Philips Electronics M132 LCD Monitor User Manual

Philips Electronics Industries (Taiwan) Ltd LCD Monitor

User Manual

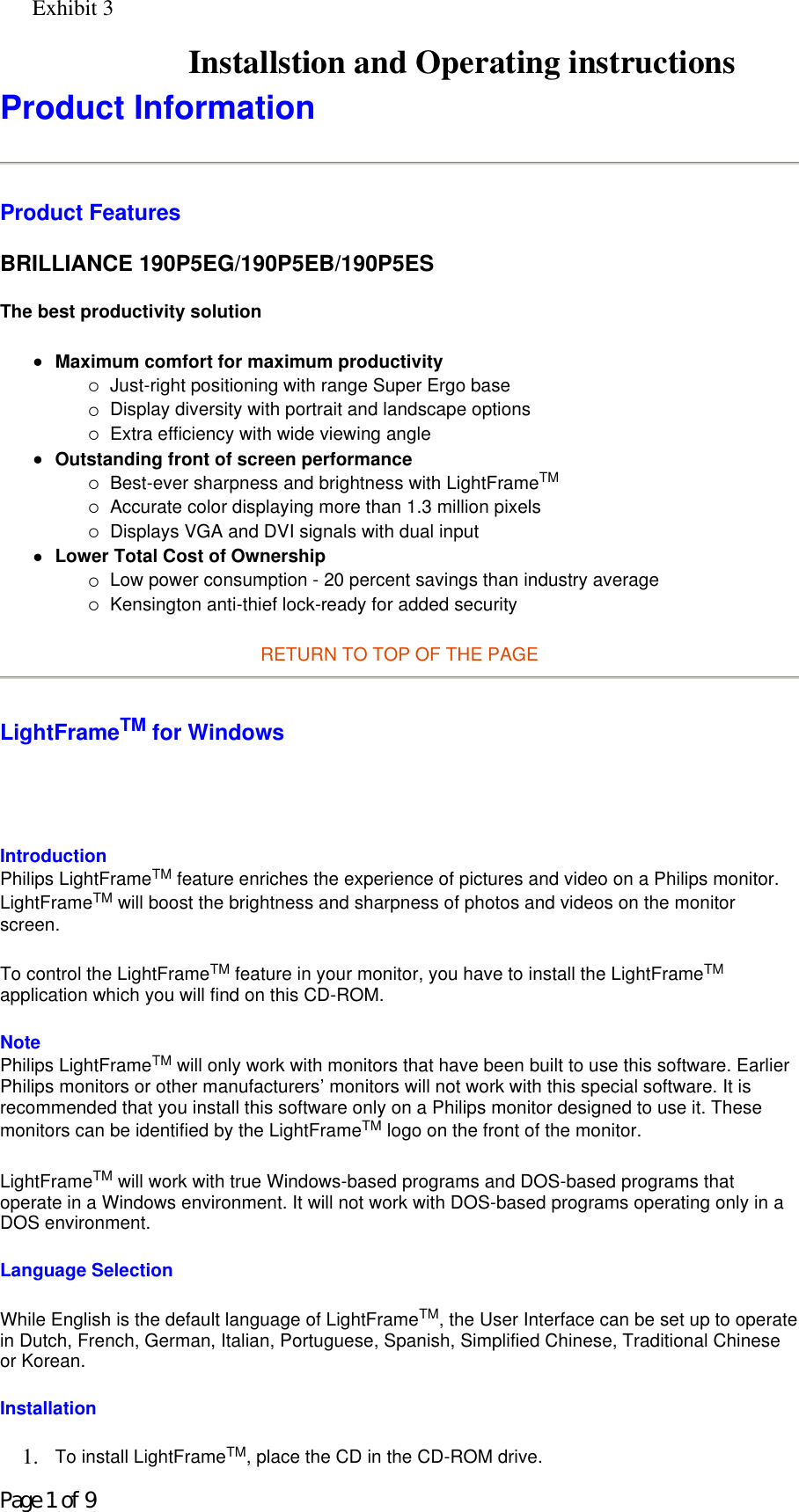

Product Information Product Features BRILLIANCE 190P5EG/190P5EB/190P5ES The best productivity solution zMaximum comfort for maximum productivity {Just-right positioning with range Super Ergo base {Display diversity with portrait and landscape options {Extra efficiency with wide viewing angle zOutstanding front of screen performance {Best-ever sharpness and brightness with LightFrameTM {Accurate color displaying more than 1.3 million pixels {Displays VGA and DVI signals with dual input zLower Total Cost of Ownership {Low power consumption - 20 percent savings than industry average {Kensington anti-thief lock-ready for added security RETURN TO TOP OF THE PAGE LightFrameTM for Windows Introduction Philips LightFrameTM feature enriches the experience of pictures and video on a Philips monitor. LightFrameTM will boost the brightness and sharpness of photos and videos on the monitor screen. To control the LightFrameTM feature in your monitor, you have to install the LightFrameTM application which you will find on this CD-ROM. Note Philips LightFrameTM will only work with monitors that have been built to use this software. Earlier Philips monitors or other manufacturers’ monitors will not work with this special software. It is recommended that you install this software only on a Philips monitor designed to use it. These monitors can be identified by the LightFrameTM logo on the front of the monitor. LightFrameTM will work with true Windows-based programs and DOS-based programs that operate in a Windows environment. It will not work with DOS-based programs operating only in a DOS environment. Language Selection While English is the default language of LightFrameTM, the User Interface can be set up to operate in Dutch, French, German, Italian, Portuguese, Spanish, Simplified Chinese, Traditional Chinese or Korean. Installation 1. To install LightFrameTM, place the CD in the CD-ROM drive. Page 1 of 9Exhibit 3Installstion and Operating instructions

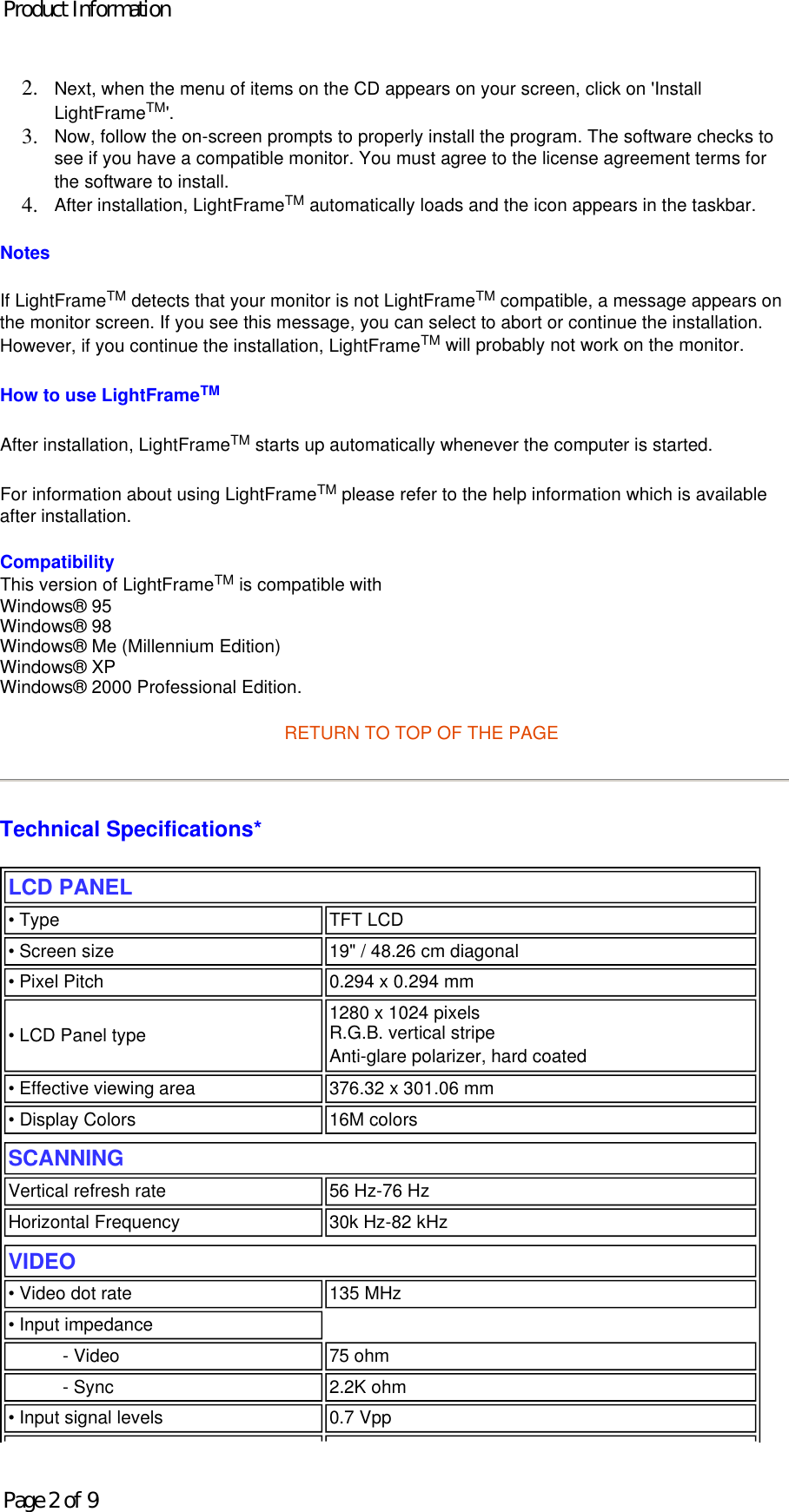

2. Next, when the menu of items on the CD appears on your screen, click on 'Install LightFrameTM'. 3. Now, follow the on-screen prompts to properly install the program. The software checks to see if you have a compatible monitor. You must agree to the license agreement terms for the software to install. 4. After installation, LightFrameTM automatically loads and the icon appears in the taskbar. Notes If LightFrameTM detects that your monitor is not LightFrameTM compatible, a message appears on the monitor screen. If you see this message, you can select to abort or continue the installation. However, if you continue the installation, LightFrameTM will probably not work on the monitor. How to use LightFrameTM After installation, LightFrameTM starts up automatically whenever the computer is started. For information about using LightFrameTM please refer to the help information which is available after installation. Compatibility This version of LightFrameTM is compatible with Windows® 95 Windows® 98 Windows® Me (Millennium Edition) Windows® XP Windows® 2000 Professional Edition. RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • Type TFT LCD• Screen size 19" / 48.26 cm diagonal• Pixel Pitch 0.294 x 0.294 mm• LCD Panel type 1280 x 1024 pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated • Effective viewing area 376.32 x 301.06 mm• Display Colors 16M colorsSCANNINGVertical refresh rate 56 Hz-76 HzHorizontal Frequency 30k Hz-82 kHzVIDEO • Video dot rate 135 MHz• Input impedance- Video 75 ohm- Sync 2.2K ohm• Input signal levels 0.7 VppProduct InformationPage 2 of 9
• Sync input signal Separate sync Composite sync Sync on green • Sync polarities Positive and negative• Video interface Dual input: D-Sub (analog) and DVI-D (digital) are available and user selectable• Light FrameTM Brightness and sharpness enhancementAudio • Loudspeaker 4W Stereo Audio (2W/channel RMSx2, 300 Hz-12 kHz, 16 ohm, THD=10%, PMPO 32 Watts)• Headphone connector 3.5mm mini jack• Input signal connector 3.5mm mini jack• Stand-alone audio output Audio output can still function whenever there is an audio source playing, even there is no video input. Note: The volume adjustment can not function under the following conditions: 1. A warning message appears on screen 2. No audio input Optical characteristics • Contrast ratio 700:1 (typ.) • Brightness 300 cd/m2 (typ.)• Peak contrast angle 6 o'clock• White Chromaticity x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) x: 0.313 y: 0.329 (at sRGB) • Viewing Angle (C/R>10) Upper >85° (typ.) Lower >85° (typ.) Left >85° (typ.) Right >85° (typ.)• Response time <25 ms (typ.) sRGB sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital cameras, monitors, printers, scanners, etc.) Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen. Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD. To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button to go to Adjust Color and press OK again. Then move the down button to go to sRGB and press OK again. Exit this OSD. After this, please do not change the brightness or contrast setting of your monitor. If you change either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K. For more information on sRGB, please visit: www.srgb.com Product InformationPage 3 of 9

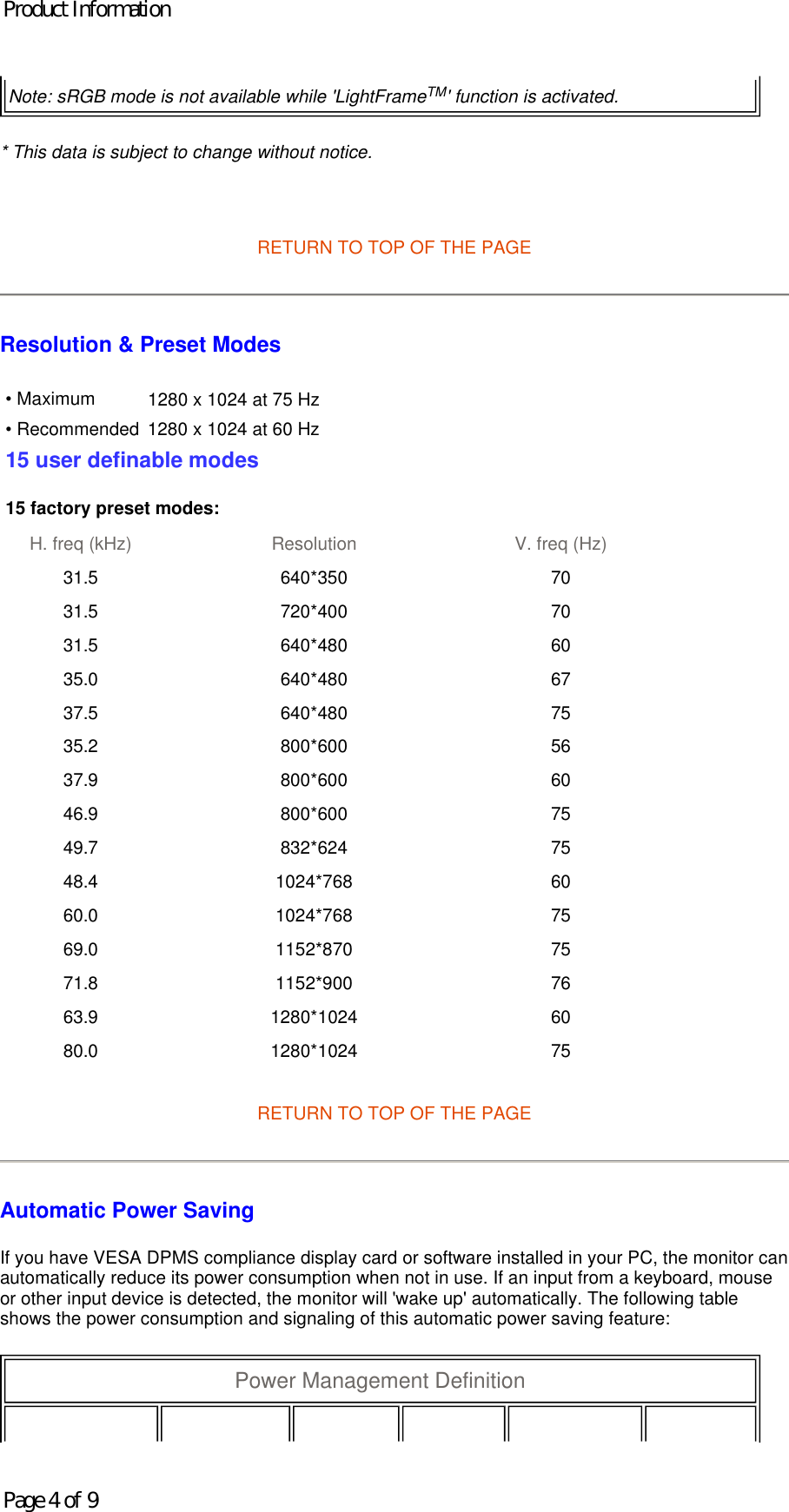

* This data is subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: Note: sRGB mode is not available while 'LightFrameTM' function is activated. • Maximum 1280 x 1024 at 75 Hz • Recommended 1280 x 1024 at 60 Hz15 user definable modes 15 factory preset modes: H. freq (kHz) Resolution V. freq (Hz) 31.5 640*350 70 31.5 720*400 70 31.5 640*480 60 35.0 640*480 67 37.5 640*480 75 35.2 800*600 56 37.9 800*600 60 46.9 800*600 75 49.7 832*624 75 48.4 1024*768 60 60.0 1024*768 75 69.0 1152*870 75 71.8 1152*900 76 63.9 1280*1024 60 80.0 1280*1024 75 Power Management Definition Product InformationPage 4 of 9

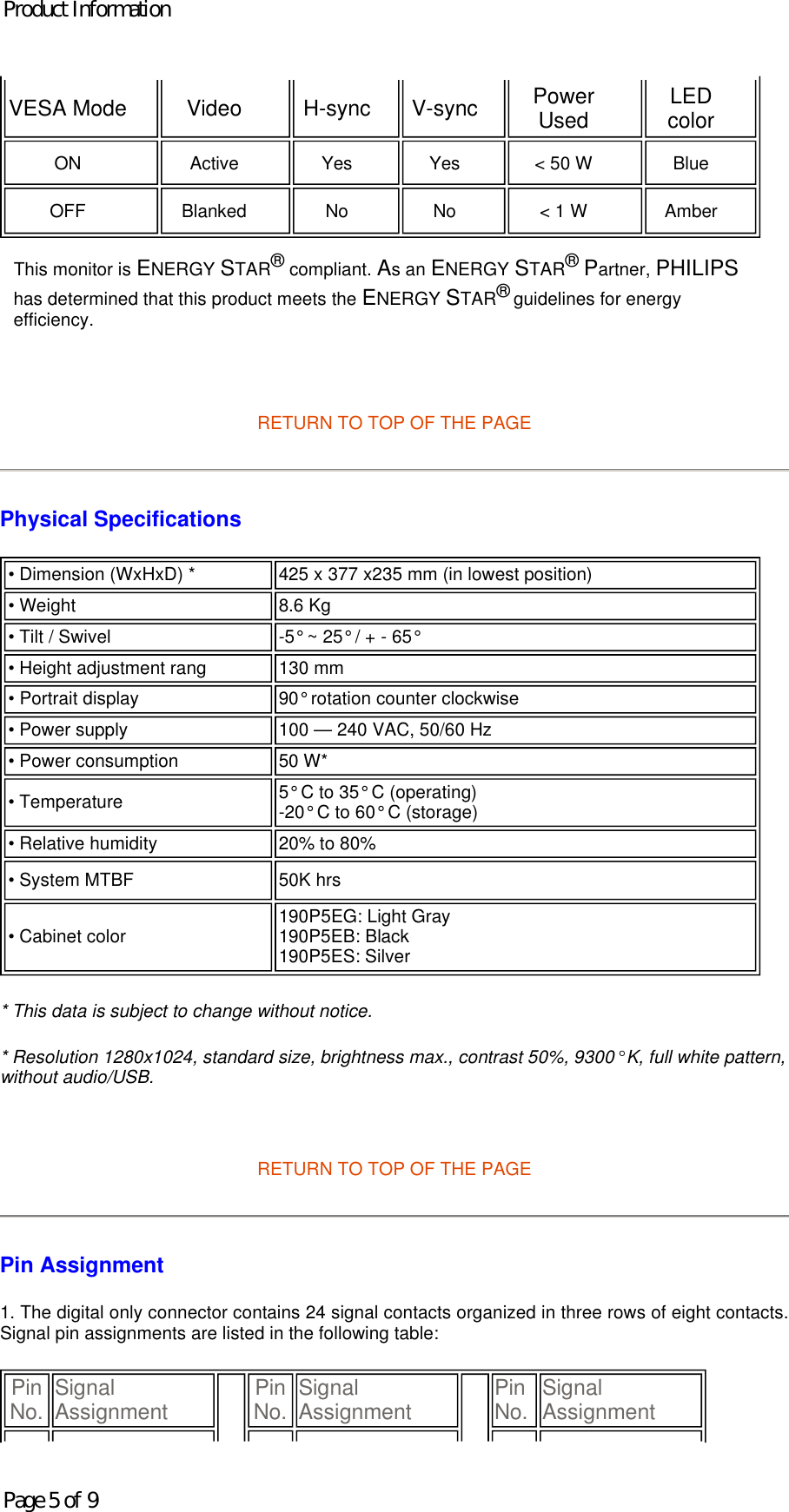

RETURN TO TOP OF THE PAGE Physical Specifications * This data is subject to change without notice. * Resolution 1280x1024, standard size, brightness max., contrast 50%, 9300° K, full white pattern, without audio/USB. RETURN TO TOP OF THE PAGE Pin Assignment 1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: VESA Mode Video H-sync V-sync Power Used LED color ON Active Yes Yes < 50 W Blue OFF Blanked No No < 1 W Amber This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.• Dimension (WxHxD) * 425 x 377 x235 mm (in lowest position) • Weight 8.6 Kg • Tilt / Swivel -5° ~ 25° / + - 65° • Height adjustment rang 130 mm• Portrait display 90° rotation counter clockwise • Power supply 100 — 240 VAC, 50/60 Hz• Power consumption 50 W*• Temperature 5° C to 35° C (operating) -20° C to 60° C (storage)• Relative humidity 20% to 80%• System MTBF 50K hrs• Cabinet color 190P5EG: Light Gray 190P5EB: Black 190P5ES: SilverPin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal AssignmentProduct InformationPage 5 of 9

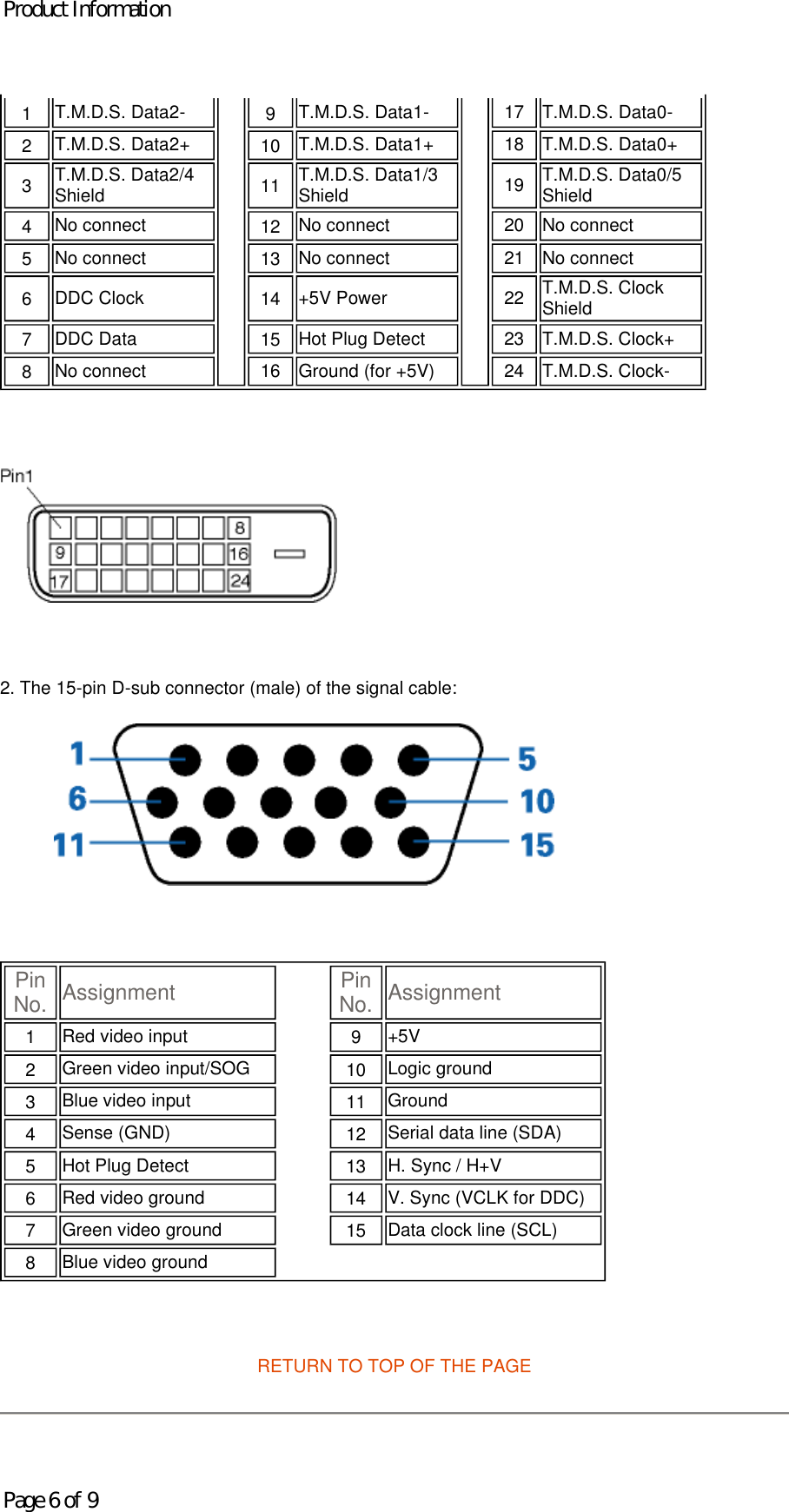

2. The 15-pin D-sub connector (male) of the signal cable: RETURN TO TOP OF THE PAGE 1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield4 No connect 12 No connect 20 No connect 5 No connect 13 No connect 21 No connect 6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield7 DDC Data 15 Hot Plug Detect 23 T.M.D.S. Clock+8 No connect 16 Ground (for +5V) 24 T.M.D.S. Clock-Pin No. Assignment Pin No. Assignment1 Red video input 9 +5V2 Green video input/SOG 10 Logic ground3 Blue video input 11 Ground4 Sense (GND) 12 Serial data line (SDA)5 Hot Plug Detect 13 H. Sync / H+V6 Red video ground 14 V. Sync (VCLK for DDC)7 Green video ground 15 Data clock line (SCL)8 Blue video groundProduct InformationPage 6 of 9

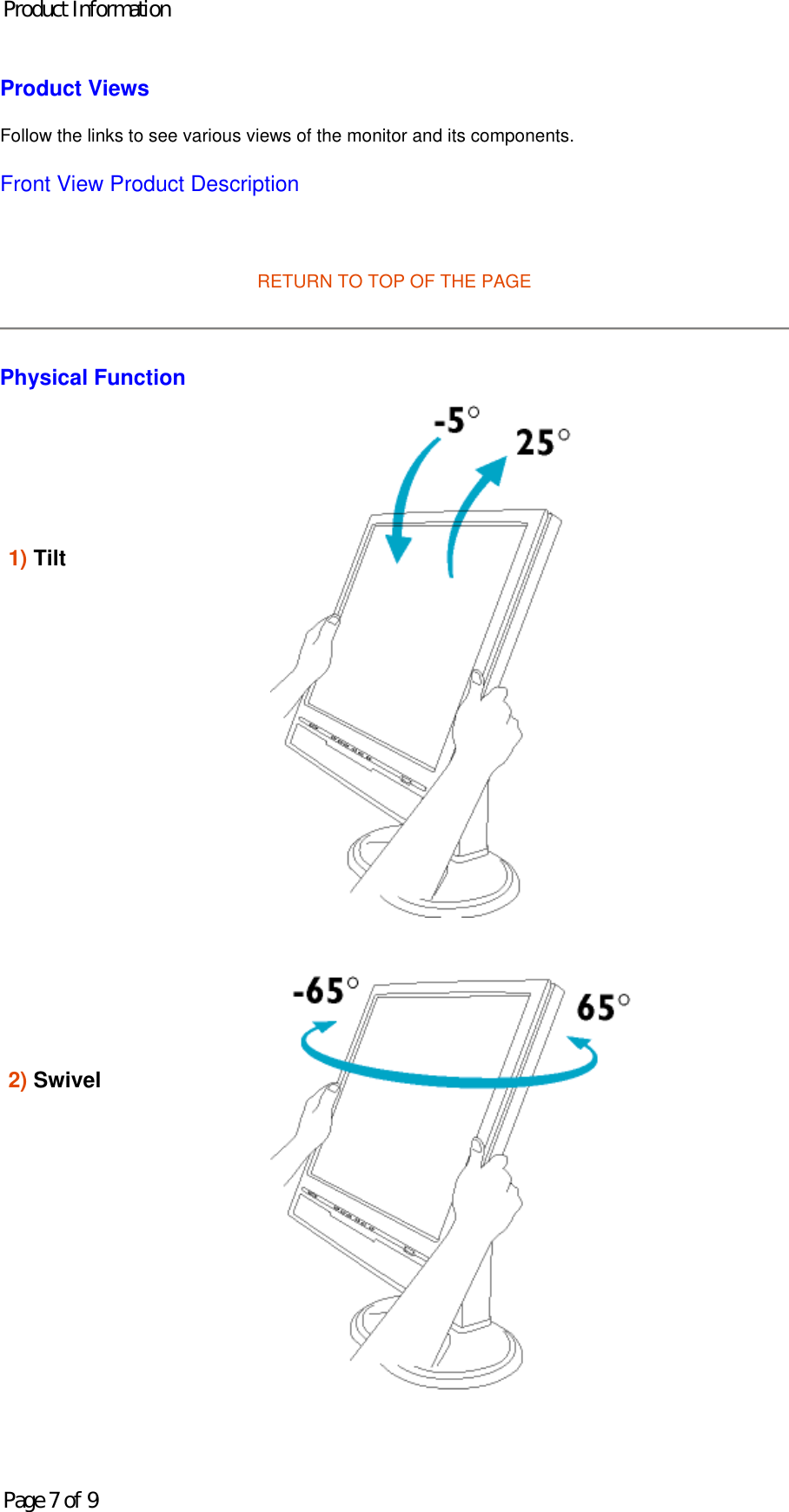

Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function 1) Tilt 2) Swivel Product InformationPage 7 of 9

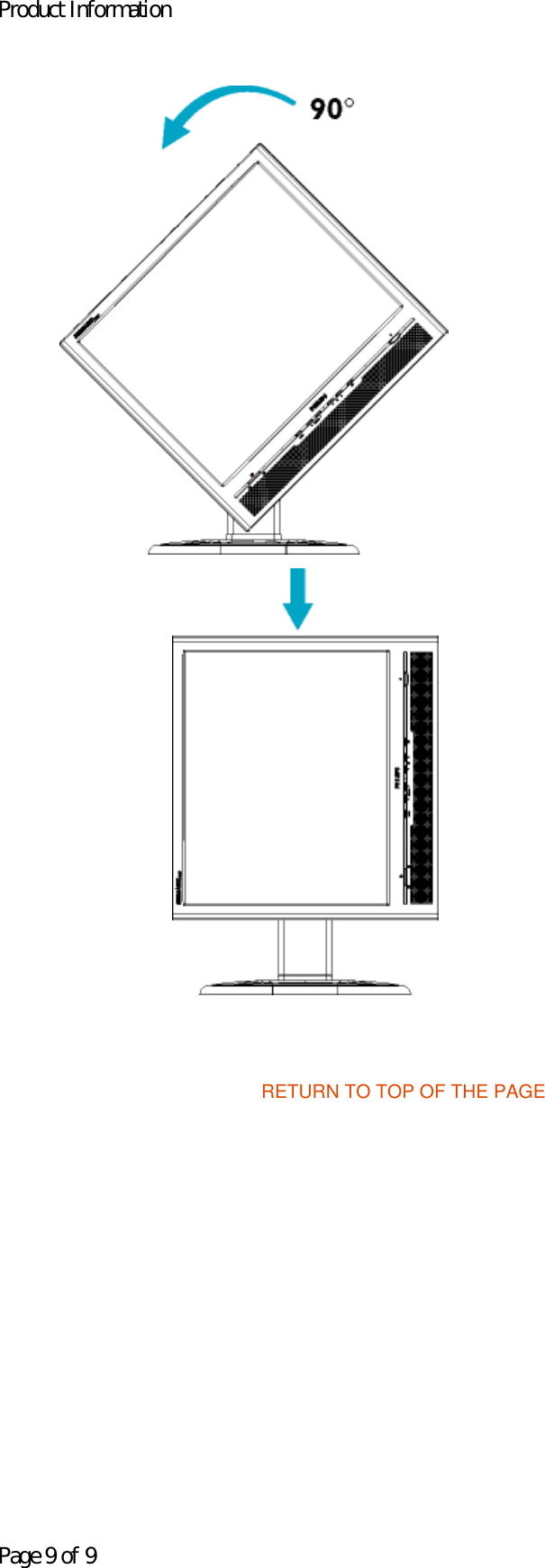

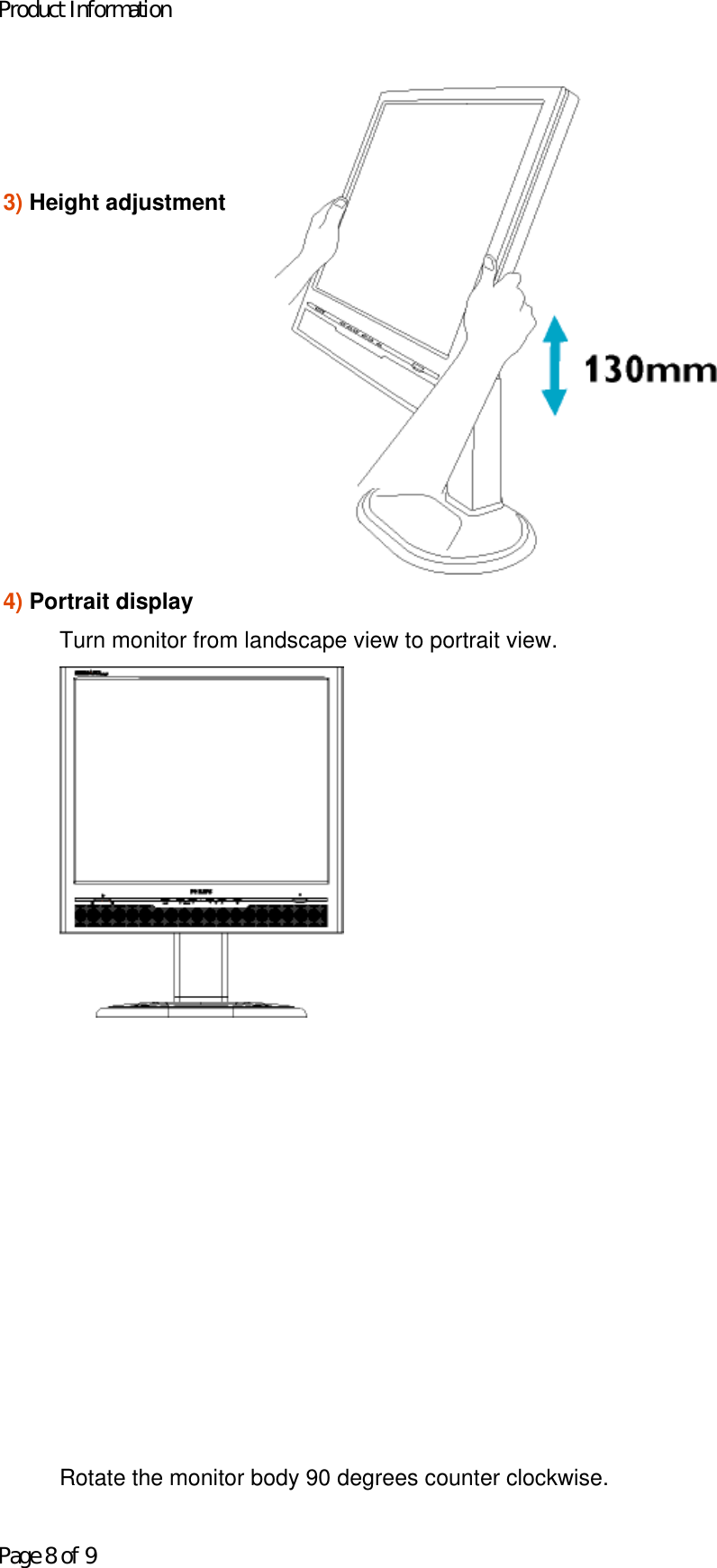

3) Height adjustment 4) Portrait displayTurn monitor from landscape view to portrait view. Rotate the monitor body 90 degrees counter clockwise. Product InformationPage 8 of 9
RETURN TO TOP OF THE PAGE Product InformationPage 9 of 9

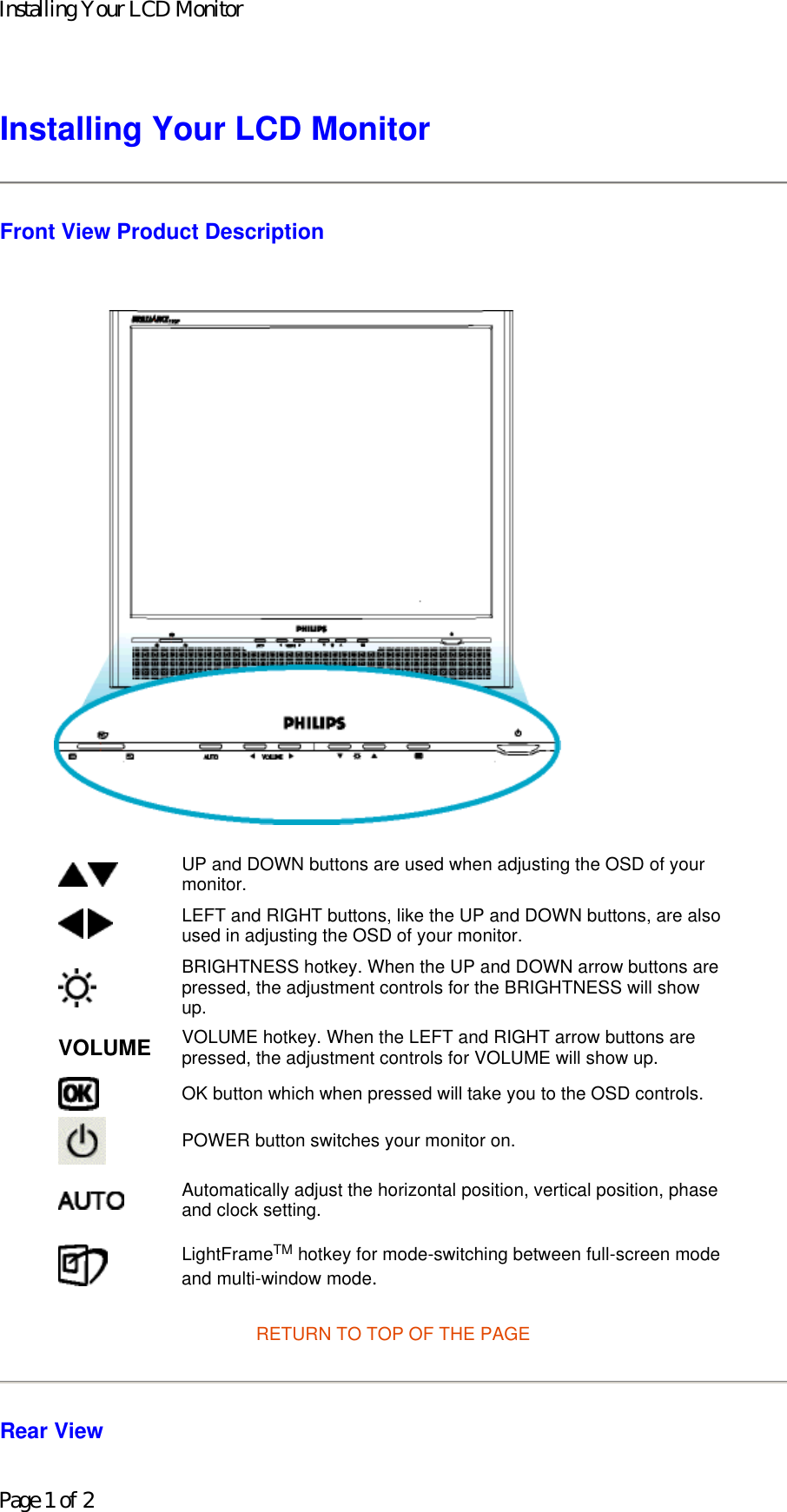

Installing Your LCD Monitor Front View Product Description RETURN TO TOP OF THE PAGE Rear View UP and DOWN buttons are used when adjusting the OSD of your monitor. LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor.BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are pressed, the adjustment controls for the BRIGHTNESS will show up.VOLUME VOLUME hotkey. When the LEFT and RIGHT arrow buttons are pressed, the adjustment controls for VOLUME will show up.OK button which when pressed will take you to the OSD controls.POWER button switches your monitor on.Automatically adjust the horizontal position, vertical position, phase and clock setting. LightFrameTM hotkey for mode-switching between full-screen mode and multi-window mode.Installing Your LCD MonitorPage 1 of 2

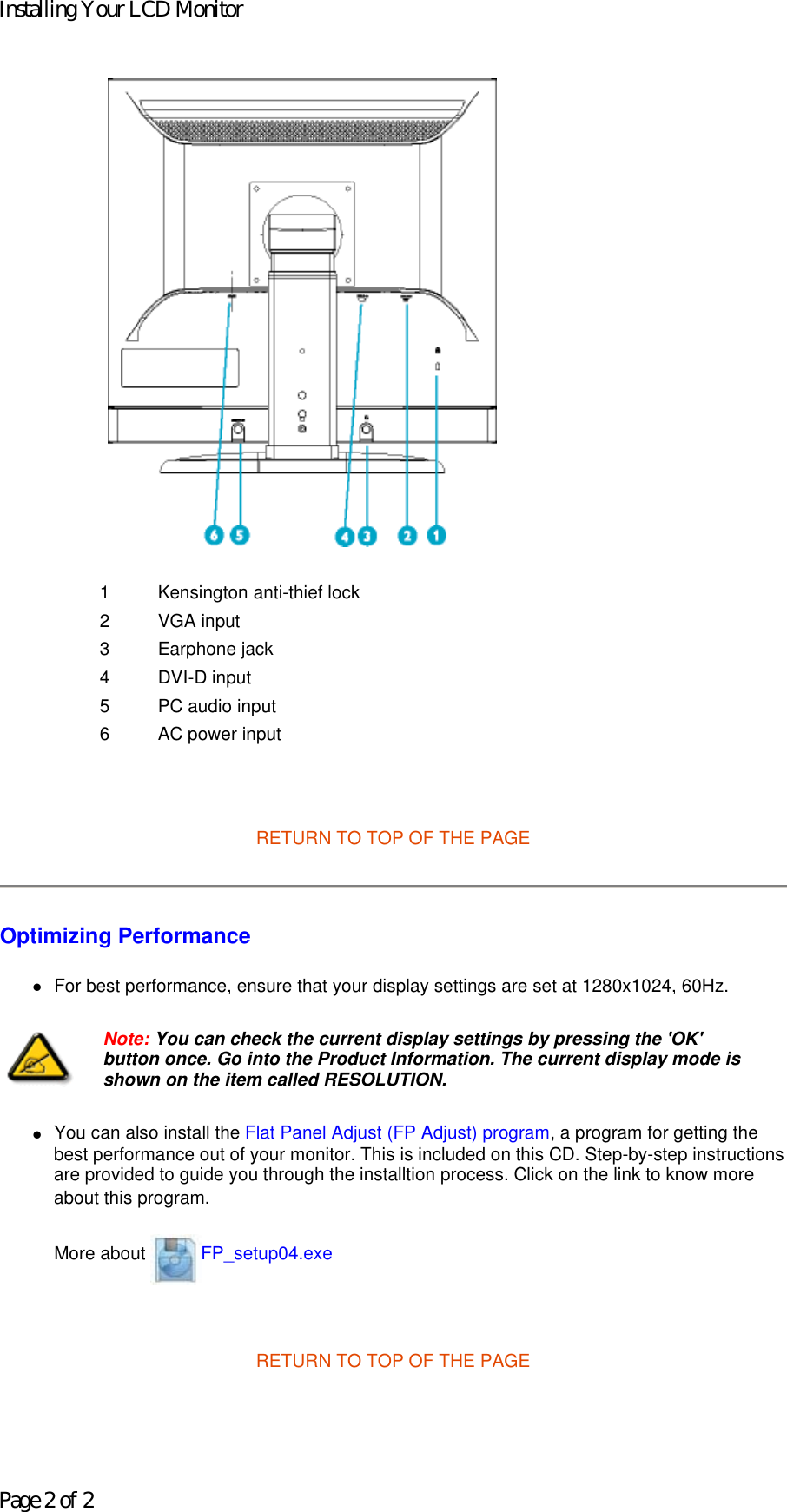

RETURN TO TOP OF THE PAGE Optimizing Performance zFor best performance, ensure that your display settings are set at 1280x1024, 60Hz. zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor. This is included on this CD. Step-by-step instructions are provided to guide you through the installtion process. Click on the link to know more about this program. More about FP_setup04.exe RETURN TO TOP OF THE PAGE1 Kensington anti-thief lock 2 VGA input3 Earphone jack 4 DVI-D input 5 PC audio input6 AC power inputNote: You can check the current display settings by pressing the 'OK' button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.Installing Your LCD MonitorPage 2 of 2

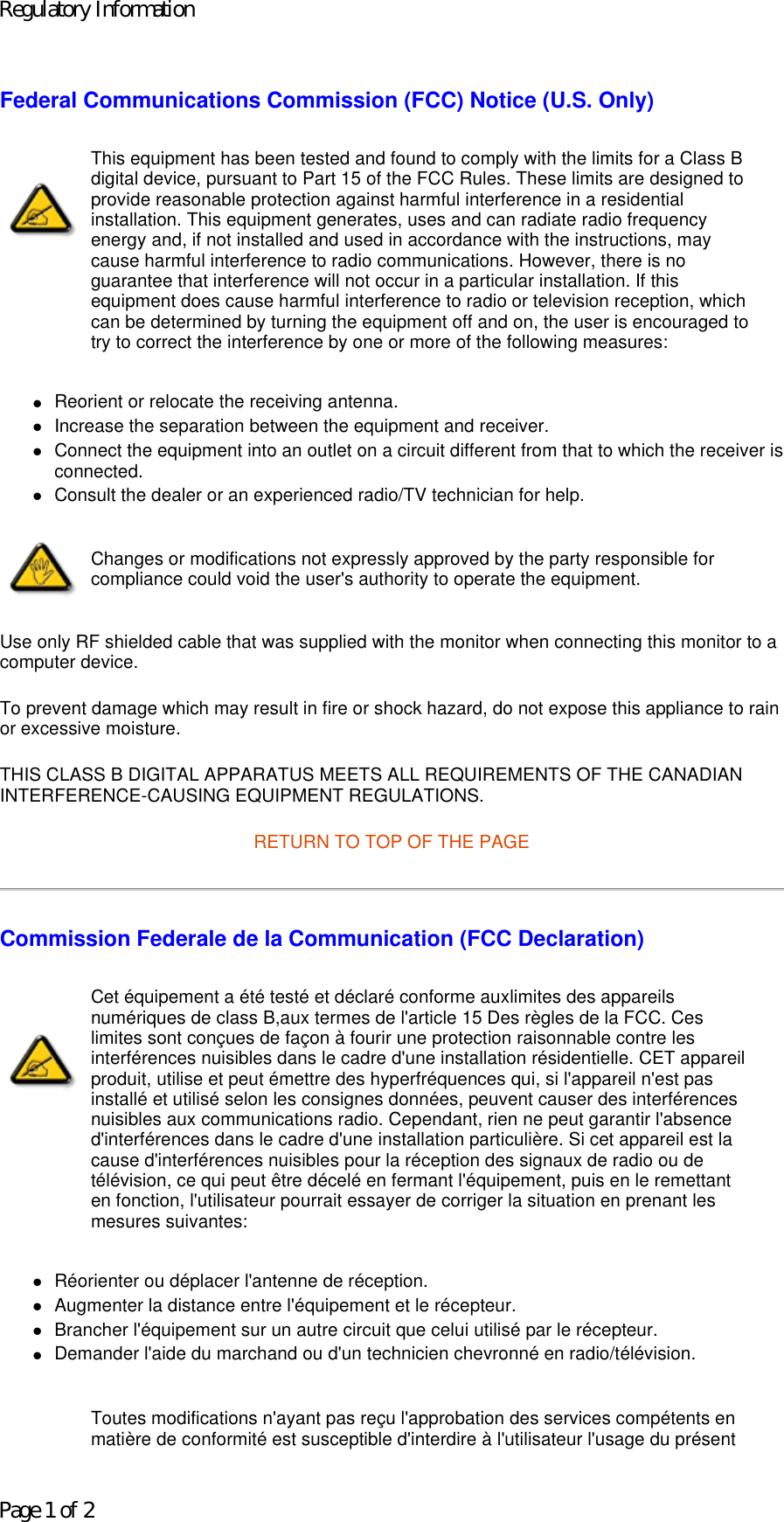

Federal Communications Commission (FCC) Notice (U.S. Only) zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration) zRéorienter ou déplacer l'antenne de réception. zAugmenter la distance entre l'équipement et le récepteur. zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes: Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent Regulatory InformationPage 1 of 2

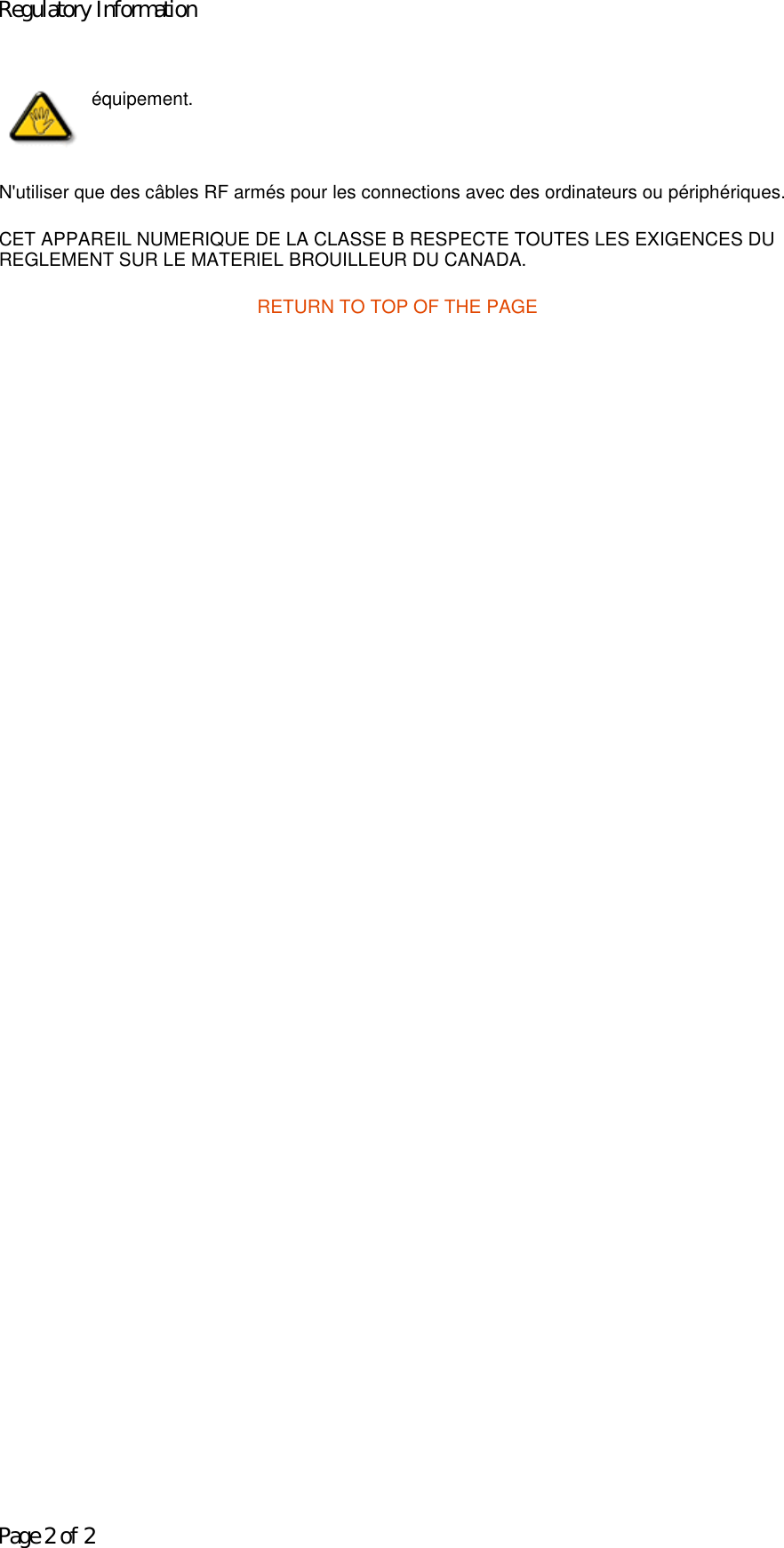

N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGEéquipement.Regulatory InformationPage 2 of 2
