Philips Electronics M133 LCD Monitor User Manual

Philips Electronics Industries (Taiwan) Ltd LCD Monitor

User Manual

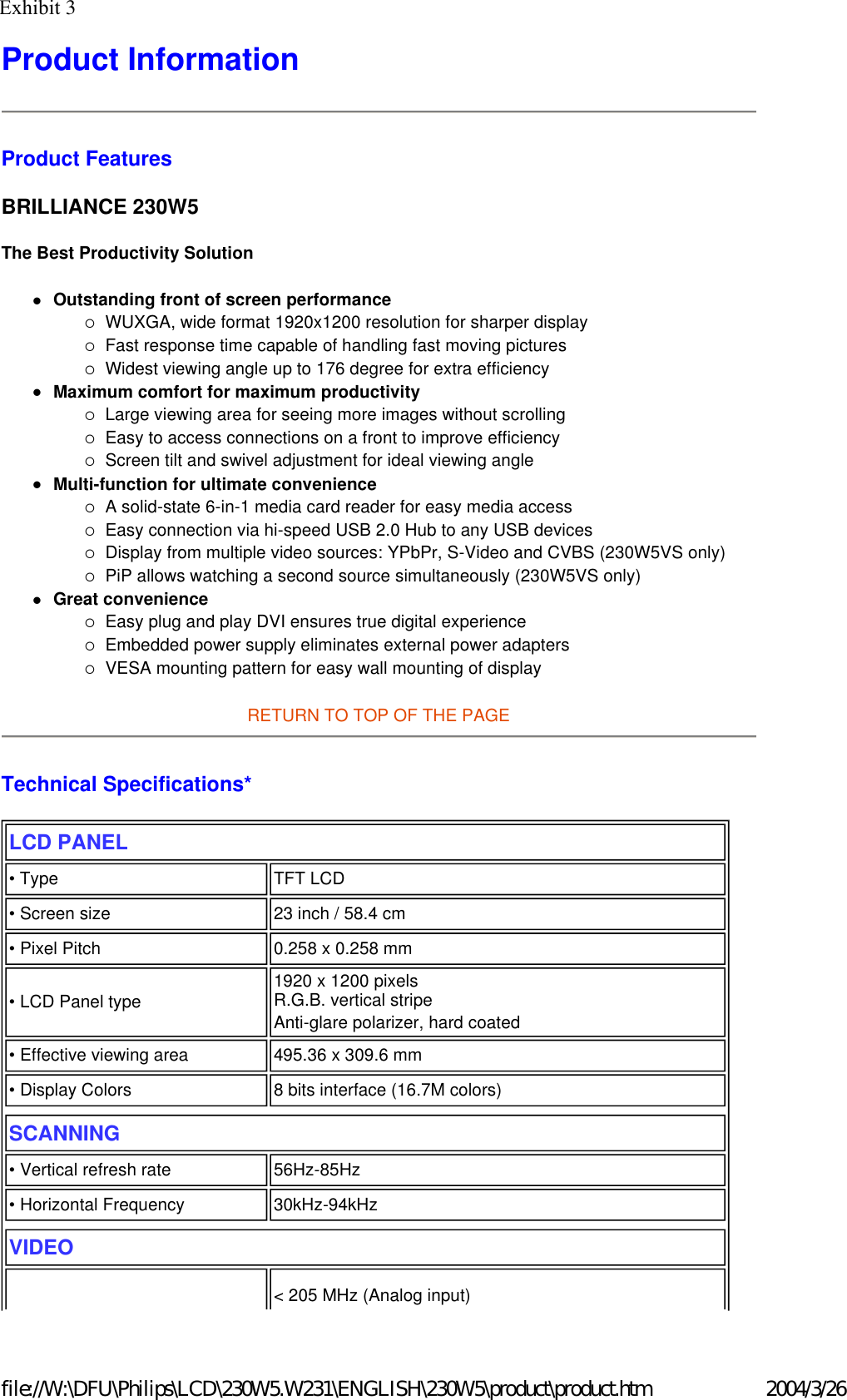

$Product Information Product Features BRILLIANCE 230W5 The Best Productivity Solution zOutstanding front of screen performance {WUXGA, wide format 1920x1200 resolution for sharper display {Fast response time capable of handling fast moving pictures {Widest viewing angle up to 176 degree for extra efficiency zMaximum comfort for maximum productivity {Large viewing area for seeing more images without scrolling {Easy to access connections on a front to improve efficiency {Screen tilt and swivel adjustment for ideal viewing angle zMulti-function for ultimate convenience {A solid-state 6-in-1 media card reader for easy media access {Easy connection via hi-speed USB 2.0 Hub to any USB devices {Display from multiple video sources: YPbPr, S-Video and CVBS (230W5VS only) {PiP allows watching a second source simultaneously (230W5VS only) zGreat convenience {Easy plug and play DVI ensures true digital experience {Embedded power supply eliminates external power adapters {VESA mounting pattern for easy wall mounting of display RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • Type TFT LCD• Screen size 23 inch / 58.4 cm• Pixel Pitch 0.258 x 0.258 mm• LCD Panel type 1920 x 1200 pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated • Effective viewing area 495.36 x 309.6 mm• Display Colors 8 bits interface (16.7M colors)SCANNING• Vertical refresh rate 56Hz-85Hz• Horizontal Frequency 30kHz-94kHzVIDEO< 205 MHz (Analog input) 2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\product\product.htmExhibit 3$

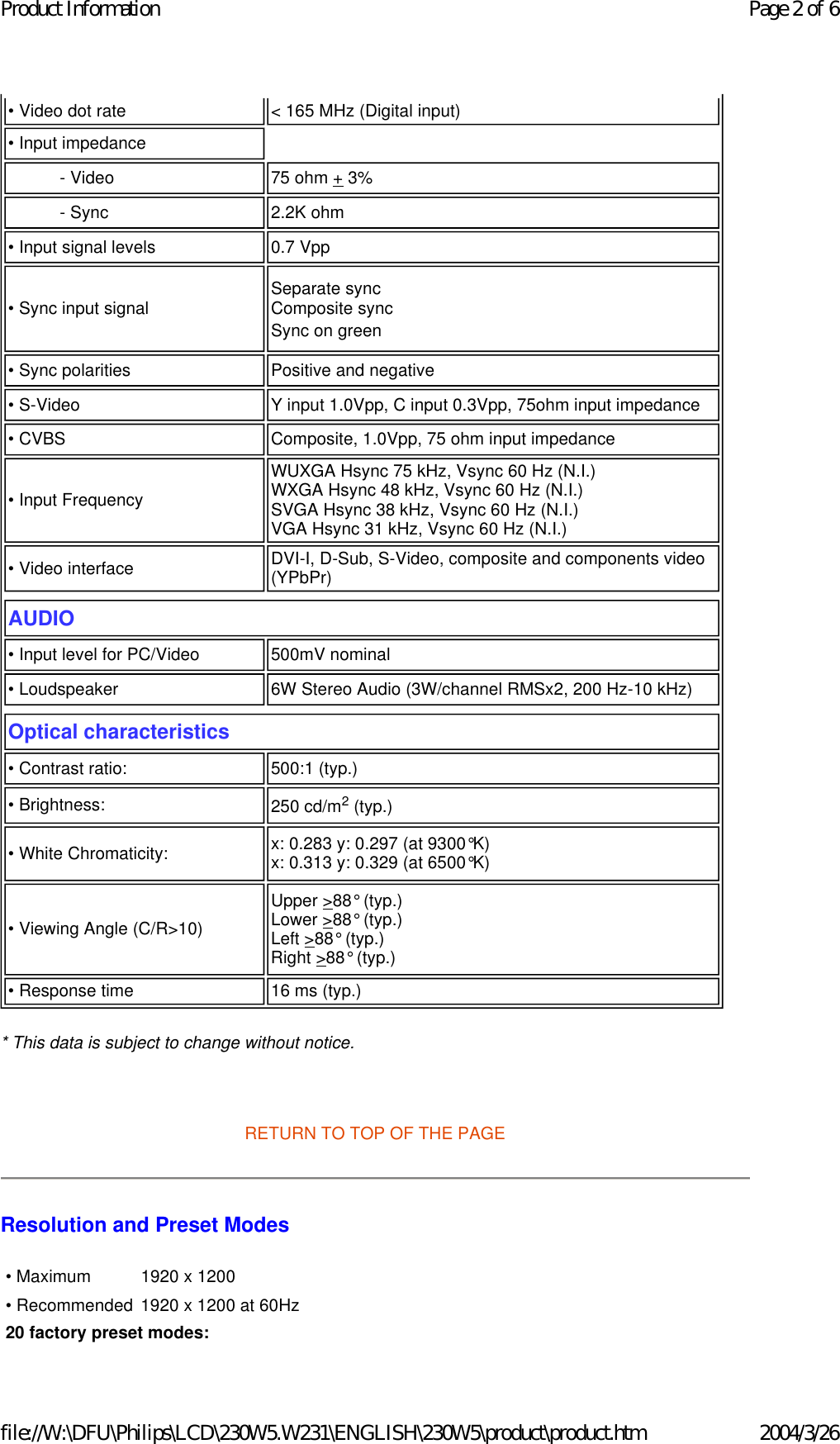

$* This data is subject to change without notice. RETURN TO TOP OF THE PAGE Resolution and Preset Modes • Video dot rate < 165 MHz (Digital input)• Input impedance- Video 75 ohm + 3%- Sync 2.2K ohm• Input signal levels 0.7 Vpp• Sync input signal Separate sync Composite sync Sync on green • Sync polarities Positive and negative• S-Video Y input 1.0Vpp, C input 0.3Vpp, 75ohm input impedance• CVBS Composite, 1.0Vpp, 75 ohm input impedance• Input FrequencyWUXGA Hsync 75 kHz, Vsync 60 Hz (N.I.) WXGA Hsync 48 kHz, Vsync 60 Hz (N.I.) SVGA Hsync 38 kHz, Vsync 60 Hz (N.I.) VGA Hsync 31 kHz, Vsync 60 Hz (N.I.) • Video interface DVI-I, D-Sub, S-Video, composite and components video (YPbPr)AUDIO• Input level for PC/Video 500mV nominal• Loudspeaker 6W Stereo Audio (3W/channel RMSx2, 200 Hz-10 kHz)Optical characteristics • Contrast ratio: 500:1 (typ.) • Brightness: 250 cd/m2 (typ.)• White Chromaticity: x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) • Viewing Angle (C/R>10) Upper >88° (typ.) Lower >88° (typ.) Left >88° (typ.) Right >88° (typ.)• Response time 16 ms (typ.) • Maximum 1920 x 1200 • Recommended 1920 x 1200 at 60Hz20 factory preset modes:Page 2 of 6Product Information2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\product\product.htm$

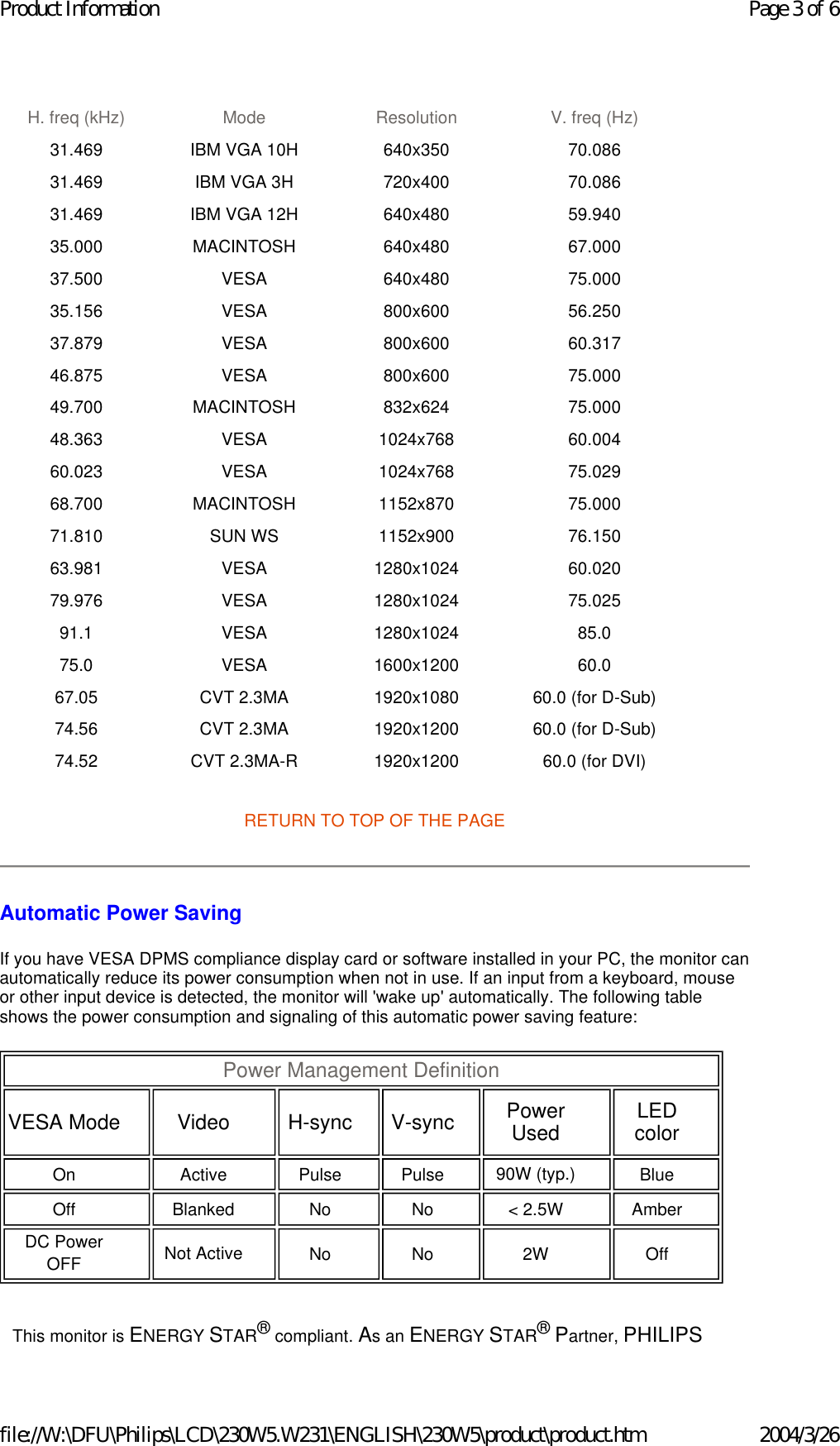

$RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: H. freq (kHz) Mode Resolution V. freq (Hz) 31.469 IBM VGA 10H 640x350 70.086 31.469 IBM VGA 3H 720x400 70.086 31.469 IBM VGA 12H 640x480 59.940 35.000 MACINTOSH 640x480 67.000 37.500 VESA 640x480 75.000 35.156 VESA 800x600 56.250 37.879 VESA 800x600 60.317 46.875 VESA 800x600 75.000 49.700 MACINTOSH 832x624 75.000 48.363 VESA 1024x768 60.004 60.023 VESA 1024x768 75.029 68.700 MACINTOSH 1152x870 75.000 71.810 SUN WS 1152x900 76.150 63.981 VESA 1280x1024 60.020 79.976 VESA 1280x1024 75.025 91.1 VESA 1280x1024 85.0 75.0 VESA 1600x1200 60.0 67.05 CVT 2.3MA 1920x1080 60.0 (for D-Sub) 74.56 CVT 2.3MA 1920x1200 60.0 (for D-Sub) 74.52 CVT 2.3MA-R 1920x1200 60.0 (for DVI) Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color On Active Pulse Pulse 90W (typ.) Blue Off Blanked No No < 2.5W Amber DC Power OFF Not Active No No 2W Off This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS Page 3 of 6Product Information2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\product\product.htm$

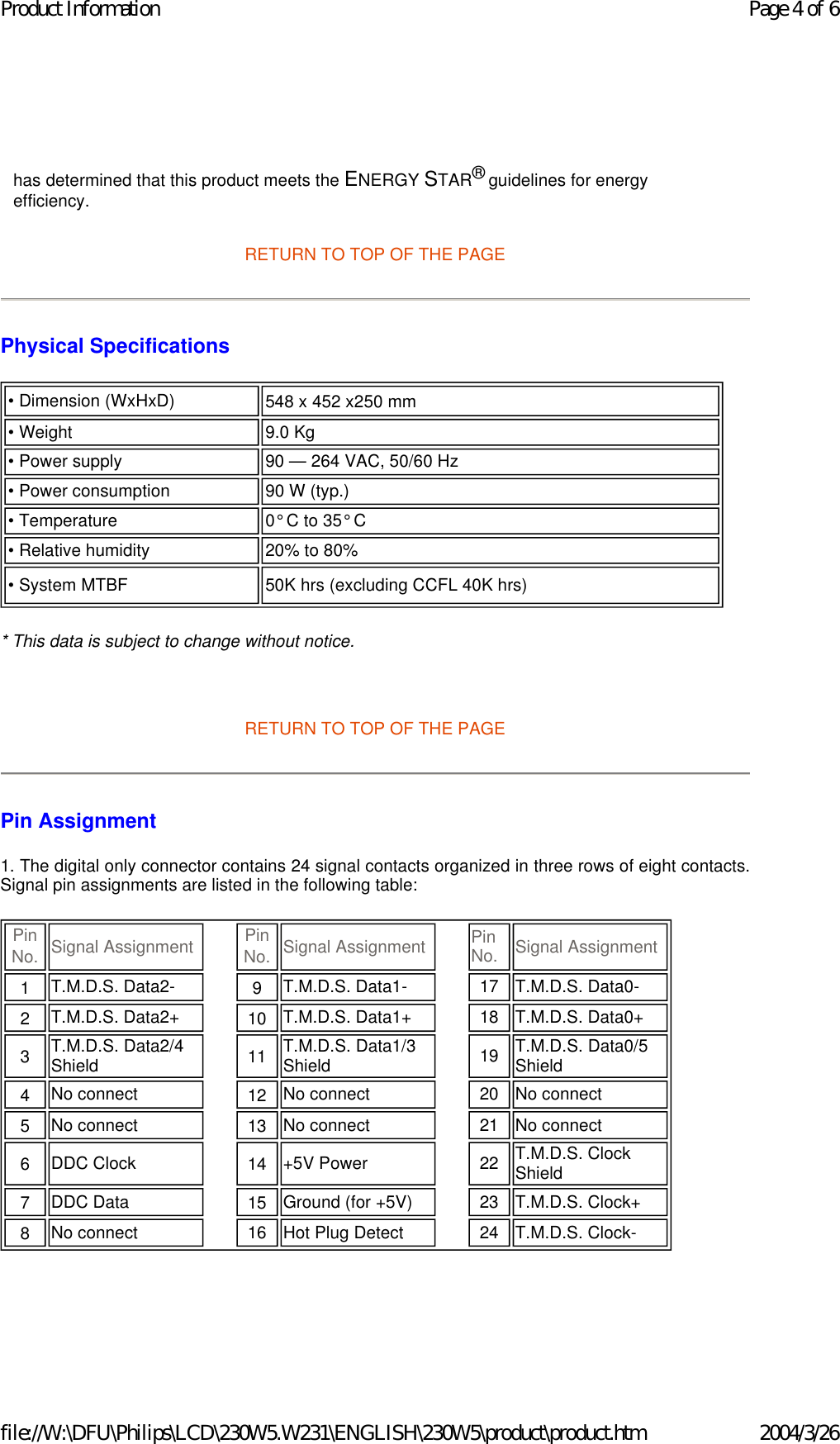

$RETURN TO TOP OF THE PAGE Physical Specifications * This data is subject to change without notice. RETURN TO TOP OF THE PAGE Pin Assignment 1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.• Dimension (WxHxD) 548 x 452 x250 mm • Weight 9.0 Kg • Power supply 90 — 264 VAC, 50/60 Hz• Power consumption 90 W (typ.)• Temperature 0° C to 35° C• Relative humidity 20% to 80%• System MTBF 50K hrs (excluding CCFL 40K hrs)Pin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield4 No connect 12 No connect 20 No connect 5 No connect 13 No connect 21 No connect 6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+8 No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-Page 4 of 6Product Information2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\product\product.htm$

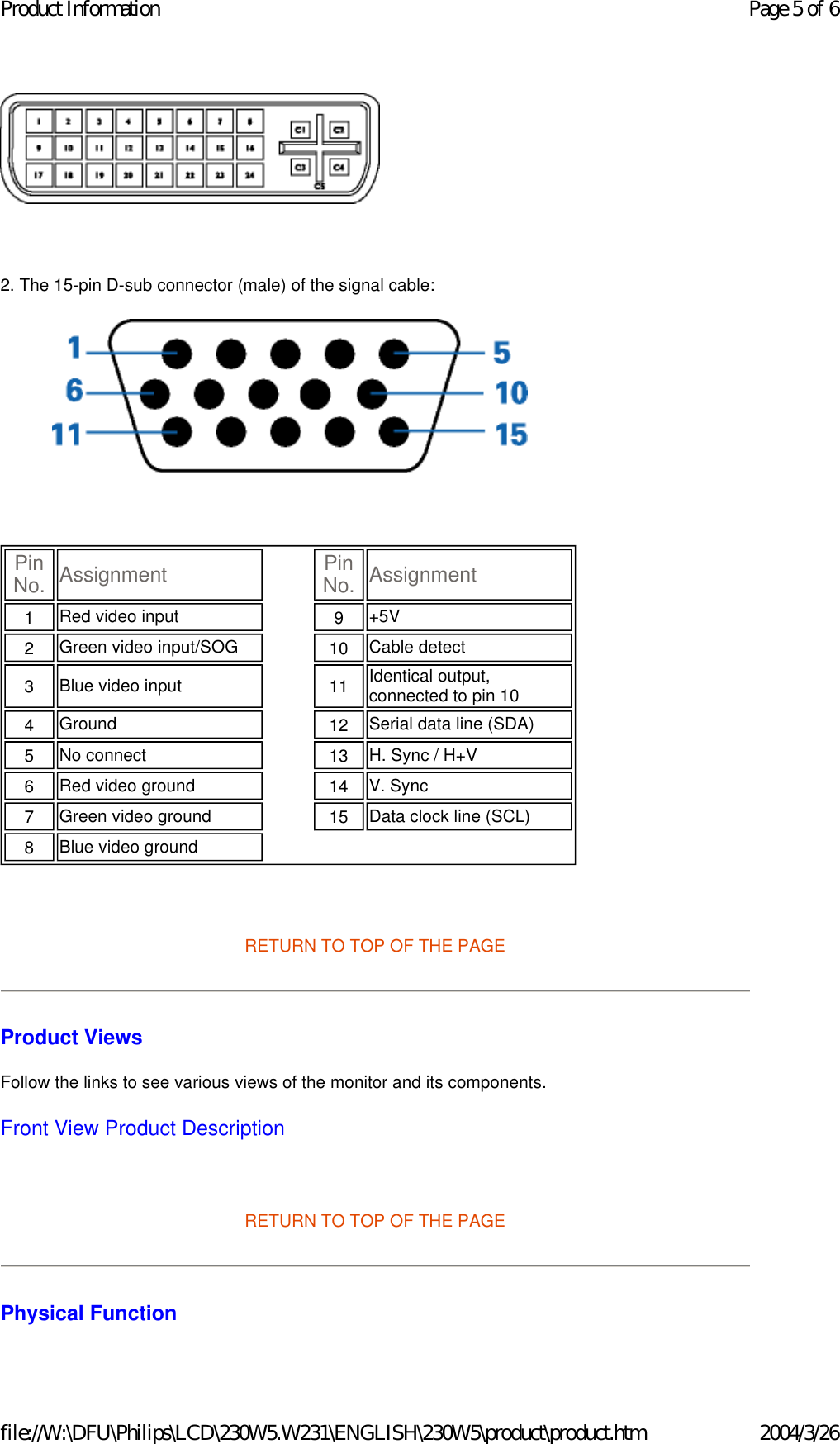

$2. The 15-pin D-sub connector (male) of the signal cable: RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function Pin No. Assignment Pin No. Assignment1 Red video input 9 +5V2 Green video input/SOG 10 Cable detect3 Blue video input 11 Identical output, connected to pin 104 Ground 12 Serial data line (SDA)5 No connect 13 H. Sync / H+V6 Red video ground 14 V. Sync7 Green video ground 15 Data clock line (SCL)8 Blue video groundPage 5 of 6Product Information2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\product\product.htm$

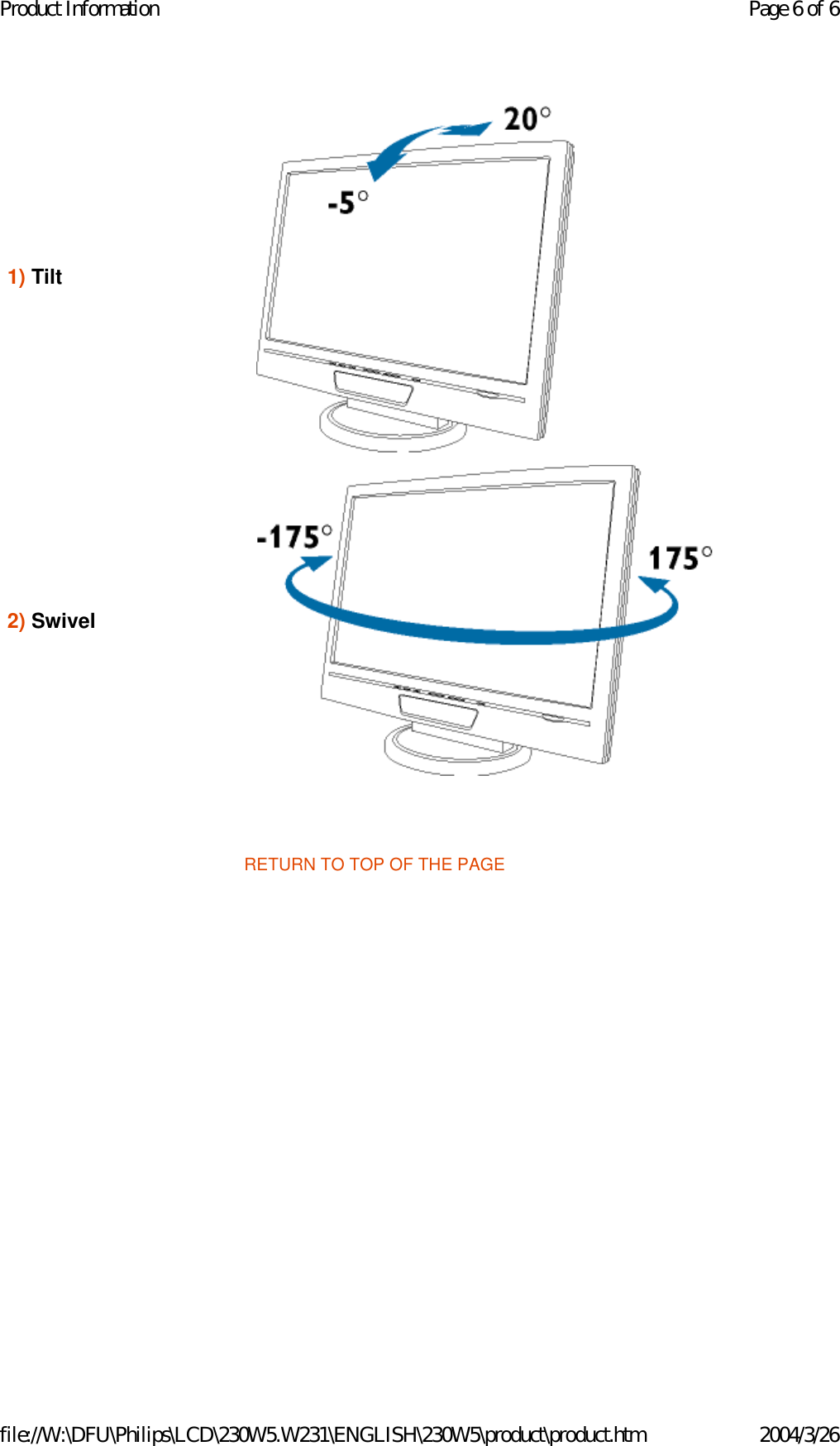

$RETURN TO TOP OF THE PAGE1) Tilt2) SwivelPage 6 of 6Product Information2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\product\product.htm$

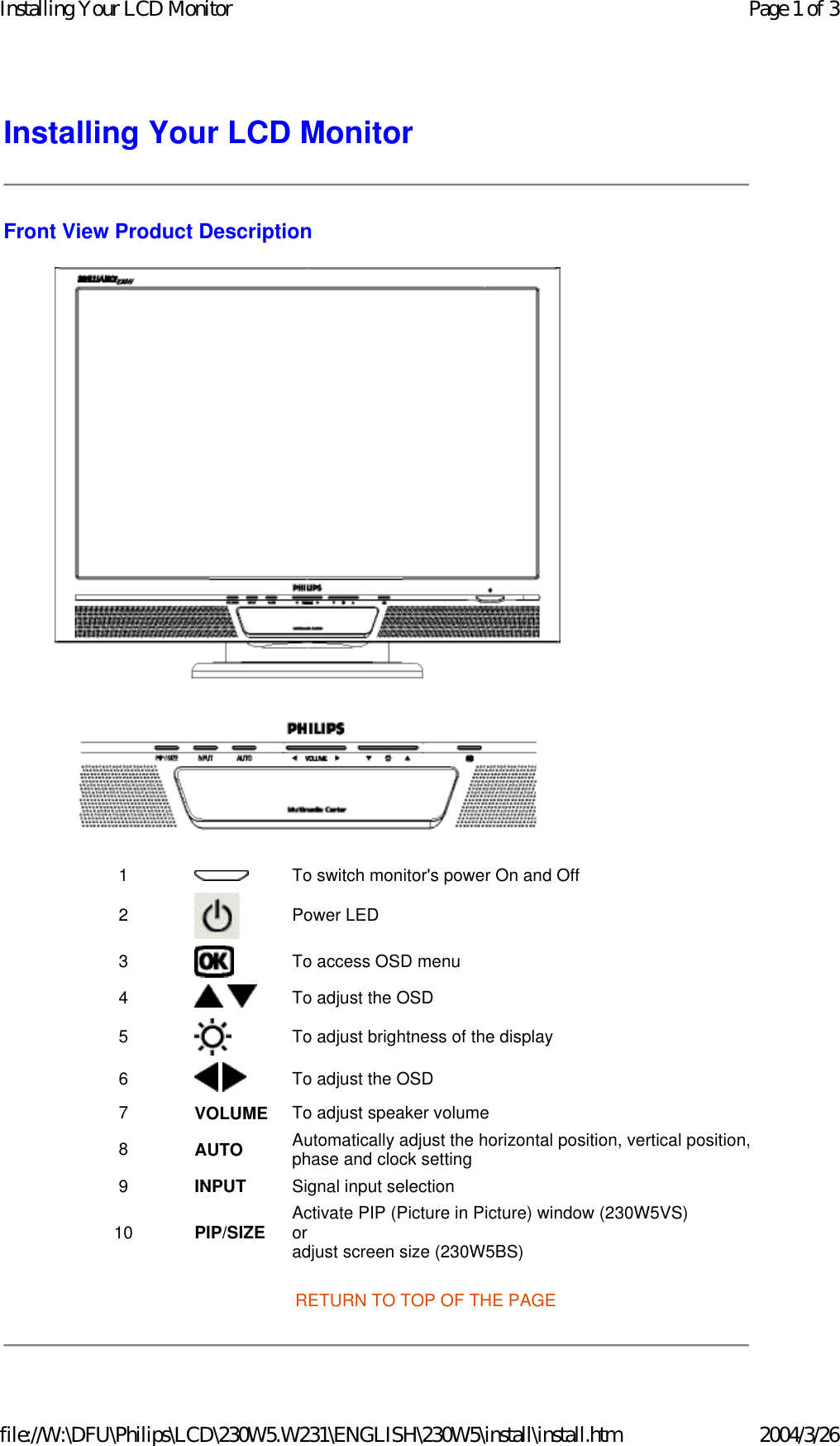

$Installing Your LCD Monitor Front View Product Description RETURN TO TOP OF THE PAGE 1 To switch monitor's power On and Off2 Power LED3 To access OSD menu4 To adjust the OSD5 To adjust brightness of the display6 To adjust the OSD7 VOLUME To adjust speaker volume8 AUTO Automatically adjust the horizontal position, vertical position,phase and clock setting9 INPUT Signal input selection10 PIP/SIZE Activate PIP (Picture in Picture) window (230W5VS) or adjust screen size (230W5BS) Page 1 of 3Installing Your LCD Monitor2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\install\install.htm$

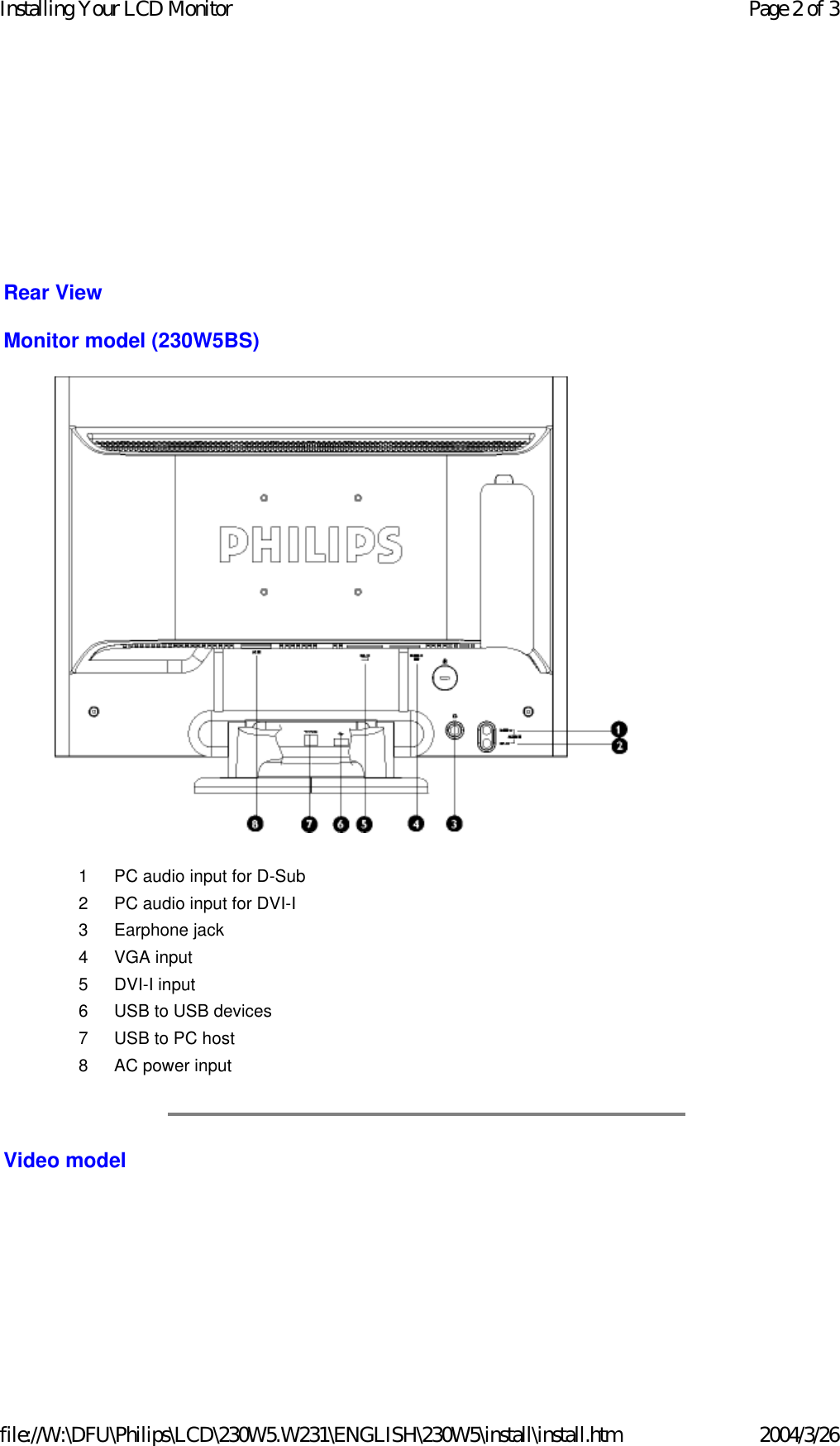

$Rear View Monitor model (230W5BS) Video model 1 PC audio input for D-Sub 2 PC audio input for DVI-I3 Earphone jack 4 VGA input5 DVI-I input6 USB to USB devices7 USB to PC host8 AC power inputPage 2 of 3Installing Your LCD Monitor2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\install\install.htm$

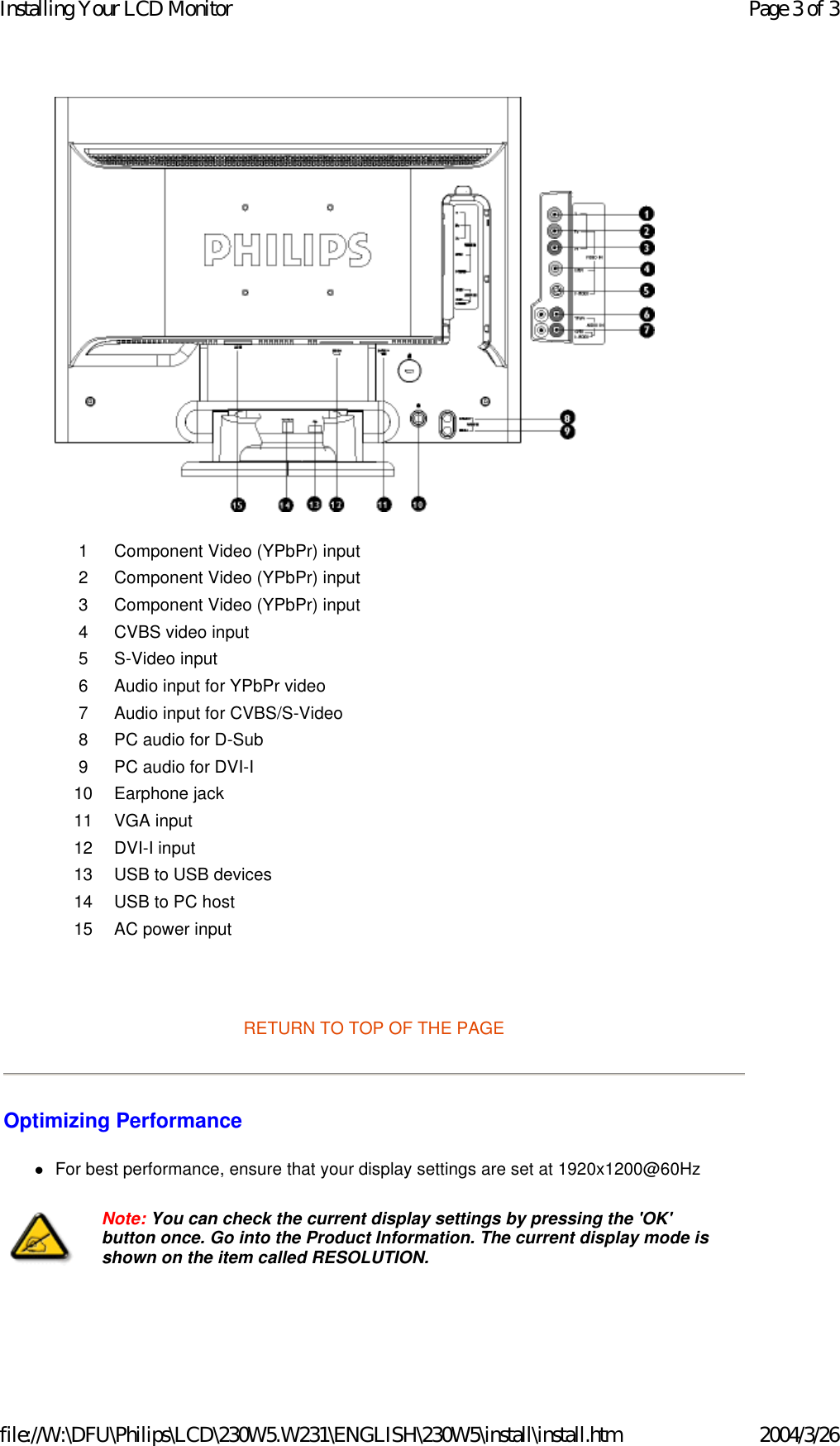

$RETURN TO TOP OF THE PAGE Optimizing Performance zFor best performance, ensure that your display settings are set at 1920x1200@60Hz 1 Component Video (YPbPr) input2 Component Video (YPbPr) input3 Component Video (YPbPr) input4 CVBS video input5 S-Video input6 Audio input for YPbPr video7 Audio input for CVBS/S-Video8 PC audio for D-Sub9 PC audio for DVI-I10 Earphone jack 11 VGA input12 DVI-I input13 USB to USB devices14 USB to PC host15 AC power inputNote: You can check the current display settings by pressing the 'OK' button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.Page 3 of 3Installing Your LCD Monitor2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\install\install.htm$

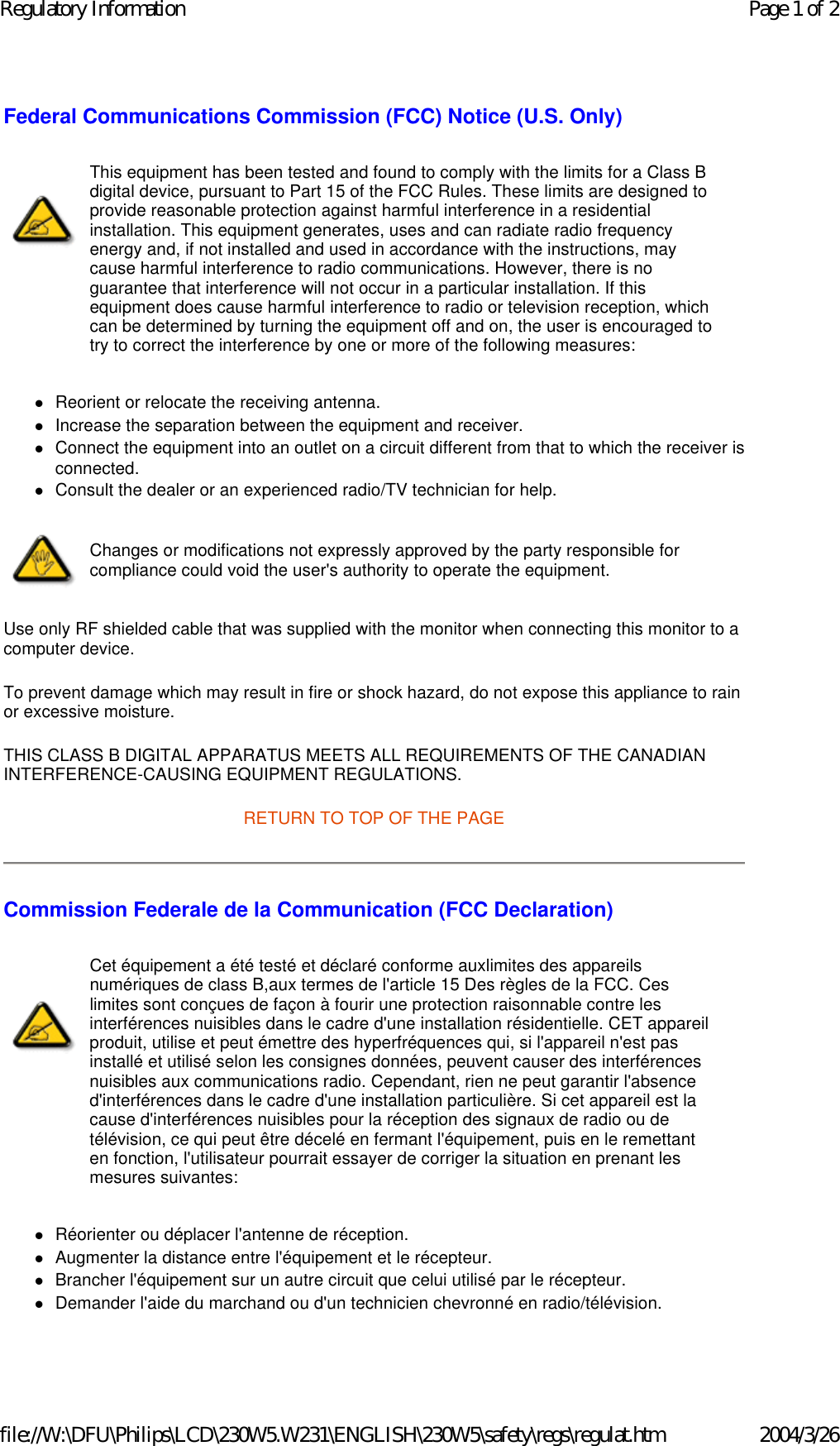

$Federal Communications Commission (FCC) Notice (U.S. Only) zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration) zRéorienter ou déplacer l'antenne de réception. zAugmenter la distance entre l'équipement et le récepteur. zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes: Page 1 of 2Regulatory Information2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\safety\regs\regulat.htm$

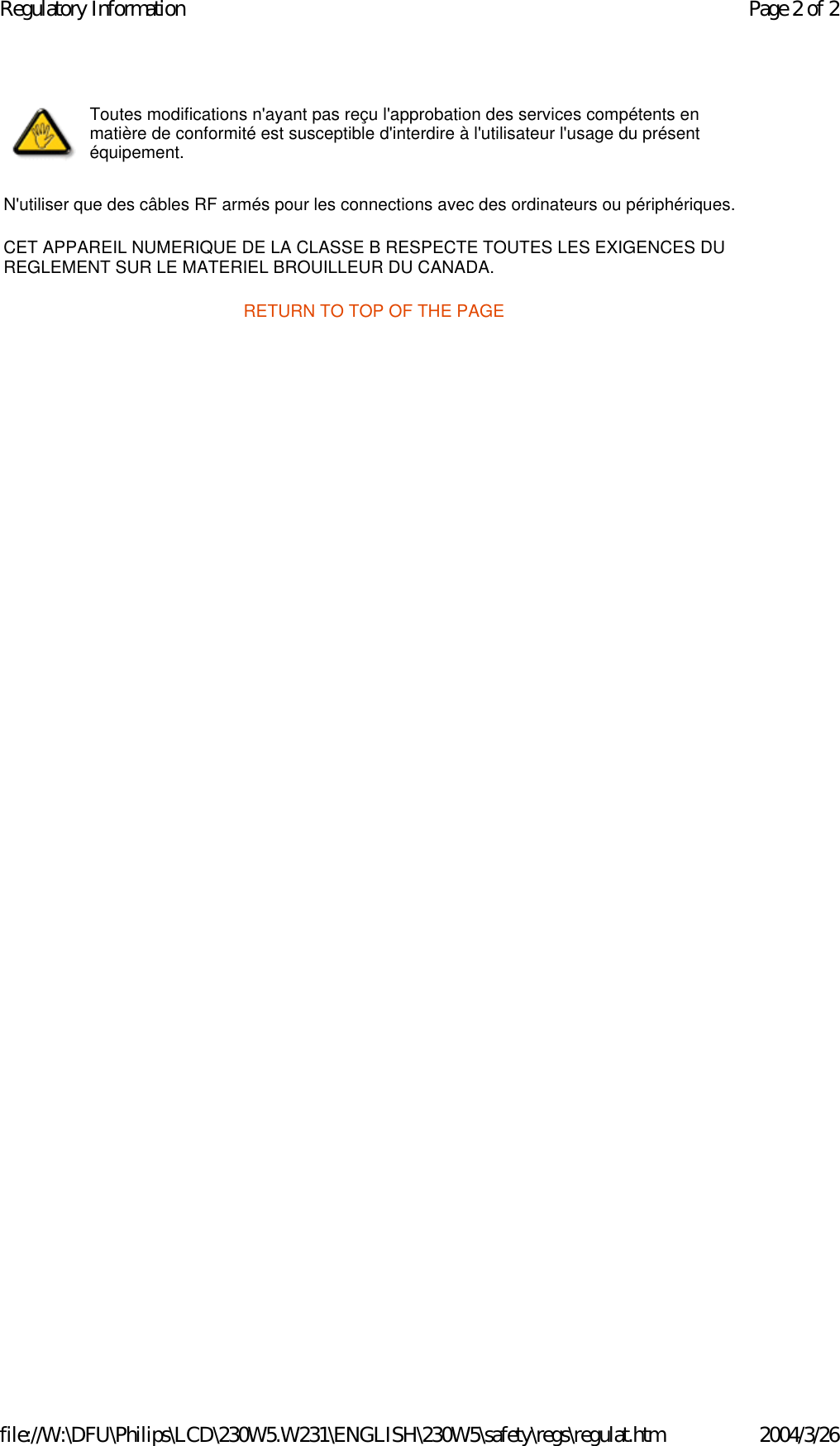

$N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGE Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.Page 2 of 2Regulatory Information2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\safety\regs\regulat.htm$
