Philips Electronics M133 LCD Monitor User Manual
Philips Electronics Industries (Taiwan) Ltd LCD Monitor
User Manual
Product Information
Product Features
BRILLIANCE 230W5
The Best Productivity Solution
zOutstanding front of screen performance
{WUXGA, wide format 1920x1200 resolution for sharper display
{Fast response time capable of handling fast moving pictures
{Widest viewing angle up to 176 degree for extra efficiency
zMaximum comfort for maximum productivity
{Large viewing area for seeing more images without scrolling
{Easy to access connections on a front to improve efficiency
{Screen tilt and swivel adjustment for ideal viewing angle
zMulti-function for ultimate convenience
{A solid-state 6-in-1 media card reader for easy media access
{Easy connection via hi-speed USB 2.0 Hub to any USB devices
{Display from multiple video sources: YPbPr, S-Video and CVBS (230W5VS only)
{PiP allows watching a second source simultaneously (230W5VS only)
zGreat convenience
{Easy plug and play DVI ensures true digital experience
{Embedded power supply eliminates external power adapters
{VESA mounting pattern for easy wall mounting of display
RETURN TO TOP OF THE PAGE
Technical Specifications*
LCD PANEL
• Type TFT LCD
• Screen size 23 inch / 58.4 cm
• Pixel Pitch 0.258 x 0.258 mm
• LCD Panel type 1920 x 1200 pixels
R.G.B. vertical stripe
Anti-glare polarizer, hard coated
• Effective viewing area 495.36 x 309.6 mm
• Display Colors 8 bits interface (16.7M colors)
SCANNING
• Vertical refresh rate 56Hz-85Hz
• Horizontal Frequency 30kHz-94kHz
VIDEO
< 205 MHz (Analog input)
2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\product\product.htm
Exhibit 3
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution and Preset Modes
• Video dot rate < 165 MHz (Digital input)
• Input impedance
- Video 75 ohm + 3%
- Sync 2.2K ohm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
Composite sync
Sync on green
• Sync polarities Positive and negative
• S-Video Y input 1.0Vpp, C input 0.3Vpp, 75ohm input impedance
• CVBS Composite, 1.0Vpp, 75 ohm input impedance
• Input Frequency
WUXGA Hsync 75 kHz, Vsync 60 Hz (N.I.)
WXGA Hsync 48 kHz, Vsync 60 Hz (N.I.)
SVGA Hsync 38 kHz, Vsync 60 Hz (N.I.)
VGA Hsync 31 kHz, Vsync 60 Hz (N.I.)
• Video interface DVI-I, D-Sub, S-Video, composite and components video
(YPbPr)
AUDIO
• Input level for PC/Video 500mV nominal
• Loudspeaker 6W Stereo Audio (3W/channel RMSx2, 200 Hz-10 kHz)
Optical characteristics
• Contrast ratio: 500:1 (typ.)
• Brightness: 250 cd/m2 (typ.)
• White Chromaticity: x: 0.283 y: 0.297 (at 9300°K)
x: 0.313 y: 0.329 (at 6500°K)
• Viewing Angle (C/R>10)
Upper >88° (typ.)
Lower >88° (typ.)
Left >88° (typ.)
Right >88° (typ.)
• Response time 16 ms (typ.)
• Maximum 1920 x 1200
• Recommended 1920 x 1200 at 60Hz
20 factory preset modes:
Page 2 of 6Product Information
2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\product\product.htm
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. If an input from a keyboard, mouse
or other input device is detected, the monitor will 'wake up' automatically. The following table
shows the power consumption and signaling of this automatic power saving feature:
H. freq (kHz) Mode Resolution V. freq (Hz)
31.469 IBM VGA 10H 640x350 70.086
31.469 IBM VGA 3H 720x400 70.086
31.469 IBM VGA 12H 640x480 59.940
35.000 MACINTOSH 640x480 67.000
37.500 VESA 640x480 75.000
35.156 VESA 800x600 56.250
37.879 VESA 800x600 60.317
46.875 VESA 800x600 75.000
49.700 MACINTOSH 832x624 75.000
48.363 VESA 1024x768 60.004
60.023 VESA 1024x768 75.029
68.700 MACINTOSH 1152x870 75.000
71.810 SUN WS 1152x900 76.150
63.981 VESA 1280x1024 60.020
79.976 VESA 1280x1024 75.025
91.1 VESA 1280x1024 85.0
75.0 VESA 1600x1200 60.0
67.05 CVT 2.3MA 1920x1080 60.0 (for D-Sub)
74.56 CVT 2.3MA 1920x1200 60.0 (for D-Sub)
74.52 CVT 2.3MA-R 1920x1200 60.0 (for DVI)
Power Management Definition
VESA Mode Video H-sync V-sync Power
Used LED
color
On Active Pulse Pulse 90W (typ.) Blue
Off Blanked No No < 2.5W Amber
DC Power
OFF Not Active No No 2W Off
This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS
Page 3 of 6Product Information
2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\product\product.htm
RETURN TO TOP OF THE PAGE
Physical Specifications
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE

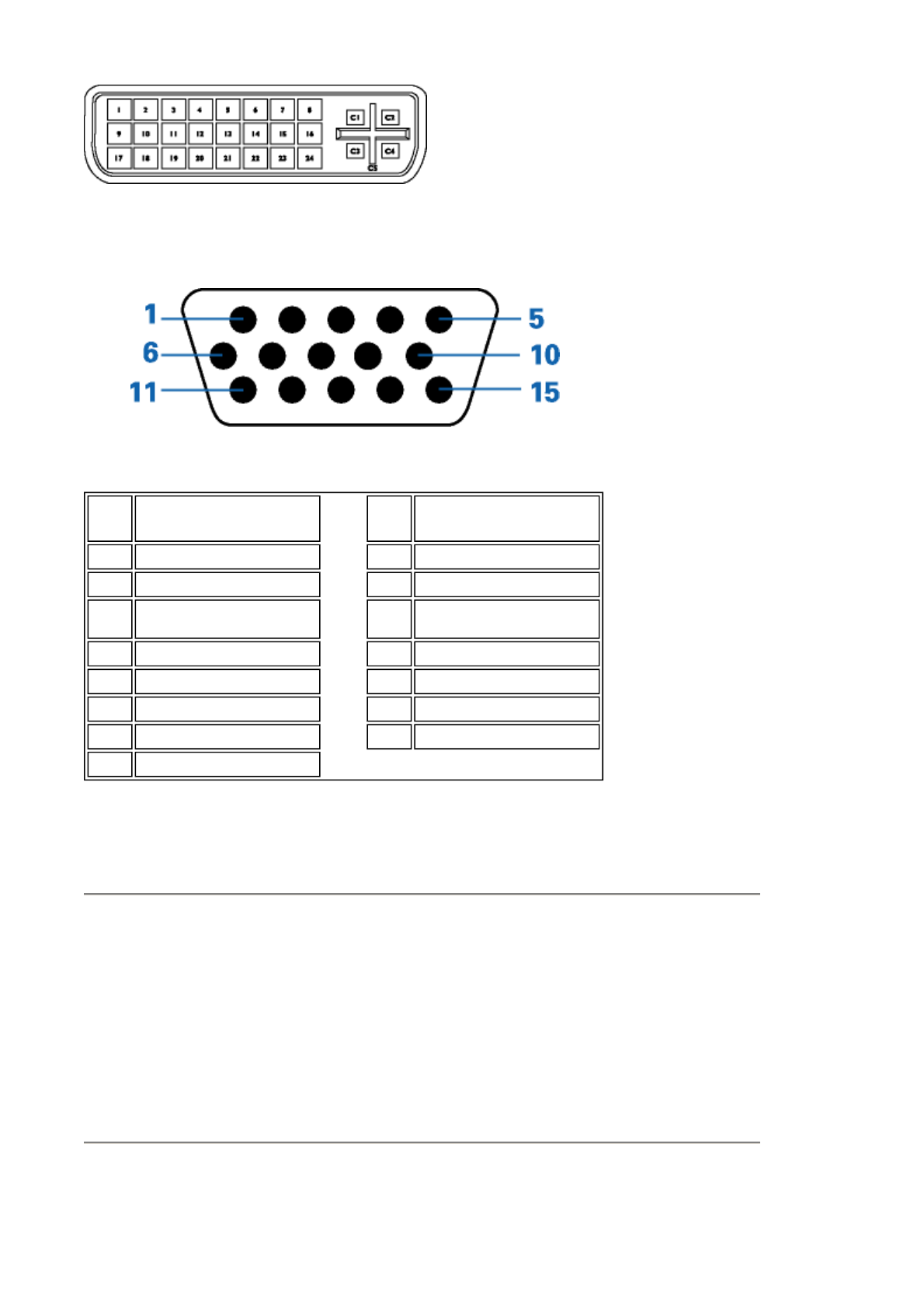

Pin Assignment
1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts.
Signal pin assignments are listed in the following table:
has determined that this product meets the ENERGY STAR® guidelines for energy
efficiency.
• Dimension (WxHxD) 548 x 452 x250 mm
• Weight 9.0 Kg
• Power supply 90 — 264 VAC, 50/60 Hz
• Power consumption 90 W (typ.)
• Temperature 0° C to 35° C
• Relative humidity 20% to 80%
• System MTBF 50K hrs (excluding CCFL 40K hrs)
Pin
No. Signal Assignment Pin
No. Signal Assignment Pin
No. Signal Assignment
1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-
2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+
3 T.M.D.S. Data2/4
Shield 11 T.M.D.S. Data1/3
Shield 19 T.M.D.S. Data0/5
Shield
4 No connect 12 No connect 20 No connect
5 No connect 13 No connect 21 No connect
6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock
Shield
7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+
8 No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-
Page 4 of 6Product Information
2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\product\product.htm
2. The 15-pin D-sub connector (male) of the signal cable:
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.

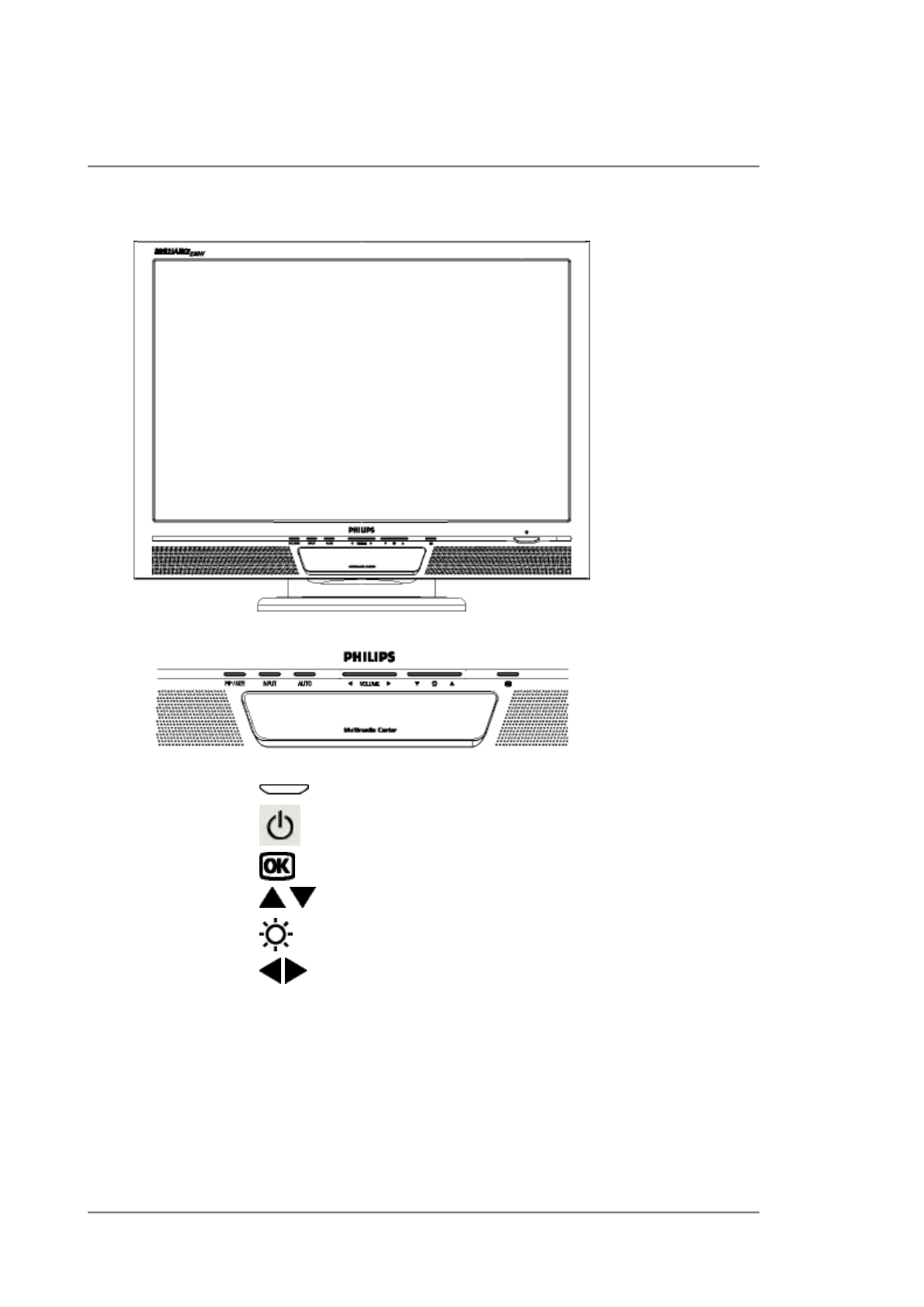

Front View Product Description
RETURN TO TOP OF THE PAGE
Physical Function
Pin
No. Assignment Pin
No. Assignment
1 Red video input 9 +5V
2 Green video input/SOG 10 Cable detect
3 Blue video input 11 Identical output,
connected to pin 10
4 Ground 12 Serial data line (SDA)
5 No connect 13 H. Sync / H+V
6 Red video ground 14 V. Sync
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground
Page 5 of 6Product Information
2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\product\product.htm
RETURN TO TOP OF THE PAGE

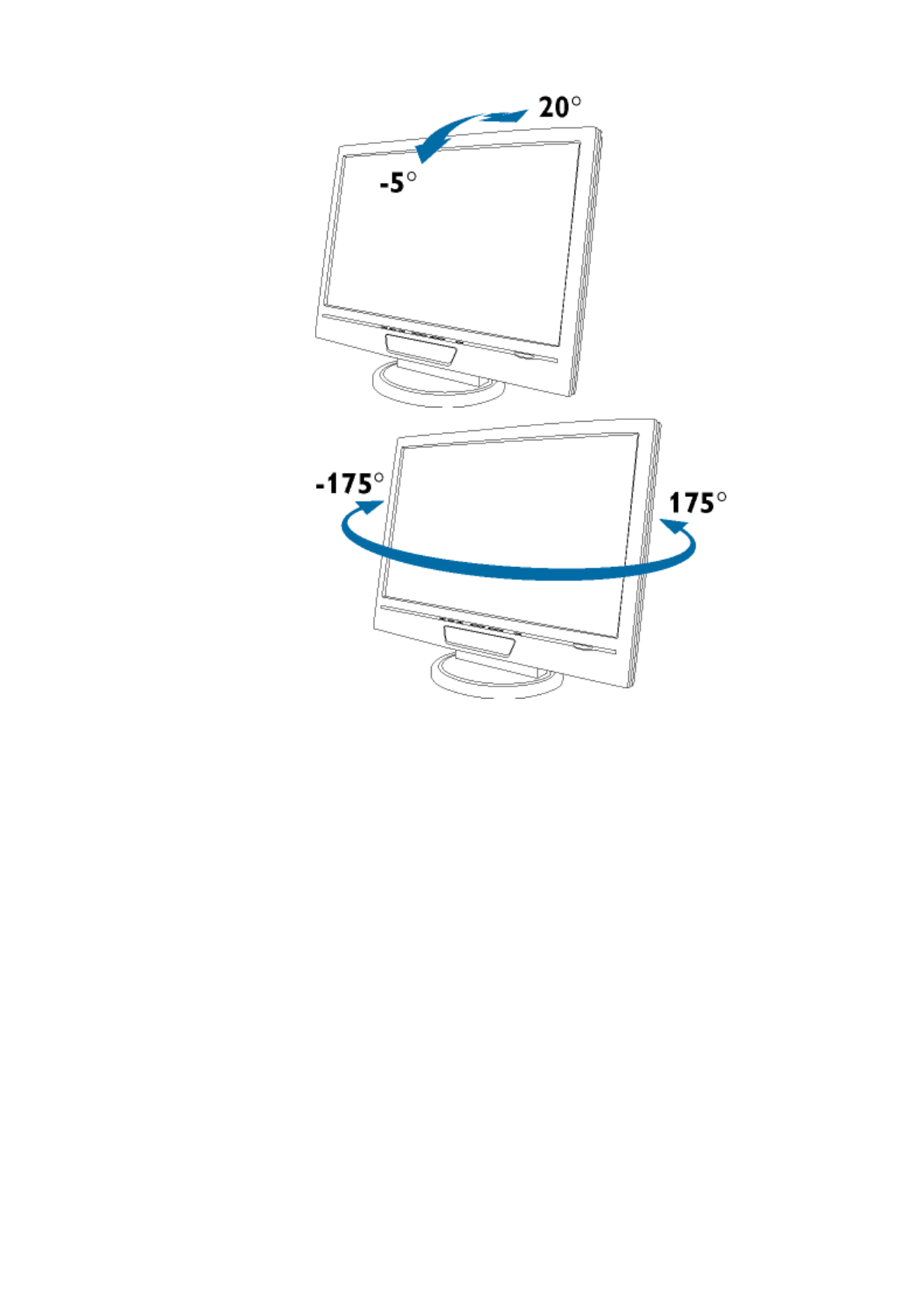

1) Tilt
2) Swivel
Page 6 of 6Product Information
2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\product\product.htm
Installing Your LCD Monitor
Front View Product Description
RETURN TO TOP OF THE PAGE
1 To switch monitor's power On and Off
2 Power LED
3 To access OSD menu
4 To adjust the OSD
5 To adjust brightness of the display
6 To adjust the OSD
7 VOLUME To adjust speaker volume
8 AUTO Automatically adjust the horizontal position, vertical position
,
phase and clock setting
9 INPUT Signal input selection
10 PIP/SIZE Activate PIP (Picture in Picture) window (230W5VS)
or
adjust screen size (230W5BS)
Page 1 of 3Installing Your LCD Monitor
2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\install\install.htm

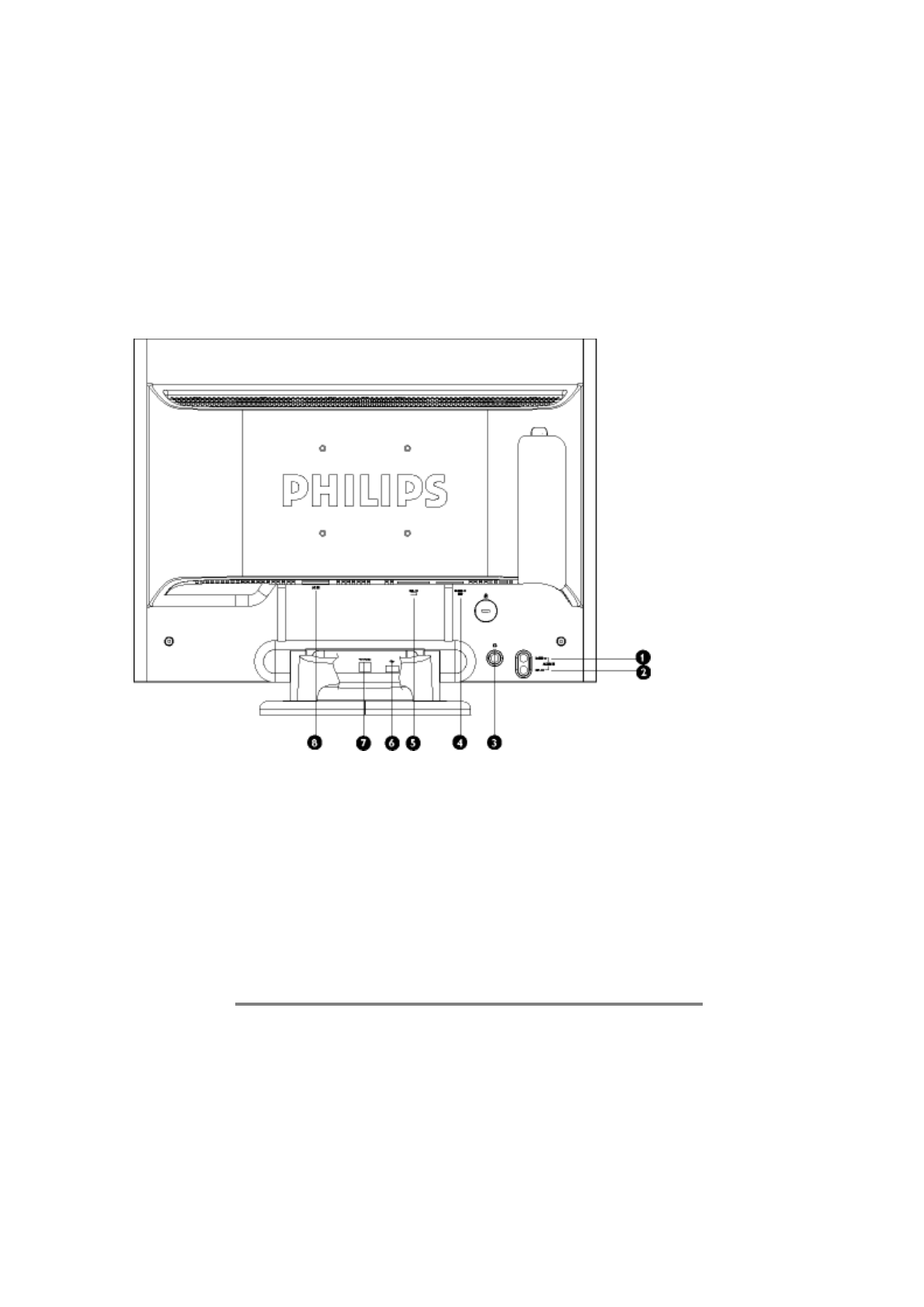

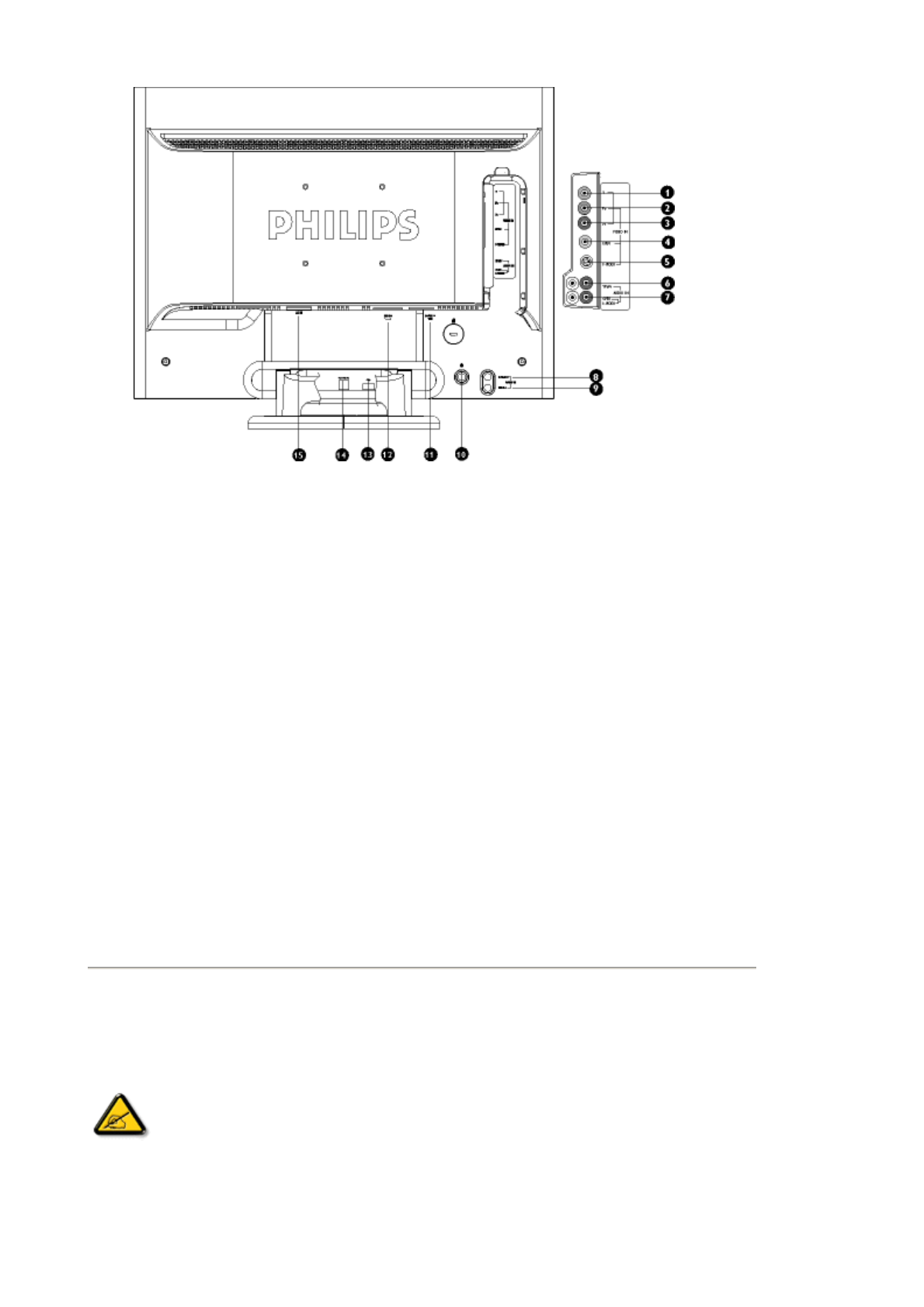

Rear View
Monitor model (230W5BS)
Video model
1 PC audio input for D-Sub
2 PC audio input for DVI-I
3 Earphone jack
4 VGA input
5 DVI-I input
6 USB to USB devices
7 USB to PC host
8 AC power input
Page 2 of 3Installing Your LCD Monitor
2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\install\install.htm
RETURN TO TOP OF THE PAGE
Optimizing Performance
zFor best performance, ensure that your display settings are set at 1920x1200@60Hz
1 Component Video (YPbPr) input
2 Component Video (YPbPr) input
3 Component Video (YPbPr) input
4 CVBS video input
5 S-Video input
6 Audio input for YPbPr video
7 Audio input for CVBS/S-Video
8 PC audio for D-Sub
9 PC audio for DVI-I
10 Earphone jack
11 VGA input
12 DVI-I input
13 USB to USB devices
14 USB to PC host
15 AC power input
Note: You can check the current display settings by pressing the 'OK'
button once. Go into the Product Information. The current display mode is
shown on the item called RESOLUTION.
Page 3 of 3Installing Your LCD Monitor
2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\install\install.htm
Federal Communications Commission (FCC) Notice (U.S. Only)
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
zConsult the dealer or an experienced radio/TV technician for help.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a
computer device.
To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain
or excessive moisture.
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.
RETURN TO TOP OF THE PAGE
Commission Federale de la Communication (FCC Declaration)
zRéorienter ou déplacer l'antenne de réception.
zAugmenter la distance entre l'équipement et le récepteur.
zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur.
zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Cet équipement a été testé et déclaré conforme auxlimites des appareils
numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces
limites sont conçues de façon à fourir une protection raisonnable contre les
interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil
produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas
installé et utilisé selon les consignes données, peuvent causer des interférences
nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence
d'interférences dans le cadre d'une installation particulière. Si cet appareil est la
cause d'interférences nuisibles pour la réception des signaux de radio ou de
télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant
en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les
mesures suivantes:
Page 1 of 2Regulatory Information
2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\safety\regs\regulat.htm
N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.
CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU
REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.
RETURN TO TOP OF THE PAGE
Toutes modifications n'ayant pas reçu l'approbation des services compétents en
matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent
équipement.
Page 2 of 2Regulatory Information
2004/3/26file://W:\DFU\Philips\LCD\230W5.W231\ENGLISH\230W5\safety\regs\regulat.htm
