Philips Electronics M138 Flat Panel Color Monitor User Manual

Philips Electronics Industries (Taiwan) Ltd Flat Panel Color Monitor Users Manual

Users Manual

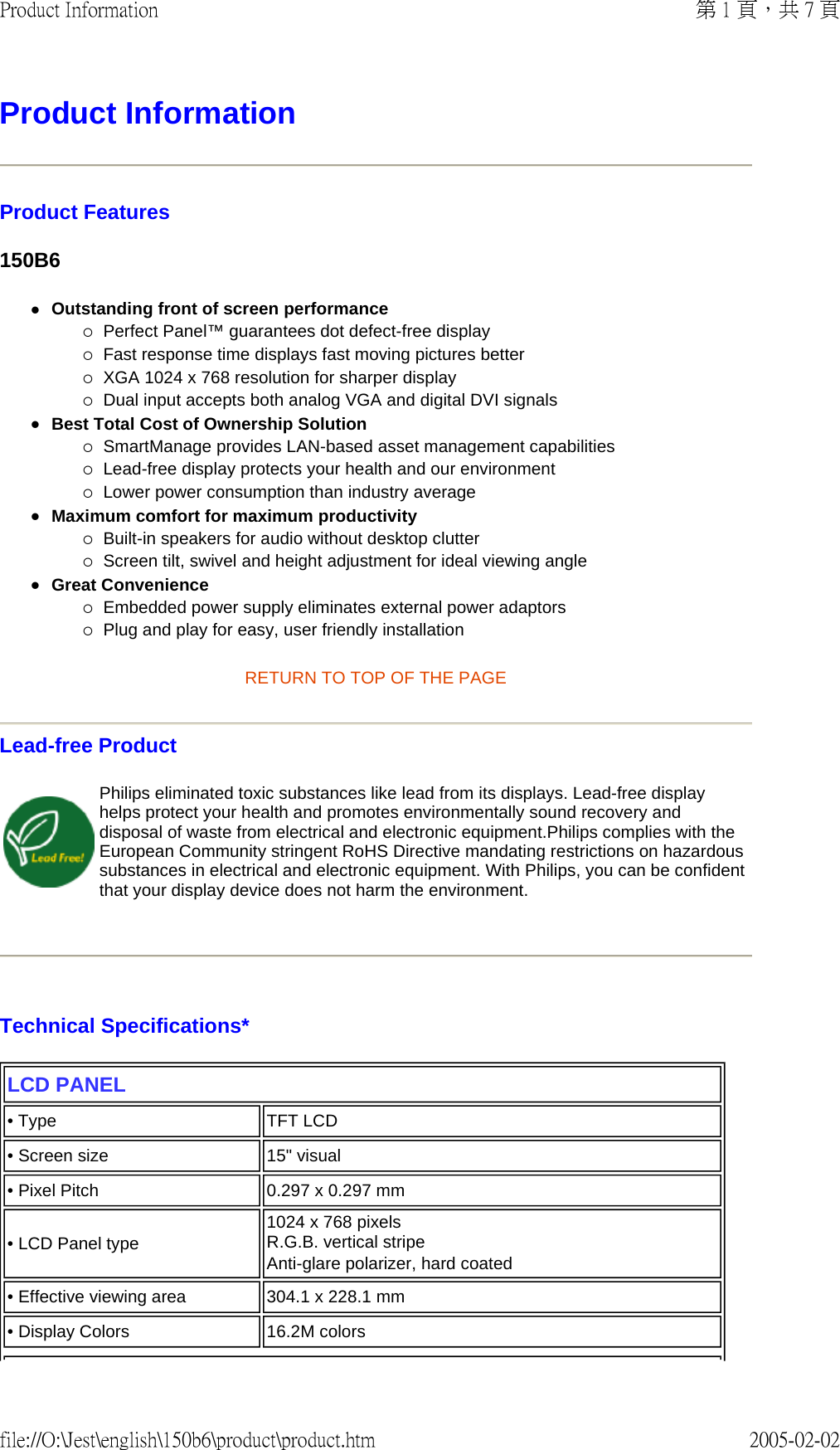

$Product Information Product Features 150B6 zOutstanding front of screen performance {Perfect Panel™ guarantees dot defect-free display {Fast response time displays fast moving pictures better {XGA 1024 x 768 resolution for sharper display {Dual input accepts both analog VGA and digital DVI signals zBest Total Cost of Ownership Solution {SmartManage provides LAN-based asset management capabilities {Lead-free display protects your health and our environment {Lower power consumption than industry average zMaximum comfort for maximum productivity {Built-in speakers for audio without desktop clutter {Screen tilt, swivel and height adjustment for ideal viewing angle zGreat Convenience {Embedded power supply eliminates external power adaptors {Plug and play for easy, user friendly installation RETURN TO TOP OF THE PAGE Lead-free Product Technical Specifications* Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment.Philips complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment. With Philips, you can be confident that your display device does not harm the environment.LCD PANEL • Type TFT LCD• Screen size 15" visual• Pixel Pitch 0.297 x 0.297 mm• LCD Panel type 1024 x 768 pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated • Effective viewing area 304.1 x 228.1 mm• Display Colors 16.2M colors第 1 頁，共 7 頁Product Information2005-02-02file://O:\Jest\english\150b6\product\product.htm$

$* This data is subject to change without notice. RETURN TO TOP OF THE PAGE SCANNINGVertical refresh rate 56 Hz-76 HzHorizontal Frequency 30k Hz-63 kHzVIDEO • Video dot rate 80 MHz• Input impedance- Video 75 ohm- Sync 2K ohm• Input signal levels 700m Vpp• Sync input signal Separate sync Composite sync Sync on green • Sync polarities Positive and negative• Input Frequency XGA Hsync 48- 61 kHz, Vsync 60 - 76 Hz (N.I.) SVGA Hsync 35- 50 kHz, Vsync 56 - 75 Hz (N.I.) VGA Hsync 31- 38 kHz, Vsync 60 - 76 Hz (N.I.) • Video interface Dual input: D-Sub (analog) and DVI-D (digital) are available and user selectableAudio • Loudspeaker 3W Stereo Audio (1.5W/channel RMSx2, 460 Hz-12 kHz, 16 ohm, THD=10%, PMPO 24 Watts)• Headphone connector 3.5mm mini jack• Input signal connector 3.5mm mini jackOptical characteristics • Contrast ratio 450:1 (typ.) • Brightness 250 cd/m2 (typ.)• Peak contrast angle 6 o'clock• White Chromaticity x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) x: 0.313 y: 0.329 (at sRGB) • Viewing Angle (C/R>5) Upper >60° (typ.) Lower >80° (typ.) Left >80° (typ.) Right >80° (typ.)• Response time <16 ms (typ.) 第 2 頁，共 7 頁Product Information2005-02-02file://O:\Jest\english\150b6\product\product.htm$

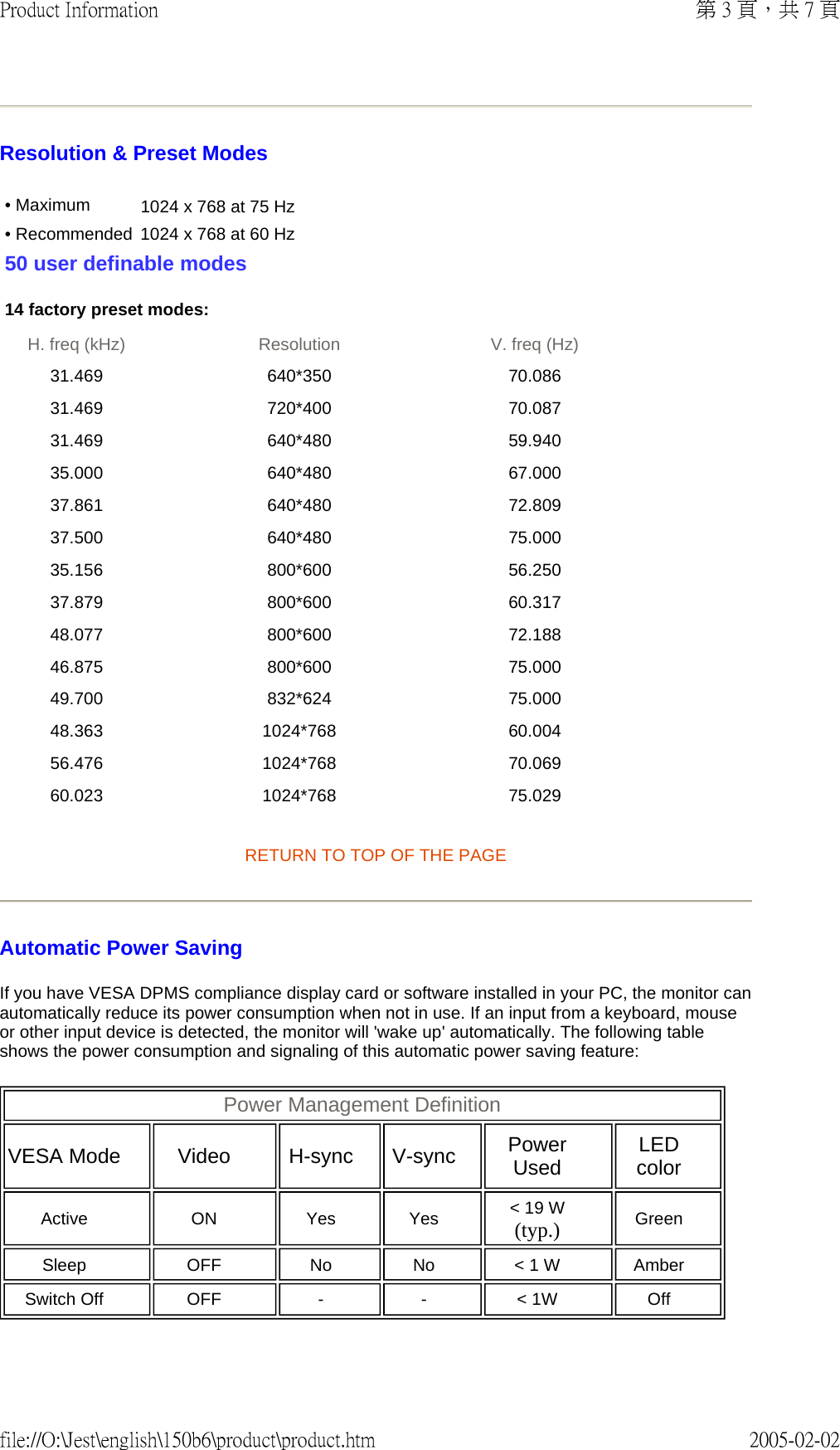

$Resolution & Preset Modes RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: • Maximum 1024 x 768 at 75 Hz • Recommended 1024 x 768 at 60 Hz50 user definable modes 14 factory preset modes: H. freq (kHz) Resolution V. freq (Hz) 31.469 640*350 70.086 31.469 720*400 70.087 31.469 640*480 59.940 35.000 640*480 67.000 37.861 640*480 72.809 37.500 640*480 75.000 35.156 800*600 56.250 37.879 800*600 60.317 48.077 800*600 72.188 46.875 800*600 75.000 49.700 832*624 75.000 48.363 1024*768 60.004 56.476 1024*768 70.069 60.023 1024*768 75.029 Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color Active ON Yes Yes < 19 W (typ.) Green Sleep OFF No No < 1 W Amber Switch Off OFF - -< 1W Off 第 3 頁，共 7 頁Product Information2005-02-02file://O:\Jest\english\150b6\product\product.htm$

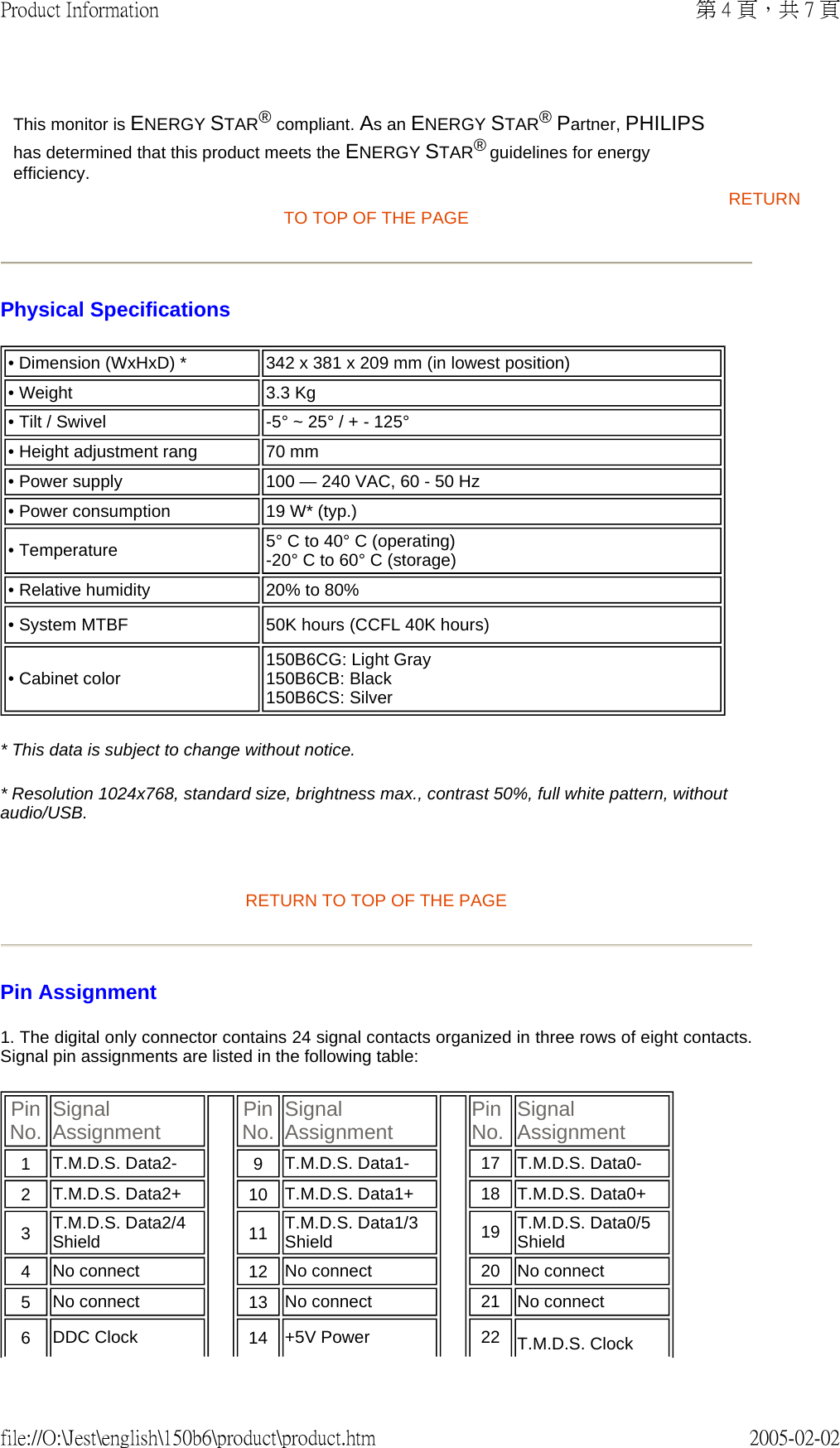

$RETURN TO TOP OF THE PAGE Physical Specifications * This data is subject to change without notice. * Resolution 1024x768, standard size, brightness max., contrast 50%, full white pattern, without audio/USB. RETURN TO TOP OF THE PAGE Pin Assignment 1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.• Dimension (WxHxD) * 342 x 381 x 209 mm (in lowest position) • Weight 3.3 Kg • Tilt / Swivel -5° ~ 25° / + - 125° • Height adjustment rang 70 mm• Power supply 100 — 240 VAC, 60 - 50 Hz• Power consumption 19 W* (typ.)• Temperature 5° C to 40° C (operating) -20° C to 60° C (storage)• Relative humidity 20% to 80%• System MTBF 50K hours (CCFL 40K hours)• Cabinet color 150B6CG: Light Gray 150B6CB: Black 150B6CS: SilverPin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield4 No connect 12 No connect 20 No connect 5 No connect 13 No connect 21 No connect 6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock 第 4 頁，共 7 頁Product Information2005-02-02file://O:\Jest\english\150b6\product\product.htm$

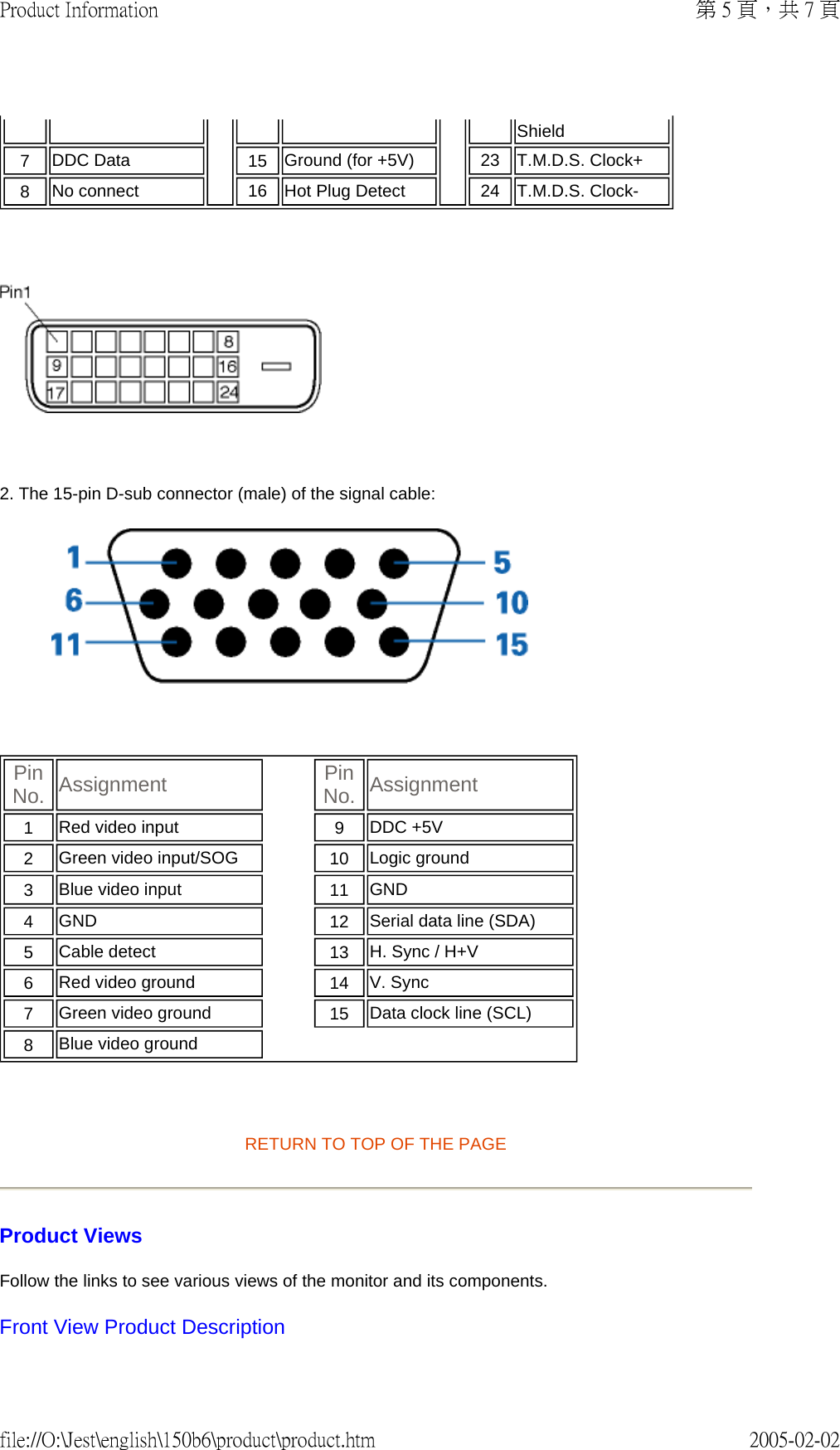

$2. The 15-pin D-sub connector (male) of the signal cable: RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description Shield7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+8 No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-Pin No. Assignment Pin No. Assignment1 Red video input 9 DDC +5V2 Green video input/SOG 10 Logic ground3 Blue video input 11 GND4 GND 12 Serial data line (SDA)5 Cable detect 13 H. Sync / H+V6 Red video ground 14 V. Sync7 Green video ground 15 Data clock line (SCL)8 Blue video ground第 5 頁，共 7 頁Product Information2005-02-02file://O:\Jest\english\150b6\product\product.htm$

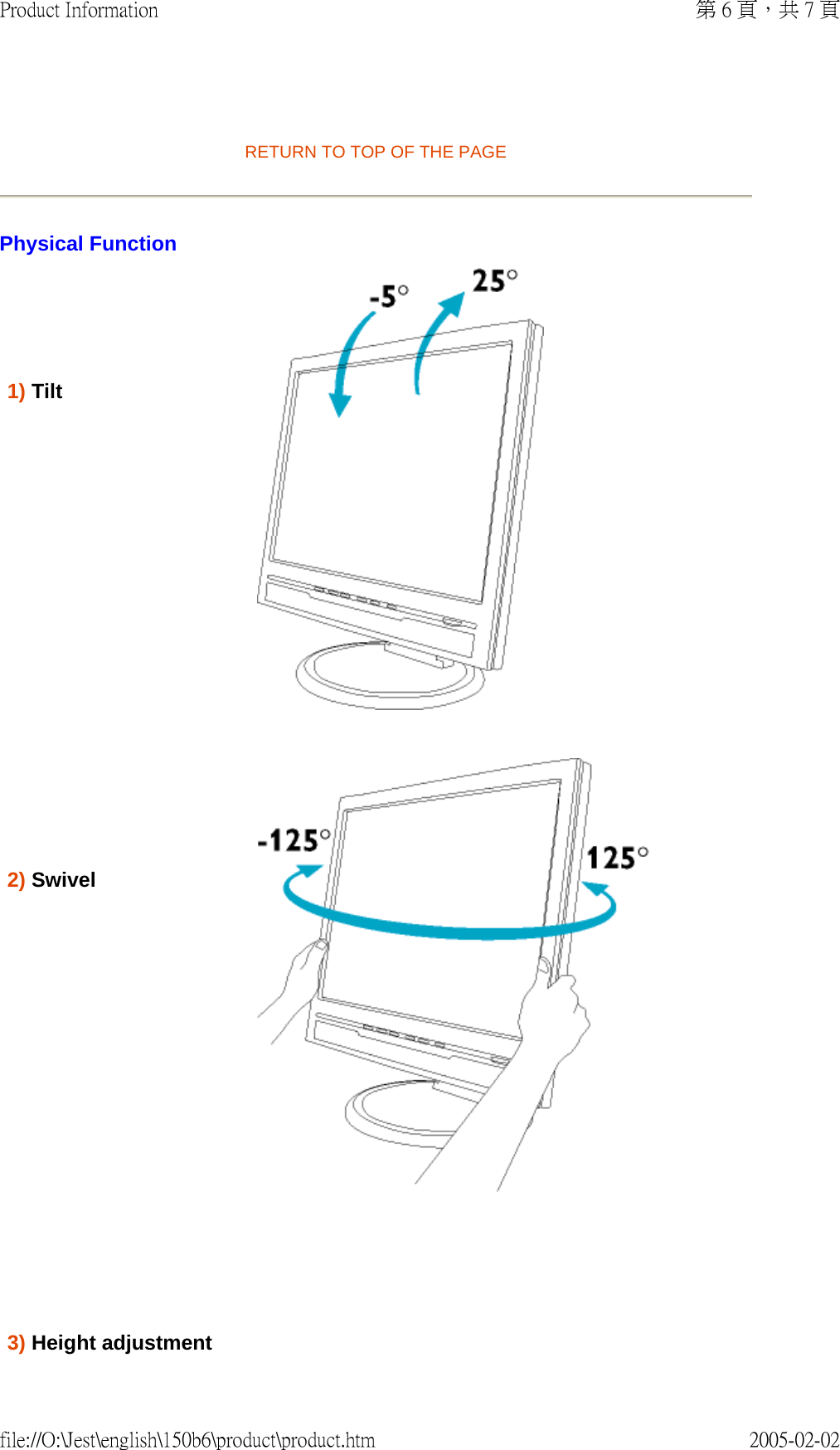

$RETURN TO TOP OF THE PAGE Physical Function 1) Tilt 2) Swivel 3) Height adjustment 第 6 頁，共 7 頁Product Information2005-02-02file://O:\Jest\english\150b6\product\product.htm$

$第 7 頁，共 7 頁Product Information2005-02-02file://O:\Jest\english\150b6\product\product.htm$

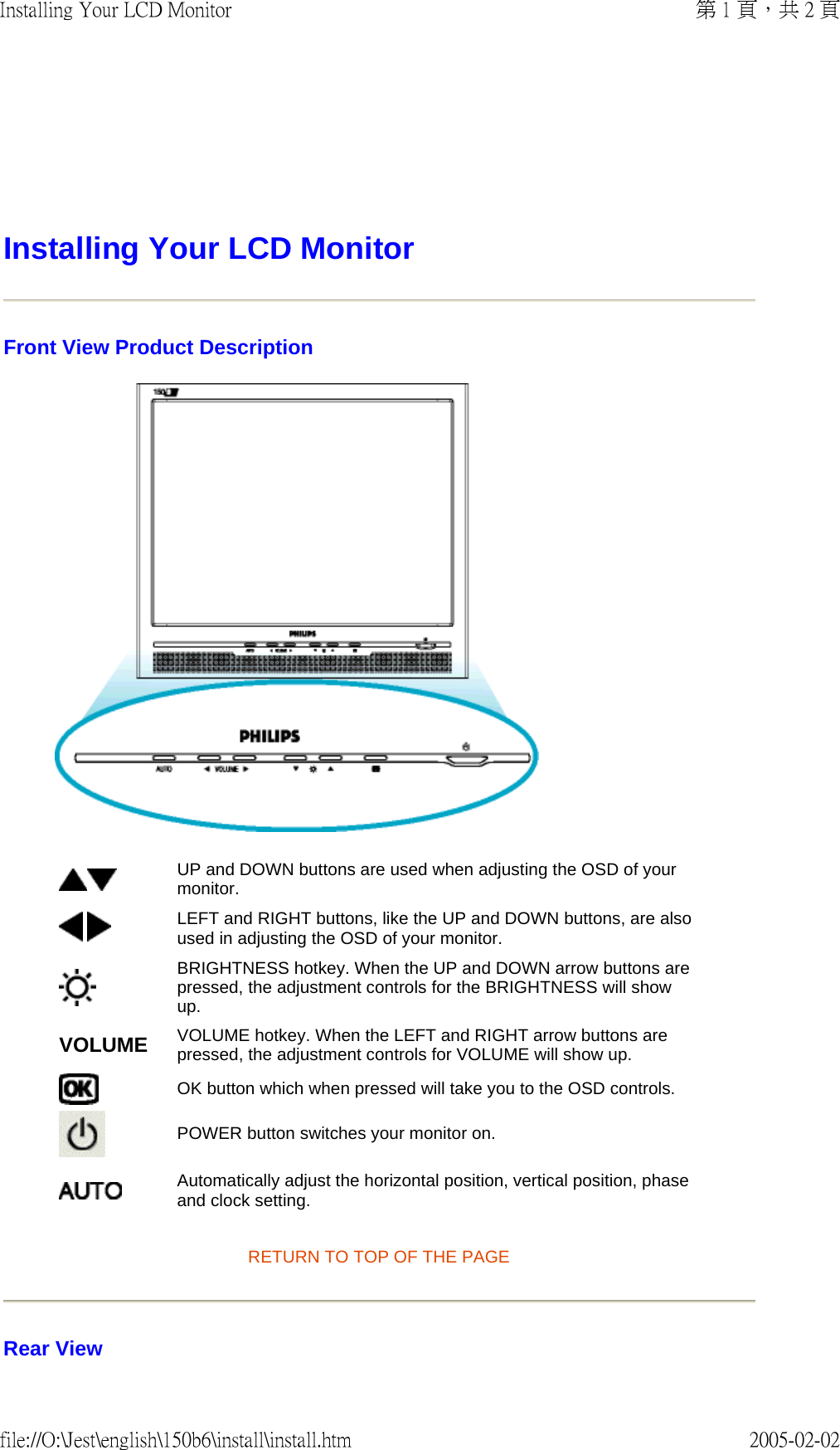

$Installing Your LCD Monitor Front View Product Description RETURN TO TOP OF THE PAGE Rear View UP and DOWN buttons are used when adjusting the OSD of your monitor. LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor.BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are pressed, the adjustment controls for the BRIGHTNESS will show up.VOLUME VOLUME hotkey. When the LEFT and RIGHT arrow buttons are pressed, the adjustment controls for VOLUME will show up.OK button which when pressed will take you to the OSD controls.POWER button switches your monitor on.Automatically adjust the horizontal position, vertical position, phase and clock setting. 第 1 頁，共 2 頁Installing Your LCD Monitor2005-02-02file://O:\Jest\english\150b6\install\install.htm$

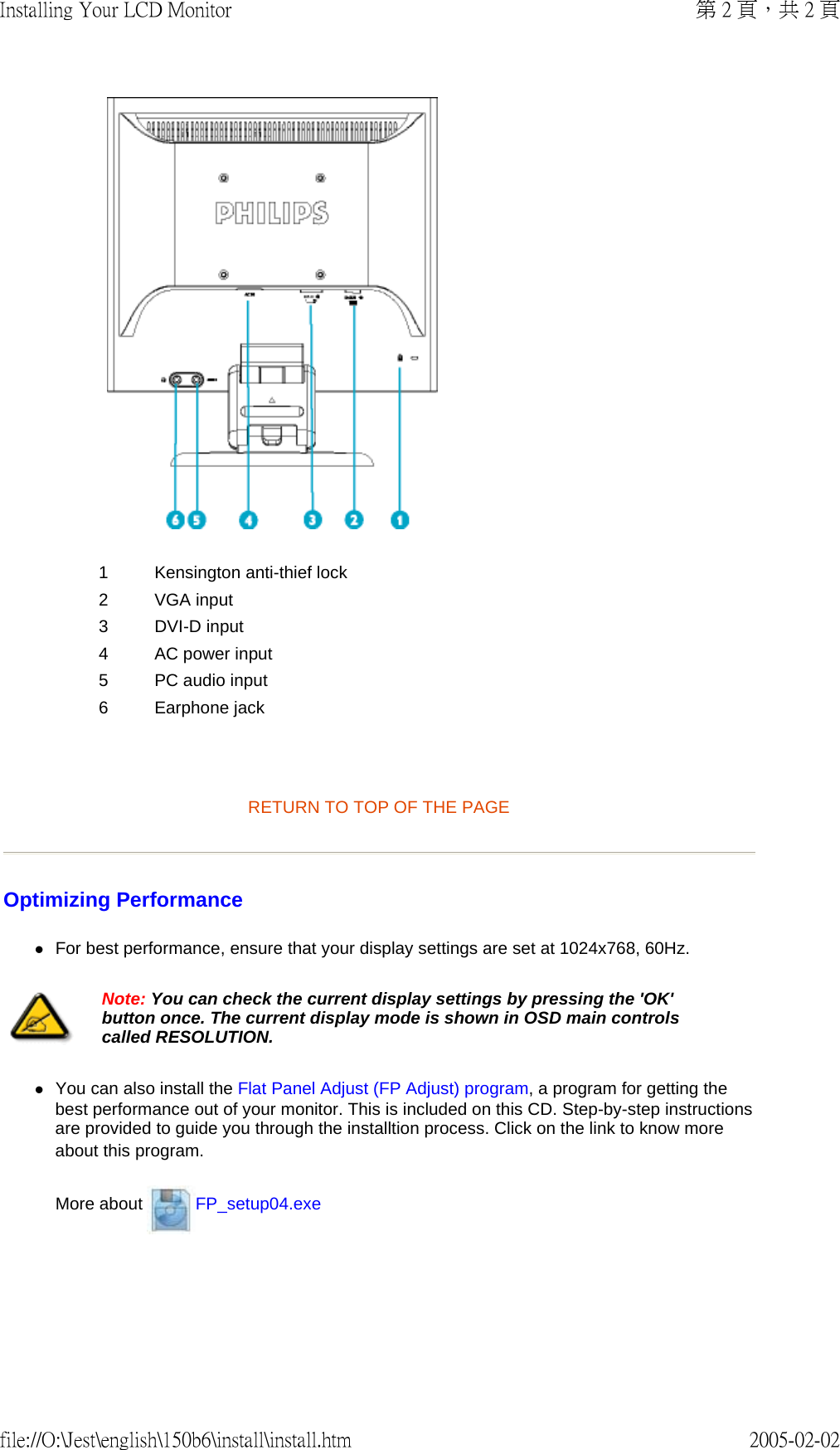

$RETURN TO TOP OF THE PAGE Optimizing Performance zFor best performance, ensure that your display settings are set at 1024x768, 60Hz. zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor. This is included on this CD. Step-by-step instructions are provided to guide you through the installtion process. Click on the link to know more about this program. More about FP_setup04.exe 1 Kensington anti-thief lock 2 VGA input3 DVI-D input 4 AC power input5 PC audio input6 Earphone jack Note: You can check the current display settings by pressing the 'OK' button once. The current display mode is shown in OSD main controls called RESOLUTION.第 2 頁，共 2 頁Installing Your LCD Monitor2005-02-02file://O:\Jest\english\150b6\install\install.htm$

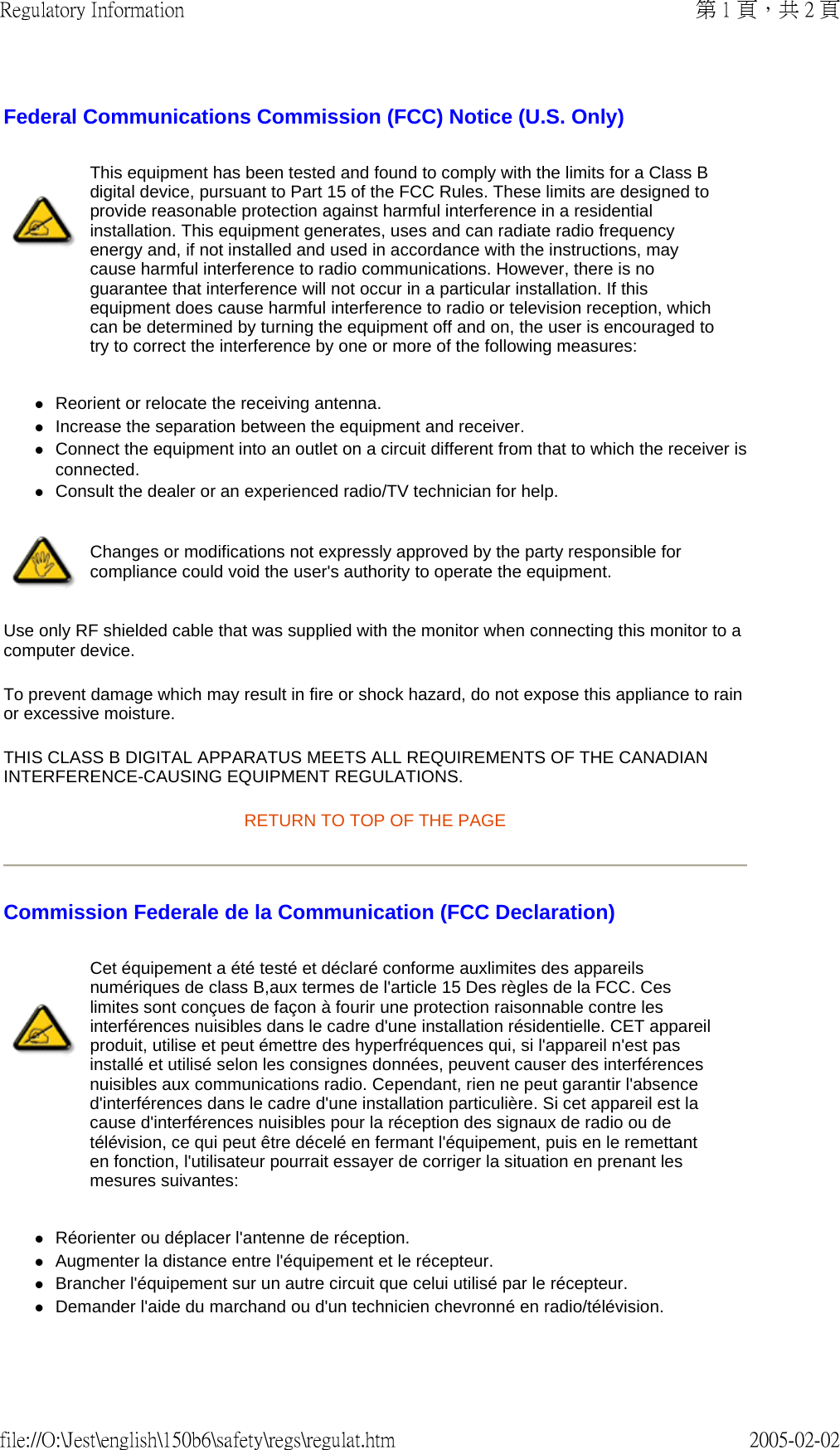

$Federal Communications Commission (FCC) Notice (U.S. Only) zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration) zRéorienter ou déplacer l'antenne de réception. zAugmenter la distance entre l'équipement et le récepteur. zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes: 第 1 頁，共 2 頁Regulatory Information2005-02-02file://O:\Jest\english\150b6\safety\regs\regulat.htm$

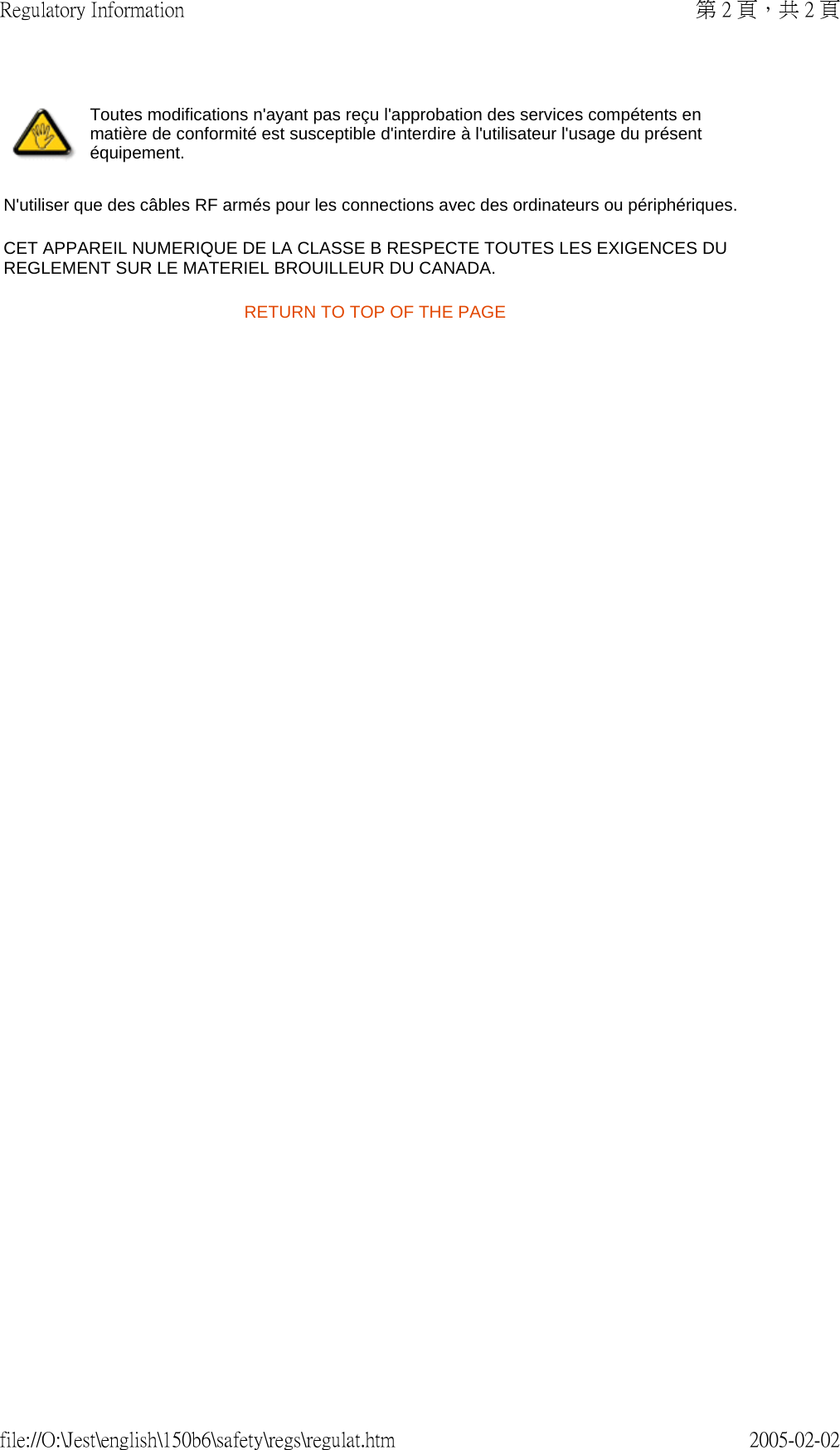

$N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGE Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.第 2 頁，共 2 頁Regulatory Information2005-02-02file://O:\Jest\english\150b6\safety\regs\regulat.htm$
