Product Information
Product Features
150B6
zOutstanding front of screen performance
{Perfect Panel™ guarantees dot defect-free display
{Fast response time displays fast moving pictures better
{XGA 1024 x 768 resolution for sharper display
{Dual input accepts both analog VGA and digital DVI signals
zBest Total Cost of Ownership Solution
{SmartManage provides LAN-based asset management capabilities
{Lead-free display protects your health and our environment
{Lower power consumption than industry average
zMaximum comfort for maximum productivity
{Built-in speakers for audio without desktop clutter
{Screen tilt, swivel and height adjustment for ideal viewing angle
zGreat Convenience
{Embedded power supply eliminates external power adaptors
{Plug and play for easy, user friendly installation
RETURN TO TOP OF THE PAGE
Lead-free Product
Technical Specifications*
Philips eliminated toxic substances like lead from its displays. Lead-free display
helps protect your health and promotes environmentally sound recovery and
disposal of waste from electrical and electronic equipment.Philips complies with the
European Community stringent RoHS Directive mandating restrictions on hazardous
substances in electrical and electronic equipment. With Philips, you can be confident
that your display device does not harm the environment.
LCD PANEL
• Type TFT LCD
• Screen size 15" visual
• Pixel Pitch 0.297 x 0.297 mm
• LCD Panel type 1024 x 768 pixels
R.G.B. vertical stripe
Anti-glare polarizer, hard coated
• Effective viewing area 304.1 x 228.1 mm
• Display Colors 16.2M colors
第 1 頁，共 7 頁Product Information
2005-02-02file://O:\Jest\english\150b6\product\product.htm
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
SCANNING
Vertical refresh rate 56 Hz-76 Hz
Horizontal Frequency 30k Hz-63 kHz
VIDEO
• Video dot rate 80 MHz
• Input impedance
- Video 75 ohm
- Sync 2K ohm
• Input signal levels 700m Vpp
• Sync input signal Separate sync
Composite sync
Sync on green
• Sync polarities Positive and negative
• Input Frequency XGA Hsync 48- 61 kHz, Vsync 60 - 76 Hz (N.I.)
SVGA Hsync 35- 50 kHz, Vsync 56 - 75 Hz (N.I.)
VGA Hsync 31- 38 kHz, Vsync 60 - 76 Hz (N.I.)
• Video interface Dual input: D-Sub (analog) and DVI-D (digital) are
available and user selectable
Audio
• Loudspeaker 3W Stereo Audio (1.5W/channel RMSx2, 460 Hz-12 kHz,
16 ohm, THD=10%, PMPO 24 Watts)
• Headphone connector 3.5mm mini jack
• Input signal connector 3.5mm mini jack
Optical characteristics
• Contrast ratio 450:1 (typ.)
• Brightness 250 cd/m2 (typ.)
• Peak contrast angle 6 o'clock
• White Chromaticity x: 0.283 y: 0.297 (at 9300°K)
x: 0.313 y: 0.329 (at 6500°K)
x: 0.313 y: 0.329 (at sRGB)
• Viewing Angle (C/R>5)
Upper >60° (typ.)
Lower >80° (typ.)
Left >80° (typ.)
Right >80° (typ.)
• Response time <16 ms (typ.)
第 2 頁，共 7 頁Product Information
2005-02-02file://O:\Jest\english\150b6\product\product.htm
Resolution & Preset Modes
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. If an input from a keyboard, mouse
or other input device is detected, the monitor will 'wake up' automatically. The following table
shows the power consumption and signaling of this automatic power saving feature:
• Maximum 1024 x 768 at 75 Hz
• Recommended 1024 x 768 at 60 Hz
50 user definable modes
14 factory preset modes:
H. freq (kHz) Resolution V. freq (Hz)
31.469 640*350 70.086
31.469 720*400 70.087
31.469 640*480 59.940
35.000 640*480 67.000
37.861 640*480 72.809
37.500 640*480 75.000
35.156 800*600 56.250
37.879 800*600 60.317
48.077 800*600 72.188
46.875 800*600 75.000
49.700 832*624 75.000
48.363 1024*768 60.004
56.476 1024*768 70.069
60.023 1024*768 75.029
Power Management Definition
VESA Mode Video H-sync V-sync Power
Used LED
color
Active ON Yes Yes < 19 W
(typ.) Green
Sleep OFF No No < 1 W Amber
Switch Off OFF - -< 1W Off
第 3 頁，共 7 頁Product Information
2005-02-02file://O:\Jest\english\150b6\product\product.htm
RETURN
TO TOP OF THE PAGE
Physical Specifications
* This data is subject to change without notice.
* Resolution 1024x768, standard size, brightness max., contrast 50%, full white pattern, without
audio/USB.
RETURN TO TOP OF THE PAGE

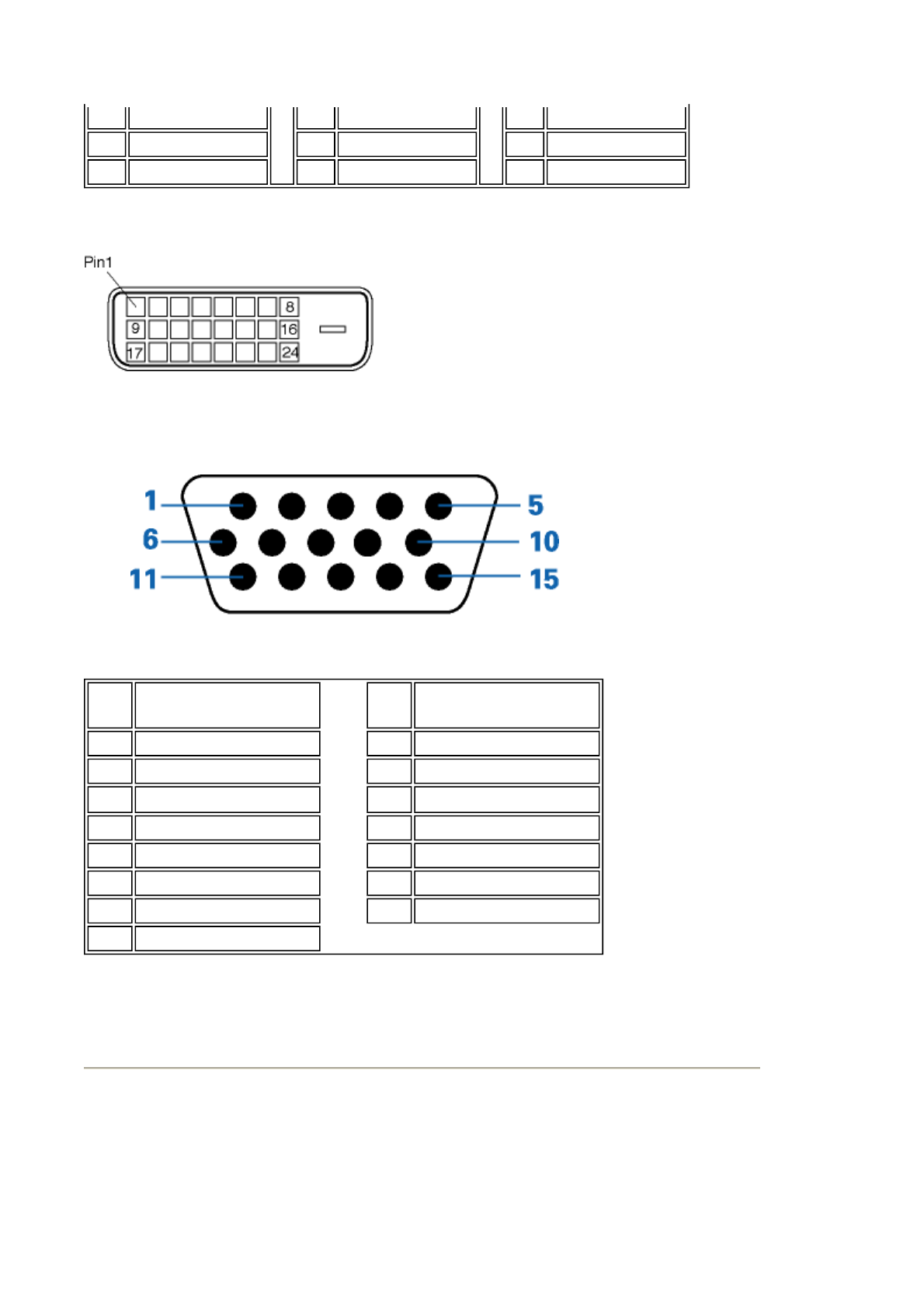

Pin Assignment
1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts.
Signal pin assignments are listed in the following table:
This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS
has determined that this product meets the ENERGY STAR® guidelines for energy
efficiency.
• Dimension (WxHxD) * 342 x 381 x 209 mm (in lowest position)
• Weight 3.3 Kg
• Tilt / Swivel -5° ~ 25° / + - 125°
• Height adjustment rang 70 mm
• Power supply 100 — 240 VAC, 60 - 50 Hz
• Power consumption 19 W* (typ.)
• Temperature 5° C to 40° C (operating)
-20° C to 60° C (storage)
• Relative humidity 20% to 80%
• System MTBF 50K hours (CCFL 40K hours)
• Cabinet color 150B6CG: Light Gray
150B6CB: Black
150B6CS: Silver
Pin
No. Signal
Assignment
Pin
No. Signal
Assignment
Pin
No. Signal
Assignment
1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-
2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+
3 T.M.D.S. Data2/4
Shield 11 T.M.D.S. Data1/3
Shield 19 T.M.D.S. Data0/5
Shield
4 No connect 12 No connect 20 No connect
5 No connect 13 No connect 21 No connect
6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock
第 4 頁，共 7 頁Product Information
2005-02-02file://O:\Jest\english\150b6\product\product.htm
2. The 15-pin D-sub connector (male) of the signal cable:
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
Shield
7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+
8 No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-
Pin
No. Assignment Pin
No. Assignment
1 Red video input 9 DDC +5V
2 Green video input/SOG 10 Logic ground
3 Blue video input 11 GND
4 GND 12 Serial data line (SDA)
5 Cable detect 13 H. Sync / H+V
6 Red video ground 14 V. Sync
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground
第 5 頁，共 7 頁Product Information
2005-02-02file://O:\Jest\english\150b6\product\product.htm
RETURN TO TOP OF THE PAGE

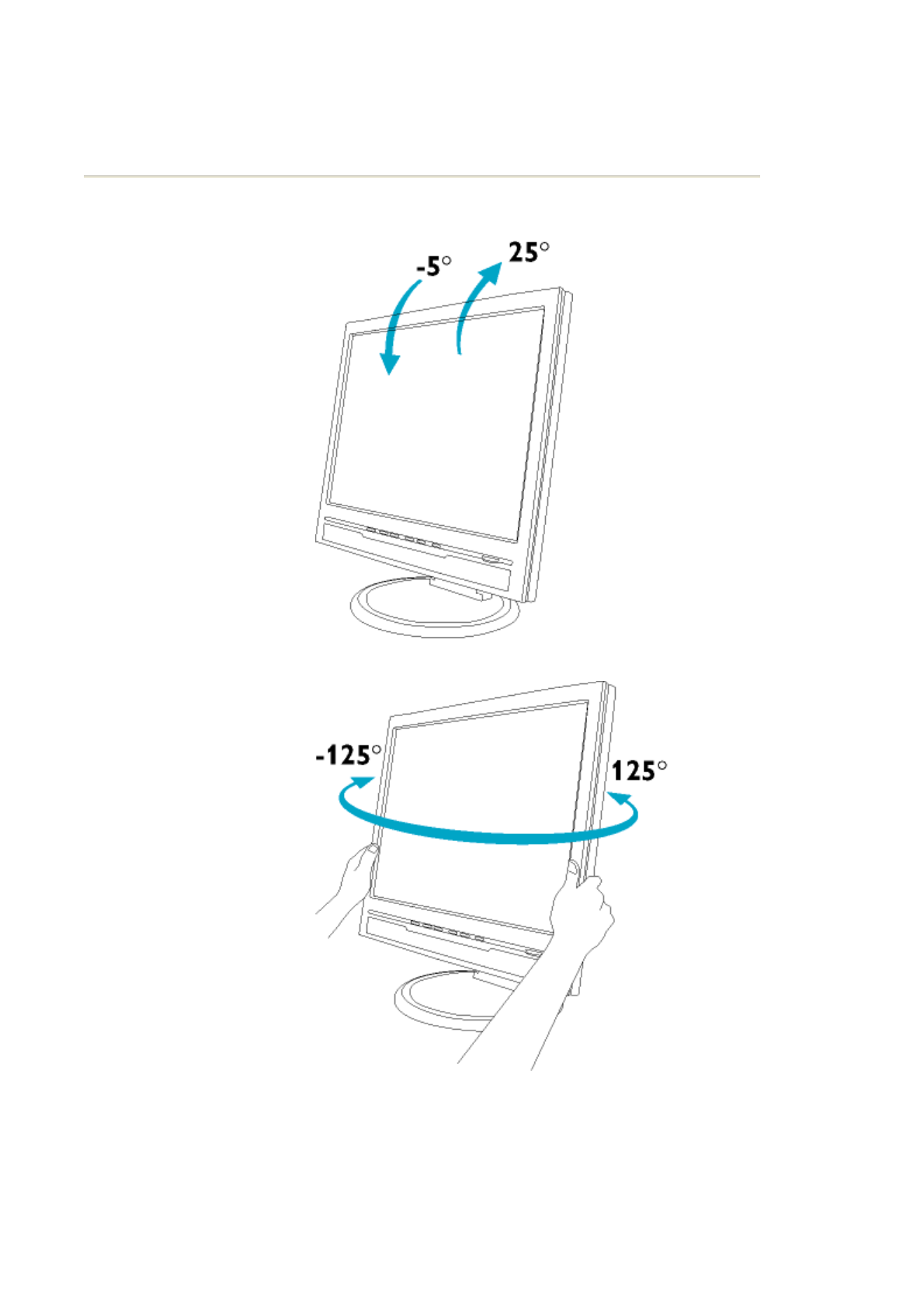

Physical Function
1) Tilt
2) Swivel

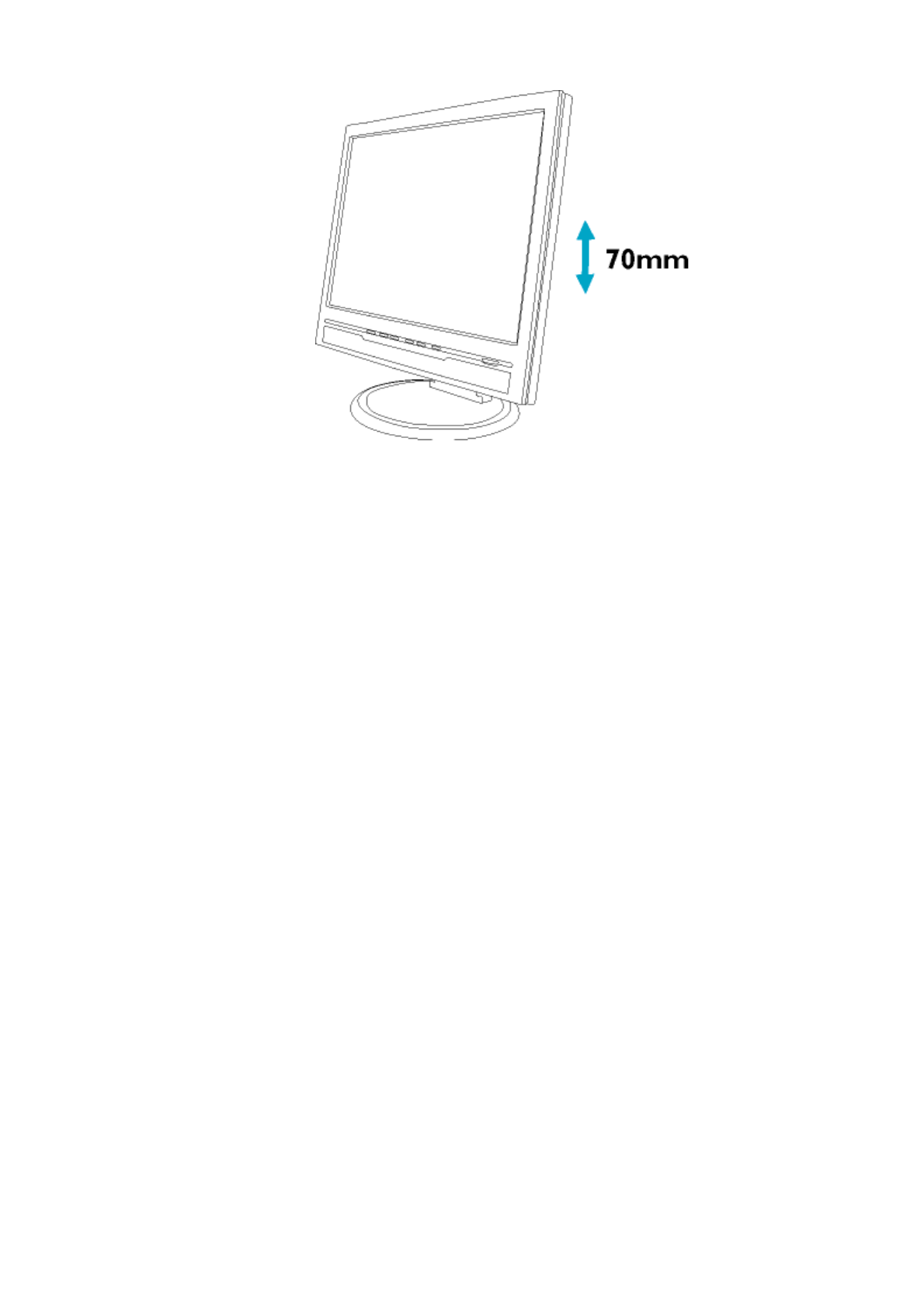

3) Height adjustment
第 6 頁，共 7 頁Product Information
2005-02-02file://O:\Jest\english\150b6\product\product.htm
第 7 頁，共 7 頁Product Information
2005-02-02file://O:\Jest\english\150b6\product\product.htm
Installing Your LCD Monitor

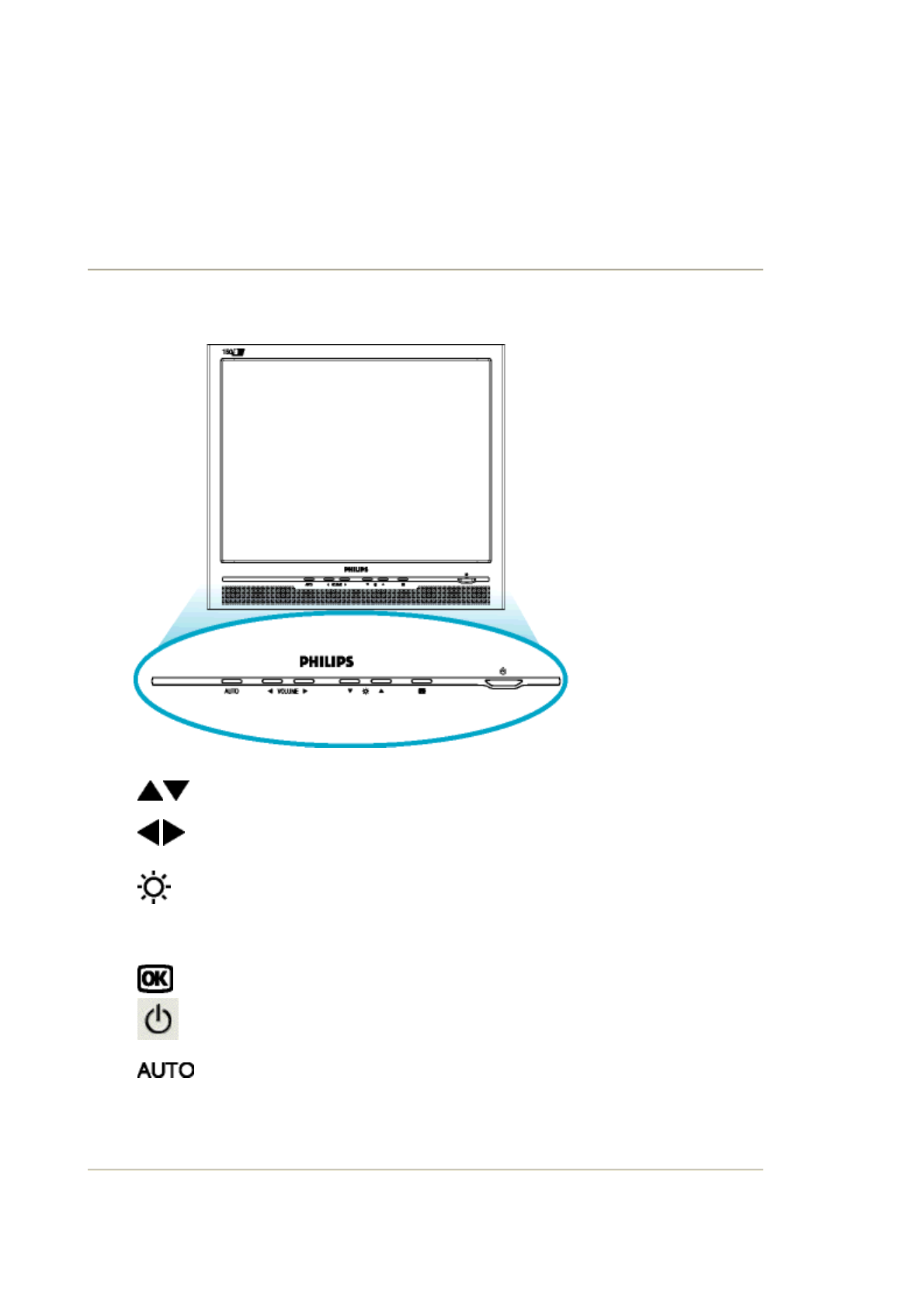

Front View Product Description
RETURN TO TOP OF THE PAGE

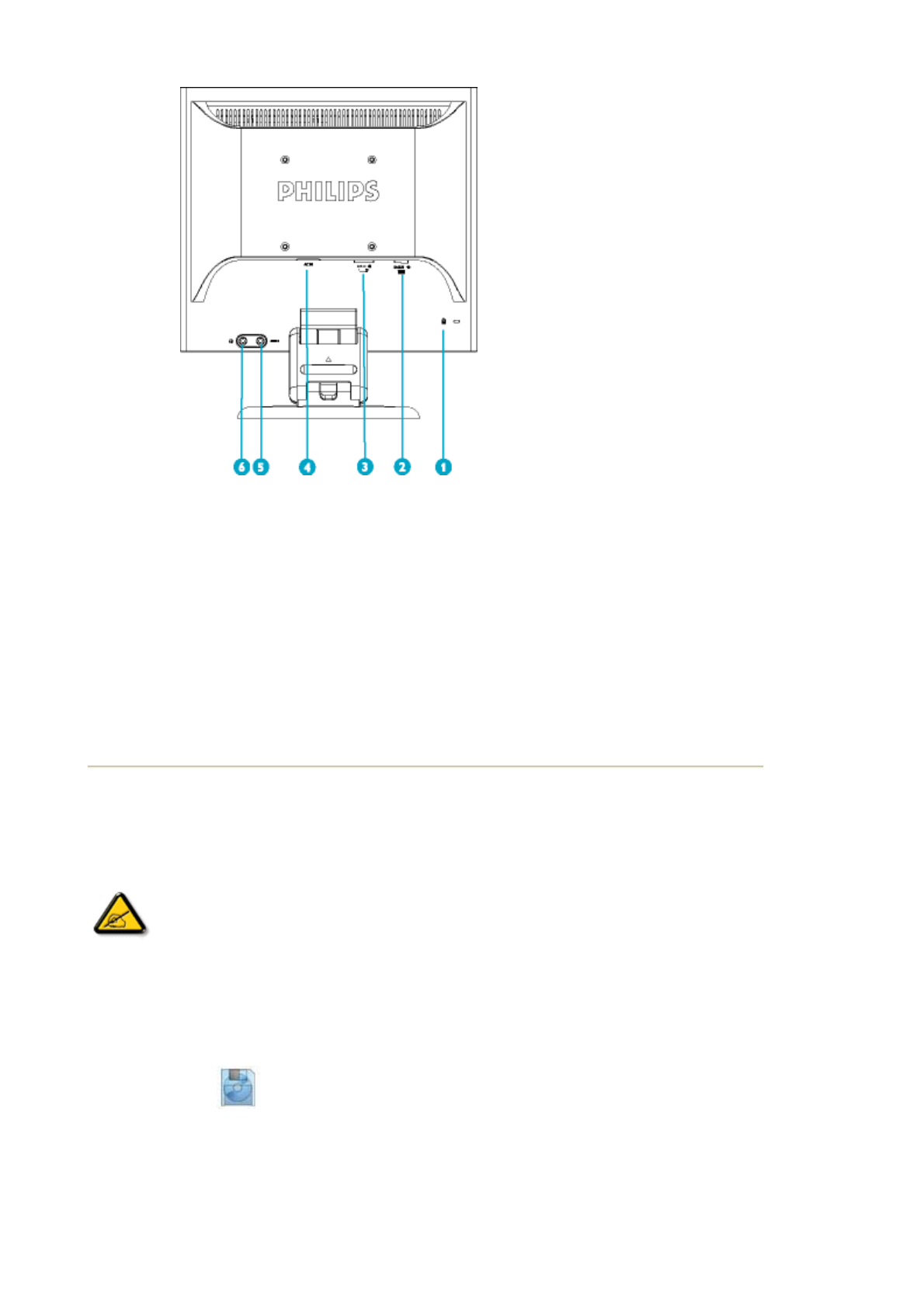

Rear View
UP and DOWN buttons are used when adjusting the OSD of your
monitor.
LEFT and RIGHT buttons, like the UP and DOWN buttons, are also
used in adjusting the OSD of your monitor.
BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are
pressed, the adjustment controls for the BRIGHTNESS will show
up.
VOLUME VOLUME hotkey. When the LEFT and RIGHT arrow buttons are
pressed, the adjustment controls for VOLUME will show up.
OK button which when pressed will take you to the OSD controls.
POWER button switches your monitor on.
Automatically adjust the horizontal position, vertical position, phase
and clock setting.
第 1 頁，共 2 頁Installing Your LCD Monitor
2005-02-02file://O:\Jest\english\150b6\install\install.htm
RETURN TO TOP OF THE PAGE
Optimizing Performance
zFor best performance, ensure that your display settings are set at 1024x768, 60Hz.
zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the
best performance out of your monitor. This is included on this CD. Step-by-step instructions
are provided to guide you through the installtion process. Click on the link to know more
about this program.
More about FP_setup04.exe
1 Kensington anti-thief lock
2 VGA input
3 DVI-D input
4 AC power input
5 PC audio input
6 Earphone jack
Note: You can check the current display settings by pressing the 'OK'
button once. The current display mode is shown in OSD main controls
called RESOLUTION.
第 2 頁，共 2 頁Installing Your LCD Monitor
2005-02-02file://O:\Jest\english\150b6\install\install.htm
Federal Communications Commission (FCC) Notice (U.S. Only)
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
zConsult the dealer or an experienced radio/TV technician for help.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a
computer device.
To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain
or excessive moisture.
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.
RETURN TO TOP OF THE PAGE
Commission Federale de la Communication (FCC Declaration)
zRéorienter ou déplacer l'antenne de réception.
zAugmenter la distance entre l'équipement et le récepteur.
zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur.
zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Cet équipement a été testé et déclaré conforme auxlimites des appareils
numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces
limites sont conçues de façon à fourir une protection raisonnable contre les
interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil
produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas
installé et utilisé selon les consignes données, peuvent causer des interférences
nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence
d'interférences dans le cadre d'une installation particulière. Si cet appareil est la
cause d'interférences nuisibles pour la réception des signaux de radio ou de
télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant
en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les
mesures suivantes:
第 1 頁，共 2 頁Regulatory Information
2005-02-02file://O:\Jest\english\150b6\safety\regs\regulat.htm
N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.
CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU
REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.
RETURN TO TOP OF THE PAGE
Toutes modifications n'ayant pas reçu l'approbation des services compétents en
matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent
équipement.
第 2 頁，共 2 頁Regulatory Information
2005-02-02file://O:\Jest\english\150b6\safety\regs\regulat.htm
