Philips Electronics M141 Flat Panel Color Monitor User Manual 190B6

Philips Electronics Industries (Taiwan) Ltd Flat Panel Color Monitor Users Manual 190B6

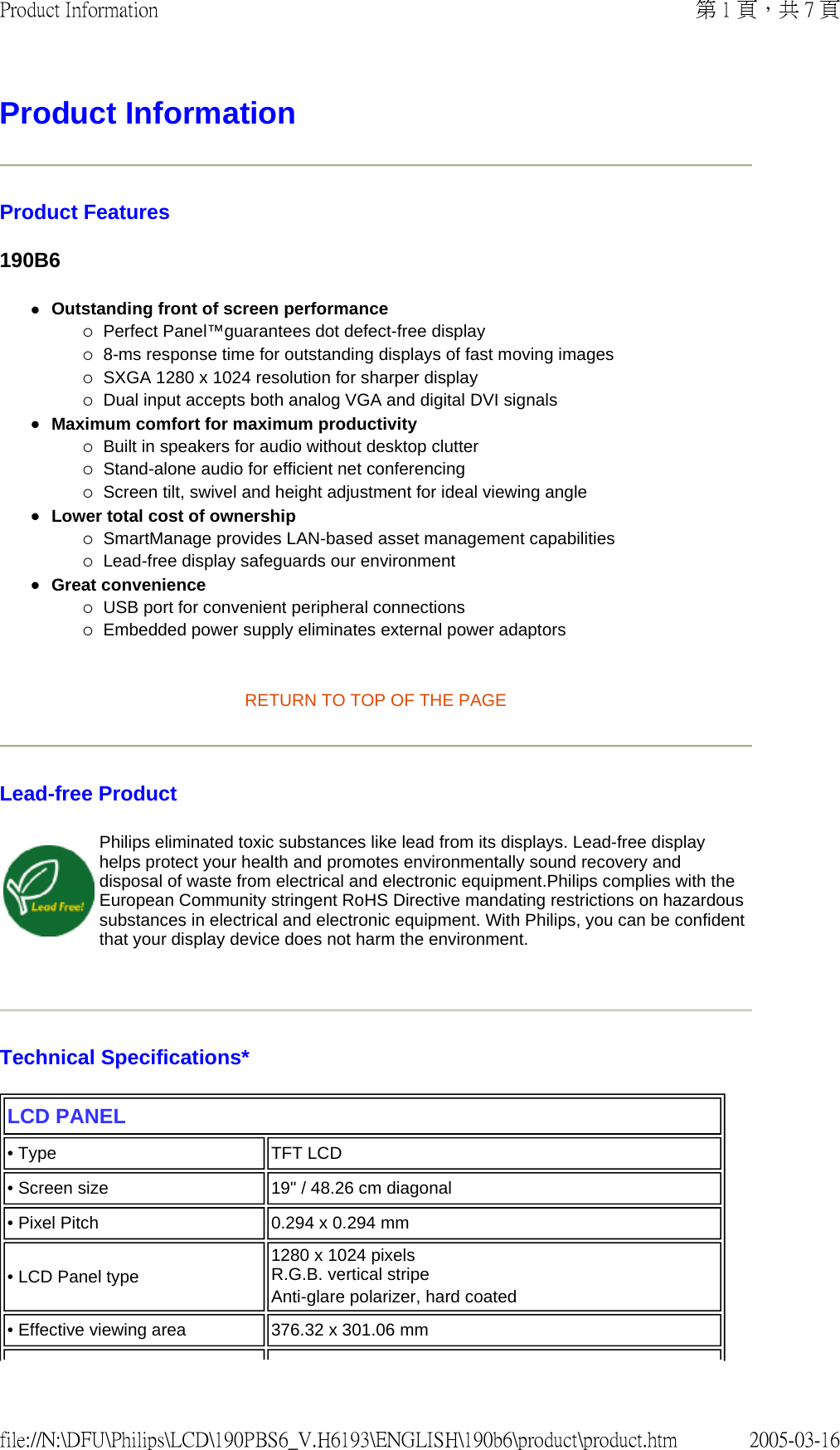

$Product Information Product Features 190B6 zOutstanding front of screen performance {Perfect Panel™guarantees dot defect-free display {8-ms response time for outstanding displays of fast moving images {SXGA 1280 x 1024 resolution for sharper display {Dual input accepts both analog VGA and digital DVI signals zMaximum comfort for maximum productivity {Built in speakers for audio without desktop clutter {Stand-alone audio for efficient net conferencing {Screen tilt, swivel and height adjustment for ideal viewing angle zLower total cost of ownership {SmartManage provides LAN-based asset management capabilities {Lead-free display safeguards our environment zGreat convenience {USB port for convenient peripheral connections {Embedded power supply eliminates external power adaptors RETURN TO TOP OF THE PAGE Lead-free Product Technical Specifications* Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment.Philips complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment. With Philips, you can be confident that your display device does not harm the environment.LCD PANEL • Type TFT LCD• Screen size 19" / 48.26 cm diagonal• Pixel Pitch 0.294 x 0.294 mm• LCD Panel type 1280 x 1024 pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated • Effective viewing area 376.32 x 301.06 mm第 1 頁，共 7 頁Product Information2005-03-16file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190b6\product\product.htm$

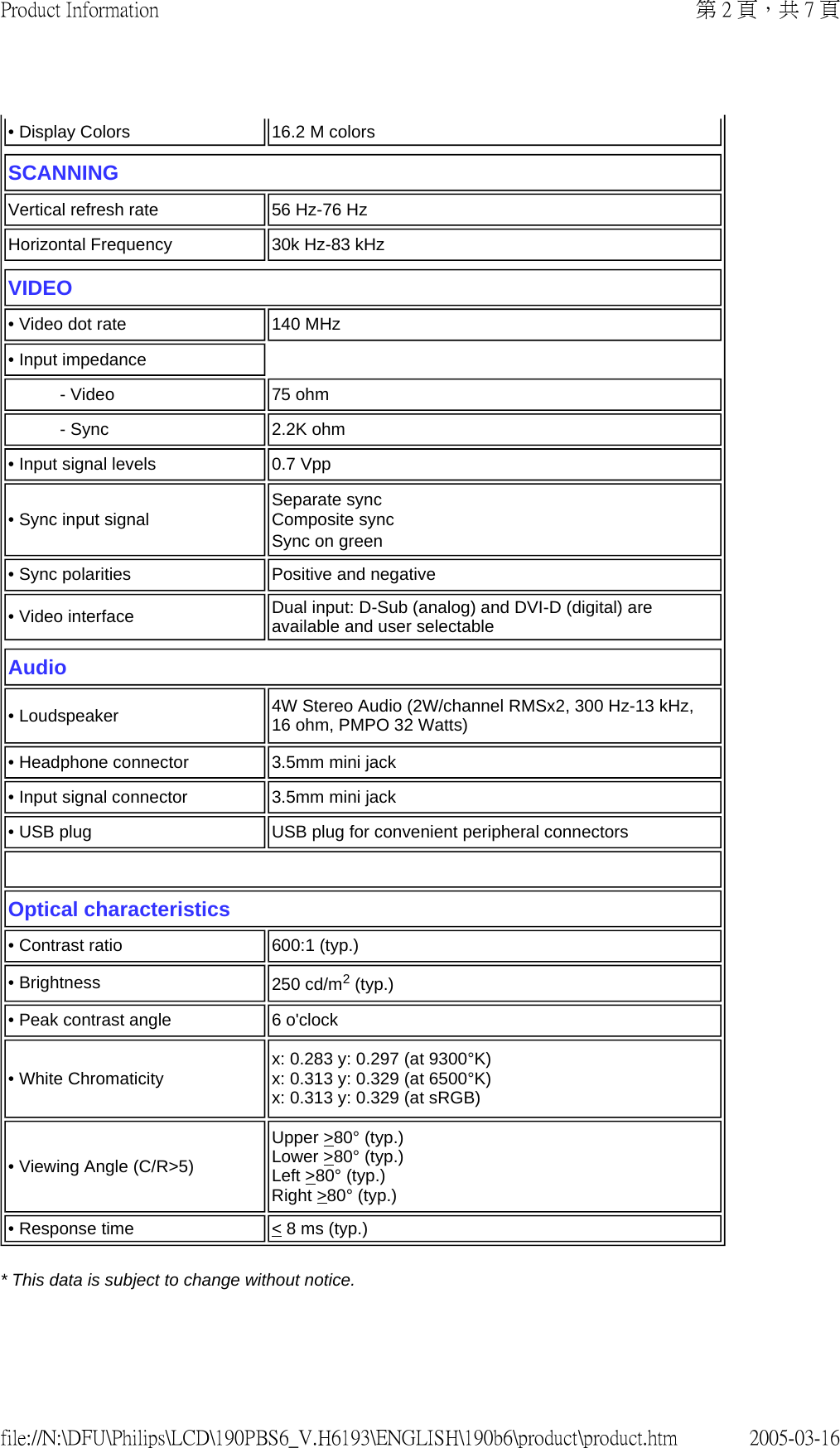

$* This data is subject to change without notice. • Display Colors 16.2 M colorsSCANNINGVertical refresh rate 56 Hz-76 HzHorizontal Frequency 30k Hz-83 kHzVIDEO • Video dot rate 140 MHz• Input impedance- Video 75 ohm- Sync 2.2K ohm• Input signal levels 0.7 Vpp• Sync input signal Separate sync Composite sync Sync on green • Sync polarities Positive and negative• Video interface Dual input: D-Sub (analog) and DVI-D (digital) are available and user selectableAudio • Loudspeaker 4W Stereo Audio (2W/channel RMSx2, 300 Hz-13 kHz, 16 ohm, PMPO 32 Watts)• Headphone connector 3.5mm mini jack• Input signal connector 3.5mm mini jack• USB plug USB plug for convenient peripheral connectors Optical characteristics • Contrast ratio 600:1 (typ.) • Brightness 250 cd/m2 (typ.)• Peak contrast angle 6 o'clock• White Chromaticity x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) x: 0.313 y: 0.329 (at sRGB) • Viewing Angle (C/R>5) Upper >80° (typ.) Lower >80° (typ.) Left >80° (typ.) Right >80° (typ.)• Response time < 8 ms (typ.) 第 2 頁，共 7 頁Product Information2005-03-16file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190b6\product\product.htm$

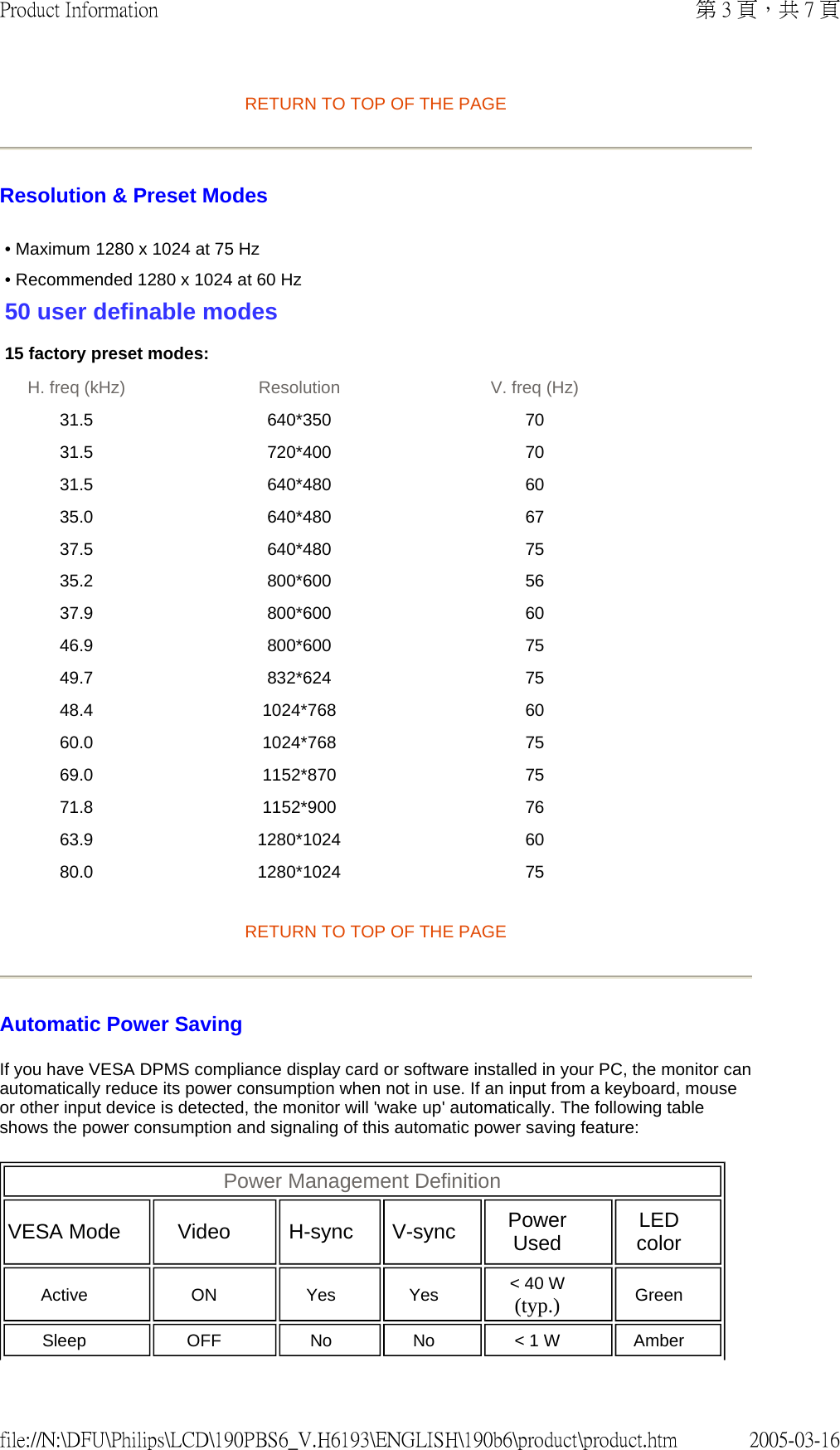

$RETURN TO TOP OF THE PAGEResolution & Preset Modes RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: • Maximum 1280 x 1024 at 75 Hz • Recommended 1280 x 1024 at 60 Hz 50 user definable modes 15 factory preset modes:H. freq (kHz) Resolution V. freq (Hz) 31.5 640*350 70 31.5 720*400 70 31.5 640*480 60 35.0 640*480 67 37.5 640*480 75 35.2 800*600 56 37.9 800*600 60 46.9 800*600 75 49.7 832*624 75 48.4 1024*768 60 60.0 1024*768 75 69.0 1152*870 75 71.8 1152*900 76 63.9 1280*1024 60 80.0 1280*1024 75 Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color Active ON Yes Yes < 40 W (typ.) Green Sleep OFF No No < 1 W Amber 第 3 頁，共 7 頁Product Information2005-03-16file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190b6\product\product.htm$

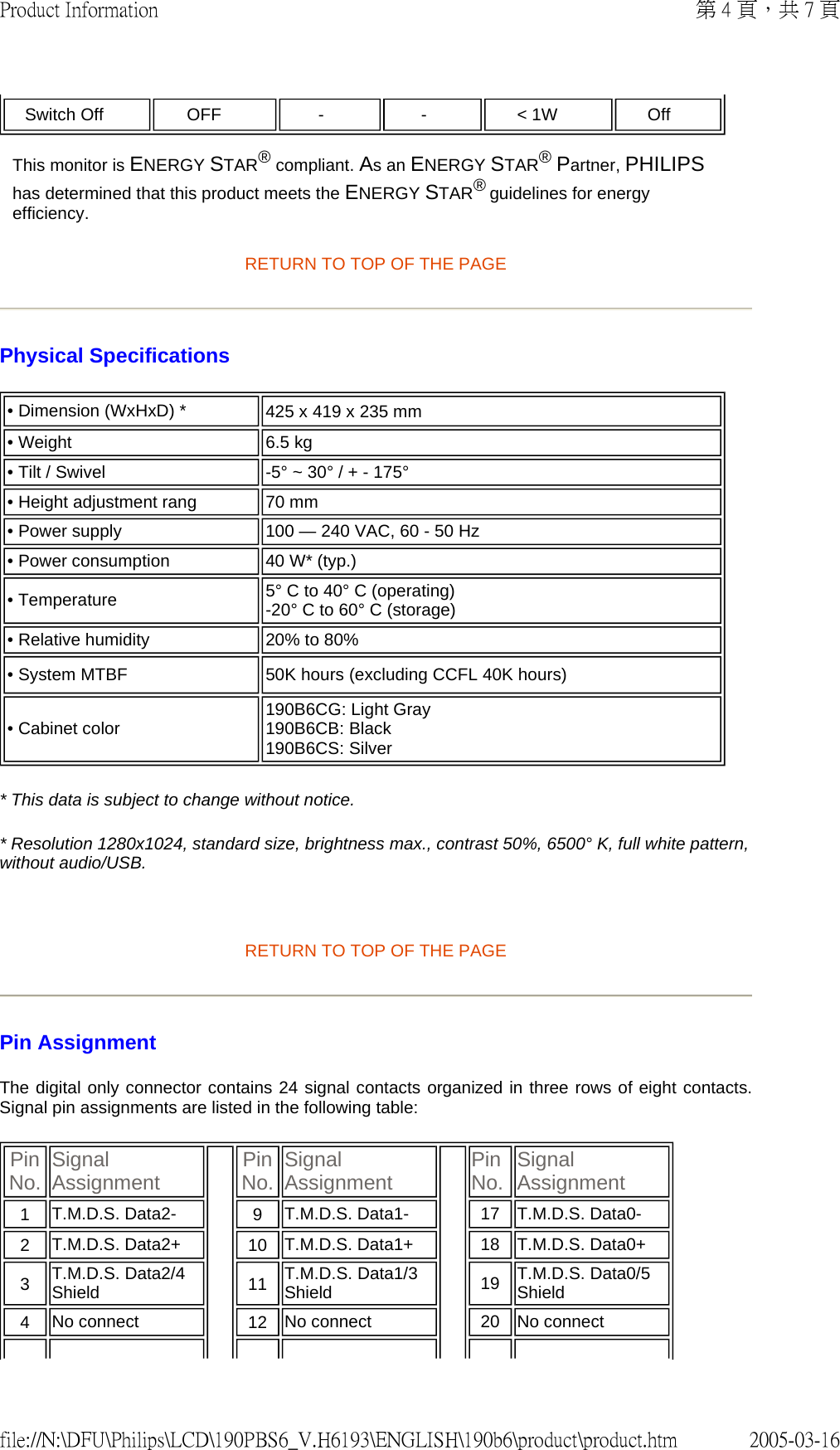

$RETURN TO TOP OF THE PAGE Physical Specifications * This data is subject to change without notice. * Resolution 1280x1024, standard size, brightness max., contrast 50%, 6500° K, full white pattern, without audio/USB. RETURN TO TOP OF THE PAGE Pin Assignment The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: Switch Off OFF - -< 1W Off This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.• Dimension (WxHxD) * 425 x 419 x 235 mm • Weight 6.5 kg • Tilt / Swivel -5° ~ 30° / + - 175° • Height adjustment rang 70 mm• Power supply 100 — 240 VAC, 60 - 50 Hz• Power consumption 40 W* (typ.) • Temperature 5° C to 40° C (operating) -20° C to 60° C (storage)• Relative humidity 20% to 80%• System MTBF 50K hours (excluding CCFL 40K hours)• Cabinet color 190B6CG: Light Gray 190B6CB: Black 190B6CS: SilverPin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield4 No connect 12 No connect 20 No connect 第 4 頁，共 7 頁Product Information2005-03-16file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190b6\product\product.htm$

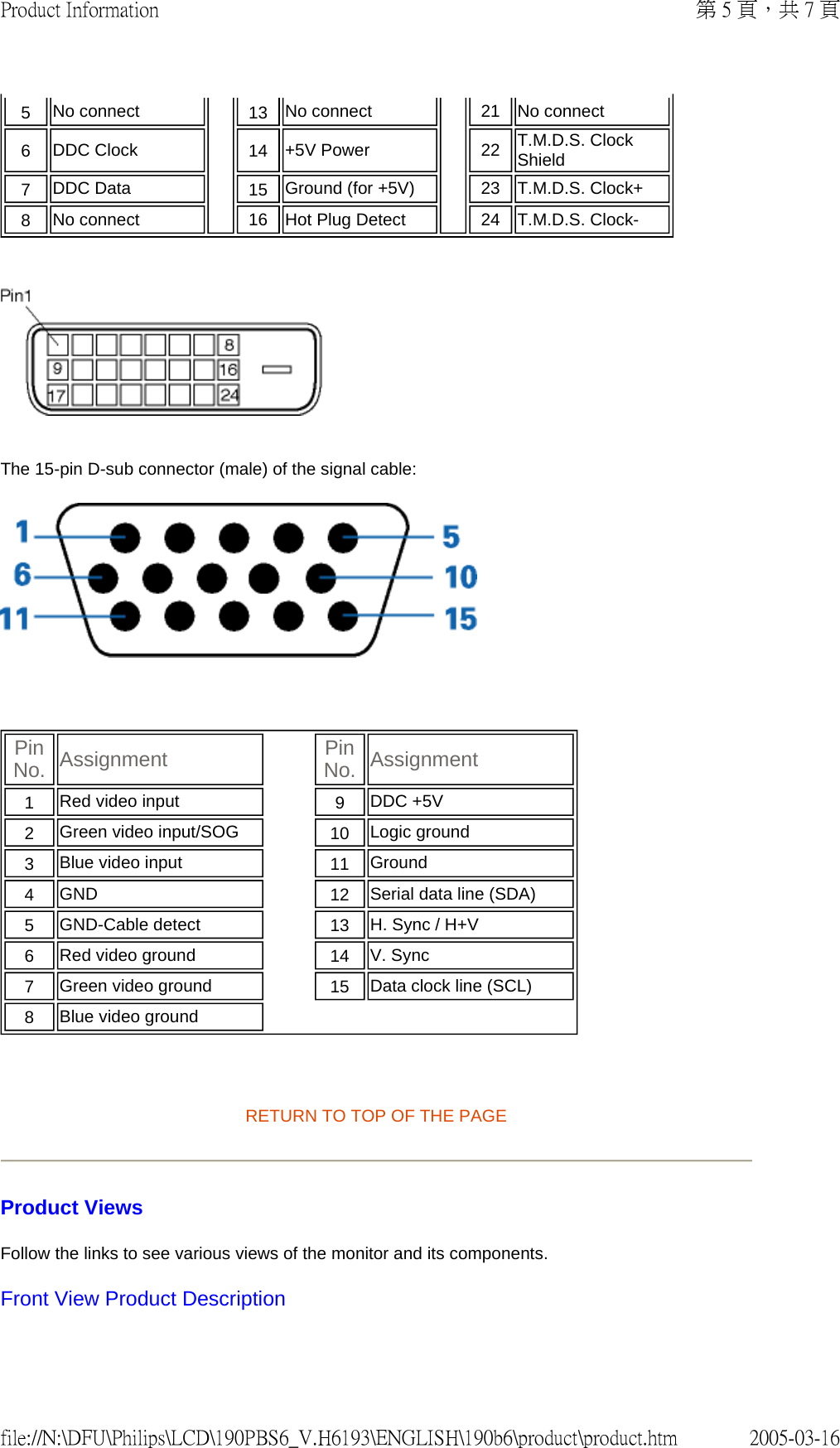

$The 15-pin D-sub connector (male) of the signal cable: RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description 5 No connect 13 No connect 21 No connect 6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+8 No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-Pin No. Assignment Pin No. Assignment1 Red video input 9 DDC +5V2 Green video input/SOG 10 Logic ground3 Blue video input 11 Ground4 GND 12 Serial data line (SDA)5 GND-Cable detect 13 H. Sync / H+V6 Red video ground 14 V. Sync7 Green video ground 15 Data clock line (SCL)8 Blue video ground第 5 頁，共 7 頁Product Information2005-03-16file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190b6\product\product.htm$

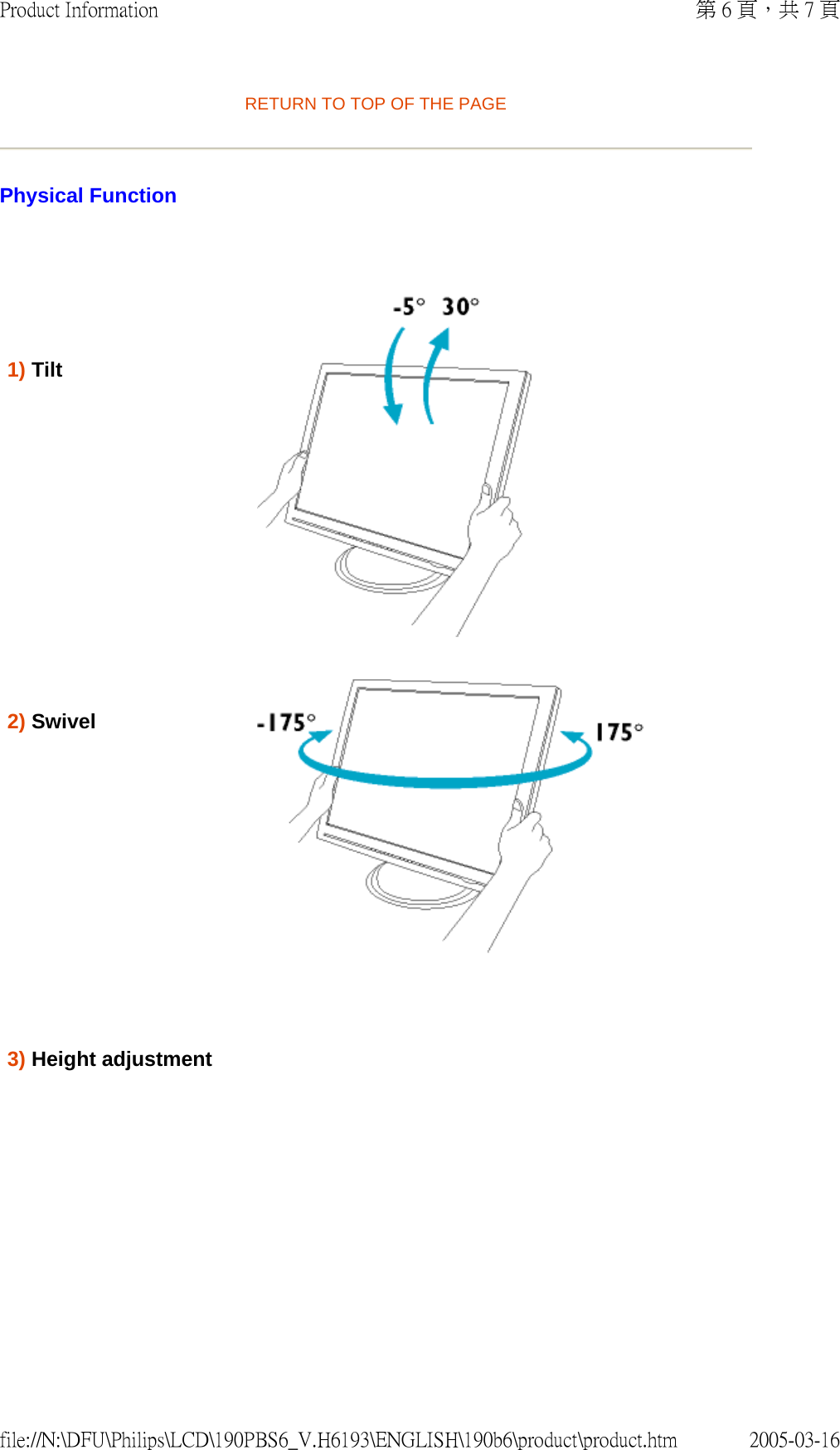

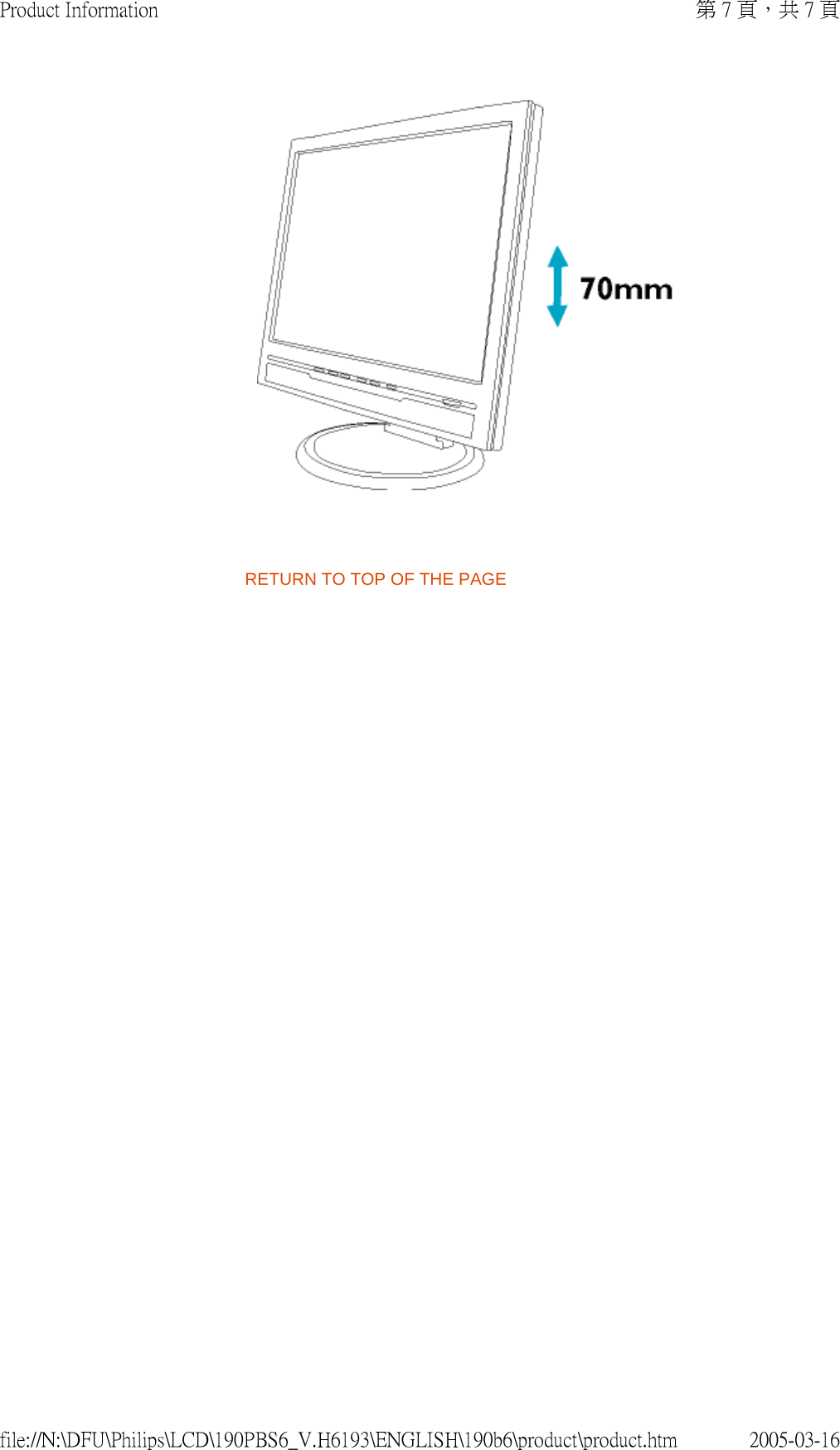

$RETURN TO TOP OF THE PAGEPhysical Function 1) Tilt 2) Swivel 3) Height adjustment 第 6 頁，共 7 頁Product Information2005-03-16file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190b6\product\product.htm$

$RETURN TO TOP OF THE PAGE第 7 頁，共 7 頁Product Information2005-03-16file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190b6\product\product.htm$

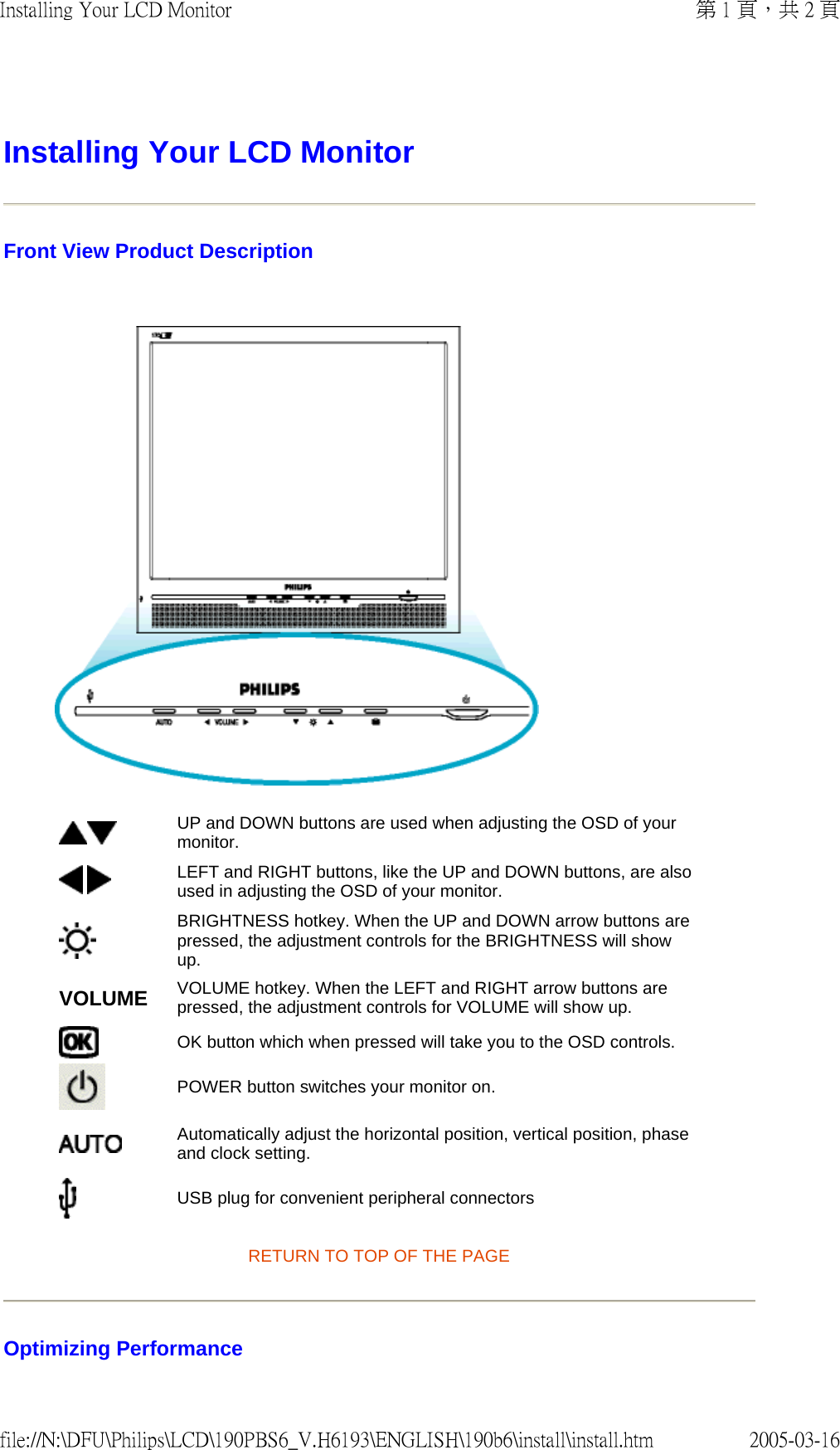

$Installing Your LCD Monitor Front View Product Description RETURN TO TOP OF THE PAGE Optimizing Performance UP and DOWN buttons are used when adjusting the OSD of your monitor. LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor.BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are pressed, the adjustment controls for the BRIGHTNESS will show up.VOLUME VOLUME hotkey. When the LEFT and RIGHT arrow buttons are pressed, the adjustment controls for VOLUME will show up.OK button which when pressed will take you to the OSD controls.POWER button switches your monitor on.Automatically adjust the horizontal position, vertical position, phase and clock setting. USB plug for convenient peripheral connectors第 1 頁，共 2 頁Installing Your LCD Monitor2005-03-16file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190b6\install\install.htm$

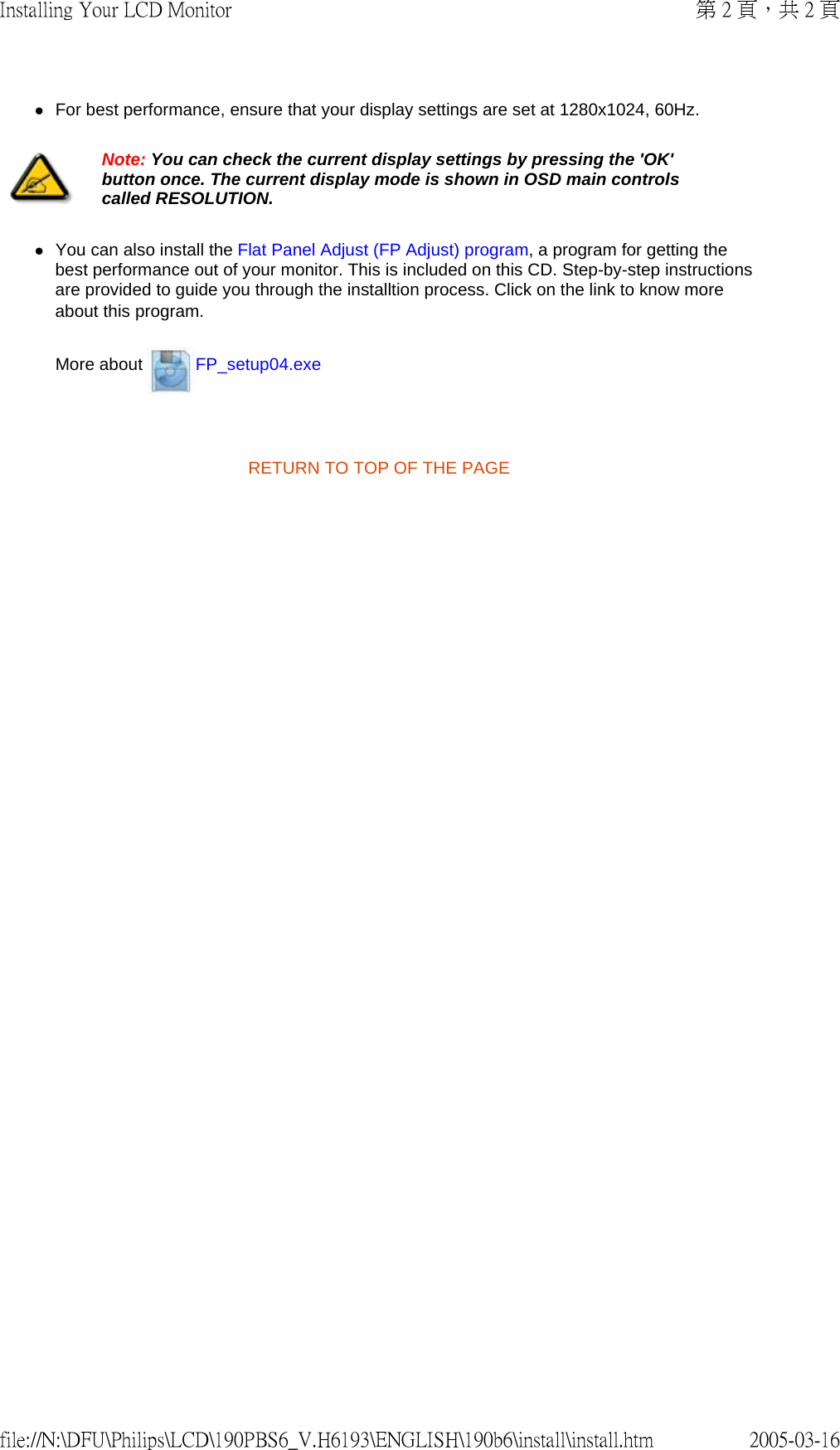

$zFor best performance, ensure that your display settings are set at 1280x1024, 60Hz. zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor. This is included on this CD. Step-by-step instructions are provided to guide you through the installtion process. Click on the link to know more about this program. More about FP_setup04.exe RETURN TO TOP OF THE PAGE Note: You can check the current display settings by pressing the 'OK' button once. The current display mode is shown in OSD main controls called RESOLUTION.第 2 頁，共 2 頁Installing Your LCD Monitor2005-03-16file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190b6\install\install.htm$

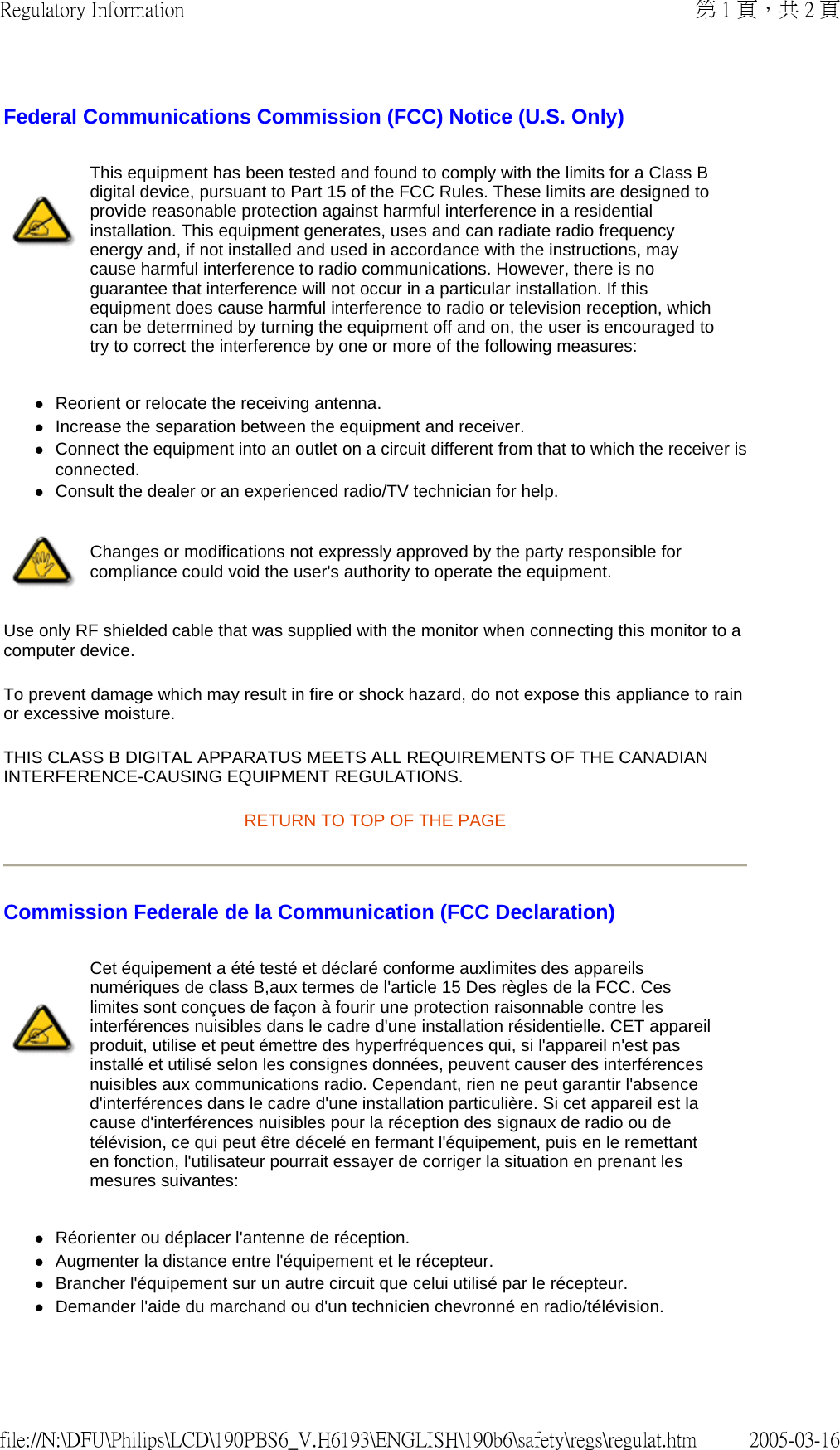

$Federal Communications Commission (FCC) Notice (U.S. Only) zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration) zRéorienter ou déplacer l'antenne de réception. zAugmenter la distance entre l'équipement et le récepteur. zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes: 第 1 頁，共 2 頁Regulatory Information2005-03-16file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190b6\safety\regs\regulat.htm$

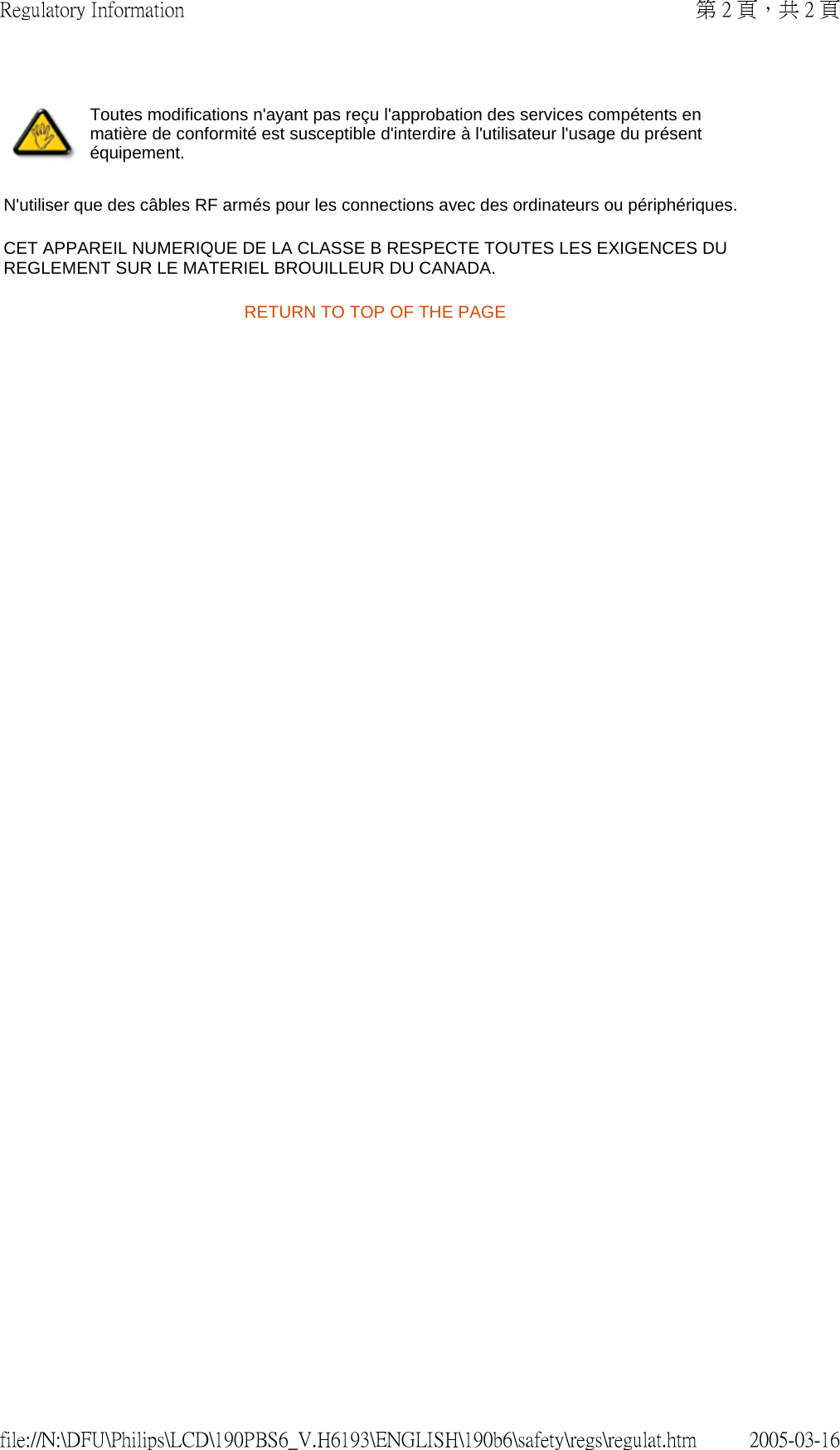

$N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGE Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.第 2 頁，共 2 頁Regulatory Information2005-03-16file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190b6\safety\regs\regulat.htm$
