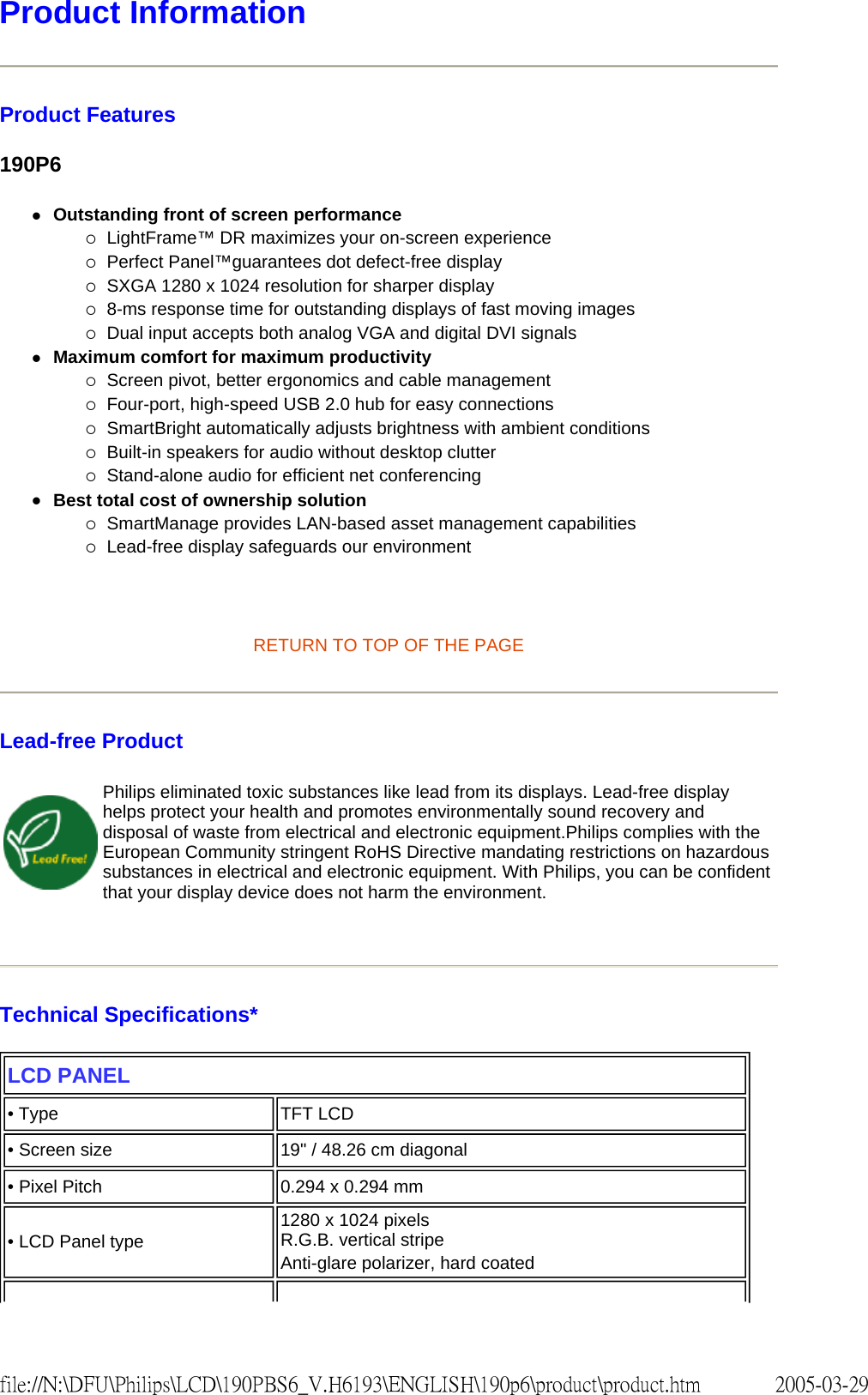

$Product Information Product Features 190P6 zOutstanding front of screen performance {LightFrame™ DR maximizes your on-screen experience {Perfect Panel™guarantees dot defect-free display {SXGA 1280 x 1024 resolution for sharper display {8-ms response time for outstanding displays of fast moving images {Dual input accepts both analog VGA and digital DVI signals zMaximum comfort for maximum productivity {Screen pivot, better ergonomics and cable management {Four-port, high-speed USB 2.0 hub for easy connections {SmartBright automatically adjusts brightness with ambient conditions {Built-in speakers for audio without desktop clutter {Stand-alone audio for efficient net conferencing zBest total cost of ownership solution {SmartManage provides LAN-based asset management capabilities {Lead-free display safeguards our environment RETURN TO TOP OF THE PAGE Lead-free Product Technical Specifications* Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment.Philips complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment. With Philips, you can be confident that your display device does not harm the environment.LCD PANEL • Type TFT LCD• Screen size 19" / 48.26 cm diagonal• Pixel Pitch 0.294 x 0.294 mm• LCD Panel type 1280 x 1024 pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated 2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\product\product.htm$

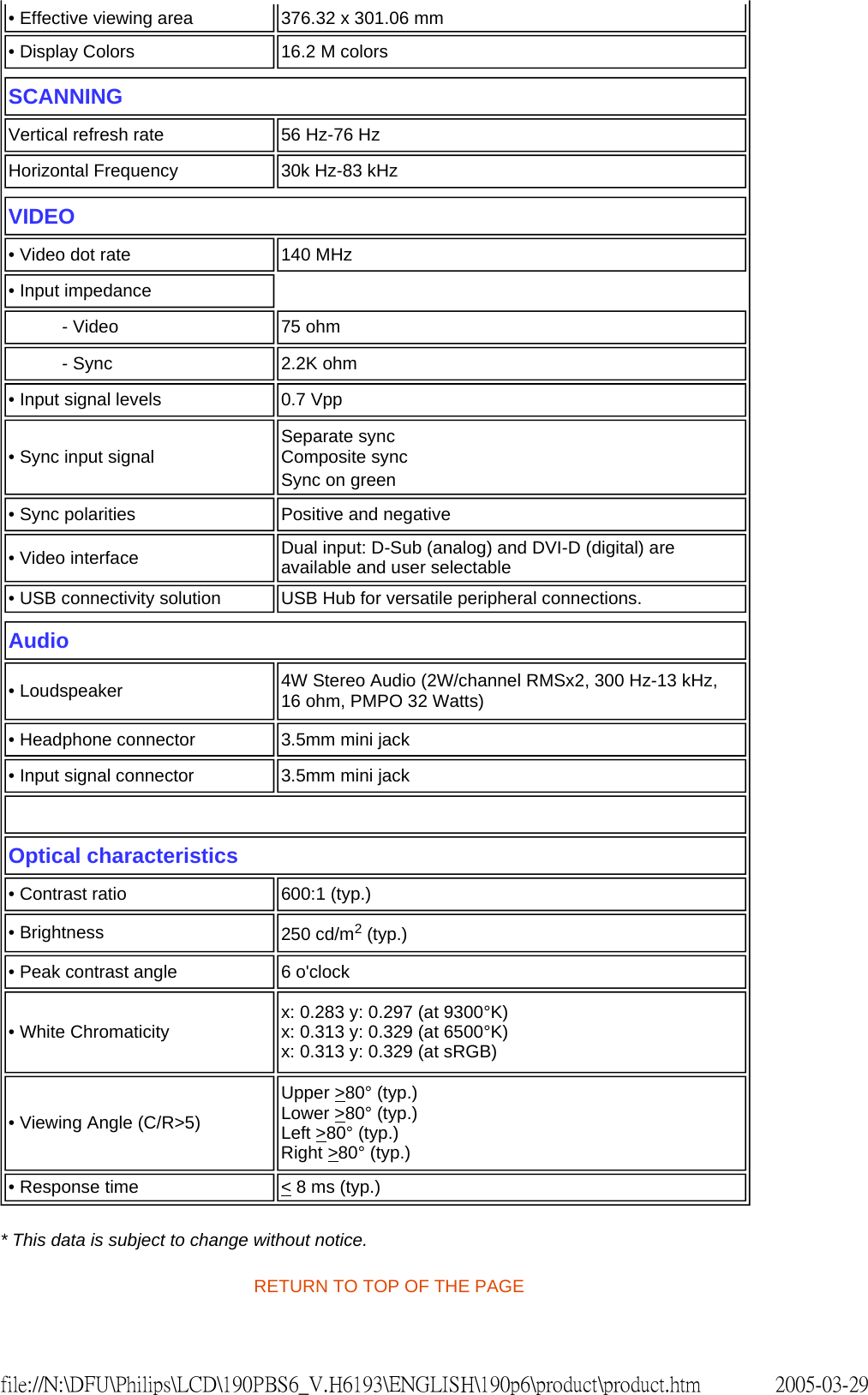

$* This data is subject to change without notice. RETURN TO TOP OF THE PAGE • Effective viewing area 376.32 x 301.06 mm• Display Colors 16.2 M colorsSCANNINGVertical refresh rate 56 Hz-76 HzHorizontal Frequency 30k Hz-83 kHzVIDEO • Video dot rate 140 MHz• Input impedance- Video 75 ohm- Sync 2.2K ohm• Input signal levels 0.7 Vpp• Sync input signal Separate sync Composite sync Sync on green • Sync polarities Positive and negative• Video interface Dual input: D-Sub (analog) and DVI-D (digital) are available and user selectable• USB connectivity solution USB Hub for versatile peripheral connections. Audio • Loudspeaker 4W Stereo Audio (2W/channel RMSx2, 300 Hz-13 kHz, 16 ohm, PMPO 32 Watts)• Headphone connector 3.5mm mini jack• Input signal connector 3.5mm mini jack Optical characteristics • Contrast ratio 600:1 (typ.) • Brightness 250 cd/m2 (typ.)• Peak contrast angle 6 o'clock• White Chromaticity x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) x: 0.313 y: 0.329 (at sRGB) • Viewing Angle (C/R>5) Upper >80° (typ.) Lower >80° (typ.) Left >80° (typ.) Right >80° (typ.)• Response time < 8 ms (typ.) 2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\product\product.htm$

$LightFrameTM Digital Reality (LightFrameTM DR) for Windows Introduction Philips LightFrameTM DR feature enriches your photo and video experience with preset modes ideal for your favorite applications: Internet, TV/video viewing, photos and gaming. The LightFrameTM DR engine optimizes brightness, sharpness, contrast, color, JPG noise for photos and skin tone for videos. Installation First things first: Philips LightFrameTM DR only works with latest Philips LCD Monitor which is sepcially built to use this software. That is LightFrameTM DR can only work on 170X5,190X5 or 170P6/190P6 or later version LCD monitor. Earlier Philips monitors or other manufacturers' monitors will not work with this picture enhancement software. You can identify compatible Philips monitors by the LightFrame logo on the front of the monitor. LightFrameTM DR works with true Windows-based programs and DOS-based programs that operate in a Windows environment. It does not work with DOS-based programs operating only in a DOS environment. To control the LightFrameTM DR feature in your monitor, you'll want install the LightFrameTM DR application found on this CD-ROM. To install LightFrameTM DR, place the CD in your CD-ROM drive. When the CD menu appears on your screen, 1) select preferred language 2) select model number (17P6 or 190P6) 3) click on Install LightFrameTM Digital Reality. Follow the on-screen prompts to properly install the program. The software checks to see if you have a compatible monitor. You must agree to the license terms in order to install the software. After installation, the LightFrameTM DR shortcut icon automatically appears at your desktop, click it to load the control bar on screen. Use Tips 1. Cursor with a yellow light bulb versus a blue light bulb Your mouse pointer takes the shape of a light bulb to indicate that LightFrameTM DR is ready to activate or deactivate a target window that contains photos, videos or other content that can be enhanced. A yellow light bulb means that you are moving over a window where LightFrameTM DR can be activated. Click on the window to activate enhancement. A blue light bulb appears when moving over an activated window. Click on the window to de-activate LightFrameTM DR. Cursor examples 2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\product\product.htm$

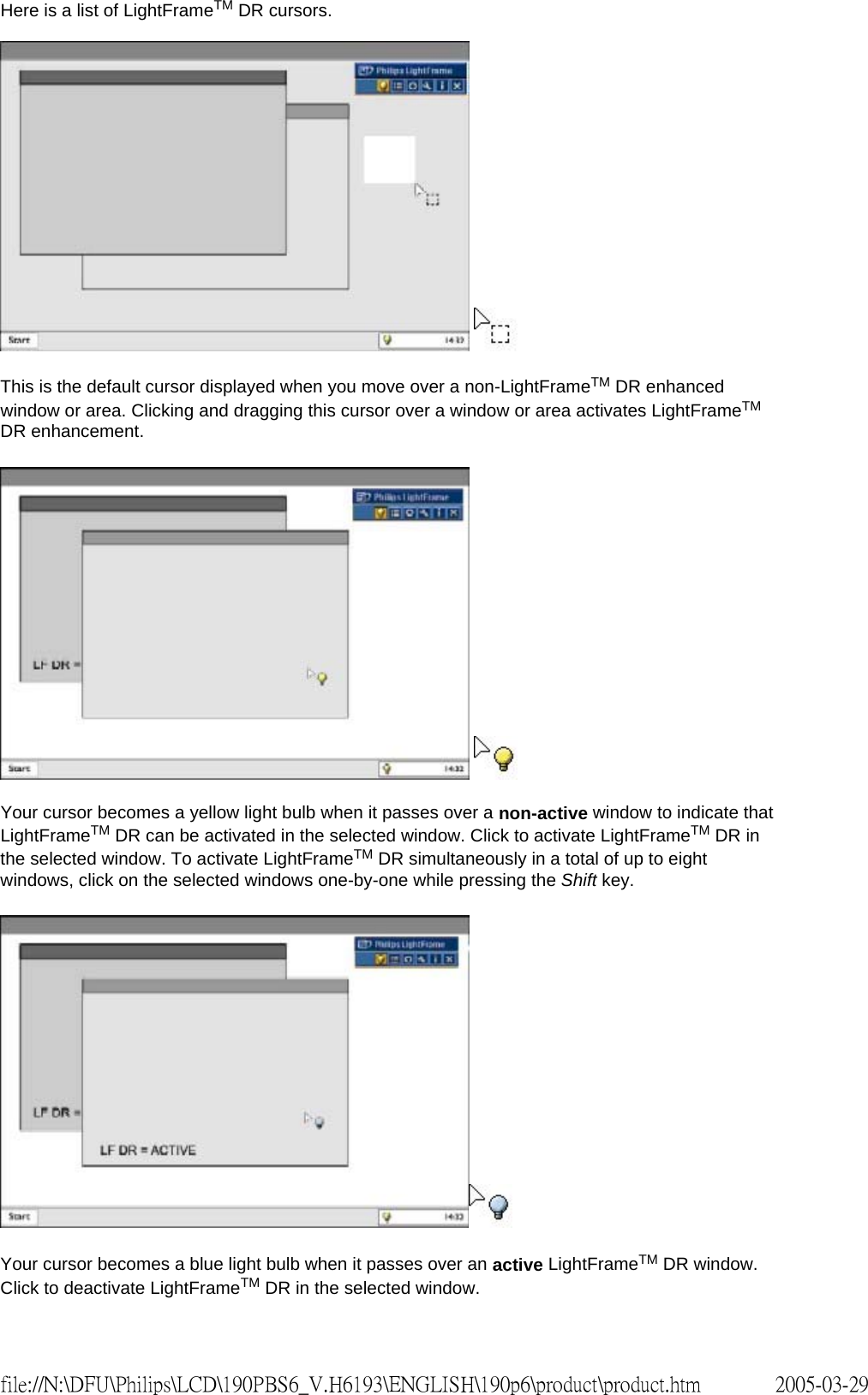

$Here is a list of LightFrameTM DR cursors. This is the default cursor displayed when you move over a non-LightFrameTM DR enhanced window or area. Clicking and dragging this cursor over a window or area activates LightFrameTM DR enhancement. Your cursor becomes a yellow light bulb when it passes over a non-active window to indicate that LightFrameTM DR can be activated in the selected window. Click to activate LightFrameTM DR in the selected window. To activate LightFrameTM DR simultaneously in a total of up to eight windows, click on the selected windows one-by-one while pressing the Shift key. Your cursor becomes a blue light bulb when it passes over an active LightFrameTM DR window. Click to deactivate LightFrameTM DR in the selected window. 2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\product\product.htm$

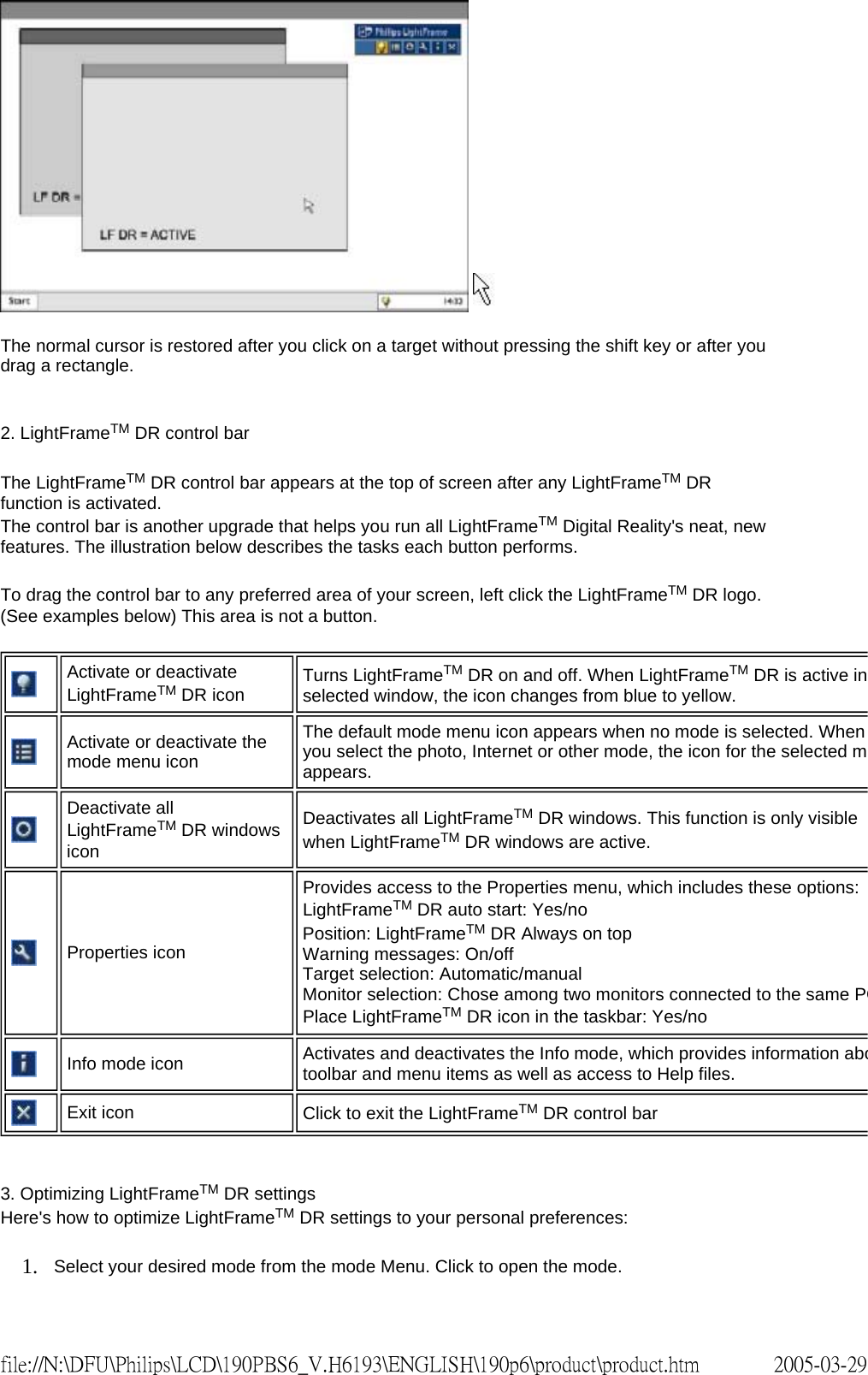

$The normal cursor is restored after you click on a target without pressing the shift key or after you drag a rectangle. 2. LightFrameTM DR control bar The LightFrameTM DR control bar appears at the top of screen after any LightFrameTM DR function is activated. The control bar is another upgrade that helps you run all LightFrameTM Digital Reality's neat, new features. The illustration below describes the tasks each button performs. To drag the control bar to any preferred area of your screen, left click the LightFrameTM DR logo. (See examples below) This area is not a button. 3. Optimizing LightFrameTM DR settings Here's how to optimize LightFrameTM DR settings to your personal preferences: 1. Select your desired mode from the mode Menu. Click to open the mode. Activate or deactivate LightFrameTM DR icon Turns LightFrameTM DR on and off. When LightFrameTM DR is active in selected window, the icon changes from blue to yellow.Activate or deactivate the mode menu iconThe default mode menu icon appears when no mode is selected. When you select the photo, Internet or other mode, the icon for the selected mappears. Deactivate all LightFrameTM DR windows iconDeactivates all LightFrameTM DR windows. This function is only visible when LightFrameTM DR windows are active.Properties iconProvides access to the Properties menu, which includes these options:LightFrameTM DR auto start: Yes/no Position: LightFrameTM DR Always on top Warning messages: On/off Target selection: Automatic/manual Monitor selection: Chose among two monitors connected to the same PCPlace LightFrameTM DR icon in the taskbar: Yes/noInfo mode icon Activates and deactivates the Info mode, which provides information abotoolbar and menu items as well as access to Help files.Exit icon Click to exit the LightFrameTM DR control bar2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\product\product.htm$

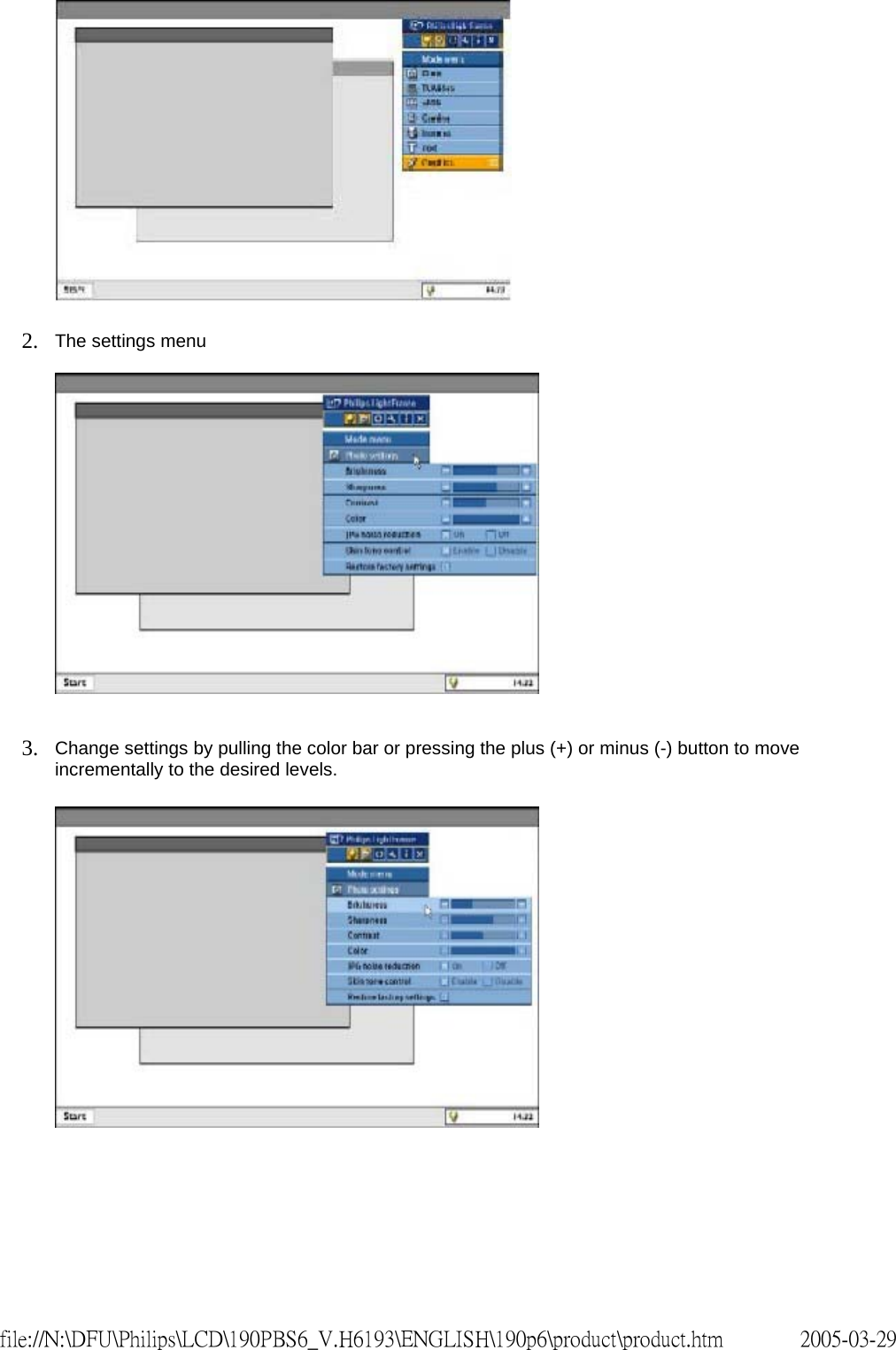

$2. The settings menu 3. Change settings by pulling the color bar or pressing the plus (+) or minus (-) button to move incrementally to the desired levels. 2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\product\product.htm$

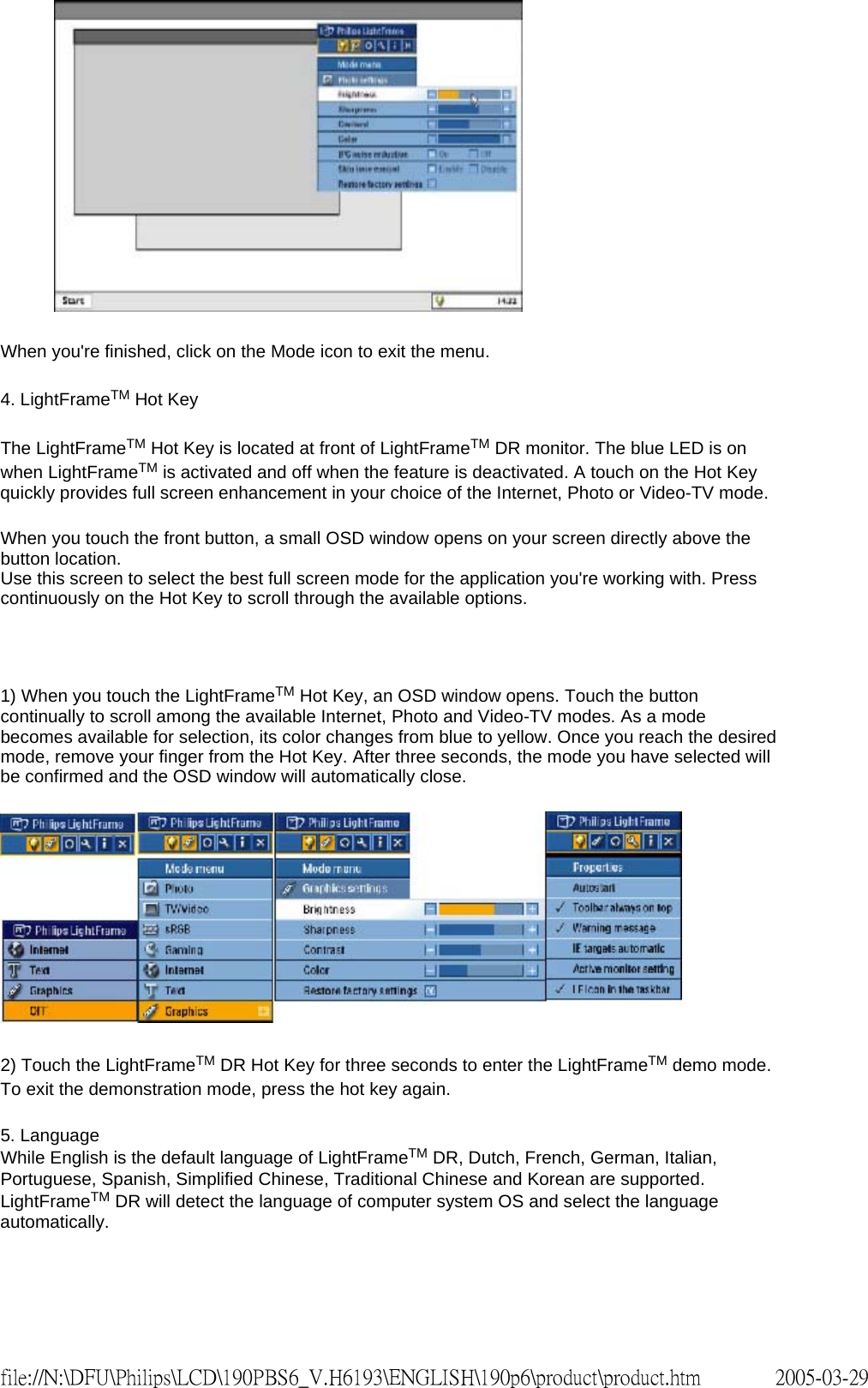

$When you're finished, click on the Mode icon to exit the menu. 4. LightFrameTM Hot Key The LightFrameTM Hot Key is located at front of LightFrameTM DR monitor. The blue LED is on when LightFrameTM is activated and off when the feature is deactivated. A touch on the Hot Key quickly provides full screen enhancement in your choice of the Internet, Photo or Video-TV mode. When you touch the front button, a small OSD window opens on your screen directly above the button location. Use this screen to select the best full screen mode for the application you're working with. Press continuously on the Hot Key to scroll through the available options. 1) When you touch the LightFrameTM Hot Key, an OSD window opens. Touch the button continually to scroll among the available Internet, Photo and Video-TV modes. As a mode becomes available for selection, its color changes from blue to yellow. Once you reach the desired mode, remove your finger from the Hot Key. After three seconds, the mode you have selected will be confirmed and the OSD window will automatically close. 2) Touch the LightFrameTM DR Hot Key for three seconds to enter the LightFrameTM demo mode. To exit the demonstration mode, press the hot key again. 5. Language While English is the default language of LightFrameTM DR, Dutch, French, German, Italian, Portuguese, Spanish, Simplified Chinese, Traditional Chinese and Korean are supported. LightFrameTM DR will detect the language of computer system OS and select the language automatically. 2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\product\product.htm$

$Notes Philips LightFrameTM DR only works with monitors specially built to use this software. If LightFrameTM DR detects that your monitor is not LightFrameTM DR-compatible, a message appears on the monitor screen. If you see this message, you can abort or continue the installation; however, if you continue the installation, LightFrameTM DR will probably not work on the monitor. How to use LightFrameTM DR After installation, LightFrameTM DR shortcut icon appears on your screen whenever the computer is started. To learn more about using LightFrameTM Digital Reality, please refer to the help information, which is available after installation. Compatibility This version of LightFrameTM DR is compatible with: Windows® XP Windows® 2000 Professional Edition with Service Pack 2 How to download your upgraded LF DR Installation file Visit http://www.philips.com/support RETURN TO TOP OF THE PAGE USB Connectivity Solution The USB (Universal Serial Bus) is a universal interface for peripherals to hot-swap with PCs. A four-port USB 2.0 hub located on a monitor converting a monitor into an USB host not only provides additional connectivity for USB peripherals, but also provides managed power to attached peripherals. It is a convenient and easy-to-use high-speed interface for data transfer between your PC and up to four USB peripherals. RETURN TO TOP OF THE PAGE SmartBright Ambient light is the general background light all around us that softens contrasts between brightly lighted task areas and the surrounding portions of the room. In most rooms, ambient light changes constantly, but changes in lighting can adversely effect display quality. Philips SmartBright automatically adjusts display brightness settings to correspond with ambient light conditions, delivering just the right level of brightness for optimal front-of-screen performance, maximum productivity and minimal fatigue. How to switch the setting 1.Choose the Smart Bright via More Setting in OSD menu. 2.Select the "On" "Off" setting.(default: Off) Note: Do not block the sensor when using this function. 2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\product\product.htm$

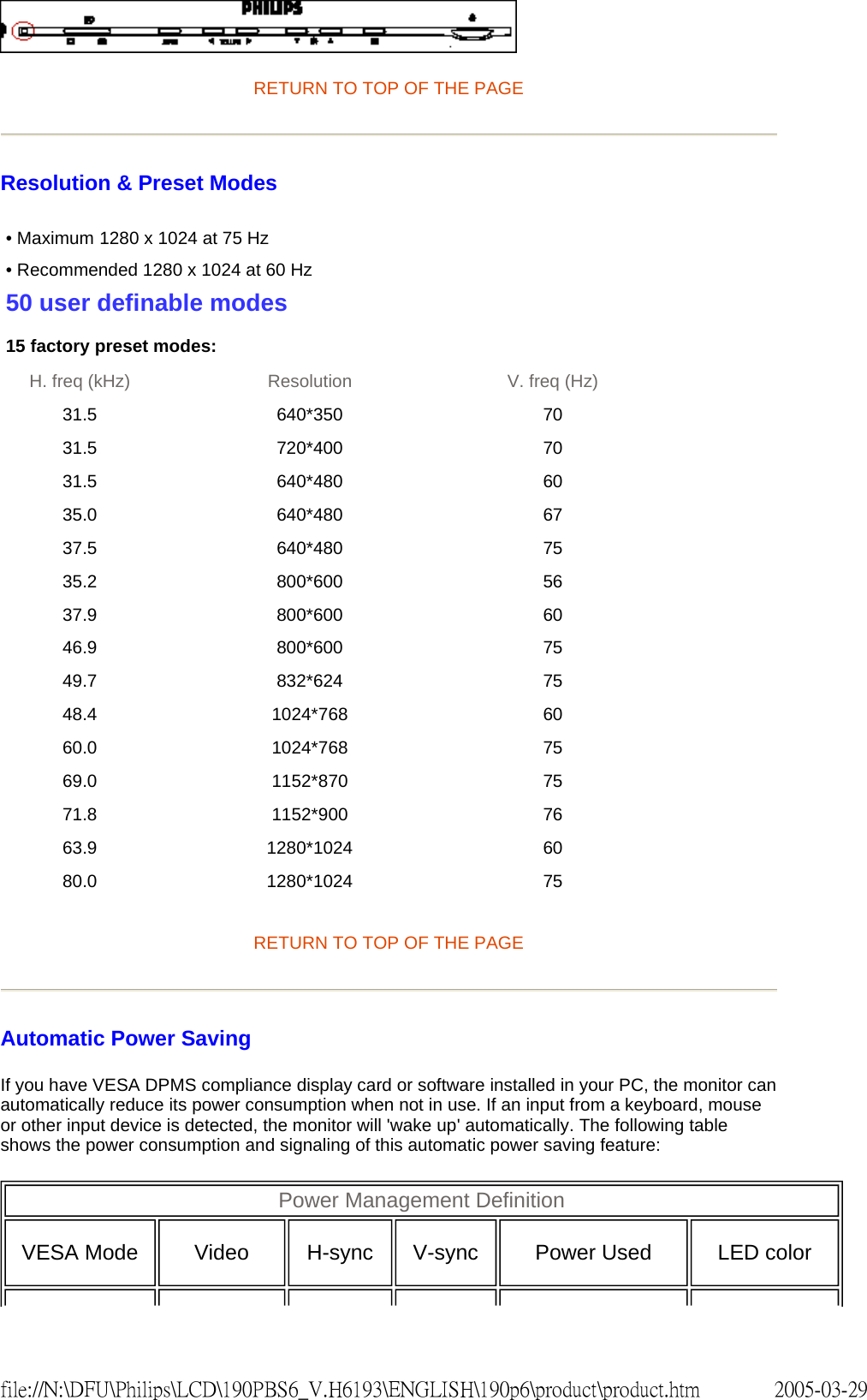

$RETURN TO TOP OF THE PAGE Resolution & Preset Modes RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: • Maximum 1280 x 1024 at 75 Hz • Recommended 1280 x 1024 at 60 Hz 50 user definable modes 15 factory preset modes:H. freq (kHz) Resolution V. freq (Hz) 31.5 640*350 70 31.5 720*400 70 31.5 640*480 60 35.0 640*480 67 37.5 640*480 75 35.2 800*600 56 37.9 800*600 60 46.9 800*600 75 49.7 832*624 75 48.4 1024*768 60 60.0 1024*768 75 69.0 1152*870 75 71.8 1152*900 76 63.9 1280*1024 60 80.0 1280*1024 75 Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color 2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\product\product.htm$

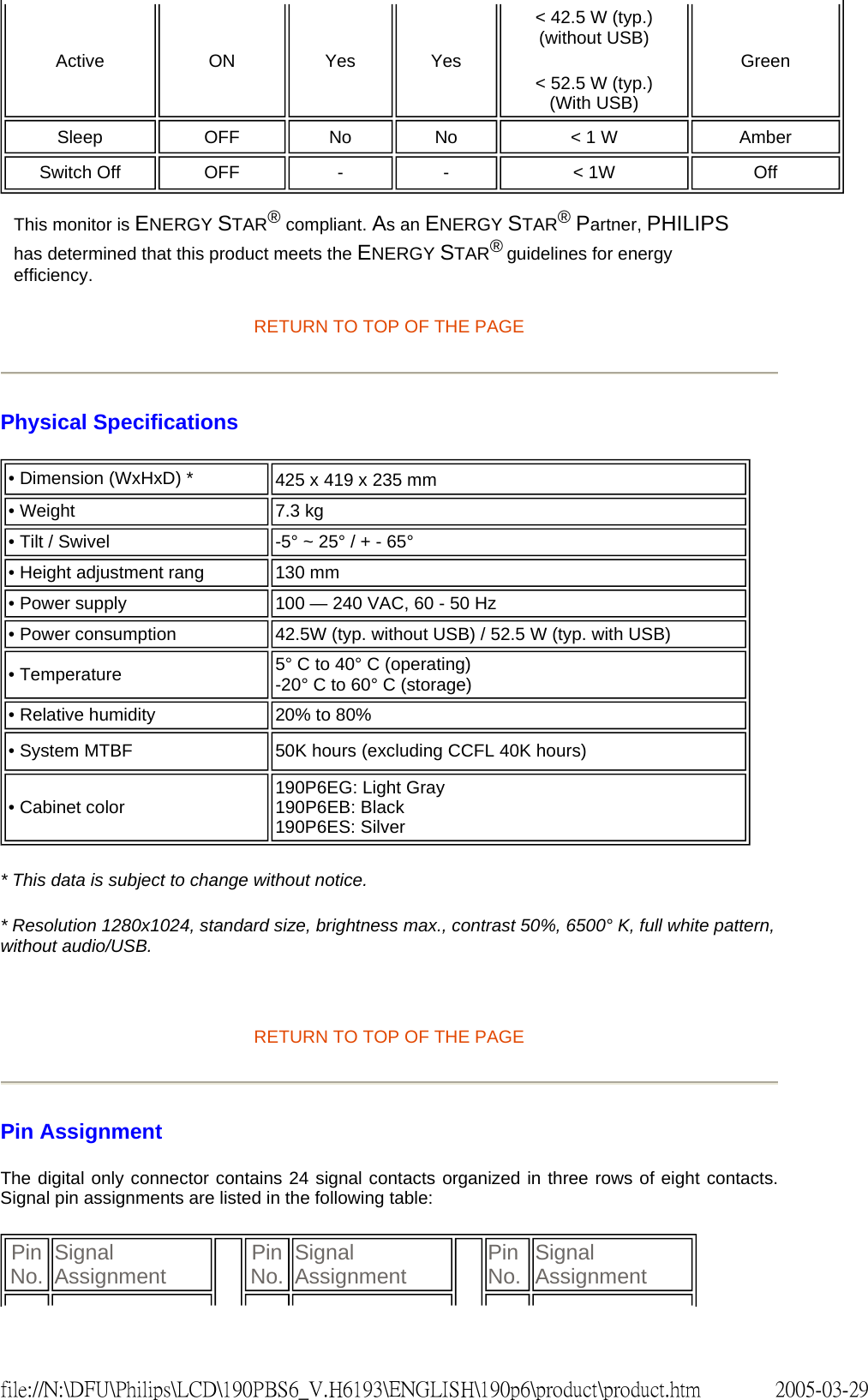

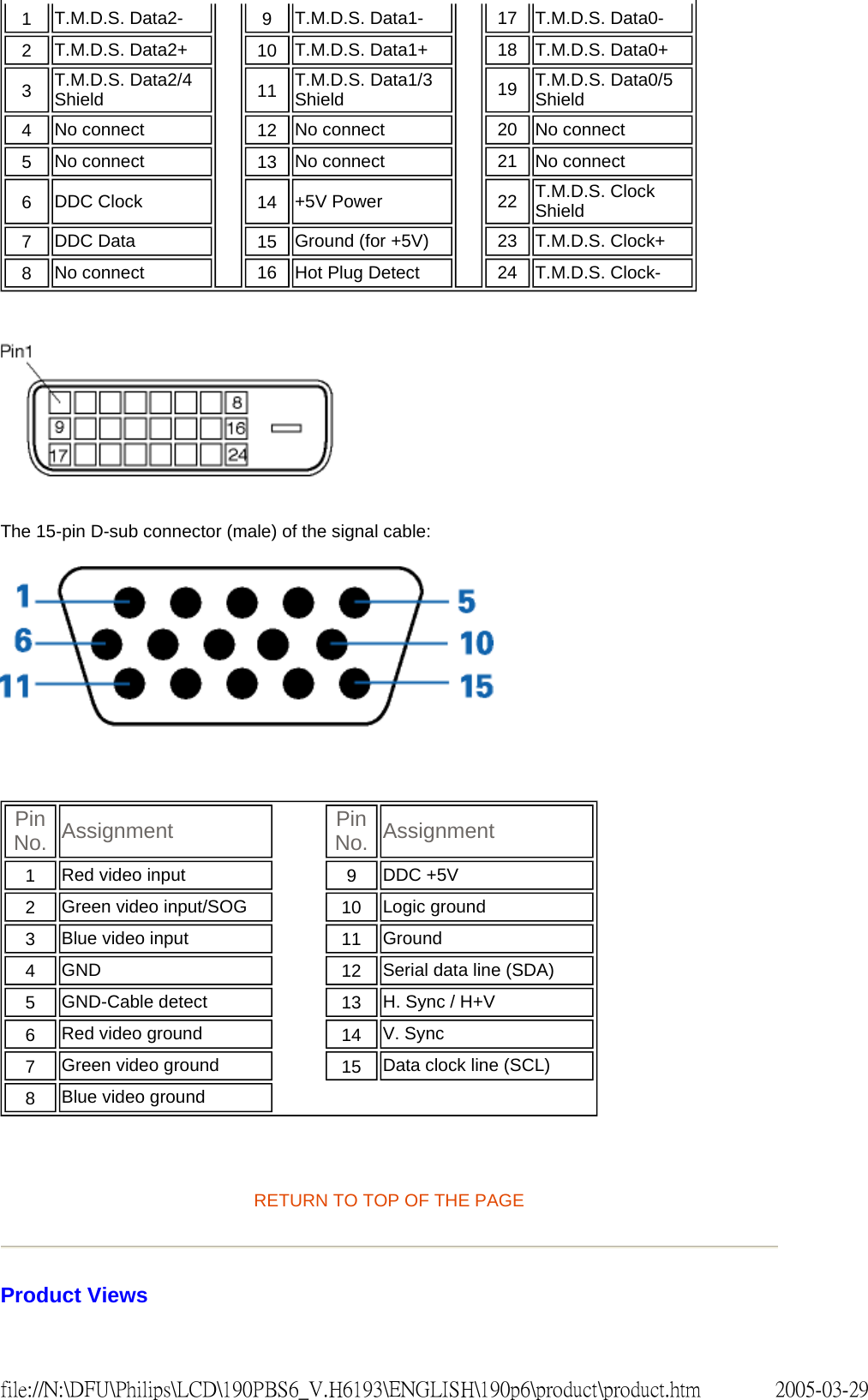

$RETURN TO TOP OF THE PAGE Physical Specifications * This data is subject to change without notice. * Resolution 1280x1024, standard size, brightness max., contrast 50%, 6500° K, full white pattern, without audio/USB. RETURN TO TOP OF THE PAGE Pin Assignment The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: Active ON Yes Yes < 42.5 W (typ.) (without USB) < 52.5 W (typ.) (With USB) Green Sleep OFF No No < 1 W Amber Switch Off OFF - - < 1W Off This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.• Dimension (WxHxD) * 425 x 419 x 235 mm • Weight 7.3 kg • Tilt / Swivel -5° ~ 25° / + - 65° • Height adjustment rang 130 mm• Power supply 100 — 240 VAC, 60 - 50 Hz• Power consumption 42.5W (typ. without USB) / 52.5 W (typ. with USB)• Temperature 5° C to 40° C (operating) -20° C to 60° C (storage)• Relative humidity 20% to 80%• System MTBF 50K hours (excluding CCFL 40K hours)• Cabinet color 190P6EG: Light Gray 190P6EB: Black 190P6ES: SilverPin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\product\product.htm$

$The 15-pin D-sub connector (male) of the signal cable: RETURN TO TOP OF THE PAGE Product Views 1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield4 No connect 12 No connect 20 No connect 5 No connect 13 No connect 21 No connect 6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+8 No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-Pin No. Assignment Pin No. Assignment1 Red video input 9 DDC +5V2 Green video input/SOG 10 Logic ground3 Blue video input 11 Ground4 GND 12 Serial data line (SDA)5 GND-Cable detect 13 H. Sync / H+V6 Red video ground 14 V. Sync7 Green video ground 15 Data clock line (SCL)8 Blue video ground2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\product\product.htm$

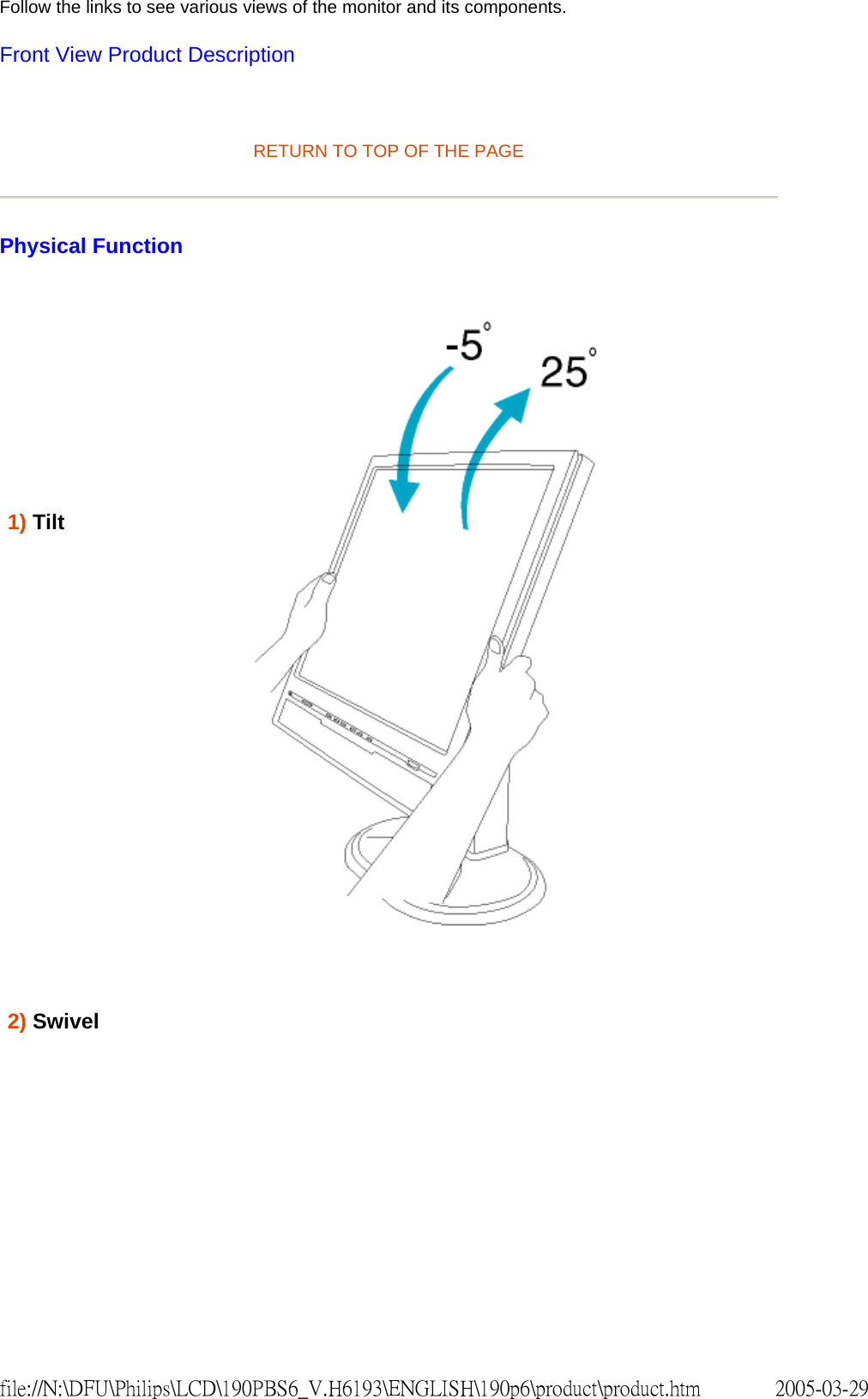

$Follow the links to see various views of the monitor and its components.Front View Product Description RETURN TO TOP OF THE PAGE Physical Function 1) Tilt 2) Swivel 2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\product\product.htm$

$RETURN TO TOP OF THE PAGE 3) Height adjustment 2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\product\product.htm$

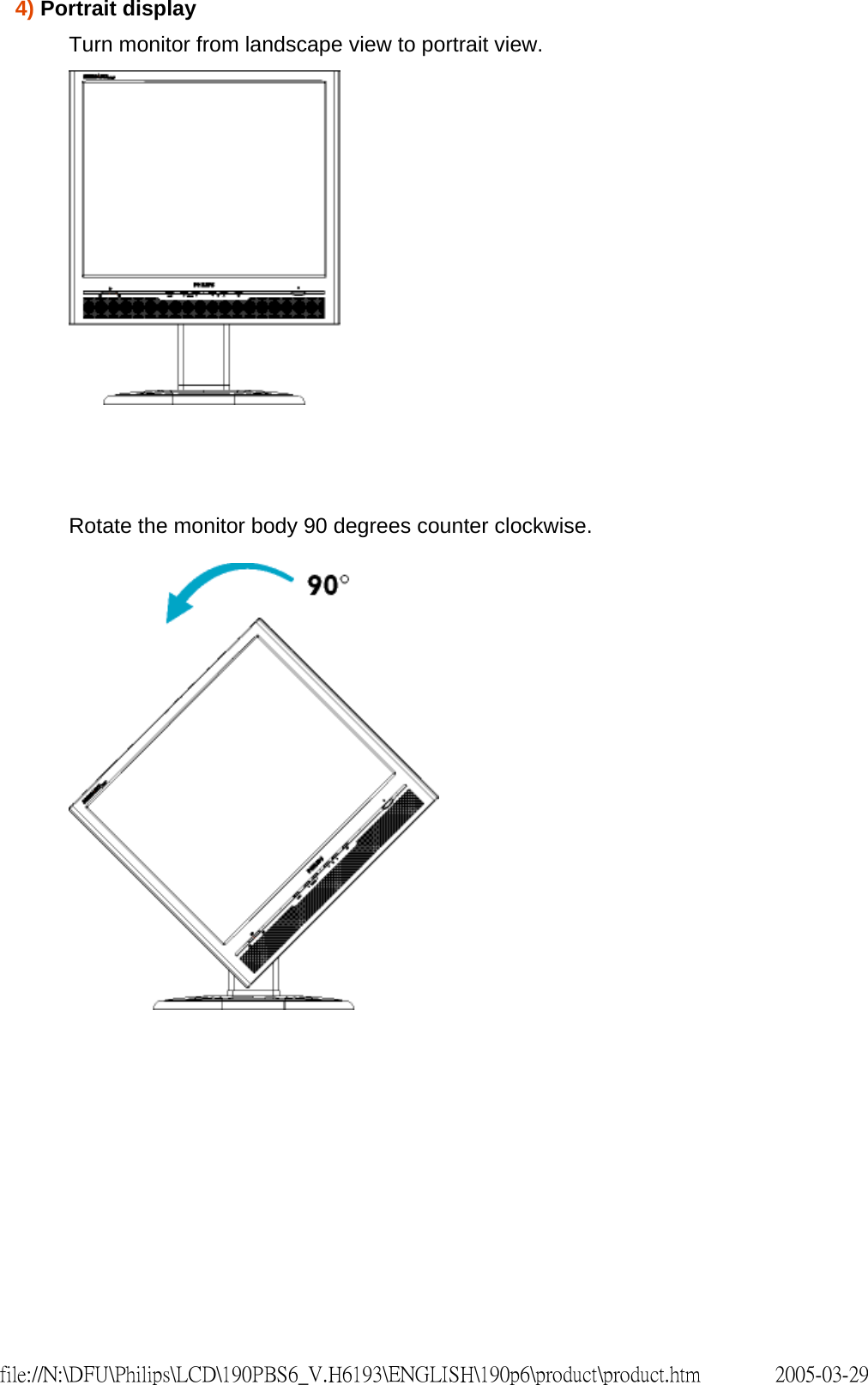

$4) Portrait displayTurn monitor from landscape view to portrait view. Rotate the monitor body 90 degrees counter clockwise. 2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\product\product.htm$

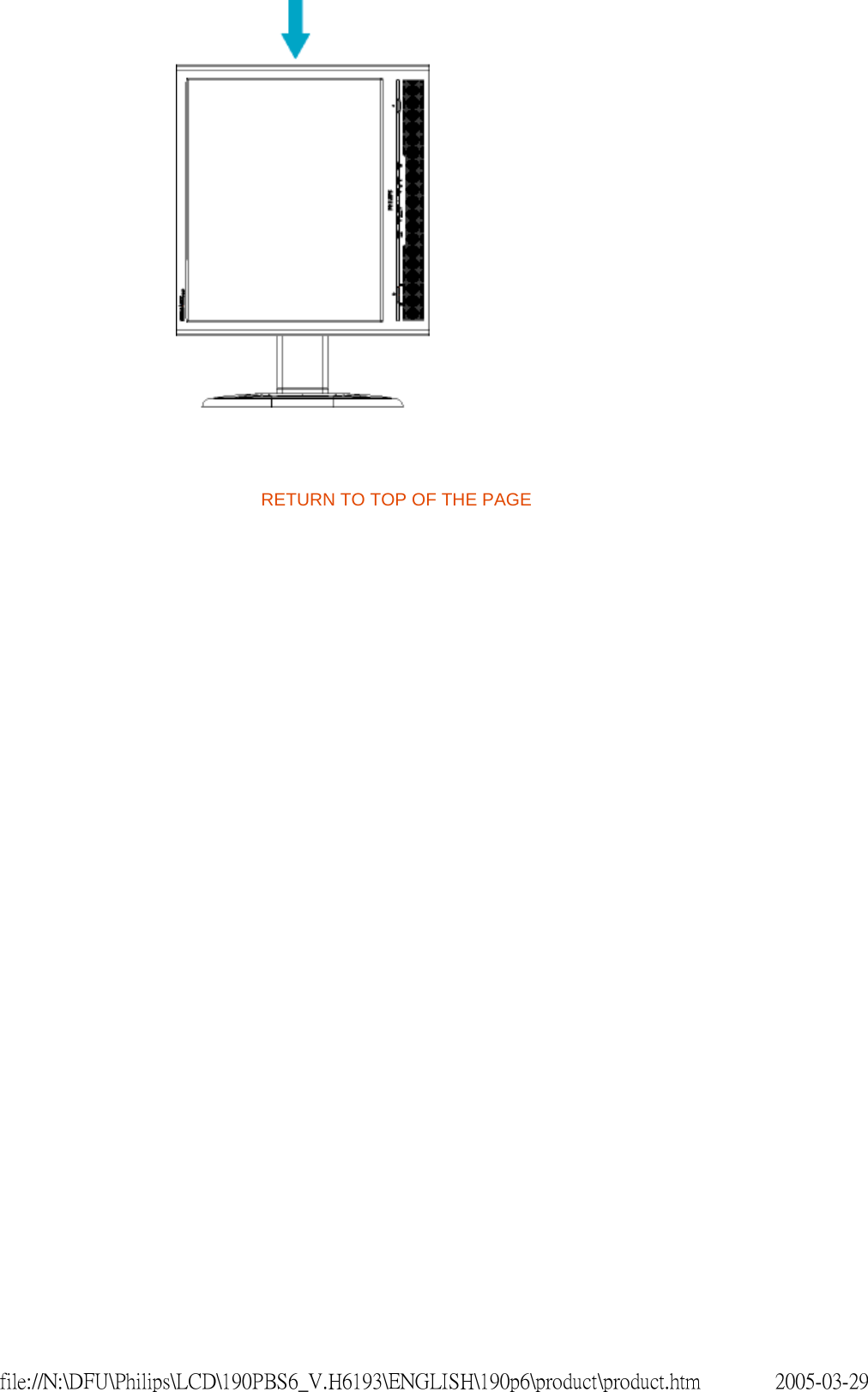

$RETURN TO TOP OF THE PAGE 2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\product\product.htm$

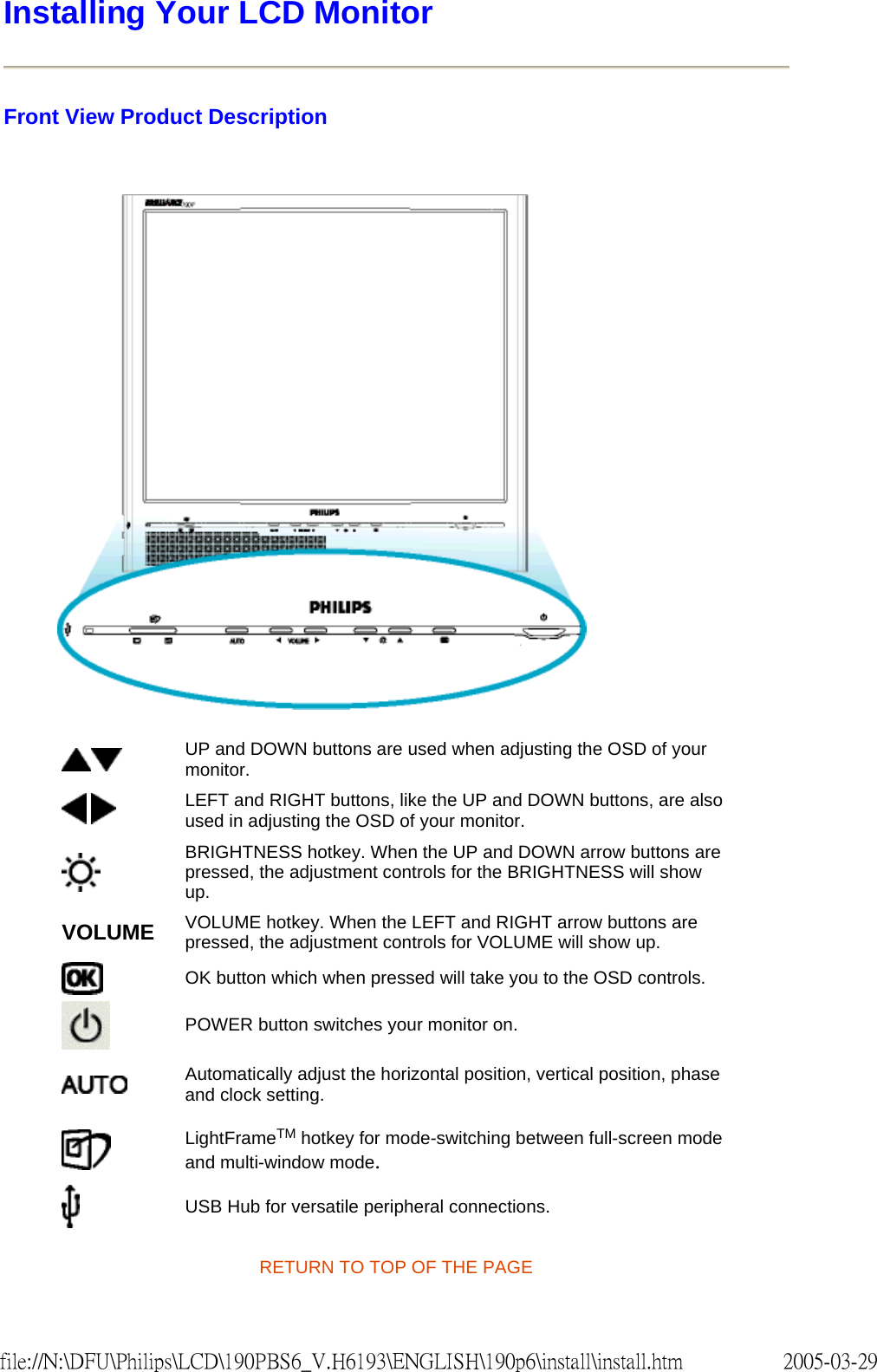

$Installing Your LCD Monitor Front View Product Description RETURN TO TOP OF THE PAGE UP and DOWN buttons are used when adjusting the OSD of your monitor. LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor.BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are pressed, the adjustment controls for the BRIGHTNESS will show up.VOLUME VOLUME hotkey. When the LEFT and RIGHT arrow buttons are pressed, the adjustment controls for VOLUME will show up.OK button which when pressed will take you to the OSD controls.POWER button switches your monitor on.Automatically adjust the horizontal position, vertical position, phase and clock setting. LightFrameTM hotkey for mode-switching between full-screen mode and multi-window mode.USB Hub for versatile peripheral connections.2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\install\install.htm$

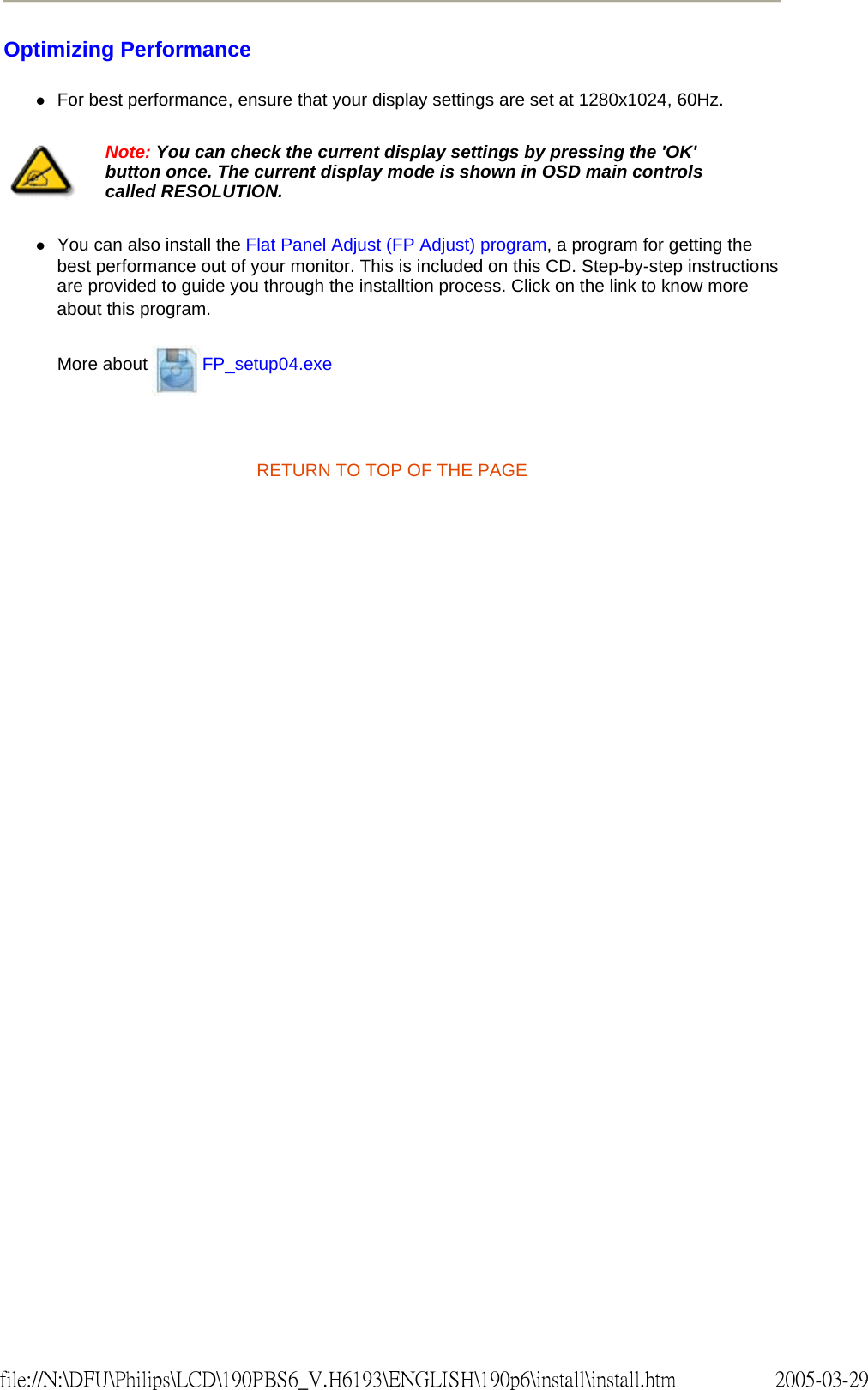

$Optimizing Performance zFor best performance, ensure that your display settings are set at 1280x1024, 60Hz. zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor. This is included on this CD. Step-by-step instructions are provided to guide you through the installtion process. Click on the link to know more about this program. More about FP_setup04.exe RETURN TO TOP OF THE PAGE Note: You can check the current display settings by pressing the 'OK' button once. The current display mode is shown in OSD main controls called RESOLUTION.2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\install\install.htm$

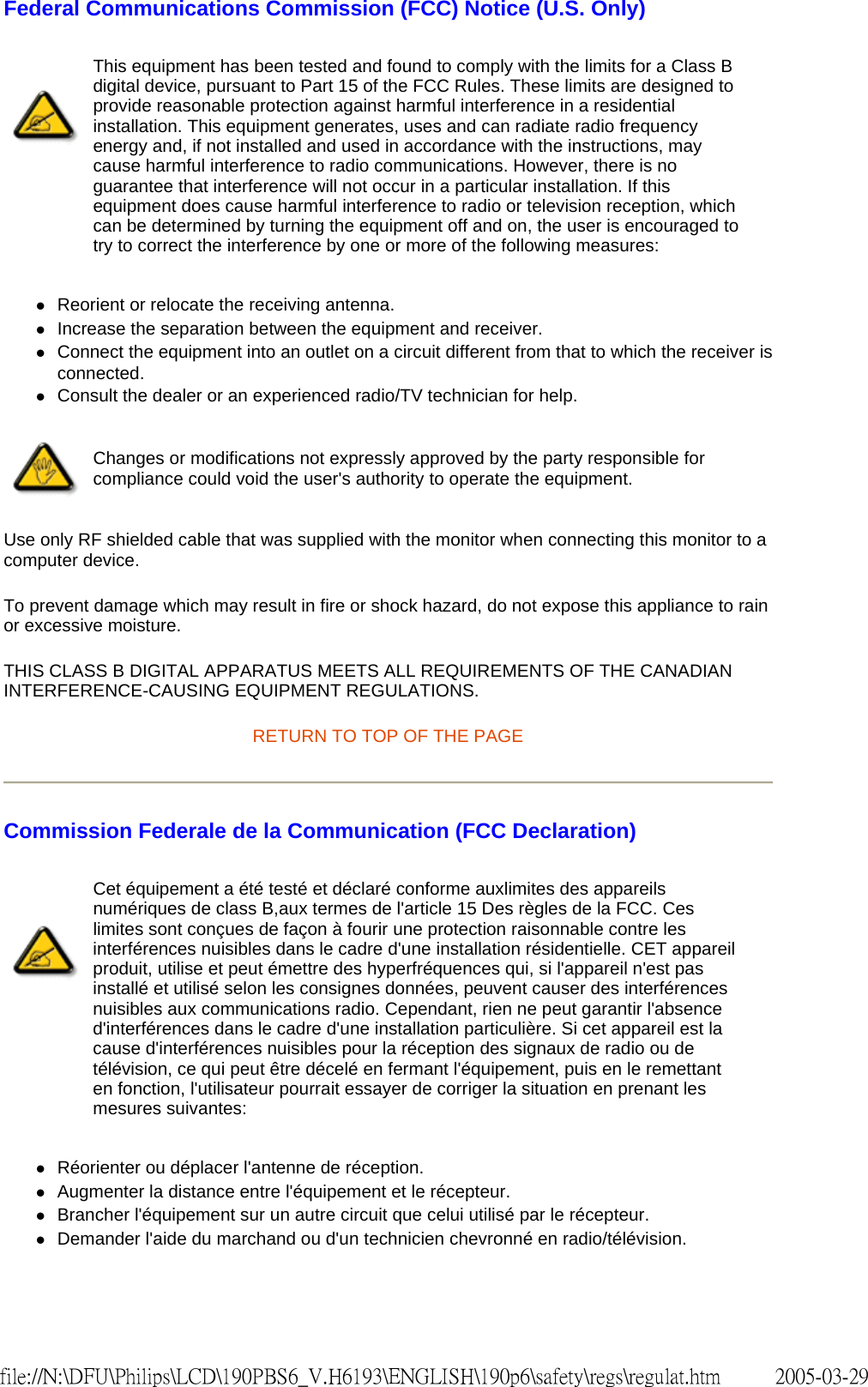

$Federal Communications Commission (FCC) Notice (U.S. Only) zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration) zRéorienter ou déplacer l'antenne de réception. zAugmenter la distance entre l'équipement et le récepteur. zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes: 2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\safety\regs\regulat.htm$

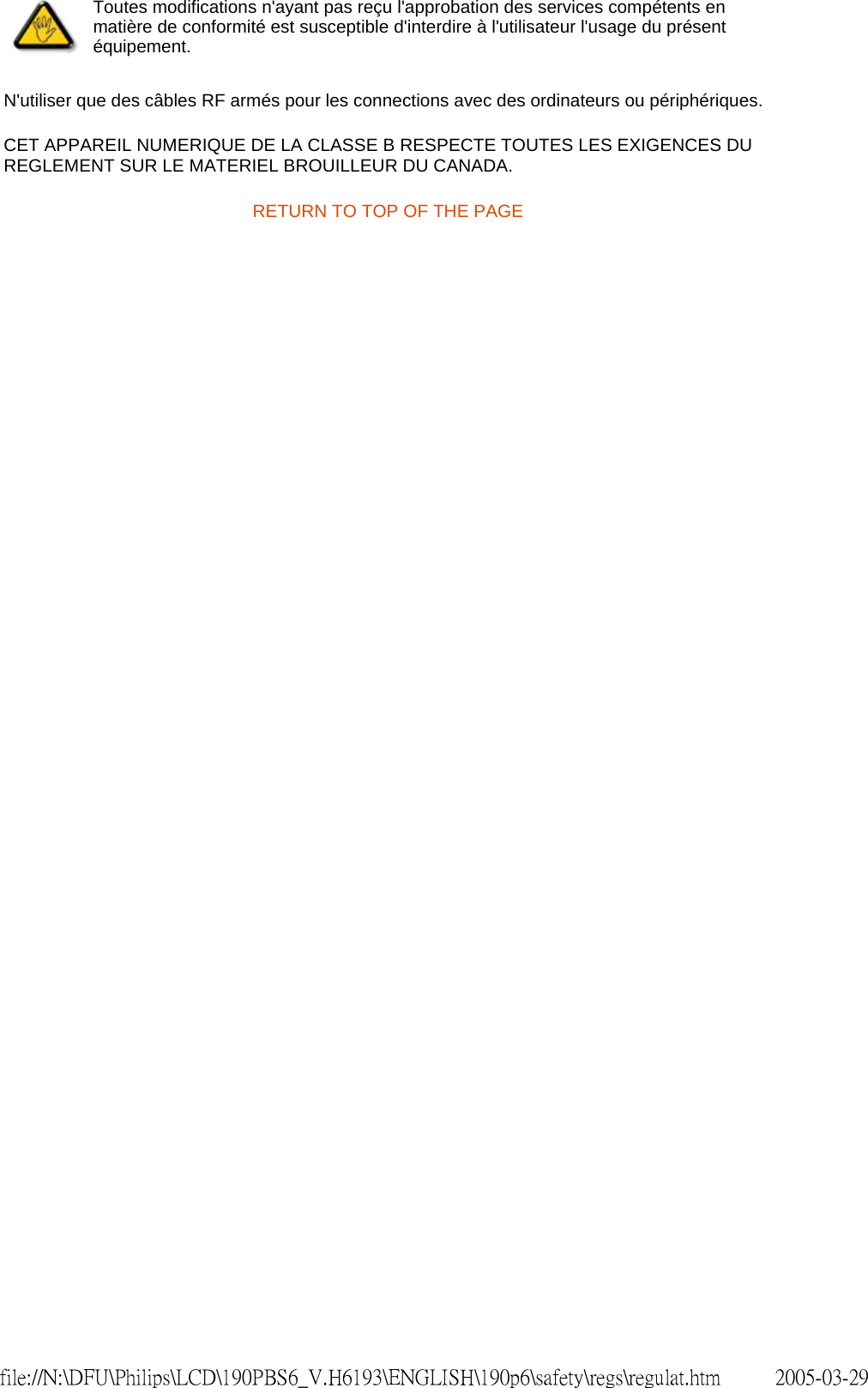

$N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGE Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190p6\safety\regs\regulat.htm$
