Contents

Users Manual 190S6

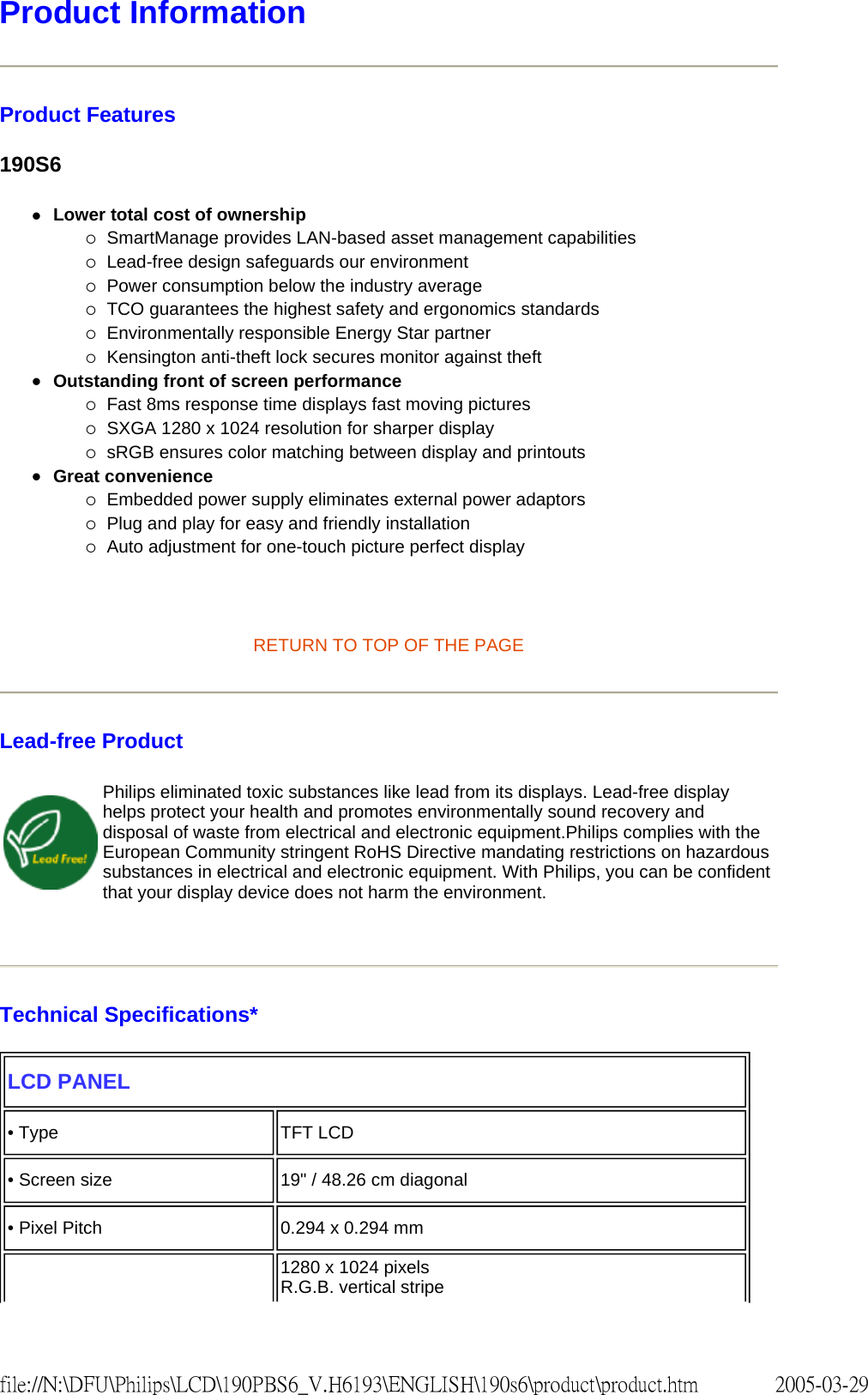

Product Information
Product Features
190S6
zLower total cost of ownership
{SmartManage provides LAN-based asset management capabilities
{Lead-free design safeguards our environment
{Power consumption below the industry average
{TCO guarantees the highest safety and ergonomics standards
{Environmentally responsible Energy Star partner
{Kensington anti-theft lock secures monitor against theft
zOutstanding front of screen performance
{Fast 8ms response time displays fast moving pictures
{SXGA 1280 x 1024 resolution for sharper display
{sRGB ensures color matching between display and printouts
zGreat convenience
{Embedded power supply eliminates external power adaptors
{Plug and play for easy and friendly installation
{Auto adjustment for one-touch picture perfect display
RETURN TO TOP OF THE PAGE
Lead-free Product
Technical Specifications*
Philips eliminated toxic substances like lead from its displays. Lead-free display
helps protect your health and promotes environmentally sound recovery and
disposal of waste from electrical and electronic equipment.Philips complies with the
European Community stringent RoHS Directive mandating restrictions on hazardous
substances in electrical and electronic equipment. With Philips, you can be confident
that your display device does not harm the environment.
LCD PANEL
• Type TFT LCD
• Screen size 19" / 48.26 cm diagonal
• Pixel Pitch 0.294 x 0.294 mm
1280 x 1024 pixels
R.G.B. vertical stripe
2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190s6\product\product.htm
* This data is subject to change without notice.

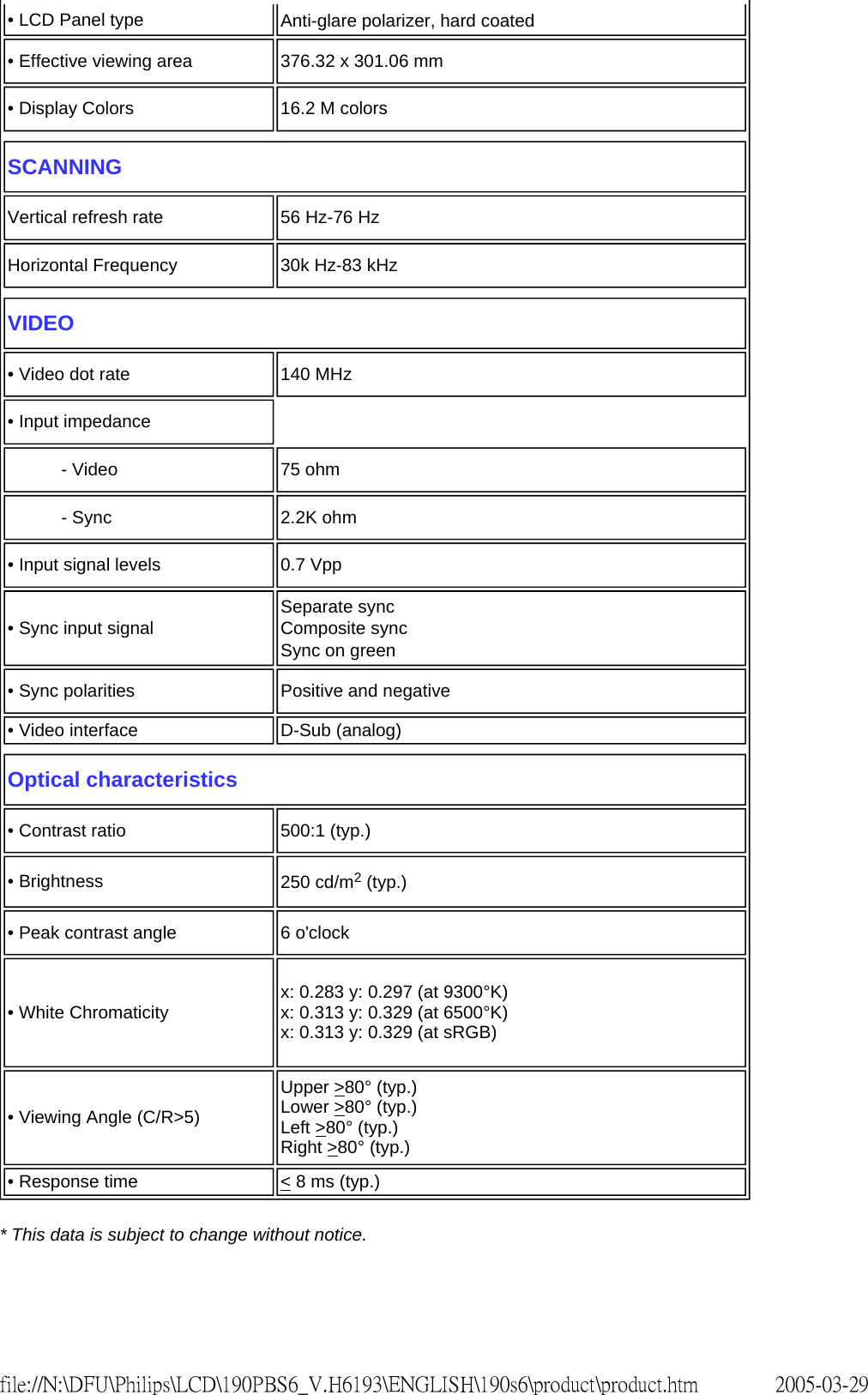

• LCD Panel type Anti-glare polarizer, hard coated
• Effective viewing area 376.32 x 301.06 mm
• Display Colors 16.2 M colors
SCANNING
Vertical refresh rate 56 Hz-76 Hz
Horizontal Frequency 30k Hz-83 kHz
VIDEO
• Video dot rate 140 MHz
• Input impedance
- Video 75 ohm
- Sync 2.2K ohm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
Composite sync
Sync on green
• Sync polarities Positive and negative
• Video interface D-Sub (analog)
Optical characteristics
• Contrast ratio 500:1 (typ.)
• Brightness 250 cd/m2 (typ.)
• Peak contrast angle 6 o'clock
• White Chromaticity x: 0.283 y: 0.297 (at 9300°K)
x: 0.313 y: 0.329 (at 6500°K)
x: 0.313 y: 0.329 (at sRGB)
• Viewing Angle (C/R>5)
Upper >80° (typ.)
Lower >80° (typ.)
Left >80° (typ.)
Right >80° (typ.)
• Response time < 8 ms (typ.)
2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190s6\product\product.htm
RETURN TO TOP OF THE PAGE

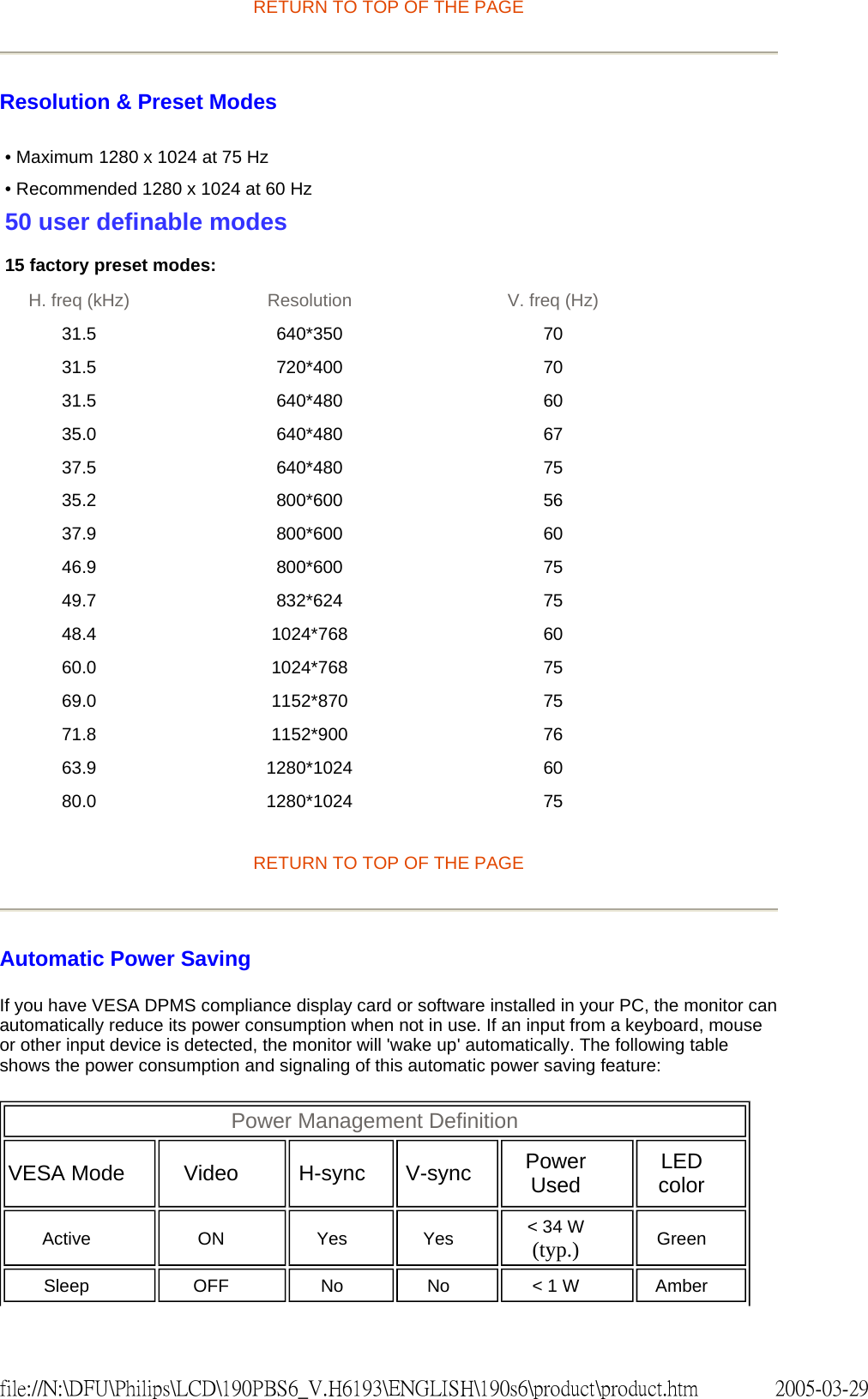

Resolution & Preset Modes
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. If an input from a keyboard, mouse
or other input device is detected, the monitor will 'wake up' automatically. The following table
shows the power consumption and signaling of this automatic power saving feature:
• Maximum 1280 x 1024 at 75 Hz
• Recommended 1280 x 1024 at 60 Hz
50 user definable modes
15 factory preset modes:
H. freq (kHz) Resolution V. freq (Hz)
31.5 640*350 70
31.5 720*400 70
31.5 640*480 60
35.0 640*480 67
37.5 640*480 75
35.2 800*600 56
37.9 800*600 60
46.9 800*600 75
49.7 832*624 75
48.4 1024*768 60
60.0 1024*768 75
69.0 1152*870 75
71.8 1152*900 76
63.9 1280*1024 60
80.0 1280*1024 75
Power Management Definition
VESA Mode Video H-sync V-sync Power
Used LED
color
Active ON Yes Yes < 34 W
(typ.) Green
Sleep OFF No No < 1 W Amber
2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190s6\product\product.htm
RETURN TO TOP OF THE PAGE

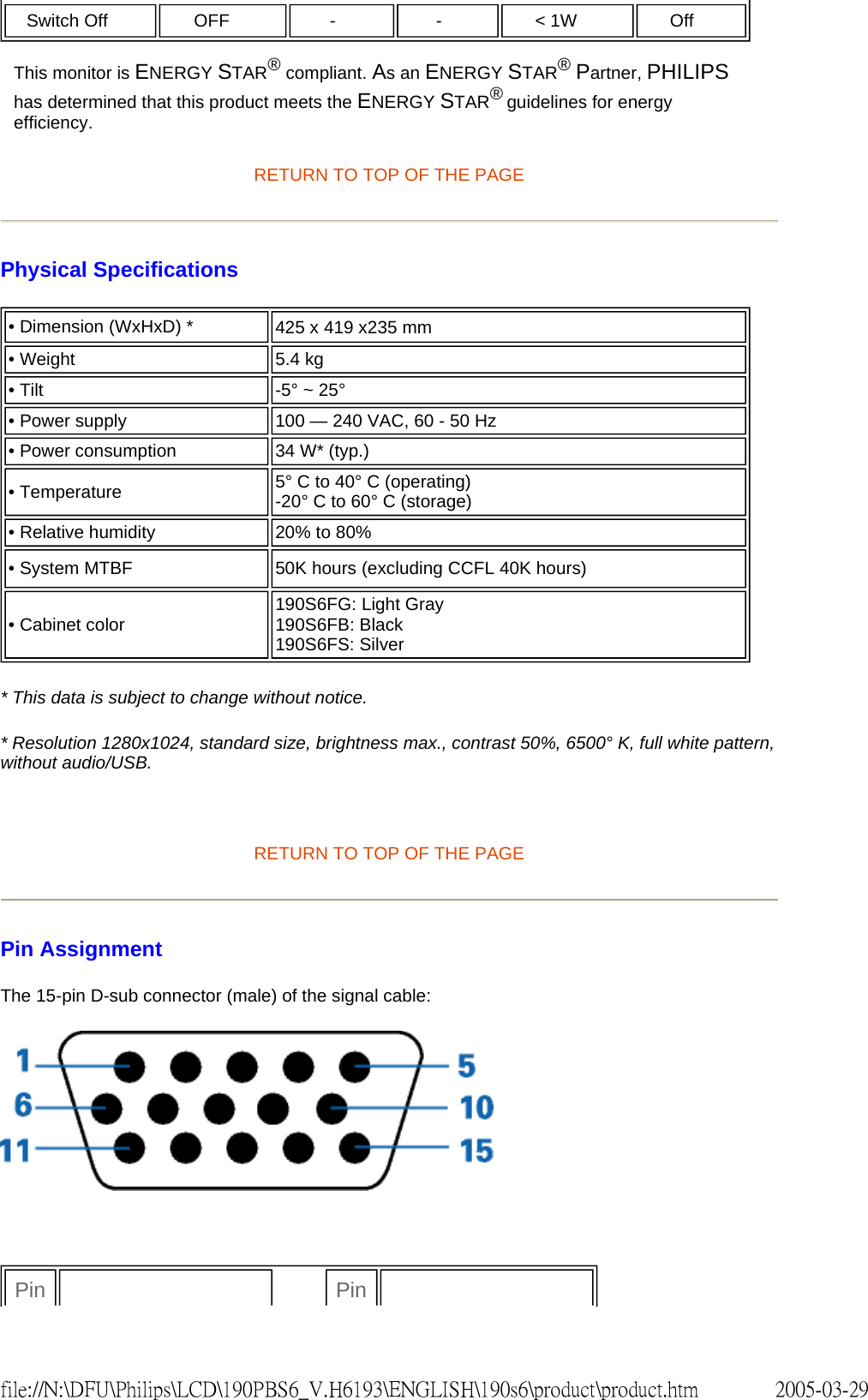

Physical Specifications
* This data is subject to change without notice.
* Resolution 1280x1024, standard size, brightness max., contrast 50%, 6500° K, full white pattern,
without audio/USB.
RETURN TO TOP OF THE PAGE

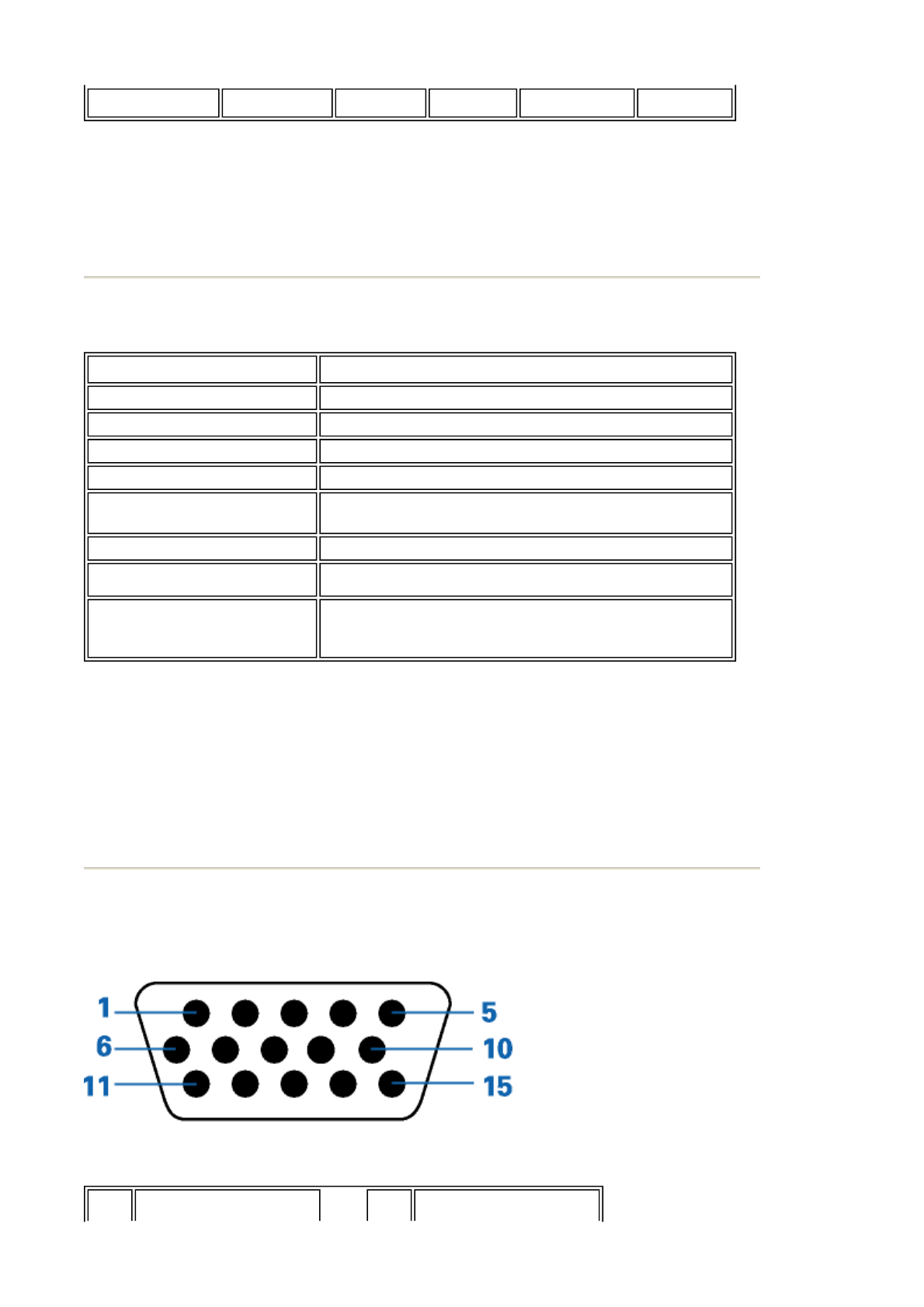

Pin Assignment
The 15-pin D-sub connector (male) of the signal cable:
Switch Off OFF - -< 1W Off
This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS
has determined that this product meets the ENERGY STAR® guidelines for energy
efficiency.
• Dimension (WxHxD) * 425 x 419 x235 mm
• Weight 5.4 kg
• Tilt -5° ~ 25°
• Power supply 100 — 240 VAC, 60 - 50 Hz
• Power consumption 34 W* (typ.)
• Temperature 5° C to 40° C (operating)
-20° C to 60° C (storage)
• Relative humidity 20% to 80%
• System MTBF 50K hours (excluding CCFL 40K hours)
• Cabinet color 190S6FG: Light Gray
190S6FB: Black
190S6FS: Silver
Pin Pin
2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190s6\product\product.htm
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.

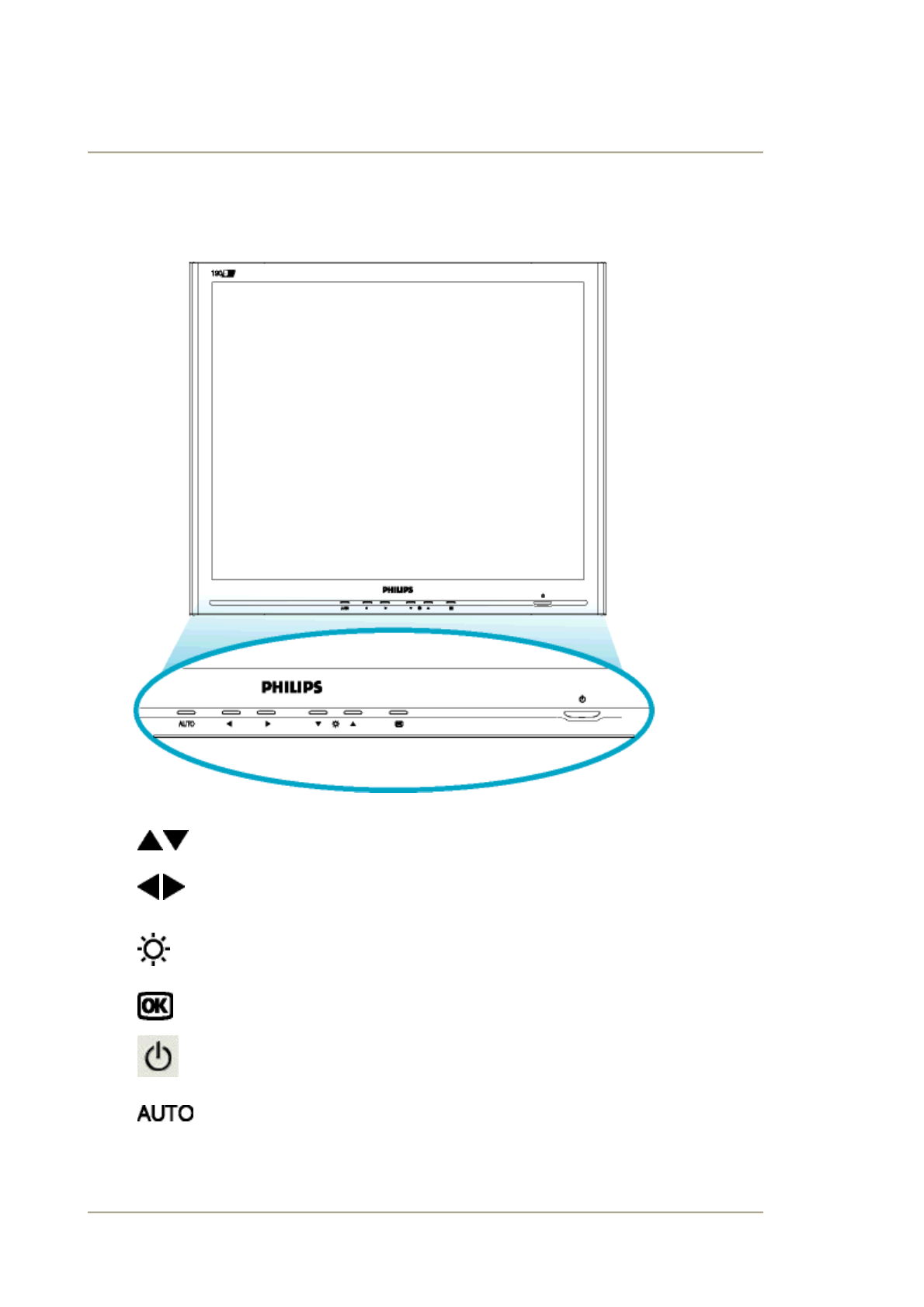

Front View Product Description
RETURN TO TOP OF THE PAGE
Physical Function

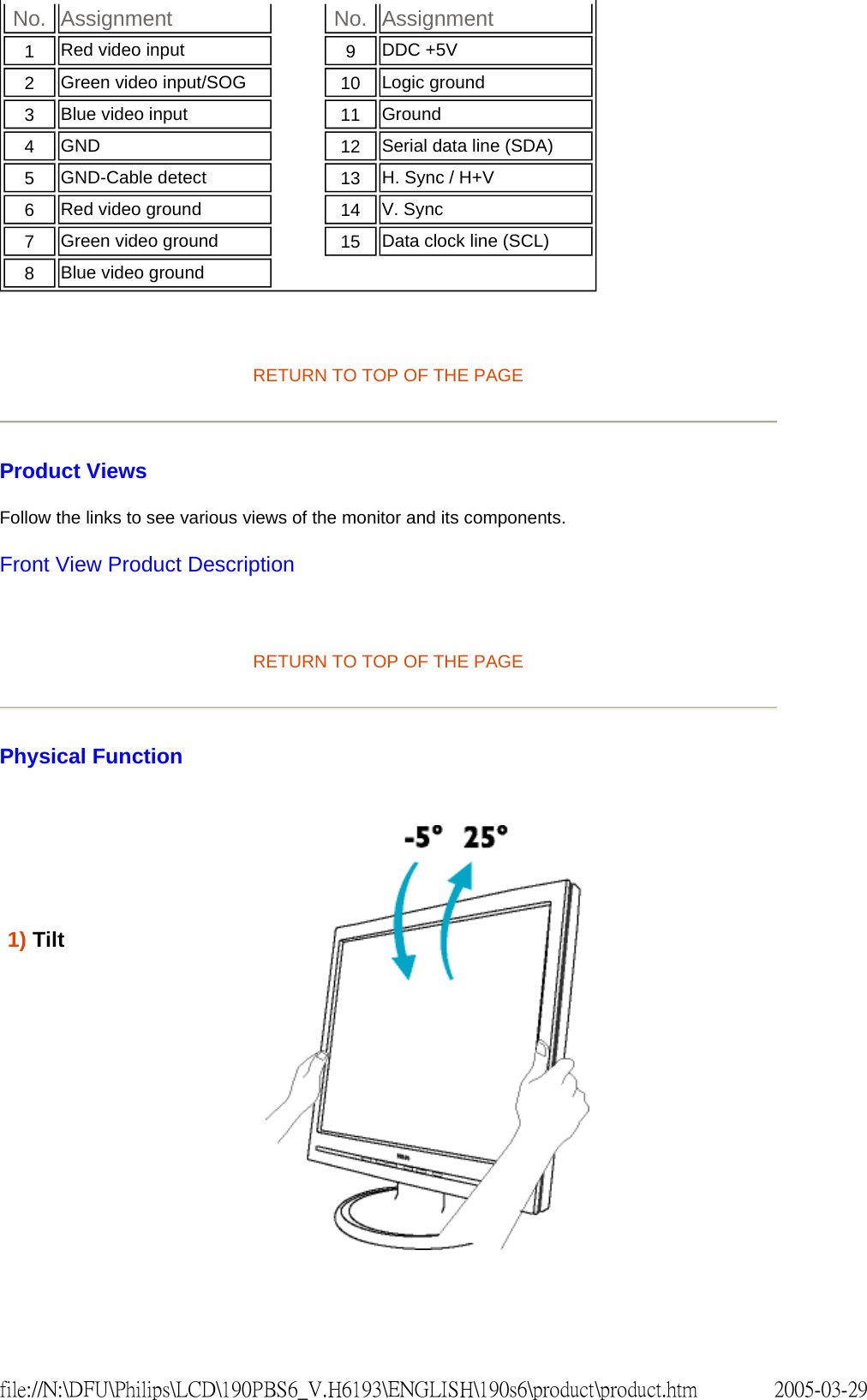

No. Assignment No. Assignment
1 Red video input 9 DDC +5V
2 Green video input/SOG 10 Logic ground
3 Blue video input 11 Ground
4 GND 12 Serial data line (SDA)
5 GND-Cable detect 13 H. Sync / H+V
6 Red video ground 14 V. Sync
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground

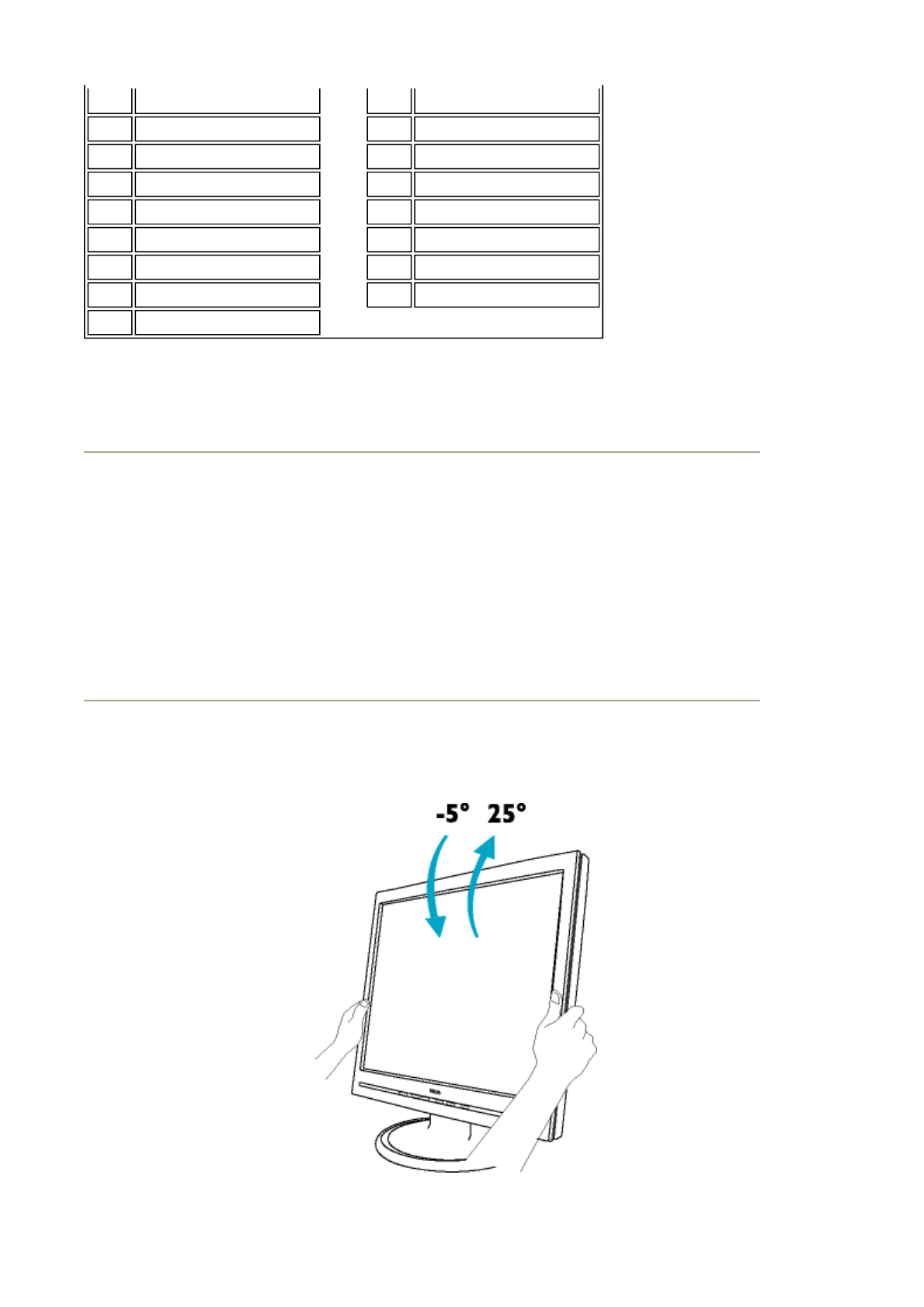

1) Tilt
2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190s6\product\product.htm

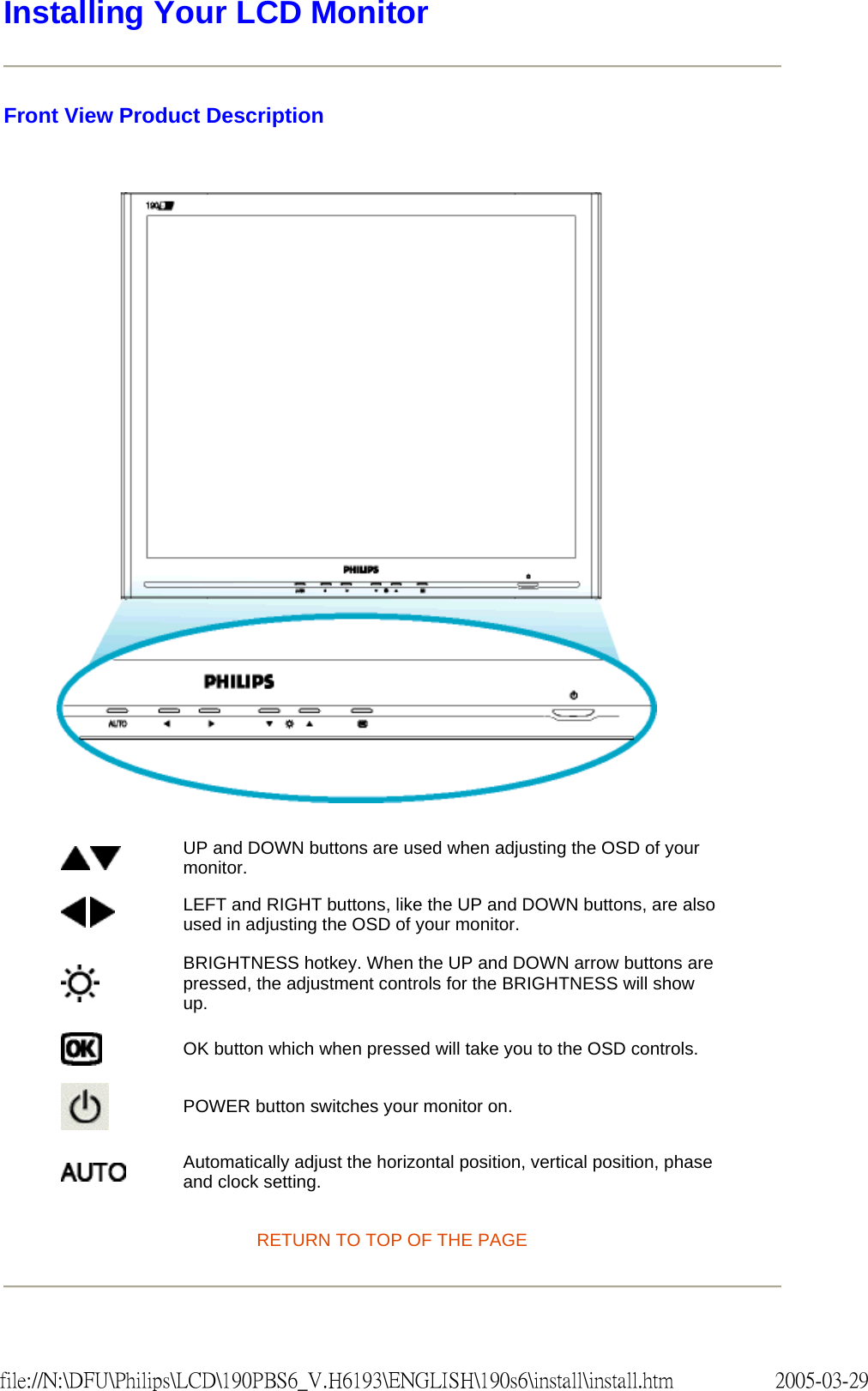

Installing Your LCD Monitor
Front View Product Description
RETURN TO TOP OF THE PAGE
UP and DOWN buttons are used when adjusting the OSD of your
monitor.
LEFT and RIGHT buttons, like the UP and DOWN buttons, are also
used in adjusting the OSD of your monitor.
BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are
pressed, the adjustment controls for the BRIGHTNESS will show
up.
OK button which when pressed will take you to the OSD controls.
POWER button switches your monitor on.
Automatically adjust the horizontal position, vertical position, phase
and clock setting.
2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190s6\install\install.htm

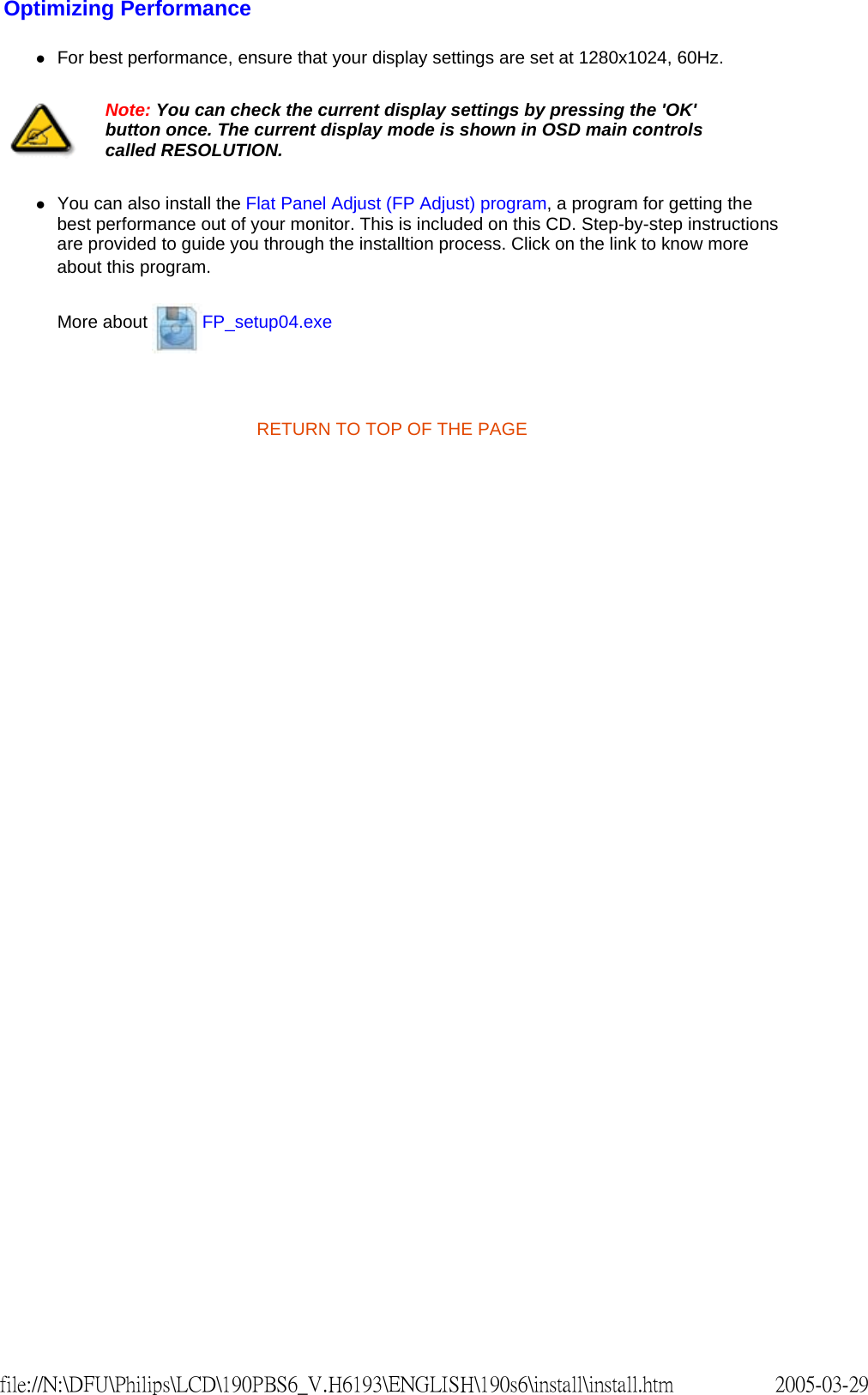

Optimizing Performance
zFor best performance, ensure that your display settings are set at 1280x1024, 60Hz.
zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the
best performance out of your monitor. This is included on this CD. Step-by-step instructions
are provided to guide you through the installtion process. Click on the link to know more
about this program.
More about FP_setup04.exe
RETURN TO TOP OF THE PAGE
Note: You can check the current display settings by pressing the 'OK'
button once. The current display mode is shown in OSD main controls
called RESOLUTION.
2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190s6\install\install.htm

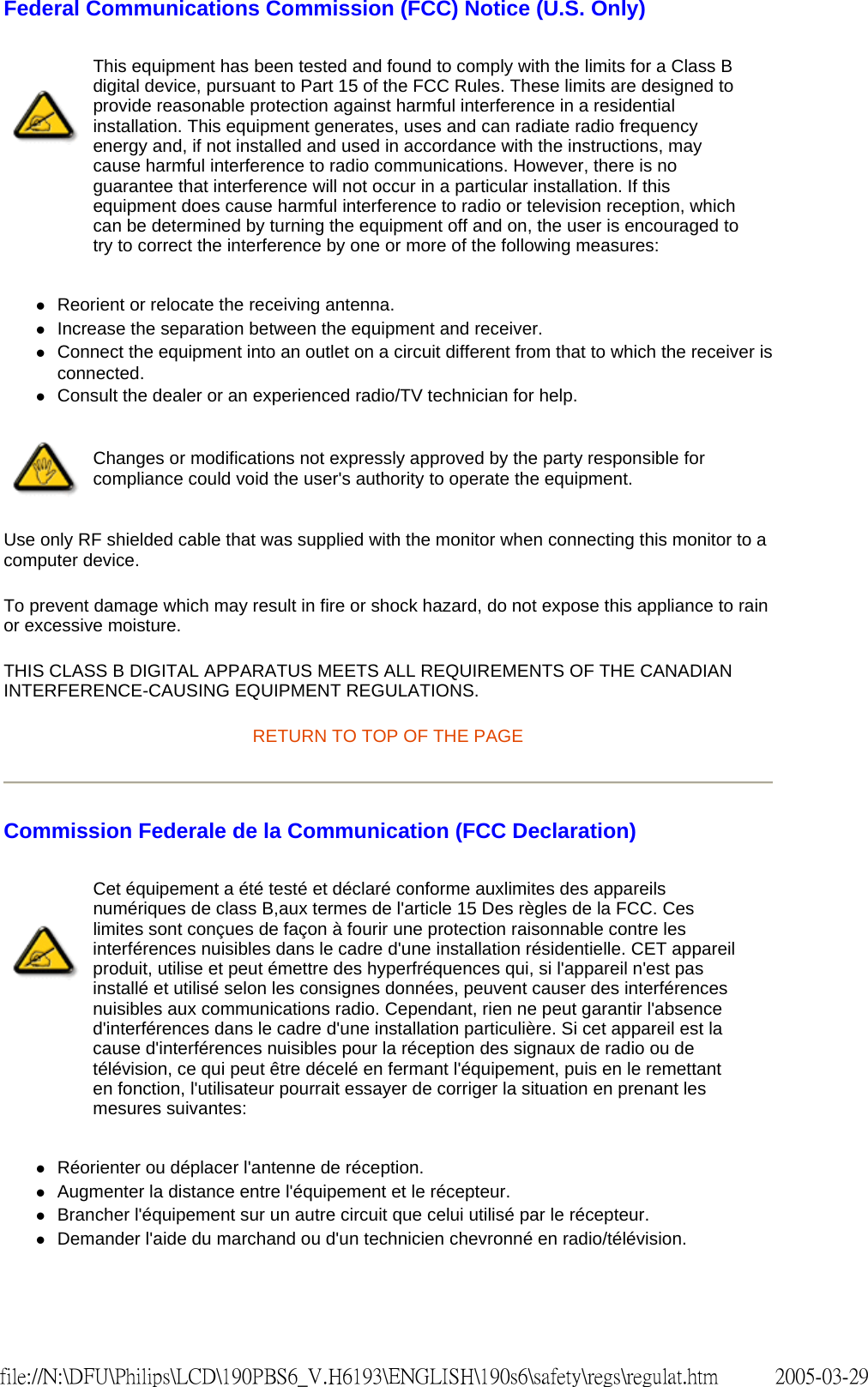

Federal Communications Commission (FCC) Notice (U.S. Only)
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
zConsult the dealer or an experienced radio/TV technician for help.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a
computer device.
To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain
or excessive moisture.
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.
RETURN TO TOP OF THE PAGE
Commission Federale de la Communication (FCC Declaration)
zRéorienter ou déplacer l'antenne de réception.
zAugmenter la distance entre l'équipement et le récepteur.
zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur.
zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Cet équipement a été testé et déclaré conforme auxlimites des appareils
numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces
limites sont conçues de façon à fourir une protection raisonnable contre les
interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil
produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas
installé et utilisé selon les consignes données, peuvent causer des interférences
nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence
d'interférences dans le cadre d'une installation particulière. Si cet appareil est la
cause d'interférences nuisibles pour la réception des signaux de radio ou de
télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant
en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les
mesures suivantes:
2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190s6\safety\regs\regulat.htm

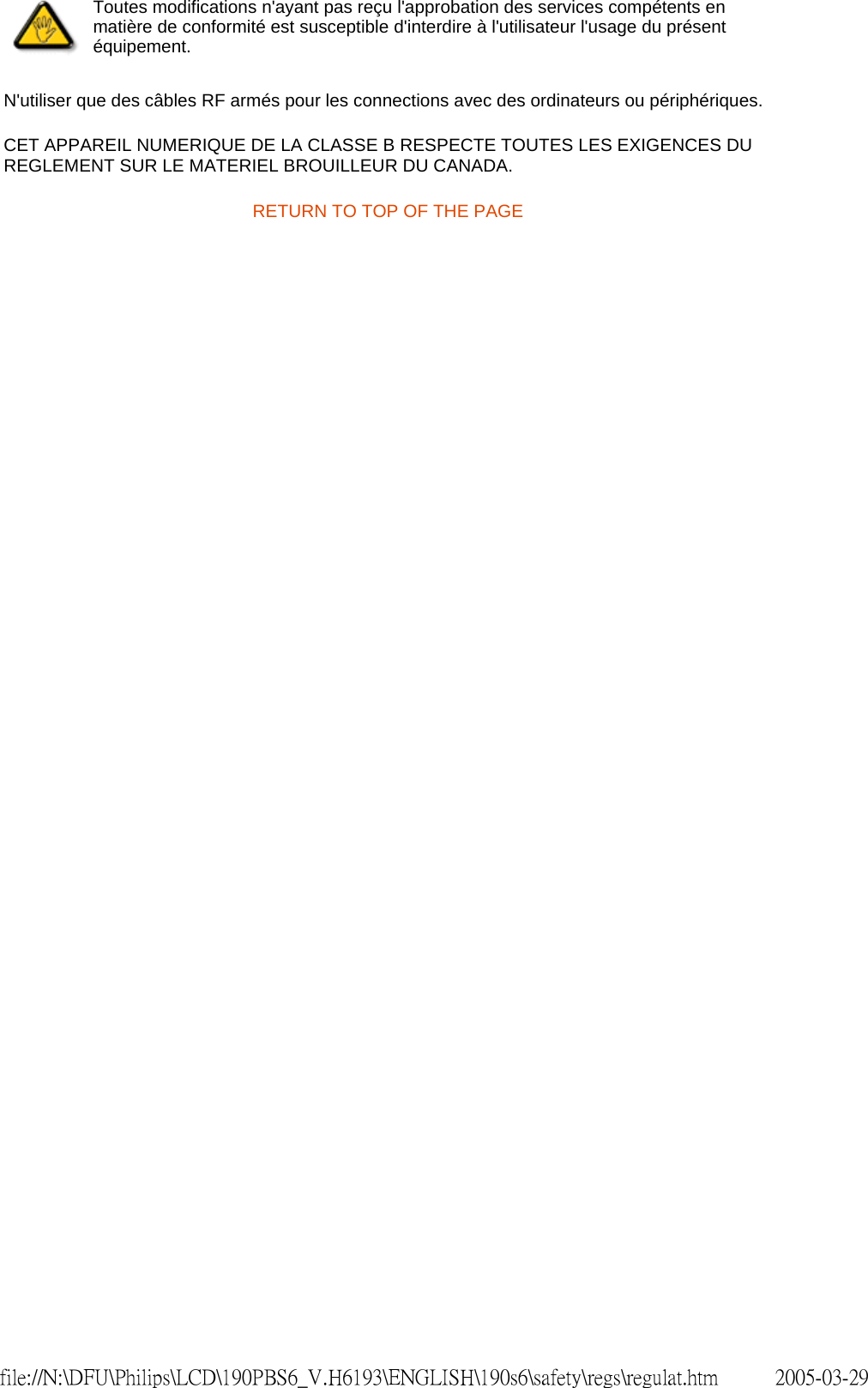

N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.
CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU
REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.
RETURN TO TOP OF THE PAGE
Toutes modifications n'ayant pas reçu l'approbation des services compétents en
matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent
équipement.
2005-03-29file://N:\DFU\Philips\LCD\190PBS6_V.H6193\ENGLISH\190s6\safety\regs\regulat.htm
