Philips Electronics M142 Flat Panel Color Monitor User Manual

Philips Electronics Industries (Taiwan) Ltd Flat Panel Color Monitor Users Manual

Users Manual

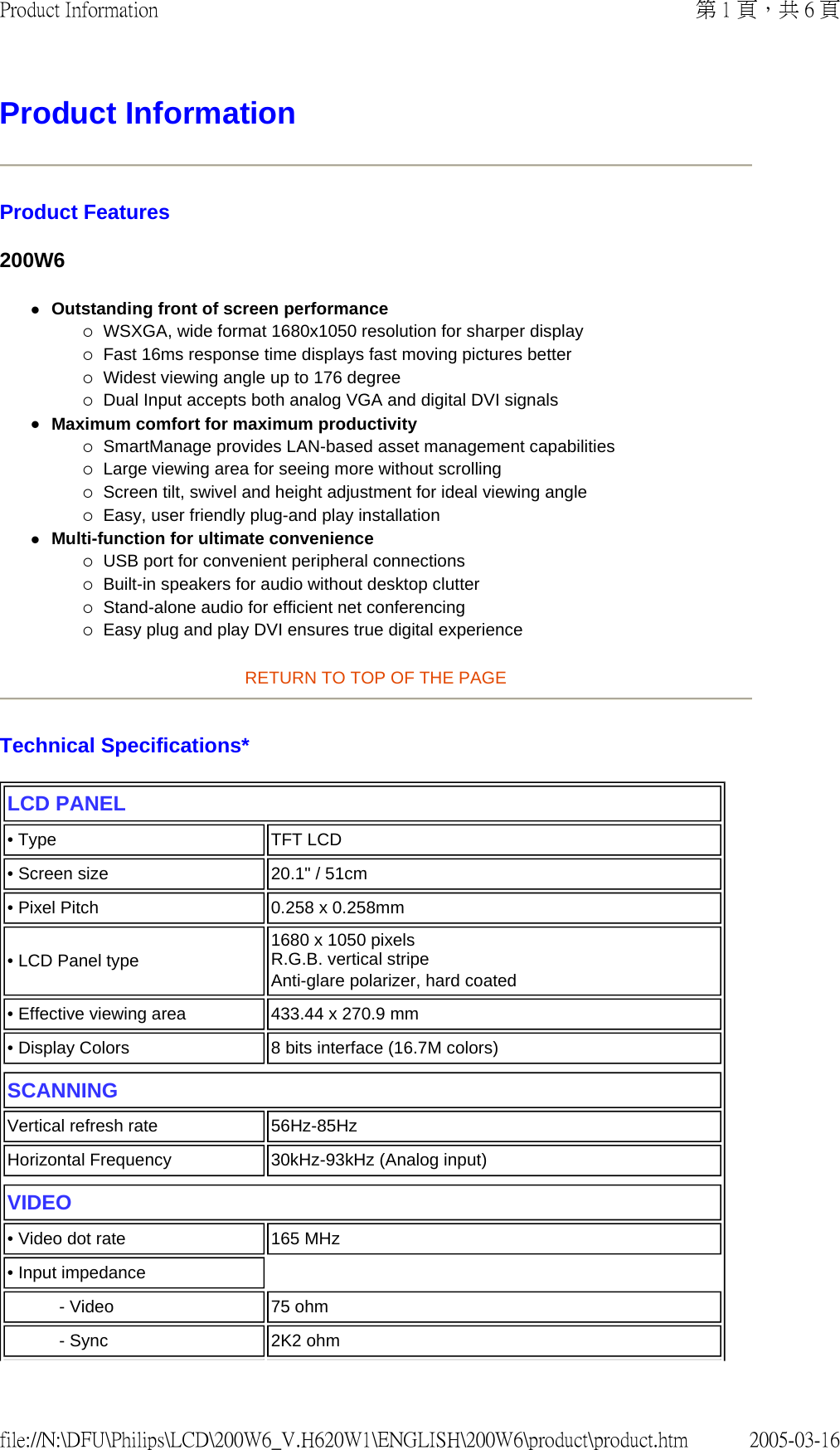

Product Information Product Features 200W6 zOutstanding front of screen performance {WSXGA, wide format 1680x1050 resolution for sharper display {Fast 16ms response time displays fast moving pictures better {Widest viewing angle up to 176 degree {Dual Input accepts both analog VGA and digital DVI signals zMaximum comfort for maximum productivity {SmartManage provides LAN-based asset management capabilities {Large viewing area for seeing more without scrolling {Screen tilt, swivel and height adjustment for ideal viewing angle {Easy, user friendly plug-and play installation zMulti-function for ultimate convenience {USB port for convenient peripheral connections {Built-in speakers for audio without desktop clutter {Stand-alone audio for efficient net conferencing {Easy plug and play DVI ensures true digital experience RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • Type TFT LCD• Screen size 20.1" / 51cm• Pixel Pitch 0.258 x 0.258mm• LCD Panel type 1680 x 1050 pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated • Effective viewing area 433.44 x 270.9 mm• Display Colors 8 bits interface (16.7M colors)SCANNINGVertical refresh rate 56Hz-85HzHorizontal Frequency 30kHz-93kHz (Analog input)VIDEO • Video dot rate 165 MHz• Input impedance- Video 75 ohm- Sync 2K2 ohm第 1 頁，共 6 頁Product Information2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm

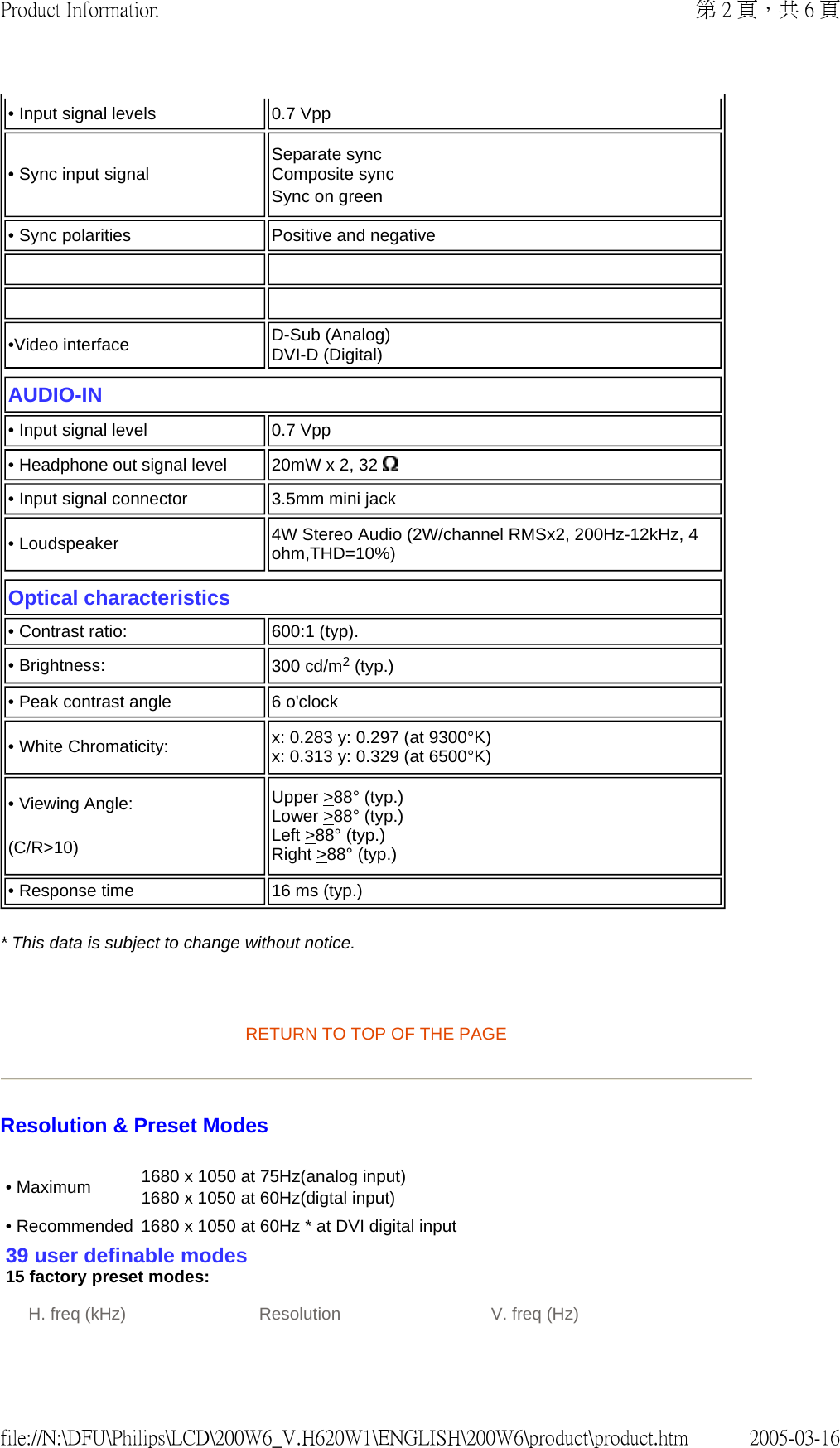

* This data is subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes • Input signal levels 0.7 Vpp• Sync input signal Separate sync Composite sync Sync on green • Sync polarities Positive and negative•Video interface D-Sub (Analog) DVI-D (Digital)AUDIO-IN • Input signal level 0.7 Vpp • Headphone out signal level 20mW x 2, 32 • Input signal connector 3.5mm mini jack• Loudspeaker 4W Stereo Audio (2W/channel RMSx2, 200Hz-12kHz, 4 ohm,THD=10%)Optical characteristics • Contrast ratio: 600:1 (typ).• Brightness: 300 cd/m2 (typ.)• Peak contrast angle 6 o'clock• White Chromaticity: x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) • Viewing Angle: (C/R>10) Upper >88° (typ.) Lower >88° (typ.) Left >88° (typ.) Right >88° (typ.) • Response time 16 ms (typ.) • Maximum 1680 x 1050 at 75Hz(analog input) 1680 x 1050 at 60Hz(digtal input) • Recommended 1680 x 1050 at 60Hz * at DVI digital input39 user definable modes 15 factory preset modes:H. freq (kHz) Resolution V. freq (Hz) 第 2 頁，共 6 頁Product Information2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm

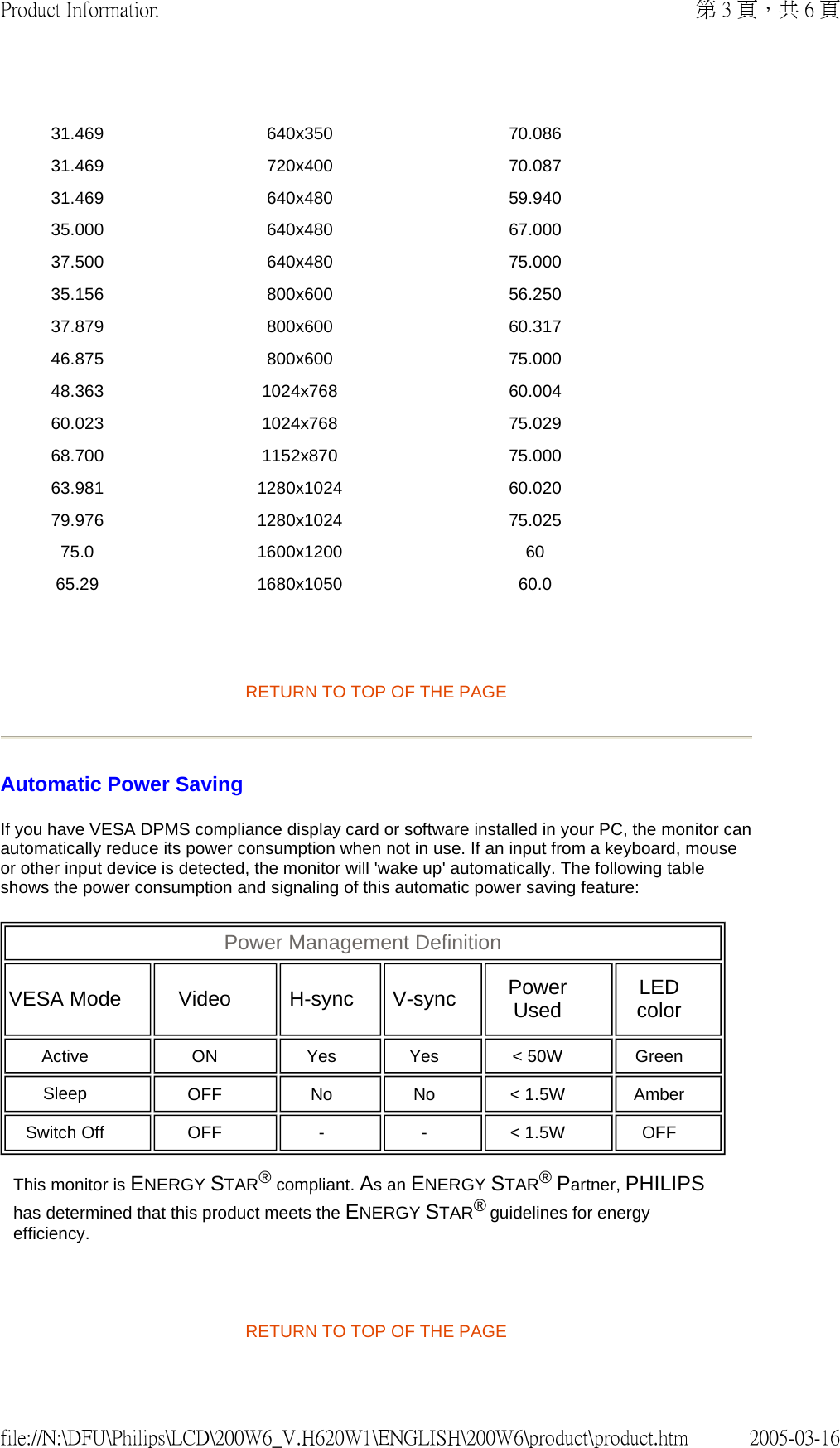

RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: RETURN TO TOP OF THE PAGE 31.469 640x350 70.086 31.469 720x400 70.087 31.469 640x480 59.940 35.000 640x480 67.000 37.500 640x480 75.000 35.156 800x600 56.250 37.879 800x600 60.317 46.875 800x600 75.000 48.363 1024x768 60.004 60.023 1024x768 75.029 68.700 1152x870 75.000 63.981 1280x1024 60.020 79.976 1280x1024 75.025 75.0 1600x1200 60 65.29 1680x1050 60.0 Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color Active ON Yes Yes < 50W Green Sleep OFF No No < 1.5W Amber Switch Off OFF - -< 1.5W OFF This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.第 3 頁，共 6 頁Product Information2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm

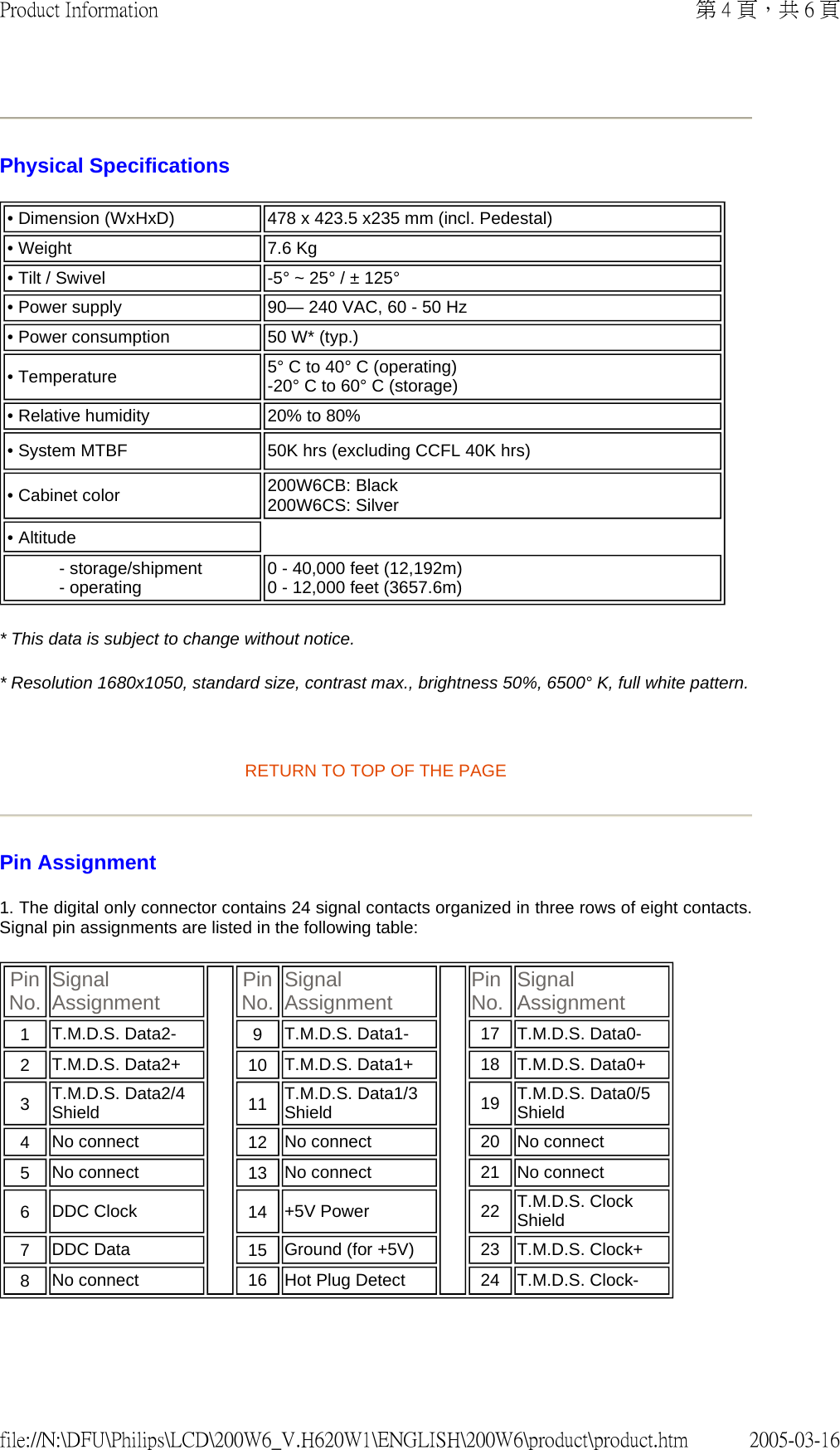

Physical Specifications * This data is subject to change without notice. * Resolution 1680x1050, standard size, contrast max., brightness 50%, 6500° K, full white pattern. RETURN TO TOP OF THE PAGE Pin Assignment 1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: • Dimension (WxHxD) 478 x 423.5 x235 mm (incl. Pedestal) • Weight 7.6 Kg • Tilt / Swivel -5° ~ 25° / ± 125° • Power supply 90— 240 VAC, 60 - 50 Hz• Power consumption 50 W* (typ.)• Temperature 5° C to 40° C (operating) -20° C to 60° C (storage)• Relative humidity 20% to 80%• System MTBF 50K hrs (excluding CCFL 40K hrs)• Cabinet color 200W6CB: Black 200W6CS: Silver• Altitude- storage/shipment - operating 0 - 40,000 feet (12,192m) 0 - 12,000 feet (3657.6m)Pin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield4 No connect 12 No connect 20 No connect 5 No connect 13 No connect 21 No connect 6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+8 No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-第 4 頁，共 6 頁Product Information2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm

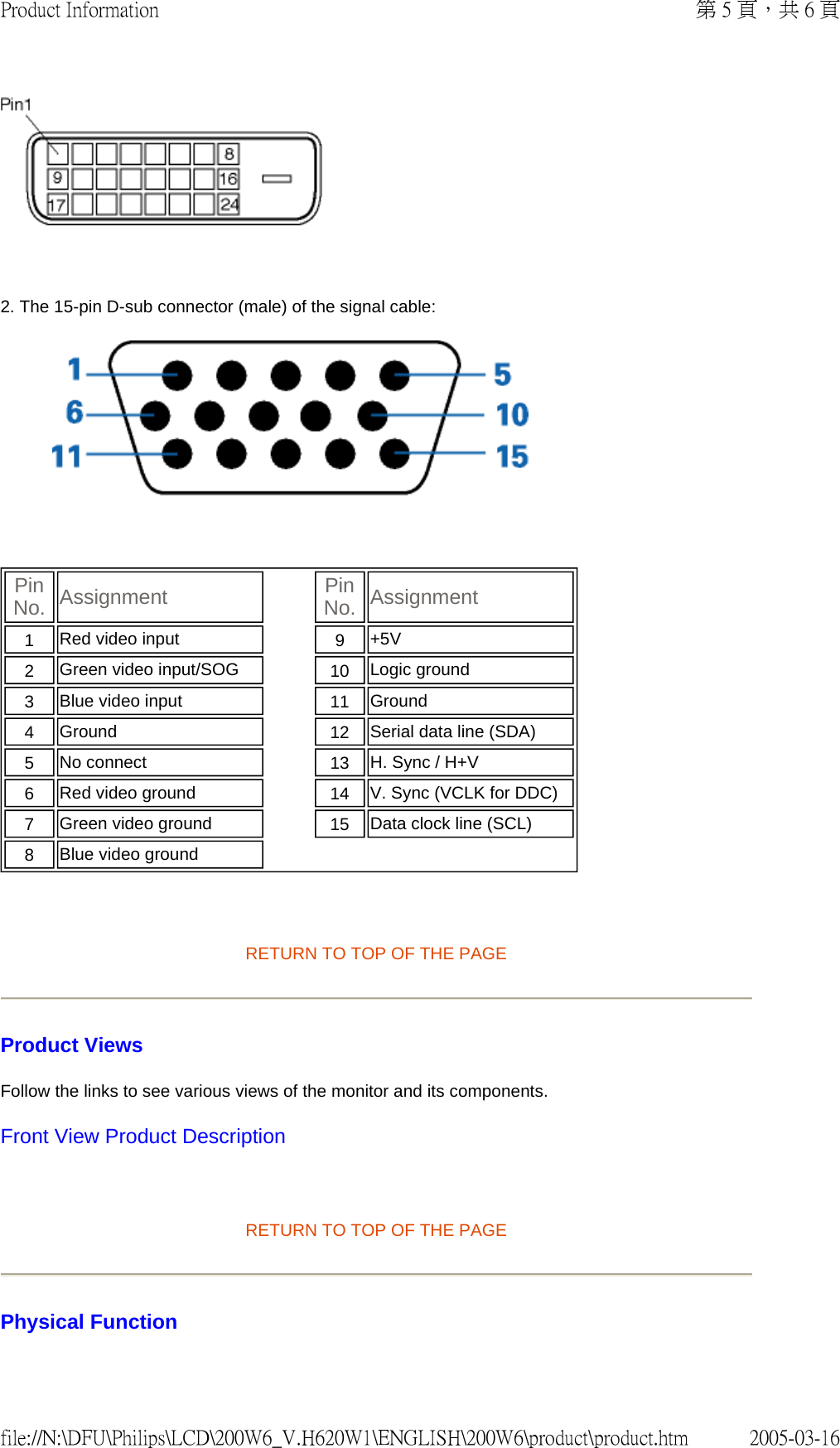

2. The 15-pin D-sub connector (male) of the signal cable: RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function Pin No. Assignment Pin No. Assignment1 Red video input 9 +5V2 Green video input/SOG 10 Logic ground3 Blue video input 11 Ground4 Ground 12 Serial data line (SDA)5 No connect 13 H. Sync / H+V6 Red video ground 14 V. Sync (VCLK for DDC)7 Green video ground 15 Data clock line (SCL)8 Blue video ground第 5 頁，共 6 頁Product Information2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm

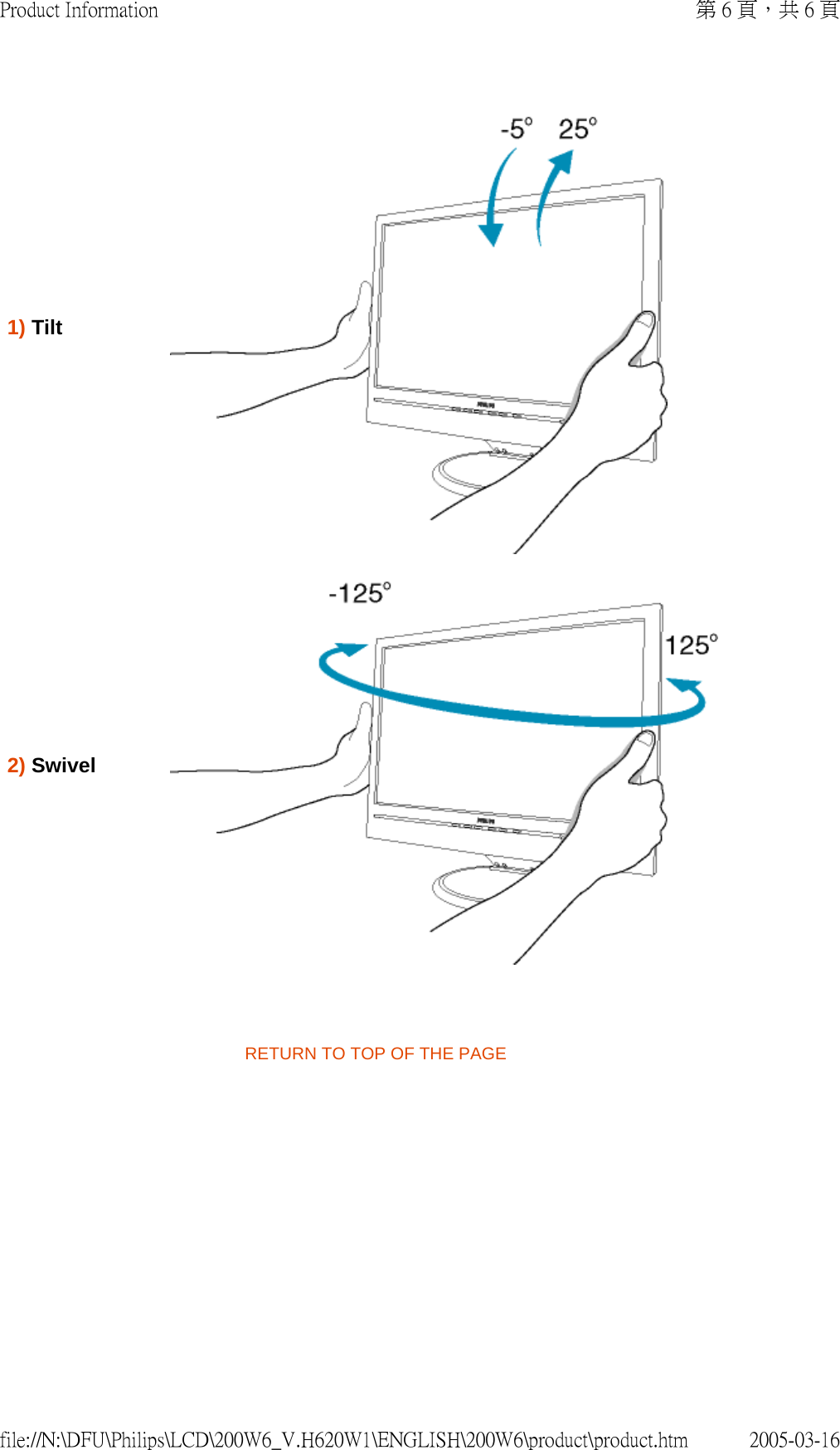

RETURN TO TOP OF THE PAGE1) Tilt2) Swivel第 6 頁，共 6 頁Product Information2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm

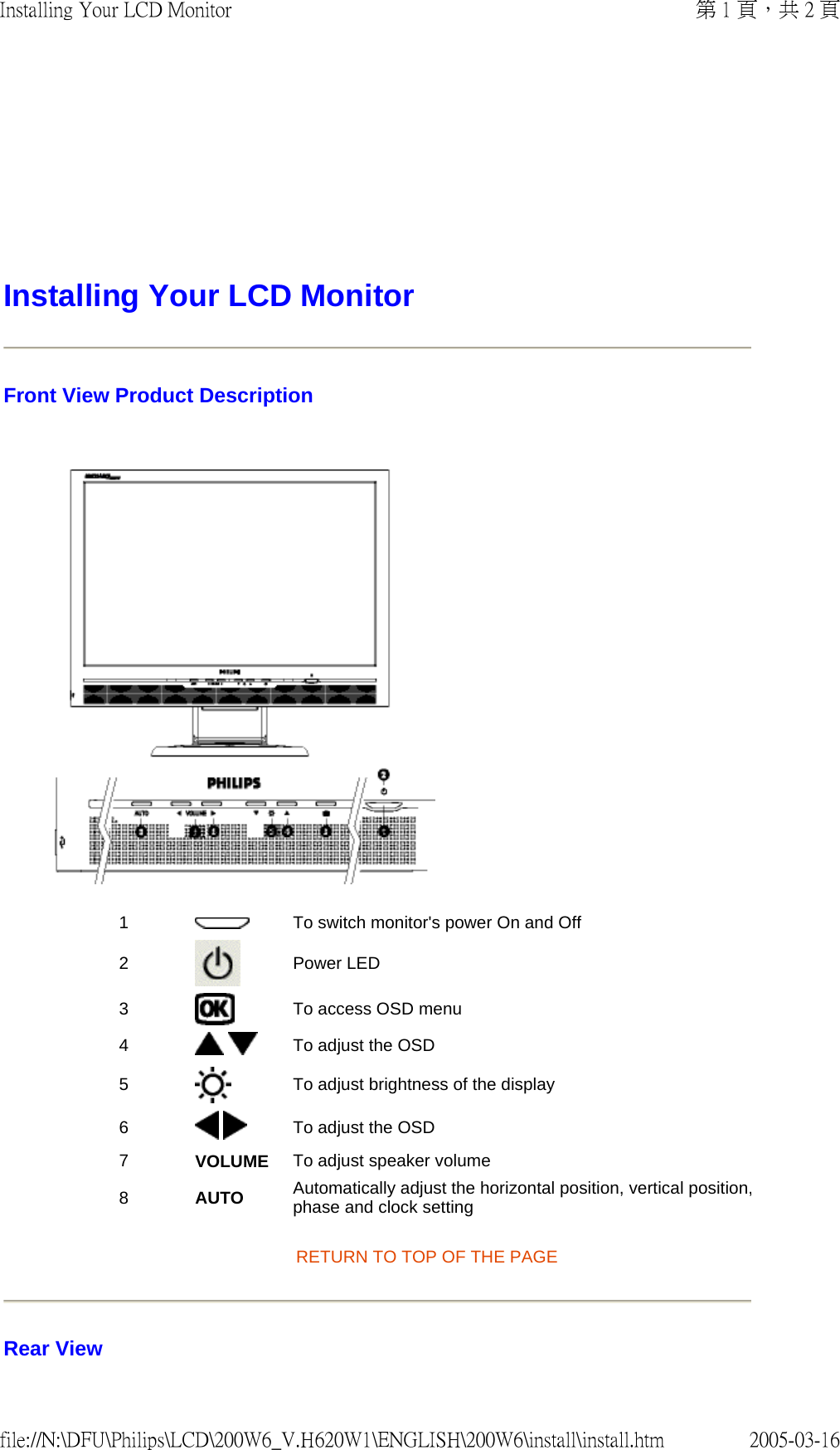

Installing Your LCD Monitor Front View Product Description RETURN TO TOP OF THE PAGE Rear View 1 To switch monitor's power On and Off2 Power LED3 To access OSD menu4 To adjust the OSD5 To adjust brightness of the display6 To adjust the OSD7 VOLUME To adjust speaker volume8 AUTO Automatically adjust the horizontal position, vertical position,phase and clock setting第 1 頁，共 2 頁Installing Your LCD Monitor2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\install\install.htm

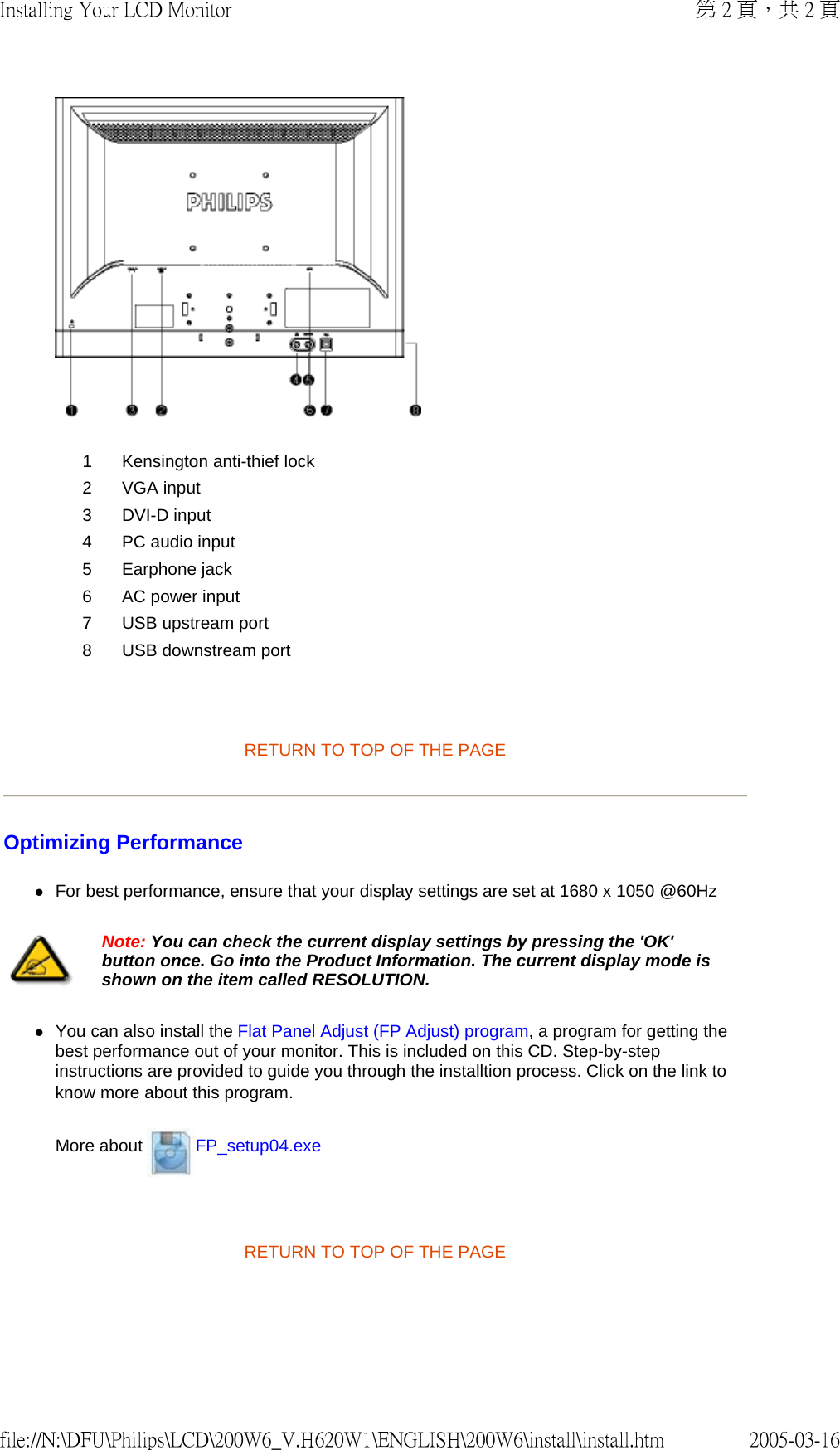

RETURN TO TOP OF THE PAGE Optimizing Performance zFor best performance, ensure that your display settings are set at 1680 x 1050 @60Hz zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor. This is included on this CD. Step-by-step instructions are provided to guide you through the installtion process. Click on the link to know more about this program. More about FP_setup04.exe RETURN TO TOP OF THE PAGE 1 Kensington anti-thief lock 2 VGA input3 DVI-D input4 PC audio input5 Earphone jack 6 AC power input7 USB upstream port8 USB downstream portNote: You can check the current display settings by pressing the 'OK' button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.第 2 頁，共 2 頁Installing Your LCD Monitor2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\install\install.htm

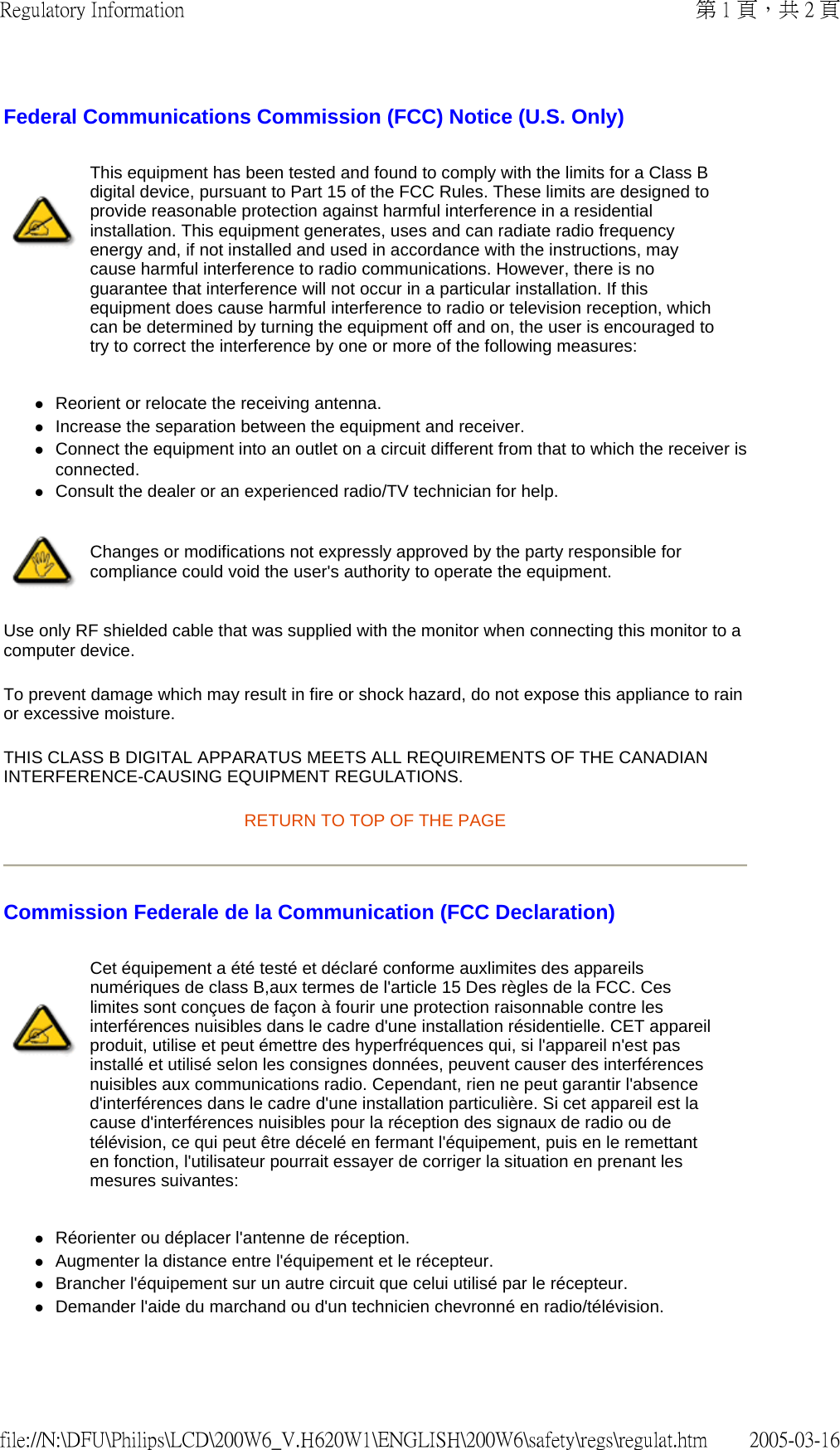

Federal Communications Commission (FCC) Notice (U.S. Only) zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration) zRéorienter ou déplacer l'antenne de réception. zAugmenter la distance entre l'équipement et le récepteur. zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes: 第 1 頁，共 2 頁Regulatory Information2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\safety\regs\regulat.htm

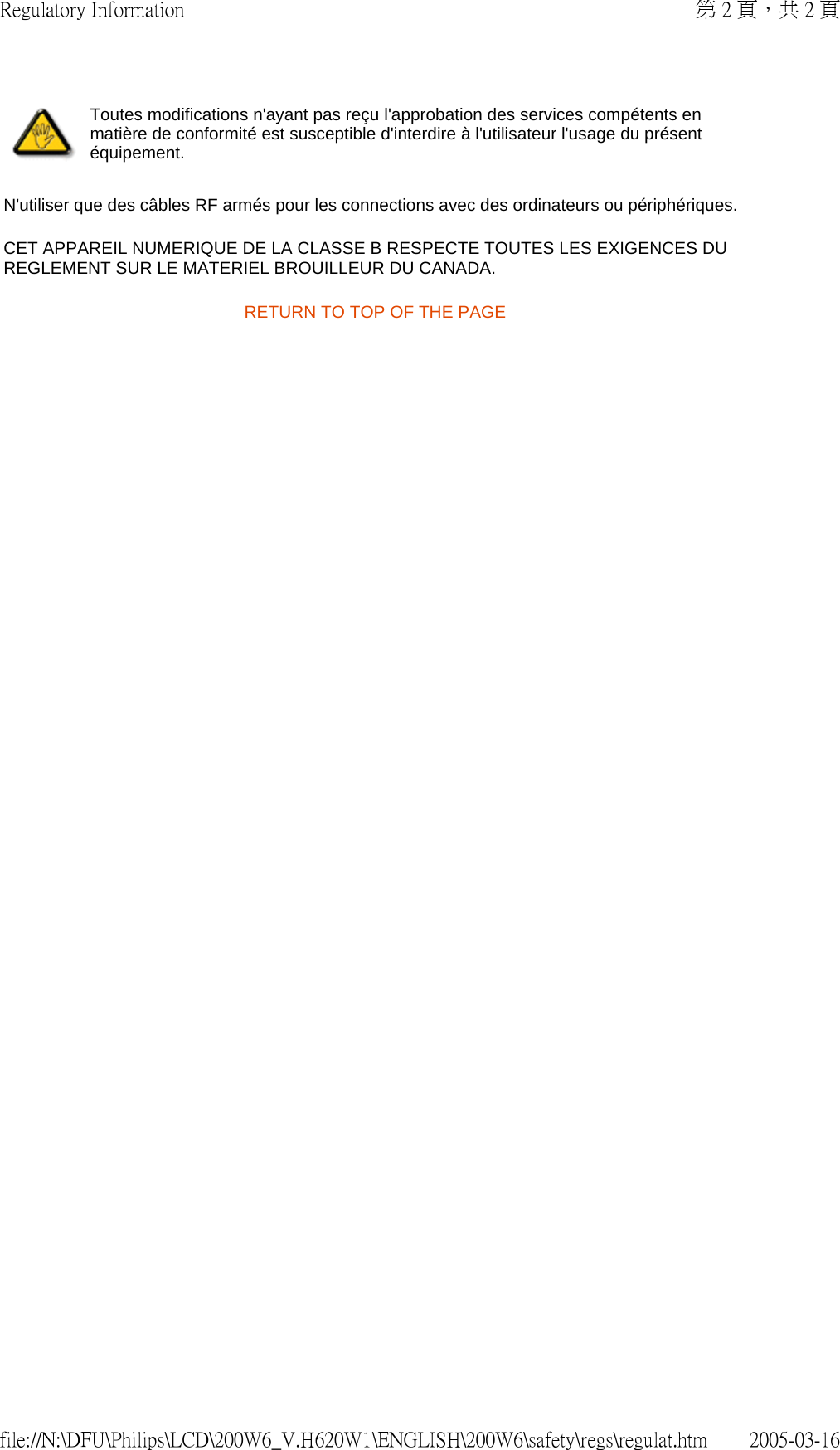

N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGE Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.第 2 頁，共 2 頁Regulatory Information2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\safety\regs\regulat.htm
