Product Information
Product Features
200W6
zOutstanding front of screen performance
{WSXGA, wide format 1680x1050 resolution for sharper display
{Fast 16ms response time displays fast moving pictures better
{Widest viewing angle up to 176 degree
{Dual Input accepts both analog VGA and digital DVI signals
zMaximum comfort for maximum productivity
{SmartManage provides LAN-based asset management capabilities
{Large viewing area for seeing more without scrolling
{Screen tilt, swivel and height adjustment for ideal viewing angle
{Easy, user friendly plug-and play installation
zMulti-function for ultimate convenience
{USB port for convenient peripheral connections
{Built-in speakers for audio without desktop clutter
{Stand-alone audio for efficient net conferencing
{Easy plug and play DVI ensures true digital experience
RETURN TO TOP OF THE PAGE
Technical Specifications*
LCD PANEL
• Type TFT LCD
• Screen size 20.1" / 51cm
• Pixel Pitch 0.258 x 0.258mm
• LCD Panel type
1680 x 1050 pixels
R.G.B. vertical stripe
Anti-glare polarizer, hard coated
• Effective viewing area 433.44 x 270.9 mm
• Display Colors 8 bits interface (16.7M colors)
SCANNING
Vertical refresh rate 56Hz-85Hz
Horizontal Frequency 30kHz-93kHz (Analog input)
VIDEO
• Video dot rate 165 MHz
• Input impedance
- Video 75 ohm
- Sync 2K2 ohm
第 1 頁，共 6 頁Product Information
2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution & Preset Modes
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
Composite sync
Sync on green
• Sync polarities Positive and negative
•Video interface D-Sub (Analog)
DVI-D (Digital)
AUDIO-IN
• Input signal level 0.7 Vpp
• Headphone out signal level 20mW x 2, 32
• Input signal connector 3.5mm mini jack
• Loudspeaker 4W Stereo Audio (2W/channel RMSx2, 200Hz-12kHz, 4
ohm,THD=10%)
Optical characteristics
• Contrast ratio: 600:1 (typ).
• Brightness: 300 cd/m2 (typ.)
• Peak contrast angle 6 o'clock
• White Chromaticity: x: 0.283 y: 0.297 (at 9300°K)
x: 0.313 y: 0.329 (at 6500°K)
• Viewing Angle:
(C/R>10)
Upper >88° (typ.)
Lower >88° (typ.)
Left >88° (typ.)
Right >88° (typ.)
• Response time 16 ms (typ.)
• Maximum 1680 x 1050 at 75Hz(analog input)
1680 x 1050 at 60Hz(digtal input)
• Recommended 1680 x 1050 at 60Hz * at DVI digital input
39 user definable modes
15 factory preset modes:
H. freq (kHz) Resolution V. freq (Hz)
第 2 頁，共 6 頁Product Information
2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. If an input from a keyboard, mouse
or other input device is detected, the monitor will 'wake up' automatically. The following table
shows the power consumption and signaling of this automatic power saving feature:
RETURN TO TOP OF THE PAGE
31.469 640x350 70.086
31.469 720x400 70.087
31.469 640x480 59.940
35.000 640x480 67.000
37.500 640x480 75.000
35.156 800x600 56.250
37.879 800x600 60.317
46.875 800x600 75.000
48.363 1024x768 60.004
60.023 1024x768 75.029
68.700 1152x870 75.000
63.981 1280x1024 60.020
79.976 1280x1024 75.025
75.0 1600x1200 60
65.29 1680x1050 60.0
Power Management Definition
VESA Mode Video H-sync V-sync Power
Used LED
color
Active ON Yes Yes < 50W Green
Sleep OFF No No < 1.5W Amber
Switch Off OFF - -< 1.5W OFF
This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS
has determined that this product meets the ENERGY STAR® guidelines for energy
efficiency.
第 3 頁，共 6 頁Product Information
2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm
Physical Specifications
* This data is subject to change without notice.
* Resolution 1680x1050, standard size, contrast max., brightness 50%, 6500° K, full white pattern.
RETURN TO TOP OF THE PAGE
Pin Assignment
1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts.
Signal pin assignments are listed in the following table:
• Dimension (WxHxD) 478 x 423.5 x235 mm (incl. Pedestal)
• Weight 7.6 Kg
• Tilt / Swivel -5° ~ 25° / ± 125°
• Power supply 90— 240 VAC, 60 - 50 Hz
• Power consumption 50 W* (typ.)
• Temperature 5° C to 40° C (operating)
-20° C to 60° C (storage)
• Relative humidity 20% to 80%
• System MTBF 50K hrs (excluding CCFL 40K hrs)
• Cabinet color 200W6CB: Black
200W6CS: Silver
• Altitude
- storage/shipment
- operating 0 - 40,000 feet (12,192m)
0 - 12,000 feet (3657.6m)
Pin
No. Signal
Assignment
Pin
No. Signal
Assignment
Pin
No. Signal
Assignment
1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-
2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+
3 T.M.D.S. Data2/4
Shield 11 T.M.D.S. Data1/3
Shield 19 T.M.D.S. Data0/5
Shield
4 No connect 12 No connect 20 No connect
5 No connect 13 No connect 21 No connect
6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock
Shield
7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+
8 No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-
第 4 頁，共 6 頁Product Information
2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm

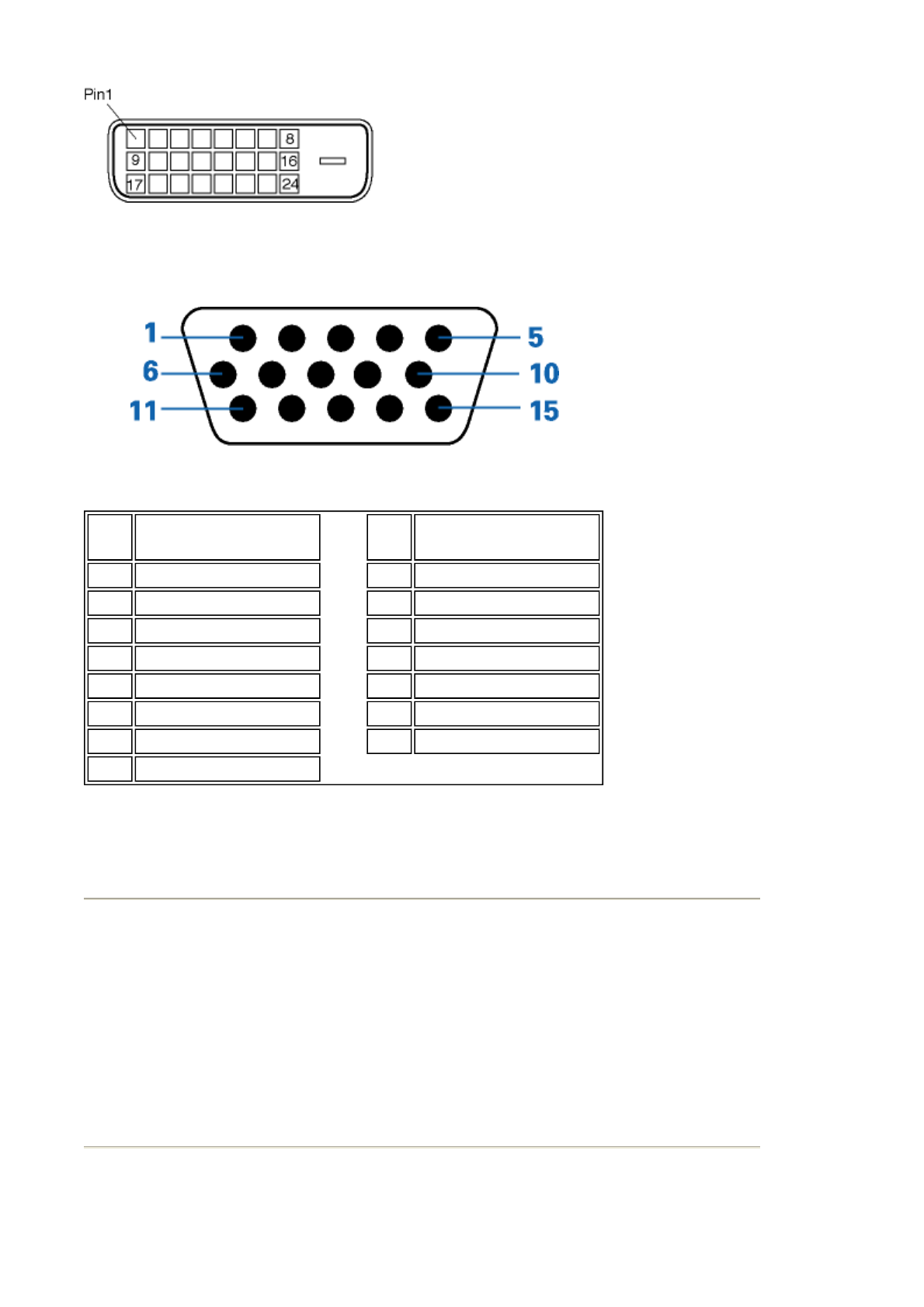

2. The 15-pin D-sub connector (male) of the signal cable:
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.

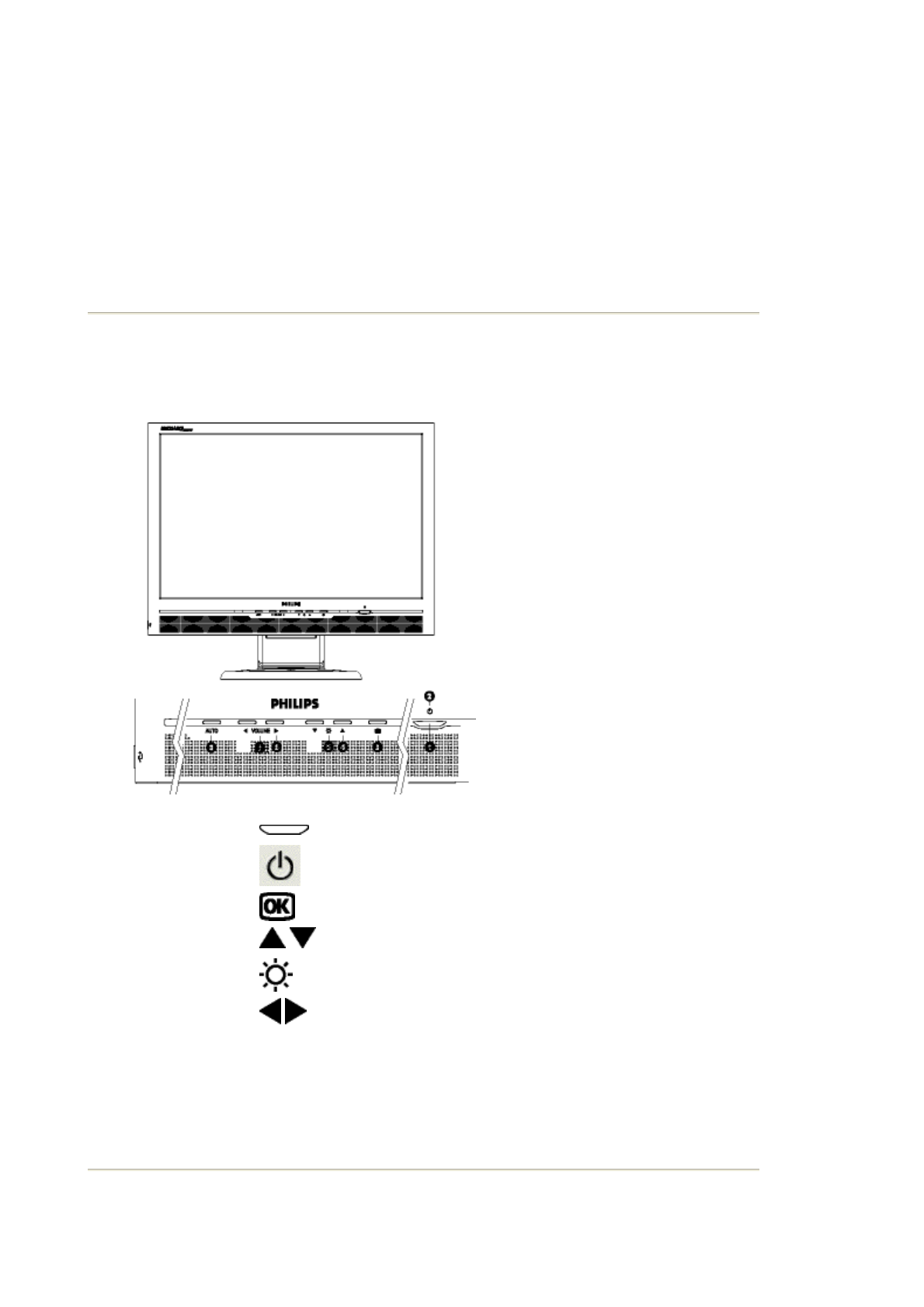

Front View Product Description
RETURN TO TOP OF THE PAGE
Physical Function
Pin
No. Assignment Pin
No. Assignment
1 Red video input 9 +5V
2 Green video input/SOG 10 Logic ground
3 Blue video input 11 Ground
4 Ground 12 Serial data line (SDA)
5 No connect 13 H. Sync / H+V
6 Red video ground 14 V. Sync (VCLK for DDC)
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground
第 5 頁，共 6 頁Product Information
2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm
RETURN TO TOP OF THE PAGE
1) Tilt
2) Swivel
第 6 頁，共 6 頁Product Information
2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\product\product.htm
Installing Your LCD Monitor
Front View Product Description
RETURN TO TOP OF THE PAGE
Rear View
1 To switch monitor's power On and Off
2 Power LED
3 To access OSD menu
4 To adjust the OSD
5 To adjust brightness of the display
6 To adjust the OSD
7 VOLUME To adjust speaker volume
8 AUTO Automatically adjust the horizontal position, vertical position
,
phase and clock setting
第 1 頁，共 2 頁Installing Your LCD Monitor
2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\install\install.htm
RETURN TO TOP OF THE PAGE
Optimizing Performance
zFor best performance, ensure that your display settings are set at 1680 x 1050 @60Hz
zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the
best performance out of your monitor. This is included on this CD. Step-by-step
instructions are provided to guide you through the installtion process. Click on the link to
know more about this program.
More about FP_setup04.exe
RETURN TO TOP OF THE PAGE
1 Kensington anti-thief lock
2 VGA input
3 DVI-D input
4 PC audio input
5 Earphone jack
6 AC power input
7 USB upstream port
8 USB downstream port
Note: You can check the current display settings by pressing the 'OK'
button once. Go into the Product Information. The current display mode is
shown on the item called RESOLUTION.
第 2 頁，共 2 頁Installing Your LCD Monitor
2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\install\install.htm
Federal Communications Commission (FCC) Notice (U.S. Only)
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
zConsult the dealer or an experienced radio/TV technician for help.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a
computer device.
To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain
or excessive moisture.
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.
RETURN TO TOP OF THE PAGE
Commission Federale de la Communication (FCC Declaration)
zRéorienter ou déplacer l'antenne de réception.
zAugmenter la distance entre l'équipement et le récepteur.
zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur.
zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Cet équipement a été testé et déclaré conforme auxlimites des appareils
numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces
limites sont conçues de façon à fourir une protection raisonnable contre les
interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil
produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas
installé et utilisé selon les consignes données, peuvent causer des interférences
nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence
d'interférences dans le cadre d'une installation particulière. Si cet appareil est la
cause d'interférences nuisibles pour la réception des signaux de radio ou de
télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant
en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les
mesures suivantes:
第 1 頁，共 2 頁Regulatory Information
2005-03-16file://N:\DFU\Philips\LCD\200W6_V.H620W1\ENGLISH\200W6\safety\regs\regulat.htm
N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.
CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU
REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.
RETURN TO TOP OF THE PAGE
Toutes modifications n'ayant pas reçu l'approbation des services compétents en
matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent
équipement.
