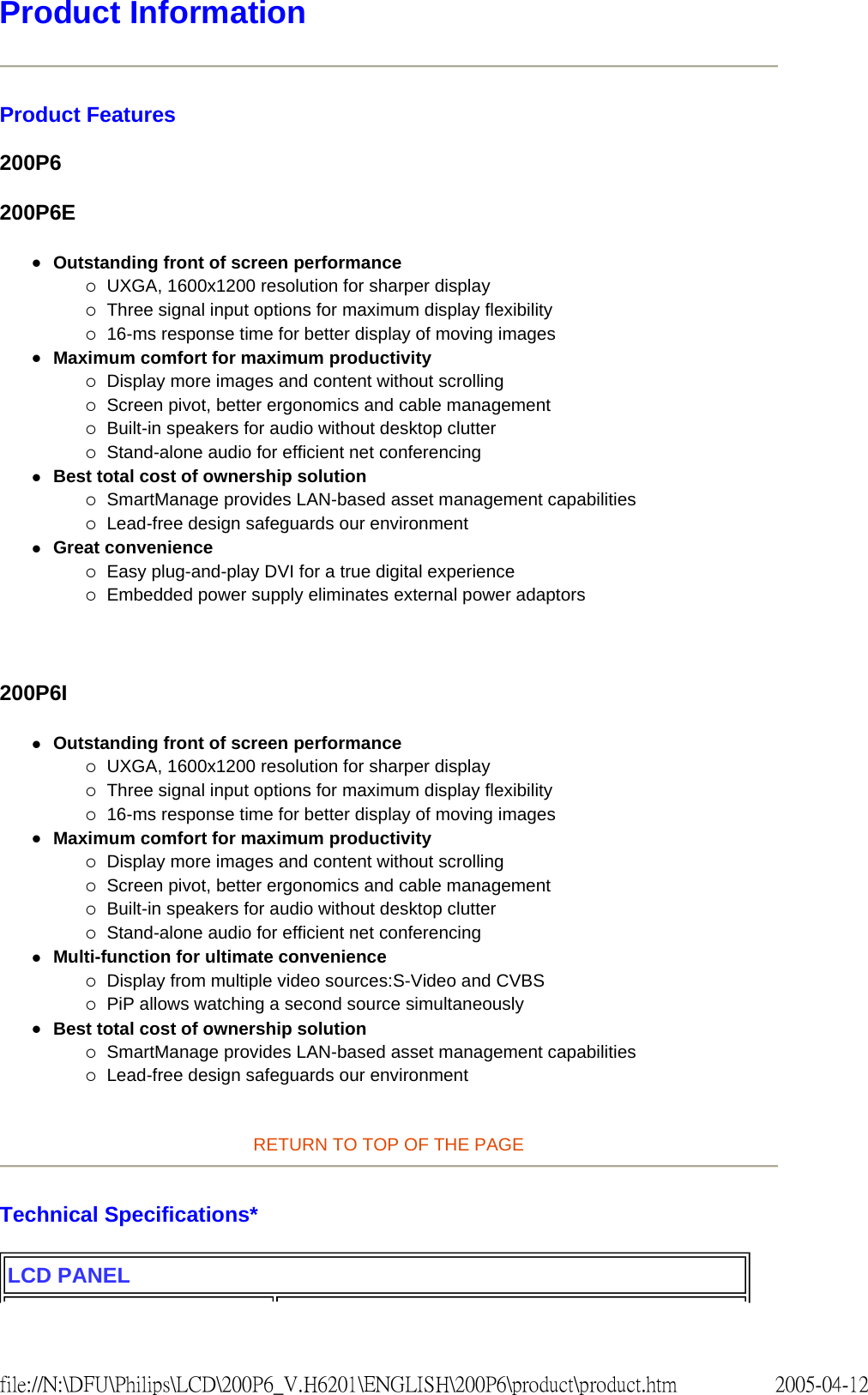

$Product Information Product Features 200P6 200P6E zOutstanding front of screen performance {UXGA, 1600x1200 resolution for sharper display {Three signal input options for maximum display flexibility {16-ms response time for better display of moving images zMaximum comfort for maximum productivity {Display more images and content without scrolling {Screen pivot, better ergonomics and cable management {Built-in speakers for audio without desktop clutter {Stand-alone audio for efficient net conferencing zBest total cost of ownership solution {SmartManage provides LAN-based asset management capabilities {Lead-free design safeguards our environment zGreat convenience {Easy plug-and-play DVI for a true digital experience {Embedded power supply eliminates external power adaptors 200P6I zOutstanding front of screen performance {UXGA, 1600x1200 resolution for sharper display {Three signal input options for maximum display flexibility {16-ms response time for better display of moving images zMaximum comfort for maximum productivity {Display more images and content without scrolling {Screen pivot, better ergonomics and cable management {Built-in speakers for audio without desktop clutter {Stand-alone audio for efficient net conferencing zMulti-function for ultimate convenience {Display from multiple video sources:S-Video and CVBS {PiP allows watching a second source simultaneously zBest total cost of ownership solution {SmartManage provides LAN-based asset management capabilities {Lead-free design safeguards our environment RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL 2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm$

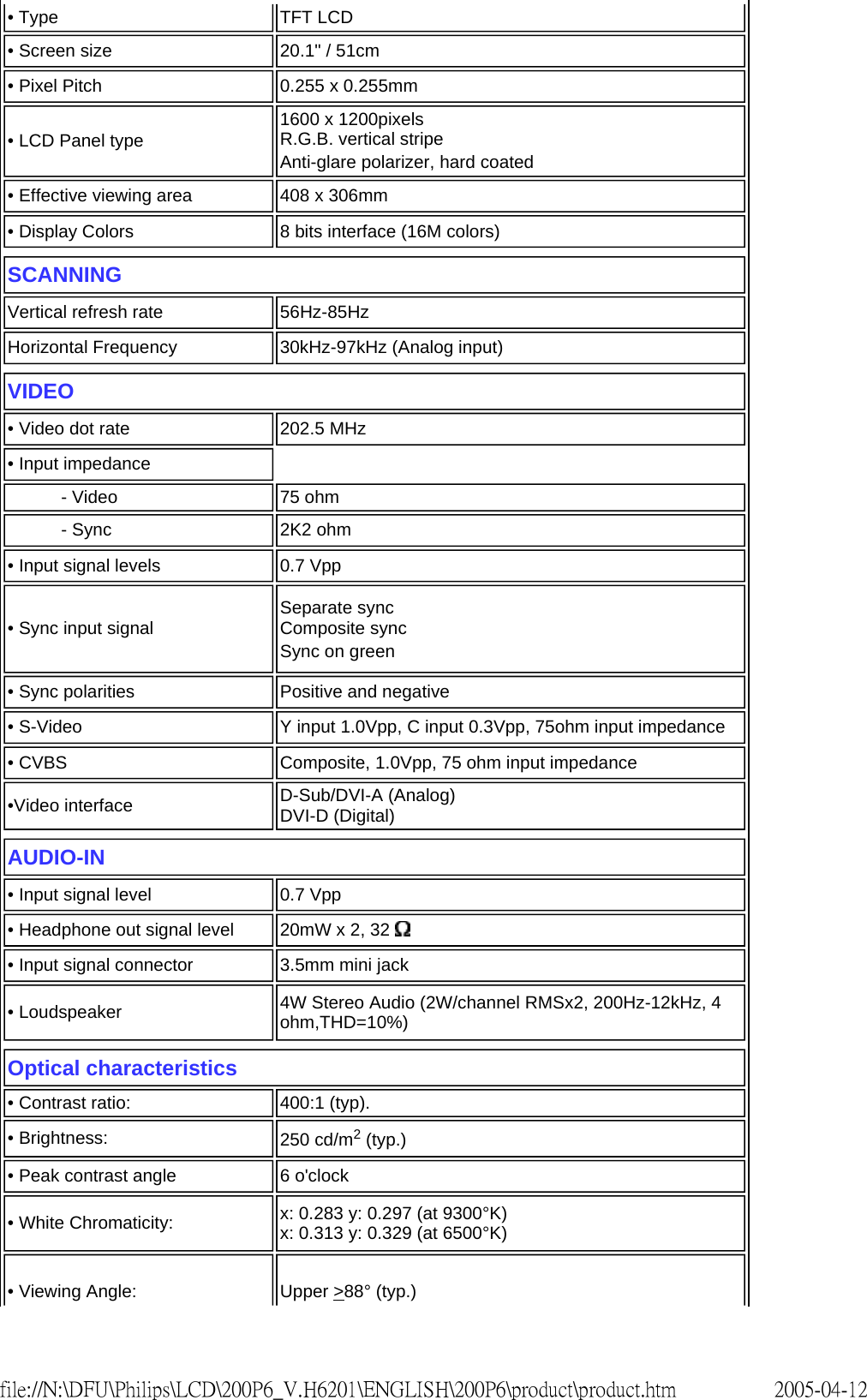

$• Type TFT LCD• Screen size 20.1" / 51cm• Pixel Pitch 0.255 x 0.255mm• LCD Panel type 1600 x 1200pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated • Effective viewing area 408 x 306mm• Display Colors 8 bits interface (16M colors)SCANNINGVertical refresh rate 56Hz-85HzHorizontal Frequency 30kHz-97kHz (Analog input)VIDEO • Video dot rate 202.5 MHz• Input impedance- Video 75 ohm- Sync 2K2 ohm• Input signal levels 0.7 Vpp• Sync input signal Separate sync Composite sync Sync on green • Sync polarities Positive and negative• S-Video Y input 1.0Vpp, C input 0.3Vpp, 75ohm input impedance• CVBS Composite, 1.0Vpp, 75 ohm input impedance•Video interface D-Sub/DVI-A (Analog) DVI-D (Digital)AUDIO-IN • Input signal level 0.7 Vpp • Headphone out signal level 20mW x 2, 32 • Input signal connector 3.5mm mini jack• Loudspeaker 4W Stereo Audio (2W/channel RMSx2, 200Hz-12kHz, 4 ohm,THD=10%)Optical characteristics • Contrast ratio: 400:1 (typ).• Brightness: 250 cd/m2 (typ.)• Peak contrast angle 6 o'clock• White Chromaticity: x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) • Viewing Angle: Upper >88° (typ.) 2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm$

$* This data is subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes RETURN TO TOP OF THE PAGE Automatic Power Saving (C/R>10) Lower >88° (typ.) Left >88° (typ.) Right >88° (typ.) • Response time 16 ms (typ.) • Maximum 1600 x 1200 at 75Hz(analog input) 1600 x 1200 at 60Hz(digtal input) • Recommended 1600 x 1200 at 60Hz * at DVI digital input37 user definable modes 15 factory preset modes:H. freq (kHz) Resolution V. freq (Hz) 31.5 640*350 70 (IBM VGA 10h) 31.5 720*400 70 31.5 640*480 60 37.5 640*480 75 35.2 800*600 56 37.9 800*600 60 46.9 800*600 75 48.4 1024*768 60 60.0 1024*768 75 60 1280*960 60 69.0 1152*870 75 63.9 1280*1024 60 80.0 1280*1024 75 75.0 1600*1200 60 93.8 1600*1200 75 (Analog only) 2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm$

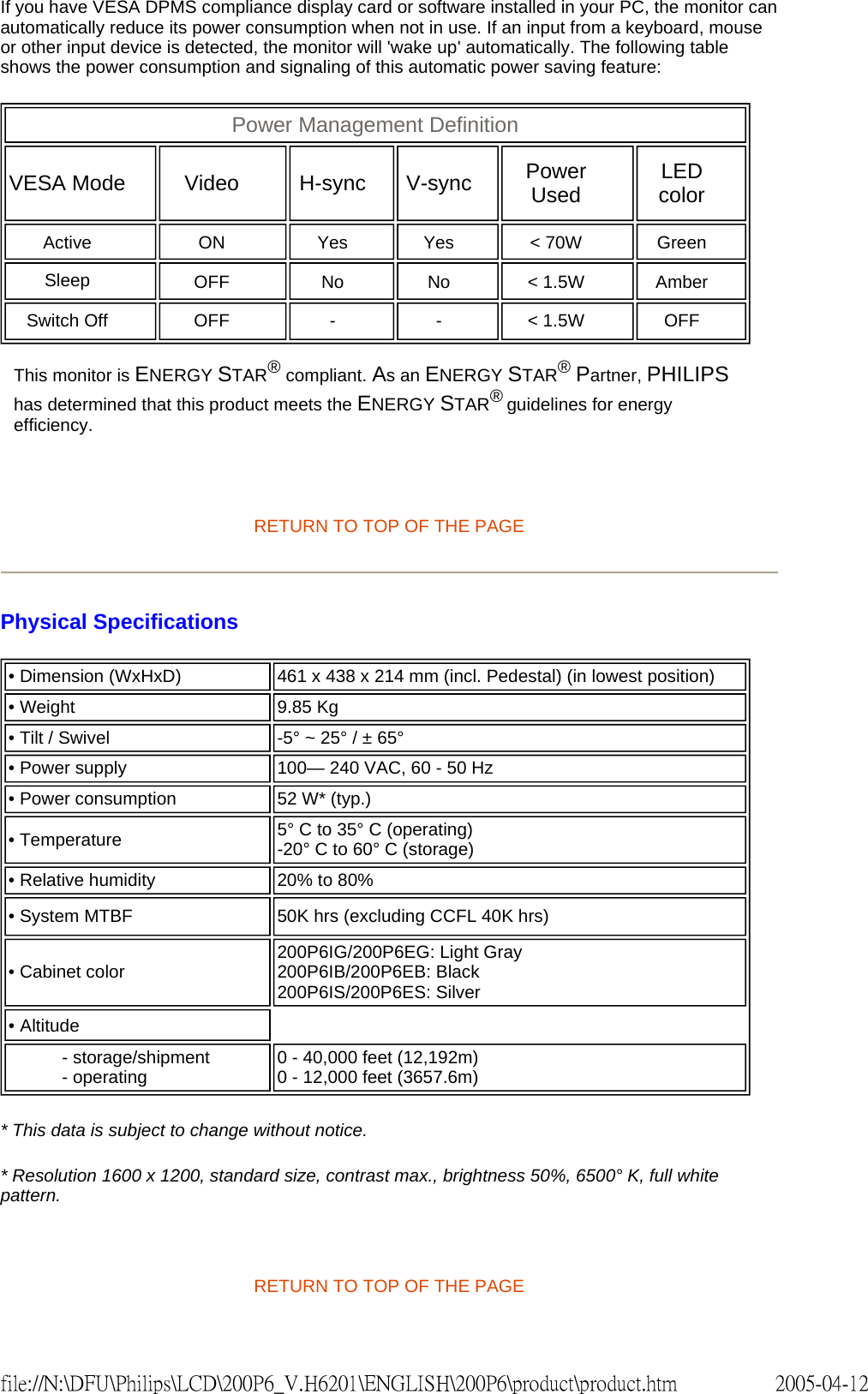

$If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: RETURN TO TOP OF THE PAGE Physical Specifications * This data is subject to change without notice. * Resolution 1600 x 1200, standard size, contrast max., brightness 50%, 6500° K, full white pattern. RETURN TO TOP OF THE PAGE Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color Active ON Yes Yes < 70W Green Sleep OFF No No < 1.5W Amber Switch Off OFF - -< 1.5W OFF This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.• Dimension (WxHxD) 461 x 438 x 214 mm (incl. Pedestal) (in lowest position) • Weight 9.85 Kg • Tilt / Swivel -5° ~ 25° / ± 65° • Power supply 100— 240 VAC, 60 - 50 Hz• Power consumption 52 W* (typ.)• Temperature 5° C to 35° C (operating) -20° C to 60° C (storage)• Relative humidity 20% to 80%• System MTBF 50K hrs (excluding CCFL 40K hrs)• Cabinet color 200P6IG/200P6EG: Light Gray 200P6IB/200P6EB: Black 200P6IS/200P6ES: Silver• Altitude- storage/shipment - operating 0 - 40,000 feet (12,192m) 0 - 12,000 feet (3657.6m)2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm$

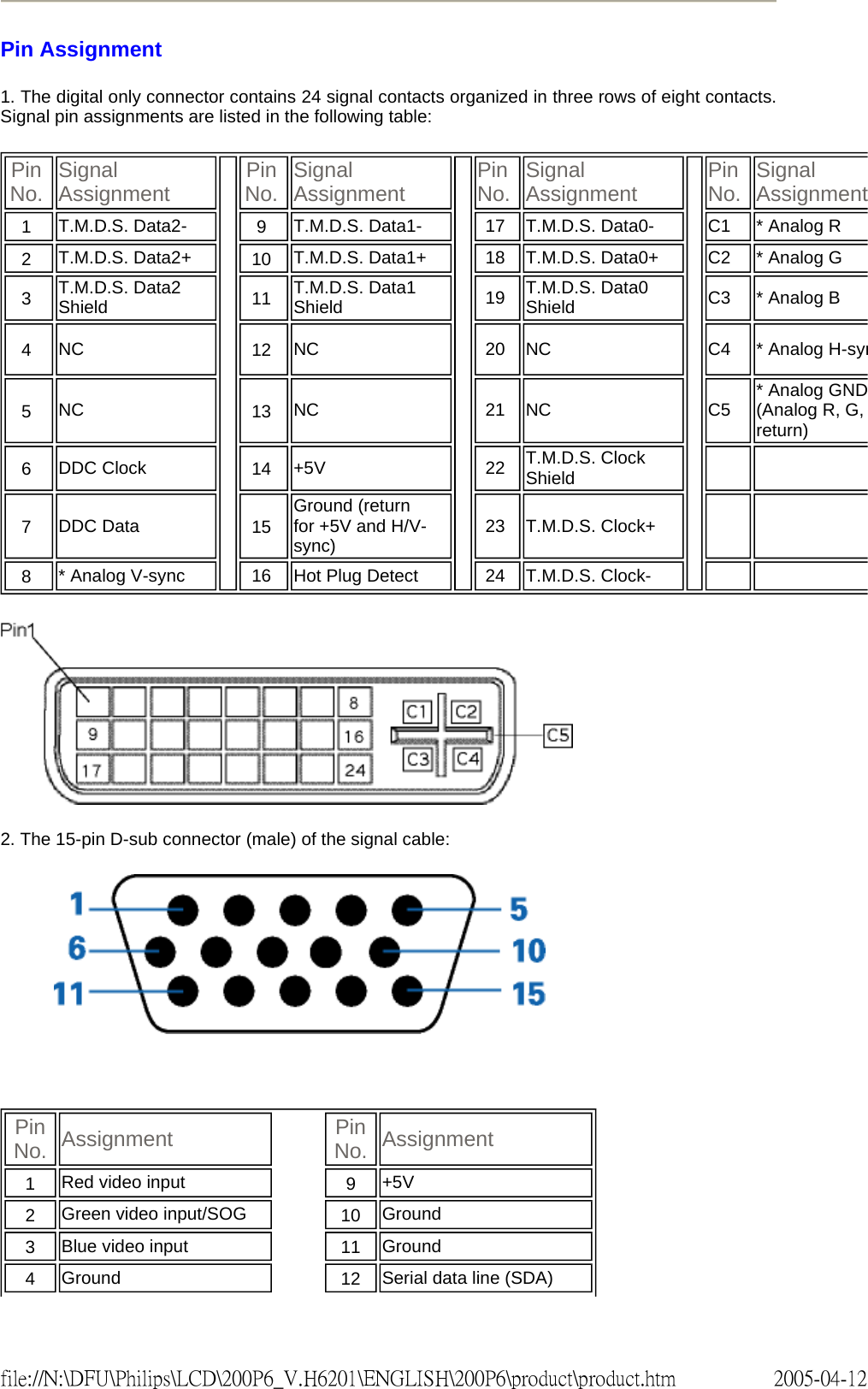

$Pin Assignment 1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: 2. The 15-pin D-sub connector (male) of the signal cable: Pin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0- C1 * Analog R2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+ C2 * Analog G3 T.M.D.S. Data2 Shield 11 T.M.D.S. Data1 Shield 19 T.M.D.S. Data0 Shield C3 * Analog B4 NC 12 NC 20 NC C4 * Analog H-syn5 NC 13 NC 21 NC C5 * Analog GND(Analog R, G, return)6 DDC Clock 14 +5V 22 T.M.D.S. Clock Shield 7 DDC Data 15 Ground (return for +5V and H/V-sync) 23 T.M.D.S. Clock+ 8 * Analog V-sync 16 Hot Plug Detect 24 T.M.D.S. Clock- Pin No. Assignment Pin No. Assignment1 Red video input 9 +5V2 Green video input/SOG 10 Ground3 Blue video input 11 Ground4 Ground 12 Serial data line (SDA)2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm$

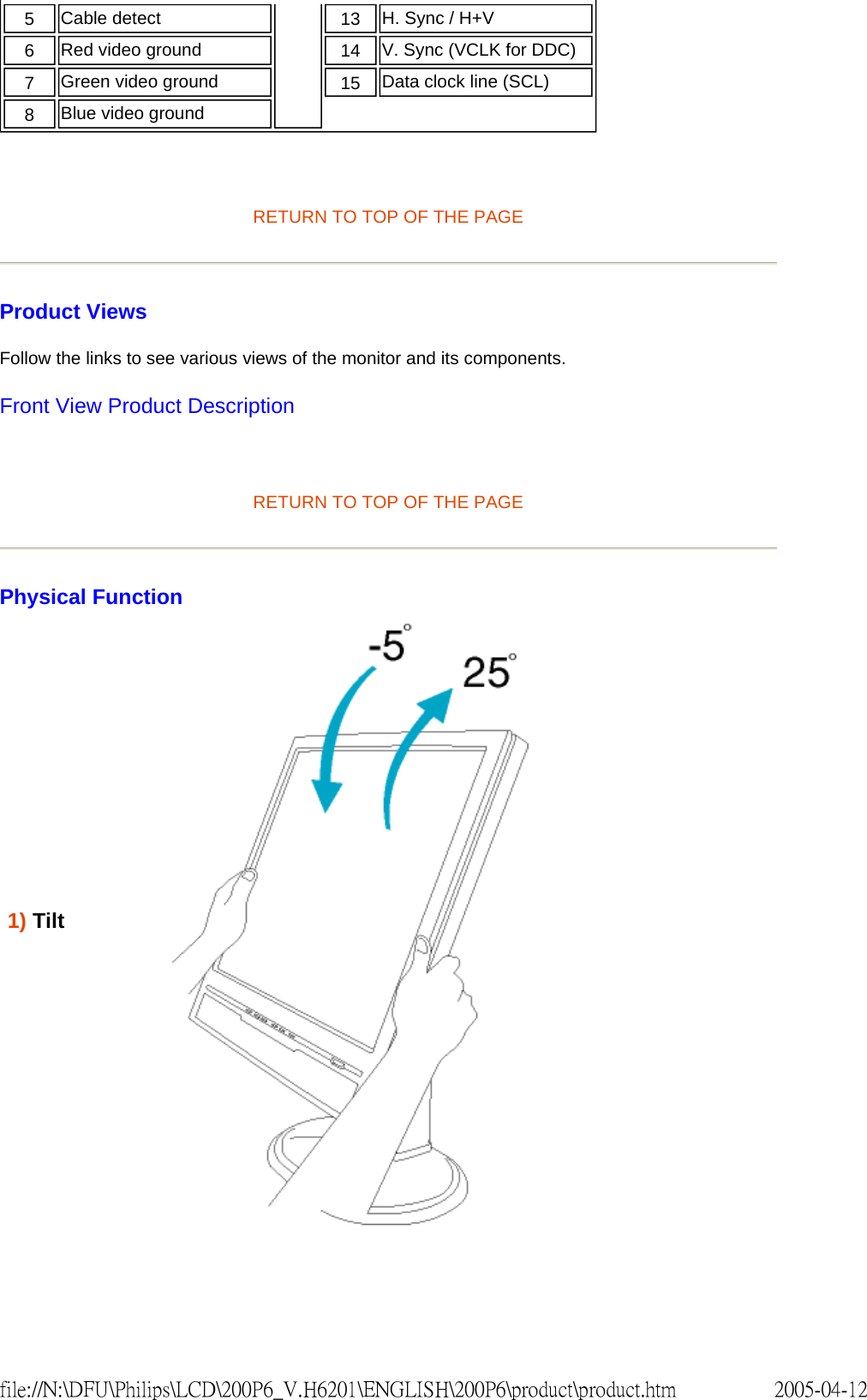

$RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function 5 Cable detect 13 H. Sync / H+V6 Red video ground 14 V. Sync (VCLK for DDC)7 Green video ground 15 Data clock line (SCL)8 Blue video ground1) Tilt2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm$

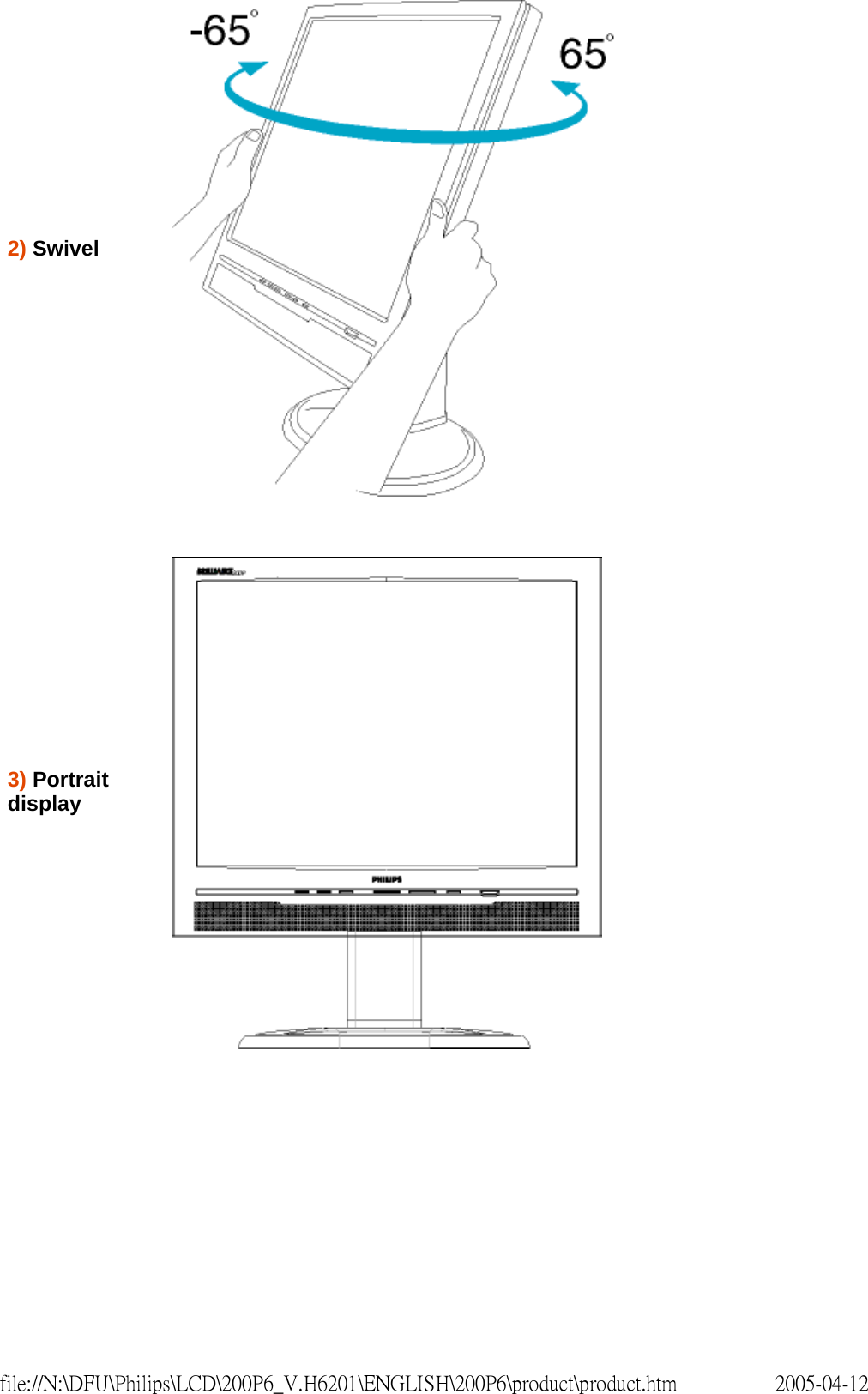

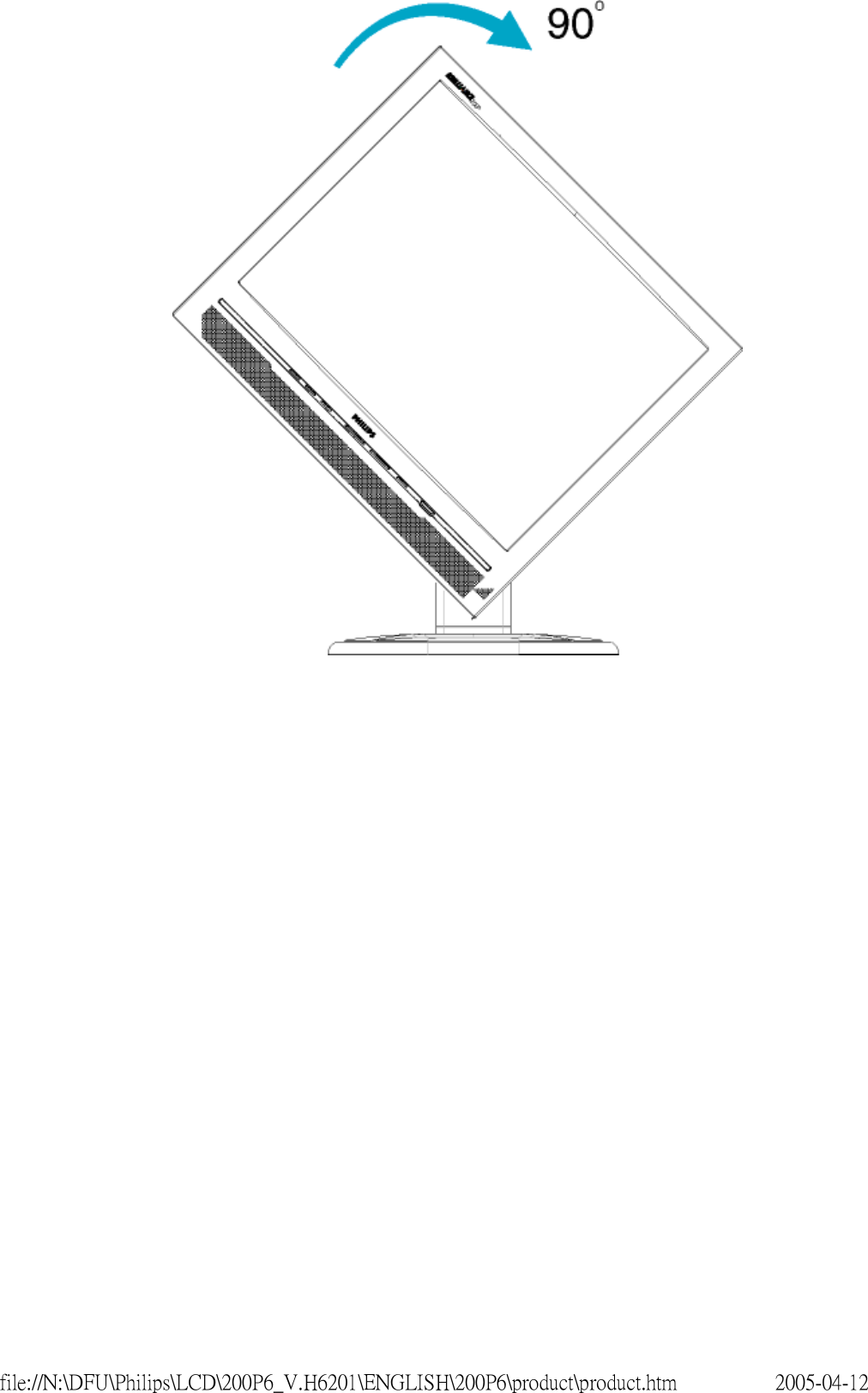

$2) Swivel3) Portrait display 2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm$

$2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm$

$RETURN TO TOP OF THE PAGE 2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm$

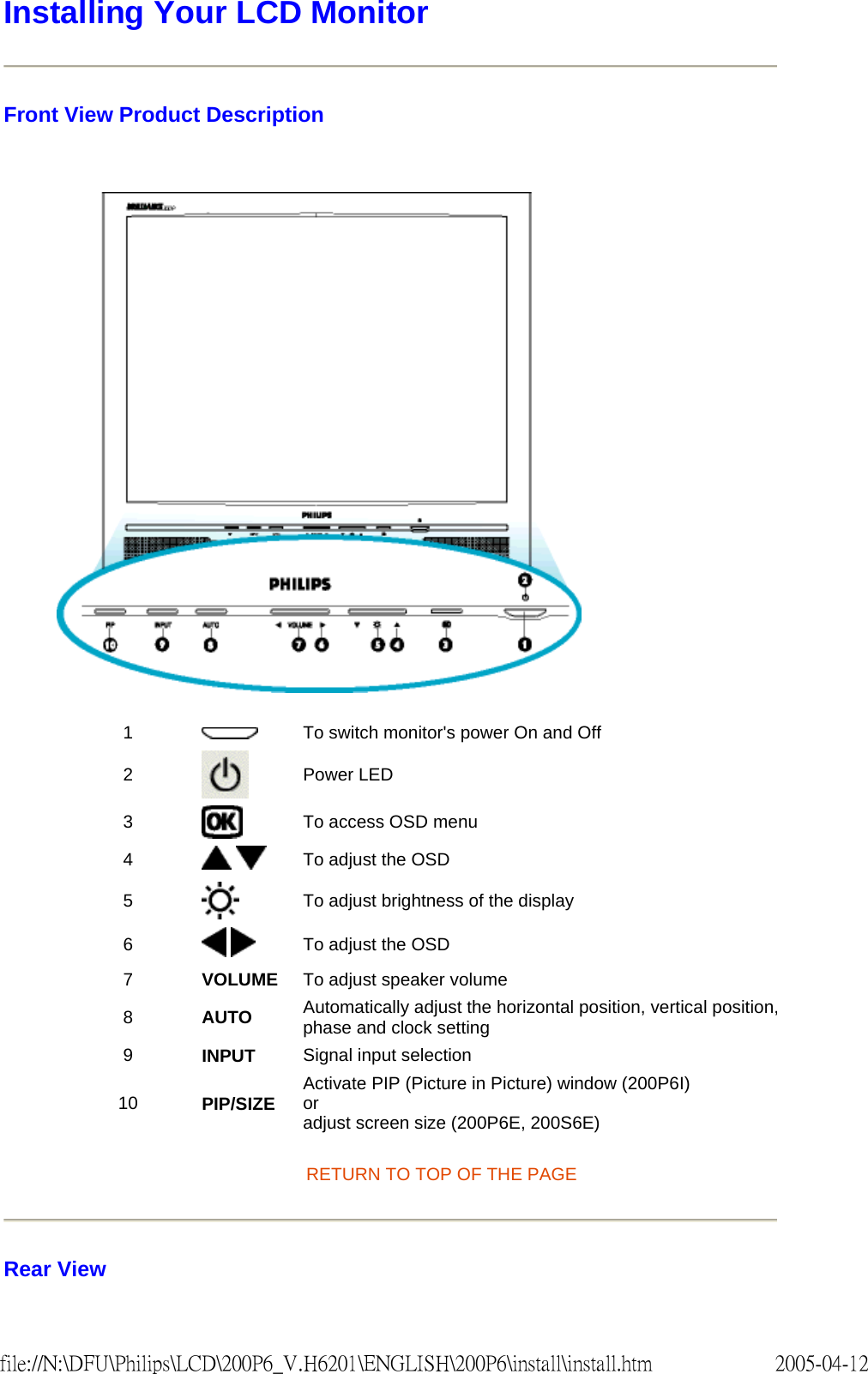

$Installing Your LCD Monitor Front View Product Description RETURN TO TOP OF THE PAGE Rear View 1 To switch monitor's power On and Off2 Power LED3 To access OSD menu4 To adjust the OSD5 To adjust brightness of the display6 To adjust the OSD7 VOLUME To adjust speaker volume8 AUTO Automatically adjust the horizontal position, vertical position,phase and clock setting9 INPUT Signal input selection10 PIP/SIZE Activate PIP (Picture in Picture) window (200P6I) or adjust screen size (200P6E, 200S6E) 2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\install\install.htm$

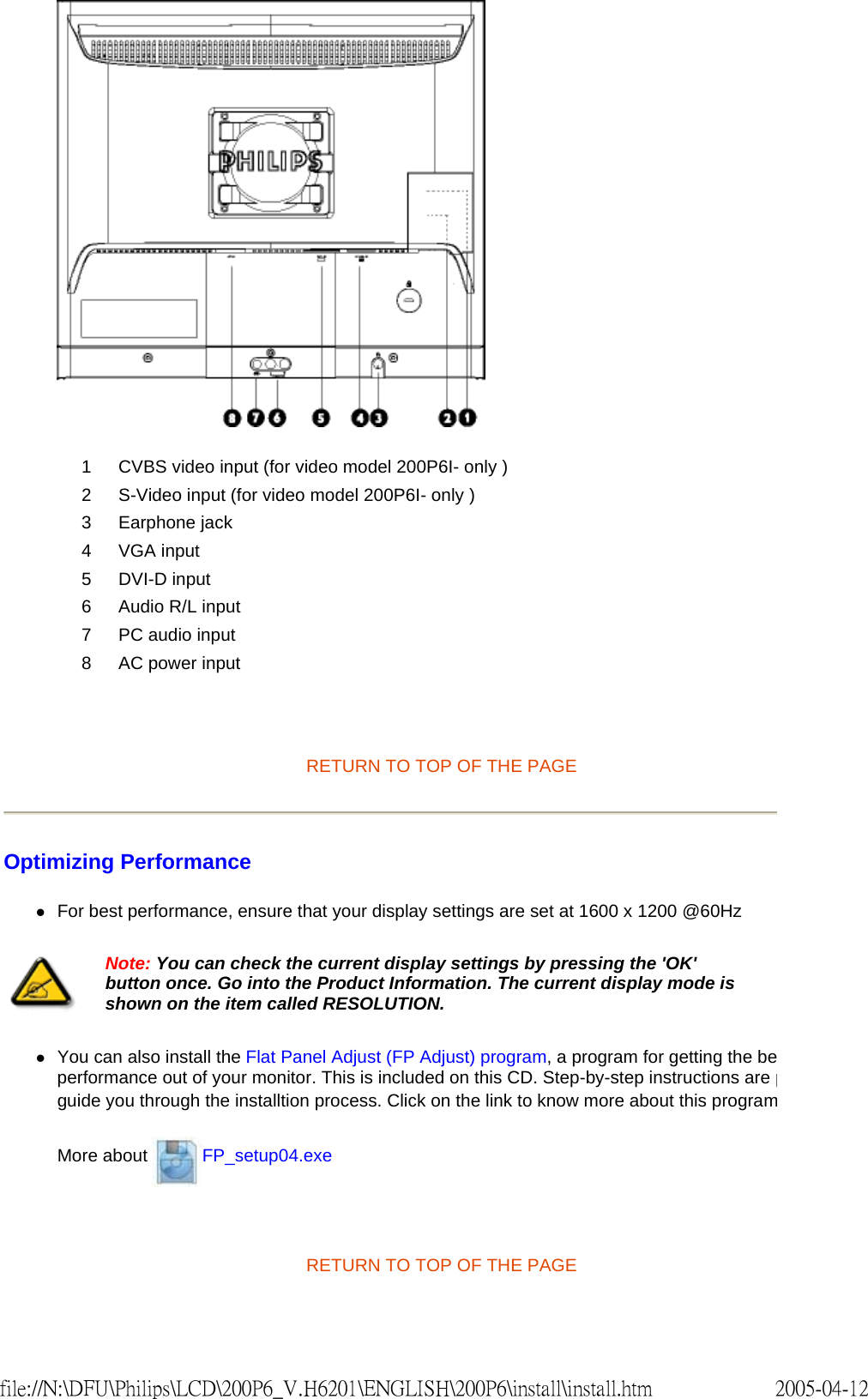

$RETURN TO TOP OF THE PAGE Optimizing Performance zFor best performance, ensure that your display settings are set at 1600 x 1200 @60Hz zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the beperformance out of your monitor. This is included on this CD. Step-by-step instructions are pguide you through the installtion process. Click on the link to know more about this programMore about FP_setup04.exe RETURN TO TOP OF THE PAGE 1 CVBS video input (for video model 200P6I- only )2 S-Video input (for video model 200P6I- only )3 Earphone jack 4 VGA input5 DVI-D input6 Audio R/L input7 PC audio input8 AC power inputNote: You can check the current display settings by pressing the 'OK' button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\install\install.htm$

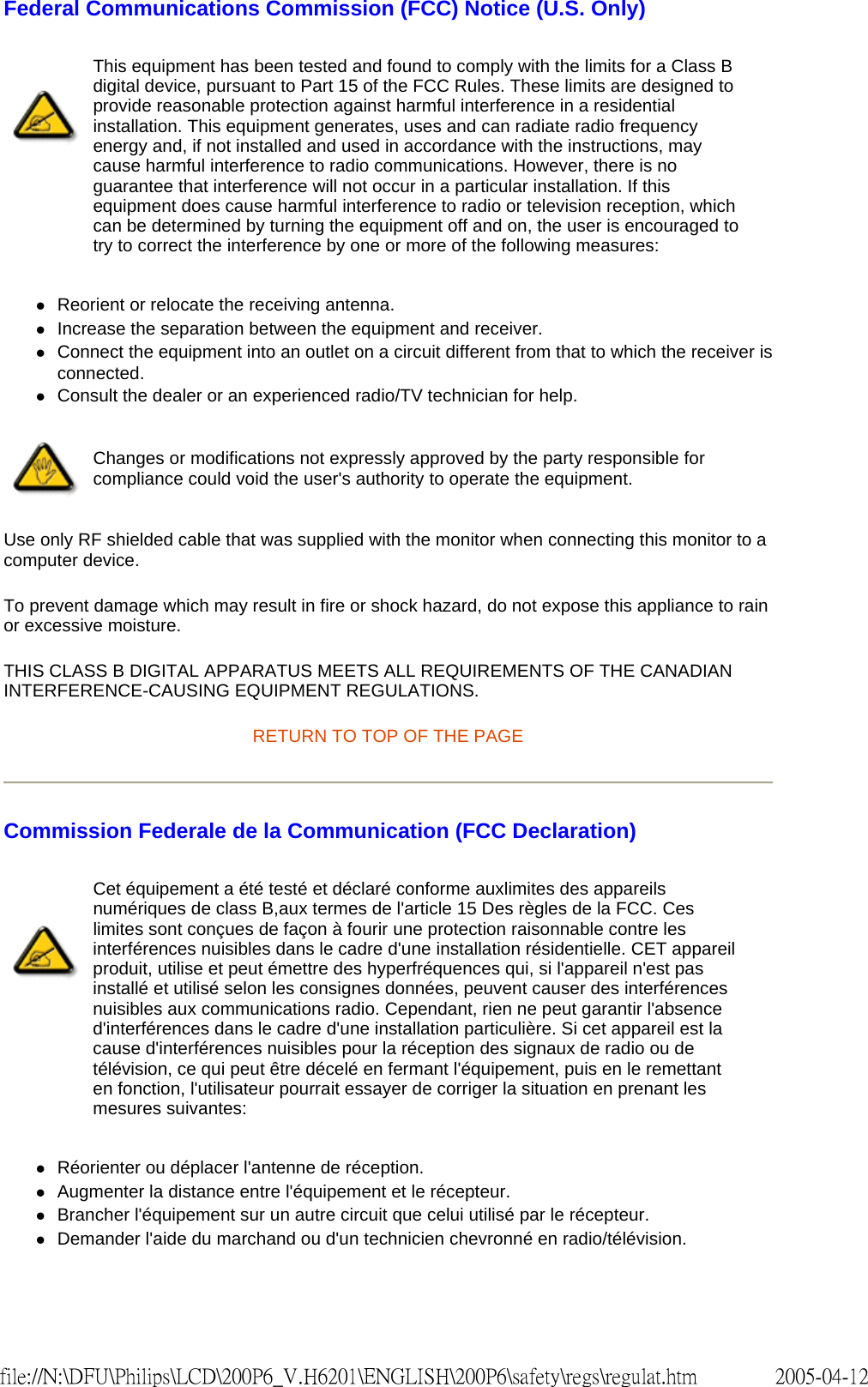

$Federal Communications Commission (FCC) Notice (U.S. Only) zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration) zRéorienter ou déplacer l'antenne de réception. zAugmenter la distance entre l'équipement et le récepteur. zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes: 2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\safety\regs\regulat.htm$

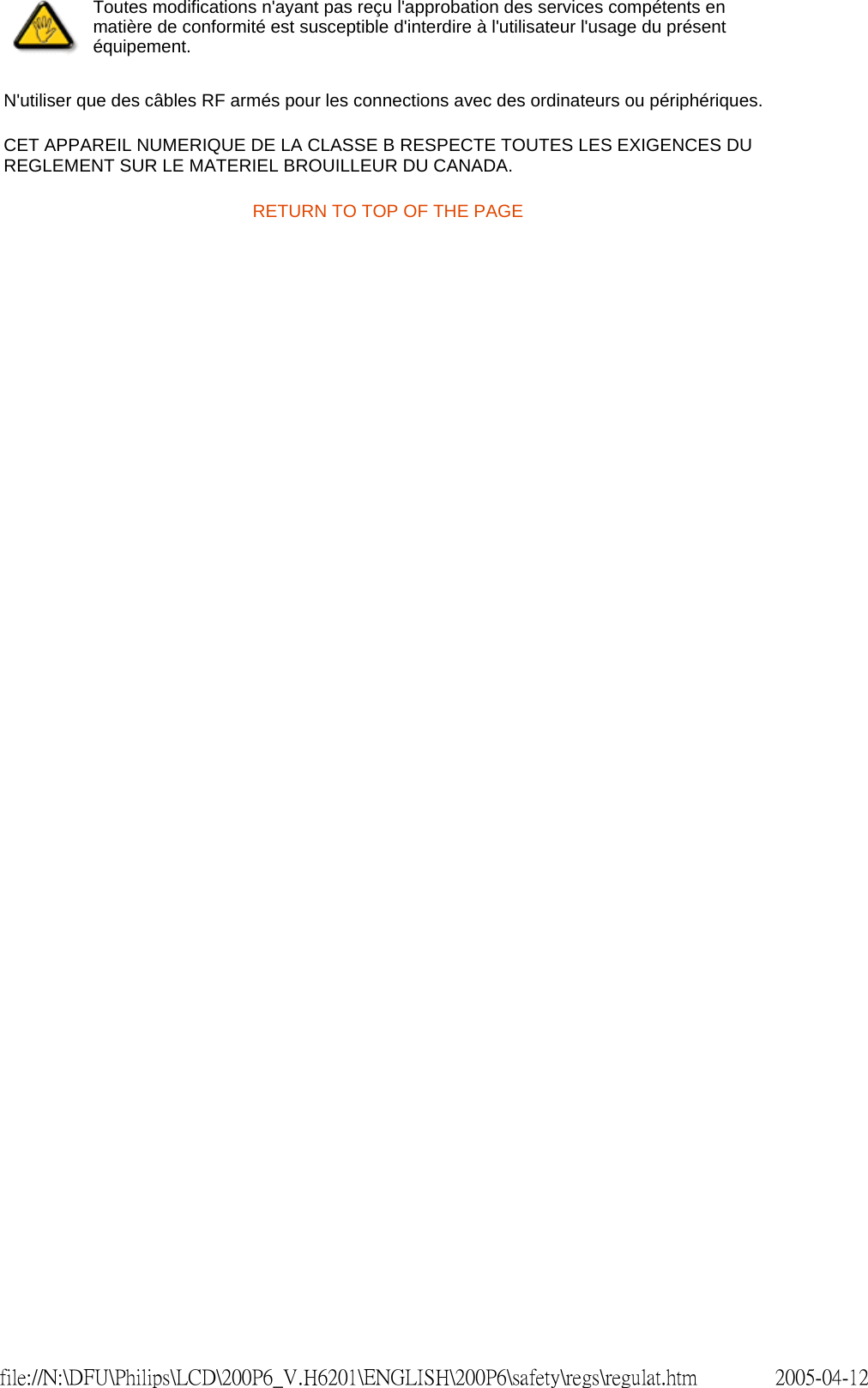

$N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGE Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\safety\regs\regulat.htm$
