Philips Electronics M143 Display Color Monitor User Manual
Philips Electronics Industries (Taiwan) Ltd Display Color Monitor Users Manual
Users Manual
Product Information
Product Features
200P6
200P6E
zOutstanding front of screen performance
{UXGA, 1600x1200 resolution for sharper display
{Three signal input options for maximum display flexibility
{16-ms response time for better display of moving images
zMaximum comfort for maximum productivity
{Display more images and content without scrolling
{Screen pivot, better ergonomics and cable management
{Built-in speakers for audio without desktop clutter
{Stand-alone audio for efficient net conferencing
zBest total cost of ownership solution
{SmartManage provides LAN-based asset management capabilities
{Lead-free design safeguards our environment
zGreat convenience
{Easy plug-and-play DVI for a true digital experience
{Embedded power supply eliminates external power adaptors
200P6I
zOutstanding front of screen performance
{UXGA, 1600x1200 resolution for sharper display
{Three signal input options for maximum display flexibility
{16-ms response time for better display of moving images
zMaximum comfort for maximum productivity
{Display more images and content without scrolling
{Screen pivot, better ergonomics and cable management
{Built-in speakers for audio without desktop clutter
{Stand-alone audio for efficient net conferencing
zMulti-function for ultimate convenience
{Display from multiple video sources:S-Video and CVBS
{PiP allows watching a second source simultaneously
zBest total cost of ownership solution
{SmartManage provides LAN-based asset management capabilities
{Lead-free design safeguards our environment
RETURN TO TOP OF THE PAGE
Technical Specifications*
LCD PANEL
2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm
• Type TFT LCD
• Screen size 20.1" / 51cm
• Pixel Pitch 0.255 x 0.255mm
• LCD Panel type 1600 x 1200pixels
R.G.B. vertical stripe
Anti-glare polarizer, hard coated
• Effective viewing area 408 x 306mm
• Display Colors 8 bits interface (16M colors)
SCANNING
Vertical refresh rate 56Hz-85Hz
Horizontal Frequency 30kHz-97kHz (Analog input)
VIDEO
• Video dot rate 202.5 MHz
• Input impedance
- Video 75 ohm
- Sync 2K2 ohm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
Composite sync
Sync on green
• Sync polarities Positive and negative
• S-Video Y input 1.0Vpp, C input 0.3Vpp, 75ohm input impedance
• CVBS Composite, 1.0Vpp, 75 ohm input impedance
•Video interface D-Sub/DVI-A (Analog)
DVI-D (Digital)
AUDIO-IN
• Input signal level 0.7 Vpp
• Headphone out signal level 20mW x 2, 32
• Input signal connector 3.5mm mini jack
• Loudspeaker 4W Stereo Audio (2W/channel RMSx2, 200Hz-12kHz, 4
ohm,THD=10%)
Optical characteristics
• Contrast ratio: 400:1 (typ).
• Brightness: 250 cd/m2 (typ.)
• Peak contrast angle 6 o'clock
• White Chromaticity: x: 0.283 y: 0.297 (at 9300°K)
x: 0.313 y: 0.329 (at 6500°K)
• Viewing Angle: Upper >88° (typ.)
2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution & Preset Modes
RETURN TO TOP OF THE PAGE
Automatic Power Saving
(C/R>10) Lower >88° (typ.)
Left >88° (typ.)
Right >88° (typ.)
• Response time 16 ms (typ.)
• Maximum 1600 x 1200 at 75Hz(analog input)
1600 x 1200 at 60Hz(digtal input)
• Recommended 1600 x 1200 at 60Hz * at DVI digital input
37 user definable modes
15 factory preset modes:
H. freq (kHz) Resolution V. freq (Hz)
31.5 640*350 70 (IBM VGA 10h)
31.5 720*400 70
31.5 640*480 60
37.5 640*480 75
35.2 800*600 56
37.9 800*600 60
46.9 800*600 75
48.4 1024*768 60
60.0 1024*768 75
60 1280*960 60
69.0 1152*870 75
63.9 1280*1024 60
80.0 1280*1024 75
75.0 1600*1200 60
93.8 1600*1200 75 (Analog only)
2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm
If you have VESA DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. If an input from a keyboard, mouse
or other input device is detected, the monitor will 'wake up' automatically. The following table
shows the power consumption and signaling of this automatic power saving feature:
RETURN TO TOP OF THE PAGE
Physical Specifications
* This data is subject to change without notice.
* Resolution 1600 x 1200, standard size, contrast max., brightness 50%, 6500° K, full white
p
attern.
RETURN TO TOP OF THE PAGE
Power Management Definition
VESA Mode Video H-sync V-sync Power
Used LED
color
Active ON Yes Yes < 70W Green
Sleep OFF No No < 1.5W Amber
Switch Off OFF - -< 1.5W OFF
This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS
has determined that this product meets the ENERGY STAR® guidelines for energy
efficiency.
• Dimension (WxHxD) 461 x 438 x 214 mm (incl. Pedestal) (in lowest position)
• Weight 9.85 Kg
• Tilt / Swivel -5° ~ 25° / ± 65°
• Power supply 100— 240 VAC, 60 - 50 Hz
• Power consumption 52 W* (typ.)
• Temperature 5° C to 35° C (operating)
-20° C to 60° C (storage)
• Relative humidity 20% to 80%
• System MTBF 50K hrs (excluding CCFL 40K hrs)
• Cabinet color 200P6IG/200P6EG: Light Gray
200P6IB/200P6EB: Black
200P6IS/200P6ES: Silver
• Altitude
- storage/shipment
- operating 0 - 40,000 feet (12,192m)
0 - 12,000 feet (3657.6m)
2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm

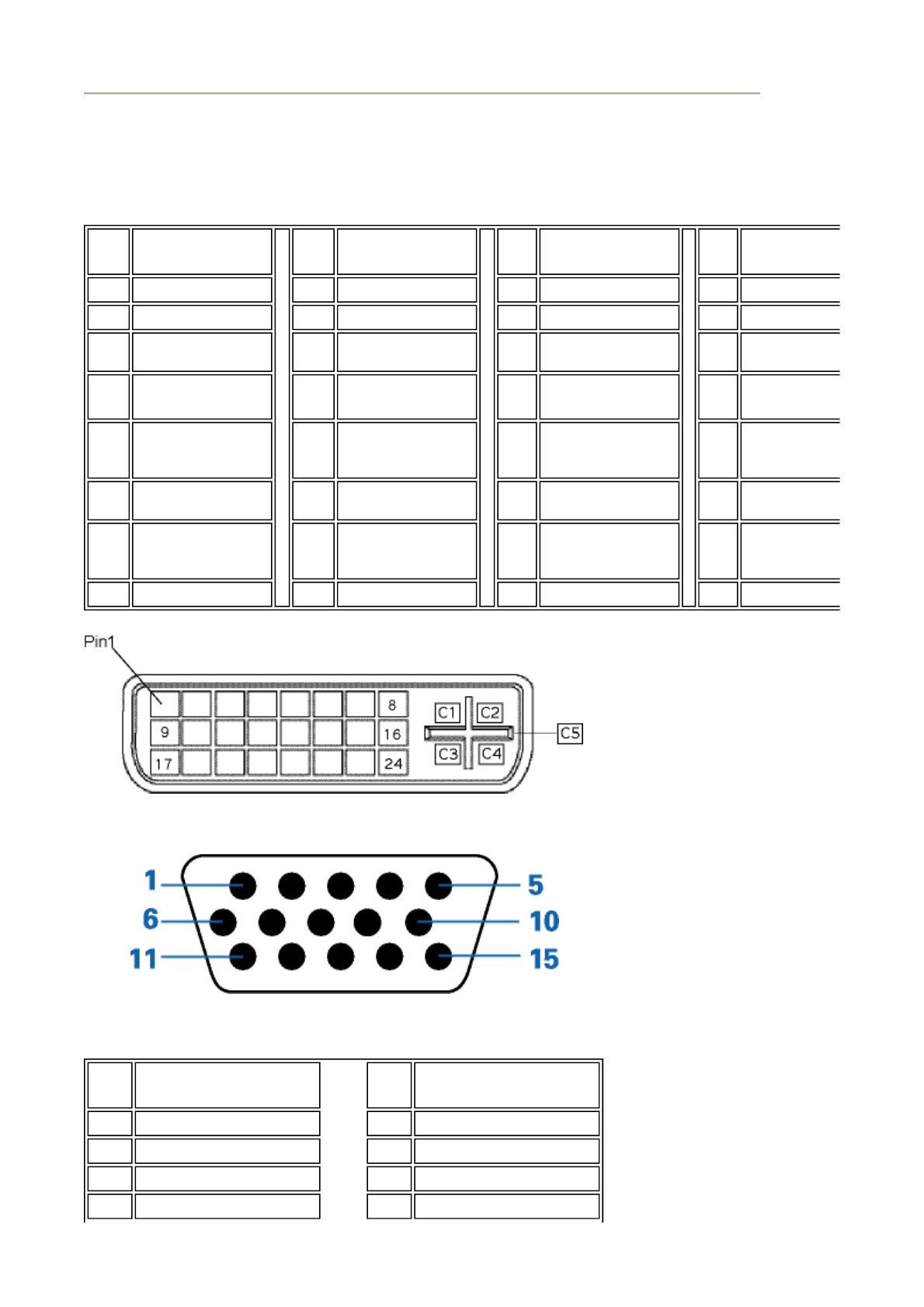

Pin Assignment
1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts.
Signal pin assignments are listed in the following table:
2. The 15-pin D-sub connector (male) of the signal cable:
Pin
No. Signal
Assignment
Pin
No. Signal
Assignment
Pin
No. Signal
Assignment
Pin
No. Signal
A
ssignmen
t
1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0- C1 * Analog R
2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+ C2 * Analog G
3 T.M.D.S. Data2
Shield 11 T.M.D.S. Data1
Shield 19 T.M.D.S. Data0
Shield C3 * Analog B
4 NC 12 NC 20 NC C4 * Analog H-sy
n
5 NC 13 NC 21 NC C5 * Analog GND
(Analog R, G,
return)
6 DDC Clock 14 +5V 22 T.M.D.S. Clock
Shield
7 DDC Data 15 Ground (return
for +5V and H/V-
sync) 23 T.M.D.S. Clock+
8 * Analog V-sync 16 Hot Plug Detect 24 T.M.D.S. Clock-
Pin
No. Assignment Pin
No. Assignment
1 Red video input 9 +5V
2 Green video input/SOG 10 Ground
3 Blue video input 11 Ground
4 Ground 12 Serial data line (SDA)
2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
RETURN TO TOP OF THE PAGE
Physical Function
5 Cable detect 13 H. Sync / H+V
6 Red video ground 14 V. Sync (VCLK for DDC)
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground

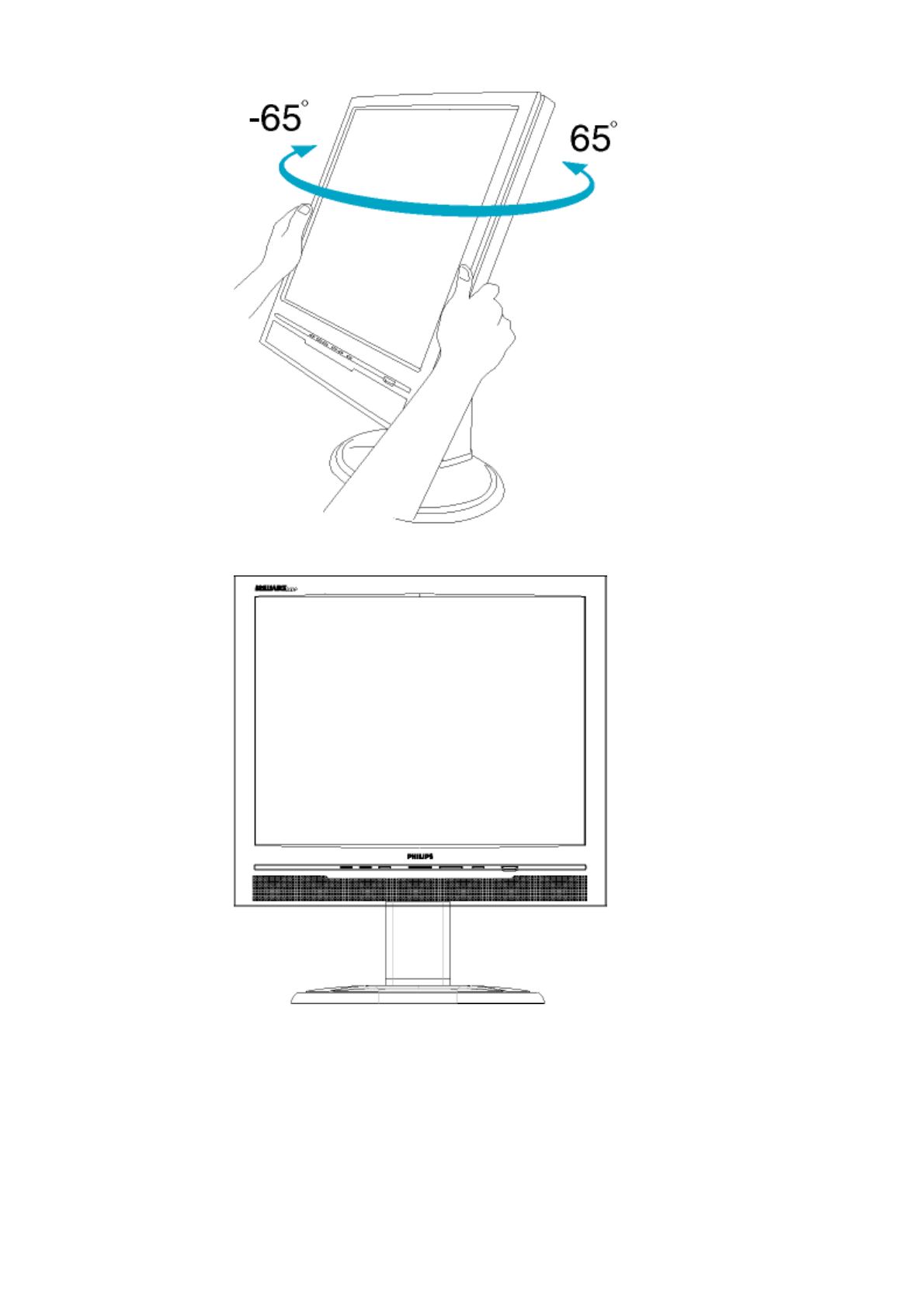

1) Tilt
2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm
2) Swivel

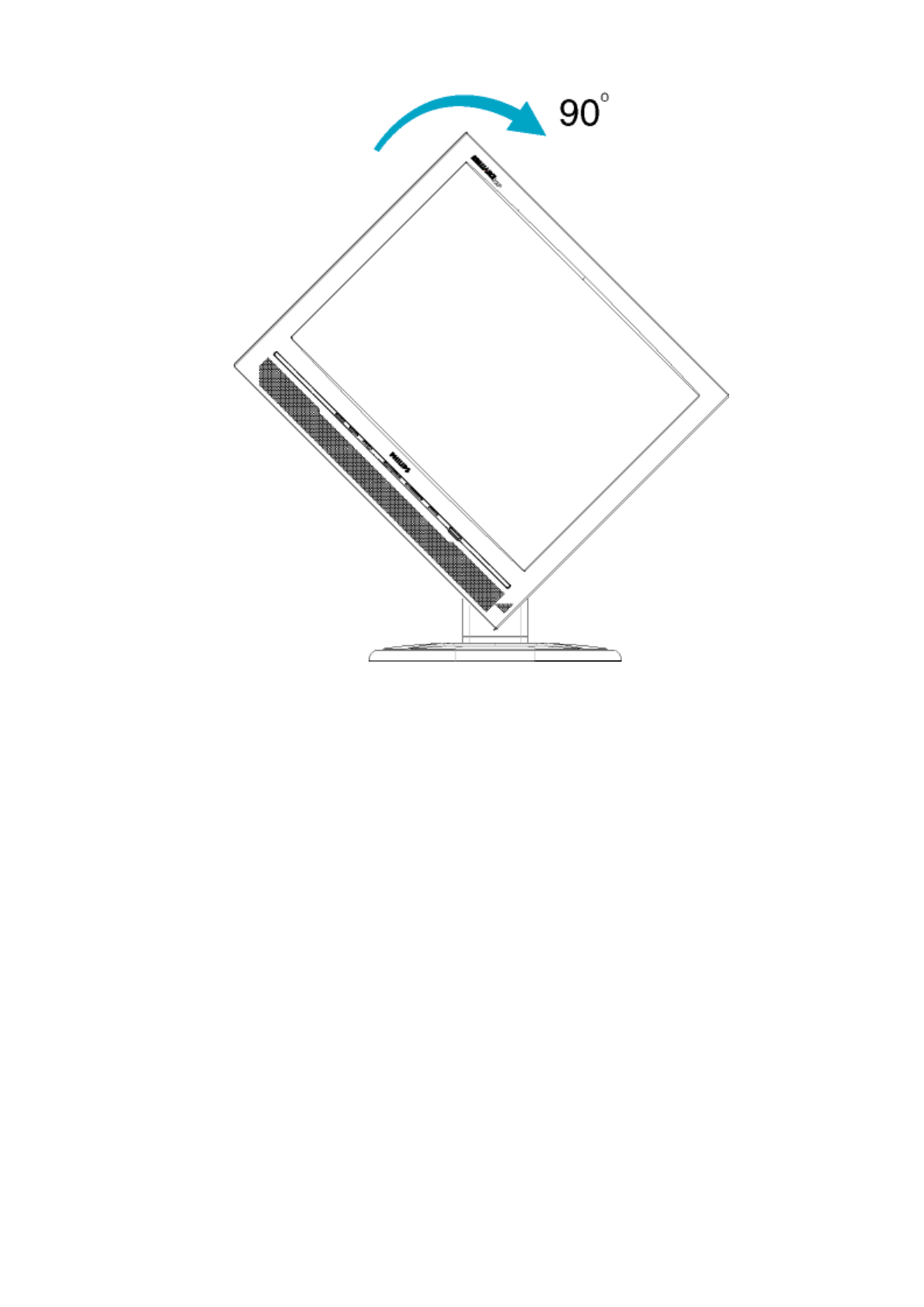

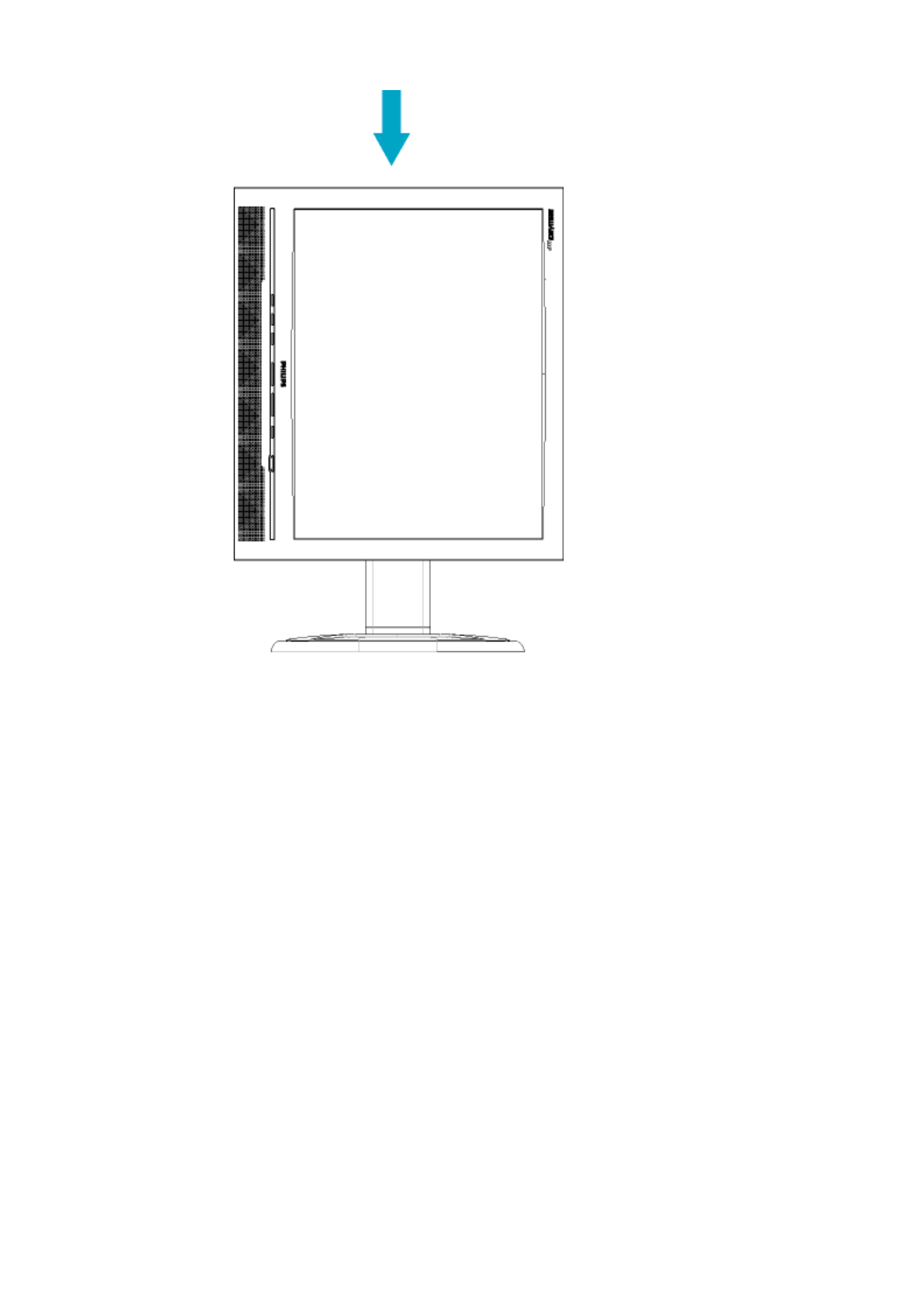

3) Portrait
display
2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm
2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm
RETURN TO TOP OF THE PAGE
2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\product\product.htm
Installing Your LCD Monitor
Front View Product Description
RETURN TO TOP OF THE PAGE
Rear View

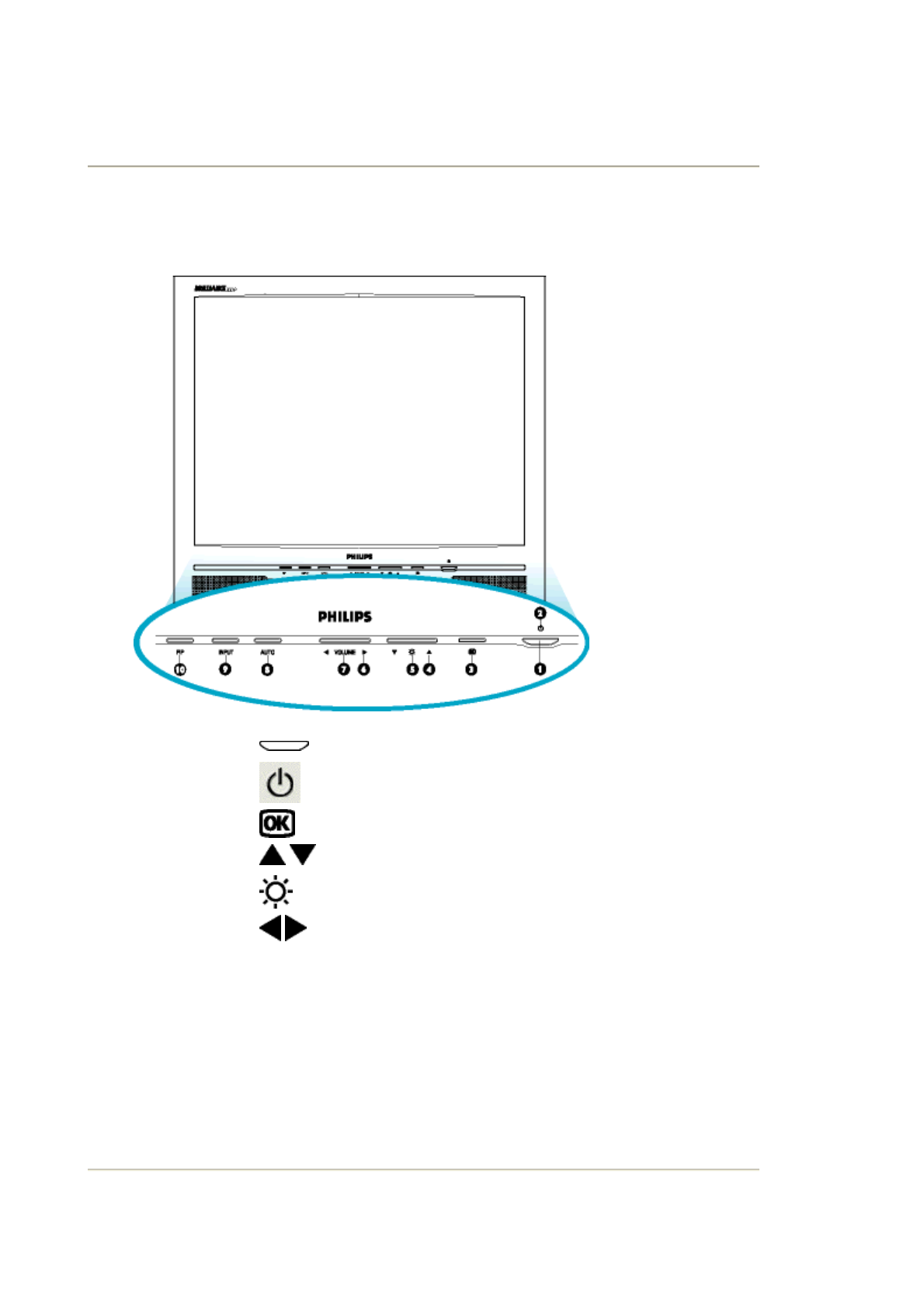

1 To switch monitor's power On and Off
2 Power LED
3 To access OSD menu
4 To adjust the OSD
5 To adjust brightness of the display
6 To adjust the OSD
7 VOLUME To adjust speaker volume
8 AUTO Automatically adjust the horizontal position, vertical position
,
phase and clock setting
9 INPUT Signal input selection
10 PIP/SIZE Activate PIP (Picture in Picture) window (200P6I)
or
adjust screen size (200P6E, 200S6E)
2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\install\install.htm
RETURN TO TOP OF THE PAGE
Optimizing Performance
zFor best performance, ensure that your display settings are set at 1600 x 1200 @60Hz
zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the be
performance out of your monitor. This is included on this CD. Step-by-step instructions are
p
guide you through the installtion process. Click on the link to know more about this progra
m
More about FP_setup04.exe
RETURN TO TOP OF THE PAGE
1 CVBS video input (for video model 200P6I- only )
2 S-Video input (for video model 200P6I- only )
3 Earphone jack
4 VGA input
5 DVI-D input
6 Audio R/L input
7 PC audio input
8 AC power input
Note: You can check the current display settings by pressing the 'OK'
button once. Go into the Product Information. The current display mode is
shown on the item called RESOLUTION.
2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\install\install.htm
Federal Communications Commission (FCC) Notice (U.S. Only)
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
zConsult the dealer or an experienced radio/TV technician for help.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a
computer device.
To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain
or excessive moisture.
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.
RETURN TO TOP OF THE PAGE
Commission Federale de la Communication (FCC Declaration)
zRéorienter ou déplacer l'antenne de réception.
zAugmenter la distance entre l'équipement et le récepteur.
zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur.
zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Cet équipement a été testé et déclaré conforme auxlimites des appareils
numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces
limites sont conçues de façon à fourir une protection raisonnable contre les
interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil
produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas
installé et utilisé selon les consignes données, peuvent causer des interférences
nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence
d'interférences dans le cadre d'une installation particulière. Si cet appareil est la
cause d'interférences nuisibles pour la réception des signaux de radio ou de
télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant
en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les
mesures suivantes:
2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\safety\regs\regulat.htm
N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.
CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU
REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.
RETURN TO TOP OF THE PAGE
Toutes modifications n'ayant pas reçu l'approbation des services compétents en
matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent
équipement.
2005-04-12file://N:\DFU\Philips\LCD\200P6_V.H6201\ENGLISH\200P6\safety\regs\regulat.htm
