Philips Electronics M145 LCD TV User Manual

Philips Electronics Industries (Taiwan) Ltd LCD TV Users Manual

Users Manual

Page 1 of 1320wn6

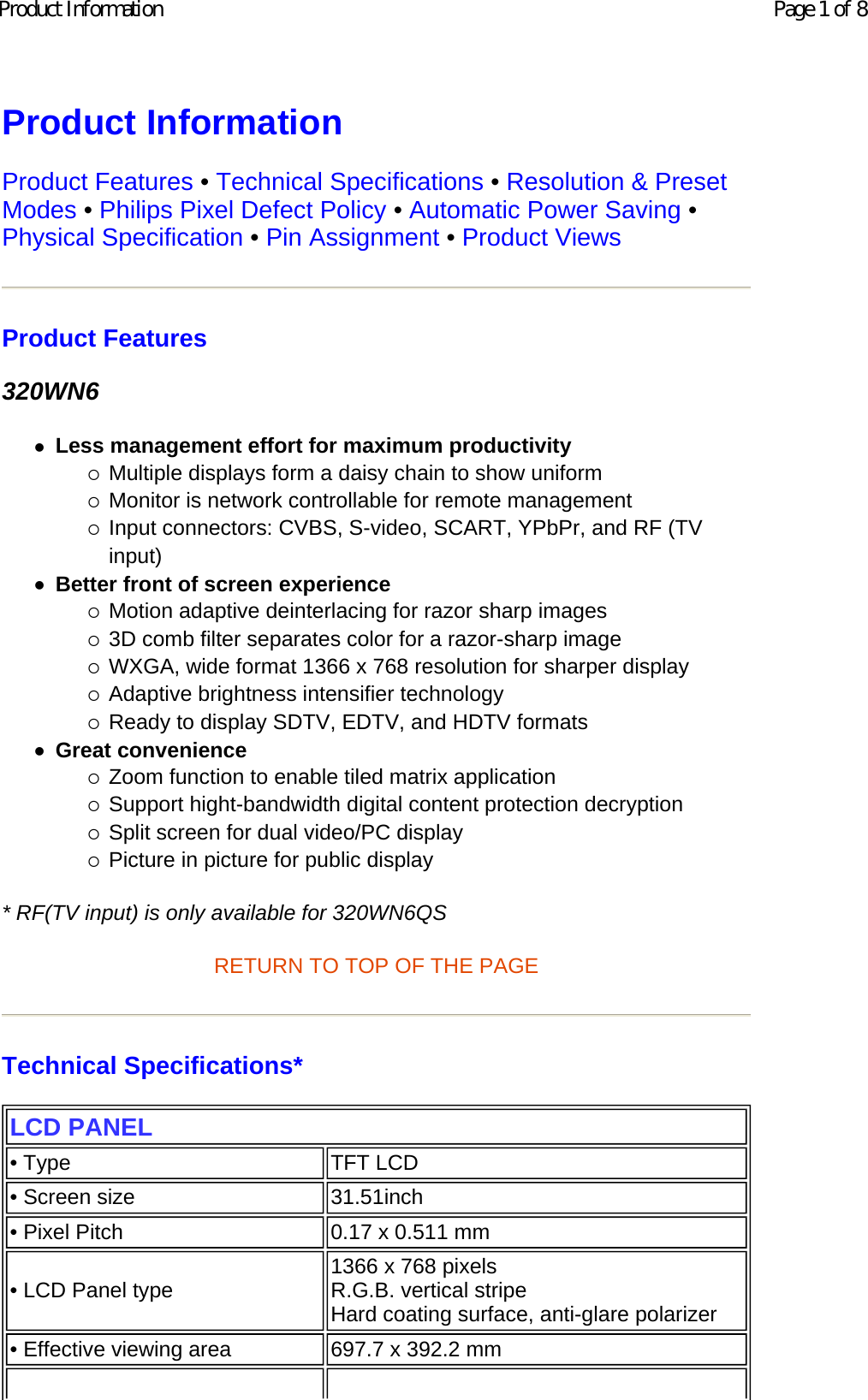

Product Information Product Features • Technical Specifications • Resolution & Preset Modes • Philips Pixel Defect Policy • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views Product Features 320WN6 zLess management effort for maximum productivity {Multiple displays form a daisy chain to show uniform {Monitor is network controllable for remote management {Input connectors: CVBS, S-video, SCART, YPbPr, and RF (TV input) zBetter front of screen experience {Motion adaptive deinterlacing for razor sharp images {3D comb filter separates color for a razor-sharp image {WXGA, wide format 1366 x 768 resolution for sharper display {Adaptive brightness intensifier technology {Ready to display SDTV, EDTV, and HDTV formats zGreat convenience {Zoom function to enable tiled matrix application {Support hight-bandwidth digital content protection decryption {Split screen for dual video/PC display {Picture in picture for public display * RF(TV input) is only available for 320WN6QS RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • Type TFT LCD• Screen size 31.51inch • Pixel Pitch 0.17 x 0.511 mm• LCD Panel type 1366 x 768 pixels R.G.B. vertical stripe Hard coating surface, anti-glare polarizer• Effective viewing area 697.7 x 392.2 mmPage 1 of 8Product Information

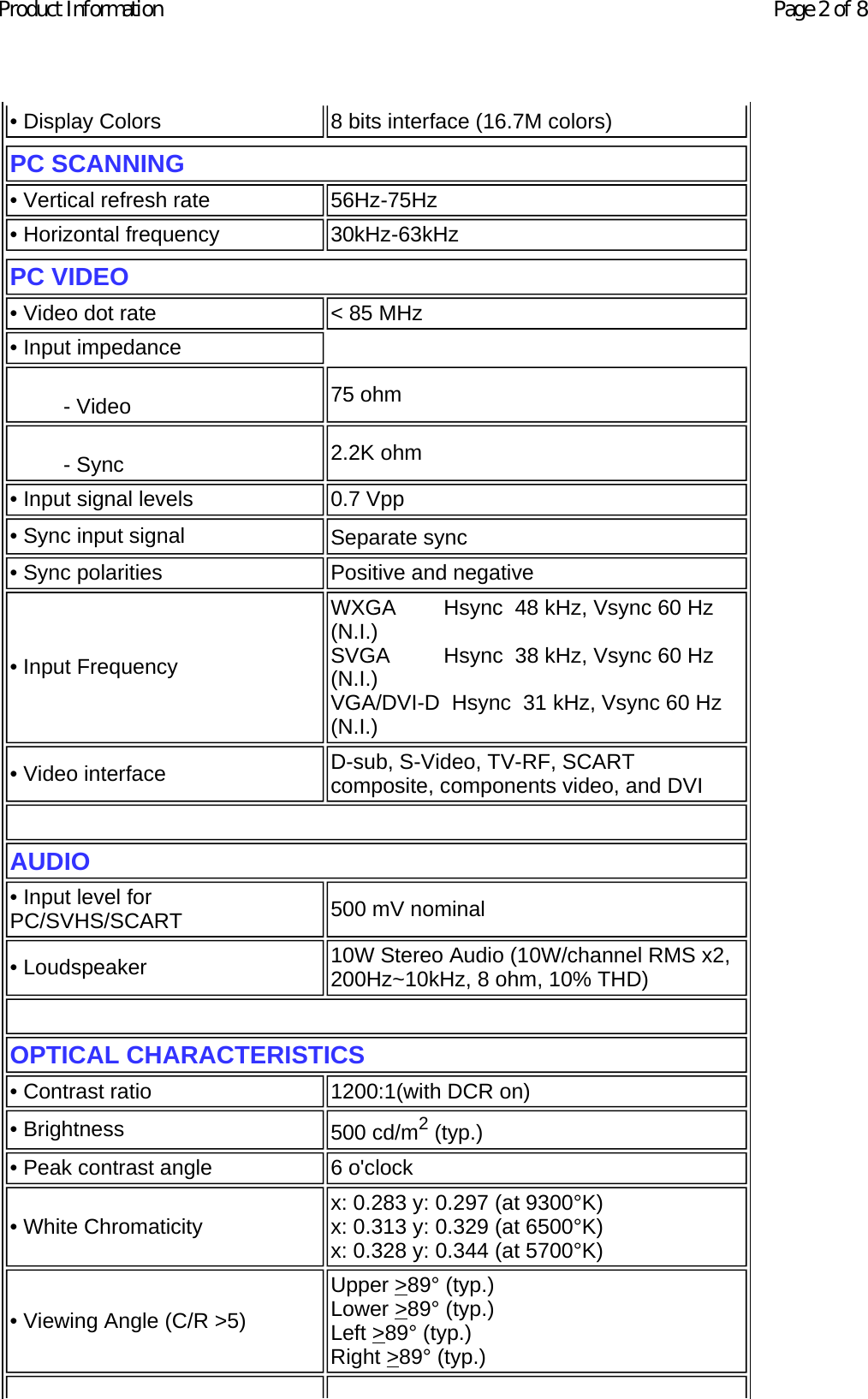

• Display Colors 8 bits interface (16.7M colors)PC SCANNING• Vertical refresh rate 56Hz-75Hz• Horizontal frequency 30kHz-63kHzPC VIDEO• Video dot rate < 85 MHz• Input impedance - Video 75 ohm - Sync 2.2K ohm• Input signal levels 0.7 Vpp• Sync input signal Separate sync • Sync polarities Positive and negative• Input FrequencyWXGA Hsync 48 kHz, Vsync 60 Hz (N.I.) SVGA Hsync 38 kHz, Vsync 60 Hz (N.I.) VGA/DVI-D Hsync 31 kHz, Vsync 60 Hz (N.I.)• Video interface D-sub, S-Video, TV-RF, SCART composite, components video, and DVI AUDIO• Input level for PC/SVHS/SCART 500 mV nominal• Loudspeaker 10W Stereo Audio (10W/channel RMS x2, 200Hz~10kHz, 8 ohm, 10% THD) OPTICAL CHARACTERISTICS • Contrast ratio 1200:1(with DCR on)• Brightness 500 cd/m2 (typ.) • Peak contrast angle 6 o'clock• White Chromaticity x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) x: 0.328 y: 0.344 (at 5700°K) • Viewing Angle (C/R >5) Upper >89° (typ.) Lower >89° (typ.) Left >89° (typ.) Right >89° (typ.)Page 2 of 8Product Information

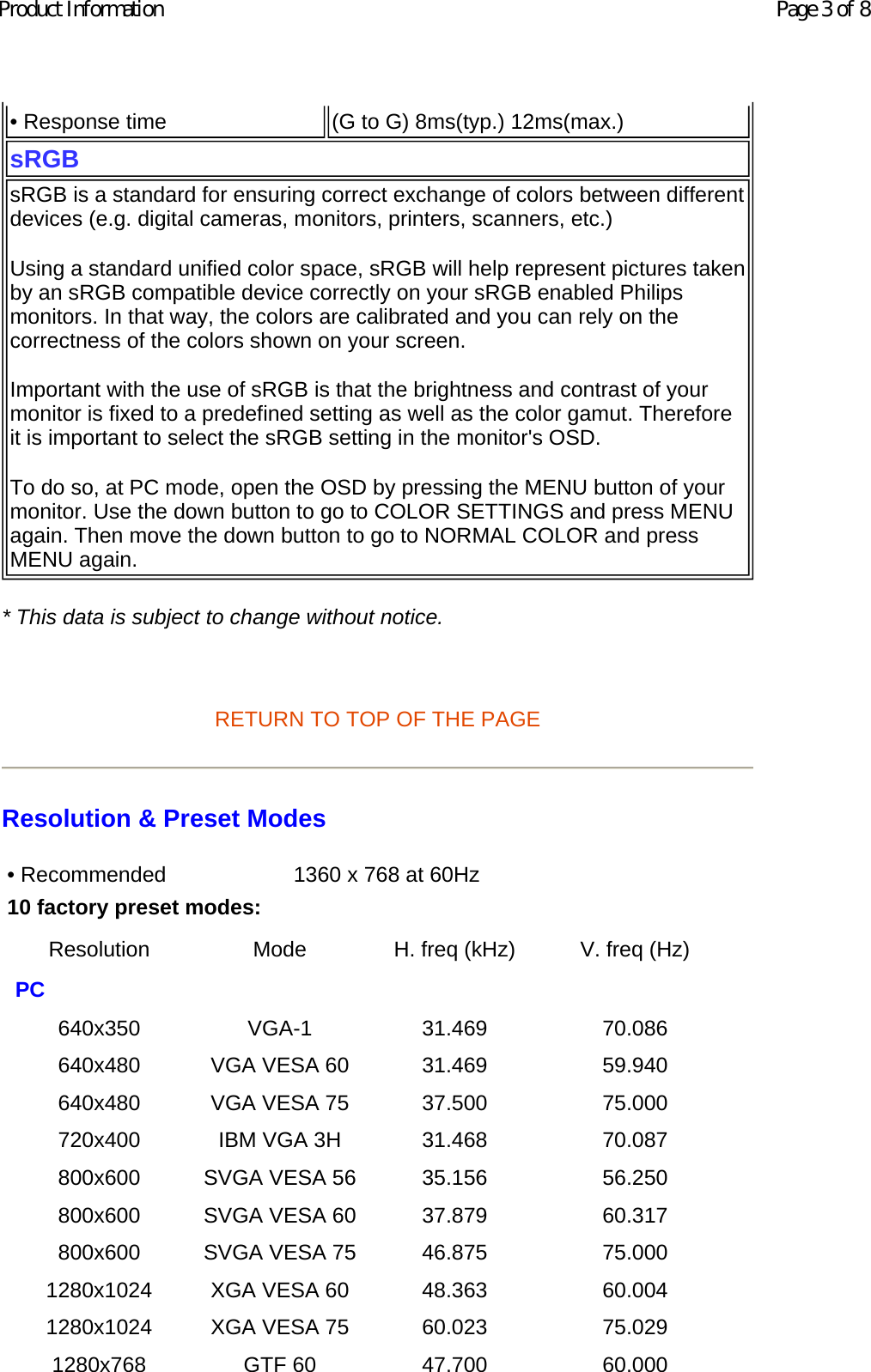

* This data is subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes • Response time (G to G) 8ms(typ.) 12ms(max.)sRGBsRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital cameras, monitors, printers, scanners, etc.) Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen. Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD. To do so, at PC mode, open the OSD by pressing the MENU button of your monitor. Use the down button to go to COLOR SETTINGS and press MENU again. Then move the down button to go to NORMAL COLOR and press MENU again. • Recommended 1360 x 768 at 60Hz10 factory preset modes: Resolution Mode H. freq (kHz) V. freq (Hz) PC 640x350 VGA-1 31.469 70.086 640x480 VGA VESA 60 31.469 59.940 640x480 VGA VESA 75 37.500 75.000 720x400 IBM VGA 3H 31.468 70.087 800x600 SVGA VESA 56 35.156 56.250 800x600 SVGA VESA 60 37.879 60.317 800x600 SVGA VESA 75 46.875 75.000 1280x1024 XGA VESA 60 48.363 60.004 1280x1024 XGA VESA 75 60.023 75.029 1280x768 GTF 60 47.700 60.000 Page 3 of 8Product Information
RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will then 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: RETURN TO TOP OF THE PAGE Physical Specifications 1280x768 Wincomm 45.113 56.260 1360x768 VESA 47.700 60.000 Video 720x480 480i 15.734 59.940 720x576 576i 15.625 50.000 720x480 480p 31.470 60.000 720x576 576p 31.250 50.000 1280x720 720p 28.200 50.000 1280x720 720p 33.750 60.000 1920x1080 1080i 37.500 50.000 1920x1080 1080i 45.000 60.000 Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color Active On Yes Yes 100 W (typ.) Blue Sleep Off No No < 5 W Amber Switch Off Off - - < 3 W Off • Dimension (WxHxD) * 1014mm x 517mm x 244mm (incl. Pedestal, Speakers) Page 4 of 8Product Information

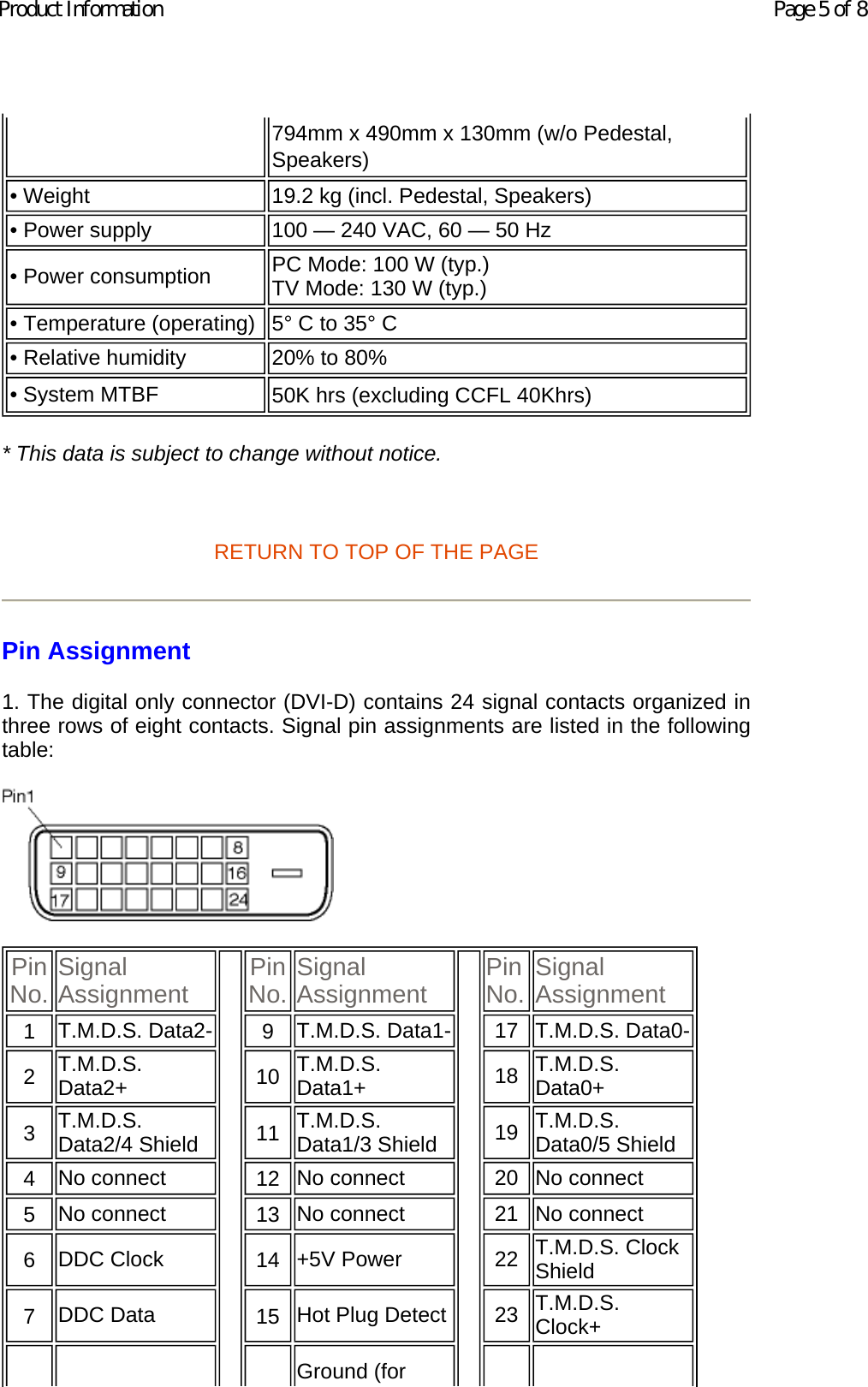

* This data is subject to change without notice. RETURN TO TOP OF THE PAGE Pin Assignment 1. The digital only connector (DVI-D) contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: 794mm x 490mm x 130mm (w/o Pedestal, Speakers) • Weight 19.2 kg (incl. Pedestal, Speakers)• Power supply 100 — 240 VAC, 60 — 50 Hz• Power consumption PC Mode: 100 W (typ.) TV Mode: 130 W (typ.)• Temperature (operating) 5° C to 35° C• Relative humidity 20% to 80%• System MTBF 50K hrs (excluding CCFL 40Khrs) Pin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield4 No connect 12 No connect 20 No connect 5 No connect 13 No connect 21 No connect 6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield7 DDC Data 15 Hot Plug Detect 23 T.M.D.S. Clock+Ground (for Page 5 of 8Product Information
2. The 15-pin D-sub connector (male) of the signal cable: 3. RS232 Connector D-sub 9-pin male connector for communication with plasma engine or PC. 8 No connect 16 +5V) 24 T.M.D.S. Clock-Pin No. Assignment Pin No. Assignment1 Red video input 9 DDC +5V 2 Green video input 10 Cable detect3 Blue video input 11 Identical output, connected to pin 104 Ground 12 Serial data line (SDA)5 NC 13 H. Sync / H+V6 Red video ground 14 V. Sync7 Green video ground 15 Data clock line (SCL)8 Blue video groundPin No. RS-232 (EIA-232-A) Function 3 Transmit Data (TD) from DTE to DCE 2 Receive Data (RD) from DCE to DTE 7 Request to Send (RTS) 8 Clear to Send (CTS) 6 DCE Ready (DSR) 5 Signal Ground (SG) Page 6 of 8Product Information

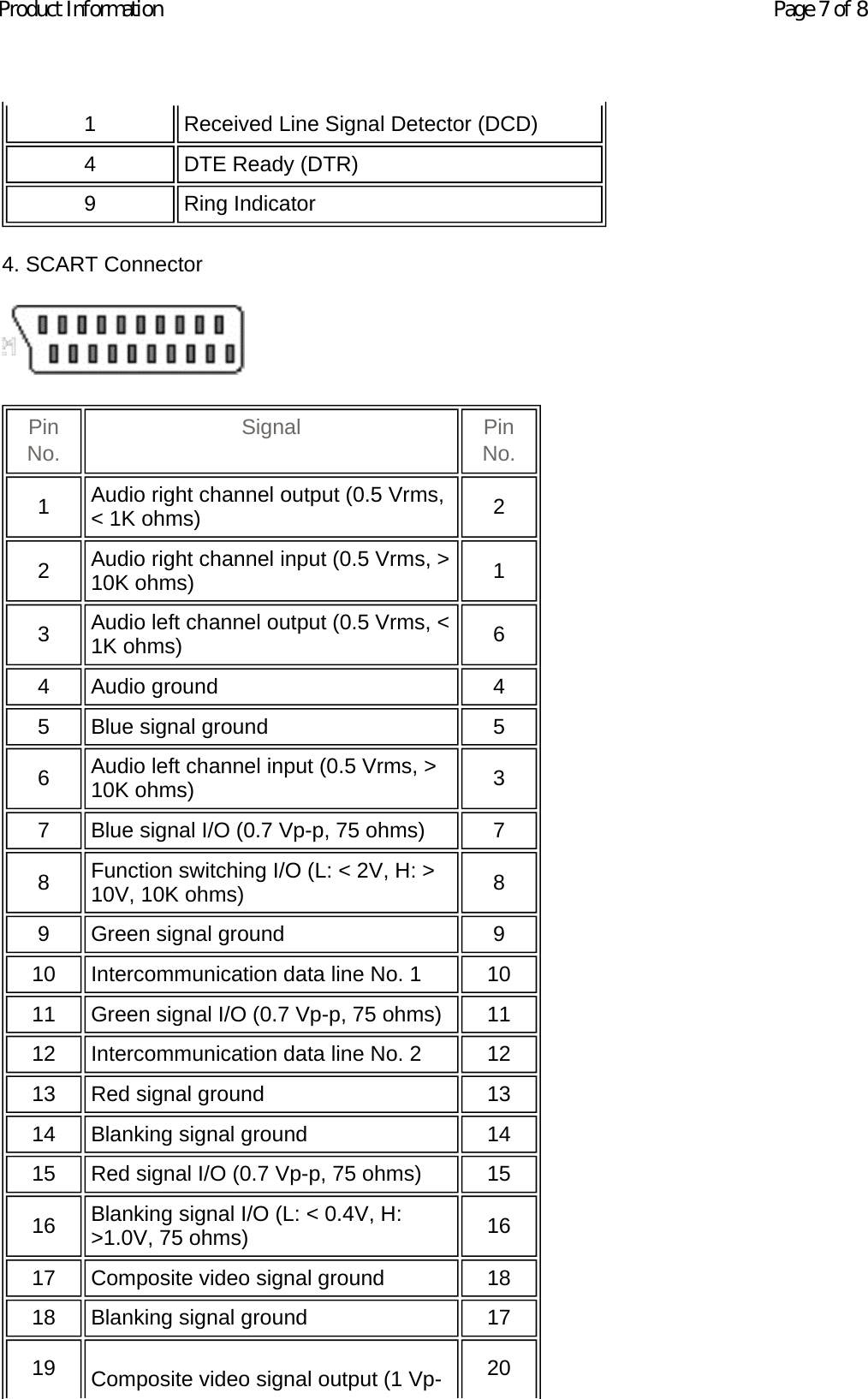

4. SCART Connector 1 Received Line Signal Detector (DCD) 4 DTE Ready (DTR) 9 Ring Indicator Pin No. Signal Pin No. 1 Audio right channel output (0.5 Vrms, < 1K ohms) 2 2 Audio right channel input (0.5 Vrms, > 10K ohms) 1 3 Audio left channel output (0.5 Vrms, < 1K ohms) 6 4 Audio ground 4 5 Blue signal ground 5 6 Audio left channel input (0.5 Vrms, > 10K ohms) 3 7 Blue signal I/O (0.7 Vp-p, 75 ohms) 7 8 Function switching I/O (L: < 2V, H: > 10V, 10K ohms) 8 9 Green signal ground 9 10 Intercommunication data line No. 1 10 11 Green signal I/O (0.7 Vp-p, 75 ohms) 11 12 Intercommunication data line No. 2 12 13 Red signal ground 13 14 Blanking signal ground 14 15 Red signal I/O (0.7 Vp-p, 75 ohms) 15 16 Blanking signal I/O (L: < 0.4V, H: >1.0V, 75 ohms) 16 17 Composite video signal ground 18 18 Blanking signal ground 17 19 Composite video signal output (1 Vp- 20 Page 7 of 8Product Information
RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Product Description RETURN TO TOP OF THE PAGE p, 75 ohms, sync: negative) 20 Composite video signal input (1 Vp-p, 75 ohms, sync: negative) 19 21 Plug shield (common ground) 21 Page 8 of 8Product Information

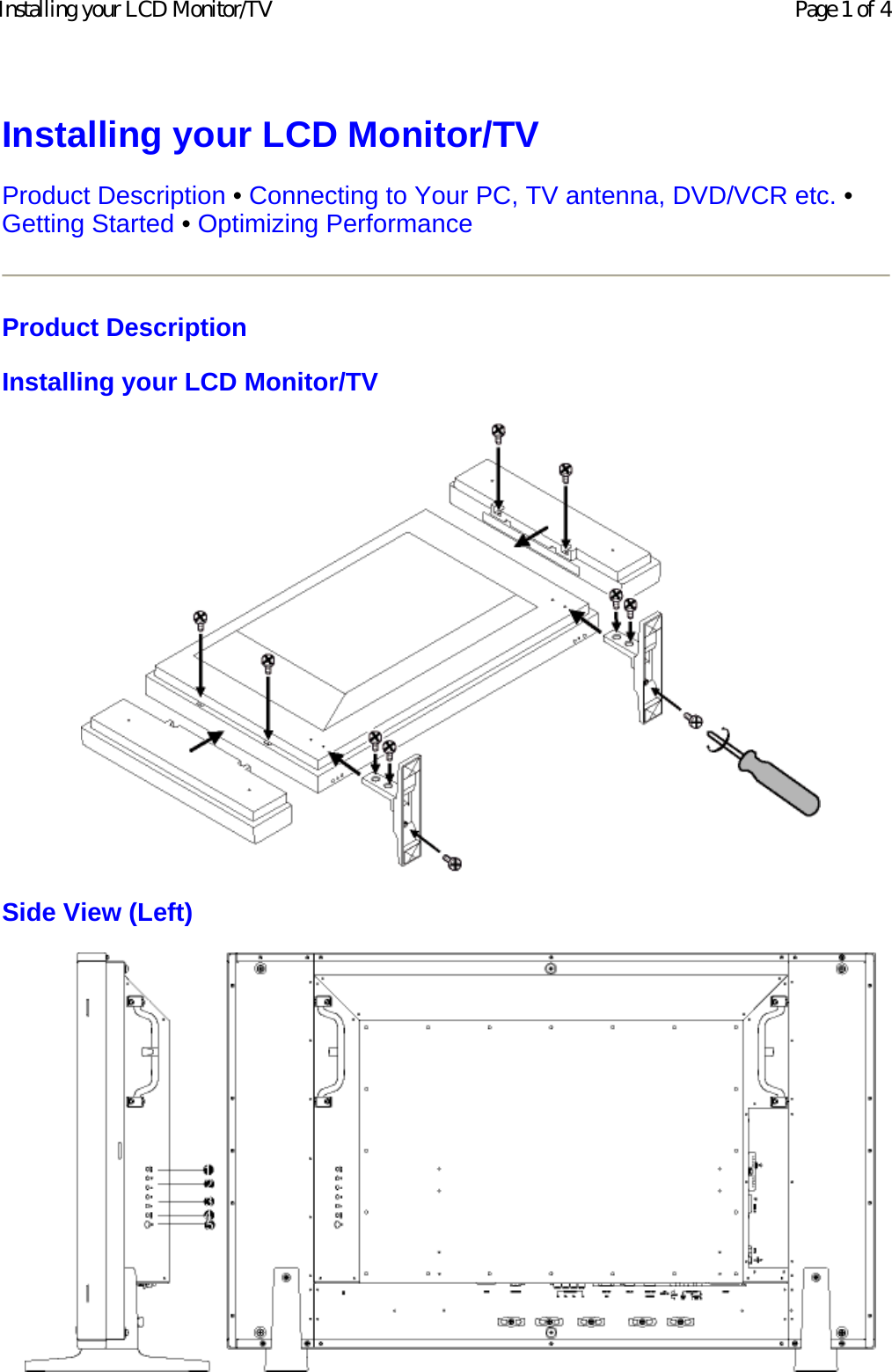

Installing your LCD Monitor/TV Product Description • Connecting to Your PC, TV antenna, DVD/VCR etc. • Getting Started • Optimizing Performance Product Description Installing your LCD Monitor/TV Side View (Left) Page 1 of 4Installing your LCD Monitor/TV

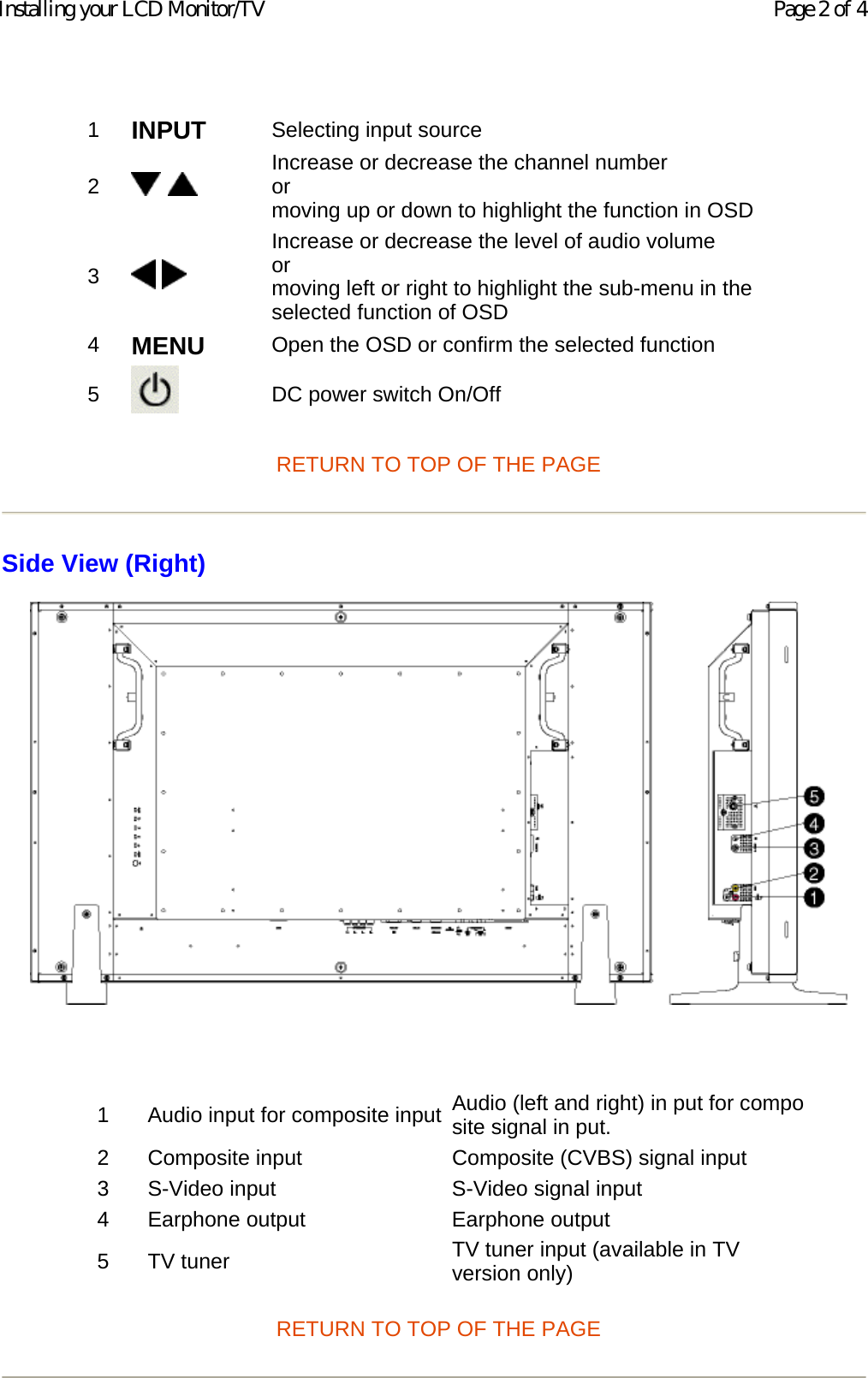

RETURN TO TOP OF THE PAGE Side View (Right) RETURN TO TOP OF THE PAGE 1 INPUT Selecting input source2 Increase or decrease the channel number or moving up or down to highlight the function in OSD3 Increase or decrease the level of audio volume or moving left or right to highlight the sub-menu in the selected function of OSD4 MENU Open the OSD or confirm the selected function5 DC power switch On/Off1 Audio input for composite input Audio (left and right) in put for compo site signal in put. 2 Composite input Composite (CVBS) signal input3 S-Video input S-Video signal input4 Earphone output Earphone output 5 TV tuner TV tuner input (available in TV version only)Page 2 of 4Installing your LCD Monitor/TV

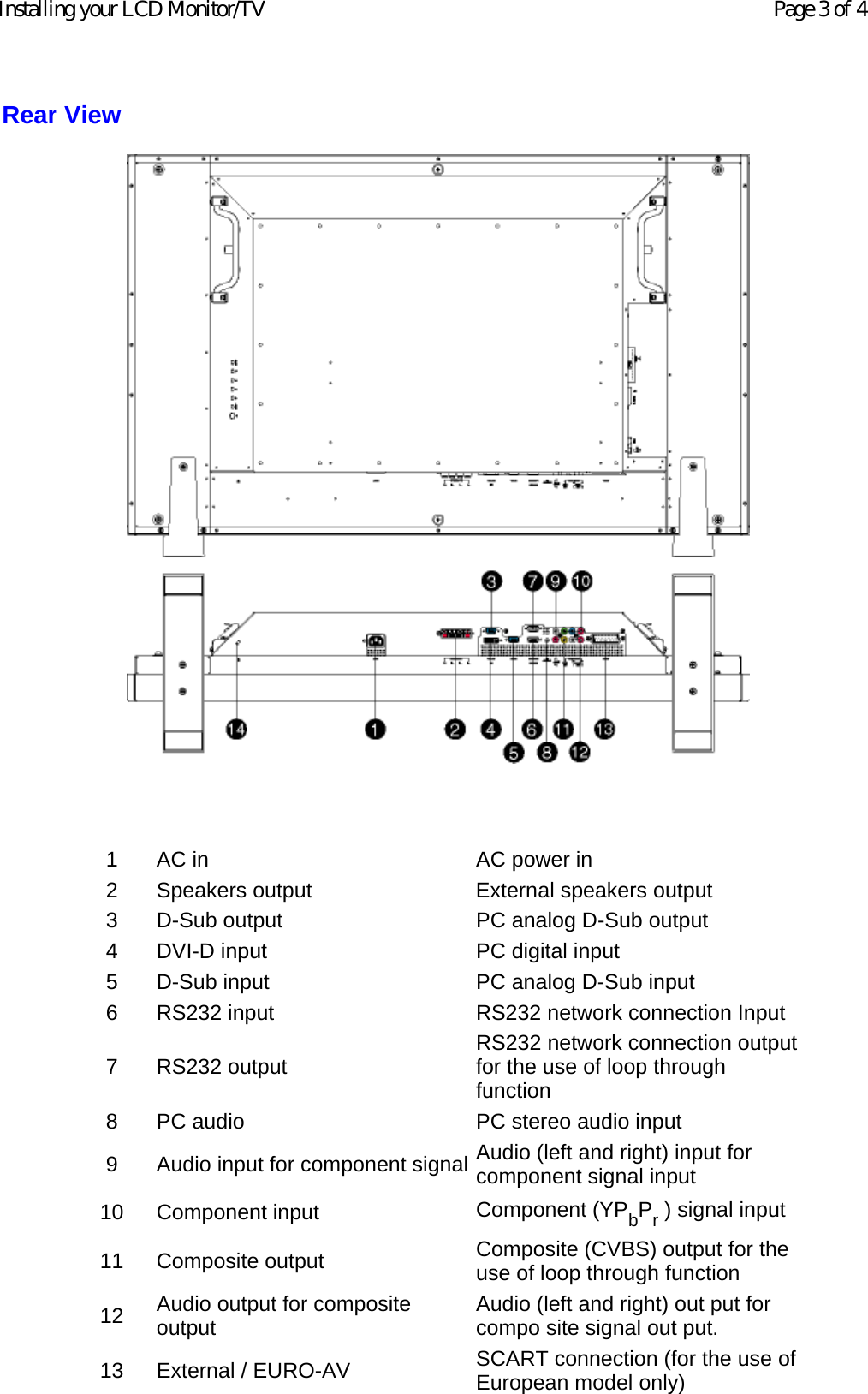

Rear View 1 AC in AC power in2 Speakers output External speakers output 3 D-Sub output PC analog D-Sub output 4 DVI-D input PC digital input 5 D-Sub input PC analog D-Sub input 6 RS232 input RS232 network connection Input7 RS232 output RS232 network connection output for the use of loop through function 8 PC audio PC stereo audio input 9 Audio input for component signal Audio (left and right) input for component signal input 10 Component input Component (YPbPr ) signal input 11 Composite output Composite (CVBS) output for the use of loop through function 12 Audio output for composite output Audio (left and right) out put for compo site signal out put. 13 External / EURO-AV SCART connection (for the use of European model only) Page 3 of 4Installing your LCD Monitor/TV

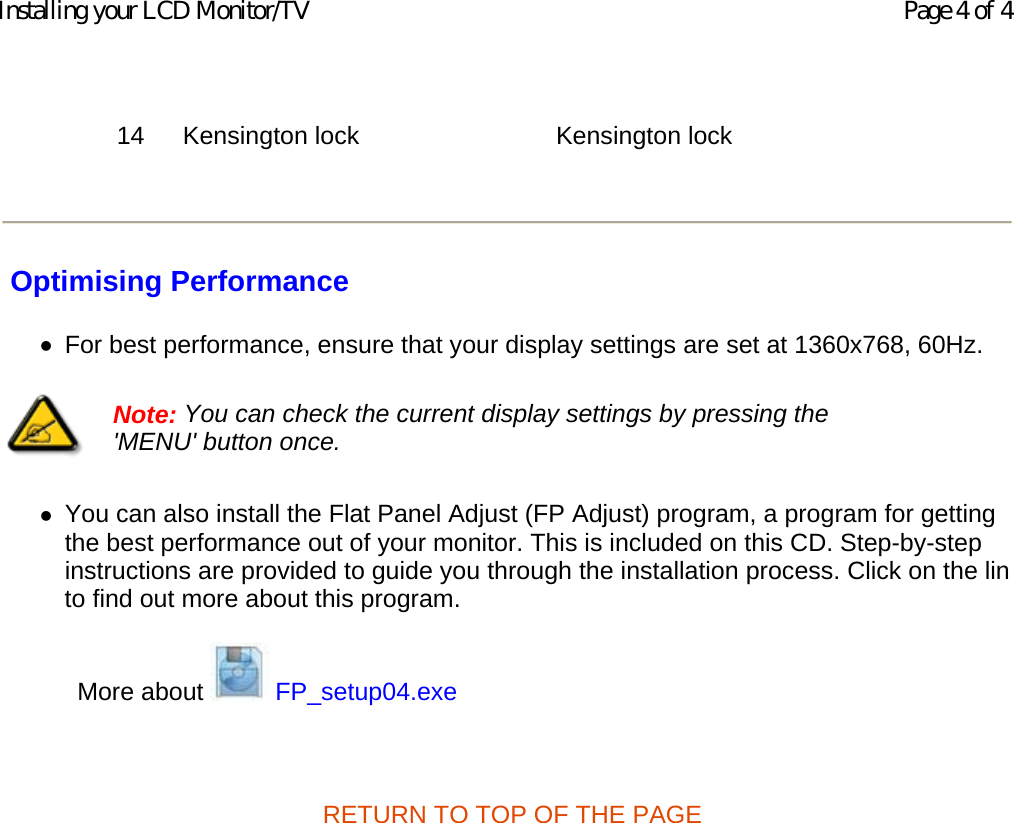

Optimising Performance zFor best performance, ensure that your display settings are set at 1360x768, 60Hz. zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor. This is included on this CD. Step-by-step instructions are provided to guide you through the installation process. Click on the linto find out more about this program. More about FP_setup04.exe RETURN TO TOP OF THE PAGE 14 Kensington lock Kensington lock Note: You can check the current display settings by pressing the 'MENU' button once. Page 4 of 4Installing your LCD Monitor/TV

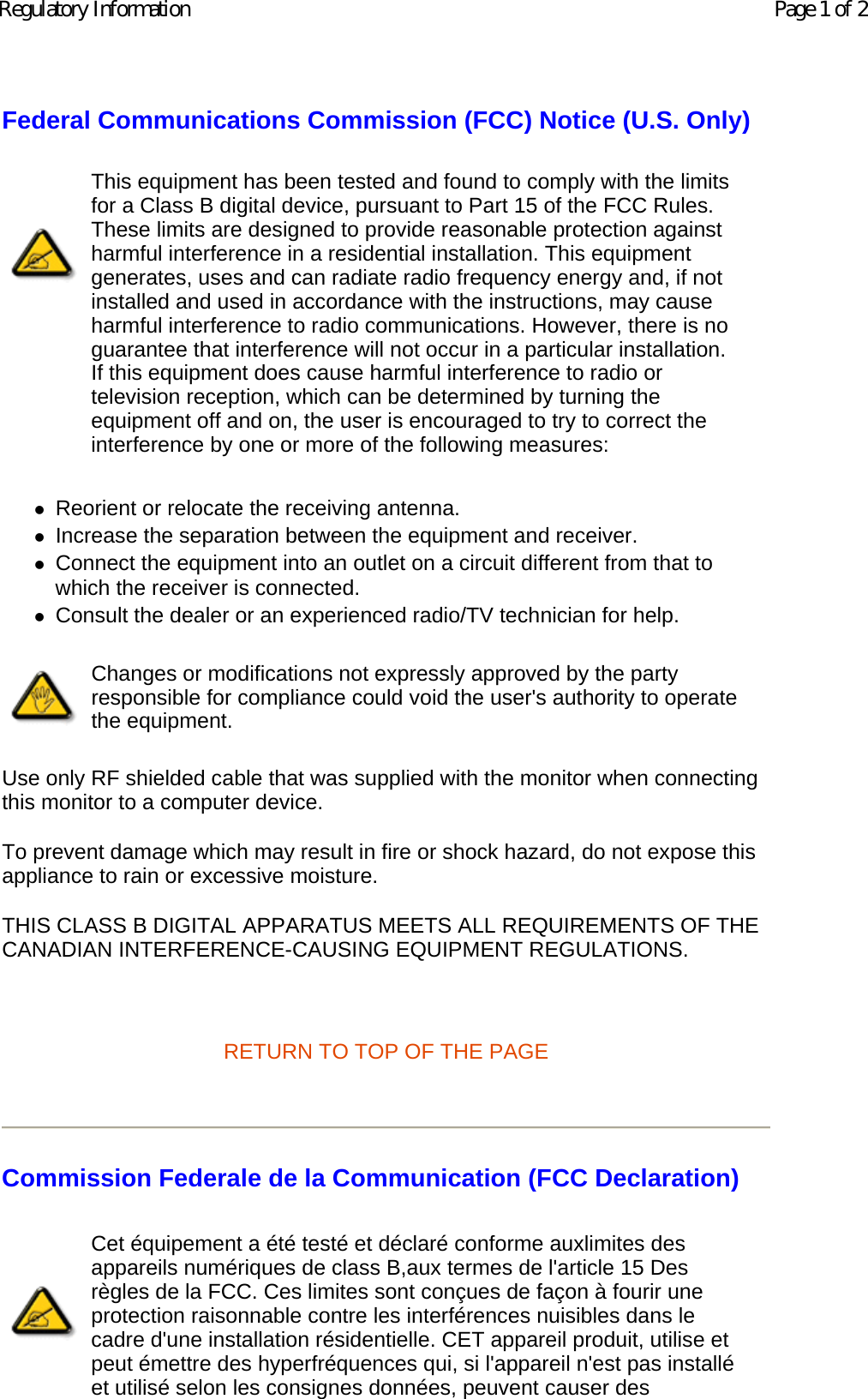

Federal Communications Commission (FCC) Notice (U.S. Only) zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des Page 1 of 2Regulatory Information

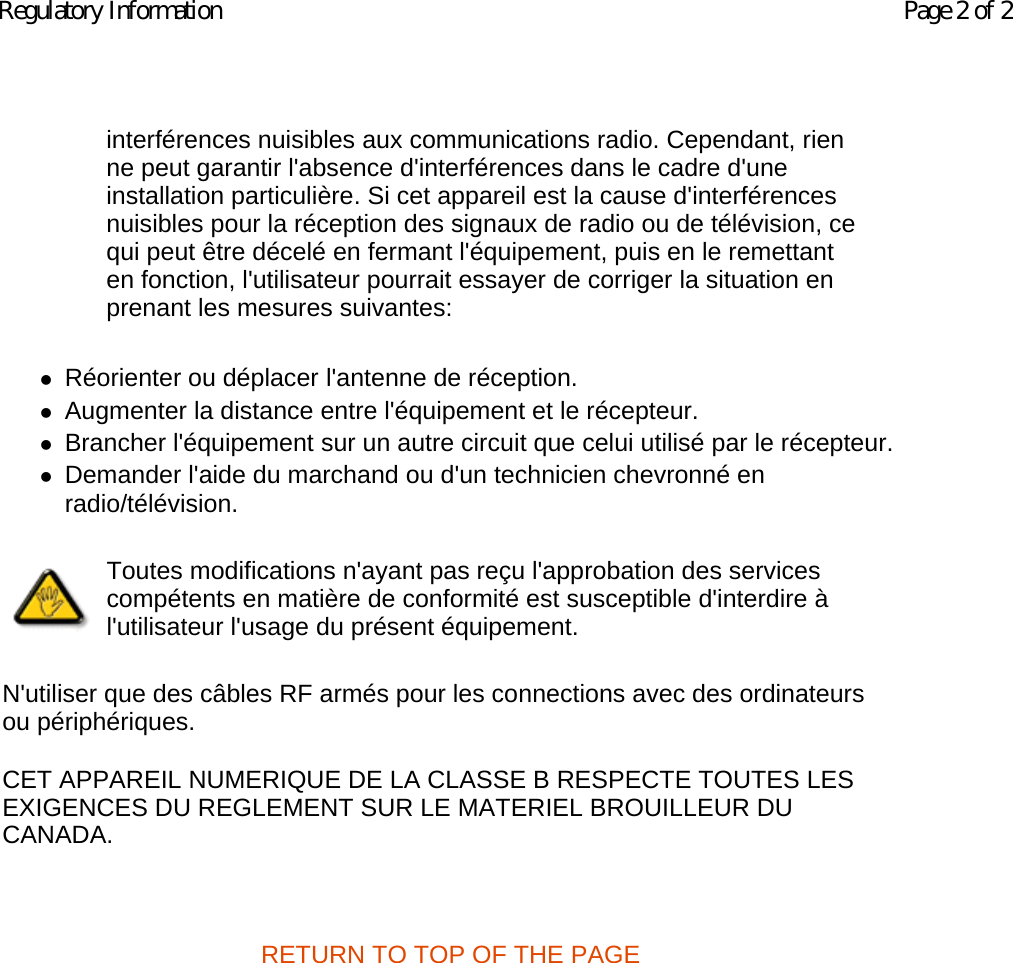

zRéorienter ou déplacer l'antenne de réception. zAugmenter la distance entre l'équipement et le récepteur. zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGE interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes:Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.Page 2 of 2Regulatory Information
