Philips Electronics M148 20 User Manual

Philips Electronics Industries (Taiwan) Ltd 20 Users Manual

Users Manual

Page 1 of 1e-Manual

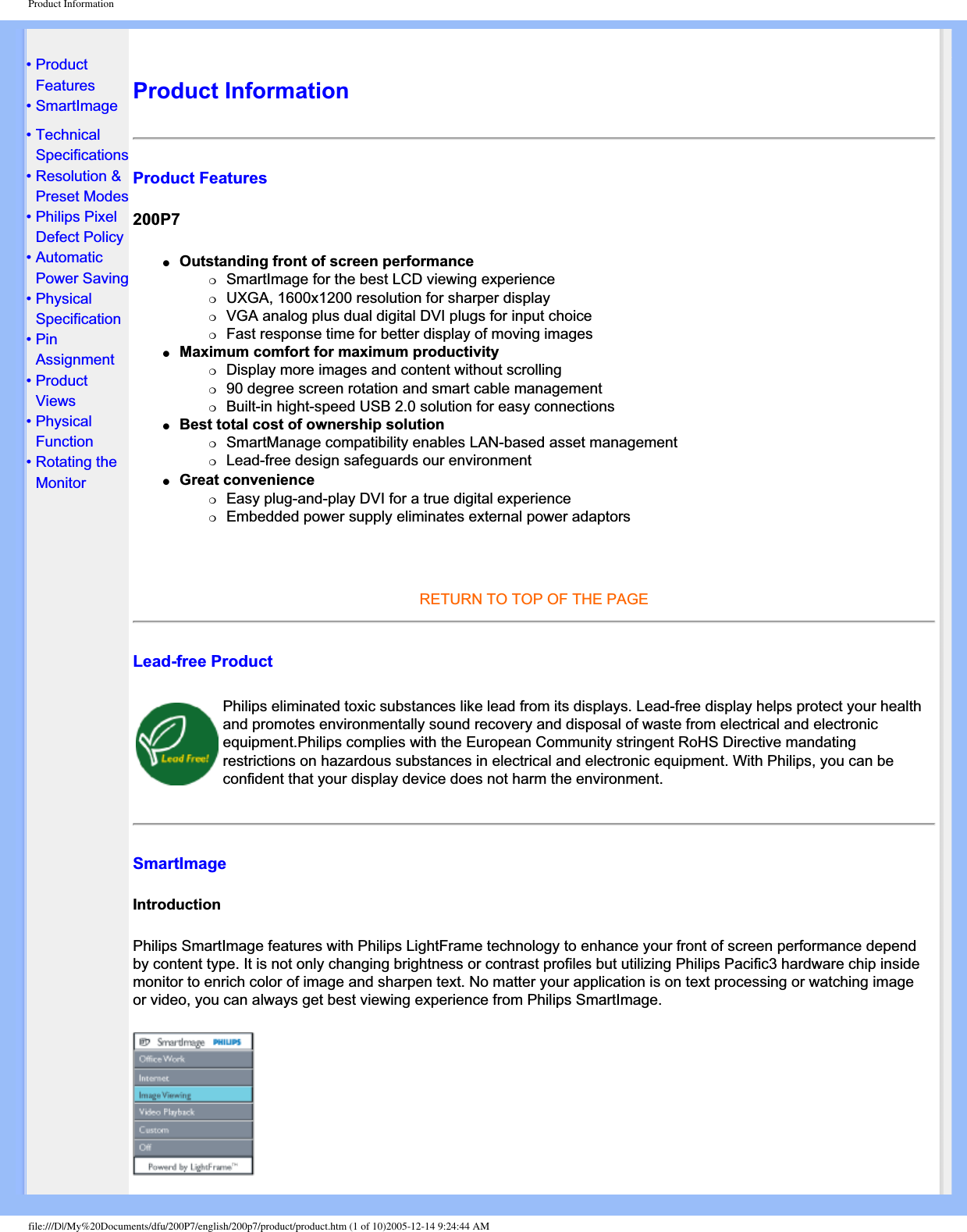

Product Information• ProductFeatures• SmartImage• TechnicalSpecifications• Resolution & Preset Modes• Philips Pixel Defect Policy• AutomaticPower Saving• PhysicalSpecification• PinAssignment• ProductViews• PhysicalFunction• Rotating the MonitorProduct Information Product Features200P7●Outstanding front of screen performance❍SmartImage for the best LCD viewing experience❍UXGA, 1600x1200 resolution for sharper display❍VGA analog plus dual digital DVI plugs for input choice❍Fast response time for better display of moving images●Maximum comfort for maximum productivity❍Display more images and content without scrolling❍90 degree screen rotation and smart cable management❍Built-in hight-speed USB 2.0 solution for easy connections●Best total cost of ownership solution❍SmartManage compatibility enables LAN-based asset management❍Lead-free design safeguards our environment●Great convenience❍Easy plug-and-play DVI for a true digital experience❍Embedded power supply eliminates external power adaptorsRETURN TO TOP OF THE PAGELead-free ProductPhilips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment.Philips complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment. With Philips, you can be confident that your display device does not harm the environment.SmartImageIntroductionPhilips SmartImage features with Philips LightFrame technology to enhance your front of screen performance depend by content type. It is not only changing brightness or contrast profiles but utilizing Philips Pacific3 hardware chip inside monitor to enrich color of image and sharpen text. No matter your application is on text processing or watching image or video, you can always get best viewing experience from Philips SmartImage.file:///D|/My%20Documents/dfu/200P7/english/200p7/product/product.htm (1 of 10)2005-12-14 9:24:44 AM

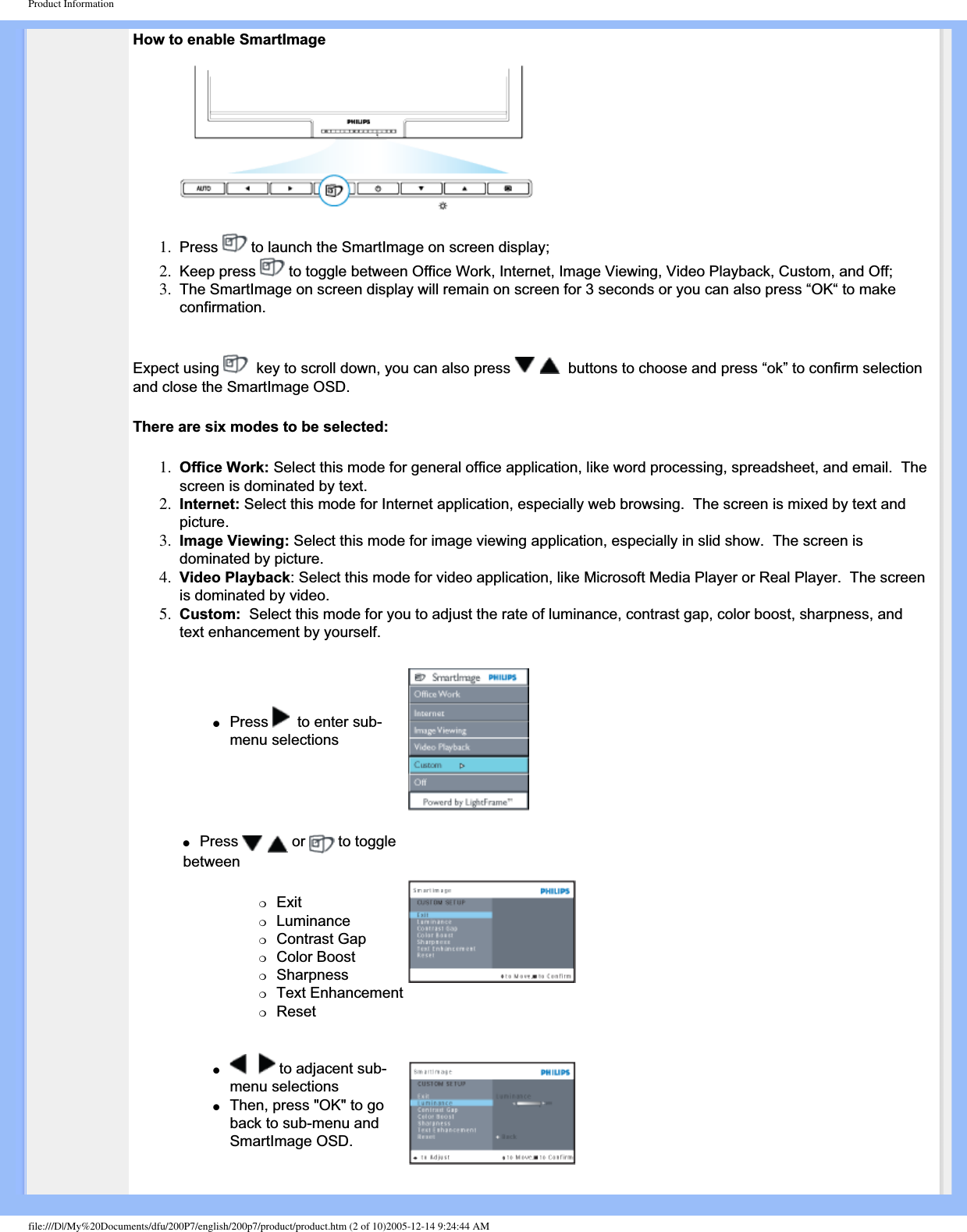

Product InformationHow to enable SmartImage1. Press to launch the SmartImage on screen display;2. Keep press to toggle between Office Work, Internet, Image Viewing, Video Playback, Custom, and Off;3. The SmartImage on screen display will remain on screen for 3 seconds or you can also press “OK“ to make confirmation.Expect using key to scroll down, you can also press buttons to choose and press “ok” to confirm selection and close the SmartImage OSD.There are six modes to be selected:1. Office Work: Select this mode for general office application, like word processing, spreadsheet, and email. The screen is dominated by text.2. Internet: Select this mode for Internet application, especially web browsing. The screen is mixed by text and picture.3. Image Viewing: Select this mode for image viewing application, especially in slid show. The screen is dominated by picture.4. Video Playback: Select this mode for video application, like Microsoft Media Player or Real Player. The screen is dominated by video.5. Custom: Select this mode for you to adjust the rate of luminance, contrast gap, color boost, sharpness, and text enhancement by yourself.●Press to enter sub-menu selections●Press or to toggle between❍Exit❍Luminance❍Contrast Gap❍Color Boost❍Sharpness❍Text Enhancement❍Reset● to adjacent sub-menu selections●Then, press "OK" to go back to sub-menu and SmartImage OSD.file:///D|/My%20Documents/dfu/200P7/english/200p7/product/product.htm (2 of 10)2005-12-14 9:24:44 AM
Product Information6. Off: No optimization by SmartImage.RETURN TO TOP OF THE PAGETechnical Specifications*LCD PANEL • Type TFT LCD• Screen size 20.1" / 51cm• Pixel Pitch 0.255 x 0.255mm• LCD Panel type 1600 x 1200pixelsR.G.B. vertical stripe Anti-glare polarizer, hard coated• Effective viewing area 408 x 306mm• Display Colors 8 bits interface (16M colors)SCANNINGVertical refresh rate 56Hz-85HzHorizontal Frequency 30kHz-98kHz (Analog input)VIDEO• Video dot rate 202.5 MHz• Input impedance- Video 75 ohm- Sync 2K2 ohm• Input signal levels 0.7 Vpp• Sync input signalSeparate syncComposite syncSync on green• Sync polarities Positive and negativeOptical characteristics • Peak contrast angle 6 o'clock• White Chromaticity: x: 0.283 y: 0.297 (at 9300°K)x: 0.313 y: 0.329 (at 6500°K)* This data is subject to change without notice.RETURN TO TOP OF THE PAGEResolution & Preset Modesfile:///D|/My%20Documents/dfu/200P7/english/200p7/product/product.htm (3 of 10)2005-12-14 9:24:44 AM

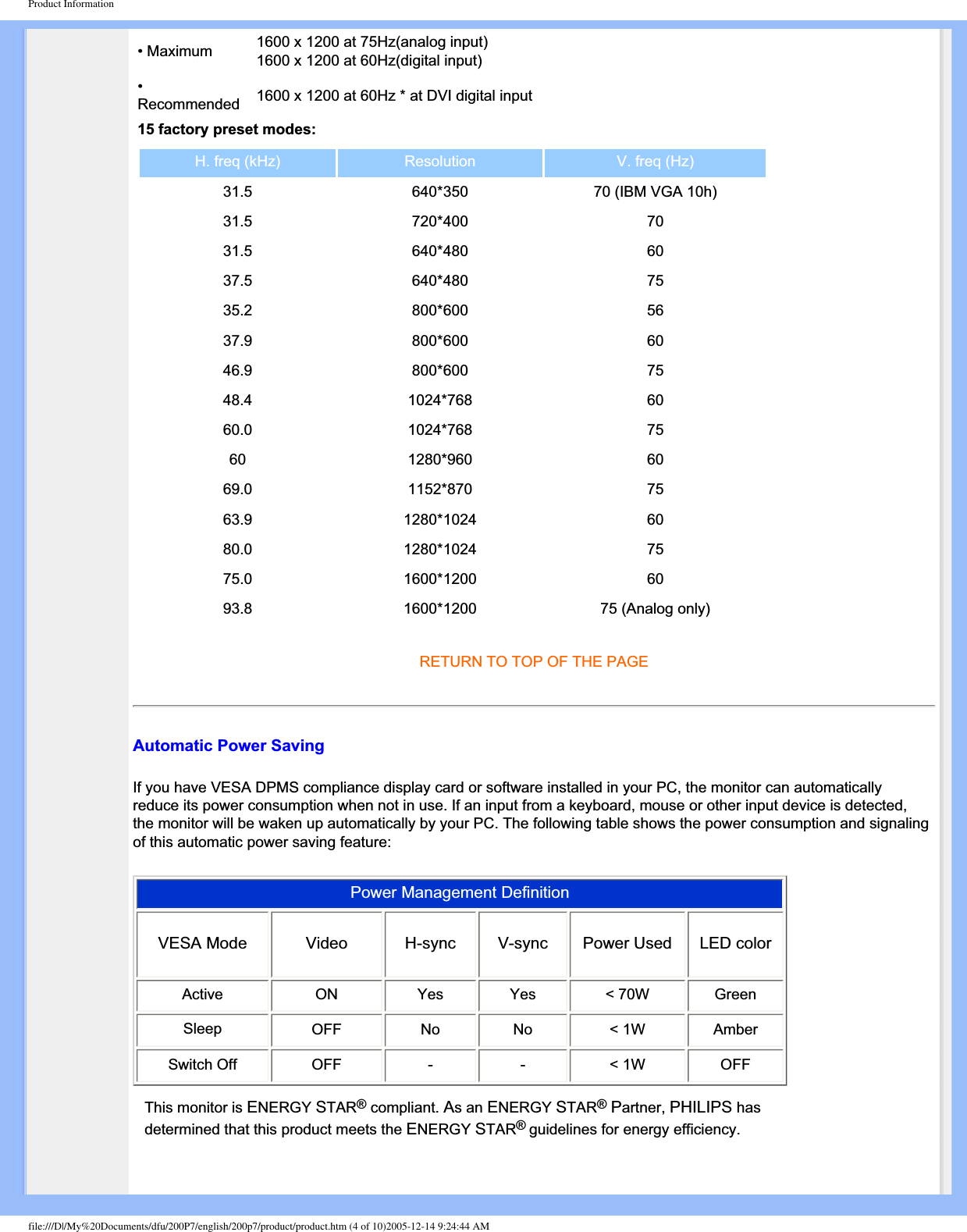

Product Information• Maximum 1600 x 1200 at 75Hz(analog input)1600 x 1200 at 60Hz(digital input)•Recommended 1600 x 1200 at 60Hz * at DVI digital input15 factory preset modes:H. freq (kHz) Resolution V. freq (Hz)31.5 640*350 70 (IBM VGA 10h) 31.5 720*400 7031.5 640*480 6037.5 640*480 7535.2 800*600 5637.9 800*600 6046.9 800*600 7548.4 1024*768 6060.0 1024*768 7560 1280*960 6069.0 1152*870 7563.9 1280*1024 6080.0 1280*1024 7575.0 1600*1200 6093.8 1600*1200 75 (Analog only) RETURN TO TOP OF THE PAGEAutomatic Power SavingIf you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will be waken up automatically by your PC. The following table shows the power consumption and signaling of this automatic power saving feature:Power Management DefinitionVESA Mode Video H-sync V-sync Power Used LED colorActive ON Yes Yes < 70W GreenSleep OFF No No < 1W AmberSwitch Off OFF - - < 1W OFFThis monitor is ENERGY STAR® compliant. As an ENERGY STAR®Partner, PHILIPS has determined that this product meets the ENERGY STAR®guidelines for energy efficiency.file:///D|/My%20Documents/dfu/200P7/english/200p7/product/product.htm (4 of 10)2005-12-14 9:24:44 AM
Product InformationRETURN TO TOP OF THE PAGEPhysical Specifications• Dimension (WxHxD) 461 x 421 x 235 mm (incl. Pedestal) (in lowest position) • Weight 8.9 Kg • Tilt / Swivel -5° ~ 25° / ± 45° • Height adjustment rang 130 mm• Power supply 100— 240 VAC, 60 - 50 Hz• Power consumption 50 W* (typ.)• Temperature 5° C to 35° C (operating)-20° C to 60° C (storage)• Relative humidity 20% to 80%• System MTBF 50K hrs (excluding CCFL 40K hrs)• Cabinet color Black/Silver• Altitude- storage/shipment- operating 0 - 40,000 feet (12,192m)0 - 12,000 feet (3657.6m)* This data is subject to change without notice.* Resolution 1600 x 1200, standard size, contrast max., brightness 50%, 6500° K, full white pattern.RETURN TO TOP OF THE PAGEPin Assignment1. The DVI connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: PinNo. Signal Assignment PinNo. Signal Assignment PinNo. Signal Assignment PinNo. Signal Assignment1T.M.D.S. Data2- 9T.M.D.S. Data1- 17 T.M.D.S. Data0- C1 * Analog R2T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+ C2 * Analog G3T.M.D.S. Data2 Shield 11 T.M.D.S. Data1 Shield 19 T.M.D.S. Data0 Shield C3 * Analog B4NC 12 NC 20 NC C4 * Analog H-sync5NC 13 NC 21 NC C5* Analog GND (Analog R, G, B return)6DDC Clock 14 +5V 22 T.M.D.S. Clock Shieldfile:///D|/My%20Documents/dfu/200P7/english/200p7/product/product.htm (5 of 10)2005-12-14 9:24:44 AM

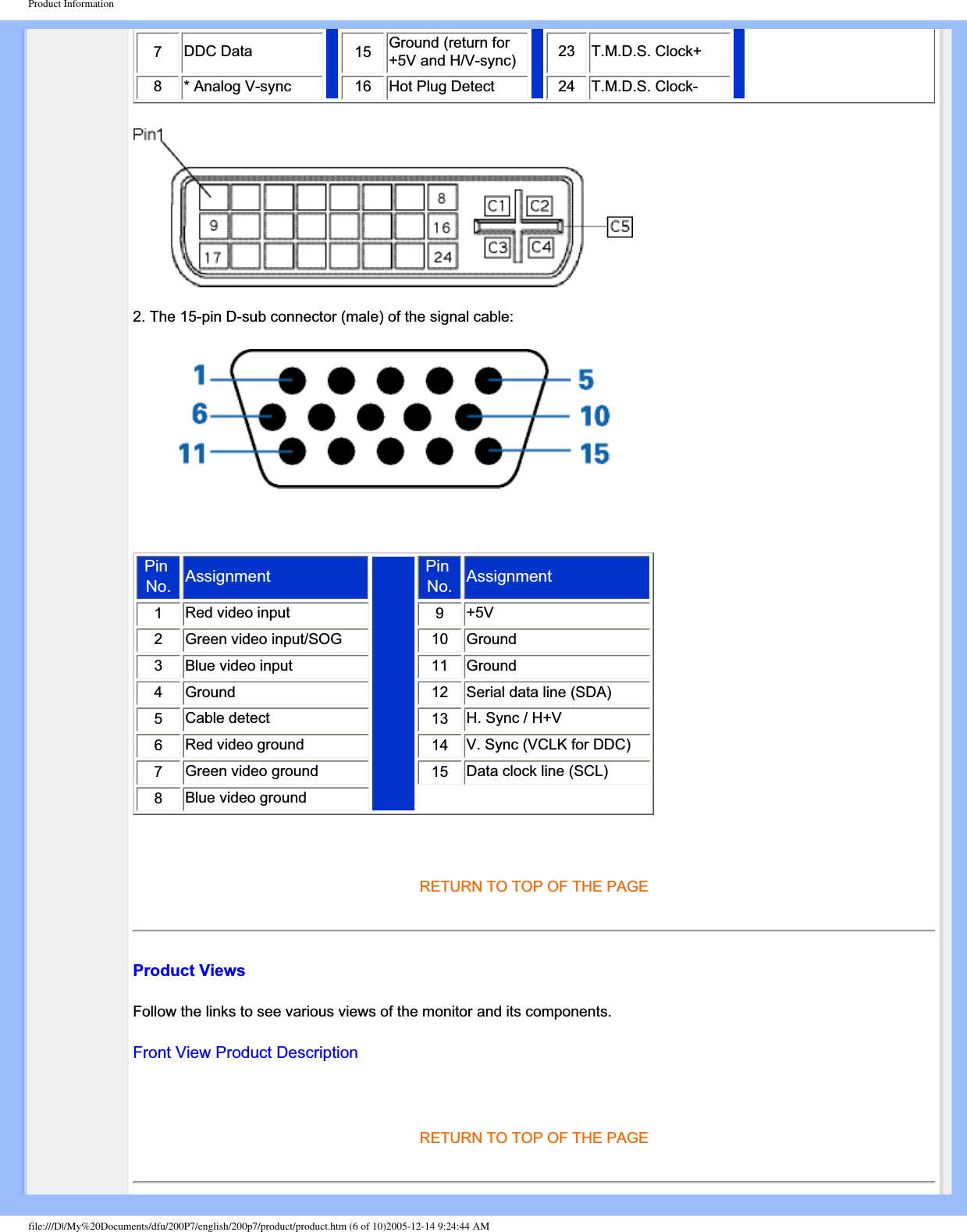

Product Information7DDC Data 15 Ground (return for +5V and H/V-sync) 23 T.M.D.S. Clock+8* Analog V-sync 16 Hot Plug Detect 24 T.M.D.S. Clock-2. The 15-pin D-sub connector (male) of the signal cable: PinNo. Assignment PinNo. Assignment1Red video input 9+5V2Green video input/SOG 10 Ground3Blue video input 11 Ground4Ground 12 Serial data line (SDA)5Cable detect 13 H. Sync / H+V6Red video ground 14 V. Sync (VCLK for DDC)7Green video ground 15 Data clock line (SCL)8Blue video groundRETURN TO TOP OF THE PAGEProduct ViewsFollow the links to see various views of the monitor and its components.Front View Product DescriptionRETURN TO TOP OF THE PAGEfile:///D|/My%20Documents/dfu/200P7/english/200p7/product/product.htm (6 of 10)2005-12-14 9:24:44 AM

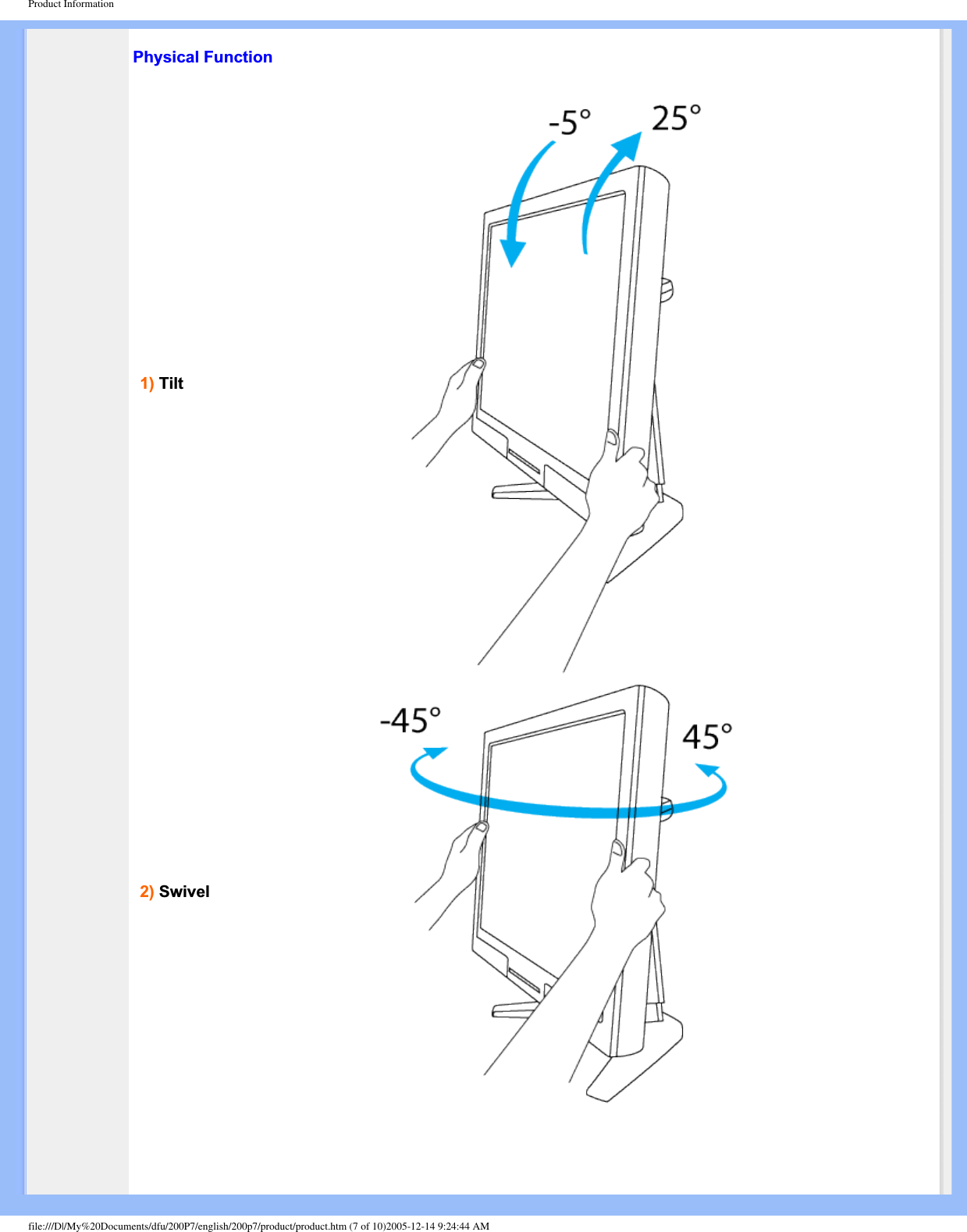

Product InformationPhysical Function1) Tilt2) Swivelfile:///D|/My%20Documents/dfu/200P7/english/200p7/product/product.htm (7 of 10)2005-12-14 9:24:44 AM

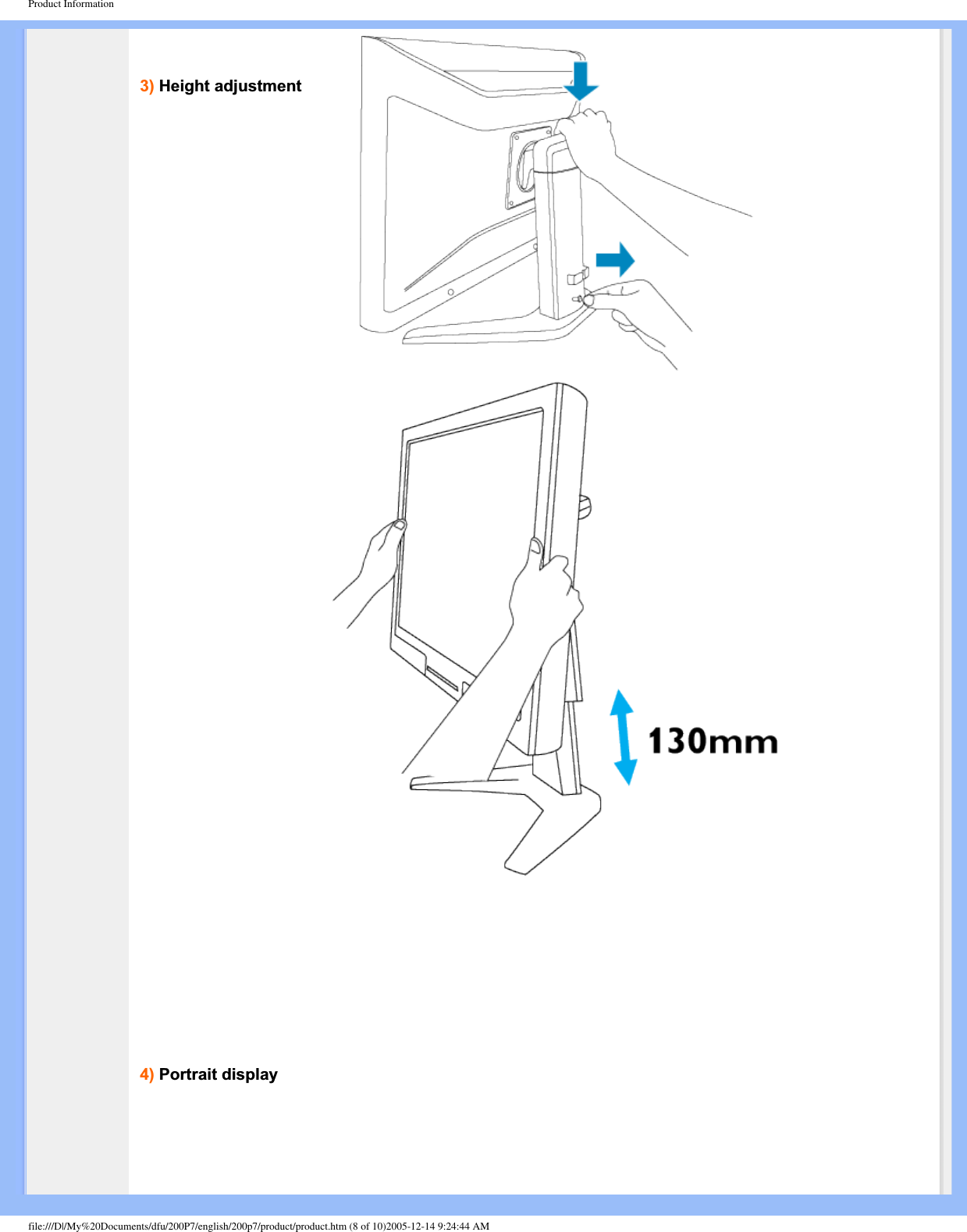

Product Information3) Height adjustment4) Portrait displayfile:///D|/My%20Documents/dfu/200P7/english/200p7/product/product.htm (8 of 10)2005-12-14 9:24:44 AM

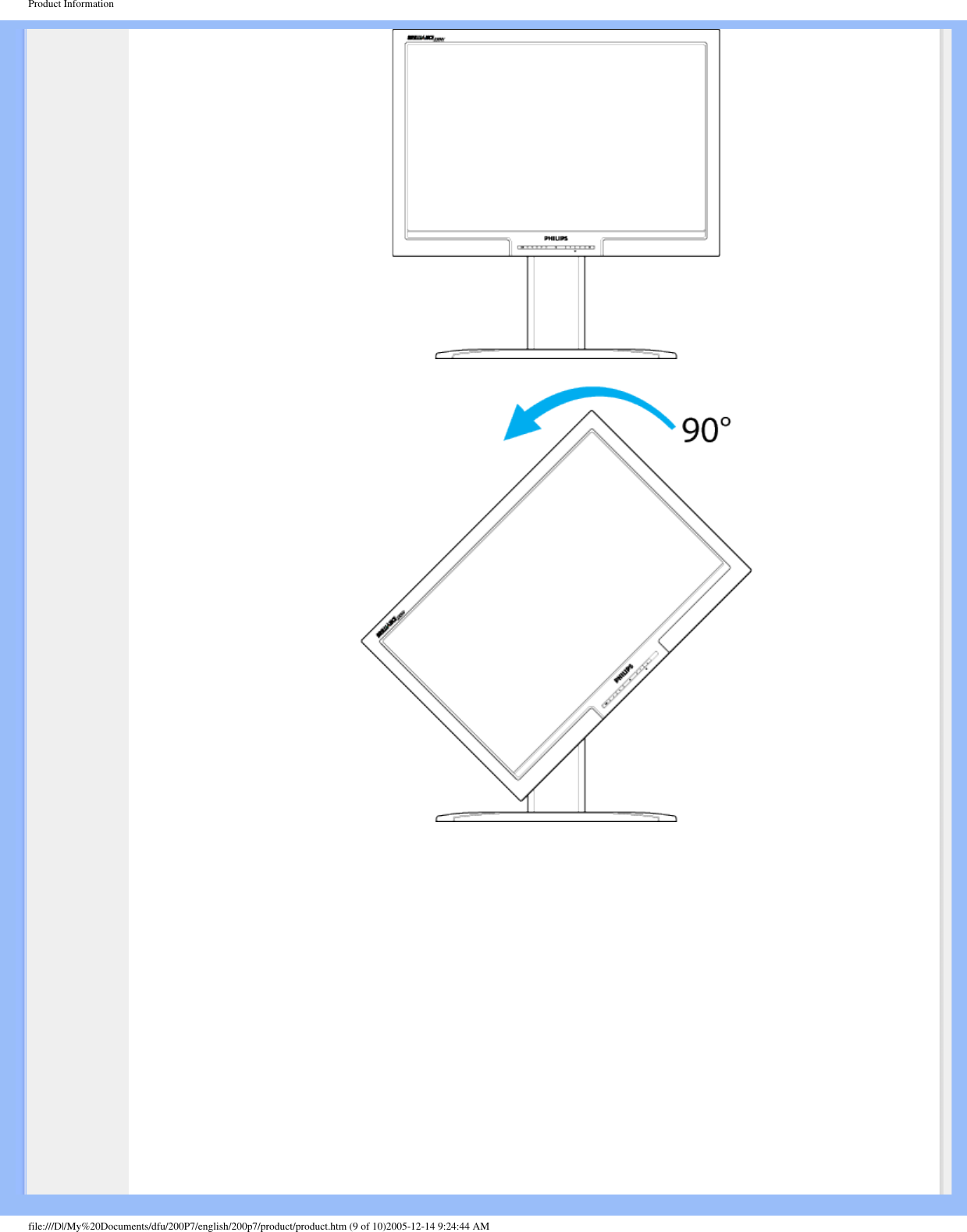

Product Informationfile:///D|/My%20Documents/dfu/200P7/english/200p7/product/product.htm (9 of 10)2005-12-14 9:24:44 AM

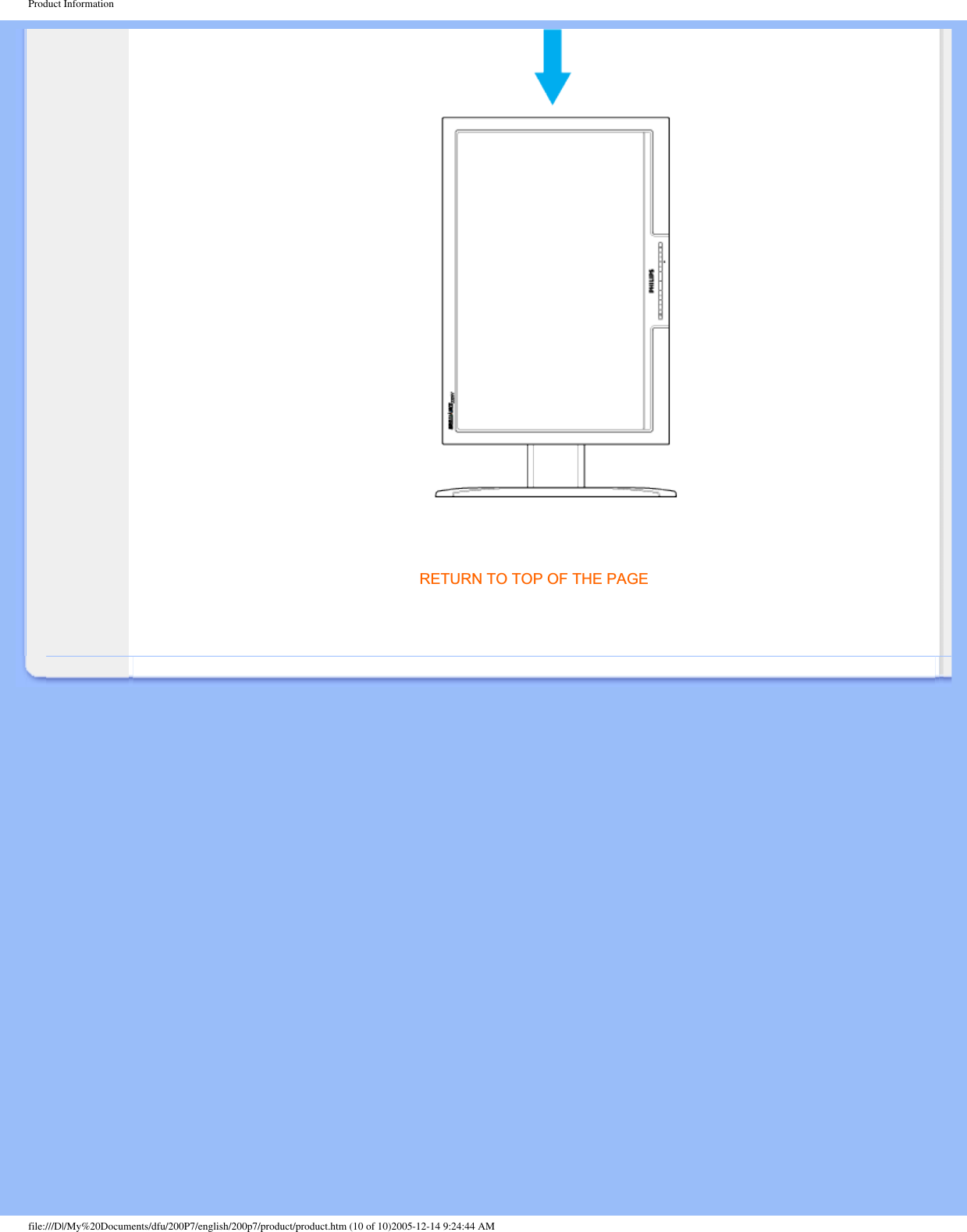

Product InformationRETURN TO TOP OF THE PAGEfile:///D|/My%20Documents/dfu/200P7/english/200p7/product/product.htm (10 of 10)2005-12-14 9:24:44 AM

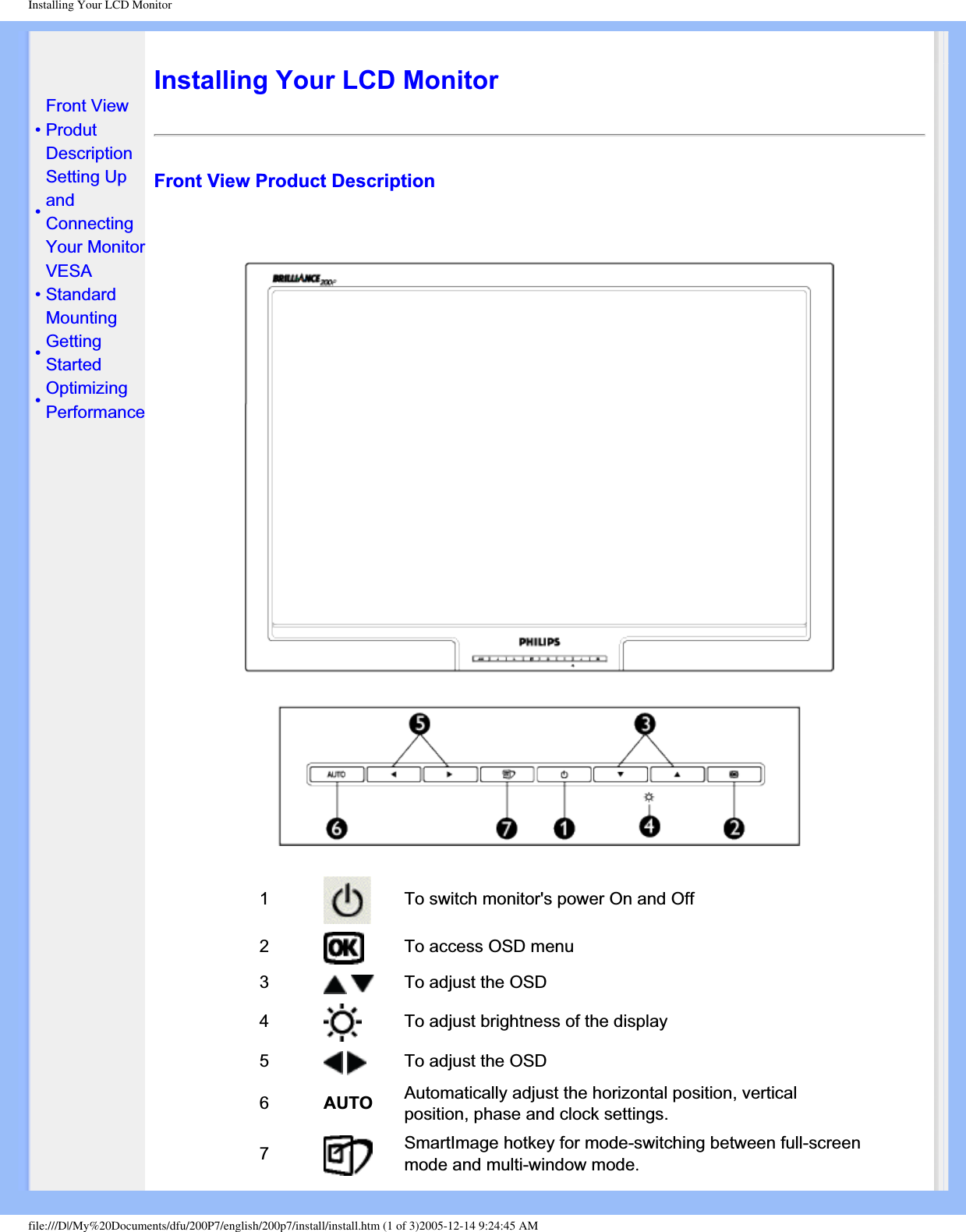

Installing Your LCD Monitor •Front View ProdutDescription•Setting Up andConnectingYour Monitor•VESAStandardMounting•GettingStarted•OptimizingPerformanceInstalling Your LCD MonitorFront View Product Description1 To switch monitor's power On and Off2To access OSD menu3To adjust the OSD4To adjust brightness of the display5To adjust the OSD6AUTO Automatically adjust the horizontal position, vertical position, phase and clock settings.7SmartImage hotkey for mode-switching between full-screen mode and multi-window mode.file:///D|/My%20Documents/dfu/200P7/english/200p7/install/install.htm (1 of 3)2005-12-14 9:24:45 AM

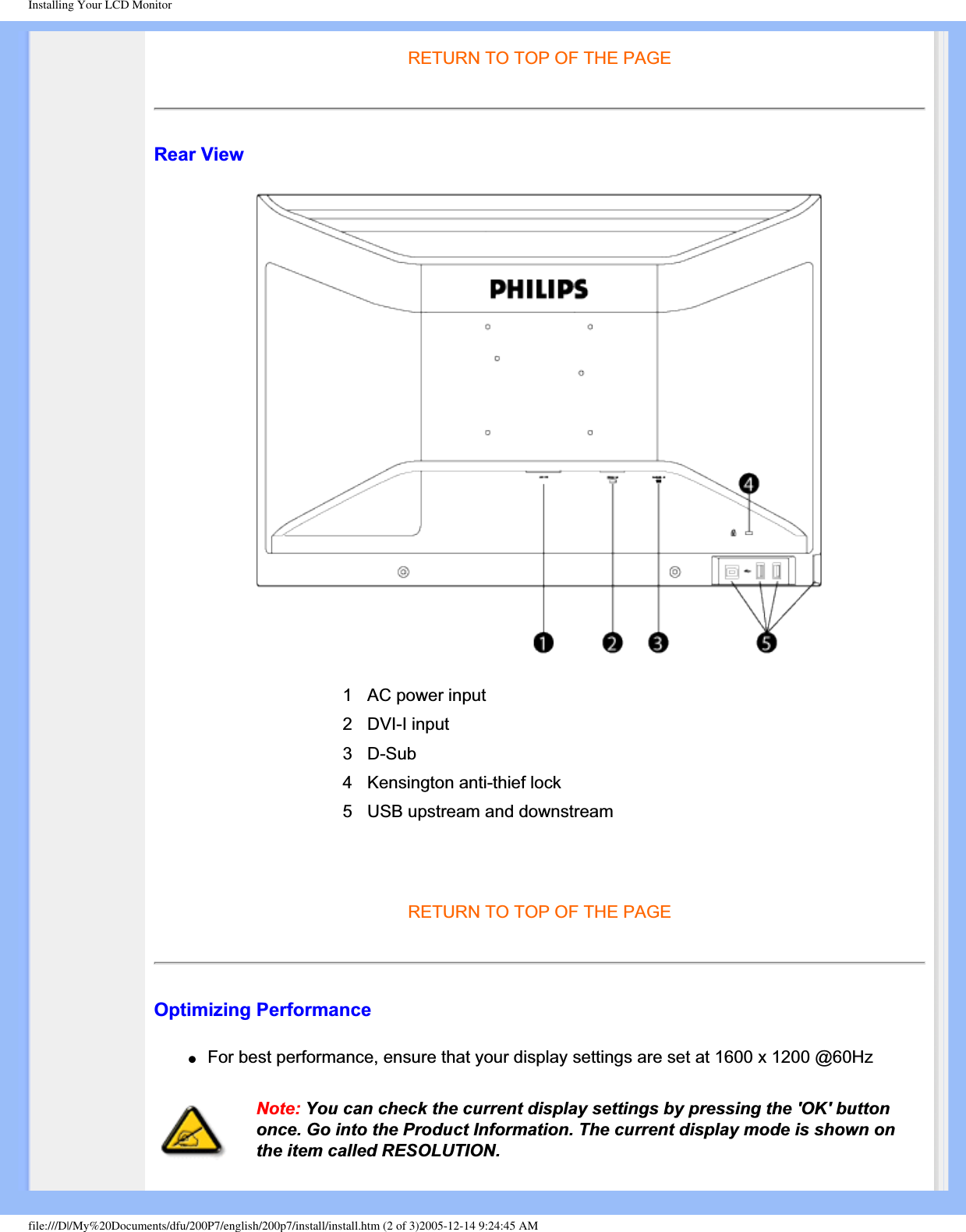

Installing Your LCD Monitor RETURN TO TOP OF THE PAGERear View1 AC power input2 DVI-I input3 D-Sub4 Kensington anti-thief lock5 USB upstream and downstreamRETURN TO TOP OF THE PAGEOptimizing Performance●For best performance, ensure that your display settings are set at 1600 x 1200 @60HzNote: You can check the current display settings by pressing the 'OK' button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.file:///D|/My%20Documents/dfu/200P7/english/200p7/install/install.htm (2 of 3)2005-12-14 9:24:45 AM

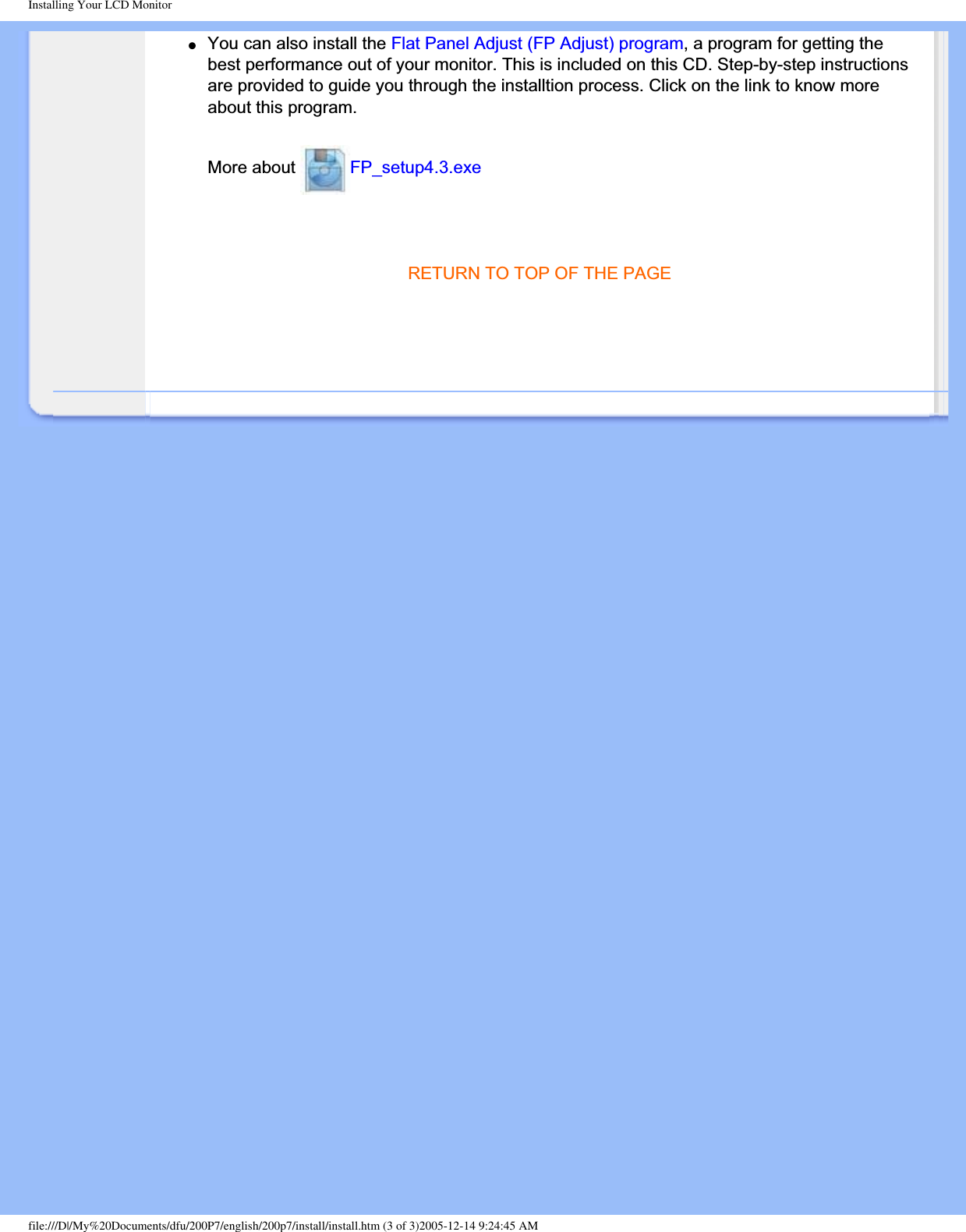

Installing Your LCD Monitor ●You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor. This is included on this CD. Step-by-step instructions are provided to guide you through the installtion process. Click on the link to know more about this program.More about FP_setup4.3.exeRETURN TO TOP OF THE PAGEfile:///D|/My%20Documents/dfu/200P7/english/200p7/install/install.htm (3 of 3)2005-12-14 9:24:45 AM

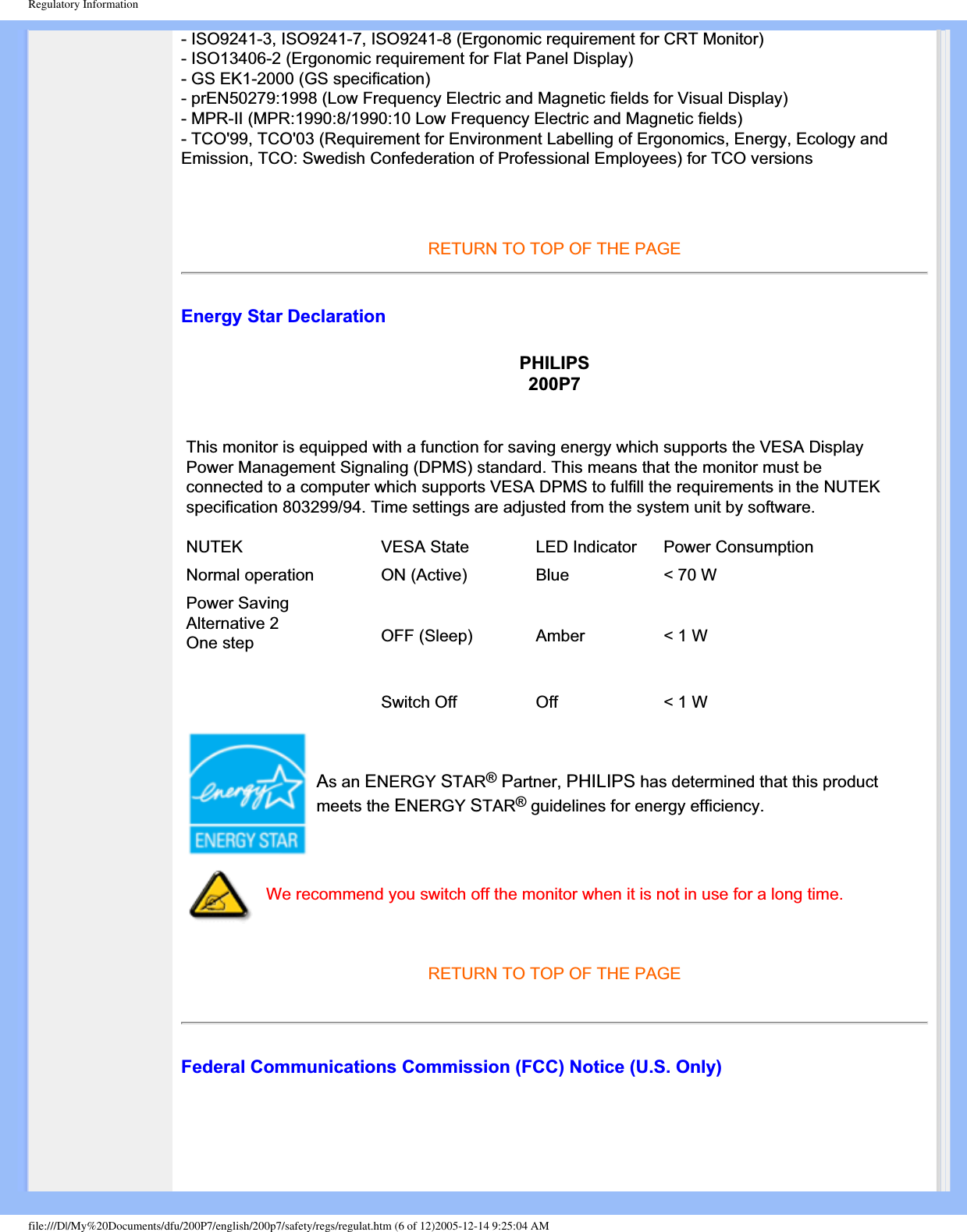

Regulatory Information- ISO9241-3, ISO9241-7, ISO9241-8 (Ergonomic requirement for CRT Monitor) - ISO13406-2 (Ergonomic requirement for Flat Panel Display) - GS EK1-2000 (GS specification) - prEN50279:1998 (Low Frequency Electric and Magnetic fields for Visual Display) - MPR-II (MPR:1990:8/1990:10 Low Frequency Electric and Magnetic fields) - TCO'99, TCO'03 (Requirement for Environment Labelling of Ergonomics, Energy, Ecology and Emission, TCO: Swedish Confederation of Professional Employees) for TCO versions RETURN TO TOP OF THE PAGEEnergy Star DeclarationPHILIPS200P7This monitor is equipped with a function for saving energy which supports the VESA Display Power Management Signaling (DPMS) standard. This means that the monitor must be connected to a computer which supports VESA DPMS to fulfill the requirements in the NUTEK specification 803299/94. Time settings are adjusted from the system unit by software.NUTEK VESA State LED Indicator Power ConsumptionNormal operation ON (Active) Blue < 70 WPower SavingAlternative 2One step OFF (Sleep) Amber < 1 WSwitch Off Off < 1 WAs an ENERGY STAR®Partner, PHILIPS has determined that this product meets the ENERGY STAR®guidelines for energy efficiency.We recommend you switch off the monitor when it is not in use for a long time.RETURN TO TOP OF THE PAGEFederal Communications Commission (FCC) Notice (U.S. Only)file:///D|/My%20Documents/dfu/200P7/english/200p7/safety/regs/regulat.htm (6 of 12)2005-12-14 9:25:04 AM
Regulatory InformationThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.●Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGECommission Federale de la Communication (FCC Declaration)Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes:●Réorienter ou déplacer l'antenne de réception. ●Augmenter la distance entre l'équipement et le récepteur. ●Brancher l'équipement sur un autre circuit que celui utilisé par le récepteur. ●Demander l'aide du marchand ou d'un technicien chevronné en radio/télévision. file:///D|/My%20Documents/dfu/200P7/english/200p7/safety/regs/regulat.htm (7 of 12)2005-12-14 9:25:04 AM
Regulatory InformationToutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGEEN 55022 Compliance (Czech Republic Only)RETURN TO TOP OF THE PAGEMIC Notice (South Korea Only)Class B DevicePlease note that this device has been approved for non-business purposes and may be used in any environment, including residential areas.RETURN TO TOP OF THE PAGEPolish Center for Testing and Certification Noticefile:///D|/My%20Documents/dfu/200P7/english/200p7/safety/regs/regulat.htm (8 of 12)2005-12-14 9:25:04 AM
