Philips Lighting North America SSDB1S Wireless 902MHz-928MHz Module User Manual 443529060901 rev F
Philips Lighting North America Corporation Wireless 902MHz-928MHz Module 443529060901 rev F
User Manual
Starsense NEMA Dim Intellivolt OLC LLC7320
Installation Instructions
4435 290 60901 REV. F

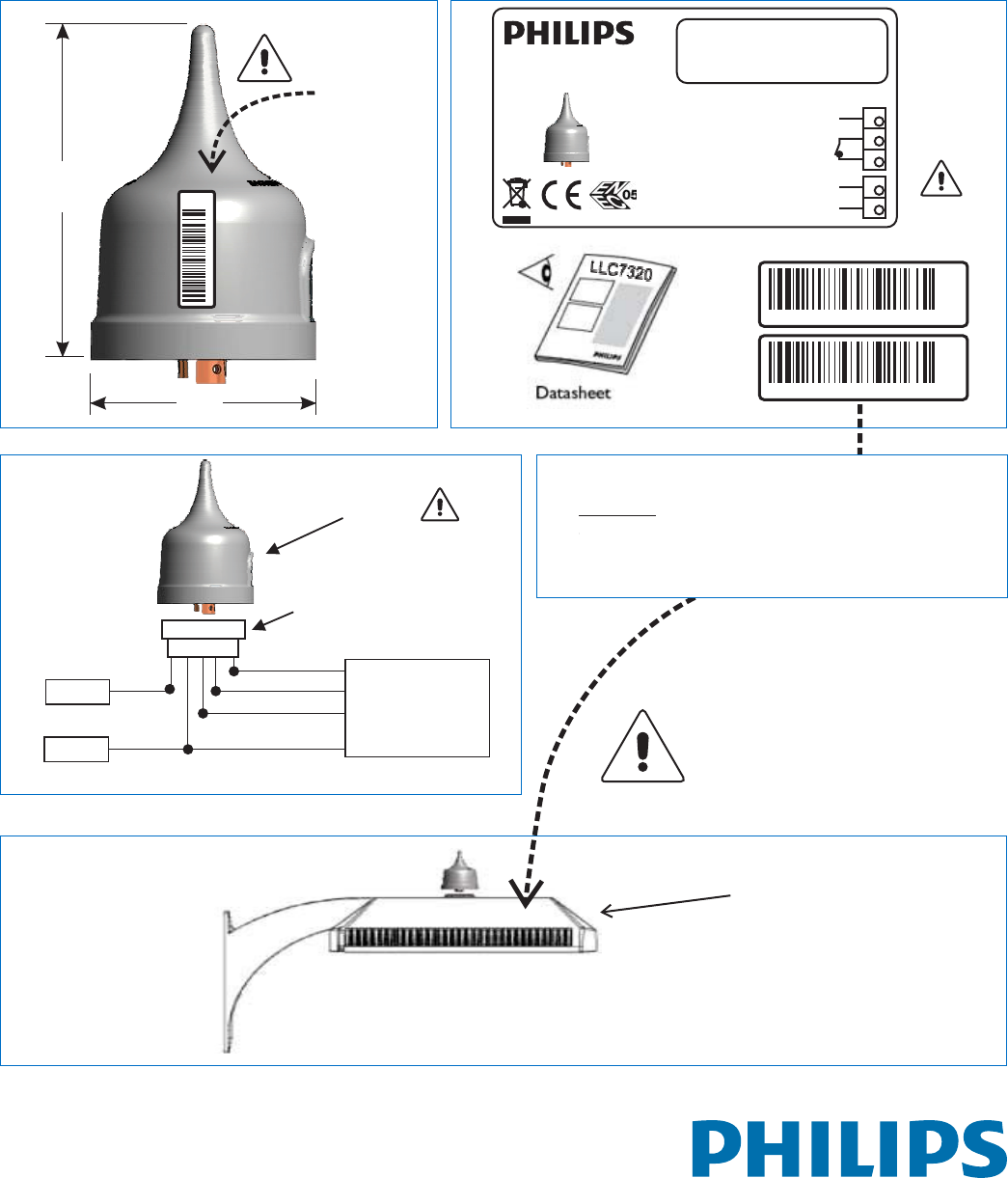

Wiring/Installation Diagram
Attach a copy of barcode
to luminaire interior
5
IP>=43
LLC7320
Output load
The OLC shall be able to operate an electronic ballast load
with 4A rating at 120VAC and 2.5A rating at 277VAC.
43
INTERNAL
BALLAST/DRIVER
WITH DIMMING
CONTROL
GRAY
WHT
BLACK
H
N
Photocontrol base *
*Photocontrol base is not supplied with Starsense
Light Sensor must
point NORTH
VIOLET
BLACK
WHT
RED
VLT
GRY
WHT
BLK
2
000981379400
000981379400
LLC7320 913701261202
Starsense Wireless
Line V:
Line Freq:
Temp Range:
Tc:
Pload:
120-277V
50-60Hz
-30...+60°C
65°C
480VA
Made in USA
0682
N
L
L2
PFTYYWW
D+
D-
1
Do not
remove
barcode
from
Starsense
Ø86.0
129.1
000981379400
CAUTION: Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it deemed to comply without maximum
permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and more between the
radiator and person's body (excluding extremities: hands, wrists, feet and ankles). Co-location : This transmitter must not be co-located or
operated in conjunction with any other antenna or transmitter.
Philips Lighting Electronics N.A.
10275 West Higgins Road
Rosemont, IL 60018
Tel: 1-800-322-2086 Fax: 888-423-1882
Customer Support/Technical Service:800-372-3331
www.philips.com/starsense-na
©2014 Philips Lighting Electronics N.A.
A Division of Philips Electronics North America Corporation.
All rights reserved.
Published and printed in USA
Form No. PA-7540-A 5/14
This device complies with part 15 of the FCC rules for the United States and Industry Canada (IC) license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly
approved by Philips could void the user's authority to operate this equipment.This product is intended for commercial use only.
