Phonex Broand ReadyNet SG5 10/100/1000Mbps Fast Ethernet Switch User Manual

Phonex Broadband Corporation 10/100/1000Mbps Fast Ethernet Switch

User manual

Quick Installation GuideSG5 5 Port Gigabit Ethernet Switch•HubtoSwitch–Ahubcanbeconnectedviaatwo-pairCategory3, 4,or5UTP/STPStraight-ThroughorCrossovercable.For1000Mbps operationaCategory5cablemustbeused.Theconnectionis accomplishedfromanyportofthehubtoanyportoftheSG5.•SG5toOtherDevices–TheSG5canbeconnectedtoanotherswitch orotherdevices(routers,bridges,etc.)viaatwo-pairCategory3,4,5 UTP/STPStraight-ThroughorCrossovercable.ACategory5cable mustbeusedfor1000Mbpsoperation.Theconnectioncanbe accomplishedfromanyportontheSG5toanyofthe10Mbps, 100Mbpsor1000Mbpsportsonanotherswitchorotherdevices.•PortSpeed&DuplexMode–Afterpluggingtheselectedcableto aspecicport,thesystemusesauto-negotiationtodeterminethe transmissionmode,auto-detectingthenetworkspeedforanynew twisted-pairconnection.Iftheattacheddevicedoesnotsupportauto-negotiationorhasauto-negotiationdisabled,anauto-sensingprocessisinitiatedtoselectthespeedandhalf-duplexmodeisselected.

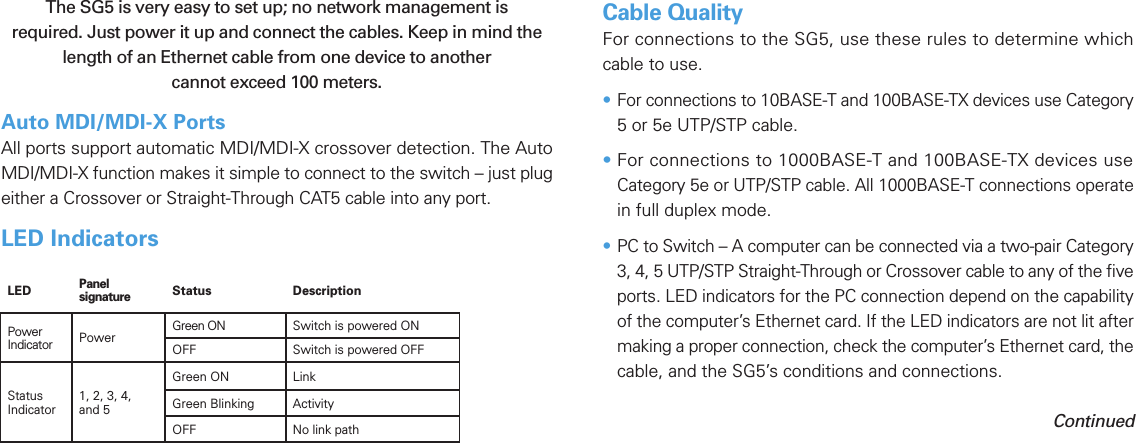

The SG5 is very easy to set up; no network management is required. Just power it up and connect the cables. Keep in mind the length of an Ethernet cable from one device to another cannot exceed 100 meters. Auto MDI/MDI-X PortsAllportssupportautomaticMDI/MDI-Xcrossoverdetection.TheAutoMDI/MDI-Xfunctionmakesitsimpletoconnecttotheswitch–justplugeitheraCrossoverorStraight-ThroughCAT5cableintoanyport.LED IndicatorsCable QualityForconnectionstotheSG5,usetheserulestodeterminewhichcabletouse.•Forconnectionsto10BASE-Tand100BASE-TXdevicesuseCategory 5or5eUTP/STPcable.•Forconnectionsto1000BASE-Tand100BASE-TXdevicesuse Category5eorUTP/STPcable.All1000BASE-Tconnectionsoperate infullduplexmode.•PCtoSwitch–Acomputercanbeconnectedviaatwo-pairCategory 3,4,5UTP/STPStraight-ThroughorCrossovercabletoanyoftheve ports.LEDindicatorsforthePCconnectiondependonthecapability ofthecomputer’sEthernetcard.IftheLEDindicatorsarenotlitafter makingaproperconnection,checkthecomputer’sEthernetcard,the cable,andtheSG5’sconditionsandconnections. ContinuedLED Panel signature Status DescriptionPowerIndicator PowerGreenON SwitchispoweredONOFF SwitchispoweredOFFStatusIndicator1,2,3,4,and5GreenON LinkGreenBlinking ActivityOFF Nolinkpath
FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
