Pioneer K011 Bluetooth Transmitter User Manual CRD4118A BT owners QX3e
Pioneer Corporation Bluetooth Transmitter CRD4118A BT owners QX3e
Pioneer >
users manual
1
ENG/MASTER COVER 98
PIONEER CORPORATION
4-1, MEGURO 1-CHOME, MEGURO-KU, TOKYO 153-8654, JAPAN
PIONEER ELECTRONICS (USA) INC.
P.O. Box 1540, Long Beach, California 90801-1540, U.S.A.
TEL: (800) 421-1404
PIONEER EUROPE NV
Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium
TEL: (0) 3/570.05.11
PIONEER ELECTRONICS ASIACENTRE PTE. LTD.
253 Alexandra Road, #04-01, Singapore 159936
TEL: 65-6472-7555
PIONEER ELECTRONICS AUSTRALIA PTY. LTD.
178-184 Boundary Road, Braeside, Victoria 3195, Australia
TEL: (03) 9586-6300
PIONEER ELECTRONICS OF CANADA, INC.
300 Allstate Parkway, Markham, Ontario L3R OP2, Canada
TEL: 1-877-283-5901
PIONEER ELECTRONICS DE MEXICO, S.A. de C.V.
Blvd. Manuel Avila Camacho 138 10 piso
Col. Lomas de Chapultepec, Mexico, D.F. 11000
TEL: 55-9178-4270
Published by Pioneer Corporation.
Copyright © 2006 by Pioneer Corporation.
All rights reserved.
Publication de Pioneer Corporation.
Copyright © 2006 Pioneer Corporation.
Tous droits de reproduction et de traduction
réservés.
Printed in Japan
Imprimé au Japon
<CRD4118-A> E< KKYHF > < 06B00000 >
BLUETOOTH UNIT
APPAREIL BLUETOOTH
Owner’s Manual
Mode d’emploi
ND-BT1
CRD4118A_BT_owners.QX3e 2/14/06 2:00 PM Page 1

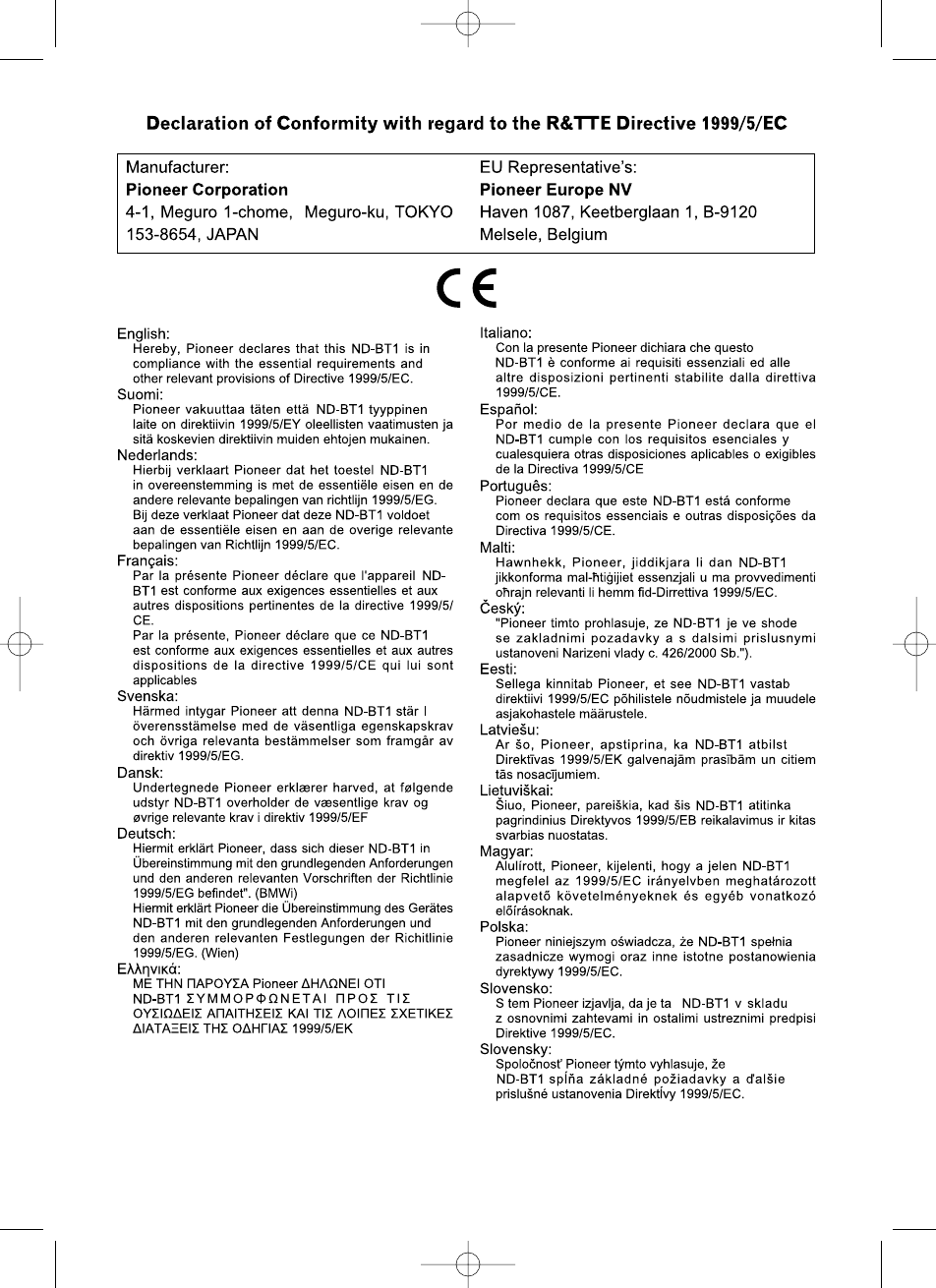

2
CRD4118A_BT_owners.QX3e 2/14/06 2:00 PM Page 2
3
Information to User
WARNING
Handling the cord on this product or cords asso-
ciated with accessories sold with the product
may expose you to chemicals listed on proposi-
tion 65 known to the State of California and other
governmental entities to cause cancer and birth
defects or other reproductive harm. Wash hands
after handling.
Private households in the 25 member states of
the EU, in Switzerland and Norway may return
their used electronic products free of charge to
designated collection facilities or to a retailer (if
you purchase a similar new one).
For countries not mentioned above, please con-
tact your local authorities for the correct method
of disposal.
By doing so you will ensure that your disposed
product undergoes the necessary treatment,
recovery and recycling and thus prevent potential
negative effects on the environment and human
health.
If you want to dispose this prod-
uct, do not mix it with general
household waste. There is a sepa-
rate collection system for used
electronic products in accordance
with legislation that requires
proper treatment, recovery and
recycling.
This equipment complies with FCC/IC radiation
exposure limits set forth for uncontrolled
equipment and meets the FCC/IC radio fre-
quency (RF) Exposure Guidelines in
Supplement C to OET65 and RSS-102 of the IC
radio frequency (RF) exposure rules. This
equipment has very low levels of RF energy
that it is deemed to comply without testing of
specific absorption ratio (SAR).
This transmitter must not be co-located or
operated in conjunction with any other
antenna or transmitter.
This class B digital apparatus complies with
Canadian ICES-003.
FCC ID : AJDK011
MODEL NO. : ND-BT1
IC : 775E-K011
This device complies with Part 15 of FCC Rules
and RSS-Gen of IC Rules. Operation is subject
to the following two conditions: (1) this device
may not cause interference, and (2) this device
must accept any interference, including inter-
ference that may cause undesired operation of
this device.
MADE IN JAPAN
Alteration or modifications carried out without
appropriate authorization may invalidate the
user's right to operate the equipment.
This equipment has been tested and found to
comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reason-
able protection against harmful interference in
a residential installation.
This equipment generates, uses and can radi-
ate radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio com-
munications. However, there is no guarantee
that interference will not occur in a particular
installation.
If this equipment dose cause harmful interfer-
ence to radio or television reception, which can
be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the follow-
ing measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equip-
ment and receiver.
— Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced
radio/TV technician for help.
English
CRD4118A_BT_owners.QX3e 2/15/06 1:26 PM Page 3
4
About this unit
This unit is used to connect a Bluetooth enabled
cellular phone to a Pioneer HDD Navigation
System.
About Bluetooth
Bluetooth is a short-range wireless radio connectivity
technology that is developed as a cable replacement for
cellular phones, handheld PCs and other devices.
Bluetooth operates in 2.4 GHz frequency range and
transmits voice and data at speeds up to 1 megabit per
second. Bluetooth was launched by a special interest
group (SIG) that comprises of Ericsson Inc., Intel Corp.,
Nokia Corp., Toshiba and IBM in 1998, and it is currently
developed by nearly 2 000 companies worldwide.
• The Bluetooth word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by
Pioneer Corporation is under license. Other trade-
marks and trade names are those of their respective
owners.
Operating environment
This unit should be used within the temperature ranges
shown below.
Operating temperature range : -10 to +60 °C
(14 to 140 °F)
EN300328 ETC test temperature : -20 and +55 °C
(-4 and 131 °F)
• The line-of-sight distance between this unit and your
cellular phone must be 10 meters or less in sending
and receiving voice and data via Bluetooth technol-
ogy. However, the transmission distance may become
shorter than the estimated distance, depending on
the environment in use.
• There are some Bluetooth enabled cellular phones
that can be incompatible with this unit due to their
Bluetooth version.
• The performance test of this unit with all Bluetooth
enabled cellular phones is not conducted. Also, it is
not guaranteed that this unit can be connected to all
Bluetooth enabled cellular phones.
• About the Bluetooth profile and its overview
It is required that the Bluetooth enabled cellular
phone to be connected to this unit is implemented
with the same profile.
HFP (Hands Free Profile): the profile used for hands-
free calling
OPP (Object Push Profile): the profile used for trans-
ferring data such as address books
Installation notes
• This unit may be installed in relatively unnoticeable
positions such as the passenger seat floor, however,
before fixing the unit, check the reception condition
of the Bluetooth unit with the setup-status monitor of
navigation system.
• Referring to Operation Manual included in navigation
system, check the connection and fine-tune the
reception of this unit.
• Thoroughly wipe off the surface before affixing the
velcro tape.
• Do not install the unit where it may (i) obstruct the
driver’s vision, (ii) impair the performance of any of
the vehicle’s operating systems or safety features,
including air bags, hazard lamp buttons or (iii) impair
the driver’s ability to safely operate the vehicle.
• When disconnecting a connector, pull the connector
itself. Do not pull the lead, as you may pull it out of the
connector.
• Do not install the unit in places where it may become
subject to high temperatures or humidity, such as:
* Places close to a heater outlet.
* Places exposed to direct sunlight, such as on top of
the dashboard or the rear shelf.
• Places that may be splashed by rain, for example
close to the door.

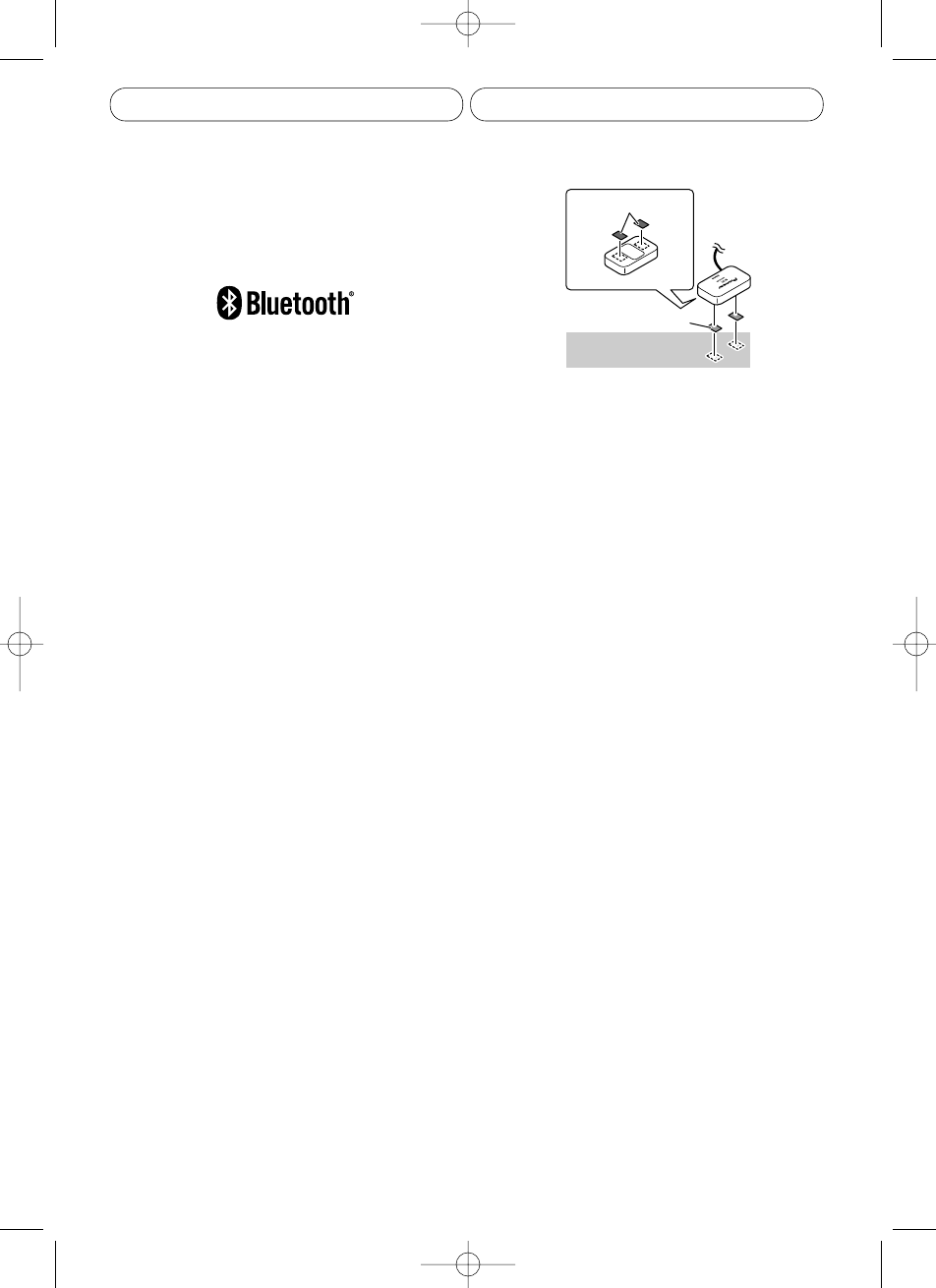

• Use supplied velcro tapes to secure the unit so that it
doesn’t move. It is extremely dangerous if cords are
exposed on the floor as they may become entangled
with the brake pedal etc. Hide cords so that they do
not get in the way when you are driving.
• Do not disassemble or modify this unit. To do so may
cause a fault.
Specifications
General
Max. Current Consumption ......0.25 A
Dimensions (W x H x D) ............89 mm x 16 mm x 48 mm
(3-1/2 x 5/8 x 1-7/8 in.)
Weight........................................0.16 kg (0.33 lbs)
Bluetooth
Version ......................................Bluetooth 1.1 certined
Maximum Output Power ..........+4 dBm (Power Class 2)
Velcro tape (hard) × 2
Velcro tape (soft) × 2
backside
CRD4118A_BT_owners.QX3e 2/14/06 2:00 PM Page 4
