Pixel Enterprise WTCTW-282TX Wireless Timer Remote Control User Manual TW 282English
Pixel Enterprise Limited Wireless Timer Remote Control TW 282English
User Manual Jan. 06
50202 V10.01
无线定时快门线
Wireless Timer Remote Control
TW-282
Turned on/off the power 1 4
Overview 03
TW-282 introduction 07
The name of each part
08
11
Prepare for install and use
Fix the receiver(TW-282RX) 1
3
Channel Setting 15
1
Open the background light of display 1 7
Install and replace the battery
1
1

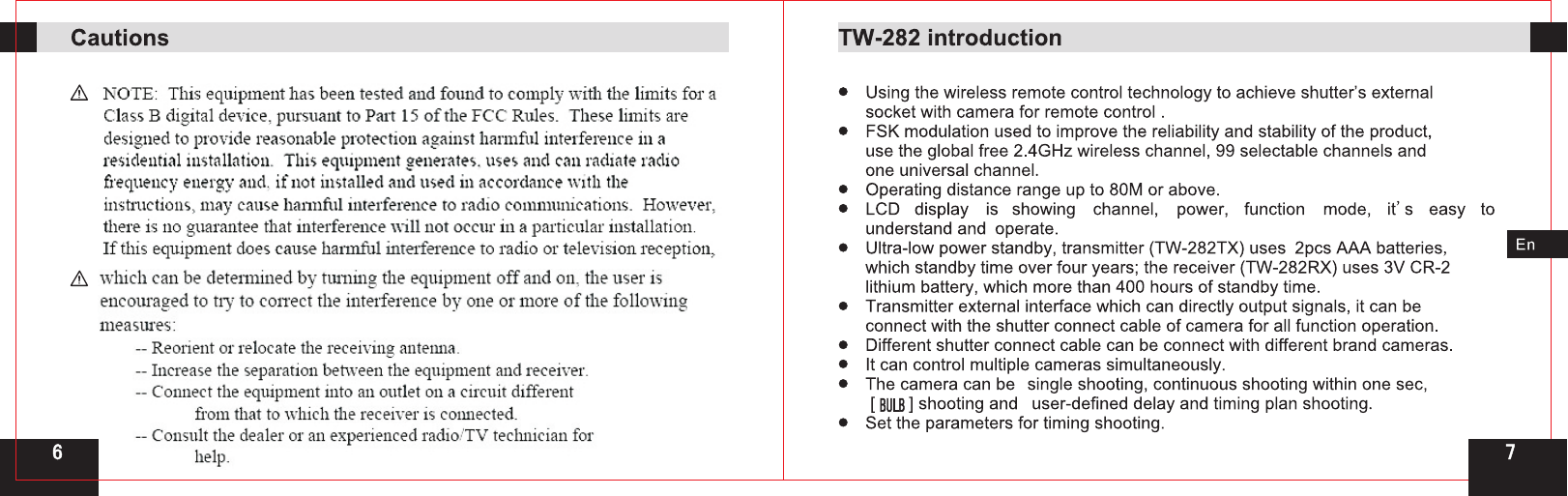

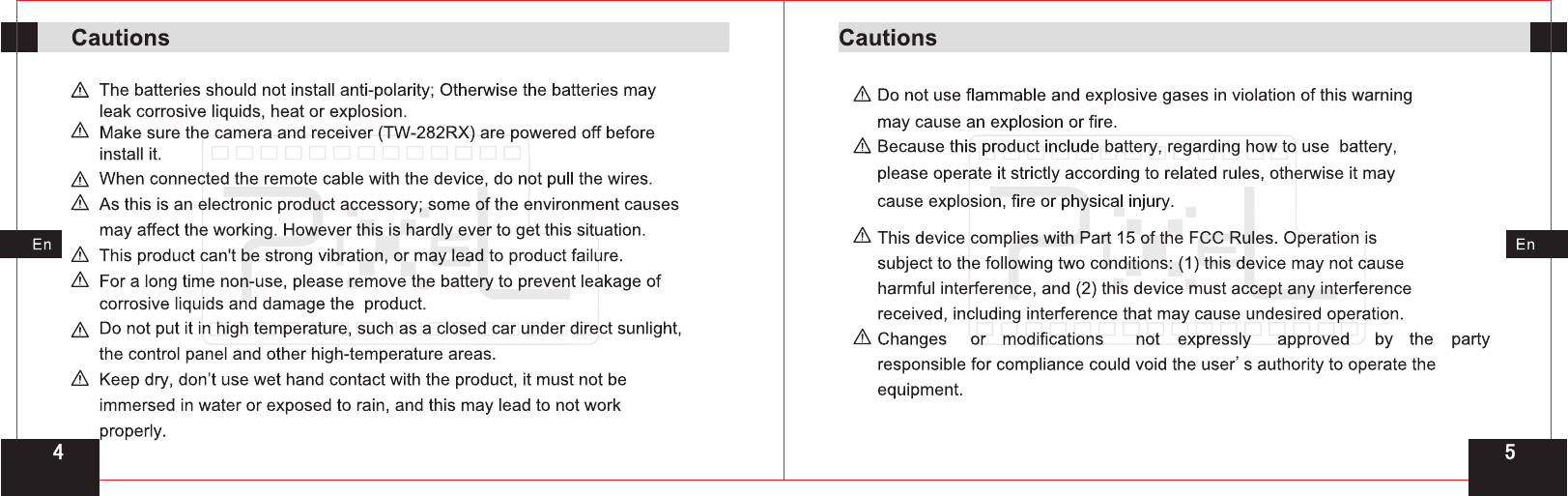

Cautions 04
Receiver connected with the camera 1 8
Shooting control 1 9
Single shooting 1 9
Continuous shooting within one sec
20
Contents
3
2
[ ]shooting
2
2

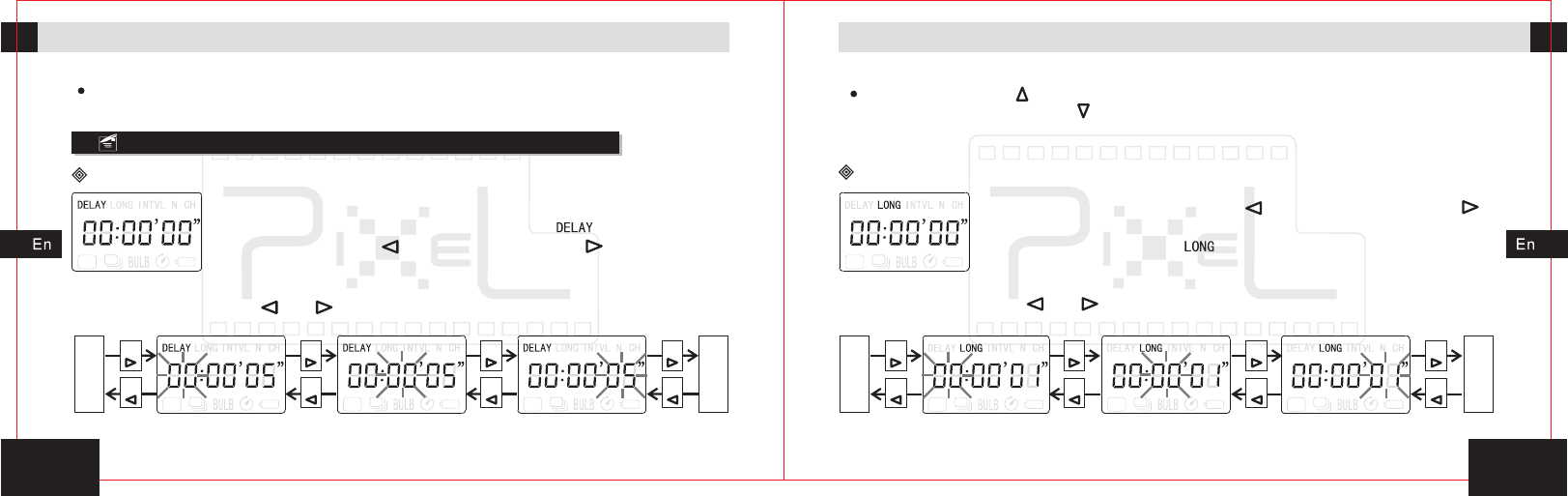

Delay shooting
2
3
Timing plan for shooting 26
This manual is current update of 1st Sep, 2009. Please contact
to PIXEL distributor for further information, if interesting of the
combining usage with products released after this day.
Overview
Thank you for purchasing high-performance PIXEL products
First of all, thank you for purchasing product of PIXEL TW-282.
ways included single shooting, continuous shooting within one sec, [ ]
shooting, user-defined time-delay and timing plan for shooting. Low
consumption of LCD display will make you be clear at a glance of the using
status and using plan.
Before use this product, you must read and fully understand this manual,
then learn to use the camera to ensure you are familiar with the operation
properly. Through this manual you can easily handle the operation method
and the attentive things.
The shooting
13
14
10
6
7
8
9
2
3
4
5
12
11
Transmitter(TW-282TX)
1
1
3
2
1
3
2
6
7
4
5
8
Low battery voltage icon
Receiver (TW-282RX)
Channel display screen
Power button/channel
reduce button
Power indicator
Background light button/
channel increase button
Battery hatch
6
7
9
10
9
10
Battery compartment
Hot shoe fixed nut
Hot shoe fixed mount
Output control signal interface
4
8
5
Please check all included items after open the packing, if missing, please
contact the dealer.
1. Transmitter (TW-282TX) ------- 1pc
5. Shutter connect cable ---------- 1pc 6. Manual(this manual) ------------ 1pc

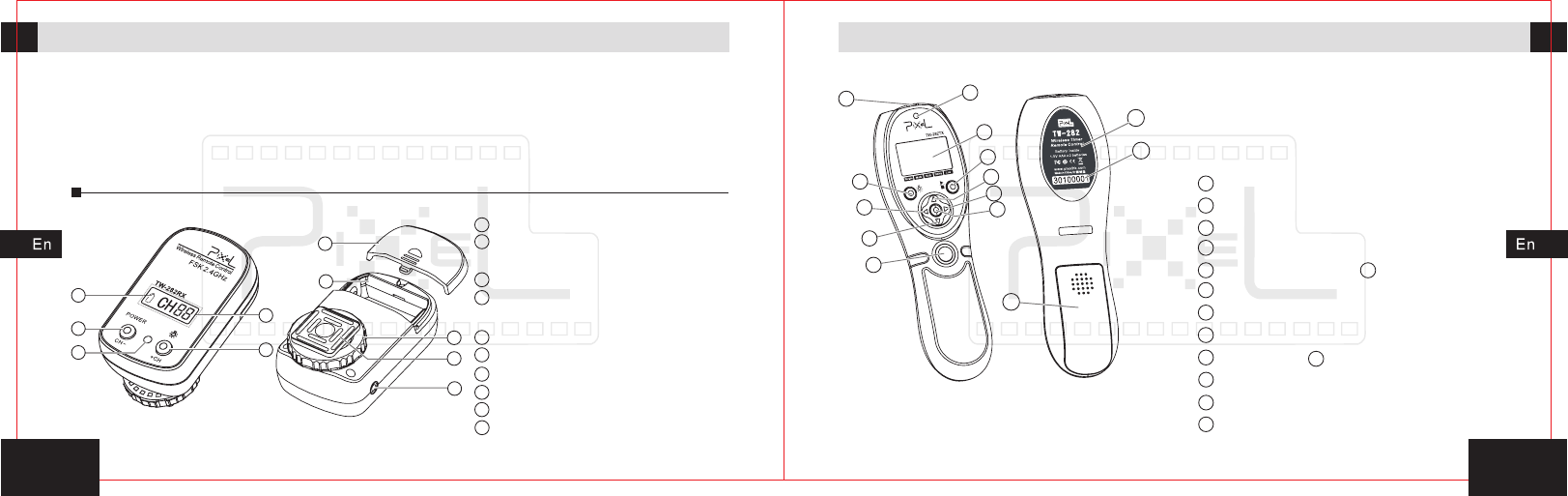

The name of each part
Here are the names of each part:
2. Receiver (TW-282RX) ---------- 1pc
3. 1.5V AAA battery ---------------- 2pcs 4. CR-2 battery ------------ 1pc
Lithium
The name of each part
11 Shutter indicator
10 Display
Timing plan start/stop button
9
8 Increment button
Right move button
7
6Set button
5Release button
4Decrement button
3Left move button
2Background light button
1Output control socket
12 Battery hatch
13 Product back sticker
14 Item code
9
8
The transmitter(TW-282TX)
1
3
2
45678
10
9111213
13
The name of each part
The icon of timing shots
12
The icon of interval time
11
The icon of exposure time
10
The icon of delay time
9
8Low battery voltage icon
7 Delay shooting icon
6[ ]shooting icon
4Single shooting icon
Function area
3
Display of transmitter

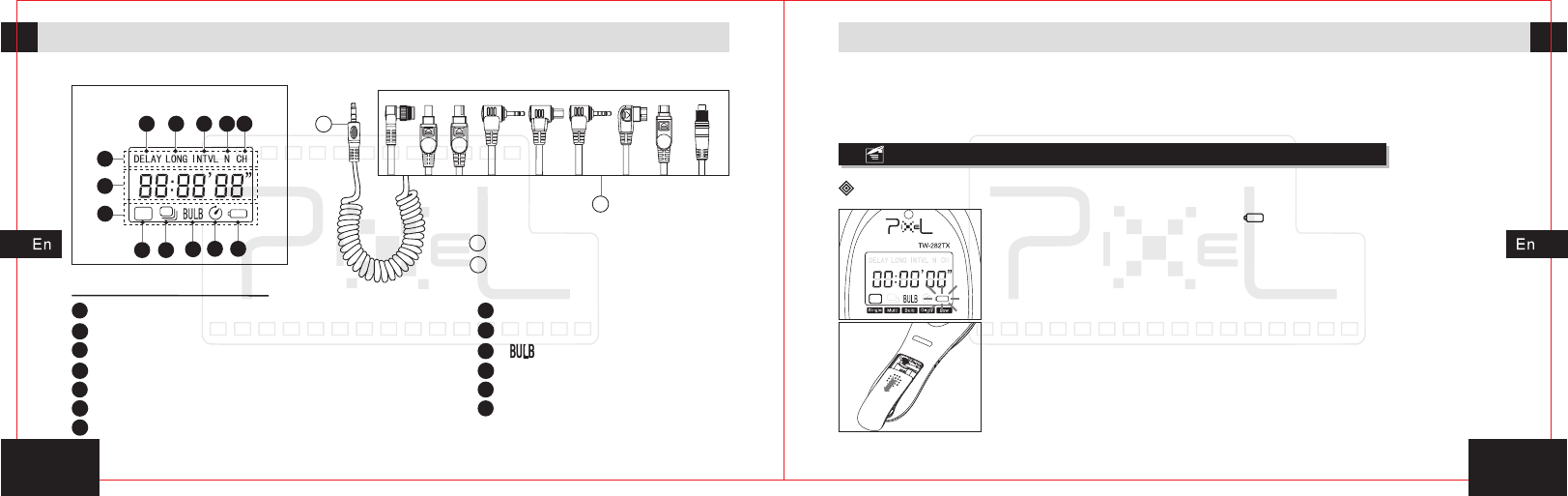

Input plug
Shutter connect plug
Shutter connect cable
Display of transmitter
1
2
1
2
1Timing plan function area 2Time display area
5Continuous shooting within one sec icon
The icon of channel
13
Preparation for installation and use
Install and replace the battery
Before use, you should read the user manual of your camera carefully and
well understand the manipulation and functional setting. The function setting
of camera may influence this item’s efficiency control of the camera.
The low battery voltage icon[ ]will twinkle or the character
become dim obvious when the power is not enough, that
means the low battery voltage has already influence the
normal work of the device, which needs to replace the
battery in time. The transmitter uses 2pcs AAA batteries;
Please follow the steps to replace the battery if needed.
1. Slide and open the battery hatch.
DC0 DC1 DC2 E3 N3 RS1 S1 UC1 CB1
1 1
1 0
Fix the receiver (TW-282RX)
The receiver(TW-282RX)
TW-282RX
3. Close the battery hatch.
2. Follow the signs of positive [+] and negative [-] in the
battery compartment to install the battery correctly.
You should pay attention to the polarity of battery because of
the wrong installation will make the device work abnormally,
or even physical injury.
The low battery voltage icon[ ]will twinkle when the power
is not enough, that means the low battery voltage has
already influenced the normal work of the device, which
needs to replace the battery in time. The receiver uses CR-2
lithium battery; Please follow the steps to replace the
battery if needed.
1. Slide and open the battery hatch.
2. the signs of positive [+] and negative [-] in the
battery compartment to install the battery correctly.
Follow
Preparation for installation and usePreparation for installation and use

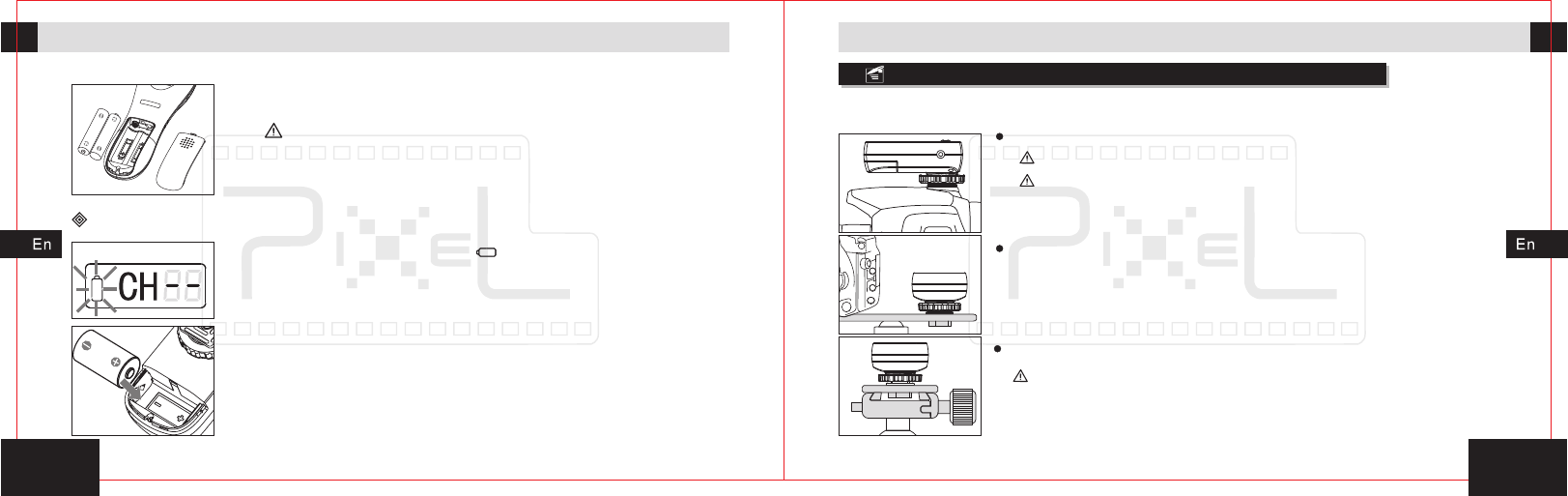

Receiver can be fixed on the top of camera, rack of camera accessory or tripod.
Fix the receiver on the hot shoe of camera.
Fix on the rack of camera accessory.the receiver
Fix on the tripod.the receiver
Loosen hot shoe fixed nut when you remove .
forcibly pull it, in order to avoid damage to the receiver and
camera.
the receiver Do not
Lock hot shoe fixed nut tightly when you fix it.
Make sure to fix firmly so that it will not slide.the receiver
1 3
1 2
1. Press left move button[ ]or right move button[ ]will
move the functional icon to the channel icon[ ].
2. Press the set button into the channel setting.
3. Thought pressing increment button[ ]or decrement
button[ ] to adjust the channel number.
Turned on/off the power
2s
Channel setting
Channel setting for transmitter(TW-282TX)
Preparation for installation and usePreparation for installation and use
The transmitter(TW-282TX)
1. Press any button once, and turn on the power of transmitter.
2. Turn on the power, set
the timing plan and communication channel unchanged.
3. The displ ay shows the single shooting icon an d
communication channel.
4. The transmitter without any operation (except timing plan or
implementing [ ] status) will shut down automatically after
one minute.
transmitter in single shooting state,
The receiver(TW-282RX)
1. Press the power button[ ]2s, turn on the receiver
power, screen display communication channel
2. After turn on the power, the set timing communication
channel remain effectively.
3. The receiver does not turn off automatically. In the
power-on state, press power button 2s and the receiver
will be turned off.
.

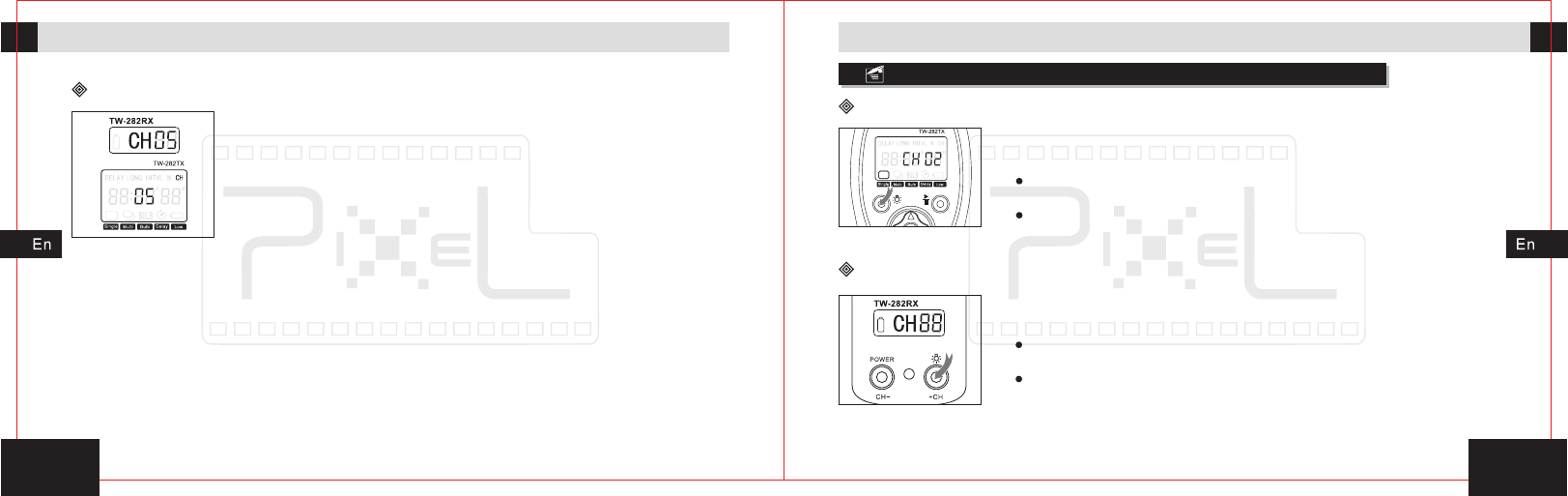

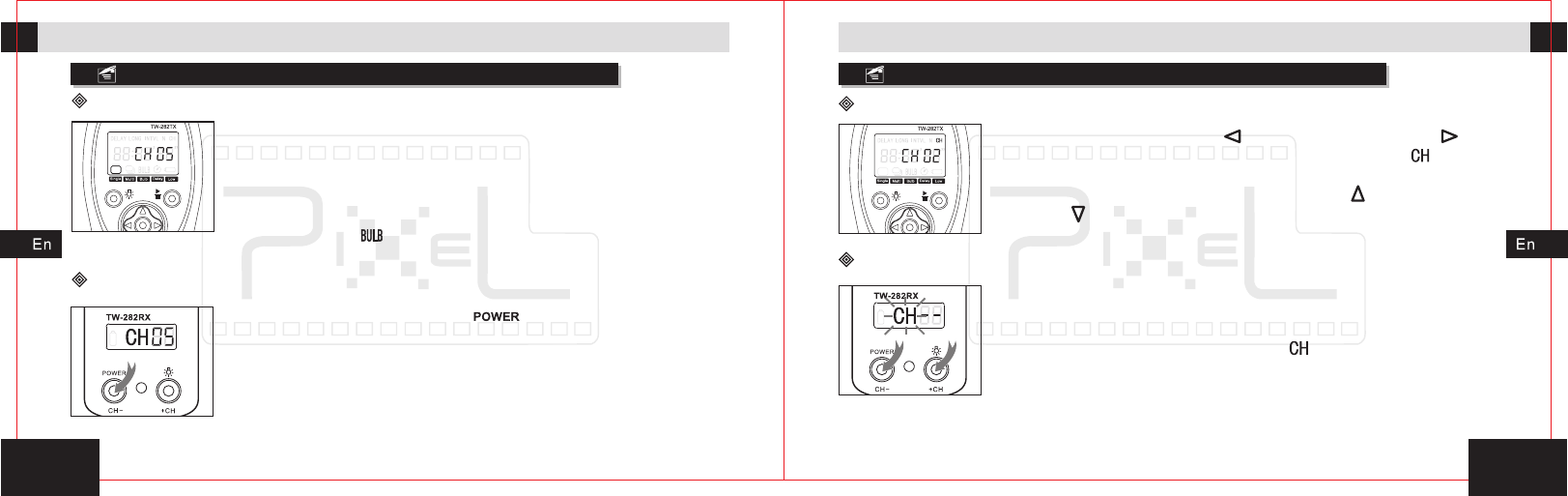

Channel setting for receiver(TW-282RX)
1. Turn the power on, the communication channel will be
default[- -]or the last setting.
2. CH-
.
3. Set the communication channel, press[ ]plus one,
press[CH-]minus one.
4. 10s no action exit and save your settings.
Press the button[+CH]and[ ]at the same time to
enter the channel settings, the [ ] icon on the LCD will
blinks
+CH
1 5
1 4
Channel model
Open the background light of display
3s
3s
Preparation for installation and usePreparation for installation and use
1. When the transmitter's communication channel adjust
to will effectively control all channels within the
region of the receiver .
2. When the receiver's communication channel adjust
to , all transmitter in the effective reception area can
control the receiver.
3. The
inconsistent, the
transmitter will not be effectively controlled the receiver.
[ -- ]
[ -- ]
transmitter and receiver’s value of communication
channels setting must be consistent .If
Press and hold the background light button for 3 seconds,
the background light will be turned on.
Open the background light of the receiver and press the button
twice each 4 seconds, the background light will keep lit.
The background light will not be close by hand; it will turn off
after 4 seconds automatically without any operation.
Press and hold the background light button for 3 seconds,
the background light will be turned on.
Open the background light and press the button twice each 6
seconds, the background light will keep lit.
The background light will not be close by hand; it will turn off
after 6 seconds automatically without any operation.
The transmitter(TW-282TX)
The receiver(TW-282RX)
1 7
1 6

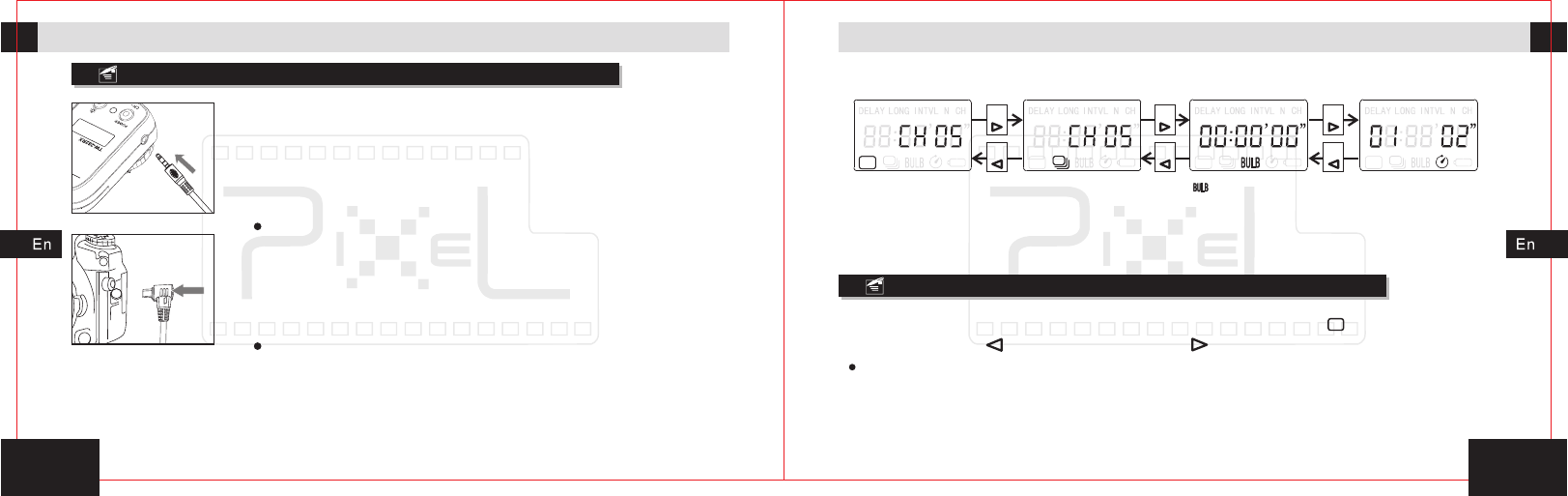

Receiver connected with the camera
FSK 2.4GHz
Wireless Controller
Preparation for installation and use
1. Make sure your receiver has been installed in place and
to ensure that cameras and receivers are shut down.
2. First, insert the input plug of the shutter connect
cable into the receiver's output control signal socket in
place.
The timer remote control will not be able to control the camera if
the shutter connect cable didn’t insert correctly.
3. Fix the camera on the tripod or other fixed frame.
the protective cover of external shutter socket and put the
shutter plug of shutter connect cable in place, then make
sure it has been fixed firmly.
Open
For most of camera shutter socket, there is a mis-plug interface,
please note insert direction so as to avoid damage to shutter
socket.
4. Turn on the receiver's power and then the camera's
power.
Shooting control
Sketch map for selecting function mode:
[ ]shooting functionSingle shooting function
Press
Press
Press
Press
Press
Press
Continuous shooting
within one sec function Delay shooting function
The instruction is under the premise that the receiver and camera have been
connected tightly, and turned on the power of camera and receiver. The detail
instruction of remote shooting will be showing as follow.
Single shooting
1. In the power-on state, set the single shooting icon [ ] by pressing the
left move button[ ]or right move button[ ].
In the sleeping state, press any key to wake up transmitter to enter single shooting mode.
2. Half-press the release button and transmitter will send signal for focusing,
the green indicator will lit on the transmitter and receiver, and the camera is in
the focusing state until the release or full-press the button.
1 9
1 8
Shooting control
Shooting control
3. Full-press the release button and transmitter will send
signal of shooting. The red indicator will light for a while,
the camera start shooting.
Make sure to set the camera function to be [ ].
When the camera function is set to be[ ], it may cause continuous
shooting.
When the camera function is set to be[ ],the camera will shoot
based on[ ]mode, it may cause underexposure or overexposure.
When the camera function is set to be [ ], the camera will execute
delay shooting.

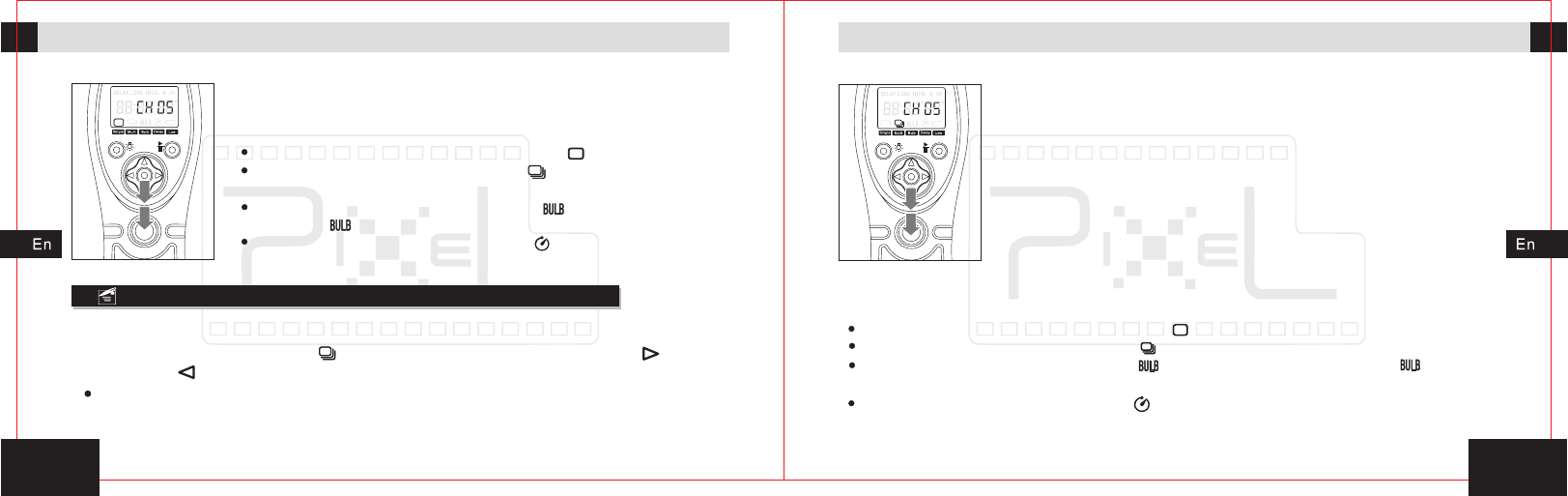

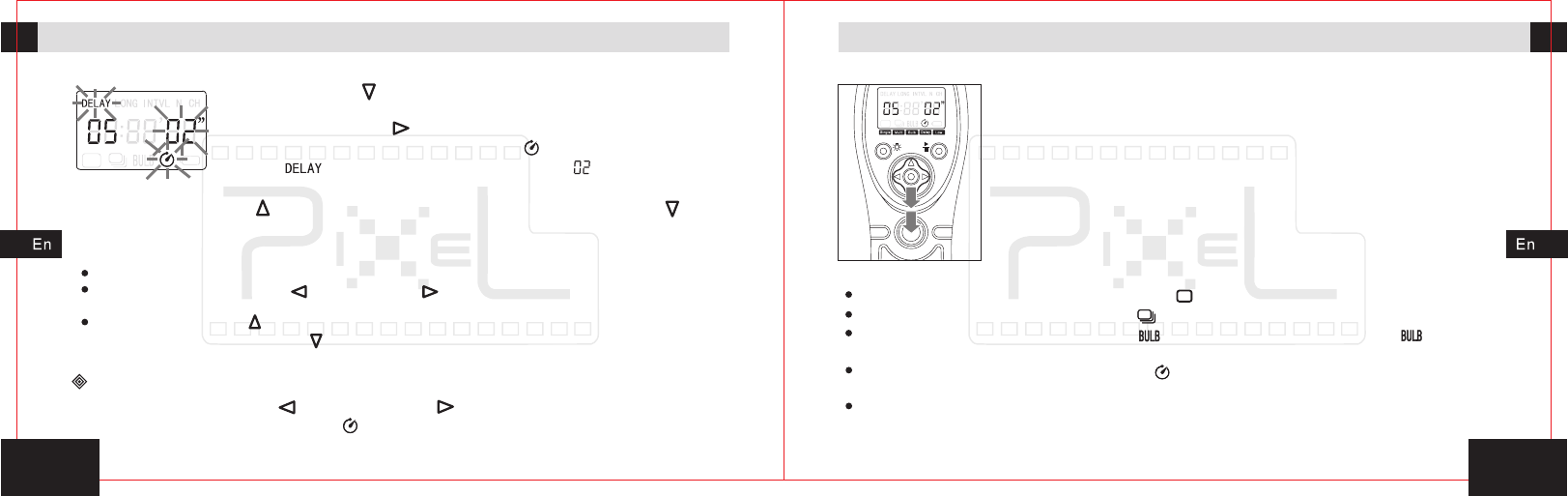

Continuous shooting within one sec
1. In the power-on state, move the transmitter’s activities icon to continuous
shooting within one sec icon[ ] by pressing the left move button[ ]or right
move button[ ].
Continuous shooting within one sec second is patent function which issued by
Pixel limited Enterprise, it'll support spacing continuous shooting within one sec and
never change the single shooting mode.
the firs
2. Half-press the release button and transmitter will send
signal for focusing, the green indicator will lit on the
transmitter and receiver, and the camera is in the focusing
state until the release or full-press the button.
3. Full-press the release button, red indicators of the
transmitter and receiver will be lit, keep fully press the
button, the transmitter will send signal of shooting
continuously, the indicators will blink red and green light
in turn. The camera will start to shot, and the shooting
speed will be one photo per sec.
4. Release the release button, the transmitter stop sending signal for shooting
and the camera will stop shooting.
Make sure to set the camera function to be [ ].
When the camera function is set to be [ ], it may cause continuous shooting.
When the camera function is set to be [ ],the camera will shoot based on [ ] function,
it may cause underexposure or overexposure.
When the camera function is set to be[ ], the camera will execute delay shooting.
2 1
2 0
Shooting control
Shooting control

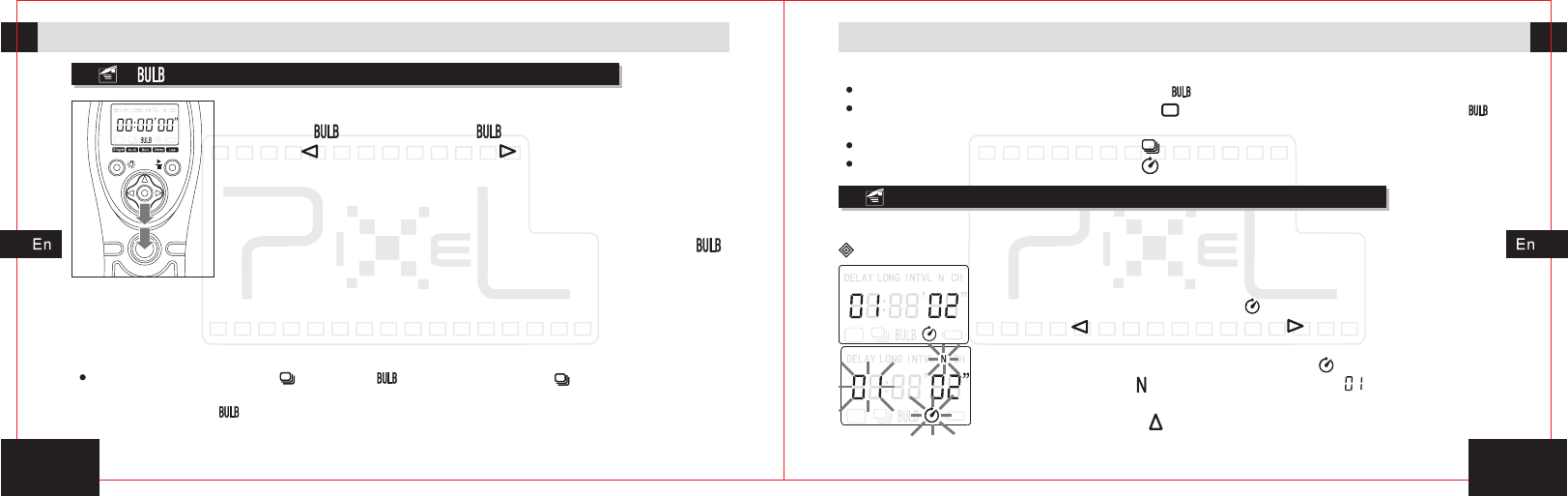

[ ]shooting
1. In the power-on state, move the transmitter's activities
icon to [ ] shooting icon[ ] by pressing the left move
button[ ]or right move button[ ].
2. Half-press the release button and transmitter will send
signal for focusing, the green indicator will lit on the
transmitter and receiver, and the camera is in the focusing
state until the release or full-press the button.
3. Full-press the release button, transmitter will send[ ]
signal. The red indicator of transmitter starts flashing and
start timing, the indicator of receiver will keep lighting.
The transmitter continuous output shooting signal.
Camera enters into exposure shooting continuously.
4. Press the release button again, transmitter will stop output shooting signals,
camera stop exposure shooting.
The differences between[ ]mode and[ ]mode are as follow: [ ]function is the release
button is pressed fully and keep on, camera starts shooting until the release button is
released. While[ ] function is the camera will start shooting when the release button is
pressed fully until press it again, the shooting will stop.
Make sure to set the camera function to be [ ].
When the camera function is set to be [ ], the camera only shoot once but not[ ]
shooting.
When the camera function is set to be [ ],the camera will be continuous shooting.
When the camera function is set to be [ ], the camera will be delay shooting once.
Delay shooting
Delay shooting setting
The delay shooting function of TW-282 can user-defined the delay time and shots.
1. In the power-on state, move the transmitter’s activities
icon to delay shooting icon[ ] by pressing the move
button[ ]or right move button[ ]. Press the set button
entering the delay setting for adjusts the shooting
numbers. The delay shooting icon[ ], the numbers of
shooting icon [ ],number of shooting [ ]will blink at the
same time.
left
2. Press button[ ]settings shot number can be increased,
2 3
2 2
Shooting control
Shooting control
press button [ ], settings shot number can be reduced. It
can be set between 1 to 99 sheets .
3. Press button[ ]enter into the delay setting of delay
shooting. delay shooting time
icon[ ], delay shooting time value[ ]will blink at the
same time.
the delay shooting icon[ ] ,
4. Press the button[ ], set the delay time increased, press button[ ], set
the delay time reduced. It can be set between 1 to 59 seconds.
5. After set up the new parameters, press the set button, save and exit settings.
When enter to the delay shooting set, the transmitter will save the previous setting.
By pressing the left button[ ]or right button[ ], convert shooting numbers and delay
time settings.
Gently press button[ ]once to set numerical increased, hold it on, set the value rapidly
increased; Press the button[ ]once to set the numerical reduced, hold on to set the
values rapidly reduced.
Operate the delay shooting
1. Press the left button[ ]or right button[ ], move the transmitter’s activity
icon to the delay shooting icon[ ].
2. Half-press the release button and transmitter will send
signal for focusing, the green indicator will lit on the
transmitter and receiver, and the camera is in the focusing
state until the release or full-press the button.
3. Full-press the release button, transmitter will send all
the delay shooting information to receiver, the transmitter
starts to delay countdown, and red indicator blink quickly
and enter to the delay shooting mode.
4. When countdown is completed, receiver will follow the
setting shots output a signal per second to control shooting.
When the camera function is set to be [ ], the camera will perform one or more delay
shooting.
When the camera lens focus function is set to be [ M ],the camera will not execute focusing
action if half-press the release button of the transmitter.
Make sure to set the camera function to be [ ].
When the camera function is set to be [ ], it will start continuous shooting.
When the camera function is set to be [ ],the camera will shoot based on [ ] function,
it may cause underexposure or overexposure.
2 5
2 4
Shooting control
Shooting control
When the camera lens focus function is set to be [ A ], even receiving the shooting signal
the camera will not shoot at the moment as most of camera don't seize focus.
3. By pressing button[ ]or[ ],enter into the setting for minutes and hours ,
as the sketch map.
“ ” “ ”
Timing plan for shooting
Delay time setting
1. In the power-on state, move the functional activities
icon to the delay timing program icon[ ]by pressing the
left move button[ ]or right move button[ ].
2. Press the set button, enter the delay time for ‘second
bit’ setting.
Press
Press
Press
Press
Press
Press
Press
Press
The
shot
number
of
timing
plan
setting
Exposu
-re
time
of
timing
plan
setting
Delay time of timing
plan--hours setting Delay time of timing
plan--minutes setting Delay time of timing
plan--seconds setting
Gently press button[ ]once to set numerical increased, hold it on, set the value rapidly
increased; Press the button[ ]once to set the numerical reduced, hold on to set the
values rapidly reduced.
4. Press the set button, save and exit settings.
Exposure time setting
1. Press left move button[ ]or right move button[ ],
move the transmitter’s activities icon to the exposure
timing program icon[ ].
2. Press the set button, enter the delay time for ‘second
bit’ setting.
3. By pressing button[ ]or[ ],enter into the setting for minutes and hours ,
as the sketch map.
“ ” “ ”
Press
Press
Press
Press
Press
Press
Press
Press
Exposure time of timing
plan--hours setting Exposure
plan--minutes setting
time of timing Exposure
plan--seconds setting
time of timing
Delay
time
of
timing
plan
setting
Interval
time
of
timing
plan
setting
2 7
2 6
1. Press left move button[ ]or right move button[ ],
move the transmitter ’s activities icon to the icon of timing
shots [ ].
Shooting control
Shooting control
Gently press button[ ]once to set numerical increased, hold it on, set the value rapidly
increased; Press the button[ ]once to set the numerical reduced, hold on to set the
values rapidly reduced.
4. Press the set button, save and exit settings.

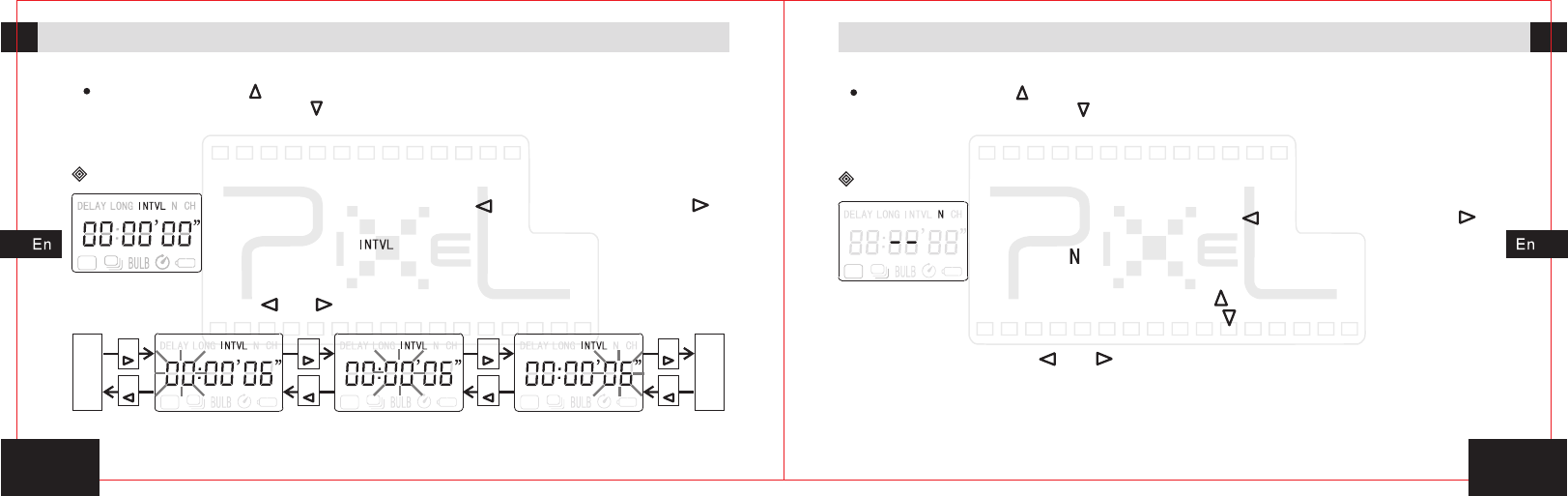

Interval time setting
1. Press left move button[ ]or right move button[ ],
move the transmitter’s activities icon to the interval timing
program icon[ ].
2. Press the set button, enter the time for second
bit” setting.
interval “
3. By pressing button[ ]or[ ],enter into the setting for minutes and hours ,
as the sketch map.
“ ” “ ”
Press
Press
Press
Press
Press
Press
Press
Press
Interval time of timing
plan--hours setting
Interval
plan--minutes setting
time of timing Interval
plan--second setting
time of timing
Exposu
-re
time
of
timing
plan
setting
The
shot
number
of
timing
plan
setting
Gently press button[ ]once to set numerical increased, hold it on, set the value rapidly
increased; Press the button[ ]once to set the numerical reduced, hold on to set the
values rapidly reduced.
4. Press the set button, save and exit settings.
The shot number setting
2. Press the set button, entering to set the number plan
of shot. Press button[ ]setting shot number can be
increased, press button [ ], settings shot number can be
decreased. It can be set between 1 to 99 sheets.
3. By pressing button[ ]or[ ],enter into the setting for delay time and
“exposure time”, “interval time” as the shown picture.
“ ”
2 9
2 8
Press the timing plan start/stop button[ ]of the transmitter before
the timing plan executing completely, the transmitter and receiver
will stop regularly scheduled executing.
The transmitter indicator and LCD will run the timing plans, but
does not send control commands to the receiver, it’s only offer a
reference to understand the operation status of the receiver.
3 1
Shooting control
Shooting control
Press
Press
Press
Press
Interval
time
of
timing
plan
setting
Delay
time
of
timing
plan
setting
4. Press the set button, save and exit settings.

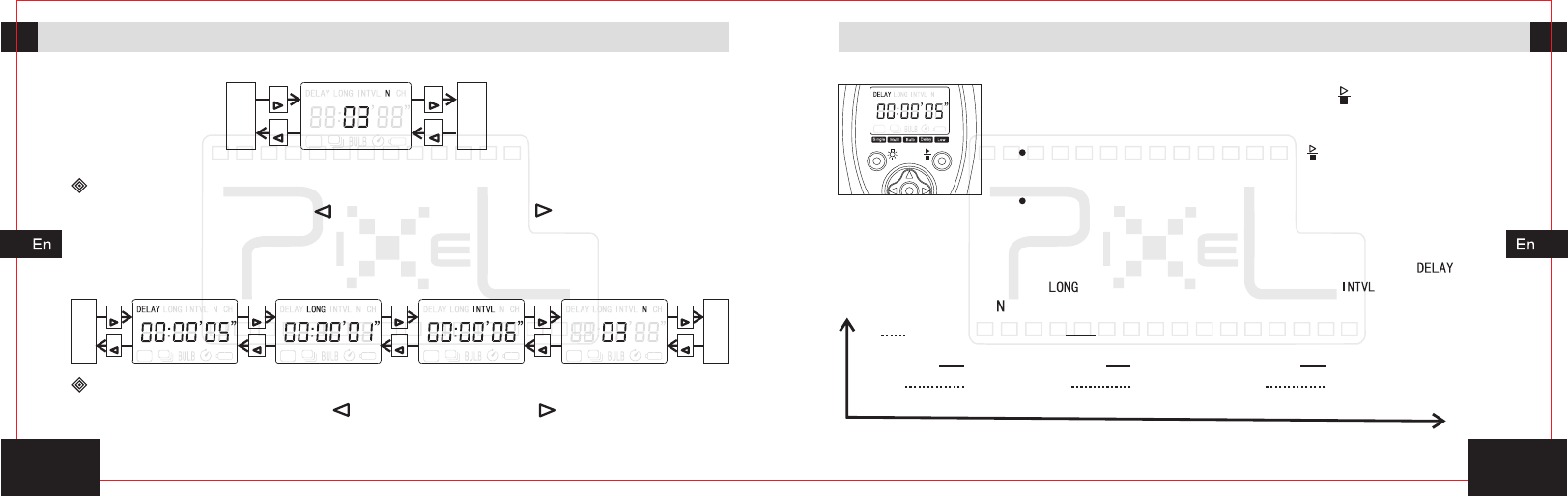

Search the timing plan
1. Press left move button[ ]or right move button[ ],move transmitter’s
activities icon to timing plan icon which can check the related timing project.
2. When check the related projects, if need adjust the parameters, only press
the set button to enter the relevant project settings, press the set button again
to exit and save your setting. Move the icons sequence showed as below.
Press
Press
Press
Press
Press
Press
Press
Press
Press
Press
Delay
shoot
-ing
function
Singl e
shoot
-ing
func tion
Execute timing plan
1. Press the left move button[ ]or right move button[ ], move the activities
icon to any icon among the timing plan shooting area.
2. Press the timing start/stop button[ ], the transmitter
will sent all information to the receiver. The timing plan will
run in the receiver, and output control signals to camera.
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
The following examples illustrate the timing plan running: delay time[ ] = 5
seconds, exposure time[ ] = 1 second, shooting interval[ ]= 6 seconds,
shooting number[ ] = 3.
Focusing output Shooting output
3 0
Type : FSK 2.4 GHz wireless control system
Transmission distance: 80 meters or above
Channel: 99 channels, as well as ALL
Standby time: Transmitter : more than 4 years(using two 1.5V AAA batteries)
Receiver 400 hours (using CR-2 lithium battery)
Dimensions (W × H × D)Transmitter:
Receiver:
Weight with ba ttery Transmitte:
Receiver:
:
: 149 ×49.5 ×24
63mm×38mm×31mm
( )： 70.5 g
39.5 g
mm mm mm
3 2
PIXEL TW-282 Specification
Now you can start to use unique high-performance PIXEL
product TW-282. If you have any questions, you can contact the
local distributor. Or visit the website http://www.pixelhk.com.
