User manual 2 of 2

B230-M
QUICK
START3 EASY STEPS
SET UP,
CONNECT, CALL
QUICK START GUIDE
GUIDE DE DÉMARRAGE RAPIDE
GUÍA DE INICIO RÁPIDO
GUIA DE INÍCIO RÁPIDO
plantronics.com/support
BLUETOOTH WIRELESS
HEADSET SYSTEM
en
en
Micro USB
Charger
BT300-M USB Adapter
Voyager PRO UC v2
USB Charging Cable
Software and User Guide CD
Soft Gel Eartips (Small & Large) and
Foam Eartip Covers
Carry Case

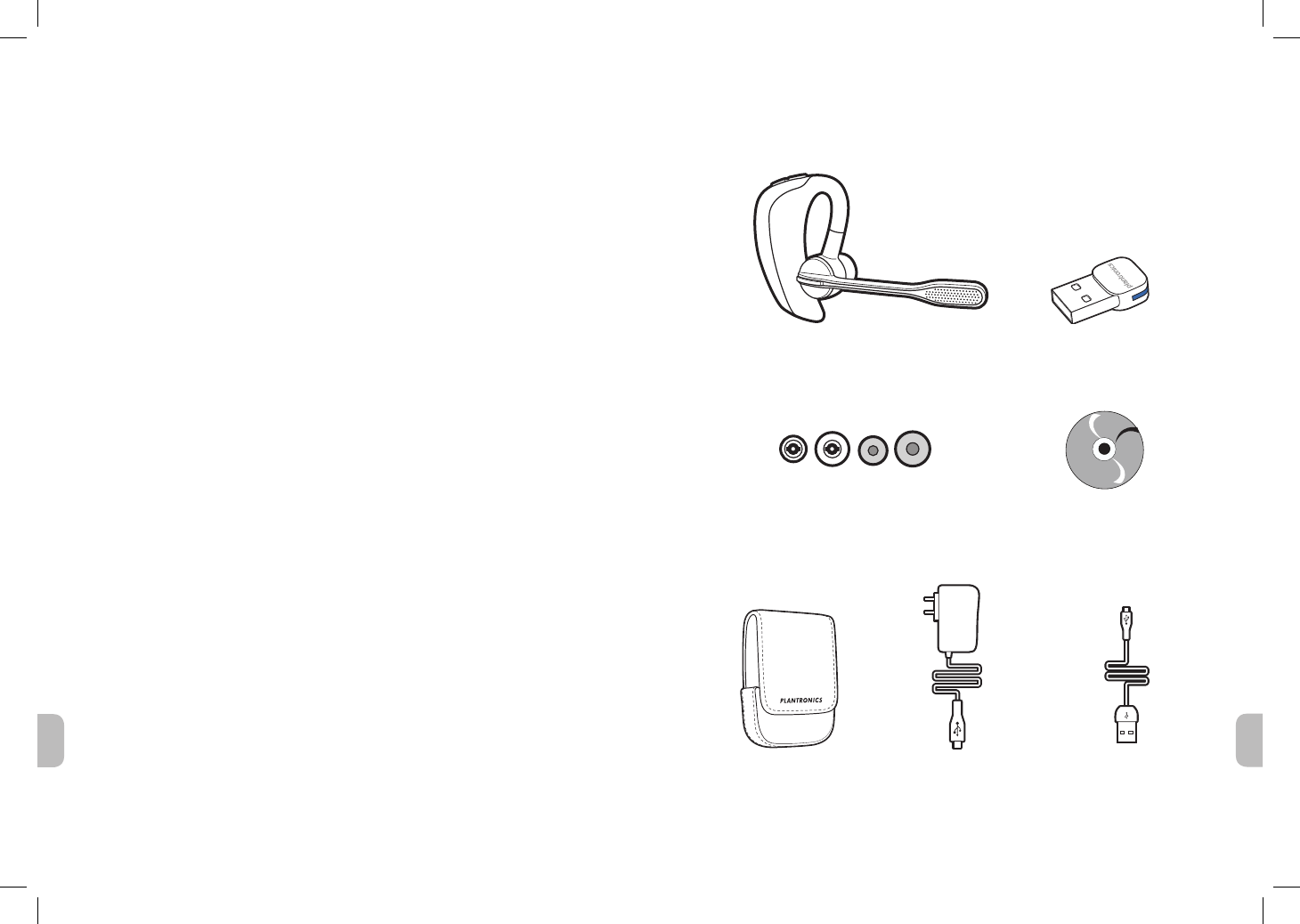

What’s in the box
en
en
Step 1 Set up your headset and computer
Install the software
To use all the features of your system, install the Plantronics software from
the CD included or download it at plantronics.com/software.
Once the software is installed, Windows users can access the utility by
selecting Start > Programs > Plantronics > Plantronics Control Panel.
Charge your headest
To calibrate your headset and provide optimal performance fully charge the
headset before using. Connect the AC charger to an outlet and the headset.
The headset LED will be solid red to indicate that the headset battery is
charging. When fully charged the LED goes off.
Note To charge the headset with USB charging cable the PC must be on and in
an active state. Charge times using the USB cable will be longer.
Try on your headset
The headset comes configured for the right ear, with the medium eartip
installed, however you can replace it with the small or large eartip provided.
For the best sound clarity and comfort, make sure you have a secure fit.
Replace the eartip for a better fit
Grip the eartip and gently push it into the speaker housing.1
Rotate it a quarter turn to the left to unlock. 2
Pull the eartip away from the headset.3
2
13
Headset features
345
12
1 Volume/Mute button
Increase/decrease volume
Mute during a call
Music or audio: pause/play
Tap + or – buttons per level change
1-second press of both + and – buttons
1-second press of both + and – buttons
2 Call button
Take a call or end it
Call Back/Redial
Initiate phone’s voice-dialing
Reconnect lost connection
1 tap
2 taps
2-second press until tone heard
1 tap
3 Micro USB charging port With the AC charger, a full charge takes 90
minutes.
4 Power button
On or off
Battery level voice alerts
Activate pairing mode
2-second press
1 tap
Press until LED flashes red/blue
5 LED
Charging
Battery status
Pairing mode
Solid red. When fully charged, LED is off.
Low = 2 red flashes, Critically low = 3 red flashes
Flashes red/blue
en
en

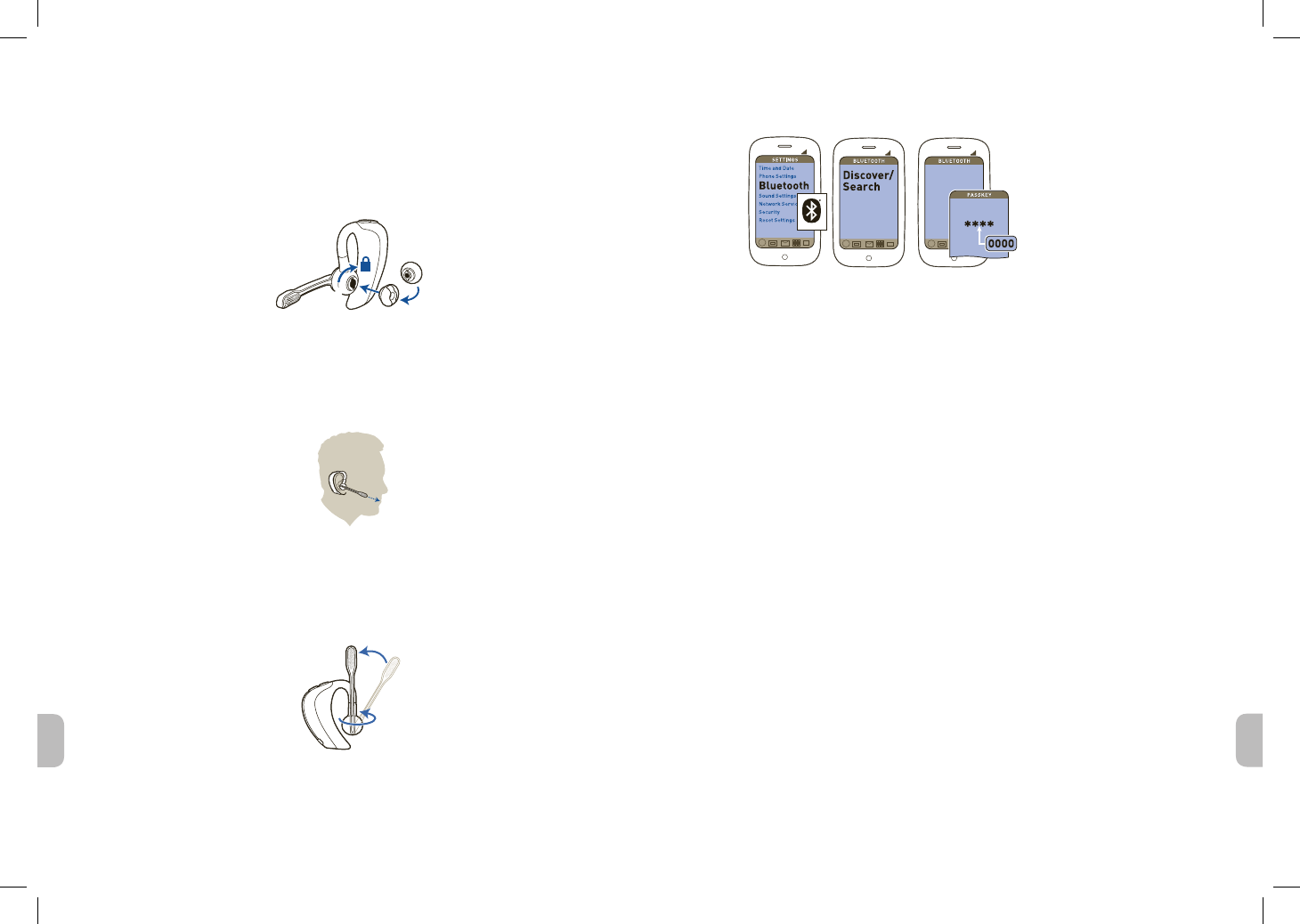

Attach a new eartip
Align the tabs on the eartip with the slots on the speaker housing.4
Gently push the eartip into housing while turning it a quarter turn to the 5
right. The eartip will stop rotating when it is locked.
You may want to add a foam eartip cover for additional comfort.
4
4
5
Wearing the headset
Guide the earloop behind your ear and position the headset so that the 1
speaker and eartip rest comfortably in your ear.
Pivot the boom up to point the microphone toward the corner of your mouth.2
1
2
Quick-turn adjustment for the left ear
Pivot the boom into an upright position.1
Rotate the boom and speaker to the other side of the headset and lower it 2
before fitting your other ear.
2
1
Step 2 Connect (Pair) your headset to your mobile phone
VoyagerPRO UC v2
 
Ready1
Activate the Bluetooth feature on your phone, then use the phone’s settings
to add/search/discover new Bluetooth devices.
BlackBerry® Settings/options > Bluetooth: On > Search for devices.
iPhone Settings > General > Bluetooth > On (starts the search for devices)
Android Phone Settings > Wireless > Bluetooth: On > Scan for devices
Set2
To activate Bluetooth pairing mode, press and hold the power button until
LED flashes red/blue to indicate pairing mode.
Connect3
Select • VoyagerPRO UC v2 from the list of Bluetooth devices shown on your
phone.
If phone asks for a passcode, enter four zeros • 0000. You may see **** on
screen.
Some phones also ask to confirm headset connection after pairing.•
Headset LED will stop flashing red/blue once your phone and headset are •
successfully paired/connected.
en
en
Step 3 Call Making calls with Microsoft Office Communicator
You can make Microsoft Office Communicator calls with your computer using
your Bluetooth adapter which comes automatically paired with your headset.
Ensure the headset is powered on. 1
Ensure Microsoft Office Communicator is running on your PC.2
Insert the USB adapter into USB Port on the PC. The LED on the adapter will 3
flash blue to indicate the adapter is connecting to the headset. The LED will
become solid blue to indicate the adapter is powered on and is connected to
the headset.
Set the headset and microphone volume to a comfortable level using the 4
Microsoft Office Communicator “Set up Audio and Video” page.*.
Place a call using Microsoft Office Communicator. The audio connection to 5
your headset will activate automatically when your recipient’s phone begins
to ring. The LED on the adapter will slowly flash blue while you are on an
active call.
* Consult Microsoft Office Communicator Help for more information.
Learn More
To learn more about your system features, change default settings or
read troubleshooting tips, refer to the user guide on the CD or online at
plantronics.com/documentation. You can also view online FAQ at
plantronics.com/support. Technical support is available at 1.800.544.4660.
Advanced Features
Auto Answer:
When you are not wearing your headset.
When you have an incoming call on
your mobile or softphone, simply put
on the headset and the call will be
answered automatically. You do not
have to press the call button.
Auto Pause:
When you are listening to streaming
audio.
When you are steaming audio from
your mobile phone or PC. Simply
remove the headset and the streaming
audio pauses. Place your headset back
on and the streaming audio resumes.
Auto Transfer:
Whether you are wearing your headset
or not.
If you are not wearing your headset
and there is an incoming call, the
audio will be routed to the mobile
phone. When you place the headset
on your head, the audio will be routed
back to the headset and will Auto
Answer. In the case where the headset
is already being worn, the audio will
be in the headset and you will need to
press the Call Button to answer the
call.
Auto Lock:
When you are not wearing your headset
This feature locks out the call button
to prevent an accidental call when the
headset is not worn.
Plantronics, Inc.
345 Encinal Street
Santa Cruz, CA 95060
United States
Tel: 800-544-4660
plantronics.com
© 2010 Plantronics, Inc. All rights reserved. Plantronics, the logo design, Plantronics Voyager, QuickPair, and Sound Innovation are
trademarks or registered trademarks of Plantronics, Inc. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
and any use of such marks by Plantronics, Inc. is under license. All other trademarks are the property of their respective owners.
Patents US 5,210,791; Patents Pending
84592-04 (09.10)
