Polar Electro M5 Sensor GPS G3 User Manual
Polar Electro Oy Sensor GPS G3
User manual
Manufactured by
Polar Electro Oy
Professorintie 5
FIN-90440 KEMPELE
Tel +358 8 5202 100
Fax +358 8 5202 300
www.polar.fi
17932210.00 GEN A WINLEE
Polar G3 GPS sensor
User manual
Polar G3 GPS sensor
Gebrauchsanleitung
Capteur GPS Polar G3
Manuel d’Utilisation
Polar G3 GPS sensor
Gebruiksaanwijzing
Sensor GPS Polar G3
Manual del Usuario
Sensore GPS Polar G3
Manuale d’uso
Sensor de GPS Polar G3
Manual do utilizador
Polar G3 GPS sensor
Brugervejledning
Polar G3 GPS-sensor
Brukerveiledning
Polar G3 GPS-sensor
Bruksanvisning
Polar G3 -GPS-sensori
Käyttöohje
AB
1.
5.
4.
3.
2.
Congratulations! You are now the proud owner
of a Polar G3 GPS sensor. Polar G3 provides
speed and distance data in all outdoor sports
using Global Positioning System (GPS)
technology.
The Polar G3 sensor determines your location by
measuring the distance between itself and at
least four satellites. The sensor uses Polar
W.I.N.D. 2.4 GHz wireless transmission
technology to transmit speed and distance data
to a compatible Polar product, like the RS800,
which records and displays the data.
Polar G3 is resilient and water resistant - you
can depend on its performance regardless where
you train!
Using Polar G3 Sensor
Inserting Battery

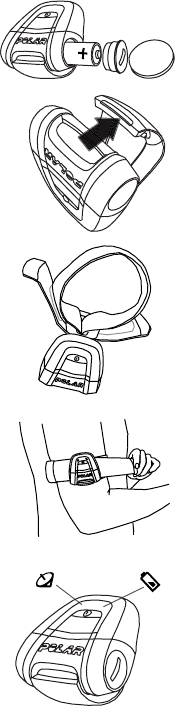

1. See picture 1 on the front cover. Open the
battery cover by turning it counterclockwise
with a coin.
2. Place the battery inside with the positive
(+) side facing the cover.
3. Close the cover by turning it clockwise with
a coin.
Wearing Polar G3 Sensor
1. Push to open the clip (Picture 2).
2. Thread the armband loosely through the
loops on the clip and fasten (Picture 3).
You can fasten the sensor on a belt or on
the top of a backpack without the armband.
3. Position the armband round your upper arm
and fasten (Picture 4). Place the sensor
and the Polar product on the same arm.
Make sure that the "GPS sensor" text and
symbol are facing upwards and away from
you.
ENGLISH
1
Turning Polar G3 Sensor On/Off
To best catch satellite signals, go outdoors and
away from tall buildings and trees. Press the
button shortly to turn the sensor on. A flashing
light indicates the power mode (low/full). Then
a red light will flash as the sensor searches for
satellite signals (Picture 5 a). Acquiring satellite
signals for the first time typically takes 30-60
seconds. The sensor will find the signals faster
if you keep the sensor immobile during the
search. A green light will then flash when the
signals are found and location is determined.
Your Polar G3 sensor is now ready for action.
The G3 sensor works like a Polar s3 stride
sensor in providing speed and distance data
to the Polar RS800. All you need to do is enter
the settings as instructed in Using Polar G3
Sensor With Polar RS800.
To turn the sensor off, press the button for one
second. The power switches off automatically if
the sensor cannot locate satellite signals or the
sensor location does not change for 15 minutes.
For instructions on how speed and distance data
are displayed on your Polar product, please see
the corresponding user manual.
Switching Power Mode
You can use the Polar G3 sensor in low or full
power mode. The default mode is full power
mode. By using the low power mode, you can
increase battery life by up to 40 %. For
maximum accuracy of speed and distance
measurement, use full power mode.
When the sensor is activated, press the button
for five flashes to change modes. A light flashes
four times on both sides; the green light
indicating full power mode activation or the red
light indicating low power mode activation.
ENGLISH
2
Everytime you turn the sensor on, the flashing
light indicates which mode is activated.
Using Polar G3 Sensor With Polar RS800
When combined with the RS800, the G3 is part
of the most advanced and powerful training
systems available.
The G3 communicates speed and distance to
your RS800 like your Polar s3 stride sensor
does, except that it is manually turned on and
off. While the s3 provides running cadence and
average stride length, the G3 does not.
Therefore cadence and stride length
measurement will not work when the G3 sensor
is in use, but this will not have any negative
effect on your speed and distance readings /
data file. Also notice that the Running Index
feature in RS800 is designed for monitoring
your performance only in running sports. Polar
G3 sensor and s3 stride sensor cannot be used
at the same time.
To use the G3 sensor you need to have the
following settings on your RS800.
•Switch the speed and distance function on
by selecting Settings > Features > S
sensor > On/Off.
•The RS800 has to be taught to communicate
with the G3 sensor. The sensor must be
turned on before teaching and no s3 sensor
should be nearby. Select Settings >
Features > S sensor > New sensor.Teach
new sensor? is displayed. Select Yes to
confirm teaching. Completed! is displayed.
•The calibration factor must be 1.000. You
can set the factor manually by selecting
Settings > Features > S sensor >
Calibrate. Set the Calibration factor to
1.000 and press OK. The sensor is now
calibrated.
ENGLISH
3
If speed values exceed 55 km/hour, they are
divided by 10. For example, 56 km/hour will
be displayed 5.6 km/hour.
Battery replacement
The red battery indicator light flashes, when
battery is low (Picture 5 b). Change the battery
yourself by following the instructions in Using
the Polar G3 Sensor.
Use an AA-sized alkaline battery. We
recommend you use a lithium battery or
rechargeable NiMH battery in temperatures 5°C
and below. Cold temperature decreases the life
of an alkaline battery.
Keep batteries away from children. If
swallowed, contact a doctor immediately.
Batteries should be disposed of in compliance
with local regulations.
Care and Maintenance
The following instructions will help you fulfill
guarantee obligations.
•Wash the armband in a washing machine at
40°C / 104°F. Use a washing pouch. Do not
soak, nor use detergent with bleach or fabric
softener. Do not dry-clean. Do not spin-dry
or iron.
•Clean the sensor with a mild soap and water
solution. Dry it with a towel. Never use
alcohol or abrasive materials (steel wool or
cleaning chemicals). Never put the sensor in
a washing machine or drier.
•Keep the sensor and the armband in a cool
and dry place. Do not store wet in
non-breathing material, such as a sports
bag. Do not expose to direct sunlight for
extended periods.
ENGLISH
4
Service
During the warranty period, service the product
at an authorized Polar Service Center only. The
warranty does not cover damage caused by
unauthorized service. See Limited International
Polar Guarantee.
Using the G3 Sensor in Water
Polar G3 sensor is water resistant. It can be
safely worn in the rain or while crossing rivers or
canoeing. The GPS reception system does not
function under water.
Troubleshooting
If speed or distance readings are irregular or
show zero, something in your surroundings may
be blocking satellite signal reception (e.g. a
building or terrain). If the sensor cannot locate
the satellite signals, it will not be able to
calculate its location. Speed values may
therefore show zero. Distance is measured
between the last location before the shadow
area, and the first location after the shadow
area in a straight line, i.e. curves are not
counted.
In low speeds (below 3km/hour), accuracy
decreases causing variation in speed values.
If the button does not react, press it for ten
green light flashes to reset the sensor. The red
light flashes twice on both sides when the
sensor resets. If this does not work, the battery
may be empty.
ENGLISH
5
Technical Specifications
Transfer frequency: 2.4 GHz
Battery type: One AA sized battery
Battery life in full
power mode: Average 10 hours of use (20 °C /
68 ºF)*
Operating
temperature: -20 °C to +60 °C / -4 ºF to 140 ºF
Accuracy (Distance): +/-2%
Accuracy (Speed): +/- 2km/h
Water resistance: 20 m
Armband material: Flexible textile strap: 34 %
polyamide, 33 % polyester, 33 %
rubber. Other parts: polyamide,
silicone.
*Battery life varies depending on battery type and
operating temperature.
Limited International Polar Guarantee
•This limited Polar international guarantee is
issued by Polar Electro Inc. for the
consumers who have purchased this product
in the USA or Canada. This limited Polar
international guarantee is issued by Polar
Electro Oy for the consumers who have
purchased this product in other countries.
•Polar Electro Inc. / Polar Electro Oy
guarantees to the original
consumer/purchaser of this product that the
product will be free from defects in material
or workmanship for two years from the date
of purchase.
•Please keep the receipt and stamped
Polar Customer Service Card. The receipt
is your proof of purchase!
•The guarantee does not cover the battery,
damage due to misuse, abuse, accidents or
non-compliance with the precautions;
improper maintenance, commercial use,
cracked or broken cases and armband.
ENGLISH
6
•The guarantee does not cover any damage/s,
losses, costs or expenses, direct, indirect or
incidental, consequential or special, arising
out of, or related to the product. During the
guarantee period the product will either be
repaired or replaced at an authorized service
center free of charge.
•This guarantee does not affect the
consumer’s statutory rights under applicable
national or state laws in force, or the
consumer’s rights against the dealer arising
from their sales/purchase contract.
This product is compliant with Directive
93/42/EEC. The relevant Declaration of
Conformity is available at
www.support.polar.fi/declaration_of_conformity.
This crossed out wheeled bin marking shows
that Polar products are electronic devices and
are in the scope of Directive 2002/96/EC of the
European Parliament and of the Council on
waste electrical and electronic equipment
(WEEE). These products should thus be
disposed of separately in EU countries. Polar
encourages you to minimize possible effects of
waste on the environment and human health,
also outside the European Union by following
local waste disposal regulations and, where
possible, utilizing separate collection of
electronic devices.
Copyright © 2007 Polar Electro Oy, FIN-90440
KEMPELE, Finland.
Polar Electro Oy is a ISO 9001:2000 certified
company.
ENGLISH
7
All rights reserved. No part of this manual may
be used or reproduced in any form or by any
means without prior written permission of Polar
Electro Oy. The names and logos marked with a
™ symbol in this user manual or in the package
of this product are trademarks of Polar Electro
Oy. The names and logos marked with a ®
symbol in this user manual or in the package of
this product are registered trademarks of Polar
Electro Oy.
Disclaimer
The material in this manual is for informational
purposes only. The products it describes are
subject to change without prior notice, due to
the manufacturer’s continuous development
program.
•Polar Electro Inc. / Polar Electro Oy makes
no representations or warranties with respect
to this manual or with respect to the
products described herein.
•Polar Electro Inc. / Polar Electro Oy shall not
be liable for any damages, losses, costs or
expenses, direct, indirect or incidental,
consequential or special, arising out of, or
related to the use of this material or the
products described herein.
ENGLISH
8
English
This product is compliant with the Directive
1999/5/EC. The relevant Declaration of
Conformity is available at www.support.polar.fi /
declaration_of_conformity.html.
Deutsch
Dieses Produkt ist konform mit der Richtlinie
1999/5/EC. Die zugehörige Konformitätserklärung
ist erhältlich unter www.support.polar.fi /
declaration_of_conformity.html.
Français
Ce produit est conforme à la Directive 1999/5/EC.
La Déclaration de Conformité correspondante est
disponible sur le lien www.support.polar.fi /
declaration_of_conformity.html.
Nederlands
Dit product voldoet aan de richtlijn 1999/5/EC.
De desbetreffende overeenkomstigheidsverklaring
is beschikbaar op www.support.polar.fi /
declaration_of_conformity.html.
Ελληνικά
To προϊόν αυτό είναι συμβατό με την
Ευρωπαϊκή Οδηγία 1999/5/EC. Η σχετική Δήλωση
συμμόρφωσης είναι διαθέσιμη στην ηλεκτρονική
διεύθυνση www.support.polar. /declaration_of_
conformity.html.
Italiano
Questo prodotto è conforme alla Direttiva
1999/5/EC. La Dichiarazione di conformità
rilevante è visionabile sul sito Web: www.support.
polar.fi /declaration_of_conformity.html.
Español
Este producto cumple con la Directiva
1999/5/EC. La Declaración de conformidad
correspondiente está disponible en www.
support.polar.fi /declaration_of_conformity.html.
Português
Este produto está conforme à Directiva
1999/5/EC. A respectiva Declaração de
Conformidade está disponível em www.support.
polar.fi /declaration_of_conformity.html.
Suomi
Tämä tuote on direktiivin 1999/5/EC mukainen.
Asiaankuuluva Vaatimustenmukaisuusvakuutus
löytyy osoitteesta www.support.polar.fi /
declaration_of_conformity.html.
Svenska
Denna produkt uppfyller kraven i EU-
direktiv 1999/5/EC. Tillämplig försäkran om
överensstämmelse fi nns tillgänglig på www.
support.polar.fi /declaration_of_conformity.html.
Dansk
Dette produkt er i overensstemmelse med
direktiv 1999/5/EC. Den relevante Erklæring
om overensstemmelse fi ndes på adressen www.
support.polar.fi /declaration_of_conformity.html.
Norsk
Dette produktet er i overenstemmelse
med EU-direktiv 1999/5/EC. De relevante
overenstemmelseserklæringene fi nner du
på www.support.polar.fi /declaration_of_
conformity.html
19531175.00 GEN A
USA
FCC regulatory information
This device complies with part 15 of the FCC
rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) This device must
accept any interference received, including
interference that may cause undesired
operation.
Note: This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the
equipment and receiver.
3) Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
4) Consult the dealer or an experienced
radio/TV technician for help.
Caution! Changes or modifi cations not
expressly approved by the party responsible
for compliance could void the user’s authority
to operate the equipment.
CANADA
Industry Canada (IC) regulatory information
This device complies with RSS-210 of
Industry Canada rules. Operation is subject
to the following two conditions: (1) This device
may not cause harmful interference, and (2)
This device must accept any interference
received, including interference that may
cause undesired operation.
Avis de conformité à la réglementation d’Industrie
Canada
Cet appareil est conform à la norme CNR-
210 du Industrie Canada. L’utilisation de
ce dispositif est autorisée seulement aux
deux conditions suivantes : (1) il ne doit pas
produire de brouillage, et (2) l’utilisateur
du dispositif doit être prêt à accepter tout
brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre
le fonctionnement du dispositif.
