Polygroup CW003 Christmas Tree Lighting User Manual

Polygroup Limited(Macao Commercial Offshore) Christmas Tree Lighting

Contents

140404080GZU_2AABT-CW003_User manual

Section 3
Section 2
Section 1
90S
80S
100S
100S
80S
50S
50S
Do Not Tamper
Internal Parts
Open the
protective
cover
Do Not Tamper
Internal Parts
Open the
protective
cover
Control box
Safety Information
Safety Information
IMPORTANT SAFETY
INSTRUCTIONS
a.READ AND FOLLOW ALL
SAFETY INSTRUCTIONS.
When using electrical products, basic precautions should
always be followed, including the following:
b.Do not use seasonal products outdoors unless marked
suitable for indoor and outdoor use. When products are
used in outdoor applications, connect the product to a
Ground Fault Circuit Interrupting (GFCI) outlet. If one is not
provided, contact a qualified electrician for proper installa-
tion.
c. This seasonal product is not intended for permanent
installation or use.
d.Do not mount or place the product near gas or electric
heaters, fireplaces, candles, or other similar sources of
heat.
e.Do not secure the wiring of the product with staples or
nails, or place on sharp hooks or nails.
f. Do not let lamps rest on the supply cord or on any wire.
g.Unplug the product when leaving the house, when
retiring for the night, or if left unattended.
h.This is an electric product and not a toy! To avoid risk of
fire, burns, personal injury and electric shock it should not
be played with or placed where small children can reach it.
i. Do not use this product for other than its intended use.
j. Do not hang ornaments or other objects from cord, wire,
or light string.
k.Do not close doors or windows on the product or exten-
sions cords as this may damage the wire insulation.
l. Do not cover the product with cloth, paper, or any material
that is not a part of the product when in use.
m.This product has a polarized plug (one blade is wider than
the other) as a feature to reduce the risk of electric shock.
This plug will fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician. Do not use
with an extension cord unless plug can be fully inserted.
Do not alter or replace the plug.
n.This product is equipped with push-in type lamps. Do not
twist lamps.
o.This product employs overload protection (fuse). A blown
fuse indicates an overload or short-circuit situation. If the
fuse blows, unplug the product from the outlet. Also
unplug any additional strings or products that may be
attached to the product. Replace the fuse as per the user
servicing instructions (follow product marking for proper
fuse rating) and check the product.
p.Read and follow all instructions that are on the product
or provide with the product.
q.SAVE THESE INSTRUCTIONS
Step 1. Choose a location near a wall outlet.
Step 2. Unfold the legs of the tree stand (D) and lay the
stand on the floor.
Step 3. Slide the locking disk of the tree stand (D) down
until it snaps into place.
Assembling the tree
This tree assmebles with Quick Set® technology
---Set up and light up your tree in less than 10 minutes!
Step 1.Remove the protective caps from the tree bottom (C)
and insert the pole into the tree stand (D).
Step 2.Remove the protective caps from the tree center (B)
and insert the pole into the tree bottom (C) .
Step 3.Insert the tree top (A) into the tree center (B).
Step 4.Shape the branches to your preference by working
from the bottom to the top. When adjusting
branches, ensure that all wires are free of branch
hinges.
Step 5.Insert the green label extension cord plug into the
wall outlet. All your lights should now be lit.
Step 6.When finished shaping the branches, slightly
upsweep all branch tips for a uniform look.

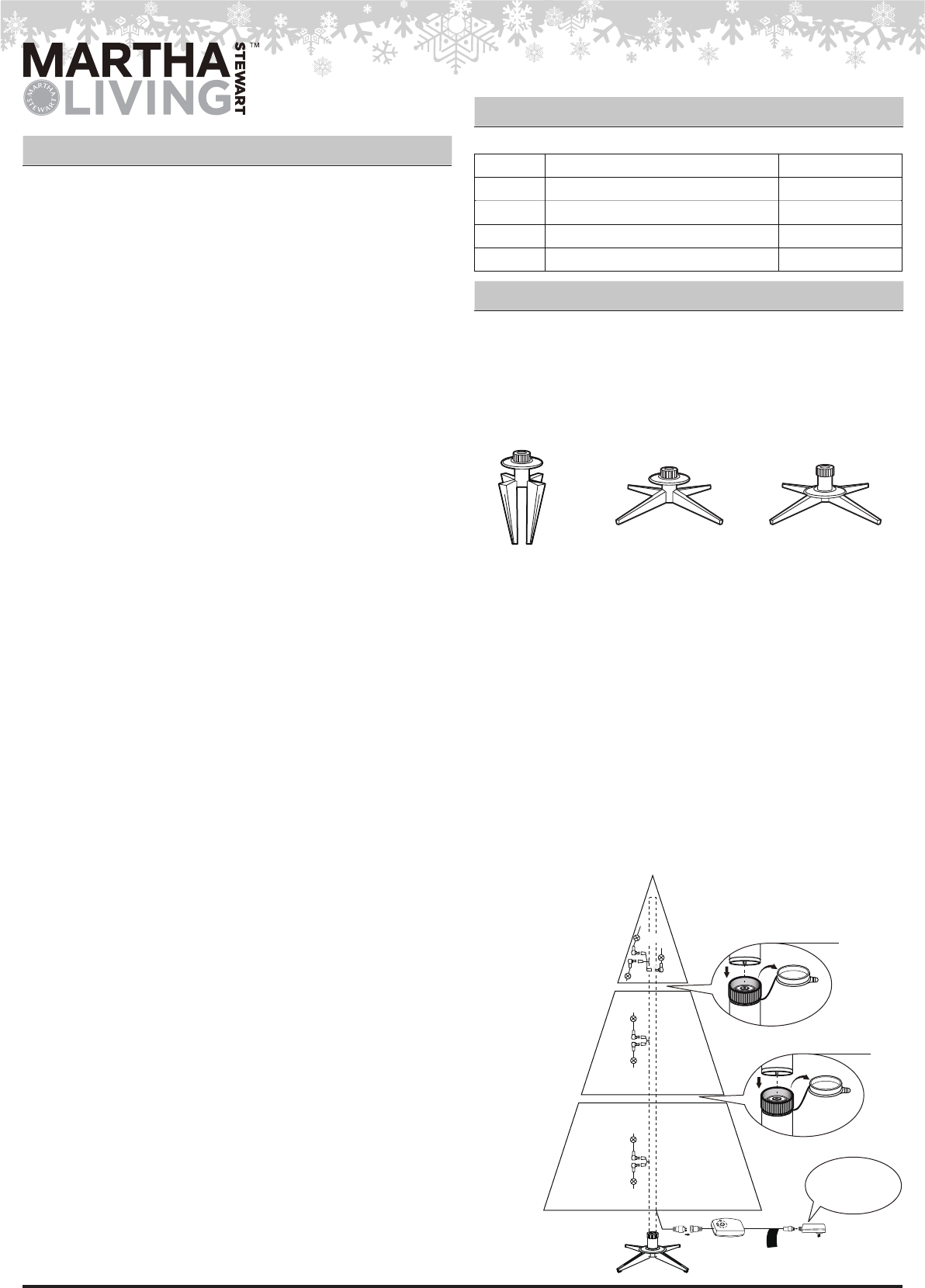

Package Contents
Assembly
Assembling the tree stand
Part Description Quantity
A Tree top, tag 3 1
B Tree center, tag 2 1
C Tree bottom, tag 1 1
D Tree stand 1
Christmas Tree
Model: DOU186755LEDCMR
Sku # 1000 654 240
Adaptor
To Be Plugged
Into Wall
Outlet
NOTE: If some bulbs do not light or flicker, search for any
loose plugs and/or broken, loose, or missing bulbs. Replace
bulbs promptly with the replacement bulbs provided in
order to maintain the performance and life expectancy of
your tree.
Step 1. Connect the light strings of the tree together and
plug the power cord into a wall outlet.
Step 2. If the tree comes with a foot pedal, step on the
On/Off button.
Press the selector button on the “Dual Color Light Control
ler” or “Remote Controller” to select among: (1) CLEAR AND
MULTI-COLOR ALTERNATING; (2) CLEAR LIGHTS; (3)
MULTI LIGHTS and (4) TURN OFF BOTH LIGHTS.
Note: The lights will be automatically reset to “CLEAR AND
MULTI-COLOR ALTERNATING” every
time the product is powered up. For
the remote controller, replace only
with CR2032 battery. See bottom of
the remote controller for
replacement instruction.
a)Grasp plug and remove from the receptacle or other
outlet device. Do not unplug by pulling on cord.
b)Open fuse cover. Slide open fuse access cover on top
of attachment plug towards blades.
c)Remove fuse carefully.
d)Risk of fire. Replace fuse only with
5,7, or10 Amp, 125 Volt fuse for the
power cord set.
e)Close fuse cover. Slide closed the fuse
access cover on top of attachment plug.
f )Risk of fire.Do not replace attachment plug. Contains
a safety device (fuse) that should not be removed.
Discard product if the attachment plug is damaged.
CAUTION: Use only power adaptor that was
provided with this product. Using a different power
adaptor will damage the lights and cause fire, electrical
shock hazard.

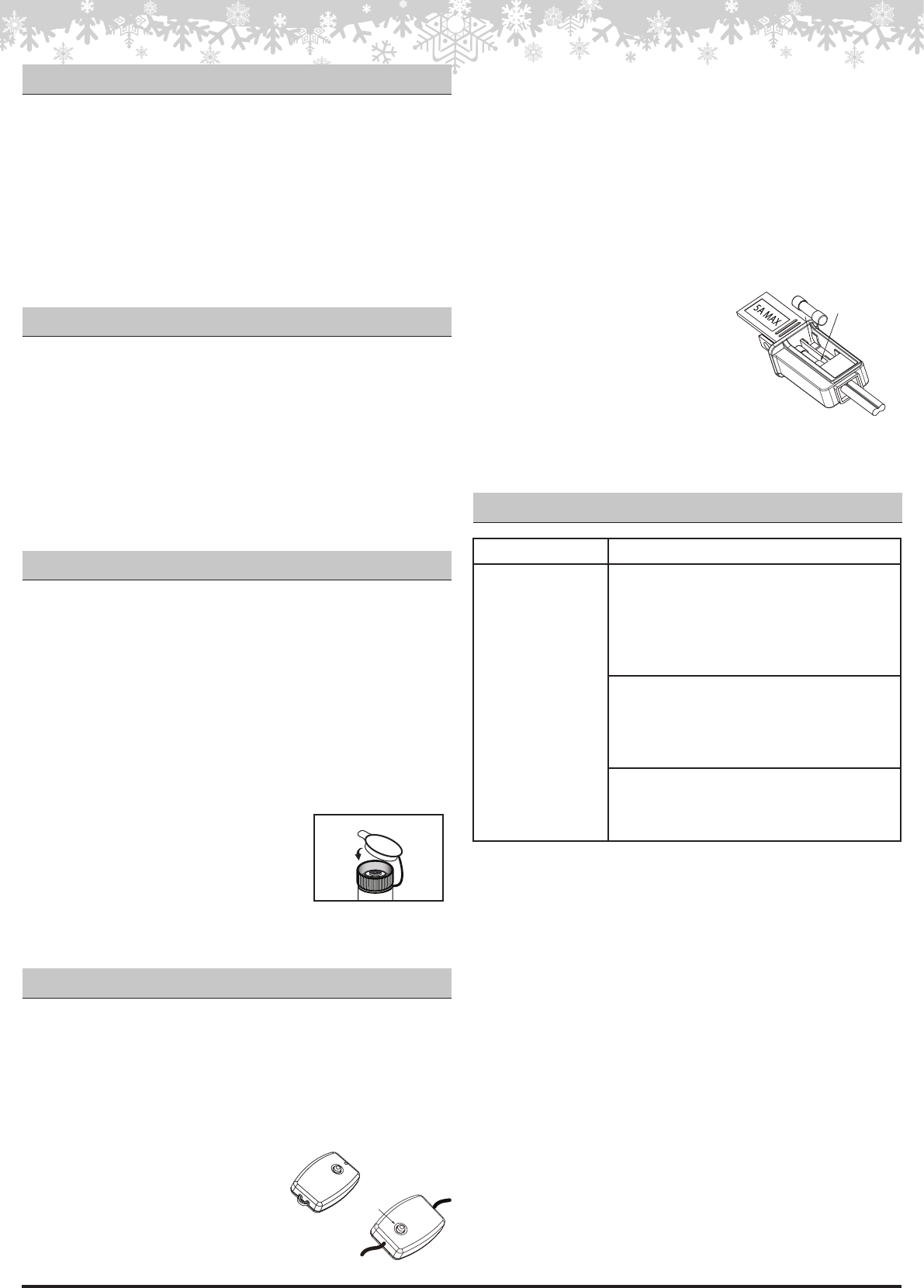

Operation
Turning on the tree
HOW TO USE THE DUAL COLOR LIGHT CONTROLLER
AND REMOTE CONTROL:
Fuse replacement of extension cord
This tree package includes hinge pins, washers, bulbs
and fuse for any replacement or repair that you need to
perform on your tree. If extra parts are needed, contact
the Customer Service Team at 1-877-527-0313 between
the hours of 8 am and 5 pm EST, Monday through Friday.
Repairing Loose Hinges
Step 1. Place the branch into the slot of the bracket
Step 2. Insert a new hinge pin through the holes of the
bracket and secure with a washer.
Maintenance
Spare parts
1. Before using or reusing, inspect product carefully. Discard
any products that have cut, damaged or frayed wire
insulation or cords, cracks in the lampholders or enclo-
sures, loose connections, or exposed copper wire.
2.Before disassembling the tree, unplug the tree and remove
all ornaments and decorations.
3.Gently lift the tree top straight up to remove from the
center section and fold all branches towards the pole.
4.Repeat this step for the center and bottom tree sections.
5.When storing the product, carefully remove the product
from wherever it is placed, including tree,
branches, or bushes, to avoid any
undue strain or stress on the
product conductors, connections,
and wires. Cover the protective cap
on the poles to avoid damaging the
internal parts.
6.When not in use, store neatly in a cool, dry location
protected from sunlight.
Use and Care Instructions
Troubleshooting
User servicing instructions
Light
Controller
Selector
Button
Remote
Controller
Problem Solution
The tree does
not light
Ensure that all tree sections are
plugged into each other and that the
tree is plugged into the wall. If your
tree came with a foot pedal, step on
the On/Off button.
Check for blown fuses at the light string
and power cord plugs. Replace as
needed with the replacement fuses
provided.
Check for loose, broken, or missing
bulbs and replace as needed with the
replacement bulbs provided
Christmas Tree
Model: DOU186755LEDCMR
Sku # 1000 654 240
SPARE FUSE
FCC notices:
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Christmas tree
With model PDC series
or PDR series controller
FCC ID: 2AABT-CW003
Outfit
With model PDC
series or PDR series
controller
LxGxYxS (First X = 30-120, second X=0-5, thirdly X=0100-2300)
Note:
"L" means that the low voltage.
The first "x" indicates the size of the tree, said the use of height from
3ft-12ft.
"Gx" number of lines, G0 represents 0 drag line G5 on behalf of 5 drag line.
"Y" means tree stand. M means the tree is to use ordinary tree foot. R which
means that the tree is to use rotating tree foot.
The third "x" represents the number of lamp, from 100 to 2300 lamp.
"S" means that the tree pin.
LIxYx (First X=06-220, second X=010-2300)
Note:
"L" means that the low voltage.
"I" indicates for indoor use only, if blank means for indoor and outdoor use.
The first "x" indicates the size of Wreath/Garland/Teardrop/Tree/Swag, the
size is from 06 in - 220 in in for Wreath/Teardrop/Tree/Swag; the size is
from 06 ft - 50 ft in for Garland.
"Y" means type of product. "W" which means wreath. "G" which means
Garland. "TD" which means teardrop. "T" which means tree. "S" which
means swag.
The second "x" represents the number of lamp, from 10 to 2300 lamps.
