RF1G9V1 Module
User Manual
Introduction
RF1G9V1 Module is a DECT (Digital Enhanced Cordless Telecommunications) compatibility products. To the
quality of audio and to the safety offered from the digital technology, It’s offers manifold and useful features
including Full duplex system. The module be application to cordless phone, walkie talkie and other data
communications.

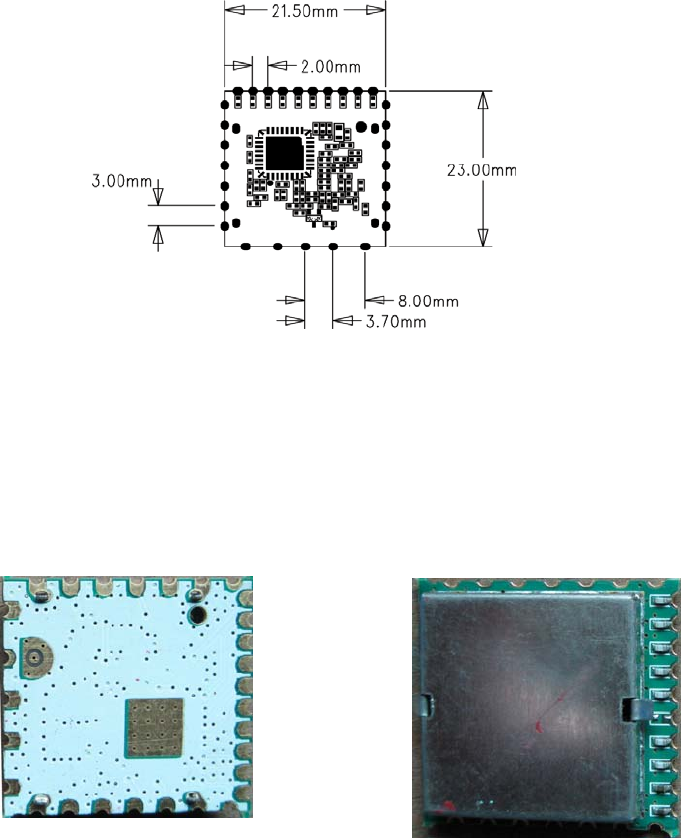

Dimension Drawing
Outside view
Page 2

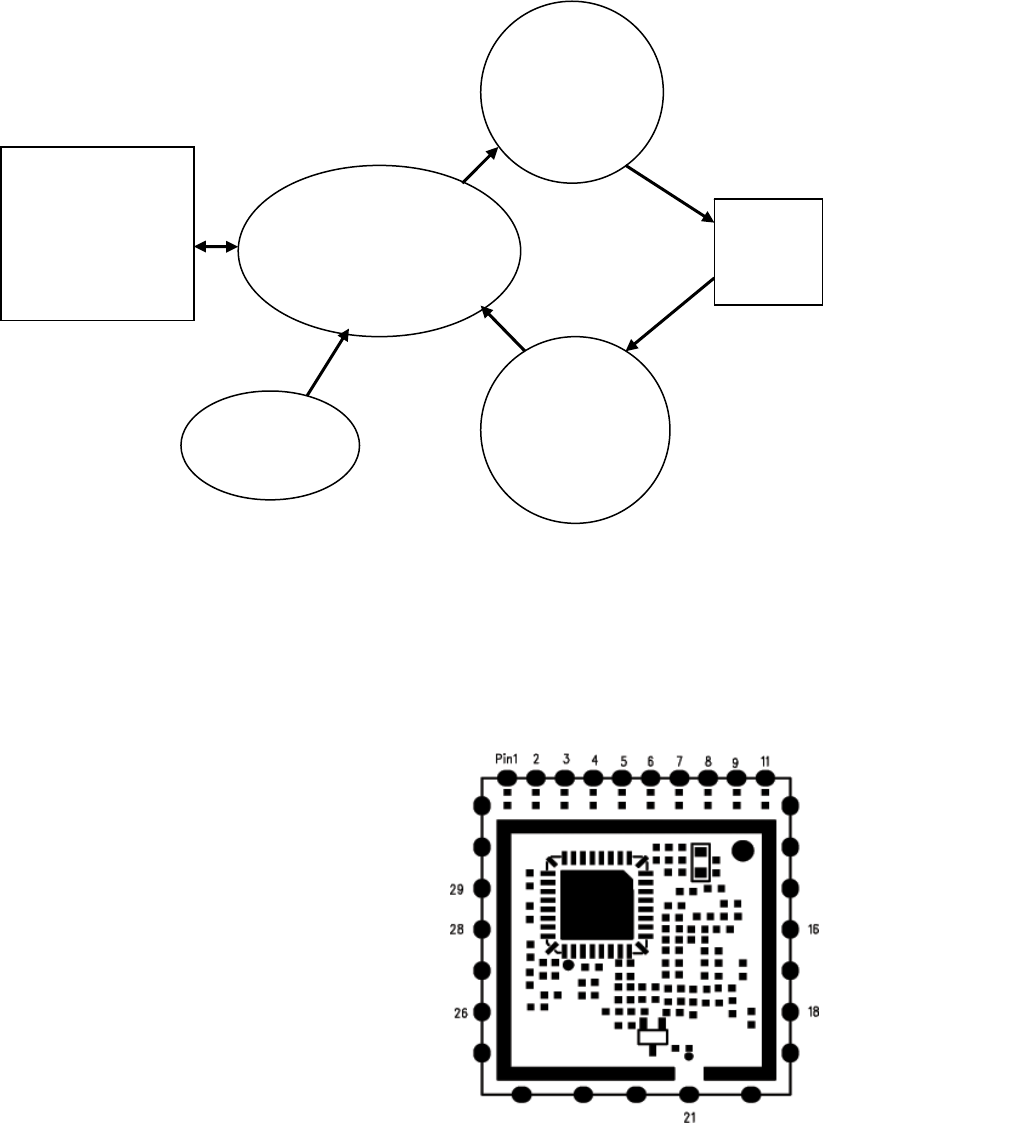

Block Diagram
Synch-Interface
Pin1- syn_out
Pin2- syn_en
Pin3- syn_clk
Pin4- syn_data
Pin5- slot_ctrl
Pin6- radio_en
Pin7- trdata
Pin8- vcc_dig
Pin9- rstn
Pin10,12-15,17,19-20,22-25,27,30-31.-GND
Pin11- vccrf
Pin16- vccPA
Pin18- A_ctrl2
Pin21- ANT
Pin26- A_ctrl1
Pin28- vccrf
Pin29- bclk
RX Part
RC4,5,14,15
RL2,3,7,8
TX Part
RC16,21,24
27,28,63,64,
RL4
,
5
RU1
DE19RF19
RFIC Transceiver
RD1
TX,RX
Switch
RF1G9
Pin1-7
Synch-Interface
Syn_clk
Syn_data
EXT-CLK
13.824MHz
Page 3
Specification
Standard DECT6.0 (Digital Enhanced Cordless Telecommunications)
Frequency 1920 ~1930MHz (USA)
Frequency 1880 ~1900MHz (EURO)
Channel Separation 1.728 MHz
Modulation type GFSK
Transmission speed 1.152 Mbps (Baud rate)
Duplexing Time Division Duplex (TDD)
Speech encoding ADPCM / 32kbit/s
RF Accessing Time Division Multiple Access (TDMA)
TX Power Not more than 20dBm
Channel 5(USA),
10(EURO)
Coverage range 100m indoor; 400m in open space(PP to FP)
Power Supply DC 3.3V/ 30-80mA
Normal condition of use 0 O C to 40 O C
Storage Temperature -10 O C to 60 O C
LIMITED WARRANTY
This limited warranty only applies to the use of this device with a communications service for which it
is designed. This device alone does not provide the customer with any communications service and
requires a separate subscription to a communications service from a service provider. Altering
service provider-specific settings may void the warranty. This limited warranty does not warrant that
the device will be free of any limitations of voice quality or service caused by (1) the services provided
by the customer’s underlying communications service provider; or (2) interference from other radio
frequencies or transmissions, static electricity, and other electronic devices.
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of
the end product, which integrates this module
The final end product must be labeled in a visible area with the following” Contains
FCC ID:B4HRF1900V1
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This
equipment should be installed and operated with minimum distance 20cm between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The module supports the highest gain of antenna is 2.0dBi when install to the end product.
Page 4
IC Warning:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil nedoit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Le présent appareil est conforme
Après examen de ce matériel aux conformité ou aux limites d’intensité de champ RF,
les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir
les informations correspondantes. La distance minimale du corps à utiliser le dispositif est de 20cm.
Assemble to main board
The RF module can put on the main board by SMT or hand soldering.
This module is intended for OEM integrator. The OEM integrator is still responsible for the IC compliance requirement of
the end product, which integrates this module
The final end product must be labeled in a visible area with the following”
limits set forth for an uncontrolled environment .This
equipment should be installed and operated with minimum distance 20cm between the radiator& your body.
This equipment complies with IC radiation exposure
The module supports the highest gain of antenna is 2.0dBi when install to the end product.
contains IC:3064A-RF1900V1.
