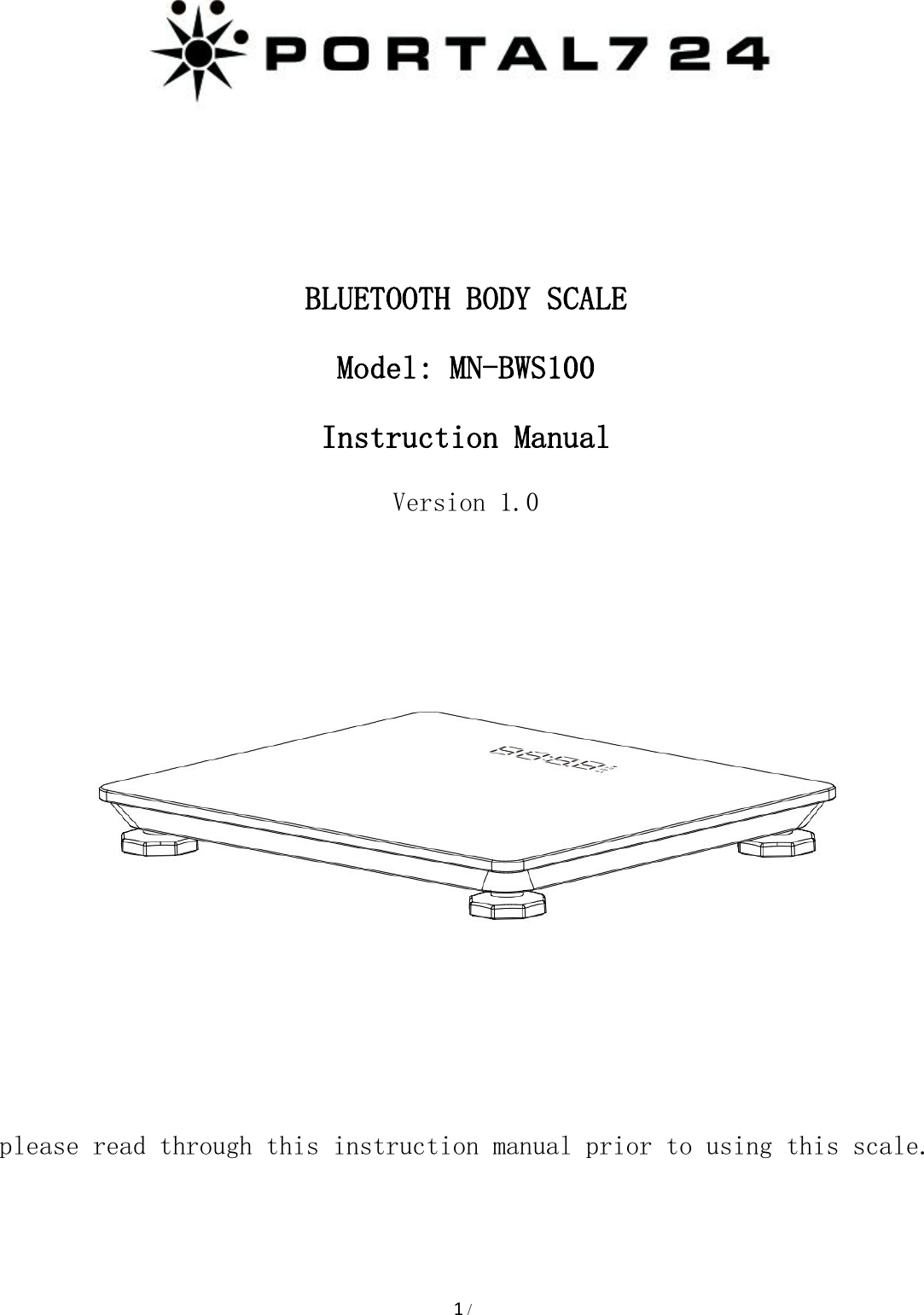

1/3BLUETOOTH BODY SCALEModel: MN-BWS100Instruction ManualVersion 1.0please read through this instruction manual prior to using this scale.

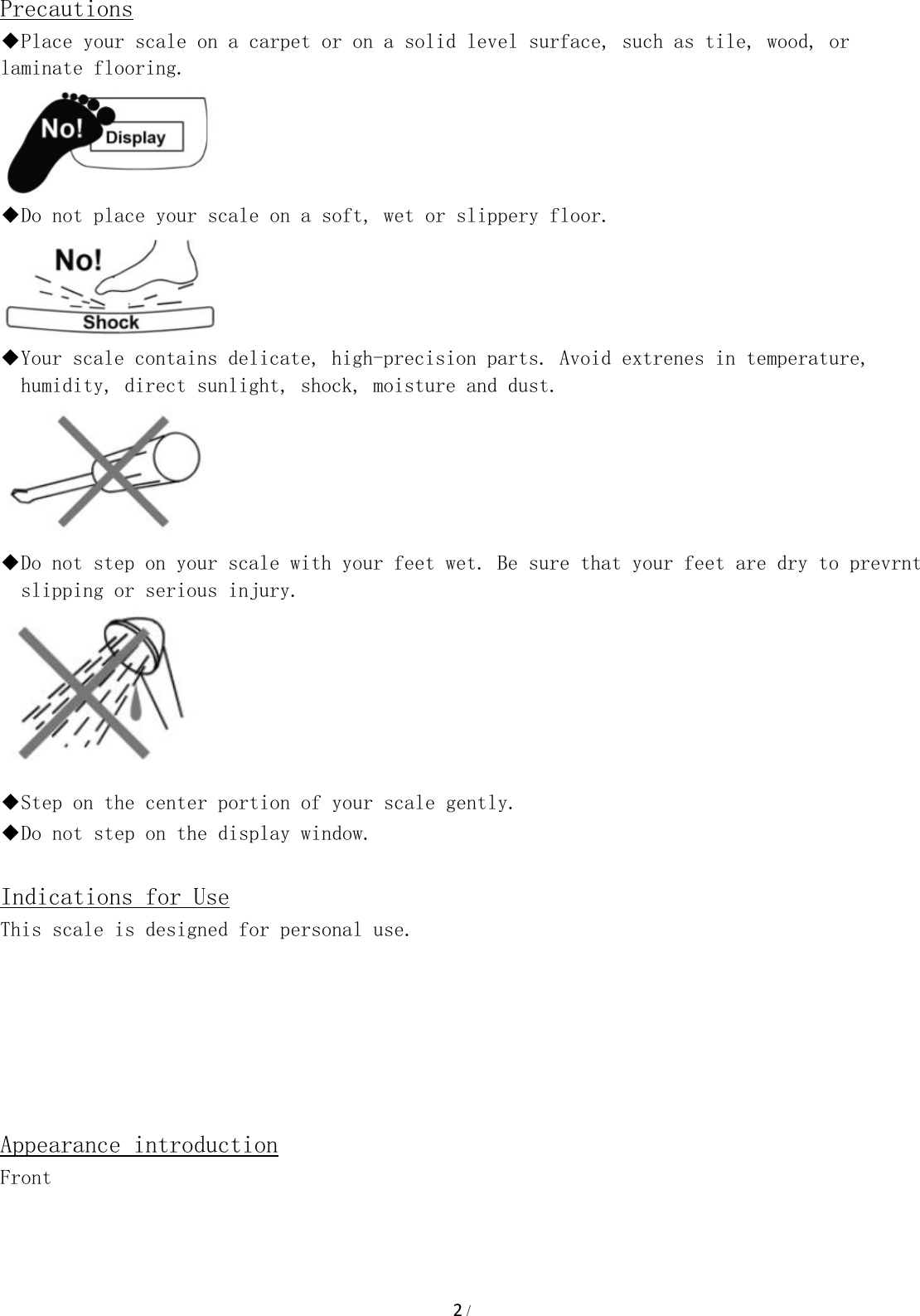

2/3Precautions◆Place your scale on a carpet or on a solid level surface, such as tile, wood, orlaminate flooring.◆Do not place your scale on a soft, wet or slippery floor.◆Your scale contains delicate, high-precision parts. Avoid extrenes in temperature,humidity, direct sunlight, shock, moisture and dust.◆Do not step on your scale with your feet wet. Be sure that your feet are dry to prevrntslipping or serious injury.◆Step on the center portion of your scale gently.◆Do not step on the display window.Indications for UseThis scale is designed for personal use.Appearance introductionFront

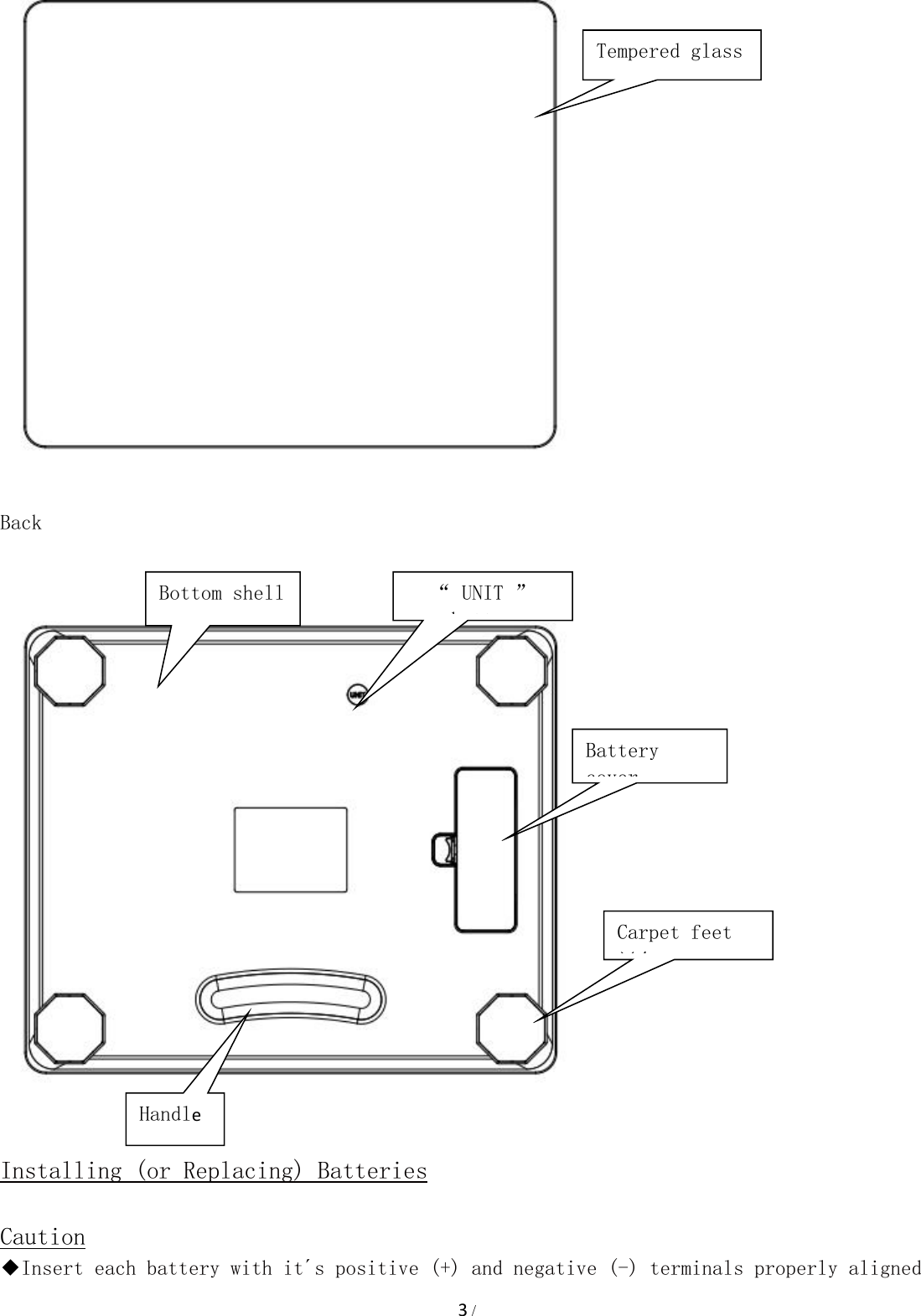

3/3BackInstalling (or Replacing) BatteriesCaution◆Insert each battery with it´s positive (+) and negative (-) terminals properly alignedTempered glass“ UNIT ”buttonBatterycoverCarpet feet×4HandleBottom shell
4/3with the corresponding symbols in the battery compartment.◆Improper installation of the batteries may cause battery leakage.◆Replace all four batteries with new ones, when the “Lo” symbol is displayed.◆Do not mix new and used batteries. It may cause damage to the scale or shorten batterylife.◆The battery life is dependent upon the environmental temperature, battery type andusage.◆Remove the batteries from the battery compartment, when the scale is not to be used fora long time. They may leak and damage the scale.Steps for Installing (or Replacing) Batteries◆Remove the battery compartment cover on the underside of the scale by gently pushingthe hook in the direction indicated by the arrow and lifting the cover backward.◆If necessary, remove the old batteries in the order suggested below. Install four newbatteries withthe positive (+) and negative (-) terminals properly aligned with the correspondingsymbols in the battery compartment.◆Replace the cover by sliding it into the compartment and gently pressing it into place.Measuring Your Weight◆Place the scale on a solid level surface.Tap the scale gently with one foot to turn it on and calibrate it to display “0.0 lb”.The scale must becalibrated to ensure accurate measurement.◆Step on the scale gently, placing both feet on the center portion of the scale.

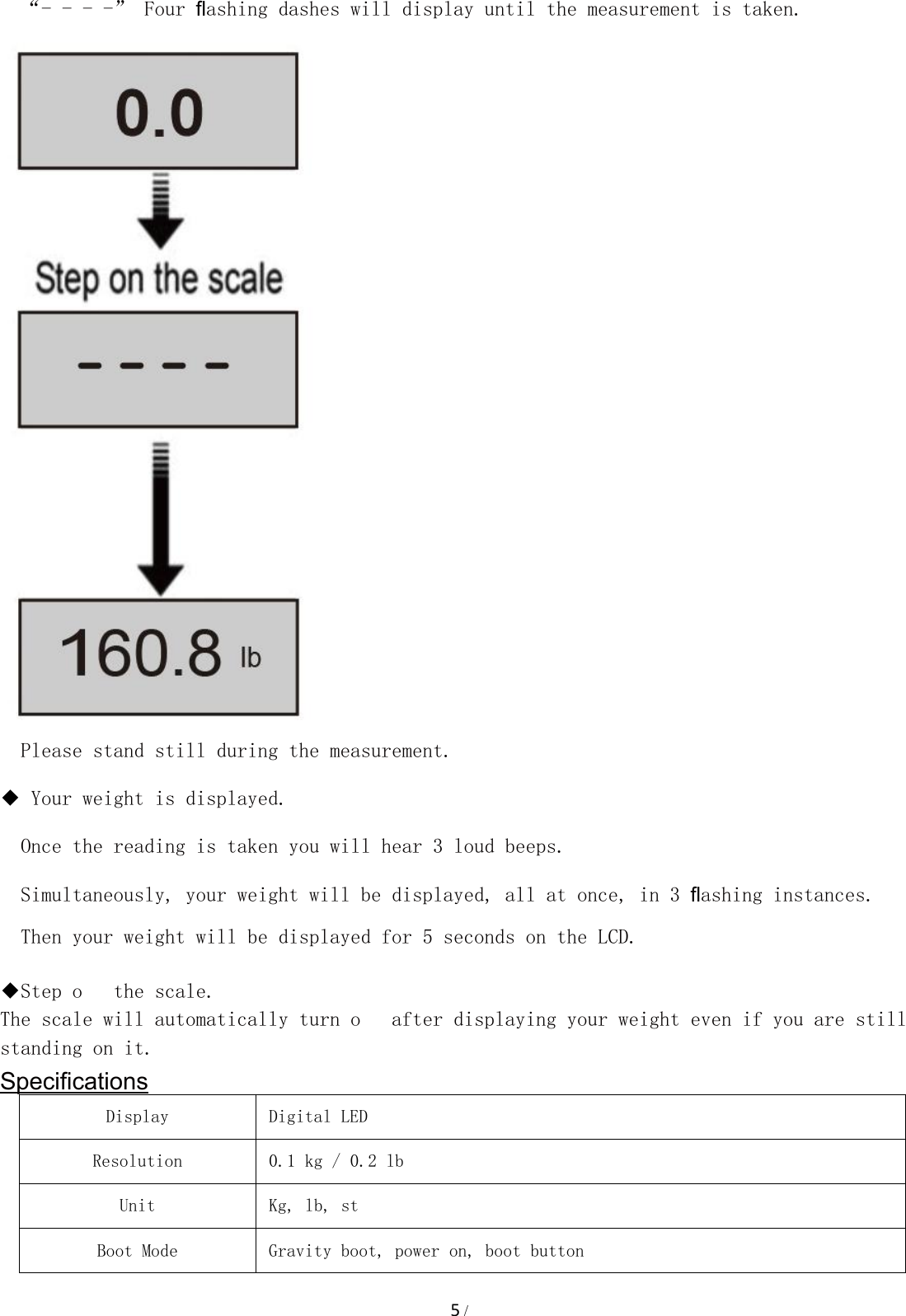

5/3“- - - -” Four flashing dashes will display until the measurement is taken.Please stand still during the measurement.◆Your weight is displayed.Once the reading is taken you will hear 3 loud beeps.Simultaneously, your weight will be displayed, all at once, in 3 flashing instances.Then your weight will be displayed for 5 seconds on the LCD.◆Step o the scale.The scale will automatically turn o after displaying your weight even if you are stillstanding on it.SpecificationsDisplayDigital LEDResolution0.1 kg / 0.2 lbUnitKg, lb, stBoot ModeGravity boot, power on, boot button
6/3Measurement Range11.2-551 lb / 5.1-250 kgAccuracy50kg±3D,100kg±4D,150kg±5D,200kg±6D,250kg±7DWeigh the Weight11.2 lb / 5.1 kgZero Range0.22 lb / 100 gOverloading TipsReach to Max+11 1b/Max+5kg, it will be displayed “EEEE”Turn off ModeAutomatic Turn offLow Voltage DetectionBattery Voltage is 4±0.2 V, it will turn off after display“Lo” for1 second.Power sourceFour type “ AA ” batteries ( R6P or LR6, 1.5 Volt ×4 )Volume≥70dB（Test Distance:30cm）wireless communicationBluetooth 4.0Bluetooth TransmissionDistance10 Meters(Unobstructed Transmission Distance)Equipment RequirementAndroid 4.4 or above operating system and a blue version of 4.0 mobileterminal equipment;iOS7.0 or above operating system and a blue version of 4.0 mobileterminal equipment.Size≈ L380 × W320 ×H41 mmSystem function description◆the scale has an automatic power-on and off function.◆Automatic turn off：●When the battery is installed, the LED will turn off automatically after about 2seconds.●The battery voltage drops to the preset warning value, and it will turn off automatically afterthe LED display “Lo” about 1 second.●Steady display of weight about 6 seconds after the automatic turn off.◆Unit defaults to “lb”, short press the machine “UNIT”button in the “lb”, “st”,“kg” between the switch back and forth, each time to play a “beep” warning sound.◆It can automatically weighing when people stand on the scale in the turnoff state.◆When the weight is not locked, “---” is displayed on the LED and flashed twice.◆After the weight is locked, the value will flash 3 times and a “beep” beep will beplayed once every flashing.◆During the use of the Bluetooth is not connected to the “ ” flashing state, it will bein a steady state after connection successfully.Operating and Storage EnvironmentsOperation EnvironmentOperation temperature: +10 - +40℃

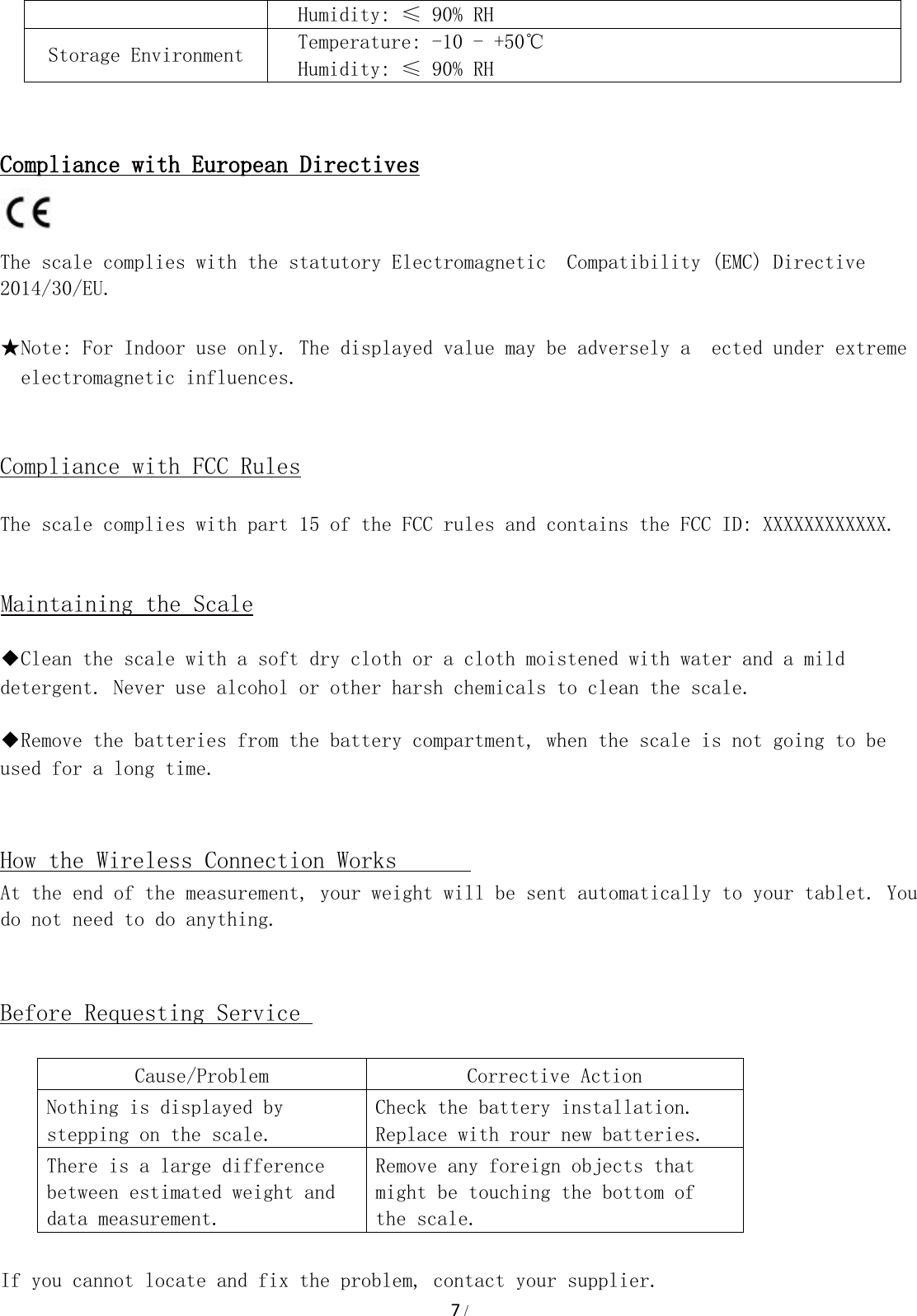

7/3Humidity: ≤ 90% RHStorage EnvironmentTemperature: -10 - +50℃Humidity: ≤ 90% RHCompliance with European DirectivesThe scale complies with the statutory Electromagnetic Compatibility (EMC) Directive2014/30/EU.★Note: For Indoor use only. The displayed value may be adversely a ected under extremeelectromagnetic influences.Compliance with FCC RulesThe scale complies with part 15 of the FCC rules and contains the FCC ID: XXXXXXXXXXXX.Maintaining the Scale◆Clean the scale with a soft dry cloth or a cloth moistened with water and a milddetergent. Never use alcohol or other harsh chemicals to clean the scale.◆Remove the batteries from the battery compartment, when the scale is not going to beused for a long time.How the Wireless Connection WorksAt the end of the measurement, your weight will be sent automatically to your tablet. Youdo not need to do anything.Before Requesting ServiceCause/ProblemCorrective ActionNothing is displayed bystepping on the scale.Check the battery installation.Replace with rour new batteries.There is a large differencebetween estimated weight anddata measurement.Remove any foreign objects thatmight be touching the bottom ofthe scale.If you cannot locate and fix the problem, contact your supplier.

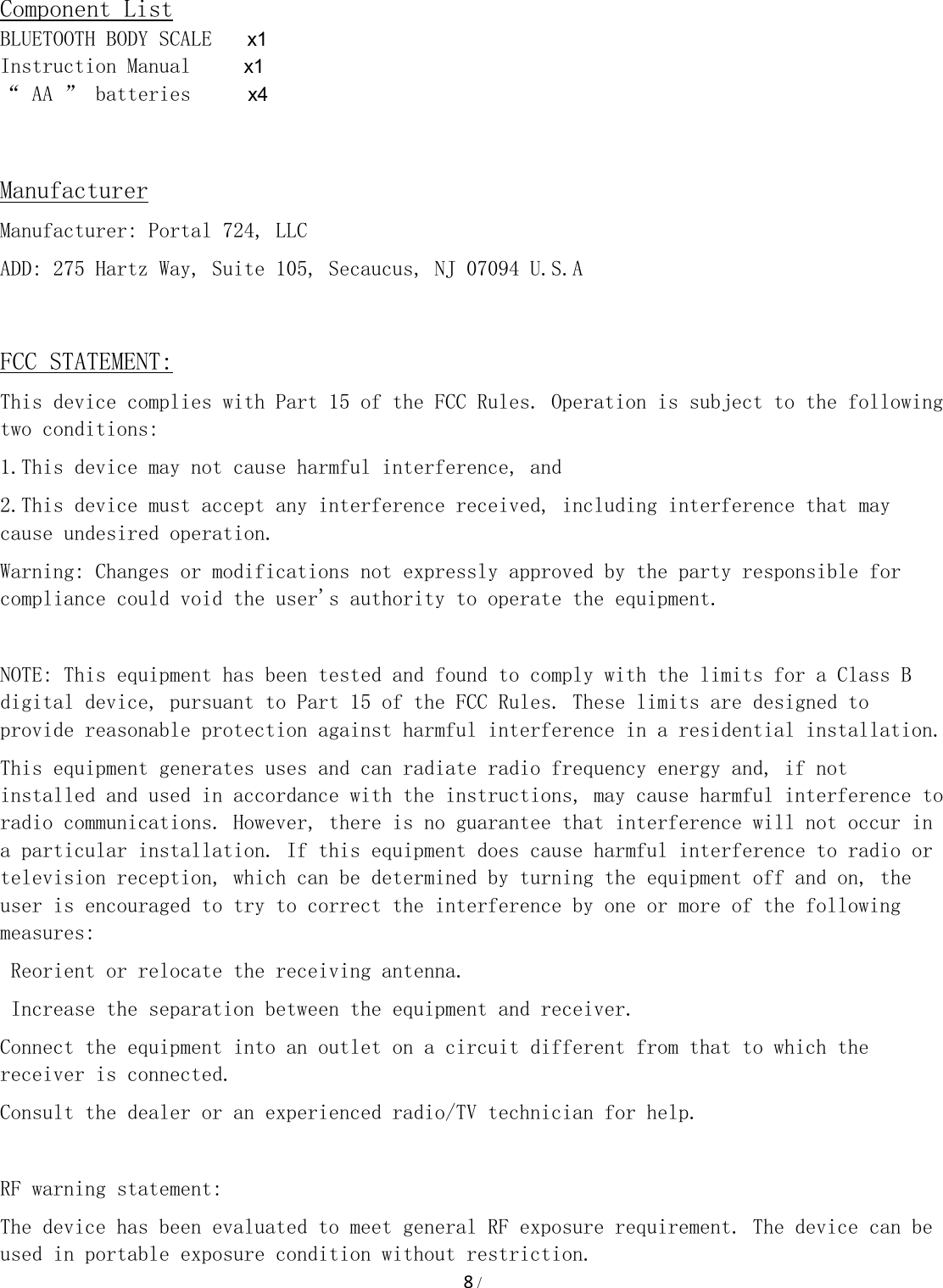

8/3Component ListBLUETOOTH BODY SCALE x1Instruction Manual x1“ AA ” batteries x4ManufacturerManufacturer: Portal 724, LLCADD: 275 Hartz Way, Suite 105, Secaucus, NJ 07094 U.S.AFCC STATEMENT:This device complies with Part 15 of the FCC Rules. Operation is subject to the followingtwo conditions:1.This device may not cause harmful interference, and2.This device must accept any interference received, including interference that maycause undesired operation.Warning: Changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmful interference toradio communications. However, there is no guarantee that interference will not occur ina particular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, theuser is encouraged to try to correct the interference by one or more of the followingmeasures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.Consult the dealer or an experienced radio/TV technician for help.RF warning statement:The device has been evaluated to meet general RF exposure requirement. The device can beused in portable exposure condition without restriction.
