OWNER'S MANUAL

MODEL:

PDGT26H48B

LAWN TRACTOR

WARNING:

Read the Owner's Manual and fol-

low all Warnings and Safety Instruc-

tions. Failure to do so can result

in serious injury.

Always Wear Eye Protection During Operation

186714 Rev. 1 06.06.03 JH/TR

Printed in U.S.A.

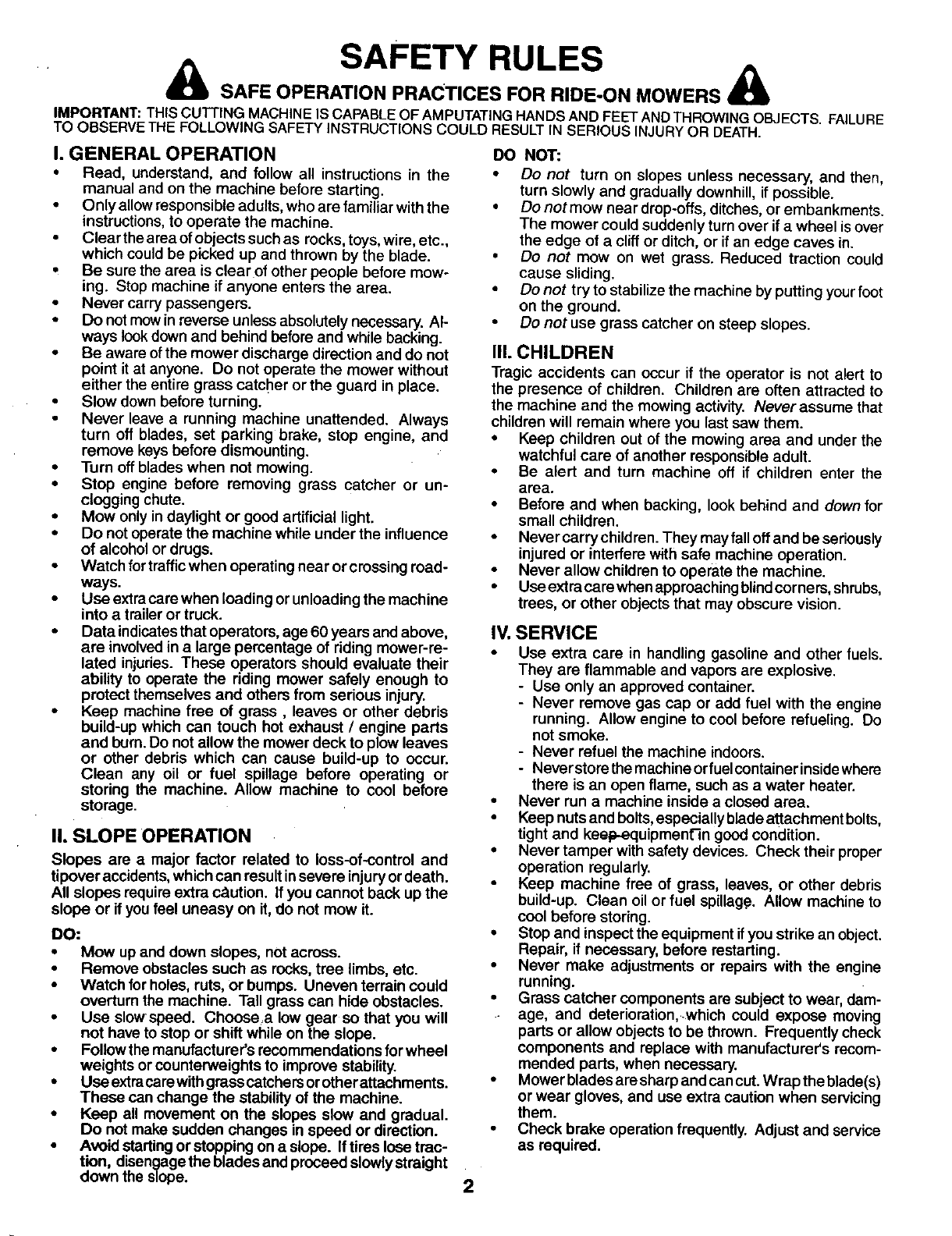

SAFETY RULES

SAFEOFERAT,ONPRACT,CESFOR.,DE-ON.OVERSa

IMPORTANT: THIS CUTTING MACHINEIS CAPABLEOF AMPUTATINGHANDS AND FEETAND THROWINGOBJECTS. FAILURE

TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULTIN SERIOUS INJURYOR DEATH.

I. GENERAL OPERATION

•Read, understand, and follow all instructions in the

manual and on the machine before starting.

• Only allow responsible adults, who are familiar with the

instructions, to operate the machine.

• Clear the area of objects such as rocks, toys,wire, etc.,

which could be picked up and thrown by the blade.

•Be sure the area is clear of other people before mow-

ing. Stop machine if anyone enters the area.

•Never carry passengers.

•Do notmow inreverse unless absolutely necessary. Al-

ways lookdown and behind before and while backing.

•Be aware of the mower discharge direction and do not

point it at anyone. Do not operate the mower without

either the entire grass catcher or the guard in place.

•Slow down before turning.

•Never leave arunning machine unattended. Always

turn off blades, set parking brake, stop engine, and

remove keys before dismounting.

•Turn off blades when not mowing.

•Stop engine before removing grass catcher or un-

clogging chute.

• Mow only in daylight or good artificial light.

• Do not operate the machine while under the influence

of alcohol or drugs.

• Watch for traffic when operating near or crossing road-

ways.

• Use extra care when loading or unloading the machine

into atrailer or truck.

• Data indicates that operators, age 60 years and above,

are involved in a large percentage of riding mower-re-

lated injuries. These operators should evaluate their

ability to operate the riding mower safely enough to

protect themselves and others from serious injury.

• Keep machine free of grass, leaves or other debris

build-up which can touch hot exhaust /engine parts

and burn. Do not allow the mower deck to plow leaves

or other debris which can cause build-up to occur.

Clean any oil or fuel spillage before operating or

storing the machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are amajor factor related to loss-of-control and

tipover accidents,which can result insevere injury or death.

All slopes require extra c_ution. If you cannot back up the

slope or if you feel uneasy on it, do not mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree limbs, etc.

•Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

•Use slow speed. Choose,a low gear so that you will

not have to stop or shift while on the elope.

•Follow the manufacturer's recommendations forwheel

weights or counterweights to improve stability.

•Use extracare withgrasscatchers orother attachments.

These can change the stability of the machine.

•Keep all movement on the slopes slow and gradual.

Do not make sudden changes in speed or direction.

•Avoid starting or stopping on a slope. If tires lose trac-

tion, disengage the blades and proceed slowly straight

down the slope.

DO NOT:

•Do not turn on slopes unless necessary, and then,

turn slowly and gradually downhill, if possible.

•Do not mow near drep-offs, ditches, or embankments.

The mower could suddenly turn over ifawheel is over

the edge of a cliff or ditch, or if an edge caves in.

• Do not mow on wet grass. Reduced traction could

cause sliding.

•Do not try to stabilize the machine by putting yourfoot

on the ground.

•Do not use grass catcher on steep slopes.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to

the presence of children. Children are often attracted to

the machine and the mowing activity. Never assume that

children will remain where you last saw them.

•Keep children out of the mowing area and under the

watchful care of another responsible adult.

•Be alert and turn machine off if children enter the

area.

• Before and when backing, look behind and down for

small children.

• Never carry children. They may fall off and be seriously

injured or interfere with safe machine operation.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

IV, SERVICE

•Use extra care in handling gasoline and other fuels.

They are flammable and vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never storethe machine orfuel oontainer insidewhere

there is an open flame, such as a water heater.

• Never run a machine inside a closed area.

•Keep nuts and bolts,especially blade attachment bolts,

tight and keel=equipment-in good condition.

•Never tamper with safety devices. Check their proper

operation regularly.

•Keep machine free of grass, leaves, or other debris

build-up. Clean oil or fuel spillage. Allow machine to

cool before storing.

•Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting.

•Never make adjustments or repairs with the engine

running.

• Grass catcher components are subject to wear, dam-

age, and deterioration, which could expose moving

parts or allow objects to be thrown. Frequently check

components and replace with manufacturer's recom-

mended parts, when necessary.

•Mower blades are sharp and can cut.Wrap the blade(s)

or wear gloves, and use extra caution when servicing

them.

•Check brake operation frequently. Adjust and service

as required.

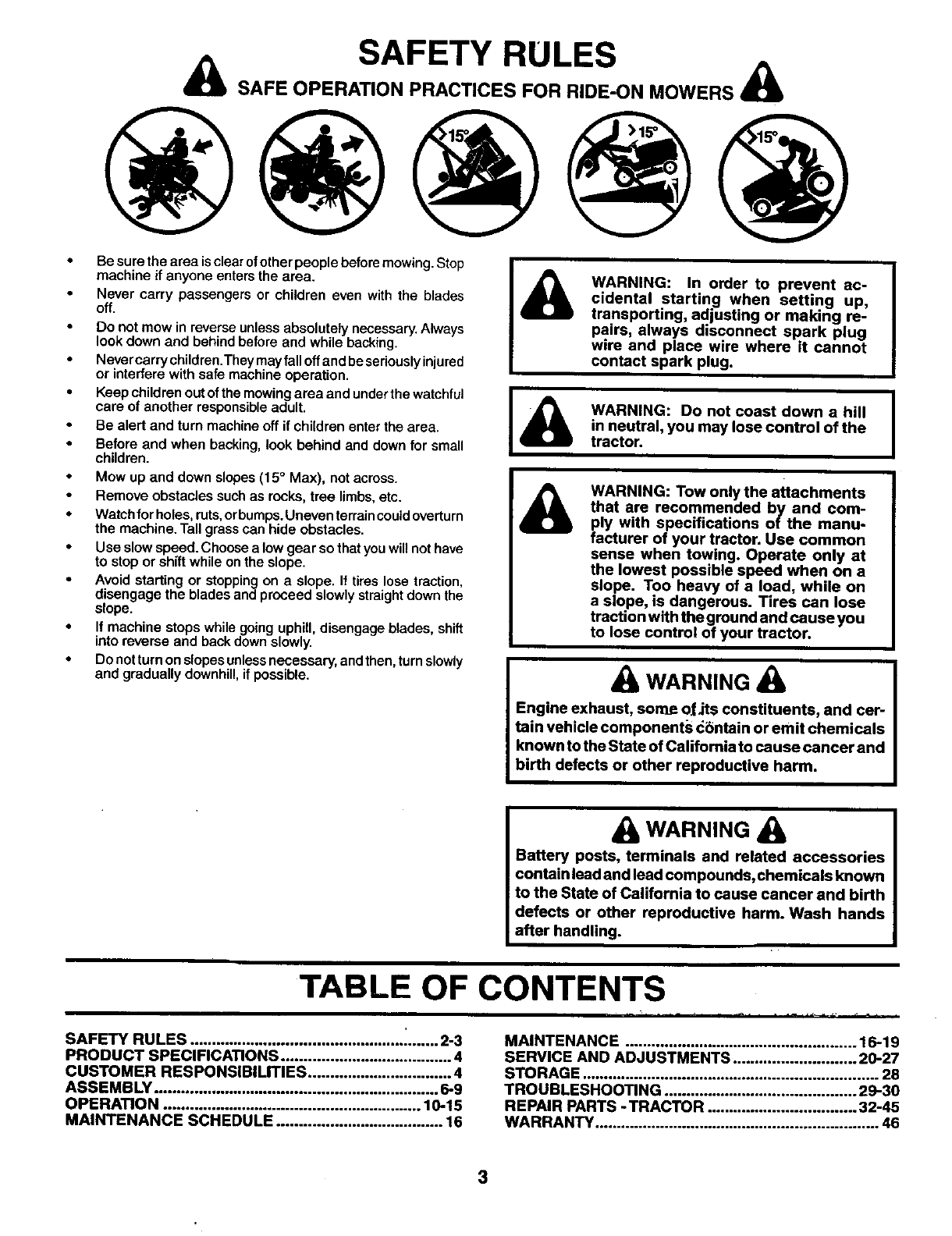

SAFETY RULES

• Be sure the area isclear of other people before mowing. Stop

machine if anyone enters the area.

• Never carry passengers or children even with the blades

off.

Do not mow in reverse unless absolutely necessary. Always

look down and behind before and while backing.

Nevercarry children.They may fall off and be seriously injured

or interfere with safe machine operation.

•Keep children out of the mowing area and underthe watchful

care of another responsible adult.

Be alert and turn machine off if children enter the area.

Before and when backing, look behind and down for small

children.

•Mow up and down slopes (15 °Max), not across.

Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could overturn

the machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so that you will not have

to stop or shift while on the slope.

Avoid starting or stopping on a slope. If tires lose traction,

disengage the blades and proceed slowly straight down the

slope.

• If machine stops while going uphill, disengage blades, shift

into reverse and back down slowly.

• Do not turn on slopes unless necessary, and then, turn slowly

and gradually downhill, if possible.

WARNING: In order to prevent ac-

cidental starting when setting up,

transporting, adjusting or making re-

pairs, always disconnect spark plug

wire and place wire where it cannot

contact spark plug.

WARNING: Do not coast down a hill

in neutral, you may lose control of the

tractor.

WARNING

Engine exhaust, some of its constituents, and car-

tain vehicle components (_6ntain or emit chemicals

known to the State of California to cause cancer and

birth defects or other reproductive harm.

WARNING

Battery posts, terminals and related accessories

contain lead and lead compounds, chemicals known

to the State of California to cause cancer and birth

defects or other reproductive harm. Wash hands

after handling.

TABLE OF CONTENTS

ii i i • r p ...... ,r i- _ f i

SAFETY RULES ................................................. i ....... 2- 3

PRODUCT SPECIFICATIONS ....................................... 4

CUSTOMER RESPONSIBILITIES ................................. 4

ASSEMBLY ................................................................. 6-9

OPERATION ........................................................... 10-15

MAINTENANCE SCHEDULE ...................................... 16

MAINTENANCE ..................................................... 16-19

SERVICE AND ADJUSTMENTS ............................ 20-27

STORAGE .................................................................... 28

TROUBLESHOOTING ............................................ 29-30

REPAIR PARTS - TRACTOR .................................. 32-45

WARRANTY ................................................................. 46

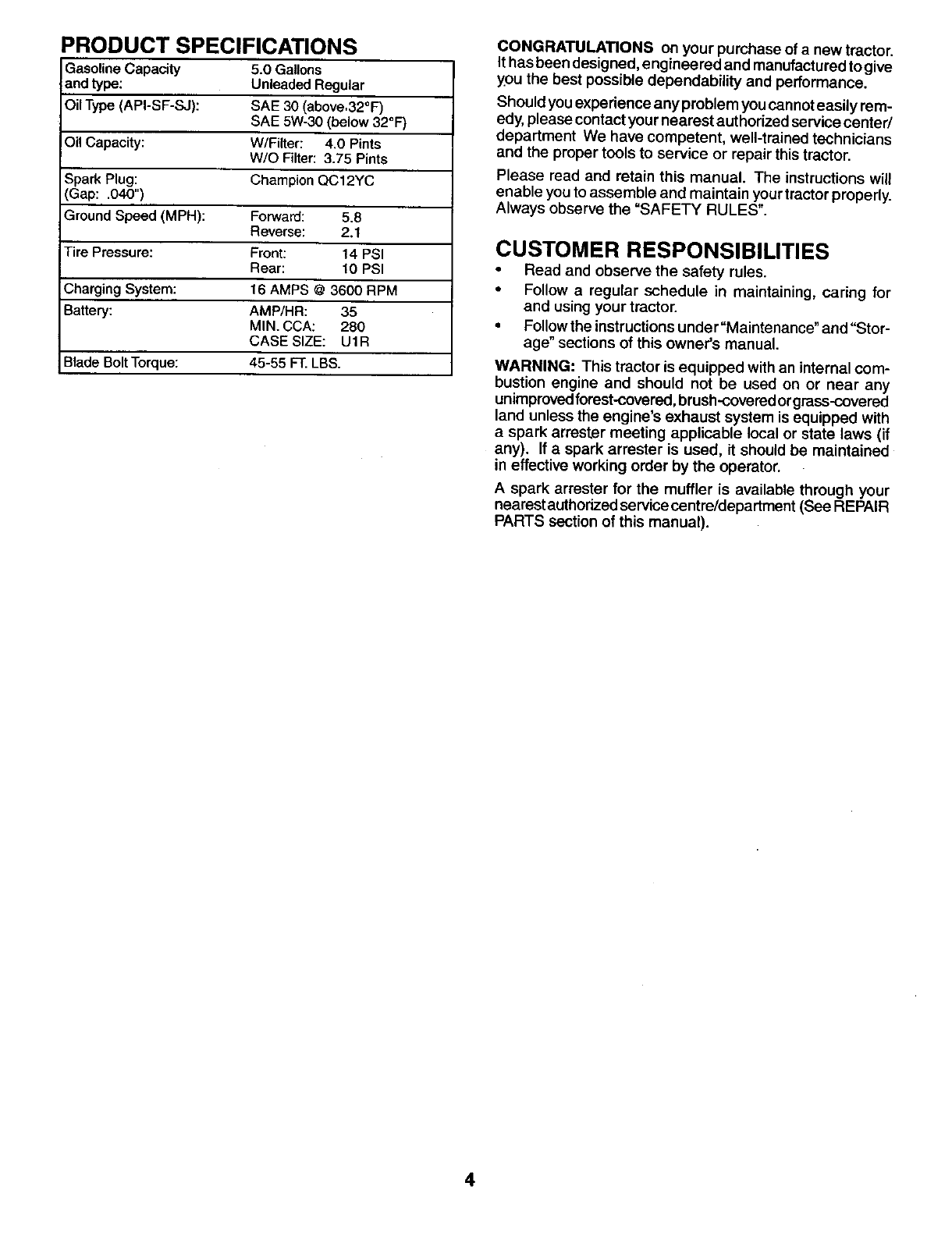

PRODUCT SPECIFICATIONS

GasolineCapacity 5.0 Gallons

and type: UnleadedRegular

OilType(API-SF-SJ): SAE 30 (above,32°F)

SAE 5W-30 (below32°1=)

OilCapacity: W/Filter: 4.0 Pints

W/O Filter:3.75 Pints

Spark Plug: Champion QC12YC

3ap: .040")

Ground Speed (MPH): Forward: 5.8

Reverse: 2.1

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 16 AMPS @ 3600 RPM

Battery: AMP/HR: 35

MIN. CCA: 280

CASE SIZE: U1R

BladeBoltTorque: 45-55 FT.LBS.

CONGRATULATIONS on your purchase of anew tractor.

It has been designed, engineered and manufactured togive

you the best possible dependability and performance.

Should you experience any problem you cannoteasily rem-

edy, please contact your nearest authorized service center/

department We have competent, well-trained technicians

and the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions wiU

enable you to assemble and maintain your tractor properly.

Always observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for

and using your tractor.

• Follow the instructions under "Maintenance" and"Stor-

age" sections of this owner's manual.

WARNING: This tractor is equipped withan internal com-

bustion engine and should not be used on or near any

unimprovedforest-covered, brush-coveredorgrase-covered

land unless the engine's exhaust system is equipped with

a spark arrester meeting applicable local or state laws (if

any). If a spark arrester is used, it should be maintained

in effective working order by the operator.

Aspark arrester for the muffler is available through your

nearest authorized servicecentre/department (See REPAIR

PARTS section of this manual).

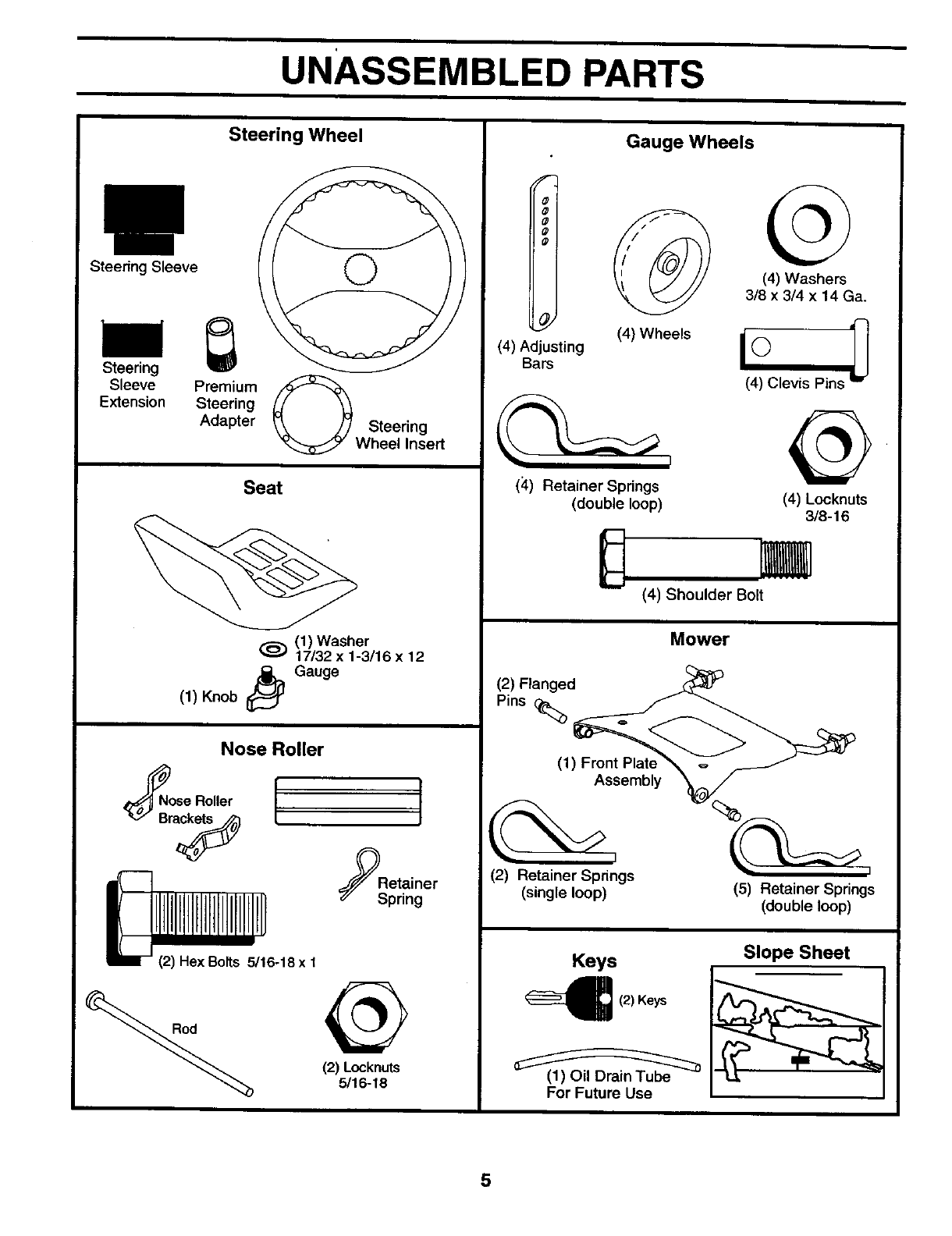

UNASSEMBLED PARTS

Steering Wheel

Steering Sleeve

Steering

Sleeve

Extension

Premium

Steering

Adapter Steering

Wheel Insert

Seat

(1) Washer

(_) 17/32 x 1-3/16 x 12

Gauge

(1) Knob I_

Nose Roller

_RNose Roller

Bra_

_l_J (2) Hex Bolts 5116o18x1

_Retainer

pring

5/16-16

Gauge Wheels

(4) Wheels

(4) Adjusting

Bars

(_-) Retainer Springs

(double loop)

(4) Washers

3/8 x 3/4 x 14 Ga.

(4) Clevis Pins I •

(4) Locknuts

3/8-16

(4) Shoulder Bolt

Mower

(2) Flanged

Assembly

(2) Retainer Springs

(singte loop) (5) Retainer Springs

(double loop)

Keys Slope Sheet

(2)Keys

For Future Use

ASSEMBLY

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.

To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use

the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard

wrench sizes are listed.

(1) Pliers (1) Tire pressure gauge

(2) 9/16" wrench (1) Utility knife

(1) 1/2" wrench (1) 3/4" socket w/drive ratchet

When right or left hand is mentioned in this manual, it means

when you are in the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

•Remove all accessible loose parts and parts cartons

from carton.

• Cut along dotted lines on all four panels of carton.

Remove end panels and lay side panels flat.

• Remove mower and packing materials.

• Check for any additional loose parts or cartons and

remove.

BEFORE REMOVING TRACTOR FROM

SKID

_STEERING

@1 w

INSERT

_HEX BOLT

(_.,., _LOCK WASHER

_LARGE FLAT

SHER

STEERING \ _k. J "_ // STEERING

WHEEL \_'_-__ /i _// WHEEL

STEERING _ADAPTOR

SLEEVE EX---......___ TABSTENTION

STEERING

SHAFT

STEERING

SLEEVE

FIG. 1

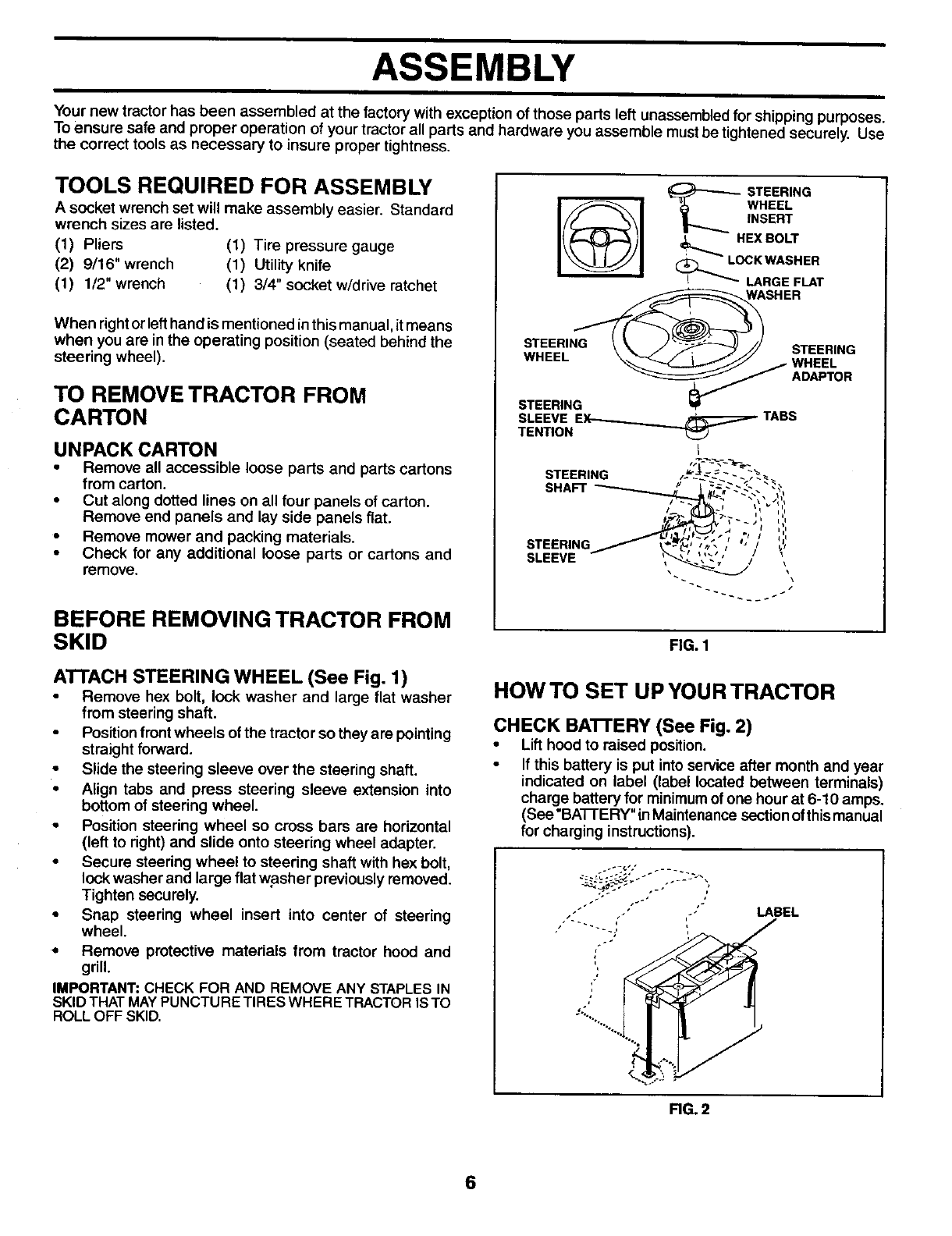

ATTACH STEERING WHEEL (See Fig. 1)

•Remove hex bolt, lock washer and large flat washer

from steering shaft.

•Position front wheels of the tractor so they are pointing

straight forward.

•Slide the steering sleeve over the steering shaft.

•Align tabs and press steering sleeve extension into

bottom of steering wheel.

•Position steering wheel so cross bars are horizontal

(left to right) and slide onto steering wheel adapter.

•Secure steering wheel to steering shaft with hex bolt,

lock washer and large flat washer previously removed.

Tighten securely.

•Snap steering wheel insert into center of steering

wheel.

•Remove protective materials from tractor hood and

grill.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES IN

SKID THAT MAYPUNCTURE TIRES WHERE TRACTORIS TO

ROLL OFF SKID.

HOW TO SET UP YOUR TRACTOR

CHECK BA'n'ERY (See Fig. 2)

•Lift hood to raised position.

•If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimumof one hour at 6-10 amps.

(See"BATIERY" inMaintenance section ofthismanual

for charging instructions).

/t"

!£.

LABEL

FIG. 2

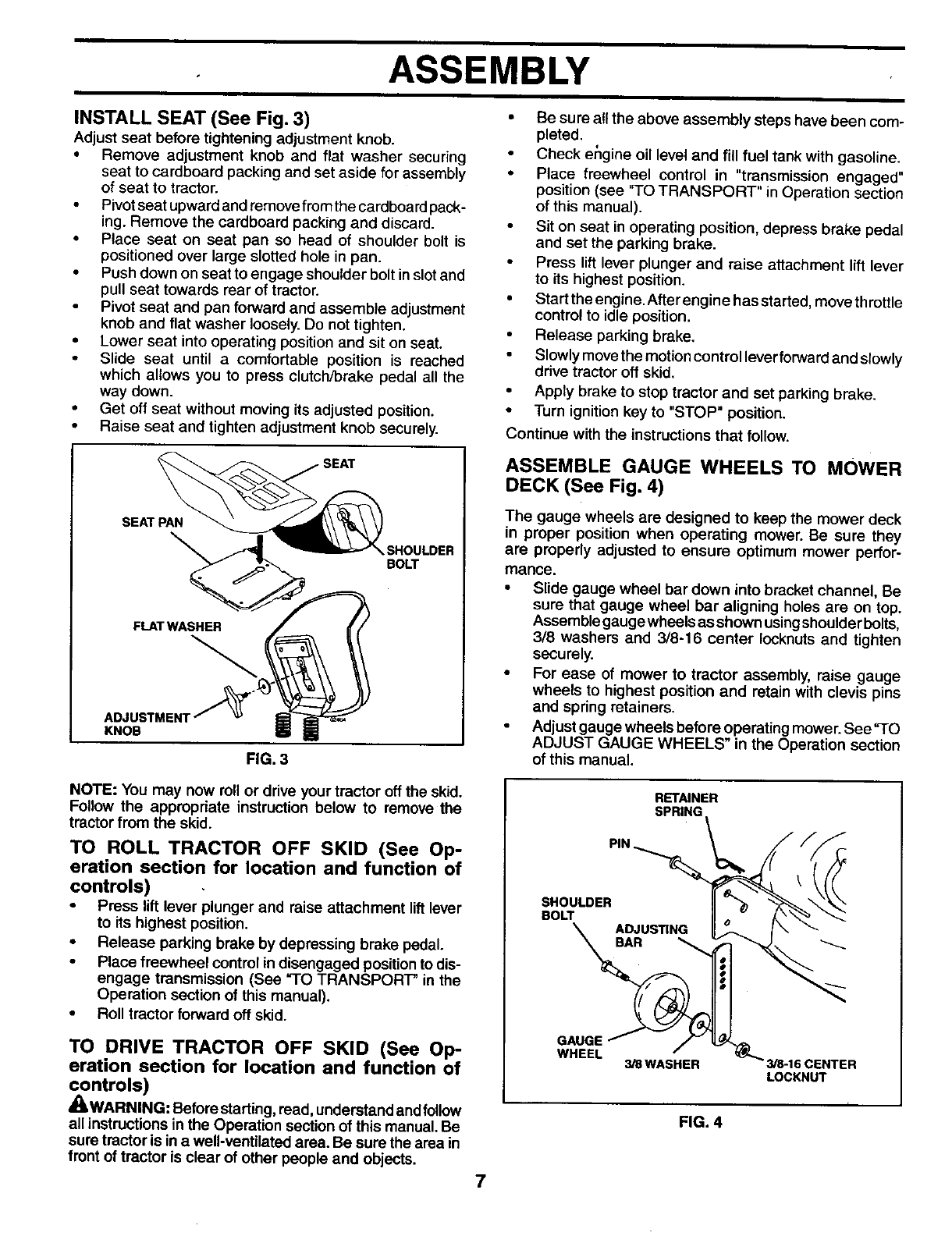

ASSEMBLY

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment knob.

•Remove adjustment knob and flat washer securing

seat to cardboard packing and set aside for assembly

of seat to tractor.

Pivot seat upward and remove from the cardboard pack-

ing. Remove the cardboard packing and discard.

• Place seat on seat pan so head of shoulder bolt is

positioned over large slotted hole in pan.

• Push down on seat to engage shoulder bolt in slot and

pull seat towards rear of tractor.

Pivot seat and pan forward and assemble adjustment

knob and fiat washer loosely. Do not tighten.

• Lower seat into operating position and sit on seat.

Slide seat until a comfortable position is reached

which allows you to press clutch/brake pedal all the

way down.

•Get off seat without moving its adjusted position.

• Raise seat and tighten adjustment knob securely.

SEAT PAN

,SHOULDER

BOLT

FLAT WASHER

KNOB

FIG. 3

NOTE: You may now roll or drive your tractor off the skid.

Follow the appropriate instruction below to remove the

tractor from the skid.

TO ROLL TRACTOR OFF SKID (See Op-

eration section for location and function of

controls)

• Press lift lever plunger and raise attachment lift lever

to its highest position.

•Release parking brake by depressing brake pedal.

• Place freewheel control in disengaged position to dis-

engage transmission (See "TO TRANSPORT" in the

Operation section of this manual).

• Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See Op-

eration section for location and function of

controls)

_WARNING: Before starting, read, understand andfollow

all instructions in the Operation section of this manual. Be

sure tractor is inawell-ventilated area. Be sure the area in

front of tractor is clear of other people and objects.

• Be su re all the above assembly steps have been com-

pleted.

• Check e_gine oil level and fill fuel tank with gasoline.

• Place freewheel control in "transmission engaged"

position (see "TO TRANSPORT" in Operation section

of this manual).

• Sit on seat in operating position, depress brake pedal

and set the parking brake.

•Press lift lever plunger and raise attachment lift lever

to its highest position.

• Start the engine.After engine hasstarted, move throttle

control to idle position.

• Release parking brake.

• Slowly move the motion control lever forward and slowly

drive tractor off skid.

• Apply brake to stop tractor and set parking brake.

• Turn ignition key to "STOP" position.

Continue with the instructions that follow,

ASSEMBLE GAUGE WHEELS TO MOWER

DECK (See Fig. 4)

The gauge wheels are designed to keep the mower deck

in proper position when operating mower. Be sure they

are properly adjusted to ensure optimum mower perfor-

mance.

• Slide gauge wheel bar down into bracket channel, Be

sure that gauge wheel bar aligning holes are on top.

Assemble gauge wheels as shown using shoulder bolts,

3/8 washers and 3/8-16 center Iocknuts and tighten

securely.

• For ease of mower to tractor assembly, raise gauge

wheels to highest position and retain with clevis pins

and spring retainers.

Adjust gauge wheels before operating mower. See "TO

ADJUST GAUGE WHEELS" in the Operation section

of this manual.

RETAINER

SPRING

SHOULDER

BOLT

ADJUSTING

WHEELG"

3/8 WASHER 3/8-16 CENTER

LOCKNUT

FIG. 4

ASSEMBLY

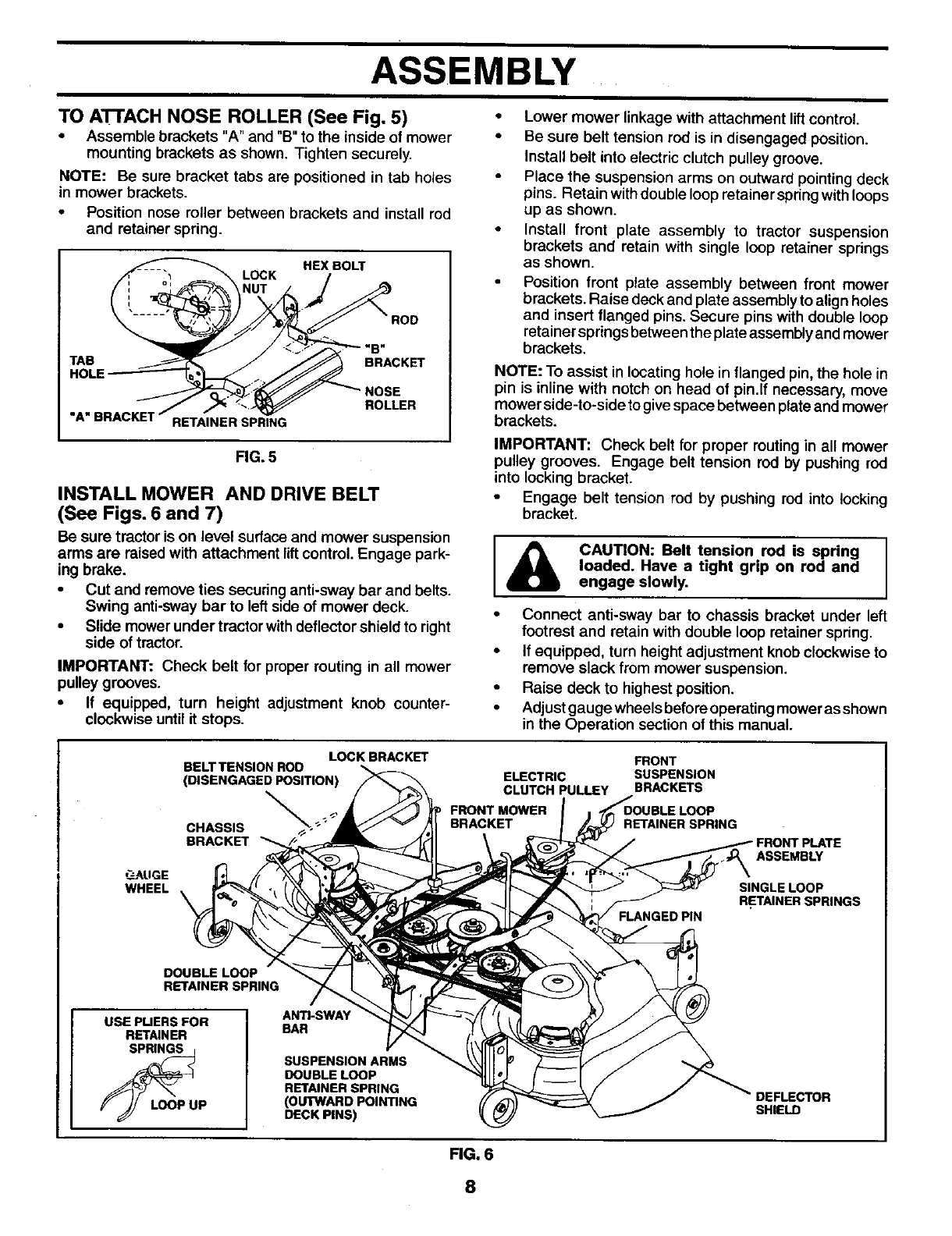

TO ATrACH NOSE ROLLER (See Fig. 5)

•Assemble brackets "A" and "B"to the inside of mower

mounting brackets as shown. Tighten securely.

NOTE: Be sure bracket tabs are positioned in tab holes

in mower brackets.

•Position nose roller between brackets and install rod

and retainer spring.

LOCK HEX BOLT

ROD

TAB BRACKET

HOLE

"A" BRACKE'i' RETAINER SPRING

ROLLER

FIG. 5

INSTALL MOWER AND DRIVE BELT

(See Figs. 6 and 7)

Be sure tractor is on level surface and mower suspension

arms are raised with attachment lift control. Engage park-

ing brake.

•Cut and remove ties securing anti-sway bar and belts.

Swing anti-sway bar to left side of mower deck.

•Slide mower under tractor withdeflector shield to right

side of tractor.

IMPORTANT: Check belt for proper routing in all mower

pulley grooves.

•If equipped, turn height adjustment knob counter-

clockwise until it stops.

Lower mower linkage with attachment lift control.

Be sure belt tension rod is in disengaged position.

Install belt into electric clutch pulley groove.

Place the suspension arms on outward pointing deck

pins. Retain with double loop retainer spring with loops

up as shown.

Install front plate assembly to tractor suspension

brackets and retain with single loop retainer springs

as shown.

Position front plate assembly between front mower

brackets. Raise deck and plate assemblyto align holes

and insert flanged pins. Secure pins with double loop

retainer springs between the plate assembly and mower

brackets.

NOTE: To assist in locating hole in flanged pin, the hole in

pin is inline with notch on head of pin.If necessary, move

mower side-to-side togive space between plate and mower

brackets.

IMPORTANT: Check belt for proper routing in all mower

pulley grooves. Engage belt tension rod by pushing rod

into locking bracket.

•Engage belt tension rod by pushing rod into locking

bracket.

I& CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and

engage slowly.

• Connect anti-sway bar to chassis bracket under left

footrest and retain with double loop retainer spring.

•If equipped, turn height adjustment knob clockwise to

remove slack from mower suspension.

•Raise deck to highest position.

•Adjustgauge wheels before operatingmower as shown

in the Operation section of this manual.

,_AUGE

WHEEL

LOCK BRACKET

BELT TENSION ROD

(DISENGAGED POSITION)

CHASSIS _"

BRACKET

FRONT

ELECTRIC SUSPENSION

CLUTCH PULLEY BRACKETS

FRONT MOWER

BRACKET RETAINER SPRING

ASSEMBLY

SINGLE LOOP

RETAINER SPRINGS

DOUBLE LOOP

RETAINER SPRING

USE PUERS FOR

RETAINER

ANTI-SWAY

BAR

SUSPENSION ARMS

DOUBLE LOOP

RETAINER SPRING

(OUTWARD POINTING

DECK PINS)

FIG. 6

DEFLECTOR

SHIELD

ASSEMBLY

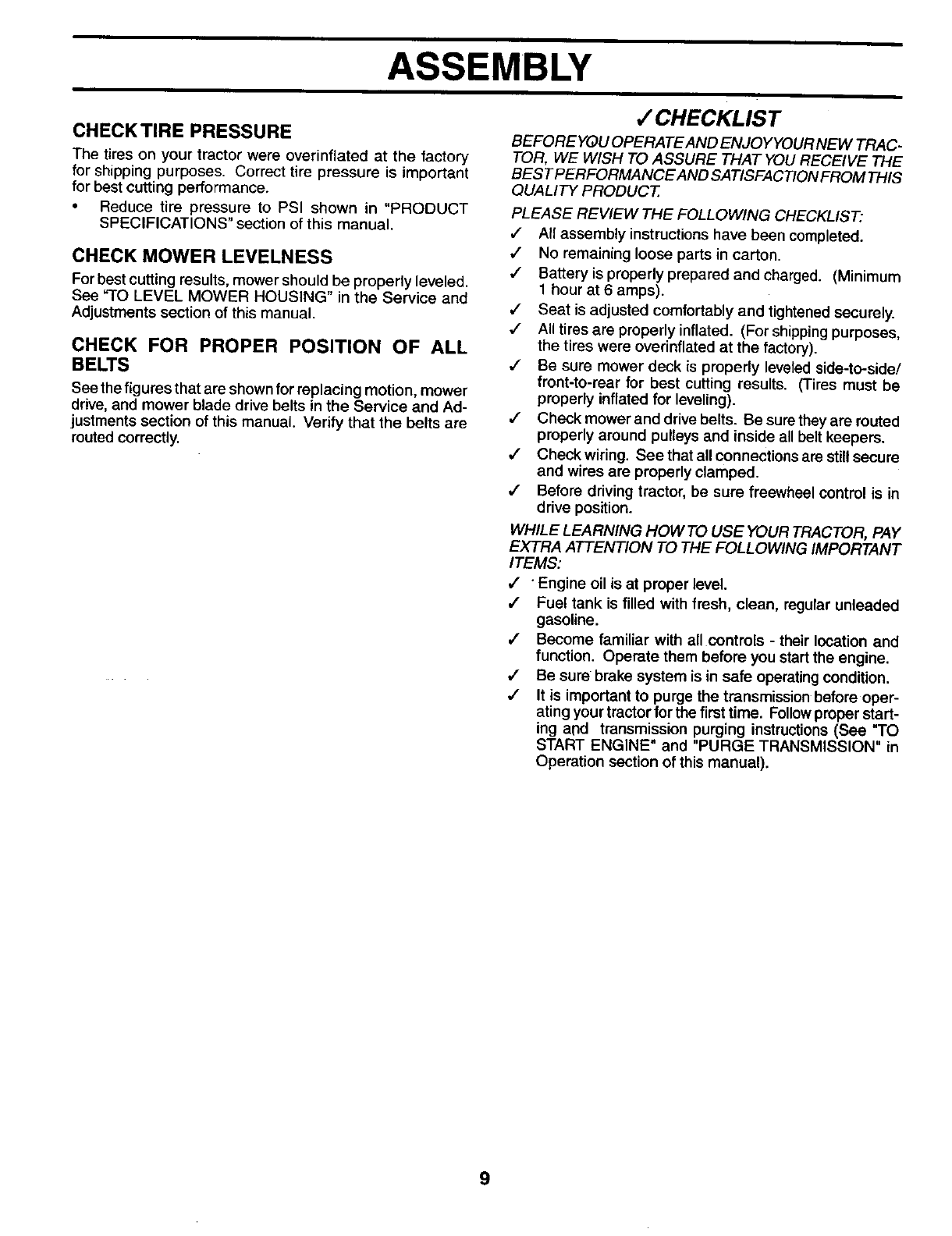

CHECKTIRE PRESSURE

The tires on your tractor were overinflated at the factory

for shipping purposes. Correct tire pressure is important

for best cutting performance.

•Reduce tire pressure to PSI shown in "PRODUCT

SPECIFICATIONS" section of this manual.

CHECK MOWER LEVELNESS

For best cutting results, mower should be properly leveled.

See "TO LEVEL MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion, mower

drive, and mower blade drive belts in the Service and Ad-

justments section of this manual. Verity that the belts are

routed correctly.

,/CHECKLIST

BEFORE YQU OPERATE AND ENJOYYOUR NEW TRAC-

TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE

BEST PERFORMANCE AND SATISFACTION FROM THIS

QUALITY PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

,/ All assembly instructions have been completed.

,/ No remaining loose parts in carton.

,/ Battery is properly prepared and charged. (Minimum

1 hour at 6 amps).

#" Seat is adjusted comfortably and tightened securely.

,/ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

,/ Be sure mower deck is properly leveled side-to-side/

frent-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

,/ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

,/ Check wiring. See that all connections are still secure

and wires are properly clamped.

,/ Before driving tractor, be sure freewheel control is in

drive position.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

,f •Engine oil is at proper level

,/ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

/Become familiar with all controls - their location and

function. Operate them before you start the engine.

,/ Be sure brake system is in safe operating condition.

,/ It is important to purge the transmission before oper-

ating your tractor for the first time. Follow proper start-

ing and transmission purging instructions (See "TO

START ENGINE" and "PURGE TRANSMISSION" in

Operation section of this manual).

OPERATION

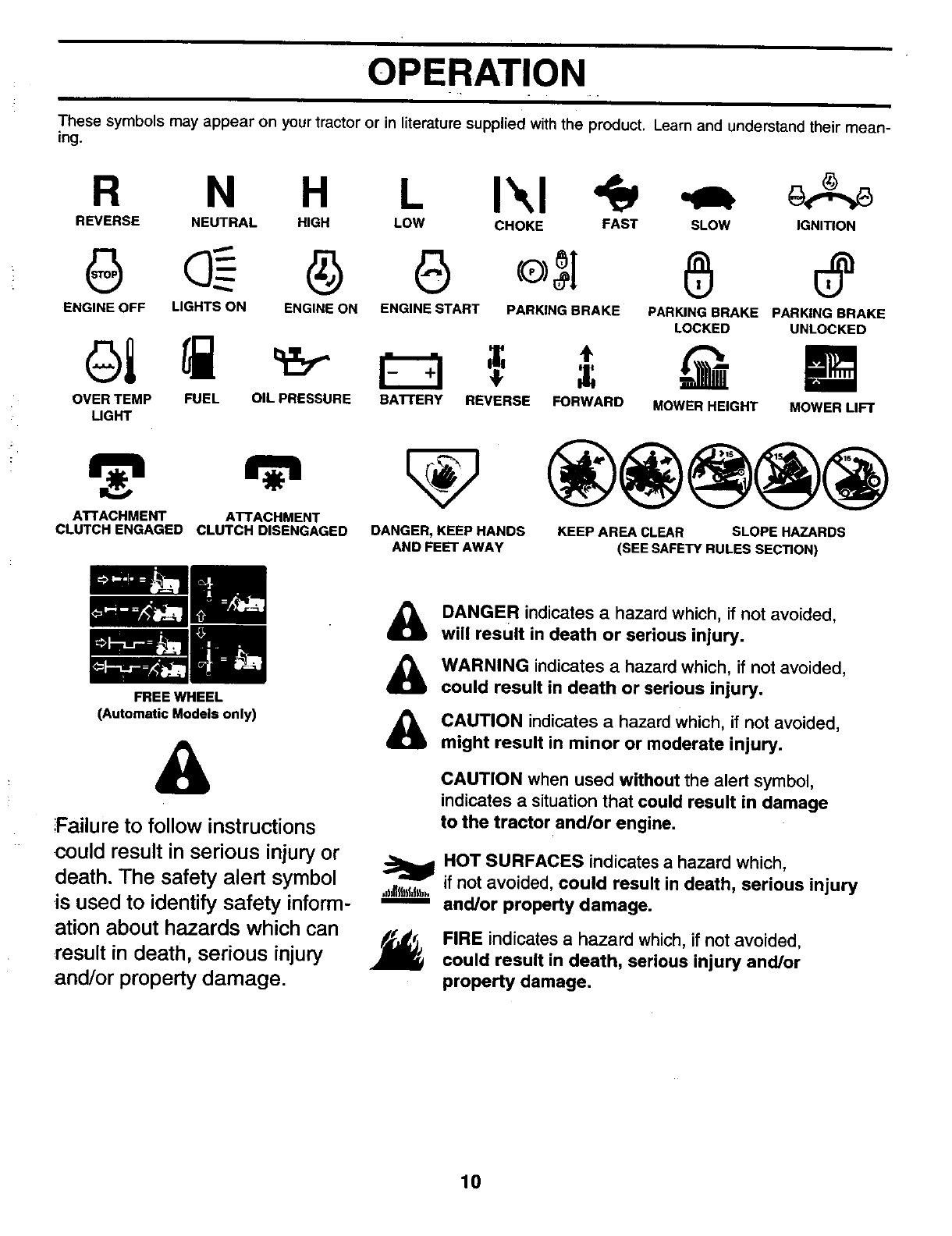

These symbols may appear on your tractor or in literature supplied with the product, Learn and understand their mean-

ing.

R N H L I'-,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD MOWER HEIGHT MOWER LIFT

UGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

;Failureto follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury _1_

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

OPERATION

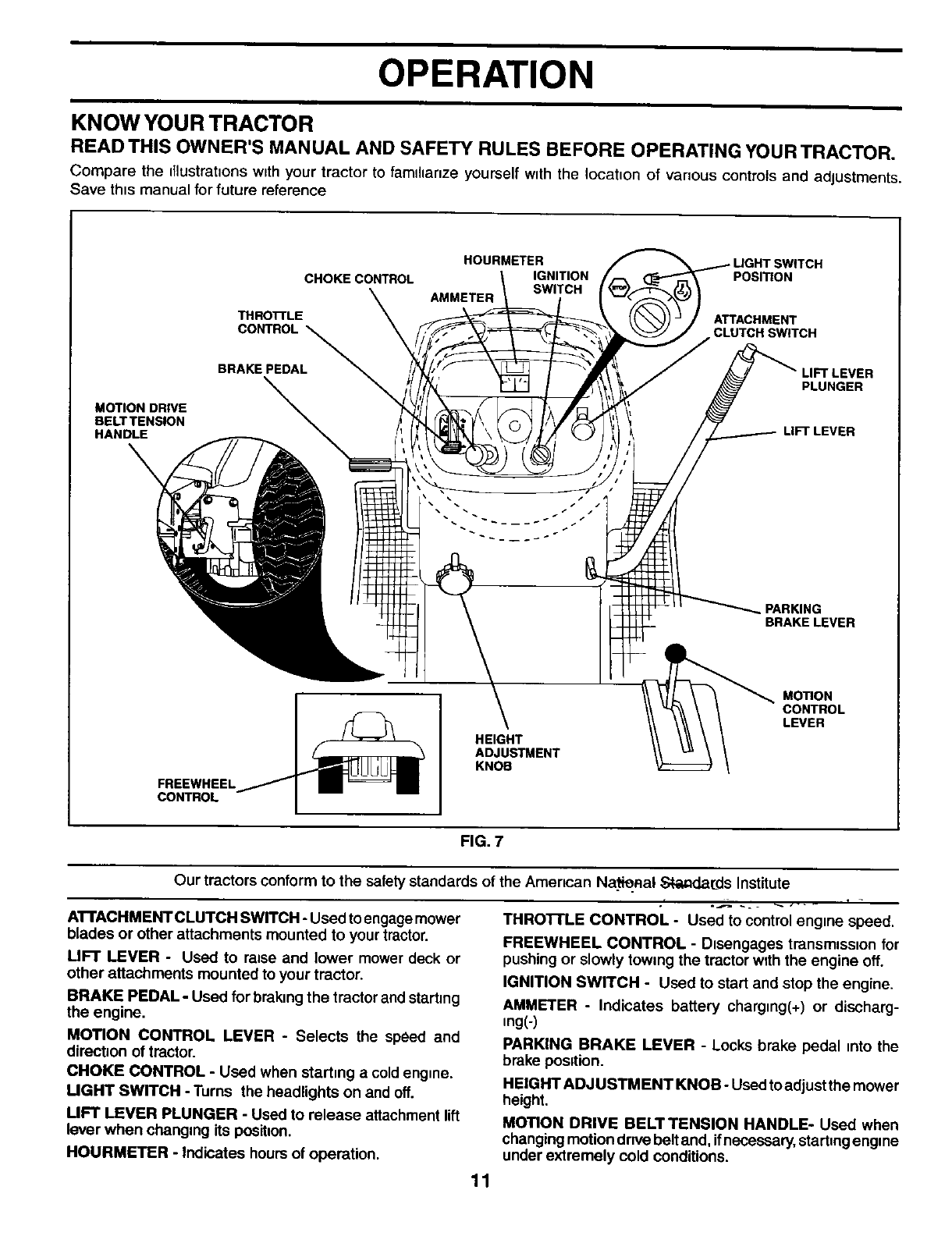

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR.

Compare the illustrations wtth your tractor to famtlianze yourself with the Iocahon of various controls and adjustments.

Save thts manual for future reference

MOTION DRIVE

BELT TENSION

HANDLE

CHOKE CONTROL

THROI-rLE

CONTROL

BRAKE PEDAL

HOURMETER ,_- LJGHT SWITCH

IGNITION POSITION

SWITCH

AMMETER

ATTACHMENT

CLUTCH SWITCH

PLUNGER

UFTLEVER

PARKING

BRAKE LEVER

FREEWHEEL

CONTROL

HEIGHT

ADJUSTMENT

KNOB

MORON

CONTROL

LEVER

FIG. 7

Our tractors conform to the safety standards of the American Na.t_.Ral ,St,aadar_dsInstitute

ATTACHMENT CLUTCH SWITCH - Used to engage mower

blades or other attachments mounted to your tractor.

UFT LEVER - Used to raise and lower mower deck or

other attachments mounted to your tractor.

BRAKE PEDAL -Used for braking the tractor and starting

the engine.

MOTION CONTROL LEVER -Selects the speed and

direction of tractor.

CHOKE CONTROL - Used when starting acold engine.

UGHT SWITCH - Turns the headlights on and off.

UFT LEVER PLUNGER - Used to release attachment lift

lever when changmg its positron.

HOURMETER -Indicates hoursof operation.

THRO'n'LE CONTROL - Used to control engine speed.

FREEWHEEL CONTROL - Disengages transmission for

pushing or slowly towmg the tractor wtth the engine off.

IGNITION SWITCH - Used to start and stop the engine.

AMMETER - Indicates battery chargmg(+) or discharg-

ing(-)

PARKING BRAKE LEVER - Locks brake pedal tnto the

brake position.

HEIGHT ADJUSTMENT KNOB -Usedto adjust the mower

height.

MOTION DRIVE BELTTENSION HANDLE- Used when

changing motion drive beltand, ifnecessary, starting engine

under extremely cold conditions.

TOPERATION

HOW TO USE YOUR TRACTOR

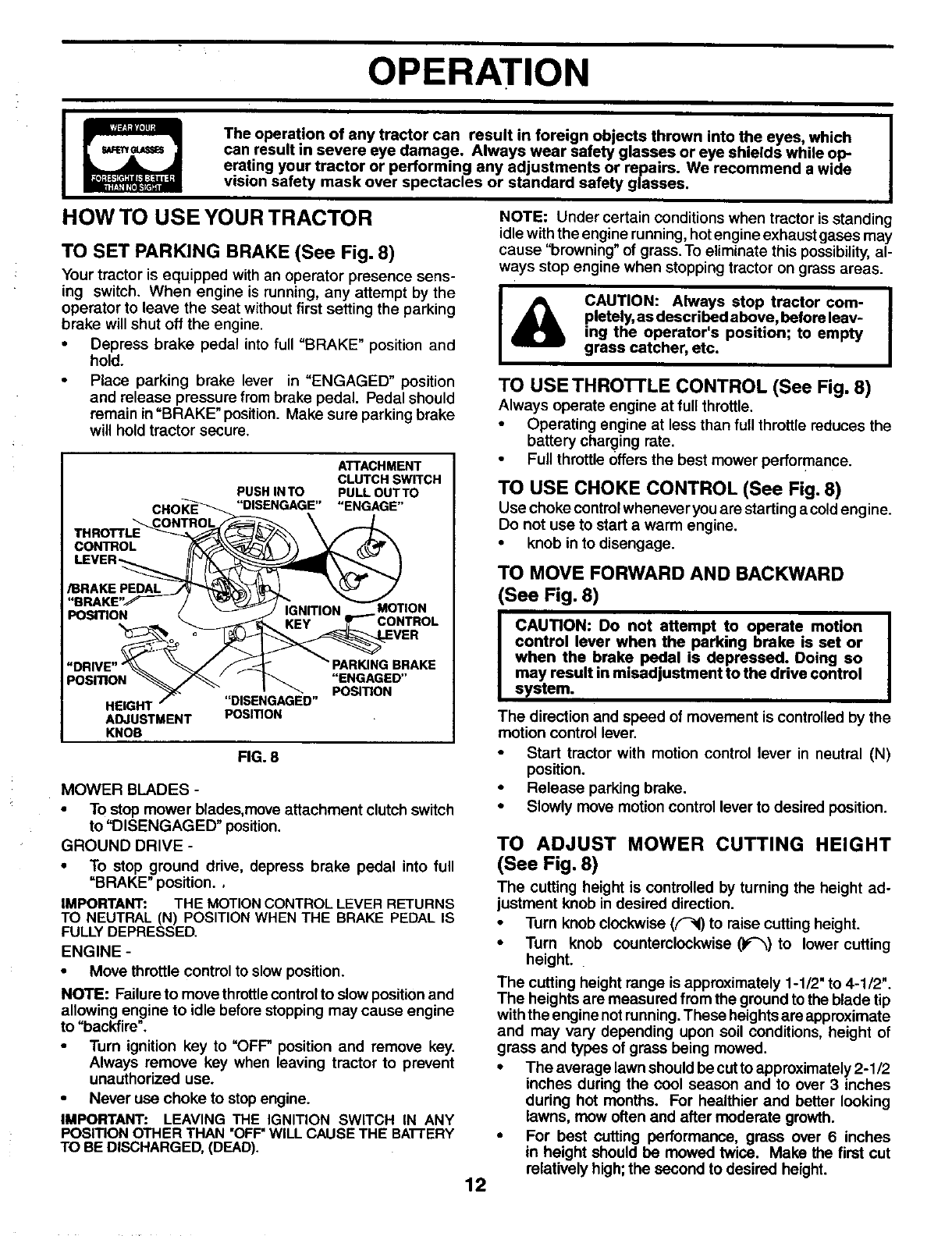

TO SET PARKING BRAKE (See Fig. 8)

Your tractor is equipped with an operator presence sens-

ing switch. When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine.

•Depress brake pedal into full "BRAKE" position and

hold.

•Place parking brake lever in "ENGAGED" position

and release pressure from brake pedal. Pedal should

remain in "BRAKE" position. Make sure parking brake

will hold tractor secure.

The operation of any tractor can result in foreign objects thrown into the eyes, which

can result in severe eye damage. Always wear safety glasses or eye shields while op-

erating your tractor or performing any adjustments or repairs. We recommend a wide

vision safety mask over spectacles or standard safety glasses.

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hotengine exhaust gases may

cause "browning" of grass. To eliminate this possibility, al-

ways stop engine when stopping tractor on grass areas.

CONTROL

/BRAKE PEDAL

POSITION

ATTACHMENT

CLUTCH SWITCH

PUSHINTO PULL OUTTO

"DISENGAGE .... ENGAGE"

POSnlON

HEIGHT "DISENGAGED"

ADJUSTMENT POSITION

KNOB

FIG. 8

MOTION

PARKINGBRAKE

"ENGAGED"

POSITION

MOWER BLADES -

• To stop mower blades,move attachment clutch switch

to "DISENGAGED" position.

GROUND DRIVE -

•To stop ground drive, depress brake pedal into full

=BRAKE" position.,

IMPORTANT: THE MOTIONCONTROL LEVER RETURNS

TO NEUTRAL (N) POSITION WHEN THE BRAKE PEDAL IS

FULLYDEPRESSED.

ENGINE -

•Move throttle control to slow position.

NOTE: Failure to move throttlecontrol to slow position and

allowing engine to idle before stopping may cause engine

to "backfire".

•Turn ignition key to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

•Never use choke to stopengine.

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY

POSITION OTHER THAN "OFF"WILL CAUSE THE BATI'ERY

TO BE DISCHARGED, (DEAD).

CAUTION: Allays stop tractor corn- J

pletely, as described above, before leav- I

ing the operator's position; to empty

grass catcher, etc.

TO USE THROI-rLE CONTROL (See Fig. 8)

Always operate engine at full throttle.

•Operating engine at less than full throttle reduces the

battery charging rate.

•Full throttle offers the best mower performance.

TO USE CHOKE CONTROL (See Fig. 8)

Use choke control whenever you are starting a coldengine.

Do not use to start a warm engine.

•knob in to disengage.

TO MOVE FORWARD AND BACKWARD

(See Fig. 8)

I CAUTION: Do not attempt to operate motion I

control lever when the parking brake is set or I

when the brake pedal is depressed. Doing so

may result in misadjustment to the drive control

system.

The direction and speed of movement is controlled by the

motion control lever.

• Start tractor with motion control lever in neutral (N)

position.

• Release parking brake.

• Slowly move motion control lever to desired position.

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 8)

The cutting height is controlled by turning the height ad-

justment knob in desired direction.

•Turn knob clockwise (f-N) to raise cutting height.

•Turn knob counterclockwise (1__)to lower cutting

height.

The cutting height range is approximately 1-1/2" to 4-1/2".

The heights are measured from the ground to the blade tip

with the engine notrunning.These heightsare approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed.

• Theaveragelawnshouldbecuttoapproximately2-1/2

inches during the cool season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

•For best cutting performance, grass over 6 inches

in height should be mowed twice. Make the first cut

relatively high;the second to desired height.

OPERATION

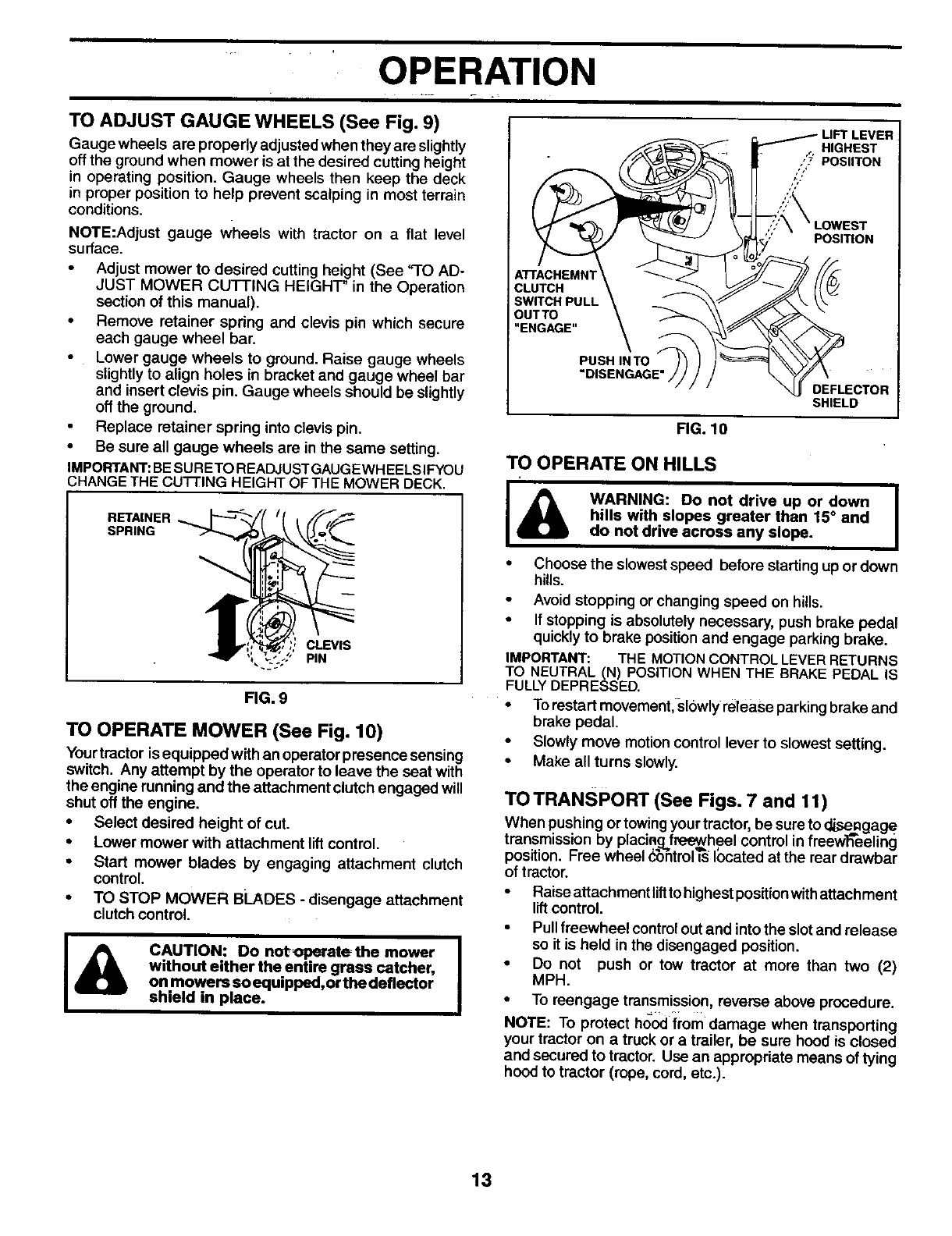

TO ADJUST GAUGE WHEELS (See Fig. 9)

Gauge wheels are properly adjusted when they are slightly

off the ground when mower is at the desired cutting height

in operating position. Gauge wheels then keep the deck

in proper position to help prevent scalping in most terrain

conditions.

NOTE:Adjust gauge wheels with tractor on a flat level

surface.

• Adjust mower to desired cutting height (See "TO AD-

JUST MOWER CUTTING HEIGHT" in the Operation

section of this manual).

• Remove retainer spring and clevis pin which secure

each gauge wheel bar.

•Lower gauge wheels to ground. Raise gauge wheels

slightly to align holes in bracket and gauge wheel bar

and insert clevis pin. Gauge wheels should be slightly

off the ground.

Replace retainer spring into clevis pin.

• Be sure all gauge wheels are in the same setting.

IMPORTANT:BESURETO READJUSTGAUGEWHEELSIFYOU

CHANGE THE CU'i-rlNG HEIGHT OFTHE MOWER DECK.

RETAINER

SPRING

CLEVIS

FIG. 9

TO OPERATE MOWER (See Fig. 10)

Yourtractor is equipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged will

shut off the engine.

•Select desired height of cut.

•Lower mower with attachment lift control.

•Start mower blades by engaging attachment clutch

control.

•TO STOP MOWER BLADES -disengage attachment

clutch control.

CAUTION: Do notoperate the mower I

without either the entire grass catcher, I

on mowers so equipped, or the deflector

shield in place.

UFT LEVER

•HIGHEST

,'_" POSIITON

ATrACHEMNT

CLUTCH

SWITCH PULL

OUTTO

"ENGAGE"

POSITION

PUSH INTO

"DISENGAGE"

FIG. 10

DEFLECTOR

SHIELD

TO OPERATE ON HILLS

li_ WARNING: Do not drive up or down

hills with slopes greater than 15° and

do not drive across any slope.

• Choose the slowest speed befora starting up or down

hills.

•Avoidstopping or changing speed on hills.

•If stopping is absolutely necessary, push brake pedal

quicklyto brake position and engage parking brake.

IMPORTANT: THE MOTIONCONTROL LEVERRETURNS

TO NEUTRAL (N) POSITIONWHEN THE BRAKEPEDAL IS

FULLYDEPRESSED.

•Torestart movement, slowly release parking brake and

brake pedal.

•Slowly move motioncontrol lever to slowest setting.

•Make all turns slowly.

TO TRANSPORT (See Figs. 7 and 11)

When pushing or towingyour tractor, be sureto dLsengage

transmission by placing fme_,=heelcontrol in freew'h'eeling

position. Free wheel _b_troli_ located at the rear drawbar

of tractor.

•Raise attachment liftto highestpositionwithattachment

liftcontrol.

•Pull freewheel controlout and into the slotand release

so it is held in the disengaged position•

•Do not push or tow tractor at more than two (2)

MPH.

•To reengage transmission, reverse above procedure.

NOTE: To protect ho0d from damage when transporting

your tractor on a truck or a trailer, be sure hood is closed

and secured to tractor. Use an appropriate means of tying

hood to tractor (rope, cord, etc.).

OPERATION

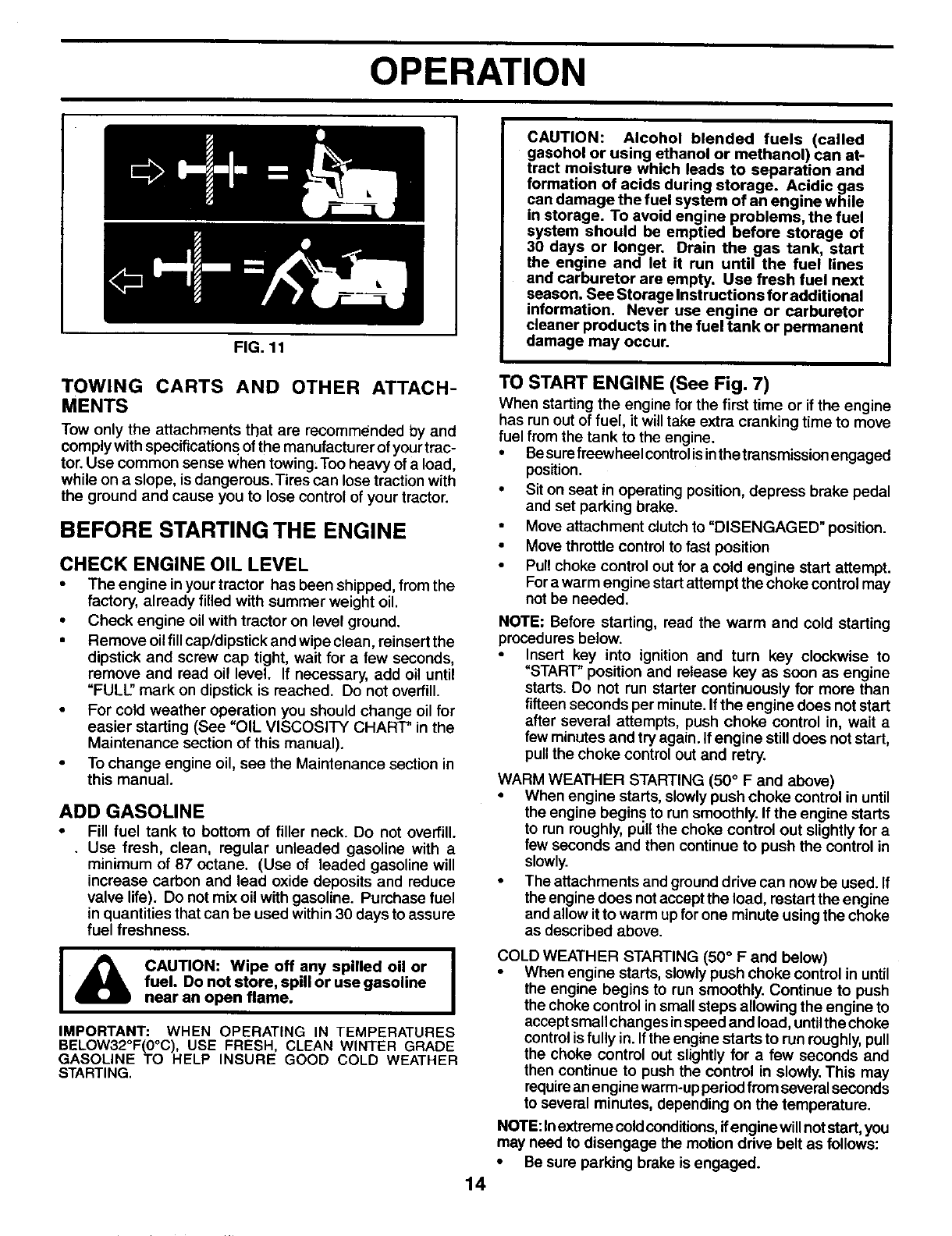

FIG. 11

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recommended by and

comply with specifications of the manufacturer of your trac-

tor. Use common sense when towing.Too heavy of a load,

while on a slope, is dangerous. Tires can lose traction with

the ground and cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

•The engine inyour tractor has been shipped, from the

factory, already filled with summer weight oil.

• Check engine oil with tractor on level ground.

• Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

"FULL" mark on dipstick is reached. Do not overfill.

• For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART" in the

Maintenance section of this manual).

• To change engine oil, see the Maintenance section in

this manual.

ADD GASOLINE

•Fill fuel tank to bottom of filler neck. Do not overfill.

• Use fresh, clean, regular unleaded gasoline with a

minimum of 87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits and reduce

valve life). Do not mix oil with gasoline. Purchase fuel

in quantities that can be used within 30 days to assure

fuel freshness.

CAUTION: Wipe off any spilled oil or I

fuel. Do not store, spill or use gasoline I

near an open flame.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can at-

tract moisture which leads to separation and

formation of acids during storage. Acidic gas

can damage the fuel system of an engine while

in storage. To avoid engine problems, the fuel

system should be emptied before storage of

30 days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel next

season. See Storage Instructions for additional

information. Never use engine or carburetor

cleaner products in the fuel tank or permanent

damage may occur.

TO START ENGINE (See Fig. 7)

When starting the engine for the first time or if the engine

has run out of fuel, it will take extra cranking time to move

fuel fromthe tank to the engine.

•Besurefreewheel controlis inthe transmissionengaged

position.

•Sit on seat in operating position, depress brake pedal

and set parking brake.

•Move attachment clutch to "DISENGAGED" position.

•Move throttle control to fast position

•Pull choke control out for a cold engine start attempt.

Forawarm engine start attempt the choke control may

not be needed.

NOTE: Before starting, read the warm and cold starting

procedures below.

•Insert key into ignition and turn key clockwise to

"START" position and release key as seen as engine

starts. Do not run starter continuously for more than

fifteen seconds per minute•If the engine does not start

after several attempts, push choke control in, wait a

few minutes and try again. If engine stilldoes notstart,

pullthe choke control out and retry.

WARM WEATHER STARTING (50 °F and above)

•When engine starts, slowly push choke control in until

the engine begins to run smoothly. If the engine starts

to run roughly, pull the choke control out slightly for a

few seconds and then continue to push the control in

slowly.

•The attachments and ground drive can now be used. If

the engine does notaccept the load, restart the engine

and allow itto warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50 °Fand below)

•When engine starts, slowly push choke control in until

the engine begins to run smoothly. Continue to push

the choke control insmall steps allowing the engine to

accept smallchanges inspeed and load, untilthe choke

control is fully in. Ifthe engine starts to run roughly,pull

the choke control out slightly for afew seconds and

then continue to push the control in slowly.This may

requirean engine warm-up period from several seconds

to several minutes, depending on the temperature.

NOTE: Inextreme cold conditions,if engine will notstart, you

may need to disengage the motion drive belt as follows:

•Be sure parking brake is engaged.

OPERATION

•Remove retainer sprmg from the drive belt tenston

handle to relieve belt tension.

• Start engme and allow _tto warm up for three (3) min-

utes

• Shut-off engine and engage parking brake

• Engage dnve belt tension handle and replace the

retainer spring.

AUTOMATIC TRANSMISSION WARM UP

•Before dnving the unit mcold weather, the transmisston

should be warmed up as follows:

• Be sure the tractor is on level ground.

• Place the motion control lever in neutral. Re-

lease the parkmg brake and let the brake slowly

return to operating posttton.

• Allow one mmute for transmtssion to warm up.

This can be done during the engine warm up

period.

• The attachments can be used during the engine warm-

up penod after the transmission has been warmed

up and may requtre the choke control be pulled out

shghtiy.

NOTE: If at a htgh altitude (above 3000 feet) or m cold

temperatures (below 32 F) the carburetor fuel mtxture may

need to be adjusted for best engine performance. See "TO

ADJUST CARBURETOR" m the Service and Adjustments

section of thts manual.

PURGE TRANSMISSION

I_ CAUTION: Never engage or disengage I

freewheel lever while the engine is run-

ning.

To ensure proper operation and performance, it is recom-

mended that the tmnsmtsslon be purged before operating

tractor for the first time Thts procedure will remove any

trapped air inside the transmission which may have de-

veloped during shippingof your tractor.

IMPORTANT: SHOULD YOUR TRANSMISSION REQUIRE

REMOVALFOR SERVICE OR REPLACEMENT, IT SHOULD

BE PURGEDAFTER REINSTALLATIONBEFORE OPERATING

THE TRACTOR.

• Place tractor safely on level surface with engine off and

parkmg brake set.

• Disengage transmission by placing freewheel control

infreewheeling position (See'rOTRANSPORT" inthts

section of manual)

• Sitttng in the tractor seat, start engine. After the en-

gine =srunning, move throttle control to slow pesltion.

Disengage parking brake

• Move motion control lever to full forward position and

hold for five (5) seconds. Move lever to full reverse

position and hold for five (5) seconds. Repeat this

procedure three (3) times.

NOTE: Dunng this procedure there wtll be no movement

of drive wheels. The air is being removed from hydraulic

dnve system.

• Move motion control lever to neutral (N) position. Shut-

off engine and set parking brake.

• Engage transmission by placing freewheel control m

driving position (See "TO TRANSPORT" inthis sectton

of manual).

• Sitting m the tractor seat, start engine. After the engine

ts running, move throttle control to half (1/2) speed.

Disengage parking brake.

• Slowly move motton control lever forward, after the

tractor moves approximately five (5) feet, slowly move

motton control lever to reverse posihon. After the trac-

tor moves approximately five (5) feet return the mo-

tion control lever to the neutral (N) poslhon. Repeat

thts procedure with the motion control lever three (3)

times.

• Your tractor =snow purged and now ready for normal

operation.

MOWING TIPS

Tire chains cannot be used when the mower housing

is attached to tractor.

•Mower should be properly leveled for best mowing per-

formance. See "TO LEVEL MOWER HOUSING" inthe

Service and Adjustments section of this manual.

•The left hand stde of mower should be used for trim-

mmg.

• Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the nght of

.the tractor. This wdl result in a more even d=stnbutlon

of clippings and more uniform cutting.

• When mowinglarge areas, start byturnmg tothe r_ghtso

that chppmgs will discharge away from shrubs, fences,

dnveways, etc. After one or two rounds, mow m the

opposite dtrection making left hand turns untd finished

(See Fig. 12).

00272

FIG. 12

•If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried chp-

pings. Make first cut relahvely high; the second to the

desired height.

•Do not mow grass when it is wet. Wet grass will plug

mower and leave undesirable clumps. Allow grass to

dry before mowing.

•Always operate engine at full throttle when mow-

ing to assure better mowing performance and proper

discharge of material. Regulate ground speed by se-

lecUng a low enough gear to give the mower cutting

performance as well as the quality of cut desired.

•When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the attachment being used.

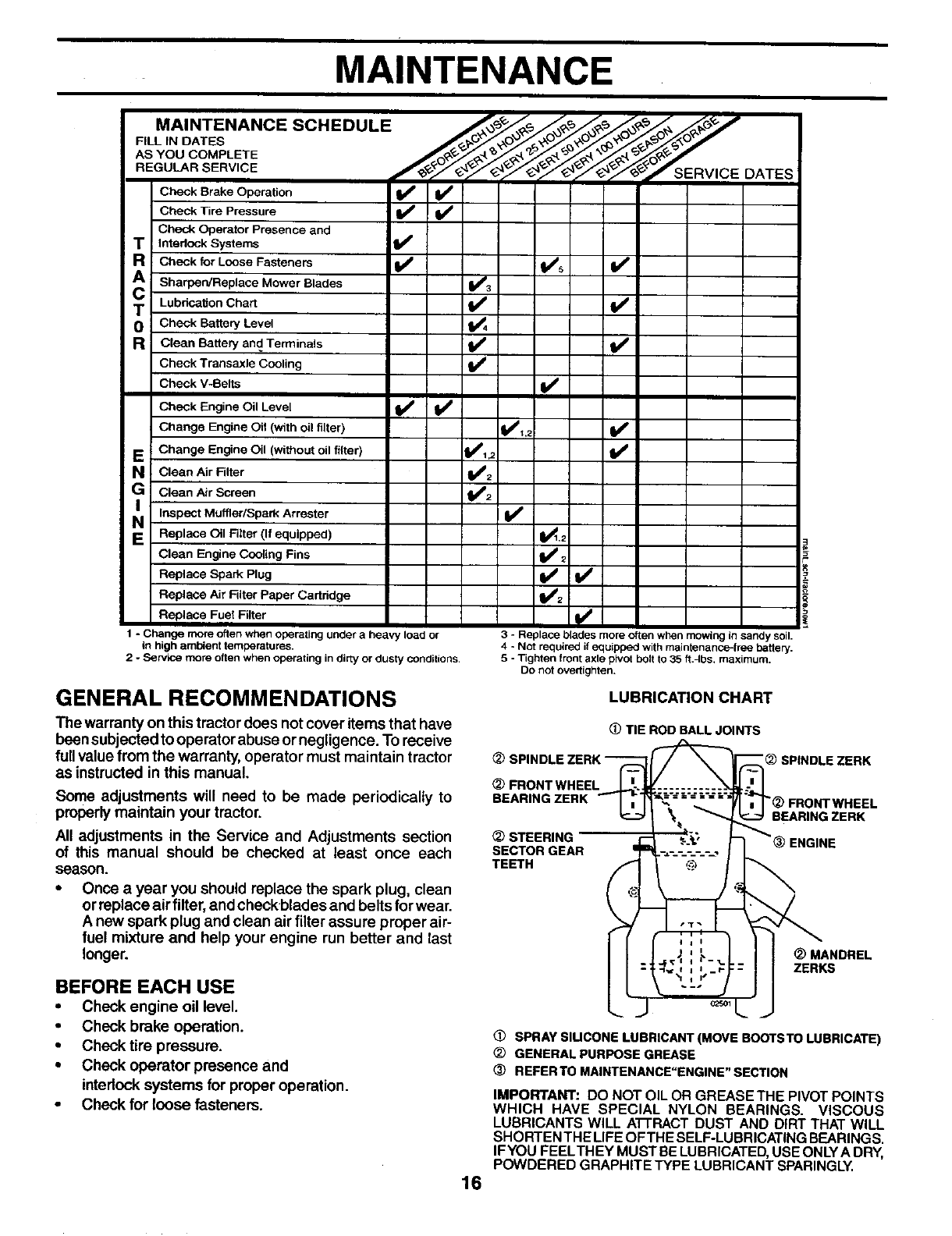

MAINTENANCE

FELL IN OATES

REGU RSERV,CE S V,CE" DATES

Check Brake Operation

Check Tire Pressure _

Check Operator Presence and

T Interlock Systems

RCheck for Loose Fasteners _I_s If

ASharpen/Replace Mower Blades _3

TLubrication Chart V e

0Check Battery Level

RClean Battery and Terminals V°V'

Cheek Transaxle Cooling

Check V-Belts V'

Check Engine Oil Level I_ V#

Change Engine Oil (with oil filter) IIP#_,_ V'

EChange Engine Oil (without oil filter) V'1,2 ./

NClean Air Filter

Gclean Air Screen

Ni Inspect Muffler/Spark If

Arrester

EReplace Oil Filter (If equipped) V_,2

Clean Engine Cooling Fins V#2

Replace Spark Plug ik_ V'

Replace Air Filter Paper Cartridge _2

Replace Fuel Filter

1 - Change more often when operating under aheavy load or

in high ambient temperatures.

2-Serwce more often when operating in dirty or dusty conditions.

3- Replace blades more often when mowing in sandy soil.

4 * Not required if equipped with m3intenance-free battery.

5 - Tighten front axle pivot pelt to 35 ff.4bs, maximum.

Do not ovedighten.

GENERAL RECOMMENDATIONS LUBRICATION CHART

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence. To receive

full value from the warranty, operator must maintain tractor

as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tractor.

All adjustments in the Service and Adjustments section

of this manual should be checked at least once each

season.

• Once a year you should replace the spark plug, clean

or replace air filter, and check blades and belts for wear.

A new spark plug and clean air filter assure proper air-

fuel mixture and help your engine run better and last

longer.

BEFORE EACH USE

•Check engine oil level.

•Check brake operation.

• Check tire pressure.

•Check operator presence and

intedock systems for proper operation.

•Check for loose fasteners.

FRONT WHEEL

BEARING ZERK

STEERING

SECTOR GEAR

TEETH

(D TIE ROD BALL JOINTS

_) SPINDLE ZERK

"_ FRONTWHEEL

BEARINGZERK

MANDREL

ZERKS

(_ SPRAY SIUCONE LUBRICANT (MOVE BOOTS TO LUBRICATE)

(_ GENERAL PURPOSE GREASE

REFER TO MAINTENANCE"ENGINE" SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS

LUBRICANTS WILL ATrRACT DUST AND DIRT THAT WILL

SHORTEN THE LIFE OFTHE SELF-LUBRICATING BEARINGS.

IFYOU FEELTHEY MUST BE LUBRICATED, USE ONLY A DRY,

POWDERED GRAPHITE TYPE LUBRICANT SPARINGLY.

MAINTENANCE

MANDREL

ASSEMBLY

TRACTOR

Always observe safety rules when performing any main-

tenance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance

at highspeed in highestgear, then brake must be adjusted.

(See "TO ADJUST BRAKE"in the Service andAdjustments

section of this manual).

TIRES

•Maintain properairpressure inalltires(See"PRODUCT

SPECIFICATIONS" section of this manual).

Keep tires free of gasoline, oil, or insectcontrol chemi-

cals which can harm rubber.

•Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock systems are work-

ing properly. If your tractor does not function as described,

repair the problem immediately.

•The engine should not start unless the brake pedal is

fully depressed and attachement clutch control is in

the disengaged position.

•Whentheengineisrunning, anyattemptbytheoperator

to leave the seat without first setting the parking brake

should shut off the engine.

•When the engine is running and the attachment clutch

is engaged, any attempt by the operator to leave the

seat should shut off the engine.

•The attachment clutch should never operate unless

the operator is inthe seat.

BLADE CARE

For best results mower blades must be keptsharp, Replace

bent or damaged blades.

BLADE REMOVAL (See Fig. 13)

•Raise mower to highest position to allow access to

blades.

NOTE: Protect your hands with gloves and/or wrap blade

with heavy cloth.

•Remove blade bolt by turning counterclockwise.

•Install new or resharpened blade with stamped "THIS

SIDE UP" facing deck and mandrel assembly.

IMPORTANT: TO ENSURE PROPER ASSEMBLY,CENTER

HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL

ASSEMBLY.

•Install and tighten blade bolt securely (45-55 Ft. Lbs.

torque).

IMPORTANT: SPECIALBLADEBOLT HEATTREATED.

BLADE

CENTER

HOLE

(SPECIAL)

FIG. 13

TO SHARPEN BLADE (See Fig. 14)

NOTE: We do not recommend sharpening blade -but if

you do, be sure the blade is balanced.

Care should be taken to keep the blade balanced. An un-

balanced blade will cause excessive vibration and eventual

damage to mower and engine.

• " The bladecan be sharpened with a file or on a grind-

ing wheel. Do not attempt to sharpen while on the

mower.

• To check blade balance, you will need a 5/8" diameter

steel bolt, pin, or a cone balancer. (When using a

cone balancer, follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing blade. The lobes of

the center hole may appear to be centered, but are not.

• Slide blade on to an unth readed portion of the steel bolt

or pin and hold the bolt or pin parallel with the ground.

If blade is balanced, it should remain in a horizontal

position. If either end of the blade moves downward,

sharpen the heavy end untilthe blade is balanced.

OR PIN

FIG. 14

BA'B'ERY

Yourtractor has a battery chargingsystem which is sufficient

for normal use. However, periodic charging of the battery

with an automotive charger will extend its life.

•Keep battery and terminals clean.

•Keep battery bolts tight.

•Keep small vent holes open.

•Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on your tractor is

maintenance free. Do not attempt to open or remove caps

or covers. Adding or checking level of electrolyte is not

necessary.

MAINTENANCE

TO CLEAN BATI'ERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power.

•Remove terminal guard.

• Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush

until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See "REPLACING BATI'ERY" in

the SERVICE AND ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for deterioration and wear after 100 hours

of operation and replace if necessary. The belts are not

adjustable. Replace belts if t.hey begin to slip from wear.

TRANSAXLE COOLING

The fan and cooling fins of transmissi0n.should be kept

clean to assure proper cooling.

Do not attempt to clean fan or transmission while engine

is running or while the transmission is hot. To prevent pos-

sible damage to seals, no not use high pressure water or

steam to clean transaxle.

•Inspect cooling fan to be sure fan blades are intact and

clean.

•Inspect cooling fins for dirt, grass clippings and other

materials. To prevent damage to seals, do not use

compressed air or highpressure sprayer to clean cool-

ing fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid mainte-

nance is not required for the life of the transaxle. Should

the transaxle ever leak or require servicing, contact your

nearest authorized service center/department.

ENGINE

LUBRICATION

Or_lyuse high quality detergent oil rated with API service

classification SF-SJ. Select the oil's SAE viscosity grade

according to your expected operating temperature.

*20 0 3O

-30 -20 -10 0 10 20 30 40

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

ol_vir,c cimrtl e

FIG. 15

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting incold weather, these multi-viscosityoils

will result in irlcreased oil consumption when used above

32°F. Check your engine oil level morefrequently to avoid

possible engine damage from running low on oil.

Change the oil after every 50 hoursof operation or at least

once a year if the tractor is not used for 50 hours in one

year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation. Tighten oil fill

cap/dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Figs. 15 and 16)

Determine temperature range expected before oil change.

All oil must meet API service classification SF-SJ.

•Be sure tractor is on level surface.

•Oil will drain more freely when warm.

•Catch oil in asuitable container.

•Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

•Remove yellow cap from end of drain valve and install

the drain tube onto the fitting.

OIL DRAIN VALVE

YELLOW

_1 I I 12% CLOSED

DRAIN_ _' " J \AND

TUBE gCg,%

FIG. 16

•Unlock drain valve by pushing inward and turning

counterclockwise.

•To open, pull out on the drain valve.

•After oil has drained completely, close and lock the

drain valve by pushing inward and turning clockwise

until the pin is in the locked positionas shown.

• Remove the draintube and replace the cap onto to the

bottom fitting of the drain valve.

•Refill engine with oil through oil fill dipsticktube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" section of this man-

ual.

•Use gauge on oil fill cap/dipstick for checking level.

Be sure dipstickcap is tightened securely for accurate

reading. Keep oil at "FULL" line on dipstick.

MAINTENANCE

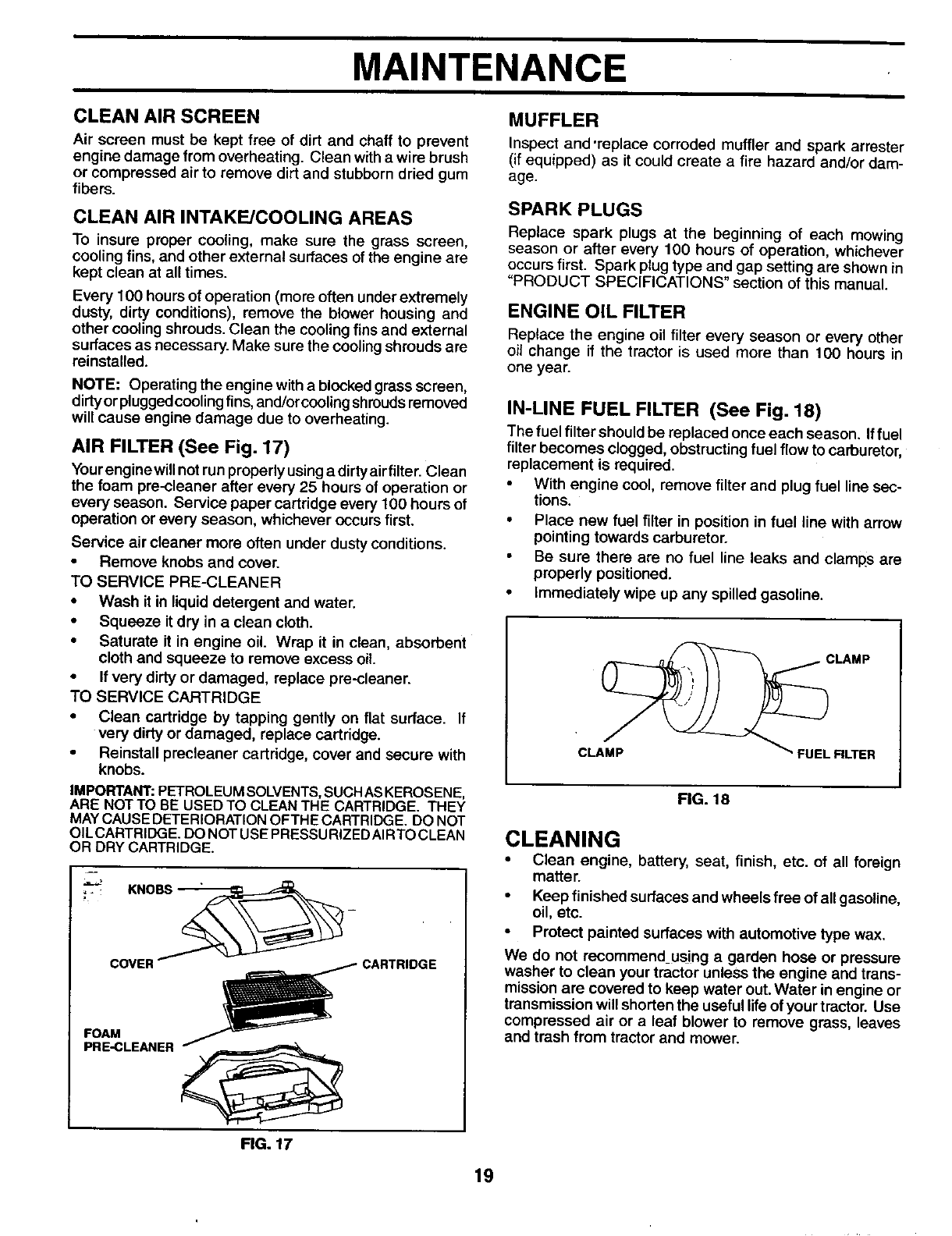

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating. Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the grass screen,

cooling fins, and other external surfaces of the engine are

kept clean at all times.

Every 100 hours of operation (more often under extremely

dusty, dirty conditions), remove the blower housing and

other cooling shrouds. Clean the cooling fins and external

surfaces as necessary. Make sure the cooling shrouds are

reinstalled.

NOTE: Operating the engine with a blocked grass screen,

dirtyor plugged cooling fins, and/or cooling shrouds removed

will cause engine damage due to overheating.

AIR FILTER (See Fig. 17)

Your enginewill notrun properly usinga dirtyairfilter. Clean

the foam pre-cleaner after every 25 hours of operation or

every season. Service paper cartridge every 100 hours of

operation or every season, whichever occurs first.

Service air cleaner more often under dusty conditions.

•Remove knobs and cover.

TO SERVICE PRE-CLEANER

•Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth.

• Saturate it in engine oil. Wrap it in clean, absorbent

cloth and squeeze to remove excess oil.

• If very dirty or damaged, replace pre-cleaner.

TO SERVICE CARTRIDGE

• Clean cartridge by tapping gently on flat surface. If

very dirty or damaged, replace cartridge.

• Reinstall precleaner cartridge, cover and secure with

knobs.

IMPORTANT: PETROLEUM SOLVENTS, SUCH AS KEROSENE,

ARE NOT TO BE USED TO CLEAN THE CARTRIDGE. THEY

MAY CAUSE DETERIORATION OFTHE CARTRIDGE. DO NOT

OIL CARTRIDGE. DO NOT USE PRESSU RIZED AIR TO CLEAN

OR DRY CARTRIDGE.

KNOBS

FoAIOVER _CARTRIDGE

PRE-CLEANER_

FIG. 17

MUFFLER

Inspect and'replace corroded muffler and spark attester

(if equipped) as it could create a fire hazard and/or dam-

age.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" section of this manual.

ENGINE OIL FILTER

Replace the engine oil filter every season or every other

oil change if the tractor is used more than 100 hours in

one year.

IN-LINE FUEL FILTER (See Fig. 18)

The fuel filter should be replaced once each season. Iffuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required.

With engine cool, remove filter and plug fuel line sec-

tions.

•Place new fuel filter in position in fuel line with arrow

pointing towards carburetor.

Be sure there are no fuel line leaks and clamps are

properly positioned.

•immediately wipe up any spilled gasoline.

,_:LAMP

CLAMP FILTER

FIG. 18

CLEANING

•Clean engine, battery, seat, finish, etc. of all foreign

matter.

•Keep finished surfaces and wheels free of all gasoline,

oil, etc.

•Protect painted surfaces with automotive type wax,

We do not recommend_using a garden hose or pressure

washer to clean your tractor unless the engine and trans-

mission are covered to keep water out. Water in engine or

transmission will shorten the useful lifeof your tractor. Use

compressed air or aleaf blower to remove grass, leaves

and trash from tractor and mower.

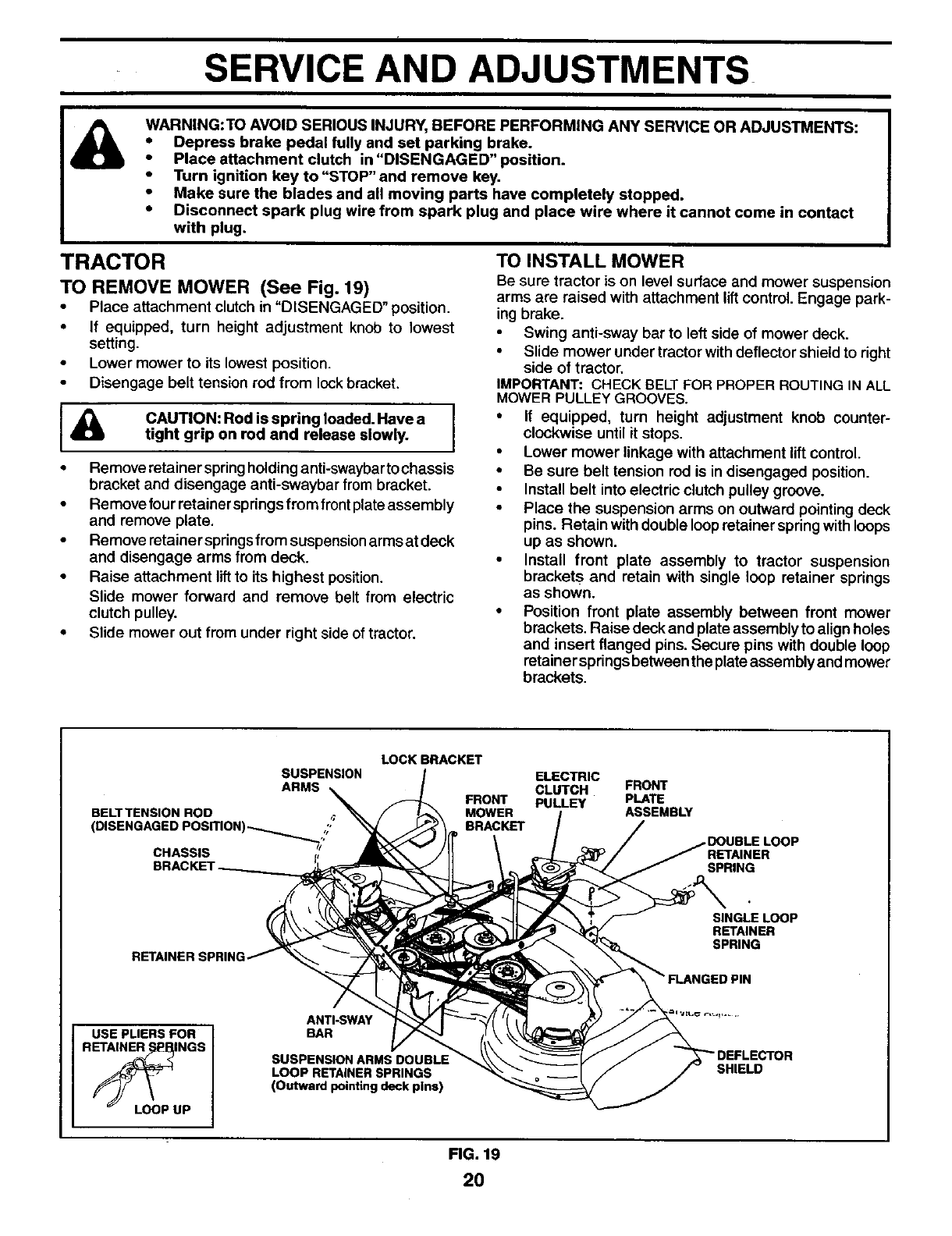

SERVICE AND ADJUSTMENTS

WARNING:TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

Depress brake pedal fully and set parking brake.

Place attachment clutch in "DISENGAGED" position.

•Turn ignition key to "STOP" and remove key.

•Make sure the blades and all moving parts have completely stopped.

•Disconnect spark plug wire from spark plug and place wire where it cannot come in contact

with plug.

TRACTOR

TO REMOVE MOWER (See Fig. 19)

•Place attachment clutch in "DISENGAGED" position.

• If equipped, turn height adjustment knob to lowest

setting.

• Lower mower to its lowest position.

• Disengage belt tension rod from lock bracket.

CAUTION: Rod is spring loaded. Have a I

tight grip on rod and release slowly, I

•Remove retainer spring holding anti-swaybar to chassis

bracket and disengage anti-swaybar from bracket.

•Removefourretainerspringsfromfmntplateassembly

and remove plate.

•Remove retainer springsfrom suspensionarms at deck

and disengage arms from deck.

•Raise attachment liftto its highest position.

Slide mower forward and remove belt from electric

clutch pulley.

•Slide mower out from under right side of tractor.

TO INSTALL MOWER

Be sure tractor is on level surface and mower suspension

arms are raised with attachment lift control. Engage park-

ing brake.

• Swing anti-sway bar to left side of mower deck.

• Slide mower under tractor with deflector shield to right

side of tractor.

IMPORTANT: CHECK BELT FOR PROPER ROUTING IN ALL

MOWER PULLEY GROOVES.

• If equipped, turn height adjustment knob counter-

clockwise until it stops.

• Lower mower linkage with attachment lift control.

• Be sure belt tension rod is in disengaged position.

• Install belt into electric clutch pulley groove.

• Place the suspension arms on outward pointing deck

pins. Retain with double loop retainer spring with loops

up as shown.

• Install front plate assembly to tractor suspension

brackets and retain with single loop retainer springs

as shown.

•Position front plate assembly between front mower

brackets. Raise deck and plate assembly to align holes

and insert flanged pins. Secure pins with double loop

ratainer springs betweenthe plateassembly and mower

brackets.

SUSPENSION

ARMS

BELT TENSION ROD ,;

(DISENGAGED POSITION) _.,.._, ,;,

CHASSIS

LOCK BRACKET

FRONT

MOWER

BRACKET

ELECTRIC

CLUTCH FRONT

PULLEY PLATE

ASSEMBLY

RETAINER

SPRING

RETAINER

SINGLE LOOP

RETAINER

SPRING

USE PLIERS FOR ANTI-SWAY

BAR

SUSPENSION ARMS DOUBLE

LOOP RETAINER SPRINGS

(Outward pointing deck pins)

SHIELD

RG. 19

SERVICE AND ADJUSTMENTS

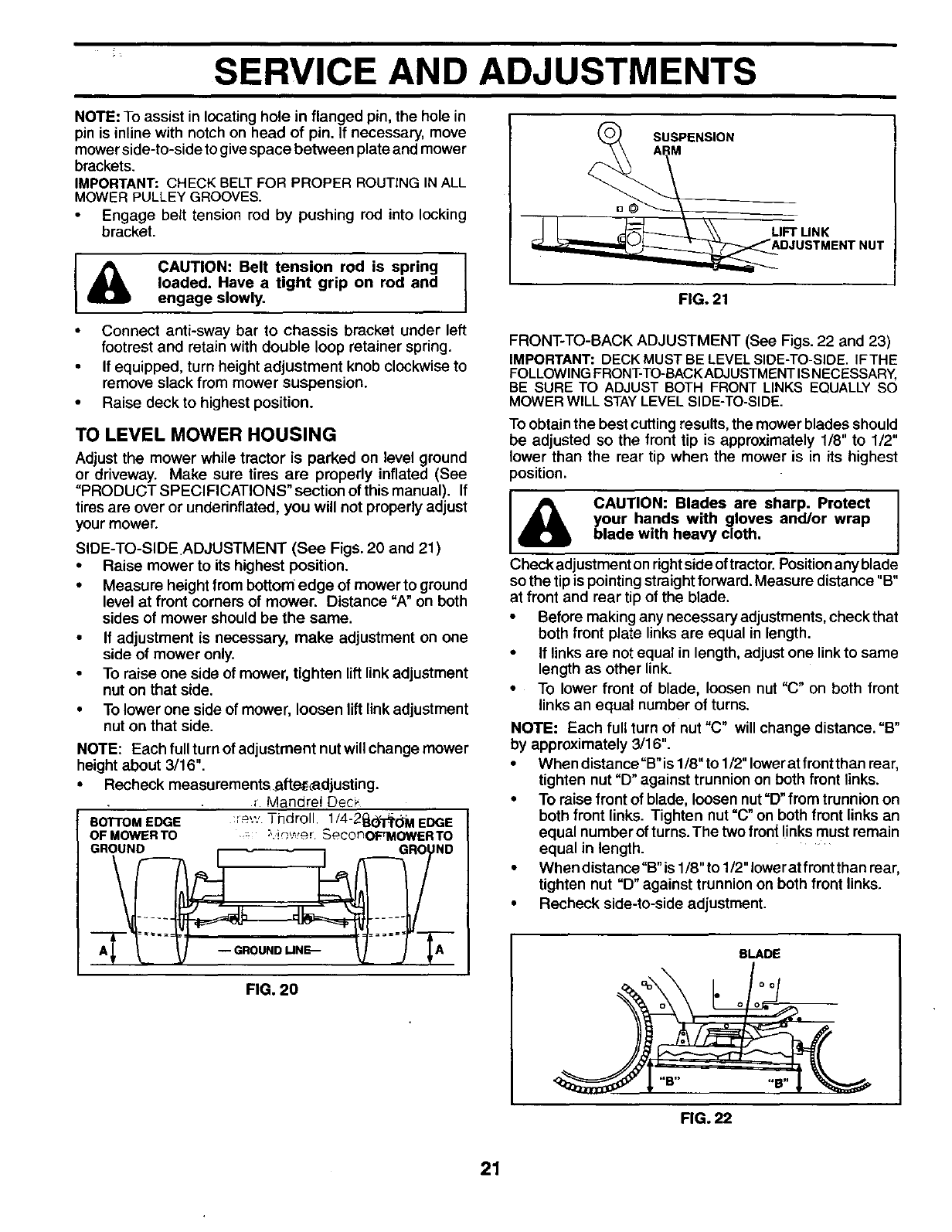

NOTE: To assist in locating hole in flanged pin, the hole in

pin is inline with notch on head of pin. If necessary, move

mowerside-to-side to givespace between plate and mower

brackets.

IMPORTANT: CHECK BELT FOR PROPER ROUTING IN ALL

MOWER PULLEY GROOVES.

• Engage belt tension rod by pushing rod into locking

bracket.

SUSPENSION

UFT LINK

I& CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and

engage slowly.

• Connect anti-sway bar to chassis bracket under left

footrest and retain with double loop retainer spring.

•If equipped, turn height adjustment knob clockwise to

remove slack from mower suspension.

•Raise deck to highest position.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground

or driveway. Make sure tires are properly inflated (See

=PRODUGT SPECIFICATIONS" section of this manual). If

tires are over or underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDEADJUSTMENT (See Figs. 20 and 21)

•Raise mower to its highest position.

• Measure height from bottom edge of mower to ground

level at front corners of mower. Distance =A" on both

sides of mower should be the same.

• If adjustment is necessary, make adjustment on one

side of mower only.

• To raise one side of mower, tighten lift link adjustment

nut on that side.

• To lower one side of mower, loosen lift link adjustment

nut on that side.

NOTE: Each full turn of adjustment nutwill change mower

heightabout 3/16".

•Recheck measurements aftg_cadjusting.

_1Mandrel Dec_

BoTroM EDGE :re:*: Ti7droll. 114-2_(_1._0M EDGE

OF MOWERTO :,,,i_,wer SeconOFrMOWERTO

GROUND _GROUND

FIG. 20

FIG. 21

FRONT-TO-BACK ADJUSTMENT (See Figs. 22 and 23)

IMPORTANT= DECK MUST BE LEVEL SIDE-TO-SIDE. IFTHE

FOLLOWING FRONT-TO-BACK ADJ USTM ENT IS NECESSARY,

BE SURE TO ADJUST BOTH FRONT LINKS EQUALLY SO

MOWER WILL STAY LEVEL SIDE-TO-SIDE.

To obtain the best cutting results, the mower blades should

be adjusted so the front tip is approximately 1/8" to 1/2"

lower than the rear tip when the mower is in its highest

_osition.

_1) CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap

blade with heavy cloth.

Check adjustment on right sideof tractor.Position any blade

so the tip is pointing straight forward. Measure distance "B"

at front and rear tip of the blade.

•Before making any necessaryadjustments, checkthat

both front plate links are equal in length.

• If links are not equal in length, adjust one link to same

length as other link.

• To lower front of blade, loosen nut "C" on both front

links an equal number of turns.

NOTE: Each full turn of nut "C" will change distance."B"

by approximately 3/16".

• Whendistance=B°isll8"toll2"loweratfrontthanrear,

tighten nut "D" against trunnion on both front links.

•To raise front of blade, loosen nut =D"from trunnion on

both front links. Tighten nut =C"on both front links an

equal number of turns. The two front links must remain

equal in length.

• When distance"B" is 1/8" to 1/2" Iowerat frontthan rear,

tighten nut =D" against trunnion on both front links.

• Recheck side-to-side adjustment.

BLADE

FIG. 22

SERVICE AND ADJUSTMENTS

BOTH FRONT PLATE LINKS MUST BE

EQUAL IN LENGTH

NUT "D"_

FRONT PLATE !. ]"/

ASSEMBLY _

NUT"C"

_TRUNNION

FIG. 23

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL (See Fig. 24)

• Park tractor on a level surface. Engage parking

brake.

• Lower mower to its lowest position.

• Disengage belt tention rod from lock bracket.

,_ CAUTION: Rod is spring loaded. Have a

_1_ tight grip on rod and re ease s ow y,

•Remove screws from R.H. mandrel cover and remove

cover.

•Remove any dirt or grass clippings which may have

accumulated around mandrels and entire upper deck

surface.

•Disconnect R.H. suspension arm from raar deck bracket

by removing retainer spring.

•Roll belt over the top of R.H. mandrel pulley carefully.

•Remove belt from electric clutch pulley.

•Remove belt from idler pulleys.

•Check primary idler arm and two idlers to see that they

rotate freely.

•Be sure spring is securely hocked to primary idler arm

and spring arm.

MOWER DRIVE BELT INSTALLATION (See Fig. 24)

Install belt in both idlers.

Install new belt onto electric clutch pulley.

• Roll belt into upper groove of R.H. mandrel pulley care-

fully.

Carefully check belt routing making sure belt is in the

grooves correctly.

• Reconnect R.H. suspension arm to rear deck bracket

with retainer spring.

• Reassemble R.H. mandrel cover.

Engage belt tension rod by pushing rod into locking

bracket.

BELT TENSION

ROD(DISENGAGED

POSITION)

SPRING

ARM

RH SUSPENSION

ARM PRIMARY

IDLER ARM

FIG. 24

SERVICE AND ADJUSTMENTS

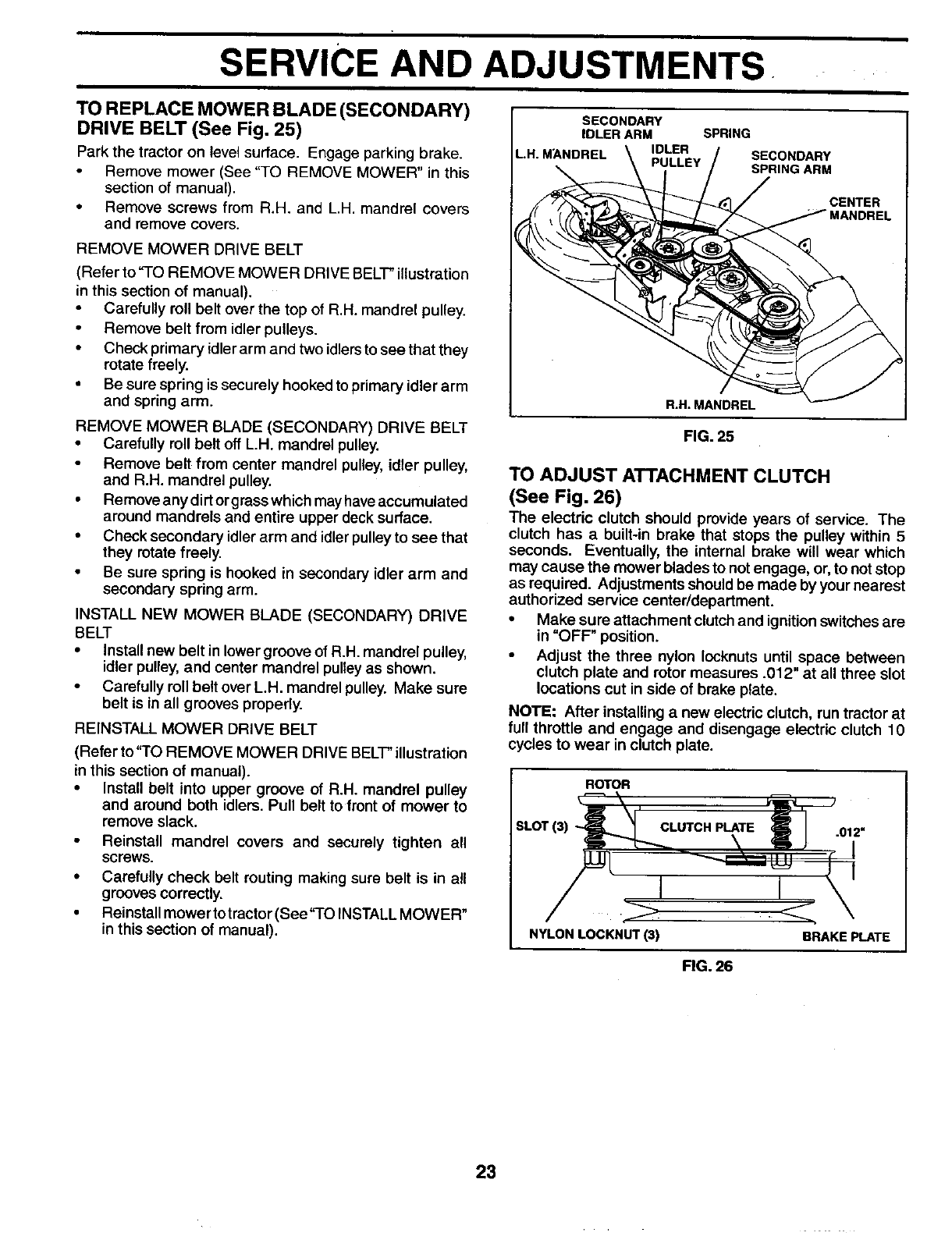

TO REPLACE MOWER BLADE (SECONDARY)

DRIVE BELT (See Fig. 25)

Park the tractor on level surface. Engage parking brake.

Remove mower (See "TO REMOVE MOWER" in this

section of manual).

•Remove screws from R.H. and L.H. mandrel covers

and remove covers.

REMOVE MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE BELT" illustration

in this section of manual).

• Carefully roll belt over the top of R.H. mandrel pulley.

• Remove belt from idler pulleys.

• Check primary idlerarm and two idlers to see that they

rotate freely.

• Be sure spring is securely hooked to primary idler arm

and spring arm.

REMOVE MOWER BLADE (SECONDARY) DRIVE BELT

•Carefully roll belt off L.H. mandrel pulley.

Remove belt from center mandrel pulley, idler pulley,

and R.H. mandrel pulley.

•Remove any dirtorgrass which mayhave accumulated

around mandrels and entire upper deck surface.

• Check secondary idler arm and idlerpulleyto see that

they rotate freely.

• Be sure spring is hooked in secondary idler arm and

secondary spring arm.

INSTALL NEW MOWER BLADE (SECONDARY) DRIVE

BELT

•Install new belt in lower groove of R.H. mandrel pulley,

idler pulley, and center mandrel pulleyas shown.

•Carefully roll belt over LH. mandrel pulley. Make sure

belt is in all grooves properly.

REINSTALL MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE BELT" illustration

in this section of manual).

•Install belt into upper groove of R.H. mandrel pulley

and around both idlers. Pull belt to front of mower to

remove slack.

•Reinstall mandrel covers and securely tighten all

screws.

•Carefully check belt routing making sure belt is in a!l

grooves correctly.

•Reinstall mower totractor (See %O INSTALL MOWER"

in this section of manual).

SECONDARY

IDLER ARM SPRING

L.H.M_NDREL IDLER SECONDARY

PULLEY SPRING ARM

CENTER

R.H. MANDREL

FIG. 25

TO ADJUST ATTACHMENT CLUTCH

(See Fig. 26)

The electric clutch should provide years of service. The

clutch has a built-in brake that stops the pulley within 5

seconds. Eventually, the internal brake will wear which

may cause the mower blades to notengage, or, to notstop

as required. Adjustments should be made by your nearest

authorized service center/department.

•Make sure attachment clutch and ignition switches are

in "OFF" position.

Adjust the three nylon Iocknuts until space between

clutch plate and rotor measures .012" at all three slot

locations cut in side of brake plate.

NOTE: After installing a new electric clutch, run tractor at

full throttle and engage and disengage electric clutch 10

cycles to wear in clutch plate.

ROTOR

SLOT (3) CLUTCH PLATE .012"

.._

NYLONLOCKNUT(3) BRAKE PLATE

FIG. 26

SERVICE AND ADJUSTMENTS

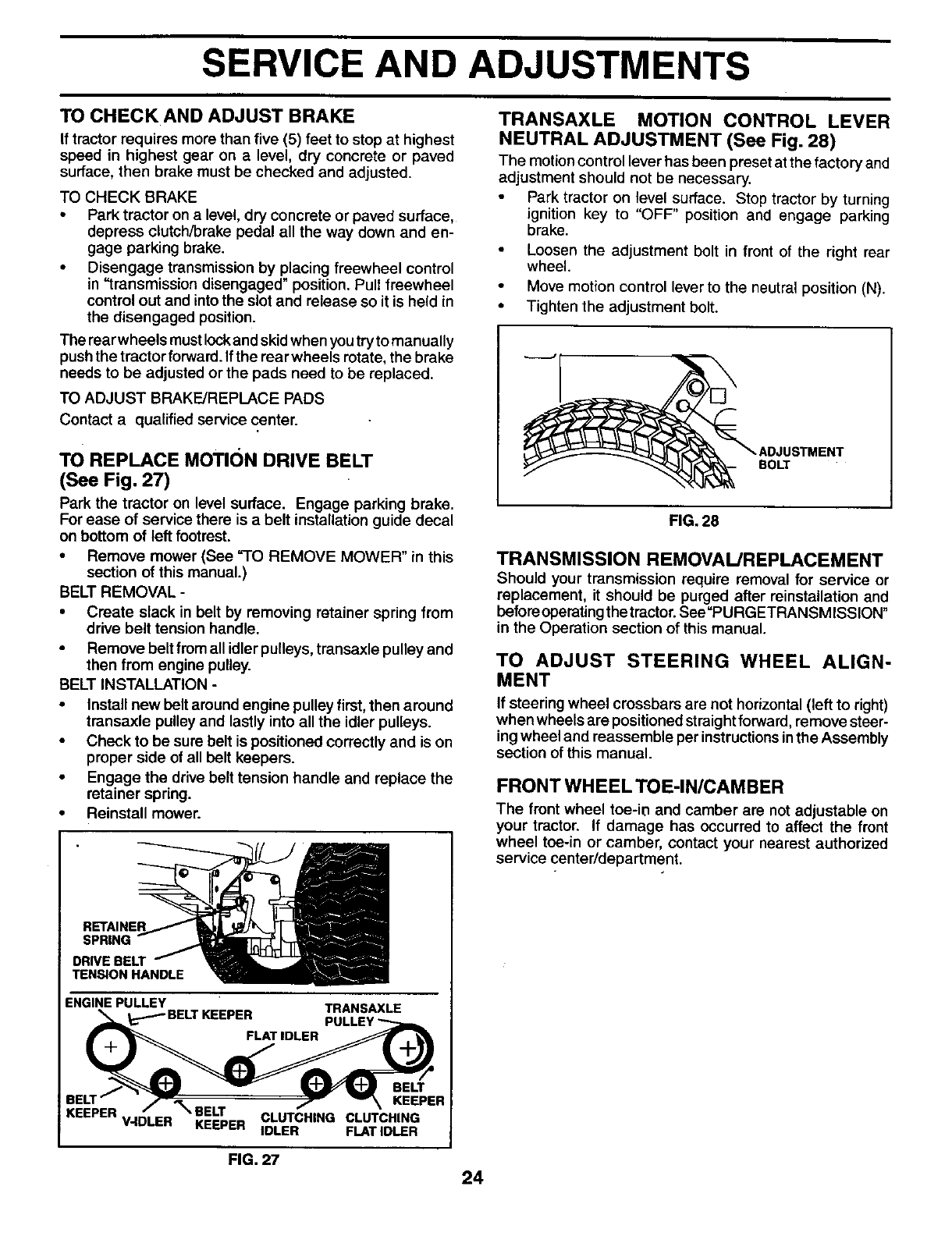

TO CHECK AND ADJUST BRAKE

If tractor requires more than five (5) feet to stop at highest

speed in highest gear on a level, dry concrete or paved

surface, then brake must be checked and adjusted.

TO CHECK BRAKE

• Park tractor on a level, dry concrete or paved surface,

depress clutch/brake pedal all the way down and en-

gage parking brake.

• Disengage transmission by placing freewheel control

in "transmission disengaged" position. Pull freewheel

control out and into the slot and release so it is held in

the disengaged position.

The rear wheels must lock and skid when you try to manually

push the tractor forward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to be replaced.

TO ADJUST BRAKE/REPLACE PADS

Contact a qualified service center.

TO REPLACE MOTION DRIVE BELT

(See Fig, 27)

Park the tractor on level surface. Engage parking brake.

For ease of service there is a belt installation guide decal

on bottom of left footrest.

•Remove mower (See =TO REMOVE MOWER" in this

section of this manual.)

BELT REMOVAL -

•Create slack in belt by removing retainer spring from

drive belt tension handle.

• Remove belt from all idler pulleys, transaxle pulley and

then from engine pulley.

BELT INSTALLATION -

• Install new bolt around engine pulley first, then around

transaxle pulley and lastly into all the idler pulleys.

•Check to be sure belt is positioned correctly and is on

proper side of all bolt keepers.

•Engage the drive belt tension handle and replace the

retainer spring.

•Reinstall mower.

R rA,NE

SPRING

DRIVEBELT

TENSIONHANDLE

ENGINE PULLEY

BELT KEEPER TRANSAXLE

FLATIDLER

KEEPER V4DLER KEEPER

BELT

KEEPER

CLUTCHING CLUTCHING

IDLER FLATIDLER

TRANSAXLE MOTION CONTROL LEVER

NEUTRAL ADJUSTMENT (See Fig. 28)

The motioncontrol lever has been preset at the factory and

adjustment should not be necessary.

•Park tractor on level surface. Stop tractor by turning

ignition key to "OFF" position and engage parking

brake.

Loosen the adjustment bolt in front of the right rear

wheel,

•Move motion control lever to the neutral position (N).

•Tighten the adjustment bolt.

BOLT

FIG. 28

TRANSMISSION REMOVAL/REPLACEMENT

Should your transmission require removal for service or

replacement, it should be purged after reinstallation and

before operatingthe tractor.See "PURGETRANSMISSION"

in the Operation section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight forward, remove steer-

ing wheel and reassemble per instructionsinthe Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on

your tractor. If damage has occurred to affect the front

wheel tee-in or camber, contact your nearest authorized

service center/department.

FIG. 27 24

SERVICE AND ADJUSTMENTS

TO REMOVE WHEEL FOR REPAIRS

FRONT WHEEL (See Fig. 29)

• Block up axle securely.

• Remove axle cover, retaining ring and washers to allow

wheel removal.

Repair tire and reassemble.

• Replace washers and snap retaining ring securely in

axle groove.

• Replace axle cover.

REAR WHEEL -

• Block rear axle securely.

• Remove five (5) hub bolts to allow wheel removal.

Repair tire and reassemble. Replace and tighten hub

bolts securely.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

WASHERS

RETAINING

RING

AXLE

COVER

0O663

FIG. 29

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 30)

WARNING: Lead-acid batteries geno !

erate explosive gases. Keep sparks,

flame and smoking materi_ls away from

batteries. Always wear ,-'tion

when around batteries. ]

If your battery is too weak to start the engine, =,_.... _ oe

recharged. (See "BATTERY" in me Maintenance section

of this manual).

If "jumper cables" are used for emergency starting, follow

this procedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPEDWITH A 12 VOLT

SYSTEM. THE OTHER VEHICLE MUST ALSO BE A 12 VOLT

SYSTEM. DO NOT USEYOUR TRACTOR BATTERY TO START

OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

Connect one end of the RED cable to the POSITIVE

(+) terminal of each battery(A-B), taking care not to

short against tractor chassis.

Connect one end of the BLACK cable to the NEGATIVE

(-) terminal (C) of fully charged battery.

• Connect the other end of the BLACK cable (D) to good

chassis ground, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully

charged battery.

•RED cable last from both batteries.

WEAK OR DEAD FULLY CHARGED

BATTERY BATTERY

FIG. 30

REPLACING BA'n'ERY (See Fig. 31)

WARNING: Do not short battery ter-

minals byallowing a wrench or any other

object to contact both terminals at the

same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

Lift hood to raised position.

• Remove terminal guard.

• Disconnect BLACK battery cable then RED battery

cable and carefully remove batterv from tractor.

old battery.

• Reinstall terminal guard.

• First connect RED battery cable to positive (+) battery

terminal with hex bolt and keps nut as shown. Tighten

securely.

• Connect BLACK grounding cable to negative (-) battery

terminal with remaining hex bolt and keps nut. Tighten

securely

• Close terminal access doors.

• Close hoed.

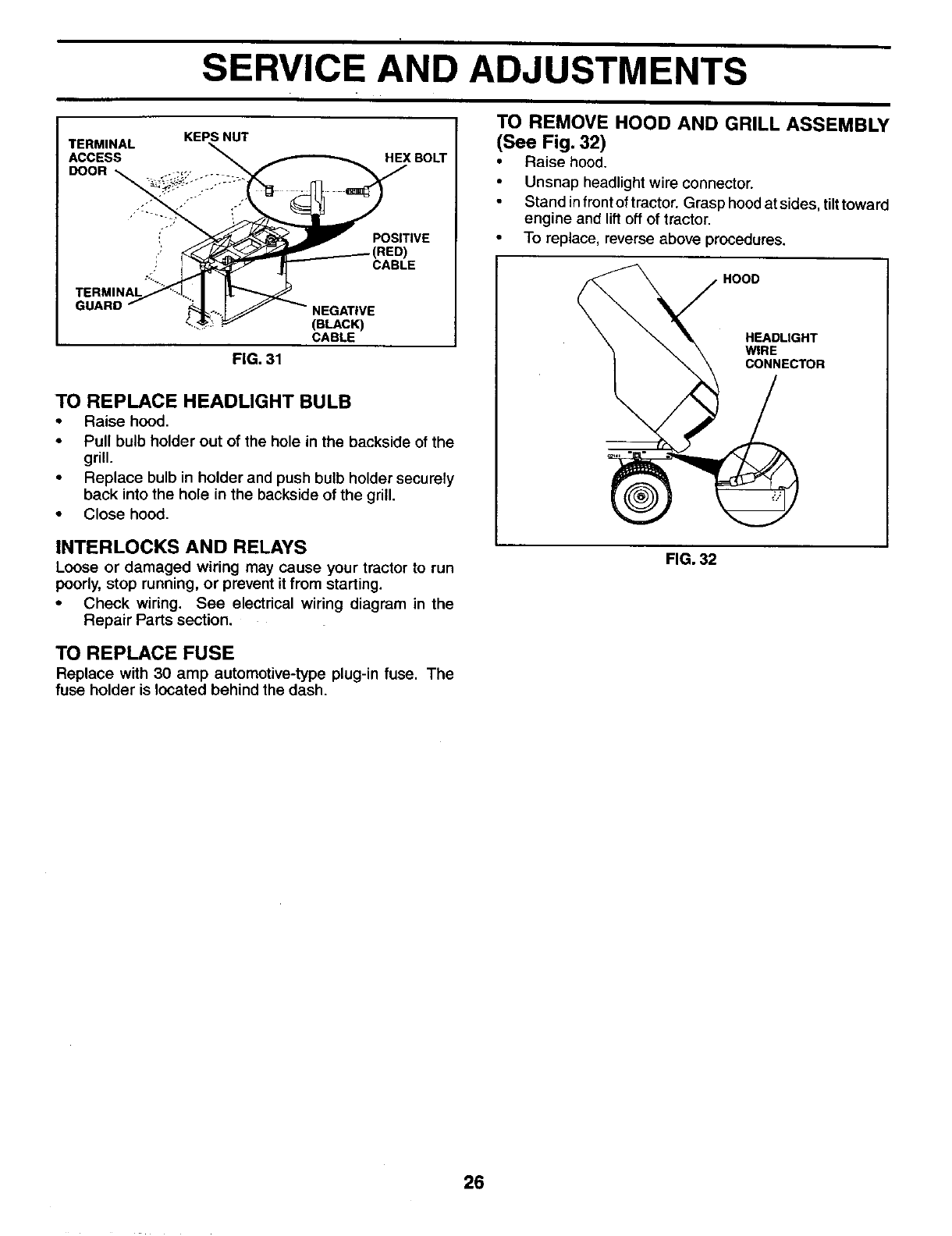

SERVICE AND ADJUSTMENTS

TERMINAL KEPS NUT

ACCESS

DOOR .. -,-..

HEX BOLT

POSITIVE

CABLE

TERMINAL

GUARD NEGATIVE

(SLACK)

CABLE

FIG. 31

TO REPLACE HEADLIGHT BULB

•Raise hood.

•Pull bulb holder out of the hole in the backside of the

grill.

• Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.

• Check wiring. See electrical wiring diagram in the

Repair Parts section.

TO REPLACE FUSE

Replace with 30 amp automotive-type plug-in fuse. The

fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 32)

• Raise hood.

•Unsnap headlight wire connector.

Stand in frontof tractor. Grasp hoodat sides, tilttoward

engine and lift off of tractor.

• To replace, reverse above procedures.

HOOD

HEADLIGHT

WIRE

CONNECTOR

FIG. 32

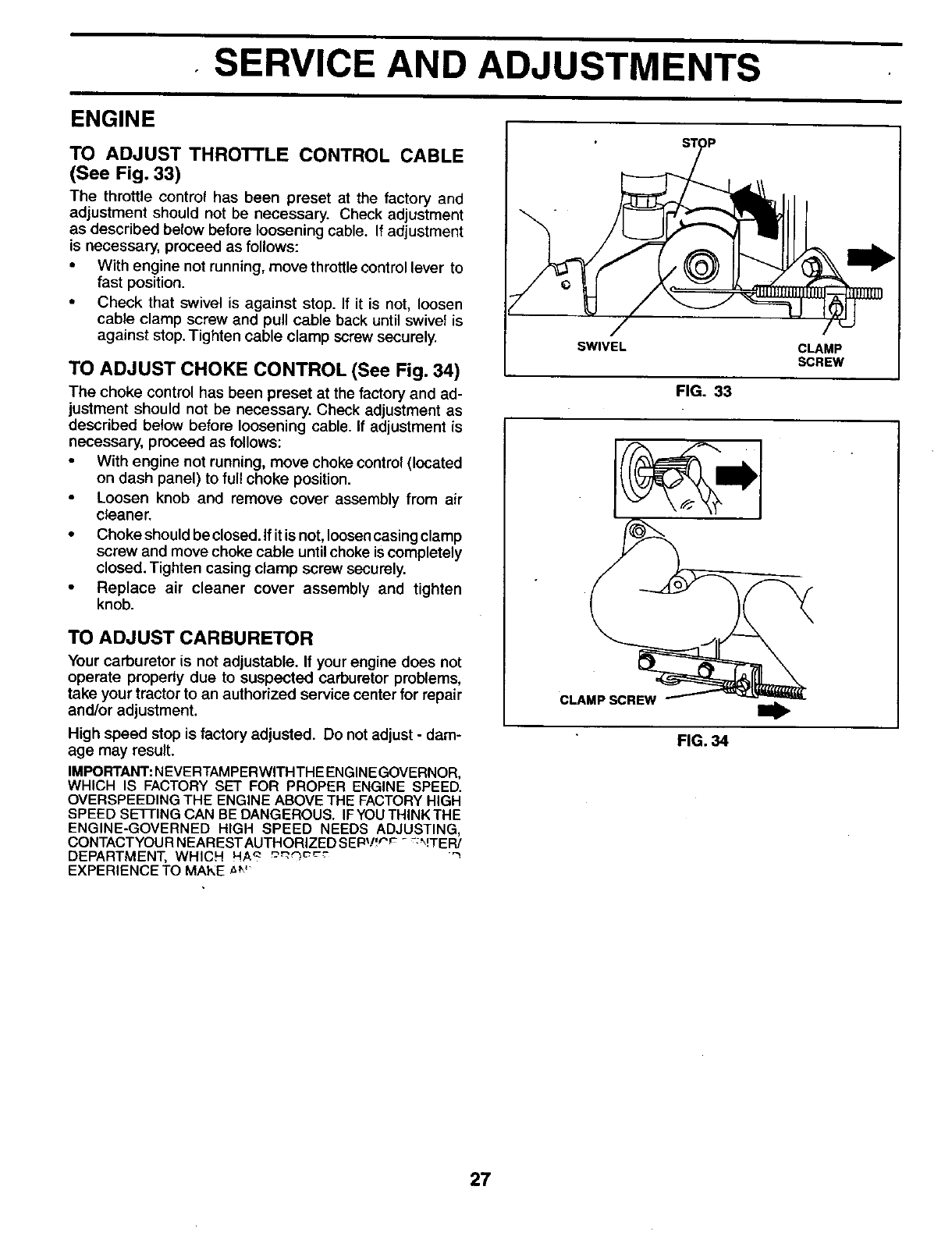

SERVICE AND ADJUSTMENTS

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 33)

The throttle control has been preset at the factory and

adjustment should not be necessary. Check adjustment

as described below before loosening cable. If adjustment

is necessary, proceed as follows:

•With engine not running, move throttlecontrol lever to

fast position.

•Check that swivel is against stop. If it is not, loosen

cable clamp screw and pull cable back until swivel is

against stop.Tighten cable clamp screw securely.

TO ADJUST CHOKE CONTROL (See Fig. 34)

The choke control has been preset at the factory and ad-

justment should not be necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

•With engine not running, move choke control (located

on dash panel) to full choke position.

Loosen knob and remove cover assembly from air

cleaner.

• Choke should be closed. If it is not, loosen casing clamp

screw and move choke cable until choke is completely

closed. Tighten casing clamp screw securely.

• Replace air cleaner cover assembly and tighten

knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your engine does not

operate properly due to suspected carburetor problems,

take your tractor to an authorized service center for repair

and/or adjustment.

High speed stop is factory adjusted. Do not adjust - dam-

age may result.

IMPORTANT: NEVERTAMPERWITHTHE ENGINEGOVERNOR,

WHICH IS FACTORY SET FOR PROPER ENGINE SPEED.

OVERSPEEDING THE ENGINE ABOVE THE FACTORY HIGH

SPEED SE-FrlNG CAN BE DANGEROUS. IFYOUTHINKTHE

ENGINE-GOVERNED HIGH SPEED NEEDS ADJUSTING,

CONTACTYOUR NEAREST AUTHORIZED SEPV!_r- - =:NTER/

DEPARTMENT, WHICH HA? _-_"3 c'c':" "_

EXPERIENCE TO MAKE _ _"

SWIVEL CLAMP

SCREW

FIG. 33

FIG. 34

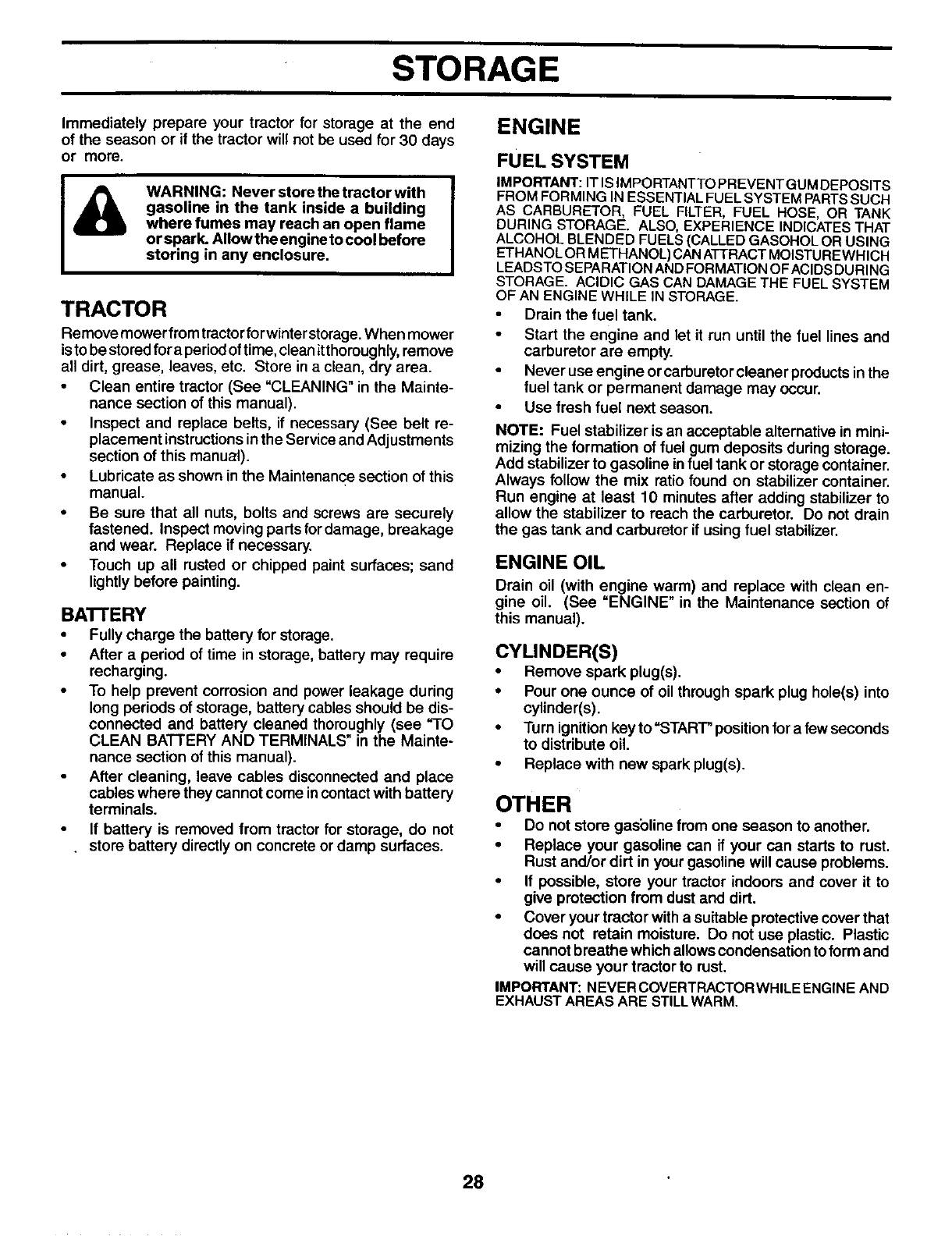

STORAGE

ENGINE

Immediately prepare your tractor for storage at the end

of the season or if the tractor will not be used for 30 days

or more.

AWARNING: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure•

TRACTOR

Remove mower frem tractor forwinter storage. When mower

is to be stored fora period of time, clean itthoroughly, remove

all dirt, grease, leaves, etc. Store in a clean, dry area.

• Clean entire tractor (See "CLEANING" in the Mainte-

nance section of this manual).

• Inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual).

• Lubricate as shown in the Maintenance section of this

manual.

• Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BA'rrERY

•Fully charge the battery for storage.

•After a period of time in storage, battery may require

recharging.

•To help prevent corrosion and power leakage during

long periods of storage, battery cables should be dis-

connected and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in the Mainte-

nance section of this manual).

After cleaning, leave cables disconnected and place

cables where they cannot come incontact with battery

terminals.

•If battery is removed from tractor for storage, do not

•store battery directly on concrete or damp surfaces.

FUEL SYSTEM

IMPORTANT:IT ISIMPORTANTTOPREVENTGUMDEPOSITS

FROM FORMING IN ESSENTIALFUELSYSTEM PARTSSUCH

AS CARBURETOR, FUEL FILTER, FUEL HOSE, OR TANK

DURING STORAGE. ALSO, EXPERIENCE INDICATESTHAT

ALCOHOL BLENDED FUELS(CALLEDGASOHOL OR USING

ETHANOLOR METHANOL) CANATTRACTMOISTUREWHICH

LEADSTOSEPARATIONANDFORMATIONOFACIDSDURING

STORAGE. ACIDIC GAS CAN DAMAGETHE FUEL SYSTEM

OF AN ENGINE WHILE IN STORAGE.

Drain the fuel tank.

•Start the engine and let it run until the fuel lines and

carburetor are empty.

•Never use engine or carburetorcleaner products in the

fuel tank or permanent damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in mini-

mizing the formation of fuel gum deposits during storage.

Add stabilizer to gasoline infuel tank or storage container.

Always follow the mix ratio found on stabilizer container.

Run engine at least 10 minutes after adding stabilizer to

allow the stabilizer to reach the carburetor. Do not drain

the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean en-

gine oil. (See "ENGINE" in the Maintenance section of

this manual).

CYLINDER(S)

•Remove spark plug(s).

•Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

•Turn ignition keyto"START" position fora few seconds

to distribute oil.

•Replace with new spark plug(s).

OTHER

•Do not store gasoline from one season to another.

•Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

•If possible, store your tractor indoors and cover it to

give protection from dust and dirt.

•Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to formand

will cause your tractor to rust.

IMPORTANT: NEVERCOVERTRACTORWHILEENGINE AND

EXHAUST AREAS ARE STILLWARM.

TROUBLESHOOTING POINTS

PROBLEM

Will not start

Hardto start

Engine will not turn over

Engine clicks but will not

start

Loss of power

Excessive vibration

CAUSE

1. Out of fuel.

2. Engine not =CHOKED" properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel tilter.

7. Water in fuel.

8. Looseor damaged wiring,

9. Carburetor out of adjustment.

10. Enginevalves out of adjustment.

11. Extreme cold conditions.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel tilter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valvesout of adjustment.

1. Brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence switch(as).

1. Weak or dead battery. ,

2. Corrodedbattery terminals.

3. Looseor damagedwidng.

4. Faultysolenoidorstarter.

t. Cutting too much grass/too fast.

2. Throttle in =CHOKE" position.

3, Build-up of grass, leaves and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. We+.... %@!.

10. Sp_,; ' ::,_se.

11. Dirty engine _screen/fins.

!2 Didy/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment.

15. Engine valves out of adjustment.

1. Worn, bent or loose blade.

2. Rent blade mandrel.

3. Loose/damaged part(s).

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE" in Operation section.

3. Wait several minutes before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

8. Check all widng.

9. See "To Adjust Carburetor" in Service Adjustments

section.

10. Contact an authorized service center/department.

11. See "To start engine" in operafion section

1. Clean/replece air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel tilter.

5. Drain fuel tank and refill with fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in Service Adjustments

seciton.

8. Contact an authorized service center/department.

1. Depress brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replece solenoid or starter.

9. Contact an authorized service center/depar_ent.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replase solenoid or starter.

1. Set in "Higher Cut"position/reduce speed.

2. Adjust thretUe control.

3. Clean underside of mower housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill with fresh gasoline.

9. Drain fuel tank and carburetor, refilltank with fresh

gasoline and replace fuel filter.

10. Connect and tighten spark plug wire.

11. Clean engine air screen/tins.

1_. Clean/replace muffler.

14. See'fc _ ,!.._. :. ............ Z._ "-_ ^'_!,,_tments

section.

15. Contact an authorized service center/department.

1. Replace blade. Tighten blade bolt.

2. Replace blade mandrel,

3. Tighten loose part(s). Replace damaged parts.

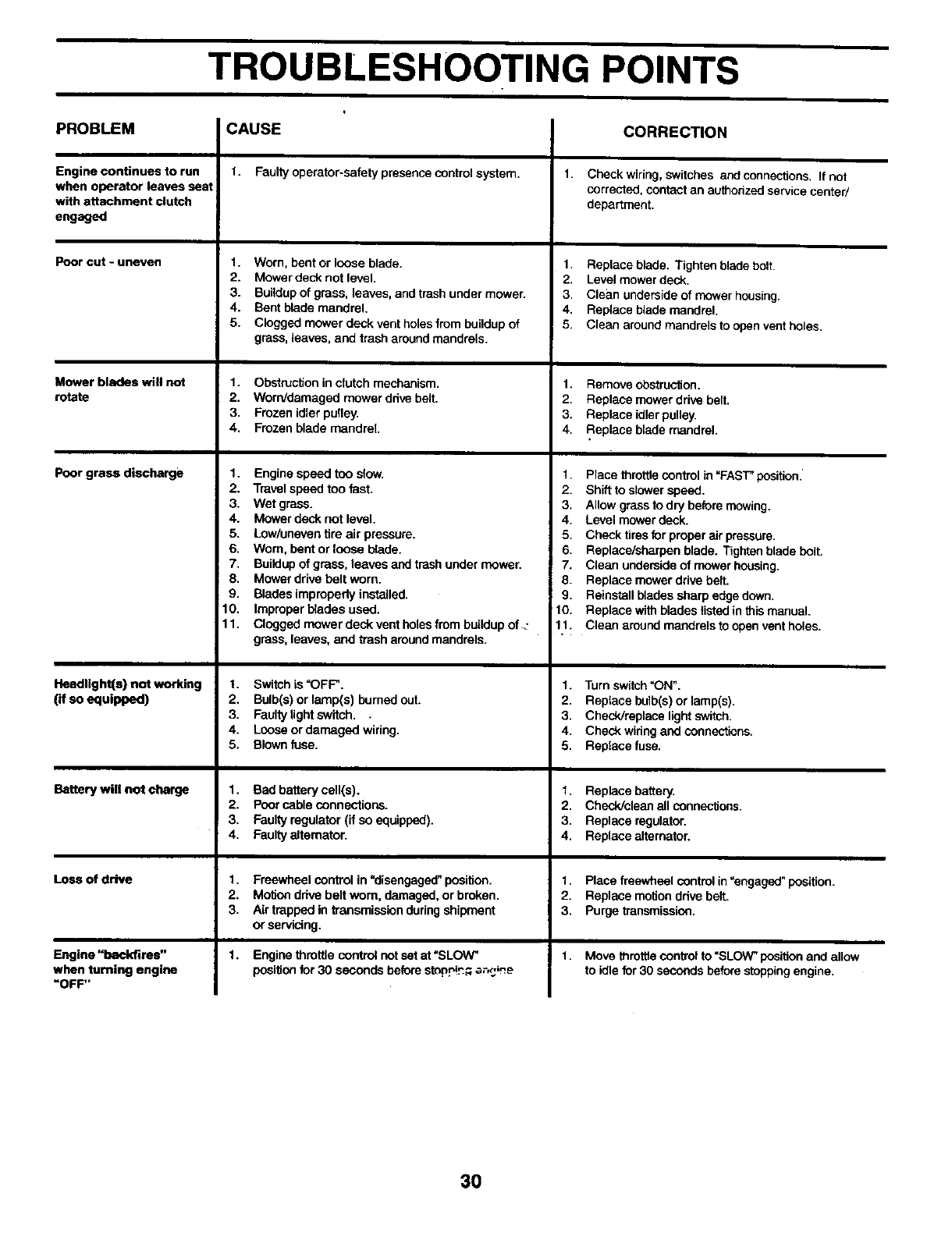

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Engine continues to run

when operator leaves seat

with attachment clutch

engaged

Poorcut - uneven

Mower blades will net

rotate

Poor grass discharge

Ileedllght(e) not working

(if so equipped)

Battery will not charge

Loss of drive

Engine "bad(fires"

when turning engine

=OFF"

1. Faulty operator-safety presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves, and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Obstruction in clutch mechanism.

2. Worn/damaged mower drive belt,

3. Frozen idler polley.

4. Frozen blade mandrel,

1. Engine speed too slow.

2. Travel speed ton fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Wore, bent or loose blade.

7. Buildup of grass, leaves and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed,

10. Improper blades used.

11. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned Out.

3. Faulty light switch. .

4. Loose or damaged wiring.

5. Blown fuse.

1. Badbattery cell(s).

2. Poorcableconnections.

3. Faultyregulator(if so equipped).

4. Faultyalternator.

1. Freewheelcontrol in "disengaged"position.

2. Motiondrive beltworn, damaged, or broken.

3. Airtrappedin transmissionduringshipment

orservicing.

Engine throttle control not set at"SLOW _

position for 30 seconds beforestnbn!_,__nC;,_e

1. Check wiring, switches and connections. If not

corrected, contact an authohzed service center/

department.

1. Replace blade. Tighten blade bolt.

2. Level mower deck.

3. Clean underside of mower housing.

4. Replace blade mandrel.

5. Clean around mandrels to open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Replace blade mandrel.

1. Place throttle control in =FAST' position.

2. Shift to slower speed.

3. Allow grass to dry before mowing.

4. Level mower deck.

5. Check tires for proper air pressure.

6. Replace/sharpen blade. Tighten blade bolt.

7. Clean underside of mower housing.

8. Replace mower drive belt.

g. Reinstall blades sharp edge down.

10. Replace with blades listed in this manual.

11. Clean around mandrels to open vent holes.

1. Turn switch "ON".

2, Replace bulb(s) or lamp(s).

3. Check/raplace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec_ons.

3, Replace regulator,

4, Replace aitamator,

1. Place freewheel control in "engaged" position.

2. Replace motion ddve belt.

3. Purge transmission.

Move throttle control to "SLOW" position and allow

to idle for 30 seconds before stopping engine.

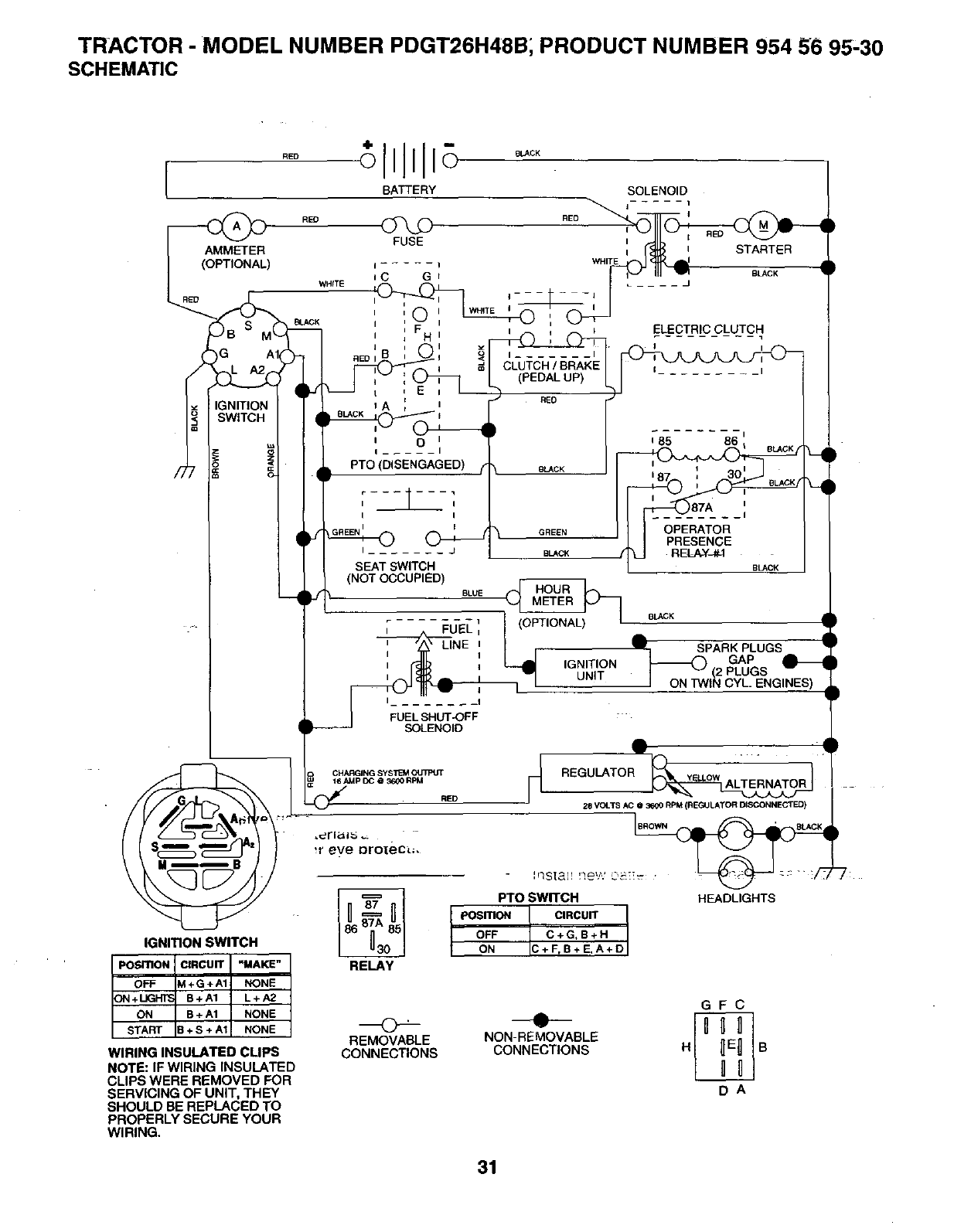

TRACTOR -MODEL NUMBER PDGT26H48B; PRODUCT NUMBER 954 56 95-30

SCHEMATIC

_'i" CH_ RGING SYSTEM

16 AMp OC @ 3600 RPM

_r eye project.

IGNITION SWITCH

POSI_ON CIRCUIT "MAKE" RELAY

OFF M+G+A1 NONE

DN + LIGHTS B+A1 L+A2

ON B + A1 NONE

START B+ S + AI NONE

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

RED

A J

11r

REGULATOR _"

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

BROW N i 8LAC K

Ir]Sla][ l]e_/,.';)EE_

PTO SWITCH HEADLIGHTS

POSmON CIRCUIT

OFF C+G,B+H

ON C+F,B+E,A+D

REMOVABLE

CONNECTIONS

GFC

NON-REMOVABLE

CONNECTIONS H B

REPAIR PARTS

TRACTOR -MODEL NUMBER PDGT26H48B, PRODUCT NUMBER 954 56 95-30

ELECTRICAL

REPAIR PARTS

TRACTOR - MODEL NUMBER PDGT26H48B, PRODUCT NUMBER 954 56 95-30

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 Bolt Hex Head 1/4-20 x 3/4

87603J Tray, Battery

10 145211 Bolt Btr Frt 1/4-20 x 7.5 zinc

11 150109 Holdown Battery Front Mount

12 145769 Nut Push Nylon 1/4"

16 176138 Switch Interlock Push-In

21 175688 Harness Headlight w/Bulbs

22 4152J Bulb Light

24 185464 Cable, Battery

25 146149 Cable, Battery

26 108824X Fuse

27 73510400 Nut Keps Hex 1/4-20 Unc

28 170697 Cable, Ground

29 160784 Switch, Plunger

3() 175566 Switch, Ign

33 140401 Key

40 170238 Harness, Ignition

41 17720408 Screw 1/4-20 x 1/2

42 131563 Cover, Terminal Red

43 178861 Solenoid

45 122822X Ammeter

46 169635 Hourmeter Snap-In

50 174653 Switch, PTO

79 175242 Socket, Light Bulb

81 109748X Relay Asm.

89 169639 Bracket Snap-In

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

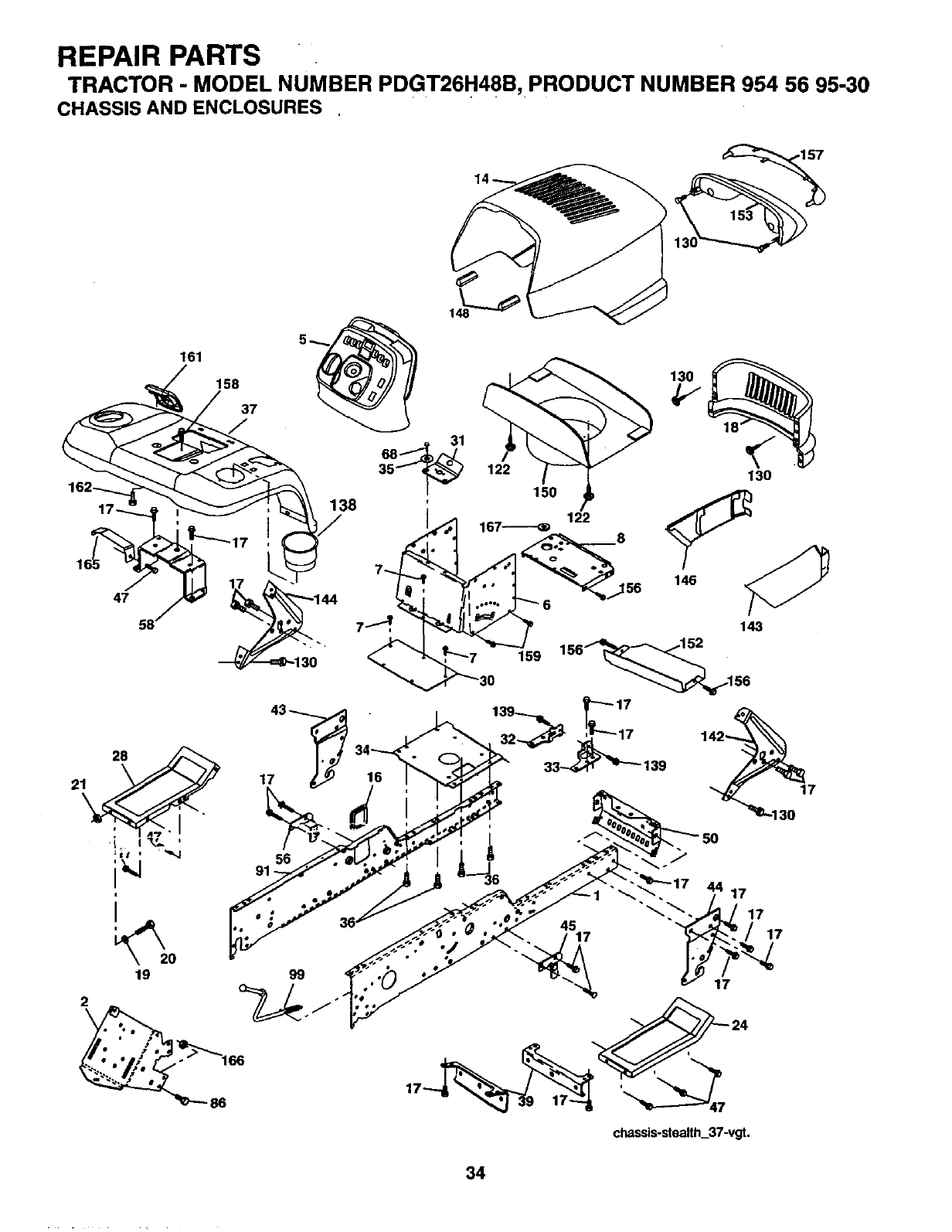

REPAIR PARTS "

TRACTOR -MODEL NUMBER PDGT26H48B, PRODUCT NUMBER 954 56 95-30

CHASSIS AND ENCLOSURES

161

;11 ='_l

!_2 o

158

138

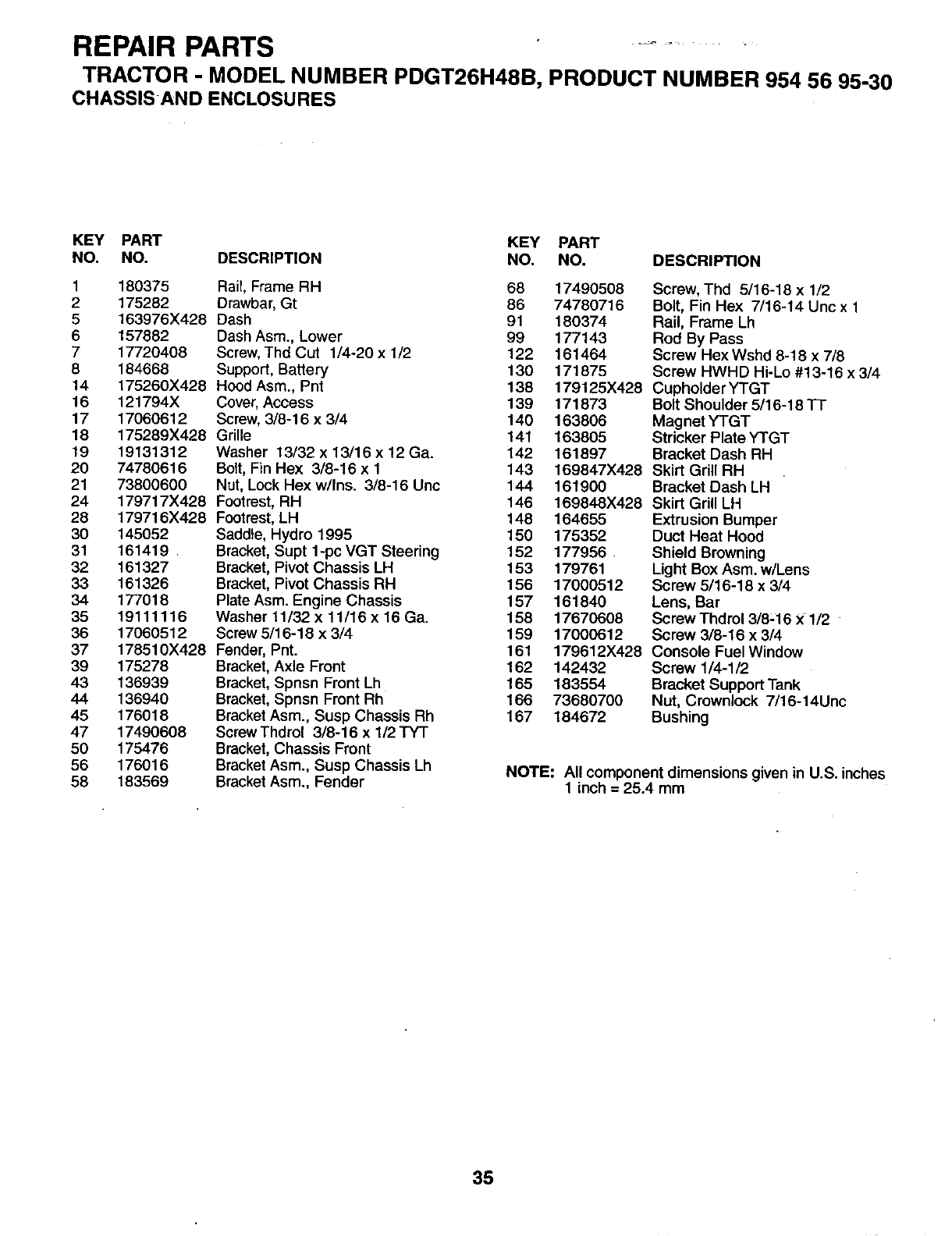

REPAIR PARTS .........

TRACTOR -MODEL NUMBER PDGT26H48B, PRODUCT NUMBER 954 56 95-30

CHASSIS AND ENCLOSURES

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 180375

2 175282

5 163976X428

6157882

7 17720408

8 184668

14 175260X428

16 121794X

17 17060612

18 175289X428

19 19131312

20 74780616

21 73800600

24 179717X428

28 179716X428

30 145052

31 161419

32 161327

33 161326

34 177018

35 19111116

36 17060512

37 178510X428

39 175278

43 136939

44 136940

45 176018

47 17490608

50 175476

56 176016

58 183569

Rail, Frame RH

Drawbar, Gt

Dash

Dash Asm., Lower

Screw, Thd Cut 1/4-20 x 1/2

Support, Battery

Hood Asm., Pnt

Cover, Access

Screw, 3/8-16 x 3/4

Grille

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 x 1

Nut, Lock Hex w/Ins. 3/8-16 Unc

Footrest, RH

Footrest, LH

Saddle, Hydro 1995

Bracket, Supt 1-pc VGT Steering

Bracket, Pivot Chassis LH

Bracket, Pivot Chassis RH

Plate Asm. Engine Chassis

Washer 11/32 x 11/16 x 16 Ga.

Screw 5/16-18 x 3/4

Fender, Pnt.

Bracket, Axle Front

Bracket, Spnsn Front Lh

Bracket, Spnsn Front Rh

Bracket Asm., Susp Chassis Rh

ScrewThdrol 3/8-16 x I/2TYT

Bracket, Chassis Front

Bracket Asm., Susp Chassis Lh

Bracket Asm., Fender

68 17490508 Screw, Thd 5/16-18 x 1/2

86 74780716 Bolt, Fin Hex 7/16-14 Unc x 1

91 180374 Rail, Frame Lh

99 177143 Rod By Pass

122 161464 Screw Hex Wshd 8-18 x 7/8

130 171875 Screw HWHD Hi-Lo #13-16 x 3/4

138 179125X428 CupholderYTGT

139 171873 Bolt Shoulder 5/16-18 TT

140 163806 Magnet YTGT

141 163805 Stricker Plate YTGT

142 161897 Bracket Dash RH

143 169847X428 Skirt Grill RH

144 161900 Bracket Dash LH

146 169848X428 Skirt Grill LH

148 164655 Extrusion Bumper

150 175352 Duct Heat Hood

152 177956 Shield Browning

153 179761 Light Box Asm. w/Lens

156 17000512 Screw 5/16-18 x 3/4

157 161840 Lens, Bar

158 17670608 ScrewThdrol 3/8-16 x 1/2

159 17000612 Screw 3/8-16 x 3/4

161 179612X428 Console Fuel Window

162 142432 Screw 1/4-1/2

165 183554 Bracket Support Tank

166 73680700 Nut, Crownlock 7/16-14Unc

167 184672 Bushing

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

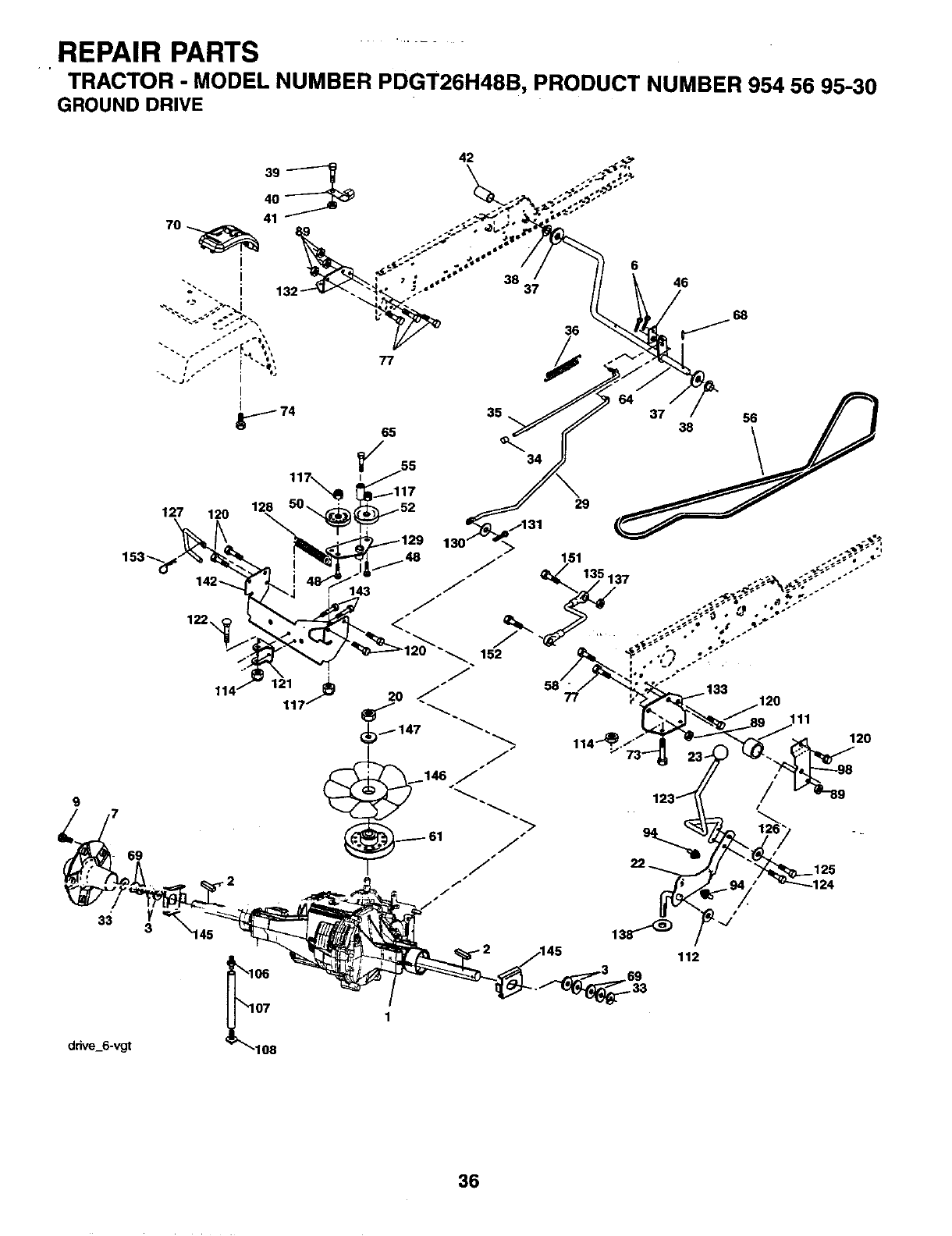

REPAIR PARTS ....

TRACTOR -MODEL NUMBER PDGT26H48B, PRODUCT NUMBER 954 56 95-30

GROUND DRIVE

drive_6-vgt

127 120

122,

38 37 46

128

108

112

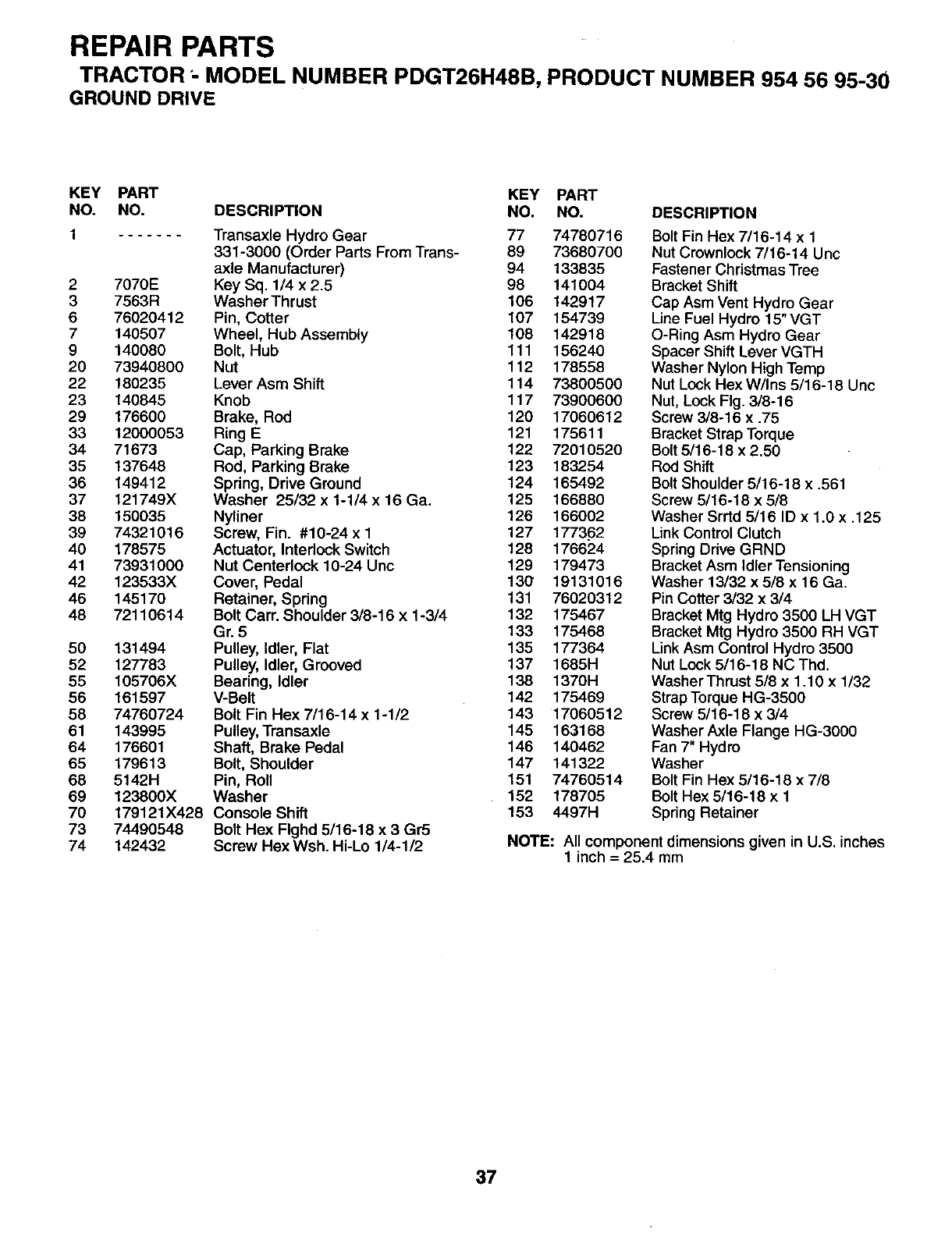

REPAIR PARTS

TRACTOR "-MODEL NUMBER PDGT26H48B, PRODUCT NUMBER 954 56 95-30

GROUND DRIVE

KEY PART KEY

NO. NO. DESCRIPTION NO.

1....... Transaxle Hydro Gear 77 74780716

331-3000 (Order Parts From Trans- 89 73680700

axle Manufacturer) 94 133835

2 7070E Key Sq. 1/4 x 2.5 98 141004

3 7563R Washer Thrust 106 142917

6 76020412 Pin, Cotter 107 154739

7 140507 Wheel, Hub Assembly 108 142918

9 140080 Bolt, Hub 111 156240

20 73940800 Nut 112 178558

22 180235 Lever Asm Shift 114 73800500

23 140845 Knob 117 73900600

29 176600 Brake, Rod 120 17060612

33 12000053 Ring E121 175611

34 71673 Cap, Parking Brake 122 72010520

35 137648 Rod, Parking Brake 123 183254

36 149412 Spring, Drive Ground 124 165492

37 121749X Washer 25132 x 1-1/4x 16 Ga. 125 166880

38 150035 Nyliner 126 166002

39 74321016 Screw, Fin. #10-24 x 1 127 1773_62

40 178575 Actuator, Interlock Switch 128 176624

41 73931000 Nut Centerlock 10-24 Unc 129 179473

42 123533X Cover, Pedal 130" 19131016

46 145170 Retainer, Spring 131 76020312

48 72110614 Bolt Carr. Shoulder 3/8-16 x 1-3/4 132 175467

Gr. 5 133 175468

50 131494 Pulley, Idler, Flat 135 177364

52 127783 Pulley, Idler, Grooved 137 1685H

55 105706X Bearing, Idler 138 1370H

56 161597 V-Belt 142 175469

58 74760724 Bolt Fin HexT/16-14 x 1-1/2 143 17060512

61 143995 Pulley, Transaxle 145 163168

64 176601 Shall, Brake Pedal 146 140462

65 179613 Bolt, Shoulder 147 141322

68 5142H Pin, Roll 151 74760514

69 123800X Washer 152 178705

70 179121X428 Console Shift 153 4497H

73 74490548 Bolt Hex Flghd 5/16-18 x 3 Gr5

74 142432 Screw Hex Wsh. Hi-Lo 1/4-1/2

PART

NO. DESCRIPTION

Bolt Fin Hex 7/16-14 x 1

Nut Crownlock 7/16-14 Unc

Fastener Christmas Tree

Bracket Shift

Cap Asm Vent Hydro Gear

Line Fuel Hydro 15" VGT

O-Ring Asm Hydro Gear

Spacer Shift Lever VGTH

Washer Nylon High Temp

Nut Lock Hex W/Ins 5/16-18 Unc

Nut, Lock Fig. 3/8-16

Screw 3/8-16 x .75

Bracket Strap Torque

Bolt 5/16-18 x 2.50

Rod Shift

Bolt Shoulder 5/16-18 x .561

Screw 5/16-18 x 5/8

Washer Srrtd 5/16 ID x 1.0 x .125

Link Control Clutch

Spring Drive GRND

Bracket Asrn Idler Tensioning

Washer 13/32 x 5/8 x 16 Ga.

Pin Cotter 3/32 x 3/4

Bracket Mtg Hydro 3500 LH VGT

Bracket Mtg Hydro 3500 RH VGT

Link Asm Control Hydro 3500

Nut Lock 5/16-18 NC Thd.

Washer Thrust 5/8 x 1.10 x 1/32

Strap Torque HG-3500

Screw 5/16-18 x 3/4

Washer Axle Flange HG-3000

Fan 7" Hydro

Washer

Bolt Fin Hex 5/16-18 x 7/3

Bolt Hex 5/16-18 x 1

Spring Retainer

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

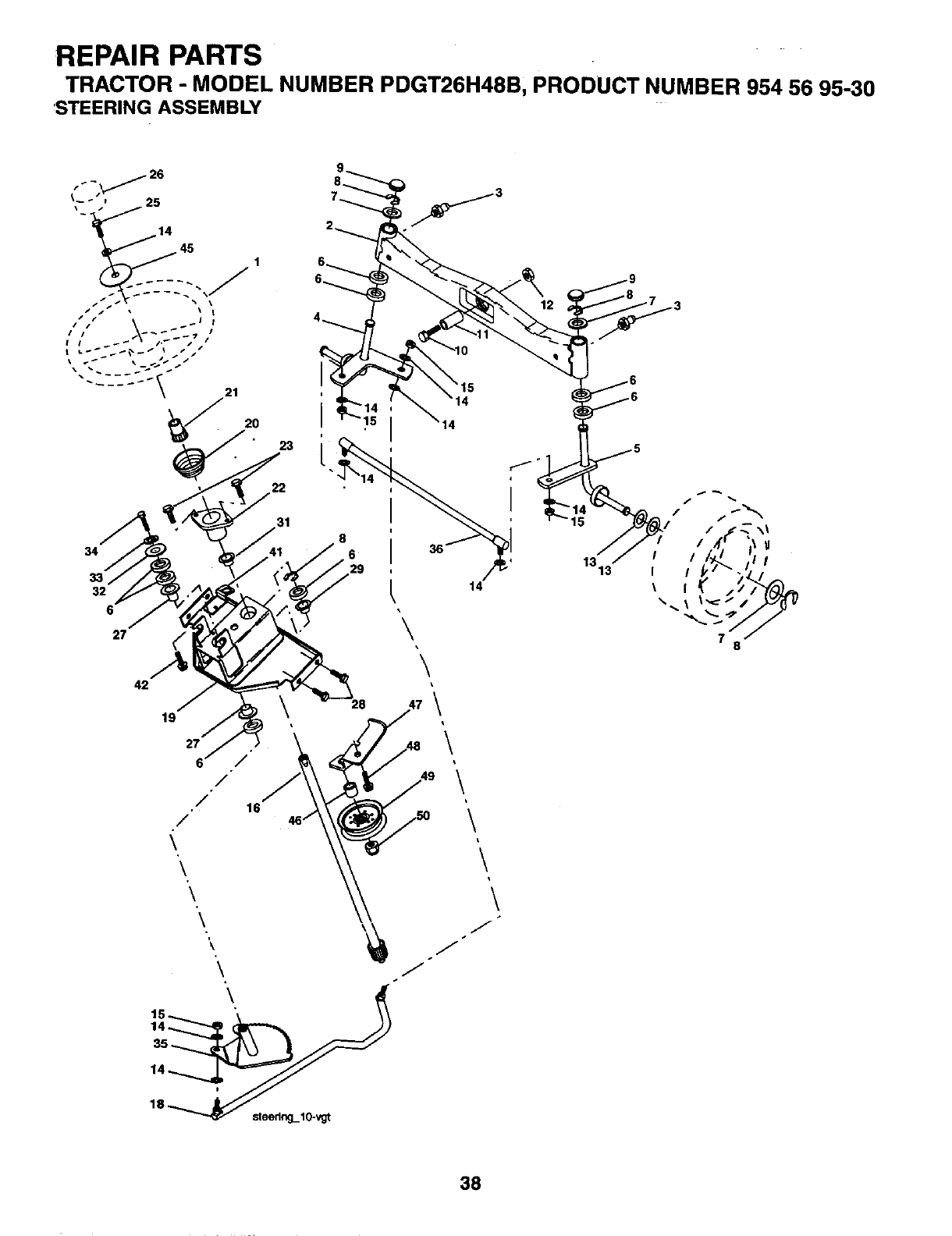

REPAIR PARTS

TRACTOR -MODEL NUMBER PDGT26H48B, PRODUCT NUMBER 954 56 95-30

STEERING ASSEMBLY

,.. _3

.31

'\ j

18 '_"'-,_st eedng_10-_t

28 47 \

1313

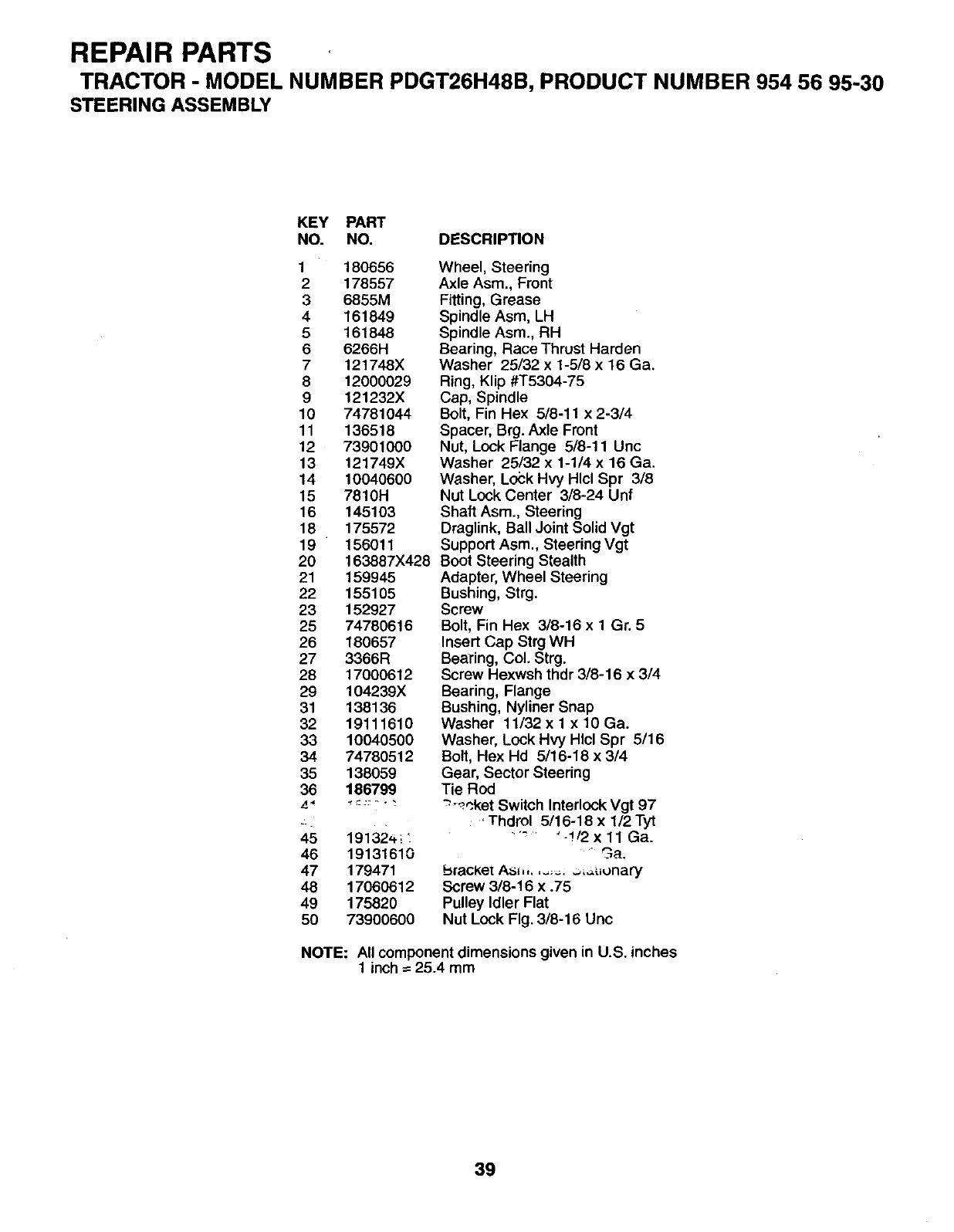

REPAIR PARTS

TRACTOR -MODEL NUMBER PDGT26H48B, PRODUCT NUMBER 954 56 95-30

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 180656

2178557

3 6855M

4 161849

5 161848

6 6266H

7121748X

8 12000029

9 121232X

10 74781044

11 136518

12 73901000

13 121749X

14 10040600

15 7810H

16 145103

18 175572

19 156011

20 163887X428

21 159945

22 155105

23 152927

25 74780616

26 180657

27 3366R

28 17000612

29 104239X

31 138136

32 19111610

33 10040500

34 74780512

35 138059

36 186799

45 19132_;_

46 19131610

47 179471

48 17060612

49 175820

50 73900600

Wheel, Steering

Axle Asm., Front

Fitting, Grease

Spindle Asm, LH

Spindle Asm., RH

Bearing, Race Thrust Harden

Washer 25/32 x 1-5/8 x 16 Ga.

Ring, Klip #T5304-75

Cap, Spindle

Bolt, Fin Hex 5/8-11 x 2-3/4

Spacer, Brg. Axle Front

Nut, Lock Flange 5/8-11 Unc

Washer 25/32 x 1-1/4 x 16 Ga.

Washer, Lock Hvy Hlcl Spr 3/8

Nut Lock Center 3/8-24 Unf

Shaft Asm., Steering

Draglink, Ball Joint Solid Vgt

Support Asm., Steering Vgt

Boot Steering Stealth

Adapter, Wheel Steering

Bushing, Strg.

Screw

Bolt, Fin Hex 3/8-16 x 1 Gr. 5

Insert Cap Strg WH

Bearing, Col. Strg.

Screw Hexwsh thdr 3/8-16 x 3/4

Bearing, Flange

Bushing, Nyliner Snap

Washer 11/32 x 1 x 10 Ga.

Washer, Lock Hvy HIcl Spr 5/16

Bolt, Hex Hd 5/16-18 x 3/4

Gear, Sector Steering

Tie Rod

-_,:.ket Switch Interlock Vgt 97

,Thdrol 5/16-18 x 1/2 Tyt

"'_ '-!/2 x11Ga.

bracket As_-. ,_;: ._hunary

Screw 3/8-16 x .75

Pulley Idler Flat

Nut Lock Fig. 3/8-16 Uric

NOTE: All component dimensions given in U.S. inches

1 inch =25.4 mm

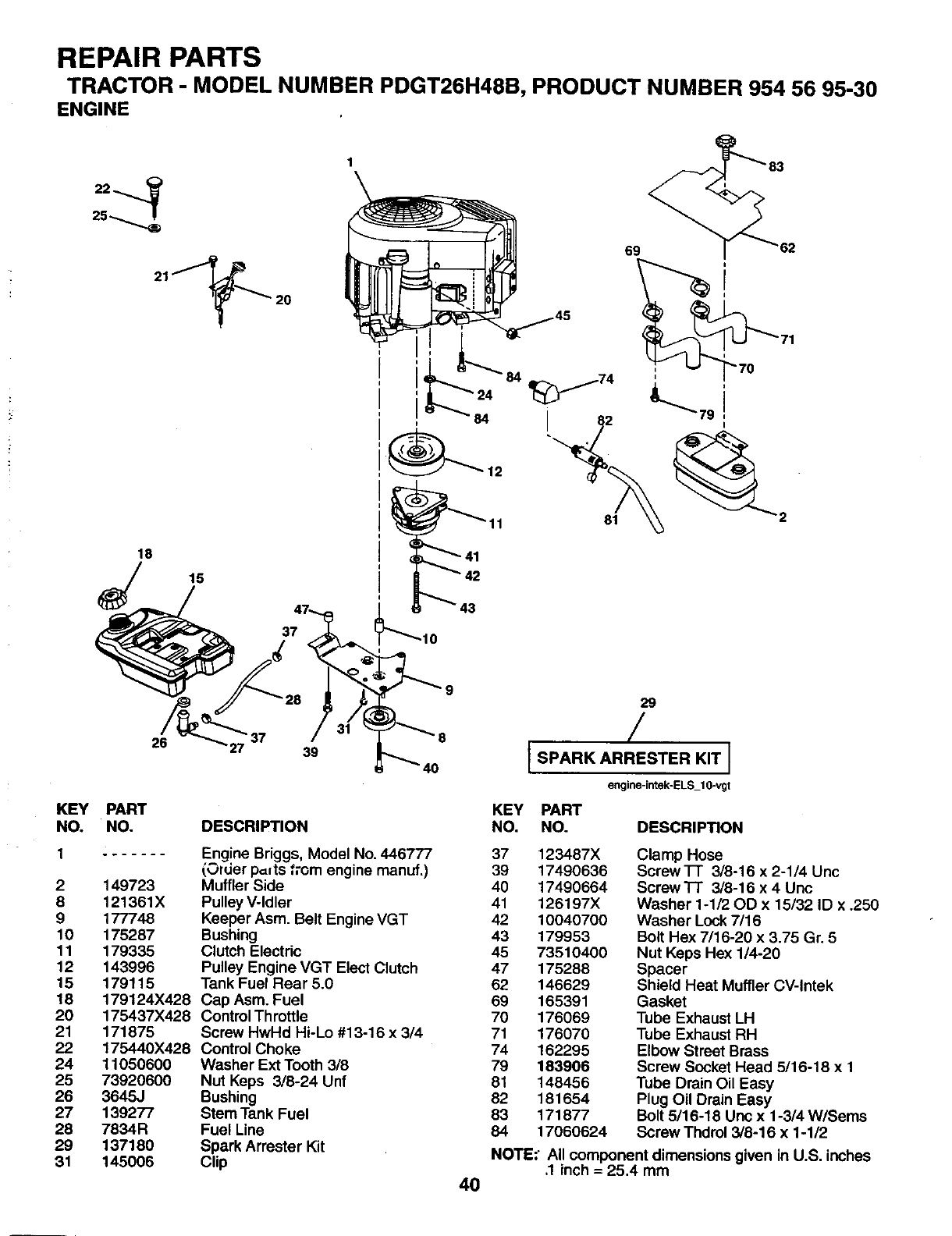

REPAIR PARTS

TRACTOR -MODEL NUMBER PDGT26H48B, PRODUCT NUMBER 954 56 95-30

ENGINE

26 "37 39

KEY PART

NO. NO. DESCRIPTION

B4 _/74

KEY

NO.

ISPARK ARRESTER KIT I

engine-intek-FLS_l 0-vgt

PART

NO. DESCRIPTION

2 149723

8 121361X

9 177748

10 175287

11 179335

12 143996

15 179115

18 179124X428

20 175437X428

21 171875

22 175440X428

24 11050600

25 73920600

26 3645J

27 139277

28 7834R

29 137180

31 145006

Engine Briggs, Model No. 446777

(Older p_fts fz'om engine manuf.)

Muffler Side

Pulley V-Idler

Keeper Asm. Belt Engine VGT

Bushing

Clutch Electric

Pulley Engine VGT Elect Clutch

Tank Fuel Rear 5.0

Cap Asm. Fuel

Control Throttle

Screw HwHd Hi-Lo #13-16 x 3/4

Control Choke

Washer Ext Tooth 3/8

Nut Keps 3/8-24 Unf

Bushing

Stem Tank Fuel

Fuel Line

Spark Arrester Kit

Clip 4O

37 123487X

39 17490636

40 17490664

41 126197X

42 10040700

43 179953

45 73510400

47 175288

62 146629

69 165391

70 176069

71 176070

74 162295

79 183906

81 148456

82 181854

83 171877

84 17060624

Clamp Hose

Screw'lF 3/8-16 x 2-1/4 Unc

Screw'lT 3/8-16 x 4 Unc

Washer 1-1/20D x 15/32 ID x .250

Washer Lock 7/16

Bolt Hex 7/16-20 x 3.75 Gr. 5

Nut Keps Hex 1/4-20

Spacer

Shield Heat Muffler CV-Intek

Gasket

Tube Exhaust LH

Tube Exhaust RH

Elbow Street Brass

Screw Socket Head 5/16-18 x 1

Tube Drain Oil Easy

Plug Oil Drain Easy

Bolt 5/16-18 Unc x 1-3/4 W/Sems

Screw Thdrol 3/8-16 x 1-1/2

NOTE:' All component dimensions given in U.S. inches

.1 inch = 25.4 mm

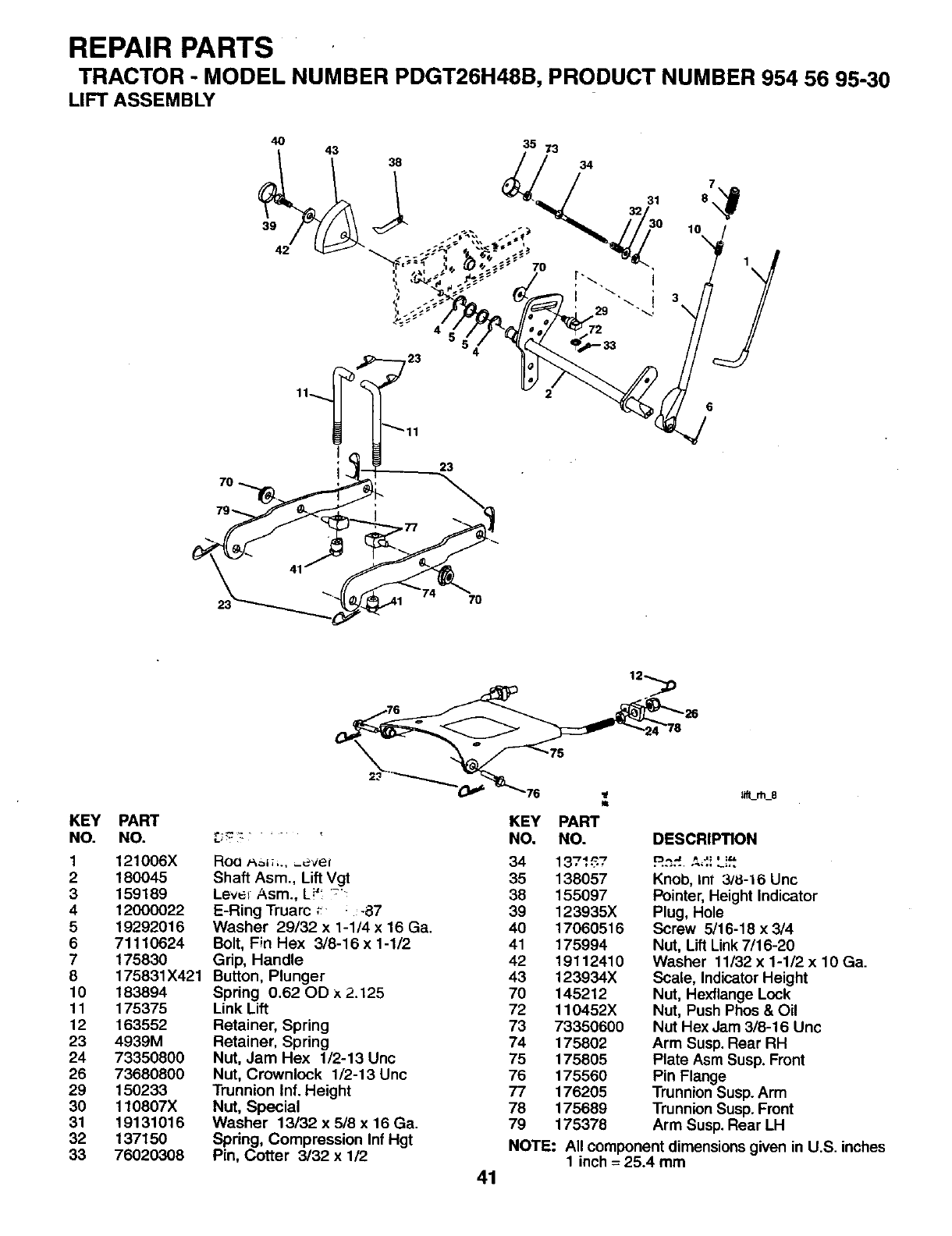

REPAIR PARTS

TRACTOR -MODEL NUMBER PDGT26H48B, PRODUCT NUMBER 954 56 95-30

LIFT ASSEMBLY

40 43 35 73

31 8

t0 10 /

7O 23

KEY

NO.

PART

NO.

121006X

180045

159189

12000022

19292016

71110624

175830

175831X421

183894

175375

163552

4939M

73350800

73680800

150233

110807X

19131016

137150

76020308

76 °26

4 78

KEY PART

NO. NO. DESCRIPTION

ROO ,'-_&li;., _-_vel

Shaft Asm., Lift Vgt

Lever Asm., L!t _'

E-Ring Truarc _' :-87

Washer 29/32 x 1-1/4 x 16 Ga.

Bolt, Fin Hex 3/8-16 x 1-1/2

Grip, Handle

Button, Plunger

Spring 0.62 OD x 2.125

Link Lift

Retainer, Spring

Nut, Jam Hex 1/2-13 Unc

Nut, Crownlock 1/2-13 Unc

Trunnion Inf. Height

Nut, Special

Washer 13/32 x 5/8 x 16 Ga.

Spring, Compression Inf Hgt

Pin, Cotter 3/32 x 1/2

34 !371_7

35 138057

38 155097

39 123935X

40 17060516

41 175994

42 19112410

43 123934X

70 145212

72 110452X

73 73350600

74 175802

75 175805

76 175560

77 176205

78 175689

79 175378

R_ _,'_iL_ff

Knob, Int 3/6-16 Unc

Pointer, Height Indicator

Plug, Hole

Screw 5/16-18 x 3/4

Nut, Lift Link 7/16-20

Washer 11/32 x 1-1/2 x 10 Ga.

Scale, Indicator Height

Nut, Hexflange Lock

Nut, Push Phos & Oil

Nut Hex Jam 3/8-16 Unc

Arm Susp. Rear RH

Plate Asm Susp. Front

Pin Flange

Trunnion Susp. Arm

Trunnion Susp. Front

Arm Susp. Rear LH

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

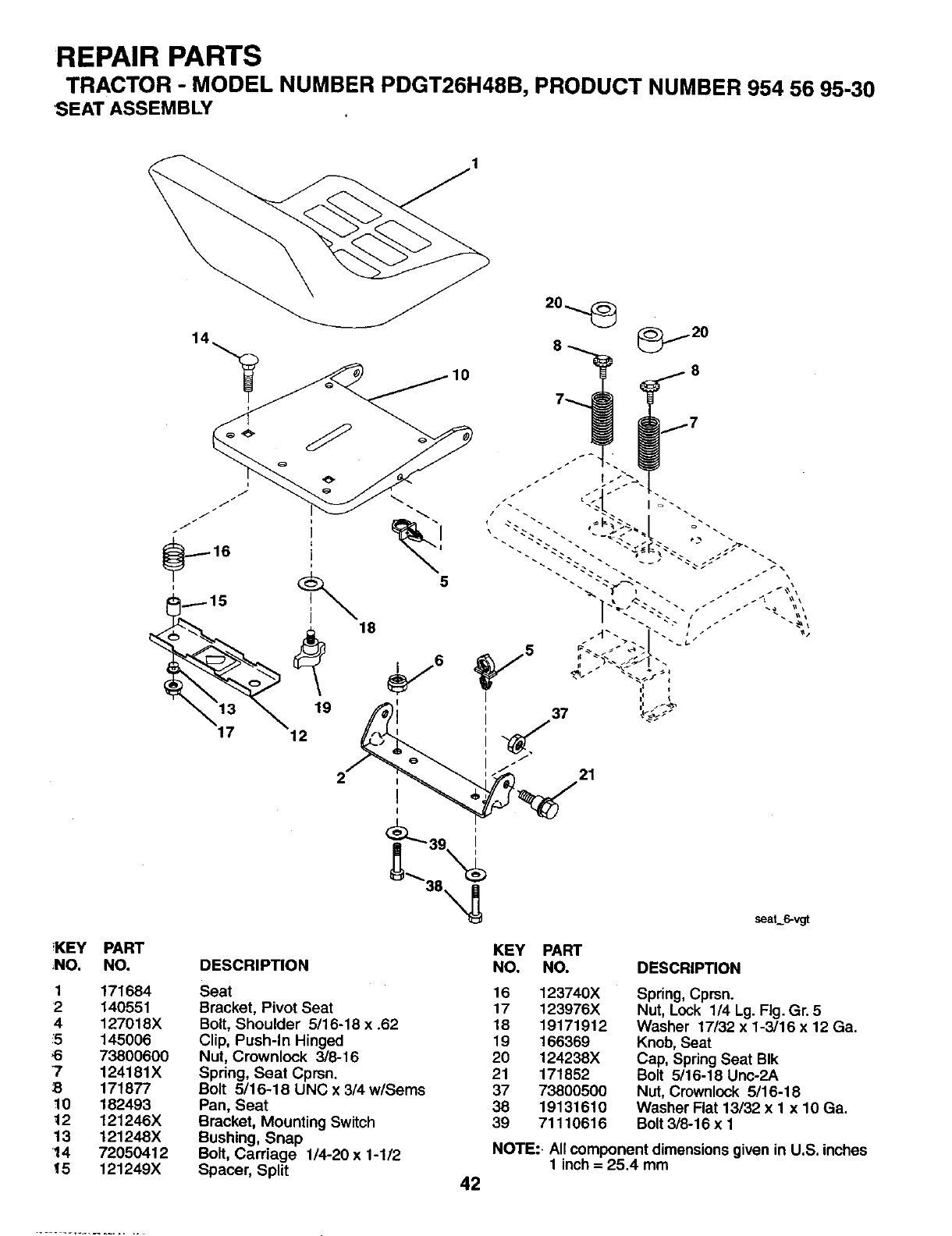

REPAIR PARTS

TRACTOR -MODEL NUMBER PDGT26H48B, PRODUCT NUMBER 954 56 95-30

'SEAT ASSEMBLY

_KEY

NO,

PART

NO.

171684

140551

127018X

145006

73800600

124181X

171877

182493

121246X

121248X

72050412

121249X

DESCRIPTION

Seat

Bracket, Pivot Seat

Bolt, Shoulder 5/16-18 x .62

Clip, Push-In Hinged

Nut, Crownlock 3/8-16

Spring, Seat Cprsn.

Bolt 5/16-18 UNC x 3/4 w/Sems

Pan, Seat

Bracket, Mounting Switch

Bushing, Snap

Bolt, Carriage 1/4-20 x 1-1/2

Spacer, Split

seatS-vgt

KEY PART

NO. NO. DESCRIPTION

16 123740X

17 123976X

18 19171912

19 166369

2O 124238X

21 171852

37 73800500

38 19131610

39 71110616

Spring, Cprsn.

Nut, Lock 1/4 Lg. Fig. Gr. 5

Washer 17/32 x 1-3/16 x 12 Ga.

Knob, Seat

Cap, Spring Seat BIk

Bolt 5/16-18 Unc-2A

Nut, Crownlock 5/16-18

Washer Flat 13/32 x 1 x 10 Ga.

Bolt 3/8-16 x 1

NOTE:. All component dimensions given in U.S. inches

1 inch = 25.4 mm

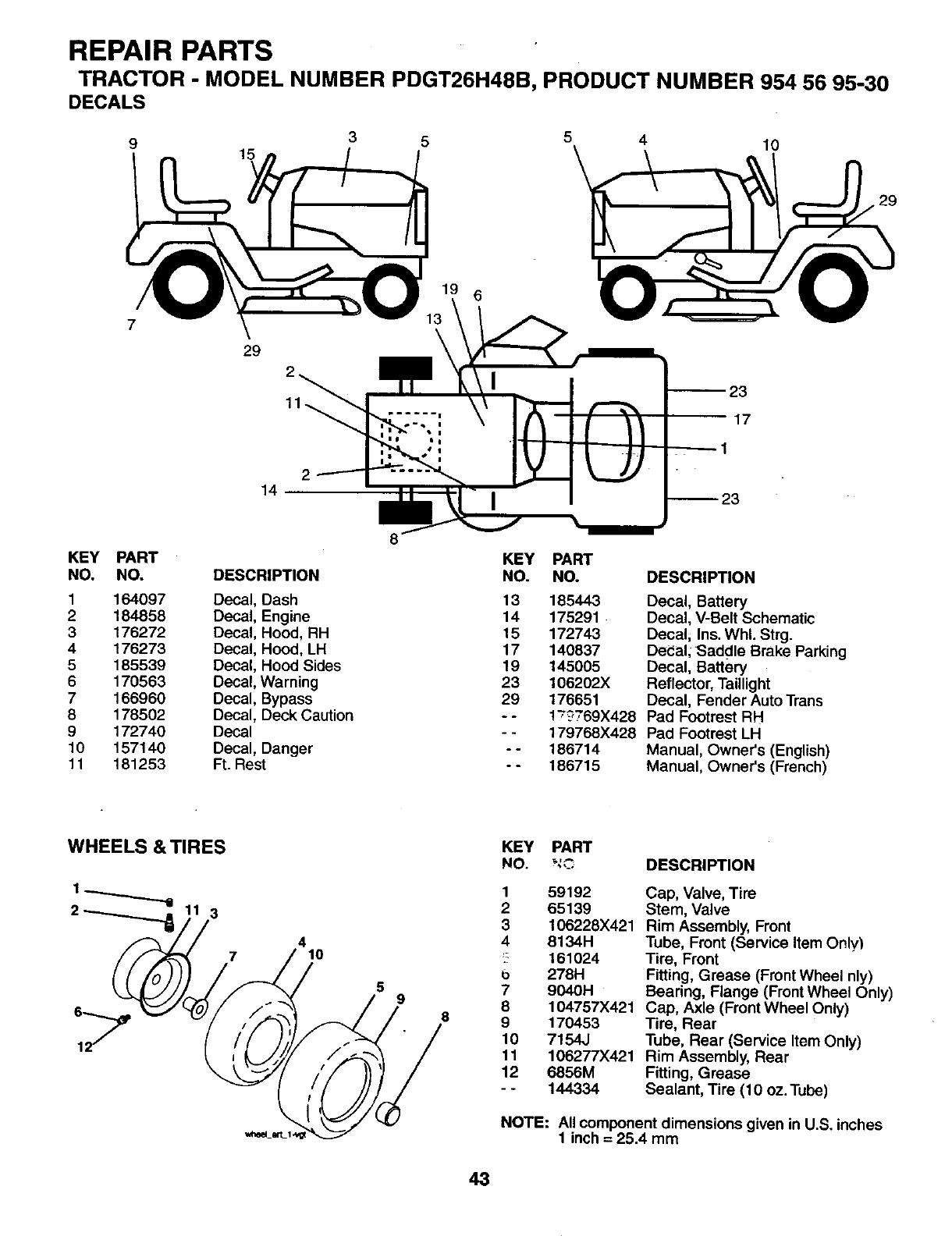

REPAIR PARTS

TRACTOR -MODEL NUMBER PDGT26H48B, PRODUCT NUMBER 954 56 95-30

DECALS

915

355\410

...... , 17

KEY PART KEY

NO. NO. DESCRIPTION NO,

1164097 Decal, Dash 13

2 184858 Decal, Engine 14

3 176272 Decal, Hood, RH 15

4 176273 Decal, Hood, LH 17

5 185539 Decal, Hood Sides 19

6 170563 Decal, Warning 23

7 166960 Decal, Bypass 29

8 178502 Decal, Deck Caution - -

9 172740 Decal - -

10 157140 Decal, Danger - -

11 181253 Ft. Rest - -

PART

NO,

185443

175291

172743

140837

145005

106202X

176651

1"77769X428

179768X428

186714

186715

DESCRIPTION

Decal, Battery

Decal, V-Belt Schematic

Decal, Ins. Whl. Strg.

De(_al, Saddle Brake Parking

Decal, Battery

Reflector, Taillight

Decal, Fender Auto Trans

Pad Footrest RH

Pad Footrest LH

Manual, Owner's (English)

Manual, Owner's (French)

WHEELS & TIRES KEY

NO.

7 10

PART

159192

2 65139

3 106228X421

48134H

'F 161024

278H

7 9040H

8 104757X421

9 170453

10 7154J

11 106277X421

12 6856M

--144334

DESCRIPTION

Cap, Valve, Tire

Stem, Valve

Rim Assembly, Front

Tube, Front (Service Item Only)

Tire, Front

Fitting, Grease (Front Wheel nly)

Bearing, Flange (Front Wheel Only)

Cap, Axle (Front Wheel Only)

Tire, Rear

Tube, Rear (Service Item Only)

Rim Assembly, Rear

Fitting, Grease

Sealant, Tire (10 oz.Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

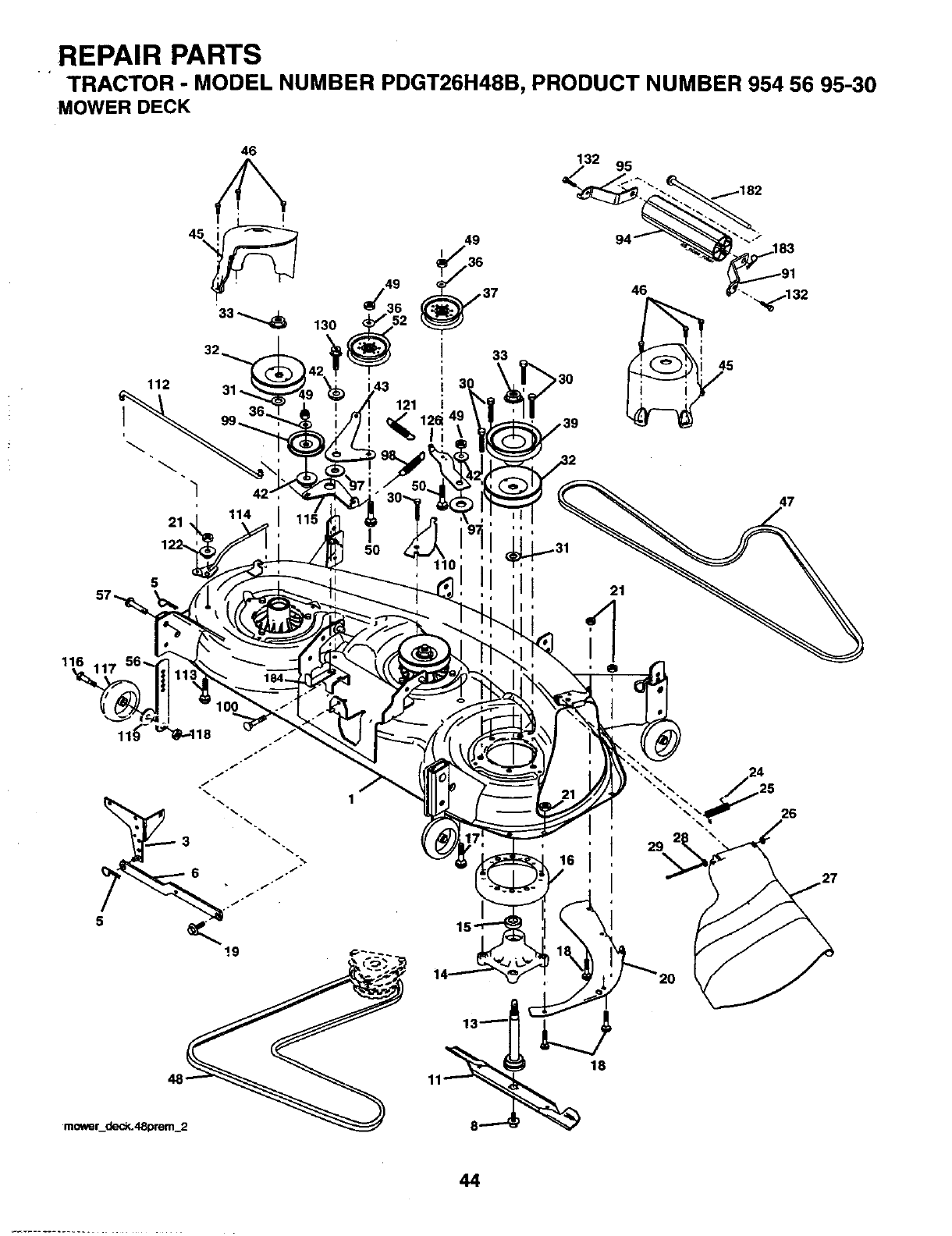

REPAIR PARTS

•+TRACTOR -MODEL NUMBER PDGT26H48B, PRODUCT NUMBER 954 56 95-30

MOWER DECK

46 132 95

112

121

_30

114

110 '1

I,!

I I

mower_dec_.4.8prem_2

REPAIR PARTS

TRACTOR ;MODEL NUMBER PDGT26H48B, PRODUCT NUMBER954 56 95-30

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

180358X421

178915

4939M

178024

174365

173921

180054

174360

174358

110485X

174493

72110610

72140505

132827

174378

73680500

105304X

178102

110452X

180655X428

19111016

131491

173984

129963

177865

178342

19131316

177968

174375

122052X

_74373

180806

137729

180808

174368

Deck Weldment Mower 48 49 73680600

Bracket Asm., Sway Bar 50 72110612

Retainer Spring 52 175820

Sway Bar Deck 56 155986

Bolt 7/16 Asm. Blade 57 156941

(The following blades are available) 91 180535

Blade, 48" Mulching 94 176066

(For mulching mowers only) 95 180534

Blade, 48" Hi-lift 97 178515

(For bagging and discharging) 98 179479

Shaft Asm. w/Lower Bearing 99 184058

Mandrel Asm. 100 72110616

Bearing, Ball, Mandrel 110 175016

Stripper Mandrel Deck 112 174387

Bolt RDHD Sq Neck 3/8-16 x 1.25 113 72110506

Bolt, Carriage 5/16-18 x 5/8 114 174384

Bolt, Hex Hd, Shoulder 5/16-18 115 174609

Baffle, Vortex Mower 116 184219

Nut, Crownlock 5/16-18 Unc 117 174873

Cap, Sleeve 118 73930600

Spring, Torsion 119. 19121414

Nut, Push 121 174371

Deflector Shield 122 174606

Washer 11/32x5/8x16Ga. 126 174372

Rod, Hinge 130 17000616

Screw, Thdroll Washer Head 132 17000612

Washer, Spacer Mower Vented 182 179127

Pulley, Mandrel 183 163552

Nut, Fig.Top Lock Cntr. 9/16 184 173979

Washer 13/32 x 13/16 x 16 Ga. - - 174356

Pulley, Idler, Flat

Pulley, Idler, Driven -- 180939

Spacer, Retainer

Arm, Idler Secondary

Cover, Mandrel Deck

Screw, Thdroll. 1/4-20 x 5/8

V-Belt, Mower, Secondary

V-Belt, Mower, Primary

Nut, Crownlock 3/8-16 Unc

Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5

Pulley Idler Flat

Bar Pnt Adj.

Pin Head Rivet

Bracket Asm N Roller RH

Roller Nose 48"

Bracket Asm N Roller LH

Washer Hardened

Spring Primary Drive

Pulley Idler"V"

Bolt RDHD Sqnk 3/8-16 Unc x 2

Arm Spring Secondary

Link Tension Relief Lever

Bolt Carr. 5/16-18 x 3/4

Tension Asm. Relief Lever

Arm Spring Tension Relief

Bolt, Shoulder

Gauge Wheel

Nut, Centerlock 3/8-16 Unc

Washer 3/8 x 7/8 x 14 Ga.

Spring Secondary Drive

Bushing Pivot Tension Relief

Arm, Idler, Primary Deck

Screw 3/8-16 x 1.0

Screw 3/8-16 x .75

Red Roller Nose

Retainer Spring

Keeper Belt Idler

Mandrel Asm. Service

(Includes Key Nos. 13-15 and 33)

Replacement Mower, Complete

(Std. Deck - Order separately nose

roller components key nos. 91, 94,

95, 132, 182, and 183)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

LIMITED WARRANTY

The Manufacturerwarrantsto the originalconsumerpurchaserthat this product as manufacturedisfree from defectsinmateri-

als andworkmanship.For a periodoftwo (2) years from date of purchaseby the originalconsumerpurchaser,we wiltrepairor

replace,at our option,withoutchargefor partsor laborincurredinreplacingparts, any part whichwe find to be defectivedue

to materialsorworkmanship.ThisWarrantyis subjectto the following limitationsandexclusions.

1. This warranty d_es n_t app_yt_ the engine_ _ther than EHP manufactured transax_e/transmissi_n c_mp_nents_

battery (except as noted below) or components parts thereof. Please refer to the applicable manufacturer's

warranty on these items.

2. Transportation charges for the movement of any power equipment unit or attachment are the responsibilityof

the purchaser. Transportation charges for any parts submitted for replacement under this warranty must be

paid by the purchaser unless such return is requested by Electrolux Home Products.

3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery

which we find to be defective in manufacture, during the first ninety (90) days of ownership. After ninety (90)

days, we will exchange the Battery, charging you 1/12 of the price of anew Battery for each full month from

the date of the original sale. Battery must be maintained in accordance with the instructionsfurnished.

4. The Warranty period for any products used for rental or commercial purposes is limitedto 90 days from the

date of original purchase.

5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and main-

tained in accordance with the instructions furnished. This Warranty does not apply to any product which has

been subjected to.alteration, misuse, abuse, improper assembly or installation, delivery damage, or to normal

wear of the product.

6. Exclusions: Excluded from this Wa.rranty are belts, blades, blade adapters, normal wear, normal adjustments,

standard hardware and normal maintenance.

7. In the event you have a claim under this Warranty, you must return the product to an authorized service deal-

el'.

Should you have any unanswered questions concerning this Warranty, please contact:

Electrolux Home Products, Inc. In Canada contact:

Outdoor Products Customer Sen/ice Dept. Electrolux Canada Corp.

250 Bobby Jones Expressway 7075 Ordan Drive

Augusta, GA 30909 USA Mississauga, Ontario

L5T 1K6

giving the model number, serial number and date of purchase of your product and the name and address of the authorized

dealer from whom it was purchased.

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRAN-

TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas

do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above limi-

tations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which

vary from locale to locale.

This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975.

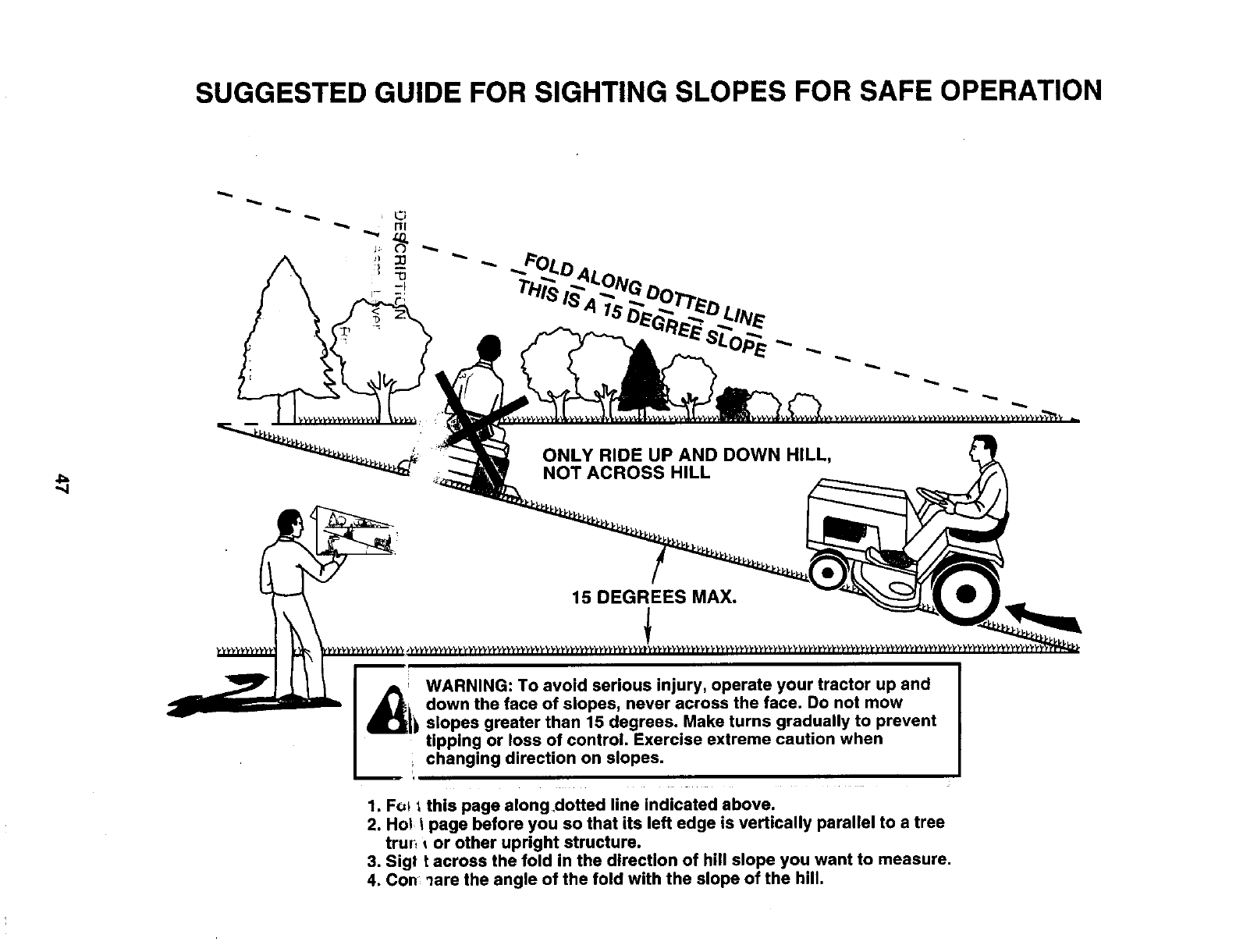

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

15 DEGREES MAX.

_t ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

D q

1. F(J_t this page along dotted line indicated above.

2. Ho! Ipage before you so that its left edge is vertically parallel to a tree

trur, _or other upright structure.

3. Sigt t across the fold in the direction of hill slope you want to measure.

4. Con mare the angle of the fold with the slope of the hill.

PARTS AND SERVICE

Your POULAN PRO product has been expertly engineered and carefully manufactured to rigid quality standards.

As with all mechanical products, some adjustments or part replacement may be necessary during the life of your

unit.

FOR SERVICE OR REPLACEMENT PARTS:

1. Consult your dealer/place of purchase.

2. Consult the yellow pages of your phone directory for the name of the nearest service dealer (under "saws" for

Chain Saws or under "lawn mowem" for Trimmers, Brushcutters, and Blowers).

3. For replacement parts, have available the following information:

v. Model Number/Manufacturer's I.D. Number

b. Description of part.

NOTE: Electrolux Home Products provides parts and service through its authorized distributors and dealem;

therefore, all requests for parts and service should be directed to your local dealer(s). The philosophy

of Electrolux Home Products is to continually improve all of its products. If the operating character-

2._:: cr _ _,.:_,rance of your product differs from those described in this Manual, please contact

your local dealer for updated information and assistance.

Poulan Pro Pdgt26H48B Users Manual

POULAN Lawn, Tractor Manual L0310500 POULAN Lawn, Tractor Owner's Manual, POULAN Lawn, Tractor installation guides

!! Poulan-61 Poulan Lawn Mower Manuals - Lawn Mower Manuals – The Best Lawn Mower Manuals Collection

Navigation menu

Versions of this User Manual:

Views

Navigation
