Powerwave Technologies 5JS0094 Wideband Radio Head User Manual 044 05251 WRH
Powerwave Technologies Inc Wideband Radio Head 044 05251 WRH
Users Manual
Installation and Service Manual
044-05251 Rev A
March 2007
Wideband Radio Head (WRH)
© 2007 Powerwave Technologies Incorporated. All rights reserved.
Powerwave Technologies and the Powerwave logo are registered trademarks.
Powerwave Technologies Inc. reserves the right to make changes to the documentation and equipment, includ-
ing but not limited to component substitution and circuitry changes. Changes that impact this document may
subsequently be incorporated in a later revision of this document.
This Powerwave product is designed to operate within the Normal Operating (typical operating) ranges or con-
ditions specified in this document. Operation of this equipment beyond the specified ranges in this document
may cause (1) spurious emissions that violate regulatory requirements; (2) the equipment to be automatically
removed from service when maximum thresholds are exceeded; or (3) the equipment to not perform in accor-
dance with its specifications. It is the Operator's responsibility to ensure this equipment is properly installed and
operated within Powerwave operating specifications to obtain proper performance from the equipment and to
comply with regulatory requirements.
The rated output power of a standard WRH is for single carrier operation; for a WRH-V it is for multiple carriers.
As long as the composite power does not exceed the rated power (20W for North America), derating is not
required for mutiple carriers. For situations above that, the rating would have to be reduced by 3.5 dB, espe-
cially where the output signal is re-radiated and can cause interference to adjacent band users. This power
reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the
device. Input power is rated at 115/230VAC, 50/60Hz, and should be protected with a 20 A breaker. Power
strips should, at a minimum, conform to this requirement to prevent equipment damage and possible overload.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. Changes or modifications not expressly approved by Powerwave Technologies, Inc.
for compliance could void the user’s authority to operate this equipment. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial environ-
ment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Industry Canadian Requirement
All Powerwave apparatus introduced on the Canadian market meet all requirements of the Canadian Interfer-
ence-Causing Equipment Regulations. The -20dB bandwidth at 1900 MHz band is 80 MHz. The -20dB band-
width at the 850 MHz is 34 MHz.
Powerwave Technologies Inc., 1801 East St. Andrew Place, CA 92705 Santa Ana, USA.
Phone +1 714 466 1000 – Fax +1 714 466 5800 – Internet www.powerwave.com
Wideband Radio Head Revision Record
044-05251 Rev A i
Revision Record
Revision Letter Date of Change Reason for Change
3A August 2005 Original VD203 66
A March 2007 Document number changed to 044-05251 and manual updated
ii 044-05251 Rev A
This Page Intentionally Left Blank
044-05251 Rev A i
Table of Contents
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Chapter 1 - Product Description
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Scope of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Human Exposure of RF Radiation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Installation and Maintenance of Antenna Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Radiation Exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Electrostatic Discharge (ESD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
WRH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
WRH-V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Chassis Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Sub Unit Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Wideband Amplifier PCBA (WBA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Power Amplifier PCBA (PA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Multi-Carrier Power Amplifier PCBA (MCPA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Booster Amplifier PCBA (BA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Control Unit PCBA (CU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Distribution PCBA (DIA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Low Noise Amplifier (LNA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Duplex Filter (DPX). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Fiber Optic Unit (FOU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Fiber Optic Node (FON) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Power Supply Unit (PSU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Remote Control Unit (RCU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Alarm Interface PCBA (ALI) and Remote Control Interface PCBA (RCI) . . . . . . . . . . . . . . . . . . .1-6
Sub Unit Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7
WRH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7
WRH-V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8
Fiber Optic Distribution Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
Multi-Operator Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
Chapter 2 - Controls, Indicators and Connectors
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Front Cover Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Cabinet Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
PCBA Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
CU PCBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
FON PCBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
WRH-V PCBA Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
WRH PCBA Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
DIA PCBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
BA PCBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6
DPX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6
LNA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6
FON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6
PSU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7
Software and Hardware Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-9
Table of Contents Wideband Radio Head
ii 044-05251 Rev A
Chapter 3 - Installation
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Site Survey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
WRH Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Main Power and Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Fiber Optic and RF Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
WRH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
WRH-V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6
Optional Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6
Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6
External Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6
Door Open Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6
Fiber Link Interface (FLI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7
Main Power Breakdown Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7
21-60 Volt DC PSU Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8
Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-9
Initial Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-10
Chapter 4 - Maintenance
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Periodic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Clearing Alarm Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Field Replaceable Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6
FON. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6
PSU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6
WRH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
Return For Service Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
Obtaining an RMA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
Repackaging for Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
Remote Control Unit (RCU). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
RCU for Radio Communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8
RCU for Telephone Line Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8
Chapter 5 - Specifications
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Appendix A - Block Diagrams
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Standard WRH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
WRH-V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Non-Diversity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Diversity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
Wideband Radio Head List of Figures
044-05251 Rev A iii
List of Figures
1-1 Powerwave Wideband Radio Head (WRH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3

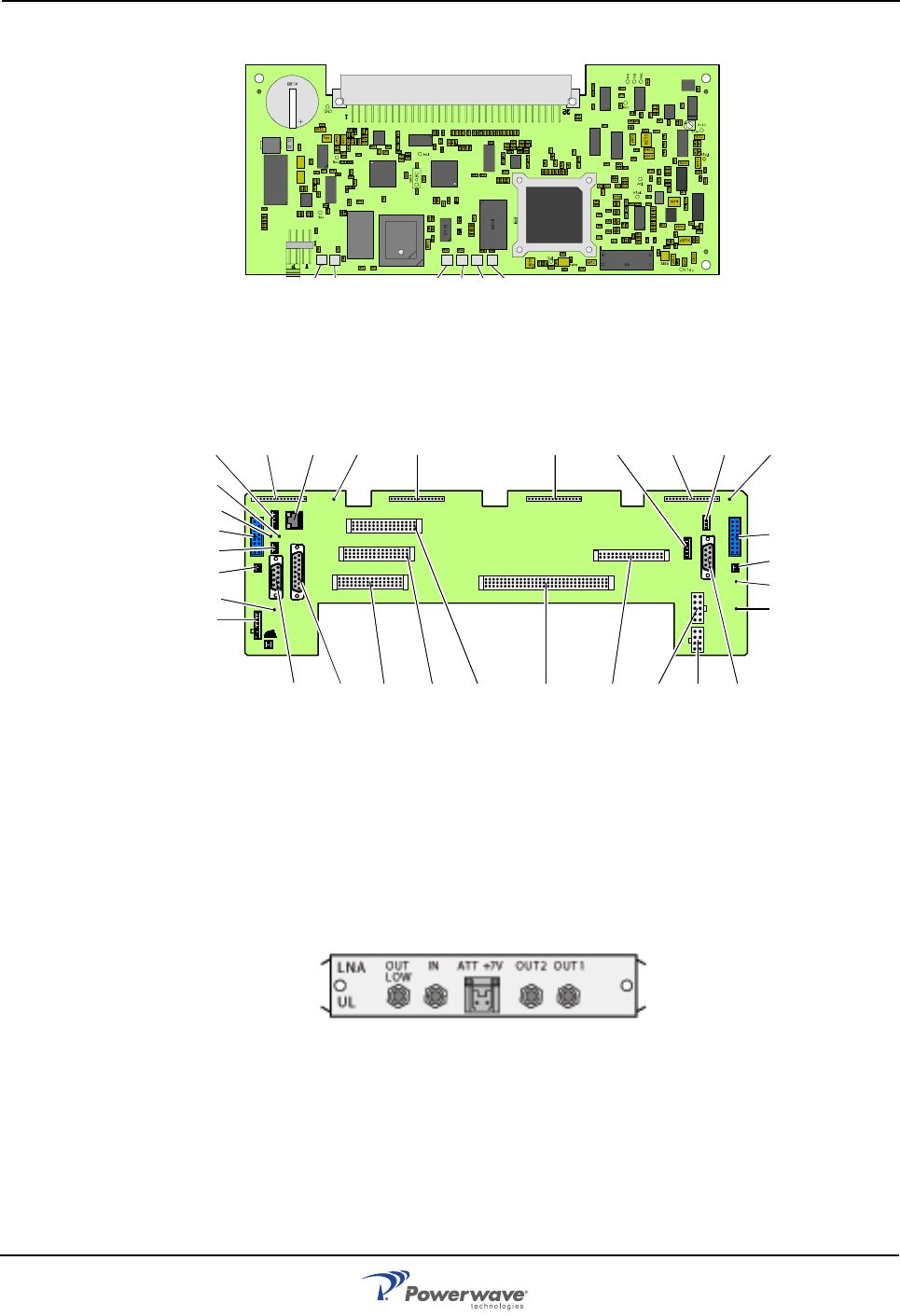

1-2 CU PCBA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
1-3 DIA PCBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
1-4 LNA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

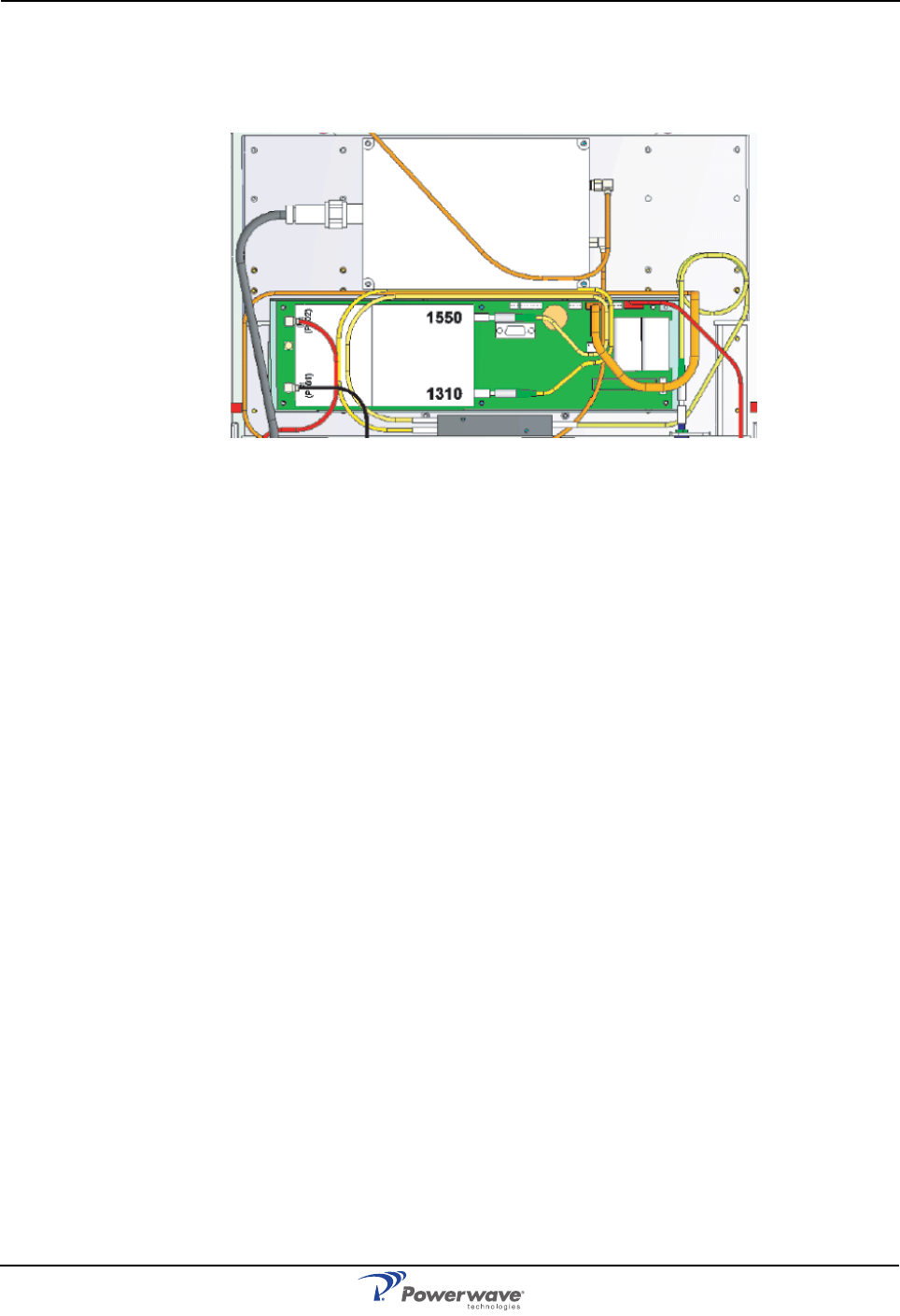

1-5 FOU in WRH-V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

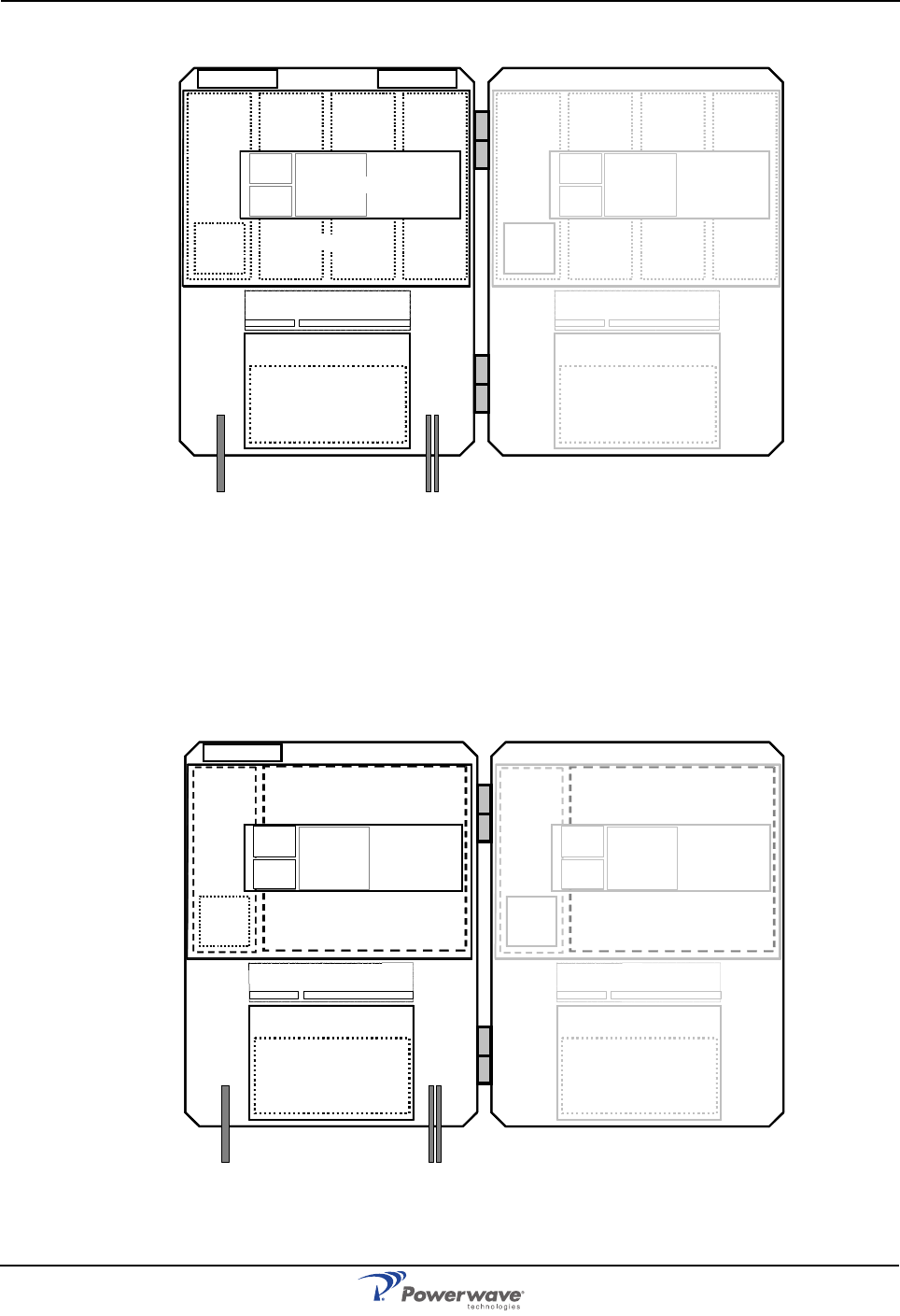

1-6 Standard WRH Sub Unit Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7
1-7 Standard WRH with Booster Option Sub Unit Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8

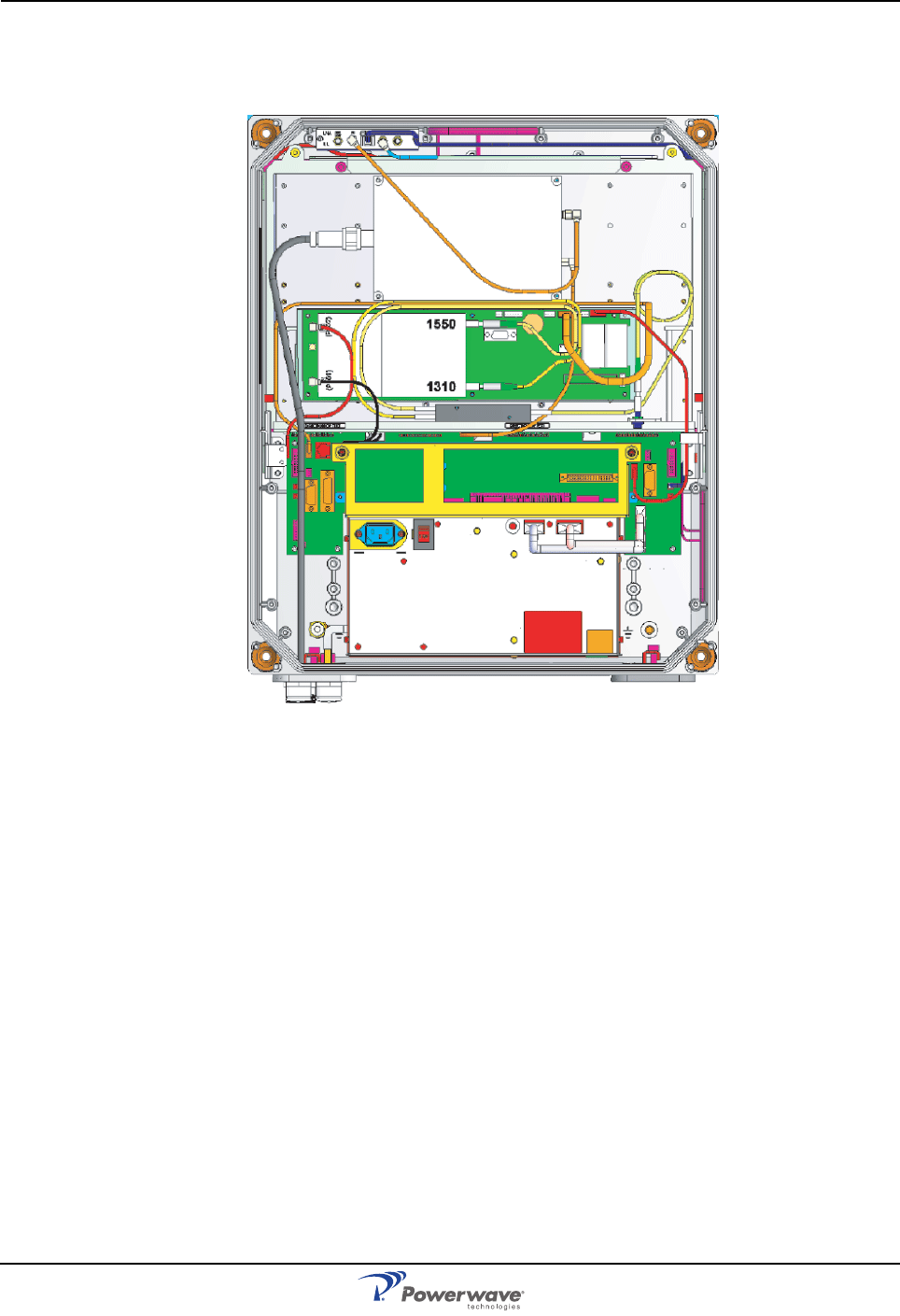

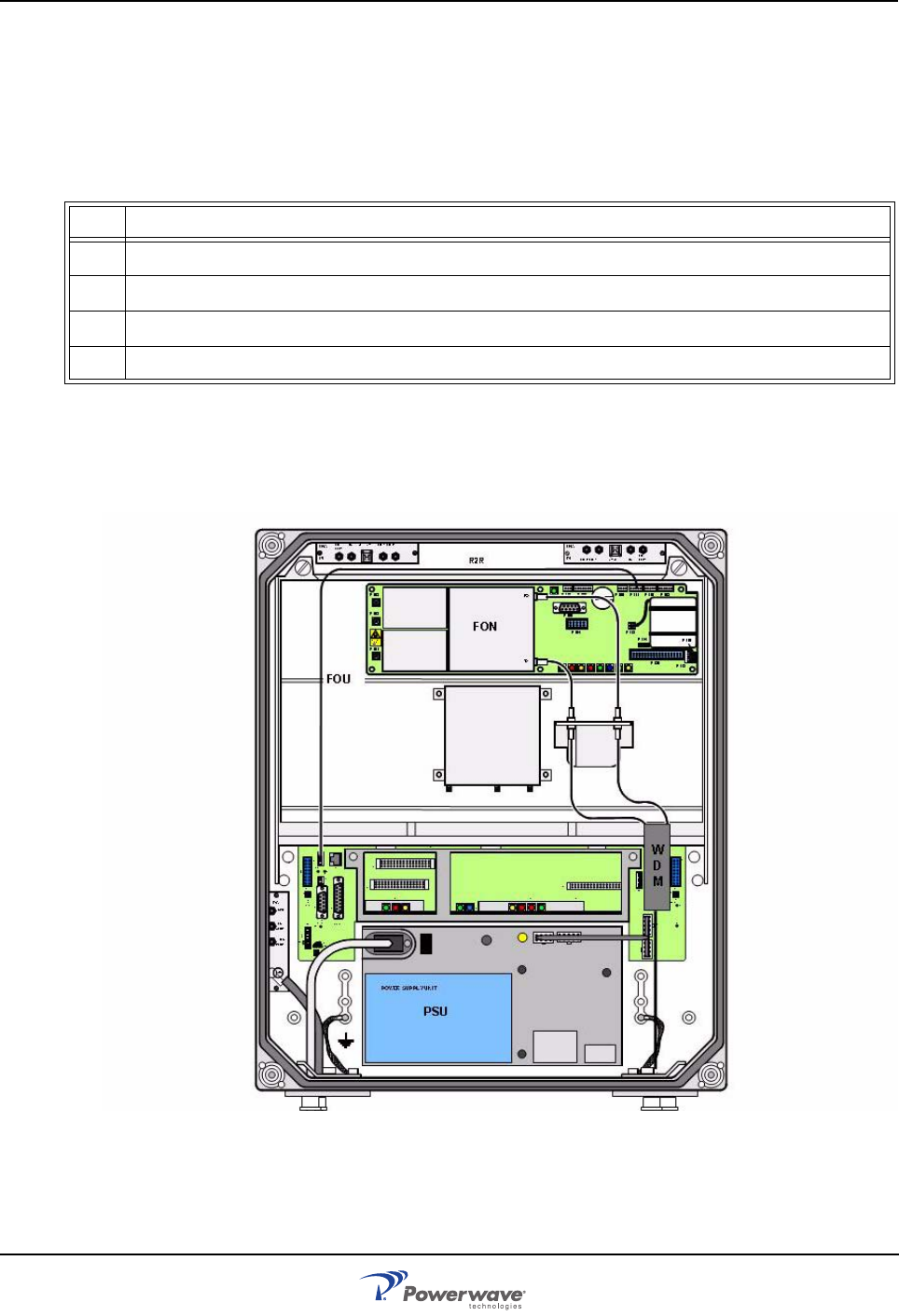

1-8 WRH-V Sub Unit Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8

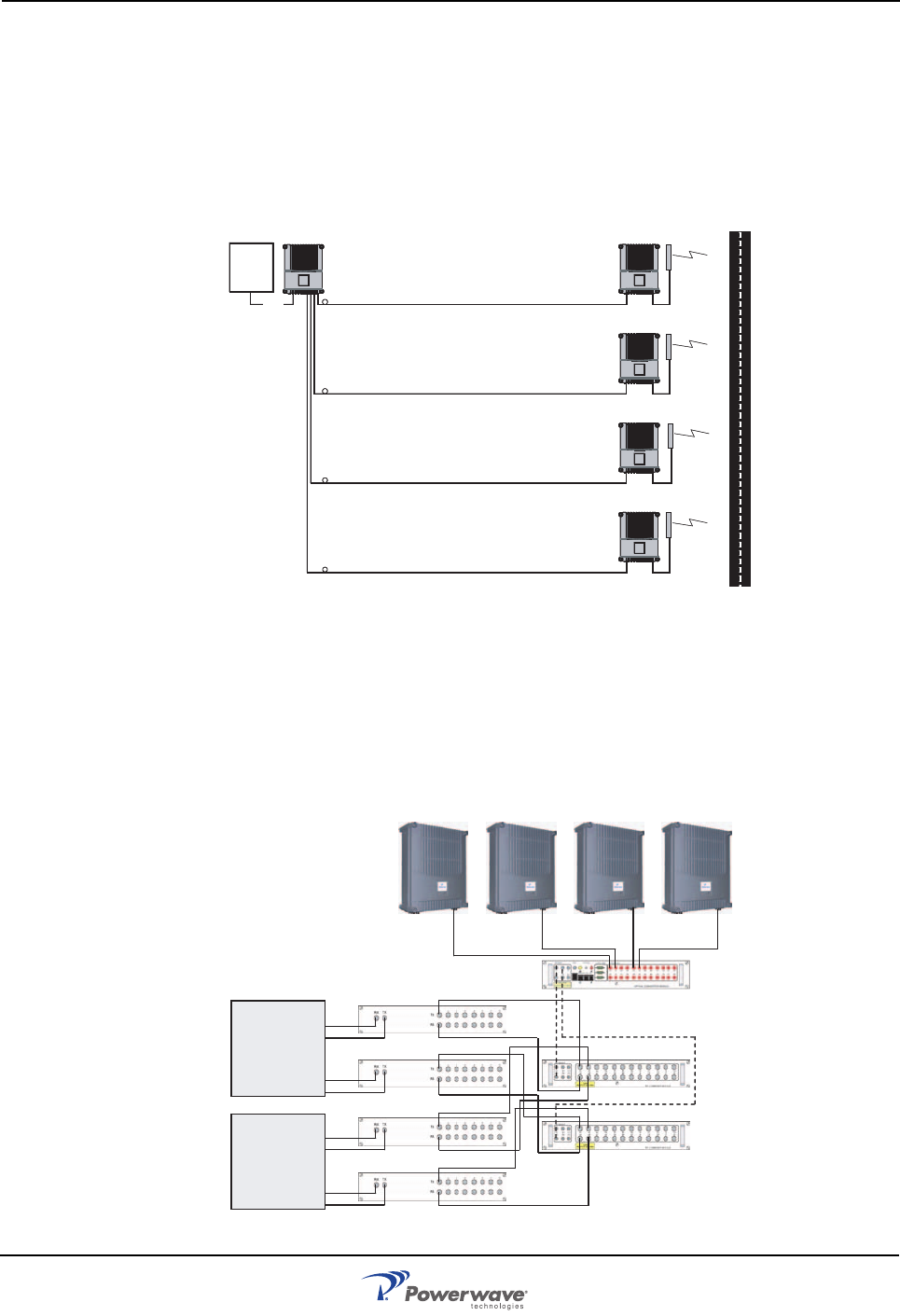

1-9 Fiber Optic Star Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
1-10 Multi-operator System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
2-1 External Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
2-2 Cabinet Internal Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

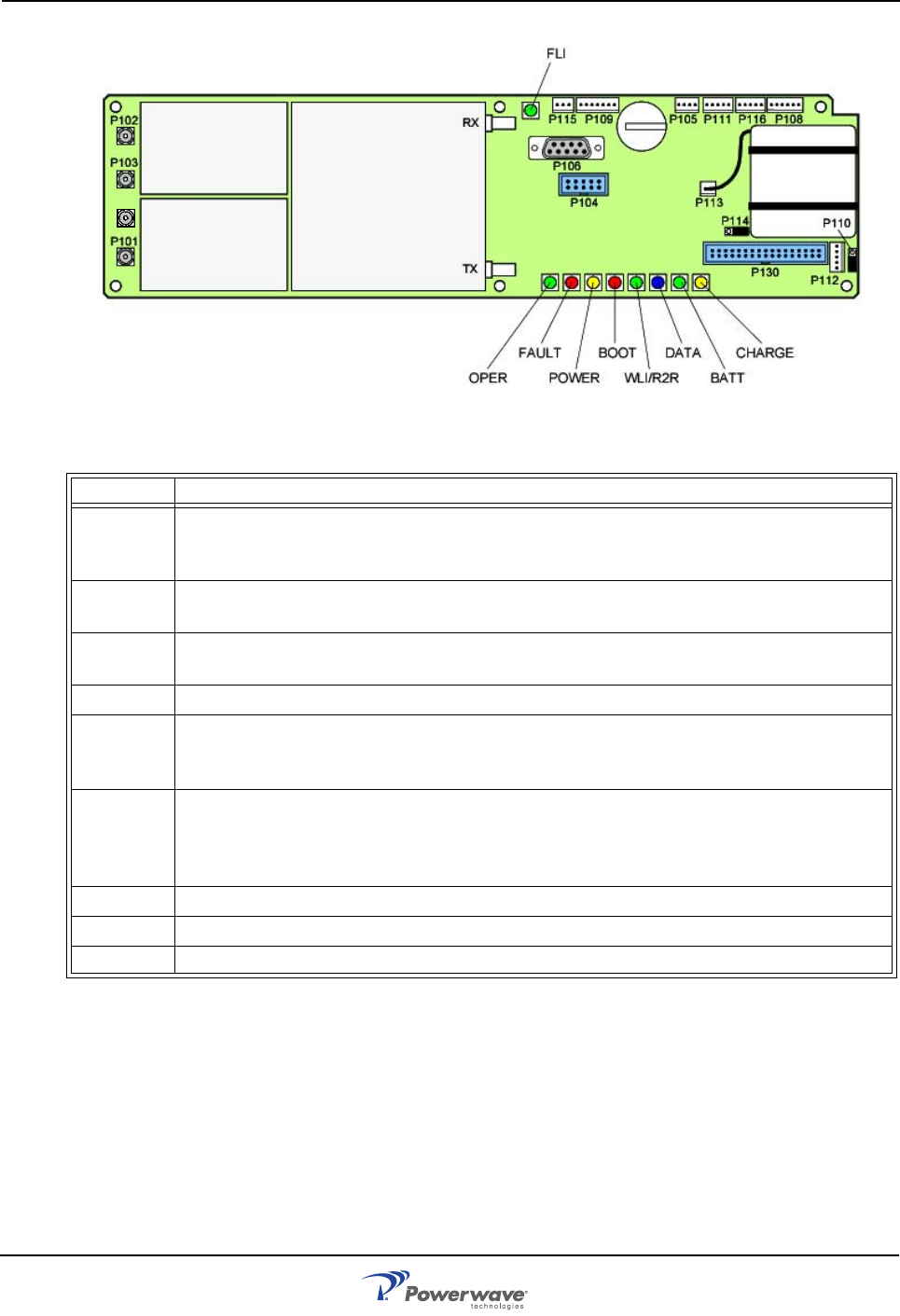

2-3 CU PCBA LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
2-4 FON LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
2-5 DIA PCBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5

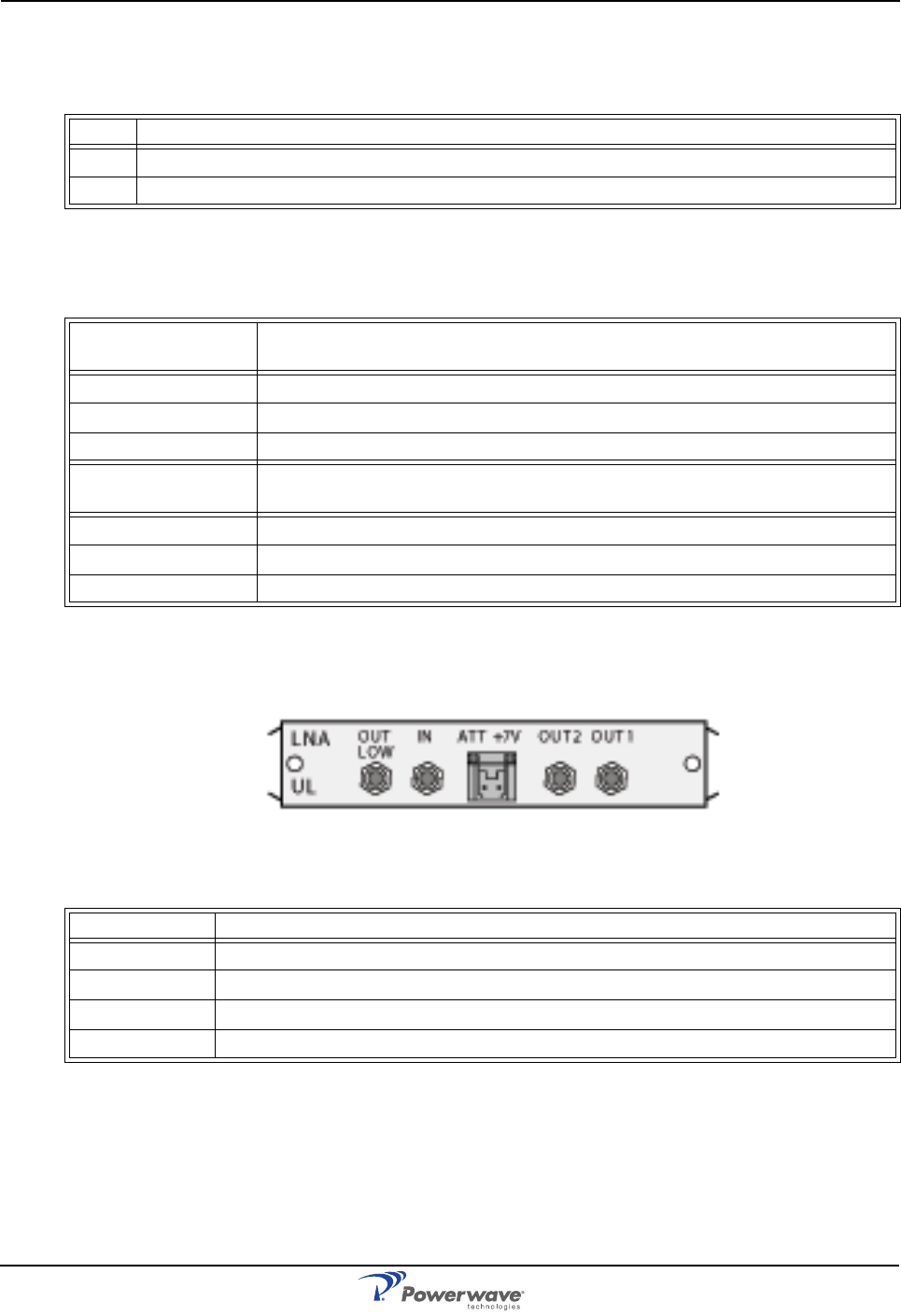

2-6 LNA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6

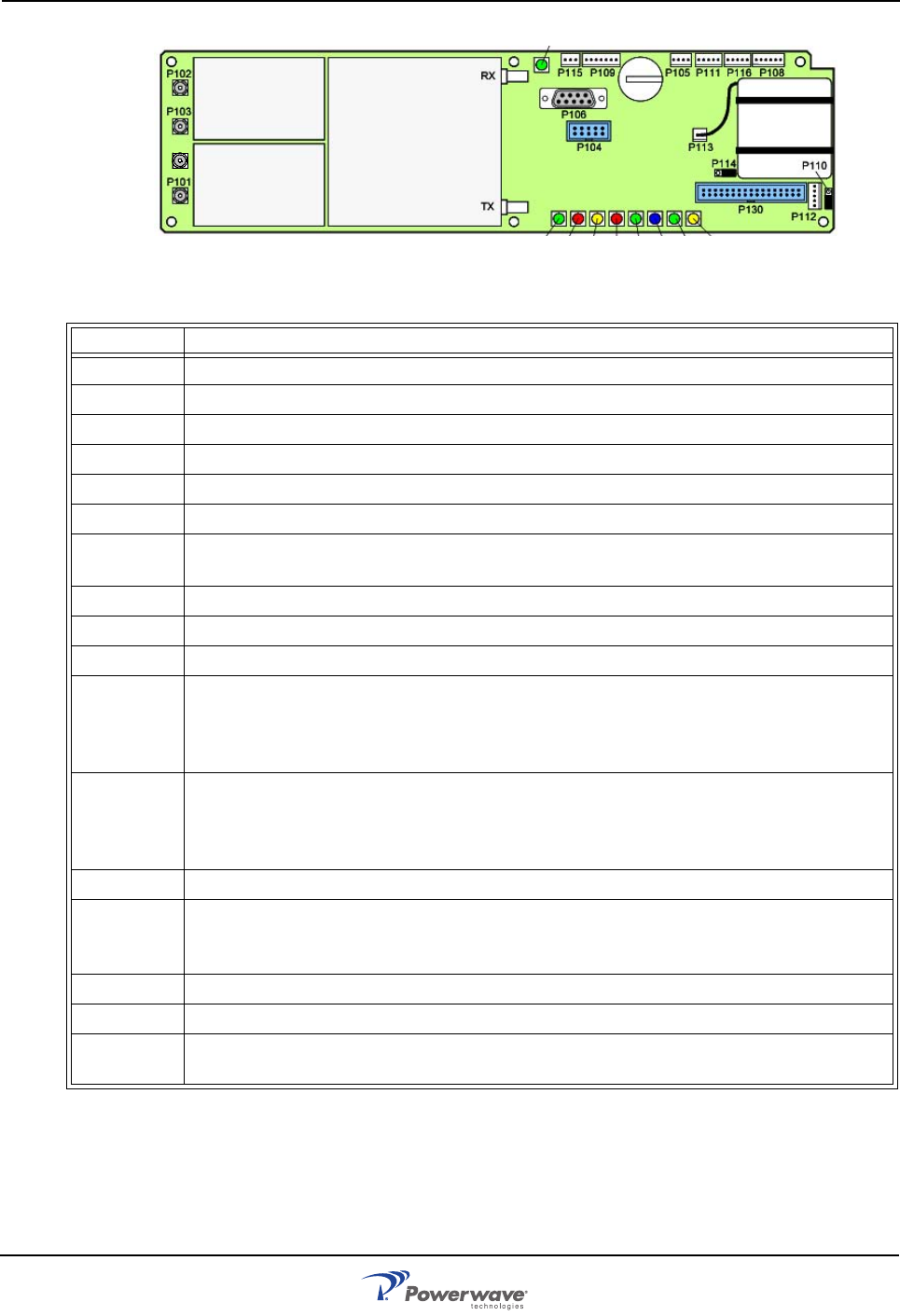

2-7 FON Connector Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7
2-9 PSU Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-8

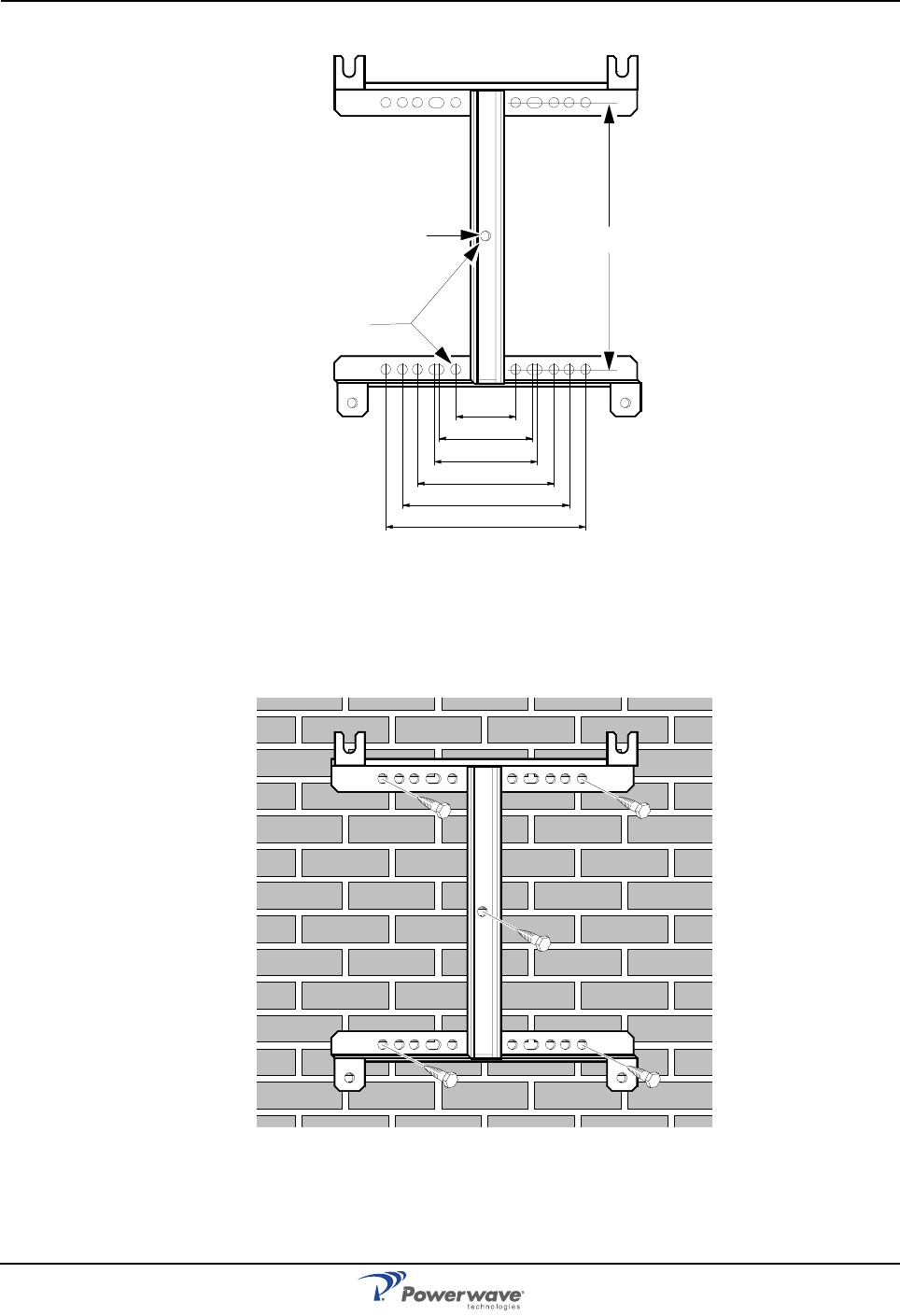

3-1 Mounting Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
3-2 Mounting Bracket Installation on Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

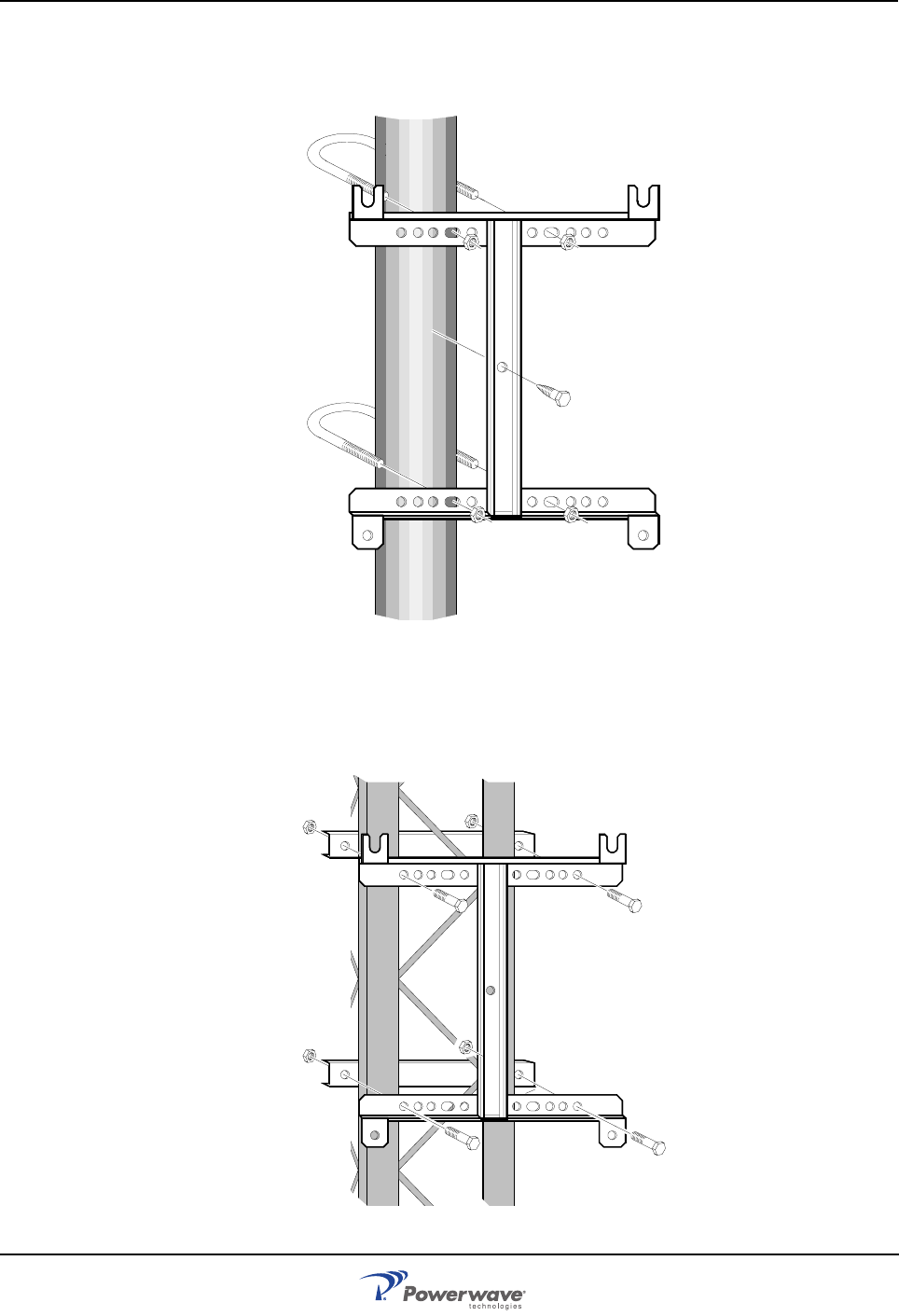

3-3 Attaching the Bracket to a Pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3
3-4 Attaching the Bracket to a Mast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3

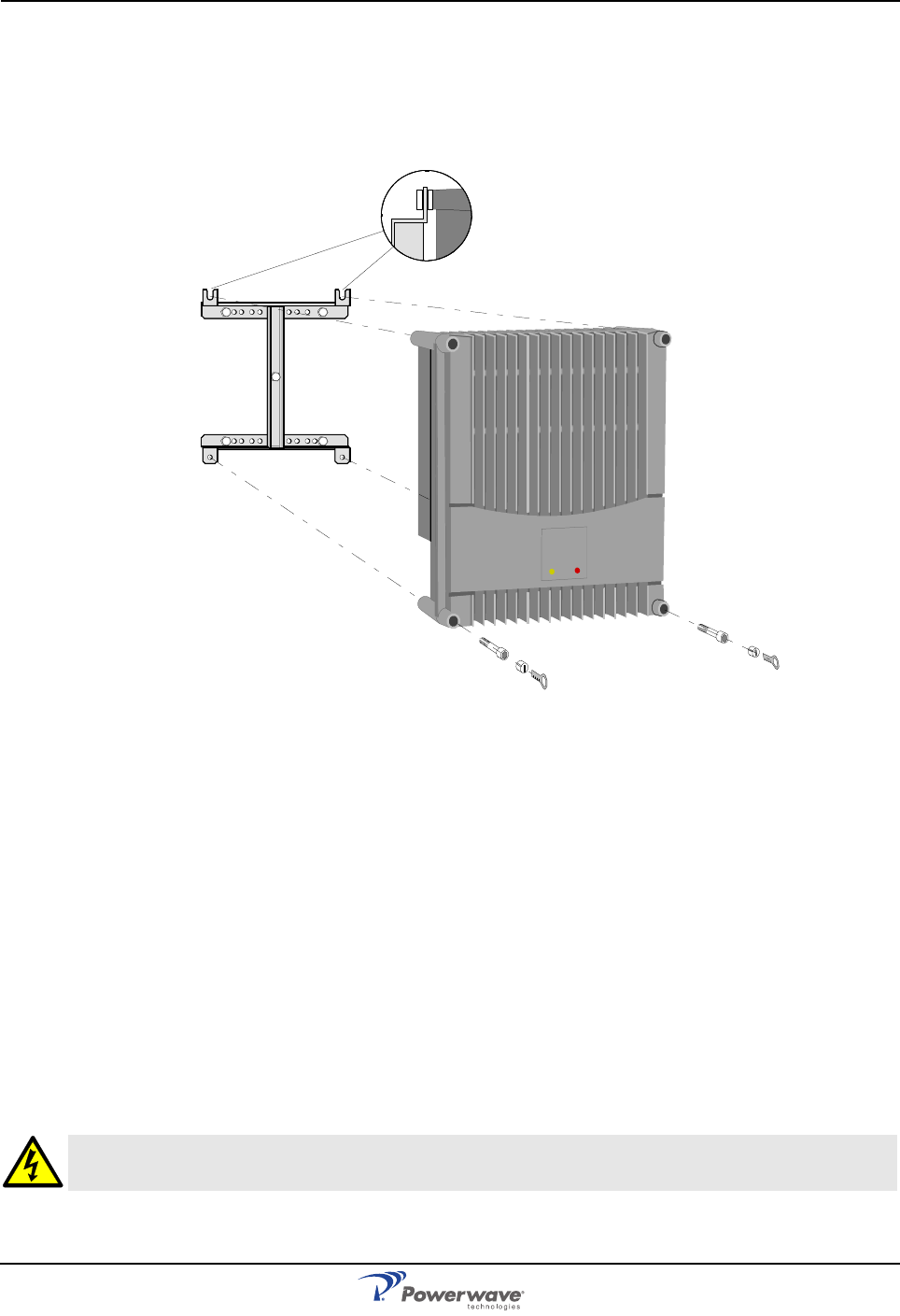

3-5 Attaching the WRH to the Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

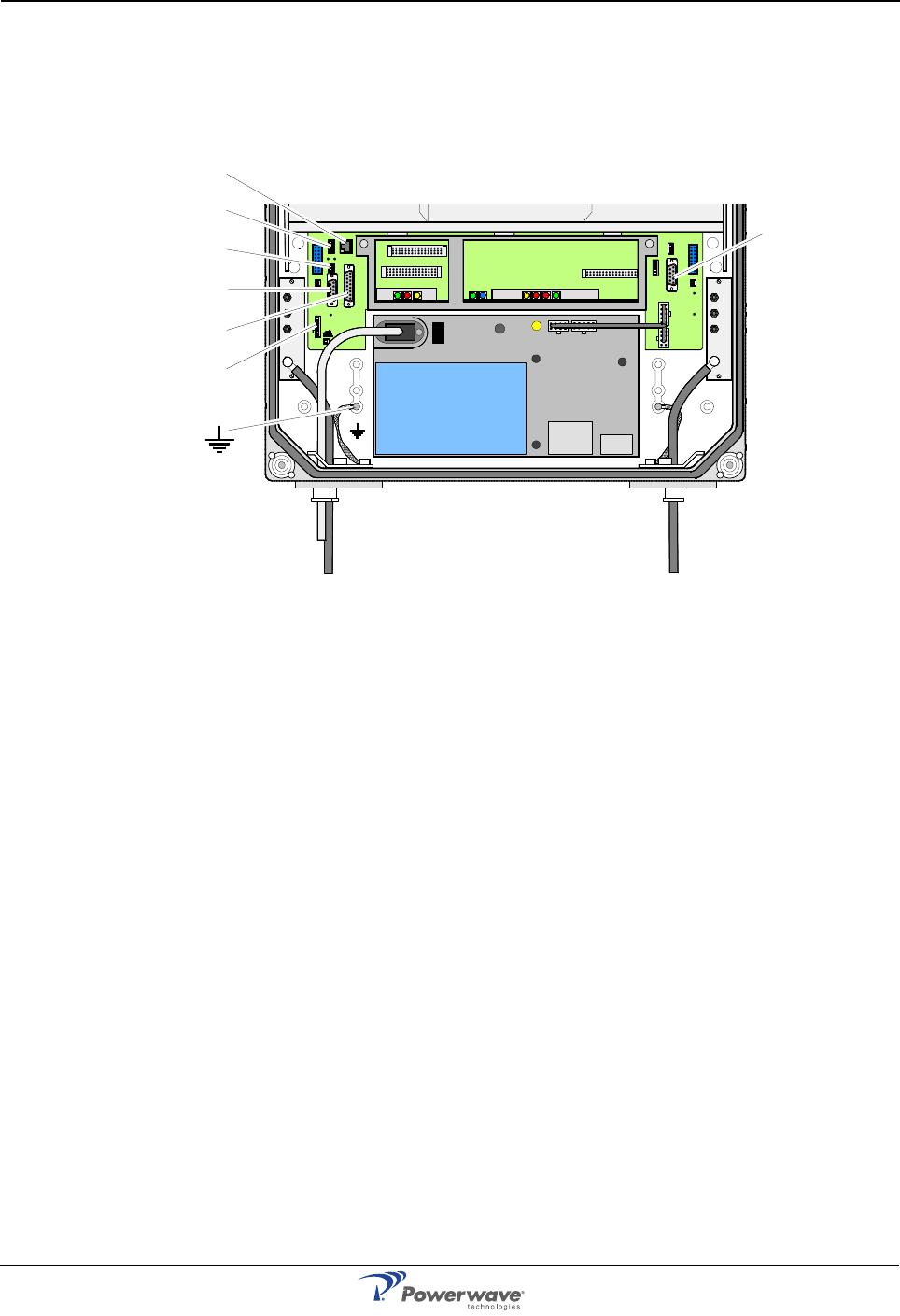

3-6 WRH Cable Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
3-7 WRH-V Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6

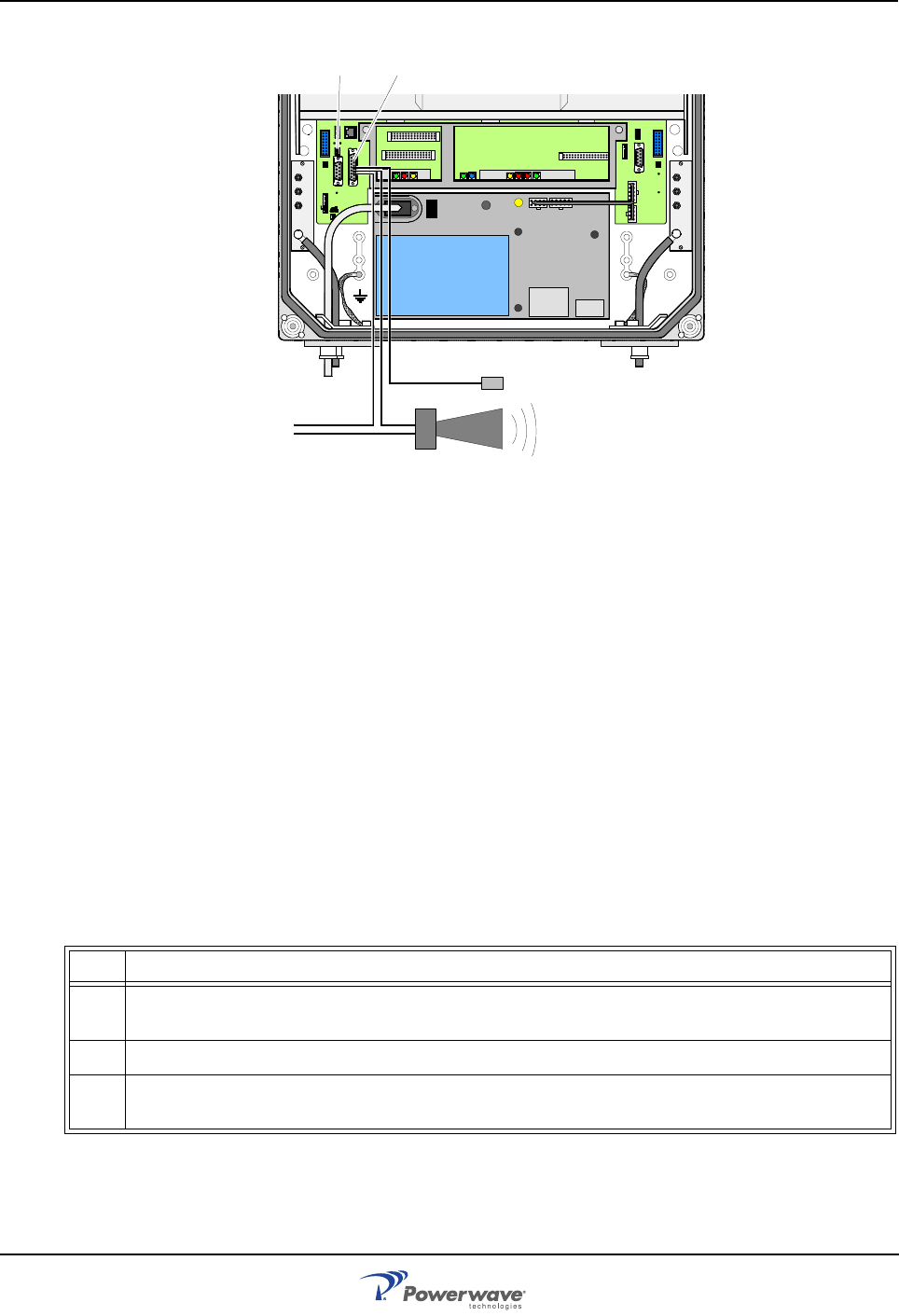

3-8 External Alarm Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7

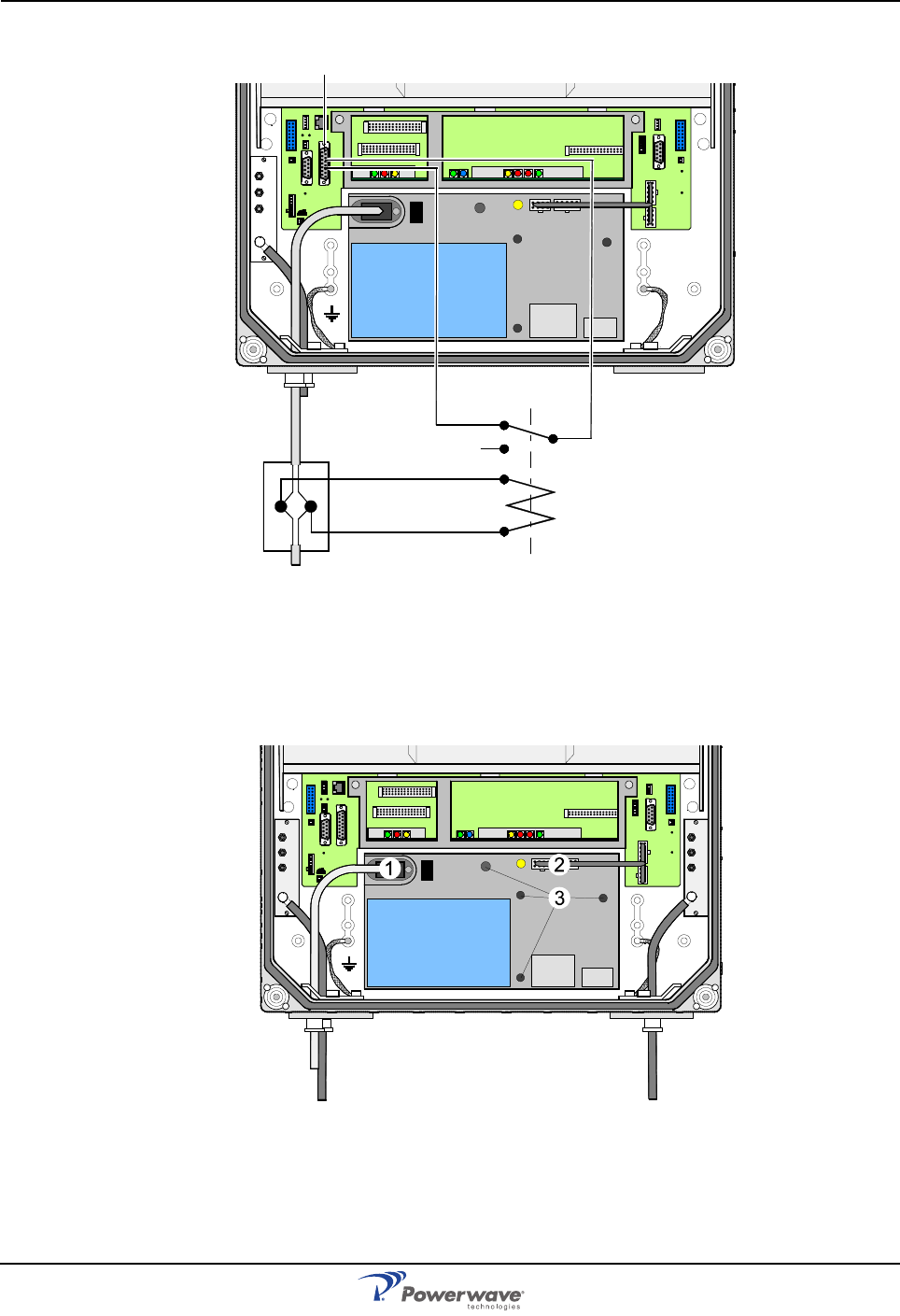

3-9 Main Power Breakdown Relay Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8

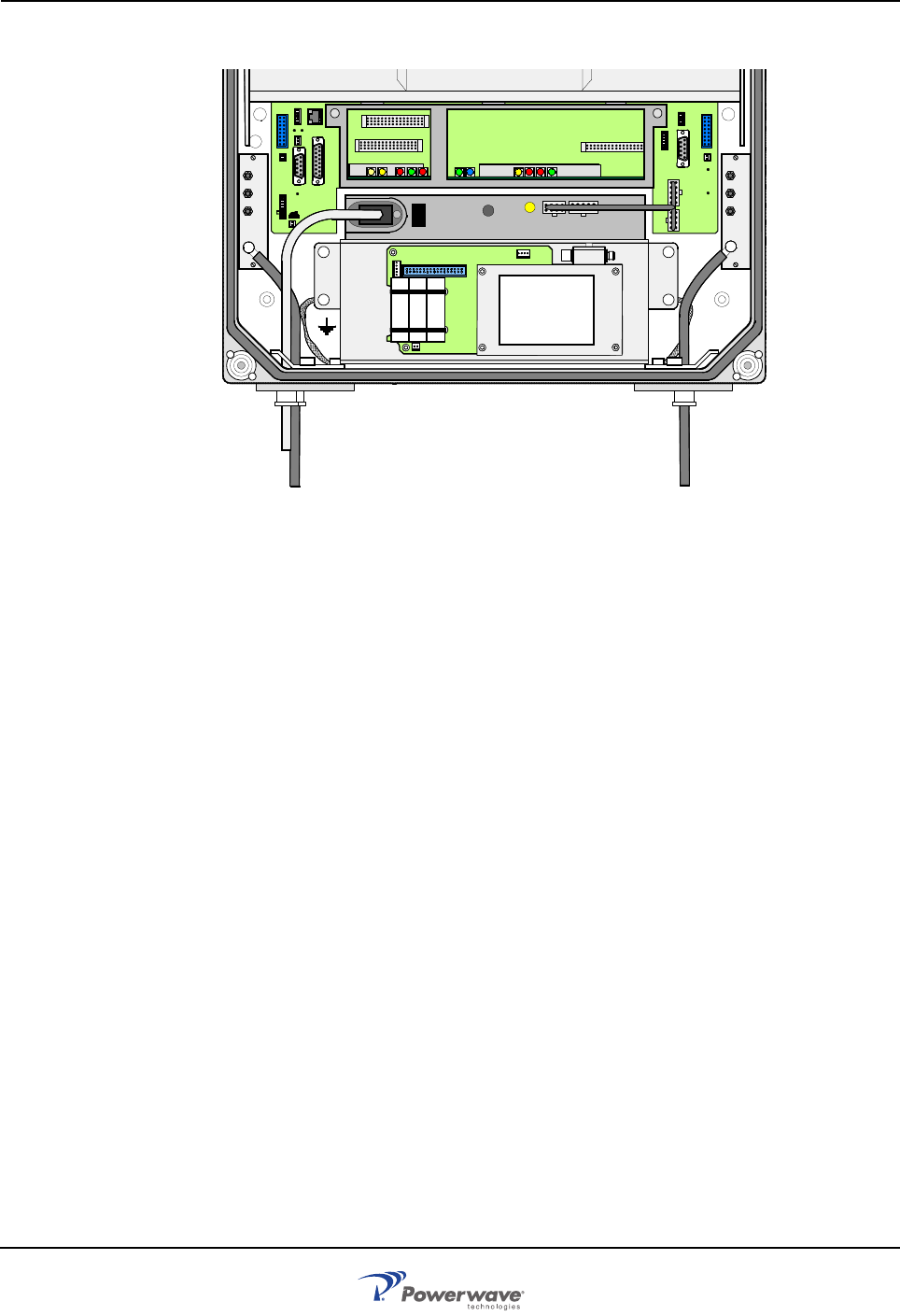

3-10 PSU Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8

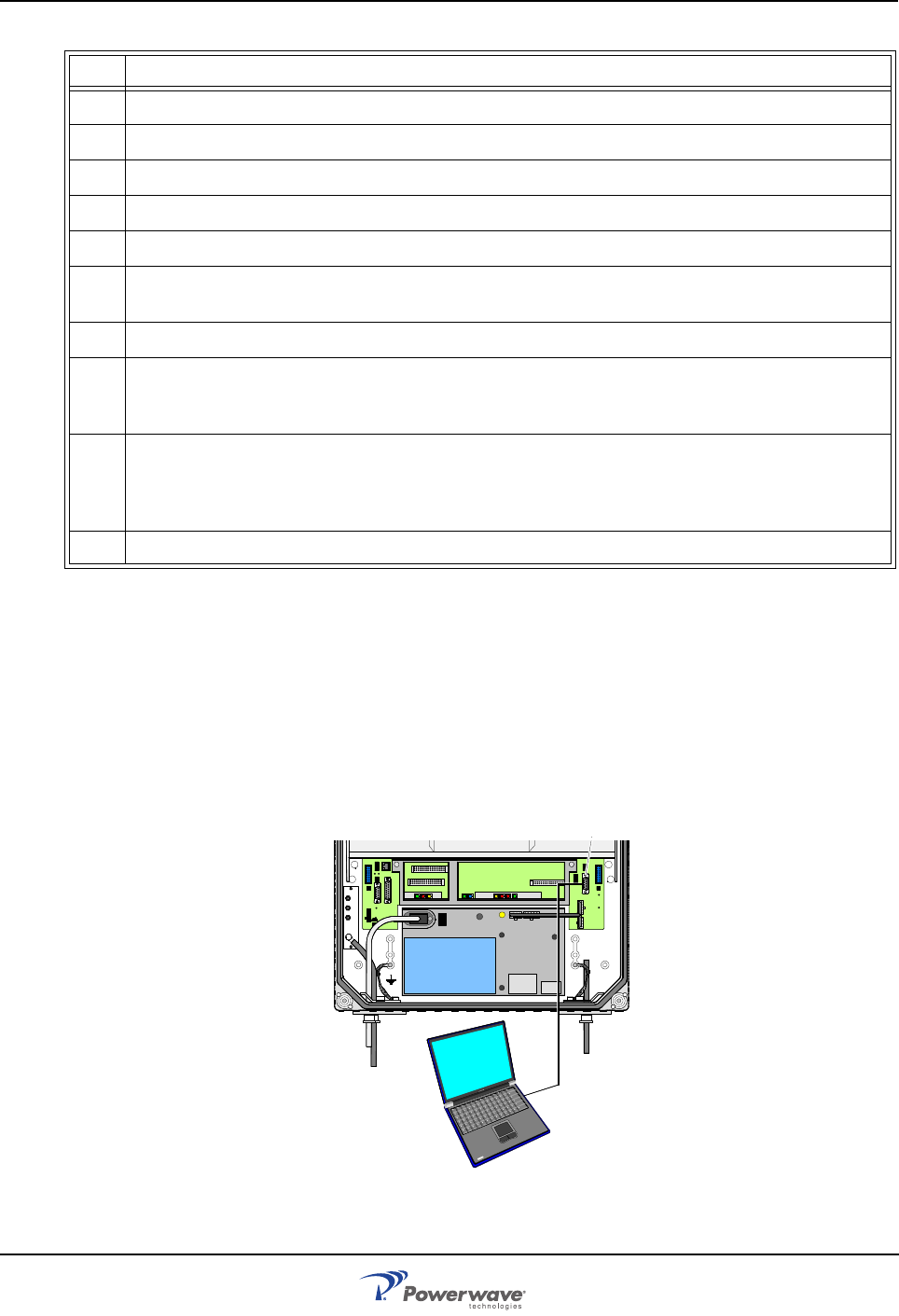

3-11 Connecting a PC for Local Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-9
4-1 RCU in the WRH Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8

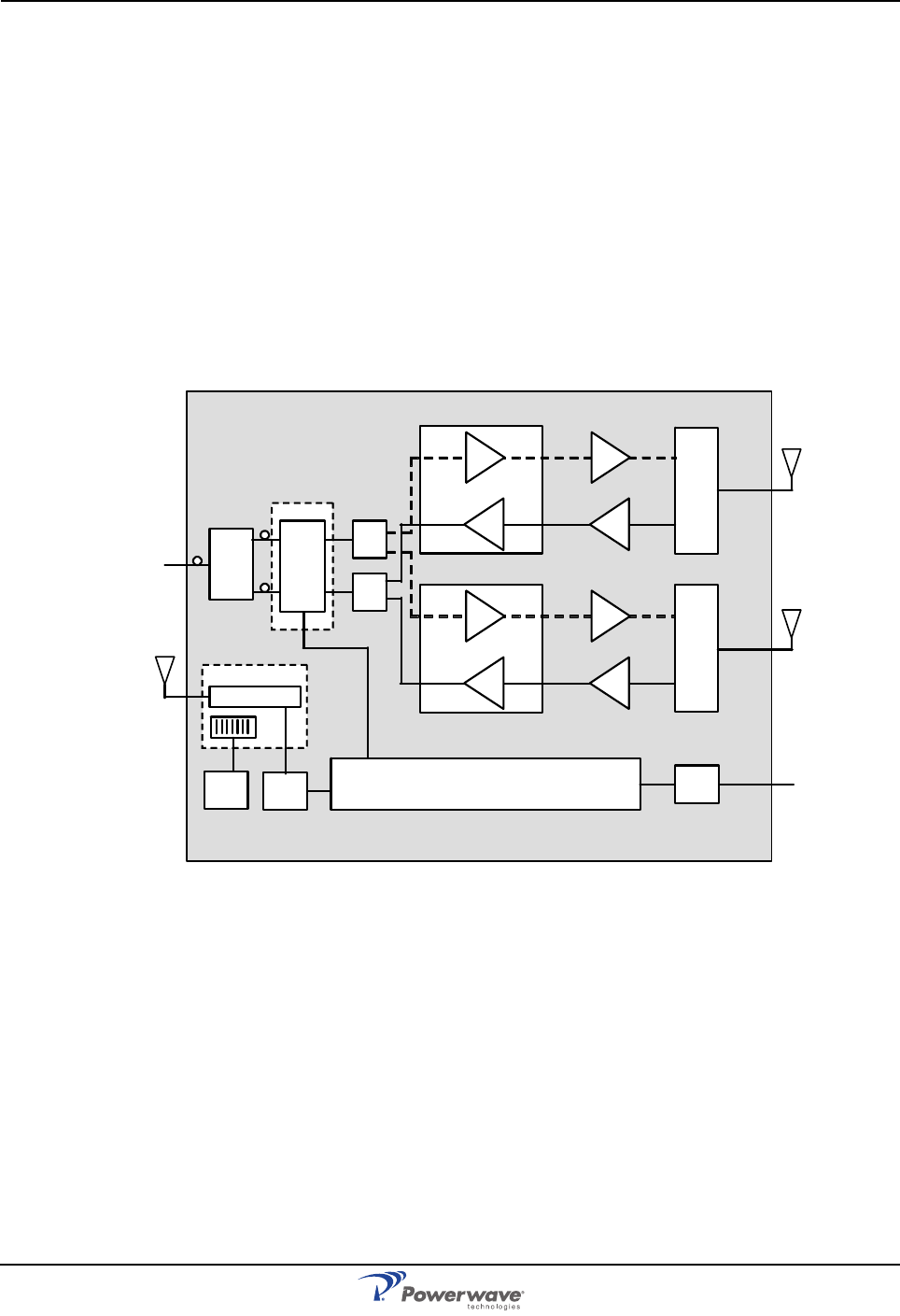

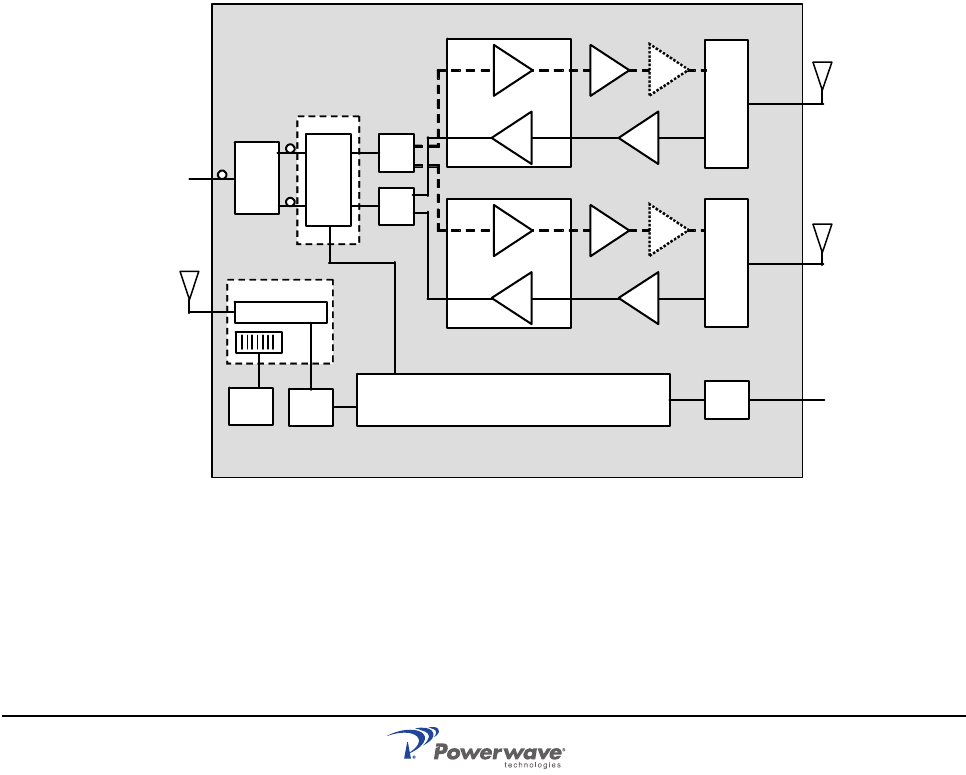

A-1 Standard WRH Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
A-2 WRH-V Block Digram - Non-diversity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
A-3 WRH-V Block Diagram - Diversity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
List of Tables
2-1 CU PCBA LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
2-2 FON PCBA LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
2-3 WRH-V PCS Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
2-4 WRH-V Cellular Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
2-5 DIA PCBA Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
2-6 BA PCBA Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6
2-7 DPX Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6
2-8 LNA Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6
2-9 FON Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7
2-10 Hardware/Software Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-9
List of Tables Wideband Radio Head
iv 044-05251 Rev A
3-1 Cable Connection Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
3-2 Main Power Breakdown Relay Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7
3-3 PSU Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-9
3-4 Initial Startup Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-10
4-1 Recommended Periodic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
4-2 Alarm Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
4-3 FON Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6
4-4 PSU Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6
4-5 WRH Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
5-1 WRH Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Wideband Radio Head Abbreviations
044-05251 Rev A v
Abbreviations
The following list of abbreviations are used throughout this manual, the software, and the repeater:
AGC Automatic Gain Control
ALI Alarm Interface
AMPS Advanced Mobile Phone Service
BA Booster Amplifier
BeO Beryllium Oxide
BMU Base Station Master Unit
BS Base Station, BS antenna = towards the base station
BSA Band Selective Amplifier
BSel Band Selective
BTS Base Transceiver Station
CDMA Code Division Multiple Access
CHE Channel Amplifier for GSM and EDGE
CMB Combiner
CSA Channel Selective Amplifier
CSel Channel Selective
CU Control Unit
CW Continuous Wave
DAMPS Digital Advanced Mobile Phone Service
DC Directional Coupler
DCS Digital Communication System (same as PCN)
DIA Distribution Interface
DL Downlink signal direction (from base station via repeater to mobile station)
DPX Duplex filter
EDGE Enhanced Data rates for GSM Evolution
EEPROM Electrical Erasable Programmable Read Only Memory
EGSM Extended Global System for Mobile communication
ESD Electrostatic Discharge
ETACS Extended Total Access Communication System
ETSI European Telecommunications Standard Institute
FLI Fiber Link Interface
FON Fiber Optic Node
FOR Fiber Optic Repeater
FOU Fiber Optic Unit
GSM Global System for Mobile communication
HW Hardware
ICNIRP International Commission on Non-Ionizing Radiation Protection
LED Light Emitting Diode
LNA Low Noise Amplifier
MCPA Multi-Carrier Power Amplifier
MS Mobile Station, MS antenna = towards the mobile station
MSC Mobile Switching Center
Abbreviations Wideband Radio Head
vi 044-05251 Rev A
NEMA National Electrical Manufacturers Association
NiCd Nickel Cadmium
NMT Nordic Mobile Telephone system
NOC Network Operations Center
OCM Optical Converter Module
OMS Operation and Maintenance System
PCN Personal Communication Network (same as DCS)
PCS Personal Communication System
POI Point of Interconnect
PSM Power Supply Module
PTFE Polytetrafluoro Ethylene (Teflon)
R2R Repeater-to-Repeater
RCI Remote Control Interface
RCU Remote Control Unit
RCM RF Converter Module
RF Radio Frequency
RIA Repeater-to-Repeater Adapter
RMU Remote Master Unit
RSSI Received Signal Strength Indication
RTC Real Time Clock
SW Software
TACS Total Access Communication System
TDMA Time Division Multiple Access
UL Uplink signal direction (from mobile station via repeater to base station)
UPS Uninterruptible Power Supply
WHO World Health Organization
WLI Wire Link Interface
WRH Wideband Radio Head
044-05251 Rev A 1-1
Chapter 1
Product Description
Introduction
This manual contains information and procedures for installation, operation, and maintenance of the
Wideband Radio Head (WRH). The manual is organized into chapters as follows.
Scope of Manual
This manual is intended for use by service technicians familiar with similar types of equipment. It
contains service information required for the equipment described and is current as of the printing date.
Changes which occur after the printing date may be incorporated by a complete manual revision or
alternatively as additions.
Safety
It is necessary that any personnel involved in installation, operation or service of units included in a
Powerwave Distributed Antenna System (DAS) understand and follow the below points.
• Powerwave WRHs are designed to receive and amplify signals from one or more base
stations and retransmit the signals to one or more mobile stations. And, also to act the
other way round, that is to receive signals from one or more mobile stations, amplify
and retransmit the signals to the base stations. Powerwave WRH systems must be
used exclusively for this purpose and nothing else.
• Units supplied from the mains must be connected to grounded outlets and in conformity
with the local prescriptions.
• Power supply units supplied from the mains contain dangerous voltage that can cause
electric shock. Disconnect the mains prior to any work in such a unit. Local regulations
are to be followed when servicing such units. Authorized service personnel only are
allowed to service units while the mains is connected.
• The WRH cover must be secured in opened position, for instance by tying it up.
Otherwise, the cover can be closed by the wind and cause your fingers getting pinched
or your head being hit.
• When working on a WRH on high ground, for instance on a mast or pole, be careful not
to drop parts or the entire WRH. Falling parts can cause serious personal injury.
• All RF transmitting units, including WRHs, will generate radio signals and thereby give
rise to electromagnetic fields that may be hazardous to the health of any person who is
extensively exposed close to an antenna.
• A lithium battery is permanently mounted on the CU and FON PCBAs. Due to the risk
of explosion, this battery must only be removed from the board by an Powerwave
authorized service technician.
• NiCd batteries are mounted on the FON PCBA. These batteries contain environmental
poisonous substances. If replaced, the old batteries should be taken care of as stated
in the local prescriptions.
Chapter 1 - Product Description
Chapter 2 - Controls and Indicators
Chapter 3 - Installation
Chapter 4 - Maintenance
Chapter 5 - Specifications
Safety Wideband Radio Head
1-2 044-05251 Rev A
• The FON unit contains a class IIIb laser transmitter that emits 2 – 4mW invisible laser
radiation during operation. Avoid direct exposure from unconnected laser transmitter or
fiber cord.
• Do not power up the FON unit if a fiber cable is not attached to the fiber output UL port,
neither if a fiber cable is attached to the port but unattached in the other end.
•Never look in the end of a fiber cable. The 1310nm and 1550nm laser light is not
visible, so no signal identification can be made anyway. Use always an instrument,
such as a power meter to detect signaling.
•Never use any kind of magnifying devices that can focus the laser light to an
unaided eye.
Human Exposure of RF Radiation
Safe distances must be kept when working around antennas. The following paragraphs describe the
cautions to be aware of during the installation and maintenance of antenna systems and how to
calculate safety distances needed for RF radiation at different antenna power and frequencies.
Antennas
To be able to receive and transmit signals, a WRH is connected to a donor antenna directed towards
the base station and a service antenna directed towards the coverage area. A fiber optic cable from the
base station might, however, be substituted for the donor antenna.
Installation and Maintenance of Antenna Systems
Installation and maintenance of all antenna systems must be performed with respect to the radiation
exposure limits for public areas. The antenna radiation level is affected by WRH output power, antenna
gain, and transmission devices such as cables, connectors, splitters and feeders. Also have in mind
the system minimum coupling loss, typically between 25dB and 35dB, is determined by a standard with
the purpose to protect base stations from noise and other performance dropping effects.
Radiation Exposure
The World Health Organization (WHO) and International Commission on Non-Ionising Radiation
Protection (ICNIRP) have determined recommendations for radiation exposure. ICNIRP recommends
not to exceed the following radiation power for public exposure:
FrequencyRadiation power
800/900 MHz 4.5W/m²
1800/1900 MHz 9.0W/m²
2100 MHz 10.0W/m²
For antennas larger than 20cm the maximum radiation power can be calculated by using the following
formula:
Electrostatic Discharge (ESD)
ESD can severly damage essential parts of the equipment if not handled carefully. Parts on
printed circuit board assemblies (PCBA) as well as other parts in the equipment are sensitive
to ESD. Never touch the PCBA or uninsulated conductor surfaces unless absolutely
necessary.
If you must handle the PCBAs or uninsulated conductor surfaces, use ESD protective
equipment or first touch the chassis with your hand. Never let your clothes touch PCBAs or
uninsulated conductor surfaces and always store PCBAs in ESD-safe bags.
S = Radiation power in W/m²
P = Output power in W
r = Distance between antenna and human in meters
S
P
4πr2
××
------------------
--
=
Wideband Radio Head Overview
044-05251 Rev A 1-3
Overview

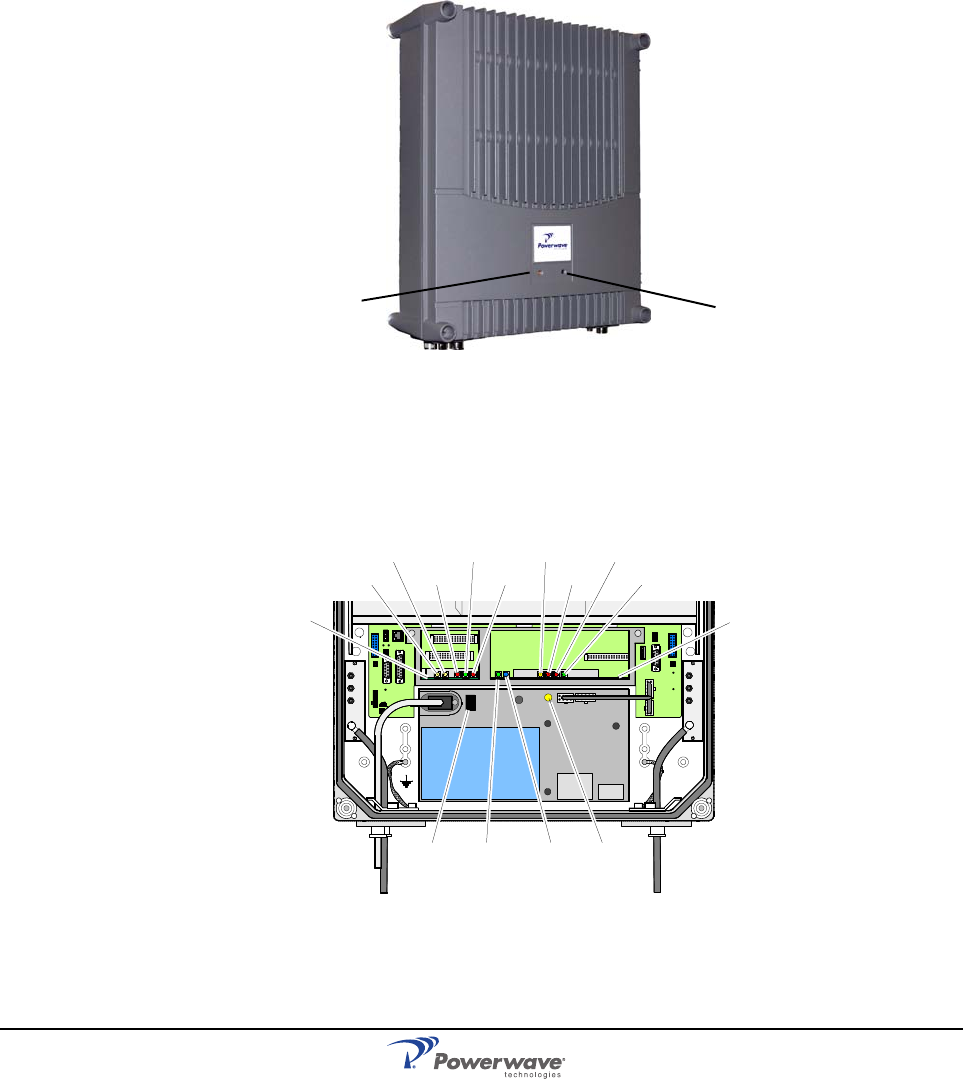

Figure 1-1 Powerwave Wideband Radio Head (WRH)
Powerwave WRHs work as bi-directional on-frequency amplifiers used to fill out uncovered areas in
wireless mobile systems such as base station fringe areas, tunnels, convention centers, airports and
business buildings. It receives, amplifies and transmits signals to/from a base transceiver station (BTS)
to/from mobile stations (MS) with both directions being served simultaneously. Connections to the
WRH are made with N-type or 7/16" male connectors.
WRHs are microprocessor controlled with alarm and operational status LEDs visible on the front cover.
Cooling is provided through convection heat dissipation. Operational parameters, such as gain,
channel number and power levels are set using a PC running Powerwave OM-Online software which
can communicate with the WRHs either locally or remotely via modem. Remote operation can be
performed via PSTN or a GSM net. The Operation and Maintenance System (OMS) provides for
Network Operations Center (NOC) configuration and alarm monitoring.
WRHs can be configured in many combinations depending on the wireless system, single or double
system operation, and output power. The following paragraphs provide a description of the different
models of WRH’s available.
WRH
The Standard WRH is used for analog or digital systems such as GSM, TACS, ETACS, AMPS,
DAMPS, CDMA and WCDMA. It can be equipped with two bands in the cabinet and two bands in a high
cover. It has a fiber optic donor port and an RF port for a service antenna (or RF cable) and is designed
to be connected to a BTS via a BMU or OCM.
A booster option is available for the standard WRH to provide greater output power. This unit is
equipped with a 6dB Booster Amplifier (BA) in the downlink path. The BA reduces the number of bands
with one band per BA used in the cabinet and an additional one band if a high cover is used. The BA
is located in the cabinet and is supplied from the existing PSU. For two bands, a high cover is used.
WRH-V
The WRH-V is designed to provide a higher output power level and comes equipped with a MCPA in
the downlink path. The MCPA restricts the number of bands to one in the cabinet and one additional
band if a high cover is used. The MCPA is located in the cabinet and is supplied from the existing PSU.
For two bands, a high cover is used.
Overview Wideband Radio Head
1-4 044-05251 Rev A
Chassis Design
The WRH is housed in a cast aluminium waterproof chassis, class NEMA4 / IP65 approved for outdoor
use but is also suited for indoor installations. The chassis consists of a cabinet and a cover attached
with hinges. The cabinet contains the WRH circuitry. The cover comes as either a low or high version.
The high cover can be used as an empty cover or be equipped as a part of the WRH or an independent
WRH unit. A WRH with a high cover that is equipped as two independent units can, for example, be
equipped for channel selective operation in the cabinet and band selective operation in the cover.
Inside the WRH, a number of amplifier PCBAs are individually shielded and located under a metal
cover that can be opened outward. These PCBAs are of different types depending on the supported
system. Functionally, all WRHs are built up with a number of sub units. These are listed and described
in the following sections.
Sub Unit Overview
A number of amplifier PCBAs are individually shielded and located under a metal cover inside the
WRH. This cover can be opened outward for access. These amplifier PCBAs are of different types
depending on the supported system. All of the WRHs are built up with a number of sub units which are
described in the following sections.
Wideband Amplifier PCBA (WBA)
WRHs can handle multiple carriers over a wide band. Each band requires one WBA for the uplink and
downlink, and one associated PA or MCPA for the downlink. The cabinet can be equipped with up to
two WBAs along with two PAs supporting two bands or one MCPA supporting one band. Positions 1
and 3 are assigned for a WBA.
Power Amplifier PCBA (PA)
The PA is used to amplify the output signal from the WBA in the dowlink direction and reside in
positions 2 and 4.
Multi-Carrier Power Amplifier PCBA (MCPA)
Installed in the WRH-V only, the MCPA is used to amplify the output signal from the WBA. Each MCPA
can handle one band in the downlink direction. It requires an extra heat sink element on the outside of
the cabinet or high cover to dissipate the heat generated. The MCPA occupies positions 2 through 4 in
the cabinet and 6 through 8 in a high cover.
Booster Amplifier PCBA (BA)
A WRH can be modified with a BA on the DL path to increase the output power by 6dB (typically)
depending on system configuration. This BA can operate with a maximum of 2 channels and occupies
position 3 in the cabinet and position 7 in a high cover. It also requires an extra heat sink element on
the outside of the cabinet or high cover. Some configurations use the existing PSU while others require
a second PSU.
Control Unit PCBA (CU)
The CU is the core microprocessor controller in the WRH and is connected to P2 on the DIA. It contains
a microprocessor, main memory, flash memory for the CU software, EEPROM memory for parameters,
memory for the event log and statistics, a REFO reference oscillator, ports for local and remote
communication, battery powered real-time clock, and MAC identity circuit. The CU supervises and
controls operational parameters such as gain control and channel handling, alarms, event log,
password and logon. The CU is also a control interface for OM-Online and OMS. Software for the CU
can be downloaded from OM-Online, either locally or remotely, or from OMS. It is located in the lower
right part of the shielded DIA frame.
Wideband Radio Head Overview
044-05251 Rev A 1-5
Figure 1-2 CU PCBA
Distribution PCBA (DIA)
The DIA is the core distribution PCBA on which all other PCBAs and units connect to in the cabinet with
the exception of the PA. A shielded metal frame on the DIA provides the mounting location for the CU,
ALI and RCIs, if used.
Figure 1-3 DIA PCBA
Low Noise Amplifier (LNA)
LNAs are used on the uplink and are located at the top of the cabinet and the high cover, if equipped.
All coaxial connectors are SMA-type. Signals from the DPX output are fed to the LNA input connector
IN. OUT1 and OUT2 outputs feed the WBAs of the same signal direction. The signal level in these
connectors are +20dB referenced to the antenna input. Another output, OUT LOW, is an expansion
output for an additional LNA if the WRH is equipped in the cover part of the chassis. The gain to this
connector is +2dB. The +7V input is used for +7V supply from the DIA PCBA and ATT is a control signal
for a controllable attenuator in the LNA.
Figure 1-4 LNA
Duplex Filter (DPX)
DPXs are located on the metal cover sheet in the upper part of the cabinet. Service and donor DPXs
are identical.
ALLGON INNOVATION
SWEDEN M105 R6
1
PARKING
FOR W5
W5
8
P27 W6B 10
1
P33
ALARM
P23
LNA
UP-LINK
P32
MODEM
AUX1
P28
DOOR
5
9
61
116
1
1
M->S
P11
P34
8
9
15
P26
15 16
S->M
12
389
P36
5
X0A
X0B
2
V2 116
P12 P13
1
1
1
16
16
16
P4
P5
P6
c
b
a
c
b
a
c
b
a
c
b
a
1P232
1
b
a
116P3
16 116
P14
1
V1
1
1
1
1
1
4
6
1
15
6
915
2
16
1
2
4
5
8
5
P35
P21
PSU
6
10
P31
PC
P29
P24
P25
GND
7
6V6
LNA
DOWN-LINK
LED
P22
1
2
V6B
P27
P26
P23
XOA
XOB
P28
P4 P5 P6 P2 P3 P31 P21 P35 P33
P32
P11 P12 P13 V1P14 P22P29P34 V2P36
V6
GND
P25
P24
Overview Wideband Radio Head
1-6 044-05251 Rev A
Fiber Optic Unit (FOU)
The FOU is a metal plate mounted on top of the cover plate in the upper part of the WRH. The FON and
fiber optic connectors are mounted on the FOU. It can also be configured with combiners, splitters, and
WDMs to obtain a desired combination of several branches with double or single fiber.
Figure 1-5 FOU in WRH-V
Fiber Optic Node (FON)
The FON is the main part of the FOU. It is a bi-directional electrical/optical signal converter and a node
in a fiber network. In addition, the FON has all the functionality included in the CU PCBA and contains
battery backup. It has also functionality for:
• Electrical and optical signal supervision
• Internal and external alarm handling
• RS232 interface for local PC control via an O&M software (OM-Online)
• Remote control via an O&M software (OM-Online or OMS)
• Interfaces for RCU and FLI
• Battery backup with charger
There are two versions of the FON; one with three SMA ports (UL, DL and RX Mon) and the other with
four SMA ports (UL, DL, RX Mon and TX Mon). The FON has coaxial ports for DL and UL RF signals
and two optical ports for DL and UL fiber connections.
Power Supply Unit (PSU)
A PSU is located in the lower center of the cabinet and, if configured, the high cover.
Remote Control Unit (RCU)
The RCU is an optional communication unit for remote control of WRHs via PSTN or RF modems. RCU
types and details are described in Chapter 4.
Alarm Interface PCBA (ALI) and Remote Control Interface PCBA (RCI)
The ALI handles alarms and alarm communication. It is replace with an RCI if an RCU is used and
provides an interface between the CU and an RCU for remote communication via modem. The RCI
also handles alarms and alarm communication. Either unit is located in the lower left part of the
shielded DIA frame.
Wideband Radio Head Overview
044-05251 Rev A 1-7
Sub Unit Locations
WRH
Figure 1-6 Standard WRH Sub Unit Locations
For single wideband operation the cabinet is equipped with a WBA in position 1 for both DL and UL
paths and an associated PA in position 2 for DL signal amplification. For dual band operation another
set of PCBAs can be used in positions 3 and 4. The WRH has a FON for uplink transmission via fiber
optics. A high cover can be equipped as well providing up to four bands. PCBA positions are illustrated
in the Figure 1-6 and a block diagram is located in Appendix A.
The booster option boosts the output DL signal from the PA. The BA is located at position 3 in the
cabinet. A booster can only be equipped for one band in the cabinet and an additional band in a high
cover. PCBA positions are illustrated in the Figure 1-7 and a block diagram is located in Appendix A.
LNA - DL
1234
LNA - UL
PSU
(RCU)
DPX
CUALI/RCI
WBA
DL/UL
FOU
PA
DL
FON
5678
PSU
(RCU)
DPX
WBA
DL/UL
FOU
PA
DL
FON
WBA
DL/UL PA
DL WBA
DL/UL PA
DL
Overview Wideband Radio Head
1-8 044-05251 Rev A
Figure 1-7 Standard WRH with Booster Option Sub Unit Locations
WRH-V
The WRH-V has a configuration similar to the standard WRH with the exception of a the MCPA that
boosts the output DL signal from the PA. The MCPA is located at positions 3 and 4 in the cabinet. The
MCPA requires an additional heat sink and is attached to the MCPA PCBA. A WRH-V can only be
equipped for one band in the cabinet and an additional band in a high cover. PCBA positions are
illustrated in the Figure 1-8 and a block diagram is located in Appendix A.
Figure 1-8 WRH-V Sub Unit Locations
LNA - DL
1234
LNA - UL
PSU
(RCU)
DPX
CUALI/RCI
WBA
DL/UL
FOU
PA
DL BA
DL
FON
5678
PSU
(RCU)
DPX
CUALI/RCI
WBA
DL/UL
FOU
PA
DL BA
DL
FON
1234
LNA - UL
PSU
(RCU)
DPX
CUALI/RCI
WBA
DL/UL
FOU
MCPA DL 5678
PSU
(RCU)
DPX
CUALI/RCI
WBA
DL/UL
FOU
MCPA DL
FON FON
Wideband Radio Head Overview
044-05251 Rev A 1-9
Fiber Optic Distribution Networks
Fiber optic networks are setup identically to data networks. WRHs are connected is a star configuration
as illustrated in Figure 1-9. In this example, a Base Station Master Unit (BMU) is fed by a BTS via an
RF cable. An Optical Converter Module (OCM) could also be used depending on the system
configuration. The BMU or OCM contain three FONs and provide continuity to the FONs in the four
WRHs. By using Wave Division Multiplexers (WDMs) and Optical Splitters (OSPs) in the WRHs, the
distribution net can be built up with a combination of star and daisy-chain connections using double or
single fiber.
Figure 1-9 Fiber Optic Star Configuration
Multi-Operator Configurations
Multi-operator systems require the use of Point of Interconnects (POIs), RF Combining Modules
(RCMs) and OCMs as illustrated in Figure 1-10. In this simple example, two operators have two sectors
each. Each sector is connected to a POI and then to a RCM. The RCM is interconnected with an OCM
via coaxial cables. The combined DL and UL signals are converted to optical signals in the OCM and
then distributed to the WRHs. Additional information is provided in the Fiber Optic Equipment
Operation and Maintenance Manual.
Figure 1-10 Multi-operator System
BMU WRH
WRH
WRH
WRH
BTS
RF
O
p
erator 1
O
p
erator 2
Sector 1
Sector 1
Sector 2
Sector 2
OCM
RCM
RCM
POI
POI
POI
POI
Overview Wideband Radio Head
1-10 044-05251 Rev A
This Page Intentionally Left Blank
044-05251 Rev A 2-1
Chapter 2
Controls, Indicators and Connectors
Introduction
This chapter contains descriptions of the controls, indicators and connectors for the WRH.
Front Cover Indicators
Figure 2-1 External Indicators
Two LEDs are located on the front cover to provide easy identification of a fault in the system. The
amber operation LED lights up approximately 15 seconds after the main power is switched on. When
the LED is steady, the WRH is ready for operation. The red alarm LED indicates a system error
alarms when flashing and a critical alarm when steady.
Cabinet Indicators
Figure 2-2 Cabinet Internal Indicators
Figure 2-2 illustrates the LED indicators located on the ALI, or RCI, and CU PCBAs as well as the
115/220V main power switch (‘S’) in the cabinet. These indicators are described in further detail in the
following sections.
Red
Amber
MS
DPX
ANT
TEST
DC
-30 dB
-20 dB MS
DPX
ANT
TEST
DC
-30 dB
-20 dB
ALLGON INNOVATION
SWED EN M105 R6
1
PARKING
FOR W 5
W5
8
P27 W6B 10
1
P33
ALARM
P23
LNA
UP-LINK
P32
MODEM
AUX1
P28
DOOR
5
9
61
116
1
1
M->S
P11
P34
8
9
15
P26
15 16
S->M
12
389
P36
5
X0A
X0B
2V2 116
P12 P13
1
1
1
16
16
16P4
P5
P6
c
b
a
c
b
a
c
b
a
c
b
a
1P232
1
b
a
116P3
16 116
P14
1
V1
1
1
1
1
1
4
6
1
15
6
915
2
16
1
2
4
5
8
5
P35
P21
PSU
6
10
P31
PC
P29
P24
P25
GND
7
6V6
LNA
DOWN-LINK
LED
P22
1
2
POWER SUPPLY UNIT
C
U
ALI
or
RCI
SV
OPER
FAULT
POWER
10V ALARM
POWER
BOOT
FAULT
OPER
WLI / R2R DATA
PCBA Indicators Wideband Radio Head
2-2 044-05251 Rev A
PCBA Indicators
This following paragraphs describe the LED indicators on the main PCBAs inside the WRH.
CU PCBA
Figure 2-3 illustrates the location of the LEDs on the CU and Table 2-1 describes their indications.
Figure 2-3 CU PCBA Indicators
Table 2-1 CU PCBA LED Indicators
FON PCBA
The FON is illustrated in Figure 2-4 and the LED indicators are described in Table 2-2.
LED Description
WLI Wire Line Interface. A flashing green LED indicates the unit is receiving data over the
subcarrier. A steady green LED indicates: the unit is currently not receiving any data,
is currently not a control station or there is no other node in the network.
DATA Blue LED indicating data transmission in the W-net.
POWER Yellow LED indicating present power and remains steady after power is switched on.
BOOT Steady red LED when the CU boots (10 – 15 seconds after main power is switched
on), then flashing red (5 – 10 seconds), then off if no error is detected. If an error is
detected LED will stay on.
FAULT Flashing red LED for 15 – 20 seconds after main power is switched on. Flashes for
less serious alarms (Error) and is on solid for fatal alarms (Critical).
OPER Steady green LED indicates WRH is ready for operation.
WARNING: A lithium battery is permanently mounted on the CU PCBA. Due to risk of
explosion, this battery must not be removed. In case of battery malfunction, replace the
CU PCB.
WLI DATA POWER BOOT FAULT OPER
Wideband Radio Head WRH-V PCBA Connections
044-05251 Rev A 2-3
Figure 2-4 FON LED Indicators
Table 2-2 FON LED Indications
WRH-V PCBA Connections
The following tables list the connections on the main PCBAs inside the WRH-V. Table 2-3 describes
the connections for the WRH-V configured for PCS with diversity and non-diversity and Table 2-4 for
Cellular with diversity and non-diversity.
LED Description
FLI or
F2F Green LED. Fiber Line Interface (FLI). Flashing LED indicates the unit is receiving
data over the sub carrier. A steady LED indicates the unit has detected an FLI sub-
carrier, but is not carrying any data.
OPER Green LED. Lights up for approximately 15 seconds after the mains is switched on.
When steady, it indicates the unit is ready for operation.
FAULT Red LED. Flashes for 15 – 20 seconds after the mains is switched on. Will flash for
less serious alarms and be steady for fatal alarms.
POWER Yellow LED. Indicates power is present
BOOT Red LED. Steady LED when the control unit boots up (10 – 15 seconds after the
mains is switched on). Next enters a flashing state for 5 – 10 seconds. If no error is
detected, the LED is off. If an error occurs, the LED remains on.
WLI Green LED. Wire Line Interface. Flashing LED indicates unit is receiving data over
the subcarrier. A steady LED indicates one of the following: The unit is not currently
receiving any data, the unit is not currently a control station or there is no other node
in the network.
DATA Blue LED. Indicates data transmission in the W-net
BATT Green LED. Steady LED indicates battery pack is currently used as power source
CHARGE Yellow LED. Steady LED indicates battery charging
P117
WRH-V PCBA Connections Wideband Radio Head
2-4 044-05251 Rev A
Table 2-3 WRH-V PCS Connections
Table 2-4 WRH-V Cellular Connections
From To Cable Type Non-Diversity
800-15790-001 Diversity
800-15790-002
ANT M Duplexer M 1/4 super flex Used Used
ANT D Duplexer D RG223 Not Used Used
DuplexerM MCPA Out .141 conform Used Used
DuplexerM LNA In RG223 Used Used
DuplexerD LNA In RG223 Not Used Used
M LNA Out WBA P2101 RG316 Used Used
D LNA Out WBA P3101 RG316 Not Used Used
MCPA IN WBA P1401 .086 conform Used Used
WBA P2401 M FON P101 RG316 Used Used
WBA P3401 D FON P101 RG316 Not Used Used
WBA P1101 M FON P102 RG316 Used Used
From To Cable Type Non-Diversity
800-16568-001 Diversity
800-16568-002
ANT M Duplexer M 1/4 super flex Used Used
ANT D Duplexer D RG223 Not Used Used
DuplexerM MCPA Out .141 conform Used Used
DuplexerM LNA In RG223 Used Used
DuplexerD LNA In RG223 Not Used Used
M LNA Out WBA P2101 RG316 Used Used
D LNA Out WBA P3101 RG316 Not Used Used
MCPA IN WBA P1401 .086 conform Used Used
WBA P2401 M FON P101 RG316 Not Used Not Used
WBA P3401 D FON P101 RG316 Not Used Not Used
WBA P1101 M FON P102 RG316 Not Used Not Used
DX DL LO (M) WBA P1101 RG316 Used Used
DX UL1 LO (M) WBA P2401 RG316 Used Used
DX UL2 LO (D) WBA P3401 RG316 Not Used Used
DX DL HI (M) Cable 327 RG316 Used Used
DX UL1 HI (M) Cable 325 RG316 Used Used
DX UL2 HI (D) Cable 326 RG316 Not Used Used
DX DL C M FON P102 RG223 Used Used
DX UL1 C (M) M FON P101 RG223 Used Used
DX UL2 C (D) M FON P101 RG223 Not Used Used
Wideband Radio Head WRH PCBA Connections
044-05251 Rev A 2-5
WRH PCBA Connections
The tables in the following sections list the connections on the main PCBAs inside the standard WRH.
DIA PCBA
Figure 2-5 illustrates and Table 2-5 lists the connections on the DIA PCBA.
Figure 2-5 DIA PCBA Connectors and Testpoints
Table 2-5 DIA PCBA Connections
Port Connected to
P2 CU PCBA
P3, 5, 6 Not Used
P4 ALI or RCI PCBA
P11 - 14 Channel PCBA positions 1 through 4
P21 PSU, connector 1
P22 LED PCBA in cover
P23 LNA/UL
P24 LNA/DL
P25 Expansion output port to cover circuitry. Only in cabinets.
P26 Expansion input port to cover circuitry. Used in equipped high covers.
P27 Auxiliary Port (8-pin male) - Pins 2 and 3 must always be interconnected to provide
the CU and ALI/RCI PCBAs with voltage. If there is no cable connected, pins 2 and 3
must be interconnected with a jumper.
P28 Door switch port - Normally, alarm input AI4 is used for door opening alarm EAL4
which is arranged using an optional door switch. Signal AI4 and AIC are thus avail-
able also in the P28 connector, to which the door switch is connected. The EAL4 door
switch alarm is activated 10 – 30 seconds after the cover has been opened.
P29 Power to FON
P31 RS-232 PC Port (9-pin D-sub female) - Used for local PC communication.
P32 RS-232 Modem port (9-pin D-sub male)
P33 External Alarm Port (15-pin D-sub female) - Used for external alarm sensors and
alarm equipment. Four alarm inputs, EAL1 – EAL4, and two alarm outputs.
P34 Not used
P35 PSU, connector 2
P36 Not used
ALLGON I NNOVATION
SWEDEN M105 R6
1
PARKING
FOR W 5
W5
8
P27 W6B 10
1
P33
ALARM
P23
LNA
UP-L INK
P32
MODEM
AUX1
P28
DOOR
5
9
61
116
1
1
M->S
P11
P34
8
9
15
P26
15 16
S->M
12
389
P36
5
X0A
X0B
2V2 116
P12 P13
1
1
1
16
16
16
P4
P5
P6
c
b
a
c
b
a
c
b
a
c
b
a
1P232
1
b
a
116P3
16 116
P14
1
V1
1
1
1
1
1
4
6
1
15
6
915
2
16
1
2
4
5
8
5
P35
P21
PSU
6
10
P31
PC
P29
P24
P25
GND
7
6V6
LNA
DOWN-LI NK
LED
P22
1
2
V6B
P27
P26
P23
XOA
XOB
P28
P4 P5 P6 P2 P3 P31 P21 P35 P33
P32
P11 P12 P13 V1P14 P22P29P34 V2P36
V6
GND
P25
P24
WRH PCBA Connections Wideband Radio Head
2-6 044-05251 Rev A
BA PCBA
Table 2-6 lists the connections for the BA PCBA.
Table 2-6 BA PCBA Connections
DPX
Table 2-7 lists the DPX connections. DPXs are located on the FOU in the upper part of the cabinet.
Table 2-7 DPX Connections
LNA
Figure 2-6 illustrates the front of the LNA and Table 2-8 defines the connections.
Figure 2-6 LNA
Table 2-8 LNA Connections
FON
Figure 2-7 illustrates the locations of the connectors on the FON and Table 2-9 defines the port
numbers, connector types, and port usage.
Port Connected to
P3 P5 on the PA/DL PCBA
P4 HI on the service DPX
Service DPX for
Non-diversity Connected to
ANT Service antenna (or DPX on the service (MS) DC
HI Connection from the MCP or PA
LO IN on the LNA/UL
Secondary DPX
for Diversity Connected to
ANT Service diversity RX1 antenna
HI Not used
LO Connection to LNA
LNA Port Connected to
OUT LOW IN on the LNA/UL in the cover, if equipped
IN LO on the service DPX duplex filter.
ATT +7V P23 on the DIA PCBA.
OUT1 P2101 on the WBA PCBA.
Wideband Radio Head WRH PCBA Connections
044-05251 Rev A 2-7
Figure 2-7 FON Connector Locations
Table 2-9 FON Connectors
PSU
The PSU is located in the bottom middle of the cabinet or in an equipped high cover. The PSU has all
the voltages required for the WRH. It has capacity for the radio circuitry, fiber optics, modem, etc., and
also supplies the BA if used. Multi-band WRH-Vs always require a second PSU. There are two PSU
types with different input voltages:
Port Description
P101 SMA, electrical RF input port (to the optical TX port)
P102 SMA, electrical RF output port (from the optical RX port)
P103 SMA, electrical RF output port (15dB below the P102 port)
RX DIN/APC, optical input port (to the P102 and P103 RF ports)
TX DIN/APC, optical output port (from the P101 RF port)
P104 Used only for development and debugging
P105 4-pin male, door LED indicators. Used for the yellow and red LED indicators located
on the front cabinet door
P106 9-pin D-sub female, RS-232 used for local PC communication
P108/116 6-pin male, parallel connected power ports for the FON
P109 7-pin male, used for external alarm sensors
P110 W-link jumper, used to terminate units in a W-link. It has to be set in the parking
state for all units except for the first and last units in a W-link. The Parking state (P)
has the jumper between the center and bottom pins. The opposite state (T) termi-
nates the W-link.
P111/112 5-pin male, WLI ports used for interconnecting nodes in WLI-nets (IP or R2R net-
works). They are identical and connected in parallel. One of the connectors are
intended to be used from the previous node and the other connector to the next
node in the network. Either can be used for the first and the last unit in the net chain.
P113 2-pin male, used for the on-PCBA backup batteries.
P114 Backup power output jumper, sets the backup power output state. The OFF state
has jumper between the center and left pins. This jumper has to be in the OFF state
when used in an OCM. Otherwise, it shall be in the ON state.
P115 3-pin male, future port - intended for future use
P117 SMA, electrical RF input port (15dB below the P101 port)
P130 34-pin, 2-line male, RCU port used for connecting an RCU. The connector contains
both the modem connection and RCU power supply.
P117
WRH PCBA Connections Wideband Radio Head
2-8 044-05251 Rev A
1. 115/230V 50/60Hz, 300W input max.
2. 21- 60V DC, 300W input max.
The DIA provides most of the internal connection between the sub units and external ports.
Connectors involved are also located on the DIA. Refer to Table 2-6 for descriptions of the
connectors.
Figure 2-8 PSU Location
The External Alarm Port P33 is used for external alarm sensors and alarm equipment. The four alarm
inputs are low-level inputs with common ground (AIC). Use an insulated switch or relay to initiate
alarms (open switches in normal operating mode, closed switches cause alarm). The alarm switch
connection can be toggled between active open and active closed. The alarm input voltage ratings,
related to ground (AIC), are: Vinmax= 5.5V, Vinmin= –0.5V.
The four alarm inputs are connected to the following pins:
Pin 14 AI1 External alarm input 1 - EAL1
Pin 15 AI2 External alarm input 2 - EAL2
Pin 7 AI3 External alarm input 3 - EAL3
Pin 8 AI4 External alarm input 4 - EAL4
Pin 6 AIC Ground.
Two alarm outputs are 1 pole closing and 1 pole opening relay outputs insulated from each other.
Maximum ratings, related to ground or any other alarm terminal, are 50V AC / 60V DC. The alarm
outputs are defined as follows:
Pin 9 and 1 AO1 and AO8 Closed when operating, otherwise open.
Pin 10 and 2 AO6 and AO7 Open when operating, otherwise closed.
Pin 11 and 3 AO2 and AO5 Closed at alarm state, otherwise open.
Pin 12 and 4 AO3 and AO4 Open at alarm state, otherwise closed.
MS
DPX
ANT
TEST
DC
-30 dB
-20 dB MS
DPX
ANT
TEST
DC
-30 dB
-20 dB
POWER SUPPLY UNIT
AL LGON INNOVATI ON
SWEDEN M105 R6
1
PARKI NG
FOR W5
W5
8
P27 W6B 10
1
P33
ALARM
P23
LNA
UP-LINK
P32
MODEM
AUX1
P28
DOOR
5
9
61
116
1
1
M->S
P11
P34
8
9
15
P26
15 16
S->M
12
389
P36
5
X0A
X0B
2V2 116
P12 P13
1
1
1
16
16
16
P4
P5
P6
c
b
a
c
b
a
c
b
a
c
b
a
1P232
1
b
a
116P3
16 116
P14
1
V1
1
1
1
1
1
4
6
1
15
6
915
2
16
1
2
4
5
8
5
P35
P21
PSU
6
10
P31
PC
P29
P24
P25
GND
7
6V6
LNA
DOWN- LINK
LED
P22
1
2
P33
P27
P3
1
P32
P34
P28
P36
Wideband Radio Head Software and Hardware Compatibility
044-05251 Rev A 2-9
Software and Hardware Compatibility
There are different versions of CU PCBA software which can be combined with PCBAs of various
revisions. These have unique part numbers and revision information. Below, you will find a table of
software currently available in combination with CU PCBA revisions.
Table 2-10 Hardware / Software Compatibility
This information is accurate as of 01/31/2007. As new versions of hardware and software are
released without prior notice. Contact your Powerwave sales representative if in doubt about the
latest revision status.
For detailed information, refer to the release notes for the CU software to be downloaded (normally
found in the readme.txt file provided with the program files).
CU PCBA
part # CU Software
part # Comments
K103/3
(500-13817-001) SA102 06/x
SA102 07/x
SA102 08/x
More memory. MAC ID is added on the PCBA. R2R func-
tionality integrated.
Software and Hardware Compatibility Wideband Radio Head
2-10 044-05251 Rev A
This Page Intentionally Left Blank
044-05251 Rev A 3-1
Chapter 3
Installation
Introduction
This chapter contains unpacking, inspection and installation instructions for installing and powering up
the WRH.
Site Survey
Powerwave recommends that a site survey be performed prior to equipment ordering or installation.
Performing a detailed site survey reduces or eliminates installation and turn-up delays. Pay particular
attention to power plant capacity, cooling needs, floor space, and RF/DC cabling/breaker
requirements. Cabinet dimensions, clearance dimensions, and weights are listed in Chapter 5.
Unpacking and Inspection
This equipment has been operated, tested, and calibrated at the factory. Carefully open containers to
remove equipment. Retain all packing material that can be reassembled in the event unit must be
returned to the factory. Perform the following steps:
• Visually inspect equipment for damage that may have occurred during shipment. If possi-
ble, in the presence of the delivery person.
• Check for evidence of water damage, bent or warped chassis, loose screws or nuts, or
extraneous packing material in connectors.
If equipment is damaged, file a claim with the carrier once the extent of any damage is assessed.
If equipment must be returned to factory, please contact factory for a Return Material Authorization
(RMA). See Chapter 4.
WRH Location
The WRH is designed with a weather proof outdoor cabinet that can be mounted without any kind of
shelter from rain, snow or hail. The same unit can be installed indoors. A preferable site for the WRH
is a location free of obstructions, easily accessible and allows for proper air-flow and ventilation.
If a WRH is installed outdoor and can be exposed to direct sunshine, it is essential that air can
circulate around the WRH with no obstacle. The operating temperature must not exceed 131°F
(55°C). A shelter can be used to shade the WRH from direct sunshine.
Never open a WRH when rain, snow, hail, high humidity or high winds are present unless some kind
of temporary shelter can be erected. Limitations for very bad weather are found in the next section.
Mounting
The WRH is easy to mount using the provided mounting bracket, which has 9/16-inch (14mm) holes
for 3/8-inch (10mm) or 1/2-inch (12mm) fixing screws. Clamps with C-C measures of 3.5-inch
(90mm), 5.3-inch (135mm), 5.7-inch (144mm), 8.1-inch (205mm), 9.8-inch (250mm), and 11.8-inch
(300mm) can be used as well. The vertical C-C measure for these are 16.2-inch (411mm). There is a
9/16-inch (14mm) single hole in the middle of the mounting bracket, marked ‘A’ in the figure, which is
intended for a locking screw to lock the bracket into place.
Mounting Wideband Radio Head
3-2 044-05251 Rev A
Figure 3-1 Mounting bracket
Normally, the WRH is mounted on a wall, pole, or mast. Figure 3-2 illustrates the installation of the
mounting bracket on a wall using four fixing screws and a locking screw.
Figure 3-2 Mounting bracket installation on wall
90
135
144
205
250
300
Ø14
A411
Wideband Radio Head Mounting
044-05251 Rev A 3-3
Figure 3-3 illustrates the installation of the mounting bracket on a pole using two 5.7-inch (144mm) U-
shaped clamps and a locking screw.
Figure 3-3 Attaching the bracket to a pole
Figure 3-4 illustrates a mast installation using two 11.8-inch (300mm) bar-shaped clamps and no
locking screw.
Figure 3-4 Attaching the bracket to a mast
Connections Wideband Radio Head
3-4 044-05251 Rev A
After installing the mounting bracket, hang the WRH on the upper supports, as illustrated in Figure 3-
5. Tighten the upper and lower mounting screws to secure it into place using the 6mm hex socket
wrench. Locking cylinders, used to prevent unauthorized removal of the repeater, can be inserted and
locked with a key after the lower screws have been tightened. Make sure the donor antenna, directed
towards the BTS antenna, and the service antenna, directed towards the area to be covered by the
WRH, are mounted and installed properly.
Figure 3-5 Attaching the WRH to the bracket
Connections
This section describes general examples of how to connect the input and output ports on the WRH.
Main Power and Grounding
Local regulations need to be followed for the main power connection. WRHs are approved in
accordance with EN and UL/cUL regulations. This is, however, only valid if a classified power cord is
used. For the WRH to meet these regulations you must select one of the following classified and
approved cord types:
• EN – H 05 W5 - F HMR
• UL – AWM Style 2587
• CSA– AWM 1 A/B 11 A/B
For outdoor use, the power cord should meet at least IP65 encapsulation requirements. Do not turn
the main power on until you are ready to commission the WRH
WARNING: For WRHs supplied from the main power source, the main outlet must be grounded.
Wideband Radio Head Connections
044-05251 Rev A 3-5
Fiber Optic and RF Connections
Fiber optic and RF cable connections should be verified both internally and externally before
powering up the equipment. This section illustrates the general internal connections of the WRH and
WRH-V. Verify these connections with the as-built drawings and documents for your specific system
configuration. Table 3-1 lists the steps for external connections to the WRH.
Table 3-1 Cable Connection Procedure
WRH
Figure 3-6 illustrates the cables and connections for a standard WRH.
Figure 3-6 WRH Cable Connections
Step Action
1 Connect the service antenna coaxial cable to the left in the cabinet using an N-type male connector.
2 Connect the fiber optic cable from the OCM or BMU to the fiber optic cable demark on the FOU.
3 Connect station ground.
4 Mount the main power plug to the main power cord and connect it to the PSU.
Optional Connections Wideband Radio Head
3-6 044-05251 Rev A
WRH-V
Figure 3-7 illustrates the cables and connections for the WRH-V.
Figure 3-7 WRH-V Cable Connections
Optional Connections
Alarms
Alarm signals from external sensors are received by an ALI or RCI which forwards them to the CU.
The RCI is used if the WRH has an RCU, otherwise the ALI is used. The software on the CU can
activate acoustic or visual alarms or direct the alarm to the P33 alarm port for forwarding via an RCU
to an OM-Online or OMS workstation. Alarms can also be handled by the FON. Alarms can be
configured from an OM-Online or OMS workstation.
External Alarm
Burglary, fire or other external alarms can be handled by the WRH. External alarm sensors and alarm
signals are connected to the P33 alarm port located to the left in the cabinet, as illustrated in Figure 3-
8. The P33 alarm port is described in Chapter 2. The cable for this installation is taken through a
strain relief bushing at the bottom of the WRH cabinet.
Door Open Alarm
A door open alarm can be configured and installed in the WRH. This is arranged with a door switch
connected to P28, as illustrated in Figure 3-8.
Wideband Radio Head Optional Connections
044-05251 Rev A 3-7
Figure 3-8 External alarm connection
Fiber Link Interface (FLI)
The FLI feature makes it possible to interconnect WRHs. By using an RF distribution fiber network, no
wire or other communication device is required.
Main Power Breakdown Relay
To be able to distinguish PSU faults from power failure, a main power breakdown relay can be used.
This relay is not included in the WRH. It has to be mounted outside the WRH cabinet. The relay
intended for this purpose must fulfil the following specifications:
Closing time: Max. 30 milliseconds
Insulation coil/contact: Min. 4KV
A main power connected relay must also be in compliance with valid local regulations.
Table 3-2 Main Power Breakdown Relay Connection
Step Action
1 Connect a current less closed relay contact to pin AI1 and AIC on the P33 alarm connector, see Fig-
ure 3-11. Alarm is initiated by short-circuiting pin AI1 and AIC in the P33 port.
2 Connect the relay coil. It must be supplied from the same fuse as the WRH
3 After commissioning, select Mains Breakdown in the alarm configuration window in OM-Online or
OMS. Refer to the OM-Online User Manual
MS
DPX
ANT
TEST
DC
-30 dB
-20 dB
MS
DPX
ANT
TEST
DC
-30 dB
-20 dB
POWER SUPPLY UNIT
ALLGON IN NOVATION
SWEDEN M105 R6
1
PARKING
FOR W5
W5
8
P27 W6B 10
1
P33
ALAR M
P23
LNA
UP-LINK
P32
MODEM
AUX1
P28
DOOR
5
9
61
116
1
1
M->S
P11
P34
8
9
15
P26
15 16
S->M
12
389
P36
5
X0A
X0B
2V2 116
P12 P13
1
1
1
16
16
16
P4
P5
P6
c
b
a
c
b
a
c
b
a
c
b
a
1P232
1
b
a
116P3
16 116
P14
1
V1
1
1
1
1
1
4
6
1
15
6
915
2
16
1
2
4
5
8
5
P35
P21
PSU
6
10
P31
PC
P29
P24
P25
GND
7
6V6
LNA
DOWN-LINK
LED
P22
1
2
P28 P33
Optional Connections Wideband Radio Head
3-8 044-05251 Rev A
Figure 3-9 Main power breakdown relay connection
21-60 Volt DC PSU Installation
The 115/220 VAC PSU can be replaced with a 21 to 60 VDC DC PSU as described below.
Figure 3-10 PSU Connections
MS
DPX
ANT
TEST
DC
-30 dB
-20 dB
POWER SUPPLY UNIT
ALLGON INNOVATION
SWEDEN M105 R6
1
PARKI NG
FOR W5
W5
8
P27 W6B 10
1
P33
ALARM
P23
LNA
UP-LINK
P32
MODEM
AUX1
P28
DOOR
5
9
61
116
1
1
M->S
P11
P34
8
9
15
P26
15 16
S->M
12
389
P36
5
X0A
X0B
2V2 116
P12 P13
1
1
1
16
16
16
P4
P5
P6
c
b
a
c
b
a
c
b
a
c
b
a
1P232
1
b
a
116P3
16 116
P14
1
V1
1
1
1
1
1
4
6
1
15
6
915
2
16
1
2
4
5
8
5
P35
P21
PSU
6
10
P31
PC
P29
P24
P25
GND
7
6V6
LNA
DOWN- LINK
LED
P22
1
2
P33:AICP33:AI1
P33
MS
DPX
ANT
TEST
DC
-30 dB
-20 dB
MS
DPX
ANT
TEST
DC
-30 dB
-20 dB
POWER SUPPLY UNIT
ALLGO N INNOVATIO N
SWEDEN M105 R6
1
PARKING
FOR W5
W5
8
P27 W6B 10
1
P33
ALARM
P23
LNA
UP-LINK
P32
MODEM
AUX1
P28
DOOR
5
9
61
116
1
1
M->S
P11
P34
8
9
15
P26
15 16
S->M
12
389
P36
5
X0A
X0B
2V2 116
P12 P13
1
1
1
16
16
16
P4
P5
P6
c
b
a
c
b
a
c
b
a
c
b
a
1P232
1
b
a
116P3
16 116
P14
1
V1
1
1
1
1
1
4
6
1
15
6
915
2
16
1
2
4
5
8
5
P35
P21
PSU
6
10
P31
PC
P29
P24
P25
GND
7
6V6
LNA
DOWN-LINK
LED
P22
1
2
PSU
Wideband Radio Head Commissioning
044-05251 Rev A 3-9
Table 3-3 PSU Replacement Procedure
Commissioning
Before proceeding, carefully read the Safety section and check all connections made during the
installation. To fulfill the IP65 weather protective requirements, ensure cable strain relief bushings are
properly tightened. Also, ensure gaskets at cable inlets and on the cabinet are properly fitted and not
damaged.
A WRH can be configured locally with OM-Online by connecting a standard serial cable from the
COM port on the PC to the P31 PC port (RS-232) located to the right in the cabinet (see Figure 3-14).
The P31 PC port is described in Chapter 2. OM-Online is described in the OM-Online User Manual.
Figure 3-11 Connecting a PC for Local Access
Step Action
1 Disconnect main power
2 Remove the main power plug from the PSU ('1' in Figure 3-12)
3 Disconnect the power cable bundle connectors (2) on the PSU
4 Loosen the four fixing screws (3) using a 5mm Allen key and remove the PSU
6 Examine the removed PSU and identify the supply voltage for the WRH (13.5V or 27V)
7 Set the new PSU to the correct supply voltage by moving the jumper as illustrated on the PSU. This
must be done before the PSU is mounted in the WRH
8 Mount the PSU with the four fixing screws (3)
9 Connect the PSU to the DIA PCBA (2) with a cable marked VE007 98/1. This cable must be used
even if one connector will be left over at the DIA PCBA (previous versions of the DIA had only one
connector)
10 Connect the DC power cable. The supplied cable should have a radiation limiter. The + pole should
be connected to one of the left terminals in the PSU connector with the brown part of the DC cable.
The – pole should be connected to one of the right terminals in the PSU connector with the blue part
of the DC cable
11 Apply power and verify the yellow LED on the PSU lights
MS
DPX
ANT
TEST
DC
-30 dB
-20 dB
POWER SUPPLY UNIT
ALLGON INNOV ATION
SWEDEN M105 R6
1
PARKING
FOR W5
W5
8
P27 W6B 10
1
P33
ALARM
P23
LNA
UP-LINK
P32
MODEM
AUX1
P28
DOOR
5
9
61
116
1
1
M->S
P11
P34
8
9
15
P26
15 16
S->M
12
389
P36
5
X0A
X0B
2V2 116
P12 P13
1
1
1
16
16
16
P4
P5
P6
c
b
a
c
b
a
c
b
a
c
b
a
1P232
1
b
a
116P3
16 116
P14
1
V1
1
1
1
1
1
4
6
1
15
6
915
2
16
1
2
4
5
8
5
P35
P21
PSU
6
10
P31
PC
P29
P24
P25
GND
7
6V6
LNA
DOWN-LINK
LED
P22
1
2
P31
Commissioning Wideband Radio Head
3-10 044-05251 Rev A
Initial Startup
Table 3-4 Initial Statup Procedure
Step Action
1 Turn the main power on
2 Check the Yellow LED on the power supply unit. It must be a steady on
3 Check the four CU PCBA LEDs. Refer to the CU PCBA section in Chapter 2 for the correct power up
indications
4 Check the three ALI PCBA LEDs or the corresponding LEDs on the RCI PCBA. Refer to the ALI or
RCI PCBA section in Chapter 2 for the correct power up indications. The LEDs follow the alarm
relays.
044-05251 Rev A 4-1
Chapter 4
Maintenance
Introduction
This chapter contains periodic maintenance and performance test procedures for the WRH.
Periodic Maintenance
Periodic maintenance requirements are listed in Table 4-1, as well as the intervals at which the tasks
should be performed.
Table 4-1 Recommended Periodic Maintenance
Troubleshooting
The sections that follow contain a list of problems that could occur and a few suggested actions that
can correct the problem. If the suggested corrective action does not eliminate the problem, please
contact your Powerwave field representative or help line for further instruction.
Clearing Alarm Faults
Table 4-2 contains a list of those alarms which can be generated in the WRH. Critical, Error and
Warning alarms can be sent automatically from a WRH to OM-Online and/or OMS, stored and then
viewed. These can be viewed in the Alarm window.
Table 4-2 Alarm Troubleshooting
Task Interval Action
Inspection of cables
and connectors 12 months Inspect power, RF and Fiber cables for signs of damage or wear
(frayed insulation, cracks, punctures, etc.) Check connections to be
sure they are tight.
Optional Perform cable sweeps.
Clean equipment Clean as required depending on operating environment.
ID Alarm
Text Alarm
Unit Alarm Description
1 Power PSU Critical PSU1 in the cabinet does not work properly. A sum signal from
the PSU1 indicates that at least one voltage output has dropped.
If no mains breakdown relay is used, then the alarm will also be
sent at mains breakdown.
Ceasing PSU1 in the cabinet works properly again. Ceasing is sent if the
PSU1 works at start-up, and there is a corresponding critical
PSU1 alarm logged in the Events log. The WRH will restart when
the power is back and this alarm will be sent.
PSU Critical PSU2 in the cover does not work properly. A sum signal from the
PSU2 indicates that at least one voltage output has dropped. If
no mains breakdown relay is used, then the alarm will also be
sent at mains breakdown.
Troubleshooting Wideband Radio Head
4-2 044-05251 Rev A
Ceasing PSU2 in the cover works properly again. Ceasing is sent if the
PSU2 works at start-up, and there is a corresponding critical
PSU2 alarm logged in the Events Log. The WRH will restart
when the power is back and this alarm will be sent.
FON Error The FON 10 Volt charger voltage is below limit. Suggested rem-
edy: Replace the FON
Ceasing The cause of the alarm has ceased.
2 WRH
restart CU None Power on start, or user ordered reboot. Logged to indicate a nor-
mal power up, or a restart ordered by the operator.
Warning Software error restart, 1st – 7th time. Restart 1st to 7th time dur-
ing a 14 day period. The counter is reset every 14th day, counted
from power up.
Error Software error restart 8th – 10th time. Restart 8th to 10th time
during the 14 day period. At the 11th time, the SW bank will be
blocked and not used anymore until a user ordered reset is per-
formed, or power is switched off/on.
3Mains
break-
down
External Critical The mains power is gone. Used with an external relay indicating
mains breakdown. The external relay should be connected to
External Alarm 1 and the WRH configured to indicate this alarm.
If no relay is used, a mains breakdown will be reported as a PSU
fault.
Ceasing The mains power is back. Sent if there is a corresponding critical
mains breakdown alarm logged in the Events Log. The WRH will
restart when the power is back.
4Alarm
reset CU None Alarm reset by the user. All alarms are reset. The cause of the
alarm will be re-evaluated and reported, if still active.
5 Local bus
error WBA #,
PA#,
MCPA#
Error Error when communicating on the bus. The CU has no contact
with the WBA, PA or MCPA PCBA, which is taken out of service.
6 Main bkd
w backup External Error Used to indicate that the mains is no longer available. WRH is
powered by external battery backup unit.
Suggested remedy: Check the mains power.
Ceasing The cause of the alarm has ceased.
7 Err in AD-
converter Warning The analog-to-digital converter on the CU PCBA does not give
reliable values.
8 New unit
detected None Compared to the last power on, the CU has recognized at least
one additional hardware unit.
9 Inst. unit
lost Error Compared to the last power on, the CU lacks at least one hard-
ware unit.
10 EEPROM
error CU Error EEP read or write fail. Data cannot be written or read from the
EEPROM on the CU PCBA. User parameters are stored in the
EEPROM.
11 Log mem-
ory fault Error Log memory fault. Indicates that the log memory on the CU
PCBA is faulty. The WRH will not work. Not available in all CU
software versions.
12 High temp CU Warning The CU PCBA temperature is higher than 90°C.
Wideband Radio Head Troubleshooting
044-05251 Rev A 4-3
Ceasing The CU PCBA temperature has fallen below 90°C.
13 REFO
error Error Significant REFO drift or error detected by CU.
14 Ext refo
error Warning Suggested remedy: Check the reference source and the cables.
15 CU bat-
tery fault CU Warning CU RAM battery fault. The battery for the RAM on the CU PCBA
has a voltage outside the normal 2.7 to 3.5 Volt. An alarm may
be initiated at start-up if the WRH has been stored out of power
for a long time. Suggested remedy: Ensure jumper P3 on the CU
PCBA is mounted to charge the battery.
Ceasing The cause of the alarm has ceased.
16 SW load
error CU Error Software load error. An error has occurred during a software load
process. The flash memory does not contain a proper software.
Suggested remedy: Check the CU software using the OM-Online
SW Manager. Do NOT restart the WRH.
17 Log
cleared CU None Log memory has been cleared. The check sum in the Events Log
memory is faulty. The log is cleared. Can be caused of a bad
RAM battery backup or low voltage to the RAM.
18 RTC
restarted CU None The time is changed by the operator (logged to keep track of
changes made to the RTC).
Warning Time reset to 1994-01-01. The RTC was unable to keep track of
the time and did a reset. Suggested remedy: Ensure jumper P3
on the CU PCBA is mounted to charge the battery.
19 RTC error Error RTC does not operate. The CU has detected an error in the RTC
operation which makes the time unreliable. Suggested remedy:
Replace the CU PCBA.
20 Door open
alarm External Config The door has been open 30 seconds without disabling the alarm.
Ceasing The door has been closed 30 seconds, or the alarm is disabled.
21 External
alarm 1 External Config External alarm input EA1 active more than 1 second.
Ceasing External alarm input EA1 no longer active.
22 External
alarm 2 External Config External alarm input EA2 active more than 1 second.
Ceasing External alarm input EA2 no longer active.
23 External
alarm 3 External Config External alarm input EA3 active more than 1 second.
Ceasing External alarm input EA3 no longer active.
24 External
alarm 4 External Config External alarm input EA4 active more than 1 second.
Ceasing External alarm input EA4 no longer active.
Troubleshooting Wideband Radio Head
4-4 044-05251 Rev A
30 No
modem
found
Remote
ctrl None No modem found, that is no answer is returned on a poll string to
the modem.
33 No con-
nection Remote
ctrl None No connection at callback. The WRH has tried to call as many
times as stated in the alarm call settings. No connection was
established.
Warning No connection at alarm call. The WRH has tried to call as many
times as stated in the alarm call settings. No connection was
established. This alarm does not generate a new attempt to
report alarm by alarm call.
34 Login
failed None Invalid WRH password.
35 Remote
connec-
tion
Remote
ctrl None Modem connection to OM-Online opened. Not logged on CU2.
Login Registry gives the same function and more information
about CU2.
36 Modem
init failed Remote
ctrl None Initiation string to modem not OK. The initiation string sent to the
modem is not OK. The string may contain commands not recog-
nized by the modem. An alarm might be sent anyway. Suggested
remedy: Check the modem using the OM-Online or OMS
modem debugger.
37 Remote
timeout Remote
ctrl Warning The time limit of 20 minutes is exceeded without extending the
timer. The modem connection is terminated by the WRH.
38 PIN code
failed Remote
ctrl Warning The PIN code sent to MS is incorrect. To unlock the MS/SIM
card, the PUK code will probably be needed.
Ceasing The cause of the alarm has ceased.
39 No phone
detected Remote
ctrl Warning When using a PC-card together with the MS, the alarm indicates
contact with the PC-card, but MS is not present or turned off.
Note: A Nokia MS does not power-up after power failure. Sug-
gested remedy: Ensure the cellular phone is connected.
Ceasing The cause of the alarm has ceased.
40 Battery
fault RCU,
FON
charger
Error The backup battery on the RCU or the FON PCBA does not work
properly. Suggested remedy: Check cables or replace battery.
Ceasing The cause of the alarm has ceased.
42 Antenna
isolation WBA #,
Chan-
nel #,
UL/DL
Warning Low antenna isolation. The antenna isolation is lower than the
gain set. Gain is reduced by 10dB – 13dB below the oscillation
point. Suggested remedy: Decrease gain or increase antenna
isolation.
Error Low antenna isolation at lowest gain. The gain has been reduced
as much as possible but the oscillation still remains. The ampli-
fier is turned off. Suggested remedy: Decrease gain or increase
antenna isolation.
Ceasing Normal operation again, that is no oscillation can be detected
13dB above the gain set.
Wideband Radio Head Troubleshooting
044-05251 Rev A 4-5
Remarks: The Door open alarm requires an optional door switch described in the P33 Alarm Port section in
Chapter 5.
The Main power breakdown alarm requires a relay not included in the WRH (see Main Power
Breakdown Relay in Chapter 3).
48 Battery
backup
fault
External Error If a battery backup unit alarm is connected to external alarm 2,
then the operator can configure the WRH to display this alarm
when the battery backup unit indicates alarm.
Ceasing The cause of the alarm has ceased.
50 Fiberopti-
cal error FOT
fiber
optics
Config-
urable If a fiber unit alarm is connected to external alarm 3, then the
operator can configure the WRH to display this alarm when the
fiber optical unit indicates alarm.
Ceasing The cause of the alarm has ceased.
70 Bad table
alarm CU Error Requested table contains incorrect information (SW error).
71 Table not
found CU Error Requested table not found in the database (SW or calibration
error).
72 Table
database
error
CU Error Table database not found (calibration error).
80 Antenna
SWR
alarm
Donor
antenna
service
antenna
Error Too low antenna return loss, caused either by cables, connec-
tors, or antenna problems.
Suggested remedy: Check antenna and cables.
Ceasing The cause of the alarm has ceased.
90 FON
power
alarm
FON RF Error A DC voltage on a FON PCBA is out of range. Suggested rem-
edy: Replace the FON PCBA.
Ceasing The cause of the alarm has ceased.
91 FON
TxStable
alarm
FON RF Error Laser transmitter control loop voltage out of range. Suggested
remedy: Replace the FON PCBA.
Ceasing The cause of the alarm has ceased.
92 FON
RxLevel
alarm
FON Warning Received optical level is below any of the two limits (one for
Warning and one for Error). Suggested remedy: Check optical
cables.
Error Received optical level is below any of the two limits (one for
Warning and one for Error). Suggested remedy: Check optical
cables.
Ceasing The cause of the alarm has ceased.
93 FON SPI
alarm FON
F2F Error The SPI bus connection to the RF modem does not work prop-
erly. Suggested remedy: Replace the FON PCBA.
245 Not In
Allowed
Area
CU None WRH is moved from the operating area and the RF HW is
switched on or off.
Field Replaceable Units Wideband Radio Head
4-6 044-05251 Rev A
Field Replaceable Units
The following units can be replaced in the field on-site by a qualified technician with experience
maintaining RF equipment:
• FON
• PSU
• WRH
FON
To replace a FON PCBA, proceed as described in the Table 4-3.
Table 4-3 FON Replacement Procedure
PSU
To replace a PSU, proceed as desribed in the Table 4-4.
Table 4-4 PSU Replacement Procedure
Step Action
1 Open WRH door and secure
2 Locate power connector on FON and remove connector from PCBA
3 Verify all cables on FON are labeled before disconnecting, then disconnect all cables. CAUTION: Do
not look into the end of any fiber optic cable. Be sure to cap fiber optic cables to protect the con-
necting end from damage.
4 Remove screws securing FON PCBA to FOU and remove PCBA
5 Replace FON PCBA in reverse order and apply power
6 Connect PC to OM Online port, login to FON and verify configuration and IP address. NOTE: Make
sure ‘Fiberoptical’ classmark in the FON Status window is checked, otherwise FON will not be opera-
tional.
7 Close WRH door and secure
Step Action
1 Open WRH door and secure
2 Disconnect main power plug from PSU
3 Disconnect power cable bundle from PSU
4 Loosen screws securing PSU using a 5mm Allen key and remove.
NOTE: screws are designed to not be removed completely from PSU.
5 Replace PSU in reverse order and apply power
6 Close WRH door and secure
Wideband Radio Head Return For Service Procedures
044-05251 Rev A 4-7
WRH
To replace a WRH, proceed as desribed in the Table 4-5.
Table 4-5 WRH Replacement Procedure
Return For Service Procedures
When returning products to Powerwave, the following procedures will ensure optimum response.
Obtaining an RMA
A Return Material Authorization (RMA) number must be obtained prior to returning equipment to the
factory for service. Pease contact our Repair Department at 1-714-466-1000 to obtain this number, or
FAX your request to 1-714-466-5800. Failure to obtain this RMA number may result in delays in
receiving repair service.
Repackaging for Shipment
To ensure safe shipment of the unit, it is recommended that the original package designed for
shipping the unit be reused. If it is not available, contact Powerwave’s Customer Service Department
for packing materials.
Remote Control Unit (RCU)
The RCU provides remote control of Powerwave WRHs. It contains an integrated mobile phone,
modem and power supply backup. The RCU is installed in the bottom front of the cabinet, on top of
the PSU as illustrated in Figure 4-1.
The RCU is connected to P130 on either an RCI or FON. A jumper is required between pins 1 and 2
on the RCI if the P130 cable connector is disconnected. If a main power failure occurs, the unit has a
battery with enough capacity for sending a number of alarms.
Step Action
1 Open WRH door and secure
2 Disconnect main power plug from PSU
3 Verify all cables connected to WRH are labeled before disconnecting, then disconnect all cables
4 Remove mounting screws from bottom legs of WRH and loosen mounting screws in top legs
5 Close and secure door
WARNING: A fully loaded WRH can weigh 96lbs. Lifting of the WRH should be done by two
people. Do not attempt to carry the WRH up a ladder.
6 Lift the WRH off the mount hinges
7 Replace WRH in reverse order
8 Connect PC to OM Online port and verify configuration. For Fiber Optic installations, verify IP
address.
9 Close WRH door and secure
Remote Control Unit (RCU) Wideband Radio Head
4-8 044-05251 Rev A
Figure 4-1 RCU in the WRH cabinet
RCU for Radio Communication
The RCU antenna for a radio modem is connected to the BS antenna via the uplink DC, provided the
RCU and the WRH operate in the same cell system. Otherwise, the modem must have a separate
antenna. Data is transferred between the WRH and the RCU via the P130 modem port on the RCI or
FON. The RCU is also powered via the same port and has a battery with enough capacity to send a
number of alarms if a main power failure occurs.
RCU for Telephone Line Communication
The land line version uses a telephone line connected to a terminal block on the RCU. A free strain
relief bushing at the bottom of the WRH is used for the external telephone line cable.
MS
DPX
ANT
TEST
DC
-30 dB
-20 dB MS
DPX
ANT
TEST
DC
-30 dB
-20 dB
ALLGON INNOV ATION
SWEDEN M105 R6
1
PARKING
FOR W 5
W5
8
P27 W6B 10
1
P33
ALARM
P23
LNA
UP-LINK
P32
MODEM
AUX1
P28
DOOR
5
9
61
116
1
1
M->S
P11
P34
8
9
15
P26
15 16
S->M
12
389
P36
5
X0A
X0B
2V2 116
P12 P13
1
1
1
16
16
16
P4
P5
P6
c
b
a
c
b
a
c
b
a
c
b
a
1P232
1
b
a
116P3
16 116
P14
1
V1
1
1
1
1
1
4
6
1
15
6
915
2
16
1
2
4
5
8
5
P35
P21
PSU
6
10
P31
PC
P29
P24
P25
GND
7
6V6
LNA
DOWN- LINK
LED
P22
1
2
POWER SUPPLY UNIT
RCU
044-05251 Rev A 5-1
Chapter 5
Specifications
Introduction
This chapter provides specifications for the different WRH product line.
Table 5-1 WRH Specifications
Generic
Dimensions (W x H x D in inches) 17.5 x 21 x 7 (low cover)
17.5 x 21 x 11 (high cover)
Weight
Empty low cover
Cabinet with a low cover
Cabinet with a high cover
Equipped cabinet or high cover w/extra heat sink
element
13 lbs (6.0 kg)
50 lbs (22.5 kg)
96lbs (44.0 kg)
41 lbs (18.5 kg)
Temperature range -13 to +131°F (-25 to + 55°C)
Casing class NEMA4/IP65
Fiber-Optic Link Budget 10dBo
Amplifiers in 1 cabinet or 1 high cover Standard = 2 (WBA / PA combination)
High Power = 1(WBA / MCPA combination)
Receiver input port return loss 14dB
Power supply voltage (default) 115 VAC
Power consumption 160 W (standard WRH)
210 W typical, 250 W max (WRH-V)
Fiber Optics (FON)
Bandwidth @ 3dB 800 – 2200 MHz
Power Consumption, total <5 W
Wavelength TX: DFB 1310 or 1550 nm
RX: 1250 – 1600 nm
Transmitter
Max continuous RF input
Optical output power, two levels
RF attenuation settable by SW in 1dB steps
+36dBm
+3 or 0dBm
0-20dB
Receiver
Max optic power input
RF attenuation settable by SW in 1dB steps
Alarm threshold level, settable warning
Alarm threshold level, settable error
+5dBm
4-24dB
0-40dBm
0-40dBm
Introduction Wideband Radio Head
5-2 044-05251 Rev A
Standard WRH (SMR / iDEN 800 / 900 MHz)
Frequency band UL 806-824 MHz; 896-901 MHz
Frequency band DL 851-869 MHz; 935-940 MHz
Max absolute delay <300 ns
Gain adjustment range (in 1 dB steps) 30dB
Gain (max variation –25 to +55 °C) <2dB
Maximum input power (non-destructive) +13dBm
Return Loss 14dB
AGC for UL and DL ≥30dB
Noise figure including fiber optic node 4dB
Standard WRH (900 / 1800 / 2100 MHz)
Frequency band UL 890-915 MHz; 1710-1785 Mhz; 1920-1980 MHz
Frequency band DL 935-960 MHz; 1805-1880 MHz; 2110-2170 MHz
Absolute group delay 5 µs
Gain adjustment range (in 1 dB steps) 30dB
Gain (max variation –25 to +55 °C) <2dB
Noise figure UL at max gain 4dB
WRH-V
Frequency band UL 824-849 MHz; 1850-1910 MHz
Frequency band DL 869-894 MHz; 1930-1990 MHz
Max absolute delay <300 ns
Gain adjustment range (in 1 dB steps) 30dB
Gain
Uplink
Downlink
Variation
35 to 60dB typical
45 to 70dB typical
3dB versus temperature and frequency including fiber link
Instantaneous bandwidth 25 MHz
Maximum input power (non-destructive) +13dBm
Return Loss 11dB
TX band IMD < -60dBc (1930-1990 MHz) Full power 8 EDGE carriers
TX spurious in RX band < -111dBm / 200kHz Full power 8 EDGE carriers
Output power +43dBm
Noise figure excluding fiber optic link 4dB
044-05251 Rev A A-1
Appendix A
Block Diagrams
Introduction
This appendix describes the main signals paths for the WRH.
Standard WRH
Figure A-1 illustrates a single band WRH block diagram. The TX signal from the BTS is converted to
an optical signal at a FON within a BMU or OCM and fed to the WRH via a fiber optic cable. The FON
in the WRH converts the fiber optic signal back to RF. It also supervises the signaling and reports
errors via the RCU connected to the CU. The RF signal enters the WBA at P1101. Amplification
occurs in the LNA and the additional amplifier stages followed by controllable attenuators. The signal
exits the WBA on P1401 and enters the PA at P4 where it is amplified and fed to the DPX.
If a BA is installed, the signal goes through it before being fed to the DPX, boosting the output DL
signal from the PA by typically 6dB. The amplified output signal passes the DPX before it is fed to the
service antenna.
The uplink signal path is located on the same WBA but has no PA or BA stage. An optional LNA can
be used.
Figure A-1 Standard WRH Block Diagram
WDM
FOU
DX
DX
DPX
DPX
WBA
WBA
DL
DL
UL
UL LNA
LNA
PA
PA
To/From
OCM or
BMU
RCU
RCI
PSU CU
FON
ALI To
External
alarms
BA
BA
850 MHz
TX0/RX0
1900 MHz
TX0/RX0
WRH-V Wideband Radio Head
A-2 044-05251 Rev A
WRH-V
Non-Diversity
Figure A-2 illustrates non-diversity block diagram configuration of the WRH-V. The WRH-V is always
fed by a BTS via either a BMU or an OCM. The TX signal from the BTS is converted to an optical
signal in a BMU or OCM and fed to the WRH-V via a fiber optic cable. The optical signal is received
by the FON and converted to an RF signal. The FON supervises the signaling and reports errors via
the RCU connected to the CU.
The RF signal enters the WBA, is amplified, and further amplified in amplifier stages followed by
controllable attenuators. The signal exits the WBA and enters the MCPA where it is amplified and fed
to the DPX. The amplified output signal passes the DPX before it is fed to the service antenna.
The uplink signal path is located on the same WBA but only has an LNA before entering the WBA.
Figure A-2 WRH-V Block Diagram - Non-Diversity
WDM
FOU
DX
DX
DPX
DPX
WBA
WBA
DL
DL
UL
UL LNA
LNA
MCPA
MCPA
To/From
OCM or
BMU
RCU
RCI
PSU CU
FON
ALI To
External
alarms
850 MHz
TX0/RX0
1900 MHz
TX0/RX0
Wideband Radio Head WRH-V
044-05251 Rev A A-3
Diversity
Figure A-3 illustrates the diversity block diagram configuration of the WRH-V. With diversity installed,
there are two paths on the UL instead of one. This requires an additional FON for the added receive
path signal. Signal flow is identical to the non-diversity version with the MCPA on the DL and LNAs on
the UL providing the additional amplification out of and into the WBA.
Figure A-3 WRH-V Block Diagram - Diversity
WDM
DX
DX DPX
WBA
DL
LNA
MCPA
To/From
OCM or
BMU
RCU
RCI
PSU CU
FON
ALI To
External
alarms
FOU
DX
LNA
DPX
DPX
WBA
LNA
MCPA
LNA
DPX
UL
DL
FON
1900 MHz
TX0/RX0
850 MHz
TX0/RX0
850 MHz
RX1
1900 MHz
RX1
UL
UL
UL
WRH-V Wideband Radio Head
A-4 044-05251 Rev A
