Theory Of Operation
An LINKNET FM MODULE is a radio repeater that simultaneously receives and
transmits a single narrow band radio channel on exactly the same frequency.
The LINKNET FM MODULE accomplishes its repeater function without store and
forward circuitry, or expensive conventional simulcasting techniques. The fact that
the same frequency is retransmitted by an LINKNET FM MODULE means that
additional frequency allocations are not required in situations where an existing radio
coverage pattern needs to be extended. The most common LINKNET FM MODULE
applications are the extension of above ground signals into buildings, tunnels,
vehicles or the extension of radio coverage patterns into outdoor shaded areas such
as deep valleys.
From an applications standpoint, an LINKNET FM MODULE is very similar to a
regular two-way radio repeater. LINKNET FM MODULES can be combined using
regular two-way radio multicoupling or duplexing equipment and have input and
output signal characteristics to those of regular transmitters and receivers. The one
special consideration in LINKNET FM MODULE systems is that of input to output
antenna isolation. This must be carefully engineered for each installation.
LINKNET FM MODULES are designed for indoor use only and are intended for
mounting in a standard EIA 19 inch rack. The Modular design of LINKNET FM
MODULE circuitry allows for easy servicing, stocking of spares, adaptability and
upgrade ability.
LNKF800 MODULE FAMILY
MODEL TYPE FREQUENCY
LNKF800-A1 25 KHz FM Channels 806-824 MHz (FM)
LNKF800-B1 25 KHz FM Channels 851-869 MHz (FM)
LNKF800-C2 12.5 KHz FM Channels 806-824 MHz (FM)
LNKF800-D2 12.5 KHz FM Channels 851-869 MHz (FM)
LNKF800-G1 12.5 KHz FM Channels 896-902 MHz (FM)
LNKF800-H1 12.5 KHz FM Channels 935-941 MHz (FM)
1. LNKF800 MODULES
Overview
Models
LinkNet™ LNKF800 RF MODULES ! USER MANUAL
DCM000000014
Printed: 01.10.19,15:50
Revision Date:10/19/01 5
LNKF800 RF Module
Block diagram
Transmit Board
UMC Controller Board
Receive Board
IF Board
RF Input
806-941 MHz
RF Output
806-941 MHz
Micro-
Controller
with lines to
all Boards
Blind-Mate
to SMA RF
Connector
Blind-Mate
to SMA RF
Connector
Power &
Control to
Backplane
Gain Control
Communication
Interfaces
Gain
Control Test
Oscillator
Low Noise
Pre-Amplifier Buffer
Amplifiers
2'nd Local
Oscillator
First Local
Oscillator
Buffers, Filters, and
Linear Power Amplifier
Power
Circuits
First Local
Oscillator
2'nd IF
Crystal
Filter
First IF
Filter
First IF
Filter
2'nd IF
Crystal
Filter
2'nd Local
Oscillator
LinkNet™ LNKF800 RF MODULES ! USER MANUAL
DCM000000014
Printed: 01.10.19,15:50
Revision Date:10/19/01 6
Frequency Bands See Model Chart
Modulation & Channel Spacing Narrowband FM,
25 or 12.5 KHz as per Model Chart
RF Frequency Stability Tracks Input Signal Exactly
Max. RF Output Power +38 dBm for A1,B1,C2,D2 Models
+37 dBm for G1, H1 Models
RF Output Power Range Power can be reduced 20 dB in 1 dB Steps
(AGC Controlled)
RF Output Power Variation vs. Input
(over -90 to -30 dBm) +/- 1 dB
Input Dynamic Range -110 to -30 dBm
Input Sensitivity Adjust Range -110 to -50 dBm
Input Hysteresis 1 to 10 dB
Adjacent Channel Selectivity 60 dB Minimum
Transmit Duty Cycle Continuous
Transmit Spurious -13 dBm max
Receive Conducted Spurious -57 dBm Max
Audio Distortion & Noise <3% Increase for 25 KHz Modules
<4% Increase for 12.5 KHz Modules
Transmit Key-Up & Key-Down Times <2 mS Key-Up, <1 mS Key-Down
Group Delay <120 uS for 25 KHz,
<160 uS for 12.5 KHz
RF Connectors SMA (50Ω) Connectors on back of Card-Cage
Module Power Supply Requirements 45 Watts Maximum
Connections
Edge Connector & 2 Blind-Mate RF Connectors to
Card-Cage, DB-15 Connector on back of Card-
Cage provides per-Module Fault Relay,
Interconnect to other Modules, & RS-232
Front Panel Indicators Operating, Stand by, Fault, Program Mode,
Receive, Transmit
Configuration Options RF Modules may be configured either via the
optional Controller Module, or via a PC and an
RS-232 Connection via the Card-Cage.
Operating Temperature Range -10 to +50
o
C; consult Manual DCM000000008 for
cooling requirements
Operating Humidity Range 10 to 90% RH, Non-Condensing
Size & Weight 9.11” High, 2.00” Wide, 14.00” Deep,
10 lbs, 4.5 kg Max
Also consult the main LinkNet™ Manual DCM000000008.
Module Specifications
LinkNet™ LNKF800 RF MODULES ! USER MANUAL
DCM000000014
Printed: 01.10.19,15:50
Revision Date:10/19/01 7
Software Set-up
The LNKF800 module is shipped with the following factory set options:
OPTION RANGE OF VALUES DEFAULT VALUE
Frequency See Model Chart Order Specific
Receive Threshold
–110 to -50 dB -89 dB
Receive Hysteresis 1 to 10 dB 2.5 dB
Time Out 0 to 600 Seconds, or none 300 Seconds
Module Enabled On / Off On
Transmit Power Level 20 to 38 dBm Order Specific
Default values may be changed when an order is placed. Check your order
confirmation (shipped with modules) for customized values.
Configuration
In line with the versatility of the LinkNet
TM
Platform, it is possible to re-configure the
LNKF800 module in the field, either with a Personal Computer (PC) or via the
optional Control Module. To use a PC it is necessary to have a Kaval
CAB000000057 Control Cable to connect between the appropriate Module's DB15
connector on the back of the Card-Cage and the standard DB9 RS232 Connector on
the PC. On the PC a terminal emulation program such as HyperTerminal is used to
communicate to the LinkNet Module. The settings are 9600 baud, 8 bits, no parity,
and 1 stop bit. Commands are one or two words followed by pressing Return.
Commands may be given in upper or lower-case. Available commands are...
ACCESS USER: Required as a simple password to gain access to customer
settable parameters and diagnostics; This will time-out after 10
minutes, and may have to be re-typed.
HELP or ?: Displays a list of Available Commands.
LIST: Displays Current Settings and Status Faults, Etc.
VER: Display the current Version of Software.
ENABLE 1 or 0: Enables or Disables the Module.
TXFREQ #########: Displays or Sets the current Transmit Frequency (in Hertz).
RXFREQ #########: Displays or Sets the current Receive Frequency (in Hertz).
TXPOWER ###: Displays or Sets the Transmit Power Level (in tenths of a dBm).
RXTHRESH -####: Displays or Sets the Receive Threshold Level (in tenths of a dBm).
RXHYSTER ##: Displays or Sets the Receive Hysteresis (in tenths of a dB).
TIMEOUT ####: Displays or Sets the Timeout-Timer value (in Seconds).
TESTOSC 1 or 0: Enables or Disables the Test Oscillator.
Please consult Kaval Wireless Technologies for further support.
Operation
LinkNet™ LNKF800 RF MODULES ! USER MANUAL
DCM000000014
Printed: 01.10.19,15:50
Revision Date:10/19/01 8
Power On Self Test (POST)
Each system module automatically performs a self-diagnostics when inserted into
the system Card-cage. These tests determine that the unit is a) correctly installed in
the Card-cage and b) not damaged in transit.
•
All six of the LED’s on the front panel will flash 3 times
•
If the LED’s do NOT flash three times, then remove the module, check the power
source, and re-insert the module, (See Installation Instructions).
•
If the card is “OK” the LED’s will continue normally. (See Normal Operation)
•
If there is a fault, then the Red Fault LED will remain on. If this occurs, contact
your KAVAL WIRELESS TECHNOLOGIES Service Representative, (See
Warranty / RMA Procedures).
The Power On Self Test is Not an RF test, it only verifies that there is power to
the unit and that the logical circuitry is functioning.
LinkNet™ LNKF800 RF MODULES ! USER MANUAL
DCM000000014
Printed: 01.10.19,15:50
Revision Date:10/19/01 9
Normal Operation

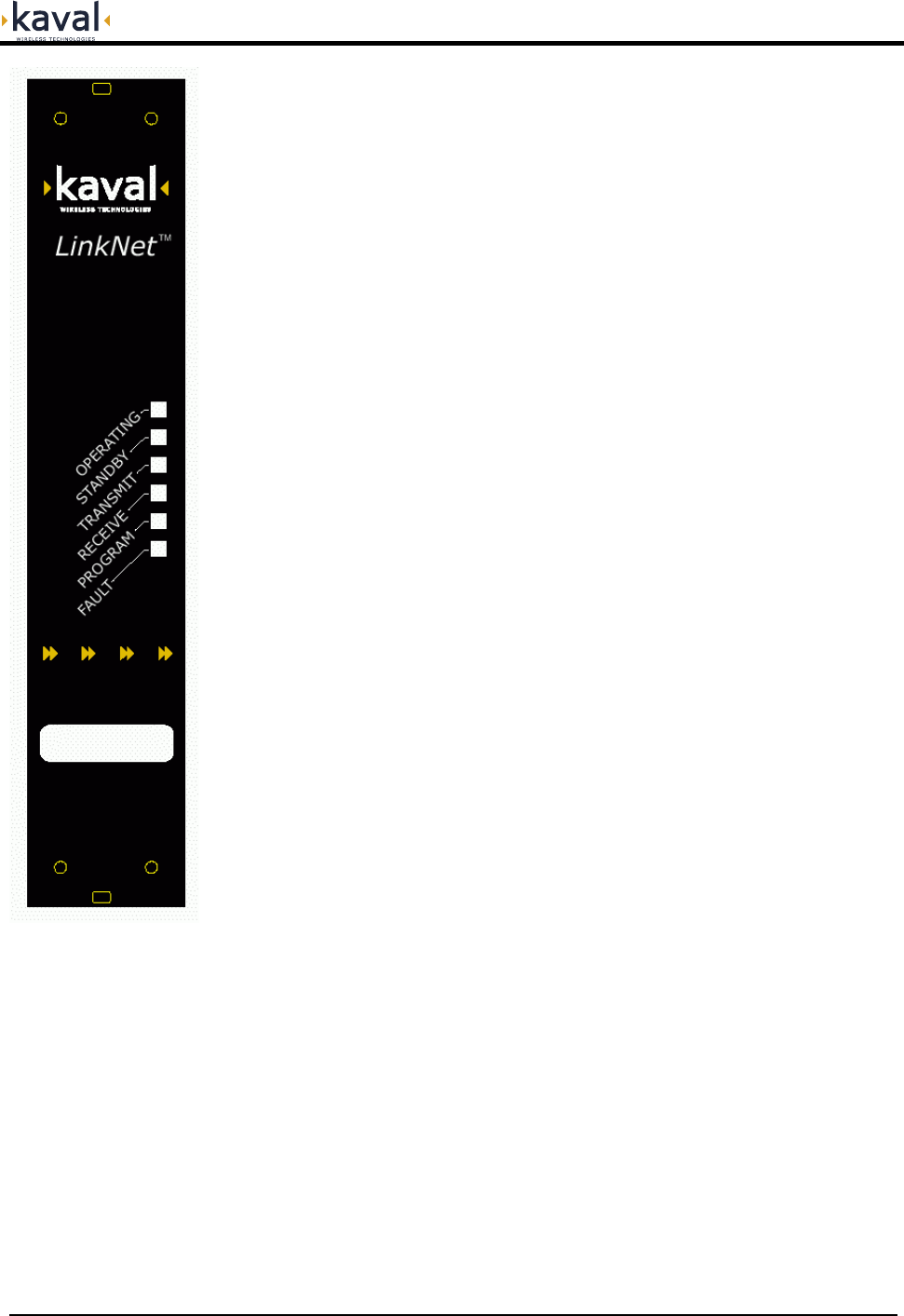

The LNKF800 Module has six LED’s on the faceplate:
1. OPERATING - Under normal operating conditions, this LED will flash
GREEN when RF Data is present.
2. STANDBY – Under the control of the Controller Module, the LNKF800
Module has the ability to act as a duplex transmitter, sitting perpetually in
Stand by Mode waiting for the primary transmitter to fail. This LED should
be constant Amber. If a Fault should occur with the primary module, the
“Stand by” unit will immediately become the primary unit, at which time the
Stand by LED will be turned off and the LED’s will show an operating
Module.
3. TRANSMIT – This Green LED will be on when a signal is being
transmitted
4. RECEIVE – This Green LED will be on when a signal is being received
5. PROGRAM – This LED will be constant Amber when the unit is being re-
programmed by the Controller Module. This will signify that the unit is
powered on but unavailable for use.
6. FAULT – Red LED, If the internal diagnostics for the module detect a
problem, then this LED will remain on
LinkNet™ LNKF800 RF MODULES ! USER MANUAL
DCM000000014
Printed: 01.10.19,15:50
Revision Date:10/19/01 10

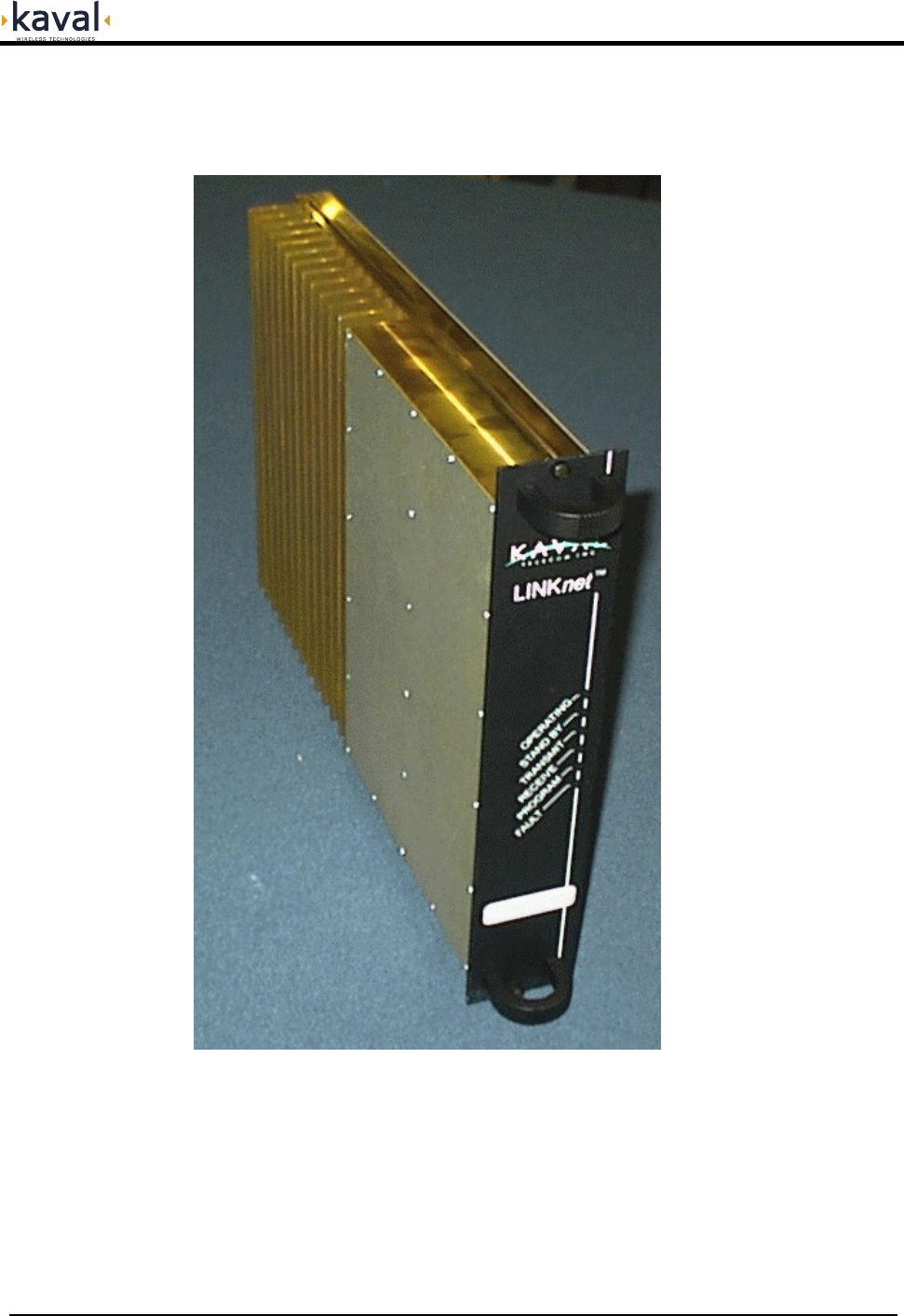

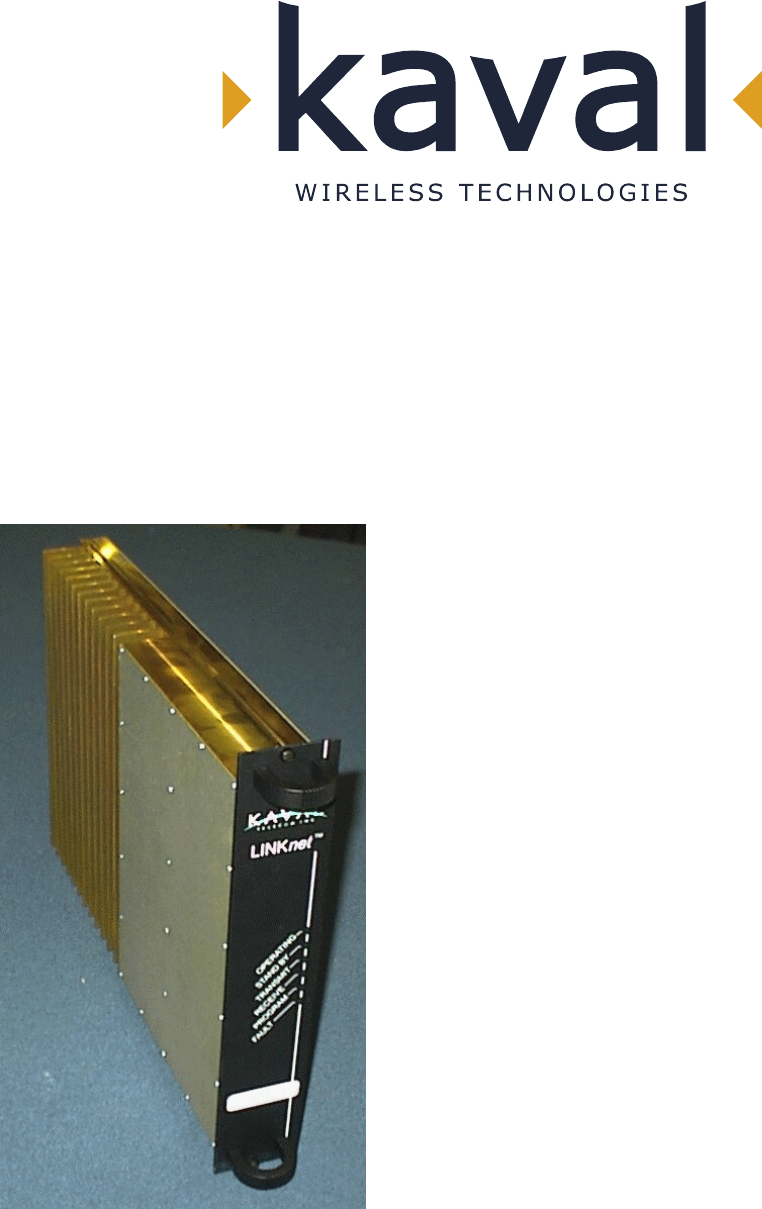

LINKNET FM MODULE Module
LinkNet™ LNKF800 RF MODULES ! USER MANUAL
DCM000000014
Printed: 01.10.19,15:50
Revision Date:10/19/01 11
•
All Antenna Installation to be performed by Qualified Technical Personnel only.
•
Antenna Installation Instructions and locations below are for the purpose of
satisfying FCC RF Exposure Compliance requirements.
•
Note that if multiple LinkNet™ Modules are used, the Instructions below
apply to the composite power output of all Modules when transmitting
simultaneously.
•
The Roof Top Antenna or Antennae for linking to the Donor Site(s) is/are
directional (high gain) Antennae, fixed-mounted physically on the side or top of a
building, or on a tower. The Antenna Gain must be no more than 10 dB. If
multiple LinkNet™ Modules are used with output combiners into any one
Antenna, and/or multiple Antennae are used on one Roof Top, then the
sum of composite powers into all Roof Top Antennae must not exceed 100
Watts maximum. Please consult Kaval Wireless for assistance as required. The
Roof Top Antennae location should be such that only Qualified Technical
Personnel can access it, and that under normal operating conditions no other
person can touch the Antenna, or approach within 10 meters of the Antenna.
•
The In-Building Antenna connection is via a coaxial cable distribution system
with Signal Taps at various points connected to the fixed-mounted Indoor
Antennae. This is shown in the figure in the Introduction. The Indoor Antennae
are simple 1/4 Wavelength (0 dB Gain) types. They are used with KAVAL
WIRELESS TECHNOLOGIES 12, 16, or 20 dB Cable Taps. As such the
maximum EIRP will be at the first Tapped Antenna, which will be 12 dB below
the maximum signal level of the LinkNet™ (+40 dBm); +28 dBm, or 0.63 Watts
EIRP. If multiple LinkNet™ Modules are used with output combiners, then
the composite power output of all Modules transmitting simultaneously
must meet this maximum EIRP requirement. Please consult Kaval Wireless
for assistance as required. These Antennae are to be installed such that no
person can touch the Antenna, or approach within 0.2 Meters.
ANTENNA INSTALLATION
WARNING
ALL ANTENNA INSTALLATION IS TO BE PERFORMED BY QUALIFIED
TECHNICAL PERSONNEL ONLY.
ANTENNA INSTALLATION INSTRUCTIONS AND LOCATIONS ARE FOR THE
PURPOSE OF SATISFYING FCC RF EXPOSURE COMPLIANCE
REQUIREMENTS, AND ARE NOT OPTIONAL.
ALL ROOF TOP ANTENNA INSTALLATION MUST BE SUCH THAT NO PERSON
CAN TOUCH THE ANTENNA, OR APPROACH CLOSER THAN 10 METERS.
ALL IN-BUILDING ANTENNAE INSTALLATIONS MUST BE SUCH THAT NO
PERSON CAN TOUCH THE ANTENNAE, OR APPROACH CLOSER THAN 0.2
METERS.
Antenna Installation
