Bluetooth Laptop Mouse
Installation Guide
Use it
like your wireless
desktop mouse
Store It
inside a
PC card slot
Charge it
automatically
Newton Peripherals MoGo MouseBT
Introduction
Congratulations on your purchase of a MoGo MouseBT.
This user’s guide describes how to connect and use the
MoGo MouseBT to your Laptop.
In addition to this user’s guide this package contains:
• Newton Peripherals MoGo MouseBT
System Requirements
To use the MoGo MouseBT, your computer must meet
the following requirements:
Hardware
• Type II PC card slot
• USB Bluetooth adaptor or embedded Bluetooth
Operating System
• Bluetooth®-enabled Windows®98, Me, 2000, or XP.
• Bluetooth®-enabled Macintosh®running Mac®OS 10.2.8 or later.
Charging and Storing
The MoGo MouseBT is equipped with an internal
rechargeable battery. It is recommended that
before using, you insert the MoGo MouseBT
inside your type II PC card slot for charging.
The MoGo MouseBT automatically begins
to charge when installed. The laptop must
be turned on for charging to take place.
You should allow up to 60 minutes
for initial charging of MoGo MouseBT.

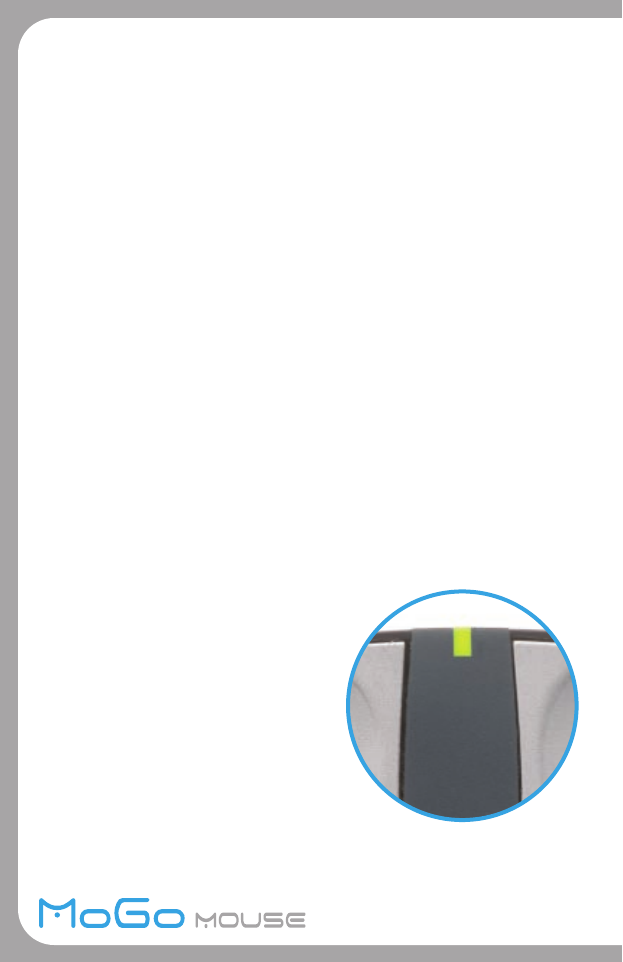

Charging status is indicated by either
a red light for active charging or a
green light for fully charged.
GREEN = CHARGED
RED = CHARGING
Battery LED Status

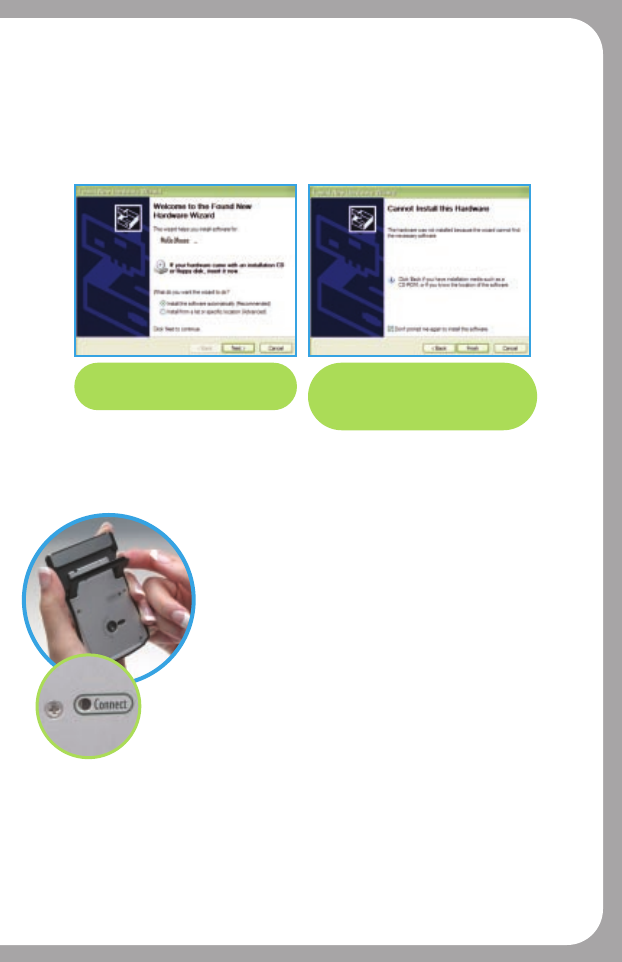

What to do if the “Found new Hardware Wizard” appears
When inserting the MoGo MouseBT in your computer’s PCMCIA slot for the
first time, the window below may appear. Though no software is required
for the MoGo MouseBT to charge properly, Microsoft Windows will try to load
a driver for the MoGo MouseBT. To stop Microsoft Windows from displaying
this window follow the steps below. Once completed no other action is
required for setting up your laptop for charging.
You may see a message appear warning you that the driver was not
installed and your device my not work properly. You can ignore this
as the MoGo MouseBT does not need a driver to operate properly.
Pairing your MoGo MouseBT with your laptop
Bluetooth devices require that you initially “pair” your
MoGo MouseBT with your laptop. Follow the steps
below to prepare your MoGo MouseBT for pairing.
Once paired to your laptop the MoGo MouseBT only
needs to be turned on for operation with your laptop.
1. Turn on the MoGo MouseBT by opening kickstand on
side of unit with finger. You may notice a one time RED blink
from Optical Sensor on the bottom of the mouse.
2. Press the “connect” button down until the status light starts
flashing blue, every 2 seconds. Your MoGo MouseBT is now ready
to pair to your laptop. It will stay in this state for 3 minutes.
3. Initiate your laptop Bluetooth to complete pairing your mouse. In case
you are requested to enter a Pass Code or PIN number, simply enter
“0000”. MoGo MouseBT does not require such a code to operate. Refer to
the owner’s manual for specific instructions on pairing your laptop Bluetooth.
Check the box to install
automatically and click “Next”.
Check the box at the bottom
(Don’t Prompt me again to install
the software) and click finish.
Once connected the blue light on the MoGo MouseBT will begin to blink
slowly, every 3 seconds.
4. You are ready to MoGo!
Pairing Your MoGo MouseBT with another Laptop
Your MoGo MouseBT can only be paired with one laptop at a time. Pressing
the connect button will break the current pairing and prepare the MoGo
MouseBT to be paired with another laptop.
Using your MoGo MouseBT
Since the MoGo MouseBT fits into the Type II PC card slot to store and charge,
it needs a kickstand to prop up the back of the mouse to make it functional
and ergonomic. To turn it on, open the kickstand from the side. Click the right
or left button to activate the connection. Note: initially, you must pair the
MoGo MouseBT to the laptop before this can occur.
Turning the MoGo MouseBT off is simple. Collapse/close the kickstand and
MoGo MouseBT will automatically turn off.
Leaving the MoGo MouseBT untouched for ten minutes will cause the mouse
to fall asleep. Wake it by simply pressing the right or left button. Note: The
MoGo Mouse is designed so that leaving it in sleep mode reduces battery use
to save battery power.
If the laptop Bluetooth signal becomes unavailable to the mouse, this will
also cause the mouse to fall asleep.
If the indicator LED turns solid red, the battery is very low and needs
to be recharged.
Operating Hints
For optimal performance and RF reception:
• Avoid using the MoGo MouseBT on a metal surface. Metals, such as iron,
aluminum or copper, shield the Bluetooth transmission and may slow
down the MoGo MouseBT’s response time or cause the MoGo MouseBT to
fail temporarily.
•The MoGo MouseBT will enter a suspend mode at the same time your
computer does. To activate the MoGo MouseBT, press any button on
your MoGo MouseBT.
•If your computer has a metal case that contains aluminum or magnesium,
use the MoGo MouseBT to the side. The display panel may interfere with
the Bluetooth signal if you use the MoGo MouseBT directly in front
of the computer.
•Glass or mirrored surfaces can result in erratic behavior for all mice
using optical technology.
•To maximize battery life, use the MoGo MouseBT on a white, or light
colored surface. Dark surfaces cause the MoGo MouseBT’s light emitting
diode (LED) light to glow brighter, which causes the battery to discharge
more rapidly.
Specifications
Troubleshooting
The MoGo MouseBT is not working.
•Make sure that the MoGo MouseBT is charged. Install into type II PC
card slot and wait for Green LED indicator.
• Verify that Bluetooth is configured correctly on your computer
1) Click Start/Settings/Control Panel/System/Hardware/Device Manager.
2) Check under ‘Bluetooth Devices’ that a ‘Newton Peripherals MoGo
MouseBT’is installed.
I cannot connect to a paired device.
• Paired Bluetooth devices are displayed in a connection management
window of your Bluetooth management application, even if the remote
device is out of range or not powered up.
•Verify that the remote member of the pair is within Bluetooth range,
and powered up, and then attempt the connection again.
Bluetooth Specification
Resolution
Working range
RF transmit power Operating
Battery Voltage
Operating Current
Standby Current
Sleep Mode Current
Dimensions
Weight
1.1 and 1.2 compliant
500 DPI
Up to 30 feet (10 m)
<4 dBm
4.2 V
165 mAh Internal Rechargeable
32 mA
22 mA
.04 mA
3.4 x 2.125” x .21 inches
(86 x 54 x 5 mm)
1.5 oz or 41 grams
I cannot discover Bluetooth services on an un-paired remote device.
• The remote device may not be powered up or may be out of range.
• Verify that the remote device is powered up.
• Verify that the remote device is in Connectable mode
(Bluetooth Configuration Panel > Accessibility tab).
• Perform a Search for Devices to verify that the device is within range.
For technical questions, please visit:
North America Email: supportna@newtonperipherals.com
EMEA Email: supportemea@newtonperipherals.com
ASIA Email: supportasia@newtonperipherals.com
Product Registration
Newton Peripherals recommends that you register your Newton Peripherals
accessory shortly after purchasing it. To register your Newton Peripherals
accessory, go to: http://www.Newtonperipherals.com/registration/
You will need to provide your full name, email address, phone number,
date purchase, place of purchase and company information (if applicable).
Warranty
Newton Peripherals warrants this product to be free from defects in materials
and workmanship for two years from the date of purchase of the Products.
The warranty extends only to you if you are the end user with original purchase
receipt. We will, at our option, repair or replace the Products that do not
conform to the warranty. We may use functionally equivalent reconditioned/
refurbished/remanufactured/pre-owned or new Products or parts. If your Newton
Peripherals accessory is found to be defective within that time, we will promptly
repair or replace it. This warranty does not cover accidental damage, wear
and tear, or consequential or incidental loss. Under no conditions is Newton
Peripherals liable for loss of, or damage to a computer; nor loss of, or damage
to, programs, records, or data; nor any consequential or incidental damages,
even if Newton Peripherals has been informed of their possibility. This warranty
does not affect your statutory rights.

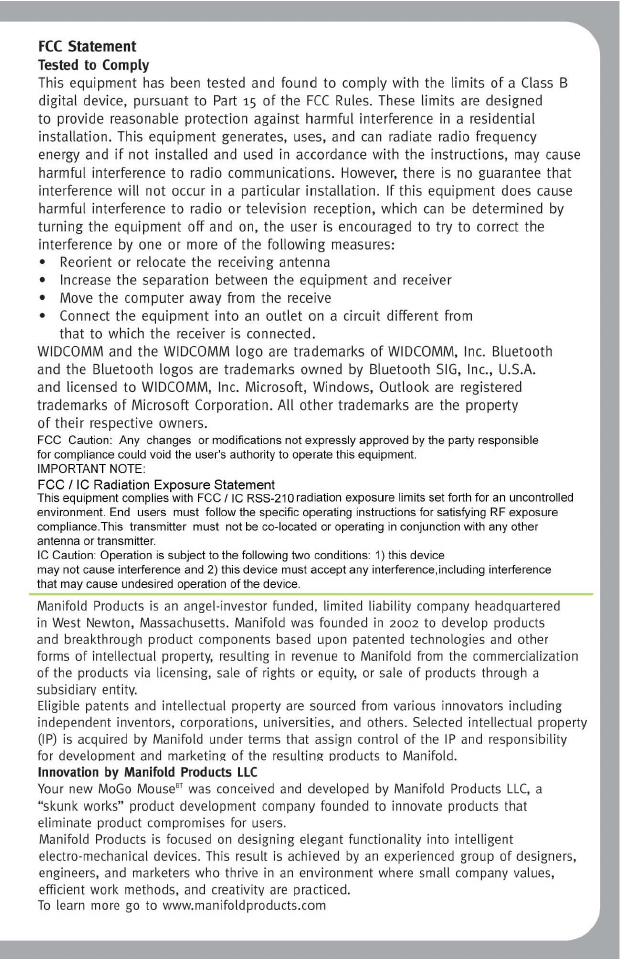

Regulatory Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) This device must accept any interference received, including interference
that may cause undesired operation.
