ZF01-B Wireless Module
Operation Manual

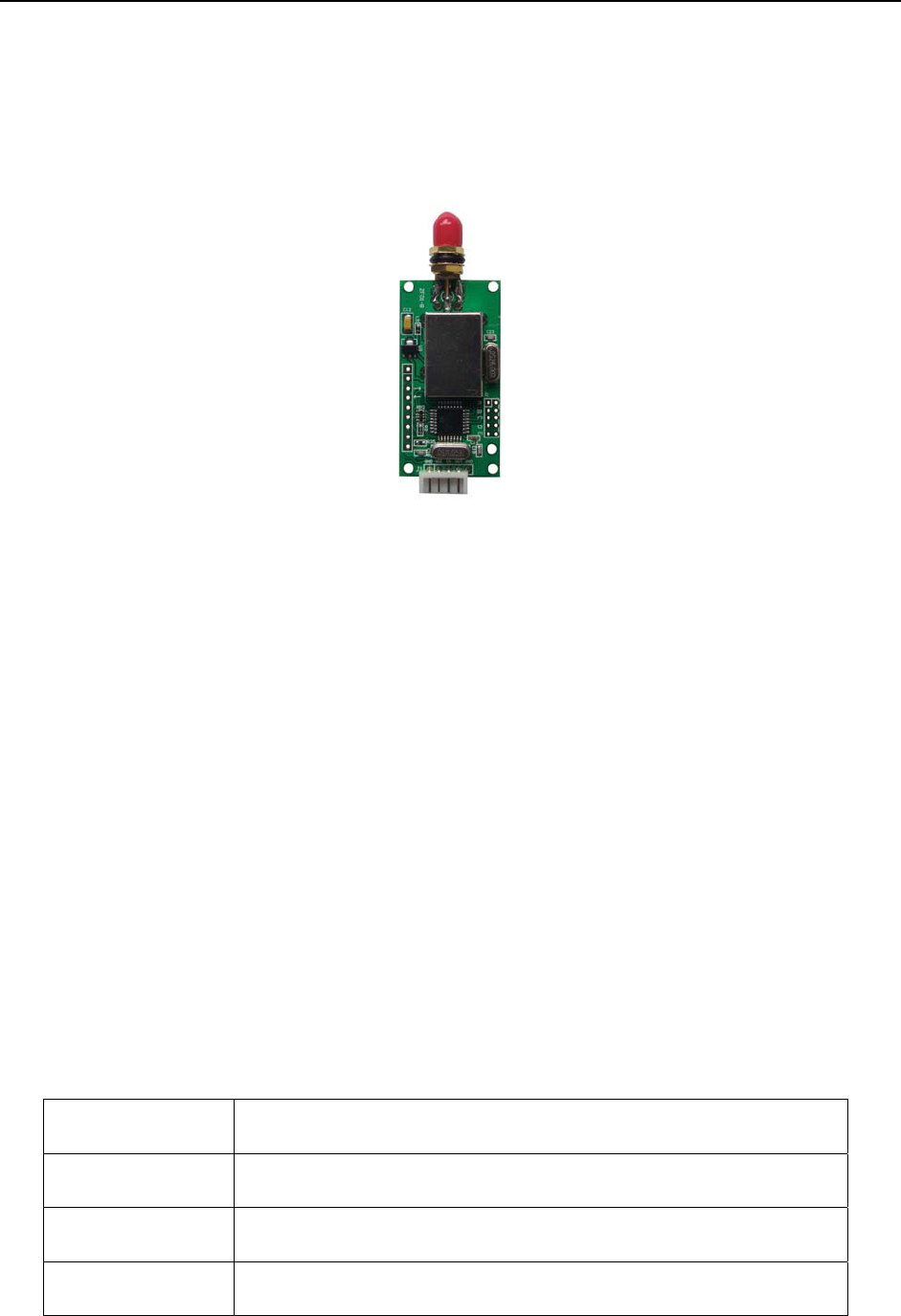

Figure 1. ZF01-B wireless module
z Features：
1． Providing TTL level UART interface
2. Low power RF transmission：Maximum transmit power 10mW
3. GFSK/FSK modulation mode
4. Crystal frequency stabilization.
5. High-efficiency forward error correction channel encoding technology is used.
z Main Application Areas：
1. AMR – Automatic Meter Reading
2. Wireless alarm and security systems
3. Wireless POS, PDA
4. Long-distance non-contact RF smart cards, RFID tags.
5. Wireless Field Bus、wireless conference voting system
z Main Technical Specifications：
RF channels 433.05MHz
modulation mode GFSK
baud rate 9600bps
output power 10mW
NINGBO YOUWON TECHNOLOGY ELECTRONICS CO., LTD
ADDRESS ：#928, XUEYUAN ROAD, LUGANG VILLAGE, GAOQIAO TOWN, NINGBO TELE
PHONE：0574 88046201 FAX：0574-88046202
Interface data
format UART ,8E1/8N1 data format
Power supply DC 3.6V---5V
current consumption Receive mode: 17mA； Transmit mode: 35mA
overall
dimensions 52 X 26mm

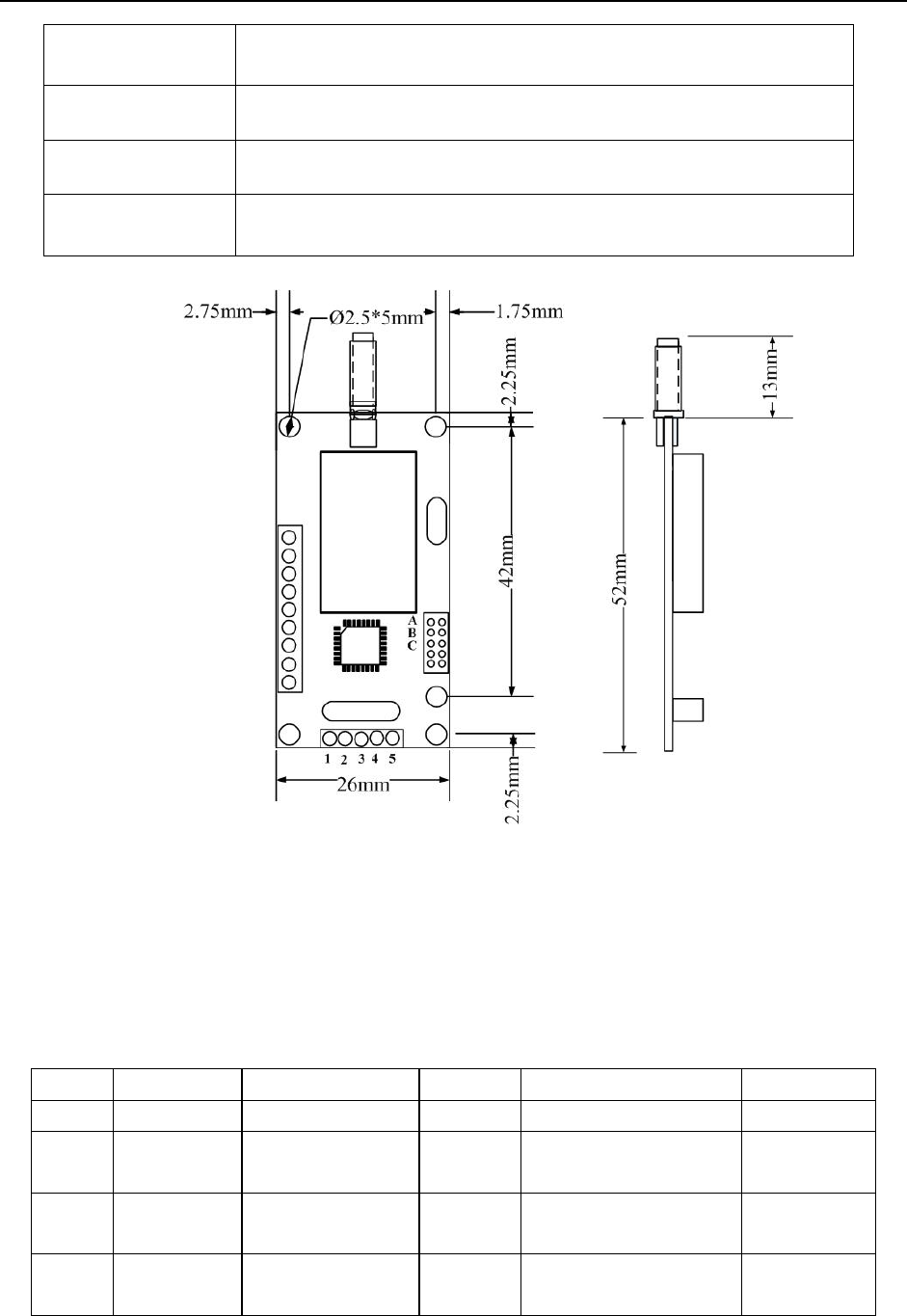

Figure 2. interface and sizes
z Connector Description：
Module provides a 5-pin connector, as shown in the Figure 2，definitions and connection
methods of the connector are as followed:
number module end description level connection terminal notes
1 GND Power ground Power ground
2 VCC Power supply
positive（DC） +3.6-5V
3 IN Serial data
Receive port TTL TXD
4 OUT Serial data
Transmit port TTL RXD
NINGBO YOUWON TECHNOLOGY ELECTRONICS CO., LTD
ADDRESS ：#928, XUEYUAN ROAD, LUGANG VILLAGE, GAOQIAO TOWN, NINGBO TELE
PHONE：0574 88046201 FAX：0574-88046202
5 SGND Signal ground Signal ground
Can be
connected
with the
power
ground
z Channel setting
There is one group of 5-bit short-circuiter wire (JP2) as shown in Figure 2, defined as A、
B 、C、D、E respectively，A and B are used for setting channels.
“0”= short, “1”= open
A B channel frequency(MHz)
1 1 4 433.05
z Communication Interface Description：
A
B
1 2 3 4 5
MCU
GND
VCC
TX RXGND
A
B
1 2 3 4 5
MCU
GND
VCC
TX RXGND
Wireless
communication
channel setting

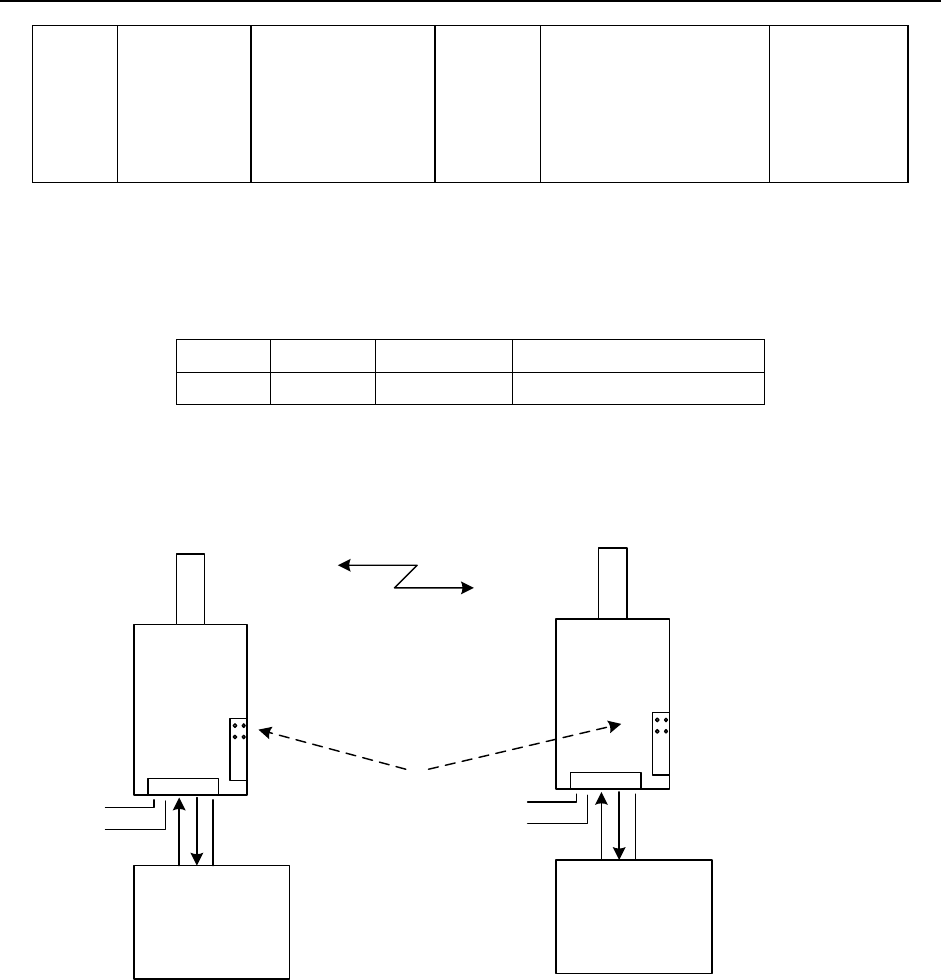

Figure 3. wireless communication application diagram
