Users Manual
Tracker1UserManual
Moduledescription
Programmingportinterfacedescription
DownLoadingcodedescription
ExclusiveApplicationPlatformDescriptionforModule
Transferprotocol
RFGeneralInformation

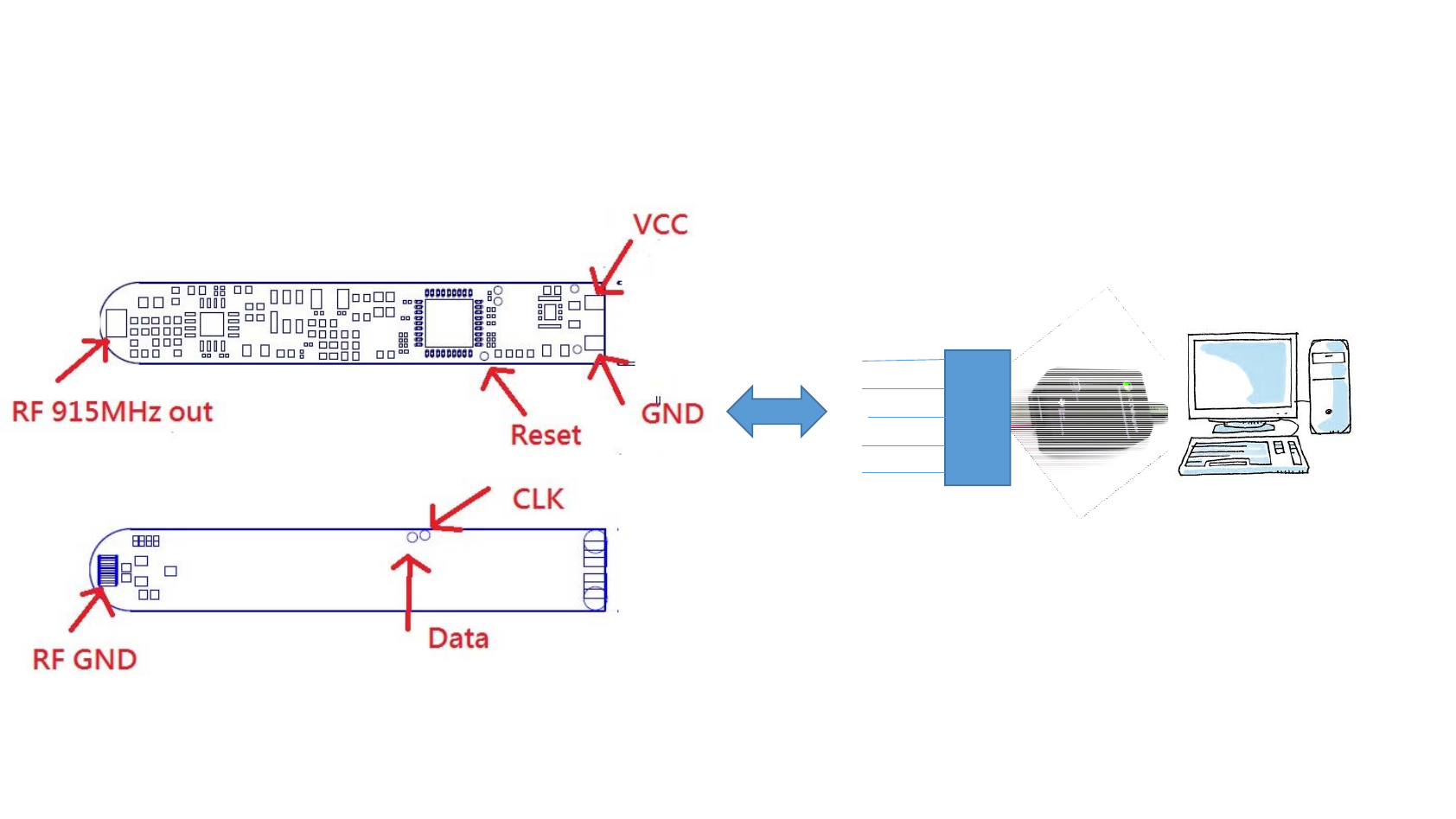

CCDebugger
Connector
Gnd
VCC
CLK
Data
Reset
SPI
Programming
Pins
Programmingportinterfacedescription
Movemousetoupperrightcornericontoclickit,
andthenFlashProgrammerwillappear.
Next,movethemousetoFlashprogrammer
Anti‐whiteareaandclickthemouse,
thenentertheprogrammingScreen..
DownLoadingcodedescription
Selectprogrammingfile
Checkthebox
Fillinfour Fillin1000 9798999A9B9C9D9E9FA0A1A2A3A4
A5A6A7A8A9AAABACADAEAFB0B1…
……….
.
TransmitterID
Click“Performactions”
ProgrammingOK
Programmingscreen
C:\Transmit_20140627_2.HEX
1000
Battery V+
V‐

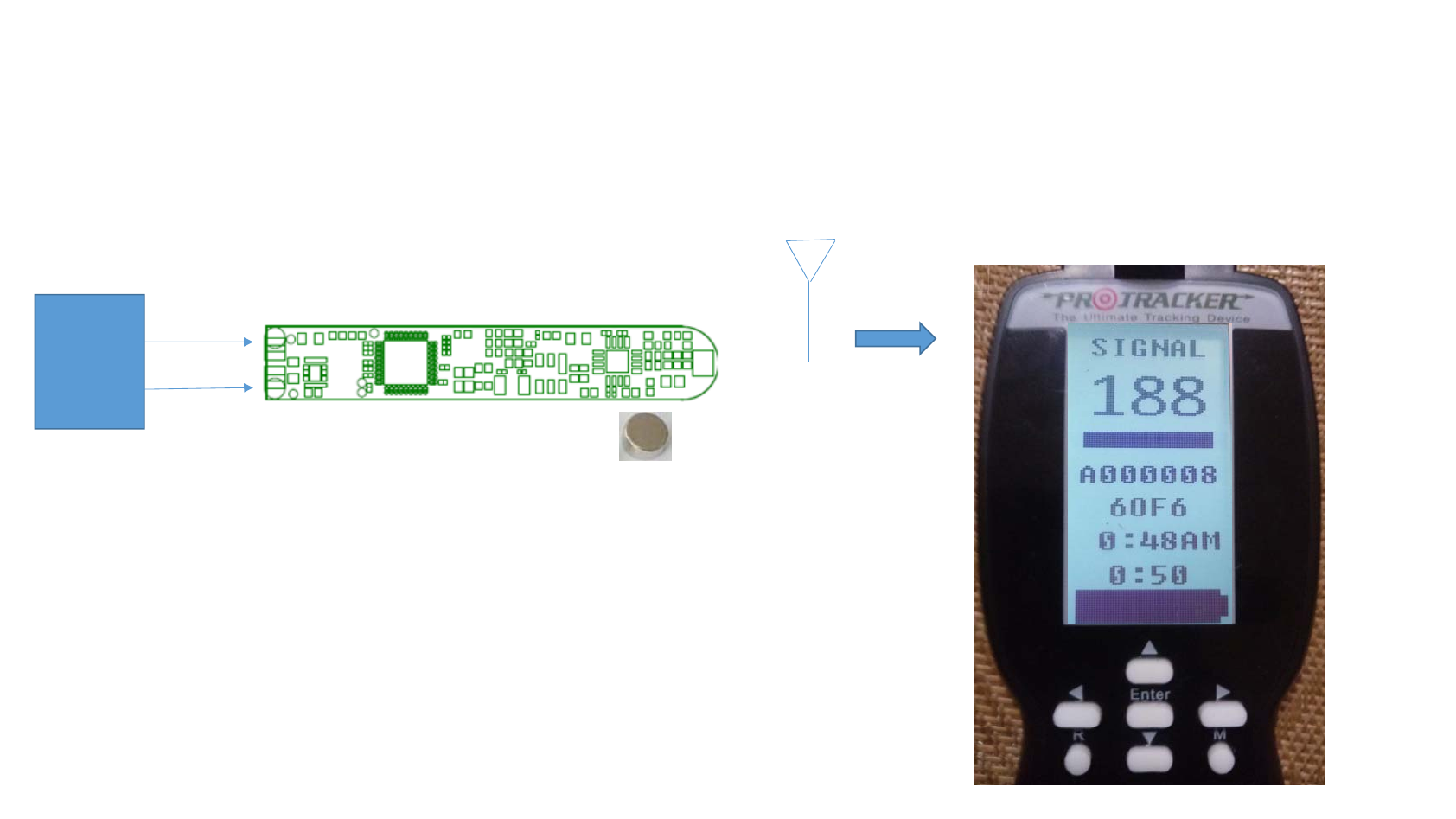

Afterinstallingthebattery,movemagnetaway,
thenturnonthepowertosendoutinformation
movemagnetclose,turnoffthepower
moduleonlyusedforPro‐Trackerplatform
ExclusiveApplicationPlatformDescriptionforModule
•Transferprotocol
•BaudRates:2.4K
Start First30minutes 12secondsontosendinginformation 6secondsoff
After30minutes 10secondson tosendinginformation6secondsoff
After1hour 8secondsontosendinginformation 6secondsoff
After1hours 8secondson tosendinginformation8secondsoff
•RFGeneralInformation
•FrequencyRange:902‐928MHz
•Modulation:FSK
•Ch.Frequency:905‐927.25Mhz
•Bandwith :250KHz
•ChannelNumber:89
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or
transmitter.
IMPORTANT NOTE:
This module is intended for OEM integrator.
The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this
module.
Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment authorizations (e.g.
Verification , Doc) of the host device to be addressed by the integrator/manufacturer.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID: 2ADB5-TRACKER1 ".
