Pro4Tech 103P Digital camcorder pen User Manual

Pro4Tech Ltd. Digital camcorder pen

Contents

User manual

User GuidePro4Tech © 2009

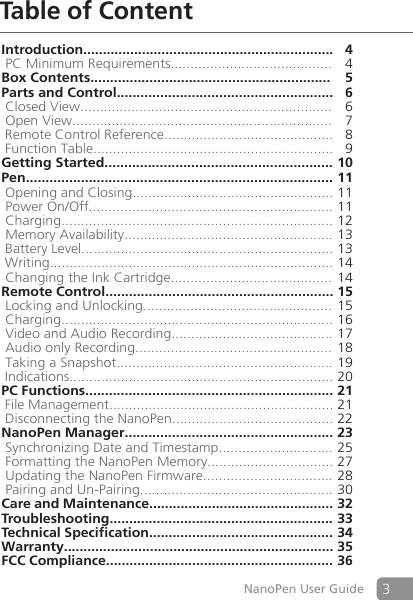

3NanoPen User GuideTable of ContentIntroduction................................................................4 PC Minimum Requirements.........................................   4Box Contents............................................................. 5Parts and Control....................................................... 6 Closed View................................................................  6 Open View..................................................................  7 Remote Control Reference........................................... 8 Function Table............................................................. 9Getting Started.......................................................... 10Pen.............................................................................. 11 Opening and Closing................................................... 11 Power On/Off.............................................................. 11 Charging..................................................................... 12 Memory Availability..................................................... 13 Battery Level................................................................ 13 Writing........................................................................ 14 Changing the Ink Cartridge......................................... 14Remote Control..........................................................15 Locking and Unlocking................................................ 15 Charging..................................................................... 16 Video and Audio Recording......................................... 17 Audio only Recording.................................................. 18 Taking a Snapshot....................................................... 19 Indications................................................................... 20PC Functions............................................................... 21 File Management.........................................................21 Disconnecting the NanoPen......................................... 22NanoPen Manager..................................................... 23 Synchronizing Date and Timestamp............................. 25 Formatting the NanoPen Memory................................ 27 Updating the NanoPen Firmware................................. 28 Pairing and Un-Pairing................................................. 30Care and Maintenance...............................................32Troubleshooting.........................................................33Technical Specification...............................................34Warranty.....................................................................35FCC Compliance..........................................................36

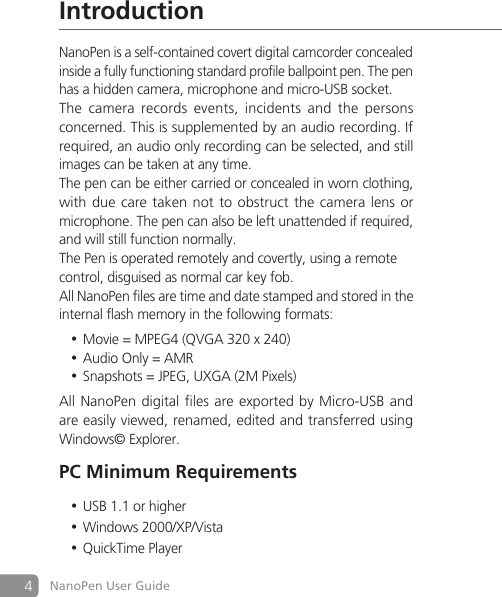

4NanoPen User GuideIntroductionNanoPen is a self-contained covert digital camcorder concealed inside a fully functioning standard profile ballpoint pen. The pen has a hidden camera, microphone and micro-USB socket.The  camera  records  events,  incidents  and  the  persons concerned. This is supplemented by an audio recording. If required, an audio only recording can be selected, and still images can be taken at any time.The pen can be either carried or concealed in worn clothing, with due care taken not to obstruct the camera lens or microphone. The pen can also be left unattended if required, and will still function normally.The Pen is operated remotely and covertly, using a remotecontrol, disguised as normal car key fob.All NanoPen files are time and date stamped and stored in the internal flash memory in the following formats:Movie = MPEG4 (QVGA 320 x 240)•Audio Only = AMR•Snapshots = JPEG, UXGA (2M Pixels)•All NanoPen digital files are  exported by Micro-USB and are easily viewed, renamed, edited and transferred using Windows© Explorer.PC Minimum RequirementsUSB 1.1 or higher•Windows 2000/XP/Vista•QuickTime Player•

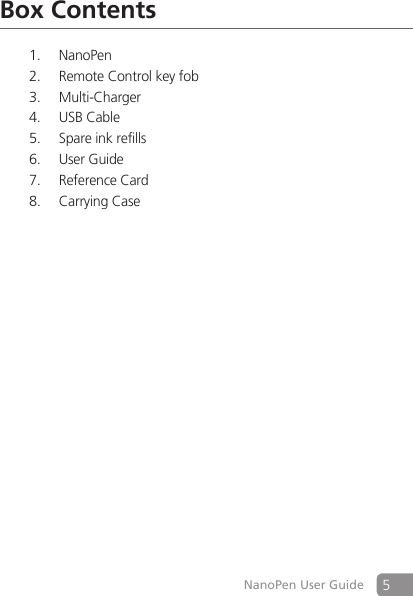

5NanoPen User GuideBox ContentsNanoPen1. Remote Control key fob2. Multi-Charger3. USB Cable4. Spare ink refills5. User Guide6. Reference Card7. Carrying Case8.

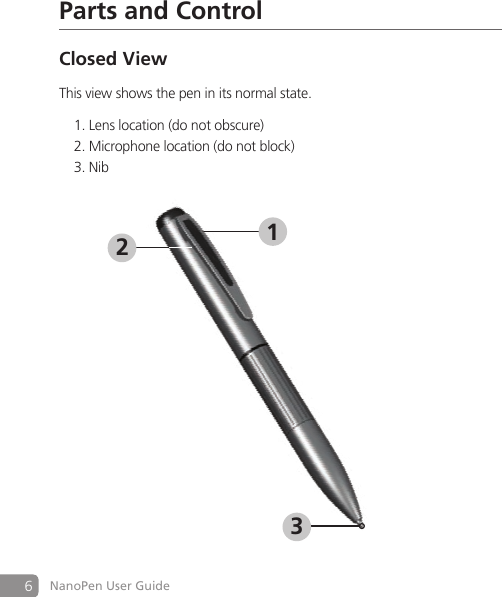

6NanoPen User GuideParts and ControlClosed ViewThis view shows the pen in its normal state. Lens location (do not obscure)1. Microphone location (do not block)2. Nib3. 213
7NanoPen User GuideOpen ViewThis view shows the pen in its open state. All components listed here, are concealed when the pen is closed.Power on/off button 1. LEDs indicators2. Micro-USB socket 3. 312

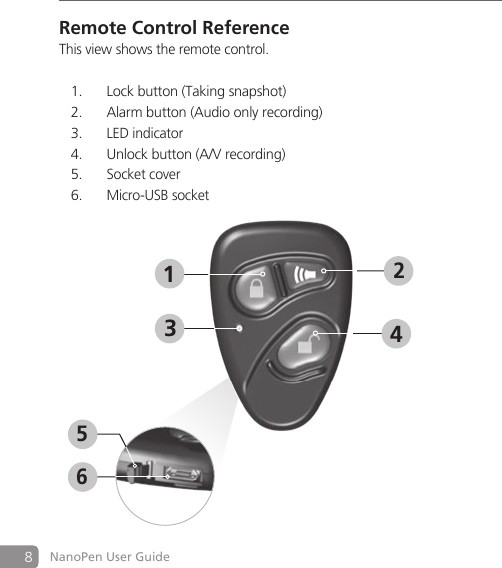

8NanoPen User GuideRemote Control ReferenceThis view shows the remote control.Lock button (Taking snapshot) 1. Alarm button (Audio only recording)2. LED3.  indicatorUnlock button (A/V recording)4. S5. ocket coverMicro-USB socket6. 432165

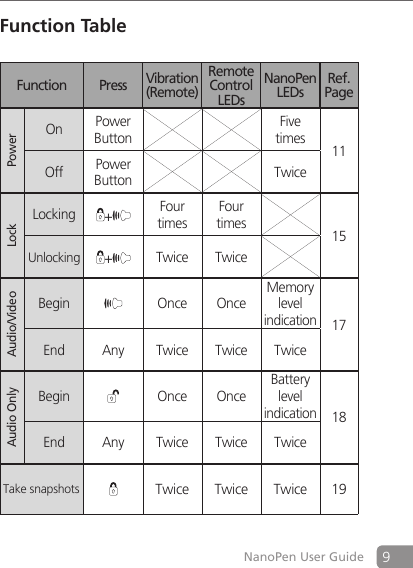

9NanoPen User GuideFunction TableFunction PressVibration (Remote)Remote Control LEDsNanoPen LEDsRef. PagePowerOn Power  ButtonFive times 11Off Power Button TwiceLockLocking +Four timesFour times 15Unlocking +Twice TwiceAudio/VideoBegin Once OnceMemory level indication17End Any Twice Twice TwiceAudio OnlyBegin Once OnceBatterylevel indication18End Any Twice Twice TwiceTake snapshots Twice Twice Twice 19

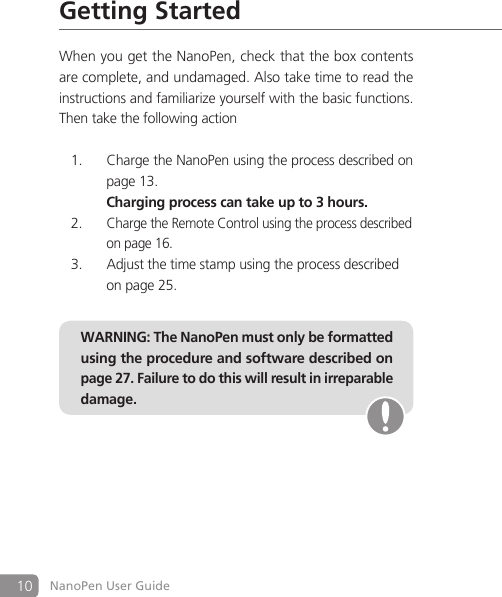

10 NanoPen User GuideGetting StartedWhen you get the NanoPen, check that the box contents are complete, and undamaged. Also take time to read the instructions and familiarize yourself with the basic functions. Then take the following actionCharge the NanoPen using the process described on 1. page 13.     Charging process can take up to 3 hours.Charge the Remote Control using the process described 2. on page 16. Adjust the time stamp using the process described 3. on page 25.WARNING: The NanoPen must only be formatted using the procedure and software described on page 27. Failure to do this will result in irreparable damage.

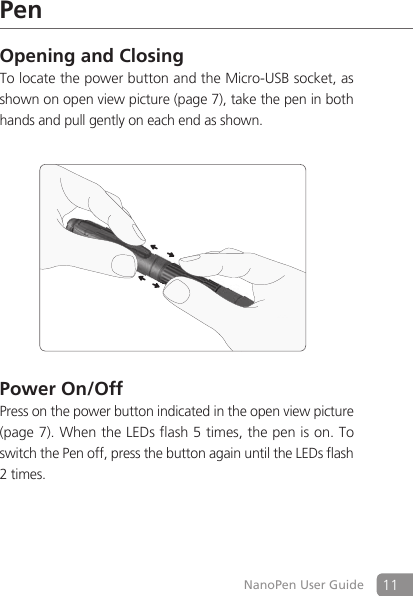

11NanoPen User GuidePenOpening and ClosingTo locate the power button and the Micro-USB socket, as shown on open view picture (page 7), take the pen in both hands and pull gently on each end as shown.Power On/OffPress on the power button indicated in the open view picture (page 7). When the LEDs flash 5 times, the pen is on. To switch the Pen off, press the button again until the LEDs flash 2 times.

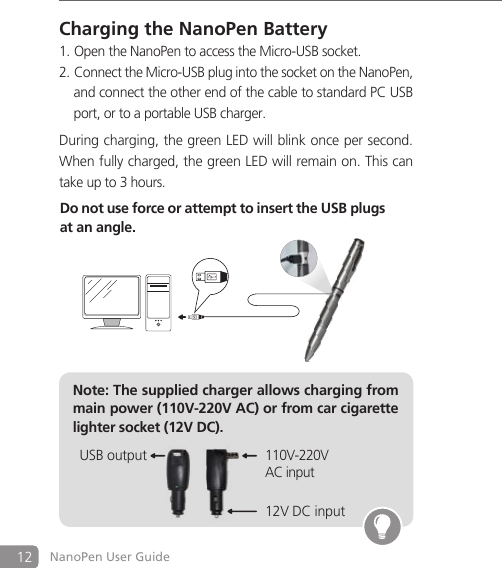

12 NanoPen User GuideCharging the NanoPen BatteryOpen the NanoPen to access the Micro-USB socket.1. Connect the Micro-USB plug into the socket on the2.  NanoPen,   and connect the other end of the cable to standard PC USB   port, or to a portable USB charger.During charging, the green LED will blink once per second.When fully charged, the green LED will remain on. This cantake up to 3 hours.Note: The supplied charger allows charging from main power (110V-220V AC) or from car cigarette lighter socket (12V DC).Do not use force or attempt to insert the USB plugs at an angle.12V DC input110V-220VAC inputUSB output

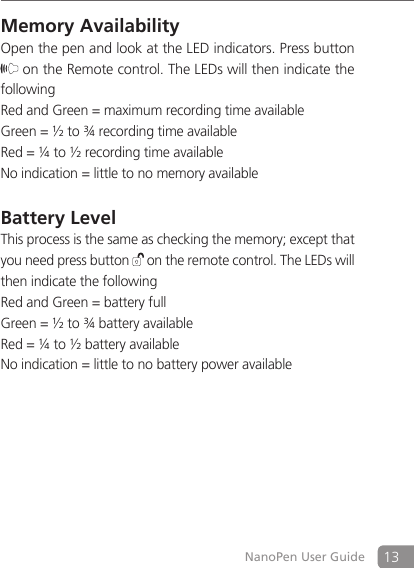

13NanoPen User GuideMemory Availability Open the pen and look at the LED indicators. Press button  on the Remote control. The LEDs will then indicate the followingRed and Green = maximum recording time availableGreen = ½ to ¾ recording time availableRed = ¼ to ½ recording time availableNo indication = little to no memory availableBattery LevelThis process is the same as checking the memory; except that you need press button   on the remote control. The LEDs will then indicate the followingRed and Green = battery fullGreen = ½ to ¾ battery availableRed = ¼ to ½ battery availableNo indication = little to no battery power available

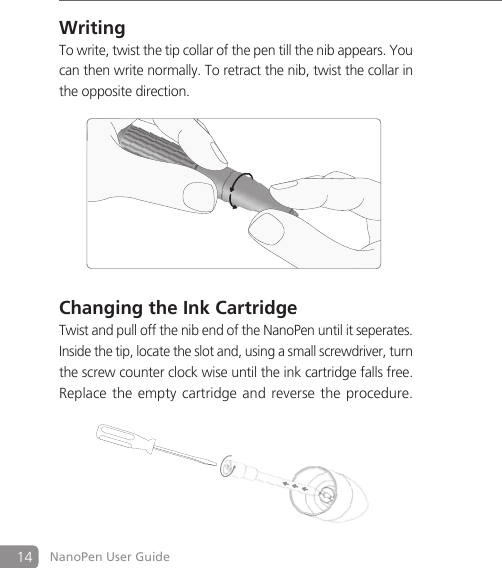

14 NanoPen User GuideWritingTo write, twist the tip collar of the pen till the nib appears. You can then write normally. To retract the nib, twist the collar in the opposite direction.Changing the Ink CartridgeTwist and pull off the nib end of the NanoPen until it seperates. Inside the tip, locate the slot and, using a small screwdriver, turn the screw counter clock wise until the ink cartridge falls free. Replace the empty cartridge and reverse the procedure.

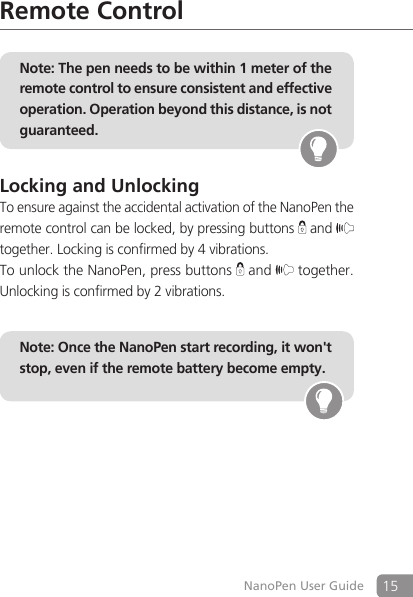

15NanoPen User GuideRemote ControlNote: The pen needs to be within 1 meter of the remote control to ensure consistent and effective operation. Operation beyond this distance, is not guaranteed.Locking and UnlockingTo ensure against the accidental activation of the NanoPen the remote control can be locked, by pressing buttons   and   together. Locking is confirmed by 4 vibrations.To unlock the NanoPen, press buttons   and  together. Unlocking is confirmed by 2 vibrations.Note: Once the NanoPen start recording, it won't stop, even if the remote battery become empty.

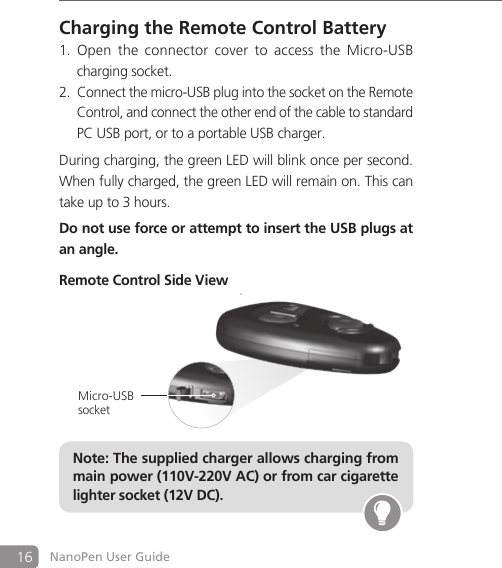

16 NanoPen User GuideCharging the Remote Control BatteryOpen  the  connector  cover  to  access  the  Micro-USB  1.   charging socket.Connect the micro-USB plug into the socket on the Remote 2.   Control, and connect the other end of the cable to standard   PC USB port, or to a portable USB charger. During charging, the green LED will blink once per second. When fully charged, the green LED will remain on. This can take up to 3 hours.Do not use force or attempt to insert the USB plugs at an angle.Remote Control Side ViewNote: The supplied charger allows charging from main power (110V-220V AC) or from car cigarette lighter socket (12V DC).Micro-USB socket

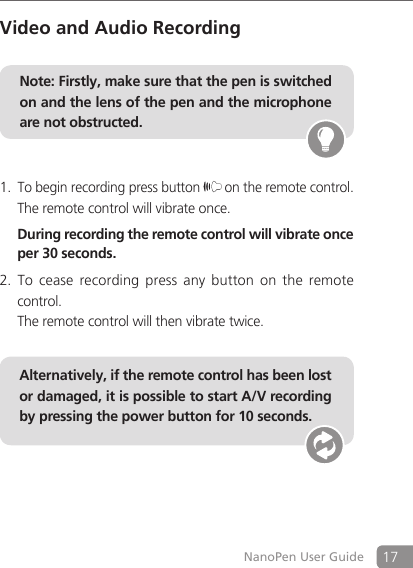

17NanoPen User GuideVideo and Audio RecordingNote: Firstly, make sure that the pen is switched on and the lens of the pen and the microphone are not obstructed. To begin recording press button 1.  on the remote control.The remote control will vibrate once.  During recording the remote control will vibrate once per 30 seconds.To  cease  recording  press  any  button  on  the remote 2. control.  The remote control will then vibrate twice.    Alternatively, if the remote control has been lost or damaged, it is possible to start A/V recording by pressing the power button for 10 seconds.

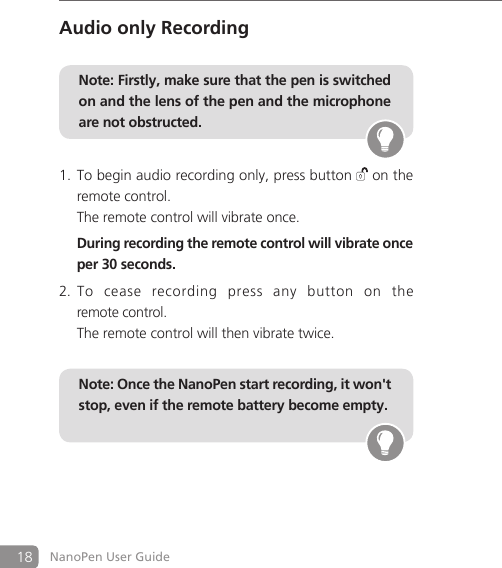

18 NanoPen User GuideAudio only RecordingNote: Firstly, make sure that the pen is switched on and the lens of the pen and the microphone are not obstructed. To begin audio recording only, press button 1.  on the remote control.   The remote control will vibrate once.   During recording the remote control will vibrate once per 30 seconds.To  cease  recording  press  any  button  on  the  2. remote control.   The remote control will then vibrate twice.    Note: Once the NanoPen start recording, it won't stop, even if the remote battery become empty.

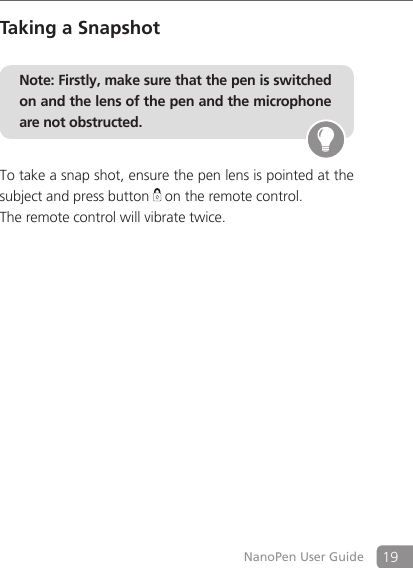

19NanoPen User GuideTaking a SnapshotNote: Firstly, make sure that the pen is switched on and the lens of the pen and the microphone are not obstructed. To take a snap shot, ensure the pen lens is pointed at the subject and press button   on the remote control. The remote control will vibrate twice.

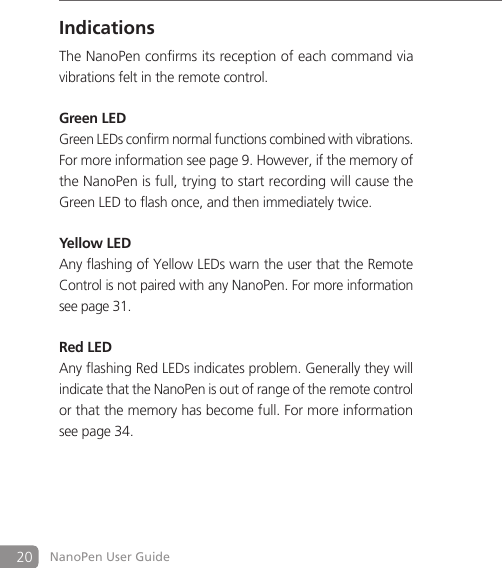

20 NanoPen User GuideIndicationsThe NanoPen confirms its reception of each command via vibrations felt in the remote control. Green LEDGreen LEDs confirm normal functions combined with vibrations. For more information see page 9. However, if the memory of the NanoPen is full, trying to start recording will cause the Green LED to flash once, and then immediately twice.Yellow LEDAny flashing of Yellow LEDs warn the user that the Remote Control is not paired with any NanoPen. For more information see page 31.Red LEDAny flashing Red LEDs indicates problem. Generally they will indicate that the NanoPen is out of range of the remote control or that the memory has become full. For more information see page 34.

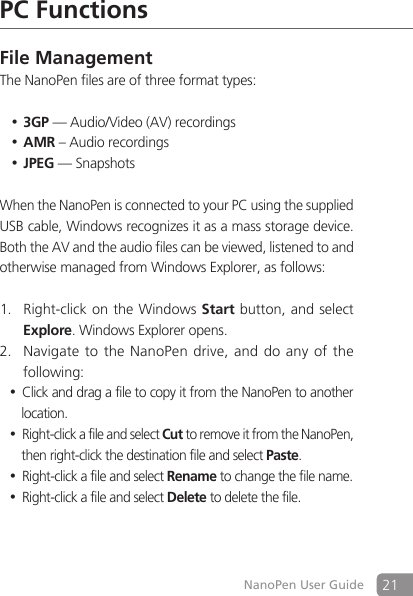

21NanoPen User GuidePC FunctionsFile ManagementThe NanoPen files are of three format types: 3GP• — Audio/Video (AV) recordings AMR• – Audio recordings JPEG• — Snapshots When the NanoPen is connected to your PC using the supplied USB cable, Windows recognizes it as a mass storage device. Both the AV and the audio files can be viewed, listened to and otherwise managed from Windows Explorer, as follows:  Right-click on the Windows 1. Start button, and select Explore. Windows Explorer opens. Navigate to the NanoPen drive, and do any of the 2. following: Click and drag a file to copy it from the NanoPen to another •location.Right-click a file and select •Cut to remove it from the NanoPen, then right-click the destination file and select Paste. Right-click a file and select •Rename to change the file name.Right-click a file and select •Delete to delete the file.

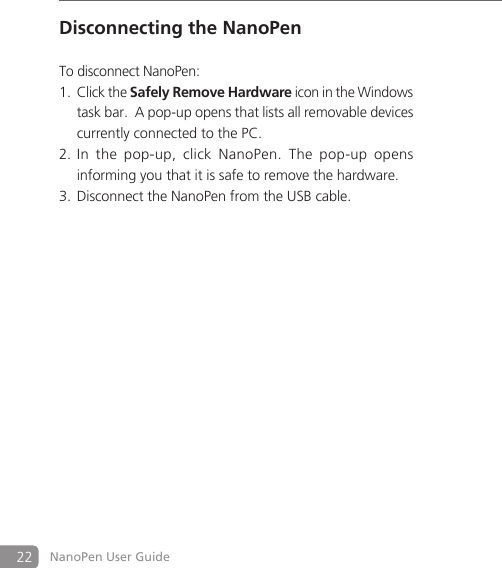

22 NanoPen User GuideDisconnecting the NanoPenTo disconnect NanoPen: Click the 1. Safely Remove Hardware icon in the Windows task bar.  A pop-up opens that lists all removable devices currently connected to the PC. In  the  pop-up,  click  NanoPen.  The  pop2. -up  opens informing you that it is safe to remove the hardware.Disconnect the NanoPen from the USB cable. 3.

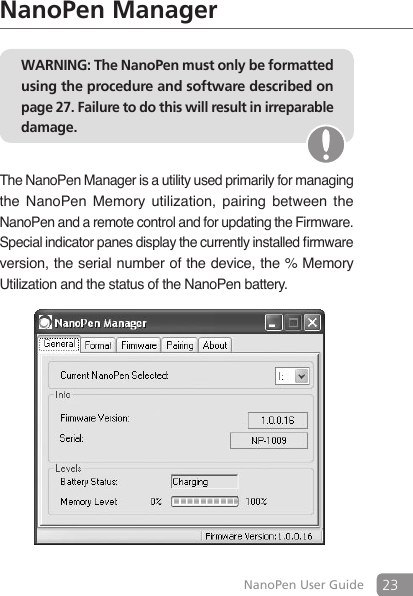

23NanoPen User GuideNanoPen ManagerWARNING: The NanoPen must only be formatted using the procedure and software described on page 27. Failure to do this will result in irreparable damage.The NanoPen Manager is a utility used primarily for managing the  NanoPen  Memory  utilization,  pairing  between  the NanoPen and a remote control and for updating the Firmware. Special indicator panes display the currently installed rmware version, the serial number of the device, the % Memory Utilization and the status of the NanoPen battery.

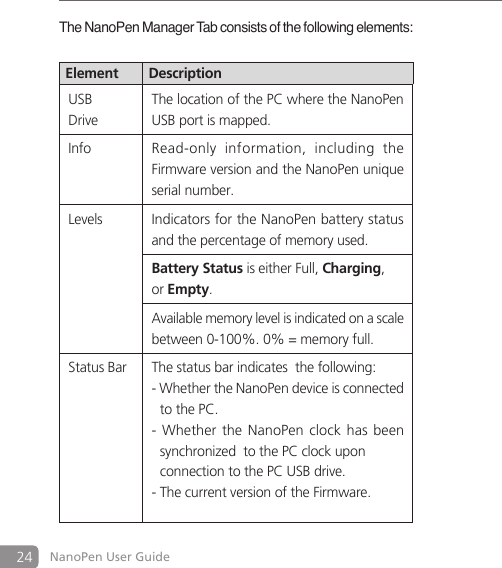

24 NanoPen User GuideThe NanoPen Manager Tab consists of the following elements:Element DescriptionUSBDriveThe location of the PC where the NanoPen USB port is mapped.InfoRead-only  information,  including  the Firmware version and the NanoPen unique serial number.LevelsIndicators for the NanoPen battery status and the percentage of memory used.Battery Status is either Full, Charging, or Empty.Available memory level is indicated on a scale between 0-100%. 0% = memory full.Status Bar The status bar indicates  the following:- Whether the NanoPen device is connected    to the PC.- Whether the NanoPen clock  has  been   synchronized  to the PC clock upon      connection to the PC USB drive.- The current version of the Firmware.

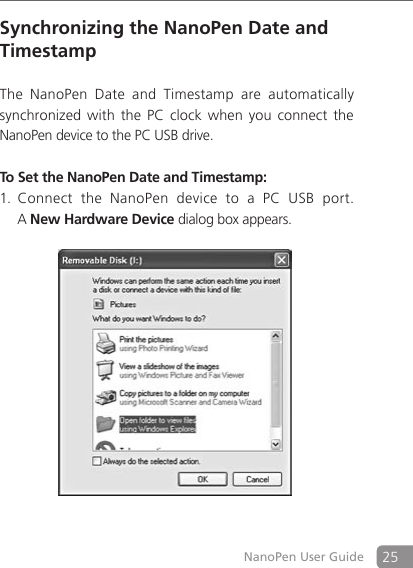

25NanoPen User GuideSynchronizing the NanoPen Date and Timestamp The  NanoPen  Date  and  Timestamp  are  automatically synchronized with  the PC  clock when  you connect  the NanoPen device to the PC USB drive. To Set the NanoPen Date and Timestamp: Connect  the  NanoPen  device  to  a  PC  USB  port.  1.   A New Hardware Device dialog box appears.

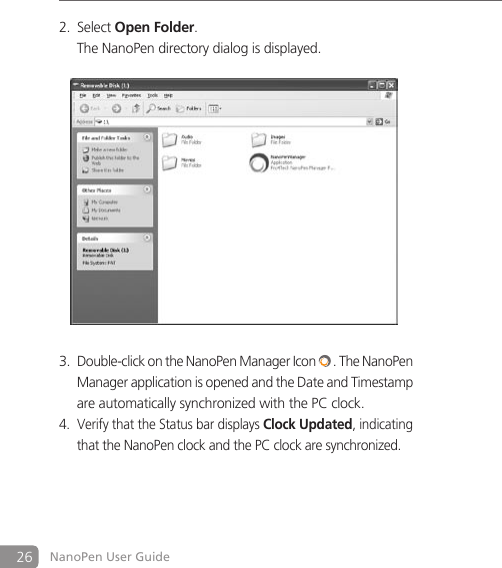

26 NanoPen User GuideSelect 2.  Open Folder.  The NanoPen directory dialog is displayed.   Double-click on the NanoPen Manager Icon 3.  . The NanoPen   Manager application is opened and the Date and Timestamp    are automatically synchronized with the PC clock. Verify that the Status bar displays 4. Clock Updated, indicating    that the NanoPen clock and the PC clock are synchronized.

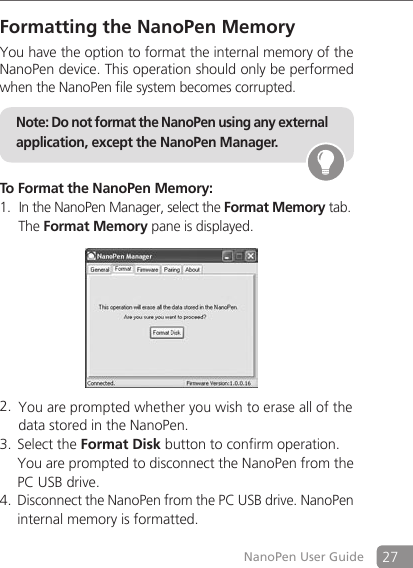

27NanoPen User GuideFormatting the NanoPen MemoryYou have the option to format the internal memory of the NanoPen device. This operation should only be performed when the NanoPen file system becomes corrupted.  Note: Do not format the NanoPen using any external application, except the NanoPen Manager.To Format the NanoPen Memory: In the NanoPen Manager, select the 1.  Format Memory tab.    The Format Memory pane is displayed.      You are prompted whether you wish to erase all of the  2.   data stored in the NanoPen.Select the 3.  Format Disk button to confirm operation.    You are prompted to disconnect the NanoPen from the PC USB drive. Disconnect the NanoPen from the PC USB drive. NanoPen 4. internal memory is formatted.

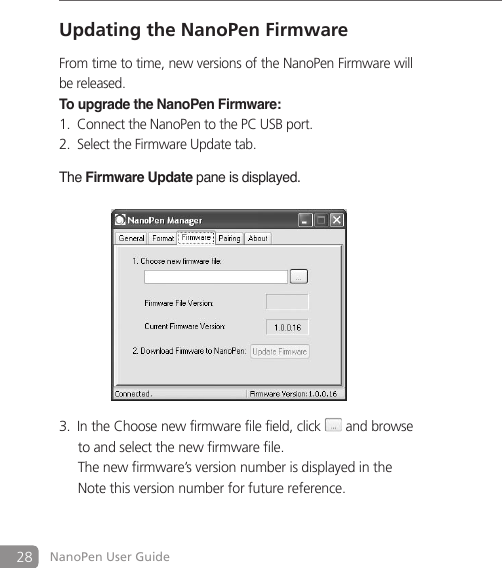

28 NanoPen User GuideUpdating the NanoPen FirmwareFrom time to time, new versions of the NanoPen Firmware will be released. To upgrade the NanoPen Firmware: Connect the NanoPen to the PC USB port. 1. Select the Firmware Update tab. 2. The Firmware Update pane is displayed.               In the Choose new firmware file field, click3.   and browse  to and select the new firmware file.    The new firmware’s version number is displayed in the    Note this version number for future reference.

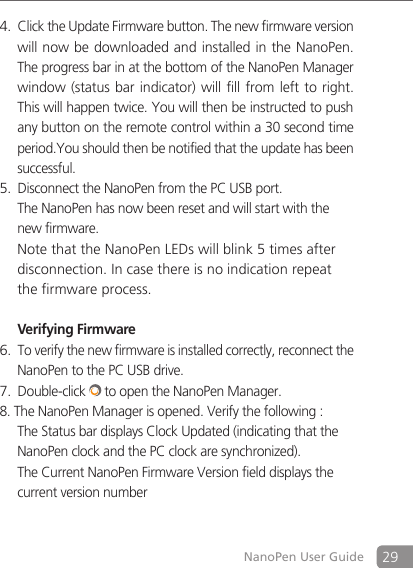

29NanoPen User GuideClick the Update Firmware button.4.  The new firmware version will now be downloaded and installed in the NanoPen.  The progress bar in at the bottom of the NanoPen Manager window (status bar indicator) will  fill  from left to right.  This will happen twice. You will then be instructed to push any button on the remote control within a 30 second time period.You should then be notified that the update has been  successful.Disconnect the NanoPen from the PC USB port. 5. The NanoPen has now been reset and will start with the new firmware. Note that the NanoPen LEDs will blink 5 times after disconnection. In case there is no indication repeat the firmware process.   Verifying FirmwareTo verify the new firmware is installed correctly, reconnect the 6. NanoPen to the PC USB drive.Double-click7.   to open the NanoPen Manager.8. The NanoPen Manager is opened. Verify the following :  The Status bar displays Clock Updated (indicating that the NanoPen clock and the PC clock are synchronized).  The Current NanoPen Firmware Version field displays the current version number

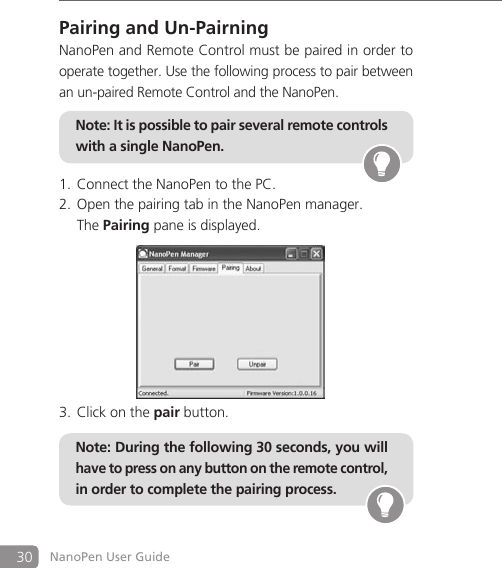

30 NanoPen User GuidePairing and Un-PairningNanoPen and Remote Control must be paired in order to operate together. Use the following process to pair between an un-paired Remote Control and the NanoPen.Connect the NanoPen to the PC.1. Open the pairing tab in the NanoPen manager.2.   The Pairing pane is displayed.Click on the 3.  pair button.Note: During the following 30 seconds, you will have to press on any button on the remote control, in order to complete the pairing process. Note: It is possible to pair several remote controls with a single NanoPen.

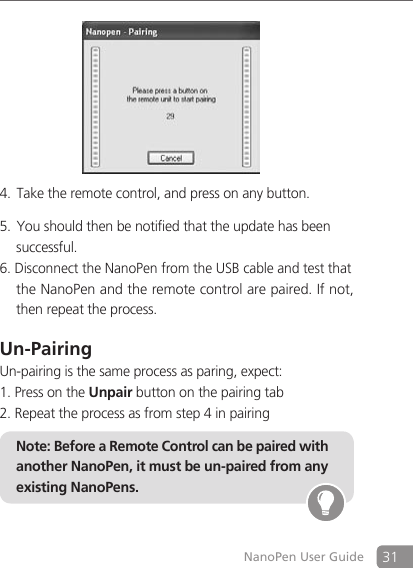

31NanoPen User GuideTake the remote control, and press on any button.4. You should then be notified that the update has been5.    successful.6. Disconnect the NanoPen from the USB cable and test that    the NanoPen and the remote control are paired. If not,    then repeat the process.Un-PairingUn-pairing is the same process as paring, expect:1. Press on the Unpair button on the pairing tab2. Repeat the process as from step 4 in pairingNote: Before a Remote Control can be paired with another NanoPen, it must be un-paired from any existing NanoPens.

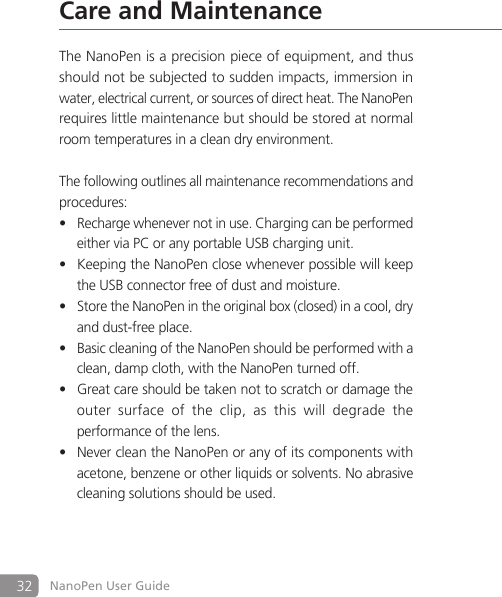

32 NanoPen User GuideCare and MaintenanceThe NanoPen is a precision piece of equipment, and thus should not be subjected to sudden impacts, immersion in water, electrical current, or sources of direct heat. The NanoPen requires little maintenance but should be stored at normal room temperatures in a clean dry environment. The following outlines all maintenance recommendations and procedures:Recharge whenever not in use. Charging can be performed •  either via PC or any portable USB charging unit.Keeping the NanoPen close whenever possible will keep •  the USB connector free of dust and moisture.Store the NanoPen in the original box (closed) in a cool, dry •  and dust-free place.Basic cleaning of the NanoPen should be performed with a •  clean, damp cloth, with the NanoPen turned off.Great care should be taken not to scratch or damage the •  outer  surface  of  the  clip,  as  this  will  degrade  the   performance of the lens.Never clean the NanoPen or any of its components with •  acetone, benzene or other liquids or solvents. No abrasive    cleaning solutions should be used.
33NanoPen User GuideTroubleshootingProblem Probable CauseSolutionRecording and/or snapshot are of poor quality.Lens and/or microphone is obstructed or dirty.Verify that you are holding the NanoPen correctly and that clothing or position is not obstructing the lens/microphone. Clean the lens with a dry cotton swab and always store the NanoPen in its original container.Nothing happens when I try to record of take snapshotsNanoPen is lockedFollow the unlocking procedure described on Page 15.Nothing happens when I try to record of take snapshots. NanoPen is unlocked.Battery is discharge Charge the Battery.Nothing happens when I try to record of take snapshots. Red LEDs blink 3 times, but the battery is charged and there is spare memory.Firmware failure contact your distributor.Nothing happens when I connect the NanoPen to the PC or Portable USB charger.USB connector is dirty or damaged.Replace the USB cable. If the problem persists, contact your distributor.

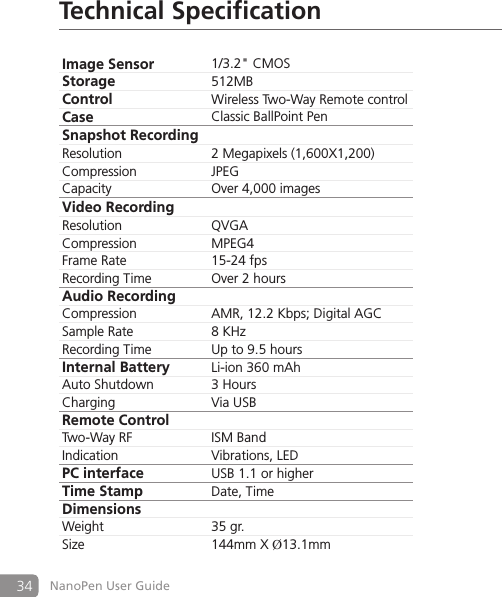

34 NanoPen User GuideTechnical Specification Image Sensor 1/3.2" CMOSStorage 512MBControl Wireless Two-Way Remote controlCase Classic BallPoint PenSnapshot RecordingResolution 2 Megapixels (1,600X1,200)Compression JPEGCapacity Over 4,000 imagesVideo RecordingResolution QVGACompression MPEG4Frame Rate 15-24 fpsRecording Time Over 2 hoursAudio Recording  Compression AMR, 12.2 Kbps; Digital AGCSample Rate 8 KHzRecording Time Up to 9.5 hoursInternal Battery Li-ion 360 mAhAuto Shutdown 3 HoursCharging Via USBRemote ControlTwo-Way RF ISM BandIndication Vibrations, LEDPC interface USB 1.1 or higherTime Stamp Date, TimeDimensionsWeight 35 gr.Size 144mm X Ø13.1mm

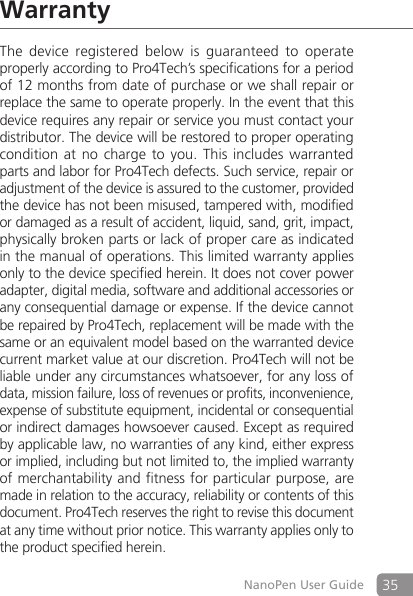

35NanoPen User GuideWarrantyThe  device  registered  below  is  guaranteed  to  operate properly according to Pro4Tech’s specifications for a period of 12 months from date of purchase or we shall repair or replace the same to operate properly. In the event that this device requires any repair or service you must contact your distributor. The device will be restored to proper operating condition at  no  charge to you.  This  includes warranted parts and labor for Pro4Tech defects. Such service, repair or adjustment of the device is assured to the customer, provided the device has not been misused, tampered with, modified or damaged as a result of accident, liquid, sand, grit, impact, physically broken parts or lack of proper care as indicated in the manual of operations. This limited warranty applies only to the device specified herein. It does not cover power adapter, digital media, software and additional accessories or any consequential damage or expense. If the device cannot be repaired by Pro4Tech, replacement will be made with the same or an equivalent model based on the warranted device current market value at our discretion. Pro4Tech will not be liable under any circumstances whatsoever, for any loss of data, mission failure, loss of revenues or profits, inconvenience, expense of substitute equipment, incidental or consequential or indirect damages howsoever caused. Except as required by applicable law, no warranties of any kind, either express or implied, including but not limited to, the implied warranty of merchantability and fitness for particular purpose, are made in relation to the accuracy, reliability or contents of this document. Pro4Tech reserves the right to revise this document at any time without prior notice. This warranty applies only to the product specified herein.

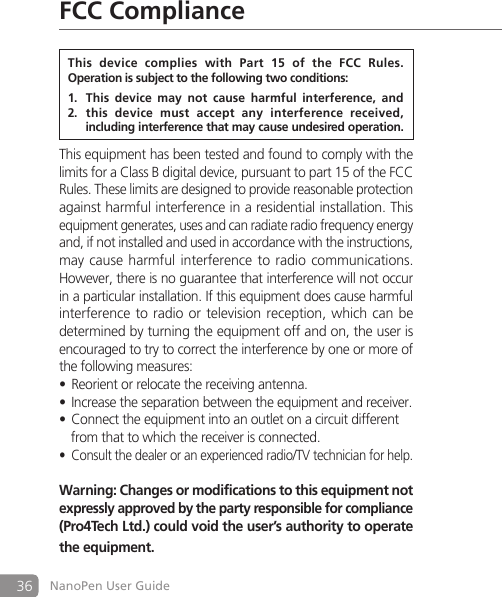

36 NanoPen User GuideFCC ComplianceThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful  interference  to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different  •  from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.•Warning: Changes or modifications to this equipment not expressly approved by the party responsible for compliance (Pro4Tech Ltd.) could void the user’s authority to operate the equipment.This  device  complies  with  Part  15  of  the  FCC  Rules.Operation is subject to the following two conditions:This  device  may  not  cause  harmful  interference,  and1. this  device  must  accept  any  interference  received, 2.   including interference that may cause undesired operation.
