Model No. 831.29604.2
Serial No.
Serial Number
Decal
Assembly
, Operation
, Maintenance
,Part List and Drawing
TREADMILL
User's lVlanual
Sears, Roebuck and Co., Hoffman Estates, IL 60179

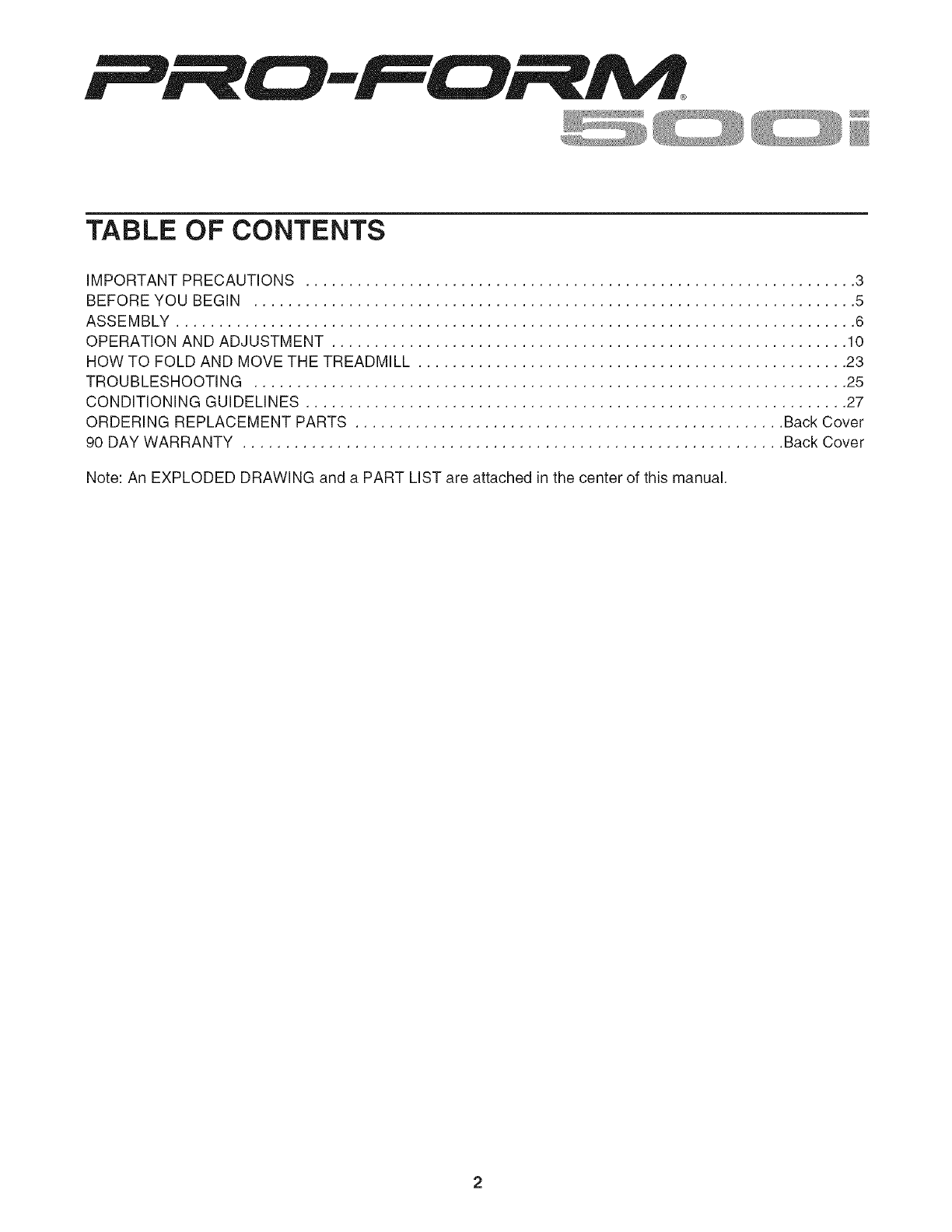

TABLE OF CONTENTS
iMPORTANT PRECAUTIONS ................................................................ 3
BEFORE YOU BEGIN ...................................................................... 5
ASSEMBLY ............................................................................... 6
OPERATION AND ADJUSTMENT ............................................................ 10
HOW TO FOLD AND MOVE THE TREADMILL .................................................. 23
TROUBLESHOOTING ..................................................................... 25
CONDiTiONiNG GUiDELiNES ............................................................... 27
ORDERING REPLACEMENT PARTS .................................................. Back Cover
90 DAY WARRANTY ............................................................... Back Cover

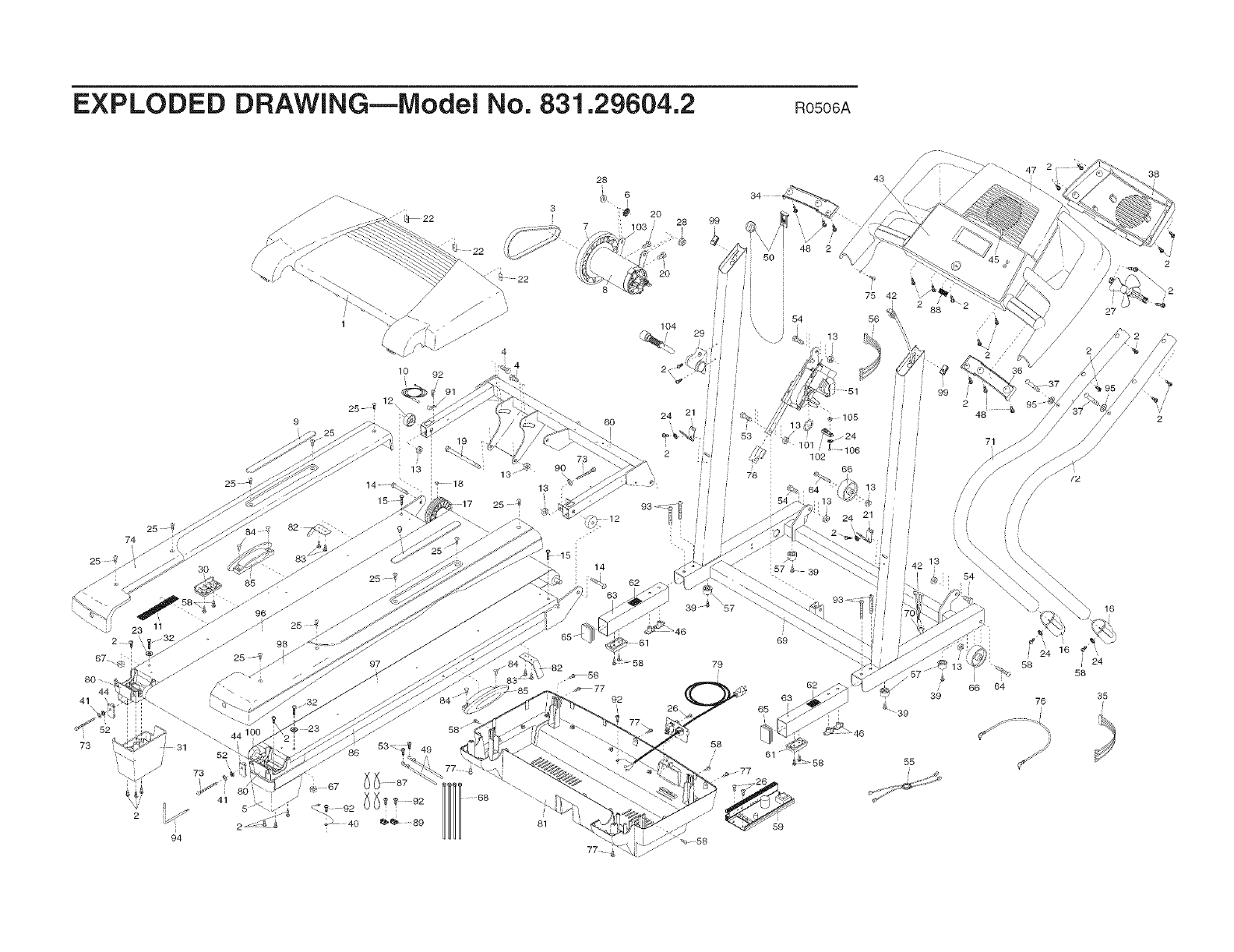

Note: An EXPLODED DRAWING and a PART LiST are attached in the center of this manual.

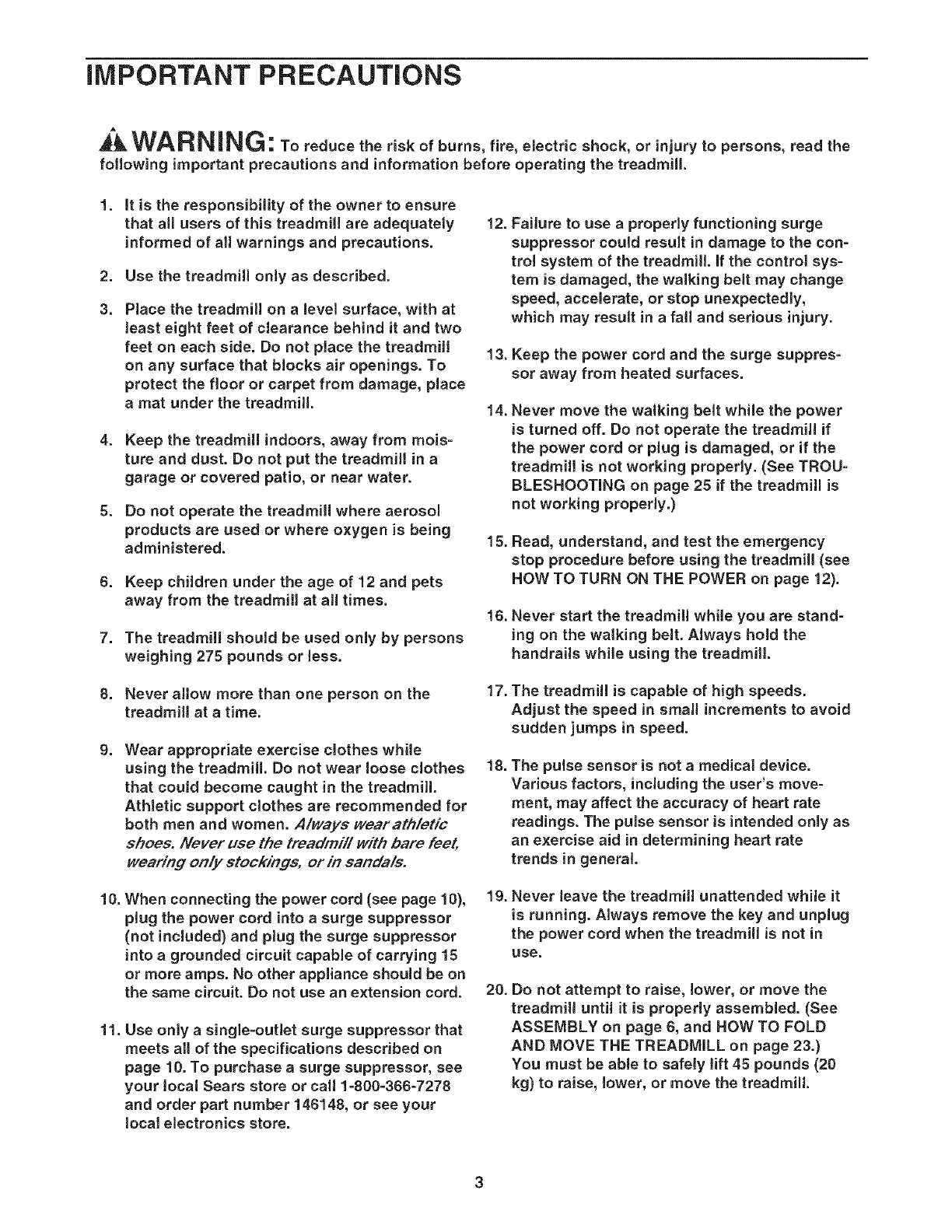

iMPORTANT PRECAUTIONS
WARN ING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
,
.
3.
It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
Use the treadmill only as described.
Place the treadmill on a level surface, with at
]east eight feet of clearance behind it and two
feet on each side. Do not place the treadmiJJ
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
.
,
Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should be used only by persons
weighing 275 pounds or less.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
10. When connecting the power cord (see page 10),
plug the power cord into asurge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 10. To purchase a surge suppressor, see
your local Sears store or call 1-800-366-7278
and order part number 146148, or see your
local electronics store.
12. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
13. Keep the power cord and the surge suppres-
sor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU-
BLESHOOTING on page 25 if the treadmill is
not working properly.)
15. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 12).
16. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
18. The pulse sensor is not amedical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The puJse sensor is intended only as
an exercise aid in determining heart rate
trends in general.
19. Never leave the treadmiJl unattended while it
is running. Always remove the key and unplug
the power cord when the treadmill is not in
use.
20. Do not attempt to raise, Jower, or move the
treadmill untiJ it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 23.)
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.
21.Whenfoldingor moving the treadmill, make
sure that the storage latch is fully closed.
22. Inspect and properly tighten aH parts of the
treadmill regularly.
23. Never insert any object into any opening.
24.DANGER: Alwaysunplugthepower
cord immediately after use, before cleaning
the treadmill, and before performing the main-
tenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
25. This treadmiiJ is intended for in=home use
only. Do not use this treadmill in a commer-
cial, rental, or institutional setting.

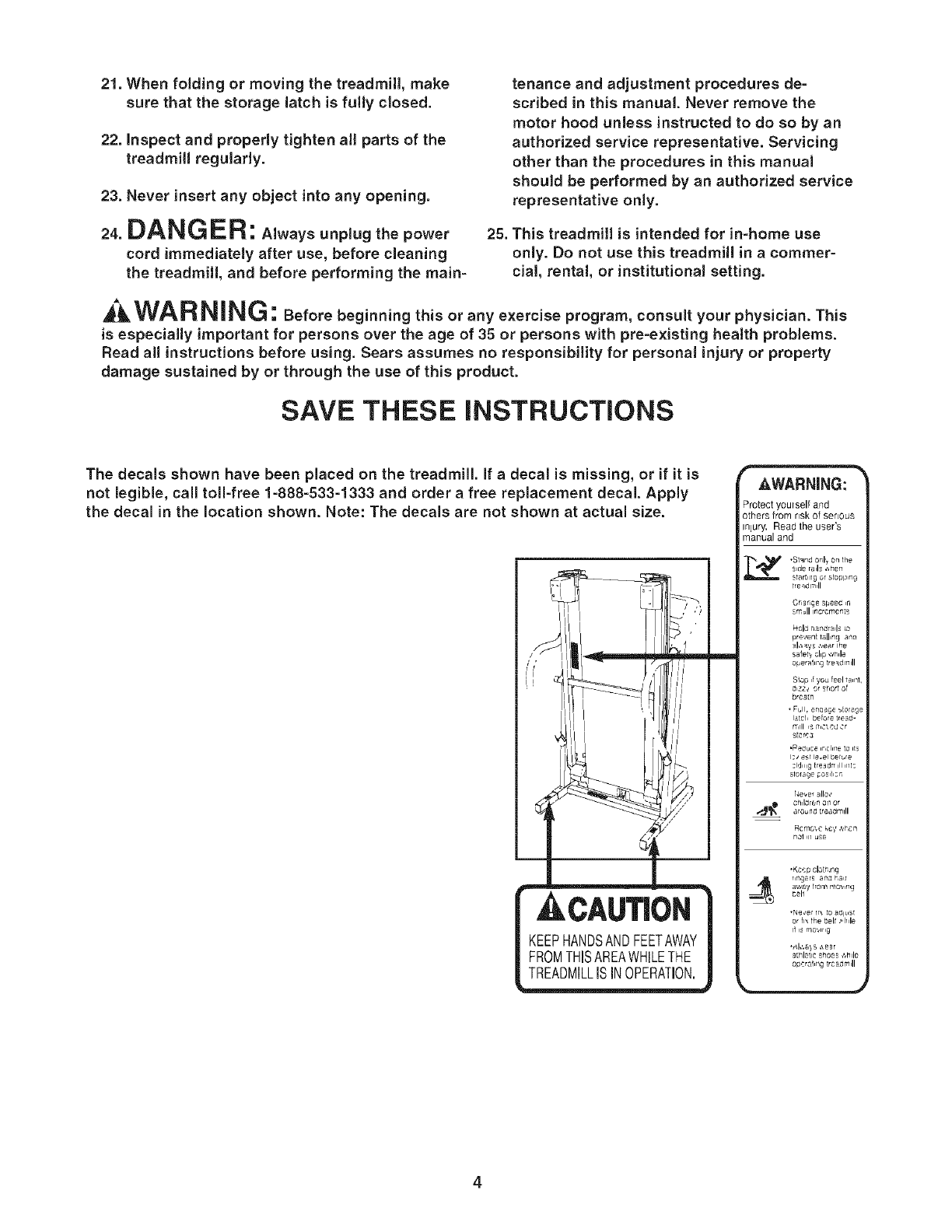

_W#'_M|_||_=_ : Before beginning thisor any exerciseprogram, consultyour physician.This
isespeciallyimportantforpersons over the age of35 or persons with pre=existinghealthproblems.
Read BH instructions before using. Sears assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE iNSTRUCTiONS
The decals shown have been placed on the treadmill. If a decal is missing, or if it is
not legible, call toll-free 1-888-533-1333 and order a free replacement decal. Apply
the decal in the location shown. Note: The decals are not shown at actual size.
,4
II
I1'1I l! [|,,"
IIii I ' II_I,iI
/J,
,ACAUTION
PHANDSANDFEETAWAY
| FROMTHISAREAWHILETHE
Protect youlself and
others from risk of senous
Injury, Read the user's
manual and
__ ,St'_nd onl' I on the
side rails ¢,nen
5[aRIll 0 or stopping
Treadm,ll
Change speedin
src=llincrcmcn[_
Hold I_andrallS LO
pr#vent tall,rig arl_
_l,_ays ,'_ear Ihe
safeb cl,p wh,le
ol_erPJing tre_dlnlll
S1op ,f you feel ta,r_l,
d,zz¢ or _bort C,l
br_zatn
• FL,II, enqaGe _[orage
I_tch before lreaO-
Fill ,S n,,:',cd ,:r
s[orc3
=Peduce ,ncI,n_ to i_
I:_ e_[ level berure
:ld,llg tre_drr iii ,n[:
sTotacje F,o_,1,:r"
Ne_,e_ allo,,
around lreadmlll
Rcm_,,,r k_:'>' ,',,hr.n
no1 ,n u_e
'Keep cloth_nq
T,nger_ and P,_,_
away 1tom mGv,nq
'Ne_er ir_ _o a_lUS_
or h_ 1he bell ,,,hie
i1i_ mO,_lr,_
'_l,',a_ _ ,',ear
opt r.'lt, ng trc _dm,ll
4
BEFORE YOU BEGIN
Thank you for selecting the PROFORM _>500i treadmill.
The 5001 treadmill combines advanced technology with
innovative design to help you achieve your fitness
goals in the convenience and privacy of your home.
And when you're not exercising, the 500i treadmill can
be folded up, requiring less than half the floor space of
other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after reading
this manual, call 1-800-4-MY-HOME _(1-800-469-4663).
To help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is 831.29604.2. The serial num-
ber can be found on a decal attached to the treadmill
(see the front cover of this manual for the location).

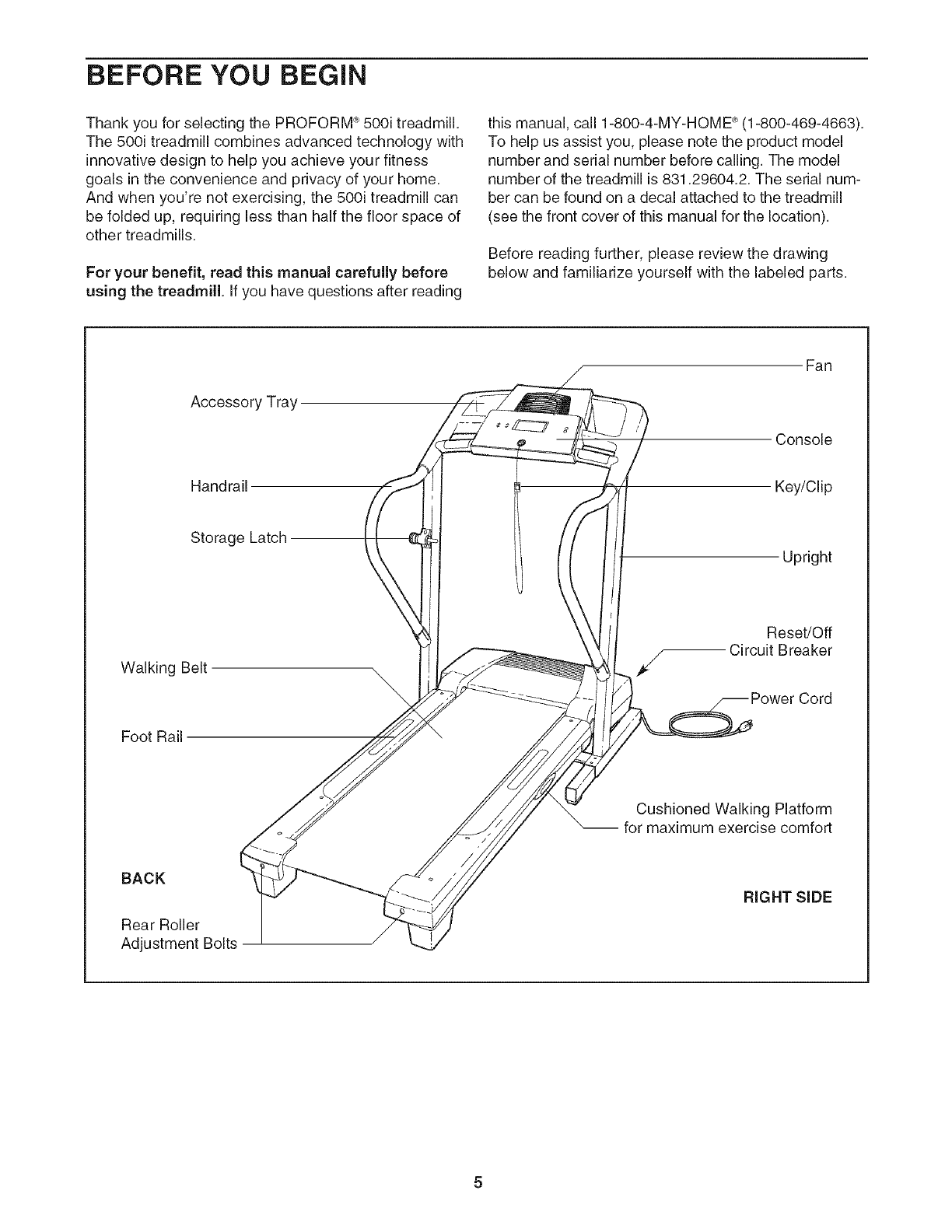

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Accessory Tray
Fan
Console
Handrail
Storage Latch
Walking Belt
Key/Clip
Upright
/Reset/Off
Circuit Breaker
Foot Rail
Cushioned Walking Platform
for maximum exercise comfort
BACK
Rear Roller
Adjustment Bolts
RIGHT SIDE
ASSEMBLY

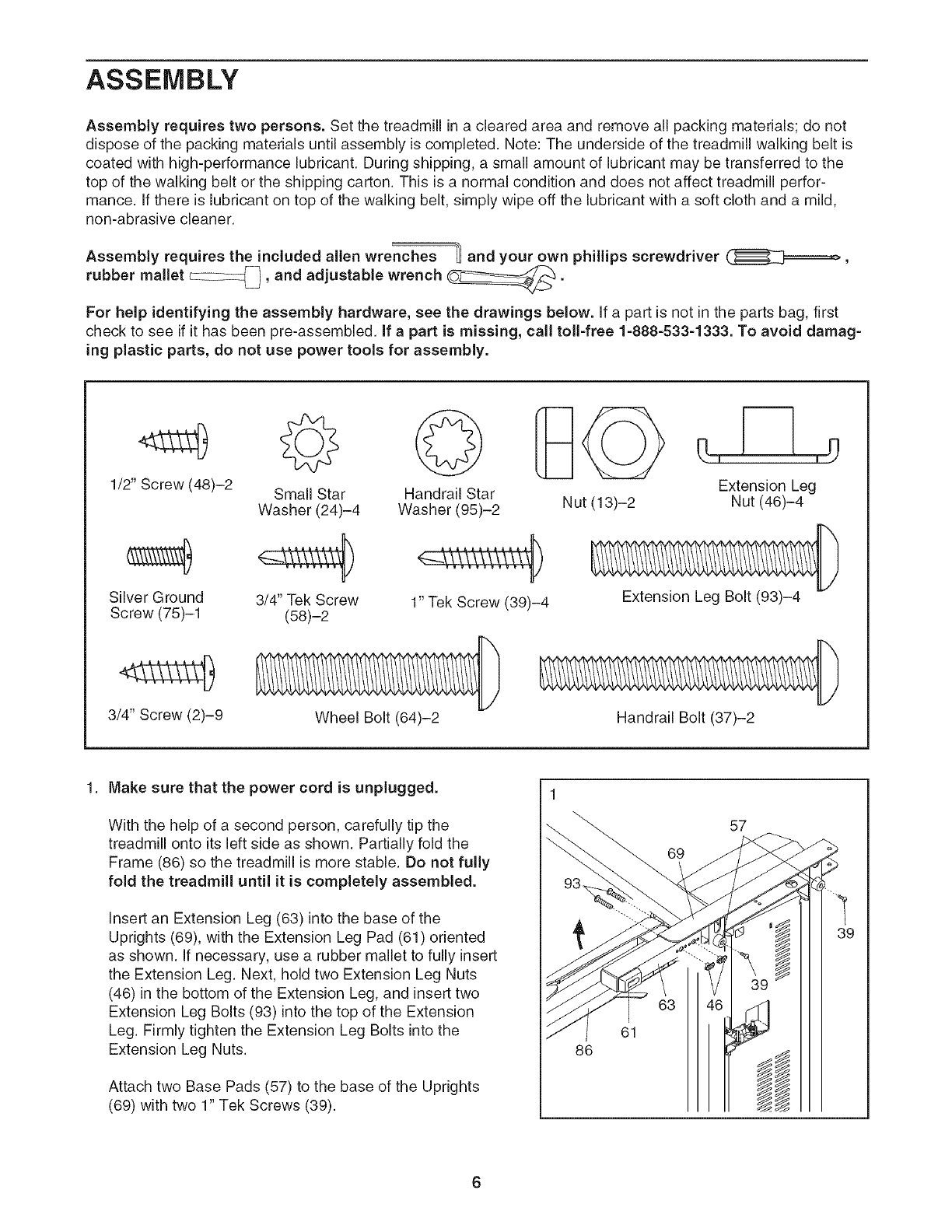

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included allen wrenches _ and your own phillips screwdriver (_i_ _==_ ,
rubber mallet _:_, and adjustable wrench C_:::@.
For help identifying the assembly hardware, see the drawings below, if a part is not in the parts bag, first
check to see if it has been pre-assembled, if apart is missing, call toll-free 1-888-533-1333. To avoid damag-
ing plastic parts, do not use power tools for assembly.
1/2" Screw (48)-2 Small Star Handrail Star
Washer (24)-4 Washer (95)-2
Silver Ground 3/4" Tek Screw 1" Tek Screw (39)-4
Screw (75)-1 (58)-2
3/4" Screw (2)-9 Wheel Bolt (64)-2
@
Nut (13)-2
<L [---]
Extension Leg
Nut (46)-4
Extension Leg Bolt (93)-4
Handrail Bolt (37)-2
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip the
treadmill onto its left side as shown. Partially fold the
Frame (86) so the treadmill is more stable. Do not fully
fold the treadmill until it is completely assembled.
Insert an Extension Leg (63) into the base of the
Uprights (69), with the Extension Leg Pad (61) oriented
as shown. If necessary, use a rubber mallet to fully insert
the Extension Leg. Next, hold two Extension Leg Nuts
(46) in the bottom of the Extension Leg, and insert two
Extension Leg Bolts (93) into the top of the Extension
Leg. Firmly tighten the Extension Leg Bolts into the
Extension Leg Nuts.
Attach two Base Pads (57) to the base of the Uprights
(69) with two 1" Tek Screws (39).
86
61
69
57
39

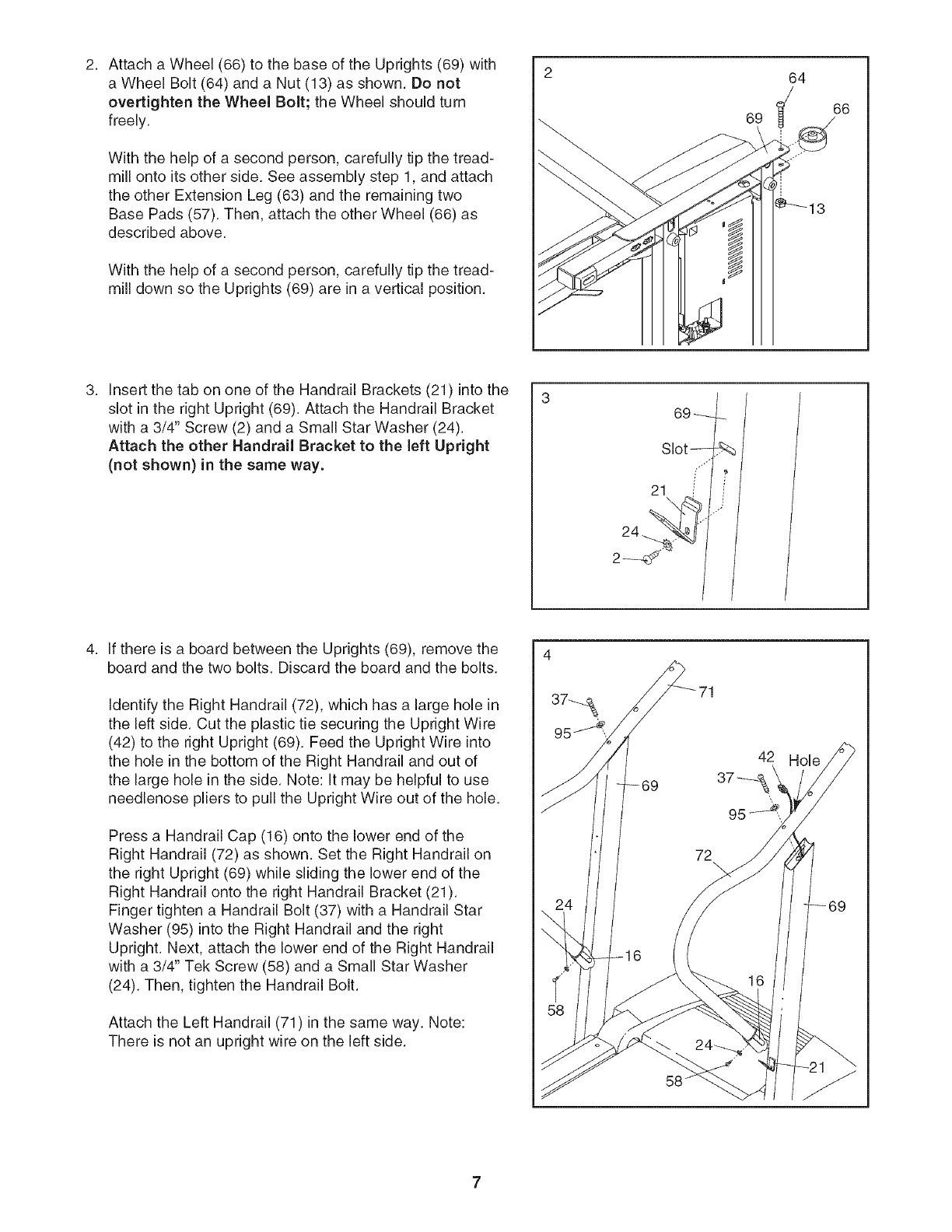

Attacha Wheel(66)tothebaseoftheUprights(69)with
a WheelBolt(64)andaNut(13)asshown.Donot
overtightentheWheelBolt;theWheelshouldturn
freely.
Withthehelpofa secondperson,carefullytipthetread-
millontoitsotherside.Seeassemblystep1,andattach
theotherExtensionLeg(63)andtheremainingtwo
BasePads(57).Then,attachtheotherWheel(66)as
describedabove.
Withthehelpofa secondperson,carefullytipthetread-
milldownsotheUprights(69)areinaverticalposition.
64
69 66
Insert the tab on one of the Handrail Brackets (21) into the
slot in the right Upright (69). Attach the Handrail Bracket
with a 3/4" Screw (2) and a Small Star Washer (24).
Attach the other Handrail Bracket to the left Upright
(not shown) in the same way.
69 -_
21\
24
If there is a board between the Uprights (69), remove the
board and the two bolts. Discard the board and the bolts.
Identify the Right Handrail (72), which has a large hole in
the left side. Cut the plastic tie securing the Upright Wire
(42) to the right Upright (69). Feed the Upright Wire into
the hole in the bottom of the Right Handrail and out of
the large hole in the side. Note: It may be helpful to use
needlenose pliers to pull the Upright Wire out of the hole.
Press a Handrail Cap (16) onto the lower end of the
Right Handrail (72) as shown. Set the Right Handrail on
the right Upright (69) while sliding the lower end of the
Right Handrail onto the right Handrail Bracket (21).
Finger tighten a Handrail Bolt (37) with a Handrail Star
Washer (95) into the Right Handrail and the right
Upright. Next, attach the lower end of the Right Handrail
with a 3/4" Tek Screw (58) and a Small Star Washer
(24). Then, tighten the Handrail Bolt.
Attach the Left Handrail (71) in the same way. Note:
There is not an upright wire on the left side.

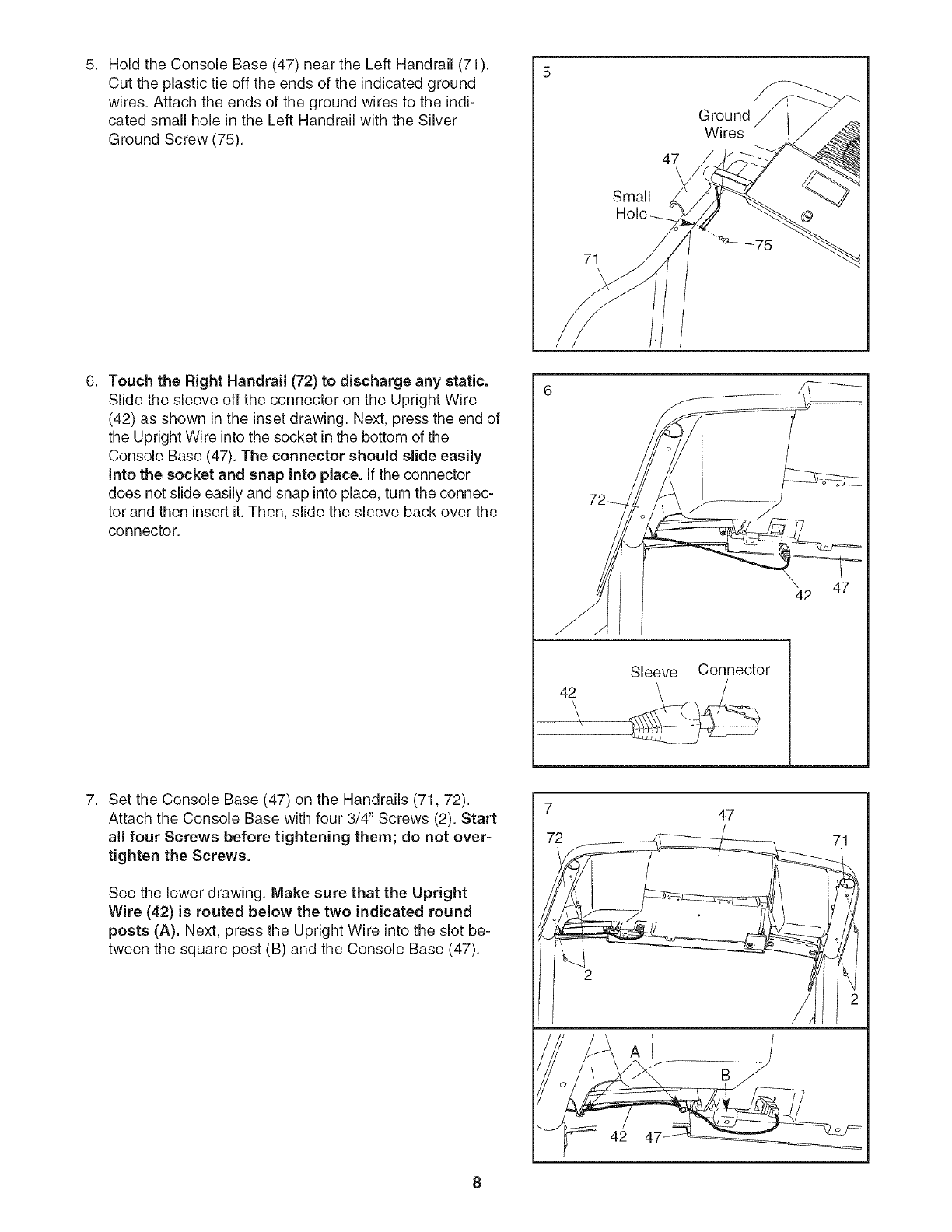

5. 5
HoldtheConsoleBase(47)neartheLeftHandrail(71).
Cuttheplastictieofftheendsoftheindicatedground
wires.Attachtheendsof thegroundwirestotheindi-
catedsmallholeintheLeftHandrailwiththeSilver
GroundScrew(75).
71
Small
Ground
Wires
47
Touch the Right Handrail (72) to discharge any static.
Slide the sleeve off the connector on the Upright Wire
(42) as shown in the inset drawing. Next, press the end of
the Upright Wire into the socket in the bottom of the
Console Base (47). The connector should slide easily
into the socket and snap into place. If the connector
does not slide easily and snap into place, turn the connec-
tor and then insert it.Then, slide the sleeve back over the
connector.
42
Sleeve Connector
47
42
Set the Console Base (47) on the Handrails (71,72).
Attach the Console Base with four 3/4" Screws (2). Start
all four Screws before tightening them; do not over-
tighten the Screws.
See the lower drawing. Make sure that the Upright
Wire (42) is routed below the two indicated round
posts (A). Next, press the Upright Wire into the slot be-
tween the square post (B) and the Console Base (47).
7
72
42 47
47
71
8

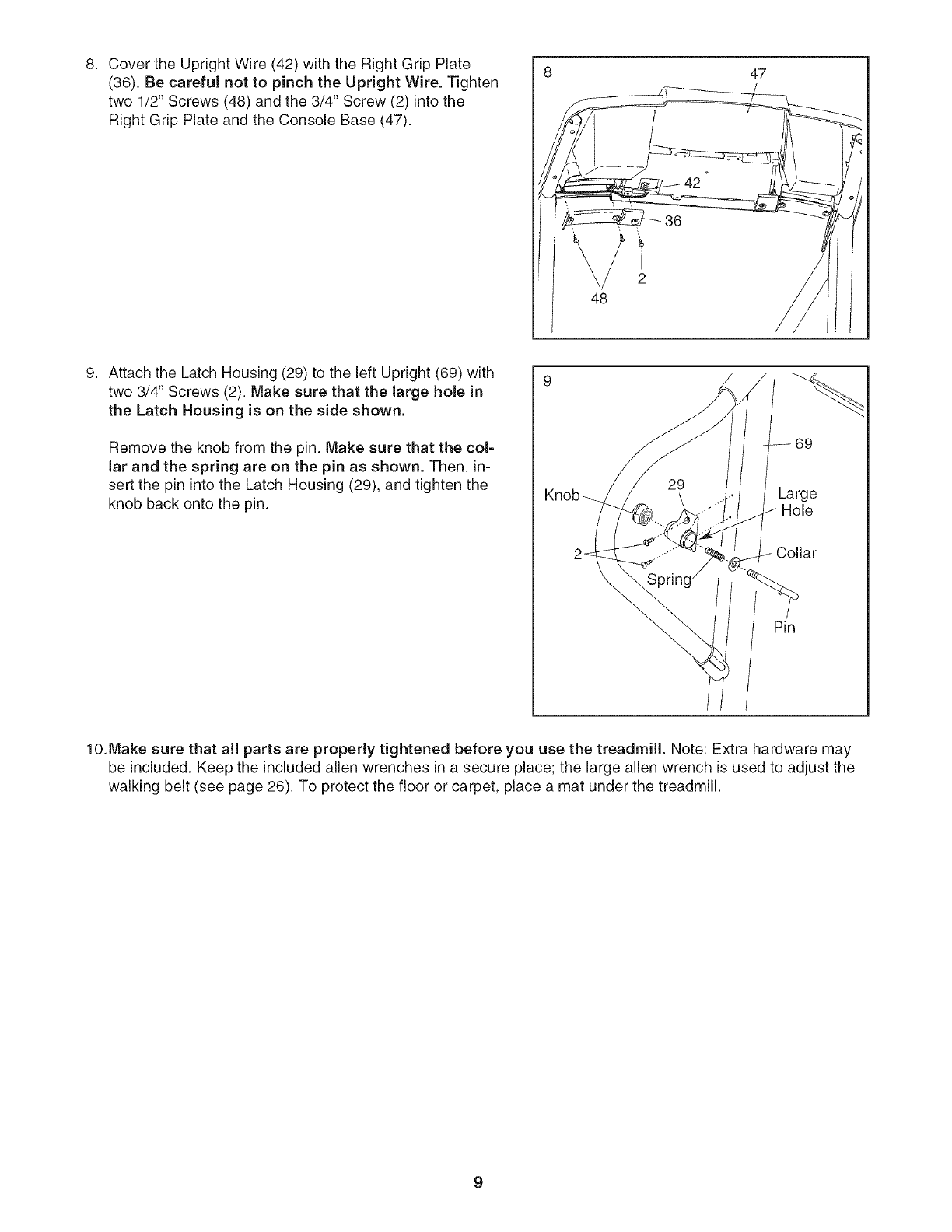

Cover the Upright Wire (42) with the Right Grip Plate
(36). Be careful not to pinch the Upright Wire. Tighten
two 1/2" Screws (48) and the 3/4" Screw (2) into the
Right Grip Plate and the Console Base (47).
48
2
47
Attach the Latch Housing (29) to the left Upright (69) with
two 3/4" Screws (2). Make sure that the large hole in
the Latch Housing is on the side shown.
Remove the knob from the pin. Make sure that the col-
lar and the spring are on the pin as shown. Then, in-
sert the pin into the Latch Housing (29), and tighten the
knob back onto the pin. Knob Large
Hole
lO.Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place; the large allen wrench is used to adjust the
walking belt (see page 26). To protect the floor or carpet, place a mat under the treadmill.

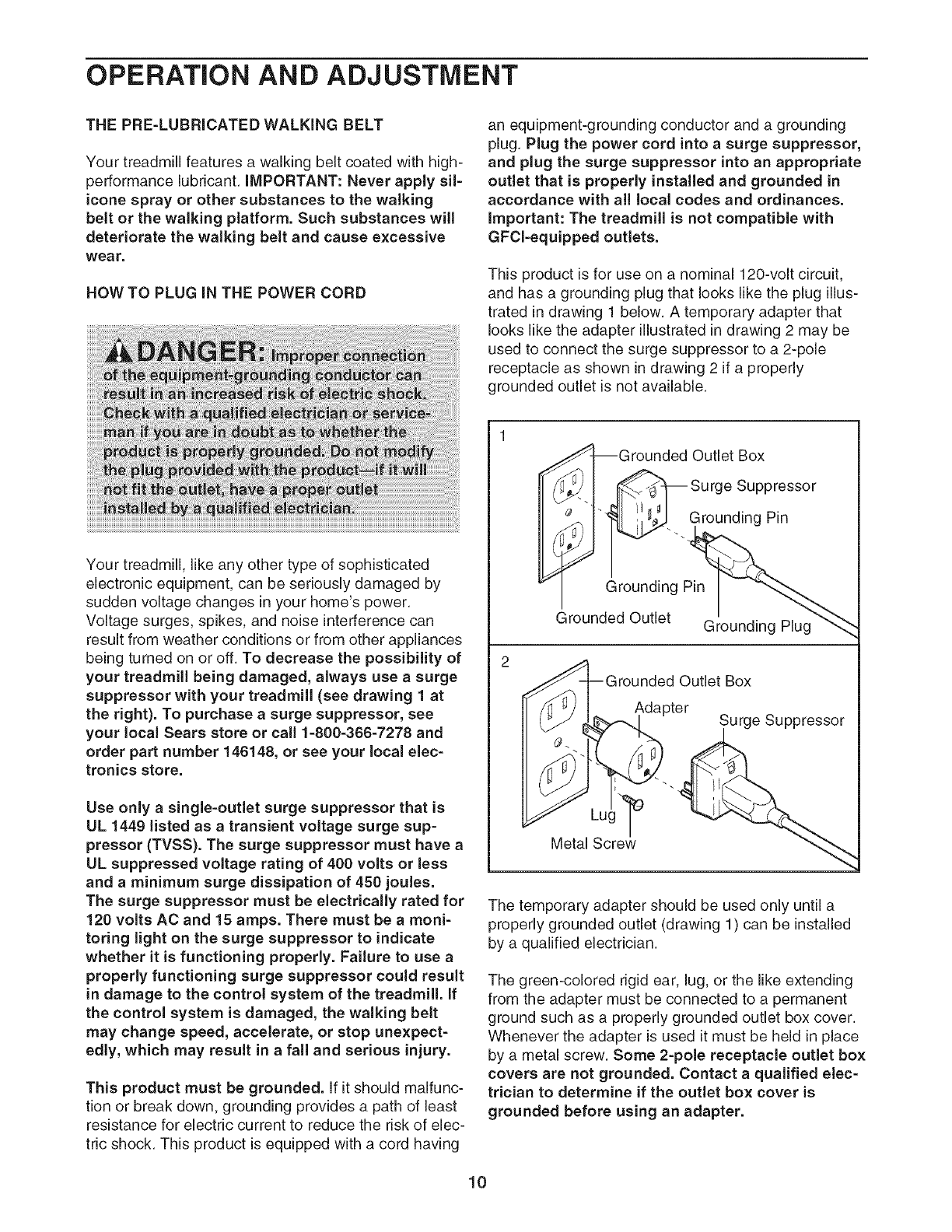

OPERATION AND ADJUSTMENT
THE PRE=LUBRICATED WALKING BELT
Your treadmill features a walking belt coated with high-
performance lubricant, iMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
an equipment-grounding conductor and a grounding
plug. Plug the power cord into asurge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCl=equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home's power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase asurge suppressor, see
your local Sears store or call 1=800=366=7278 and
order part number 146148, or see your local elec=
tronics store.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be amoni=
toting light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill, if
the control system is damaged, the walking belt
may change speed, accelerate, or stop unexpect=
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
IGrounded Outlet Box
_.._ -- Surge Suppressor
_'< "-. Grounding Pin
Grounding Pin
_rounded Outlet Grounding Plug
2
_rounded Outlet Box
Adapter Surge Suppressor
Metal Screw_ "
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2=pole receptacle outlet box
covers are not grounded. Contact a qualified elec=
trician to determine if the outlet box cover is
grounded before using an adapter.
10

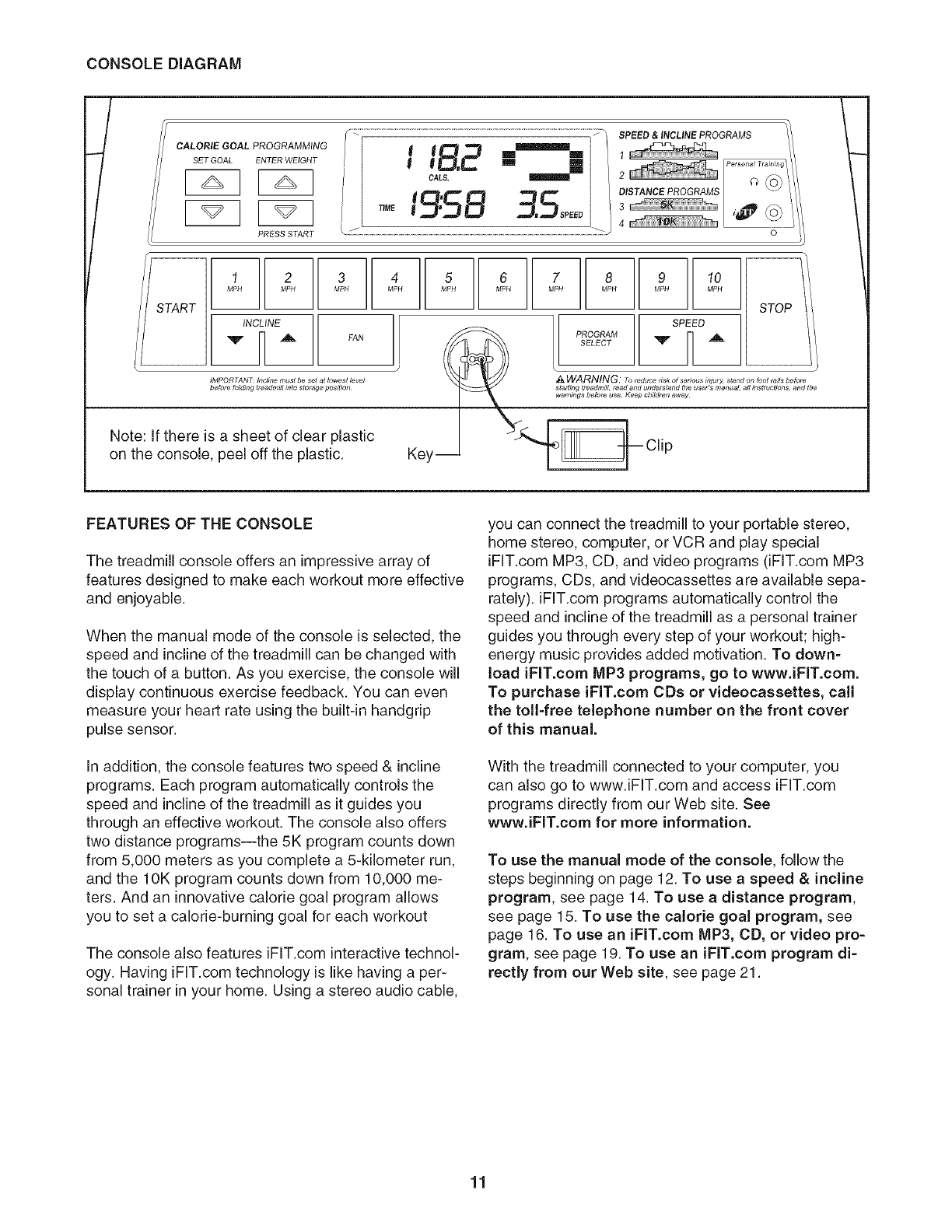

CONSOLEDIAGRAM
CALORIE GOAL PROGRAMMING
SET GOAL ENTER WEIGHT
PRESS START
SPEED &iNCLINE. PROGRAMS
IS_RT
1 2 3
MPH MPH MPH
INCLINE
IMPORTANT Inchne must be set at lowest level
before folding lreadmilt into storage position
Note: If there is a sheet of clear plastic
on the console, peel off the plastic.
45 6 78 9 10
MPH MPH MPH MPH MPH MPH MPH
STOP
SPEED
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make each workout more effective
and enjoyable.
When the manual mode of the console is selected, the
speed and incline of the treadmill can be changed with
the touch of a button. As you exercise, the console will
display continuous exercise feedback. You can even
measure your heart rate using the built-in handgnp
pulse sensor.
In addition, the console features two speed & incline
programs. Each program automatically controls the
speed and incline of the treadmill as it guides you
through an effective workout. The console also offers
two distance programs--the 5K program counts down
from 5,000 meters as you complete a 5-kilometer run,
and the 10K program counts down from 10,000 me-
ters. And an innovative calorie goal program allows
you to set a calorie-burning goal for each workout
The console also features iFIT.com interactive technol-
ogy. Having iFIT.com technology is like having a per-
sonal trainer in your home. Using a stereo audio cable,
you can connect the treadmill to your portable stereo,
home stereo, computer, or VCR and play special
iFIT.com MP3, CD, and video programs (iFIT.com MP3
programs, CDs, and videocassettes are available sepa-
rately), iFIT.com programs automatically control the
speed and incline of the treadmill as a personal trainer
guides you through every step of your workout; high-
energy music provides added motivation. To down-
load iRT.com MP3 programs, go to www.JFiT.com.
To purchase iFIT.com CDs or videocassettes, call
the toll=free telephone number on the front cover
of this manual.
With the treadmill connected to your computer, you
can also go to www.iFIT.com and access iFIT.com
programs directly from our Web site. See
www.iFIT.com for more information.
To use the manual mode of the console, follow the
steps beginning on page 12. To use a speed & incline
program, see page 14. To use a distance program,
see page 15. To use the calorie goal program, see
page 16. To use an iFIT.com MP3, CD, or video pro=
gram, see page 19. To use an iFIT.com program di=
rectly from our Web site, see page 21.
11

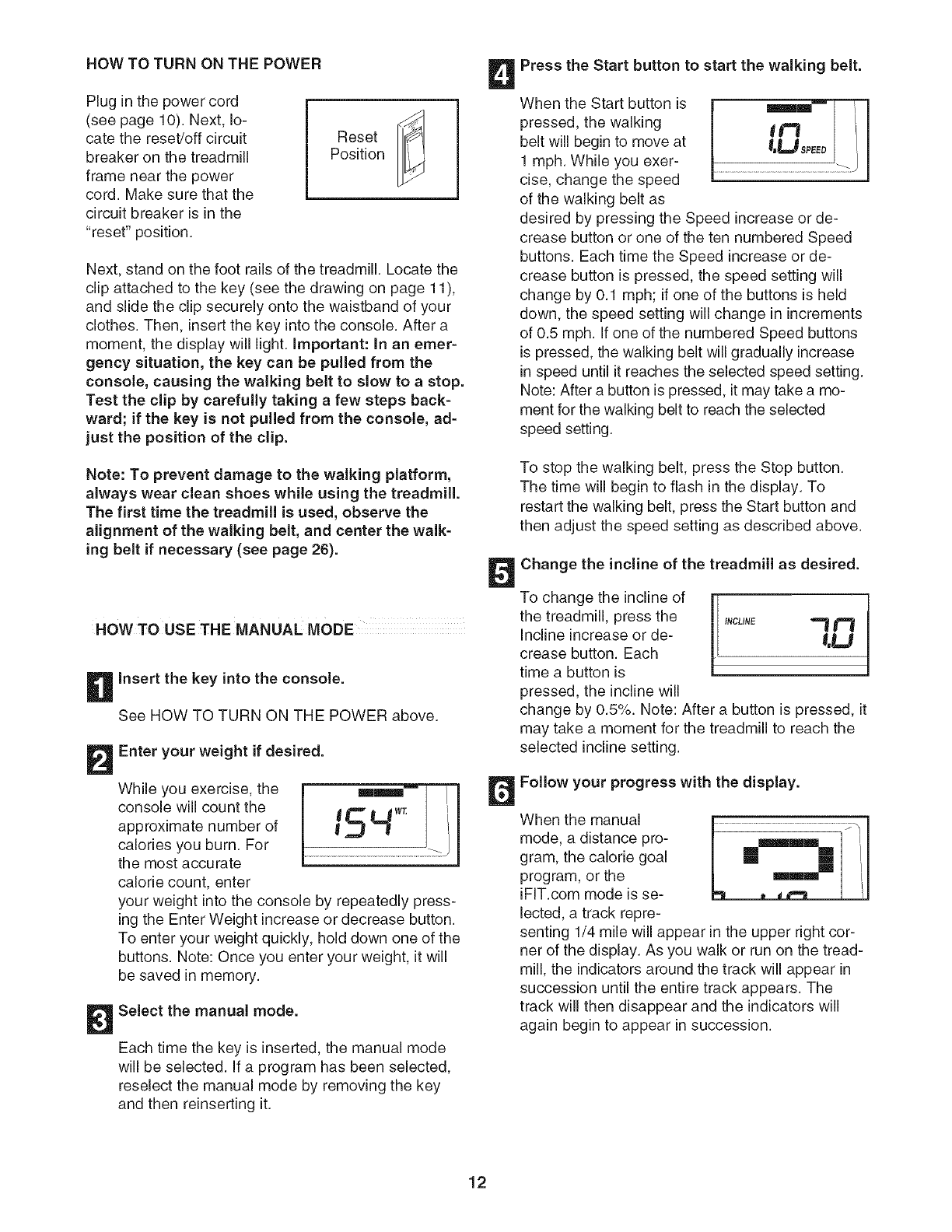

HOW TO TURN ON THE POWER
Plug in the power cord
(see page 10). Next, lo-
cate the reset/off circuit
breaker on the treadmill
frame near the power
cord. Make sure that the
circuit breaker is in the
"reset" position.
Reset
Position
Next, stand on the foot rails of the treadmill. Locate the
clip attached to the key (see the drawing on page 11),
and slide the clip securely onto the waistband of your
clothes. Then, insert the key into the console. After a
moment, the display will light. Important: In an emer-
gency situation, the key can be pulled from the
console, causing the walking belt to slow to astop.
Test the clip by carefully taking afew steps back-
ward; if the key is not pulled from the console, ad-
just the position of the clip.
Note: To prevent damage to the walking platform,
always wear clean shoes while using the treadmill.
The first time the treadmill is used, observe the
alignment of the walking belt, and center the walk-
ing belt if necessary (see page 26).
HOWTO USE THE MANUALMODE
Insert the key into the console.
See HOW TO TURN ON THE POWER above.
Enter your weight if desired.
While you exercise, the
console will count the
approximate number of
calories you burn. For
the most accurate
calorie count, enter
"-=1
15H'*
_J
your weight into the console by repeatedly press-
ing the Enter Weight increase or decrease button.
To enter your weight quickly, hold down one of the
buttons. Note: Once you enter your weight, it will
be saved in memory.
Select the manual mode.
Each time the key is inserted, the manual mode
will be selected. If a program has been selected,
reselect the manual mode by removing the key
and then reinserting it.
Press the Start button to start the walking belt.
When the Start button is
pressed, the walking
belt will begin to move at
1 mph. While you exer-
cise, change the speed
of the walking belt as
desired by pressing the Speed increase or de-
crease button or one of the ten numbered Speed
buttons. Each time the Speed increase or de-
crease button is pressed, the speed setting will
change by 0.1 mph; if one of the buttons is held
down, the speed setting will change in increments
of 0.5 mph. If one of the numbered Speed buttons
is pressed, the walking belt will gradually increase
in speed until it reaches the selected speed setting.
Note: After a button is pressed, it may take a mo-
ment for the walking belt to reach the selected
speed setting.
To stop the walking belt, press the Stop button.
The time will begin to flash in the display. To
restart the walking belt, press the Start button and
then adjust the speed setting as described above.
Change the incline of the treadmill as desired.
To change the incline of
the treadmill, press the I_CUNE _
Incline increase or de- J,LJ
crease button. Each
time a button is
pressed, the incline will
change by 0.5%. Note: After a button is pressed, it
may take a moment for the treadmill to reach the
selected incline setting.
Follow your progress with the display.
When the manual
mode, a distance pro-
gram, the calorie goal
program, or the
iFIT.com mode is se-
lected, a track repre-
imlmlmll_ /
senting 1/4 mile will appear in the upper right cor-
ner of the display. As you walk or run on the tread-
mill, the indicators around the track will appear in
succession until the entire track appears. The
track will then disappear and the indicators will
again begin to appear in succession.
12

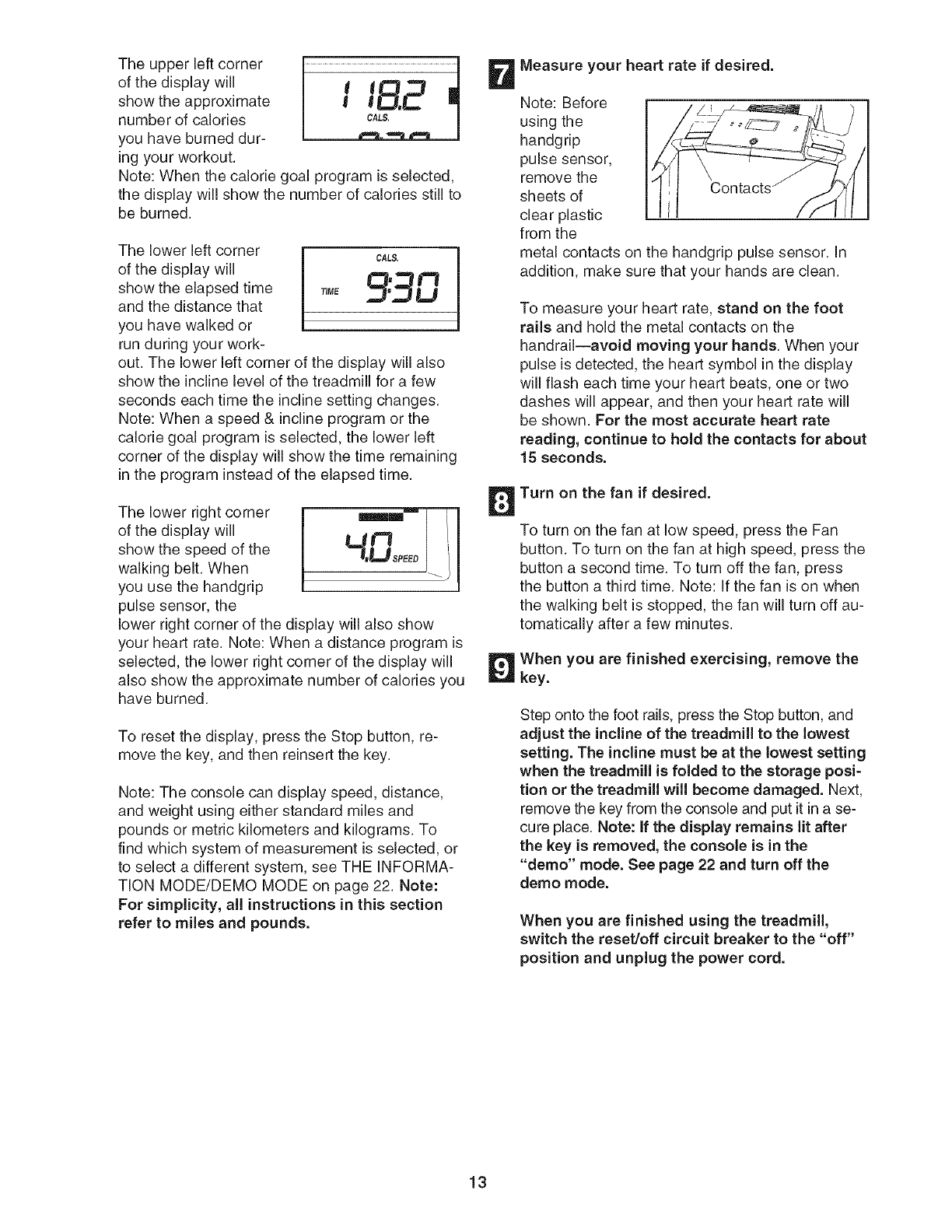

The upper left corner
of the display will
show the approximate
number of calories
you have burned dur-
ing your workout.
Note: When the calorie goal program is selected,
the display will show the number of calories still to
be burned.
The lower left corner CAL&
of the display will
show the elapsed time ,,ME _'90
and the distance that
you have walked or
run during your work-
out. The lower left corner of the display will also
show the incline level of the treadmill for a few
seconds each time the incline setting changes.
Note: When a speed & incline program or the
calorie goal program is selected, the lower left
corner of the display will show the time remaining
in the program instead of the elapsed time.
The lower right corner
of the display will
show the speed of the
walking belt. When
you use the handgrip
pulse sensor, the
IJs
lower right corner of the display will also show
your heart rate. Note: When a distance program is
selected, the lower right corner of the display will
also show the approximate number of calories you
have burned.
To reset the display, press the Stop button, re-
move the key, and then reinsert the key.
Note: The console can display speed, distance,
and weight using either standard miles and
pounds or metric kilometers and kilograms. To
find which system of measurement is selected, or
to select a different system, see THE INFORMA-
TION MODE/DEMO MODE on page 22. Note:
For simplicity, all instructions in this section
refer to miles and pounds.
Measure your heart rate if desired.
Note: Before
using the
handgrip
pulse sensor,
remove the
sheets of
clear plastic
from the
metal contacts on the handgrip pulse sensor. In
addition, make sure that your hands are clean.
To measure your heart rate, stand on the foot
rails and hold the metal contacts on the
handrail--avoid moving your hands. When your
pulse is detected, the heart symbol in the display
will flash each time your heart beats, one or two
dashes will appear, and then your heart rate will
be shown. For the most accurate heart rate
reading, continue to hold the contacts for about
15 seconds.
Turn on the fan if desired.
To turn on the fan at low speed, press the Fan
button. To turn on the fan at high speed, press the
button a second time. To turn off the fan, press
the button a third time. Note: If the fan is on when
the walking belt is stopped, the fan will turn off au-
tomatically after a few minutes.
When you are finished exercising, remove the
key.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
when the treadmill is folded to the storage posi=
tion or the treadmill will become damaged. Next,
remove the key from the console and put it in a se-
cure place. Note: if the display remains lit after
the key is removed, the console is in the
"demo" mode. See page 22 and turn off the
demo mode.
When you are finished using the treadmill,
switch the reset/off circuit breaker to the "off"
position and unplug the power cord.
13

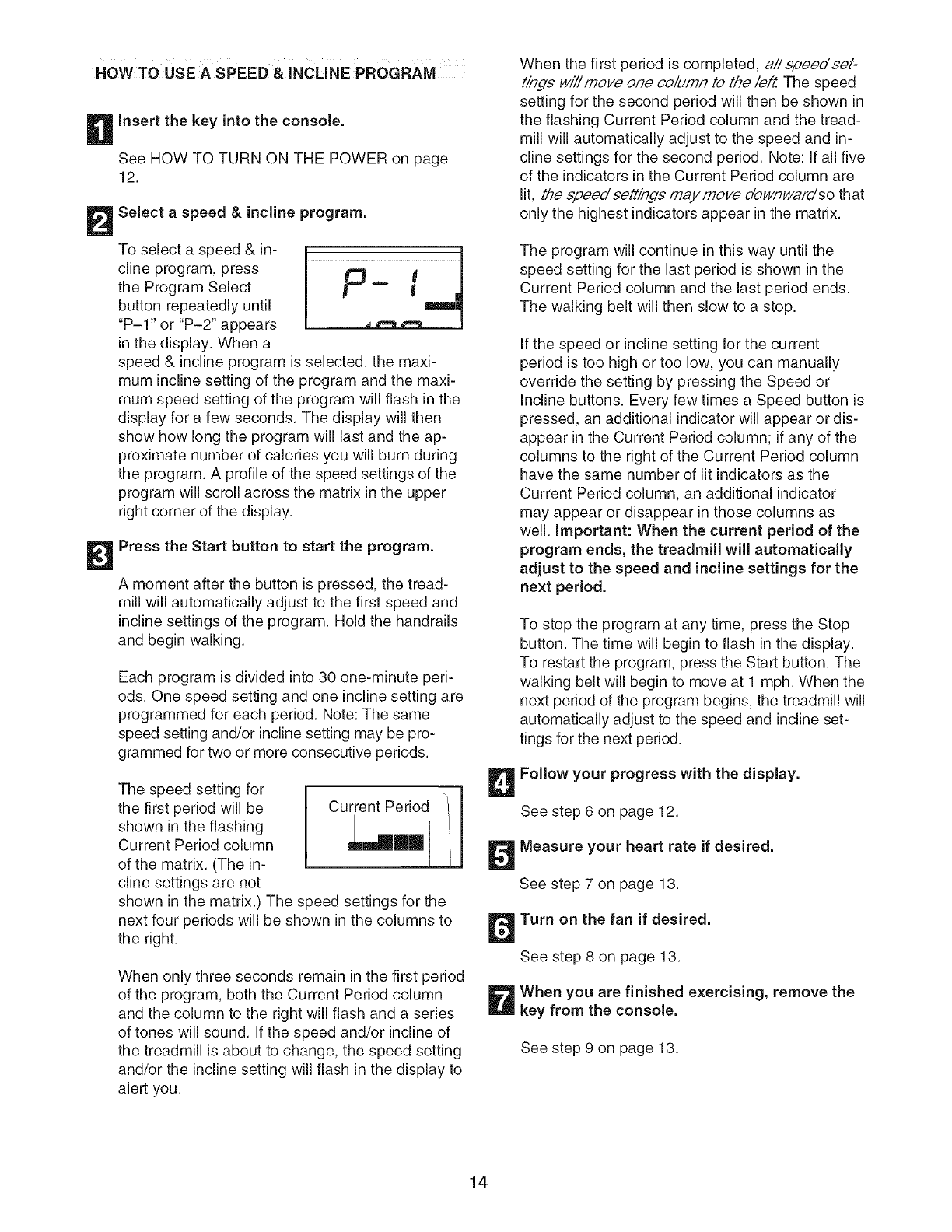

HOW TO USE A SPEED &iNCLiNE PROGRAM
insert the key into the consoJe.
See HOW TO TURN ON THE POWER on page
12.
Select a speed & incline program.
To select a speed & in-
cline program, press
the Program Select
button repeatedly until
"P-l" or "P-2" appears
in the display. When a
speed & incline program is selected, the maxi-
mum incline setting of the program and the maxi-
mum speed setting of the program will flash in the
display for a few seconds. The display will then
show how long the program will last and the ap-
proximate number of calories you will burn during
the program. A profile of the speed settings of the
program will scroll across the matrix in the upper
right corner of the display.
Press the Start button to start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings of the program. Hold the handrails
and begin walking.
Each program is divided into 30 one-minute peri-
ods. One speed setting and one incline setting are
programmed for each period. Note: The same
speed setting and/or incline setting may be pro-
grammed for two or more consecutive periods.
The speed setting for
the first period will be
shown in the flashing
Current Period column
of the matrix. (The in-
cline settings are not
shown in the matrix.) The speed settings for the
next four periods will be shown in the columns to
the right.
When only three seconds remain in the first period
of the program, both the Current Period column
and the column to the right will flash and a series
of tones will sound. If the speed and/or incline of
the treadmill is about to change, the speed setting
and/or the incline setting will flash in the display to
alert you.
When the first period is completed, a// speed set-
tings will move one column to the left The speed
setting for the second period will then be shown in
the flashing Current Period column and the tread-
mill will automatically adjust to the speed and in-
cline settings for the second period. Note: If all five
of the indicators in the Current Period column are
lit, the speed seiting_ may move downward/so that
only the highest indicators appear in the matrix.
The program will continue in this way until the
speed setting for the last period is shown in the
Current Period column and the last period ends.
The walking belt will then slow to a stop.
If the speed or incline setting for the current
period is too high or too low, you can manually
override the setting by pressing the Speed or
Incline buttons. Every few times a Speed button is
pressed, an additional indicator will appear or dis-
appear in the Current Period column; if any of the
columns to the right of the Current Period column
have the same number of lit indicators as the
Current Period column, an additional indicator
may appear or disappear in those columns as
well. Important: When the current period of the
program ends, the treadmill will automatically
adjust to the speed and incline settings for the
next period.
To stop the program at any time, press the Stop
button. The time will begin to flash in the display.
To restart the program, press the Start button. The
walking belt will begin to move at 1 mph. When the
next period of the program begins, the treadmill will
automatically adjust to the speed and incline set-
tings for the next period.
Follow your progress with the display.
See step 6 on page 12.
Measure your heart rate if desired.
See step 7 on page 13.
Turn on the fan if desired.
See step 8 on page 13.
When you are finished exercising, remove the
key from the console.
See step 9 on page 13.
14

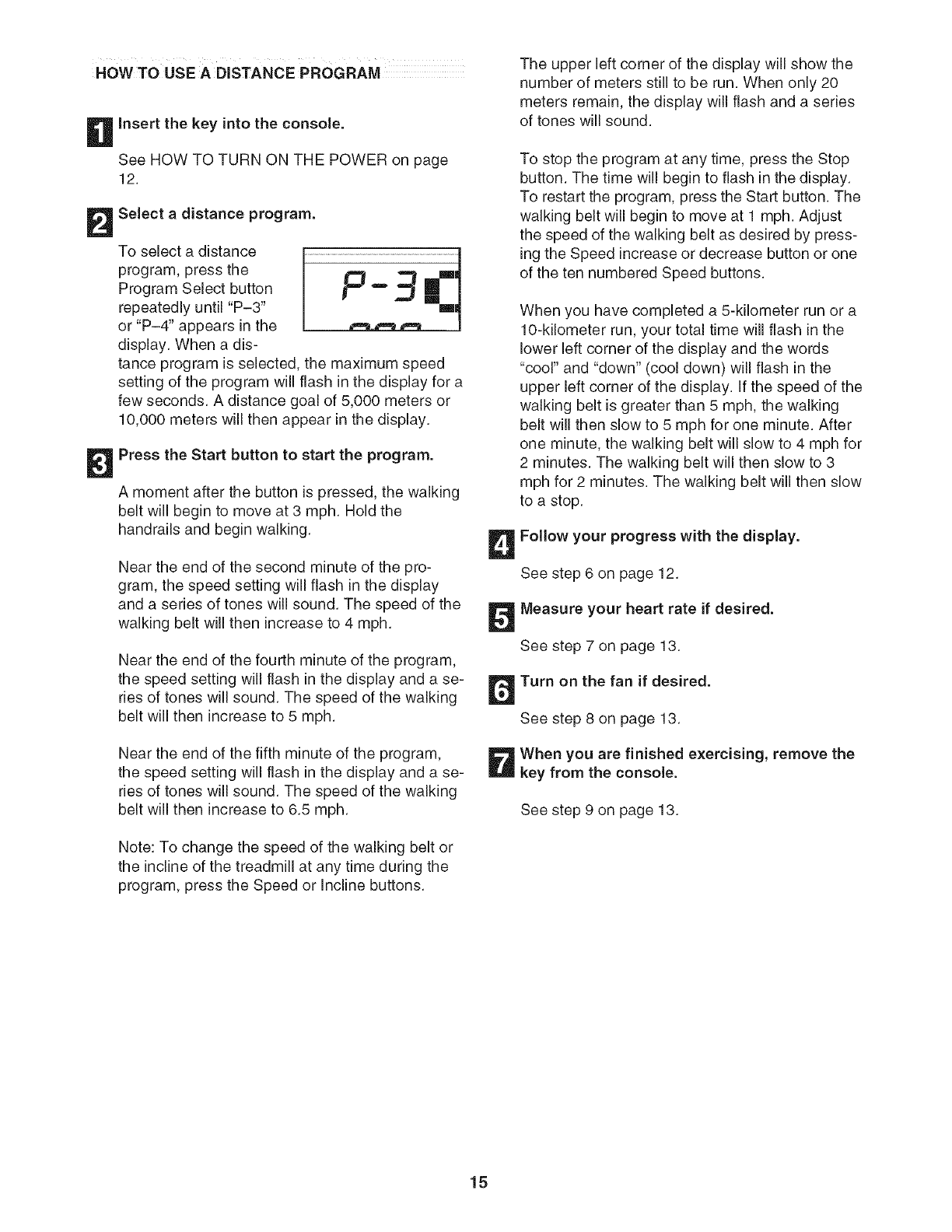

HOW TO USE A DISTANCE PROGRAM
insert the key into the console.
See HOW TO TURN ON THE POWER on page
12.
Select adistance program.
To select a distance
program, press the
Program Select button
repeatedly until "P-3"
or "P-4" appears in the
display. When a dis-
tance program is selected, the maximum speed
setting of the program will flash in the display for a
few seconds. A distance goal of 5,000 meters or
10,000 meters will then appear in the display.
Press the Start button to start the program.
A moment after the button is pressed, the walking
belt will begin to move at 3 mph. Hold the
handrails and begin walking.
Near the end of the second minute of the pro-
gram, the speed setting will flash in the display
and a series of tones will sound. The speed of the
walking belt will then increase to 4 mph.
Near the end of the fourth minute of the program,
the speed setting will flash in the display and a se-
ries of tones will sound. The speed of the walking
belt will then increase to 5 mph.
Near the end of the fifth minute of the program,
the speed setting will flash in the display and a se-
ries of tones will sound. The speed of the walking
belt will then increase to 6.5 mph.
Note: To change the speed of the walking belt or
the incline of the treadmill at any time during the
program, press the Speed or Incline buttons.
The upper left corner of the display will show the
number of meters still to be run. When only 20
meters remain, the display will flash and a series
of tones will sound.
To stop the program at any time, press the Stop
button. The time will begin to flash in the display.
To restart the program, press the Start button. The
walking belt will begin to move at 1 mph. Adjust
the speed of the walking belt as desired by press-
ing the Speed increase or decrease button or one
of the ten numbered Speed buttons.
When you have completed a 5-kilometer run or a
lO-kilometer run, your total time will flash in the
lower left corner of the display and the words
"cool" and "down" (cool down) will flash in the
upper left corner of the display. If the speed of the
walking belt is greater than 5 mph, the walking
belt will then slow to 5 mph for one minute. After
one minute, the walking belt will slow to 4 mph for
2 minutes. The walking belt will then slow to 3
mph for 2 minutes. The walking belt will then slow
to a stop.
Follow your progress with the display.
See step 6 on page 12.
Measure your heart rate if desired.
See step 7 on page 13.
Turn on the fan if desired.
See step 8 on page 13.
When you are finished exercising, remove the
key from the console.
See step 9 on page 13.
15

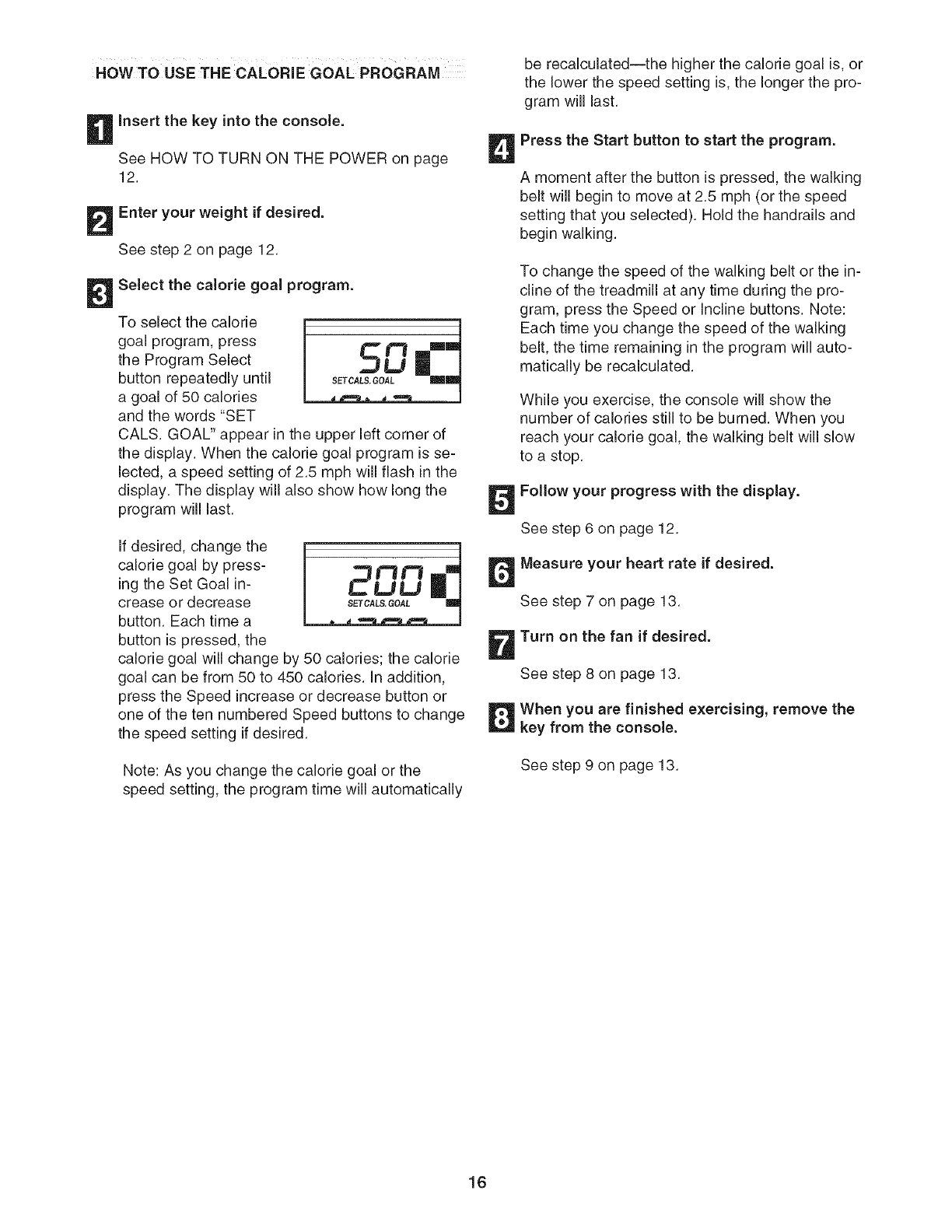

HOW TO USE THE CALORIE GOAL PROGRAM
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
12.
Enter your weight if desired.
See step 2 on page 12.
Select the calorie goal program.
To select the calorie
goal program, press
the Program Select
button repeatedly until
a goal of 50 calories
and the words "SET
0Imlmlllm
SETCALS.GOAL _llmmJ
CALS. GOAL" appear in the upper left corner of
the display. When the calorie goal program is se-
lected, a speed setting of 2.5 mph will flash in the
display. The display will also show how long the
program will last.
If desired, change the
calorie goal by press-
ing the Set Goal in-
crease or decrease
button. Each time a
button is pressed, the
calorie goal will change by 50 calories; the calorie
goal can be from 50 to 450 calories. In addition,
press the Speed increase or decrease button or
one of the ten numbered Speed buttons to change
the speed setting if desired.
Note: As you change the calorie goal or the
speed setting, the program time will automatically
be recalculated--the higher the calorie goal is, or
the lower the speed setting is, the longer the pro-
gram will last.
Press the Start button to start the program.
A moment after the button is pressed, the walking
belt will begin to move at 2.5 mph (or the speed
setting that you selected). Hold the handrails and
begin walking.
To change the speed of the walking belt or the in-
cline of the treadmill at any time during the pro-
gram, press the Speed or Incline buttons. Note:
Each time you change the speed of the walking
belt, the time remaining in the program will auto-
matically be recalculated.
While you exercise, the console will show the
number of calories still to be burned. When you
reach your calorie goal, the walking belt will slow
to a stop.
Follow your progress with the display.
See step 6 on page 12.
Measure your heart rate if desired.
See step 7 on page 13.
Turn on the fan if desired.
See step 8 on page 13.
When you are finished exercising, remove the
key from the console.
See step 9 on page 13.
16

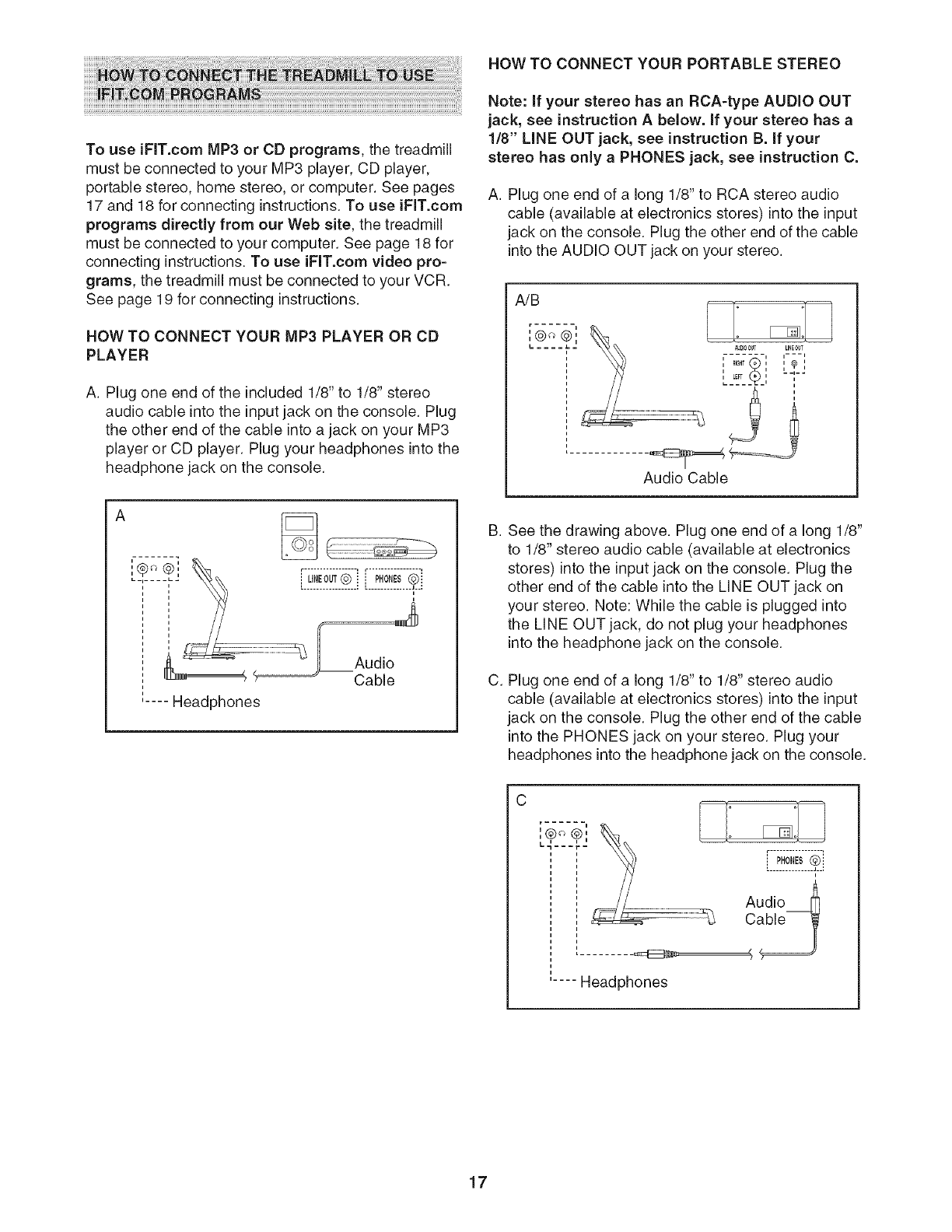

To use iFIT.com MP3 or CD programs, the treadmill
must be connected to your MP3 player, CD player,
portable stereo, home stereo, or computer. See pages
t 7 and 18 for connecting instructions.To use JFIT.com
programs directly from our Web site, the treadmill
must be connected to your computer. See page t 8 for
connecting instructions. To use iFIT.com video pro=
grams, the treadmill must be connected to your VCR.
See page t 9 for connecting instructions.
HOW TO CONNECT YOUR MP3 PLAYER OR CD
PLAYER
A. Plug one end of the included 1/8" to 1/8" stereo
audio cable into the input jack on the console. Plug
the other end of the cable into a jack on your MP3
player or CD player. Plug your headphones into the
headphone jack on the console.
,m_ ®, _,_ ......................................
i'T" i : : : :
.......
i
i .....................
._ /_:::::::::::_; Audio
__ 9=====_ Cable
.... Headphones
HOW TO CONNECT YOUR PORTABLE STEREO
Note: if your stereo has an RCA-type AUDIO OUT
jack, see instruction A below, if your stereo has a
1/8" LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the AUDIO OUT jack on your stereo.
A/B
Audio Cable
B,
C,
See the drawing above. Plug one end of a long 1/8"
to 1/8" stereo audio cable (available at electronics
stores) into the input jack on the console. Plug the
other end of the cable into the LINE OUT jack on
your stereo. Note: While the cable is plugged into
the LINE OUT jack, do not plug your headphones
into the headphone jack on the console.
Plug one end of a long 1/8" to 1/8" stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the PHONES jack on your stereo. Plug your
headphones into the headphone jack on the console.
C
r
i ©
,@ @,
Lq--d.-
L........
.... Headphones
17

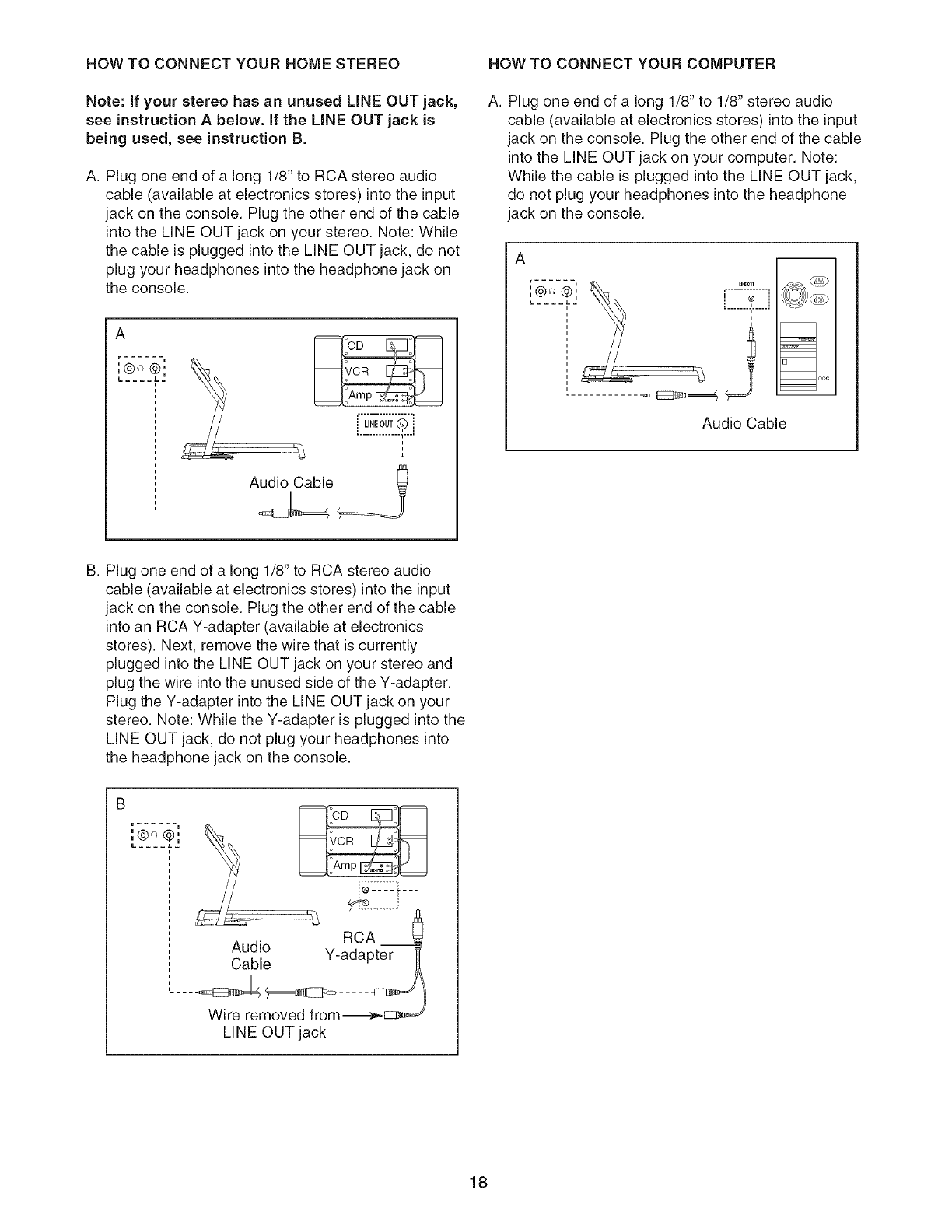

HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER
Note: if your stereo has an unused LiNE OUT jack,
see instruction A below. If the LiNE OUT jack is
being used, see instruction B.
A. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the MNE OUT jack on your stereo. Note: While
the cable is plugged into the LINE OUT jack, do not
plug your headphones into the headphone jack on
the console.
A
r ...... i
L.@.t2
LINEOUT
.............. i ....
A. Plug one end of a long 1/8" to 1/8" stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the MNE OUT jack on your computer. Note:
While the cable is plugged into the LINE OUT jack,
do not plug your headphones into the headphone
jack on the console.
A
.......2........ ......
= ooc
Audio Cable
B. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into an RCA Y-adapter (available at electronics
stores). Next, remove the wire that is currently
plugged into the LINE OUT jack on your stereo and
plug the wire into the unused side of the Y-adapter.
Plug the Y-adapter into the LINE OUT jack on your
stereo. Note: While the Y-adapter is plugged into the
LINE OUT jack, do not plug your headphones into
the headphone jack on the console.
i ©
,@ @,
L .... J.-
RCA
Audio Y-adapter
Cable
Wire removed from-_'_.-_
LiNE OUT jack
18

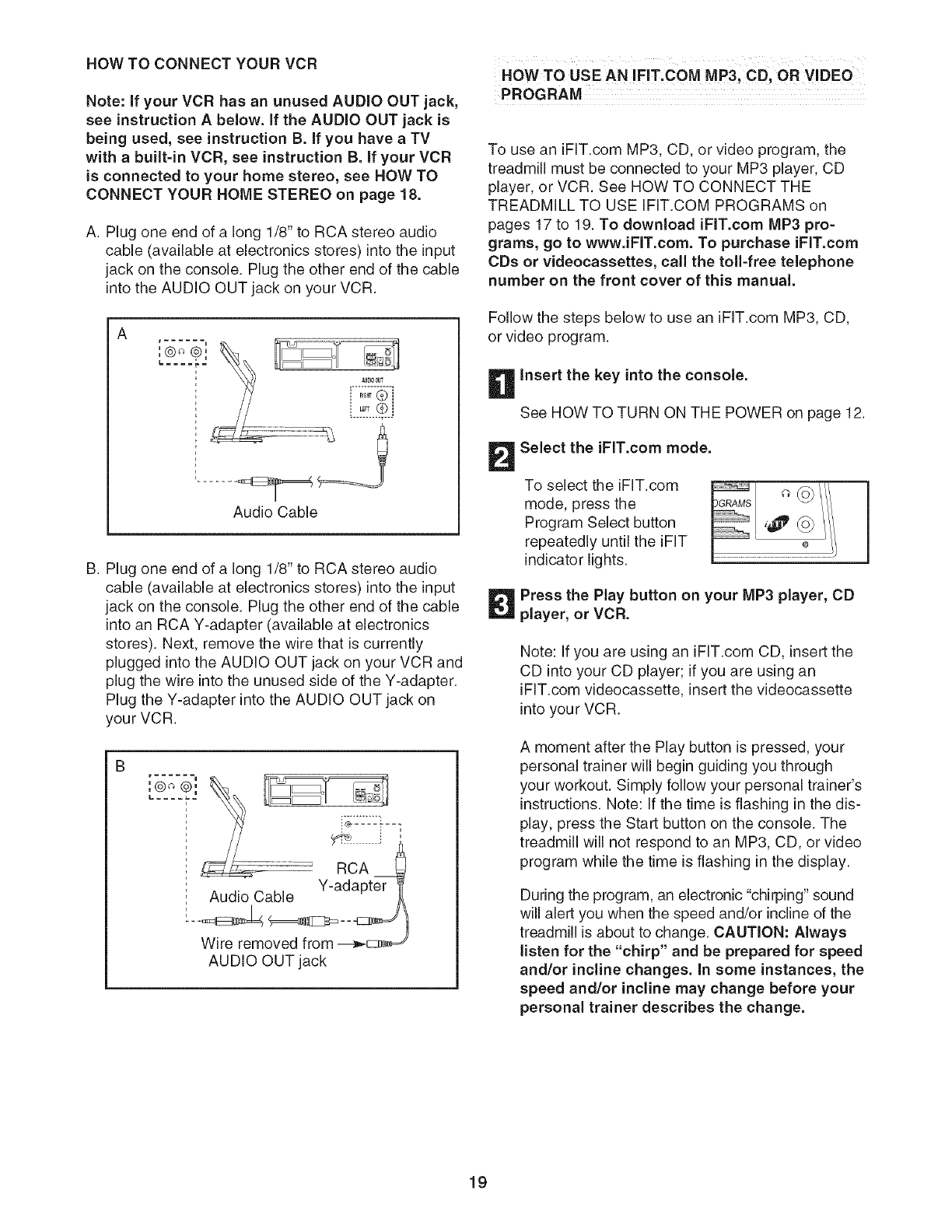

HOW TO CONNECT YOUR VCR
Note: if your VCR has an unused AUDIO OUT jack,
see instruction A below, if the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with abuilt-in VCR, see instruction B. if your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 18.
A. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the AUDIO OUT jack on your VCR.
Ar u
L£t2J
Audio Cable
B. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into an RCA Y-adapter (available at electronics
stores). Next, remove the wire that is currently
plugged into the AUDIO OUT jack on your VCR and
plug the wire into the unused side of the Y-adapter.
Plug the Y-adapter into the AUDIO OUT jack on
your VCR.
AUDIO OUT jack
HOW TO USE AN !FIT, COM MP3, CO, OR VIDEO
PROGRAM
To use an iFIT.com MP3, CD, or video program, the
treadmill must be connected to your MP3 player, CD
player, or VCR. See HOW TO CONNECT THE
TREADMILL TO USE IFIT.COM PROGRAMS on
pages 17 to 19. To download iFIT.com MP3 pro-
grams, go to wwwJFIT.com. To purchase iFIT.com
CDs or videocassettes, call the toll=free telephone
number on the front cover of this manual.
Follow the steps below to use an iFIT.com MP3, CD,
or video program.
insert the key into the console.
See HOW TO TURN ON THE POWER on page 12.
Select the iFIT.com mode.
To select the iFIT.com
mode, press the
Program Select button
repeatedly until the iFIT
indicator lights.
Press the Play button on your MP3 player, CD
player, or VCR.
Note: If you are using an iFIT.com CD, insert the
CD into your CD player; if you are using an
iFIT.com videocassette, insert the videocassette
into your VCR.
A moment after the Play button is pressed, your
personal trainer will begin guiding you through
your workout. Simply follow your personal trainer's
instructions. Note: If the time is flashing in the dis-
play, press the Start button on the console. The
treadmill will not respond to an MP3, CD, or video
program while the time is flashing in the display.
During the program, an electronic "chirping" sound
will alert you when the speed and/or incline of the
treadmill is about to change. CAUTION: Always
listen for the "chirp" and be prepared for speed
and/or incline changes. In some instances, the
speed and/or incline may change before your
personal trainer describes the change.
19

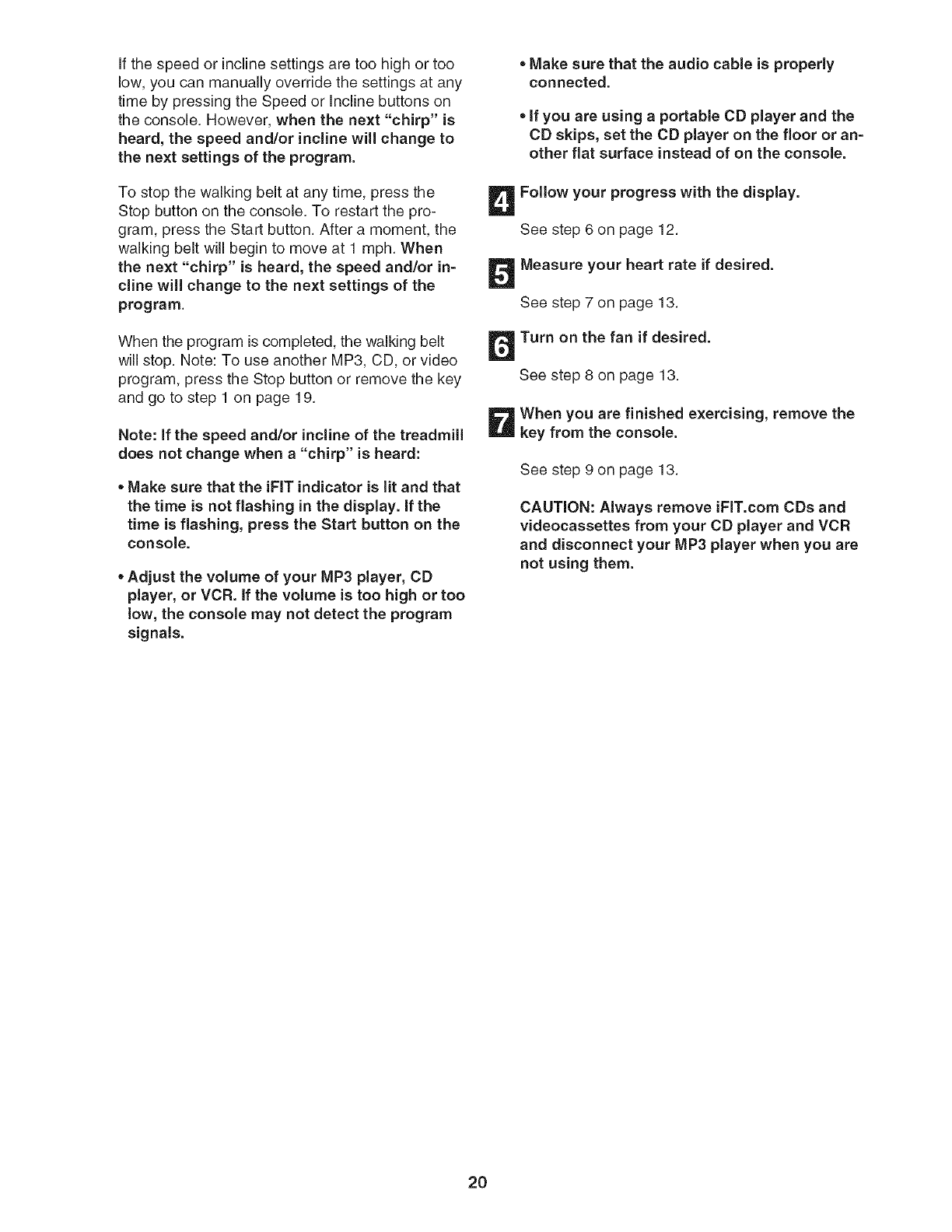

If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next "chirp" is
heard, the speed and/or incline will change to
the next settings of the program.
To stop the walking belt at any time, press the
Stop button on the console. To restart the pro-
gram, press the Start button. After a moment, the
walking belt will begin to move at 1 mph. When
the next "chirp" is heard, the speed and/or in-
cline will change to the next settings of the
program.
When the program is completed, the walking belt
will stop. Note: To use another MP3, CD, or video
program, press the Stop button or remove the key
and go to step 1 on page 19.
Note: If the speed and/or incline of the treadmill
does not change when a "chirp" is heard:
,Make sure that the iFIT indicator is lit and that
the time is not flashing in the display. If the
time is flashing, press the Start button on the
console.
, Adjust the volume of your MP3 player, CD
player, or VCR. if the volume is too high or too
low, the console may not detect the program
signals.
, Make sure that the audio cable is properly
connected.
, if you are using aportable CD player and the
CD skips, set the CD player on the floor or an-
other fiat surface instead of on the console.
Follow your progress with the display.
See step 6 on page 12.
Measure your heart rate if desired.
See step 7 on page 13.
Turn on the fan if desired.
See step 8 on page 13.
When you are finished exercising, remove the
key from the console.
See step 9 on page 13.
CAUTION: Always remove iFIT.com CDs and
videocassettes from your CD player and VCR
and disconnect your MP3 player when you are
not using them.
2O

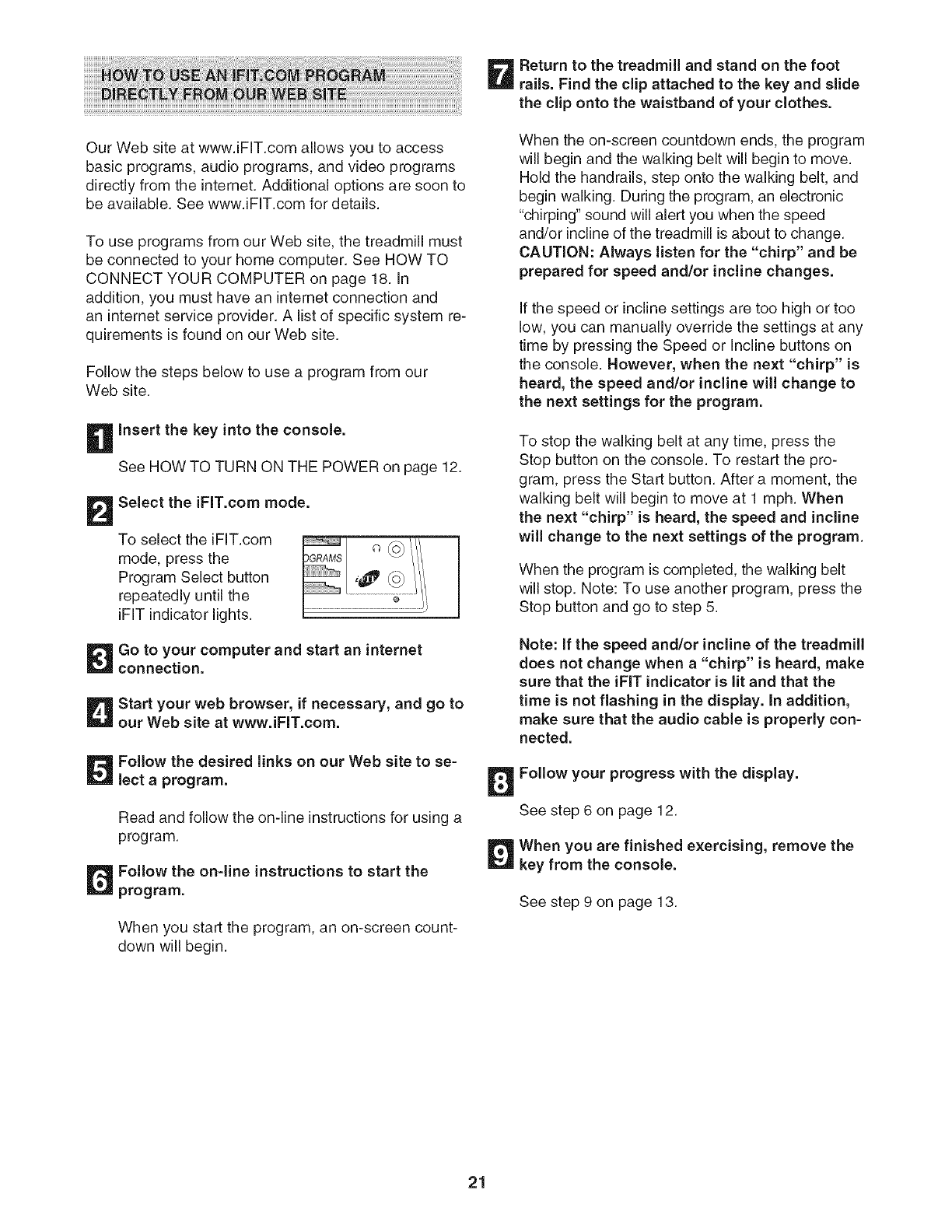

Our Web site at www.iFIT.com allows you to access
basic programs, audio programs, and video programs
directly from the intemet. Additional options are soon to
be available. See www.iFIT.com for details.
To use programs from our Web site, the treadmill must
be connected to your home computer. See HOW TO
CONNECT YOUR COMPUTER on page 18. In
addition, you must have an internet connection and
an internet service provider. A list of specific system re-
quirements is found on our Web site.
Follow the steps below to use a program from our
Web site.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 12.
Select the iFIT.com mode.
To select the iFIT.com
mode, press the
Program Select button
repeatedly until the
iFIT indicator lights.
Go to your computer and start an internet
connection.
Start your web browser, if necessary, and go to
our Web site at www.iFIT.com.
Follow the desired links on our Web site to se-
lect a program.
Read and follow the on-line instructions for using a
program.
Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
_ eturn to the treadmill and stand on the foot
rails. Find the clip attached to the key and slide
the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking. During the program, an electronic
"chirping" sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the "chirp" and be
prepared for speed and/or incline changes.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or incline buttons on
the console. However, when the next "chirp" is
heard, the speed and/or incline will change to
the next settings for the program.
To stop the walking belt at any time, press the
Stop button on the console. To restart the pro-
gram, press the Start button. After a moment, the
walking belt will begin to move at 1 mph. When
the next "chirp" is heard, the speed and incline
will change to the next settings of the program.
When the program is completed, the walking belt
will stop. Note: To use another program, press the
Stop button and go to step 5.
Note: If the speed and/or incline of the treadmill
does not change when a "chirp" is heard, make
sure that the iFIT indicator is lit and that the
time is not flashing in the display. In addition,
make sure that the audio cable is properly con-
nected.
Follow your progress with the display.
See step 6 on page 12.
When you are finished exercising, remove the
key from the console.
See step 9 on page 13.
21

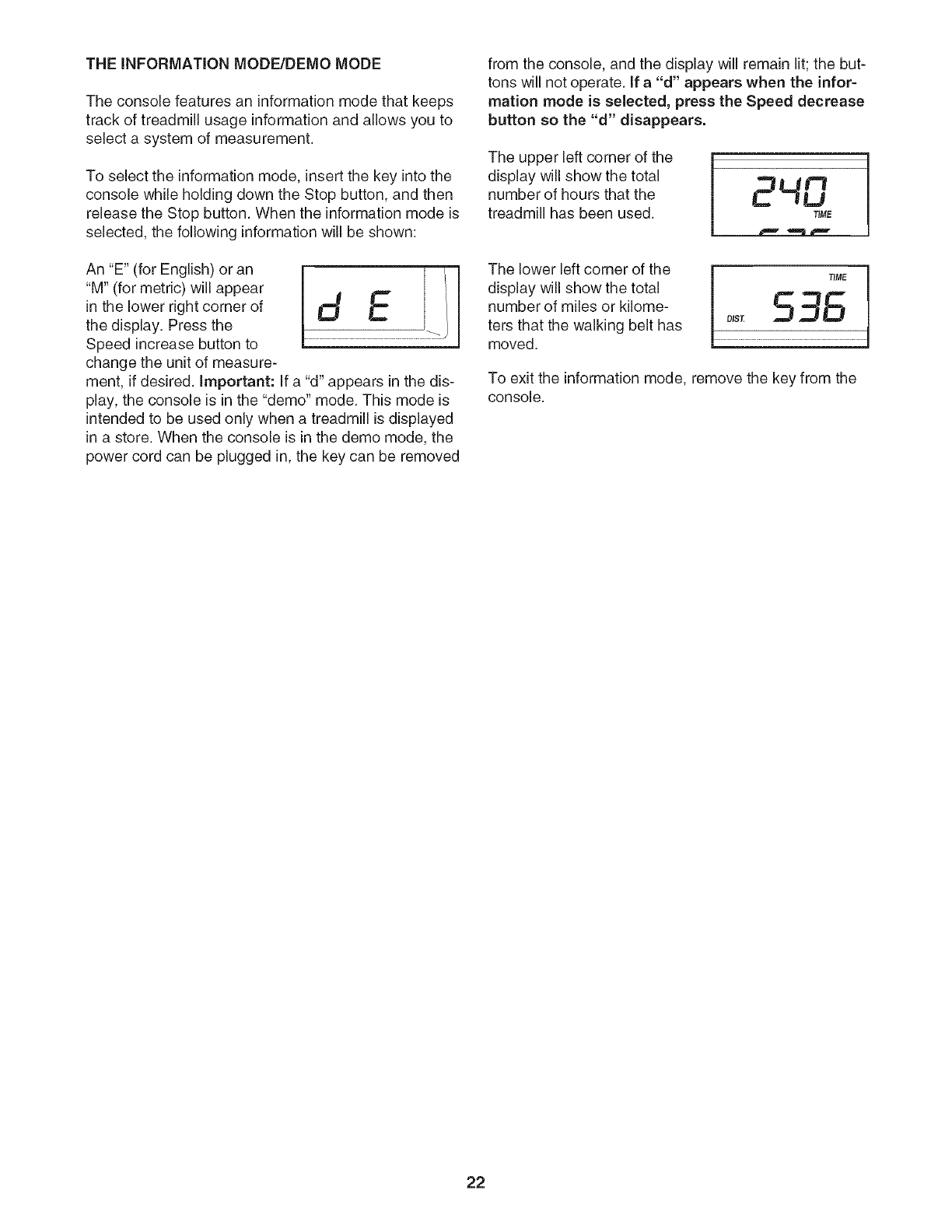

THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps
track of treadmill usage information and allows you to
select a system of measurement.
To select the information mode, insert the key into the
console while holding down the Stop button, and then
release the Stop button. When the information mode is
selected, the following information will be shown:
An "E" (for English) or an
"M" (for metric) will appear
in the lower right corner of
the display. Press the
Speed increase button to
change the unit of measure-
dE
ment, if desired, important: If a "d" appears in the dis-
play, the console is in the "demo" mode. This mode is
intended to be used only when a treadmill is displayed
in a store. When the console is in the demo mode, the
power cord can be plugged in, the key can be removed
from the console, and the display will remain lit; the but-
tons will not operate. If a "d" appears when the infor-
mation mode is selected, press the Speed decrease
button so the "d" disappears.
The upper left corner of the
display will show the total
number of hours that the
treadmill has been used. 240
_ME
_ME
The lower left corner of the
display will show the total
number of miles or kilome-
ters that the walking belt has
moved.
To exit the information mode, remove the key from the
console.
22

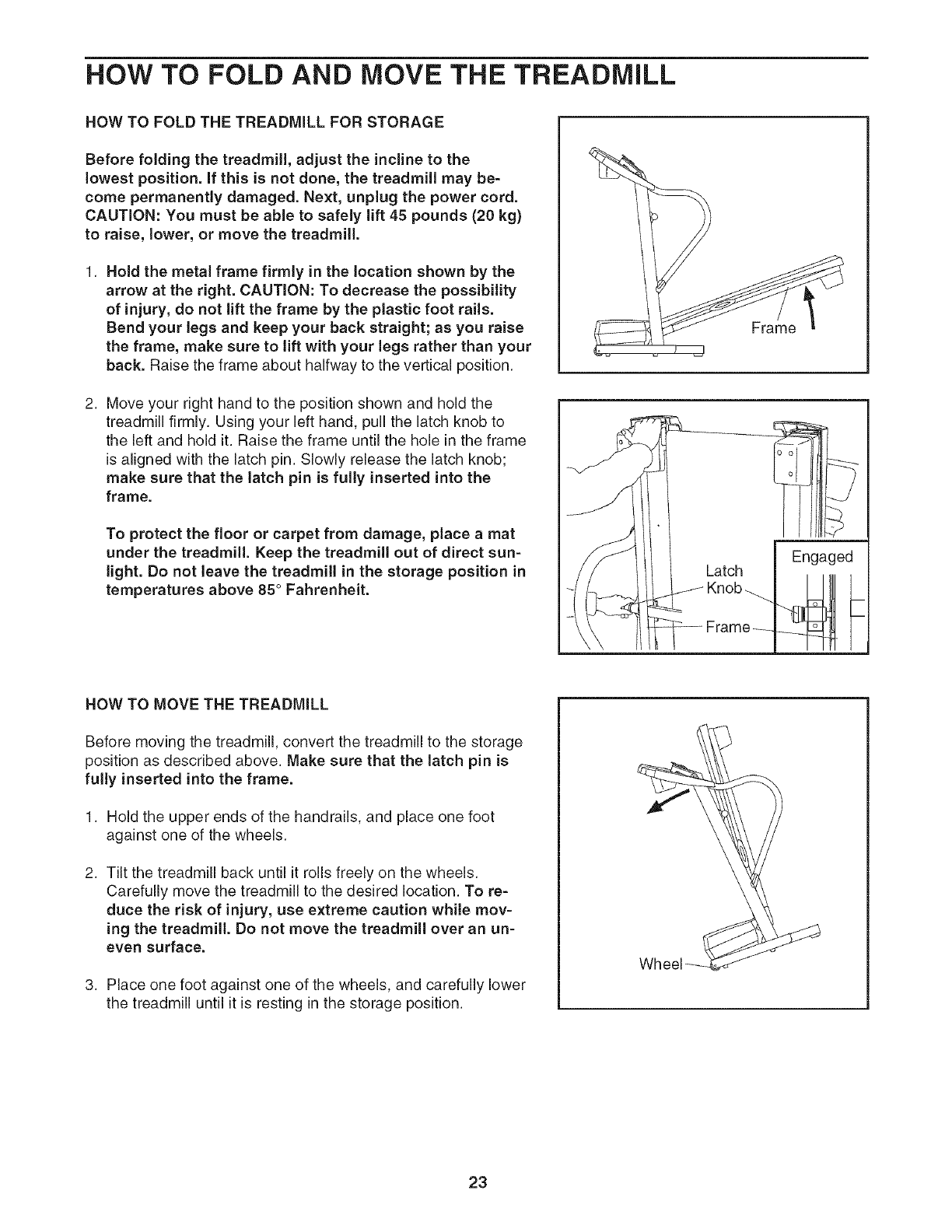

HOW TO FOLD AND MOVE THE TREADMILL
NOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be-
come permanently damaged. Next, unplug the power cord.
CAUTION: You must be able to safely lift 45 pounds (20 kg)
to raise, lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown by the
arrow at the right. CAUTION: To decrease the possibility
of injury, do not lift the frame by the plastic foot rails.
Bend your legs and keep your back straight; as you raise
the frame, make sure to lift with your legs rather than your
back. Raise the frame about halfway to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob to
the left and hold it. Raise the frame until the hole in the frame
is aligned with the latch pin. Slowly release the latch knob;
make sure that the latch pin is fully inserted into the
frame.
To protect the floor or carpet from damage, place a mat
under the treadmill. Keep the treadmill out of direct sun=
light. Do not leave the treadmill in the storage position in
temperatures above 85 ° Fahrenheit.
Frame
Engaged
Latch
Frame _
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage
position as described above. Make sure that the latch pin is
fully inserted into the frame.
1. Hold the upper ends of the handrails, and place one foot
against one of the wheels.
2. Tilt the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution while mov-
ing the treadmill. Do not move the treadmill over an un=
even surface.
3. Place one foot against one of the wheels, and carefully lower
the treadmill until it is resting in the storage position.
Wheel
23

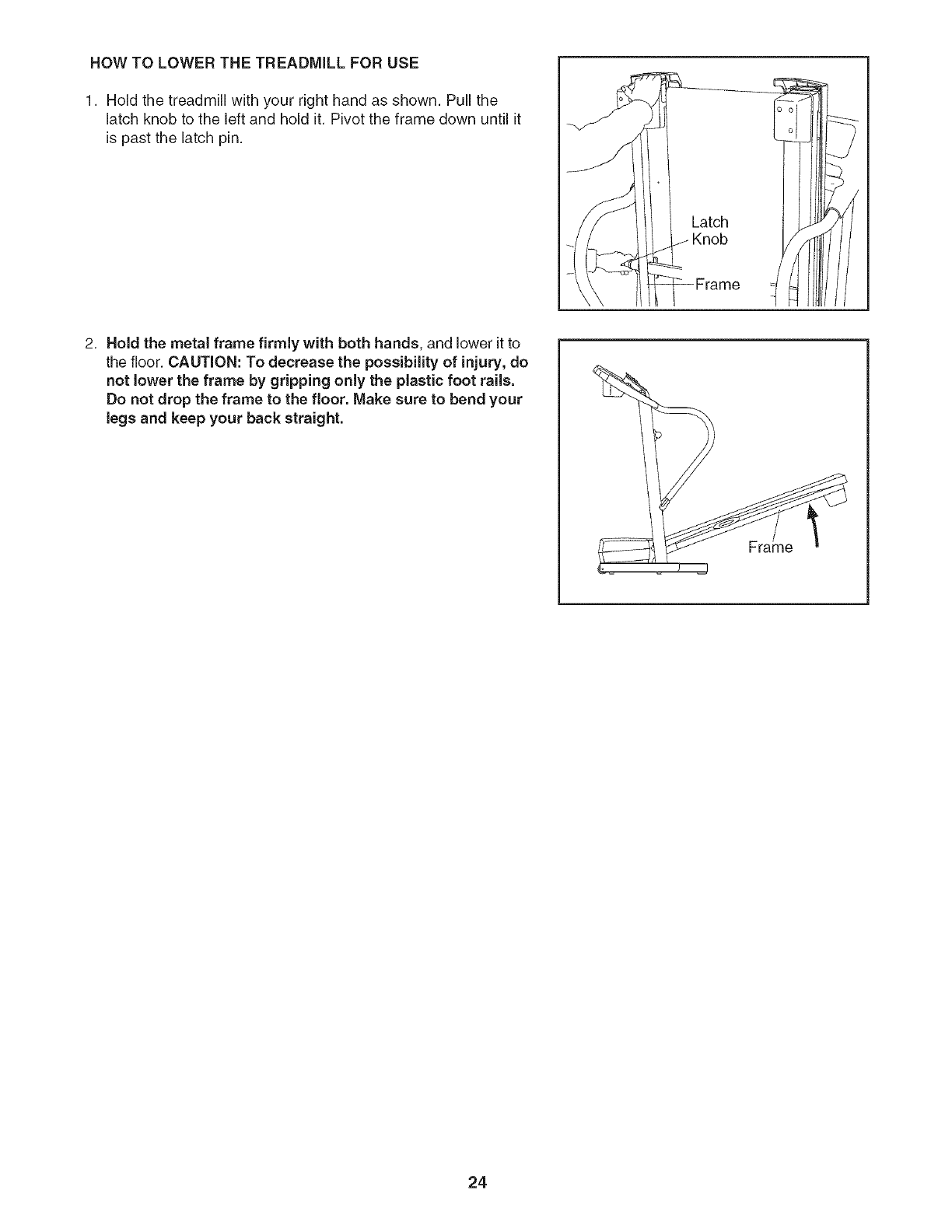

HOW TO LOWER THE TREADMILL FOR USE
1. Hold the treadmill with your right hand as shown. Pull the
latch knob to the left and hold it. Pivot the frame down until it
is past the latch pin.
2. Hold the metal frame firmly with both hands, and lower it to
the floor. CAUTION: To decrease the possibility of injury, do
not lower the frame by gripping only the plastic foot rails.
Do not drop the frame to the floor. Make sure to bend your
legs and keep your back straight.
Frame
24

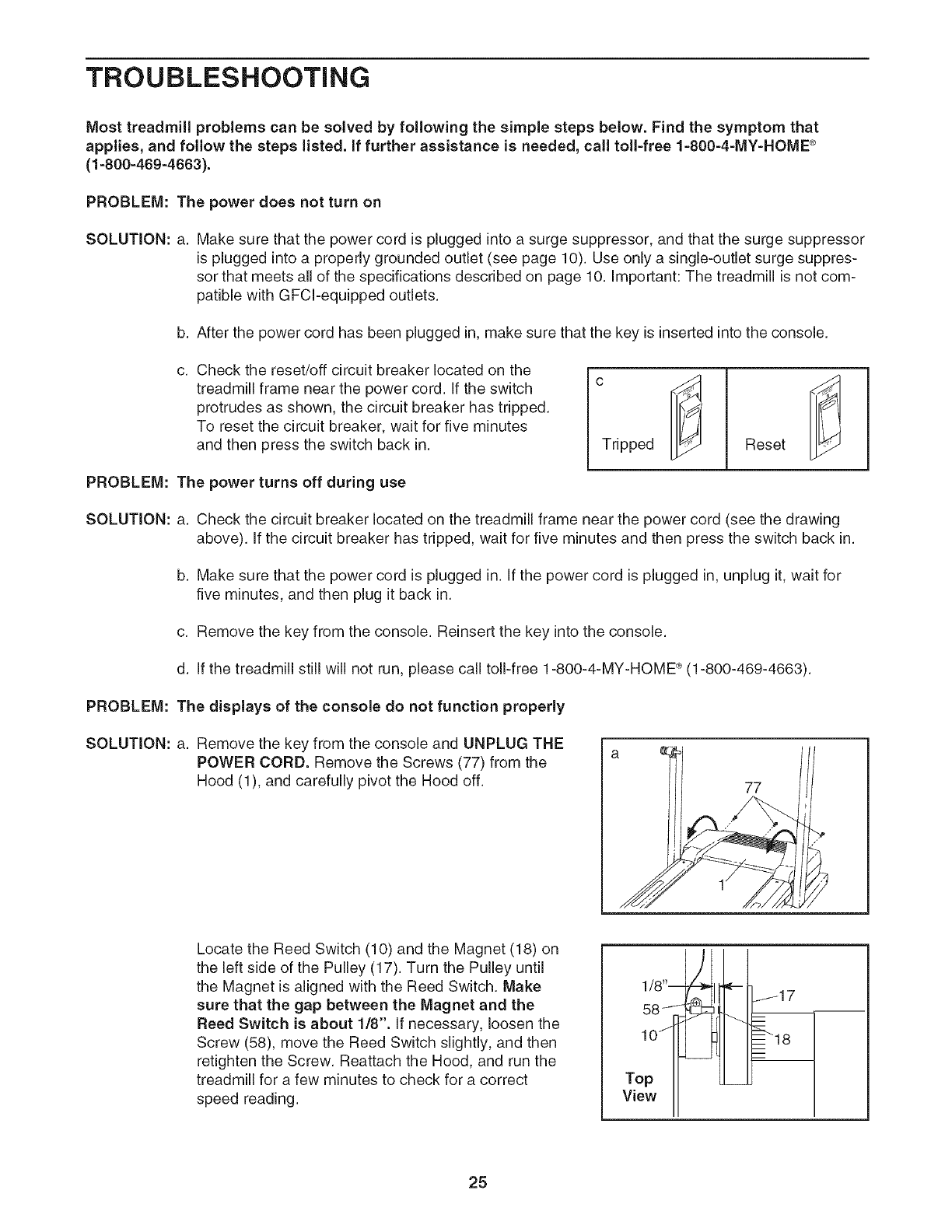

TROUBLESHOOTING
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed, if further assistance is needed, call toll=free 1-800-4-MY-HOME ®
(1-800-469-4663).
PROBLEM: The power does not turn on
Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppres-
sor that meets all of the specifications described on page 10. Important: The treadmill is not com-
patible with GFCI-equipped outlets.
SOLUTION: a.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has tripped.
To reset the circuit breaker, wait for five minutes
and then press the switch back in.
C.
PROBLEM: The power turns off during use
Tripped Reset
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing
above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the treadmill still will not run, please call toll-free 1-800-4-MY-HOME _>(1-800-469-4663).
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Remove the Screws (77) from the
Hood (1), and carefully pivot the Hood off. 77
Locate the Reed Switch (10) and the Magnet (18) on
the left side of the Pulley (17). Turn the Pulley until
the Magnet is aligned with the Reed Switch. Make
sure that the gap between the Magnet and the
Reed Switch is about 1/8". If necessary, loosen the
Screw (58), move the Reed Switch slightly, and then
retighten the Screw. Reattach the Hood, and run the
treadmill for a few minutes to check for a correct
speed reading.
1/8"_
Top
View
25

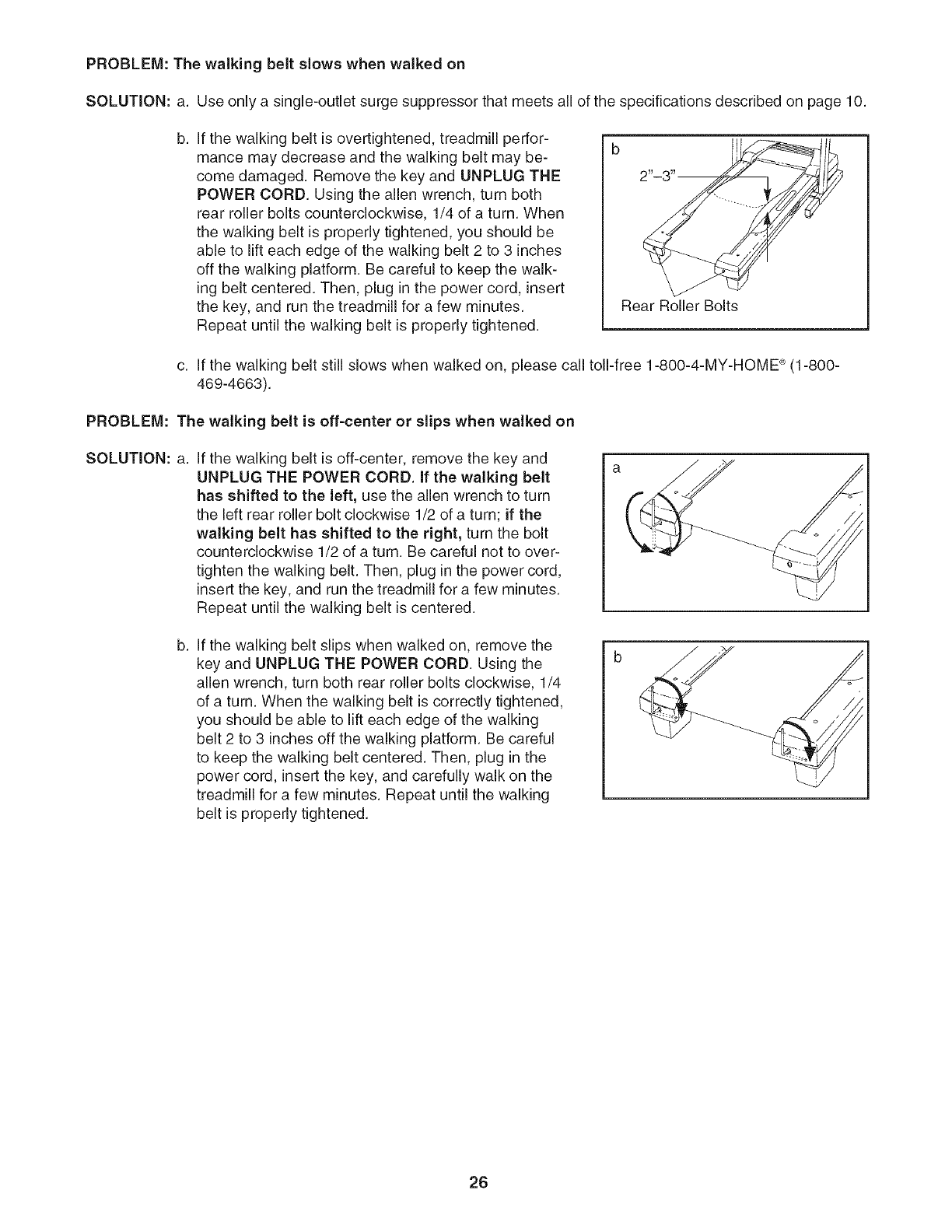

PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 10.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both
rear roller bolts counterclockwise, 1/4 of a turn. When
the walking belt is properly tightened, you should be
able to lift each edge of the walking belt 2 to 3 inches
off the walking platform. Be careful to keep the walk-
ing belt centered. Then, plug in the power cord, insert
the key, and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
Rear Roller Bolts
c. If the walking belt still slows when walked on, please call toll-free 1-800-4-MY-HOME _ (1-800-
469-4663).
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, remove the key and
UNPLUG THE POWER CORD. If the walking belt
has shifted to the left, use the allen wrench to turn
the left rear roller bolt clockwise 1/2 of a turn; if the
walking belt has shifted to the right, turn the bolt
counterclockwise 1/2 of a turn. Be careful not to over-
tighten the walking belt. Then, plug in the power cord,
insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, remove the
key and UNPLUG THE POWER CORD. Using the
allen wrench, turn both rear roller bolts clockwise, 1/4
of a turn. When the walking belt is correctly tightened,
you should be able to lift each edge of the walking
belt 2 to 3 inches off the walking platform. Be careful
to keep the walking belt centered. Then, plug in the
power cord, insert the key, and carefully walk on the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
26

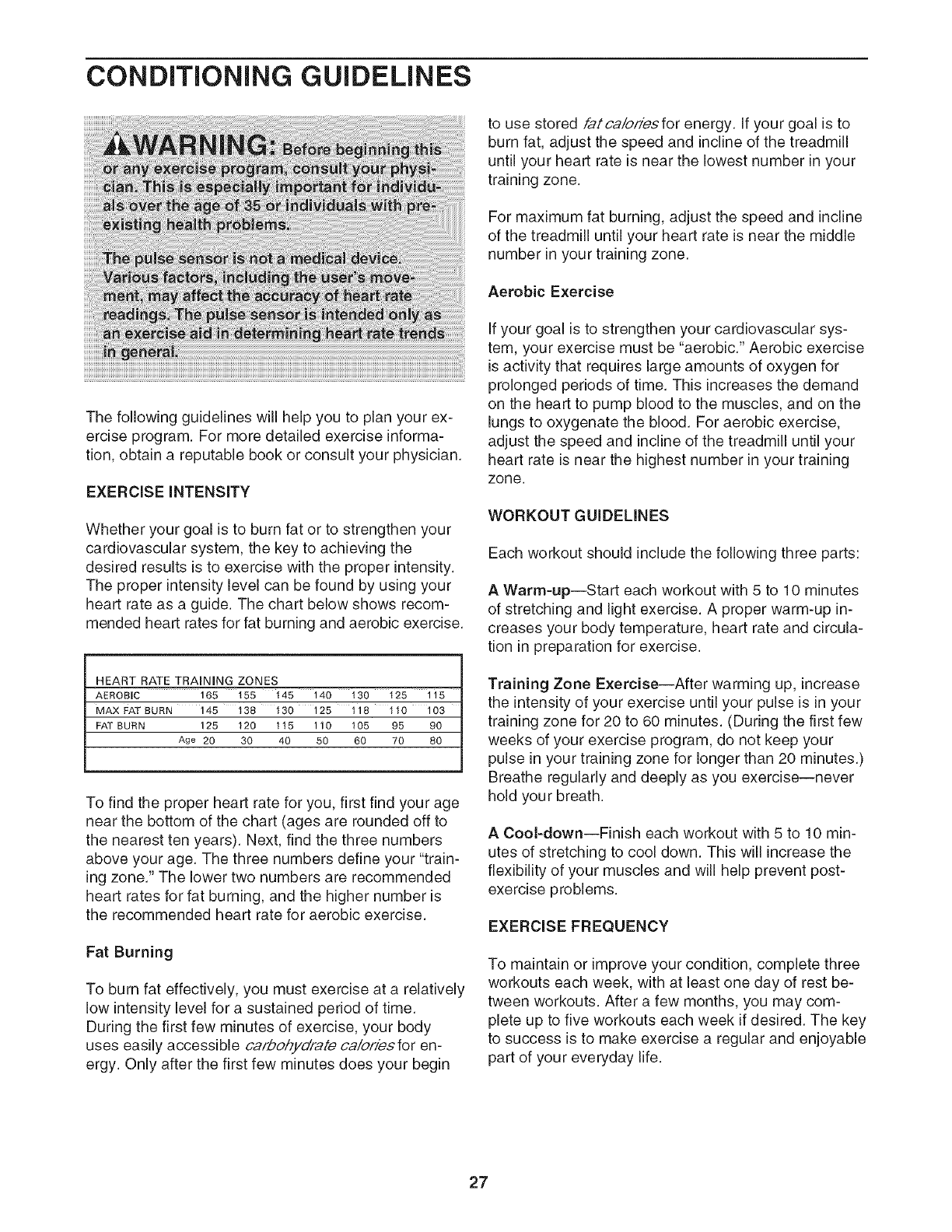

CONDiTiONiNG GUiDELiNES
The following guidelines will help you to plan your ex-
ercise program. For more detailed exercise informa-
tion, obtain a reputable book or consult your physician.
EXERCISE iNTENSiTY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning and aerobic exercise.
HEART RATE TRAINING ZONES
AEROBIC 165 155 145 140 130 125 115
MAX FAT BURN 145 138 130 125 118 110 103
FAT BURN 125 120 115 110 105 95 90
Age 20 30 40 50 60 70 80
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your "train-
ing zone." The lower two numbers are recommended
heart rates for fat burning, and the higher number is
the recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate caloriesfor en-
ergy. Only after the first few minutes does your begin
to use stored fatca/oriesfor energy. If your goal is to
burn fat, adjust the speed and incline of the treadmill
until your heart rate is near the lowest number in your
training zone.
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be "aerobic." Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
AWarm-up--Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up in-
creases your body temperature, heart rate and circula-
tion in preparation for exercise.
Training Zone Exercise--After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise--never
hold your breath.
ACool-down--Finish each workout with 5 to 10 min-
utes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-
exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months, you may com-
plete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
27

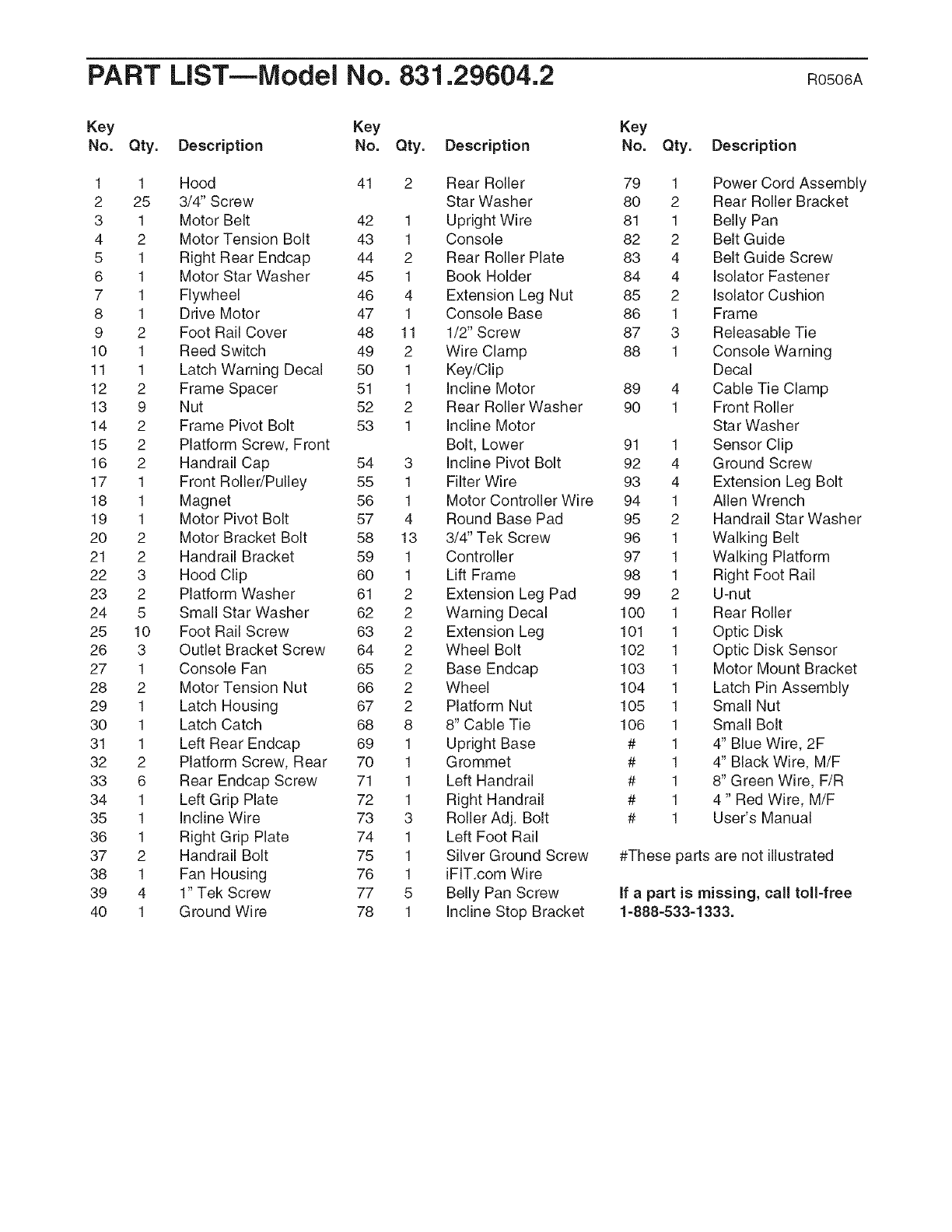

PART LiST--Model No. 831.29604.2 RO506A
Key Key Key
No. Qty. Description No. Qty. Description No. Qty. Description
1 1 Hood 41 2 Rear Roller
2 25 3/4" Screw Star Washer
3 1 Motor Belt 42 1 Upright Wire
4 2 Motor Tension Bolt 43 1 Console
5 1 Right Rear Endcap 44 2 Rear Roller Plate
6 1 Motor Star Washer 45 1 Book Holder
7 1 Flywheel 46 4 Extension Leg Nut
8 1 Drive Motor 47 1 Console Base
9 2 Foot Rail Cover 48 11 1/2" Screw
10 1 Reed Switch 49 2 Wire Clamp
11 1 Latch Warning Decal 50 1 Key/Clip
12 2 Frame Spacer 51 1 Incline Motor
13 9 Nut 52 2 Rear Roller Washer
14 2 Frame Pivot Bolt 53 1 Incline Motor
15 2 Platform Screw, Front Bolt, Lower
16 2 Handrail Cap 54 3 Incline Pivot Bolt
17 1 Front Roller/Pulley 55 1 Filter Wire
18 1 Magnet 56 1 Motor Controller Wire
19 1 Motor Pivot Bolt 57 4 Round Base Pad
20 2 Motor Bracket Bolt 58 13 3/4" Tek Screw
21 2 Handrail Bracket 59 1 Controller
22 3 Hood Clip 60 1 Lift Frame
23 2 Platform Washer 61 2 Extension Leg Pad
24 5 Small Star Washer 62 2 Warning Decal
25 10 Foot Rail Screw 63 2 Extension Leg
26 3 Outlet Bracket Screw 64 2 Wheel Bolt
27 1 Console Fan 65 2 Base Endcap
28 2 Motor Tension Nut 66 2 Wheel
29 1 Latch Housing 67 2 Platform Nut
30 1 Latch Catch 68 8 8" Cable Tie
31 1 Left Rear Endcap 69 1 Upright Base
32 2 Platform Screw, Rear 70 1 Grommet
33 6 Rear Endcap Screw 71 1 Left Handrail
34 1 Left Grip Plate 72 1 Right Handrail
35 1 incline Wire 73 3 Roller Adj. Bolt
36 1 Right Grip Plate 74 1 Left Foot Rail
37 2 Handrail Bolt 75 1 Silver Ground Screw
38 1 Fan Housing 76 1 iFIT.com Wire
39 4 1" Tek Screw 77 5 Belly Pan Screw
40 1 Ground Wire 78 1 incline Stop Bracket
79 1 Power Cord Assembly
80 2 Rear Roller Bracket
81 1 Belly Pan
82 2 Belt Guide
83 4 Belt Guide Screw
84 4 Isolator Fastener
85 2 Isolator Cushion
86 1 Frame
87 3 Releasable Tie
88 1 Console Warning
Decal
89 4 Cable Tie Clamp
90 1 Front Roller
Star Washer
91 1 Sensor Clip
92 4 Ground Screw
93 4 Extension Leg Bolt
94 1 Allen Wrench
95 2 Handrail Star Washer
96 1 Walking Belt
97 1 Walking Platform
98 1 Right Foot Rail
99 2 U-nut
100 1 Rear Roller
101 1 Optic Disk
102 1 Optic Disk Sensor
103 1 Motor Mount Bracket
104 1 Latch Pin Assembly
105 1 Small Nut
106 1 Small Bolt
# 1 4" Blue Wire, 2F
# 1 4" Black Wire, M/F
# 1 8" Green Wire, F/R
# 1 4" Red Wire, M/F
# 1 User's Manual
#These parts are not illustrated
if apart is missing, call toll-free
1-888-533-1333.
EXPLODED DRAWING--Model No. 831.29604.2 RO506A
74
52
73
_y
41
2
94
92
25 '_ 24 2"
9 60
14
26
_,8 2
75 _2 2
54 56
% 13
51 99
57 & 39
69
77
58
55
re
47
2
4_
4%
66 64
76
27
16
24 16 _ '
58 24
58
35
38
2
2
Your Home
For repair--in your home--of all major brand appliances, lawn and garden equipment ..................
or heating and cooling systems, no matter who made it, no matter who sold it! ..............
For the replacement parts, accessories, and user's manuals that you need to do-it-yourself.
iiiiiiiiiiiiiii_ iiiiiiiiiiiiii
iiiiiiiiiiiiiii_ iiiiiiiiiiiiii
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOM E®(1-8oo-469-4663)
Callanyt,me,daynight andCanada
www.ee.re.comwww.eeare.°. ..............
HHHHHHHi_ HHHHHHH
ourHome
HHHHHHHi_ HHHHHHH
HHHHHHHi_ HHHHHHH
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
HHHHHHHi_ HHHHHHH
iiiiiiiiiiiiiii_ iiiiiiiiiiiiii
1-800-488-1222 Call anytime, day or night (U.S.A. only) HHHHHHH
www.eeare.com ..............
HHHHHHHi_ HHHHHHH
HHHHHHHi_ HHHHHHH
iiiiiiiiiiiiiii_ iiiiiiiiiiiiii
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada)on a product serviced by Sears:
HHHHHHHi_ HHHHHHH
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Pard pedir servicio de reparacidn a domicilio, y pard ordenar piezas:
1-888-SU-HOGAFP (1-888-784-6427)
SeaF's
® Registered Trademark /TMTrademark /SMService Mark of Sears Brands, LLC
® Marca Registrada /TMMarca de Fabrica /SMMarca de Servicio de Sears Brands, LLC
90 DAY FULL WARRANTY
If this Sears Treadmill Exerciser fails due to a defect in material or workmanship within 90 days of the
date of purchase, call 1-800-4-MY-HOME _ (1-800-469-4663) to arrange for free repair (or replacement if
repair proves impossible).
This warranty does not apply when the Treadmill Exerciser is used commercially or for rental purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Part No. 240032 RO506A Printed in USA © 2006 ICON IP, Inc.

Navigation menu
