CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. 831.23935.1

Serial No.

Write the serial number in the space

above for reference.

• Assembly

• Operation

• Maintenance

• Part List and Drawing

Sears, Roebuck and Co.

Hoffman Estates, IL 60179

ELLIPTICAL EXERCISER

User’s Manual

Serial Number Decal

2

TABLE OF CONTENTS

WARNING DECAL PLACEMENT

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

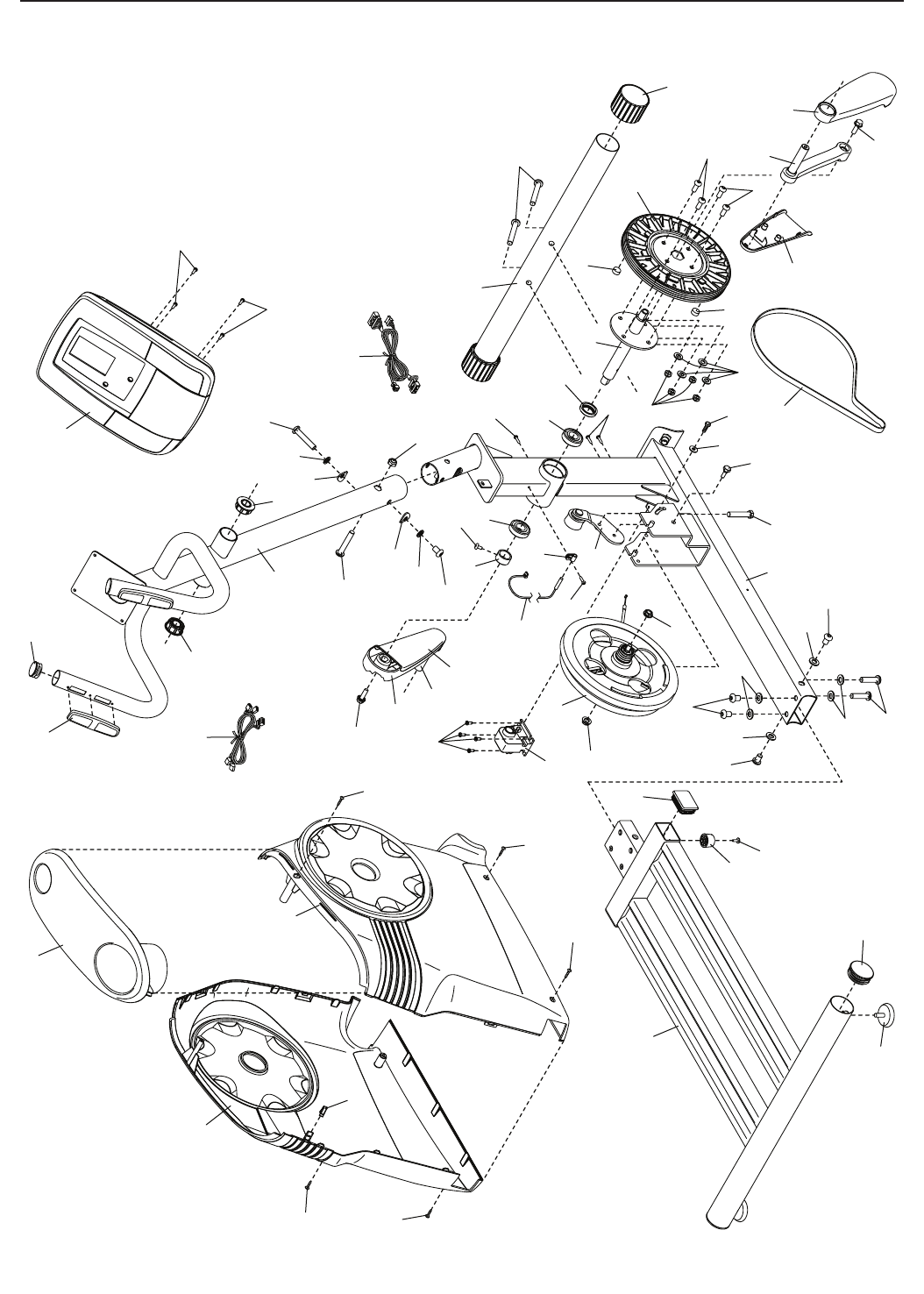

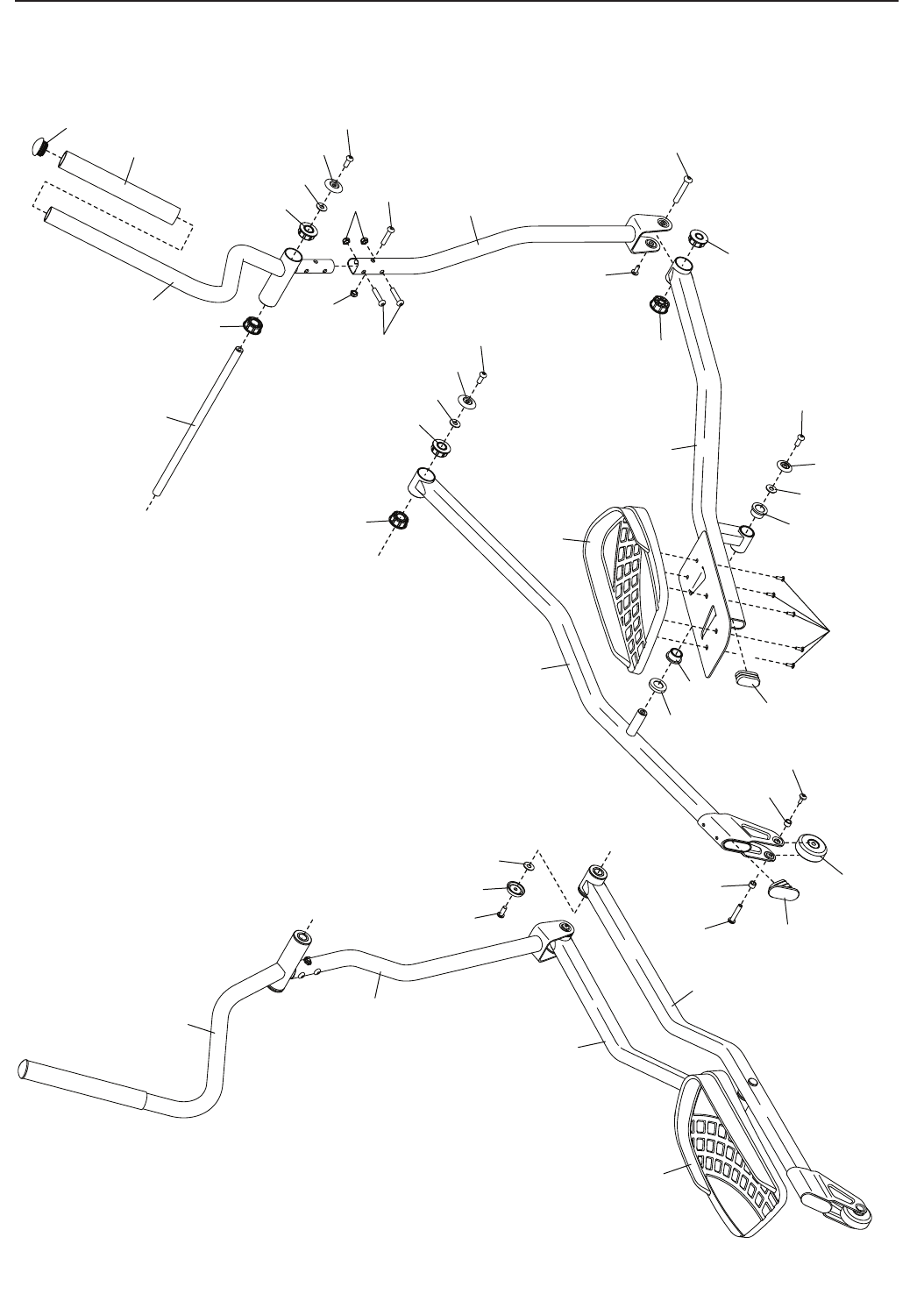

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

90 DAY FULL WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

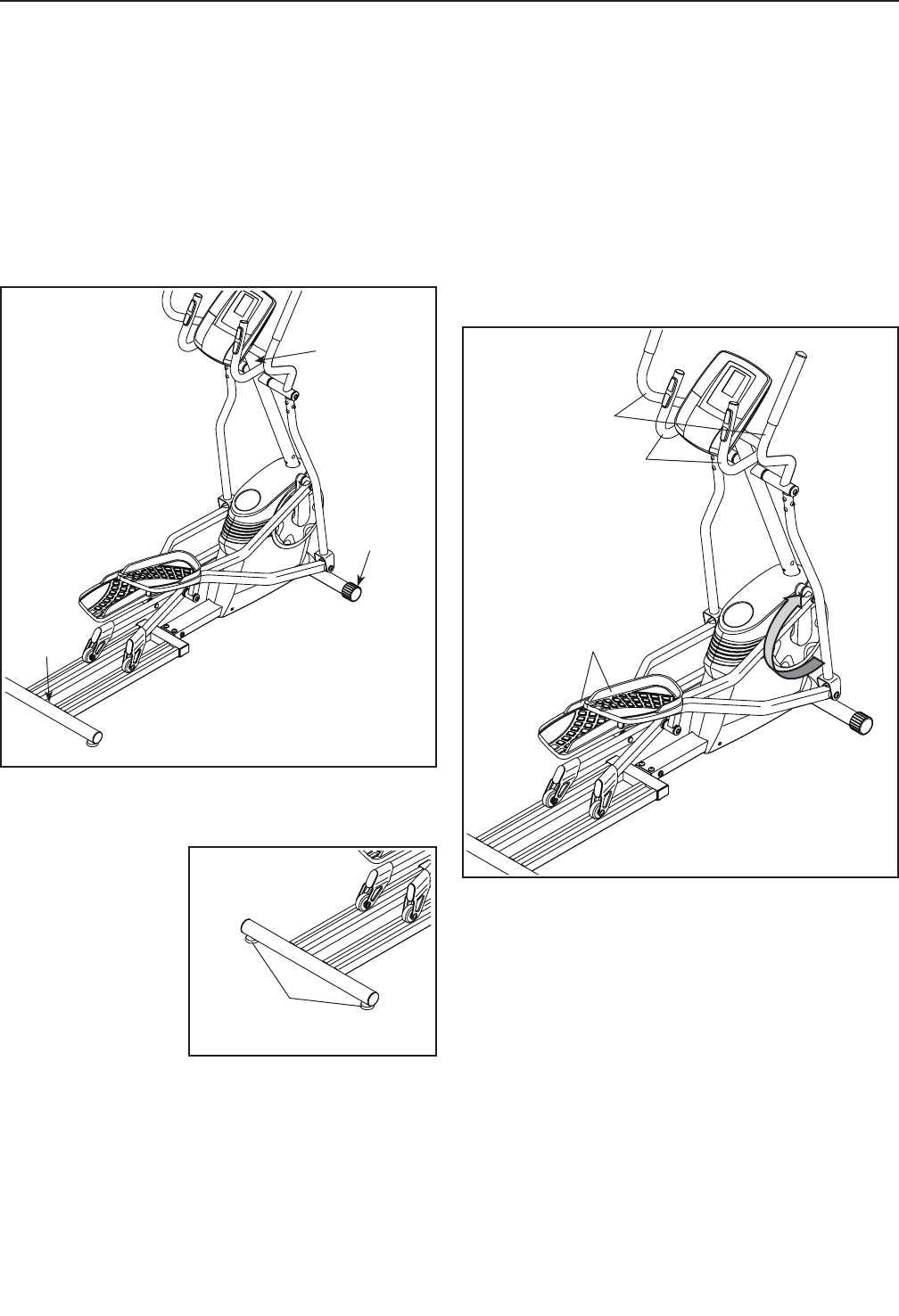

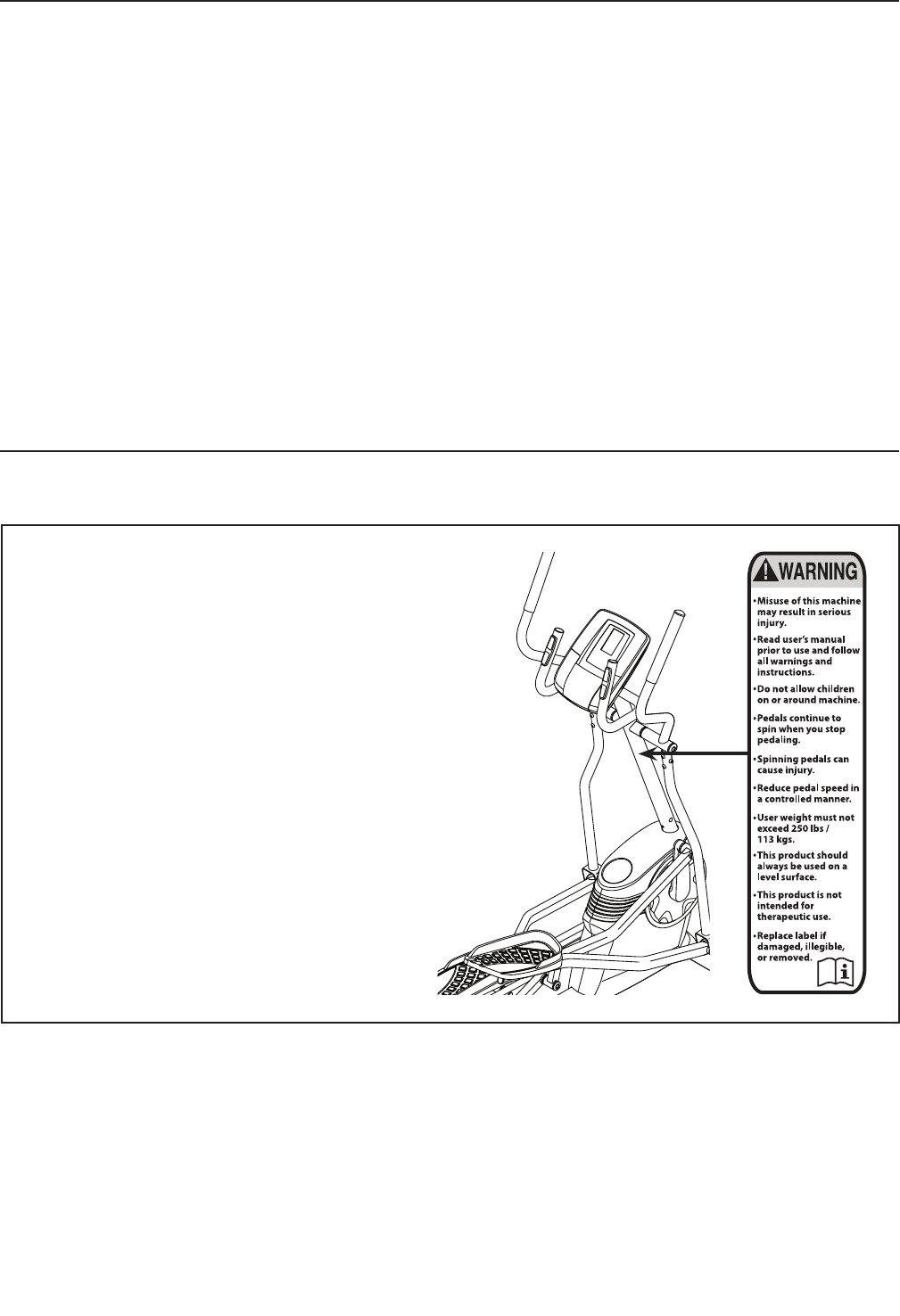

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, call

1-888-533-1333 and request a free replacement

decal. Apply the decal in the location shown.

Note: The decal(s) may not be shown at actual size.

3

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. Sears

assumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

1. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

3. Use the elliptical only as described in this

manual.

4. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

5. Keep the elliptical indoors, away from mois-

ture and dust. Do not put the elliptical in a

garage or covered patio, or near water.

6. Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2 ft. (0.6 m) on each

side. To protect the floor or carpet from dam-

age, place a mat under the elliptical.

7. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

8. Keep children under age 12 and pets away

from the elliptical at all times.

9. The elliptical should not be used by persons

weighing more than 250 lbs. (113 kg).

10. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

11. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

12. The heart rate monitor is not a medical

device. Various factors may affect the accu-

racy of heart rate readings. The heart rate

monitor is intended only as an exercise aid

in determining heart rate trends in general.

13. The elliptical does not have a freewheel; the

pedals will continue to move until the fly-

wheel stops. Reduce your pedaling speed in

a controlled way.

14. Keep your back straight while using the ellip-

tical; do not arch your back.

15. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

IMPORTANT PRECAUTIONS

4

Thank you for selecting the revolutionary PROFORM®

475 E elliptical. The 475 E elliptical provides an

impressive selection of features designed to make your

workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the back cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

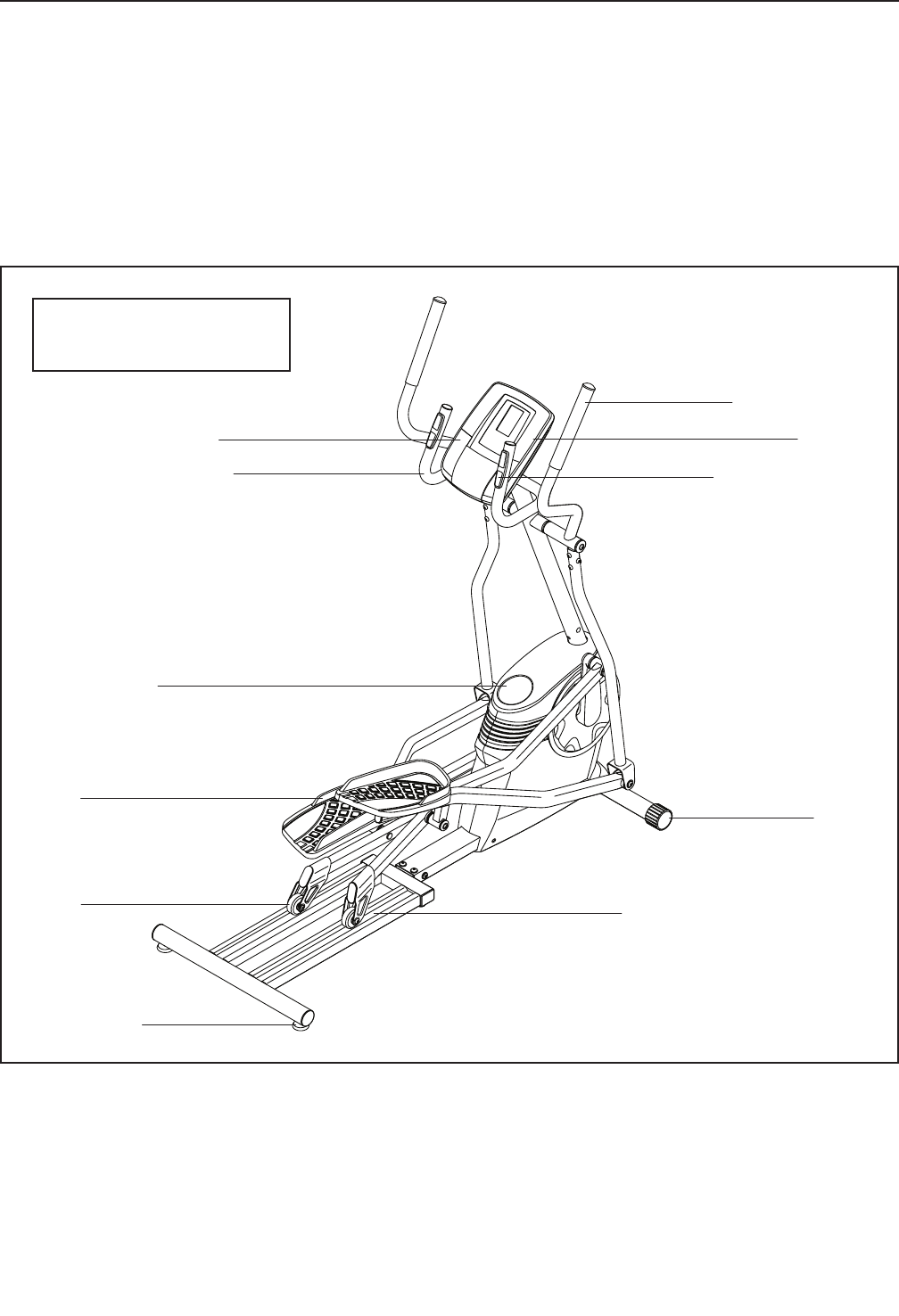

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

BEFORE YOU BEGIN

Heart Rate Monitor

Accessory Tray

Speaker

Handlebar

Upper Body Arm

Pedal

Roller Track

Console

Wheel

Leveling Foot

Length: 5 ft. 8 in. (173 cm)

Width: 2 ft. 2 in. (66 cm)

5

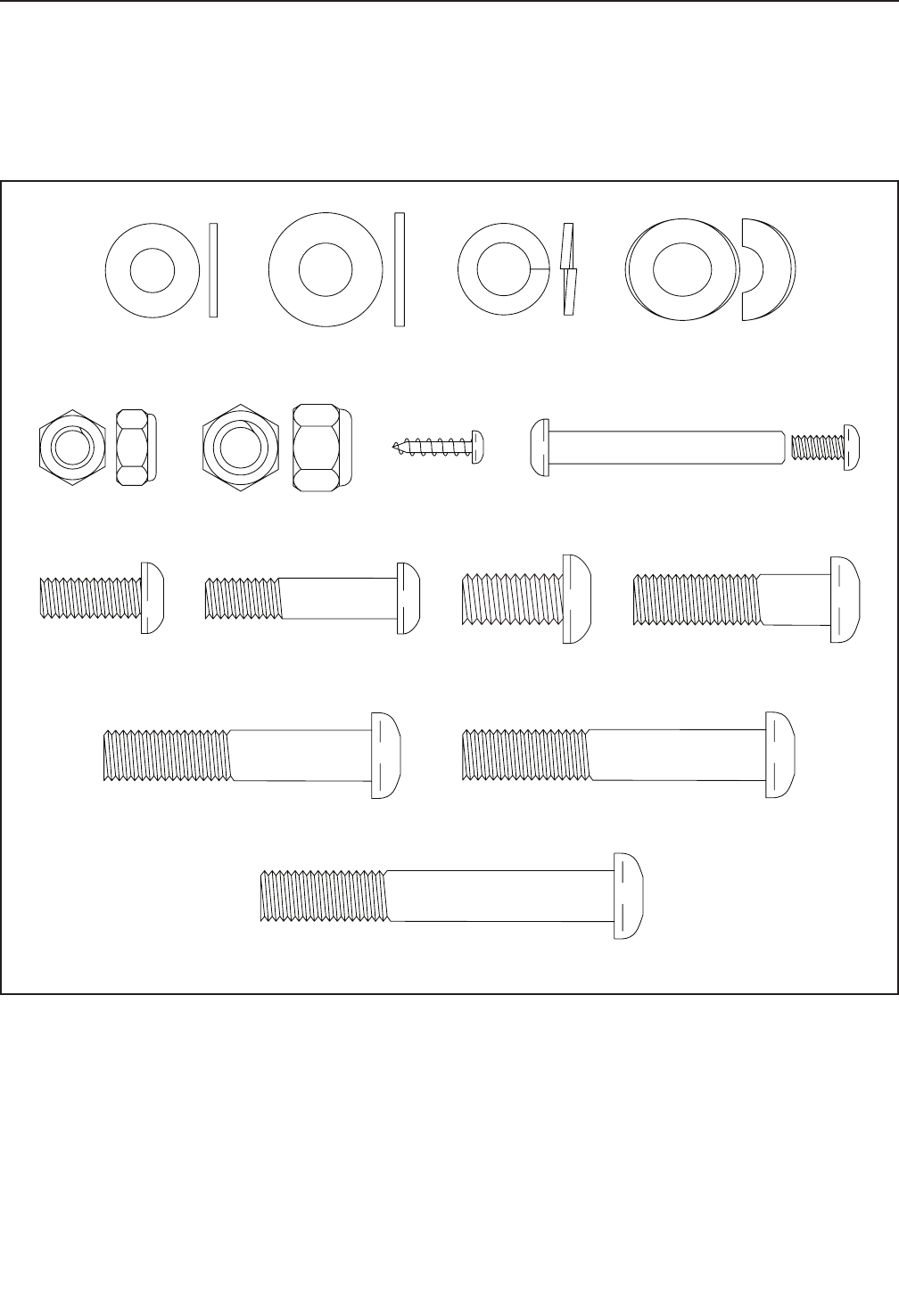

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included. If a part is missing, please call 1-888-533-1333.

M8 Locknut

(60)–6

M8 Washer

(63)–6

M4 x 16mm

Screw (56)–4

M10 x 70mm Screw (76)–2

M10 x 60mm Bolt (72)–1

M10 x 53mm Screw (73)–1

M10 x 39mm Screw (75)–2

M8 x 38mm Bolt

(59)–6

M8 x 20mm

Screw (61)–6

M6 Bolt Set (67)–2

M10 Washer

(64)–6

M10 Curved

Washer (62)–2

M10 Split

Washer (80)–2

M10 Locknut

(77)–1

M10 x 20mm

Screw (74)–5

6

2

1

12

76

ASSEMBLY

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you fi nish all assembly steps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 5.

• In addition to the included tool(s), assembly

requires the following tools:

one Phillips screwdriver

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

1

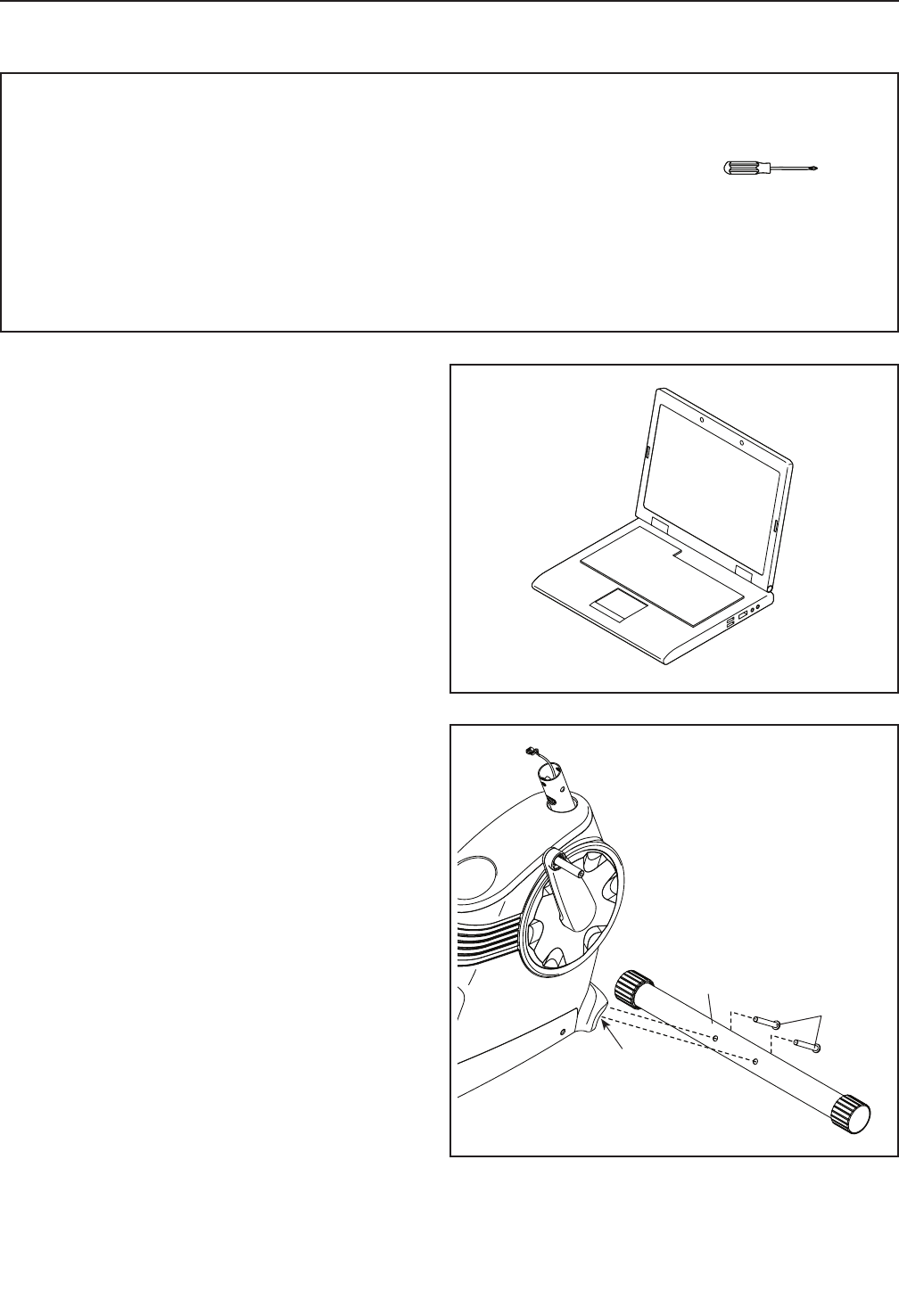

1. Go to www.proformservice.com/registration

on your computer and register your product.

• activates your warranty

• saves you time if you ever need to contact

Customer Care

• allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

1-888-533-1333 and register your product.

2. With the help of a second person, place some

of the packing materials (not shown) under the

front of the Frame (1). Have the second per-

son hold the Frame to prevent it from tipping

while you complete this step.

Attach the Front Stabilizer (12) to the Frame (1)

with two M10 x 70mm Screws (76).

Remove the packing materials from under the

Frame (1).

7

4

1

2

Wire

Tie

Wire Tie

32

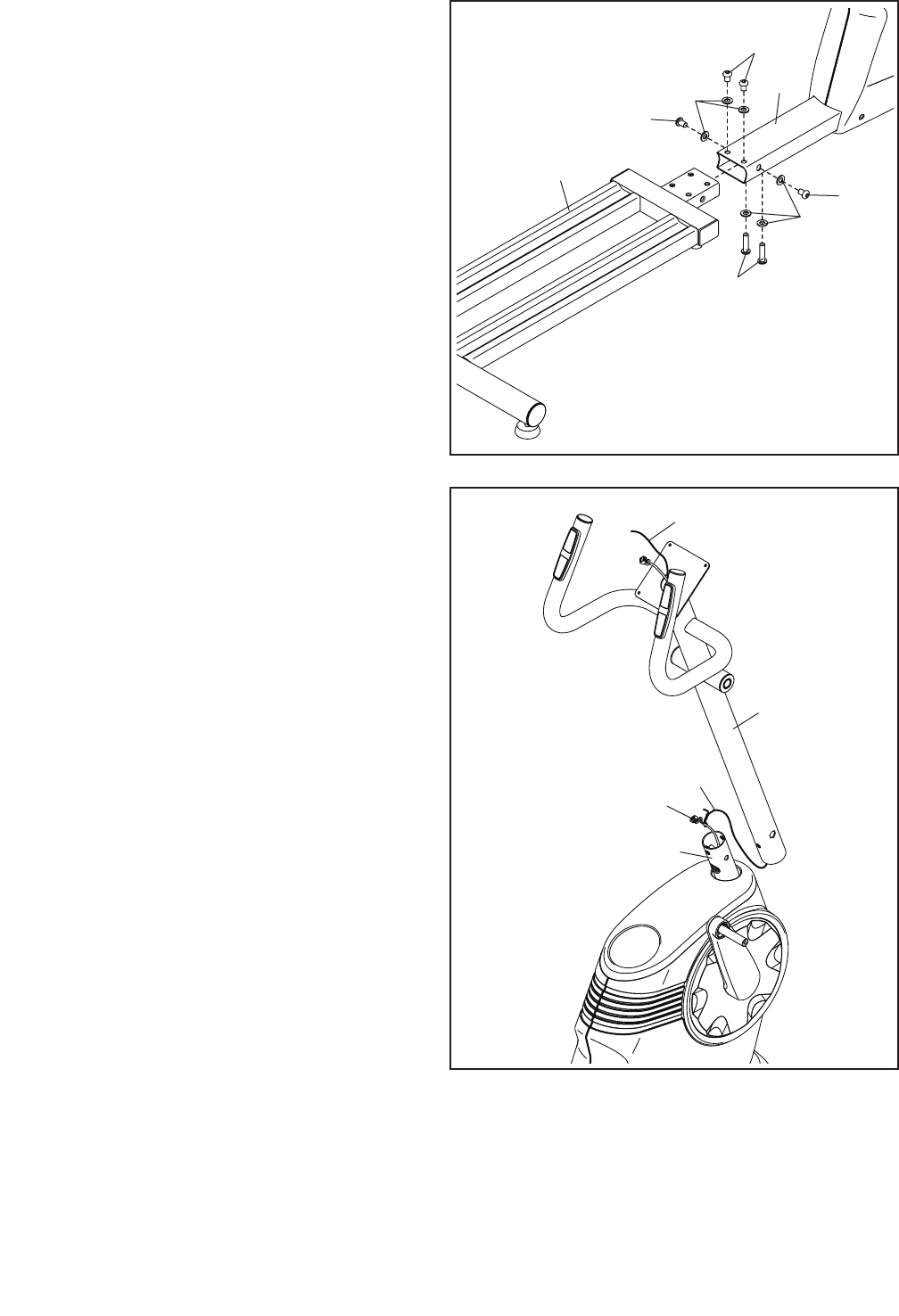

3. With the help of a second person, place some of

the packing materials (not shown) under the rear

of the Frame (1).

Attach the Track (11) to the Frame (1) with four

M10 x 20mm Screws (74), two M10 x 39mm

Screws (75), and six M10 Washers (64) as

shown; start all six Screws, and then tighten

them.

Remove the packing materials from under the

Frame (1).

4. Have a second person hold the Upright (2) near

the Frame (1).

Locate the wire tie in the Upright (2). Tie the

lower end of the wire tie to the Main Wire (32).

Then, pull the upper end of the wire tie until the

Main Wire is routed through the Upright.

Tip: Secure the Main Wire (32) to the Upright

(2) with the wire tie to prevent it from falling

into the Upright.

3

1

74

74

74

11

64

64

75

8

5

2

1

72

74

73

77

80

80

62

Hexagonal Hole

62

32

6

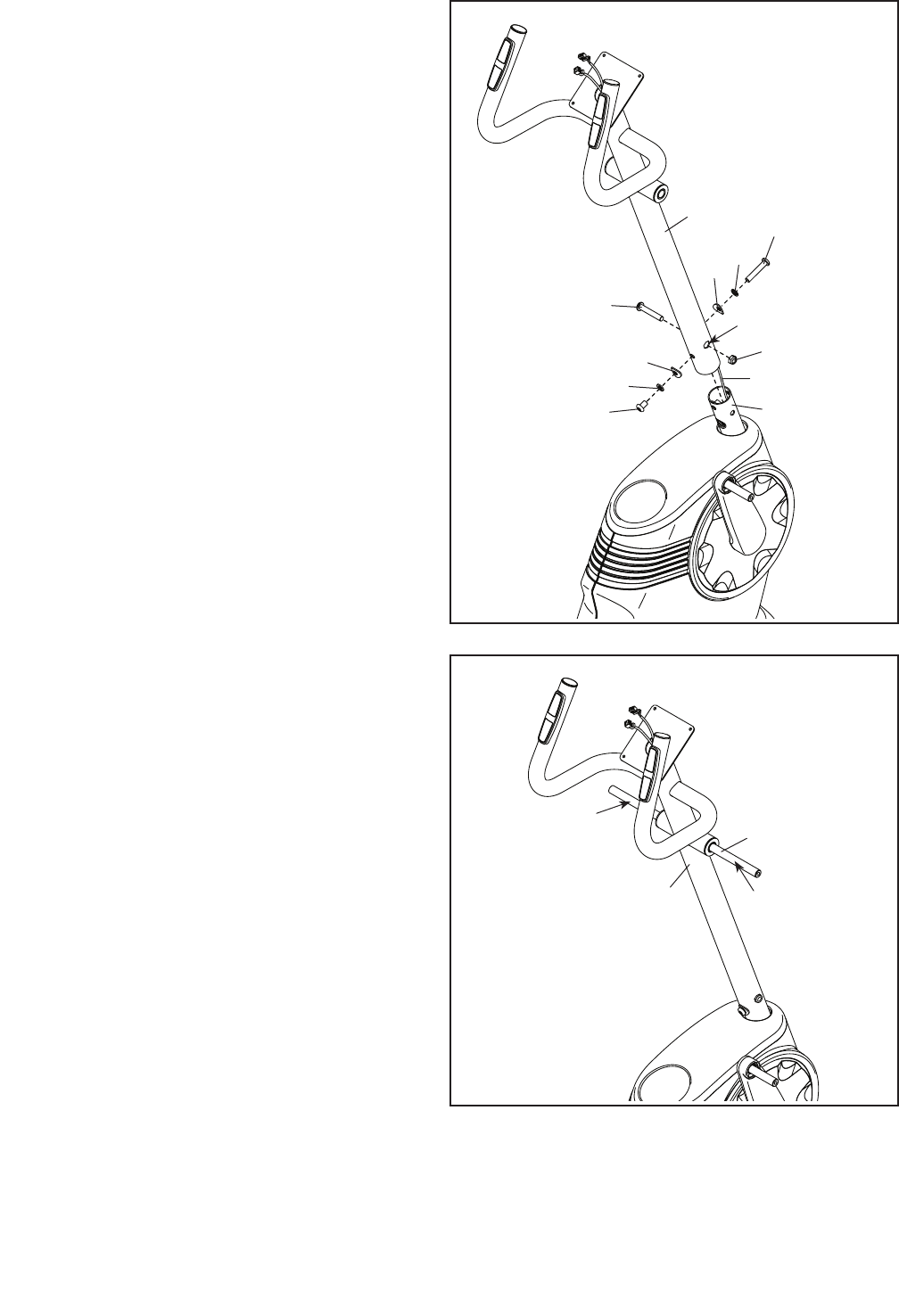

5. Tip: Avoid pinching the Main Wire (32). Slide

the Upright (2) onto the Frame (1).

Attach the Upright (2) with an M10 x 53mm

Screw (73), an M10 x 20mm Screw (74), two

M10 Split Washers (80), and two M10 Curved

Washers (62) as shown; do not fully tighten

the Screws yet.

Finish attaching the Upright (2) with an M10 x

60mm Bolt (72) and an M10 Locknut (77); do

not fully tighten the Bolt yet. Make sure that

the Locknut is in the hexagonal hole.

Grease

Grease

18

2

Avoid pinching

the Main Wire

(32)

6. Insert the Upright Axle (18) into the Upright (2)

and center it.

Using a plastic bag to keep your fingers clean,

apply some of the included grease to both ends

of the Upright Axle (18).

9

7

59 59

60

Hexagonal

Holes

60

4

6

5

3

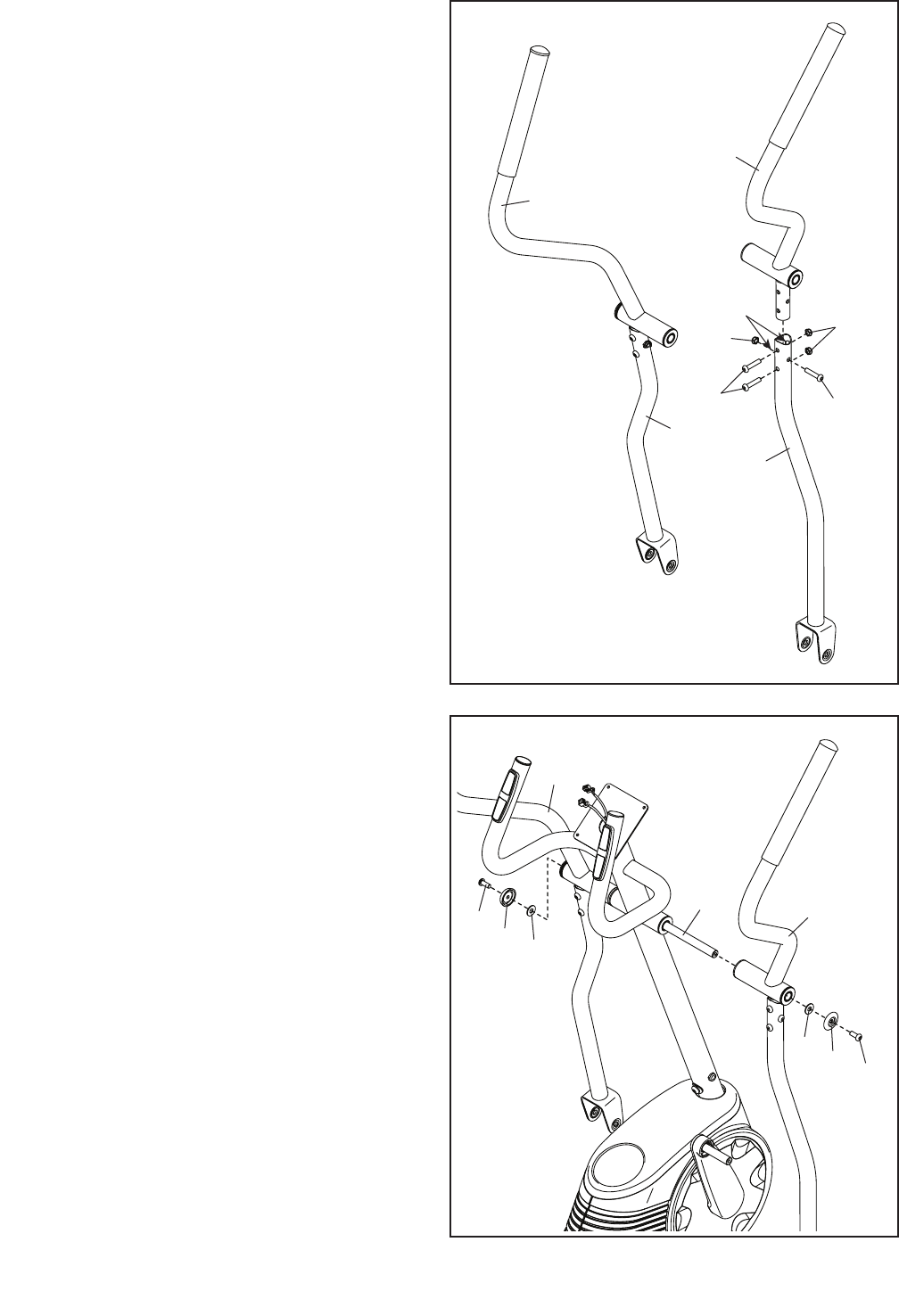

7. Identify the Right Upper Body Arm (4) and the

Right Upper Body Leg (5), and orient them as

shown.

Insert the Right Upper Body Arm (4) into the

Right Upper Body Leg (5). Attach the Right

Upper Body Arm with three M8 x 38mm Bolts

(59) and three M8 Locknuts (60); make sure

that the Locknuts are in the hexagonal holes.

Do not fully tighten the Bolts yet.

Attach the Left Upper Body Arm (3) to the

Left Upper Body Leg (6) in the same way.

61

61

44

44

18

63

63

8. Slide the Right Upper Body Arm (4) onto the

right side of the Upright Axle (18).

Slide the Left Upper Body Arm (3) onto the left

side of the Upright Axle (18).

Tighten an M8 x 20mm Screw (61) with an Axle

Cover (44) and an M8 Washer (63) into each

end of the Upright Axle (18) at the same time.

8

3

4

10

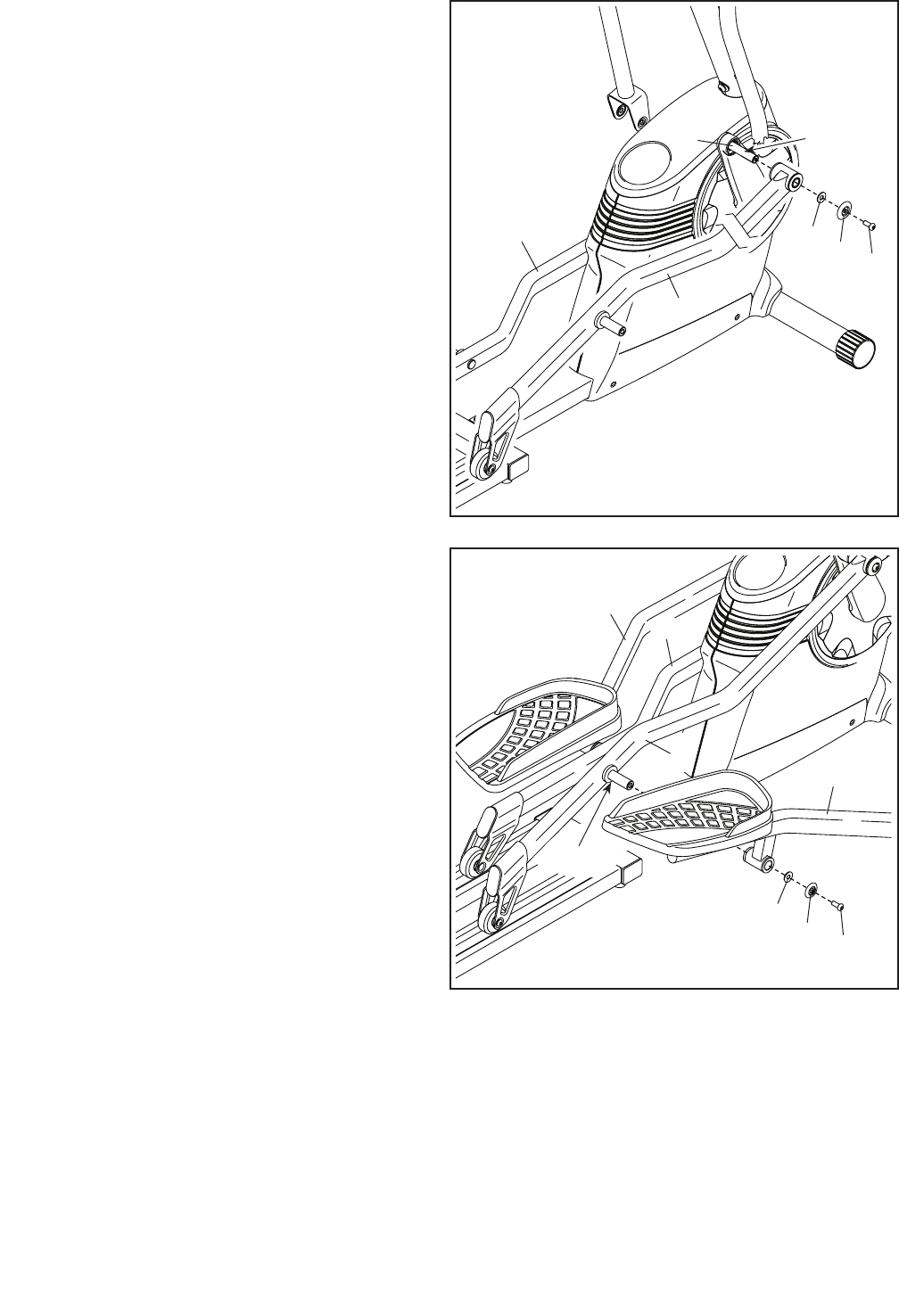

9. Apply grease to the right Crank Arm (13).

Identify the Right Roller Arm (7) and orient it as

shown.

Attach the Right Roller Arm (7) to the right Crank

Arm (13) with an M8 x 20mm Screw (61), an

Axle Cover (44), and an M8 Washer (63).

Attach the Left Roller Arm (8) in the same

way.

10

10. Apply grease to axle on the Right Roller Arm (7).

Then, identify the Right Pedal Arm (9), orient

it as shown, and slide it onto the Right Roller

Arm (7).

Attach the Right Pedal Arm (9) with an M8 x

20mm Screw (61), an Axle Cover (44), and an

M8 Washer (63).

Attach the Left Pedal Arm (10) to the Left

Roller Arm (8) in the same way.

10

61

44

63

9

Grease

7

8

9

61

Grease

44

63

13

8

7

11

30

Battery

Cover

Battery

Cover

12

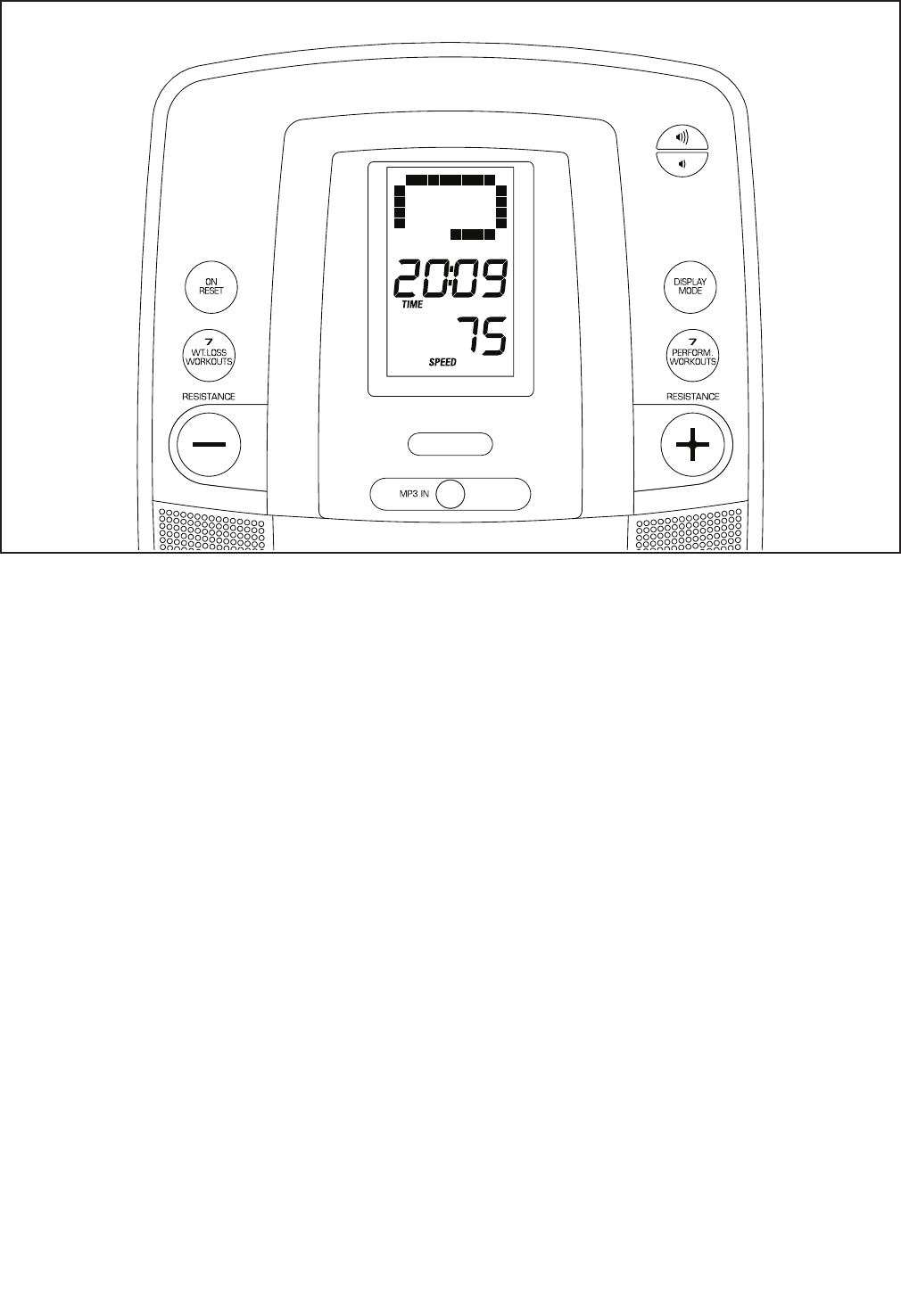

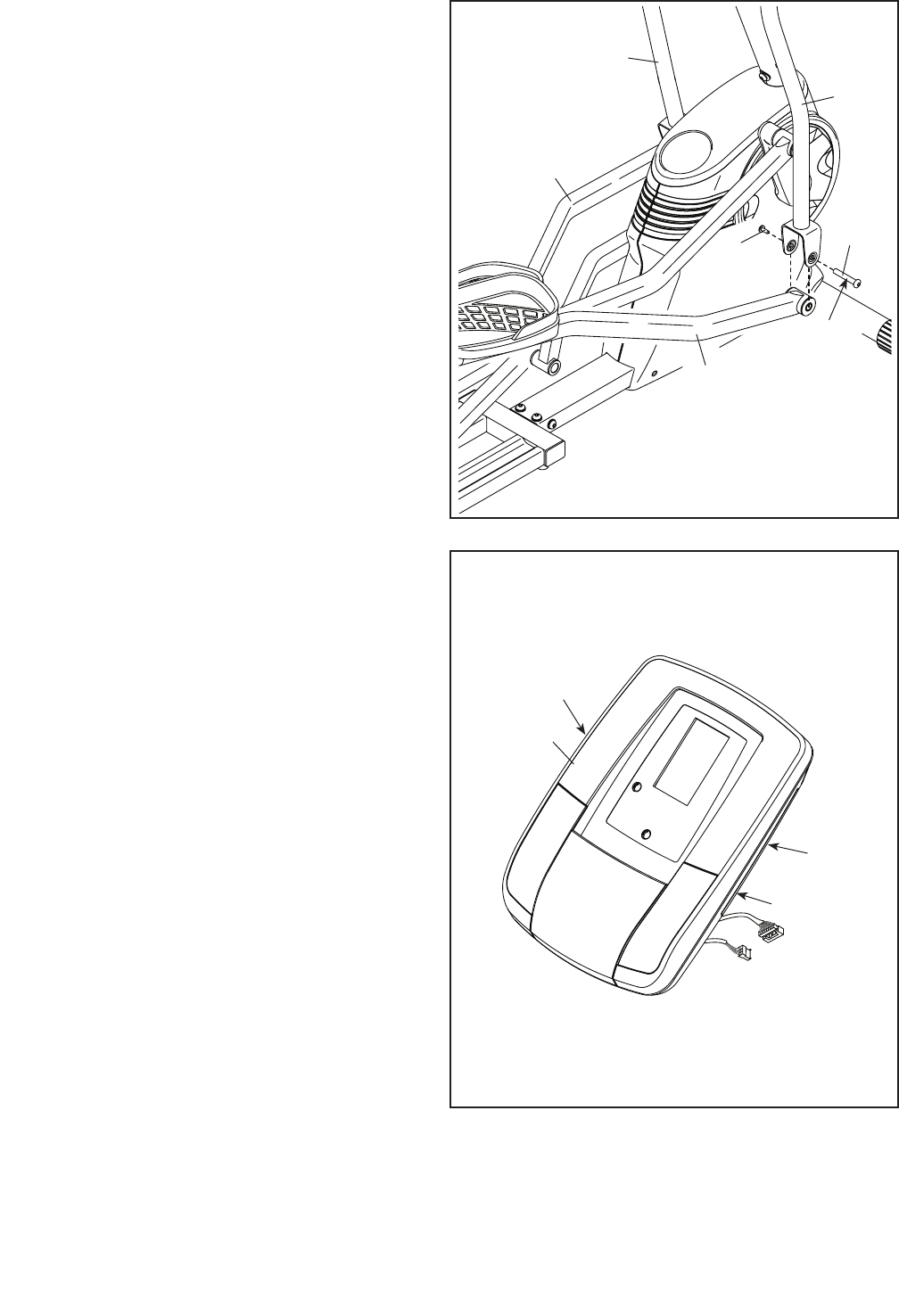

12. The Console (30) can use four D batteries (not

included); alkaline batteries are recommended.

Do not use old and new batteries together or

alkaline, standard, and rechargeable batter-

ies together. IMPORTANT: If the Console has

been exposed to cold temperatures, allow it

to warm to room temperature before inserting

batteries. Otherwise, you may damage the

console displays or other electronic com-

ponents. Remove the battery covers from the

back of the Console, and insert batteries into the

battery compartments. Make sure to orient the

batteries as shown by the diagrams inside

the battery compartments. Then, reattach the

battery covers.

To purchase an optional power adapter, call

the telephone number on the cover of this

manual. To avoid damaging the console,

use only a manufacturer-supplied regulated

power adapter. Plug one end of the power

adapter into the receptacle inside the battery

compartment on the console; plug the other end

into an outlet installed in accordance with all

local codes and ordinances.

Receptacle

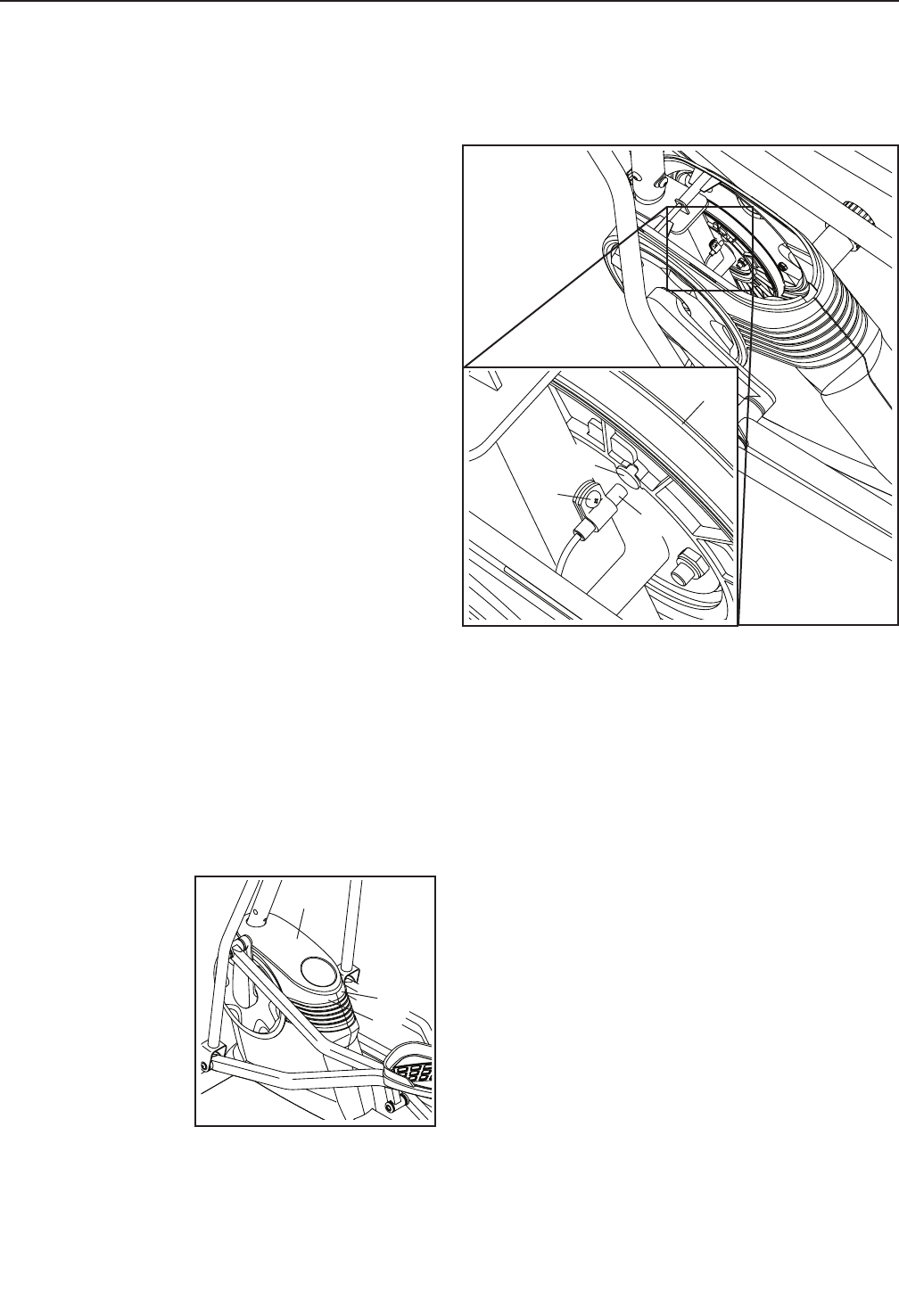

11. Apply grease to an M6 Bolt Set (67).

Attach the Right Pedal Arm (9) to the Right

Upper Body Leg (5) with the M6 Bolt Set (67).

Attach the Left Pedal Arm (10) to the Left

Upper Body Leg (6) in the same way.

11

6

5

10

67 67

9

Grease

12

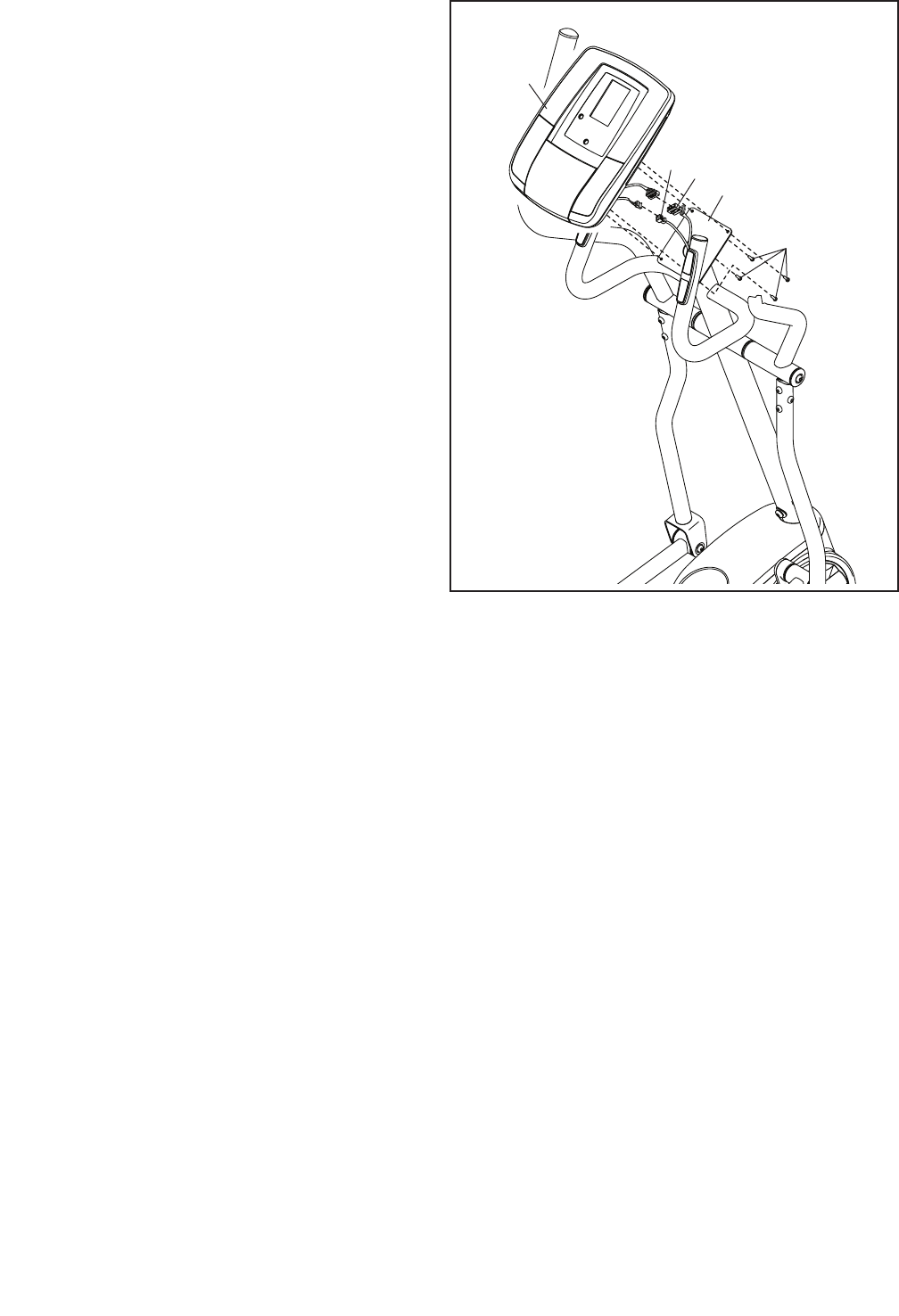

13. Remove and discard the wire tie on the Main

Wire (32).

Have a second person hold the Console (30)

near the Upright (2).

Connect the wires on the Console (30) to the

Main Wire (32) and to the Pulse Wire (31).

Insert the excess wire into the Upright (2).

Tip: Avoid pinching the wires. Attach the

Console (30) to the Upright (2) with four M4 x

16mm Screws (56).

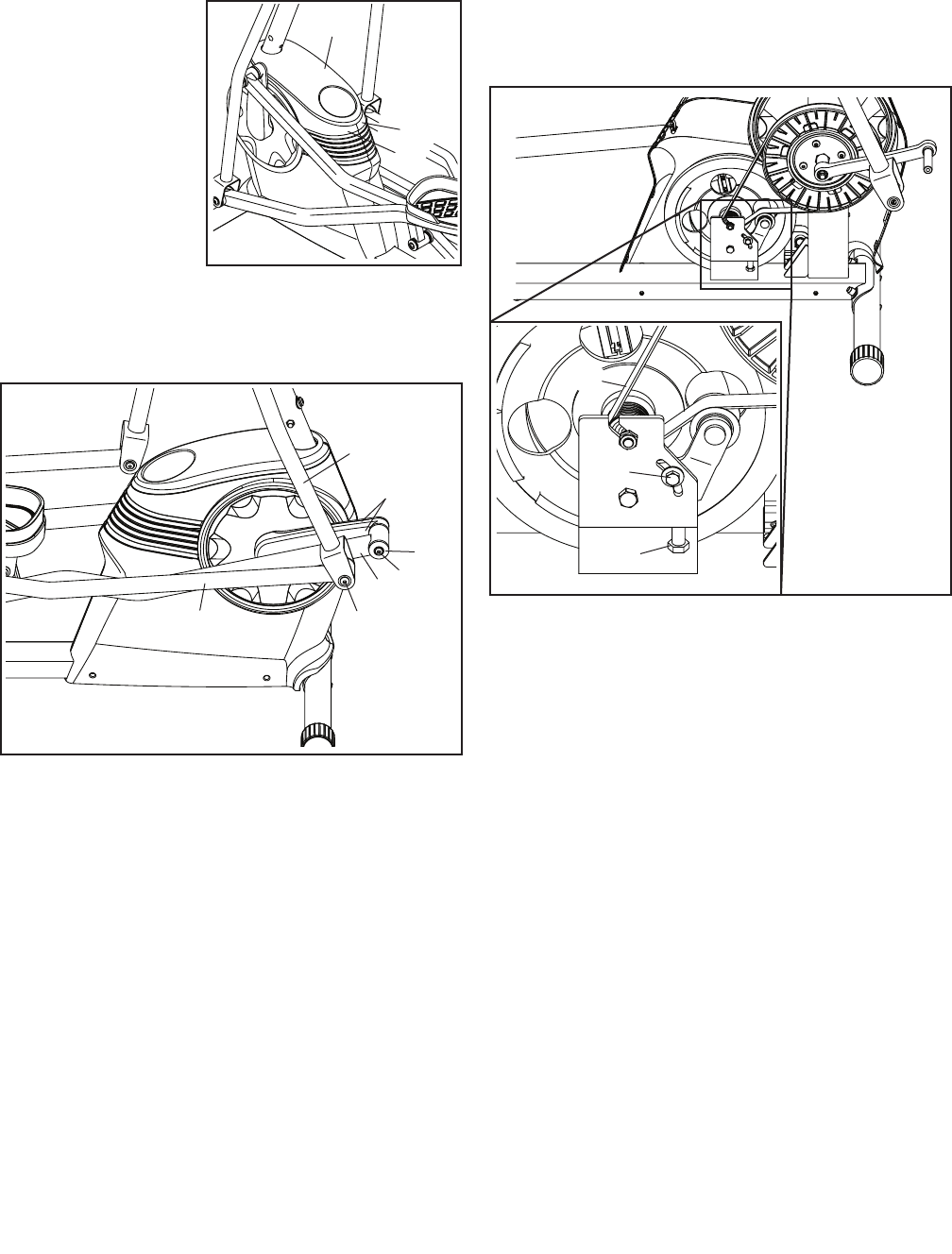

See step 5. Tighten the M10 x 53mm Screw

(73), the M10 x 20mm Screw (74), and the M10

x 60mm Bolt (72).

See step 7. Tighten the M8 x 38mm Bolts (59).

2

56

31

30

32

13

14. Make sure that all parts are properly tightened before you use the elliptical. Note: Extra parts may be

included. Place a mat beneath the elliptical to protect the floor.

Avoid pinching

the wires

13

HOW TO USE THE ELLIPTICAL

HOW TO MOVE THE ELLIPTICAL

Due to the size and weight of the elliptical, moving

it requires two persons. Stand in front of the elliptical,

hold the upright, and place one foot against one of the

wheels. Pull on the upright, and have a second person

lift the track until the elliptical will roll on the wheels.

Carefully move the elliptical to the desired location, and

then lower it to the floor.

HOW TO LEVEL THE ELLIPTICAL

If the elliptical rocks

slightly on your

floor during use,

turn one or both

of the leveling feet

beneath the rear of

the frame until the

rocking motion is

eliminated.

HOW TO EXERCISE ON THE ELLIPTICAL

To mou n t the ell i p t ical, h o l d the ha n d l ebars o r t he

upper body arms and step onto the pedal that is in the

lower position. Then, step onto the other pedal. Push

the pedals until they begin to move with a continuous

motion. Note: The pedals can turn in either direc-

tion. It is recommended that you turn the pedals

in the direction shown by the arrow; however, for

variety, you can turn the pedals in the opposite

direction.

To dis m o u nt the e l l iptical , w ait unt i l the ped a l s come t o

a complete stop. Note: The elliptical does not have

a free wheel; the pedals will continue to move until

the flywheel stops. When the pedals are stationary,

step off the higher pedal first. Then, step off the lower

pedal.

Pull on the

upright

Place

your foot

here

Lift

here

Leveling

Feet

Handlebars

Upper

Body Arms

Pedals

14

FEATURES OF THE CONSOLE

The advanced console offers an array of features

designed to make your workouts more effective and

enjoyable.

When you use the manual mode of the console, you

can change the resistance of the pedals with the touch

of a button.

As you exercise, the console will provide continuous

exercise feedback. You can even measure your heart

rate using the handgrip heart rate monitor.

The console offers a selection of preset workouts.

Each preset workout automatically changes the

resistance of the pedals as it guides you through an

effective workout.

You can even connect your MP3 player or CD player

to the console sound system and listen to your favorite

music or audio books while you exercise.

To use the manual mode, see page 15. To use a

preset workout, see page 16. To use the sound

system, see page 17.

Note: Make sure that batteries are installed in the con-

sole (see assembly step 12 on page 11). If there is a

sheet of plastic on the display, remove the plastic.

CONSOLE DIAGRAM

15

HOW TO USE THE MANUAL MODE

1. Turn on the console.

Press any button or begin pedaling to turn on the

console.

When you turn on the console, the display will turn

on. A tone will sound and the console will be ready

for use.

2. Select the manual mode.

When you turn on the con-

sole, the manual mode will

be selected automatically.

If you have selected a

workout, reselect the manual

mode by pressing the Wt.

Loss Workouts button or

the Perform. Workouts but-

ton repeatedly until a track

appears in the upper display.

3. Begin pedaling and change the resistance of

the pedals as desired.

As you pedal, change the

resistance of the pedals by

pressing the Resistance

increase and decrease

buttons.

Note: After you press the

buttons, it will take a moment

for the pedals to reach the

selected resistance level.

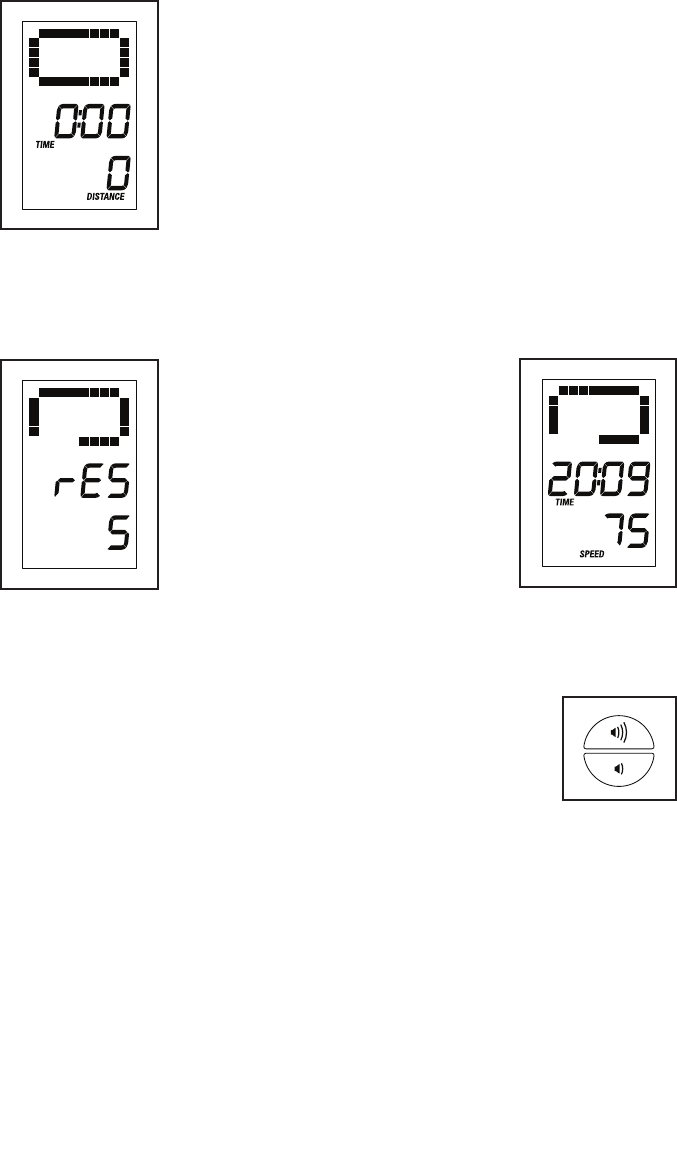

4. Follow your progress with the display.

The display can show the following workout

information:

Calories—This display mode will show the approx-

imate number of calories you have burned.

Distance—This display mode will show the dis-

tance that you have pedaled in revolutions.

Profile—When a workout is selected, this display

mode will show a profile of the resistance settings

of the workout.

Pulse—This display mode will show your heart rate

when you use the handgrip heart rate monitor (see

step 5).

Resistance (Res)—This display mode will show

the resistance level of the pedals for a few seconds

each time the resistance level changes.

Speed—This display mode will show your pedaling

speed in revolutions per minute.

Time—When the manual mode is selected, this

display mode will show the elapsed time. When a

workout is selected, this display mode will show the

time remaining in the workout.

Track—When the manual mode is selected, this

display mode will show a track representing 1/4

mile (400 m). As you exercise, indicators will

appear in succession around the track until the

entire track appears. The track will then disappear

and the indicators will again begin to appear in

succession.

Press the Display Mode

button repeatedly to view the

desired workout information.

When the word SCAN

appears in the display, the

display will show the calo-

ries, distance, speed, and

time display modes in a

repeating cycle.

To reset the display to zero, press the On/Reset

button.

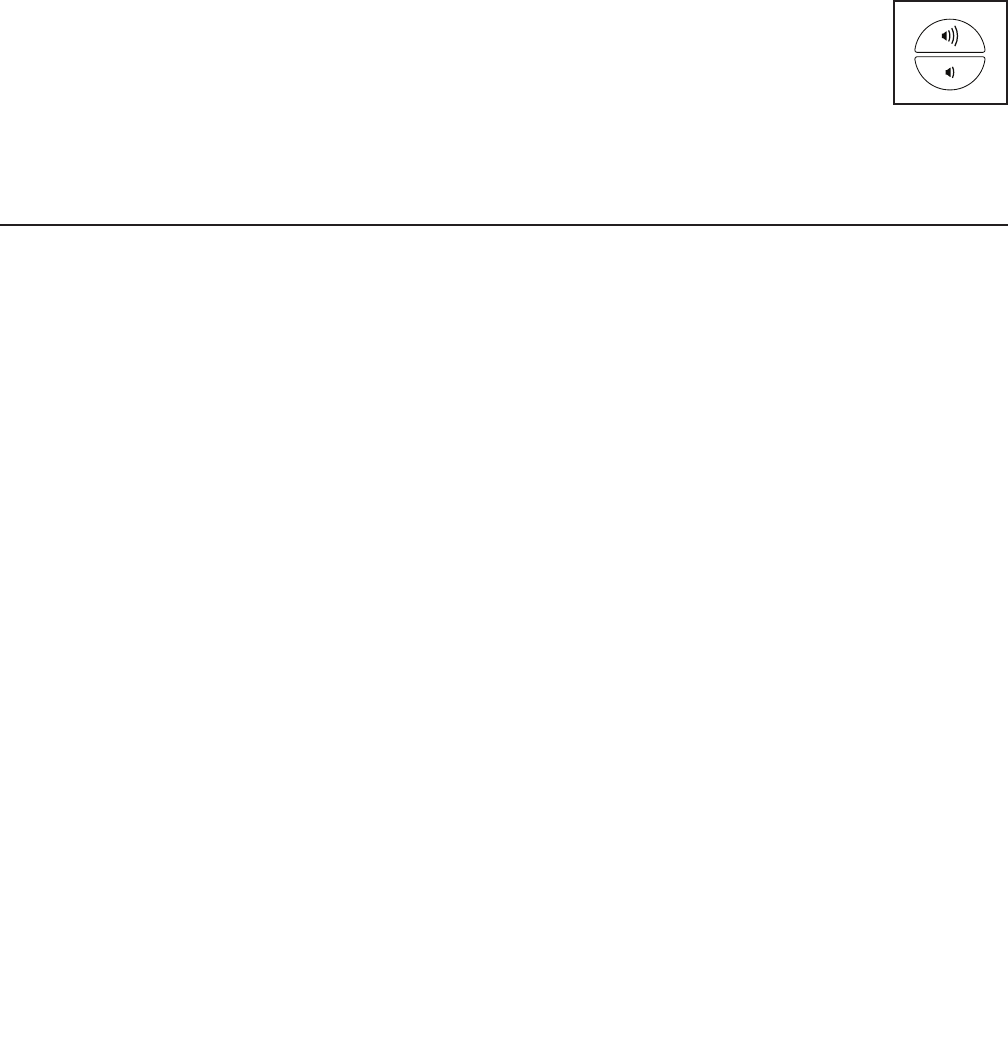

Change the volume level of the

console by pressing the volume

increase and decrease buttons.

16

5. Measure your heart rate if desired.

If there are sheets

of plastic on the

metal contacts

on the handgrip

heart rate monitor,

remove the plastic.

In addition, make

sure that your

hands are clean.

To mea s u r e your

heart rate, hold the

handgrip heart rate monitor with your palms resting

against the contacts. Avoid moving your hands

or gripping the contacts tightly.

When your pulse is detected, a heart-shaped

symbol will flash in the display and then your heart

rate will be shown. For the most accurate heart rate

reading, hold the contacts for at least 15 seconds.

If your heart rate is not shown, make sure that your

hands are positioned as described. Be careful not

to move your hands excessively or to squeeze the

contacts tightly. For optimal performance, clean

the contacts using a soft cloth; never use alcohol,

abrasives, or chemicals to clean the contacts.

6. When you are finished exercising, the console

will turn off automatically.

If the pedals do not move for several seconds, a

series of tones will sound, the console will pause,

and the time will flash in the display.

If the pedals do not move for several minutes, the

console will turn off and the display will be reset.

HOW TO USE A PRESET WORKOUT

1. Turn on the console.

Press any button or begin pedaling to turn on the

console.

When you turn on the console, the display will turn

on. A tone will sound and the console will be ready

for use.

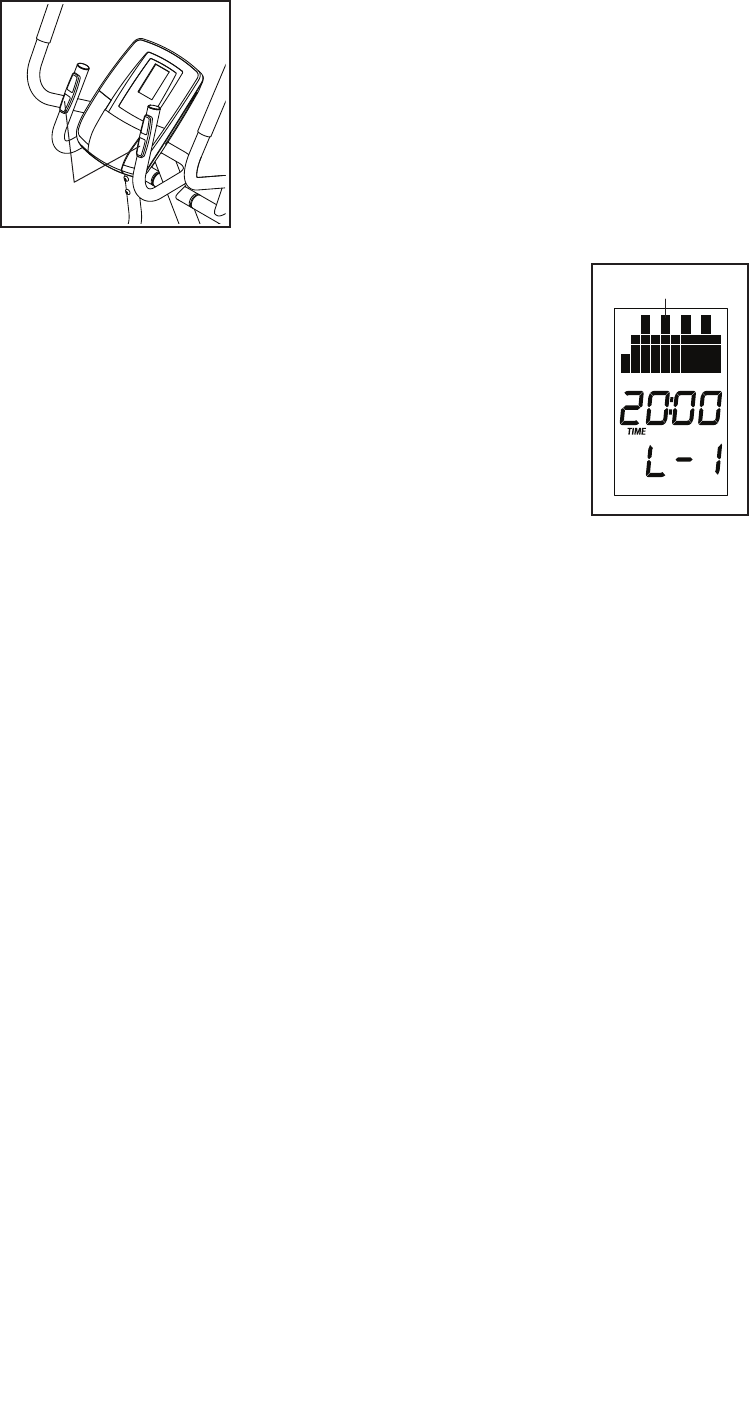

2. Select a preset workout.

To select a preset workout,

press the Wt. Loss Workouts

button or the Perform.

Workouts button repeat-

edly until the number of the

desired workout appears in

the lower display.

When you select a preset

workout, a profile of the

resistance levels of the

workout will scroll across

the upper display, the duration of the workout will

appear in the center display, and the number of the

workout will appear in the lower display.

3. Begin pedaling to start the workout.

Each workout is divided into several one-minute

segments. One resistance level is programmed for

each segment. Note: The same resistance level

may be programmed for consecutive segments.

During the workout, the workout profile will show

your progress (see the drawing above). The flash-

ing segment of the profile represents the current

segment of the workout. The height of the flashing

segment indicates the resistance level for the cur-

rent segment.

At the end of each segment of the workout, a

series of tones will sound and the next segment of

the profile will begin to flash. If a different resis-

tance level is programmed for the next segment,

the resistance level will appear in the display for

a few seconds to alert you. The resistance of the

pedals will then change.

Profile

Contacts

17

If the resistance level for the current segment is too

high or too low, you can manually override the set-

ting by pressing the Resistance buttons. However,

when the current segment ends, the pedals will

automatically adjust to the resistance level for the

next segment.

If you stop pedaling for several seconds, a series of

tones will sound and the workout will pause.

To res u m e the wo r k o ut, sim p l y resume p e daling.

The workout will continue until the last segment

of the profile flashes and the last segment of the

workout ends.

4. Follow your progress with the display.

See step 4 on page 15.

5. Measure your heart rate if desired.

See step 5 on page 16.

6. When you are finished exercising, the console

will turn off automatically.

See step 6 on page 16.

HOW TO USE THE SOUND SYSTEM

To pla y m usic or a u dio boo k s through t h e conso l e

sound system while you exercise, plug a 3.5 mm male

to 3.5 mm male audio cable (not included) into the jack

on the console and into a jack on your MP3 player,

CD player, or other personal audio player; make sure

that the audio cable is fully plugged in. Note: To

purchase an audio cable, see your local electronics

store.

Next, press the play button on your

personal audio player. Adjust the vol-

ume level using the volume increase

and decrease buttons on the console

or the volume control on your per-

sonal audio player.

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to

computer or peripheral devices. Changes or modifications not expressly approved by the party respon-

sible for compliance could void the user’s authority to operate this equipment.

18

I nspect and tighten all parts of the elliptical regularly.

Replace any worn parts immediately.

To clean the elliptical, use a damp cloth and a small

amount of mild soap. IMPORTANT: To avoid damage

to the console, keep liquids away from the console

and keep the console out of direct sunlight.

CONSOLE TROUBLESHOOTING

Most console problems are the result of low batter-

ies. To replace the batteries, see assembly step 12 on

page 11.

If the console does not display your heart rate when

you use the handgrip heart rate monitor, see step 5 on

page 17.

HOW TO LEVEL THE ELLIPTICAL

If the elliptical rocks slightly on your floor during use,

see HOW TO LEVEL THE ELLIPTICAL on page 13.

HOW TO GREASE THE ROLLERS

See the EXPLODED DRAWING near the end of this

manual. If the Rollers (16) squeak when moving on the

Track (11), apply a small amount of the included PTFE

grease to a paper towel. Next, spread a thin layer of

grease evenly along the Track where the Rollers move.

Then, wipe off any excess grease.

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted.

To adjust the reed

switch, first use a

flat screwdriver and

carefully pry the

Accessory Tray (50)

upward off the Right

and Left Shields

(48, 49).

Next, locate the Reed Switch (33). Turn the Pulley (15)

until a Magnet (65) is aligned with the Reed Switch.

Loosen, but do not remove, the indicated M4 x 12mm

Screw (57). Slide the Reed Switch (33) slightly closer

to or away from the Magnet (65), and then retighten

the Screw. Then, rock the Pulley (15) forward and

backward just enough that the Magnet passes the

Reed Switch repeatedly.

Repeat these actions until the console displays correct

feedback. When the reed switch is correctly adjusted,

reattach the accessory tray.

MAINTENANCE AND TROUBLESHOOTING

57

65

33

15

50

48

49

19

HOW TO ADJUST THE DRIVE BELT

If the pedals slip while you are pedaling, even while

the resistance is adjusted to the highest level, the drive

belt may need to be adjusted.

To adj u s t the dr i v e

belt, first use a flat

screwdriver and

carefully pry the

Accessory Tray (50)

upward off the Right

and Left Shields

(48, 49).

Next, remove the

M6 Bolt Set (67) from the Right Upper Body Leg (5)

and the Right Pedal Arm (9). Then, gently move the

Right Pedal Arm out of the way.

Next, remove the M8 x 20mm Screw (61), the Axle

Cover (44), and the M8 Washer (not shown) from

the Right Roller Arm (7) and the right Crank Arm (not

shown). Gently move the Right Roller Arm out of the

way. Then, use a flat screwdriver and gently remove

the Outer and Inner Crank Covers (52, 53) from the

right Crank Arm.

See EXPLODED DRAWING A on page 22. Remove

the M4 x 25mm Screw (68) and the M4 x 16mm

Screws (56) from the Right and Left Shields (48, 49);

make sure to note the location of each screw. Then,

gently remove the Right Shield.

Locate and loosen the M6 x 20mm Screw (25). Next,

tighten the M10 x 50mm Screw (20) until the Drive Belt

(55) is tight. Then, retighten the M6 x 20mm Screw.

Reattach the right shield, the outer and inner crank

covers, the right roller arm, the right pedal arm, and the

accessory tray.

25

20

67

9

61

44

52, 53

7

5

55

50

48

49

20

EXERCISE GUIDELINES

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To fin d t he prop e r intensi t y level, f i n d your a g e at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise ; never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To mai n t a in or i m p r ove you r c onditio n , complet e t hree

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week,

if desired. Remember, the key to success is to make

exercise a regular and enjoyable part of your everyday

life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

21

1 1 Frame

2 1 Upright

3 1 Left Upper Body Arm

4 1 Right Upper Body Arm

5 1 Right Upper Body Leg

6 1 Left Upper Body Leg

7 1 Right Roller Arm

8 1 Left Roller Arm

9 1 Right Pedal Arm

10 1 Left Pedal Arm

11 1 Track

12 1 Front Stabilizer

13 2 Crank Arm

14 1 Crank

15 1 Pulley

16 2 Roller

17 4 Small Roller Spacer

18 1 Upright Axle

19 4 Bushing C

20 1 M10 x 50mm Screw

21 3 Crank Spacer

22 2 Pulse Sensor

23 1 Eddy Mechanism

24 1 Idler

25 1 M6 x 20mm Screw

26 1 M6 Washer

27 1 M6 x 20mm Shoulder Screw

28 2 M8 Nut

29 1 Resistance Motor

30 1 Console

31 1 Pulse Wire

32 1 Main Wire

33 1 Reed Switch/Wire

34 2 Bearing

35 1 Clamp

36 10 Bushing A

37 4 Bushing B

38 2 Leveling Foot

39 2 Foot

40 2 Small Round Cap

41 2 Foam Grip

42 2 Dome Cap

43 2 Wheel

44 6 Axle Cover

45 2 Large Round Cap

46 1 Right Pedal

47 1 Left Pedal

48 1 Right Shield

49 1 Left Shield

50 1 Accessory Tray

51 1 V-clip

52 2 Outer Crank Cover

53 2 Inner Crank Cover

54 2 Angle Cap

55 1 Drive Belt

56 10 M4 x 16mm Screw

57 7 M4 x 12mm Screw

58 1 M4 x 12mm Bright Screw

59 6 M8 x 38mm Bolt

60 10 M8 Locknut

61 10 M8 x 20mm Screw

62 2 M10 Curved Washer

63 6 M8 Washer

64 6 M10 Washer

65 2 Magnet

66 2 5/16" x 25mm Screw

67 2 M6 Bolt Set

68 1 M4 x 25mm Screw

69 4 M8 Split Washer

70 2 M5 Bolt Set

71 1 Collar

72 1 M10 x 60mm Bolt

73 1 M10 x 53mm Screw

74 5 M10 x 20mm Screw

75 2 M10 x 39mm Screw

76 2 M10 x 70mm Screw

77 1 M10 Locknut

78 1 M5 x 10mm Screw

79 10 #10 x 14mm Screw

80 2 M10 Split Washer

81 2 Track Cap

82 2 Pedal Arm Cap

* – Assembly Tool

* – Grease Packet

* – User’s Manual

K e y N o . Q t y . D e s c r i p t i o n K e y N o . Q t y . D e s c r i p t i o n

PART LIST Model No. 831.23935.1 R0714A

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. If a part is missing, call 1-888-533-1333. *These parts are not illustrated.

22

1

12

2

11

14

13

13

15

20

21

23

26

28

60

28

62

62

32

25

22

24

27

29

31

34

34

36

36

38

39

33 35

40

43

61

61

48

50

52

52

45

81

49

51

56

57

56

56

56

56

68

58

53

53

55

57

57

66

66

80

80

64

64 64

64

72

74

74

74

74

76

78

73

75

77

71

65

65

69

30

56

56

EXPLODED DRAWING A Model No. 831.23935.1 R0714A

23

EXPLODED DRAWING B

44

3

6

8

10

5

4

7

9

16

18

44

17

17

60

60

36

36

19

19

41

46

42

82

44

47

54

59 59

61

63

63

61

67

67

70

70

79

36

37

37

61

63

36

44

61

63

21

Model No. 831.23935.1 R0714A

Part No. 363317 R0714A Printed in China © 2014 ICON Health & Fitness, Inc.

If this Sears Elliptical Exerciser fails due to a defect in material or workmanship within 90 days of the

date of purchase, call 1-800-4-MY-HOME® (1-800-469-4663) to arrange for free repair (or replacement if

repair proves impossible). The frame is warranted for 5 years.

This warranty does not apply when the Elliptical Exerciser is used commercially or for rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to

state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

90 DAY FULL WARRANTY
