USER'S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial

Number

Decal

Model No. PETL63000

Serial No.

Find the serial number in the location

shown below. Write the serial number

in the space above for reference.

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

Patent Pending

QUESTIONS?

As a manufacturer, we are

committed to providing

complete customer satisfaction.

If you have questions, or if

there are missing parts, we will

guarantee complete satisfaction

through our Customer Service

Department.

Please CALL:

0345-089009

Or WRITE:

ICON Fitness Lifestyle Ltd.

Greenwich House

223 North Street

Sheepscar

Leeds LS7 2AA

West Yorkshire

Class HC Fitness Product

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

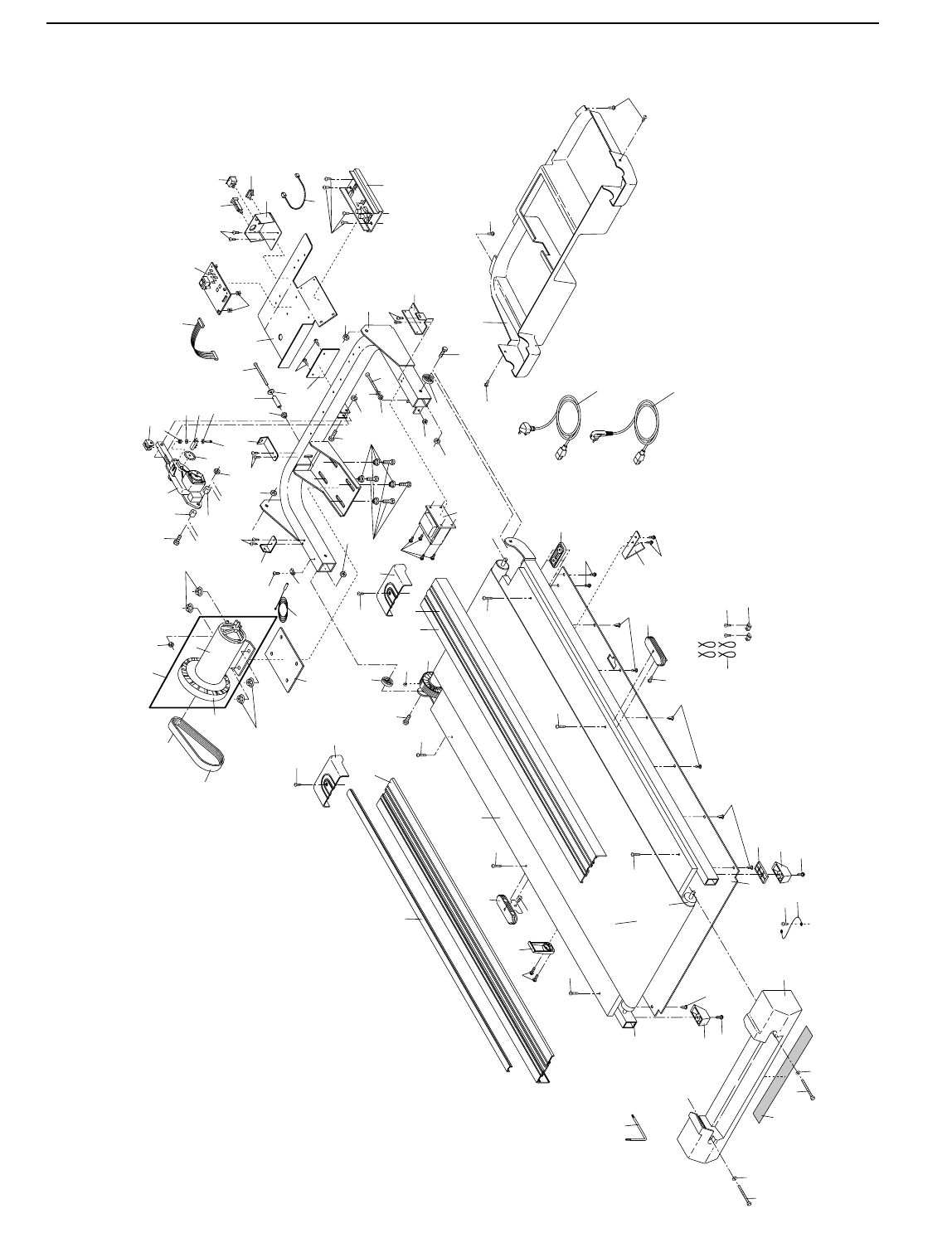

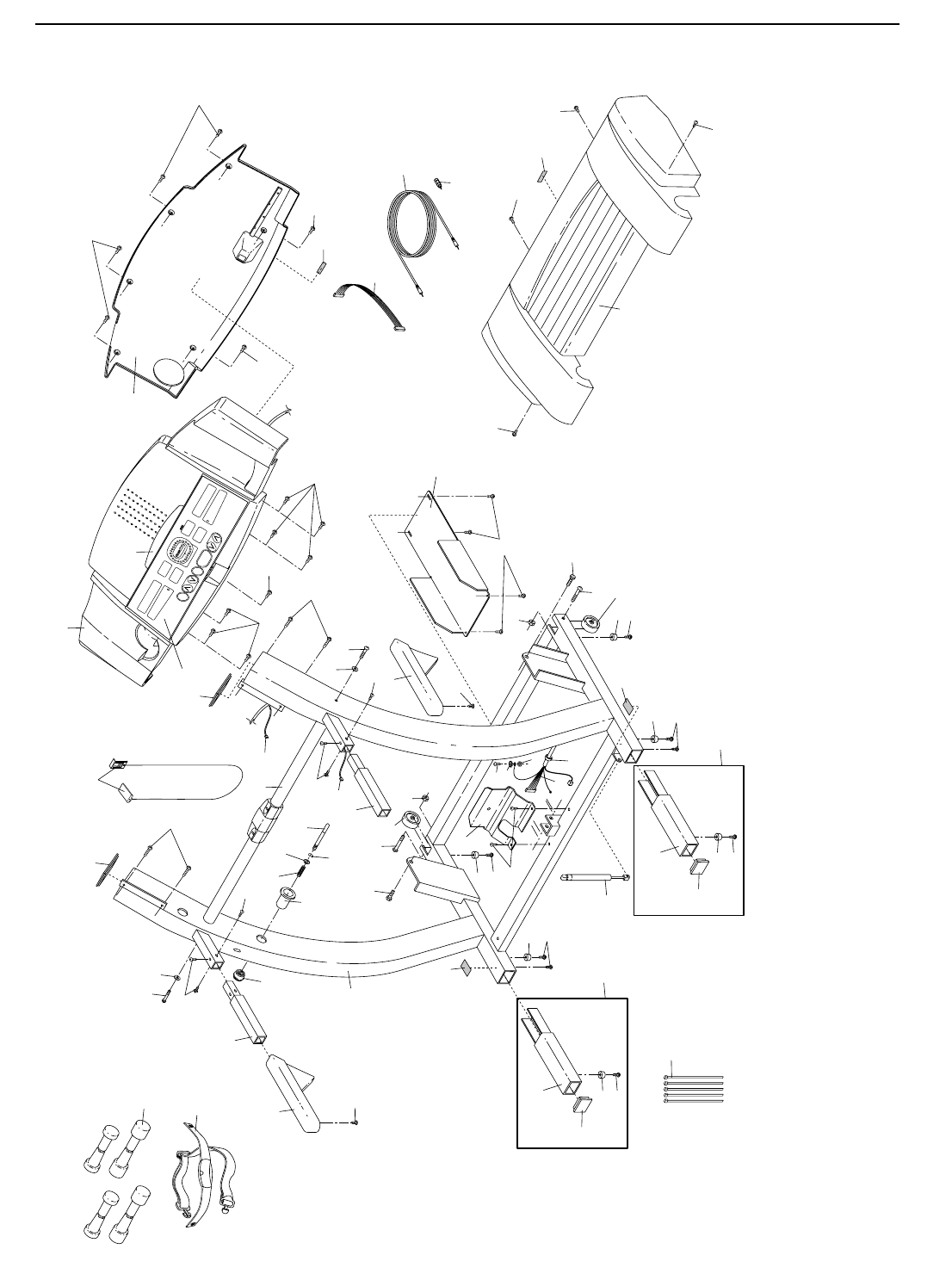

Note: An EXPLODED DRAWING is attached in the centre of this manual.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

IMPORTANT PRECAUTIONS

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Use the treadmill only as described in this

manual.

3. Place the treadmill on a level surface, with at

least two meters of clearance behind it. Do not

place the treadmill on any surface that blocks

air openings. To protect the floor or carpet

from damage, place a mat under the treadmill.

4. When choosing a location for the treadmill,

make sure that the location and position

permit access to an electircal plug.

5. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

6. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

7. Keep children under the age of 12 and pets

away from the treadmill at all times.

8. The treadmill should not be used by persons

weighing more than 115 kg.

9. Never allow more than one person on the

treadmill at a time.

10. Wear appropriate exercise clothing when

using the treadmill. Do not wear loose cloth-

ing that could become caught in the treadmill.

Athletic support clothes are recommended for

both men and women. Always wear athletic

shoes. Never use the treadmill with bare feet,

wearing only stockings, or in sandals.

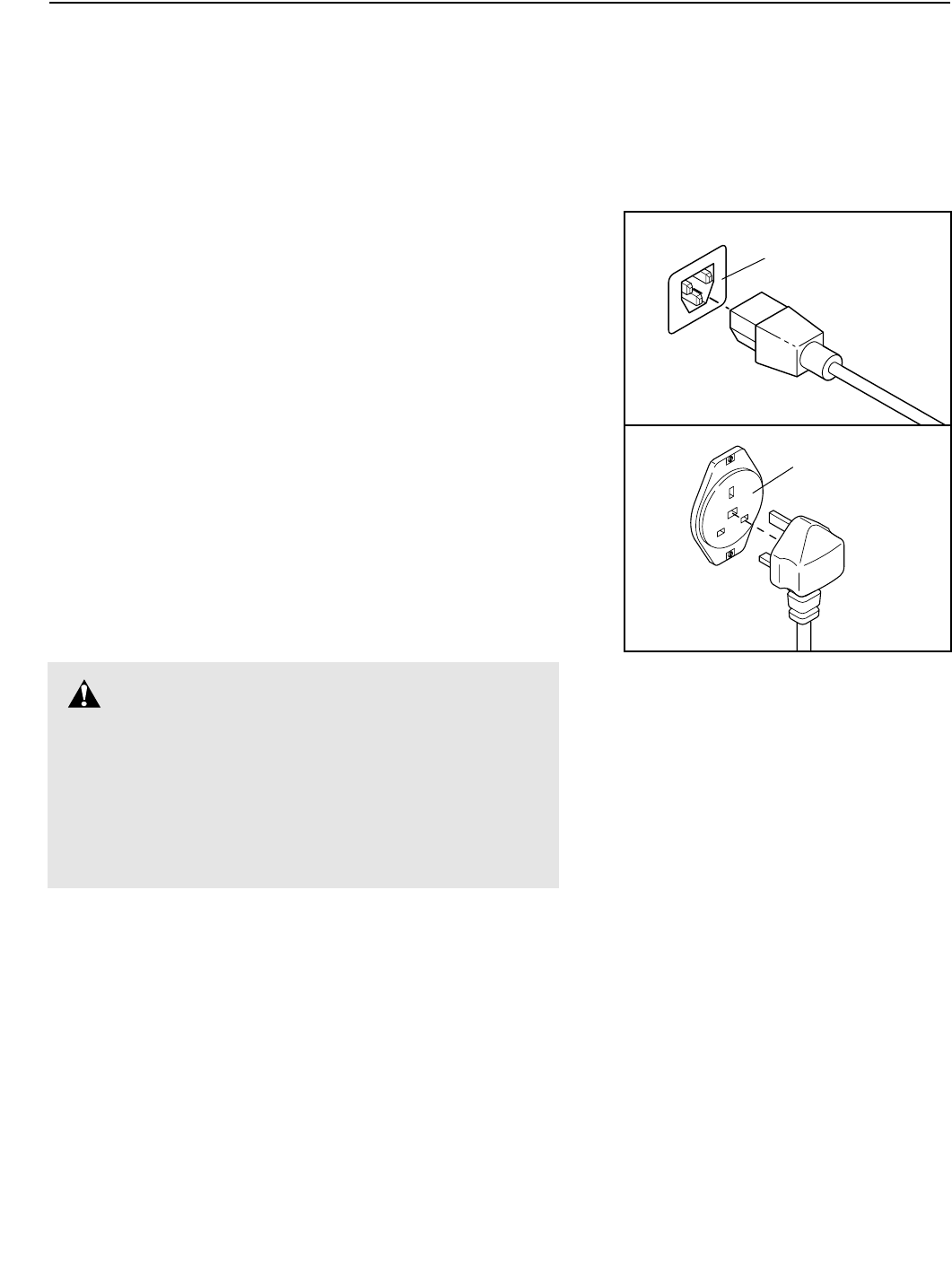

11. When connecting the power cord (see page 8),

plug the power cord into an earthed circuit.

When replacing the fuse, on ASTA approved

BS1362 type should be fitted to the fuse car-

rier. A 13 amp fuse should be used. No other

appliance should be on the same circuit.

12. If an extension cord is needed, use only a 3-

conductor, 14 gauge (1mm2) cord that is no

longer than 5 feet (1.5) meters.

13. Keep the power cord away from heated sur-

faces.

14. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See

BEFORE YOU BEGIN on page 5 if the tread-

mill is not working properly.)

15. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

16. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid

sudden jumps in speed.

17. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

18. Never leave the treadmill unattended while it

is running. Always remove the key, unplug

the power cord and move the on/off switch to

the off position when the treadmill is not in

use. (See the drawing on page 5 for the loca-

tion of the on/off switch.)

19. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 19.)

You must be able to safely lift 20 kg in order

to raise, lower, or move the treadmill.

20. Do not change the incline of the treadmill by

placing objects under the treadmill.

21. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

22. When using i-Fit.com CD’s and videos, an

electronic “chirping” sound will alert you

when the speed and/or incline of the treadmill

is about to change. Always listen for the

“chirp” and be prepared for speed and/or in-

cline changes. In some instances, the speed

and/or incline may change before the per-

sonal trainer describes the change.

23. When using i-Fit.com CD’s and videos, you

can manually override the speed and incline

settings at any time by pressing the speed

and incline buttons. However, when the next

“chirp” is heard, the speed and/or incline will

change to the next settings of the CD or video

program.

24. Always remove i-Fit.com CD’s and videos

from your CD player or VCR when you are not

using them.

25. Inspect and tighten all parts of the treadmill

regularly.

26. Never insert or drop any object into any

opening.

27. DANGER: Always unplug the power

cord immediately after use, before cleaning

the treadmill, and before performing the main-

tenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorised service representative. Servicing

other than the procedures in this manual

should be performed by an authorised service

representative only.

28. This treadmill is intended for in-home use

only. Do not use this treadmill in any commer-

cial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decals shown below have been placed on your treadmill. If a decal is missing or illegible, please call

our Customer Service Department to order a free replacement decal (see the front cover of this manual).

Apply the decal in the location shown.

Note: This decal is shown at 38% of actual size.

Note: This decal is shown at 20% of actual size.

Thank you for selecting the revolutionary PROFORM®

630 treadmill. The 630 treadmill combines advanced

technology with innovative design to help you get the

most from your exercise program in the convenience

and privacy of your home. And when you’re not exer-

cising, the unique 630 can be folded up, requiring less

than half the floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have additional questions,

please call our Customer Service Department at

0345-089009. To help us assist you, please note the

product model number and serial number before call-

ing. The model number of the treadmill is PETL63000.

The serial number can be found on a decal attached to

the treadmill (see the front cover of this manual for the

location).

Before reading further, please review the drawing

below and familiarise yourself with the parts that are

labelled.

BEFORE YOU BEGIN

Handrail

Console

Lock Knob

Pulse Sensor

Book Holder

Key/Clip

Circuit

Breaker

On/Off Switch

Walking Belt

Cushioned Walking Platform

Front

Wheel

Foot Rail

Rear Roller

Adjustment Bolts

Water Bottle

Holder (bottle

not included)

RIGHT SIDE

LEFT SIDE

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench

and your own phillips screwdriver .

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a

small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal

condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off

the lubricant with a soft cloth and a mild, non-abrasive cleaner.

If further assistance is needed, please call our Customer Service Department at 0345-089009.

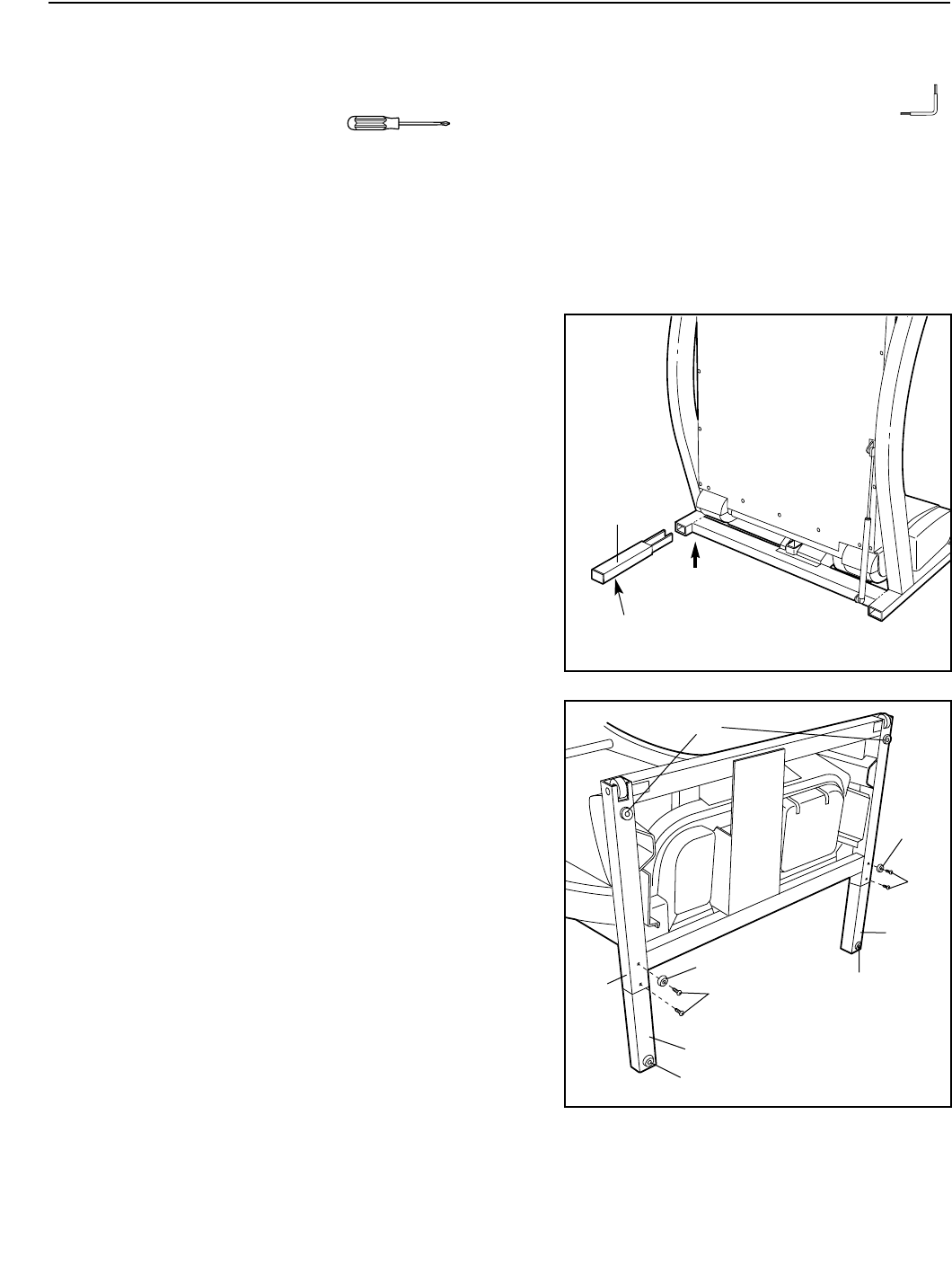

1. With the help of a second person, carefully raise the

treadmill to the upright position.

While a second person tips the treadmill to one side and

holds it, insert one of the Extension Legs (103) into the

treadmill as shown. Make sure that the Extension Leg is

turned so the Thick Base Pad (97) is on the bottom.

Next, tip the treadmill to the other side and insert the

other Extension Leg (not shown) in the same way. Lower

the side of the treadmill so that both Extension Legs

(103) are resting flat on the floor.

2. With the help of a second person, carefully tip the

Uprights (82) down as shown. Make sure that the

Extension Legs (103) remain in the Uprights.

Attach each Extension Leg (103) with two Screws (101)

and a Thick Base Pad (97) as shown.

With the help of a second person, carefully tip the

Uprights (82) back to the vertical position.

Note: One replacement Thick Base Pad (97) may be

included. Use the extra Pad if one becomes worn or

needs to be replaced.

103

101

103

5. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a

secure place. The allen wrench is used to adjust the walking belt (see page 21). To protect the floor or carpet

from damage, place a mat under the treadmill.

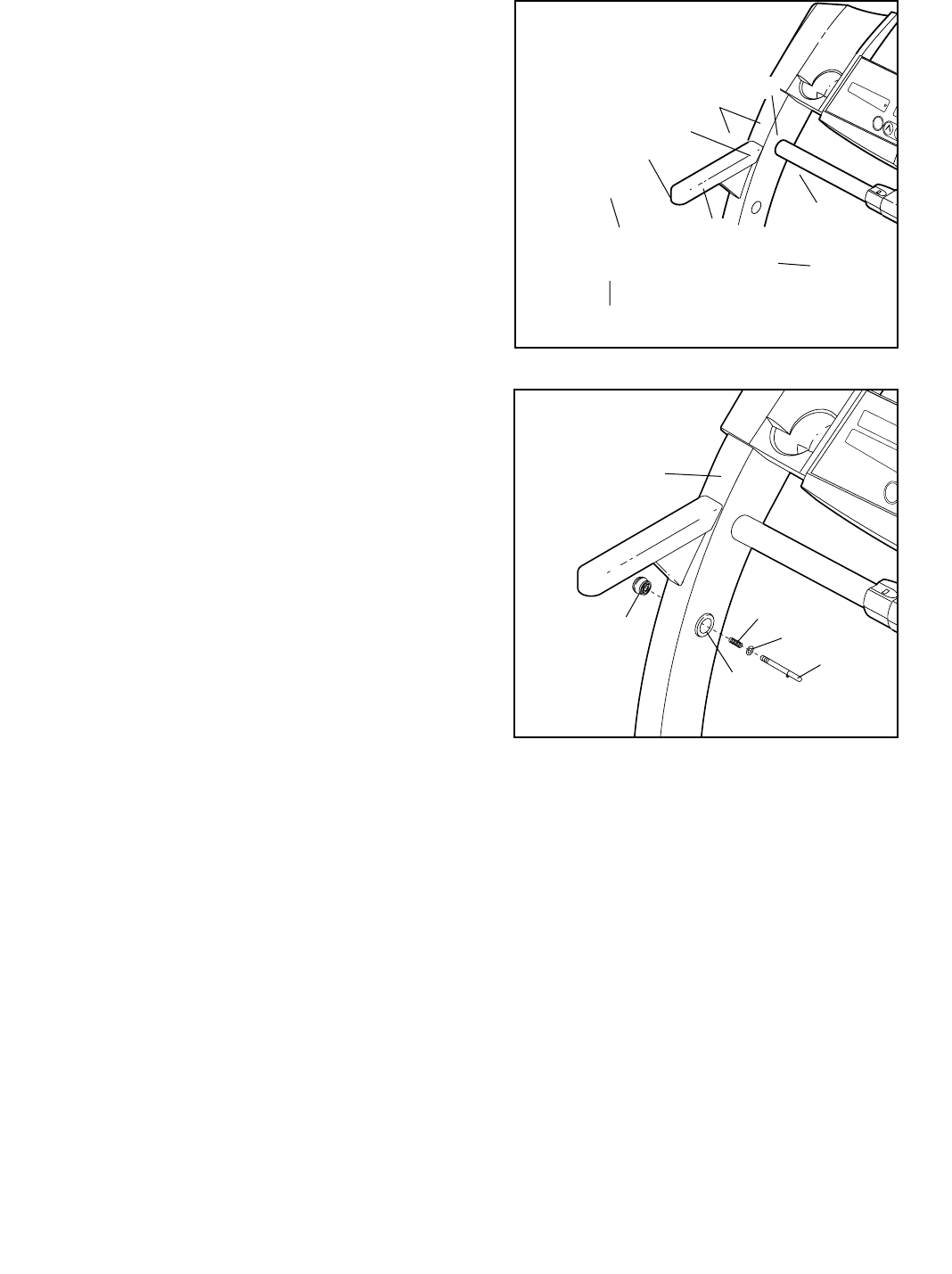

3. Locate the plastic tie in the post on the left Upright (82).

Hold a Handrail Extension (85) in the position shown.

Insert the plastic tie into the Handrail Extension as you

insert the Handrail Extension into the post. Attach the

Handrail Extension with three Short Screws (76). Note:

The plastic tie is tied to the Hand Pulse Wire (124). Be

careful to avoid damaging the Hand Pulse Wire. The

Hand Pulse Wire is used with the optional chest pulse

sensor (see page 18).

Slide a Handrail Foam Grip (110) onto the Handrail

Extension (85). (If it is difficult to slide on the Foam Grip,

place a small amount of warm water and dish soap in the

Foam Grip.) Press an Plastic Fastener (47) into the

Handrail Foam Grip.

Attach the other Handrail Extension (85) and Handrail

Foam Grip (110) to the right Upright (not shown). Note:

There is not a pulse wire in the right Upright.

4. Make sure that the Lock Knob Sleeve (111) is fully in-

serted into the left Upright (82).

Remove the Lock Knob (102) from the Lock Pin (115).

Make sure that the Lock Pin Collar (113) and the Spring

(112) are on the Lock Pin. Insert the Lock Pin into the left

Upright (82) and tighten the Lock Knob onto it.

110

76 Post

124

Plastic Tie

113

115

111

112

102

THE PERFORMANT LUBETM WALKING BELT

Your treadmill features a walking belt coated with PERFORMANT LUBETM, a high-performance lubricant. IMPOR-

TANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such

substances will deteriorate the walking belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

This product must be earthed. If it should malfunction or break

down, earthing provides a path of least resistance for electric cur-

rent to reduce the risk of electric shock. This product is equipped

with a cord having an equipment-earthing conductor and a earthing

plug.

Two power cords are included. Select the one that will fit your

oulet. Refer to drawing 1. Plug the indicated end of the power

cord into the socket on the treadmill. Refer to drawing 2. Plug

the power cord into an appropriate outlet that is properly in-

stalled and earthed in accordance with all local codes and ordi-

nances. Note: In Italy, an adapter (not included) must be used

between the power cord and the outlet. Important: The treadmill

is not compatible with GFCI-equipped outlets.

Use only a power cord type H05VV-F with a conductor of at

least 1mm2, with a country recognised plug and an appliance

coupler.

DANGER: Improper connection of the

equipment-earthing conductor can result in an in-

creased risk of electric shock. Check with a qualified

electrician or serviceman if you are in doubt as to

whether the product is properly earthed. Do not mod-

ify the plug provided with the product—if it will not fit

the outlet, have a proper outlet installed by a qualified

electrician.

OPERATION AND ADJUSTMENT

Socket on treadmill

Outlet

FEATURES OF THE CONSOLE

Note: If there is a thin sheet of clear plastic on the face

of the console, remove it.

The advanced console offers an impressive array of

features to help you get the most from your exercise.

When the console is in the manual mode, the speed

and incline of the treadmill can be changed with a touch

of a button. As you exercise, the console will display

continuous exercise feedback. You can even measure

your heart rate using the built-in thumb pulse sensor.

Note: See page 18 for information about an optional

chest pulse sensor.

Eight certified personal trainer programs are also

offered. Each program automatically controls the

speed and incline of the treadmill to give you an effec-

tive low-, medium-, or high-intensity workout.

The console also features new iFit.com interactive tech-

nology. IFit.com technology is like having a personal

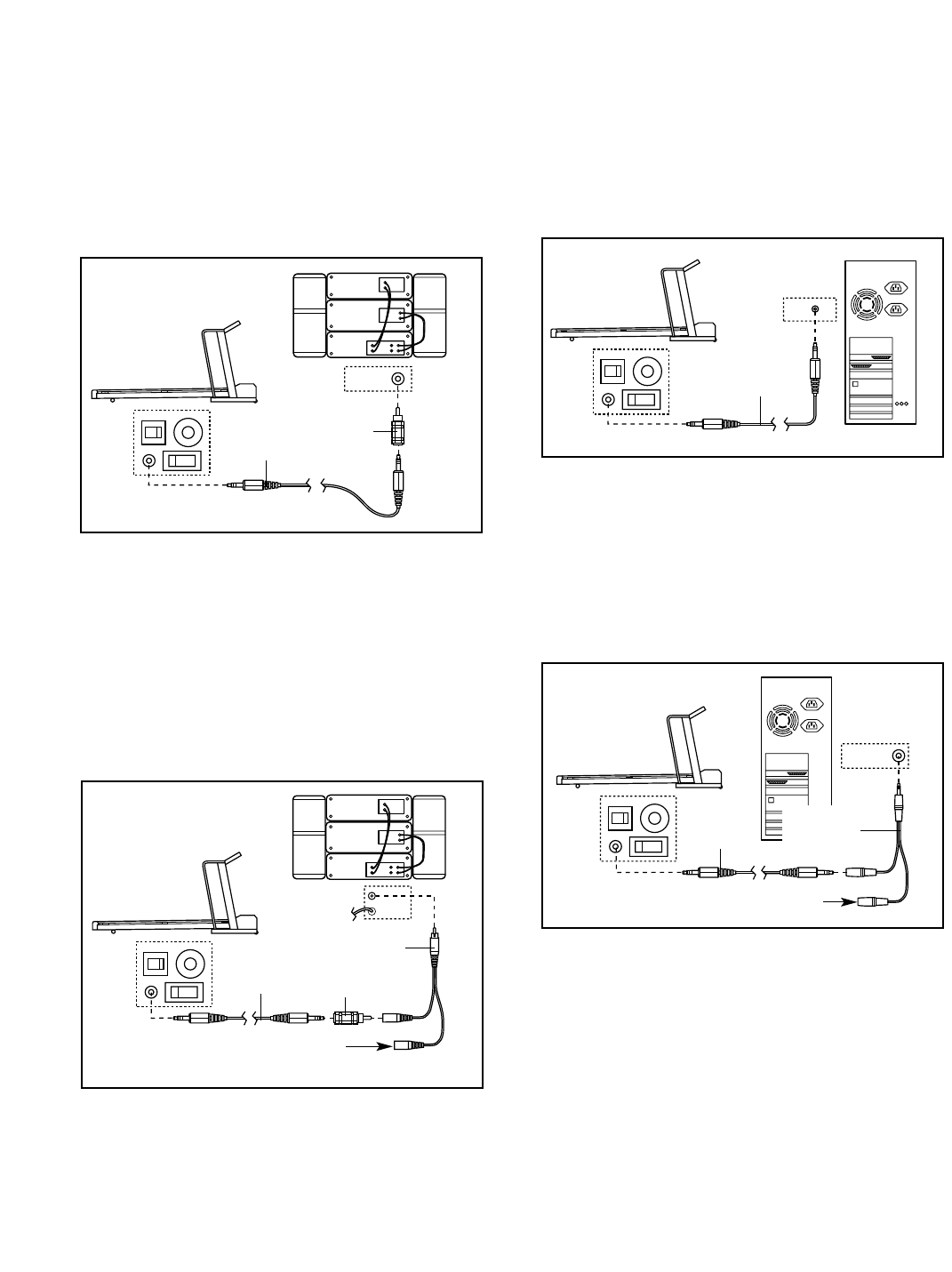

trainer right in your home. Using the included audio

cable, you can connect the treadmill to your home

stereo, portable stereo, or computer and play special

iFit.com CD programs (CD’s are available separately).

IFit.com CD programs automatically control the speed

and incline of the treadmill as a personal trainer guides

you through every step of your workout. High-energy

music provides added motivation. Each CD features

two programs designed by certified personal trainers.

In addition, you can connect the treadmill to your VCR

and TV and play iFit.com video programs (videocas-

settes are available separately). Video programs offer

the same benefits as iFit.com CD programs, but add

the excitement of working out with a class and an

instructor—the hottest new trend at health clubs.

With the treadmill connected to your computer, you

can also go to our new internet site at www.iFit.com

and access basic programs, audio programs, and

video programs directly from the internet.

To purchase iFit.com CD’s or videocassettes call

0345-089009.

To use the manual mode of the console, follow the

steps beginning on page 10. To use a personal trainer

program, see page 11. To use an iFit.com CD or

video program, refer to page 15. To use an iFit.com

program directly from our internet site, see page 17.

CAUTION:Before operating the

console, read the following precautions.

• Do not stand on the walking belt when turn-

ing on the power.

• Always wear the clip (see the drawing

above) while operating the treadmill.

• Adjust the speed in small increments to

avoid sudden jumps in speed.

• To reduce the possibility of electric shock,

keep the console dry. Avoid spilling liquids

on the console and place only a sealed water

bottle in the water bottle holder.

CONSOLE DIAGRAM

Display Display i-Fit.com Indicator

Manual/Program Indicators LED Display

Clip

Key

Program

Button Incline

Buttons Start

Button

Speed

Buttons

Stop

Button

HOW TO TURN ON THE POWER

Plug in the power cord (see HOW TO PLUG IN

THE POWER CORD on page 8).

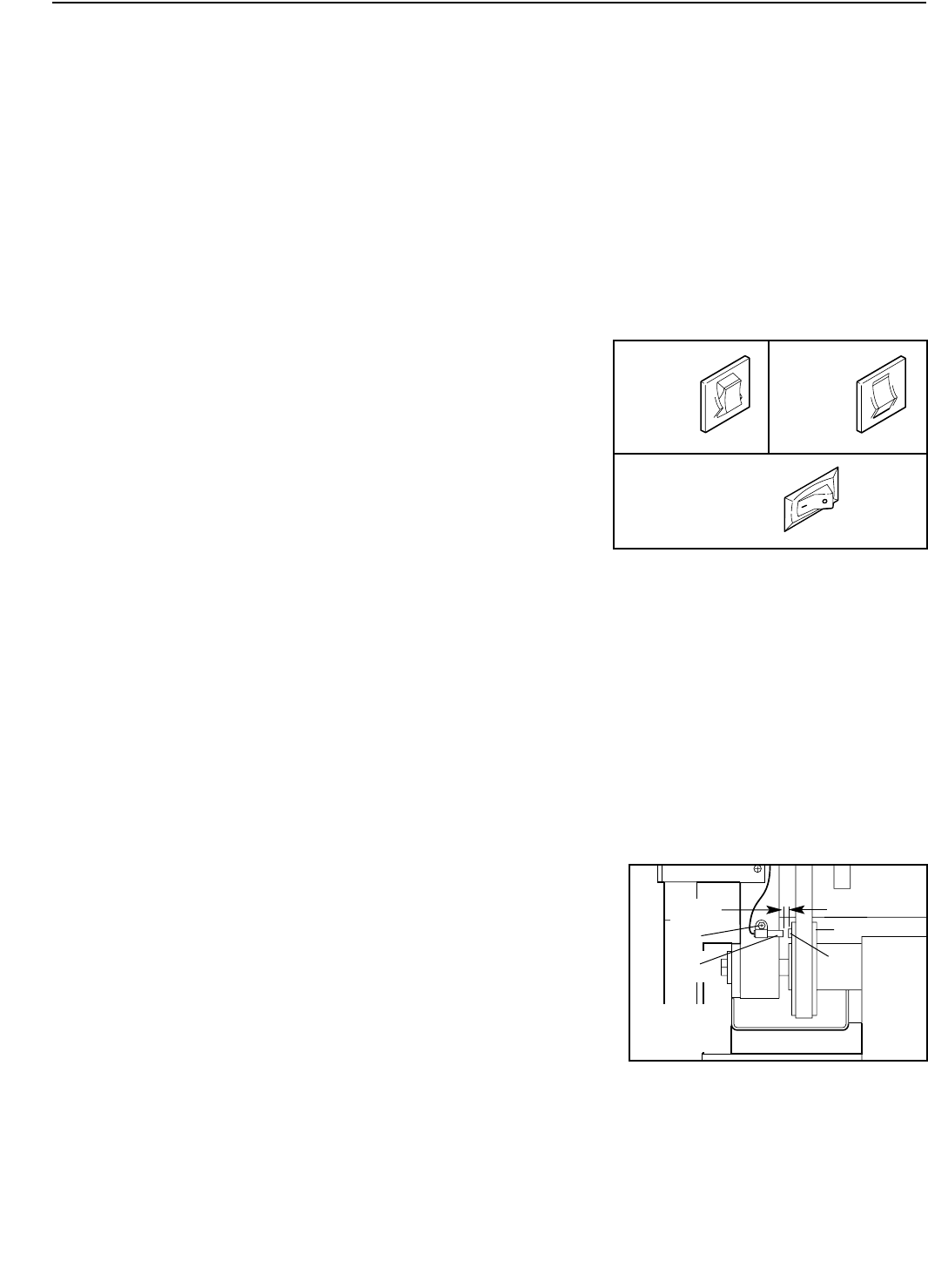

Locate the on/off

switch on the treadmill

near the power cord.

Move the on/off switch

to the on position.

Stand on the foot rails

of the treadmill. Find

the clip attached to the

key and slide the clip

onto the waistband of

your clothing. Next, in-

sert the key into the console. After a moment, the

displays and various indicators will light. Test the

clip by carefully taking a few steps backward

until the key is pulled from the console. If the

key is not pulled from the console, adjust the

position of the clip as needed.

HOW TO USE THE MANUAL MODE

Insert the key fully into the console.

See HOW TO TURN ON THE POWER above.

Select the manual mode.

When the key is in-

serted, the manual

mode will be selected

and the Manual Control

indicator will light. If a

program has been se-

lected, press the Program button repeatedly to se-

lect the manual mode.

Press the Start button or the Speed

▲▲

button to

start the walking belt.

A moment after the button is pressed, the walking

belt will begin to move at 1 mph. Hold the handrails

and begin walking. As you exercise, change the

speed of the walking belt

as desired by pressing

the Speed buttons. Each

time a button is pressed,

the speed setting will

change by 0.1 mph; if a

button is held down, the

speed setting will change in increments of 0.5

mph. The speed range is 0.5 mph to 10 mph.

To stop the walking belt, press the Stop button.

The Time/Segment Time display will begin to

flash. To restart the walking belt, press the Start

button or the Speed

▲▲

button.

Change the incline of the treadmill as desired.

To change the incline of

the treadmill, press the

Incline buttons. Each time

one of the buttons is

pressed, the incline will

change by 0.5%. The

incline range is 1.5% to 10%. Note: After the

buttons are pressed, it may take a moment for the

treadmill to reach the selected incline setting.

Follow your progress with the LED track and

the displays.

The LED Track—When

the manual mode or an

iFit.com program is se-

lected, the program dis-

play will show an LED

track representing 1/4

mile. As you exercise,

the indicators around the track will light in sequence

until you have completed 1/4 mile. A new lap will

then begin.

Distance/Laps/Incline

display—This display

shows the distance that

you have walked and the

number of 1/4-mile laps

you have completed. The

display will alternate between one number and the

other every seven seconds. The Laps indicator

will light when the number of laps is shown. In ad-

dition, each time the Incline buttons are pressed,

the display will show the current incline setting for

several seconds.

Time/Segment Time dis-

play—When the manual

mode or an iFit.com pro-

gram is selected, this dis-

play will show the elapsed

time. When a personal

trainer program is selected, the display will show

both the time remaining in the program and the

time remaining in the current segment of the pro-

gram. The display will alternate between one num-

ber and the other every seven seconds. The Seg

indicator will light when the segment time is shown.

Position

Manual Indicator

Calories/Fat Calories

display—This display

shows the approximate

numbers of calories and

fat calories you have

burned (see FAT BURN-

ING on page 22). Every seven seconds, the dis-

play will change from one number to the other.

The Fat indicator will light when the number of fat

calories is shown.

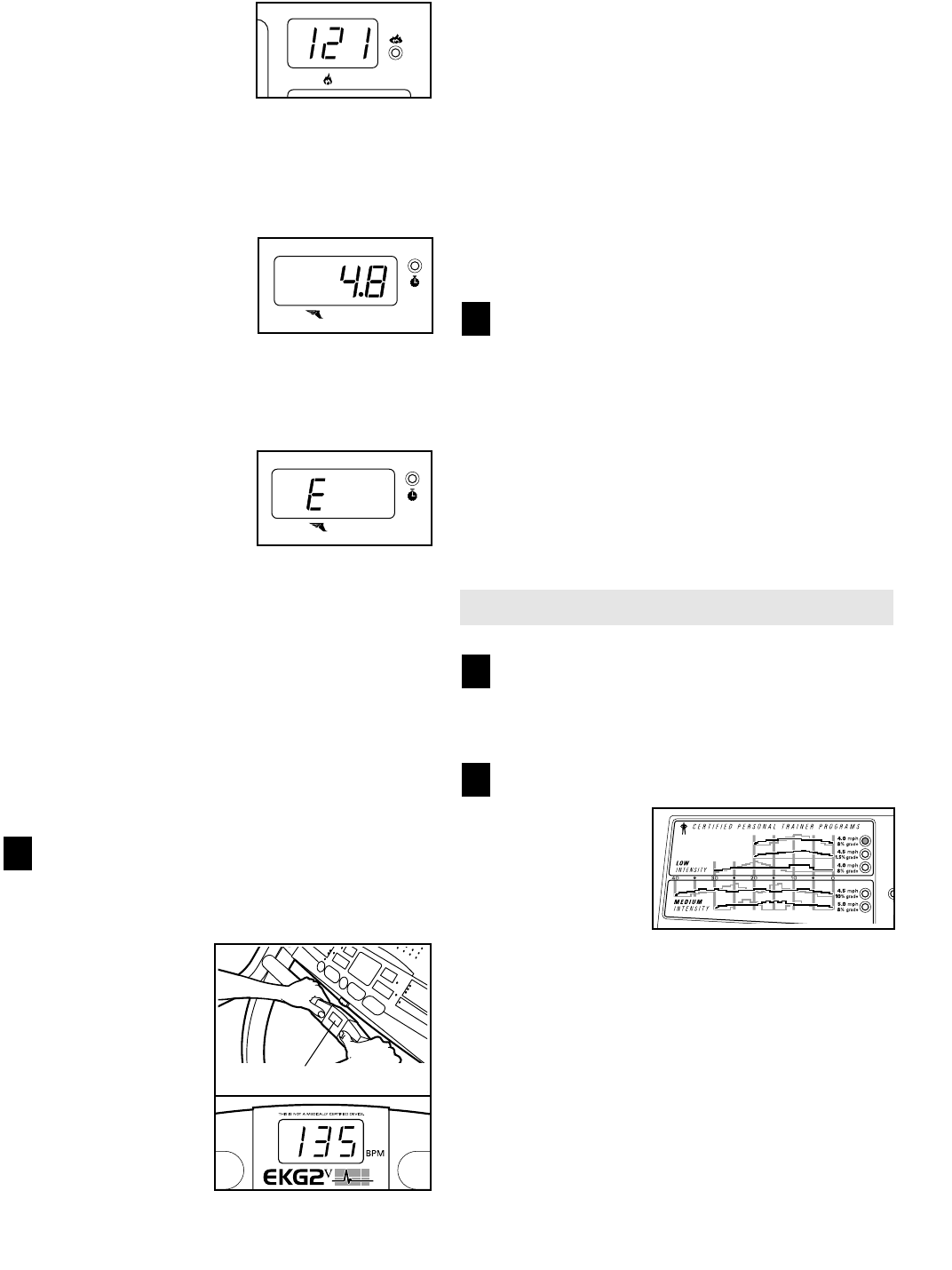

Speed/Min-Mile

display—This display

shows the speed of the

walking belt and your

current pace (pace is

measured in minutes per

mile). Every seven seconds, the display will

change from one number to the other. The M/M

indicator will light when your pace is shown.

Note: The console can

display speed and dis-

tance in either miles or

kilometres. To find which

unit of measurement is

selected, hold down the

Stop button while inserting the key into the con-

sole. An “E,” for English miles, or an “M,” for metric

kilometres, will appear in the display. Press the

Speed

▲▲

button to change the unit of measure-

ment. When the desired unit of measurement is

selected, remove the key and then reinsert it.

Note: For simplicity, all instructions in this manual

refer to miles.

To reset the displays, press the Stop button, re-

move the key, and then reinsert the key.

Measure your heart rate, if desired.

Note: Before using the pulse sensor, make sure

that your hands are clean.

To measure your

heart rate, stand

on the foot rails

and place both

thumbs on the

pulse sensors as

shown. Do not

press too hard,

or the circulation

in your thumbs

will be restricted

and your heart

rate will not be

detected. After a few seconds, one or two dashes

will appear in the Pulse display and then your heart

rate will be shown. Hold your thumbs on the sen-

sor for another 15 seconds for the most accurate

reading. If the displayed heart rate appears to be

too high or too low, or if your heart rate is not dis-

played, lift your thumbs off the sensors and allow

the display to reset. Then, place your thumbs on

the sensors as described above.

Try the pulse sensor several times until you be-

come familiar with it. Remember to stand still

while measuring your heart rate. Note: If the op-

tional chest pulse sensor is worn, your heart rate

will be displayed in the Pulse display.

When you are finished, remove the key.

Step onto the foot rails, press the Stop button, and

remove the key from the console. Keep the key in

a secure place. Note: If the displays and various

indicators on the console remain lit after the

key is removed, the console is in the “demo”

mode. See page 18 and turn off the demo mode.

When you are finished using the treadmill, move

the on/off switch near the power cord to the off

position and unplug the power cord.

HOW TO USE PERSONAL TRAINER PROGRAMS

Insert the key fully into the console.

See HOW TO TURN ON THE POWER on page

10.

Select one of the personal trainer programs.

When the key is

inserted, the

manual mode will

be selected and

the Manual

Control indicator

will light. To se-

lect one of the personal trainer programs, press

the Program button repeatedly until one of the

eight personal trainer program indicators lights.

The console features three low-intensity programs,

two medium-intensity programs, and three high-

intensity programs. The profiles on the console

show how the speed and incline of the treadmill

will change during the programs. The numbers

beside the profiles show the maximum speed and

incline settings for the programs. For example, the

upper left profile shows that the treadmill will reach

a maximum speed of 4.5 mph and a maximum in-

cline of 5% during the first program.

Pulse Display

The program display

will show a simplified

profile of the program

you have selected. The

Time/Segment Time

display will show how

long the program will

last.

Press the Start button or the Speed

▲▲

button to

start the program.

A moment after the button is pressed, the tread-

mill will automatically adjust to the first speed and

incline settings for the program. Hold the handrails

and begin walking.

Each program is divided into several time seg-

ments of different lengths. The Time/Segment

Time display shows both the time remaining in the

program and the time

remaining in the current

segment. One speed

setting and one incline

setting are programmed

for each segment. The

speed setting for the

first segment will be

shown in the flashing

Current Segment column of the program display.

(The incline settings are not shown in the program

display.) The speed settings for the next seven

segments will be shown in the seven columns to

the right.

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash, a se-

ries of tones will sound, and all speed settings will

move one column to the left. The speed setting for

the second segment will then be shown in the

flashing Current Segment column and the tread-

mill will automatically adjust to the speed and in-

cline settings for the second segment.

The program will continue in this way until the

speed setting for the last segment is shown in the

Current Segment column and no time remains in

the Time/Segment Time display. The walking belt

will then slow to a stop.

Note: Each time a segment ends and the speed

settings move one column to the left, if all of the

indicators in the Current Segment column are lit,

the speed settings will move downward so that only

the highest indicators in the columns will appear in

the program display. When the speed settings

move to the left again and not all of the indicators

in the Current Segment column are lit, the speed

settings will move back up.

If the speed or incline setting for the current

segment is too high or too low, you can manually

override the setting by pressing the Speed or

Incline buttons on the console. Every few times

one of the Speed buttons is pressed, an additional

indicator will light or darken in the Current Segment

column. If any of the columns to the right of the

Current Segment column have the same number

of lit indicators as the Current Segment column,

an additional indicator may light or darken in those

columns as well. Note: If you manually adjust the

speed setting so that all of the indicators in the

Current Segment column are lit, the speed settings

in the program display will not move downward as

described above. When the current segment of

the program ends, the treadmill will automati-

cally adjust to the speed and incline settings

for the next segment.

To stop the program temporarily, press the Stop

button. The Time/Segment Time display will begin

to flash. To restart the program, press the Start but-

ton or the Speed

▲▲

button. To end the program,

press the Stop button, remove the key, and then

reinsert the key.

Follow your progress with the displays.

Refer to step 5 on page 10.

Measure your heart rate, if desired.

See step 6 on page 11.

When the program is completed, remove the

key from the console.

When the program is completed, remove the key

from the console. Keep the key in a secure place.

Note: If the displays and various indicators on

the console remain lit after the key is removed,

the console is in the “demo” mode. Refer to

page 18 and turn off the demo mode.

When you are finished using the treadmill, move

the on/off switch near the power cord to the off

position and unplug the power cord.

Current Segment

HOW TO CONNECT THE TREADMILL TO YOUR

CD PLAYER, VCR, OR COMPUTER

To use iFit.com CD’s, the treadmill must be con-

nected to your portable CD player, portable stereo,

home stereo, or computer with CD player. See pages

13 and 14 for connecting instructions. To use iFit.com

videocassettes, the treadmill must be connected to

your VCR. See page 15 for connecting instructions. To

use iFit.com programs directly from our internet

site, the treadmill must be connected to your home

computer. See page 14 for connecting instructions.

HOW TO CONNECT YOUR PORTABLE CD PLAYER

Note: If your CD player has separate LINE OUT and

PHONES jacks, see instruction A below. If your CD

player has only one jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the LINE OUT jack on

your CD player. Plug your headphones into the

PHONES jack.

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your CD player. Plug your

headphones into the other side of the Y-adapter.

HOW TO CONNECT YOUR PORTABLE STEREO

Note: If your stereo has an RCA-type AUDIO OUT

jack, see instruction A below. If your stereo has a

3.5mm LINE OUT jack, see instruction B. If your

stereo has only a PHONES jack, see instruction C.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter. Plug

the adapter into an AUDIO OUT jack on your stereo.

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the LINE OUT jack on

your stereo.

C. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your stereo. Plug your

headphones into the other side of the Y-adapter.

LINE OUT

PHONES LINE OUT

PHONES

Audio

Cable

Head-

phones

AUDIO OUT

RIGHT

LEFT

Audio

Cable Adapter

LINE OUT

Audio

Cable

PHONES

Audio

Cable

PHONES

Audio

Cable

3.5mm

Y-adapter

Headphones

3.5mm

Y-adapter

Headphones

HOW TO CONNECT YOUR HOME STEREO

Note: If your stereo has an unused LINE OUT jack,

see instruction A below. If the LINE OUT jack is

being used, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into the LINE OUT jack on your

stereo.

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into an RCA adapter (available at

electronics stores). Next, remove the wire that is

currently plugged into the LINE OUT jack on your

stereo and plug the wire into the unused side of the

RCA adapter. Plug the RCA adapter into the LINE

OUT jack on your stereo.

HOW TO CONNECT YOUR COMPUTER

Note: If your computer has a 3.5mm LINE OUT jack,

see instruction A. If your computer has only a

PHONES jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the LINE OUT jack on

your computer.

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your computer. Plug your

headphones or speakers into the other side of the

Y-adapter.

VCR

Amp

LINE OUT

Audio

Cable Adapter

LINE OUT

Audio

Cable

VCR

Amp

LINE OUT

Audio

Cable

RCA

Adapter

Wire removed from

LINE OUT jack

Adapter

PHONES

Audio

Cable

3.5mm

Y-adapter

Headphones/Speakers

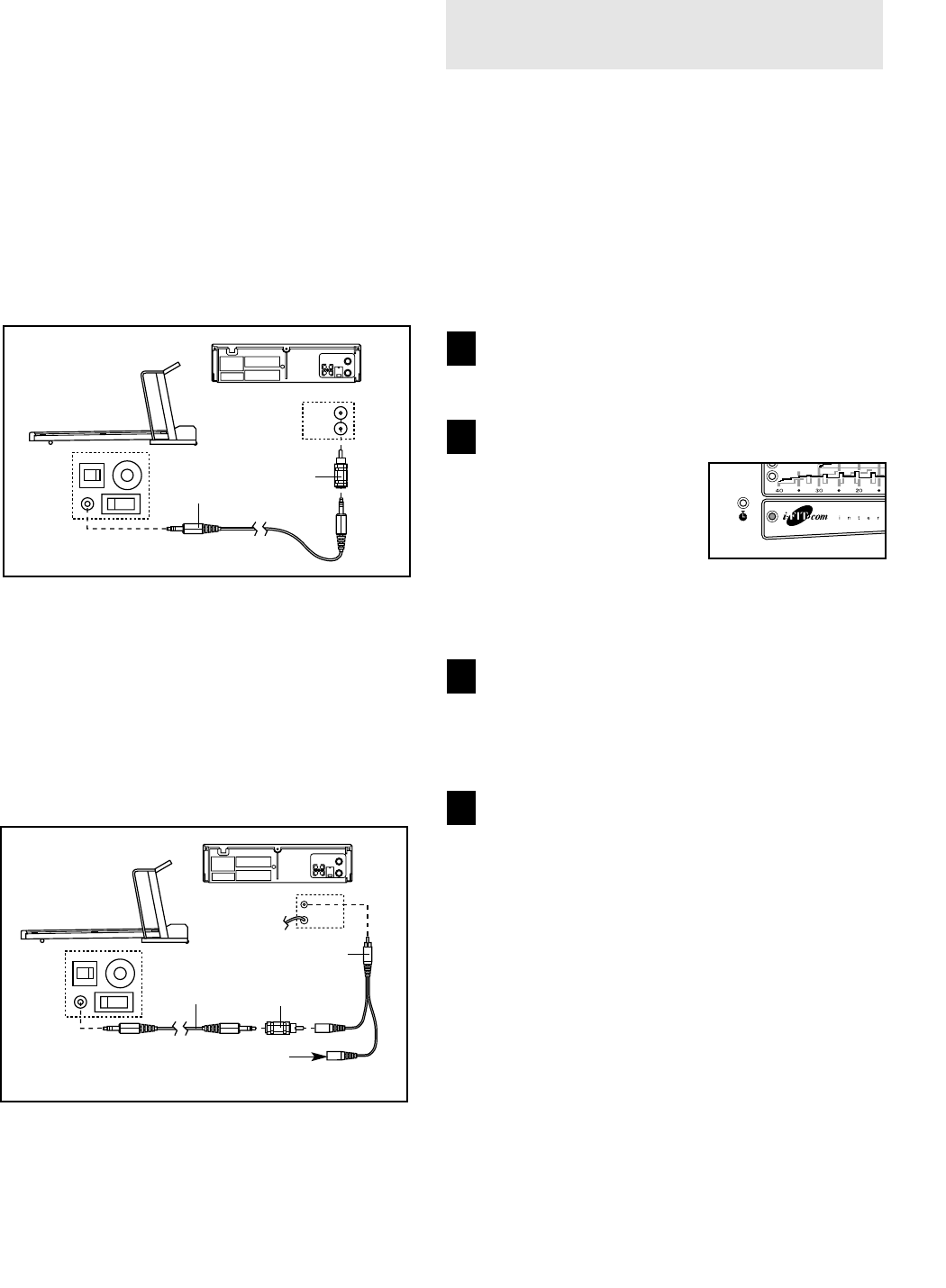

HOW TO CONNECT YOUR VCR

Note: If your VCR has an unused AUDIO OUT jack,

see instruction A below. If the AUDIO OUT jack is

being used, see instruction B. If you have a TV

with a built-in VCR, see instruction B. If your VCR

is connected to your home stereo, see HOW TO

CONNECT YOUR HOME STEREO on page 14.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into the AUDIO OUT jack on your

VCR.

B.Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into an RCA adapter (available at

electronics stores). Next, remove the wire that is

currently plugged into the AUDIO OUT jack on your

VCR and plug the wire into the unused side of the

RCA adapter. Plug the RCA adapter into the AUDIO

OUT jack on your VCR.

HOW TO USE IFIT.COM CD AND VIDEO

PROGRAMS

To use iFit.com CD’s or videocassettes, the treadmill

must be connected to your portable CD player, portable

stereo, home stereo, computer with CD player, or

VCR. See HOW TO CONNECT THE TREADMILL TO

YOUR CD PLAYER, VCR, OR COMPUTER on page

13. Note: To purchase iFit.com CD’s or videocas-

settes, call 0345-089009.

Follow the steps below to use an iFit.com CD or video

program.

Insert the key into the console.

See HOW TO TURN ON THE POWER on page 10.

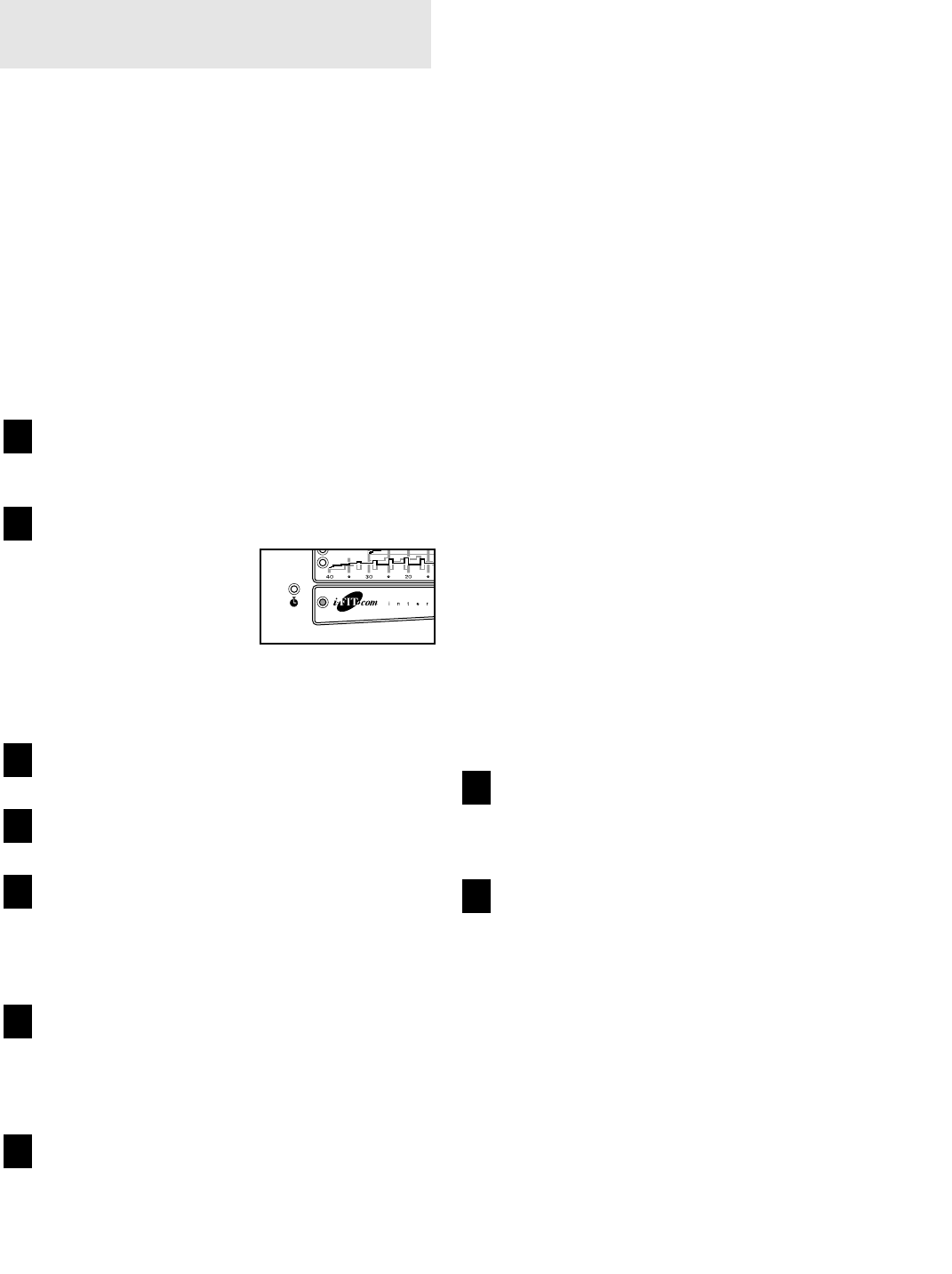

Select the iFit.com mode.

When the key is in-

serted, the manual

mode will be selected

and the Manual Control

indicator will light. To

use iFit.com CD’s or

videocassettes, press the Program button repeat-

edly until the iFit.com indicator lights.

Insert the iFit.com CD or videocassette.

If you are using an iFit.com CD, insert the CD into

your CD player. If you are using an iFit.com video-

cassette, insert the videocassette into your VCR.

Press the PLAY button on your CD player or

VCR.

A moment after the button is pressed, your per-

sonal trainer will begin guiding you through your

workout. Simply follow your personal trainer’s

instructions. Note: If the Time/Segment Time dis-

play is flashing, press the Start button or the

Speed

▲▲

button on the console. The treadmill will

not respond to a CD or video program when the

Time/Segment Time display is flashing.

During the CD or video program, an electronic

“chirping” sound will alert you when the speed

and/or incline of the treadmill is about to change.

CAUTION: Always listen for the “chirp” and be

prepared for speed and/or incline changes. In

some instances, the speed and/or incline may

change before the personal trainer describes

the change.

AUDIO OUT

RIGHT

LEFT

VIDEO AUDIO

ANT. IN

RF OUT

OUT

Audio

Cable Adapter

VIDEO AUDIO

ANT. IN

RF OUT

OUT

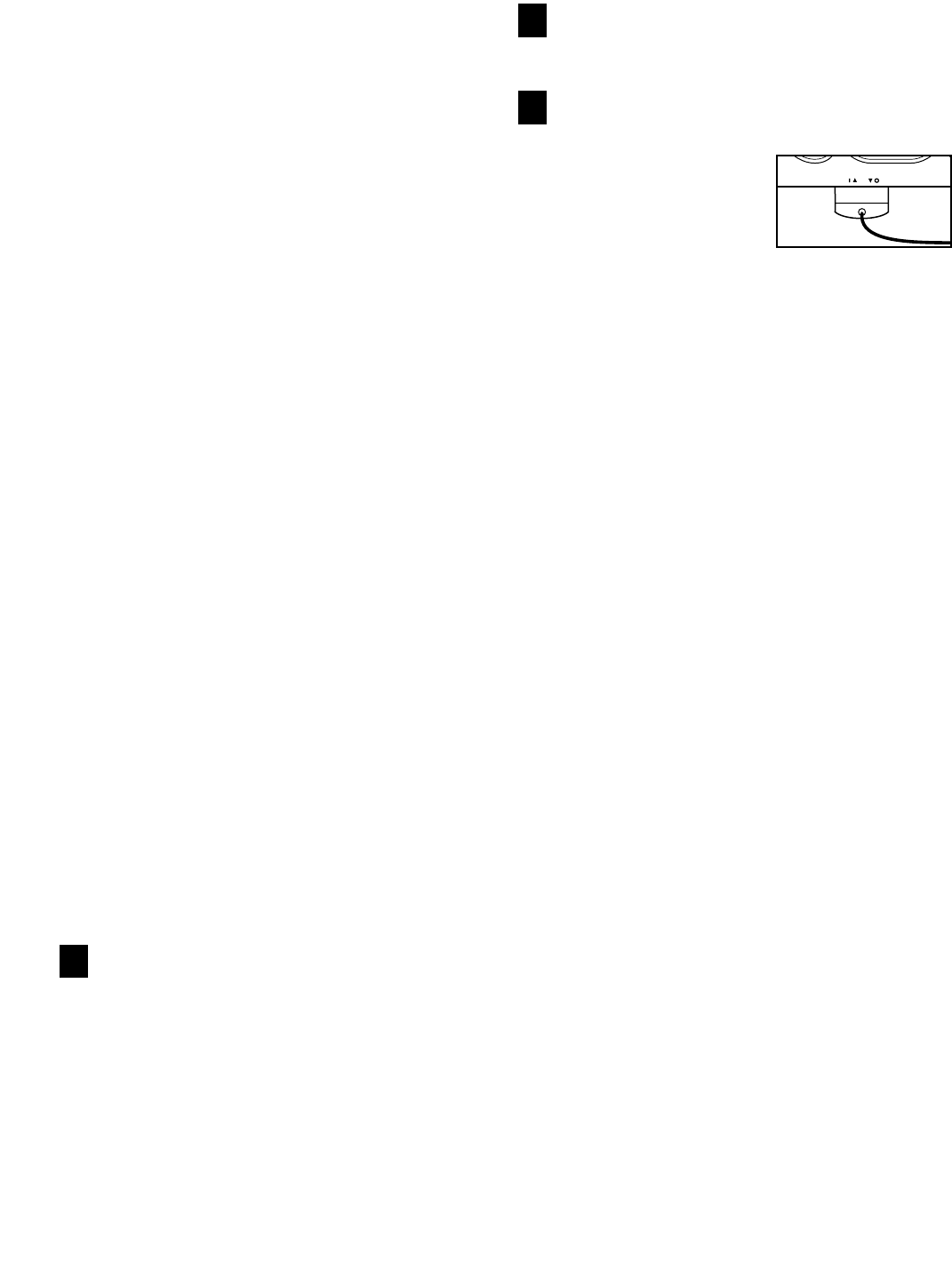

Audio

Cable Adapter

Wire removed from

AUDIO OUT jack

RCA Adapter

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the Speed or Incline buttons on

the console. However, when the next “chirp” is

heard, the speed and/or incline will change to

the next settings of the CD or video program.

To stop the walking belt at any time, press the

Stop button on the console. The Time/Segment

Time display will begin to flash. To restart the pro-

gram, press the Start button or the Speed

▲▲

but-

ton. After a moment, the walking belt will begin to

move at 1.0 mph. When the next “chirp” is

heard, the speed and incline will change to the

next settings of the CD or video program. The

program can also be stopped by pressing the

Stop button on your CD player or VCR.

When the CD or video program is completed, the

walking belt will stop and the Time/Segment Time

display will begin to flash. Note: To use another

CD or video program, press the Stop button or re-

move the key and go to step 1 on page 15.

Note: If the speed or incline of the treadmill

does not change when a “chirp” is heard:

• make sure that the iFit.com indicator is lit and

that the Time/Segment Time display is not

flashing. If the Time/Segment Time display is

flashing, press the Start button or the Speed

▲▲

button on the console

• adjust the volume of your CD player or VCR. If

the volume is too high or too low, the console

may not detect the program signals

• make sure that the audio cable is properly

connected, that it is fully plugged in, and that

it is not wrapped around a power cord

• if you are using your portable CD player and

the CD skips, set the CD player on the floor or

another flat surface instead of on the console.

Follow your progress with the LED track and

the displays.

See step 5 on page 10.

Measure your heart rate, if desired.

Refer to step 6 on page 11.

When the program is completed, remove the

key.

When the program is

completed, remove the

key from the console.

Keep the key in a secure

place. Note: If the dis-

plays and various indi-

cators on the console remain lit after the key is

removed, the console is in the “demo” mode.

Refer to page 18 and turn off the demo mode.

When you are finished using the treadmill, move

the on/off switch near the power cord to the off

position and unplug the power cord.

HOW TO USE PROGRAMS DIRECTLY FROM

OUR INTERNET SITE

Our new internet site at www.iFit.com allows you to

access a selection of programs that interactively con-

trol your treadmill to help you achieve your specific ex-

ercise goals.

To use programs from our internet site, the treadmill

must be connected to your home computer. See HOW

TO CONNECT YOUR COMPUTER on page 14. In

addition, you must have an internet connection and

an internet service provider. A list of specific system

requirements will be found on our internet site.

Follow the steps below to use a program from our

internet site.

Insert the key into the console.

See HOW TO TURN ON THE POWER on page 10.

Select the iFit.com mode.

When the key is inserted,

the manual mode will be

selected and the Manual

Control indicator will light.

To use a program from

our internet site, press

the Program button repeatedly until the iFit.com

indicator lights.

Go to your computer and start an internet

connection.

Start your web browser, if necessary, and go to

our internet site at www.iFit.com.

Follow the desired links on our internet site to

select a program.

Read and follow the on-line instructions for using a

program.

Follow the on-line instructions to start the

program.

When you start the program, an on-screen count-

down will begin.

Return to the treadmill and stand on the foot

rails. Find the clip attached to the key and slide

the key onto the waistband of your clothing.

When the on-screen countdown ends, the program

will begin and the walking belt will begin to move.

Hold the handrails, step onto the walking belt, and

begin walking. During the program, an electronic

“chirping” sound will alert you when the speed

and/or incline of the treadmill is about to change.

CAUTION: Always listen for the “chirp” and be

prepared for speed and/or incline changes.

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the Speed or Incline buttons on

the console. However, when the next “chirp” is

heard, the speed and/or incline will change to

the next settings of the program.

To stop the walking belt at any time, press the

Stop button on the console. The Time/Segment

Time display will begin to flash. To restart the pro-

gram, press the Start button or the Speed

▲▲

but-

ton. After a moment, the walking belt will begin to

move at 1.0 mph. When the next “chirp” is

heard, the speed and incline will change to the

next settings of the program.

When the program is completed, the walking belt

will stop and the Time/Segment Time display will

begin to flash. Note: To use another program,

press the Stop button and go to step 5.

Note: If the speed or incline of the treadmill

does not change when a “chirp” is heard, make

sure that the iFit.com indicator is lit and that

the Time/Segment Time display is not flashing.

In addition, make sure that the audio cable is

properly connected, that it is fully plugged in,

and that it is not wrapped around a power cord.

Follow your progress with the LED track and

the displays.

See step 5 on page 10.

When the program has ended, remove the key.

When the program has ended, remove the key

from the console. Keep the key in a secure place.

Note: If the displays and indicators on the con-

sole remain lit after the key is removed, the

console is in the “demo” mode. Refer to page

18 and turn off the demo mode.

When you are finished using the treadmill, move

the on/off switch near the power cord to the off

position and unplug the power cord.

THE INFORMATION MODE/DEMO MODE

The console features an information mode that keeps

track of the total number of hours that the treadmill has

been operated and the total number of miles that the

walking belt has moved. The information mode also

allows you to switch the console from miles per hour to

kilometres per hour. In addition, the information mode

allows you to turn on and turn off the demo mode.

To select the information mode, hold down the Stop

button while inserting the key into the console. When

the information mode is selected, the following informa-

tion will be shown:

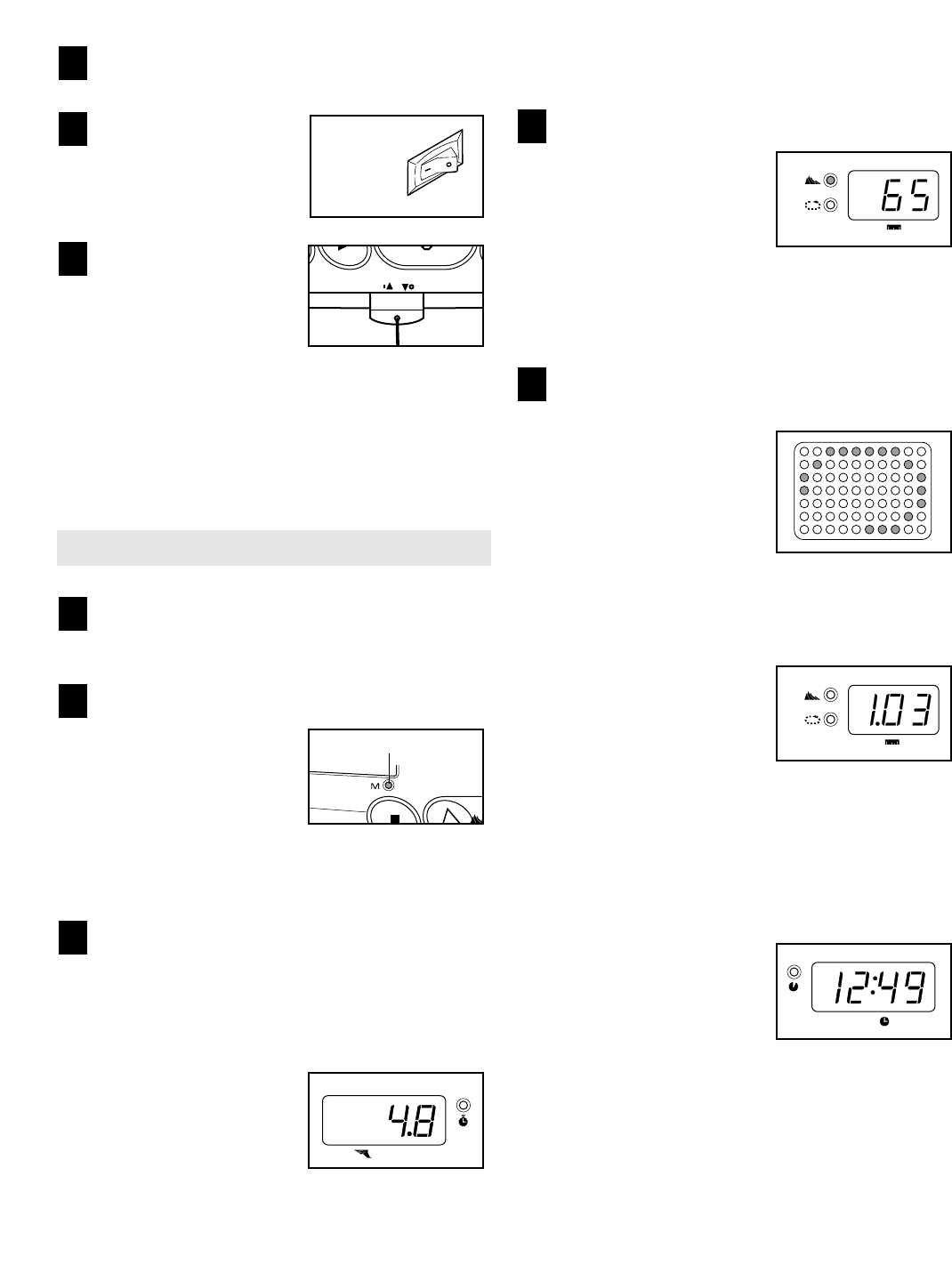

The Distance/Laps/Incline

display will show the total

number of miles that the walk-

ing belt has moved.

The Time/Segment Time dis-

play will show the total number

of hours the treadmill has

been used.

An “E,” for english miles, or an

“M,” for metric kilometres, will

appear in the Speed/ Min-Mile

display. Press the Speed

▲▲

button to change the unit of

measurement.

IMPORTANT: The

Calories/Fat Calories dis-

play should be blank. If a “d”

appears in the display, the

console is in the “demo”

mode. This mode is intended

to be used only when a treadmill is displayed in a store.

When the console is in the demo mode, the power cord

can be plugged in, the key can be removed from the

console, and the displays and indicators on the console

will automatically light in a preset sequence, although

the buttons on the console will not operate. If a “d” ap-

pears in the Calories/Fat Calories display when the

information mode is selected, press the Speed

▼▼

button so the Calories/Fat Calories display is

blank.

To exit the information mode, remove the key from the

console.

OPTIONAL CHEST PULSE SENSOR

An optional chest pulse sensor adds even more

features to the console. The chest pulse sensor offers

hands-free operation and continuously monitors your

heart rate during your workouts. To purchase the

optional chest pulse sensor, call the Customer

Service Department (see the back cover of this

manual).

OPTIONAL HAND WEIGHTS

Optional hand weights let

you include upper-body exer-

cise in your workouts. The

hand weights fit into conve-

nience holders in the con-

sole. To purchase the op-

tional hand weights, call

the Customer Service

Department (see the back

cover of this manual).

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the

lowest position. If this is not done, the treadmill may be

permanently damaged. Next, unplug the power cord.

CAUTION: You must be able to safely lift 20 kg in order

to raise, lower, or move the treadmill.

1. Hold the treadmill with your hands in the locations shown

at the right. CAUTION: To decrease the possibility of in-

jury, bend your legs and keep your back straight. As

you raise the treadmill, make sure to lift with your legs

rather than your back. Raise the treadmill about halfway

to the vertical position.

2. Move your right hand to the position shown and hold the

treadmill firmly. Using your left hand, pull the latch knob

to the left and hold it. Raise the treadmill until the latch

pin is aligned with the hole in the catch. Insert the latch

pin into the catch. Make sure that the latch pin is fully

inserted into the catch.

To protect the floor or carpet from damage, place a

mat under the treadmill. Keep the treadmill out of

direct sunlight. Do not leave the treadmill in the stor-

age position in temperatures above 30° Celsius.

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the stor-

age position as described above. Make sure that the stor-

age latch is closed fully over the catch.

1. Hold the handrails as shown and place one foot against a

wheel.

2. Tilt the treadmill back until it rolls freely on the front wheels.

Carefully move the treadmill to the desired location. Never

move the treadmill without tipping it back. To reduce

the risk of injury, use extreme caution while moving

the treadmill. Do not attempt to move the treadmill

over an uneven surface.

3. Place one foot on the base, and carefully lower the tread-

mill until it is resting in the storage position.

HOW TO LOWER THE TREADMILL FOR USE

1. Refer to drawing 2 above. Hold the treadmill with your right hand as shown. Using your left hand, pull the latch

knob to the left and hold it. Pivot the treadmill down until the frame is past the pin. Slowly release the latch knob.

2. Refer to drawing 1. Hold the treadmill firmly with both hands, and lower the treadmill to the floor. CAUTION:

To decrease the possibility of injury, bend your legs and keep your back straight.

Base

Front Wheels

Latch

Knob

Catch

Closed

Open

TROUBLE-SHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and

follow the steps listed. If further assistance is needed, please call our Customer Service Department.

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a properly earthed outlet. (See HOW TO PLUG IN

THE POWER CORD on page 8.) If an extension cord is needed, use only a 3-conductor, 14-

gauge (1mm2) cord that is no longer than 1.5 meters (5 feet). Important: The treadmill is not com-

patible with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the con-

sole.

c. Check the circuit breaker located on the treadmill

near the power cord. If the switch protrudes as

shown, the circuit breaker has tripped. To reset the

circuit breaker, wait for five minutes and then press

the switch back in.

d. Check the on/off switch located on the treadmill

near the power cord. The switch must be in the on

position.

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the

circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in.

c. Remove the key from the console. Reinsert the key fully into the console.

d. Make sure that the on/off switch is in the on position.

e. If the treadmill still will not run, please call our Customer Service Department.

PROBLEM: The speed display on the console does not function properly

SOLUTION: a. Remove the key from the console and unplug the

power cord. Remove the screws from the hood and

carefully remove the hood. Locate the Reed Switch (21)

and the Magnet (43) on the left side of the Pulley (42).

Turn the Pulley until the Magnet is aligned with the Reed

Switch. Make sure that the gap between the Magnet

and the Reed Switch is about 3 mm. If necessary,

loosen the Short Screw (76) and move the Reed Switch

slightly. Retighten the Screw. Re-attach the hood, and

run the treadmill for a few minutes to check for a correct

speed reading.

Tri

ed Reset

Tripped

Reset

Position

3 mm 42

Top

View

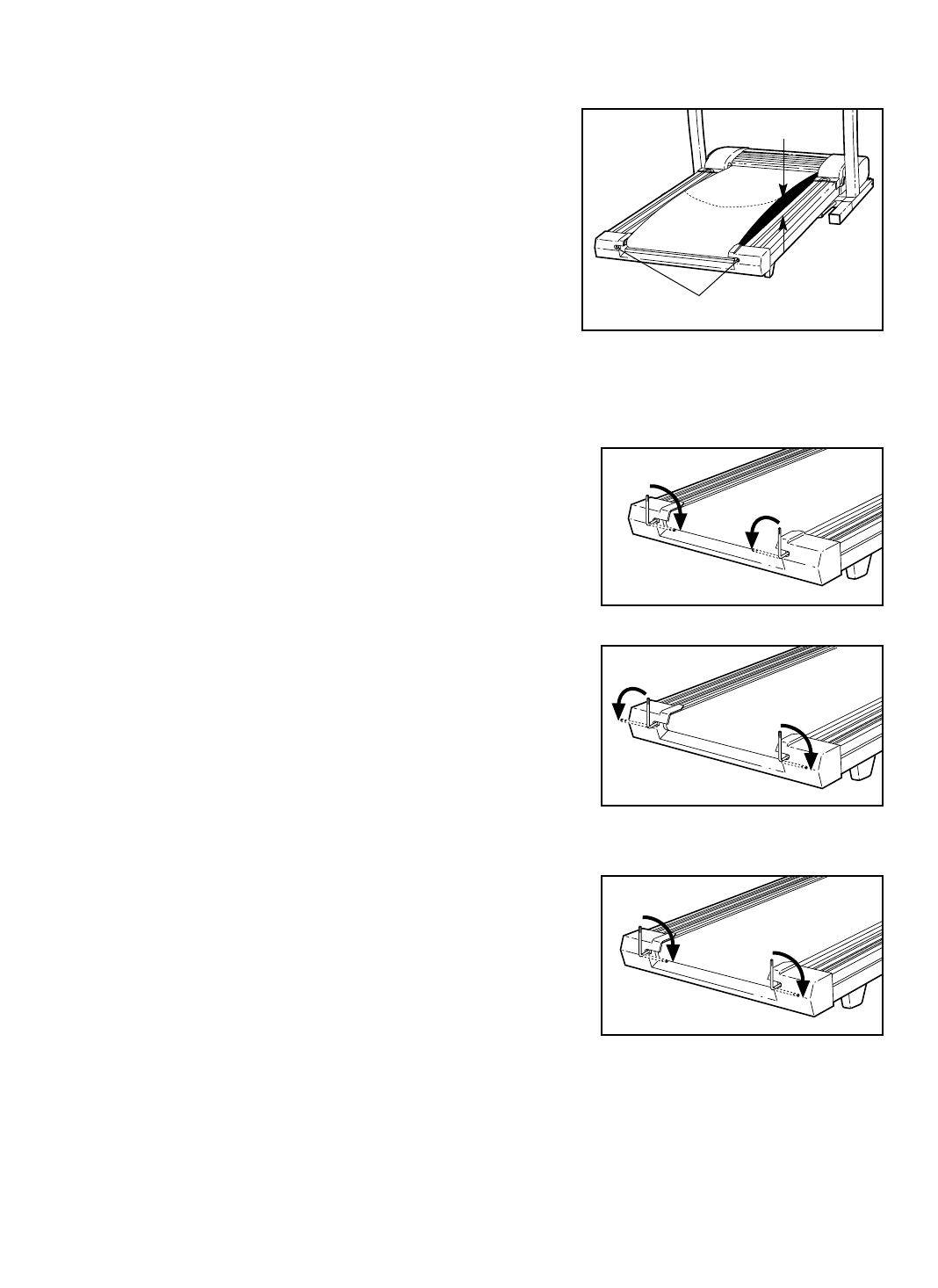

PROBLEM: The walking belt slows when walked on

SOLUTION: a. If an extension cord is needed, use only a 3-conductor, 14-gauge (1mm2) cord that is no longer

than 1.5 meters (5 feet).

b. If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may be-

come damaged. Remove the key and UNPLUG THE

POWER CORD. Using the allen wrench, turn both

rear roller adjustment bolts counterclockwise, 1/4 of a

turn. When the walking belt is properly tightened, you

should be able to lift each side of the walking belt 7 to

10 cm off the walking platform. Be careful to keep the

walking belt centred. Plug in the power cord, insert

the key and run the treadmill for a few minutes.

Repeat until the walking belt is properly tightened.

c. If the walking belt still slows when walked on, please call our Customer Service Department.

PROBLEM: The walking belt is off-centre

SOLUTION: a. If the walking belt has shifted to the left, first remove

the key and UNPLUG THE POWER CORD. Using the

allen wrench, turn the left rear roller adjustment bolt

clockwise, and the right bolt counterclockwise, 1/4 of a

turn each. Be careful not to overtighten the walking belt.

Plug in the power cord, insert the key and run the tread-

mill for a few minutes. Repeat until the walking belt is

centred.

b. If the walking belt has shifted to the right, first re-

move the key and UNPLUG THE POWER CORD.

Using the allen wrench, turn the left rear roller adjust-

ment bolt counterclockwise, and the right bolt clockwise,

1/4 of a turn each. Be careful not to overtighten the

walking belt. Plug in the power cord, insert the key and

run the treadmill for a few minutes. Repeat until the

walking belt is centred.

PROBLEM: The walking belt slips when walked on

SOLUTION: a. If the walking belt slips when walked on, first remove

the key and UNPLUG THE POWER CORD. Using the

allen wrench, turn both rear roller adjustment bolts

clockwise, 1/4 of a turn. When the walking belt is cor-

rectly tightened, you should be able to lift each side of

the walking belt 7 to 10 cm off the walking platform. Be

careful to keep the walking belt centred. Plug in the

power cord, insert the key and carefully walk on the

treadmill for a few minutes. Repeat until the walking belt

is properly tightened.

PROBLEM: The incline of the treadmill does not change correctly or does not change when i-Fit.com

CD’s and videos are played

SOLUTION: a. With the key inserted in the console, press one of the INCLINE buttons. While the incline is

changing, remove the key. After a few seconds, re-insert the key. The treadmill will automati-

cally rise to the maximum incline level and then return to the minimum level. This will recalibrate

the incline.

Rear Roller Adjustment Bolts

7–10 cm

CONDITIONING GUIDELINES

The following guidelines will help you to plan your ex-

ercise program. Remember—these are general guide-

lines only. For more detailed exercise information, ob-

tain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

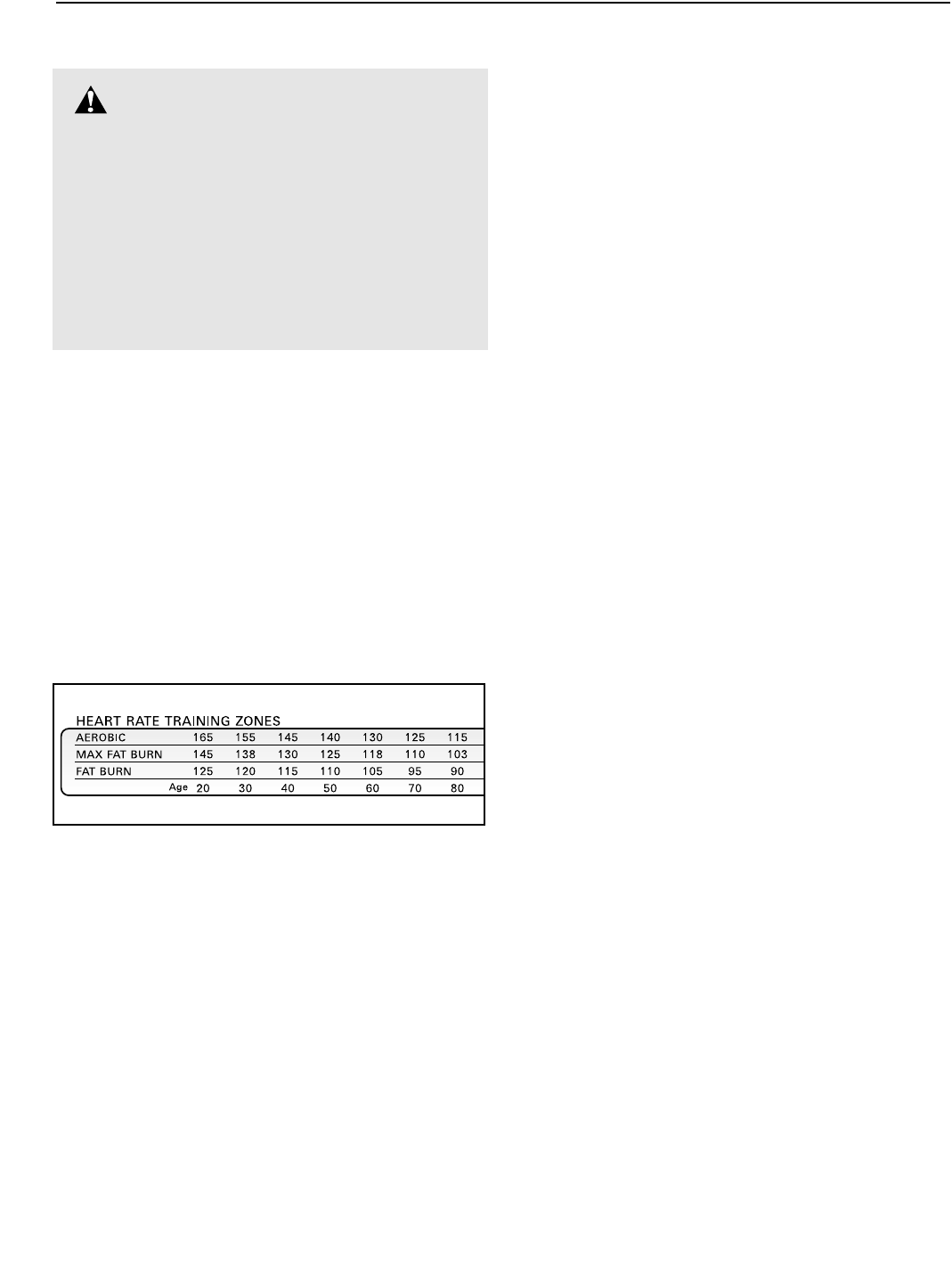

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning and aerobic exercise.

To find the proper heart rate for you, first find your age

near the bottom of the chart (ages are rounded off to

the nearest ten years). Next, find the three numbers

above your age. The three numbers define your “train-

ing zone.” The lower two numbers are recommended

heart rates for fat burning; the higher number is the

recommended heart rate for aerobic exercise.

To measure your heart rate during exercise, use the

pulse sensor on the console. If your heart rate is too

high or too low, adjust the speed and incline of the

treadmill.

Fat Burning

To burn fat effectively, you must exercise at a relatively

low intensity level for a sustained period of time. Dur-

ing the first few minutes of exercise, your body uses

easily accessible carbohydrate calories for energy.

Only after the first few minutes does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the speed and incline of the treadmill

until your heart rate is near the lowest number in your

training zone.

For maximum fat burning, adjust the speed and incline

of the treadmill until your heart rate is near the middle

number in your training zone.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be “aerobic.” Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. For aerobic exercise,

adjust the speed and incline of the treadmill until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A Warm-up—Start each workout with 5 to 10 minutes

of stretching and light exercise. A proper warm-up in-

creases your body temperature, heart rate and circula-

tion in preparation for exercise.

Training Zone Exercise—After warming up, increase

the intensity of your exercise until your pulse is in your

training zone for 20 to 60 minutes. (During the first few

weeks of your exercise program, do not keep your

pulse in your training zone for longer than 20 minutes.)

Breathe regularly and deeply as you exercise—never

hold your breath.

A Cool-down—Finish each workout with 5 to 10 min-

utes of stretching to cool down. This will increase the

flexibility of your muscles and will help prevent post-ex-

ercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest be-

tween workouts. After a few months, you may com-

plete up to five workouts each week if desired.

The key to success is to make exercise a regular and

enjoyable part of your everyday life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for individu-

als over the age of 35 or individuals with pre-

existing health problems.

The pulse sensor is not a medical device.

Various factors, including your movement,

may affect the accuracy of heart rate readings.

The sensor is intended only as an exercise aid

in determining heart rate trends in general.

PART LIST—Model No. PETL63000 R0500A

To locate the parts listed below, refer to the EXPLODED DRAWING attached in the centre of this manual.

Key

No. Qty. Description

1 1 Motor Belt

2 1 Pulley/Flywheel/Fan

3 4 Motor Nut

4* 1 Motor/Pulley/

Flywheel/ Fan

5 1 Incline Motor Bolt

6 1 Plastic Incline Motor

Spacer

7 1 Incline Motor

8 1 Stop Bracket

9 1 Small Nut

10 2 Star Washer

11 1 Optic Switch

12 1 Frame

13 1 Optic Switch Bolt

14 1 Incline Optic Disk

15 8 Incline Motor Nut

16 4 Hood Screw

17 4 Plastic Stand-Off

18 1 Hood Bracket (short)

19 1 Hood Bracket (long)

20 2 Warning Decal

21 1 Reed Switch

22 1 Reed Switch Clip

23 1 Motor/Controller Wire

24 1 Controller

25 1 Electronics Bracket

26 1 Circuit Breaker

27 1 Receptacle

28 1 Grounding Nut

29 1 On/Off Switch

30 1 Inlet Bracket

31 1 Incline Leg

32 2 Frame Pivot Bolt

33 2 Frame Pivot Spacer

34 1 Upright Wire Harness

35 1 Front Roller Adj. Bolt

36 3 Roller Adj. Washer

37 2 Motor Tension Nut/

Front Roller Nut

38 4 Motor Bolt

39 2 Cap Screw

40 1 Left Foot Rail Cap

41 2 Foot Rail

42 1 Front Roller/Pulley

43 1 Magnet

44 2 Platform Screw (mid)

45 2 Isolator

46 4 Isolator Screw

47 15 Plastic Fastener

48 1 Shield

49 2 Belt Guide

50 1 Book Holder

51 1 Front Belly Pan

52 1 Power Supply

53 4 Cable Tie Clamp

54 4 Cable Tie

55 1 Walking Belt

56 1 20” Wire Harness

57 1 Rear Roller

58 1 Belly Pan Spacer

59 2 Rear Foot

60 2 Rear Foot Screw

61 1 Ground Wire

62 5 Ground Wire Screw

63 1 Belly Pan

64 1 Rear Endcap

65 2 Rear Roller Adj. Bolt

66 1 Motor

67 1 Latch Decal

68 4 Platform Screw

69 6 Electronics Screw

70 1 Latch Catch

71 1 Walking Platform

72 5 8” Cable Tie

73 1 Jack

74 1 Motor Tension Bolt

75 2 Foot Rail Insert

76 14 Short Screw

77 1 Console

78 1 Choke

79 4 Long Screw

80 1 10’ I-Fit Wire

81 4 Motor Spacer

82 1 Upright

83 2 Incline Leg Pivot Bolt

84 1 Motor Mount Isolator

85 2 Handrail Extension

86 2 Wheel Bolt

87 1 Console Base

88 1 Motor Tension Washer

89 10 Console/Catch Screw

90 1 Key/Clip

91 1 Incline Motor Plate

92 1 Right Foot Rail Cap

93 1 Motor Tension

Bushing

94 1 Motor Hood

95 2 Front Wheel

96 1 Incline Motor Shield

97 6 Thick Base Pad

98 1 12” Audio Wire

99 1 Upright Grommet

100 1 Allen Wrench

101 17 Screw

102 1 Lock Knob

103 2 Extension Leg

104 2 Extension Leg Cap

105 1 Shock

106** 2 Extension Leg

Assembly

107 2 Pulse Bar Bolt

108 2 Pulse Bar Washer

109 1 Pulse Bar

110 2 Handrail Foam Grip

111 1 Lock Knob Sleeve

112 1 Spring

113 1 Lock Pin Collar

114 1 Pin Clip

115 1 Lock Pin

116 1 Console Base Bottom

117 2 Upright Endcap

118** 1 Chest Pulse Sensor

119 8 Hood Bracket Screw/

Incline Shield Screw

120 1 Rear Foot Spacer

121** 1 Hand Weight Set

122 1 Metal Incline Motor

Spacer

123 2 Static Decal

124 1 Hand Pulse Wire

125 1 Choke Bracket

126 2 Motor Tension Sleeve

127 1 Grounding Screw

128 1 Grounding Washer

129 1 UK Power Cord

130 1 European Power Cord

# 1 10” White Wire

# 1 4” White Wire, M/F

# 1 8” Blue Wire, 2F

# 1 4” Blue Wire, 2F

# 1 4” Black Wire, M/F

# 1 4” Black Wire, 2F

# 1 4” Green Wire, F/Ring

# 1 8” Green Wire, F/Ring

# 1 8” Green Wire, 2 Ring

# 1 4” Red Wire, M/F

# 1 User's Manual

* Includes all parts shown in the box

**For more information about the

optional hand weight set or chest

pulse sensor, see page 18

# These parts are not illustrated

ORDERING REPLACEMENT PARTS

To order replacement parts, contact the ICON Health & Fitness Ltd. office, or write:

ICON Health & Fitness Ltd.

Greenwich House

223 North Street

Sheepscar

Leeds LS7 2AA

West Yorkshire

Tel: Country Code:

Fax: 0113-2411120

When ordering parts, please be prepared to give the following information:

• The MODEL NUMBER OF THE PRODUCT (PETL63000)

• The NAME OF THE PRODUCT (PROFORM®630 treadmill)

• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)

• The KEY NUMBER OF THE PART(S) (see the PART LIST on page 23 and the EXPLODED DRAWING

attached in the centre of this manual)

• The DESCRIPTION OF THE PART(S) (see the PART LIST on page 23 and the EXPLODED DRAWING

attached in the centre of this manual).

PROFORM®is a registered trademark of ICON Health & Fitness, Inc.

0345-089009

89 70

100

125

119

76 18

119

101

47 62

59 47

75 75

101

120

122

119

130

129

EXPLODED DRAWING—Model No. PETL63000 R0500A

108

107

109

116

117

101

103

119

101

127

104

101

105

101

103

104

110

108 107

121**

118**

124

106*

123

128

124

102

111

112 113

114

115

EXPLODED DRAWING—Model No. PETL63000 R0500A

Proform Petl63000 630 Treadmill Users Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
