USER’S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial

Number

Decal

Model No. PFEX17931

Serial No.

Write the serial number in the

space above for reference.

Patent Pending

QUESTIONS?

If you have questions, or if

there are missing parts, we will

guarantee complete satisfac-

tion through direct assistance

from our factory.

TOAVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The trained technicians on our

customer hot line will provide

immediate assistance, free of

charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

V

2

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

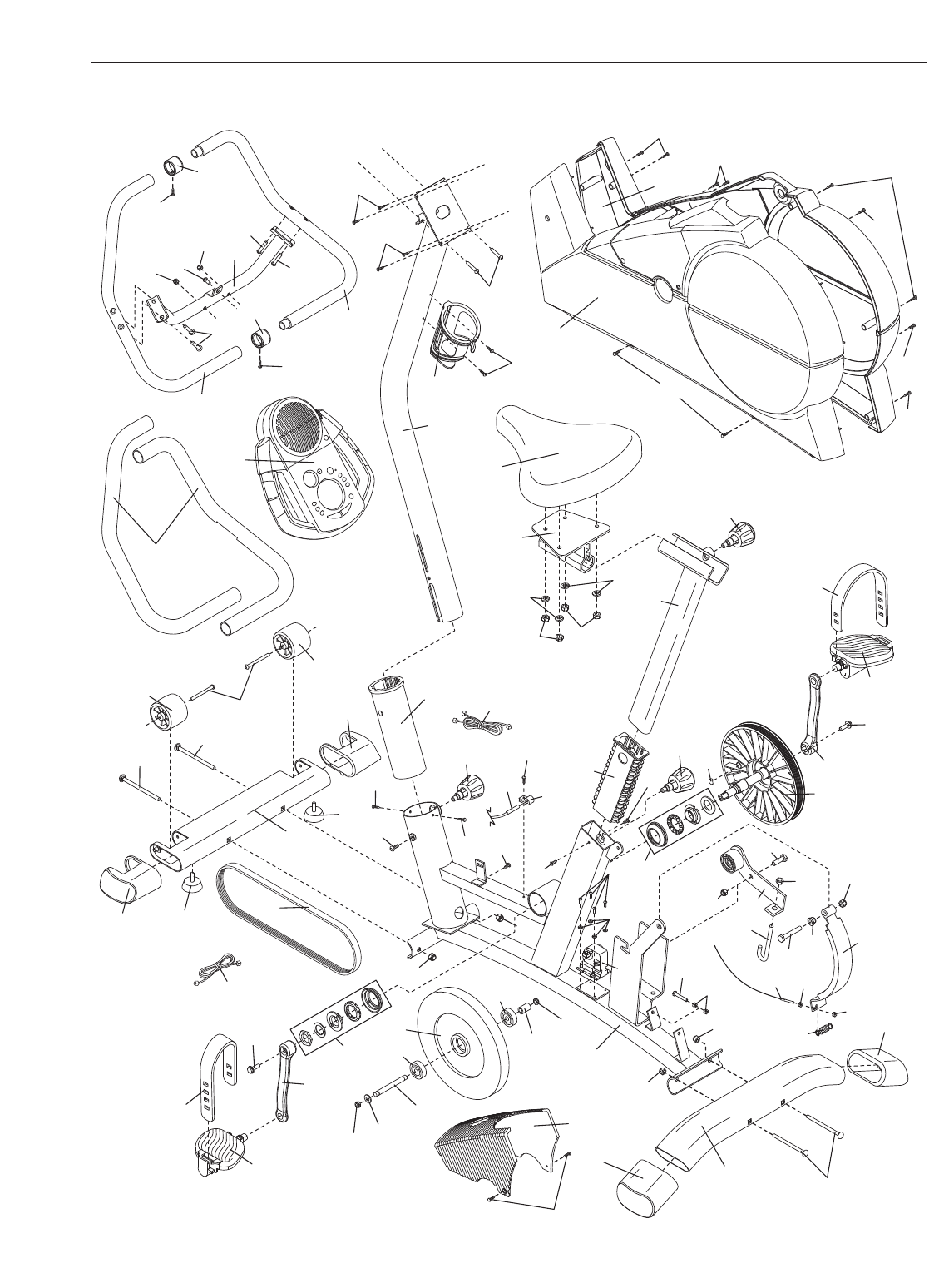

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

3

1. Read all instructions in this manual before

using the exercise cycle.

2. Use the exercise cycle only as described in

this manual.

3. It is the responsibility of the owner to ensure

that all users of the exercise cycle are ade-

quately informed of all precautions.

4. The exercise cycle is intended for home use

only. Do not use the exercise cycle in

acommercial, rental, or institutional setting.

5. Place the exercise cycle indoors on a level

surface. Keep the exercise cycle away from

moisture and dust. Place a mat under the

exercise cycle to protect the floor.

6. Inspect and properly tighten all parts regular-

ly. Replace any worn parts immediately.

7. Keep children under the age of 12 and pets

away from the exercise cycle at all times.

8. Wear appropriate clothing when exercising;

do not wear loose clothing that could become

caught on the exercise cycle. Always wear

athletic shoes for foot protection.

9. The exercise cycle should not be used by

persons weighing more than 250 pounds.

10.The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

11. Always keep your back straight when using

the exercise cycle; do not arch your back.

12.If you feel pain or dizziness while exercising,

stop immediately and cool down.

13.The exercise cycle does not have a free-

wheel; the pedals will continue to move until

the flywheel stops.

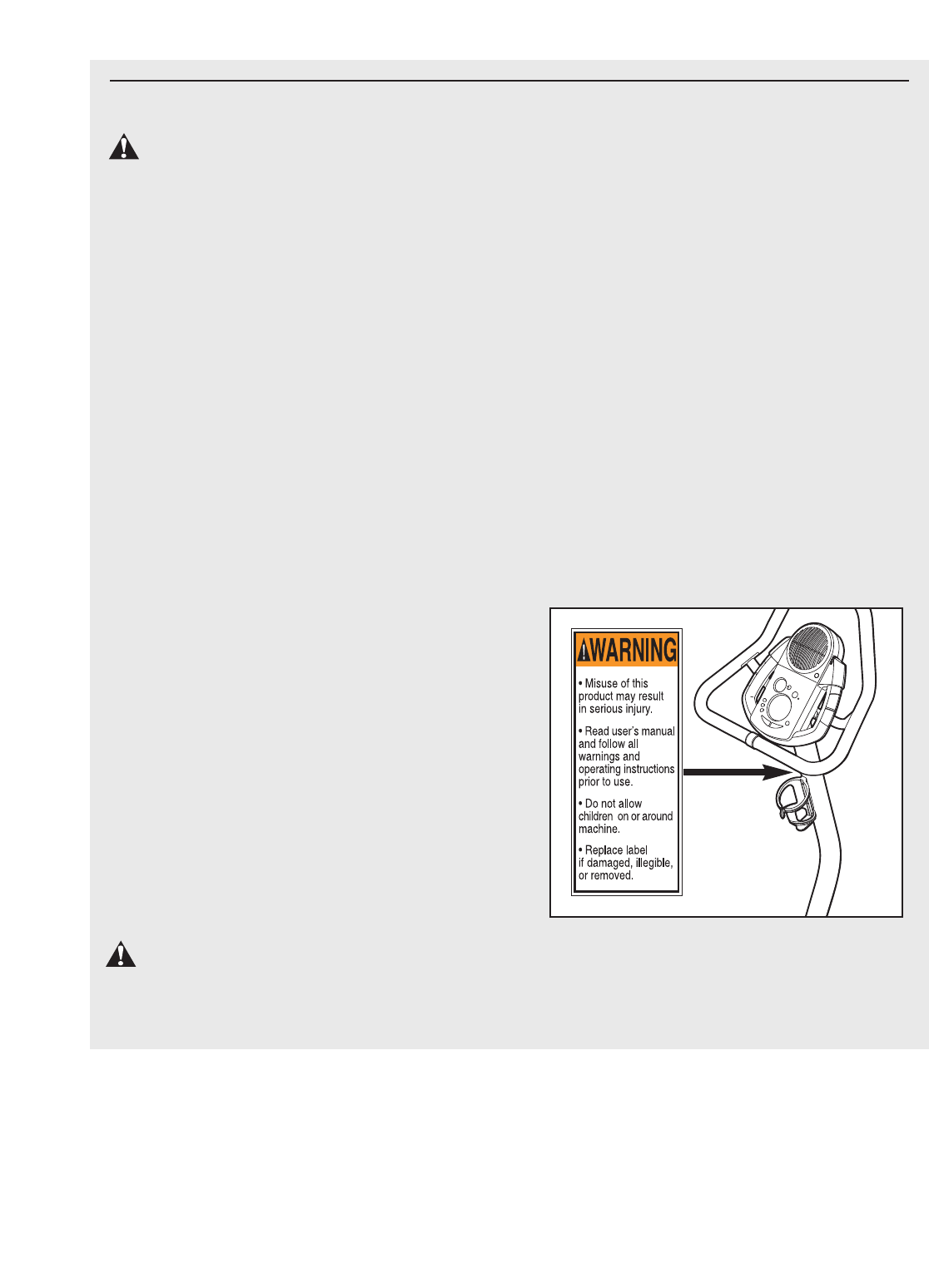

14. The decal shown below has been placed on

the exercise cycle. If the decal is missing, or

if it is not legible, please call toll-free 1-800-

999-3756 to order a free replacement decal.

Apply the decal in the location shown.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the exercise cycle.

4

Congratulations for selecting the new PROFORM®

GL36 exercise cycle. Cycling is one of the most effec-

tive exercises for increasing cardiovascular fitness,

building endurance, and toning the entire body. The

PROFORM®GL36 exercise cycle offers an impressive

array of features to let you enjoy this healthful exer-

cise in the convenience and privacy of your home.

For your benefit, read this manual carefully before

you use the exercise cycle. If you have questions

after reading this manual, please call our Customer

Service Department toll-free at 1-800-999-3756,

Monday through Friday, 6 a.m. until 6 p.m. Mountain

Time (excluding holidays). To help us assist you,

please note the product model number and serial

number before calling. The model number is

PFEX17931. The serial number can be found on a

decal attached to the exercise cycle (see the front

cover of this manual).

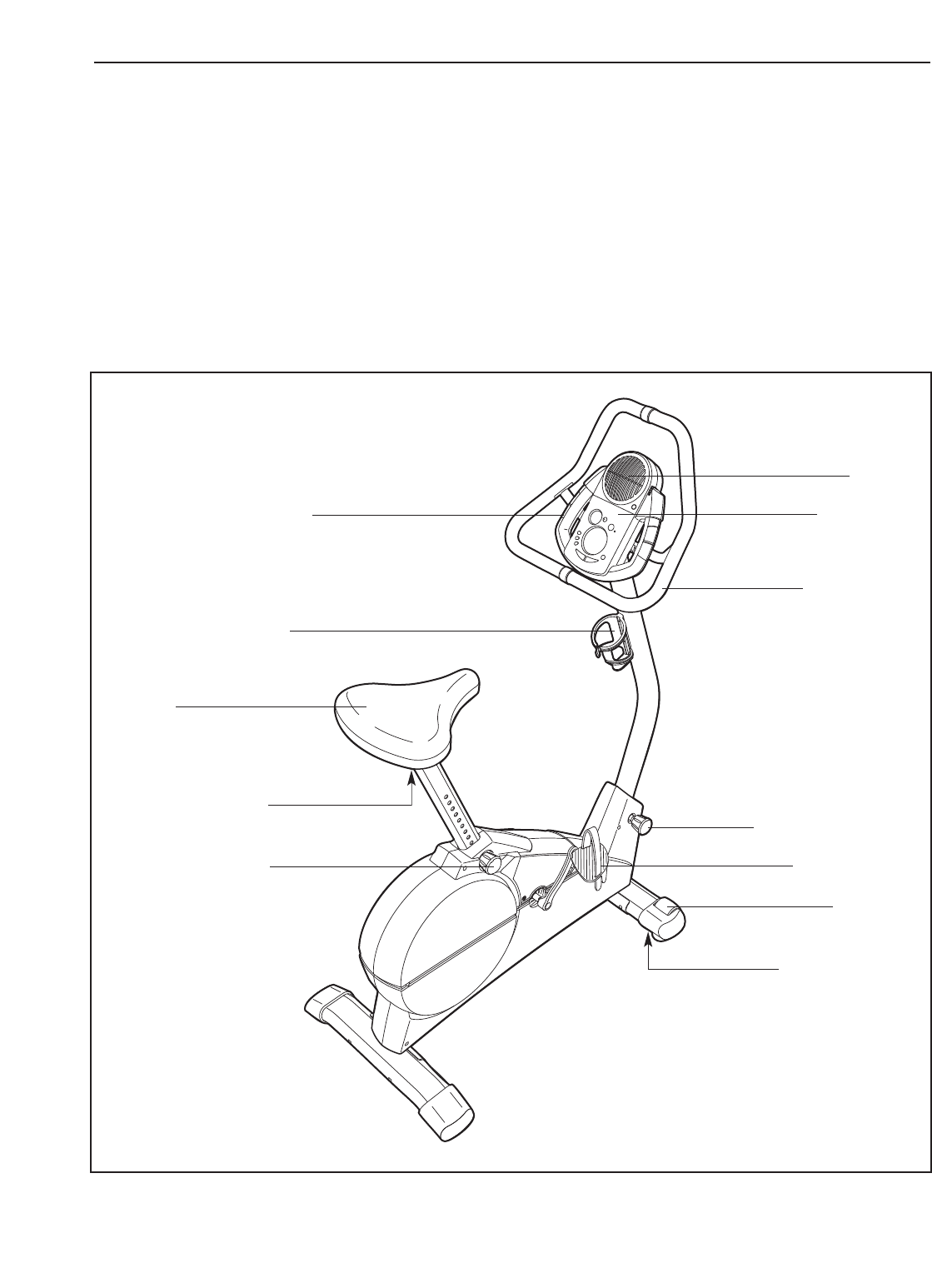

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

*No water bottle is included

Handgrip Pulse Sensor

REAR

FRONT

Seat

Adjustment Knob

Pedal/Strap

Wheel

Leveling Foot

Console

Fan

Handlebar

Adjustment Knob

Water Bottle Holder*

Adjustment Knob

RIGHT SIDE

BEFORE YOU BEGIN

5

ASSEMBLY

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included tools and your own adjustable wrench and Phillips screw-

driver .

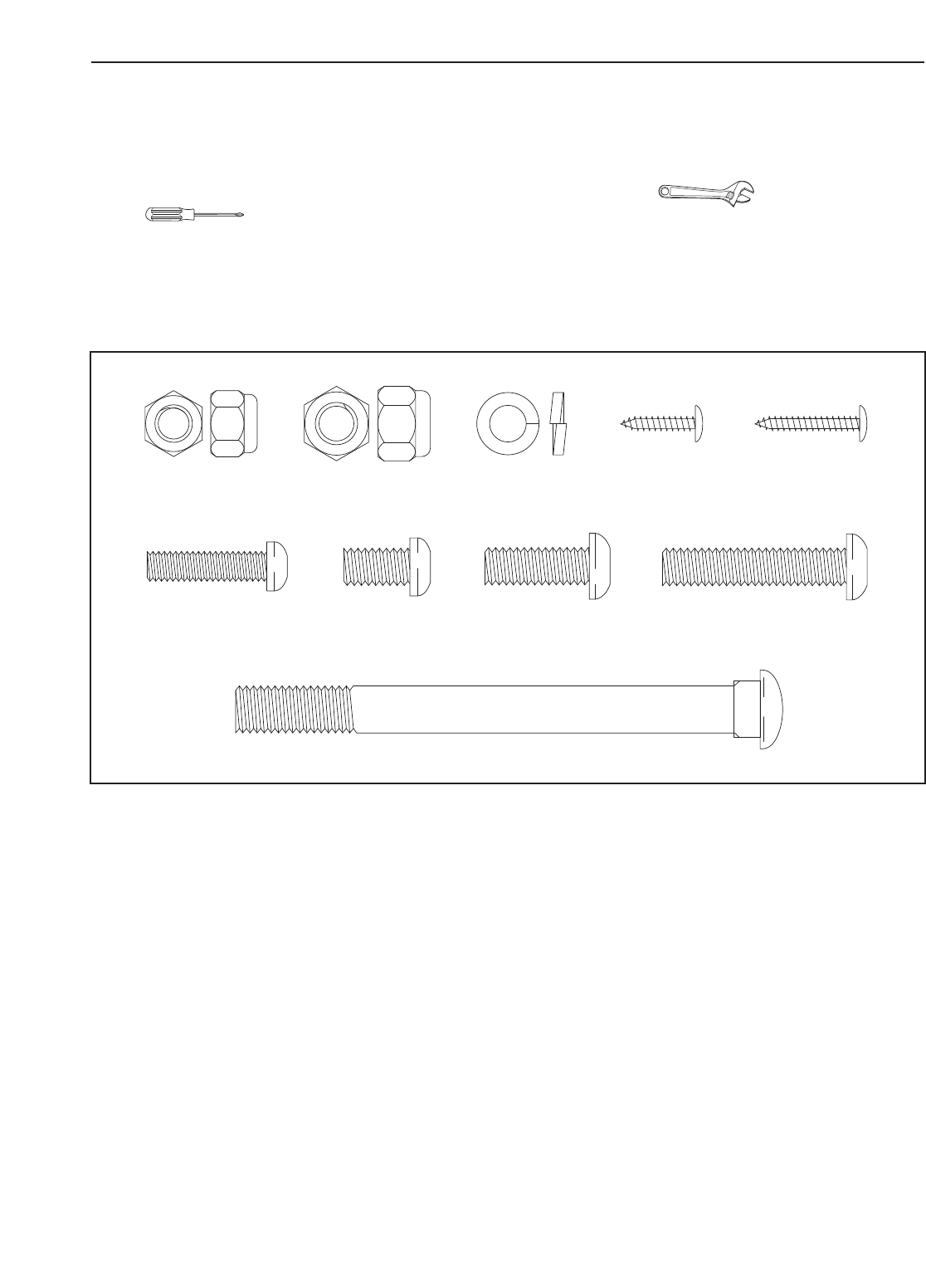

Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below

each drawing refers to the key number of the part, from the PART LIST on page 22. The second number refers

to the quantity needed for assembly. Note: Some small parts may have been pre-attached. If a part is not in

the parts bag, check to see if it has been pre-attached.

M10 Black Nylon

Locknut (63)–4

M6 x 25.4mm Button

Screw (33)–1 M8 x 14mm Button

Screw (49)–1 M8 x 22mm Button

Screw (74)–4 M8 x 39mm Button

Bolt (64)–2

M4 x 16mm

Screw (66)–6

M8 Split

Washer (70)–4

M8 Nylon

Locknut (10)–6 M4 x 22mm

Screw (21)–2

M10 x 112mm Carriage Bolt (65)–4

6

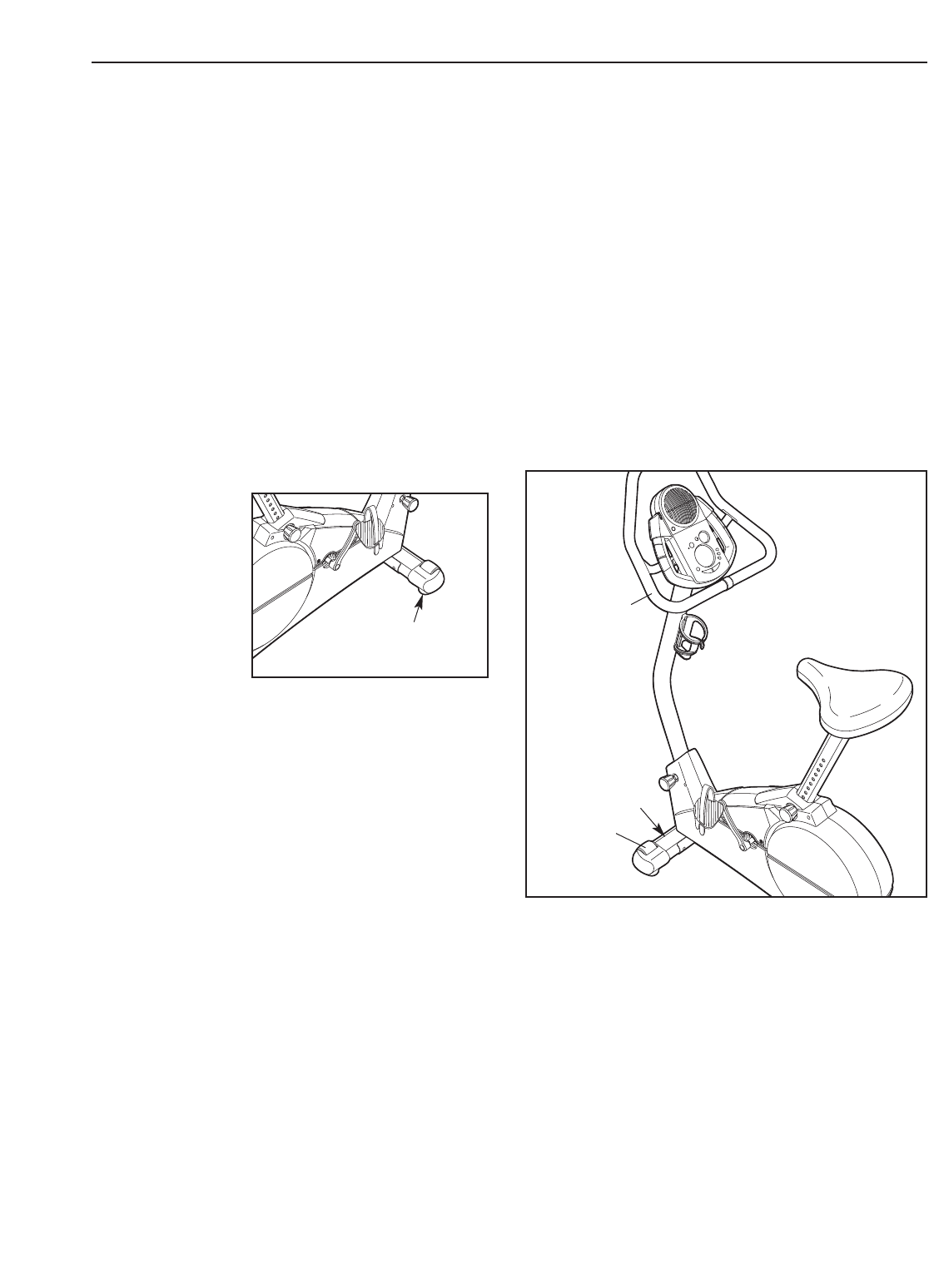

1. Identify the Front Stabilizer (2). While another person

lifts the front of the Frame (1), attach the Front

Stabilizer to the Frame with two M10 x 112mm

Carriage Bolts (65) and two M10 Black Nylon Locknuts

(63). Make sure that the Front Stabilizer is turned

so the Wheels (30) are not touching the floor.

2

63

30

30

65

1

1

2. While another person lifts the rear of the Frame (1),

attach the Rear Stabilizer (3) to the Frame with two

M10 x 112mm Carriage Bolts (65) and two M10 Black

Nylon Locknuts (63).

65

3

1

3

13

9

21

Make sure the

wire harnesses

do not get

pinched and

damaged during

this step.

28

36

Slot

Rod

35

33

1

3. While another person holds the Upright (13) in the

position shown, connect the Upper Wire Harness (36)

to the Lower Wire Harness (35). Carefully pull the

upper end of the Upper Wire Harness to remove

any slack from the Wire Harnesses; make sure that

the connectors do not catch on the indicated rod.

Turn the indicated Adjustment Knob (28) counterclock-

wise two or three turns to loosen it. Next, pull the Knob,

insert the Upright (13) into the Frame (1), and then

release the Knob. Be careful to avoid pinching the

Wire Harnesses (35, 36). Move the Upright up and

down slightly until the pin on the Knob snaps into

one of the holes in the Upright. Then, turn the Knob

clockwise until it is tight.

Tighten the M6 x 25.4mm Button Screw (33) into the

Frame (1) and into the slot in the side of the Upright (13).

Attach the Water Bottle Holder (9) to the Upright (13)

with two M4 x 22mm Screws (21).

263

63

7

5. While another person holds the Console (16) in the

position shown, connect the wire harness on the

Console to the Upper Wire Harness (36). Insert the

excess wire harness into the Upright (13).

Attach the Console (16) to the Upright (13) with four

M4 x 16mm Screws (66). Be careful to avoid pinch-

ing the wire harnesses.

7. Turn the indicated Adjustment Knob (28) counterclock-

wise two or three turns to loosen it. Next, pull the Knob,

insert the Seat Post (5) into the Frame (1), and then

release the Knob. Move the Seat Post up and down

slightly until the pin on the Knob snaps into one of

the holes in the Seat Post. Then, turn the Knob clock-

wise until it is tight.

1

5

28

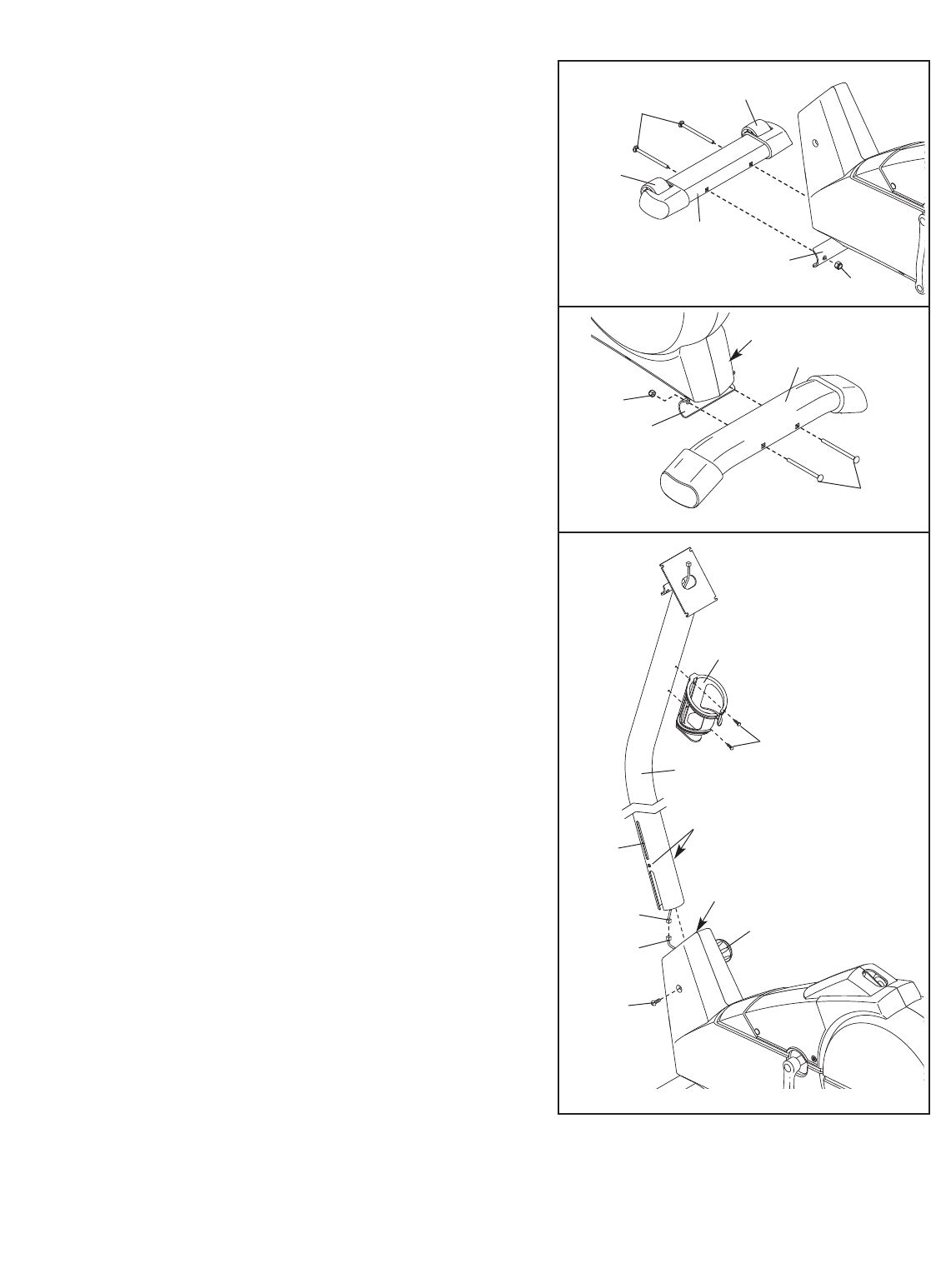

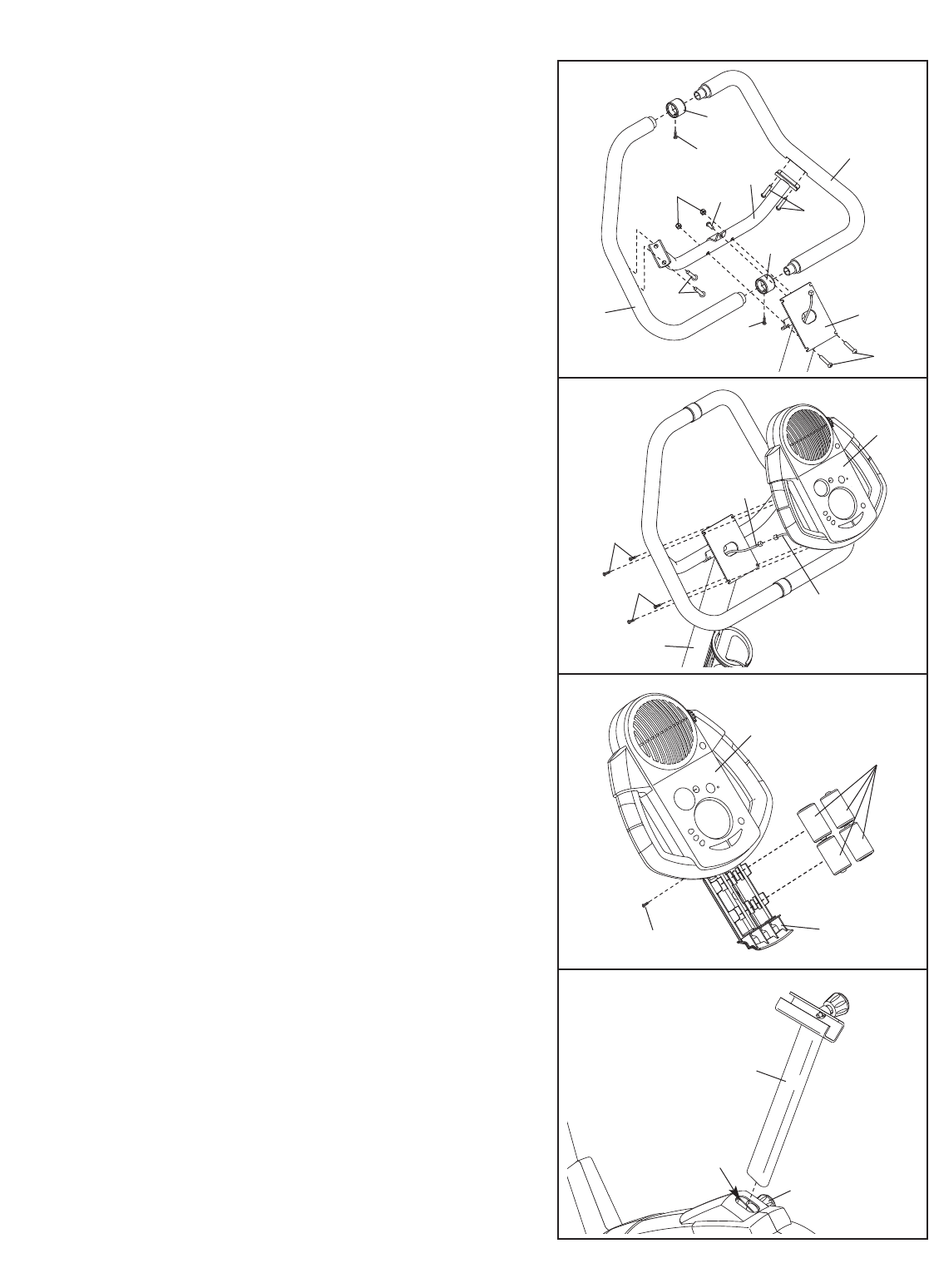

4. Slide the two Handlebar Collars (7) onto the Left

Handlebar (50). Insert the Right Handlebar (51) into

the Left Handlebar. Connect the Handlebar Collars, the

Left Handlebar, and the Right Handlebar with two M4 x

16mm Screws (66).

Attach the Handlebar Bracket (15) to the Left and

Right Handlebars (50, 51) with four M8 x 22mm Button

Screws (74).

Attach the Handlebar Bracket (15) to the Upright (13)

with two M8 x 39mm Button Bolts (64), two M8 Nylon

Locknuts (10), and an M8 x 14mm Button Screw (49).

64

66

66

7

7

10 49

4

7

15

13

74

74

50

51

5

16

13

66

66

36

Wire

Harness

6. The Console (16) requires four “D” batteries (not

included); alkaline batteries are recommended.

Remove the indicated screw from the battery drawer,

and pull the battery drawer open. Insert four batteries

into the battery drawer; make sure that the batteries

are oriented as shown by the markings inside the

battery drawer.Close the battery drawer and reattach

the screw. Note: When the batteries are installed cor-

rectly,the fan will turn on for a moment.

16

Batteries

Battery

Drawer

6

Screw

8

10.Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is

completed, some extra parts may be left over.Place a mat beneath the exercise cycle to protect the floor.

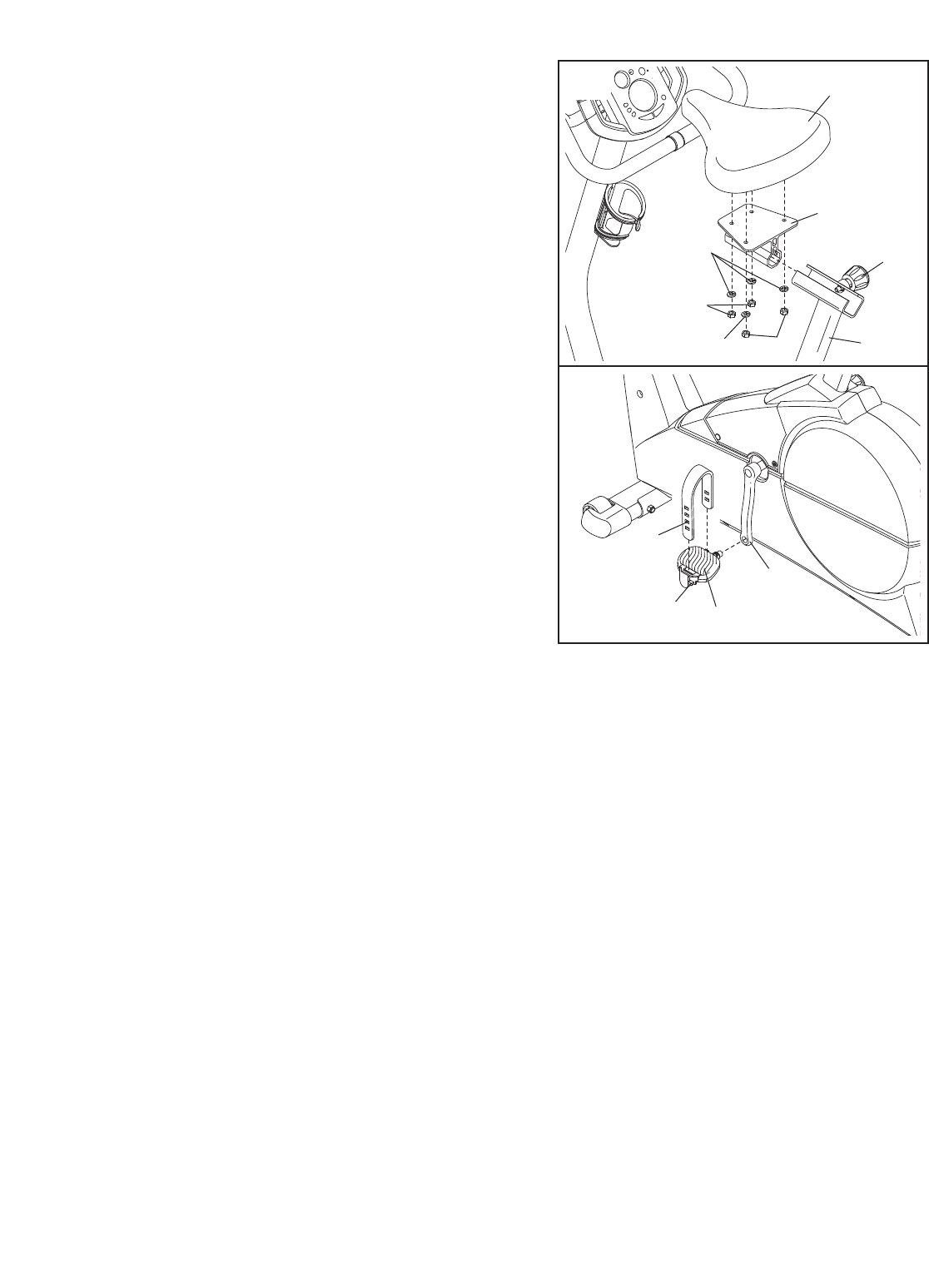

9. Identify the Left Pedal (24), which is marked with an

“L.” Using an adjustable wrench, firmly tighten the

Left Pedal

counterclockwise

into the Left Crank Arm

(42). Tighten the Right Pedal (not shown)

clockwise

into the Right Crank Arm. Important: Tighten both

Pedals as firmly as possible. After using the exer-

cise cycle for one week, retighten the Pedals. For

best performance, the Pedals must be kept tight-

ened.

Adjust the Left Pedal Strap (25) to the desired position,

and press the end of the Pedal Strap onto the tab on

the Left Pedal (24). Adjust the Right Pedal Strap (not

shown) in the same way.

9

24

42

25

Tab

8. Attach the Seat (12) to the Seat Bracket (6) with four

M8 Nylon Locknuts (10) and four M8 Split Washers

(70). Note: The Nylon Locknuts and the Split Washers

may be pre-attached to the underside of the Seat.

Turn the indicated Adjustment Knob (28) counterclock-

wise two or three turns to loosen it. Next, pull the Knob,

slide the Seat Bracket (6) into the top of the Seat Post

(5), and then release the Knob. Move the Seat

Bracket forward and backward slightly until the pin

on the Knob snaps into one of the holes in the Seat

Bracket. Then, turn the Knob clockwise until it is tight.

5

10

70

6

12

70

10

28

8

9

HOW TO OPERATE THE EXERCISE CYCLE

HOW TO ADJUST THE SEAT POST

For effective exer-

cise, the seat

should be at the

proper height. As

you pedal, there

should be a slight

bend in your knees

when the pedals

are in the lowest

position. To adjust

the height of the

seat, first turn the

indicated knob counterclockwise two or three turns to

loosen it (if the knob is not loosened enough, it may

scratch the seat post). Next, pull the knob, slide the

seat post to the desired height, and then release the

knob. Move the seat post up and down slightly until

the pin on the knob snaps into one of the holes in

the seat post. Then, turn the knob clockwise until it is

tight.

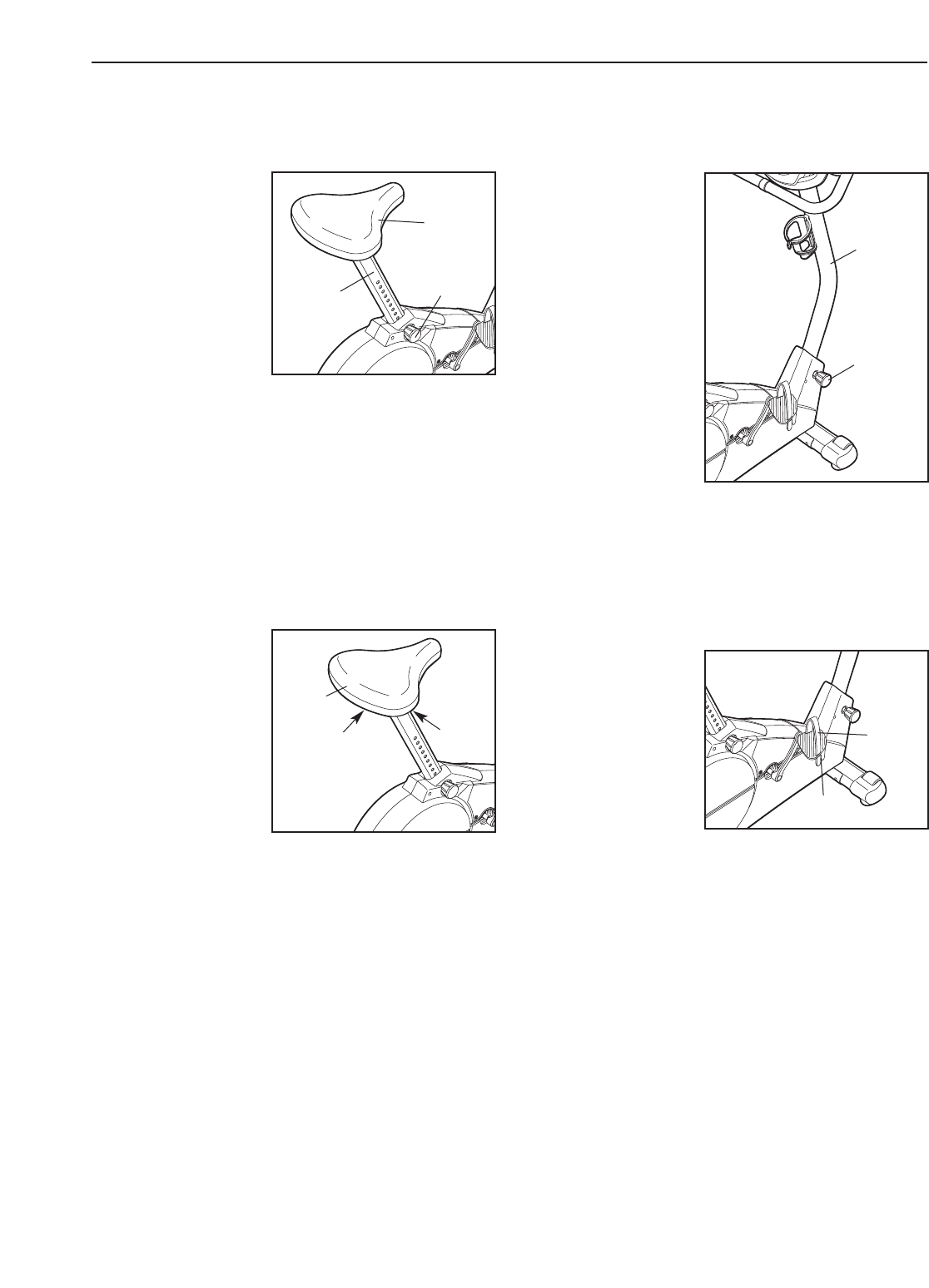

HOW TO ADJUST THE SEAT

The seat can be

adjusted to the

position that is the

most comfortable

for you. Before

adjusting the seat,

dismount the

exercise cycle; do

not adjust the

seat while you are

sitting on it. To

adjust the seat, first

turn the indicated knob counterclockwise two or three

turns to loosen it (if the knob is not loosened enough, it

may scratch the seat bracket). Next, pull the knob,

slide the seat to the desired position, and then release

the knob. Move the seat bracket forward and back-

ward slightly until the pin on the knob snaps into

one of the holes in the seat bracket. Then, turn the

knob clockwise until it is tight.

HOW TO ADJUST THE UPRIGHT

The upright can be

adjusted to the

height that is the

most comfortable for

you. To adjust the

upright, first turn the

indicated knob

counterclockwise

two or three turns to

loosen it (if the knob

is not loosened

enough, it may

scratch the upright).

Next, pull the knob,

slide the upright to

the desired height,

and then release

the knob. Move the upright up and down slightly

until the pin on the knob snaps into one of the

holes in the upright. Then, turn the knob clockwise

until it is tight.

HOW TO ADJUST THE PEDAL STRAPS

Toadjust the pedal

straps, first pull the

ends of the straps

offthe tabs on the

pedals. Adjust the

straps to the

desired position,

and press the ends

of the straps back

onto the tabs.

Pedal

Strap

Tab

Upright

Knob

Seat

Post

Knob

Seat

Seat

Bracket

Seat

Knob

10

FEATURES OF THE CONSOLE

The advanced console offers a selection of features

designed to make your workouts more enjoyable and

effective. When the manual mode of the console is

selected, the resistance of the pedals can be changed

with the touch of a button. As you pedal, the console

will provide continuous exercise feedback. You can

even measure your heart rate using the built-in hand-

grip pulse sensor.

The console also offers four Smart programs. Each pro-

gram automatically changes the resistance of the ped-

als and prompts you to increase or decrease your pace

as it guides you through an effective workout.

In addition, the console features two Heart Rate pro-

grams that change the resistance of the pedals and

prompt you to vary your pace to keep your heart rate

near a target heart rate as you exercise.

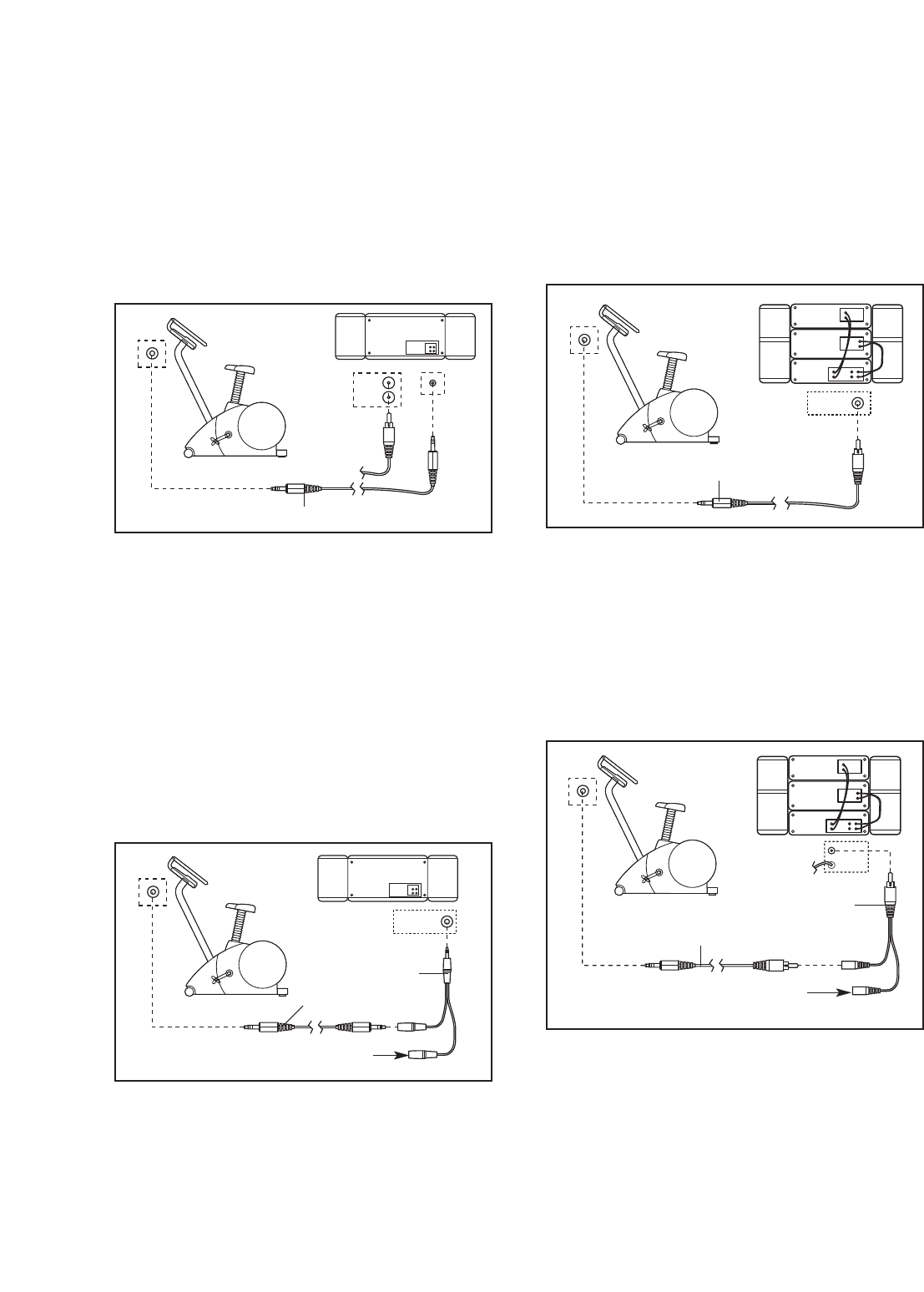

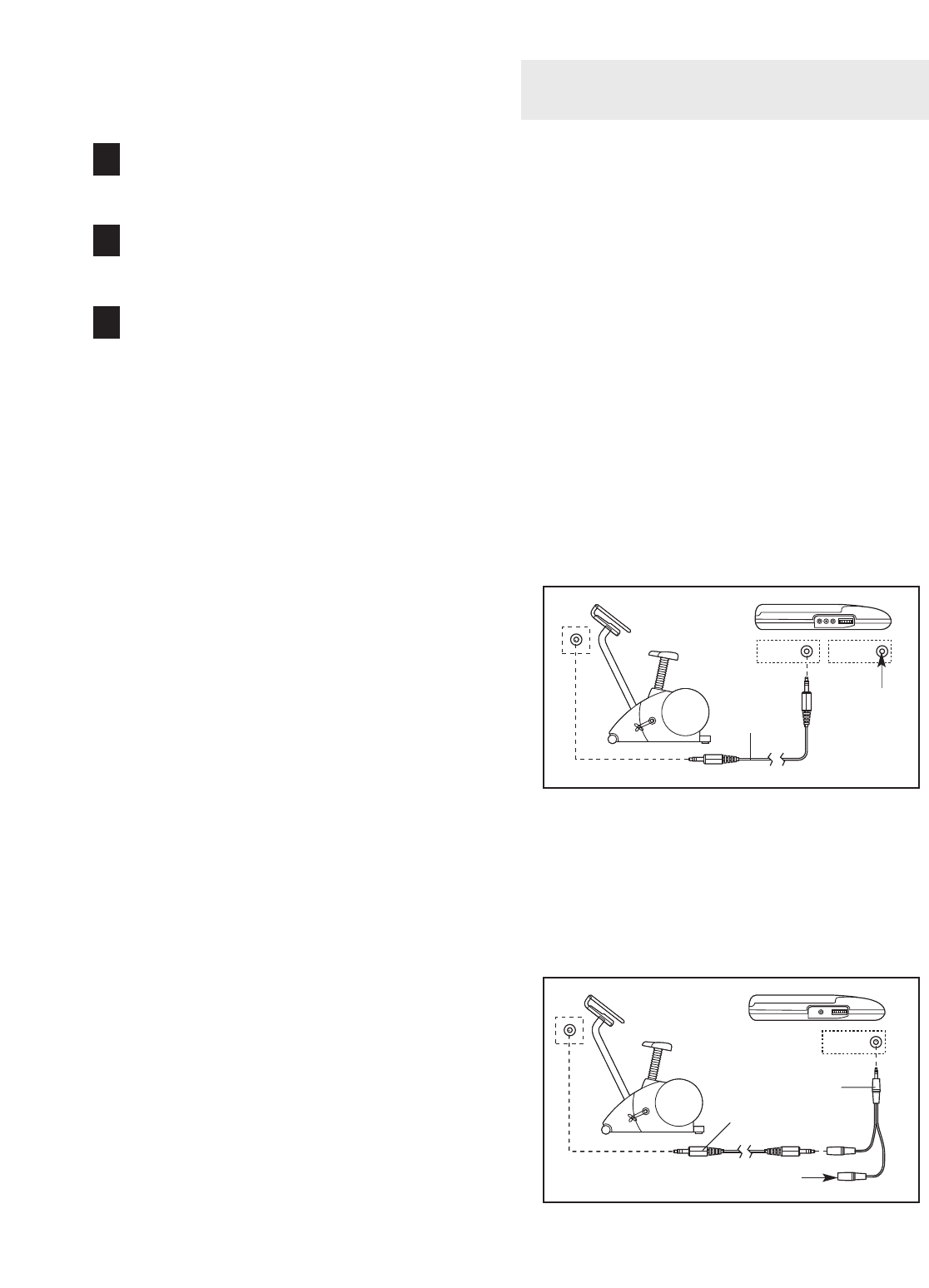

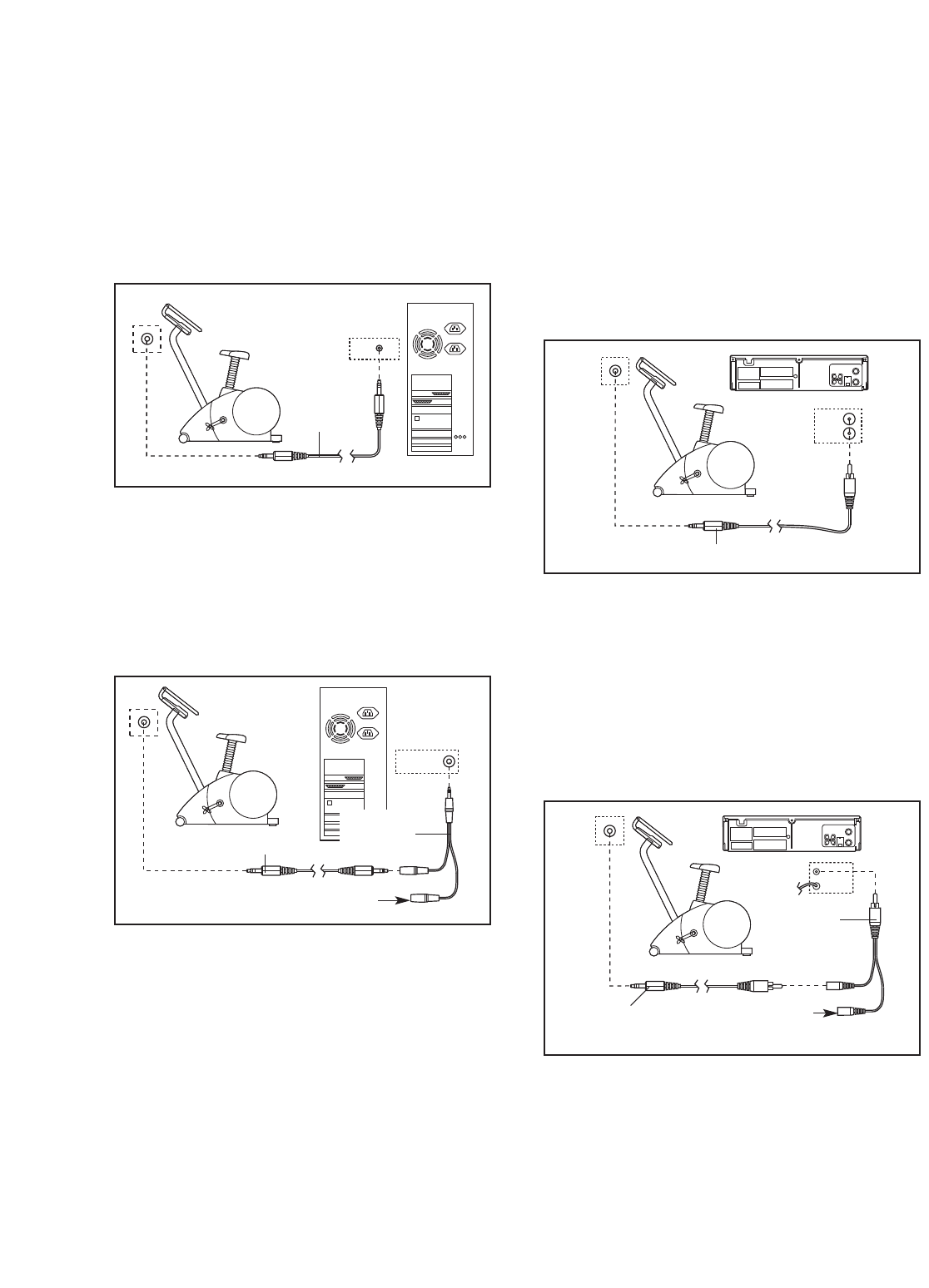

The console also features iFIT.com interactive technol-

ogy. Having iFIT.com technology is like having a per-

sonal trainer in your home. Using a stereo audio cable

(available at electronics stores), you can connect the

exercise cycle to your home stereo, portable stereo,

computer, or VCR and play special iFIT.com CD and

video programs (iFIT.com CDs and videocassettes are

available separately). iFIT.com CD and video programs

automatically control the resistance of the pedals and

prompt you to vary your pace as a personal trainer

coaches you through every step of your workout. High-

energy music provides added motivation. To purchase

iFIT.com CDs and videocassettes, call toll-free 1-

800-735-0768.

With the exercise cycle connected to your computer,

you can also go to our Web site at www.iFIT.com and

access programs directly from the internet. Explore

www.iFIT.com for more information.

To use the manual mode of the console, see page

11. To use a Smart program, see page 13. To use a

Heart Rate program, see page 14. Touse an

iFIT.com CD or videocassette, see page 18. To use

aprogram directly from our Web site, see page 19.

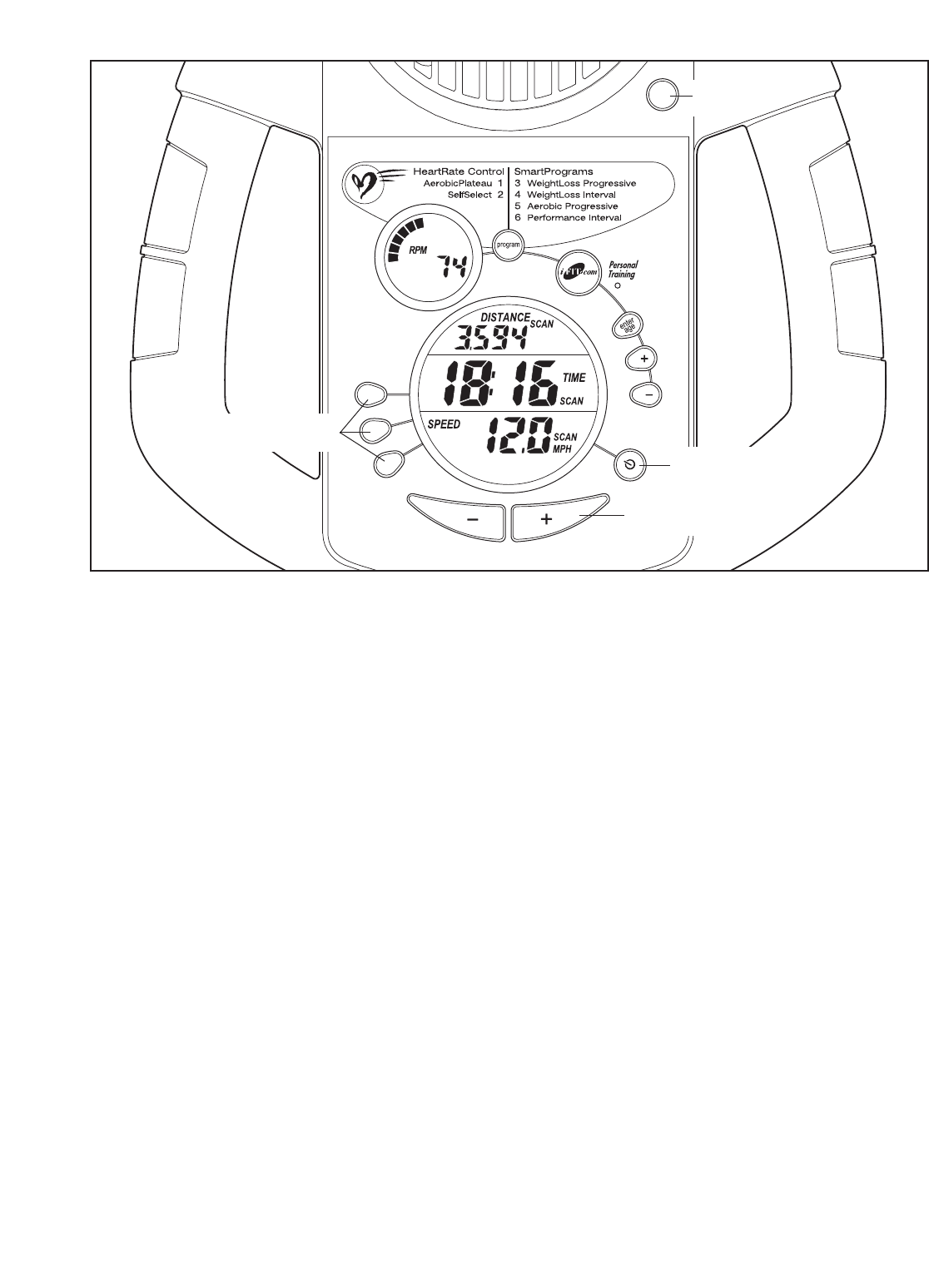

Display Buttons

Fan Button

On/Reset Button

Resistance Buttons

11

Turn on the console.

Note: The console requires four 1.5V “D” batteries

(see assembly step 6 on page 7).

To turn on the console, press the On/Reset button

or begin pedaling. (See the drawing on page 10 to

identify the On/Reset button.)

Select the manual mode.

Each time the console is

turned on, the manual

mode will be selected. If a

program has been select-

ed, select the manual

mode by pressing the

Program button repeated-

ly until the letters RPM

appear in the small display.

Begin pedaling and change the resistance of

the pedals as desired.

As you pedal, change the resistance of the ped-

als by pressing the + and – buttons below the

large display.There are ten resistance levels—

level 10 is the most challenging. Note: After the

buttons are pressed, it will take a few seconds for

the resistance to reach the selected setting.

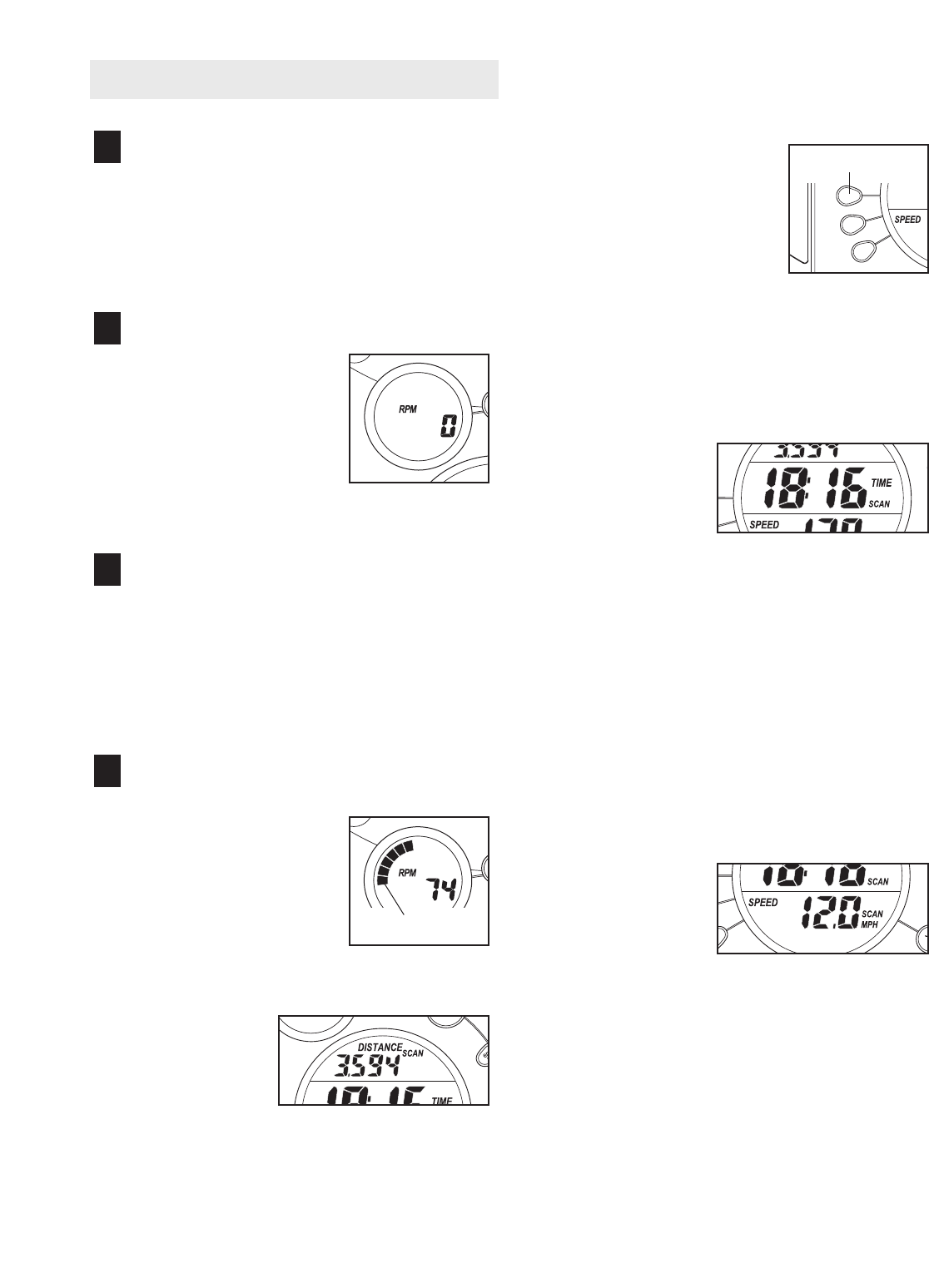

Follow your progress with small display and

the large display.

The small display will

show your pedaling pace,

in revolutions per minute

(RPM). The indicator bar

in the small display will

increase or decrease in

length as you increase or

decrease your pedaling

pace.

The upper sec-

tion of the

large display

will show the

distance you

have pedaled

and the numbers of

calories

and

fat calories

you

have burned (see FATBURNING on page 21 for

an explanation of fat calories). The display will

change from one number to the next every few

seconds. If you use the handgrip pulse sensor,

the display will also show your heart rate (see

step 5 on page 12).

Toview only the distance

you have pedaled or the

number of calories or fat

calories you have burned,

press the upper button on

the left side of the large

display until only the word

DISTANCE, CALORIES, or

FAT CALORIES appears in the upper section of

the large display. Make sure that the word SCAN

does not appear. To again view the distance you

have pedaled and the numbers of calories and

fat calories you have burned, press the upper

button until the word SCAN reappears.

The center of

the large display

will show the

elapsed time and

your current pace

(pace is shown in

minutes per mile). The display will change from

one number to the other every few seconds.

Note: When a program is selected (except for the

SelfSelect program), the display will show the

time

remaining

in the program instead of the

elapsed time.

Toview only the elapsed time or your pace, press

the center button on the left side of the large dis-

play until only the word TIME or PACE appears.

Make sure that the word SCAN does not appear.

To view both the elapsed time and your pace,

press the center button until the word SCAN

reappears.

The lower sec-

tion of the large

display will show

your pedaling

speed and the

resistance level.

The display will change from one number to the

other every few seconds.

Toview only your pedaling speed or the resis-

tance level, press the lower button on the left

side of the large display until only the word

SPEED or RESISTANCE appears. Make sure

that the word SCAN does not appear.Toview

both your pedaling speed and the resistance

level, press the lower button until the word SCAN

reappears.

4

3

2

1

HOW TO USE THE MANUAL MODE

Indicator Bar

Upper Button

12

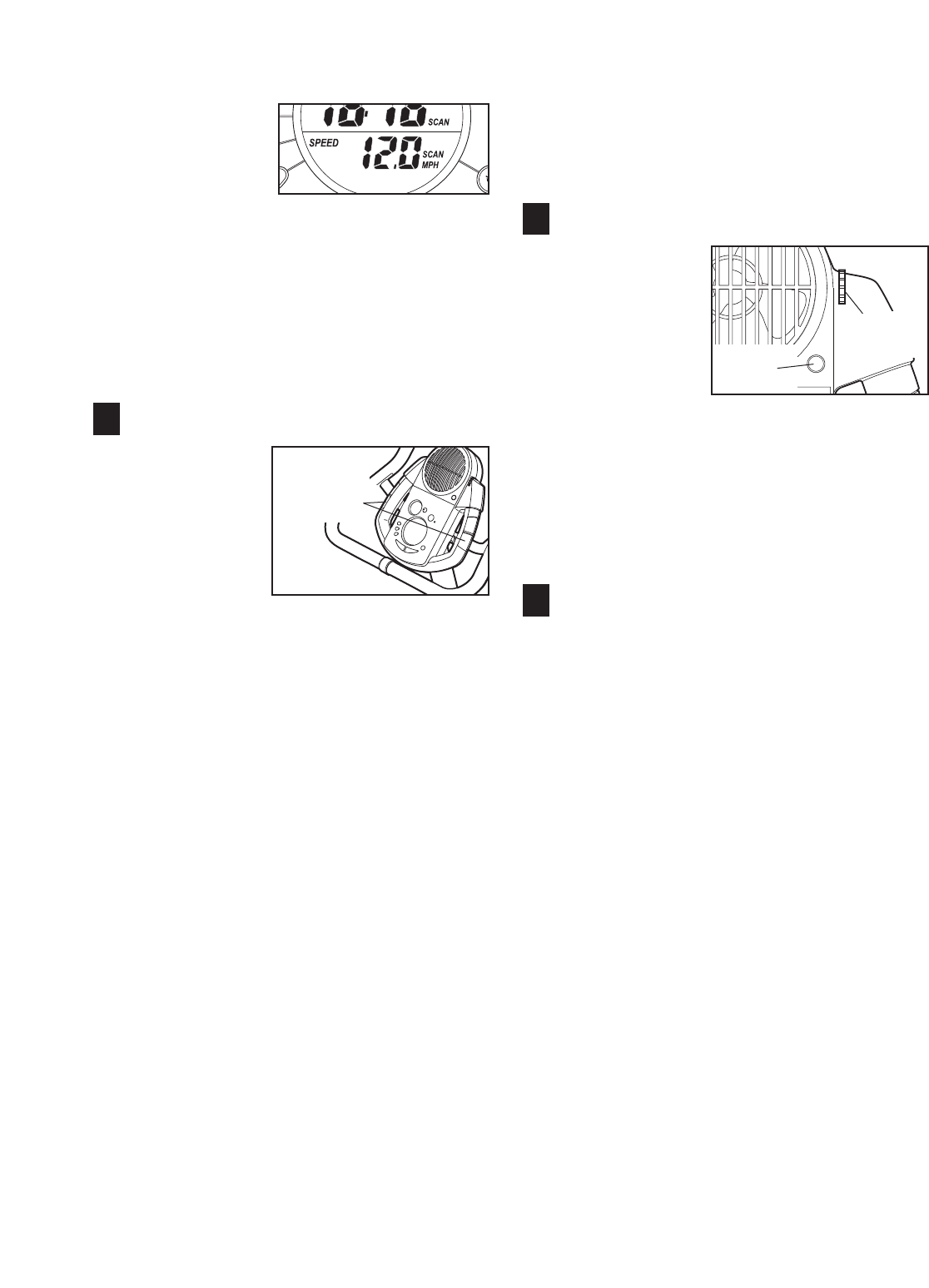

To reset the displays, press the On/Reset button.

Note: The con-

sole can show

speed and dis-

tance in either

miles or kilo-

meters. The let-

ters MPH or KM/H will appear in the lower section

of the large display to show which system of mea-

surement is selected. To change the system of

measurement, hold down the On/Reset button for

about six seconds. Note: When the button is held

down, the fan will turn on for a moment. When the

batteries are replaced, it may be necessary to res-

elect the desired system of measurement.

Measure your heart rate if desired.

If there are

thin sheets of

plastic on the

metal contacts

on the hand-

grips, peel off

the plastic. To

use the hand-

grip pulse sen-

sor, hold the handgrips with your palms resting

against the metal contacts. Avoid moving your

hands. When your pulse is detected, the heart-

shaped indicator in the large display will flash

each time your heart beats. After a moment, two

dashes (– –) will appear and then your heart rate

will be shown.

For the most accurate heart rate reading, continue

to hold the handgrips for about 30 seconds. Note:

When you first hold the handgrips, the large dis-

play will show your heart rate continuously for 30

seconds. The display will then show your heart

rate along with other feedback modes.

Turn on the fan if desired.

To turn on the

fan at low speed,

press the fan

button. To turn

on the fan at

high speed,

press the fan

button a second

time. To turn off

the fan, press the fan button a third time. Note: If

the fan is turned on but the pedals are not moved

for thirty seconds, the fan will automatically turn

off to conserve the batteries.

Rotate the thumb wheel on the right side of the

console to pivot the fan to the desired angle.

When you are finished exercising, the console

will automatically turn off.

If the pedals are not moved for a few seconds,

the displays will pause and the time will flash in

the large display.

If the pedals are not moved and the console but-

tons are not pressed for a few minutes, the con-

sole will turn off to conserve the batteries.

7

6

5

Thumb

Wheel

Fan

Button

Metal

Contacts

13

Each Smart program will automatically change the

resistance of the pedals and prompt you to increase or

decrease your pace as it guides you through an effec-

tive workout. Programs 3 and 4 are weight loss pro-

grams, program 5 is an aerobic program, and program

6 is a high-performance interval-training program.

Follow the steps below to use a Smart program.

Turn on the console.

See step 1 on page 11.

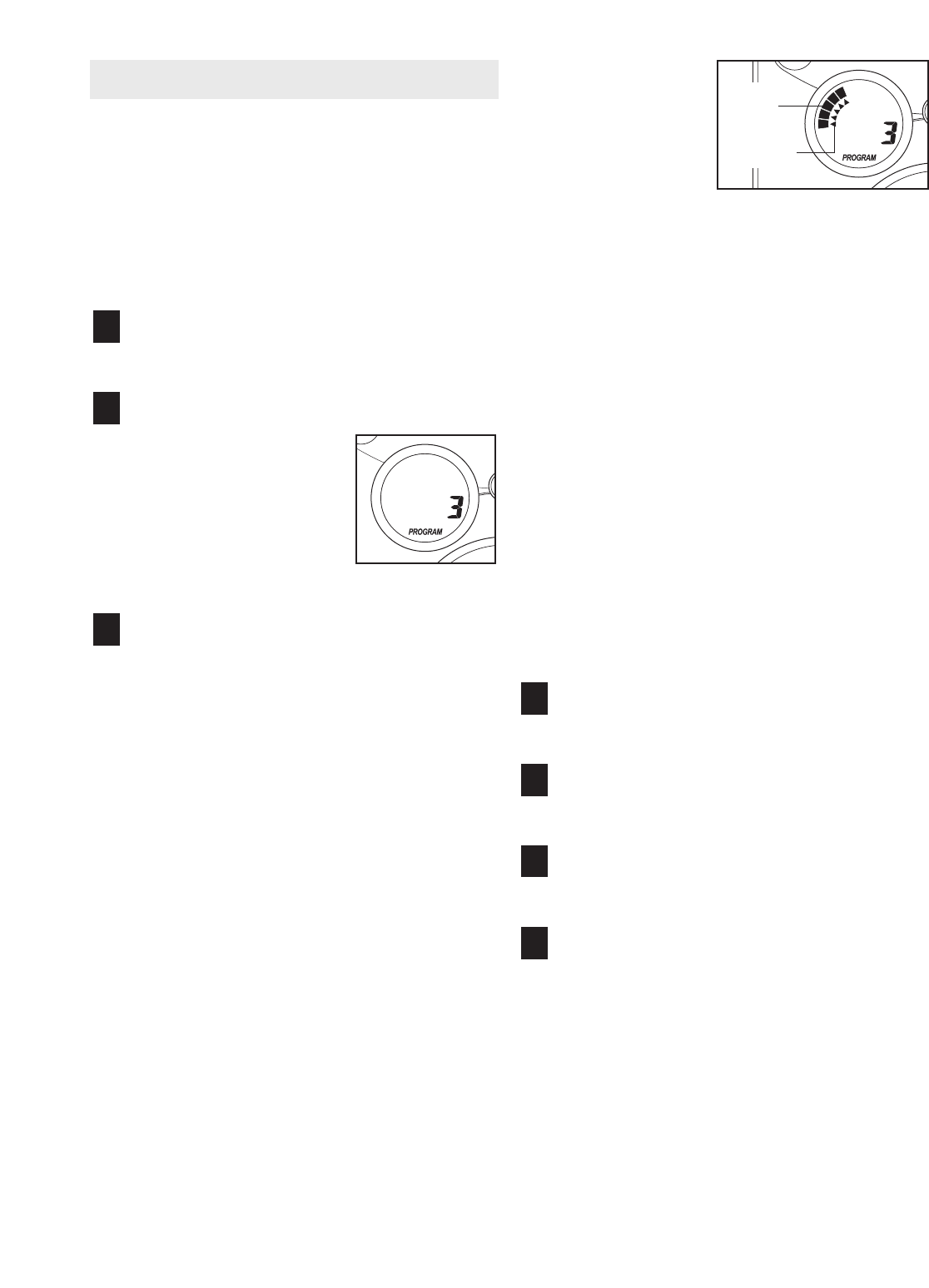

Select one of the Smart programs.

Each time the console is

turned on, the manual

mode will be selected. To

select a Smart program,

press the Program button

repeatedly until the num-

ber 3, 4, 5, or 6 appears in

the small display.

Begin pedaling to start the program.

Tostart the program, simply begin pedaling. Each

Smart program consists of 20 or 30 one-minute

periods. One resistance level and one target pace

are programmed for each period. (The same

resistance level and/or target pace may be pro-

grammed for two or more consecutive periods.)

At the end of each period of the program, the

resistance of the pedals will automatically change

if a different resistance level is programmed for

the next period. Note: If the resistance level is too

high or too low, you can change it by pressing the

+and – buttons below the large display. However,

when the current period is completed, the resis-

tance of the pedals will automatically change if a

different resistance level is programmed for the

next period.

The target pace

for the current

period will be

shown by the

arrows in the

small display. To

pedal at the target

pace, simply

increase or decrease your pace until there is one

arrow pointing to each segment of the indicator

bar (see the drawing above). At the end of each

period, the number of arrows will change if a dif-

ferent target pace is programmed for the next

period. When the number of arrows changes,

change your pace until there is one arrow point-

ing to each segment of the indicator bar.

Important: The target pace is intended only to

provide a goal. Your actual pace may be slow-

er than the target pace, especially during the

first few months of your exercise program.

Make sure to pedal at a pace that is comfort-

able for you.

During the program, the center of the large dis-

play will show the time remaining in the program.

If you stop pedaling for a few seconds, the dis-

plays will pause and the time will flash. If you

continue pedaling after the program is completed,

the displays will continue to show exercise feed-

back.

Follow your progress with the large display.

See step 4 on page 11.

Measure your heart rate if desired.

See step 5 on page 12.

Turn on the fan if desired.

See step 6 on page 12.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 12.

7

6

5

4

3

2

1

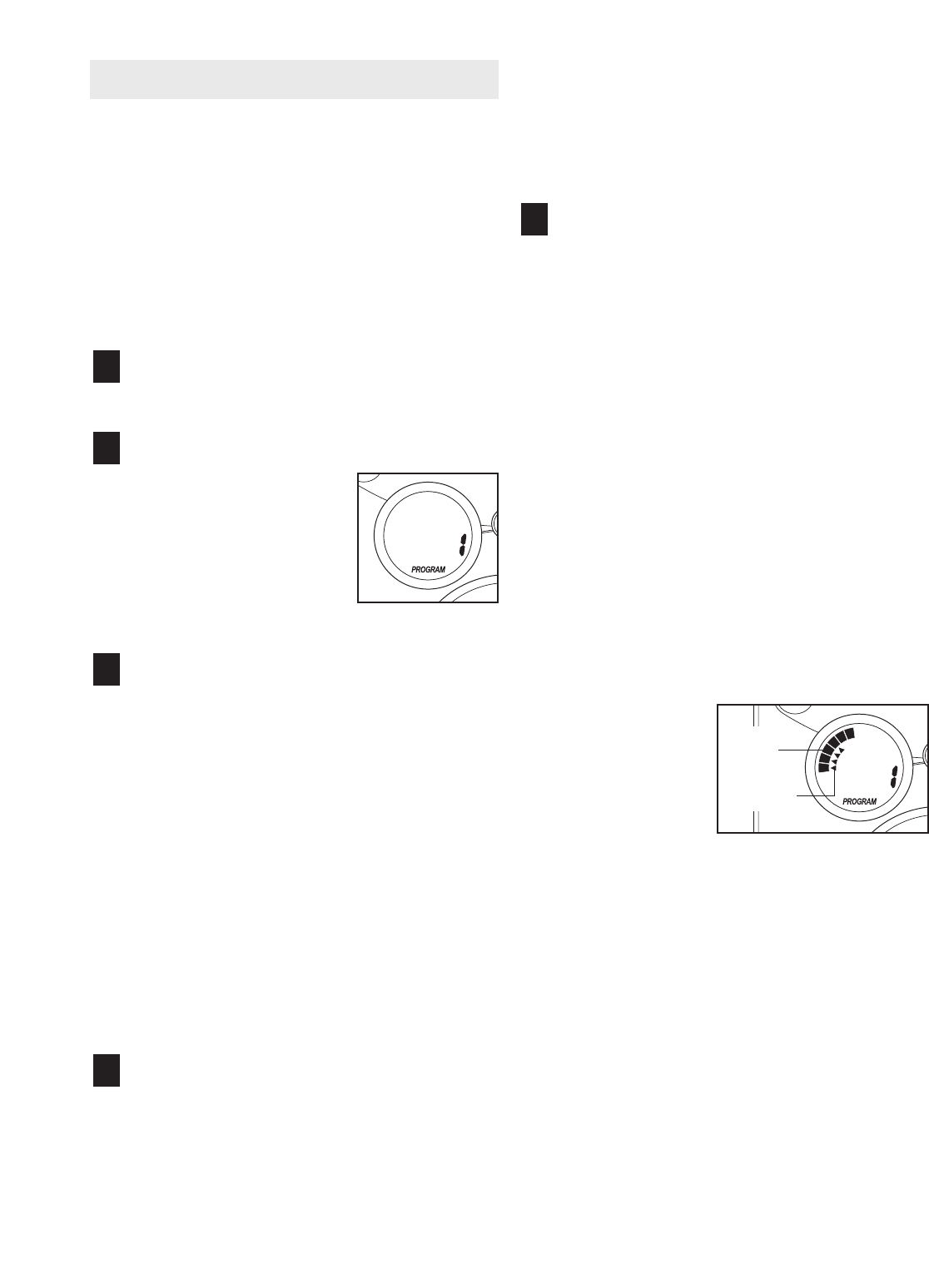

HOW TO USE A SMART PROGRAM

Arrows

Indicator

Bar

14

Heart Rate program 1 is designed to keep your heart

rate between 65% and 85% of your

maximum heart

rate

during your workout. (Your maximum heart rate is

estimated by subtracting your age from 220. For

example, if you are 25 years old, your maximum heart

rate is 195 beats per minute.) Heart Rate program 2 is

designed to keep your heart rate near a target heart

rate that you select.

Follow the steps below to use a Heart Rate program.

Turn on the console.

See step 1 on page 11.

Select one of the Heart Rate programs.

Each time the console is

turned on, the manual

mode will be selected. To

select a Heart Rate pro-

gram, press the Program

button repeatedly until the

number 1 or 2 appears in

the small display.

Enter your age or a target heart rate.

If program 1 is selected, the word AGE will

appear in the large display and the current age

setting will flash. If you have already entered your

age, press the Enter button. If you have not

entered your age, press the small + and – buttons

to enter your age. Then, press the Enter button.

Once you have entered your age, it will be saved

in memory until the batteries are replaced.

If program 2 is selected, the letters PLS (pulse)

will appear in the large display and the current

target heart rate will flash. If you do not wish to

change the target heart rate, press the Enter but-

ton. If you wish to change the target heart rate,

press the small + and – buttons. Then, press the

Enter button. The target heart rate can be from 70

to 170 beats per minute.

Hold the handgrip pulse sensor.

It is not necessary to hold the handgrips continu-

ously during a Heart Rate program; however, you

must hold the handgrips frequently for the program

to operate properly. Each time you hold the

handgrips, keep your hands on the metal con-

tacts for at least 30 seconds. Note: When you

are not holding the handgrips, the letters PLS will

appear in the large display instead of your heart

rate.

Begin pedaling to start the program.

To start the program, simply begin pedaling.

Program 1 consists of 20 one-minute periods.

One resistance level and one target heart rate are

programmed for each period. (The same resis-

tance level and/or target heart rate may be pro-

grammed for two or more consecutive periods.)

Program 2 is sixty minutes long (you may choose

to use only part of the program). The same resis-

tance level and target heart rate are programmed

for the entire program.

If program 1 is selected, the resistance of the

pedals will periodically change. (Note: If the resis-

tance level is too high or too low,you can change

it by pressing the + and – buttons below the large

display. However, when the current period is com-

pleted, the resistance of the pedals may automati-

cally change.) If program 2 is selected, the

resistance of the pedals will not change. Note:

You can change the resistance level for the entire

program by pressing the + and – buttons below

the large display if desired.

During programs

1and 2, the

arrows in the

small display will

help you to keep

your heart rate

near the current

target heart rate.

When you hold the handgrip pulse sensor, the

console will compare your heart rate to the cur-

rent target heart rate. If your heart rate is too far

above or below the target heart rate, the number

of arrows in the small display will change to

prompt you to increase or decrease your pace.

When the number of arrows changes, change

your pace until there is one arrow pointing to

each segment of the indicator bar. Important:

The target pace is intended only to provide a

goal. Your actual pace may be slower than the

target pace, especially during the first few

months of your exercise program. Make sure

to pedal at a pace that is comfortable for you.

5

4

3

2

1

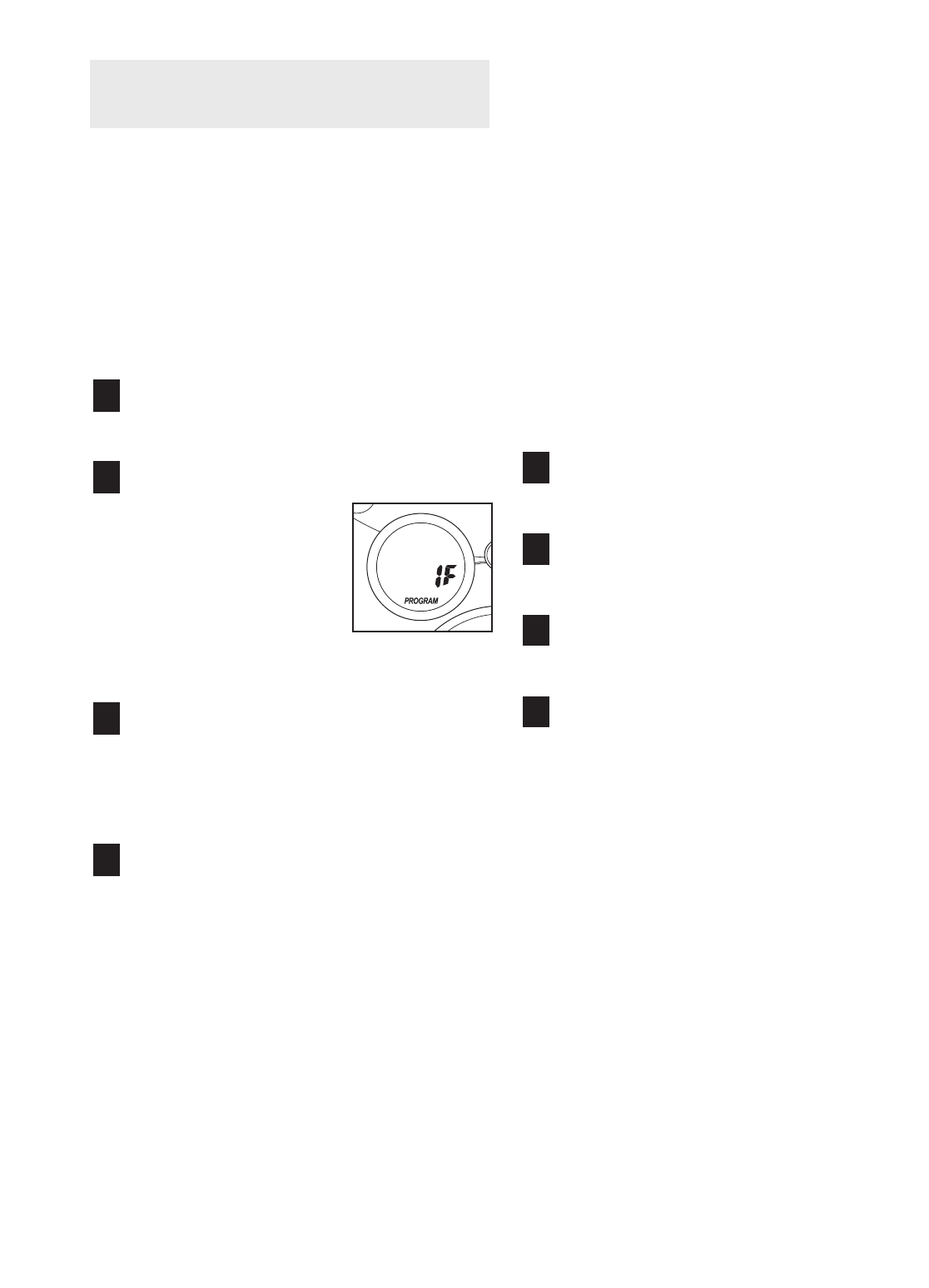

HOW TO USE A HEART RATE PROGRAM

Arrows

Indicator

Bar

15

Note: If you stop pedaling for a few seconds, the

program will end. To use the program again, rese-

lect it and start it at the beginning.

Follow your progress with the large display.

See step 4 on page 11.

Turn on the fan if desired.

See step 6 on page 12.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 12.

Touse iFIT.com CDs,the exercise cycle must be con-

nected to your portable CD player, portable stereo, home

stereo, or computer with CD player. See pages 15 to 17

for connecting instructions. To use iFIT.com videocas-

settes,the exercise cycle must be connected to your

VCR. See page 17 for connecting instructions. To use

iFIT.com programs directly from our Web site,the

exercise cycle must be connected to your computer. See

page 17 for connecting instructions.

HOW TO CONNECT YOUR PORTABLE CD PLAYER

Note: If your CD player has separate LINE OUT and

PHONES jacks, see instruction A below. If your CD

player has only one jack, see instruction B.

A. Plug one end of a 1/8” to 1/8” stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into the LINE OUT jack on your CD player.

Plug your headphones into the PHONES jack.

B. Plug one end of a 1/8” to 1/8” stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into a 1/8” Y-adapter (available at electronics

stores). Plug the Y-adapter into the PHONES jack

on your CD player. Plug your headphones into the

other side of the Y-adapter.

8

7

6

HOW TO CONNECT YOUR CD PLAYER, VCR,

OR COMPUTER

LINE OUT

PHONES LINE OUT

PHONES

Audio

Cable

Head-

phones

A

PHONES

PHONES

Audio

Cable

1/8”

Y-adapter

Headphones

B

16

HOW TO CONNECT YOUR PORTABLE STEREO

Note: If your stereo has an RCA-type AUDIO OUT

jack, see instruction A below. If your stereo has a

1/8” LINE OUT jack, see instruction B. If your

stereo has only a PHONES jack, see instruction C.

A. Plug one end of a 1/8” to RCA stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into the AUDIO OUT jack on your stereo.

B. Refer to the drawing above. Plug one end of a 1/8”

to 1/8” stereo audio cable (available at electronics

stores) into the jack beneath the console. Plug the

other end of the cable into the LINE OUT jack on

your stereo.

C. Plug one end of a 1/8” to 1/8” stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into a 1/8” Y-adapter (available at electronics

stores). Plug the Y-adapter into the PHONES jack

on your stereo. Plug your headphones into the

other side of the Y-adapter.

HOW TO CONNECT YOUR HOME STEREO

Note: If your stereo has an unused LINE OUT jack,

see instruction A below. If the LINE OUT jack is

being used, see instruction B.

A. Plug one end of a 1/8” to RCA stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into the LINE OUT jack on your stereo.

B. Plug one end of a 1/8” to RCA stereo audio cable

(available at electronics stores) into the jack beneath

the console. Plug the other end of the cable into an

RCA Y-adapter (available at electronics stores).

Next, remove the wire that is currently plugged into

the LINE OUT jack on your stereo and plug the wire

into the unused side of the Y-adapter. Plug the Y-

adapter into the LINE OUT jack on your stereo.

AUDIO OUT

RIGHT

LEFT

LINE OUT

L

Audio Cable

A/B

PHONES

Audio

Cable

C

1/8”

Y-adapter

Headphones

CD

VCR

Amp

LINE OUT

LINE OUT

Audio Cable

A

CD

VCR

Amp

LINE OUT

Audio

Cable

RCA

Y-adapter

Wire removed from

LINE OUT jack

B

17

HOW TO CONNECT YOUR COMPUTER

Note: If your computer has a 1/8” LINE OUT jack,

see instruction A. If your computer has only a

PHONES jack, see instruction B.

A. Plug one end of a 1/8” to 1/8” stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into the LINE OUT jack on your computer.

B. Plug one end of a 1/8” to 1/8” stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into a 1/8” Y-adapter (available at electronics

stores). Plug the Y-adapter into the PHONES jack

on your computer. Plug your headphones or speak-

ers into the other side of the Y-adapter.

HOW TO CONNECT YOUR VCR

Note: If your VCR has an unused AUDIO OUT jack,

see instruction A below. If the AUDIO OUT jack is

being used, see instruction B. If you have a TV

with a built-in VCR, see instruction B. If your VCR

is connected to your home stereo, see HOW TO

CONNECT YOUR HOME STEREO on page 16.

A. Plug one end of a 1/8” to RCA stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into the AUDIO OUT jack on your VCR.

B. Plug one end of a 1/8” to RCA stereo audio cable

(available at electronics stores) into the jack

beneath the console. Plug the other end of the

cable into an RCA Y-adapter (available at electron-

ics stores). Next, remove the wire that is currently

plugged into the AUDIO OUT jack on your VCR

and plug the wire into the unused side of the Y-

adapter.Plug the Y-adapter into the AUDIO OUT

jack on your VCR.

LINE OUT

Audio

Cable

A

PHONES

Audio Cable

B

1/8”

Y-adapter

Headphones/Speakers

AUDIO OUT

RIGHT

LEFT

VIDEO AUDIO

ANT. IN

RF OUT

IN

OUT

CH

34

Audio Cable

A

VIDEO AUDIO

ANT. IN

RF OUT

IN

OUT

CH

34

B

Wire removed from

AUDIO OUT jack

RCA

Y-adapter

Audio

Cable

18

To use iFIT.com CDs or videocassettes, the exercise

cycle must be connected to your portable CD player,

portable stereo, home stereo, computer with CD play-

er, or VCR. See HOW TO CONNECT YOUR CD

PLAYER, VCR, OR COMPUTER on page 15. To

purchase iFIT.com CDs and videocassettes, call

toll-free 1-800-735-0768.

Follow the steps below to use an iFIT.com CD or

video program.

Turn on the console.

See step 1 on page 11.

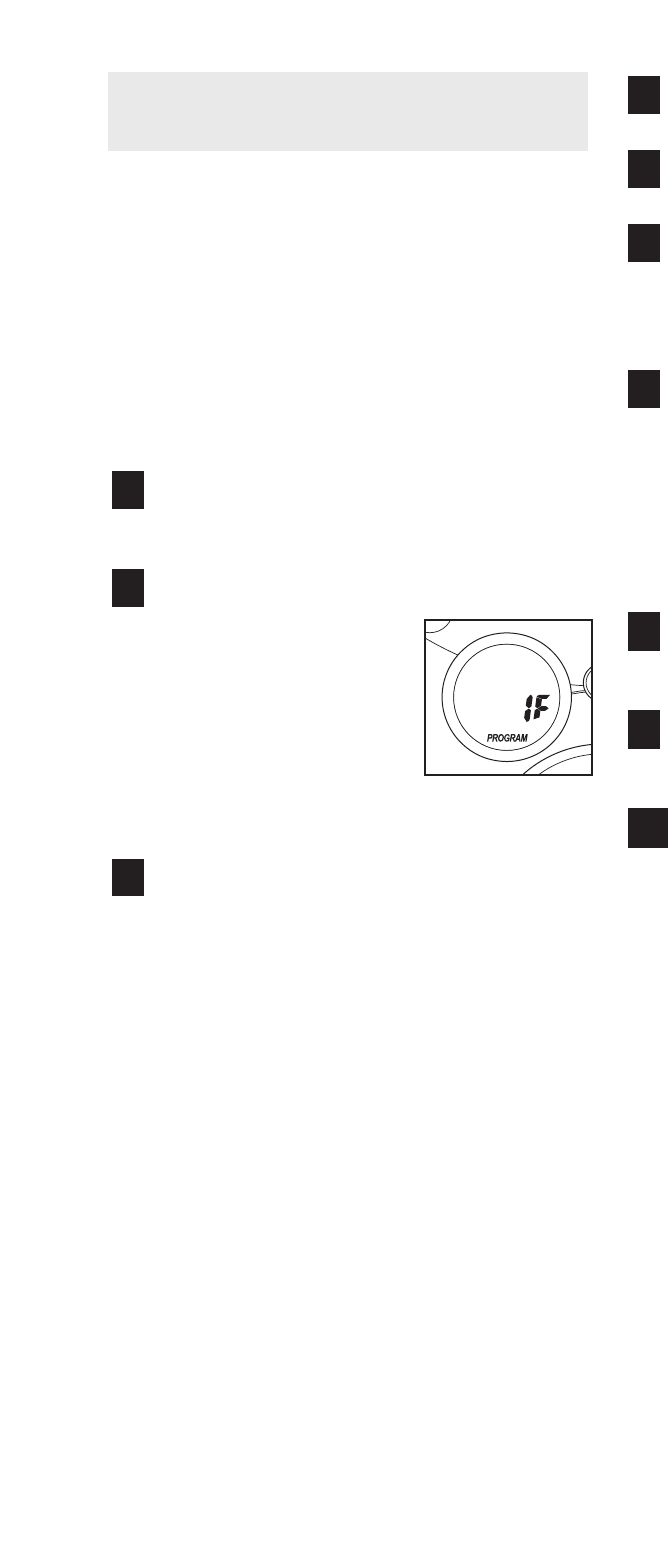

Select the iFIT.com mode.

Each time the console is

turned on, the manual

mode will be selected. To

select the iFIT.com mode,

press the iFIT.com button.

The indicator near the but-

ton will light and the letters

IF will appear in the small

display.

Insert the iFIT.com CD or videocassette.

If you are using an iFIT.com CD, insert the CD

into your CD player. If you are using an iFIT.com

videocassette, insert the videocassette into your

VCR.

Press the play button on your CD player or

VCR.

Amoment after the play button is pressed, your

personal trainer will begin guiding you through

your workout. Simply follow your personal trainer’s

instructions.

The program will function in almost the same way

asaSmart program (see step 3 on page 13).

However, an electronic “chirping” sound will alert

you when the resistance level and/or the target

pace is about to change.

Note: If the resistance of the pedals and/or the

target pace does not change when a “chirp” is

heard:

•Make sure that the indicator near the iFIT.com

button is lit.

•Adjust the volume of your CD player or VCR.

If the volume is too high or too low, the con-

sole may not detect the program signals.

•Make sure that the audio cable is properly

connected and that it is fully plugged in.

Follow your progress with the large display.

See step 4 on page 11.

Measure your heart rate if desired.

See step 5 on page 12.

Turn on the fan if desired.

See step 6 on page 12.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 12.

8

7

6

5

4

3

2

1

HOW TO USE IFIT.COM CD AND VIDEO

PROGRAMS

19

Our Web site at www.iFIT.com allows you to play

iFIT.com programs directly from the internet. To use

programs from our Web site, the exercise cycle must

be connected to your computer. See HOW TO CON-

NECT YOUR COMPUTER on page 17. In addition,

you must have an internet connection and an internet

service provider. A list of specific system requirements

will be found on our Web site.

Follow the steps below to use a program from our

Web site.

Turn on the console.

See step 1 on page 11.

Select the iFIT.com mode.

Each time the console is

turned on, the manual

mode will be selected. To

select the iFIT.com mode,

press the iFIT.com button.

The indicator near the but-

ton will light and the letters

IF will appear in the small

display.

Go to your computer and start an internet con-

nection.

Start your Web browser, if necessary, and go

to our Web site at www.iFIT.com.

Follow the desired links on our Web site to

select a program.

Follow the on-line instructions to start the

program.

When you start the program, an on-screen count-

down will begin.

Return to the exercise cycle and begin

pedaling.

When the on-screen countdown ends, the pro-

gram will begin. The program will function in

almost the same way as a Smart program (see

step 3 on page 13). However,an electronic “chirp-

ing” sound will alert you when the resistance level

and/or the target pace is about to change.

Follow your progress with the large display.

See step 4 on page 11.

Measure your heart rate if desired.

See step 5 on page 12.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 12.

10

9

8

7

6

5

4

3

2

1

HOW TO USE PROGRAMS DIRECTLY FROM

OUR WEB SITE

20

Inspect and tighten all parts of the exercise cycle reg-

ularly. Replace any worn parts immediately.

To clean the exercise cycle, use a damp cloth and a

small amount of mild soap. Important: To avoid

damage to the console, keep liquids away from

the console and keep the console out of direct

sunlight.

BATTERY REPLACEMENT

If the console display becomes dim, the batteries

should be replaced; most console problems are the

result of low batteries. Refer to assembly step 6 on

page 7 for replacement instructions.

HOW TO LEVEL THE EXERCISE CYCLE

After the exer-

cise cycle has

been moved to

the location

where it will be

used, make sure

that both ends of

front stabilizer

are touching the

floor. If the exer-

cise cycle rocks

slightly during use, turn one or both of the leveling

feet under the front stabilizer until the rocking motion

is eliminated.

HANDGRIP PULSE SENSOR TROUBLESHOOTING

• Avoid moving your hands while using the handgrip

pulse sensor. Excessive movement may interfere

with heart rate readings.

• Do not hold the metal contacts too tightly; doing so

may interfere with heart rate readings.

• For the most accurate heart rate reading, hold the

metal contacts for about 30 seconds.

• For optimal performance of the handgrip pulse sen-

sor, keep the metal contacts clean. The contacts

can be cleaned with a soft cloth; never use alcohol,

abrasives, or chemicals.

HOW TO MOVE THE EXERCISE CYCLE

To move the exercise cycle, stand in front of the exer-

cise cycle, hold the handlebars, and place one foot on

the front stabilizer. Pull the handlebars until the exer-

cise cycle can be moved on the front wheels.

Carefully move the exercise cycle to the desired loca-

tion and then lower it.

MAINTENANCE AND TROUBLESHOOTING

Handlebars

Wheel

Place

Foot

Here

Leveling

Foot

21

CONDITIONING GUIDELINES

The following guidelines will help you to plan your

exercise program. Remember that proper nutrition

and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

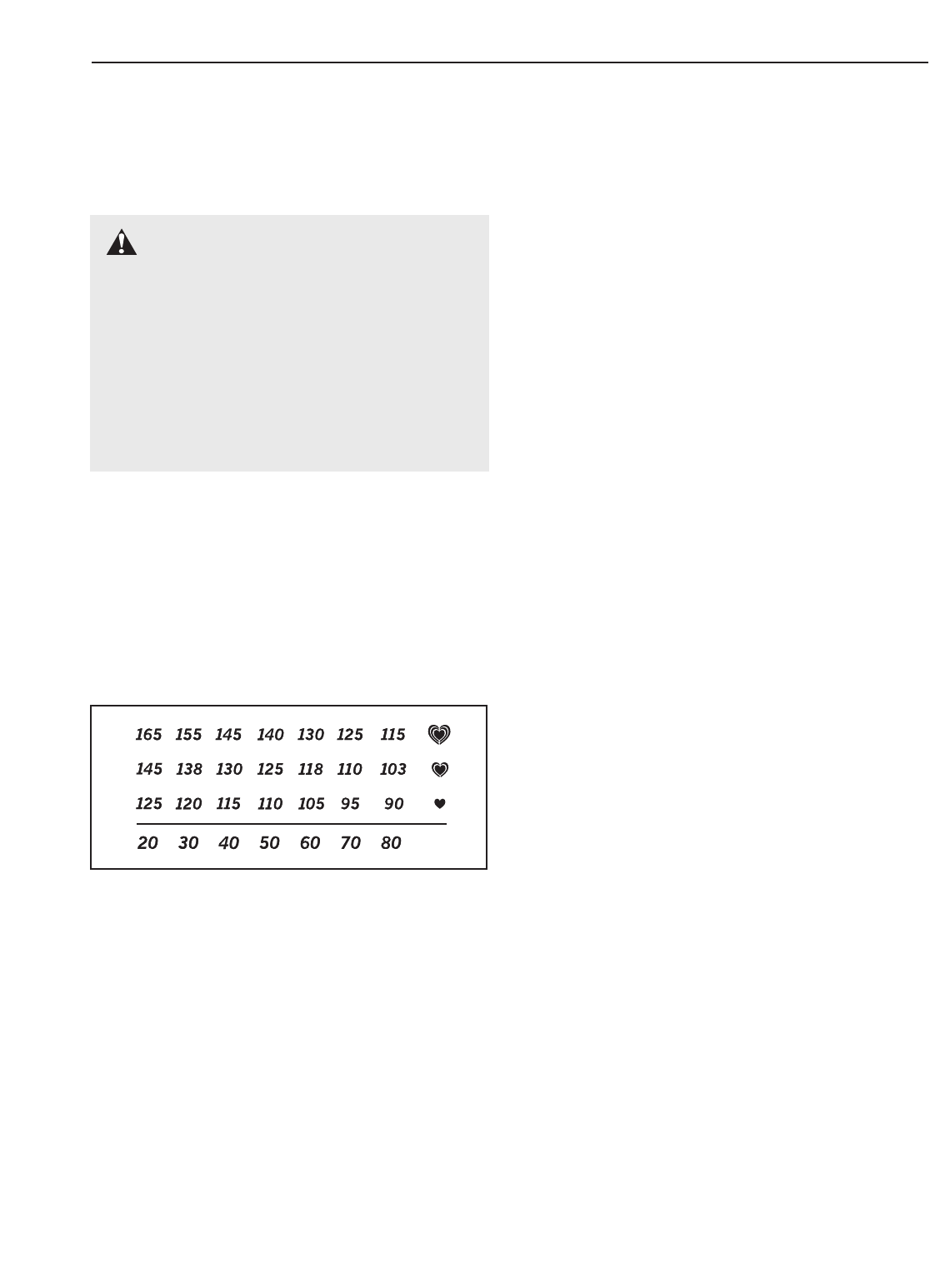

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning, maximum fat

burning, and cardiovascular (aerobic) exercise.

To find the proper heart rate for you, first find your age

at the bottom of the chart (ages are rounded off to the

nearest ten years). Next, find the three numbers above

your age. The three numbers are your “training zone.”

The lowest number is the recommended heart rate for

fat burning; the middle number is the recommended

heart rate for maximum fat burning; the highest num-

ber is the recommended heart rate for aerobic exer-

cise.

Fat Burning

To burn fat effectively, you must exercise at a relative-

ly low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible

carbohydrate

calories for ener-

gy. Only after the first few minutes of exercise does

your body begin to use stored

fat

calories for energy.

Ifyour goal is to burn fat, adjust the intensity of your

exercise until your heart rate is near the lowest num-

ber in your training zone as you exercise. For maxi-

mum fat burning, adjust the intensity of your exercise

until your heart rate is near the middle number in your

training zone as you exercise.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be “aerobic.” Aerobic exer-

cise is activity that requires large amounts of oxygen

for prolonged periods of time. This increases the

demand on the heart to pump blood to the muscles,

and on the lungs to oxygenate the blood. For aerobic

exercise, adjust the intensity of your exercise until

your heart rate is near the highest number in your

training zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

Awarm-up,consisting of 5 to 10 minutes of stretching

and light exercise. A proper warm-up increases your

body temperature, heart rate, and circulation in prepa-

ration for exercise.

Training zone exercise,consisting of 20 to 30 min-

utes of exercising with your heart rate in your training

zone. Note: During the first few weeks of your exer-

cise program, do not keep your heart rate in your

training zone for longer than 20 minutes.

A cool-down,with 5 to 10 minutes of stretching. This

will increase the flexibility of your muscles and will

help to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, plan three work-

outs each week, with at least one day of rest between

workouts. After a few months of regular exercise, you

may complete up to five workouts each week, if

desired. Remember, the key to success is make exer-

cise a regular and enjoyable part of your everyday life.

WARNING: Before beginning

this or any exercise program, consult your

physician. This is especially important for

persons over the age of 35 or persons with

pre-existing health problems.

The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

22

1 1 Frame

2 1 Front Stabilizer

3 1 Rear Stabilizer

42 Rear Endcap

5 1 Seat Post

6 1 Seat Bracket

7 2 Handlebar Collar

8 2 Foam Grip

9 1 Water Bottle Holder

10 8 M8 Nylon Locknut

11 1 M6 x 38mm Screw

12 1 Seat

13 1 Upright

14 1 Upright Bushing

15 1 Handlebar Bracket

16 1 Console

17 1 Left Side Shield

18 1 Right Side Shield

19 1 Side Shield Cover

20 1 Seat Upright Bushing

21 2 M4 x 22mm Screw

22 1 Reed Switch Clamp

23 2 M4 x 5mm Screw

24 1 Left Pedal

25 1 Left Pedal Strap

26 1 Right Pedal

27 1 Right Pedal Strap

28 3 Adjustment Knob

29 2 M6 x 72mm Button Screw

30 2 Wheel

31 1 Left Front Endcap

32 1 Right Front Endcap

33 1 M6 x 25.4mm Button Screw

34 1 Adjustment Motor

35 1 Lower Wire Harness

36 1 Upper Wire Harness

37 1 Flywheel

38 1 Magnet

39 1 Flywheel Axle

40 2 Flywheel Bearing

41 1 “C” Magnet

42 1 Left Crank Arm

43 1 Reed Switch/Wire

44 1 Crank Bearing Assembly

45 2 M5 Nut

46 1 Adjustment Cable

47 1 Return Spring

48 1 Idler Arm

49 1 M8 x 14mm Button Screw

50 1 Left Handlebar

51 1 Right Handlebar

52 7 M4 x 25mm Screw

53 1 “J” Bolt

54 1 Pulley

55 1 M10 x 25mm Flat Bolt

56 2 Flange Screw

57 1 Right Crank Arm

58 2 M6 x 8mm Screw

59 1 M8 x 47mm Button Bolt

60 2 M6 Nut

61 2 M8 Nylon Jam Nut

62 1 Flywheel Washer

63 5 M10 Black Nylon Locknut

64 2 M8 x 39mm Button Bolt

65 4 M10 x 112mm Carriage Bolt

66 16 M4 x 16mm Screw

67 2 Leveling Foot

68 1 Flywheel Spacer

69 1 M8 Flange Nut

70 4 M8 Split Washer

71 2 M4 x 12mm Round Head Screw

72 1 Belt

73 4 Motor Washer

74 4 M8 x 22mm Button Screw

# 1 User’s Manual

# 2 Allen Wrench

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover

of this manual for information about ordering replacement parts.

PART LIST—Model No. PFEX17931 R0603A

Key No. Qty. Description Key No. Qty. Description

23

1

3

4

6

13

14

16

17

18

19

24

25

30

30

37

38

41

42

44

46

47

55

56

54

63 59

23

52

66

71

69

45

45

63

11 60

29

65

65

2

31

32

39

40

40

61

61

62

68

63

63

63

22

66

43

52 52

66

66

52

51

50

35

36

12

70

28

44

15

34

33

53

10

48

26

27

57

56

5

20

4

23

65

58

28

58

8

10

10

67

67

70

28

72

66

73

7

7

21

66

66

10

64

9

66

66

10

10

49

74

74

74

66

EXPLODED DRAWING—Model No. PFEX17931 R0603A

Part No. 205489 R0903A Printed in USA © 2003 ICON Health and Fitness, Inc.

HOW TO ORDER REPLACEMENT PARTS

To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through

Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give

the following information:

•The MODEL NUMBER of the product (PFEX17931)

•The NAME of the product (PROFORM®GL36 exercise cycle)

•The SERIAL NUMBER of the product (see the front cover of this manual)

•The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on page 22)

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and

material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-

chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-

ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not

extend to any product or damage to a product caused by or attributable to freight damage, abuse, mis-

use, improper or abnormal usage or repairs not provided by an ICON authorized service center, products

used for commercial or rental purposes, or products used as store display models. No other warranty

beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss

of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-

dental or consequential damages. Accordingly,the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth

herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above

limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

PROFORM is a registered trademark of ICON Health & Fitness, Inc.
