PRO CAN *

Model: 19LB30QD

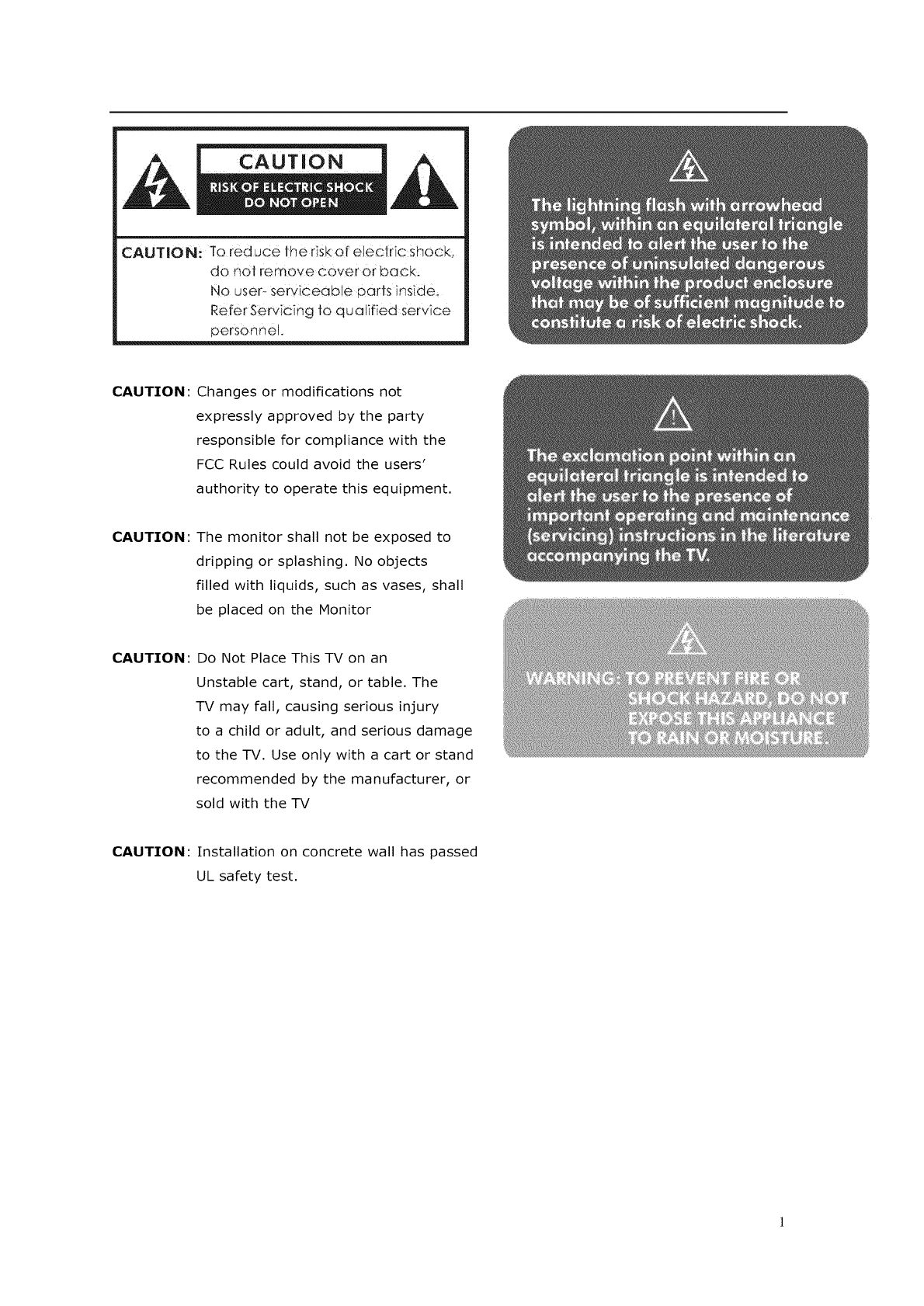

CAUTION: To reduce the risk of eFectric shock,

do no_ remove cover or back.

No user- serviceabJe parts inside.

Refer Servicing to quaJified service

personnel.

CAUTION: Changes or modifications not

expressly approved by the party

responsible for compliance with the

FCC Rules could avoid the users'

authority to operate this equipment.

CAUTION: The monitor shall not be exposed to

dripping or splashing. No objects

filled with liquids, such as vases, shall

be placed on the Monitor

CAUTION: Do Not Place This TV on an

Unstable cart, stand, or table. The

TV may fall, causing serious injury

to a child or adult, and serious damage

to the TV. Use only with a cart or stand

recommended by the manufacturer, or

sold with the TV

CAUTION: Installation on concrete wall has passed

UL safety test.

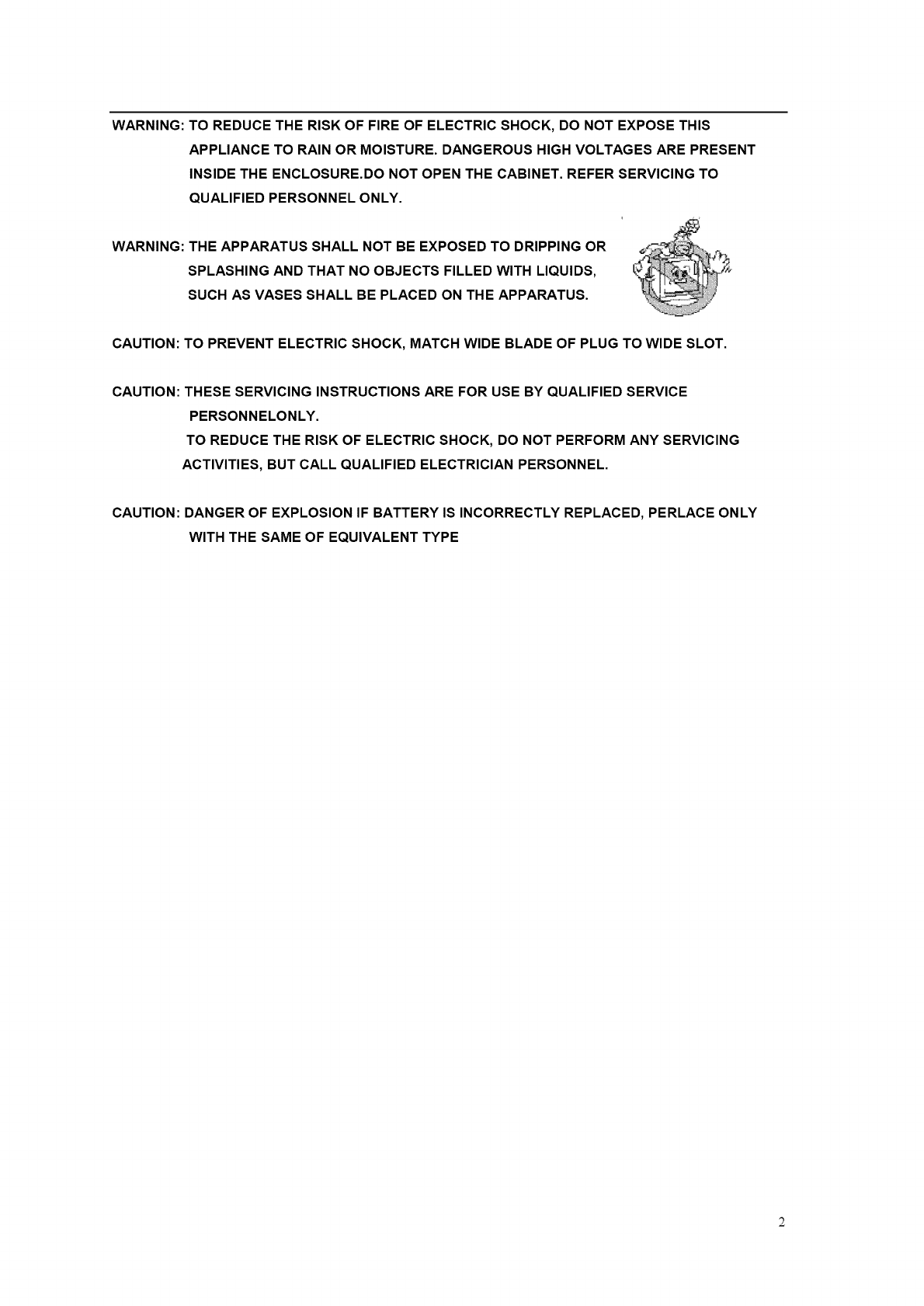

WARNING: TO REDUCE THE RISK OF FIRE OF ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT

INSIDE THE ENCLOSURE.DO NOT OPEN THE CABINET. REFER SERVICING TO

QUALIFIED PERSONNEL ONLY.

WARNING: THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR

SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS,

SUCH AS VASES SHALL BE PLACED ON THE APPARATUS.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT.

CAUTION: THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE

PERSONNELONLY.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT PERFORM ANY SERVICING

ACTIVITIES, BUT CALL QUALIFIED ELECTRICIAN PERSONNEL.

CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED, PERLACE ONLY

WITH THE SAME OF EQUIVALENT TYPE

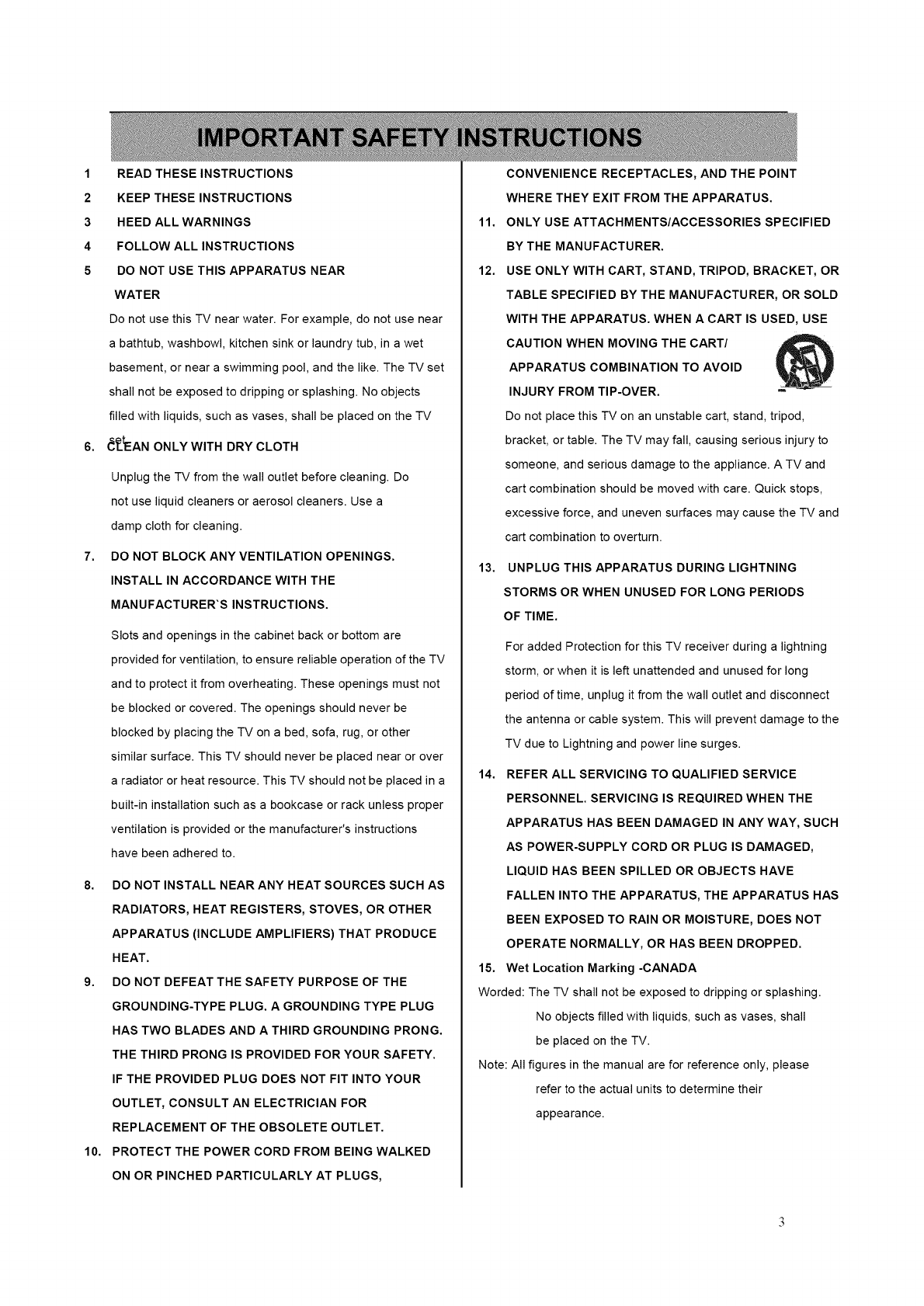

1 READ THESE INSTRUCTIONS

2KEEP THESE INSTRUCTIONS

3 HEED ALL WARNINGS

4 FOLLOW ALL INSTRUCTIONS

5 DO NOT USE THIS APPARATUS NEAR

WATER

Do not use this TV near water. For example, do not use near

a bathtub, washbowl, kitchen sink or laundry tub, in a wet

basement, or near a swimming pool, and the like. The TV set

shall not be exposed to dripping or splashing. No objects

filled with liquids, such as vases, shall be placed on the TV

6. (_ttEAN ONLY WITH DRY CLOTH

Unplug the TV from the wall outlet before cleaning. Do

not use liquid cleaners or aerosol cleaners. Use a

damp cloth for cleaning.

DO NOT BLOCK ANY VENTILATION OPENINGS.

INSTALL IN ACCORDANCE WITH THE

MANUFACTURER'S INSTRUCTIONS.

Slots and openings in the cabinet back or bottom are

provided for ventilation, to ensure reliable operation of the TV

and to protect it from overheating. These openings must not

be blocked or covered. The openings should never be

blocked by placing the TV on a bed, sofa, rug, or other

similar surface. This TV should never be placed near or over

a radiator or heat resource. This TV should not be placed in a

built-in installation such as a bookcase or rack unless proper

ventilation is provided or the manufacturer's instructions

have been adhered to.

8. DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS

RADIATORS, HEAT REGISTERS, STOVES, OR OTHER

APPARATUS (INCLUDE AMPLIFIERS) THAT PRODUCE

HEAT.

9. DO NOT DEFEAT THE SAFETY PURPOSE OF THE

GROUNDING-TYPE PLUG. A GROUNDING TYPE PLUG

HAS TWO BLADES AND A THIRD GROUNDING PRONG.

THE THIRD PRONG IS PROVIDED FOR YOUR SAFETY.

IF THE PROVIDED PLUG DOES NOT FIT INTO YOUR

OUTLET, CONSULT AN ELECTRICIAN FOR

REPLACEMENT OF THE OBSOLETE OUTLET.

10. PROTECT THE POWER CORD FROM BEING WALKED

ON OR PINCHED PARTICULARLY AT PLUGS,

11.

12.

CONVENIENCE RECEPTACLES, AND THE POINT

WHERE THEY EXIT FROM THE APPARATUS.

ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED

BY THE MANUFACTURER.

USE ONLY WITH CART, STAND, TRIPOD, BRACKET, OR

TABLE SPECIFIED BY THE MANUFACTURER, OR SOLD

WITH THE APPARATUS. WHEN A CART IS USED, USE

CAUTION WHEN MOVING THE CART/

APPARATUS COMBINATION TO AVOID

INJURY FROM TIP-OVER.

Do not place this TV on an unstable cart, stand, tripod,

bracket, or table. The TV may fall, causing serious injury to

someone, and serious damage to the appliance. A TV and

cart combination should be moved with care. Quick stops,

excessive force, and uneven surfaces may cause the TV and

cart combination to overturn.

13. UNPLUG THIS APPARATUS DURING LIGHTNING

STORMS OR WHEN UNUSED FOR LONG PERIODS

OF TIME.

For added Protection for this TV receiver during a lightning

storm, or when it is left unattended and unused for long

period of time, unplug it from the wall outlet and disconnect

the antenna or cable system. This will prevent damage to the

TV due to Lightning and power line surges.

14. REFER ALL SERVICING TO QUALIFIED SERVICE

PERSONNEL. SERVICING IS REQUIRED WHEN THE

APPARATUS HAS BEEN DAMAGED IN ANY WAY, SUCH

AS POWER-SUPPLY CORD OR PLUG IS DAMAGED,

LIQUID HAS BEEN SPILLED OR OBJECTS HAVE

FALLEN INTO THE APPARATUS, THE APPARATUS HAS

BEEN EXPOSED TO RAIN OR MOISTURE, DOES NOT

OPERATE NORMALLY, OR HAS BEEN DROPPED.

15. Wet Location Marking -CANADA

Worded: The TV shall not be exposed to dripping or splashing.

No objects filled with liquids, such as vases, shall

be placed on the TV.

Note: All figures in the manual are for reference only, please

refer to the actual units to determine their

appearance.

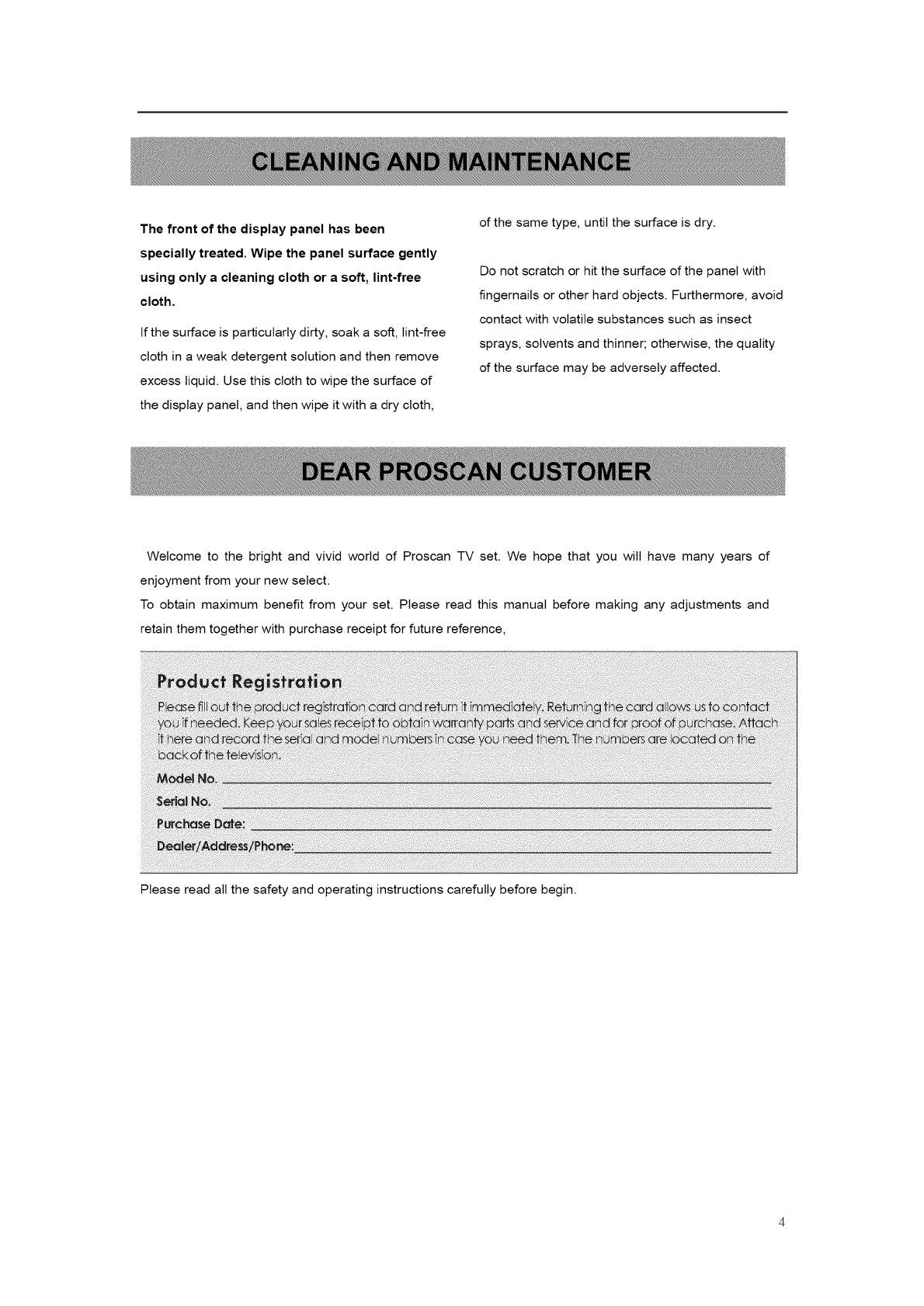

The front of the display panel has been

specially treated. Wipe the panel surface gently

using only a cleaning cloth or a soft, lint-free

cloth.

If the surface is particularly dirty, soak a soft, lint-free

cloth in a weak detergent solution and then remove

excess liquid. Use this cloth to wipe the surface of

the display panel, and then wipe it with a dry cloth,

of the same type, until the surface is dry.

Do not scratch or hit the surface of the panel with

fingernails or other hard objects. Furthermore, avoid

contact with volatile substances such as insect

sprays, solvents and thinner; otherwise, the quality

of the surface may be adversely affected.

Welcome to the bright and vivid world of Proscan TV set. We hope that you will have many years of

enjoyment from your new select.

To obtain maximum benefit from your set. Please read this manual before making any adjustments and

retain them together with purchase receipt for future reference,

Please read all the safety and operating instructions carefully before begin.

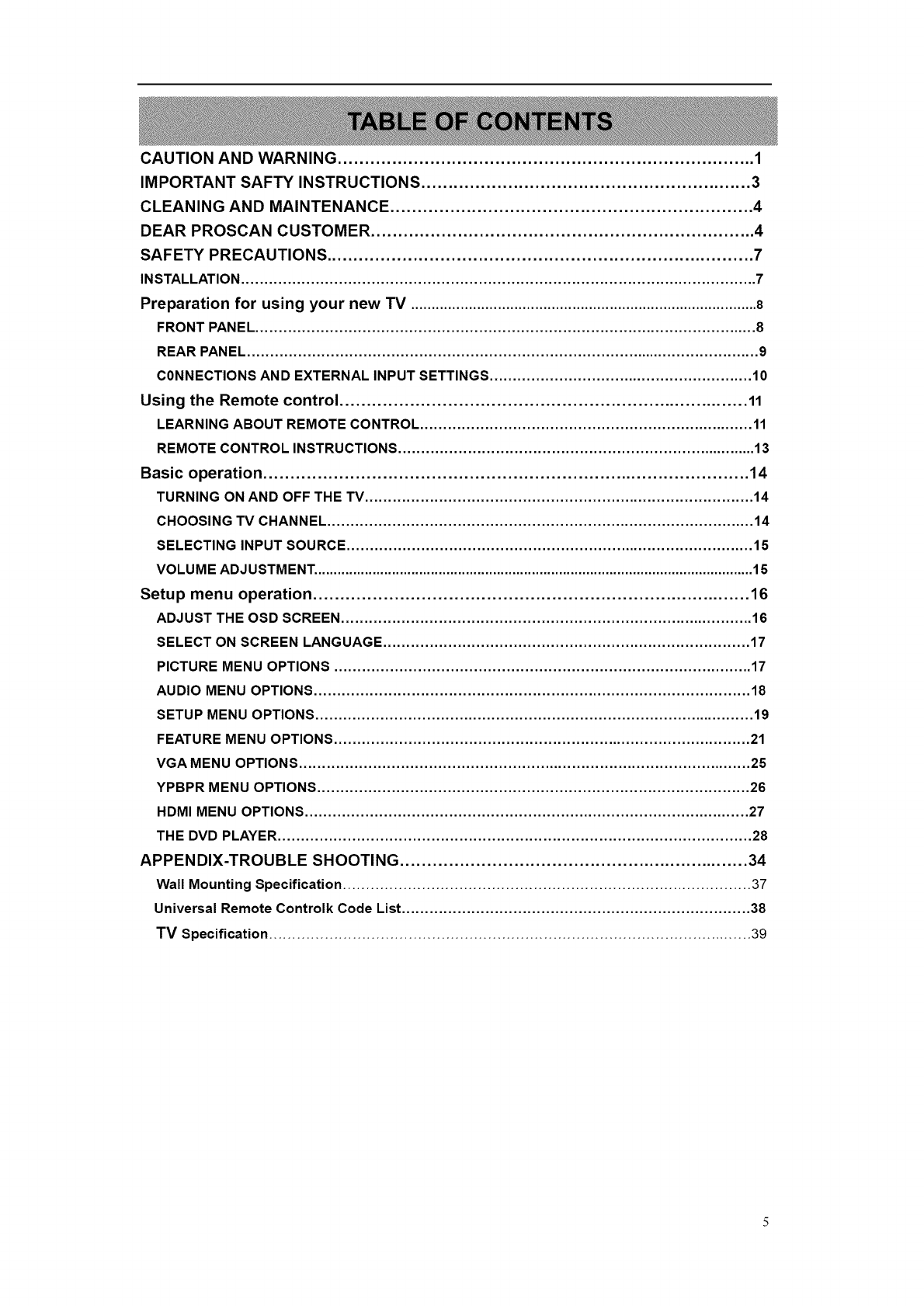

CAUTION AND WARNING ............................................................................. 1

IMPORTANT SAFTY INSTRUCTIONS ............................................................. 3

CLEANING AND MAINTENANCE ................................................................... 4

DEAR PROSCAN CUSTOMER ....................................................................... 4

SAFETY PRECAUTIONS ............................................................................... 7

INSTALLATION ............................................................................................................... 7

Preparation for using your new TV .................................................................................... 8

FRONT PANEL ............................................................................................................ 8

REAR PANEL ............................................................................................................... 9

CONNECTIONS AND EXTERNAL INPUT SETTINGS ......................................................... 10

Using the Remote control ............................................................................ 11

LEARNING ABOUT REMOTE CONTROL ........................................................................ 11

REMOTE CONTROL INSTRUCTIONS .............................................................................. 13

Basic operation .......................................................................................... 14

TURNING ON AND OFF THE TV .................................................................................... 14

CHOOSING TV CHANNEL ............................................................................................ 14

SELECTING INPUT SOURCE ........................................................................................ 15

VOLUME ADJUSTMENT. ................................................................................................................ 15

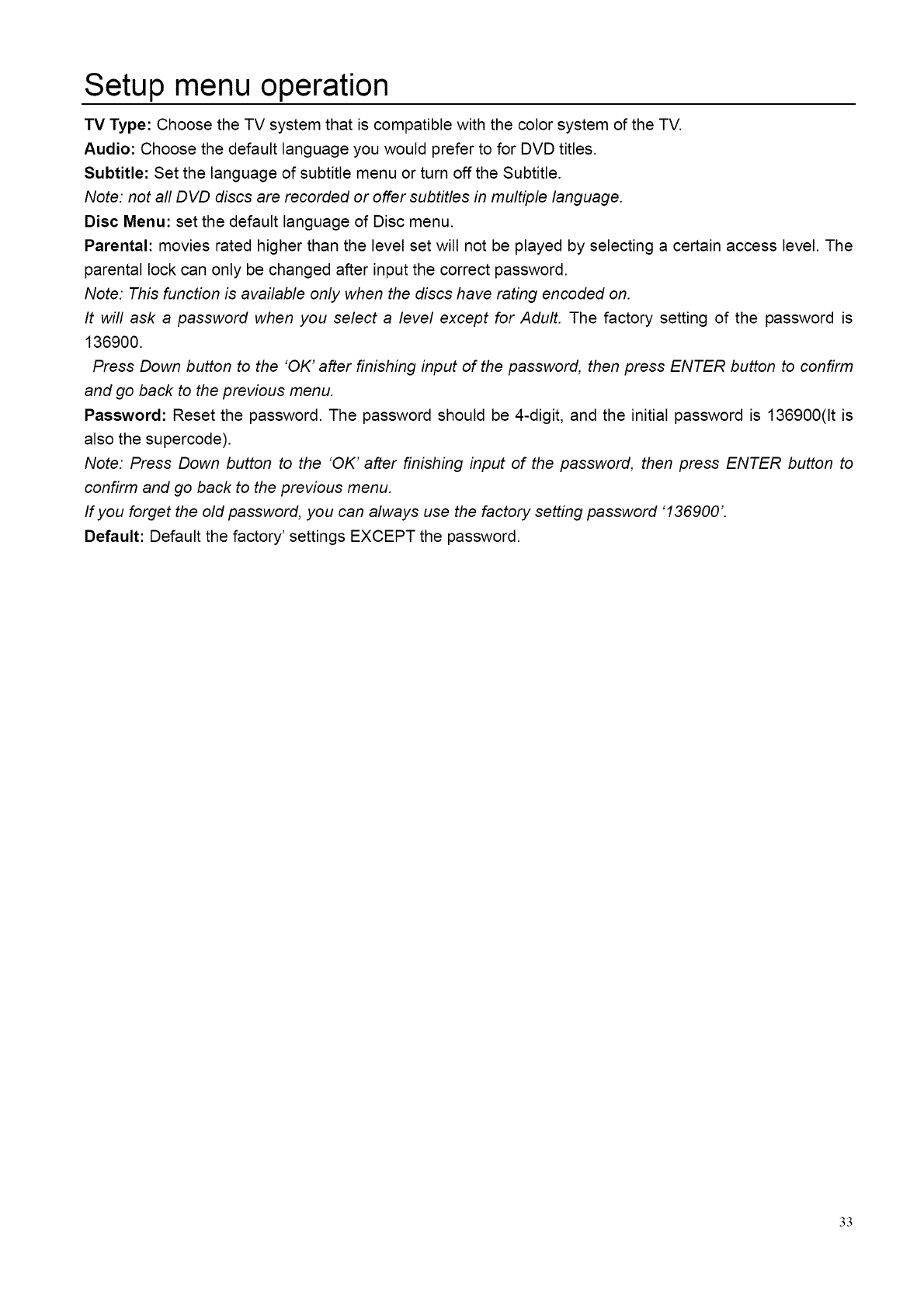

Setup menu operation ................................................................................. 16

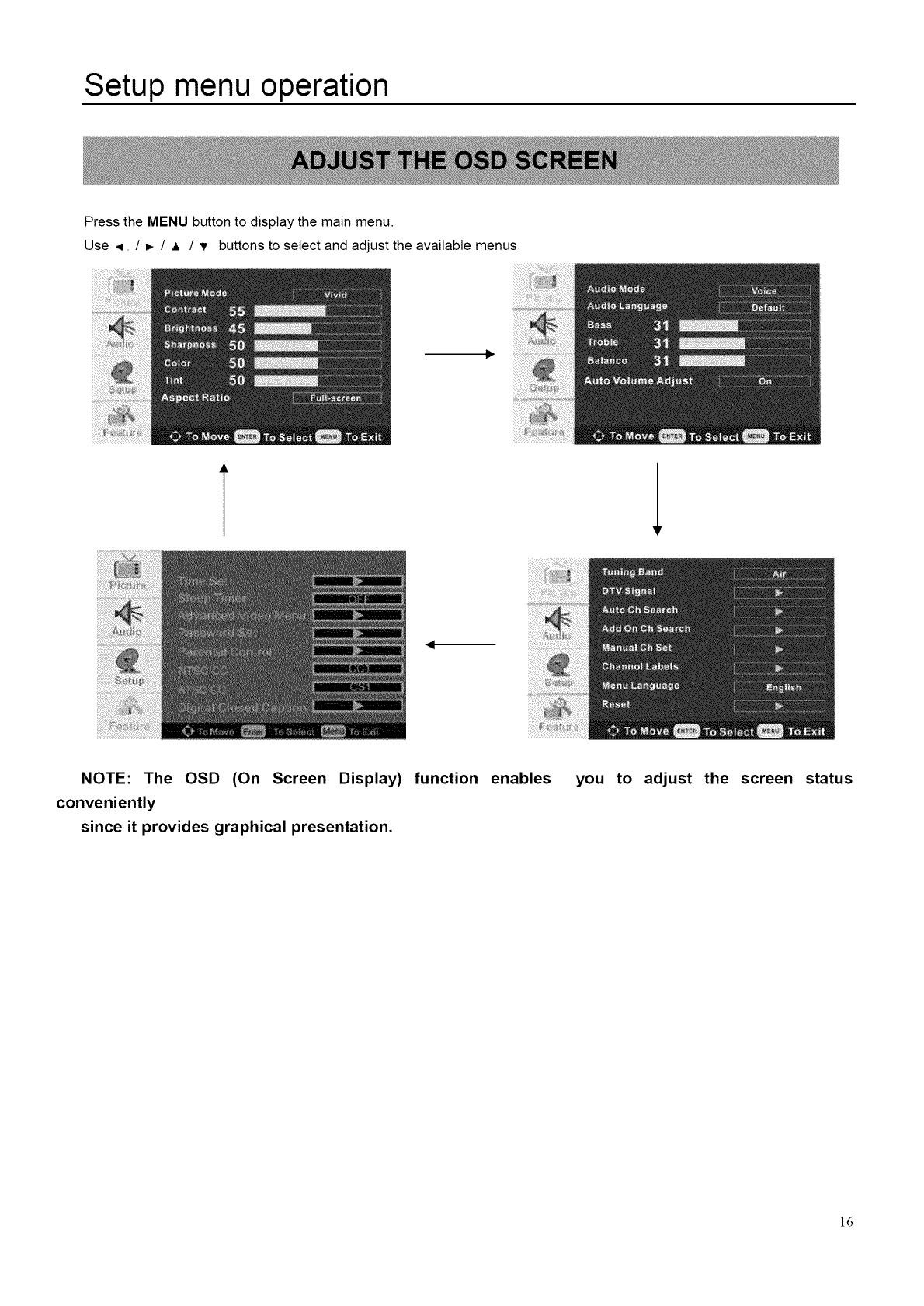

ADJUST THE OSD SCREEN ......................................................................................... 16

SELECT ON SCREEN LANGUAGE ............................................................................... 17

PICTURE MENU OPTIONS .......................................................................................... 17

AUDIO MENU OPTIONS .............................................................................................. 18

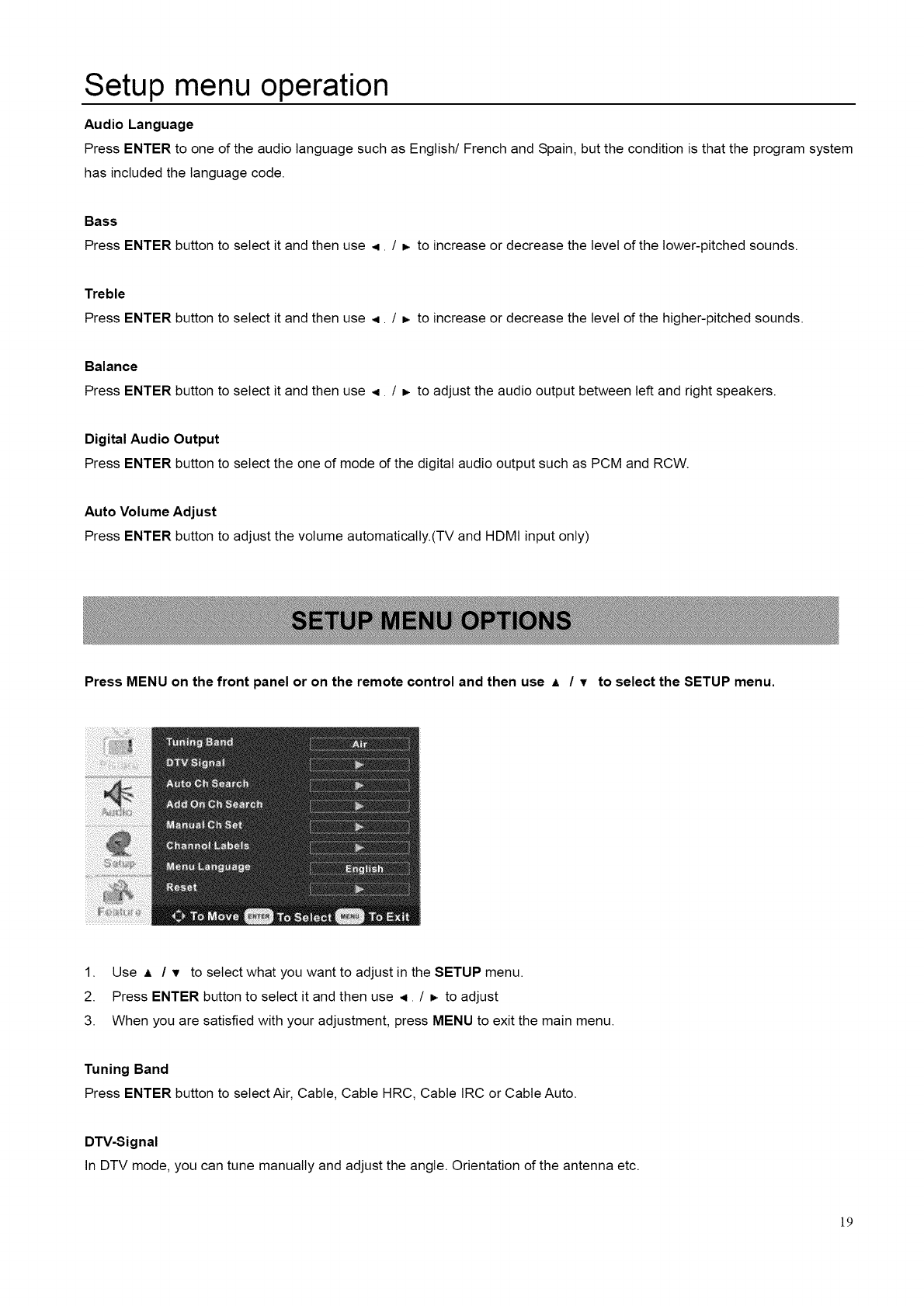

SETUP MENU OPTIONS ............................................................................................... 19

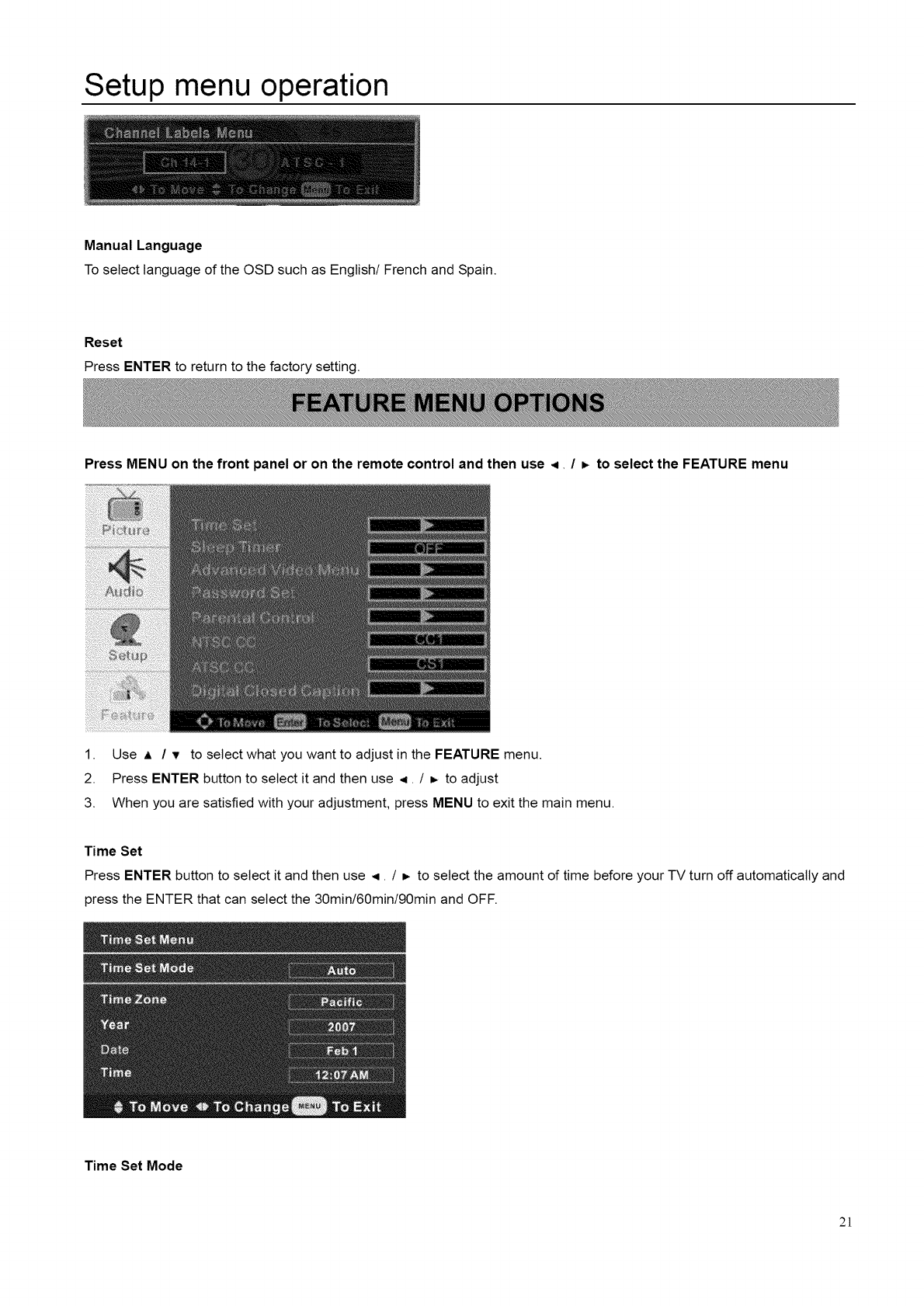

FEATURE MENU OPTIONS .......................................................................................... 21

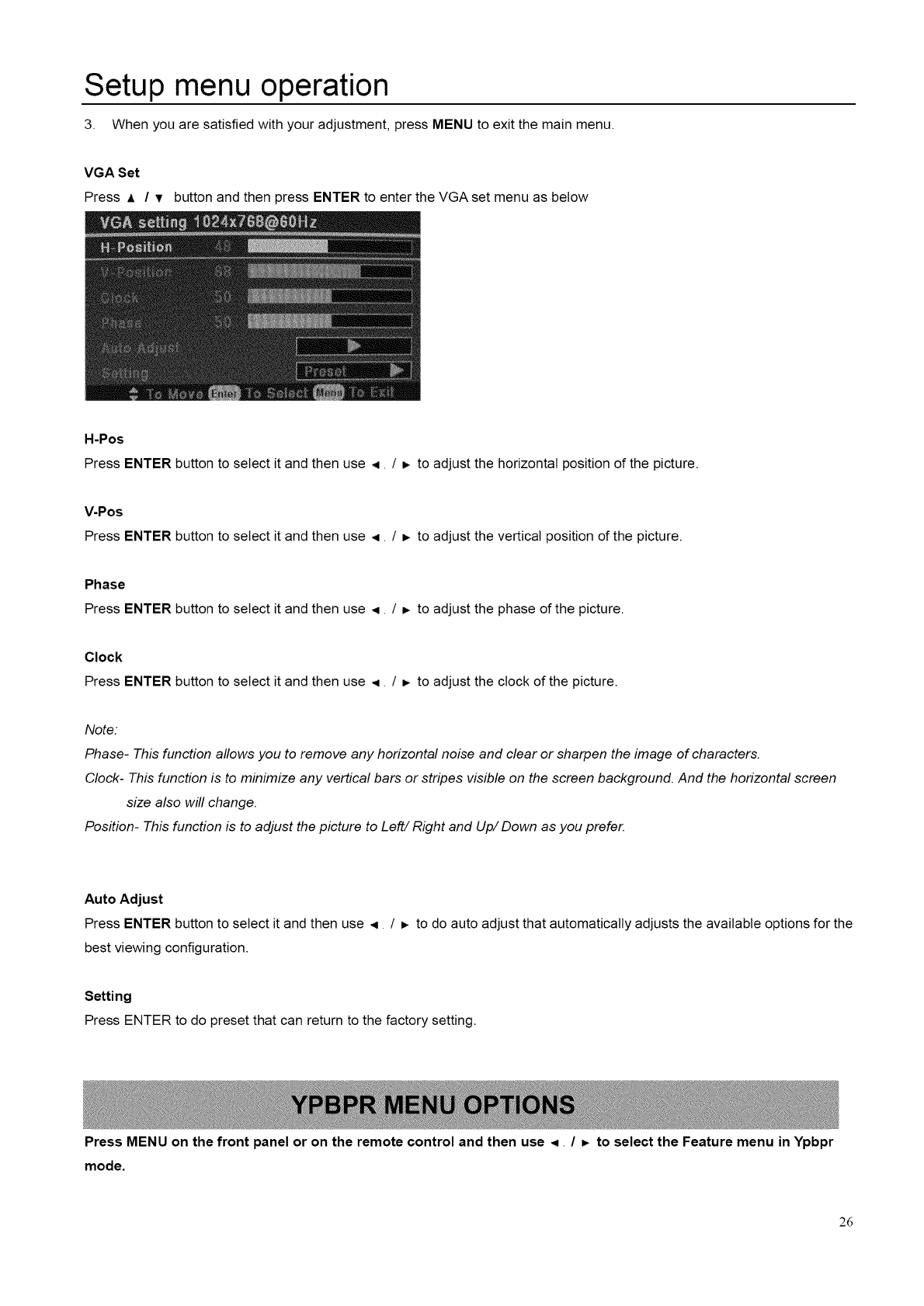

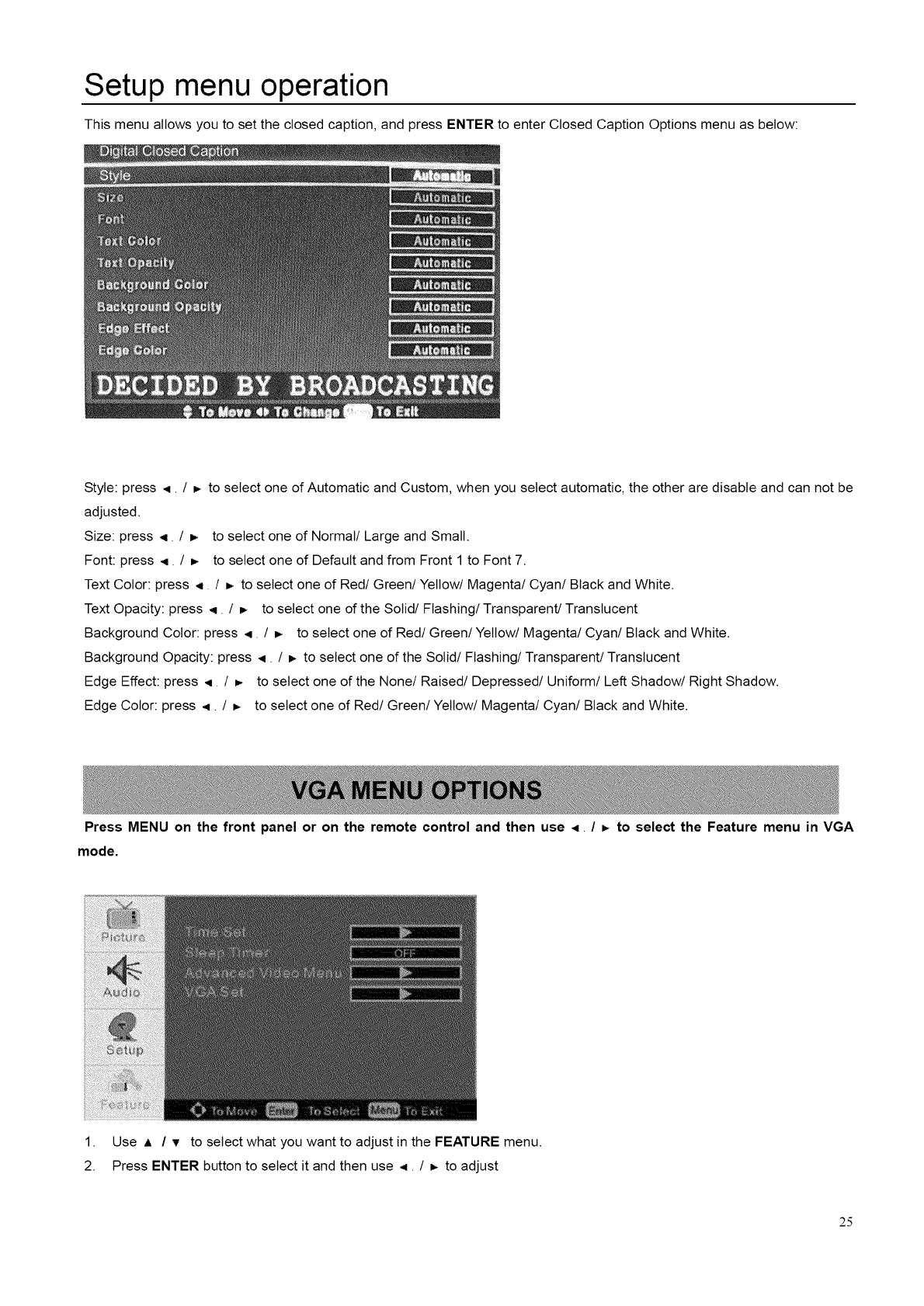

VGA MENU OPTIONS .................................................................................................. 25

YPBPR MENU OPTIONS ............................................................................................. 26

HDMI MENU OPTIONS ................................................................................................ 27

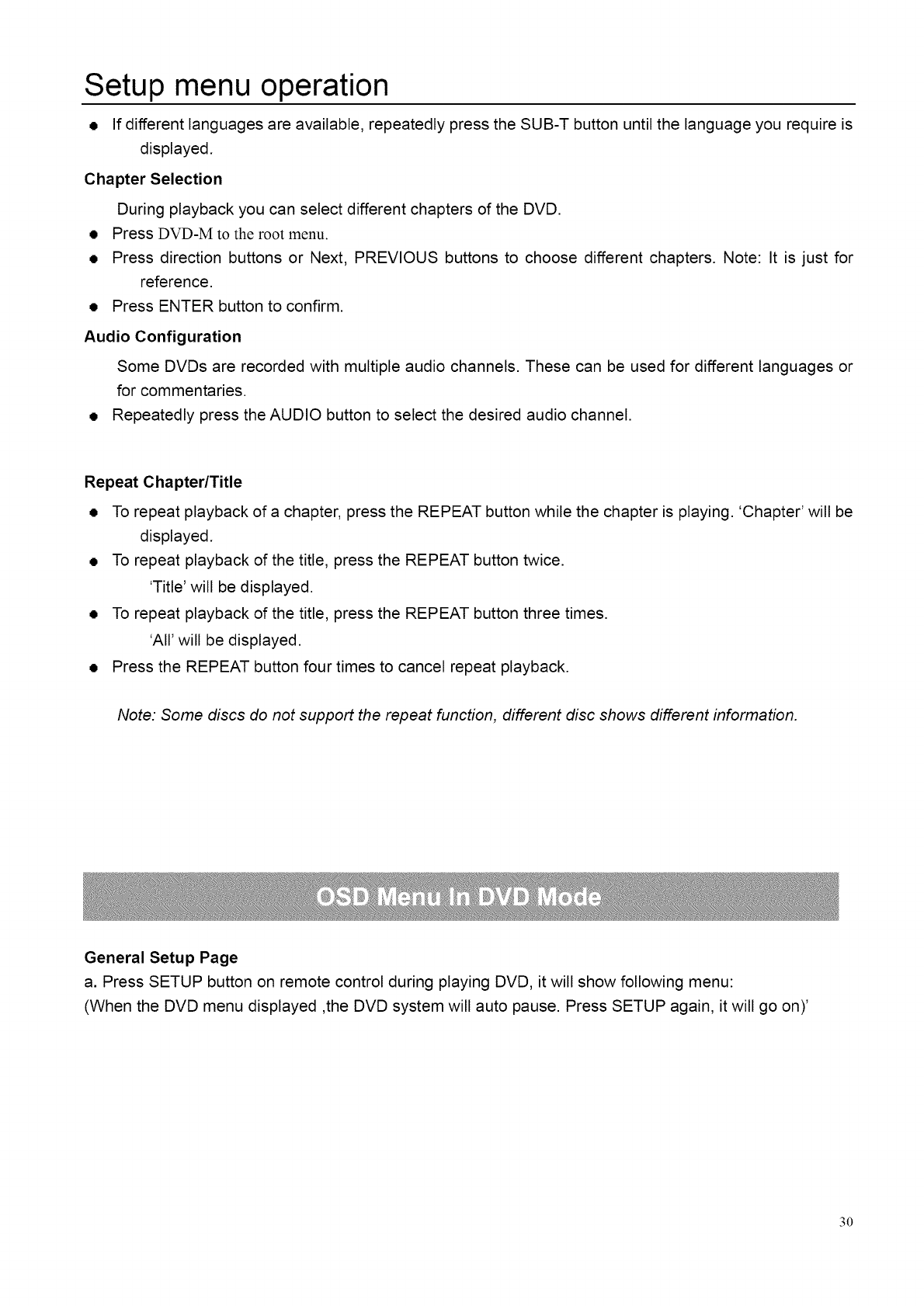

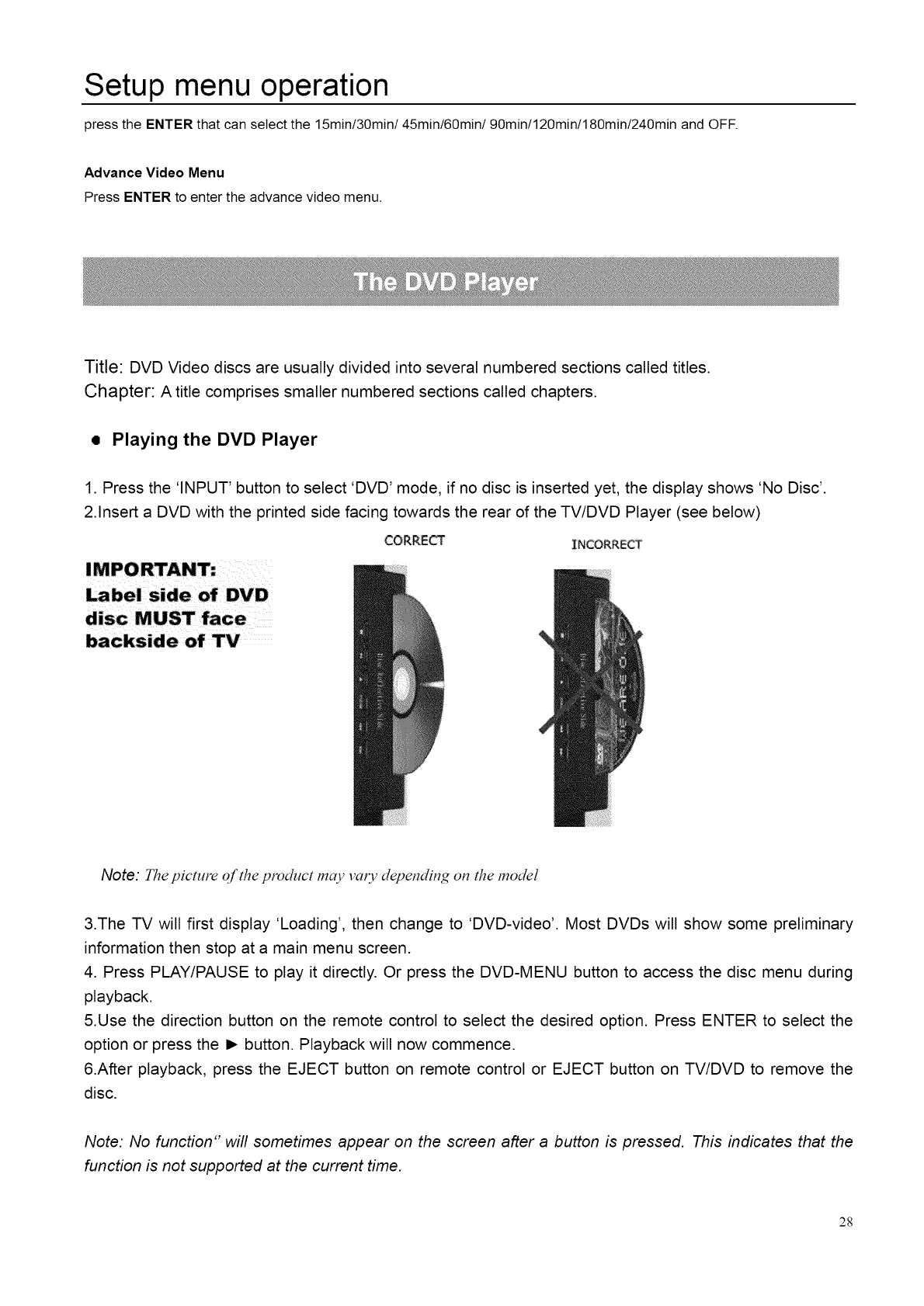

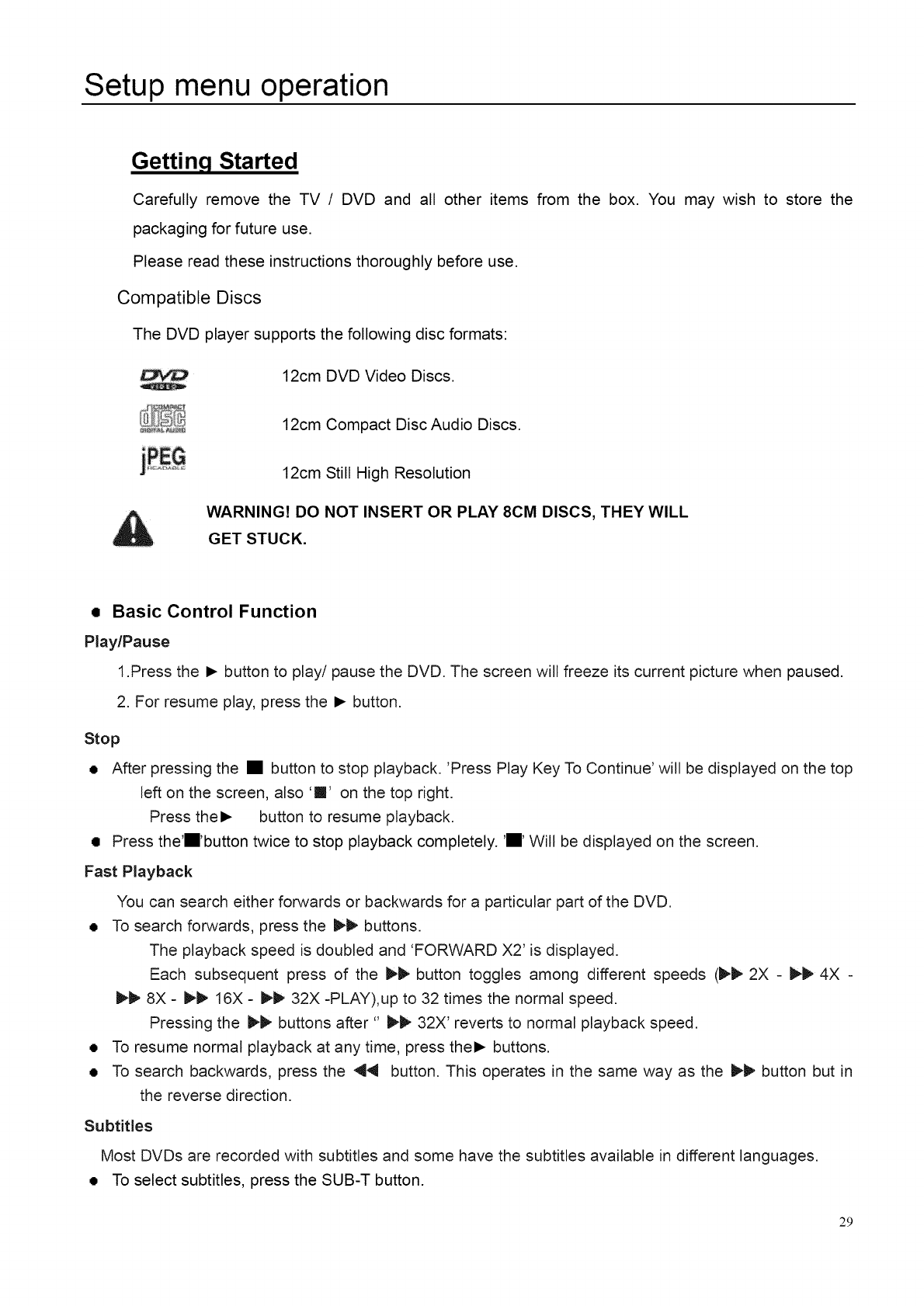

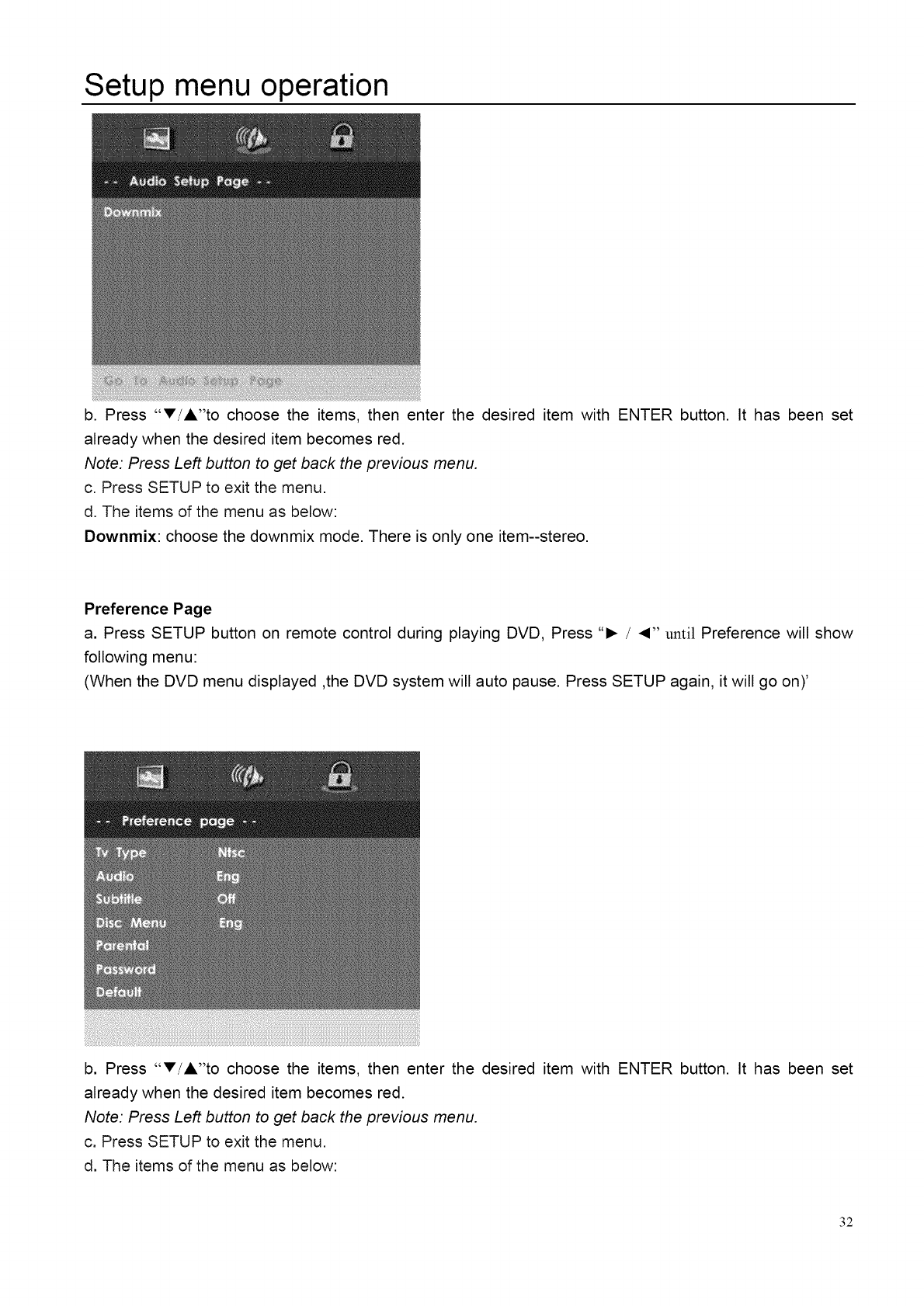

THE DVD PLAYER ...................................................................................................... 28

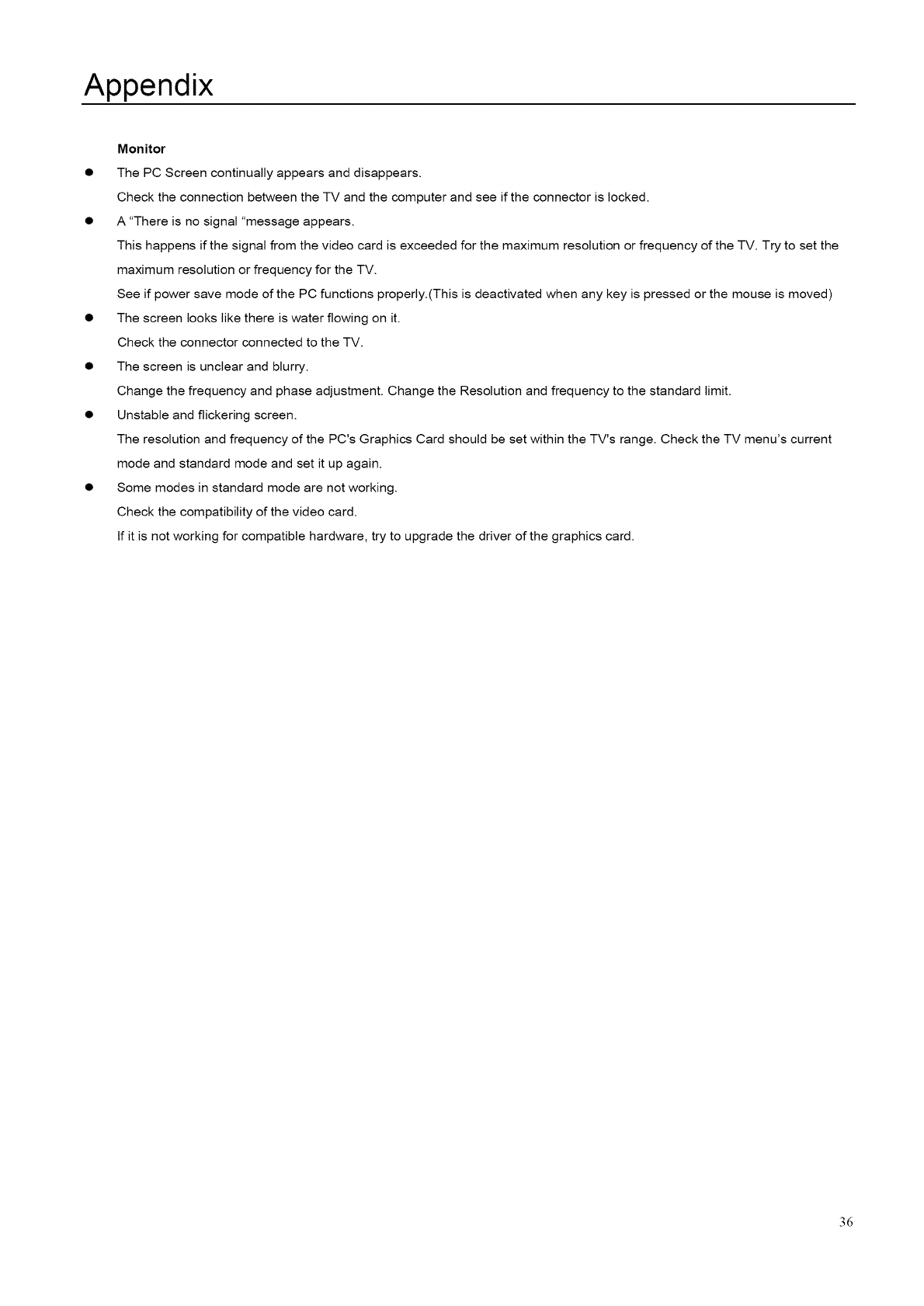

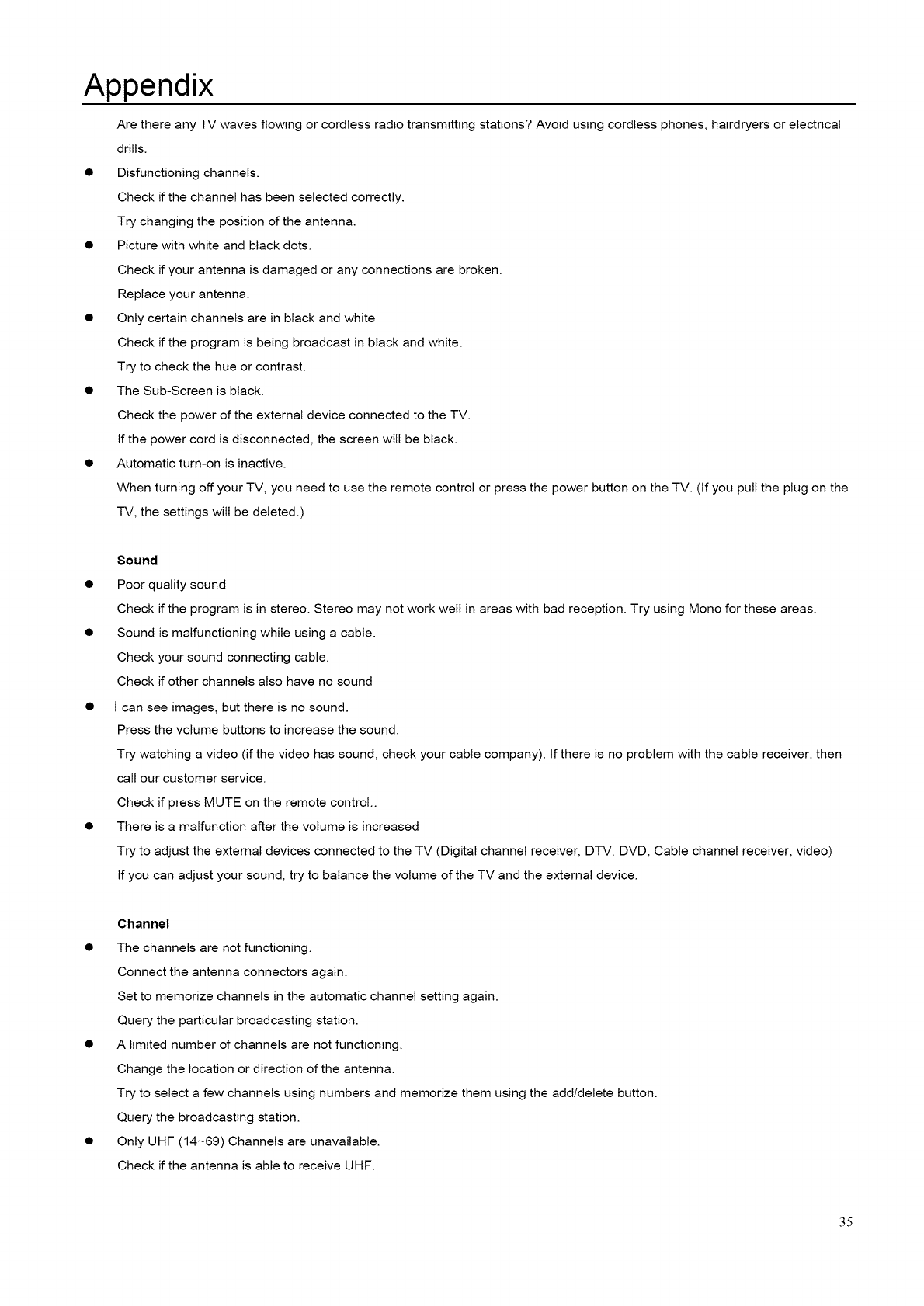

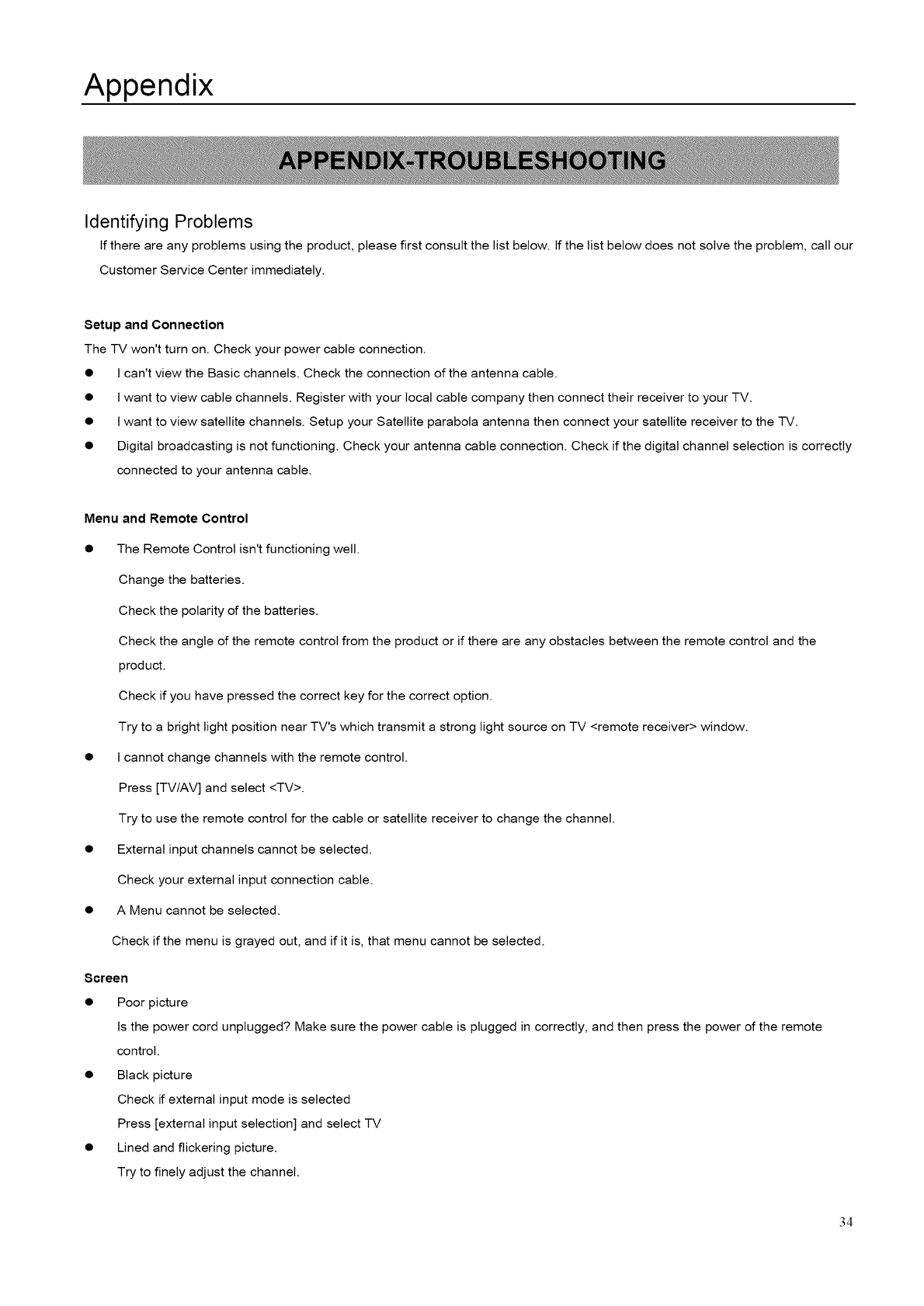

APPENDIX-TROUBLE SHOOTING ................................................................. 34

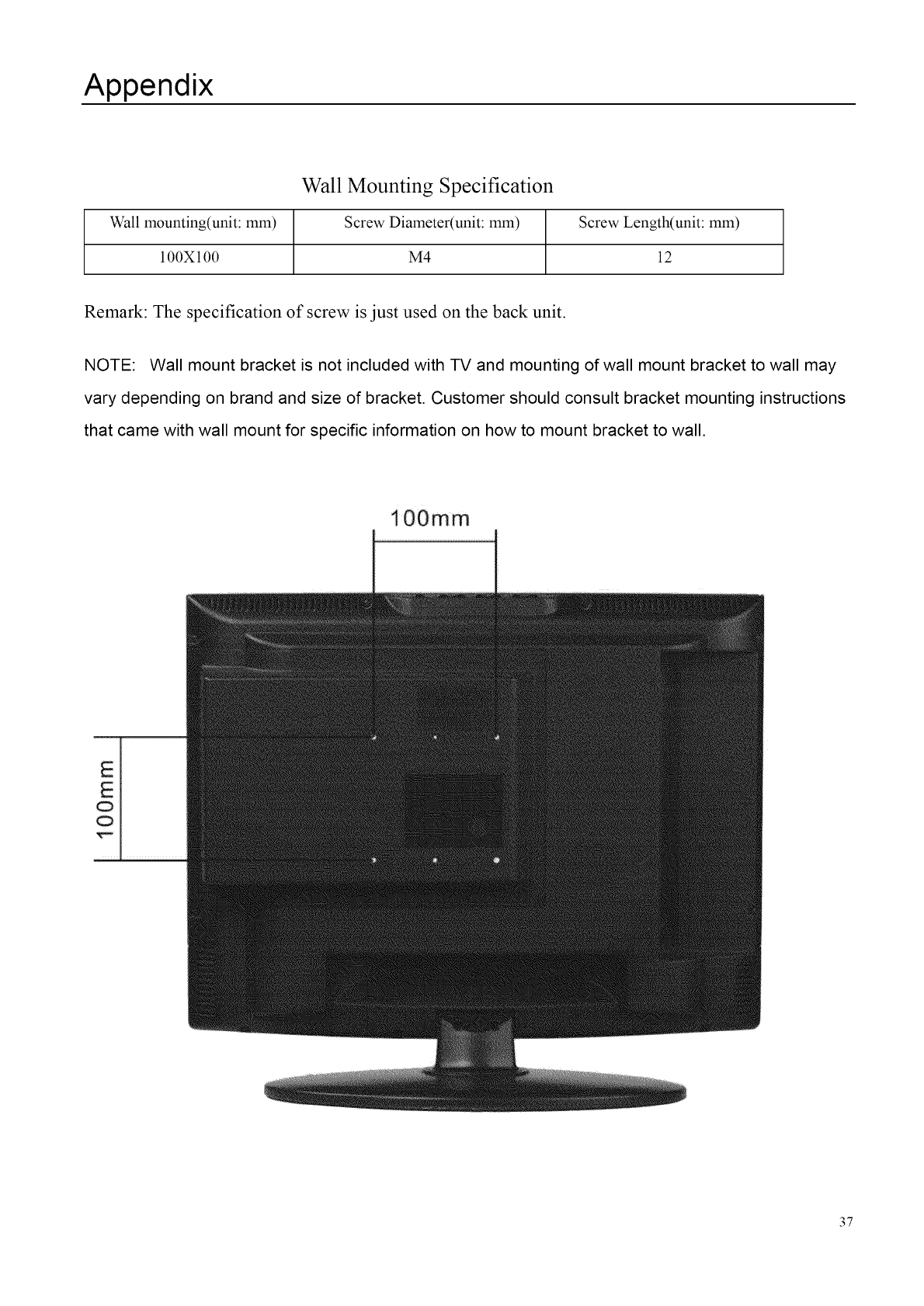

Wall Mounting Specification ........................................................................................ 37

Universal Remote Controlk Code List ........................................................................... 38

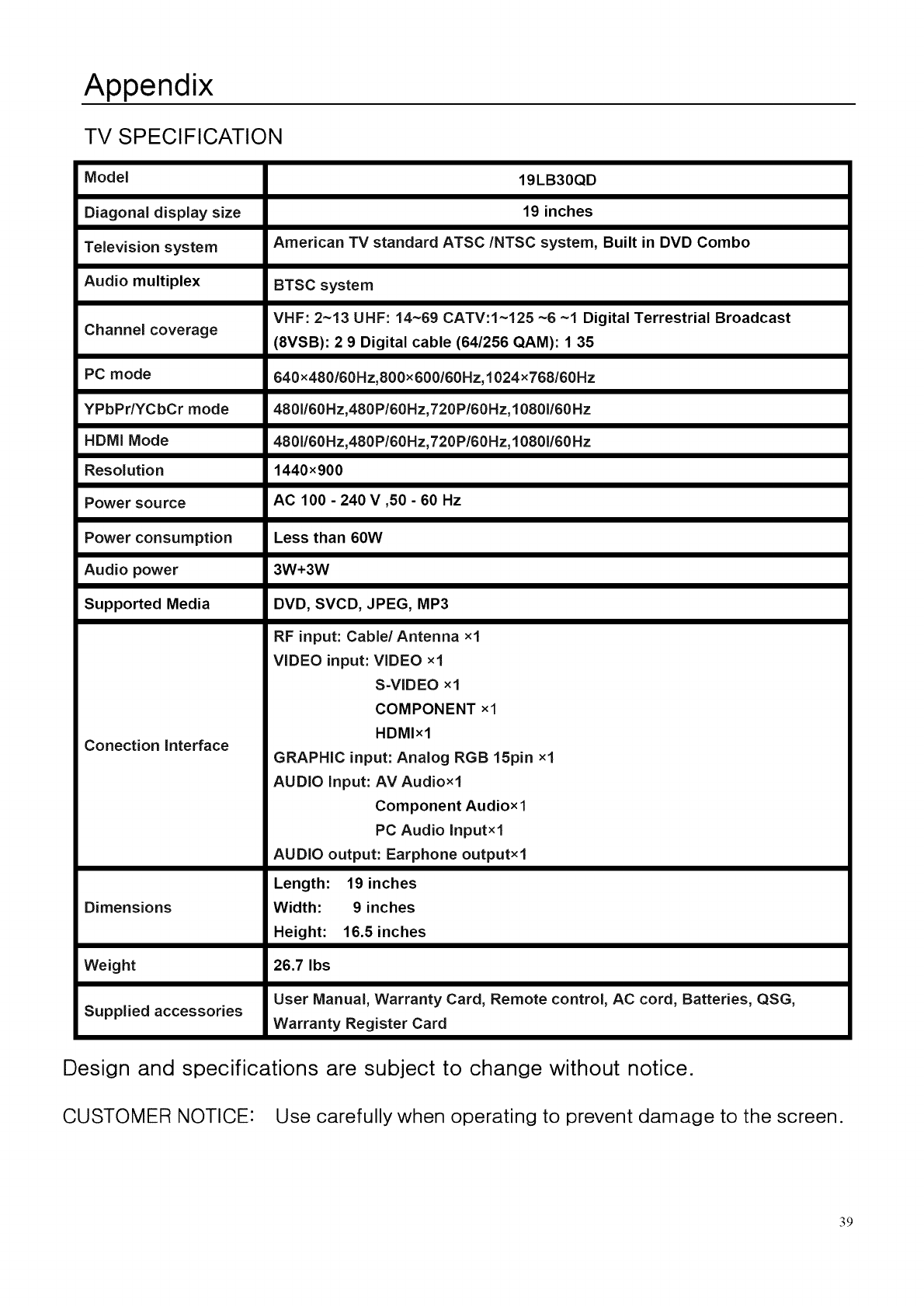

TV Specification ........................................................................................................ 39

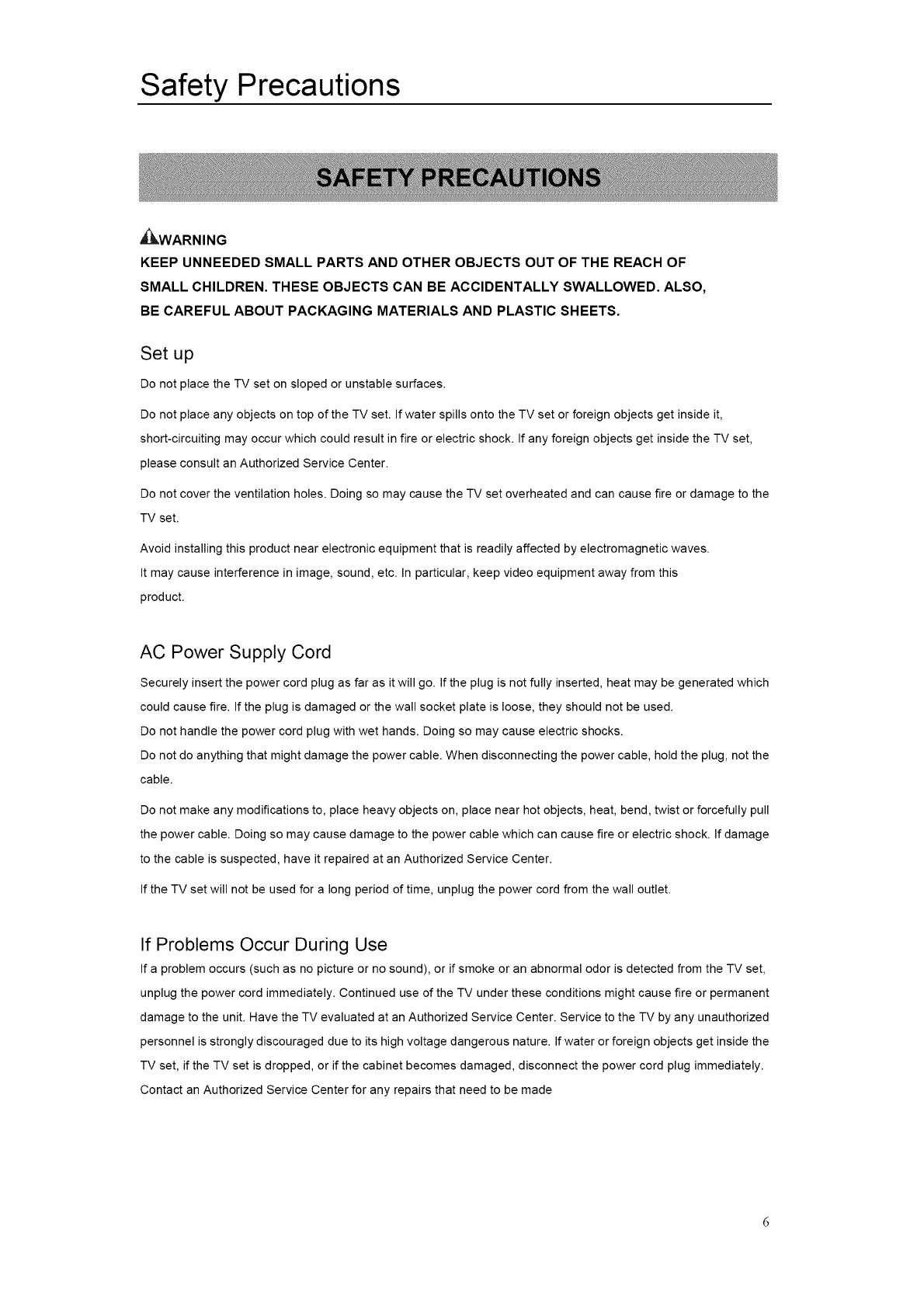

Safety Precautions

,_WARNING

KEEP UNNEEDED SMALL PARTS AND OTHER OBJECTS OUT OF THE REACH OF

SMALL CHILDREN. THESE OBJECTS CAN BE ACCIDENTALLY SWALLOWED. ALSO,

BE CAREFUL ABOUT PACKAGING MATERIALS AND PLASTIC SHEETS.

Set up

Do not place the TV set on sloped or unstable surfaces.

Do not place any objects on top of the TV set. If water spills onto the TV set or foreign objects get inside it,

short-circuiting may occur which could result in fire or electric shock. If any foreign objects get inside the TV set,

please consult an Authorized Service Center.

Do not cover the ventilation holes. Doing so may cause the TV set overheated and can cause fire or damage to the

TV set.

Avoid installing this product near electronic equipment that is readily affected by electromagnetic waves.

It may cause interference in image, sound, etc. In particular, keep video equipment away from this

product.

AC Power Supply Cord

Securely insert the power cord plug as far as it will go. If the plug is not fully inserted, heat may be generated which

could cause fire. If the plug is damaged or the wall socket plate is loose, they should not be used.

Do not handle the power cord plug with wet hands. Doing so may cause electric shocks.

Do not do anything that might damage the power cable. When disconnecting the power cable, hold the plug, not the

cable.

Do not make any modifications to, place heavy objects on, place near hot objects, heat, bend, twist or forcefully pull

the power cable. Doing so may cause damage to the power cable which can cause fire or electric shock. If damage

to the cable is suspected, have it repaired at an Authorized Service Center.

If the TV set will not be used for a long period of time, unplug the power cord from the wall outlet.

If Problems Occur During Use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the TV set,

unplug the power cord immediately. Continued use of the TV under these conditions might cause fire or permanent

damage to the unit. Have the TV evaluated at an Authorized Service Center. Service to the TV by any unauthorized

personnel is strongly discouraged due to its high voltage dangerous nature. If water or foreign objects get inside the

TV set, if the TV set is dropped, or if the cabinet becomes damaged, disconnect the power cord plug immediately.

Contact an Authorized Service Center for any repairs that need to be made

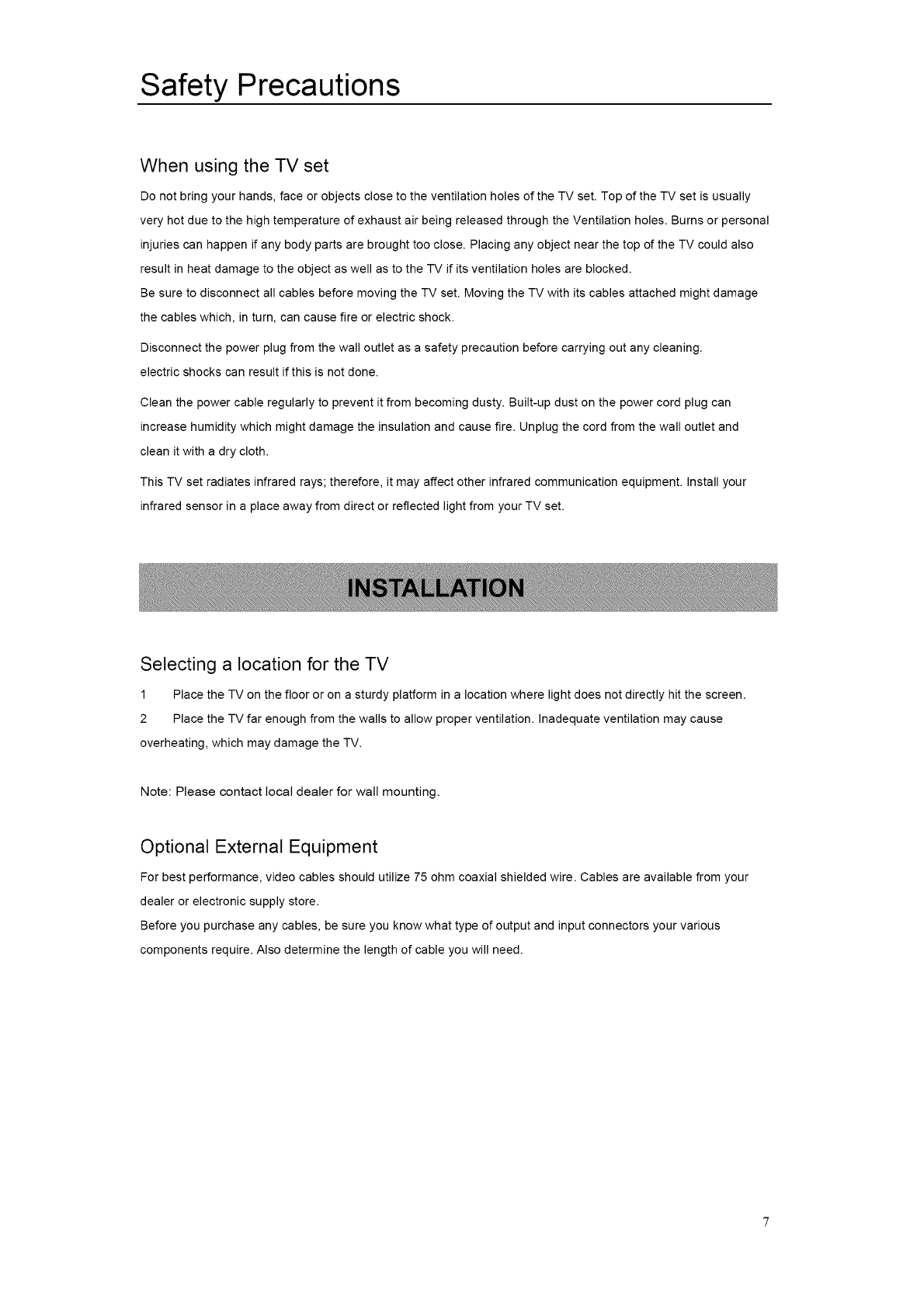

Safety Precautions

When using the TV set

Do not bring your hands, face or objects close to the ventilation holes of the TV set. Top of the TV set is usually

very hot due to the high temperature of exhaust air being released through the Ventilation holes. Burns or personal

injuries can happen if any body parts are brought too close. Placing any object near the top of the TV could also

result in heat damage to the object as well as to the TV if its ventilation holes are blocked.

Be sure to disconnect all cables before moving the TV set. Moving the TV with its cables attached might damage

the cables which, in turn, can cause fire or electric shock.

Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning.

electric shocks can result if this is not done.

Clean the power cable regularly to prevent it from becoming dusty. Built-up dust on the power cord plug can

increase humidity which might damage the insulation and cause fire. Unplug the cord from the wall outlet and

clean it with a dry cloth.

This TV set radiates infrared rays; therefore, it may affect other infrared communication equipment. Install your

infrared sensor in a place away from direct or reflected light from your TV set.

Selecting a location for the TV

1 Place the TV on the floor or on a sturdy platform in a location where light does not directly hit the screen.

2 Place the TV far enough from the walls to allow proper ventilation. Inadequate ventilation may cause

overheating, which may damage the TV.

Note: Please contact local dealer for wall mounting.

Optional External Equipment

For best performance, video cables should utilize 75 ohm coaxial shielded wire. Cables are available from your

dealer or electronic supply store.

Before you purchase any cables, be sure you know what type of output and input connectors your various

components require. Also determine the length of cable you will need.

Preparation for using your new TV

Familiarizing Yourself with the Main Hardware

(The picture of the product may vary depending on the model)

TV buttons:

a b cde f g

Select signal input. (It changes to "ENTER" function when main menu displays )

Main Menu display and menu selection

Channel up

Channel down

Volume up

Volume down

POWER ON/OFF button

DVD buttons:

A. STOP button

B. STEP button

C. EJECT button

D. ZOOM: Zoom the size of the screen

E. PREV button in DVD mode

F. NEXT button in DVD mode

Preparation for using your new TV

Rear panel

(The picture of' the product may w_ry depending on the model)

HDMI Input

- Input :J

Component Input 1

- Video: E, F, G

- Audio: C, D

Composite Input

- Video: L

- Audio : C,D

S-Video Input

- Video

- Audio

VGA input

- Video

- Audio

Others

C,D

H (3.5m plug)

Power Input: A

Earphone out: B

External Antenna: M

Preparation for using your new TV

1: Checking Items before Connecting

Please check the list below before connecting the product to other devices.

< Check items before connecting. >

Check the instruction manual when connecting external devices. External products sometimes have different

buttons and locations.

1 Do not connect the power unless every connection is well connected. The product may be damaged if

turned

on while still in the process of being connected.

2 Connect the left (white) and right (red) cables correctly to the sound cable.

3 Check the terminals to connect the product to on the rear panel.

2: Connecting an Antenna

There are internal and external types of antenna.

< Connecting an Antenna>

The rear of LCDTV

Cable TV network

the

Use a coaxial cable to connect the rear panel of the TV's [AIR] or [CABLE] terminals and the wall

mount or external antenna.

When an Air signal is required, connect to the [AIR] terminal. If a Cable signal is required, connect to

[CABLE] terminal. If both Air and Cable are available, and then connect both [AIR] and [CABLE]

terminals.

3 Connect the TV power cord when connecting everything else.

< Caution >

Avoid bending the copper tip at the center of the coaxial cable.

Using the remote control

1. POWER:Power on/off

2. MUTE:Press to temporarily switch the sound

off.

3. Numeric Buttons:Press to change the channel

directly using the numeric buttons.

4. -/--:When selecting a digital broadcast channel,

press the number, followed by "-" button, followed by

sub channel number.

5. RECALL:Press to select between current channel

and the last channel.

6. Volume +:Press to increase or decrease the

volume.

7. RMODE:Change the picture effect as

following:User- Standard-Mild-Vivid- Hi-bright

8. Channel+:Channel up button

9. Volume -:Press to increase or decrease the

volume.

10. S.MODE: Change the sound effect as following:

Standard-POP-Rock-News

11. Channel<Channel down button

12. "T/A." : The UP/DOWN key in the menu

13. ENTER:

14. "I_ /_1" : The LEFT/RIGHT key in the Menu

15. MENU: Press to display main menu

16. INPUT: INPUT selection button

17. SLEEP:Press to select a preset time interval to

automatically shut the TV

18. ASPECT:Press to adjust the screen size.

19. FREEZE:Press to freeze the current picture.

20. DISPLAY:Press to Check your current mode.

21. CC:Press to select Caption

22. FAV:Add/delete the current channel to your

favorite channel.

23. FAV.+:Press to view the next favorite channel.

24. FAV.-:Press to view the previous favorite channel

]]

Using the remote control

25. EPG/FR: One of signal channel EPG or Multi

channel EPG/Scan backward play in

normal speed

26. MTS/FF: It displays " Audiol/Audio2" under

digital signal !Scan forward play in normal

speed

27. REPEAT: For DVD play mode, press it

repeatedly, the function can be changed as

follows:

28. OPEN/CLOSE: Auto adjustion in PC mode.

Eject the DVD disc out of the DVD slot in

DVD mode

29. PLAY/PAUSE: Play or pause the USB or

card reader

30. STOP: Press the STOP button once to stop

playback. Press the PLAY/PAUSE button to

resume playback. Press the STOP button

twice to stop playback completely

31. PREV: Select previous chapter.

32. NEXT: Select next chapter.

33. DVD SETUP: Get into the SETUP Menu in

DVD CHAPTER-TITLE

34. DVD MENU: To go back to the root menu.

35. SUB-T: Select caption when playing DVD or

SVCD that has multiple captions.

36. AUDIO: During DVD or VCD playback, press

it repeatedly to select audio language.

Using the remote control

< Inserting the batteries into the remote control >1 .Push the back of the remote control and pull forward slightly.2.1nsert two

AAA 1.5V batteries ensuring the correct polarity (+/-).3.Close the lid.

Inserting the batteries

Caution: Use only Alkaline Batteries.

• If the remote control is not working, see the checkpoints below.

@ Are the polarities of the batteries (+, -) correct?

• Are the batteries worn out?

• Is there an AC power failure?

• Is the power cable plugged in?

• Is any special fluorescent or neon sign board turned on?

< Remote Control Reception Angle>

Use the Remote control within a range of 7~10m and at an angle of 30 ° to either side of the receiver.

Remote Control TV Ang|e

Caution-Used batteries should be recycled and kept out of children's reach.-Do NOT use new and old batteries together.

Change both batteries at the same time.

-When not using the remote control over a long time, remove the batteries from the unit. Use only Alkaline batteries

Basic operation

TURN ON LCD TV

1. Connecting to the AC input cable to switch on LCD TV. At this time the TV will enter standby mode and indicator show

red.

2. User POWER button or button on the remote control can turn on LCD TV from standby mode.

TURN OFF LCD TV

1. Press POWER button or button on the remote control to enter standby mode. The indicator is red.

2. Wait 5 second after switch off LCD TV then you can turn on LCD TV again.

Using the OH A/CH Ton the front panel or on the remote control.

•Press CH ,= to increase channel number.

• Press CH v to decrease channel number.

Using 0-9 digital buttons and - button

You can select the channel number by pressing 0 to 9

Example:

IN ANALOG SIGNAL:

To select channel (e.g. Channel 22): Press 2 -> 2 ->ENTER,It will jump to 22-0 directly

IN DIGITAL SIGNAL:

To select digit channel (e.g. Channel 22-1 ): Press 2 -> 2 -> - > 1 ->ENTER,the program will appear immediately

NOTE: Sub channel number of analog channel is always zero. But when you in the digital signal, if you enter

physical channel number and not end with "ENTER", channel selection will be made if there is no operation within

a few seconds.

Basic operation

You can select the input source by pressing the INPUT on the remote control or on the front panel.

INPUT Menu

1. Press VOL+/- to adjust the volume.

2. If you want to switch the sound OFF, press the MUTE, will turn on CC display at the same time.

3. You can cancel this function by pressing MUTE or VOL+

Setup menu operation

Press the MENU button to display the main menu.

Use </D. /A/v buttons to select and adjust the available menus.

NOTE: The OSD (On Screen Display) function

conveniently

since it provides graphical presentation.

enables you to adjust the screen status

Setup menu operation

NOTE: If you use your LCD TV for the first time, you should select the language which will be used

for displaying menus and indications

•Press MENU to display the main menu.

• Press A /vrepeatedly to select the SETUP MENU.

• Use </_ and • /T to select MENU LANGUAGE.

Press ENTER button to select your desired language.

NOTE: In this manual, the OSD (On Screen Display) may be different from your TV's in colors.

Press the MENU on the front panel or on the remote control and then use A/Tto select the PICTURE menu.

]. Use A /v to select what you want to adjust in the PICTURE MODE.

2. Press ENTER button to adjust.

3. When you are satisfied with your adjustment. Press MENU to exit the main menu.

Picture Mode

Select the type of picture which best corresponds to your viewing requirements by selecting Picture Mode in PICTURE menu.

You may select the picture mode directly by pressing the PICTURE button on the remote control.

Setup menu operation

Contrast

Press ENTER button to select it and then use _ /_ to adjust the contrast of picture.

Brightness

Press ENTER button to select it and then use </k, to adjust the brightness of picture.

Sharpness

Press ENTER button to select it and then use </_, to adjust the sharpness level of picture.

Color

Press ENTER button to select it and then use ,_ /_. to adjust the color saturation

Tint (NTSC Input only)

Press ENTER button to select it and then use </D. to adjust the tint of picture

Aspect Ratio

Press ENTER button to select the ratio of picture display such as Normal/Zoom/Wide and Cinema.

Press MENU on the front panel or on the remote control and then use A/Tto select the AUDIO menu.

1. Use A /T to select what you want to adjust in the AUDIO menu.

2. Press ENTER button to select it and then use ,i. /_, to adjust

3. When you are satisfied with your adjustment, press MENU to exit the main menu.

Audio Mode

You can select the type of sound which best corresponds to your listening requirements by selecting sound in SOUND menu.

You may select the sound mode directly by pressing the SOUND button on the remote control.

Setup menu operation

Audio Language

Press ENTER to one of the audio language such as English/French and Spain, but the condition is that the program system

has included the language code.

Bass

Press ENTER button to select it and then use ,i. /=, to increase or decrease the level of the lower-pitched sounds.

Treble

Press ENTER button to select it and then use ,i. /_ to increase or decrease the level of the higher-pitched sounds.

Balance

Press ENTER button to select it and then use ,i. /_ to adjust the audio output between left and right speakers.

Digital Audio Output

Press ENTER button to select the one of mode of the digital audio output such as PCM and RCW.

Auto Volume Adjust

Press ENTER button to adjust the volume automatically.(TV and HDMI input only)

Press MENU on the front panel or on the remote control and then use A/v to select the SETUP menu.

1. Use A /T to select what you want to adjust in the SETUP menu.

2. Press ENTER button to select it and then use ,_. /_ to adjust

3. When you are satisfied with your adjustment, press MENU to exit the main menu.

Tuning Band

Press ENTER button to select Air, Cable, Cable HRC, Cable IRC or Cable Auto.

DTV-Signal

In DTV mode, you can tune manually and adjust the angle. Orientation of the antenna etc.

Setup menu operation

Auto Ch Search

Press A /vto move the cursor to the item to be selected (item selected highlighted in yellow). Press ENTER key to enter

your selection and scan. After the scan is finished, the following menu will display. The channels found the automatically

saved as below:

Note: If you want you exit the Auto Oh Search during the Auto search process, press MENU twice to exit.

Add On Oh Search

When the channels are found, use ENTER to add it to the cannel list

Manual Ch Set

Press ENTER button to display a channel list that you can select channel as below:

Channel Labels

Allows you to name the channel that is selected. Use A /vto move and use ,i. /_, to change.

Setup menu operation

Manual Language

To select language of the OSD such as English! French and Spain.

Reset

Press ENTER to return to the factory setting.

Press MENU on the front panel or on the remote control and then use <. /_to select the FEATURE menu

1. Use A /T to select what you want to adjust in the FEATURE menu.

2. Press ENTER button to select it and then use ,i. /_, to adjust

3. When you are satisfied with your adjustment, press MENU to exit the main menu.

Time Set

Press ENTER button to select it and then use <. /b to select the amount of time before your TV turn off automatically and

press the ENTER that can select the 30min/60min/90min and OFF.

Time Set Mode

Setup menu operation

You can select one of auto and manual to set the time. When selected auto, the item of year/date and time will be disabled

and can not to adjust. When select the manual mode, you can press A /v/ ,4 / D,to set the corresponding functions.

Time Zone

Press ENTER button to select it and then use <. /b. to select the time zone such as Pacific/Alaska/Hawaii/Eastern/

Central/Mountain

Advance Video Menu

Press ENTER to enter the advance video menu as below

Noise Reduction- Spatial: press <. /_. to select on or off.

Noise Reduction -Speaker :press <. /_. to select on or off.

Noise Reduction-Temporal: press <. /_ to select on or off.

Auto Contrast Enhancement: press < /_. to select on or off.

Color Temperature: press <. /_. to select one of Normal/Cool and Warm.

3D Y/C: press <. /_. to select on or off.

Password Set

Press the ENTER to enter old password menu, and then input the number of 0-9 as below, and you can change the password

when you input the new on twice.

Parental Control

Press ENTER to enter the sub-menu and then uses the 0-9 to enter the correct password and the Parental Control Menu will

display.

Setup menu operation

US Ratings

Press ENTER to enter the Parental Control Menu as below

M PAA

Press ENTER to lock or unlock one of None! G/PG/PG-13/R/NC-17 and X

None - No restrictions

G - General Audience. This contains little or no violence, no strong language, and little or no sexual dialog or situations.

PG - Children under 13 should be accompanied by an adult.

PG-13 - Parental guidance suggested. Children under 13 should be accompanied by an adult.

R - Restricted. Viewers should be 17 or older.

NC-17 - not classified. Viewers should be 17 or older.

TV Rating

Press ENTER to lock or unlock one of TV-MA/TV-14/TV-PG/TV-G!TV-Y7 and TV-Y.

TV-MA- Mature audiences only. This program may contain mature themes, profane language, graphic violence and explicit

and explicit sexual content.

TV-14 - Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language and

more intense violence.

TV-PG - Parents guidance suggested. The program may contain infrequent coarse language, limited violence, some

suggestive sexual dialog and situations.

TV-G - General audience. This contains little or no violence, no strong language, and little or no sexual dialog or situations.

TV-V7 - Directed for older children. Themes and elements in this program may include mild physical or comedic violence, or

may frighten children under the age of seven.

TV-Y - All children. The themes and elements in this program are specifically designed for a very young audience, including

children from ages two six.

Setup menu operation

Advanced Parental Lock

When select the ON for Advance Rating, the Advanced Parental Lock will display.

Canadian English

Press ENTER to lock or unlock one of E/C/C8+/G/PG/14+/18+.

E - Expect No restriction.

C - Children

C8+ - Viewers should be 8 or order.

G - General Audience.

PG - Parental guidance suggested.

14+ - Restricted. Viewers should be 14 or older.

18+ - Restricted. Viewers should be 18 or older.

Canadian French

Press ENTER to lock or unlock one of E/G/8 arts+/13 arts+/16 arts+ and 18 arts+.

E-Expect No restriction.

G - For all.

8 ans+- Restricted. Viewers should be 8 or older.

13 ans+- Restricted. Viewers should be 13 or older.

16 ans+- Restricted. Viewers should be 16 or older.

18 ans+ - Restricted. Viewers should be 18 or older.

Digital Closed Captions

Setup menu operation

This menu allows you to set the closed caption, and press ENTER to enter Closed Caption Options menu as below:

Style: press ,_. _ to select one of Automatic and Custom, when you select automatic, the other are disable and can not be

adjusted.

Size: press ,q. _. to select one of Normal/Large and Small.

Font: press 4. _- to select one of Default and from Front 1 to Font 7.

Text Color: press ,q. !_. to select one of Red/Green/Yellow! Magenta/Cyan/Black and White.

Text Opacity: press 4. /_- to select one of the Solidi Flashing/Transparent/Translucent

Background Color: press ,q. /_. to select one of Red/Green/Yellow/Magenta/Cyan/Black and White.

Background Opacity: press _. /_. to select one of the Solidi Flashing! Transparent/Translucent

Edge Effect: press ,4. /_. to select one of the None/Raised/Depressed/Uniform! Left Shadow! Right Shadow.

Edge Color: press _. /_, to select one of Red/Green/Yellow/Magenta/Cyan/Black and White.

Press MENU on the front panel or on the remote control and then use .4 /_- to select the Feature menu in VGA

mode.

1. Use A /T to select what you want to adjust in the FEATURE menu.

2. Press ENTER button to select it and then use ,4. / _, to adjust

Setup menu operation

3. When you are satisfied with your adjustment, press MENU to exit the main menu.

VGA Set

Press A /T button and then press ENTER to enter the VGA set menu as below

H-Pos

Press ENTER button to select it and then use ,4 /_ to adjust the horizontal position of the picture.

V-Pos

Press ENTER button to select it and then use ,q /_, to adjust the vertical position of the picture.

Phase

Press ENTER button to select it and then use ,4 /b. to adjust the phase of the picture.

Clock

Press ENTER button to select it and then use ,4. /_ to adjust the clock of the picture.

Note:

Phase- This function allows you to remove any horizontal noise and clear or sharpen the image of characters.

Clock- This function is to minimize any vertical bars or stripes visible on the screen background. And the horizontal screen

size also will change.

Position- This function is to adjust the picture to Left/Right and Up/Down as you prefer.

Auto Adjust

Press ENTER button to select it and then use ,t /_ to do auto adjust that automatically adjusts the available options for the

best viewing configuration.

Setting

Press ENTER to do preset that can return to the factory setting.

Press MENU on the front panel or on the remote control and then use < /_to select the Feature menu in Ypbpr

mode.

Setup menu operation

1. Use ,= / v to select what you want to adjust in the FEATURE menu.

2. Press ENTER button to select and then use <. /_. to adjust

3. When you are satisfied with your adjustment, press MENU to exit the main menu.

Component Set

Press ,L / v button and then use ENTER to enter the VGA Set menu as below

Press MENU on the front panel or on the remote control and then use 4. /=, to select the Feature menu in HDMI

mode.

Time Set

Press A /v button and then use ENTER the time set menu that allows you to set the time the TV will display.

Sleep timer

Press ENTER button to select it and then use .4 /b. to adjust the amount of time before your TV turn off automatically and

Setup menu operation

press the ENTER that can select the 15min/30min/45min/60min/90min/120min/180min/240min and OFF.

Advance Video Menu

Press ENTER to enter the advance video menu.

Title: DVD Video discs are usually divided into several numbered sections called titles.

Chapter: A title comprises smaller numbered sections called chapters.

i Playing the DVD Player

1. Press the 'INPUT' button to select 'DVD' mode, if no disc is inserted yet, the display shows 'No Disc'.

2.Insert a DVD with the printed side facing towards the rear of the TV/DVD Player (see below)

CORRE_ INCORRECT

disc MUST face

backside of TV

Note: The picture of the product may vao_ depending on the model

3.The TV will first display 'Loading', then change to 'DVD-video'. Most DVDs will show some preliminary

information then stop at a main menu screen.

4. Press PLAY/PAUSE to play it directly. Or press the DVD-MENU button to access the disc menu during

playback.

5.Use the direction button on the remote control to select the desired option. Press ENTER to select the

option or press the I_ button. Playback will now commence.

&After playback, press the EJECT button on remote control or EJECT button on TV/DVD to remove the

disc.

Note: No function" will sometimes appear on the screen after a button is pressed. This indicates that the

function is not supported at the current time.

Setup menu operation

Getting Started

Carefully remove the TV /DVD and all other items from the box. You may wish to store the

packaging for future use.

Please read these instructions thoroughly before use.

Compatible Discs

The DVD player supports the following disc formats:

12cm DVD Video Discs.

12cm Compact Disc Audio Discs.

12cm Still High Resolution

WARNING! DO NOT INSERT OR PLAY 8CM DISCS, THEY WILL

GET STUCK.

•Basic Control Function

Play/Pause

1.Press the I_ button to play/pause the DVD. The screen will freeze its current picture when paused.

2. For resume play, press the I_ button.

Stop

•After pressing the •button to stop playback. 'Press Play Key To Continue' will be displayed on the top

left on the screen, also '!i' on the top right.

Press thel_ button to resume playback.

• Press the'i'button twice to stop playback completely. 'i' Will be displayed on the screen.

Fast Playback

You can search either forwards or backwards for a particular part of the DVD.

• To search forwards, press the I_ buttons.

The playback speed is doubled and 'FORWARD X2' is displayed.

Each subsequent press of the i_1_ button toggles among different speeds (1_1_2X - I_1_ 4X -

t_1t_8X - P-I_ 16X - I_1_ 32X -PLAY),up to 32 times the normal speed.

Pressing the I_b, buttons after" limb,32X' reverts to normal playback speed.

• To resume normal playback at any time, press thel_ buttons.

• To search backwards, press the _11 button. This operates in the same way as the _1_ button but in

the reverse direction.

Subtitles

Most DVDs are recorded with subtitles and some have the subtitles available in different languages.

• To select subtitles, press the SUB-T button.

Setup menu operation

•If different languages are available, repeatedly press the SUB-T button until the language you require is

displayed.

Chapter Selection

During playback you can select different chapters of the DVD.

Audio Configuration

Press DVD-M to the root menu.

Press direction buttons or Next,

reference.

Press ENTER button to confirm.

PREVIOUS buttons to choose different chapters. Note: It is just for

Some DVDs are recorded with multiple audio channels. These can be used for different languages or

for commentaries.

Repeatedly press the AUDIO button to select the desired audio channel.

Repeat Chapter/Title

• To repeat playback of a chapter, press the REPEAT button while the chapter is playing. 'Chapter' will be

displayed.

• To repeat playback of the title, press the REPEAT button twice.

'Title' will be displayed.

• To repeat playback of the title, press the REPEAT button three times.

'All' will be displayed.

• Press the REPEAT button four times to cancel repeat playback.

Note: Some discs do not support the repeat function, different disc shows different information.

General Setup Page

a. Press SETUP button on remote control during playing DVD, it will show following menu:

(When the DVD menu displayed ,the DVD system will auto pause. Press SETUP again, it will go on)'

Setup menu operation

b. Press "_'/A'to choose the items, then enter the desired item with ENTER button. It has been set

already when the desired item becomes red.

Note: Press Left button to get back the previous menu.

c. Press SETUP to exit the menu.

d. The items of the menu as below:

TV Shape: set the Picture Shape:

OSD Lang.: Set the language of OSD menu. Default setting is English.

Last Memory: set it on to memorize the last stop point. During playing the DVD, you change to other mode.

When you come back to DVD mode, it can play automatically from the last stop point.

Audio Setup Page

a. Press SETUP button on remote control during playing DVD, Press "1_ /_1" until it will show following

menu:

(When the DVD menu displayed ,the DVD system will auto pause. Press SETUP again, it will go on)'

Setup menu operation

b. Press "v/A'to choose the items, then enter the desired item with ENTER button. It has been set

already when the desired item becomes red.

Note: Press Left button to get back the previous menu.

c. Press SETUP to exit the menu.

d. The items of the menu as below:

Downmix: choose the downmix mode. There is only one item--stereo.

Preference Page

a. Press SETUP button on remote control during playing DVD, Press "1_ /," until Preference will show

following menu:

(When the DVD menu displayed ,the DVD system will auto pause. Press SETUP again, it will go on)'

b. Press "_'/A'to choose the items, then enter the desired item with ENTER button. It has been set

already when the desired item becomes red.

Note: Press Left button to get back the previous menu.

c. Press SETUP to exit the menu.

d. The items of the menu as below:

Setup menu operation

TV Type: Choose the TV system that is compatible with the color system of the TV.

Audio: Choose the default language you would prefer to for DVD titles.

Subtitle: Set the language of subtitle menu or turn off the Subtitle.

Note: not all DVD discs are recorded or offer subtitles in multiple language.

Disc Menu: set the default language of Disc menu.

Parental: movies rated higher than the level set will not be played by selecting a certain access level. The

parental lock can only be changed after input the correct password.

Note: This function is available only when the discs have rating encoded on.

It will ask a password when you select a level except for Adult. The factory setting of the password is

136900.

Press Down button to the 'OK' after finishing input of the password, then press ENTER button to confirm

and go back to the previous menu.

Password: Reset the password. The password should be 4-digit, and the initial password is 136900(It is

also the supercode).

Note: Press Down button to the 'OK' after finishing input of the password, then press ENTER button to

confirm and go back to the previous menu.

If you forget the old password, you can always use the factory setting password '136900'.

Default: Default the factory' settings EXCEPT the password.

Appendix

Identifying Problems

If there are any problems using the product, please first consult the list below. If the list below does not solve the problem, call our

Customer Service Center immediately.

Setup and Connection

The -IV won't turn on. Check your power cable connection.

•I can't view the Basic channels. Check the connection of the antenna cable.

• I want to view cable channels. Register with your local cable company then connect their receiver to your TV.

• I want to view satellite channels. Setup your Satellite parabola antenna then connect your satellite receiver to the -IV.

• Digital broadcasting is not functioning. Check your antenna cable connection. Check if the digital channel selection is correctly

connected to your antenna cable.

Menu and Remote Control

• The Remote Control isn't functioning well.

Change the batteries.

Check the polarity of the batteries.

Check the angle of the remote control from the product or if there are any obstacles between the remote control and the

product.

Check if you have pressed the correct key for the correct option.

Try to a bright light position near TV's which transmit a strong light source on TV <remote receiver> window.

• I cannot change channels with the remote control.

Press [TV/AV] and select <TV>.

Try to use the remote control for the cable or satellite receiver to change the channel.

• External input channels cannot be selected.

Check your external input connection cable.

• A Menu cannot be selected.

Check if the menu is grayed out, and if it is, that menu cannot be selected.

Screen

• Poor picture

Is the power cord unplugged? Make sure the power cable is plugged in correctly, and then press the power of the remote

control.

• Black picture

Check if external input mode is selected

Press [external input selection] and select TV

• Lined and flickering picture.

Try to finely adjust the channel.

Appendix

Are there any TV waves flowing or cordless radio transmitting stations? Avoid using cordless phones, hairdryers or electrical

drills.

•Disfunctioning channels.

Check if the channel has been selected correctly.

Try changing the position of the antenna.

• Picture with white and black dots.

Check if your antenna is damaged or any connections are broken.

Replace your antenna.

• Only certain channels are in black and white

Check if the program is being broadcast in black and white.

Try to check the hue or contrast.

• The Sub-Screen is black.

Check the power of the external device connected to the TV.

If the power cord is disconnected, the screen will be black.

• Automatic turn-on is inactive.

When turning off your TV, you need to use the remote control or press the power button on the TV. (If you putt the plug on the

TV, the settings will be deleted.)

Sound

• Poor quality sound

Check if the program is in stereo. Stereo may not work well in areas with bad reception. Try using Mono for these areas.

• Sound is malfunctioning while using a cable.

Check your sound connecting cable.

Check if other channels also have no sound

•I can see images, but there is no sound.

Press the volume buttons to increase the sound.

Try watching a video (if the video has sound, check your cable company). If there is no problem with the cable receiver, then

call our customer service.

Check if press MUTE on the remote control..

• There is a malfunction after the volume is increased

Try to adjust the external devices connected to the TV (Digital channel receiver, DTV, DVD, Cable channel receiver, video)

If you can adjust your sound, try to balance the volume of the TV and the external device.

Channel

• The channels are not functioning.

Connect the antenna connectors again.

Set to memorize channels in the automatic channel setting again.

Query the particular broadcasting station.

• A limited number of channels are not functioning.

Change the location or direction of the antenna.

Try to select a few channels using numbers and memorize them using the add/delete button.

Query the broadcasting station.

• Only UHF (14~69) Channels are unavailable.

Check if the antenna is able to receive UHF.

Appendix

Monitor

•The PC Screen continually appears and disappears.

Check the connection between the TV and the computer and see if the connector is locked.

• A "There is no signal "message appears.

This happens if the signal from the video card is exceeded for the maximum resolution or frequency of the TV. Try to set the

maximum resolution or frequency for the TV.

See if power save mode of the PC functions properly.(This is deactivated when any key is pressed or the mouse is moved)

• The screen looks like there is water flowing on it.

Check the connector connected to the TV.

• The screen is unclear and blurry.

Change the frequency and phase adjustment. Change the Resolution and frequency to the standard limit.

• Unstable and flickering screen.

The resolution and frequency of the PC's Graphics Card should be set within the TV's range. Check the TV menu's current

mode and standard mode and set it up again.

• Some modes in standard mode are not working.

Check the compatibility of the video card.

If it is not working for compatible hardware, try to upgrade the driver of the graphics card.

Appendix

Wall mounting(unit: mm) Screw Length(unit: mm)

100Xl00 12

Wall Mounting Specification

Screw Diameter(unit: mm)

Remark: The specification of screw is just used on the back unit.

NOTE: Wall mount bracket is not included with TV and mounting of wall mount bracket to wall may

vary depending on brand and size of bracket. Customer should consult bracket mounting instructions

that came with wall mount for specific information on how to mount bracket to wall.

100mm

Appendix

UNIVERSAL REMOTE CONTROL CODE LIST

For Universal Remote Control brands listed below, please use accompanying Proscan codes

and refer to your Universal Remote Control User Manual for basic instruction for changing TV code to

operate Proscan model.

Proscan codes for Sony TV=8003,8012

Proscan codes for Philips TV= 1005,1006,1007,1035,1064,1216

Proscan codes for other universal remotes=272,132,134,116,040,016,024,056,019,262

Appendix

TV SPECIFICATION

Model 19LB30QD

Diagonal display size 19 inches

Television system American TV standard ATSC/NTSC system, Built in DVD Combo

Audio multiplex BTSC system

VHF: 2-13 UHF: 14-69 CATV:l~125 -6 -1 Digital Terrestrial Broadcast

Channel coverage (8VSB): 2 9 Digital cable (641256 QAM): 1 35

PC mode 640x480160Hz,800x600160Hz,lO24x768160Hz

YPbPdYCbCr mode 4801160Hz,480PI60Hz,720PI60Hz,lO801160Hz

HDMI Mode 4801160Hz,480PI60Hz,720PI60Hz,lO801160Hz

Resolution 1440x900

Power source AC 100 - 240 V ,50 - 60 Hz

Power consumption Less than 60W

Audio power 3W+3W

Supported Media DVD, SVCD, JPEG, MP3

RF input: Cable/Antenna xl

VIDEO input: VIDEO xl

S-VIDEO xl

COMPONENT xl

HDMIxl

Conection Interface GRAPHIC input: Analog RGB 15pin xl

AUDIO Input: AV Audioxl

Component Audiox 1

PC Audio Inputxl

AUDIO output: Earphone outputxl

Length: 19 inches

Dimensions Width: 9 inches

Height: 16.5 inches

Weight 26.7 Ibs

User Manual, Warranty Card, Remote control, AC cord, Batteries, QSG,

Supplied accessories Warranty Register Card

Design and specifications are subject to change without notice.

CUSTOMER NOTICE: Use carefully when operating to prevent damage to the screen.

PRO CAN *

Model: 19LB30QD

CAUTION: To reduce the risk of eFectric shock,

do no_ remove cover or back.

No user- serviceabJe parts inside.

Refer Servicing to quaJified service

personnel.

CAUTION: Changes or modifications not

expressly approved by the party

responsible for compliance with the

FCC Rules could avoid the users'

authority to operate this equipment.

CAUTION: The monitor shall not be exposed to

dripping or splashing. No objects

filled with liquids, such as vases, shall

be placed on the Monitor

CAUTION: Do Not Place This TV on an

Unstable cart, stand, or table. The

TV may fall, causing serious injury

to a child or adult, and serious damage

to the TV. Use only with a cart or stand

recommended by the manufacturer, or

sold with the TV

CAUTION: Installation on concrete wall has passed

UL safety test.

WARNING: TO REDUCE THE RISK OF FIRE OF ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT

INSIDE THE ENCLOSURE.DO NOT OPEN THE CABINET. REFER SERVICING TO

QUALIFIED PERSONNEL ONLY.

WARNING: THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR

SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS,

SUCH AS VASES SHALL BE PLACED ON THE APPARATUS.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT.

CAUTION: THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE

PERSONNELONLY.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT PERFORM ANY SERVICING

ACTIVITIES, BUT CALL QUALIFIED ELECTRICIAN PERSONNEL.

CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED, PERLACE ONLY

WITH THE SAME OF EQUIVALENT TYPE

1 READ THESE INSTRUCTIONS

2KEEP THESE INSTRUCTIONS

3 HEED ALL WARNINGS

4 FOLLOW ALL INSTRUCTIONS

5 DO NOT USE THIS APPARATUS NEAR

WATER

Do not use this TV near water. For example, do not use near

a bathtub, washbowl, kitchen sink or laundry tub, in a wet

basement, or near a swimming pool, and the like. The TV set

shall not be exposed to dripping or splashing. No objects

filled with liquids, such as vases, shall be placed on the TV

6. (_ttEAN ONLY WITH DRY CLOTH

Unplug the TV from the wall outlet before cleaning. Do

not use liquid cleaners or aerosol cleaners. Use a

damp cloth for cleaning.

DO NOT BLOCK ANY VENTILATION OPENINGS.

INSTALL IN ACCORDANCE WITH THE

MANUFACTURER'S INSTRUCTIONS.

Slots and openings in the cabinet back or bottom are

provided for ventilation, to ensure reliable operation of the TV

and to protect it from overheating. These openings must not

be blocked or covered. The openings should never be

blocked by placing the TV on a bed, sofa, rug, or other

similar surface. This TV should never be placed near or over

a radiator or heat resource. This TV should not be placed in a

built-in installation such as a bookcase or rack unless proper

ventilation is provided or the manufacturer's instructions

have been adhered to.

8. DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS

RADIATORS, HEAT REGISTERS, STOVES, OR OTHER

APPARATUS (INCLUDE AMPLIFIERS) THAT PRODUCE

HEAT.

9. DO NOT DEFEAT THE SAFETY PURPOSE OF THE

GROUNDING-TYPE PLUG. A GROUNDING TYPE PLUG

HAS TWO BLADES AND A THIRD GROUNDING PRONG.

THE THIRD PRONG IS PROVIDED FOR YOUR SAFETY.

IF THE PROVIDED PLUG DOES NOT FIT INTO YOUR

OUTLET, CONSULT AN ELECTRICIAN FOR

REPLACEMENT OF THE OBSOLETE OUTLET.

10. PROTECT THE POWER CORD FROM BEING WALKED

ON OR PINCHED PARTICULARLY AT PLUGS,

11.

12.

CONVENIENCE RECEPTACLES, AND THE POINT

WHERE THEY EXIT FROM THE APPARATUS.

ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED

BY THE MANUFACTURER.

USE ONLY WITH CART, STAND, TRIPOD, BRACKET, OR

TABLE SPECIFIED BY THE MANUFACTURER, OR SOLD

WITH THE APPARATUS. WHEN A CART IS USED, USE

CAUTION WHEN MOVING THE CART/

APPARATUS COMBINATION TO AVOID

INJURY FROM TIP-OVER.

Do not place this TV on an unstable cart, stand, tripod,

bracket, or table. The TV may fall, causing serious injury to

someone, and serious damage to the appliance. A TV and

cart combination should be moved with care. Quick stops,

excessive force, and uneven surfaces may cause the TV and

cart combination to overturn.

13. UNPLUG THIS APPARATUS DURING LIGHTNING

STORMS OR WHEN UNUSED FOR LONG PERIODS

OF TIME.

For added Protection for this TV receiver during a lightning

storm, or when it is left unattended and unused for long

period of time, unplug it from the wall outlet and disconnect

the antenna or cable system. This will prevent damage to the

TV due to Lightning and power line surges.

14. REFER ALL SERVICING TO QUALIFIED SERVICE

PERSONNEL. SERVICING IS REQUIRED WHEN THE

APPARATUS HAS BEEN DAMAGED IN ANY WAY, SUCH

AS POWER-SUPPLY CORD OR PLUG IS DAMAGED,

LIQUID HAS BEEN SPILLED OR OBJECTS HAVE

FALLEN INTO THE APPARATUS, THE APPARATUS HAS

BEEN EXPOSED TO RAIN OR MOISTURE, DOES NOT

OPERATE NORMALLY, OR HAS BEEN DROPPED.

15. Wet Location Marking -CANADA

Worded: The TV shall not be exposed to dripping or splashing.

No objects filled with liquids, such as vases, shall

be placed on the TV.

Note: All figures in the manual are for reference only, please

refer to the actual units to determine their

appearance.

The front of the display panel has been

specially treated. Wipe the panel surface gently

using only a cleaning cloth or a soft, lint-free

cloth.

If the surface is particularly dirty, soak a soft, lint-free

cloth in a weak detergent solution and then remove

excess liquid. Use this cloth to wipe the surface of

the display panel, and then wipe it with a dry cloth,

of the same type, until the surface is dry.

Do not scratch or hit the surface of the panel with

fingernails or other hard objects. Furthermore, avoid

contact with volatile substances such as insect

sprays, solvents and thinner; otherwise, the quality

of the surface may be adversely affected.

Welcome to the bright and vivid world of Proscan TV set. We hope that you will have many years of

enjoyment from your new select.

To obtain maximum benefit from your set. Please read this manual before making any adjustments and

retain them together with purchase receipt for future reference,

Please read all the safety and operating instructions carefully before begin.
