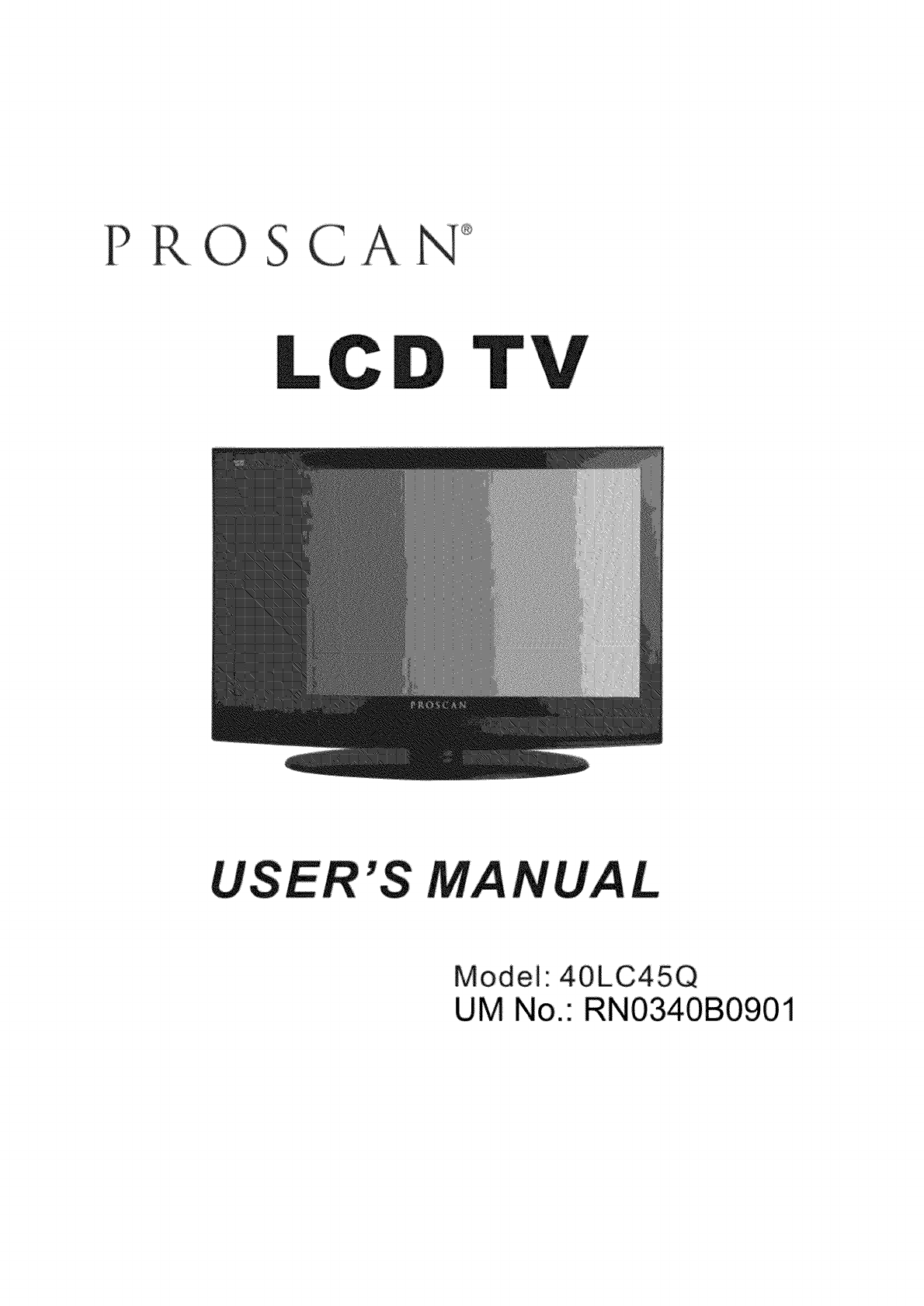

Model:: 40LC45Q
UM No.: RN0340B0901
Class B digital device
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio Communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT
INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO
QUALIFIED PERSONNEL ONLY.
WARNING: THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR
SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES SHALL BE PLACED ON THE APPARATUS.
J
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT IN
OUTLET.
CAUTION: THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE
PERSONNEL ONLY.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT PERFORM ANY SERVICING
ACTIVITIES, BUT CALL QUALIFIED ELECTRICIAN PERSONNEL.
CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED, REPLACE ONLY
WITH THE SAME OF EQUIVALENT TYPE.
CAUTION: 1o reduce the riskof electric shock,
do not remove cover or back.
No user- serviceable parts insTde.
Refer Servicing to qualified service
personnel.
CAUTION:
CAUTION:
CAUTION:
Changes or modifications not
expressly approved by the party
responsible for compliance with the
FCC Rules could avoid the users'
authority to operate this equipment.
The TV shall not be exposed to
dripping or splashing. No objects
filled with liquids, such as vases, shall
be placed on the TV.
Do Not Place This TV on an
unstable cart, stand, or table. The
TV may fall, causing serious injury
to a child or adult, and serious damage
to the TV. Use only with a cart or stand
recommended by the manufacturer, or
sold with the TV.
CAUTION: Installation on concrete wall has passed
UL safety test.
1.
2.
3.
4.
5.

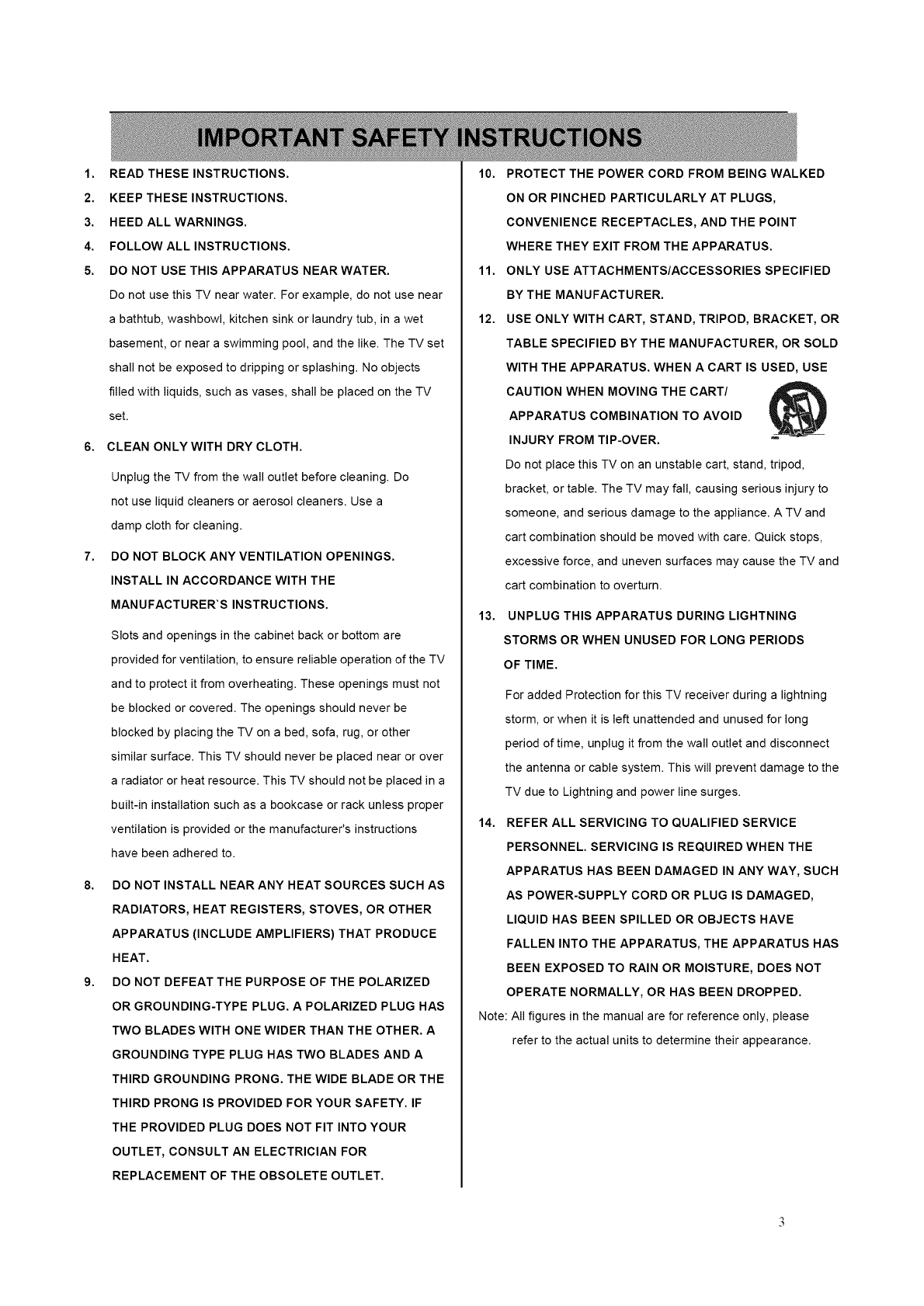

READ THESE INSTRUCTIONS.
KEEP THESE INSTRUCTIONS.
HEED ALL WARNINGS.
FOLLOW ALL INSTRUCTIONS.
DO NOT USE THIS APPARATUS NEAR WATER.
Do not use this TV near water. For example, do not use near
a bathtub, washbowl, kitchen sink or laundry tub, in a wet
basement, or near a swimming pool, and the like. The TV set
shall not be exposed to dripping or splashing. No objects
filled with liquids, such as vases, shall be placed on the TV
set.
6. CLEAN ONLY WITH DRY CLOTH.
7.
8.
9.
Unplug the TV from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
DO NOT BLOCK ANY VENTILATION OPENINGS,
INSTALL IN ACCORDANCE WITH THE
MANUFACTURER'S INSTRUCTIONS.
Slots and openings in the cabinet back or bottom are
provided for ventilation, to ensure reliable operation of the TV
and to protect it from overheating. These openings must not
be blocked or covered. The openings should never be
blocked by placing the TV on a bed, sofa, rug, or other
similar surface. This TV should never be placed near or over
a radiator or heat resource. This TV should not be placed in a
built-in installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer's instructions
have been adhered to.
DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS
RADIATORS, HEAT REGISTERS, STOVES, OR OTHER
APPARATUS (INCLUDE AMPLIFIERS) THAT PRODUCE
HEAT.
DO NOT DEFEAT THE PURPOSE OF THE POLARIZED
OR GROUNDING-TYPE PLUG. A POLARIZED PLUG HAS
TWO BLADES WITH ONE WIDER THAN THE OTHER. A
GROUNDING TYPE PLUG HAS TWO BLADES AND A
THIRD GROUNDING PRONG. THE WIDE BLADE OR THE
THIRD PRONG IS PROVIDED FOR YOUR SAFETY. IF
THE PROVIDED PLUG DOES NOT FIT INTO YOUR
OUTLET, CONSULT AN ELECTRICIAN FOR
REPLACEMENT OF THE OBSOLETE OUTLET.
10.
11.
12.
PROTECT THE POWER CORD FROM BEING WALKED
ON OR PINCHED PARTICULARLY AT PLUGS,
CONVENIENCE RECEPTACLES, AND THE POINT
WHERE THEY EXIT FROM THE APPARATUS.
ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED
BY THE MANUFACTURER.
USE ONLY WITH CART, STAND, TRIPOD, BRACKET, OR
TABLE SPECIFIED BY THE MANUFACTURER, OR SOLD
WITH THE APPARATUS. WHEN A CART IS USED, USE
CAUTION WHEN MOVING THE CART/
APPARATUS COMBINATION TO AVOID
INJURY FROM TIP-OVER.
Do not place this TV on an unstable cart, stand, tripod,
bracket, or table. The TV may fall, causing serious injury to
someone, and serious damage to the appliance. A TV and
cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the TV and
cart combination to overturn.
13. UNPLUG THIS APPARATUS DURING LIGHTNING
STORMS OR WHEN UNUSED FOR LONG PERIODS
OF TIME.
For added Protection for this TV receiver during a lightning
storm, or when it is left unattended and unused for long
period of time, unplug it from the wall outlet and disconnect
the antenna or cable system. This will prevent damage to the
TV due to Lightning and power line surges.
14, REFER ALL SERVICING TO QUALIFIED SERVICE
PERSONNEL. SERVICING IS REQUIRED WHEN THE
APPARATUS HAS BEEN DAMAGED IN ANY WAY, SUCH
AS POWER-SUPPLY CORD OR PLUG IS DAMAGED,
LIQUID HAS BEEN SPILLED OR OBJECTS HAVE
FALLEN INTO THE APPARATUS, THE APPARATUS HAS
BEEN EXPOSED TO RAIN OR MOISTURE, DOES NOT
OPERATE NORMALLY, OR HAS BEEN DROPPED.
Note: All figures in the manual are for reference only, please
refer to the actual units to determine their appearance.
The front of the display panel has been
specially treated. Wipe the panel surface gently
using only a cleaning cloth or a soft, lint-free
cloth.
If the surface is particularly dirty, soak a soft, lint-free
cloth in a weak detergent solution and then remove
excess liquid. Use this cloth to wipe the surface of
the display panel, and then wipe it with a dry cloth,
of the same type, until the surface is dry.
Do not scratch or hit the surface of the panel with
fingernails or other hard objects. Furthermore, avoid
contact with volatile substances such as insect
sprays, solvents and thinner; otherwise, the quality
of the surface may be adversely affected.
Welcome to the bright and vivid world of Proscan TV set. We hope that you will have many years of
enjoyment from your new select.
To obtain maximum benefit from your set. Please read this manual before making any adjustments and
Product Registration
Please till out the oroduct registratbncardand returr ;t immediately. Returning the card allows usto contact
you if needed. Keep your sales rece;ot to obtain warranty parts and serviceand for oroof of purchase. Attach
it nere and record the serial Gqd model numbers in case you need them. The numbers are located on the
back of the television.
Model No.
Serial No.
Purchase Date:
Dealer/Address/Phone:
retain them together with purchase receipt for future reference.
Please read all the safety and operating instructions carefully before begin.
Toll free call center 1-888-977-6722 (888-9PROSCAN)
www.proscanus.com
Tableof contents
FCC NOTICE ............................................................................................. 1
WARNING AND CAUTION ........................................................................... 1
IMPORTANT SAFETY INSTRUCTIONS ........................................................... 3
CLEANING AND MAINTENANCE ................................................................. 4
DEAR PROSCAN CUSTOMER ..................................................................... 4
SAFETY PRECAUTIONS ............................................................................. 6

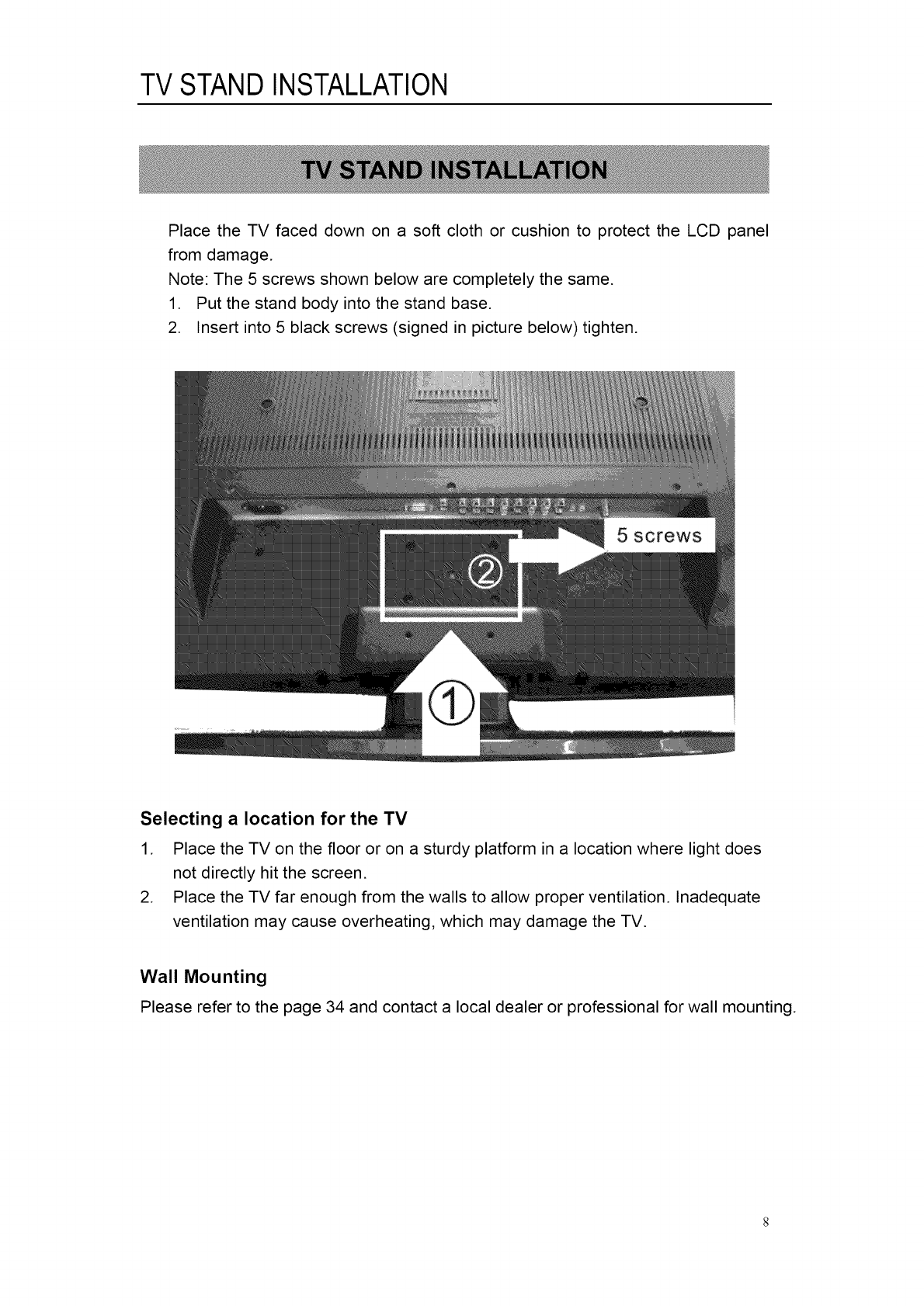

TV STAND INSTALLATION ........................................................................ 8
Preparation for using your new TV ............................................................. 9
FRONT PANEL ......................................................................................... 9
REAR PANEL ............................................................................................ 10
CONNECTIONS AND EXTERNAL INPUT SETTINGS .............................................. 11
Using the Remote control .......................................................................... 12
LEARNING ABOUT REMOTE CONTROL ........................................................... 12
REMOTE CONTROL INSTRUCTIONS ............................................................... 13
Basic operation ......................................................................................... 14
TURNING ON AND OFF THE TV ...................................................................... 14
CHOOSING TV CHANNEL ............................................................................. 14
SELECTING INPUT SOURCE .......................................................................... 15
VOLUME ADJUSTMENT .............................................................................................. 15
Setup menu operation ................................................................................ 16
ADJUST THE OSD SCREEN ........................................................................... 16
SELECT ON SCREEN LANGUAGE ................................................................... 17
VIDEO MENU OPTIONS ................................................................................ 17
AUDIO MENU OPTIONS ................................................................................ 19
TV MENU OPTIONS ..................................................................................... 20
SETUP MENU OPTIONS ............................................................................... 21
PARENTAL MENU OPTIONS ........................................................................... 23
COMPONENT MENU OPTIONS ........................................................................ 27
VGA MENU OPTIONS .................................................................................. 28
HDMI MENU OPTIONS ................................................................................... 29
APPENDIX ................................................................................................ 30

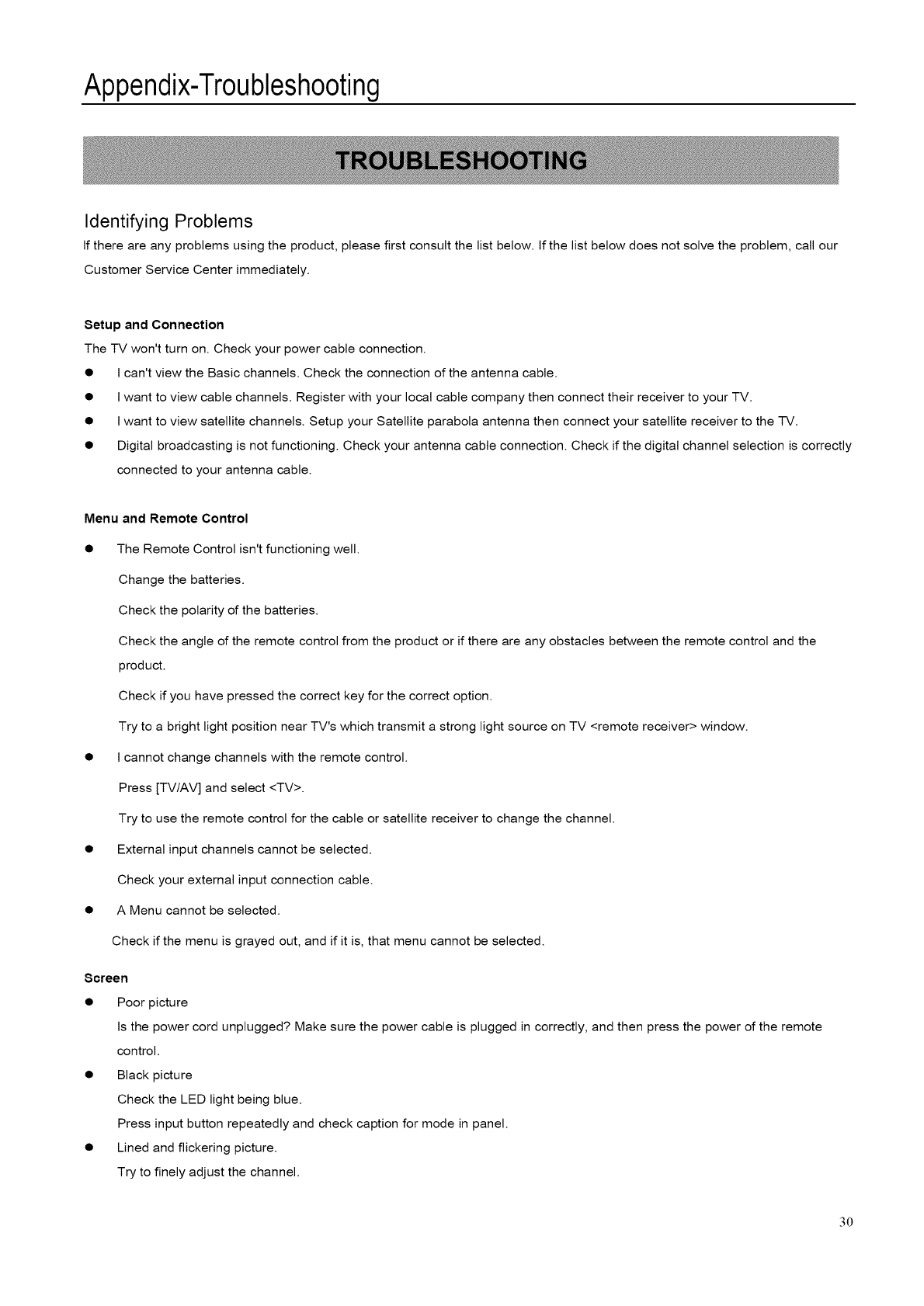

Troubleshooting ......................................................................................... 30
Removing TV Stand ....................................................................................... 33

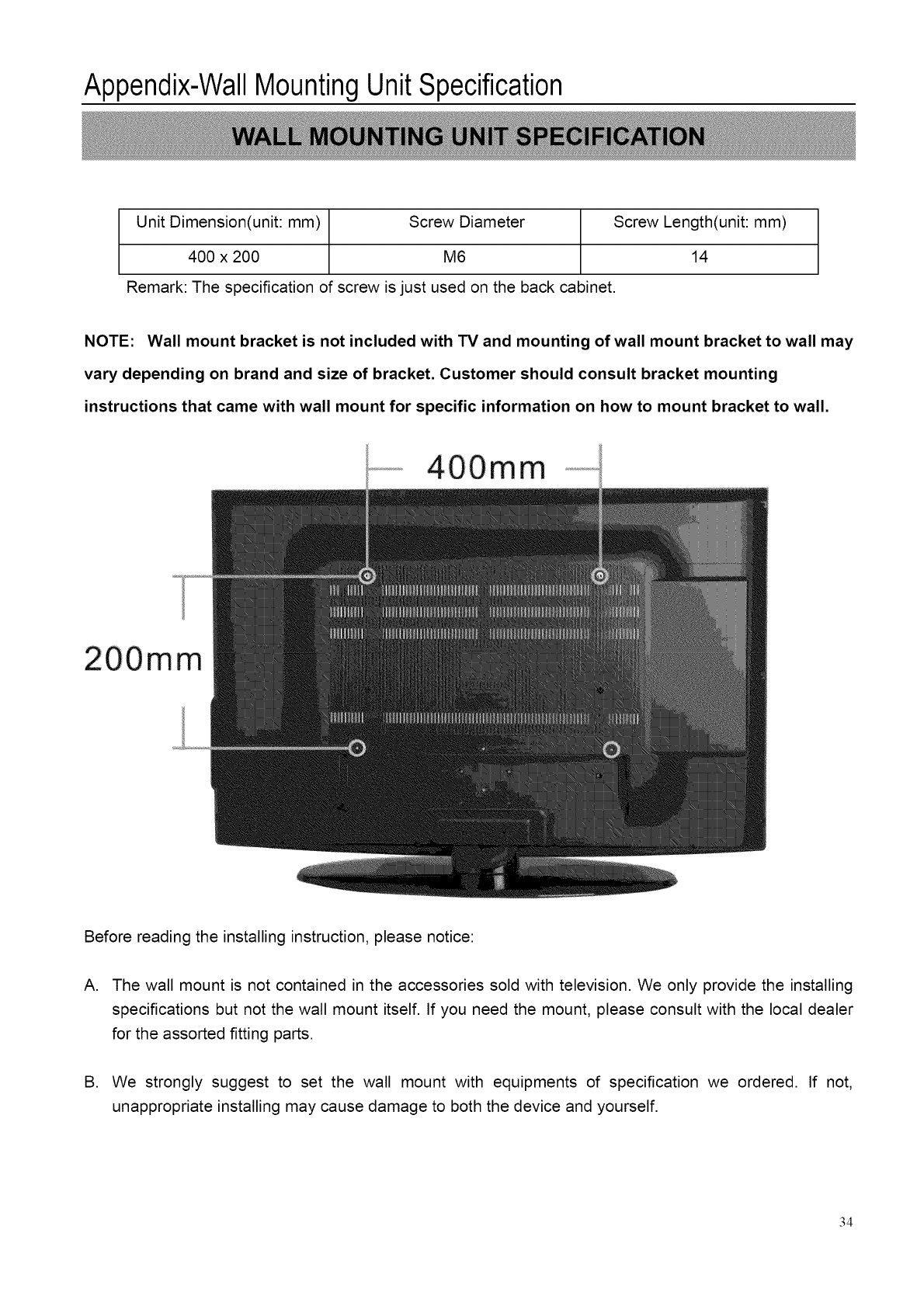

Wall Mounting Unit Specification ...................................................................... 34
Safety Warnings ....................................................................................... 35
Universal Remote Control Code List ................................................................. 35
TV Specification ........................................................................................................ 36

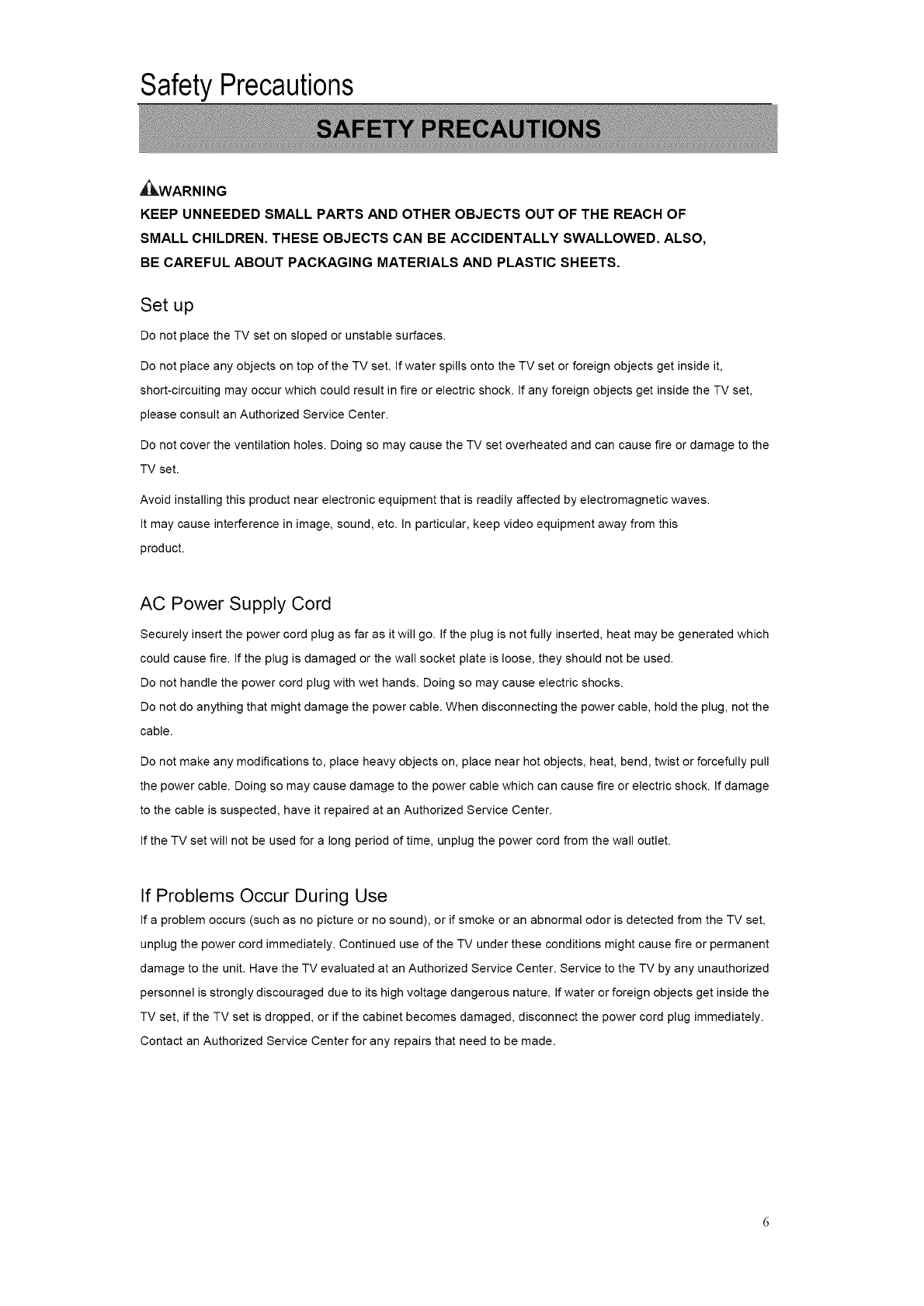

SafetyPrecautions
,_WARNING
KEEP UNNEEDED SMALL PARTS AND OTHER OBJECTS OUT OF THE REACH OF
SMALL CHILDREN. THESE OBJECTS CAN BE ACCIDENTALLY SWALLOWED. ALSO,
BE CAREFUL ABOUT PACKAGING MATERIALS AND PLASTIC SHEETS.
Set up
Do not place the TV set on sloped or unstable surfaces.
Do not place any objects on top of the TV set. If water spills onto the TV set or foreign objects get inside it,
short-circuiting may occur which could result in fire or electric shock. If any foreign objects get inside the TV set,
please consult an Authorized Service Center.
Do not cover the ventilation holes. Doing so may cause the TV set overheated and can cause fire or damage to the
TV set.
Avoid installing this product near electronic equipment that is readily affected by electromagnetic waves.
It may cause interference in image, sound, etc. In particular, keep video equipment away from this
product.
AC Power Supply Cord
Securely insert the power cord plug as far as it will go. If the plug is not fully inserted, heat may be generated which
could cause fire. If the plug is damaged or the wall socket plate is loose, they should not be used.
Do not handle the power cord plug with wet hands. Doing so may cause electric shocks.
Do not do anything that might damage the power cable. When disconnecting the power cable, hold the plug, not the
cable.
Do not make any modifications to, place heavy objects on, place near hot objects, heat, bend, twist or forcefully pull
the power cable. Doing so may cause damage to the power cable which can cause fire or electric shock. If damage
to the cable is suspected, have it repaired at an Authorized Service Center.
If the TV set will not be used for a long period of time, unplug the power cord from the wall outlet.
If Problems Occur During Use
If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the TV set,
unplug the power cord immediately. Continued use of the TV under these conditions might cause fire or permanent
damage to the unit. Have the TV evaluated at an Authorized Service Center. Service to the TV by any unauthorized
personnel is strongly discouraged due to its high voltage dangerous nature. If water or foreign objects get inside the
TV set, if the TV set is dropped, or if the cabinet becomes damaged, disconnect the power cord plug immediately.
Contact an Authorized Service Center for any repairs that need to be made.
SafetyPrecautions
When using the TV set
Do not bring your hands, face or objects close to the ventilation holes of the TV set. Top of the TV set is usually
very hot due to the high temperature of exhaust air being released through the Ventilation holes. Burns or personal
injuries can happen if any body parts are brought too close. Placing any object near the top of the TV could also
result in heat damage to the object as well as to the TV if its ventilation holes are blocked.
Be sure to disconnect all cables before moving the TV set. Moving the TV with its cables attached might damage
the cables which, in turn, can cause fire or electric shock.
Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning.
electric shocks can result if this is not done.
Clean the power cable regularly to prevent it from becoming dusty. Built-up dust on the power cord plug can
increase humidity which might damage the insulation and cause fire. Unplug the cord from the wall outlet and
clean it with a dry cloth.
This TV set radiates infrared rays; therefore, it may affect other infrared communication equipment. Install your
infrared sensor in a place away from direct or reflected light from your TV set.
TV STANDINSTALLATION
Place the TV faced down on a soft cloth or cushion to protect the LCD panel
from damage.
Note: The 5 screws shown below are completely the same.
1. Put the stand body into the stand base.
2. Insert into 5 black screws (signed in picture below) tighten.
Selecting a location for the TV
1. Place the TV on the floor or on a sturdy platform in a location where light does
not directly hit the screen.
2. Place the TV far enough from the walls to allow proper ventilation. Inadequate
ventilation may cause overheating, which may damage the TV.
Wall Mounting
Please refer to the page 34 and contact a local dealer or professional for wall mounting.
Preparationfor usingyour newTV- Frontpanel
Familiarizing Yourself with the Main Hardware
(The picture of the product may vary depending on the model)
A. Select signal input.
(It changes to "ENTER" function when main menu displays )
B.Main Menu display and menu selection
C. Channel up
D. Channel down
E. Volume up
F. Volume down
G.ON/OFF button
Preparationfor usingyour newTV- Rearpanel
Rear panel
(The picture of the product may vary depending on the model)
HDMI Input
Input1: B
Input2: C
Input3: D
Component Input 1
Video: H, I, J
Audio: K, L
Component Input 2
Video: H1, I1 , J1
Audio: K1, L1
AV1 Input
Video: M
Audio: N, O
AV2 Input
Video: M1
Audio: N1, O1
S-Video Input
Video: G
Audio: N, O
VGA Input
Video: E
Audio: P (3.5mm plug)
AUDIO Output
Headphone: Q (3.5mm plug)
COAX Digital Out: F
OTHERS
Power Input: A
External Antenna: R
]0
Preparationfor usingyour newTV- Connections
1. Checking Items before Connecting
Please check the list below before connecting the product to other devices.
< Check items before connecting >
Check the instruction manual when connecting external devices. External products sometimes have
different buttons and locations.
A. Do not connect the power unless every connection is well connected. The product may be
damaged if turned on while still in the process of being connected.
B. Connect the left (white) and right (red) cables correctly to the sound cable.
C. Check the terminals to connect the product to on the rear panel.
2. Connecting an Antenna
There are internal and external types of antenna.
< Connecting an Antenna >
The rear of LOB TV
Cable TV network
A. Use a coaxial cable to connect the rear panel of the TV's [AIR] or [CABLE] terminals and the wall
mount or external antenna.
B. When an Air signal is required, connect to the [AIR] terminal. If a Cable signal is required, connect
to the [CABLE] terminal.
If both Air and Cable are available, and then connect both [AIR] and [CABLE] terminals.
C. Connect the TV power cord when connecting everything else.
CAUTION
Avoid bending the copper tip at the center of the coaxial cable.
]]
Usingthe remotecontrol- Learningaboutremotecontrol
@
POWER
PI_T_JR_ $@g_0
F_£EZE E×_T
ZOOM Ao8 DVDM TITLE
@£TUP REPEAT SUB-T AUDIO
PR () S( A N
--® ®
®
@
Note: The remote control may differ from the above picture.
1. POWER: Power on/off.
2. SLEEP: Press to select a preset time interval
to automatically shut the TV.
3. ASPECT: Press to adjust the screen size.
4. DISPLAY: Press to Check your current mode.
5. MTS: Press to select your favorite language
in digital broadcasting.
6. CC: Press to select closed caption.
7. FAV.: Add/delete the current channel to your
favorite channel.
8. FAV.+: Press to view the next favorite
channel.
9. FAV.-: Press to view the previous favorite
channel.
10. Numberic Buttons: Press to change the
channel directly using the numberic buttons.
11. RECALL: Press to switch between the
current channel and the last channel.
12. -: When selecting a digital broadcast channel,
press the number, followed by "-" button,
followed by sub channel number.
13. EPG: One of signal channel EPG or Multi
channel EPG.
14. PICTURE: Press to change to a preset
picture mode.
15. SOUND: Press to change to a preset sound
mode.
16. INPUT: Press to display a menu of all
available input sources. Also used to confirm
your choice in the on-screen menu.
17. ENTER: Enter and confirm button.
18. UP/DOWN LEFT/RIGHT : The direction keys.
Also used to control channel (UP/DOWN)
and volume (LEFT/RIGHT).
19. MENU: Press to display main menu.
20. MUTE: Press to temporarily switch the sound
off.
21. FREEZE: Press to freeze the current picture.
22. EXIT: Exit the current menu.
23. VOL+/-: Volume control buttons.
24. CH+/-: Channel control buttons.
]2
Usingthe remotecontrol- Remotecontrolinstructions
Inserting the batteries into the remote control
1. Open the cover of battery cabin on the back of the remote control.
2. Insert two AAA 1.5V batteries, ensuring the correct polarity (+/-).
3. Close the cover.
0
0
®
®
®
o
If the remote control is not working, see the checkpoints below.
Are the polarities of the batteries (+, -) correct?
Are the batteries worn out?
Is there an AC power failure?
Is the power cable plugged in?
Is any special fluorescent or neon sign board turned on?
Remote Control Reception Angle
Use the Remote control within a range of 7~10m and at an angle of 30 ° to either side of the receiver.
CAUTION
0
0
0
0
0
i 0 r_°
Used batteries should be recycled
Kept out of children's reach.
Do NOT use new and old batteries together.
Change both batteries at the same time.
When not using the remote control over a long time, remove the batteries from the unit.
]3
Basicoperation- ChoosingTV channel
TURN ON LCD TV
1. Connect the AC input cable to power the LCD TV. At this time the TV will enter standby mode and indicator show red.
2. User POWER button or button on the remote control.
3. Wait 5 second after switch off LCD TV then you can turn on LCD TV again.
1.
2.
3.
Using the CH +/CH - on the side panel or on the remote control.
•Press CH + to increase channel number.
• Press CH - to decrease channel number.
• When no OSD menu is used, the arrow keys A /v can also work as CH + /CH - buttons.
Using 0-9 digital buttons and - button
Enter the channel's number with 0-9 digital buttons and - button, then press ENTER button to switch the channel.
For example:
• To play channel 4: Press digital button 4, then press ENTER button.
• To play channel 45: Press digital button 4, and then press 5, press ENTER button at last.
• To play channel 121: Press digital button 1and 2, and then press 1, press ENTER button at last.
• To play channel 13-4: Press digital button 1, 3, follow by" -" button, and then press 4, press ENTER button at last.
]4
Basicoperation- Selectinginputsource
Press the INPUT button to select TV, AV, S-Video, Component, VGA, HDMI inputs. Use the A /v to move
the cursor and ENTER button to confirm the source.
1. Press VOL+/- to adjust the volume.
2. If you want to switch the sound OFF, press the MUTE.
3. You can cancel this function by pressing MUTE or VOL+/-.
4. When OSD menu is not used, the arrow keys .q. /_ can also work as VOL - /VOL + buttons.
]5
Setupmenuoperation-Adjust the OSDscreen
Press the MENU button to display the main menu.
Use _ /_- /A/v buttons to select and adjust the available menus.
NOTE: The OSD (On Screen Display) function enables you to adjust the screen status conveniently
since it provides graphical presentation.
When the cursor stays on a main menu function (Video, Audio, TV, Setup or Parental), you need to
use ENTER or _button to activate it. After activating, the cursor will go forward into the submenu,
which you can use to choose the concrete functions with A/vbutton.
The images in this document may vary from your TV' menu depending on the model. We provide
the instrucion manual for better understanding and operation to the TV set. Therefore, all the
pictures here are for reference only.
]6
Setupmenuoperation- Videomenuoptions
NOTE: If you use your LCD TV for the first time, you should select the language which will be used
for displaying menus and indications
1. Press MENU to display the main menu.
2. Press A /v repeatedly to select the SETUP MENU.
3. Use _- button to select OSD Language.
4. Press b. button to select your favorite language
NOTE: In this manual, the OSD (On Screen Display) may be different from your TV's in colors.
Press the MENU on the side panel or MENU on the remote control and then use A/Tto select the Video menu,
press ENTER button to enter it (see the picture below),
1. Use A /vto select what you want to adjust in the VIDEO menu.
2. Press ENTER or _. button to adjust (according to the guiding sign in the bottom right corner of the menu).
3. When you are satisfied with your adjustment. Press MENU to exit.
Picture Mode
Select the type of picture which best corresponds to your viewing requirements by selecting Picture Mode in PICTURE menu.
You may select the picture mode directly by pressing the PICTURE button on the remote control.
In only User mode, user can change the Brightness /Contrast /Color /Tint /Sharpness /Color Temperature.
]7
Setupmenuoperation- Videomenuoptions
Brightness
Press _, /• button to select it and then use ,q. /b to adjust the brightness of picture.
Contrast
Press _, /• button to select it and then use ,q. /b to adjust the contrast of picture.
Color
Press _, /• button to select it and then use ,q. /b to adjust the color saturation
Tint
Press _, /• button to select it and then use ,q. /b to adjust the tint of picture.
Sharpness
Press _, /• button to select it and then use <. /b to adjust the sharpness level of picture.
Color Temperature
Press ENTER to enter the submenu.
Color Temperature: To select the mode ...... Standard, Warm, User, Cool.
And the "R Gain, G Gain, B Gain" numbers in "User" mode is set by yourself.
DNR (Dynamic Noise Reduction)
To remove unwanted artifacts in video, user can adjust DNR mode: Medium, Strong, Auto, Off, Low.
]8
Setupmenuoperation- Audiomenuoptions
Press MENU on the side panel or on the remote control and then use A/v to select the AUDIO menu, press ENTER
button to enter it (see the picture below).
1. Use A /vto select what you want to adjust in the AUDIO menu.
2. Press ENTER or _ button to adjust (according to the guiding sign in the bottom right corner of the menu).
3. When you are satisfied with your adjustment. Press MENU to exit.
Balance
Press A /vbutton to select it and then use ,t /_ to adjust the audio output between left and right speakers.
Bass
Press A /vbutton to select it and then use _ /=, to increase or decrease the level of the lower-pitched sounds.
Treble
Press A /vbutton to select it and then use _ /=, to increase or decrease the level of the higher-pitched sounds.
Sound Mode
You can use the presetting sound (User /Voice /Concert /Jazz)
You may select the sound mode directly by pressing the SOUND button on the remote control.
Sound Surround
Press A /vbutton to select it and then use to select the sound surround on or off.
Digital Audio Output (Coaxial Out )
Press A /vbutton to select it and then use to select the one of mode of the digital audio output such as PCM and RAW or
off.
]P
Setupmenuoperation- TV menuoptions
Press MENU on the side panel or on the remote control and then use A/Tto select the TV menu, press ENTER
button to enter it(see the picture below),
1. Use A /T to select what you want to adjust in the TV menu.
2. Press ENTER or b. button to adjust(according to the guiding sign in the bottom right corner of the menu).
3. When you are satisfied with your adjustment. Press MENU to exit.
Tuner Mode
You can select the signal input mode: Antenna, Cable.
Channel Scan
Select "Channel Scan", press ENTER button to start the channel scan. Press MENU to stop or it will not stop until the scan is
finished.
Channel Skip
Select "Channel Skip", press ENTER button to enter the submenu.
Press ,4 /_ button to select the channel you want set, and press ENTER to set.
20
Setupmenuoperation- Setupmenuoptions
Press MENU on the side panel or on the remote control and then use A/Tto select the SETUP menu.
1. Use ,i, /T to select what you want to adjust in the SETUP menu.
2. Press ENTER or _ button to adjust (according to the guiding sign in the bottom right corner of the menu).
3. When you are satisfied with your adjustment. Press MENU to exit.
OSD Language
Press _ /b. button to select language of the OSD menu as English, Spanish or French.
OSD Transparency
Press _ /b. button to select transparency of the OSD menu as Medium, Low or High.
Time Setup
Select "Time Setup", press ENTER button to enter the submenu.
Time Zone
To select time zone.
Time
Select "Time", press ENTER button to enter the submenu.
Sleep Timer
You can also set up the Sleep Timer and Auto sleep.
2]
Setupmenuoperation- Setupmenuoptions
Auto Synchronization
Press _ /b. button to set auto synchronization On/Off.
Timer
Press _ /b. button to set the auto power on and off timer.
Sleep Timer
To select the sleep timer as 5/10/15/30/45/60/90/120/180/240 minutes/off.
Caption
Select "Caption", press ENTER button to enter the submenu (digital functions are only available under DTV signal).
Analog Closed Caption, Digital Closed Caption
To selectt the analog closed caption and digital closed caption options.
Digital Caption Style
Select "Digital Caption Style", press ENTER button to enter the submenu.
22
Setupmenuoperation- Parentalmenuoptions
0
®
o
®
o
o
0
0
Caption Style: press to select one of As Broadcast and Custom, when you select broadcast, the others
are disable and can not be adjusted.
Font Size: press ,I /b to select one of Medium/Large and Small.
Font Color: press </_, to select one of RedlGreenlBtuelYellowlMagentalCyanlBlack and White.
Font Opacity: press </_, to select one of the Solid/Transparent/Translucent.
Background Color: press <. /_, to select one of the Black /White /Red /Green /Blue /Yellow /Magenta
/Cyan.
Background Opacity: press <. /_, to select one of the Solid/Transparent/Translucent.
Window Color: press ,4 b to select one of the Black /White /Red /Green /Blue /Yellow /Magenta /
Cyan.
Window Opacity: press ,4 /b to select one of the Solid /Transparent /Translucent.
Reset Default
Every TV has its original setting before leaving the factory. So the function helps you restore these settings.
Press MENU on the side panel or on the remote control and then use A/vto select the PARENTAL menu.
Enter the original password 0000 to enter the parental menu (see the picture below).
1. Use _, /v to select what you want to adjust in the PARENTAL menu.
2. Press ENTER or _, button to adjust (according to the guiding sign in the bottom right corner of the menu).
3. When you are satisfied with your adjustment. Press MENU to exit.
Program Block (see below)
Rating Enable
Press <. /_. button to select On/Off, when you select Off, the others below are disabled and can not be adjusted.
23
Setupmenuoperation- Parentalmenuoptions
U.S. TV Ratings
Press ENTER button to enter, and use ,4. /D,/A/v button to select, and press ENTER button to confirm.
• TV-Y - All children. The themes and elements in this program are specifically designed for a very young
audience, includingchildren from ages two six.
Q TV-Y7 - Directed for older children. Themes and elements in this program may include mild physical or
comedic violence, or may frighten children under the age of seven.
O TV-G - General audience. This contains little or no violence, no strong language, and little or no sexual
dialog or situations.
• TV-PG - Parents guidance suggested. The program may contain infrequent coarse language, limited
violence, some suggestive sexual dialog and situations.
Q TV-14 - Parents strongly cautioned. This program may contain sophisticated themes, sexual content,
strong language and more intense violence.
• TV-MA- Mature audiences only. This program may contain mature themes, profane language, graphic
violence and explicit and explicit sexual content.
U.S. Movie Ratings
Press ENTER button to enter, and use ,q. /_. / ,I, / v button to select, and press ENTER button to confirm.
O G - General Audience. This contains little or no violence, no strong language, and little or no sexual dialog or
situations.
O PG - Children under 13 should be accompanied by an adult.
O PG-13 - Parental guidance suggested. Children under 13 should be accompanied by an adult.
O R- Restricted. Viewers should be 17 or older.
O NC-17 - not classified. Viewers should be 17 or older.
• X - Hard core films. Viewers should be 17 or older.
24
Setupmenuoperation- Parentalmenuoptions
Canadian English Ratings
Press ENTER button to enter, and use </_. /A/• button to select, and press ENTER button to confirm.
Q C - Children.
O C8+ - Viewers should be 8 or order.
O G - General Audience.
O PG - Parental guidance suggested.
O 14+ - Restricted. Viewers should be 14 or older.
O 18+ - Restricted. Viewers should be 18 or older.
Canadian French Ratings
Press ENTER button to enter, and use </_/ ,i, / • button to select, and press ENTER button to confirm.
• G - For all.
• 8 ans+- Restricted. Viewers should be 8 or older.
• 13 ans+ - Restricted. Viewers should be 13 or older.
• 16 ans+ - Restricted. Viewers should be 16 or older.
• 18 ans+ - Restricted. Viewers should be 18 or older.
25
Setupmenuoperation- Parentalmenuoptions
Open V-Chip
Select "V-Chip", press ENTER button to enter, you will see an item "U.S. (50 states + possessions)", then press ENTER
button again to enter the Open V-Chip menu (see the picture below).
You can select the item you want to set, press ENTER button to enter, and use ,4. /_. button to select, and press
ENTER button to confirm.
Change Password
To change the password of PARENTAL menu (see blow).
Input the new password in the first blank, and input it again in the second blank to confirm.
Clear All
To clear all the settings and return to the default factory setting.
26
Setupmenuoperation- Componentmenuoptions
Press MENU on the side panel or on the remote control and then use < /_. to select the OSD menu in Component
mode.
m 1
1. Use A /v to select what you want to adjust in the each menu.
2. Press ENTER or _, button to adjust (according to the guiding sign in the bottom right corner of the menu).
3. When you are satisfied with your adjustment. Press MENU to exit.
The functions of OSD menu for Component /AV /S-Video inputs are similar with TV mode except that there
is no TV menu in these modes. For the detailed information, please attend to the instructions for TV mode
OSD menu for reference.
27
Setupmenuoperation- VGAmenuoptions
Press MENU on the side panel or on the remote control and then use < /_. to select the Video menu in VGA mode.
1. Use A /T to select what you want to adjust in the Video menu.
2. Press ENTER button to select it and then use ,t !=, to adjust
3. When you are satisfied with your adjustment, press MENU to exit the main menu.
VGA
Press A /T button and then press ENTER to enter the VGA menu as below.
Auto Adjust
Press ENTER button to select it and then use ,4 /_, to do auto adjust that automatically adjusts the available options for the
best viewing configuration.
H-Position
Press ENTER button to select it and then use ,4 /_, to adjust the horizontal position of the picture.
V-Position
Press ENTER button to select it and then use ,4 /_, to adjust the vertical position of the picture.
Phase
Press ENTER button to select it and then use ,4 /_ to adjust the phase of the picture.
Clock
Press ENTER button to select it and then use ,4 /_ to adjust the clock of the picture.
28
Setupmenuoperation- HDMImenuoptions
Note:
Phase- This function allows you to remove any horizontal noise and clear or sharpen the image of characters.
Clock- This function is to minimize any vertical bars or stripes visible on the screen background. And the horizontal screen
size also will change.
Position- This function is to adjust the picture to Left/Right and Up/Down as you prefer.
Press MENU on the side panel or on the remote control and then use < /_to select the Video menu in HDMI
mode.
1. Use A /T to select what you want to adjust in the each menu.
2. Press ENTER or _, button to adjust(according to the guiding sign in the bottom right corner of the menu).
3. When you are satisfied with your adjustment. Press MENU to exit.
The functions of OSD menu in HDMI mode are similar with TV mode except that there is no TV menu or
NDR function. For the detailed information, please attend to the instructions for TV mode OSD menu for
reference.
2P
Appendix-Tr0ublesh00ting
Identifying Problems
If there are any problems using the product, please first consult the list below. If the list below does not solve the problem, call our
Customer Service Center immediately.
Setup and Connection
The TV won't turn on. Check your power cable connection.
• I can't view the Basic channels. Check the connection of the antenna cable.
• I want to view cable channels. Register with your local cable company then connect their receiver to your TV.
• I want to view satellite channels. Setup your Satellite parabola antenna then connect your satellite receiver to the TV.
• Digital broadcasting is not functioning. Check your antenna cable connection. Check if the digital channel selection is correctly
connected to your antenna cable.
Menu and Remote Control
• The Remote Control isn't functioning well.
Change the batteries.
Check the polarity of the batteries.
Check the angle of the remote control from the product or if there are any obstacles between the remote control and the
product.
Check if you have pressed the correct key for the correct option.
Try to a bright light position near TV's which transmit a strong light source on TV <remote receiver> window.
• I cannot change channels with the remote control.
Press [TV/AV] and select <TV>.
Try to use the remote control for the cable or satellite receiver to change the channel.
• External input channels cannot be selected.
Check your external input connection cable.
• A Menu cannot be selected.
Check if the menu is grayed out, and if it is, that menu cannot be selected.
Screen
• Poor picture
Is the power cord unplugged? Make sure the power cable is plugged in correctly, and then press the power of the remote
control.
• Black picture
Check the LED light being blue.
Press input button repeatedly and check caption for mode in panel.
• Lined and flickering picture.
Try to finely adjust the channel.
30
Appendix-Tr0ublesh00ting
Are there any TV waves flowing or cordless radio transmitting stations? Avoid using cordless phones, hairdryers or electrical
drills.
• Disfunctioning channels.
Check if the channel has been selected correctly.
Try changing the position of the antenna.
• Picture with white and black dots.
Check if your antenna is damaged or any connections are broken.
Replace your antenna.
• Only certain channels are in black and white
Check if the program is being broadcast in black and white.
Try to check the hue or contrast.
• The Sub-Screen is black.
Check the power of the external device connected to the TV.
If the power cord is disconnected, the screen will be black.
• Automatic turn-on is inactive.
When turning off your TV, you need to use the remote control or press the power button on the TV. (If you pull the plug on the
TV, the settings will be deleted.)
8eund
• Poor quality sound
Check if the program is in stereo. Stereo may not work well in areas with bad reception. Try using Mono for these areas.
• Sound is malfunctioning while using a cable.
Check your sound connecting cable.
Check if other channels also have no sound
• I can see images, but there is no sound.
Press the volume buttons to increase the sound.
Try watching a video (if the video has sound, check your cable company). If there is no problem with the cable receiver, then
call our customer service.
Check if press MUTE on the remote control..
• There is a malfunction after the volume is increased
Try to adjust the external devices connected to the TV (Digital channel receiver, DTV, DVD, Cable channel receiver, video)
If you can adjust your sound, try to balance the volume of the TV and the external device.
Channel
• The channels are not functioning.
Connect the antenna connectors again.
Set to memorize channels in the automatic channel setting again.
Query the particular broadcasting station.
• A limited number of channels are not functioning.
Change the location or direction of the antenna.
Try to select a few channels using numbers and memorize them using the add/delete button.
Query the broadcasting station.
• Only UHF (14~69) Channels are unavailable.
Check if the antenna is able to receive UHF.
3]
Appendix-Tr0ublesh00ting
Monitor
• The PC Screen continually appears and disappears.
Check the connection between the TV and the computer and see if the connector is locked.
• A "There is no signal "message appears.
This happens if the signal from the video card is exceeded for the maximum resolution or frequency of the TV. Try to set the
maximum resolution or frequency for the TV.
See if power save mode of the PC functions properly.(This is deactivated when any key is pressed or the mouse is moved)
• The screen looks like there is water flowing on it.
Check the connector connected to the TV.
• The screen is unclear and blurry.
Change the frequency and phase adjustment. Change the Resolution and frequency to the standard limit.
• Unstable and flickering screen.
The resolution and frequency of the PC's Graphics Card should be set within the TV's range. Check the TV menu's current
mode and standard mode and set it up again.
• Some modes in standard mode are not working.
Check the compatibility of the video card.
If it is not working for compatible hardware, try to upgrade the driver of the graphics card.
32
Appendix-RemovingTV Stand
If you decide to install the wall mount your LCD TV, always use a VESA standard wall mount appropriate
for the size and weight of the LCD TV.
CAUTION
• Be sure to follow the instructions. Incorrect installation of the stand/wall mount may result in the
TV falling over.
• Before detaching (or attaching) the stand, unplug the AC cord from the AC input terminal.
• Unplug and remove any cables and/or other component connectors from the rear of the TV.
NOTES
Before proceeding, make sure the appropriate bracket(s) are attached to the wall and the back of the TV as
described in the instructions provided with the wall bracket. Extreme care should always be used when
removing the stand/wall mount to avoid damage to the LCD panel.
As shown below:
(The picture may vary depending on the model.)
PROCEDURE
Place the TV set on a surface that is totally stable, flat and smooth, such as a table.
1. Loose the 5 rear screws in TV.
(The 5 screws are the completely the same.)
2. Draw out the stand gently.
33
Appendix-WallMountingUnitSpecification
Unit Dimension(unit: mm) Screw Diameter Screw Length(unit: mm)
400 x 200 M6 14
Remark: The specification of screw is just used on the back cabinet.
NOTE: Wall mount bracket is not included with TV and mounting of wall mount bracket to wall may
vary depending on brand and size of bracket, Customer should consult bracket mounting
instructions that came with wall mount for specific information on how to mount bracket to wall,
400mm
200mm
Before reading the installing instruction, please notice:
A, The wall mount is not contained in the accessories sold with television. We only provide the installing
specifications but not the wall mount itself. If you need the mount, please consult with the local dealer
for the assorted fitting parts.
B. We strongly suggest to set the wall mount with equipments of specification we ordered. If not,
unappropriate installing may cause damage to both the device and yourself.
34
Appendix-SafetyWarnings
1. Do not set up the wall mount by yourself. Please contact qualified professionals for installation.
2. The TV should not be mounted on walls or surfaces which have an angle more than 10 degrees with
vertical direction. Otherwise the TV set may fall.
3. The walls for mounting must have enough strength to hold the whole weight of TV set. For example,
concrete wall and brickwork are eligible. Do not place the mount on soft walls such as earth walls and
plasterboard.
4. If spare parts of different specifications (such as screws) are used during mounting, consult with
qualified professionals to make sure these parts are safe and effective.
5. Before attaching the base to wall, ensure the holes for anchors are in keeping with the installing rules.
Otherwise there may exist some potential problems.
6. Do not place any heating source under your television. Or else, it can cause fire.
7. Do not place the TV near anything dripping. Transducers and high voltage wires should be kept far
away from the apparatus too. Or else, it may cause creepage, electric shock or bad resonance.
8. Do not place TV in a location where collision or vibration is liable to happen.
9. In order to avoid unexpected falling of the TV set, do not put any strong force on TV or wall mount after
installing.
10. Be sure to unplug the TV before installing. Keep anything hard or sharp away from the screen panel to
prevent the scuffing.
11. After installing, if there is any need to move the cabinet, please contact the qualified professionals.
For Universal Remote Control brands listed below, please use accompanying Proscan codes and refer
to your Universal Remote Control User Manual for basic instruction for changing TV code to operate
Proscan model.
• Proscan codes for Sony TV = 8003, 8012, 8058
• Proscan codes for Philips TV = 1005, 1006, 1007, 1035, 1064, 1216
• Proscan codes for other universal remotes = 272, 132, 134, 116,040,016, 024, 056, 019, 262
35
Appendix-TVSpecification
Model 40LC45Q
Diagonal display size 40 inches
Television system American TV standard ATSC/NTSC system
Audio system MTS/SAP
VHF: 2~13 UHF: 14~69 CATV: 1~125
Channel coverage Digital Terrestrial Broadcast(8VSB): 2~69
Digital cable (64/256 QAM): 1~135
PC mode 640x480/60Hz, 800x600/60Hz, 1024x768/60Hz
YPbPr/YCbCr mode 480i/60Hz, 480p/60Hz, 720p/60Hz, 1080i/60Hz, 1080p/60Hz
HDMI Mode 480i/60Hz, 480p/60Hz, 720p/60Hz, 1080i/60Hz, 1080p/60Hz
Max Resolution 1920xl 080
Power source AC 100 - 240 V, 50 - 60 Hz
Power consumption 230W
Audio power 8W + 8W
RF input: Cable/Antenna xl
VIDEO input: VIDEO x2
S-VIDEO xl
COMPONENT x2
HDMI x3
Connection Interface PC input: Analog RGB 15pin xl
AUDIO Input: AV Audio x2
Component Audio x2
PC Audio Input xl
AUDIO output: Coaxial Out x 1 (Digital audio out)
Headphone audio output xl
TV Dimensions Width: 39.0 inches Height: 27.8 inches Depth: 12.9 inches
Package Dimensions Width: 48.8 inches Height: 29.9 inches Depth: 9.8 inches
NET Weight 46.0 Ibs
Package Weight 54.6 Ibs
User Manual, Warranty Card, Remote control, AC cord, Batteries, QSG,
Supplied accessories Warranty Register Card
Design and specifications are subjects to change without notice,
CUSTOMER NOTICE: Use carefully when operating to prevent damage to the screen,
36

Navigation menu
