Protectli FW6X Mini Pc User Manual

Protectli Mini Pc

User Manual

Mini Pc
User Manual
Version 1.0
Published May 2015
Content
1. Introduction........................................................................................................................................1
1.1 Specification................................................................................................................................. 2
1.2 Package Contents.................................................................................................................... 3
1.3 I/O Panel………………………………………………………………………………………………….4
2. Installation.......................................................................................................................................... 4
2.1 Screw Holes.................................................................................................................................. 5
2.2 Pre-installation Precautions.................................................................................................. 6
2.3 Installation of Memory Modules......................................................................................6
2.4 3D Drawing..................................................................................................................... 6
2.5 Dimension and Interface...........................................................................................6
Chapter 1: Introduction
1.1Specification
Model
Processor
Chipset
RAM
Display port
Expansion
port
Storage
Audio
Network
I /O
Built-in I/O
BIOS
WDT
Power supply
Temp
Humidity
Dimension
FW6A-0
Adopt Intel Celeron 3865U dual core (14nm, 1.8GHz, 2MB
second Cache) , core i3-7100U is optional
Adopt Intel express chipset
2*SODDR4(can up to 32G)
Integrated Intel HD Graphic card, Support 1*HDMI
2*Mini-PCIE, support WiFi
1* MINISATA, 1*2.5” SATA
N/A
6* Intel WG82583 1000M Lan, support wake on lan
6* RJ-45
1* 12V DC input
1* HDMI
4 *USB3.0
1*Power switch
1*RJ-45 COM
1
* FP1
1
* J2
1
* JSATA Port, 1*SATA
1
* MINI_PCIE for WiFi, 1 * Mini-SATA
1
* SODIMM
1
* CPU_Fan
AMI 64M DPI Flash ROM
Support hardware reset (256 level0~255 sec)
DC-12V
-20℃~60
095% relative humidity, non-condensing
155*126*52mm
1.2Package Contents
1.FW6A-0 Main Host
2.Vesa Bracket
3.Screw Package

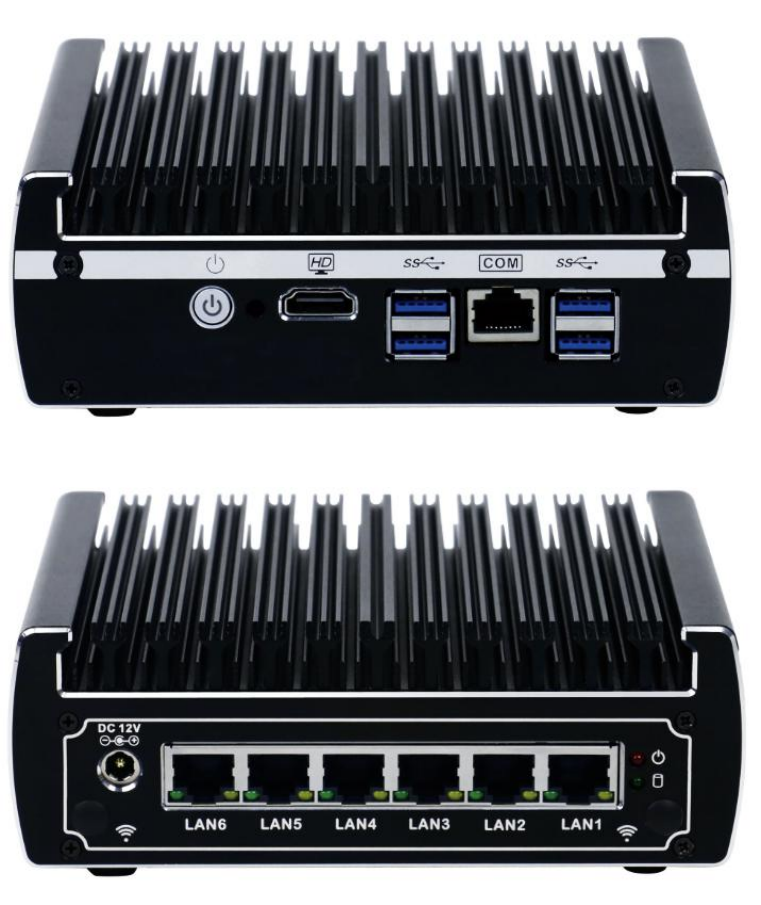

1.3 I/O Panel
Chapter 2

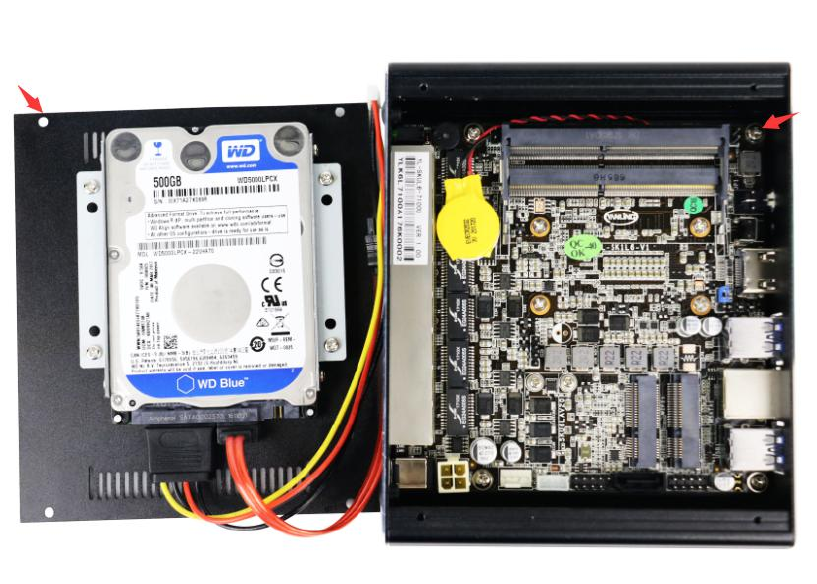

2.1 screw holes
Put screws into the holes to secure the motherboard to the chassis .
And Put screws into the hole to secure the bottom panel to the chassis .
2.1 Pre-installation precautions
Take note of the following precautions before you install
motherboard components or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any
component .
2. To avoid damaging the motherboard components due to static
electricity, Never place your motherboard directly on the carpet
or the like . Also remember to use a grounded wrist strap or
touch a safety grounded object before you handle components .
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded
antistatic pad or in the bag that comes with the component .
2.3Installation Memory Modules
Please make sure to disconnect power supply before adding or
removing So-DIMMs or the system components.
Step1. Unlock a SO-DIMM slot by pressing the retaining clips outward.
Step2. Align a SO-DIMM on the slot such that the notch on the
SO-DIMM matches the break on the slot

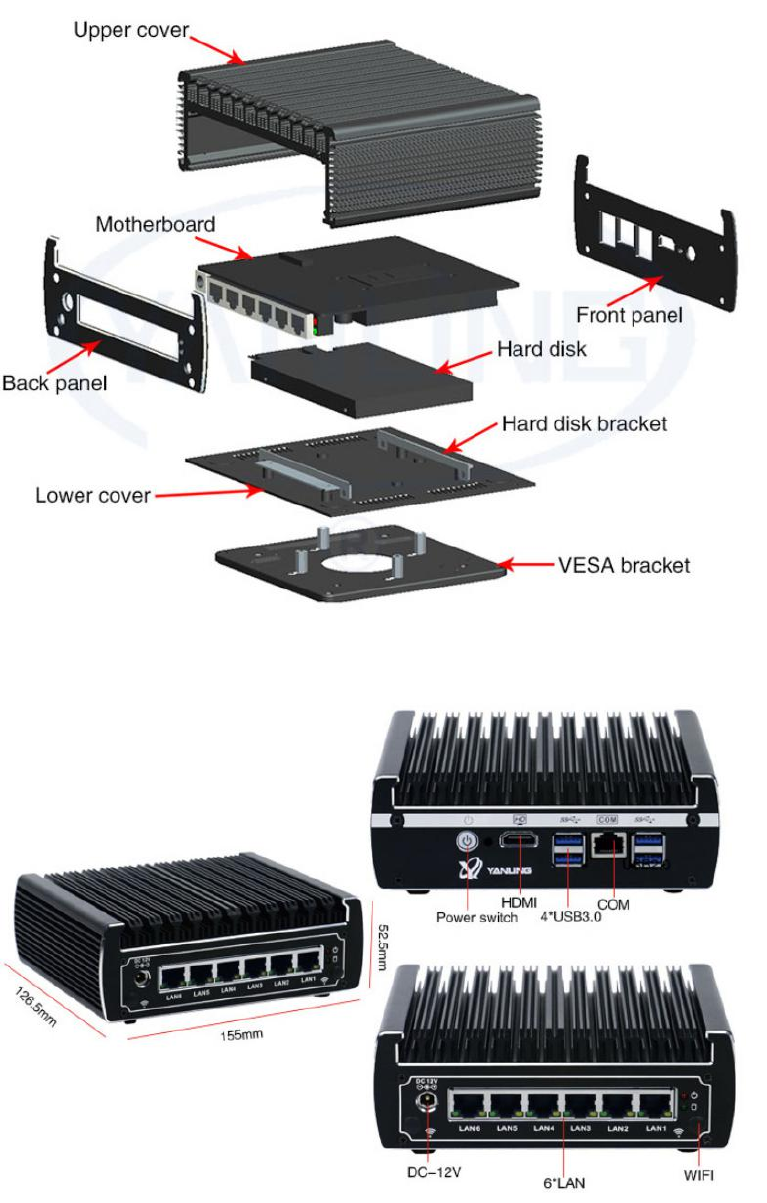

2.4 3D Drawing
2.5 Dimension and Interface
FCCCaution
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)
thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation.
AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
Note: ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass
Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.
Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference
toradiocommunications.However,thereisnoguaranteethatinterferencewillnot
occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto
radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff
andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
followingmeasures:
-Reorientorrelocatethereceivingantenna.
-Increasetheseparationbetweentheequipmentandreceiver.
-Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.
-Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan
uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith
minimumdistance20cmbetweentheradiator&yourbody.
