ProteinSimple MAURICE Protein Detection Instrument User Manual Maurice manual

ProteinSimple Protein Detection Instrument Maurice manual

Contents

Users Manual Part 1

page 1
User Guide for Maurice, Maurice
C. and Maurice S.
Copyright © 2016 ProteinSimple. All rights reserved.
ProteinSimple
3001 Orchard Parkway
San Jose, CA 95134
Toll-free: (888) 607-9692
Tel: (408) 510-5500
Fax: (408) 510-5599
email: support@proteinsimple.com
web: www.proteinsimple.com
User Guide for Maurice, Maurice C. and Maurice S.
P/N 046-295
Revision 1, February 2016
For research use only. Not for use in diagnostic procedures
Patents and Trademarks
ProteinSimple's Maurice and iCE technology is covered by issued and pending patents in the U.S. and other
countries. For more information please see http://www.proteinsimple.com/Intellectual_Property.html.
ProteinSimple and the ProteinSimple logo are trademarks or registered trademarks of ProteinSimple. Other
marks appearing in these materials are marks of their respective owners.
page 1
User Guide for Maurice, Maurice C. and Maurice S.
Chapter 1:
Let’s Get Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

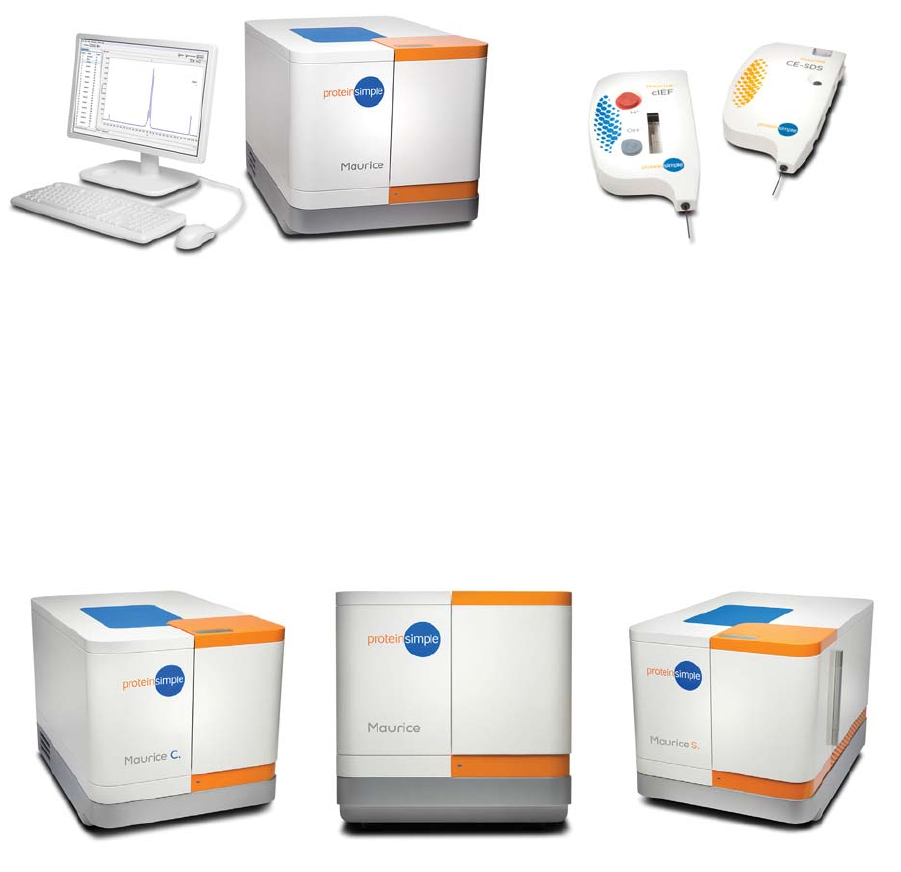

Maurice Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chapter 2:
Getting Your Lab Ready . . . . . . . . . . . . . . . . . . . . 3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Space Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Physical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Environmental Requirements. . . . . . . . . . . . . . . . . . . . . . . . . 5
Software and Computer Requirements . . . . . . . . . . . . . . . 6
General Guidelines and Information. . . . . . . . . . . . . . . . . . 6
Intended Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Lifting and Moving the System: Lift Maurice
Correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Chapter 3:
Maurice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Maurice Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

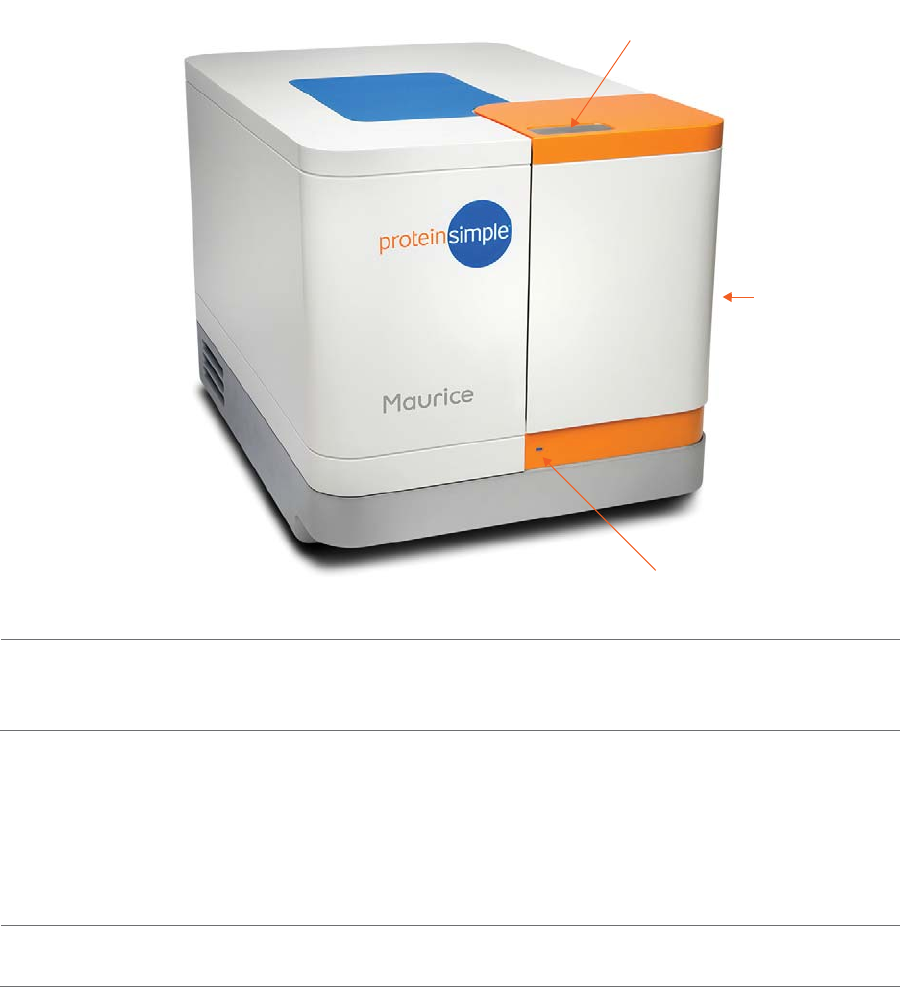

External Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
System Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

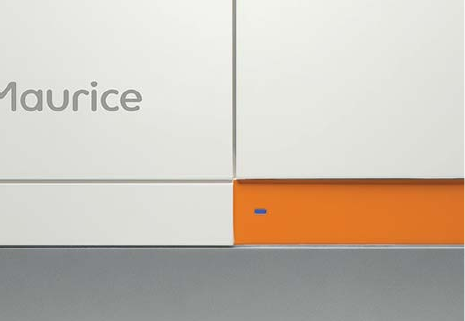

Status Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Internal Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

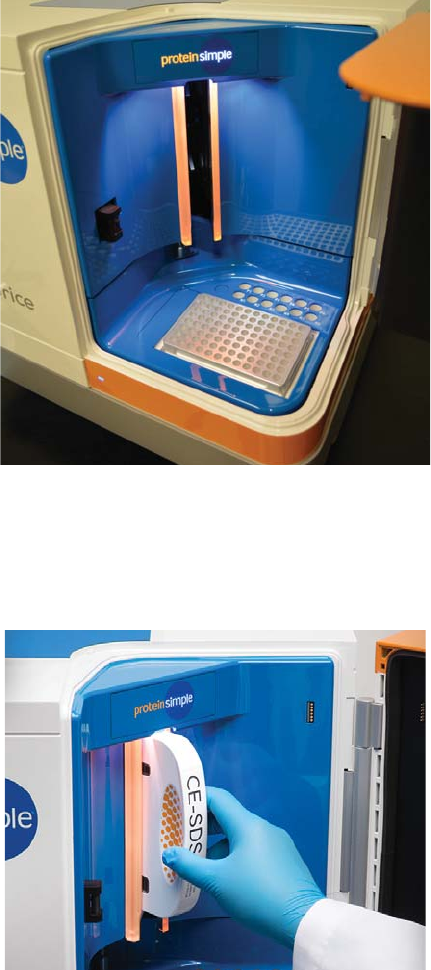

Cartridge Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

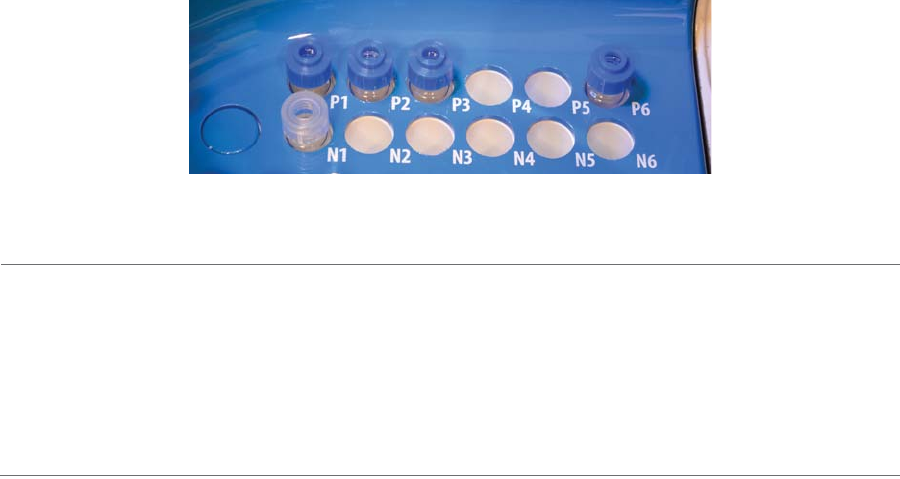

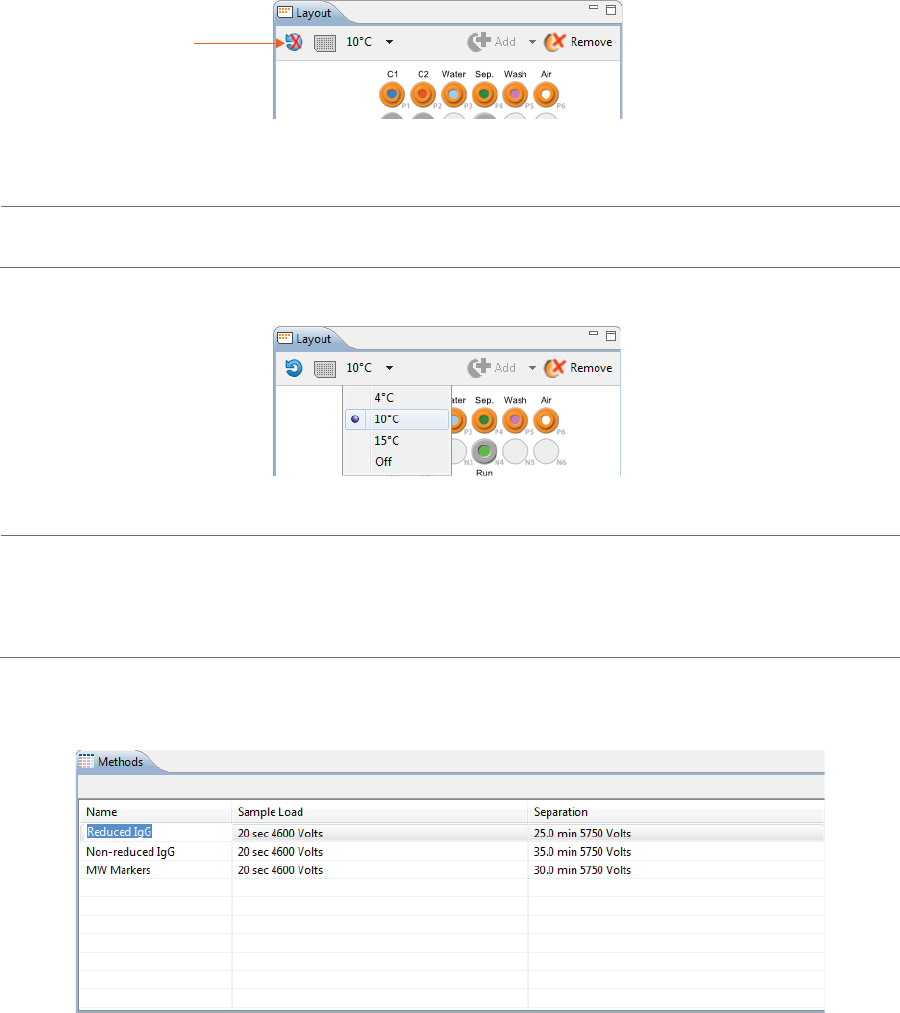

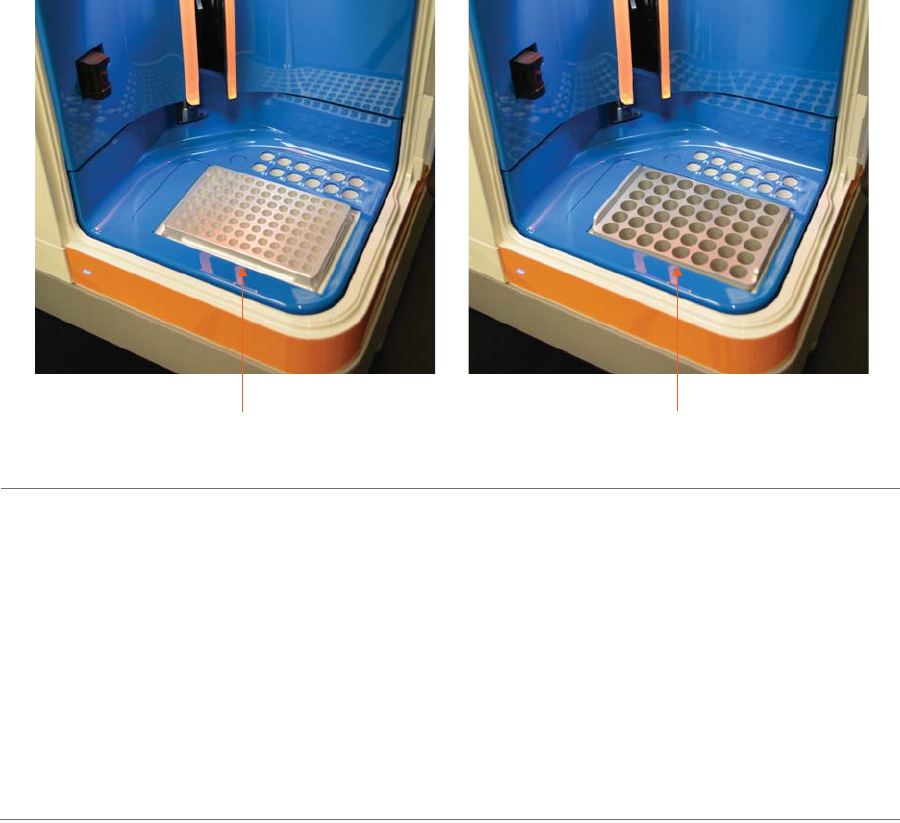

Sample and Reagent Platform . . . . . . . . . . . . . . . . . . 12

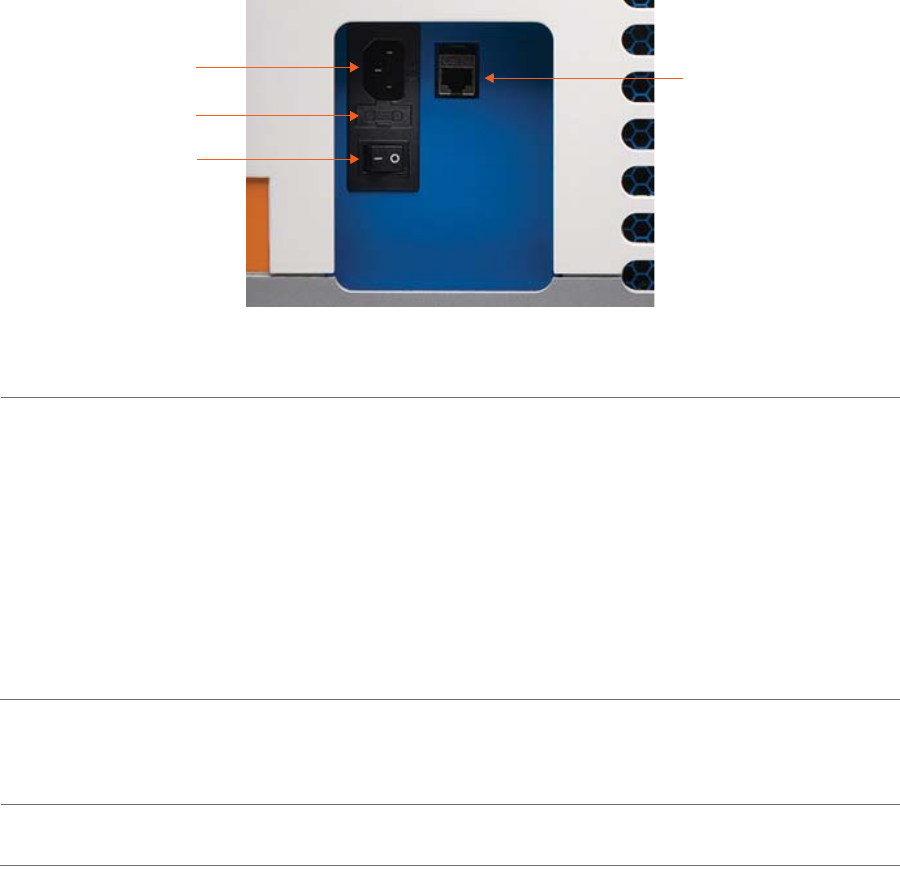

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
System Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Computer Workstation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Chapter 4:
Compass for iCE Overview . . . . . . . . . . . . . . . . 17
Launching Compass for iCE . . . . . . . . . . . . . . . . . . . . . . . . . 18
Compass for iCE Overview . . . . . . . . . . . . . . . . . . . . . . . . . . .18

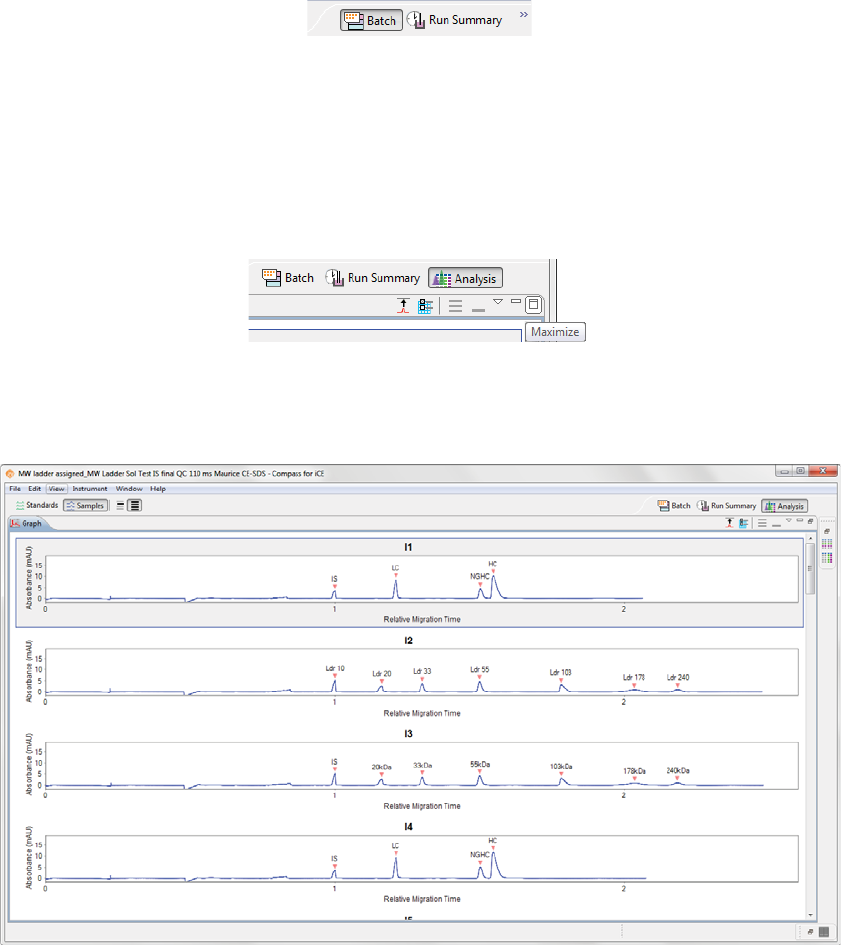

Changing the Screen View . . . . . . . . . . . . . . . . . . . . . .19

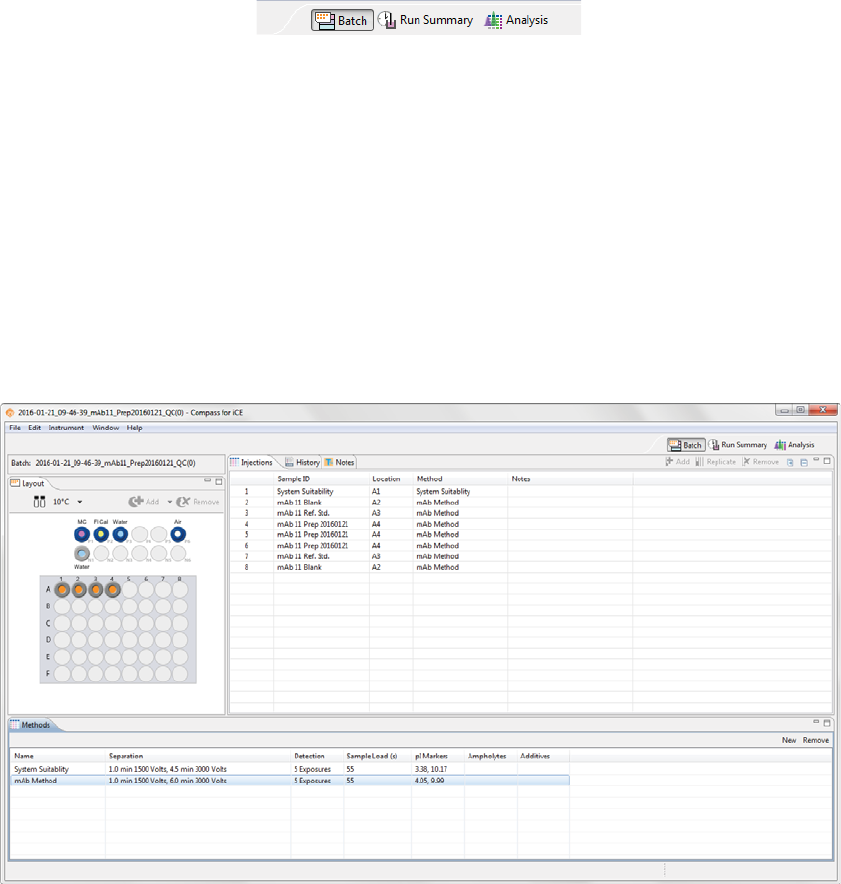

Batch Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Run Summary Screen . . . . . . . . . . . . . . . . . . . . . . . . . . .20

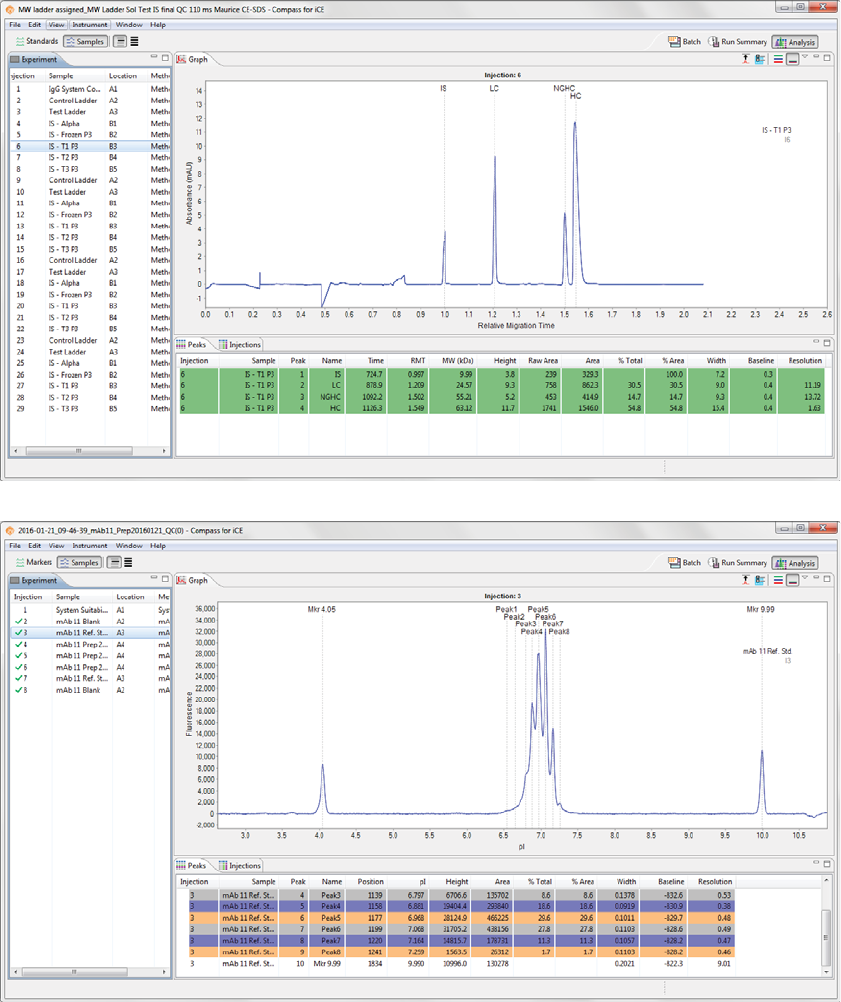

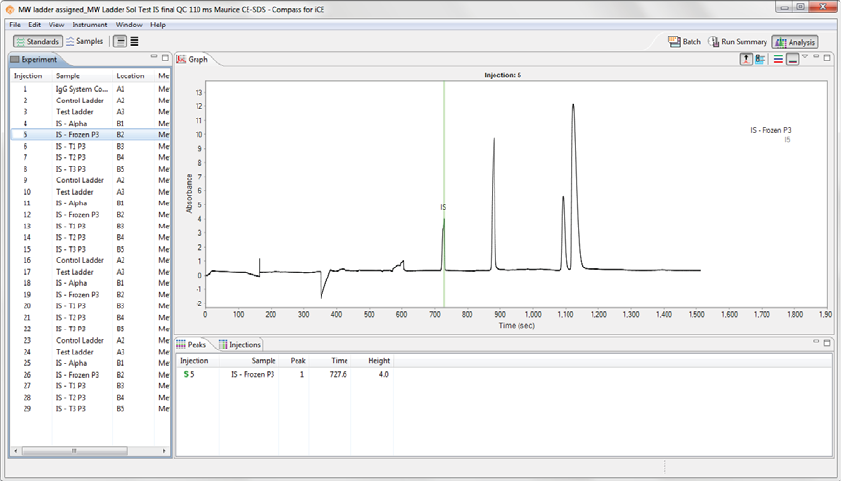

Analysis Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

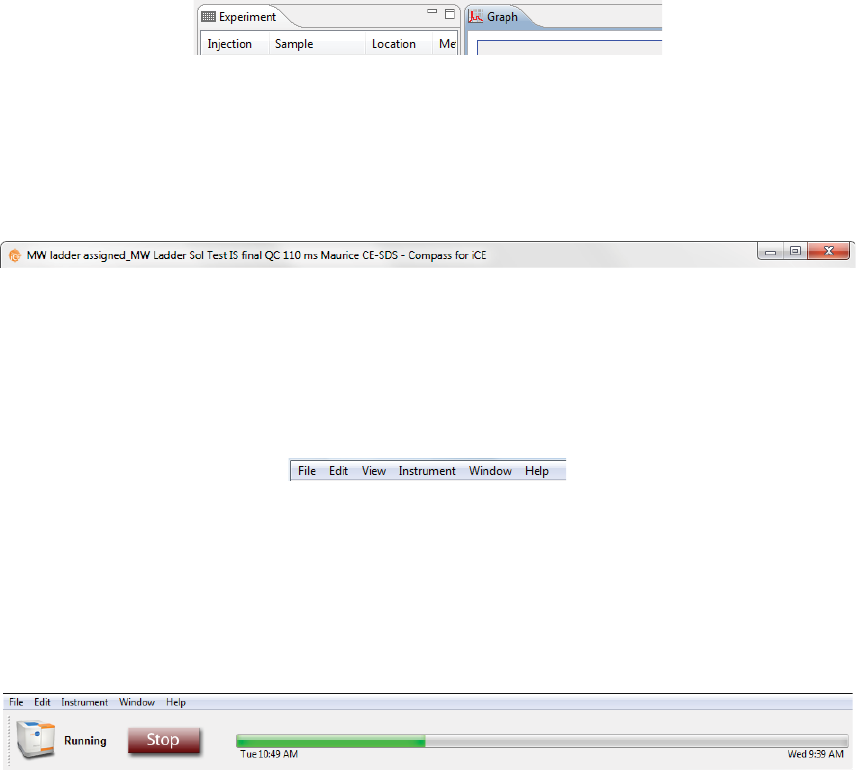

Screen Panes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Title Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Instrument Status Bar . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Screen Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
View Bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Compass for iCE Status Bar. . . . . . . . . . . . . . . . . . . . . .25
Software Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
File Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Edit Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

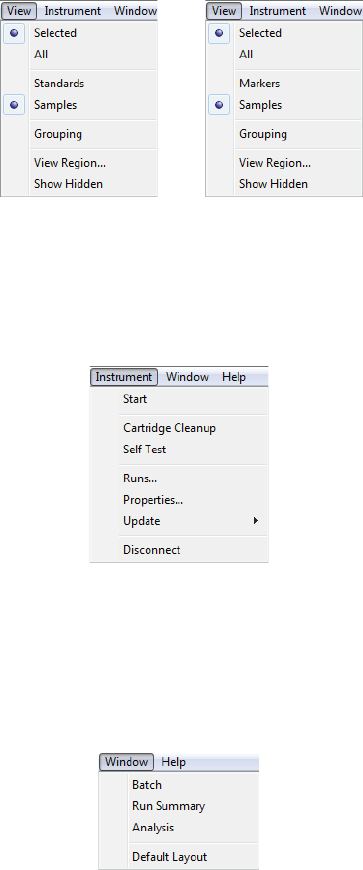

View Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Instrument Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Window Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Help Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Changing the Compass for iCE Main Window
Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Resizing the Main Compass for iCE Window . . . .28
Resizing the Screen Tab . . . . . . . . . . . . . . . . . . . . . . . . .29

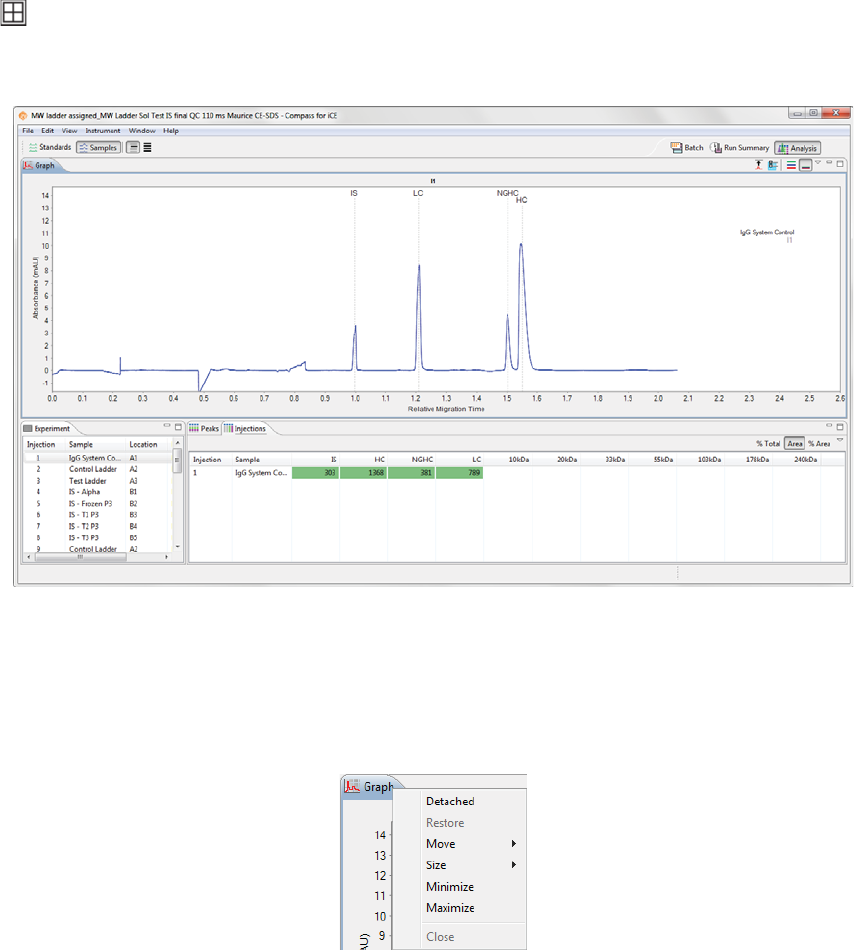

Resizing Screen Panes. . . . . . . . . . . . . . . . . . . . . . . . . . .29
Changing the Location of Screen Panes. . . . . . . . .30
Restoring the Main Window to the Default
Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Software Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Checking for and Installing New Versions of Compass
for iCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Viewing Release Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Table of Contents
page 2
User Guide for Maurice, Maurice C. and Maurice S.
Viewing the Software Log. . . . . . . . . . . . . . . . . . . . . . . . . . . .33

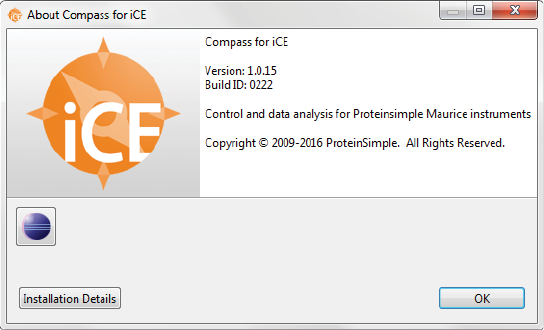

Compass for iCE Version Information . . . . . . . . . . . . . . . . 33

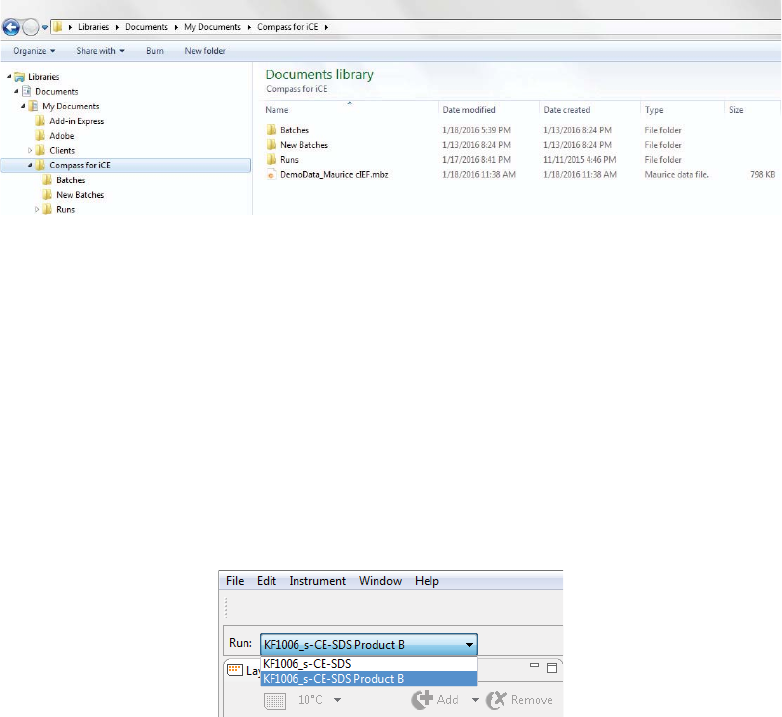

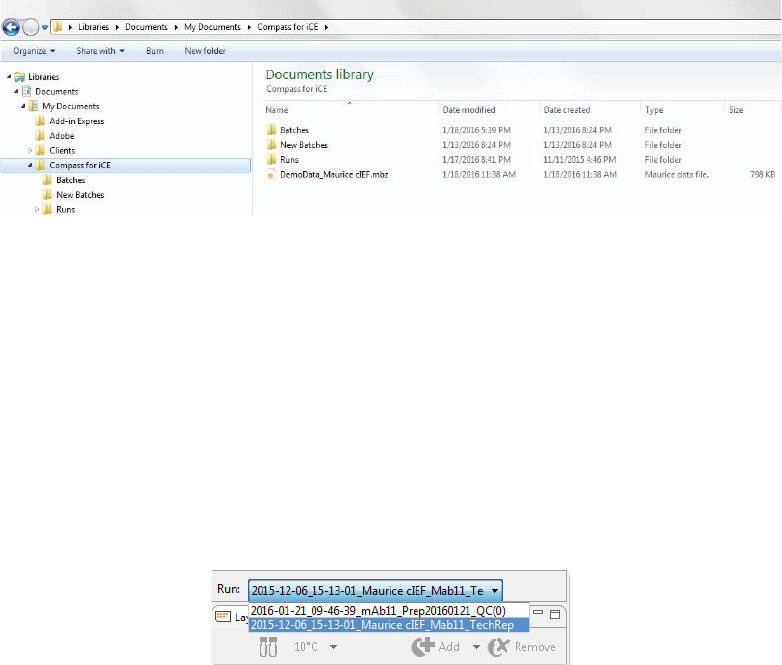

Directory and File Information. . . . . . . . . . . . . . . . . . . . . . . 34
File Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Chapter 5:
cIEF Batches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

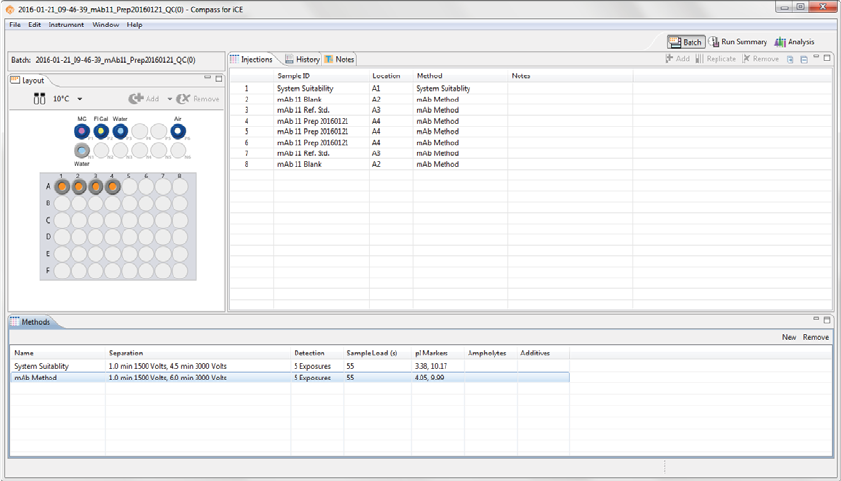

Batch Screen Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Batch Screen Panes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Software Menus Active in the Batch Screen . . . . . 39
Opening a Batch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Creating a New Batch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Step 1 - Open a Template Batch. . . . . . . . . . . . . . . . . 42

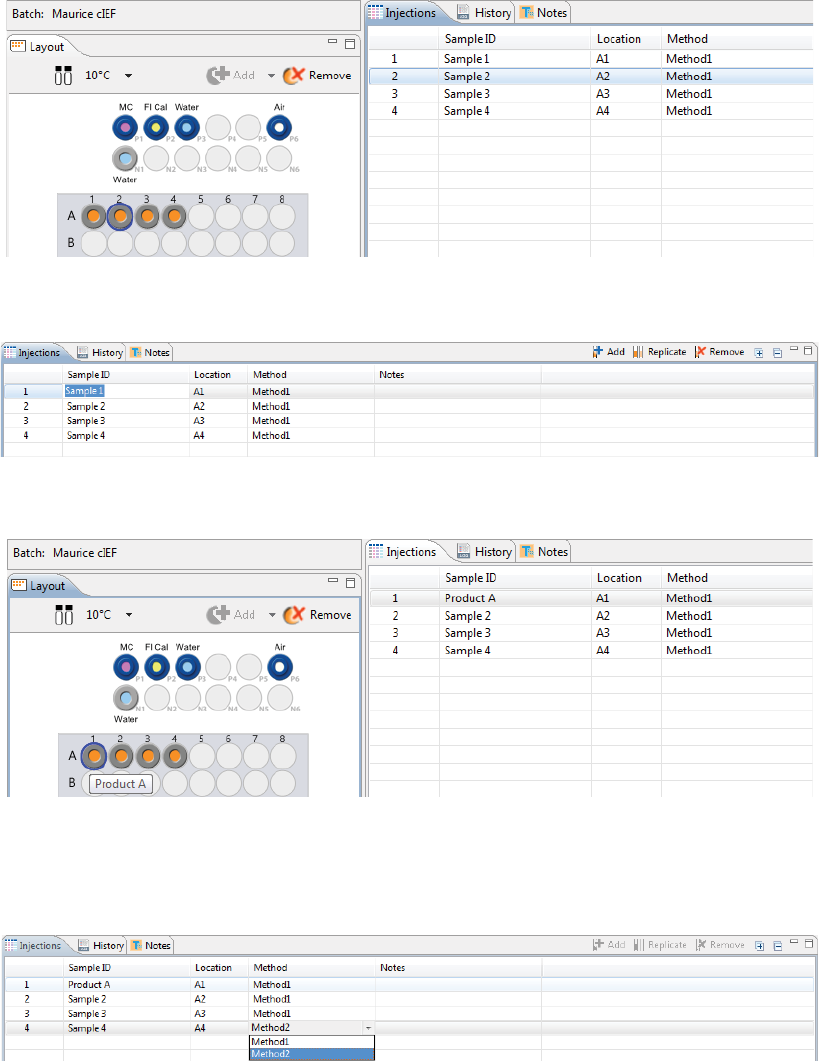

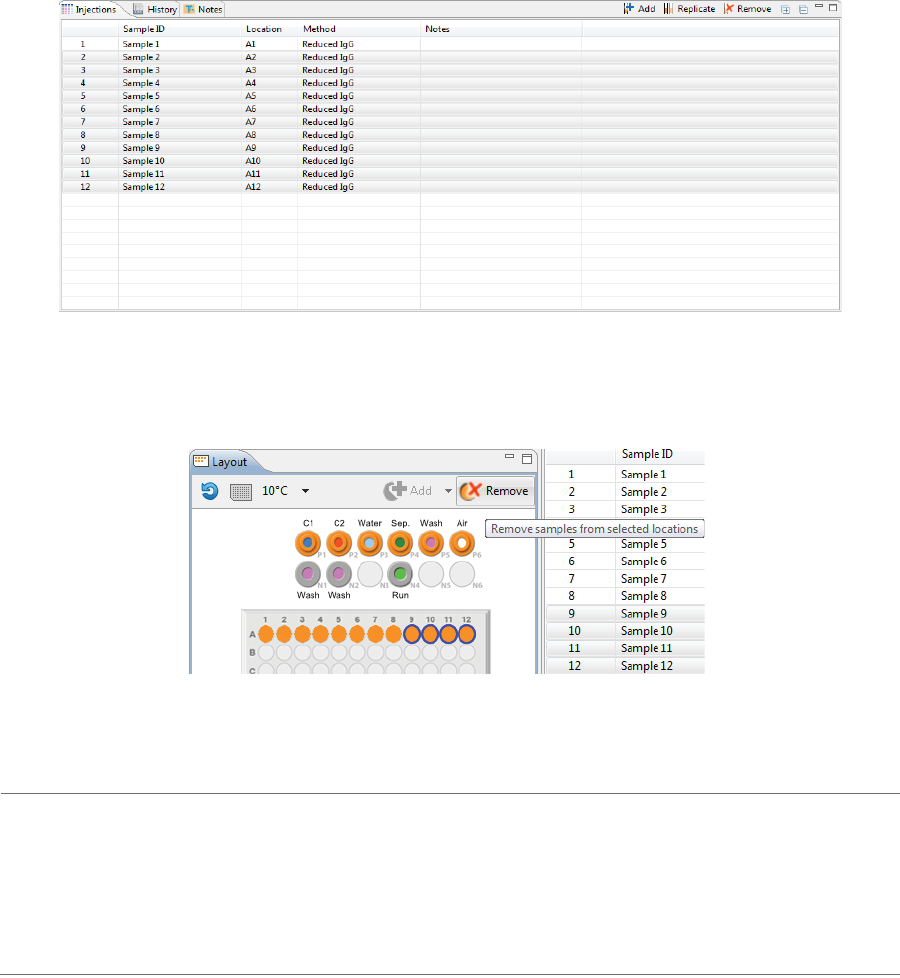

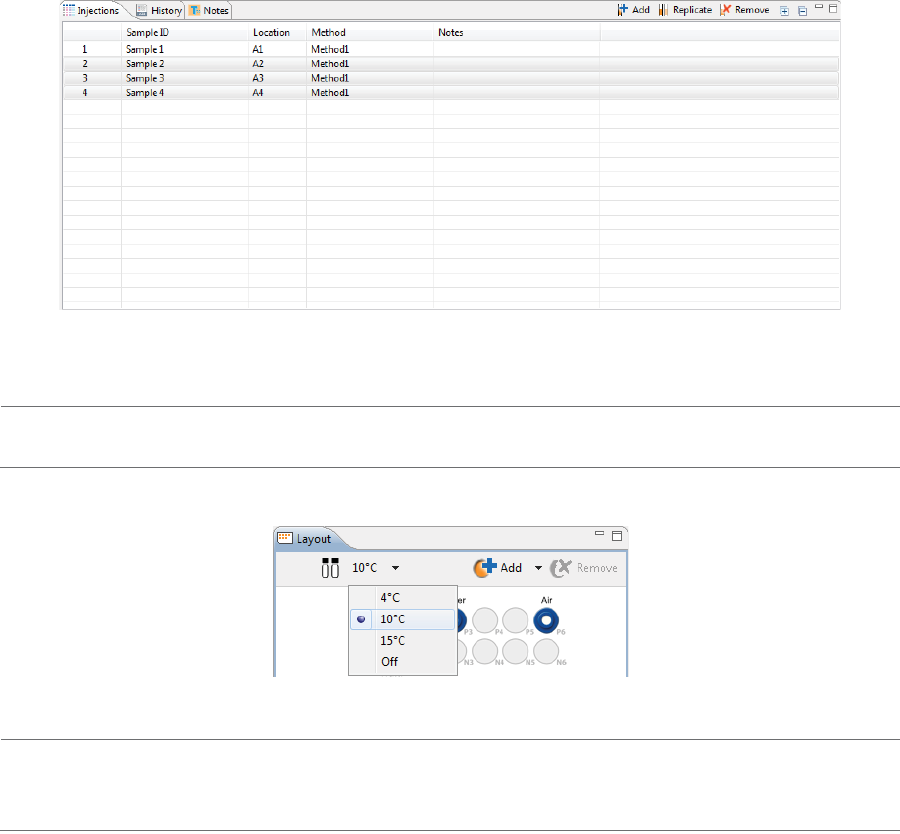

Step 2 - Assign Your Samples. . . . . . . . . . . . . . . . . . . .43

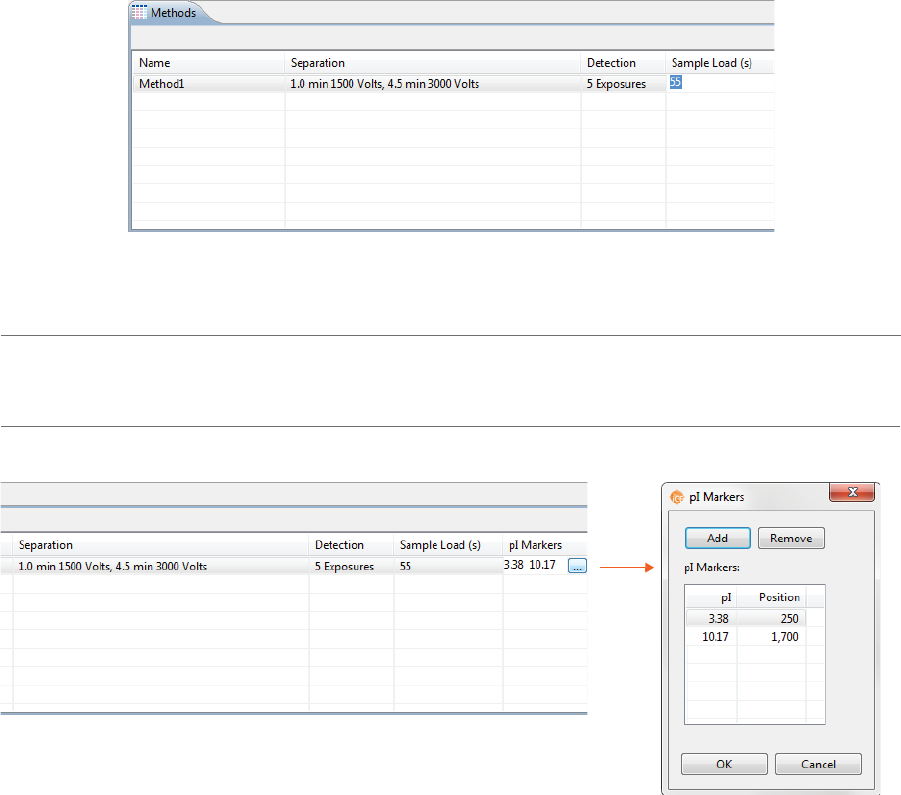

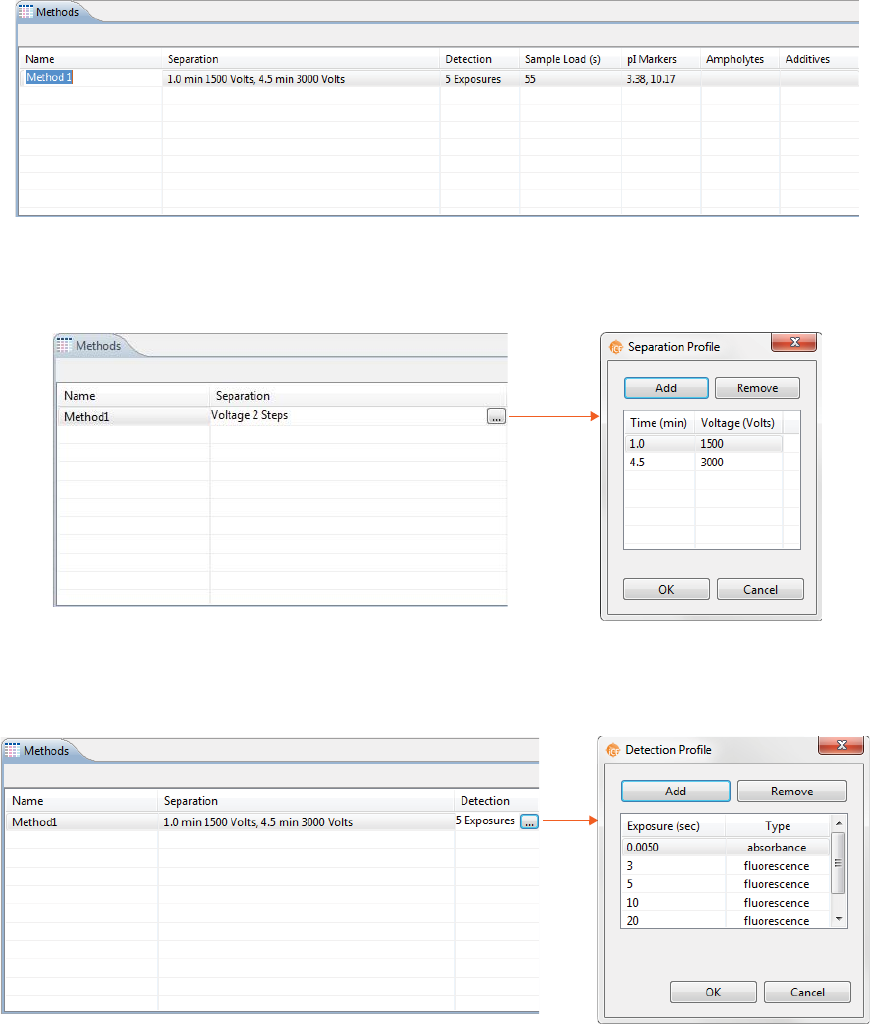

Step 3 - Assign Your Method Parameters. . . . . . . . 46

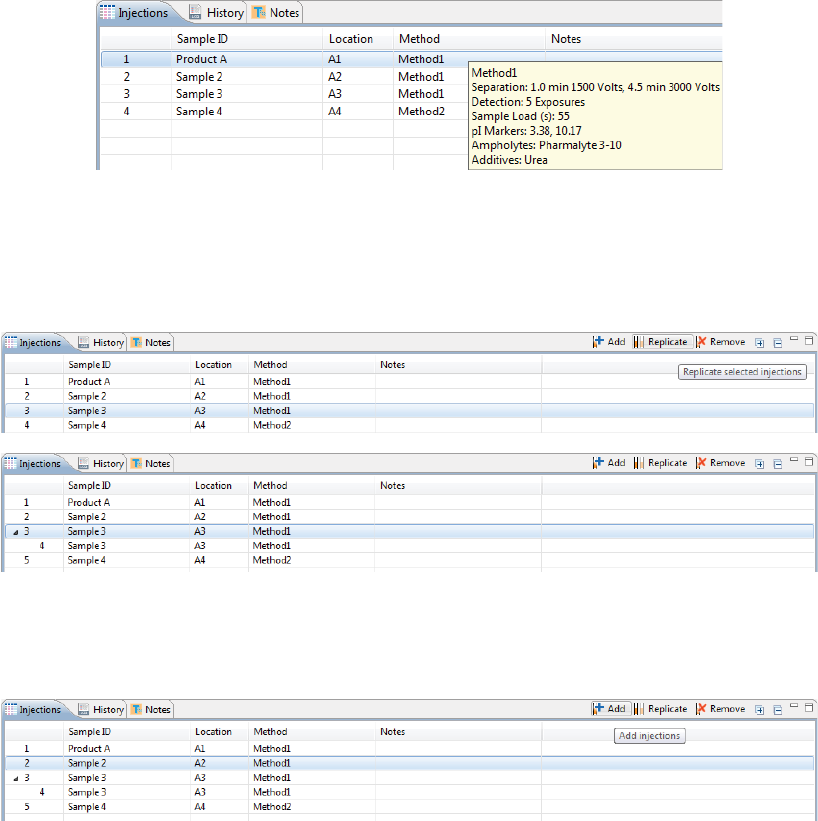

Step 4 - Set Up Your Injections. . . . . . . . . . . . . . . . . . .49

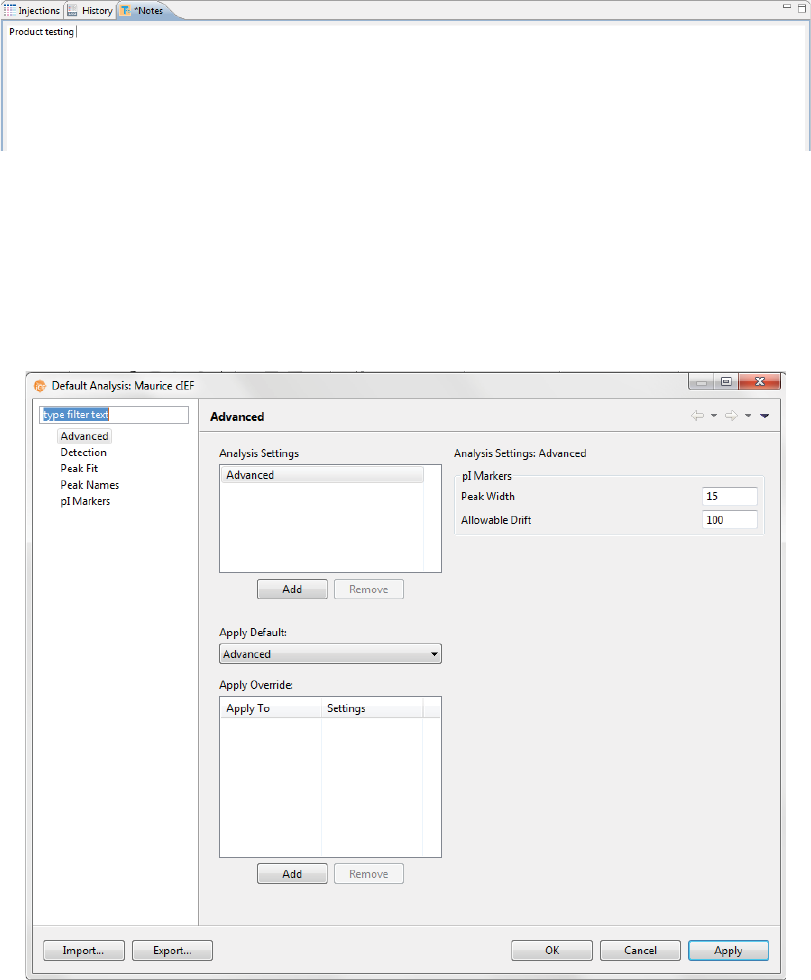

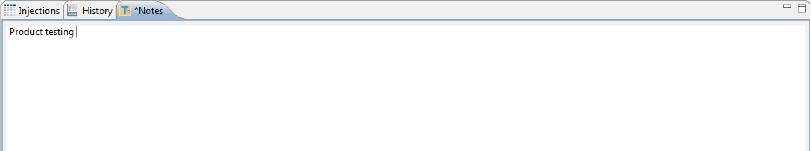

Step 5 - Add Batch Notes (Optional). . . . . . . . . . . . .51
Step 6 - Modify Default Analysis Parameters
(Optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

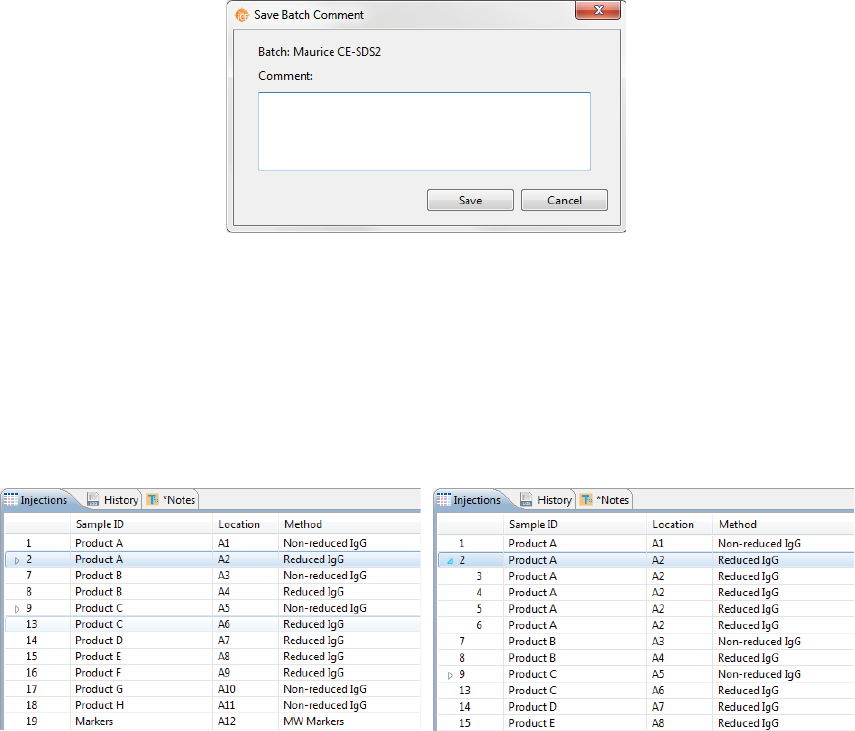

Step 7 - Save Your Batch . . . . . . . . . . . . . . . . . . . . . . . . 52

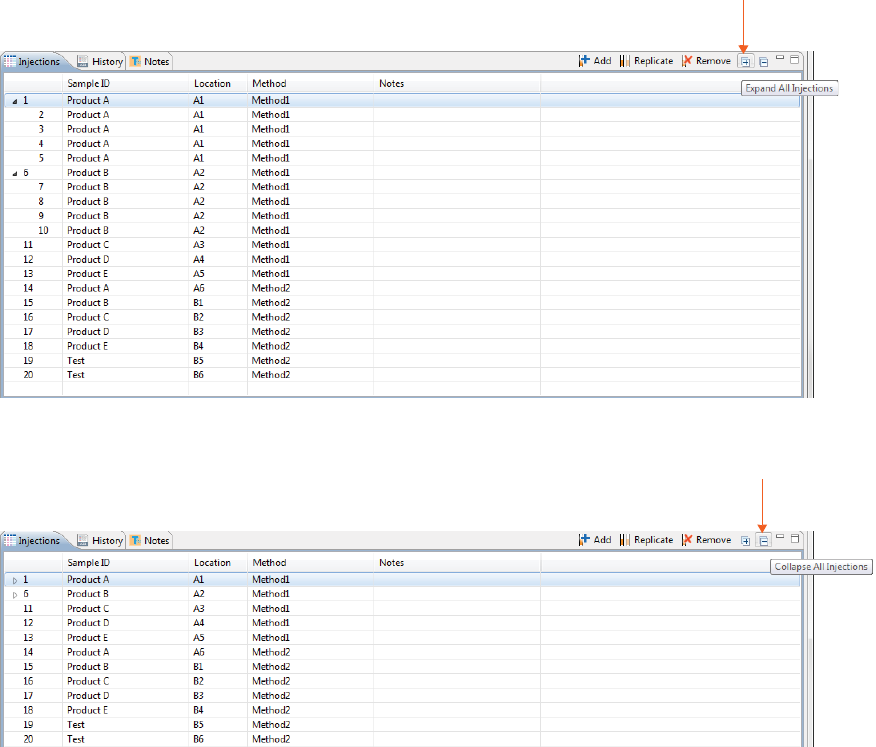

Viewing Replicate Injections . . . . . . . . . . . . . . . . . . . . . . . . . 53

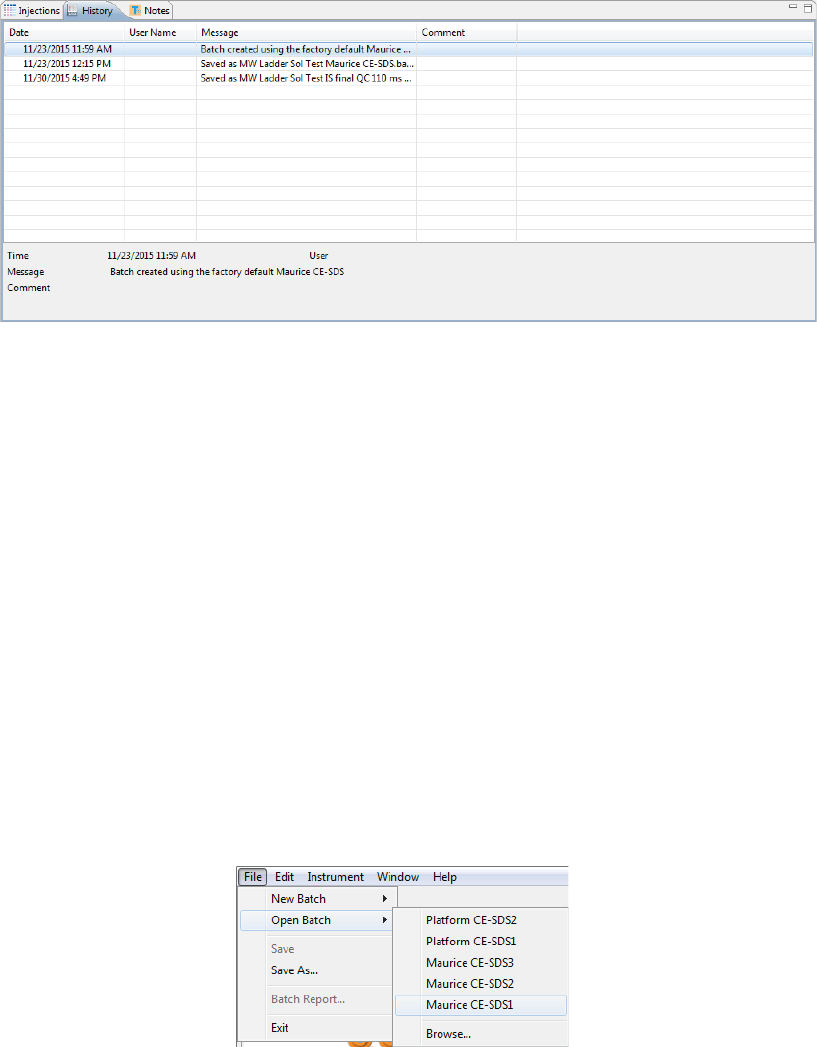

Batch History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Making Changes to a Batch . . . . . . . . . . . . . . . . . . . . . . . . .55
Viewing and Editing Batches in Completed Runs . . . . 56

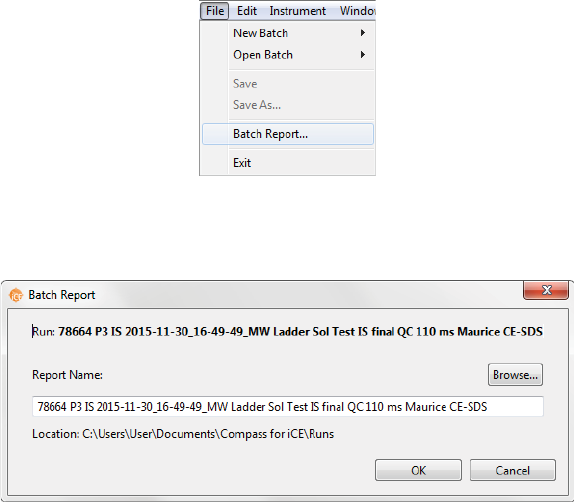

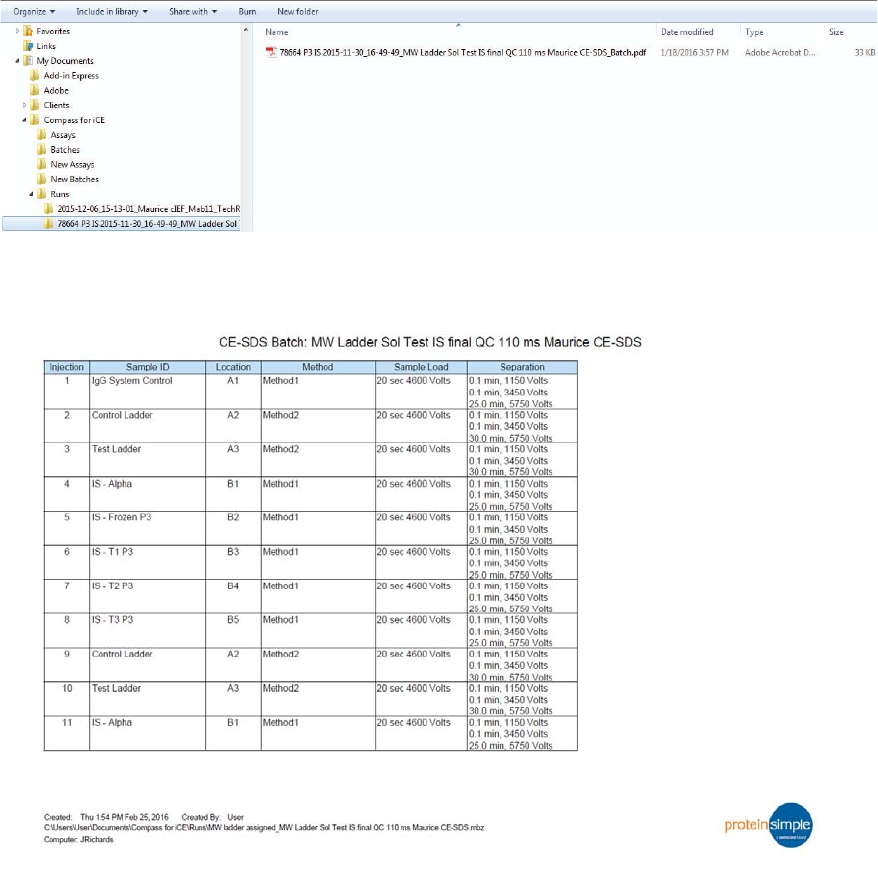

Batch Reports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Chapter 6:
CE-SDS Batches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Batch Screen Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Batch Screen Panes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Software Menus Active in the Batch Screen . . . . . 61
Opening a Batch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Creating a New Batch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Step 1 - Open a Template Batch. . . . . . . . . . . . . . . . .64

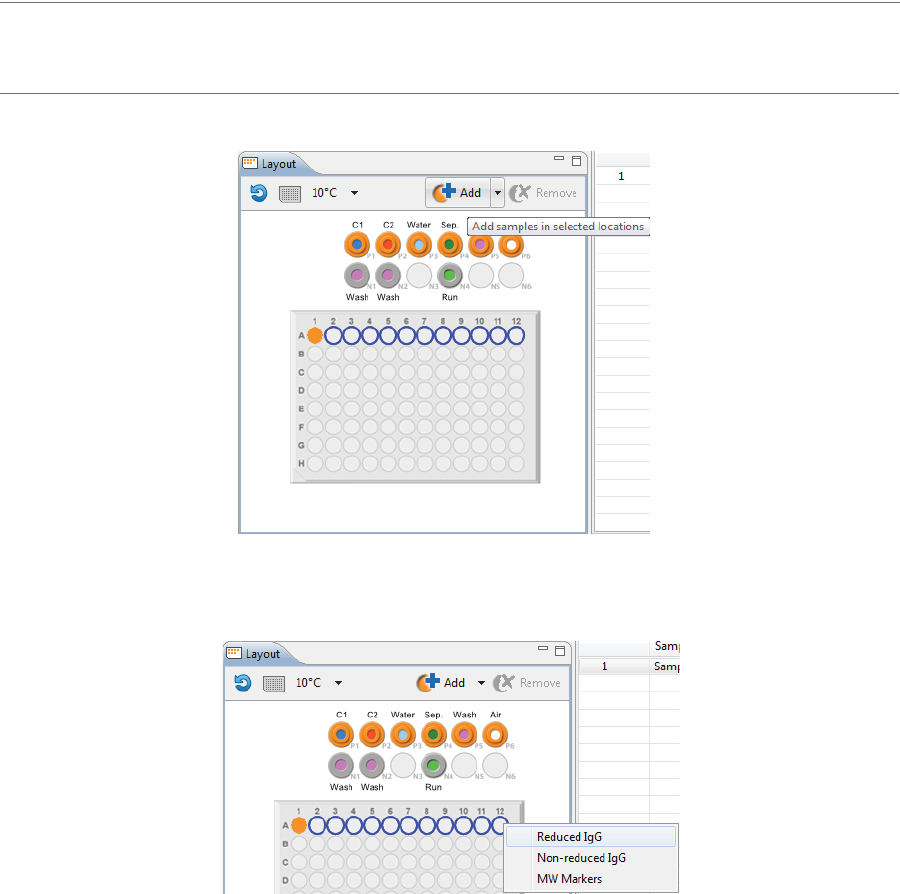

Step 2 - Assign Your Samples. . . . . . . . . . . . . . . . . . . .65
Step 3 - Assign Your Method Parameters . . . . . . . .68
Step 4 - Set Up Your Injections. . . . . . . . . . . . . . . . . . .70
Step 5 - Add Batch Notes (Optional). . . . . . . . . . . . .73
Step 6 - Modify Default Analysis Parameters
(Optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Step 7 - Save Your Batch . . . . . . . . . . . . . . . . . . . . . . . .74
Viewing Replicate Injections . . . . . . . . . . . . . . . . . . . . . . . . .75
Batch History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Making Changes to a Batch . . . . . . . . . . . . . . . . . . . . . . . . .77
Viewing and Editing Batches in Completed Runs . . . .78
Batch Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Chapter 7:
Running cIEF Applications on
Maurice and Maurice C. . . . . . . . . . . . . . . . . . . . 81
Before You Throw the Switch . . . . . . . . . . . . . . . . . . . . . . . .82
Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Running cIEF Applications . . . . . . . . . . . . . . . . . . . . . . . . . . .82
What You’ll Need. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Step 1: Prep Your Markers, Samples and
Reagents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Step 2: Prep the Cartridge . . . . . . . . . . . . . . . . . . . . . . .86

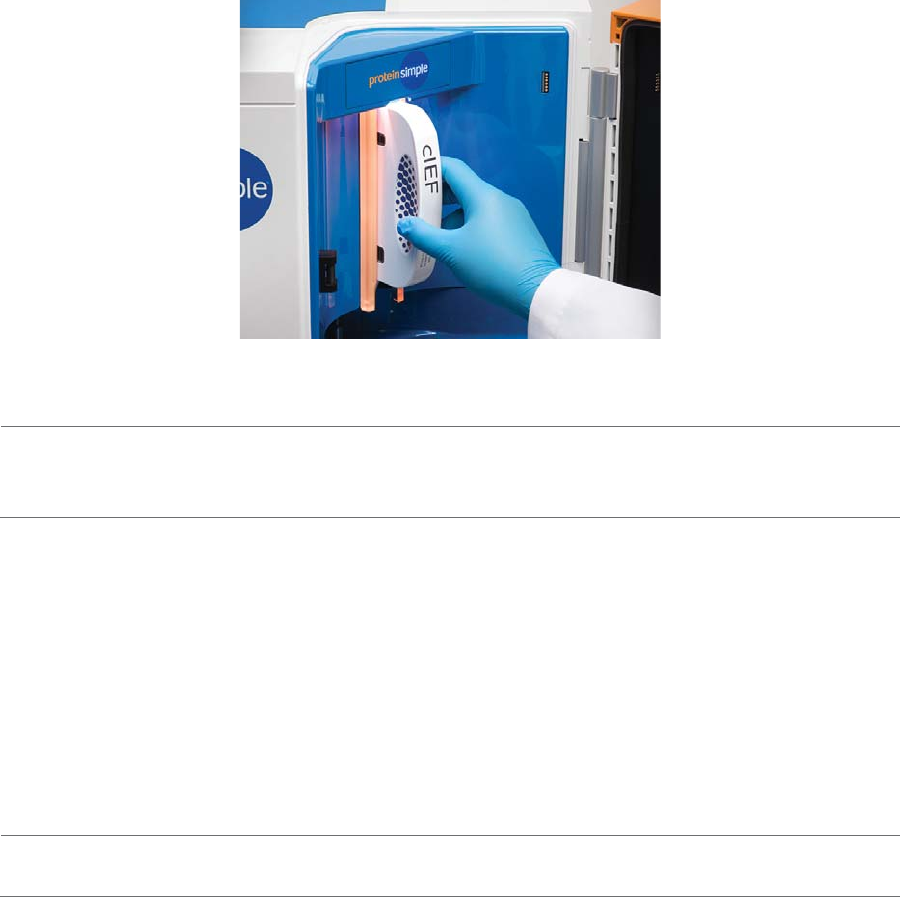

Step 3: Install the Cartridge. . . . . . . . . . . . . . . . . . . . . .88
Step 4: Load Samples and Reagents. . . . . . . . . . . . .90
Step 5: Create a Batch . . . . . . . . . . . . . . . . . . . . . . . . . . .91

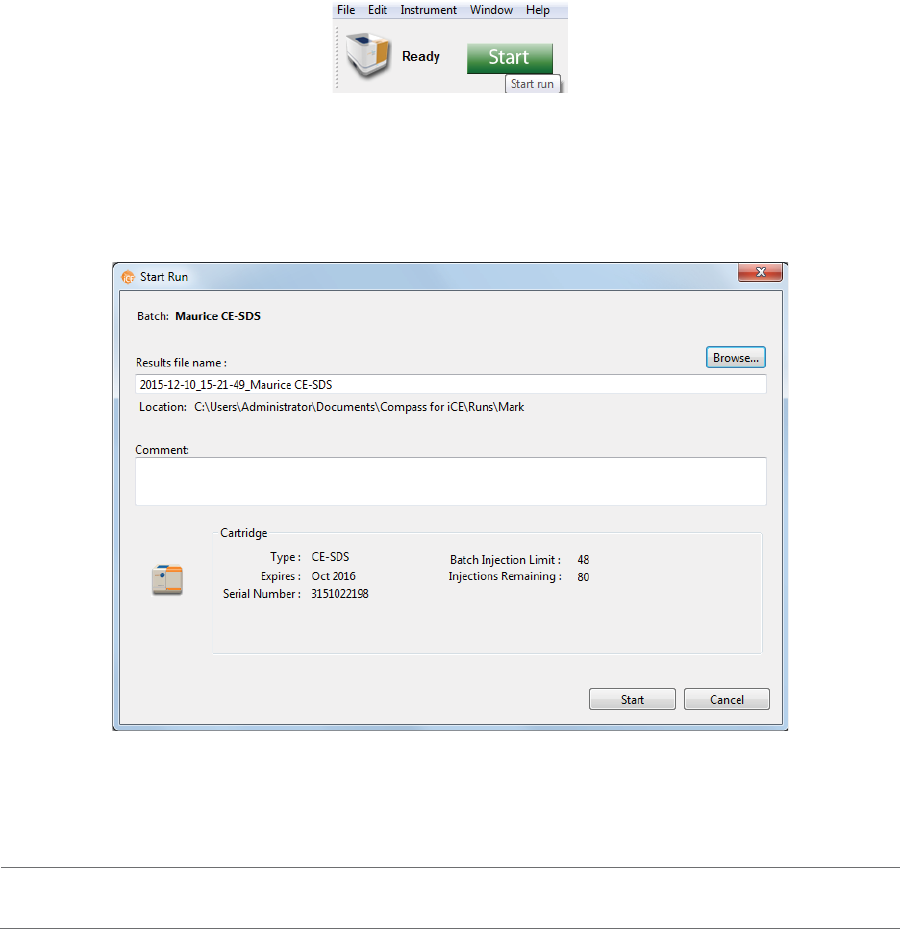

Step 6: Start the Batch. . . . . . . . . . . . . . . . . . . . . . . . . 100
Post-batch Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Checking Your Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Step 1: Select Your Detection Mode . . . . . . . . . . . 105

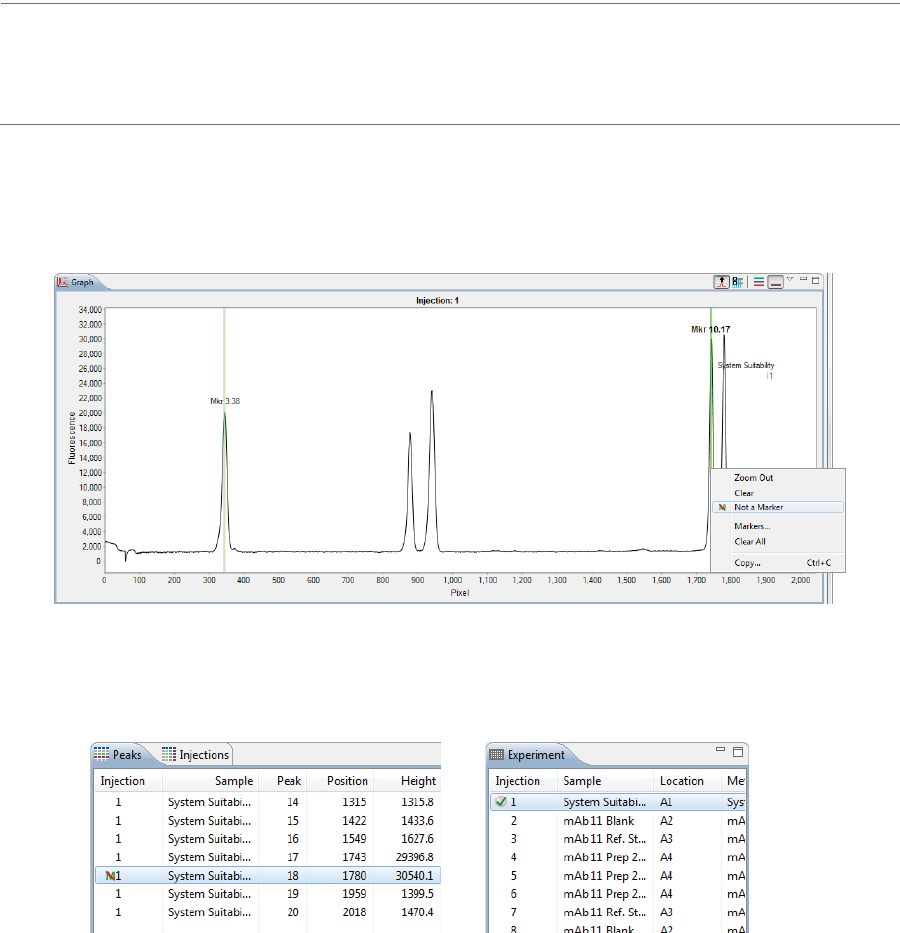

Step 2: Check Your pI Markers . . . . . . . . . . . . . . . . . 105
page 3
User Guide for Maurice, Maurice C. and Maurice S.

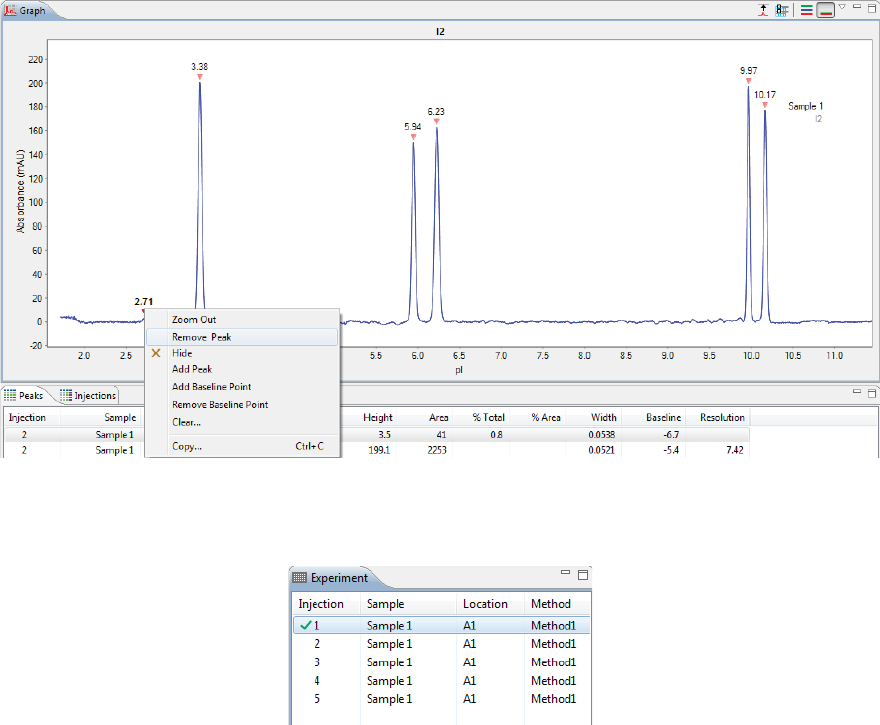

Step 3: Checking Sample Peaks . . . . . . . . . . . . . . . .108
Step 4: Assigning Peak Names . . . . . . . . . . . . . . . . .111
Chapter 8:
Running CE-SDS Applications on
Maurice and Maurice S. . . . . . . . . . . . . . . . . . . .112
Before You Throw the Switch . . . . . . . . . . . . . . . . . . . . . . .113
Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Running CE-SDS Applications . . . . . . . . . . . . . . . . . . . . . .113
What You’ll Need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Step 1: Prep Your Internal Standard, Samples and
Reagents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Internal Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114

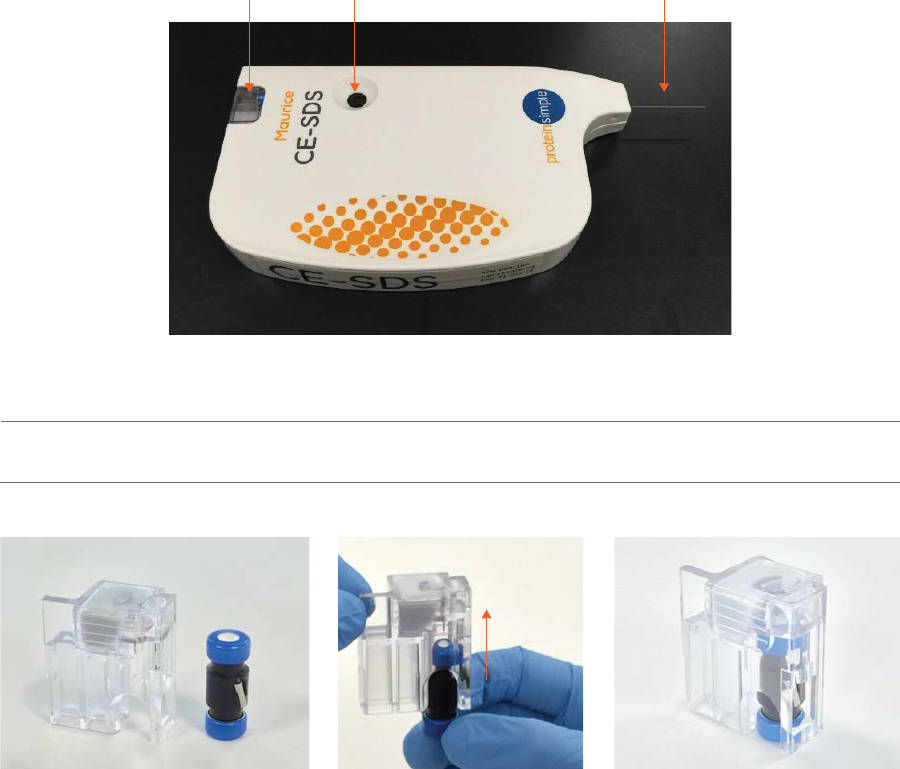

Step 2: Prep the Cartridge . . . . . . . . . . . . . . . . . . . . . .120
Step 3: Install the Cartridge. . . . . . . . . . . . . . . . . . . . .122
Step 4: Load Samples and Reagents . . . . . . . . . . .124
Step 5: Create a Batch. . . . . . . . . . . . . . . . . . . . . . . . . .125
Step 6: Start the Batch. . . . . . . . . . . . . . . . . . . . . . . . . .133
Post-batch Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135
Checking Your Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139
Step 1: Check Your Internal Standard . . . . . . . . . .139

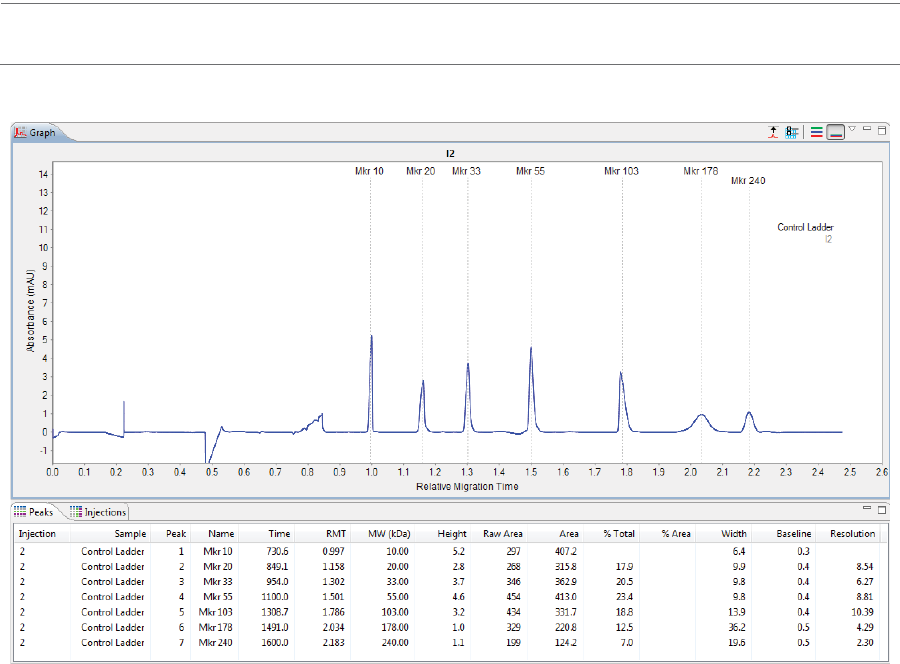

Step 2: Set Your Molecular Weight (MW)
Markers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143
Step 3: Checking Sample Peaks . . . . . . . . . . . . . . . .147
Step 4: Assigning Peak Names . . . . . . . . . . . . . . . . .150
Chapter 9:
Run Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151

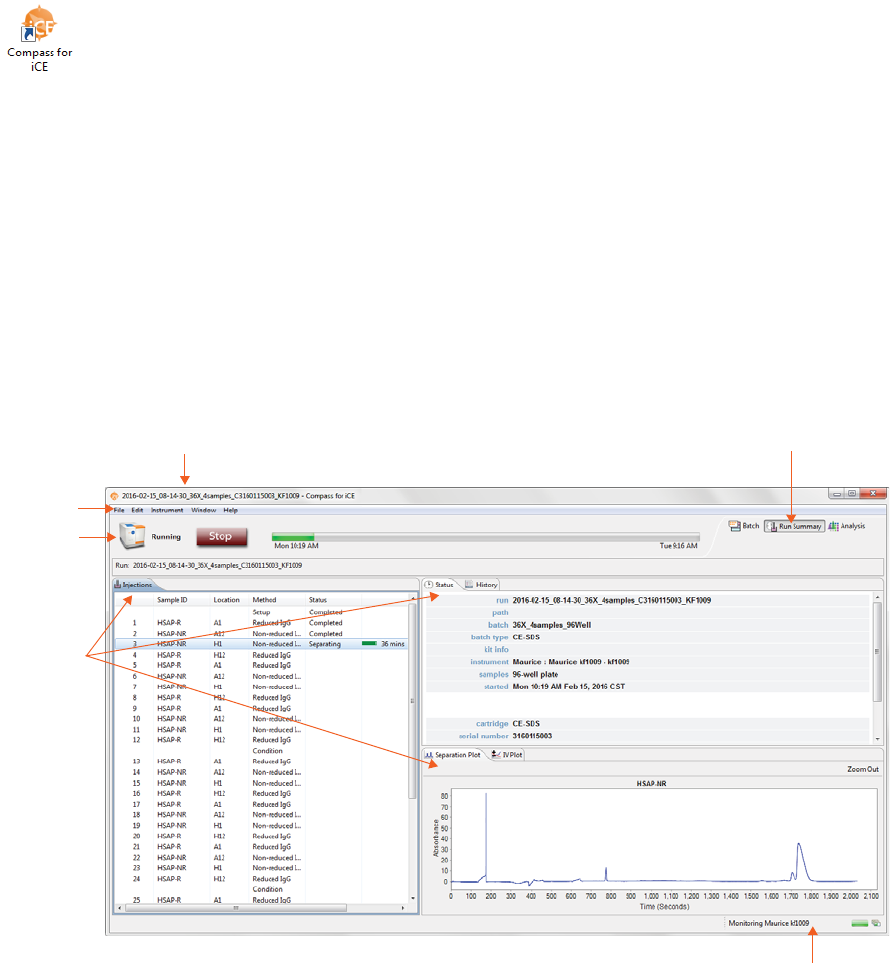

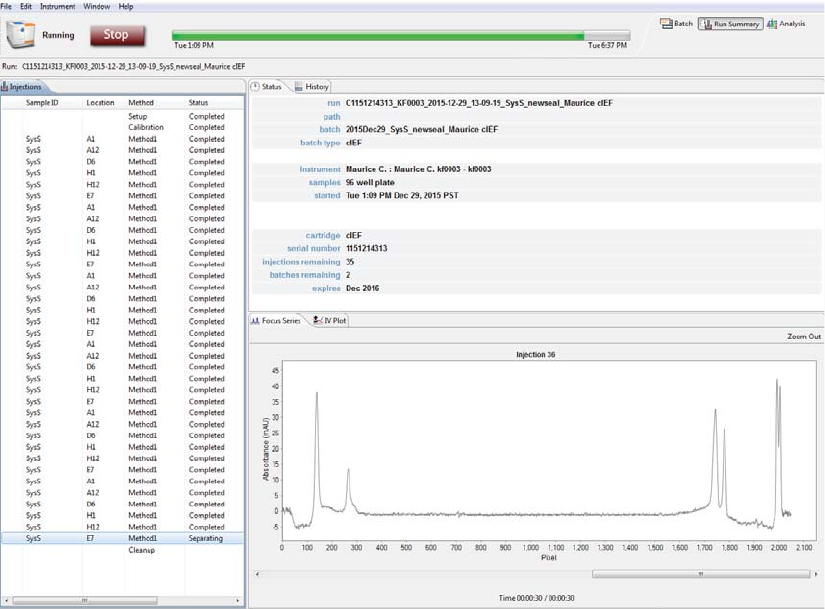

Run Summary Screen Overview. . . . . . . . . . . . . . . . . . . . .152
Run Summary Screen Panes . . . . . . . . . . . . . . . . . . .152
Software Menus Active in the Run Summary
Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154
Opening Run Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156
Opening One Run File. . . . . . . . . . . . . . . . . . . . . . . . . 156
Opening Multiple Run Files. . . . . . . . . . . . . . . . . . . . 156
Batch Injection Information . . . . . . . . . . . . . . . . . . . . . . . 157
Injection Flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Run Status Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Viewing the Focus Series (cIEF Only) . . . . . . . . . . . . . . . 161
Viewing the Separation (CE-SDS Only) . . . . . . . . . . . . . 162
Current and Voltage Plots. . . . . . . . . . . . . . . . . . . . . . . . . . 163
Run History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Viewing Multiple Events. . . . . . . . . . . . . . . . . . . . . . . 165
Copying History Info . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Viewing Run Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Injection Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Example Analysis and Injection Report: CE-SDS169
Example Analysis and Injection Report: cIEF. . . 172
Switching Between Open Run Files . . . . . . . . . . . . . . . . 174
Closing Run Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Chapter 10:
Controlling Maurice, Maurice C. and
Maurice S.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Instrument Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

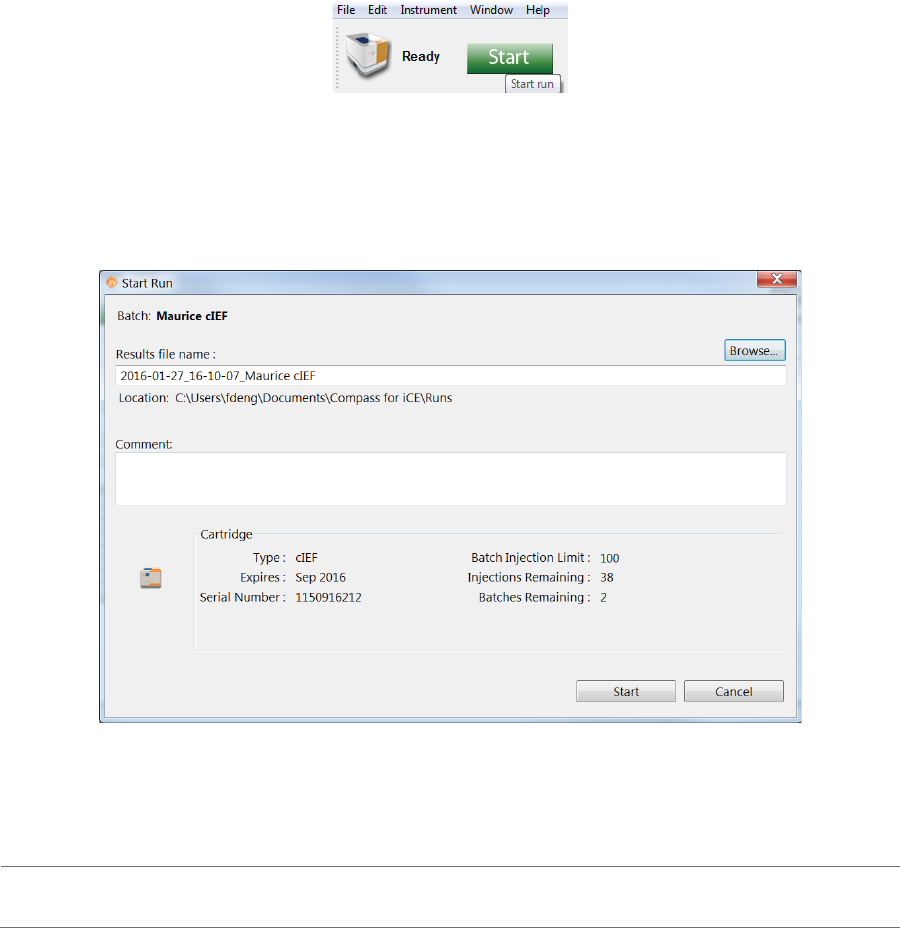

Starting a Run. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Stopping a Run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Status Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Instrument Software (Embedded) Updates . . . . . . . . 181
Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Viewing and Changing System Properties . . . . . . . . . 184
Checking Cartridge Status . . . . . . . . . . . . . . . . . . . . . . . . . 185
page 4
User Guide for Maurice, Maurice C. and Maurice S.
Viewing Log Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .186
Runs Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .186
System Logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187
Error Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .189
Self Test Logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .192
Command Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .194
Chapter 11:
CE-SDS Data Analysis . . . . . . . . . . . . . . . . . . . . .195
Analysis Screen Overview . . . . . . . . . . . . . . . . . . . . . . . . . . .196
Analysis Screen Panes. . . . . . . . . . . . . . . . . . . . . . . . . .196
Software Menus Active in the Analysis Screen . .197
Opening Run Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .199
Opening One Run File. . . . . . . . . . . . . . . . . . . . . . . . . .199
Opening Multiple Run Files. . . . . . . . . . . . . . . . . . . . .199
How Run Data is Displayed . . . . . . . . . . . . . . . . . . . . . . . . .201
Experiment Pane: Batch Injection Information .201
Graph Pane: Electropherogram Data . . . . . . . . . .201
Peaks Pane: Calculated Results. . . . . . . . . . . . . . . . .202
Injections Pane: User-Specified Peak Names . . .204
Viewing Run Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .205
Switching Between Samples and Standards Data
Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .205
Selecting and Displaying Injection Data . . . . . . .208
Switching Between Single and Multiple Views of
Injections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .211
Hiding Injection Data . . . . . . . . . . . . . . . . . . . . . . . . . .213
Data Notifications and Warnings. . . . . . . . . . . . . . . . . . .214
Checking Your Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .215
Group Statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .216
Using Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .216
Viewing Sample Injection Groups . . . . . . . . . . . . . .217
Viewing Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Hiding or Removing Injections in Group
Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Copying Results Tables and Graphs. . . . . . . . . . . . . . . . 220
Copying Results Tables . . . . . . . . . . . . . . . . . . . . . . . . 220
Copying the Graph. . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Saving the Graph as an Image File . . . . . . . . . . . . 220
Exporting Run Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Exporting Results Tables. . . . . . . . . . . . . . . . . . . . . . . 221
Exporting Raw Sample Electropherogram
Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Changing Sample Protein Identification . . . . . . . . . . . 222
Adding or Removing Sample Data. . . . . . . . . . . . 222
Hiding Sample Data . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Changing Peak Names for Sample Data . . . . . . 225
Changing the Electropherogram View . . . . . . . . . . . . . 226
Autoscaling the Electropherogram. . . . . . . . . . . . 227
Customizing the Data Display . . . . . . . . . . . . . . . . 227
Stacking Multiple Electropherograms . . . . . . . . . 233
Overlaying Multiple Electropherograms. . . . . . . 234
Zooming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Selecting Data Viewing Options. . . . . . . . . . . . . . . 236
Adding and Removing Baseline Points . . . . . . . . 240
Selecting the Graph X-axis Range . . . . . . . . . . . . . 241
Closing Run Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Analysis Settings Overview. . . . . . . . . . . . . . . . . . . . . . . . . 244
Advanced Analysis Settings . . . . . . . . . . . . . . . . . . . . . . . . 246
Internal Standard Settings . . . . . . . . . . . . . . . . . . . . 246
Advanced Analysis Settings Groups . . . . . . . . . . . 247
Creating a New Analysis Group . . . . . . . . . . . . . . . 247
Changing the Default Analysis Group. . . . . . . . . 248
page 5
User Guide for Maurice, Maurice C. and Maurice S.
Modifying an Analysis Group . . . . . . . . . . . . . . . . . .249
Deleting an Analysis Group . . . . . . . . . . . . . . . . . . . .249
Applying Analysis Groups to Specific Run Data 250
Markers Analysis Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .252
Markers Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .253
Changing the Injection Used for the CE-SDS MW
Markers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .253
Standards Analysis Settings Groups. . . . . . . . . . . .254
Creating a New Standards Group . . . . . . . . . . . . . .255
Changing the Default Standards Group . . . . . . .258
Modifying a Standards Group. . . . . . . . . . . . . . . . . .258
Deleting a Standards Group . . . . . . . . . . . . . . . . . . .258
Applying Standards Groups to Specific Run
Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .259
Peak Fit Analysis Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .261
Range Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .262
Baseline Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .263
Peak Find Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .263
Peak Fit Analysis Settings Groups . . . . . . . . . . . . . .264
Creating a New Peak Fit Group. . . . . . . . . . . . . . . . .265
Changing the Default Peak Fit Group . . . . . . . . . .267
Modifying a Peak Fit Group . . . . . . . . . . . . . . . . . . . .267
Deleting a Peak Fit Group . . . . . . . . . . . . . . . . . . . . . .268
Applying Peak Fit Groups to Specific Run
Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .268
Peak Names Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .271
Peak Names Analysis Settings Groups. . . . . . . . . .271
Creating a Peak Names Group . . . . . . . . . . . . . . . . .272
Modifying a Peak Names Group . . . . . . . . . . . . . . .275
Deleting a Peak Names Group . . . . . . . . . . . . . . . . .275
Applying Peak Names Groups to Run Data . . . .276
Injection Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Example Analysis and Injection Report. . . . . . . . 280
Importing and Exporting Analysis Settings. . . . . . . . . 283
Importing Analysis Settings . . . . . . . . . . . . . . . . . . . 283
Exporting Analysis Settings. . . . . . . . . . . . . . . . . . . . 283
Chapter 12:
cIEF Data Analysis. . . . . . . . . . . . . . . . . . . . . . . . . 285
Analysis Screen Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Analysis Screen Panes . . . . . . . . . . . . . . . . . . . . . . . . . 286
Software Menus Active in the Analysis Screen . 287
Opening Run Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Opening One Run File. . . . . . . . . . . . . . . . . . . . . . . . . 289
Opening Multiple Run Files. . . . . . . . . . . . . . . . . . . . 289
How Run Data is Displayed . . . . . . . . . . . . . . . . . . . . . . . . 291
Experiment Pane: Batch Injection Information 291
Graph Pane: Electropherogram Data . . . . . . . . . 291
Peaks Pane: Calculated Results. . . . . . . . . . . . . . . . 292
Injections Pane: User-Specified Peak Names. . . 293
Viewing Run Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Switching Between Samples and Markers Data
Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Selecting and Displaying Injection Data . . . . . . 298
Switching Between Single and Multiple Views of
Injections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Hiding Injection Data . . . . . . . . . . . . . . . . . . . . . . . . . 303
Data Notifications and Warnings. . . . . . . . . . . . . . . . . . 304
Checking Your Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
Group Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
Using Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
Viewing Sample Injection Groups . . . . . . . . . . . . . 306
Viewing Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
page 6
User Guide for Maurice, Maurice C. and Maurice S.
Hiding or Removing Injections in Group
Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .309
Copying Results Tables and Graphs. . . . . . . . . . . . . . . . .310
Copying Results Tables. . . . . . . . . . . . . . . . . . . . . . . . .310
Copying the Graph. . . . . . . . . . . . . . . . . . . . . . . . . . . . .310
Saving the Graph as an Image File. . . . . . . . . . . . .310
Exporting Run Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .311
Exporting Results Tables . . . . . . . . . . . . . . . . . . . . . . .311
Exporting Raw Sample Electropherogram
Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .311
Changing Sample Protein Identification. . . . . . . . . . . .312
Adding or Removing Sample Data. . . . . . . . . . . . .312
Hiding Sample Data . . . . . . . . . . . . . . . . . . . . . . . . . . .314
Changing Peak Names for Sample Data . . . . . . .315
Changing the Electropherogram View. . . . . . . . . . . . . .316
Autoscaling the Electropherogram . . . . . . . . . . . .317
Customizing the Data Display . . . . . . . . . . . . . . . . .317
Stacking Multiple Electropherograms. . . . . . . . . .323
Overlaying Multiple Electropherograms . . . . . . .324
Zooming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .325
Selecting Data Viewing Options . . . . . . . . . . . . . . .326
Adding and Removing Baseline Points. . . . . . . . .330
Selecting the Graph X-axis Range . . . . . . . . . . . . . .331
Closing Run Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .333
Analysis Settings Overview. . . . . . . . . . . . . . . . . . . . . . . . . .334
Advanced Analysis Settings. . . . . . . . . . . . . . . . . . . . . . . . .336
pI Markers Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . .336

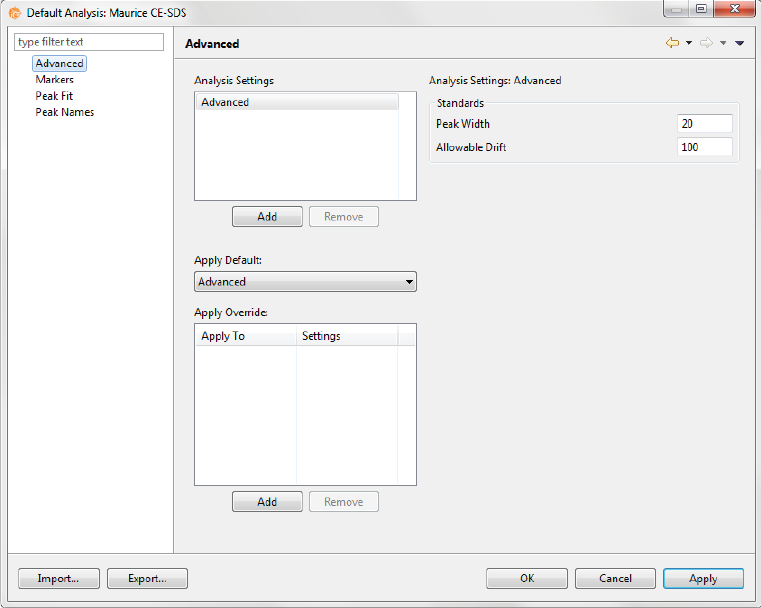

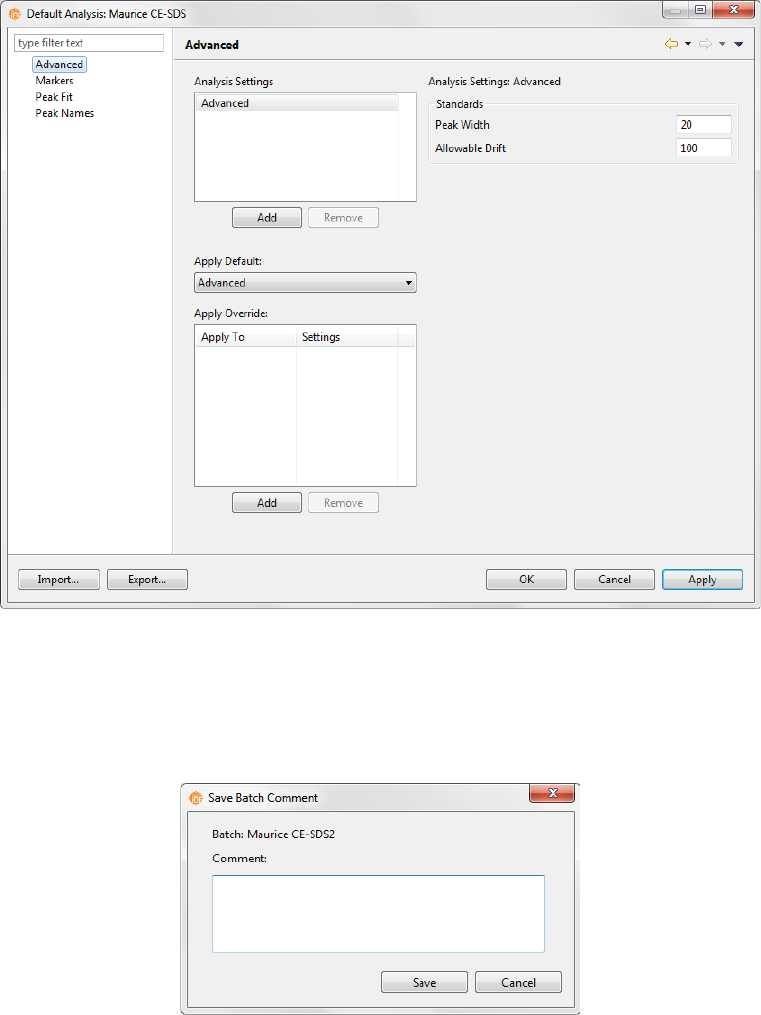

Advanced Analysis Settings Groups . . . . . . . . . . . .337
Creating a New Analysis Group . . . . . . . . . . . . . . . .337
Changing the Default Analysis Group. . . . . . . . . .338
Modifying an Analysis Group . . . . . . . . . . . . . . . . . .339
Deleting an Analysis Group . . . . . . . . . . . . . . . . . . . 339
Applying Analysis Groups to Specific Run Data 340
Detection Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
Changing the Detection Method. . . . . . . . . . . . . . 343
Changing the Detection Exposure . . . . . . . . . . . . 344
Peak Fit Analysis Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Range Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Baseline Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Peak Find Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Peak Fit Analysis Settings Groups. . . . . . . . . . . . . . 348
Creating a New Peak Fit Group. . . . . . . . . . . . . . . . 348
Changing the Default Peak Fit Group . . . . . . . . . 350
Modifying a Peak Fit Group . . . . . . . . . . . . . . . . . . . 350
Deleting a Peak Fit Group . . . . . . . . . . . . . . . . . . . . . 351
Applying Peak Fit Groups to Specific Run Data 351
Peak Names Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Peak Names Analysis Settings Groups. . . . . . . . . 354
Creating a Peak Names Group . . . . . . . . . . . . . . . . 355
Modifying a Peak Names Group . . . . . . . . . . . . . . 358
Deleting a Peak Names Group . . . . . . . . . . . . . . . . 358
Applying Peak Names Groups to Run Data. . . . 359
pI Markers Analysis Settings. . . . . . . . . . . . . . . . . . . . . . . . 362
Markers Analysis Settings Groups . . . . . . . . . . . . . 362
Creating a New Markers Group . . . . . . . . . . . . . . . 363
Changing the Default Markers Group . . . . . . . . . 365
Modifying a Markers Group . . . . . . . . . . . . . . . . . . . 366
Deleting a Markers Group . . . . . . . . . . . . . . . . . . . . . 366
Applying Markers Groups to Specific Run Data 367
Injection Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
Example Analysis and Injection Report . . . . . . . . 371
page 7
User Guide for Maurice, Maurice C. and Maurice S.
Importing and Exporting Analysis Settings . . . . . . . . .374
Importing Analysis Settings . . . . . . . . . . . . . . . . . . . .374
Exporting Analysis Settings . . . . . . . . . . . . . . . . . . . .374
Chapter 13:
Setting Your Preferences . . . . . . . . . . . . . . . . .377
Customize Your Preferences . . . . . . . . . . . . . . . . . . . . . . . .378
Enabling Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . .379
Setting Data Export Options . . . . . . . . . . . . . . . . . . . . . . . .379
Selecting Custom Plot Colors for Graph Overlay . . . .380
Grouping Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .382
Setting Up Maurice Systems to Send Tweets . . . . . . . .383
Chapter 14:
Compass Access Control and
21 CFR Part 11 Compliance . . . . . . . . . . . . . .389
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .390
Enabling Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . .391
Logging In to Compass for iCE . . . . . . . . . . . . . . . . . . . . . .392
Locking and Unlocking the Application. . . . . . . .393
Resolving Log In Issues . . . . . . . . . . . . . . . . . . . . . . . . .393
Saving Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .394
Signing Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .395
Instrument Command Log . . . . . . . . . . . . . . . . . . . . . . . . .395
Run File History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .398
Troubleshooting Problems and Suggested
Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .398
Authorization Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .399
Server Administration . . . . . . . . . . . . . . . . . . . . . . . . . .400
Adding Non-admin Users . . . . . . . . . . . . . . . . . . . . . .400
Adding Admin Users . . . . . . . . . . . . . . . . . . . . . . . . . . .404
Resetting User Passwords . . . . . . . . . . . . . . . . . . . . . .405
Audit Trail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .406
Password Policy Settings . . . . . . . . . . . . . . . . . . . . . . 406
LDAP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407
Encryption Details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407
Chapter 15:
Maintenance and Troubleshooting. . . . . 409

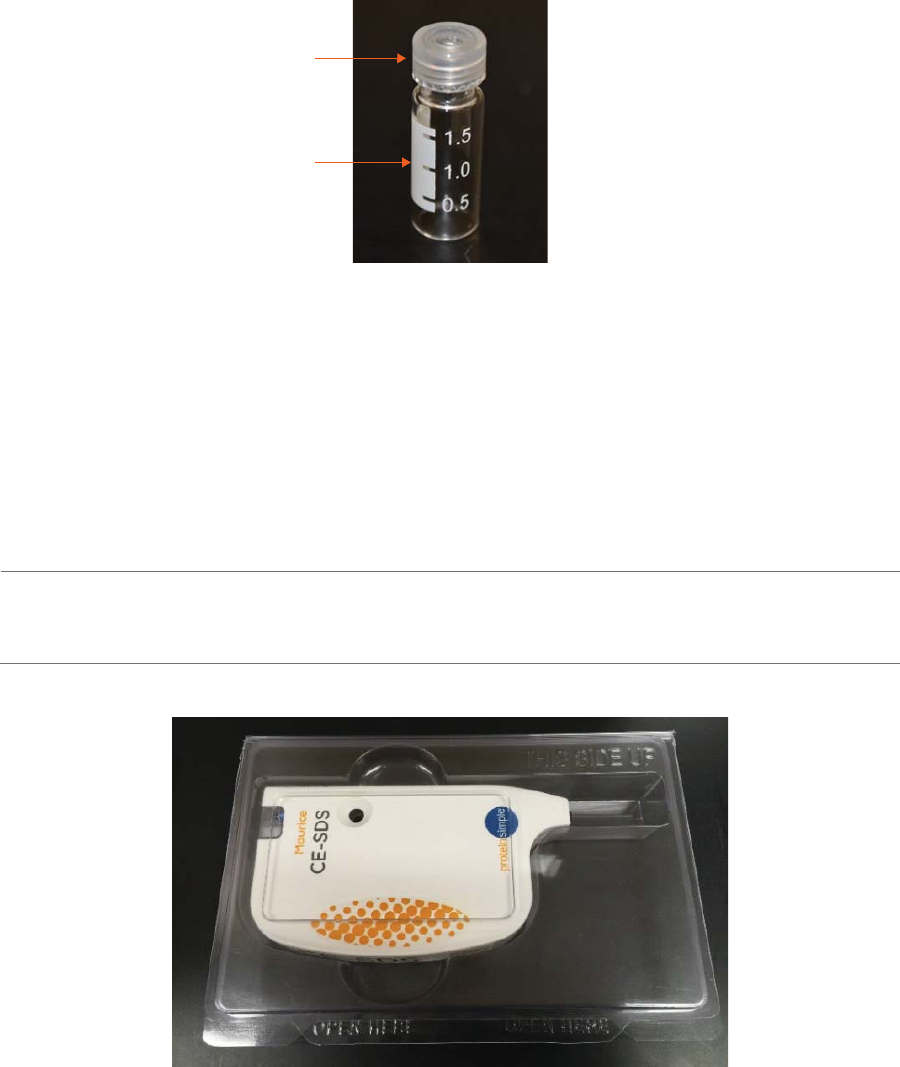

Cartridge Handling and Care . . . . . . . . . . . . . . . . . . . . . . 410
cIEF Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410
CE-SDS Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 411
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 412
Daily . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 412
Yearly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413
Changing the Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413
Spare Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414
Software Updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414
Instrument Software (Embedded) Updates . . . . . . . . 415
Frequently Asked Questions: cIEF Applications. . . . . 415
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 419
cIEF Application Troubleshooting . . . . . . . . . . . . . 419
CE-SDS Application Troubleshooting . . . . . . . . . 421
Chapter 16:
General Information . . . . . . . . . . . . . . . . . . . . . . 423
Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 424
Safety Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 425
Chemical Hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . 425
Chemical Waste Hazards . . . . . . . . . . . . . . . . . . . . . 426
Waste Production and Disposal. . . . . . . . . . . . . . . 427
Safety Data Sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . 427
Instrument Safety Labels . . . . . . . . . . . . . . . . . . . . . . 428
Consumables and Reagents . . . . . . . . . . . . . . . . . . . . . . . 429
page 8
User Guide for Maurice, Maurice C. and Maurice S.
Maurice CE-SDS Consumables, Kits and
Reagents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .429
Maurice cIEF Consumables, Kits and Reagents .431
Maurice Systems Consumables and Reagents .433
Customer Service and Technical Support . . . . . . . . . . .433
Legal Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .435
Maurice Disclaimer of Warranty . . . . . . . . . . . . . . .435
Compass Software and Authorization Server
License Agreement. . . . . . . . . . . . . . . . . . . . . . . . . . . . .435
page 1
User Guide for Maurice, Maurice C. and Maurice S.
Chapter 1:
Let’s Get Started
Chapter Overview
•Welcome
•Maurice Systems
Welcome page 2
User Guide for Maurice, Maurice C. and Maurice S.
Welcome
Congratulations on bringing Maurice into your lab! We welcome you as a new user and are excited to be a
part of your work. This user guide will provide you with details on system hardware, operating the system,
how to use Compass for iCE software, maintenance procedures and other useful information.
To help you get the most from you new lab addition, we've added some attention phrases to guide you
through the user guide:
NOTE Points out useful information.
IMPORTANT Indicates information necessary for proper operation of Maurice systems.
CAUTION Cautions you about potentially hazardous situations that could result in injury to you or
damage to the system.
!WARNING! Warns you that serious physical injury can result if the listed precautions aren’t followed.
Maurice Systems
Maurice, Maurice C. and Maurice S. systems give you identity, purity and heterogeneity data on your biolog-
ics, and get you to results faster with short development times and simple workflows!
They're fluent in cIEF and CE-SDS. They take cIEF up a notch, and CE-SDS is a breeze. You'll get pI
and charge heterogeneity data in less than 10 minutes flat — with the added bonus of same-time
absorbance and native fluorescence for sensitivity down to 0.7 μg/mL. Their size applications have
the high res and wide molecular weight range you need and they're done in 35 minutes.
They make it easy. Just pop in a ready-to-go cartridge, drop in your sample vials or a 96-well plate,
and hit start — they'll do the rest!
They're time-savers. Develop methods fast so you get to results even faster. Your cIEF and CE-SDS
methods are done in a day. The icing? You can develop platform methods and use them for multiple
molecules. No maintenance and clean-up needed between the two applications.
They're dependable. Get reproducible results with tight CVs day in and day out. Your data is reliable
no matter what — across samples, users, instruments or labs.
page 3
User Guide for Maurice, Maurice C. and Maurice S.
Chapter 2:
Getting Your Lab Ready
Chapter Overview
•Introduction
Space Requirements
Physical Specifications
Electrical Requirements
Environmental Requirements
Software and Computer Requirements
General Guidelines and Information
Introduction page 4
User Guide for Maurice, Maurice C. and Maurice S.
Introduction
This chapter will help you prepare the lab for Maurice. Please have the space, electrical and environmental
requirements ready prior to scheduling your installation.
NOTE: Please wait for an authorized ProteinSimple Field Service Engineer to unpack and install Maurice
for you. Don’t try doing this yourself. Handling Maurice incorrectly could cause injury to yourself or dam-
age to the system.
Space Requirements
You need a lab bench or table that can support 100 lb (46 kg) and has enough space for both Maurice and
his computer. There should be sufficient clearance for both heat ventilation and to provide access if Maurice
needs service.
IMPORTANT
Maurice needs a stable surface and must remain level to work properly. The lab bench or table can’t
shift or wobble under heavy weight. Dont use anti-vibration tables either, since Maurice may not
stay level while hes working.
Recommended space requirements for Maurice.
Dimension Meters Feet
Width 1.5 5.0
Depth 0.8 2.5
Height 0.5 1.5
Physical Specifications page 5
User Guide for Maurice, Maurice C. and Maurice S.
Physical Specifications
For indoor use only. Use up to altitudes of 1524 meters (5000 feet).
Table 2-1: Physical Specifications
Electrical Requirements
Maurice requires a dedicated, grounded circuit capable of delivering the appropriate current and voltage for
your country. The power requirements for all three Maurice systems are 100 V- 240 V (AC), 50/60 Hz, 500 W.
In addition to these requirements, Maurice needs the grounded circuits terminate at the receptacles, and
receptacles must be located within 10 ft (3 m) of the instrument.
Environmental Requirements
Maurice likes a consistent temperature in the lab (not too hot – not too cold). He works best when condi-
tions stay within these ranges:
Table 2-2: Environmental requirements.
Description Specification
Maurice’s Dimensions (Door Closed) 0.44 m x 0.42 m x 0.61m (H x W x D)
1.46’ x 1.38’ x 2.0’ (H x W x D)
Maurice’s Dimensions (Door Open) 0.44 m x 0.57 m x 0.61m (H x W x D)
1.46” x 2.43’ x 2.0’ (H x W x D)
Maurice’s Weight 46 kg (100 lb)
Computer Workstation Dimensions 0.41 m x 0.66 m x 0.76 m (H x W x D)
1.35' x 2.17' x 2.49' (H x W x D)
Requirement Specification
Operating temperature range 18 - 25 °C (64 - 77 °F)
Operating humidity range 20-80% relative, non-condensing
Software and Computer Requirements page 6
User Guide for Maurice, Maurice C. and Maurice S.
Software and Computer Requirements

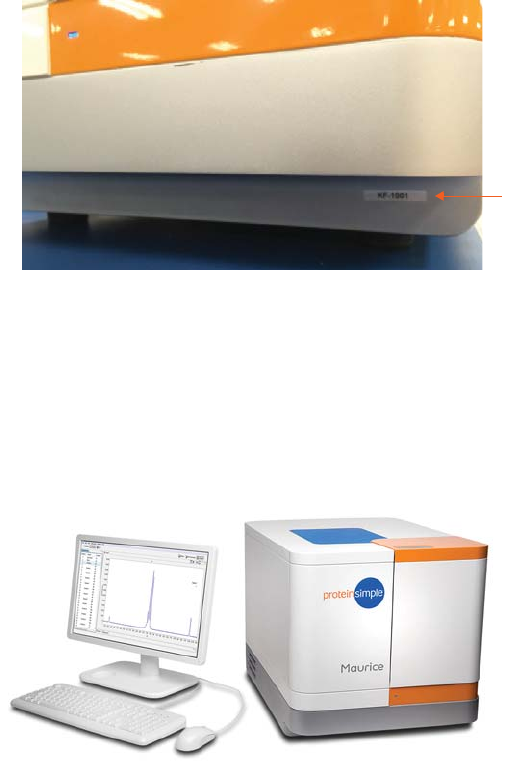

Maurice brings his own computer to the lab with Compass for iCE software pre-installed. Compass for iCE is
used to run cIEF and CE-SDS applications on Maurice and analyze resulting data. Just in case you need it, a
CD containing Compass for iCE software also comes in the box. If you don't want to analyze your data at
Maurice's workstation in the lab, Compass for iCE software can also be installed on a separate workstation,
such as your desktop computer. Your computer must meet the recommended requirements listed below to
run Compass for iCE software and process data.
Table 2-3: Computer requirements.
General Guidelines and Information
Intended Use
NOTE: Maurice is for research use only. Not for use in diagnostic procedures.
Lifting and Moving the System: Lift Maurice Correctly
IMPORTANT
Take all the standard precautions when lifting or moving Maurice. Since Maurice systems weigh 46
kg (100 lb), you should not lift him by yourself. Two people should lift him onto the lab bench.
Component Recommended
Operating System Windows 7
Processor Core i5
Memory 6 GB
Free Disk Space 100 GB
Ethernet Ports 2 - One is required to connect to Maurice, the other is
used for network access
USB Ports 2 - To connect the keyboard and mouse
page 7
User Guide for Maurice, Maurice C. and Maurice S.
Chapter 3:
Maurice
Chapter Overview
•Maurice Systems
External Components
Internal Components
•Rear Panel
•Computer Workstation
Maurice Systems page 8
User Guide for Maurice, Maurice C. and Maurice S.
Maurice Systems
Maurice, Maurice C. and Maurice S. systems include the instrument, computer workstation, Compass for iCE
software and cIEF or CE-SDS Cartridges.
All systems have the same hardware components, computer and software, the only difference between
them are the applications you can run:
Maurice: cIEF and CE-SDS applications
Maurice C.: cIEF applications only
Maurice S.: CE-SDS applications only
You can run samples in 96-well plates or in up to 48 sample vials with integrated 0.2 mL inserts on all three
systems.
Maurice with Computer Workstation cIEF and CE-SDS Cartridges
Maurice C. Maurice Maurice S.
External Components page 9
User Guide for Maurice, Maurice C. and Maurice S.
External Components
!WARNING!
You can’t replace or service any parts on Maurice systems except for the power entry fuse.

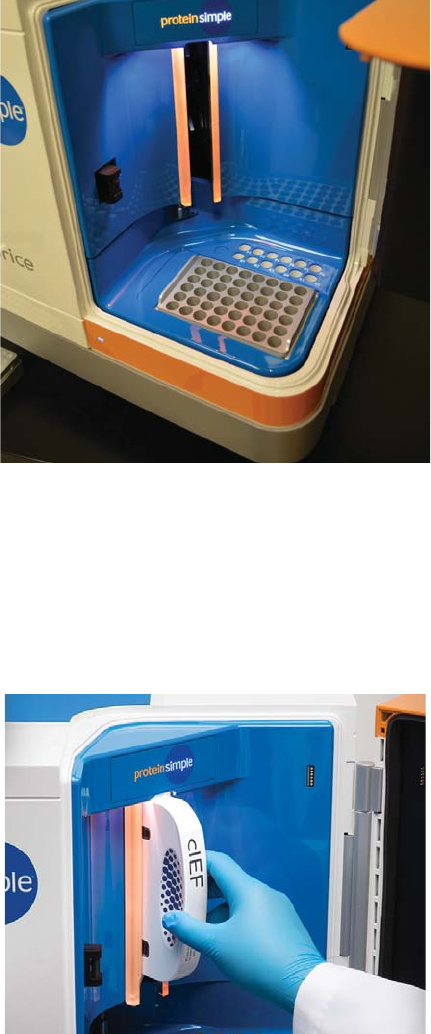

System Door
Maurice's door gives you access to the inside of the instrument to load cartridges, reagents and samples. To
open the door, first make sure the status light is a steady blue. Then just touch the metal touch plate on the
top of the door to open it. Close it by pushing the door until you hear the latch engage.
NOTE: Maurices door must be closed before starting a batch.
Touch Plate to
System Door
Status Light
Open Door
Internal Components page 10
User Guide for Maurice, Maurice C. and Maurice S.
Status Light
The LED on Maurices front panel tells you what hes doing. Heres what his different status lights mean:
Start-up (magenta): You've just turned on the power and Maurice is warming up.
Ready (steady blue): Maurice is powered on and ready to go.
Opening Door (long blue flash followed by blue pulses): Maurice’s door is opening.
Running (pulsing blue): Maurice is running a batch.
Trying to Open Door While Running (red flash): Maurices door can’t be opened when hes run-
ning.
Error (steady red): Maurice has detected an error. To get more information on the error, check the
Status pane in the Run Summary Screen in Compass for iCE.
Internal Components

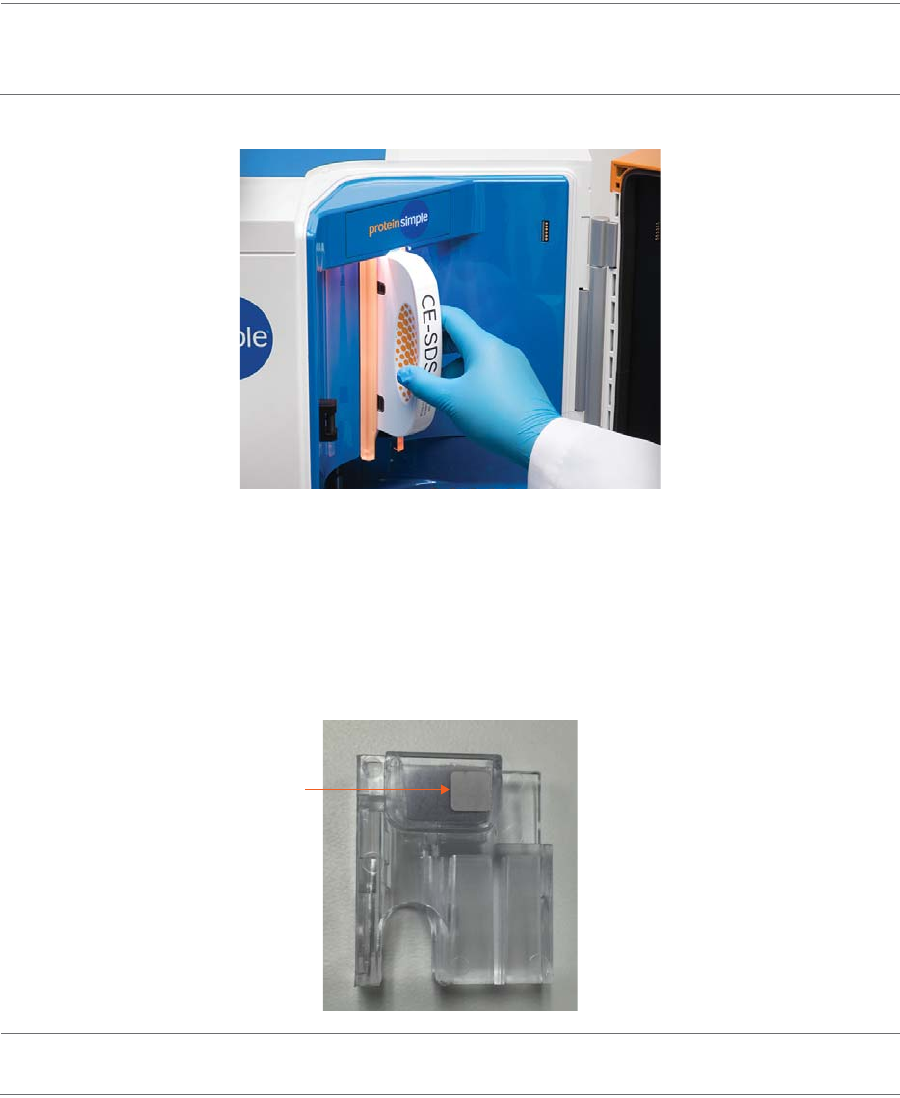

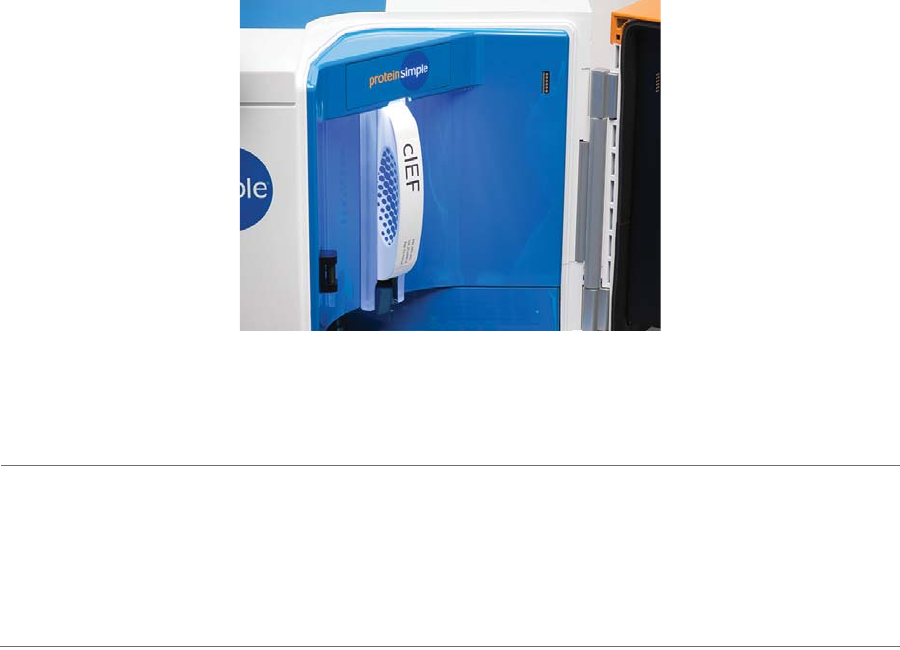

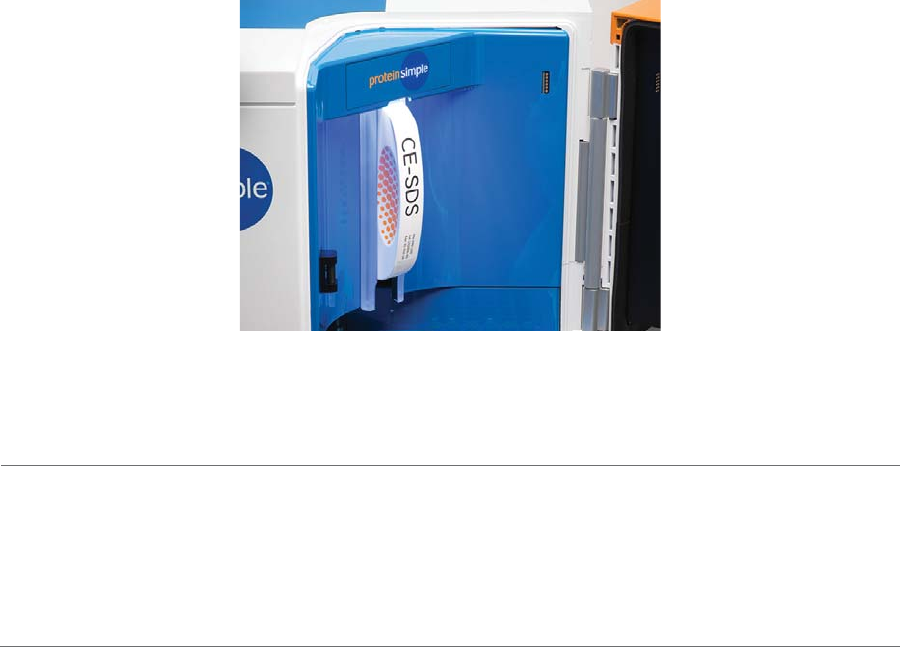

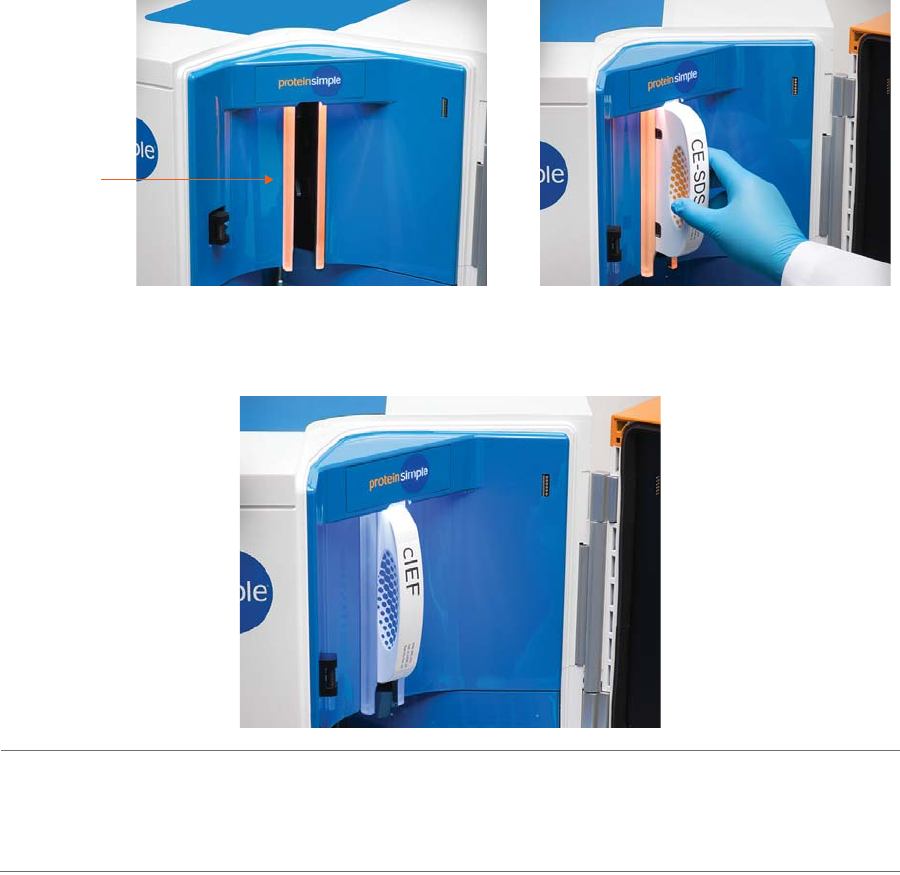

Cartridge Slot

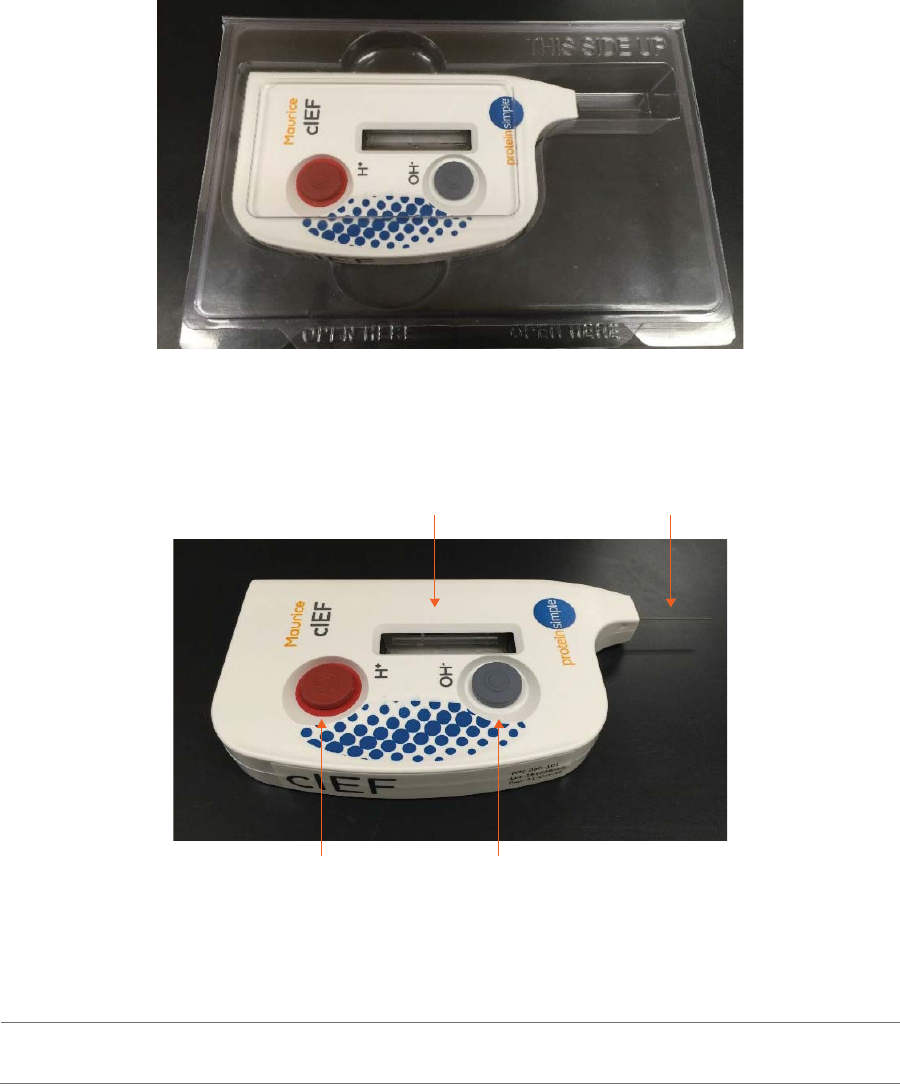

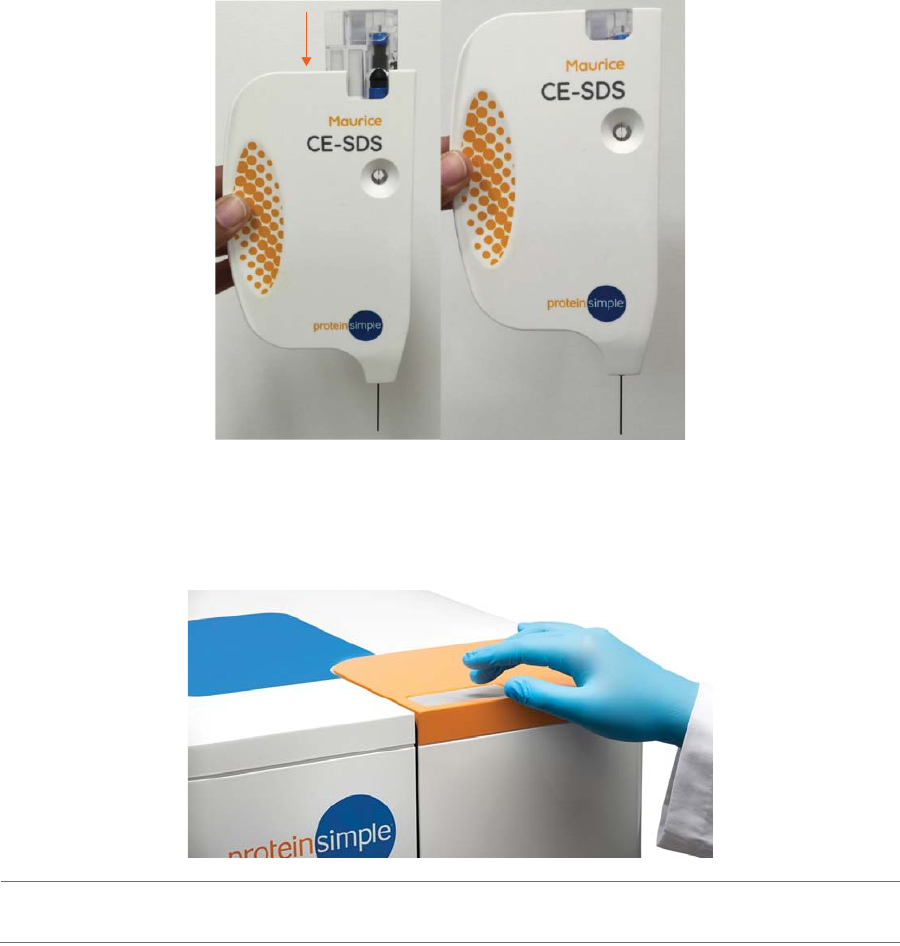

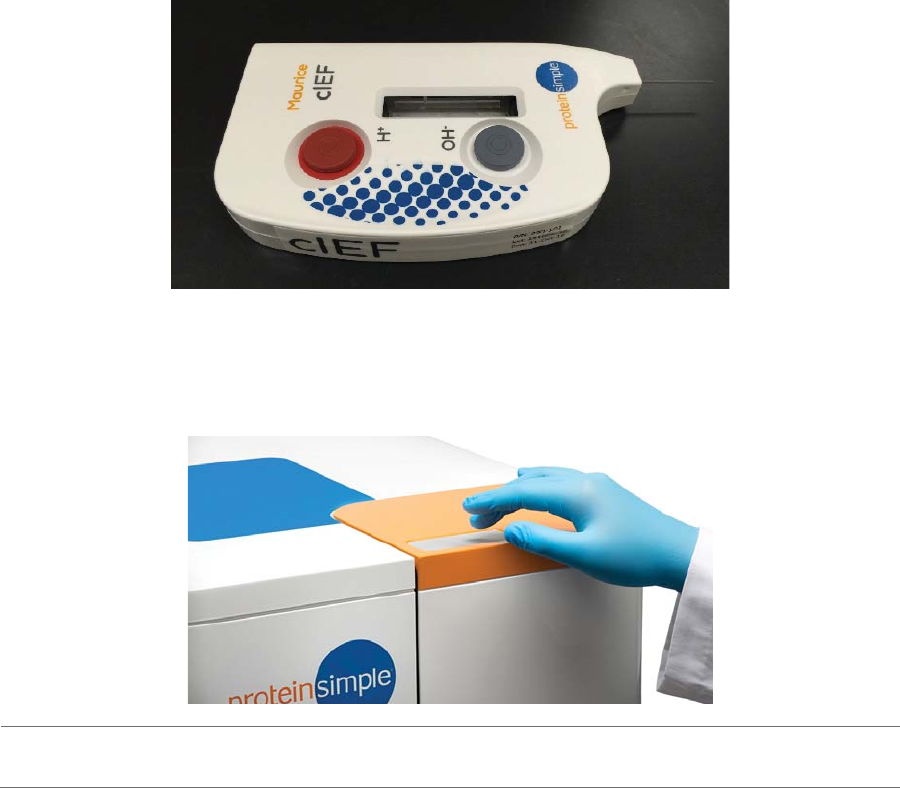

The cartridge slot holds Maurice’s ready-to-go application cartridges. The cartridge it holds depends on the
system:
Maurice: cIEF and CE-SDS Cartridges
Maurice C.: cIEF Cartridges only
Maurice S.: CE-SDS Cartridges only
Internal Components page 11
User Guide for Maurice, Maurice C. and Maurice S.
The lights on either side of the cartridge slot will be orange after Maurice disengages the cartridge when
the door is opened at the end of a batch, and whenever the slot is empty.
The lights change to blue once a cartridge is installed correctly.

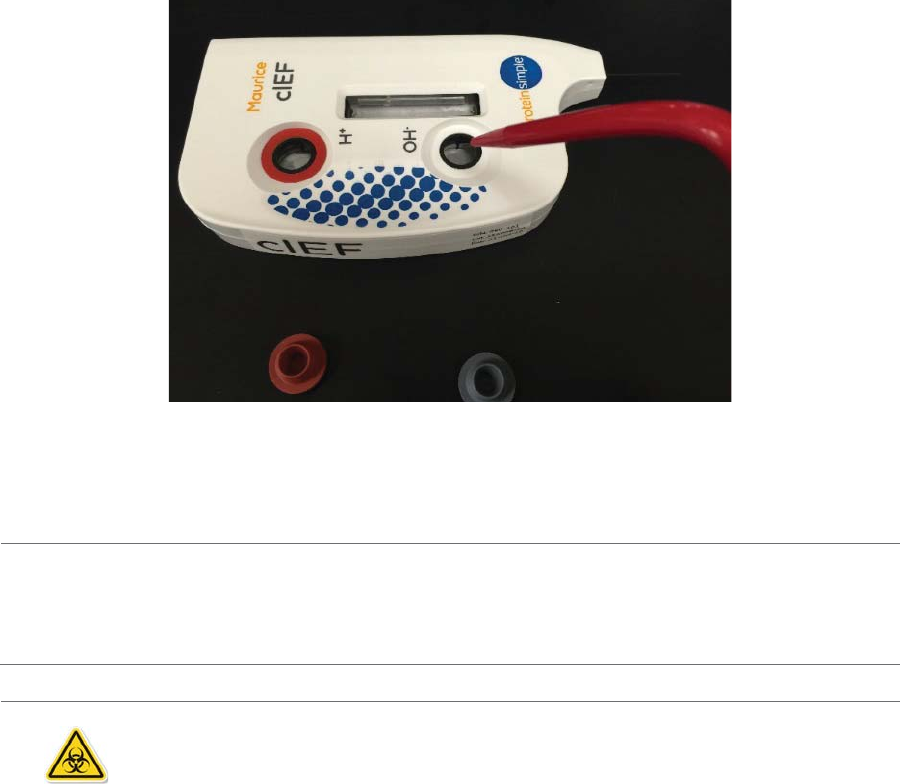

NOTE: You can find cartridge prep, installation and post-run procedures in Chapter 7, “Running cIEF Appli-
cations on Maurice and Maurice C.“ and Chapter 8, “Running CE-SDS Applications on Maurice and Mau-
rice S.
Cartridge
Slot
Internal Components page 12
User Guide for Maurice, Maurice C. and Maurice S.

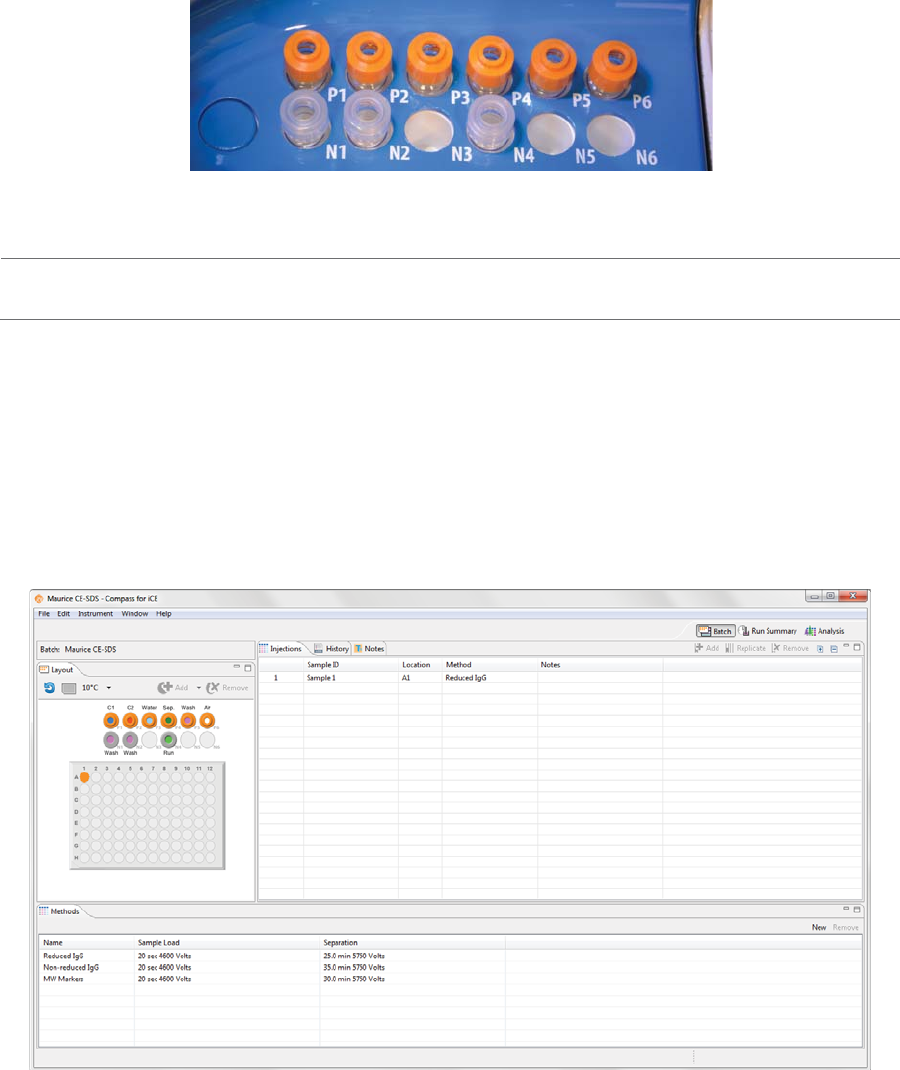

Sample and Reagent Platform

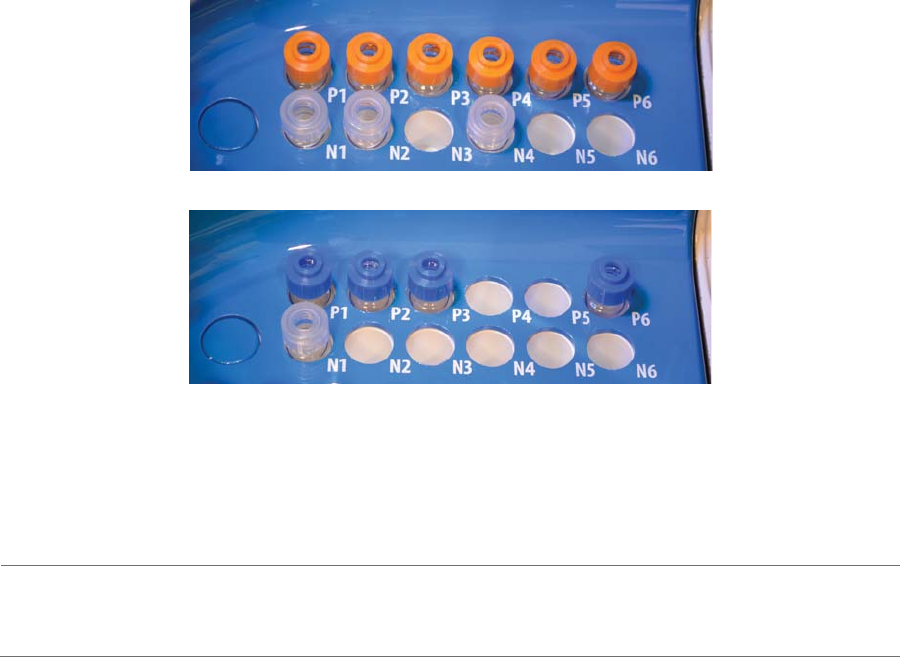

Maurice’s sample and reagent platform has two rows for batch reagents. These reagents are kept at room
temperature.

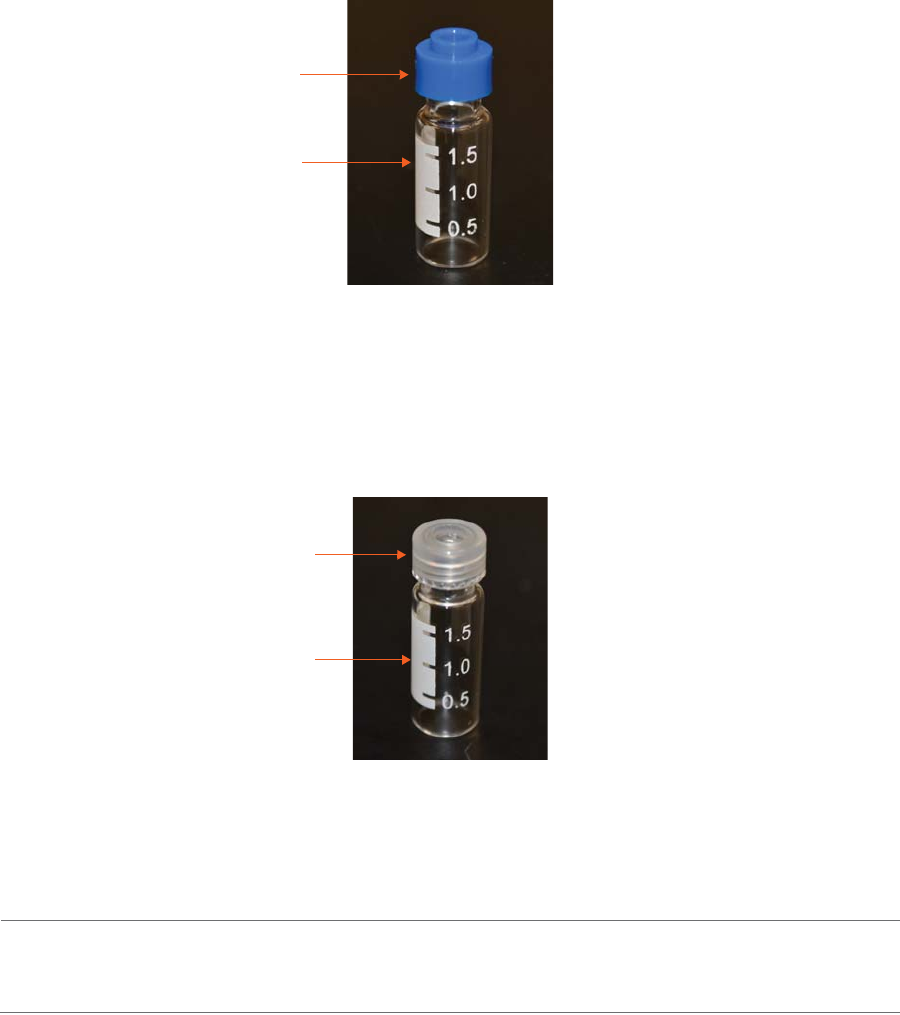

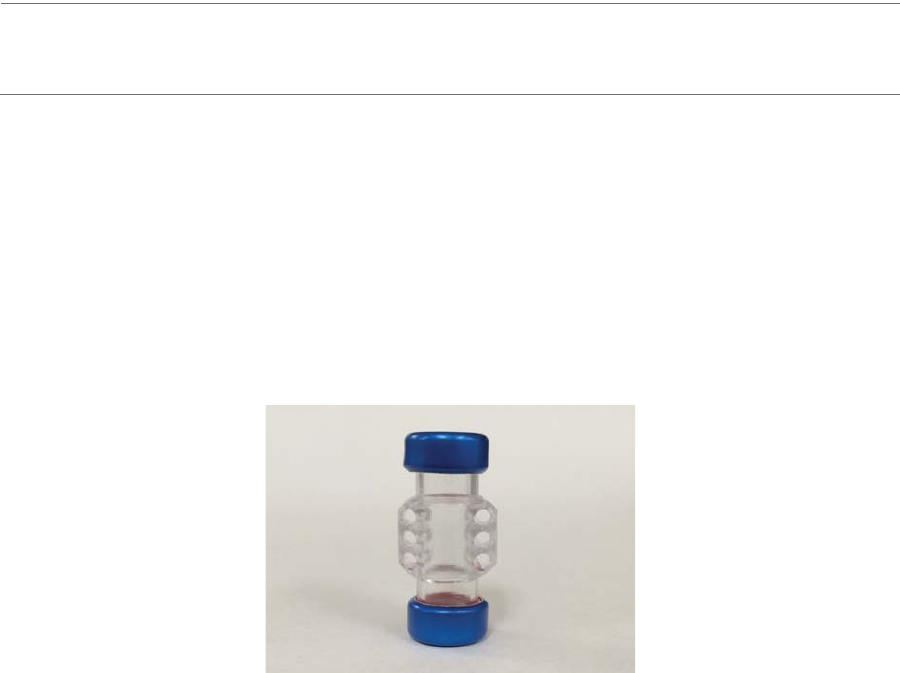

Row P (top): These reagents are loaded under pressure during the batch. Only use glass reagent
vials with pressure caps in this row. Use blue pressure caps with cIEF reagents and orange pres-
sure caps with CE-SDS reagents.

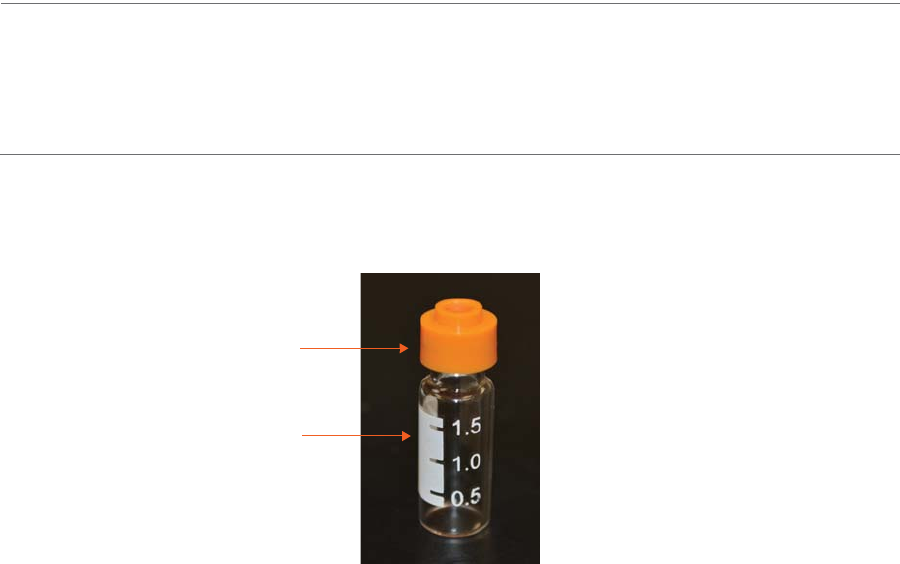

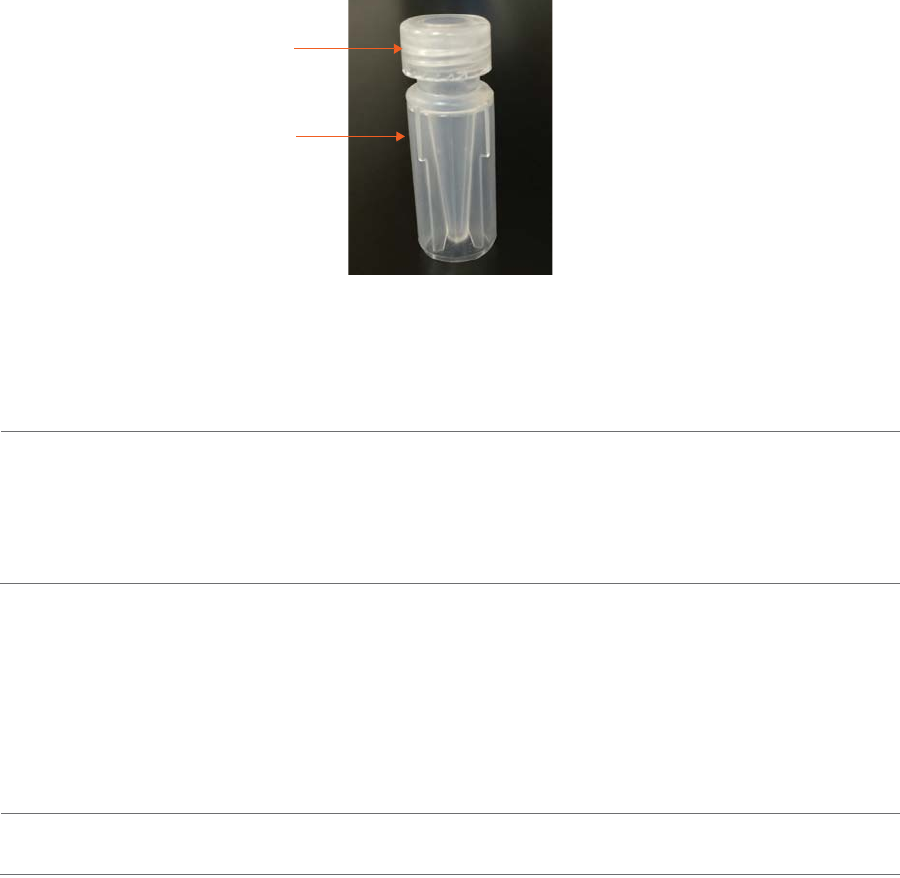

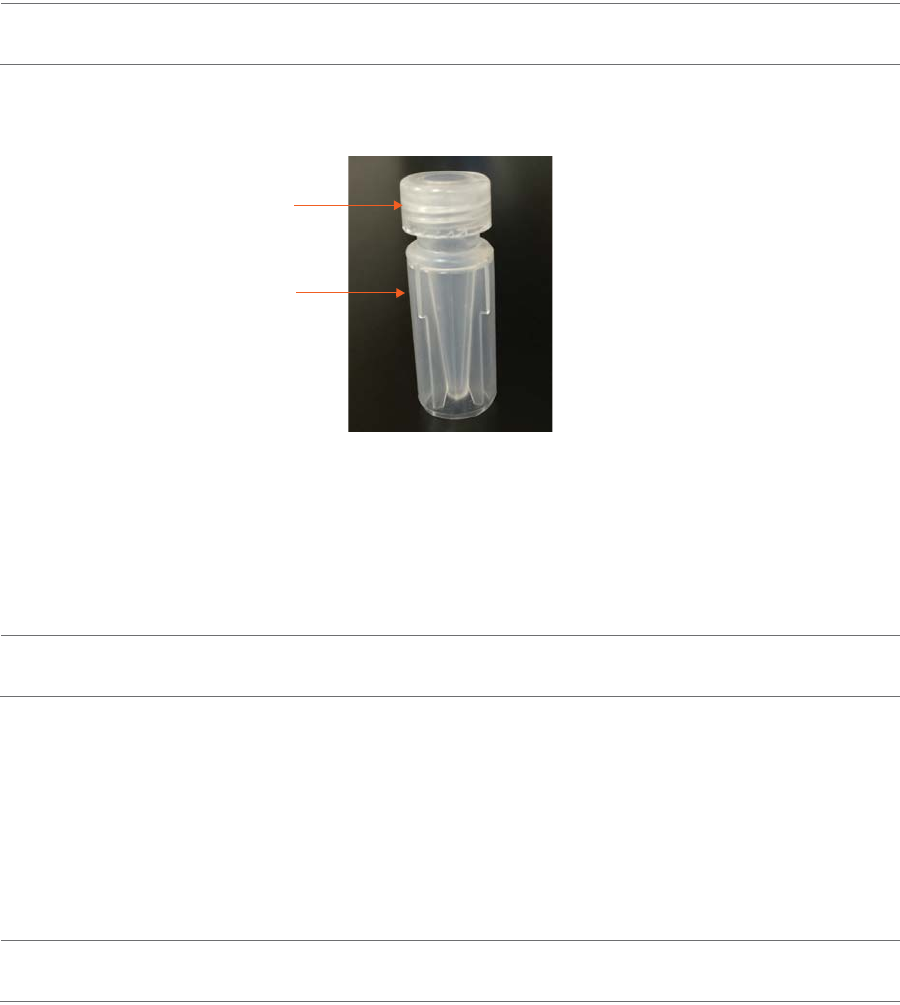

Row N (bottom): Only use reagent vials with clear screw caps in this row.

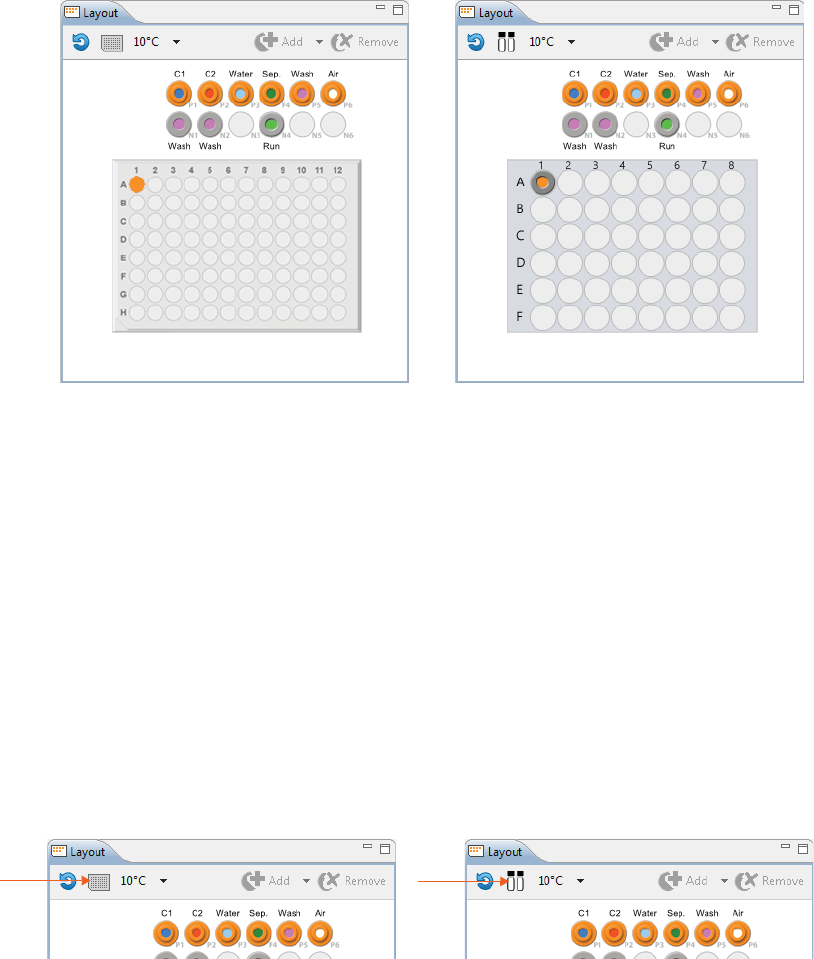

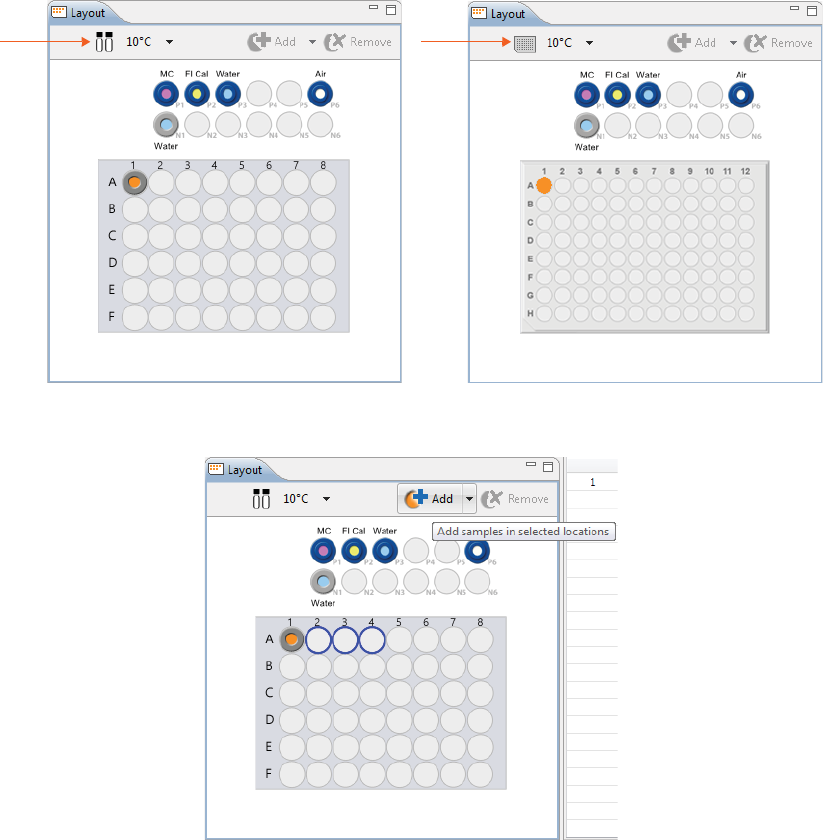

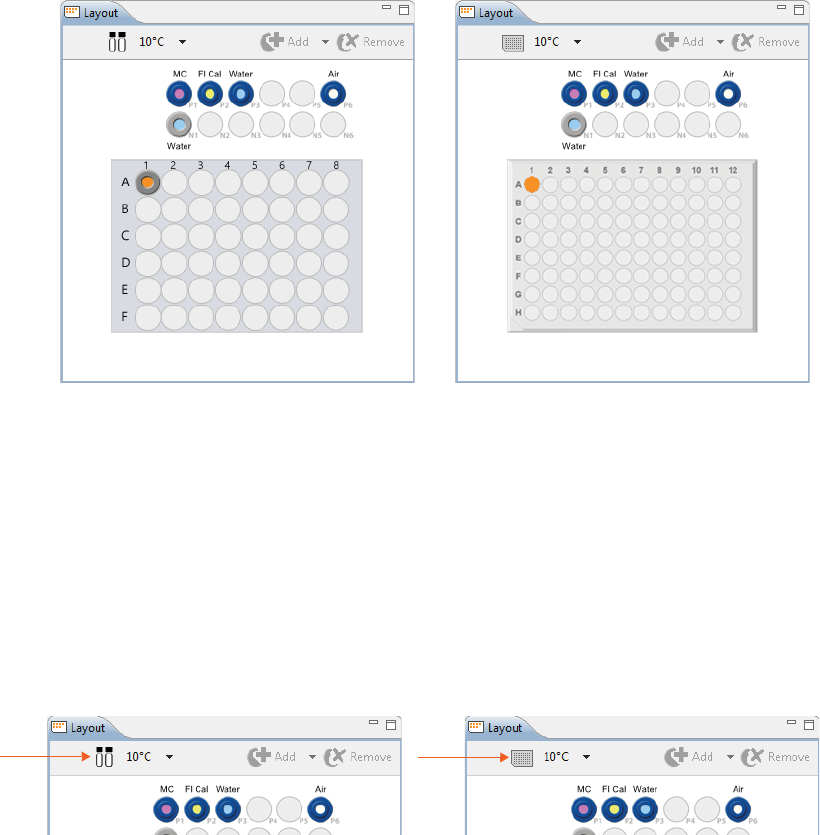

The sample block holds either a 96-well plate or 48-vial metal insert and is temperature-controlled. You can

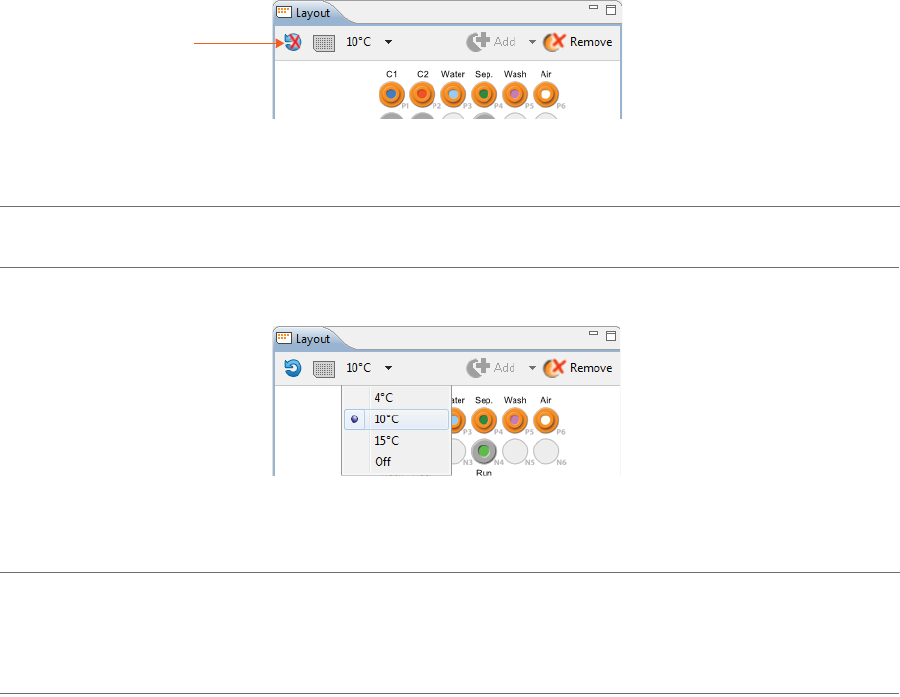

set it to 4 °C, 10 °C, 15 °C or turn the temperature control off in Compass for iCE software.
Sample cooling turns on when the run starts, and takes a few minutes to reach the temperature setting.
After a run, the sample block stays at the set temperature until you open Maurices door, then it shuts off
until you start the next run. This prevents excess condensation.
NOTE: Because Maurice holds the sample block temperature after a run until you open the door, samples
are still viable for your next run and after overnight runs.
Internal Components page 13
User Guide for Maurice, Maurice C. and Maurice S.
NOTES:
When you’re using a 96-well plate, well A1 should be in the top left corner of the insert.
You can only use V-bottom plates with the 96-well plate insert.
Remove plate lids before inserting a 96-well plate into Maurice.
You can find info on where to load reagents and samples for cIEF applications in “Step 4: Load Samples
and Reagents” on page 90 and for CE-SDS applications in “Step 4: Load Samples and Reagents” on
page 124.
96-well Plate
Insert
48-vial
Insert
Internal Components page 14
User Guide for Maurice, Maurice C. and Maurice S.
Rear Panel
Located on Maurice’s rear panel is the power entry, power switch and network connector.
System Power - The main system power components consist of the power input, fuse and power
switch
!WARNING!
Only use the power supply cord provided with Maurice. If the cord is damaged, please contact Pro-
teinSimple Technical Support.
!WARNING!
You can't replace or service any parts on Maurice except the power entry fuse.
!WARNING! SHOCK HAZARD
Disconnect the power cord from Maurices power input to disconnect power to the instrument.
Network connection - A 10/100/1000 Mbps Ethernet (RJ-45 connector) is used to connect Maurice
to a computer or local network.
NOTE: Serial numbers are used to identify individual instruments.
System Labels
A full system label is located on the rear panel. It includes the ProteinSimple location, system model, power
requirements, serial number and certification markings.
Power
Entry
Power
Switch
Fuse
Network
Connector
Internal Components page 15
User Guide for Maurice, Maurice C. and Maurice S.
A serial number label is located on the Maurice systems front lower right side, on the silver system base.
Computer Workstation page 16
User Guide for Maurice, Maurice C. and Maurice S.
Computer Workstation
The PC has two built-in Ethernet ports, one is used for Maurice and the other is available for your companys
network. ProteinSimple configures one port to have a fixed IP for a local link connection to the instrument,
the other is configurable by users and will typically use a DHCP for dynamic IP.
page 17
User Guide for Maurice, Maurice C. and Maurice S.
Chapter 4:
Compass for iCE Overview
Chapter Overview
Launching Compass for iCE
Compass for iCE Overview
•Software Menus
Changing the Compass for iCE Main Window Layout
Software Help
Checking for and Installing New Versions of Compass for iCE
•Viewing Release Notes
Viewing the Software Log
Compass for iCE Version Information
Directory and File Information
page 18 Chapter 4: Compass for iCE Overview
User Guide for Maurice, Maurice C. and Maurice S.
Launching Compass for iCE
Compass for iCE Overview
Compass for iCE has three main screens:
Batch - You’ll create and review your batch.
Run Summary - Check out the status of your run.
Analysis - Take a look at the data from your experiment.
Each screen has these components:
To open Compass for iCE, just double-click the icon on the computer desktop.
Instrument
Status Bar
Screen Panes
Title bar Screen Tabs
Status Bar
Main Menu
Compass for iCE Overview page 19
User Guide for Maurice, Maurice C. and Maurice S.
Changing the Screen View

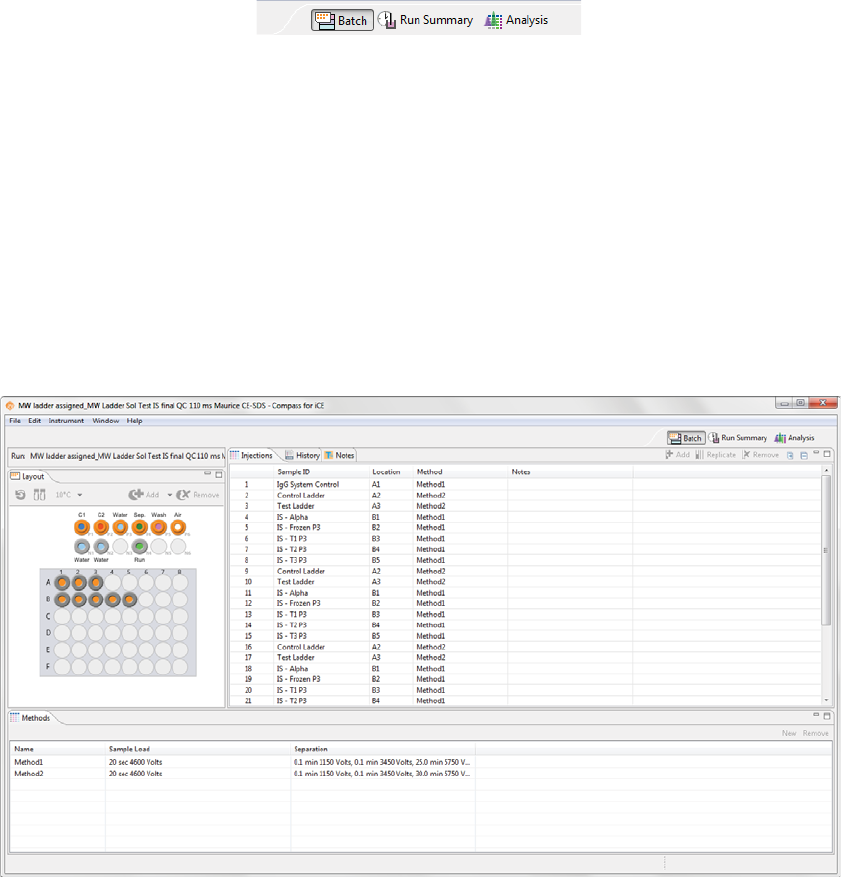

To toggle between the Batch, Run Summary and Analysis screens, just click the button in the screen tab
located in the upper right corner of the main window.

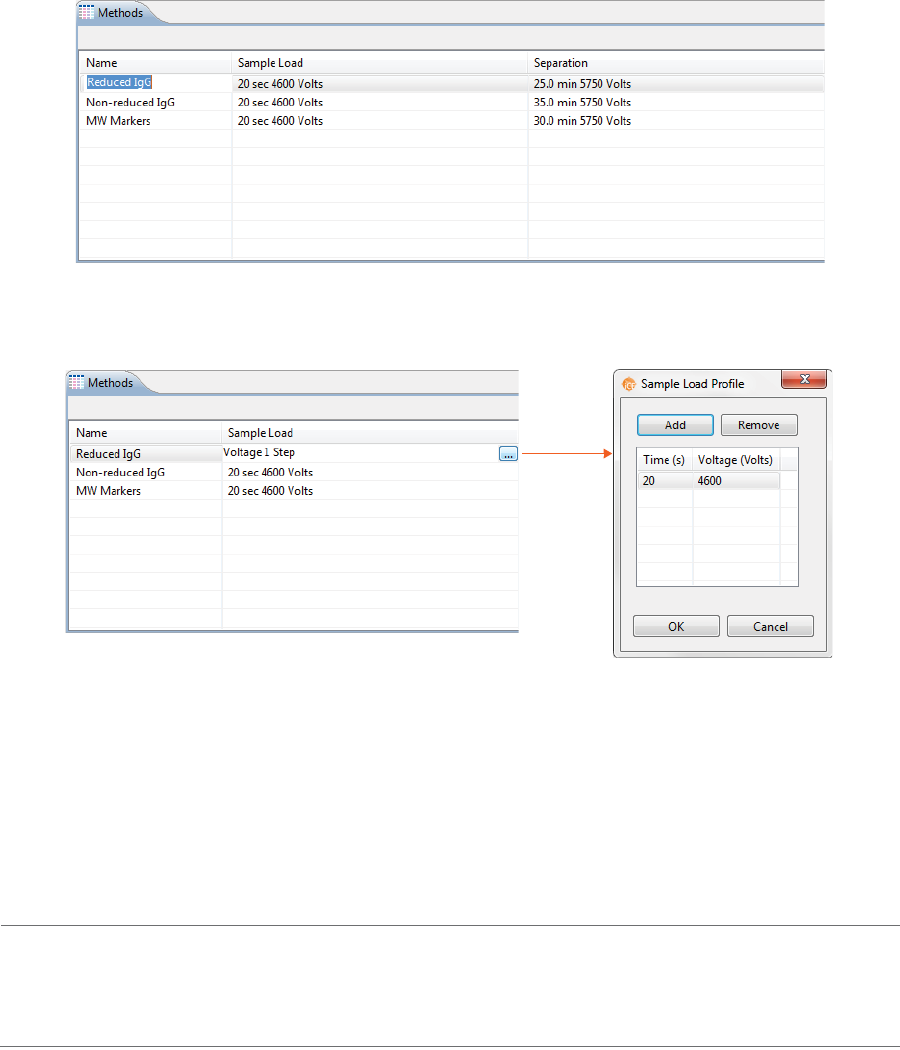

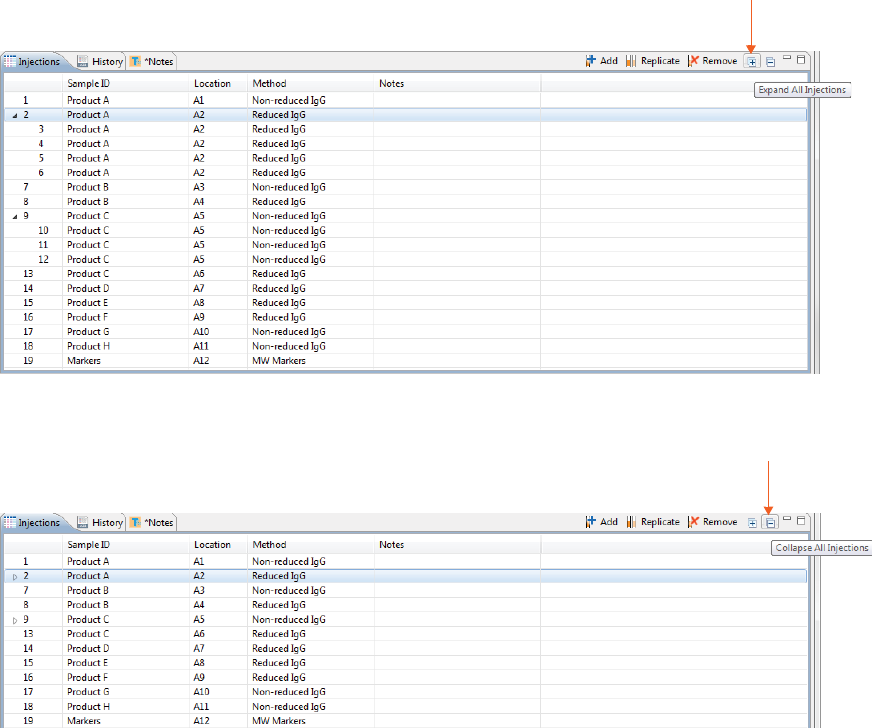

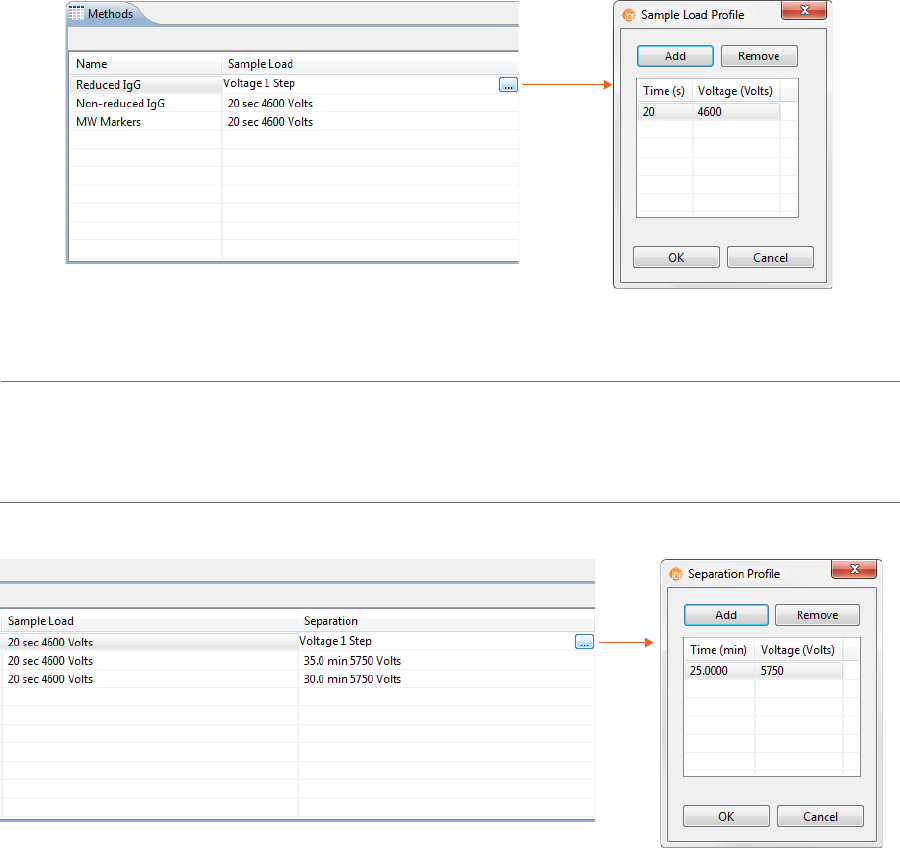

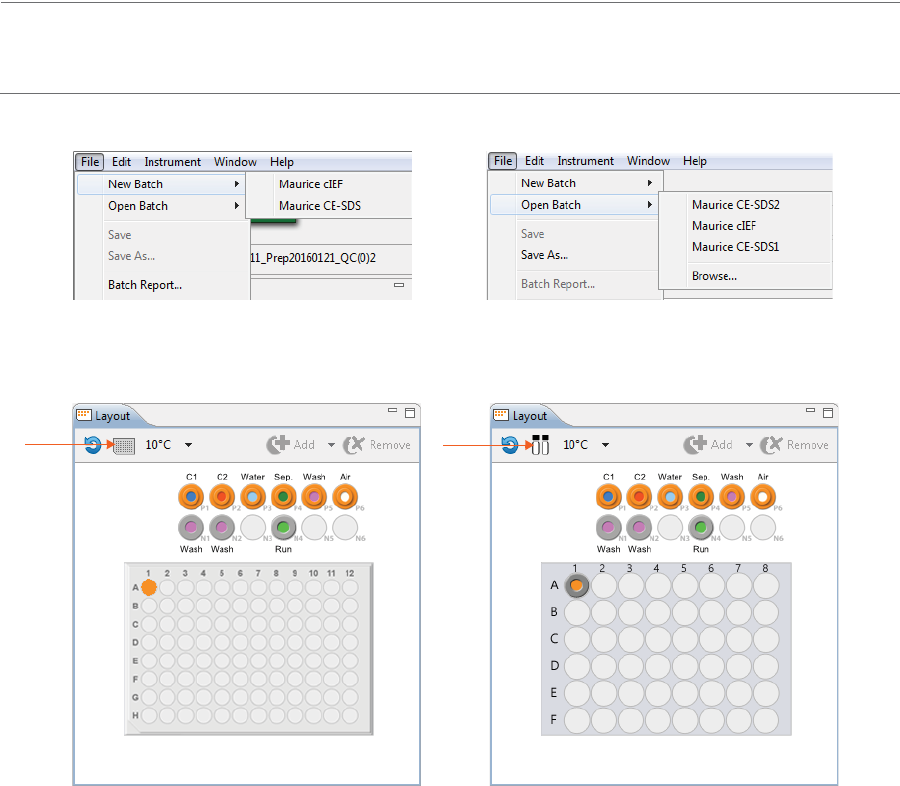

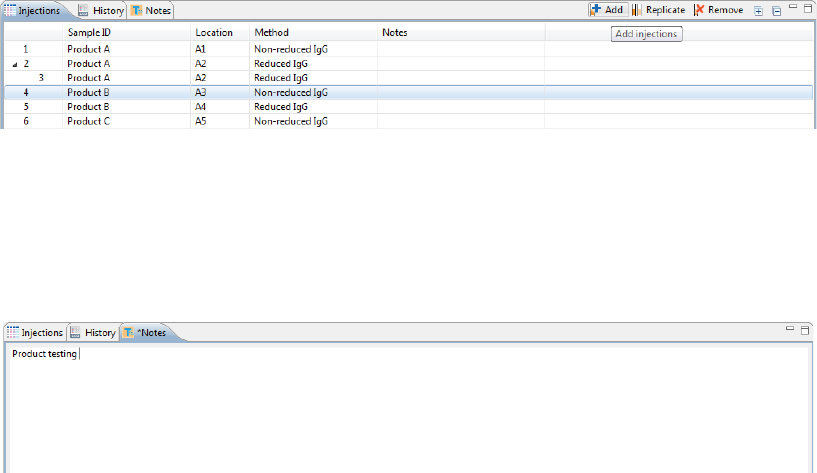

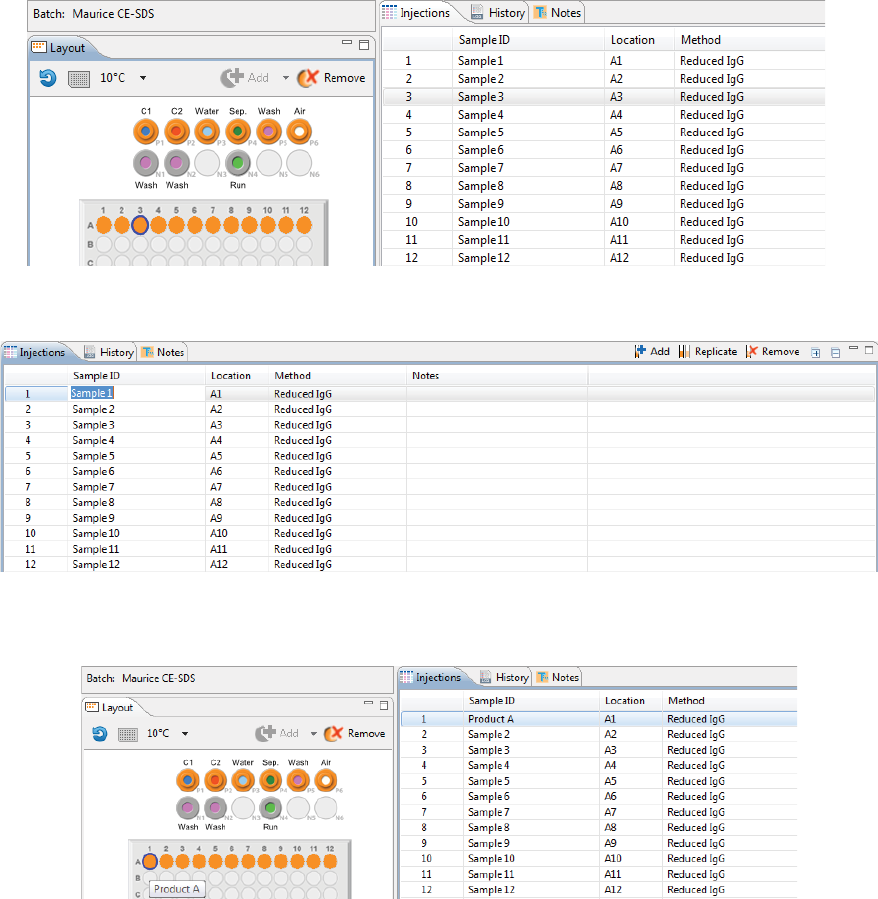

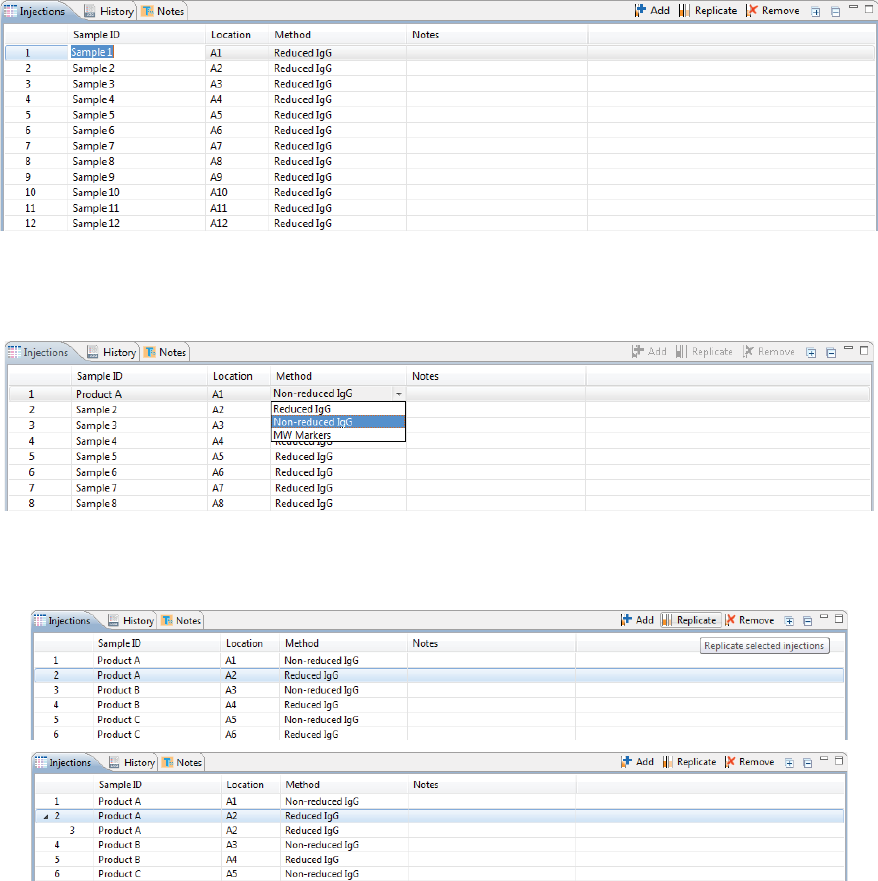

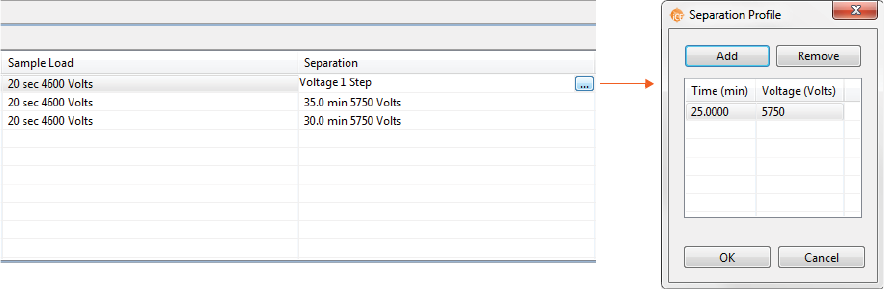

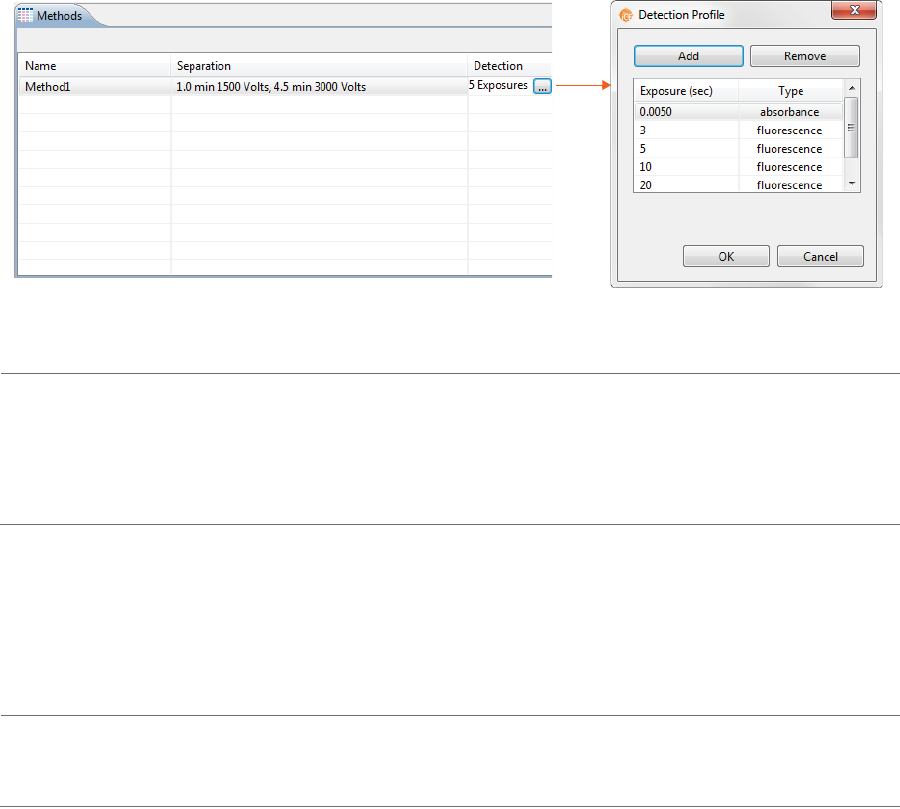

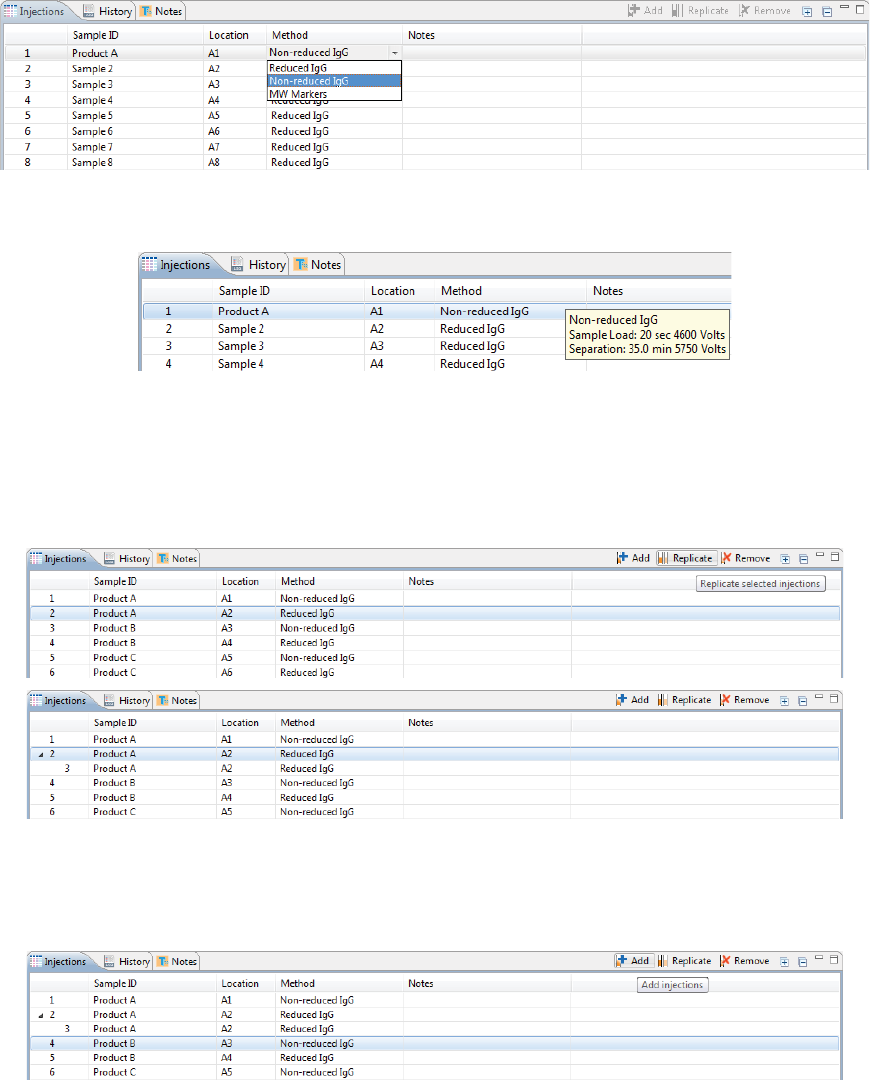

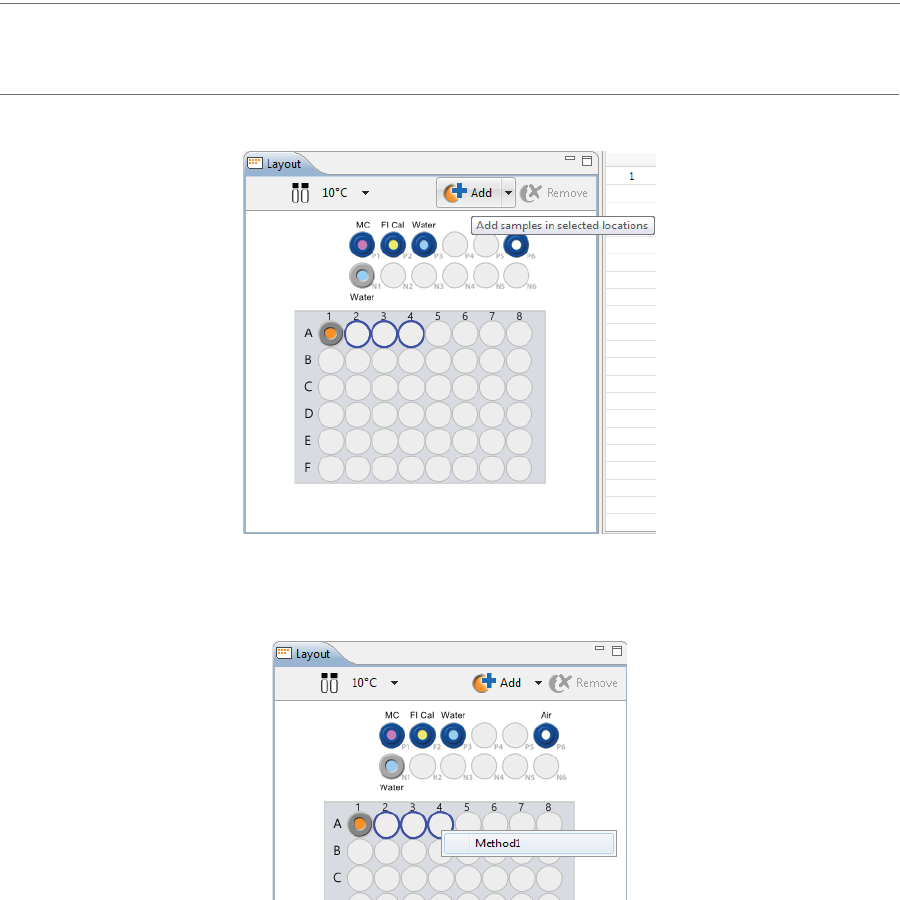

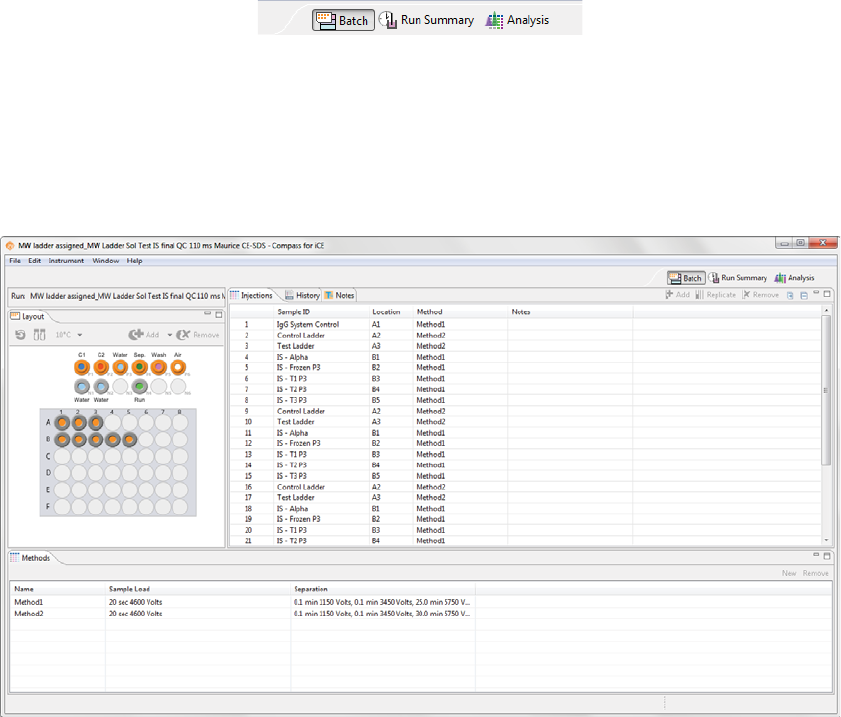

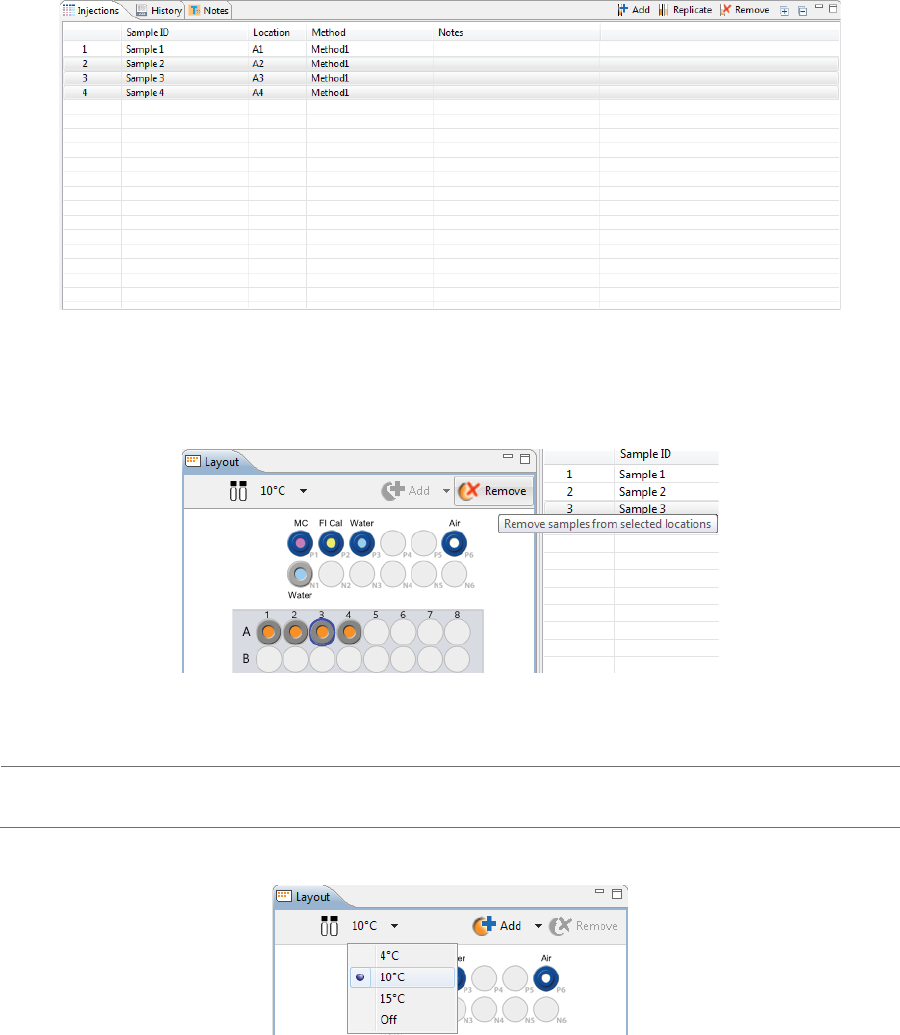

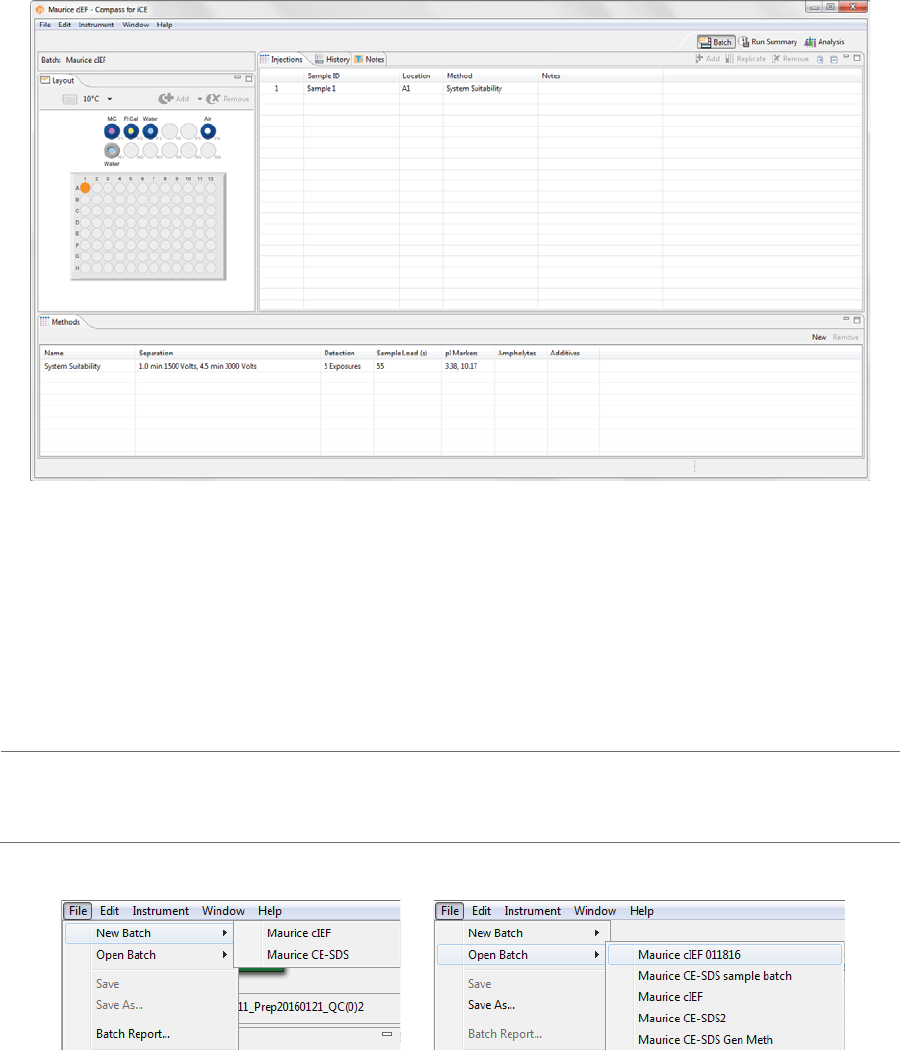

Batch Screen
The Batch screen is used to create, view, and edit batches. You can assign samples to 96-well plate wells or
vials, create and modify methods, customize your injection list and assign methods to each of your injec-
tions.
page 20 Chapter 4: Compass for iCE Overview
User Guide for Maurice, Maurice C. and Maurice S.

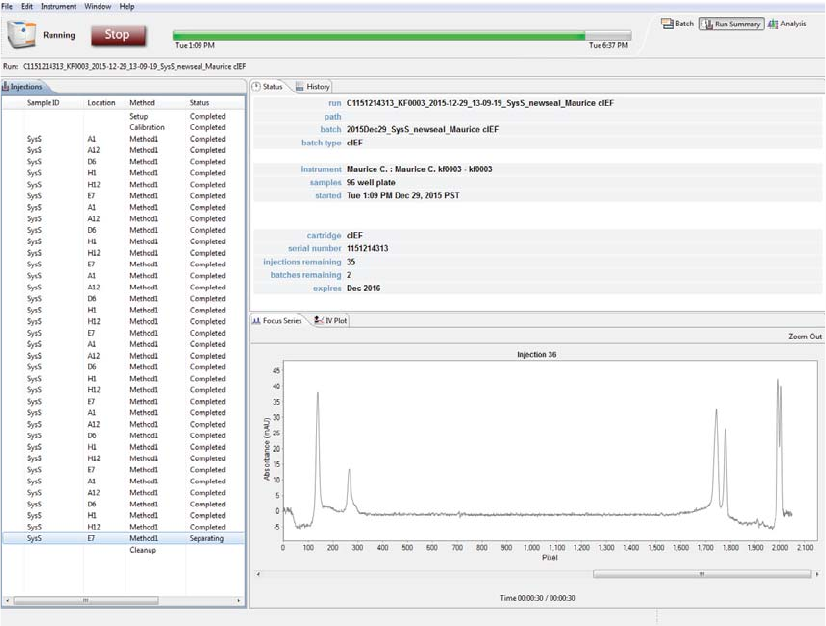

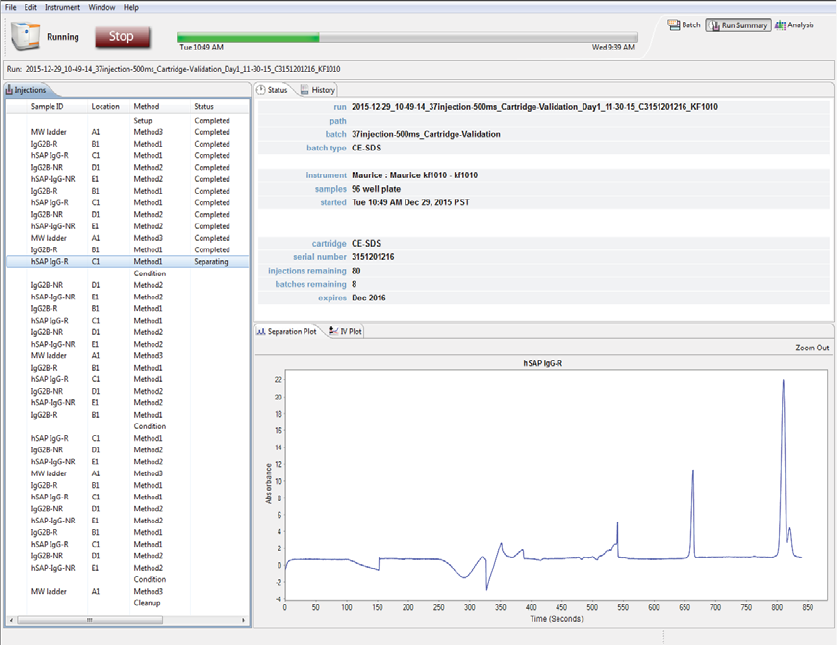

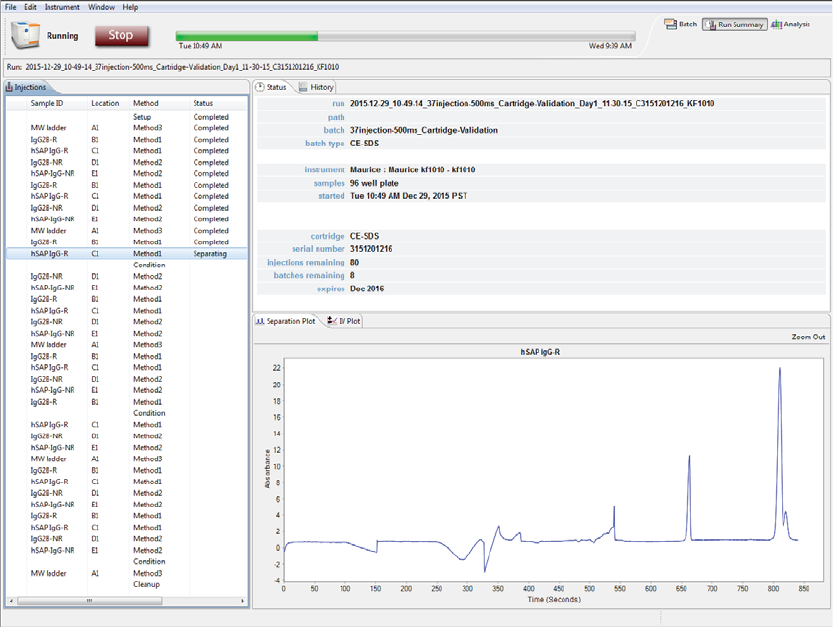

Run Summary Screen
The Run Summary screen is used to monitor status of a batch in progress, the CE-SDS separation or cIEF
Focus series for each injection and the current and voltage plots for each injection.
Compass for iCE Overview page 21
User Guide for Maurice, Maurice C. and Maurice S.
page 22 Chapter 4: Compass for iCE Overview
User Guide for Maurice, Maurice C. and Maurice S.

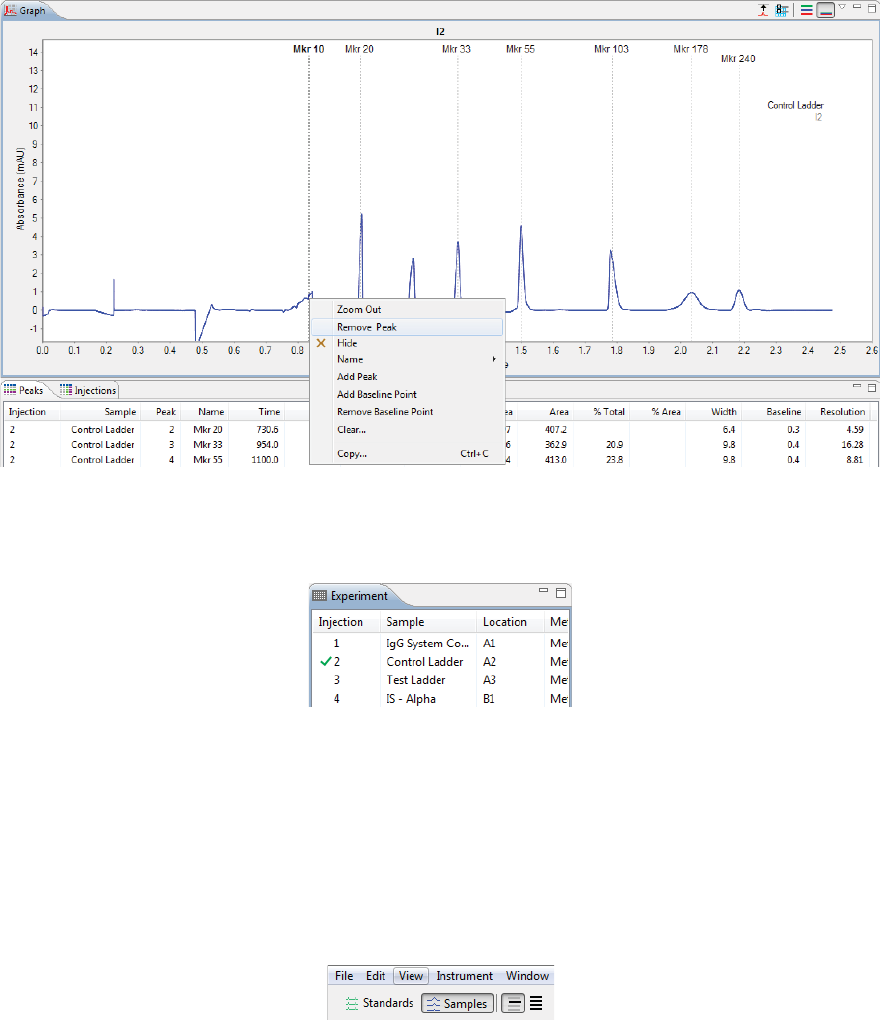

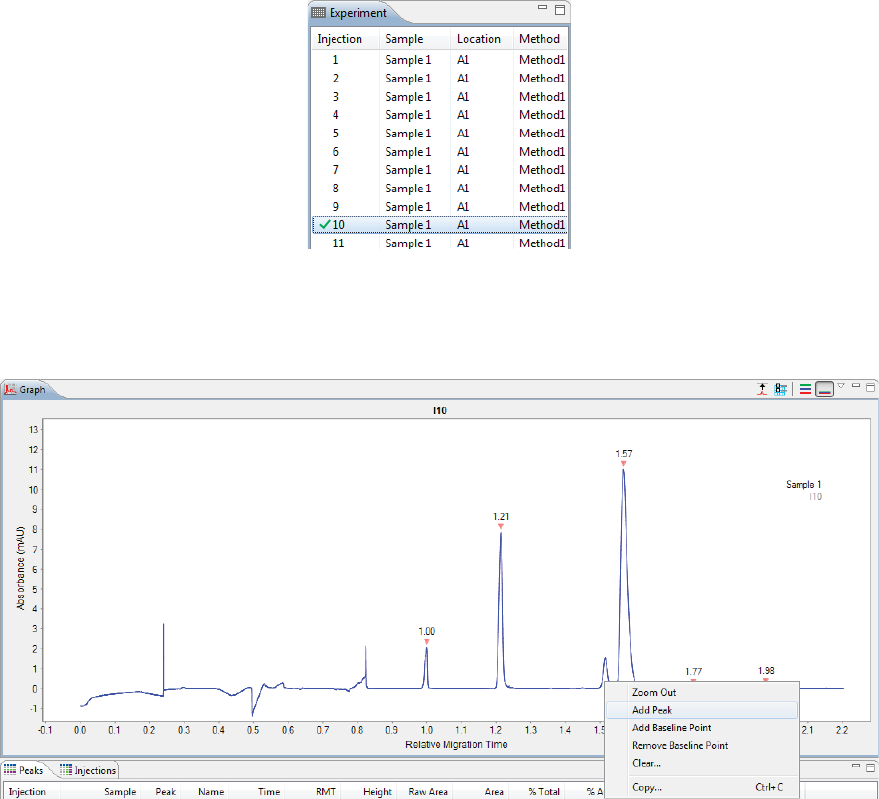

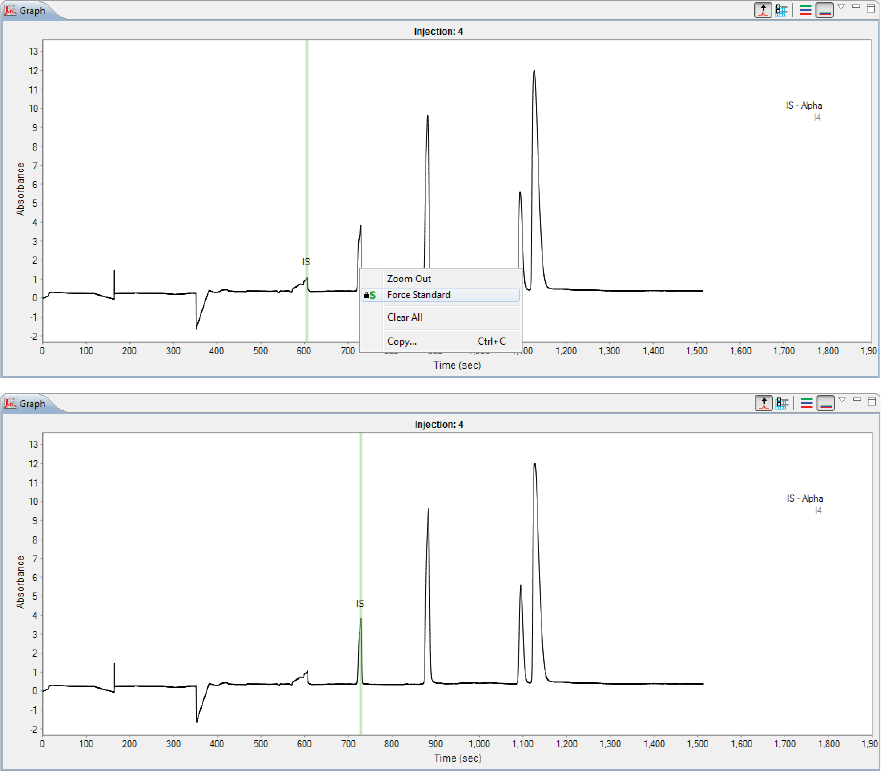

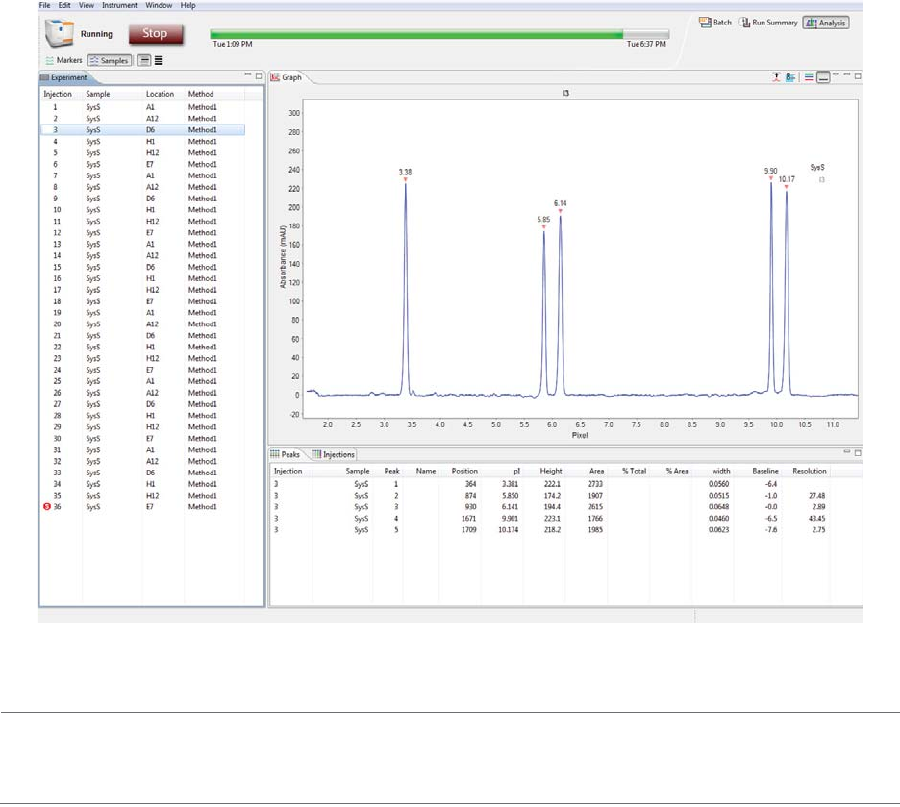

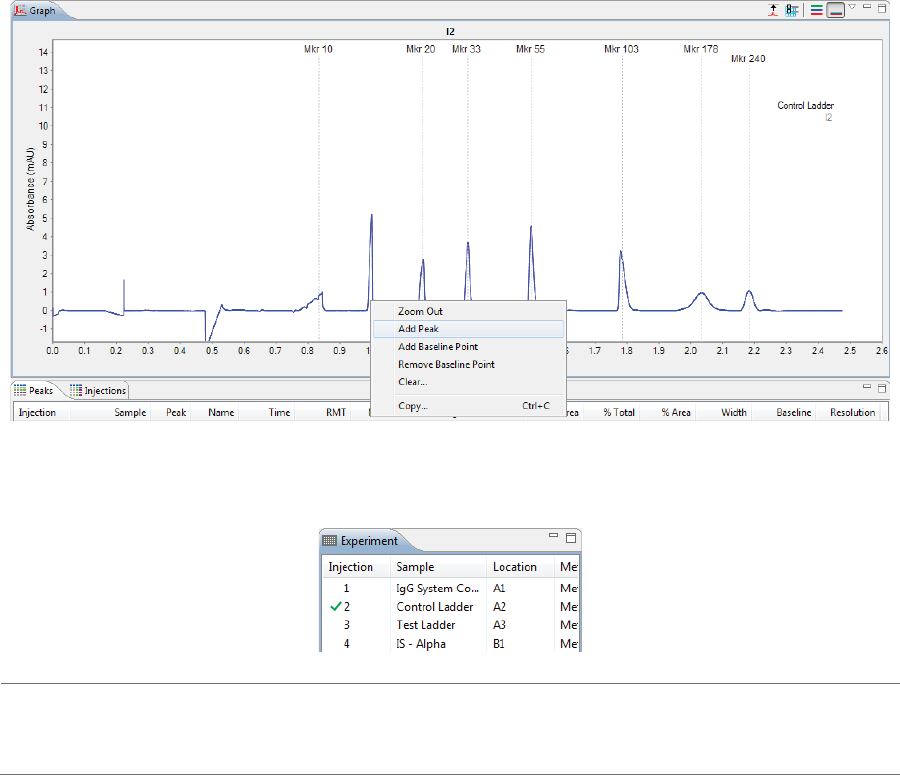

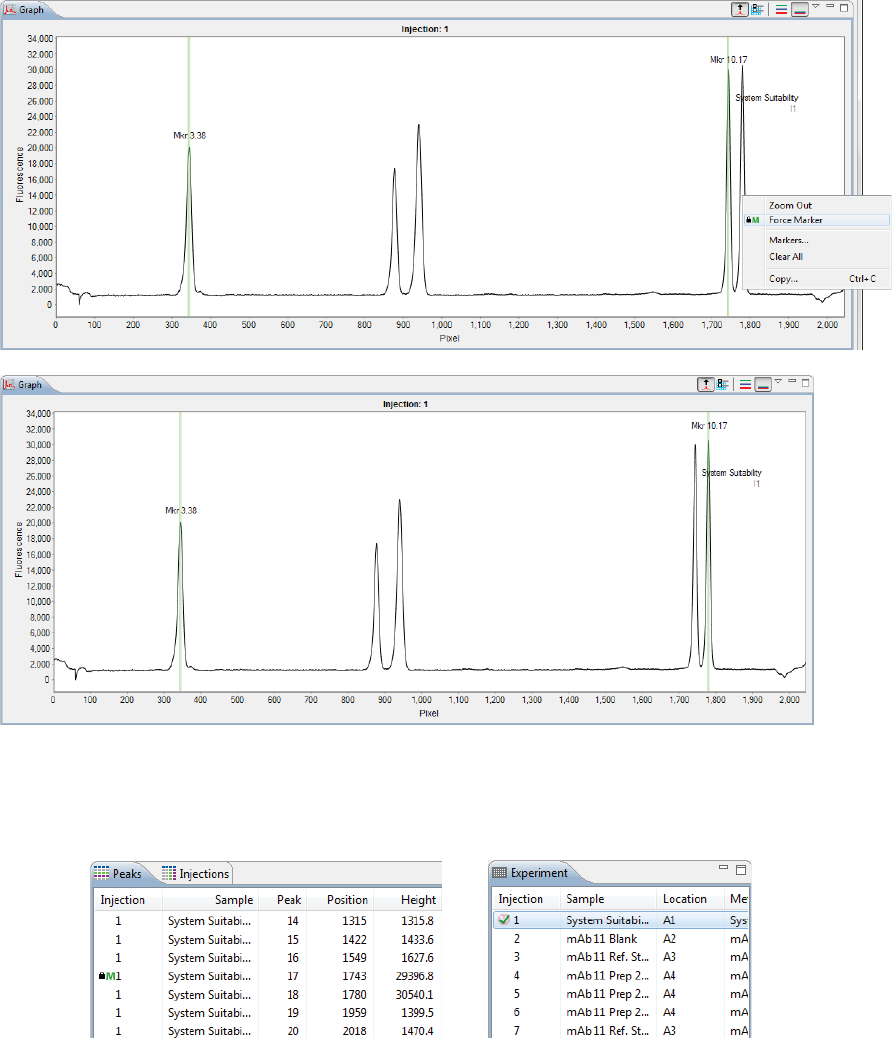

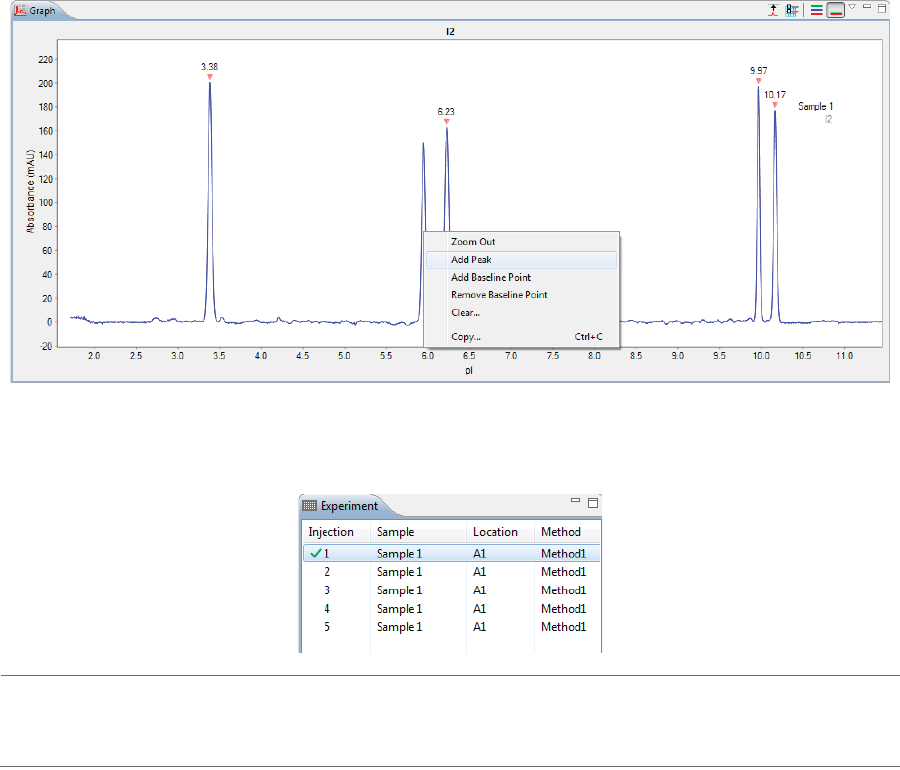

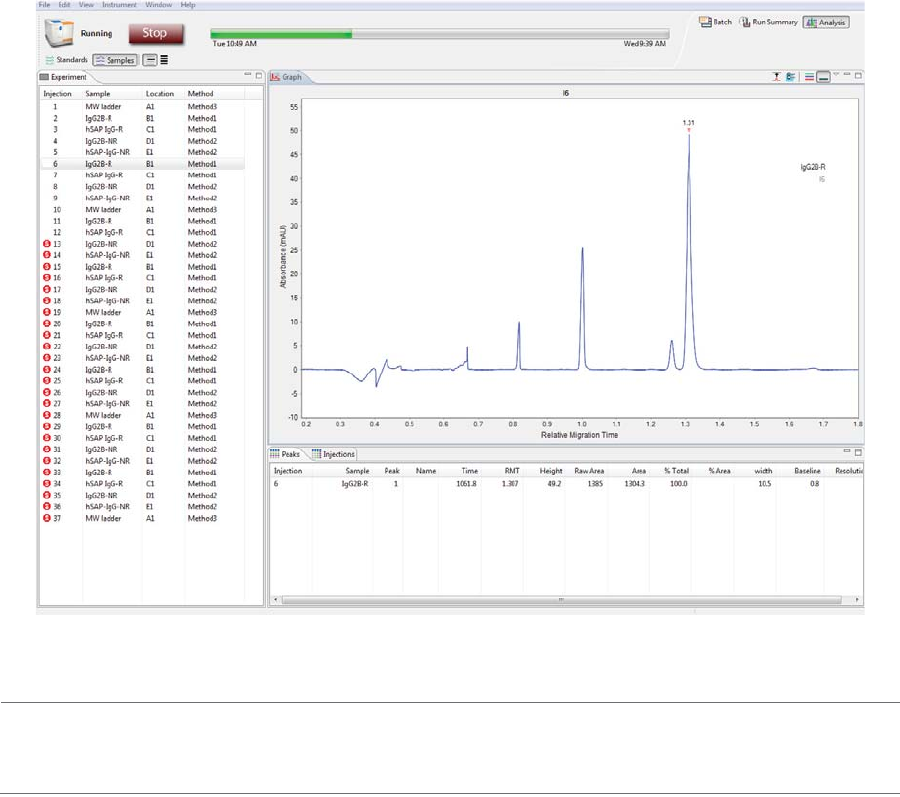

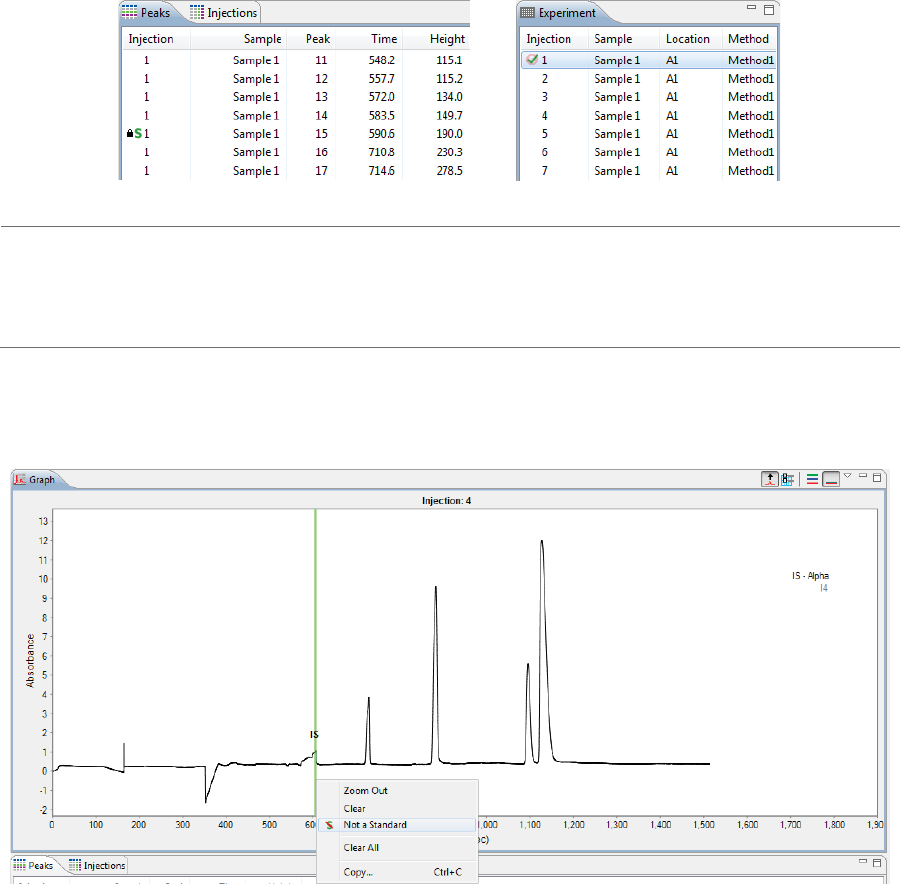

Analysis Screen

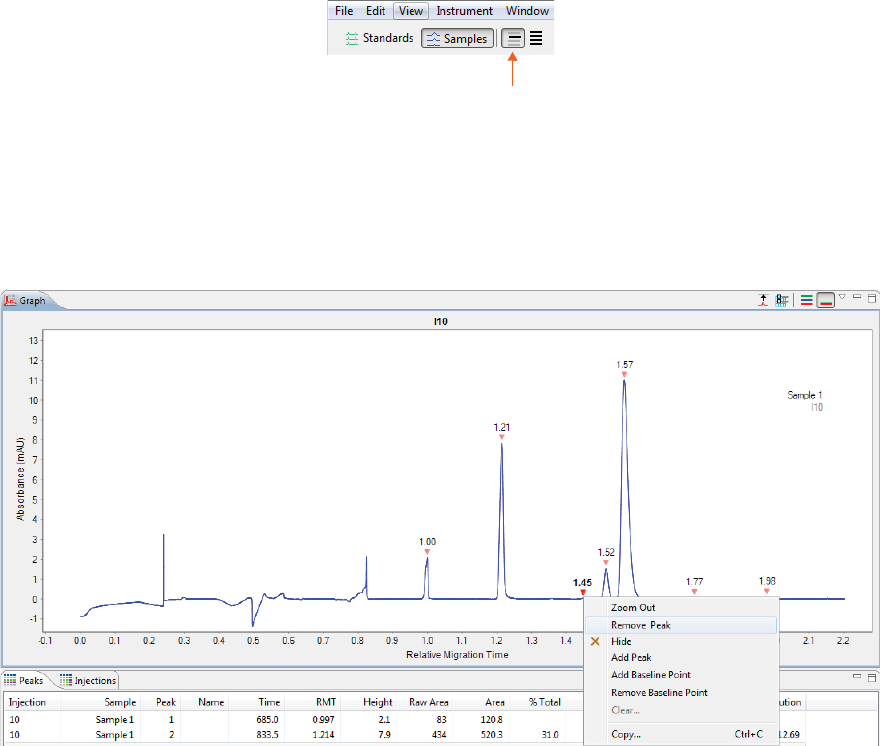

The Analysis screen is used to view data from your batch, including the graph view (electropherograms) and
a table with your results. You can also analyze your data for completed runs.
Compass for iCE Overview page 23
User Guide for Maurice, Maurice C. and Maurice S.
page 24 Chapter 4: Compass for iCE Overview
User Guide for Maurice, Maurice C. and Maurice S.

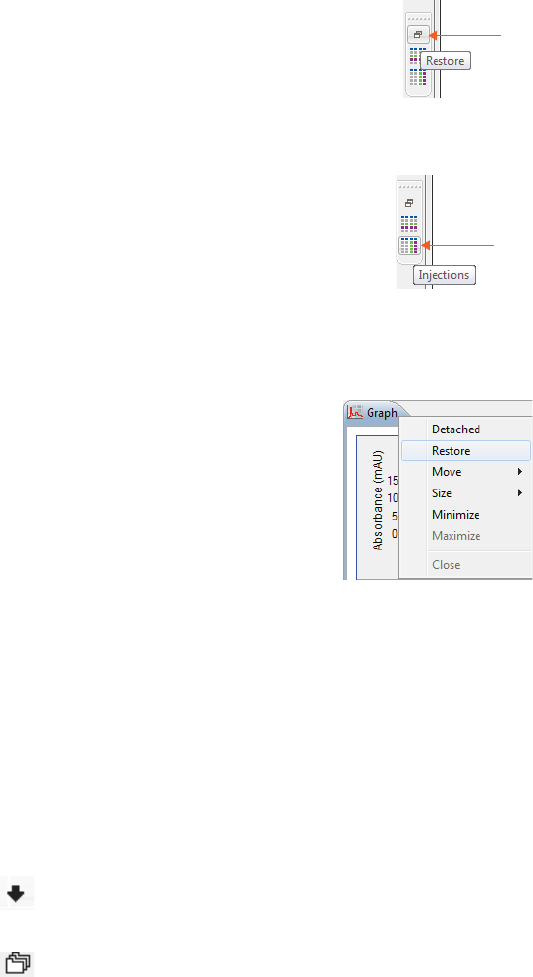

Screen Panes
Each of the Batch, Run Summary and Analysis screens have multiple panes that let you view the individual
components of a batch, method or data file. Each pane has a labeled tab and a unique icon. We'll describe
panes specific to each screen later in the individual screen sections.
The active pane in a screen is blue. To view a pane, click in the pane or on its tab. The example below shows
panes in the Batch screen, and the Graph pane is active:
Title Bar
In the title bar you will see the batch file name and the icons that allow the main Compass for iCE window to
be minimized, maximized or closed.
Main Menu
Access to various software, instrument and screen operations is available through the main menu. More
details on menu commands can be found in “Software Menus” on page 25.
Instrument Status Bar
The instrument status bar is used to start batches and cleaning protocols, indicate system status and show
run progress. More details on instrument control and status can be found in Chapter 10, “Controlling Maurice,
Maurice C. and Maurice S..
Software Menus page 25
User Guide for Maurice, Maurice C. and Maurice S.
NOTE: You will only see the instrument status bar when Compass for iCE is connected to an instrument.
There is no status bar on computer workstations that you're only using for data analysis.

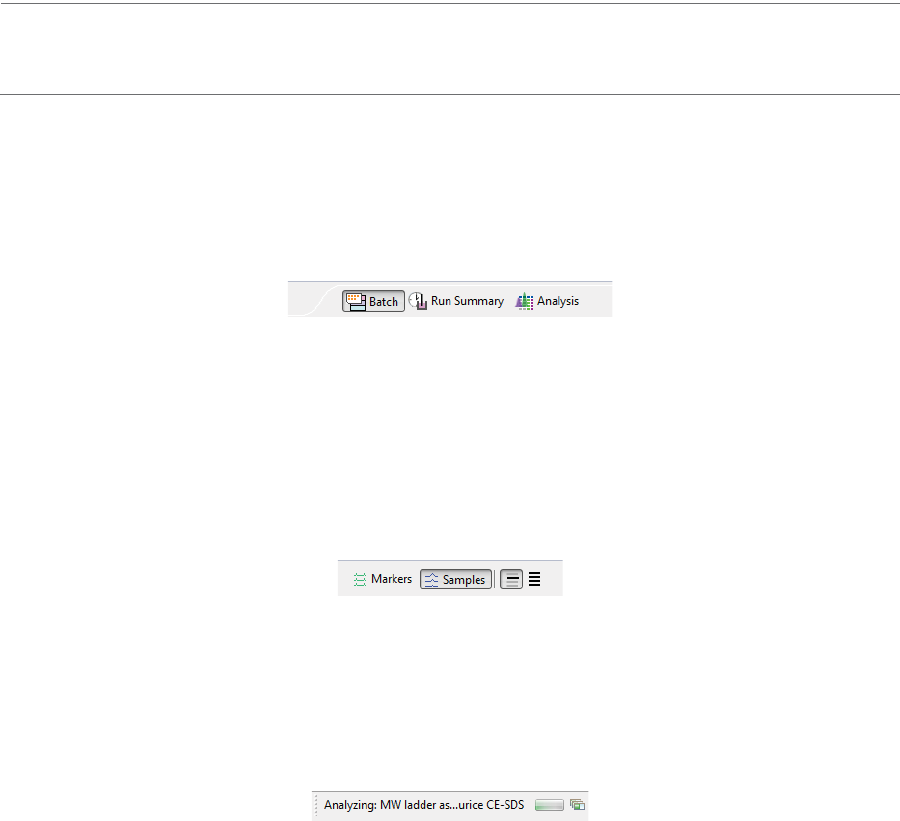

Screen Tab
The screen tab lets you move between Batch, Run Summary or Analysis screens and is located in the upper
right corner of the main window. Just click a button to view a screen.

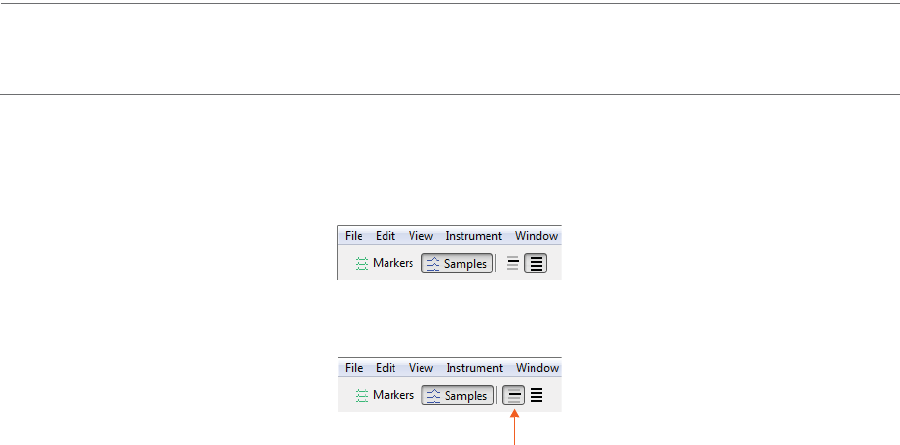

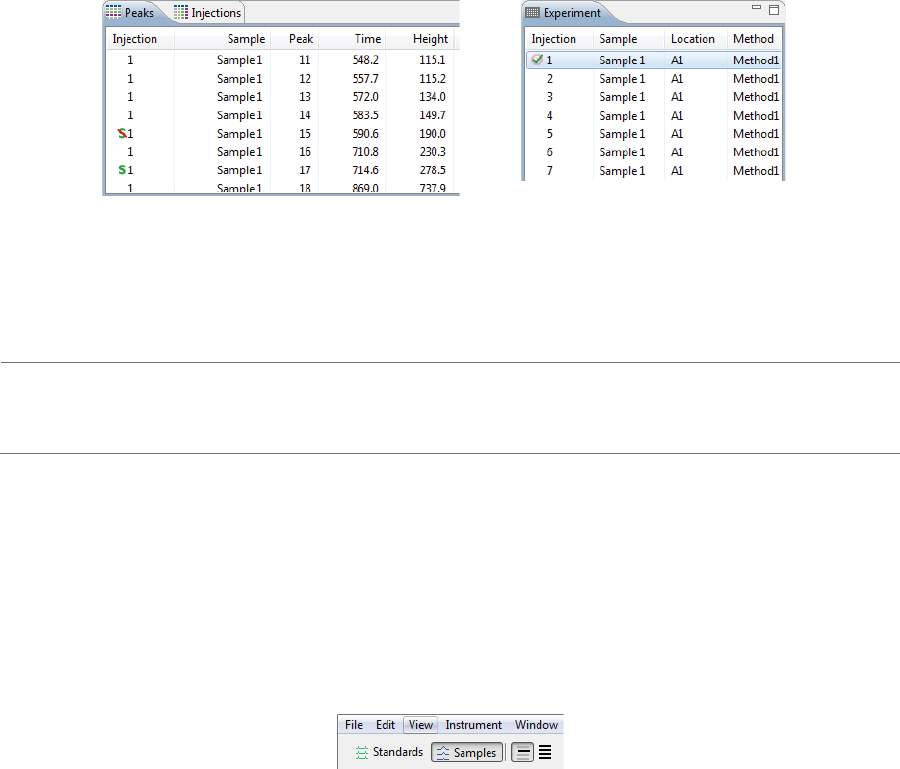

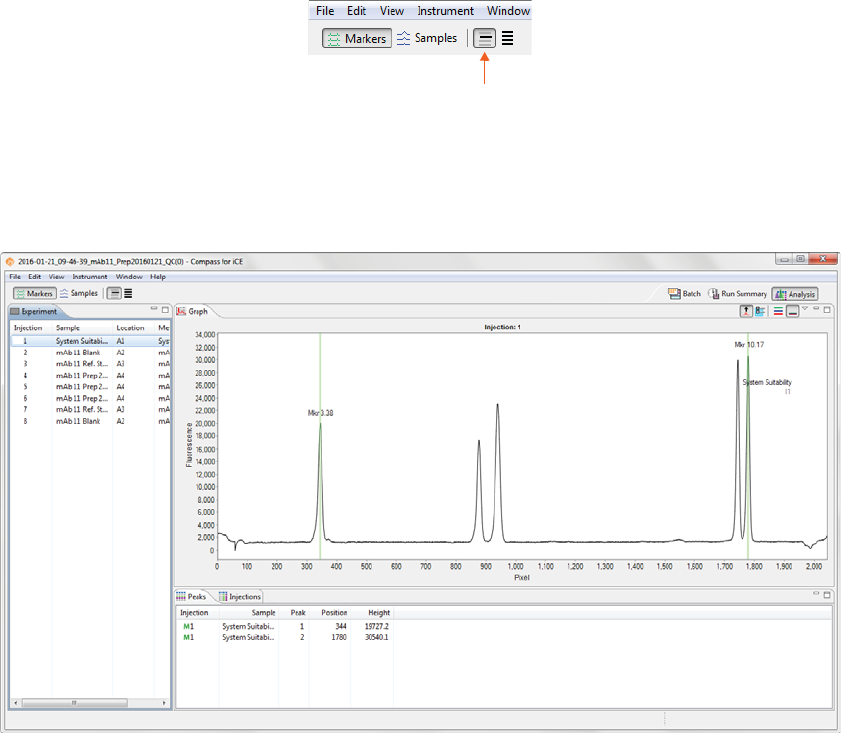

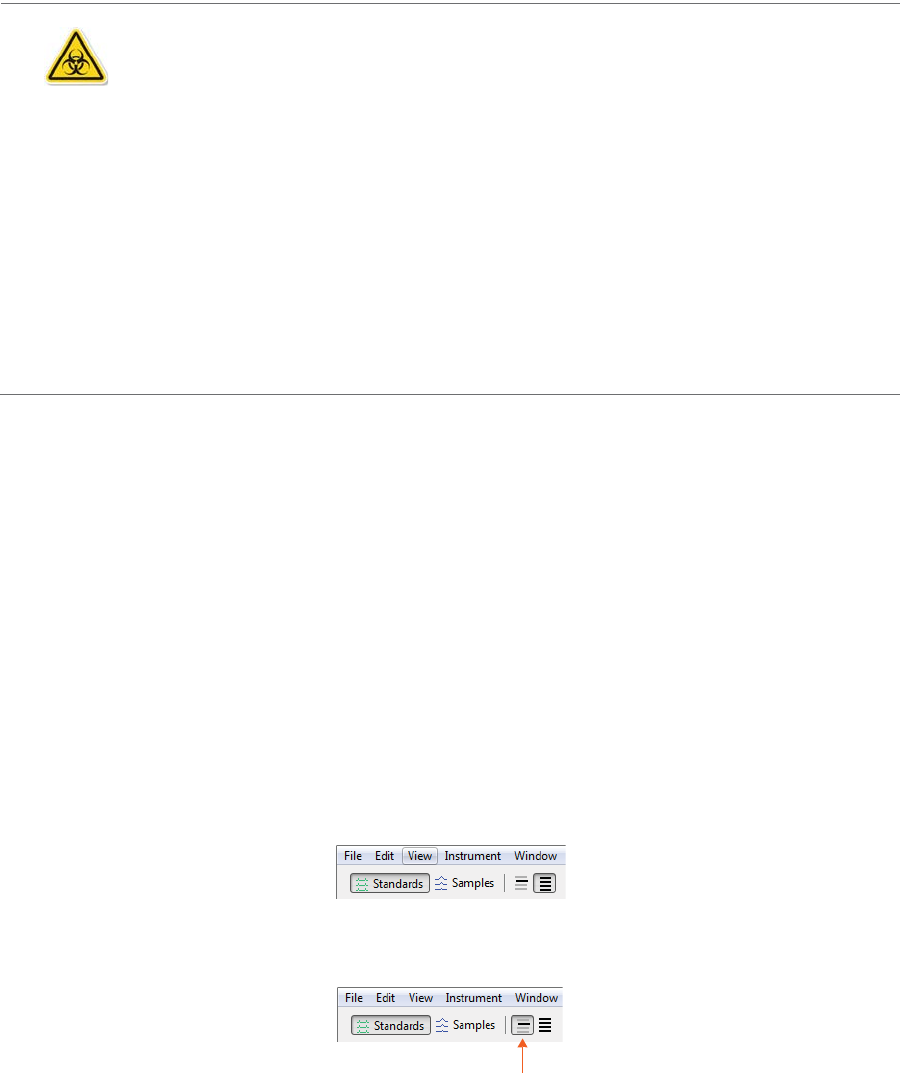

View Bar
The view bar is only displayed in the Analysis screen as part of the main menu, and allows you to switch
between viewing standards or sample data, data for a single injection or all injections in the batch, or
grouped injection data. View bar options are in “Viewing Run Data” on page 295 for cIEF applications or
page 205 for CE-SDS applications.
Compass for iCE Status Bar
The status bar is in the lower right corner of the main window. It displays active software processes and their
progress.
Software Menus
Some of the items in the Compass for iCE main menu are available in specific screens only, and menu com-
mands change depending on which screen is active. You can find menus and commands available for each
screen in the Chapter 5, “cIEF Batches, Chapter 6, “CE-SDS Batches“, Chapter 9, “Run Status“, Chapter 12, “cIEF
Data Analysis“ and Chapter 11, “CE-SDS Data Analysis“.
page 26 Chapter 4: Compass for iCE Overview
User Guide for Maurice, Maurice C. and Maurice S.

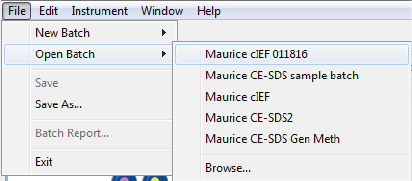

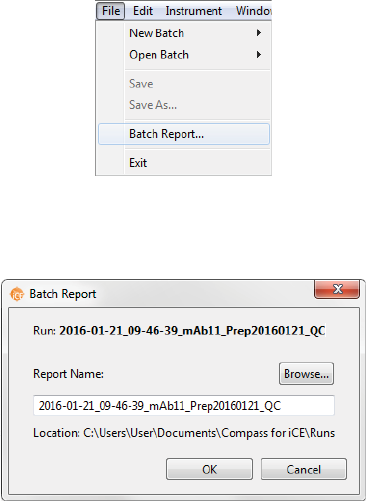

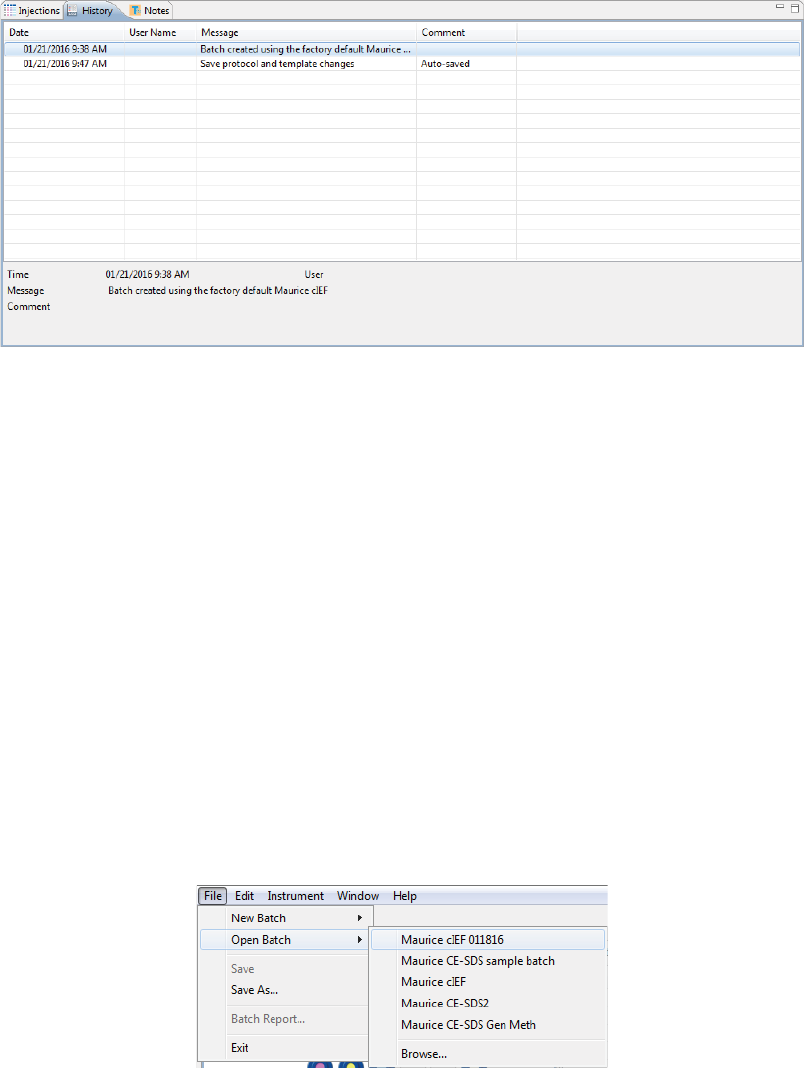

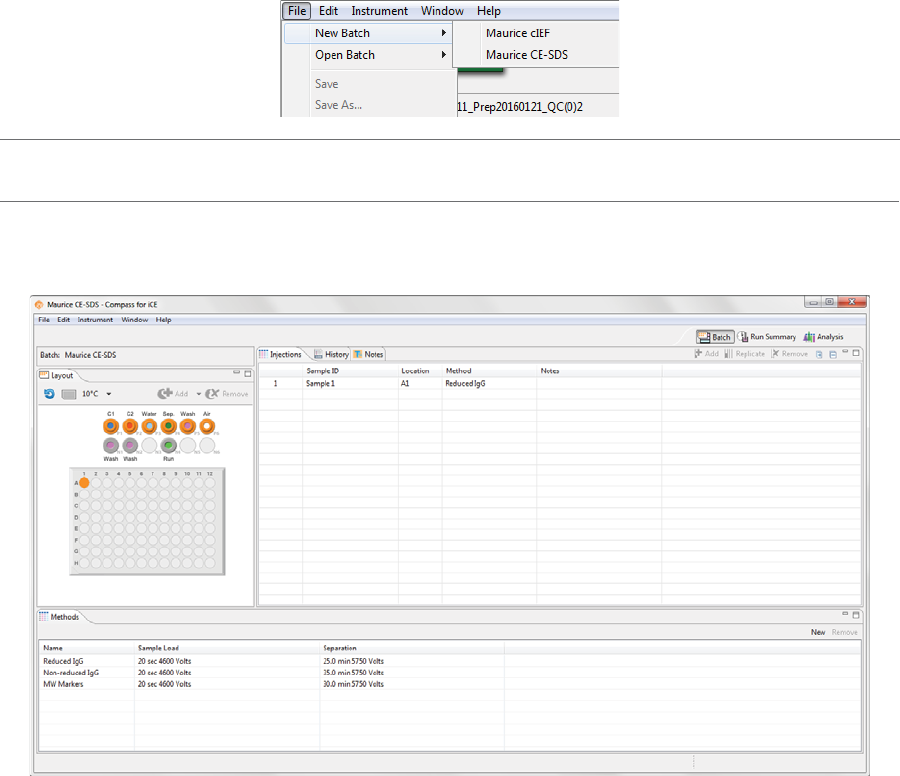

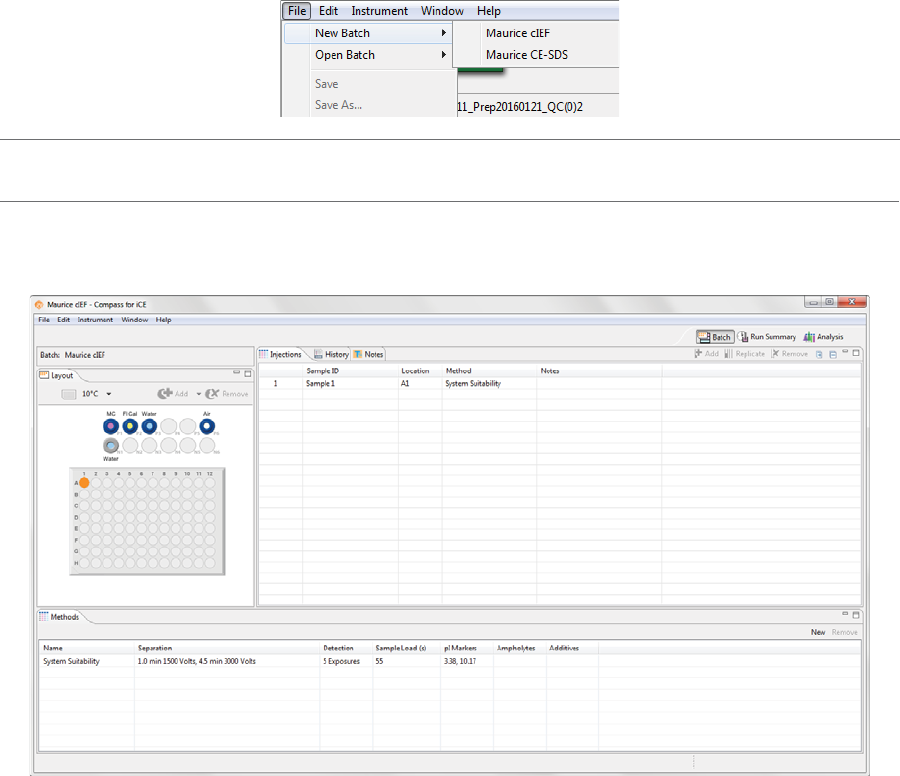

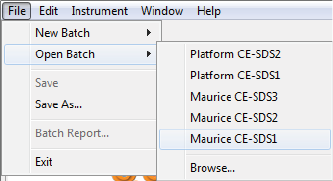

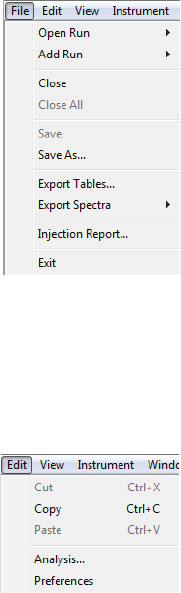

File Menu
The File menu contains basic file commands.

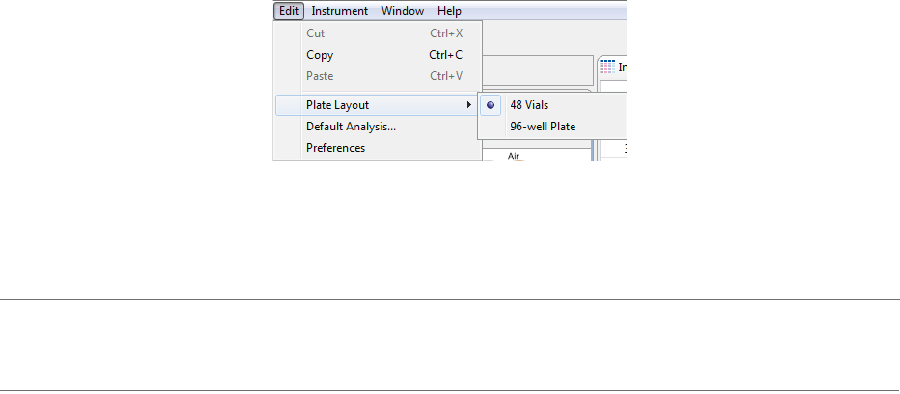

Edit Menu

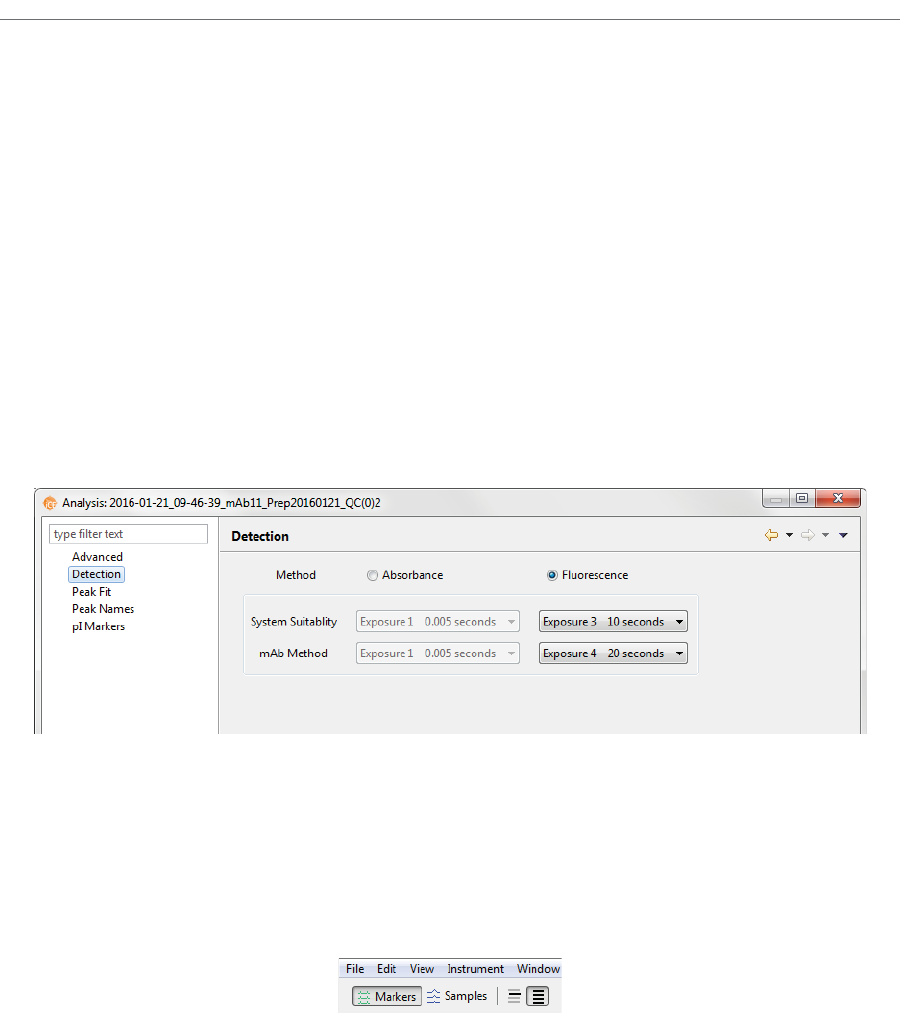

The Edit menu contains basic editing commands, analysis and preferences options. Specific details on pref-
erences are described in Chapter 13, “Setting Your Preferences“.
Software Menus page 27
User Guide for Maurice, Maurice C. and Maurice S.
View Menu
The View menu is only available in the Analysis screen, and allows you to change how your data is displayed.
For more info on view options check out “Viewing Run Data” on page 295 for cIEF applications or page 205
for CE-SDS applications, and “Using Groups” on page 306 for cIEF applications or page 216 for CE-SDS appli-
cations.

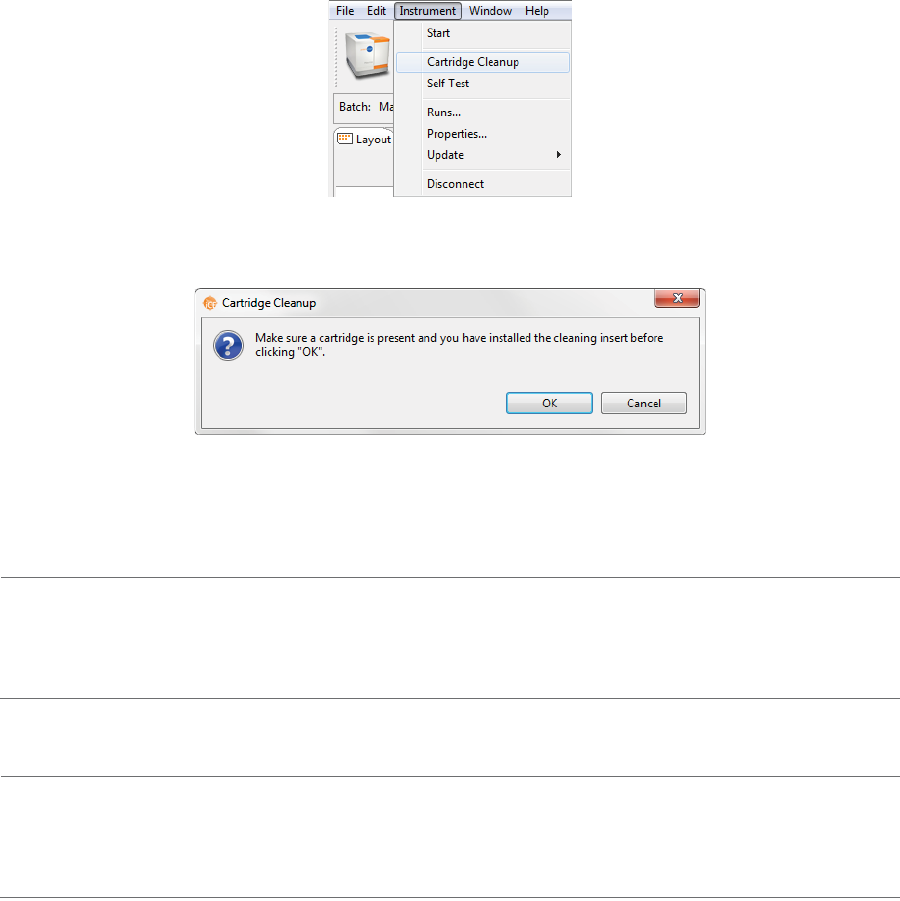

Instrument Menu
The Instrument menu is only available when the software is connected directly to your instrument. You can
lean more about instrument control options in Chapter 10, “Controlling Maurice, Maurice C. and Maurice S.
Window Menu
The Window menu lets you to switch between the Batch, Run Summary or Analysis screens, and restore
screens to the default layout.
Batch - Displays the Batch screen where you create, view, and edit batches.
page 28 Chapter 4: Compass for iCE Overview
User Guide for Maurice, Maurice C. and Maurice S.
Run Summary - Displays the Run Summary screen which lets you view the status of a batch in prog-
ress.
Analysis - Displays the Analysis screen that lets you view electropherograms and results and change
analysis parameters
Default Layout - Restores the individual panes in the current screen back to their default size and
location.
Help Menu
The Help menu gives you access to Help, software updates, release notes and other software info.
User Guide - Displays the User Guide for Maurice, Maurice C. and Maurice S.
Check for Updates - Automatically checks to see if a new version of Compass for iCE is available.
Release Notes - Displays the software release notes for the current and prior versions.
Compass for iCE Log - Displays the software log file.
About Compass for iCE - Displays the software version and build information.
Changing the Compass for iCE Main Window Layout
You can easily resize the main window and the individual panes in each screen. Screen panes can also be
moved outside of the main window.
Resizing the Main Compass for iCE Window
To resize the main window, roll the mouse over a corner or border until the sizing arrow appears. Then just
click and drag to resize.
Changing the Compass for iCE Main Window Layout page 29
User Guide for Maurice, Maurice C. and Maurice S.
Resizing the Screen Tab
The screen tab can be sized to show all or just some of the screen buttons. To resize, roll the mouse over the
left edge of the tab until the sizing arrow appears, then click and drag to resize. If a screen button is hidden,
a double arrow will display in the tab. Just click to display and select the hidden screen.
Resizing Screen Panes
To resize a pane - Roll the mouse over the pane border until the sizing arrow appears. Then just click
and drag to resize.
To maximize a pane - Click the maximize button in the upper right corner or double-click the tab.
The other panes in the screen will automatically minimize to pane bars in the task area along the win-
dow border.
page 30 Chapter 4: Compass for iCE Overview
User Guide for Maurice, Maurice C. and Maurice S.
To restore all minimized panes - Click Restore on the minimized pane bar.
To restore only one minimized pane - Click the pane icon on the minimized pane bar.
To restore a maximized pane to its original size - Double-click the tab or right click the tab and
click Restore.
To restore all panes to their original sizes - Select Window in the main menu and click Default
Layout.
Changing the Location of Screen Panes
Panes can be moved to different locations within a screen.
To move a pane - Click on its tab and drag it to the new location. As the pane is moved, area guides
will display to assist you in choosing a drop location.
Area guides with a black arrow let you know that if the pane is dropped at that location, it will
be resized and relocated as an individual pane in that area of the screen.
Area guides with a folder let you know that if the pane is dropped at that location, it will be
added as a new tab in an area with one or more pane tabs.
Changing the Compass for iCE Main Window Layout page 31
User Guide for Maurice, Maurice C. and Maurice S.
This example shows the Analysis screen after moving the Graph pane:
To detach a pane from the main window - Click on its tab and drag it outside the main Compass for
iCE window or right click the tab and click Detached.
To move a detached pane back inside the main window - Right click the tab and deselect
Detached.
To restore all panes to their original locations - Select Window in the main menu and click
Default Layout.
Area guides with a window let you know that if the pane is dropped at that location, it will be a
separate window outside the Compass for iCE main window.
page 32 Chapter 4: Compass for iCE Overview
User Guide for Maurice, Maurice C. and Maurice S.
Restoring the Main Window to the Default Layout
To restore screen pane sizes and locations to the original Compass for iCE layout, select Window from the
main menu and click Default Layout.
Software Help
Select Help and click User Guide to view Maurice Systems User Guide.
Checking for and Installing New Versions of Compass for iCE
The software can automatically check to see if a newer version of software is available. To do this:
1. Make sure the computer being used has an active internet connection.
2. Select Help and click Check for Updates. If an update is found, a screen will display with the new ver-
sion that’s available.
3. Click Finish to start the download and install the update.
4. Follow the on-screen instructions to complete the software installation.
5. Reboot the computer before using the new version of software.
Viewing Release Notes
Select Help and click Release Notes to view a PDF with feature updates and bug fixes for new and past ver-
sions of Compass for iCE. We recommend you review these notes whenever a software update is installed.
NOTE: You can contact ProteinSimple Technical Support to request the release notes for new versions of
Compass for iCE before you install it.
Viewing the Software Log page 33
User Guide for Maurice, Maurice C. and Maurice S.
Viewing the Software Log
Select Help and click Compass Log to view the software log file.
Compass for iCE Version Information
Select Help and click About Compass for iCE to view the software version and build number information.
page 34 Chapter 4: Compass for iCE Overview
User Guide for Maurice, Maurice C. and Maurice S.

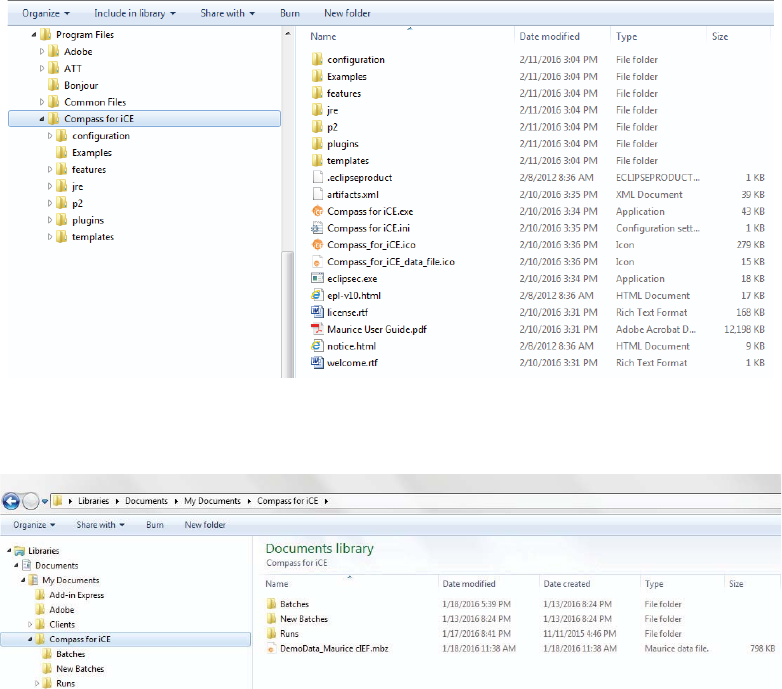

Directory and File Information
The main Compass for iCE directory is located in the Program Files folder, and also contains PDF files of the
User Guide for Maurice, Maurice C. and Maurice S.
Batch and run files are located in the Documents folder in the User directory on your computer:
Batches Folder - Contains all batch files that you’ve saved.
New Batches Folder - Contains Maurice batch template files.
Runs Folder - Contains all batch data files. Data is automatically written to this folder.
Directory and File Information page 35
User Guide for Maurice, Maurice C. and Maurice S.
NOTE: When a Compass for iCE software update is performed, the template s in the New Batch folder are
overwritten. If you have customized these batches, we recommend saving them in a unique subfolder
prior to updating the software, then transferring them back to the New Batch folder after the update to
avoid losing your customizations.
File Types
These file types are used by Compass for iCE:
Batch Files - Use a *.batch file extension.
Run Files - Use a *.mbz file extension. The default file format for run files is Date_Time_BatchName.
An example run file name would be 2016-01-28_18-50-53_CE-SDS.mbz.
Analysis Settings Files - Exported analysis settings files use a *.settings file extension.
page 36 Chapter 4: Compass for iCE Overview
User Guide for Maurice, Maurice C. and Maurice S.
page 37
User Guide for Maurice, Maurice C. and Maurice S.
Chapter 5:
cIEF Batches
Chapter Overview
Batch Screen Overview
Opening a Batch
Creating a New Batch

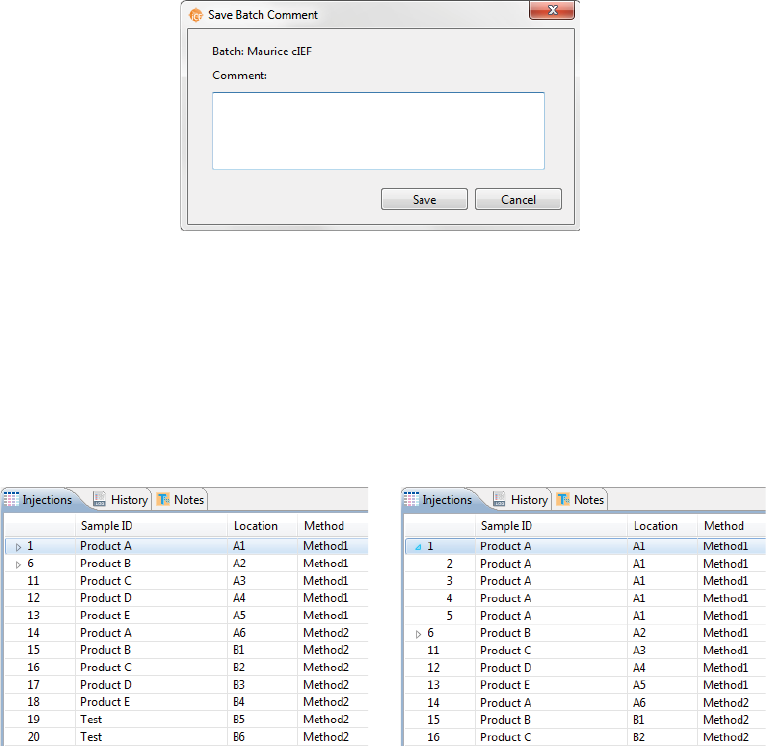

Viewing Replicate Injections
•Batch History
Making Changes to a Batch
Viewing and Editing Batches in Completed Runs

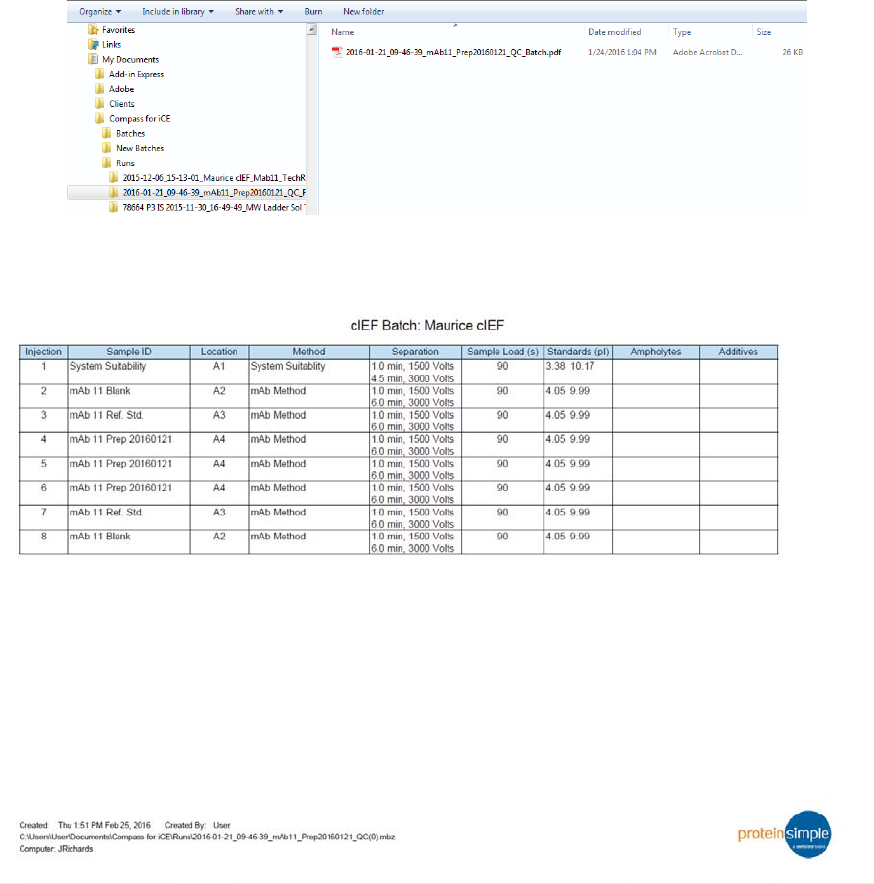

•Batch Reports
page 38 Chapter 5: cIEF Batches
User Guide for Maurice, Maurice C. and Maurice S.
Batch Screen Overview
You can use the Batch screen to create, view, and edit batches. To get to this screen, click the Batch screen
tab:
Batch Screen Panes
The Batch screen has five panes:
Layout - Displays a map of either the 96-well plate or 48-vial tray of batch sample locations.
Injections - Lists the injections, sample ID, sample locations and methods that Maurice or Maurice C.
will execute for each sample in the batch.
History - Lists all batch file events from initial creation to the most current update.
Notes - Lets you enter specific information about your batch.
Methods - Lets you create methods and enter method parameters used in the batch.
Batch Screen Overview page 39
User Guide for Maurice, Maurice C. and Maurice S.
Software Menus Active in the Batch Screen
These main menu items are active in the Batch screen:
•File
•Edit
Instrument (when the software is connected to Maurice or Maurice S.)
•Window
•Help
File Menu
These File menu options are active:
New Batch - Creates a new batch from a starter template.
Open Batch - Opens an existing batch.
Save/Save As - Saves the open batch.
Batch Report - Exports a table of sample and method details for each injection in the batch as a PDF
file.
Exit - Closes Compass for iCE.
page 40 Chapter 5: cIEF Batches
User Guide for Maurice, Maurice C. and Maurice S.
Edit Menu
The following Edit menu options are active in the Batch screen:
Cut - Cuts the information currently selected.
Copy - Copies the information currently selected.
Paste - Pastes the copied information.
NOTE: Cut, Copy and Paste work differently depending on the pane you’re in. How and when you can use
them is described throughout the chapter.
Plate Layout - Lets you select between a 96-well plate or a 48-vial tray to run samples in.
Default Analysis - Displays the default settings that will be used to analyze the data generated with
your batch.
Preferences - Lets you set and save your preferences for data export, graph colors, grouped data and
Twitter settings. See Chapter 13, “Setting Your Preferences“ for more information.
Opening a Batch page 41
User Guide for Maurice, Maurice C. and Maurice S.
Opening a Batch
To open an existing batch:
1. Select File in the main menu and click Open Batch.
2. A list of the last five batches opened will display. Select one of those or click Browse to open the
Batches folder and select a different one.
3. To make changes to the batch, see the steps in “Creating a New Batchon page 42. When youre done,
select File from the main menu and click Save.
page 42 Chapter 5: cIEF Batches
User Guide for Maurice, Maurice C. and Maurice S.
Creating a New Batch
To create a new batch, we recommend that you use one of the template methods and make any necessary
modifications from there.
Step 1 - Open a Template Batch
1. Select File in the main menu and click New Batch:
NOTE: If youre using a Maurice system, both cIEF and CE-SDS template batches are available in the menu.
2. Select Maurice cIEF. A batch using the default method will display.
Creating a New Batch page 43
User Guide for Maurice, Maurice C. and Maurice S.

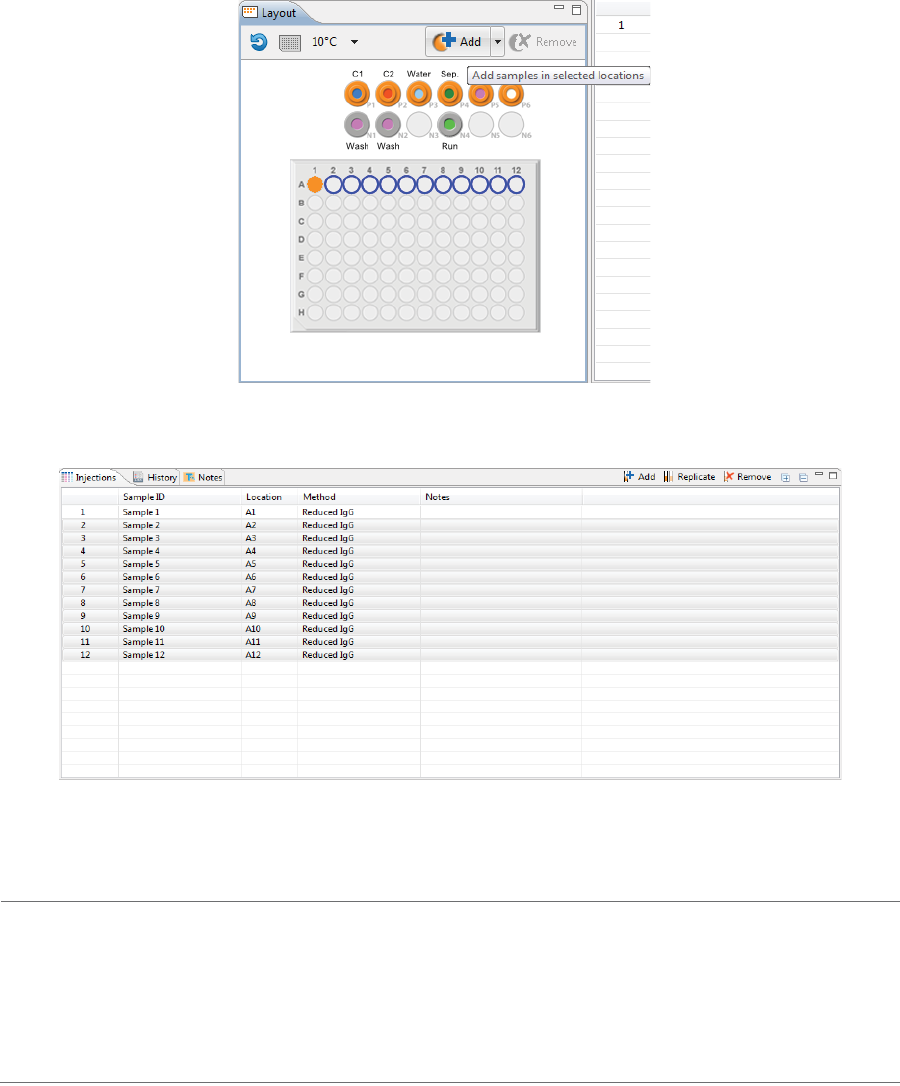

Step 2 - Assign Your Samples
The Layout pane shows the default locations of where batch reagent should be placed in your Maurice sys-
tems samples and reagents platform, and a map of either the 96-well plate or the 48-vial tray used for sam-
ples.
The same reagent locations are used for every batch:
P1 - 0.5% Methyl Cellulose with blue pressure cap
P2 - Fluorescence Calibration Standard with blue pressure cap
P3 - Water vial with blue pressure cap
P6 - Empty vial (air) with blue pressure cap
N1 - Water vial with clear screw cap
1. To assign samples, select 48 vials or a 96-well plate depending on what youre running. Clicking on the
vial/plate icon toggles between formats.
2. To select samples:
Add samples and select methods later: Use your mouse to highlight the well or vial positions
your samples are located in, then click Add. For this example were using vials.
page 44 Chapter 5: cIEF Batches
User Guide for Maurice, Maurice C. and Maurice S.
NOTE: The template batch automatically adds a sample in well or vial A1 by default, but if you dont have
a sample in this position you can remove it after you’ve added new positions for your samples.
Add samples with preassigned methods: Highlight the well or vial positions your samples are
located in, then right-click and select a method.

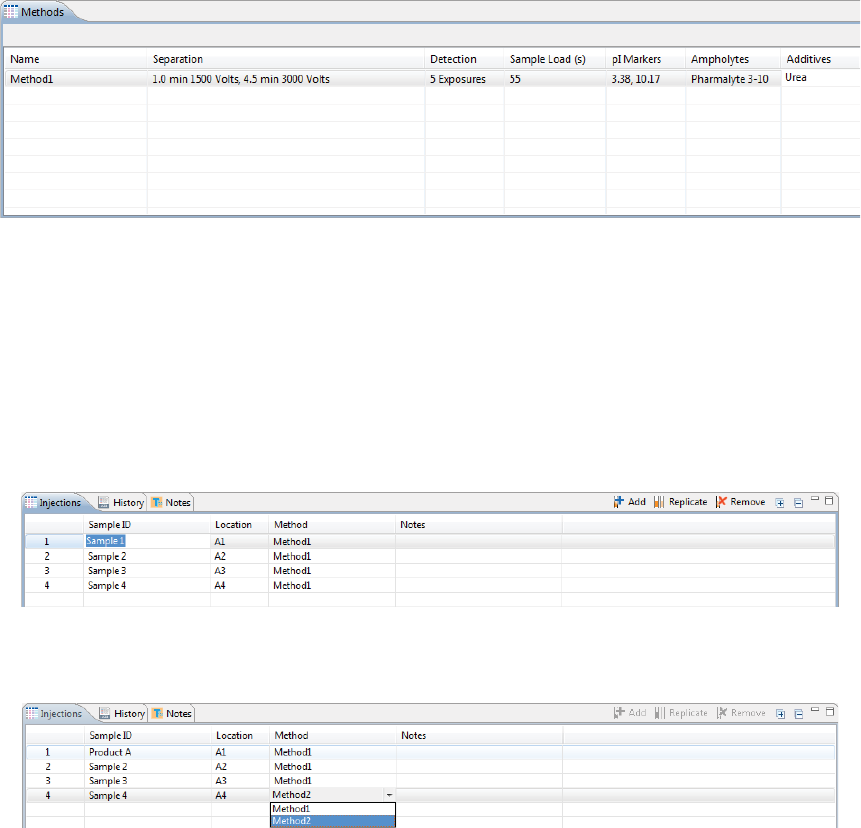

Either option of adding samples populates the Injections table:
Creating a New Batch page 45
User Guide for Maurice, Maurice C. and Maurice S.
To remove samples, just highlight the ones you want to remove and click Remove. They’ll also be
removed in the Injections table. You can also right-click well(s) or vial(s) in the Layout pane and click
Remove Sample(s).
3. The sample platform is temperature controlled with a default setting of 10 °C. To change the tempera-
ture or turn it off, click the down arrow next to the temperature and select an option.
NOTE: The two reagent rows are kept at room temperature.
page 46 Chapter 5: cIEF Batches
User Guide for Maurice, Maurice C. and Maurice S.
Step 3 - Assign Your Method Parameters
NOTE: We recommend using the default method parameters. Please see the Maurice cIEF Method Devel-
opment Guide for more information on method optimization.

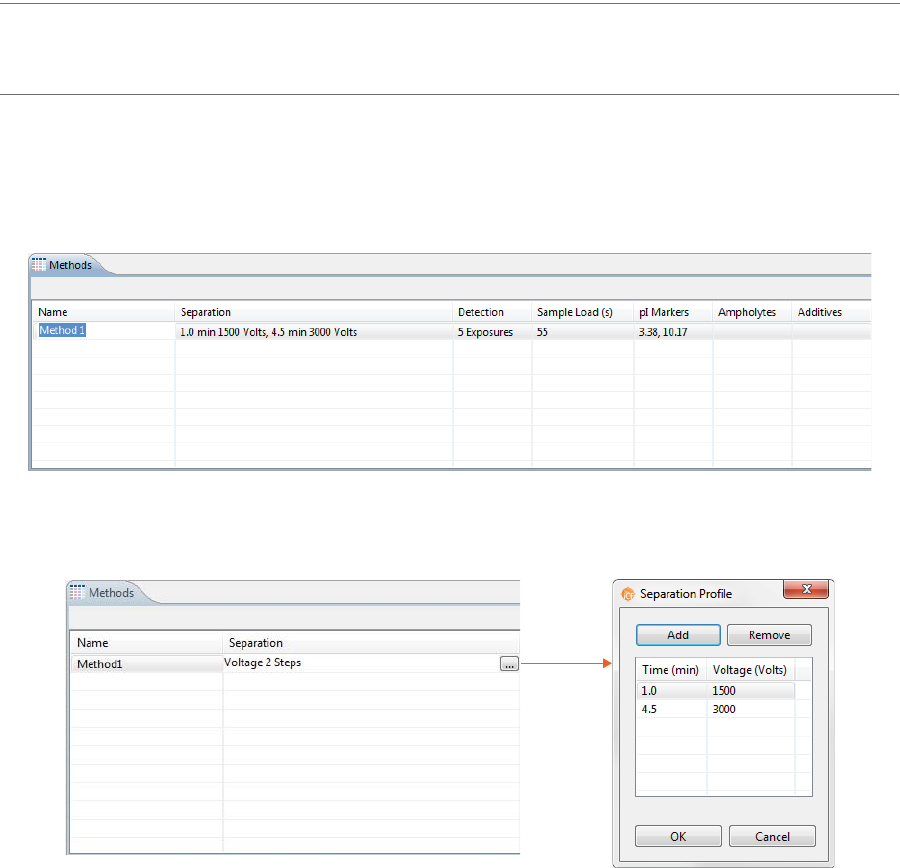

The Methods pane lists all of the methods used in a batch. You can add and remove methods here and
change method parameters.
1. In the Methods table, click the first cell in the Name column and enter a new method name if needed.
2. Click the first cell in the Separation column, then click the selection button [...] to set the pre-focusing
and focusing time (in minutes) and voltage (V).
To change time and voltage parameters: Just click in a cell under Time or Voltage and type
the new value(s).
To add a profile step: Click Add. A new row will be added in the table. Then just type in a load
time (in minutes) and voltage value (in V).
To remove a profile step: Select the row you want to remove and click Remove.
Creating a New Batch page 47
User Guide for Maurice, Maurice C. and Maurice S.
3. Click the first cell in the Detection column the selection button [...] to set your exposure times for
absorption and fluorescence detection modes.
To change the exposure time: Just click in a cell under Exposure and type the new value(s) in
seconds.
NOTES:
The first exposure is an instrument default setting and can’t be changed.
Fluorescence is the default detection for the remaining exposures and can’t be changed.
To add a profile step: Click Add. A new row will be added in the table. Then just type in an expo-
sure time (in seconds).
To remove a profile step: Select the row you want to remove and click Remove.

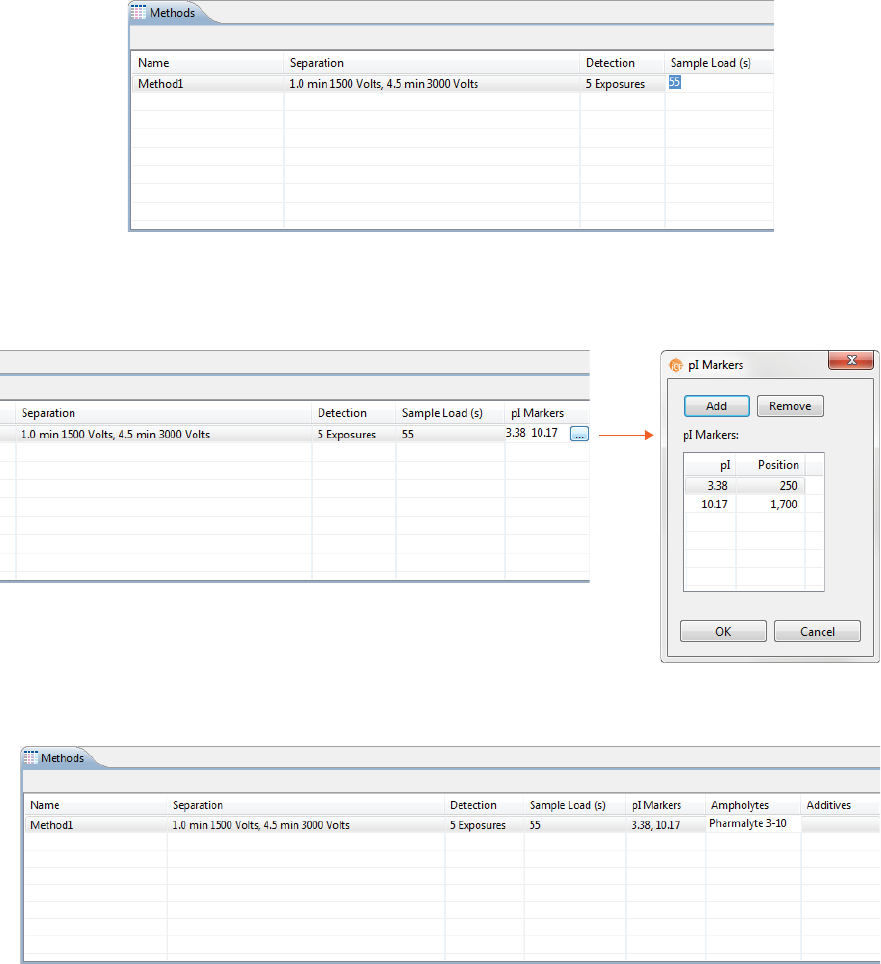

4. Click the first cell in the Sample Load(s) column and set the load time in seconds.
NOTE: We recommend using the default Sample Load time of 55 seconds. Please contact ProteinSimple
Technical Support if you have questions on the Sample Load time to use for your application.
page 48 Chapter 5: cIEF Batches
User Guide for Maurice, Maurice C. and Maurice S.
5. Click the first cell in the pI Markers column to select pI markers. Add new markers or remove existing
ones then click OK.
NOTE: When you edit the pI markers in the method for a batch, Compass for iCE automatically creates a
Markers group in the pI Markers Analysis settings for you.
To add a pI marker: Click Add. A new row will be added in the table. Then just type in a pI and a
position (in pixels).
To remove a pI marker: Select the row you want to remove and click Remove.
6. Optional: Click the first cell in the Ampholytes column and enter the ampholytes youre using.
Creating a New Batch page 49
User Guide for Maurice, Maurice C. and Maurice S.
7. Optional: Click the first cell in the Additives column and enter any additives you’re using.
8. You can now:
•Click New in the upper right corner of the Methods pane to add a new one if you want to use dif-
ferent methods for different samples. Then just repeat the steps above for the new method.
Make updates to the remaining methods by repeating the prior steps.
Select a method and click Remove in the upper right corner of the Methods pane to delete it.
Step 4 - Set Up Your Injections

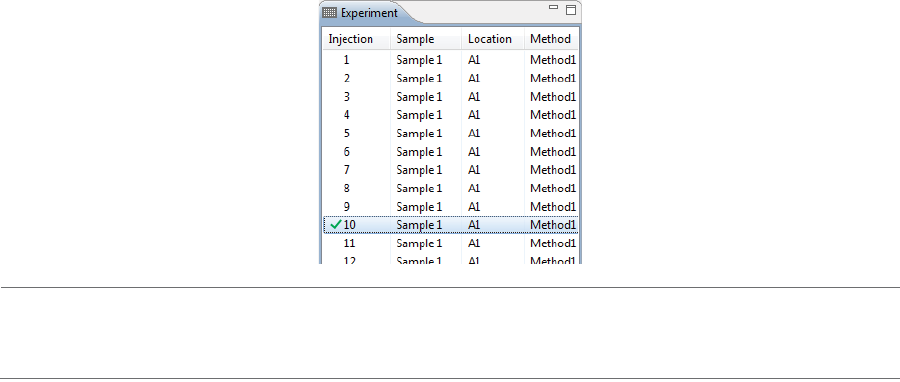

The Injection pane lists all sample injections for the batch. Any samples that were added in Step 2 - Assign
Your Samples are automatically added to this list.
Selecting an injection in the table also selects the sample the injection will be made from in the plate or vial
map in the Layout pane and vice-versa.
page 50 Chapter 5: cIEF Batches
User Guide for Maurice, Maurice C. and Maurice S.
1. To add sample names, click the Sample ID cell for the injection and type a name.
The sample name also displays when you hover the mouse over the sample in the plate or vial map:
2. Assign your methods to each injection. Just click the Method cell for the injection and select a method
from the drop down menu. If you added your samples with pre-assigned methods and don’t need to
make any changes, skip to the next step.
Creating a New Batch page 51
User Guide for Maurice, Maurice C. and Maurice S.
Hovering over a method name displays the method parameters:
3. You can add or remove injections as needed using a few different options. If you don’t need to make any
changes here, just skip to the next step.
To add sequential replicate injections: Highlight an injection and click Replicate. A new injec-
tion will be added under the row you selected
To add injections at the end of the batch: Click on any sample position in the Layout pane or
sample injection in the Injection table and click Add. A new injection using the same sample will
be added to the end of the table. Assign the method if needed.
To copy and paste injections: Right-click on an injection in the Injection table and select Copy.
Click on the injection number above where you want to insert the copied injection, right click
and select Paste. The copied injection will be inserted under the row you selected.
Step 5 - Add Batch Notes (Optional)
1. Click on the Notes pane.
2. Click in the notes area and type any information you want to add about your batch.
page 52 Chapter 5: cIEF Batches
User Guide for Maurice, Maurice C. and Maurice S.
Step 6 - Modify Default Analysis Parameters (Optional)
You can preset the parameters used to analyze data generated with the batch. We recommend using the
default parameters for cIEF applications, but if you need to modify parameters:
1. Select Edit from the main menu and click Default Analysis. The following screen will display:
2. Change the parameters you want to, then click OK. For detailed information on analysis parameters,
please refer to “Analysis Settings Overview” on page 334.
Viewing Replicate Injections page 53
User Guide for Maurice, Maurice C. and Maurice S.
Step 7 - Save Your Batch
1. Once all of your sample, method and injection info is entered, select File > Save. Enter any comments
on the batch if you want, then click Save.
2. Enter a name for your batch then click Save.
Viewing Replicate Injections
Injections with replicates have an arrow next to the injection number. You can expand or collapse the list of
replicate injections by toggling the arrow:
To show all replicate injections in the batch, click the Expand All Injections button.
page 54 Chapter 5: cIEF Batches
User Guide for Maurice, Maurice C. and Maurice S.
To hide all replicate injections in the batch, click the Collapse All Injections button.
Batch History
Clicking on the History pane shows the batch event history, starting with the date and time the batch was
created through the most current event. Clicking on a row in the table displays the full event details in the
box under the table.
Making Changes to a Batch page 55
User Guide for Maurice, Maurice C. and Maurice S.
Date: Date and time of the batch event.
User Name: User that initiated the event. User names only display if you’re using the Access Con-
trol feature to help satisfy the 21CFR Part 11 data security requirements. Go to “Enabling Access
Control” on page 391 to learn how to set it up.
Message: Description of the event that took place.
Comment: Comments entered by the user when the batch was saved.
You can copy the information in the History pane to use in other documents:
1. Click the History pane to make sure its active.
2. Click Edit in the main menu and select Copy.
3. Open a document and click Paste.
Making Changes to a Batch
1. Select File in the main menu and click Open Batch.
page 56 Chapter 5: cIEF Batches
User Guide for Maurice, Maurice C. and Maurice S.
2. A list of the last five batches opened will display.
Select one of these files or click Browse to open the Batch folder and select a different one.
To open a batch used in a run file, click Browse. Go to the Run folder in the Compass for iCE direc-
tory and select the run file that uses the batch you want to edit.
3. To make changes to the batch, see the steps in “Creating a New Batch” on page 42. Then select File from
the main menu and click Save or Save As.
Viewing and Editing Batches in Completed Runs
1. Click the Analysis screen and open your run file(s).
2. After the run opens, click the Batch screen to view the batch used with the run.
If you opened more than one run file, you can switch between viewing batches for each file. Just click
the down arrow in the Run box and select the batch you want to view from the drop down list.
3. In completed run files, you can only make edits to the sample and method names in a batch, and these
changes are saved to the run file only. Update sample and method names as needed.
4. Click the Analysis screen. Then select File from the main menu and click Save or Save As to save the
new changes to the run file.
Batch Reports page 57
User Guide for Maurice, Maurice C. and Maurice S.
Batch Reports
You can export a PDF file of sample and method details for each injection in the batch for completed run
files.
1. Go to the Analysis or Run Summary screen, then click File > Open Run and select a run file (if you
don’t have one open already).
2. After the run opens, go to the Batch screen.
3. Select File from the main menu and click Batch Report.
4. The report name defaults to the run file name. If you want to change it, type in the Report Name box to
make updates.
5. The Batch Report PDF is exported to the Runs folder in the Compass for iCE directory. It’ll be in a folder
with the report name used in the prior step. When the reports are done, the folder opens for you auto-
matically.
page 58 Chapter 5: cIEF Batches
User Guide for Maurice, Maurice C. and Maurice S.
Heres an example Batch Report:
page 59
User Guide for Maurice, Maurice C. and Maurice S.
Chapter 6:
CE-SDS Batches
Chapter Overview
Batch Screen Overview
Opening a Batch
Creating a New Batch
Viewing Replicate Injections
•Batch History
Making Changes to a Batch
Viewing and Editing Batches in Completed Runs
•Batch Reports
page 60 Chapter 6: CE-SDS Batches
User Guide for Maurice, Maurice C. and Maurice S.
Batch Screen Overview
You can use the Batch screen to create, view, and edit batches. To get to this screen, click the Batch screen
tab:
Batch Screen Panes
The Batch screen has five panes:
Layout - Displays a map of either the 96-well plate or 48-vial tray of batch sample locations.
Injections - Lists the injections, sample ID, sample locations and methods that Maurice or Maurice S.
will execute for each sample in the batch.
History - Lists all batch file events from initial creation to the most current update.
Notes - Lets you enter specific information about your batch.
Methods - Lets you create methods and enter method parameters used in the batch.
Batch Screen Overview page 61
User Guide for Maurice, Maurice C. and Maurice S.
Software Menus Active in the Batch Screen
These main menu items are active in the Batch screen:
•File
•Edit
Instrument (when the software is connected to Maurice or Maurice S.)
•Window
•Help
File Menu
These File menu options are active:
New Batch - Creates a new batch from a starter template.
Open Batch - Opens an existing batch.
Save/Save As - Saves the open batch.
Batch Report - Exports a table of sample and method details for each injection in the batch as a PDF
file. This menu item is only active for batches in completed runs.
Exit - Closes Compass for iCE.
page 62 Chapter 6: CE-SDS Batches
User Guide for Maurice, Maurice C. and Maurice S.
Edit Menu
The following Edit menu options are active in the Batch screen:
Cut - Cuts the information currently selected.
Copy - Copies the information currently selected.
Paste - Pastes the copied information.
NOTE: Cut, Copy and Paste work differently depending on the pane you’re in. How and when you can use
them is described throughout the chapter.
Plate Layout - Lets you select between a 96-well plate or a 48-vial tray to run samples in.
Default Analysis - Displays the default settings that will be used to analyze the data generated with
your batch.
Preferences - Lets you set and save your preferences for data export, graph colors, grouped data and
Twitter settings. See Chapter 13, “Setting Your Preferences“ for more information.
Opening a Batch page 63
User Guide for Maurice, Maurice C. and Maurice S.
Opening a Batch
To open an existing batch:
1. Select File in the main menu and click Open Batch.
2. A list of the last five batches opened will display. Select one of those or click Browse to open the
Batches folder and select a different one.
3. To make changes to the batch, see the steps in “Creating a New Batchon page 64. When youre done,
select File from the main menu and click Save.
page 64 Chapter 6: CE-SDS Batches
User Guide for Maurice, Maurice C. and Maurice S.
Creating a New Batch
To create a new batch, we recommend that you use one of the template methods and make any necessary
modifications from there.
Step 1 - Open a Template Batch
1. Select File in the main menu and click New Batch:
NOTE: If youre using a Maurice system, both cIEF and CE-SDS template batches are available in the menu.
2. Select Maurice CE-SDS. A batch using the default method will display.
Creating a New Batch page 65
User Guide for Maurice, Maurice C. and Maurice S.
Step 2 - Assign Your Samples
The Layout pane shows the default locations of where batch reagent should be placed in your Maurice sys-
tems samples and reagents platform, and a map of either the 96-well plate or the 48-vial tray used for sam-
ples.
The same reagent locations are used for every batch:
P1 - Conditioning Solution 1 with orange pressure cap
P2 - Conditioning Solution 2 with orange pressure cap
P3 - DI water with orange pressure cap
P4 - Separation Matrix with orange pressure cap
P5 - Wash Solution vial with orange pressure cap
P6 - Empty vial (air) with orange pressure cap
N1 - Wash Solution vial with clear screw cap
N2 - Wash Solution vial with clear screw cap
N4 - Running Buffer - Bottom with clear screw cap
1. To assign samples, select a 96-well plate or 48 vials depending on what youre running. Clicking on the
vial/plate icon toggles between formats.
page 66 Chapter 6: CE-SDS Batches
User Guide for Maurice, Maurice C. and Maurice S.
2. To select samples:
Add samples and select methods later: Use your mouse to highlight the well or vial positions
your samples are located in, then click Add. For this example were using a 96-well plate.
NOTE: The template batch automatically adds a sample in well or vial A1 by default, but if you dont have
a sample in this position you can remove it after you’ve added new positions for your samples.
Add samples with preassigned methods: Highlight the well or vial positions your samples are
located in, then right-click and select a method.
Either option of adding samples populates the Injections table:
Creating a New Batch page 67
User Guide for Maurice, Maurice C. and Maurice S.
To remove samples, just highlight the ones you want to remove and click Remove. They’ll also be
removed in the Injections table. You can also right-click well(s) or vial(s) in the Layout pane and click
Remove Sample(s).
3. Compass for iCE can monitor the current during a separation for you, stop it if the current drops below
the minimum value and reinject the sample for you automatically. Reinjections are enabled by default,
but if you don’t want to use this feature just click the reinject icon to toggle it off.
NOTES:
If a sample was reinjected, the injection row will be flagged in the Injections pane in the Run Summary
screen. See “Injection Flags” on page 158 for more info.
A maximum of 10 reinjections are allowed per batch.
page 68 Chapter 6: CE-SDS Batches
User Guide for Maurice, Maurice C. and Maurice S.
4. The sample platform is temperature controlled with a default setting of 10 °C. To change the tempera-
ture or turn it off, click the down arrow next to the temperature and select an option.
NOTE: The two reagent rows are kept at room temperature.
Step 3 - Assign Your Method Parameters
NOTE: There are three default methods. We recommend using the default method parameters for the
listed sample types. Please see the Maurice CE-SDS Application Guide for more information on method
optimization.
The Methods pane lists all of the methods used in a batch. You can add and remove methods here and
change method parameters.
1. In the Methods table, click the first cell in the Name column and enter a new method name if needed.
Creating a New Batch page 69
User Guide for Maurice, Maurice C. and Maurice S.
2. Click the first cell in the Sample Load column, then click the selection button [...] to set your sample load
profile time (in seconds) and voltage.
To change time and voltage parameters: Just click in a cell under Time or Voltage and type
the new value(s).
To add a profile step: Click Add. A new row will be added in the table. Then just type in a load
time (in seconds) and voltage value.
To remove a profile step: Select the row you want to remove and click Remove.
3. Click the first cell in the Separation column the selection button [...] to set your separation profile
parameters (in minutes) and voltage.
NOTE: Run your reduced IgG samples and IgG Standard for 25 minutes and the CE-SDS MW Markers for 30
minutes. Run your non-reduced IgG samples and IgG Standard for 35 minutes. The default separation
voltage for all sample types is 5750 volts.
page 70 Chapter 6: CE-SDS Batches
User Guide for Maurice, Maurice C. and Maurice S.
To change time and voltage parameters: Just click in a cell under Time or Voltage and type
the new value(s).
To add a profile step: Click Add. A new row will be added in the table. Then just type in a load
time (in seconds) and voltage value.
To remove a profile step: Select the row you want to remove and click Remove.
4. You can now:
•Click New in the upper right corner of the Methods pane to add a new one if you want to use dif-
ferent methods for different samples. Then just repeat the steps above for the new method.
Make updates to the remaining methods by repeating the prior steps.
Select a method and click Remove in the upper right corner of the Methods pane to delete it.
Step 4 - Set Up Your Injections
The Injection pane lists all sample injections for the batch. Any samples that were added in Step 2 - Assign
Your Samples” are automatically added to this list.
Selecting an injection in the table also selects the sample the injection will be made from in the plate or vial
map in the Layout pane and vice-versa.
Creating a New Batch page 71
User Guide for Maurice, Maurice C. and Maurice S.
1. To add sample names, click the Sample ID cell for the injection and type a name.
The sample name also displays when you hover the mouse over the sample in the plate or vial map:
2. Assign your methods to each injection. Just click the Method cell for the injection and select a method
from the drop down menu. If you added your samples with pre-assigned methods and don’t need to
make any changes, skip to the next step.
page 72 Chapter 6: CE-SDS Batches
User Guide for Maurice, Maurice C. and Maurice S.
Hovering over a method name displays the method parameters:
3. You can add or remove injections as needed using a few different options. If you don’t need to make any
changes here, just skip to the next step.
To add sequential replicate injections: Highlight an injection and click Replicate. A new injec-
tion will be added under the row you selected
To add injections at the end of the batch: Click on any sample position in the Layout pane or
sample injection in the Injection table and click Add. A new injection using the same sample will
be added to the end of the table. Assign the method if needed.
Creating a New Batch page 73
User Guide for Maurice, Maurice C. and Maurice S.
To copy and paste injections: Right-click on an injection in the Injection table and select Copy.
Click on the injection number above where you want to insert the copied injection, right click
and select Paste. The copied injection will be inserted under the row you selected.
Step 5 - Add Batch Notes (Optional)
1. Click on the Notes pane.
2. Click in the notes area and type any information you want to add about your batch.
Step 6 - Modify Default Analysis Parameters (Optional)
You can preset the parameters used to analyze data generated with the batch. We recommend using the
default parameters for CE-SDS applications, but if you need to modify parameters:
page 74 Chapter 6: CE-SDS Batches
User Guide for Maurice, Maurice C. and Maurice S.
1. Select Edit from the main menu and click Default Analysis. The following screen will display:
2. Change the parameters you want to, then click OK. For detailed information on analysis parameters,
please refer to “Analysis Settings Overview” on page 244.
Step 7 - Save Your Batch
1. Once all of your sample, method and injection info is entered, select File > Save. Enter any comments
on the batch if you want, then click Save.
Viewing Replicate Injections page 75
User Guide for Maurice, Maurice C. and Maurice S.
2. Enter a name for your batch then click Save.
Viewing Replicate Injections
Injections with replicates have an arrow next to the injection number. You can expand or collapse the list of
replicate injections by toggling the arrow:
To show all replicate injections in the batch, click the Expand All Injections button.
page 76 Chapter 6: CE-SDS Batches
User Guide for Maurice, Maurice C. and Maurice S.
To hide all replicate injections in the batch, click the Collapse All Injections button.
Batch History
Clicking on the History pane shows the batch event history, starting with the date and time the batch was
created through the most current event. Clicking on a row in the table displays the full event details in the
box under the table.
Making Changes to a Batch page 77
User Guide for Maurice, Maurice C. and Maurice S.
Date: Date and time of the batch event.
User Name: User that initiated the event. User names only display if you’re using the Access Con-
trol feature to help satisfy the 21CFR Part 11 data security requirements. Go to “Enabling Access
Control” on page 391 to learn how to set it up.
Message: Description of the event that took place.
Comment: Comments entered by the user when the batch was saved.
You can copy the information in the History pane to use in other documents:
1. Click the History pane to make sure its active.
2. Click Edit in the main menu and select Copy.
3. Open a document and click Paste.
Making Changes to a Batch
1. Select File in the main menu and click Open Batch.
page 78 Chapter 6: CE-SDS Batches
User Guide for Maurice, Maurice C. and Maurice S.
2. A list of the last five batches opened will display.
Select one of these files or click Browse to open the Batch folder and select a different one.
To open a batch used in a run file, click Browse. Go to the Run folder in the Compass for iCE direc-
tory and select the run file that uses the batch you want to edit.
3. To make changes to the batch, see the steps in “Creating a New Batch” on page 64. Then select File from
the main menu and click Save or Save As.
Viewing and Editing Batches in Completed Runs
1. Click the Analysis screen and open your run file(s).
2. After the run opens, click the Batch screen to view the batch used with the run.
If you opened more than one run file, you can switch between viewing batches for each file. Just click
the down arrow in the Run box and select the batch you want to view from the drop down list.
3. In completed run files, you can only make edits to the sample and method names in a batch, and these
changes are saved to the run file only. Update sample and method names as needed.
4. Click the Analysis screen. Then select File from the main menu and click Save or Save As to save the
new changes to the run file.
Batch Reports page 79
User Guide for Maurice, Maurice C. and Maurice S.
Batch Reports
You can export a PDF file of sample and method details for each injection in the batch for completed run
files.
1. Go to the Analysis or Run Summary screen, then click File > Open Run and select a run file (if you
don’t have one open already).
2. After the run opens, go to the Batch screen.
3. Select File from the main menu and click Batch Report.
4. The report name defaults to the run file name. If you want to change it, type in the Report Name box to
make updates.
5. The Batch Report PDF is exported to the Runs folder in the Compass for iCE directory. It’ll be in a folder
with the report name used in the prior step. When the reports are done, the folder opens for you auto-
matically.
page 80 Chapter 6: CE-SDS Batches
User Guide for Maurice, Maurice C. and Maurice S.
Heres an example Batch Report:
page 81
User Guide for Maurice, Maurice C. and Maurice S.
Chapter 7:
Running cIEF Applications on
Maurice and Maurice C.
Chapter Overview
Before You Throw the Switch
•Power Up
Running cIEF Applications
Post-batch Procedures
•Checking Your Data
Before You Throw the Switch page 82
User Guide for Maurice, Maurice C. and Maurice S.
Before You Throw the Switch
Ensure that everyone using Maurice have:
Received instruction in general safety practices for laboratories.
Received instruction in specific safety practices for Maurice.
Received instruction on handling of biohazards (if biohazardous materials are to be used on Maurice).
Read and understood all Product Inserts and related Safety Data Sheets (SDS).
Power Up
1. Turn on the computer connected to Maurice.
2. Turn on Maurices main power switch.
3. Wait for Maurice to initialize. His indicator light will turn from magenta to blue when he’s done.
4. Double-click the Compass for iCE software icon on the computer desktop to open the application.
5. Connect Maurice to Compass for iCE.
Running cIEF Applications
What You’ll Need
Maurice cIEF Cartridges
Maurice cIEF Method Development Kit (optional)
Maurice System Suitability Kit (optional)
Maurice cIEF Fluorescence Calibration Standard
Maurice cIEF pI Markers (3.38, 4.05, 5.85, 6.14, 7.05, 8.4, 9.99, or 10.17)
0.5% Methyl Cellulose Solution
1% Methyl Cellulose Solution
iCE Electrolyte Kit
Deionized (DI) water
Glass reagent vials, 2 mL
96-well plate or vials with integrated inserts for samples
•Clear screw caps for vials
Running cIEF Applications page 83
User Guide for Maurice, Maurice C. and Maurice S.
Blue pressure caps for vials
P10, P20, P200, P1000 pipettes and tips
Electrolyte pipette
•Vortexer
Table-top centrifuge with plate adapter or vial adapter (12 mm, 2 mL vials)
Step 1: Prep Your Markers, Samples and Reagents
NOTES:
You can prepare your samples to run either in 96-well plates or vials.
If you need to seal the 96-well plate during your run, we recommend the 4titude Pierceable Film (PN 4ti-
0566, 4titude). It can be used in both absorbance and native fluorescence modes. If youre currently using
X-Pierce adhesive film (PN XP-100, Excel Scientific), we recommend using it for absorbance mode only.
System Suitability Peptide Panel (Optional)
NOTES:
Run the System Suitability Peptide Panel when you need to confirm performance on Maurice.
The System Suitability Peptide Panel is lyophilized. Always reseal the foil bag containing the unopened
tubes with desiccant to prevent moisture absorption.
1. Using scissors, carefully cut the top the package off leaving the sealing strip intact.
2. Take out the strip of tubes and cut one clear tube of lyophilized System Suitability Peptide Panel from
the strip. Return the remaining tubes to the original package, reseal tightly and store at 2-8°C.
3. Pierce the foil on the tube with a clean pipette tip.
4. Add 40 μL of DI water to the tube. Gently resuspend by pipetting up and down to mix.
5. Add 160 μL of the System Suitability Test Mix to the freshly reconstituted Peptide Panel. Gently mix by
pipetting up and down. Transfer this solution to a 1.5 mL microcentrifuge tube.
6. Vortex the tube 3 times, 5 seconds each.
7. Centrifuge the tube at 10,000 xg for 3 minutes to sediment any particulates.
Running cIEF Applications page 84
User Guide for Maurice, Maurice C. and Maurice S.
8. Carefully aspirate the top 160 μL of the solution and pipette it into a sample vial with integrated insert or
well of a 96-well plate. You’ll want to insert the pipette tip all the way to the bottom of the insert or well
when you dispense the solution to avoid introducing bubbles.
NOTE: Make sure to check for and remove any bubbles at the bottom of the sample vial or well.
9. If you're using vials, close the sample vial with a clear screw cap.
Samples
1. In a microcentrifuge tube, prepare your sample at a concentration of 1 mg/mL in a final volume of 40 μL
in DI water.
2. In a separate tube, prepare IEF Separation Mix containing your chosen pI marker(s).
NOTE: Check out the Method Development Guide for suggested IEF Separation Mix recipes.
3. Add 160 μL of IEF Separation Mix to the 40 μL of your sample.
4. Vortex the tube 3 times, 5 seconds each.
5. Centrifuge the tube at 10,000 xg for 3 minutes to sediment any particulates
6. Carefully aspirate the top 160 μL of the sample and pipette it into your sample vial with integrated insert
or well of a 96-well plate by inserting the pipette tip all the way to the bottom to avoid introducing bub-
bles.
Note: Make sure to check for and remove any bubbles at the bottom of the sample vial or well.
Clear screw cap
Sample vial with
integrated insert
Running cIEF Applications page 85
User Guide for Maurice, Maurice C. and Maurice S.
7. If you're using vials, close the sample vial with a clear screw cap.
pI Markers
1. Open the vial of lyophilized pI marker by lifting the center tab and gently pulling it back to break the
metal seal. Slowly remove the rubber stopper.
2. Add 210 μL of DI water to the vial.
3. Put the rubber stopper back in the vial and vortex 3 times, 5 seconds each time to completely reconsti-
tute the lyophilized cake. Repeat this step for all pI markers you're using.
4. Aliquot 20 μL of each reconstituted pI marker into separate tubes for storage.
NOTES:
Keep your reconstituted pI markers on ice until you're ready to add them to your sample or IEF Separation
Mix.
If you'll use the pI markers within a month, store the aliquots at 2-8 °C. Otherwise, store the aliquots at
-20 °C. They'll be stable up to 6 months.
5. Use 2 μL of each pI marker for every 200 μL of sample.
Reagents
NOTE: Don't reuse reagents, vials or the clear screw caps. Always keep the blue pressure caps paired with
their respective reagents. If you want to reuse pressure caps, first wash them thoroughly with DI water,
soak overnight in DI water, rinse caps thoroughly with DI water again and air dry them before reusing.
1. Pipette 2 mL of 0.5% Methyl Cellulose into a glass reagent vial, label and close with a blue pressure cap.
Running cIEF Applications page 86
User Guide for Maurice, Maurice C. and Maurice S.
2. Pipette 500 μL of Fluorescence Calibration Standard in a glass reagent vial, label and close with a blue
pressure cap.
3. Pipette 2 mL of DI water into a glass reagent vial, label and close with a blue pressure cap.
4. Close an empty glass reagent vial with a blue pressure cap.
5. Pipette 2 mL of DI water into a glass reagent vial, label and close with a clear screw cap.
Step 2: Prep the Cartridge
1. Take the cIEF Cartridge out of its packaging. Save the packaging, you’ll need it later to store the car-
tridge.
NOTE: When you remove the cartridge from its packaging, make sure the cartridge inlet doesn’t come in
contact with any surface.
Pressure cap
Glass reagent vial
Clear screw
Glass reagent vial
cap
Running cIEF Applications page 87
User Guide for Maurice, Maurice C. and Maurice S.
2. Put the cartridge on a flat surface with its electrolyte tanks facing up.
3. Remove the stoppers from both electrolyte tanks.
4. Add 2 mL of Catholyte solution to the OH- electrolyte tank (white port).
5. Add 2 mL Anolyte solution to the H+ electrolyte tank (red port).
NOTE: Make sure you don’t overfill the electrolyte tanks.
Anolyte
Tank
Optical
Window
Cartridge
Inlet
Catholyte
Tank
Running cIEF Applications page 88
User Guide for Maurice, Maurice C. and Maurice S.
6. Seal each tank with the rubber stoppers. Use the grey stopper for the OH- tank and the red one for the
H+ tank. If excess liquid comes out of the tank, make sure to wipe it with a laboratory wipe.
Step 3: Install the Cartridge
1. Open Maurice’s door by touching the metal plate on top of the door.
NOTE: The indicator light on Maurices front panel will blink rapidly as the door disengages.
2. Swing the door open to access the cartridge slot and the reagents and samples platform. The lights on
either side of the slot will be orange.
Running cIEF Applications page 89
User Guide for Maurice, Maurice C. and Maurice S.
3. Double check to make sure you’ve got electrolytes loaded and the tanks are properly sealed with the
stoppers.
4. Lift the cartridge and hold it vertically using the finger holds on either side, cartridge inlet down, with
the cIEF label facing you.
5. Gently insert it into the slot. You’ll feel the alignment groove on the cartridge align inside the slot when
you insert it.
Running cIEF Applications page 90
User Guide for Maurice, Maurice C. and Maurice S.
6. Continue to slide the cartridge into the slot until the locking mechanism engages. The lights on either
side of the slot will change to blue once the cartridge is installed correctly.
Step 4: Load Samples and Reagents
1. Place the reagent vials into their respective positions on the sample and reagents platform:
NOTES:
The two reagent rows in Maurice’s reagent and sample platform are kept at room temperature.
Pressure caps are blue and have a raised, ringed surface. They should only be used in Reagent Row P. Use
reagent vials with clear screw caps in Row N.
P1 - 0.5% Methyl Cellulose with blue pressure cap
P2 - Fluorescence Calibration Standard with blue pressure cap
P3 - Water vial with blue pressure cap
P6 - Empty vial (air) with blue pressure cap
N1 - Water vial with clear screw cap
Running cIEF Applications page 91
User Guide for Maurice, Maurice C. and Maurice S.
2. Depending on what you prepared your samples in, put your 96-well sample plate in the metal plate
insert or your sample vials in the metal vial insert.
NOTES:
If you need to seal the 96-well plate during your run, we recommend the 4titude Pierceable Film (PN 4ti-
0566, 4titude). It can be used in both absorbance and native fluorescence modes. If youre currently using
X-Pierce adhesive film (PN XP-100, Excel Scientific), we recommend using it in absorbance mode only.
Well A1 on the 96-well plate should be in the top left corner of the insert.
3. Close the instrument door. Maurice locks it automatically.
Step 5: Create a Batch
1. Launch Compass for iCE.
2. Select the Batch tab. This is where you’ll enter sample/injection information, methods and batch
parameters.
Running cIEF Applications page 92
User Guide for Maurice, Maurice C. and Maurice S.
3. To create a batch, make sure Maurice is connected to Compass for iCE. If he isn’t, select Instrument and
click Connect. Then select your Maurice system and click Connect.
To create a new batch:
On Maurice systems - in the main menu, select File > New Batch > Maurice cIEF.
On Maurice C. systems - in the main menu, select File > New Batch
To use an existing batch: In the main menu, select File > Open Batch.
NOTE: If youre making changes to an existing batch, follow the steps in this section. Otherwise skip to
“Step 6: Start the Batch” on page 100.
Running cIEF Applications page 93
User Guide for Maurice, Maurice C. and Maurice S.
4. In the Layout pane, clicking on the vial/plate icon toggles between formats. Select 48 vials or a 96-well
plate depending on what youre running.
5. Use your mouse to highlight the well positions for each of your samples, then click Add.
This populates the Injections table:
Running cIEF Applications page 94
User Guide for Maurice, Maurice C. and Maurice S.
6. The sample platform is temperature controlled with a default setting of 10 °C. To change the tempera-
ture or turn it off, click the down arrow next to the temperature and select an option.
NOTE: The two reagent rows are kept at room temperature.
7. In the Methods pane:
NOTE: We recommend using the default method parameters. Please see the Maurice cIEF Method Devel-
opment Guide for more information on method optimization.
a. Click the first cell in the Name column and enter a method name.
Running cIEF Applications page 95
User Guide for Maurice, Maurice C. and Maurice S.
b. Click the first cell in the Separation column, then click the selection button [...] to set the pre-focus-
ing and focusing time (in minutes) and voltage.
c. Click the first cell in the Detection column then click the selection button [...] to set your exposure
times for absorption and fluorescence detection modes.
d. Click the first cell in the Sample Load(s) column and set the load time in seconds.
Running cIEF Applications page 96
User Guide for Maurice, Maurice C. and Maurice S.
e. Click the first cell in the pI Markers column to select pI markers. Add new markers or remove existing
ones then click OK.
f. Optional: Click the first cell in the Ampholytes column and enter the ampholytes youre using.
g. Optional: Click the first cell in the Additives column and enter any additives you’re using.
Running cIEF Applications page 97
User Guide for Maurice, Maurice C. and Maurice S.
8. You can now:
Make updates to the remaining methods by repeating the prior steps.
Select a method and click Remove in the upper right corner of the Methods pane to delete it.
•Click New in the upper right corner of the Methods pane to add a new one if you want to use dif-
ferent methods for different samples. Then just repeat the steps above for the new method.
9. In the Injections pane:
To add sample names: click the Sample ID cell for the injection and type a name.
To assign methods for each injection: Click the Method cell for the injection and select a
method from the drop down menu.
To add sequential replicate injections: Highlight an injection and click Replicate. A new injec-
tion will be added under the row you selected
Running cIEF Applications page 98
User Guide for Maurice, Maurice C. and Maurice S.
To add injections at the end of the batch: Click on any sample position in the Layout pane or
sample injection in the Injection table and click Add. A new injection using the same sample will
be added to the end of the table. Assign the method if needed.
To copy and paste injections: Right-click on an injection in the Injection table and select Copy.
Click on the injection number above where you want to insert the copied injection, right click
and select Paste. The copied injection will be inserted under the row you selected.
10. Click on the Notes pane, then click in the notes area and type any information you want to add about
your batch (optional).
11. You can preset the parameters used to analyze data generated with the batch (optional). We recom-
mend using the default parameters for cIEF applications, but if you want to modify parameters:
a. Select Edit from the main menu and click Default Analysis. The following screen will display:
Running cIEF Applications page 99
User Guide for Maurice, Maurice C. and Maurice S.
b. Change the parameters you want to, then click OK. For detailed information on analysis parameters,
please refer to “Analysis Settings Overview” on page 244
12. Once all of your sample, method and injection info is entered, select File > Save. Enter any comments
on the batch if you want, then click Save.
13. Enter a name for your batch then click Save.
Running cIEF Applications page 100
User Guide for Maurice, Maurice C. and Maurice S.
Step 6: Start the Batch
1. Make sure Maurice is connected to Compass for iCE. If he isn’t, select Instrument and click Connect.
Then select your Maurice system and click Connect.
2. Click Start to start your batch.
3. The Start Run box shows you the number of injections and batches remaining on your cartridge. Make
sure you still have enough injections left before you start the run. If not, prep a new cartridge.
4. Click in the Results File name box if you want to change the default run file name. Otherwise just leave
it as is.
5. If you don’t want to save the file to the default Runs folder, click Browse to select a different location.
6. Enter any run details you’d like in the Comments box (optional).
7. Click Start to start the run.
NOTE: The indicator light on Maurices front panel will pulse slowly while hes running the batch.
Running cIEF Applications page 101
User Guide for Maurice, Maurice C. and Maurice S.
To monitor the progress of your batch, click the Run Summary tab. See Chapter 9, “Run Status“ for more
details.
To view results, analyze results or change analysis parameters on completed injections while the batch is
still running, click the Analysis tab. See Chapter 12, cIEF Data Analysis“ for more details.
Post-batch Procedures page 102
User Guide for Maurice, Maurice C. and Maurice S.
When your batch is complete, you can view electropherograms for all injections in the Analysis tab, and
all batch and injection details in the Run Summary tab.
NOTE: If you’d like Maurice to let you know when your run is done, you can set him up to tweet you. Go to
“Setting Up Maurice Systems to Send Tweets” on page 383 for more info.
Post-batch Procedures
When the batch is done:
1. Open Maurice’s door. The lights on either side of the cartridge slot will be orange as Maurice will have
already disengaged the cartridge.
2. Remove your reagent vials and samples and discard.
3. Gently pull out the cartridge making sure the cartridge inlet doesn’t come into contact with any surface.
Post-batch Procedures page 103
User Guide for Maurice, Maurice C. and Maurice S.
If you're at 100 injections, the cartridge is at its limit. Put it back in its original packing and discard it
per your institution's safety and waste disposal guidelines.
NOTE: Disposal of cartridges, sample plates and vials depends on the samples you ran. If you aren’t sure
what your sample origins are, we recommend you dispose of everything in biohazard waste.
If you've still got injections left and the cartridge will be used again within 24 hours. You don't
need to do anything. Just leave the cartridge in Maurice.
If you've still got injections left and the cartridge wont be used within 24 hours. Clean and store
the cartridge. Maurice has already cleaned the capillary for you, so here's all you need to do:
a. Put the cartridge on a flat surface with its electrolyte tanks facing up.
b. Remove the stoppers from both the electrolyte tanks.
c. Using an electrolyte pipette or low vacuum, aspirate the solutions from each tank.
d. Fill each tank with 2 mL DI water, then aspirate it out. Repeat this rinse 3 times.
NOTE: Make sure not to get any liquid on the cartridge’s optical window.
Post-batch Procedures page 104
User Guide for Maurice, Maurice C. and Maurice S.
e. Aspirate all the remaining liquid and make sure that the tanks are dry.
f. Put the stoppers back on the tanks.
g. Put the cartridge back in its protective packaging and store it at room temperature.
!WARNING! SHARPS HAZARD
The capillary inlet of the cartridge may present a potential sharps hazard. Dispose of used cartridges
according to your organizations health and safety regulations.
!WARNING! BIOHAZARD
Cartridges, sample plates and vials should be handled by procedures recommended in
the CDC/NIH manual: Biosafety in Microbiological and Biomedical Laboratories (BMBL).
The manual is available from the U.S. Government Printing Office or online at http://
www.cdc.gov/biosafety/publications/bmbl5/.
Depending on the samples used, the cartridges, plates and vials may constitute a chemi-
cal or a biohazard. Dispose of the cartridges, plates and vials in accordance with good lab-
Checking Your Data page 105
User Guide for Maurice, Maurice C. and Maurice S.
oratory practices and local, state/provincial, or national environmental and health regulations. Read
and understand the Safety Data Sheets (SDSs) provided by the manufacturers of the chemicals in
the waste content before you store, handle, or dispose of chemical waste.
Checking Your Data
Compass for iCE detects your sample protein and pI marker peaks and reports results automatically. But, we
always recommend you review your data using the steps in this section as a good general practice to make
sure your results are accurate. If you see a data warning in the Experiment pane, these steps will also help
you identify and correct any issues.
Step 1: Select Your Detection Mode
1. Go to the Analysis screen and open your run (if it isn’t already open).
2. The data displays in absorbance mode by default. If you want to look at fluorescence data instead, select
Edit from the main menu and click Analysis. In the Analysis window, select Detection in the left side-
bar, then click Fluorescence in the Detection page.
Step 2: Check Your pI Markers
To make sure your pI markers are identified correctly:
1. Go to the Analysis screen.
2. Click Markers in the View bar.
Checking Your Data page 106
User Guide for Maurice, Maurice C. and Maurice S.
3. Click the Single View icon in the View bar.
4. Click Injection 1 in the Experiment pane.
5. Check that your pI markers in the electropherogram have been correctly identified. Each marker peak
will have a green vertical line running through it and be labeled Mkr. They’re also identified with an M in
the Peaks table.
6. If your pI markers aren’t identified correctly, heres how to manually correct them:
To set an unidentified peak as a pI marker: Right-click the peak in the electropherogram or Peaks
table and select Force Standard. Compass will assign that peak as a pI marker, and correctly reassign
the remaining pI marker peaks.
Checking Your Data page 107
User Guide for Maurice, Maurice C. and Maurice S.
A lock icon indicating the pI marker was set manually will display next to the peak in the Peaks table and
a check mark will appear next to the injection in the Experiment pane to show a manual correction was
made.
Checking Your Data page 108
User Guide for Maurice, Maurice C. and Maurice S.
NOTE: To remove pI marker peak assignments that were made manually, right click on the peak in the
electropherogram or Peaks table and click Clear. To clear all the manual settings for the injection, click
Clear All.
If an incorrect peak is identified as a pI marker: Right-click the peak in the electropherogram or
Peaks table and select Not a Marker. Compass should correctly reassign the remaining peaks as pI
markers and update the Peaks table.
An M with a red slash through it will appear next to the incorrectly assigned peak in the Peaks table and
a check mark will appear next to the injection in the Experiment pane to show a manual correction was
made.
7. Repeat the previous steps for the remaining pI marker peaks as needed in the current injection and for
all other injections to make sure all your pI markers are identified correctly.
Step 3: Checking Sample Peaks
All detected peaks will be labeled automatically with the calculated protein pI.
Checking Your Data page 109
User Guide for Maurice, Maurice C. and Maurice S.
NOTE: The reported protein pI in Compass may vary slightly from predicted pIs based on sample, buffer,
and method conditions.
To make sure your sample proteins are identified correctly:
1. Click Samples in the View bar.
2. Click the Single View icon in the View bar.
3. Click Injection 1 in the Experiment pane.
4. If your sample peaks aren’t identified correctly, heres how to manually correct them:
If a peak is incorrectly identified as a sample peak: Right-click the peak in the electropherogram or
Peaks table and select Remove Peak. Compass will no longer identify it as a sample peak in the electro-
pherogram and the peak data will be removed in the results table.
Checking Your Data page 110
User Guide for Maurice, Maurice C. and Maurice S.
A check mark will appear next to the injection in the Experiment pane to indicate a manual correction
was made.
To identify a peak as a sample peak: Right-click the peak in the electropherogram or Peaks table and
select Add Peak. Compass will calculate and display the results for the peak in the results table and
identify the peak in the electropherogram.
Checking Your Data page 111
User Guide for Maurice, Maurice C. and Maurice S.
A check mark will appear next to the injection in the Experiment pane to indicate a manual correction
was made.
NOTE: To remove sample peak assignments that were made manually and go back to the original peak
data, right-click the peak in the electropherogram and select Clear.
5. Repeat the previous steps for the remaining injections to make sure all sample peaks are correctly iden-
tified.
Step 4: Assigning Peak Names
Compass can also optionally identify and automatically name sample peaks using user-specified peak name
settings. For more information on how to do this, see “Peak Names Settings” on page 354.
page 112
User Guide for Maurice, Maurice C. and Maurice S.
Chapter 8:
Running CE-SDS Applications on
Maurice and Maurice S.
Chapter Overview
Before You Throw the Switch
•Power Up
Running CE-SDS Applications
Post-batch Procedures
•Checking Your Data
Before You Throw the Switch page 113
User Guide for Maurice, Maurice C. and Maurice S.
Before You Throw the Switch
Ensure that everyone using Maurice have:
Received instruction in general safety practices for laboratories.
Received instruction in specific safety practices for Maurice.
Received instruction on handling of biohazards (if biohazardous materials are to be used on Maurice).
Read and understood all Product Inserts and related Safety Data Sheets (SDS).
Power Up
1. Turn on the computer connected to Maurice.
2. Turn on Maurices main power switch.
3. Wait for Maurice to initialize. His indicator light will turn from magenta to blue when he’s done.
4. Double-click the Compass for iCE software icon on the computer desktop to open the application.
5. Connect Maurice to Compass for iCE.
Running CE-SDS Applications
What You’ll Need
Maurice CE-SDS Size Application Kit which includes:
Maurice CE-SDS Cartridges
Cartridge Cleaning Vials
Separation Matrix
Running Buffer (Top and Bottom)
1X Sample Buffer
Wash Solution
Conditioning Solutions (1 and 2)
25X Internal Standard
Glass reagent vials, 2 mL
96-well plates
•Clear screw caps for vials
Orange pressure caps for vials
Maurice CE-SDS IgG Standard (optional)
Running CE-SDS Applications page 114
User Guide for Maurice, Maurice C. and Maurice S.
Maurice CE-SDS MW Markers (optional)
β-mercaptoethanol (βME, >98% = 14.2 M) for reducing conditions
Iodoacetamide (IAM, 250 mM) for alkylation at non-reducing conditions
Deionized (DI) water
Sample vials with integrated inserts for samples (optional)
P10, P20, P200, P1000 and pipette tips
Water bath or thermocycler
•Vortexer
Table-top centrifuge with plate adapter or vial adapter (12 mm, 2 mL vials)
Step 1: Prep Your Internal Standard, Samples and Reagents
NOTE: You can prepare your samples to run either in 96-well plates or vials. Using 96-well plates is the
default method.
Internal Standard
NOTES:
The Internal Standard is lyophilized. Always reseal the foil bag containing the unopened tubes with desic-
cant to prevent moisture absorption.
Aliquot the reconstituted solution into appropriately sized vials and store at -80 °C for long term storage.
For short-term storage (< 1 week), the solution can be stored at 2-8 °C
1. Open the vial of lyophilized 25X Internal Standard by lifting the center tab and gently pulling it back to
break the metal seal. Then slowly remove the rubber stopper.
2. Reconstitute by adding 240 μL of 1X Sample Buffer. Pipette up and down a few times to mix thoroughly.
This results in a 25X Internal Standard solution.
NOTE: Don’t vortex the reconstituted Internal Standard during prep.
Running CE-SDS Applications page 115
User Guide for Maurice, Maurice C. and Maurice S.
Sample Prep Under Reducing Conditions
Reduced IgG Sample
1. In a microcentrifuge tube, dilute your IgG sample with 1X Sample Buffer to a concentration of 1mg/mL
in a final volume of 50 μL.
NOTE: Dilute at least 1:1 with 1X Sample Buffer.
2. Add 2 μL of reconstituted 25X Internal Standard for every 50 μL of sample volume.
3. Add 2.5 μL of 14.2 M β-mercaptoethanol to 50 μL of sample.
4. Mix thoroughly.
NOTE: Heating in the presence of SDS linearizes the protein and allows for SDS binding. The reducing
agents break up inter- and intra-molecular disulfide bonds.
5. Centrifuge the tube and heat the mixture in a water bath or thermocycler at 70 °C for 10 minutes.
6. Put the tube on ice for 5 minutes.
7. Vortex briefly and spin down.
Reduced IgG Standard (Optional)
NOTE: The IgG Standard is lyophilized. Always reseal the foil bag containing the unopened tubes with des-
iccant to prevent moisture absorption.
1. Using scissors, carefully cut the top of the foil package, leaving the sealing strip intact.
2. Take out the strip of tubes and carefully cut one pink tube of lyophilized IgG Standard from the strip. Put
the unopened tubes back in the package, seal tightly and store at 2-8 °C.
3. Pierce the foil on the tube with a clean pipette tip.
4. Reconstitute the IgG Standard with 50 μL of 1X Sample Buffer. Gently resuspend by pipetting the solu-
tion up and down. Transfer the solution to a microcentrifuge tube.
5. Add 2 μL of reconstituted 25X Internal Standard.
6. Add 2.5 μL of 14.2 M β-mercaptoethanol.
7. Mix thoroughly by vortex.
Running CE-SDS Applications page 116
User Guide for Maurice, Maurice C. and Maurice S.
8. Centrifuge the tube and heat mixture in a water bath or thermocycler at 70 °C for 10 minutes.
9. Put the tube on ice for 5 minutes.
10. Vortex briefly and spin down.
CE-SDS Molecular Weight (MW) Markers (Optional)
NOTE: The CE-SDS MW Markers are lyophilized. Always reseal the foil bag containing the unopened tubes
with desiccant to prevent moisture absorption.
1. Using scissors, carefully cut the top of the foil package leaving the sealing strip intact.
2. Take out the strip of tubes and carefully cut one green tube of lyophilized CE-SDS MW Markers from the
strip. Put the unopened tubes back in the package, seal tightly and store at 2-8 °C.
3. Pierce the foil on the tube with a clean pipette tip.
4. Reconstitute the CE-SDS MW Markers with 50 μL of 1X Sample Buffer. Gently resuspend by pipetting the
solution up and down. Transfer the solution to a microcentrifuge tube.
5. Add 2 μL of reconstituted 25X Internal Standard.
6. Add 2.5 μL of 14.2 M β-mercaptoethanol.
7. Mix thoroughly.
8. Centrifuge the tube and heat the mixture in a water bath or thermocycler at 70 °C for 10 minutes.
9. Put the tube on ice for 5 minutes.
10. Vortex briefly and spin down.
Spin Samples, Standards and CE-SDS MW Markers
If you’re using a 96-well plate:
1. Transfer 50 μL of each of your samples, IgG Standard and CE-SDS MW Markers to their designated wells
in a 96-well plate.
2. Cover the plate with a lid and spin for 10 minutes at 1000 xg in a centrifuge with a plate adapter.
3. Pop any bubbles in the samples with a clean pipette tip.
If you’re using vials:
1. Transfer 50 μL of each of your samples, IgG Standard and CE-SDS MW Markers to their designated sam-
ple vials with integrated inserts.
2. Close the vials with a clear screw cap.
3. Place the vials in a centrifuge using a vial adapter (12 mm, 2 mL vials) and spin for 10 minutes at 1000 xg.
Running CE-SDS Applications page 117
User Guide for Maurice, Maurice C. and Maurice S.
Sample Prep Under Non-reducing Conditions
Alkylation Reagent
NOTES:
We use a 250 mM solution of iodoacetamide (IAM) as an alkylating reagent.
Prepare a fresh 250 mM solution of iodoacetamide in DI water before use.
1. Weigh out 46 mg of IAM directly into a 1.5 mL microcentrifuge tube.
2. Add 1 mL of DI water to the tube and mix thoroughly.
Non-reduced IgG Sample
1. In a microcentrifuge tube, dilute your IgG sample with 1X Sample Buffer to a concentration of 1 mg/mL
in a final volume of 50 μL.
NOTE: Dilute at least 1:1 with 1X Sample Buffer.
2. Add 2 μL of reconstituted 25X Internal Standard for every 50 μL of sample volume.
3. Add 2.5 μL of 250 mM IAM.
4. Mix thoroughly.
5. Centrifuge the tube and heat the mixture in a water bath or thermocycler at 70 °C for 10 minutes.
6. Put the tube on ice for 5 minutes.
Clear screw cap
Sample vial with
integrated insert
Running CE-SDS Applications page 118
User Guide for Maurice, Maurice C. and Maurice S.
7. Vortex briefly and spin down.
Non-reduced IgG Standard (Optional)
NOTE: The IgG Standard is lyophilized. Always reseal the foil bag containing the unopened tubes with des-
iccant to prevent moisture absorption.
1. Using scissors, carefully cut the top of the foil package, leaving the sealing strip intact.
2. Take out the strip of tubes and carefully cut one pink tube of lyophilized IgG Standard from the strip. Put
the unopened tubes back in the package, seal tightly and store at 2-8 °C.
3. Pierce the foil on the tube with a clean pipette tip.
4. Reconstitute the IgG Standard with 50 μL of 1X Sample Buffer. Gently resuspend by pipetting the solu-
tion up and down. Transfer the solution to a microcentrifuge tube.
5. Add 2 μL of reconstituted 25X Internal Standard.
6. Add 2.5 μL of 250 mM IAM.
7. Mix thoroughly by vortex.
NOTE: Heating in the presence of SDS linearizes the protein and allows for SDS binding. The alkylating
agents prevent disulfide-bond scrambling catalyzed by free sulfhydryl groups. This minimizes the appear-
ance of fragments under non-reducing conditions.
8. Centrifuge the tube and heat mixture in a water bath or thermocycler at 70 °C for 10 minutes.
9. Put the tube on ice for 5 minutes.
10. Vortex briefly and spin down.
Spin Samples and Standards
If you’re using a 96-well plate:
1. Transfer 50 μL of each of your samples and IgG Standard to their designated wells in a 96-well plate.
2. Cover the plate with a lid and spin for 10 minutes at 1000 xg in a centrifuge with a plate adapter.
3. Pop any bubbles in the samples with a clean pipette tip.
If you’re using vials:
1. Transfer 50 μL of your samples and IgG Standard to their designated sample vials with integrated inserts.
2. Close the vials with a clear screw cap.
Running CE-SDS Applications page 119
User Guide for Maurice, Maurice C. and Maurice S.
3. Place the vials in a centrifuge using vial adapter (12 mm, 2 mL vials) and spin for 10 minutes at 1000 xg.
Reagents
NOTE: Don't reuse reagents, vials or the clear screw caps. Always keep the orange pressure caps paired
with their respective reagents. If you want to reuse pressure caps, first wash them thoroughly with DI
water, soak overnight in DI water, rinse caps thoroughly with DI water again and air dry them before reus-
ing.
1. Pipette 1.5 mL of Conditioning Solution 1 into a glass reagent vial, label and close with an orange pres-
sure cap.
2. Pipette 1.5 mL of Conditioning Solution 2 into a glass reagent vial, label and close with an orange pres-
sure cap.
3. Pipette 1.0 mL of Wash Solution into a glass reagent vial, label each and close with an orange pressure
cap.
4. Pipette 1.5 mL of Wash Solution into two glass reagent vials. Label each and close both with clear screw
caps.
Pressure cap
Glass reagent vial
Running CE-SDS Applications page 120
User Guide for Maurice, Maurice C. and Maurice S.
5. Pipette 1 mL of Separation Matrix into a glass reagent vial, label and close with an orange pressure cap.
6. Pipette 1 mL of Running Buffer - Bottom into a glass reagent vial, label and close with a clear screw cap.
7. Pipette 1.5 mL of DI water into a glass reagent vials, label and close with an orange pressure cap.
8. Close an empty glass reagent vial with an orange pressure cap.
Step 2: Prep the Cartridge
1. Take the CE-SDS Cartridge out of its packaging. Save the packaging, you’ll need it later to store the car-
tridge.
NOTE: When you remove the cartridge from its packaging, make sure the cartridge inlet doesn’t come in
contact with any surface.
Glass reagent vial
Clear screw
cap
Running CE-SDS Applications page 121
User Guide for Maurice, Maurice C. and Maurice S.
2. Pull the cartridge insert out of the cartridge.
3. Slide the Top Running Buffer vial into the cartridge insert so that the metal pin on the side of the vial is
facing out. Press the vial up until it is completely inside the cartridge insert.
NOTE: The Top Running Buffer vial has metal pins on either side, so no specific orientation is necessary.
4. Slide the cartridge insert back into the cartridge.
Cartridge
Insert
Optical
Window
Cartridge
Inlet
Running CE-SDS Applications page 122
User Guide for Maurice, Maurice C. and Maurice S.
Step 3: Install the Cartridge
1. Open Maurice’s door by touching the metal plate on top of the door.
NOTE: The indicator light on Maurices front panel will blink rapidly as the door disengages.
2. Swing the door open to access the cartridge slot and the reagents and samples platform. The lights on
either side of the slot will be orange.
Running CE-SDS Applications page 123
User Guide for Maurice, Maurice C. and Maurice S.
3. Lift the cartridge and hold it vertically using the finger holds on either side, cartridge inlet down, with
the CE-SDS label facing you.
4. Gently insert it into the slot. You’ll feel the alignment groove on the cartridge align inside the slot when
you insert it.
5. Continue to slide the cartridge into the slot until the locking mechanism engages. The lights on either
side of the slot will change to blue once the cartridge is installed correctly.
Running CE-SDS Applications page 124
User Guide for Maurice, Maurice C. and Maurice S.
Step 4: Load Samples and Reagents
1. Place the reagent vials into their respective positions in the sample and reagents platform:
NOTES:
The two reagent rows in Maurice’s reagent and sample platform are kept at room temperature.
Pressure caps are orange and have a raised, ringed surface. They should only be used in Reagent Row P.
Use reagent vials with clear screw caps in Row N.
P1 - Conditioning Solution 1 with orange pressure cap
P2 - Conditioning Solution 2 with orange pressure cap
P3 - DI water with orange pressure cap
P4 - Separation Matrix with orange pressure cap
P5 - Wash Solution vial with orange pressure cap
P6 - Empty vial (air) with orange pressure cap
N1 - Wash Solution vial with clear screw cap
N2 - Wash Solution vial with clear screw cap
N4 - Running Buffer - Bottom with clear screw cap
Running CE-SDS Applications page 125
User Guide for Maurice, Maurice C. and Maurice S.
2. Depending on what you prepared your samples in, put your 96-well sample plate in the metal plate
insert or your sample vials in the metal vial insert.
NOTE: Well A1 on the 96-well plate should be in the top left corner of the insert.
3. Close the instrument door. Maurice locks it automatically.
Step 5: Create a Batch
1. Launch Compass for iCE.
2. Select the Batch tab. This is where you’ll enter sample/injection information, methods and batch
parameters.
Running CE-SDS Applications page 126
User Guide for Maurice, Maurice C. and Maurice S.
3. To create a batch, make sure Maurice is connected to Compass for iCE. If he isn’t, select Instrument and
click Connect. Then select your Maurice system and click Connect.
To create a new batch:
On Maurice systems - in the main menu, select File > New Batch > Maurice CE-SDS.
On Maurice S. systems - in the main menu, select File > New Batch.
To use an existing batch: In the main menu, select File > Open Batch.
NOTE: If youre making changes to an existing batch, follow the steps in this section. Otherwise skip to
“Step 6: Start the Batch” on page 133.
4. In the Layout pane, clicking on the vial/plate icon toggles between formats. Select a 96-well plate or 48
vials depending on what you’re running.
5. Use your mouse to highlight the well positions for each of your samples, then click Add.
Running CE-SDS Applications page 127
User Guide for Maurice, Maurice C. and Maurice S.
This populates the Injections table:
6. Compass for iCE can monitor the current during a separation for you, stop it if the current drops below
the minimum value and reinject the sample for you automatically. Reinjections are enabled by default,
but if you don’t want to use this feature just click the reinject icon to toggle it off.
NOTES:
If a sample was reinjected, the injection row will be flagged in the Injections pane in the Run Summary
screen. See “Injection Flags” on page 158 for more info.
A maximum of 10 reinjections are allowed per batch.
Running CE-SDS Applications page 128
User Guide for Maurice, Maurice C. and Maurice S.
7. The sample platform is temperature controlled with a default setting of 10 °C. To change the tempera-
ture or turn it off, click the down arrow next to the temperature and select an option.
NOTE: The two reagent rows are kept at room temperature.
8. In the Methods pane:
NOTE: There are three default methods. We recommend using the default method parameters for the
listed samples. Please see the Maurice CE-SDS Application Guide for more information on method optimi-
zation.
a. Click the first cell in the Name column and enter a new method name if needed.
b. Click the first cell in the Sample Load column, then click then click the selection button [...] to set
your load profile time (in seconds) and voltage.
Running CE-SDS Applications page 129
User Guide for Maurice, Maurice C. and Maurice S.
c. Click the first cell in the Separation column then click the selection button [...] to set your separation
time (in minutes) and voltage.
NOTE: Run your reduced IgG samples and IgG Standard for 25 minutes and the CE-SDS MW Markers for 30
minutes. Run your non-reduced IgG samples and IgG Standard for 35 minutes. The default separation
voltage for all sample types is 5750 volts.
9. You can now:
Make updates to the remaining methods by repeating the prior steps.
Select a method and click Remove in the upper right corner of the Methods pane to delete it.
•Click New in the upper right corner of the Methods pane to add a new one if you want to use dif-
ferent methods for different samples. Then just repeat the steps above for the new method.
10. In the Injections pane:
a. To add sample names: Click the Sample ID cell for the injection and type a name.
Running CE-SDS Applications page 130
User Guide for Maurice, Maurice C. and Maurice S.
b. To assign methods for each injection: Click the Method cell for the injection and select a method
from the drop down menu.
To add sequential replicate injections: Highlight an injection and click Replicate. A new injec-
tion will be added under the row you selected
To add injections at the end of the batch: Click on any sample position in the Layout pane or
sample injection in the Injection table and click Add. A new injection using the same sample will
be added to the end of the table. Assign the method if needed.
Running CE-SDS Applications page 131
User Guide for Maurice, Maurice C. and Maurice S.
To copy and paste injections: Right-click on an injection in the Injection table and select Copy.
Click on the injection number above where you want to insert the copied injection, right click
and select Paste. The copied injection will be inserted under the row you selected.
11. Click on the Notes pane, then click in the notes area and type any information you want to add about
your batch (optional).
12. You can preset the parameters used to analyze data generated with the batch (optional). We recom-
mend using the default parameters for CE-SDS applications, but if you want to modify parameters:
a. Select Edit from the main menu and click Default Analysis. The following screen will display:
Running CE-SDS Applications page 132
User Guide for Maurice, Maurice C. and Maurice S.
b. Change the parameters you want to, then click OK. For detailed information on analysis parameters,
please refer to “Analysis Settings Overview” on page 244
13. Once all of your sample, method and injection info is entered, select File > Save. Enter any comments
on the batch if you want, then click Save.
14. Enter a name for your batch then click Save.
Running CE-SDS Applications page 133
User Guide for Maurice, Maurice C. and Maurice S.
Step 6: Start the Batch
1. Make sure Maurice is connected to Compass for iCE. If he isn’t, select Instrument and click Connect.
Then select your Maurice system and click Connect.
2. Click Start to start your batch.
3. The Start Run box shows you the number of injections and batches remaining on your cartridge. Make
sure you still have enough injections left before you start the run. If not, prep a new cartridge.
4. Click in the Results File name box if you want to change the default run file name. Otherwise just leave
it as is.
5. If you don’t want to save the file to the default Runs folder, click Browse to select a different location.
6. Enter any run details you’d like in the Comments box (optional).
7. Click Start to start the run.
NOTE: The indicator light on Maurices front panel will pulse slowly while hes running the batch.
Running CE-SDS Applications page 134
User Guide for Maurice, Maurice C. and Maurice S.
To monitor the progress of your batch, click the Run Summary tab. See Chapter 9, “Run Status“ for more
details.
To view results, analyze results or change analysis parameters on completed injections while the batch is
still running, click the Analysis tab. See Chapter 11, CE-SDS Data Analysis“ for more details.
Post-batch Procedures page 135
User Guide for Maurice, Maurice C. and Maurice S.
When your batch is complete, you can view electropherograms for all injections in the Analysis tab, and
all batch and injection details in the Run Summary tab.
NOTE: If you’d like Maurice to let you know when your run is done, you can set him up to tweet you. Go to
“Setting Up Maurice Systems to Send Tweets” on page 383 for more info.
Post-batch Procedures
When the batch is done:
1. Open Maurice’s door. The lights on either side of the cartridge slot will be orange as Maurice will have
already disengaged the cartridge.
2. Remove your reagent vials and samples and discard.
3. Gently pull out the cartridge making sure the cartridge inlet doesn’t come into contact with any surface.
Post-batch Procedures page 136
User Guide for Maurice, Maurice C. and Maurice S.
NOTE: If you see any separation matrix sticking to the capillary inlet, soak it in DI water for 5 minutes. Then
wipe it using a lint-free laboratory wipe that's been moistened with DI water.
4. Pull the cartridge insert out.
5. Remove the Top Running Buffer vial and dispose of it according to your institution's safety and waste
disposal guidelines.
6. Check the saturation sensor on the back of the cartridge insert. If it's red, you'll need to use a new car-
tridge insert for your next batch. If the saturation sensor isn't red, you can keep using the current car-
tridge insert with that cartridge.
NOTE: Don't dispose of the cartridge insert unless the saturation sensor is red.
Saturation
Sensor
Post-batch Procedures page 137
User Guide for Maurice, Maurice C. and Maurice S.
If you're at 100 injections, the cartridge is at its limit. Put it in its original packing and discard it along
with the cartridge insert and the Top Running Buffer vial per your institution's safety and waste disposal
guidelines. Discard the cleaning vial you've used with that cartridge too.
NOTE: Disposal of cartridges, sample plates and vials depends on the samples you ran. If you aren’t sure
what your sample origins are, we recommend you dispose of everything in biohazard waste.
If you've still got injections left and the cartridge will be used again within 2 hours. You can leave
the cartridge in Maurice. When you're ready to run the next batch, just replace the Top Running Buffer
vial with a fresh one.
If you've still got injections left and the cartridge won't be used within 2 hours. Clean and store
the cartridge:
a. Pipette 1.5 mL of DI water in a new glass reagent vial and close it with an orange pressure cap.
Place this vial in P3.
b. Insert a Cleaning Vial into the cartridge insert.
c. Slide the cartridge insert back into the cartridge.
d. Insert the cartridge in Maurice.
e. In the Compass main menu, select Instrument and click Cartridge Cleanup.
Post-batch Procedures page 138
User Guide for Maurice, Maurice C. and Maurice S.
I
f. You’ll get the following message. Click OK. It’ll only take six minutes.
g. Once the cleanup procedure is done, remove the cartridge.
h. Pull the insert from the cartridge.
i. Remove the Cleaning Vial and push the empty insert back into the cartridge.
NOTE: The cleaning vial is paired with the cartridge and can be used for a maximum of three Cartridge
Cleanup cycles of that cartridge. Dispose of the cleaning vial when you dispose of the cartridge. Don't use
it with other cartridges.
j. Put the cartridge back in its protective packaging and store it at room temperature.
!WARNING! SHARPS HAZARD
The capillary inlet of the cartridge may present a potential sharps hazard. Dispose of used cartridges
according to your organizations health and safety regulations.
Checking Your Data page 139
User Guide for Maurice, Maurice C. and Maurice S.
!WARNING! BIOHAZARD
Cartridges, sample plates and vials should be handled by procedures recommended in
the CDC/NIH manual: Biosafety in Microbiological and Biomedical Laboratories (BMBL).
The manual is available from the U.S. Government Printing Office or online at http://
www.cdc.gov/biosafety/publications/bmbl5/.
Depending on the samples used, the cartridges, plates and vials may constitute a chemi-
cal or a biohazard. Dispose of the cartridges, plates and vials in accordance with good lab-
oratory practices and local, state/provincial, or national environmental and health
regulations. Read and understand the Safety Data Sheets (SDSs) provided by the manu-
facturers of the chemicals in the waste content before you store, handle, or dispose of
chemical waste.
Checking Your Data
Compass for iCE detects your sample proteins, CE-SDS MW Markers and Internal Standard peaks and reports
results automatically. But, we always recommend you review your data using the steps in this section as a
good general practice to make sure your results are accurate. If you see a data warning in the Experiment
pane, these steps will also help you identify and correct any issues.
Step 1: Check Your Internal Standard
To make sure your Internal Standard is identified correctly:
1. Go to the Analysis screen and open your run (if it isn’t already open).
2. Click Standards in the View bar.
3. Click the Single View icon in the View bar.
4. Click Injection 1 in the Experiment pane.
Checking Your Data page 140
User Guide for Maurice, Maurice C. and Maurice S.
5. Check that your Internal Standard in the electropherogram has been correctly identified. It’ll be labeled
Std 1 and will have a green vertical line running through it. The Internal Standard is also identified with
an S in the Peaks table.
6. If your Internal Standard isn’t identified correctly, heres how to manually correct it:
To set an unidentified peak as the Internal Standard: Right-click the peak in the electropherogram
or Peaks table and select Force Standard. Compass will assign that peak as the Internal Standard.
Checking Your Data page 141
User Guide for Maurice, Maurice C. and Maurice S.
A lock icon indicating the Internal Standard was set manually will display next to the peak in the Peaks
table and a check mark will appear next to the injection in the Experiment pane to show a manual cor-
rection was made.
Checking Your Data page 142
User Guide for Maurice, Maurice C. and Maurice S.
NOTE: To remove an Internal Standard peak assignment that was made manually, right click on the peak
in the electropherogram or Peaks table and click Clear. To clear all the manual settings for the injection,
click Clear All.
If an incorrect peak is identified as the Internal Standard: Right-click the peak in the electrophero-
gram or Peaks table and select Not a Standard.
An S with a red slash through it will appear next to the incorrectly assigned peak in the Peaks table and
a check mark will appear next to the injection in the Experiment pane to show a manual correction was
made.
Checking Your Data page 143
User Guide for Maurice, Maurice C. and Maurice S.
7. Repeat the previous steps for all other injections to make sure your Internal Standard is identified cor-
rectly.
Step 2: Set Your Molecular Weight (MW) Markers
NOTE: You’ll only need to do this if you ran the CE-SDS MW Markers. If you didn’t, you can skip to the next
section.
Compass reports the relative migration time (RMT) of your sample in the Peaks table. If you also want to
know the relative molecular weight of your sample, you can run the CE-SDS MW Markers as one of your
injections.
You'll see these sizing markers when you run the CE-SDS MW Markers: 10, 20, 33, 55, 103, 178, and 240 kDa.
To get MW data:
1. Click Samples in the View bar.

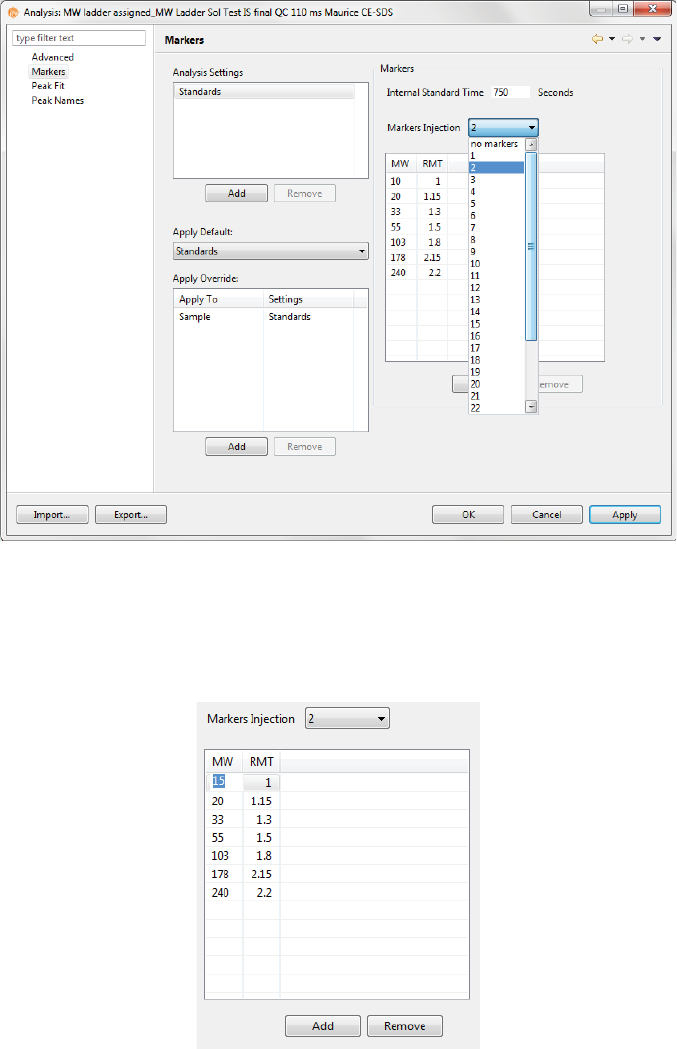

2. Select Edit from the main menu and click Analysis. In the Analysis window, select Markers in the left
sidebar. Then click the Markers Injection drop down menu to select the injection you ran your CE-SDS
MW Markers in.
Checking Your Data page 144
User Guide for Maurice, Maurice C. and Maurice S.
3. The default Maurice CE-SDS MW Markers molecular weights and relative migration time (RMT) values
are already populated in the table. If you’d like to use these values, skip to the next step. If youre using
different markers, click in the MW and RMT cells to type new values, click a row and select Remove to
delete, or click Add to add a new one.
Checking Your Data page 145
User Guide for Maurice, Maurice C. and Maurice S.
4. Click OK to close the Analysis window. Compass will automatically assign the molecular weights to your
makers and label them Mkr. A MW (kDa) column will also now display in the Peaks table.
NOTE: The Mkr 10 peak is also the Internal Standard in every sample.
5. It's always a good idea to verify that all your CE-SDS MW Markers are identified correctly. Heres how to
manually correct them:
To set an unidentified peak as a MW Marker: Right-click the peak in the electropherogram or Peaks
table and select Add Peak. Compass will assign that peak as a MW Marker, and correctly reassign the
remaining marker peaks.
Checking Your Data page 146
User Guide for Maurice, Maurice C. and Maurice S.
A check mark will appear next to the injection in the Experiment pane to show a manual correction was
made.
NOTE: To remove MW Marker peak assignments that were made manually, right click on the peak in the
electropherogram or Peaks table and click Clear.
If an incorrect peak is identified as a MW Marker: Right-click the peak in the electropherogram or
Peaks table and select Remove Peak. Compass should correctly reassign the remaining peaks as mark-
ers and update the Peaks table.
Checking Your Data page 147
User Guide for Maurice, Maurice C. and Maurice S.
A check mark will appear next to the injection in the Experiment pane to show a manual correction was
made.
Step 3: Checking Sample Peaks
All detected peaks will be labeled automatically with the RMT (default) or apparent MW (if the CE-SDS MW
Markers were run).
To make sure your sample proteins are identified correctly:
1. Click Samples in the View bar.
2. Click the Single View icon in the View bar.
Checking Your Data page 148
User Guide for Maurice, Maurice C. and Maurice S.
3. Click Injection 1 in the Experiment pane.
4. If your sample peaks aren’t identified correctly, heres how to manually correct them:
If a peak is incorrectly identified as a sample peak: Right-click the peak in the electropherogram or
Peaks table and select Remove Peak. Compass will no longer identify it as a sample peak in the electro-
pherogram and the peak data will be removed in the results table.
A check mark will appear next to the injection in the Experiment pane to indicate a manual correction
was made.
Checking Your Data page 149
User Guide for Maurice, Maurice C. and Maurice S.
To identify a peak as a sample peak: Right-click the peak in the electropherogram or Peaks table and
select Add Peak. Compass will calculate and display the results for the peak in the results table and
identify the peak in the electropherogram.
A check mark will appear next to the injection in the Experiment pane to indicate a manual correction
was made.
Checking Your Data page 150
User Guide for Maurice, Maurice C. and Maurice S.
NOTE: To remove sample peak assignments that were made manually and go back to the original peak
data, right-click the peak in the electropherogram and select Clear.
5. Repeat the previous steps for the remaining injections to make sure all sample peaks are correctly iden-
tified.
Step 4: Assigning Peak Names
Compass can also optionally identify and automatically name sample peaks using user-specified peak name
settings. For more information on how to do this, see “Peak Names Settings” on page 354.
