Psion 7535G2BTRA2043 Handheld Computer User Manual netpad Win CE Quick Start Guide
Psion Inc Handheld Computer netpad Win CE Quick Start Guide
Psion >
User Manual
7535 G2
Hand-Held Computer
Quick Start Guide
April 11, 2006 PN 8000076.A
ISO 9001 Certified
Quality Management System
© Copyright 2006 by Psion Teklogix Inc., Mississauga, Ontario, Canada
This document and the information it contains is the property of Psion
Teklogix Inc., is issued in strict confidence, and is not to be reproduced or
copied, in whole or in part, except for the sole purpose of promoting the sale
of Psion Teklogix manufactured goods and services. Furthermore, this docu-
ment is not to be used as a basis for design, manufacture, or sub-contract, or
in any manner detrimental to the interests of Psion Teklogix Inc.
All trademarks are the property of their respective holders.
Return-To-Factory Warranty
Psion Teklogix provides a return to factory warranty on this product for a
period of twelve (12) months in accordance with the Statement of Limited
Warranty and Limitation of Liability provided at www.psionteklogix.com/
warranty. (If you are not already a member of Teknet and you attempt to view
this warranty, you will be asked to register. As a member of Teknet, you’ll
have access to helpful information about your Psion Teklogix products at no
charge to you.) In some regions, this warranty may exceed this period. Please
contact your local Psion Teklogix office for details. For a list of offices, refer
to “Support Services & Worldwide Offices” on page 66. The warranty on
Psion Teklogix manufactured equipment does not extend to any product that
has been tampered with, altered, or repaired by any person other than an
employee of an authorized Psion Teklogix service organization. See Psion
Teklogix terms and conditions of sale for full details.
Important: To ensure prompt warranty service in North America,
please register the serial number of this device to activate its
warranty coverage by contacting Psion Teklogix at 1-800-
835-5644 ext. 209, or via web-link americascontracts@tek-
logix.com. Failure to do so could affect the ability of Psion
Teklogix to effectively service, repair, or support this device.
Service
Psion Teklogix provides a complete range of product support services to its
customers. For detailed information, please refer to “Support Services &
Worldwide Offices” on page 66. This section also provides information about
accessing support services through the Psion Teklogix web site.
Waste Electrical and Electronic Equipment (WEEE) Directive
2002/96/EC
This Product, and its accessories, comply with the requirements of the Waste
Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC.
If your end-of-life Psion Teklogix product or accessory carries a label as
shown here, please contact your local country representative for details on
how to arrange recycling.
For a list of international subsidiaries, please go to:
http://www.psionteklogix.com/public.aspx?s=us&p=Contacts.
Restriction On Hazardous Substances (RoHS) Directive
2002/95/EC
What is RoHS?
The European Union has mandated that high environmental standards be met
in the design and manufacture of electronic and electrical products sold in
Europe, to reduce hazardous substances from entering the environment. The
“Restriction on Hazardous Substances Directive (RoHS)” prescribes the max-
imum trace levels of lead, cadmium, mercury, hexavalent chromium, and
flame retardants PBB and PBDE that may be contained in a product. Only
products meeting these high environmental standards may be “placed on the
market” in EU member states after July 1, 2006.
RoHS Logo
Although there is no legal requirement to mark RoHS-compliant products,
Psion Teklogix Inc. indicates its compliance with the directive as follows:
The RoHS logo located either on the back of the product or underneath
the battery in the battery compartment (or on a related accessory such
as the charger or docking station) signifies that the product is
RoHS-compliant as per the EU directive. Other than as noted below, a
Psion Teklogix product that does not have an accompanying RoHS logo
signifies that it was placed on the EU market prior to July 1, 2006,
and is thereby exempt from the directive.
Note: Not all accessories or peripherals will have a RoHS logo due to
physical space limitations or as a result of their exempt status.
Disclaimer
Every effort has been made to make this material complete, accurate, and up-
to-date. In addition, changes are periodically added to the information herein;
these changes will be incorporated into new editions of the publication.
Psion Teklogix Inc. reserves the right to make improvements and/or changes
in the product(s) and/or the program(s) described in this document without
notice, and shall not be responsible for any damages, including but not lim-
ited to consequential damages, caused by reliance on the material presented,
including but not limited to typographical errors.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 1
Table Of Contents
Approval. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Program License Agreements . . . . . . . . . . . . . . . . . . . . . . . . . 11
1. Basic Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.1 Charging The Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.2 Attaching The Hand Strap . . . . . . . . . . . . . . . . . . . . . . 20
1.3 Attaching A Pistol Grip . . . . . . . . . . . . . . . . . . . . . . . . 21
1.4 The Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
1.4.1 Battery Safety Guidelines. . . . . . . . . . . . . . . . . . 23

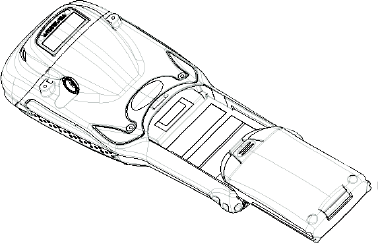

1.4.2 Installing The Battery. . . . . . . . . . . . . . . . . . . . . 25
1.4.3 Battery Swap And Runtime . . . . . . . . . . . . . . . . 25
1.5 Switching The 7535 G2 On . . . . . . . . . . . . . . . . . . . . . 25
1.6 Switching The 7535 G2 Off . . . . . . . . . . . . . . . . . . . . . 26
1.7 Connecting To An 802.11 Network . . . . . . . . . . . . . . . 26
2. Getting To Know Your 7535 G2 . . . . . . . . . . . . . . . . . . . . . . 27
2.1 7535 G2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.2 The Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2.2.1 Modifier Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2.2.2 The Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2.2.3 The 58-Key Keyboard . . . . . . . . . . . . . . . . . . . . 30
2.2.4 The 36-Key Keyboard . . . . . . . . . . . . . . . . . . . . 31
2.2.5 Adjusting The Keypad Backlight. . . . . . . . . . . . 33
2.3 The Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.3.1 Adjusting The Display Backlight. . . . . . . . . . . . 34
2.3.2 Adjusting The Contrast . . . . . . . . . . . . . . . . . . . 35
2 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
2.3.3 Calibrating The Touchscreen . . . . . . . . . . . . . . . 36
2.4 7535 G2 Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.4.1 LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.4.2 Onscreen Indicators . . . . . . . . . . . . . . . . . . . . . . 39
2.4.3 Audio Indicators . . . . . . . . . . . . . . . . . . . . . . . . . 43
2.5 Monitoring The Network Connection . . . . . . . . . . . . . 43
2.6 Checking The Scanner . . . . . . . . . . . . . . . . . . . . . . . . . 44
2.6.1 Scanning Techniques . . . . . . . . . . . . . . . . . . . . . 44
2.6.2 Scan LED Indicators. . . . . . . . . . . . . . . . . . . . . . 45
3. Navigating In Windows CE. . . . . . . . . . . . . . . . . . . . . . . . . . 46
3.1 Navigating A Touchscreen . . . . . . . . . . . . . . . . . . . . . . 46
3.2 Navigating Using The Keyboard . . . . . . . . . . . . . . . . . 47

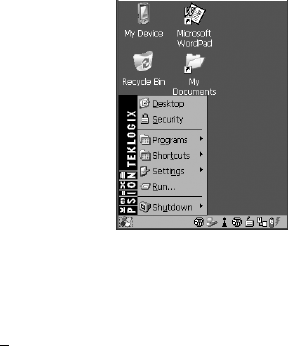

3.3 The Startup Desktop . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
3.3.1 Accessing Desktop Icons . . . . . . . . . . . . . . . . . . 48
3.3.2 The Taskbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

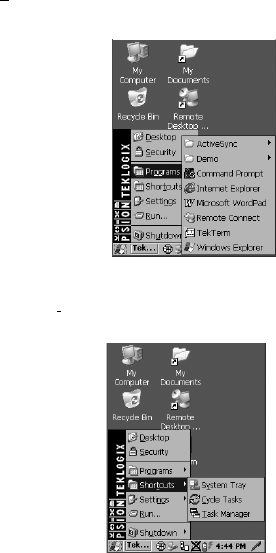

3.4 The Start Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
3.5 Using A Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
4. Scanner Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
4.1 SE 1200 High Performance & Long Range . . . . . . . . . 58
4.2 SE 1200 Advanced Long Range & SE 2223PDF. . . . . 59
4.3 SE 1224 High Performance . . . . . . . . . . . . . . . . . . . . . 61
4.4 SE 1524ER – Extended Range Scanner . . . . . . . . . . . . 62
4.5 Symagery SX5303 Imager . . . . . . . . . . . . . . . . . . . . . . 63
4.6 Intermec EV15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
5. General Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
5.1 Caring For The Touchscreen . . . . . . . . . . . . . . . . . . . . 65
5.2 Cleaning The 7535 G2 . . . . . . . . . . . . . . . . . . . . . . . . . 66
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 3
6. Support Services & Worldwide Offices . . . . . . . . . . . . . . . . 66
6.1 Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
6.2 Product Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
6.3 Worldwide Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
4 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
Approval
FCC DECLARATION OF CONFORMITY (DoC)
Applicant’s Name & Address:
PSION TEKLOGIX
2100 Meadowvale Blvd.
Mississauga, Ontario
Canada L5N 7J9
Contact Person: Iain Roy
Telephone No.: (905) 813-9900
US Representative’s Name & Address:
1810 Airport Exchange Blvd., Suite 500
Erlanger, KY, 41018,
USA
Contact Person: Kyle Day
Telephone No.: (859) 372-4329
Equipment Type/Environment:Computing Devices
Trade Name / Model No.: 7535 G2 Hand Held Micro-computer with Portable Docking Module
Year of Manufacture:2006
Standard(s) to which Conformity is Declared:
The 7535 G2 Hand Held Micro-computer with Portable Docking Module, supplied by Psion Teklogix, has
been tested and found to comply with FCC PART 15, SUBPART B - UNINTENTIONAL RADIATORS,
CLASS B COMPUTING DEVICES FOR HOME & OFFICE USE.
I, the undersigned, hereby declare that the equipment as tested is representative within
manufacturing tolerance to these units.
Applicant Legal Representative in U.S.
Signature Signature
Mike Doyle Kyle Day
Full Name Full Name
Vice President of Engineering V.P. Channel Sales
Position Position
Mississauga, Ontario, Canada Erlanger, KY 41018, USA
Place Place
March 22, 2006 March 22, 2006
Date Date
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 5
S a f e t y S u m m a r y
CE Marking
When used in a residential, commercial or light industrial environ-
ment the product and its approved UK and European peripherals
fulfil all requirements for CE marking.
R&TTE Directive 1999/5/EC
This equipment complies with the essential requirements of EU Direc-
tive 1999/5/EC (Declaration available: www.psionteklogix.com).
Cet équipement est conforme aux principales caractéristiques défin-
ies dans la Directive européenne RTTE 1999/5/CE. (Déclaration dis-
ponible sur le site: www.psionteklogix.com).
Die Geräte erfüllen die grundlegenden Anforderungen der RTTE-
Richtlinie (1999/5/EG). (Den Wortlaut der Richtlinie finden Sie
unter: www.psionteklogix.com).
Questa apparecchiatura è conforme ai requisiti essenziali della Diret-
tiva Europea R&TTE 1999/5/CE. (Dichiarazione disponibile sul
sito: www.psionteklogix.com).
Este equipo cumple los requisitos principales de la Directiva 1995/5/
CE de la UE, “Equipos de Terminales de Radio y Telecomu-nica-
ciones”. (Declaración disponible en: www.psionteklogix.com).
Este equipamento cumpre os requisitos essenciais da Directiva 1999/
5/CE do Parlamento Europeu e do Conselho (Directiva RTT).
(Declaração disponível no endereço: www.psionteklogix.com).
Ο εξοπλισμός αυτός πληροί τις βασικές απαιτήσεις της κοινοτικής
οδηγίας EU R&TTE 1999/5/EΚ. (Η δήλωση συμμόρφωσης
διατίθεται στη διεύθυνση: www.psionteklogix.com)
6 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
Deze apparatuur voldoet aan de noodzakelijke vereisten van EU-
richtlijn betreffende radioapparatuur en telecommunicatie-eindappa-
ratuur 199/5/EG. (verklaring beschikbaar: www.psionteklogix.com).
Dette udstyr opfylder de Væsentlige krav i EU's direktiv 1999/5/EC
om Radio- og teleterminaludstyr. (Erklæring findes på: www.psion-
teklogix.com).
Dette utstyret er i overensstemmelse med hovedkravene i R&TTE-
direktivet (1999/5/EC) fra EU. (Erklæring finnes på: www.psiontek-
logix.com).
Utrustningen uppfyller kraven för EU-direktivet 1999/5/EC om ans-
luten teleutrustning och ömsesidigt erkännande av utrustningens
överensstämmelse (R&TTE). (Förklaringen finns att läsa på:
www.psionteklogix.com).
Tämä laite vastaa EU:n radio- ja telepäätelaitedirektiivin
(EU R&TTE Directive 1999/5/EC) vaatimuksia. (Julkilausuma
nähtävillä osoitteessa: www.psionteklogix.com).
PSION TEKLOGIX tímto prohlašuje, že 7535 G2 je ve shod
ě
se základními požadavky a dalšími příslušnými ustanoveními
sm
ě
rnice1995/5/ES (NV č. 426/2000 Sb.) a Prohlášení o shod
ě
j
e k dispozici na www.PsionTeklogix.com.
Toto zařízení lze provozovat v České republice na základ
ě
generální licence č. GL - 12/R/2000.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 7
Use of the 802.11 7535 G2 in France: Owing to French
Government restrictions, the 802.11 7535 G2 is limited to indoor
use. They may be used outdoors, on private property, only with prior
authorization from the French Ministry of Defense.
FCC Information To Users
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by
one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
PSION TEKLOGIX týmto vyhlasuje, že 7535 G2 spĺ
ň
a
základné požiadavky a všetky príslušné ustanovenia Smernice
1995/5/ES (NV č. 443/2001 Z.z.) a Vyhlásenie o zhode je k
dispozícii na www.PsionTeklogix.com.
Toto zariadenie je možné prevádzkovať v Slovenskej republike
na základe Všeobecného povolenia č. VPR-01/2001.
L
8 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any inter-
ference received, including interference that may cause undesired
operation.
FCC Caution: Any changes or modifications not expressly approved
by the party responsible for compliance could void the user's author-
ity to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement: This portable device with its
antenna complies with FCC's and IC's RF exposure limits set for
an uncontrolled environment. This equipment has shown
compliance with FCC's and IC's Specific Absorption Rate (SAR)
limits.
Any accessories not provided by
Psion Teklogix Inc. should not be used with this device. This
device must not be co-located or operating in conjunction with
any other antenna or transmitter.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 9
Note: To maintain compliance with the FCC RF exposure guide-
lines, if you wear the 7535 G2 on your body, use the Psion
Teklogix approved carrying case.
Use of non-approved accessories may violate FCC RF
exposure guidelines.
Emissions Information For Canada
This Class B digital apparatus meets all requirements of the Cana-
dian Interference-Causing Equipment Regulations. When using the
802.11 radio option, to prevent radio interference, this device is
intended to be operated indoors and away from windows to provide
maximum shielding. Equipment (or its transmit antenna) that is
installed outdoors is subject to licensing.
Cet appareil numérique de la classe B respecte toutes les exigences
du Règlement sur le matériel brouilleur du Canada. En cas d’utilisa-
tion du module radio 802.11, afin d'éviter toute interférence radio
avec le service autorisé, l'appareil doit être utilisé à l'intérieur, tout en
tant éloigné de toute fenêtre afin de garantir le maximum de protec-
tion. Si cet équipement (ou son antenne émettrice) est installé à
l'extérieur, il est alors soumis à licence.
Warning to Users
This product is a Class I/Class II laser product according to CDRH
21 CFR 1040.10 and 1040.11 and Class1/Class 2 laser product
according to IEC 60825-1:1993+A1:1997+A2:2001
The SE1200 ALR has an maximum radiated power less than 1.4
mW; according to EN 60825-1: 2001 it is classified as a Class 3B
laser product.
10 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
Laser Warnings
For your own safety, it is critical that you comply with the
following warnings:
Caution!
Do not look into the laser beam or point the beam at people or
animals.
Caution!
Using controls or adjustments, or performing procedures other
than those specified herein may result in hazardous radiation
exposure.
Caution!
The use of optical instruments with this product will increase
eye hazard.
A label is affixed below
the aperture.
Aperture
650-680nm LASER DIODE
Max.Output:1.4mW (SCAN ) <1mW(AIM)
IEC 60825-1:1993+A1:1997+A2:2001
LASER RAD I ATI O N
DO NOT STARE INTO BEAM
CLASS 2 LASER PROD U CT ( I EC)
CLASS I I LASER PROD U CT ( CDRH)
1001849A
MODEL No:
7535 G2 Handheld
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 11
Do Not Operate In An Explosive Atmosphere
Operating Psion Teklogix equipment where explosive gas is
present may result in an explosion.
Do Not Remove Covers Or Open Enclosures
To avoid injury, the equipment covers and enclosures should only
be removed by qualified service personnel. Do not operate the
equipment without the covers and enclosures properly installed.
Caution!
Danger of explosion if a 7535 G2 battery is incorrectly handled,
charged, disposed of or replaced. Replace only with the same or
equivalent type recommended by the manufacturer. Dispose of
used batteries according to the instructions described in “The
Battery” on page 22. Carefully review all battery safety issues.
Vors i cht!
Explosiongefahr bei unsachgemäßem Austausch der Batterie
Ersatz nur durch denselben oder einen vom Hersteller empfoh-
lenen gleichwertigen Typ. Entsorgung gebrauchter Batterien
nach Angaben des Herstellers.
Program License Agreements
Microsoft's End User License Agreement
You have acquired a device (“DEVICE”) that includes software licensed by
Psion Teklogix Inc. from Microsoft Licensing Inc. or its affiliates (“MS”).
Those installed software products of MS origin, as well as associated media,
printed materials, and “online” or electronic documentation (“SOFTWARE”)
are protected by international intellectual property laws and treaties. The
SOFTWARE is licensed, not sold. All rights reserved.
12 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT
(“EULA”), DO NOT USE THE DEVICE OR COPY THE SOFTWARE.
INSTEAD, PROMPTLY CONTACT PSION TEKLOGIX INC. FOR
INSTRUCTIONS ON RETURN OF THE UNUSED DEVICE(S) FOR A
REFUND. ANY USE OF THE SOFTWARE, INCLUDING BUT NOT
LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE YOUR
AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PRE-
VIOUS CONSENT).
GRANT OF SOFTWARE LICENSE. This EULA grants you the follow-
ing license:
• You may use the SOFTWARE only on the DEVICE.
•NOT FAULT TOLERANT. THE SOFTWARE IS NOT FAULT
TOLERANT. PSION TEKLOGIX INC. HAS INDEPENDENTLY
DETERMINED HOW TO USE THE SOFTWARE IN THE
DEVICE, AND MS HAS RELIED UPON PSION TEKLOGIX INC.
TO CONDUCT SUFFICIENT TESTING TO DETERMINE THAT
THE SOFTWARE IS SUITABLE FOR SUCH USE.
• NO WARRANTIES FOR THE SOFTWARE. THE SOFTWARE is
provided “AS IS” and with all faults. THE ENTIRE RISK AS
TO SATISFACTORY QUALITY, PERFORMANCE, ACCU-
RACY, AND EFFORT (INCLUDING LACK OF NEGLI-
GENCE) IS WITH YOU. ALSO, THERE IS NO WARRANTY
AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF
THE SOFTWARE OR AGAINST INFRINGEMENT. IF YOU
HAVE RECEIVED ANY WARRANTIES REGARDING THE
DEVICE OR THE SOFTWARE, THOSE WARRANTIES DO NOT
ORIGINATE FROM, AND ARE NOT BINDING ON, MS.
•Note on Java Support. The SOFTWARE may contain support for
programs written in Java. Java technology is not fault tolerant and is
not designed, manufactured, or intended for use or resale as online
control equipment in hazardous environments requiring fail-safe per-
formance, such as in the operation of nuclear facilities, aircraft navi-
gation or communication systems, air traffic control, direct life
support machines, or weapons systems, in which the failure of Java
technology could lead directly to death, personal injury, or severe
physical or environmental damage. Sun Microsystems, Inc. has con-
tractually obligated MS to make this disclaimer.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 13
• No Liability for Certain Damages. EXCEPT AS PROHIBITED BY
LAW, MS SHALL HAVE NO LIABILITY FOR ANY INDI-
RECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL
DAMAGES ARISING FROM OR IN CONNECTION WITH
THE USE OR PERFORMANCE OF THE SOFTWARE. THIS
LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS
OF ITS ESSENTIAL PURPOSE. IN NO EVENT SHALL MS
BE LIABLE FOR ANY AMOUNT IN EXCESS OF U.S. TWO
HUNDRED FIFTY DOLLARS (U.S. $250.00).
•Limitations on Reverse Engineering, Decompilation, and Disas-
sembly. Yo u may not reverse engineer, decompile, or disassemble
the SOFTWARE, except and only to the extent that such activity is
expressly permitted by applicable law notwithstanding this limita-
tion.
•SOFTWARE TRANSFER ALLOWED BUT WITH RESTRIC-
TIONS. Yo u may permanently transfer rights under this EULA only
as part of a permanent sale or transfer of the Device, and only if the
recipient agrees to this EULA. If the SOFTWARE is an upgrade, any
transfer must also include all prior versions of the SOFTWARE.
•EXPORT RESTRICTIONS. You acknowledge that SOFTWARE is
subject to U.S. export jurisdiction. You agree to comply with all
applicable international and national laws that apply to the SOFT-
WARE, including the U.S. Export Administration Regulations, as
well as end-user, end-use and destination restrictions issued by U.S.
and other governments. For additional information see http://
www.microsoft.com/exporting/.
Psion Teklogix Inc. End User License Agreement
IMPORTANT - READ CAREFULLY:
This License Agreement (“Agreement”) is a legal agreement between you
and Psion Teklogix (“we”), the licensor of this software package (“Soft-
ware”), for your use of the Software only as authorized in this Agreement.
By clicking on the “Accept” or other appropriate assent button and/or install-
ing the Software, you agree to be and are hereby bound by the terms and con-
ditions of this Agreement. If you do not agree with this Agreement, we do not
14 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
grant you a license to the Software, and you may not install or use the Soft-
ware or any accompanying documentation.
The Software is the property of Psion Teklogix Inc. or its licensors and is pro-
tected by copyright laws and international copyright treaties, as well as other
intellectual property laws and treaties. The Software is licensed, not sold.
Psion Teklogix Inc. provides the Software and licenses its use worldwide.
You assume responsibility for the selection of the Software to achieve your
intended results, and for the use and results obtained from it.
1. GRANT OF LICENSE
We hereby grant you and you hereby accept a non-exclusive, non-transfera-
ble, limited license to install and use the Software in object code form only,
subject to the terms and restrictions set forth in this Agreement. Except as
explicitly set forth below, (i) you are not permitted to copy, sell, lease or rent,
distribute or sublicense the Software or to use the Software in a time-sharing
arrangement or in any other unauthorized manner; (ii) no license is granted to
you in the human readable code of the Software (source code); and (iii) this
Agreement does not grant you any rights to patents, copyrights, trade secrets,
trademarks, intellectual property or any other ownership rights with respect
to the Software.
2. DESCRIPTION OF REQUIREMENTS, RESTRICTIONS,
RIGHTS AND LIMITATIONS
a. Copy. The right and license granted to you shall be limited to installation
and use of the Software up to but not exceeding the number of copies you
have licensed. However, you may make a copy of the Software for
backup or archival purposes. You shall not remove any copyright notice
or proprietary notices, labels or marks in or on the Software.
b. Evaluation. As part of evaluation, you may install and use the Software
only during the specified evaluation period. Unless you register the license as
described below, the evaluation license shall expire upon the expiration of the
evaluation period.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 15
c. License Registration. You will be required to provide a license ID, unique
to each device, for registering your Software license. As part of your soft-
ware license registration, we will provide you a corresponding license key for
each device.
d. No Modifications. You may not modify or create any derivative work of
the Software or any copy or portion thereof nor may you remove any Soft-
ware identification, copyright or other notices.
e. No Distribution. You may not distribute the Software, in whole or in part,
to any other third party.
f. Virus Program. You may not develop or knowingly incorporate any virus
program that may be harmful to a computer or a network in conjunction with
the Software, or use the Software for any other purpose as which may be
harmful to a third party.
g. Assignment. You may not assign or transfer the Software to a third party
or allow a third party to use the same.
h. Reverse Engineering. Modification, reverse engineering, reverse
compiling, disassembly, unbundling or extraction of the Software is
expressly prohibited.
i. Export Restrictions. You agree to comply with all applicable laws and
regulations and that you will not export or re-export the Software, or any part
or copies thereof, or any products utilizing the Software in violation of appli-
cable laws or regulations of the United States or the country in which you
obtained them.
3. HIGH RISK ACTIVITIES
The Software is not fault-tolerant and is not designed, manufactured or
intended for use or resale as on-line control equipment in hazardous environ-
ments requiring fail-safe performance, such as in the operation of nuclear
facilities, aircraft navigation or communication systems, air traffic control,
direct life support machines, or weapons systems, in which the failure of the
Software could lead to death, personal injury, or severe physical or environ-
16 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
mental damage (“High Risk Activities”). We specifically disclaim any
express or implied warranty of fitness for High Risk Activities.
4. DISCLAIMER OF WARRANTY
We do not warrant uninterrupted or error free operation of the Software nor
do we warrant that the Software will meet your requirements. THE SOFT-
WARE IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY WHAT-
SOEVER AND WITHOUT ANY TECHNICAL SUPPORT OF ANY
KIND. WE DISCLAIM ANY AND ALL REPRESENTATIONS, WAR-
RANTIES AND CONDITIONS, WHETHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABLE QUALITY OR FITNESS FOR
A PARTICULAR PURPOSE. WE DO NOT WARRANT OR MAKE ANY
REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF
THE USE OF THE SOFTWARE IN TERMS OF ITS CORRECTNESS,
ACCURACY, RELIABILITY, USE WITH FUTURE PSION TEKLOGIX
DEVICES INTRODUCED, OR OTHERWISE. YOU EXPRESSLY
ACKNOWLEDGE AND AGREE THAT USE OF THE SOFTWARE IS AT
YOUR SOLE RISK AND YOU ARE RESPONSIBLE FOR INSTALLA-
TION OF THE SOFTWARE ON YOUR COMPUTER.
5. LIMITATION OF LIABILITY
We are liable for no more than the value of the license fee that you paid for
the Software. This limitation is cumulative and our responsibility for multiple
claims will not exceed in aggregate this limit.
Under no circumstances are we or our third party suppliers liable for dam-
ages of third parties claimed against you, or for harm to your records or data,
or special, incidental, indirect, or consequential damages, including but not
limited to lost profits, lost business revenue or failure to realize expected sav-
ings, loss of data, loss of use of the Software or any associated equipment,
downtime and user's time, even if you informed us of their possibility, or for
breach of any express or implied warranty, breach of contract, negligence,
strict liability or any other legal theory related to the Software. This limitation
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 17
applies whether you are entitled to claim damages from us or our third party
suppliers as a matter of contract or tort.
6. COPYRIGHTS, OWNERSHIP AND PROPRIETARY RIGHTS
All title and copyrights in and to the Software, and any copies thereof, are
owned by Psion Teklogix Inc. or its suppliers. The Software also contains
copyrighted material licensed from our suppliers or obtained from open
source and all rights to such copyrighted material rests with such suppliers.
Additional third party license terms and conditions may apply. We retain title
to the Software and any copies made from it. Any copies of the Software you
made are subject to the restrictions of this Agreement.
WE DISCLAIM ALL WARRANTIES AND INDEMNITIES, EXPRESS,
IMPLIED OR STATUTORY, FOR PATENT OR COPYRIGHT INFRINGE-
MENT.
7. CONFIDENTIALITY
You agree not to use or disclose any proprietary information provided by us,
except for the purposes of this Agreement. You agree not to reproduce any of
the copyrighted materials unless expressly permitted by this Agreement.
8. ENDING THIS AGREEMENT
We may terminate this Agreement and your license immediately without
notice if (a) you fail to comply with any term of this Agreement, or (b) your
rights are assigned by you, by operation of law or otherwise. In such event,
you must return or destroy all copies and component parts of the Software
and documentation, as well as any other Psion Teklogix proprietary informa-
tion in your possession, within fourteen (14) days of the date of termination.
Any rights and obligations under this Agreement that by their nature continue
after it ends will remain in effect until they are completed.
9. GENERAL
The laws of the Province of Ontario and the federal laws applicable therein,
excluding the conflict of laws provisions, govern this Agreement. If any pro-
vision of this Agreement is deemed invalid or unenforceable by any country,
18 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
that particular provision will be deemed modified to the extent necessary to
make the provision valid and enforceable, and the remaining provisions will
remain in full force and effect. Failure by us to insist on strict performance or
to exercise a right when entitled, does not prevent us from doing so at a later
time, either in relation to that default or any subsequent one.
No modifications of this Agreement shall be effective unless in writing and
approved by us.
You acknowledge that you have read this Agreement, understand it, and that
it is the complete agreement between you and Psion Teklogix with respect to
the subject matter hereof and supersedes all prior agreements, oral or written.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 19
1. Basic Preparation
This quick start guide provides basic information on the operation
and features of the Psion Teklogix 7535 G2 hand-held computer. For
more detailed information, refer to the 7535 G2 Hand-Held Compu-
ter User Manual, the online help, or the documentation supplied
with the application you are using.
Typically, 7535 G2 hand-helds are configured at the factory and
arrive ready for use. Although the 7535 G2 is equipped with an
internal Compact Flash and SD I/O slot, these slots are not intended
for user modification. If a device needs to be changed or added in
these slots, contact qualified Psion Teklogix personnel.
1.1 Charging The Battery
Batteries shipped from the factory are not charged. They must be
fully charged prior to use. Full capacity may not be reached until at
least 5 full charge/discharge cycles have been performed.
Batteries can be charged using a variety of chargers and docking sta-
tions. Refer to ‘Peripheral Devices And Accessories’ in the 7535 G2
Hand-Held Computer User Manual (PN 8000075) for details about
the chargers and docking stations recommended for your hand-held.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 23
1.4.1 Battery Safety Guidelines
Important: Before charging or using the battery pack, it is
critical that the safety information in this section is
reviewed and that all warnings are strictly followed.
Warning: BATTERIES ARE CONSIDERED HAZARDOUS
WASTE and must be returned to Psion Teklogix for
proper disposal. Forward all used batteries to one of:
Psion Teklogix Inc. Psion Teklogix Corp.
2100 Meadowvale Blvd. 1810 Airport Exchange Blvd.
Mississauga, Ontario Suite 500
Canada Erlanger, Kentucky
L5N 7J9 USA 41018
Psion Teklogix S.A.
La Duranne; 135 Rue Rene Descartes;
BP 421000
13591 Aix-En-Provence
Cedex 3; France
Warning: TO PREVENT the battery from leaking acid, generat-
ing heat or exploding, adhere to precautions below.
• The battery incorporates built-in safety devices. To ensure
their proper function, do not disassemble or alter any parts
of the battery.
• Do not short-circuit the battery by directly connecting any of
the exposed terminals with metal objects such as wire. Do not
transport or store the battery together with metal objects such
as necklaces, hair pins, etc.
• Do not dispose of batteries in fire.
• Do not use or leave the battery near a heat source such as a
fire or heater.
• Do not immerse the battery in water.
24 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
• When charging, use the battery charger specifically designed
for the battery.
• Do not pierce, strike, throw or step on the battery.
• Do not directly solder the battery.
• Do not connect the battery to an electrical outlet, vehicle
cigarette lighter, etc.
• Do not put battery into a microwave oven or pressurized
container.
• Do not use the battery in combination with primary batteries
(such as dry-cell batteries) or batteries of different capacities
or brands.
• Immediately remove the battery from the device or battery
charger and stop use if the battery gives off an odour, gener-
ates heat, becomes discoloured or deformed, or in any way
appears abnormal during use.
• Do not continue charging the battery if it does not recharge
within the specified charge time.
• The battery may burst or ignite if the battery leaks. Always
ensure that it is away from any exposed flames.
• If leaking electrolyte sprays into your eyes, rinse them with
clean running water, and immediately seek medical attention.
• Do not store the battery in extremely high temperatures
(e.g., a vehicle, strong direct sunlight, etc.). This may cause
the battery to overheat or ignite, and it may also reduce the
performance and service life of the battery.
• Do not use in areas where static electricity is greater than
what the manufacturer guarantees.
• Keep batteries out of reach of children.
Always switch the unit off before changing the battery. While the
battery is being replaced, the 7535 G2 will save its current data for at
least 10 minutes.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 25
1.4.2 Installing The Battery
•Slide the charged battery with the contoured plastic facing
you into the 7535 G2.
• Click the battery into place.
1.4.3 Battery Swap And Runtime
The 7535 G2 battery will operate for ten hours under typical operat-
ing conditions after a full charge. Typical battery life is 300 charge
cycles or 2 years average use. A full charge is completed in 4 hours
with a typical charge time of 1.5 hours.
1.5 Switching The 7535 G2 On
• Press and hold down [ENTER] for at least one second.
• When all four LEDs flash yellow, release the [ENTER] key.
A splash screen displaying the Psion Teklogix logo and the Win-
dows CE logo appears followed by the startup desktop.
26 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
Note: If the 7535 G2 is in suspend state, pressing [ENTER]
‘wakes’ the unit from this state. The screen in which
you were working before the computer entered suspend
state is displayed.
1.6 Switching The 7535 G2 Off
Important: Keep in mind that turning off the 7535 G2 does not
result in a complete reboot; rather, the unit enters a
power-saving, “suspend” state. When the hand-held
is turned on from suspend state, operation resumes
within a few seconds.
To switch off the 7535 G2:
• Press the [BLUE] key, and then press the [ENTER] key.
Important: If the word ‘BLUE’ is displayed in uppercase in the
taskbar area at the bottom of the screen, this key is
locked “on”—the 7535 G2 will not switch off. Press
the [BLUE] key again to unlock it; then press
[BLUE] [ENTER] to switch the 7535 G2 off.
If the ‘BLUE’ option is enabled in the ‘One Shots’
dialog box (accessible through the ‘Keyboard’
Control Panel icon) the 7535 G2 can be turned off
when the [BLUE] key is locked on.
1.7 Connecting To An 802.11 Network
In most cases, the 7535 G2 must be configured before it can connect
to an 802.11 wireless network. Chapter 2, Section 2.2.2, “Configur-
ing An IEEE 802.11 Radio Installed In The 7535 G2” in the
7535 G2 Hand-Held Computer User Manual (PN 8000075)
describes this configuration process. Once the 7535 G2 is properly
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 27
configured, it automatically connects to your wireless network
within a few moments of switching on. A radio icon in the taskbar
indicates a successful network connection along with the quality of
the radio reception.
2. Getting To Know Your 7535 G2
2.1 7535 G2 Features
Ambient Light
7535 G2 Screen
Tether Port
Sensor
Sound Port
Docking Port
28 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
2.2 The Keyboard
Note: Refer to “Navigating Using The Keyboard” on page 47 for
details about using keys to move around Windows CE.
The 7535 G2 offers two types of keyboard layouts—a 58-key key-
board and a 36-key, large button keyboard.
The [BLUE] and [ORANGE] modifier keys provide access to addi-
tional keys and system functions. These functions are colour coded
in orange and blue print above the keyboard keys.
2.2.1 Modifier Keys
The [SHIFT], [CTRL], [ALT], [BLUE] and [ORANGE] keys are
modifier keys. Pressing a modifier key changes the function of the
next key pressed. For example, on a 58-key keyboard, a square
bracket is printed in orange print above the [4] key. Pressing the
Stylus
(Pointing Tool)
Battery Pack
Tether Port
Scanner Window
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 29
[ORANGE] key followed by the [4] key displays a square bracket
rather than the number 4.
The [SHIFT], [CTRL] and [ALT] keys operate much like a desktop
keyboard except that they are not chorded (two keys held down
simultaneously). The modifier key must be pressed first followed by
the key whose function you want modified.
Activating Modifier Keys
When a modifier key is pressed once, it is displayed in lowercase let-
ters in the taskbar at the bottom of the 7535 G2 screen. For example,
if the [CTRL] key is pressed, ctrl key is displayed at the bottom of the
unit screen. Once the next key is pressed, the modifier key becomes
inactive and disappears from the taskbar.
Locking Modifier Keys
When a modifier key is pressed twice, it is ‘locked’ on. A ‘locked’
modifier key is displayed in uppercase letters in the taskbar. For
example, pressing the [BLUE] key twice locks it on—it is displayed
as BLUE KEY in the taskbar at the bottom of the computer screen.
The locked modifier key will remain active until it is pressed a third
time to unlock or turn it off.
2.2.2 The Keys
The [SHIFT] Key
Used to display uppercase alpha characters and provide access to
the symbols above the numeric keys.
The Arrow Keys
Move the cursor around the screen in the direction of the arrow—
up, down, left and right.
30 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
The [BKSP/DEL] Key
Moves the cursor one character to the left, erasing the incorrectly-
entered key stroke.
[DEL] key ([BLUE] [BKSP]) erases the character at the
cursor position.
The [CTRL] And [ALT] Key
Modify the function of the next key pressed and are application-
dependent.
The [TAB] Key
Usually moves the cursor to the next field to the right or
downward.
The [ESC] Key
Generally used as a keyboard shortcut to close the current menu,
dialog box or activity and return to the previous one.
The [SPACE] Key
Inserts a blank space between characters. In a Windows dialog
box, the [SPACE] key enables or disables a checkbox.
The [SCAN] Key
Activates the scanner beam while pressed. For units without
internal scanners, pressing this key has no affect.
2.2.3 The 58-Key Keyboard
In addition to alphanumeric keys that are directly accessible on the
keyboard (no key combination is required) and the keys described in
this chapter, the 58-key keyboard also provides function keys and
macro keys. They can be custom-defined for each application.
32 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
Creating Uppercase Letters
To display a capital letter:
• Press the [ORANGE] key and then the [SHIFT] key before
typing the alpha character.
Note: If you want to use uppercase characters at all times, press
[BLUE] [SHIFT]. An icon of an uppercase ‘A’ is displayed
in the taskbar indicating that all letters will be displayed as
uppercase characters.
Choosing Multiple Characters From The Same Key
If you need to choose more than one alpha character from a single
key, you’ll need to press the ‘Accept’ key between alpha selections.
The ‘Accept’ key is presented as an arrow ⇒ symbol above the ‘0’
(zero) key.
For example, suppose you want to type the letters ‘a’, ‘b’ and ‘c’.
These letters are all accessible from the numeric key, [2].
To type the letter ‘a’:
• Press the [ORANGE] key, and then press the numeric
key, [2].
• Press the ‘Accept’ key [⇒] (zero key) to indicate that the let-
ter ‘a’ should be accepted and that another letter from the
same key will be chosen.
To type the letter ‘b’:
• Press the [2] key twice, and press [⇒] to accept the
letter ‘b’.
To type the letter ‘c’:
• Press the [2] key three times.
When you have completed your alpha selections from this key, you
can do one of the following:
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 33
• If you want to choose additional alpha characters from
another key(s), leave the [ORANGE] key ‘on’, and press the
numeric key with the alpha character you require, or
• If you do not want to choose any additional alpha characters,
press [ORANGE] again to unlock or turn ‘off’ the key and
end alpha selection.
Choosing Multiple Characters From A Range Of Keys
If you plan on choosing alpha characters from a number of different
keys, you are not required to press the ‘Accept’ [⇒] key after each
alpha selection. The [⇒] key is only required when you are choosing
more than one alpha character from the same key—e.g., ‘a’, ‘b’ and
‘c’ from the [2] key.
Suppose you want to type the letters ‘a’, ‘d’ and ‘g’. These alpha
characters are accessed from the numeric keys [2], [3] and [4].
• With the [ORANGE] key locked ‘on’, press [2] to type the
letter ‘a’.
• Press [3] to type ‘d’, and press [4] to type the letter ‘g’.
• To end alpha selection, press the [ORANGE] key again to
unlock it.
2.2.5 Adjusting The Keypad Backlight
To adjust the intensity of the keypad backlight and the conditions
under which this backlight is activated.
•In the Control Panel, choose the Keyboard icon.
Note: Access may be restricted to supervisory use.
34 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
•In the Keyboard Properties dialog box, open the
Backlight tab.
2.3 The Display
7535 G2s are equipped with display backlighting to improve charac-
ter visibility in low light conditions. The backlight switches on when
a key is pressed and the ambient light is below the set threshold. The
contrast can also be adjusted to further improve character visibility.
2.3.1 Adjusting The Display Backlight
• In the Windows CE Control Panel, choose the Display icon
and select the Backlight tab.
Note: Keep in mind that this option may be restricted to
supervisory use only.
Determines how dark the
ambient light gets before
backlight switches on.
Adjusts light intensity.
Determines the duration
of time that the keyboard
backlight stays on when
the unit is not in use.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 35
2.3.2 Adjusting The Contrast
The display contrast can be adjusted from the unit keyboard using
the [BLUE] key and function keys [F1] and [F2].
• Press the [BLUE] key twice to lock it on, and then press [F1]
to darken or [F2] to lighten the display.
• When you’re satisfied with the contrast adjustment, press
[BLUE] again.
Sets the duration of time that the
backlight stays on at half the configured
intensity when the unit is not in use.
Determines how dark the ambient light
light needs to be before the backlight
switches on.
Sets the duration of time that the backlight
stays on at the configured intensity when
the unit is not in use.
Adjusts the light intensity of the backlight.
36 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
2.3.3 Calibrating The Touchscreen
Note: This function may be restricted to supervisory use.
If your 7535 G2 touchscreen has never been calibrated or if you find
that the stylus pointer is not accurate when you tap on an item:
•In the Control Panel, choose the Stylus icon, and select the
Calibration tab, and then choose the [Recalibrate] button.
• Follow the onscreen directions to calibrate the display.
2.4 7535 G2 Indicators
7535 G2s use LEDs (Light Emitting Diodes), onscreen messages
and audio tones as indicators.
2.4.1 LEDs
The 7535 G2 is equipped with four tri-coloured LEDs. This section
outlines what these LEDs indicate.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 37
Important: If an LED is illuminated in red, the operator should
be cautious as this generally indicates an abnormal
operating condition or active laser emission.
Charge LED
The lower-right LED is reserved for internal charger/power status.
and is active even when the 7535 G2 is inserted in a docking station
(and in suspend mode).
Function Charge LED Behaviour
External power not available. LED off.
Fully charged to within 95% of charge
capacity.
LED displays solid green colour.
Quick charge successfully completed to
within 75% of charge capacity.
LED flashes slow green.
Radio Traffic
LED
Scanner
LED
User Application
LED
Charge
LED
38 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
Radio Traffic LED
The upper-left LED on your 7535 G2 flashes either orange (trans-
mit) or green (receive).
Note: Keep in mind that while the standard 802.11.g radio
supports the transmit/receive LED, not all radios support
this function.
Scan LED
Successful scans are indicated in two ways—with a scan LED and
with an audio tone.
User Application LED
The behaviour of the user application LED is dependent on the
application program installed in your 7535 G2. Refer to the Psion
Teklogix Windows CE Device SDK Manual for details.
Charge in progress. LED displays solid yellow
colour.
Cell temperature out of range for charge. LED flashes yellow.
Unable to charge battery. LED displays solid red colour.
Charge circuit failure. LED flashes fast red.
Function Scan LED Behaviour
Scan in progress LED displays solid red during scan.
Successful scan LED displays solid green after decode.
Off when scan ended.
Unsuccessful scan LED flashes red.
Function Charge LED Behaviour
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 39
2.4.2 Onscreen Indicators
The taskbar at the bottom of the screen displays a variety of system
status indicators.
Note: If you double-tap a taskbar icon (touchscreen) or use the
keys to access the system tray, more information is displayed
in a dialog box.
The taskbar changes dynamically, and only those icons that are
applicable are displayed. For example, if a radio is not installed in
your 7535 G2, the radio signal icon is not displayed in the taskbar.
Windows Start Button
The Windows Start button in the taskbar displays the Start Menu.
Keep in mind that this button is visible only if the configuration of
the computer allows it. Keep in mind also that operator access to
40 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
Start Menu options may be very limited depending on the security
setting assigned to the computer.
Modifier Key Indicators
[SHIFT], [CTRL], [ALT], [BLUE] and [ORANGE] are modifier
keys that have onscreen indicators to show when a key is active or
locked. If a modifier key is pressed once to activate it, the key is dis-
played in the taskbar in lowercase characters. If a modifier key is
pressed twice, it is ‘locked on’ and the onscreen indicator is dis-
played in uppercase letters in the taskbar.
Battery Gauge
The battery-shaped icon displayed in the taskbar provides a visual
indication of the remaining battery power.
When the battery level is low—approximately 15 minutes from
empty—a warning window pops up. When the battery power is
completely depleted, a final warning window indicates that the 7535
G2 will be powered down.
If the 7535 G2 is using external AC power, an AC icon is displayed.
Full 75% 50% 25% Empty AC Connection
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 41
Battery Charge
The battery charge icon is displayed in the taskbar when the 7535 G2
hand-held battery is being charged.
Radio Signal Quality
Increasing radio signal quality is represented by longer, filled bars
within this icon.
Tethered Devices
When a peripheral is attached to the tether port and activated, an
associated icon appears in the taskbar.
Good No Radio
Reception
Weak
Reception Link
Scanner RFID Serial DeviceUSB Device
42 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
Docking Device
When a 7535 G2 is inserted in a docking station, charger or cradle, an
associated icon like some of the samples below appears in the taskbar.
Security Level
Security levels can be set to limit access and prevent inadvertent
changes to application settings.
Bluetooth Radio
If a Bluetooth radio is installed in your 7535 G2, this icon is dis-
played in the taskbar.
Wireless WAN
These icons provide access to and information about the 7535 G2
GSM/GPRS wide area networking status.
Quad Docking Station Power Cradle Portable Docking
Module (PDM)
Combo Charger &
Combo Docking Station
Fatal Error 0% 1 to 20% 21 to 40% 41 to 60% 61 to 80% 81 to 100%
Signal Status
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 43
2.4.3 Audio Indicators
The 7535 G2 beeper provides a variety of sounds and can be config-
ured to emit a sound under a variety of conditions. Refer to ‘Volume
Adjustment’ in Chapter 5 of the ‘7535 G2 Hand-Held Computer
User Manual’ for details about determining when your unit
will beep.
Adjusting The Beeper Volume
The volume function keys located along the top of the keyboard
are used to adjust the beeper volume emitted from your 7535 G2.
The increase volume function key is labelled with a plus sign
and the decrease volume function key is labelled with a
minus sign .
To adjust the beeper volume:
• Press the [BLUE] key twice to lock it ‘on’.
• Press the increase volume function key or the decrease
volume function key until the volume meets your needs.
• Press the [BLUE] key again to ‘unlock’ it.
2.5 Monitoring The Network Connection
If your hand-held is equipped with a wireless LAN radio, it will
typically associate with the nearest access point. The radio signal
quality meter in the taskbar indicates the relative strength of the
communication link.
To access the radio signal icon from the keyboard:
• Press [BLUE] [0]. Choose Shortcuts>System Tray from
the Start Menu.
• Use the arrow keys to highlight the radio signal icon in
the taskbar.
44 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
•Press [ENTER] to display the radio quality dialog box.
If you’re using a touchscreen:
• Tap on the radio icon in the taskbar to display the radio qual-
ity dialog box.
Note: Moving in and out of the radio coverage area can have vary-
ing effects on a network session. At times, you may need to
renew your connection by logging in again.
2.6 Checking The Scanner
If your 7535 G2 is equipped with an internal scanner, you can test it
to ensure that it is operating properly. Point the scanner window at a
bar code that your scanner was designed to decode – for example, a
1D UPC bar code or 2D bar code. Press the SCAN button or the pis-
tol trigger, and check for a valid decode on the hand-held screen.
“Scanning Techniques” on page 44 provides some pointers to help
ensure successful decodes. “Scan LED Indicators” also on page 45
describes how to determine a successful decode.
2.6.1 Scanning Techniques
Note: The scanning techniques described here apply to internal
and external scanners.
• Hold the scanner at an angle. Do not hold it perpendicular to
the bar code.
•Do not hold the scanner directly over the bar code. In this
position, light can reflect back into the scanner’s exit window
and prevent a successful decode.
• Scan the entire bar code. If you are using a 1D or 2D scanner,
make certain that the scan beam crosses every bar and space
on the bar code, including the margins on either end of
the symbol.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 45
• If you are using a 2D imaging scanner, make certain the red,
oval-shaped framing mark is centered within the bar code you
want to scan.
• When using imaging scanners, do not move the scanner while
decoding the bar code. Movement blurs the image.
• Hold the scanner farther away for larger bar codes.
• Hold the scanner closer for bar codes with bars that are
close together.
2.6.2 Scan LED Indicators
The 7535 G2 scanner LED (the lower-left LED) indicates whether or
not your scan is successful. The LED behaves as follows:
• Scan In Progress: scan LED displays solid red colour.
• Successful Scan: scan LED displays solid green colour and
turns off when the scan is ended.
• Unsuccessful scan: scan LED flashes red.
A bar code icon appears on the screen during a scan. While the scan-
ner beam is active, the onscreen message states—SCANNING. If the
scan is successful, the bar code data is displayed on the screen until
the scan button (or pistol trigger) is released.
Note: If you prefer not to display the ‘SCANNING’ message and/or
the bar code data on the screen, these options can be disa-
bled using the ‘Scan Indication’ and ‘Scan Result’ parame-
ters, respectively. Refer to the user guide provided with your
unit for details about these parameters.
46 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
3. Navigating In Windows CE
Graphic user interfaces like Windows CE for portable devices and
desktop Windows (2000, XP, etc.) utilize ‘point and click’ naviga-
tion. On 7535 G2s with touchscreens, the ‘point and click’ action is
accomplished by tapping the stylus on the touchscreen rather than
using a mouse.
An equivalent keyboard shortcut is also available for every ‘point
and click’ action. Actions can be performed using any combination
of keyboard shortcuts or touchscreen tapping (provided your unit is
equipped with a touchscreen).
3.1 Navigating A Touchscreen
Note: If the touchscreen is not registering your screen taps accu-
rately, it may need recalibration. Refer to “Calibrating The
Touchscreen” on page 36.
A touchscreen is an optional feature. A 7535 G2 equipped with a
touchscreen has a stylus—a pointing tool that looks like a pen —
stored in a slot at the top of the 7535 G2. It is used to select objects
on the touchscreen.
Note: To prevent damage to the touchscreen, use only the stylus
(pen) supplied with your 7535 G2.
To open a file, launch an applet or open a folder:
• Double-tap on the appropriate icon.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 47
3.2 Navigating Using The Keyboard
Note: Refer to “The Keyboard” on page 28 for more detail about
the keyboard keys.
If your 7535 G2 has a standard screen (rather than a touchscreen),
choosing icons and navigating dialog boxes, displaying the desktop,
and so on requires keyboard input.
Keep in mind that unlike a desktop computer, the 7535 G2 does not
support key chording (pressing two keys at the same time). You must
press one key followed by the next in sequence.
Operation Key or Key Combination
Switch between applications [ALT] [TAB]
Open the task manager screen [ALT] [ESC]
Move the cursor Arrow keys
Open file, folder or icon [ENTER]
Exit & Save [ENTER]
Close/Exit & Do Not Save [ESC]
Navigate Dialog Boxes [TAB]
To move cursor up: [SHIFT][TAB]
To display the next ‘tab’ in a dialog box:
[CTRL][TAB]
Select Radio Button/
Press Button
[SPACE]
Go to Start Menu [BLUE][0]
48 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
3.3 The Startup Desktop
When the 7535 G2 boots up, the startup desktop is displayed. Any
applications stored in the Startup folder will start up immediately.
The Startup folder is located in \Windows\Startup and \Flash
Disk\Startup.
3.3.1 Accessing Desktop Icons
• Use the arrow keys to highlight the icon, and press [ENTER]
to launch the highlighted icon.
Note: If the arrow keys do not highlight the desktop icons, the desk-
top may not be selected. Press [BLUE] 0 (zero) to display the
Start Menu, and choose Desktop. Now the desktop will be
“in focus” and the arrow keys will highlight the icons.
If you’re using a touchscreen:
• Tap the icon to select it, or double-tap on it to open a window
or, in the case of an application icon, launch an application.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 49
3.3.2 The Taskbar
The 7535 G2 is equipped with a taskbar at the bottom of the screen.
It displays icons through which you can view the security level,
battery capacity and radio signal quality of your unit. A 7535 G2
attached to a charger, cradle, docking station or PDM displays the
associated icon.
The taskbar also displays active modifier keys—[SHIFT], [ALT],
[CTRL], [BLUE] and [ORANGE]. Keys that have been locked “on”
are displayed in uppercase letters.
Using The Taskbar
• Press [BLUE] [0] to display the Start Menu.
• Press the [DOWN] arrow key to highlight the Shortcut menu.
Press the [RIGHT] arrow key to display the sub-menu. Type
[Y] to choose System Tray from the menu.
• Press the [LEFT] and [RIGHT] arrow keys to highlight the
icon in the taskbar about which you’d like more information.
A tooltip is displayed as each taskbar icon is highlighted. The tooltip
provides the status of each icon.
50 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
• Press [ENTER] to display the associated dialog box.
If you’re using touchscreen:
• Tap and hold the stylus on an icon to display the icon's
tooltip. Double-tap the icon to open the Control Panel dialog
box associated with the icon.
3.4 The Start Menu
The Start Menu lists operations you can access and work with. It is
available from the startup desktop or from within any application.
To display the menu:
• Press [BLUE] [0] (zero).
• Use the arrow keys to highlight a menu item, and press
[ENTER], or
If the menu item has an underlined character:
• Type the underlined alpha character—for example, to display
Security, type the letter s.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 51
If you’re using a touchscreen:
• Tap on the Start button in the taskbar. Tap on the item in the
menu with which you want to work.
The Desktop
Choosing Desktop from the Start Menu displays the 7535 G2
desktop.
Security Settings
To assign a security level:
• Choose Security from the Start Menu.
• Choose a security level from the dialog box. To allow access
to all the Start Menu and taskbar options, choose the Supervi-
sor security level.
• Type the appropriate password in the Password: text box, and
press [ENTER].
To change the password:
Note: Keep in mind that this is the same password as that assigned
through the Password control panel applet.
• Choose a security level, and enter the existing password in
the Password field.
• Choose the [Set Password] button.
In the Password Properties dialog box:
• Type the new password in the Password: text box, and retype
the new password in the Confirm Password: text box.
52 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
Programs
The Programs menu contains a sub-menu of programs available
on your hand-held.
Shortcuts
Choosing Shortcuts provides access to the System Tray, Cycle Tasks
and the Task Manager.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 53
The System Tray
The System Tray option allows access to the icons in the taskbar at
the bottom of the screen. The taskbar displays indicators such as a
battery capacity gauge and the security level. These indicators are
attached to dialog boxes that provide additional information.
• Choose System Tray from the Start Menu.
When System Tray is chosen, the taskbar icons become accessible.
To display the dialog box attached to an icon:
• Use the [LEFT] and [RIGHT] arrow keys to highlight an
icon—for example, the security icon.
• Press [ENTER] to display the security level dialog box.
If you’re using a touchscreen, you don’t need to use System Tray:
You have direct access to the icons in the taskbar.
• Tap on the icon with which you want to work. The associated
dialog box is displayed.
Cycle Tasks
When Cycle Tasks is selected (and the Task Manager is not open),
you can cycle through active applications.
• Press [BLUE] [0] (zero) [T] [C] to cycle to the next active
task, or
Press [ALT][TAB].
The Task Manager
The Task Manager option allows you to switch to another task or to
end an active task. To display the task manager window:
• Press [BLUE] [0] (zero) [T] [T], or
54 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
Press [ALT][ESC].
Settings
The Settings menu provides access to the Control Panel applets, lets
you configure your radio (Network and Dial-up Connections) and
customize the Taskbar and Start Menu.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 55
Run
Choosing the Run option displays a dialog box in which you can
enter the name of the program, folder or document you want to open.
Shutdown
Note: The Shutdown menu varies depending on the security level
chosen. At ‘Supervisor’ security level, a sub-menu like the
one in the sample screen is displayed. At ‘User’ security
Suspends the 7535 G2 immediately – equivalent
to turning the unit off.
Resets the 7535 G2, leaving all saved files
and (registry) settings intact. Unsaved data
is lost.
Resets the 7535 G2. Files stored outside of
permanent memory are lost.
56 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
level, choosing ‘Suspend’ causes the computer to shut down
immediately. A sub-menu is not available.
At ‘Teklogix’ security level, an additional option is availa-
ble in the sub-menu—Bootloader. This option behaves like
cold-reset, except that the 7535 G2 starts Bootloader rather
than Windows CE.
3.5 Using A Dialog Box
A dialog box appears when you need to make selections and enter
further information.
Important: If you’re using a touchscreen, use the stylus to tap on
an element in a dialog box to select or deselect it,
display dropdown menus, save your selections,
and so on. If you’re using a keyboard, follow the
directions below.
Checkbox Button
Textbox
Radio
Button
Tabs
Dropdown Menu
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 57
Dialog boxes contain one or more of the following elements:
Tab: A tab separates different elements of a dialog box. Press the
[TAB] key until a tab in the dialog box is highlighted. To display
adjoining tabs, press the [RIGHT] or [LEFT] arrow key.
To display the information in the next tab from anywhere in the win-
dow, press [CTRL] [TAB].
Textbox: A textbox requires that you type information. Press the
[TAB] key to highlight the textbox and then type the appropriate
information.
Dropdown: This type of menu is identified by up and down arrows
next to the dropdown menu to indicate that additional options are
available. Press the [TAB] key to highlight the menu, and use the
arrow keys on your keyboard to cycle through the options.
Checkbox: This box allows you to select or deselect an option. To
select or deselect a checkbox, press the [TAB] key to highlight the
checkbox, and press the [SPACE] key to select or deselect it.
Radio buttons: These buttons allow you to choose from a number of
options. For example, in the sample screen under section 3.5 on page
56, you can choose to ‘Obtain an IP address via DHCP’ or ‘Specify
an IP address’. Press the [TAB] key to highlight a radio button
option, and then select a radio button by pressing the arrow keys to
highlight the appropriate option.
Buttons: This type of button allows you to ‘Save’, ‘Delete’ and so
on the options you’ve chosen in a dialog box. Use the [TAB] key
to highlight the button you want to use. Press the [ENTER] key to
activate it.
Saving Your Choices: Once you’ve made all your changes, press
the [ENTER] key to save your changes and exit the window.
Note: A dialog box item that is displayed in grey text indicates that
it is not currently available.
58 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
4. Scanner Specifications
4.1 SE 1200 High Performance & Long Range
Parameter SE 1200HP SE 1200LR
Light Source Visible Laser Diode 650 nm Visible Laser Diode 650
nm
Scan Rate 35 (± 5) scans/sec (bidirec-
tional)
35 (± 5) scans/sec (bidirec-
tional)
Scan Angle 42º± 2º 23º± 2º
Scan Patterns Linear Linear
Minimum Print
Contrast
Minimum 20% absolute
dark/light reflectance mea-
sured at 650 nm
Minimum 40% absolute
dark/light reflectance mea-
sured at 650 nm
Symbologies
UPC/EAN, Code 128, Code
39, Code 93, 1 2 of 5, Dis-
crete 2 of 5, Codabar, MSI
UCC/EAN 128.
UPC/EAN, Code 128,
Code 39, Code 93, 1 2 of
5, Discrete 2 of 5, Coda-
bar, MSI UCC/EAN 128.
Programmable
Parameters
Laser On Time, Aim Dura-
tion, Power Mode, Trigger
Mode, Bi-directional
Redundancy, Symbology
types/lengths, Data format-
ting, Serial Parameters,
Beeper Tone
Laser On Time, Aim Dura-
tion, Power Mode, Trigger
Mode, Bidirectional
Redundancy, Symbology
types/lengths, Data format-
ting, Serial Parameters,
Beeper Tone, Scan Angle,
Pattern Controls
Ambient Light:
Artificial: 450 ft. candles
(4844 Lux)
Sunlight: 10000 ft. candles
(107,640 Lux)
Artificial: 450 ft. candles
(4844 Lux)
Sunlight: 8000 ft. candles
(86,112 Lux)
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 59
4.2 SE 1200 Advanced Long Range & SE 2223PDF
Operating
Temperature:
-22º to 131ºF (-30º to 55ºC)
chassis temperature
-22º to 131ºF (-30º to
55ºC) chassis temperature
Storage
Temperature:
-40° to 140°F (-40° to
60°C)
-40° to 140°F (-40° to
60°C)
Humidity: 5% to 95% noncondensing 5% to 95% noncondensing
Power:
Input Voltage:
Input Current:
Standby Current:
3.0-5.0 VDC ± 10%
65 mA typical
50 µA max.
5.5 VDC ± 10%
72 mA typical
50 µA max.
Shock 2000 G 2000 G
Output Power
(peak) 0.83mW 1.33mW
Parameter SE 1200ALR SE 2223 PDF
Light Source Visible Laser Diode 650 nm Visible Laser Diode 650 nm
Scan Rate 35 (± 5) scans/sec (bi-direc-
tional) 590 scan/sec. 22 frames/sec.
Scan Angle 13º± 2º Horizontal: 34º,
Vertical: 12.5º
Scan Patterns Linear Linear and Smart Raster
Minimum Print
Contrast
Minimum 40% absolute
dark/light reflectance mea-
sured at 650 nm
Minimum 40% absolute
dark/light reflectance mea-
sured at 650 nm
35% absolute dark/light
reflectance differential
(PDF)
25% absolute dark/light
reflectance differential (1-D)
Parameter SE 1200HP SE 1200LR
60 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
Symbologies
UPC/EAN, Code 128,
UCC/EAN 128, RSS, Code
39, Code 93, I 2 of 5, Dis-
crete 2 of 5, Codabar, MSI.
PDF417, Micro PDF, UPC/
EAN, Code 39, Interleaved 2
of 5, Code 128, Codabar,
MSI Plessey, RSS and Com-
posite codes
Programmable
Parameters
Laser On Time, Aim Dura-
tion, Power Mode, Trigger
Mode, Bi-directional
Redundancy,
Symbology types/lengths,
Data formatting, Serial
Parameters, Beeper Tone
Laser On Time, Aim Dura-
tion, Power Mode, Trigger
Mode, Bidirectional Redun-
dancy,
Symbology types/lengths,
Data formatting, Serial
Parameters, Beeper Tone,
Scan Angle, Pattern Controls
Ambient Light:
Artificial: 450 ft. candles
(4844 Lux)
Sunlight: 4000 ft. candles
(43,056 Lux)
Artificial: 450 ft. candles
(4844 Lux)
Sunlight: 8000 ft. candles
(86112 Lux)
Operating
Temperature:
-22º to 131ºF (-30º to 55ºC)
chassis temperature
-22º to 140ºF/-30º to 60ºC @
100% duty cycle
Storage
Temperature: -40° to 140°F (-40° to 60°C) -40° to 158°F (-40° to 70°C)
Humidity: 5% to 95% noncondensing 5% to 95% noncondensing
Power:
Input Voltage:
Input Current:
Standby Cur-
rent:
5.0 VDC ± 10%
72 mA typical
50 µA max.
5.5 VDC ± 10%
230 mA typical
6.5 mA max.
Shock 2000 G 2000 G
Output Power
(peak) 1.35mW 0.86mW
Parameter SE 1200ALR SE 2223 PDF
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 65
5. General Maintenance
5.1 Caring For The Touchscreen
The top of the touchscreen is a thin, flexible polyester plastic sheet
with a conductive coating on the inside. The polyester can be perma-
nently damaged by harsh chemicals and is susceptible to abrasions
and scratches. Using sharp objects on the touchscreen can scratch or
cut the plastic, or crack the internal conductive coating.
Protect the touchscreen from the following chemicals:
• mustard, ketchup etc.,
• sodium hydroxide,
• concentrated caustic solutions,
• benzyl alcohol, and
• concentrated acids.
If touchscreens are used in harsh environments, apply disposable
screen protectors (PN HU6110). They reduce the clarity of the dis-
play slightly but will dramatically extend the life of the touchscreen.
When they become damaged, they are easily removed and replaced.
Connection 12 pin ZIF connector, pitch 0.5 mm
(0.2 in)
Shock 2000G, 0.7ms, half sinus, 3 axes
Vibration 50G r.m.s.
Parameter EV15
66 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
5.2 Cleaning The 7535 G2
Important: Do not immerse the unit in water. Dampen a soft
cloth with mild detergent to wipe the unit clean.
•Use only mild detergent or soapy water to clean the
hand-held unit.
• Avoid abrasive cleaners, solvents or strong chemicals for
cleaning. The 7535 G2 has a plastic case that is susceptible
to harsh chemicals. The plastic is partially soluble in oils,
mineral spirits and gasoline. The plastic slowly decomposes
in strong alkaline solutions.
To clean ink marks from the units keypad and touchscreen, use iso-
propyl alcohol.
6. Support Services & Worldwide Offices
Psion Teklogix provides a complete range of product support serv-
ices to its customers worldwide. These services include technical
support and product repairs.
6.1 Technical Support
Technical Support for Mobile Computing Products is provided via
e-mail through the Psion Teklogix customer and partner extranets.
To reach the website, go to www.psionteklogix.com and click on the
appropriate Teknet link on the home page. Then click on the
“Log-in” button or the “Register” button, depending on whether you
have previously registered for Teknet. Once you have logged in,
search for the “Support Request Form”.
Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide 67
6.2 Product Repairs
International
For technical support outside of Canada or the U.S.A., please contact
your local Psion Teklogix office listed on our worldwide website:
http://www.psionteklogix.com
Click on the heading labelled “Contacts” to choose a Psion Teklogix
technical support representative closest to you.
Canada/U.S.A
Canadian and U.S. customers can receive access to repair services,
by calling the toll-free number below, or via our secure website (see
Technical Support, above).
Note: Before calling the toll-free number, have your Psion Teklogix
customer number or trouble ticket number available.
Voice: 1 800 387-8898 (press option “2”)
Fax: 1 905 812-6304
6.3 Worldwide Offices
COMPANY HEADQUARTERS AND CANADIAN SERVICE CENTRE
Psion Teklogix Inc.
2100 Meadowvale Blvd.
Mississauga, Ontario
Canada L5N 7J9
Tel: +1 905 813 9900
Fax: +1 905 812 6300
E-mail: salescdn@psion.com
68 Psion Teklogix 7535 G2 Hand-Held Computer Quick Start Guide
NORTH AMERICAN HEADQUARTERS AND U.S. SERVICE CENTRE
Psion Teklogix Corp.
1810 Airport Exchange Boulevard
Suite 500
Erlanger, Kentucky
USA 41018
Tel: +1 859 371 6006
Fax: +1 859 371 6422
E-mail: salesusa@psion.com
INTERNATIONAL SUBSIDIARIES (SEE ALSO WWW.PSIONTEKLOGIX.COM)
Psion Teklogix S.A.
La Duranne
135 Rue Rene Descartes
BP 421000
13591 Aix-En-Provence
Cedex 3; France
Tel: +33 4 42 90 88 09
Fax: +33 4 42 90 88 88
E-mail: tekeuro@psion.com
