SO 9001 Certiﬁed

Quality Management System

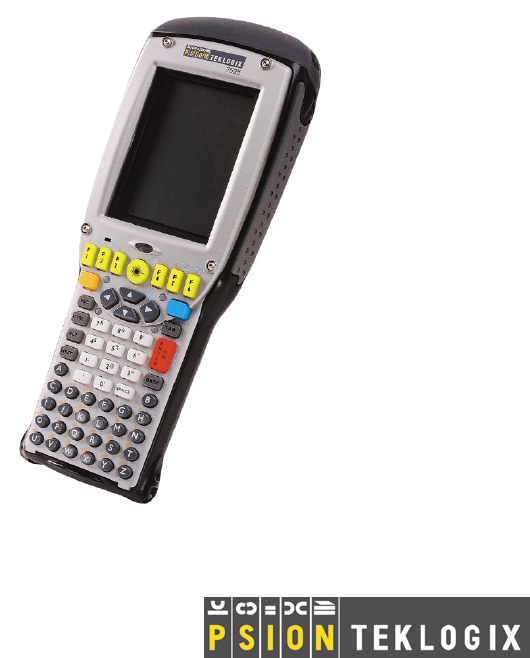

7535-RFID Hand-Held

Computer

User Manual

December 10, 2003 Part No. 8000007.B

This document and the information it contains is the property of Psion Teklogix Inc.,

is issued in strict conﬁdence, and is not to be reproduced or copied, in whole or in

part, except for the sole purpose of promoting the sale of Teklogix manufactured

goods and services. Furthermore, this document is not to be used as a basis for

design, manufacture, or sub-contract, or in any manner detrimental to the interests

of Psion Teklogix Inc.

All trademarks are the property of their respective holders.

Return-To-Factory Warranty

Psion Teklogix warrants a return-to-factory warranty for a period of one year from

shipment. The warranty on Psion Teklogix manufactured equipment does not extend

to any product that has been tampered with, altered, or repaired by any person other

than an employee of an authorized Psion Teklogix service organization. See Psion

Teklogix terms and conditions of sale for full details.

Service

When requesting service, please provide information concerning the nature of the

failure and the manner in which the equipment was used when the failure occurred.

Type, model, and serial number should also be provided. Before returning any

products to the factory, call the Customer Services Group for a Return

Authorization number.

Support Services

Psion Teklogix provides a complete range of product support services to its custom-

ers. In North America, these services can be accessed through the Psion Teklogix

Helpdesk. The Helpdesk coordinates repairs and training, helps you to troubleshoot

problems over the phone and arranges for technicians or engineers to come to your

site. For contact information and a listing of worldwide ofﬁces, please refer to

Appendix A: Support Services And Worldwide Ofﬁces

Disclaimer

Every effort has been made to make this material complete, accurate and up-to-date.

Teklogix Inc. reserves the right to make changes without notice and shall not be

held responsible for damages resulting from reliance on the material presented in

this manual.

Psion Teklogix 7535 Hand-Held Computer User Manual

ROGRAM

ICENSE

GREEMENTS

Microsoft's End User License Agreement

You have acquired a device (“DEVICE”) that includes software licensed by Psion

Teklogix Inc. from Microsoft Licensing Inc. or its afﬁliates (‘MS”). Those installed

software products of MS origin, as well as associated media, printed materials, and

“online” or electronic documentation (“SOFTWARE”) are protected by interna-

tional intellectual property laws and treaties. The SOFTWARE is licensed, not sold.

IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT

(“EULA”), DO NOT USE THE DEVICE OR COPY THE SOFTWARE.

INSTEAD, PROMPTLY CONTACT PSION TEKLOGIX INC. FOR INSTRUC-

TIONS ON RETURN OF THE UNUSED DEVICE(S) FOR A REFUND.

ANY

USE

OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON

THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA

(OR RATIFICATION OF ANY

PREVIOUS CONSENT).

GRANT OF SOFTWARE LICENSE.

This EULA grants you the following

license:

• You may use the SOFTWARE only on the DEVICE.

•

NOT FAULT TOLERANT

. THE SOFTWARE IS NOT FAULT TOLER-

ANT. PSION TEKLOGIX INC. HAS INDEPENDENTLY DETER-

MINED HOW TO USE THE SOFTWARE IN THE DEVICE, AND MS

HAS RELIED UPON PSION TEKLOGIX INC. TO CONDUCT SUFFI-

CIENT TESTING TO DETERMINE THAT THE SOFTWARE IS SUIT-

ABLE FOR SUCH USE.

• NO WARRANTIES FOR THE SOFTWARE.

THE SOFTWARE is pro-

vided “AS IS” and

with all faults. THE ENTIRE RISK AS TO SATIS-

FACTORY QUALITY, PERFORMANCE, ACCURACY, AND

EFFORT (INCLUDING LACK OF NEGLIGENCE) IS WITH YOU.

ALSO, THERE IS NO WARRANTY AGAINST INTERFERENCE

WITH YOUR ENJOYMENT OF THE SOFTWARE OR AGAINST

License Agreement

Psion Teklogix 7535 Hand-Held Computer User Manual

INFRINGEMENT.

IF YOU HAVE RECEIVED ANY WARRANTIES

REGARDING THE DEVICE OR THE SOFTWARE, THOSE WARRAN-

TIES DO NOT ORIGINATE FROM, AND ARE NOT BINDING ON, MS.

•

Note on Java Support

. The SOFTWARE may contain support for pro-

grams written in Java. Java technology is not fault tolerant and is not

designed, manufactured, or intended for use or resale as online control

equipment in hazardous environments requiring fail-safe performance, such

as in the operation of nuclear facilities, aircraft navigation or communica-

tion systems, air trafﬁc control, direct life support machines, or weapons

systems, in which the failure of Java technology could lead directly to

death, personal injury, or severe physical or environmental damage. Sun

Microsystems, Inc. has contractually obligated MS to make this disclaimer.

• No Liability for Certain Damages.

EXCEPT AS PROHIBITED BY

LAW, MS SHALL HAVE NO LIABILITY FOR ANY INDIRECT,

SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES

ARISING FROM OR IN CONNECTION WITH THE USE OR PER-

FORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL

APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL PUR-

POSE. IN NO EVENT SHALL MS BE LIABLE FOR ANY AMOUNT

IN EXCESS OF U.S. TWO HUNDRED FIFTY DOLLARS

(U.S.$250.OO).

•

Limitations on Reverse Engineering, Decompilation, and Disassembly.

You

may not reverse engineer, decompile, or disassemble the SOFTWARE,

except and only to the extent that such activity is expressly permitted by

applicable law notwithstanding this limitation.

•

SOFTWARE TRANSFER ALLOWED BUT WITH RESTRICTIONS.

You

may permanently transfer rights under this EULA only as part of a per-

manent sale or transfer of the Device, and only if the recipient agrees to this

EULA. If the SOFTWARE is an upgrade, any transfer must also include all

prior versions of the SOFTWARE.

•

EXPORT RESTRICTIONS.

You acknowledge that SOFTWARE is

subject to U.S. export jurisdiction. You agree to comply with all applicable

international and national laws that apply to the SOFTWARE, including the

U.S. Export Administration Regulations, as well as end-user, end-use and

destination restrictions issued by U.S. and other governments. For addi-

tional information see http://www.microsoft.com/exporting/.

Psion Teklogix 7535 Hand-Held Computer User Manual

III

License Agreement

Meetinghouse Data Communications, Inc. End User License Agreement

End User License Agreement:

ATTENTION: PLEASE READ THIS SOFTWARE LICENSE AGREEMENT

("LICENSE") CAREFULLY BEFORE INSTALLATION. USE OF THE SOFT-

WARE IS SUBJECT TO THE SOFTWARE LICENSE TERMS SET FORTH

BELOW. USING THE SOFTWARE INDICATES YOUR ACCEPTANCE OF

THESE LICENSE TERMS. IF YOU DO NOT ACCEPT THESE LICENSE

TERMS, YOU MUST RETURN THE SOFTWARE FOR A FULL REFUND. IF

THE SOFTWARE IS SUPPLIED WITH ANOTHER PRODUCT, YOU MAY

RETURN THE ENTIRE UNUSED PRODUCT FOR A FULL REFUND.

Software License Terms:

The following terms govern your use of the enclosed Software unless you have a

separate written agreement with Meetinghouse Data Communications, Inc. herein

also known as “MDC”.

License Grant:

MDC grants you a non-exclusive and non-transferable license to Use one copy of

the Software. "Use" means storing, loading, installing, executing or displaying the

Software. “Software” means software, documentation and any fonts accompanying

this License whether on disk, in read only memory, on any other media or in any

other form. You may not modify the Software or disable any licensing or control

features of the Software. If the Software is licensed for "concurrent use", you may

not allow more than the maximum number of authorized users to Use the Software

concurrently.

The Software is licensed as a "Shareware" version, on one computer only. You may

use the Software distributed and licensed as Shareware on a trial basis only. The

shareware version of the Software may be distributed freely without any associated

fees to other parties who wish to try the software as long as the Software is distrib-

uted within an exact copy of the original MDC self-extracting installation ﬁle. In

other words, nothing may be left out of the Shareware as distributed on MDC's web

site at http://www.mtghouse.com.

License Agreement

Psion Teklogix 7535 Hand-Held Computer User Manual

All permanent licenses are prepaid and the Software is licensed to you by MDC.

You own the media on which the Software is recorded but MDC and/or MDC’s

licensor(s) retain title to the Software. The Software and any copies which this

License authorizes you to make are subject to this License.

Permitted Uses and Restrictions:

This License allows you to install and use the Software on a single computer at a

time. This License does not allow the Software to exist on more than one computer

at a time. You may make one copy of the Software in machine-readable form for

backup purposes only. The backup copy must include all copyright information con-

tained on the original. Except as expressly permitted in this License, you may not, in

whole or part, decompile, reverse engineer, disassemble, modify, rent, lease, loan,

sublicense, distribute or create derivative works based upon the Software, or trans-

mit the Software over a network. You may not copy the Software onto any bulletin

board or similar system. You agree that you will not utilize any information obtained

from MDC or obtained or learned in the course of using the Software, to develop or

improve technology with similar functionality to the Software, nor will you directly

or indirectly assist any other party in doing so. You further agree that you will not

separate the various modules of the software for their different purposes, if any.

High Risk Activities:

The Software is not fault-tolerant and is not designed, manufactured or intended for

use or resale as on-line control equipment in hazardous environments requiring fail-

safe performance, such as in the operation of nuclear facilities, aircraft navigation or

communication systems, air trafﬁc control, direct life support machines, or weapons

systems, in which the failure of the Software could lead directly to death, personal

injury, or severe physical or environmental damage ("High Risk Activities").

Accordingly, MDC and its suppliers speciﬁcally disclaim any express or implied

warranty of ﬁtness for High Risk Activities. You agree that MDC and its suppliers

will not be liable for any claims or damages arising from the use of the Software in

such applications.

Ownership:

The Software is licensed, not sold. The Software is owned and copyrighted by MDC

or its third party suppliers. Your license confers no title or ownership in the Software

and is not a sale of any rights in the Software. You acknowledge such ownership and

intellectual property rights and will not take any action to jeopardize, limit or inter-

fere in any manner with MDC's or its suppliers' ownership of or rights with respect

Psion Teklogix 7535 Hand-Held Computer User Manual

License Agreement

to the Software. The Software is protected by copyright and other intellectual prop-

erty laws and by international treaties. MDC's third party suppliers may protect their

rights in the event of any violation of these License Terms.

Termination:

Your rights under this License will terminate automatically without notice from

MDC if you fail to comply with any term(s) of this License. Upon termination, you

must immediately destroy the Software, together with all copies, adaptations and

merged portions in any form.

U.S. Government Restricted Rights:

The Software and documentation have been developed entirely at private expense

and are provided as "Commercial Computer Software" or "restricted computer soft-

ware". They are delivered and licensed as "commercial computer software" as

deﬁned in DFARS 252.227-7013 (Oct 1988), DFARS 252.211-7015 (May 1991) or

DFARS 252.227-7014 (Jun 1995), as a "commercial item" as deﬁned in FAR 2.101

(a), or as "Restricted computer software" as deﬁned in FAR 52.227-19 (Jun 1987)

(or any equivalent agency regulation or contract clause), whichever is applicable.

You have only those rights provided for such Software and Documentation by the

applicable FAR or DFARS clause or the MDC standard software agreement for the

product.

Export Law Assurances:

You may not use or otherwise export or reexport the Software except as authorized

by United States law and the laws of the jurisdiction in which the Software was

obtained. In particular, but without limitation, the Software may not be exported or

reexported (i) into (or to a national or resident of) any U.S. embargoed country or

(ii) to anyone on the U.S. Treasury Department's list of Specially Designated

Nationals or the U.S. Department of Commerce's Table of Denial Orders. By using

the Software, you represent and warrant that you are not located in, under control of,

or a national or resident of any such country or on any such list.

Limited Warranty on Media: (if applicable)

MDC warrants the media on which the Software is recorded to be free from defects

in materials and workmanship under normal use for a period of ninety (90) days

from the date of original retail purchase. Your exclusive remedy under this para-

graph shall be, at MDC's option, a refund of the purchase price of the product con-

taining the Software or replacement of the Software which is returned to MDC or a

License Agreement

Psion Teklogix 7535 Hand-Held Computer User Manual

MDC authorized representative with a copy of the receipt. THIS LIMITED WAR-

RANTY AND ANY IMPLIED WARRANTIES ON THE MEDIA INCLUDING

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR

A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO NINETY (90)

DAYS FROM THE DATE OF ORIGINAL RETAIL PURCHASE. SOME JURIS-

DICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY LASTS, SO THIS LIMITATION MAY NOT APPLY TO YOU. THE

LIMITED WARRANTY SET FORTH HEREIN IS EXCLUSIVE AND IN LIEU

OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED.

LICENSOR SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES. THIS

LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU

MAY ALSO HAVE OTHER RIGHTS WHICH VARY BY JURISDICTION.

Disclaimer of Warranty on Software:

You expressly acknowledge and agree that use of the Software is at your sole risk.

The Software is provided "AS IS" and without warranty of any kind and MDC and

MDC’s licensor(s) (for the purposes of warranty and liability, MDC and MDC's

licensor(s) shall be collectively referred to as "MDC") EXPRESSLY DISCLAIM

ALL WARRANTIES AND/OR CONDITIONS, EXPRESS OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES

AND/OR CONDITIONS OF MERCHANTABILITY OR SATISFACTORY

QUALITY AND FITNESS FOR A PARTICULAR PURPOSE AND NONIN-

FRINGEMENT OF THIRD PARTY RIGHTS. LICENSOR DOES NOT WAR-

RANT THAT THE FUNCTIONS CONTAINED IN THE SOFTWARE WILL

MEET YOUR REQUIREMENTS, OR THAT THE OPERATION OF THE SOFT-

WARE WILL BE UNINTERRUPTED OR ERROR-FREE, OR THAT DEFECTS

IN THE SOFTWARE WILL BE CORRECTED. FURTHERMORE, LICENSOR

DOES NOT WARRANT OR MAKE ANY REPRESENTATIONS REGARDING

THE USE OR THE RESULTS OF THE USE OF THE SOFTWARE OR

RELATED DOCUMENTATION IN TERMS OF THEIR CORRECTNESS,

ACCURACY, RELIABILITY, OR OTHERWISE. NO ORAL OR WRITTEN

INFORMATION OR ADVICE GIVEN BY LICENSOR OR AN LICENSOR

AUTHORIZED REPRESENTATIVE SHALL CREATE A WARRANTY OR IN

ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. SHOULD THE

SOFTWARE PROVE DEFECTIVE, YOU (AND NOT LICENSOR OR AN

LICENSOR AUTHORIZED REPRESENTATIVE) ASSUME THE ENTIRE

COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. SOME

JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WAR-

Psion Teklogix 7535 Hand-Held Computer User Manual

VII

License Agreement

RANTIES, SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. THE

TERMS OF THIS DISCLAIMER DO NOT AFFECT OR PREJUDICE THE

STATUTORY RIGHTS OF A CONSUMER ACQUIRING LICENSOR PROD-

UCTS OTHERWISE THAN IN THE COURSE OF A BUSINESS, NEITHER DO

THEY LIMIT OR EXCLUDE ANY LIABILITY FOR DEATH OR PERSONAL

INJURY CAUSED BY LICENSOR’S NEGLIGENCE.

Limitation of Liability:

UNDER NO CIRCUMSTANCES, EXCEPT TO THE EXTENT PROHIBITED

BY LOCAL LAW, INCLUDING NEGLIGENCE, SHALL LICENSOR, ITS SUB-

SIDIARIES, AFFILIATES, OR SUPPLIERS BE LIABLE FOR ANY DIRECT,

INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES

(INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS) ARIS-

ING OUT OF OR RELATING TO THIS LICENSE, THE USE, INABILITY TO

USE, OR THE RESULTS OF USE OF THE SOFTWARE, WHETHER BASED IN

WARRANTY, CONTRACT, TORT OR OTHER LEGAL THEORY, AND

WHETHER OR NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

In no event shall MDC's total liability to you for all damages exceed the price paid

for the license to use the Software, regardless of the form of the claim.

Government End Users:

If the Software is supplied to the United States Government, the Software is classi-

ﬁed as "restricted computer software" as deﬁned in clause 52.227-19 of the FAR.

The United States Government's rights to the Software are as provided in clause

52.227-19 of the FAR.

Controlling Law and Severability:

This License shall be governed by the laws of the United States and the State of

New Hampshire. As to any dispute relating to this License or the Software, you fur-

ther agree to jurisdiction and venue in the Federal and State Courts located in the

State of New Hampshire. If for any reason a court of competent jurisdiction ﬁnds

any provision, or portion thereof, to be unenforceable, the remainder of this License

shall continue in full force and effect.

Acknowledgement:

Your use of any software produced by MDC is based only on your acknowledge-

ment that you have read this License, understand it, and agree to be bound by its

terms and conditions.

License Agreement

VIII

Psion Teklogix 7535 Hand-Held Computer User Manual

MDC Acknowledgments:

This product includes software developed by MDC and its licensors. This product

includes software developed by the OpenSSL Project for use in the OpenSSL Tool-

kit (http://www.openssl.org/)". This product includes cryptographic software written

by Eric Young (eay@cryptsoft.com). This product includes software written by Tim

Hudson (tjh@cryptsoft.com).

Complete Agreement:

This License constitutes the entire agreement between the parties with respect to the

use of the Software and supersedes all prior or contemporaneous understandings

regarding such subject matter. No amendment to or modiﬁcation of this License will

be binding unless in writing and signed by MDC.

NOTE: EXCEPT TO THE EXTENT ALLOWED BY LOCAL LAW, THESE

WARRANTY TERMS DO NOT EXCLUDE, RESTRICT, OR MODIFY, AND

ARE IN ADDITION TO, THE MANDATORY STATUTORY RIGHTS APPLICA-

BLE TO THE LICENSE OF THE SOFTWARE TO YOU.

Meetinghouse Data Communications, Inc.

150 Greenleaf Avenue, Unit F

Portsmouth, NH 03801

Revised 8/12/2002

Psion Teklogix 7535 Hand-Held Computer User Manual

ABLE

ONTENTS

Program License Agreements

..............................I

Approvals And Safety Summary

...........................xiii

Chapter 1: Introduction

1.1 About This Manual ............................3

1.2 Text Conventions .............................4

1.3 About The 7535 Hand-Held Computer ..................5

1.3.1 Features...............................5

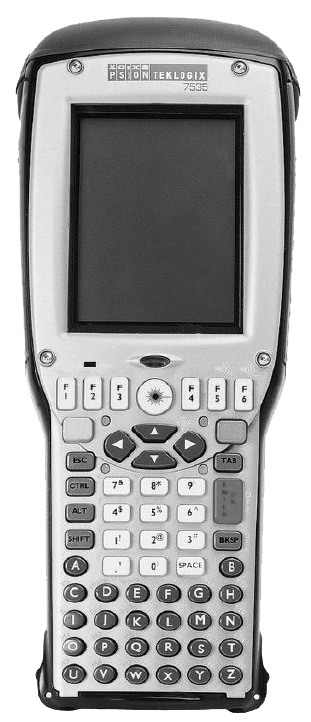

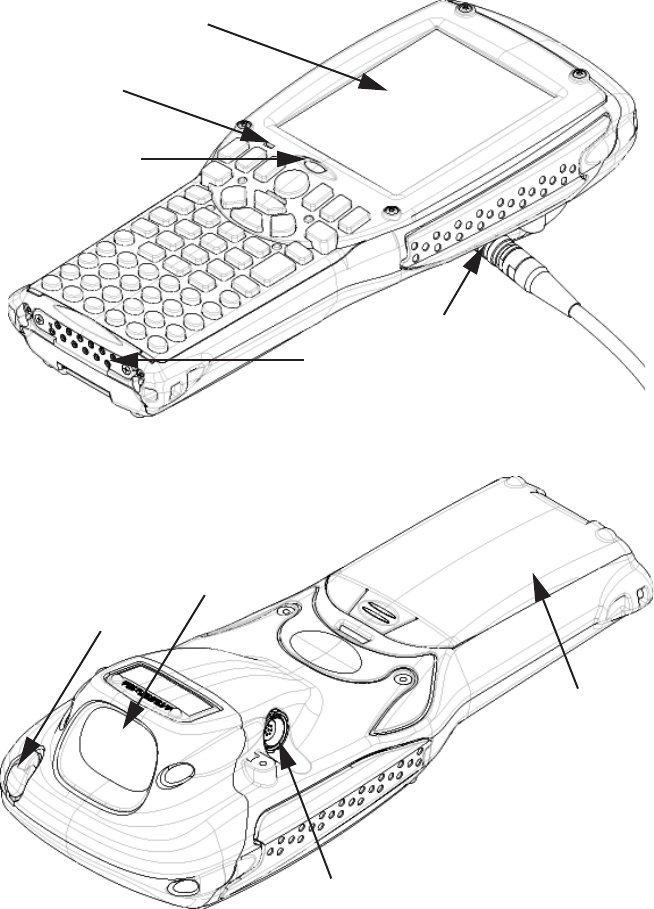

1.3.2 The 7535 Hand-Held Computer ..................7

1.3.3 Regulatory Labels .........................9

Chapter 2: Basic Checkout

2.1 Preparing The 7535 For Operation ....................13

2.1.1 Equipment You Need To Get Started ...............13

2.1.2 Charging The Battery .......................13

2.1.3 Attaching Carrying Accessories ..................13

2.1.3.1 Attaching The Hand Strap ................14

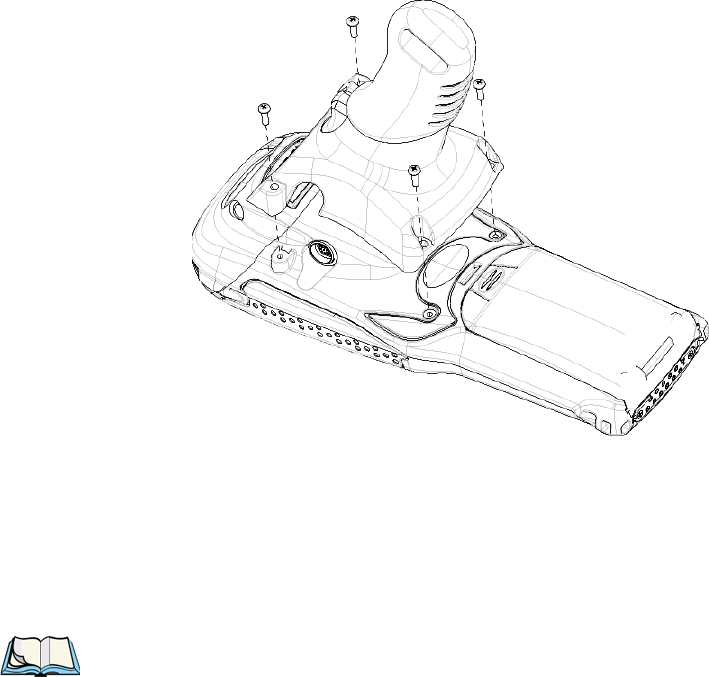

2.1.3.2 Attaching The Pistol Grip ................15

2.2 Powering Up The 7535 And Conﬁguring The Radio ...........16

2.2.1 Installing The Battery And Switching The 7535 On........17

2.2.3 Assigning An IP Address .....................24

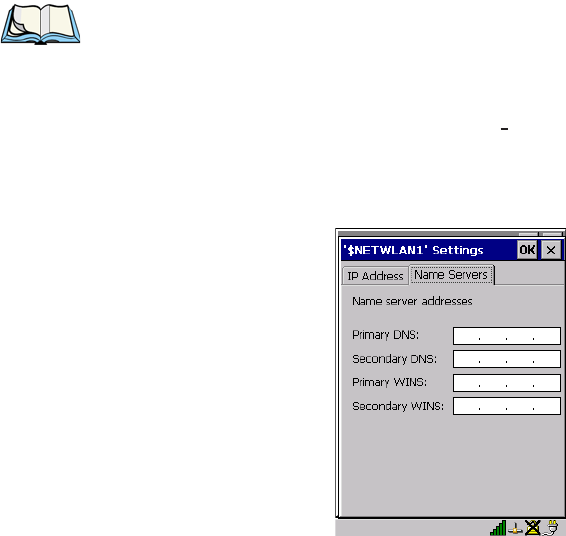

2.2.4 Name Servers Tab .........................25

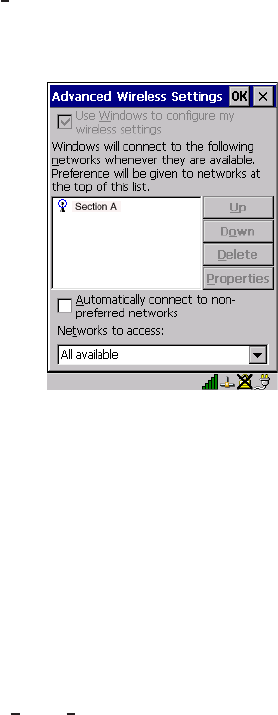

2.2.5 Advanced Features .........................26

2.2.5.1 Rearranging Preferred Networks ............26

2.2.5.2 Deleting A Preferred Network..............27

2.2.5.3 Changing Network Properties ..............27

2.3 Checking The Scanner ..........................27

2.4 Using Microsoft® ActiveSync® To Work With Files...........27

Contents

Psion Teklogix 7535 Hand-Held Computer User Manual

2.5 Calibrating The Touchscreen ......................28

2.6 Resetting The 7535 Hand-Held .....................28

Chapter 3: Getting To Know Your 7535

3.1 Features Of The 7535 ..........................31

3.2 The Battery................................32

3.2.1 Battery Safety ...........................32

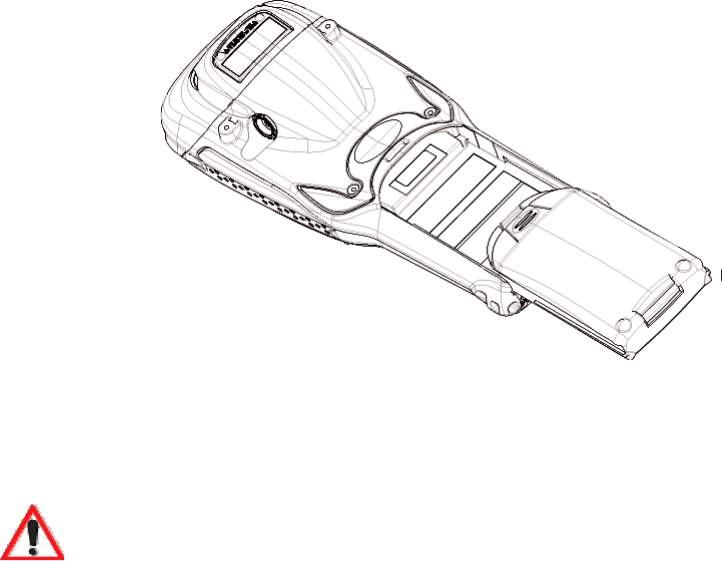

3.2.2 Removing And Installing The Battery Pack ...........32

3.2.3 Charging The Battery .......................33

3.3 Switching The 7535 Hand-Held On And Off ..............34

3.4 The Keyboard ..............................35

3.4.1 Modifier Keys...........................35

3.4.1.1 Activating Modiﬁer Keys................36

3.4.1.2 Locking Modiﬁer Keys.................36

3.4.2 The Keys .............................36

3.4.3 The 58-Key Keyboard ......................37

3.4.4 The 36-Key Keyboard ......................38

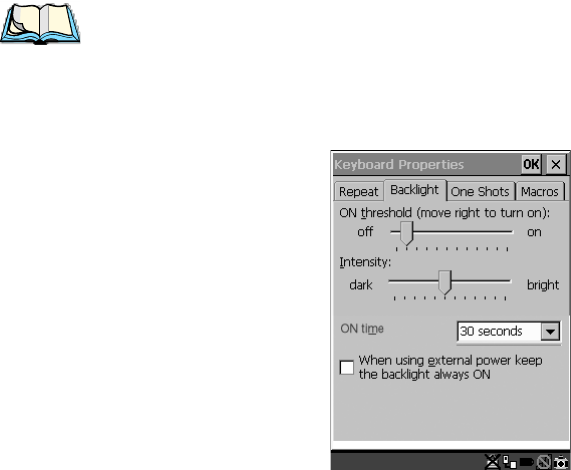

3.4.5 The Keypad Backlight ......................40

3.5 The Display ...............................40

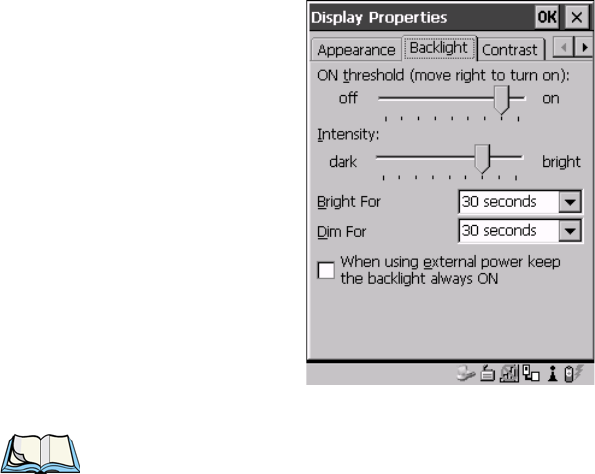

3.5.1 Adjusting The Display Backlight.................40

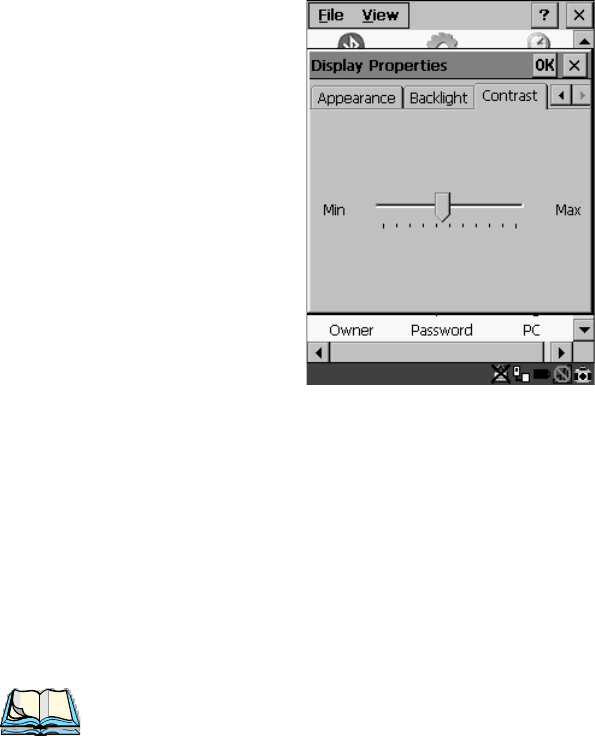

3.5.2 Adjusting The Contrast ......................41

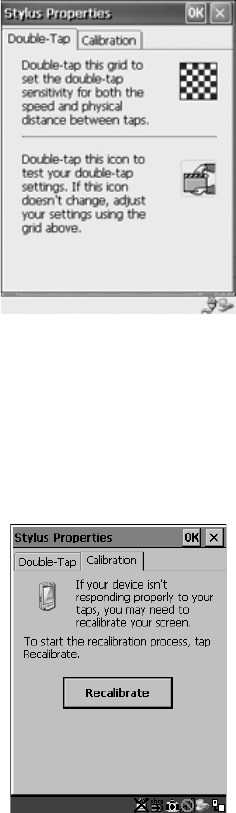

3.5.3 Calibrating The Touchscreen ...................41

3.6 7535 Indicators..............................42

3.6.1 LEDs ...............................42

3.6.1.1 Charge LED ......................43

3.6.1.2 Radio Trafﬁc LED ...................44

3.6.1.3 Scan LED........................44

3.6.1.4 User Application LED .................44

3.6.2 Onscreen Indicators........................45

3.6.3 Audio Indicators .........................47

3.6.3.1 Adjusting The Beeper Volume .............48

3.7 Internal Scanners.............................48

3.7.1 Scanning Techniques .......................49

3.7.2 Scan LED Indicators .......................49

3.7.3 Troubleshooting..........................50

3.7.4 Operating One Dimensional (1D) Internal Laser Scanners....50

3.7.5 Operating Internal PDF Laser Scanners .............51

Psion Teklogix 7535 Hand-Held Computer User Manual

iii

Contents

3.7.6 Operating Internal Two Dimensional (2D) Imager Scanners . . .51

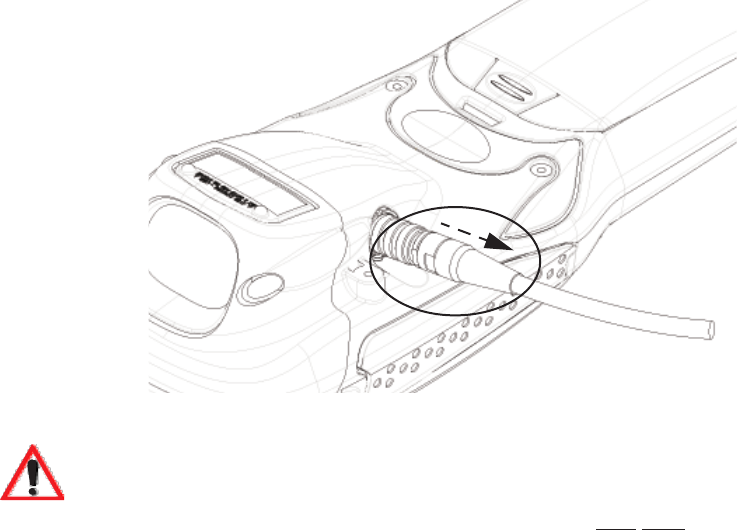

3.8 Connecting & Disconnecting Tethered Peripherals............52

3.9 Monitoring The Battery And Maximizing Run Time ...........53

3.9.1 Storing Batteries ..........................55

3.10 Monitoring The Network Connection...................55

3.11 Uploading Data In A Docking Station ..................56

3.12 General Maintenance ...........................56

3.12.1 Caring For The Touchscreen....................56

3.12.2 Cleaning The 7535 .........................57

Chapter 4: Working With Windows CE

4.1 Navigating In Windows CE And Applications ..............61

4.1.1 Navigating Using A Touchscreen And Stylus ...........61

4.1.2 Navigating Using The Keyboard..................62

4.2 Working With Files, Folders And Programs ...............63

4.3 The Startup Desktop............................64

4.3.1 The Desktop Icons .........................65

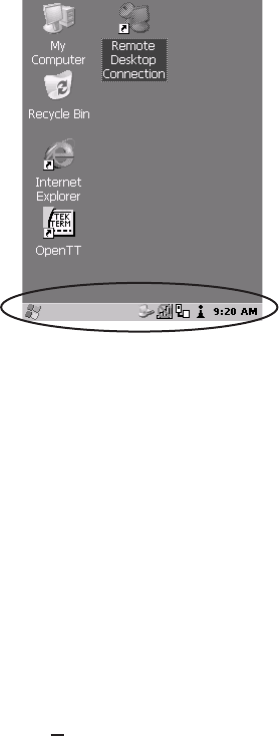

4.3.2 The Taskbar ............................66

4.3.2.1 Using The Taskbar ....................66

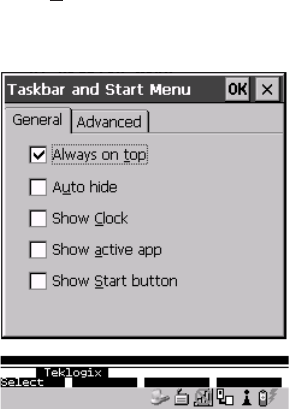

4.3.2.2 Customizing The Taskbar ................67

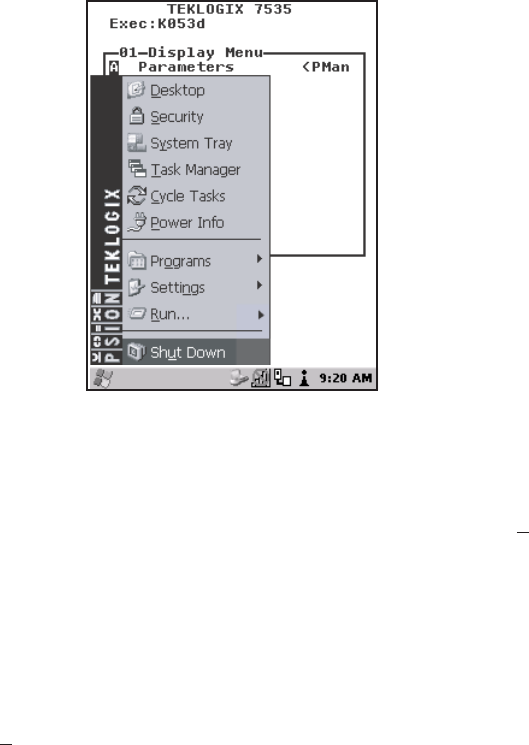

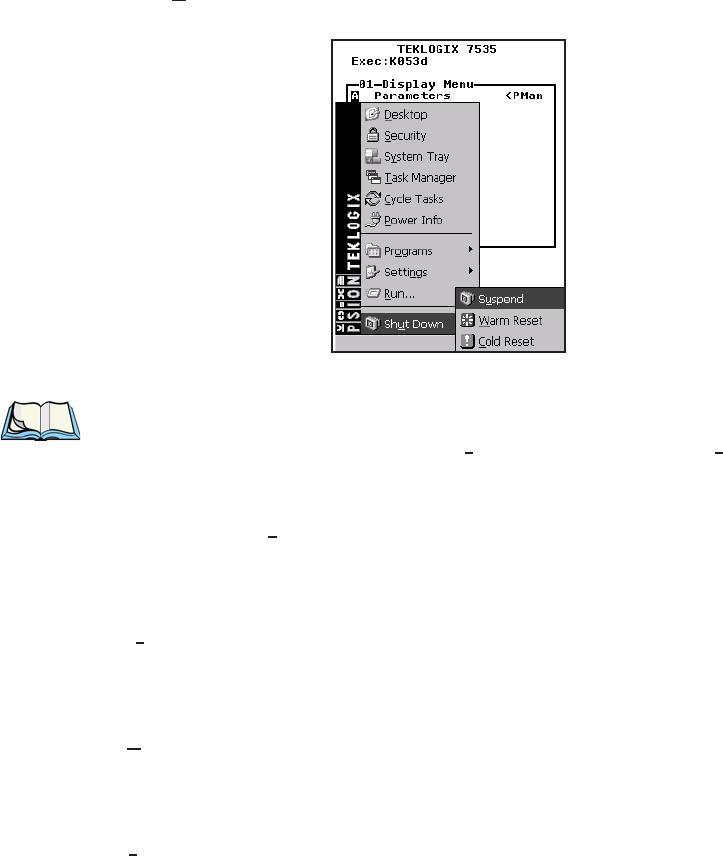

4.4 The Start Menu ..............................68

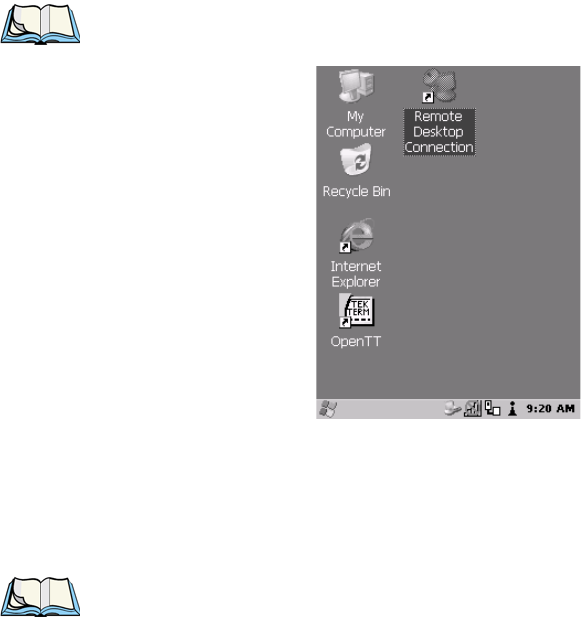

4.4.1 The Desktop ............................68

4.4.2 Security Settings ..........................69

4.4.3 The System Tray ..........................70

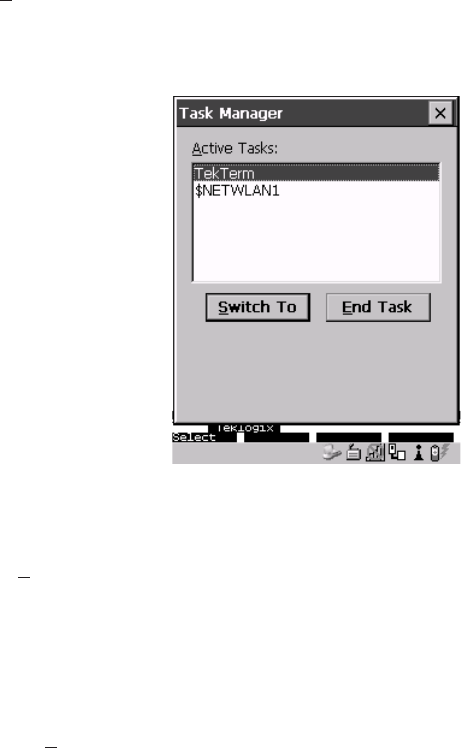

4.4.4 The Task Manager .........................71

4.4.5 Cycle Tasks.............................71

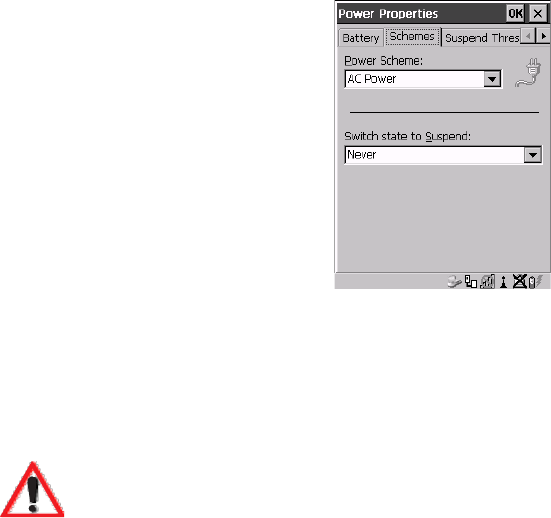

4.4.6 Power Info .............................71

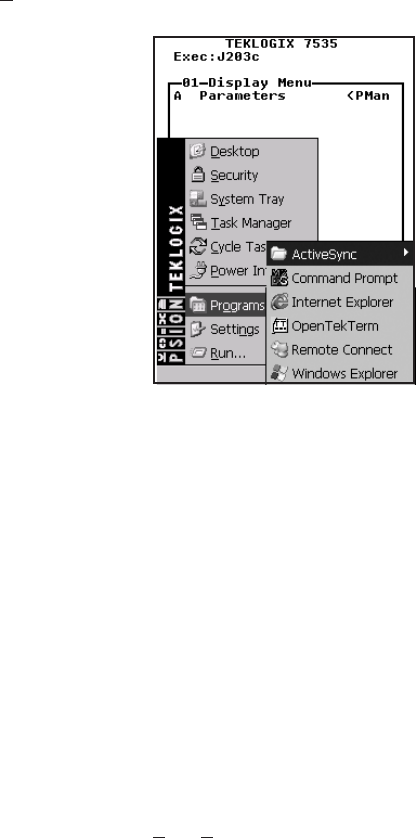

4.4.7 Programs ..............................72

4.4.8 Settings ...............................73

4.4.9 Run .................................74

4.4.10 Shutdown..............................75

4.5 Using A Dialogue Box ..........................76

Chapter 5: Configuration

5.1 Remote Desktop Connection .......................83

5.2 Pocket PC Compatibility .........................83

Contents

Psion Teklogix 7535 Hand-Held Computer User Manual

5.3 The Control Panel ............................83

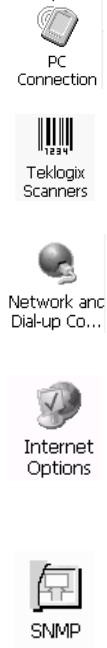

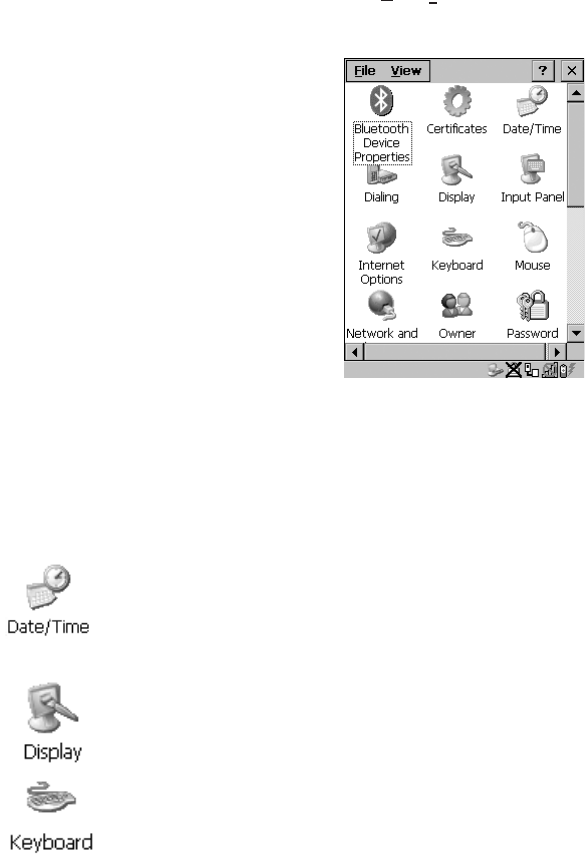

5.4 Control Panel Icons ...........................84

5.5 Basic Setup................................88

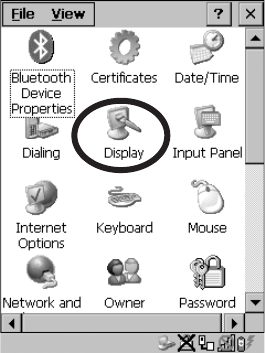

5.5.1 Display Properties.........................88

5.5.1.1 Display Contrast ....................88

5.5.1.2 Display Backlight ...................89

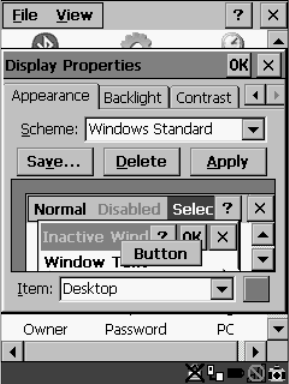

5.5.1.3 Display Appearance ..................91

5.5.2 Keyboard Properties .......................92

5.5.2.1 Key Repeat .......................92

5.5.2.2 Keyboard Backlight ..................93

5.5.2.3 Keyboard One Shot Modes...............94

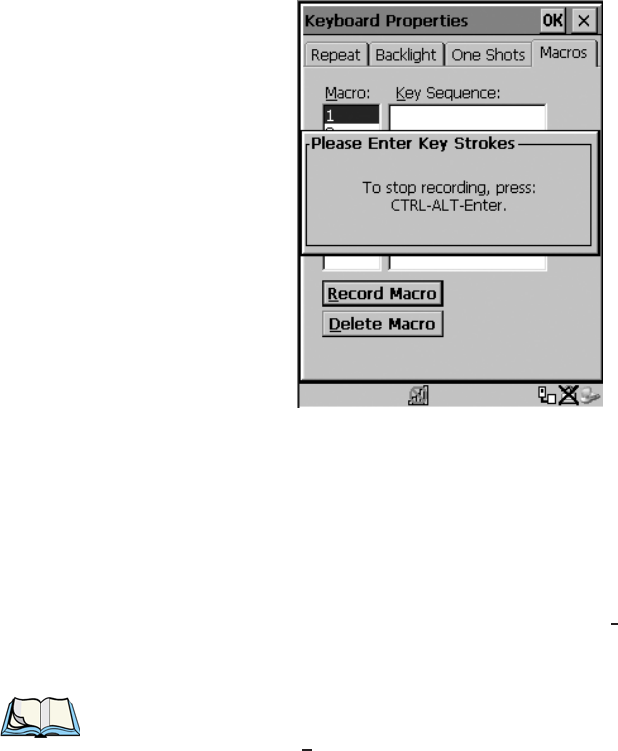

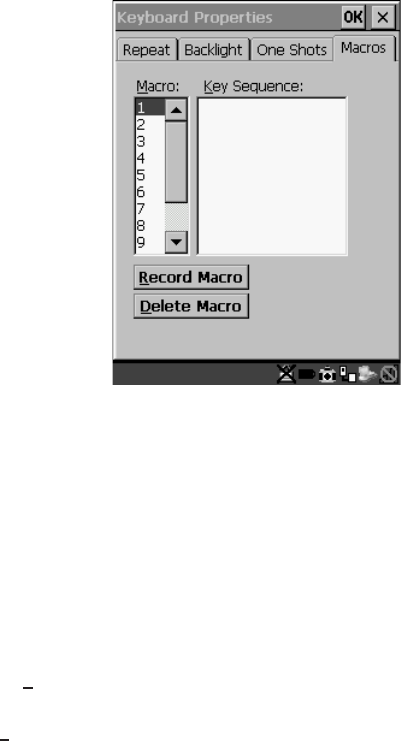

5.5.2.4 Keyboard Macro Keys .................95

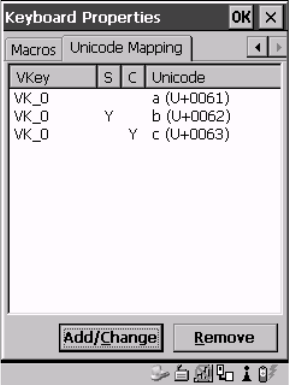

5.5.2.5 Unicode Mapping ...................97

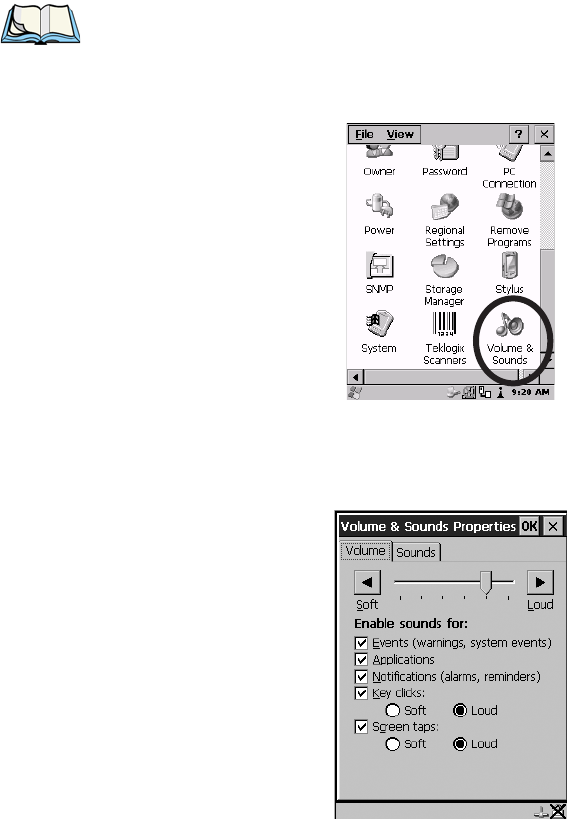

5.5.3 Volume And Sound Properties ..................99

5.5.3.1 Volume Adjustments ..................99

5.5.4 Power Management Properties ..................100

5.5.4.1 Battery Capacity ....................100

5.5.4.2 Power Saving Schemes.................101

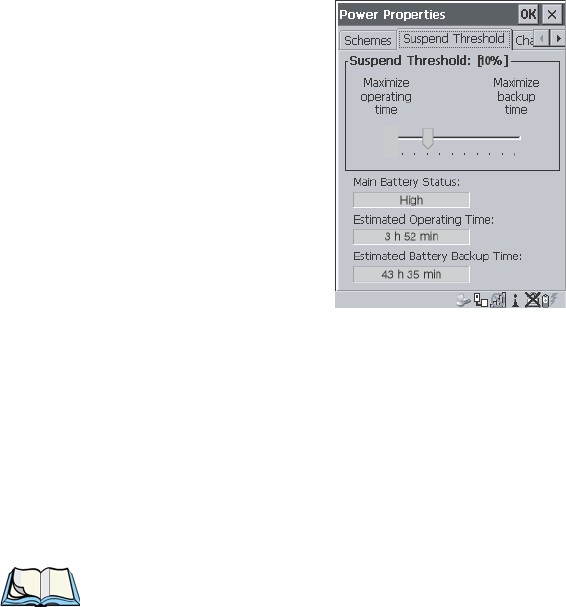

5.5.4.3 Suspend Threshold ...................102

5.5.4.4 Charger Details .....................103

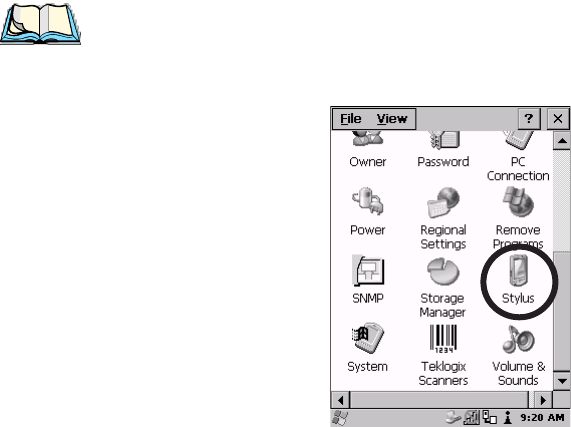

5.5.5 Stylus Properties .........................103

5.5.5.1 Setting Double-Tap Sensitivity.............104

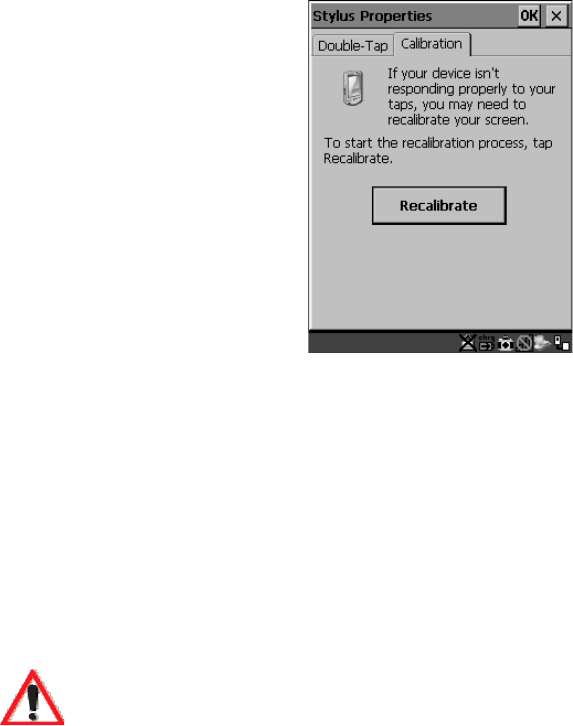

5.5.5.2 Touchscreen Calibration ................104

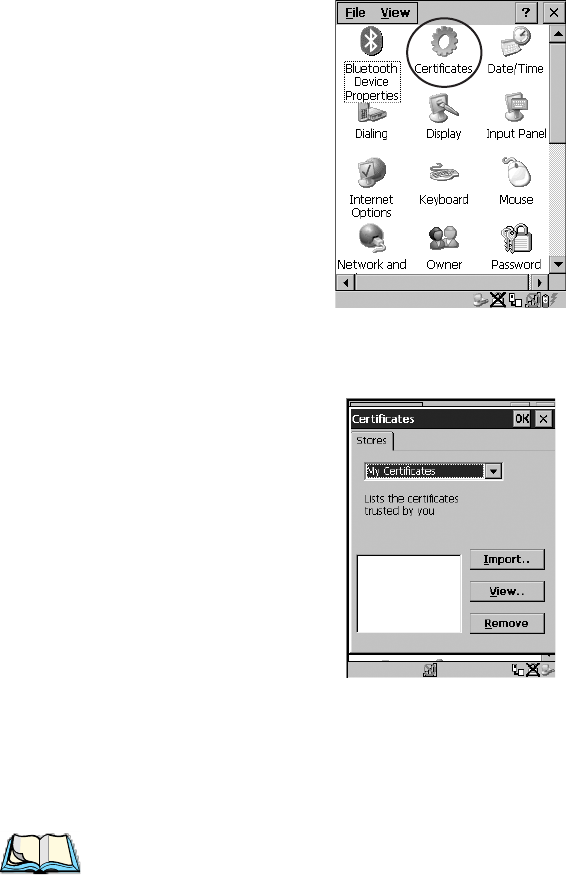

5.5.6 Certificate Assignment ......................105

5.7 Scanner Properties Setup ........................118

5.7.1 Scanner Options..........................118

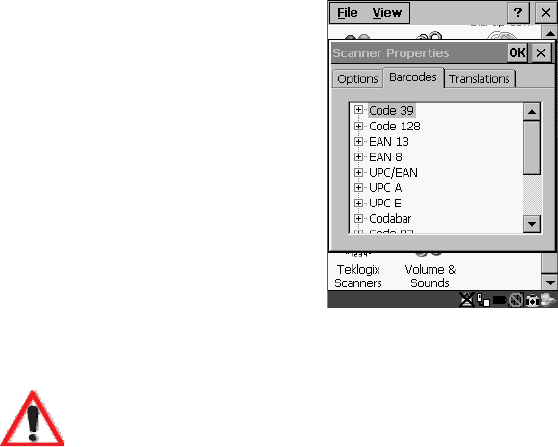

5.7.2 Bar Codes .............................121

5.7.2.1 Code 39 Settings ....................122

5.7.2.2 Code 128 Settings ...................124

5.7.2.3 EAN 13 Settings ....................125

5.7.2.4 EAN 8 .........................126

5.7.2.5 UPC And EAN Settings ................127

5.7.2.6 UPC A Settings.....................127

5.7.2.7 UPC E Settings .....................127

5.7.2.8 Codabar.........................128

5.7.2.9 Code 93.........................128

5.7.2.10 Code 11.........................128

Psion Teklogix 7535 Hand-Held Computer User Manual

Contents

5.7.2.11 Interleaved 2 of 5 ...................129

5.7.2.12 MSI Plessey ......................129

5.7.2.13 Discrete 2 of 5 .....................129

5.7.2.14 IATA 2 of 5 ......................130

5.7.2.15 Postal: Australian ...................130

5.7.2.16 Postal: Japanese ....................130

5.7.2.17 Postal: Korean .....................130

5.7.2.18 Postal: PlaNET.....................131

5.7.2.19 Postal: PostNET ....................131

5.7.2.20 Postal: Royal Mail ...................131

5.7.2.21 2D DataMatrix .....................131

5.7.2.22 2D Maxicode......................131

5.7.2.23 2D PDF-417 ......................131

5.7.2.24 2D Micro PDF-417 ..................132

5.7.2.25 2D QR Code ......................132

5.7.2.26 2D RSS Code .....................132

5.7.2.27 Aztec ..........................132

5.7.3 Translations ...........................132

5.8 SNMP (Simple Network Management Protocol) Setup ........134

5.8.1 Contact Tab............................135

5.8.2 Communities Tab ........................136

5.8.2.1 Adding A Community .................137

5.8.2.2 Modifying A Community Setting ...........138

5.8.2.3 Removing An Existing Community ..........138

5.8.3 Trap Destination Tab.......................139

5.8.3.1 Enabling Authentication TRAPS ...........139

5.8.3.2 Adding A Destination .................139

5.8.3.3 Changing A Destination ................140

5.8.3.4 Removing A Trap Destination .............140

5.8.4 Permitted Hosts Tab .......................141

5.8.4.1 Adding A Host .....................141

5.8.4.2 Changing A Host....................142

Chapter 6: Tekterm Application

6.1 The Tekterm Application ........................147

6.2 Additional Keyboard Functions .....................147

6.2.1 Function Keys And Softkeys...................147

6.2.1.1 Function Keys .....................147

6.2.1.2 Softkey Function Keys.................148

6.2.2 Macro Keys............................149

Contents

Psion Teklogix 7535 Hand-Held Computer User Manual

6.3 Keyboard Modes.............................150

6.3.1 View Mode ............................150

6.3.1.1 Changing Font Sizes ..................150

6.3.1.2 Panning The Screen Contents .............150

6.3.1.3 Exiting View Mode ...................151

6.3.2 Using The Task Manager To Switch Between Applications. . .152

6.4 The Tekterm Status Area.........................153

6.5 TESS Emulation .............................154

6.5.1 Configuration ...........................154

6.5.2 Working With Multiple Sessions .................154

6.5.3 The Field Types..........................154

6.5.4 IBM 5250 Emulation Keys ....................155

6.5.5 Data Entry.............................155

6.5.5.1 TESS Edit Modes And Cursor Movement .......156

6.5.5.2 <DEL> Key Behaviour In TESS ............157

6.5.5.3 <BKSP> Key Behaviour In TESS ...........158

6.5.6 TESS Status Message.......................159

6.5.7 Lock Messages ..........................160

6.5.8 Control Commands ........................160

6.5.9 Resetting A TESS Session ....................160

6.5.10 The Local Menu .........................161

6.5.11 Selecting Another Host Computer ................161

6.5.12 Queuing Mode ..........................162

6.6 ANSI Emulation .............................162

6.6.1 Configuration ...........................162

6.6.2 Sending Data To The Host ....................163

6.6.3 Psion Teklogix Keyboard And VT220 Equivalent Keys.....163

6.6.4 Block Mode (Local Editing) ...................164

6.6.5 Working With Sessions......................165

6.6.5.1 Establishing A New Session ..............165

6.6.5.2 Listing Sessions And Moving To Other Sessions . . .165

6.6.5.3 Closing A Session ...................165

6.6.5.4 Printing A Screen....................166

6.6.5.5 Smart Echo – Disabling ................166

6.8 The Tekterm Startup Display Menu ...................168

6.9 Working With Menus ..........................169

Psion Teklogix 7535 Hand-Held Computer User Manual

vii

Contents

6.9.1 Using The Keyboard To Navigate Through Menus .......170

6.9.1.1 Sub-Menus.......................170

6.9.1.2 Numeric Parameters ..................170

6.9.1.3 Y/N Parameters ....................171

6.9.1.4 Alpha Parameters ...................171

6.9.1.5 String Entry Parameters ................171

6.9.2 Using The Touchscreen To Navigate Through Menus .....173

6.9.2.1 Sub-Menus.......................173

6.9.2.2 Numeric Parameters ..................174

6.9.2.3 Y/N Parameters ....................174

6.9.2.4 Alpha Parameters ...................174

6.9.2.5 String Entry Parameters ................174

6.9.3 Saving Changes To Parameters .................175

6.9.4 Retrieving Default Parameter Values ..............175

6.10 Resetting The 7535 Hand-Held Computer ...............175

6.11 The Parameters Menu ..........................176

6.11.1 Security Settings .........................176

6.12 Display Options .............................177

6.13 More Parameters ............................177

6.15 System Parameters ...........................180

6.15.1 Keyboard .............................181

6.15.1.1 Macro Control Panel..................181

6.15.1.2 Indicators........................182

6.15.1.3 Softkeys ........................182

6.15.1.4 Ctrl Panel .......................182

6.15.2 Audio ...............................183

6.15.3 Power Mgmt Ctrl Panel .....................184

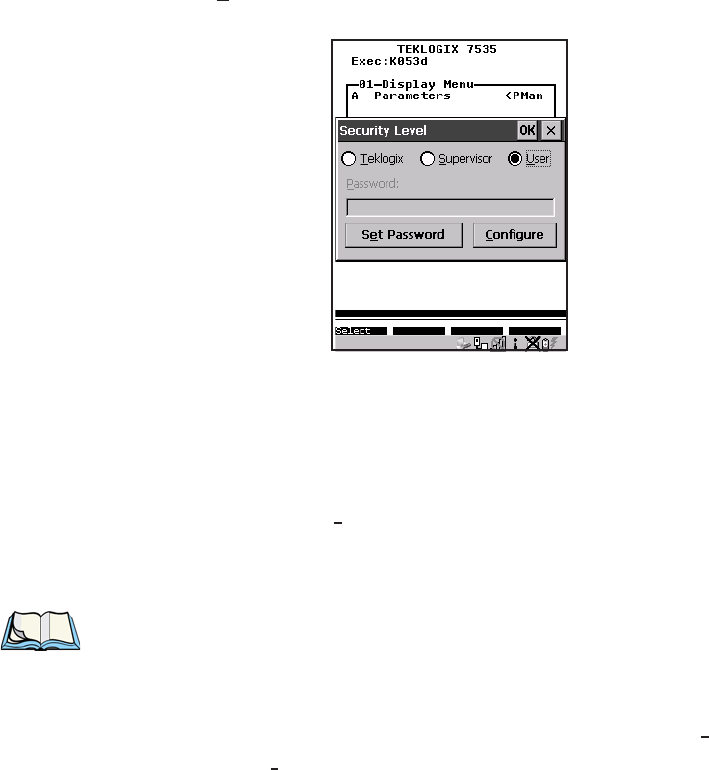

6.15.4 Security..............................185

6.15.4.1 Default Mode .....................185

6.15.4.2 User Level Options ..................185

6.15.4.3 Sup. Password .....................186

6.15.4.4 Allow Teklogix ....................186

6.16 Scanner Control Panel..........................187

6.17 View Manager..............................187

6.17.1 Split Screen............................188

6.17.1.1 Splitting And Displaying Screens ...........189

6.17.1.2 Moving Between Split Screens ............190

6.17.1.3 Toggling Between Full & Split Screens ........190

Contents

viii

Psion Teklogix 7535 Hand-Held Computer User Manual

6.17.1.4 Using The Asterisk As A Wild Card ..........190

6.17.2 Custom Characters (Unicode™) .................191

6.17.2.1 Creating A Unicode™ Character............191

6.17.2.2 Displaying The Unicode™ Pop-up Window......192

6.18 Applications ...............................194

6.18.1 ANSI Settings...........................195

6.18.1.1 Host Conn .......................196

6.18.1.2 Screen..........................199

6.18.1.3 Xmit Modes ......................202

6.18.1.4 Kbd Modes .......................206

6.18.1.5 Edit Modes .......................209

6.18.1.6 Serial ..........................210

6.18.1.7 Host Char Set......................210

6.18.1.8 Anchor View ......................211

6.18.2 TESS Settings...........................212

6.18.2.1 Host Conn. .......................213

6.18.2.2 Screen..........................214

6.18.2.3 Characters .......................216

6.18.2.4 Tests ..........................218

6.18.2.5 Features.........................219

6.18.2.6 Scanner .........................223

6.18.2.7 Fields ..........................224

6.18.2.8 Anchor View ......................227

6.18.2.9 Emulation........................227

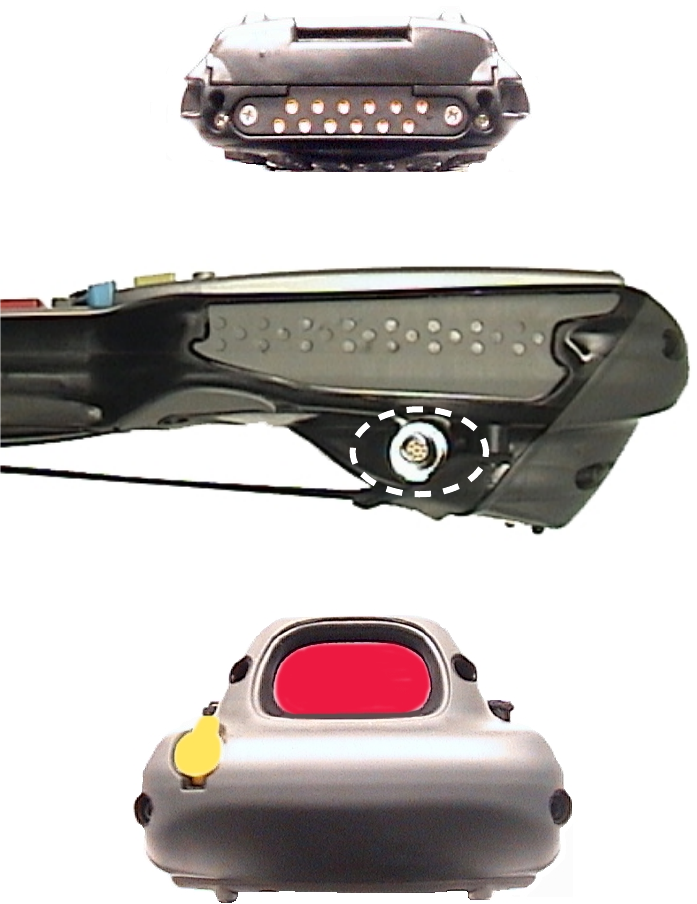

6.19 Ports– Tether And Console........................235

6.19.1 Tether And Console Port Peripheral Options...........235

6.19.2 Tether And Console Port Parameter Settings...........236

6.19.3 Tether And Console Port Scan-See Parameters .........239

6.19.3.1 Scan-See Sub-Menu – Mapping The Viewport ....239

6.19.3.2 Scan-See Keyboard Mapping .............244

6.20 Network .................................244

6.20.1 Network Ctrl Panel Settings ...................245

6.20.2 802.IQ v2 .............................245

Chapter 7: Peripheral Devices & Accessories

7.1 External Bar Code Readers .......................251

7.1.1 PowerScan™ Standard, LR and XLR Bar Code Scanners....251

7.1.2 Entering Data With The Bar Code Reader ............251

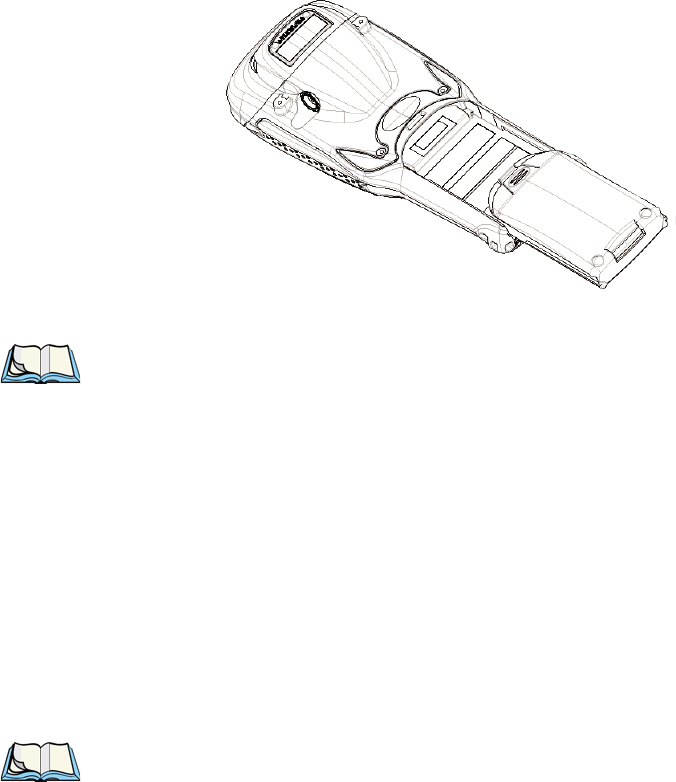

7.2 The 7535 Battery.............................251

Psion Teklogix 7535 Hand-Held Computer User Manual

Contents

7.2.1 Lithium-Ion Battery Safety Precautions .............252

7.3 Important Charger Safety Instructions .................253

7.4 Chargers .................................254

7.5 Gang Charger ..............................254

7.5.1 Installation ............................255

7.5.2 Operator Controls ........................255

7.5.3 Charge Indicators.........................256

7.5.4 Charging Batteries ........................256

7.5.5 Troubleshooting .........................257

7.5.5.1 Excessive Charge Duration ..............257

7.5.5.2 Indicator Flashing Red.................257

7.5.5.3 Power LED Does Not Light Up ............257

7.5.5.4 Indicator Does Not Light When Battery Installed. . . 258

7.6 Combo Charger .............................258

7.6.1 Installation ............................258

7.6.2 Operator Controls ........................259

7.6.3 Using the Combo Charger With The 7535............259

7.6.4 Charging The Spare Battery ...................259

7.6.5 Charge Indicators.........................260

7.6.6 Troubleshooting .........................260

7.7 Combo Dock ..............................261

7.7.1 Installation ............................261

7.7.2 Using The Combo Dock .....................261

7.7.3 Network Access .........................261

7.7.4 Troubleshooting .........................262

7.8 Quad Dock ...............................262

7.8.1 Installation ............................262

7.8.2 Indicators And Controls .....................263

7.8.3 Using The Quad Dock ......................263

7.8.4 Network Access .........................263

7.8.4.1 Network Addressing ..................263

7.8.5 Battery Charging .........................263

7.8.6 Troubleshooting .........................264

7.8.6.1 Network Link Unsuccessful ..............264

7.8.6.2 7535 LED Does Not Light When Docked.......264

7.9 Portable Docking Module (PDM)....................264

Contents

Psion Teklogix 7535 Hand-Held Computer User Manual

7.11 The 7535 Picker Cradle .........................268

7.11.1 Picker Cradle Mounting Recommendations ...........269

7.11.1.1 Mounting Template...................269

7.11.2 Wiring Guidelines ........................270

7.11.3 Using The Picker Cradle .....................270

7.11.4 Maintaining The Picker Cradle ..................270

7.11.5 Powered Cradle Installation In High Voltage Vehicles .....271

7.11.5.1 Extreme Wet Environments ..............271

7.11.6 Powered Cradle Installation ...................272

7.11.6.1 Wiring Vehicle Power To The Cradle .........273

7.11.7 The Port Replicator ........................274

Chapter 8: Specifications

8.1 7535 Hand-Held Computer Speciﬁcations ...............277

8.2 RFID Speciﬁcations ...........................279

8.3 Bar Code Scanning............................279

8.3.1 Internal Scanners .........................279

8.3.2 Internal Scanner Port .......................280

8.3.3 External Scanners .........................280

8.4 Internal Scanner Speciﬁcations .....................281

8.4.1 SE1200 High Performance & Long Range Specs ........281

8.4.2 SE1200 Advanced Long Range & SE2223 PDF Specs .....282

8.4.3 Decode Zones ...........................284

8.5 External Scanner Speciﬁcations .....................284

8.5.1 PowerScan™ LR and XLR Industrial Scanner Specs ......284

8.5.2 PowerScan™ Standard Range Scanner Specs ..........287

8.6 Lithium-Ion Battery Pack ........................288

Appendix A: Support Services And Worldwide Offices

A.1 Support Services .............................A-1

A.1.1 Canada and USA: Technical Support and Repair Services . . .A-1

A.1.2 International Support.......................A-1

Appendix B: Port Pinouts

B.1 7535 Tether Port Pinout .........................B-1

Psion Teklogix 7535 Hand-Held Computer User Manual

Contents

B.2 Docking Station Connector .......................B-1

B.3 Battery Contacts.............................B-2

Appendix C: USB Setup Application

C.1 USB Setup................................C-1

C.1.1 Launching The Application ...................C-1

C.1.2 Pre-Installation: Updating usbstor.inf And wceusbsh.inf ....C-2

C.1.3 Installation: Installing The 7535 As a Device On Your PC . . . C-4

C.1.4 Post Installation .........................C-5

Psion Teklogix 7535 Hand-Held Computer User Manual xiii

APPROVALS AND SAFETY SUMMARY

Declaration Of Conformity

Product: 7535 Hand Held Micro-computer with Portable Docking Module

Application of Council R&TTE Directive: 1999/5/EEC

Directive(s): EMC Directive: 89/336/EEC

Low Voltage Directive: 73/23/EEC

Conformity Declared Article 3.1a (Health): EN 60950: 2000

to Standards: Article 3.1b (EMC): EN 301 489-17: v1.1.1; 09-2000

Article 3.2 (RF Spectrum): EN 300 328-2: v 1.1.1; 07 2000

EN 55022: 1998 + Am 1, Class B;

EN 61000-3-2; EN 61000-3-3

EN 55024:1998;

EN 61000-4-2; ±4kV CD; ±8kV AD

EN 61000-4-3; 3V/m, 80-1000 MHz

EN 61000-4-4; ±1kV Power lines

EN 61000-4-5; ±1kV Differential mode

EN 61000-4-6; 3VRMS, 150kHz-80MHz

EN 61000-4-11; AC Mains Ports

Manufacturer: PSION TEKLOGIX INC.

2100 Meadowvale Boulevard

Mississauga, Ontario, Canada

L5N 7J9

Year of Manufacture: 2003

Manufacturer’s Address PSION TEKLOGIX S.A.

in the European La Duranne; 135 Rue Rene Descartes; BP 421000

Community: 13591 Aix-En-Provence

Cedex 3; France

Type of Equipment: Information Technology Equipment

Equipment Class: Commercial and Light Industrial

I the undersigned hereby declare that the equipment speciﬁed above conforms to

the above directives and standards.

Manufacturer: Rob Williams

Vice President of Engineering

Psion Teklogix Inc. Ontario

Legal Representative Domique Binckly

Vice President International Sales

Psion Teklogix S.A. France

Approvals And Safety Summary

xiv Psion Teklogix 7535 Hand-Held Computer User Manual

FCC DECLARATION OF CONFORMITY (DoC)

Applicant’s Name & Address: PSION TEKLOGIX

2100 Meadowvale Blvd.

Mississauga, Ontario

Canada L5N 7J9

Contact Person: Iain Roy

Telephone No.: (905) 813-9900

US Representative’s Name & Address: 1810 Airport Exchange Blvd., Suite 500

Erlanger, KY, 41018, USA

Contact Person: Joe Musgrave

Telephone No.: (859) 372-4106

Equipment Type/Environment: Computing Devices

Trade Name / Model No.: 7535 Hand Held Micro-computer with

Portable Docking Module

Year of Manufacture: 2003

Standard(s) to which Conformity is Declared:

The 7535 Hand Held Micro-computer with Portable Docking Module, supplied by Psion

Teklogix, has been tested and found to comply with FCC PART 15, SUBPART B -

UNINTENTIONAL RADIATORS, CLASS B COMPUTING DEVICES FOR

HOME & OFFICE USE.

I, the undersigned, hereby declare that the equipment as tested is representative within

manufacturing tolerance to units.

Applicant Legal Representative in U.S.

Signature Signature

Rob Williams Joe Musgrave

Full Name Full Name

Vice President of Engineering V.P. Global Solutions, Americas

Position Position

Mississauga, Ontario, Canada Erlanger, KY 41018, USA

Place Place

July 4, 2003 July 4, 2003

Date Date

Psion Teklogix 7535 Hand-Held Computer User Manual xv

Approvals And Safety Summary

This equipment complies with Class B Part 15 of the FCC rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interfer-

ence that may cause undesired operation.

Changes or modiﬁcations not expressly approved by Psion Teklogix, the party

responsible for compliance, may void the user's authority to operate the equipment.

1. FCC Information to Users

For Class B Unintentional Radiators:

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential instal-

lation. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instruction manual, may

cause harmful interference to radio communications. However, there is no guaran-

tee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one of more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

2. Warning to Users

Warning: Changes or modiﬁcations not expressly approved by Psion

Teklogix Inc. could void the user's authority to operate the

equipment.

Approvals And Safety Summary

xvi Psion Teklogix 7535 Hand-Held Computer User Manual

LASER WARNINGS

For your own safety, it is critical that you comply with the following warnings:

CAUTION

Do not look into the laser beam or point the beam at people or animals.

CAUTION

Using controls or adjustments, or performing procedures other than those

speciﬁed herein may result in hazardous radiation exposure.

CAUTION

The use of optical instruments with this product will increase eye hazard.

This product contains a laser scanner that emits less than 1.2 mW maximum radiant

power at a wavelength of 650nm or 680nm. This product complies with 21 CFR

1040.10, 1040.11 and DIN EN 60825-1: 2001, and is classiﬁed as a Class 2 laser

product.

The SE1200 ALR has an maximum radiated power less than 1.4 mW; according to

EN 60825-1: 2001 it is classiﬁed as a Class 3B laser product.

DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE

Operating Psion Teklogix equipment where explosive gas is present may

result in an explosion.

DO NOT REMOVE COVERS OR OPEN ENCLOSURES

To avoid injury, the equipment covers and enclosures should only be

removed by qualiﬁed service personnel. Do not operate the equipment

without the covers and enclosures properly installed.

Psion Teklogix 7535 Hand-Held Computer User Manual xvii

Approvals And Safety Summary

CAUTION!Danger of explosion if a 7535 battery is incorrectly handled, charged,

disposed of or replaced. Replace only with the same or equivalent type

recommended by the manufacturer. Dispose of used batteries according to

the instructions described in “Lithium-Ion Battery Safety Precautions” on

page 252. Carefully review all battery safety issues.

VORSICHT!Explosiongefahr bei unsachgemäßem Austausch der Batterie Ersatz nur

durch denselben oder einen vom Hersteller empfohlenen gleichwertigen

Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.

Psion Teklogix 7535 Hand-Held Computer User Manual 1

INTRODUCTION 1

1.1 About This Manual ..............................3

1.2 Text Conventions ...............................4

1.3 About The 7535 Hand-Held Computer ....................5

1.3.1 Features .................................5

1.3.2 The 7535 Hand-Held Computer .....................7

1.3.3 Regulatory Labels ............................9

Psion Teklogix 7535 Hand-Held Computer User Manual 3

Chapter 1: Introduction

About This Manual

1.1 About This Manual

This manual describes how to conﬁgure, operate and maintain the Psion Teklogix

7535 hand-held computer.

Chapter 1: Introduction

provides a basic overview of the 7535 hand-held.

Chapter 2: Basic Checkout

describes the steps required to get the 7535 ready for operation.

Chapter 3: Getting To Know Your 7535

describes the 7535 features and outlines how to charge and maintain the battery.

This chapter also provides a description of the keyboard, how to navigate in

Microsoft® Windows® CE, how to use the internal scanner, and so on.

Chapter 4: Working With Windows CE

describes the Microsoft® Windows® CE desktop and how to use it. This

chapter also outlines the basics of moving around a Windows CE window,

selecting and opening icons, ﬁles, folders and working with a Windows

dialogue box.

Chapter 5: Conﬁguration

provides a description of the Windows CE Control Panel and how to use it

to conﬁgure the 7535, along with the scanners attached to the hand-held,

and so on.

Chapter 6: Tekterm Application

describes TESS and ANSI operations. This chapter also provides descriptions of

the Tekterm parameters.

Chapter 7: Peripheral Devices & Accessories

describes the peripherals and accessories available for your 7535 hand-held.

Chapter 8: Speciﬁcations

details radio, hand-held computer and battery speciﬁcations.

Appendix A: Support Services And Worldwide Ofﬁces

provides the helpdesk phone number at the Mississauga, Ontario, Canada ofﬁce

and details the support services available. This appendix also lists the world-

wide ofﬁce addresses and phone numbers.

Appendix B: Port Pinouts

includes 7535 pinouts.

Chapter 1: Introduction

Text Conventions

4Psion Teklogix 7535 Hand-Held Computer User Manual

1.2 Text Conventions

Note: Notes highlight additional helpful information.

Important: These statements provide particularly important instructions

or additional information that is critical to the operation of

the equipment.

Warning: These statements provide critical information that may prevent

physical injury, equipment damage or data loss.

Psion Teklogix 7535 Hand-Held Computer User Manual 5

Chapter 1: Introduction

About The 7535 Hand-Held Computer

1.3 About The 7535 Hand-Held Computer

The 7535 is a ruggedized hand-held personal computer, running the Microsoft®

Windows® CE.net operating system. It is intended for use in commercial and light

industrial applications with a focus on real time wireless data transactions. All

possible bar code input methodologies are supported by one of the variety of

scanners available. Optimization for speciﬁc operational environments is supported

with a wide range of peripheral options and carrying accessories.

1.3.1 Features

• Rugged design:

- sealed from water and dust to IP54 (light rain) rating.

- withstands multiple drops of up to 6.5 feet onto concrete.

• Large 240 x 320 portrait mode display that is available in colour or black

and white with or without a touchscreen

• Automatic backlighting for both the display and the keypad.

- automatic backlight and contrast control.

- daylight readable screen.

• Processor and memory:

- Intel PXA255 400Mhz CPU with 32 MB FLASH and 64 MB RAM

standard.

• Microsoft® Windows® CE.net operating system

• Application software:

- Internet Explorer for CE.

- Tekterm terminal emulation.

• Ergonomic keyboard designed to accommodate left- and right-handed use.

• Two keyboard formats available:

- 58-key with 6 function keys (standard).

- 36-key large button with 10 function keys.

- keypads feature EL backlight for visibility in low-light conditions.

• Wireless communication:

- Compact FLASH slot normally equipped with an IEEE 802.11b

11 Mbps 2.4GHz Wi-Fi radio.

Chapter 1: Introduction

Features

6Psion Teklogix 7535 Hand-Held Computer User Manual

- standard antenna integrated onto radio card.

- optional high performance internal antenna available.

- Bluetooth SD I/O radio.

• Expansion slot:

- SD I/O slot that supports extra FLASH memory (up to 512 MB)

• Programming environment:

-HTML

- .net Compact framework

- Java, Visual C++

• Bar code applications:

- internal 1D and 2D scan engines.

- internal CMOS image capture scan engine.

- supports decoded and undecoded tethered scanners.

Psion Teklogix 7535 Hand-Held Computer User Manual 7

Chapter 1: Introduction

The 7535 Hand-Held Computer

1.3.2 The 7535 Hand-Held Computer

Figure 1.1 7535 With 58-Key Keyboard

Chapter 1: Introduction

The 7535 Hand-Held Computer

8Psion Teklogix 7535 Hand-Held Computer User Manual

Figure 1.2 7535 Docking Port

Figure 1.3 Tether Port

Figure 1.4 Scanner Window

Psion Teklogix 7535 Hand-Held Computer User Manual 9

Chapter 1: Introduction

Regulatory Labels

1.3.3 Regulatory Labels

Figure 1.5 Laser Warning Labels

Figure 1.6 Radio Labels

Chapter 1: Introduction

Regulatory Labels

10 Psion Teklogix 7535 Hand-Held Computer User Manual

Figure 1.7 Manufacturer’s Label

Warning: Using controls or adjustments or performing procedures other than

those speciﬁed herein may result in hazardous radiation exposure.

Psion Teklogix 7535 Hand-Held Computer User Manual 11

BASIC CHECKOUT 2

2.1 Preparing The 7535 For Operation .....................13

2.1.1 Equipment You Need To Get Started .................13

2.1.2 Charging The Battery .........................13

2.1.3 Attaching Carrying Accessories ...................13

2.1.3.1 Attaching The Hand Strap ..................14

2.1.3.2 Attaching The Pistol Grip ..................15

2.2 Powering Up The 7535 And Conﬁguring The Radio ............16

2.2.1 Installing The Battery And Switching The 7535 On .........17

2.2.3 Assigning An IP Address .......................24

2.2.4 Name Servers Tab...........................25

2.2.5 Advanced Features ..........................26

2.2.5.1 Rearranging Preferred Networks ..............26

2.2.5.2 Deleting A Preferred Network ................27

2.2.5.3 Changing Network Properties ................27

2.3 Checking The Scanner ...........................27

2.4 Using Microsoft® ActiveSync® To Work With Files............27

2.5 Calibrating The Touchscreen ........................28

2.6 Resetting The 7535 Hand-Held .......................28

Psion Teklogix 7535 Hand-Held Computer User Manual 13

Chapter 2: Basic Checkout

Preparing The 7535 For Operation

2.1 Preparing The 7535 For Operation

Typically, 7535 hand-helds are conﬁgured at the factory and arrive ready for use.

Although the 7535 is equipped with an internal Compact Flash and SD I/O slot,

these slots are not intended for user modiﬁcation. If a device needs to be changed or

added in these slots, contact qualiﬁed Psion Teklogix personnel. Refer to

Appendix A: Support Services And Worldwide Ofﬁces for the service number

closest to you.

2.1.1 Equipment You Need To Get Started

You’ll need:

• A 7535 compatible battery charger, docking station or portable docking

module (PDM) with power supply.

• An operating wireless network (if you are not operating the equipment in

batch mode).

• A medium Phillips head screwdriver.

2.1.2 Charging The Battery

Important: The 7535 uses a high capacity Lithium-Ion battery. It is critical

that you review the battery safety guidelines in “Lithium-Ion

Battery Safety Precautions” on page 252 before charging the

battery.

Batteries shipped from the factory are not charged. They must be fully charged prior

to use. Full capacity may not be reached until at least 5 full charge/discharge cycles

have been performed.

7535 batteries can be charged using a gang charger or the 7535 internal charger.

When using the internal charger, a suitable power source is required. All chargers

and docking stations are described in Chapter 7: Peripheral Devices & Accessories

beginning on page 254.

2.1.3 Attaching Carrying Accessories

Psion Teklogix recommends that a carrying accessory – a hand strap, pistol grip or

shoulder strap – be installed on the 7535 before use.

If your hand-held is not ﬁtted with a hand strap or pistol grip, you can install either

using the carrying accessory kit supplied. You’ll need:

• A Phillips head screwdriver.

Chapter 2: Basic Checkout

Attaching The Hand Strap

14 Psion Teklogix 7535 Hand-Held Computer User Manual

Important: Do not use adhesives such as Loctite to secure the screws on the

carrying accessories. These chemicals may damage the plastic

casing.

2.1.3.1 Attaching The Hand Strap

Note: A Phillips head screwdriver is required.

Two Phillips head screws are provided with the hand strap.

• Attach the strap to the two threaded inserts located at the back of the 7535

near the top of the unit.

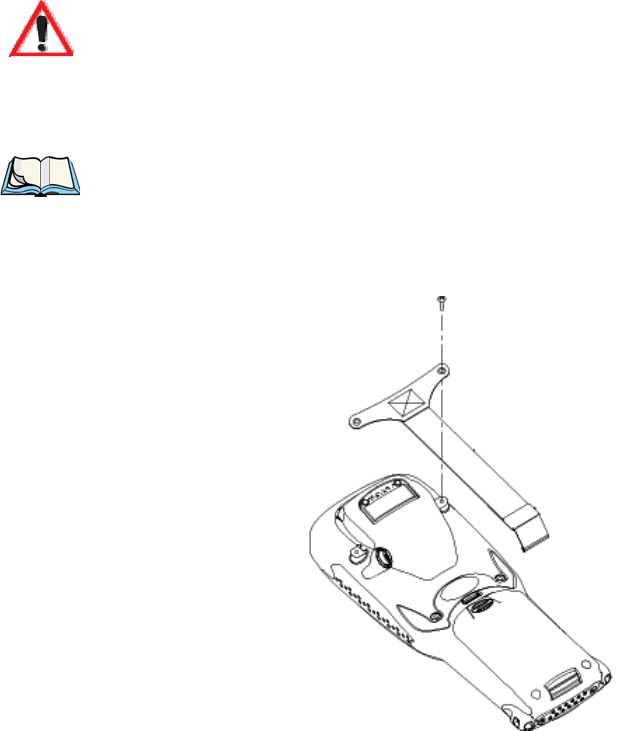

Figure 2.1 Attaching The Hand Strap

Psion Teklogix 7535 Hand-Held Computer User Manual 15

Chapter 2: Basic Checkout

Attaching The Pistol Grip

• Stretch the handstrap toward the base of the 7535, and hook the bottom of

the handstrap into the slot near the base of the battery pack.

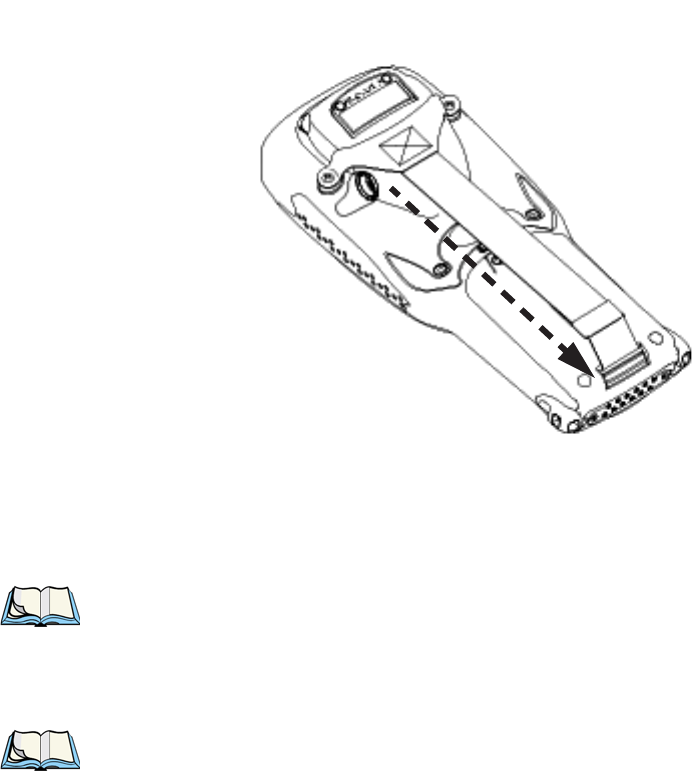

Figure 2.2 Hooking The Hand Strap To The 7535

2.1.3.2 Attaching The Pistol Grip

Note: A Phillips head screwdriver is required.

The pistol grip is attached to the back of the 7535 using the four threaded inserts in

the upper part of the 7535 casing. Four black #4-40 Phillips head screws are

provided with this accessory.

Note: Prior to installation, make sure the trigger mechanism is securely

snapped into the pistol grip body and that the trigger operates properly.

Chapter 2: Basic Checkout

Powering Up The 7535 And Conﬁguring The Radio

16 Psion Teklogix 7535 Hand-Held Computer User Manual

• Position the pistol grip so that it ﬁts snugly over the back of the unit and

the inserts on the back of the 7535 align with the holes in the pistol grip.

Figure 2.3 Attaching The Pistol Grip

• Using a Phillips screwdriver, securely fasten the pistol grip to the back of

the 7535.

2.2 Powering Up The 7535 And Conﬁguring The Radio

Note: Psion Teklogix offers a Portable Docking Module (PDM) along with its

power supply to help speed the checkout and conﬁrmation process for

your 7535. The PDM can power your hand-held with or without a battery

installed in the 7535. Refer to Chapter 7: Peripheral Devices & Accesso-

ries beginning on page 249 for more information about this accessory.

Psion Teklogix 7535 Hand-Held Computer User Manual 17

Chapter 2: Basic Checkout

Installing The Battery And Switching The 7535 On

2.2.1 Installing The Battery And Switching The 7535 On

If you are not using a docking station or PDM:

• Slide the charged battery with the contoured plastic facing you into the

7535. Click the battery into place.

Figure 2.4 Installing The Battery

Note: If you are using a docking station, you can insert an uncharged battery,

dock the unit and switch it on.

If you are using a PDM, you can conﬁgure your unit without a battery, with

a charged battery or with an uncharged battery.

If you are using a hand strap:

• Hook the bottom of the hand strap into the slot at the base of the battery.

To switch the 7535 on:

• Press and hold down the <ENTER/ON> key for at least one second.

• When all four LEDs ﬂash orange, release the <ENTER/ON> button.

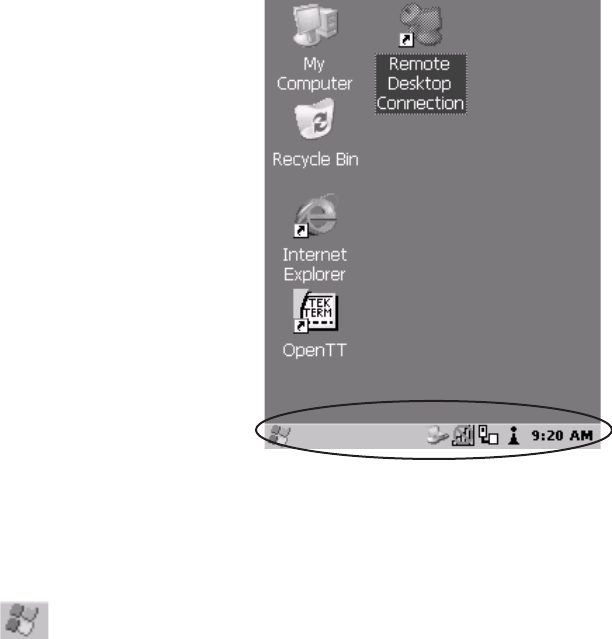

A splash screen displaying the Psion Teklogix logo and the Microsoft®

Windows® CE. net logo appears. When Windows® CE has successfully loaded, the

startup desktop is displayed.

Note: The screen may go blank for a few seconds after the splash screen loading

bar reaches the end. This is part of the normal Windows CE cold boot

process. The desktop is displayed after a few moments.

Psion Teklogix 7535 Hand-Held Computer User Manual 25

Chapter 2: Basic Checkout

Name Servers Tab

• Press the <DOWN> arrow key to highlight Specify an IP address.

• Press the <TAB> key to move from ﬁeld to ﬁeld, and type an IP, Subnet Mask

and Default Gateway address. Press <ENTER> to save your information.

2.2.4 Name Servers Tab

Note: If DHCP is enabled, name server addresses are assigned automatically.

• In the $NETWLAN1 Settings window, press the <TAB> key followed by the

<LEFT> arrow key to display the IP Information tab.

• In the IP Information tab, highlight the Conﬁgure... button, and press

<ENTER>.

• Press the <TAB> key followed by the <RIGHT> arrow key to display the

Name Servers tab.

Figure 2.13 Name Servers Tab

The DNS and WINS ﬁelds in the Name Servers tab allow you to specify additional

WINS and DNS resolvers. The format for these ﬁelds is ###.###.###.###.

Chapter 2: Basic Checkout

Advanced Features

26 Psion Teklogix 7535 Hand-Held Computer User Manual

2.2.5 Advanced Features

To display the Advanced Wireless Settings dialogue box:

• Highlight the Advanced... button in the Wireless Information tab and press

<ENTER>.

This window lists the available preferred networks.

Figure 2.14 Advanced Settings

2.2.5.1 Rearranging Preferred Networks

The 7535 attempts to connect with the networks listed in this dialogue box in

sequence, beginning at the top of the list. If you need to rearrange this list of

networks – move networks up and down in the list:

• Press the <TAB> key to move the cursor into the networks list.

• Use the <UP> or <DOWN> arrow keys to highlight the network that you

want to move up or down in the list.

• To move the highlighted item in the list upward or downward, press <TAB>

to highlight the Up or Down button, and press <ENTER>.

Psion Teklogix 7535 Hand-Held Computer User Manual 27

Chapter 2: Basic Checkout

Deleting A Preferred Network

2.2.5.2 Deleting A Preferred Network

To delete a network from this list:

• Press the <TAB> key to highlight the networks list.

• Use the <UP> or <DOWN> arrow keys to highlight the network that you

want to remove.

• Highlight the Delete button, and press <ENTER>.

2.2.5.3 Changing Network Properties

To change the properties of an existing preferred network:

• Highlight the network that you want to modify.

• Press <TAB> to highlight the Properties button, and press <ENTER>.

• Make any necessary changes in the Wireless Properties dialogue box, and press

<ENTER> to save the changes.

2.3 Checking The Scanner

If your 7535 is equipped with an internal scanner, it will successfully decode most

1D bar codes as delivered. Press the SCAN button and check for a valid decode on

any UPC bar code. If desired, set the “Dot Time” parameter to zero in the ‘Teklogix

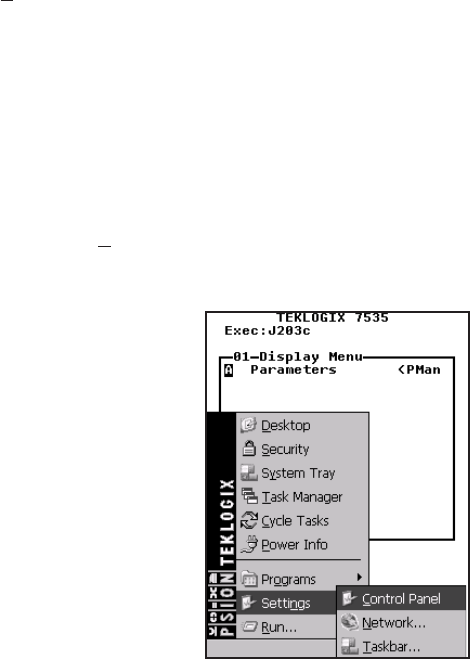

Scanners’ applet in the Control Panel to turn off the default aiming dot.

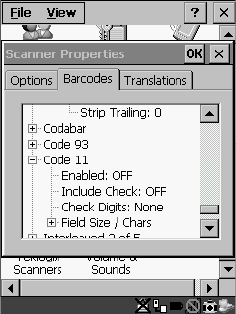

Performance is improved if you disable all unneeded bar codes under the ‘Bar

Codes’ dialogue screen. Review “Scanner Properties Setup” on page 118 for details

about bar codes.

2.4 Using Microsoft® ActiveSync® To Work With Files

ActiveSync® – Microsoft PC connectivity software – can be used to connect the

7535 to PCs running this software. By connecting the 7535 to a PC with a cable and

running ActiveSync on the PC, you can:

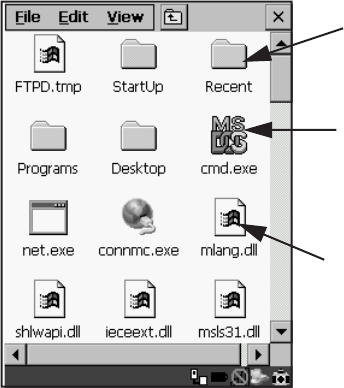

• View 7535 ﬁles from Windows Explorer.

• Drag and drop ﬁles between the 7535 and the PC in the same way that you

would between PC drives.

• Back up 7535 ﬁles to the PC, then restore them from the PC to the

hand-held again, if needed, and so on.

Note: You’ll need the USB setup utility to conﬁgure the .ini ﬁle. For information

about this USB application, refer to Appendix C: USB Setup Application.

Chapter 2: Basic Checkout

Calibrating The Touchscreen

28 Psion Teklogix 7535 Hand-Held Computer User Manual

To install ActiveSync, follow the step-by-step instructions provided with the

program’s setup wizard. Refer to the following website for details:

http://www.microsoft.com/windowsmobile/resources/downloads/pocketpc/activesync35.mspx

2.5 Calibrating The Touchscreen

If your 7535 is equipped with a touchscreen, it will need to be calibrated. Refer to

“Calibrating The Touchscreen” on page 41 for details.

2.6 Resetting The 7535 Hand-Held

Important: Because Psion Teklogix cannot guarantee what has been saved

(registry) after a reset, this should be considered as a last resort.

To reset the 7535:

• Press and hold down the <BLUE> key and the <ENTER/ON> key simulta-

neously for a minimum of six seconds.

A reset results in a complete reboot of the unit. All RAM memory contents are lost.

The contents of the ﬂash memory and memory card may be preserved, but Psion

Teklogix cannot guarantee. However, you should keep in mind that When the 7535

is reset, the screen displays the Psion Teklogix and Microsoft® Windows® CE.net

splash screen before displaying the startup desktop.

Note: You do not need to reset your 7535 after conﬁguring the radio.

Psion Teklogix 7535 Hand-Held Computer User Manual 29

GETTING TO KNOW YOUR 7535 3

3.1 Features Of The 7535 ............................31

3.2 The Battery .................................32

3.2.1 Battery Safety.............................32

3.2.2 Removing And Installing The Battery Pack .............32

3.2.3 Charging The Battery .........................33

3.3 Switching The 7535 Hand-Held On And Off ................34

3.4 The Keyboard ................................35

3.4.1 Modiﬁer Keys.............................35

3.4.1.1 Activating Modiﬁer Keys ..................36

3.4.1.2 Locking Modiﬁer Keys ...................36

3.4.2 The Keys ...............................36

3.4.3 The 58-Key Keyboard ........................37

3.4.4 The 36-Key Keyboard ........................38

3.4.5 The Keypad Backlight ........................40

3.5 The Display .................................40

3.5.1 Adjusting The Display Backlight ...................40

3.5.2 Adjusting The Contrast ........................41

3.5.3 Calibrating The Touchscreen .....................41

3.6 7535 Indicators ...............................42

3.6.1 LEDs .................................42

3.6.1.1 Charge LED .........................43

3.6.1.2 Radio Trafﬁc LED ......................44

3.6.1.3 Scan LED ..........................44

3.6.1.4 User Application LED ....................44

3.6.2 Onscreen Indicators..........................45

3.6.3 Audio Indicators ...........................47

3.6.3.1 Adjusting The Beeper Volume ................48

3.7 Internal Scanners ..............................48

3.7.1 Scanning Techniques .........................49

3.7.2 Scan LED Indicators .........................49

3.7.3 Troubleshooting............................50

3.7.4 Operating One Dimensional (1D) Internal Laser Scanners......50

3.7.5 Operating Internal PDF Laser Scanners ...............51

3.7.6 Operating Internal Two Dimensional (2D) Imager Scanners.....51

Chapter 3: Getting To Know Your 7535

30 Psion Teklogix 7535 Hand-Held Computer User Manual

3.8 Connecting & Disconnecting Tethered Peripherals .............52

3.9 Monitoring The Battery And Maximizing Run Time ............53

3.9.1 Storing Batteries............................55

3.10 Monitoring The Network Connection ...................55

3.11 Uploading Data In A Docking Station ...................56

3.12 General Maintenance............................56

3.12.1 Caring For The Touchscreen.....................56

3.12.2 Cleaning The 7535..........................57

Psion Teklogix 7535 Hand-Held Computer User Manual 31

Chapter 3: Getting To Know Your 7535

Features Of The 7535

3.1 Features Of The 7535

Figure 3.1 Front Of 7535

Figure 3.2 Back Of 7535

Ambient Light Sensor

Tether Port

Docking Port

7535 Screen

Sound Port

Stylus

(Pointing Tool) Scanner Window

Battery Pack

Tether Port

Chapter 3: Getting To Know Your 7535

The Battery

32 Psion Teklogix 7535 Hand-Held Computer User Manual

3.2 The Battery

The 7535 hand-held operates with a Lithium-Ion battery pack. Preparing the

hand-held unit for operation requires that a battery pack be charged and installed in

the unit.

3.2.1 Battery Safety

Important: Before attempting to install, use or charge the battery pack, it is

critical that you review and follow the important safety guidelines

in the section entitled “Lithium-Ion Battery Safety Precautions”

beginning on page 252.

3.2.2 Removing And Installing The Battery Pack

Note: TURN OFF THE 7535 HAND-HELD BEFORE REMOVING THE

BATTERY PACK. If you do not turn the hand-held off before removing

the battery, it may be necessary to reboot the unit. Any active sessions

will be lost.

Removing The Battery Pack

• If your 7535 is equipped with a hand strap, unhook it from the base of the

battery.

• Press down the release tab at the top of the battery, and slide the battery out.

Psion Teklogix 7535 Hand-Held Computer User Manual 33

Chapter 3: Getting To Know Your 7535

Charging The Battery

Installing The Battery Pack

To install the battery pack:

• Slide the battery pack with the contoured plastic facing you into the 7535.

Click the battery into place.

Figure 3.3 Installing The Battery Pack

• If your computer is equipped with a hand strap, insert the hook at the end of

the hand strap into the slot at the base of the battery.

3.2.3 Charging The Battery

Important: FOR DETAILED INFORMATION about 7535 chargers and

docking stations, refer to Chapter 7: Peripheral Devices & Acces-

sories beginning on page 249. For battery safety, refer to “Lith-

ium-Ion Battery Safety Precautions” beginning on page 252.

All batteries must be charged before use. The 7535 battery can be charged with a

variety of chargers. These include:

• 6-Gang Charger (Model #HU3006) – charges up to six Lithium-Ion batter-

ies at one time.

• Portable Docking Module (Model #HU4001 or HU1005 and HU3220 or

HU3220) – charges the 7535 battery (with the battery installed in the unit).

• Combo Charger (Model #HU3002) – a desktop charger that charges the

7535 internal battery along with a spare battery pack.

Chapter 3: Getting To Know Your 7535

Switching The 7535 Hand-Held On And Off

34 Psion Teklogix 7535 Hand-Held Computer User Manual

• Combo Docking Station (Model #HU4002) – operates as both a charger

and a docking station. Operating as a charger, both the battery installed in

the computer and a spare battery can be charged simultaneously.

• Quad Docking Station (Model #HU4004) – can charge the battery of up to

four 7535s inserted in the docking station while transferring data through an

Ethernet connection.

• Powered Cradle (Model #HU1000, HU1010) – can charge the 7535 with

the battery installed in the hand-held.

It can take from 1.5 to 4 hours to charge a battery. The 7535’s intelligent charging

system protects the battery from over-charging by terminating the charge process

when the battery is at maximum capacity.

Note: Refer to “Monitoring The Battery And Maximizing Run Time” on page 53

for additional information about the 7535 battery.

Important: To avoid damaging the battery, chargers will not begin the charge

process until the battery temperature is between 0˚C (32˚F) and

39˚C (102˚F). If the battery is too hot or cold, the battery status

LED ﬂashes yellow and the charge is suspended. Refer to

Table 3.1, “Charge LEDs” on page 43 for details.

3.3 Switching The 7535 Hand-Held On And Off

Switching On The 7535

• Press and hold down the <ENTER/ON> key for at least one second.

• When all four LEDs ﬂash orange, release the <ENTER/ON> button.

A splash screen displaying the Psion Teklogix logo and the Microsoft®

Windows® CE. net logo appears followed by the startup desktop.

Note: If the 7535 is in suspend state, pressing <ENTER/ON> key ‘wakes’ the

unit from this state. The screen in which you were working before the

computer entered suspend state is displayed.

Psion Teklogix 7535 Hand-Held Computer User Manual 35

Chapter 3: Getting To Know Your 7535

The Keyboard

Switching Off The 7535

Important: Keep in mind that turning off the 7535 does not result in a

complete reboot; rather, the unit enters a power-saving,

“suspend” state. When the 7535 is turned on from suspend state,

operation resumes within a few seconds.

To switch off the 7535:

• Press the <BLUE> key, and then press the <ENTER/ON> key.

Important: If the word ‘BLUE’ is displayed in uppercase in the taskbar area

at the bottom of the screen, this key is locked “on” – the 7535 will

not switch off. Press the <BLUE> key again to unlock it; then

press <BLUE> <ENTER/ON> to switch the 7535 off.

If, however, you’ve disabled the “Blue Key” in the ‘One Shot’ dia-

logue box (see “Keyboard One Shot Modes” on page 94), the 7535

can be turned off even when the <BLUE> key is locked ‘on’.

3.4 The Keyboard

The 7535 offers two types of keyboard layouts – a 58-key keyboard and a 36-key,

large button keyboard. Most of the keys on these keyboards operate much like a

desktop computer. Where a key or key function is not consistent with the PC

keyboard, the differences are noted.

The <BLUE> and <ORANGE> modiﬁer keys provide access to additional keys and

system functions. These functions are colour coded in orange and blue print above

the keyboard keys.

3.4.1 Modiﬁer Keys

The <SHIFT>, <CTRL>, <ALT>, <BLUE> and <ORANGE> keys are modiﬁer

keys. Pressing a modiﬁer key changes the function of the next key pressed. For

example, on a 58-key keyboard, a square bracket is printed in orange print above the

<4> key. Pressing the <ORANGE> key followed by the <4> key displays a square

bracket rather than the number 4.

Chapter 3: Getting To Know Your 7535

Activating Modiﬁer Keys

36 Psion Teklogix 7535 Hand-Held Computer User Manual

The <SHIFT>, <CTRL> and <ALT> keys operate much like a desktop keyboard

except that they are not chorded (two keys held down simultaneously). The modiﬁer

key must be pressed ﬁrst followed by the key whose function you want modiﬁed.

3.4.1.1 Activating Modiﬁer Keys

When a modiﬁer key is pressed once, it is displayed in lowercase letters in the

taskbar at the bottom of the 7535 screen. For example, if the <CTRL> key is

pressed, ctrl key is displayed at the bottom of the unit screen. Once the next key is

pressed, the modiﬁer key becomes inactive and disappears from the taskbar.

3.4.1.2 Locking Modiﬁer Keys

When a modiﬁer key is pressed twice, it is ‘locked’ on. A ‘locked’ modiﬁer key is

displayed in uppercase letters in the taskbar. For example, pressing the <BLUE> key

twice locks it on – it is displayed as BLUE KEY in the taskbar at the bottom of the

computer screen.

The locked modiﬁer key will remain active until it is pressed a third time to unlock

or turn it off. Once a modiﬁer key is unlocked (pressed a third time), the uppercase

representation at the bottom of the screen is no longer displayed.

Note: The locking function of the <ORANGE> and <BLUE> keys can be dis-

abled so that pressing either of these keys once will lock the keys ‘on’.

If you disable the ‘One Shot’ function of either of these keys, pressing the

<BLUE> and/or <ORANGE> key once will lock the key ‘on’. Pressing

the same key a second time will unlock or turn it ‘off’. Refer to “Keyboard

One Shot Modes” on page 94 for details.

3.4.2 The Keys

The <SHIFT> Key

The <SHIFT> key is used to display uppercase alpha characters and provide access

to the symbols above the numeric keys.

The Arrow Keys

The Arrow keys move the cursor around the screen in the direction of the arrow –

up, down, left and right. The cursor is the ﬂashing box or underline character that

indicates where the next character you type will appear.

Psion Teklogix 7535 Hand-Held Computer User Manual 37

Chapter 3: Getting To Know Your 7535

The 58-Key Keyboard

The <BKSP/DEL> Key

The <BKSP> key (sometimes referred to as destructive backspace) moves the

cursor one character to the left, erasing the incorrectly entered key stroke.

The <DEL> key (<BLUE> <BKSP>) erases the character at the cursor position.

The <CTRL> And <ALT> Key

The <CTRL> and <ALT> keys modify the function of the next key pressed and are

application dependent.

The <TAB> Key

Typically, the <TAB> key moves the cursor to the next ﬁeld to the right or

downward.

The <ESC> Key

Generally, this key is used as a keyboard shortcut to close the current menu,

dialogue box or activity and return to the previous one.

The <SPACE> Key

Pressing this key inserts a blank space between characters. In a Windows dialogue

box, pressing the <SPACE> key enables (√) or disables a checkbox.

The <SCAN> Key

Pressing the <SCAN> key – the yellow key with the star-burst scan symbol on it –

activates the scanner beam while pressed. For units that do not have internal

scanners, this key is inoperable.

3.4.3 The 58-Key Keyboard

In addition to alphanumeric keys that are directly accessible on the keyboard (no key

combination is required) and the keys described in this chapter, the 58-key keyboard

also provides function keys and macro keys.

Function keys <F1> through <F24> can be used with the CE operating system or

another application. The additional function keys – <F25> through <F30> along

with the macros are not used as part of the Windows CE operating system.

All function keys and macro keys can be custom deﬁned for each application. The

Tekterm application utilizes these keys. Refer to “Additional Keyboard Functions”

on page 147 for details about Tekterm keys.

Chapter 3: Getting To Know Your 7535

The 36-Key Keyboard

38 Psion Teklogix 7535 Hand-Held Computer User Manual

3.4.4 The 36-Key Keyboard

On 36-key 7535s, all alpha characters are printed on the unit plastic in orange

typeface above the numeric keys. To access an alpha character, you must ﬁrst press

the <ORANGE> key and then press the numeric key above which the alpha

character you want to type is printed.

Because the alpha keys on a 36-key keyboard are laid out much like the letters on a

telephone – generally in groups of three letters per numeric key – you need to take a

few extra steps to access the alphabetic characters. The examples in this section help

illustrate how to access alpha characters.

Choosing A Single Alpha Character

Note: Keep in mind that the following examples assume that ‘One Shot’ is

enabled for the <ORANGE> key. Refer to “Keyboard One Shot Modes”

on page 94 for details.

The examples below illustrate how to access A, B and C, all of which are printed in

orange characters above the numeric key, <2>.

To choose the letter ‘a’:

• Press the <ORANGE> key, and press the numeric key <2>.

To choose the letter ‘b’:

• Press the <ORANGE> key twice to lock it ‘on’, and press <2> twice.

• Press the <ORANGE> key again to unlock or turn it off.

To choose the letter ‘c’:

• Press the <ORANGE> key twice to lock it ‘on’.

• Press <2> three times, and then

• Press the <ORANGE> key again to unlock or turn it off.

Creating Uppercase Letters

To display a capital letter:

• Press the <ORANGE> key and then the <SHIFT> key before typing the

alpha character.

Psion Teklogix 7535 Hand-Held Computer User Manual 39

Chapter 3: Getting To Know Your 7535

The 36-Key Keyboard

Choosing More Than One Alpha Character From The Same Key

If you need to choose more than one alpha character from a single key, you’ll need

to press the ‘Accept’ key between alpha selections. The ‘Accept’ key is presented as

an arrow ⇒ symbol above the ‘0’ (zero) key. Pressing this key signals the 7535 to

display the alpha character you’ve chosen and await the next selection from the

same key.

For example, suppose you want to type the letters ‘a’, ‘b’ and ‘c’. These letters are

all accessible from the numeric key, <2>.

To type the letter ‘a’:

• Press the <ORANGE> key twice to lock it ‘on’, and then press the numeric

key, <2>.

• Press the ‘Accept’ key < ⇒> to indicate that the letter ‘a’ should be

accepted and that another letter from the same key will be chosen.

To type the letter ‘b’:

• Press the <2> key twice.

• Press < ⇒> to accept the letter ‘b’.

To type the letter ‘c’:

• Press the <2> key three times.

When you have completed your alpha selections from this key, you can do one of the

following:

• If you want to choose additional alpha characters from another key(s),

leave the <ORANGE> key ‘on’, and press the next numeric key that

supports the alpha character you require.

• If you do not want to choose any additional alpha characters, press

<ORANGE> again to unlock or turn ‘off’ the key and end alpha selection.

Choosing Multiple Alpha Characters From A Range Of Keys

If you plan on choosing alpha characters from a number of different keys, you are

not required to press the ‘Accept’ < ⇒> key after each alpha selection. The < ⇒>

key is only required when you are choosing more than one alpha character from the

same key – e.g., ‘a’, ‘b’ and ‘c’ from the <2> key.

Chapter 3: Getting To Know Your 7535

The Keypad Backlight

40 Psion Teklogix 7535 Hand-Held Computer User Manual

Suppose you want to type the letters ‘a’, ‘d’ and ‘g’. These alpha characters are

accessed from the numeric keys <2>, <3> and <4>.

• With the <ORANGE> key locked ‘on’ (press twice), press <2> to type the

letter ‘a’.

• Press <3> to type ‘d’, and press <4> to type the letter ‘g’.

• To end alpha selection, press the <ORANGE> key a third time to unlock it.

3.4.5 The Keypad Backlight

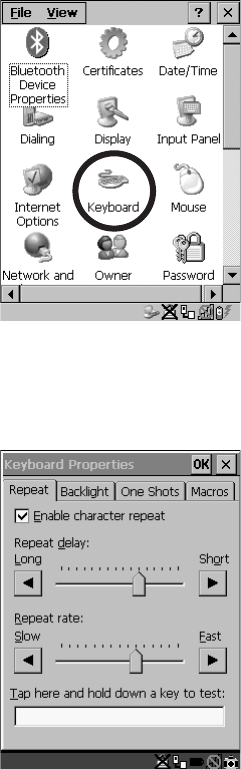

The intensity of the keypad backlight and the conditions under which this backlight

is activated can be conﬁgured using the Keyboard icon in the Windows CE Control Panel.

The behaviour of the keypad backlight is tailored in the Keyboard Properties dialogue box.

Refer to “Keyboard Backlight” on page 93 for details about this option.

Note: Keep in mind that this option may be restricted to supervisory use only.

3.5 The Display

7535s are equipped with display backlighting to improve character visibility in low

light conditions. The backlight switches on when a key is pressed and the ambient

light is below the set threshold. A light sensor on the front of the hand-held

determines the ambient light level. On some displays, the contrast can also be

adjusted to further improve character visibility.

3.5.1 Adjusting The Display Backlight

The behaviour of the display backlight – the ambient light threshold below which

the backlight will become active and the intensity of the backlight – can be speciﬁed

in the Display Properties dialogue box in the Windows CE Control Panel.

Note: Refer to “Display Backlight” on page 89 for details about the Display

Properties dialogue box.

Psion Teklogix 7535 Hand-Held Computer User Manual 41

Chapter 3: Getting To Know Your 7535

Adjusting The Contrast

3.5.2 Adjusting The Contrast

Note: In addition to the manual adjustments described in this section, the dis-

play contrast can also be adjusted using the Windows CE Control Panel.

Refer to “Display Contrast” on page 88 for details about this dialogue

box.

The display contrast can be adjusted from the unit keyboard using the <BLUE> key

and function keys <F1> and <F2>. Pressing <F1> darkens the display, and

pressing <F2> lightens the display. Keep in mind that adjusting the contrast on

a colour display is much less pronounced than on a monochrome display.

To adjust the display contrast:

• Press the <BLUE> key twice to lock it on, and then press <F1> . to

darken the display or <F2> . to lighten the display.

• Once you’ve successfully adjusted the display contrast, remember to press

the <BLUE> key again to turn it ‘off’.

3.5.3 Calibrating The Touchscreen

If your 7535 touchscreen has never been calibrated or if you ﬁnd that the stylus

pointer is not accurate when you tap on an item, use the Stylus Properties dialogue box in

the Windows CE Control Panel to recalibrate the screen.

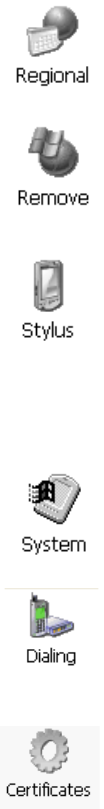

• In the Control Panel, choose the Stylus icon to display the Stylus Properties window.

Figure 3.4 Stylus Icon

Chapter 3: Getting To Know Your 7535

7535 Indicators

42 Psion Teklogix 7535 Hand-Held Computer User Manual

• Select the Calibration tab, and then choose the ‘Recalibrate’ button.

Figure 3.5 Calibration Screen

• Follow the directions on the calibration screen to calibrate the screen.

3.6 7535 Indicators

7535s use LEDs (Light Emitting Diode), onscreen messages and audio tones as

indicators.

3.6.1 LEDs

The 7535 is equipped with four tri-coloured LEDs. This section outlines what these

LEDs indicate.

Important: If an LED is illuminated in red, the operator should be cautious

as this generally indicates an abnormal operating condition or

active laser emission.

Psion Teklogix 7535 Hand-Held Computer User Manual 43

Chapter 3: Getting To Know Your 7535

Charge LED

Figure 3.6 Keyboard LEDs

3.6.1.1 Charge LED

The lower-right LED is reserved for internal charger/power status. This indicator is

active even when the 7535 is inserted in a docking station (and in suspend mode) so

that the charge status of the battery can be detected easily.

*If the charge fails, refer to the charger troubleshooting sections in Chapter 7: Peripheral Devices &

Accessories beginning on page 254 for helpful details.

Table 3.1 Charge LEDs

Function Charge LED Behaviour

External power not available. LED off.

Fully charged to within 95% of charge

capacity. LED displays solid green colour.

Quick charge successfully completed to

within 75% of charge capacity. LED ﬂashes slow green.

Charge in progress. LED displays solid yellow colour.

Cell temperature out of range for charge. LED ﬂashes yellow.

Unable to charge battery. LED displays solid red colour.

Charge circuit failure.* LED ﬂashes fast red.*

Radio Traffic

Scanner

LED

LED Charge

LED

User

Application

LED

Chapter 3: Getting To Know Your 7535

Radio Trafﬁc LED

44 Psion Teklogix 7535 Hand-Held Computer User Manual

3.6.1.2 Radio Trafﬁc LED

The upper-left LED on your 7535 ﬂashes either orange or green to indicate when the

radio transmits and receives data.

Note: Keep in mind that while the standard 802.11b radio supports the trans-

mit/receive LED, not all radios support this function.

Table 3.2 Transmit and Receive LEDs

3.6.1.3 Scan LED

Successful scans are indicated in two ways – with a scan LED and with an

audio tone.

Table 3.3 Scan LED

3.6.1.4 User Application LED

This indicator is available for user-loaded custom Windows CE applications. Refer

to the 7535 SDK Manual for details about this LED. Neither Windows CE nor

Tekterm use this LED.

Function Radio Trafﬁc LED Behaviour

Radio Transmit LED ﬂashes orange.

Radio Receive LED ﬂashes green.

Function Scan LED Behaviour

Scan in progress LED displays solid red during scan.

Successful scan LED displays solid green after decode.

Off when scan ended.

Unsuccessful scan LED ﬂashes red.

Psion Teklogix 7535 Hand-Held Computer User Manual 45

Chapter 3: Getting To Know Your 7535

Onscreen Indicators

3.6.2 Onscreen Indicators

The taskbar at the bottom of the screen displays a variety of system status indicators.

Figure 3.7 Taskbar

This display changes dynamically, and only those icons that are applicable are

displayed. For example, if a radio is not installed in your 7535, the radio signal icon

is not displayed in the taskbar.

Windows® Start Button

If you have a touchscreen, you can display the Start Menu by tapping on the Windows®

Start button in the taskbar.

Chapter 3: Getting To Know Your 7535

Onscreen Indicators

46 Psion Teklogix 7535 Hand-Held Computer User Manual

Modiﬁer Key Indicators

<SHIFT>, <CTRL>, <ALT>, <BLUE> and <ORANGE> are modiﬁer keys that

have onscreen indicators to show when a key is active or locked. If a modiﬁer key is

pressed once to activate it, the key is displayed in the taskbar in lowercase characters

– for example, pressing the <BLUE> key once displays blue key in the taskbar. If a

modiﬁer key is pressed twice, it is ‘locked on’ and the onscreen indicator is

displayed in uppercase letters in the taskbar – for example, pressing <BLUE> twice

displays BLUE KEY in the taskbar.

Battery Gauge

The battery shaped icon displayed in the taskbar provides a visual indication of the

remaining battery power. The icon acts as a meter that is either full, at three-quarter

level, half, quarter level or empty.

When the battery level is low – approximately 15 minutes from empty – a warning

window pops up. When the battery power is completely depleted, a ﬁnal warning

window indicates that the 7535 will be powered down.

If the 7535 is using external AC power, an AC icon is displayed in the taskbar.

Battery Charge

The battery charge icon is displayed in the taskbar when the 7535 hand-held battery

is being charged.

Radio Signal Quality

Increasing radio signal quality is represented by longer, ﬁlled bars within this icon.

AC ConnectionFull

75%

50% 25% Empty

Good No Radio

Reception Weak

Reception Link

Psion Teklogix 7535 Hand-Held Computer User Manual 47

Chapter 3: Getting To Know Your 7535

Audio Indicators

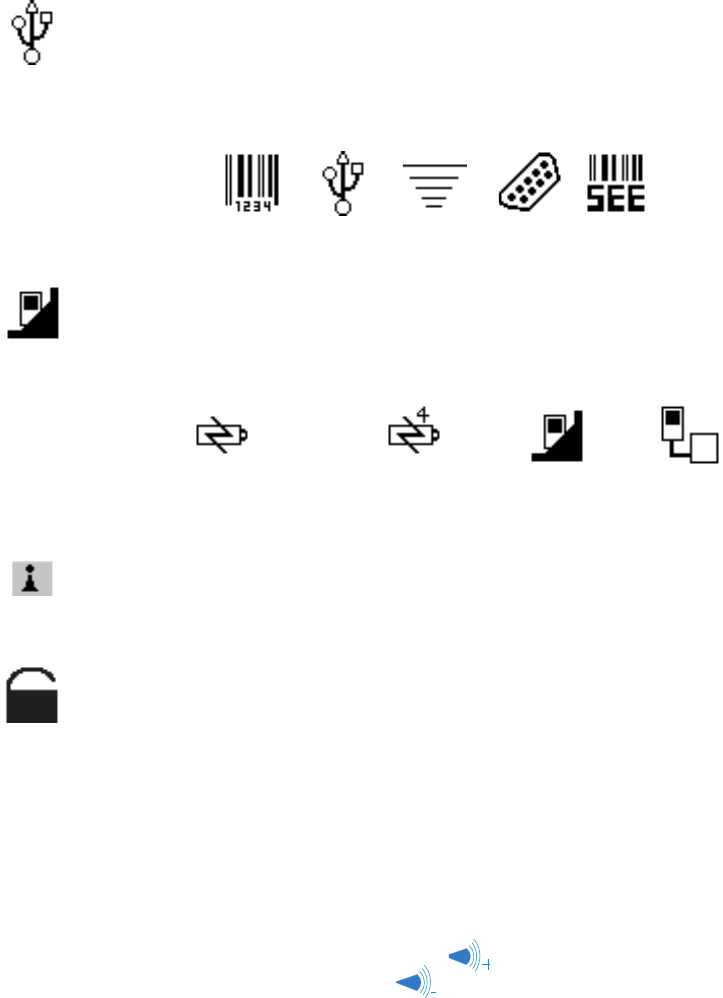

Tethered Devices

When a peripheral is attached to the tether port and activated, an associated icon

appears in the taskbar. The sample to the left indicates that a USB device is

connected to the tether port.

Docking Device

When a 7535 is inserted in a docking station, charger or cradle, an associated icon

appears in the taskbar.

Security Level

Security levels can be set to limit user access to 7535 settings. In addition,

applications can be restricted to prevent inadvertent changes.

3.6.3 Audio Indicators

The 7535 beeper provides a variety of sounds and can be conﬁgured to emit a sound

when a key is pressed, a keyboard character is rejected, scan input is accepted or

rejected, an operator’s entry does not match in a match ﬁeld or the battery is low.

The volume function keys are located in the top row of the keyboard. The increase

volume key is labelled with a plus symbol and the decrease volume function

key is labelled with a minus symbol .

Scanner RFID Serial Device Scan-SeeUSB Device

Gang Charger, Combo Charger &

Combo Docking Station Quad Docking Station Power Cradle Portable Docking

Module (PDM)

Chapter 3: Getting To Know Your 7535

Adjusting The Beeper Volume

48 Psion Teklogix 7535 Hand-Held Computer User Manual

3.6.3.1 Adjusting The Beeper Volume

On 58-key keyboards, the volume function keys are accessed by pressing <BLUE>

<F5> and <F6>.

On 36-key keyboards, the volume function keys are accessed by pressing <BLUE>

< F3> and <F4>.

To adjust the beeper volume:

• Press the <BLUE> key twice to lock the key ‘on’ and then, press the

increase volume function key or the decrease volume function

key until the volume is meets your requirements.

• Remember to press the <BLUE> key again to turn it ‘off’.

3.7 Internal Scanners

Important: For detailed scanner speciﬁcations and decode zone tables, refer

to “Internal Scanner Speciﬁcations” beginning on page 281.

The scanner installed in your unit can be conﬁgured using the Scanner Properties

dialogue box in the Control Panel.

The 7535 can be equipped with a:

• One dimensional (1D) internal laser scanner,

• Internal PDF laser scanner, or a

• Two dimensional (2D) internal imager scanner.

It is critical that you review the warnings listed in “Laser Warnings” on page xvi in

the Approvals and Safety section at the beginning of this manual before using any of

the scanners described in this chapter. “Scanning Techniques” outlines the

mechanics of a successful scan. In addition, review “Scan LED Indicators” on

page 49 to better understand how to interpret whether or not a bar code has been

successfully scanned. Finally, “Troubleshooting” on page 50 provides some helpful

suggestions should the scan fail.

Psion Teklogix 7535 Hand-Held Computer User Manual 49

Chapter 3: Getting To Know Your 7535

Scanning Techniques

3.7.1 Scanning Techniques

Note: The scanning techniques described here apply to internal and external

scanners.

• Hold the scanner at an angle. Do not hold it perpendicular to the bar code.

•Do not hold the scanner directly over the bar code. In this position, light can

reﬂect back into the scanner’s exit window and prevent a successful decode.

• Scan the entire bar code. If you are using a 1D or PDF laser scanner, make

certain that the scan beam crosses every bar and space on the bar code,

including the margins on either end of the symbol.

• If you are using a 2D imaging scanner, make certain the red, oval shaped

framing mark is centered within the bar code you want to scan.

• Hold the scanner farther away for larger bar codes.

• Hold the scanner closer for bar codes with bars that are close together.

3.7.2 Scan LED Indicators

The 7535 scanner LED (the lower-left LED) indicates whether or not your scan is

successful. The LED behaves as follows:

• Scan In Progress: scan LED displays solid red colour.

• Successful Scan: scan LED displays solid green colour and turns off when

the scan is ended.

• Unsuccessful scan: scan LED ﬂashes red.

A bar code icon appears on the screen during a scan. While the scanner beam is

active, the onscreen message states – SCANNING. If the scan is successful, the bar

code data is displayed on the screen until the scan button (or pistol trigger) is

released.

Chapter 3: Getting To Know Your 7535

Troubleshooting

50 Psion Teklogix 7535 Hand-Held Computer User Manual

3.7.3 Troubleshooting

If the scanner is not working, investigate the following:

• Is the 7535 on?

• Check that the bar code symbology being scanned is enabled for the 7535

you are using. Check any other parameters that affect the scanning proce-

dure or the bar code.

• Check the bar code to make sure it is not damaged. Try scanning a different

bar code to verify that the problem is not with the bar code.

• Check that the bar code is within the proper range.

• Does the hand-held display the warning without scanning? This suggests a

hardware problem in the 7535.

• Is the laser beam scanning across the bar code?

• Once the scan beam has stopped, check the scanner window for

dirt or fogging.

3.7.4 Operating One Dimensional (1D) Internal Laser Scanners

• Turn the 7535 on. Wait until the unit has booted up completely.

Important: If an aiming dot is available on the installed scanner, the dot will

be enabled for a conﬁgurable time period (including off), after

which normal scanning begins. Refer to “Dot Time (msec)” on

page 120 for details.

Double-clicking the trigger will override the aiming delay and

initiate an immediate scan. Note that the aiming dot is standard

on long-range and high visibility internal scanners.

• Aim at the bar code and press the scan key or the trigger. A scan beam and a

warning indicator appear until a successful decode is achieved or six

seconds have elapsed.

Psion Teklogix 7535 Hand-Held Computer User Manual 51

Chapter 3: Getting To Know Your 7535

Operating Internal PDF Laser Scanners

3.7.5 Operating Internal PDF Laser Scanners

This scanner decodes PDF417 two-dimensional bar codes.

• Turn the 7535 on. Wait until the unit has booted up completely.

• Aim at the bar code and press the scan key or the trigger. The beam expands

into a rectangle covering the bar code to properly scan it. The scan beam

and a warning indicator are visible until a successful decode is achieved or

three seconds have elapsed.

3.7.6 Operating Internal Two Dimensional (2D) Imager Scanners

An imager scanner takes a snap shot of a single bar code or multiple bar codes (at

one time). It can ﬁnd a bar code regardless of its orientation – that is, even a bar code

printed at a 45 degree angle to the 7535 will be decoded successfully.

Note: When scanning multiple bar codes, ensure that all of the desired bar

codes are within the ﬁeld of view of the scanner. It is possible that even

when all bar codes are within the ﬁeld of view, not all of them may be

decoded. Only successfully decoded bar codes are passed to the applica-

tion program. The application program then issues a warning, asking that

you scan the missing bar codes.

When scanning a single bar code, ensure that only the desired bar code is

within the ﬁeld of view of the scanner.

Because imager scanners generally have a shorter depth of ﬁeld than laser scanners,

some practise may be required to ﬁnd the optimal distance from the types of bar

codes being scanned. Although the imager includes illumination LEDs, ambient

light will help the imager decode the bar codes, especially if the bar code is far from

the 7535.

Important: Keep in mind that the imager scanner is a camera, and the LED

illumination is a ﬂash. Glare can be an issue on reﬂective media

such as plastic coated bar codes, just as glare is an issue for pho-

tographers. When pointing at a shiny surface, either shift the bar

code to the side or top, or angle the bar code so that the glare

reﬂects away from the imager scanner.

• Turn the 7535 computer on. Wait until the unit has booted up completely.

• Aim at the bar code and press the scan key or the trigger.

Chapter 3: Getting To Know Your 7535

Connecting & Disconnecting Tethered Peripherals

52 Psion Teklogix 7535 Hand-Held Computer User Manual

• When the scan button or trigger is pressed, a red, oval shaped light (the

framing marker) is displayed. Centre the framing marker in the ﬁeld – either

in the centre of the bar code you want to scan or in the centre of the area in

which multiple bar codes are to be scanned.

Illumination LEDs will ﬂash and a picture of the bar code(s) is taken.

3.8 Connecting & Disconnecting Tethered Peripherals

Tethered peripherals such as scanners and printers connect to the hand-held

computer with a quick release, circular connector. When a peripheral is connected to

the hand-held, the 7535 detects the peripheral and loads the necessary drivers for it.

An icon in the taskbar at the bottom of the screen provides a visual representation of

the peripheral and indicates that it is ready for operation.

To attach the peripheral to the round, tether port on the side of the 7535:

• Insert the barrel of the plug into the tether port and rotate slowly until

it clicks into place. The red dot on the port and on the connector should

be aligned.

Figure 3.8 Attaching The Cable To The Tether Port

Psion Teklogix 7535 Hand-Held Computer User Manual 53

Chapter 3: Getting To Know Your 7535

Monitoring The Battery And Maximizing Run Time

To remove the peripheral:

• Grasp the shell of the plug, and pull it back gently to unlock and release the

connector.

Figure 3.9 Disconnecting The Tether Cable

Important: Never attempt to disconnect a peripheral by pulling the connector

by the wire. The connector is locked into place and can only be

unlocked and removed by pulling back the plug shell.

3.9 Monitoring The Battery And Maximizing Run Time

Under normal operating conditions, fully charged batteries last for 10 hours. As

Lithium-Ion batteries age, their capacity decreases gradually, and they are generally

considered depleted after approximately 2 years of use (less than 60% of original

capacity remaining). Keep in mind however that heavy usage or operating the 7535

at temperature extremes will shorten the battery life.

Lithium-Ion batteries do not require conditioning cycles and the 7535 battery

system (including chargers) requires no user interaction to maintain peak

performance.

Chapter 3: Getting To Know Your 7535

Monitoring The Battery And Maximizing Run Time

54 Psion Teklogix 7535 Hand-Held Computer User Manual

To maximize the run time of your batteries, consider the following:

• The display backlight is the largest drain on the battery. Try to keep its

brightness as low as possible.

• The hand-held is ‘event’ driven – that is, when the unit is not in use, it

reverts to sleep mode (even when it appears to be running), saving battery

power. Events include a key press, touchscreen taps and scan triggers.

Power consumption is reduced if you avoid unnecessary events, and allow

the unit to sleep as much as possible.

• The 7535 battery is a ‘smart battery’ with built-in intelligence. The taskbar

battery icon is a linear gauge used to estimate the remaining run time of the

battery. It is important to note that the battery capacity icon displays quarter

percentages of nominal capacity (the capacity of a new battery). An aged

battery, even when fully charged, shows somewhat less capacity than

nominal.

Double-tapping on the battery icon displays a dialogue box that provides

detailed information about the battery status and performance. If the

remaining capacity indication seems inaccurate, the battery may need recal-

ibration. Recalibration requires that the battery be fully charged, discharged

and then charged again before use. If the battery is fully discharged and

charged on a regular basis, recalibration should not be necessary.

• When the hand-held is switched off, it goes into a low-power, suspend state

but continues to draw a small amount of power from the battery. This

should not be an issue unless the unit is left in suspend state for more than a

week – in this case, the battery should be removed.

• Batteries left unused for durations of more than one or two months should

be fully charged, discharged and then charged again before use. This recali-

brates the gas gauge and allows the internal electronics to determine the

actual capacity of the battery.

• The hand-held can determine when the useful life of the battery has expired

and will notify the user. Chargers may reject batteries that have exceeded

their lifespan.

Psion Teklogix 7535 Hand-Held Computer User Manual 55

Chapter 3: Getting To Know Your 7535

Storing Batteries

3.9.1 Storing Batteries

Long term battery storage is not recommended. If storage is necessary:

• Always try to use a ‘ﬁrst-in ﬁrst-out’ approach to minimize storage time.

• Lithium-Ion batteries age much faster at elevated temperatures. Store bat-

teries at temperatures between 0˚ C and 20˚C.

• Always charge batteries to 40 to 60% before storing them. Batteries can be

damaged by an over-discharge phenomenon that occurs when an empty

battery is stored for a long period of time such that the cell voltage drops

below a lower limit.

• To minimize storage degradation, recharge stored batteries to 40 to 60%

every 4 or 6 months to prevent over-discharge damage.

• A ‘never used’ Li-Ion battery that has been stored for 3 years may have

limited or no useful life remaining once put into service. Think of batteries

as perishable goods.

3.10 Monitoring The Network Connection

If your hand-held is equipped with a wireless LAN radio, it will typically associate

with the nearest access point. The radio signal quality meter in the taskbar indicates

the relative strength of the communication link.

To access the radio signal icon from the keyboard:

• Press <BLUE> <0> to display the Start Menu.

• Choose System Tray from the menu.

• Use the <LEFT> and <RIGHT> arrow keys to highlight the radio signal

icon in the taskbar.

• Press <ENTER> to display the wireless statistics box dialogue box.

If you have a touchscreen:

• Tap on the radio icon in the taskbar to display the wireless statistics

dialogue box.

Note: Moving in and out of the radio coverage area can have varying effects on

a network session. At times, you may need to renew your connection by

logging in again.

Chapter 3: Getting To Know Your 7535

Uploading Data In A Docking Station

56 Psion Teklogix 7535 Hand-Held Computer User Manual

3.11 Uploading Data In A Docking Station

The Combo Docking and Quad Docking peripherals allow the 7535 to link to an

Ethernet network. They are typically used to upload transaction data to a server

computer when a radio link in not available. When a 7535 is properly inserted in a

docking station, a dock icon is displayed in the taskbar at the bottom of the 7535

screen. The 7535 also detects the presence of the Ethernet network. Review the

documentation provided with the user application installed in your 7535 before

preforming data uploads.

3.12 General Maintenance

3.12.1 Caring For The Touchscreen

The top of the touchscreen is a thin, ﬂexible polyester plastic sheet with a

conductive coating on the inside. The polyester can be permanently damaged by

harsh chemicals and is susceptible to abrasions and scratches. Using sharp objects

on the touchscreen can scratch or cut the plastic, or crack the internal conductive

coating.

The chemicals listed below must not come into contact with the touchscreen:

• mustard,

• sodium hydroxide,

• concentrated caustic solutions,

• benzyl alcohol, and

• concentrated miner acids.

If the touchscreen is used in harsh environments, consider applying a disposable

screen protector (PN HU6110). These covers reduce the clarity of the display

slightly but will dramatically extend the useful life of the touchscreen. When they

become scratched and abraded, they are easily removed and replaced.

Psion Teklogix 7535 Hand-Held Computer User Manual 57

Chapter 3: Getting To Know Your 7535

Cleaning The 7535

3.12.2 Cleaning The 7535

Important: Do not immerse the unit in water. Dampen a soft cloth with mild

detergent to wipe the unit clean.

• Use only mild detergent or soapy water to clean the hand-held unit.

• Avoid abrasive cleaners, solvents or strong chemicals for cleaning. The

7535 has a plastic case that is susceptible to harsh chemicals. The plastic is

partially soluble in oils, mineral spirits and gasoline. The plastic slowly

decomposes in strong alkaline solutions.

• To clean ink marks from the keypad and touchscreen, use isopropyl

alcohol.

Psion Teklogix 7535 Hand-Held Computer User Manual 59

WORKING WITH WINDOWS CE 4

4.1 Navigating In Windows CE And Applications ...............61

4.1.1 Navigating Using A Touchscreen And Stylus ............61

4.1.2 Navigating Using The Keyboard ...................62

4.2 Working With Files, Folders And Programs ................63

4.3 The Startup Desktop ............................64

4.3.1 The Desktop Icons ..........................65

4.3.2 The Taskbar ..............................66

4.3.2.1 Using The Taskbar ......................66

4.3.2.2 Customizing The Taskbar ..................67

4.4 The Start Menu ...............................68

4.4.1 The Desktop .............................68

4.4.2 Security Settings ...........................69

4.4.3 The System Tray ...........................70

4.4.4 The Task Manager ..........................71

4.4.5 Cycle Tasks ..............................71

4.4.6 Power Info ..............................71

4.4.7 Programs ...............................72

4.4.8 Settings ................................73

4.4.9 Run ..................................74

4.4.10 Shutdown ..............................75

4.5 Using A Dialogue Box ...........................76

Psion Teklogix 7535 Hand-Held Computer User Manual 61

Chapter 4: Working With Windows CE

Navigating In Windows CE And Applications

4.1 Navigating In Windows CE And Applications

Graphic user interfaces like Windows CE for portable devices and desktop Windows

(2000, XP, etc.) utilize ‘point and click’ navigation. An equivalent keyboard shortcut

is also available for every ‘point and click’ action.

Windows CE supports the same ‘point and click’ user interface and keyboard

shortcuts as desktop Windows with one difference – the ‘point and click’ action is

accomplished using a touchscreen rather than a mouse. Actions can be performed

using any combination of keyboard shortcuts or touchscreen tapping (provided your

7535 is equipped with a touchscreen).

4.1.1 Navigating Using A Touchscreen And Stylus

Note: If the touch screen is not registering your screen taps accurately, the

touchscreen may need recalibration. Refer to “Calibrating The Touch-

screen” on page 41.

A touchscreen is an optional feature. A 7535 equipped with a touchscreen has a

stylus – a pointing tool that looks like a pen – stored in a slot at the top of the 7535.

The stylus is used to select objects on the touchscreen.

Note: To prevent damage to the touchscreen, use only the stylus (pen)

supplied with your 7535.

To open a ﬁle, launch an applet or open a folder:

• Double-tap the stylus on the appropriate icon.

Chapter 4: Working With Windows CE

Navigating Using The Keyboard

62 Psion Teklogix 7535 Hand-Held Computer User Manual

4.1.2 Navigating Using The Keyboard

If your 7535 has a standard screen (rather than a touchscreen), choosing icons and

navigating dialogue boxes, displaying the desktop, and so on requires keyboard

input. If your unit has already been fully conﬁgured and your application is

launched at startup, you’ll have little need for keyboard navigation.

Table 4.1 Keyboard Navigation

Keep in mind that unlike a desktop computer, the 7535 does not support key

chording (pressing two keys at the same time). You must press one key followed by

the next in sequence.

Refer to “Working With Files, Folders And Programs” on page 63 for additional

details about keyboard navigation.

Operation Key or Key Combination

Switch between active applications <ALT> <TAB>

Open task manager <ALT> <ESC>

Move the cursor Arrow keys

Open ﬁle, folder or icon <ENTER>

Exit & Save <ENTER>

Close/Exit & Do Not Save <ESC>

Navigate Dialogue Boxes

<TAB>

To move cursor up <SHIFT> <TAB>

To display the contents of the next ‘tab’ in

a dialogue box <CTRL> <TAB>

Select Radio Button/Press Button <SPACE>

Go to Start Menu <BLUE><0>

Psion Teklogix 7535 Hand-Held Computer User Manual 63

Chapter 4: Working With Windows CE

Working With Files, Folders And Programs

4.2 Working With Files, Folders And Programs

Figure 4.1 Working With Windows Icons

• Use the arrow keys to highlight the icon you want to open or launch.

• Press <ENTER>.

If you have a touchscreen:

• Double-tap on the appropriate icon – either a folder icon, a program icon or

a ﬁle icon – to open or launch your selection.

Folder

File

Program Icon

Chapter 4: Working With Windows CE

The Startup Desktop

64 Psion Teklogix 7535 Hand-Held Computer User Manual

4.3 The Startup Desktop

When the 7535 boots up, the startup desktop (shell) is displayed. Any applications

stored in the Startup folder start up immediately.

Note: The startup folder is located in \Windows\StartUp and

\Flash Disk\StartUp.

Figure 4.2 The 7535 Startup Desktop

To access desktop icons:

• Use the arrow keys to highlight the icon, and press <ENTER> to launch the

highlighted icon.

Note: If the arrow keys do not highlight the desktop icons, the desktop may not

be selected. Press <BLUE> 0 (zero) to display the Start Menu, and select

Desktop. Now the desktop will be “in focus” and the arrow keys will high-

light the icons.

If you have a touchscreen:

• Tap on the icon to open a window or, in the case of an application icon,

launch an application.

Psion Teklogix 7535 Hand-Held Computer User Manual 65

Chapter 4: Working With Windows CE

The Desktop Icons

4.3.1 The Desktop Icons

The icons displayed in the startup desktop operate in much the same way as those

displayed on any standard PC desktop that is running Windows®.

My Computer

Choosing this icon displays the contents of your 7535 computer. If you’re not sure

how to work with the ﬁles, folders and programs displayed, refer to “Working With

Files, Folders And Programs” on page 63.

Recycle Bin

This option temporarily contains items that were deleted, allowing you to either

permanently delete or restore these items.

Internet Explorer

Choosing this icon launches Internet Explorer – a standard Windows CE version.

Keep in mind that your supervisor will need to set up access using the Internet Options

and the Network and Dial-up Connections icons in the Control Panel.

Remote Desktop Connection

This option allows your 7535 to communicate with a remote desktop PC. “Remote

Desktop Connection” on page 83 provides a website with step-by-step instructions.

Chapter 4: Working With Windows CE

The Taskbar

66 Psion Teklogix 7535 Hand-Held Computer User Manual

4.3.2 The Taskbar

Figure 4.3 The Taskbar

The 7535 is equipped with a taskbar at the bottom of the screen. It displays icons

through which you can view the battery capacity and radio signal quality of your

unit. If the hand-held is attached to a charger, cradle, docking station or PDM, an

associated icon is displayed. In addition, the taskbar displays the application(s)

currently running on your unit and the security level assigned to your 7535.

The taskbar also displays active modiﬁer keys – <SHIFT>, <ALT>, <CTRL>,

<BLUE> and <ORANGE>. Keys that have been locked “on” are displayed in

uppercase letters. For example, if you press the <CTRL> key twice to lock it “on”, it

is displayed as CTRL KEY in the taskbar.

4.3.2.1 Using The Taskbar

• Press <BLUE> <0> to display the Start Menu.

• Type <Y> to choose System Tray from the menu.

• Use the arrow keys to highlight the icon in the taskbar about which you’d

like more information.

• Press <ENTER> to display the appropriate dialogue box.

If you have a touchscreen:

• Using the stylus, tap on the indicator you want to view – the battery icon for

example – to display a dialogue box listing the current battery capacity

information.

Psion Teklogix 7535 Hand-Held Computer User Manual 67

Chapter 4: Working With Windows CE

Customizing The Taskbar

4.3.2.2 Customizing The Taskbar

To customize the taskbar so that it displays only those icons you require:

• Press <BLUE> <0> (zero) to display the Start Menu.

• Highlight the Settings option, highlight Taskbar... in the sub-menu, and

press <ENTER>.

The Taskbar and Start Menu dialogue box is displayed.

Figure 4.4 Taskbar And Start Menu Settings

• Under the General tab, highlight the options you want to activate, and press

the <SPACE> key to select them. A check mark indicates active items.

If you have a touchscreen:

• Tap the stylus on the items you want to activate or deactivate. The check

mark indicates active items.

Chapter 4: Working With Windows CE

The Start Menu

68 Psion Teklogix 7535 Hand-Held Computer User Manual

4.4 The Start Menu

Note: Some of the Start Menu items may be disabled based on the 7535’s

current security settings.

The Start Menu lists the operations you can access and work with. It is available from

the startup desktop or from within any application.

To display the menu:

• Press <BLUE> <0> (zero).

Figure 4.5 Start Menu

• Use the arrow keys to highlight a menu item, and press <ENTER>, or

If the menu item has an underlined character:

• Type the underlined alpha character – for example, to display the Power

Info dialogue box, type the letter p.

If you have a touchscreen:

• Tap on the Windows® Start button in the taskbar. Tap on the item in the

menu with which you want to work.

4.4.1 The Desktop

Choosing the Desktop option from the Start Menu displays the 7535 desktop.

Psion Teklogix 7535 Hand-Held Computer User Manual 69

Chapter 4: Working With Windows CE

Security Settings

4.4.2 Security Settings

Choosing the Security option from the Start Menu displays a dialogue box in

which you can deﬁne the access level for the 7535 – Teklogix, Supervisor or User.

Figure 4.6 Security Levels

Security Level

These security levels deﬁne the options accessible to the operator in the Start Menu

and the taskbar. When you change security levels, you’ll need to enter the

appropriate password in the Password textbox. The security level is represented by an

icon in the shape of a lock in the taskbar.

Changing A Password

Note: Keep in mind that this is the same password as that assigned through the

Password control panel applet. Refer to “Control Panel Icons” on page 84.

To assign a password:

• Choose a security level, and enter the existing password in the Password ﬁeld

• Choose the Set Password button.

A dialogue box labelled Password Properties is displayed.

• Type the new password in the Password: text box

• In the Conﬁrm Password: text box, retype the new password.

Chapter 4: Working With Windows CE

The System Tray

70 Psion Teklogix 7535 Hand-Held Computer User Manual

Conﬁguring Security

Choosing the Conﬁgure button displays the Conﬁgure Security dialogue box.

Figure 4.7 Conﬁguring Security

This dialogue box allows you to determine which security levels will have an

associated icon displayed in the taskbar. By default, a security icon is not displayed

for user-level security.

4.4.3 The System Tray

The System Tray option allows access to the icons in the taskbar at the bottom

of the screen. The taskbar displays indicators such as a battery capacity gauge and

the security level. These indicators are attached to dialogue boxes that provide

additional information.

• Choose System Tray from the Start Menu.

When System Tray is chosen, the taskbar icons become accessible. To display

the dialogue box attached to an icon:

• Use the arrow keys to highlight an icon – for example – the security icon.

• Press <ENTER> to display the security level dialogue box.

If you have a touchscreen:

• Tap on the icon with which you want to work. The associated dialogue box

is displayed.

Psion Teklogix 7535 Hand-Held Computer User Manual 71

Chapter 4: Working With Windows CE

The Task Manager

4.4.4 The Task Manager

The Task Manager option allows you to switch to another task or to end an

active task. To display the task manager window:

• Press <BLUE><0><T>, or

• Press <ALT> <ESC>.

Figure 4.8 Task Manager

4.4.5 Cycle Tasks

When Cycle Tasks is selected (and the Task Manager is not open), you can

cycle through active applications. To choose this option:

• Press <BLUE><0>, and type <C>, or

• Press <ALT> <TAB>.

4.4.6 Power Info

Selecting Power Info from the Start Menu displays the Power Properties dialogue box.

This dialogue box indicates the remaining charge capacity of the battery.

Chapter 4: Working With Windows CE

Programs

72 Psion Teklogix 7535 Hand-Held Computer User Manual

4.4.7 Programs

With Programs highlighted, press the <RIGHT> arrow key to display a

sub-menu of options.

Figure 4.9 Program Sub-Menu

This sub-menu allows you to choose ActiveSync and Command Prompt, and you can access

the Internet Explorer, installed applications (e.g., Open Tekterm), Remote Desktop Connection or

Windows Explorer.

ActiveSync®

This option allows you to connect to another device using ActiveSync.

Command Prompt

Command Prompt is used to access the DOS command prompt. At the prompt, you can

type DOS commands such as dir to display all the directories in the drive.

Internet Explorer

The 7535 is equipped with Microsoft® Internet Explorer consistent with all

Windows CE devices on the market. You can access the Internet Options icon through

the Start Menu under Settings>Control Panel or by double-tapping on the

desktop icon labelled My Computer and then, double-tapping on the Control Panel icon.

Psion Teklogix 7535 Hand-Held Computer User Manual 73

Chapter 4: Working With Windows CE

Settings

Windows Explorer

Windows Explorer installed on your 7535 is consistent with all Windows CE.NET 4.2

devices. You can access this option either from the Start Menu under

Programs>Windows Explorer.

Remote Desktop Connection

Remote Desktop Connection is a 7535 application used to connect to a Windows Terminal

Server so that you can run a “session” on the Server machine using the 7535

(Windows CE device). “Remote Desktop Connection” on page 83 provides a

website with details about this option.

4.4.8 Settings

With Settings highlighted, pressing the <RIGHT> arrow key displays a

sub-menu of options, including Control Panel, Network and Dial-up Connections and Taskbar and

Start Menu settings.

Figure 4.10 Settings Sub-Menu

Control Panel

The Control Panel contains applets used to conﬁgure hardware, the operating system

and the shell. If your 7535 is running with the Psion Teklogix Tekterm application or

another application, additional conﬁguration applets may appear in the Control Panel.

Chapter 4: Working With Windows CE

Run

74 Psion Teklogix 7535 Hand-Held Computer User Manual

Network And Dial-Up Connections

The Network and Dial-up Connections window allows you to conﬁgure the 7535 radio or

execute an existing conﬁguration. Refer to “Conﬁguring An IEEE 802.11 Radio

Installed In The 7535” on page 18 for radio setup details.

Taskbar And Start Menu

The Taskbar and Start Menu option displays a dialogue box in which you can

customize the taskbar, choosing which options will be displayed. Refer to

“Customizing The Taskbar” on page 67 for additional details about this option.

4.4.9 Run

Choosing the Run option from the Start Menu displays a dialogue box in which you

can enter the name of the program, folder or document you want to open or launch.

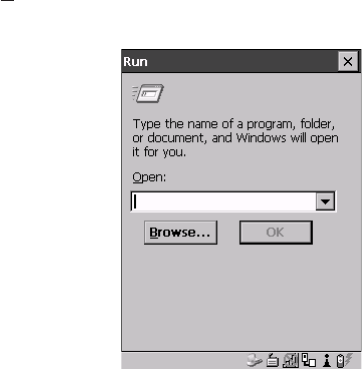

Figure 4.11 Run Dialogue Box

Psion Teklogix 7535 Hand-Held Computer User Manual 75

Chapter 4: Working With Windows CE

Shutdown

4.4.10 Shutdown

With Shutdown highlighted, pressing the <RIGHT> arrow key displays a

sub-menu of options, including Suspend, Warm Reset and Cold Reset.

Figure 4.12 Shutdown Sub-Menu

Note: This menu varies slightly depending on the security level chosen. When

the 7535 is set to User level, the Shutdown option is replaced by Suspend.

A sub-menu is not available.

At Teklogix security level, an additional option is available in the

sub-menu – Bootloader. This option behaves like cold-reset, except

that the 7535 starts Bootloader rather than Windows CE.

Suspend

The Suspend option suspends the 7535 immediately – this is equivalent to turning the

hand-held off.

Warm Reset

The Warm Reset option resets the 7535, leaving all saved ﬁles and (registry) settings

intact. Any unsaved data is lost.

Cold Reset

The Cold Reset option resets the 7535. Any ﬁles not stored in permanent memory are

lost. However, the registry settings are saved.

Chapter 4: Working With Windows CE

Using A Dialogue Box

76 Psion Teklogix 7535 Hand-Held Computer User Manual

4.5 Using A Dialogue Box

A dialogue box (like the samples in Figure 4.13) appears when you need to make

selections and enter further information.

You can move between dialogue items by tapping on them, or by pressing the arrow

keys and the <TAB> key. (<SHIFT> <TAB> moves the cursor backwards.)

Figure 4.13 Dialogue Boxes

Note: If your unit is equipped with a touchscreen, you can use the stylus to tap

on an element in a dialogue box to select or deselect it, display dropdown

menu items, save your selections, and so on.

Dialogue boxes contain one or more of the following elements:

Tab: A tab separates different elements of a dialogue box. Press the <TAB> key

until a tab in the dialogue box is highlighted. To display adjoining tabs, press the

<RIGHT> or <LEFT> arrow key. To display the information in the next tab from

anywhere in the window, press <CTRL> <TAB>.

Textbox: A textbox requires that you type information. Press the <TAB> key to

highlight the textbox and then type the appropriate information.

Dropdown: This type of menu is identiﬁed by up and down arrows next to the

dropdown menu to indicate that additional options are available. Press the <TAB>

key to highlight the menu, and use the arrow keys on your keyboard to cycle through

the options.

Checkbox

Dropdown Menu

Button

Textbox

Radio

Button

Tabs

Psion Teklogix 7535 Hand-Held Computer User Manual 77

Chapter 4: Working With Windows CE

Using A Dialogue Box

Checkbox: This box allows you to select or deselect an option. To select or deselect

a checkbox, press the <TAB> key to highlight the checkbox, and press the

<SPACE> key to select (√) or deselect it.

Radio buttons: These buttons allow you to choose from a number of options. For

example, in the sample screen in Figure 4.13 on page 76 you can choose to ‘Obtain an

IP address via DHCP’ or ‘Specify an IP address’. Press the <TAB> key to highlight a radio

button option, and then select a radio button by pressing the arrow keys to highlight

the appropriate option.

Buttons: This type of button allows you to ‘Save’, ‘Delete’ and so on the options

you’ve chosen in a dialogue box. Use the <TAB> key to highlight the button you

want to use. Press the <ENTER> key to activate it.

Saving Your Choices: Once you’ve made all your changes, press the <ENTER>

key to save your changes and exit the window.

Note: A dialogue box item that is displayed in grey text indicates that it is not

currently available.

Psion Teklogix 7535 Hand-Held Computer User Manual 79

CONFIGURATION 5

5.1 Remote Desktop Connection ........................83

5.2 Pocket PC Compatibility ..........................83

5.3 The Control Panel ..............................83

5.4 Control Panel Icons .............................84

5.5 Basic Setup .................................88

5.5.1 Display Properties ..........................88

5.5.1.1 Display Contrast .......................88

5.5.1.2 Display Backlight ......................89

5.5.1.3 Display Appearance .....................91

5.5.2 Keyboard Properties .........................92

5.5.2.1 Key Repeat..........................92

5.5.2.2 Keyboard Backlight .....................93

5.5.2.3 Keyboard One Shot Modes .................94

5.5.2.4 Keyboard Macro Keys ....................95

5.5.2.5 Unicode Mapping ......................97

5.5.3 Volume And Sound Properties ....................99

5.5.3.1 Volume Adjustments .....................99

5.5.4 Power Management Properties ................... 100

5.5.4.1 Battery Capacity ...................... 100

5.5.4.2 Power Saving Schemes .................. 101

5.5.4.3 Suspend Threshold..................... 102

5.5.4.4 Charger Details ...................... 103

5.5.5 Stylus Properties .......................... 103

5.5.5.1 Setting Double-Tap Sensitivity .............. 104

5.5.5.2 Touchscreen Calibration .................. 104

5.5.6 Certiﬁcate Assignment ....................... 105

5.7 Scanner Properties Setup ......................... 118

5.7.1 Scanner Options .......................... 118

5.7.2 Bar Codes .............................. 121

5.7.2.1 Code 39 Settings ...................... 122

5.7.2.2 Code 128 Settings ..................... 124

Chapter 5: Conﬁguration

80 Psion Teklogix 7535 Hand-Held Computer User Manual

5.7.2.3 EAN 13 Settings ......................125

5.7.2.4 EAN 8 ...........................126

5.7.2.5 UPC And EAN Settings ..................127

5.7.2.6 UPC A Settings.......................127

5.7.2.7 UPC E Settings.......................127

5.7.2.8 Codabar...........................128

5.7.2.9 Code 93...........................128

5.7.2.10 Code 11 ..........................128

5.7.2.11 Interleaved 2 of 5 .....................129

5.7.2.12 MSI Plessey........................129

5.7.2.13 Discrete 2 of 5 ......................129

5.7.2.14 IATA 2 of 5 ........................130

5.7.2.15 Postal: Australian .....................130

5.7.2.16 Postal: Japanese......................130

5.7.2.17 Postal: Korean.......................130

5.7.2.18 Postal: PlaNET ......................131

5.7.2.19 Postal: PostNET......................131

5.7.2.20 Postal: Royal Mail ....................131

5.7.2.21 2D DataMatrix ......................131

5.7.2.22 2D Maxicode .......................131

5.7.2.23 2D PDF-417........................131

5.7.2.24 2D Micro PDF-417 ....................132

5.7.2.25 2D QR Code .......................132

5.7.2.26 2D RSS Code .......................132

5.7.2.27 Aztec ...........................132

5.7.3 Translations .............................132

5.8 SNMP (Simple Network Management Protocol) Setup..........134

5.8.1 Contact Tab .............................135

5.8.2 Communities Tab ..........................136

5.8.2.1 Adding A Community ...................137

5.8.2.2 Modifying A Community Setting .............138

5.8.2.3 Removing An Existing Community ............138

5.8.3 Trap Destination Tab ........................139

5.8.3.1 Enabling Authentication TRAPS..............139

5.8.3.2 Adding A Destination ...................139

5.8.3.3 Changing A Destination ..................140

5.8.3.4 Removing A Trap Destination ...............140

Psion Teklogix 7535 Hand-Held Computer User Manual 81

Chapter 5: Conﬁguration

5.8.4 Permitted Hosts Tab ........................ 141

5.8.4.1 Adding A Host ....................... 141

5.8.4.2 Changing A Host...................... 142

Psion Teklogix 7535 Hand-Held Computer User Manual 83

Chapter 5: Conﬁguration

Remote Desktop Connection

5.1 Remote Desktop Connection

Remote Desktop Connection is a 7535 application used to connect to a Windows Terminal

Server so that you can run a “session” on the Server machine, using the 7535

(Windows CE device).

Refer to the following website for step-by-step information about setting up this

connection:

http://www.microsoft.com/WindowsXP/pro/using/howto/gomobile/remotedesktop/default.asp

5.2 Pocket PC Compatibility

The 7535 supports the AYGShell API set that allows PocketPC-compatible

applications to run on the hand-held. Microsoft® Windows® CE.NET 4.2 is

designed to include application programming interface (API) compatibility support

for the Microsoft Windows Powered Pocket PC 2002 shell in 7535s running

Windows® CE.NET 4.2.

The website listed below describes the APIs exposed through AYGShell and the

application compatibility between Windows Powered Pocket PC 2002-based

applications and Windows CE.NET 4.2-based devices:

http://msdn.microsoft.com/library/default.asp?url=/library/en-us/dncenet /html/WINCENET_CEPCC_App.asp

5.3 The Control Panel

The Windows CE Control Panel provides a group of icons through which you can set a

variety of system-wide properties, such as mouse sensitivity, network conﬁguration

and the desktop color scheme.

Note: If you are uncertain how to move around a dialogue box and make selec-

tions, review “Using A Dialogue Box” on page 76.

When the 7535 boots up, the startup desktop (shell) is displayed, and any

applications stored in the Startup folder start up immediately.

To access the Windows CE Control Panel:

• Press BLUE> <0> to display the Start Menu.

• Highlight Settings in Start Menu, and press the <RIGHT > arrow key to

highlight the Control Panel option.

• Press the <ENTER> key to display the contents of the Control Panel window.

Chapter 5: Conﬁguration

Control Panel Icons

84 Psion Teklogix 7535 Hand-Held Computer User Manual

If you have a touchscreen:

• Use the stylus to tap on the Windows Start button in the taskbar to display the

Start Menu. Tap on Settings>Control Panel.

The Control Panel folder contains icons used in the setup of your 7535.

Figure 5.1 Control Panel

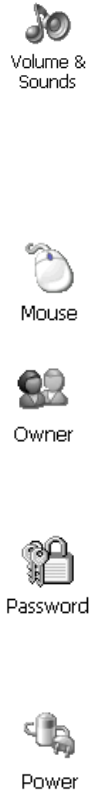

5.4 Control Panel Icons

The Windows CE Control Panel provides a group of icons that allow you to customize

and adjust settings on your 7535.

Date/Time

Allows you to set the current Month, Date, Time and Time Zone on your

unit.

Display

Changes the appearance (window colour scheme) on the unit desktop.

Keyboard

Toggles character repeat on and off and speciﬁes delay and rate for repeated

characters. It also allows you to adjust the keyboard backlight threshold and

intensity.

Psion Teklogix 7535 Hand-Held Computer User Manual 85

Chapter 5: Conﬁguration

Control Panel Icons

Volume & Sound

Allows you to adjust the volume of the beep that is emitted to indicate

events like warnings, key clicks and, if your unit is equipped with a touch-

screen, screen taps.

Sounds (wave ﬁles) cannot be reproduced on 7535 units. The beeper

volume and the conditions under which it sounds are tailored from within

the application installed on your unit.

Mouse Properties

For units equipped with touchscreens, this icon allows you to customize the

sensitivity and speed of the stylus double-tap.

Owner

Provides ﬁelds in which you can specify owner information. A ‘Notes’ tab

allows additional information to be entered and displayed when the unit is

powered up. ‘Network ID’ tab information is used to access network resources.

(This information should be provided by your System Administrator.)

Password

Allows you to assign a password to restrict access to elements of the unit.

Once assigned, password access cannot be circumvented so it is important

that you write down your password and keep it in a safe place. Refer to

“Security Settings” on page 69 for details.

Power

Displays battery pack power status. (Alternately, battery status can be

accessed through the taskbar.) The ‘Power Scheme’ tab allows you to deter-

mine a suspend states, and the ‘Charger’ tab determines whether or not a

battery that requires it, can be recalibrated. (Refer to “Power Saving

Schemes” on page 101 for details.)

Chapter 5: Conﬁguration

Control Panel Icons

86 Psion Teklogix 7535 Hand-Held Computer User Manual

Regional Settings

Allows you to specify the local language the display text will use along

with the format of numbers, currency, time and date for your region.

Remove Programs

Lists the programs that can be removed from your unit. To remove a pro-

gram, select it and then click on the Remove button.

Stylus

Adjusts how Windows CE recognizes your double-tap (as slow or rapid

successive taps).

Under the ‘Calibration’ tab, you can recalibrate your touchscreen by tapping

on the ‘Recalibrate’ button and following the directions on the calibration

screen.

System

Displays system and memory properties. Under the Memory tab, you can

allocate memory between storage memory and program memory.

Dialing

Speciﬁes dialing settings, including area code, country code, dial type and

the code to disable call waiting. You can store multiple patterns – for exam-

ple, ‘Work’, ‘Home’, and so on using this dialogue box.

Certiﬁcates

A public key is transmitted as part of a certiﬁcate. The certiﬁcate assigned

through this icon is used to ensure that the submitted public key is, in fact,

the public key that belongs to the submitter. The client checks that the cer-

tiﬁcate has been digitally signed by a certiﬁcation authority that the client

explicitly trusts. “Certiﬁcate Assignment” on page 105 directs you to the

appropriate setup information.

Psion Teklogix 7535 Hand-Held Computer User Manual 87

Chapter 5: Conﬁguration

Control Panel Icons

PC Connection

Enables direct connections to a desktop computer. Selecting the ‘Change Con-

nection’ button allows you to change the type of direct connect to your PC.

Teklogix Scanners

Used to set up scanner parameters and choose the bar code symbologies

that the 7535 scanner will successfully read.

Network And Dial-up Connections

Displays a network window from which the 7535 radio can be conﬁgured

and an existing conﬁguration can be executed. Refer to “Conﬁguring An

IEEE 802.11 Radio Installed In The 7535” on page 18 for details.

Internet Options

Used to conﬁgure your Internet browser including options such as identify-

ing the default and search page that the browser applies when connecting to

the Internet, setting the cache size, specifying the Internet connection

options, and deﬁning the security level that is applied when browsing.

SNMP

SNMP (Simple Network Management Protocol) is the protocol used to

monitor and manage devices attached to a TCP/IP network.

Input Panel

The 7535 is equipped with the framework for a Soft Input Panel (SIP)

should you need to design your own SIP.

Chapter 5: Conﬁguration

Basic Setup

88 Psion Teklogix 7535 Hand-Held Computer User Manual

5.5 Basic Setup

5.5.1 Display Properties

• In the Control Panel, choose the Display icon.

Figure 5.2 Choosing The Display Icon

5.5.1.1 Display Contrast

The Contrast tab allows you to adjust the 7535 display contrast to suit the environment

in which you are using the hand-held.

Psion Teklogix 7535 Hand-Held Computer User Manual 89

Chapter 5: Conﬁguration

Display Backlight

• In the Display Properties dialogue box, open the Contrast tab.

Figure 5.3 Display Contrast Properties

Sliding bar in the Contrast tab to the left decreases or darkens the display contrast.

Sliding the bar to the right to increases or lightens the display contrast.

5.5.1.2 Display Backlight

The backlight is activated for a conﬁgurable amount of time if the ambient light is

below a speciﬁed threshold and if the 7535 is in use (key press, scanner trigger or

data received from the host). The Display Properties dialogue box in the Control Panel

allows you to specify the intensity of the backlight along with how the backlight

behaves in low-light conditions and when the unit is not in use.

Note: Keep in mind that this option may be restricted to supervisory use only.

Chapter 5: Conﬁguration

Display Backlight

90 Psion Teklogix 7535 Hand-Held Computer User Manual

• In the Display Properties dialogue box, open the Backlight tab.

Figure 5.4 Display Backlight Properties

Note: Backlight changes take affect immediately. You do not need to reset

the 7535.

ON Threshold

The 7535 is equipped with an ambient light sensor. This sliding bar allows you to

determine how dark the ambient light needs to be before the backlight turns on.

Intensity

This parameter is used to adjust the light intensity of the 7535 backlight. Sliding the

bar to the left lowers the light intensity, and sliding it to the right raises the intensity.

Bright For

The value chosen from this dropdown menu determines the duration of time that the

backlight stays on at the conﬁgured intensity when a unit is not in use.

Dim For

The value chosen from this dropdown menu determines the duration of time that

the backlight stays on at half the conﬁgured intensity (dimmed backlight) when a

unit is not in use.

Psion Teklogix 7535 Hand-Held Computer User Manual 91

Chapter 5: Conﬁguration

Display Appearance

External Power Checkbox

When you select (√) the checkbox next to ‘When using external power keep the backlight

always ON.’, the backlight remains ON at the conﬁgured intensity when the 7535 is

operating with external power (not battery power). If the 7535 is drawing power

from its battery, this option is ignored and the other parameters deﬁned in Display

Properties dialogue box take affect.

5.5.1.3 Display Appearance

• In the Display Properties dialogue box, open the Appearance tab.

Figure 5.5 Display Appearance Properties

This dialogue box allows you to customize the display colour scheme.

Chapter 5: Conﬁguration

Keyboard Properties

92 Psion Teklogix 7535 Hand-Held Computer User Manual

5.5.2 Keyboard Properties

This icon displays the Keyboard Properties dialogue box in which you can adjust the

repeat rate of the keys, the intensity of the keyboard backlight and the behaviour of

the <BLUE> and <ORANGE> modiﬁer keys. This dialogue box also allows you to

deﬁne macro keys and Unicode characters.

• In the Control Panel, choose the Keyboard icon.

Figure 5.6 Choosing The Keyboard Icon

5.5.2.1 Key Repeat

• In the Keyboard Properties dialogue box, open the Repeat tab.

Figure 5.7 Key Repeat Properties

Psion Teklogix 7535 Hand-Held Computer User Manual 93

Chapter 5: Conﬁguration

Keyboard Backlight

Repeat Delay

The value assigned for this parameter determines the delay in milliseconds between

repeat characters. Sliding the Repeat Delay bar to the left increases the delay between

key repeats while sliding the bar to the right shortens the repeat delay time.

Repeat Rate

The value assigned for the Repeat Rate parameter determines how quickly the key you

press repeats and is measured in characters per second (cps). Sliding the bar to the

left slows the repeat rate, and sliding the bar to the right increases the repeat rate.

Note: Use the ﬁeld at the bottom of this dialogue box to test the repeat delay and

rate settings you’ve chosen.

5.5.2.2 Keyboard Backlight

• In the Keyboard Properties dialogue box, open the Backlight tab.

Figure 5.8 Keyboard Backlight Properties

ON Threshold

The ON Threshold sliding bar allows you to determine how dark the ambient light needs

to be before the keyboard backlight turns on.

Intensity

This parameter is used to adjust the light intensity of the 7535 keyboard backlight.

Sliding the bar to the left darkens the keyboard backlight intensity, and sliding it to

the right lightens the intensity.

Chapter 5: Conﬁguration

Keyboard One Shot Modes

94 Psion Teklogix 7535 Hand-Held Computer User Manual

ON Time

The value chosen from this dropdown menu determines the duration of time that the

keyboard backlight stays on when a unit is not in use.

5.5.2.3 Keyboard One Shot Modes

• In the Keyboard Properties dialogue box, open the One Shots tab.

Figure 5.9 Keyboard One Shot Properties

When these options are enabled (√), the <ORANGE> and <BLUE> keys only

remain active until the next key is pressed. If the ‘One Shots’ options are disabled

(the checkbox is left blank), the <ORANGE> and <BLUE> keys are locked ‘on’

when pressed only once; they remain ‘on’ until they are pressed a second time to

unlock them.

Note: Keep in mind that checking the taskbar lets you know whether or not

these keys are locked on. When the <ORANGE> and <BLUE> keys

are locked ‘on’, the taskbar at the bottom of the screen displays them

in uppercase characters – BLUE KEY and ORANGE KEY. If these keys are dis-

played in lowercase characters in the taskbar, you’ll know that the Blue Key

and the Orange Key are not locked. They will become inactive following a

key press.

Psion Teklogix 7535 Hand-Held Computer User Manual 95

Chapter 5: Conﬁguration

Keyboard Macro Keys

5.5.2.4 Keyboard Macro Keys

• In the Keyboard Properties dialogue box, open the Macros tab.

Figure 5.10 Macro Dialogue Box

A macro has 20 programmable characters (or “positions”). The macro keys can be

programmed to replace frequently used keystrokes, along with the function of

executable keys including <ENTER>, <BKSP> and <DEL> (<BLUE>-<BKSP>),

function keys and arrow keys.

Recording And Saving A Macro

You can program up to 12 macro keys on a 58-key keyboard and 6 macro keys on a

36-key keyboard.

• In the Macro: menu, highlight a macro key number – for example, macro 1 to

assign a macro to macro key <M1>. Press the <TAB> key twice to highlight

the Record Macro button, and press <ENTER>.

Chapter 5: Conﬁguration

Keyboard Macro Keys

96 Psion Teklogix 7535 Hand-Held Computer User Manual

A message screen is displayed instructing you to ‘Please Enter Key Strokes’.

Figure 5.11 Recording A Macro

• Type the macro sequence you want to assign to the Macro key. You can type

text and numbers, and you can program the function of special keys into a

macro.

• When you’ve ﬁnished recording your macro sequence, press the key

sequence – <CTRL> <ALT> <ENTER>.

A new screen displays the macro sequence you created. The Save Macro button is

highlighted.

• Press <ENTER> to save your macro.

Note: If you want to discard the macro you’ve just created, press the <TAB> key

to highlight the Discard Macro button and press <ENTER>.

Executing A Macro

To execute a macro:

• Press the macro key to which you’ve assigned the macro. For example, if

you created a macro for macro key ‘1’, press <M1> to execute the macro.

Psion Teklogix 7535 Hand-Held Computer User Manual 97

Chapter 5: Conﬁguration

Unicode Mapping

Deleting A Macro

To delete a macro:

• In the Macros tab, use the arrow keys to highlight the macro number you want

to delete.

• Press <TAB> to highlight the Delete Macro button, and press <ENTER>.

5.5.2.5 Unicode Mapping

• In the Keyboard Properties dialogue box, open the Unicode Mapping tab.

Figure 5.12 Unicode Mapping

The Unicode Mapping tab is used to map combinations of virtual key values and

<CTRL> and <SHIFT> states to Unicode™ values. This tab shows the conﬁgured

Unicode character along with the Unicode value. For example, the sample screen

above shows “a (U+0061)” indicating that the character “a” is represented by the

Unicode value “0061”, and so on. Keep in mind that Unicode conﬁgurations are

represented as hexidecimal rather than decimal values.

All user-deﬁned Unicode mappings are listed in the Unicode Mapping tab in order of

virtual key value, and then by order of the shift state. If a Unicode mapping is not

listed, the Unicode mapping is mapped to the default Unicode value.

Chapter 5: Conﬁguration

Unicode Mapping

98 Psion Teklogix 7535 Hand-Held Computer User Manual

Adding And Changing Unicode Values

Important: Changes to Unicode mappings are not saved until you exit the

Keyboard Properties dialogue box.

• Press <TAB> to highlight the Add/Change button, and press <ENTER>.

Figure 5.13 Adding And Change Unicode Values

• Highlight the a value in the Unicode mapping list – in the sample screen

above, a value will be assigned to virtual key 0 (VK 0).

• Press <TAB> to position the cursor in the ‘Unicode Mapping’ ﬁeld and

type a Unicode value for the highlighted key.

Note: To add a shifted state – <SHIFT> and/or <CTRL>, press <TAB> to posi-

tion the cursor in the checkbox next to ‘SHIFT Pressed’ and/or ‘CTRL

Pressed’. Press <SPACE> to select (

√

) the shift state you want to assign.

Removing Unicode Values

• In the ‘Unicode Mapping’ tab, highlight the item you want to delete, and

press <TAB> to highlight the Remove button.

• Press <ENTER> to delete the value.

Psion Teklogix 7535 Hand-Held Computer User Manual 99

Chapter 5: Conﬁguration

Volume And Sound Properties

5.5.3 Volume And Sound Properties

Note: Sounds (wave ﬁles) cannot be reproduced on 7535 units. The conditions

under which 7535s emit sounds are tailored from within the application

installed on your unit.

• In the Control Panel, choose the Volume & Sounds icon.

Figure 5.14 Choosing The Volume Icon

5.5.3.1 Volume Adjustments

Figure 5.15 Volume Settings

• Slide the volume button to the left to lower the beeper volume or to the right

to increase the beeper volume.

• Under the heading ‘Enable sounds for:’, enable (√) the conditions under which

you want the 7535 to emit a beep.

Chapter 5: Conﬁguration

Power Management Properties

100 Psion Teklogix 7535 Hand-Held Computer User Manual

5.5.4 Power Management Properties

This icon displays a Power Properties dialogue box that indicates the unit’s battery

capacity and allows you to manage battery use.

• In the Control Panel, choose the Power icon.

Figure 5.16 Choosing The Power Icon

5.5.4.1 Battery Capacity

• In the Power Properties dialogue box, open the Battery tab.

Figure 5.17 Power Battery Properties

The Battery tab details information about the battery installed in your 7535.

Psion Teklogix 7535 Hand-Held Computer User Manual 101

Chapter 5: Conﬁguration

Power Saving Schemes

5.5.4.2 Power Saving Schemes

• In the Power Properties dialogue box, open the Schemes tab.

Figure 5.18 Power Scheme Properties

Power Scheme

This dropdown menu allows you to specify whether the unit is using AC Power or

Battery Power.

Switch State To Suspend

Important: Psion Teklogix recommends setting the Suspend value to 10 min-

utes. Setting ‘Switch State To Suspend’ to ‘Never’ will adversely

affect the battery run time.

To further reduce power consumption, carefully consider the

duration of time that the display backlight is ‘on’ (see “Display

Backlight” on page 89).

When the 7535 is idle – not receiving any user input (a key touch, a scan, and so on)

or system activity (serial data, an activity initiated by an application, and so on), the

hand-held uses the value assigned in the Switch State To Suspend ﬁeld to determine when

the unit will go to sleep (appear to be off).

When the time in the Suspend ﬁeld elapses without any activity, the unit enters Suspend

state. In Suspend state, the 7535 CPU enters a sleep state, and the radio is shut off. The

state of the device (RAM contents) is preserved. Pressing <ENTER> wakes the

system from suspend state. When the 7535 is in suspend state, the network

connection will not be broken immediately. If the connection is dropped, you must

re-establish the network connection.

Chapter 5: Conﬁguration

Suspend Threshold

102 Psion Teklogix 7535 Hand-Held Computer User Manual

5.5.4.3 Suspend Threshold

• In the Power Properties dialogue box, open the Suspend Threshold tab.

Figure 5.19 Suspend Threshold Properties

Suspend Threshold

The sliding bar in this tab is used to set the battery capacity (as a percentage value)

at which the hand-held will be forced into a suspend state. For example, if you slide

the bar in the Suspend Threshold tab to the right to the 10% level, when the battery

capacity falls to 10%, the 7535 will enter suspend state. You will not be able to

resume until the battery is charged, or you operate the 7535 using AC power. The

allowable threshold ranges from 0 to 50%. The default value is 0%.

Note: The7535 hand-held does not enter suspend state when it is using

AC power.

Main Battery Status

This ﬁeld indicates the status of the main battery.

Estimated Operating Time

This ﬁeld estimates the length of time the 7535 can remain ‘on’ (operating) before

reaching the conﬁgured Suspend Threshold.

Estimated Battery Backup Time

This ﬁeld displays the amount of time the state of the 7535 will be maintained in

suspend at the currently conﬁgured Suspend Threshold.

Psion Teklogix 7535 Hand-Held Computer User Manual 103

Chapter 5: Conﬁguration

Charger Details

5.5.4.4 Charger Details

• In the Power Properties dialogue box, open the Charger tab.

When the 7535 is in a Combo Dock, enabling (√) Allow Battery Calibration in this tab

allows a battery requiring recalibration to be fully discharged and recharged.

Recalibration occasionally extends the battery charge time. If you prefer that the

battery always be charged in the shortest time possible, do not check this box.

5.5.5 Stylus Properties

Note: Touchscreen calibration may not be enabled on your unit. If your screen

appears to require recalibration, contact your supervisor.

• In the Control Panel, choose the Stylus icon.

Figure 5.20 Stylus Icon

Chapter 5: Conﬁguration

Setting Double-Tap Sensitivity

104 Psion Teklogix 7535 Hand-Held Computer User Manual

5.5.5.1 Setting Double-Tap Sensitivity

• In the Double-Tap tab, follow the directions to tailor the sensitivity of the stylus

when you tap on the touchscreen.

Figure 5.21 Setting Stylus Sensitivity

5.5.5.2 Touchscreen Calibration

Touchscreens rarely require recalibration. However, if your touchscreen has never

been calibrated or if you ﬁnd that the stylus pointer is not accurate when you tap on

an item, follow the directions below.

• Choose the Calibration tab and then tap on the Recalibrate button.

Figure 5.22 Calibrating The Touchscreen

• Follow the directions in the Calibration tab to recalibrate the screen.

Psion Teklogix 7535 Hand-Held Computer User Manual 105

Chapter 5: Conﬁguration

Certiﬁcate Assignment

5.5.6 Certiﬁcate Assignment

• In the Control Panel, choose the Certiﬁcate icon.

The dialogue box is used in conjunction with 802.1x authentication to enhance 7535

security.

Figure 5.23 Certiﬁcates Dialogue Box

For a detailed description about Certiﬁcate setup for both the server and client-side

devices (7535s), refer to the following website:

www.microsoft.com/windows2000/techinfo/planning/walkthroughs/default.asp - "Security Services"

Note: When importing certiﬁcates, the 7535 only recognizes .cer ﬁles.

5.7 Scanner Properties Setup

The Teklogix Scanners icon in the Control Panel provides dialogue boxes in which you can

tailor bar code options and choose the bar codes your scanner will recognize.

5.7.1 Scanner Options

Figure 5.45 Bar Code Options

To display the sub-menus available in the Options tab:

• Highlight the option you want to work with, and press the right

<ARROW> key.

To change a parameter:

• Highlight the parameter and press the <RIGHT> arrow key, or press the

<SPACE> key.

If a ﬁeld requires text entry, a text ﬁeld is displayed in which you can type

the appropriate value.

Display Parameters

Scan Result

When this parameter is enabled (set to ‘ON’), the type of bar code and the result of

the scan appear on the screen. Note that this information is only displayed after a

successful decode and is visible only while the scanner trigger is pressed. When the

trigger is released, this information is cleared from the screen.

Psion Teklogix 7535 Hand-Held Computer User Manual 119

Chapter 5: Conﬁguration

Scanner Options

Scan Indicator

When this parameter is enabled (set to ‘ON’), the laser warning logo appears on the

display whenever the scanner is activated.

Scan Result Time (sec)

The value assigned to the “Scan Result Time (sec)” parameter determines how long

the scan results of a successful scan are displayed on the screen. Time is measured in

seconds, and a value of “0” (zero) disables the parameter.

Note: To remove the scan result from the screen before the “Result Time” has

expired, point the scanner away from the bar code and press the trigger.

Scan Beep

This parameter determines whether or not the 7535 emits an audible scanner ‘beep’

when a scan is performed. Set this parameter to either ‘ON’ to enable the beeper or

‘OFF’ to disable it.

Scan Log File

If this parameter is enabled, the input barcode and the modiﬁed/translated output bar

code are logged in the ﬁle \Flash Disk\ScanLog.txt. Keep in mind that if the ‘Scan

Log File’ is enabled, there is a slight performance effect when performing multiple

scans since the log ﬁle is written to persistent storage.

Double Click Parameters

Click Time (msec)

This parameter controls the maximum gap time (in milliseconds) for a double-click.

If the time between the ﬁrst and second clicks of the scanner trigger is within this

time, it is considered a double-click. The allowable range is 0 to 1000. A value of

zero disables this feature.

A double-click produces different results depending on whether or not a value is

assigned in the “Click Data” parameter. When a value is not assigned for the “Click

Data”, double-clicking the scanner trigger overrides the target dot delay set in the

“Dot Time” parameter and initiates a normal scan sweep. If a value is assigned for

the “Click Data” parameter, double-clicking the scanner trigger inserts the “Click

Data” value rather than initiating a scan.

Chapter 5: Conﬁguration

Scanner Options

120 Psion Teklogix 7535 Hand-Held Computer User Manual

Click Data

For both integrated and external scanners, this parameter determines which

character is sent to the application installed in your 7535 following a double-click.

A dialogue box appears, asking that you press the key you want to insert. The

ASCII/Unicode key value of the keypress is displayed.

Pressing the <ESC> key in this dialogue box resets the data to zero.

Options

Dot Time (msec)

The value selected for “Dot Time (msec)” determines (in milliseconds) how long the

targeting dot remains on before the scanner switches to a normal scan sweep. The

allowable values are: 0, 0.1, 0.5, 1.0, 1.5, 2.0, 2.5 and 3.0

seconds. A value of 0 (zero) disables the target dot.

Short Code

When enabled (set to ‘ON’), this parameter allows scanning of short I 2 of 5 bar

codes (2 characters). When disabled, these short bar codes are rejected.

Enabling “Short Code” may reduce the robustness of the decoding since the

7535 must decode more potential bar codes; it is therefore not recommended for

general-purpose bar codes with 4 or more characters.

Verify

The value entered for this parameter determines the number of correct additional

decodes required after the initial decode before a bar code is accepted. Higher

values signiﬁcantly increase the time it takes to decode a bar code but also improve

the reliability of the decoded bar code.

Security

This parameter controls the tolerance for decoding edge-to-edge bar codes

(Code 93, Code 128, UPC/EAN). Lower values have a lower tolerance for misreads,

but they also increase the time it takes to decode the bar code. The default value of

30 is generally a good compromise setting.

Psion Teklogix 7535 Hand-Held Computer User Manual 121

Chapter 5: Conﬁguration

Bar Codes

5.7.2 Bar Codes

Figure 5.46 Bar Code Selection

All the available bar code symbologies can be selected from this menu.

Important: To improve the decode speed and performance, enable (set to

‘ON’) only those codes that are required by the application.

Keep in mind that some bar code types are only available when an internal imaging

scanner is installed. The bar code settings do not affect the operation of internal or

external decoded scanners. These scanners must be conﬁgured by scanning special

conﬁguration bar codes. These conﬁguration bar codes affect the communication

speed or data format between the scanner and the 7535 and must not be changed.

The scanner manufacturer provides programming manuals for conﬁguration

purposes.

• For Symbol, refer to “Programming Guide P300”.

• For PSC, refer to “Powerscan Programing guide (PSC)”.

Chapter 5: Conﬁguration

Code 39 Settings

122 Psion Teklogix 7535 Hand-Held Computer User Manual

Figure 5.47 Code 39 Bar Code Settings

A ‘plus’ sign (+) to the left of the each bar code listed in this Barcodes tab indicate that

that a sub-menu of parameters is attached. To work with a sub-menu:

• Highlight the bar code you want to work with, and press the <RIGHT>

arrow key to display the sub-menu.

• Use the <UP> and <DOWN> arrow keys to highlight a parameter.

• To change a parameter value, press <SPACE> or the <RIGHT> arrow key.

If a ﬁeld requires text entry, a text box is displayed in which you can enter

the appropriate value.

5.7.2.1 Code 39 Settings

Full Ascii

If this parameter is enabled (set to ‘ON’), the characters +, %, and / are used as

escape characters. The combination of an escape character and the next character

is converted to an equivalent ASCII character.

Include Check

If this parameter is enabled (set to ‘ON’), the check digit is included with the

decoded bar code data.

Psion Teklogix 7535 Hand-Held Computer User Manual 123

Chapter 5: Conﬁguration

Code 39 Settings

AIAG Strip

If this parameter is enabled (set to ‘ON’), the AIAG data identiﬁer is removed from

each decoded Code 39 label. The data identiﬁer occurs in the ﬁrst position next to

the Code 39 start character. It can be a single alphabetic character or a series of

numeric digits followed by an alphabetic character. This identiﬁer deﬁnes the

general category or speciﬁc use of the data contained in the rest of the bar code.

Note: If your unit is operating with the Psion Teklogix TESS application, this

parameter should not be used in conjunction with the TESS AIAG feature.

This is because the 7535 hand-held performs the strip function before it

processes the data through the AIAG feature; if the preﬁx is stripped, the

data is not identiﬁed as AIAG.

Error Accept

If the “Err Accept” and “AIAG Strip” parameters are enabled (set to ‘ON’), all label

data without an AIAG identiﬁer character is accepted. If the “Err Accept” parameter

is disabled and the “AIAG Strip” parameter is enabled (set to ‘ON’), the label data is

not accepted.

Mod Checks

Mod 43 Check

If this parameter is enabled (set to ‘ON’), the Mod 43 check digit is calculated.

Mod 10 Check

If this parameter is enabled (set to ‘ON’), the Mod 10 check digit is calculated.

None

If you choose ‘None’, a check is not executed.

Field Size/Chars

Field Size

The ﬁeld size is the length of the ﬁeld after the ﬁrst character is stripped and

the preﬁx and sufﬁx characters are added. If the ﬁeld size is non-zero, only

bar codes of that length are passed through.

Chapter 5: Conﬁguration

Code 128 Settings

124 Psion Teklogix 7535 Hand-Held Computer User Manual

Preﬁx Char

This character, if non-zero, is added before a successfully decoded bar code. Press

the key you want to insert in the dialogue box attached to this parameter. The

ASCII/Unicode key value of the keypress is displayed.

Pressing the <ESC> key in this dialogue box resets the data to zero.

Sufﬁx Char

Note: The appended character is treated as any other keyboard character.

For example, if <BKSP> is pressed, the usual action for that key is

performed. If your unit is operating with the Psion Teklogix ANSI

emulation application, the 7535 transmits the escape sequence

associated with the function immediately after the bar code data.

This character, if non-zero, is added after a successfully decoded bar code. Press the

key you want to insert in the dialogue box attached to this parameter. The

ASCII/Unicode key value of the keypress is displayed.

Pressing the <ESC> key in this dialogue box resets the data to zero.

Strip Leading

This parameter determines the number of characters that will be removed from the

beginning of the bar code before the preﬁx character is added.

Note: For Code 39 bar codes, the “AIAG Strip” is performed before the

“Strip Leading”.

Strip Trailing

The value entered in this parameter determines the number of characters that will be

removed from the end of the bar code before the sufﬁx character is added.

5.7.2.2 Code 128 Settings

Include Sym

Setting “Include Sym” to ‘ON’ causes the group separator(s) and start code

contained in this type of bar code to be displayed on the screen.

Note: This option is available only when ‘EAN/UCC 128’ is selected.
