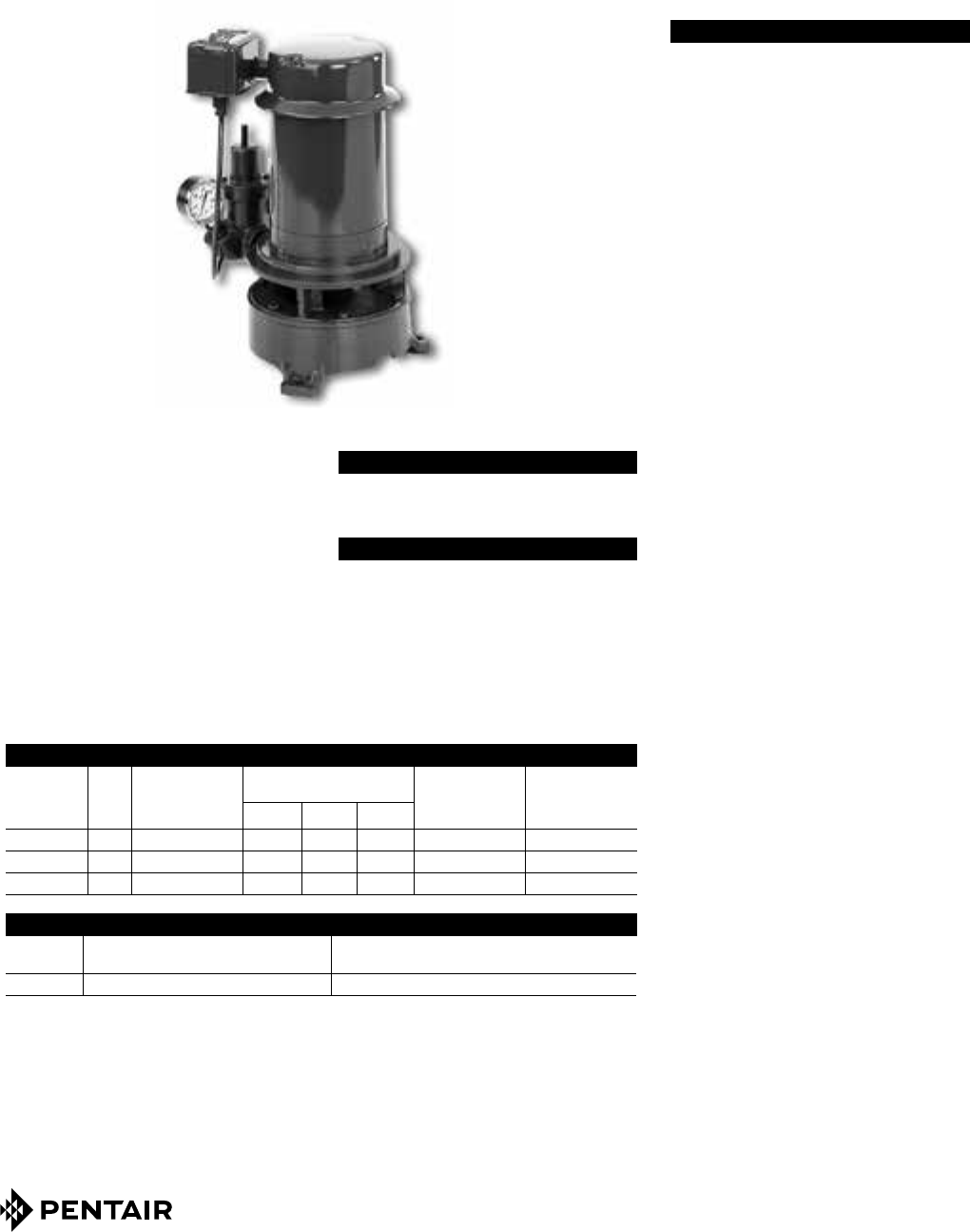

STA-RITE® SSJ Series
Cast iron vertical jet pumps
The SSJ Series Vertical Jet Pumps are
the industry standard deep well jet
pumps for over-the-well
“bolt-on” installations.
The SSJ Series Jet Pumps include the
pre-plumbed external automatic
regulator, pressure gauge, pressure
switch, and a complete line of casing
adapters to drive the 4" double pipe or
2" and 3" single pipe jet packages.
APPLICATIONS
Water systems and sprinkling…
for
homes, farms and cottages.
SPECIFICATIONS
Body:
Rugged cast iron
Pump and Motor Shaft:
Stainless steel
Impellers:
Noryl
®
Diffuser:
Heavy-duty cast iron
*Required for all 4" double pipe or offset installations.
NOTE: Order pump from ordering information table above. A Jet Package should be ordered with every SSJ Series Pump. All installations require an appropriate
size adapter flange or casing adapter.
Noryl® is registered trademark of General Electric Co.
All other brand or product names are trademarks or registered trademarks of Pentair Ltd.
FEATURES
Automatic Pressure Regulator:
Faster-
acting, quieter design eliminates “hunting”
for correct drive pressure. New, improved
stem and guide are precisely molded to
assure efficient, trouble-free performance
on all deep wells.
Quality Construction:
Precision-
machined, close-grained cast iron pump
body and base are specially treated to
resist corrosion.
Noryl Impellers:
Precision-molded for
perfect balance, and ultra-smooth for
highest performance and efficiency.
Pressure Switch:
High quality. Differential
and cut-in/cut-out pressure settings
are adjustable.
Dustproof Cover:
All electrical
components are protected from dirt,
dust and insects by a dustproof canopy.
Ventilating air cannot contaminate vital
switching components. This eliminates
the most common cause of motor failure.
Motor Windings:
Superior insulation
materials protect against exces sive
moisture and contaminants to ensure
prolonged motor life.
Balanced Rotor:
Diecast under high
pressures for uniform performance and
greater efficiency...dynamically balanced.
Heavy-Duty Ball Bearings:
Shielded,
permanently lubricated bearings are
extensively tested to ensure extended life
and smooth, quiet operation.
Pump and Motor Shaft:
Stainless steel for
maximum corrosion resistance; one-piece
threaded shaft for positive impeller drive
and alignment.
ORDERING INFORMATION
CATALOG
NUMBER HP DESCRIPTION PIPE TAPPING SIZES MOTOR
VOLTAGE
APPROX. WT.
LBS.
SUCT. DRIVE DISCH.
SSJC 1/2 Deep Well Jet 1-1/4" 1" 1" 115/230 53
SSJD 3/4 Deep Well Jet 1-1/4" 1" 1" 115/230 63
SSJE 1 Deep Well Jet 1-1/4" 1" 1" 115/230 65
ADAPTER FLANGE*
CATALOG
NUMBER DESCRIPTION USED WITH
J21626 1-1/4" x 1" Offset single pipe and 4" double pipe
1S4512WS
STA-RITE® SSJ Series
Cast iron vertical jet pumps
SSJ
3/8
8-1/8
12-1/4
A
Dimensions (in inches) are for estimating purposes only.
Tested and rated in accordance with Water Systems Council Standards.
NOTE: Pumps installed with a Pro-Source® tank require a 100 PSI relief valve. Pumps installed with a conventional tank require a 75 PSI relief valve.
Relief valve must be capable of relieving entire flow of pump at relief pressure.

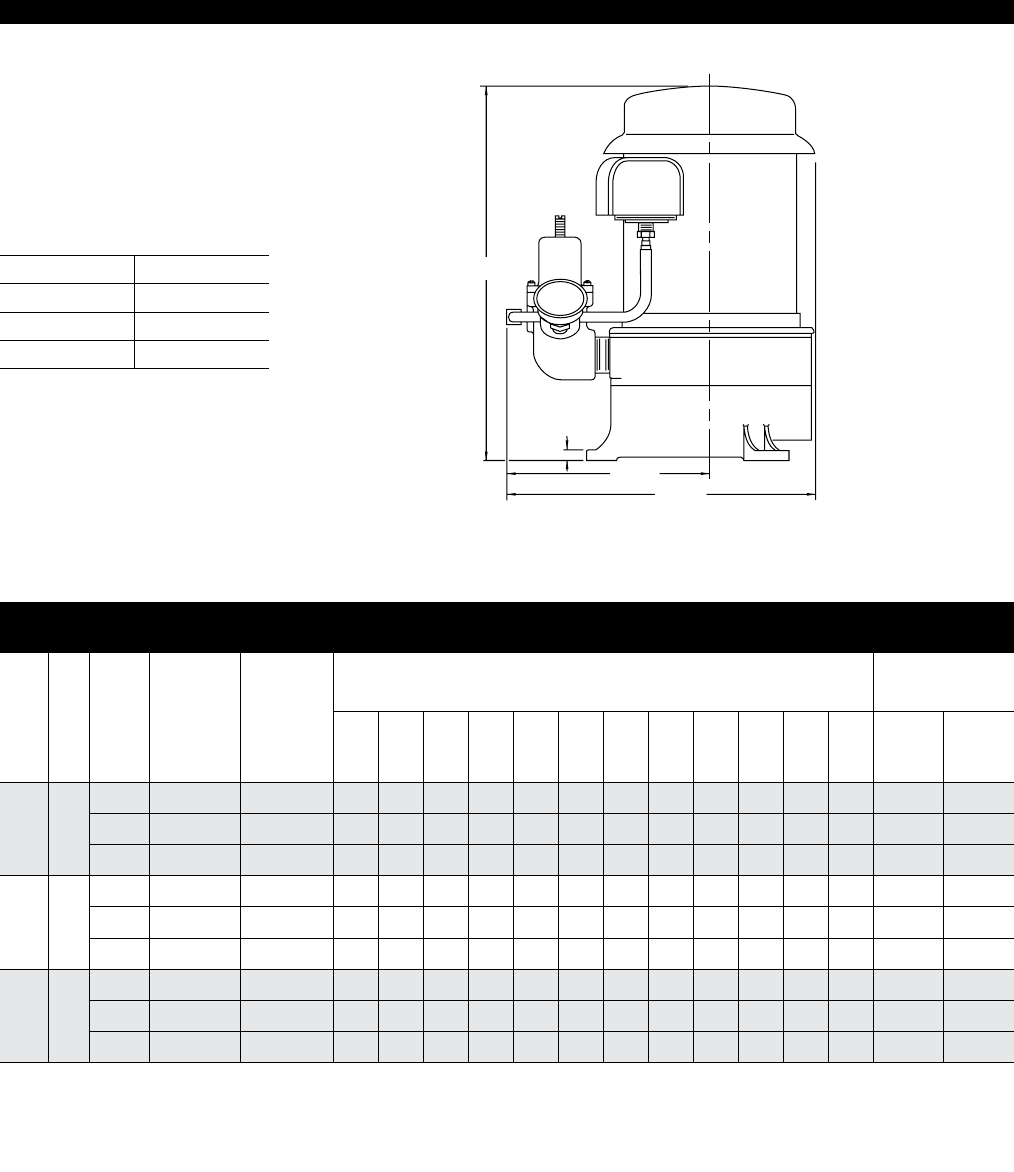

OUTLINE DIMENSIONS
CAT. NO. A
SSJC 14-1/2
SSJD 15-1/8
SSJE 16-3/16
PUMP PERFORMANCE (CapaCity in Gallons per Minute)
DEEP WELL (40 PSI) 4" DOUBLE PIPE
CAT.
NO. HP
JET
NO.
USES
VENTURI
USES
NOZZLE
PUMPING DEPTH IN FEET
MAX. PUMP
SHUTOFF PRESS.
PSI
20' 30' 40' 50' 60' 70' 80' 90' 100' 110' 120' 130'
JET AT
MIN.
DEPTH
JET AT
MAX.
DEPTH
SSJC 1/2
15SD J32P-18 J34P-42 4.8 4.3 3.7 3.0 2.4 1.8 1.5 1.0 0.5 91 50
CK4 J32P32 J34P-35 9.5 7.0 4.5 2.0 62 44
4SD J32P-24 J34P-41 6.5 5.1 4.0 3.0 1.8 0.8 75 45
SSJD 3/4
CK1 J32P22 J34P-43 8.3 7.4 6.3 5.3 3.8 3.5 2.6 1.8 1.0 88 46
CK3 J32P-32 J34P-41 10.0 6.4 3.0 57 46
4SD J32P24 J34P-41 8.6 7.5 6.5 5.2 4.0 2.9 1.8 0.8 93 51
SSJE 1
CK1 J32P-22 J34P-43 8.6 7.8 6.6 5.6 4.5 3.6 2.8 2.3 1.7 1.1 0.6 98 47
CK4 J32P28 J34P-45 11.4 10.7 9.6 8.3 7.0 5.0 3.3 1.6 102 48
CK4 J32P38 J34P-45 17.0 13.2 9.5 5.8 2.2 66 44
2S4512WS
STA-RITE® SSJ Series
Cast iron vertical jet pumps
Tested and rated in accordance with Water Systems Council Standards.
NOTE: Pumps installed with a Pro-Source® tank require a 100 PSI relief valve. Pumps installed with a conventional tank require a 75 PSI relief valve.
Relief valve must be capable of relieving entire flow of pump at relief pressure.
PUMP PERFORMANCE (CapaCity in Gallons per Minute)
DEEP WELL (40 PSI) 2" SINGLE PIPE
CAT.
NO. HP
JET
NO.
USES
VENTURI
USES
NOZZLE
PUMPING DEPTH IN FEET
MAX. PUMP
SHUTOFF PRESS.
PSI
20' 30' 40' 50' 60' 70' 80' 90' 100' 110' 120' 130'
JET AT
MIN.
DEPTH
JET AT
MAX.
DEPTH
SSJC 1/2
14AP J32P-32 J34P-45 9.2 6.7 4.3 61 49
10AP J32P-24 J34P-44 6.2 4.8 3.7 2.3 1.2 71 47
8AP J32P-18 J34P-42 4.1 3.7 3.1 2.6 2.1 1.6 1.2 0.8 94 53
SSJD 3/4
15AP J32P-33 J34P-41 12.3 9.2 5.7 57 48
9AP J32P-29 J34P-44 10.6 7.4 4.7 2.3 64 47
8AP J32P-18 J34P-42 5.0 4.7 4.2 3.8 3.3 3.3 2.3 1.8 1.3 109 62
SSJE 1
16AP J32P-38 J34P-45 15.3 11.8 8.5 5.2 65 48
9AP J32P-29 J34P-44 12.3 9.3 6.4 4.0 72 53
8AP J32P-18 J34P-42 5.7 5.0 4.6 4.2 3.7 3.3 2.8 2.4 1.8 1.3 124 66
DEEP WELL (40 PSI) 3" SINGLE PIPE
SSJC 1/2
19CP J32P-24 J34P-41 6.5 5.1 4.0 3.0 1.8 0.8 75 45
16CP J32P-18 J34P-42 4.8 4.3 3.7 3.0 2.4 1.8 1.5 1.0 0.5 91 50
11CP J32P-32 J34P-45 9.5 7.0 4.5 2.0 62 44
SSJD 3/4
26CP J32P-33 J34P-41 13.0 9.8 6.0 58 49
19CP J32P-24 J34P-41 8.6 7.5 6.5 5.2 4.0 2.9 1.8 0.8 93 51
17CP J32P-29 J34P-44 11.5 8.0 5.2 2.6 66 48
15CP J32P-22 J34P-43 8.3 7.4 6.3 5.3 3.8 3.5 2.6 1.8 0.1 88 46
SSJE 1
19CP J32P-24 J34P-41 7.9 7.5 7.2 6.5 5.6 4.4 2.8 105 69
15CP J32P-22 J34P-43 8.6 7.8 6.6 5.6 4.5 3.6 2.8 2.3 1.7 1.1 0.6 98 47
10CP J32P-38 J34P-45 17.0 13.2 9.5 5.8 2.2 66 44
3S4512WS
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.STA-RITE.COM PH: 888-782-7483 ORDERS FAX: 800-426-9446
Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
S4512WS (05/20/13)
