1 of 5
¡ INNOVATIVE DESIGN & PROTOTYPE TESTING are key components of
GENERAC’S success in “IMPROVING POWER BY DESIGN.” But it
doesn’t stop there. Total commitment to component testing, reliability
testing, environmental testing, destruction and life testing, plus testing
to applicable CSA, NEMA, EGSA, and other standards, allows you to
choose GENERAC POWER SYSTEMS with the confidence that these
systems will provide superior performance.
¡
COREPOWER™: Offers an extreme value for those who desire automatic
backup power at the most affordable price.
¡ TEST CRITERIA:
PROTOTYPE TESTED NEMA MG1-22 EVALUATION
SYSTEM TORSIONAL TESTED MOTOR STARTING ABILITY
¡ SOLID-STATE, FREQUENCY COMPENSATED VOLTAGE REGULATION.
This state-of-the-art power maximizing regulation system is standard on
all Generac models. It provides optimized FAST RESPONSE to changing
load conditions and MAXIMUM MOTOR STARTING CAPABILITY by
electronically torque-matching the surge loads to the engine.
¡ SINGLE SOURCE SERVICE RESPONSE from Generac’s dealer network
provides parts and service know-how for the entire unit, from the engine
to the smallest electronic component.
¡ GENERAC TRANSFER SWITCHES. Long life and reliability are
synonymous with GENERAC POWER SYSTEMS. One reason for this
confidence is that the GENERAC product line includes its own transfer
systems and controls for total system compatibility.
INCLUDES:
• Digital LED Controller
• Automatic Transfer Switch
with Built-In Priority Load Center
• Composite All Weather Enclosure
• Sound Attenuated Enclosure
• External Main Circuit Breaker
• Flexible Fuel Line Connector
• Composite Mounting Pad
• Natural Gas or LP Gas Operation
• 2 Year Limited Warranty
• UL 2200 Listed
Power Rating
Model 005837-0 (Composite Polymer) - 7 kW 60Hz
FEATURES
CorePower™ System
Residential Standby Generators
Air-Cooled Gas Engine
7kW
®
7kW

2 of 5
CorePower™ System - 7 kW features and benefits
Engine
•Generac OHV engine A durable, reliable powertrain for maximum power output.
•Cast iron cylinder walls Rigid construction and added durability provide long engine life.
•Electronic ignition/spark advance These features combine to assure smooth, quick starting every time.
•Pressurized filtration system Better performance, less maintenance and significantly longer engine life.
•Low oil pressure shutdown system Superior shutdown protection prevents catastrophic engine damage due to low oil.
•High temperature shutdown Prevents damage due to overheating.
•Spin-on automotive type oil filter Captures and collects harmful impurities with easy serviceability.
Generator
•Revolving field
Allows for a smaller, light weight unit that operates 25% more efficiently than a revolving armature generator.
•Displaced phase excitation
Maximizes motor starting capability.
•Automatic voltage regulation Regulates the output voltage to ±5% prevents damaging voltage spikes.
•UL 2200 Listed For your safety.
Transfer Switch
•Fully Automatic Transfers your vital electrical loads to the energized source of power.
•Remote Mounting Mounts near your existing distribution panel for simple, low cost installation.
•Flush mountable Can be installed between studs like a standard electrical panel.
•UL Listed For your safety.
Controls
•Auto/Off/Manual switch Selects the operating mode.
•Utility voltage sensing Constantly monitors utility voltage, setpoints 60% dropout, 80% pick-up, of standard voltage.
•Utility interrupt delay Prevents nuisance start-ups of the engine, adjustable 10-30 seconds.
•Engine warm-up Ensures engine is ready to assume the load, setpoint approximately 5 seconds.
•Engine cool-down Allows engine to cool prior to shutdown, setpoint approximately 1 minute.
•Seven day exerciser Operates engine to prevent oil seal drying and damage between power outages.
•Timed Trickle Battery charger Maintains battery charge level to ensure starting.
•Main Line Circuit Breaker Protects generator from overload.
Unit
•Weather protective enclosure Ensures protection against mother nature. Tool-less removal of roof and sides.
Three lift-out panels for easy access to all routine maintenance items. Composite polymer enclosure will not rust
and is ideal for harsh and coastal installations.
•Enclosed critical grade muffler Quiet, critical grade muffler is mounted inside the unit to prevent injuries.
•Small, compact, attractive Makes for an easy, eye appealing installation.
•SAE Sound attenuated enclosure ensures quiet operation.
Installation System
•1’ Flexible Fuel Line Connector Easy Installation.
7kW
®

3 of 5
Rating definitions - Standby: Applicable for supplying emergency power for the duration of the utility power outage. No overload capability is available for this rating. (All ratings in accordance with BS5514,
ISO3046 and DIN6271). * Maximum wattage and current are subject to and limited by such factors as fuel Btu content, ambient temperature, altitude, engine power and condition, etc. Maximum power
decreases about 3.5 percent for each 1,000 feet above sea level; and also will decrease about 1 percent for each 6° C (10° F) above 16° C (60°F). Sound output ratings from certain points on the generator
subject to change based on installation parameters.
Generator
Model 005837-0
Rated Maximum Continuous Power Capacity (LP) 7,000 Watts*
Rated Maximum Continuous Power Capacity (NG) 6,000 Watts*
Rated Voltage 240
Rated Maximum Continuous Load Current – 240 Volts 29.1 / 25
Main Line Circuit Breaker 30 Amp
Phase 1
Number of Rotor Poles 2
Rated AC Frequency 60Hz
Power Factor 1
Battery Requirement (not included) Group 26R 12 Volts and
350 Cold-cranking Amperes Minimum
Unit Weight (Pounds/Kilos) 250/113.4
Dimensions (L x W x H) inches [mm] 24.4 x 30.2 x 33 [618.5 x 767.5 x 837]
Sound output in dB(A) at 23 ft. with generator operating at normal load 67
Engine
Type of Engine GENERAC OHV
Number of Cylinders 1
Displacement 432cc
Cylinder Block Aluminum w/Cast Iron Sleeve
Valve Arrangement Overhead Valve
Ignition System Solid-state w/Magneto
Governor System Mechanical
Starter 12 Vdc
Oil Capacity Including Filter Approx. 1.1 Qts./1.0L
Operating RPM 3,600
Fuel Consumption
Natural Gas cu.ft./hr.
1/2 Load
Full Load
Liquid Propane ft3/hr (gal/hr)
1/2 Load
Full Load
83 (2.4)
146 (4.1)
37.1 (1.02)
47.6 (1.31)
Required fuel pressure to generator fuel inlet at all load ranges - 5 to 7 inches of water column for natural gas, 10 to 12 inches of water column for LP gas
For Btu content, multiply ft3/hr x 2520 (LP) or ft3/hr x 1000 (NG)
Controls
Digital LED Indicators Simple user interface for ease of operation
Mode Switch
-Auto Automatic Start on Utility failure. 7 day exerciser
-Off Stops unit. Power is removed. Control and charger still operate.
-Manual/Test (start) Start with starter control, unit stays on. If utility fails, transfer to load takes place,
Engine Start Sequence Cyclic cranking: 16 sec. on, 7 rest (90 sec. maximum duration)
Engine Warm-up 5 seconds
Engine Cool-Down 1 minute
Starter Lock-out Starter cannot re-engage until 5 sec. after engine has stopped.
2.5 Amp Timed Trickle Battery Charger Standard
Automatic Voltage Regulator w/Overvoltage Protection Standard
Automatic Low Oil Pressure Shutdown Standard
Overspeed Shutdown Standard, 72Hz
High Temperature Shutdown Standard
Overcrank Protection Standard
Safety Fuse Standard
CorePower™ System - 7 kW specifications
7kW
®

4 of 5
7kW

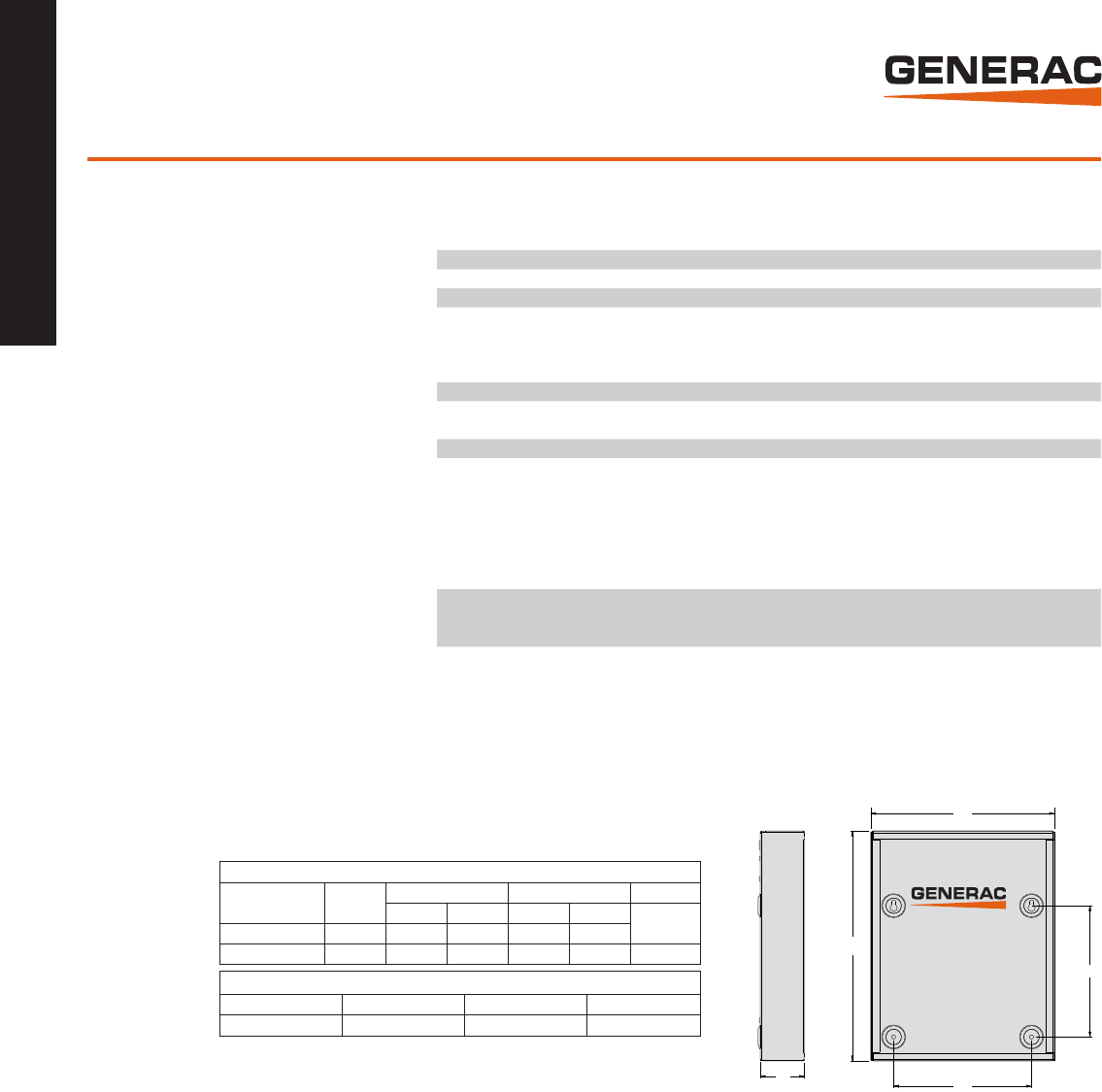

CorePower™ System - 7 kW transfer switch
®
Model 005837-0
No. of Poles 2
Current Rating (amps) 50
Voltage Rating (VAC) 250
Utility Voltage Monitor (fixed) (Function of Digital LED
Controller)
-Pick-up
-Dropout
80%
60%
Return to Utility (Function of Digital LED Controller) approx. 15 sec.
Exerciser weekly for 12 minutes (Function of Digital LED
Controller)
Standard
UL Listed Standard
Total of Pre-wired Circuits
No. 15A 120V
No. 20A 120V
No. 20A 240V
No. 30A 240V
No. 40A 240V
No. 50A 240V
8
5
1
-
1
-
-
Circuit Breaker Protected
Available RMS Symmetrical
Fault Current @ 250 Volts 10,000
Weight (Pounds/Kilos) 25/11.3
Transfer Switch Features
• Electrically operated, mechanically-held
contacts for fast, positive connections.
• Rated for all classes of load, 100%
equipment rated, both inductive and
resistive.
• 2 pole, 250 VAC contactors.
• 160 millisecond transfer time.
• NEMA 1 (indoor rated) enclosure is standard.
• Flush mountable
Dimensions Mechanical Dimensions (in inches/mm)
Current
Rating
No. of
Poles
Height Width Depth
H1 H2 W1 W2
3.4 in50 UL Listed 218.5 in 23 in 10.5 in 15.38 in
470 mm 584 mm 267 mm 391 mm 86 mm
Terminal Wire Ranges
ATS Rated Amps Switch Terminal Neutral Lug/Stud Ground Lug
50A 2-Pole UL 1 x 1/0-12 1 x 3/8-16 Stud 1 x 2/0-14
H1
W1
D
W2
H2
®

5 of 5
®
Generac Power Systems, Inc. • S45 W29290 HWY. 59, Waukesha, WI 53189 • generac.com
©2012 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice. Bulletin 0186720SBY-J Printed in U.S.A. 10/26/12
Design and specifications subject to change without notice. Dimensions shown are approximate. Contact your Generac dealer for certified drawings. DO NOT USE THESE DIMENSIONS FOR INSTALLATION PURPOSES.
Model # Product Discription
5819 26R Wet Cell Battery Every standby generator requires a battery to start the system. Generac offers the
recommended 26R wet cell battery for use with all air-cooled standby product.
5865 Cold Weather Kit The CorePower cold weather kit is recommended for CorePower units installed in
regions where the temperature regularly falls below 32° F.
6003 Scheduled Maintenance Kit Generac's scheduled maintenance kits provide all the hardware necessary to
perform complete routine maintenance on a Generac automatic standby generator.

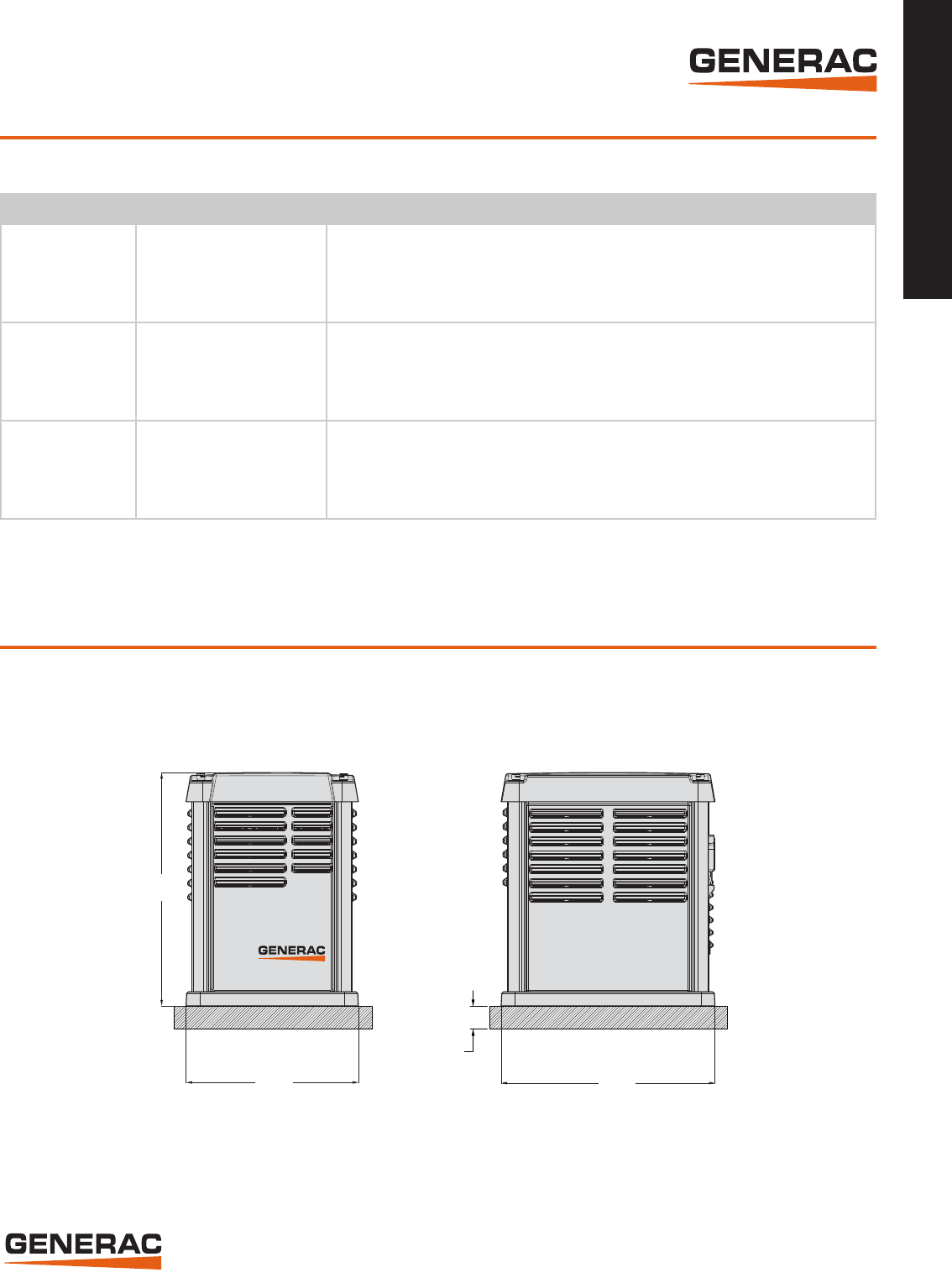

CorePower™ System - 7 kW available accessories
dimensions
®
RIGHT SIDE VIEW
767.5
[30.22]
618.5
[24.35]
837
[32.95]
FRONT VIEW
76.2 [3.0]
PEA GRAVEL
MINIMUM
®
7kW
