GRUNDFOS PRODUCT GUIDE

UP Series

Circulator pumps

60 Hz

Contents

Mission 3

Cross reference

Quick cross reference for competitive 3-speed pumps 4

Reference for replacing ALPHA models 5

Reference for replacing Comfort models 5

Reference for replacing TACO models 6

Reference for replacing Bell & Gossett models 8

Reference for replacing Laing models 9

Reference for replacing Armstrong models 10

Discontinued products 11

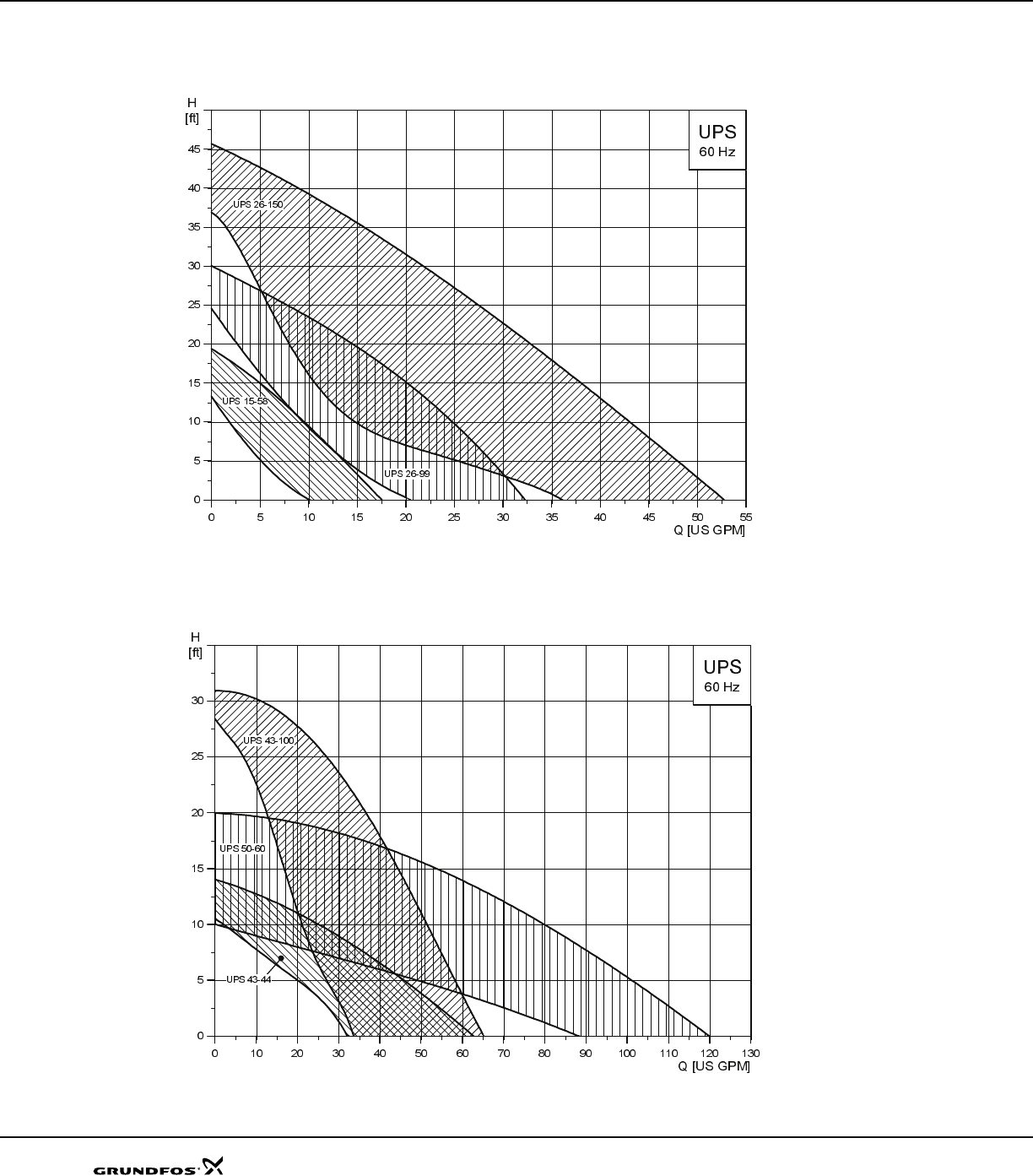

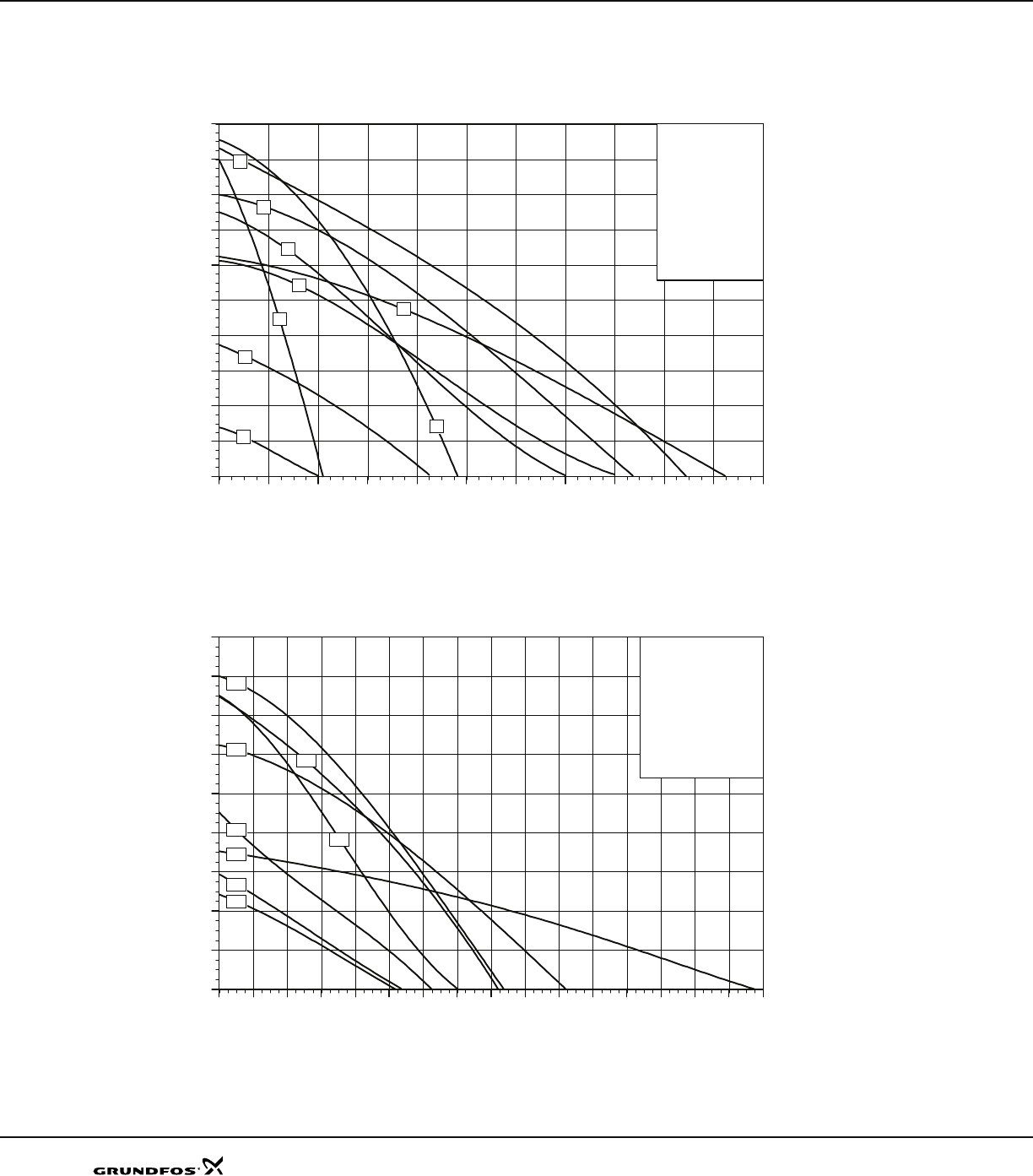

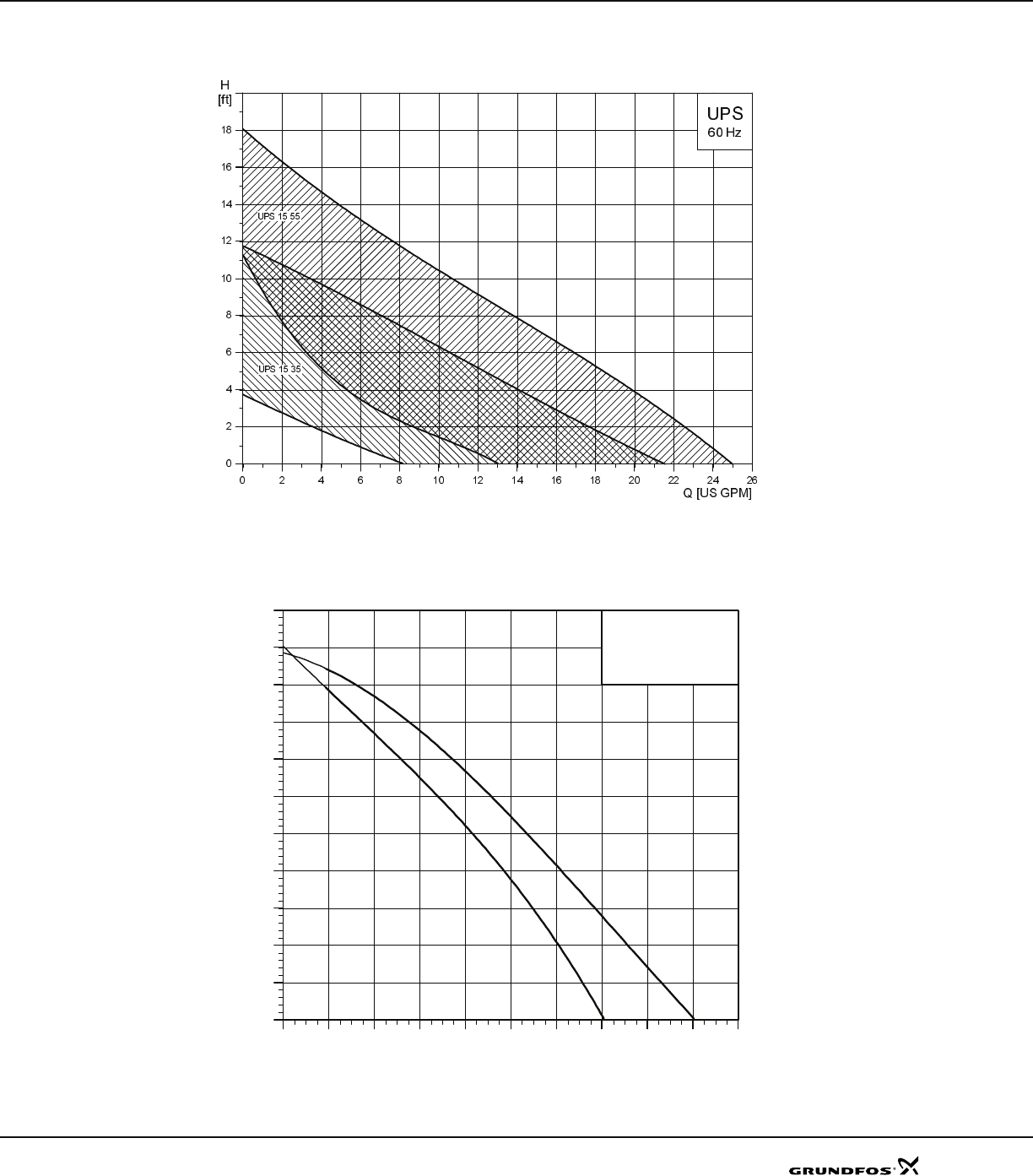

Performance ranges

3-speed 12

3-speed stainless steel 13

Comfort Pump 13

Closed systems 14

Open systems 14

Open systems 1/2" 15

Open systems 3/4" 15

Product range

Cast iron 16

Bronze 17

Stainless steel 18

Identification

Type key 19

Nameplate 20

Applications

Heating systems 21

Domestic hot-water systems 21

Cooling systems 21

Construction 21

Materials of construction 22

Installation 22

Pumped liquids 23

Ambient and liquid temperatures 23

Maximum system pressure 23

Minimum inlet pressure 23

Performance 23

ALPHA 24

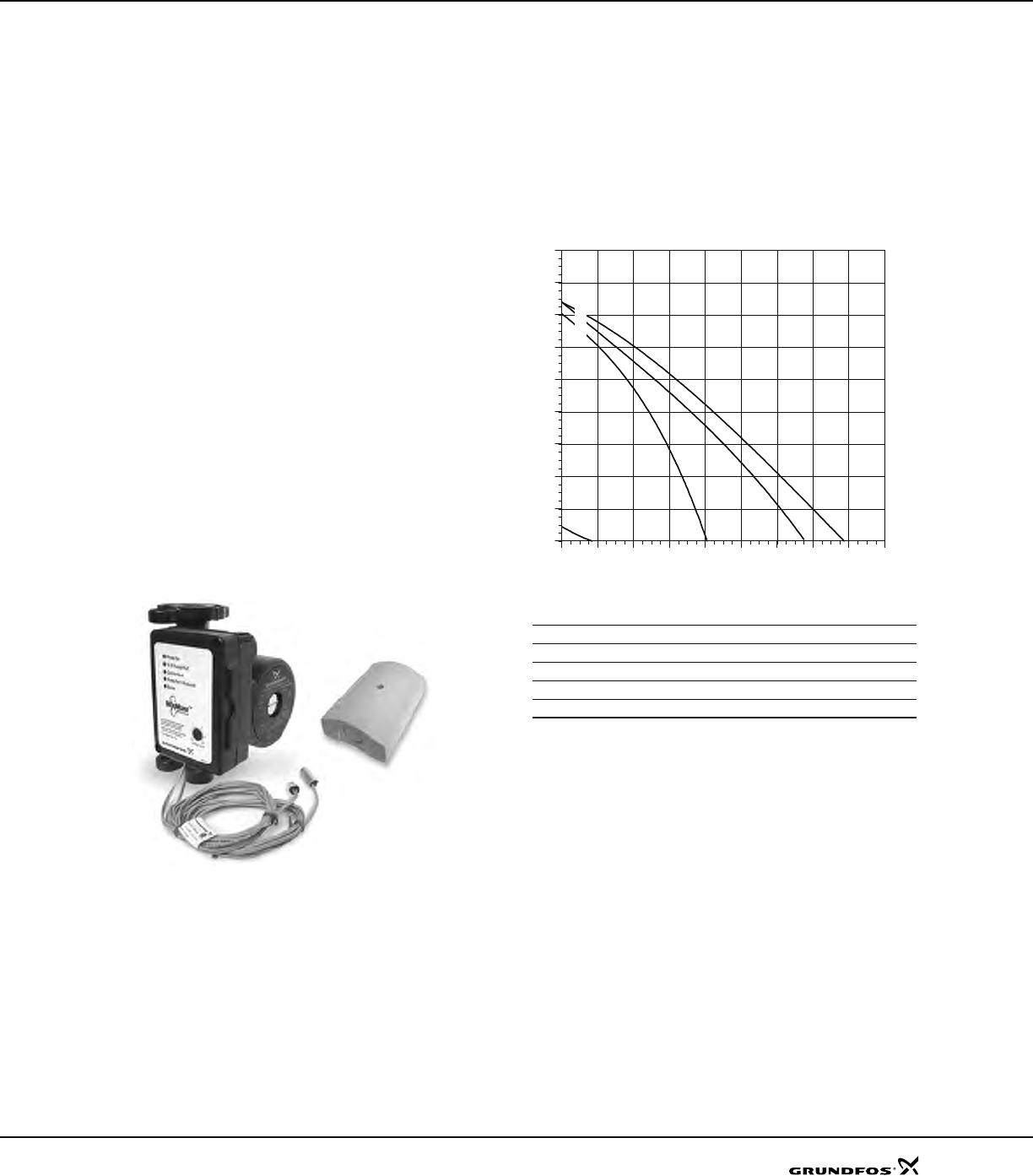

MixiMizer - mixing reset pump 25

Variable-speed pump 26

Comfort System 27

UP 10 Comfort pump 28

Technical data

Comfort Pump UP 10-16 B5/BN5 29

UP 15-10 B5/B7 30

UP 15-10 BUC5/7 31

UP 15-10 F/FR 32

UP Comfort System 15-10 SU7P/TLC 33

UP 15-18 B5/B7 34

UP 15-18 BUC5/BUC7 35

UP 15-29 SU/SF 36

UP 15-35 SUC 37

UPS 15-35 SUC/SFC 38

UP 15-42 B5/B7 39

UP 15-42 BUC5/BUC7 40

UP 15 MixiMizer 15-42 BUC5/MR and BUC7/MR 41

UP 15-42 F/FR 42

UPS 15-42 F 43

UP 15 Miximizer 15-42 FC/MR 44

UP 15 Variable Speed 15-42 F/VS 45

UP 15-55 SUC 46

UPS 15-55 SFC/SUC 47

ALPHA 15-55 F/FR/SF/LC 48

UPS 15-58 FC/FRC 50

UP 15-100 F 51

UP 26-64 F 52

UP 26 Variable Speed 26-64 F/VS 53

UP 26-96 F/BF 54

UP 26 Variable Speed 26-96F/VS 55

UP 26-99 F/BF 56

UPS 26-99 F/BFC 57

UP 26-116 F/BF 58

UP 26-120 U 59

UPS 26-150 F/SF 60

UP 43-44 F/BF 61

UPS 43-44 FC/BFC 62

UP 43-70 F 63

UP 43-75 F/BF 64

UPS 43-100 F/SF 65

UP 43-110 F 66

UPS 50-44 F 67

UPS 50-60 F/SF 68

UP 50-75 F 69

Accessories

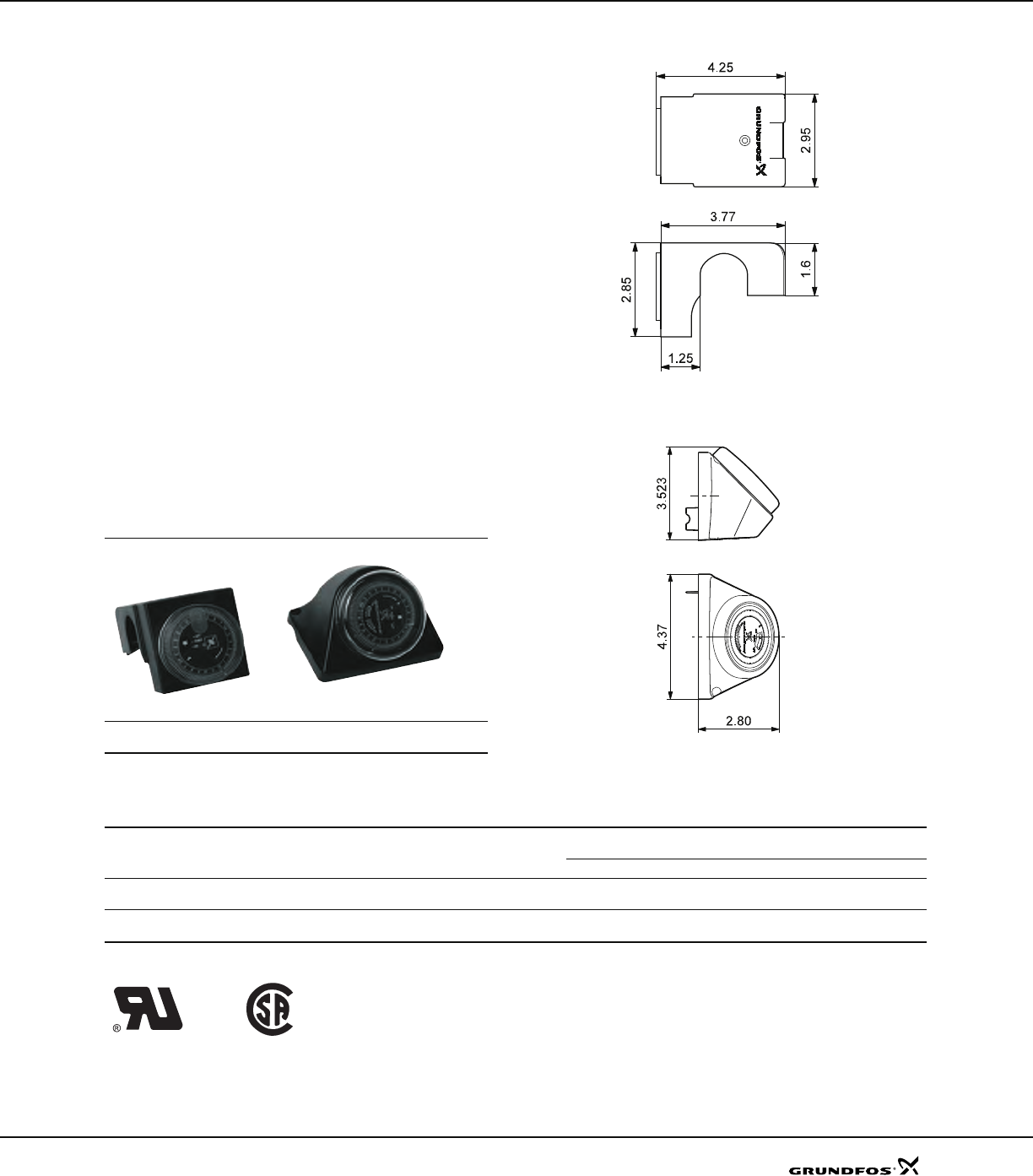

UP timer 71

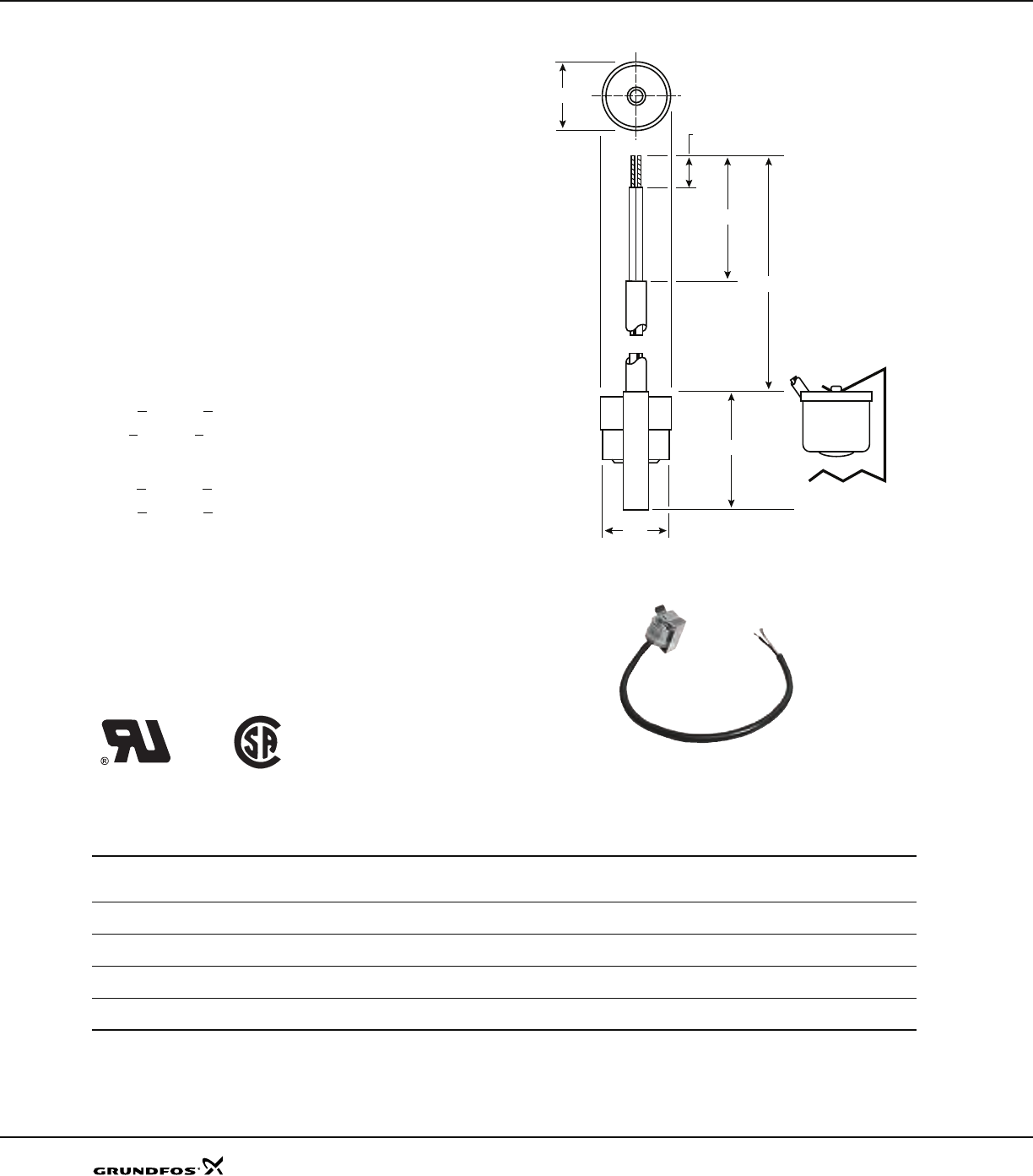

AquaStat 72

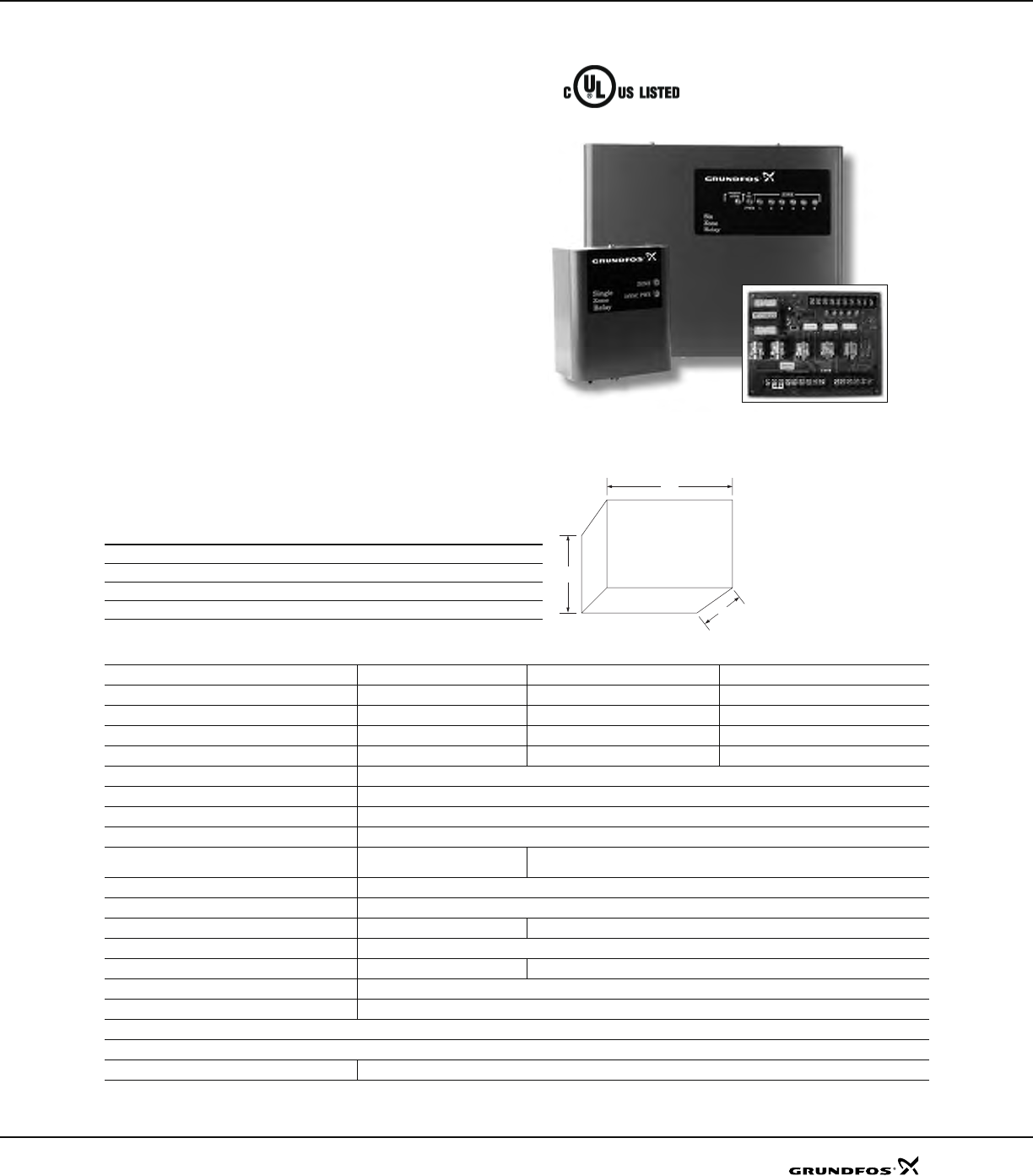

Pump Zone Controls 73

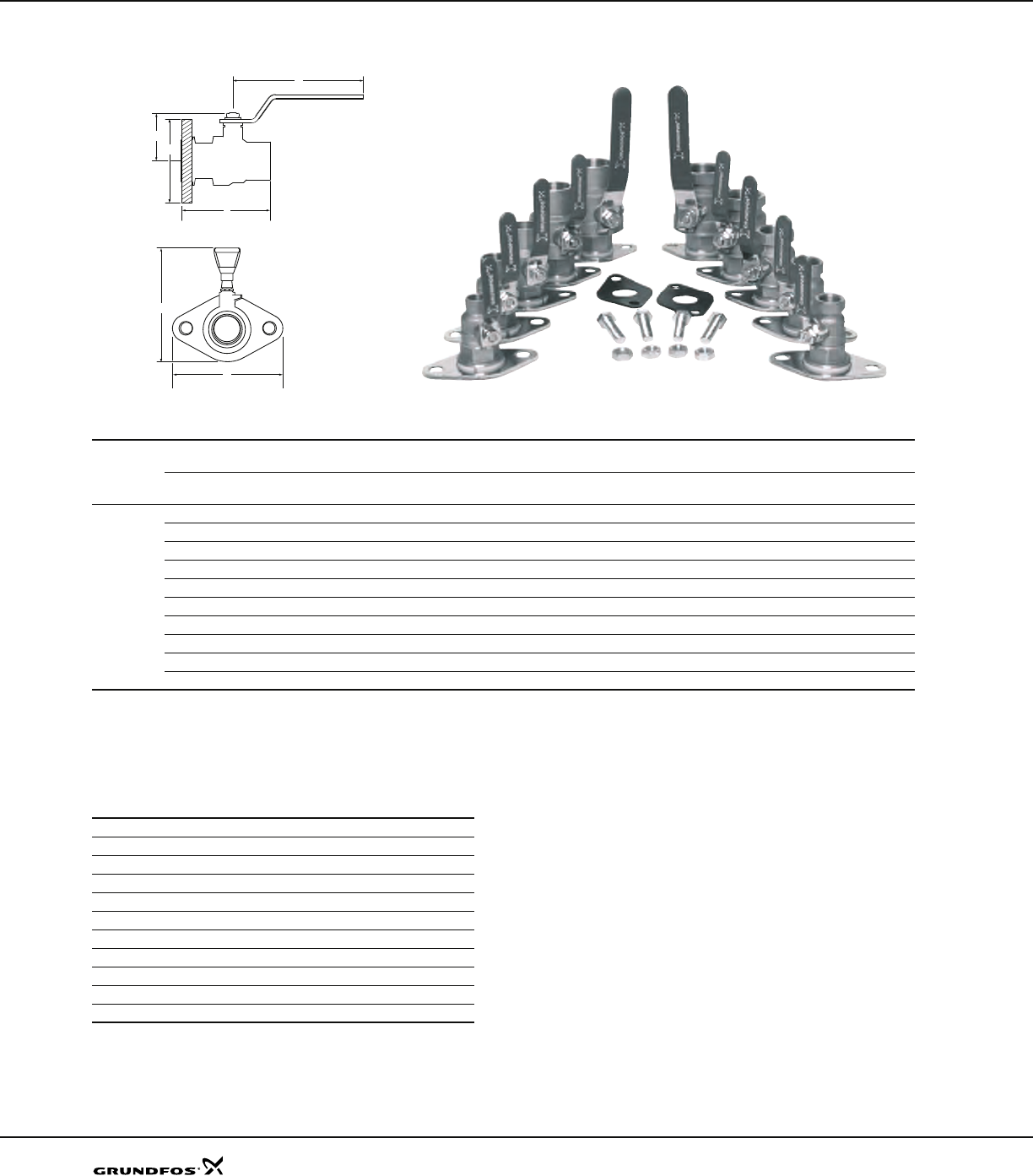

Packaged dielectric isolation valve sets 74

Packaged fitting sets 75

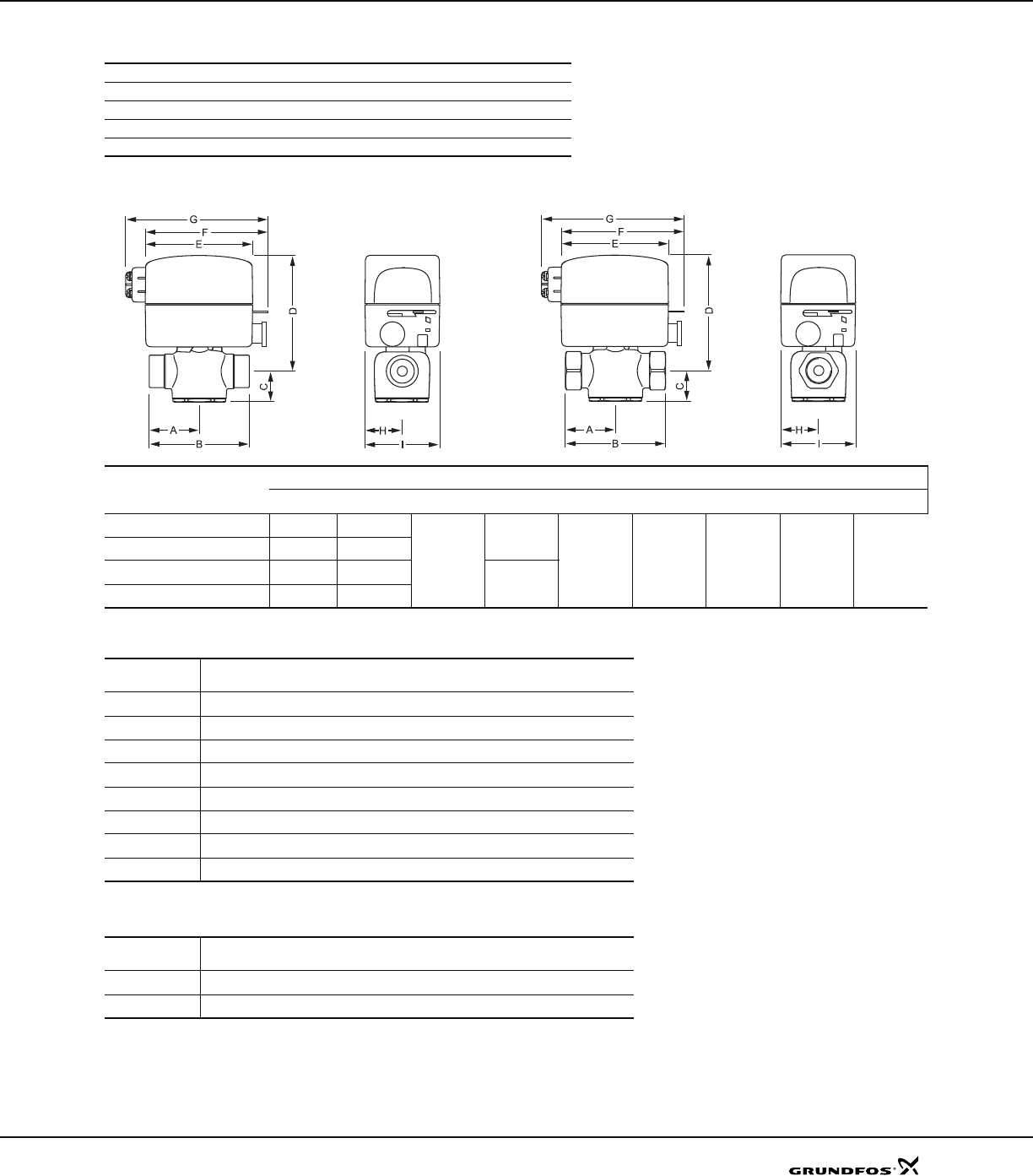

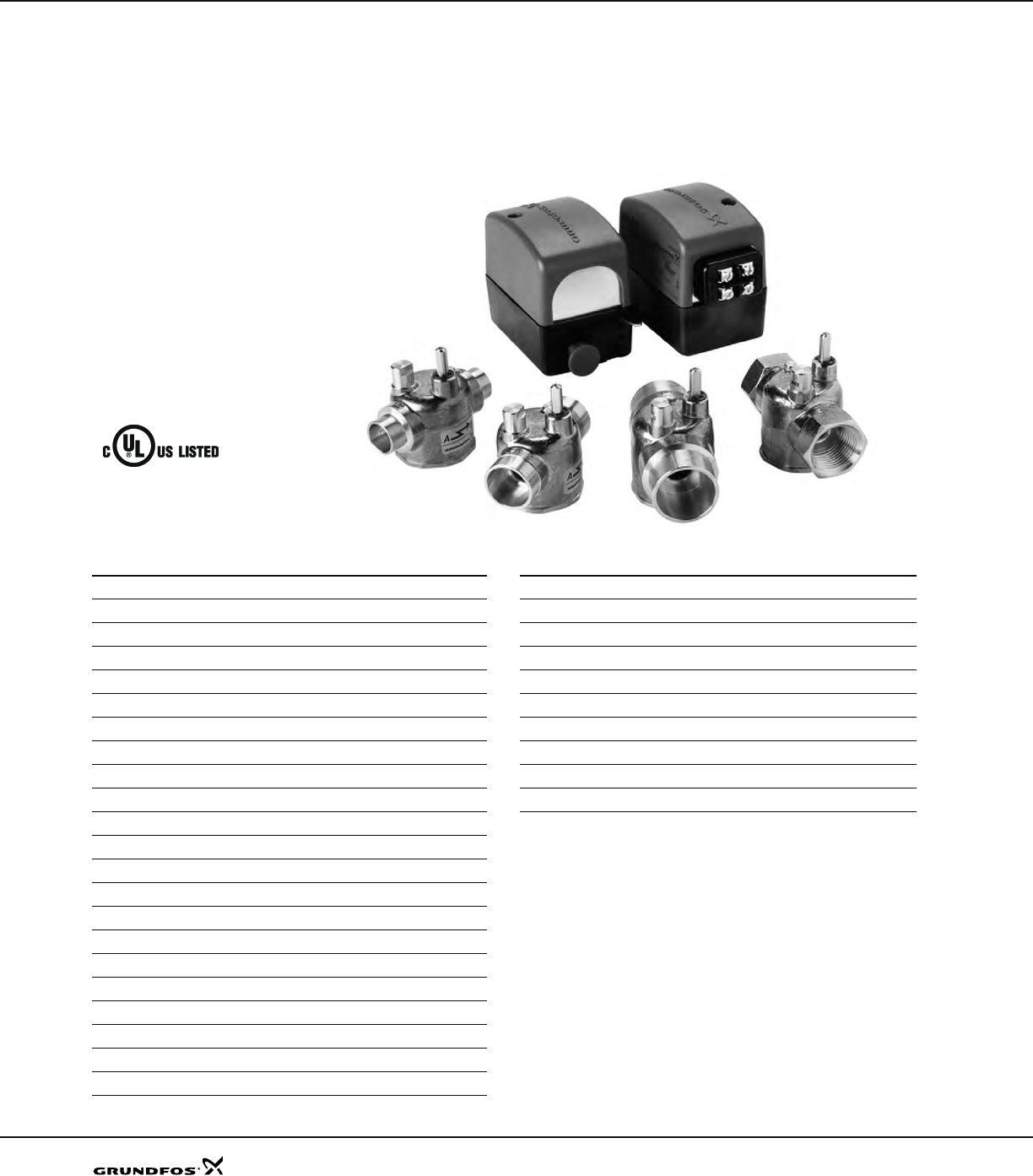

UP-ZV zone valves 76

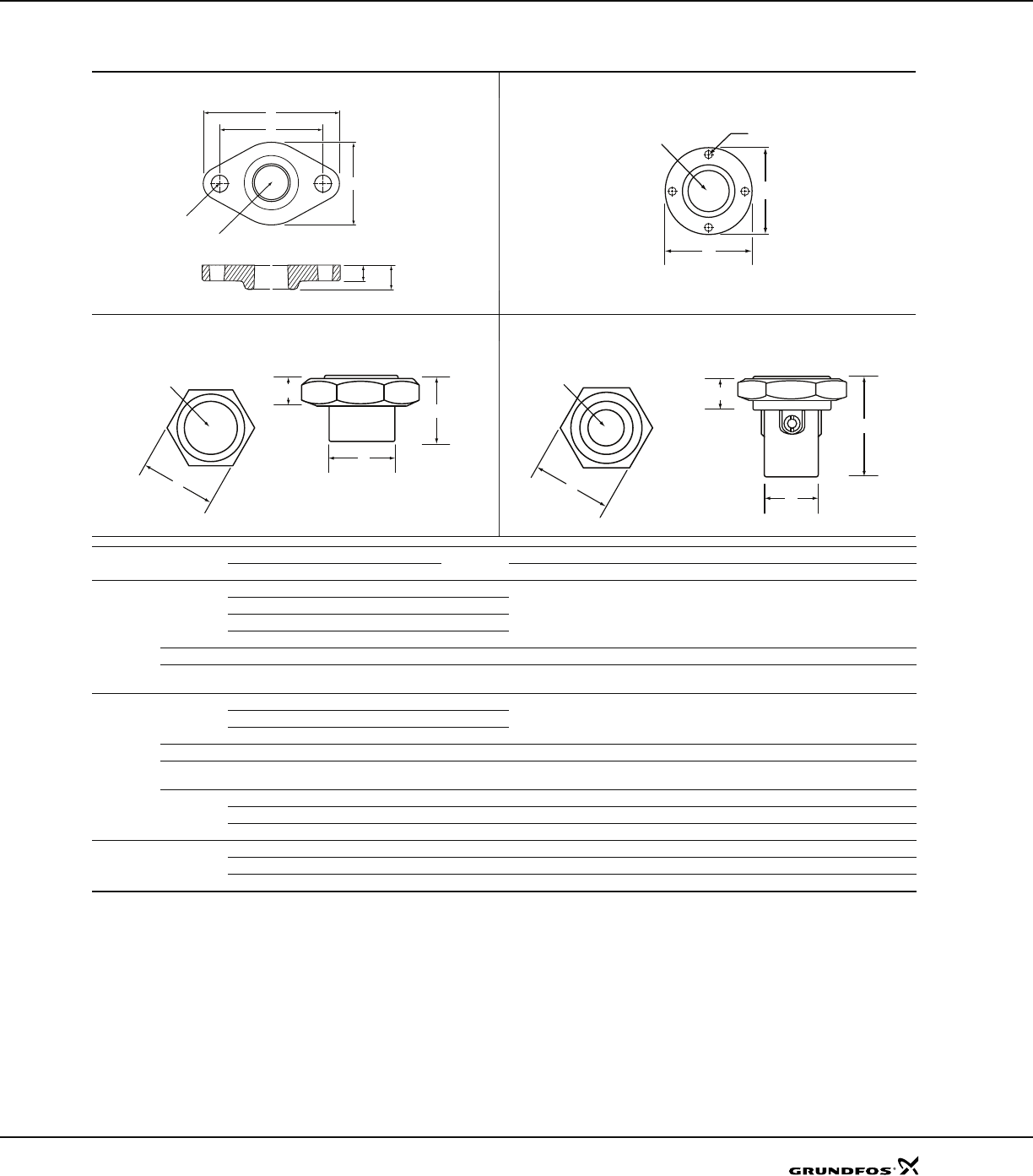

Replacement flange gaskets 78

Submittal data

Submittal data 79

Further product documentation

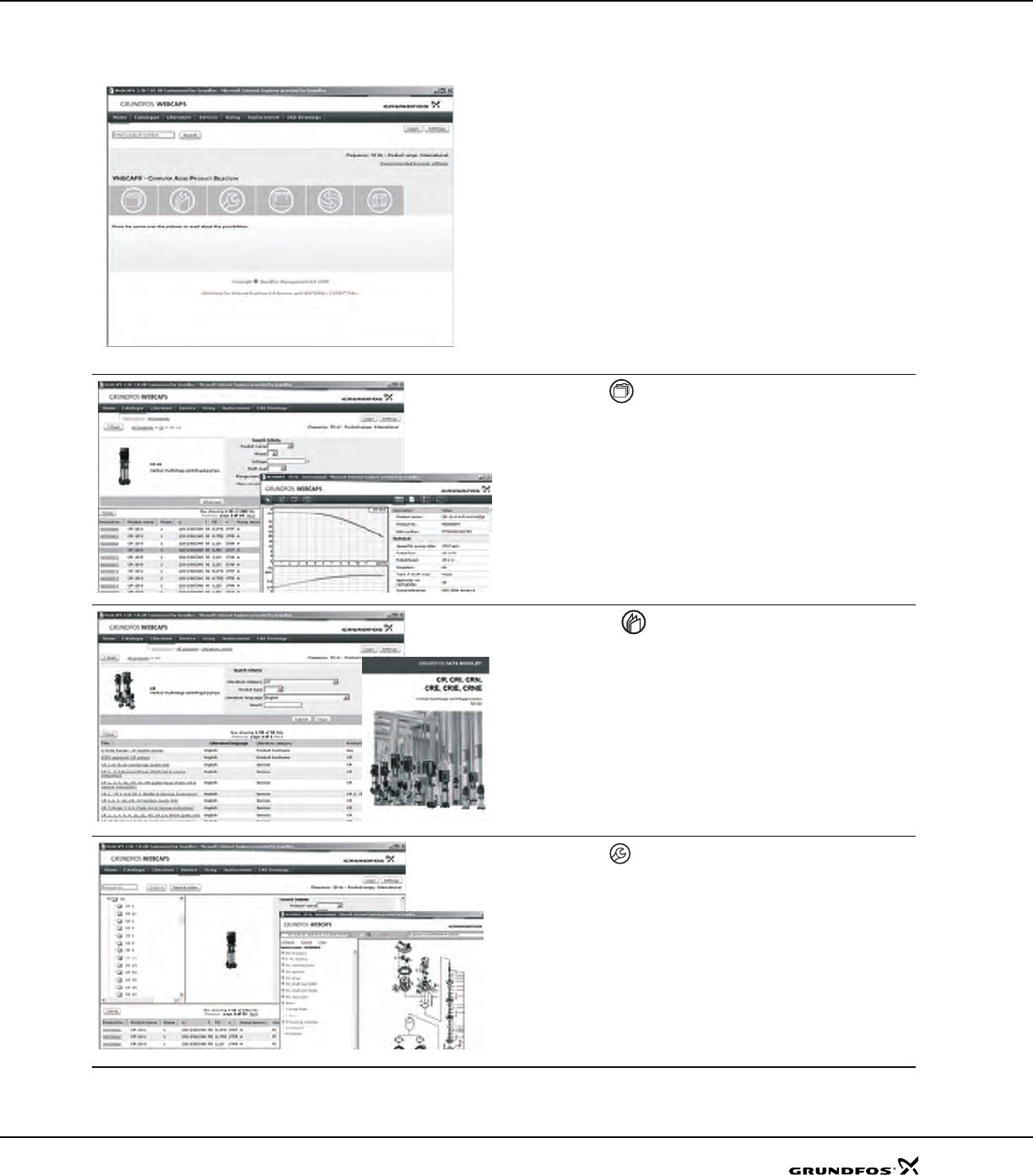

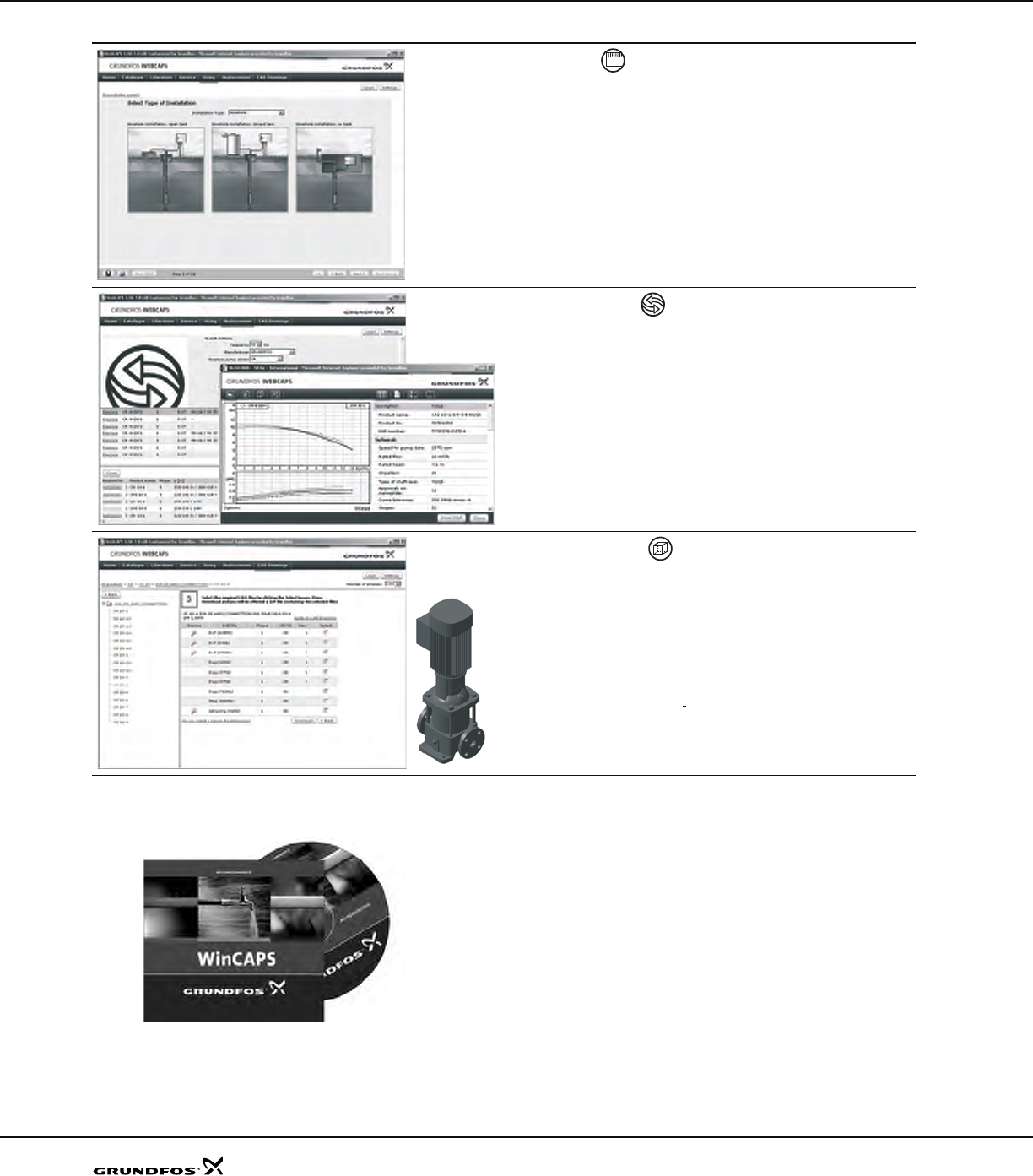

WebCAPS 81

WinCAPS 82

UP Series

Mission

It is our mission — the basis of our existence — to successfully develop, produce and sell high-quality pumps and

pumping systems world-wide, contributing to a better quality of life and a healthy environment

• World's leading pump company

• World's largest manufacturer of circulator pumps, covering more than 50% of the global market

• World headquarters in Denmark

• North American headquarters in Kansas City - Manufacturing in Fresno, California

• 82 companies in 45 countries

• More than 16 million motors and pumps produced annually worldwide

• North American companies operating in USA, Canada and Mexico

• Continuous reinvestment in growth and development enables the company to

BE responsible, THINK ahead, and INNOVATE

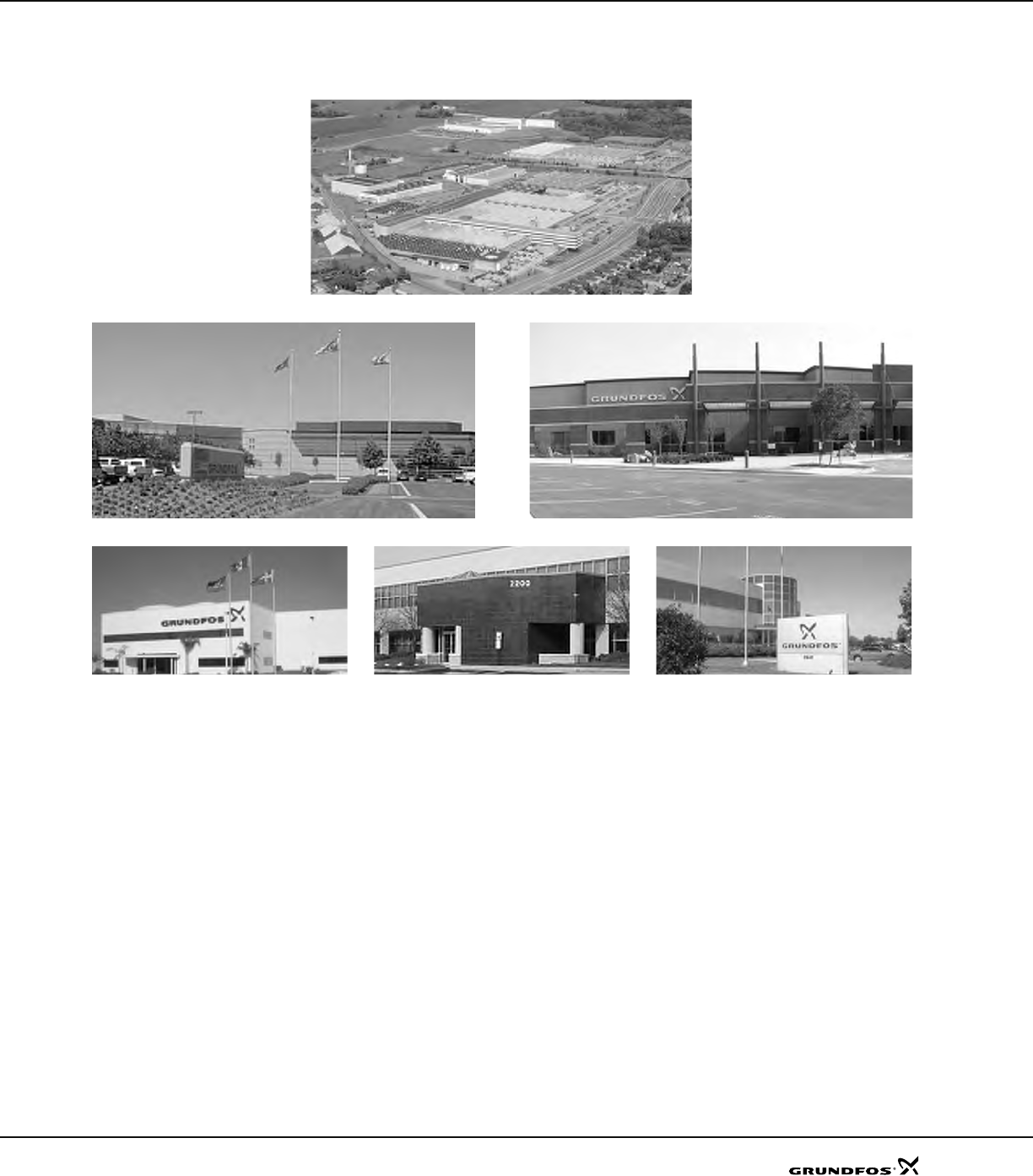

Bjerringbro, Denmark

Fresno, California Olathe, Kansas

Monterrey, Mexico Allentown, Pennsylvania Oakville, Ontario

UP Series

Cross reference

Quick cross reference for competitive 3-speed pumps

* Grundfos provides no guarantee as to the accuracy of competitor information listed herein.

Competitor cross-reference

Model Speed TACO* Bell & Gossett* Armstrong*

ALPHA 15-55 F/SF

UPS 15-58 FC/FRC

High 005F, 007F, 008F, 0010F-IFC,

00R-MSF1-IFC NRF-22, LR-20WR Astro 30, Astro 30-(3),

Astro 50-3, Astro 230CI

Med. 005F-(IFC), 007F-(IFC), 008F-(IFC),

0010F-IFC, 00R-IFC, 00R-MSF1-IFC NRF9F/LW, NRF-25 Sp-1 & 2 Astro 25, Astro 30-3

Low 005F-(IFC), 006F-(IFC),

00R-MSF1-IFC Astro 20

UPS 26-99 FC/BFC

High 0013(B)-IFC NRF-36 Sp-2, NRF-45 Sp-2,

H-41(B) E7(B), Astro 50(B)-(3)

Med. 0011(B)-(IFC), 0014(B)-(IFC) Series 100, PL-30, PR, NRF-36, Sp-1,

NRF-45 Sp-1 Astro 50(B), H41

Low — LR-15BWR Astro 30(B)

UPS 26-150 F/SF

High 1400-45(B), 1400-50(B) PL-55(B) E15(B)

Med. 0011(B, SF), 0013(B, SF), 1400-20(B),

1400-30(B), 1400-40(B) PL-36(B) E8(B), E9(B), E11(B),

E13(B)

Low — NRF(NBF)-36 Sp-2 & 3 E7(B), E10(B)

UPS 43-44 FC/BFC

High 0012(B, SF)-(IFC), 113(B) HV, H-32(B) E16(B)

Med. 0010(B, SF)-(IFC), 111(B) NRF-33 H32

Low 0010-MSF1-IFC, 110(B) — —

UPS 43-100 F/SF

High — H-51(B), H-52(B) E17(B)

Med. 1400-20(B), 1400-30(B), 1400-40(B),

1400-45(B) PL-45(B), PL-50(B), NRF(NBF)-45 Sp-2 &

3, NRF-36 Sp-2 & 3 E11(B), E15(B),E16(B)

Low — — 10(B), E13(B)

UPS 50-60 F/SF

High 1400-65 (B), 131(B) PL-130(B), E19(B), E29(B), S-35(B) E19(B), E28(B), E29(B),

E30(B)

Med. 1400-60(B), 121(B), 122(B), 131(B) PL-50(B), PL-75(B) —

Low 120(B) – E16(B)

UPS 15-35 SFC

High 005BF2-(IFC), 007(B, SF)-(IFC) NBF(SSF)-12F/LW SM-909-BF14, Astro 25B,

Astro 30(B) Sp-2

Med. — — Astro 20(B), Astro 30(B)-3

Sp-1 & 2

Low — — –

UPS 15-35 SUC

High — NBF(SSF)-12U/LW Astro 25BU, Astro 220,

225SSU

Med. 006BC4-1, 006B7-IFC NBF-9U/LW Astro 25BU, Astro 20,

25(BU)

Low 003-B4-2-IFC — —

UPS 15-35 SUC/TLC

High — — Astro 20, 25BU(LC, T),

Astro 25U-T

Med. — — Astro 25U-T

Low — — —

UPS 15-55 SFC

High — — Astro 30B-(3), Astro 230SS,

Astro 30(B), SM-909-BF14,

SM-909-BF18

Med. 005-(B, SF), 006-BF, 007-(B, SF)-

(IFC), 008-(B, SF)-(IFC), 00R-SF-IFC LR-15B, NBF(SSF)-22, NBF-25 Astro 30(B) Sp-2,

Astro 30(B)-3 Sp-1

Low — — Astro 30(B) Sp-1,

Astro 50(B) Sp-1

Cross reference UP Series

Reference for replacing ALPHA models

* Grundfos provides no guarantee as to the accuracy of competitor information listed herein.

Reference for replacing Comfort models

* Grundfos provides no guarantee as to the accuracy of competitor information listed herein.

Competitor cross-reference

Model Speed TACO* Bell & Gossett* Armstrong*

ALPHA 15-55 F/SF

High 005F, 007F, 008F, 0010F-IFC,00R-MSF1-IFC NRF-22, LR-20WR Astro 30, Astro 50-3

Med. 005F-(IFC), 007F-(IFC), 008F-(IFC), 0010F-IFC,

00R-IFC, 00R-MSF1-IFC NRF9F/LW, NRF-25 Sp-1 & 2 Astro 25, Astro 30-3

Low 005F-(IFC), 006F-(IFC), 00R-MSF1-IFC Astro 20

Competitor cross-reference

Comparable Grundfos replacement options (UP Comfort) TACO pumps* Laing pumps*

Pump type Page Connections Pump type Pump type

UP 10-16 B5/LC 29 1/2" sweat/cord 003-BC4-4PNP SM-303-BS,

UP 10-16 B5/TLC 29 1/2" sweat/cord/timer 003-BC4-PNP,

003-BT4-PNP SMT-303-BS, SMT-303-BSW

UP 10-16 B5/ATLC 29 1/2" sweat/stat/cord/timer SM-303-BSR, SM-303-BSW, SM303-BSRW,

SMT-303-BSR, SMT-303-BSRW

UP 10-16 BN5/LC 29 1/2" FNPT thread/cord SM-303-BT, SM-303-BTW,

UP 10-16 BN5/TLC 29 1/2" FNPT thread/cord/timer SMT-303-BT, SMT-303-BTW,

UP 10-16 BN5/ATLC 29 1/2" FNPT thread/stat/cord/timer 003-BT4-PNP (Plus Star) SM-303-BTR, SM-303-BTRW, SMT-303-BTR,

SMT-303-BTRW

Cross reference UP Series

Reference for replacing TACO models

Competitor cross-reference

Open systems: Stainless steel and bronze body pumps

Comparable Grundfos replacement options Taco pumps*

Primary model (s) Page

no. Conn.

type

Pump

length

[inches] Model Conn.

type

Pump

length

[inches]

UP 15-10 B5

1/2" sweat 5

003-BC4 1/2" sweat 4 13/32

UP 15-10 B5/LC 003-BC4-4PNP 1/2" sweat 4 1/4

UP 15-10 B5/TLC 003-BC4-PNP 1/2" sweat 4 1/4

UP 15-10 BUC5

003-BC4-1IFC Union 5 15/16

UP 15-10 BUC5/LC 003-BC4-7PNP 1/2" sweat 4 1/4

UP 15-10 BUC5/TLC 003-BC4-3PNP 1/2" sweat 4 1/4

UP 15-10 B7

3/4" sweat 6 3/8

003-B4, 003-ST4

3/4" sweat 4 13/32

UP 15-10 B7/LC 003-B4-1PNP

UP 15-10 B7/TLC 003-B4-PNP

UP 15-10 BUC7

003-BC4-IFC

UP 15-10 BUC7/LC 003-BC4-6PNP

UP 15-10 BUC7/TLC 003-BC4-2PNP

UP 15-18 B5

34 1/2" sweat 5

006-BC4, 006-ST4

1/2" sweat 4 1/4

UP 15-18 B5/LC 006-BC4-2PNP

UP 15-18 B5/LC 006-BC4-PNP

UP 15-18 BUC5 35 006-BC7-1IFC

UP 15-18 B7

34 3/4" sweat 6 3/8

006-B4

3/4" sweat 4 13/32

UP 15-18 B7/LC 006-B4-1PNP

UP 15-18 B7/TLC 006-B4-PNP

UP 15-18 BUC7 35 006-BC7-IFC

UP 15-29 SF

Flange 6 1/2 007-SF5 Flange 6 3/8

UP 15-29 SU

1 1/4" U 5 7/8

006-BC4-1

Union 5 15/32UP 15-29 SU/LC 006-BC4-3PNP

UP 15-29 SUC/TLC 003-BC4-1PNP

UP 15-42 B7 39 3/4" sweat 6 3/8 008-BC6 3/4" sweat 6 3/8

UP 15-42 BUC7 40 008-BC6-IFC

UPS 15-55 SUC 47 1 1/4" U 5 7/8 003-BC-1 Union 6

UPS 15-55 SFC 47 Flange 6 1/2

005-BF2 Flng-R

6 3/8

007-BF5 Flng-R

005-SF2, 005-SFC-IFC, 007-BF5,

007-BF-IFC, 007-SF5, 007-SF5-IFC,

008-BF-IFC, 008-SF6, 008-SF-IFC Flange

008-BF6 Flng-R

UP 26-99 BF 56 Flange 6 1/2 0011-BF4, 0011-SF4, 0011-SF4--IFC,

0014-BFI, 0014-BF-IFC, 0014-SF1,

0014-SF-IFC Flange 6 1/2

UPS 26-99 BFC 57

UP 26-116 BF (230V) 58 Flange 6 1/2 0013-BF3, 0013-BF-IFC, 0013-SF3,

0013-SF-IFC Flange 6 1/2

UPS 26-150 SF 60

UP 43-44 BF 61

Flange 8 1/2

0012-BF4 Flange 8 1/2

UPS 43-44 BFC 62

0010-BF2, 0010-BF-IFC, 0010-SF3,

0010-SF3-IFC Flange 6 3/8

0012-BF-IFC, 0012-SF4, 0012-SF-IFC Flange 8 1/2

Cross reference UP Series

Reference for replacing TACO models (continued)

* Grundfos provides no guarantee as to the accuracy of competitor information listed herein.

UPS 26-99 BFC 57 Flange 6 1/2 1400-10B Flange 6 3/8

UPS 26-150 SF 60 Flange 6 1/2 1400-20B, 1400-30B, 1400-40B,

1400-45B, 1400-50B Flange 6 3/8

UPS 43-100 SF 65 Flange 8 1/2 1400-60B Flange 8 1/2

UPS 50-60 SF 68 Flange 8 1/2 1400-65B Flange 8 1/2

UPS 43-44 BFC 62 Flange 8 1/2

110B

Flange

6 5/16

111B 8 3/4

113B 8 1/2

UPS 43-100 SF 65 Flange 8 1/2 112B, Flange 6 3/8

UPS 50-60 SF 68 Flange 8 1/2

120B Flange 11

121B, 122B Flng-R 11 1/8

131B, 132B 13 5/8

Closed systems: Cast iron body pumps

UP 15-42 FC/MR 44 Flange 6 1/2 008-VDTF6 Flange 6 3/8

UPS 15-58 FC 50 Flange 6 1/2 005-F2, 005-F2-2IFC Flange 6 3/8

UP 15-10 FR 32

Flng-R 6 1/2

006-F4

Flng-R 6 3/8

UPS 15-58 FRC 50 006-F4-IFC

007-F5-8IFC, 008-F6-1IFC

UPS 15-58 FC 50 Flange 6 1/2 00R-MSF1-IFC, 007-F5, 008-F6 Flange 6 3/8

UP 15-100 F 51 Flange 6 1/2 009-F5 Flng-R 6 3/8

UP 26-64 F 52

Flange 6 1/2

0014-F

Flng-R 6 1/2UPS 26-99 FC 57 0014-F

UP 26-116 F (230 V) 58 0013-F

UPS 26-150 F 60 Flange 6 1/2 0011-F4, 0011-F4-2IFC, 0013-F3,

0013-F3-1IFC, 0014-F1,0014-F1-IFC Flng-R 6 1/2

UPS 43-44 FC 62 Flange 8 1/2 0010-F3, 0010-F3-IFC, 0012-F4,

0012-F4-IFC Flange 6 3/8, 8 1/2

UPS 26-99 FC 57

Flange 6 1/2

1400-10

Flange 6 3/8

UPS 26-150 F 60 1400-20,1400-30, 1400-40, 1400-45,

1400-50

UPS 43-100 F 65 Flange 8 1/2 1400-60 Flange 8 1/2

UPS 50-60 F 68 Flange 8 1/2 1400-65 Flange 8 1/2

UPS 43-44 FC 62 Flange 8 1/2

110

Flange

6 5/16

111 8 3/4

113 8 1/2

UPS 43-100 F 65 Flange 8 1/2 112 Flange 6 3/8

UPS 50-60 F 68 Flange 8 1/2

120 Flange 11

121, 122 Flng-R 11 1/8

131, 132 13 5/8

Cross reference UP Series

Reference for replacing Bell & Gossett models

* Grundfos provides no guarantee as to the accuracy of competitor information listed herein.

Competitor cross-reference

Open systems: Stainless steel and bronze body pumps

Grundfos Bell & Gossett*

Primary model(s) Page Conn. type Pump length

[inches] Model Conn. type Pump length

[inches]

UP 15-10 B5 30 1/2" sweat 5 NBF-8S/LW 1/2" sweat 5

UP 15-29 SU 36 1 1/4" U 5 7/8 NBF-9U/LW 3/4"NPT,

1/2 & 3/4" sweat 6 1/8

UP 15-18 B5 34 1/2" sweat 5 NBF-10S/LW 1/2" sweat 5

UPS 15-35 SUC 38 1 1/4" U 5 7/8 NBF-9U/LW, NBF-12U/LW, SSF-12U/LW 1 1/4" U 6 1/8

UPS 15-35 SUC/TLC 38 1 1/4" U 5 7/8 NBF-9U/TP, SSF-19U/TP 3/4"NPT,

1/2 & 3/4" sweat 6 1/8

UPS 15-35 SFC 38 Flange 6 1/2 NBF-12F/LW, SSF-12F/LW Flng-R 6 3/8

UP 15-42 B5 39 1/2" sweat 5 NBF-18S 1/2" sweat 5

UPS 15-55 SUC 47 1 1/4" U 5 7/8 NBF-22U, SSF-22U, NBF-18SU 3/4"NPT,

1/2 & 3/4" sweat 6 1/8

UPS 15-55 SFC 47 Flange 6 1/2 NBF-22, NSF-22 Flng-R 6 3/8

LR-15B, NBF-25 Flange 6 3/8

UP 26-96 BF 54 Flange 6 1/2 Series PR B Flng-R 8 1/2

PL-30B Flange 6 3/8

UPS 26-99 BF 56 Flange 6 1/2

Series PR B Flng-R 8 1/2

PL-30B, LR-15BWR, NBF-36 Sp-1 & 2,

NBF-45 Sp-1, Series 100 Flange 6 3/8

UP 26-116BF (230 V) 58 Flange 6 1/2 PL-36B Flange 6 1/2

UPS 26-150SF 60 Flange 6 1/2 PL-36B, PL-55B, NBF-36 Sp-2 & 3, NBF-45 Flange 6 3/8, 8 1/2

UP 43-44 BF 61 Flange 8 1/2 Series HV B Flng-R 8 1/2

UPS 43-44 BF 62 Flange 8 1/2 LR-15BWR, NBF-33 6 3/8

UPS 43-100 SF 65 Flange 8 1/2 PL-45B, PL-50B, NBF-36 Sp-2 & 3,

NRF(NBF)-45 Sp-2 & 3 Flange 8 1/2

UPS 50-60 SF 68 Flange 8 1/2 PL-50B, PL-75B, PL-130B Flange 8 1/2

Closed systems: Cast iron body pumps

UP 15-10 FR 32 Flng-R 6 1/2

NRF-9F/LW Flng-R 6 3/8UP 15-42 FR 42 Flng-R 6 1/2

UPS 15-58 FRC 50 Flng-R 6 1/2

UP 15-42 FR 42 Flng-R 6 1/2 NRF-22 Flng-R 6 3/8

UPS 15-58 FRC 50 Flng-R 6 1/2

UP 15-42 F 42 Flange 6 1/2 NRF-22, LW020WR,

NRF9F/LW NRF-25 Sp-1 & 2 Flange 6 3/8UPS 15-42 F 43 Flange 6 1/2

UPS 15-58 FC 50 Flange 6 1/2

UP 26-64 F 52 Flange 6 1/2 Series PR Flng-R 8 1/2

UP 26-64 F 52 Flange 6 1/2 PL-30 Flange 6 3/8

UPS 26-99 FC 57 Flange 6 1/2 Series 100, PL-30, PR, NRF-36 Sp-1 & 2,

NRF-45 Sp-1 & 2, LR-20WR Flange

UP 26-116 F (230 V) 58 Flange 6 1/2 PL-36 Flange 6 3/8

UPS 26-150 F 60 Flange 6 1/2 PL-36, PL-55, NRF-36 Sp-2 & 3, NRF-45 Flange 6 3/8

UP 43-44 F 61 Flange 8 1/2 Series HV, NRF-33 Flng-R 8 1/2

UPS 43-44 FC 62 Flange 8 1/2 LR-20WR, NRF-33, Series HV Flange 6 3/8

UPS 43-100 F 65 Flange 8 1/2 PL-45, PL-50, NRF-36 Sp-2 & 3,

NRF-45 Sp-2 & 3 Flange 8 1/2

UPS 50-44 F 67 2" Flng 8 1/2 2", PL-75 2" Flng-R, Flng 8 1/2

UPS 50-60 F 68 Flange 8 1/2 PL-50, PL-75, PL-130 Flange 8 1/2

Cross reference UP Series

Reference for replacing Laing models

* Grundfos provides no guarantee as to the accuracy of competitor information listed herein.

Competitor cross-reference

Open systems: Stainless steel and bronze body pumps

Comparable Grundfos replacement options Laing pumps*

Model(s) Page Conn. type Pump length

[inches] Model Conn. type Pump length

[inches]

UP 15-18 B5

34 1/2" sweat 5

SM-909-BS-1/2-14

1/2" sweat 6

UP 15-18 B5/LC SM-909-BSW-1/2-14

UP 15-18 B5/TLC SMT-909-BS-1/2-14,

SMT-909-BSW-1/2-14

UP 15-18 B7 34 3/4" sweat 6 3/8 SM-909-BS 3/4-14

3/4" sweat 6

UP 15-18 B7/LC SM-909-BSW 3/4-14

UP 15-18 B7/TLC 34 3/4" sweat 6 3/8 SMT-909-BS 3/4-14,

SMT-909-BSW-3/4-14

UPS 15-35 SFC 38 Flange 6 1/2 SM-909-BF14 Flange 6 1/2

UPS 15-55 SFC 47 Flange 6 1/2 SM-909-BF14, SM-909-BF18 Flange 6 1/2

Cross reference UP Series

Reference for replacing Armstrong models

* Armstrong pump information taken from literature on Armstrong website August 2002.

Grundfos provides no guarantee as to the accuracy of competitor information listed herein.

Competitor cross-reference

Open systems: Stainless steel and bronze body pumps

Comparable Grundfos replacement options Armstrong pumps*

Primary model(s) Page Conn. type Pump length

[inches] Model Conn. type Pump

length

UP 15-10 B5

1/2" sweat 5 Astro 20B050S 1/2" sweat 5

UP 15-10 B5/LC 1/2" sweat 5 Astro 20B050S-LC 1/2" sweat 5

UP 15-10 B5/TLC 1/2" sweat 5 Astro 20B050S-T 1/2" sweat 5

UP 15-10 B7

3/4" sweat 6 3/8 Astro 20B075S 3/4" sweat 5

UP 15-10 B7/LC 3/4" sweat 6 3/8 Astro 20B075S-LC 3/4" sweat 5

UP 15-10 B7/TLC 3/4" sweat 6 3/8 Astro 20B075S-T 3/4" sweat 5

UPS 15-35 SUC 38 Union 5 7/8 Astro 20BU, Astro 25BU, Astro 220SSU,

Astro 225SSU 1 1/4" U 6

UPS 15-35 SUC/TLC 38 Union 5 7/8 Astro 20BU, Astro 25BU, Astro 20BU-LC,

Astro 20BU-T 1 1/4" U 6

UPS 15-35 SFC 38 Flange 6 1/2 Astro 25BF Flange 6 3/8

UPS 15-55 SFC 47 Flange 6 1/2 Astro 30B, Astro 30B-3, Astro 230SS Flange 6 3/8

UP 26-96 BF 54 Flange 6 1/2 E7B Flange 6 3/8

UPS 26-99 BFC 57 Flange 6 1/2 E7B, Astro 50B, Astro 50B-3 Flange 6 3/8

H-41B 8 1/2

UPS 26-150 SF 60 Flange 6 1/2 E8B Flange 6 3/8

E10B, E11B, E13B, E15B 8 1/2

UPS 43-44 BFC 62 Flange 8 1/2 E16B, H-32B Flange 8 1/2

S-25B 6 1/2

UPS 43-100 SF 65 Flange 8 1/2 E17B Flange 8 1/2

H-51B, H-52B 11 1/2

UPS 50-60 SF 68 Flange 8 1/2 E19B, E28B, E29B, E30B, S-35B Flange 8 1/2

Closed systems: Cast iron body pumps

UP 15-10 F 32 Flange 6 1/2 Astro 20F Flange 6 3/8

UPS 15-58 FRC 50 Flange 6 1/2 Astro 230CI-R Flange 6 3/8

UPS 15-58 FC 50 Flange 6 1/2 Astro 30, Astro 30-3, Astro 230CI Flange 6 3/8

UPS 26-99 FC 57 Flange 6 1/2 E7, Astro 50, Astro 50-3 Flange 6 3/8

H-41 8 1/2

UPS 26-150 F 60 Flange 6 1/2 E8 Flange 6 3/8

E10, E11, E13, E15 8 1/2

UPS 43-44 FC 62 Flange 8 1/2 E16, H-32 Flange 8 1/2

S-25 6 1/2

UPS 43-100 F 65 Flange 8 1/2 E17 Flange 8 1/2

H-51, H-52 11 1/2

UPS 50-60 F 68 Flange 8 1/2 E19, E28, E29, E30, S-35 Flange 8 1/2

Cross reference UP Series

Discontinued products

The table shows which new products replace

discontinued products.

Stainless steel, flanged 115 V

Old model Product number New model Product number

UP 15-18SF 59896125 UP 15-29SF 59896771

UP 15-42SF 59896171 UPS 15-35SFC 59896772

UPS 15-42SF 59896247 UPS 15-55SFC 59896773

UP 25-64SF 52722322

Stainless steel, union 115 V

UP 15-18SU 59896127 UP 15-29SU 59896775

UP 15-18SU/LC 59896231 UP 15-29SU/LC 59896776

UP 15-18SU/TLC 59896232 UP 15-29SU/TLC 59896777

UP 15-42SU 59896174

UPS 15-35SUC 59896778

UPS 15-35SUC/LC 59896779

UPS 15-35SUC/TLC 59896780

UPS 15-42SU, UP 25-64 SU 59896130, 52722322

UPS 15-55SUC 59896781

UPS 15-55SUC/LC 59896782

UPS 15-55SUC/TLC 59896783

Stainless steel, union 230 V

UP 15-18SU 59896130 UP 15-29SU 59896784

UP 15-42SU 59896172 UP 15-35SUC 59896785

UP 25-64SU 52722323 UP 15-55SUC 59896786

UP Series

Performance ranges

3-speed

TM04 5461TM04 5460

Performance ranges UP Series

3-speed stainless steel

Comfort Pump

Note: a. UP 10-16 B5 b. UP 10-16 BN5

TM04 5462TM03 8851 2807

0.0 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2 3.6 4.0

Q[GPM]

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

[ft]

a. UP 10-16 B5

b. UP 10-16 BN5

Performance ranges UP Series

Closed systems

Open systems

TM03 9128 3407

0 4 812 16 20 24 28 323640 44

Q [US GPM]

[ft]

1. UP 26-116 F

2. UP 26-99 F

3. UP 43-75 F

4. UP 26-96 F

5. UP 26-64 F

6. UP 15-42 F

7. UP 15-10 F/FR

8. UP 15-100 F

9. UP 26-120 U

TM03 9129 3507

04812 16 20 24 28 323640 44 4852 56 60 64

Q [US GPM]

[ft]

10. UP 26-99 BF

11. UP 43-75 BF

12. UP 26-96 BF

13. UPS 15-55 SU/SF

14. UPS 15-35 SU/SF

15. UP 15-29 SU/SF

16. UPS 26-99 BFC

17. UPS 43-44 BFC

1312

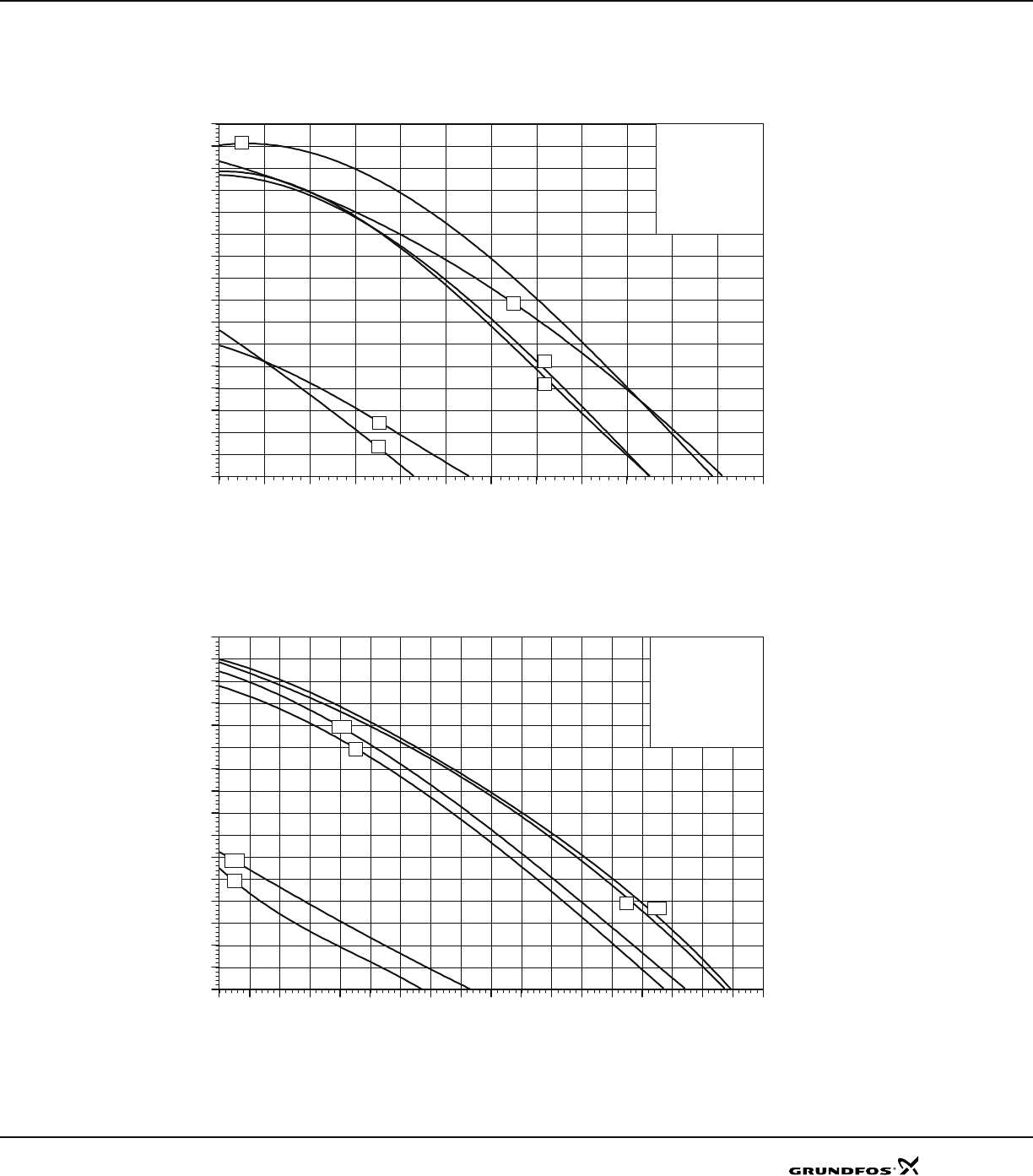

Performance ranges UP Series

Open systems 1/2"

Open systems 3/4"

TM03 9131 3507

01234 5 6 7 8910 11 12

Q [US GPM]

[ft]

1. UP 15-42 B5

2. UP 15-18 B5

3. UP 15-10 B5

4. UP 15-42 BUC5

5. UP 15-18 BUC5

6. UP 15-10 BUC5

TM03 9132 3507

0 1 2 34 5 6 7 8910 11 12 1314 15 16 17 18

Q [US GPM]

[ft]

7. UP 15-42 B7

8. UP 15-18 B7

9. UP 15-10 B7

10. UP 15-42 BUC7

11. UP 15-18 BUC7

12. UP 15-10 BUC7

UP Series

Product range

Cast iron

* Note: VS - variable speed, MR - MixiMizer, SU7P

Closed systems Product number Flow

[gpm]

Head

[ft]Flanged Union NPT Sweat Check valve Page

115 V 230 V

UP 15-10 F 59896248 - 0-8 0-5 z32

UP 15-10 FR 59896249 - 0-8 0-5 z32

UP 15-42 FC/MR* 59896804 - 0-16 0-14 zz44

UP 15-42 F 59896155 59896173 0-17 0-15 z42

UP 15-42 FR 59896167 59896274 0-17 0-15 z42

UP 15-42 F/VS* 59896807 - 0-16 0-15 z45

UPS 15-42 F - 59896180 0-17 0-16 z43

UPS 15-58 FC 59896341 - 0-17 0-19 zz50

UPS 15-58 FRC 59896343 - 0-17 0-19 zz50

UP 15-100 F 59896300 - 0-8.5 0-33 z51

UP 26-64 F 52722330 52722327 0-32 0-24 z52

UP 26-64 F/VS* 52722553 - 0-34 0-24 z53

UP 26-96 F 52722341 52722338 0-27 0-30 z54

UP 26-96 F/VS* 52722552 - 0-32 0-30 z55

UP 26-99 F 52722355 52722351 0-34 0-32 z56

UPS 26-99 FC 52722512 52722513 zz57

UP 26-116 F - 52722377 0-38 0-37 z58

UP 26-120 U 52722435 52722436 0-19 0-38 z59

UPS 26-150 F 95906630 95906631 0-51 0-45 z60

UP 43-44 F 52722437 52722438 0-64 0-13 z61

UPS 43-44 FC 52722514 52722515 zz62

UP 43-70 F 96439644 - 15-85 1-24 z63

UP 43-75 F 52722373 52722372 0-40 0-26 z64

UPS 43-100 F 95906636 95906637 0-65 0-31 z65

UP 43-110 F 96439643 - 0-90 1-37 z66

UPS 50-44 F 52722557 52722558 0-65 0-14 z67

UPS 50-60 F 97523134 97523135 0-125 0-21 z68

UP 50-75 F 52722352 52722353 0-40 0-25 z69

Product range UP Series

Bronze

* Note: MR - MixiMizer

Open systems Product number Flow

[gpm]

Head

[ft]Flanged Union NPT Sweat Check

valve Timer Line

cord Aqua

Stat Page

115 V 230 V

UP 10-16 B5/LC 96433894 - 0-3 0-5 z29

UP 10-16 B5/TLC 96433895 - 0-3 0-5 zzz29

UP 10-16 B5/ATLC 96433896 - 0-3 0-5 zzzz29

UP 10-16 BN5/LC 96433897 - 0-3 0-5 zz29

UP 10-16 BN5/TLC 96433898 - 0-3 0-5 zzz29

UP 10-16 BN5/ATLC 96433899 - 0-3 0-5 zzzz29

UP 10-16 BU/ATLC 96433902 - 0-3 0-5 zzzzz29

UP 15-10 B5 59896213 - 0-9 0-6 z30

UP 15-10 B5/LC 59896214 - 0-9 0-6 zz30

UP 15-10 B5/TLC 59896215 - 0-9 0-6 zzz30

UP 15-10 B7 59896226 - 0-9 0-6 z30

UP 15-10 B7/LC 59896209 - 0-9 0-6 zz30

UP 15-10 B7/TLC 59896210 - 0-9 0-6 zzz30

UP 15-10 BUC5 59896225 - 0-9 0-6 zz 31

UP 15-10 BUC5/LC 59896237 - 0-9 0-6 zzz31

UP 15-10 BUC5/TLC 59896238 - 0-9 0-6 zzzz31

UP 15-10 BUC7 59896241 - 0-9 0-6 zz 31

UP 15-10 BUC7/LC 59896239 - 0-9 0-6 zzz31

UP 15-10 BUC7/TLC 59896240 - 0-9 0-6 zzzz31

UP 15-18 B5 59896114 59896118 0-15 0-14 z34

UP 15-18 B5/LC 59896211 - 0-15 0-14 zz34

UP 15-18 B5/TLC 59896212 - 0-15 0-14 zzz34

UP 15-18 B7 59896121 59896119 0-15 0-14 z34

UP 15-18 B7/LC 59896229 - 0-15 0-14 zz34

UP 15-18 B7/TLC 59896230 - 0-15 0-14 zzz34

UP 15-18 BUC5 59896123 - 0-12 0-16 zz 35

UP 15-18 BUC7 59896124 - 0-12 0-16 zz 35

UP 15-42 B5 59896145 59896142 0-17 0-15 z39

UP 15-42 B5/LC 59896233 - 0-17 0-15 zz39

UP 15-42 B5/TLC 59896234 - 0-17 0-15 zzz39

UP 15-42 B7 59896146 59896149 0-17 0-15 z39

UP 15-42 B7/LC 59896235 - 0-17 0-15 zz39

UP 15-42 B7/TLC 59896236 - 0-17 0-15 zzz39

UP 15-42 BUC5 59896150 - 0-16 0-15 zz 40

UP 15-42 BUC7 59896151 - 0-16 0-15 zz 40

UP 15-42 BUC5/MR* 59896805 - 0-8 0-14 zz 41

UP 15-42 BUC7/MR* 59896806 - 0-14 0-15 zz 41

UP 26-96 BF 52722336 52722334 0-27 0-30 z54

UP 26-99 BF 52722347 52722346 0-34 0-32 z56

UPS 26-99 BFC 52722518 52722519 0-33 0-29 zz57

UP 26-116 BF - 52722393 0-38 0-37 z58

UP 43-44 BF 52722439 52722440 0-64 0-13 z61

UPS 43-44 BFC 52722520 52722521 0-63 0-13 zz62

UP 43-75 BF 52722370 52722369 0-45 0-26 z64

Product range UP Series

Stainless steel

* Note: Comfort system with 3/4" MXF NPT

Open systems Product number Flow

[gpm]

Head

[ft]Flanged Union NPT Sweat Check

valve Timer Line

cord Page

115 V 230 V

UP 15-10 SU7P/TLC* 595916 - 0-3 0-3 zz z z 33

UP 15-29 SF 59896771 - 0-22 0-10 z36

UP 15-29 SU 59896775 59896784 0-22 0-10 z36

UP 15-29 SU/LC 59896776 - 0-22 0-10 zz36

UP 15-29 SUC/TLC 59896777 - 0-22 0-10 zzzz36

UP 15-35 SUC - 59896785 0-22 0-12 zz 37

UPS 15-35 SFC 59896772 - 0-22 0-12 zz38

UPS 15-35 SUC 59896778 - 0-22 0-12 zz 38

UP 15-35 SUC/TLC 59896780 - 0-22 0-12 zzzz38

UP 15-55 SUC - 59896786 0-25 0-18 zz 46

UPS 15-55 SFC 59896773 - 0-25 0-18 zz47

UPS 15-55 SUC 59896781 - 0-25 0-18 zz 47

UPS 15-55 SUC/TLC 59896783 - 0-25 0-18 zzzz47

UPS 26-150 SF 95906632 95906633 0-51 0-47 z60

UPS 43-100 SF 95906638 95906639 0-68 0-33 z65

UPS 50-60 SF 97523136 97523137 0-125 0-21 z68

UP Series

Identification

Type key

Example UP S 15 -58 () F C /

Circulator pump

S: 3 speed

10: Comfort series

15: Small stator UP

25, 26, 43, 50: Large stator UP

Maximum head [dm]

Pump housing

= Cast iron (no letter = cast iron)

S = Stainless steel

B = Bronze

Pipe connection

F = Flange

FR = Flange rotated 90°

U = Union connection

5 = 1/2" internal sweat

7 = 3/4" internal sweat

N = NPT female thread fitting

7P = 3/4" male x female connection

Special features

A = Thermostat (Aquastat)

C = Check valve (removable)

/T = Timer

/LC = Line cord

/TLC = Timer Line cord

/VS = Variable speed control

/MR = Mixing reset control

Identification UP Series

Nameplate

Fig. 1 Nameplate

TM03 8595 2007

NONSUBMERSIBLE CIRCULATION PUMP

I1/1

(A) P1 (W)

.74 85 -

P/N: 59896155

PC: 0452 P1

Type UP 15 - 42F

115 V 1PH

60Hz

10uF

Class F

MPEDANCE

PROTECTED

FOR NDOOR USE ONLY

MAX FLUID TEMP. 230F

CUS

99K4

LISTED

NONSUBMERSIBLE CIRCULATION PUMP

I1/1

(A) P1 (W)

.74 85 -

P/N: 59896155

PC: 0452 P1

Type UP 15 - 42F

115 V 1PH

60Hz

10uF

Class F

IMPEDANCE

PROTECTED

FOR NDOOR USE ONLY

MAX FLUID TEMP. 230F

CUS

99K4

LISTED

Pos. Description Pos. Description

1 Non-submersible pump 9 Approval

2 Pump type UP 15-42F 10 Product number 59896155

3 Voltage 115 V 11 04 = year 2004 / 52 = week

4 Frequency 60 Hz 12 Manufactured country

5 Capacitor 10 μF 13 Insulation, Class F

6 1-phase 14 Impedance-protected

7 Power 85 W 15 Maximum liquid temperature 230° F

8 Current 0.74 A

Applications UP Series

The Grundfos circulator pumps, Series UP(S), are

specifically designed for heating systems. The pumps

are also suitable for circulation of hot domestic water

and for circulation of liquid in cooling and air-

conditioning systems.

Heating systems

Common uses:

• Boiler/hydronic heating

• Ground-source heat pumps

• Radiant floor heating

• Hydronic and fan-coil heating

• Solar heating

• Heat recovery/heat pumps.

Pump types with cast iron housing are generally used

for these applications, considered to be closed systems

pumping water or water/glycol mixtures. However,

when water conditions exist that are not compatible

with cast iron, we recommend the use of bronze or

stainless steel.

Optional variable-speed and mixing-reset controls are

available to customize heat output vs heat demand for

increased comfort.

Domestic hot-water systems

Common uses:

• Solar water heating

• Hot-water recirculation

• Domestic hot-water heating.

Pump types with bronze, brass or stainless steel

housing are used for these applications, considered to

be open systems pumping potable water.

Optional timer and thermostat controls are available to

limit pump operation to periods when hot water is

required and to save energy.

Cooling systems

Common uses:

• Chilled-water pumping.

Pump types UP(S) 25, 26, 43, 50 and pump housings

compatible with the pumped liquids are recommended

for chilled water due to their motor construction, which

is suitable for 32 °F (0 °C) water.

Construction

The UP(S) pumps are of the canned rotor type, i.e.

pump and motor form an integral unit without shaft seal

and with only two gaskets for sealing. The bearings are

lubricated by the pumped liquid.

The pumps are characterized by:

• Ceramic shaft and radial bearings

• Carbon thrust bearing

• Stainless steel rotor can and bearing plate

• Impeller in corrosion-resistant material

• Pump housing in cast iron, bronze or stainless steel.

Applications UP Series

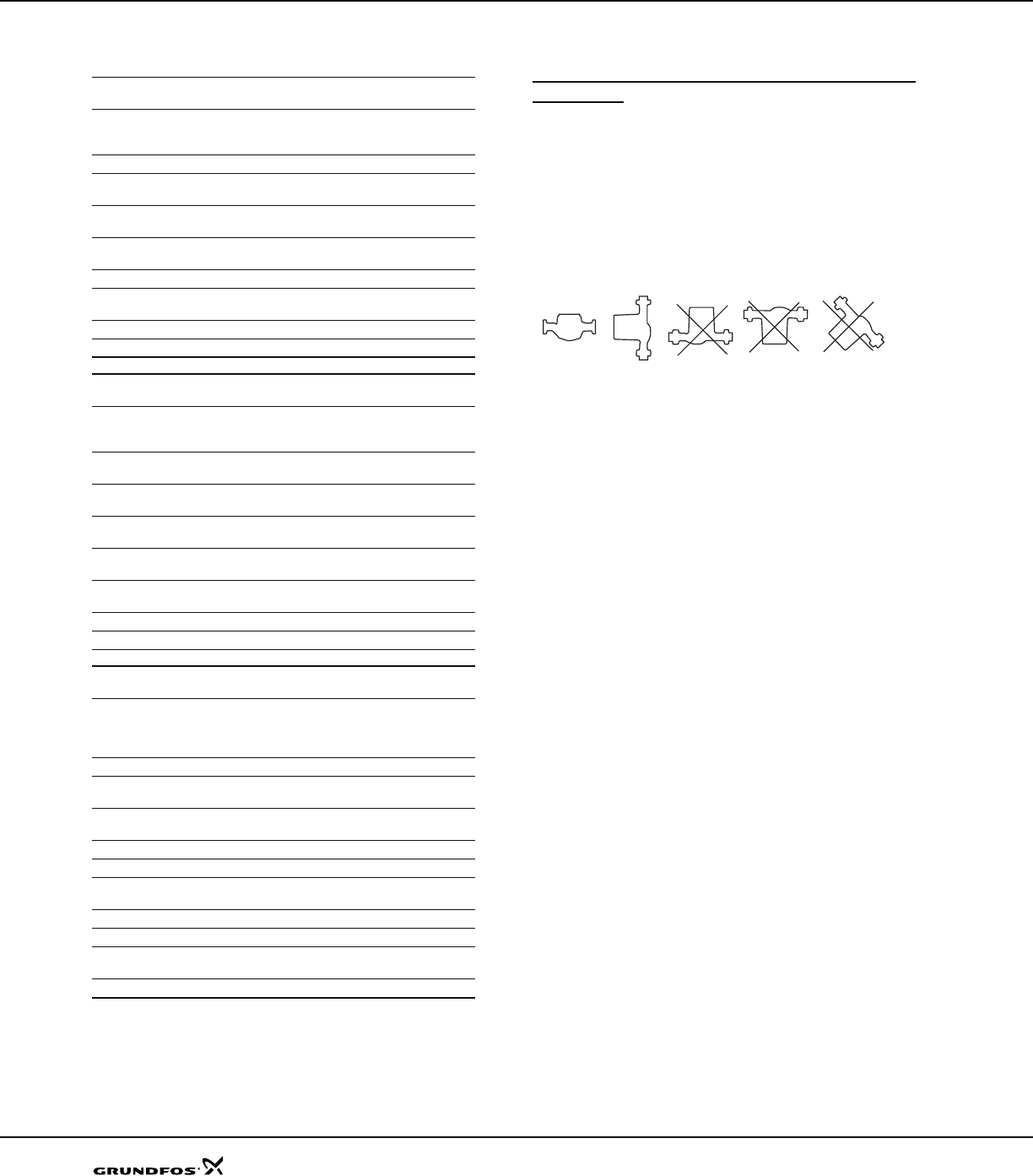

Materials of construction Installation

The pump must always be installed with horizontal

motor shaft.

Proper installation of the pump will have the terminal

box located to one side of the pump or the other, with

the conduit entry down.

UP(S) can be installed in both vertical and horizontal

lines.

UP(S) pumps are intended for indoor use only.

Fig. 1

Motor

The motor is a 2-pole asynchronous squirrel-cage PSC

(permanent split capacitor) motor with UL, CUL, ETL

and CSA approvals.

UP(S) pumps are available in single-phase 115 V and

230 V versions with one or three speeds.

The terminal box is easily accessible and has functional

cable connecting leads or terminals.

Insulation class(es): F, H.

The motor incorporates thermal overload or impedance

protection. Therefore, no external motor protection is

required.

UP models are single speed.

UPS model pumps are multi-speed, and the speed can

be changed by a speed selector switch located on the

front of the terminal box.

If the speed of UPS 15-35 or 15-55 TLC models has to

be changed, the timer control has to be removed before

the speed can be changed.

UP models with VS or MR suffixes are variable speed

with integrated control.

Depending on pump model, motor horsepowers range

from 1/25 to 1/6 and power consumption from 5 to 385

Description

(UP closed systems) Material

Inlet cone, bearing plate, bearing

retainers, rotor can, rotor

cladding, shaft retainer Stainless steel

Stator housing Aluminium

Shaft, upper and lower radial

bearings Aluminium oxide ceramic

Thrust bearing Carbon bearing and EPDM

retainer

Check valve ACETAL with 302 stainless steel

spring and nitrile rubber seats

Pump housing (volute) Cast iron

O-ring and gaskets EPDM (ethylene propylene

rubber)

Impeller PES composite (30 % glass-filled)

Terminal box Noryl® with EPDM gasket

Description

(UP open systems) Material

Inlet cone, bearing plate, bearing

retainers, rotor can, rotor

cladding, shaft retainer Stainless steel

Volute retainer (SU & SF models)

and stator housing Aluminium

Shaft, upper and lower radial

bearings Aluminium oxide ceramic

Thrust bearing Carbon bearing and EPDM

retainer

Pump housing (volute) Silicon bronze C875 or stainless

steel 300 series.

O-ring and gaskets EPDM (ethylene propylene

rubber)

Impeller PES composite (30 % glass-filled)

Terminal box Noryl® with EPDM gasket

Description

(BUC5 and BUC7) Material

Inlet cone, bearing plate, bearing

retainers, rotor can, rotor

cladding, shaft retainer, check

valve spring

Stainless steel

Stator housing Aluminium

Shaft, upper and lower radial

bearings Aluminium oxide ceramic

Thrust bearing Carbon bearing and EPDM

retainer

Pump housing (volute) Silicon bronze C875 lead free

Tail piece and union nut Brass (UNS C36000)

O-ring and gaskets EPDM (ethylene propylene

rubber)

Impeller PES composite (30 % glass-filled)

Terminal box Noryl® with EPDM gasket

Check valve housing, valve and

torpedo ACETAL with 302 stainless steel,

spring and nitrile rubber seat

Union gasket EPDM

TM04 5058 2509

Applications UP Series

Pumped liquids

Depending on type, Grundfos circulator pumps are

designed for the following liquids:

• Potable water

• Non-potable water

• Water/glycol mixtures

• Chilled water

• Domestic-hot water

• Softened water.

If the circulator pump is used for a glycol mixture with a

higher viscosity than that of water, the hydraulic

performance of the pump will be reduced.

Example: 50 % glycol at 68 °F (20 °C) means a

viscosity of approx. 10 cSt and a reduction of pump

performance by approx. 15 %.

When selecting a pump, the viscosity of the pumped

liquid must be taken into consideration.

Ambient and liquid temperatures

The maximum allowable water temperature is

determined by the ambient or surrounding air

temperature as shown in the table below.

Note: This table refers to all standard product without

timer/control options or other special features.

• If the UP pump is equipped with a timer, the

maximum liquid temperature is 150 °F (66 °C).

•Temperature requirements for pumps with timer/

control or other special features may be found

on their technical data page.

The ambient temperature for standard pumps with a

permissible liquid temperature from 36 °F (2 °C) to

230 °F (110 °C) should always be lower than the liquid

temperature, as otherwise condensation may form in

the stator housing.

Maximum system pressure

145 psi (10 bar).

Minimum inlet pressure

The amount of pressure required at the inlet of a pump

is a function of the temperature of the water as shown

in the table below.

Performance

Flow range 0 - 120 gpm, head range 0 - 46 feet

In a pressure system, the required inlet pressure is the

allowable system pressure.

In a system open to the atmosphere, the required inlet

pressure is the minimum distance the pump must be

located below the lowest possible water level of the

water source (tank, pool, etc.).

Maximum water temperature

Ambient (°F) 104

(40) 120

(49) 140

(60) 160

(71) 175

(79)

Water, all cast iron (°F) 230

(110) 220

(104) 210

(99) 190

(88)

175

(79)

Water, all bronze and stainl. steel 220

(104) 210

(99) 190

(88)

175

(79)

*exceptions below

UP/UPS 15 FC and UP 43 FC (°F) 200

(93) 190

(88) 180

(82) 170

(77)

UP 15BUC5 and UP 15BUC7 (°F) 200

(93) 190

(88) 180

(82) 170

(77)

UPS 15-35 (°F) 165

(74) 140

(60) ---

UP 15-100F (°F) 205

(96) 195

(91) 185

(85) 175

(79) -

UP 26-120U (°F) 205

(96) 195

(91) 185

(85) 175

(79) -

UP 26-116 (°F) 150

(66) 140

(60) ---

Liquid temperature

UP(S) model

140 °F

(60 °C) 165 °F

(74 °C) 190 °F

(88 °C) 230 °F

(110 °C)

[psi] [bar] [psi] [bar] [psi] [bar] [psi] [bar]

UP(S) 15

1.3 0.1

1.9 0.1 4.0 0.3 15.6 1.1UP(S) 26

UP(S) 43

UPS 26-150 1.3 0.09 2.6 0.18 7.8 0.54

UPS 43-100 2.1 0.15 5.6 0.40 11.3 0.80

UPS 50-60 0.5 0.04 1.0 0.07 1.3 0.09 7.0 0.49

Applications UP Series

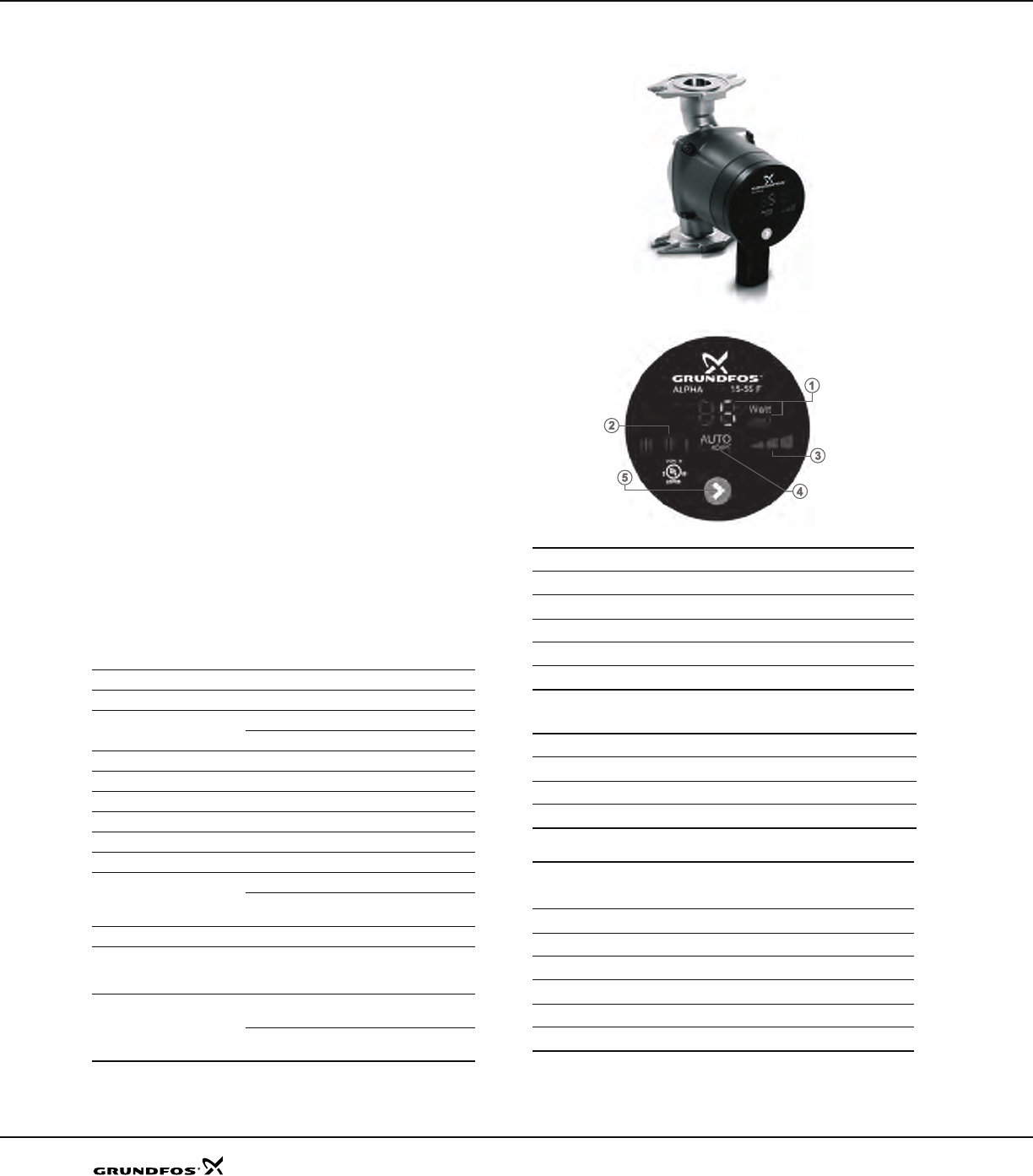

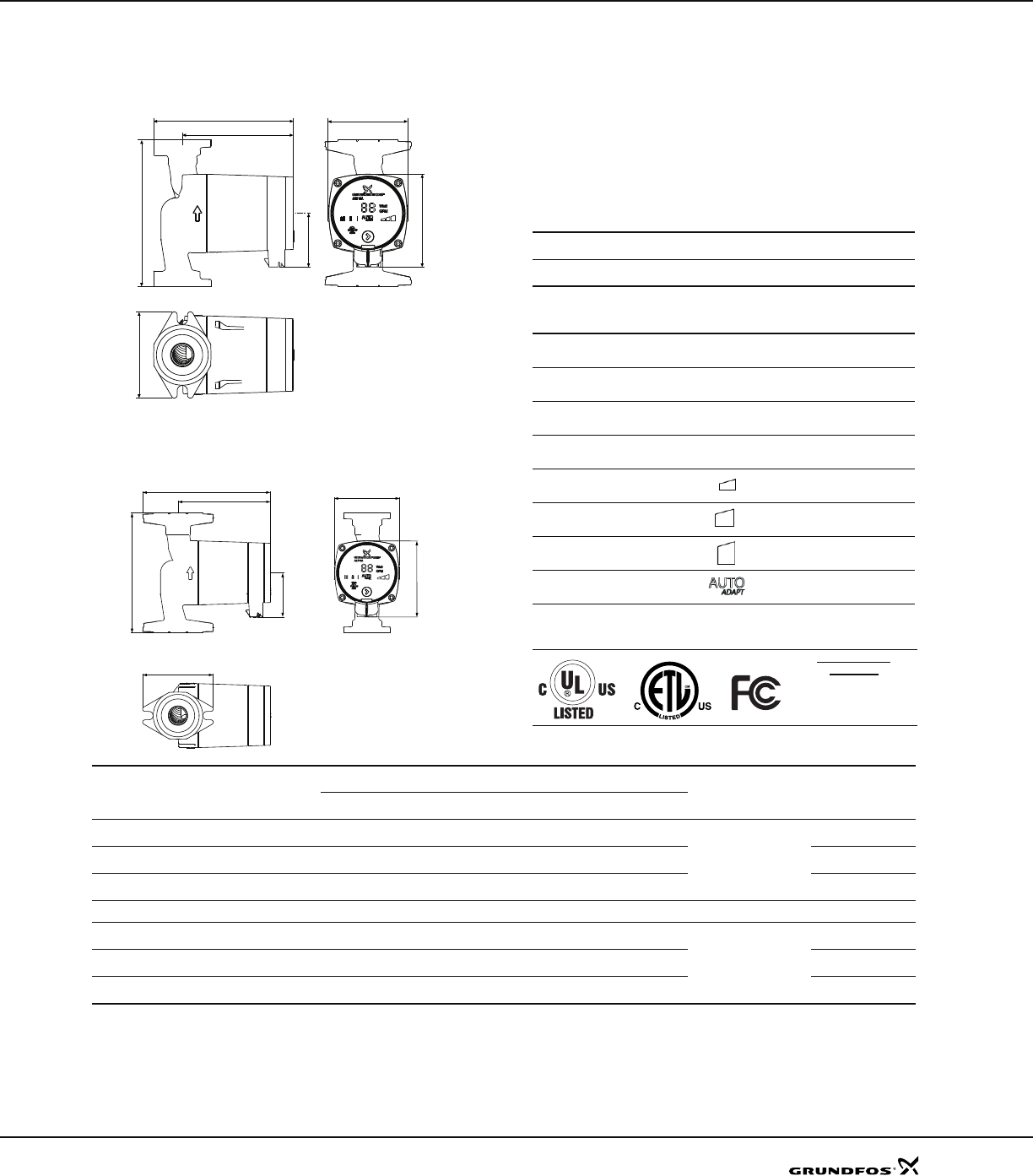

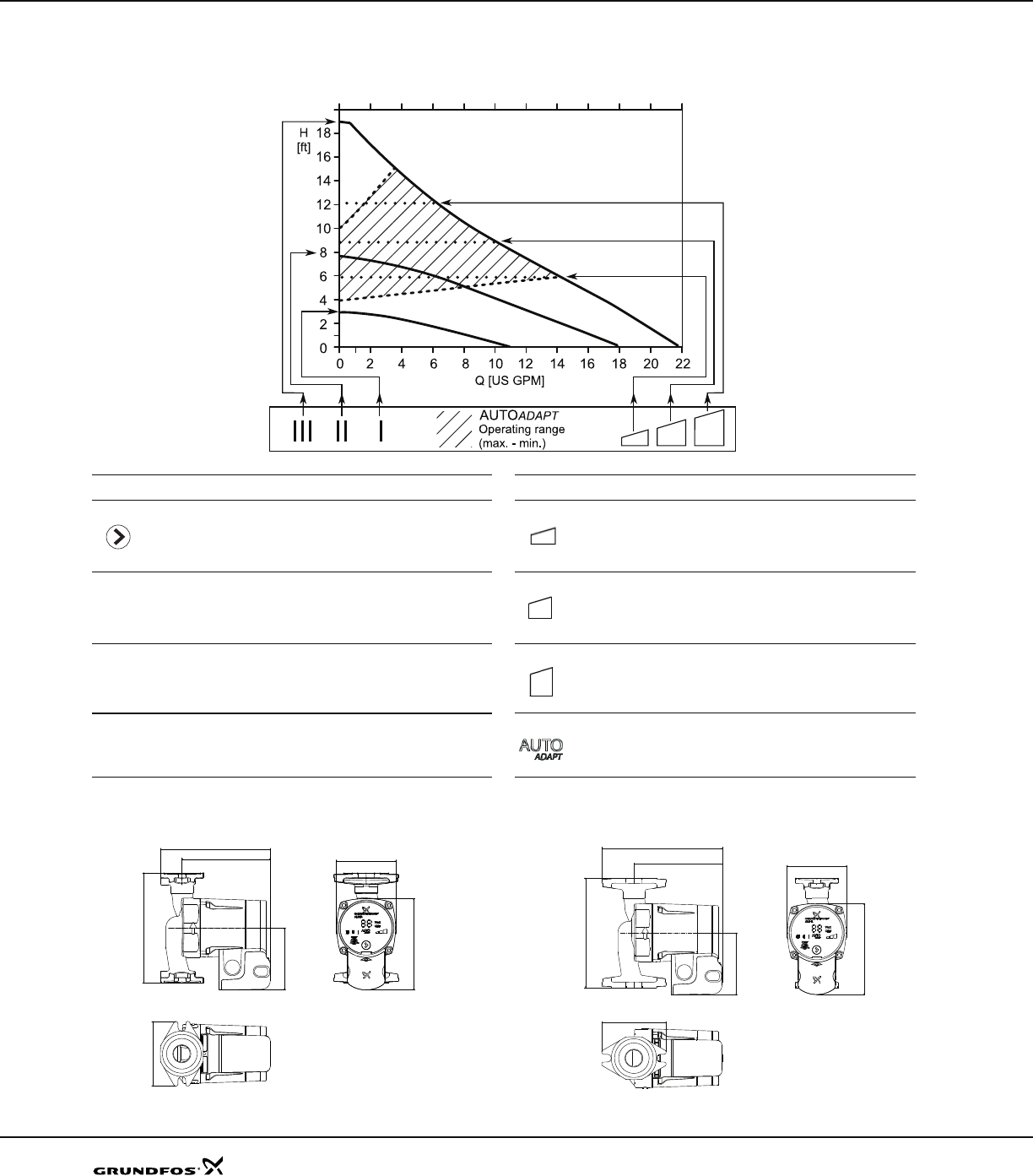

ALPHA

The Grundfos Alpha is the next generation of energy

efficient wet-rotor circulators. By incorporating a

permanent magnet motor design, power consumption

is now reduced by a minimum of 50 %.

By using the AutoADAPT™ feature, Grundfos ALPHA

will automatically analyze the system demands and

adjust head and or flow requirements to meet changing

heating demands.

Standard features

• Permanent magnet motor design

• Easy push button hydraulic selection

• Seven hydraulic selection options

- Three fixed speeds

- Three constant pressures

- AutoADAPT™

• Easy to read LED display

- Flow indicator (gpm)

- Power consumption (watts)

- Hydraulic selection

• Nut capture flange

• Metallurgical options

- Cast iron (F or FR)

- Stainless steel (F)

• Line cord or conduit connection options

Additional technical data

Control display

Max. operating pressures

Max. operating temperatures

Supply voltage: 1x115V +/-10 %, 60Hz

Motor protection: Pump requires none.

Enclosure class: Indoor use only, IP42,

CSA Enclosure Type 2

Insulation class: F

Relative air humidity: Maximum 95 %

Max. discharge press.: 150 psi (10.34 bar)

Sound pressure level: 43 dB (A)

Ambient temp.: +32 °F (0 °C) to +104 °F (+40 °C)

Liquid temp.: +36 °F (+2 °C) to +230 °F (+110 °C)

Max. glycol

concentrations:

50 % glycol @ 36 °F (2 °C)

(Hydraulic performance change can be

expected.)

Watt readings: Accuracy +/-1 Watt

Flow indicator: Provides a relative indication of flow —

should not be used in lieu of a

flow meter.

Check valve:

Use of check valve may reduce pump

hydraulic performance (up to -10%).

Use check valve in parallel pumping

applications.

Position Description

1 Watt or flow indicator

2 Three fixed speeds

3 Three constant pressure settings

4AUTOADAPT

5 Push-button for selction of pump settings

Liquid temp. Min. inlet press.

167 °F (75 °C) 0.75 psi (0.05 bar)

194 °F (90 °C) 4.06 psi (0.28 bar)

230 °F (110 °C) 15.7 psi (1.08 bar)

Ambient temp. Liquid temp.

[°F (°C)] Min. [°F (°C)] Max. [°F (°C)]

+32 °F (0 °C) +36 °F (+2 °C) +230 °F (+110 °C)

+50 °F (+10 °C) +50 °F (+10 °C) +230 °F (+110 °C)

+68 °F (+20 °C) +68 °F (+20 °C) +230 °F (+110 °C)

+86 °F (+30 °C) +86 °F (+30 °C) +230 °F (+110 °C)

+95 °F (+35 °C) +95 °F (+35 °C) +194 °F (+90 °C)

+104 °F (+40 °C) +104 °F (+40 °C) +158 °F (+70 °C)

Applications UP Series

MixiMizer - mixing reset pump

The Grundfos MixiMizer, a fully integrated injection

pump and indoor/outdoor controller, is the only pump

and controller system of its kind.

Equipped with a weather responsive control, also

known as indoor/outdoor control or reset control, the

MixiMizer automatically calculates and controls mixed

water temperatures according to outdoor temperatures

in primary/secondary piping systems. The control also

provides pump exercising for 10 seconds every 3 days

and a 20 second postpurge when the heat demand is

removed.

For maximum design flexibility, the MixiMizer can be

integrated into a thermostat or zoning control system

through the user-selectable "external call for heat/

demand input".

A fully serviceable check valve integrated into the pump

housing eliminates ghost flows in primary/secondary

injection systems and zone applications.

LEDs located on the terminal box are designed to

indicate performance and diagnose faults without tools.

Other standard user-selectable features include boiler

protection, system/slab "overtemperature" control and

a 5 °F parallel shift of the heating curve.

Fig. 2 MixiMizer

MixiMizer models includes the following:

• Two water-temperature sensors (system supply and

return) prewired, 8 ft (2.4 m) each

• One prewired 6-foot line cord

• One outdoor air-temperature sensor

• Two flange gaskets

• Optional zone control input

• Optional boiler on/off output.

Standard features

• Variable-speed output modulation

• System supply-temperature sensor 140 °F

(60 °C) max.

• Boiler return-temperature sensor 135 °F

(57 °C) min.

• Heating curve can be adjusted by 5 °F in parallel

• Pump exercising every three days of no operation.

Fig. 3 Family curves for MixiMizer

TM04 9735 5110

TM03 8844 2607

Position Description

a Min. curve for all models

b Max. UP 15-42 BUC5

c Max. UP 15-42 BUC7

d Max. UP 15-42 FC

0 2 4 6 8 10 12 14 16 18

Q[USGPM]

[ft]

Applications UP Series

Variable-speed pump

The Grundfos variable-speed pump is another product

with fully integrated control. The variable-speed

controller requires a 0-10/2-10 DC or 0-20/4-20 mA

control signal, which is user-selectable.

If desired, the manual-% dial allows the speed of the

pump to be manually adjusted and set by the user. The

speed of the pump may be manually adjusted anywhere

from min. to 100 %, but once set, remains fixed at that

speed.

In addition, the pump speed may be set as 0-100 % or

15-100 % by user.

The control also provides pump exercising for

10 seconds every 3 days and a power-up reset, which

runs the pump for 3 seconds at full speed, for all modes

of operation.

LEDs on the terminal box indicate operation (power is

applied) and performance (flashes slower or faster).

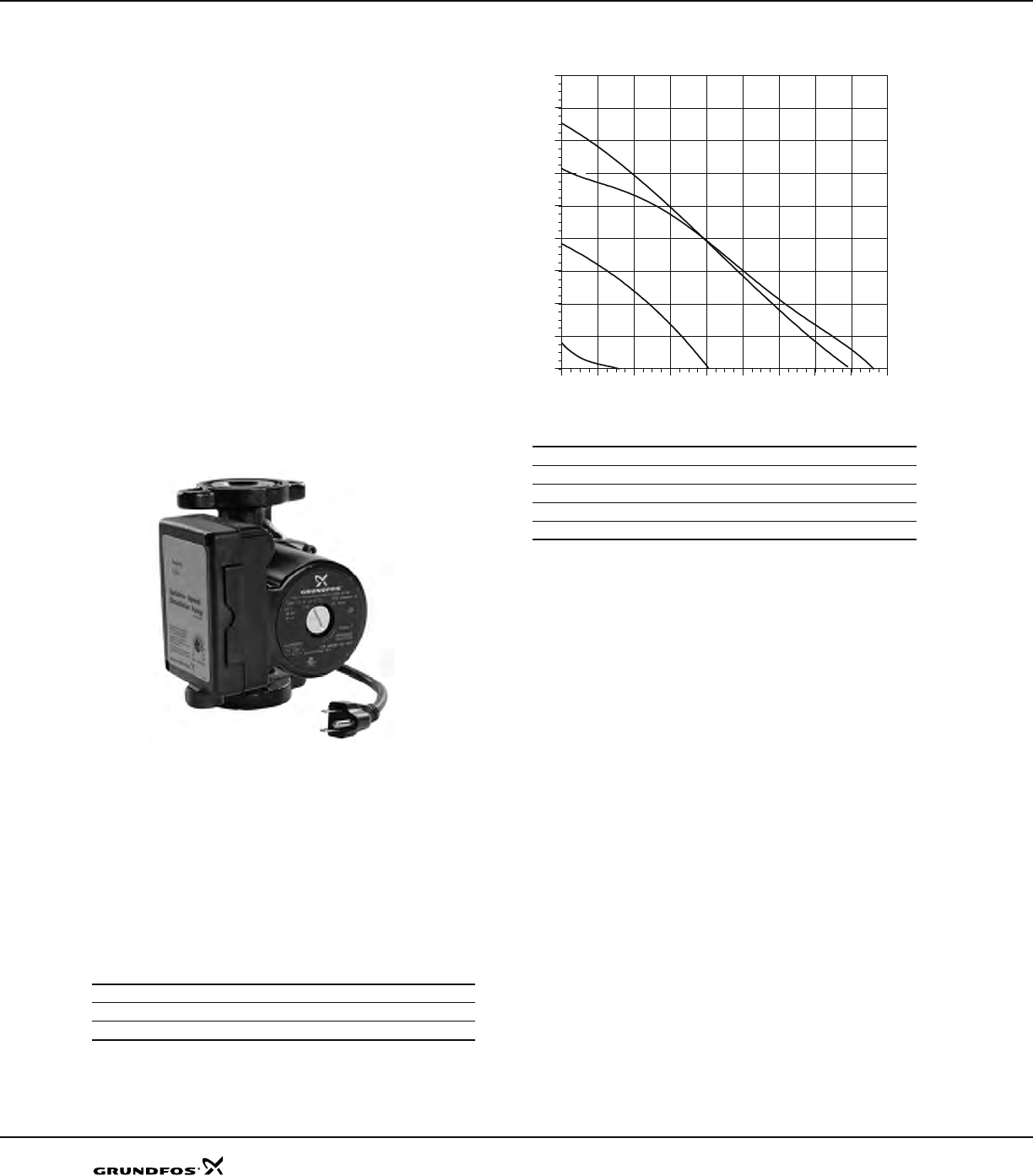

Fig. 4 Variable-speed pump

Variable-speed models include the following

• Pump with integrated variable-speed control

• Line cord, 6-ft (1.8 m) prewired

• Two gaskets.

Variable-speed standard features

• Variable-speed output modulation (external or

manual control)

• Offset-dial for fine-tuning of the signal input.

Fig. 5 Family curves for variable-speed pumps

TM03 9088 3307

Signal type Signal range

Voltage 0-10 VDC or 2-10 VDC, 5mA Max

Current 0-20 mA or 4-20 mA, 5 VDC Max

TM03 8843 2607

Position Description

a Min. curve for all models

b Max. UP 15-42 F/VS

c Max. UP 26-64 F/VS

d Max. UP 26-96 F/VS

0 4 812 16 20 24 28 3236

Q [US GPM]

[ft]

Applications UP Series

Comfort System

The Comfort System uses a patented Comfort Valve®

and pump to provide instant availability of hot water at

the point of use.

Operation

The Comfort Valve® is installed at the furthest fixture

from the hot-water tank. With a built-in timer, the pump

allows hot water to circulate along the loop through the

valve using the cold-water side as a return line. As the

temperature rises to 100 °F (38 ° C), the valve closes

directing hot water to the tap, resulting in a constant

availability of hot water.

Savings

The Comfort System saves up to 16,000 gallons of

water per year and per household (based on average

modern household usage) and uses less energy than a

25 W light bulb.

Applications

• Domestic hot-water recirculation systems in single-

and two-family houses.

Pumped liquids

• Domestic hot water

• Potable and non-potable water

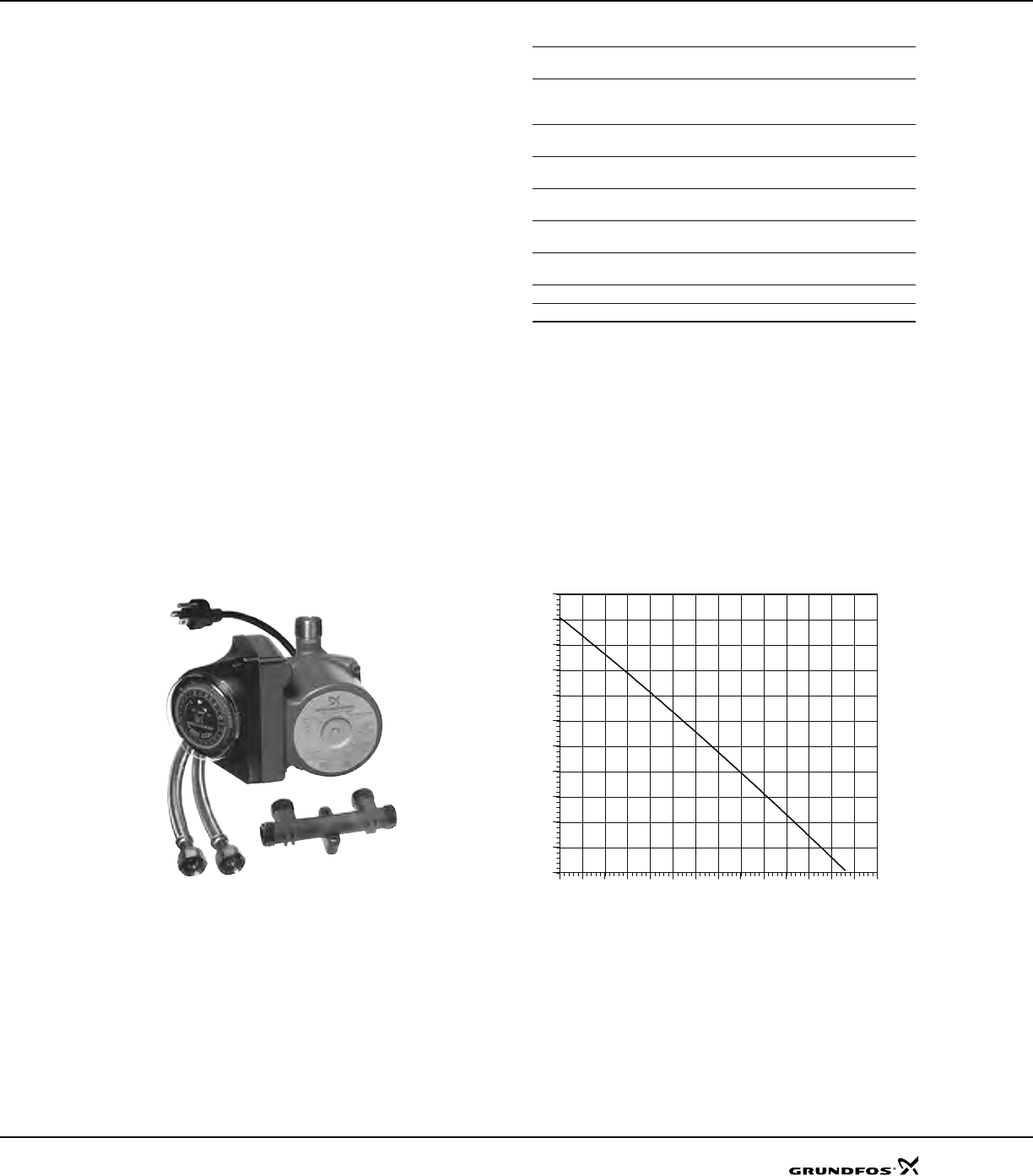

Fig. 6 Comfort System

Motor

• Insulation class: F.

• Power consumption: 25 W.

• Voltage: 115 V.

• Current 0.23 A.

• Phase: 1.

Ambient and liquid temperatures

Liquid temperature: 36 °F (2 °C) to 150 °F (66 °C).

It is recommended to keep the operating temperature

as low as possible (e.g. 140 °F (60 °C)) to avoid calcium

precipitation.

The ambient temperature should always be lower than

the liquid temperature, as otherwise condensation may

form in the stator housing.

Maximum system pressure

145 psi (10 bar).

Fig. 7 Performance curve for the Comfort System

TM03 9126 3407

Description

(UP open systems) Material

Inlet cone, bearing plate, bearing

retainers, rotor can, rotor

cladding, shaft retainer Stainless steel

Volute retainer (SU & SF models)

and stator housing Aluminium

Shaft, upper and lower radial

bearings Aluminium oxide ceramic

Thrust bearing Carbon bearing and EPDM

retainer

Pump housing (volute) Silicon bronze C875 or stainless

steel 300 series.

O-ring and gaskets EPDM (ethylene propylene

rubber)

Impeller PES composite (30 % glass-filled)

Terminal box Noryl® with EPDM gasket

TM03 5547 3806

0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0

Q[GPM]

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

[ft]

Applications UP Series

UP 10 Comfort pump

The water-conduction part of the pump is hermetically

separated from the stator with a stainless steel

spherical separator. The motor can be separated from

the pump housing, enabling easy maintenance and

replacement.

Applications

• Domestic hot-water recirculation systems in single-

and two-family houses

• Small heating systems.

Pumped liquids

• Domestic hot water

• Non-potable water

• Softened water.

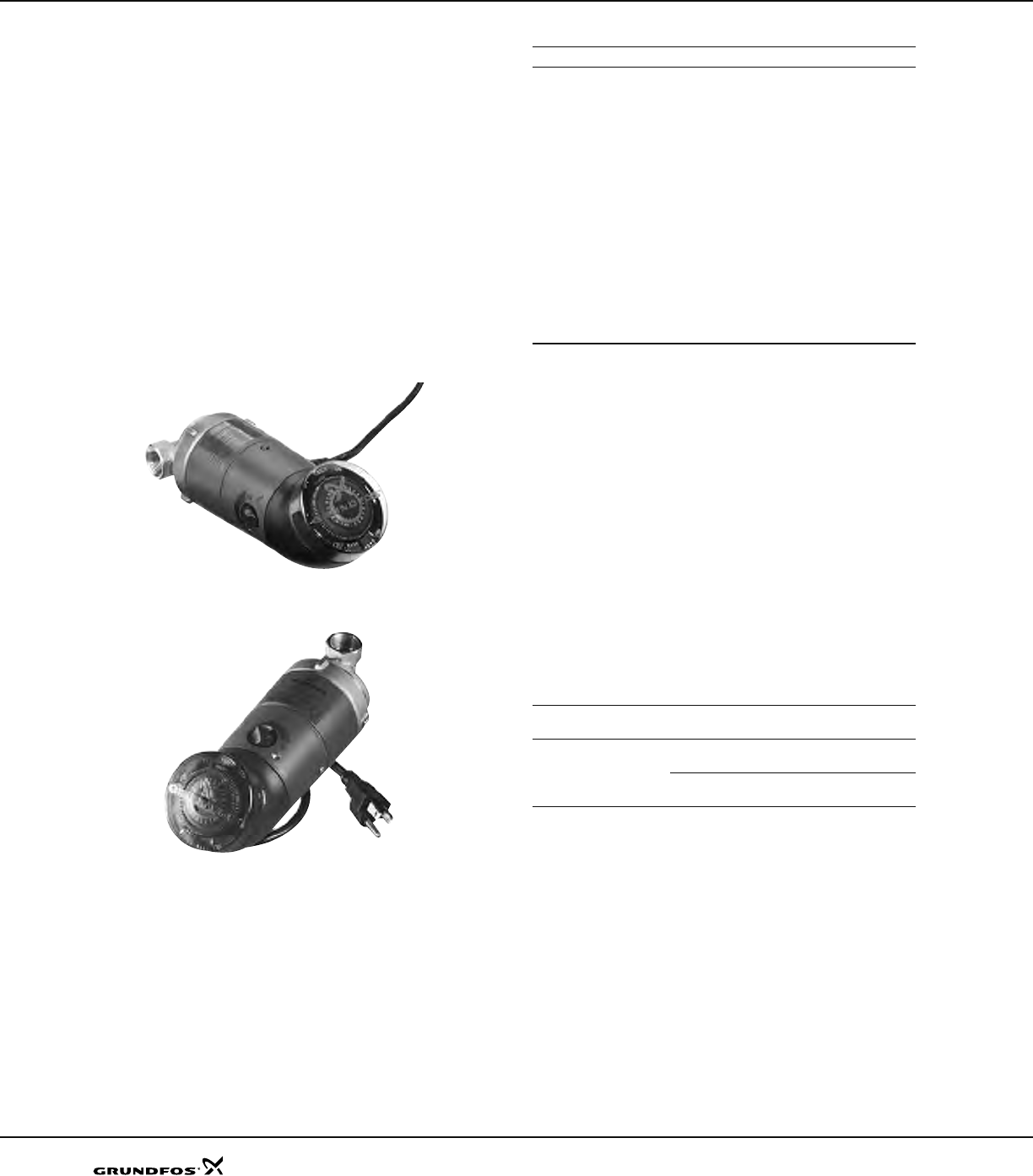

Fig. 8 Comfort pump

Fig. 9 Comfort pump

Motor

• Insulation class: F.

• Power consumption: 25 W.

• Voltage: 115 V.

• Phase: 1.

Ambient and liquid temperatures

Liquid temperature: 36 °F (2 °C) to 203 °F (95 °C).

It is recommended to keep the operating temperature

as low as possible (e.g. 140 °F (60 °C)) to avoid calcium

precipitation.

The ambient temperature should always be lower than

the liquid temperature, as otherwise condensation may

form in the stator housing.

Maximum system pressure

145 psi (10 bar).

Inlet pressure

To avoid cavitation noise and damage to the pump

bearing at high temperatures, the following minimum

pressures are required at the pump suction port.

GrA3803TM04 9805 0111

Description Material

Stator housing Aluminium

Spherical separator Stainless steel

Rotor can complete Stainless steel/tungsten carbide

Rotor, impeller Stainless steel, EPDM, PPO,

PFTE, graphite

Pump housing Brass MS 58

Isolation valve PPO

Screw Stainless steel

Terminal box cover, motor cover PA66/6

Light Lexan

Cable, cable relief PVC

Insulating cover EPP 55

O-rings EPDM

Check valve POM

Liquid temperature 203 °F

(95 °C) 185 °F

(85 °C)

Inlet pressure

9 ft

(2.8 m) 1.6 ft

(0.5 m)

4.0 psi

( 3 bar) 0.7 psi

(.05 bar)

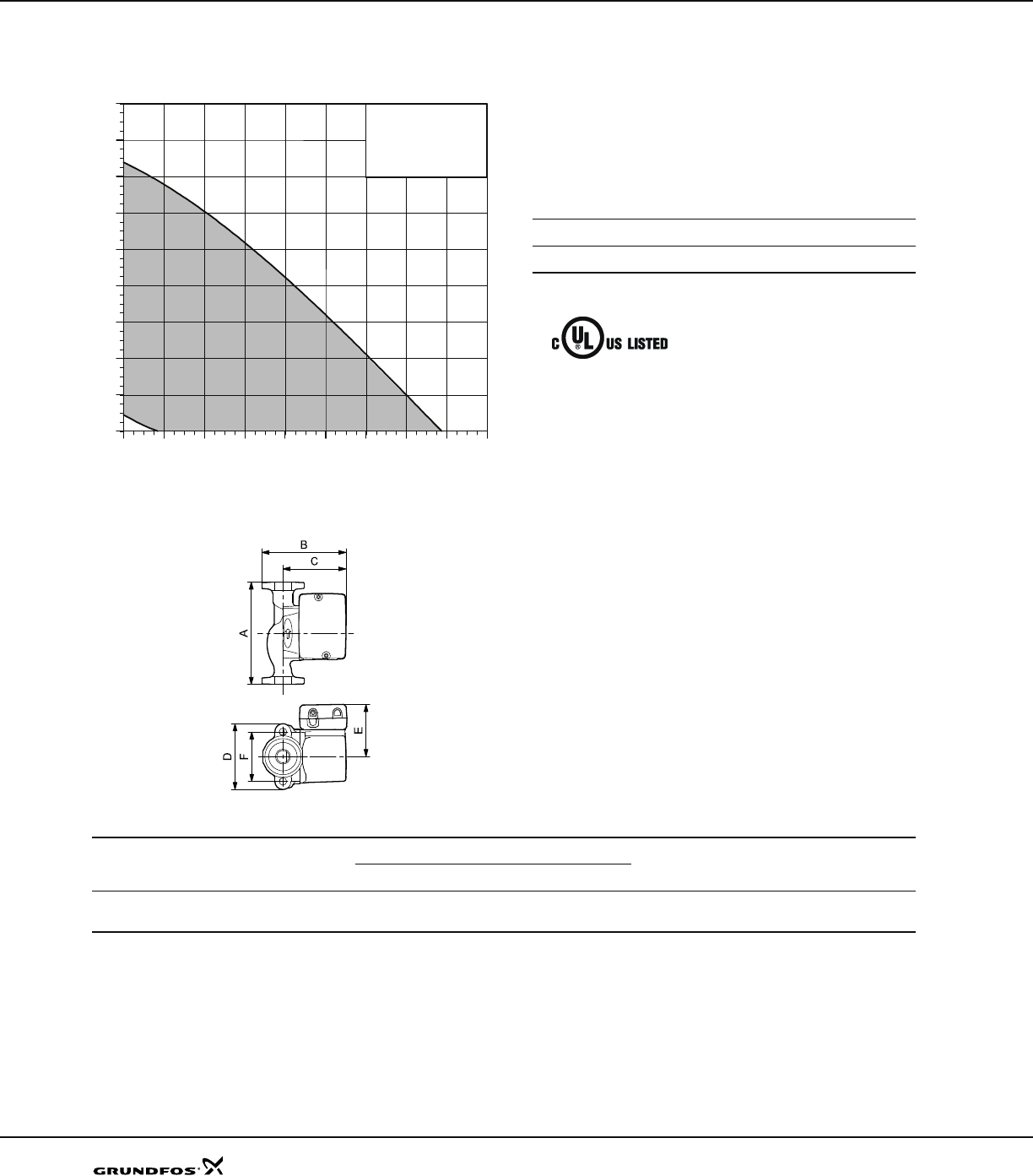

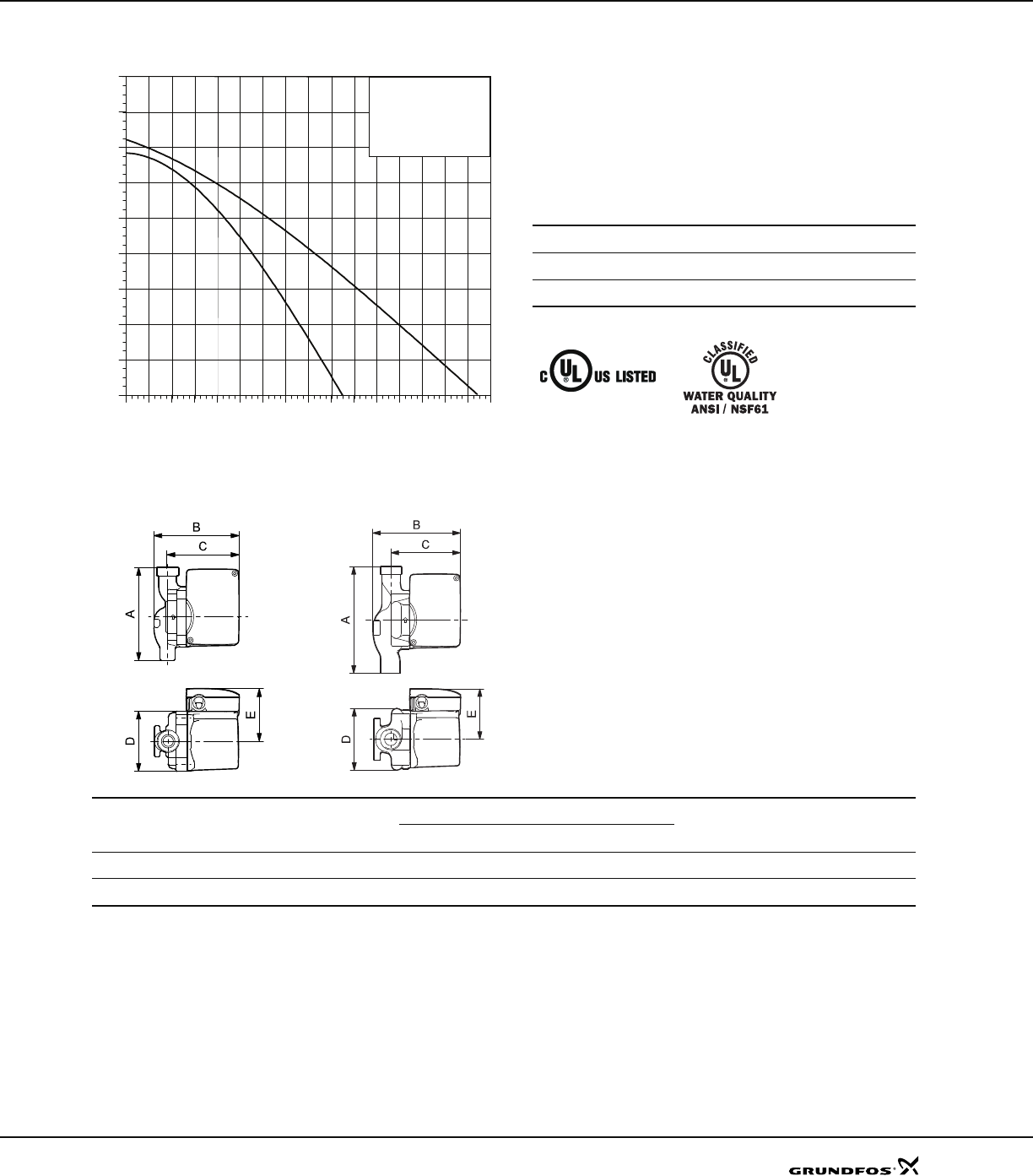

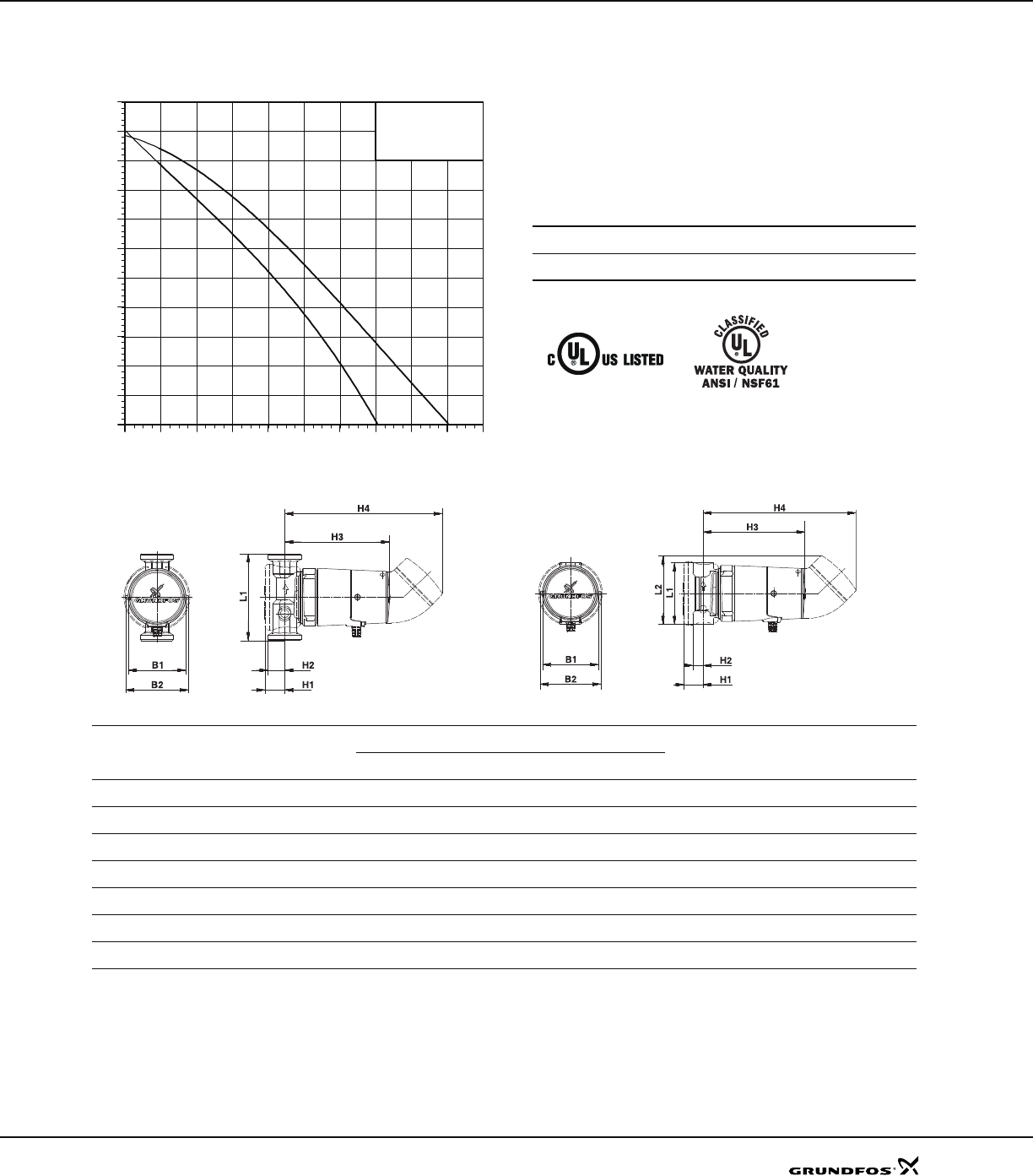

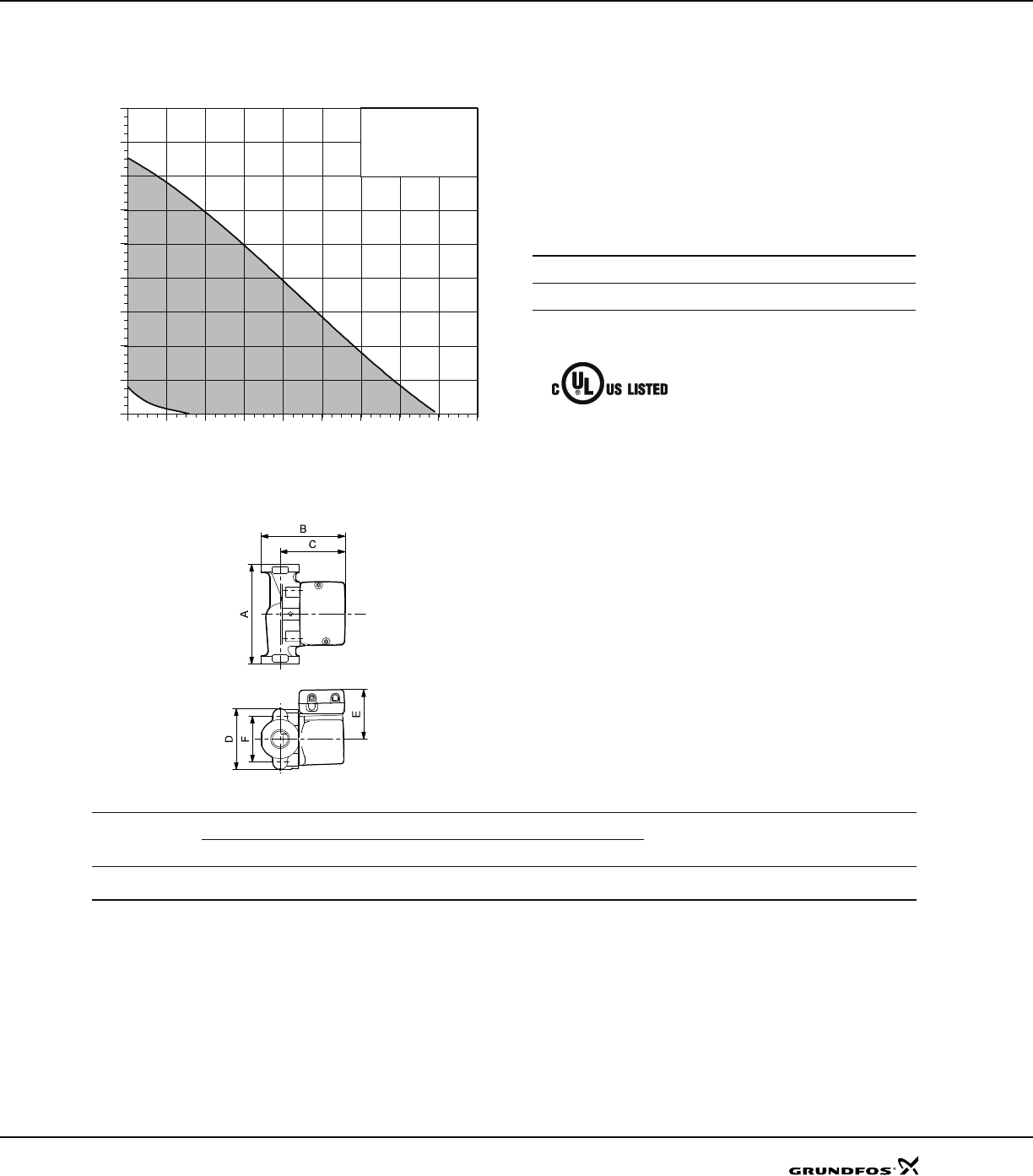

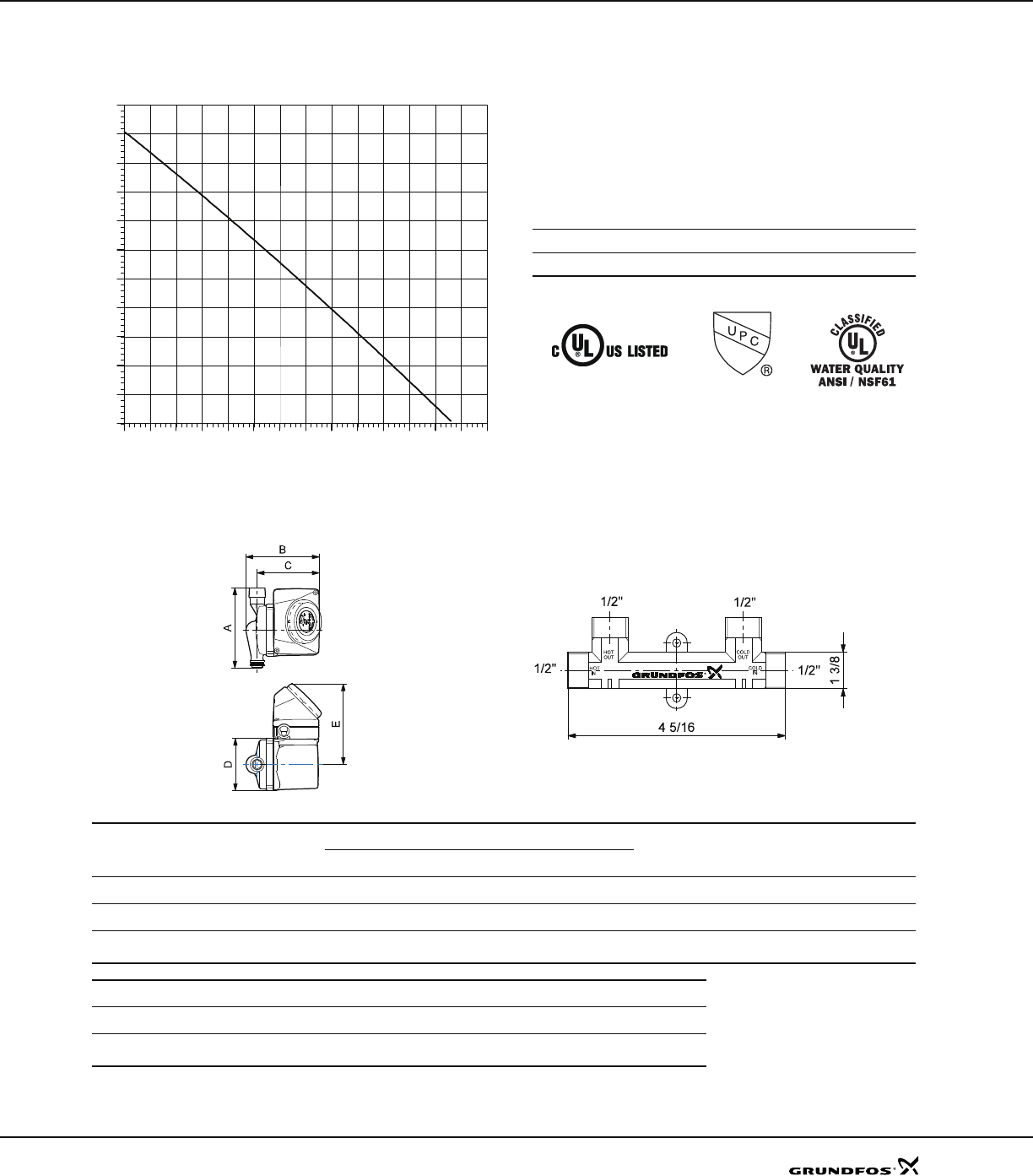

Technical data

UP 10 Comfort Pump

Approvals

Note: Dimensions in inches unless otherwise noted.

TM03 8851 0211

0.0 0.4 0.8 1.2 1.6 2 0 2.4 2.8 3.2 3.6 4 0

Q[GPM]

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

[ft]

a. UP 10-16 B5

b. UP 10-16 BN5

Flow range: 0-3.5 gpm

Head range: 0-5.4 feet

Motors: Single-phase

Max. liquid temperature: 203 °F (95 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Volts Amps Watts Hp Capacitor

UP 10-16 B5/BN5 115 0.23 25 - -

UP 10-16 BU UP 10-16 B5/BN5

TM03 4353 2006

TM03 4354 2006

Model type Product number Dimensions [inches] Connection Shipping

weight

lbsL1 L2 H1 H2 H3 H4 B1 B2

UP 10-16 B5/LC 96433894 3 1/8 1 1/2 5 1/4 3 3 1/3 1/2" sweat 2.9

UP 10-16 B5/TLC 96433895 3 1/8 3 1/2 1 1/2 8 1/16 3 3 1/3 1/2" sweat 3.4

UP 10-16 B5/ATLC 96433896 3 1/8 3 1/2 1 1/2 8 1/16 3 3 1/3 1/2" sweat 3.4

UP 10-16 BN5/LC 96433897 3 1/8 1 1/2 5 1/4 3 3 1/3 1/2" F NPT 2.9

UP 10-16 BN5/TLC 96433898 3 1/8 3 1/2 1 1/2 8 1/16 3 3 1/3 1/2" F NPT 3.4

UP 10-16 BN5/ATLC 96433899 3 1/8 3 1/2 1 1/2 8 1/16 3 3 1/3 1/2" F NPT 3.4

UP 10-16 BU/ATLC 96433902 4 1/3 1 7/8 8 1/16 3 3 1/3 GF 125 union - 1 1/4" NPSM 3.8

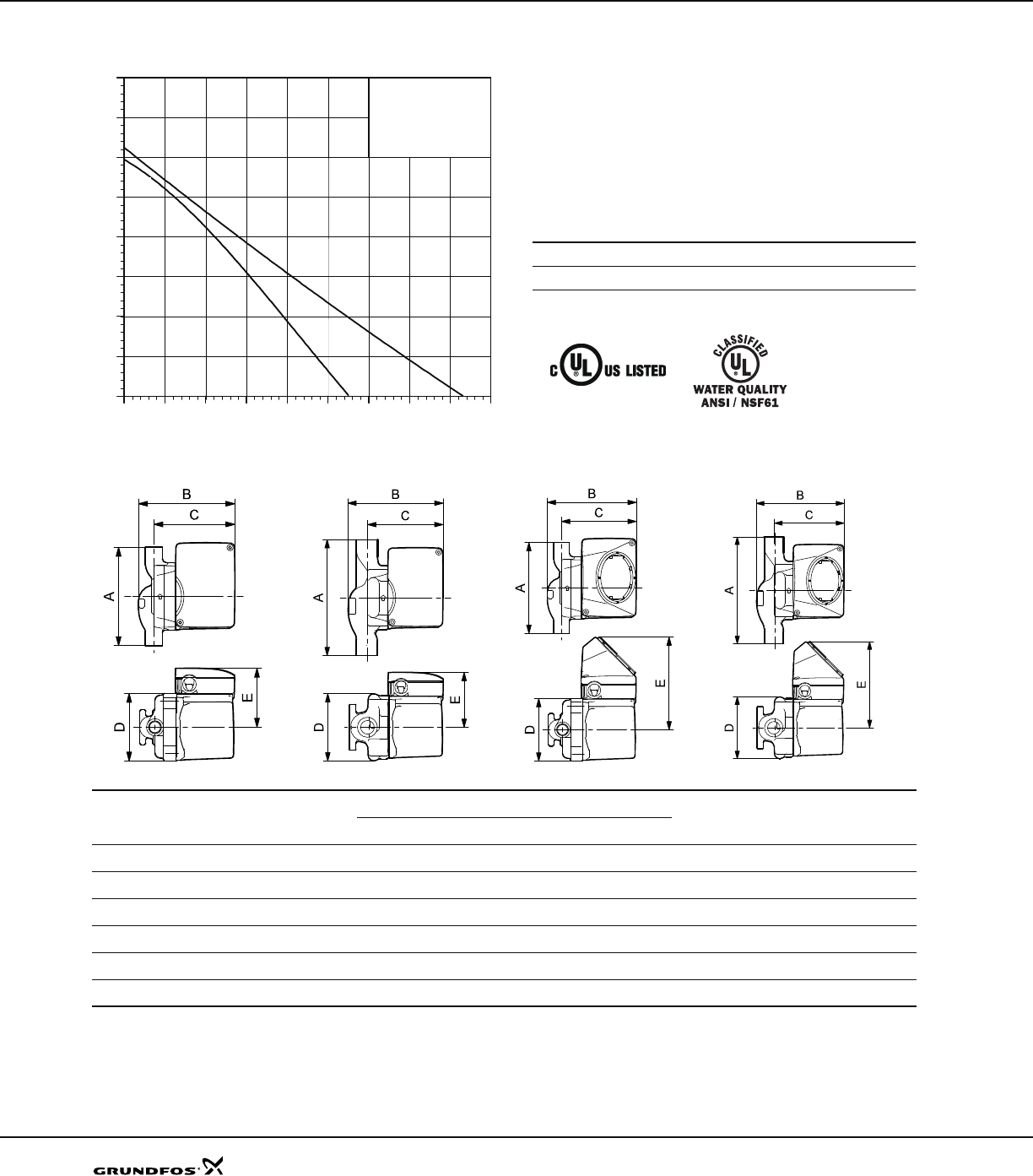

UP 10-16 B5/BN5

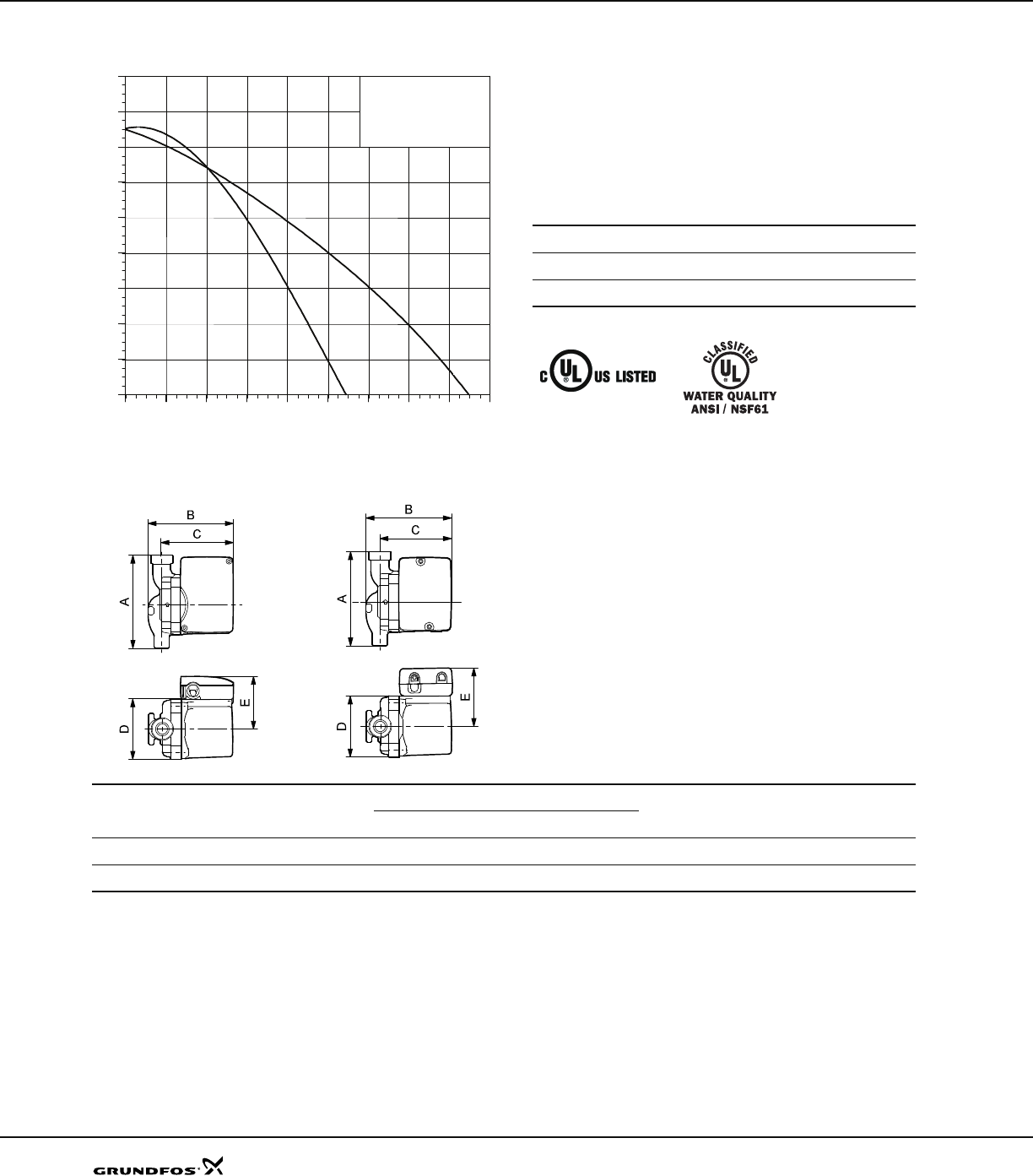

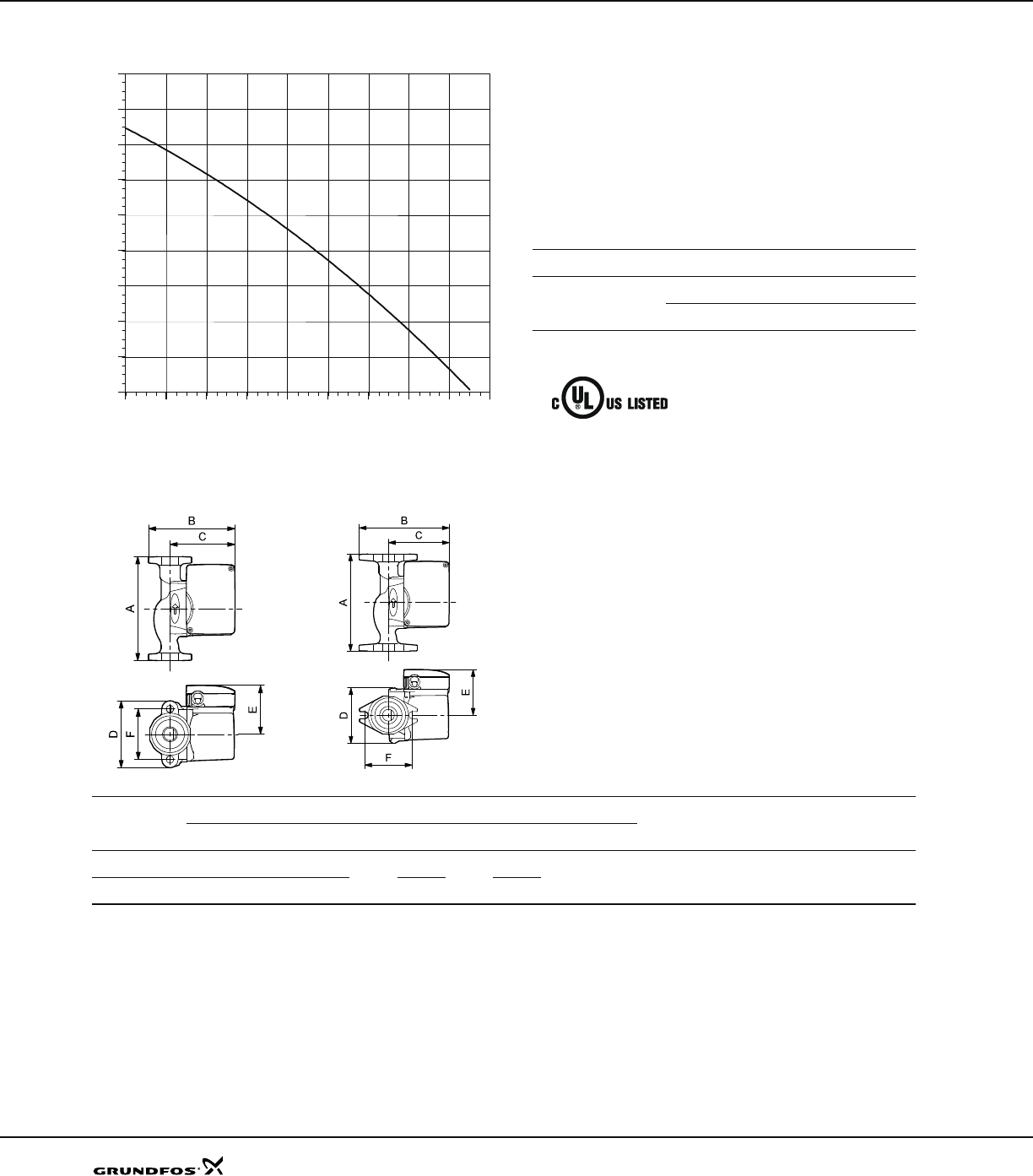

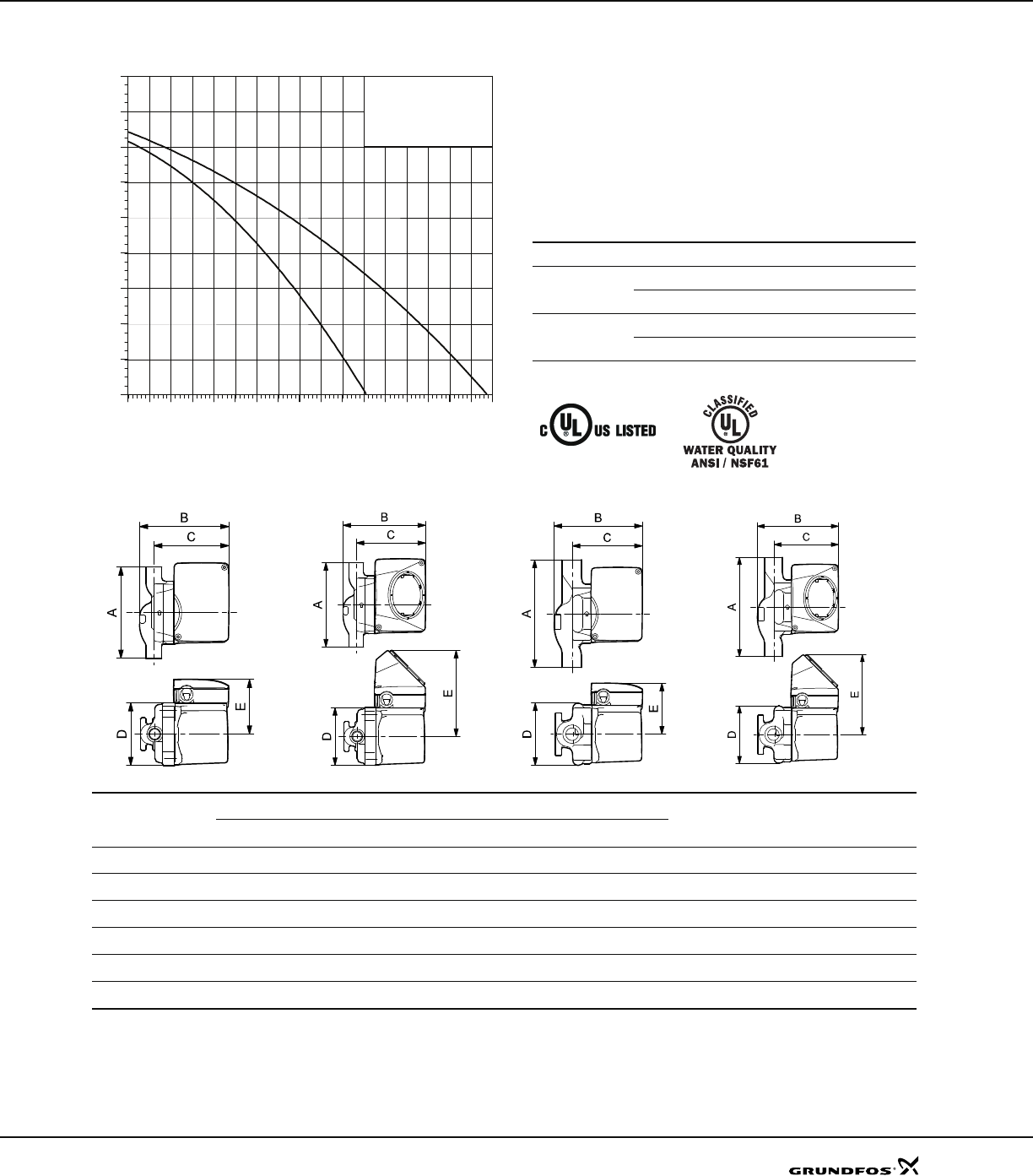

Technical data

Note: If the UP pump is equipped with a timer, the maximum liquid

temperature is 150 °F (66 °C).

Approvals

Note: LC/TLC models have a 6 ft (1.8 m), 3-prong power cord.

Dimensions in inches unless o herwise noted.

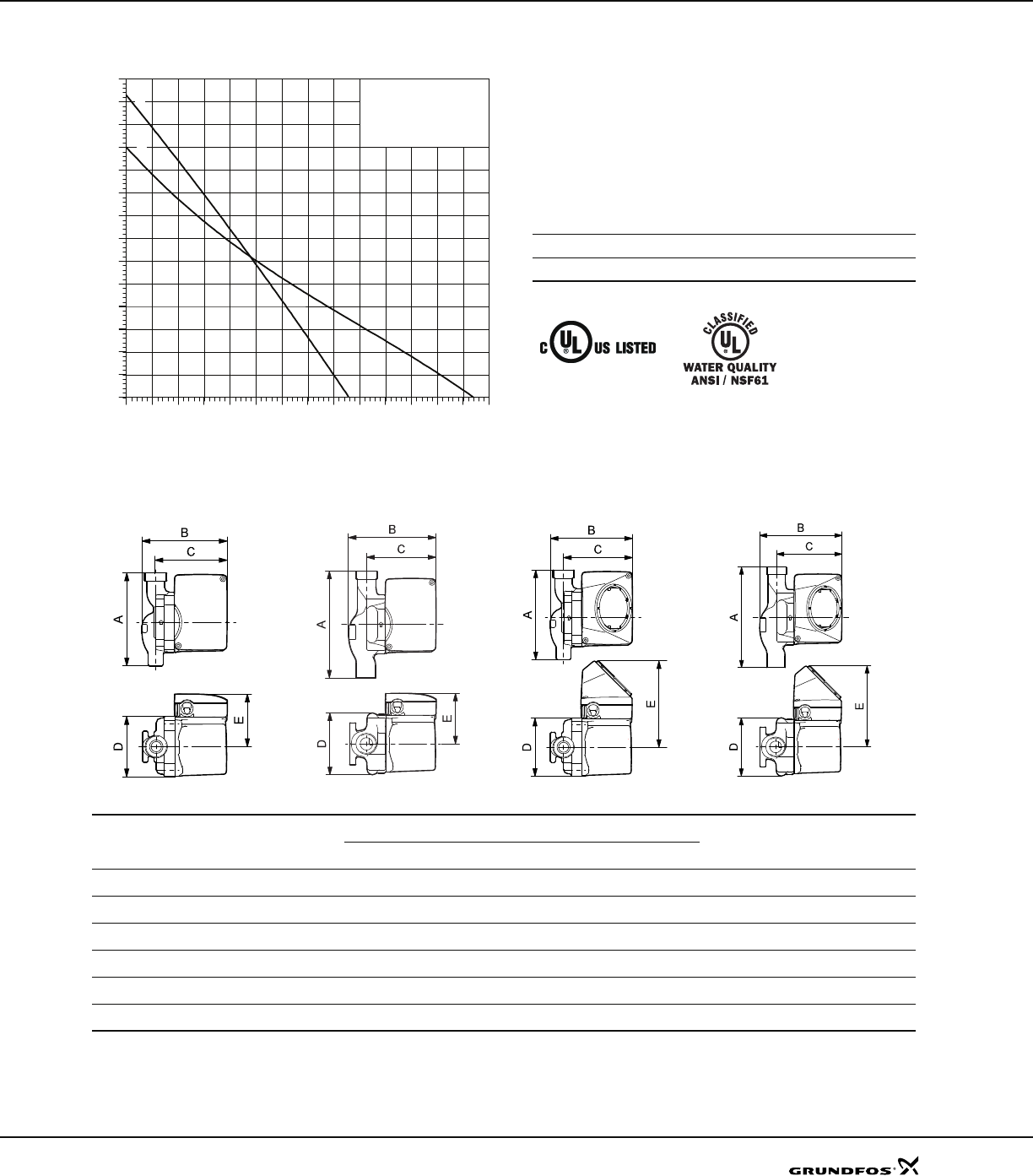

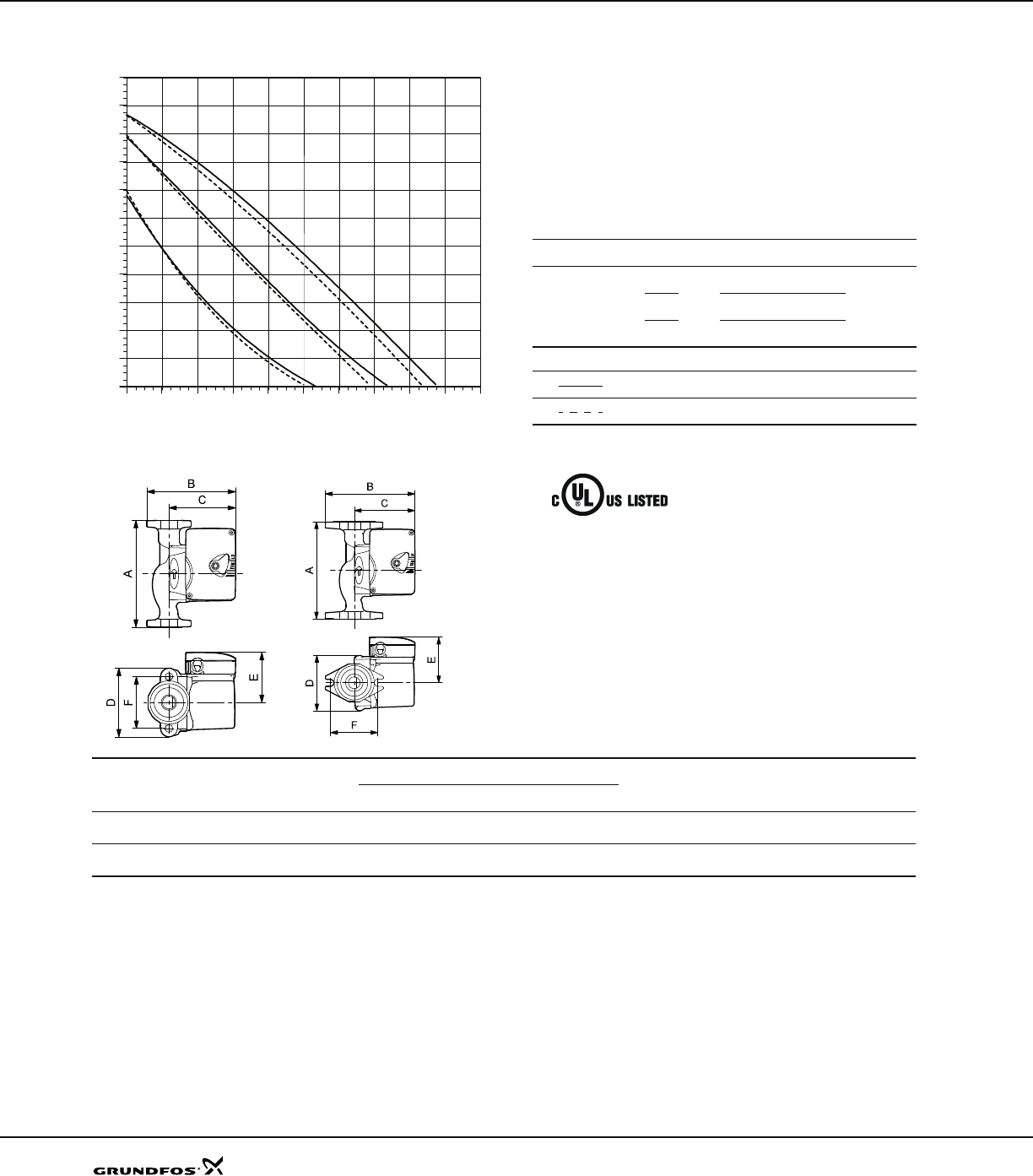

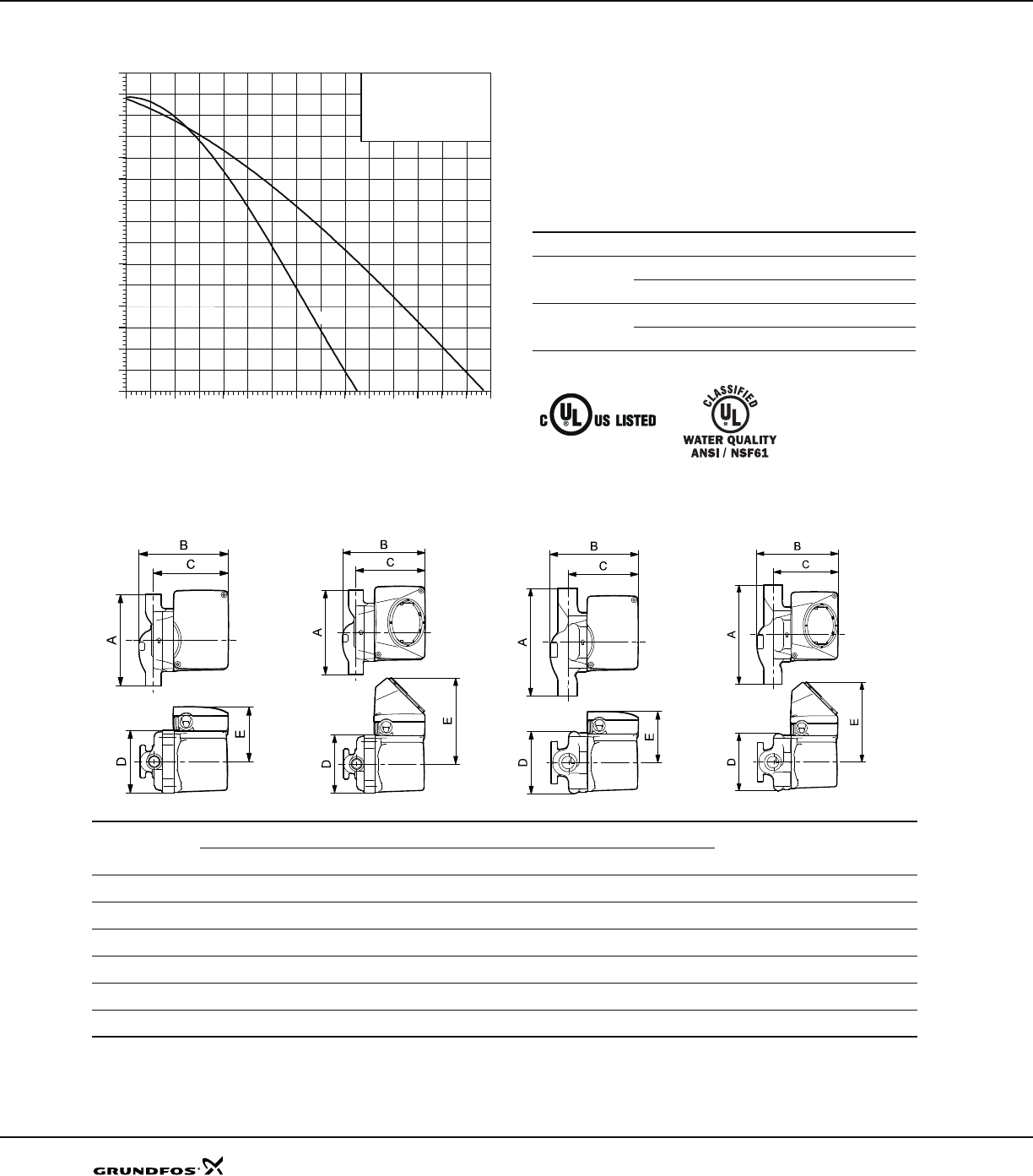

TM03 8424 1507

0 1 2 3 4 5 6 7 8 9

Q[GPM]

[ft]

a. UP 15-10 B5

b. UP 15-10 B7

Flow range: 0-8.2 gpm

Head range: 0-6.2 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 220 °F (104 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Volts Amps Watts Hp Capacitor

UP 15-10 B5 and B7 115 0.22 25 1/25 2μF/400 V

UP 15-10 B5 and UP 15-10 B5/LC UP 15-10 B7 and UP 15-10 B7/LC UP 15-10 B5/TLC UP 15-10 B7/TLC

TM03 8545 1907

TM03 8547 1907

TM03 8546 1907

TM03 8548 1907

Model type Product

number

Dimensions [inches] Connection type

and size Shipping weight

[lbs]

ABCDEF

UP 15-10 B5 59896213 5 4 11/16 4 4 3 1/2 - 1/2" sweat 6

UP 15-10 B5/LC 59896214 5 6 3/16 5 1/2 4 3 1/2 4 1/2" sweat 6.5

UP 15-10 B5/TLC 59896215 5 6 3/16 5 1/2 4 3 1/2 4 1/2" sweat 6.5

UP 15-10 B7 59896226 6 3/8 5 1/8 4 3 13/16 3 1/4 - 3/4" sweat 6.7

UP 15-10 B7/LC 59896209 6 3/8 6 5/8 5 1/2 3 13/16 3 1/4 4 3/4" sweat 7.5

UP 15-10 B7/TLC 59896210 6 3/8 6 5/8 5 1/2 3 13/16 3 1/4 4 3/4" sweat 7.5

UP 15-10 B5/B7

Technical data

Note: If the UP pump is equipped with a timer, the maximum liquid tem-

perature is 150 °F (66 °C).

Approvals

Note: LC/TLC Models have 6 ft(1.8 m), 3-prong power cord.

Dimensions in inches unless o herwise noted.

TM03 8425 1507

0.0 0 5 1.0 1.5 2 0 2.5 3 0 3 5 4.0 4 5 5.0 5.5 6 0 6.5 7.0

Q[GPM]

0 0

0 5

1 0

1 5

2 0

2 5

3 0

3 5

4 0

4 5

5 0

5 5

6 0

6 5

[ft]

a. UP 15-10 BUC5

b. UP 15-10 BUC7

Flow range: 0-6.6 gpm

Head range: 0-6.6 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Volts Amps Watts Hp Capacitor

UP 15-10 BUC5/BUC7 115 0.22 25 1/25 2μF/400 V

UP 15-10 BUC5 and

UP 15-10 BUC5/LC UP 15-10 BUC7 and

UP 15-10 BUC7/LC UP 15-10 BUC5/TLC UP 15-10 BUC7/TLC

TM03 8549 2407

TM03 8553 2407

TM03 8550 2407

TM03 8554 2407

Model type Product number Dimensions [inches] Connection

type and size Shipping weight

[lbs]

ABCDEF

UP 15-10 BUC5 59896225 6 1/2 5 1/4 4 3 1/5 3 1/4 - 1/2" sweat 7.25 lbs

UP 15-10 BUC5/LC 59896237 6 1/2 6 3/4 5 1/2 3 3/16 3 1/4 4 1/2" sweat 7.7

UP 15-10 BUC5/TLC 59896238 6 1/2 6 3/4 5 1/2 3 3/16 3 1/4 4 1/2" sweat 7.7

UP 15-10 BUC7 59896241 7 3/4 5 1/4 4 3 3/4 3 1/4 - 3/4" sweat 8.0 lbs

UP 15-10 BUC7/LC 59896239 7 3/4 6 3/4 5 1/2 3 3/4 3 1/4 4 3/4" sweat 8.5

UP 15-10 BUC7/TLC 59896240 7 3/4 6 3/4 5 1/2 3 3/4 3 1/4 4 3/4" sweat 8.5

UP 15-10 BUC5/7

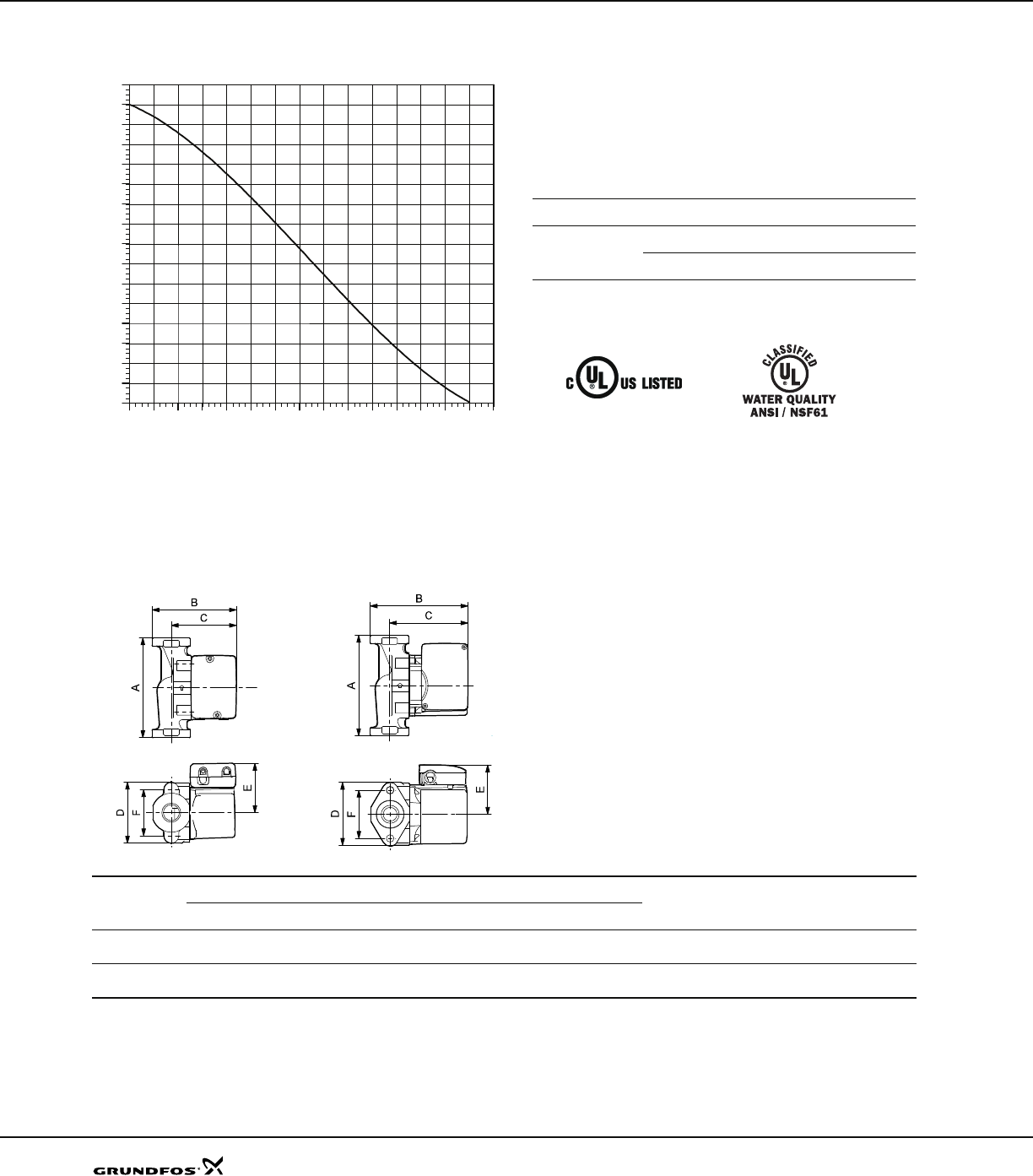

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

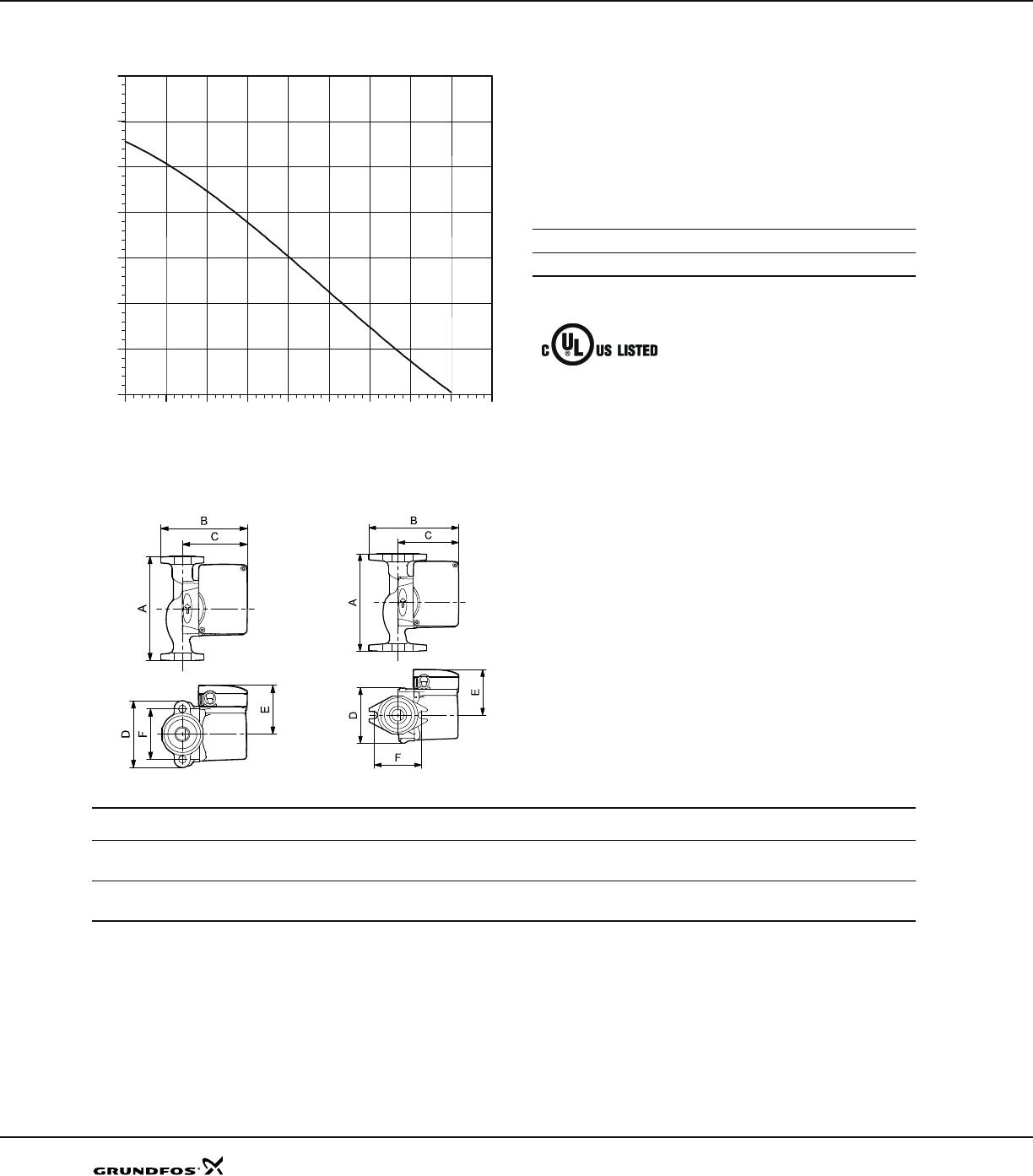

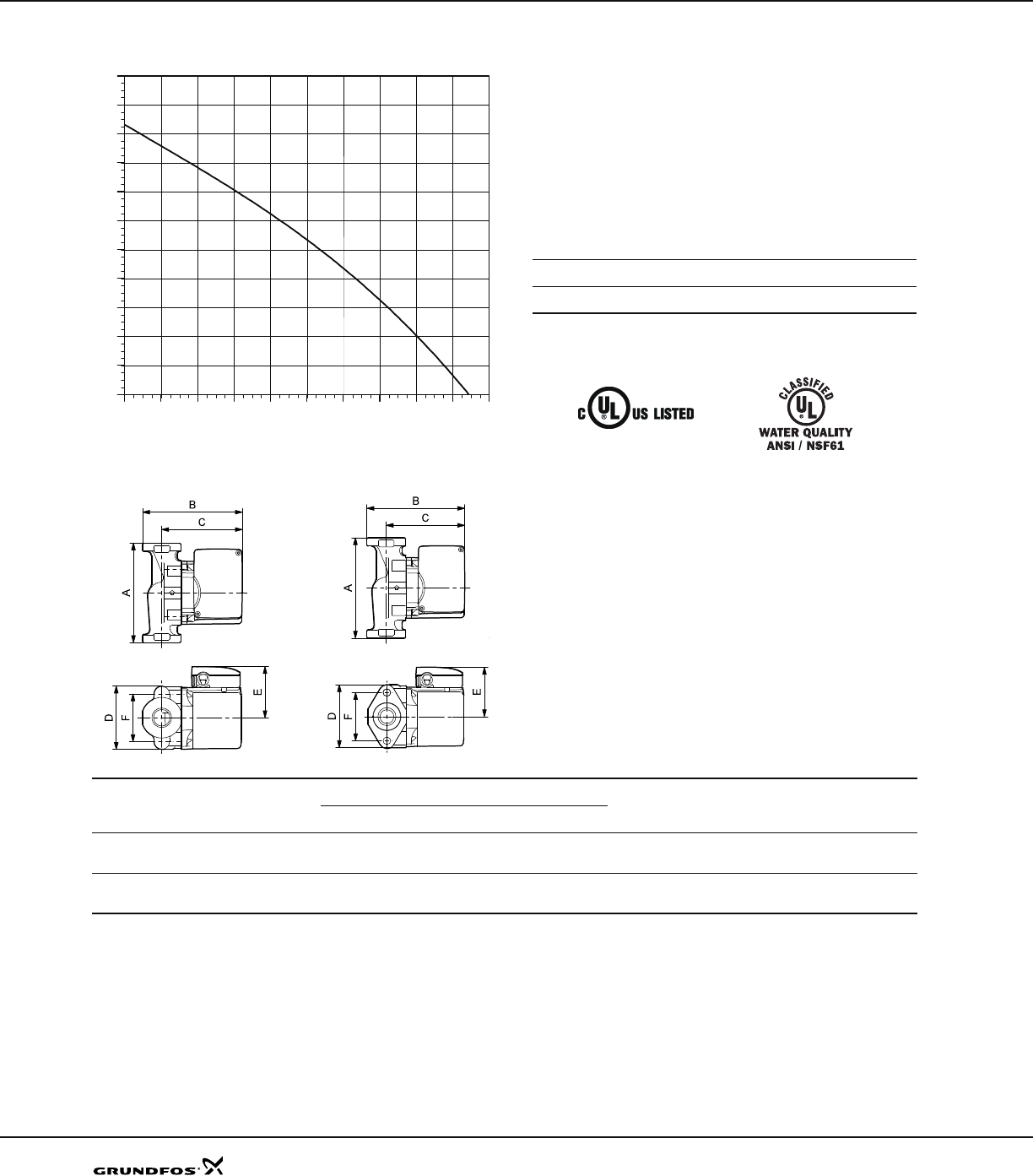

TM03 5532 0907

0 1 2 3 4 5 6 7 8 9

Q[GPM]

[ft]

Flow range: 0-8.0 gpm

Head range: 0-5.5 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Closed system

Model Volts Amps Watts Hp Capacitor

UP 15-10 F/FR 115 0.23 25 1/25 2μF/400 V

UP 15-10 F UP 15-10 FR

TM03 8526 1907

TM03 8527 1907

Model type Product number A B C D E F Connection type

and size Shipping weight

[lbs]

UP 15-10 F 59896248 6 1/2 5 1/4 4 4 3/16 3 1/4 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 7 1/4

UP 15-10 FR 59896249 6 1/2 5 15/16 4 3 3/4 3 1/4 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 7 1/4

UP 15-10 F/FR

Technical data

UP Comfort System

Approvals

Note: All models have a 10 ft (3 m), 3-prong power cord.

Dimensions in inches unless o herwise noted.

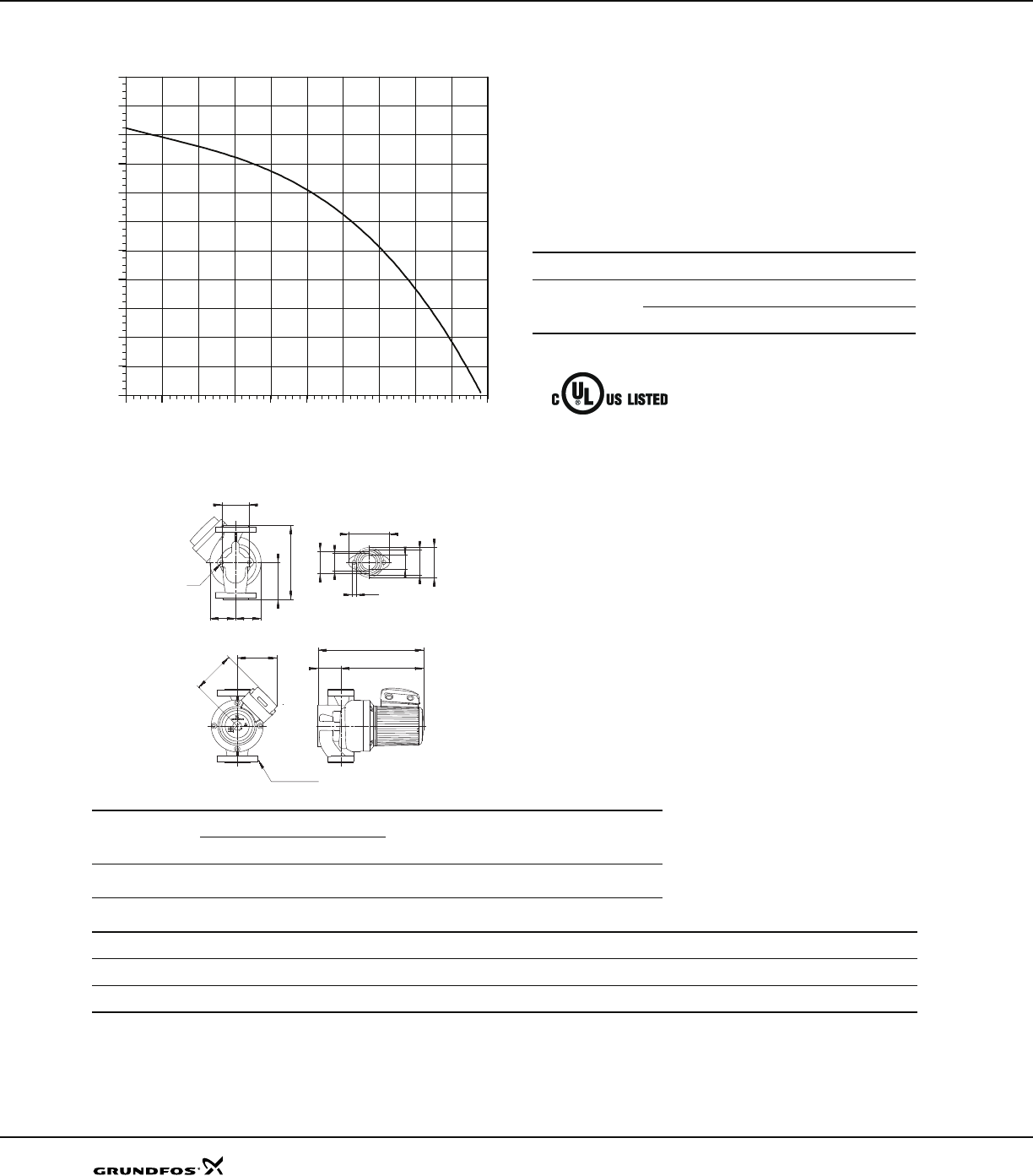

TM03 5547 3806

0.0 0 5 1 0 1.5 2 0 2.5 3.0 3 5 4.0 4.5 5 0 5.5 6.0 6 5 7.0

Q[GPM]

0 0

0 5

1 0

1 5

2 0

2 5

3 0

3 5

4 0

4 5

5 0

[ft]

Flow range: 0-6.3 gpm

Head range: 0-5.1 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 150 °F (66 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Open system

Model Volts Amps Watts Hp Capacitor

UP 15-10 SU7P/TLC 115 0.23 25 1/25 2μF/400 V

UP 15-10 SU7P/TLC Comfort Valve®

TM03 4362 3507

TM03 4363 3507

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

ABCDEF

UP 15-10 SU7P/TLC 595916 5 7/16 6 1/4 5 1/2 3 7/16 3 1/4 4 3/4" M x 3/4" F NPT 5.5

Comfort Valve 595926 ------1/2” M NPS (1/2” faucet) 2.8

Flex hose kit 599390 ------

(2) 1/2" FNPS X 1/2" FNPS X

12" flex hoses -

Model type Product number Description

Comfort Valves 595926 Box of 15 pieces

Comfort series kit 595916 1 pump and 1 valve,

(2) 1/2" FNPS X 1/2" FNPS X 12" flex hoses

UP 15-10 SU7P/TLC

Technical data

Note: If the UP pump is equipped with a timer, the maximum liquid tem-

perature is 150 °F (66 °C).

Approvals

Note: LC/TLC Models have 6 ft (1.8 m), 3-prong power cord.

Dimensions in inches unless o herwise noted.

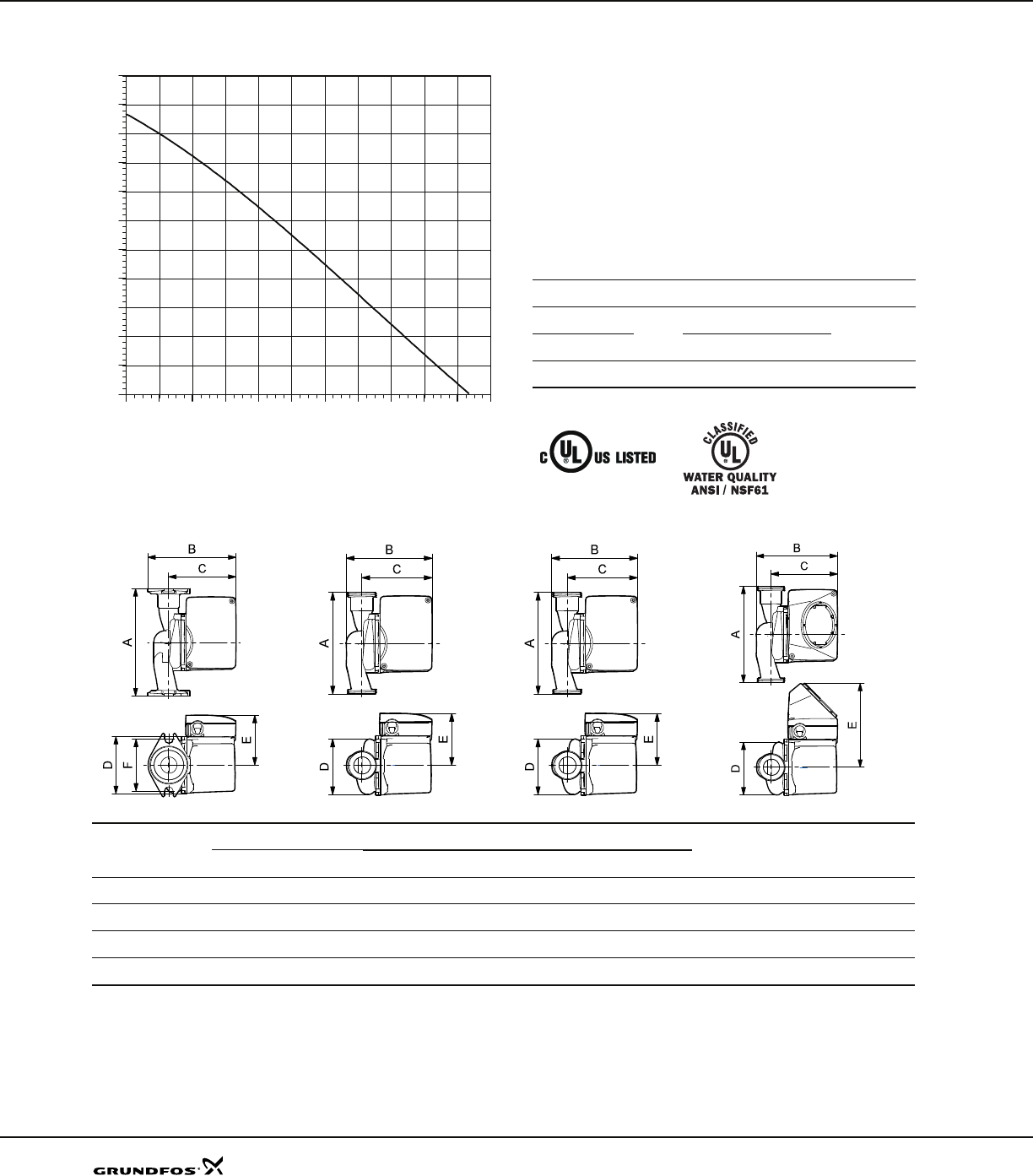

TM03 8426 1507

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Q[GPM]

[ft]

a. UP 15-18 B5

b. UP 15-18 B7

Flow range: 0-14.7 gpm

Head range: 0-13.9 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Volts Amps Watts Hp Capacitor

UP 15-18 B5 115 0.74 85 1/25 10μF/180 V

230 0.4 90 1/25 2μF/400 V

UP 15-18 B7 115 0.74 85 1/25 10μF/180 V

230 0.4 96 1/25 2μF/400 V

UP 15-18 B5/LC UP 15-18 B5/TLC UP 15-18 B7/LC UP 15-18 B7/TLC

TM03 8545 1907

TM03 8546 1907

TM03 8547 1907

TM03 8548 1907

Model type Product number Dimensions [inches] Connection

type and size Shipping weight

[lbs]

115 V230 VABCDEF

UP 15-18 B5 59896114 59896118 5 4 11/16 4 3 1/2 3 1/4 - 1/2" sweat 6

UP 15-18 B5/LC 59896211 - 5 6 3/16 5 1/2 3 1/2 3 1/4 4 1/2" sweat 6.5

UP 15-18 B5/TLC 59896212 - 5 6 3/16 5 1/2 3 1/2 3 1/4 4 1/2" sweat 6.5

UP 15-18 B7 59896121 59896119 6 3/8 5 1/8 4 3 4/5 3 1/4 - 3/4" sweat 6.7

UP 15-18 B7/LC 59896229 - 6 3/8 6 5/8 5 1/2 3 4/5 3 1/4 4 3/4" sweat 7.2

UP 15-18 B7/TLC 59896230 - 6 3/8 6 5/8 5 1/2 3 4/5 3 1/4 4 3/4" sweat 7.2

UP 15-18 B5/B7

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

TM03 8428 1507

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Q[GPM]

[ft]

a. UP 15-18 BUC5

b. UP 15-18 BUC7

Flow range: 0-14.7 gpm

Head range: 0-14.5 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Volts Amps Watts Hp Capacitor

UP 15-18 BUC5 115 0.55 60 1/25 8μF/180 V

UP 15-18 BUC7 115 0.55 60 1/25 8μF/180 V

UP 15-18 BUC5 UP 15-18 BUC7

TM03 8549 1907

TM03 8553 2407

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

ABC D EF

UP 15-18 BUC5 59896123 6 1/2 5 1/4 4 3 3/16 3 1/4 - 1/2" sweat 7 1/4 lbs

UP 15-18 BUC7 59896124 7 3/4 5 1/4 4 3 3/4 3 1/4 - 3/4" sweat 8 lbs

UP 15-18 BUC5/BUC7

Technical data

Note: If the UP pump is equipped with a timer, the maximum liquid tem-

perature is 150 °F (66 °C).

Approvals

Note: LC/TLC Models have 6 ft (1.8 m), 3-prong power cord.

Dimensions in inches unless o herwise noted.

TM03 8847 2607

0 2 4 6 8 10 12 14 16 18 20 22

Q[GPM]

[ft]

Flow range: 0-20.5 gpm

Head range: 0-9.7 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C) and 150 °F

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Open system

Model Volts Amps Watts Hp Capacitor

UP 15-29 SF 115 0.75 87 0.12 10μF/180 V

UP 15-29 SUC 0.75 87 0.12

UP 15-29 SU 230 0.42 97 0.15 2μF/400 V

UP 15-29 SF UP 15-29 SU UP 15-29 SU/LC UP 15-29 SU/TLC

TM03 8776 2507

TM03 8777 2507

TM03 8778 250

Model type Product number Dimensions [inches] Connection type

and size

Shipping

weight

[lbs]115 V 230 V A B C D E F

UP 15-29 SF 59896771 - 6 1/2 5 1/2 4 1/8 3 14/16 2 15/16 3 1/8 GF15/26 6.0

UP 15-29 SU 59896775 59896784 5 7/8 5 1/2 4 1/8 3 7/16 2 15/16 - GU125 5.4

UP 15-29 SU/LC 59896776 - 5 7/8 5 1/2 4 1/8 3 7/16 2 15/16 - GU125 5.7

UP 15-29 SUC/TLC 59896777 - 5 7/8 5 1/2 4 1/8 3 7/16 2 15/16 - GU125 6.2

UP 15-29 SU/SF

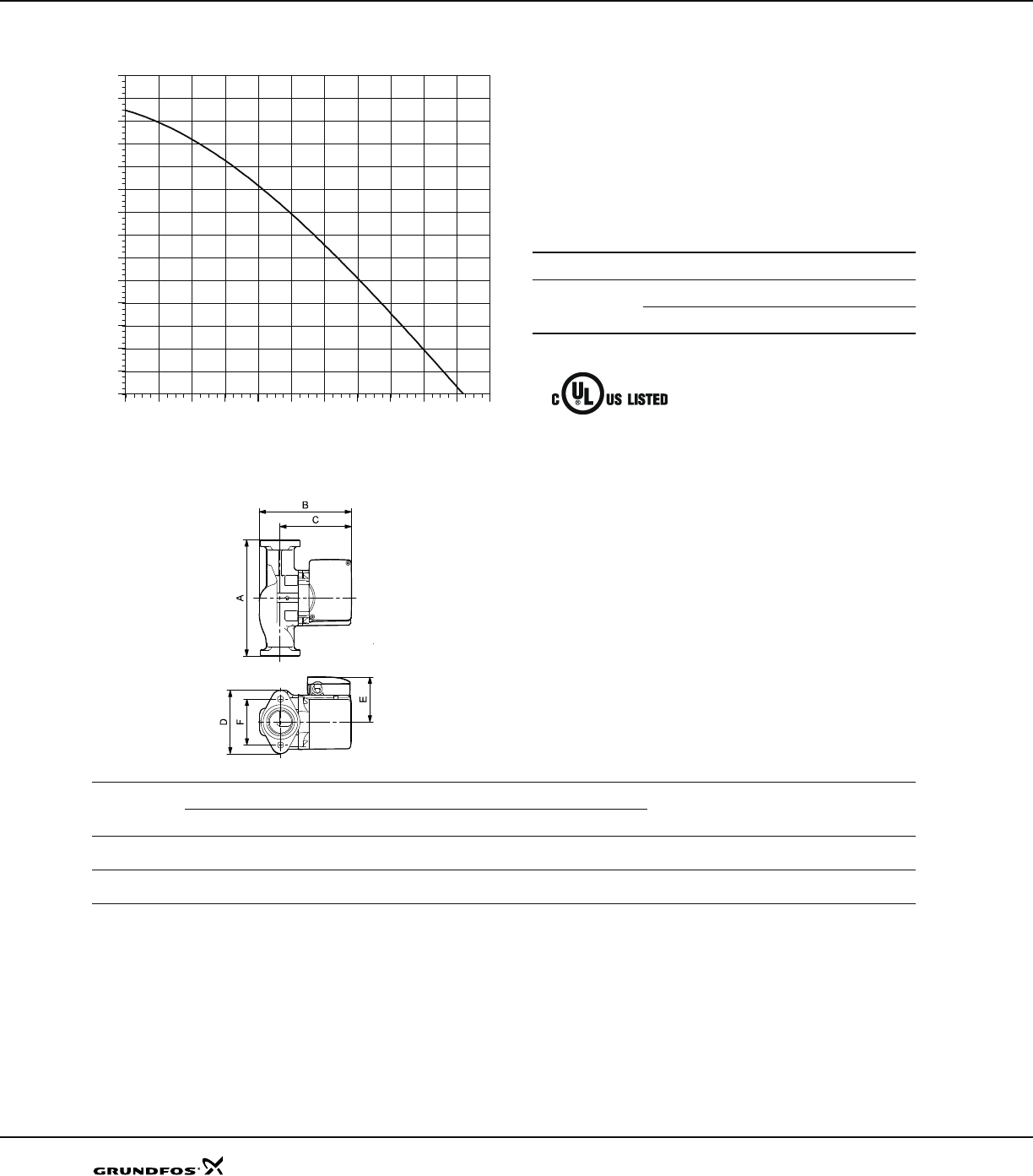

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

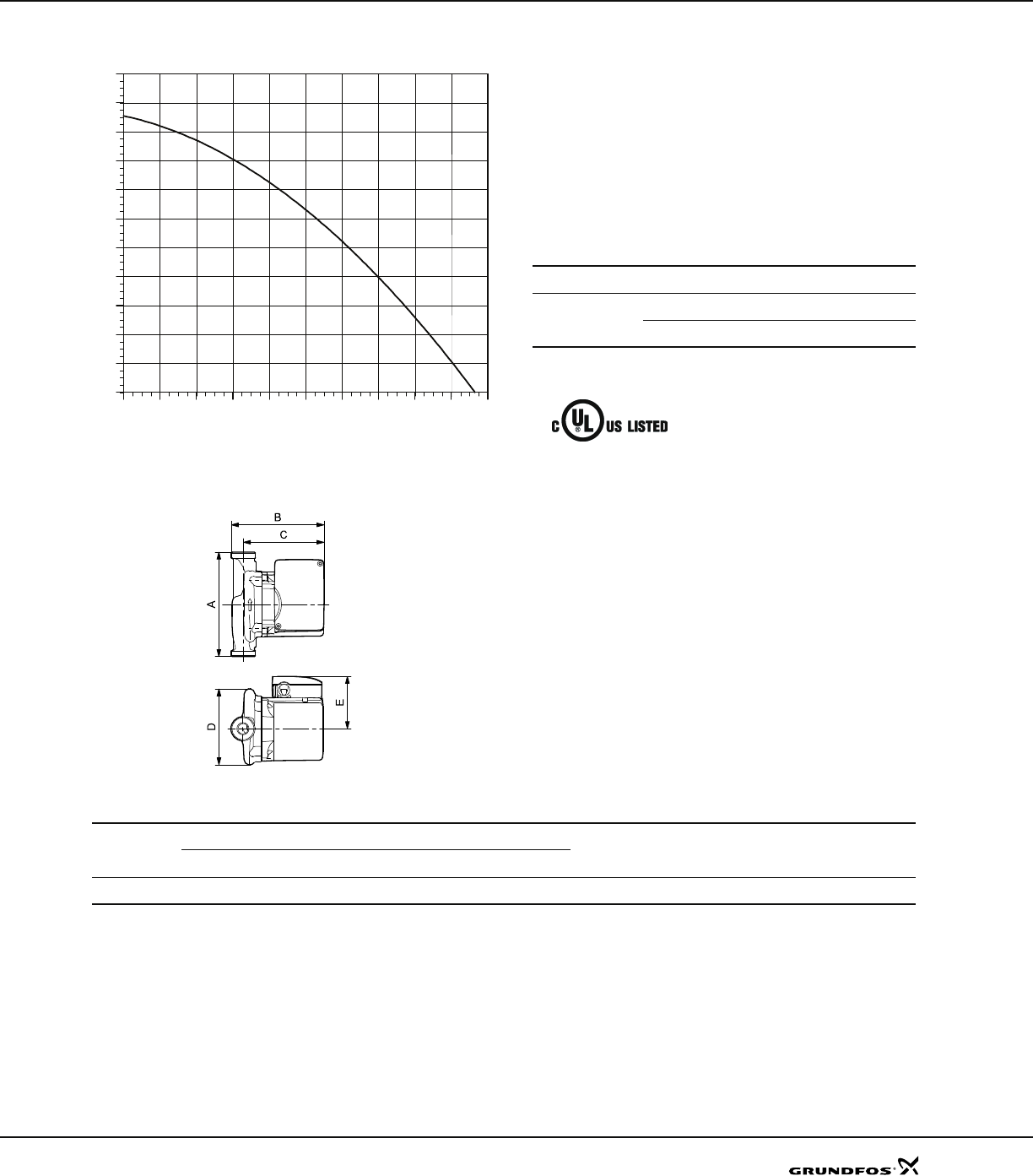

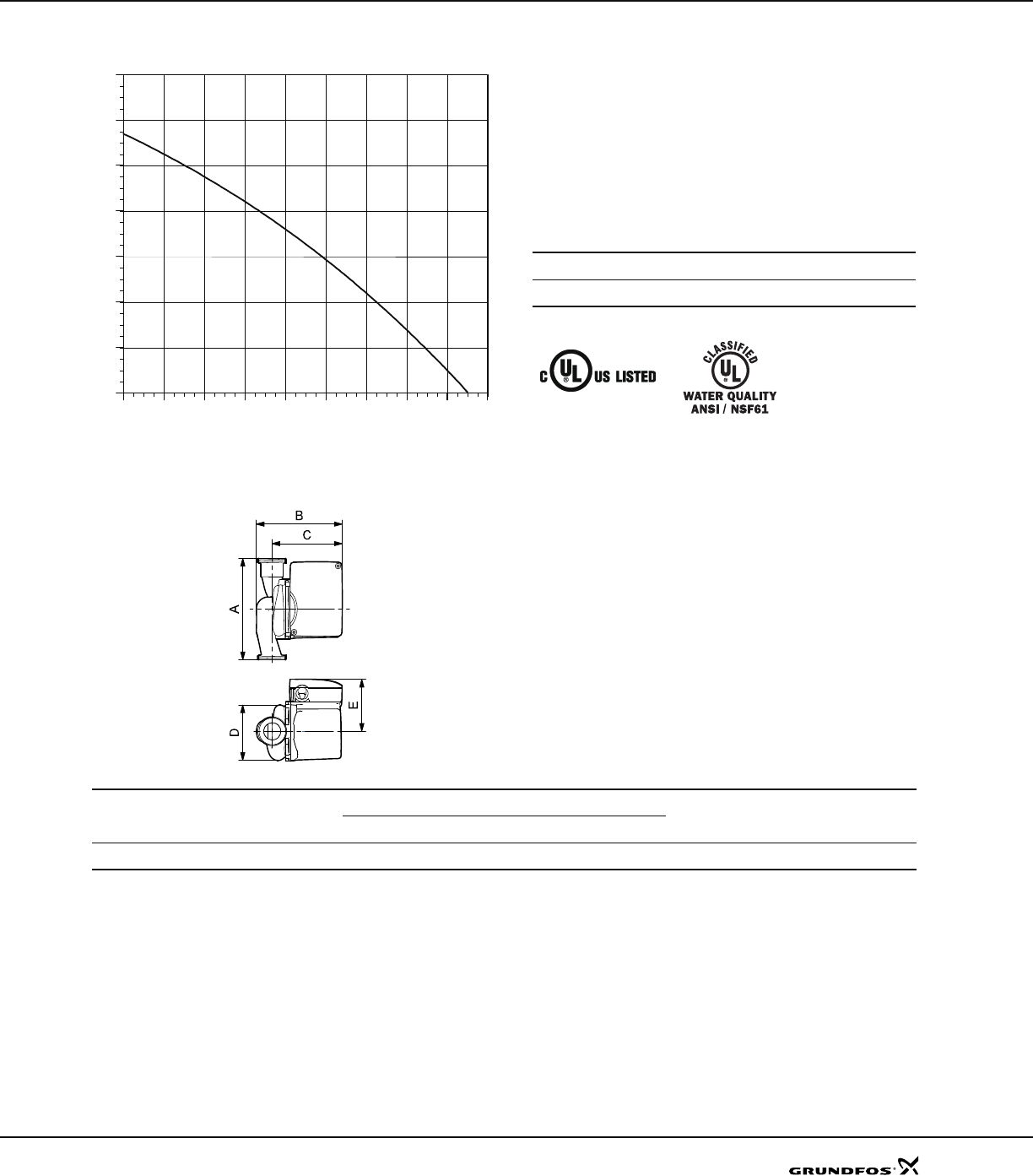

TM03 8846 2607

0 2 4 6 8 10 12 14 16 18

Q[GPM]

[ft]

Flow range: 0-17.5 gpm

Head range: 0-11.5 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Open system

Model Volts Amps Watts Hp Capacitor

UP 15-35 SUC 230 0.42 114 0.15 2μF/400 V

UP 15-35 SUC

TM03 87777 2507

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

A BCD EF

UP 15-35 SUC 59896785 5 7/8 5 1/16 4 1/8 3 7/16 2 15/16 - GU125 5.4

UP 15-35 SUC

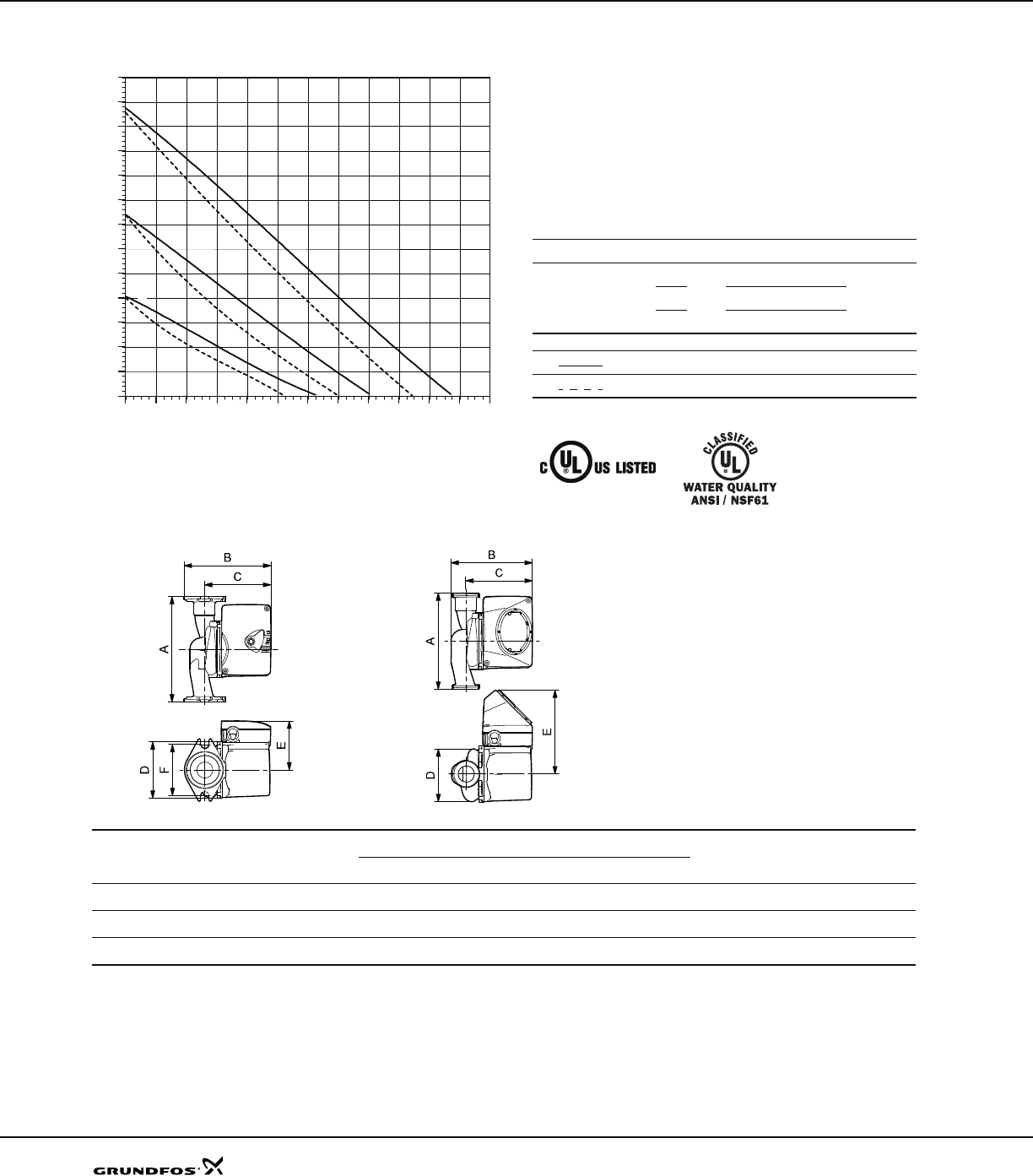

Technical data

Note: If the UP pump is equipped with a timer, the maximum liquid tem-

perature is 150 °F (66 °C).

Approvals

Note: LC/TLC Models have 6 ft (1.8 m), 3-prong power cord. Removable check valve.

Dimensions in inches unless o herwise noted.

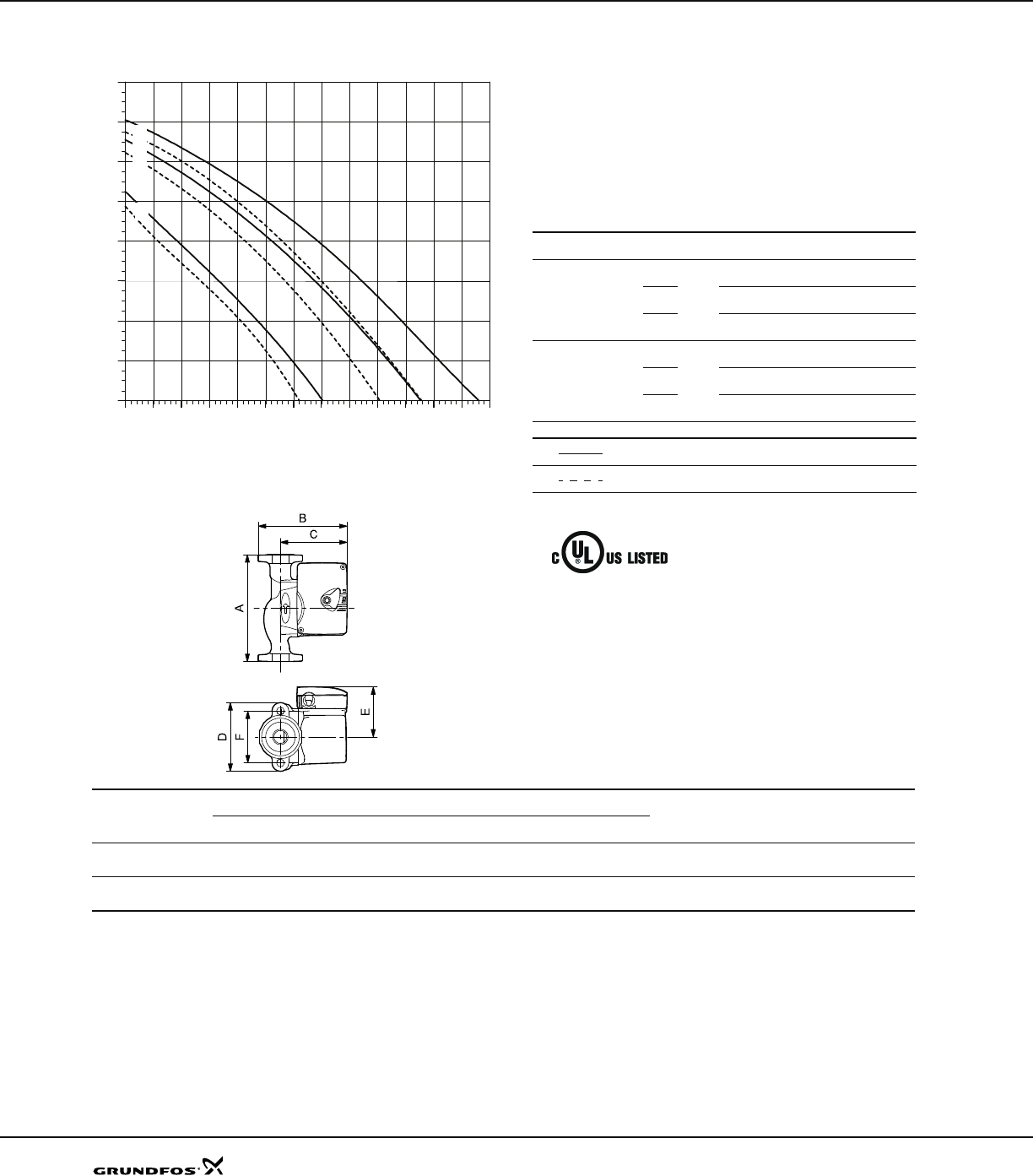

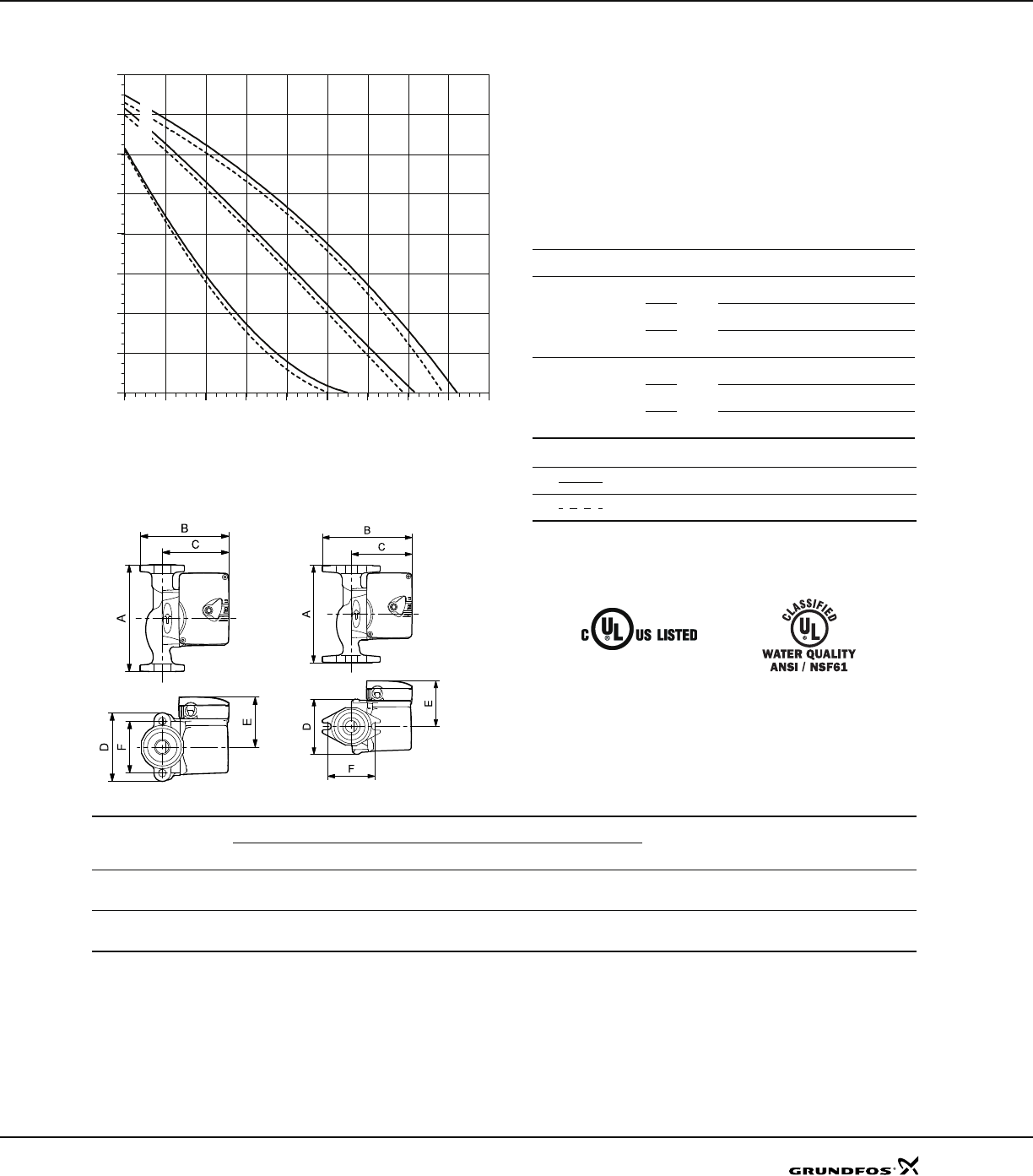

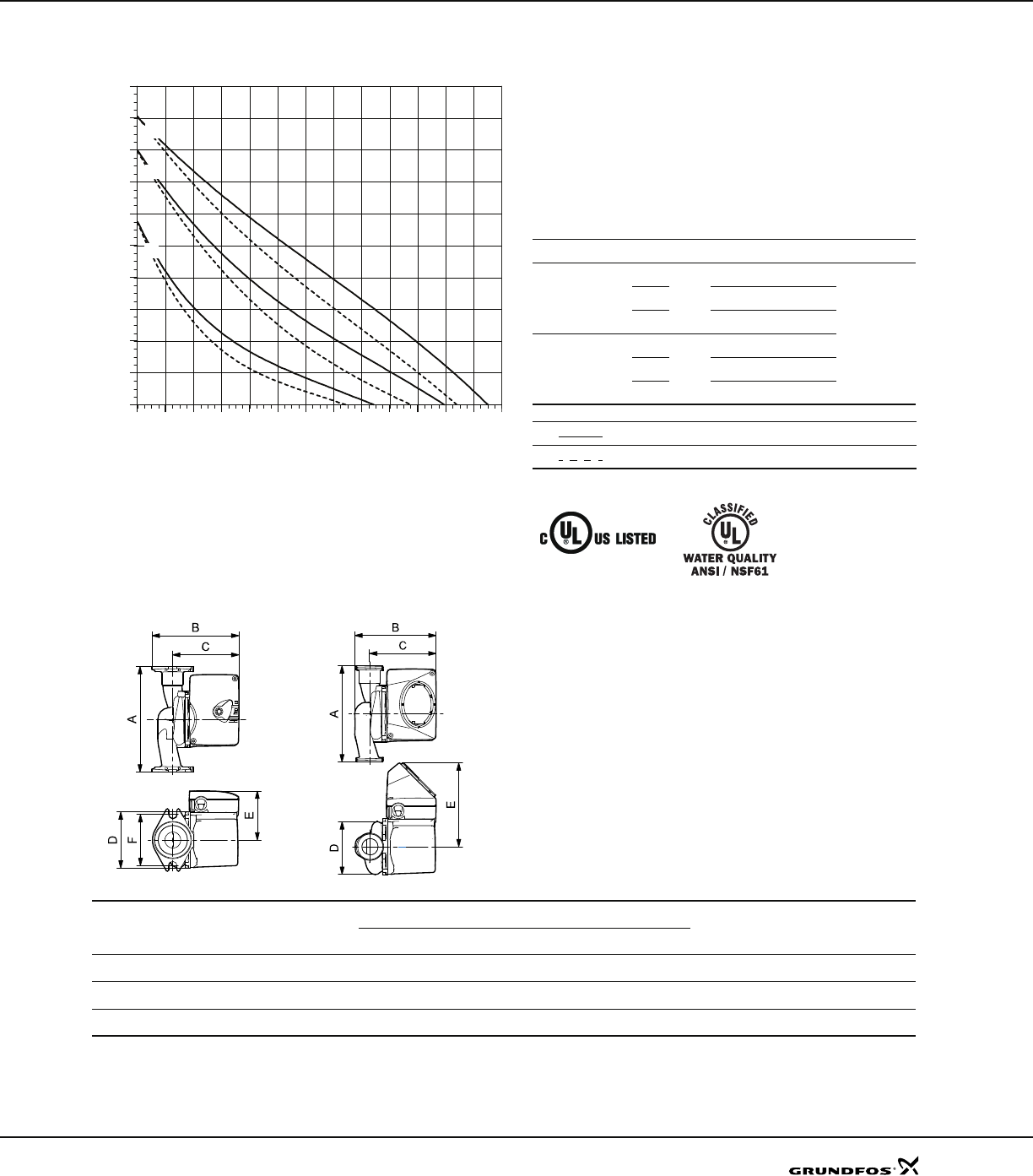

TM03 8850 2607

0 2 4 6 8 10 12 14 16 18 20 22 24

Q[GPM]

[ft]

Flow range: 0-21.5 gpm

Head range: 0-12 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 165 °F (74 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Spd Volts Amps Watts Hp Capacitor

UPS 15-35 SUC/SFC

115

0.95 110 0.15

10μF/180 V2 0.75 84 0.11

1 0.55 61 0.08

Without check valve

With check valve

UPS 15-35 SFC UPS 15-35 SUC/TLC

TM03 8779 2507

TM03 8778 2507

Model type Product number Dimensions [inches] Connection type

and size Shipping

weight [lbs]

ABCD EF

UPS 15-35 SFC 59896772 6 1/2 5 1/2 4 1/8 3 7/8 2 15/16 3 1/8 GF15/26 6

UPS 15-35 SUC 59896778 5 7/8 5 1/16 4 1/8 3 7/16 2 15/16 - GU125 5.4

UPS 15-35 SUC/TLC 59896780 5 7/8 5 1/16 4 1/8 3 7/16 2 15/16 - GU125 6.2

UPS 15-35 SUC/SFC

Technical data

Note: If the UP pump is equipped with a timer, the maximum liquid

temperature is 150 °F (66 °C).

Approvals

Note: LC/TLC Models have 6 ft (1.8 m), 3-prong power cord.

Dimensions in inches unless o herwise noted.

TM03 8430 1507

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

Q[GPM]

[ft]

a. UP 15-42 B5

b. UP 15-42 B7

Flow range: 0-17 gpm

Head range: 0-15 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Volts Amps Watts Hp Capacitor

UP 15-42 B5 115 0.74 85 1/25 10μF/180 V

230 0.41 95 1/25 2μF/400 V

UP 15-42 B7 115 0.74 85 1/25 10μF/180 V

230 0.41 95 1/25 2μF/400 V

UP 15-42 B5/LC and B7 UP 15-42 B5/TLC UP 15-42 B7/LC UP 15-42 B7/TLC

TM03 8545 1907

TM03 8546 1907

TM03 8547 1907

TM03 8548 1907

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 230 VABCDEF

UP 15-42 B5 59896145 59896142 5 4 11/16 4 3 1/2 3 1/4 - 1/2" sweat 6.0

UP 15-42 B5/LC 59896233 - 5 6 3/16 5 1/2 3 1/2 3 1/4 - 1/2" sweat 6.5

UP 15-42 B5/TLC 59896234 - 5 6 3/16 5 1/2 3 1/2 3 1/4 - 1/2" sweat 6.5

UP 15-42 B7 59896146 59896149 6 3/8 5 1/8 4 3 4/5 3 1/4 - 3/4" sweat 6.7

UP 15-42 B7/LC 59896235 - 6 3/8 6 5/8 5 1/2 3 4/5 3 1/4 - 3/4" sweat 7.2

UP 15-42 B7/TLC 59896236 - 6 3/8 6 5/8 5 1/2 3 4/5 3 1/4 - 3/4" sweat 7.2

UP 15-42 B5/B7

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

TM03 8431 1507

0 2 4 6 8 10 12 14 16 18

Q[GPM]

[ft]

a. UP 15-42 BUC5

b. UP 15-42 BUC7

Flow range: 0-17 gpm

Head range: 0-15 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 205 °F (96 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Volts Amps Watts Hp Capacitor

UP 15-42 BUC5 115 0.74 85 1/25 10μF/180 V

UP 15-42 BUC7 115 0.74 85 1/25 10μF/180 V

UP 15-42 BUC5 UP 15-42 BUC7

TM03 8549 1907

TM03 8753 2407

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

ABCDEF

UP 15-42 BUC5 59896150 6 1/2 5 1/4 4 3 3/16 3 1/4 - 1/2" sweat 6 1/2

UP 15-42 BUC7 59896151 7 3/4 5 1/4 4 3 3/4 3 1/4 - 3/4" sweat 6 3/4

UP 15-42 BUC5/BUC7

Technical data

UP 15 MixiMizer

Approvals

MixiMizer models include the following features:

• Two water-temperature sensors (system supply and

return (prewired, 8 ft (2.4 m) each

• One prewired 6-ft line cord

• one outdoor air-temperature sensor

• Optional zone control input

• Optional boiler on/off output.

Note: Dimensions in inches unless otherwise noted.

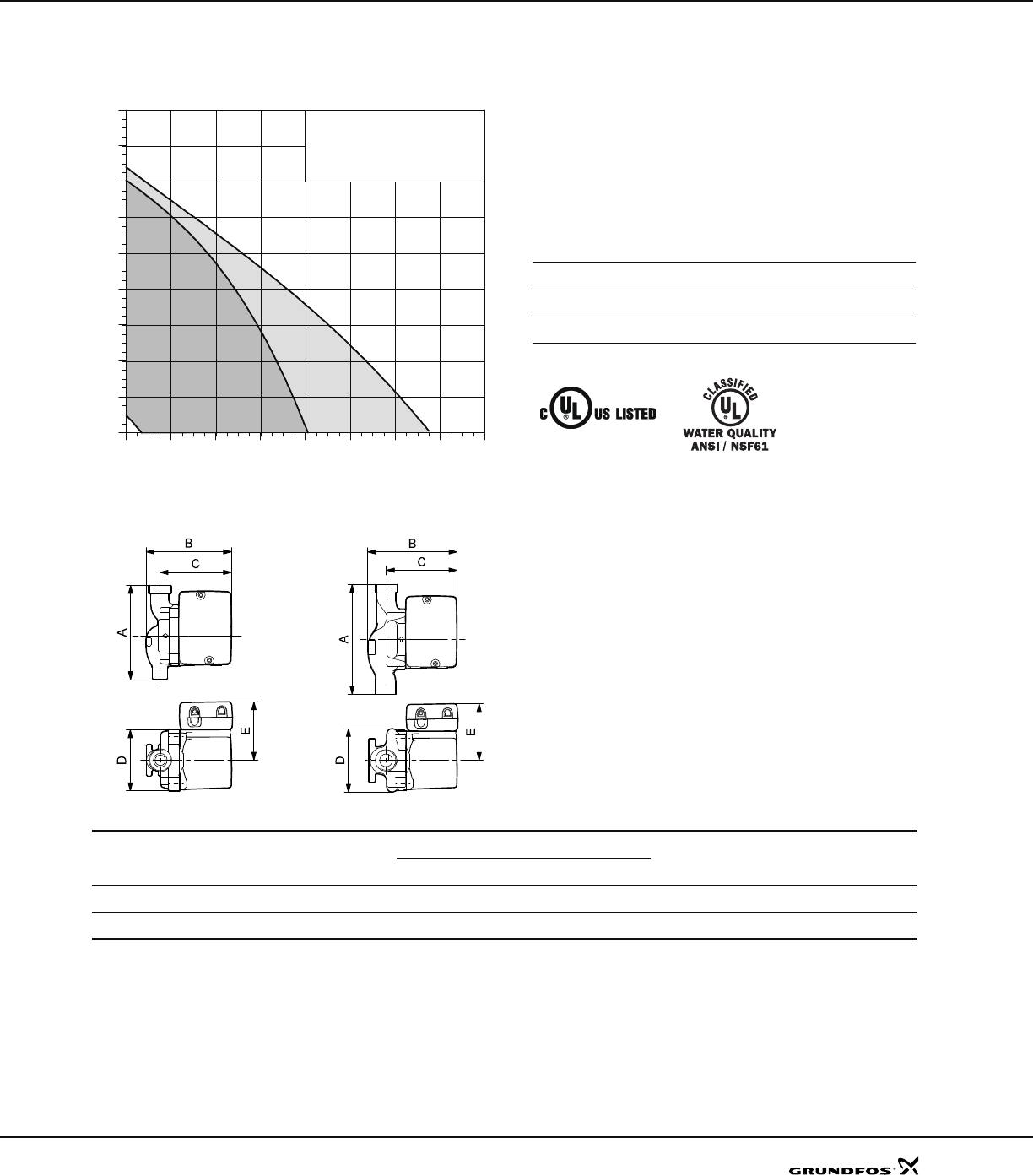

TM03 8839 2607

UP 15-42 BUC5/MR UP 15-42 BUC7/MR

TM03 8755 2407

TM03 8756 2407

0 2 4 6 8 10 12 14 16

Q[GPM]

[ft]

a. MIN - bo h models

b. MAX - UP 15-42 BUC5

c. MAX - UP 15-42 BUC 7

Flow range: 0-13.5 gpm

Head range: 0-15 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 205 °F (96 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Volts Amps Watts Hp Capacitor

UP 15-42 BUC5/MR 115 0.74 85 1/25 10μF/180 V

UP 15-42 BUC7/MR 115 0.74 85 1/25 10μF/180 V

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

ABCDEF

UP 15-42 BUC5/MR 59896805 6 1/2 5 1/4 4 3 3/16 3 1/4 - 1/2" sweat 6 1/2

UP 15-42 BUC7/MR 59896806 7 3/4 5 1/4 4 3 3/4 3 1/4 - 3/4" sweat 6 3/4

UP 15-42 BUC5/MR and BUC7/MR

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

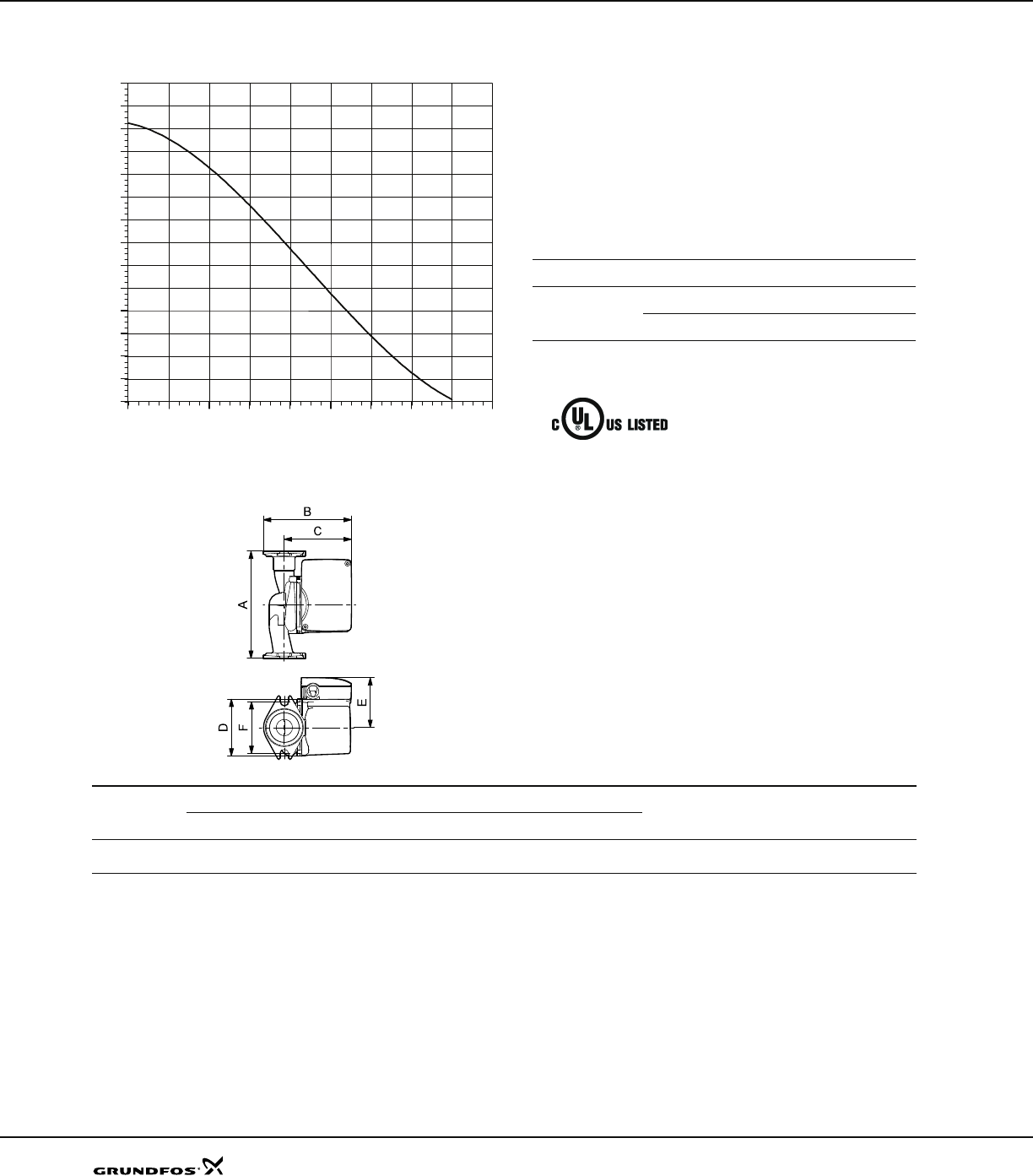

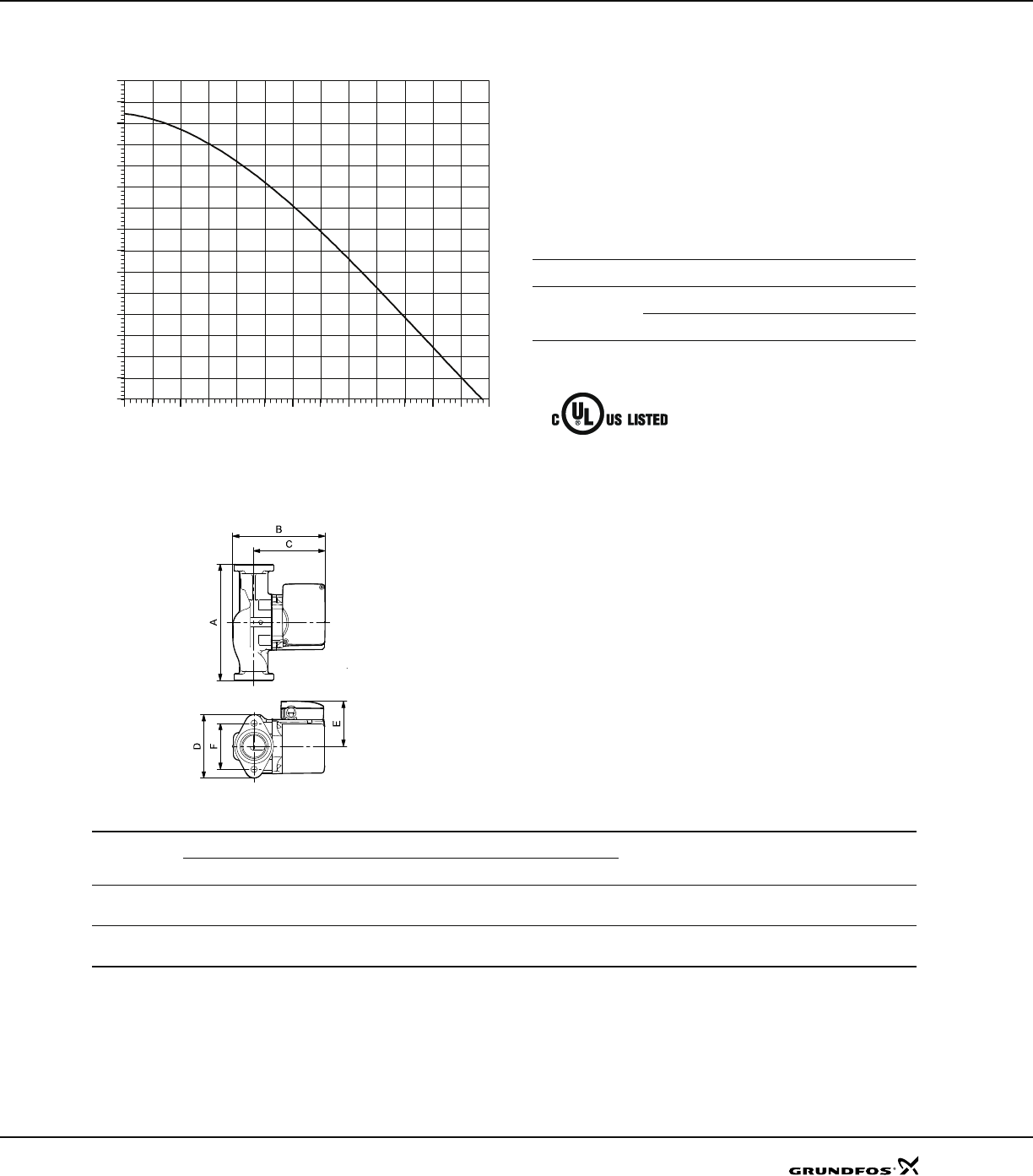

TM03 5533 0709

0 2 4 6 8 10 12 14 16 18

Q[GPM]

[ft]

Flow range: 0-17 gpm

Head range: 0-15 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Closed system

Model Volts Amps Watts Hp Capacitor

UP 15-42 F/FR 115 0.74 85 1/25 10μF/180 V

230 0.43 95 1/25 2μF/400 V

UP 15-42 F UP 15-42 FR

TM03 8526 1907

TM03 8527 1907

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 230 V A B C D E F

UP 15-42 F 59896155 59896173 6 1/2 5 1/4 44 3/16 3 1/4 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 7 1/4

UP 15-42 FR 59896167 59896274 5 15/16 3 3/4

UP 15-42 F/FR

Technical data

Note: Dimensions in inches unless otherwise noted.

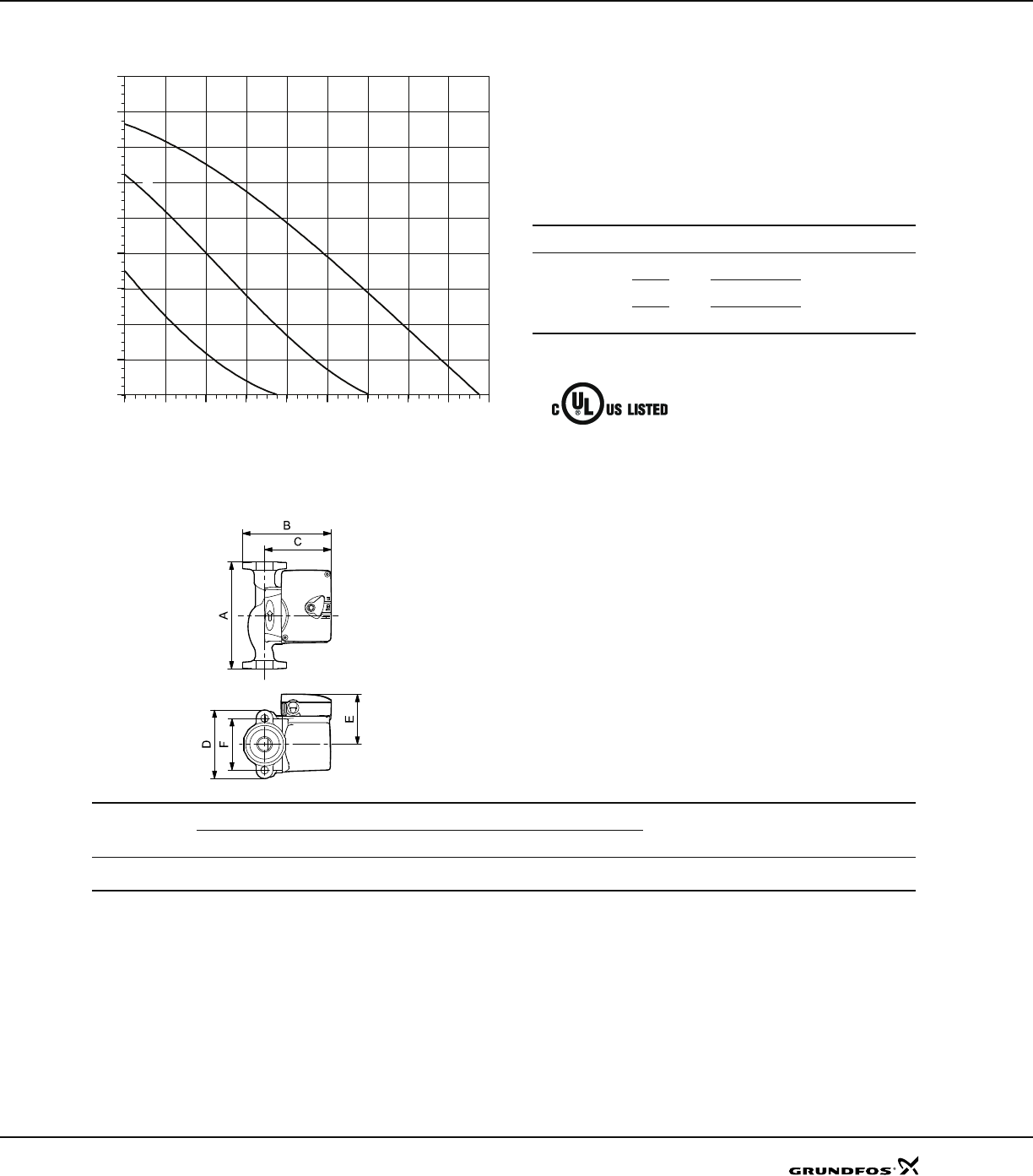

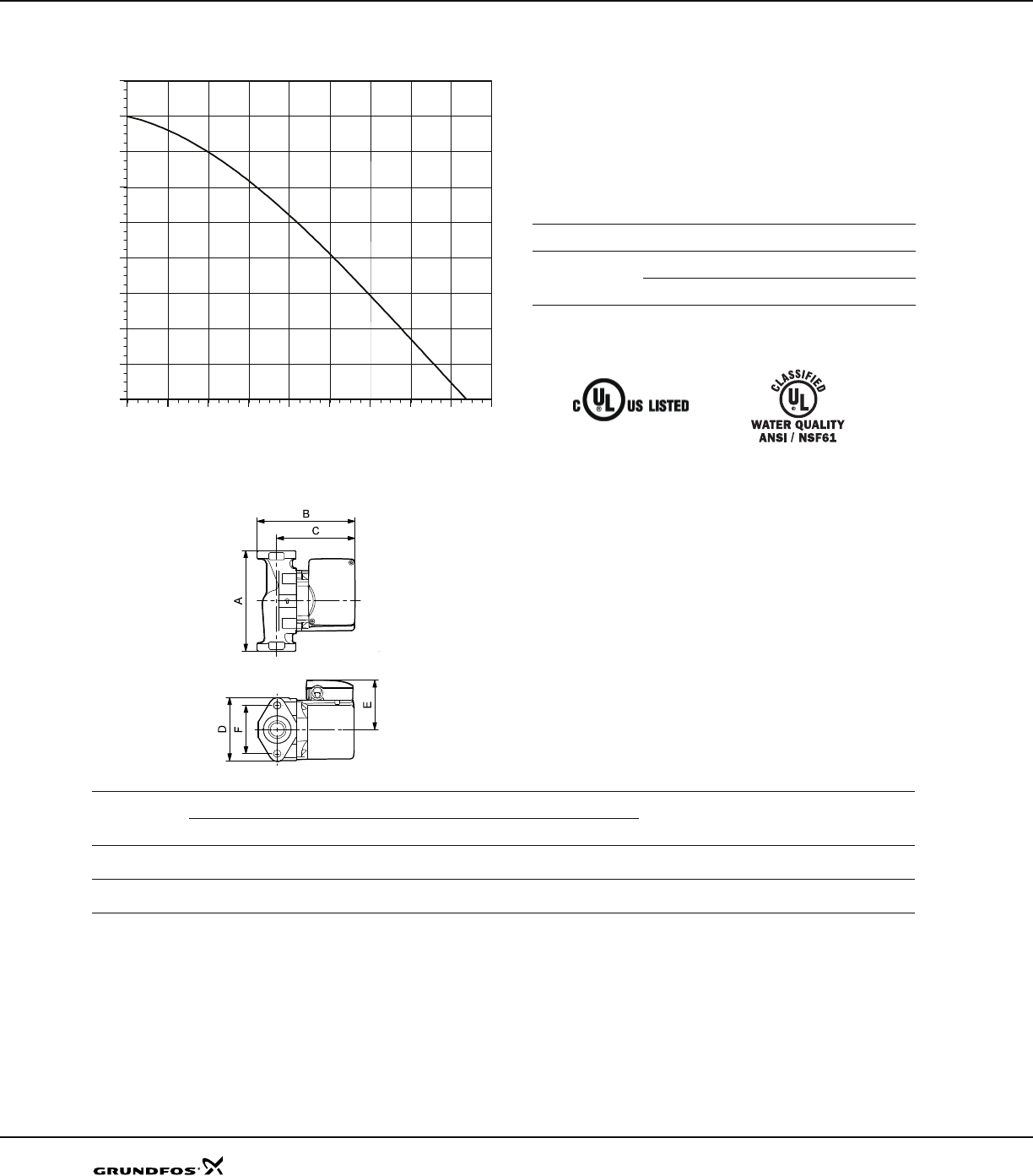

TM03 5574 0907

0 2 4 6 8 10 12 14 16 18

Q[GPM]

[ft]

Flow range: 0-17.5 gpm

Head range: 0-15.5 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Spd VoltsAmpsWatts Hp Capacitor

UPS 15-42 F

230

0.41 92

1/25 2μF/400 V20.1940

10.1430

Approvals

UPS 15-42 F

TM03 8757 2407

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 230 V A B C D E F

UPS 15-42 F - 59896180 6 1/2 5 1/4 4 4 3/16 3 1/4 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 7 1/4

UPS 15-42 F

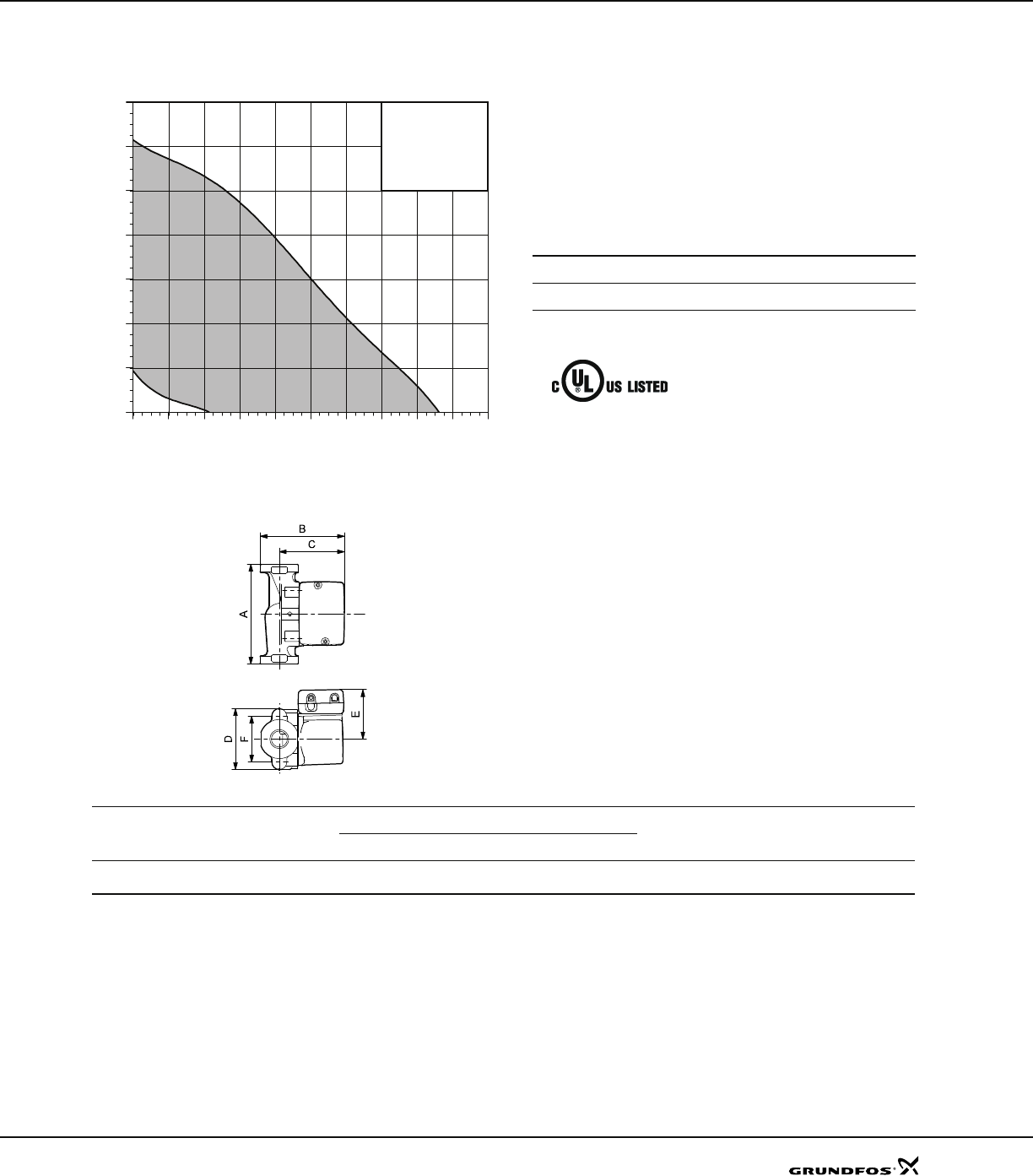

Technical data

UP 15 MixiMizer

Approvals

MixiMizer models include the following features:

• Two water-temperature sensors (system supply and

return (prewired, 8 ft (2.4 m) each

• One prewired 6-ft line cord

• one outdoor air-temperature sensor

• Optional zone control input

• Optional boiler on/off output.

Note: Dimensions in inches unless otherwise noted.

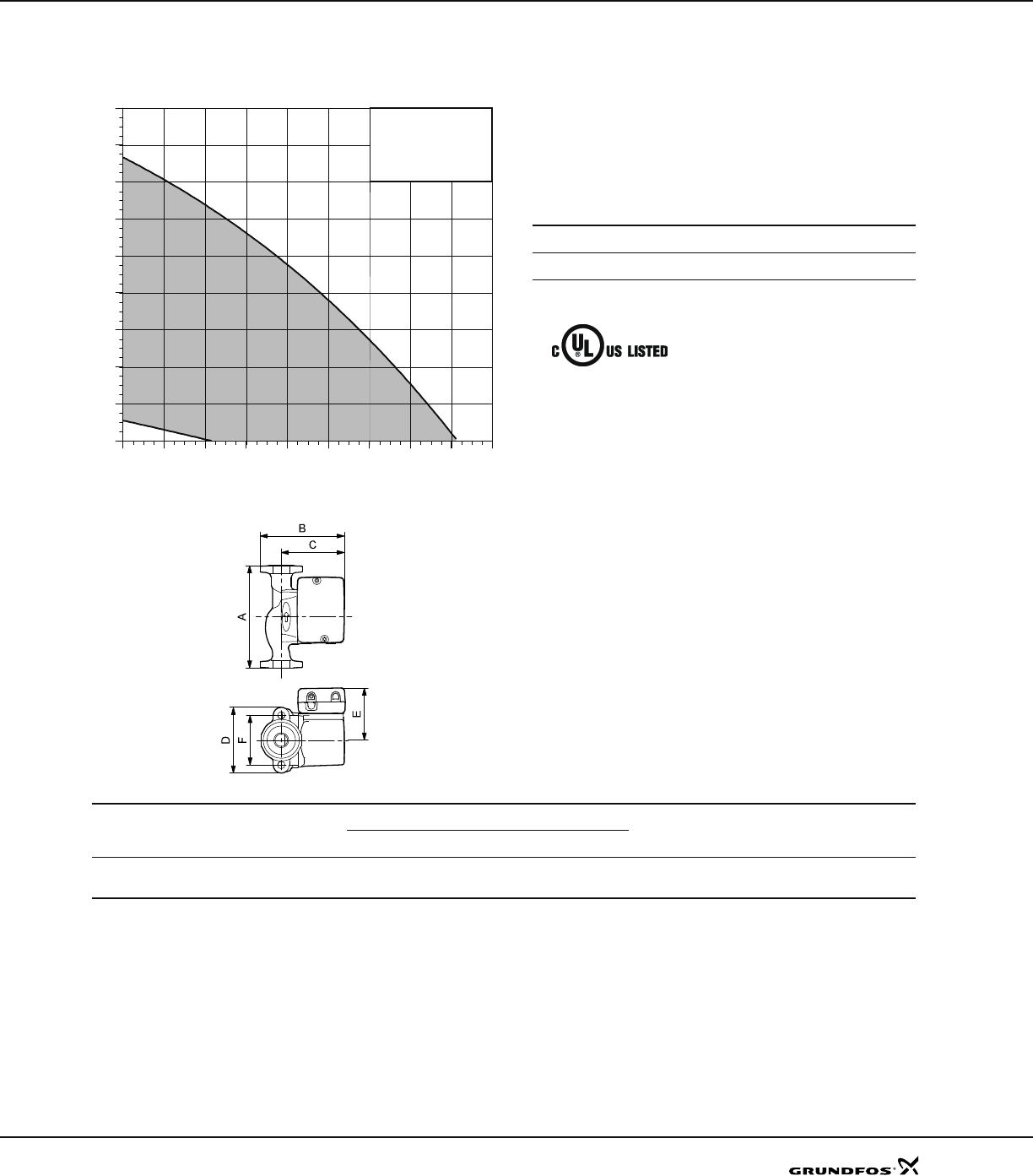

TM03 8838 2607

UP 15-42 FC/MR

TM03 8528 1907

0 2 4 6 8 10 12 14 16 18

Q[GPM]

[ft]

a. MIN

b. MAX

Flow range: 0-16 gpm

Head range: 0-15 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 205 °F (96 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Volts Amps Watts Hp Capacitor

UP 15-42 FC/MR 115 0.74 85 1/25 10μF/180 V

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

ABCDEF

UP 15-42 FC/MR 59896804 6 1/2 5 1/4 4 4 3/16 3 1/4 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 7 1/2

UP 15-42 FC/MR

Technical data

UP 15 Variable Speed

Approvals

Variable speed models include the following

features:

• Three speed control options:

1) Manual

2) Voltage: 0-10V(DC) or 2-10V(DC)

3) Current: 0-20mA or 4-20 mA

• Dip switch control selection

• Pump exercising

• Manual offset dial

• Performance indicator LED's.

Note: Dimensions in inches unless otherwise noted.

TM03 8840 0907

UP 15-42 F/VS

TM03 8528 1907

0 2 4 6 8 10 12 14 16 18

Q[GPM]

[ft]

a. MIN

b. MAX

Flow range: 0-16 gpm

Head range: 0-15.5 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 205 °F (96 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Volts Amps Watts Hp Capacitor

UP 15-42 F/FV 115 0.74 85 1/25 10μF/180 V

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

ABCDEF

UP 15-42 F/VS 59896807 6 1/2 5 1/4 4 4 3/16 3 1/4 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 7 1/2

UP 15-42 F/VS

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

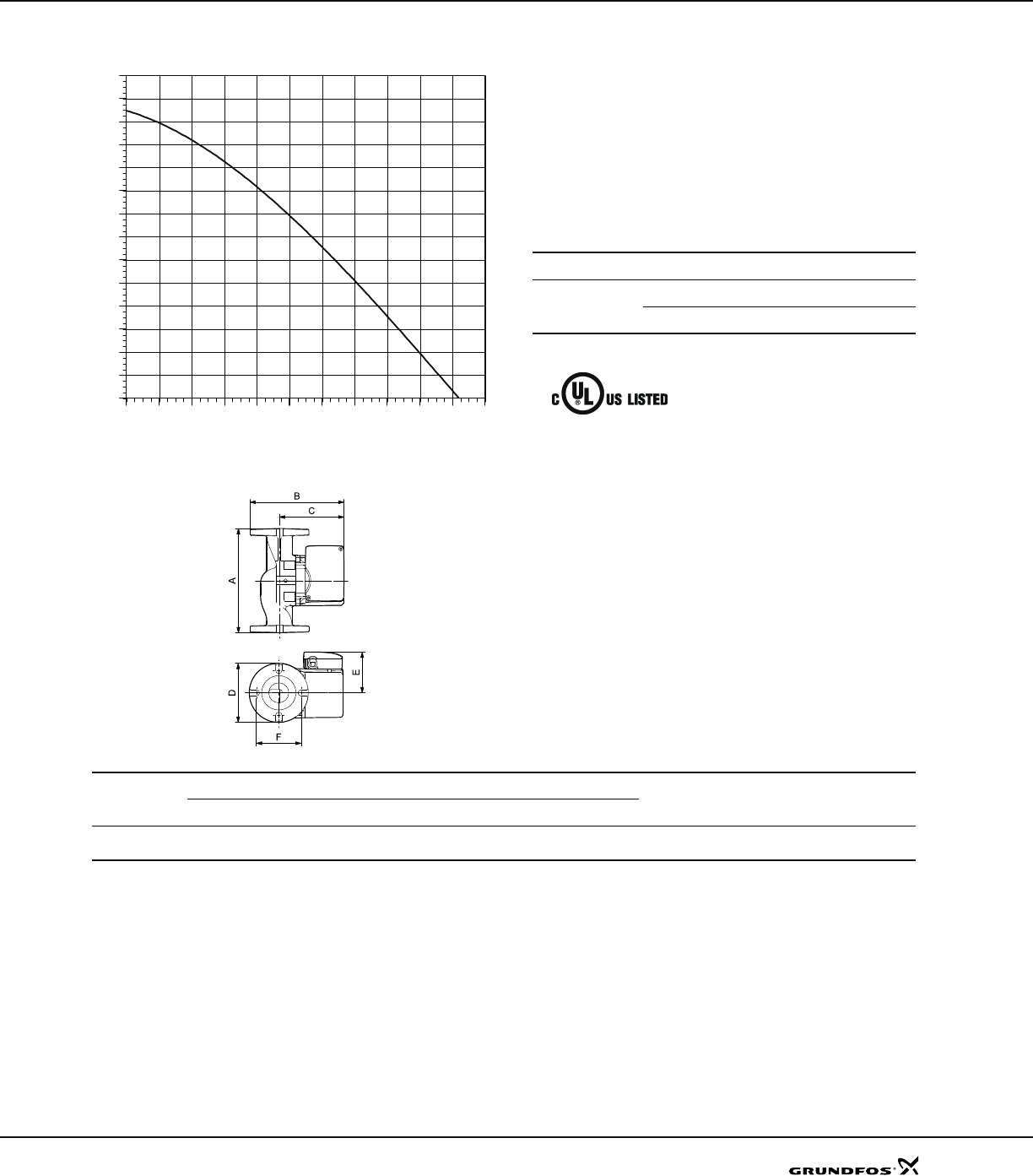

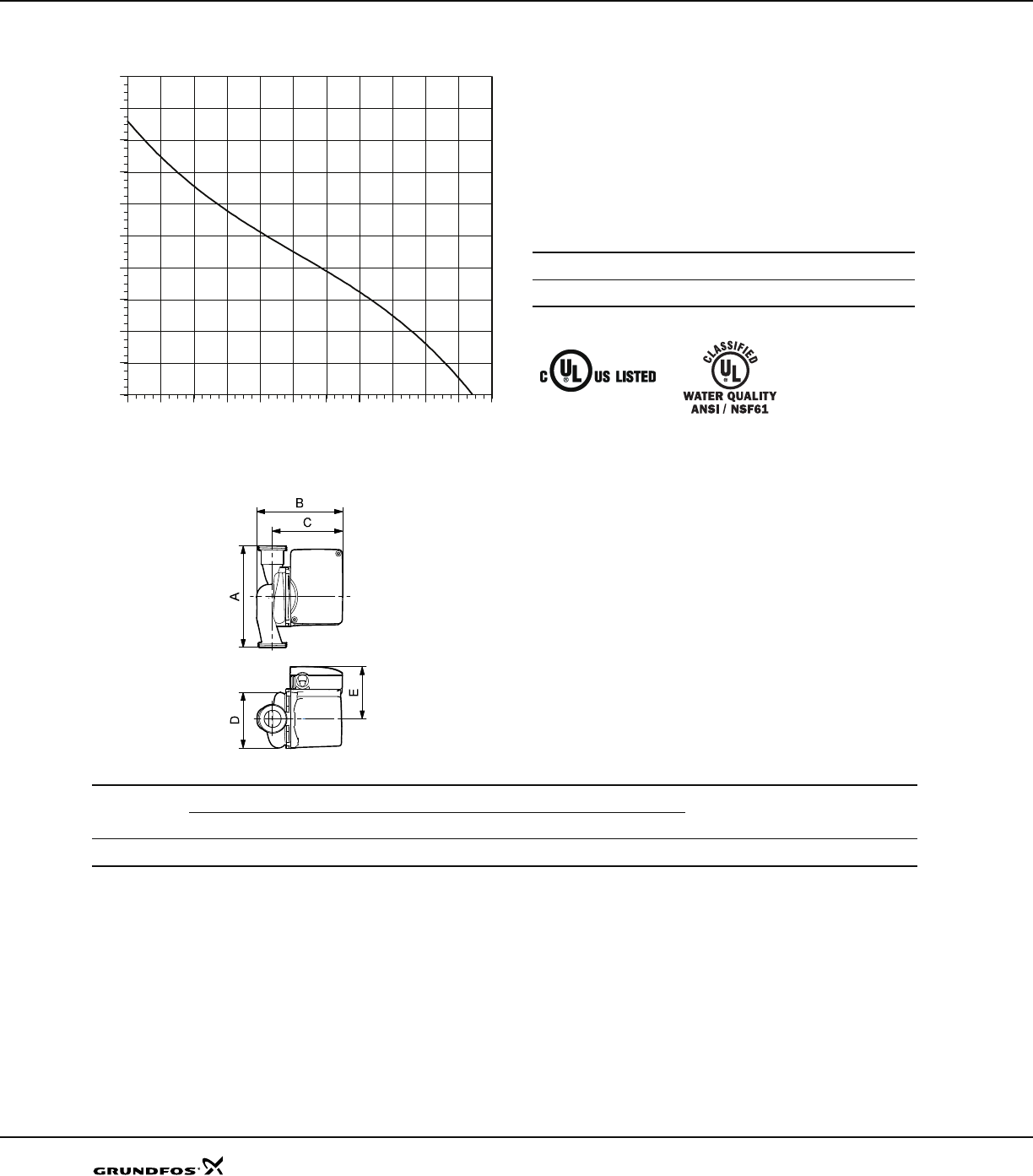

TM03 8845 2607

0 2 4 6 8 10 12 14 16 18 20 22

Q[GPM]

[ft]

Flow range: 0-21.5 gpm

Head range: 0-17 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Closed system

Model Volts Amps Watts Hp Capacitor

UP 15-55 SUC 230 0.42 97 0.13 2μF/400 V

UP 15-55 SUC

TM03 8777 2507

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V230 VABCDEF

UP 15-55 SUC - 59896786 5 7/8 5 1/16 4 1/8 3 7/16 2 15/16 - GU125 5.4

UP 15-55 SUC

Technical data

Note: If the UP pump is equipped with a timer, the maximum liquid tem-

perature is 150 °F (66 °C).

Approvals

Note: LC/TLC Models have 6 ft (1.8 m), 3-prong power cord. Removable check valve.

Dimensions in inches unless o herwise noted.

TM03 8849 2607

0 2 4 6 8 10 12 14 16 18 20 22 24 2

Q[GPM]

[ft]

Flow range: 0-25 gpm

Head range: 0-18 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Spd VoltsAmpsWatts Hp Capacitor

UPS 15-55 SFC

115

0.75 87 0.12

10μF/180 V

20.69770.1

10.53580.08

UPS 15-55 SUC

115

0.69 87 0.12

20.66740.1

10.31560.08

Without check valve

With check valve

UPS 15-55 SFC UPS 15-55 SUC/TLC

TM03 8779 2507

TM03 8778 2507

Model type Product number Dimensions [inches] Connection type

and size

Shipping

weight

[lbs]ABCD EF

UPS 15-55 SFC 59896773 6 1/2 5 1/2 4 1/8 3 7/8 2 15/16 3 1/8 GF15/26 6

UPS 15-55 SUC 59896781 5 7/8 5 1/16 4 1/8 3 7/16 2 15/16 - GU125 5.4

UPS 15-55 SUC/TLC 59896783 5 7/8 5 1/16 4 1/8 3 7/16 2 15/16 - GU125 6.2

UPS 15-55 SFC/SUC

Technical data

UP 15 ALPHA

Performance* and operation mode selection

*Hydraulic performance without check valve.

TM04 6025 0611

Pos. Description Pos. Description

• Push-button for selection of pump setting

• Every time the push-button is pressed, the circulator setting is

changed

Constant Pressure I

• The duty point of the pump will move left and right along the lowest

constant-pressure curve depending on water demand in the system.

The pump head (pressure) is kept constant, irrespective of the water

demand.

III

High Fixed Speed

• Runs at a constant speed and consequently on a constant curve. In

Speed III, the pump is set on the maximum curve under all operating

conditions. Quick Vent of the pump can be obtained by setting the

pump to Speed III for a short period.

Constant Pressure II

• The duty point of the pump will move left and right along the middle

constant-pressure curve depending on water demand in the system.

The pump head (pressure) is kept constant, irrespective of the water

demand.

Medium Fixed Speed

• Runs at a constant speed and consequently on a constant curve. In

Speed II, the pump is set on the medium curve under all operating

conditions.

Constant Pressure III

• The duty point of the pump will move left and right along the highest

constant-pressure curve depending on water demand in the system.

The pump head (pressure) is kept constant, irrespective of the water

demand.

Low Fixed Speed

• Runs at a constant speed and consequently on a constant curve. In

Speed I, the pump is set on the minimum curve under all operating

conditions.

AutoAdapt (Factory Setting)

• This function controls the pump performance automatically within the

defined performance range. Automatically adjusting the pump

performance to system demands over time.

ALPHA 15-55 F Terminal box

TM04 9773 0111

ALPHA 15-55 FR Terminal box

TM04 9774 0111

ALPHA 15-55 F/FR/SF/LC

Technical data

UP 15 ALPHA

Approximate power usage

Approvals

Note: Dimensions in inches unless otherwise noted.

ALPHA 15-55 F Linecord

TM04 6012 4709

ALPHA 15-55 FR Linecord

TM04 6013 4709

Flow range: 0-21.5 gpm

Head range: 0-17 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 150 psi (10 bar)

Closed (F, FR) and Open systems (SF)

Model Volts Amps Watts Hp Capacitor

ALPHA 15-55 115 0.65 5 to 45 0.06 -

Speed setting Min. Max.

High fixed speed III 39W 45W

Medium fixed speed II 15W 30W

Low fixed speed I 5W 8W

Constant pressure 8W 45W

Constant pressure 14W 45W

Constant pressure 22W 45W

AutoADAPT 5W 45W

Canadian EMC

Standard

ICES-003

This Class B digital

apparatus complies with

Canadian ICES-003.

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

AB C DEFG

ALPHA 15-55 F 59896877 6 1/2 6 1/2 5 1/4 3 13/16 3 11/16 3 9/16 5 3/8 GF 15/26

(2) 1/2” dia. bolt

holes

7.20

ALPHA 15-55 FR 59896878 6 1/2 7 3/16 5 1/4 3 13/16 3 11/16 3 9/16 5 3/8 7.10

ALPHA 15-55 SF 59896879 6 1/2 6 1/2 5 1/4 3 13/16 3 11/16 3 9/16 5 3/8 6.10

ALPHA 15-55 F/LC 59896832 6 1/2 6 1/2 4 15/16 4 2 1/2 3 7/16 4 1/8 GF 15/26

(2) 1/2” dia. bolt

holes

7.50

ALPHA 15-55 FR/LC 59896833 6 1/2 7 4 15/16 4 2 1/2 3 7/16 4 1/8 7.33

ALPHA 15-55 SF/LC 59896834 6 1/2 6 1/2 4 15/16 4 2 1/2 3 7/16 4 1/8 6.25

ALPHA 15-55 F/FR/SF/LC

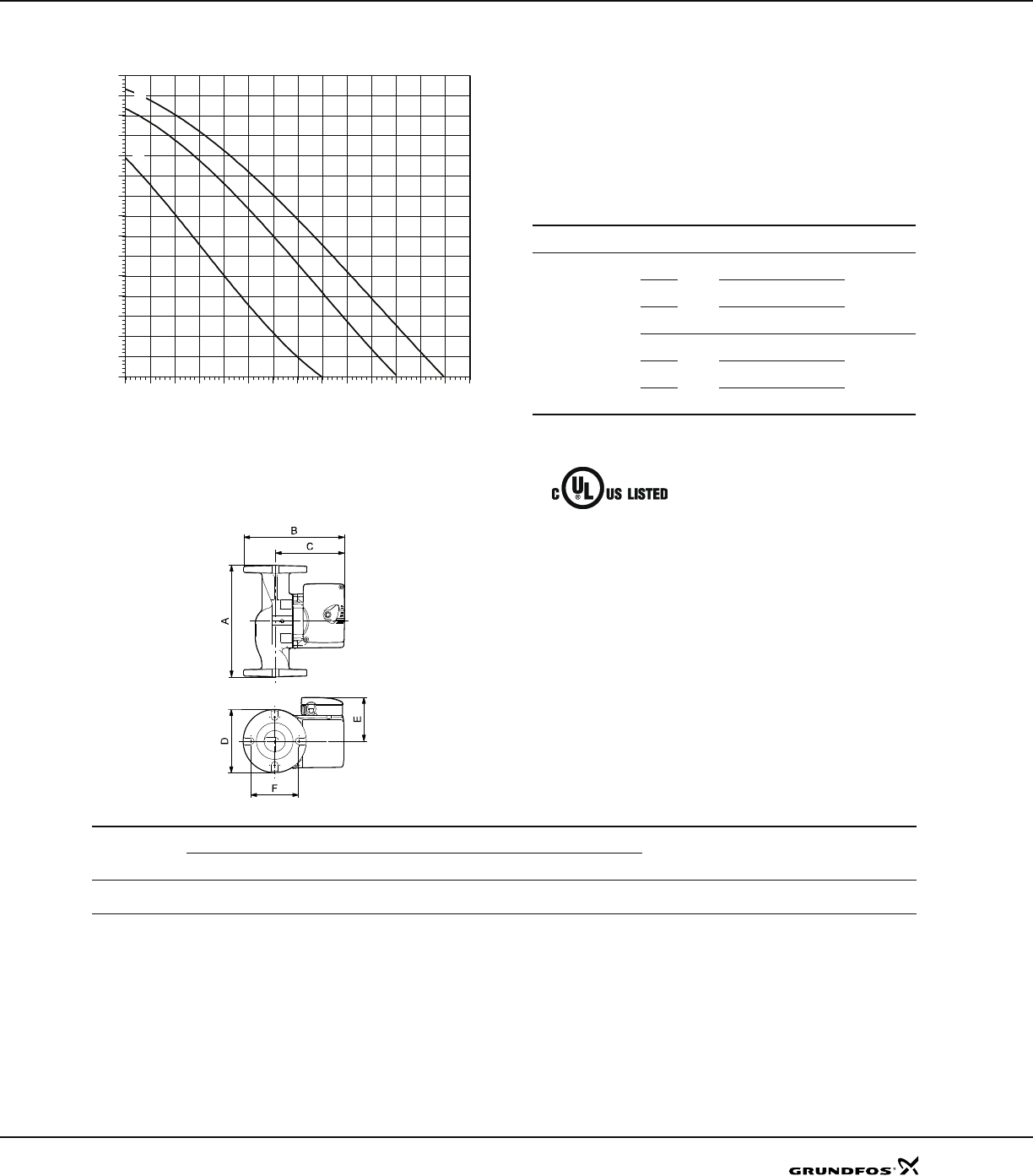

Technical data

Note: The check valve can be removed.

Dimensions in inches unless o herwise noted.

TM03 5535 0907

UPS 15-58 FC UPS 15-58 FRC

TM03 8757 2407

TM03 8531 1907

0 2 4 6 8 10 12 14 16 18 20

Q[GPM]

[ft]

Flow range: 0-17 gpm

Head range: 0-19.5 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Spd Volts Amps Watts Hp Capacitor

UPS 15-58 FC/FRC

115

0.75 87 1/25

10μF/180 V2 0.66 80 1/25

1 0.55 60 1/25

Without check valve

With check valve

Approvals

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

ABCDEF

UPS 15-58 FC 59896341 6 1/2 5 1/4 4 4 3/16 3 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 7 1/4

UPS 15-58 FRC 59896343 6 1/2 5 1/4 4 4 3/16 3 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 7 1/4

UPS 15-58 FC/FRC

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

TM03 5534 3806

0 1 2 3 4 5 6 7 8 9

Q[GPM]

[ft]

Flow range: 0-8.4 gpm

Head range: 0-36 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 205 °F (96 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Closed system

Model Volts Amps Watts Hp Capacitor

UP 15-100 F 115 1.1 135 1/25 12μF/180 V

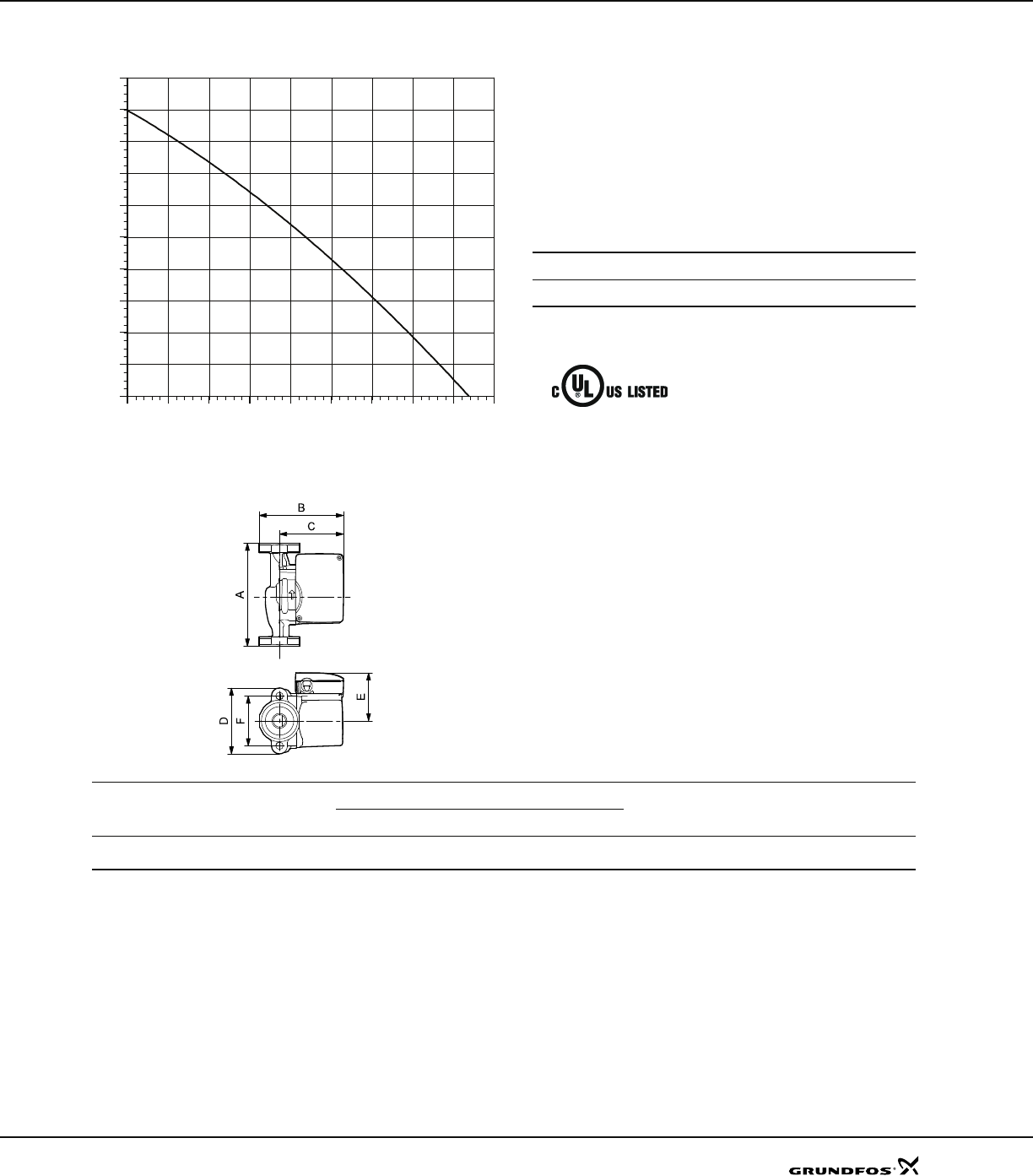

UP 15-100 F

TM03 8530 1907

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

ABCD E F

UP 15-100 F 59896300 6 1/2 5 1/4 4 4 3/16 3 1/4 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 7 1/4

UP 15-100 F

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

TM03 5536 0907

0 4 8 12 16 20 24 28 32 36

Q[GPM]

[ft]

Flow range: 0-32 gpm

Head range: 0-24.5 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Closed system

Model Volts Amps Watts Hp Capacitor

UP 26-64 F 115 1.7 185 1/12 8μF/180 V

230 0.8 175 1/12 2.5μF/380 V

UP 26-64 F

TM03 8776 2507

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 230 VABCDEF

UP 26-64 F 52722330 52722327 6 1/2 6 3/8 5 1/16 4 1/8 3 1/2 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 11 1/4

UP 26-64 F

Technical data

UP 26 Variable Speed

Variable speed models include the following

features:

• Three speed control options:

1) Manual

2) Voltage: 0-10V(DC) or 2-10V(DC)

3) Current: 0-20mA or 4-20 mA

• Dip switch control selection

• Pump exercising

• Manual offset dial

• Performance indicator LED's.

Note: Dimensions in inches unless otherwise noted.

TM03 8841 2607

UP 26-64 F/VS

TM03 8533 1907

0 4 8 12 16 20 24 28 32 36 40

Q[GPM]

[ft]

a. MIN

b. MAX

Flow range: 0-34 gpm

Head range: 0-24.5 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 195 °F (91 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Volts Amps Watts Hp Capacitor

UP 26-64 F/VS 115 1.7 185 1/12 8μF/180 V

Approvals

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

AB C DE F

UP 26-64 F/VS 52722553 6 1/2 6 3/8 5 1/16 4 1/8 3 1/2 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 11 1/4

UP 26-64 F/VS

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

TM03 5556 0907

Flow range: 0-28 gpm

Head range: 0-30 feet

0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30

Q[GPM]

[ft]

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Closed system (F) and open system (BF)

Model Volts Amps Watts Hp Capacitor

UP 26-96 F/BF 115 1.7 205 1/12 10μF/180 V

230 0.8 205 1/12 2.5μF/380 V

UP 26-96 F/BF UP 26-96 BF

UP 26-96 F UP 26-96 BF

TM03 8533 1907

TM03 8543 1907

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 230 VABCDEF

UP 26-96 F 52722341 52722338 6 1/2 6 3/8 5 1/16 4 1/8 3 1/2 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 11 1/4

UP 26-96 BF 52722336 52722334 6 1/2 6 3/8 5 1/16 4 1/8 3 1/2 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 12.5

UP 26-96 F/BF

Technical data

UP 26 Variable Speed

Approvals

]Variable speed models include the following

features:

• Three speed control options:

1) Manual

2) Voltage: 0-10V(DC) or 2-10V(DC)

3) Current: 0-20mA or 4-20 mA

• Dip switch control selection

• Pump exercising

• Manual offset dial

• Performance indicator LED's.

Note: Dimensions in inches unless otherwise noted.

TM03 8842 2607

UP 26-96 F/VS

TM03 8533 1907

0 4 8 12 16 20 24 28 32 36

Q[GPM]

[ft]

a. MIN

b. MAX

Flow range: 0-28 gpm

Head range: 0-30 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 195 °F (91 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Volts Amps Watts Hp Capacitor

UP 26-96 F/VS 115 1.7 205 1/12 10μF/180 V

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 230 V A B C D E F

UP 26-96 F/VS 52722552 - 6 1/2 6 3/8 5 1/16 4 1/8 3 1/2 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 11 1/4

UP 26-96 F/VS

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

TM03 5557 0907

0 4 8 12 16 20 24 28 32 36

Q[GPM]

[ft]

Flow range: 0-34 gpm

Head range: 0-32 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Closed system (F) and Open system (BF)

Model Volts Amps Watts Hp Capacitor

UP 26-99 F/BF 115 2.15 245 1/6 10μF/180 V

230 1.07 245 1/6 2.5μF/380 V

UP 26-99 F/BF UP 26-99 BF

UP 26-99 F/BF

TM03 8532 1907

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 230 VABCDEF

UP 26-99 F 52722355 52722351 6 1/2 6 3/8 5 1/16 4 1/8 3 1/2 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 12 1/2

UP 26-99 BF 52722347 52722346 6 1/2 6 3/8 5 1/16 4 1/8 3 1/2 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 12 1/2

UP 26-99 F/BF

Technical data

Approvals

Note: The check valve can be removed.

Dimensions in inches unless o herwise noted.

TM03 8195 2006

UPS 26-99 FC UPS 26-99 BFC

TM03 8757 2407

TM03 8531 1907

0 4 8 12 16 20 24 28 32 36

Q[GPM]

[ft]

Flow range: 0-33 gpm

Head range: 0-29 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Spd Volts Amps Watts Hp Capacitor

UPS 26-99 FC

115

1.8 197 1/6 20μF/180 V

21.51791/620μF/180 V

11.31501/620μF/180 V

UPS 26-99 FC/BFC

230

0.9 196 1/6 5μF/400 V

20.81791/65μF/400 V

10.71501/65μF/400 V

Without check valve

With check valve

UP 26-99 F/BFC UP 26-99 BFC

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 230 V A B C D E F

UPS 26-99 FC 52722512 52722513 6 1/2 6 4 7/8 3 1/2 3 7/16 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 10.3

UPS 26-99 BFC 52722518 52722519 6 1/2 6 4 7/8 3 1/2 3 7/16 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 10.3

UPS 26-99 F/BFC

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

TM03 5577 0907

0 4 8 12 16 20 24 28 32 36 40

Q[GPM]

[ft]

Flow range: 0-37 gpm

Head range: 0-37 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 150 °F (65 °C)

Min. liquid temperature: 32 °F (0 °C)

Max. system pressure: 145 psi (10 bar)

Closed system (F) and Open system (BF)

Model Volts Amps Watts Hp Capacitor

UP 26-116 F/BF 230 1.8 385 1/6 2.5μF/380 V

UP 26-116 F/BF UP 26-116 BF

UP 26-116 F UP 26-116 BF

TM03 8758 2407

TM03 8543 1907

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

AB C DE F

UP 26-116 F 52722377 6 1/2 6 3/8 5 1/16 4 1/8 3 1/2 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 12 1/2 lbs

UP 26-116 BF 52722393 6 1/2 6 3/8 5 1/16 4 1/8 3 1/2 3 5/32 GF 15/26 flange

(2) 1/2" dia. bolt holes 12 1/2 lbs

UP 26-116 F/BF

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

TM03 5546 3806

UP 26-120 U

TM03 8761 2407

0 2 4 6 8 10 12 14 16 18 20

Q[GPM]

[ft]

Flow range: 0-19 gpm

Head range: 0-38 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 203 °F (95 °C)

Min. liquid temperature: 32 °F (0 °C)

Max. system pressure: 145 psi (10 bar)

Closed system

Model Volts Amps Watts Hp Capacitor

UP 26-120 U 115 2.15 215 1/6 10μF/180 V

230 1.07 220 1/6 2.5μF/380 V

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 230 V A B C D E

UP 26-120 U 52722435 52722436 7 1/16 5 7/8 5 1/16 4 7/8 3 1/2 GF 125 union - 1 1/4" NPSM 10 1/2

UP 26-120 U

Technical data

Note: Dimensions in inches unless otherwise noted.

TM04 5463

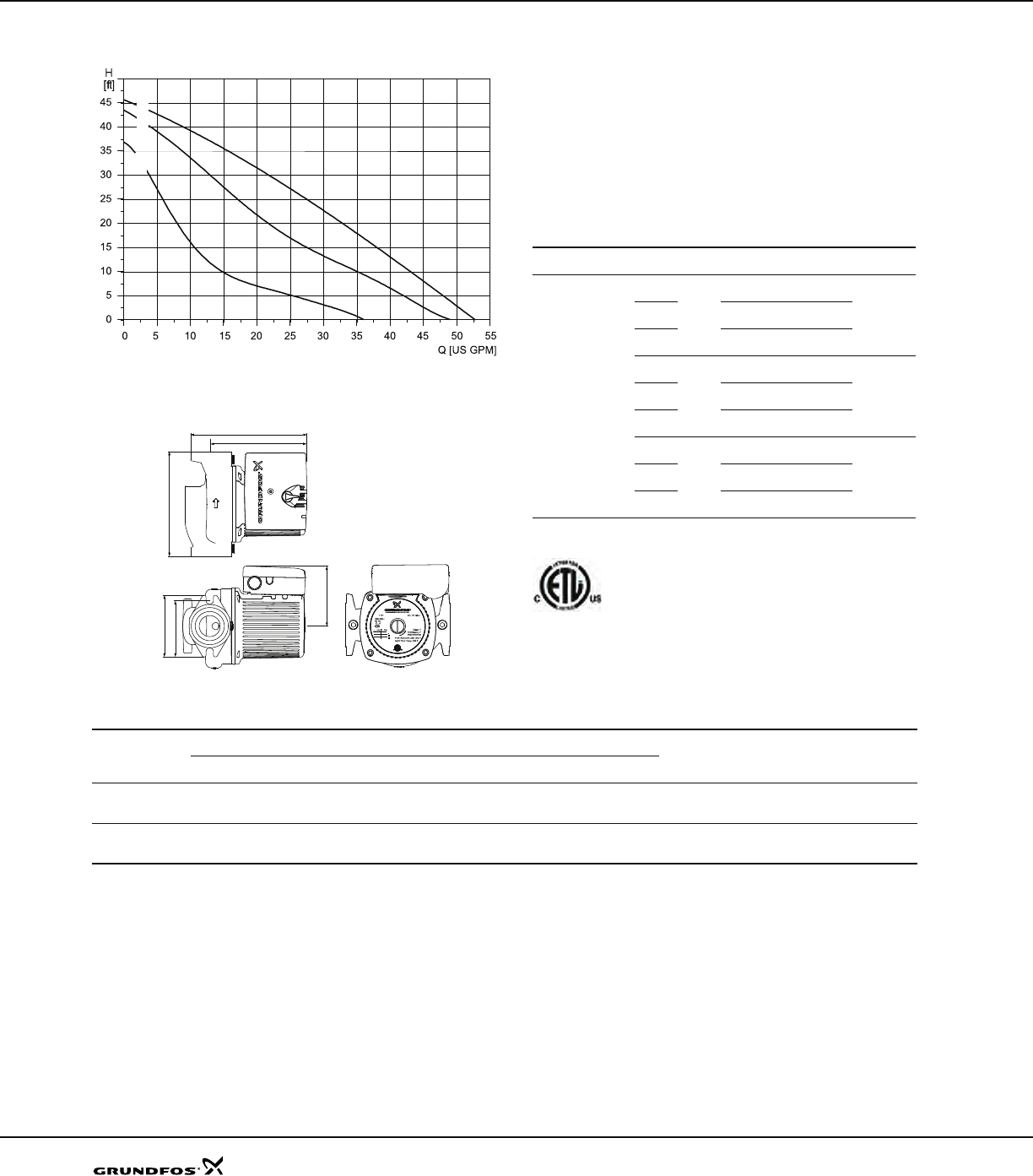

UPS 26-150 F/SF

TM04 6014

Flow range: 0-53 gpm

Head range: 0-46 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Spd Volts Amps Watts Hp Capacitor

UPS 26-150 F/SF

115

3.5 370 1/6

40μF/

180V

2 3.1 335 1/6

1 2.5 265 1/6

208

1.7 350 1/6

10μF/

400V

2 1.5 310 1/6

1 1.2 250 1/6

230

1.7 370 1/6

10μF/

400V

2 1.5 335 1/6

1 1.2 265 1/6

Approvals

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 208 / 230 V A B C D E F

UPS 26-150 F 95906630 95906631 6 1/2 7 1/8 5 7/8 3 7/8 3 3/4 3 1/8 GF 15/26 flange

(2) 1/2" dia. bolt holes 17.35

UPS 26-150 SF 95906632 95906633 6 1/2 7 1/8 5 7/8 3 7/8 3 3/4 3 1/8 GF 15/26 flange

(2) 1/2" dia. bolt holes 17.35

UPS 26-150 F/SF

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

TM03 5558 3806

UP 43-44 F/BF

TM03 8544 1907

0 5 10 15 20 25 30 35 40 45 50 55 60 65

Q[GPM]

[ft]

Flow range: 0-68 gpm

Head range: 0-13.5 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 32 °F (0 °C)

Max. system pressure: 145 psi (10 bar)

Closed system (F) and open system (BF)

Model Volts Amps Watts Hp Capacitor

UP 43-44 F/BF 115 2.15 215 1/6 10μF/180 V

230 1.07 220 1/6 2.5μF/380 V

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 230 V A B C D E F

UP 43-44 F 52722437 52722438 8 1/2 6 11/16 5 3/16 4 3/4 3 1/2 3 7/16 GF 40/43 flange

(2) 1/2" dia. bolt holes 13 1/2

UP 43-44 BF 52722439 52722440 8 1/2 6 11/16 5 3/16 4 3/4 3 1/2 3 7/16 GF 40/43 flange

(2) 1/2" dia. bolt holes 15

UP 43-44 F/BF

Technical data

Approvals

Note: The check valve can be removed.

Dimensions in inches unless o herwise noted.

TM03 8196 0807

UPS 43-44 FC/BFC

TM03 8757 2407

0 5 10 15 20 25 30 35 40 45 50 55 60 65

Q[GPM]

[ft]

Flow range: 0-63 gpm

Head range: 0-14 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 32 °F (0 °C)

Max. system pressure: 145 psi (10 bar)

Model SpdVoltsAmpsWatts Hp Capacitor

UPS 43-44 FC/BFC

115

1.8 203 1/6 20μF/180 V

21.71891/620μF/180 V

11.41571/620μF/180 V

UPS 43-44 FC/BFC

230

0.9 203 1/6 5μF/400 V

20.81901/65μF/400 V

10.71571/65μF/400 V

Without check valve

With check valve

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 230 V A B C D E F

UPS 43-44 FC 52722514 52722515 8 1/2 6 11/16 5 1/8 4 3/4 3 3/16 3 7/16 GF 40/43 flange

(2) 1/2" dia. bolt boles 13 1/2

UPS 43-44 BFC 52722520 52722521 8 1/2 6 11/16 5 1/8 4 3/4 3 3/16 3 7/16 GF 40/43 flange

(2) 1/2" dia. bolt boles 13 1/2

UPS 43-44 FC/BFC

Technical data

Note: Dimensions in inches unless otherwise noted.

TM04 9904 0211

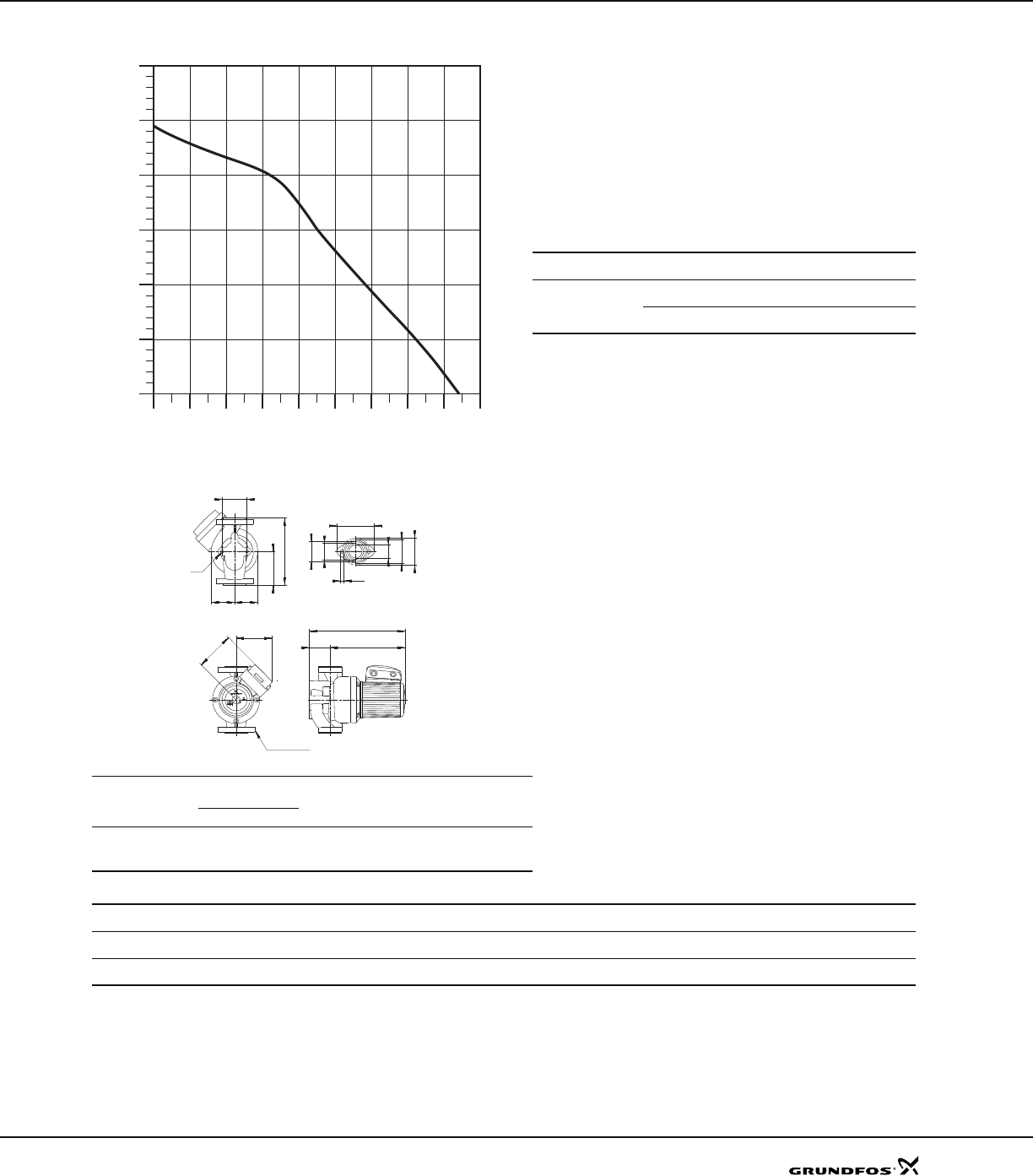

UP 43-70 F

TM02 0210 0211

0 1020304050607080

Q [US GPM]

H [ft]

H1 H2

NPT 1/4

B4 B5

Flow range: 85 gpm

Head range: 24.5 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 14 °F (-10 °C)

Max. system pressure: 145 psi (10 bar)

Closed system

Model Volts Amps Watts Hp Capacitor

UP 43-70 F 115 3.4 400 1/2 30μF

230 1.8 400 1/2 30μF

Model type

Product

number Connection type

and size

Shipping

weight

[lbs]

115 / 230 V

UP 43-70 F 96439644 GF 40/30 flange 1 1/2"

2 bolt with

(2) 1/2" dia. holes holes

Dimensions [inches]

L1 L3 B1 B2 B4 B5 B7 H1 H2 H3 D1 D2 D3 D4 D6 D7

8 1/2 4 1/4 5 5/16 5 9/16 2 15/16 2 15/16 3 1/8 2 5/8 9 5/8 12 3/16 1 5/8 2 5/16 3 7/16 4 3/4 2 2 1/2

UP 43-70 F

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

TM03 5560 0907

0 4 8 12 16 20 24 28 32 36 40 44

Q[GPM]

[ft]

Flow range: 0-41 gpm

Head range: 0-25 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Open system

Model Volts Amps Watts Hp Capacitor

UP 43-75 F/BF 115 2.15 215 1/6 10μF/180 V

230 1.07 220 1/6 2.5μF/380 V

UP 43-75 F/BF

TM03 8544 1907

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 230 V A B C D E F

UP 43-75 F 52722373 52722372 8 1/2 6 11/16 5 3/16 4 3/4 3 1/2 3 7/16 GF 40/43 flange

(2) 1/2" dia. bolt holes 13 1/2

UP 43-75 BF 52722370 52722369 8 1/2 6 11/16 5 3/16 4 3/4 3 1/2 3 7/16 GF 40/43 flange

(2) 1/2" dia. bolt holes 15

UP 43-75 F/BF

Technical data

Note: Dimensions in inches unless otherwise noted.

TM04 5464

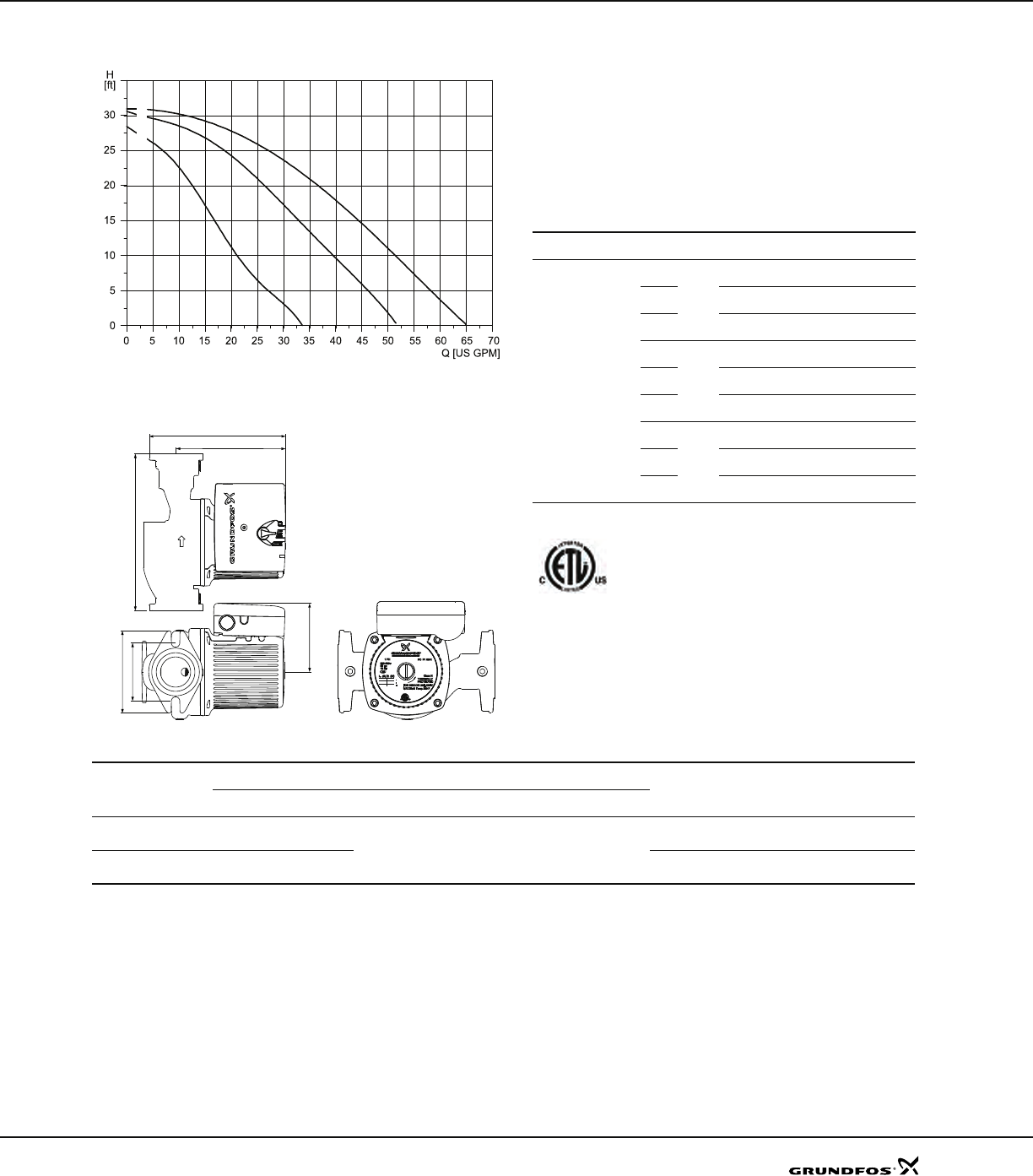

UPS 43-100 F/SF

TM04 6015

Flow range: 0-65 gpm

Head range: 0-31 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (2 °C)

Max. system pressure: 145 psi (10 bar)

Model Spd Volts Amps Watts Hp Capacitor

UPS 43-100 F/SF

115

3.5 370 1/6 40μF/180 V

2 3.1 335 1/6 40μF/180 V

1 2.5 265 1/6 40μF/180 V

208

1.7 350 1/6 10μF/400 V

2 1.5 310 1/6 10μF/400 V

1 1.2 250 1/6 10μF/400 V

230

1.7 370 1/6 10μF/400 V

2 1.5 335 1/6 10μF/400 V

1 1.2 265 1/6 10μF/400 V

Approvals

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 208 - 230 V A B C D E F

UPS 43-100 F 95906636 95906637

8 1/2 7 3/8 5 7/8 4 1/2 3 3/4 3 1/8

GF 40/43 flange

(2) 1/2" dia. bolt boles 18.47

UPS 43-100 SF 95906638 95906639 GF 40/43 flange

(2) 1/2" dia. bolt boles 18.47

UPS 43-100 F/SF

Technical data

Approvals

Dimensions in inches unless o herwise noted.

TM03 5951 3806

010 20 30 40 50 60 70 80 90 100

Q[GPM]

[ft]

Flow range: 0-98 gpm

Head range: 0-37 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 14 °F (–10 °C)

Max. system pressure: 145 psi (10 bar)

Closed system

Model Volts Amps Watts Hp Capacitor

UP 43-110 F 115 5.1 590 3/4 60μF

230 2.7 590 3/4 60μF

UP 43-110 F

TM02 0120 4301

H1 H2

NPT 1/4

B4 B5

Model type Product number Connection type

and size Shipping weight

[lbs]

115 V / 230 V

UP 43-110 F 96439643 GF 40/43 Flange

1 1/2” 41.2

Dimensions [inches]

L1 L3 B1 B2 B4 B5 B7 H1 H2 H3 D1 D2 D3 D4 D6 D7 M

8 1/2 4 1/4 5 1/4 5 9/16 2 15/16 2 15/16 3 1/8 2 5/8 9 5/8 12 3/16 1 5/8 2 15/16 3 7/16 4 3/4 2 1/16 2 1/2 12 mm

UP 43-110 F

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

TM03 8837 2607

UPS 50-44 F

TM04 54713209

0 5 10 15 20 25 30 35 40 45 50 55 60 65 70

Q[GPM]

[ft]

Flow range: 0-65 gpm

Head range: 0-14.4 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 32 °F (0 °C)

Max. system pressure: 145 psi (10 bar)

Model Spd Volts Amps Watts Hp Capacitor

UPS 50-44 F

115

1.7 194 1/6

20μF2 1.6 181 1/6

1 1.3 147 1/6

230

0.87 195 1/6

5μF2 0.81 182 1/6

1 0.74 147 1/6

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 230 VABCDEF

UPS 50-44 F 52722557 52722558 8 1/2 7 1/2 5 1/16 4 7/8 3 1/2 4 1/6 GF 50 flange

(4) 1/2" dia. bolt holes 15 1/2

UPS 50-44 F

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

TM04 7918 2410

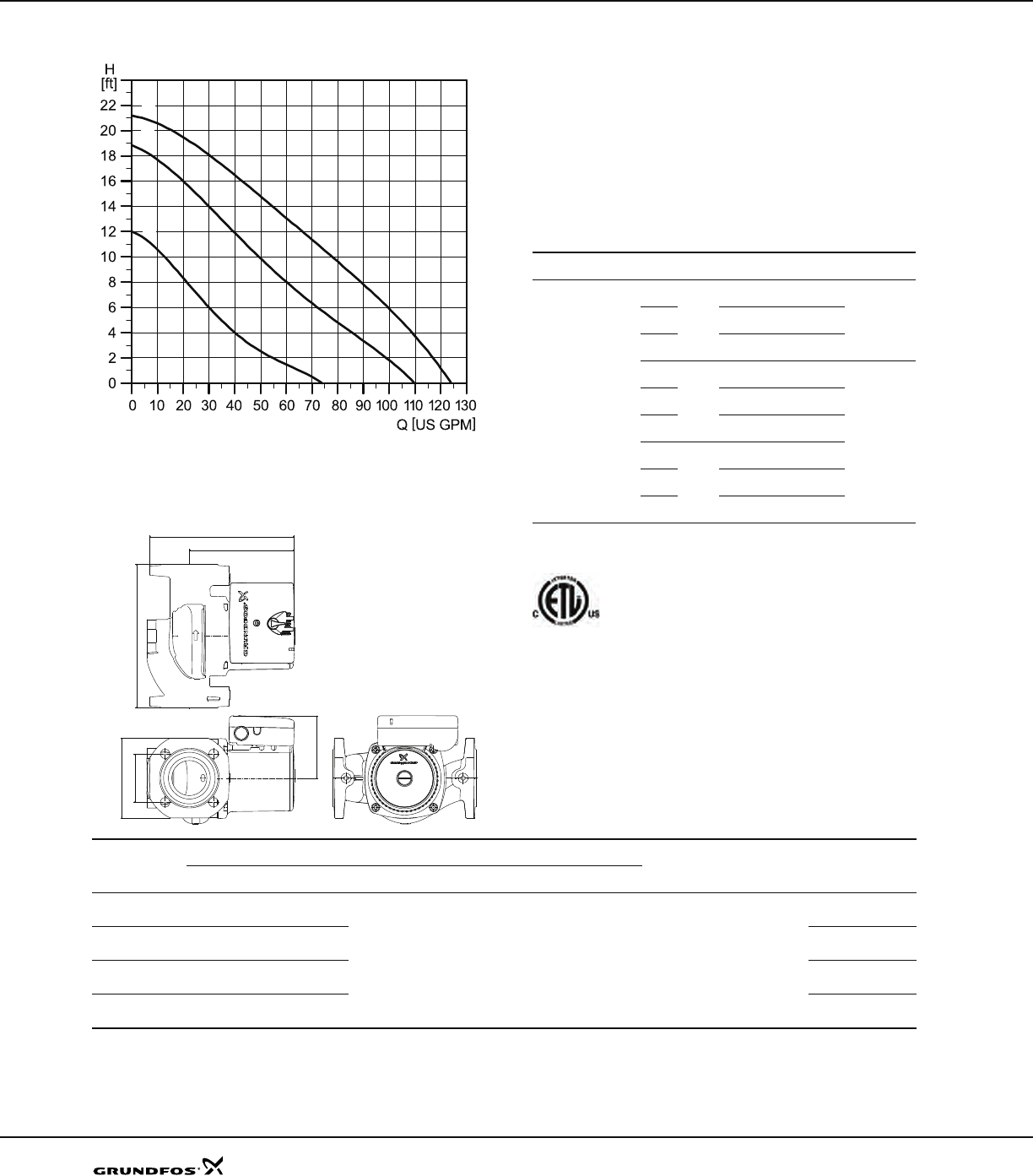

UPS 50-60 F/SF

TM04 9775 0111

Flow range: 120 gpm

Head range: 21 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 36 °F (10 °C)

Max. system pressure: 145 psi (10 bar)

Closed or Open system

Model Spd Volts Amps Watts Hp Capacitor

UPS 50-60 F/SF

115

3.6 395 1/6

40μF/180V2 3.4 350 1/6

1 2.7 260 1/6

208

1.9 395 1/6

10μF/400V

2 1.7 350 1/6

1 1.4 290 1/6

230

1.8 395 1/6

2 1.7 350 1/6

1 1.4 260 1/6

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 208 - 230 V A B C D E F

UPS 50-60 F 97523134 —

8 1/2 8 5/8 6 1/4 4 3/4 3 3/4 2 7/8 GF 50

UPS 50-60 F — 97523135 20

UPS 50-60 SF 97523136 — 19.5

UPS 50-60 SF — 97523137 19.5

UPS 50-60 F/SF

Technical data

Approvals

Note: Dimensions in inches unless otherwise noted.

TM03 5545 0907

0 4 8 12 16 20 24 28 32 36 40 44

Q[GPM]

[ft]

HFlow range: 0-41 gpm

Head range: 0-25 feet

Motors: 2-pole, single-phase

Max. liquid temperature: 230 °F (110 °C)

Min. liquid temperature: 32 °F (0 °C)

Max. system pressure: 145 psi (10 bar)

Closed system

Model Volts Amps Watts Hp Capacitor

UP 50-75 F 115 2.15 215 1/6 10μF/180 V

230 1.07 220 1/6 2.5μF/400 V

UP 50-75 F

TM03 8760 2407

Model type Product number Dimensions [inches] Connection type

and size Shipping weight

[lbs]

115 V 230 VABCDEF

UP 50-75 F 52722352 52722353 8 1/2 7 1/2 5 1/16 4 7/8 3 1/2 4 1/6 GF 50 flange

(4) 1/2" dia. bolt holes 15 1/2

UP 50-75 F

UP Series

Accessories

This page intentionally left blank.

Accessories UP Series

UP timer

Specifications (previous/current)

Type: 24 Hr. 3-position On/Timer/Off 15-minute interval

• Size: 3.77 x 2.85 x 1.25"

• Supply voltage: 120 VAC

• Power consumption: 1 VA

Switch rating: SPDT

• Resistive: 21A/6 A

• Tungsten: 1350 W.

• Inductive: 1 HP @ 120 VAC; 2 HP @ 240 VAC

Wiring connections: 1/4" quick-connects.

Installation

Indoor, wired and mounted on the UP terminal box.

Features

• Compact and contemporary design.

• Captive trippers are easy to set, cannot be lost.

• Quartz drive provides 7-day carry-over.

• Synchronous drive for greatest accuracy, lowest

cost

Fig. 1 UP timers

Fig. 2 Timer dimensions, previous version

Fig. 3 Timer dimensions, current version

Timer control

Approvals

TM03 7893 0307

Previous timer

Date codes 9132-0527 Current timer

Date codes 0528 and after

TM03 4406 3507TM03 9076 3307

Product

number Description

Shipping

weight Length Height Width

[oz.] [mm] [inch] [mm] [inch] [mm] [inch]

505474 24-hour programmable clock/timer for use with single speed.

Series UP (115 V) circulator* for date codes 9132 - 0527 10 62 2 7/16 32 1 17/64 60 2 3/8

599388 24-hour programmable clock/timer for use with single speed.

Series UP (115 Vt) circulator* for UP 15 only date code 0528 and after 10 62 2 7/16 32 1 17/64 60 2 3/8

Accessories UP Series

AquaStat

Specifications

Description: Thermostatic switch.

Type: Bi-metallic disc, snap acting.

Enclosure: environmentally sealed.

Mounting:

• Clip-on mount for 1/2” I.D. copper tube (5/8" O.D.).

• Clip-on mount for 3/4” I.D. copper tube (7/8" O.D.).

Contact rating:

• 10 A @ 120 VAC, 60 Hz resistive.

• 5 A @ 240 VAC, 60 Hz resistive.

Temperature rating

Low-temp model

•105+

5 °F (40+2 °C) pump switches off.

• 85+6 °F (29+3 °C) pump switches on.

High-temp model

• 115+5 °F (46+2 °C) pump switches off.

•105+

5 °F (40+2 °C) pump switches on.

Leads:

• 2 leads, AWG 18, 14".

• 12", black insulation, silicon or epoxy overmold.

• 1/2" strip length.

Application:

• Clip-on thermostatic control for the UP circulators.

Approvals

Fig. 4 AquaStat dimensions

Fig. 5 AquaStat

Thermostatic controls

Note: Dimensions in inches unless otherwise noted.

TM03 4408 2006

TM03 4407 2006

1 31

DIA.

0.50

2.0

1.082 DIA.

±0.045

±0.250

14.0

±0.37

1.02

Product

number Description Shipping

weight

[oz.]

595443 Aquastat set, 1/2" clip-on mount for 5/8" O.D. system piping size, 85 °F - 105 °F* (1/2" I.D. copper tubing or 3/8" steel pipe)

shielded wire, with PVC jacketed cable 1 lb

595444 Aquastat set, 3/4" clip-on mount for 7/8" O.D. system piping size, 85 °F - 105 °F* (3/4" I.D. copper tubing or 1/2" steel pipe)

shielded wire, with PVC jacketed cable 1 lb

595656 Aquastat set, 1/2" clip-on mount for 5/8" O.D. system piping size, 105 °F - 115 °F* (1/2" I.D. copper tubing or 3/8" steel

pipe) shielded wire, with PVC jacketed cable 1 lb

595657 Aquastat set, 3/4" clip-on mount for 7/8" O.D. system piping size, 105 °F - 115 °F* (3/4" I.D. copper tubing or 1/2" steel

pipe) shielded wire, with PVC jacketed cable 1 lb

Accessories UP Series

Pump Zone Controls

Specifications

Grundfos Zone Controls are non-networked devices

intended to be used for circulator and boiler control in

hydronic heating systems.

• One, three, and four - expandable to six zones

• Powder coated panel surface

• Multi-panel linking capability

• Selectable priority and freeze protection

• Single service relay for all models

• 2-wire with one 3-wire thermostat capability

• Automatic reset PTC fuse on system 24 VAC

• High capacity 25VA rated transformer

• Multiple knockouts

• Separate X-X & ZC-ZR terminals for “Cold Start” or

“Tankless Coil” boilers

• Models UPZC-3 & UPZC-4/6 only:

- No priority

- Zone 1 priority

- Zone 1 priority w/ 1-hour freeze protection

Note: Dimensions in inches unless otherwise noted.

Approvals

Fig. 1 Grundfos Zone Controls

(with closeup of circuit board)

Dimensions [in]

Model L W D

UPZC-1 5.2 4.3 2.9

UPZC-3, 4/6 9.8 12.1 2.9

TM04 9906 0311 - TM04 9907 0311

TM04 9908 0311

Model UPZC-1 UPZC-3 UPZC-4/6

Part number 96741787 96741788 96741789

Number of zones 1 3 4 to 6

Priority feature No Yes Yes

Priority timer (min.) N/A 60 60

Input power 60 hz 120VAC +/- 10%

Transformer voltage 120VAC, 24V, 15VA, Class 2

Thermostat output (amps) 0.13A

Max. single phase motor rating (per zone) 1/3Hp, 10A, GP

Max. combined load rating:

Output @ 120VAC (amps) 10A 30A

Min./max. ambient temperature range 32 °F (0 °C) / 104 °F (40 °C)

Max. operating humidity range: % RH 0.95

Number of knockouts 4 14

Size of knockouts (in.) 7/8-inch

UPZC dimensions: W x H x D (in.) 5-3/16 x 4-5/15 x 2-15/16 15 x 11-3/8 x 4-7/8

Relay type DPDT Socketed

Approvals UL-873, CAN/CSA C22.2 No. 24

Universal service relay

Part number: 10 ea. 96741790

Accessories UP Series

Packaged dielectric isolation valve sets

Approvals

IAPMO - #6591

TM04 9909 0311

TM03 7901 0307

Pump

connection

Pipe connection

type and size Material

number Approx. shipping

weight Face to face

[A*] Center of port to top

[B*] Flange diameter

[C*] Center of valve to

handle end [D*]

NPT Solder [lb/oz.]

1 kit [inch] [mm / inch] [inch] [inch]

GF 15/26 flange

Bronze

1/2" 96806129 2 / 13 2 27/32 51 / 2 4 3/16 3 29/64

3/4" 96806130 3 / 2 3 3/64 57 / 2 1/4 4 3/16 3 3/4

1" 96806131 4 / 8 3 35/64 67 / 2 21/32 4 3/16 4 17/32

1-1/4" 96806132 4 / 13 4 1/32 75 / 2 31/32 4 3/16 4 35/64

1-1/2" 96806133 4 / 14 4 7/64 75 / 2 31/32 4 3/16 4 5/8

1/2" 96806134 2 / 12 2 49/64 51 / 2 4 3/16 3 15/32

3/4" 96806135 3 / 4 3 1/4 57 / 2 1/4 4 3/16 3 47/64

1" 96806136 4 / 8 3 55/64 67 / 2 21/32 4 3/16 4 1/2

1-1/4" 96806137 4 / 13 4 1/2 75 / 2 31/32 4 3/16 4 35/64

1-1/2" 96806138 4 / 15 4 37/64 75 / 2 31/32 4 3/16 4 9/16

Note: Each set contains

2 each - rotating flanges, lever-handled full-ported ball valve, EPDM gaskets, dielectric sleeves.

4 each - 7/16" X 1-3/4" bolts with nuts.

Dimensions in inches unless otherwise noted.

Materials of construction

Flange Chrome plated steel

Valve body Brass

Valve ball Chrome plated brass

Valve seat PTFE

DIelectric sleeve Composite

Bolt Chrome plated steel

Nut Chrome plated steel

Gaskets EPDM

Maximum temperature 230 °F (110 °C)

Maximum presure 150 psi

UP Series

Accessories

Packaged fitting sets

Approvals (Bronze sets)

IAPMO - #6591

GF 15/26/40/43 GF 50

TM04 9808 0111

TM04 9810 0111

GU 125 Union Isolation Valve GU 125 Union

TM04 9809 0111

TM04 9811 0111

Material Pump

Connection

Pipe Connection Material

Number

Dimensions (in. / mm)

NPT Solder Compression A B C D E F

Cast Iron

GF15/26

3/4" 519601

4-1/4 / 106 3-1/8 / 80 2-3/4 / 67 1/2 / 13 1/2 / 13 3/4 / 20

1" 519602

1-1/4" 519603

1-1/2" 519604

GF40/43 1-1/2" 539605 4-3/4 / 120 3-1/2 / 87 3 / 74 1/2 / 13 1/2 / 13 3/4 / 20

GF50 2"

(4-bolt flange) 96409354 5-1/4 /133 4 / 103 - 1/2 / 14 1/2 / 13 3/4 / 20

Bronze

GF15/26

3/4" 519651

4-1/4 / 106 3-1/8 / 80 2-3/4 / 67 1/2 / 13 1/2 / 13 3/4 / 201" 519652

1-1/4" 96409356

GF40/43 1-1/2" 539615 4-3/4 / 120 3-1/2 / 87 3 / 74 1/2 / 13 1/2 / 13 3/4 / 20

GF50 2"

(4-bolt flange) 96409355 5-1/4 /133 4 / 103 - 1/2 / 14 1/2 / 13 3/4 / 20

GU 125

Union

3/4" 529912 1 / 25 1-7/8 / 46 1-1/14 / 31 5/8 / 16 - -

1/2" 529913 3/4 / 20 1-7/8 / 46 3/4 / 20 5/8 / 16 - -

3/4" 529911 3/4 / 20 1-7/8 / 46 1 / 26 5/8 / 16 - -

Isolation

Valves

Bronze

GU 125

Union

1/2" 519850 2-1/4 / 57 1-7/8 / 46 1 / 25 5/8 / 16 - -

3/4" 519852 2-1/4 / 57 1-7/8 / 46 1-1/4 / 31 5/8 / 16 - -

3/4" 519851 2 / 51 1-7/8 / 46 1-1/4 / 31 5/8 / 16 - -

Notes:

GF15/26/40/43 Flange sets to include two flanges, two gaskets, and four nuts and bolts.

GF50 Flange sets to include two flanges, two gaskets, and eight nuts and bolts.

GU 125 Union Union set to include two nuts, gaskets, and adapters.

Dimensions are in inches unless otherwise noted.

Pipe connection

Pipe

connection

2” NPT

Pipe

connection

Pipe

connection

Accessories UP Series

UP-ZV zone valves

Specifications

Grundfos UP-ZV 24V, 2-way motorized zone valves for

hydronic heating or chilled water applications.

Technical data

Standard features

• In-line removable actuator for

ease of installation and service

• manual open/close lever

• sealed end switch

• silent close-of technology

• high gear ratio

• forged brass body

• removable service cap

• high Cv rating.

Approvals

TM04 9803 0111

Max. percent glycol: 50 % Valves

Fluid temp. range: 32 to 240 °F (0 to 115 °C) Valve operation: With power: opened

Ambient temp. range: 32 to 104 ° F (0 to 40 °C) Without power: closed

Max. humidity: 95 % non-condensing Manually opened: opened

Max. static pressure: 15 psi (1 bar) steam Materials of construction

300 psi (20 bar) Valve body: Brass

Stroke time Open: approx. 45 sec. Seat: Brass

Closed: approx. 10 sec. Stem: Stainless steel

Actuator motor Paddle: EPDM

Actuator motor: Synchronous hysteresis O-rings: EPDM

Class: Class A

Voltage: 24-VAC +/- 10 %, Class 2

5 Watts

7 VA

Run amps: 300 ma

In-rush: 300 ma

End (auxiliary) switch models

Type: Sealed

De-energized position: Normally closed

Rating: 0.4A (400 mA) @ 24 VAC (AC/DC)

Class 2

Isolated: Yes

Accessories UP Series

UP-ZV flow characteristics

Service

Connection size Flow Coefficient Max. Close-off ΔP

1/2-inch Sweat 3.5 Cv (3.0 Kv) 30 psi (207 kPa)

3/4-inch Sweat 7.5 Cv (6.5 Kv) 20 psi (138 kPa)

1-inch Sweat 7.5 Cv (6.5 Kv) 20 psi (138 kPa)

3/4-inch NPT 3.5 Cv (3.0 Kv) 30 psi (207 kPa)

TM04 9804 0111

Connections Dimensions [inches]

AB C D E F G H I

1/2-inch Sweat 1 5/16 2 5/8

15/16

3 7/16 4 4 17/32 1 3/16 2 3/8

3/4-inch Sweat 1 3/8 2 5/8

1-inch Sweat 1 11/16 2 5/8

4 3/16

3/4-inch NPT 1 13/16 2 5/8

Note: Dimensions for actuators with or without auxiliary switch.

Product

number Description

97627415 1/2-inch Sweat, 2-way Valve Body, Normally Closed, with End Switch

97627416 1/2-inch Sweat, 2-way Valve Body, Normally Closed, without End Switch

97627419 3/4-inch Sweat, 2-way Valve Body, Normally Closed, with End Switch

97627420 3/4-inch Sweat, 2-way Valve Body, Normally Closed, without End Switch

97627421 1-inch Sweat, 2-way Valve Body, Normally Closed, with End Switch

97627422 1-inch Sweat, 2-way Valve Body, Normally Closed, without End Switch

97627417 3/4-inch NPT, 2-way Valve Body, normally Closed, with End Switch

97627418 3/4-inch NPT, 2-way Valve Body, normally Closed, without End Switch

SWEAT MODELS NPT MODELS

Product

number Description

97627423 Actuator 24-VAC, Normally Closed with End Switch

97627424 Actuator 24-VAC, Normally Closed without End Switch

Accessories UP Series

Replacement flange gaskets

For use with flange set Material number Description Shipping weight

[oz.]

GF 15/26 510179 Single gasket for 1-1/4" flange 4

GF 40/43 530244 Single gasket for 1-1/2" flange 4

GF 50 96409353 Single gasket for 2" flange 4

GF 65 550097 Single gasket for 2-1/2" flange 4

GF 80 560185 Single gasket for 3" flange 4

GF 100 570008 Single gasket for 4" flange 4

GU 125 520089 Single gasket for GU 125 union 4

UP Series

Submittal data

Company name .................................................

Prepared by .......................................................

Phone number (.......).........................................

Fax number (.......)..............................................

Date:..................... Page 1 of:....................

Quote number:...................................................

Client information

Project title:.............................................................................................. Client name:...............................................................................................

Reference number:................................................................................... Client number:............................................................................................

Client contact:.......................................................................................... Client phone:..............................................................................................

Location information

For:............................................................................................................ Unit:...........................................................................................................

Site:........................................................................................................... Service:......................................................................................................

Address:..................................................................................................... City:.............................. State:............................ Zip code:......................

Technical data Motor information

Flow (GPM):.............................................................................................. HP:.............................................................................................................

Head (Ft)................................................................................................... Phase:.......................................................................................................

Motor:....................................................................................................... Voltage:.....................................................................................................

Max. liquid temp.:....................................................................................... Enclosure:.................................................................................................

Min. liquid temp.:........................................................................................

Min. required inlet pressure:.......................................................................

Connection type and size:...........................................................................

Pump information

Model information from type key and codes: Example: UP-S-15-58-FC...........................................................................

Quantity required:.................................................................................... NPSH required at duty point:......................................................................

Minimum required flow:............................................................................

Product guide additional information pages

Materials page number:.............................................................................. Performance curve page number:...............................................................

Technical data page number:...................................................................... Motor data page number:............................................................................

Custom-built pump information (optional):..................................................................................................................................................................

.................................................................................................................................................................................................

Additional information:.................................................................................................................................................................................................

.................................................................................................................................................................................................

Submittal data UP Series

This page intentionally left blank.

UP Series

Further product documentation

WebCAPS

WebCAPS is a Web-based Computer Aided Product

Selection program available on www.grundfos.com.

WebCAPS contains detailed information on more than

185,000 Grundfos products in more than 20 languages.

In WebCAPS, all information is divided into 6 sections:

• Catalog

• Literature

• Service

• Sizing

• Replacement

• CAD drawings.

Visit our U.S. website at www.grundfos.us

Catalog

This section is based on fields of application and pump types, and

contains

• technical data

• curves (QH, Eta, P1, P2, etc) which can be adapted to the

density and viscosity of the pumped liquid and show the

number of pumps in operation

• product photos

• dimensional drawings

• wiring diagrams

• quotation texts, etc.

Literature

In this section you can access all the latest documents of a given

pump, such as

• data booklets

• installation and operating instructions

• service documentation, such as Service kit catalog and Service

kit instructions

• quick guides

• product brochures, etc.

Service

This section contains an easy-to-use interactive service catalog.

Here you can find and identify service parts of both existing and

discontinued Grundfos pumps.

Furthermore, his section contains service videos showing you how

to replace service parts.

Further product documentation UP Series

WinCAPS

WinCAPS CD-ROM

WinCAPS is a Windows-based Computer Aided

Product Selection program containing detailed

information on more than 185,000 Grundfos products in

more than 20 languages.

The program contains the same features and functions

as WebCAPS, but is an ideal solution if no Internet

connection is available.

WinCAPS is available on CD-ROM and updated once a

year.

Visit our U.S. website at www.grundfos.us

Sizing

This section is based on different fields of application and installa-

tion examples, and gives easy step-by-step instructions in how to

• select the most suitable and efficient pump for your installation

• carry out advanced calculations based on energy consumption,

payback periods, load profiles, life cycle costs, etc.

• analyse your selected pump via the built-in life cycle cost tool

• determine the flow velocity in wastewater applications, etc.

Replacement

In this section you find a guide to selecting and comparing replace-

ment data of an installed pump in order to replace the pump with a

more efficient Grundfos pump.

The section contains replacement data of a wide range of pumps

produced by other manufacturers than Grundfos.

Based on an easy step-by-step guide, you can compare Grundfos

pumps with the one you have installed on your site. When you have

specified the installed pump, the guide will suggest a number of

Grundfos pumps which can improve both comfort and efficiency.

CAD drawings

In this section it is possible to download 2-dimensional (2D) and

3-dimensional (3D) CAD drawings of most Grundfos pumps.

These formats are available in WebCAPS:

2-dimensional drawings:

• .dxf, wireframe drawings

• .dwg, wireframe drawings.

3-dimensional drawings:

• .dwg, wireframe drawings (without surfaces)

• .stp, solid drawings (with surfaces)

• .eprt, E-drawings.

UP Series

Notes

GRUNDFOS Pumps Corporation

17100 West 118th Terrace

Olathe, Kansas 66061

Phone: +1-913-227-3400

Telefax: +1-913-227-3500

GRUNDFOS Canada Inc.

2941 Brighton Road

Oakville, Ontario L6H 6C9 Canada

Phone: +1-905 829 9533

Telefax: +1-905 829 9512

Bombas GRUNDFOS de Mexico S.A. de C.V.

Boulevard TLC No. 15

Parque Industrial Stiva Aeropuerto

Apodaca, N.L. Mexico 66600

Phone: +52-81-8144 4000

Telefax: +52-81-8144 4010

www.grundfos.com

Being responsible is our foundation

Thinking ahead makes it possible

Innovation is the essence

L-UP-PG-001 Rev. 0311

Repl. 1109

17539 1 Grundfos 95906639 Brochure User Manual

17537 1 Grundfos 59896879 Brochure 17537_1_Grundfos 59896879 Brochure 17537_1_Grundfos 59896879 Brochure pdf pumpproducts

17540 1 Grundfos 59896781 Brochure 17540_1_Grundfos 59896781 Brochure 17540_1_Grundfos 59896781 Brochure pdf pumpproducts

17527 1 Grundfos 52722393 Brochure 17527_1_Grundfos 52722393 Brochure 17527_1_Grundfos 52722393 Brochure pdf pumpproducts

17538 1 Grundfos 59896773 Brochure 17538_1_Grundfos 59896773 Brochure 17538_1_Grundfos 59896773 Brochure pdf pumpproducts

17526 1 Grundfos 52722370 Brochure 17526_1_Grundfos 52722370 Brochure 17526_1_Grundfos 52722370 Brochure pdf pumpproducts

Navigation menu

Versions of this User Manual:

Views

Navigation
