GRUNDFOS PRODUCT GUIDE

Large UP, UPS

Series 200 circulator pumps

60 Hz

Table of contents

2

Large UP, UPS

1. Product introduction 3

Introduction 3

Terminal box modules 3

Applications 3

Features and benefits 3

Identification 4

2. Product overview 5

Performance range, UPS pumps 5

Performance range, UP pumps 6

3. Product range 7

Pump overview 7

4. Cross-reference guide 8

Armstrong, B&G and TACO to Grundfos 8

5. Construction 10

Construction 10

Material specification 11

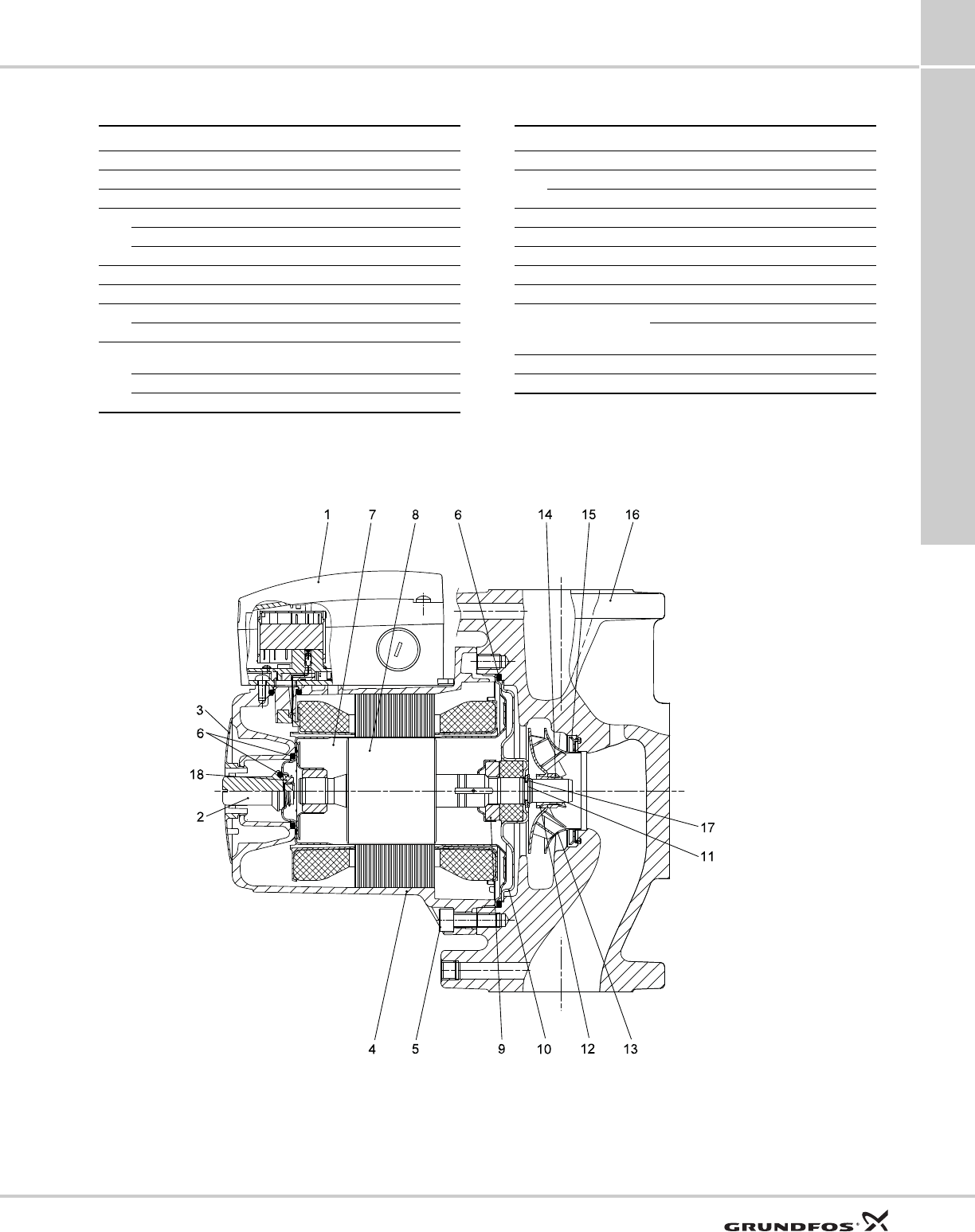

Sectional drawing 11

Motor 12

Stator housing 12

Rotor can 12

Shaft with rotor 12

Bearing plate 12

Impeller 12

Pump housing 12

6. Operating conditions 13

Pumped liquids 13

Temperature limits 13

Other technical data 13

Electrical data 14

Supply voltage tolerances 14

Terminal box 14

Insulation class 14

7. Functions 15

Functions 15

Description of functions 16

Standard module indicator lights 17

Variable frequency drive operation 17

Pumps with protection module 17

Protection module indicator lights 18

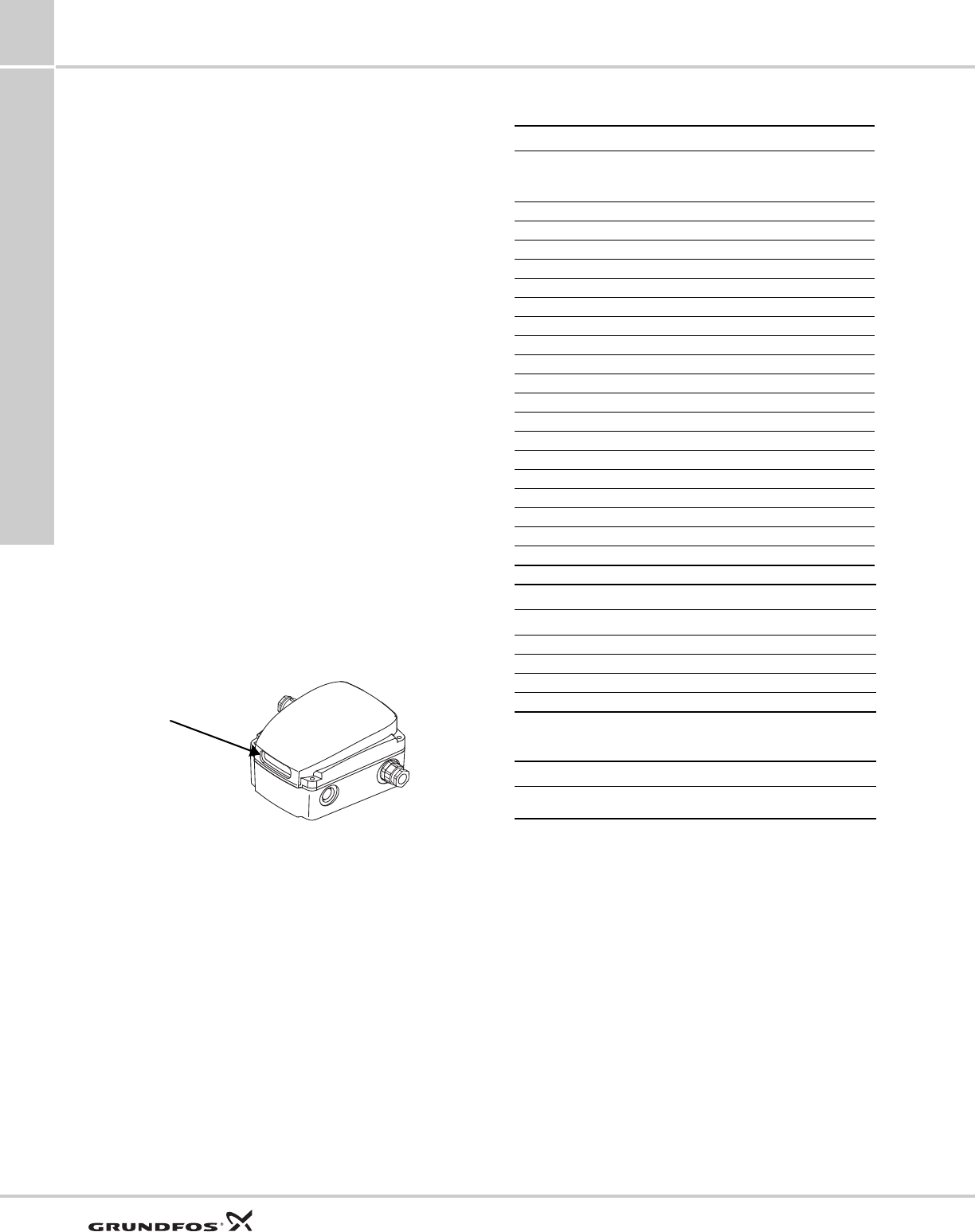

Pumps with relay module 18

Relay module indicator lights 18

Signal output of relay module 18

Two pumps plumbed in parallel 18

8. Technical data 19

Technical data, UPS 19

Curve conditions 24

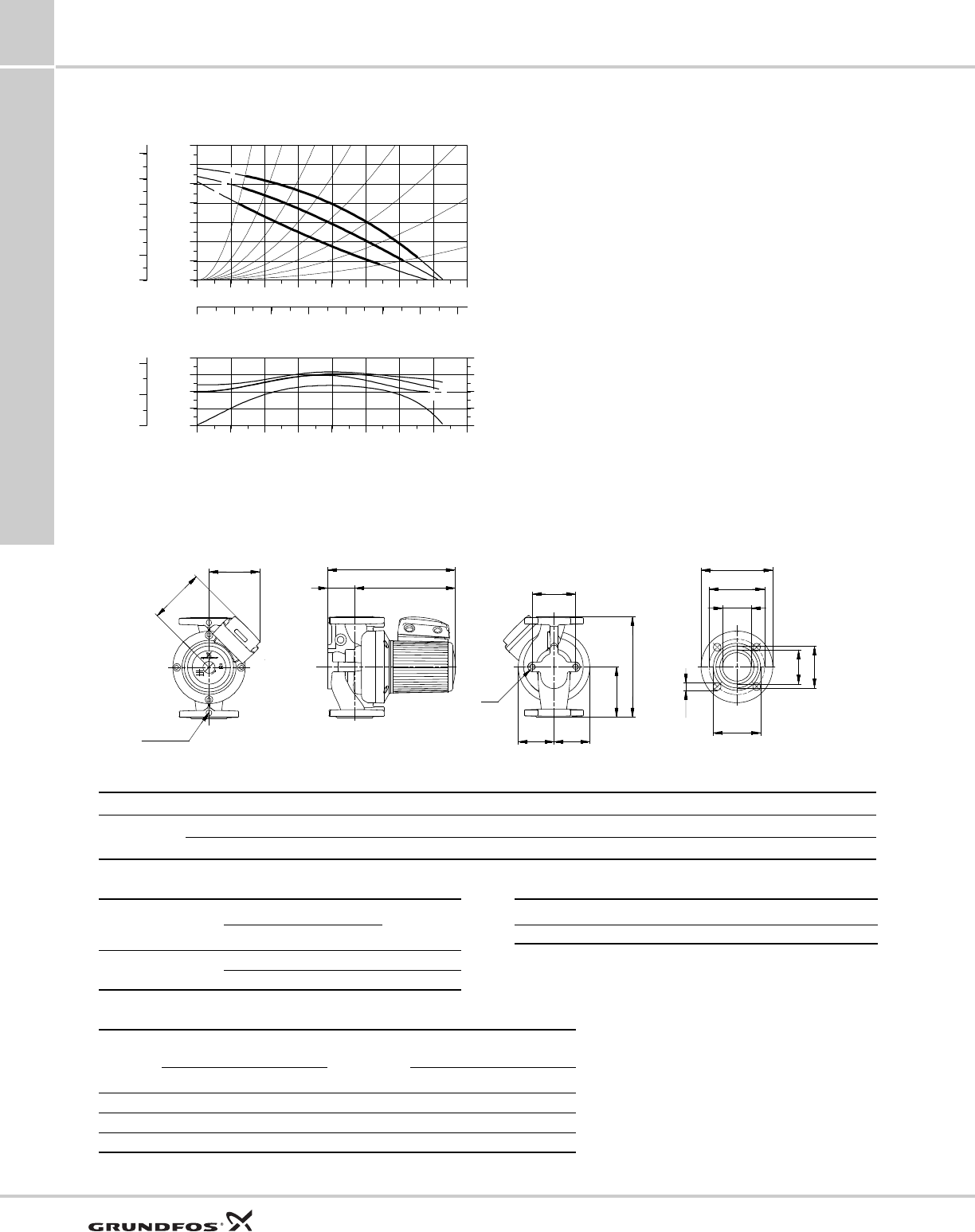

9. Curve charts and technical data 25

10. Accessories and spare parts 62

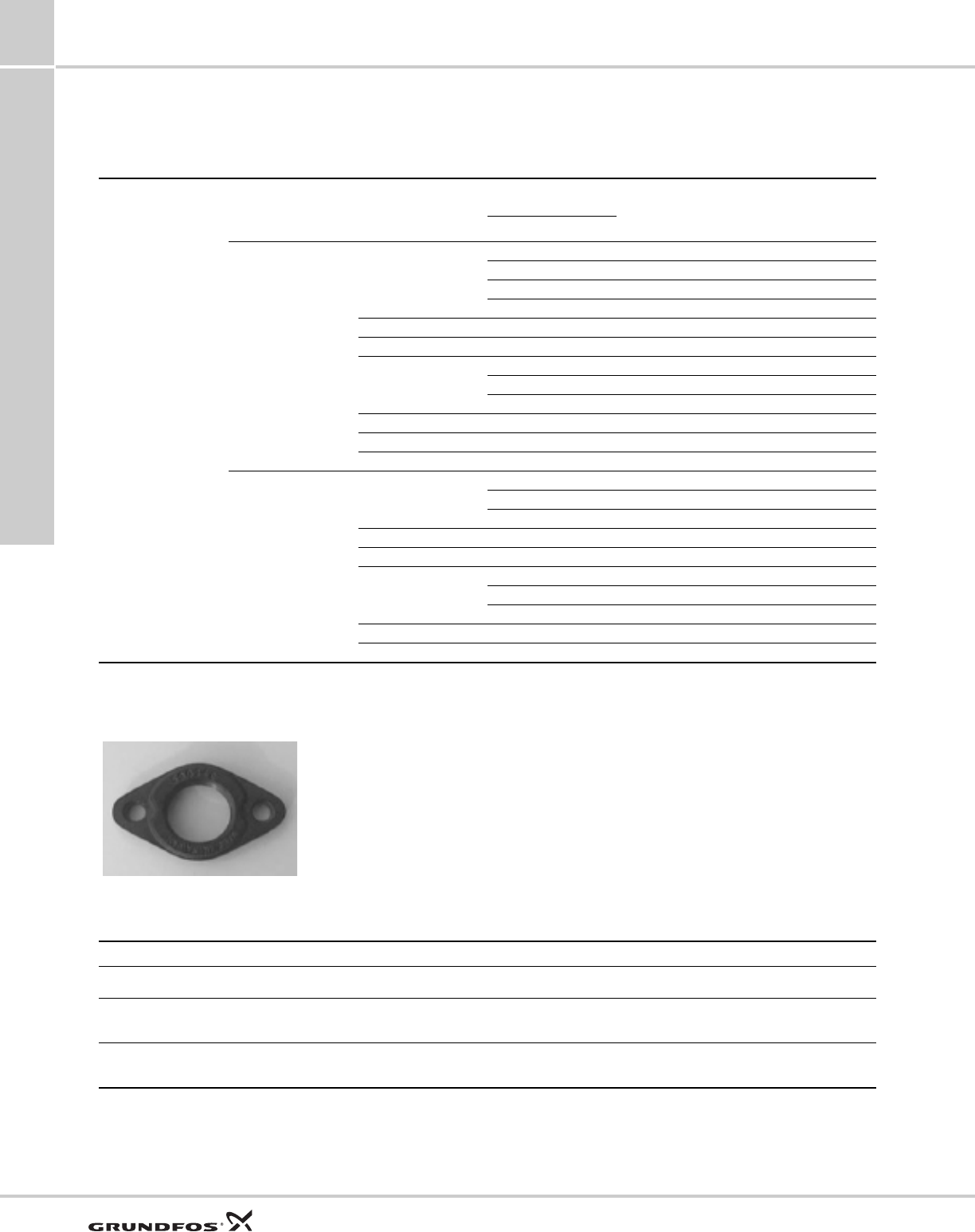

Packaged fitting sets 62

Terminal box electrical components 62

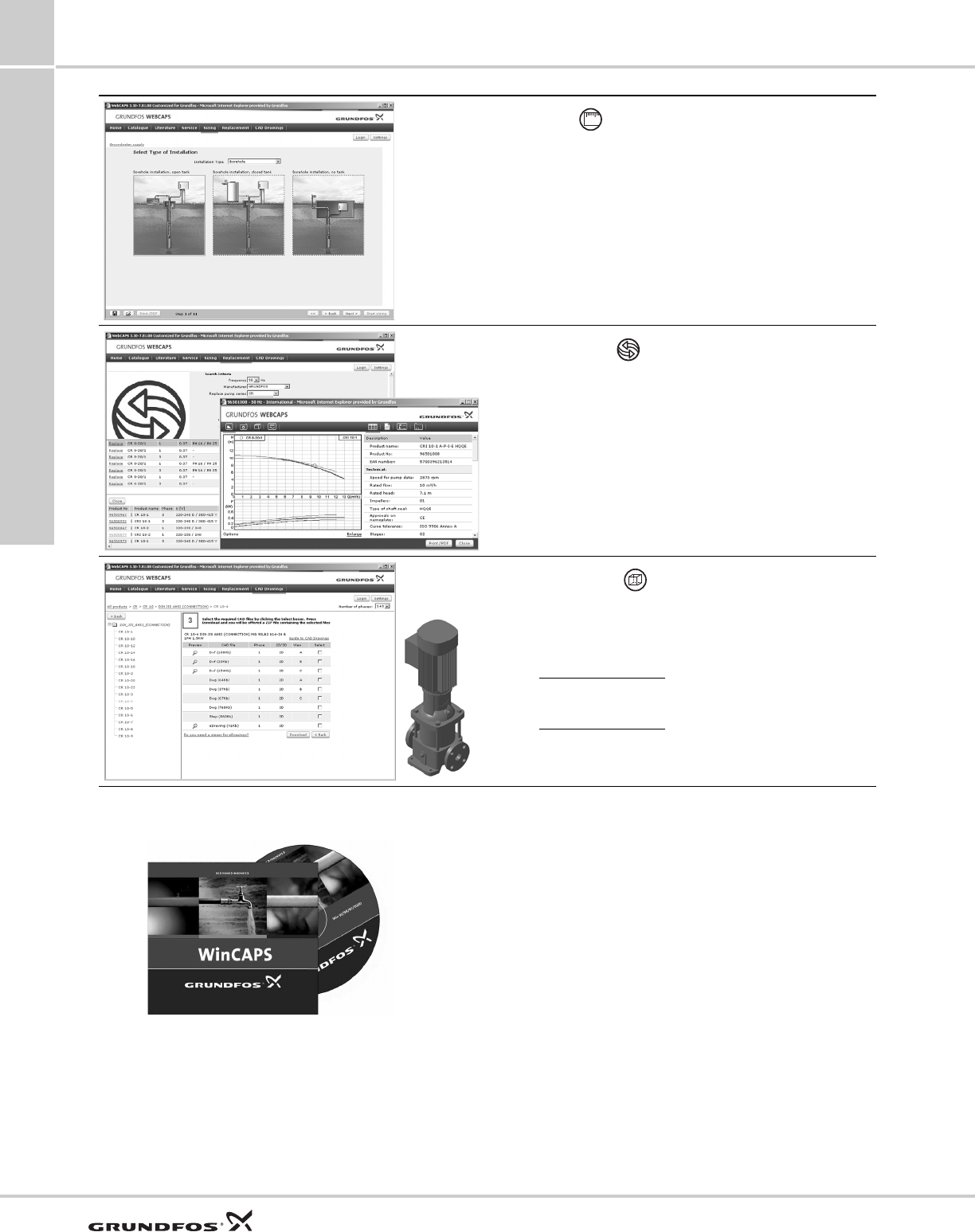

11. Further documentation 63

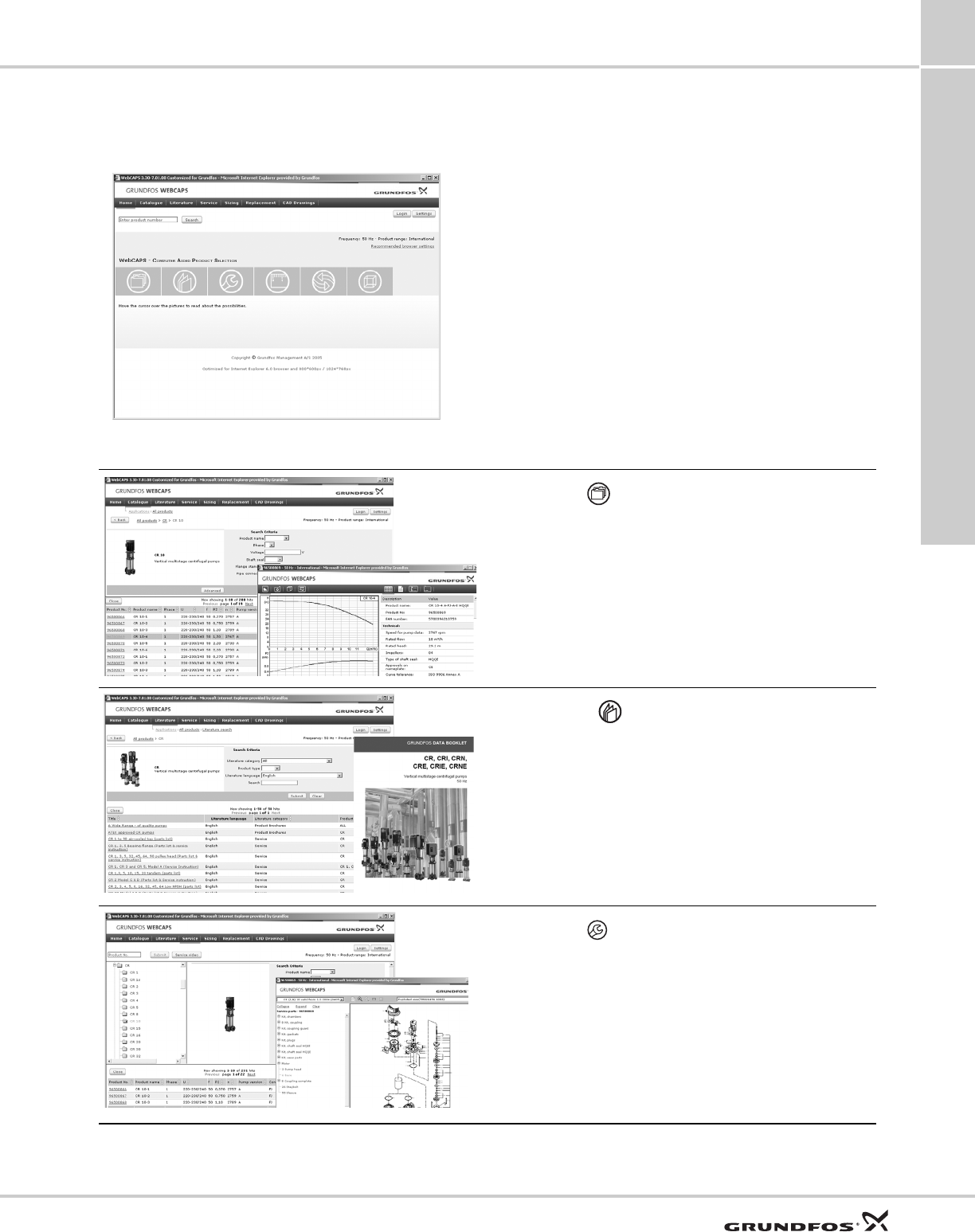

WebCAPS 63

WinCAPS 64

Product introduction

UP, UPS Series 200 1

3

1. Product introduction

Introduction

The Grundfos UP(S) Series 200 line of wet rotor

circulators is unique to commercial building

services. Most competitor pumps are dry runners.

UP(S) wet rotor circulators, on the other hand, are

designed so that the water being pumped surrounds

the rotor, cooling and lubricating the shaft and

bearings.

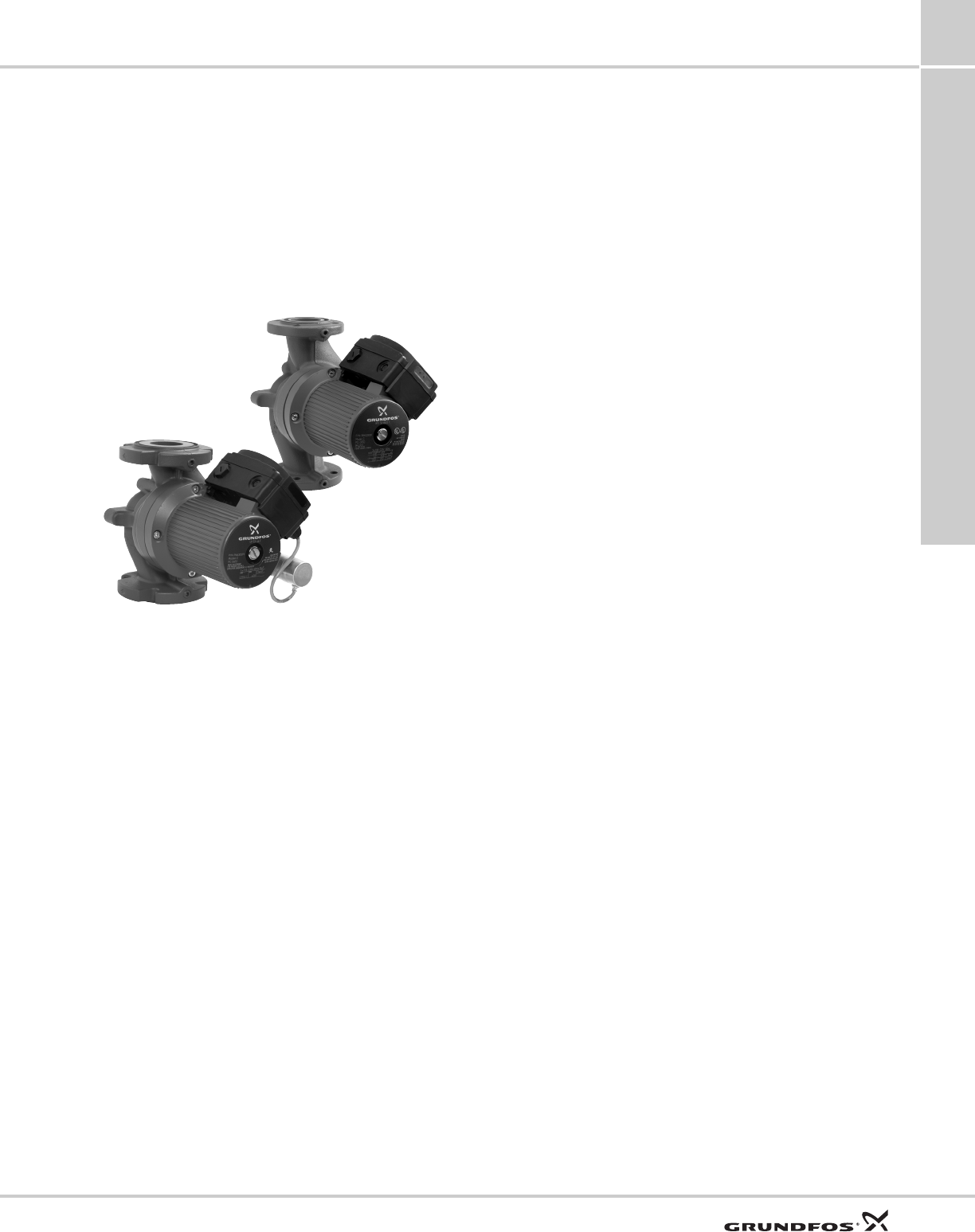

Fig. 1 Grundfos UP, UPS Series 200 circulator pumps

Wet rotor design eliminates the need for a fan to cool

the motor. Fans are often a source of noise and

vibrations that can resonate throughout a building via

the pipework. Eliminating the fan results in very quiet

operation.

UP(S) Series 200 pumps are available in cast iron

construction for closed (heating and air conditioning)

and bronze construction for open (domestic hot water)

systems.

Both cast iron and bronze UP(S) Series 200 pumps

utilize laser-welded stainless steel impellers to achieve

high pump efficiency.

The standard UP(S) motors are suitable for variable

speed drive applications.

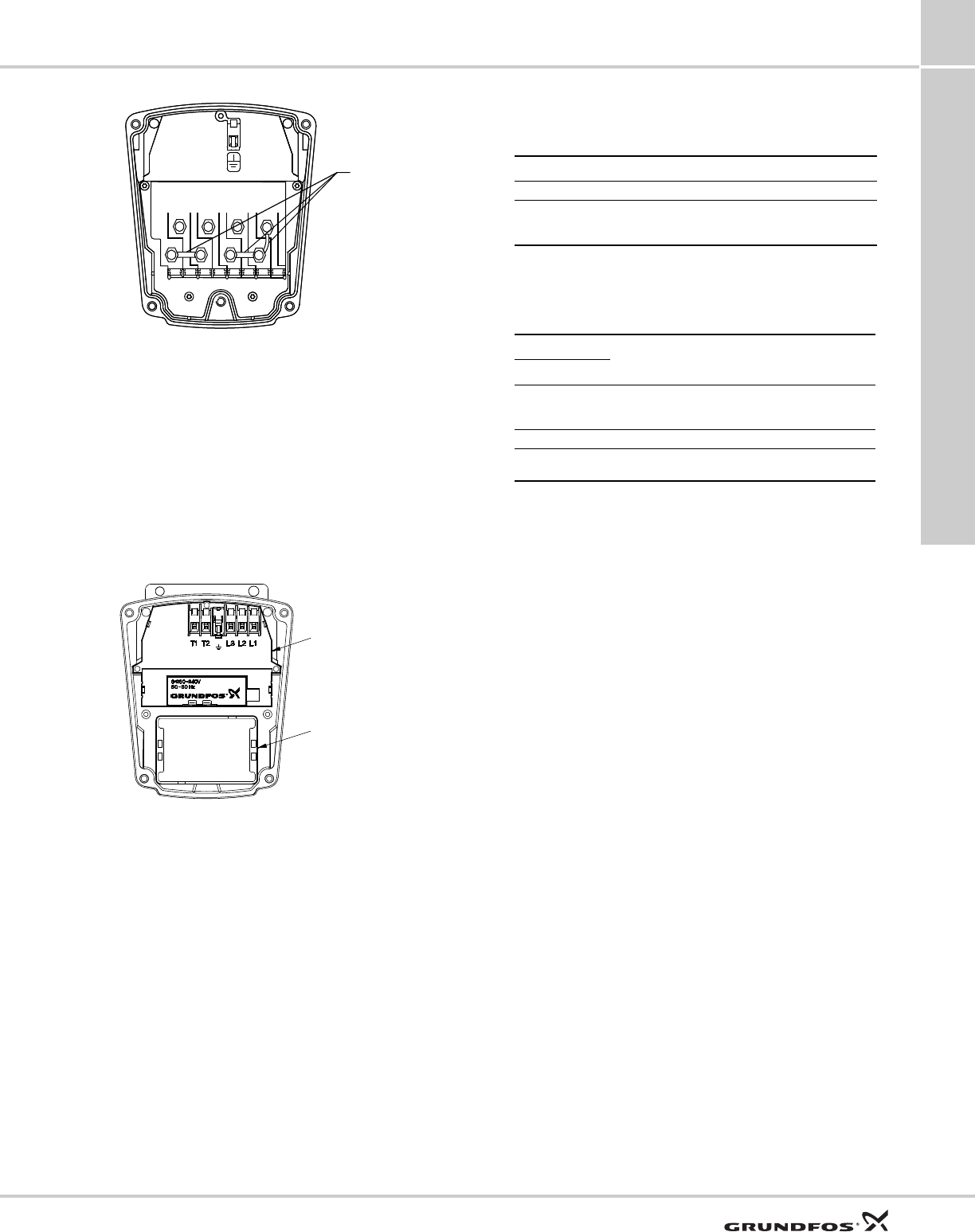

Terminal box modules

UPS pumps are equipped with a standard or protection

module in the terminal box. Pumps with standard

module must be connected to the power supply via an

external contactor, whereas pumps with protection

module can be connected directly to the power supply.

For further information about the different modules,

see pages 17 through 18.

Applications

The pumps are designed for circulation of liquids in

heating and air-conditioning systems. They can also

be used in domestic hot-water systems.

Applications for the UP(S) pumps include:

• Heating systems for apartments, colleges, hospitals,

institutions and schools

• hot water recirculation for hotels, colleges

institutions, hospitals, and apartments

• large residential heating

• snow melt.

To ensure optimum operation, the dimensioning range

of the system must fall within the performance range of

the pump. See sections 6. Operating conditions on

page 13 and 8. Technical data on page 19.

Pumped liquids

Grundfos UP, UPS Series 200 pumps are suitable for

pumping thin, clean, non-aggressive and

non-explosive liquids, not containing any solid

particles, fibers or mineral oil.

In domestic hot-water systems it is advisable to use

bronze pumps only for water with a degree of hardness

lower than approx. 14°dH. For water with a higher

degree of hardness, a Grundfos TP dry-rotor pump is

recommended.

The pumps must not be used for the transfer of

flammable liquids such as diesel oil and gasoline.

For liquid temperature, see section 6. Operating condi-

tions on page 13.

Features and benefits

The Grundfos range of UP(S) Series 200 circulator

pumps offer many beneficial features:

•Quiet

• maintenance-free

• UPS pumps have a 2 or 3 speed switch, which

increases the comfort level for the application

• small profile (one piece vs. three piece)

• sealless, which eliminates worries about hot water

leakage

• pumped water lubricates the shaft and bearings so

there is no oil to leak

• no couplers to change.

GrA3223, GrA3217

Product introduction

UP, UPS Series 200

1

4

Identification

Type key

*With the exception of the following pump types, where the number is to be considered as a reference number:

UP 53-45, UP 53-46, UPS 53-55/57 and UPS 75-69

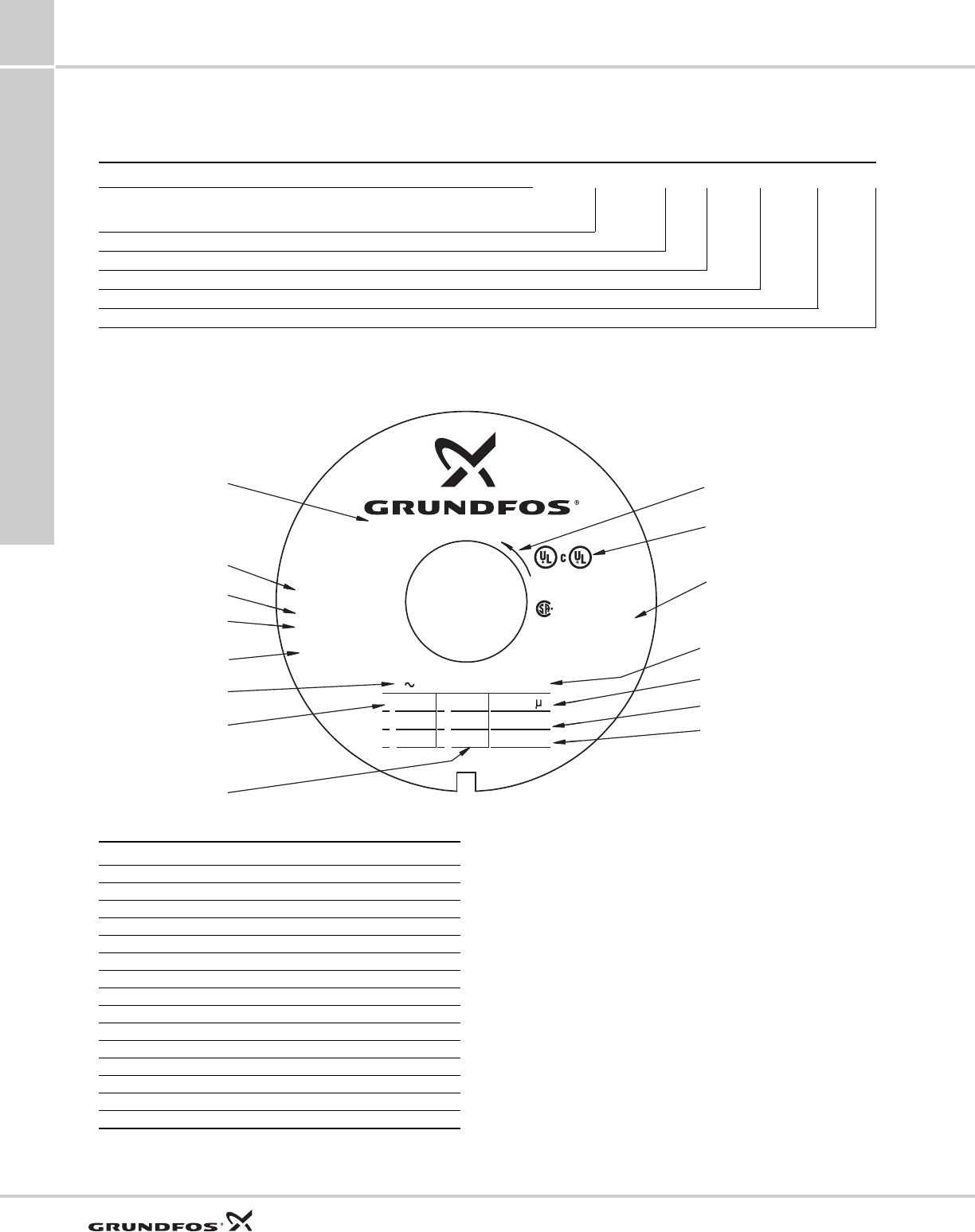

Nameplate

Fig. 1 Example of nameplate

Example UPS 50 -40 (/2) F (B)

Type range

- UP: Single-speed pump

- UPS: Two- or three-speed pump

Nominal flange diameter [mm]

Max. head [dm]*

Number of motor poles (stated if available both as 2- and 4-pole motor)

Pump with flanges

Pump with bronze housing

TM03 7712 4806

UPS 50-40 F

96402816

0.66

150

(A)

1/1

P/N:

Model:C

IP

1

(W)

ClassF

PC:0635

MADE IN GERMANY

1

2

33

2

1

3 208-230V 60Hz

0.54

1.40

170

270

10

12

13

14

15

1

2

3

4

5

8

11

9

7

6

MAX LIQUID T. 120°C/+248° F

MIN LIQUID T. -10°C/+14° F

LRA

(A)

F

4.0

FOR INDOOR USE ONLY

EMPLOYER UNIQUEMENT A L’INTERIERUR

LISTED 1Z28

WATER-CIRCULATING PUMP

US

C

APPROVED FOR

WATER: MAX T. 120

°C/248F

CSA ENCL. 2/BOITIER DE YPE 2

Pos. Description

1 Type code

2 Product number

3 Model designation

4 Production code (year + week)

5 Country of origin

6 Number of phases and rated voltage

7 Current at speeds 1, 2, 3

8 Power at speeds 1, 2, 3

9 Direction of rotation

10 Approvals

11 Temperature limits

12 Rated frequency

13 Capacitor size

14 Locked Rotor Amps

15 Insulation class

Product overview

UP, UPS Series 200 2

5

2. Product overview

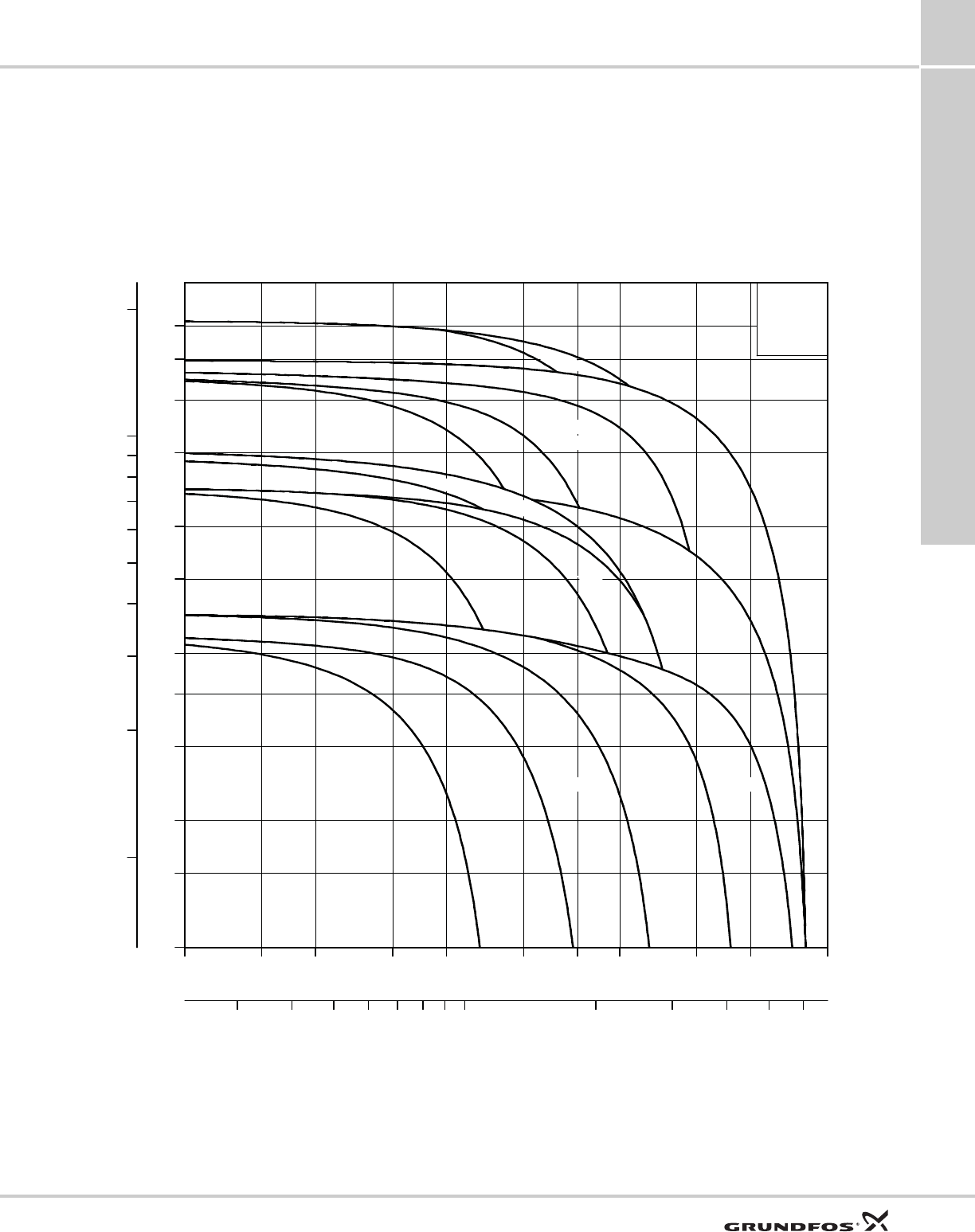

Performance range, UPS pumps

The curves show maximum performance curves for the

UPS range:

• single-voltage pumps

• two- and three-speed pumps.

TM00 9582 5106

10 15 20 30 40 60 80 100 150 200 300

Q [US GPM]

2

3

4

6

8

10

15

20

30

40

50

60

[ft]

H

3 4 5 6 7 8 9 1010 20 30 40 50 60

Q [m³/h]

11

2

3

4

5

6

7

8

9

1010

20

[m]

H

UPS

60 Hz

50-160

100-40

80-80

80-40

50-240

50-80/2

50-80/4

50-40

40-240

40-160

40-80/2

40-40

32-160

32-80

32-40

80-160

40-80/4

75-69

53-55/57

Product overview

UP, UPS Series 200

2

6

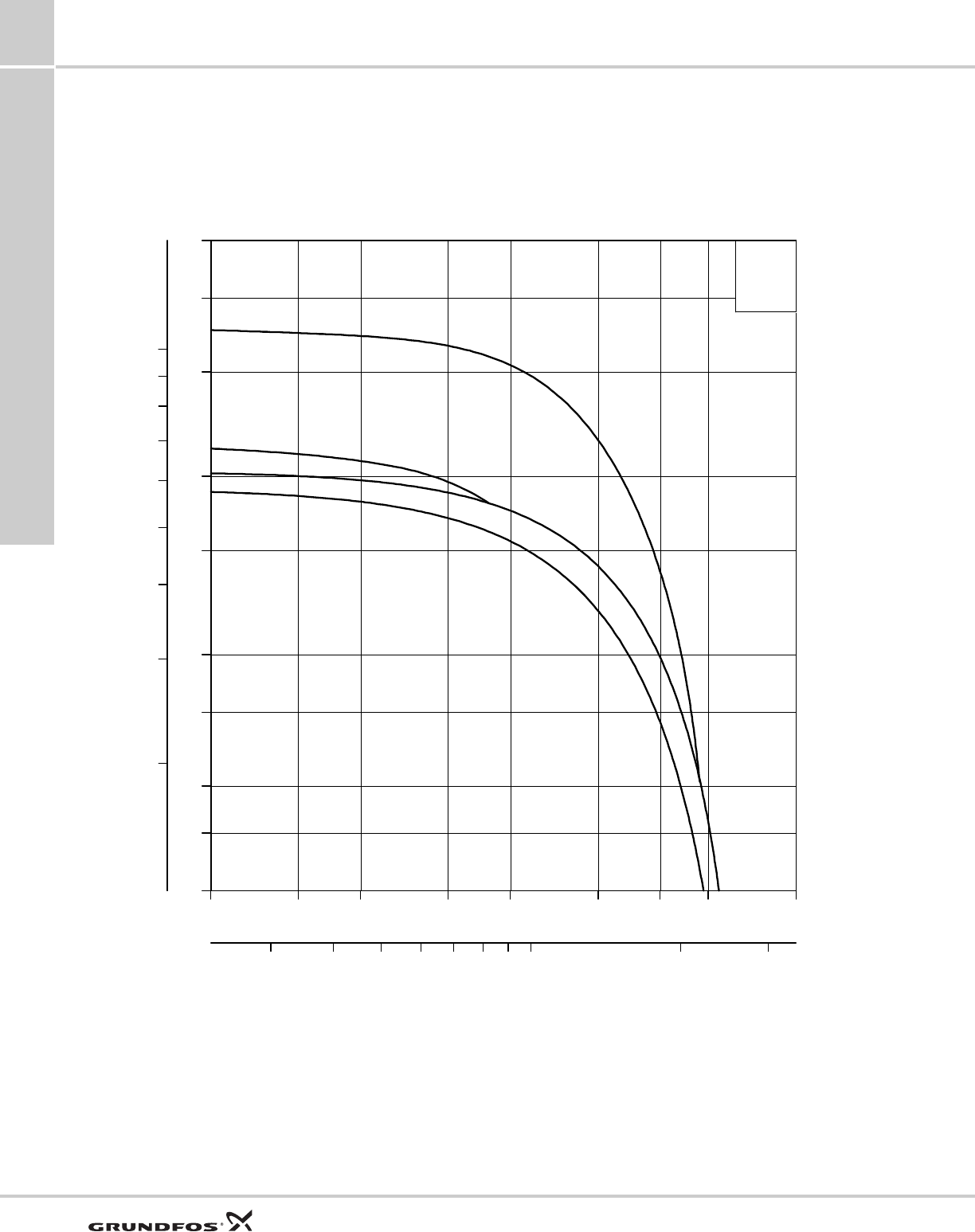

Performance range, UP pumps

The curves show maximum performance curves for the

UP range:

• dual-voltage pumps

• single-speed pumps.

TM02 5598 4706

10 15 20 3040 60 80100 150

Q [US GPM]

4

5

6

8

10

15

20

30

40

[ft]

H

34 5 6 7 891010 20 30

Q [m³/h]

2

3

4

5

6

7

8

9

1010

[m]

H

UP

60 Hz

53-46

53-45

43-110

43-70

Product range

UP, UPS Series 200 3

7

3. Product range

UPS range

Canada only

UP range

Pump overview

Pump type Voltage [V] Poles

1 x 115 1 x 230 3 x 208-230 3 x 460 3 x 57524

UPS 32-40 F ●● ● ●●—●

UPS 32-80 F ●● ● ●●●—

UPS 32-160 F ●● ● ●●●—

UPS 40-40 F ●● ● ●●—●

UPS 40-80/2 F ●● ● ●●●—

UPS 40-80/4 F ●● ● ●●—●

UPS 40-160 F ●● ● ●●●—

UPS 40-240 F — ●●●●●—

UPS 50-40 F ●● ● ●●—●

UPS 50-80/2 F ●● ● ●●●—

UPS 50-80/4 F ●● ● ●●—●

UPS 50-160 F — ●●●●●—

UPS 50-240 F — — ●●●●—

UPS 53-55/57 F ●● ● ●●●—

UPS 75-69 F — ●●●●●—

UPS 80-40 F — — ●●●—●

UPS 80-80 F — — ●———●

UPS 80-160 F — — ●●●●—

UPS 100-40 F — — ●●●—●

Pump type Voltage [V] Poles

1 x 115/230 V 2 4

UP 43-70 F ●●—

UP 43-110 F ●●—

UP 53-45 F ●●—

UP 53-46 F ●●—

Model Flow

[US gpm] Head

[ft] Ph Max.

[rpm] Flange Flange type

UP 43-70 F 15-100 1-23 1 3450 1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

UP 43-110 F 15-105 1-37 1 3450 1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

UP 53-45 F 15-100 1-23 1 3450 2", 2.5", 3" non ANSI 4 bolt w/ (4) 0.63" dia. holes GF 53

UP 53-46 F 15-105 1-37 1 3450 2", 2.5", 3" non ANSI 4 bolt w/ (4) 0.63" dia. holes GF 53

UPS 32-40/4 9-52 1-11 1-3 1750 1.25" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 15/26

UPS 32-80/2 9-67 1-25 1-3 3450 1.25" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 15/26

UPS 32-160/2 9-76 1-45 1-3 3450 1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

UPS 40-40/4 13-85 1-11 1-3 1750 1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

UPS 40-80/2 13-105 1-30 1-3 3450 1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

UPS 40-80/4 13-120 1-25 1-3 1750 1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

UPS 40-160/2 13-110 1-46 1-3 3450 1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

UPS 40-240/2 13-130 1-62 1-3 3450 1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

UPS 50-40/4 20-125 1-12 1-3 1750 2" non ANSI 4 bolt w/ (4) 0.56" dia. holes GF 50

UPS 50-80/4 20-160 1-24 1-3 1750 2" non ANSI 4 bolt w/ (4) 0.56" dia. holes GF 50

UPS 50-80/2 20-150 1-30 1-3 3450 2" non ANSI 4 bolt w/ (4) 0.56" dia. holes GF 50

UPS 50-160/2 20-170 1-46 1-3 3450 2" non ANSI 4 bolt w/ (4) 0.56" dia. holes GF 50

UPS 50-240/2 20-180 1-62 3 3450 2" non ANSI 4 bolt w/ (4) 0.56" dia. holes GF 50

UPS 53-55/57 F 20-150 1-30 1-3 3450 2", 2.5", 3" non ANSI 4 bolt w/ (4) 0.56" dia. holes GF 53

UPS 75-69 F 20-170 1-46 1-3 3450 3" ANSI 125# R.F. GF 80

UPS 80-40/4 30-200 1-13 3 1750 3" ANSI 125# R.F. GF 80

UPS 80-80/4 30-260 1-25 3 1750 3" ANSI 125# R.F. GF 80

UPS 80-160/2 30-275 1-49 3 3450 3" ANSI 125# R.F. GF 80

UPS 100-40/4 30-270 1-12 3 1750 4" ANSI 125# R.F. GF 100

Cross-reference guide

UP, UPS Series 200

4

8

4. Cross-reference guide

Armstrong, B&G and TACO to Grundfos

 Bronze version to be used in open systems.

 Replacement model requires piping and/or flange modification.

Disclaimer: This cross-reference is a guide only. Use individual technical data sheets for correct comparison.

Manufacturer Model Port-to-port

length

[in]

Flange size

[in] Grundfos model Port-to-port

length

[in]

Flange size

[in]

Armstrong

ARMflo E21 8.50 1.50 UP43-110F 8.50 1.50

ARMflo E23 8.50 1.50 UP43-110F 8.50 1.50

S 45 10.00 2.50, 3 UP53-45F9.88 2.00, 2.50, 3.00

S 46 10.00 2.50, 3 UP53-46F9.88 2.00, 2.50, 3.00

S 55 12.00 3.00 UPS53-55/57F11.88 2.00, 2.50, 3.00

S 57 12.00 3.00 UPS53-55/57F11.88 2.00, 2.50, 3.00

S 69 14.25 3.00 UPS75-69F14.00 2.00, 2.50, 3.00

H51 11.50 1.00 UPS32-80/2 11.00 0.75 to 1.50

H52 11.50 1.00 UPS32-80 11.00 0.75 to 1.50

H53 11.50 1.50 UPS40-160/211.50 1.50

H54 11.50 2.00 UPS50-80/211.50 2.00

H63 13.50 1.50 UPS32-160/213.50 1.50

H64 13.50 1.50 UPS32-160/213.50 1.50

H65 13.50 1.50 UPS40-240/213.50 1.50

H66 14.00 2.00 UPS50-160/214.00 2.00

H67 14.00 2.00 UPS50-160/214.00 2.00

H68 14.00 2.00 UPS50-240/214.00 2.00

1050 1B (0.25 Hp) 11.50 1.00 UPS32-80/2 11.00 0.75 to 1.50

1050 1-1/4B (0.25 Hp) 11.50 1.25 UPS32-80/2 11.00 0.75 to 1.50

1050 1-1/2B (0.25 Hp) 11.50 1.50 UPS32-80/2 11.00 0.75 to 1.50

1050 2B (0.33 Hp) 11.50 2.00 UPS50-80/411.50 2.00

1050 2B (0.50 Hp) 11.50 2.00 UPS50-80/411.50 2.00

1050 2B (0.75 Hp) 11.50 2.00 UPS50-80/411.50 2.00

1060 1-1/2 D (0.50 Hp) 13.50 1.50 UPS32-160/213.50 1.50

1060 1-1/2 D (0.75 Hp) 13.50 1.50 UPS32-160/213.50 1.50

1060 1-1/2 D (1.50 Hp) 13.50 1.50 UPS40-240/213.50 1.50

1060 2D (0.75 Hp) 14.00 2.00 UPS50-160/214.00 2.00

1060 2D (1.00 Hp) 14.00 2.00 UPS50-160/214.00 2.00

1060 2D (1.50 Hp) 14.00 2.00 UPS50-160/214.00 2.00

1060 2D (2.00 Hp) 14.00 2.00 UPS50-240/214.00 2.00

TACO

120 11.00 2.00 UPS32-40/4 11.00 0.75 to 1.50

131 13.63 3.00 UP53-45F 10.00 2.00, 2.50, 3.00

133 13.63 3.00 UPS53-55/57 11.88 2.00, 2.50, 3.00

1600 10.25 1.50 UPS32-80/211.00 1.50

1610 10.25 1.50 UPS32-80/211.00 1.50

1612 13.50 1.50 UPS32-160/213.50 1.50

1614 13.50 1.50 UPS32-160/213.50 1.50

1616 14.50 2.00 UPS40-240/2 13.50 1.50

1630 13.50 2.00 UPS50-80/4 11.50 2.00

1632 13.50 2.00 UPS50-160/214.00 2.00

1634 13.50 2.00 UPS50-160/214.00 2.00

1636 16.50 2.00 UPS50-240/2 14.00 2.00

1638 16.50 2.00 UPS50-240/2 14.00 2.00

Cross-reference guide

UP, UPS Series 200 4

9

 Bronze version to be used in open systems.

 Replacement model requires piping and/or flange modification.

Disclaimer: This cross-reference is a guide only. Use individual technical data sheets for correct comparison.

Manufacturer Model Port-to-port

length

[in]

Flange size

[in] Grundfos model Port-to-port

length

[in]

Flange size

[in]

B&G

2-1/2" 10.00 2.50 UP53-45F9.88 2.00, 2.50, 3.00

LD3 10.00 3.00 UP53-45F9.88 2.00, 2.50, 3.00

HD3 10.00 3.00 UP53-46F9.88 2.00, 2.50, 3.00

PD-35 12.00 3.00 UPS53-55/57F11.88 2.00, 2.50, 3.00

PD-37 12.00 3.00 UPS53-55/57F11.88 2.00, 2.50, 3.00

PD-38 14.50 3.00 UPS75-69F14.00 2.00, 2.50, 3.00

PD-40 14.50 3.00 UPS50-160/2 14.00 2.00

601 11.00 1.00 UPS32-80/211.00 0.75 to 1.50

602 11.00 1.00 UPS32-80/211.00 0.75 to 1.50

603 11.00 1.00 UPS50-80/2 11.50 2.00

604 11.00 1.25 UPS32-80/211.00 0.75 to 1.50

609 11.50 1.50 UPS40-160/211.50 1.50

610 11.50 2.00 UPS50-80/411.50 2.00

621 13.50 2.00 UPS40-80/4 13.50 1.50

614 13.50 1.50 UPS40-240/2 13.50 1.50

615 13.50 2.00 UPS50-160/2 14.00 2.00

616 13.50 2.00 UPS50-160/2 14.00 2.00

622 13.50 1.50 UPS32-160/2 13.50 1.50

623 13.50 1.50 UPS40-240/2 13.50 1.50

617 13.50 1.50 UPS40-240/2 13.50 1.50

624 14.00 2.00 UPS50-160/2 14.00 2.00

625 14.00 2.00 UPS50-240/2 14.00 2.00

60-11 11.00 1.25 UPS32-80/211.00 0.75 to 1.50

60-13 11.50 1.50 UPS40-160/211.50 1.50

60-14 11.50 2.00 UPS50-80/211.50 2.00

60-15 13.50 1.50 UPS32-160/2 13.50 1.50

60-16 13.50 1.50 UPS32-160/2 13.50 1.50

60-17 13.50 1.50 UPS40-240/2 13.50 1.50

60-19 14.00 2.00 UPS50-160/2 14.00 2.00

60-20 14.00 2.00 UPS50-160/2 14.00 2.00

60-21 14.00 2.00 UPS50-240/2 14.00 2.00

Construction

UP, UPS Series 200

5

10

5. Construction

Construction

UP(S) Series 200 pumps are of the canned rotor type,

i.e. pump and motor form an integral unit without shaft

seal and with only two gaskets for sealing.

The bearings are lubricated by the pumped liquid.

Attention has been focused on using as few materials

as possible, and the use of materials that might cause

problems in connection with disposal have been

omitted.

Features:

• UPS motors are two- or three-speed motors.

UP motors are single-speed dual-voltage motors.

• Stainless steel rotor can, bearing plate and rotor

cladding.

• Stator housing in aluminum alloy.

• Cast iron or bronze pump housing.

• Stator with built-in thermal overload switch.

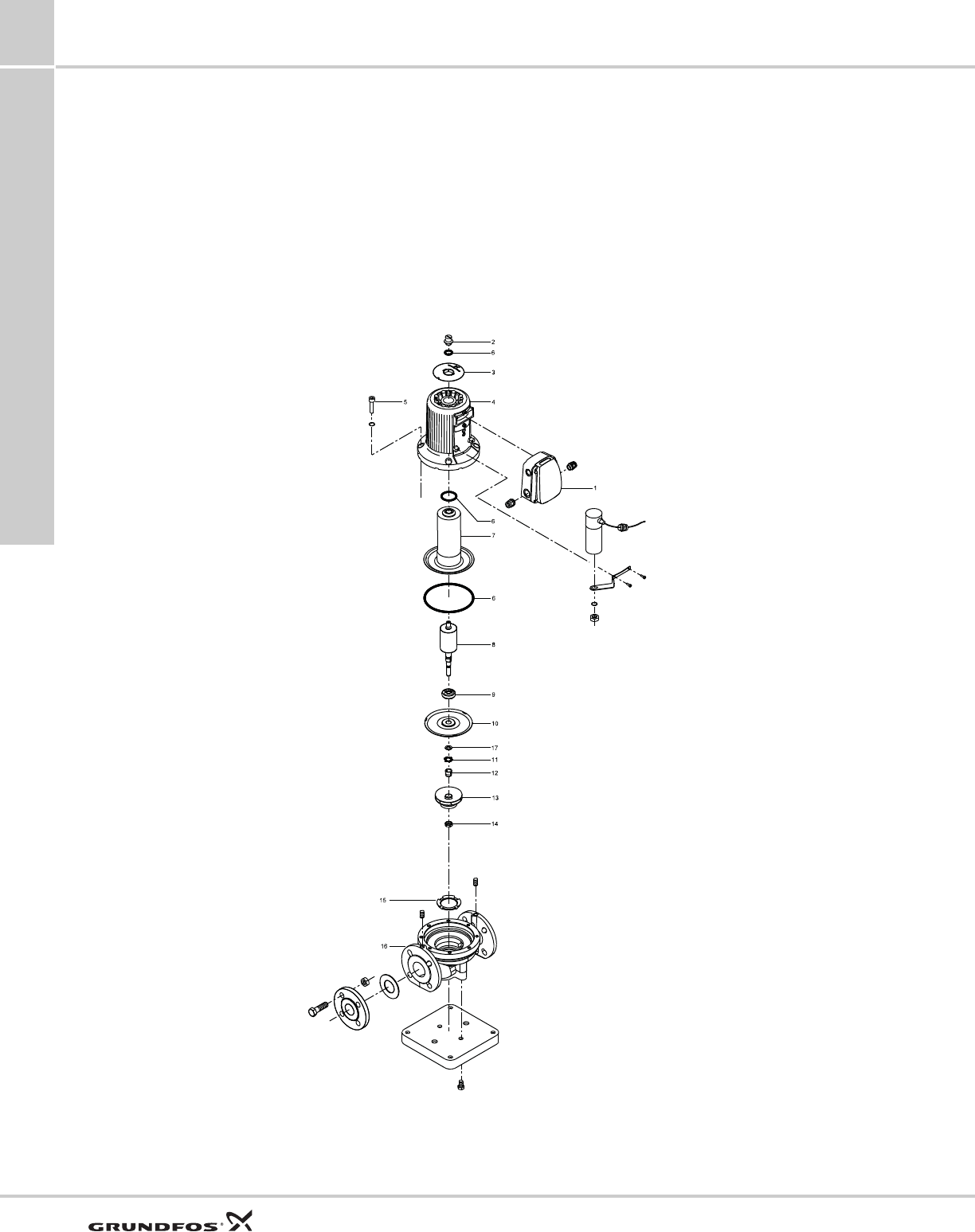

Fig. 2 Exploded view of a UP(S) Series 200 pump

TM03 7880 5106

Construction

UP, UPS Series 200 5

11

Material specification

Sectional drawing

Fig. 3 Sectional view

Pos. Description Material AISI/ASTM

1 Terminal box Composite PA66

2 Inspection screw Brass with nickel

3 Nameplate Composite PA66

4

Stator housing Aluminium AlSi10Cu2

Stator windings Copper wire

Stator caps Composite PETP

5 Cheese-head screw Steel 8.8

6 O-rings EPDM rubber

7Outer bearing ring Aluminium oxide/SiC

Rotor can Stainless steel AISI 304

8

Shaft (cast-iron pumps)

Shaft (bronze pumps) Stainless steel AISI 303

AISI 316

Rotor cladding Stainless steel AISI 304

Bearing Tungsten carbide

Pos. Description Material AISI/ASTM

9 Thrust bearing Carbon MY 106

10 Bearing plate Stainless steel AISI 304

Inner bearing ring Aluminium oxide/SiC

11 Stop ring Stainless steel

12 Split cone Stainless steel AISI 303

13 Impeller Stainless steel AISI 304

14 Nut Stainless steel AISI 303

15 Neck ring Stainless steel/PTFE AISI 304

16 Pump housing

Cast iron EN-GJL-250

Bronze CuSn10, DIN 1705 ASTM B505

and B271

17 Anti-friction ring PTFE

18 Splash protector Stainless steel AISI 303

TM02 1397 0907

Construction

UP, UPS Series 200

5

12

Motor

The motor, pos. 4, is a 2- or 4-pole, asynchronous

squirrel-cage motor. As the motor is cooled by the

pumped liquid, the noise level is very low.

Stator housing

Pressure die-cast aluminum stator housing can be

turned to change the position of the terminal box.

The stator housing has eight drain holes to enable

condensed water to escape. The vent hole under the

terminal box allows the water to evaporate from the

stator. The drain holes must point downwards.

The permissible terminal box positions are shown in

the drawing below. The positions apply to both vertical

and horizontal mounting.

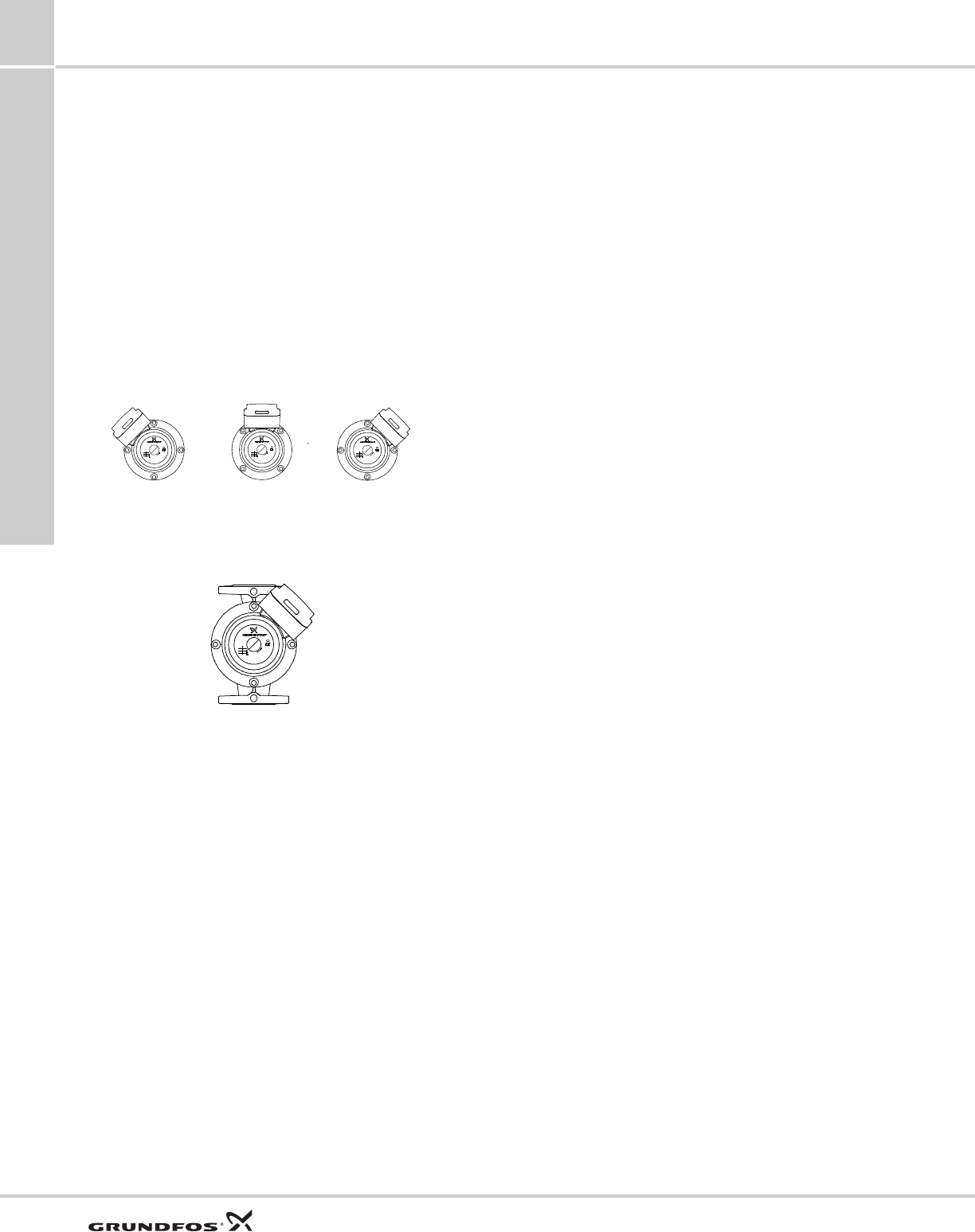

Fig. 4 Possible terminal box positions

Note: The terminal box must only be turned to the

above positions.

The drawing below shows the standard box position.

Fig. 5 Standard terminal box position

The nameplate can be turned in steps of 45°.

The positions of the terminal box and the nameplate

are changed as described above.

The stator wires are self-bonding. The wires and the

terminal box are connected by a terminal plug.

The stator incorporates a thermal overload switch for

protection of the motor if the winding temperature

becomes too high.

Rotor can

The rotor can (pos. 7) is made of drawn steel sheet

and fitted with an inspection screw directly at the top.

There is an O-ring seal between the inspection screw

and the rotor can. For reasons of safety, the hole for

the inspection screw will deflect a possible jet of liquid

if the inspection screw is removed.

The outer radial bearing is fitted into the top of the

rotor can.

Shaft with rotor

The shaft (pos. 8) is made of stainless steel and

equipped with two tungsten carbide bearings.

To further improve the internal circulation of the

pumped liquid in the rotor can, the shaft of 4-pole

motors is fitted with a small rotor impeller.

The rotor is made of soft-annealed iron lamination and

provided with copper or brass bars. The short-circuit

rings are made of copper.

The rotor is encapsulated in a thin stainless steel

cladding and dynamically balanced.

The thrust bearing is secured to the shaft in a

spherically flexible suspension.

Bearing plate

The bearing plate (pos. 10) is made of stainless steel.

The inner radial bearing is pressed into the bearing

plate, ground and honed. The relatively large bearing

plate surface means that motor heat is effectively

carried away by the pumped liquid.

Impeller

The stainless steel impeller (pos. 13) is of the radial

type with curved blades. It is secured to the shaft by a

split cone and nut (left-hand thread).

Pump housing

The pump housing (pos. 16) is available in cast iron or

bronze. All pump housings are flanged for the

individual markets.

See also section 4. Cross-reference guide on page 8

and section 5. Construction on page 10 concerning

flanges and port-to-port lengths.

The pump housing is of the in-line type. A stainless

steel/PTFE neck ring minimizes the recirculation and

improves pump efficiency.

The bottom of the housing has threaded holes for

fastening to a baseplate.

TM02 1398 1101TM03 2260 4005

Operating conditions

UP, UPS Series 200 6

13

6. Operating conditions

Pumped liquids

CAUTION: This pump is intended for use with water

only.

Grundfos UP(S) pumps can be used to circulate

• Potable hot water

• Water for hydronic heating

• Water/glycol mixtures up to 50/50

• Cooling water.

In domestic hot-water systems it is advisable to use

a bronze pump (UP(S) model) only for water with a

degree of hardness lower than 14 grains per gallon of

hardness. For water with a higher degree of hardness,

a direct coupled TP pump is recommended.

If the pump is installed in a heating system, the water

should meet the requirements of accepted standards

on water quality in heating systems.

In water/glycol mixtures, in order to prevent the

glycol from degrading, temperatures above those for

which the fluid is rated should be avoided and time

spent at high temperatures minimized.

It is also important that the system is cleaned and

flushed prior to the installation of the glycol mixture.

In order to avoid problems with corrosion or

precipitation, the glycol fluids should be checked and

maintained regularly. If further dilution of the

supplied glycol is required, follow the requirements of

the supplier of the glycol.

The pump is lubricated and cooled by the liquid being

pumped. Therefore, the pumped liquid must always be

allowed to circulate through the pump. Extended

periods without circulation will cause premature wear

to the bearings and excessive motor heat. The

pumped liquid must also meet the following

requirements.

The pumping of liquids with densities or kinematic

viscosities higher than those of water will cause

– a considerable pressure drop

– a drop in the hydraulic performance

– a rise in the power consumption.

In these situations, contact Grundfos for assistance.

Temperature limits

Other technical data

Relative humidity: Max. 95 %.

Sound-pressure level: The sound-pressure level

of the pump is lower than 41 dB(A) (reference: 20

mPa).

Max. working pressure: 145 psi (10 bar).

Approvals: See the pump nameplate.

Inlet pressure

To avoid cavitation noise, the following minimum

pressures are required at the pump suction flange:

Ambient air temperature 32 °F to 104 °F (0 °C to 40 °C)

Fluid temperature,

open systems 140 °F (60 °C).

Fluid temperature,

closed systems

UPS pumps: 248 °F (120 °C).

UP pumps: 230 °F (110 °C).

UP(S) model

Liquid temperature

167 °F

(75 °C) 194 °F

(90 °C) 230 °F

(110 °C)

[psi] [ft] [psi] [ft] [psi] [ft]

UPS 32-40 0.7 1.6 2.2 5.1 21.0 48.5

UPS 32-80 0.7 1.6 5.1 11.8 23.9 55.2

UPS 32-160 11.6 26.8 16.0 37.0 34.1 78.8

UPSD 40-40 0.7 1.6 4.4 10.2 23.2 53.6

UPS 40-80/4 0.7 1.6 1.5 3.5 18.1 41.8

UPS40-80/2 6.5 15.0 10.9 25.2 29.0 67.0

UPS 40-160 5.1 11.8 9.4 21.7 27.6 63.8

UPS 40-240 11.6 26.8 16.0 37.0 34.1 78.8

UPS 50-40 0.7 1.6 2.9 6.6 21.8 50.4

UPS 50-80/4 0.7 1.6 4.4 10.2 23.2 53.6

UPS 50-80/2 4.4 10.2 8.7 20.1 26.8 61.9

UPS 50-160 11.6 26.8 16.0 37.0 34.1 78.8

UPS 50-240 10.2 23.6 14.5 33.5 32.6 75.1

UPS 53-55/57 4.4 10.2 8.7 20.1 26.8 61.9

UPS 75-69 11.6 26.8 16.0 37.0 34.1 78.8

UPS 80-40 11.6 26.8 16.0 37.0 34.1 78.8

UPS 80-80 14.5 33.5 18.9 43.7 37.0 85.5

UPS 80-160 21.8 50.4 26.1 60.3 43.5 100.5

UPS 100-40 27.6 63.8 31.9 73.7 50.0 115.5

UP 43-70F 0.7 1.6 4.8 11.0 15.4 35.6

UP 43-110 3.6 8.4 8.2 19.0 18.9 43.7

UP 53-45 2.9 6.6 7.5 17.3 18.1 41.8

UP 53-46 1.1 2.5 5.8 13.4 16.4 37.9

Operating conditions

UP, UPS Series 200

6

14

Electrical data

Supply voltage and frequency

UPS: 115 V, 230 V, 1-phase 60 Hz, 208-230 V, 460 V,

575 V, 3 phase 60 Hz.

UP: 115 V, 230V, 1-phase 60 Hz, 460 V, 575 V,

3-phase 60Hz.

Back-up fuse: Max. 10 A.

Enclosure class: IP 44 indoor use only.

Supply voltage tolerances

The motors meet the requirements to temperature rise

at - 6 / +6 %.

Furthermore, the motors have been tested at

-10 / +10 % of the voltage range. During these tests,

the motors operate without problems and without being

thermally cut out.

The motor voltage tolerances are intended for power

supply voltage variations. They should not be used for

running motors at other voltages than those stated on

the name plates.

Variable speed applications

All 3 x 460 V, 3 x 575 V and 3-speed 3 x 208-230 V

pumps with standard module are suitable for frequency

converter applications. Please refer to section Variable

frequency drive operation on page 17 for

further information.

Terminal box

Fig. 6 Terminal box

The terminal box with cover (pos. 1) is made from

black composite material.

The terminal box is equipped with:

• 1 x 1½" NPT screwed cable entry for mains

connection, to be fitted during installation.

• 1 x M16 screwed cable entry for capacitor

connection (only single-phase pumps)

• 2 x indicator lights (single-phase pumps with

standard module have just one).

Note: UPS pumps only.

• window for indication of speed.

Note: UPS pumps only.

The terminal box is fastened to the stator housing with

screws and connected to the stator by a terminal plug.

Insulation class

Thermal overload switch

Start/stop input (relay module)

External potential-free contact.

Maximum load: 250 V, 1.5 mA.

Minimum load: 100 V, 0.5 mA.

Operating/fault signal output (relay module)

Internal potential-free changeover contact.

Maximum load: 250 V, 2 A, AC.

Minimum load: 5 V, 100 mA, DC.

TM00 9133 4596

Indicator lights and speed

indication

Pump type Insulation class

UPS 1 x 115 V

1 x 230 V

3 x 208-230 V

3 x 460 V

3 x 575 V

32-40 F F

32-80 F F

32-160 H F

40-40 F F

40-80/4 H H

40-80/2 F F

40-160 H H

40-240 H H

50-40 F F

50-80/4 H H

50-80/2 H F

50-160 H H

50-240 — H

53-55/57 H F

75-69 H H

80-40 — H

80-80 — H

80-160 — H

100-40 — H

Pump type Insulation class

UP 1 x 115/230 V

43-70 F

43-110 F

53-45 F

53-46 F

Voltage 250 V AC

Current cos phi = 1.0: 2.5 A

cos phi = 0.6: 1.6 A

Functions

UP, UPS Series 200 7

15

7. Functions

Functions

Canada only

Standard

The speed is changed by reconfiguring the jumper positions, located in the terminal box.

-Optional

❑Required

External contactor is not required when using the Protection Module option.

Standard module: Indicator lights with no motor protection. For motor protection, use Protection Module for 1 x 115/230 V and 3 x 208/230 V units or

use an external contactor.

Protection module: Indicator lights with built-in motor protection. Connect directly to line voltage.

Note: Pumps with protection module must not be connected to a variable frequency drive (VFD).

Relay module: Indicator lights with signal output for external control or fault indication (1 x 115/230 V or 3 x 208/230 V units only).

External contactor required: Pump must be connected to line voltage via an external contactor. The contactor is to be connected to the pump’s build-in

thermal overload terminals. The speed is changed by orientation of the internal jumpers.

UPS terminal box includes Additional terminal box

options External

contactor

required

Number of

speeds

Pump model Voltage options Speed

switch Standard

module Protection

module Terminal

block Protection

module Relay

module

UPS 32

1 x 115/230 ■■ ● 3

3 x 208/230 ■■ ●●

3

3 x 460 Δ■❑

2

3 x 575 Δ■❑

2

UPS 40

1 x 115/230 ■■ ● 3

3 x 208/230 ■■ ●●

3

3 x 460 Δ■❑

2

3 x 575 Δ■❑

2

UPS 50

1 x 115/230 ■■ ● 3

3 x 208/230 ■■ ●●

3

3 x 460 Δ■❑

2

3 x 575 Δ■❑

2

UPS 53-55/57

1 x 115/230 ■■ ● 3

1 x 230 ■■ ● 3

3 x 208/230 ■■ ●●

3

3 x 460 Δ■❑

2

3 x 575 Δ■❑

2

UPS 75-69

1 x 230 ■■ ● 3

3 x 208/230 ■■ ● 3

3 x 460 ■■ ●●

3

3 x 575 Δ■❑

2

UPS 80

1 x 115/230 ■■■● 3

3 x 208/230 ■■ ●●

3

3 x 460 Δ■❑

2

3 x 575 Δ■❑

2

UPS 100

1 x 115/230 ■●

3

3 x 208/230 ■■■ ●●

3

3 x 460 Δ■❑

2

3 x 575 Δ■❑

2

UP 43-70 1 x 115/230 ■❑

1

UP 43-110 1 x 115 ■❑

1

UP 53-45 1 x 115/230 ■❑

1

UP 53-46 1 x 115/230 ■❑

1

Functions

UP, UPS Series 200

7

16

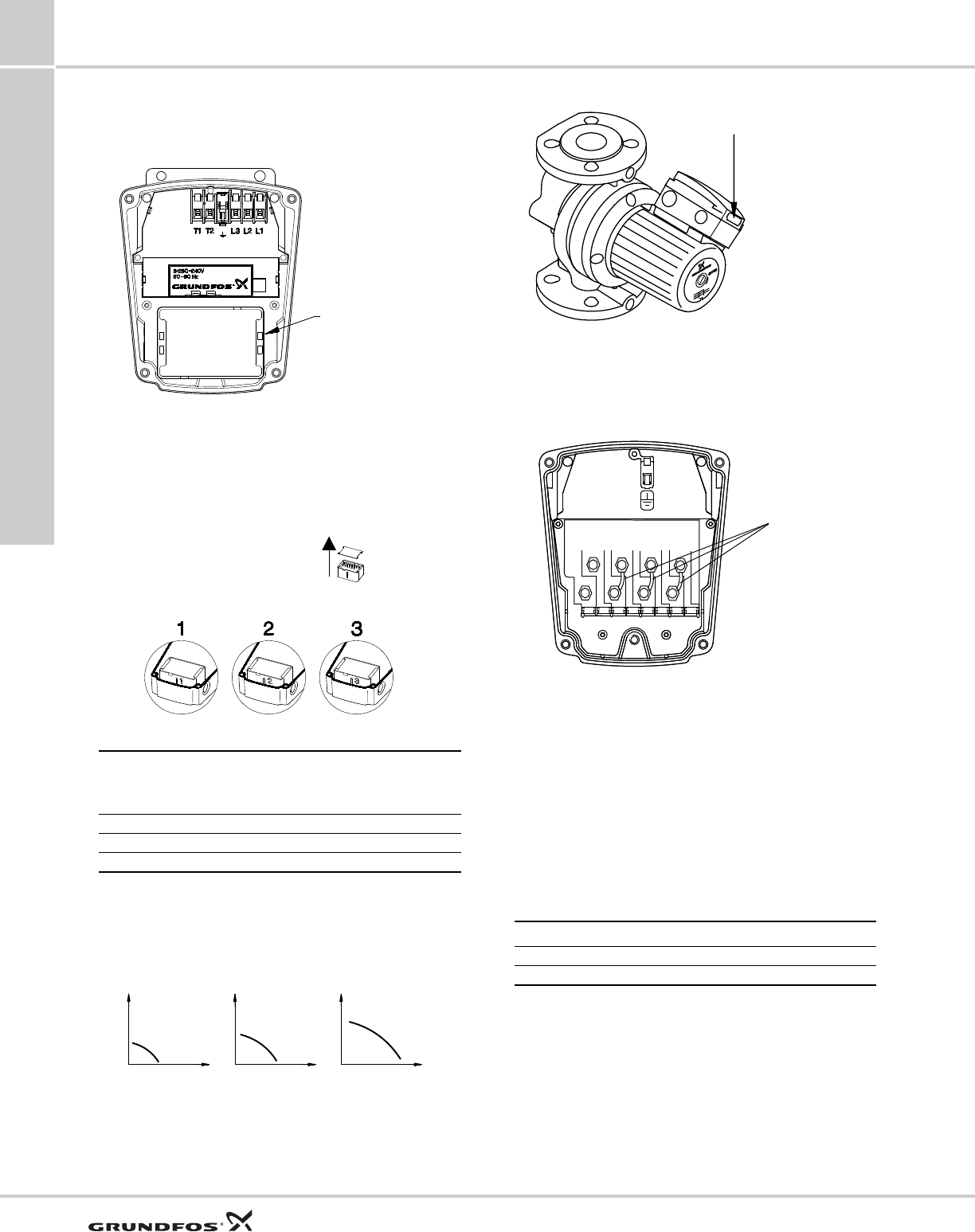

Description of functions

Three-speed pumps

Fig. 7 3 x 208/230V terminal box

By means of the speed switch, the pump performance

can be adjusted to suit the system in question.

For 1 x 115/230 V and 3 x 208/230 V three-speed

pumps only. The module is located inside the terminal

box. It has three positions:

Fig. 8 Speed switch module

Note: UP pumps runs at 100%.

Change to a lower speed enables considerable

reduction in energy consumption and less noise in the

system.

Fig. 9 Pump performance at the three speeds

Fig. 10 UPS Series 200 pump with terminal box mounted

Two-speed pumps

All UPS pumps with 3 x 460 V & 575 V terminal boxes

are fitted with a special two-speed terminal block.

Fig. 11 3 x 460 V & 575 V terminal box

The speed is changed by changing the jumper

positions.

The pump must be connected to the mains via an

external contactor. The contactor is to be

connected to the pump’s built-in thermal overload

switch (terminals P1 and P2) to protect the pump

against overheating at both speeds.

Speed selection (two-speed, 3 x 460 V and 575 V)

The speed setting in the terminal box can be changed

to two positions. The speed in the two positions

appears in the table below

Single-speed pumps

UP pumps (1 x 115/230 V)

UP pumps are single-speed pumps with a 1 x 115

V/230 V terminal box with a dual-voltage terminal

block. See fig. 12.

TM00 9235 3802TM00 9583 4996

Switch

position

Speed in % of maximum speed

Single-phase

pumps Three-phase

pumps

1 approx. 60% approx. 70%

2 approx. 80% approx. 85%

3 100% 100%

TM00 9247 4595

Speed switch

SPEEDSPEEDSPEED

H

Q

12

Q

HH

Q

3

TM00 9747 0602TM02 5740 3202

Speed step Speed in % of maximum

1 Approx. 75%

2 100%

Indicator lights and

speed indication

L1

L2

L3

P1

P2

T6

T4

T5 T1

T2

T3

Jumpers

Functions

UP, UPS Series 200 7

17

Fig. 12 1 x 115/230 V terminal box

The voltage is changed by changing the orientation of

the jumpers. See fig. 12.

The pump must be connected to the power supply via

an external switch.

The UP pumps are equipped with a built-in, automati-

cally resetting terminal overload switch, protecting the

pump at both 115 V and 230 V. The built-in terminal

overload switch (terminals P1 and P2) can optionally

be connected to external overload protection.

Pumps with standard module

Fig. 13 Terminal box with standard module

The standard module is standard in three-phase

pumps with three speeds and forms connection

between supply terminals and motor.

The pumps with standard module must be connected

to the power supply via an external contactor.

For motor protection the contactor is to be connected

to the pump’s built-in thermal overload switch to

protect the pump against overheating at all three

speeds.

Standard module indicator lights

The indicator lights on pumps with standard module

show whether the pump is live, or whether the phase

sequence of three-phase pumps is wrong.

Single-phase pumps

Single-phase pumps incorporate a green indicator light

only:

Three-phase pumps

Three-phase pumps have a green and a red indicator

light:

Variable frequency drive operation

All 3 x 460 V, 3 x 575 V and 3-speed 3 x 208-230 V

pumps with standard module are suitable for variable

frequency drive (VFD) applications. Please note the

following:

• Even if the red indicator light is on, the pump is

operating normally.

• Pumps fitted with other modules than the standard

module must not be connected to a VFD.

• Depending on the VFD type, this may cause

increased acoustic noise from the motor.

Furthermore, it may cause the motor to be exposed

to detrimental voltage peaks.

• The motor must be protected against voltage peaks

higher than 650 V between the motor terminals.

Acoustic noise and detrimental voltage peaks can be

reduced by fitting an LC filter between the VFD and the

motor.

Pumps with protection module

The protection module is standard for single-phase

UPS pumps and available for 3 x 208-230 V UPS

pump models only as an option.

When fitted with a protection module, the pump can be

connected directly to the power supply switch as it will

be protected by the built-in overload protection.

The protection module incorporates two indicator

lights.

TM02 5761 3902TM00 9237 4597

P1

P2 T8

T4

T5

T1 T2

T3

LN

Jumpers

Standard module

Speed switch

Indicator light Description

On The electricity supply has been switched on.

Off

The electricity supply has been switched off, or

the pump has been cut out by the thermal

overload switch.

Indicator lights Description

Green Red

Off Off

The electricity supply has been switched off, or the

pump has been cut out by the thermal overload

switch.

On Off The electricity supply has been switched on.

On On The electricity supply has been switched on.

The direction of rotation is wrong.

Functions

UP, UPS Series 200

7

18

Protection module indicator lights

Note: Pumps with protection module must not be

connected to a variable frequency drive.

Pumps with relay module

The relay module is available for UPS pumps as an

option for 1 x 115/230 V and 3 x 208-230 V units.

The module enables direct connection of the pump to

an external power supply switch. Furthermore, the

module has a signal output for external operating or

fault indication. By means of a selector switch the

output can be set to activation during operation or

fault.

The pump is connected directly to the power supply as

the pump incorporates overload protection at all three

speeds.

Note: Pumps with relay module must not be connected

to a variable frequency drive (VFD).

If the pump has been cut out by the thermal overload

switch, it will restart automatically when it has cooled

to normal temperature, provided the external on/off

contact is closed.

Note: If the thermal overload switch has cut out the

pump three times within a short time, the relay must be

reset manually by switching off the electricity supply.

Relay module indicator lights

The relay module indicator lights provides detailed

operating and fault indications.

All pumps with relay module incorporate a green and a

red indicator light. Functions, see table in Signal output

of relay module.

Signal output of relay module

The relay module has a signal output for external

operating or fault indication.

By means of the selector switch, the signal output can

be set to activation during operation or fault.

Operation: The output functions as operating

indication between terminals 2 and 3.

Fault: The output functions as fault indication

between terminals 1 and 3.

Two pumps plumbed in parallel

Operating modes

Both pumps must be fitted with a relay module.

In addition to the signal functions, the signal output of

the relay module for two pumps in parallel can be used

for controlling the operating mode of pump 1 and 2.

It is possible to choose between three operating

modes:

1. Alternating operation. The pumps operate

alternately as duty and standby pump, respectively.

Changeover takes place every 24 hours. If the duty

pump is cut out due to a fault, the standby pump will

automatically start. During changeover both pumps

will be running for a short period to ensure a

low-noise changeover.

2. Standby operation. The pumps operate

continuously as duty and standby pump,

respectively. If the duty pump is cut out due to a

fault, the standby pump will automatically start at a

signal from the output of the duty pump. The

sequence can be changed to make the standby

pump operate as duty pump.

3. Single-pump operation. The pumps run

independently without communicating with each

other.

Indicator lights Description

Green Red

Off Off The pump has been stopped. The electricity

supply has been switched off.

On Off The pump is operating.

On On

Three-phase pumps only:

The pump is operating, but the direction of

rotation is wrong.

Off On The pump has been cut out by the thermal

overload switch.

Indicator lights Signal output

set to Description

Green Red Opera-

tion Fault

Off Off

The pump has been

stopped. The electricity

supply has been switched

off, or a phase is missing.

On Off The pump is operating.

On On

Only three-phase pumps:

The pump is operating, but

with wrong direction of

rotation.

Off On

The pump has been cut out

by the thermal overload

switch.

Flash-

ing Off

The pump has been

stopped by an external

on/off switch.

Flash-

ing On

The pump is or has been

cut out by the thermal

overload switch, and it has

been stopped by an

external on/off switch.

132

NC NO C

132

NC NO C

123

NC NO C

123

NC NO C

123

NC NO C

132

NC NO C

132

NC NO C

132

NC NO C

132

NC NO C

123

NC NO C

132

NC NO C

132

NC NO C

Technical data

UP, UPS Series 200 8

19

8. Technical data

Technical data, UPS

Model Cast iron

product

number

Bronze

product num-

ber

Max. Hp

Speed 3 Ph Voltage Speed I-MAX.

[Amps] P-MAX.

[Watts] Istart

[Amps]

UPS 32-40/4

96402694 96402699

0.33

1

115

3 1.08 120 2.10

2 1.04 100 2.02

1 0.95851.85

96402695 96402700 230

3 0.54 120 1.00

2 0.52 100 0.96

1 0.47850.87

96402696 96402701

3

208-230

3 0.56 115 1.60

2 0.26750.74

1 0.24650.69

96402697 96402702 460

3 0.28 115 0.82

2 0.13750.38

▲▲▲▲

96402698 96402703 575

3 0.22 115 0.66

2 0.10750.30

▲▲▲▲

UPS 32-80/2

96402708 96402713

0.50

1

115

3 2.66 280 7.10

2 2.50 260 6.67

1 2.50 250 6.67

96402709 96402714 230

3 1.34 280 3.80

2 1.26 260 3.29

1 1.26 250 3.29

96402710 96402715

3

208-230

3 1.10 280 5.00

2 0.72 235 3.93

1 0.58 195 3.16

96402711 96402716 460

3 0.55 280 2.80

2 0.36 235 1.96

▲▲▲▲

96402712 96402717 575

3 0.44 280 2.20

2 0.29 235 1.60

▲▲▲▲

UPS 32-160/2

96402730 96402739

0.75

1

115

3 5.80 625 14.60

2 5.80 600 14.60

1 5.50 555 13.84

96402733 96402740 230

3 2.90 625 6.70

2 2.90 600 6.70

1 2.75 555 6.35

96402736 96402741

3

208-230

3 1.96 600 9.30

2 1.25 430 5.93

1 1.12 380 5.31

96402737 96402742 460

3 0.98 600 4.70

2 0.63 430 3.02

▲▲▲▲

96402738 96402743 575

3 0.78 600 3.76

2 0.50 430 2.40

▲▲▲▲

▲All 3-phase, 460V and 575V pumps are 2-speed only.

Canada only

Technical data

UP, UPS Series 200

8

20

UPS 40-40/4

96402748

96402753

0.33

1

115

3 1.60 170 3.10

2 1.48 150 2.87

1 1.34 125 2.60

96402749 96402754 230

3 0.80 170 1.50

2 0.74 150 1.39

1 0.66 125 1.24

96402750 96402755

3

208-230

3 0.88 260 2.50

2 0.42 120 1.19

1 0.36 100 1.02

96402751 96402756 460

3 0.44 260 1.30

2 0.21 120 0.62

▲▲▲▲

96402752 96402757 575

3 0.33 260 1.04

2 0.17 120 0.50

▲▲▲▲

UPS 40-80/4

96404948 96404953

0.50

1

115

3 5.50 565 9.50

2 5.15 485 8.90

1 4.30 410 7.43

96404949 96404954 230

3 2.75 565 4.70

2 2.60 485 4.44

1 2.15 410 3.67

96404950 96404955

3

208-230

3 1.98 550 7.10

2 1.20 370 4.30

1 1.00 305 3.59

96404951 96404956 460

3 0.99 550 4.70

2 0.60 370 4.44

▲▲▲▲

96404952 96404957 575

3 0.78 550 3.76

2 0.48 370 3.55

▲▲▲▲

UPS 40-80/2

96402762 96402767

0.75

1

115

34.4548011.00

2 4.40 450 10.88

1 4.40 440 10.88

96402763 96402768 230

3 2.24 480 5.60

2 2.20 450 5.50

1 2.18 440 5.45

96402764 96402769

3

208-230

3 1.45 440 7.40

2 0.94 320 4.80

1 0.86 290 4.39

96402765 96402770 460

3 0.73 440 3.70

2 0.47 320 2.38

▲▲▲▲

96402766 96402771 575

3 0.58 440 2.96

2 0.38 320 1.90

▲▲▲▲

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

 Canada only

Model Cast iron

product

number

Bronze

product num-

ber

Max. Hp

Speed 3 Ph Voltage Speed I-MAX.

[Amps] P-MAX.

[Watts] Istart

[Amps]

Technical data

UP, UPS Series 200 8

21

UPS 40-160/2

96402782 96402787

0.75

1

115

3 8.40 890 18.60

2 7.45 760 16.50

1 6.95 690 15.39

96402783 96402788 230

3 4.20 890 9.30

2 3.75 760 8.30

1 3.45 690 7.64

96402784 96402789

3

208-230

3 2.50 800 12.40

2 1.75 570 8.68

1 1.55 500 7.69

96402785 96402790 460

3 1.25 800 6.20

2 0.88 570 4.36

▲▲▲▲

96402786 96402791 575

3 1.00 800 4.96

2 0.70 570 3.50

▲▲▲▲

UPS 40-240/2

96402797 96402804

1.50

1 230

3 6.20 1350 11.80

2 5.55 1200 10.56

1 5.15 1100 9.80

96402798 96402805

3

208-230

3 4.50 1440 23.80

2 3.25 1100 17.19

1 2.95 990 15.60

96402799 96402807 460

3 2.25 1440 11.60

2 1.63 1100 8.40

▲▲▲▲

96402801 96402809 575

3 1.80 1440 9.28

2 1.30 1100 6.72

▲▲▲▲

UPS 50-40/4

96402814 96402819

0.33

1

115

3 2.66 285 5.20

2 2.60 244 5.08

1 2.20 204 4.30

96402815 96402820 230

3 1.32 285 2.60

2 1.30 244 2.56

1 1.10 204 2.17

96402816 96402821

3

208-230

3 1.40 270 4.60

2 0.66 170 2.17

1 0.54 150 1.77

96402817 96402822 460

3 0.70 270 2.30

2 0.33 170 1.08

▲▲▲▲

96402818 96402823 575

3 0.56 270 1.84

2 0.26 170 0.86

▲▲▲▲

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

 Canada only

Model Cast iron

product

number

Bronze

product num-

ber

Max. Hp

Speed 3 Ph Voltage Speed I-MAX.

[Amps] P-MAX.

[Watts] Istart

[Amps]

Technical data

UP, UPS Series 200

8

22

UPS 50-80/4

96404958 96404963

0.75

1

115

3 7.55 720 13.20

26.8562011.98

1 5.15 480 9.00

96404959 96404964 230

3 3.80 720 6.50

2 3.40 620 5.82

1 2.60 480 4.45

96404960 96404965

3

208-230

3 2.44 640 8.50

2 1.44 450 5.02

1 1.24 390 4.32

96404961 96404966 460

3 1.22 640 4.30

2 0.72 450 2.54

▲▲▲▲

96404962 96404967 575

3 0.98 640 3.44

2 0.58 450 2.00

▲▲▲▲

UPS 50-80/2

96402834 96402843

0.75

1

115

3 5.85 630 14.60

2 5.80 610 14.48

1 5.70 600 14.23

96402836 96402844 230

3 2.95 630 7.30

2 2.90 610 7.18

1 2.85 600 7.05

96402838 96402845

3

208-230

3 1.92 610 9.30

2 1.20 440 5.81

1 1.08 400 5.23

96402840 96402846 460

3 0.96 610 4.70

2 0.60 440 2.94

▲▲▲▲

96402842 96402847 575

3 0.77 610 3.76

2 0.48 440 2.40

▲▲▲▲

UPS 50-160/2

96411613 96411614

1.50

1 230

3 5.80 1250 26.50

2 5.20 1100 23.76

1 4.85 1050 22.16

96402860 96402866

3

208-230

3 4.00 1300 22.80

2 3.00 1000 17.10

1 2.75 950 15.68

96402861 96402868 460

3 2.00 1300 11.40

2 1.50 1000 8.55

▲▲▲▲

96402862 96402870 575

3 1.60 1300 9.12

2 1.20 1000 6.84

▲▲▲▲

UPS 50-240/2

96402882 96402885

2.00 3

208-230

3 5.80 1700 26.50

2 3.95 1300 23.10

1 3.50 1150 20.47

96402883 96402886 460

3 2.65 1700 15.40

2 1.98 1300 11.51

▲▲▲▲

96402884 96402887 575

3 2.12 1700 12.32

2 1.68 1300 9.21

▲▲▲▲

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

 Canada only

Model Cast iron

product

number

Bronze

product num-

ber

Max. Hp

Speed 3 Ph Voltage Speed I-MAX.

[Amps] P-MAX.

[Watts] Istart

[Amps]

Technical data

UP, UPS Series 200 8

23

UPS 53-55/57

96654373 96654392

0.75

1

115

3 5.85 630 14.60

2 5.80 610 14.23

1 5.70 600 14.48

96654374 96654393 230

3 2.95 630 7.30

2 2.90 610 7.18

1 2.85 600 7.05

96654375 96654394

3

208-230

3 1.92 610 9.30

2 1.20 440 5.81

1 1.08 400 5.23

96654376 96654395 460

3 0.96 610 4.70

2 0.60 440 2.94

▲▲▲▲

96654377 96654396 575

3 0.77 610 3.76

2 0.48 440 2.40

▲▲▲▲

UPS 75-69

96654378 96654397

1.50

1 230 2 5.20 1100 23.76

1 4.85 1050 22.16

96654379 96654398

3

208-230

3 4.00 1300 22.80

2 3.00 1000 17.10

1 2.75 950 15.68

96654390 96654399 460

3 2.00 1300 11.40

2 1.50 1000 8.55

▲▲▲▲

96654391 96654400 575

3 1.60 1300 9.12

2 1.20 1000 6.84

▲▲▲▲

UPS 80-40/4

96402894 96402899

0.50 3

208-230

3 1.62 380 7.10

2 0.87 260 3.81

1 0.77 230 3.37

96402895

9

6402900 460

3 0.81 380 3.50

2 0.44 260 1.90

▲▲▲▲

96402896 96402901 575

3 0.65 380 2.80

2 0.35 260 1.52

▲▲▲▲

UPS 80-80/4 96402908 96402913 1.50 3 208-230

3 3.60 1050 11.80

2 2.08 660 6.82

1 1.72 550 5.64

UPS 80-160/2

96402920 96402923

3.00 3

208-230

3 6.35 2050 31.00

2 4.20 1550 20.50

1 4.05 1500 19.77

96402921 96402924 460

3 3.13 2050 15.40

2 2.10 1550 10.17

▲▲▲▲

96402922 96402925 575

3 2.54 2050 12.32

2 1.68 1550 8.14

▲▲▲▲

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

 Canada only

Model Cast iron

product

number

Bronze

product num-

ber

Max. Hp

Speed 3 Ph Voltage Speed I-MAX.

[Amps] P-MAX.

[Watts] Istart

[Amps]

Technical data

UP, UPS Series 200

8

24

Technical data, UP

Curve conditions

The guidelines listed below, apply to the performance

curves in section 9. Curve charts and technical data:

1. Because of the danger of overheating, the pumps

must not be used at a flow below 0.1 x Q at best

efficiency point.

2. The bold parts of the curves show the

recommended performance range.

3. Test liquid: Airless water.

4. The curves apply to a liquid temperature

of 68 °F (20 ºC).

All curves show average values and should not be

used as guarantee curves. If a stated minimum

performance is required, individual measurements

must be made.

UPS 100-40/4

96402934 96402937

1.00 3

208-230

3 2.50 570 10.80

2 1.38 435 5.96

1 1.24 390 5.36

96402935 96402938 460

3 1.24 570 5.40

2 0.70 435 3.05

▲▲▲▲

96402936 96401961 575

3 1.00 570 4.32

2 0.55 435 2.44

▲▲▲▲

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

 Canada only

Model Cast iron

product

number

Bronze

product num-

ber

Max. Hp

Speed 3 Ph Voltage Speed I-MAX.

[Amps] P-MAX.

[Watts] Istart

[Amps]

Pump type Cast iron

product number Bronze

product number Hp Ph Voltage I-MAX [Amps] P-MAX [Watts]

UP 43-70 96439644 — 0.50 1 115/230 3.4/1.8 400

UP 43-110 96439643 — 0.75 1 115/230 4.9/2.5 570

UP 53-45 96633576 96633578 0.50 1 115/230 3.5/1.9 360

UP 53-46 96633591 96633592 0.75 1 115/230 3.9/2.1 420

Curve charts and technical data

UP, UPS Series 200 9

25

9. Curve charts and technical data

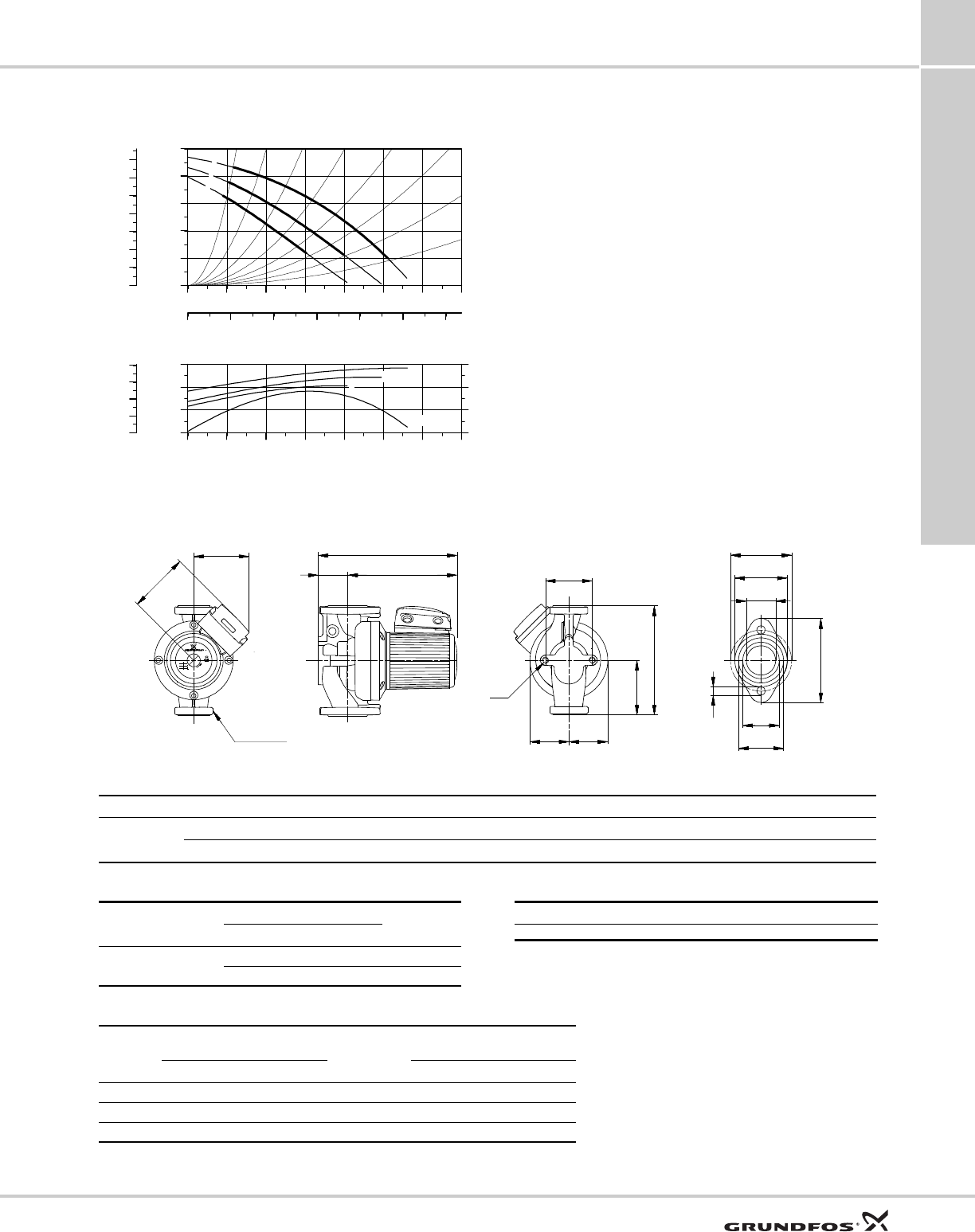

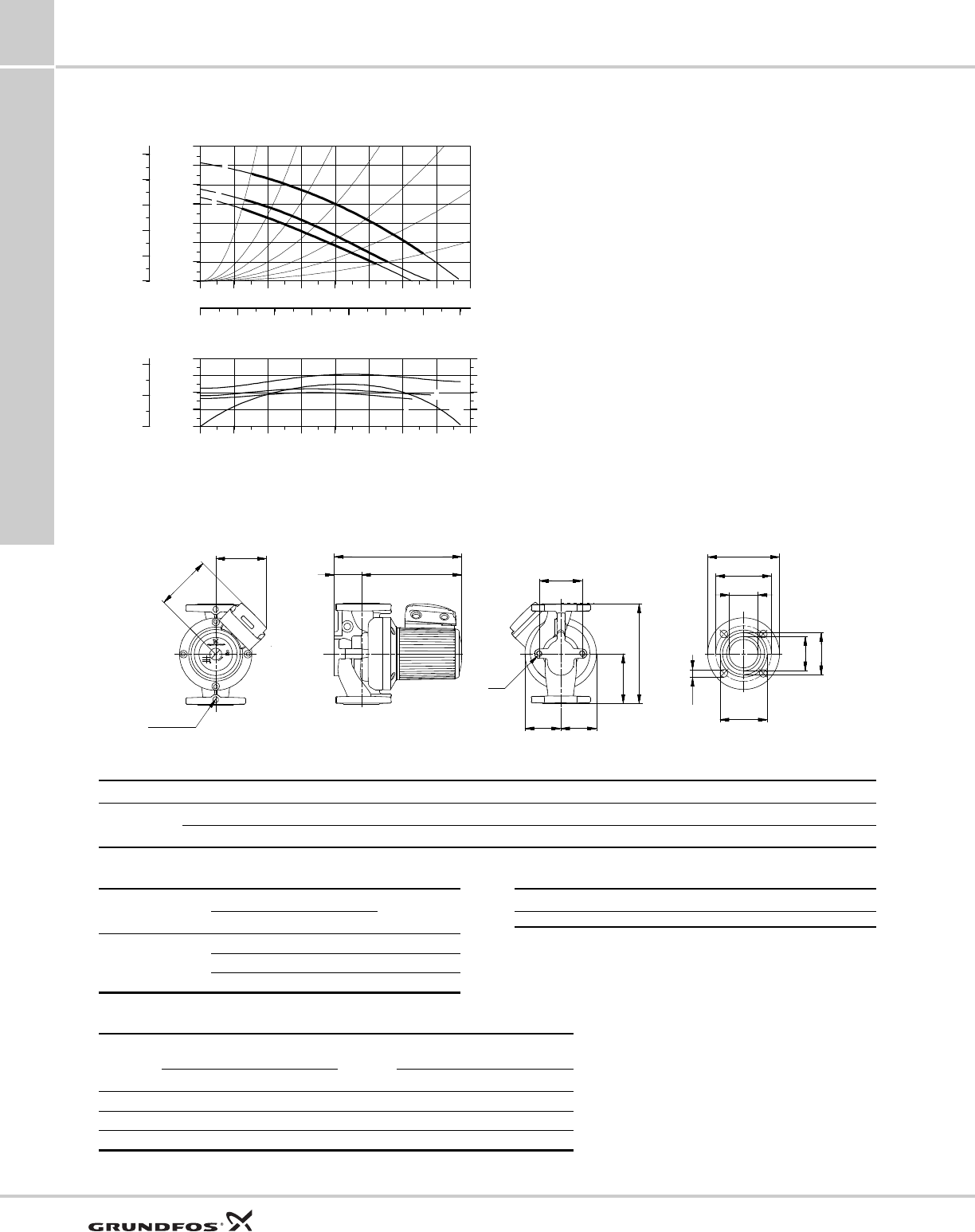

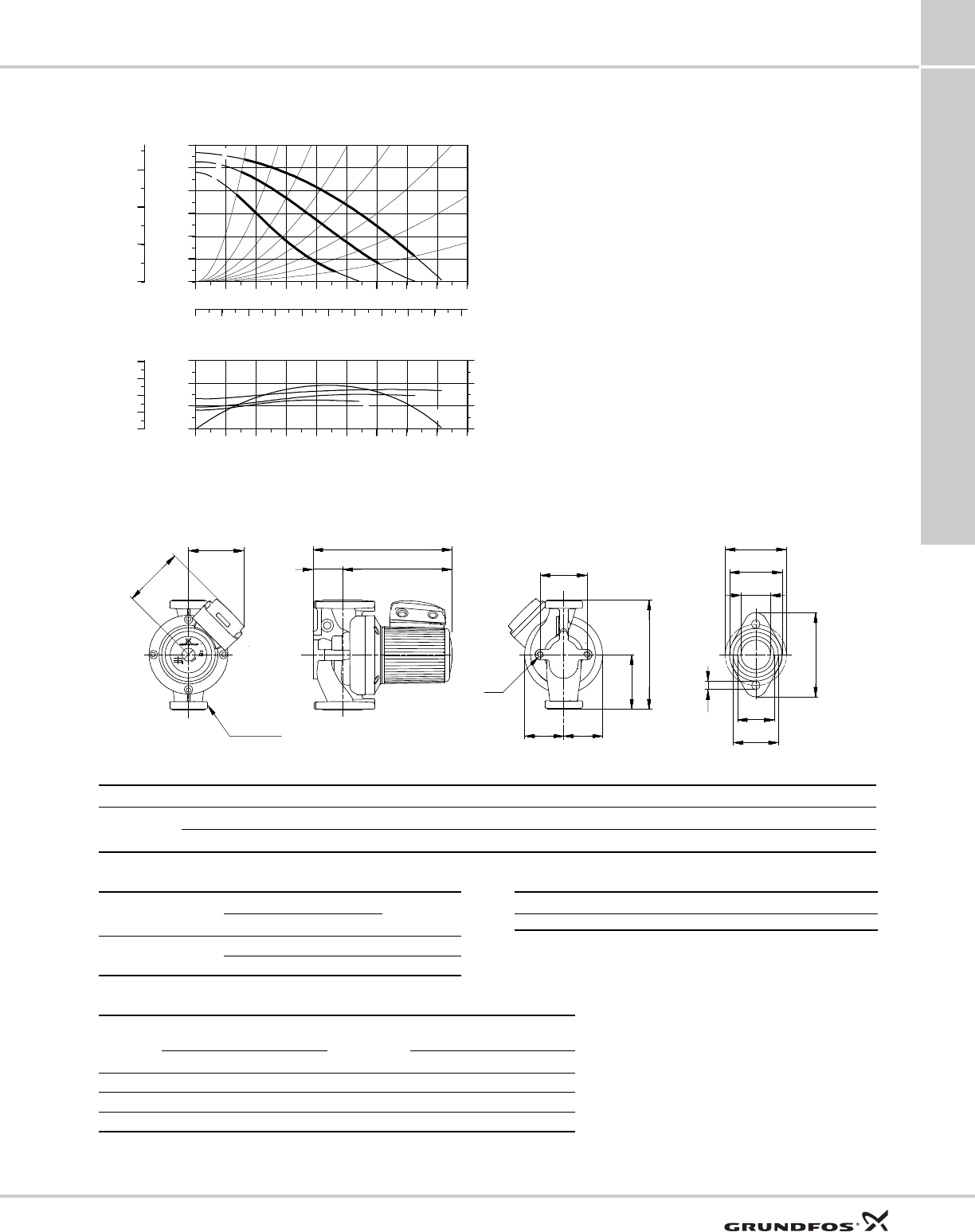

UPS 32-40/4, 1 ph, 115 V, 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9510 0697

Flow range: 9 - 52 gpm

Head range: 1 - 11 ft

Motor: 4-pole 0.33 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 35.9 lbs (16.3 kg)

Gross wt.: 43.4 lbs (19.7 kg)

Shipping volume: 1.70 ft3 (0.048 m3)

Net wt. bronze: 39.2 lbs (17.8 kg)

Gross wt. bronze: 46.7 lbs (21.2 kg)

Shipping volume bronze: 1.70 ft3 (0.048 m3)

010 20 3040 50 60 Q [US GPM]

0

2

4

6

8

10

12

H [ft]

0

1

2

3

H [m]

0 2 4 6 810 12 Q [m³/h]

12

3

010 20 3040 50 60 Q [US GPM]

0

50

100

150

P1 [W]

0

20

40

60 Eta [%]

0.0

0.1

0.2

P1 [hp]

3

2

1

Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 32-40/4 [in] 11.00 5.50 5.31 5.56 3.00 3.00 3.19 2.69 9.50 12.24 1.44 2.56 3.14 4.63 0.50 1.81 2.25

[mm] 279 140 135 141 76 76 81 68 241 311 37 65 80 117 13 46 57 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 32-40/4 (1 ph)

96402694 96402699 115

96402695 96402700 230

Flange size Flange type

1.25" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 15/26

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

115V 230V 115V 230V

3 1.08 0.54 120 2.10 1.00

2 1.04 0.52 100 2.02 0.96

1 0.95 0.47 85 1.85 0.87

UPS 32-40/4

1 ph, 115 V, 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

26

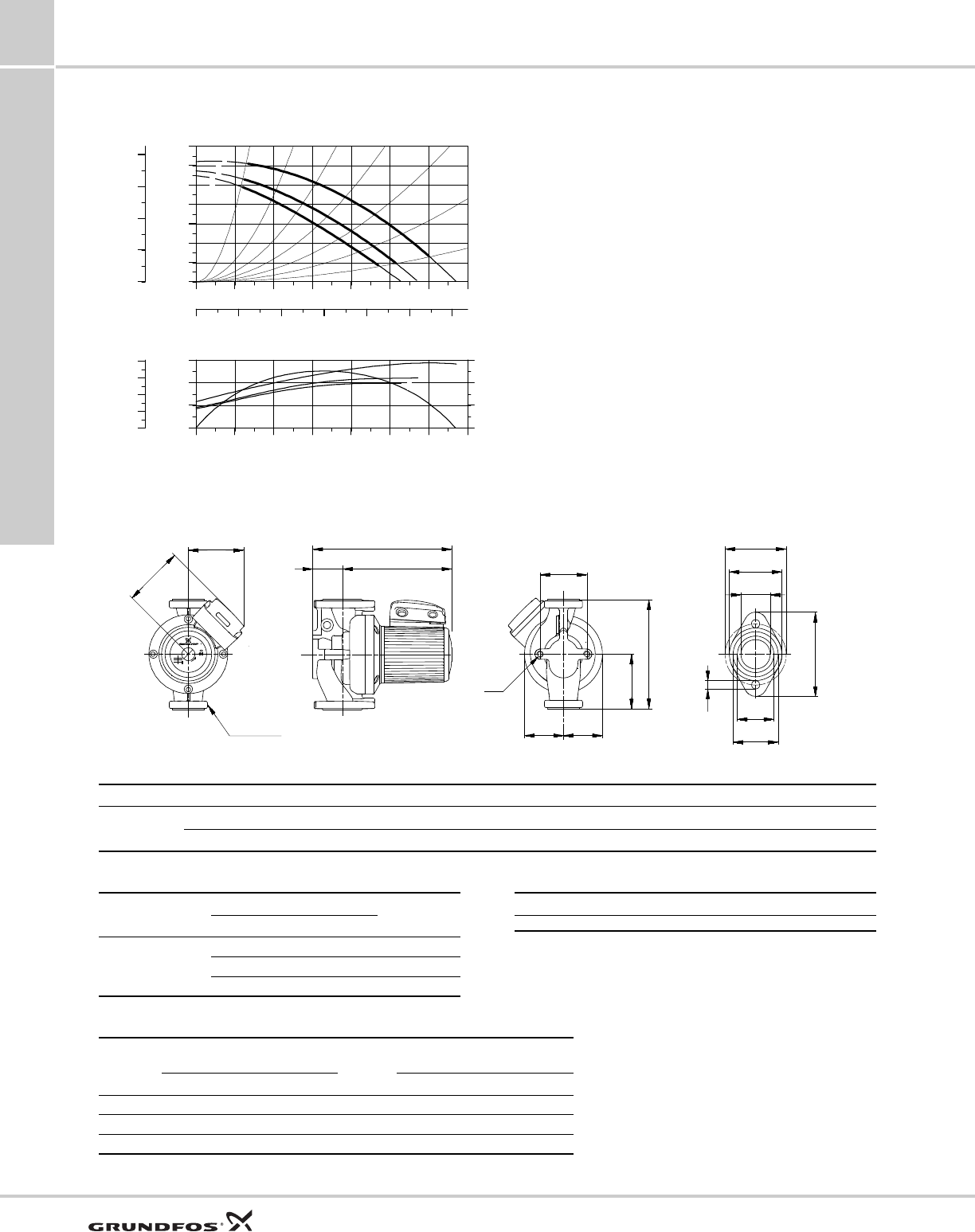

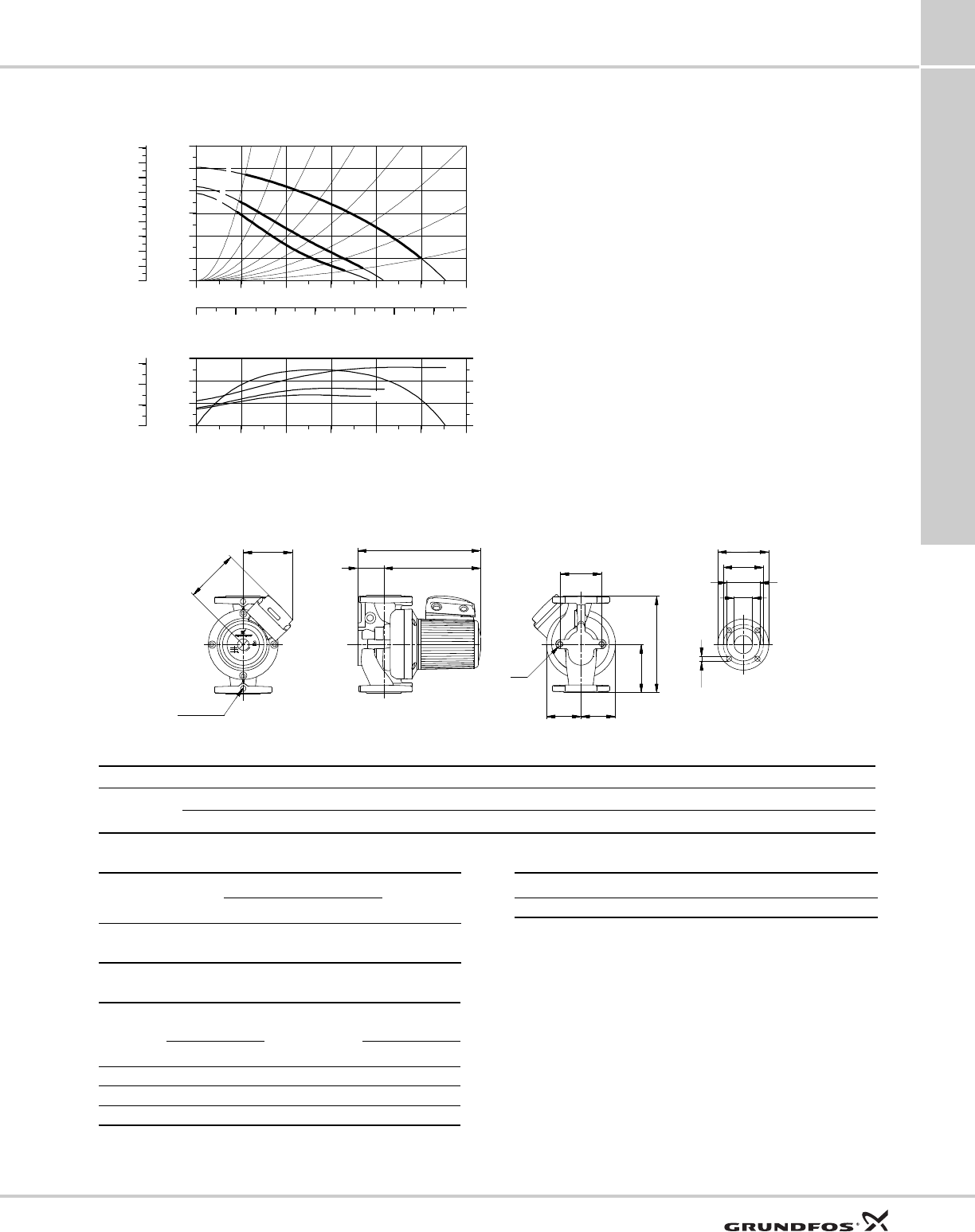

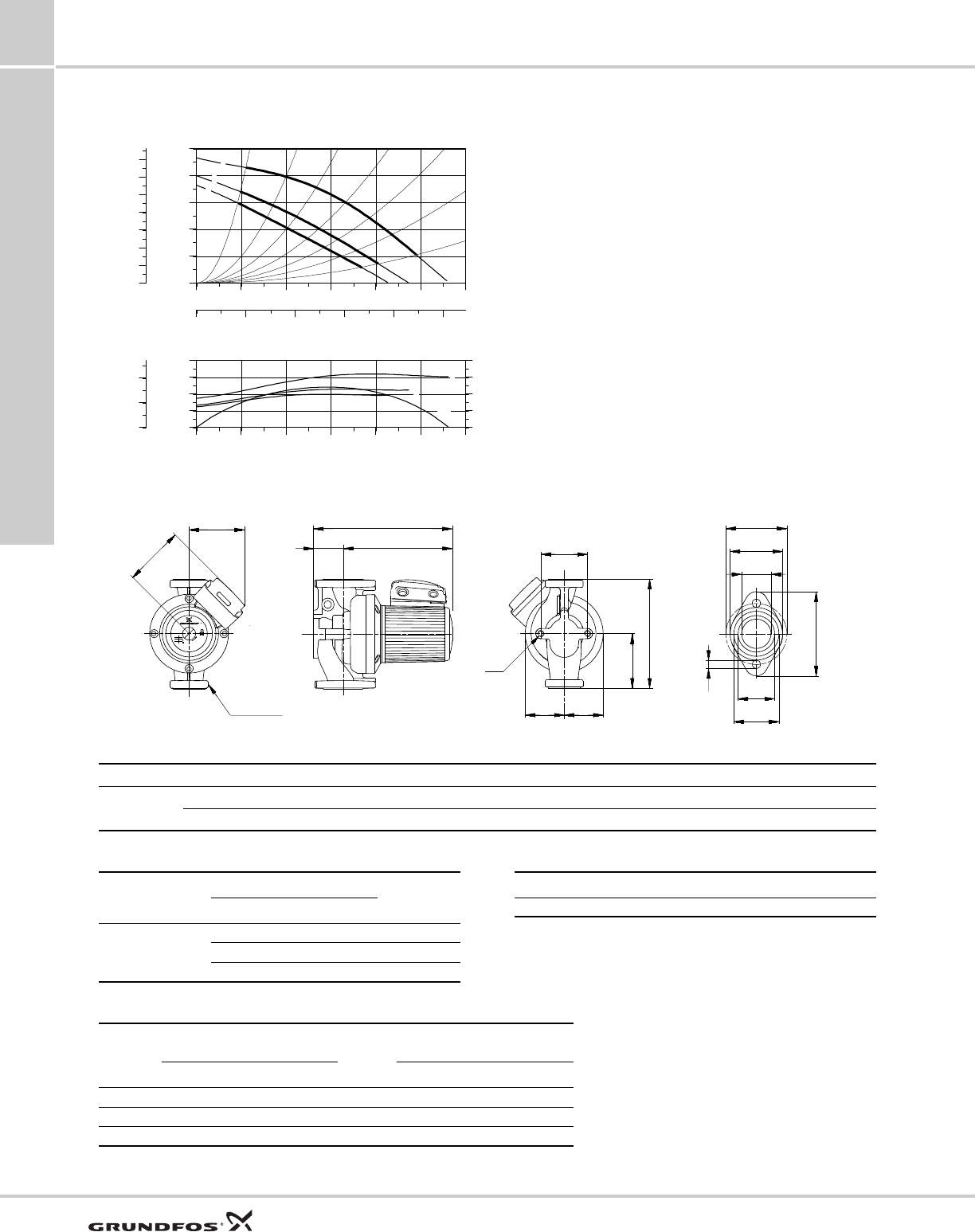

UPS 32-40/4, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM03 7904 5106

Flow range: 9 - 52 gpm

Head range: 1 - 11 ft

Motor: 4-pole 0.33 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 35.9 lbs (16.3 kg)

Gross wt.: 43.4 lbs (19.7 kg)

Shipping volume: 1.70 ft3 (0.048 m3)

Net wt. bronze: 39.2 lbs (17.8 kg)

Gross wt. bronze: 46.7 lbs (21.2 kg)

Shipping volume bronze: 1.70 ft3 (0.048 m3)

010 20 3040 50 60 Q [US GPM]

0

2

4

6

8

10

12

H [ft]

0

1

2

3

H [m]

0 2 4 6 810 12 Q [m³/h]

1

2

3

010 20 3040 50 60 Q [US GPM]

0

50

100

150

P1 [W]

0

20

40

60 Eta [%]

0.0

0.1

0.2

P1 [hp]

3

2

1

Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 32-40/4 [in] 11.00 5.50 5.31 5.56 3.00 3.00 3.19 2.69 9.50 12.24 1.44 2.56 3.14 4.63 0.50 1.81 2.25

[mm] 279 140 135 141 76 76 81 68 241 311 37 65 80 117 13 46 57 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 32-40/4 (3 ph)

96402696 96402701 208-230

96402697 96402702 460

96402698 96402703 575★

Flange size Flange type

1.25" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 15/26

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 0.56 0.28 0.22 115 1.60 0.82 0.66

2 0.26 0.13 0.10 75 0.74 0.38 0.30

10.24▲▲65 0.69 ▲▲

UPS 32-40/4

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

27

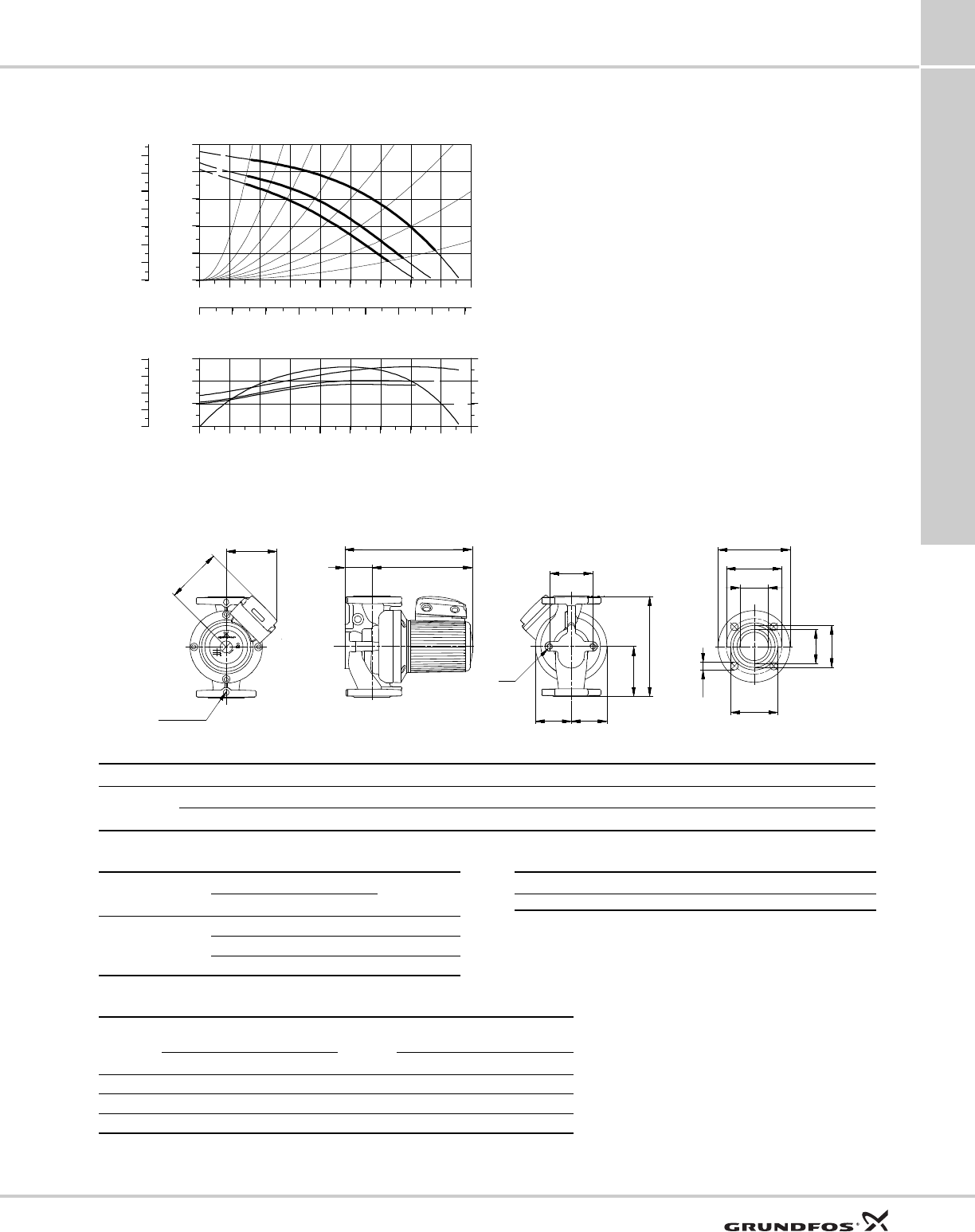

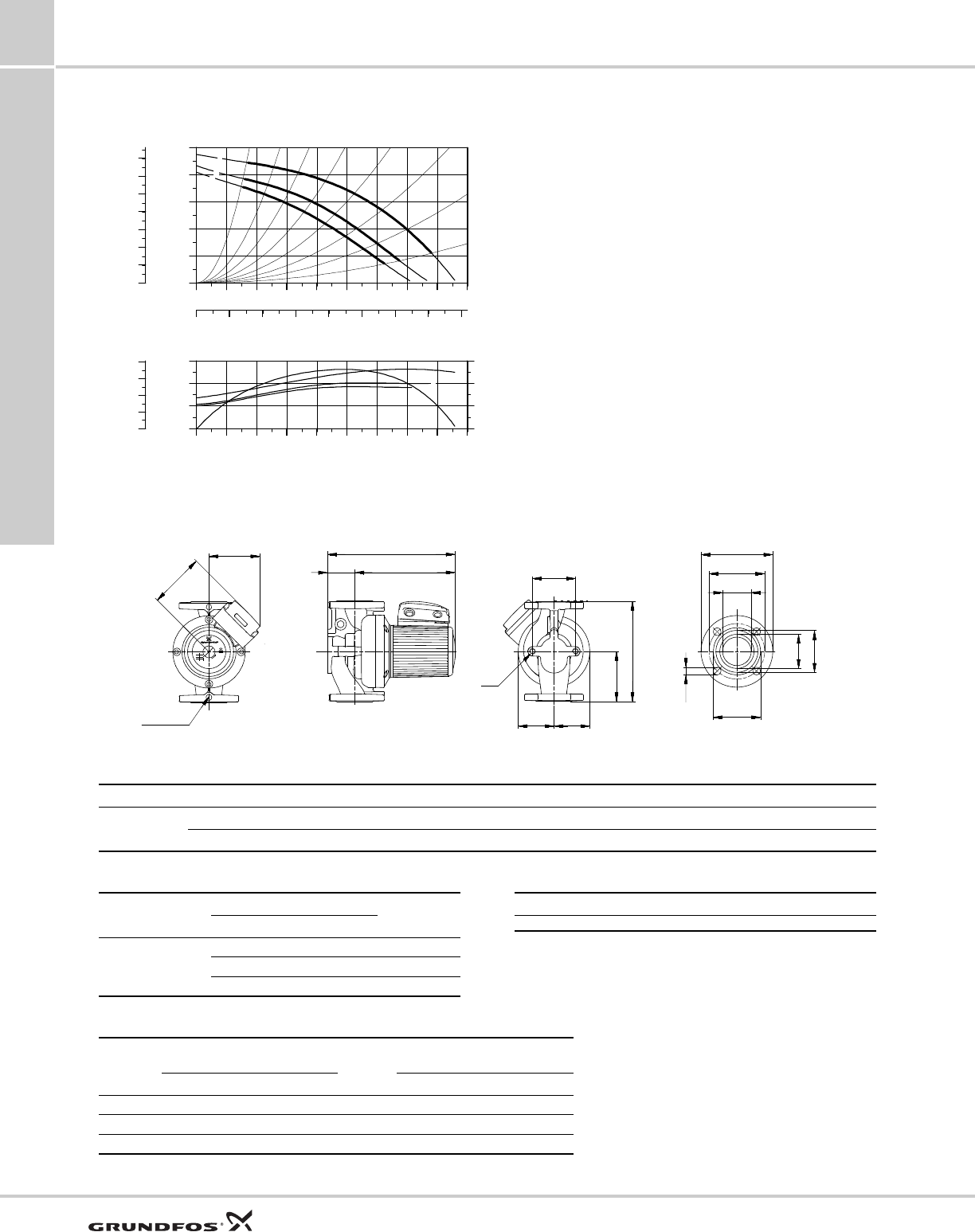

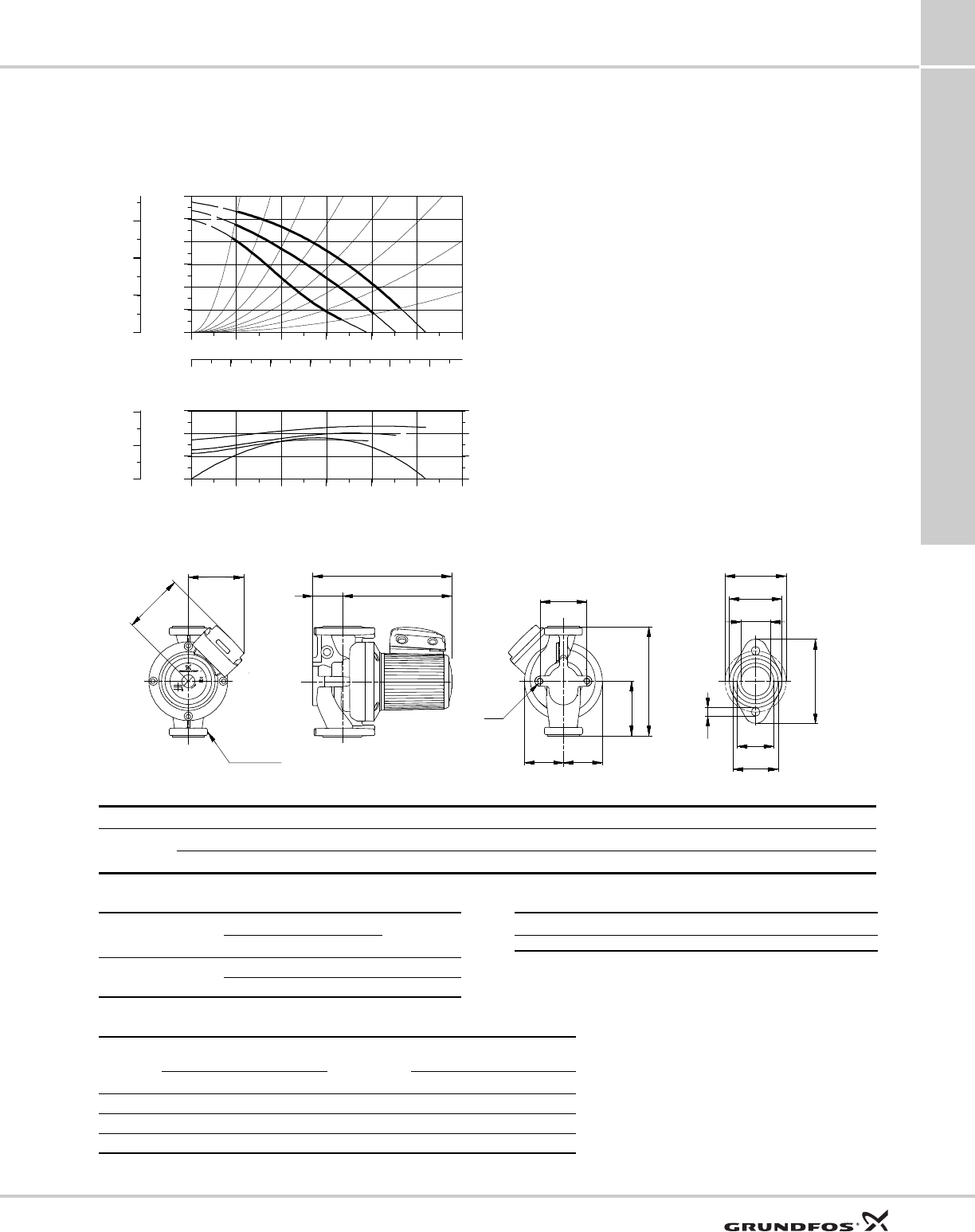

UPS 32-80/2, 1 ph, 115 V, 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9511 0697

Flow range: 9 - 67 gpm

Head range: 1 - 25 ft

Motor: 2-pole 0.50 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 35.9 lbs (16.3 kg)

Gross wt.: 41.1 lbs (20 kg)

Shipping volume: 1.70 ft3 (0.048 m3)

Net wt. bronze: 39.2 lbs (17.8 kg)

Gross wt. bronze: 47.4 lbs (21.5 kg)

Shipping volume bronze: 1.70 ft3 (0.048 m3)

010 20 3040 50 60 70 Q [US GPM]

0

5

10

15

20

25

H [ft]

0

2

4

6

H [m]

0 2 4 6 810 12 14 Q [m³/h]

123

010 20 3040 50 60 70 Q [US GPM]

0

100

200

300

P1 [W]

0

20

40

60 Eta [%]

0.0

0.1

0.2

0.3

0.4

P1 [hp]

3

2

1

Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 32-80/2 [in] 11.00 5.50 5.31 5.56 3.00 3.00 3.19 2.69 9.50 12.12 1.44 2.56 3.14 4.63 0.50 1.81 2.25

[mm] 279 140 135 141 76 76 81 68 241 308 37 65 80 117 13 46 57 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 32-80/2

(1 ph)

96402708 96402713 115

96402709 96402714 230

Flange size Flange type

1.25" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 15/26

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

115V 230V 115V 230V

3 2.66 1.34 280 7.10 3.80

2 2.50 1.26 260 6.67 3.29

1 2.50 1.26 250 6.67 3.29

UPS 32-80/2

1 ph, 115 V, 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

28

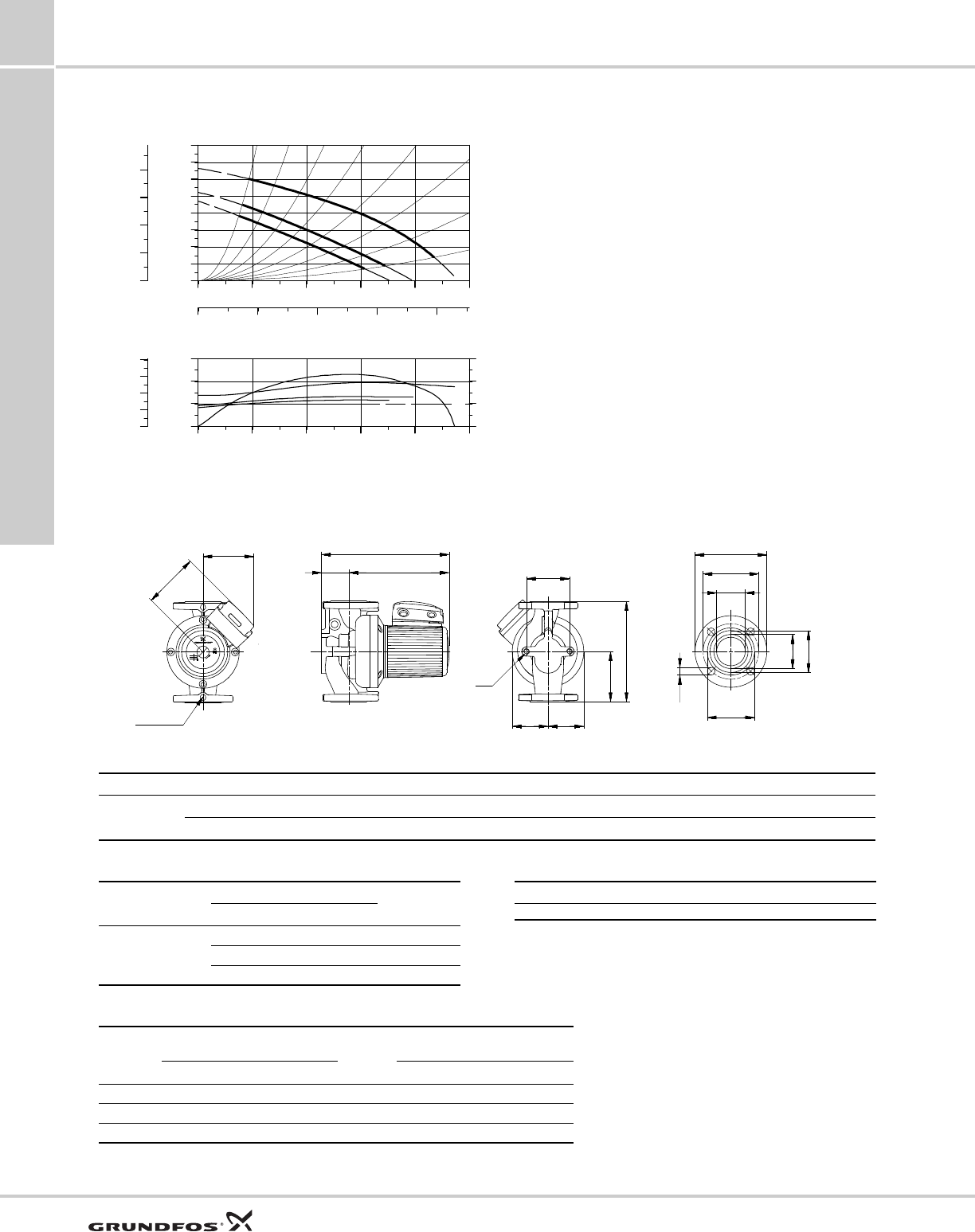

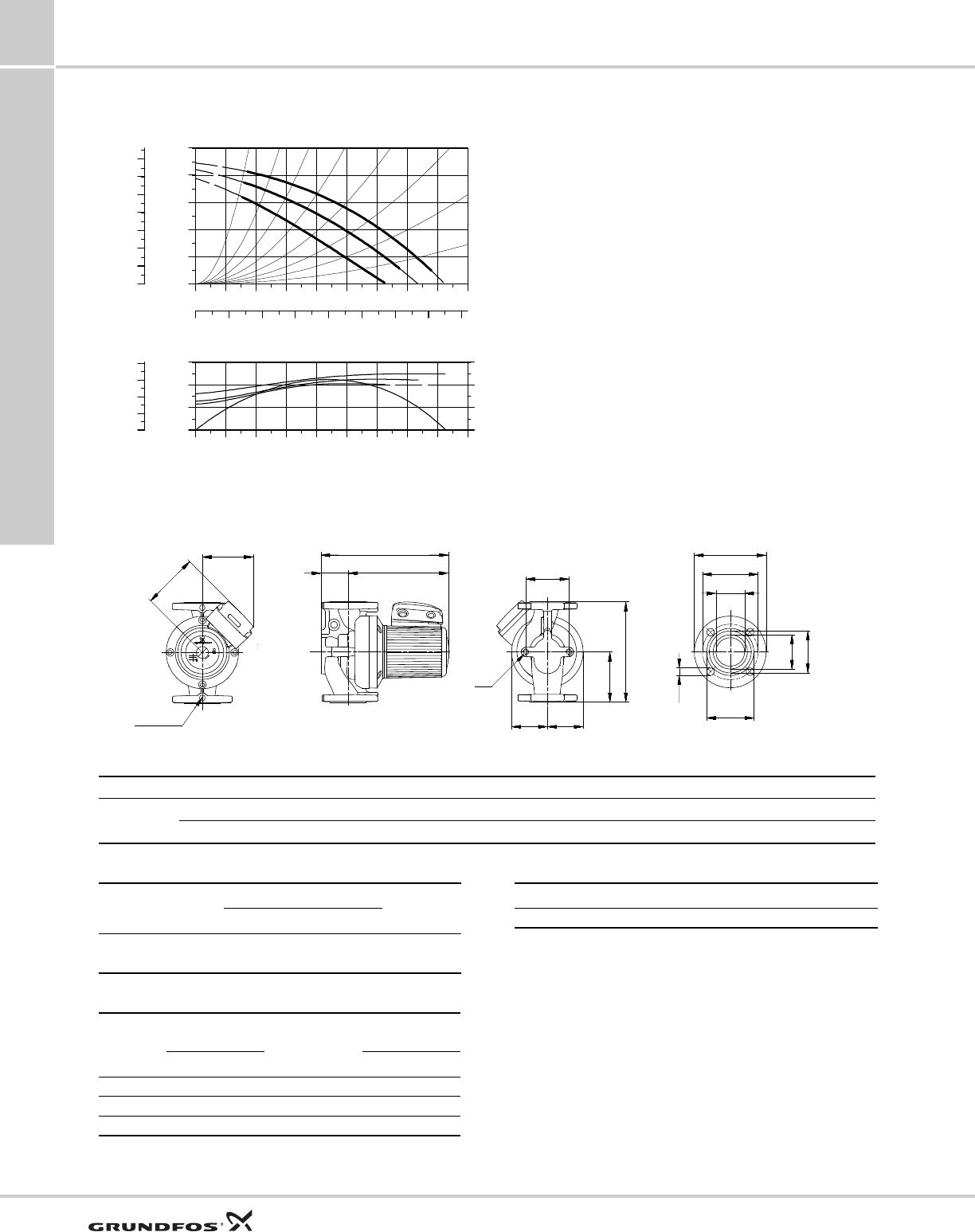

UPS 32-80/2, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9494 0697

Flow range: 9 - 67 gpm

Head range: 1 - 25 ft

Motor: 2-pole 0.50 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 35.9 lbs (16.3 kg)

Gross wt.: 41.1 lbs (20 kg)

Shipping volume: 1.70 ft3 (0.048 m3)

Net wt. bronze: 39.2 lbs (17.8 kg)

Gross wt. bronze: 47.4 lbs (21.5 kg)

Shipping volume bronze: 1.70 ft3 (0.048 m3)

010 20 3040 50 60 70 Q [US GPM]

0

5

10

15

20

25

H [ft]

0

2

4

6

H [m]

0 2 4 6 810 12 14 Q [m³/h]

1

2

3

010 20 3040 50 60 70 Q [US GPM]

0

100

200

300

P1 [W]

0

20

40

60 Eta [%]

0.0

0.1

0.2

0.3

0.4

P1 [hp]

3

2

1

Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 32-80/2 [in] 11.00 5.50 5.31 5.56 3.00 3.00 3.19 2.69 9.50 12.12 1.44 2.56 3.14 4.63 0.50 1.81 2.25

[mm] 279 140 135 141 76 76 81 68 241 308 37 65 80 117 13 46 57 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 32-80/2

(3 ph)

96402710 96402715 208-230

96402711 96402716 460

96402712 96402717 575★

Flange size Flange type

1.25" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 15/26

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 1.10 0.55 0.44 280 5.00 2.80 2.20

2 0.72 0.36 0.29 235 3.93 1.96 1.60

10.58▲▲195 3.16 ▲▲

UPS 32-80/2

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

29

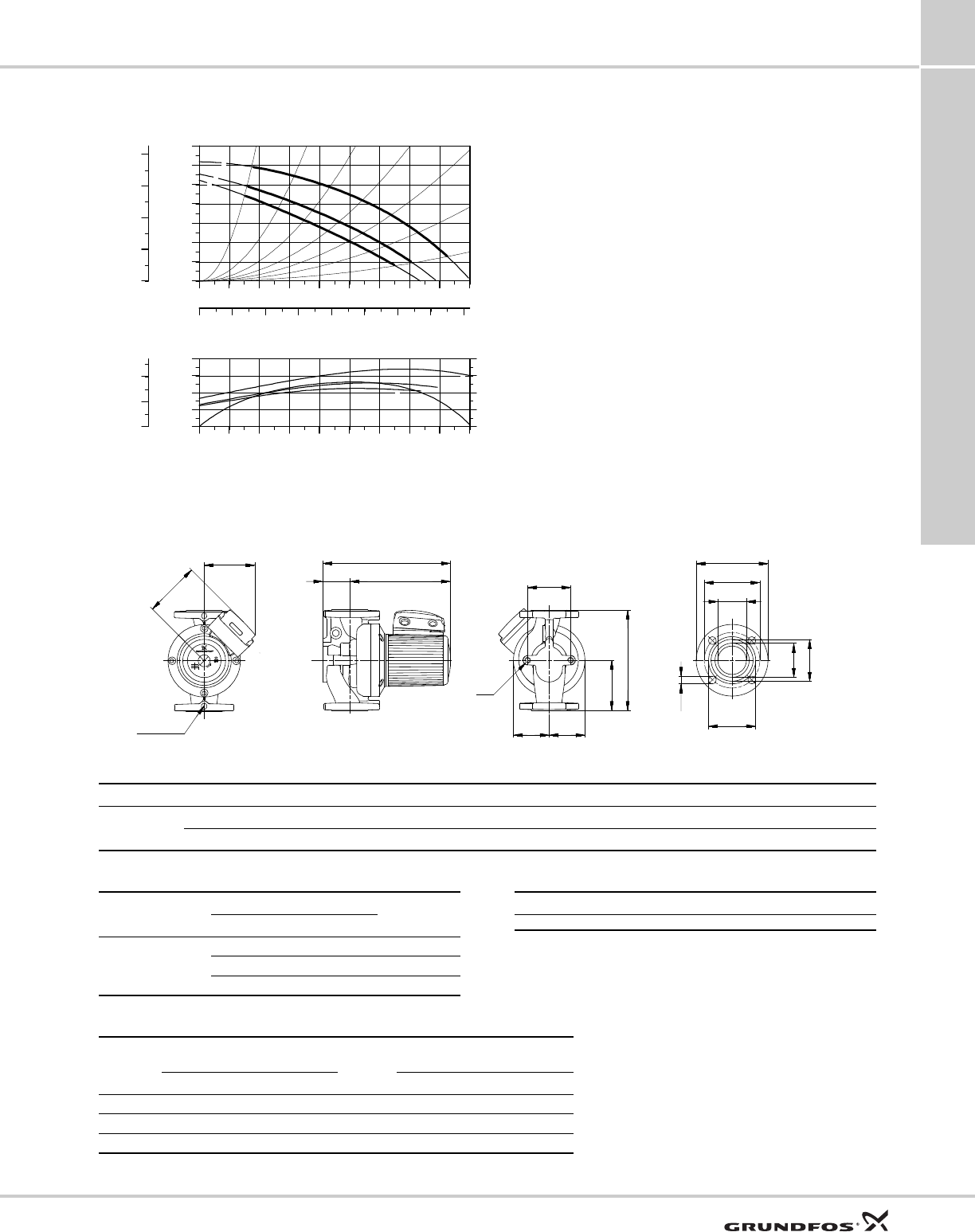

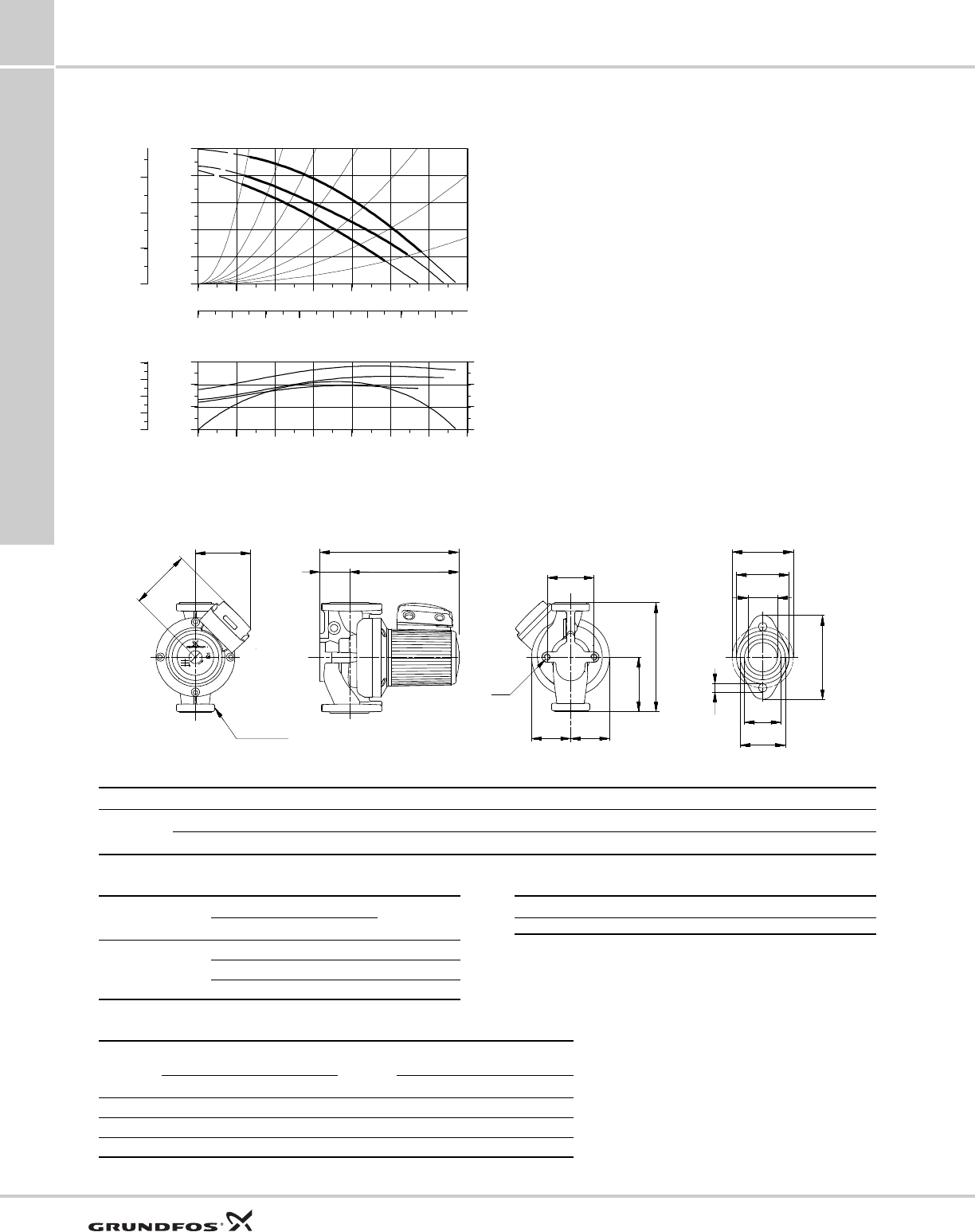

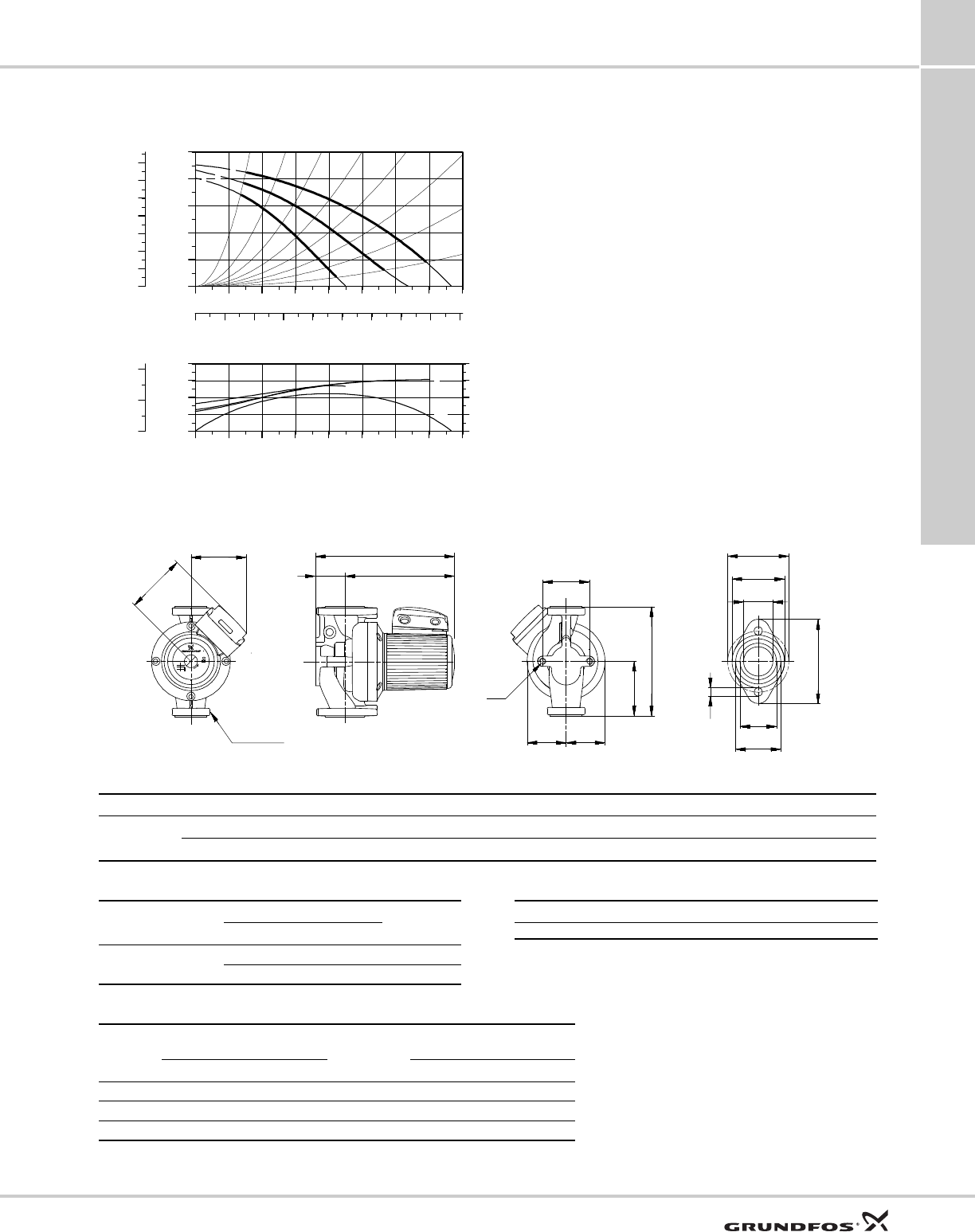

UPS 32-160/2, 1 ph, 115 V, 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TTM00 9512 0697

Flow range: 9 - 76 gpm

Head range: 1 - 45 ft

Motor: 2-pole 0.75 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 37.0 lbs (16.8 kg)

Gross wt.: 45.2 lbs (20.5 kg)

Shipping volume: 1.70 ft3 (0.048 m3)

Net wt. bronze: 37.7 lbs (17.1 kg)

Gross wt. bronze: 45.9 lbs (20.8 kg)

Shipping volume bronze: 1.70 ft3 (0.048 m3)

010 20 3040 50 60 70 80Q [US GPM]

0

10

20

30

40

50

H [ft]

0

2

4

6

8

10

12

14

H [m]

0 2 4 6 810 12 14 16 18Q [m³/h]

123

010 20 3040 50 60 70 80Q [US GPM]

0

200

400

600

800

P1 [W]

0

20

40

60

80Eta [%]

0.0

0.5

1.0

P1 [hp]

3

2

1

Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 32-160/2 [in] 13.50 5.50 5.31 5.56 3.00 3.00 3.19 2.69 9.50 12.16 1.44 2.50 3.42 4.63 0.50 2.06 2.56

[mm] 343 140 135 141 76 76 81 68 241 309 37 64 87 117 13 52 65 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 32-160/2

(1 ph)

96402730 96402739 115

96402733 96402740 230

Flange size Flange type

1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

115V 230V 115V 230V

3 5.80 2.90 625 14.60 6.70

2 5.80 2.90 600 14.60 6.70

1 5.50 2.75 555 13.84 6.35

UPS 32-160/2

1 ph, 115 V, 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

30

UPS 32-160/2, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9495 0697

Flow range: 9 - 76 gpm

Head range: 1 - 45 ft

Motor: 2-pole 0.75 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 36.8 lbs (16.7 kg)

Gross wt.: 44.8 lbs (20.3 kg)

Shipping volume: 1.70 ft3 (0.048 m3)

Net wt. bronze: 41.2 lbs (18.7 kg)

Gross wt. bronze: 49.4 lbs (22.4 kg)

Shipping volume bronze: 1.70 ft3 (0.048 m3)

010 20 3040 50 60 70 80Q [US GPM]

0

10

20

30

40

50

H [ft]

0

2

4

6

8

10

12

14

H [m]

0246810 12 14 16 18Q [m³/h]

12

3

010 20 3040 50 60 70 80Q [US GPM]

0

200

400

600

800

P1 [W]

0

20

40

60

80Eta [%]

0.0

0.5

1.0

P1 [hp]

3

2

1

Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 32-160/2 [in] 13.50 5.50 5.31 5.56 3.00 3.00 3.19 2.69 9.50 12.16 1.44 2.50 3.42 4.63 0.50 2.06 2.56

[mm] 343 140 135 141 76 76 81 68 241 309 37 64 87 117 13 52 65 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 32-160/2

(3 ph)

96402736 96402741 208-230

96402737 96402742 460

96402738 96402743 575★

Flange size Flange type

1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 1.96 0.98 0.78 600 9.30 4.70 3.76

2 1.25 0.63 0.50 430 5.93 3.02 2.40

11.12▲▲380 5.31 ▲▲

UPS 32-160/2

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

31

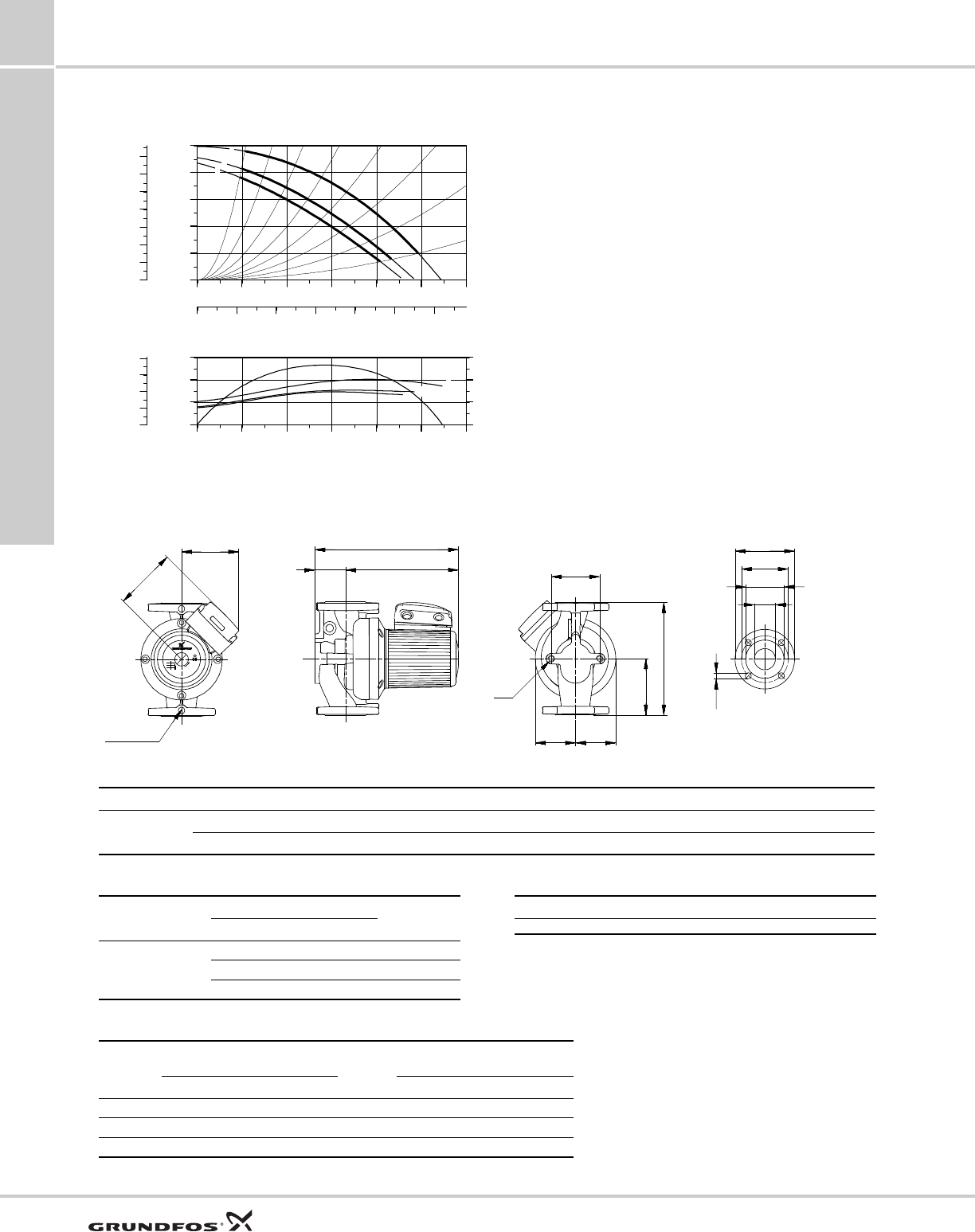

UPS 40-40/4, 1 ph, 115 V, 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9513 0697

Flow range: 13 - 85 gpm

Head range: 1 - 11 ft

Motor: 4-pole 0.33 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 37.9 lbs (17.2 kg)

Gross wt.: 46.1 lbs (20.9 kg)

Shipping volume: 1.70 ft3 (0.048 m3)

Net wt. bronze: 42.3 lbs (19.2 kg)

Gross wt. bronze: 50.5 lbs (22.9 kg)

Shipping volume bronze: 1.70 ft3 (0.048 m3)

010 20 3040 50 60 70 8090 Q [US GPM]

0

2

4

6

8

10

12

H [ft]

0

1

2

3

H [m]

0 2 4 6 810 12 14 16 1820 Q [m³/h]

1

2

3

010 20 3040 50 60 70 8090 Q [US GPM]

0

100

200

300

P1 [W]

0

20

40

60 Eta [%]

0.0

0.1

0.2

0.3

0.4

P1 [hp]

3

2

1

Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 40-40/4 [in] 13.50 6.75 5.31 5.56 3.00 3.00 4.75 2.69 9.69 12.40 1.63 2.88 3.42 5.00 0.50 2.06 2.56

[mm] 343 171 135 141 76 76 121 68 246 315 41 73 87 127 13 52 65 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 40-40/4 (1 ph) 96402748 96402753 115

96402749 96402754 230

Flange size Flange type

1.50" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

115V 230V 115V 230V

3 1.60 0.80 170 3.10 1.50

2 1.48 0.74 150 2.87 1.39

1 1.34 0.66 125 2.60 1.24

UPS 40-40/4

1 ph, 115 V, 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

32

UPS 40-40/4, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9496 0697

Flow range: 13 - 85 gpm

Head range: 1 - 11 ft

Motor: 4-pole 0.33 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 37.7 lbs (17.1 kg)

Gross wt.: 45.9 lbs (20.8 kg)

Shipping volume: 1.70 ft3 (0.048 m3)

Net wt. bronze: 42.1 lbs (19.1 kg)

Gross wt. bronze: 50.3 lbs (22.8 kg)

Shipping volume bronze: 1.70 ft3 (0.048 m3)

010 20 3040 50 60 70 8090 Q [US GPM]

0

2

4

6

8

10

12

H [ft]

0

1

2

3

H [m]

0 2 4 6 810 12 14 16 1820 Q [m³/h]

12

3

010 20 3040 50 60 70 8090 Q [US GPM]

0

100

200

300

P1 [W]

0

20

40

60 Eta [%]

0.0

0.1

0.2

0.3

0.4

P1 [hp]

3

2

1

Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 40-40/4 [in] 13.50 6.75 5.31 5.56 3.00 3.00 4.75 2.69 9.69 12.40 1.63 2.88 3.42 5.00 0.50 2.06 2.56

[mm] 343 171 135 141 76 76 121 68 246 315 41 73 87 127 13 52 65 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 40-40/4

(3 ph)

96402750 96402755 208-230

96402751 96402756 460

96402752 96402757 575★

Flange size Flange type

1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 0.88 0.44 0.33 260 2.50 1.30 1.04

2 0.42 0.21 0.17 120 1.19 0.62 0.50

10.36▲▲100 1.02 ▲▲

UPS 40-40/4

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

33

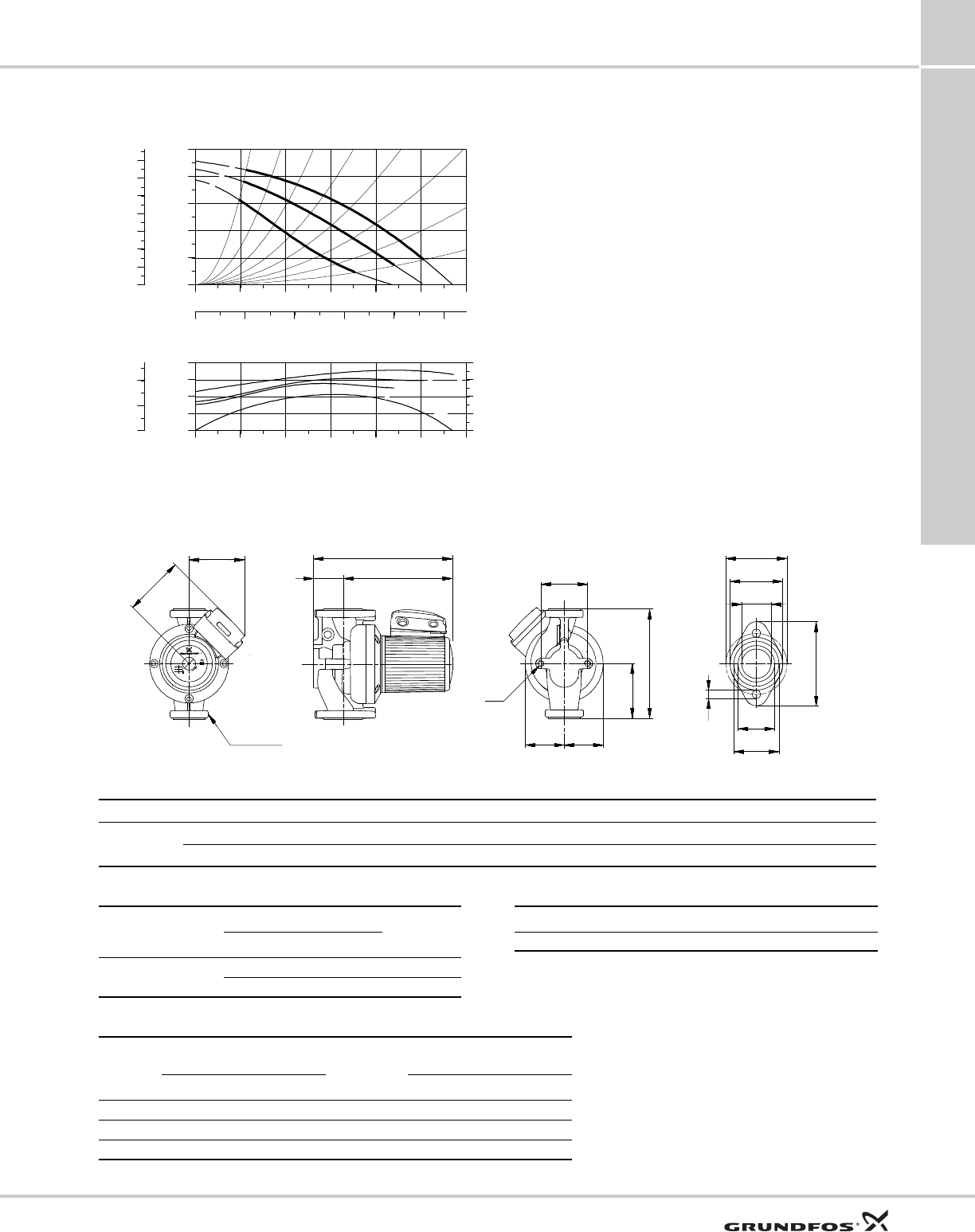

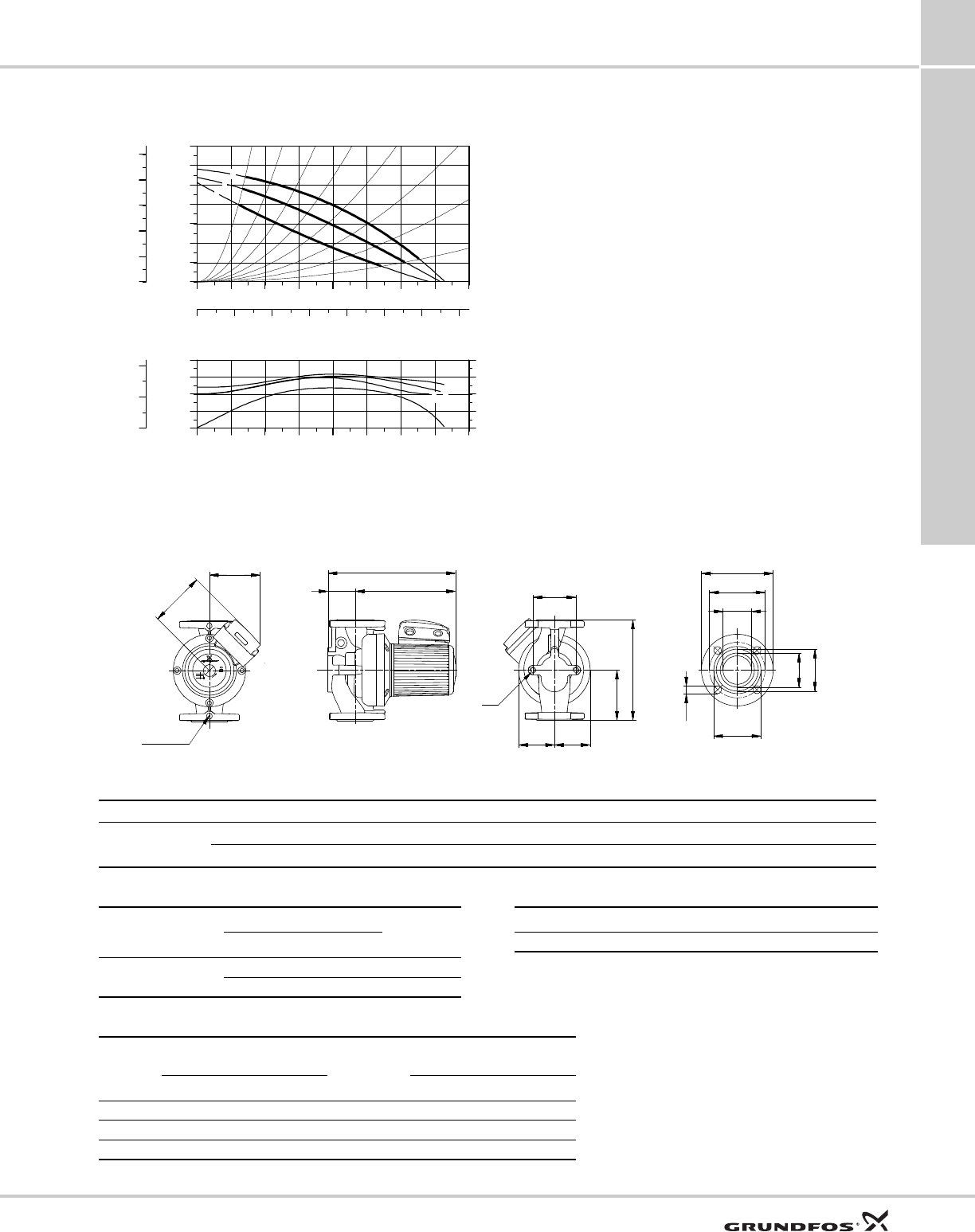

UPS 40-80/4, 1 ph, 115 V, 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9514 2297

Flow range: 13 - 120 gpm

Head range: 1 - 25 ft

Motor: 4-pole 0.50 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 57.8 lbs (26.2 kg)

Gross wt.: 70.1 lbs (31.8 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 62.2 lbs (28.2 kg)

Gross wt. bronze: 74.5 lbs (33.8 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

020 40 60 80100 120 140 Q [US GPM]

0

5

10

15

20

25

H [ft]

0

1

2

3

4

5

6

7

H [m]

0 5 10 15 20 25 30Q [m³/h]

1

2

3

020 40 60 80100 120 140 Q [US GPM]

0

200

400

600

P1 [W]

0

20

40

60 Eta [%]

0.0

0.2

0.4

0.6

0.8

P1 [hp]

3

2

1

Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 40-80/4 [in] 13.50 6.75 5.75 6.68 3.94 3.94 4.75 3.00 9.00 12.01 1.69 2.88 3.42 5.00 0.50 2.06 2.56

[mm] 343 171 146 170 100 100 121 76 229 305 43 73 87 127 13 52 65 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 40-80/4

(1 ph)

96404948 96404953 115

96404949 96404954 230

Flange size Flange type

1.50" non ANSI 2 bolt w/ (2) 1/2" dia. holes GF 40/43

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

115V 230V 115V 230V

3 5.50 2.75 565 9.50 4.70

2 5.15 2.60 485 8.90 4.44

1 4.30 2.15 410 7.43 3.67

UPS 40-80/4

1 ph, 115 V, 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

34

UPS 40-80/4, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9498 0307

Flow range: 13 - 120 gpm

Head range: 1 - 25 ft

Motor: 4-pole 0.50 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 47.6 lbs (21.6 kg)

Gross wt.: 60.0 lbs (27.2 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 52.0 lbs (23.6 kg)

Gross wt. bronze: 64.4 lbs (29.2 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

020 40 60 80100 120 140 Q [US GPM]

0

5

10

15

20

25

H [ft]

0

1

2

3

4

5

6

7

H [m]

0 5 10 15 20 25 30Q [m³/h]

1

2

3

020 40 60 80100 120 140 Q [US GPM]

0

200

400

600

P1 [W]

0

20

40

60 Eta [%]

0.0

0.2

0.4

0.6

0.8

P1 [hp]

3

2

1

Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 40-80/4 [in] 13.50 6.75 5.75 6.68 3.94 3.94 4.75 3.00 9.00 12.01 1.69 2.88 3.42 5.00 0.50 2.06 2.56

[mm] 343 171 146 170 100 100 121 76 229 305 43 73 87 127 13 52 65 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 40-80/4

(3 ph)

96402750 96402755 208-230

96402751 96402756 460

96402752 96402757 575★

Flange size Flange type

1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 1.98 0.99 0.78 550 7.10 4.70 3.76

2 1.20 0.60 0.48 370 4.30 4.44 3.55

11.00▲▲305 3.59 ▲▲

UPS 40-80/4

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

35

UPS 40-80/2, 1 ph, 115 V, 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9515 0307

Flow range: 13 - 105 gpm

Head range: 1 - 30 ft

Motor: 2-pole 0.75 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 38.4 lbs (17.4 kg)

Gross wt.: 46.5 lbs (21.1 kg)

Shipping volume: 1.70 ft3 (0.048 m3)

Net wt. bronze: 42.8 lbs (19.4 kg)

Gross wt. bronze: 50.9 lbs (23.1 kg)

Shipping volume bronze: 1.70 ft3 (0.048 m3)

020 40 60 80100 120 Q [US GPM]

0

5

10

15

20

25

30

H [ft]

0

2

4

6

8

H [m]

0 5 10 15 20 25 Q [m³/h]

12

3

020 40 60 80100 120 Q [US GPM]

0

200

400

600

P1 [W]

0

20

40

60 Eta [%]

0.0

0.2

0.4

0.6

0.8

P1 [hp]

3

2

1

Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1 L3 B1 B2 B4 B5 B7 H1 H2 H3 D1 D2 D3 D4 D5 D6 D7 M

UPS 40-80/2 [in] 13.50 6.75 5.31 5.56 3.00 3.00 3.13 2.69 9.63 12.36 1.69 2.88 3.42 5.00 0.50 2.06 2.56

[mm] 343 171 135 141 76 76 79 68 244 314 43 73 87 127 13 52 65 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 40-80/2

(1 ph)

96402762 96402767 115

96402763 96402768 230

Flange size Flange type

1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

115V 230V 115V 230V

3 4.45 2.24 480 11.00 5.60

2 4.40 2.20 450 10.88 5.50

1 4.40 2.18 440 10.88 5.45

UPS 40-80/2

1 ph, 115 V, 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

36

UPS 40-80/2, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9497 0697

Flow range: 13 - 105 gpm

Head range: 1 - 30 ft

Motor: 2-pole 0.75 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 38.4 lbs (17.4 kg)

Gross wt.: 46.5 lbs (21.1 kg)

Shipping volume: 1.70 ft3 (0.048 m3)

Net wt. bronze: 42.8 lbs (19.4 kg)

Gross wt. bronze: 50.9 lbs (23.1 kg)

Shipping volume bronze: 1.70 ft3 (0.048 m3)

020 40 60 80100 120 Q [US GPM]

0

5

10

15

20

25

30

H [ft]

0

2

4

6

8

H [m]

0 5 10 15 20 25 Q [m³/h]

1

2

3

020 40 60 80100 120 Q [US GPM]

0

200

400

600

P1 [W]

0

20

40

60 Eta [%]

0.0

0.2

0.4

0.6

0.8

P1 [hp]

3

2

1

Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1 L3 B1 B2 B4 B5 B7 H1 H2 H3 D1 D2 D3 D4 D5 D6 D7 M

UPS 40-80/2 [in] 13.50 6.75 5.31 5.56 3.00 3.00 3.13 2.69 9.63 12.36 1.69 2.88 3.42 5.00 0.50 2.06 2.56

[mm] 343 171 135 141 76 76 79 68 244 314 43 73 87 127 13 52 65 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 40-80/2

(3 ph)

96402764 96402769 208-230

96402765 96402770 460

96402766 96402771 575★

Flange size Flange type

1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 1.45 0.73 0.58 440 7.40 3.70 2.96

2 0.94 0.47 0.38 320 4.80 2.38 1.90

10.86▲▲290 4.39 ▲▲

UPS 40-80/2

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

37

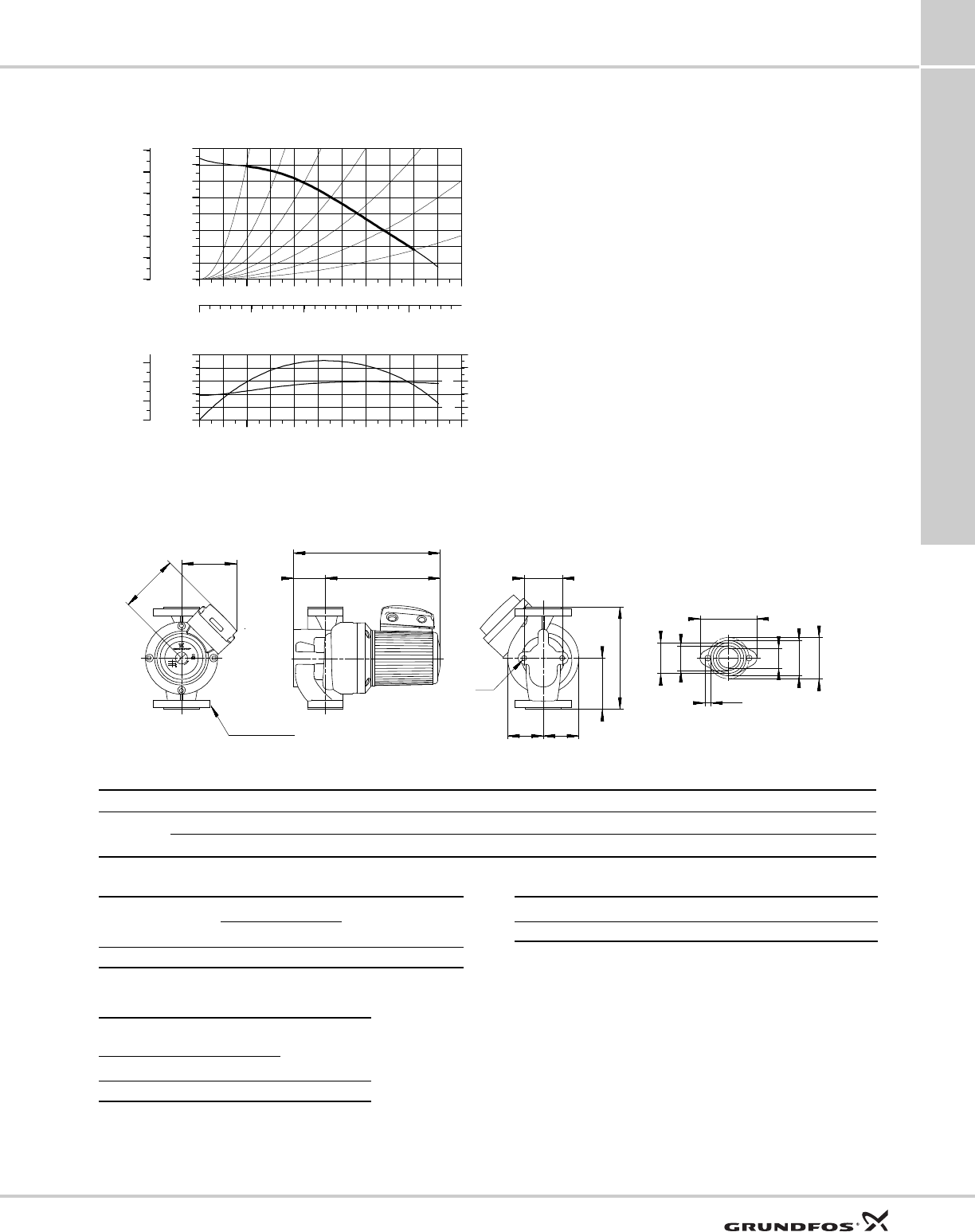

UPS 40-160/2, 1 ph, 115 V, 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9516 0307

Flow range: 13 - 110 gpm

Head range: 1 - 46 ft

Motor: 2-pole 0.75 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 43.2 lbs (19.6 kg)

Gross wt.: 55.6 lbs (25.2 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 47.6 lbs (21.6 kg)

Gross wt. bronze: 60 lbs (27.2 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

020 40 60 80100 120 Q [US GPM]

0

10

20

30

40

50

H [ft]

0

2

4

6

8

10

12

14

H [m]

0 5 10 15 20 25 Q [m³/h]

1

2

3

020 40 60 80100 120 Q [US GPM]

0

250

500

750

1000

P1 [W]

0

20

40

60

80Eta [%]

0.0

0.5

1.0

P1 [hp]

3

2

1

Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 40-160/2 [in] 11.50 5.75 5.75 6.68 3.94 3.94 3.19 2.31 9.00 11.69 1.69 2.88 3.42 5.00 0.50 2.06 2.56

[mm] 292 146 146 170 100 100 81 59 229 297 43 73 87 127 13 52 65 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 40-160/2

(1 ph)

96402782 96402787 115

96402783 96402788 230

Flange size Flange type

1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

115V 230V 115V 230V

3 8.40 4.20 890 18.60 9.30

2 7.45 3.75 760 16.50 8.30

1 6.95 3.45 690 15.39 7.64

UPS 40-160/2

1 ph, 115 V, 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

38

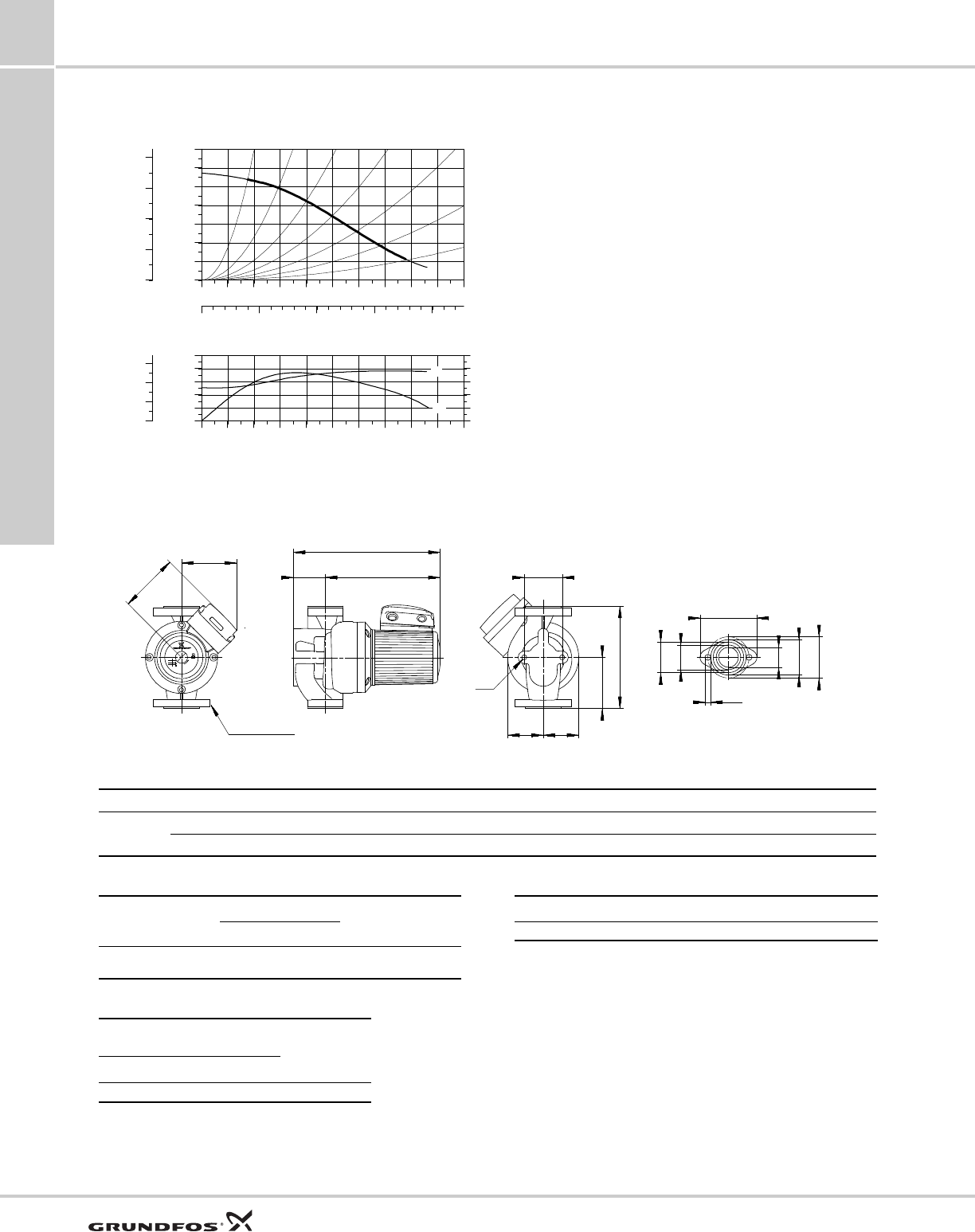

UPS 40-160/2, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9499 0307

Flow range: 13 - 110 gpm

Head range: 1 - 46 ft

Motor: 2-pole 0.75 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 43.2 lbs (19.6 kg)

Gross wt.: 55.6 lbs (25.2 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 47.6 lbs (21.6 kg)

Gross wt. bronze: 60 lbs (27.2 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

020 40 60 80100 120 Q [US GPM]

0

10

20

30

40

50

H [ft]

0

2

4

6

8

10

12

14

H [m]

0 5 10 15 20 25 Q [m³/h]

1

2

3

020 40 60 80100 120 Q [US GPM]

0

250

500

750

1000

P1 [W]

0

20

40

60

80Eta [%]

0.0

0.5

1.0

P1 [hp]

3

2

1Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 40-160/2 [in] 11.50 5.75 5.75 6.68 3.94 3.94 3.19 2.31 9.00 11.69 1.69 2.88 3.42 5.00 0.50 2.06 2.56

[mm] 292 146 146 170 100 100 81 59 229 297 43 73 87 127 13 52 65 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 40-160/2

(3 ph)

96402784 96402789 208-230

96402785 96402790 460

96402786 96402791 575★

Flange size Flange type

1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 2.50 1.25 1.00 800 12.40 6.20 4.96

2 1.75 0.88 0.70 570 8.68 4.36 3.50

11.55▲▲500 7.69 ▲▲

UPS 40-160/2

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

39

UPS 40-240/2, 1 ph, 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9517 0307

Flow range: 13 - 130 gpm

Head range: 1 - 62 ft

Motor: 2-pole 1.5 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 54.0 lbs (24.5 kg)

Gross wt.: 66.4 lbs (30.1 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 58.4 lbs (26.5 kg)

Gross wt. bronze: 70.8 lbs 32.1 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

020 40 60 80100 120 140 Q [US GPM]

0

10

20

30

40

50

60

H [ft]

0

5

10

15

H [m]

0 5 10 15 20 25 30Q [m³/h]

123

020 40 60 80100 120 140 Q [US GPM]

0

500

1000

1500

P1 [W]

0

20

40

60 Eta [%]

0.0

0.5

1.0

1.5

2.0

P1 [hp]

3

2

1

Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 40-240/2 [in] 13.50 3.75 5.75 6.68 4.00 4.00 3.19 2.69 11.06 13.96 1.69 2.88 3.42 5.00 0.50 2.06 2.56

[mm] 343 95 146 170 102 102 81 68 281 355 43 73 87 127 13 52 65 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 40-240/2

(1 ph) 96402797 96402804 230

Flange size Flange type

1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

230V 230V

3 6.20 1350 11.80

2 5.55 1200 10.56

1 5.15 1100 9.80

UPS 40-240/2

1 ph, 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

40

UPS 40-240/2, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9500 0307

Flow range: 13 - 130 gpm

Head range: 1 - 62 ft

Motor: 2-pole 1.5 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 47.2 lbs (21.4 kg)

Gross wt.: 59.5 lbs (27.0 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 51.6 lbs (23.4 kg)

Gross wt. bronze: 63.9 lbs (29.0 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

020 40 60 80100 120 140 Q [US GPM]

0

10

20

30

40

50

60

70

H [ft]

0

5

10

15

20

H [m]

0 5 10 15 20 25 30Q [m³/h]

12

3

020 40 60 80100 120 140 Q [US GPM]

0

500

1000

1500

P1 [W]

0

20

40

60 Eta [%]

0.0

0.5

1.0

1.5

2.0

P1 [hp]

3

2

1

Eta

TM02 0729 5100

NPT 1/4

M

D5

D3

D2

D1

B7

B4 B5

L1

L3

D4

D6

D7

B2

B1

H2

H1

H3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 40-240/2 [in] 13.50 3.75 5.75 6.68 4.00 4.00 3.19 2.69 11.06 13.96 1.69 2.88 3.42 5.00 0.50 2.06 2.56

[mm] 343 95 146 170 102 102 81 68 281 355 43 73 87 127 13 52 65 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 40-240/2

(3 ph)

96402798 96402805 208-230

96402799 96402807 460

96402801 96402809 575★

Flange size Flange type

1.5" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 4.50 2.25 1.80 1440 23.80 11.60 9.28

2 3.25 1.63 1.30 1100 17.19 8.40 6.72

12.95▲▲990 15.6 ▲▲

UPS 40-240/2

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

41

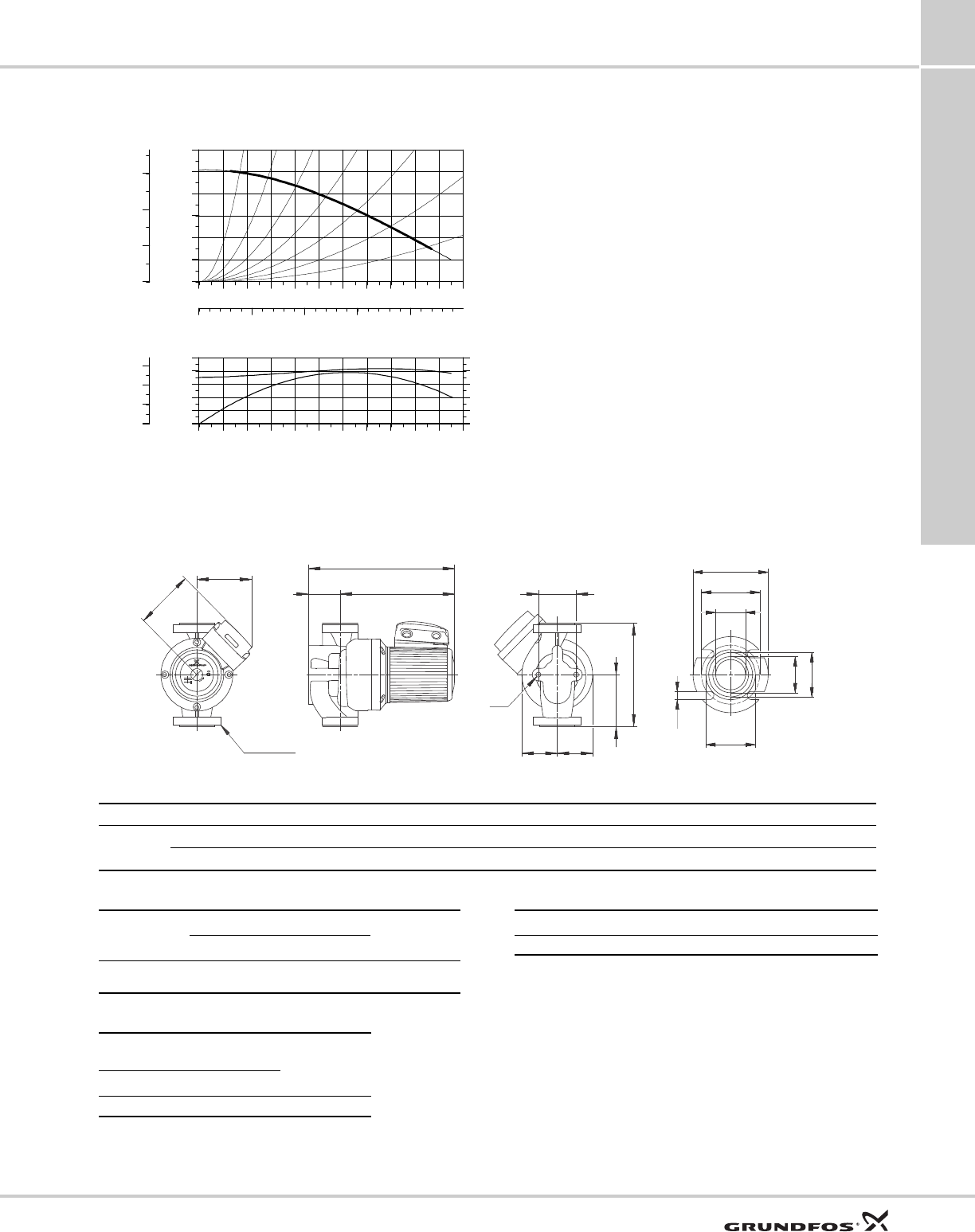

UPS 50-40/4, 1 ph, 115 V, 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9518 0307

Flow range: 20 - 125 gpm

Head range: 1 - 12 ft

Motor: 4-pole 0.33 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 43.7 lbs (19.8 kg)

Gross wt.: 51.8 lbs (23.5 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 53.6 lbs (24.3 kg)

Gross wt. bronze: 61.7 lbs (28.0 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

020 40 60 80100 120 140 Q [US GPM]

0

2

4

6

8

10

12

14

H [ft]

0

1

2

3

4

H [m]

0 5 10 15 20 25 30Q [m³/h]

12

3

020 40 60 80100 120 140 Q [US GPM]

0

100

200

300

P1 [W]

0

20

40

60 Eta [%]

0.0

0.1

0.2

0.3

0.4

P1 [hp]

3

2

1

Eta

TM02 0730 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D1

B7

B4 B5

L1

L3

D2

D6

D7

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 50-40/4 [in] 14.00 7.00 5.31 5.56 3.56 3.00 4.75 3.25 10.13 13.08 2.13 3.44 4.05 5.25 0.55 2.50 3.06

[mm] 356 178 135 141 90 76 121 83 257 332 54 87 103 133 14 64 78 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 50-40/4

(1 ph)

96402814 96402819 115

96402815 96402820 230

Flange size Flange type

2" non ANSI 4 bolt w/ (4) 0.56" dia. holes GF 50

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

115V 230V 115V 230V

3 2.66 1.32 285 5.20 2.60

2 2.60 1.30 244 5.08 2.56

1 2.20 1.10 204 4.30 2.17

UPS 50-40/4

1 ph, 115 V, 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

42

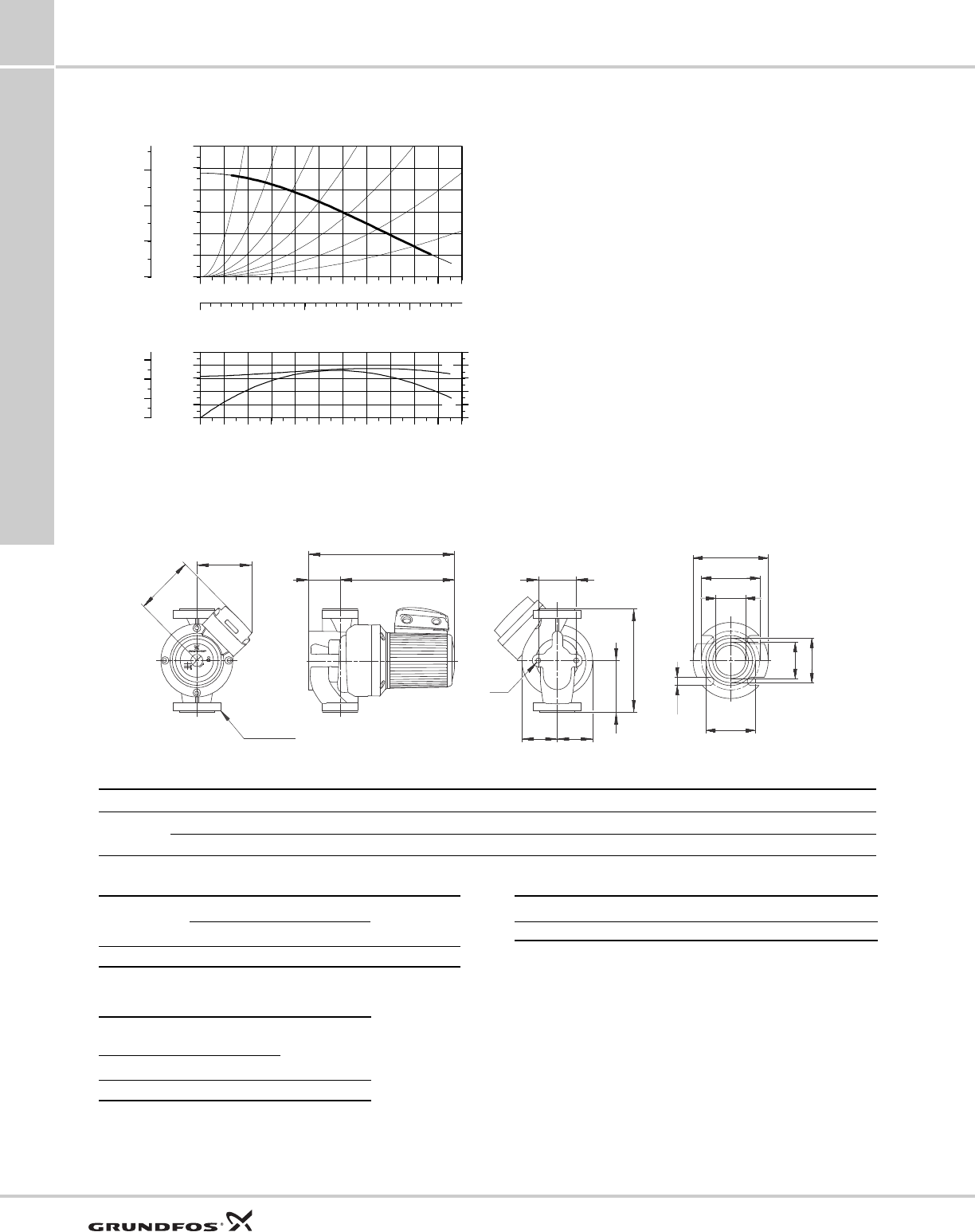

UPS 50-40/4, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9501 0307

Flow range: 20 - 125 gpm

Head range: 1 - 12 ft

Motor: 4-pole 0.33 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 43.7 lbs (19.8 kg)

Gross wt.: 51.8 lbs (23.5 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 53.6 lbs (24.3 kg)

Gross wt. bronze: 61.7 lbs (28.0 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

020 40 60 80100 120 140 Q [US GPM]

0

2

4

6

8

10

12

14

H [ft]

0

1

2

3

4

H [m]

0 5 10 15 20 25 30Q [m³/h]

1

2

3

020 40 60 80100 120 140 Q [US GPM]

0

100

200

300

P1 [W]

0

20

40

60 Eta [%]

0.0

0.1

0.2

0.3

0.4

P1 [hp]

3

2

1

Eta

TM02 0730 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D1

B7

B4 B5

L1

L3

D2

D6

D7

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 50-40/4 [in] 14.00 7.00 5.31 5.56 3.56 3.00 4.75 3.25 10.13 13.08 2.13 3.44 4.05 5.25 0.55 2.50 3.06

[mm] 356 178 135 141 90 76 121 83 257 332 54 87 103 133 14 64 78 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 50-40/4

(3 ph)

96402816 96402821 208-230

96402817 96402822 460

96402818 96402823 575★

Flange size Flange type

1" non ANSI 4 bolt w/ (4) 0.56" dia. holes GF 50

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 1.40 0.70 0.56 270 4.60 2.30 1.84

2 0.66 0.33 0.26 170 2.17 1.08 0.86

10.54▲▲150 1.77 ▲▲

UPS 50-40/4

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

43

UPS 50-80/4, 1 ph, 115 V, 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9519 0307

Flow range: 20 - 160 gpm

Head range: 1 - 24 ft

Motor: 4-pole 0.75 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 60.2 lbs (27.3 kg)

Gross wt.: 72.5 lbs (32.9 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 66.8 lbs (30.3 kg)

Gross wt. bronze: 79.1 lbs (35.9 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

020 40 60 80100 120 140 160 180Q [US GPM]

0

5

10

15

20

25

H [ft]

0

1

2

3

4

5

6

7

H [m]

0 5 10 15 20 25 303540 Q [m³/h]

1

2

3

020 40 60 80100 120 140 160 180Q [US GPM]

0

200

400

600

800

1000

P1 [W]

0

10

20

30

40

50 Eta [%]

0.0

0.5

1.0

P1 [hp]

3

2

1

Eta

TM02 0730 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D1

B7

B4 B5

L1

L3

D2

D6

D7

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 50-80/4 [in] 11.50 7.00 5.75 6.68 4.38 3.94 4.75 3.25 10.88 14.23 2.13 3.44 3.44 5.25 0.55 2.50 3.06

[mm] 292 178 146 170 111 100 121 83 276 361 54 87 87 133 14 64 78 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 50-80/4

(1 ph)

96404958 96404963 115

96404959 96404964 230

Flange size Flange type

2" non ANSI 4 bolt w/ (4) 0.56" dia. holes GF 50

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

115V 230V 115V 230V

3 7.55 3.80 720 13.20 6.50

2 6.85 3.40 620 11.98 5.82

1 5.15 2.60 480 9.00 4.45

UPS 50-80/4

1 ph, 115 V, 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

44

UPS 50-80/4, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9502 0307

Flow range: 20 - 160 gpm

Head range: 1 - 24 ft

Motor: 4-pole 0.75 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 59.5 lbs (27.0 kg)

Gross wt.: 71.9 lbs (32.6 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 66.8 lbs (30.3 kg)

Gross wt. bronze: 79.1 lbs (35.9 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

020 40 60 80100 120 140 160 180Q [US GPM]

0

5

10

15

20

25

H [ft]

0

1

2

3

4

5

6

7

H [m]

0 5 10 15 20 25 303540 Q [m³/h]

12

3

020 40 60 80100 120 140 160 180Q [US GPM]

0

200

400

600

800

1000

P1 [W]

0

10

20

30

40

50 Eta [%]

0.0

0.5

1.0

P1 [hp]

3

2

1

Eta

TM02 0730 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D1

B7

B4 B5

L1

L3

D2

D6

D7

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 50-80/4 [in] 11.50 7.00 5.75 6.68 4.38 3.94 4.75 3.25 10.88 14.23 2.13 3.44 3.44 5.25 0.55 2.50 3.06

[mm] 292 178 146 170 111 100 121 83 276 361 54 87 87 133 14 64 78 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 50-80/4

(3 ph)

96404960 96404965 208-230

96404961 96404966 460

96404962 96404967 575★

Flange size Flange type

2" non ANSI 4 bolt w/ (4) 0.56" dia. holes GF 50

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 2.44 1.22 0.98 640 8.50 4.30 3.44

2 1.44 0.72 0.58 450 5.02 2.54 2.00

11.24▲▲390 4.32 ▲▲

UPS 50-80/4

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

45

UPS 50-80/2, 1 ph, 115 V, 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9520 0697

Flow range: 20 - 150 gpm

Head range: 1 - 30 ft

Motor: 2-pole 0.75 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 46.7 lbs (21.2 kg)

Gross wt.: 54.2 lbs (24.6 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 52.2 lbs (27.3 kg)

Gross wt. bronze: 59.7 lbs (27.1 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

020 40 60 80100 120 140 160 Q [US GPM]

0

5

10

15

20

25

30

35

H [ft]

0

2

4

6

8

10

H [m]

0 5 10 15 20 25 3035Q [m³/h]

1

2

3

020 40 60 80100 120 140 160 Q [US GPM]

0

200

400

600

800

P1 [W]

0

20

40

60

80Eta [%]

0.0

0.5

1.0

P1 [hp]

3

2

1

Eta

TM02 0730 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D1

B7

B4 B5

L1

L3

D2

D6

D7

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 50-80/2 [in] 11.5 7.00 5.31 5.56 3.75 3.00 4.75 3.00 9.88 12.86 2.13 3.44 4.06 5.25 0.55 2.50 3.06

[mm] 292 178 135 141 95 76 121 76 251 327 54 87 103 133 14 64 78 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 50-80/2

(1 ph)

96402834 96402843 115

96402836 96402844 230

Flange size Flange type

2" non ANSI 4 bolt w/ (4) 0.56" dia. holes GF 50

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

115V 230V 115V 230V

3 5.85 2.95 630 14.60 7.30

2 5.80 2.90 610 14.48 7.18

1 5.70 2.85 600 14.23 7.05

UPS 50-80/2

1 ph, 115 V, 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

46

UPS 50-80/2, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9503 0307

Flow range: 20 - 150 gpm

Head range: 1 - 30 ft

Motor: 2-pole 0.75 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 49.5 lbs (20.8 kg)

Gross wt.: 53.4 lbs (24.2 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 52.2 lbs (23.7 kg)

Gross wt. bronze: 59.7 lbs (27.1 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

020 40 60 80100 120 140 160 Q [US GPM]

0

5

10

15

20

25

30

35

H [ft]

0

2

4

6

8

10

H [m]

0 5 10 15 20 25 3035Q [m³/h]

1

2

3

020 40 60 80100 120 140 160 Q [US GPM]

0

200

400

600

800

P1 [W]

0

20

40

60

80Eta [%]

0.0

0.5

1.0

P1 [hp]

3

2

1Eta

TM02 0730 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D1

B7

B4 B5

L1

L3

D2

D6

D7

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 50-80/2 [in] 11.5 7.00 5.31 5.56 3.75 3.00 4.75 3.00 9.88 12.86 2.13 3.44 4.06 5.25 0.55 2.50 3.06

[mm] 292 178 135 141 95 76 121 76 251 327 54 87 103 133 14 64 78 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 50-80/2

(3 ph)

96402838 96402845 208-230

96402840 96402846 460

96402842 96402847 575★

Flange size Flange type

2" non ANSI 4 bolt w/ (4) 0.56" dia. holes GF 50

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 1.92 0.96 0.77 610 9.30 4.70 3.76

2 1.20 0.60 0.48 440 5.81 2.94 2.40

11.08▲▲400 5.23 ▲▲

UPS 50-80/2

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

47

UPS 50-160/2, 1 ph, 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9413 0307

Flow range: 20 - 170 gpm

Head range: 1 - 46 ft

Motor: 2-pole 1.50 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 53.6 lbs (24.3 kg)

Gross wt.: 65.9 lbs (29.9 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 68.3 lbs (31.0 kg)

Gross wt. bronze: 80.7 lbs (36.6 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

020 40 60 80100 120 140 160 180Q [US GPM]

0

10

20

30

40

50

H [ft]

0

2

4

6

8

10

12

14

H [m]

0 5 10 15 20 25 303540 Q [m³/h]

1

2

3

020 40 60 80100 120 140 160 180Q [US GPM]

0

500

1000

1500

P1 [W]

0

20

40

60 Eta [%]

0.0

0.5

1.0

1.5

2.0

P1 [hp]

3

2

1

Eta

TM02 0730 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D1

B7

B4 B5

L1

L3

D2

D6

D7

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 50-160/2 [in] 14.00 7.00 5.75 6.68 3.94 3.94 4.75 3.00 10.81 13.78 2.13 3.44 4.05 5.25 0.55 2.50 3.06

[mm] 356 178 146 170 100 100 121 76 275 350 54 87 103 133 14 64 78 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 50-160/2

(1 ph) 96411613 96411614 230

Flange size Flange type

2" non ANSI 4 bolt w/ (4) 0.56" dia. holes GF 50

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

230V 230V

3 5.80 1250 26.50

2 5.20 1100 23.76

1 4.85 1050 22.16

UPS 50-160/2

1 ph, 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

48

UPS 50-160/2, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9504 0307

Flow range: 20 - 170 gpm

Head range: 1 - 46ft

Motor: 2-pole 1.50 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 53.6 lbs (24.3 kg)

Gross wt.: 65.9 lbs (29.9 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 68.3 lbs (31 kg)

Gross wt. bronze: 80.7 lbs (36.6 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

020 40 60 80100 120 140 160 180Q [US GPM]

0

10

20

30

40

50

H [ft]

0

2

4

6

8

10

12

14

H [m]

0 5 10 15 20 25 303540 Q [m³/h]

1

2

3

020 40 60 80100 120 140 160 180Q [US GPM]

0

500

1000

1500

P1 [W]

0

20

40

60 Eta [%]

0.0

0.5

1.0

1.5

2.0

P1 [hp]

3

2

1

Eta

TM02 0730 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D1

B7

B4 B5

L1

L3

D2

D6

D7

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 50-160/2 [in] 14.00 7.00 5.75 6.68 3.94 3.94 4.75 3.00 10.81 13.78 2.13 3.44 4.05 5.25 0.55 2.50 3.06

[mm] 356 178 146 170 100 100 121 76 275 350 54 87 103 133 14 64 78 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 50-160/2

(3 ph)

96402860 96402866 208-230

96402861 96402868 460

96402862 96402870 575★

Flange size Flange type

2" non ANSI 4 bolt w/ (4) 0.56" dia. holes GF 50

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 4.00 2.00 1.60 1300 22.80 11.40 9.12

2 3.00 1.50 1.20 1000 17.10 8.55 6.84

12.75▲▲950 15.68 ▲▲

UPS 50-160/2

3 ph, 208-230 V, 460 V, 575, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

49

UPS 50-240/2, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9505 0307

Flow range: 20 - 180 gpm

Head range: 1 - 62 ft

Motor: 2-pole 2.00 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 60.6 lbs (27.5 kg)

Gross wt.: 73.0 lbs (33.1 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 67.2 lbs (30.5 kg)

Gross wt. bronze: 79.6 lbs (36.1 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

020 40 60 80100 120 140 160 180Q [US GPM]

0

10

20

30

40

50

60

70

H [ft]

0

5

10

15

20

H [m]

0 5 10 15 20 25 303540 Q [m³/h]

12

3

020 40 60 80100 120 140 160 180Q [US GPM]

0

500

1000

1500

2000

P1 [W]

0

20

40

60

80Eta [%]

0

1

2

P1 [hp]

3

2

1Eta

TM02 0730 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D1

B7

B4 B5

L1

L3

D2

D6

D7

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 50-240/2 [in] 14.00 7.00 5.75 6.68 3.75 2.94 4.75 2.94 9.88 13.78 2.06 4.19 5.00 6.00 0.55 3.50 4.00

[mm] 356 178 146 170 95 75 121 75 251 350 52 106 127 152 14 89 102 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 50-240/2

(3 ph)

96402882 96402885 208-230

96402883 96402886 460

96402884 96402887 575★

Flange size Flange type

2" non ANSI 4 bolt w/ (4) 0.56" dia. holes GF 50

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 5.80 2.65 2.12 1700 26.50 15.40 12.32

2 3.95 1.98 1.68 1300 23.10 11.51 9.21

13.50▲▲1150 20.47 ▲▲

UPS 50-240/2

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

50

UPS 53-55/57, 1 ph, 115 V, 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9520 0307

Flow range: 20 - 150 gpm

Head range: 1 - 30 ft

Motor: 4-pole 0.75 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 46.7 lbs (21.2 kg)

Gross wt.: 54.2 lbs (24.6 kg)

Shipping volume: 2.10 ft3 (0.06 m3)

Net wt. bronze: 52.2 lbs (23.7 kg)

Gross wt. bronze: 59.7 lbs (27.1 kg)

Shipping volume bronze: 2.10 ft3 (0.06 m3)

020 40 60 80100 120 140 160 Q [US GPM]

0

5

10

15

20

25

30

35

H [ft]

0

2

4

6

8

10

H [m]

0 5 10 15 20 25 3035Q [m³/h]

1

2

3

020 40 60 80100 120 140 160 Q [US GPM]

0

200

400

600

800

P1 [W]

0

20

40

60

80Eta [%]

0.0

0.5

1.0

P1 [hp]

3

2

1

Eta

TM02 0730 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D1

B7

B4 B5

L1

L3

D2

D6

D7

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 53-55/57 [in] 11.88 5.94 5.31 5.56 3.75 2.94 4.75 2.94 9.88 12.86 2.06 4.19 5.00 6.00 0.63 3.50 4.00

[mm] 302 151 135 141 95 75 121 75 251 327 52 106 127 152 16 89 102 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 53-55/57

(1 ph)

96654373 96654392 115

96654374 96654393 230

Flange size Flange type

2.0",2.5",3.0" non ANSI 4 bolt w/ (4) 0.63" dia. holes GF 53

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

115V 230V 115V 230V

3 5.85 2.95 630 14.60 7.30

2 5.80 2.85 613 14.48 7.18

1 5.70 2.80 600 14.23 7.05

UPS 53-55/57

1 ph, 115 V, 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

51

UPS 53-55/57, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9503 0307

Flow range: 20 - 150 gpm

Head range: 1 - 30 ft

Motor: 2-pole 0.75 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 46.7 lbs (21.2 kg)

Gross wt.: 54.2 lbs (24.6 kg)

Shipping volume: 2.10 ft3 (0.06 m3)

Net wt. bronze: 52.2 lbs (23.7 kg)

Gross wt. bronze: 59.7 lbs (27.1 kg)

Shipping volume bronze: 2.10 ft3 (0.06 m3)

020 40 60 80100 120 140 160 Q [US GPM]

0

5

10

15

20

25

30

35

H [ft]

0

2

4

6

8

10

H [m]

0 5 10 15 20 25 3035Q [m³/h]

1

2

3

020 40 60 80100 120 140 160 Q [US GPM]

0

200

400

600

800

P1 [W]

0

20

40

60

80Eta [%]

0.0

0.5

1.0

P1 [hp]

3

2

1Eta

TM02 0730 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D1

B7

B4 B5

L1

L3

D2

D6

D7

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 53-55/57 [in] 11.88 5.94 5.31 5.56 3.75 2.94 4.75 2.94 9.88 12.86 2.06 4.19 5.00 6.00 0.63 3.50 4.00

[mm] 302 151 135 141 95 75 121 75 251 327 52 106 127 152 16 89 102 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 53-55/57

(3 ph)

96654375 96654394 208-230

96654376 96654395 460

96654377 96654396 575★

Flange size Flange type

2.0",2.5",3.0" non ANSI 4 bolt w/ (4) 0.63" dia. holes GF 53

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 1.92 0.96 0.77 610 9.30 4.70 3.76

2 1.20 0.60 0.48 440 5.81 2.94 2.40

11.08▲▲400 5.23 ▲▲

UPS 53-55/57

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

52

UPS 75-69/2, 1 ph, 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9413 0307

Flow range: 20 - 170 gpm

Head range: 1 - 46 ft

Motor: 2-pole 1.25 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 53.6 lbs (24.3 kg)

Gross wt.: 65.7 lbs (29.8 kg)

Shipping volume: 3.50 ft3 (0.098 m3)

Net wt. bronze: 68.3 lbs (31.0 kg)

Gross wt. bronze: 80.5 lbs (36.5 kg)

Shipping volume bronze: 3.50 ft3 (0.098 m3)

020 40 60 80100 120 140 160 180Q [US GPM]

0

10

20

30

40

50

H [ft]

0

2

4

6

8

10

12

14

H [m]

0 5 10 15 20 25 303540 Q [m³/h]

1

2

3

020 40 60 80100 120 140 160 180Q [US GPM]

0

500

1000

1500

P1 [W]

0

20

40

60 Eta [%]

0.0

0.5

1.0

1.5

2.0

P1 [hp]

3

2

1

Eta

TM02 0730 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D1

B7

B4 B5

L1

L3

D2

D6

D7

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 75-69/2 [in] 14.25 7.13 5.69 6.68 3.94 3.94 4.50 2.94 10.81 13.78 2.94 4.31 6.00 7.50 0.75 6.50 4.00

[mm] 362 181 145 170 100 100 114 75 275 350 75 109 152 191 19 165 102 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 75-69/2

(1 ph) 96654378 96654397 230

Flange size Flange type

3" ANSI 125# R.F. GF80

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

230V 230V

3 5.80 1250 26.50

2 5.20 1100 23.76

1 4.85 1050 22.16

UPS 75-69/2

1 ph, 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

53

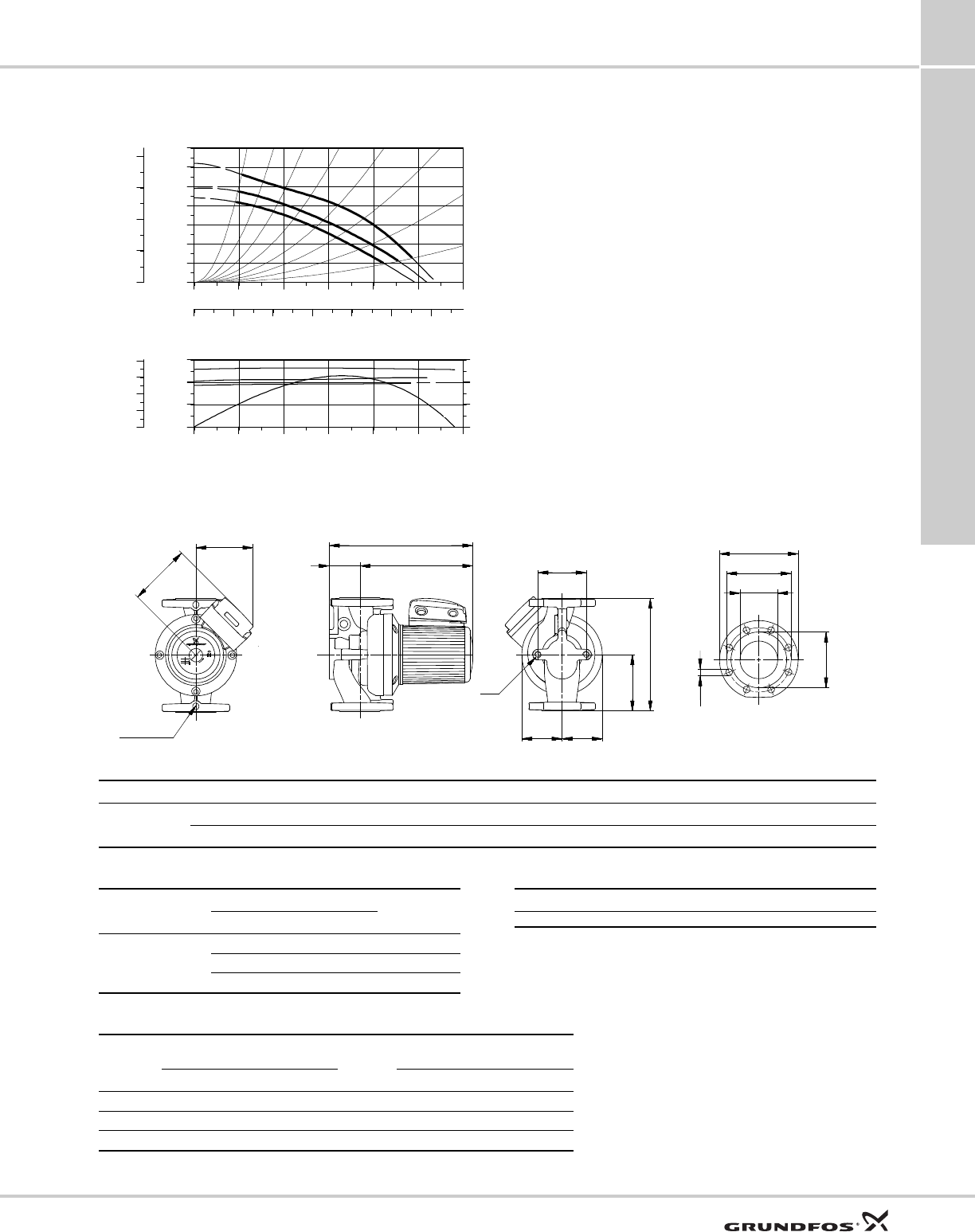

UPS 75-69/2, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9504 0307

Flow range: 20 - 170 gpm

Head range: 1 - 46 ft

Motor: 2-pole 1.25 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 53.6 lbs (24.3 kg)

Gross wt.: 65.7 lbs (29.8 kg)

Shipping volume: 3.50 ft3 (0.098 m3)

Net wt. bronze: 68.3 lbs (31.0 kg)

Gross wt. bronze: 80.5 lbs (36.5 kg)

Shipping volume bronze: 3.50 ft3 (0.098 m3)

020 40 60 80100 120 140 160 180Q [US GPM]

0

10

20

30

40

50

H [ft]

0

2

4

6

8

10

12

14

H [m]

0 5 10 15 20 25 303540 Q [m³/h]

1

2

3

020 40 60 80100 120 140 160 180Q [US GPM]

0

500

1000

1500

P1 [W]

0

20

40

60 Eta [%]

0.0

0.5

1.0

1.5

2.0

P1 [hp]

3

2

1

Eta

TM02 0730 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D1

B7

B4 B5

L1

L3

D2

D6

D7

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 75-69/2 [in] 14.25 7.13 5.69 6.68 3.94 3.94 4.50 2.94 10.81 13.78 2.94 4.31 6.00 7.50 0.75 6.50 4.00

[mm] 362 181 145 170 100 100 114 75 275 350 75 109 152 191 19 165 102 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 75-69/2

(3 ph)

96654379 96654398 208-230

96654390 96654399 460

96654391 96654400 575★

Flange size Flange type

3" ANSI 125# R.F. GF80

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 4.00 2.00 1.60 1300 22.80 11.40 9.12

2 3.00 1.50 1.20 1000 17.10 8.55 6.84

12.75▲▲950 15.68 ▲▲

UPS 75-69/2

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

54

UPS 80-40/4, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9506 0307

Flow range: 30 - 200 gpm

Head range: 1 - 13 ft

Motor: 4-pole 0.5 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 78.7 lbs (35.7 kg)

Gross wt.: 9.1 lbs (41.3 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 91.9 lbs (41.7 kg)

Gross wt. bronze: 104.3 lbs (47.3 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

040 80120 160 200 Q [US GPM]

0

2

4

6

8

10

12

14

16

H [ft]

0

1

2

3

4

H [m]

010 20 3040 Q [m³/h]

1

2

3

040 80120 160 200 Q [US GPM]

0

200

400

600

P1 [W]

0

20

40

60 Eta [%]

0.0

0.2

0.4

0.6

0.8

P1 [hp]

3

2

1Eta

TM02 0730 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D1

B7

B4 B5

L1

L3

D2

D6

D7

Model L1 L3 B1 B2 B4 B5 B7 H1 H2 H3 D1 D2 D3 D4 D5 D6 D7 M

UPS 80-80/4 [in] 19.00 9.50 5.75 6.68 4.94 3.94 6.31 3.81 11.25 15.15 3.19 5.00 6.00 7.56 0.75 — —

[mm] 483 241 146 170 125 100 160 97 286 385 81 127 152 192 19 — — M16

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 80-40/4

(3 ph)

96402894 96402899 208-230

96402895 96402900 460

96402896 96402901 575★

Flange size Flange type

3" ANSI 125# R.F. GF80

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 1.62 0.81 0.65 380 7.10 3.50 2.80

2 0.87 0.44 0.35 260 3.81 1.90 1.52

10.77▲▲230 3.37 ▲▲

UPS 80-40/4

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

55

UPS 80-80/4, 3 ph, 208-230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9507 0307

Flow range: 30 - 260 gpm

Head range: 1 - 25 ft

Motor: 4-pole 1.50 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 89.7 lbs (40.7 kg)

Gross wt.: 102.1 lbs (46.3 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 102.3 lbs (46.4 kg)

Gross wt. bronze: 114.6 lbs (52.0 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

050 100 150 200 250 300 Q [US GPM]

0

5

10

15

20

25

30

H [ft]

0

1

2

3

4

5

6

7

8

9

H [m]

010 20 3040 50 60 Q [m³/h]

1

2

3

050 100 150 200 250 300 Q [US GPM]

0

400

800

1200

P1 [W]

0

20

40

60 Eta [%]

0.0

0.5

1.0

1.5

P1 [hp]

3

2

1

Eta

TM02 0731 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D2

D1

B7

B4 B5

L1

L3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 80-80/4 [in] 19.00 9.50 5.75 6.68 4.94 3.94 6.31 3.81 11.25 15.15 3.19 5.00 6.00 7.56 0.75 — —

[mm] 483 241 146 170 125 100 160 97 286 385 81 127 152 192 19 — — M16

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 80-80/4

(3 ph) 96402908 96402913 208-230

Flange size Flange type

3" ANSI 125# R.F. GF80

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

230V 230V

3 3.60 1050 11.80

2 2.08 660 6.82

1 1.72 550 5.64

UPS 80-80/4

3 ph, 208-230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

56

UPS 80-160/2, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM00 9508 00307

Flow range: 30 - 275 gpm

Head range: 1 - 49 ft

Motor: 2-pole 3.00 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 85.1 lbs (38.6 kg)

Gross wt.: 97.4 lbs (44.2 kg)

Shipping volume: 2.90 ft3 (0.082 m3)

Net wt. bronze: 97.2 lbs (44.1 kg)

Gross wt. bronze: 109.6 lbs (49.7 kg)

Shipping volume bronze: 2.90 ft3 (0.082 m3)

050 100 150 200 250 300 Q [US GPM]

0

10

20

30

40

50

H [ft]

0

2

4

6

8

10

12

14

H [m]

010 20 3040 50 60 Q [m³/h]

12

3

050 100 150 200 250 300 Q [US GPM]

0

1000

2000

3000

P1 [W]

0

20

40

60 Eta [%]

0

1

2

3

4

P1 [hp]

3

2

1

Eta

TM02 0731 5100

B2

NPT 1/4

B1 H2

H1

H3

M

D5

D4

D3

D2

D1

B7

B4 B5

L1

L3

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 80-160/2 [in] 19.00 9.50 5.75 6.68 3.94 3.94 6.31 3.81 11.31 15.20 3.19 5.00 6.00 7.56 0.75 — —

[mm] 483 241 146 170 100 100 160 97 287 386 81 127 152 192 19 — — M16

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 80-160/2

(3 ph)

96402920 96402923 208-230

96402921 96402924 460

96402922 96402925 575★

Flange size Flange type

3" ANSI 125# R.F. GF80

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 6.35 3.13 2.54 2050 31.00 15.40 12.32

2 4.20 2.10 1.68 1550 20.50 10.17 8.14

14.05▲▲1500 19.77 ▲▲

UP 80-160/2

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

57

UPS 100-40/4, 3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

roduct numbers Connections

Electrical data

TM00 9509 0307

Flow range: 30 - 270 gpm

Head range: 1 - 12 ft

Motor: 4-pole, 1.00 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +248 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 126.8 lbs (57.5 kg)

Gross wt.: 138.9 lbs (63.0 kg)

Shipping volume: 3.53 ft3 (0.1 m3)

Net wt. bronze: 153.2 lbs (69.5 kg)

Gross wt. bronze: 165.3 lbs (75.0 kg)

Shipping volume bronze: 3.53 ft3 (0.1 m3)

050 100 150 200 250 300 Q [US GPM]

0

2

4

6

8

10

12

14

H [ft]

0

1

2

3

4

H [m]

010 20 3040 50 60 Q [m³/h]

1

2

3

050 100 150 200 250 300 Q [US GPM]

0

200

400

600

P1 [W]

0

20

40

60 Eta [%]

0.0

0.2

0.4

0.6

0.8

P1 [hp]

3

2

1

Eta

TM02 0732 5100

B2

NPT 1/4

B1

H2

H1

H3

M

D5

D4

D3

D1

B7

B4 B5

L1

L3

D2

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UPS 100-40/4 [in] 21.00 10.50 5.75 6.68 5.13 3.94 6.31 4.81 12.31 16.61 4.19 6.19 7.50 9.06 0.75 — —

[mm] 533 267 146 170 130 100 160 122 313 422 106 157 191 230 19 — — M16

Model type Product number Voltage

[V]

Cast Iron Bronze

UPS 100-40/4

(3 ph)

96402934 96402937 208-230

96402935 96402938 460

96402936 96401961 575★

Flange size Flange type

4" ANSI 125# R.F. GF100

Speed

Max amps

[A] P Max

[Watts]

Start amps

[A]

▲ All 3-phase, 460V and 575V pumps are 2-speed only.

★Canada only.

208-230V 460V 575V★208-230V 460V 575V★

3 2.50 1.24 1.00 570 10.80 5.40 4.32

2 1.38 0.70 0.55 435 5.96 3.05 2.44

11.24▲▲390 5.36 ▲▲

UP 100-40/4

3 ph, 208-230 V, 460 V, 575 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

58

UP 43-70, 1 ph, 115 V / 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM02 0079 0307

Flow range: 15 - 100 gpm

Head range: 1 - 23 ft

Motor: 2-pole 0.50 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +230 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 33.1 lbs (15.0 kg)

Gross wt.: 41.2 lbs (18.7 kg)

Shipping volume: 1.70 ft3 (0.048 m3)

010 20 3040 50 60 70 8090 100 Q [US GPM]

0

4

8

12

16

20

24

28

H [ft]

0

2

4

6

8

H [m]

0 5 10 15 20 Q [m³/h]

010 20 3040 50 60 70 8090 100 Q [US GPM]

0

100

200

300

400

500

P1 [W]

0

10

20

30

40

50 Eta [%]

0.0

0.2

0.4

0.6

P1 [hp]

Eta

P1

TM02 0120 4301

D6

D2

D3

D7

D1

D4

D5

H1 H2

H3

NPT 1/4

B1

B2

B7

L1

B4 B5

L3

M

Model L1 L3 B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7M

UP 43-70 [in] 8.50 4.25 5.25 5.56 2.94 2.94 3.13 2.63 9.63 12.23 1.63 2.31 3.42 4.75 0.50 2.06 2.50

[mm] 216 108 133 141 75 75 79 67 244 311 41 59 87 121 13 52 64 M12

Model type Product number Voltage

[V]

Cast Iron

UP 43-70

(1 ph) 96439644 115/230

Flange size Flange type

1.50" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

Max amps

[A] P Max

[Watts]

115V 230V

3.4 1.8 400

UP 43-70

1 ph, 115 V / 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

59

UP 43/110, 1 ph, 115 V / 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM02 0076 0307

Flow range: 15 - 105 gpm

Head range: 1 - 37 ft

Motor: 2-pole 0.75 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +230 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 33.1 lbs (15.0 kg)

Gross wt.: 41.2 lbs (18.7 kg)

Shipping volume: 1.70 ft3 (0.048 m3)

010 20 3040 50 60 70 8090 100110 Q [US GPM]

0

5

10

15

20

25

30

35

40

H [ft]

0

2

4

6

8

10

12

H [m]

0 5 10 15 20 Q [m³/h]

010 20 3040 50 60 70 8090 100110 Q [US GPM]

0

200

400

600

800

1000

P1 [W]

0

10

20

30

40

50 Eta [%]

0.0

0.4

0.8

1.2

P1 [hp]

Eta

P1

TM02 0120 3902

D6

D2

D3

D7

D1

D4

D5

H1 H2

H3

NPT 1/4

B1

B2

B7

L1

B4 B5

L3

M

Model L1 L3 B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7M

UP 43-110 [in] 8.50 4.25 5.25 5.56 2.94 2.94 3.13 2.63 9.63 12.23 1.63 2.94 3.42 4.75 0.50 2.06 2.50

[mm] 216 108 133 141 75 75 79 67 244 311 41 75 87 121 13 52 64 M12

Model type Product number Voltage

[V]

Cast Iron

UP 43-100 (1 ph) 96436943 115/230

Flange size Flange type

1.50" non ANSI 2 bolt w/ (2) 0.5" dia. holes GF 40/43

Max amps

[A] P Max

[Watts]

115V 230V

4.9 2.5 570

UP 43-110

1 ph, 115 V / 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200

9

60

UP 53-45, 1 ph, 115 V / 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM03 5370 0307

Flow range: 15 - 100 gpm

Head range: 1 - 23 ft

Motor: 2-pole 0.50 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +230 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 44.4 lbs (20.2 kg)

Gross wt.: 63.5 lbs (23.8 kg)

Shipping volume: 2.10 ft3 (0.06 m3)

Net wt. bronze: 49.2 lbs (22.3 kg)

Gross wt. bronze: 57.1 lbs (25.9 kg)

Shipping volume bronze: 2.10 ft3 (0.06 m3)

010 20 3040 50 60 70 8090 100110 Q [US GPM]

0

4

8

12

16

20

24

H [ft]

0

2

4

6

H [m]

0 5 10 15 20 Q [m³/h]

010 20 3040 50 60 70 8090 100110 Q [US GPM]

0

100

200

300

400

500

P1 [W]

0

10

20

30

40

50 Eta [%]

0.0

0.2

0.4

0.6

P1 [hp]

Eta

P1

TM03 7230 1608

H1 H2

H3

NPT 1/4

B1

B2

B7

L1

B4 B5

L3

M

D5

D4

D3

D1

D2

D6

D7

Model L1 L3 B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7M

UP 53-45 [in] 9.88 5.00 5.25 5.56 3.56 2.94 4.75 2.94 9.88 12.86 2.06 4.19 5.00 6.00 0.63 3.50 4.00

[mm] 251 127 133 141 90 75 121 75 251 327 52 106 127 152 16 89 102 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UP 53-45 (1 ph) 96633576 96633578 115/230

Flange size Flange type

2.0",2.5",3.0" non ANSI 4 bolt w/ (4) 0.63" dia. holes GF 53

Max amps

[A] P Max

[Watts]

115V 230V

3.5 1.9 360

UP 53-45

1 ph, 115 V / 230 V, 60 Hz

Curve charts and technical data

UP, UPS Series 200 9

61

UP 53-46, 1 ph, 115 V / 230 V, 60 Hz

Note: ETA is calculated as wire-to-water efficiency.

Dimensions

Product numbers Connections

Electrical data

TM03 5371 0307

Flow range: 15 - 105 gpm

Head range: 1 - 37 ft

Motor: 2-pole 0.75 Hp

Max. liquid temp (Open): +140 °F

Max. liquid temp.: +230 °F

Min. liquid temp.: +32 °F

Max. system pressure: 145 psi

Net wt: 44.5 lbs (20.2 kg)

Gross wt.: 63.5 lbs (23.8 kg)

Shipping volume: 2.10 ft3 (0.06 m3)

Net wt. bronze: 49.2 lbs (22.3 kg)

Gross wt. bronze: 57.1 lbs (25.9 kg)

Shipping volume bronze: 2.10 ft3 (0.06 m3)

010 20 3040 50 60 70 8090 100110 Q [US GPM]

0

4

8

12

16

20

24

H [ft]

0

2

4

6

H [m]

0 5 10 15 20 Q [m³/h]

010 20 3040 50 60 70 8090 100110 Q [US GPM]

0

100

200

300

400

500

P1 [W]

0

10

20

30

40

50 Eta [%]

0.0

0.2

0.4

0.6

P1 [hp]

P1

Eta

TM03 7230 1608

H1 H2

H3

NPT 1/4

B1

B2

B7

L1

B4 B5

L3

M

D5

D4

D3

D1

D2

D6

D7

Model L1L3B1B2B4B5B7H1H2H3D1D2D3D4D5D6D7 M

UP 53-46 [in] 9.88 5.00 5.25 5.56 3.56 2.94 4.75 2.94 9.88 12.86 2.06 4.19 5.00 6.00 0.63 3.50 4.00

[mm] 251 127 133 141 90 75 121 75 251 327 52 106 127 152 16 89 102 M12

Model type Product number Voltage

[V]

Cast Iron Bronze

UP 53-46

(1 ph) 96633591 96633592 115/230

Flange size Flange type

2.0",2.5",3.0" non ANSI 4 bolt w/ (4) 0.63" dia. holes GF 53

Max amps

[A] P Max

[Watts]

115V 230V

3.9 2.1 420

UP 53-46

1 ph, 115 V / 230 V, 60 Hz

Accessories and spare parts

UP, UPS Series 200

10

62

10. Accessories and spare parts

Packaged fitting sets

 Flange sets include: 2 each - flanges, gaskets, bolts with nuts.

Flange adapter

Terminal box electrical components

Flange sets

Pump connection

Pipe connection

type & size Product number Approx. ship. wt.

(lb/oz.)

NPT

Cast iron

GF 15/26 flange

3/4 519601 2 lb 4 oz.

1 519602 2 lb 4 oz.

1-1/4 519603 2 lb 2 oz.

1-1/2 519604 2 lb 2 oz.

GF 40/43 flange 1-1/2 539605 2 lb 7 oz.

GF 50 flange 2 96409354 6.5 lb

GF 53 flange

2 91584910 12 lb

2-1/2 91584911 12 lb

3 91584912 12 lb

GF 65 flange 2-1/2 559601 16 lb

GF 80 flange 3 569601 19 lb

GF 100 flange 4 579801 33 lb

Bronze

GF 15/26 flange

3/4 519651 2 lb 2 oz.

1 519652 2 lb 3 oz.

1-1/4 96409356 2 lb 1 oz.

GF 40/43 flange 1-1/2 539615 3 lb

GF 50 flange 2 96409355 6.3 lb

GF 53 flange

2 91584913 12 lb

2-1/2 91584914 12 lb

3 91584915 12 lb

GF 80 flange 3 569611 20 lb

GF 100 flange 4 96409357 30 lb

For use with these pumps Description Product number

1-phase x 115/230 V UPS

3-phase x 208-230 V UPS Speed plug for 3-speed 96401124

96401001

1-phase x 115 V UPS

1-phase x 230 V UPS

3-phase x 208-230 V UPS

Power head relay module

96409246

96409247

96409250

1-phase x 115 V

1-phase x 230 V

3-phase x 208-230 V

Protection module service

96427457

96427458

96427459

Further documentation

UP, UPS Series 200 11

63

11. Further documentation

WebCAPS

WebCAPS is a Web-based Computer Aided Product

Selection program available on www.grundfos.com.

WebCAPS contains detailed information on more than

185,000 Grundfos products in more than 20

languages.

In WebCAPS, all information is divided into 6 sections:

• Catalog

• Literature

• Service

• Sizing

• Replacement

• CAD drawings.

Catalog

This section is based on fields of application and pump types,

and contains

• technical data

• curves (QH, Eta, P1, P2, etc) which can be adapted to the den-

sity and viscosity of the pumped liquid and show the number of

pumps in operation

• product photos

• dimensional drawings

• wiring diagrams

• quotation texts, etc.

Literature

In this section you can access all the latest documents of a given

pump, such as

• product guides

• installation and operating instructions

• service documentation, such as Service kit catalog

and Service kit instructions

• quick guides

• product brochures, etc.

Service

This section contains an easy-to-use interactive service catalog.

Here you can find and identify service parts of both existing and

discontinued Grundfos pumps.

Furthermore, this section contains service videos showing you

how to replace service parts.

Further documentation

UP, UPS Series 200

11

64

WinCAPS

Fig. 14 WinCAPS CD-ROM

WinCAPS is a Windows-based Computer Aided

Product Selection program containing detailed infor-

mation on more than 185,000 Grundfos products in

more than 20 languages.

The program contains the same features and functions

as WebCAPS, but is an ideal solution if no Internet

connection is available.

WinCAPS is available on CD-ROM and updated once

a year.

Sizing

This section is based on different fields of application and instal-

lation examples, and gives easy step-by-step instructions in how

to

• select the most suitable and efficient pump for your installation

• carry out advanced calculations based on energy consumption,

payback periods, load profiles, life cycle costs, etc.

• analyse your selected pump via the built-in life cycle cost tool

• determine the flow velocity in wastewater applications, etc.

Replacement

In this section you find a guide to selecting and comparing

replacement data of an installed pump in order to replace the

pump with a more efficient Grundfos pump.

The section contains replacement data of a wide range of pumps

produced by other manufacturers than Grundfos.

Based on an easy step-by-step guide, you can compare Grund-

fos pumps with the one you have installed on your site. When

you have specified the installed pump, the guide will suggest a

number of Grundfos pumps which can improve both comfort and

efficiency.

CAD drawings

In this section it is possible to download 2-dimensional (2D) and

3-dimensional (3D) CAD drawings of most Grundfos pumps.

These formats are available in WebCAPS:

2-dimensional drawings:

• .dxf, wireframe drawings

• .dwg, wireframe drawings.

3-dimensional drawings:

• .dwg, wireframe drawings (without surfaces)

• .stp, solid drawings (with surfaces)

• .eprt, E-drawings.

01

65

66

67

GRUNDFOS Pumps Corporation

17100 West 118th Terrace

Olathe, Kansas 66061

Phone: +1-913-227-3400

Telefax: +1-913-227-3500

GRUNDFOS Canada Inc.

2941 Brighton Road

Oakville, Ontario L6H 6C9

Canada

Phone: +1-905 829 9533

Telefax: +1-905 829 9512

Bombas GRUNDFOS de Mexico S.A. de C.V.

Boulevard TLC No. 15

Parque Industrial Stiva Aeropuerto

Apodaca, N.L. Mexico 66600

Phone: +52-81-8144 4000

Telefax: +52-81-8144 4010

The name Grundfos, the Grundfos logo, and the payoff Be–Think–Innovate are registrated trademarks

owned by Grundfos Management A/S or Grundfos A/S, Denmark. All rights reserved worldwide.

Being responsible is our foundation

Thinking ahead makes it possible

Innovation is the essence

L-UPS-PG-01 0612

ECM: -

Subject to alterations.
