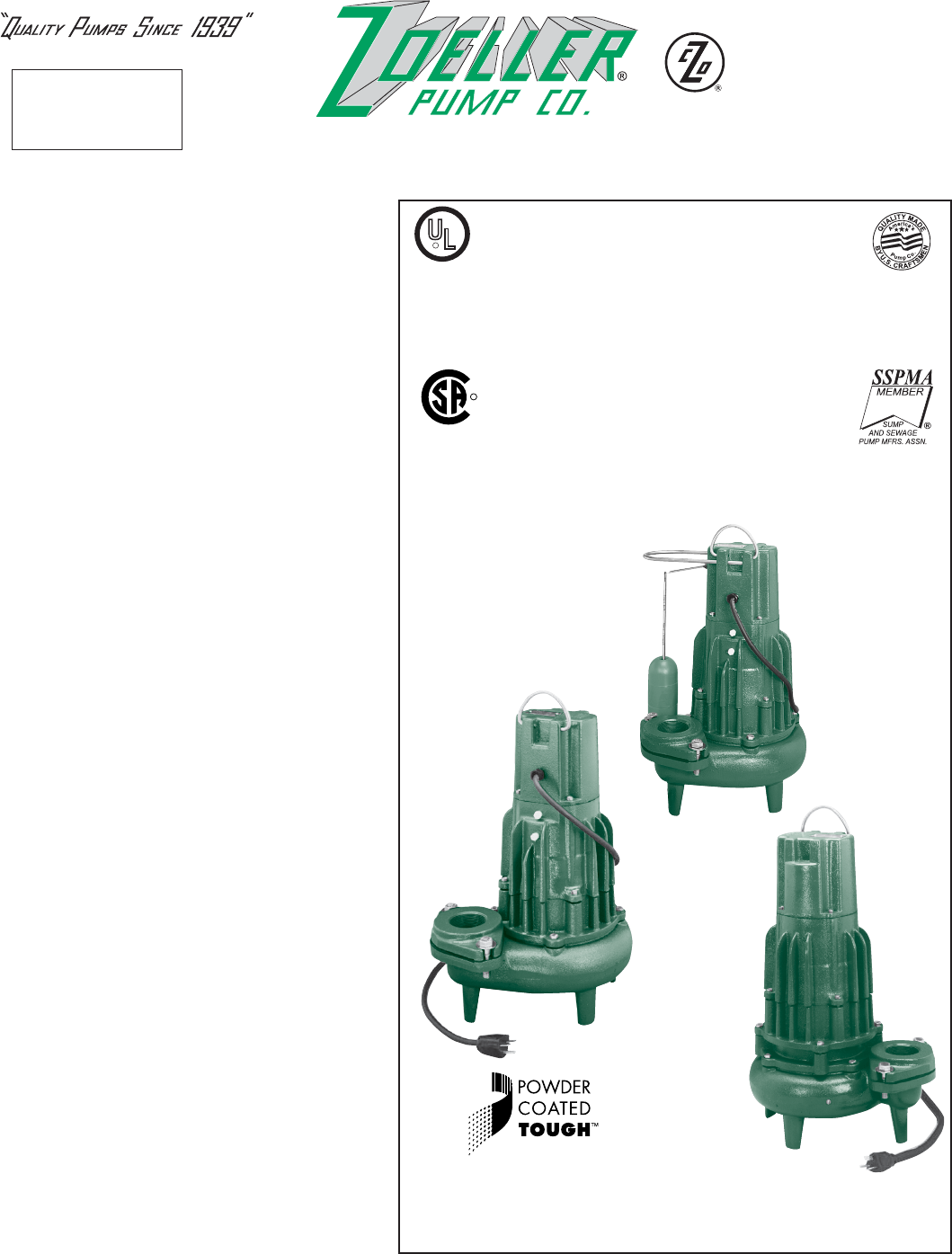

282 - 284 Single Seal Series
4282 - 4284 Double Seal Series
(For Pump Prefi x Identifi cation see News & Views 0052)
“WASTE-MATE”
SUBMERSIBLE
COMPARE THESE FEATURES
• Non-clogging vortex impeller.
• Durable cast construction. Cast iron switch
case, motor and pump housing, base and
impeller. No sheet metal parts to rust or
corrode. All cast iron class 25-30 25000#
tensile strength.
• Stainless steel screws, bolts, fl oat rod, handle,
guard and arm and seal assembly.
• Shaft Seal - Carbon & ceramic rotary face
seal, with stainless steel wetted parts.
• UL Listed 3-wire neoprene cord and plug.
10 ft. standard for automatic.
15 ft. standard for nonautomatic.
• Upper sleeve bearing and lower ball bearing
running in a bath of oil.
• Maximum temperature for sewage or
dewatering 130°F (54°C).
• Motor - 60 Hz, 1750 RPM, oil-fi lled,
hermetically sealed, automatic reset thermal
overload protected (1 Ph and Auto 3 Ph).
• All models are available in 2" or 3" discharge.
• All models pass 2 inch spherical solids.
• Automatic units available with fl oat operated,
submersible (NEMA 6) mechanical switch.
Available in both 1 and 3 Phase Units.**
• Corrosion resistant powder coated epoxy
fi nish.
• On point 15¼", Off point 5¼".
• Major width 13 9/16". Major height 18 13/16".
(Single seal pumps)
MODELS 4282-4284
DOUBLE SEAL PUMPS (nonauto only)
• Protects motor from seal leaks.
• Improved bearing lubrication.
• Helps eliminate seal and bearing damage from
dry runs.
• Major width 13 9/16". Height 21 7/16".
SECTION: 2.30.040
FM0494
0211
Supersedes
0110
*
*
SEWAGE
OR DEWATERING PUMP
2" OR 3" FLANGED DISCHARGE • PASSES 2" SOLIDS
Product information presented
here refl ects conditions at time
of publication. Consult factory
regarding discrepancies or
inconsistencies. MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624
visit our web site:
www.zoeller.com
*NOTE: No UL Listing or CSA Certifi cation for 200V 1Ph or Extra Duty (ED) pumps.
See back page for UL & CSA Listings.
**THREE PHASE AUTOMATIC UNITS AVAILABLE IN 230V SINGLE SEAL ONLY.
© Copyright 2011 Zoeller Co. All rights reserved.
MODELS AVAILABLE
• Single phase or three phase motors
avilable.
• See selection chart for specifi cations or
specifi c models.
• Automatic or Nonautomatic with single seal
• Nonautomatic with double seals
• 2" or 3" discharge.
DOUBLE
SEAL
PUMP
AUTOMATIC THREE
PHASE
PUMP**
SINGLE
SEAL
PUMP
R
Certifi ed to CSA Stan-
dard C22.2 No. 108
Tested to UL Stan-
dard UL778
R
L
U
NOTE: The sizing of effl uent systems normally requires
variable level fl oat(s) controls and properly sized basins
to achieve required pumping cycles or dosing timers with
nonautomatic pumps.
CONSULT FACTORY FOR SPECIAL APPLICATIONS
Single Seal Design
Weight 81-86 lbs.
18 13/16
5
6 5/16
8 9/16
6 1/4
5
2" NPT
OR
3" NPT
FLANGE AVAILABLE
SK1023
• Three phase pumps are available in 200V, 230V, or 460V. 230V three phase is
available in automatic and nonautomatic models.
• Electrical alternators, for duplex systems, are available and supplied with an alarm.
• Mechanical alternators, for duplex systems, are available with or without alarm
switches.
• Combination starters are available.
• Variable level control switches are available for controlling single and three phase
systems.
• Double piggyback variable level fl oat switches are available for variable level long
cycle controls.
• Long cords are available in lengths or 25 - 35 - 50 feet.
• Simplex and duplex basins are available.
• Refer to FM1922 and FM0806 for temperatures over 130°F.
SPECIFICATIONS CONTROL SELECTION
Single Seal Double Seal Cord Listings
Model Model Volt-Phase Mode Amps HP Lgth. Simplex Duplex CSA UL
M282 ----------- 115 1Ph Automatic 10.3 1/2 10 1 ------- Y Y
N282 N4282 115 1Ph Nonauto 10.3 1/2 15 2 or 3 4 Y Y
D282 ----------- 230 1Ph Automatic 5.0 1/2 10 1 ------- Y Y
E282 E4282 230 1Ph Nonauto 5.0 1/2 15 2 or 3 4 Y Y
* H282 ----------- 200 1Ph Automatic 6.1 1/2 10 1 ------- N N
* I282 * I4282 200 1Ph Nonauto 6.1 1/2 15 3 4 N N
* J282 * J4282 200 3Ph Nonauto 3.6 1/2 15 3 4 Y Y
* F282 * F4282 230 3Ph Nonauto 3.0 1/2 15 3 4 Y Y
* CF282 ----------- 230 3Ph Automatic 3.0 1/2 15 1 ------- N Y
* G282 * G4282 460 3Ph Nonauto 1.7 1/2 15 3 4 Y Y
* BA282 * BA4282 575 3Ph Nonauto 1.4 1/2 15 3 4 Y N
D284 ----------- 230 1Ph Automatic 8.9 1 10 1 ------- Y Y
E284 E4284 230 1Ph Nonauto 8.9 1 15 2 or 3 4 Y Y
* H284 ----------- 200 1Ph Automatic 9.3 1 10 1 ------- N N
* I284 * I4284 200 1Ph Nonauto 9.3 1 15 3 4 N N
* J284 * J4284 200 3Ph Nonauto 5.5 1 15 3 4 Y Y
* F284 * F4284 230 3Ph Nonauto 5.0 1 15 3 4 Y Y
* CF284 ----------- 230 3Ph Automatic 5.0 1 15 1 ------- N Y
* G284 * G4284 460 3Ph Nonauto 2.6 1 15 3 4 Y Y
* BA284 * BA4284 575 3Ph Nonauto 2.2 1 15 3 4 Y N
* No Molded Plug
For information on additional Zoeller products refer to catalog on Piggyback Variable Level Float Switches,
FM0477; Electrical Alternator, FM0486; Mechanical Alternator, FM0495; Sump/Sewage Basins, FM0487;
Simplex Pump Control, FM1596; Alarm Systems, FM0732; and Disconnect/Rail Systems, FM0787.
All installation of controls, protection devices and wiring should be done by a qualifi ed licensed
electrician. All electrical and safety codes should be followed including the most recent National
Electric Code (NEC) and the Occupational Safety and Health Act (OSHA).
RESERVE POWERED DESIGN
For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.
© Copyright 2011 Zoeller Co. All rights reserved.
SELECTION GUIDE
1. Integral fl oat operated mechanical switch, no external
control required.
2. For automatic use single piggyback variable level fl oat
switch or double piggyback variable level fl oat switch.
Refer to FM0477.
3. See FM1228 for correct model of simplex control panel.
4. See FM0712 for correct model of duplex control panel.

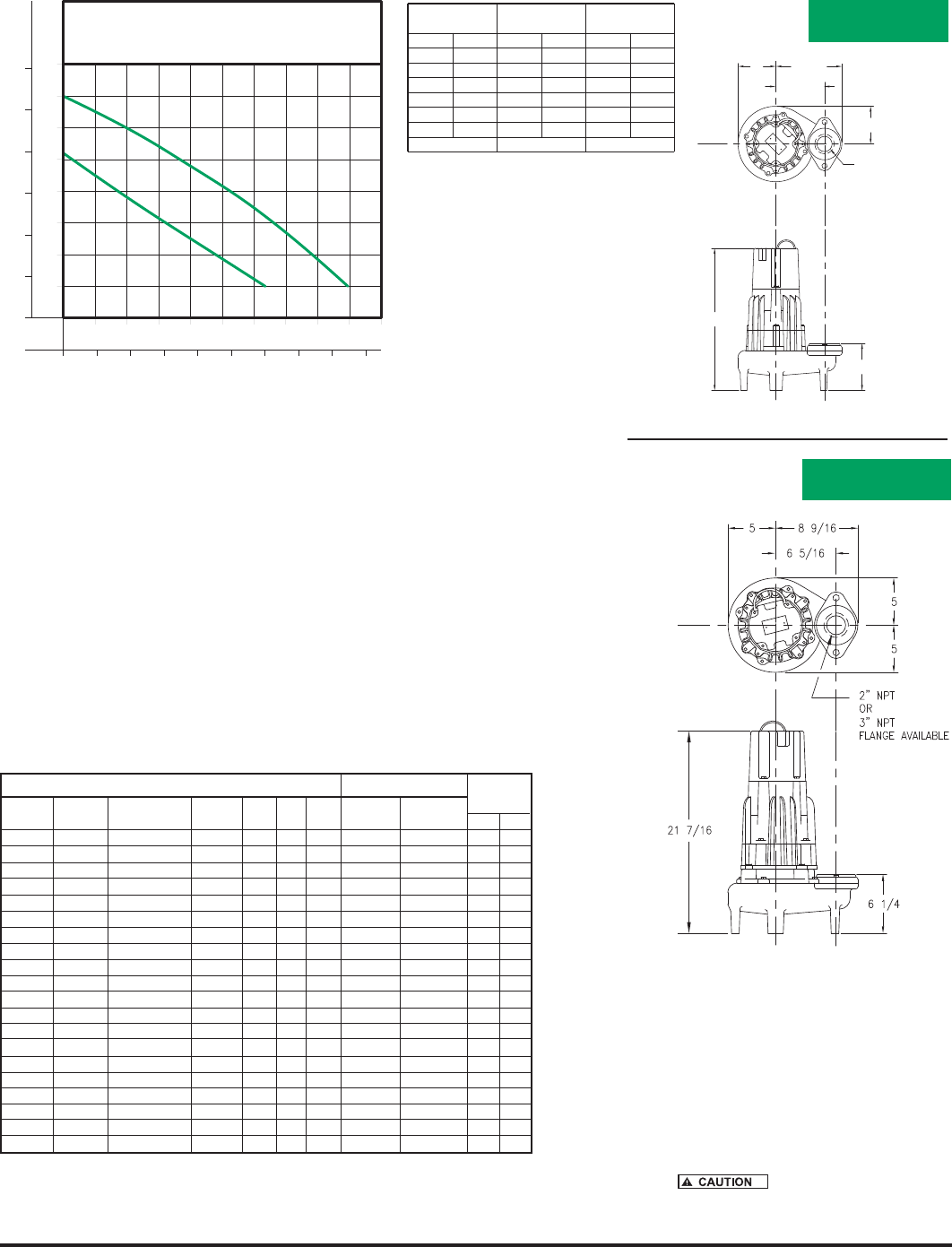

PUMP PERFORMANCE CURVE
MODELS 282/4282/284/4284
20 40 60 80 100 120 140 160 180 200
0
0
5
10
15
20
25
30
40
2
4
6
8
10
80 160 240 320 400 480 560 640 720
LITERS
GALLONS
FEET
METERS
FLOW PER MINUTE
TOTAL DYNAMIC HEAD
35
12
282
284
4284
4282
282/4282 284/4284
Gal. Liters
127 481
96 363
64 242
34 129
623
-- --
26 ft. (7.9m)
Feet
MODELS
Meters Gal. Liters
1.55 179 678
3.010 157 594
4.615 133 503
6.120 106 401
7.625 73 276
9.130 42 159
Shut-off Head 35 ft. (10.7m)
009927A
009927B
Double Seal Design
Weight 88-91 lbs.
SK1414
