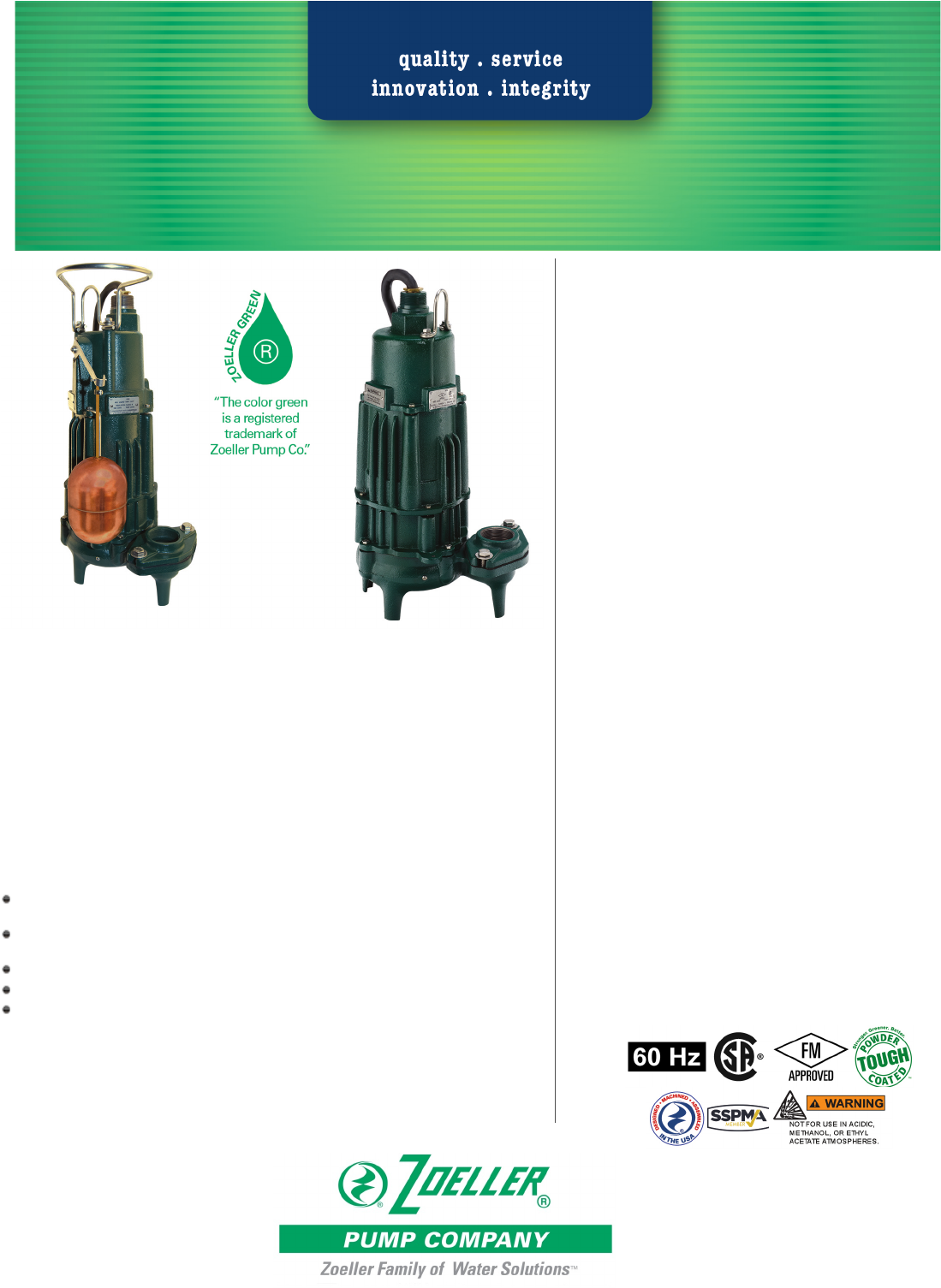

X290 Series
Features
This series of submersible pumps is designed for use in residential or
commercial wastewater applications in Class I, Division 1, Group C and D
locations. Each pump is FM/CSA approved and features innovative motor and
electrical enclosures that are designed to reduce the risk of vapor ignition both
inside and outside the pump. Should vapors inside the electrical enclosures
become ignited, the enclosures are engineered to contain the event and prevent
escalation. Each pump is constructed of hardware that will allow it to operate
safely and efficiently in extreme conditions. As with every Zoeller pump, each
one is 100% factory tested to ensure quality and reliability for years of trouble-
free performance!
Automatic models are available with an optional seal failure panel (P/N 10-
1031).
Nonautomatic units require a Zoeller control panel with intrinsically safe relays
and a moisture indicator.
Surface temperature code T5 (1 Ph) or T6 (3 Ph).
Includes a stainless steel lifting bracket for easy installation and removal.
All models are hermetically sealed to be watertight, dust-tight, and completely
submersible.
Reserve Powered Design: For unusual conditions, a reserve safety factor is
engineered into the design of every pump.
Specifications
Motor Characteristics
Motor 1/2 - 2 HP
Voltage 115 - 575 V
Phase 1 or 3 Ph
Hertz 60 Hz
RPM 3450 RPM
Type Permanent split capacitor or 3 phase
Insulation Class B
Amps 2.4 - 20.5 Amps
Pump Characteristics
Operation Automatic or nonautomatic
Auto On/ Off Points 19-1/2" / 9-3/4" (49.5 cm / 24.8 cm)
Discharge Size 2" or 3" NPT
Solids Handling 2" (50 mm) spherical solids
Cord Length 20' (6 m) standard
Cord Type UL listed, 5-wire (1 Ph) or 8-wire (3 Ph) SOOW
cord
Max Head 75' (22.9 m)
Max Flow Rate 214 GPM (810 LPM)
Max Operating Temp 104 °F (40 °C)
Cooling Oil filled with finned housings
Motor Protection Auto reset thermal overload (1 Ph) or thermal
sensor (3 Ph)
Materials Characteristics
Cap Cast iron
Motor Housing Cast iron
Pump Housing Cast iron
Base Cast iron
Upper Bearing Ball bearing
Lower Bearing Ball bearing
Mechanical Seals Carbon and ceramic with stainless steel parts
Impeller Type Non-clogging vortex
Impeller Cast iron, optional bronze
Hardware Stainless steel or brass
Motor Shaft 416 stainless steel
FM1702_Ea
Updated 0616
Model
Model Number Seal Mode Volts Phase Amps HP Hz Lbs Kg
MX292 Single Auto 115 1 15.0 1/2 60 123 55
NX292 Single Non 115 1 15.0 1/2 60 118 53
BAX292 Single Non 575 3 2.4 1/2 60 121 54
DX293 Single Auto 230 1 10.2 1 60 123 55
EX293 Single Non 230 1 10.2 1 60 118 53
HX293 Single Auto 200 1 12.0 1 60 123 55
IX293 Single Non 200 1 12.0 1 60 121 54
FX293 Single Non 230 3 7.6 1 60 121 54
JX293 Single Non 200 3 8.2 1 60 121 54
GX293 Single Non 460 3 4.0 1 60 121 54
BAX293 Single Non 575 3 3.3 1 60 121 54
DX294 Single Auto 230 1 13.7 1-1/2 60 128 58
EX294 Single Non 230 1 13.7 1-1/2 60 121 54
HX294 Single Auto 200 1 17.8 1-1/2 60 128 58
IX294 Single Non 200 1 17.8 1-1/2 60 121 54
FX294 Single Non 230 3 9.5 1-1/2 60 121 54
JX294 Single Non 200 3 10.8 1-1/2 60 121 54
GX294 Single Non 460 3 4.8 1-1/2 60 121 54
BAX294 Single Non 575 3 3.8 1-1/2 60 121 54
DX295 Single Auto 230 1 17.1 2 60 128 58
EX295 Single Non 230 1 17.1 2 60 121 54
HX295 Single Auto 200 1 20.5 2 60 128 58
IX295 Single Non 200 1 20.5 2 60 121 54
FX295 Single Non 230 3 12.2 2 60 121 54
JX295 Single Non 200 3 14.3 2 60 121 54
GX295 Single Non 460 3 6.1 2 60 121 54
BAX295 Single Non 575 3 4.9 2 60 121 54
Additional cord lengths are available in 25' (8 m), 35' (11 m) and 50' (15 m).
Automatic units Patent No. 8,535,014
X290 Series
Your Peace of Mind is Our Top Priority®
3649 Cane Run Rd | Louisville, KY 40211 USA
+1 502-778-2731 | 1-800-928-7867 | Fax: +1 502-774-3624
www.zoeller.com
Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies. Copyright Zoeller Company. All rights reserved.
