GRUNDFOS PRODUCT GUIDE
Domestic water supply
BMQE, MQ, Jets
60 Hz
Table of contents
2
Domestic water supply
1. Grundfos DWS family 3
DWS applications 3
DWS product selection 4
2. BMQE 5
Product introduction 5
Product overview 7
Construction 8
Operating conditions 10
Installation 10
Quick selection guide 12
Curve charts and technical data 12
Accessories, BMQE 18
3. MQ 19
Product introduction 19
Product overview 21
Construction 22
Operating conditions 24
Installation 24
Selection of product 24
Curve charts and technical data 25
Accessories, MQ 28
4. JP Jet Pumps 29
Product introduction 29
Product overview 31
Construction 34
Operating conditions 35
Selection 35
Selection of pumps 35
Installation 35
Curve charts and technical data 36
Dimensions and weights 41
Electrical data 45
Approvals 45
5. Further documentation 46
WebCAPS 46
WinCAPS 47
Grundfos DWS family
Domestic water supply 1
3
1. Grundfos DWS family
The Grundfos Domestic Water Supply (DWS) family of
pumps includes:
• BMQE Constant Pressure System
• MQ Flow Based Pressure System
•Jet pumps.
This product guide offers information about each of
these product lines.
DWS applications
The Grundfos DWS family includes pumps to fit most
applications including:
• Constant pressure systems (BMQE)
• flow-based pressure boosting (MQ)
• rain water harvesting (MQ)
• pressure-switch-based boosting (Jet)
• suction lift (Jet).
C
Constant pressure systems
In constant water pressure systems, only the required
discharge pressure needs setting (fig. 1).
Cut-in and cut-out pressures do not play a role in this
system.
Discharge pressure can be set from 40 to 100 psi,
according to individual needs and piping system
limitations.

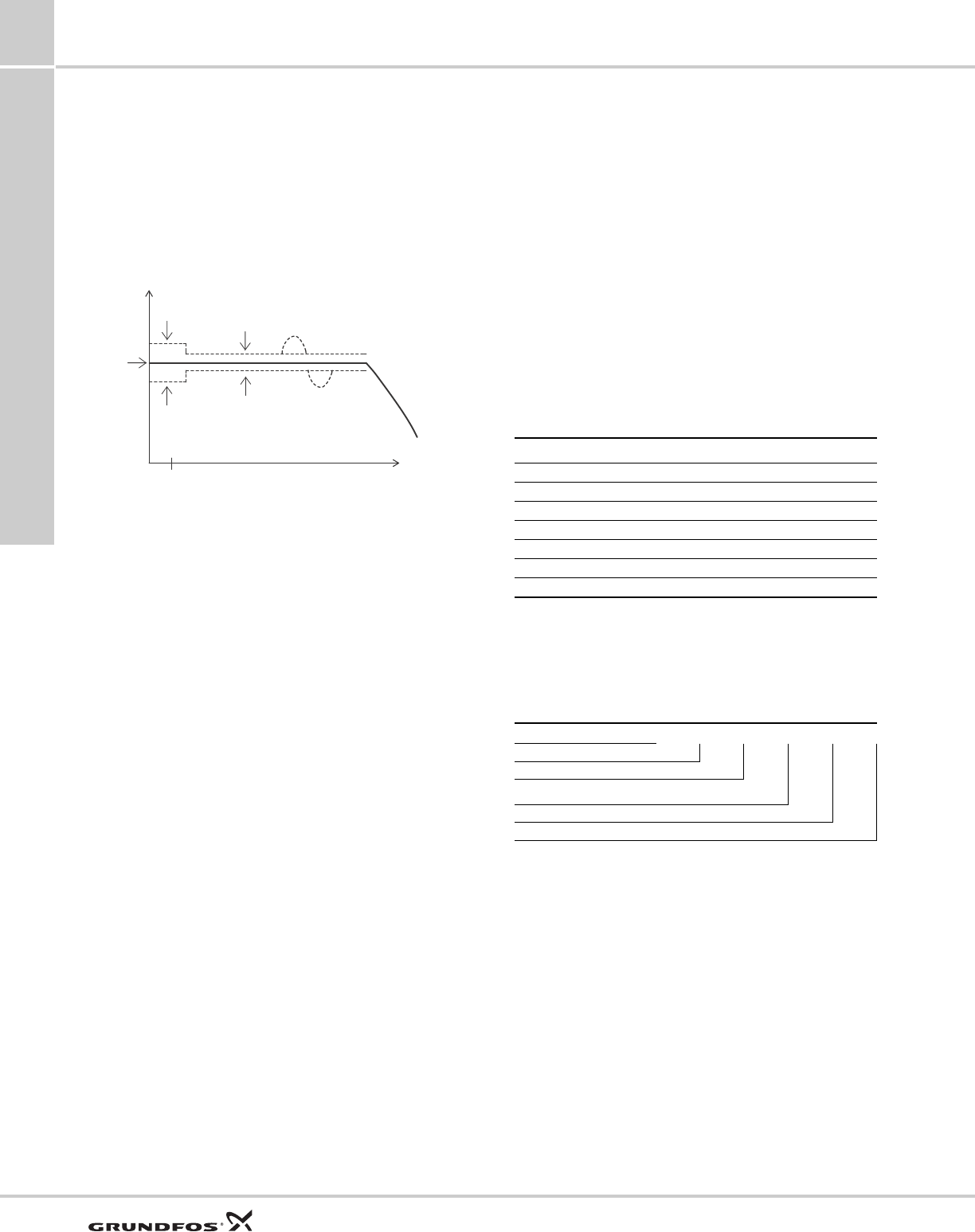

Fig. 1 In a constant pressure system, pressure does not
vary in relationship to consumption
Flow-based pressure boosting
With flow-based pressure boosting, the pump starts
automatically when water is consumed and stops
automatically when the consumption ceases. This is
accomplished via a flow switch connected to a printed
circuit board (PCB).
The pump will produce pressure in relation to the flow
rate with any incoming pressure cumulative to the total
discharge pressure (fig. 2).
Fig. 2 Flow-based pressure boosting
Rain water harvesting
Rain water harvesting is a way to store rain water for
future use — for example, watering a garden. Rain
water is collected from the roof of a home and
collected into a storage container. Pull a suction lift
using a non-collapsible suction line from the storage
container or connect the inlet of the pump to a spigot at
the bottom of the collection barrel for flooded suction.
Suction lift
High pressure water from the drive pipe passes
through the venturi and pulls water from the well into
the ejector, then pushes it up to the pump. This makes
it possible to push water up to the pump from depths
greater than 25 feet or to boost the output from a
shallow well pump to higher pressures.
Fig. 3 Suction lift pressure boosting
Pressure-switch-based boosting
Pressure switches are used to control pump operation.
These switches have a cut-in pressure and a cut-out
pressure to turn the pump on and off respectively.
Application Product
BMQE MQ Jet
Constant pressure system ---
Flow-based pressure boosting - --
Rain water harvesting - --
Suction lift - --
Pressure-switch-based boosting - - -
TM04 9463 4310
Time
Head
TM01 9873
TM05 0823 1611
Incoming psi Outgoing psi =
(city water pressure) Incoming psi + performance
Suction pipe
Venturi
Nozzle
Inlet
Drive
pipe
Grundfos DWS family
Domestic water supply
1
4
DWS product selection
Matching consumption and pump
capacity
Selecting the right pump is a matter of matching water
consumption with pump capacity. For best
performance, avoid installing an undersized or
oversized pump. Consumption may vary greatly
depending on housing standards and lifestyle. For
example, lawn sprinkler systems in the summer can
increase consumption.
Pump selection
Pump selection is based on the water demand and
required system head.
The water demand depends on the number of
consumers connected to the system.
Head can either be expressed in feet or psi. Head
refers to static head, pressure head, and friction head.
For assistance with pump selection, refer to the
WebCAPS product selection program; a link to CAPS
may be found on the Grundfos website.
Piping
In any water supply system, the sizing and choice of
materials of the pipework has an impact on the choice
of pumps and on the cost. Piping takes into account
the system head as referred to in Pump Selection.
Static head is the distance from the ground water level
to the uppermost tap. Pressure head is the system
pressure the user wants to achieve.
In most residential application this pressure is
approximately 60 psi. Friction head depends on the
pipe size, type and length.
When calculating friction loss remember to allow for
deterioration in the piping schematic, since all water
pipes will eventually become coated with rust, lime
deposits, etc.
Flow velocity in the piping must be kept low as noise
can occur due to turbulence in elbows and valves or
from water hammer.
Fitting a pressure relief valve in the discharge piping is
recommended to protect the piping from over-pressure
due to system malfunction.
Pressure tanks
A pressure tank should be installed in order to
minimize the number of pump starts and stops in the
water supply system, and to reduce problems with
water hammer in the pipework.
Tanks are included with the BMQE Constant Pressure
System and the MQ. The BMQE system has an
external tank. The MQ has an internal tank.
Jet pumps, however, may require the addition of a tank
depending upon the application.
Pressure switches
Pressure switches are used to control pump operation.
These switches have a cut-in pressure and a cut-out
pressure to turn the pump on and off.
The BMQE Constant Pressure System includes a
pressure transducer for constant pressure. The MQ
has a built-in pressure switch. Jet pumps have an
attached pressure switch.
Valves
Check valves
A check valve is a mechanical device which normally
allows fluid to flow through in only one direction.
The BMQE Constant Pressure System and the MQ
have built-in check valves. For suction lift applications
with the MQ, a check valve (provided) is required at
the inlet.
Foot Valves
A foot valve is required when pulling a suction lift
(shallow or deep well) with a Jet pump. This valve is
installed at the end of the suction pipe to prevent back
flow. The MQ will also benefit from the use of a foot
valve with suction lift applications.
Shut off valves
Shut off valves in the piping system make it possible to
drain only the part of the system that needs attention
or repair.
Flow control valves
Flow control valves are used in applications where a
set flow (gpm) is required; for example, a shower head
or an irrigation system.
Pressure reducing valves
Pressure reducing valves are used in applications
where the incoming water pressure exceeds the
maximum inlet pressure of the pump as is the case
with the MQ and city water pressure. The pressure
reducing valve (PRV) is used inline after the city water
tap and before the pump to ensure a set pressure.
Pressure relief valves
This valve is a spring controlled device that can be
adjusted to meet the needs of the pumping system.
Pressure relief valves are used in applications where
high pressure can result in damage to accessories; for
example, tanks with maximum pressure ratings.
BMQE
Domestic water supply 2
5
2. BMQE
Product introduction
The BMQE Constant Pressure System maintains
constant water pressure under varying demand, even
with multiple taps running. The BMQE is a complete
pressure boosting system that includes:
• pump
• controller
•tank
• mounting brackets
• pressure sensor.

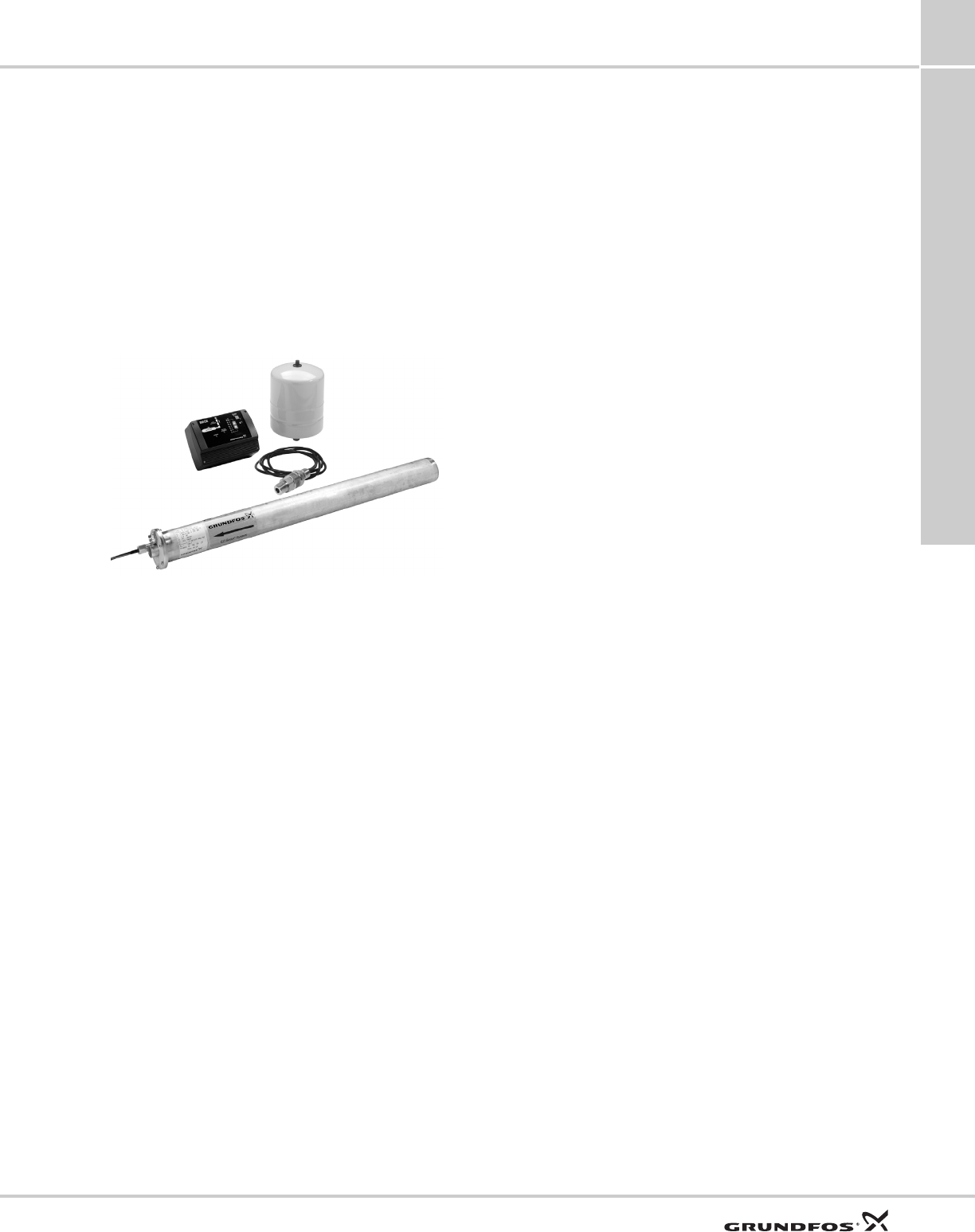

Fig. 4 Grundfos BMQE Constant Pressure System
High-quality construction and rugged design ensure
low maintenance and trouble-free operation. The
system is based on the time-tested technology of the
Grundfos SQE constant pressure system (for
submersible applications).
The pump's MSE 3 motor incorporates solid state
electronics and permanent magnet motors which
account for high motor efficiencies.
Variable speed is offered though frequency control via
the CU 301 remote status box. The system can be set
to operate at any duty point in the range between
minimum and maximum performance of the pump.
The BMQE has built in safeties in the solid state
electronics. The small footprint of the pump allows the
system to be positioned either vertically or horizontally
depending upon the application. Refer to the BMQE
(previously EZ Boost) pages on our web site at
www.grundfos.us.
Applications
The BMQE Constant Pressure System is suitable for:
• condos
• restaurants
• homes
• irrigation
•offices
• grocery applications
• many other boosting applications.
Pumped liquids
The BMQE Constant Pressure System is suitable for
pumping water or other clean, thin, non-aggressive
liquids not containing solid particles or fibers.
Features and benefits
With the Grundfos BMQE Constant Pressure System,
constant pressure is as simple as a touch of a button
on the accompanying CU 301 control unit.
Features
• Quick and easy installation
• ready-to-use system requires minimal space
• high user convenience (constant pressure
regardless of consumption)
• easily adjustable pressure level with push button
control
• continuous control and monitoring of pump
operation
• integrated dry-running protection
• integrated overload protection
• integrated protection against over-voltage and
under-voltage
• soft start feature.
Benefits
The BMQE Constant Pressure System automatically
balances water surges and equalizes flow and
pressure according to consumption.
In other words, the system maintains a constant water
pressure despite varying consumption.
The pressure is registered by means of a pressure
sensor and transmitted to the controller. The controller
adjusts the BMQE pump performance accordingly.
How the system functions
When a tap is opened, the pressure in the tank will
start to drop. The system maintains a constant
pressure within the maximum pump performance
despite varying water consumption.
The pressure is registered by means of the pressure
sensor, which transmits a signal to the controller. The
controller adjusts the pump performance accordingly to
maintain constant pressure by changing the pump
speed.
At low flow the pressure will drop slowly. When the
pressure in the tank is 7 psi below the setpoint, the
pump will start. When the pressure is 7 psi above the
setpoint, the pump will stop.
Even though the BMQE controller is controlling the
pressure within + / - 3 psi, larger pressure variations
may occur in the system.
TM04 9387 4010
BMQE
Domestic water supply
2
6
If the consumption is suddenly changed — for
example, if a tap is opened — the water must start
flowing before the pressure can be made constant
again. Such dynamic variations depend on the pipe
work, but typically they will lie between 7 and 14 psi.
If the desired consumption is higher than the quantity
the pump is able to deliver at the desired pressure, the
pressure follows the pump curve as illustrated in the
far right of fig. 5.
Fig. 5 System function
At large flow rates, the pressure will drop quickly and
the pump will start immediately and maintain constant
pressure. When the system is running, the controller
makes small adjustments to the pressure to detect
whether there is consumption. If there is none, the
pump will simply refill the tank and stop after a few
seconds.
BMQE pump
The pumps used for BMQE system are modified SQE
submersible pumps. The BMQE pump is an SQE pump
with an MSE 3 motor. The pump and motor are
centered in the 4 inch stainless steel sleeve.
BMQE pumps are suitable for both continuous and
intermittent operation for a variety of pressure boosting
applications.
BMQE controller
The BMQE controller is a control and communication
unit specifically developed for the BMQE booster
pumps in constant pressure applications.
The controller provides:
• Full control of the BMQE pumps
• Two-way communication with the BMQE pumps
• Possibility of adjusting the pressure
• Alarm indication (LED) when service is needed
• The possibility of starting, stopping and resetting the
pump simply by means of a push-button.
The controller communicates with the pump via power
line communication, meaning that no extra cables are
required between the controller and the BMQE pump.
The controller incorporates external signal input for
pressure sensor and a pump status relay for use with
devices dependant on pump status.
BMQE motor
The MSE 3 motors are based on state-of-the-art
technology within permanent magnets (PM motor),
which accounts for the high motor efficiencies. In
addition, the motors have a built-in electronic unit with
a frequency converter for variable frequency and soft
starting.
The MSE 3 motors features high efficiency within a
wide load range. The high and flat efficiency curve of
the PM motor enables the same motor to cover a wide
power range as opposed to conventional AC motors.
For BMQE pumps, this means fewer motor variants.
Diaphragm tank
The pre-charge pressure of the diaphragm tank must
be set to 70 % of the pressure setting in order to use
the tank to the limit of its capacity.
Use the values in the following table. Pre-charge
pressure is measured with 0 psi in the pipeline.
Only a 2-gallon tank (Grundfos part number 91121984)
is recommended in the BMQE system. Use of a
different size tank will result in pressure fluctations.
Identification
Type key
TM04 9388 4010
Pressure
Flow
A
Stop
+7 PSI
Start
-7 PSI
Controlling
±3 PSI
Dynamic
variations
±7 PSI
GPM0.8
A = Pressure setting
Setting (psi) Pre-charge pressure (psi)
40 28
50 35
60 42
70 49
80 56
90 63
100 70
Example 22 BMQ E 05B 120
Rated flow [US gpm]
BMQE pump
Electronically controlled pump
via BMQE controller
Motor [Hp]
Head at rated flow [ft]
BMQE
Domestic water supply 2
7
Product overview

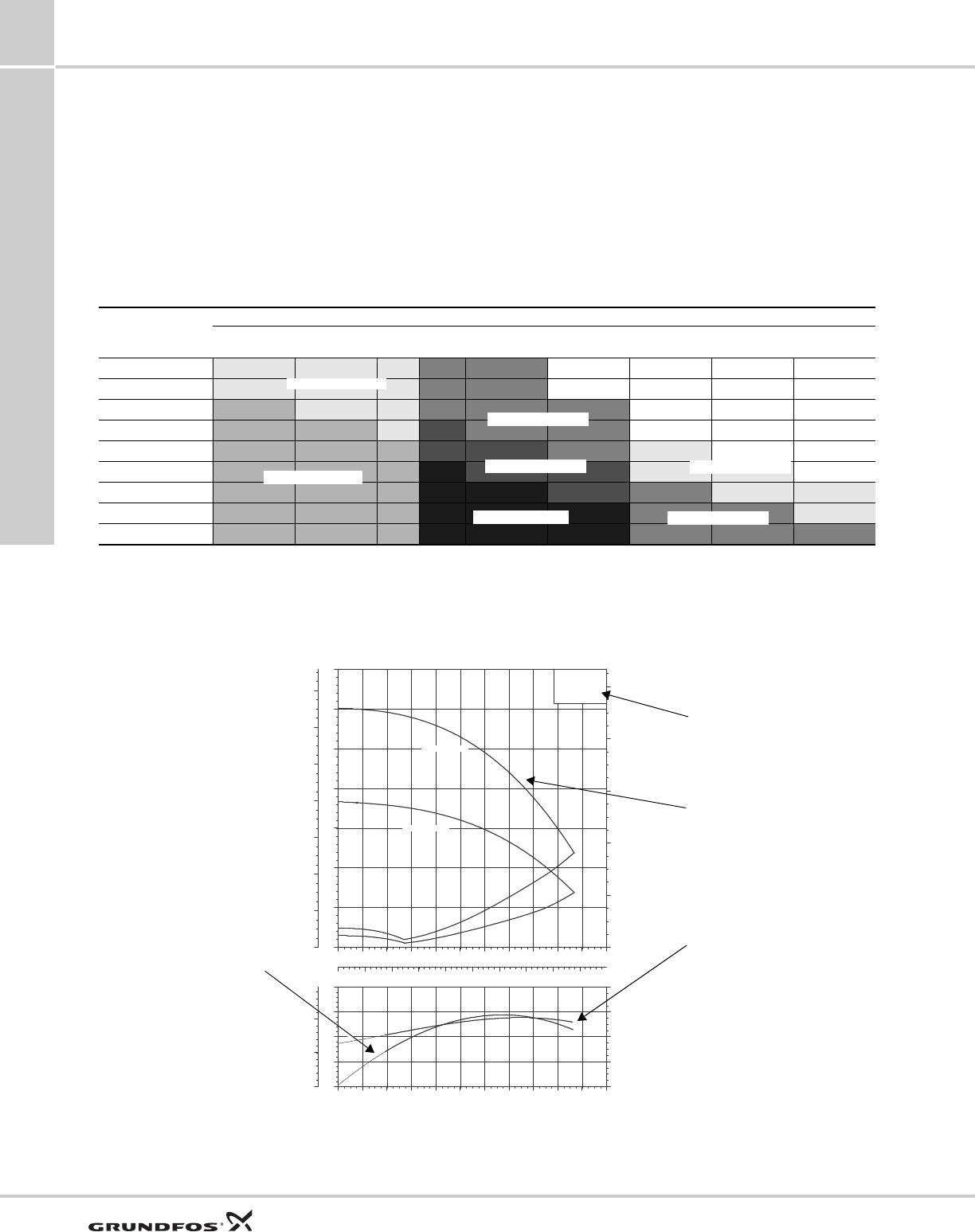

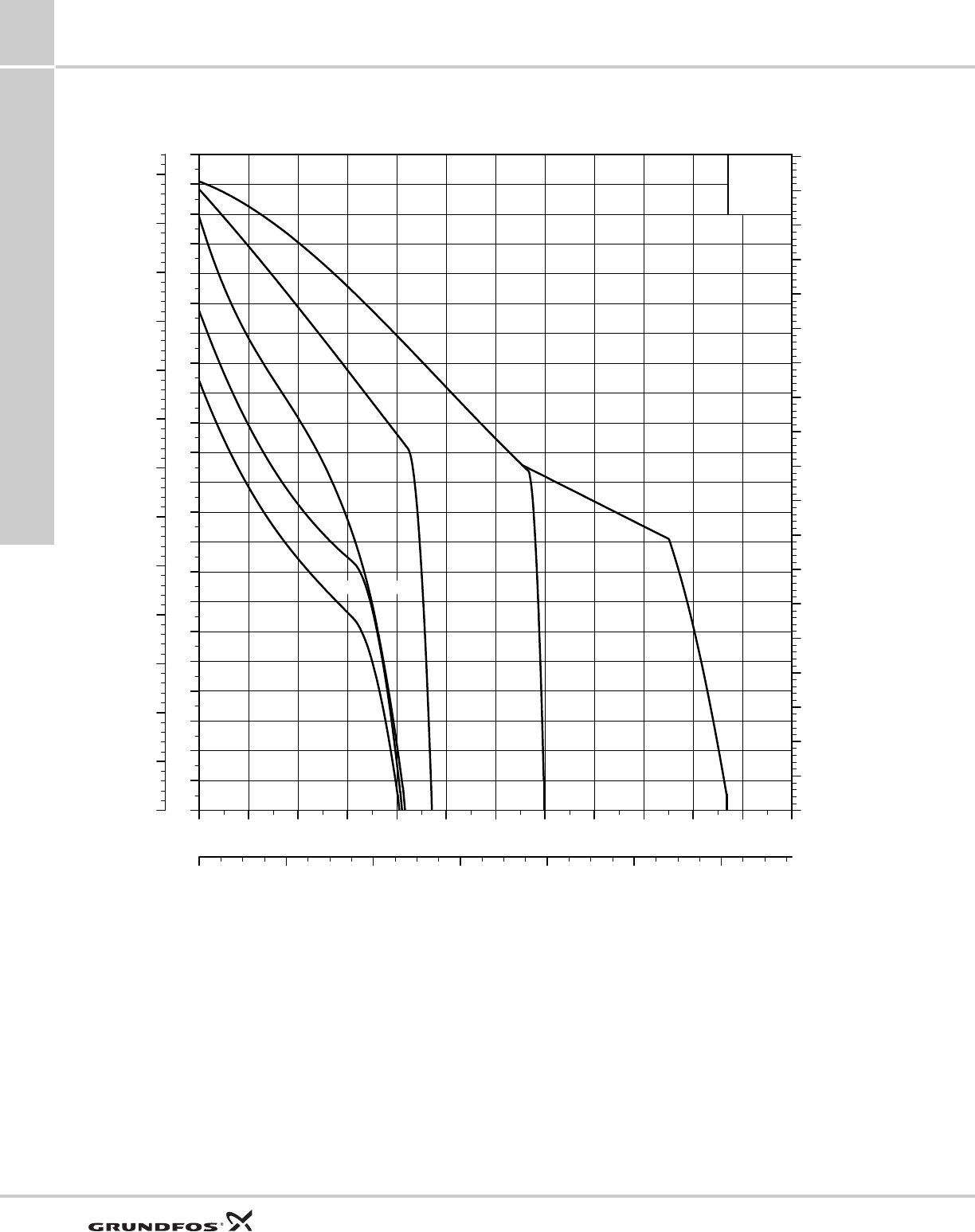

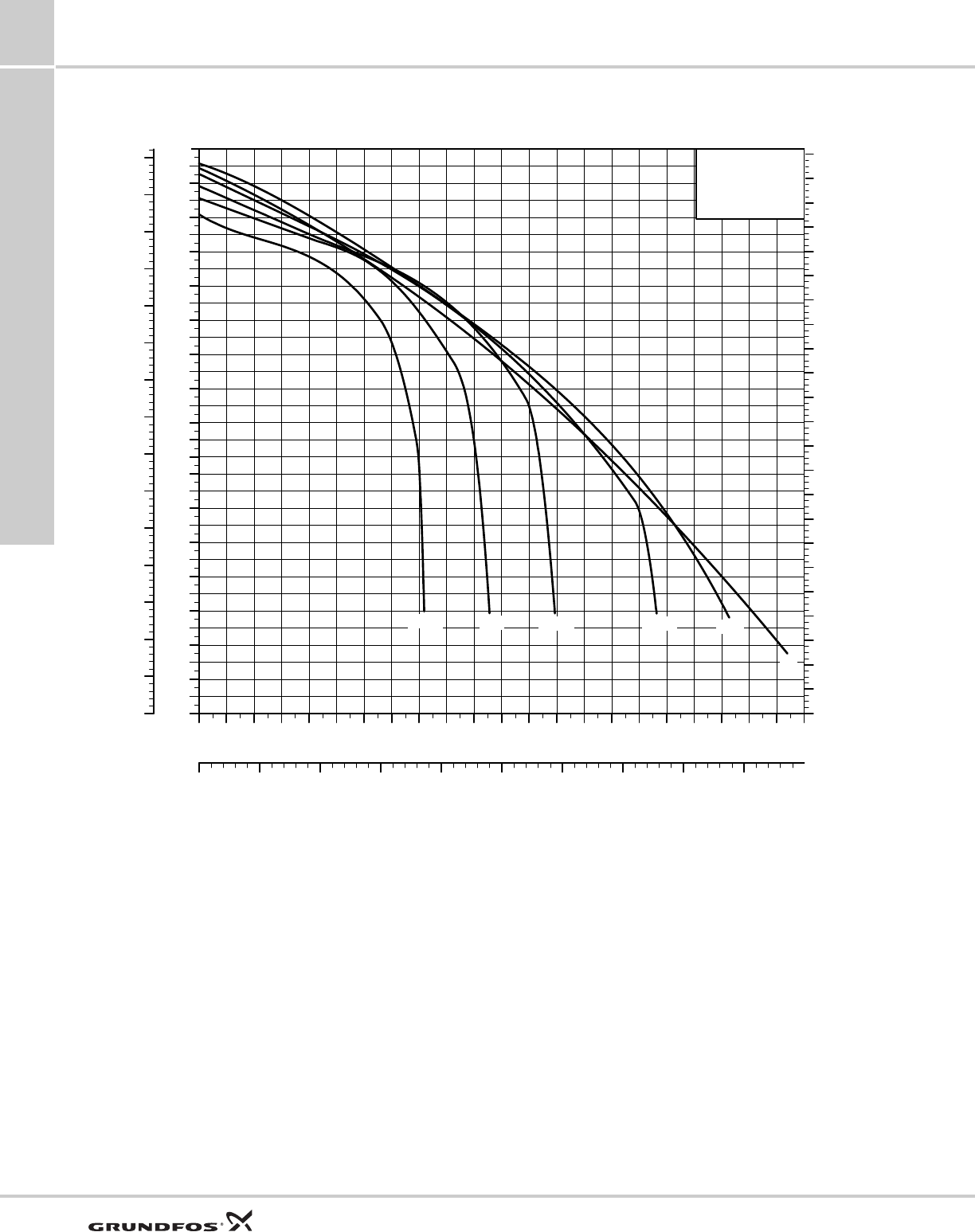

Performance range, BMQE 60 Hz
Product range, BMQE
TM05 0676 1411
0 5 10 15 20 25 30 35 Q[USGPM]
0
40
80
120
160
200
240
280
[ft]
H
0
20
40
60
80
100
120
P
[psi]
0123456789Q[m³/h]
0
20
40
60
80
H
[m]
30 BMQE 05B-90
22 BMQE 05B-120
15 BMQE 05A-110
15 BMQE 07B-180
22 BMQE 05A-80
22 BMQE 10C-190
30 BMQE 10C-130
BMQE
60 Hz
Range BMQE 15 BMQE 22 BMQE 30
Nominal flow rate [US gpm (m3h)] 15 (3.4) 22 (5.0) 30 (6.8)
Liquid temperature range [°F (°C)] +32 to +95°F (0 to +35°C)
Maximum inlet pressure [psi (bar)] 217 (15)
Minimum inlet pressure [psi (bar)] 8 (0.5)
Maximum working pressure [psi (bar)] 347 (23)
Maximum efficiency [%] 57 62 60
Flow range [US gpm (m3h)] 0 to 19 (4.3) 0 to 33 (7.5) 0 to 39 (8.8)
Maximum pump pressure [ft (m)/psi)] 300 (91.4)/130 290(88.4)/125 208(63.4)/90
Pipe connection 1.25" NPT inlet / 1” NPT discharge
BMQE
Domestic water supply
2
8

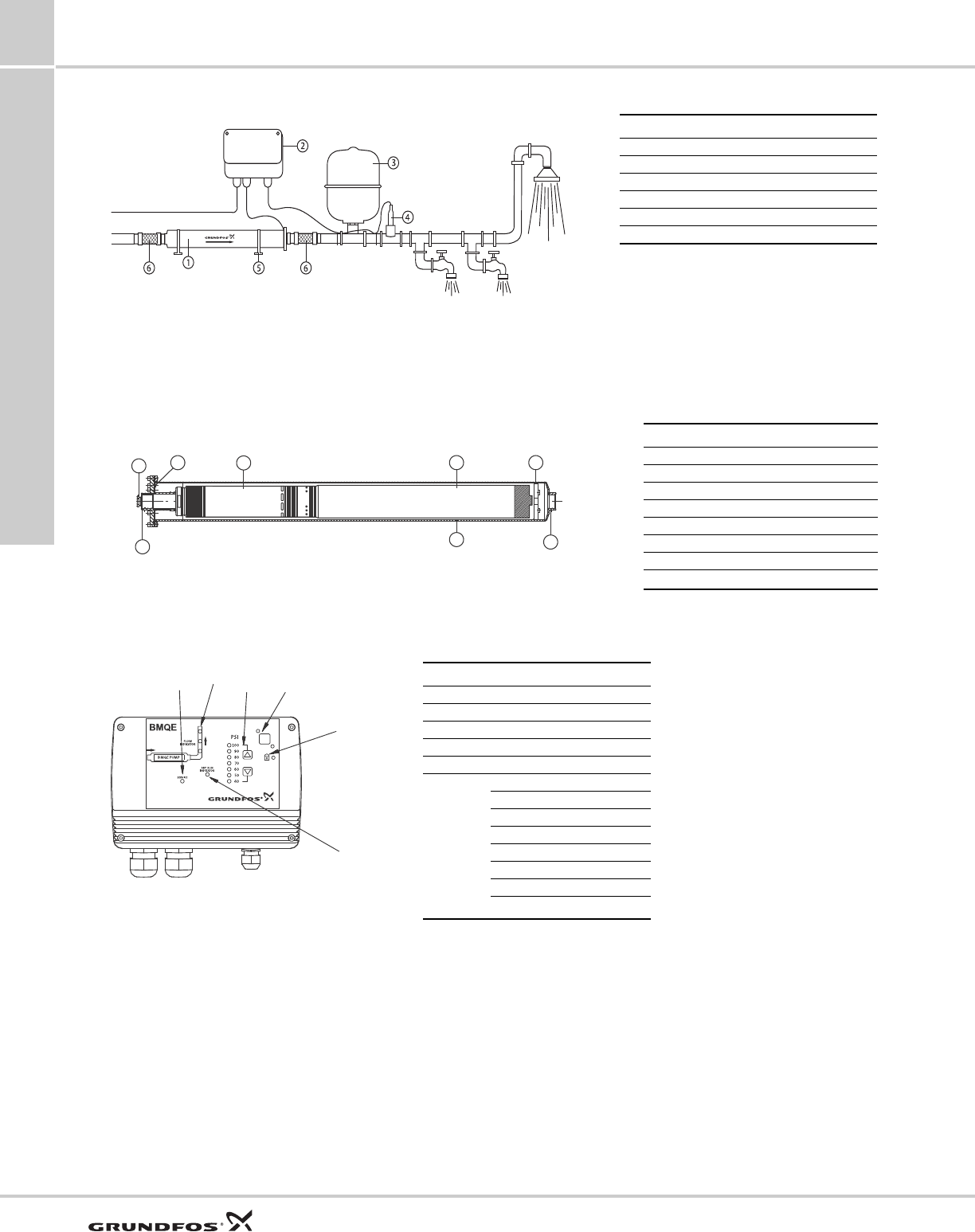

System diagram
Construction

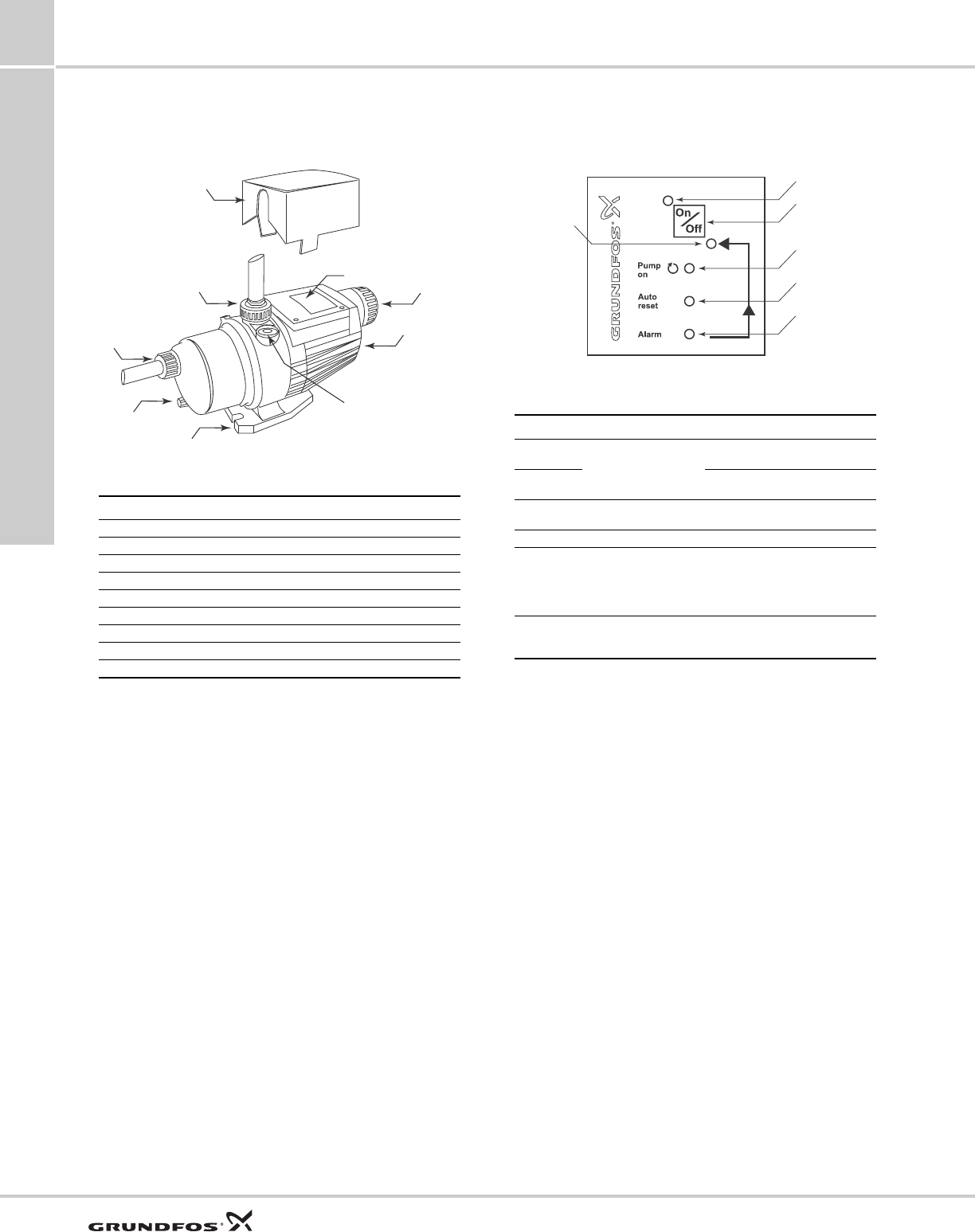

Components, BMQE
Components, BMQE controller
TM04 9415 4110
Pos. Description
1 BMQE pump
2 BMQE controller
3 Diaphragm tank*
4 Pressure sensor
5 Mounting brackets
6 Flex connector**
* Recommended size:
2 U.S. gal (8 liter) / 130 psi
** Not sold by Grundfos
TM05 0678 1411
Pos. Description
1 Sleeve
2 Discharge connection
3 Suction connection
4 MSE 3 motor
5 SQE pump
6 Cable entry
7 Centering device
8 Air vent screw
6
2
547
3
1
8
TM05 0719 1511
Pos. Description
1 Flow indicator
2 System pressure setting
3 System ON/OFF
4 Button lock indicator
5 Dry-running indicator
6 Service needed in case of:
• No contact to pump
• Over voltage
• Under voltage
• Speed reduction
• Over temperature
• Overload
• Sensor defective
6123
4
5
BMQE
Domestic water supply 2
9

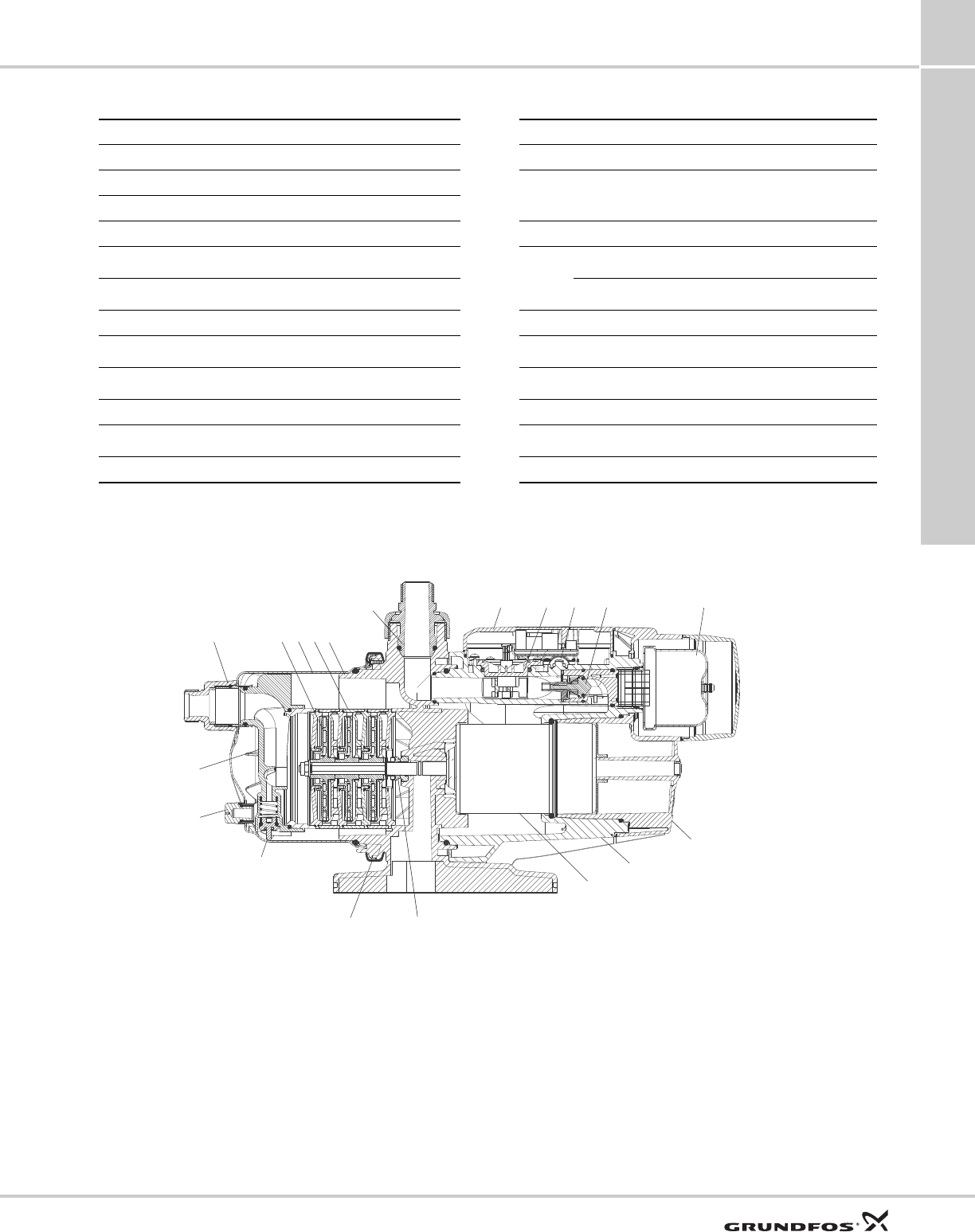

Material specification

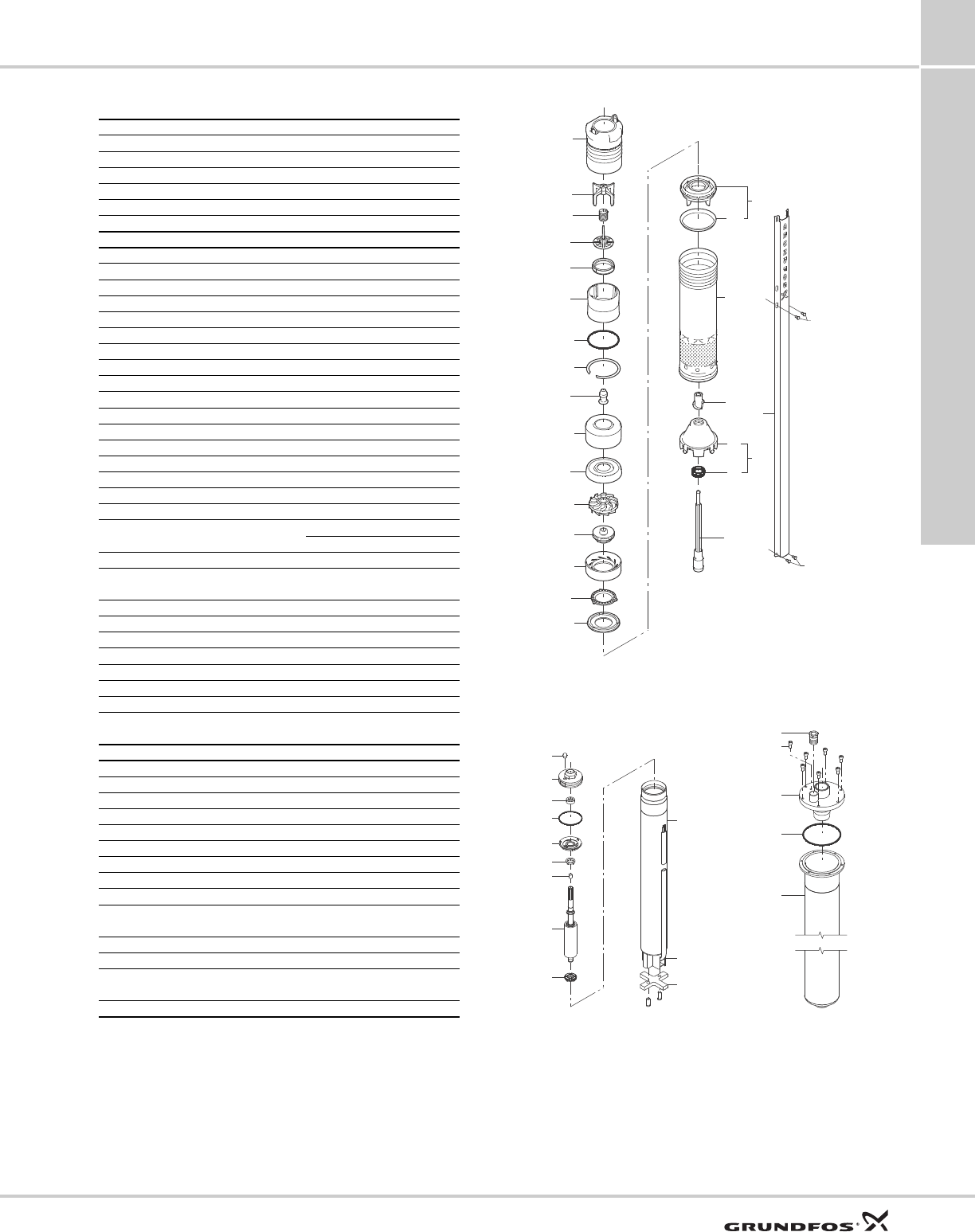

Fig. 6 BMQE exploded view
Sleeve
Pos. Description Material AISI
90 Sleeve Stainless steel 316
91 Flange Stainless steel 304
92 Cable entry Stainless steel/FKM 304
93 Air vent screw Stainless steel 304
94 O-ring FKM
Pump
Pos. Description Material AISI
1 Valve casing Polyamide 304
1a Discharge chamber Stainless steel
1d O-ring NBR rubber
2 Valve cup Polyamide
3 Valve seat NBR rubber
4a Empty chamber Polyamide
6 Top bearing NBR rubber
7 Neck ring TPU / PBT
7a Lock ring Stainless spring steel 310
7b Neck ring retainer Polyamide
9b Chamber top Polyamide
9c Chamber bottom Polyamide
13 Impeller with tungsten carbide bearing Polyamide
14 Suction interconnector Polyamide
14a Ring Stainless steel 304
16 Shaft with coupling Stainless steel 304
Sintered steel
18 Cable guard Stainless steel 304
18a Screws for cable guard Stainless steel 316
18b
30 Cone for pressure equalization Polyamide
32 Guide vanes Polyamide
39 Spring Stainless spring steel 316LN
55 Pump sleeve Stainless steel 304
64 Priming screw Polyamide
70 Valve guide Polyamide
86 Lip seal ring NBR rubber
87 Cone for pressure equalization
complete Polyamide / NBR rubber
Motor
Pos. Description Material AISI
201 Stator Stainless steel 304
202 Rotor Stainless steel 304
202a Stop ring PP
202b Filter Polyester
203 Thrust bearing Carbon
205 Radial bearing Ceramic
220 Motor cable with plug EPR
222a Filling plug MS 3: NBR
MSE 3: FKM
224 O-ring FKM
225 Top cover PPS
232 Shaft seal MS 3: NBR
MSE 3: FKM
Motor liquid SML-2
Key
NBR = Nitrile Butadiene Rubber
TPU = Thermoplastic Polyurethanes
PBT = Polybutylene Terephthalate
PP = Polypropylene
EPR = Ethylene Propylene Rubber
FKM = Viton
PPS = Polyphenylene Sulphide
TM05 0679 1411
1d
7a
1
70
2
39
3
1a
55
16
30
86
87
64
18
18b
18a
6
4a
9b
32
13
9c
7
14
14a
7b
92
93
91
94
90
202a
202
202b
222a
232
203
224
205
225
201
220
233
BMQE pump
BMQE motor BMQE sleeve
BMQE
Domestic water supply
2
10
Operating conditions
Installation
Location of installation
The sound pressure level of the BMQE is <74 db[A] at
a distance of 3 ft (1 m). It is recommended by Grundfos
that the pump be installed with sound and vibration
dampening equipment (flexible piping adapters and
anti-vibration mounting — not sold by Grundfos).
Like most mechanical equipment, this system can
create noises and vibrations. Grundfos recommends
that the BMQE pump should not be mounted in or
adjacent to living quarters.

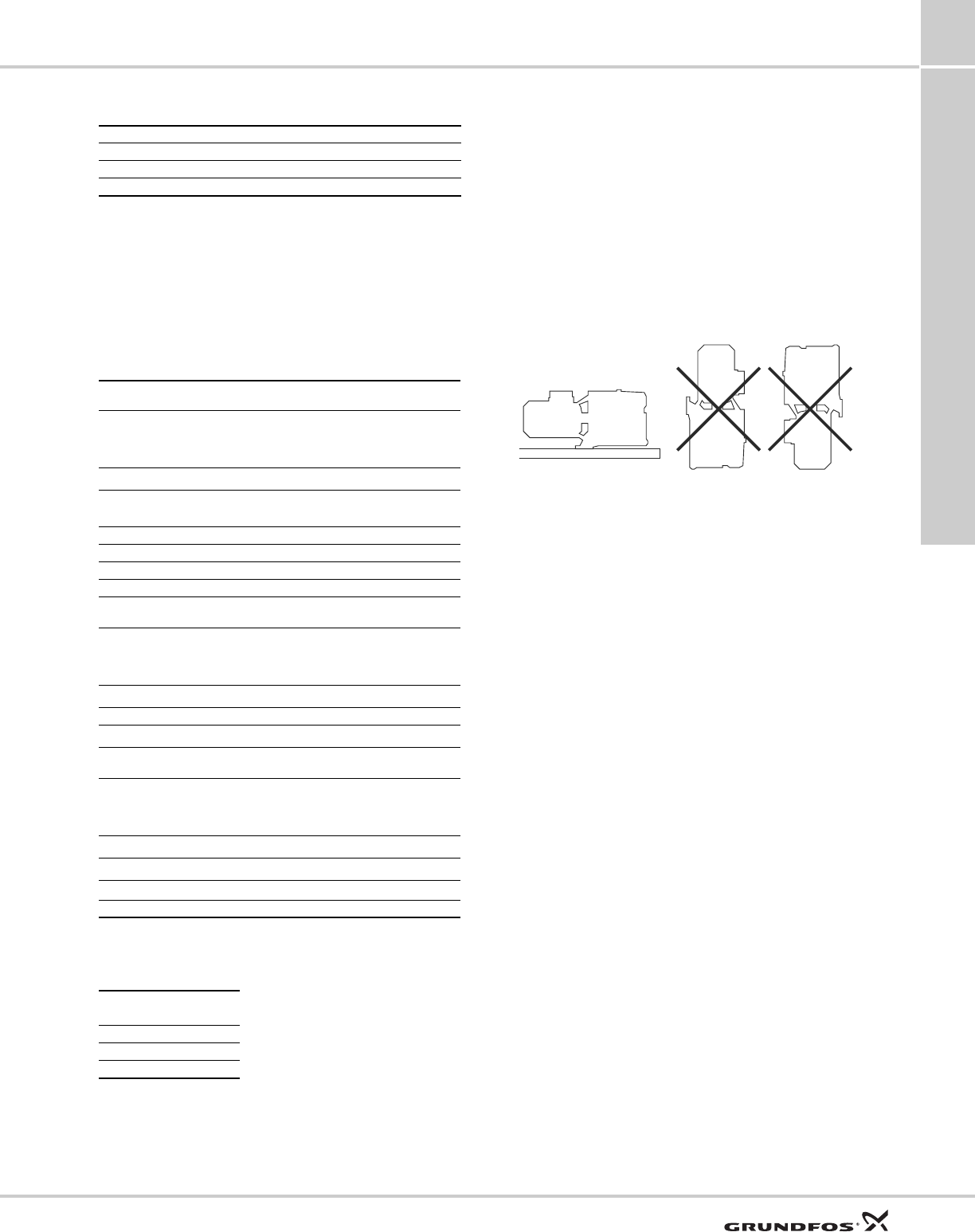

Positioning the pump
The GRUNDFOS BMQE pump is supplied with a
built-in non-return valve. An arrow on the BMQE
sleeve shows the direction of liquid flow through the
pump (fig. 7).
The BMQE is suitable for both vertical and horizontal
installation; however, the discharge port should never
fall below the horizontal plane. See fig. 8.
The BMQE must be installed with the air relief vent in
the 12 o’clock position when installed horizontally and
when installed in the vertical position, the air vent must
be at the top of the unit.

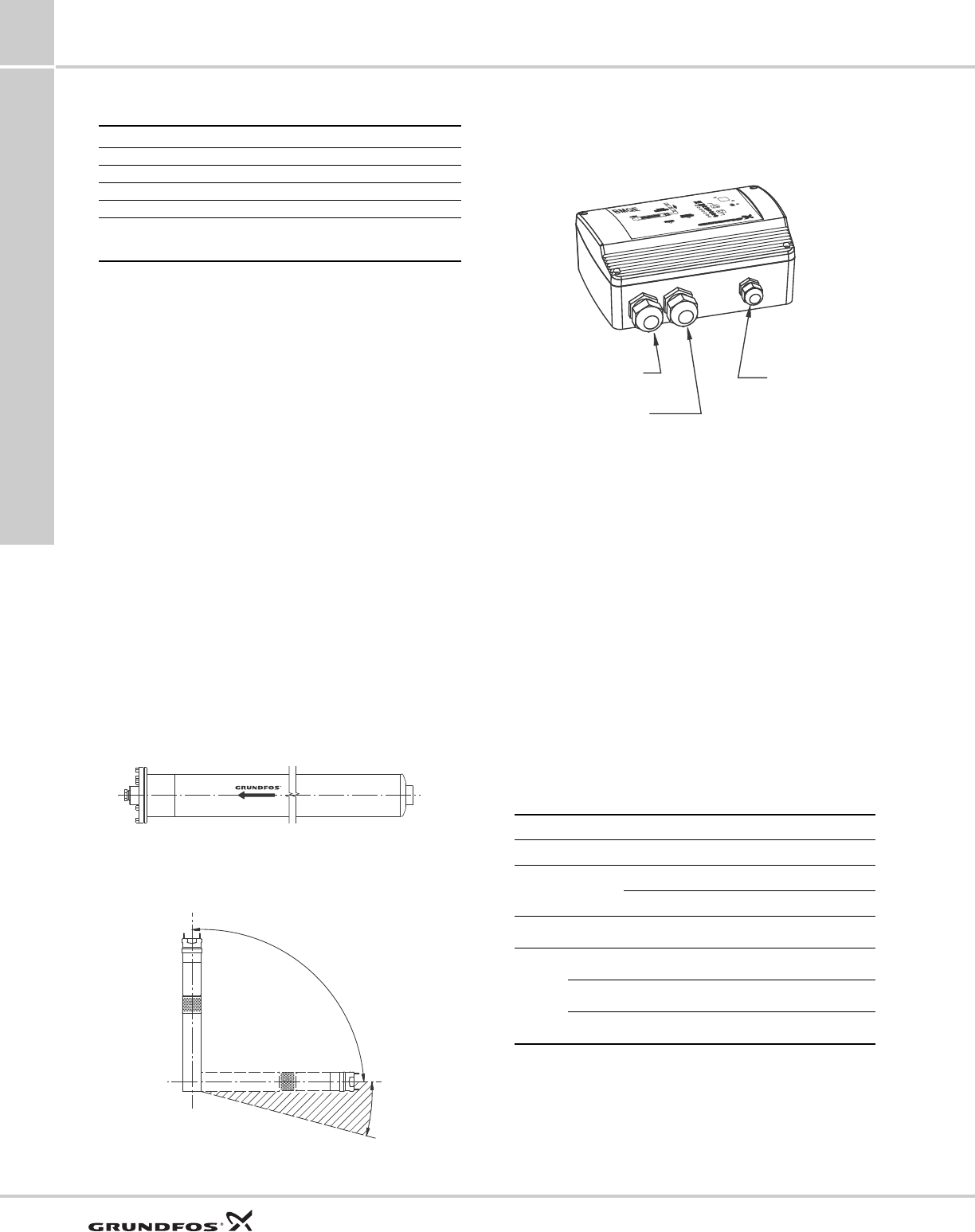

Fig. 7 Arrow showing direction of liquid flow through
pump
Fig. 8 Installation positions
Controller installation
All BMQE pumps can be connected to BMQE
controllers. Each BMQE pump must be connected to
its own BMQE controller.
Fig. 9 BMQE controller entry ports
Connection of motor
The BMQE incorporates a starter device and can
therefore be connected directly to the main power
supply. The BMQE incorporates thermal overload
protection and requires no additional motor protection.
Cable installation
In situations where multiple BMQE power cables are
run parallel in wiring trays or conduit and less than
12 inches apart, the possibility for undesired
communication between units exists. When this
occurs, intermittent or continuous NO CONTACT is
typically seen. Other unexpected errors may also be
seen.
The chart shows single-phase 60 Hz maximum cable
length motor service to entrance. The maximum cable
length with one BMQE controller is 650 ft (198.1 m);
the maximum wire size is 10 AWG.
Flow: Max. 39 US gpm (8.9 m3/h)
Head: Max. 300 ft (91.4 m)
Liquid temperature: Max. 95°F (35°C)
Operating pressure: Max. 347 psi (23 bar)
Inlet pressure: Min. 8 psi (0.55 bar)
Sound-pressure level: The sound pressure level of the BMQE
is lower than 74 db[A] at a distance of
3 ft (1 m).
TM04 9411 4110TM04 1375
TM01 7841 1511
Maximum cable length (one controller)
Motor rating Copper wire size (AWG)
Volts Hp 14 12 10
Maximum cable length [ft (m)]
115 0.50 100
(30.5) 160
(48.8) 250
(76.2)
230
0.50 400
(121.9) 650
(198.1) 650
(198.1)
0.75 300
(91.4) 480
(146.3) 650
(198.1)
1.0 250
(76.2) 400
(121.9) 630
(192)
Pressure sensor
entry
Power supply
entry
Submersible
drop cable entry
BMQE
Domestic water supply 2
11

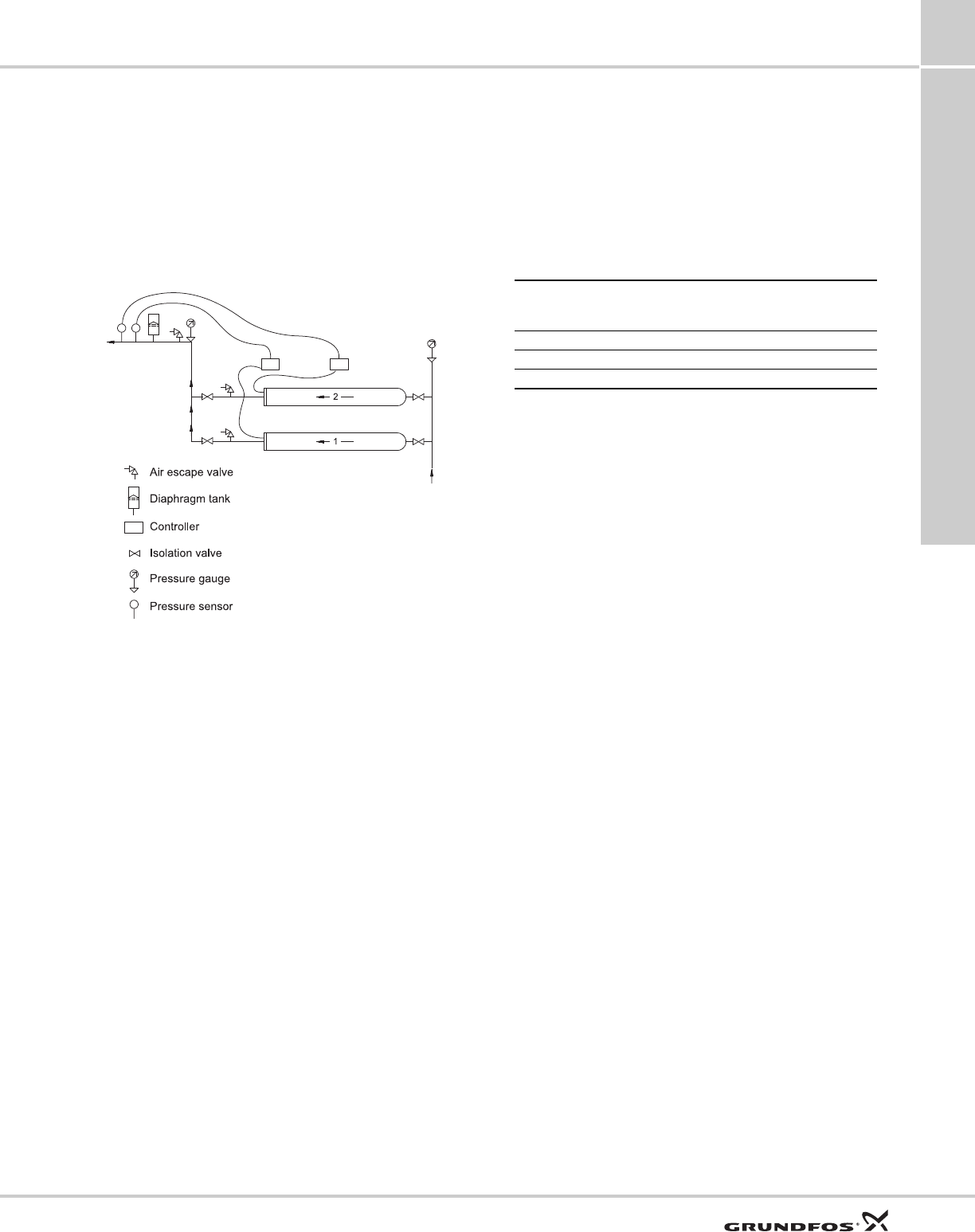

BMQE pumps connected in parallel
When connecting BMQE pumps in parallel (fig. 10) a
separate BMQE controller must be used on each
BMQE pump.
Set the pressure on one BMQE 10 psi lower than the
other.
For BMQE pumps connected in parallel, mount one
above the other; it is recommended to connect the
pipes as shown in fig. 10. This layout ensures that the
BMQE pumps are filled with water before starting.
Fig. 10 Booster unit with two BMQE pumps connected in
parallel, mounted one above the other
Additional considerations when connecting in parallel:
• All BMQE modules are supplied with a non-return
valve.
• BMQE modules connected in parallel may also be
installed vertically.
• As venting problems may arise in such installations,
it is advisable to install suitable air vent devices.
• The BMQE should be positioned with the discharge
and air vent at the top when installed vertically.
• When the maximum flow for BMQE pumps in
parallel will exceed 35 gpm, a 4-gallon or two
2-gallon diaphragm tank(s) should be used.
Pressure sensor installation
The BMQE controller keeps the pressure constant in
the place where the pressure sensor is positioned.
The maximum shielded cable length for the sensor
must not exceed 1600 ft (487.7 m).
Generator operation
Power may be supplied to BMQE pumps by an
adequately sized generator. The generator must be
sized 50 % above the pumps P1 (input power) values.
TM04 9413 4110
Motor Hp Minimum
generator size
[watts]
Recommended
generator output
[watts]
0.33 to 0.50 A 1100 1500
0.50 to 0.75 B 1700 2300
1.0 to 1.5 B 2000 3500
BMQE
Domestic water supply
2
12
Quick selection guide
Example:
• The maximum demand is 15 gpm (3.4 m3/h).
• The pressure required is 70 psi (4.8 bar) system
pressure at the taps in the building.
• The normal minimum inlet pressure (e.g. city
pressure) is 20 psi (1.4 bar)
• The additional boost required is 50 psi (3.5 bar) at
15 gpm (3.4 m3/h).
• Select a 15 BMQE 05A-110.
Curve charts and technical data

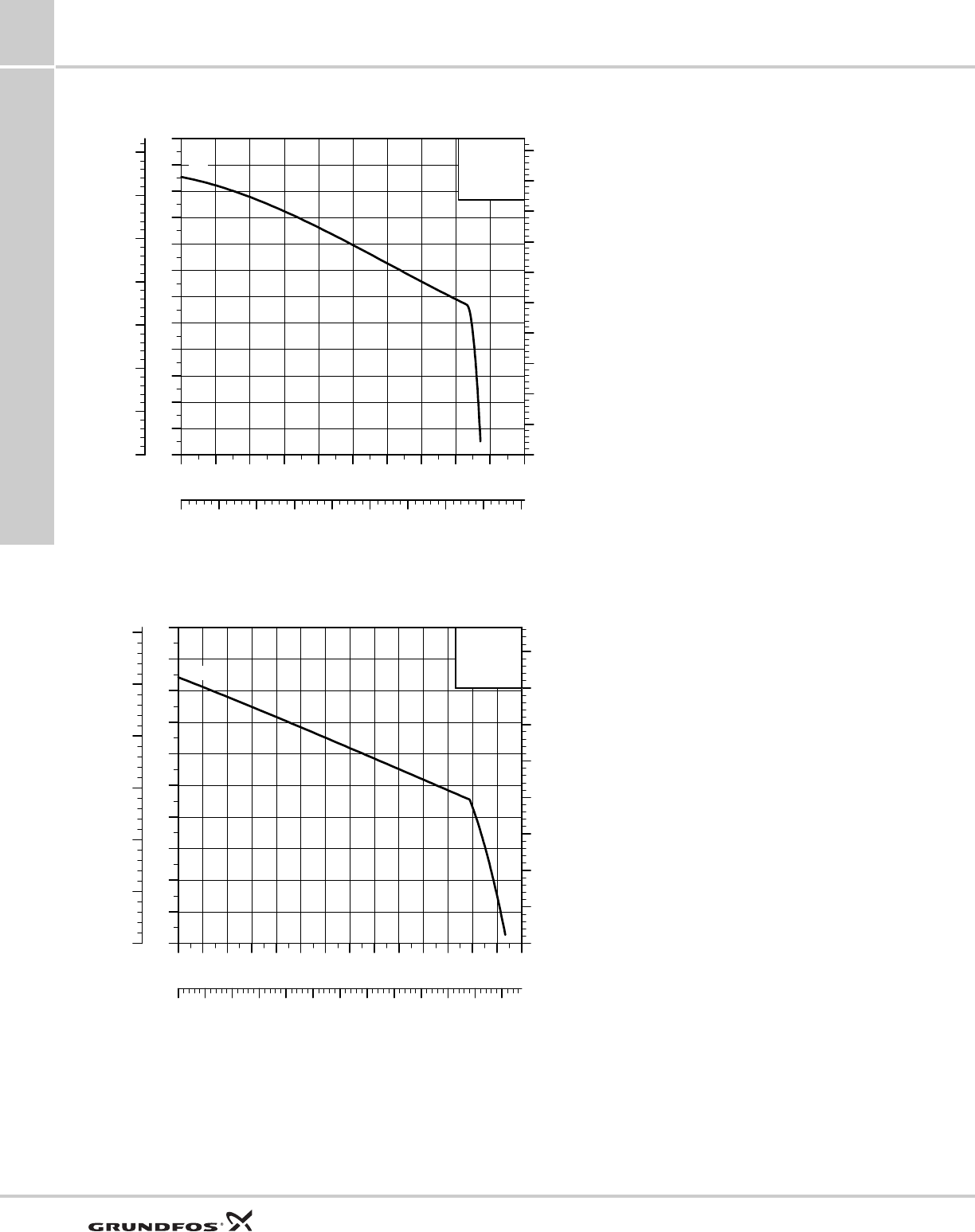

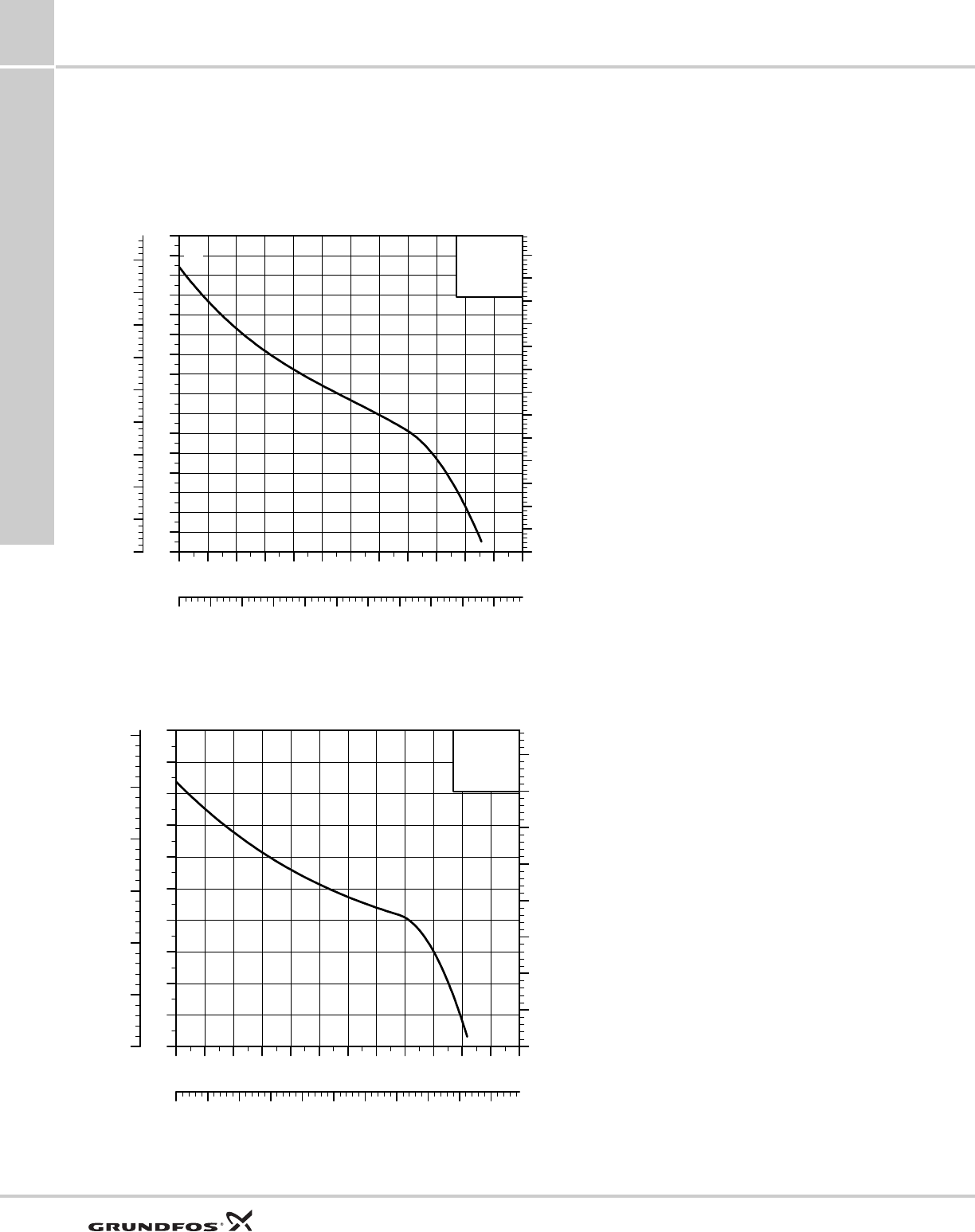

How to read the curve charts
Additional (boost)
pressure required
[psi]
Flow required [gpm]
5 10 15 2025303539
90
80
70
60
50
40
30
20
10
TM04 4551 1609
0246810 12 14 16 18 Q[USGPM]
0
50
100
150
200
250
300
[ft]
H
0
20
40
60
80
100
120
140
P
[psi]
0
20
40
60
80
100
H
[m]
0.0 0. 5 1.0 1.5 2. 0 2.5 3. 0 3. 5 4. 0 4. 5 Q[m³/h]
07B - 180 (5 -s tage)
05A -110 (3 -s tage)
0246810 12 14 16 18 Q[USGPM]
0.0
0.1
0.2
0.3
[hp]
P2
0
20
40
60
[%]
Eta
0.0
0.1
0.2
P2
[kW]
P2
Eta
15 BMQE
60 Hz
22 BMQE 10C-190
22 BMQE 05B-120
22 BMQE 05A-80 30 BMQE 05B-90
30 BMQE 10C-130
15 BMQE 07B-180
15 BMQE 05A-110
BMQE
Domestic water supply 2
13

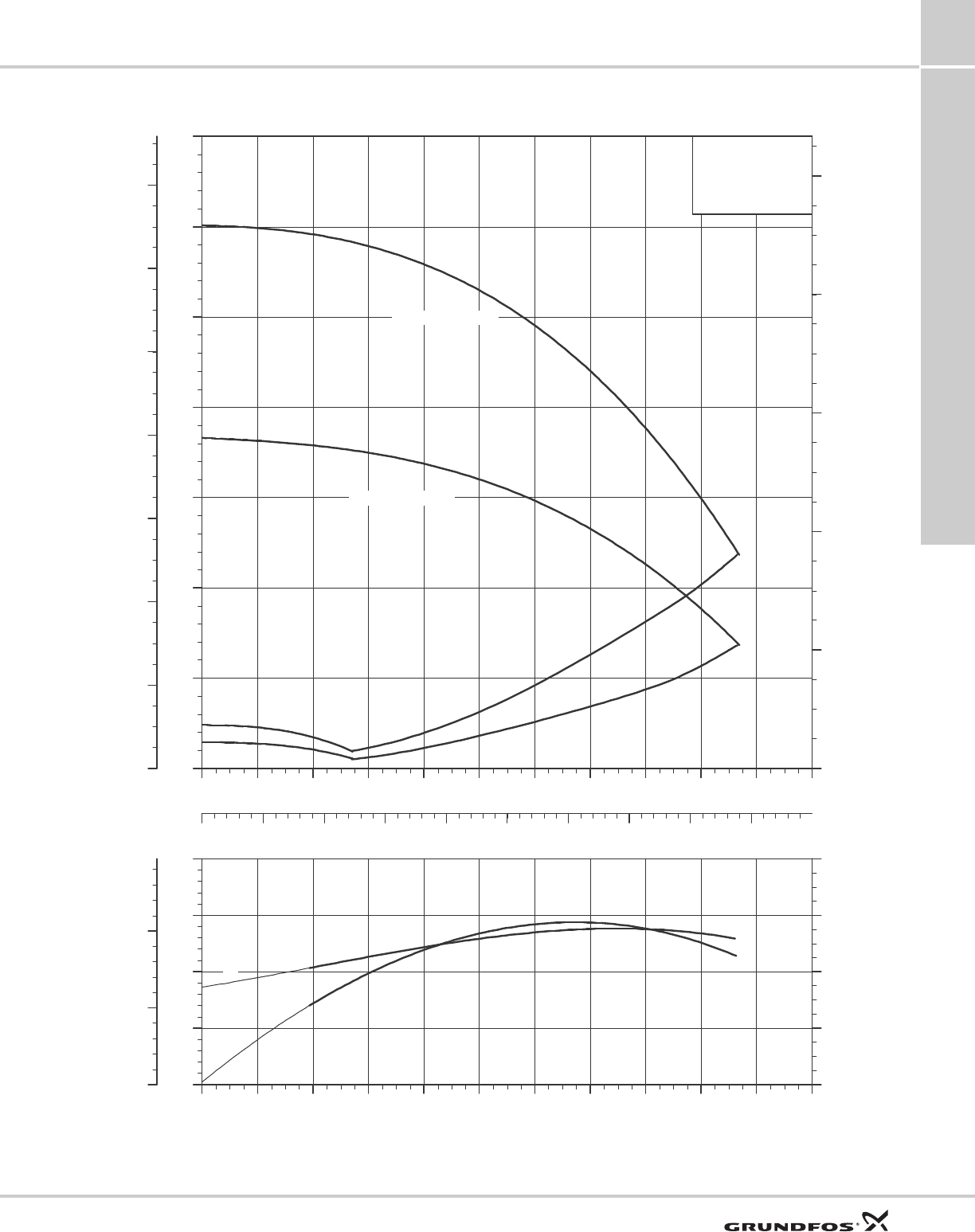

15 BMQE 60 Hz
TM05 0772 1511
0246810 12 14 16 18 Q[USGPM]
0
50
100
150
200
250
300
[ft]
H
0
20
40
60
80
100
120
140
P
[psi]
0
20
40
60
80
100
H
[m]
0.0 0.5 1.0 1.5 2. 0 2.5 3.0 3.5 4. 0 4. 5 Q[m³/h]
07B -180 (5-s tage)
05A -110 (3-s tage)
0246810 12 14 16 18 Q[USGPM]
0.0
0.1
0.2
0.3
[hp]
P2
0
20
40
60
[%]
Eta
0.0
0.1
0.2
P2
[kW]
P2
Eta
15 BMQE
60 Hz
BMQE
Domestic water supply
2
14

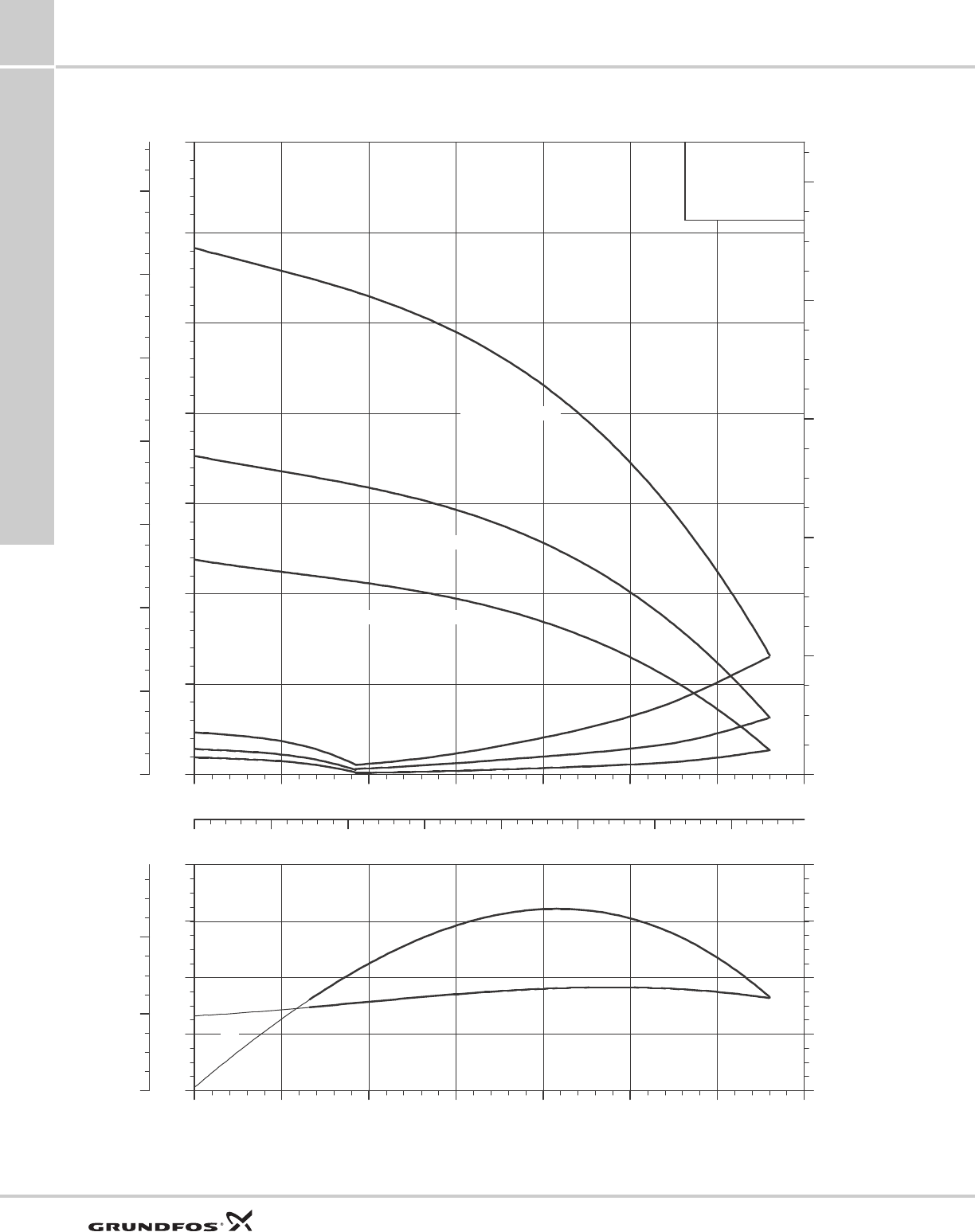

22 BMQE 60 Hz
TM05 0773 1511
0 5 10 15 20 25 30 Q[US GPM]
0
50
100
150
200
250
300
[ft]
H
0
20
40
60
80
100
120
140
P
[psi]
0
20
40
60
80
100
H
[m]
0 1 2 3 4 5 6 7 Q[m³/h]
05A -80 (2-stage)
05B -120 (3stage)
10C -190 (5-s tage)
0 5 10 15 20 25 30 Q[US GPM]
0.0
0.2
0.4
0.6
[hp]
P2
0
20
40
60
[%]
Eta
0
0
0
P2
[kW]
P2
Eta
22 BMQE
60 Hz
BMQE
Domestic water supply 2
15
30 BMQE 60 Hz
TM05 0774 1511
0 5 10 15 20 25 30 35 Q[USGPM]
0
20
40
60
80
100
120
140
160
180
200
220
[ft]
H
0
10
20
30
40
50
60
70
80
90
P
[psi]
0 1 2 3 4 5 6 7 8 9 Q[m³/h]
0
10
20
30
40
50
60
70
H
[m]
05B -90 (2-stage)
10C -130 (3-s tage)
0 5 10 15 20 25 30 35 Q[USGPM]
0.0
0.2
0.4
0.6
[hp]
P2
0
20
40
60
[%]
Eta
0
0
0
P2
[kW]
P2
Eta
30 BMQE
60 Hz
BMQE
Domestic water supply
2
16

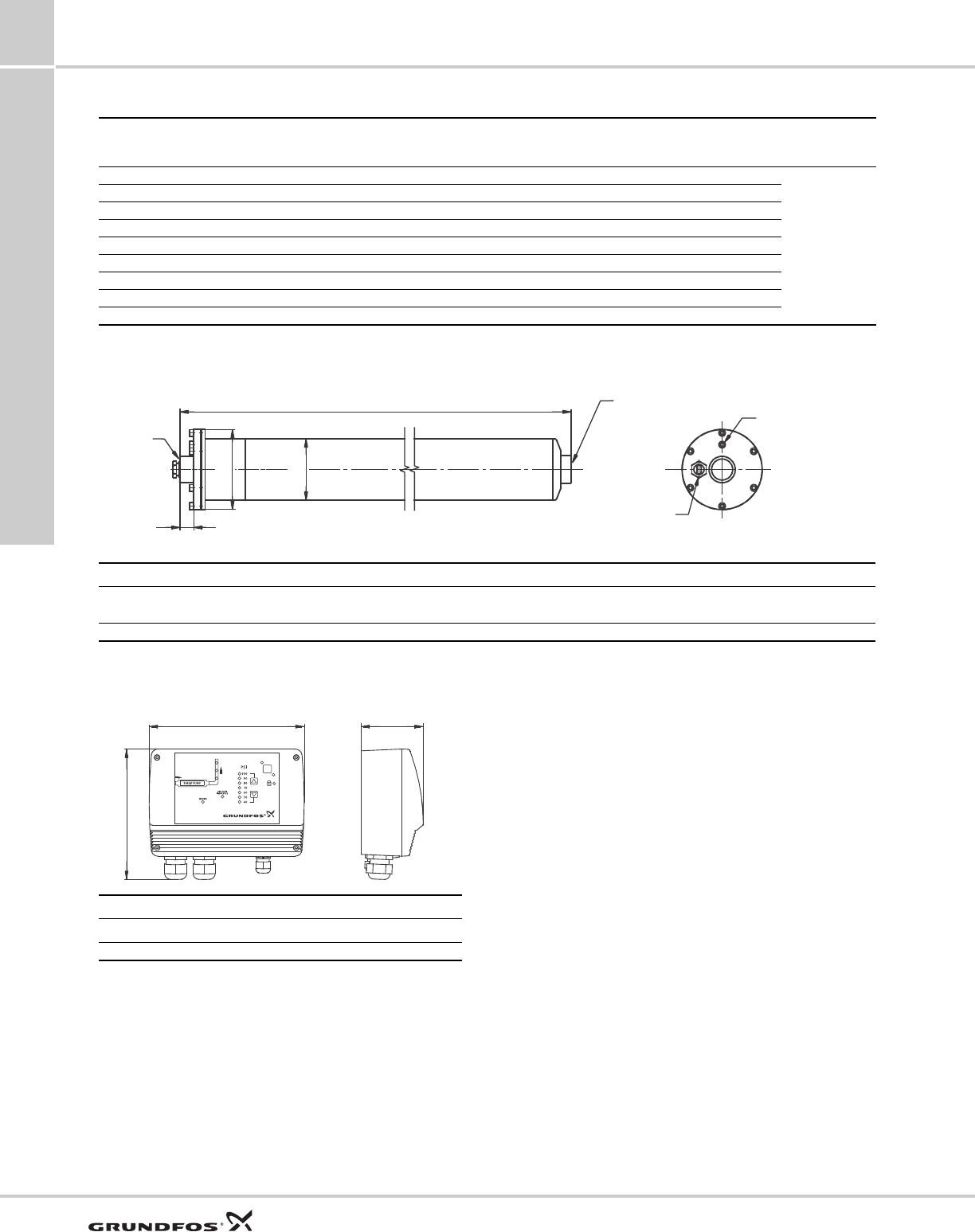

Weights and electrical data

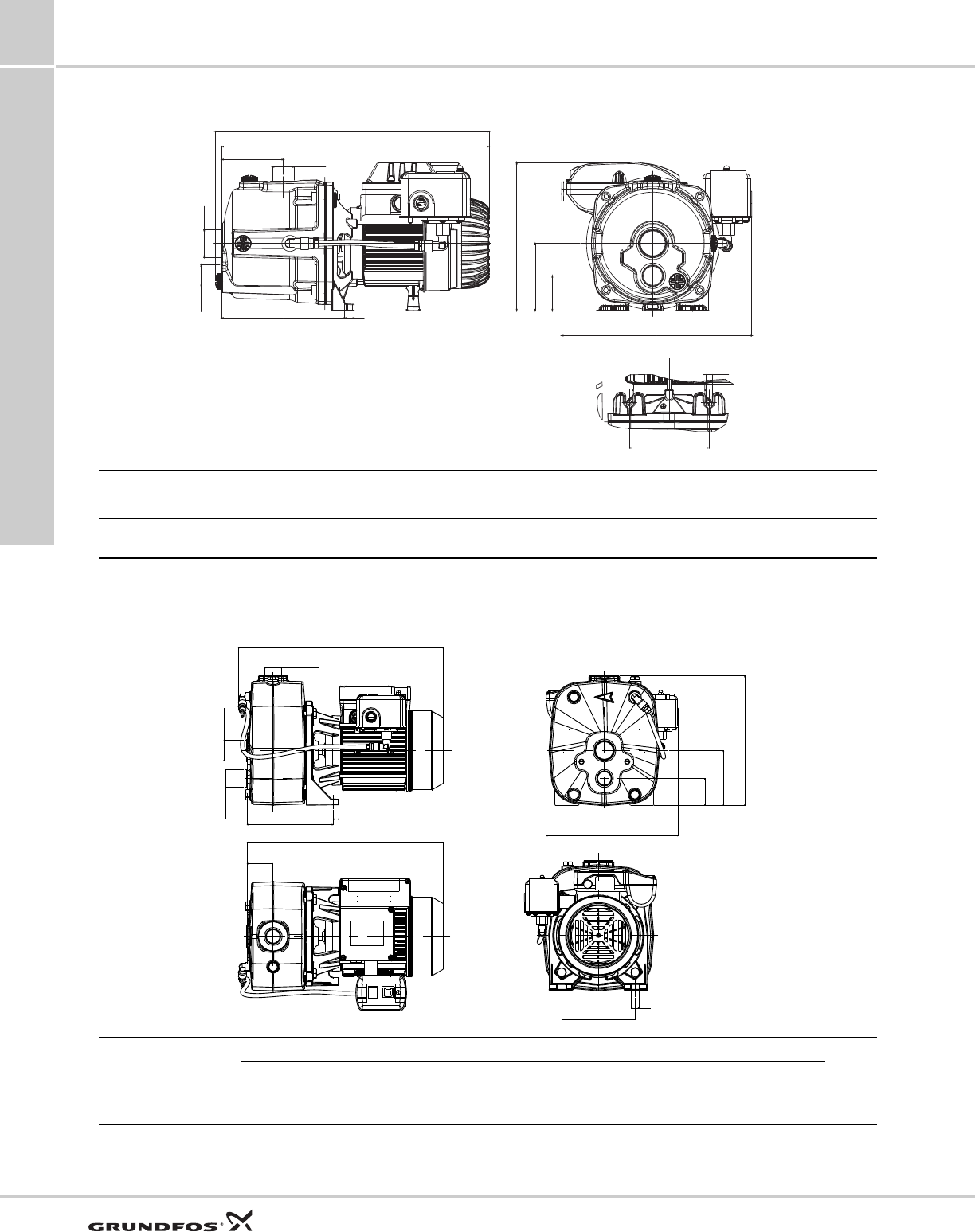

Dimensional sketch, BMQE pump
Dimensional sketch, BMQE controller
Model Product
number
Max.
motor output
[hp]
Rated
voltage
[V]
Rated
current
[A]
Locked rotor
current
[A]
Shipping
weight
[lb (kg)]
Shipping
volume
[ft3 (m3)]
15 BMQE 05A-110 91128524 0.845 110-115 9.2 11.1 26 (11.8)
0.9 (0.025)
22 BMQE 05A-80 91128527 0.845 110-115 7.8 11.1 26 (11.8)
15 BMQE 05A-110 91128525 0.845 200-240 4.6 5.0 26 (11.8)
15 BMQE 07B-180 91128526 1.408 200-240 7.1 8.0 29 (13.2)
22 BMQE 05A-80 91128528 0.845 200-240 3.9 5.0 26 (11.8)
22 BMQE 05B-120 91128529 1.408 200-240 5.6 8.0 29 (13.2)
22 BMQE 10C-190 91128530 2.320 200-240 9.9 11.1 31 (14.1)
30 BMQE 05B-90 91128531 1.408 200-240 6.0 8.0 31 (14.1)
30 BMQE 10C-130 91128533 2.320 200-240 9.5 11.1 31 (14.1)
TM01 7323 1511
Dimensions
AB
[in (mm)] C
[in (mm)] D
[in (mm)] E
[in (mm)] F
1.0" NPT 43.3 (1100) 0.8 (20.5) Ø 4.6 (116) Ø 3.5 (88.9) 1.25" NPT
TM05 0720 1511
Dimensions [in (mm)]
ABC
7.68 (195) 9.13 (232) 4.49 (114)
A
B
C
D
E
F
Cable
entry
Air vent
screw
BMQE
A
BC
BMQE
Domestic water supply 2
17
Technical data, BMQE pump
* Not sold by Grundfos.
Technical data, BMQE controller
Main power supply to pump 1 x 200-240 V –10 % / +6 %, 60 Hz
1 x 110-115 V –10 % / +6 %, 60 Hz
Starting Soft starting.
The motor starting current is equal to the highest value stated on the BMQE nameplate.
Stopping Soft stopping when stopped by the BMQE controller
Run-up time Maximum: 2 seconds.
No limitation to the number of starts/stops per hour.
Motor protection
Built into the pump. Protection against:
• Dry running
• Over voltage and under voltage
230 V cuts out at < 150 V and > 280 V
115 V cuts out at < 75 V and > 150 V
• Overload
• Over temperature
Sound pressure level
The sound pressure level is < 74 db[A] at a distance of 3 feet (1 meter).
It is recommended by Grundfos that the pump be installed with sound and vibration dampening
equipment such as flexible piping adapters and anti-vibration mounting.*
The pump should not be mounted in or adjacent to living quarters.
The pump can also be wrapped with sound proofing insulation to reduce noise.*
Reset function BMQE pumps can be reset via BMQE controller
Power factor PF = 1.
Operation via generator It is recommended that the generator output is equal to the motor input power P1 [kW]
plus 50 %; min. P1 +10 %, however.
Pipe connection 1.25” NPT inlet / 1” NPT discharge
Strainer Holes of the strainer: ø0.09” (2.3 mm)
Approvals UL Listed, CE (SQE Pump with MSE 3 motor only)
Weight 31 lbs. (14.1 kg)
Voltage 1 x 100-240 V –10 % / +6 %, 60 Hz
Voltage 1 x 100-240 V -10 % / +6 %, 60 Hz
Power consumption 5 W
Current consumption Maximum 130 mA
Motor cable • 2-wire w/ground, 12 AWG Teflon
• B: Black (Line, Neutral)
• G: Green (Ground)
Enclosure class NEMA 3R (IP 55)
Ambient temperature In operation: -22 to +122 °F (-30 to +50 °C). During storage: -22 to +140 °F (-30 to +60 °C)
Relative air humidity 95 %
Pump cable Maximum length between BMQE controller and pump: 650 ft (198 m)
Back-up fuse Maximum: 16 A
Load Max. 100 mA
Approvals UL Listed, CE
BMQE
Domestic water supply
2
18
Accessories, BMQE
BMQE constant pressure kit
BMQE controller
Sensor
Diaphragm tank

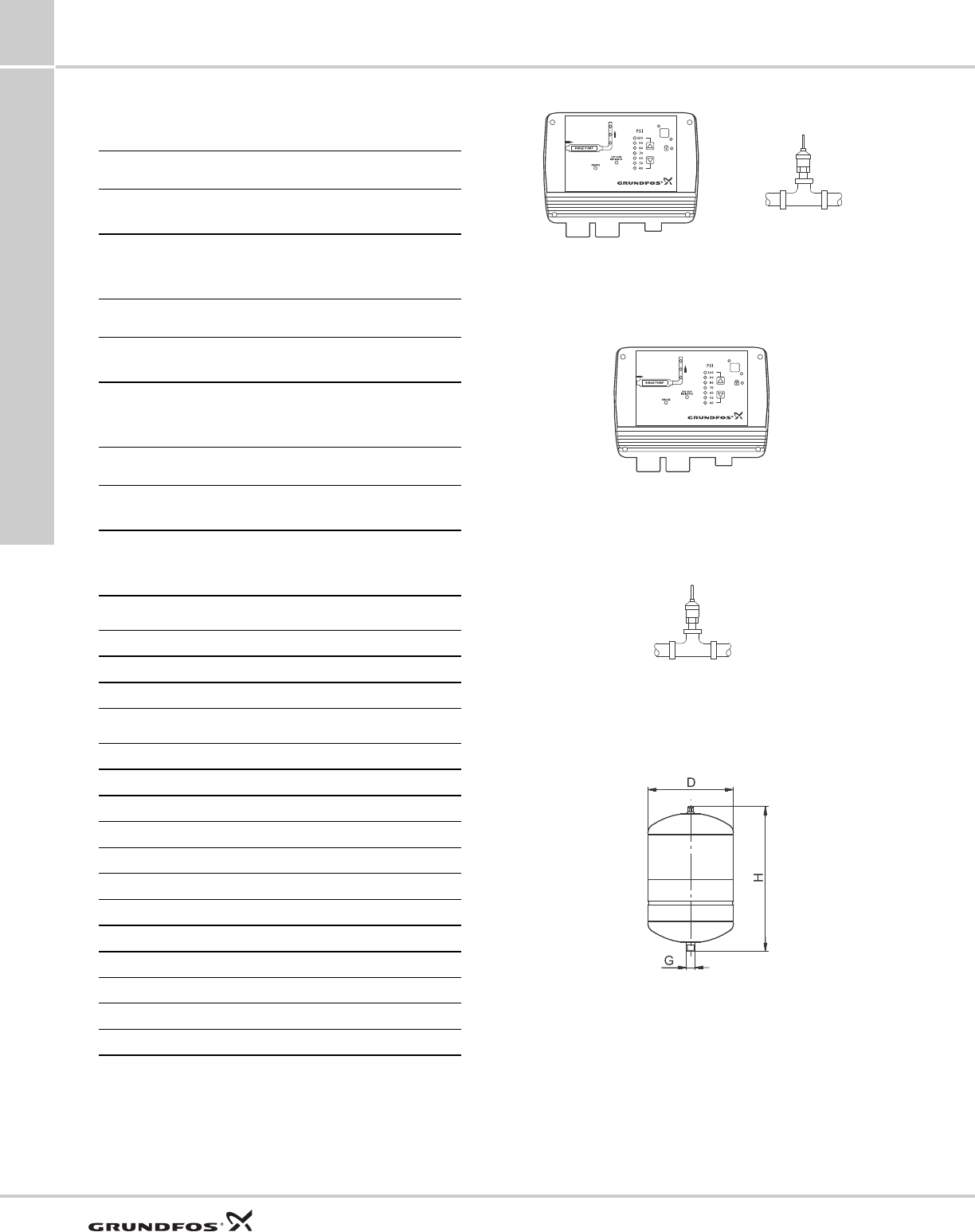

Fig. 11 BMQE constant pressure kit
Fig. 12 BMQE controller
Fig. 13 Pressure sensor for BMQE controller
Fig. 14 Diaphragm tank
Description Rating Product
number
BMQE controller and
pressure sensor
Setting range
40 to 100 psi
(2.8 to 6.9 bar) 91128636
Description Rating Product
number
BMQE controller Setting range
40 to 100 psi
(2.8 to 6.9 bar) 91121987
Description Rating Product
number
Pressure sensor for
BMQE controller
0 to 120 psi
(0 to 8.3 bar),
1/2” NPT 96437852
Description Weight
[lbs (kg)] Product
number
Diaphragm tank, 2 gal. 5 (2.3) 91121984
Dimensions
G
connection D
[in (mm)] H
[in (mm)]
3/4” NPT 8 (203) 12.63 (321)
Specifications
Duty range
Pre-charge pressure: 40 psi (2.8 bar)
Max. operating pressure: 150 psi (10.3 bar)
Max. liquid temperature: 200 °F (93 °C)
Materials
Liner: Polypropylene
Connection: Lead-free brass
Tank: Stainless steel, AISI 304
TM05 0732 / TM05 0733TM05 0732 1511TM05 0733 1511TM05 0734 1511
BMQE
BMQE
MQ
Domestic water supply 3
19
3. MQ
Product introduction
The Grundfos MQ is a compact pump and pressure
boosting unit, purpose-designed for domestic water
supply and other applications where a compact and
reliable, easy-to-install pump is advantageous. The
MQ is a self-priming multistage centrifugal pump; it
self-primes from a well depth of down to 26 ft (8 m)
within 5 minutes.
The MQ is a complete, all-in-one unit, incorporating
pump, motor, diaphragm tank, pressure and flow
sensor, controller and check valve.

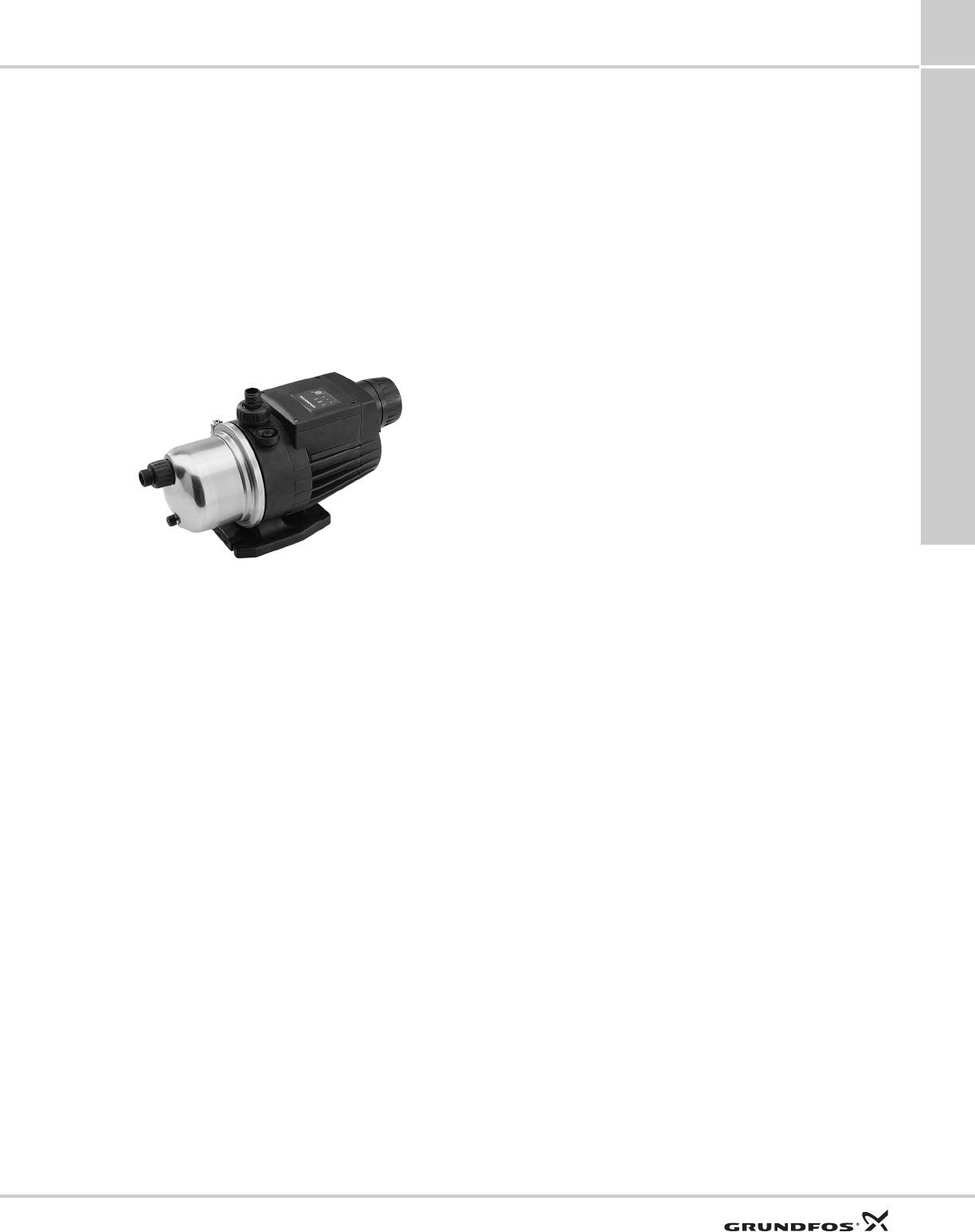

Fig. 15 Grundfos MQ
Applications
MQ is suitable for pressure boosting of potable water
and rain water for:
• water pressure boosting
(max. inlet pressure 40 psi (2.8 bar)
• water supply from wells
(max. suction lift: 26 ft (8 m).
Examples of ideal applications for MQ are:
• private homes
•farms
• market gardens and other large gardens.
Pumped liquids
The MQ is suitable for pumping potable water, rain
water, or other clean, thin, non-aggressive liquids not
containing solid particles or fibers.
Features and benefits
Complete system
The MQ is a compact, "plug and pump" or all-in-one
solution; there is no need for a separate pressure tank,
pressure switch, electrical connections, fittings, or any
other separate items. No maintenance of the pump is
required. Two versions are available to choose from.
Installation
Installation of the MQ is simple and can be done in a
matter of minutes, which means greatly reduced
installation costs.
Outlet connnection can be angled up to 5° to fit
existing pipework.
Simple operation
The MQ features a user-friendly control panel with
ON/OFF button and indicator lights for indication of the
operational state of the pump.
Compact design
Compact, horizontal design fits even where space is
limited (outdoor applications require the use of the
Protection Cover, sold separately); no space around
the pump is required.
Self-priming
As it is self-priming, the MQ is able to pump water from
a level below the pump. Provided it is filled with water,
the pump is able to lift water from a depth of 26 ft (8 m)
in less than 5 minutes. This facilitates installation and
start-up of the pump and provides more reliable water
supply in installations where there is a risk of dry
running and leakages in suction hose or pipes.
Built-in protective functions
Built-in protective functions; if exposed to dry
running, excessive temperature, or any overload
condition the pump will stop automatically, thus
preventing a motor burnout.
Automatic reset
In case of dry running or a similar alarm, the pump will
stop. Restarting will be attempted every 30 minutes for
a period of 24 hours. The reset function can be
deactivated.
Low noise level
Superior hydraulics and internal cooling combined
result in very quiet operation, which makes it suitable
for many applications.
Pressure tank
The built-in pressure tank reduces the number of starts
and stops in case of leakages in the pipe system,
causing less wear on the pump.
How the MQ functions
The MQ pump has a small built-in pressure tank,
sufficient to ensure that water is readily available from
the tap. When water is required, the pump
automatically starts. A non-return valve prevents
backflow.
The controller ensures that the pump starts
automatically when water is consumed and stops
automatically when the consumption ceases. In
addition, the controller protects the pump in case of
faults.
TM01 9873
MQ
Domestic water supply
3
20
Identification
Type key, MQ
Example MQ 3 - 35 A - B - A - BVBP
Pump range
Rated flow [m3/h]
Max. head [m]
Code for pump version
A: standard
Code for pipework connection
B: External thread
Code for materials
A: Standard
Code for shaft seal
B: Bellow seal, rubber
V: Ceramic
B: Carbon, resin-impregnated
P: NBR (nitrile rubber)
MQ
Domestic water supply 3
21
Product overview

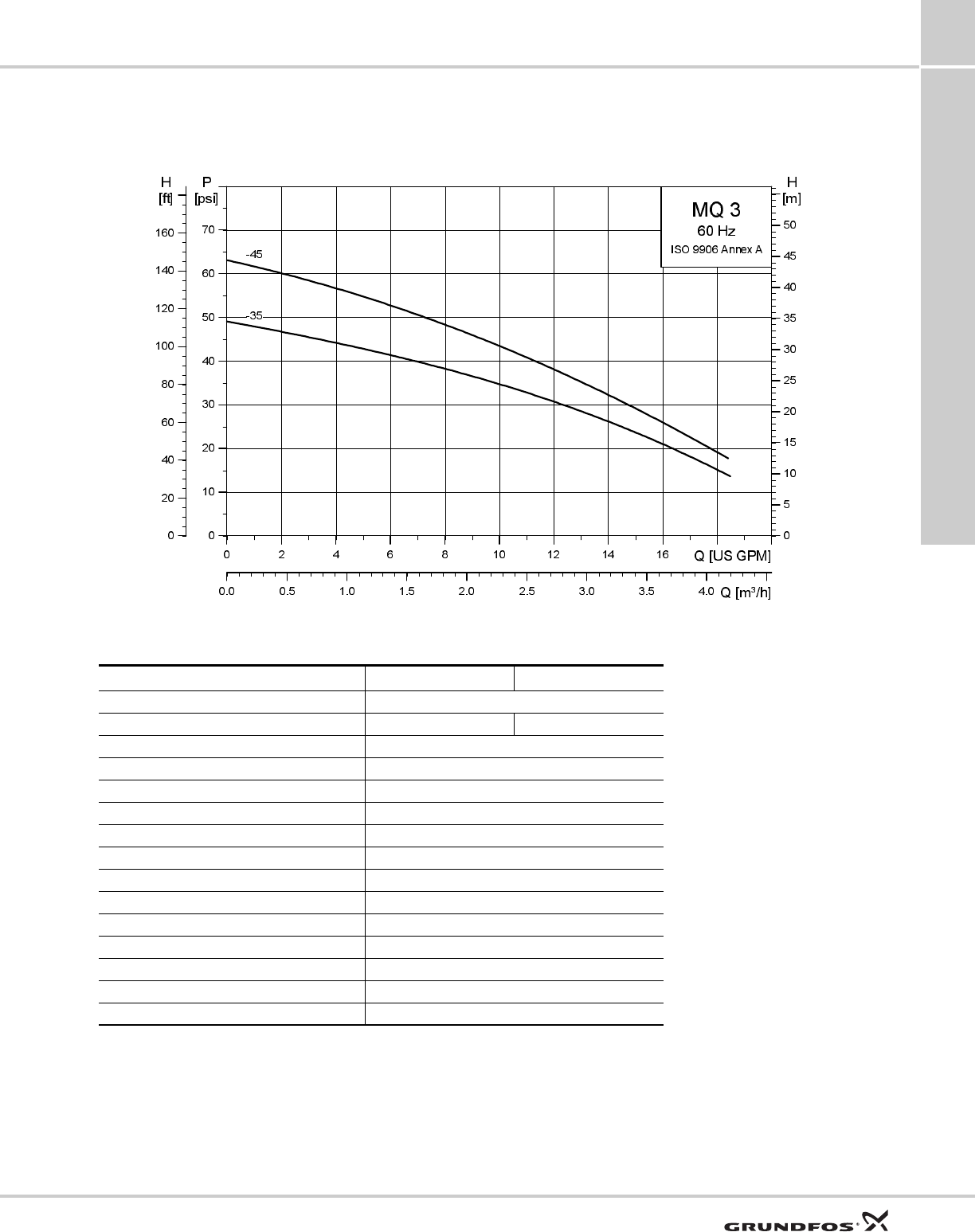

Performance range, MQ 60 Hz
Product range, MQ
TM04 4141 0909
Range MQ 3-35 MQ 3-45
Maximum flow rate [gpm (m3h)] 19 (4.3)
Maximum pressure [psi (bar)] 49 (3.4) 63 (4.3)
Maximum system pressure [psi (bar)] 109 (7.5)
Maximum inlet pressure [psi (bar)] 40 (2.7)
Maximum suction lift [ft (m)] 26 (8)
Minimum ambient temperature [°F (°C)] 32 (0)
Maximum ambient temperature [°F (°C)] 113 (45)
Minimum liquid temperature [°F (°C)] 32 (0)
Maximum liquid temperature [°F (°C)] 95 (35)
Net weight [lbs (kg)] 29 (13.2)
Sound pressure level [dB(A)] < 60
Tank volume [oz (ml)] 13.5 (399)
Air pressure in tank [psi (bar)] 22 to 25 (1.5 to 1.7)
Connections 1" NPT
Priming and drain plugs 3/8" GAS
MQ
Domestic water supply
3
22
Construction
Components, MQ
Fig. 16 MQ pump components
MQ control panel
Fig. 17 MQ control panel
TM05 0691 1411
Pos. Description
1 Protective cover (accessory)
2 Discharge port
3 Suction port
4Drain plug
5 Baseplate
6 Priming plug
7 Shaft access port plug
8 Pressure tank
9 Control panel
1
2
3
4
5
6
7
8
9
TM05 0769 1511
Pos. Description
1
Power indicator light
Indicates the pump is ready for
operation (green).
2Indicates the pump is on
standby (red).
3 On/Off button Pump is started and stopped by
pressing On/Off button.
4 Pump ON (green) Indicates pump is running.
5Auto reset
Indicates auto reset function is
active.
After an alarm, restarting will be
attempted every 30 minutes, for
a period of 24 hours.
6 Alarm (red) Indicates pump is in alarm state.
Manual resetting is possible by
pressing On/Off button.
4
1
3
2
5
6
MQ
Domestic water supply 3
23
Material specification, MQ
POM: Polyoximetylen
NR-rubber: Natural Rubber
PPO: Polyphenylene Oxides
PP: Polypropylene
NBR-rubber: Nitrile-Butadiene Rubber
Fig. 18 MQ exploded view
Pos. Components Material Pos. Components Material
2 Support flange PP + 30 % glass fiber 101 Suction port PPO + 20 % glass fiber
4 Chamber PPO + 20 % glass fiber 103
104
Shaft seal:
Stationary and
rotating part Carbon/ceramics/NBR rubber
7 Drain and priming plug PPO + 20 % glass fiber
10 Self-priming valve PP + 30 % glass fiber 149 Insulation disc PA 5VA (Polyammide)
14 Self-priming part PPO + 20 % glass fiber
150
Shaft Stainless steel,
DIN W.-Nr 1.4005, AISI 416
16 Pump sleeve Stainless steel,
DIN W.-Nr. 1.4301, AISI 304 Motor sleeve Stainless steel,
DIN W.-Nr 1.4301, AISI 304
42 Tank cover PP + 30 % glass fiber HB (f1) 164 Terminal box cover PP + 30 % glass fiber 5VA (f1)
49 Impeller PPO + 20 % glass fiber-PTFE 174a Pressure switch POM + 25 % glass fiber /
SIL Rubber (Silicone Rubber)
51 Motor cover PP + 30 % glass fiber HB (f1) Pressure switch
membrane SIL Rubber - Silicone Rubber.
65 Non-return valve POM + 25 % glass fiber 180 Motor body PP + 30 % glass fiber 5VA (f1)
92 Clamp Stainless steel,
DIN W.-Nr 1.4301, AISI 304 184 Flow sensor POM + 25 % glass fiber
100a Discharge port PPO + 20 % glass fiber O-rings NBR-rubber
TM01 9733 1411
×Ö× Úß ×Ü ÚØ
×ÖÖ`
×Ú
Ý
92
150
51
184164 174a 42
103
104
65
10
180
MQ
Domestic water supply
3
24
Operating conditions
Installation
Location
The pump is suitable for indoor and outdoor
installation. It is resistant to sunlight. For outdoor
installation, the pump must be fitted with a protective
cover (accessory). Should the unlikely event of an
internal leakage occur, pumped liquid will be drained
out from the base and/or end cover instead of
damaging the pump. Install the pump in such a way
that no undesirable collateral damage can arise.
Positioning the pump
Mount the pump on the base plate with horizontal
suction port and vertical discharge port.
The pump must be installed horizontally.
The maximum permissible inclination angle is
+/- 18 °.
To prevent movement and vibrations, the pump and
base plate can be secured to a solid foundation by
means of the bolt holes in the base plate.
Selection of product
MQ is available in two sizes and two voltages.
System pressure: Max. 109 psi (7.5 bar)
Inlet pressure: Max. 40 psi (2.8 bar)
Suction lift: Max. 26 ft (8 m)
Liquid temperature: 32°F to +95°F (0°C to +35°C)
Ambient temperature: 32°F to +113°F (0°C to +45°C)
Model Voltage
[V] Product number
MQ 3-35 115 96860172
230 96860201
MQ 3-45 115 96860195
230 96860207
MQ
Domestic water supply 3
25
Curve charts and technical data

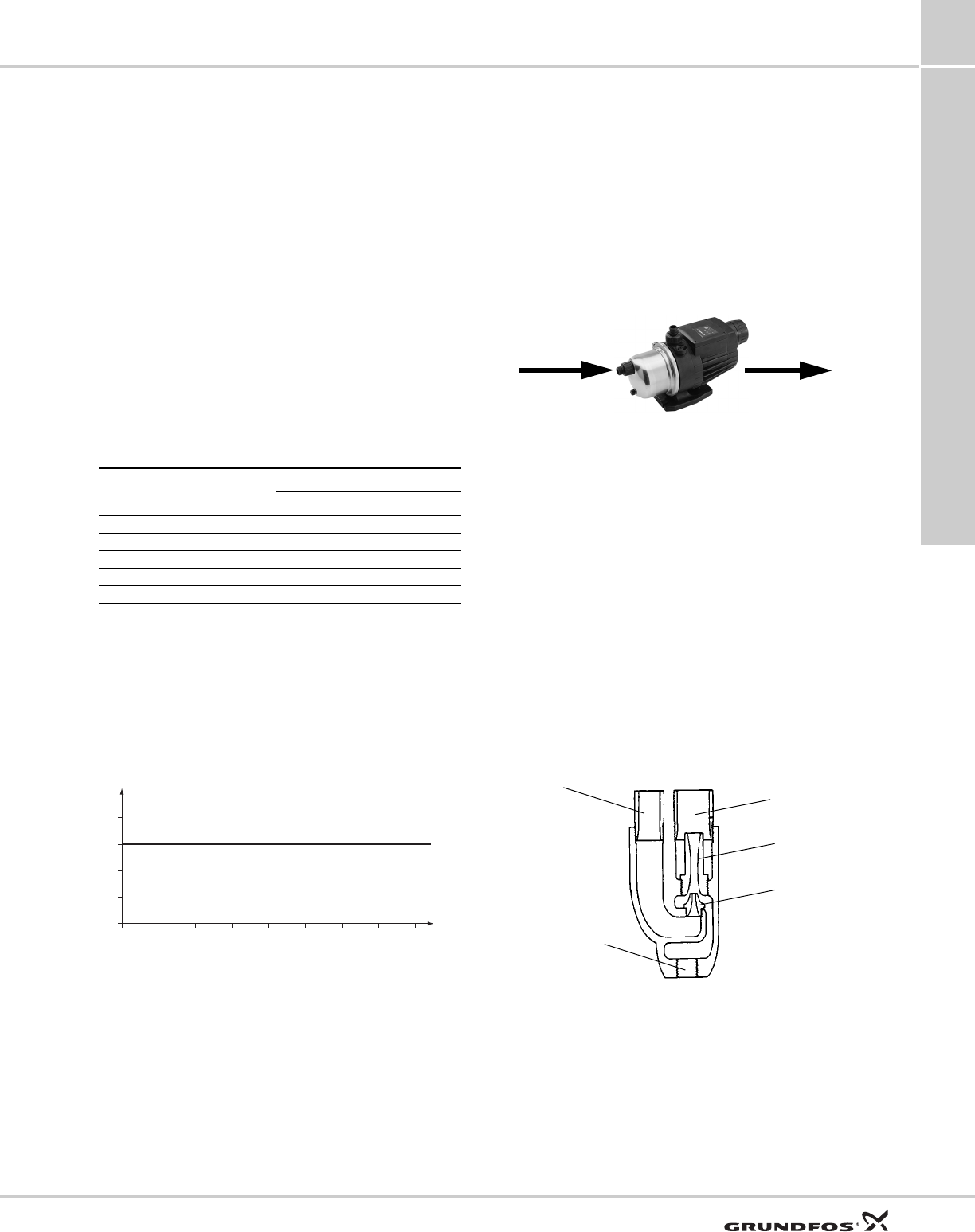

MQ 3-35 60 Hz, suction lift performance curve
Provided it is filled with water, the pump is able to lift water from a depth of 26 ft (8 m) in less than 5 minutes.
Note: Use with a foot valve in suction lift applications.
TM05 2056 4311
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Q [US GPM]
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
[psi]
P
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0
Q [m³/h]
0
10
20
30
40
50
60
70
80
90
100
110
[ft]
H
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
[m]
H
MQ 3-35
60 Hz
0 ft
13.1 ft
19.7 ft
23 ft
26.2 ft
6.6 ft
MQ
Domestic water supply
3
26
MQ 3-45 60 Hz, suction lift performance curve
Provided it is filled with water, the pump is able to lift water from a depth of 26 ft (8 m) in less than 5 minutes.
Note: Use with a foot valve in suction lift applications.
TM05 2057 4311
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
Q [US GPM]
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
[psi]
P
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0
Q [m³/h]
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
[ft]
H
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
[m]
H
MQ 3-45
60 Hz
0 ft
13.1 ft
19.7 ft
23 ft
26.2 ft 6.6 ft
MQ
Domestic water supply 3
27

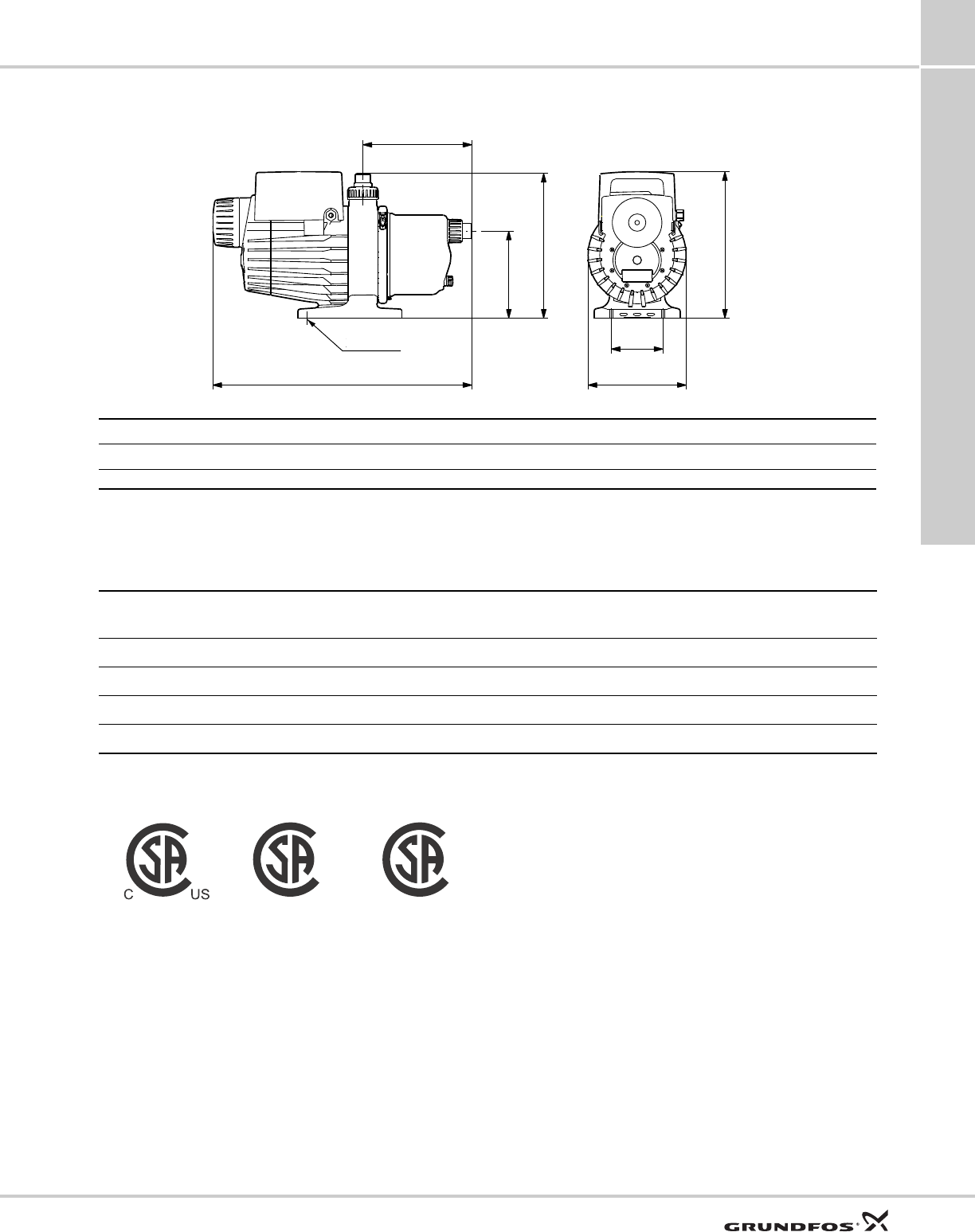

Dimensional sketch - MQ
Weights and electrical data
-10/+6 % voltage tolerance
7.5 ft. power cord with plug
Approvals
TM01 9799
Dimensions [in (mm)]
ABCDEFGH
9.45 (240) 2 x 3/8 (2 x 9.6) 22.44 (570) 7.56 (192) 12.60 (320) 4.49 (114) 8.58 (218) 12.74 (324)
A
B
C
D
E
F
G
H
Model Part
Number Phase,
Volts
Amps P2 Net wt.
[lb (kg)]
Run Start W Hp
MQ 3-35 96860172 1X110-120V 8 29 585 0.75 30.1 (13.7)
MQ 3-45 96860195 1X110-120V 10 29 725 1 30.2 (13.7)
MQ 3-35 96860201 1X220-240V 4 15 565 0.75 30.1 (13.7)
MQ 3-45 96860207 1X220-240V 4.8 15 716 1 30.2 (13.7)
Liquid Pump
Drinking Water
NSF / ANSI 61
NSF / ANSI 372
Low Lead Content
MQ
Domestic water supply
3
28

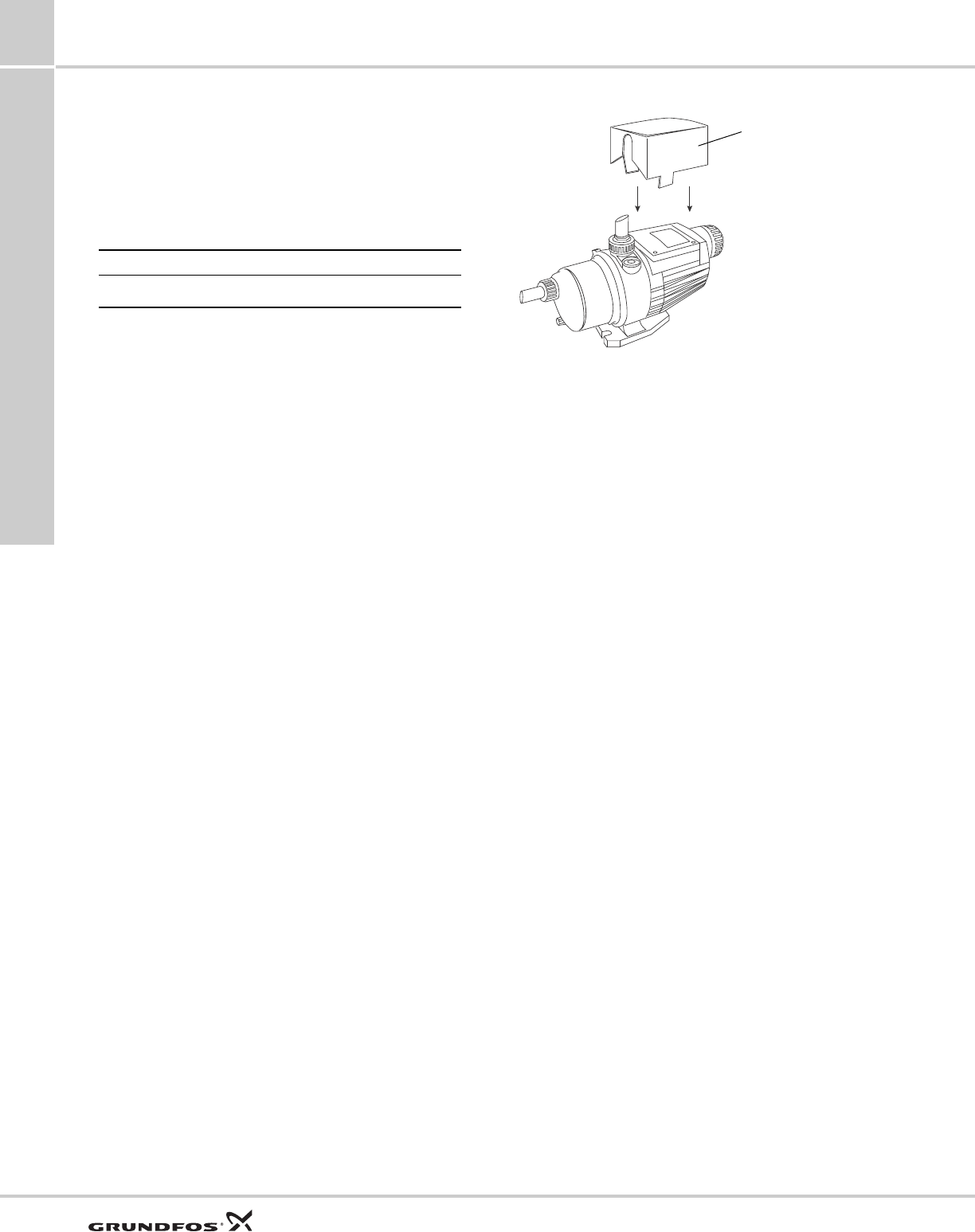

Accessories, MQ
MQ protective cover
Protects keypad and electronics in outdoor
applications. Required for outdoor applications where
MQ is exposed to the elements. Two Velcro tabs are
included to help adhere back end of cover to pump.
Description Material Product number
MQ protective cover Polypropylene
with Velcro tabs 96693071
TM05 0787 1511
MQ
protective
cover
JP Jet Pumps
Domestic water supply 4
29
4. JP Jet Pumps
Product introduction
The Grundfos JP line of self-priming centrifugal jet
pumps is designed for shallow well, deep well, and
convertible shallow well pump applications.
JP pumps provide excellent suction capacity.

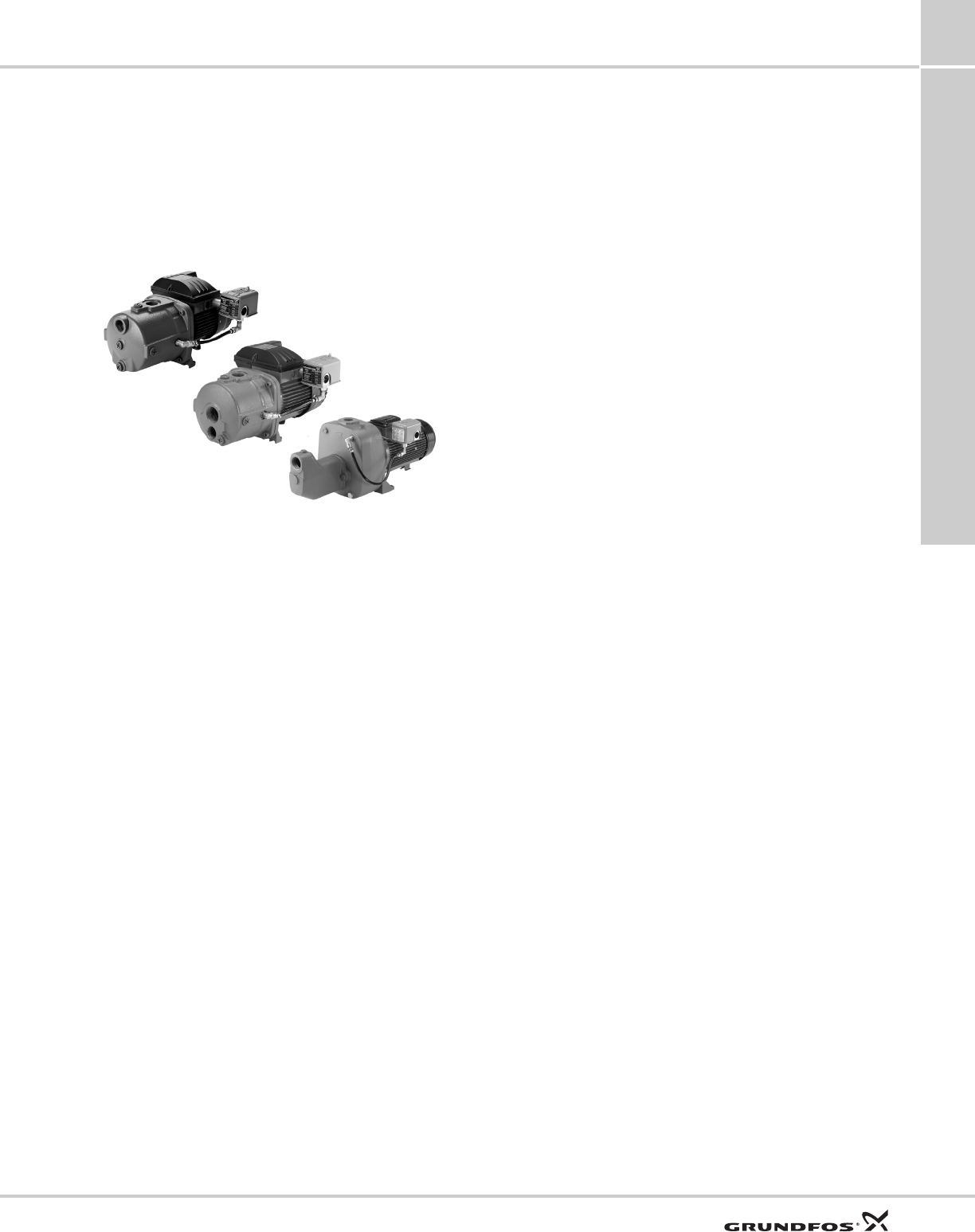

Fig. 19 Grundfos JP line (from left to right: JP shallow well;
JP deep well; and JP convertible shallow well)
Applications
Grundfos JP pumps are particularly suitable for:
• domestic water supply systems
• light agricultural
• industrial water transfer
• home and market gardens.
Features and benefits
Shallow well - cast iron
JP05S-CI, JP07S-CI, JP10S-CI, JP30S-CI
Single-stage, shallow well self-priming centrifugal
pumps. Features:
• Rugged cast iron construction
• end suction, top discharge arrangement
• technopolymer impeller
• built-in ejector complete with clean-out port to clear
blockages from nozzle
• convenient priming plug for ease of priming and air
elimination
• ceramic-carbon bellows mechanical seal ensures
trouble-free operation
• high quality pressure switch.
Shallow well convertible - cast iron
JP15S-CI, JP20S-CI
Single stage, convertible, self-priming centrifugal
pumps. Features:
• Rugged cast iron construction
• end suction, top discharge arrangement
• detachable ejector assembly for deep well
applications
• technopolymer impeller
• convenient priming plug for ease of priming and air
elimination
• ceramic-carbon bellows mechanical seal ensures
trouble-free operation
• high quality pressure switch.
Deep well - cast iron
JP05D-CI, JP07D-CI, JP15D-CI, JP20D-CI
Single-stage, deep well, self-priming centrifugal
pumps. Features:
• Rugged cast iron construction
• end suction, top discharge arrangement
• technopolymer impeller
• separate deep well port for connection to Deep Well
Ejector Kit
• convenient priming plug for ease of priming and air
elimination
• ceramic-carbon bellows mechanical seal ensures
trouble-free operation
• high quality pressure switch.
Shallow well - stainless steel
JP05S-SS, JP07S-SS, JP10S-SS
Single-stage, shallow well self-priming centrifugal
pumps constructed of stainless steel. Features:
• Corrosion-resistant stainless steel
• end suction, top discharge arrangement
• technopolymer impeller
• built-in ejector complete with clean-out port to clear
blockages from nozzle
• ceramic-carbon bellows mechanical seal ensures
trouble-free operation
• high quality pressure switch.
Motors
All Grundfos JP motors are Totally Enclosed and
Fan-Cooled (TEFC) for quiet operation and superior
protection in harsh environments. Features:
• Stainless steel motor shaft offers excellent corrosion
resistance
• Double, oversized grease ball bearings are
maintenance-free; sealed for life
• Built-in thermal overload protection
• Capacitor-run, with no switches to fail
• Drive end motor bearing protected by
durable lip seal
• Insulation class F
• Motor protection IP44
• Terminal box protection IP55.
TM05 1948 4011
JP Jet Pumps
Domestic water supply
4
30
Identification
Type key
Example JP 05 S CI
Jet pump
Horsepower
03: 1/3 Hp
05: 1/2 Hp
07: 3/4 Hp
10: 1 Hp
15: 1-1/2 Hp
20 2 Hp
30: 3 Hp
Well type
S: Shallow Well
D: Deep Well
Material
CI: Cast Iron
SS: Stainless Steel
EC: Engineered Composite
JP Jet Pumps
Domestic water supply 4
31
Product overview
Conversion chart
Old JPF Shallow Well Cast Iron Jet Pumps New Shallow Well Cast Iron Jet Pumps
Type Hp Ph Volts Pressure switch
setting [psi] Material
number Type Hp Ph Volts Pressure switch
setting [psi] Material
number
JPF3 1/2 1 115 30-50 96430412 JP05S-CI
(JP4-47ASA) 1/2 1 115/230 30-50 97855073
JPF3 1/2 1 230 30-50 96430413
JPF4 3/4 1 115 30-50 96430414 JP07S-CI
(JP4-54ASA) 3/4 1 115/230 30-50 97855081
JPF4 3/4 1 230 30-50 96430415
JP10S-CI
(JP4-61ASA) 1 1 115/230 30-50 97855085
JPF5 1-1/2 1 230 50-70 96430416 JP15S-CI
(JP5-61ASA) 1-1/2 1 230 40-60 97855091
JPF7 2 1 230 50-80 96457277 JP20S-CI
(JP8-62ASA) 2 1 230 40-60 97855094
JP30S-CI
(JP12-51ASA) 3 1 230 40-60 97855095
Old JPF Shallow Well Stainless Steel Jet Pumps New Shallow Well Stainless Steel Jet Pumps
Type Hp Ph Volts Pressure switch
setting [psi] Material
number Type Hp Ph Volts Pressure switch
setting [psi] Material
number
JPS2 1/2 1 115 30-50 96430421 JP05S-SS
(JP4-47ASI) 1/2 1 115/230 30-50 97855075
JPS2 1/2 1 230 30-50 96430422
JP07S-SS
(JP4-54ASI) 3/4 1 115/230 30-50 97855083
JPS4 1 1 115 30-50 96430423 JP10S-SS
(JP4-61ASI) 1 1 115/230 30-50 97855088
JPS4 1 1 230 30-50 96430424
Old JPF Deep Well Cast Iron Jet Pumps* New Deep Well Cast Iron Jet Pumps*
Type Hp Ph Volts Pressure switch
setting [psi] Material
number Type Hp Ph Volts Pressure switch
setting [psi] Material
number
JDF2 1/2 1 115 30-50 96430417 JP05D-CI
(JP4-47DSA) 1/2 1 115/230 30-50 97855072
JDF2 1/2 1 230 30-50 96430418
JDF4 3/4 1 115 30-50 96430419 JP07D-CI
(JP4-54DSA) 3/4 1 115/230 30-50 97855080
JDF4 3/4 1 230 30-50 96430420
JP15D-CI
(JP5-61DSA) 1-1/2 1 230 40-60 97855090
JP20D-CI
(JP8-62DSA) 2 1 230 40-60 97855093
*Ejector not included *Ejector not included
JP Jet Pumps
Domestic water supply
4
32
Performance range
TM05 1230 4511
0 5 10 15 20 25 30 35 40 45 50 55 60
Q [US GPM]
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
[ft]
H
0 2 4 6 8 10 12
Q [m³/h]
0
5
10
15
20
25
30
35
40
45
50
55
60
[m]
H
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
[psi]
p
JP
60 Hz
JP05 JP07
JP10
JP30JP20JP15
JP Jet Pumps
Domestic water supply 4
33
Product range
Shallow well
Deep well
Model Shallow well cast iron Shallow well stainless steel
JP05S-CI JP07S-CI JP10S-CI JP15S-CI JP20S-CI JP30S-CI JP05S-SS JP07S-SS JP10S-SS
Max. flow [gpm (m3h)] 21 (4.7) 20 (4.5) 20 (4.5) 23 (5.2) 34 (7.7) 52 (11.8) 21 (4.7) 20 (4.5) 20 (4.5)
Max. pump head [ft (m)] 145 (44.2) 170 (51.2) 200 (61.0) 210 (64.0) 210 (64.0) 170 (51.2) 145 (44.2) 170 (51.2) 200 (61.0)
Max. working pressure [psi (bars)] 116 (8) 116 (8)
Motor power [hp] 1/2 3/4 1 1 1/2 2 3 1/2 3/4 1
Fluid temp range [°F (°C)] +32 to +95 (0 to +35) +32 to +95 (0 to +35)
Max. lift [ft suction lift at sea level] 25 25
Max. ambient temp [°F (°C)] +104 (+40) +104 (+40)
Factory pressure switch setting
[psi (bars)] 30/50
(2.1/3.5) 30/50
(2.1/3.5) 30/50
(2.1/3.5) 40/60
(2.8/4.1) 40/60
(2.8/4.1) 40/60
(2.8/4.1) 30/50
(2.1/3.5) 30/50
(2.1/3.5) 30/50
(2.1/3.5)
Storage temp range [°F (°C)] +14 to +104 (-10 to +40) +14 to +104 (-10 to +40)
Relative humidity 95% 95%
Max. starts per hour 20 20
Model Deep well cast iron
JP05D-CI JP07D-CI JP15D-CI JP20D-CI
Max. flow [gpm (m3h)] 18 (4.0) 18 (4.0) 21 (4.7) 32 (7.2)
Max. pump head [ft (m)] 145 (44.2) 170 (51.2) 195 (59.4) 200 (61.0)
Max. working pressure [psi (bars)] 116 (8)
Motor power [hp] 1/2 3/4 1 1/2 2
Fluid temp range [°F (°C)] +32 to +95 (0 to +35)
Max. lift [ft suction lift at sea level] 50 70 90 90
Max. ambient temp [°F (°C)] +104 (+40)
Factory pressure switch setting [psi
(bars)] 30/50
(2.1/3.5) 30/50
(2.1/3.5) 40/60
(2.8/4.1) 40/60
(2.8/4.1)
Storage temp range [°F (°C)] +14 to +104 (-10 to +40)
Relative humidity 95%
Max. starts per hour 20
JP Jet Pumps
Domestic water supply
4
34

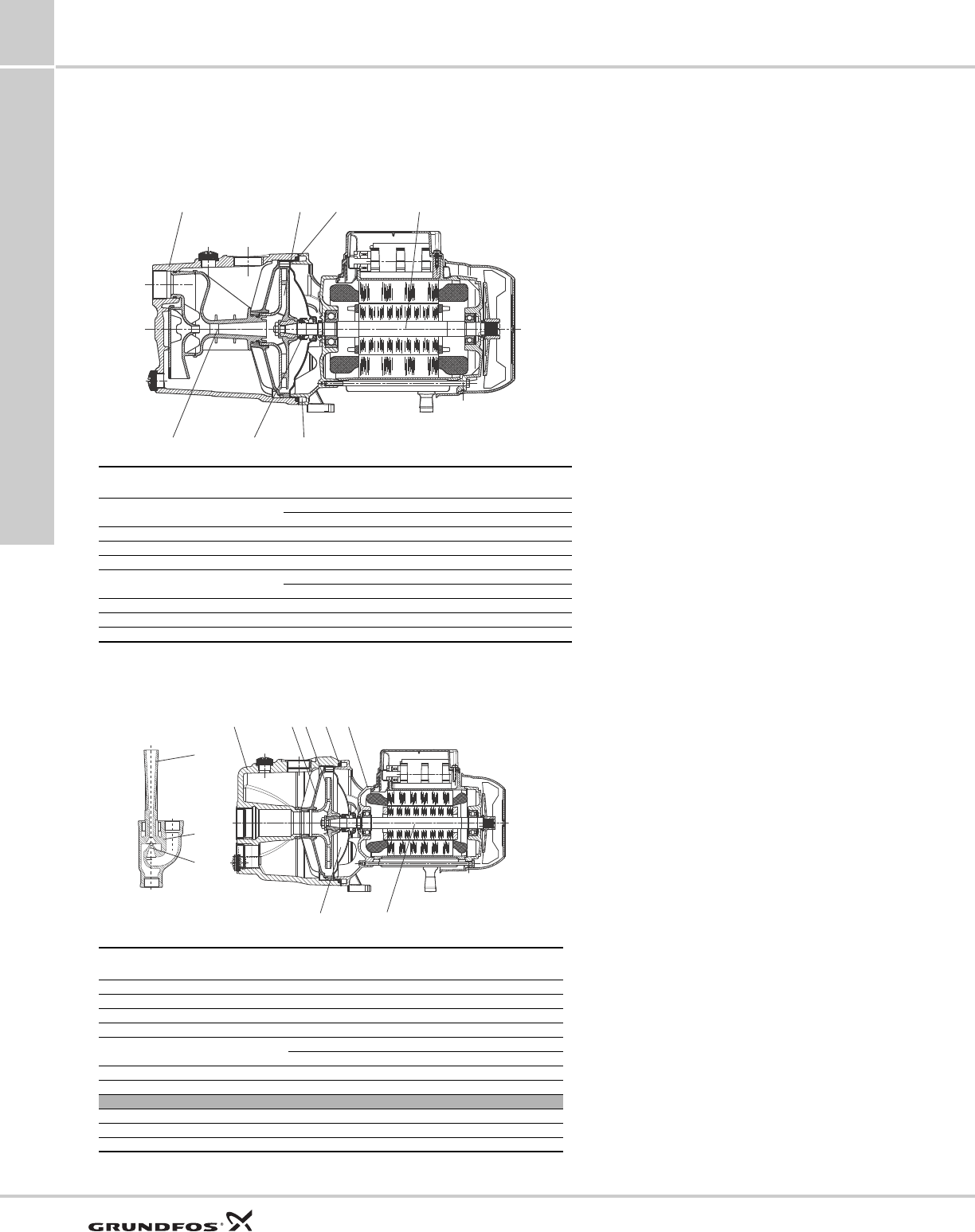

Construction
Materials of construction
Shallow well - cast iron, stainless steel
Deep well - cast iron
TM05 2216 4611
Pos. Descriptions:
in contact with liquid Materials Cast iron
models Stainless steel
models
1 Pump Body Cast Iron 200 UNI ISO 185 All -
Stainless Steel AISI 304 - All
3 Support Cast Iron 200 Uni ISO 185 JP15, JP20, JP30 -
3 Support Aluminum + AISI304 JP05, JP07, JP10 All
4 Impeller Technopolymera All All
7 Shaft with Rotor Stainless Steel AISI 416 All -
Stainless Steel AISI 303 - All
16 Mechanical Seal Carbon / ceramic All All
28 OR Gasket NBR Rubber All All
160 Nozzle-Venruri Diffuser Assembly Technopolymera All All
1428 7
160 16 3
TM05 2215 4611
8
1
16 7
6 4 28 3
2
9
Pos. Descriptions:
in contact with liquid Materials Cast iron
models
1 Pump Body Cast Iron 200 UNI ISO 185 All
3 Support Cast Iron 200 UNI ISO 185 All
4 Impeller Technopolymer All
6 Diffuser Technopolymer All
7 Shaft with Rotor Stainless Steel ANSI 416 JP05 & JP07
Stainless Steel ANSI 303 JP15 & JP20
16 Mechanical Seal Carbon/Ceramic All
28 OR Gasket NBR Rubber All
2 Ejector Body Cast Iron 200 UNI ISO 185 E20, E25, E30
8 Venturi Tube Technopolymer E20, E25, E30
9 Nozzle Brass E20, E25, E30
JP Jet Pumps
Domestic water supply 4
35
Operating conditions
Selection
Pumped liquids
JP pumps are suitable for pumping clean, non-viscous,
non-aggressive, non-explosive liquids, free of solid
particles or fibers.
Selection of pumps
Deep well ejectors
Installation
Pump location
The pump must be located in a well-ventilated place,
protected from unfavorable weather conditions and
with an environmental temperature not exceeding
104 °F (40 °C).
It is always good practice to place the pump as close
as possible to the liquid to be pumped.
Pump position
Allowable positions
Fig. 20 Pump must be installed in horizontal position only
The pump must be installed only in horizontal position.
To prevent movement and vibrations, anchor the pump
firmly to a horizontal surface.
Max. operating pressure: 116 psi (8 bar)
Liquid temp range: +32 °F to +95 °F (0 °C to +35 °C)
Max. relative humidity of air 95%
Storage temp range: +14 °F to +104 °F (-10 °C to 40 °C)
Shallow well - cast iron
Pump
type Hp Ph Volts
[V]
Pressure
switch
setting
[psi]
Product
number
JP05S-CI 1/2 1115/230 30-50 97855073
JP07S-CI 3/4 1115/230 30-50 97855081
JP10S-CI 1 1 115/230 30-50 97855085
JP15S-CI 1-1/2 1230 40-60 97855091
JP20S-CI 2 1 230 40-60 97855094
JP30S-CI 3 1 230 40-60 97855095
Shallow well - stainless steel
Pump
type Hp Ph Volts
[V]
Pressure
switch
setting
[psi]
Product
number
JP05S-SS 1/2 1115/230 30-50 97855075
JP07S-SS 3/4 1115/230 30-50 97855083
JP10S-SS 1 1 115/230 30-50 97855088
Deep well - cast iron*
Pump
type Hp Ph Volts
[V]
Pressure
switch
setting
[psi]
Product
number
JP05D-CI 1/2 1115/230 30-50 97855072
JP07D-CI 3/4 1115/230 30-50 97855080
JP015D-CI 1-1/2 1230V 40-60 97855090
JP020D-CI 2 1 230V 40-60 97855093
* Ejector not included
Type Product
number
E20 NPT 96654382
E25 NPT 96654383
E30 NPT 96654384
TM05 1232 2411
JP Jet Pumps
Domestic water supply
4
36
Curve charts and technical data
Performance curves
Models JP05S-CI, JP05S-SS
Models JP07S-CI, JP07S-SS
TM05 1137 5111
0 2 4 6 8 10 12 14 16 18 20 22 24
Q [US GPM]
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
[ft]
H
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 Q [m³/h]
0
5
10
15
20
25
30
35
40
45
[m]
H
0
5
10
15
20
25
30
35
40
45
50
55
60
65
[psi]
p
JP05
60 Hz
QH
TM05 1139 5111
0 2 4 6 8 10 12 14 16 18 20 22 24
Q [US GPM]
0
20
40
60
80
100
120
140
160
180
[ft]
H
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 Q [m³/h]
0
10
20
30
40
50
[m]
H
0
10
20
30
40
50
60
70
80
[psi]
p
JP07
60 Hz
QH
JP Jet Pumps
Domestic water supply 4
37

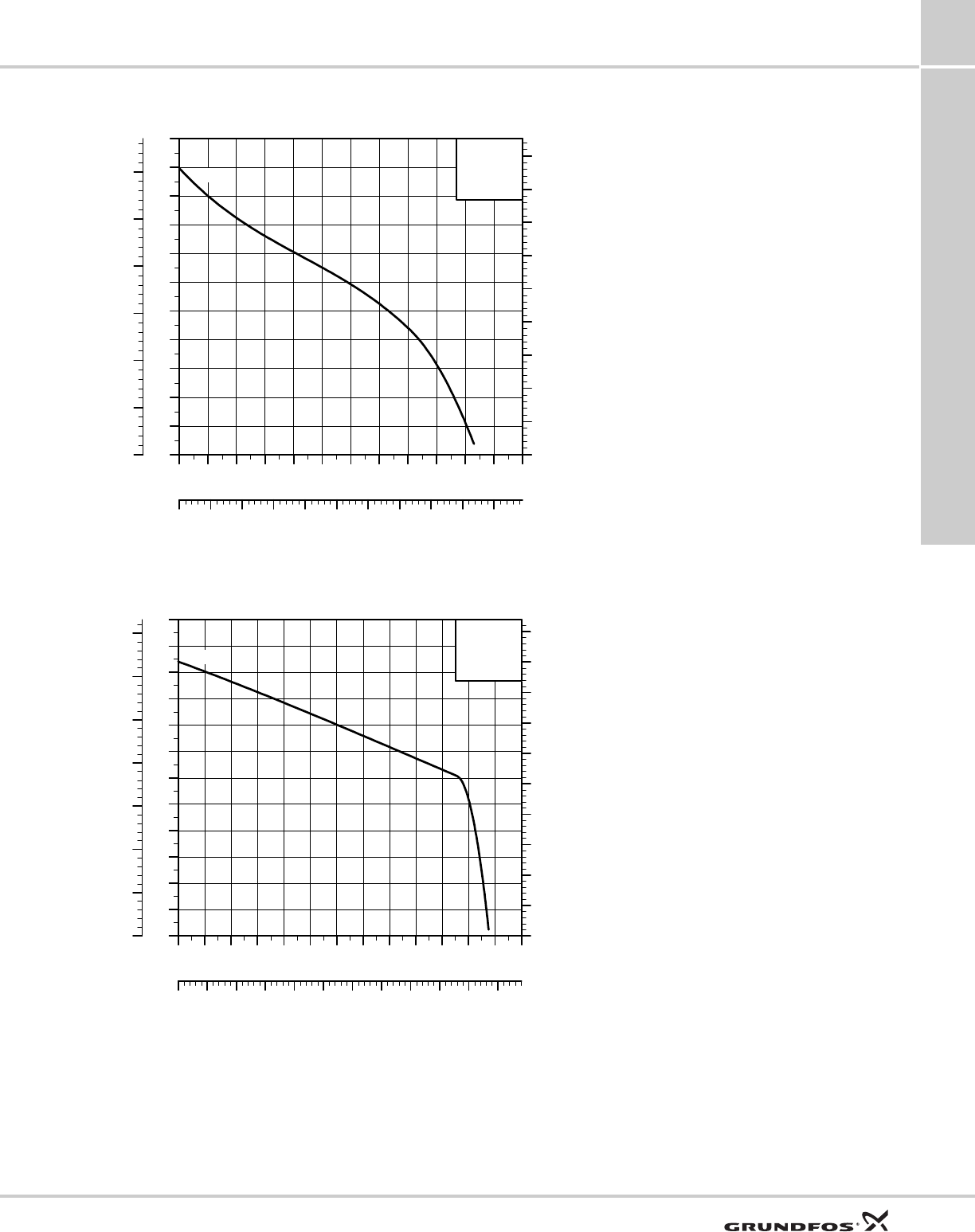

Models JP10S-CI, JP10S-SS
Model JP15S-CI
TM05 1141 5111
0 2 4 6 8 10 12 14 16 18 20 22 24
Q [US GPM]
0
20
40
60
80
100
120
140
160
180
200
[ft]
H
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 Q [m³/h]
0
10
20
30
40
50
60
[m]
H
0
10
20
30
40
50
60
70
80
[psi]
p
JP10
60 Hz
QH
TM05 1147 5111
0 2 4 6 8 10 12 14 16 18 20 22 24 26
Q [US GPM]
0
20
40
60
80
100
120
140
160
180
200
220
[ft]
H
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 Q [m³/h]
0
10
20
30
40
50
60
[m]
H
0
10
20
30
40
50
60
70
80
90
[psi]
p
JP15
60 Hz
QH
JP Jet Pumps
Domestic water supply
4
38
Model JP20S-CI
Model JP30S-CI
TM05 1148 5111
0 4 8 12 16 20 24 28 32 36 40
Q [US GPM]
0
20
40
60
80
100
120
140
160
180
200
220
[ft]
H
0 1 2 3 4 5 6 7 Q [m³/h]
0
10
20
30
40
50
60
[m]
H
0
10
20
30
40
50
60
70
80
90
[psi]
p
JP20
60 Hz
QH
TM05 1150 5111
0 4 8 12 16 20 24 28 32 36 40 44 48 52 56
Q [US GPM]
0
20
40
60
80
100
120
140
160
180
[ft]
H
0 1 2 3 4 5 6 7 8 9 10 Q [m³/h]
0
10
20
30
40
50
[m]
H
0
10
20
30
40
50
60
70
80
[psi]
p
JP30
60 Hz
QH
JP Jet Pumps
Domestic water supply 4
39
Shallow well performance data
Pump
type
Part
number
cast iron
Part
number
stainless
steel
Pressure
switch
setting
on/off
Suction
depth
[ft]
Delivery pressure [psi] Max.
pressure
[psi]
Shut off
pressure
[psi]
15 20 25 30 35 40 45 50 55 60 65
Flow table [gpm]
JP05S 97855073 97855075 30/50
514.814.814.713.6-------
62
59
1013.213.213.112.8------- 57
15 - 10.8 10.8 10.7 10.1 - - - - - - 55
20 - - 8.9 8.9 8.8 7.6 - - - - - 53
25 - - 7.0 7.0 7.0 6.9 5.5 - - - - 51
JP07S 97855081 97855083 30/50
5 - - 14.3 14.3 14.2 12.6 - - - - -
75
73
10 - - 13.1 13.1 13.0 12.3 - - - - - 70
15 ---11.011.011.010.0---- 68
20 - - - 9.2 9.1 9.1 9.0 - - - - 66
25 ----7.07.07.06.9--- 64
JP10S 97855085 97855088 30/50
5 - - - 14.5 14.4 14.3 14.2 - - - -
86
84
10 ----13.112.812.712.4--- 82
15 -----11.811.611.410.9-- 80
20 -----9.99.89.79.4-- 77
25 -------7.97.87.77.3 75
JP15S 97855091 - 40/60
5 - 21.0 20.9 20.7 20.6 20.3 20.2 19.9 - - -
87
85
10 - 19.0 18.8 18.5 18.2 17.9 17.8 17.5 17.3 - - 82
15 - - 15.7 15.5 15.4 15.2 15.1 15.0 14.8 14.5 - 80
20 - - - 13.3 13.1 12.9 12.7 12.5 12.4 12.1 11.9 78
25 ----9.79.59.39.18.98.68.5 76
JP20S 97855094 - 40/60
5 - 31.8 31.6 31.2 30.8 30.5 30.1 29.1 - - -
85
83
10 - 28.0 27.7 27.6 27.2 26.9 26.7 26.0 25.1 - - 81
15 - 23.6 23.3 23.2 23.1 22.8 22.5 22.3 22.1 20.9 - 79
20 - - 20.2 19.9 19.8 19.7 19.4 19.3 19.0 18.5 17.3 76
25 ----14.314.214.113.813.713.413.2 74
JP30S 97855095 - 40/60
5 - 49.5 49.3 48.9 47.9 46.8 - - - - -
73
71
10 - 46.0 45.4 45.0 44.5 43.6 42.0 - - - - 69
15 - 37.1 36.8 36.5 36.1 35.5 34.7 33.5 - - - 67
20 - 32.1 31.8 31.6 31.2 30.6 30.4 29.3 25.9 - - 64
25 - 20.9 20.7 20.6 20.4 20.0 19.5 18.8 18.0 16.5 13.8 62
JP Jet Pumps
Domestic water supply
4
40
Deep well performance data
Pump
type
Pump
part
number
Ejector
type
NPT
Ejector
part
number
Pressure
switch
on/off
Suction
depth
[ft]
Delivery pressure [psi]
20 30 40 50 60 70 80 90
Flow table [gpm]
JP05D 97855072
E 25 96654383 30/50
30 8 5 - - ----
40 6 3 - - ----
50 41.5- - ----
E 30 96654384 30/50
30 7.7 5.8 2.5 1.3 - - - -
40 5.9 4.3 1.6 - - - - -
50 53.41 - ----
JP07D 97855080
E 25 96654383 30/50
30 10.5 7.9 2.5 - - - - -
40 8.5 5.4 - - - - - -
50 6.4 3.5 - - - - - -
E 30 96654384 30/50
40 - 5.6 2.8 1.7 - - - -
50 - 4.6 2.2 1.3 - - - -
60 - 3.5 1.5 - - - - -
70 -2.9- - ----
JP15D 97855090
E 20 96654382 40/60
30 - - 15 12.2 9.2 2.6 - -
40 - - 13.5 10.6 7.6 - - -
50 - - 11.6 8.8 5.5 - - -
60 - - 10 7 3.6 - - -
E 25 96654383 40/60
50 - - 12 9.8 7.7 3.5 - -
60 - - 10.8 8.6 6.5 2.5 - -
70 - - 9.7 7.5 5.3 1.7 - -
E 30 96654384 40/60
70 - - 7.9 7.1 6 3.8 2 -
80 - - 7.2 6.5 5.3 3.2 1.6 -
90 - - 6.7 5.8 4.7 2.8 1.2 -
JP20D 97855093
E 20 96654382 40/60
30 - - - 15 9 2 - -
40 - - - 13.4 6.8 - - -
50 - - - 11.7 5 - - -
60 - - - 9.9 2.9 - - -
E 25 96654383 40/60
50 - - - 12.5 7.9 3.7 2 -
60 - - - 11.1 6.7 2.8 1.2 -
70 - - - 9.9 5.5 1.8 - -
80 - - - 8.6 4.3 1 - -
E 30 96654384 40/60
70 - - - 7.9 6.2 4 3 2.3
80 - - - 7.3 5.6 3.4 2.7 1.9
90 - - - 6.7 5 3 2.3 1.5
JP Jet Pumps
Domestic water supply 4
41
Dimensions and weights

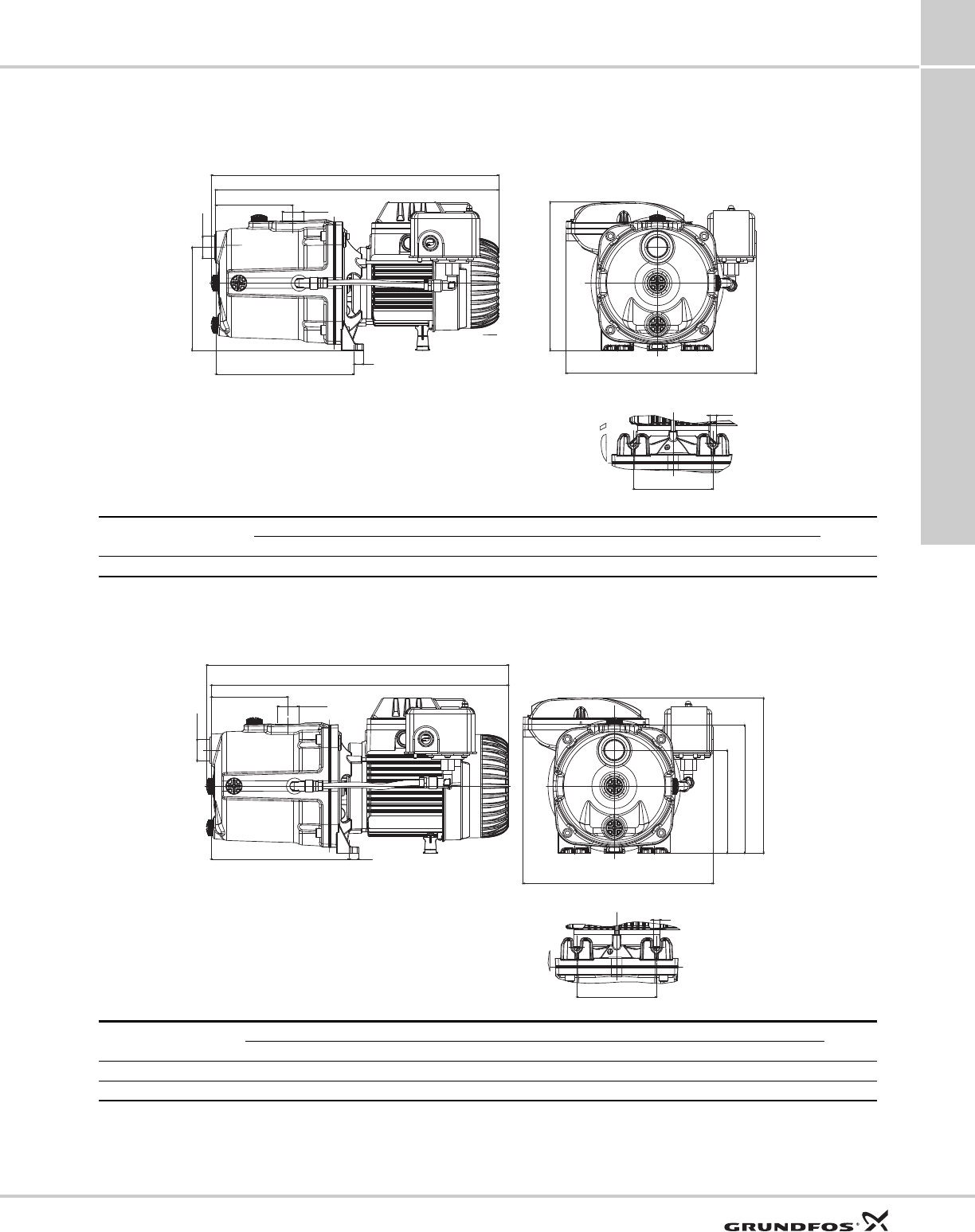

Cast iron shallow well, model JP05S-CI
Cast iron shallow well, models JP07S-CI, JP10S-CI
TM05 2221 4611
Model Part
number
Dimensions [in] Weight
[lbs]
A A1 B C E F G H H3 I DNA DNM
JP05S-CI 97855073 15.7 15.5 10.4 4.2 7.6 0.5 4.4 8.1 5.6 0.4 1 1 24
TM05 2222 4611
Model Part
number
Dimensions [in] Weight
[lbs]
AA1B C E F G HH1H2 IDNADNM
JP07S-CI 97855081 16.5 16.3 10.4 4.2 7.6 0.5 4.4 8.5 7 5.6 0.4 1 1 28
JP10S-CI 97855085 16.5 16.3 10.4 4.2 7.6 0.5 4.4 8.5 7 5.6 0.4 1 1 30
C
A1
A
EF
H3
H
B
Ø
I
DNM
DNA
G
C
A1
B
H
H1
H2
I
F
E
DNA
DNM
A
G
JP Jet Pumps
Domestic water supply
4
42
Cast iron shallow well, models JP15S-CI, JP20S-CI
Cast iron shallow well, models JP30S-CI
TM05 2365 5011
Model Part
number
Dimensions [in] Weight
[lbs]
A B C E F G H H1 I DNA DNM
JP15S-CI 97855091 21.8 10.2 8.7 13.5 0.5 5.7 10 6.2 0.6 1.25 1 68
JP20S-CI 97855094 21.9 10.2 8.7 13.5 0.5 5.7 10 6.2 0.6 1.25 1 77
TM05 2366 5011
Model Part
number
Dimensions [in] Weight
[lbs]
A B C E F G H H1 I DNA DNM
JP30S-CI 97855095 23.4 10.3 5.9 11.3 0.6 6.3 10.4 7.6 0.4 1.5 1.25 71
A
C
DNA
DNM
G
I
EFB
H1
H
A
C
H1
EF
H
B
I
DNM
DNA
G
JP Jet Pumps
Domestic water supply 4
43

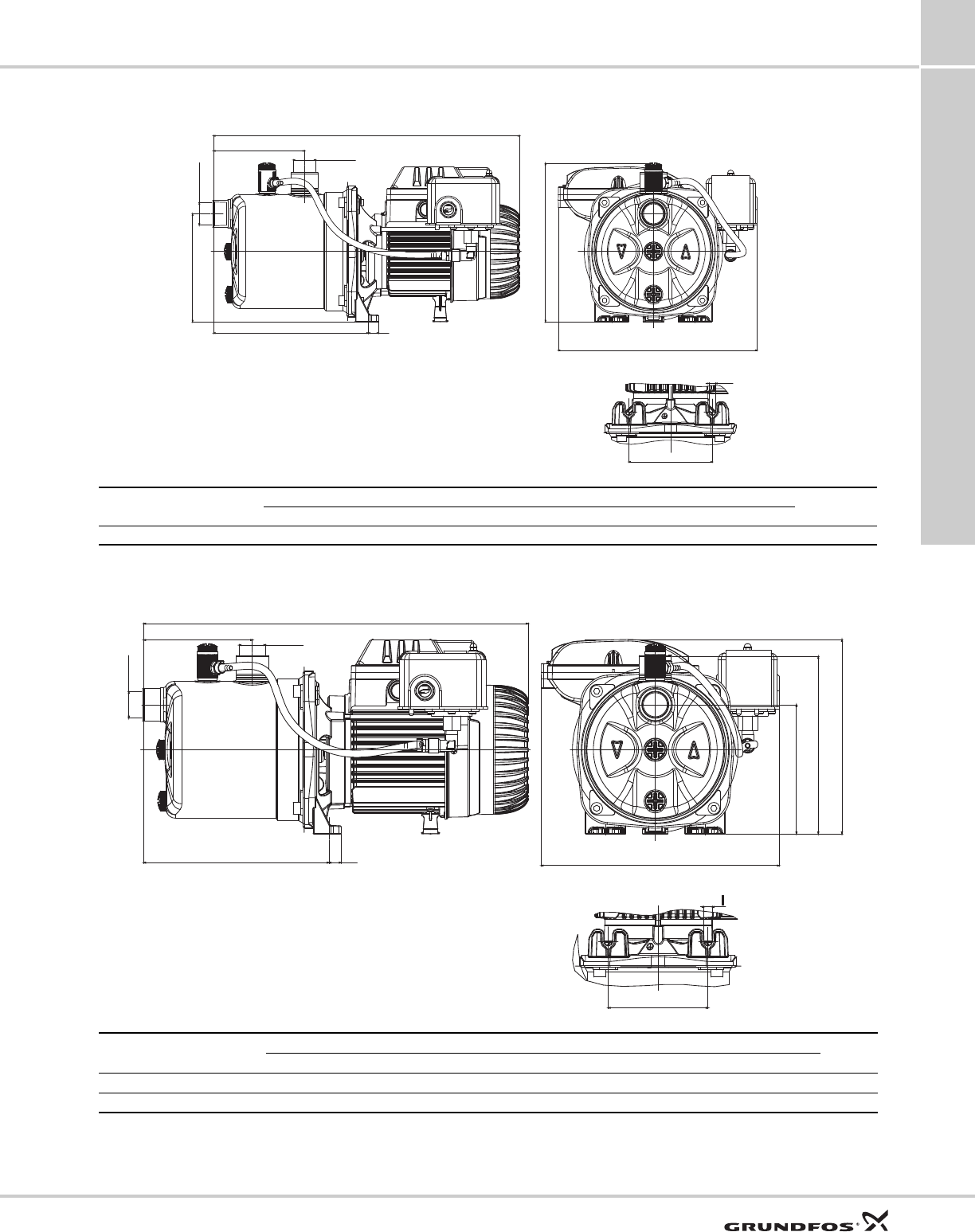

Shallow well stainless steel, model JP05S-SS
Shallow well stainless steel, models JP07S-SS, JP10S-SS
TM05 2219 4611
Model Part
number
Dimensions [in] Weight
[lbs]
ABCEFGHH3I
JP05S-SS 97855075 16 10.4 4.7 8.1 0.6 4.4 8.3 5.6 0.4 18
TM05 2220 4611
Model Part
number
Dimensions [in] Weight
[lbs]
ABCEFGHH1H2I
JP07S-SS 97855083 16.8 10.4 4.7 8.1 0.6 4.4 8.5 7.7 5.7 0.4 22
JP10S-SS 97855088 16.8 10.4 4.7 8.1 0.6 4.4 8.5 7.7 5.7 0.4 24
C
A
EF
H3
H
B
Ø
I
1"NPT
1"NPT
G
C
A
B
H
H1
H2
I
F
E
1"NPT
1"NPT
G
JP Jet Pumps
Domestic water supply
4
44

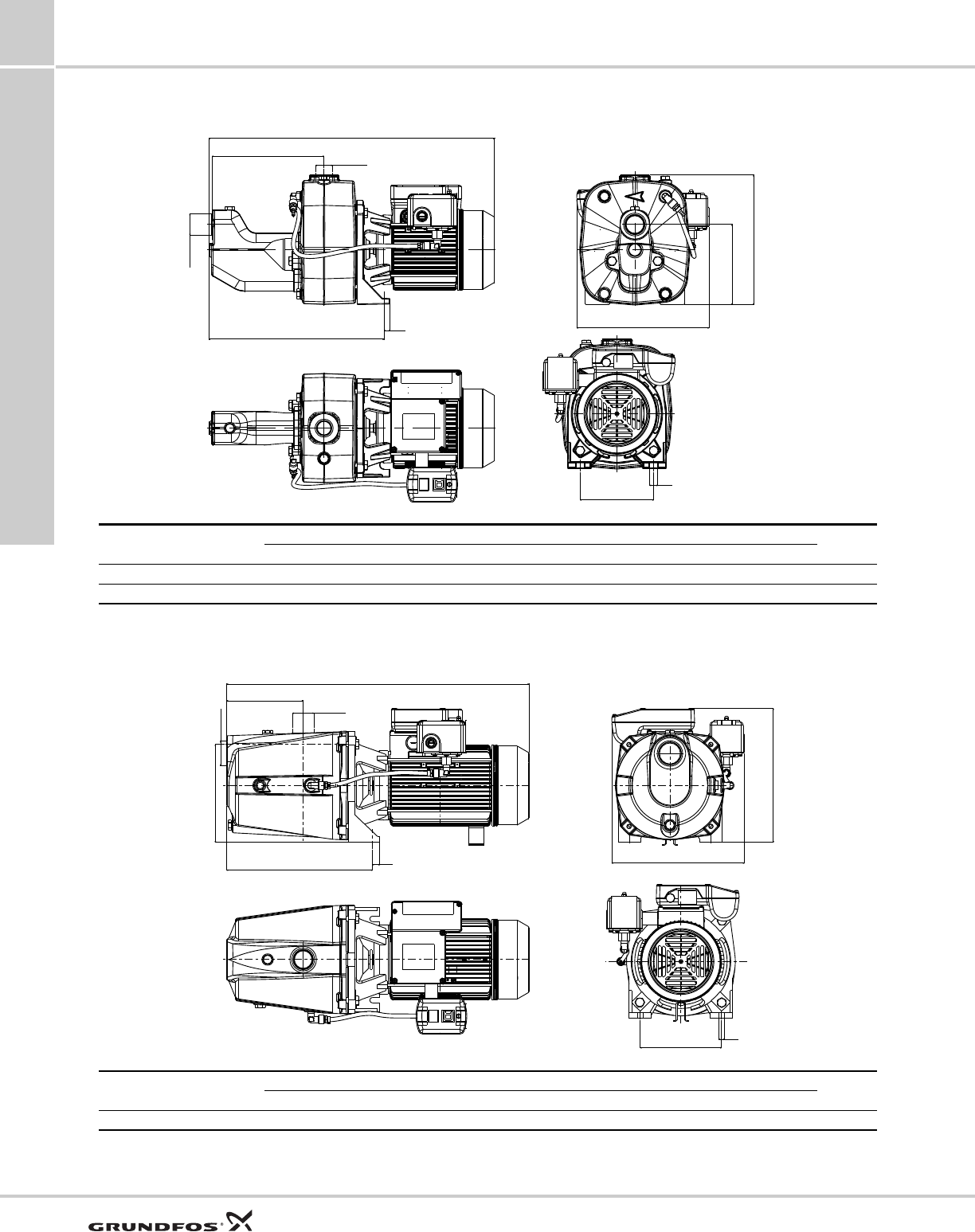

Cast iron deep well, models JP05D-CI, JP07D-CI
Cast iron deep well, models JP15D-CI, JP20D-CI
TM05 2218 4611
Model Part
number
Dimensions [in] Weight
[lbs]
A A1 B C E F G H H1 H2 I DNA DNE DNM
JP05D-CI 97855072 15 14.6 10.4 3.4 6.7 0.5 4.4 8.1 3.7 1.9 0.4 1.25 1 1 25
JP07D-CI 97855080 15.8 15.4 10.4 3.4 6.7 0.5 4.4 8.5 3.7 1.9 0.4 1.25 1 1 25
TM05 2367 5011
Model Part
number
Dimensions [in] Weight
[lbs]
A A1 B C E F G H H1 H2 I DNA DNE DNM
JP15D-CI 97855090 15.9 15.2 10.2 2 6.7 0.5 5.7 10 2.1 4.2 0.6 1.25 1 1 63
JP20D-CI 97855093 18.9 18.2 10.2 2 6.7 0.5 5.7 10 2.1 4.2 0.6 1.25 1 1 72
C
A1
A
E F
H
B
Ø
I
DNM
DNE
G
DNA
H1
H2
DNM
DNE DNA
C
A1
A
EF
B
H1
H2
H
I
G
JP Jet Pumps
Domestic water supply 4
45
Electrical data
Supply voltage:
1 X 115/230V 60Hz
1 X 230V 60Hz
Voltage tolerance + / - 6 %
Note: Refer to pump nameplate.
Approvals
Subject to alterations.
Electrical data 60 Hz
Pump
Model Part
Number
P2
Power Out
[Hp]
Service
factor
[Hp]
Phase &
voltage I
[amps] Phase &
voltage I
[amps] Capacitor
[uF]
JP05D-CI 97855072 1/2 1.60 1x115 7.09 1x230 3.61 50
JP05S-CI 97855073 1/2 1.60 1x115 8.21 1x230 4.22 50
JP05S-SS 97855075 1/2 1.60 1x115 8.21 1x230 4.22 50
JP07D-CI 97855080 3/4 1.5 1x115 9.2 1x230 4.67 50
JP07S-CI 97855081 3/4 1.5 1x115 10.3 1x230 5.25 50
JP07S-SS 97855083 3/4 1.5 1x115 10.3 1x230 5.25 50
JP10S-CI 97855085 1 1.40 1x115 13.8 1x230 7.1 80
JP10S-SS 97855088 1 1.40 1x115 13.8 1x230 7.1 80
JP15D-CI 97855090 1-1/2 1.3 - - 1x230 7.6 31.5
JP15S-CI 97855091 1-1/2 1.3 - - 1x230 8 31.5
JP20D-CI 97855093 2 1.25 - - 1x230 8.5 40
JP20S-CI 97855094 2 1.25 - - 1x230 11 40
JP30S-CI 97855095 3 1.15 - - 1x230 12 40
Liquid Pump
Further documentation
Domestic water supply
5
46
5. Further documentation
WebCAPS
WebCAPS is a Web-based Computer Aided Product
Selection program available on www.grundfos.com.
WebCAPS contains detailed information on more than
185,000 Grundfos products in more than 20 languages.
In WebCAPS, all information is divided into 6 sections:
• Catalog
• Literature
• Service
• Sizing
• Replacement
• CAD drawings.
Catalog
This section is based on fields of application and pump types, and
contains
• technical data
• curves (QH, Eta, P1, P2, etc) which can be adapted to the
density and viscosity of the pumped liquid and show the
number of pumps in operation
• product photos
• dimensional drawings
• wiring diagrams
• quotation texts, etc.
Literature
In this section you can access all the latest documents of a given
pump, such as
• product guides
• installation and operating instructions
• service documentation, such as Service kit catalog
and Service kit instructions
• quick guides
• product brochures, etc.
Service
This section contains an easy-to-use interactive service catalog.
Here you can find and identify service parts of both existing and
discontinued Grundfos pumps.
Furthermore, this section contains service videos showing you how
to replace service parts.
Further documentation
Domestic water supply 5
47
WinCAPS
Fig. 21 WinCAPS CD-ROM
WinCAPS is a Windows-based Computer Aided
Product Selection program containing detailed
information on more than 185,000 Grundfos products in
more than 20 languages.
The program contains the same features and functions
as WebCAPS, but is an ideal solution if no Internet
connection is available.
WinCAPS is available on CD-ROM and updated once a
year.
Sizing
This section is based on different fields of application and
installation examples, and gives easy step-by-step instructions in
how to
• select the most suitable and efficient pump for your installation
• carry out advanced calculations based on energy consumption,
payback periods, load profiles, life cycle costs, etc.
• analyze your selected pump via the built-in life cycle cost tool
• determine the flow velocity in wastewater applications, etc.
Replacement
In this section you find a guide to selecting and comparing
replacement data of an installed pump in order to replace the pump
with a more efficient Grundfos pump.
The section contains replacement data of a wide range of pumps
produced by other manufacturers than Grundfos.
Based on an easy step-by-step guide, you can compare Grundfos
pumps with the one you have installed on your site. When you have
specified the installed pump, the guide will suggest a number of
Grundfos pumps which can improve both comfort and efficiency.
CAD drawings
In this section it is possible to download 2-dimensional (2D) and
3-dimensional (3D) CAD drawings of most Grundfos pumps.
These formats are available in WebCAPS:
2-dimensional drawings:
• .dxf, wireframe drawings
• .dwg, wireframe drawings.
3-dimensional drawings:
• .dwg, wireframe drawings (without surfaces)
• .stp, solid drawings (with surfaces)
• .eprt, E-drawings.
01
GRUNDFOS Pumps Corporation
17100 West 118th Terrace
Olathe, Kansas 66061
Phone: +1-913-227-3400
Telefax: +1-913-227-3500
GRUNDFOS Canada Inc.
2941 Brighton Road
Oakville, Ontario L6H 6C9
Canada
Phone: +1-905 829 9533
Telefax: +1-905 829 9512
Bombas GRUNDFOS de Mexico S.A. de C.V.
Boulevard TLC No. 15
Parque Industrial Stiva Aeropuerto
Apodaca, N.L. Mexico 66600
Phone: +52-81-8144 4000
Telefax: +52-81-8144 4010
The name Grundfos, the Grundfos logo, and the payoff Be–Think–Innovate are registrated trademarks
owned by Grundfos Management A/S or Grundfos A/S, Denmark. All rights reserved worldwide.
Being responsible is our foundation
Thinking ahead makes it possible
Innovation is the essence
L-DWS-PG-01 0612
ECM: -

Navigation menu
