Motors
Drives
Controls
Protection
SYSTEMS
CONSTANT PRESSURE
CONSTANT PRESSURE
SUBDRIVE & MONODRIVE
Let Us Handle the Pressure
Franklin Electric’s SubDrive and MonoDrive constant pressure controllers provide constant pressure by
continually adjusting the speed of the pump to match water demand. Instead of draining and filling a
large tank, a SubDrive system pumps more or less water as you need it. Finally, you’ll be able to run the
dishwasher, do laundry and water the lawn – all at the same time!
Benets
n Constant water pressure with a wide range of settings (25 to 80 psi)
n Single-phase input power
n Easy installation
n Soft start feature prevents water hammer and increases motor life
n Works with small pressure tanks or existing larger tanks
n Smart Reset® technology allows well recovery before restarting the pump
n Excellent radio frequency interference shielding
n UL and cUL listed
n Built-in diagnostics and protection
Applications
n Residential homes
n Schools
n Restaurants
n Car washes
MD / MDXT
MonoDrive and MonoDriveXT are designed to convert a conventional ½ hp to 2 hp pump system to a
variable speed constant pressure system by simply replacing the 3-wire control box and pressure switch.
n Single-phase input, 3-wire motor control
n ½ hp to 2 hp performance
n Easy to install
n NEMA 1 and NEMA 4 enclosure options
(indoor/outdoor)
n Plug & play
n Easily replaceable fan kit
n UL and cUL listed
SD75, SD100, SD150, SD300
SubDrive75, SubDrive100, SubDrive150 and SubDrive300 are designed for three-phase motors to provide
constant pressure with three-phase performance using single-phase input power.
n Single-phase input, three-phase
motor control
n ¾ hp to 5 hp performance
n Easy to install
n High starting torque
n NEMA 1 and NEMA 4 enclosure options
(indoor/outdoor)
n Plug & play
n Smooth running
n Easily replaceable fan kit
n UL and cUL listed
n Farms
n Landscape irrigation systems
n Surge protection
n Underload
n Undervoltage
n Locked pump
n Open circuit
n Short circuit
n Overheated controller
SD2W
SubDrive2W is designed to convert a conventional ½ hp, ¾ hp and 1 hp pump system to a variable speed
constant pressure system by simply replacing the pressure switch. Maximum pump output using the SD2W
is similar to the performance achieved using a conventional pressure switch. Therefore, the pump selection
criteria are the same as if a pressure switch were used. (Refer to the pump manufacturer’s literature for
details of the pump selection procedure.)
n Single-phase input, 2-wire
motor control
n ½ hp, ¾ hp, or 1 hp performance
n Easy retro t installation
n NEMA 3R rated enclosure

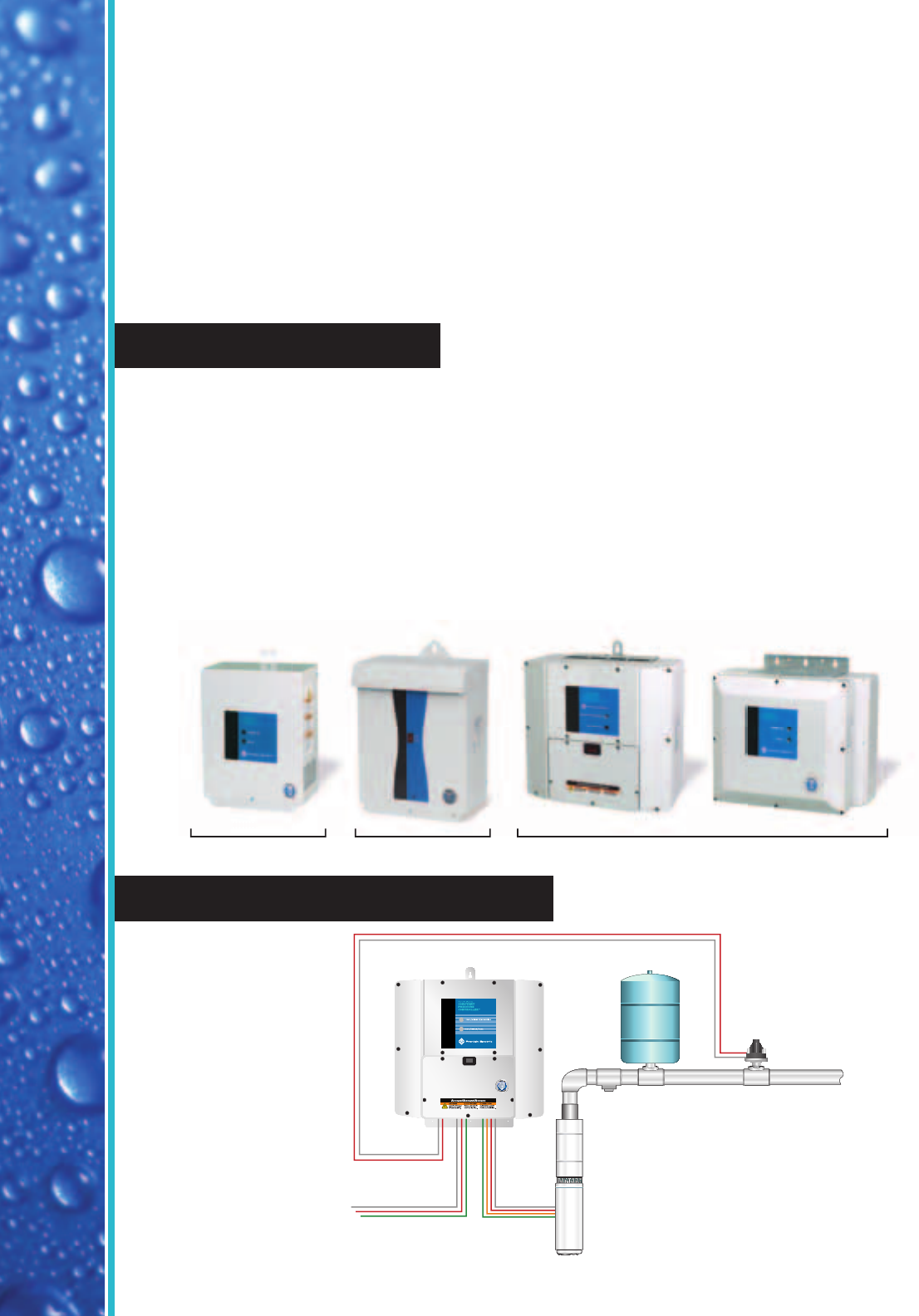

Enclosure Options
Constant Pressure System
Pressure
Sensor
Lead
Power Supply
from Circuit Breaker
Pump
Motor
Pressure
Relief Valve
Power
to Motor
Controller
n NEMA 1:
The NEMA 1 enclosure is rated for indoor use only. It is ideal for installation in garages, basements
and pump houses where there is no risk of rain, blowing dust or other harsh conditions. This
enclosure comes standard in all models except the SD300 and SD2W.
n NEMA 3R:
The NEMA 3R enclosure is rated for indoor and outdoor use. It provides a degree of protection
against falling rain and sleet. This enclosure is used only with the SD2W.
n NEMA 4:
The NEMA 4 weatherproof enclosure is designed for both indoor and outdoor use and offers robust
protection against harsh environmental conditions. This enclosure comes standard with the SD300
and is optional for the other models excluding the SD2W.
n Plug & play
n Easily replaceable air lter kit
n Easily replaceable fan kit
n UL and cUL listed
NEMA 1 NEMA 4NEMA 3R
Specications
MonoDrive MonoDriveXT
Model No.
NEMA 1 (indoor) 587 020 3110 587 020 4110
NEMA 3R
(indoor/outdoor) Not Available Not Available
NEMA 4 (outdoor) 587 020 3114 587 020 4114
Input from
Power Source
Voltage 190-260 VAC 190-260 VAC
Phase In Single-Phase Single-Phase
Frequency 60/50 Hz 60/50 Hz
Current (max)
5.7 Amps (RMS) 1/2 hp, 0.37 kW system
8.7 Amps (RMS) 3/4 hp, 0.55 kW system
11 Amps (RMS) 1 hp, 0.75 kW system
13 Amps (RMS) 1.5 hp, 1.1 kW system
16 Amps (RMS) 2 hp, 1.5 kW system
Power Factor 1.0 (constant) 1.0 (constant)
Power (idle) 35 Watts 65 Watts
Power (max)
1150 Watts (1/2 hp, 0.37 kW) system
1750 Watts (3/4 hp, 0.55 kW) system
2150 Watts (1 hp, 0.75 kW) system
2500 Watts (1.5 hp, 1.1 kW) system
3100 Watts (2 hp, 1.5 kW) system
Wire Gauge Size(s) Consult Federal, State, and Local codes
for branch circuits installations
Consult Federal, State, and Local codes for
branch circuits installations
Output to
Motor
Voltage Adjusts with Frequency Adjusts with Frequency
Phase Out Single-Phase (3-wire) Single-Phase (3-wire)
Frequency Range 30-60 Hz 30-60 Hz
Current (max)
Main Phase: 6 Amps (RMS)
1/2 hp, 0.37 kW system
Main Phase: 8 Amps (RMS)
3/4 hp, 0.55 kW system
Main Phase: 10.4 Amps (RMS)
1 hp, 0.75 kW system
Main Phase: 11.5 Amps (RMS)
1.5 hp, 1.1 kW system
Main Phase: 13.2 Amps (RMS)
2 hp, 1.5 kW system
Wire Gauge Size(s) NEMA 1 #10 - #16 * ga.
NEMA 4 #6 - #18 * ga.
NEMA 1 #6 - #18 * ga.
NEMA 4 #6 - #18 * ga.
Pressure
Setting
Factory Preset 50 psi (3.4 bar) 50 psi (3.4 bar)
Adjustment Range 25-80 psi (1.7 - 5.5 bar) 25-80 psi (1.7 - 5.5 bar)
Operating
Conditions(A)
Temperature
(at 230 VAC input) -13 °F to 125 °F (-25 °C to 50 °C) -13 °F to 125 °F (-25 °C to 50 °C)
Relative Humidity
(NEMA 1) 10-95%, non-condensing 10-95%, non-condensing
Relative Humidity
(NEMA 3R) Not Available Not Available
Relative Humidity
(NEMA 4) 0-100%, condensing 0-100%, condensing
Controller
Size(B)
(approximate)
NEMA 1 (indoor)
16 1/2" x 12 3/8" x 9"
(41.91 x 31.43 x 22.86 cm)
15.00 lbs (6.80 kg)
16 1/2" x 12 3/8" x 9"
(41.91 x 31.43 x 22.86 cm)
17.50 lbs (7.94 kg)
NEMA 3R Not Available Not Available
NEMA 4 (outdoor)
17 1/2" x 16 3/8" x 11 3/8"
(44.45 x 41.59 x 28.89 cm)
24.14 lbs (10.95 kg)
17 1/2" x 16 3/8" x 11 3/8"
(44.45 x 41.59 x 28.89 cm)
28.32 lbs (12.84 kg)
For Use With(C)
Pump (60 Hz) 1/2 hp pump/motor with 214505 - series
3/4 hp pump/motor with 214507 - series [default]
1 hp pump/motor with 214508 - series
1.5 hp pump/motor with 224300 - series [default]
2 hp pump/motor with 224301 - series
FE Motor Rating
Notes: Refer to Franklin Electric’s SubDrive/MonoDrive Installation Manual (M1560).
(A) Operating temperature is specied at full output power when installed as described in Controller Location Selection on pg. 23.
(B) Refer to pgs. 45-47 for detailed Mounting Dimensions.
(C) If a pump other than the default rating is used, refer to pgs. 9-15 for Drive Conguration.
* Refer to pg. 25 for detailed Circuit Breaker and Wire Sizing.
SubDrive75 SubDrive100
Model No.
NEMA 1 (indoor) Model 5870203380 Model 5870204100
NEMA 3R (indoor/outdoor) Not Available Not Available
NEMA 4 (outdoor) Model 5870203384 Model 5870204104
Input from
Power Source
Voltage 190-260 VAC 190-260 VAC
Phase In Single-Phase Single-Phase
Frequency 60/50 Hz 60/50 Hz
Current (max) 11 Amps (RMS) 19 Amps (RMS)
Power Factor 1.0 (constant) 1.0 (constant)
Power (idle) 35 Watts 65 Watts
Power (max) 2400 Watts 3800 Watts
Wire Gauge Size(s) Consult Federal, State, and Local codes
for branch circuits installations
Consult Federal, State, and Local codes
for branch circuits installations
Output to
Motor
Voltage Adjusts with Frequency Adjusts with Frequency
Phase Out Three-Phase (3-wire) Three-Phase (3-wire)
Frequency Range
30-80 Hz (3/4 hp, 0.55 kW) pump
30-70 Hz (1 hp, 0.75 kW) pump
30-60 Hz (1.5 hp, 1.1 kW) pump
30-80 Hz (1 hp, 0.75 kW) pump
30-70 Hz (1.5 hp, 1.1 kW) pump
30-60 Hz (2 hp, 1.5 kW) pump
Current (max) 5.9 Amps (RMS, each phase) 8.1 Amps (RMS, each phase)
Wire Gauge Size(s) NEMA 1 #10 - #16 * ga.
NEMA 4 #6 - #18 * ga.
NEMA 1 #6 - #18 * ga.
NEMA 4 #6 - #18 * ga.
Pressure
Setting
Factory Preset 50 psi (3.4 bar) 50 psi (3.4 bar)
Adjustment Range 25-80 psi (1.7 and 5.5 bar) 25-80 psi (1.7 - 5.5 bar)
Operating
Conditions(A)
Temperature (at 230 VAC input) -13 °F to 125 °F (-25 °C to 50 °C) -13 °F to 125 °F (-25 °C to 50 °C)
Relative Humidity (NEMA 1) 10-95%, non-condensing 10-95%, non-condensing
Relative Humidity (NEMA 3R) Not Available Not Available
Relative Humidity (NEMA 4) 0-100%, condensing 0-100%, condensing
Controller
Size(B)
(approximate)
NEMA 1 (indoor)
16 1/2" x 12 3/8" x 9"
(41.91 x 31.43 x 22.86 cm)
15.00 lbs (6.80 kg)
16 1/2” x 12 3/8” x 9”
(41.91 x 31.43 x 22.86 cm)
17.50 lbs (7.94 kg)
NEMA 3R Not Available Not Available
NEMA 4 (outdoor)
17 1/2" x 16 3/8" x 11 3/8"
(44.45 x 41.59 x 28.89 cm)
24.14 lbs (10.95 kg)
17 1/2” x 16 3/8” x 11 3/8”
(44.45 x 41.59 x 28.89 cm)
28.32 lbs (12.84 kg)
For Use With(C) Pump (60 Hz)
3/4 hp (0.55 kW) [default]
1 hp (0.75 kW)
1.5 hp (1.1 kW)
1 hp (0.75 kW) [default]
1.5 hp (1.1 kW)
2 hp (1.5 kW)
FE Motor Rating 234514 - series (1.5 hp, 1.1 kW) 234315 - series (2 hp, 1.5 kW)
Specications
Notes: Refer to Franklin Electric’s SubDrive/MonoDrive Installation Manual (M1560).
(A) Operating temperature is specied at full output power when installed as described in Controller Location Selection on pg. 23.
(B) Refer to pgs. 45-47 for detailed Mounting Dimensions.
(C) If a pump other than the default rating is used, refer to pgs. 9-15 for Drive Conguration.
* Refer to pg. 25 for detailed Circuit Breaker and Wire Sizing.
Specications
SubDrive150 SubDrive300
Model No.
NEMA 1 (indoor) Model 5870204150 Not Available
NEMA 3R (indoor/outdoor) Not Available Not Available
NEMA 4 (outdoor) Model 5870204154 Model 5870206300
Input from
Power Source
Voltage 190-260 VAC 220-260 VAC
Phase In Single-Phase Single-Phase
Frequency 60/50 Hz 60/50 Hz
Current (max) 23 Amps (RMS) 36 Amps (RMS)
Power Factor 1.0 (constant) 1.0 (constant)
Power (idle) 65 Watts 65 Watts
Power (max) 4600 Watts 7200 Watts
Wire Gauge Size(s) Consult Federal, State, and Local codes
for branch circuits installations
Consult Federal, State, and Local codes
for branch circuits installations
Output to
Motor
Voltage Adjusts with Frequency Adjusts with Frequency
Phase Out Three-Phase (3-wire) Three-Phase (3-wire)
Frequency Range
30-80 Hz (1.5 hp, 1.1 kW) pump
30-70 Hz (2 hp, 1.5 kW) pump
30-60 Hz (3 hp, 2.2 kW) pump
30-80 Hz (3 hp, 2.2 kW) pump
30-70 Hz (5 hp, 3.7 kW) pump
Current (max) 10.9 Amps (RMS, each phase) 17.8 Amps (RMS, each phase)
Wire Gauge Size(s) NEMA 1 #6 - #18 * ga
NEMA 4 #6 - #18 * ga. NEMA 4 #2 - #18 * ga.
Pressure
Setting
Factory Preset 50 psi (3.4 bar) 50 psi (3.4 bar)
Adjustment Range 25-80 psi (1.7 - 5.5 bar) 25-80 psi (1.7 - 5.5 bar)
Operating
Conditions(A)
Temperature (at 230 VAC input) -13 °F to 125 °F (-25 °C to 50 °C) -13 °F to 125 °F (-25 °C to 50 °C)
Relative Humidity (NEMA 1) 10-95%, non-condensing N/A
Relative Humidity (NEMA 3R) Not Available Not Available
Relative Humidity (NEMA 4) 0-100%, condensing 0-100%, condensing
Controller
Size(B)
(approximate)
NEMA 1 (indoor)
16 1/2" x 12 3/8" x 9"
(41.91 x 31.43 x 22.86 cm)
17.50 lbs (7.94 kg)
Not Available
NEMA 3R Not Available Not Available
NEMA 4 (outdoor)
17 1/2" x 16 3/8" x 11 3/8"
(44.45 x 41.59 x 28.89 cm)
28.32 lbs (12.84 kg)
19 7/8" x 17 1/2" x 14 1/4"
(50.48 x 44.45 x 36.20 cm)
35.15 lbs (15.94 kg)
For Use With(C) Pump (60 Hz)
1.5 hp (1.1 kW) [default]
2 hp (1.5 kW)
3 hp (2.2 kW)
3 hp (2.2 kW) [default]
5 hp (3.7 kW)
FE Motor Rating 234316 - series (3 hp, 2.2 kW) 234317 - series (5 hp, 3.7 kW)
Notes: Refer to Franklin Electric’s SubDrive/MonoDrive Installation Manual (M1560).
(A) Operating temperature is specied at full output power when installed as described in Controller Location Selection on pg. 23.
(B) Refer to pgs. 45-47 for detailed Mounting Dimensions.
(C) If a pump other than the default rating is used, refer to pgs. 9-15 for Drive Conguration.
* Refer to pg. 25 for detailed Circuit Breaker and Wire Sizing.
SubDrive2W
Model No.
NEMA 1 (indoor) Not Available
NEMA 3R (indoor/outdoor) Model 5870203223
NEMA 4 (outdoor) Not Available
Input from
Power Source
Voltage 207-260 VAC
Phase In Single-Phase
Frequency 60/50 Hz
Current (max) 14 Amps (RMS)
(For circuit breaker sizing)
Power Factor 0.7 (approximate)
Power (idle) 20 Watts
Power (max) 1900 Watts
Wire Gauge Size(s) Consult Federal, State, and Local codes for branch circuits installations
Output to
Motor
Voltage Adjusts with Frequency
Phase Out Single-Phase (2-wire)
Frequency Range 30-60 Hz
Current (max)
6 Amps (RMS) 1/2 hp, 0.37 kW system
8 Amps (RMS) 3/4 hp, 0.55 kW system
10.4 Amps (RMS) 1 hp, 0.75 kW system
Wire Gauge Size(s) NEMA 3R #6 - #18 * ga.
Pressure
Setting
Factory preset 50 psi (3.4 bar)
Adjustment Range 25-80 psi (1.7 - 5.5 bar)
Operating
Conditions(A)
Temperature (at 230 VAC input) -13 °F to 125 °F (-25 °C to 50 °C)
Relative Humidity (NEMA 1) Not Available
Relative Humidity (NEMA 3R) 10-95%, non-condensing
Relative Humidity (NEMA 4) Not Available
Controller
Size(B)
(approximate)
NEMA 1 (indoor) Not Available
NEMA 3R
12 1/4” x 16 1/2” x 9”
(31.1 x 41.9 x 22.9 cm)
15.0 lbs (6.80 kg)
NEMA 4 (outdoor) Not Available
For Use With(C)
Pump (60 Hz) 1/2 hp pump/motor with 244505 - series
3/4 hp pump/motor with 244507 - series [default]
1 hp pump/motor with 244508 - series
FE Motor Rating
Specications
Notes: Refer to Franklin Electric’s SubDrive/MonoDrive Installation Manual (M1560).
(A) Operating temperature is specied at full output power when installed as described in Controller Location Selection on pg. 23.
(B) Refer to pgs. 45-47 for detailed Mounting Dimensions.
(C) If a pump other than the default rating is used, refer to pgs. 9-15 for Drive Conguration.
* Refer to pg. 25 for detailed Circuit Breaker and Wire Sizing.
Accessories Controller Part Number
SubDrive Duplex Alternator All models 585 001 2000
NEMA 1 Fan Replacement Kit SubDrive75 / MonoDrive
SubDrive100 / SubDrive150 / MonoDriveXT
225 635 908
225 635 909
NEMA 3R Fan Replacement Kit SubDrive2W 225 635 910
NEMA 4 Fan Replacement Kit
(External cooling fan)
MonoDrive / SubDrive75
MonoDriveXT / SubDrive100 / SubDrive150
SubDrive300
225 635 901
225 635 902
225 635 903
NEMA 4 Fan Replacement Kit
(Internal stirring fan)
MonoDrive / SubDrive75 /
MonoDriveXT / SubDrive100 / SubDrive150 /
SubDrive300
225 635 904
Auxiliary Relay Communications Board All NEMA 4 models (excluding SubDrive300) 225 755 901
Tank Drawdown Kit All NEMA 4 models / SubDrive2W 225 770 901
Heatsink Cover Kit All NEMA 4 models (excluding SubDrive300) 225 805 901
Air Filter Kit SubDrive2W 225 835 901
Lightning Arrestor Single-phase (Input Power) 150 814 902
Low Voltage Kit SubDrive300 225 950 901
High Pressure Sensor (75-150 psi) All models 225 970 901
Standard Replacement Pressure Sensor Kit (25-80 psi) All models 223 995 901
Direct Burial Cable
10 ft (3 m)
30 ft (9 m)
100 ft (30.5 m)
225 800 901
225 800 902
225 800 903
Input Filter All models 225 198 901
Output Filter All models (excluding SubDrive300) 225 300 901
Surge Capacitors All models 225 199 901
M1459 04-12
400 East Spring Street, Bluffton, Indiana 46714
Tel: 260.824.2900 • Fax: 260.824.2909
www.franklin-electric.com
*N1 = NEMA 1 (Indoors), N3R = NEMA 3R (Indoor/Outdoors), N4 = NEMA 4 (Outdoors)

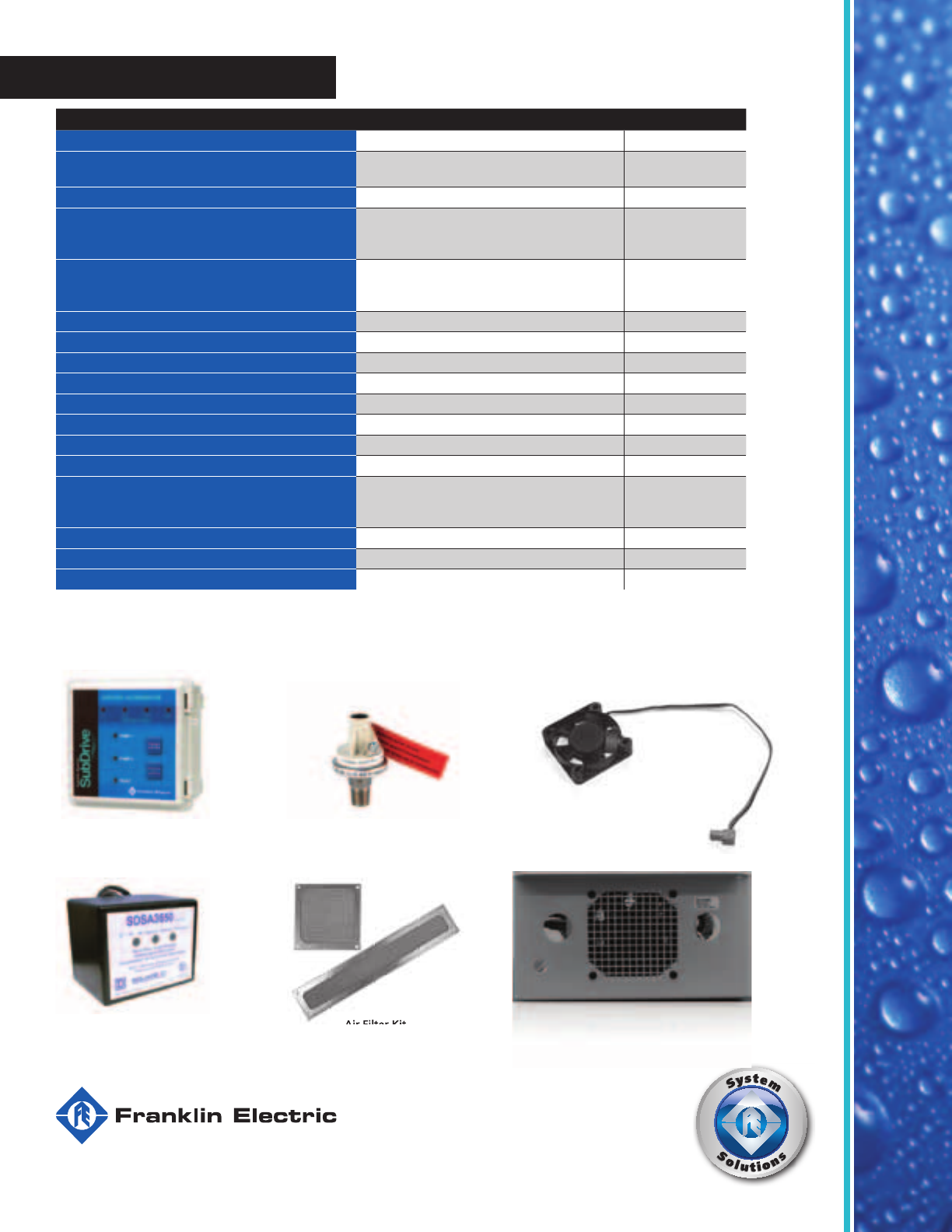

System Accessories
SubDrive Duplex Alternator High Pressure Sensor Internal Stirring Fan Kit
Lightning Arrestor Air Filter Kit External Cooling Fan Kit
Air Filter Kit
