Jet Pumps
Convertible | Shallow Well
8100 Series - Shallow Well

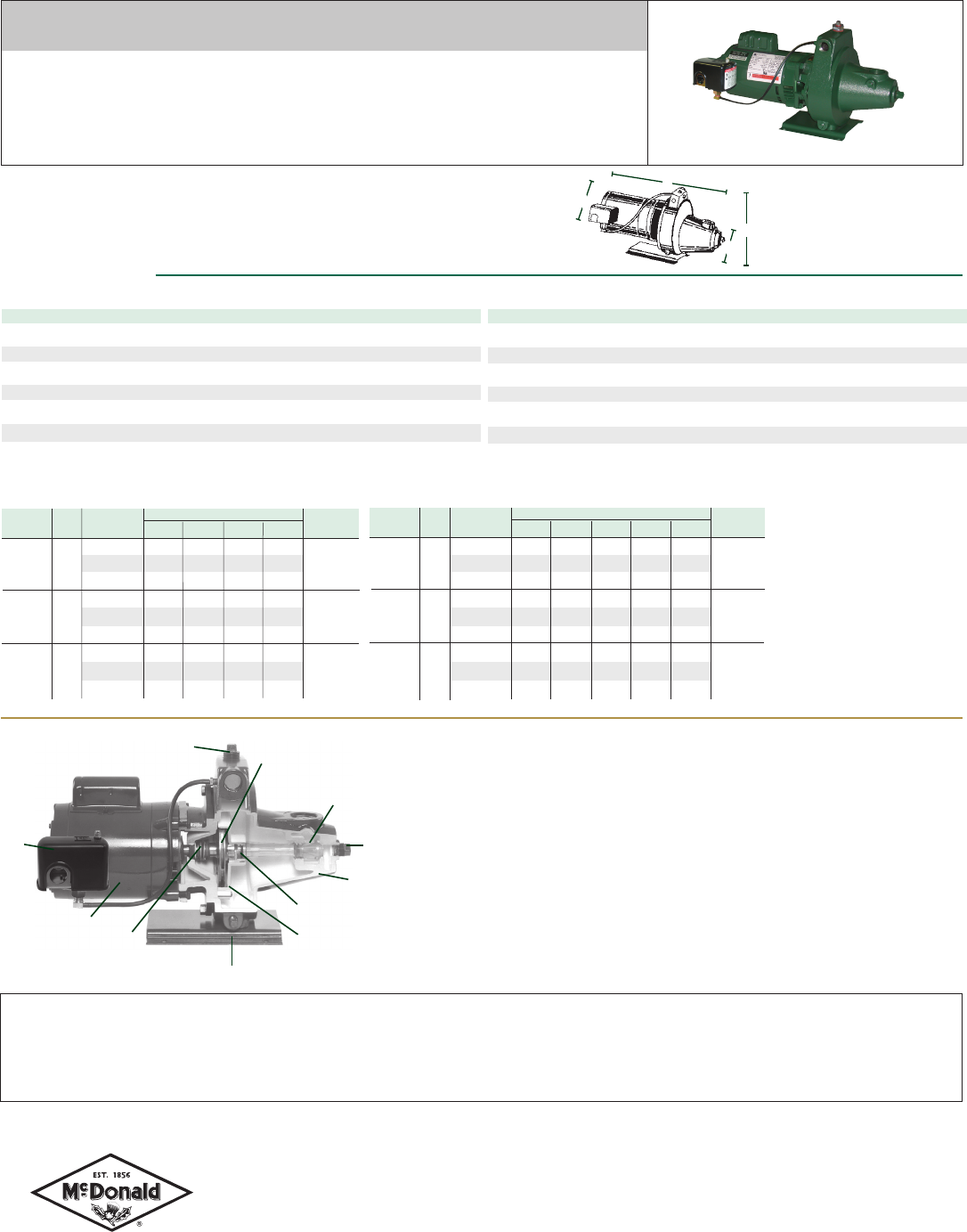

SUBMITTAL DATA SHEET
All 8100 Series Shallow Well Pumps come with a 1 1/4” suction pipe
and 3/4” discharge on the side or 1” on top. The sizes range from 1/2
to 1 horse power (HP).
NO-LEAD: The weighted average of the wetted surface of this no-lead product contacted by consumable water contains less than one quarter of
one percent (0.25%) lead.
A.Y. McDonald considers the information on this assembly drawing correct when published. Item and option availability, including specications, are subject to change without notice.
Submitted by: 3-14
A.Y. McDonald Mfg. Co. Toll Free: 1-800-292-2737 sales@aymcdonald.com
P.O. Box 508 Fax: 1-800-832-9296 www.aymcdonald.com
Dubuque, IA 52004-0508 Hours: 7:00 a.m. - 5:00 p.m., CST
A
B
D
C
Overall Length "A" | Overall Height "B"
Overall Width with Pressure Switch "C"
Overall Width without Pressure Switch "D"
Models Available
- Pressure switch factory settings:
1/2 HP High Capacity = 20-40 PSI
1/2 HP High Pressure = 30-50 PSI
- Nema J (Threaded Shaft) Motor 7/16” - 20 Threads
- All 3/4 and 1 HP = 30-50 PSI
* Maximum Amp. Draw at factory voltage setting.
SUBMITTAL INFORMATION
1 - Zinc Plated Plug
(With Pressure Gauge Tap & 1/4" plug)
2 - Impeller
Available in either dynamically balanced bronze
or engineered thermoplastic
3 - Nozzle-Venturi (Jet Ejector) Assembly
Unitized construction made of non-distorting
Polycarbonate with excellent heat resistance
4 - Zinc Plated Nozzle Clean-out Plug
5 - Cast Iron Pump Body & Motor Adapter
6 - Buna-N O-ring (On Venturi)
7 - Diffuser
Multi-volute engineered thermoplastic diffuser for
maximum capacity and pressure
8 - Drain Plug
9 - Shaft Seal
Standard 5/8” ceramic carbon rotating
mechanical seal
10- Standard, Capactor Start,
Nema J Motor
Built to NEMA specications by nationally known
manufacturers to assure local service availability.
Choice of 1/2, 3/4 and 1 H.P. 50 Hz. or 60 Hz.
11- Pressure Switch
Easily adjusted for higher or lower operating
pressures
High Capacity
Model No. HP Volt *Max. Amps Switch Impeller A B C D WT
8150 1/2 115/230 11.2 20/40 plastic 20" 10" 10.5" 8" 46
8151 1/2 115/230 11.2 20/40 brass 20" 10" 10.5" 8" 46
8170 3/4 230/115 7.4 30/50 plastic 19.5" 10" 10.5" 8" 49
8171 3/4 230/115 7.4 30/50 brass 19.5" 10" 10.5" 8" 50
8110 1 230/115 8.8 30/50 plastic 20" 10" 10.5" 8" 52
8111 1 230/115 8.8 30/50 brass 20" 10" 10.5" 8" 53
*Factory Voltage Setting listed rst in bold type.
High Pressure
Model No. HP Volt *Max. Amps Switch Impeller A B C D WT
8150HP 1/2 115/230 11.2 30/50 plastic 20" 10" 10.5" 8" 46
8151HP 1/2 115/230 11.2 30/50 brass 20" 10" 10.5" 8" 48
8170HP 3/4 230/115 7.4 30/50 plastic 19.5" 10" 10.5" 8" 49
8171HP 3/4 230/115 7.4 30/50 brass 19.5" 10" 10.5" 8" 50
8110HP 1 230/115 8.8 30/50 plastic 20" 10" 10.5" 8" 52
8111HP 1 230/115 8.8 30/50 brass 20" 10" 10.5" 8" 53
Model Suction
No. HP Lift - FT. 20 30 40 50
Model Suction
No. HP Lift - FT. 30 40 50 60 70
5 15.6 15.6 8.6 2.3
1/2 15 11.7 11.7 6.5 1.2 58
25 6.6 6.6 4.7 --
5 18.8 18.8 16.2 8.8
3/4 15 14.4 14.4 12.3 3.9 61
25 8.6 8.6 7.3 2.7
5 24.2 24.0 23.0 15.0
1 15 20.1 18.6 18.4 10.9 64
25 11.6 11.4 11.3 4.7
5 7.6 7.1 5.7 2.7
1/2 15 5.5 5.4 4.3 2.0 70
25 3.7 3.6 2.9
5 9.4 9.4 7.8 4.2
3/4 15 7.0 7.0 5.9 2.9 74
25 4.6 4.6 3.8 2.1
5 13.4 13.4 12.7 9.2 3.0
1 15 10.0 10.0 9.4 6.5 2.4 80
25 6.2 6.2 6.0 4.3 1.8
8150
8151
8150HP
8151HP
8170
8171
8170HP
8171HP
8110
8111
8110HP
8111HP
Capacities in GPM at Discharge Pressure (PSI) Capacities in GPM at Discharge Pressure (PSI)
MAX. Shut
Off Pressure
MAX. Shut
Off Pressure
High Capacity | Shallow Well High Pressure | Shallow Well
12
3
4
5
6
7
8
9
10
11
