CR10-H

Parts List & Kits

Contents

Parts List

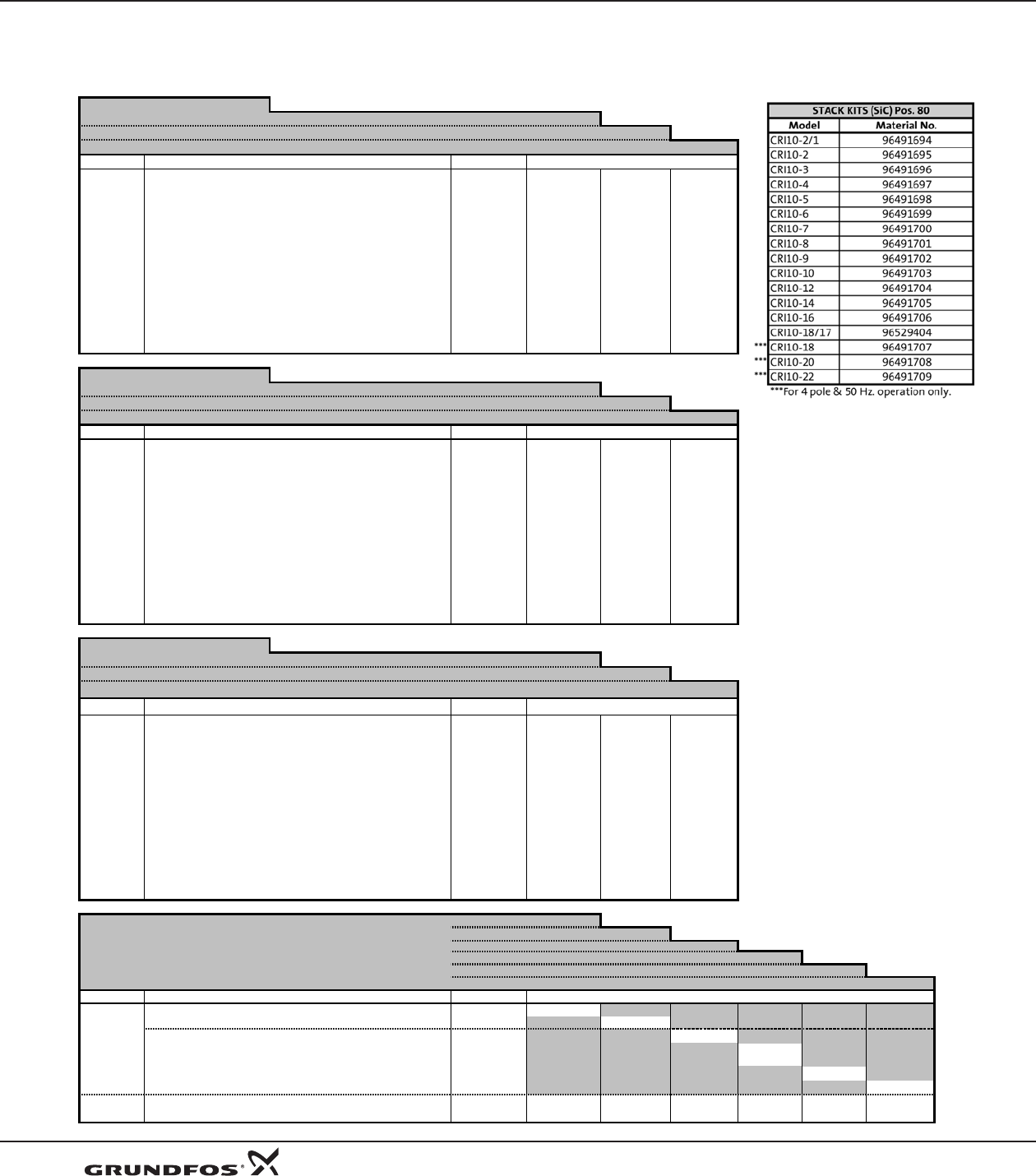

Spare Part Kits

Accessories

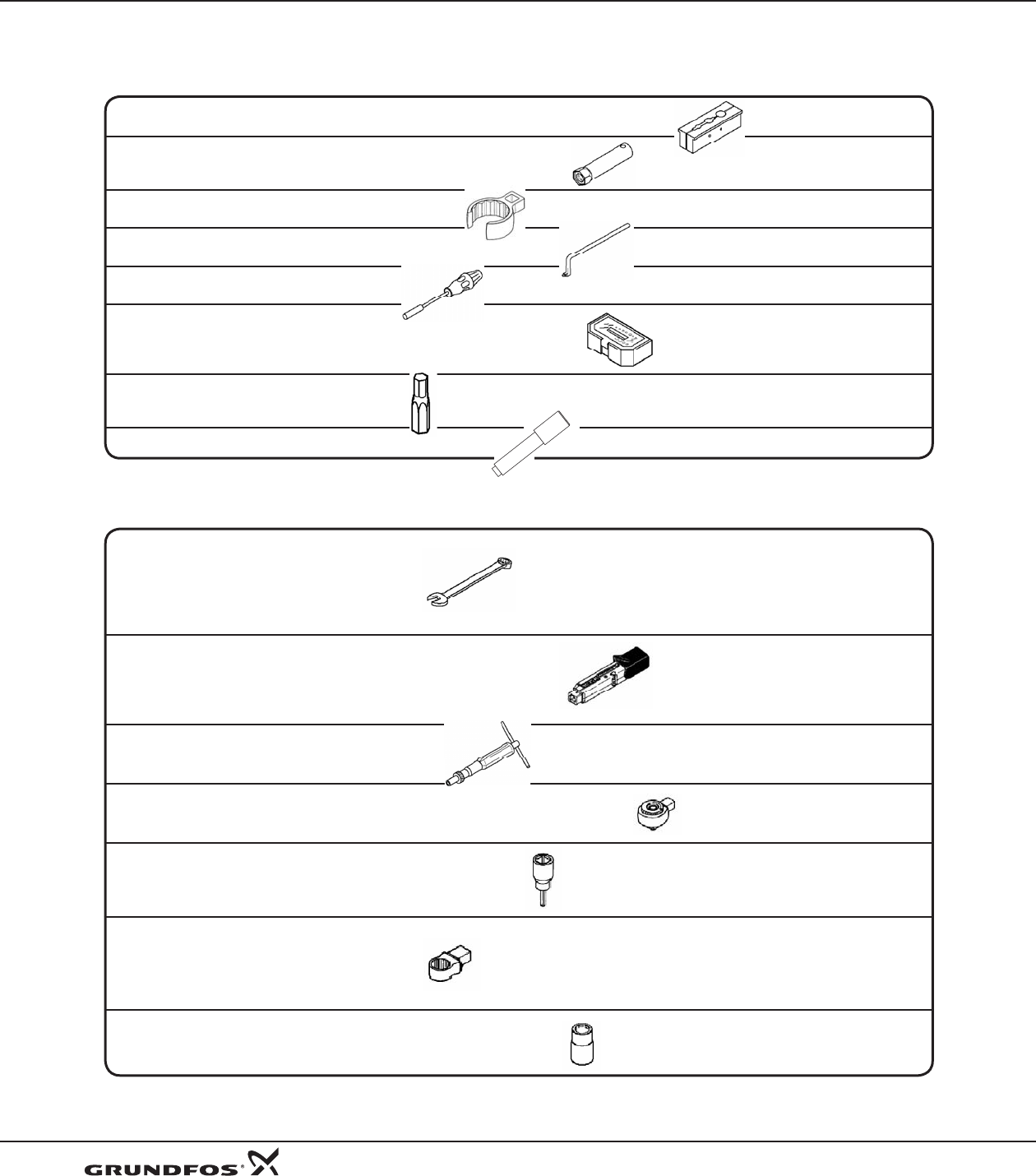

Special Tools

Standard Tools

Tools for Torques

GRUNDFOS

CR SERVICE MANUAL

Exploded View CR10-H

56a

19a

90c

TM047921

Parts List & Kits CR10-H

 

Due to part changes over time, all

position numbers (1-203) may not be used.

This column indicates which

pump model uses the spare

part. If blank, the part is used

in all models.

Comments/Dimensions

Stages

Part Description Included

in kits ?

Model B.O.M.

Ref. No. Material

No.

Pos.

No. No.

Used

1 Adapter for Motor Stool 7-12 1 For NEMA, 213/215TC, 7.5 - 10HP 96476208 No

14-18/17 1 For NEMA, F254TC, 15-20HP 96486329 No

2 Motor Stool 2/1-2 1 NEMA, 56C, .75 - 2.0HP 96486287 No

3-6 1 NEMA, 182TC, 3 - 5HP (High) 96486311 No

7-12 1 Add Pos.1 NEMA 213/215TC, 7.5-10HP (High) 96486311 No

14-18/17 1 Add Pos. 1 for NEMA 254/256TC, 15-20HP 96486311 No

1 NEMA, 284/286TSC, 25HP 96486293 No

3 Chamber, Top, Complete with guide vane 2-17 *1 Slotted to accept Strap, pos. 26a 96487783 No

3a Chamber N, Top, without guide vane 2/1&18/17 *1 Slotted to accept Strap, pos. 26a 96491220 No

3b Chamber without guide vane 3-22 *1 420015 No

4 Chamber complete with Pos. 45 & 65 2/1-22 ^^^ PTFE Pos.45 96487846 No

4a Chamber Cpl. w/Pos. 45 & 65 & Bearing 2/1-22 ^^^^ Silicon Carbide Bearing, PTFE Pos.45 96747280 YES*

  ChamberNCpl.w/Pos.45&65&Brg.(option)  2/1-22 ^^^^ GraonBearing,PTFEPos.45 96492496  YES

Chamber N Cpl. w/Pos. 45 & 65 & Brg. (option) 2/1-22 ^^^^ Bronze Bearing, PTFE Pos.45 96492498 YES

4b Chamber N Cpl. w/Pos. 45 & 65, (Low NPSH opt.) 3-18/17 1 PTFE Pos.45 96505300 No

6 Volute, suction / discharge base 2/1-22 1 GA, 1.5” suction (OD=76mm) for 4 hole dis. adapter 95922001 No

2/1-22 1 G05/G22, 2” suction (OD=90mm) for 4 hole dis. adapter 95922000 No

Volute, option larger suction & discharge 2/1-22 1 GB&C/G10/G50/G60, 3” suc. (OD=120), 6 hole dis. adap. 95922002 No

7 Coupling Guard 2/1-2 2 NEMA-56C 96491002 YES

3-18/17 2 NEMA, 182-215TC (High),254TC-286TSC 96490656 YES

7a Screw for Coupling Guard 2/1-18/17 4 Screw comb. slot torx/straight slot 4 x 8mm 96488481 YES

9 Allen Screw 2/1-2 4 M6 x 20mm, Delta/Tone Seal 00ID7899 YES

3-18/17 4 M10 x 25mm, Delta/Tone Seal 00ID7901 YES

10 Shaft Pin 2/1-22 1 ø5 x 26mm 310192 95061337 YES

10a Coupling Half (machined set) 2/1-2 1 NEMA, 56C, 1/3 - 2HP. ø15.9/ ø16mm 96516777 YES

3-6 1 NEMA, 182/184TC, 3-5HP. ø28.6/ø16mm (High) 96516009 YES

7-12 1 NEMA, 213TC, 7.5-10HP. ø34.9/ø16mm (High) 96516770 YES

14-18/17 1 NEMA, 254TC, 15-20HP. ø41.2/ø16mm (High) 96516771 YES

1 NEMA, 284/286TSC, 25HP. ø41.2/ø16mm 96516771 YES

 12a DischargeAdapter  2/1-22 1 GA,4holeange,OD=55mm,ID=26mm(1.0”),L=60mm 95922007  No

   2/1-22 1 G05,4holeange,OD=55mm,ID=26mm(1.0”),L=111mm 95922008  No

   2/1-22 1 G22,4holeange,OD=90mm,ID=50mm(2”),L=85mm 95922016  No

  DischargeAdp.optionlargersuc./dis.&press  2/1-22 1 GB,6holeange,OD=76mm,ID=49mm(1.5”),L=65mm 95922009  No

   2/1-22 1 GC,6holeange,OD=90mm,ID=49mm(2”),L=65mm 95922010  No

   2/1-22 1 G50,6holeange,OD=76mm,ID=41mm(1.5”),L=116mm 95922011  No

   2/1-22 1 G10,6holeange,OD=90mm,ID=50mm(2”),L=110mm 95922012  No

   2/1-22 1 G60,6holeange,OD=90mm,ID=50mm(2”),L=142mm 95922013  No

   2/1-22 1 G20,6holeange,OD=76mm,ID=40mm(1.5”),L=166mm 95922014  No

   2/1-22 1 G30,6holeange,OD=90mm,ID=50mm(2”),L=192mm 95922015  No

   2/1-22 1 G50,6holeange,OD=76mm,ID=47mm(1.5”),L=96mm 96834136  No

   2/1-22 1 G10,6holeange,OD=90mm,ID=56mm(2”),L=90mm 96834137  No

   2/1-22 1 G60,6hole,ange,OD=90mm,ID=55mm(2”),L=122mm 96834138  No

   2/1-22 1 G20,6holeange,OD=76mm,ID=46mm(1.5”),L=146mm 96834139  No

   2/1-22 1 G30,6holeange,OD=90mm,ID=54mm(2”),L=72mm 96834140  No

   2/1-22 1 G33,6holeg.OD=120mm,ID=80mm(3”),L=110mm 95922017  No

18(a) Priming/Vent Plug 2/1-22 1 G 1/2A, NV24 with NV9 x M8 stem 405150 95061351 No

19 (Suction) Pressure tap plug 2/1-22 1 1/4” NPT,SS SQHD 00ID7216 No

19a (Discharge) Pressure tap plug 2/1-22 1 1/4” NPT,SS SQHD 00ID7216 No

23, 23c Plug 2/1-22 * G 1/2A, NV24, solid 370025 95061733 No

25 Drain plug 2/1-22 1 1/4” NPT,SS SQHD 00ID7216 No

26 Staybolt 2/1-2 4 M16 x 116mm 96922783 No

3 4 M16 x 150mm 96922785 No

4 4 M16 x 176mm 96922787 No

5 4 M16 x 211mm 96922789 No

6 4 M16 x 241mm 96922792 No

7 4 M16 x 266mm 96922793 No

8 4 M16 x 296mm 96922795 No

9 4 M16 x 327mm 350179 No

10 4 M16 x 356mm 290248 No

12 4 M16 x 415mm 370134 No

14 4 M16 x 481mm 96922805 No

16 4 M16 x 536mm 380092 No

18/17 4 M16 x 596mm 96922810 No

20 4 M16 x 661mm, 4 pole & 50 Hz. 96922813 No

22 4 M16 x 716mm, 4 pole & 50 Hz. 380094 No

Staybolt (Back-to-Back & Tandem Seal option) 2/1-2 4 M16 x 211mm 96922789 No

3 4 M16 x 241mm 96922792 No

4 4 M16 x 266mm 96922793 No

5 4 M16 x 296mm 96922795 No

6 4 M16 x 333mm 370133 No

7 4 M16 x 356mm 290248 No

B.O.M. Ref. No. is only available if it is not included

in a kit or does not have a material number listed. If it is included in a kit (YES), or has a

material number, request one of these numbers. If not included in a kit (No), but has a

Material Number, use Material Number.

Parts List & Kits CR10-H

Comments/Dimensions

Stages

Part Description Included

in kits ?

Model B.O.M.

Ref. No. Material

No.

Pos.

No. No.

Used

 

Due to part changes over time, all

position numbers (1-203) may not be used.

This column indicates which

pump model uses the spare

part. If blank, the part is used

in all models.

B.O.M. Ref. No. is only available if it is not included

in a kit or does not have a material number listed. If it is included in a kit (YES), or has a

material number, request one of these numbers. If not included in a kit (No), but has a

Material Number, use Material Number.

26 Staybolt (Back-to-Back & Tandem Seal option) 8 4 M16 x 386mm 97525093 No

(continued) 9 4 M16 x 415mm 370134 No

10 4 M16 x 450mm 97525096 No

12 4 M16 x 506mm 96922806 No

14 4 M16 x 566mm 290251 No

16 4 M16 x 628mm 380093 No

18/17 4 M16 x 686mm 96922814 No

20: 4 pole 4 M16 x 745mm 370138 No

22: 4 pole 4 M16 x 807mm 350185 No

26a Strap 2/1-2 2 L*= 78.5mm x 20.3mm x 1.3mm, 316 SS, M8 nut 96487758 No

3 2 L*= 108.5mm x 20.3mm x 1.3mm, 316 SS, M8 nut 96487760 No

4 2 L*= 138.5mm x 20.3mm x 1.3mm, 316 SS, M8 nut 96487761 No

5 2 L*= 168.5mm x 20.3mm x 1.3mm, 316 SS, M8 nut 96487762 No

6 2 L*= 198.5mm x 20.3mm x 1.3mm, 316 SS, M8 nut 96487764 No

7 2 L*= 228.5mm x 20.3mm x 1.3mm, 316 SS, M8 nut 96487765 No

8 2 L*= 258.5mm x 20.3mm x 1.3mm, 316 SS, M8 nut 96487766 No

9 2 L*= 288.5mm x 20.3mm x 1.3mm, 316 SS, M8 nut 96487768 No

10 2 L*= 318.5mm x 20.3mm x 1.3mm, 316 SS, M8 nut 96487769 No

12 2 L*= 378.5mm x 20.3mm x 1.3mm, 316 SS, M8 nut 96487771 No

14 2 L*= 438.5mm x 20.3mm x 1.3mm, 316 SS, M8 nut 96487773 No

16 2 L*= 498.5mm x 20.3mm x 1.3mm, 316 SS, M8 nut 96487775 No

18/17 2 L*= 558.5mm x 20.3mm x 1.3mm, 316 SS, M8 nut 96487777 No

20: 4 pole 2 L*= 618.5mm x 20.3mm x 1.3mm, 316 SS, M8 nut 96487778 No

22: 4 pole 2 L*= 678.5mm x 20.3mm x 1.3mm, 316 SS, M8 nut 96487781 No

26b Bolt for Pos. 26a 2/1-22 2 M8 x 25mm, 316 SS w/Delta/Tone Seal 96416603 No

26c Washer for Pos. 26b 2/1-22 2 A4, ø16.0/ø8.4x1.6mm 00ID3284 No

28 Motor Bolt 2/1-2 4 NEMA, 56C, .75 - 2HP, UNC 3/8” x 25mm 00ID1839 No

3-6 4 NEMA, 182/184TC, 3 - 5HP, UNC1/2” x 25mm 00ID1840 No

7-12 4 NEMA, 213TC, 7.5 -10HP, JR 1/2” x 1.25” UNC 00ID0185 No

14-18/17 4 NEMA, 254TC, 15HP, 1/2” x 2.5” UNC 96491112 No

28g Bolt for Foot 56a & Volute Pos. 6 (GA, GB, GC) 2/1-22 2 M12 x 20mm, low hex head, 8.8 Alloy Steel, Delta Tone/Seal 95922047 No

Bolt-Foot 56a & Volute Pos. 6 (G05, G10, G22, G50, G60) 2/1-22 2 M12 x 20mm, 8.8 Alloy Steel, Delta Tone/Seal 95922048 No

35 Bolt for Discharge Adapter Pos. 12a (GB, GC) 2/1-18/17 6 M12 x 22mm Socket Head Cap Screw, Delta Tone/Seal 95922049 No

Bolt for Discharge Adapter Pos. 12a (GA, G05) 2/1-18/17 4 M12 x 25mm Socket Head Cap Screw, Delta Tone/Seal 95922050 No

36 Staybolt Nut 2/1-22 4 24mm x M16, Delta Tone/Seal 00ID7908 No

37(b) Sleeve O-ring 2/1-22 uu EPDM, ø170.7 x 3.3mm 96483101 YES

2/1-22 uu FKM, ø170.7 x 3.3mm 96483102 YES

Sleeve O-ring (option) 2/1-22 uu FXM, ø171.25 x 3.3mm 96483109 YES

Sleeve O-ring (option) 2/1-22 uu FFKM, ø170.7 x 3.3mm 96483140 YES

 39b O-ringforDischargeAdapterangePos.12a  2/1-17 1 EPDM,Parker2-238ø88.5x3.5mm 95922035  YES

2/1-17 1 FKM, Parker 2-238 ø88.5 x 3.5mm 95922036 YES

2/1-17 1 FXM, Parker 2-238 ø88.5 x 3.5mm 95952037 YES

2/1-17 1 FFKM, Parker 2-238 ø88.5 x 3.5mm 95131207 YES

44a Inlet upper with Pos. 45 & 65 2/1-22 1 96489070 No

44c Inlet upper N with Pos. 45 & 65 (Low NPSH option) 2/1-22 1 96489039 No

44b Inlet lower, machined 2/1-22 1 96488000 No

44d Spacer ring N for low NPSH Pos. 44c 2/1-22 1 96505491 97573624 No

 45 NeckRing  2/1-22 #imp.- ø59.5xø44.08x1.2mm,PTFE-Acoon100 96487401  YES

  NeckRing(lowNPSHoption)  2/1-22 1 ø75.8xø59.95x1.2mm,PTFE-Acoon100 96487400  YES

47a Bearing Ring/Spacer 2/1-22 ^^^^ SiC 150, ø23.4 x ø17.6 x ø15.0 x 14mm 96763100 YES

  Brg.Ring/Spacer(optionforGraon/Brz.4a)  2/1-22 ^^^^ TC,ø21.9xø17.6xø15.0x14mm 330085 95061371 YES

49 Impeller 2/1-22 # stgs- ø92.9 x ø44.0 x 13.6mm (back-plate 1.0mm) 96487817 No

49i Impeller N (Low NPSH option) 3-22 1 ø104.8 x ø59.85 x 25.4mm (back-plate 1.5mm) 96476527 No

51 Shaft, Complete 2/1-2 1 ø16 x 179.0mm, 431 SS 96489224 No

3 1 ø16 x 209.0mm, 431 SS 96490794 No

4 1 ø16 x 239.0mm, 431 SS 96490796 No

6 1 ø16 x 299.0mm, 431 SS 96490872 No

7 1 ø16 x 329.0mm, 431 SS 96490874 No

5 1 ø16 x 269.0mm, 431 SS 96490870 No

8 1 ø16 x 359.0mm, 431 SS 96490878 No

9 1 ø16 x 389.0mm, 431 SS 96490880 No

10 1 ø16 x 419.0mm, 431 SS 96490882 No

12 1 ø16 x 479.0mm, 431 SS 96490886 No

14 1 ø16 x 539.0mm, 431 SS 96490890 No

16 1 ø16 x 599.0mm, 431 SS 96490894 No

18/17 1 ø16 x 659.0mm, 431 SS 96490896 No

20 1 ø16 x 719.0mm, 431 SS, 4 pole & 50 Hz. 96490898 No

22 1 ø16 x 779.0mm, 431 SS, 4 pole & 50 Hz. 96490913 No

Shaft, Cpl. (Back-to-Back & Tandem Seal option) 2/1-2 1 ø16 x 269.0mm, 329 SS 96507534 No

3 1 ø16 x 299.0mm, 329 SS 96507538 No

4 1 ø16 x 329.0mm, 329 SS 96507539 No

5 1 ø16 x 359.0mm, 329 SS 96507571 No

6 1 ø16 x 389.0mm, 329 SS 96507572 No

7 1 ø16 x 419.0mm, 329 SS 96507573 No

8 1 ø16 x 449.0mm, 329 SS 96507575 No

9 1 ø16 x 479.0mm, 329 SS 96507576 No

Parts List & Kits CR10-H

Comments/Dimensions

Stages

Part Description Included

in kits ?

Model B.O.M.

Ref. No. Material

No.

Pos.

No. No.

Used

 

Due to part changes over time, all

position numbers (1-203) may not be used.

This column indicates which

pump model uses the spare

part. If blank, the part is used

in all models.

B.O.M. Ref. No. is only available if it is not included

in a kit or does not have a material number listed. If it is included in a kit (YES), or has a

material number, request one of these numbers. If not included in a kit (No), but has a

Material Number, use Material Number.

51 Shaft, Cpl. (Back-to-Back & Tandem Seal option) 10 1 ø16 x 509.0mm, 329 SS 96507577 No

(continued) 12 1 ø16 x 569.0mm, 329 SS 96507579 No

14 1 ø16 x 629.0mm, 329 SS 96507581 No

16 1 ø16 x 689.0mm, 329 SS 96507583 No

18/17 1 ø16 x 749.0mm, 329 SS 96507584 No

20 1 ø16 x 809.0mm, 329 SS, 4 pole & 50 Hz. 96507585 No

22 1 ø16 x 869.0mm, 329 SS, 4 pole & 50 Hz. 96507587 No

55 Outer Sleeve 2/1-2 1 ø171.1/ ø170.7 x 74.0mm x 1.5mm, 304 SS 96485420 No

3 1 ø171.1/ ø170.7 x 104.0mm x 1.5mm, 304 SS 96489762 No

4 1 ø171.1/ ø170.7 x 134.0mm x 1.5mm, 304 SS 96489763 No

5 1 ø171.1/ ø170.7 x 164.0mm x 1.5mm, 304 SS 96489765 No

6 1 ø171.1/ ø170.7 x 194.0mm x 1.5mm, 304 SS 96489766 No

7 1 ø171.1/ ø170.7 x 224.0mm x 1.5mm, 304 SS 96489838 No

8 1 ø171.1/ ø170.7 x 254.0mm x 1.5mm, 304 SS 96489768 No

9 1 ø171.1/ ø170.7 x 284.0mm x 1.5mm, 304 SS 96489769 No

10 1 ø171.1/ ø170.7 x 314.0mm x 1.5mm, 304 SS 96489770 No

12 1 ø171.1/ ø170.7 x 374.0mm x 2.0mm, 316 SS 96489829 No

14 1 ø171.1/ ø170.7 x 434.0mm x 2.0mm, 316 SS 96489830 No

16 1 ø171.1/ ø170.7 x 494.0mm x 2.0mm, 316 SS 96489832 No

18/17 1 ø171.1/ ø170.7 x 554.0mm x 2.0mm, 316 SS 96489833 No

20: 4 pole 1 ø171.1/ ø170.7 x 614.0mm x 2.0mm, 316 SS, 50Hz. 96489834 No

22: 4 pole 1 ø171.1/ ø170.7 x 674.0mm x 2.0mm, 316 SS, 50Hz. 96489859 No

 55b Sleeveange  2/1-22 1 CR-H,CRN-H10,15,20,316SS 95131164  No

56a Foot for Pos. 6 (GA, GB, GC) 2/1-22 1 H= 21mm, W= 198mm, ø16mm hole CL 142mm 95922023 No

Foot for Pos. 6 (G05, G10, G22, G50, G60) 2/1-22 1 H= 98mm, W= 300mm, ø16mm hole CL 248mm 95922024 No

Foot for Pos. 6 (C1, G20, G30) 254TC 14-18/17 1 H= 142mm, W= 300mm, ø16mm hole CL 248mm 96834143 No

56b(d) Washer for bolt Pos. 56c 2/1-22 16 M12, 304 SS 00ID3103 No

 56c BoltforsleeveangePos.55b  2/1-22 8 M12x1.75x65mm,12.9AlloySteel,DeltaTone/Seal 95922053  No

56e Nut for bolt Pos. 56c 2/1-22 8 M12, NV19, 8.8 Steel, Delta Tone/Seal 00ID7917 No

56f Bolt for Pos. 90 (BP139 w/GA, BP245 G05/22) 56/182T 2/1-6 2 Hex Hd.1/2 -13 UNC x 1” SAE 5, Z.P. YES

Bolt for Pos. 90 (BP258 G05/22) 254TC 14-18/17 2 Hex Hd.1/2 -13 UNC x 1” SAE 5, Z.P. YES

Bolt for Pos. 90 (BP148 with GA & BP252 G05/22) 213TC 7-12 2 Hex Head 1/2 -13 UNC x 1.25” SAE 5, Zinc plated YES

Bolt for Pos. 90 (BP148with GA, Pos.56k & m) 254TC 14-18/17 2 Hex Head 1/2 -13 UNC x 2.25” SAE 5, Zinc plated YES

56g Washer for bolt Pos. 56f 2/1-22 2 1/2” SAE, Zinc plated YES

56k Spacer for base Pos. 90 GA 14-18/17 1 148BP 254T, L=200mm x H=25.4mm x W=78.2mm YES

56m Alignment pin GA 14-18/17 2 Slotted Spring Pin, ø3/16” x 1” ASME, Zinc plated YES

60 Stack Compression Spring 2/1-22 4 ø11.0 x ø7.0 x 15.5mm, EPDM 96503070 YES

2/1-22 4 ø11.0 x ø7.0 x 15.5mm, FKM 96503072 YES

60a Stack Compression Spring (option) 2/1-22 4 ø11.0 x ø7.0 x 15.5mm, PTFE 96503071 YES

61 Stop spacer 2/1-22 1 ø22.0 x ø17.8 x ø15.11 x 11.8 x 6.8mm 96783511 YES

64 Spacing Pipe 2/1-22 ^^^ ø21.5 x ø17.5 x 29.05mm 331404 95061499 No

64a Spacing Pipe 2/1&18/17 ^^^^ ø21.5 x ø17.5 x 9.0mm 96495333 YES

64b Spacing Pipe (Low NPSH option only) 2/1&18/17 2 ø21.5 x ø17.5 x 10.05mm 331402 95061472 No

64c Clamp, Splined 2/1-22 1 ø21.5 x ø17.6 x ø15.0 x 12.7mm 96496311 YES

64d Spacing Pipe 2/1-22 ^^^^ ø21.5 x ø17.5 x 6.0mm 331412 No

64e Spacing Pipe (Low NPSH option only) 2/1-22 1 ø21.5 x ø17.5 x 38.0mm 331406 95061629 No

64g Spacing Pipe (de-staging 2 impellers option only) 3-22 1 per ø21.5 x ø17.5 x 30.0mm (use with 3b only) 331410 No

de-stg

65 Neck Ring Retainer N 2/1-22 # stgs- ø61.9 x ø47.2 x 4.7mm 96487285 Yes

Neck Ring Retainer N (Low NPSH option) 2/1-22 1 ø78.8 x ø61.5 x 6.7mm 330059 No

66 Lock Washer Set for Shaft 2/1-22 1 ø13.5 x ø8.2 x 2.6mm 96417297 YES

66a Washer for Staybolt 2/1-22 2 DIN 125A, ø30 x ø17 x 2.5mm, Delta Tone/Seal 96430378 No

67 Lock Nut for Shaft 2/1-22 1 13mm x M8 96496488 YES

69 Spacing Pipe 2/1-22 y ø21.5 x ø17.5 x 18.0mm 96491536 No

69a Spacing Pipe (de-staging 1 impeller option only) 2/1&18/17 1 ø21.5 x ø17.5 x 19.0mm (use with 3a only) 331409 95062143 No

72a O-ring for Sleeve Flange Pos. 55b 2/1-22 1 EPDM, ø215.5mm 95922038 YES

2/1-22 1 FKM, ø215.5mm 95922039 YES

2/1-22 1 FFKM, ø215.5mm 95131208 YES

2/1-22 1 FXM, ø215.5mm 95922040 YES

76 Nameplate 2/1-22 1 304SS, 60 x 45mm 96563333 No

76a Rivet for Nameplate 2/1-22 2 304SS, ø3 x 5mm 96022882 No

77a Pump Head Cover for Tandem Seal & Cool Top® 2/1-22 1 Cast Stainless 96505487 No

Pump Head Cover for Back-to-Back 2/1-22 1 Cast Stainless 96505488 No

79a Disc / Plate complete w/79b & c for Cool Top 2/1-22 1 Cast Stainless 96511281 No

 79b BushingforDisc/Plate79a  2/1-22 1 Graon 96505571  No

79c Retaining Ring for79b 2/1-22 1 Stainless 96510985 No

90 Main Support Baseplate GA 2/1-5 1 BP. Cpl.139, L=991mm x W=305mm x H=106.5mm 96956336 YES

GA 7-12 1 BP. Cpl.148, L=1219mm x W=381mm x H=107.9mm 96956346 YES

G05/22 2/1-6 1 BP. Cpl.245, L=1143mm x W=305mm x H=106.5mm 96956341 YES

G05/22 7-12 1 BP. Cpl.252, L=1320.8mm x W=381mm x H=107.9mm 96956356 YES

G05 16 1 BP. Cpl.258, L=1473.2mm x W=457.2mm x H=119.1mm 96956360 YES

G22 14-18/17 1 BP. Cpl.258, L=1473.2mm x W=457.2mm x H=119.1mm 96956360 YES

Main Support Baseplate - Longer versions GA 6 1 XLBP1(139/245), 96956376 YES

L=1500mm x W=381mm x H=106.5mm

GA,G05 14-18/17 1 XLBP2(148/252), L=1777.8mm x W=381mm x H=107.9mm 96956377 YES

Parts List & Kits CR10-H

Comments/Dimensions

Stages

Part Description Included

in kits ?

Model B.O.M.

Ref. No. Material

No.

Pos.

No. No.

Used

 

Due to part changes over time, all

position numbers (1-203) may not be used.

This column indicates which

pump model uses the spare

part. If blank, the part is used

in all models.

B.O.M. Ref. No. is only available if it is not included

in a kit or does not have a material number listed. If it is included in a kit (YES), or has a

material number, request one of these numbers. If not included in a kit (No), but has a

Material Number, use Material Number.

90 Main Support Baseplate - Longer versions G22 14-18/17 1 XLBP3(258/264), 96956379 YES

(continued) L=2406.4mm x W=457.2mm x H=120mm

90a Bolt for motor to slider Pos. 90b 56C 2/1-2 4 Hex Head 5/16 -18 UNC x .75” SAE 5, Zinc plated for GA YES

56/182 2/1-6 4 Hex Head 5/16 -18 UNC x .75” SAE 5, Zinc plated for G05/22 YES

182TC 3-6 4 Hex Head 3/8 -16 UNC x .5” SAE 5, Zinc plated for GA YES

213TC 7-12 4 Hex Head 3/8 -16 UNC x 5/8” SAE 5, Zinc plated for GA YES

213TC 7-12 4 Hex Head 3/8 -16 UNC x 1” SAE 5, Zinc plated for G05/22 YES

254TC 14-18/17 4 Hex Head 1/2 -13 UNC x 1.5” SAE 5, Zinc plated for GA YES

254TC 14-18/17 4 Hex Head 1/2 -13 UNC x 1.25” SAE 5, Z.P. for G05/22 YES

90b Motor support / slider 56C 2/1-2 2 GA,GB,GC, BP139, L=204mm x H=45.5mm x W=25.4mm 96956339 YES

182TC 3-6 2 GA,GB,GC, BP139, L=230mm x H=23mm x W=25.4mm 96956338 YES

213TC 7-12 2 GA,GB,GC, BP148, L=252mm x H=20mm x W=25.4mm 96956347 YES

254TC 14-18/17 2 GA,GB,GC, BP148, L=299mm x H=20.3mm x W=25.4mm 96956348 YES

56C 2/1-2 2 G05, G22, BP245, L=204mm x H=125.5mm x W=25.4mm 96956343 YES

182TC 3-6 2 G05, G22, BP245, L=230mm x H=100mm x W=25.4mm 96956342 YES

213TC 7-12 2 G05, G22, BP252, L=252mm x H=96.5mm x W=25.4mm 96956357 YES

254C 14-18/17 2 G05, G22, BP252, L=354mm x H=67mm x W=25.4mm 96956361 YES

90c Support Bracket for Pump Cartridge 2/1-22 1 304 SS, H=59mm CL of hole, GA/GB/GC 95131178 No

2/1-22 1 304 SS, H=136mm CL of hole, G05/G10/G22/G50/G60 95131180 No

2/1-22 1 304 SS, H=180mm CL of hole, G20/G30 96834148 No

90d Bolt for motor slider Pos. 90b to base Pos. 90 56C 2/1-2 4 Hex Head 1/4 -20 UNC x 1” SAE 5, Zinc plated YES

182/213 3-12 4 Hex Head 1/4 -20 UNC x 1.75” SAE 5, Zinc plated for GA YES

213-254 7-18/17 4 Hex Head 1/4 -20 UNC x 1.75” SAE 5, Z.P. for G05/22 YES

254TC 14-18/17 4 Hex Head 1/4 -20 UNC x 2.5” SAE 5, Zinc plated for GA YES

182TC 3-6 4 Hex Head 1/4 -20 UNC x 2.5” SAE 5, Z.P. for G05/22 YES

90f Washer for motor bolt Pos. 90a to slider Pos. 90b 56C 2/1-2 4 5/16”” SAE, Zinc plated YES

182/213 3-6 4 3/8” SAE, Zinc plated YES

254TC 14-18/17 4 1/2” SAE, Zinc plated YES

100 Priming/Vent Plug O-ring 2/1-22 n EPDM, ø16.3 x 2.4mm 00ID1288 YES

2/1-22 n FKM, ø16.3 x 2.4mm 00ID2231 YES

100(a) Priming/Vent Plug O-ring 2/1-22 n FFKM, ø16.3 x 2.4mm 96428162 96587720 YES

Priming/Vent Plug O-ring 2/1-22 n FXM, ø16.3 x 2.4mm 96442869 96587721 YES

105(b) Shaft Seal HQBE 2/1-22 * SiC, Carbon with resin-impregnated, EPDM 96484076 YES

Shaft Seal HQBV 2/1-22 * SiC, Carbon with resin-impregnated, FKM 96484077 YES

Shaft Seal HQQE 2/1-22 * SiC, SiC, EPDM 96484071 YES

Shaft Seal HQQV 2/1-22 * SiC, SiC, FKM 96484072 YES

Shaft Seal HQQF 2/1-22 * SiC, SiC, FXM 96484075 YES

Shaft Seal HQQK 2/1-22 * SiC, SiC, FFKM 96484074 YES

Shaft Seal HUBE 2/1-22 * TC, Carbon with resin-impregnated, EPDM 96483952 YES

Shaft Seal HUBV 2/1-22 * TC, Carbon with resin-impregnated, FKM 96483964 YES

Shaft Seal HUBF 2/1-22 * TC, Carbon with resin-impregnated, FXM 96483966 YES

Shaft Seal HUBK 2/1-22 * TC, Carbon with resin-impregnated, FFKM 96483965 YES

Shaft Seal HUUE 2/1-22 * TC, TC, EPDM 96483967 YES

Shaft Seal HUUV 2/1-22 * TC, TC, FKM 96483968 YES

Shaft Seal HUUF 2/1-22 * TC, TC, FXM 96484070 YES

Shaft Seal HUUK 2/1-22 * TC, TC, FFKM 96483969 YES

117 Pipe for Air Vent 118 2/1-22 1 G1/2, 316SS 96525189 YES

117a Counter Nut for Pipe 117 2/1-22 2 NV24, internal G1/2, 316SS 96506709 YES

118 Air Vent 2/1-22 1 Air vent type 1511-AV - 5/6430 96427483 YES

 201 Flange,Suction  2/1-10 1 1.5”150#,4x1/2”-13UNCthreadedange,e-coat 96922828  No

   2/1-10 1 2”150#,4x5/8”-11UNCthreadedange,e-coat 96922829  No

   2/1-10 1 3”150#,8xnonthreadange,electrocoated 350085  No

   12-22 1 1.5”300#,4x3/4”-10UNCthreadedange,e-coat 96956145  No

   12-22 1 2”300#,8x5/8”-11UNCthreadedange,e-coat 96956146  No

   12-22 1 3”300#,8x3/4”-10UNCthreadedange,e-coat 96956147  No

 201a Flange,Discharge  2/1-10 1 1”150#,4x1/2”-13UNCthreadedange,e-coat 96922827  No

   2/1-10 1 1.5”150#,4x1/2”-13UNCthreadedange,e-coat 96922828  No

   2/1-10 1 2”150#,4x5/8”-11UNCthreadedange,e-coat 96922829  No

   12-22 1 1”300#,4x5/8”-11UNCthreadedange,e-coat 96956144  No

   12-22 1 1.5”300#,4x3/4”-10UNCthreadedange,e-coat 96956145  No

   12-22 1 2”300#,8x5/8”-11UNCthreadedange,e-coat 96956146  No

   12-22 1 3”300#,8x3/4”-10UNCthreadedange,e-coat 96956147  No

 203 Retainingringfor201,1.5”ange  2/1-22 1 ø72.6mmx5mm 96475395 96547671 No

  Retainingringfor201,2.0”ange  2/1-22 1 ø86.6mmx5mm 96475396  No

  Retainingringfor201,3.0”ange  2/1-22 1 ø121mmx6mm 350009  No

 203a Retainingringfor201a,1.0”ange  2/1-22 1 ø53.6mmx3.2mm 96439718  No

  Retainingringfor201a,1.5”ange  2/1-22 1 ø72.6mmx5mm 96475395 96547671 No

  Retainingringfor201a,2.0”ange  2/1-22 1 ø86.6mmx5mm 96475396  No

  Retainingringfor201a,3.0”ange  2/1-22 1 ø121mmx6mm 350009  No

Parts List & Kits CR10-H

NOTES:

Therstnumberisthetotalnumberofimpellers.Thereareafewexceptionsto

this format:

Example: A CR10-1 is actually a CR10-2/1. It has 2 chambers, 1 impeller

(de-staged by 1), and uses a 2 stage shaft.

Example: A CR10-17 is actually a CR10-18/17. It has 18 chambers,

17 impellers (de-staged by 1), and uses an 18 stage shaft.

Exception to the above: Low NPSH models:

Low NPSH CR10s have one less impeller and chamber than what is listed on

the nameplate.

Example: An LNPSH CR10-3 is actually a CR10-3/2. It has 3 chambers,

2 impellers, and uses a 4 stage shaft.

Example: An LNPSH CR10-22 is actually a CR10-21. It has 21 chambers,

21 impellers, and uses a 22 stage shaft.

YES* If the YES is followed by an asterisk, the part in kit is made of upgraded

material (example 304 SS changed to 316 SS for Pos. 4a).

* 1 2 to 16 and 18 to 22 stage use Pos. 3

2 /1 and 18/17 stage use Pos. 3a

De-staging by two impellers use one 3a and one 3b

^^^ 2/1 and 2 stage use 0

3 to 8 stage = # of stages less 2

9 to 14 stage = # of stages less 3

16 to 22 stage = # of stages less 4

Exception to the above: Low NPSH models

4/2 and 4/3 stage use 0

5/4 to 8/7 stage = # of stages less 4

9/8 to 16/15 stage = # of stages less 5

18/16 to 22/21 stage = # of stages less 6

De-staging by two impellers use 1 less than stated above.

^^^^ 2/1 to 8 stage = use 1

9 to 14 stage = use 2

16 to 22 stage = use 3

Exception to the above: Low NPSH models

16/15 stage = use 2

18 stage and up = use 3

* Standard use 1. Back-to-Back or Tandem pump version use 2

** Standard use 1. Back-to-Back or Tandem pump version use 4

y Standard use 1. CR(I,N)10-2/1 and 10-18/17 replace with Pos. 69a

# stgs Use the number of stages in standard models,

less one in de-staged and Low NPSH models.

# imp. Use the number of stages in standard models,

less one in de-staged and Low NPSH models.

uu Standard use 2. Back-to-Back or Tandem pump version use 3,

Cool Top use 1 EPDM or FKM and 2 FXM in lower hot section of pump.

L* A tip-to-tip length which includes the bends for slot engagement.

Bottom tip to bend is 4.5mm shorter than the tip-to-tip value.

Key to Symbols

KITS ....... Recommended spare part

Ø ....... Diameter

ANSI ....... American National Standards Institute

CPL ....... Complete Assembly – these parts consist of more than one component

EPDM ....... Ethylene Propylene (also known as EPR and EPT) – an elastic

substance similar to rubber

FFKM ....... Kalrez Elastomer made by DuPont

FKM ....... Fluoro Elastomer (generic for Viton)

FXM ....... Fluoraz Elastomer made by Greene Tweed

IEC ....... International Electro-technical Commission (European standards)

M ....... International standard thread size designation (thread diameter in mm)

mm ....... Millimeter

MG .......IdentiesGrundfosmotortype/size 

N ....... Stamp code for 316 SS or similar

NBR ....... Buna - N (also known as Nitrile) – an elastic substance similar to rubber

NEMA ....... National Electrical Manufacturers Association

NPSH ....... Net Positive Suction Head

PTFE .......Teon 

SiC ....... Silicon Carbide

SS ....... Stainless Steel

TC ....... Tungsten Carbide

UNC .......UniedNationalCoarse–astandardforthreadsonbolts 

CR10-H Kits(draft JL)

CR(I, N)10 SiC Bearing

WEAR PARTS KIT 1-8 Kit No. 96511889

WEAR PARTS KIT 9-14 Kit No. 96511922

WEAR PARTS KIT 15-22 Kit No. 96511925

Pos. No. Description Material No.

4a Chamber N Cpl. w/Pos.45 & 65 & SiC Bearing 96747281 1 2 3

26b Bolt for strap, M8 x 25mm, 316 SS w/Delta Seal 96416603 2 2 2

26c Washer for strap, A4, ø16.0/ø8.4x1.6mm 00ID3284 2 2 2

45 Neck Ring, ø59.5 x ø44.08 x 1.2mm, PTFE-Acoflon 100 96487401 7 12 19

47a Bearing Ring/Spacer, SiC 150, ø23.4 x 14mm 96763100 1 2 3

61 Stop Spacer,ø29.0 x ø18.4 x ø17.6 x ø15.0 x 9.5 x 2mm 330072 1 1 1

62 Stop Ring, ø16.6 x ø15.0 x 1.6mm 330057 1 1 1

64a Spacing Pipe, ø21.5 x ø17.5 x 9.0mm 96495333 1 2 3

64c Clamp, Splined, ø21.5 x ø17.6 x ø15.0 x 12.7mm 96496311 1 1 1

64d Spacing Pipe, ø21.5 x ø17.5 x 6.0mm 331412 1 2 3

65 Neck Ring Retainer, N, ø61.9 x ø47.2 x 4.7mm 96487285 7 12 19

66 Lock Washer Set of 2, ø13.5 x ø8.2 x 2.6mm 96417297 1 1 1

67 Lock Nut, 13mm x M8 96496488 1 1 1

CR(I, N )10 Graflon Bearing

WEAR PARTS KIT 1-8 Kit No. 96511921

WEAR PARTS KIT 9-14 Kit No. 96511924

WEAR PARTS KIT 15-22 Kit No. 96511927

Pos. No. Description Material No.

4a Chamber N Cpl. w/Pos.45 & 65 & Graflon Bearing 96492496 1 2 3

26b Bolt for strap, M8 x 25mm, 316 SS w/Delta Seal 96416603 2 2 2

26c Washer for strap, A4, ø16.0/ø8.4x1.6mm 00ID3284 2 2 2

45 Neck Ring, ø59.5 x ø44.08 x 1.2mm, PTFE-Acoflon 100 96487401 7 12 19

47a Bearing Ring/Spacer, TC 150, ø21.9 x 14mm 330085 1 2 3

61 Stop Spacer,ø29.0 x ø18.4 x ø17.6 x ø15.0 x 9.5 x 2mm 330072 1 1 1

62 Stop Ring, ø16.6 x ø15.0 x 1.6mm 330057 1 1 1

64a Spacing Pipe, ø21.5 x ø17.5 x 9.0mm 96495333 1 2 3

64c Clamp, Splined, ø21.5 x ø17.6 x ø15.0 x 12.7mm 96496311 1 1 1

64d Spacing Pipe, ø21.5 x ø17.5 x 6.0mm 331412 1 2 3

65 Neck Ring Retainer, N, ø61.9 x ø47.2 x 4.7mm 96487285 7 12 19

66 Lock Washer Set of 2, ø13.5 x ø8.2 x 2.6mm 96417297 1 1 1

67 Lock Nut, 13mm x M8 96496488 1 1 1

CR(I )10 Bronze Bearing

WEAR PARTS KIT 1-8 Kit No. 96511920

WEAR PARTS KIT 9-14 Kit No. 96511923

WEAR PARTS KIT 15-22 Kit No. 96511926

Pos. No. Description Material No.

4a Chamber N Cpl. w/Pos.45 & 65 & Bronze Bearing 96492498 1 2 3

26b Bolt for strap, M8 x 25mm, 316 SS w/Delta Seal 96416603 2 2 2

26c Washer for strap, A4, ø16.0/ø8.4x1.6mm 00ID3284 2 2 2

45 Neck Ring, ø59.5 x ø44.08 x 1.2mm, PTFE-Acoflon 100 96487401 7 12 19

47a Bearing Ring/Spacer, TC 150, ø21.9 x 14mm 330085 1 2 3

61 Stop Spacer,ø29.0 x ø18.4 x ø17.6 x ø15.0 x 9.5 x 2mm 330072 1 1 1

62 Stop Ring, ø16.6 x ø15.0 x 1.6mm 330057 1 1 1

64a Spacing Pipe, ø21.5 x ø17.5 x 9.0mm 96495333 1 2 3

64c Clamp, Splined, ø21.5 x ø17.6 x ø15.0 x 12.7mm 96496311 1 1 1

64d Spacing Pipe, ø21.5 x ø17.5 x 6.0mm 331412 1 2 3

65 Neck Ring Retainer, N, ø61.9 x ø47.2 x 4.7mm 96487285 7 12 19

66 Lock Washer Set of 2, ø13.5 x ø8.2 x 2.6mm 96417297 1 1 1

67 Lock Nut, 13mm x M8 96496488 1 1 1

HQxx SHAFT SEAL KIT, BALANCED CARTRIDGE Kit No. 96511848

(Maximum allowed working PSI is 435) Kit No. 96511849

(

Tandem Seal o

tion Pum

s re

uire 2 of each Seal Kit

)

Kit No. 9651184

Kit No. 96511847

Kit No. 9651184

Kit No. 96511845

Pos. No. Description Material No.

105 HQBE 96484076* 1

HQBV 96484077* 1

HQQE 96484071* 1

HQQF 96484075* 1

HQQK 96484074* 1

HQQV 96484072* 1

N/A Grinding Device Tool for Emery Cloth 370711 1 1 1 1 1 1

Emer

Cloth 370712 1 1 1 1 1 1

* Seal material number includes the Adjusting fork 96483950.

Qty. Included in each Kit

Page 1 of 1

Since certain pump parts can be expected to exhibit wear at the same time as related pump parts, they have been grouped into the follow-

ing kits for your convenience. The numbers indicate the quantity of the part within each kit. Please order these kits using the kit material

number at the top of the columns.

Spare Part Kits CR10-H

  

Spare Part Kits CR10-H

   (Continued)

CR10-H Kits(draft JL)

HUxx SHAFT SEAL KIT, BALANCED CARTRIDGE Kit No. 96511836

(

Maximum allowed working PSI is 435

)

Kit No. 96511839

(Tandem Seal option Pumps require 2 of each Seal Kit

)

Kit No. 96511838

Kit No. 96511837

Kit No. 96511840

Kit No. 96511843

Kit No. 96511842

Kit No. 96511841

Pos. No. Description Material No.

105 HUBE 96483952* 1

HUBF 96483966* 1

HUBK 96483965* 1

HUBV 96483964* 1

HUUE 96483967* 1

HUUF 96484070* 1

HUUK 96483969* 1

HUUV 96483968* 1

N/A Grinding Device Tool for Emery Cloth 370711 1 1 1 1 1 1 1 1

Emer

Cloth 370712 1 1 1 1 1 1 1 1

* Seal material number includes the Adjusting fork 96483950.

Standard CR Gasket Kits

GASKET KIT (EPDM) Kit No. 96509609

GASKET KIT (FKM) Kit No. 96509610

GASKET KIT (FXM) Kit No. 96534871

GASKET KIT (FFKM) Kit No. 96533374

GASKET KIT (EPDM)-Double Seal option. Kit No. 96525433

GASKET KIT (FKM)-Double Seal option. Kit No. 96525434

GASKET KIT (FFKM/EPDM)-Double Seal option. Kit No. 96525435

GASKET KIT (FFKM/FKM)-Double Seal option. Kit No. 96525436

GASKET KIT (FXM/EPDM)-Cool Top option. Kit No. 96525432

Pos. No.

37 Sleeve O-ring, EPDM (WRC NSF), ø170.7 x 3.3mm 96483101 2 3 1 1

Sleeve O-ring, FKM, ø170.7 x 3.3mm 96483102 2 3 1

37b Sleeve O-ring, FXM, ø171.25 x 3.3mm 96483109 2 2

Sleeve O-ring, FFKM, ø170.7 x 3.3mm 96483140 2 22

37c Disc Plate O-ring, EPDM, ø155.0 x 3.0mm 96509703 1

Disc Plate O-ring, FKM, ø155.0 x 3.0mm 96480168

38, 100(a,b) Drain Plug O-ring, EPDM, Ø16.3 x 2.4mm 00ID1288 3 7 4 1

Drain Plug O-ring, FKM, Ø16.3 x 2.4mm 00ID2231 3 7 4

Drain Plug O-ring, FXM, ø16.3 x 2.4mm 96442869 3 3

Drain Plug O-ring, FFKM, ø16.3 x 2.4mm 96428162 3 3 3

38a Drain Plug O-ring, EPDM, ø5.3 x 2.4mm 00ID2142 1 1

Drain Plug O-ring, FKM, ø5.3 x 2.4mm 00ID3945 1

Drain Plug O-ring, FXM, ø5.3 x 2.4mm 96511292 1 1

Drain Plug O-ring, FFKM, ø5.3 x 2.4mm 96511293 1 1 1

39 Flange O-ring, EPDM, ø90 x 3mm 96496200 2 2

Flange O-ring, FKM, ø90 x 3mm 00ID2856 2 2

Flange gasket, Fiber, 122mm x ø60 x ø44 x 2mm 420039 2 2 2 2 2 2 2 2 2

Flange gasket, Fiber, ø102 x ø65 x 2mm 330035 2 2 2 2 2 2 2 2 2

Flange gasket, Fiber, ø92 x ø49 x 2mm 00ID2582 2 2 2 2 2 2 2 2 2

60(a) Stack Compression Spring, EPDM, ø11.0xø7.0x15.5mm 96503070 4 4 4

Stack Compression Sprin

, FKM, ø11.0xø7.0x15.5mm 96503072 4 4

Stack Compression Spring, PTFE, ø11.0xø7.0x15.5mm 96503071 4 4 4 4 4

109a Disc Plate O-ring, EPDM, ø27.5.0 x 2.75mm 96483103

Disc Plate O-ring, FKM, ø27.5 x 2.75mm 96483104

Disc Plate O-ring, FXM, ø27.5 x 2.75mm 96483141 1

dd to above standard

askets to com

lete desired CRH

CRNH mode

Kit, O-ring EPDM CR-H, CRN-H10/15/20/32 GB-G60 Kit No. 96956134

Kit, O-ring FKM CR-H, CRN-H10/15/20/32 GB-G60 Kit No. 96956135

Kit, O-ring FXM CR-H, CRN-H10/15/20/32 GB-G60 Kit No. 96923565

Kit, O-ring FFKM CR-H, CRN-H10/15/20/32 GB-G60 Kit No. 96923571

Pos. No.

72a O-ring, 2-268 EPDM ø215.5 x 3.5mm 9592203

O-ring, 2-268 Viton ø215.5 x 3.5m

9592203

O-ring, 2-268 Fluoraz ø215.5 x 3.5m

9592204

O-ring, 2-268 FFKM ø215.5 x 3.5mm 9513120

39b O-ring, Parker 2-238 EPDM ø88.5 x 3.5m

9592203

O-ring, 2-238 Viton ø88.5 x 3.5m

9592203

O-ring, 2-238 Fluoraz ø88.5 x 3.5mm 9595203

O-ring, 2-238 FFKM ø88.5 x 3.5mm 9513120

NEMA COUPLING KIT

ø15.9/ø16 Kit No. 96511353

ø28.6/ø16 (Hi

h) Kit No. 9675366

ø34.9/ø16 (Hi

h) Kit No. 96753661

ø41.3/ø16

Kit No. 9651135

Pos. No. Description Material No. Qty. Included in each Kit

9 Allen Screw, M6 x 20mm, Delta Seal 00ID7899 4

Allen Screw, M10 x 25mm, Delta Seal 00ID7901 4 4 4

10 Shaft Pin, ø5 x 26mm, Stainless 310192 1 1 1 1

10a Coupling. Half set, 56C, 1/3 - 2HP. ø15.8 / ø16 96516777 1

Cplg. Half set, 182/184TC, 3-5HP, High, ø28.5/ø16 96516009 1

Cpl

. Half set, 213TC, 7.5-10HP, Hi

h, ø34.9/ø1

96516770 1

Cpl

. Half set, 254TC-284/286TSC,15-25HP. ø41.2/ø1

96516771 1

ustin

Fork 96483950 1 1

Description Qty. Included in each Kit

Qty. Included in each Kit

Description Qty. Included in each Kit

Page 1 of 1

dd to above standard

askets to com

lete desired CRH

CRNH mode

Kit, O-ring EPDM CR-H, CRN-H10/15/20/32 GA/G05/G22 Kit No. 96922800

Kit, O-ring FKM CR-H, CRN-H10/15/20/32 GA/G05/G22 Kit No. 96922802

Kit, O-ring FXM CR-H, CRN-H10/15/20/32 GA/G05/G22 Kit No. 96922816

Kit, O-ring FFKM CR-H, CRN-H10/15/20/32 GA/G05/G22 Kit No. 96922822

Kit, O-ring EPDM CR-H, CRN-H10/15/20/32 GB-G60 Kit No. 96956134

Kit, O-ring FKM CR-H, CRN-H10/15/20/32 GB-G60 Kit No. 96956135

Kit, O-ring FXM CR-H, CRN-H10/15/20/32 GB-G60 Kit No. 96923565

Kit, O-ring FFKM CR-H, CRN-H10/15/20/32 GB-G60 Kit No. 96923571

Pos. No. Included in each Kit

72a O-ring, 2-268 EPDM ø215.5 x 3.5mm 9592203

O-ring, 2-268 Viton ø215.5 x 3.5m

9592203

O-ring, 2-268 Fluoraz ø215.5 x 3.5m

9592204

O-ring, 2-268 FFKM ø215.5 x 3.5mm 9513120

39b O-ring, 2-230 EPDM ø63.1 x 3.5mm 9592203

O-ring, 2-230 Viton ø63.1 x 3.5m

9592203

O-ring, 2-230 Fluoraz ø63.1 x 3.5mm 9592203

O-ring, 2-230 FFKM ø63.1 x 3.5mm 9513118

O-ring, Parker 2-238 EPDM ø88.5 x 3.5m

9592203

O-ring, 2-238 Viton ø88.5 x 3.5m

9592203

O-ring, 2-238 Fluoraz ø88.5 x 3.5mm 9595203

O-ring, 2-238 FFKM ø88.5 x 3.5mm 9513120

NEMA COUPLING KIT

ø15.9/ø16 Kit No. 96511353

ø28.6/ø16 (High) Kit No. 96753660

ø34.9/ø16 (High) Kit No. 96753661

ø41.3/ø16 Kit No. 96511356

Pos. No. Description Material No. Qty. Included in each Kit

9 Allen Screw, M6 x 20mm, Delta Seal 00ID7899 4

Allen Screw, M10 x 25mm, Delta Seal 00ID7901 4 4 4

10 Shaft Pin, ø5 x 26mm, Stainless 310192 1 1 1 1

10a Coupling. Half set, 56C, 1/3 - 2HP. ø15.8 / ø16 96516777 1

Cplg. Half set, 182/184TC, 3-5HP, High, ø28.5/ø16 96516009 1

Cpl

. Half set, 213TC, 7.5-10HP, Hi

h, ø34.9/ø1

96516770 1

Cplg. Half set, 254TC-284/286TSC,15-25HP. ø41.2/ø1

96516771 1

N/A Adjusting Fork 96483950 1 1

Description

   (Continued)



Spare Part Kits CR10-H

COUPLING GUARD KIT

NEMA 56C, 1/3-2HP Kit No. 96509612

NEMA 182-215TC (High) & 254TC-286TSC, 3 -25H

Kit No. 9650961

Pos. No. Description Material No.

7 Coupling Guard, W=127mm x H=90.5mm 96491002 2

Coupling Guard, W=157mm x H=171mm 96490656 2

7a Screw comb.slot torx/straight slot 4 x 8mm 96488481 4 4

Air Vent Kit - Horizontal Units

CR-H, CRN-H1S to 20 Kit No. 91136720

Pos. No. Description Material No.

117 Air Vent Pipe, short for 118, G1/2 , 60x43 96525189 1

117a Counter Nut for Pipe 117, G1/2 96506709 2

118 Air vent type 1511-AV - 5/6430 96427483 1

ANSI COMPANION FLANGES FOR MEDIUM CR-H

Kit No. 97642565 1.5" x 1" CI BLACK for GA 125# 1.5"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 97693886 4 97693886 4

N/A Flanges 91123167 1 96983489 1

N/A Gasket 91123168 1 97692916 1

Kit No. 96967594 1.5" x 1" CI BLACK for GA 250# 1.5"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 91137423 4 91130816 4

N/A Flanges 96983494 1 96983493 1

N/A Gasket 97694408 1 97694407 1

Kit No. 97642567 2" x 1" CI BLACK for G05 125# 2"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 91130816 4 97526838 4

N/A Flanges 96983491 1 96983489 1

N/A Gasket 97692909 1 97692916 1

Kit No. 96967595 2" x 1" CI BLACK for G05 250# 2"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 91120660 8 91130816 4

N/A Flanges 00ID2743 1 96983493 1

N/A Gasket 00ID2747 1 97694407 1

Kit No. 97642571 3" x 1.5" CI BLACK for GB, G50 and G20 125# 3"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Nuts 00ID1510 4 none 0

N/A Bolts 00ID1921 4 97693886 4

N/A Flanges 00ID1925 1 91123167 1

N/A Gasket 560185 1 91123168 1

Kit No. 97658571 3" x 1.5" CI BLACK for GB, G50 and G20 250# 3"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 91120662 8 91137423 4

N/A Flanges 91121943 1 96983494 1

N/A Gasket 91122339 1 97694408 1

Kit No. 97642574 3" x 2" CI BLACK for GC, G10, G60 and G30 125# 3"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Nuts 00ID1510 4 none 0

N/A Bolts 00ID1921 4 91130816 4

N/A Flanges 00ID1925 1 96983491 1

N/A Gasket 560185 1 97692909 1

Kit No. 97658572 3" x 2" CI BLACK for GC, G10, G60 and G30 250# 3"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 91120662 8 91120660 8

N/A Flanges 91121943 1 00ID2743 1

N/A Gasket 91122339 1 00ID2747 1

Kit No. 97642568 2" x 2" CI BLACK for G22 125# 2"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 91130816 4 91130816 4

N/A Flanges 96983491 1 96983491 1

N/A Gasket 97692909 1 97692909 1

Kit No. 97757976 2" x 2" CI BLACK for G22 250# 2"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 91120660 8 91120660 8

N/A Flanges 00ID2743 1 00ID2743 1

N/A Gasket 00ID2747 1 00ID2747 1

1.5"

Qty. Included in

each Kit

Qty. Included in each Ki

Spare Part Kits CR10-H

ANSI COMPANION FLANGES FOR MEDIUM CR-H, CRN-H

Kit No. 97698645 1.5" x 1" 316SS for GA 150# 1.5"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 97743748 4 97743748 4

N/A Flanges 96983498 1 96983497 1

N/A Gasket 97694409 1 97692916 1

Kit No. 97698646 1.5" x 1" 316SS for GA 300# 1.5"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 91143035 8 91143029 4

N/A Flanges 96983496 1 96983495 1

N/A Gasket 97694408 1 97694407 1

Kit No. 97698647 2" x 1" 316SS for G05 150# 2"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 91143029 4 97743748 4

N/A Flanges 96983499 1 96983497 1

N/A Gasket 97692909 1 97692916 1

Kit No. 97698648 2" x 1" 316SS for G05 300# 2"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 97743741 8 91143029 4

N/A Flanges 00ID7240 1 96983495 1

N/A Gasket 00ID2747 1 97694407 1

Kit No. 97698649 3" x 1.5" 316SS for GB, G50 and G20 150# 3"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Nuts 91143011 4 none 0

N/A Bolts 91143031 4 97743748 4

N/A Flanges 91121944 1 96983498 1

N/A Gasket 560185 1 97694409 1

Kit No. 97698650 3" x 1.5" 316SS for GB, G50 and G20 300# 3"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 91143038 8 91143035 4

N/A Flanges 91121945 1 96983496 1

N/A Gasket 91122339 1 97694408 1

Kit No. 97698651 3" x 2" 316SS for GC, G10, G60 and G30 150# 3"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Nuts 91143011 4 none 0

N/A Bolts 91143031 4 91143029 4

N/A Flanges 91121944 1 96983499 1

N/A Gasket 560185 1 97692909 1

Kit No. 97698652 3" x 2" 316SS for GC, G10, G60 and G30 300# 3"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 91143038 8 97743741 8

N/A Flanges 91121945 1 00ID7240 1

N/A Gasket 91122339 1 00ID2747 1

Kit No. 97743809 2" x 2" 316SS for G22 150# 2"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 91143029 4 91143029 4

N/A Flanges 96983499 1 96983499 1

N/A Gasket 97692909 1 97692909 1

Kit No. 97743810 2" x 2" 316SS for G22 300# 2"

Pos. No. Description Material No. Qty. Material No. Qty.

N/A Bolts 97743741 8 97743741 8

N/A Flanges 00ID7240 1 00ID7240 1

N/A Gasket 00ID2747 1 00ID2747 1

1.5"

 (Continued)

Spare Part Kits CR10-H

 (Continued)

CR10-H Kits(draft JL)

Baseplate Kit

148 213TC for GA/B/C Kit No. 97534520

254TC for GA/B/C Kit No. 97534531

XLBP2 213TC for GA/B/C Kit No. 97573875

254TC for GA/B/C Kit No. 97534579

Pos. No. Description Material No. Qty. Included in each Kit

90 Baseplate Cpl. 148, L=1219* x W=381* x H=107.9* 96956346 1 1

Baseplate Cpl. XLBP2, L=1777.8* x W=381* x H=107.9* 96956377 1 1

N/A Slider & fastners for 213TC(consists of slider & hardware) 96983859 1 1

N/A Slider & fastner 254TC (cont. of 56k , slider & hardware) 96983862 1 1

N/A Hardware Kit -96983859(consists of pos.56f, g, 90a,d& f)** 97501482 1 1

N/A Hardware Kit -96983862 (cont. pos.56f, g & m, 90a, d & f)** 97501483 1 1

56f Bolt, Hex Head 1/2 -13 UNC x 1.25" SAE 5, Zinc plated N/A 22

Bolt, Hex Head 1/2 -13 UNC x 2.25" SAE 5, Zinc plated N/A 22

Washer, 1/2" SAE, Zinc plated N/

2 2 22

56k Volute Spacer, 148 BP 254T, L=200* x H=25.4* x W=78.2 96956349 1 1

56m Slotted Spring Pin ø3/16" x 1" Zinc Plated N/A 22

90a Bolt, Hex Head 3/8 -16 UNC x 5/8" SAE 5, Zinc plated N/A 44

Bolt, Hex Head 1/2 -13 UNC x 1.5" SAE 5, Zinc plated N/A 44

90b Slider, GA/B/C 213TC/148BP, L=252* x H=20* x W=25.4* 96956347 2 2

Slider, GA/B/C 254TC/148BP, L=299* x H=20.3* x W=38.1* 96956348 2 2

90d Bolt, Hex Head 1/4 -20 UNC x 1.75" SAE 5, Zinc plated N/A 44

Bolt, Hex Head 1/4 -20 UNC x 2.5" SAE 5, Zinc plated N/A 44

90f Washer, 3/8" SAE, Zinc plated N/A 44

Washer, 1/2" SAE, Zinc plated N/A 44

* Values in mm, Length (L) is +/- 2mm, Height (H) is +/- 1mm, Width (W). ** Hardware kits 97501482 and 83 are also available for sale.

Baseplate Kit

245 56C for G05/10/50/60/70/22/33/44 Kit No. 97534535

182TC for G05/10/50/60/70/22/33/44 Kit No. 97534536

XLBP1 56C for G05/10/50/60/70/22/33/44 Kit No. 97534575

182TC for G05/10/50/60/70/22/33/44 Kit No. 97534576

Pos. No. Description Material No. Qty. Included in each Kit

90 Baseplate Cpl. 245, L=1143* x W=305* x H=106.4768* 96956341 1 1

Baseplate Cpl. XLBP1, L=1500* x W=305* x H=106.4768

96956376 1 1

N/A Slider & fastners for 56C(consists of slider & hardware) 96983868 1 1

N/A Slider & fastner for 182TC (consists of slider & hardware

)

96983869 1 1

N/A Hardware Kit -96983855/68/78(cont. pos.56f, g, 90a,d& f)** 97501470 1 1

N/A Hardware Kit -96983869/79 (cont. pos.56f & g, 90a, d & f)** 97501488 1 1

56f Bolt, Hex Head 1/2 -13 UNC x 1" SAE 5, Zinc plated N/A 2 2 22

56g Washer, 1/2" SAE, Zinc plated N/A 2 2 22

90a Bolt, Hex Head 5/16 -18 UNC x .75" SAE 5, Zinc plated N/A 4 4 44

90b Slider, G05/22 - 56C/245BP, L=204* x H=125.5* x W=25.4* 96956343 2 2

Slider, G05/22 - 182T/245 BP, L=230* x H=100* x W=25.4* 96956342 2 2

90d Bolt, Hex Head 1/4 -20 UNC x 1" SAE 5, Zinc plated N/A 44

Bolt, Hex Head 1/4 -20 UNC x 2.5" SAE 5, Zinc plated N/

Washer, 5/16" SAE, Zinc plated N/

44 4

* Values in mm, Length (L) is +/- 2mm, Height (H) is +/- 1mm, Width (W). ** Hardware kits 97501470 and 88 are also available for sale.

Baseplate Kit

252 213TC for G05/10/50/60/70/22/33/44 Kit No. 97534539

XLBP2 213TC for G05/10/50/60/70/22/33/44 Kit No. 97573873

Pos. No. Description Material No. Qty. Included in each Kit

90 Baseplate Cpl. 252, L=1321* x W=381* x H=107.9

96956356 1

Baseplate Cpl. XLBP2, L=1777.8* x W=381* x H=107.9

96956377 1

Slider & fastners for 213TC(consists of slider & hardware

)

96983870 1 1

N/A Hardware Kit -96983870/80(cont. of pos.56f, g, 90a,d & f)** 97501489 1 1

Bolt, Hex Head 1/2 -13 UNC x 1.25" SAE 5, Zinc plated N/

Washer, 1/2" SAE, Zinc plated N/

90a Bolt, Hex Head 3/8 -16 UNC x 1" SAE 5, Zinc plated N/

90b Slider, G05/22, 213TC/252BP,L=252*x H=96.5*x W=25.4* 96956357 2 2

90d Bolt, Hex Head 1/4 -20 UNC x 1.75" SAE 5, Zinc plated N/

Washer, 3/8" SAE, Zinc plated N/

* Values in mm, Length (L) is +/- 2mm, Height (H) is +/- 1mm, Width (W). ** Hardware kit 97501489 is also available for sale.

Baseplate Kit

258 254TC for G05/10/50/60/70/22/33/44 Kit No. 97534543

XLBP3 254TC for G05/10/50/60/70/22/33/44 Kit No. 97573876

Pos. No. Description Material No. Qty. Included in each Kit

90 Baseplate Cpl. 258, L=1473.2* x W=457.2* x H=119.1

96956360 1

Baseplate Cpl. XLBP3, L=2406.4* x W=457.2* x H=119.1

96956379 1

Slider & fastners for 254TC(consists of slider & hardware

)

96983871 1 1

N/A Hardware Kit -96983871(cont. of pos.56f & g, 90a,d & f)** 97501493 1 1

Bolt, Hex Head 1/2 -13 UNC x 1" SAE 5, Zinc plated N/

Washer, 1/2" SAE, Zinc plated N/

90a Bolt, Hex Head 1/2 -13 UNC x 1.25" SAE 5, Zinc plated N/

90b Slider, G05/22, 254TC/258BP, L=354* x H=67* x W=25.4* 96956361 2 2

90d Bolt, Hex Head 1/4 -20 UNC x 1.75" SAE 5, Zinc plated N/

Washer, 1/2" SAE, Zinc plated N/

* Values in mm, Length (L) is +/- 2mm, Height (H) is +/- 1mm, Width (W). ** Hardware kit 97501493 is also available for sale.

Page 1 of 1

CR10-H Kits(draft JL)

Baseplate Kit

139 56C for GA/B/C Kit No. 97534517

182TC for GA/B/C Kit No. 97534518

XLBP1 56C for GA/B/C Kit No. 97534573

182TC for GA/B/C Kit No. 97534574

Pos. No. Description Material No. Qty. Included in each Kit

90 Baseplate Cpl. 139, L=991* x W=305* x H=106.4768

96956336 1 1

Baseplate Cpl. XLBP1, L=1500* x W=305* x H=106.4768

96956376 1 1

N/A Slider & fastners for 56C(consists of slider & hardware

)

96983855 1 1

N/A Slider & fastner for 182TC (consists of slider & hardware

)

96983858 1 1

N/A Hardware Kit -96983855/68/78(cont. pos.56f, g, 90a,d& f)** 97501470 1 1

N/A Hardware Kit -96983858 (cont. pos.56f & g, 90a, d & f)** 97501481 1 1

56f Bolt, Hex Head 1/2 -13 UNC x 1" SAE 5, Zinc plated N/A 2 2 22

Washer, 1/2" SAE, Zinc plated N/

2 2 22

90a Bolt, Hex Head 5/16 -18 UNC x .75" SAE 5, Zinc plated N/A 44

Bolt, Hex Head 3/8 -16 UNC x .5" SAE 5, Zinc plated N/A 44

90b Slider, GA/B/C 56C/139BP, L=204* x H=45.5* x W=25.4* 96956339 2 2

Slider, GA/B/C 182TC/139 BP, L=230* x H=23* x W=25.4* 96956338 2 2

90d Bolt, Hex Head 1/4 -20 UNC x 1" SAE 5, Zinc plated N/A 44

Bolt, Hex Head 1/4 -20 UNC x 1.75" SAE 5, Zinc plated N/

90f Washer, 5/16" SAE, Zinc plated N/A 44

Washer, 3/8" SAE, Zinc plated N/A 44

* Values in mm, Length (L) is +/- 2mm, Height (H) is +/- 1mm, Width (W). ** Hardware kits 97501470 and 81 are also available for sale.

Page 1 of 1

Spare Part Kits CR10-H

CR10-H Kits(draft JL)

Baseplate Kit

148 213TC for GA/B/C Kit No. 97534520

254TC for GA/B/C Kit No. 97534531

XLBP2 213TC for GA/B/C Kit No. 97573875

254TC for GA/B/C Kit No. 97534579

Pos. No. Description Material No. Qty. Included in each Kit

90 Baseplate Cpl. 148, L=1219* x W=381* x H=107.9

96956346 1 1

Baseplate Cpl. XLBP2, L=1777.8* x W=381* x H=107.9

96956377 1 1

Slider & fastners for 213TC(consists of slider & hardware

)

96983859 1 1

Slider & fastner 254TC (cont. of 56k , slider & hardware) 96983862 1 1

N/A Hardware Kit -96983859(consists of pos.56f, g, 90a,d& f)** 97501482 1 1

N/A Hardware Kit -96983862 (cont. pos.56f, g & m, 90a, d & f)** 97501483 1 1

Bolt, Hex Head 1/2 -13 UNC x 1.25" SAE 5, Zinc plated N/

Bolt, Hex Head 1/2 -13 UNC x 2.25" SAE 5, Zinc plated N/

Washer, 1/2" SAE, Zinc plated N/

2 2 22

56k Volute Spacer, 148 BP 254T, L=200* x H=25.4* x W=78.

96956349 1 1

56m Slotted Sprin

Pin ø3/16" x 1" Zinc Plated N/

90a Bolt, Hex Head 3/8 -16 UNC x 5/8" SAE 5, Zinc plated N/

Bolt, Hex Head 1/2 -13 UNC x 1.5" SAE 5, Zinc plated N/

90b Slider, GA/B/C 213TC/148BP, L=252* x H=20* x W=25.4* 96956347 2 2

Slider, GA/B/C 254TC/148BP, L=299* x H=20.3* x W=38.1* 96956348 2 2

90d Bolt, Hex Head 1/4 -20 UNC x 1.75" SAE 5, Zinc plated N/

Bolt, Hex Head 1/4 -20 UNC x 2.5" SAE 5, Zinc plated N/

Washer, 3/8" SAE, Zinc plated N/

Washer, 1/2" SAE, Zinc plated N/

* Values in mm, Length (L) is +/- 2mm, Height (H) is +/- 1mm, Width (W). ** Hardware kits 97501482 and 83 are also available for sale.

Baseplate Kit

245 56C for G05/10/50/60/70/22/33/44 Kit No. 97534535

182TC for G05/10/50/60/70/22/33/44 Kit No. 97534536

XLBP1 56C for G05/10/50/60/70/22/33/44 Kit No. 97534575

182TC for G05/10/50/60/70/22/33/44 Kit No. 97534576

Pos. No. Description Material No. Qty. Included in each Kit

90 Baseplate Cpl. 245, L=1143* x W=305* x H=106.4768

96956341 1 1

Baseplate Cpl. XLBP1, L=1500* x W=305* x H=106.4768

96956376 1 1

Slider & fastners for 56C(consists of slider & hardware

)

96983868 1 1

Slider & fastner for 182TC (consists of slider & hardware

)

96983869 1 1

N/A Hardware Kit -96983855/68/78(cont. pos.56f, g, 90a,d& f)** 97501470 1 1

N/A Hardware Kit -96983869/79 (cont. pos.56f & g, 90a, d & f)** 97501488 1 1

Bolt, Hex Head 1/2 -13 UNC x 1" SAE 5, Zinc plated N/

2 2 22

Washer, 1/2" SAE, Zinc plated N/

2 2 22

90a Bolt, Hex Head 5/16 -18 UNC x .75" SAE 5, Zinc plated N/

4 4 44

90b Slider, G05/22 - 56C/245BP, L=204* x H=125.5* x W=25.4* 96956343 2 2

Slider, G05/22 - 182T/245 BP, L=230* x H=100* x W=25.4* 96956342 2 2

90d Bolt, Hex Head 1/4 -20 UNC x 1" SAE 5, Zinc plated N/

Bolt, Hex Head 1/4 -20 UNC x 2.5" SAE 5, Zinc plated N/

Washer, 5/16" SAE, Zinc plated N/

44 4

* Values in mm, Length (L) is +/- 2mm, Height (H) is +/- 1mm, Width (W). ** Hardware kits 97501470 and 88 are also available for sale.

Baseplate Kit

252 213TC for G05/10/50/60/70/22/33/44 Kit No. 97534539

XLBP2 213TC for G05/10/50/60/70/22/33/44 Kit No. 97573873

Pos. No. Description Material No. Qty. Included in each Kit

90 Baseplate Cpl. 252, L=1321* x W=381* x H=107.9

96956356 1

Baseplate Cpl. XLBP2, L=1777.8* x W=381* x H=107.9* 96956377 1

N/A Slider & fastners for 213TC(consists of slider & hardware

)

96983870 1 1

N/A Hardware Kit -96983870/80(cont. of pos.56f, g, 90a,d & f)** 97501489 1 1

56f Bolt, Hex Head 1/2 -13 UNC x 1.25" SAE 5, Zinc plated N/A 22

56g Washer, 1/2" SAE, Zinc plated N/A 22

90a Bolt, Hex Head 3/8 -16 UNC x 1" SAE 5, Zinc plated N/

90b Slider, G05/22, 213TC/252BP,L=252*x H=96.5*x W=25.4* 96956357 2 2

90d Bolt, Hex Head 1/4 -20 UNC x 1.75" SAE 5, Zinc plated N/A 44

90f Washer, 3/8" SAE, Zinc plated N/A 44

* Values in mm, Length (L) is +/- 2mm, Height (H) is +/- 1mm, Width (W). ** Hardware kit 97501489 is also available for sale.

Baseplate Kit

258 254TC for G05/10/50/60/70/22/33/44 Kit No. 97534543

XLBP3 254TC for G05/10/50/60/70/22/33/44 Kit No. 97573876

Pos. No. Description Material No. Qty. Included in each Kit

90 Baseplate Cpl. 258, L=1473.2* x W=457.2* x H=119.1

96956360 1

Baseplate Cpl. XLBP3, L=2406.4* x W=457.2* x H=119.1

96956379 1

Slider & fastners for 254TC(consists of slider & hardware

)

96983871 1 1

N/A Hardware Kit -96983871(cont. of pos.56f & g, 90a,d & f)** 97501493 1 1

56f Bolt, Hex Head 1/2 -13 UNC x 1" SAE 5, Zinc plated N/A 22

56g Washer, 1/2" SAE, Zinc plated N/A 22

90a Bolt, Hex Head 1/2 -13 UNC x 1.25" SAE 5, Zinc plated N/A 44

90b Slider, G05/22, 254TC/258BP, L=354* x H=67* x W=25.4* 96956361 2 2

90d Bolt, Hex Head 1/4 -20 UNC x 1.75" SAE 5, Zinc plated N/A 44

90f Washer, 1/2" SAE, Zinc plated N/A 44

* Values in mm, Length (L) is +/- 2mm, Height (H) is +/- 1mm, Width (W). ** Hardware kit 97501493 is also available for sale.

Page 1 of 1

 (Continued)

 

00SV0040 Shaft Holder for Dismantling/Assembly

Used to hold and protect the shaft during dismantling and assembly.

00SV2107 Tubular Box Spanner for Shaft Seal 41.0 mm

Used to install and remove the shaft seal.

Fits a 1/2” drive ratchet.

00SV2101 Ring Insert Tool for Shaft Seal + Square

41 mm x 1/2” drive

00SV0239 Puller for Neck Ring

Used to remove the Neck Ring from Chamber.

00SV2011 Bit Holder

Used with Bits Kit, 1/4”

00SV2010 Bits Kit

NV 5 mm for M6, 1/4”

NV 6 mm for M8, 1/4”

NV 8 mm for M10, 1/4”

00SV2012 Hexagon Socket Bit

Used for Shaft Seal

NV 2.5 mm for M5, 1/4”

00SV2127 Bearing Removal Punch

Wrenches

Used to tighten various nuts.

00SV0083 NV 10 mm for M6

00SV0055 NV 13 mm for M8

00SV0054 NV 19 mm for M12

00SV0122 NV 24 mm for M16

Torque Wrench

Used to torque various screws.

00SV0292 4-20 Nm, 9 x 12

00SV0269 20-100 Nm, 9 x 12

00SV0400 40-200 Nm, 14x18

Torque Screwdriver

Used to tighten various nuts.

00SV0438 1-6 Nm, 1/4”

Ratchet Spanner for all Adapters

00SV0295 9 mm x 12 mm, 1/2”

00SV0401 14 mm x 18 mm, 1/2”

Socket Spanner with Inside Hex

00SV0296 NV 5 mm for M6, 1/2” x 1/2”

00SV0297 NV 6 mm for M8, 1/2” x 1/2”

00SV0298 NV 8 mm for M10, 1/2” x 1/2”

Ring Spanner

00SV0310 NV 10 mm, 9 x 12, for M6

00SV0294 NV 13 mm, 9 x 12, for M8

00SV0271 NV 19 mm, 9 x 12, for M12

00SV0524 NV 24 mm, 14 x 18, for M16

Socket Spanner

00SV2013 NV 13 mm for M8, 1/2” drv.

00SV0267 NV 19 mm for M12, 1/2” drv.

Tools not generally available from normal sources.

In addition to being available from Grundfos, comparable tools can be purchased through normal sources.

 

Mat. No. Description and Use

SparePartKits•SpecialToolsCR10-H

L-CR-SM-050 11/11 US

®2011 Grundfos Pumps Corp.

GRUNDFOS Pumps Corporation

17100 W. 118th Terrace

Olathe, Kansas 66062

Phone: 913.227.3400

Fax: 913.227.3500

www.grundfos.com

GRUNDFOS Canada, Inc.

2941 Brighton Road

Oakville, Ontario L6H 6C9 Canada

Phone: 905.829.9533

Fax: 905.829.9512

Bombas GRUNDFOS de Mexico S.A. de C.V.

Boulevard TLC No. 15

Parque Industrial Stiva Aeropuerto

Apodaca, N.L. Mexico 66600

Phone: 52.81.8144.4000

Fax: 52.81.8144.4010

Subject to alterations.

Being responsible is our foundation

Thinking ahead makes it possible

Innovation is the essence

551463 2 Grundfos CR10 H Service Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
